The document discusses mobile end-to-end testing and exploratory testing. It describes two categories of mobile automation techniques: instrumented and non-instrumented. It then covers the advantages of each technique, considerations for which to use, examples of mobile automation tools for Android and iOS, and outlines "walls of pain" related to testing on these platforms.

1. MOET
https://github.com/eing/moet
Mobile End-to-End Testing
Mobile Exploratory Testing
Eing Ong
Intuit, Inc.
@eingong|eing.ong@intuit.com
1
1

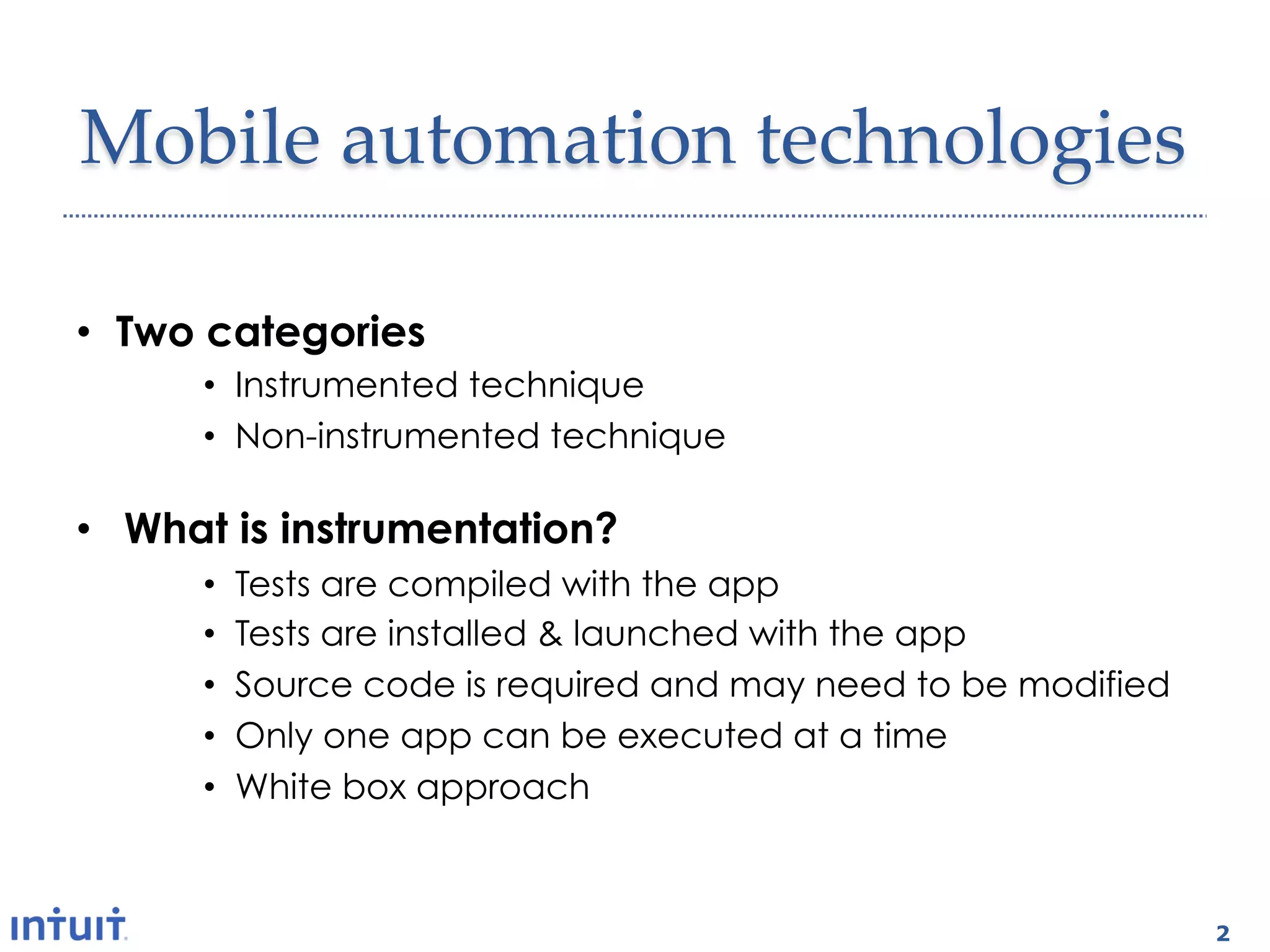

2. Mobile automation technologies
• Two categories
• Instrumented technique
• Non-instrumented technique
• What is instrumentation?
• Tests are compiled with the app
• Tests are installed & launched with the app
• Source code is required and may need to be modified
• Only one app can be executed at a time
• White box approach
2

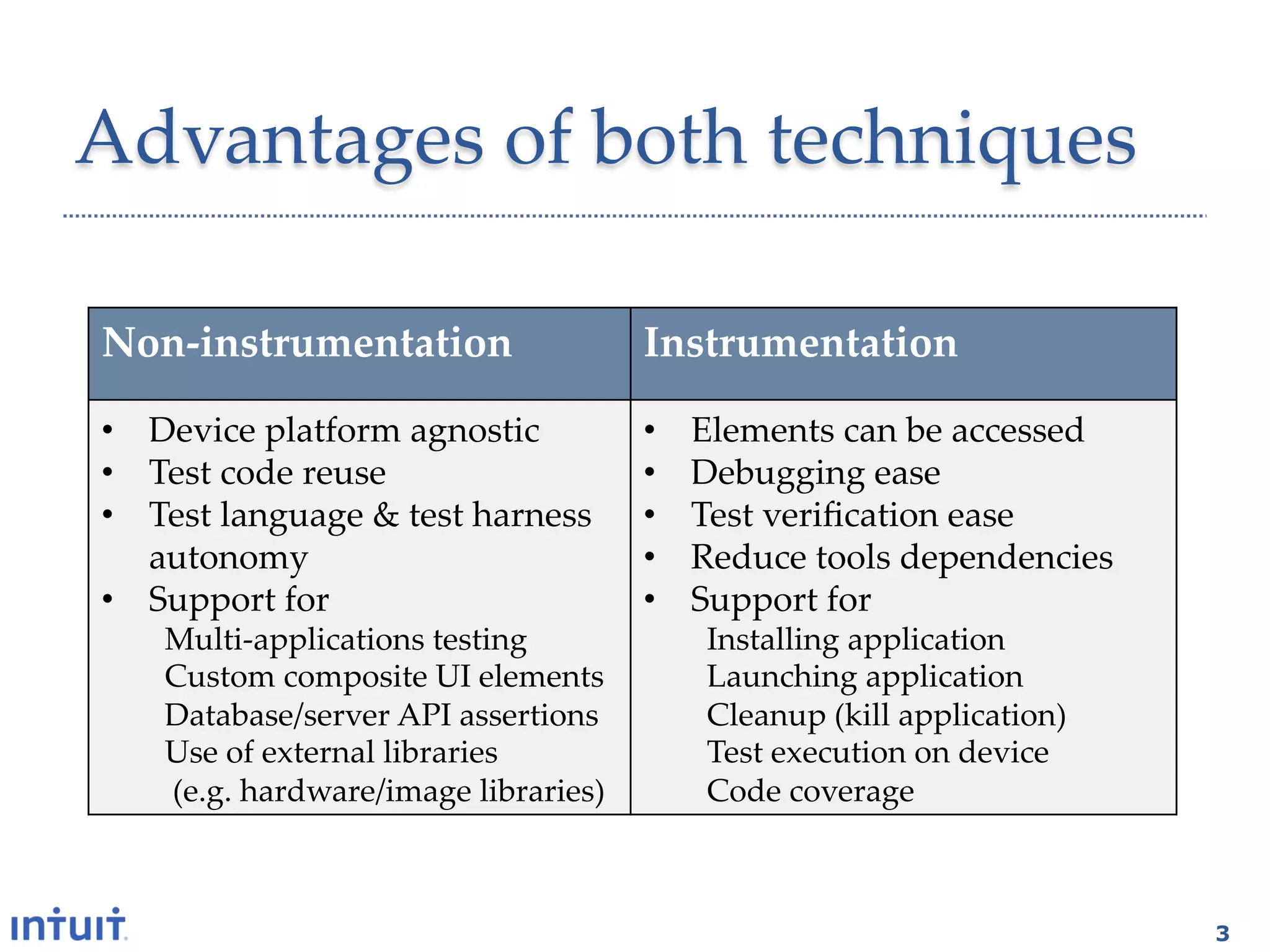

3. Advantages of both techniques
Non-­‐‑instrumentation
Instrumentation
• Device platform agnostic
• Elements can be accessed
• Test code reuse
• Debugging ease
• Test language & test harness • Test verification ease
autonomy
• Reduce tools dependencies
• Support for
• Support for
Multi-­‐‑applications testing
Installing application
Custom composite UI elements
Launching application
Database/server API assertions
Cleanup (kill application)
Use of external libraries
Test execution on device
(e.g. hardware/image libraries)
Code coverage
3

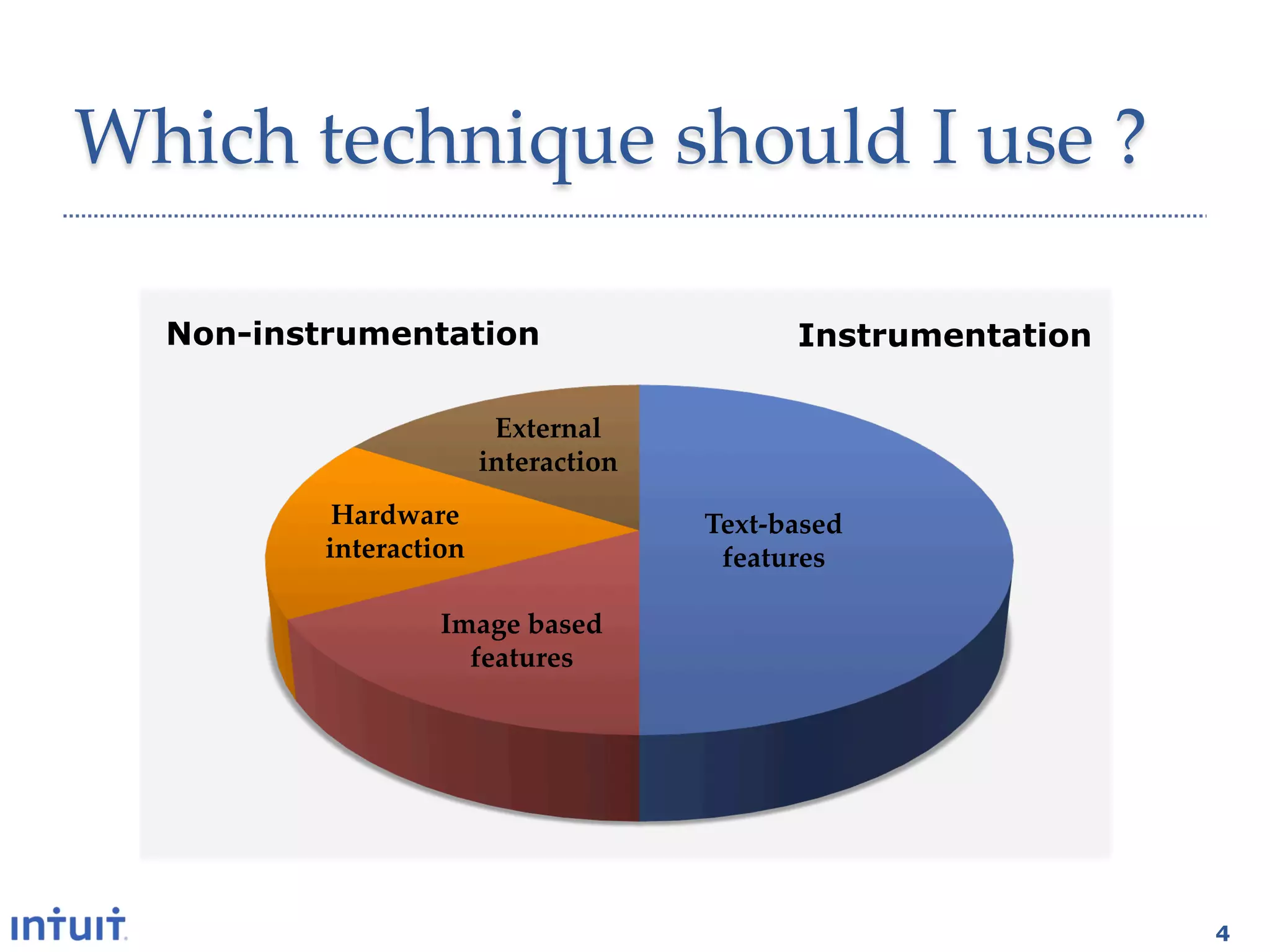

4. Which technique should I use ?
Non-instrumentation Instrumentation
External
interaction
Hardware Text-­‐‑based
interaction
features
Image based
features
4

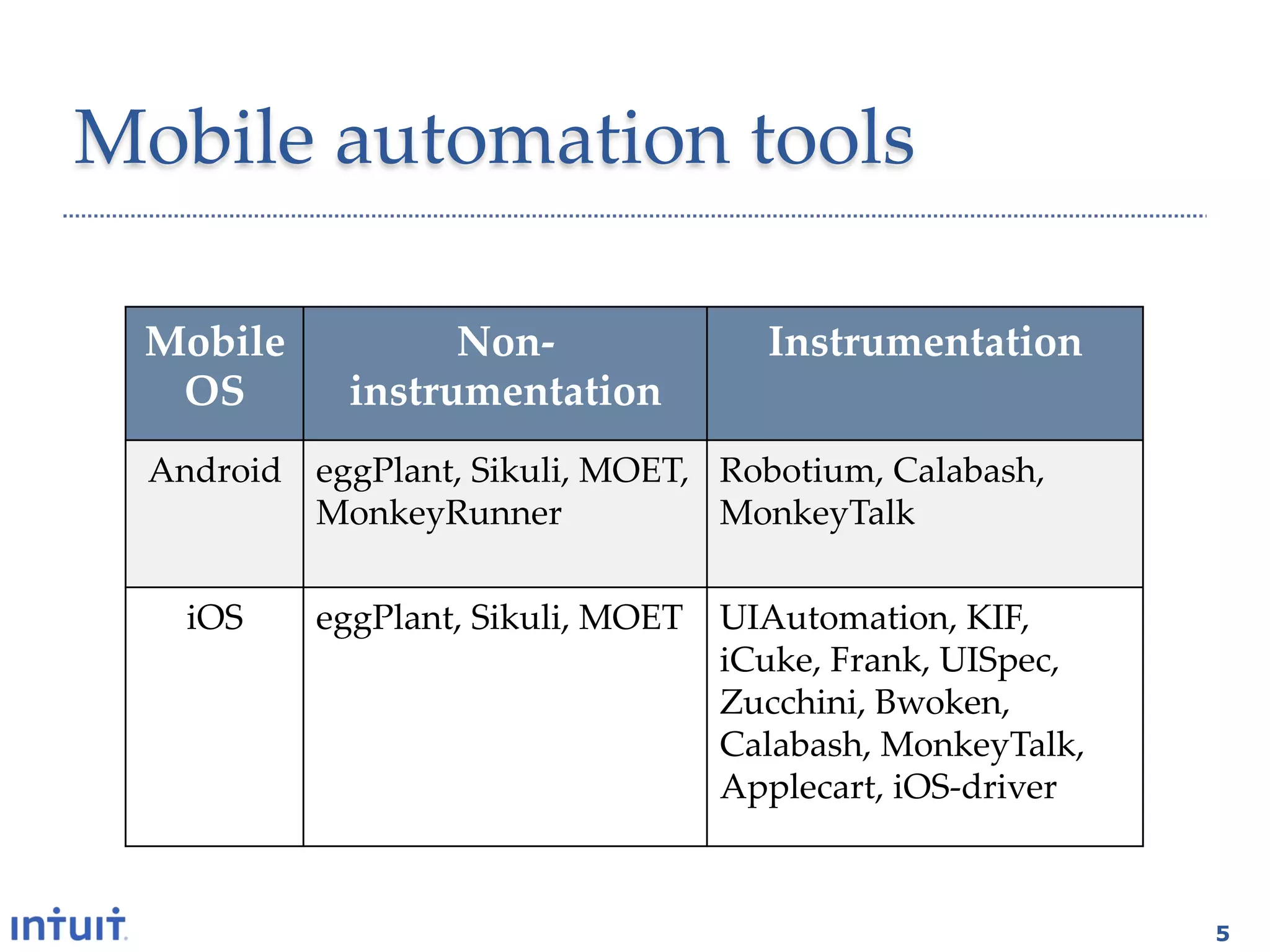

5. Mobile automation tools
Mobile
Non-­‐‑ Instrumentation
OS
instrumentation
Android
eggPlant, Sikuli, MOET, Robotium, Calabash,
MonkeyRunner
MonkeyTalk
iOS
eggPlant, Sikuli, MOET
UIAutomation, KIF,
iCuke, Frank, UISpec,
Zucchini, Bwoken,
Calabash, MonkeyTalk,
Applecart, iOS-­‐‑driver
5

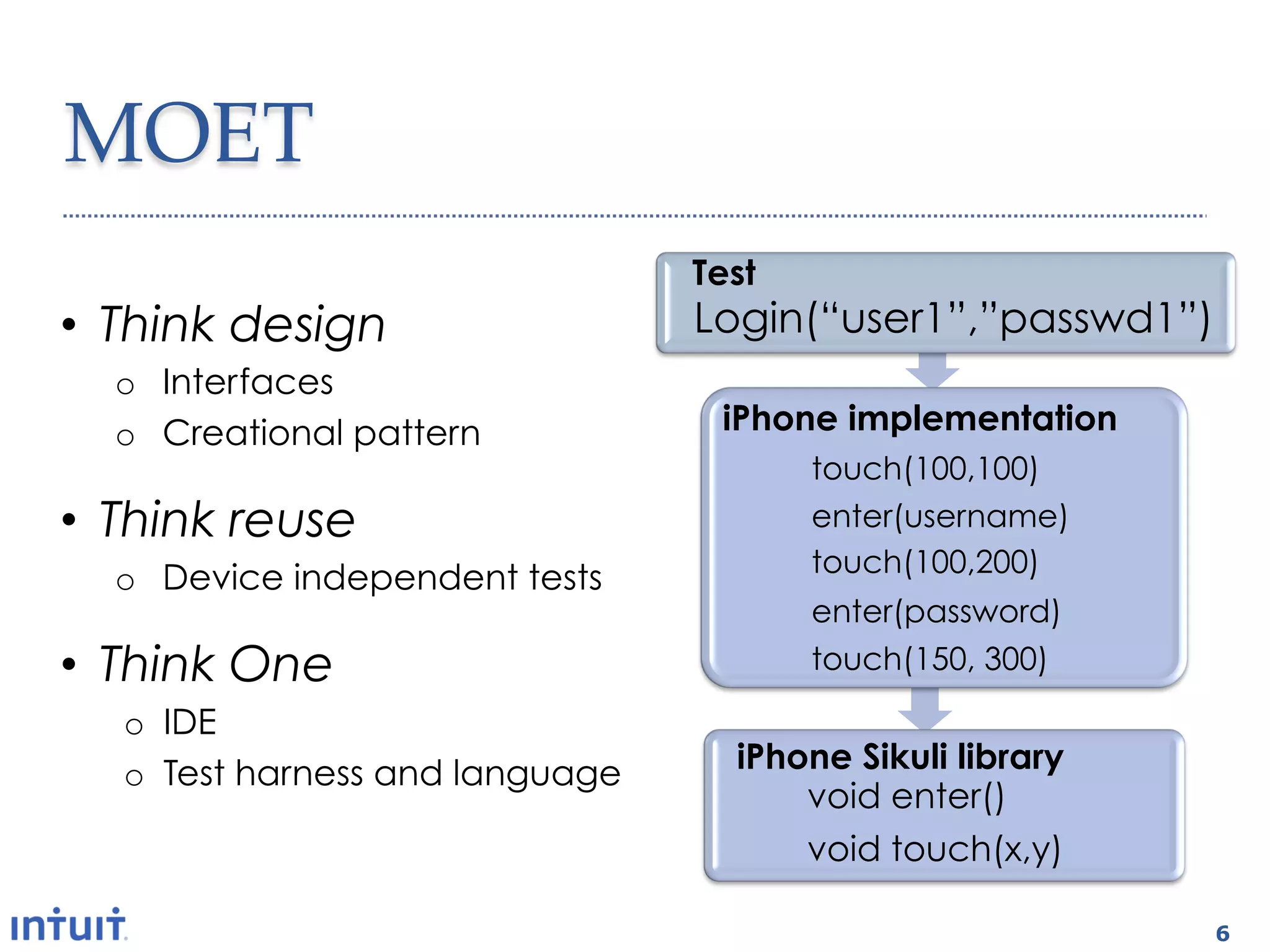

6. MOET
Test
• Think design Login(“user1”,”passwd1”)
o Interfaces
o Creational pattern iPhone implementation
touch(100,100)
• Think reuse enter(username)
touch(100,200)
o Device independent tests
enter(password)
• Think One touch(150, 300)
o IDE
o Test harness and language iPhone Sikuli library
void enter()
void touch(x,y)
6

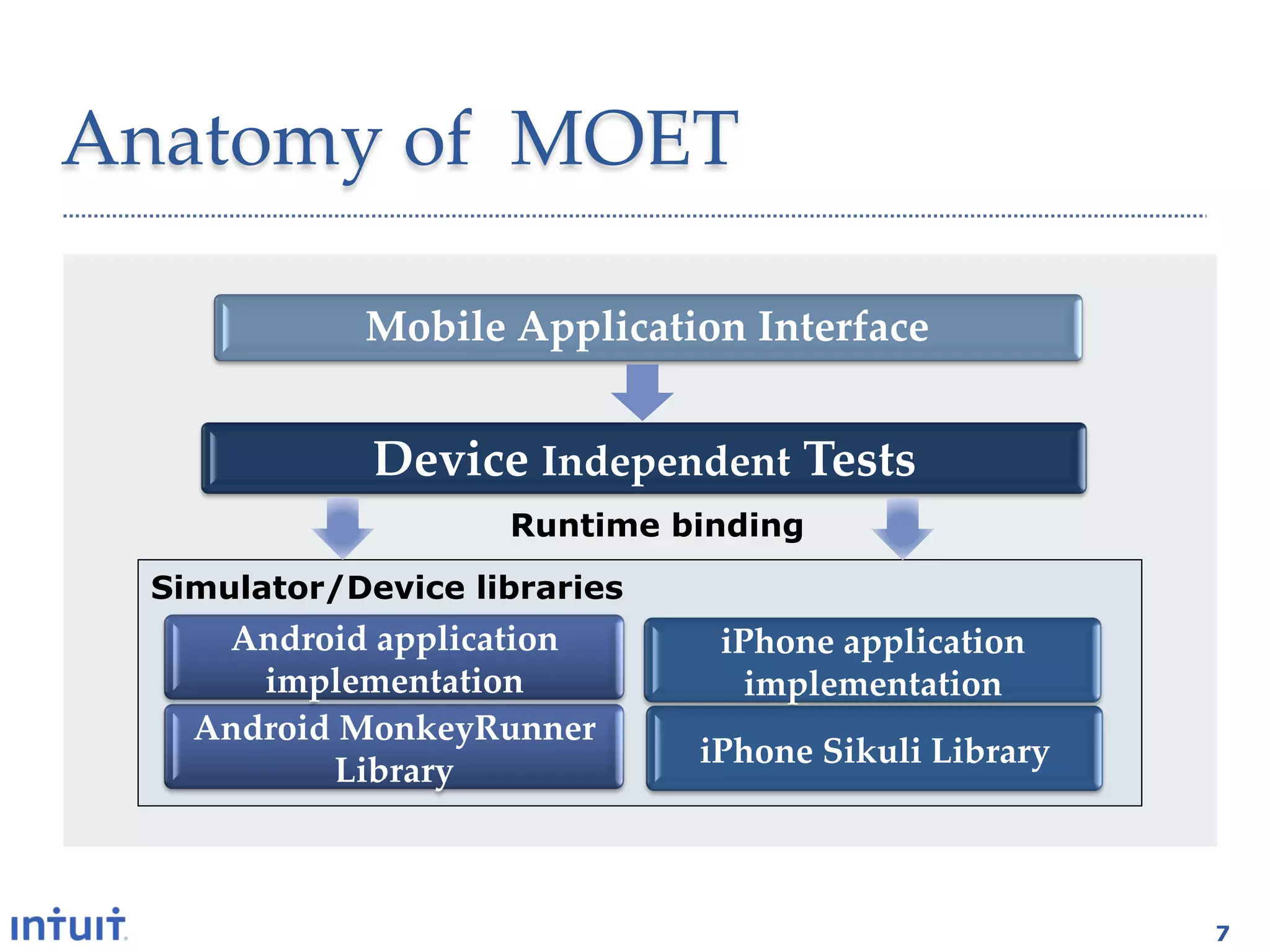

7. Anatomy of MOET
Mobile Application Interface
Device Independent Tests
Runtime binding
Simulator/Device libraries
Android application iPhone application
implementation
implementation
Android MonkeyRunner
iPhone Sikuli Library
Library
7

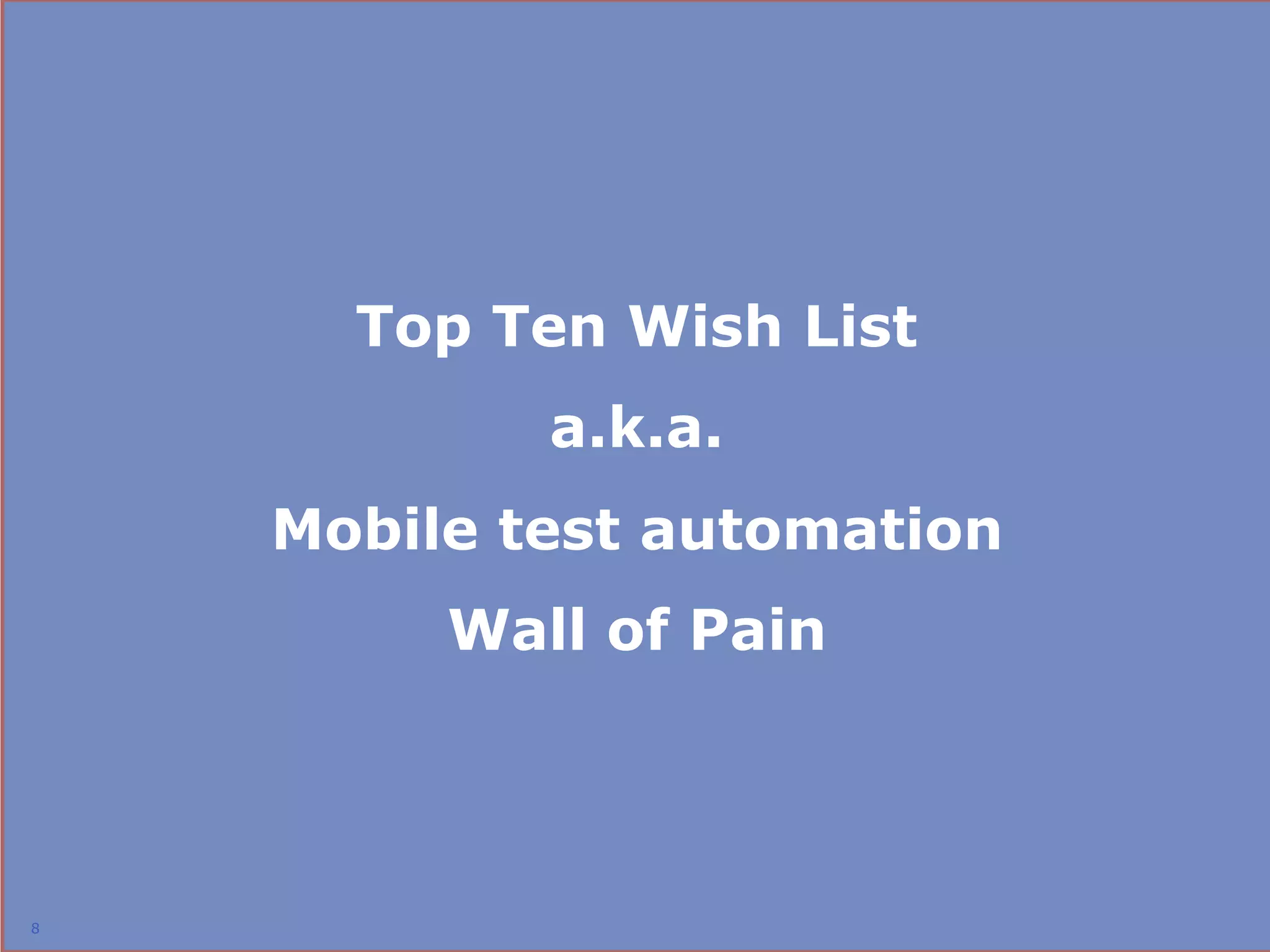

8. Top Ten Wish List
a.k.a.
Mobile test automation
Wall of Pain
8
8

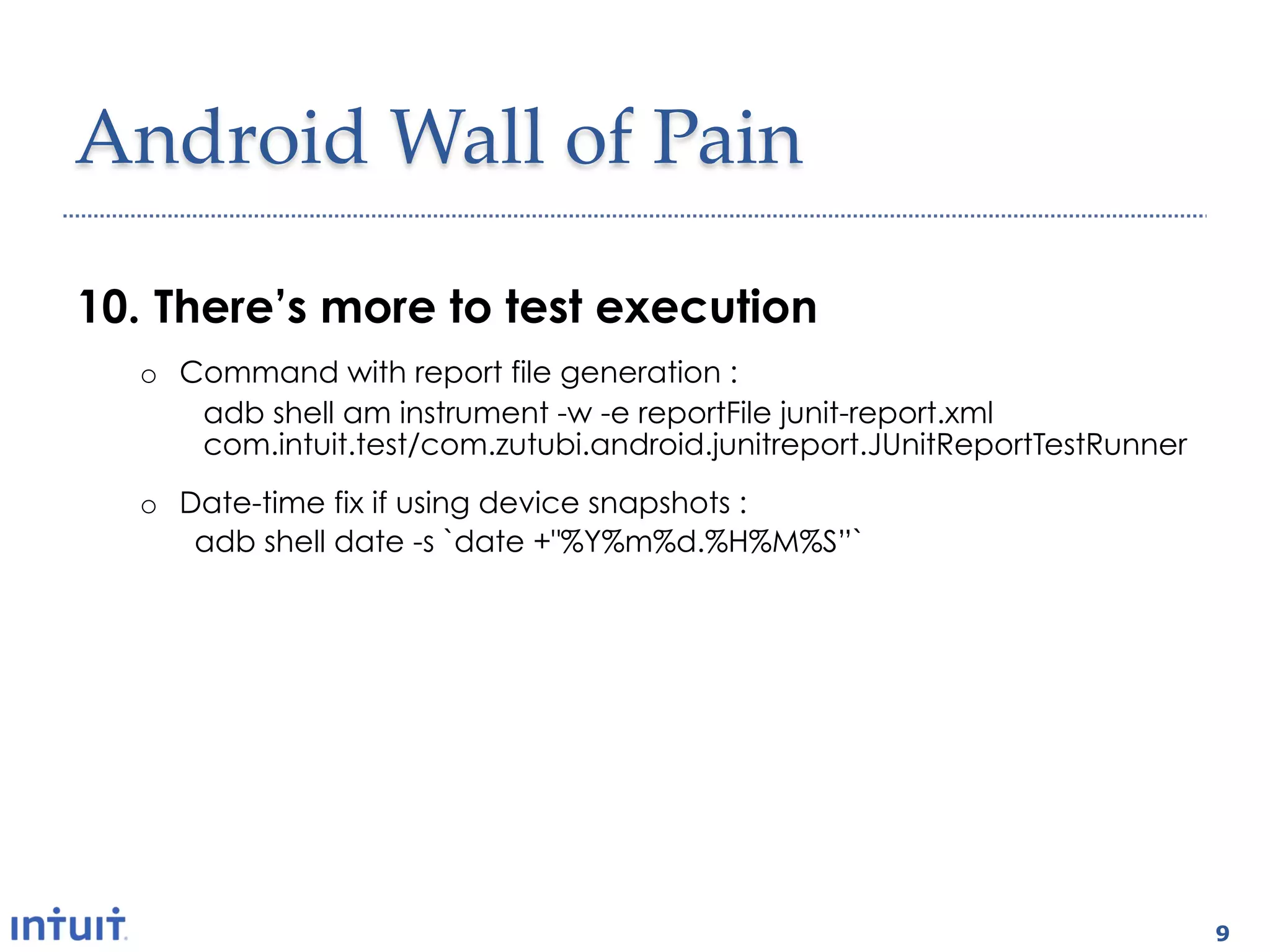

9. Android Wall of Pain
10. There’s more to test execution
o Command with report file generation :
adb shell am instrument -w -e reportFile junit-report.xml
com.intuit.test/com.zutubi.android.junitreport.JUnitReportTestRunner
o Date-time fix if using device snapshots :
adb shell date -s `date +"%Y%m%d.%H%M%S”`
9. Where are the test results ?
o Pulling results from device :
adb pull /data/data/com.intuit.test/files/junit-report.xml junit-
report.xml
9

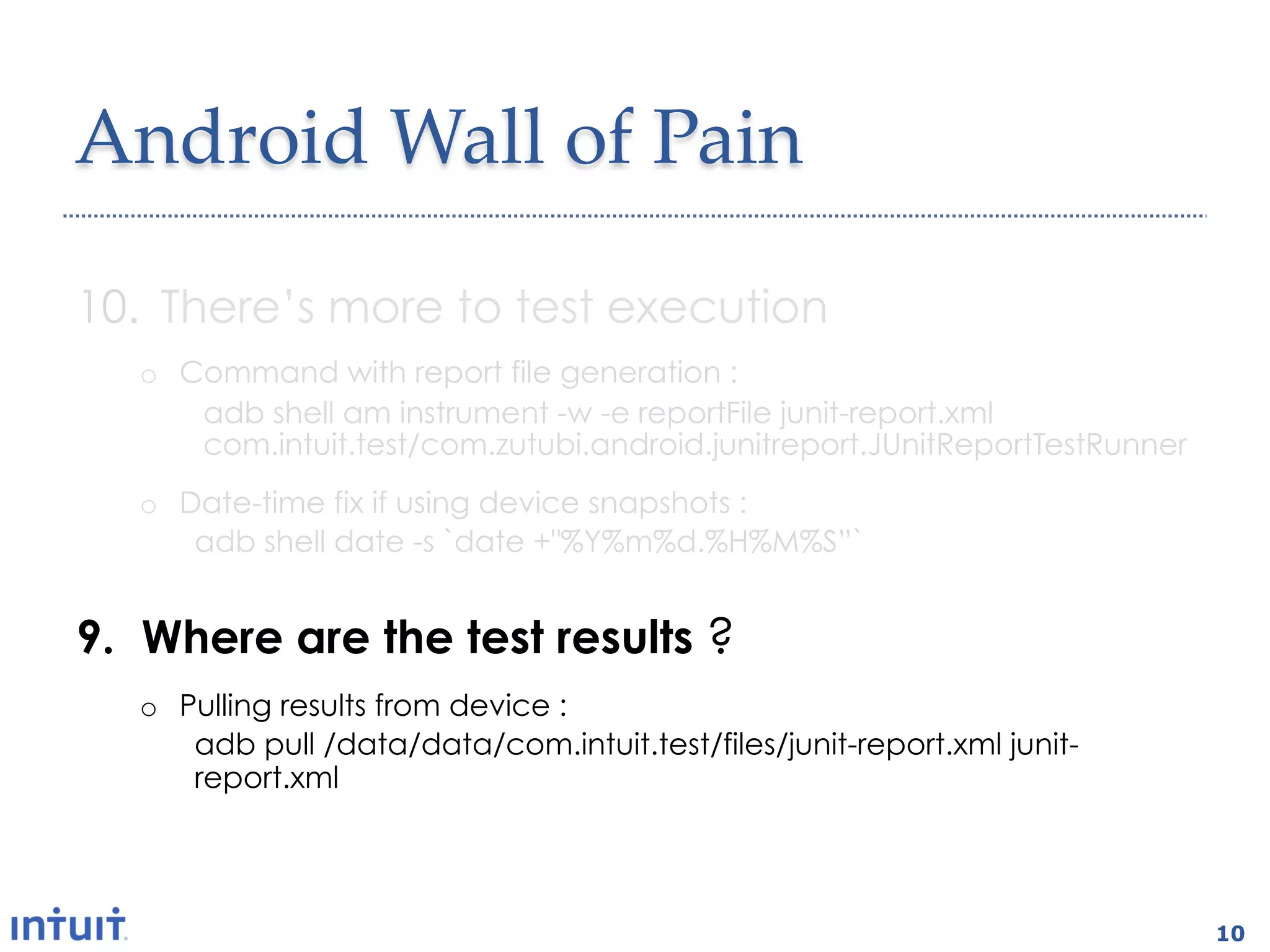

10. Android Wall of Pain
10. There’s more to test execution
o Command with report file generation :
adb shell am instrument -w -e reportFile junit-report.xml
com.intuit.test/com.zutubi.android.junitreport.JUnitReportTestRunner
o Date-time fix if using device snapshots :
adb shell date -s `date +"%Y%m%d.%H%M%S”`
9. Where are the test results ?
o Pulling results from device :
adb pull /data/data/com.intuit.test/files/junit-report.xml junit-
report.xml
10

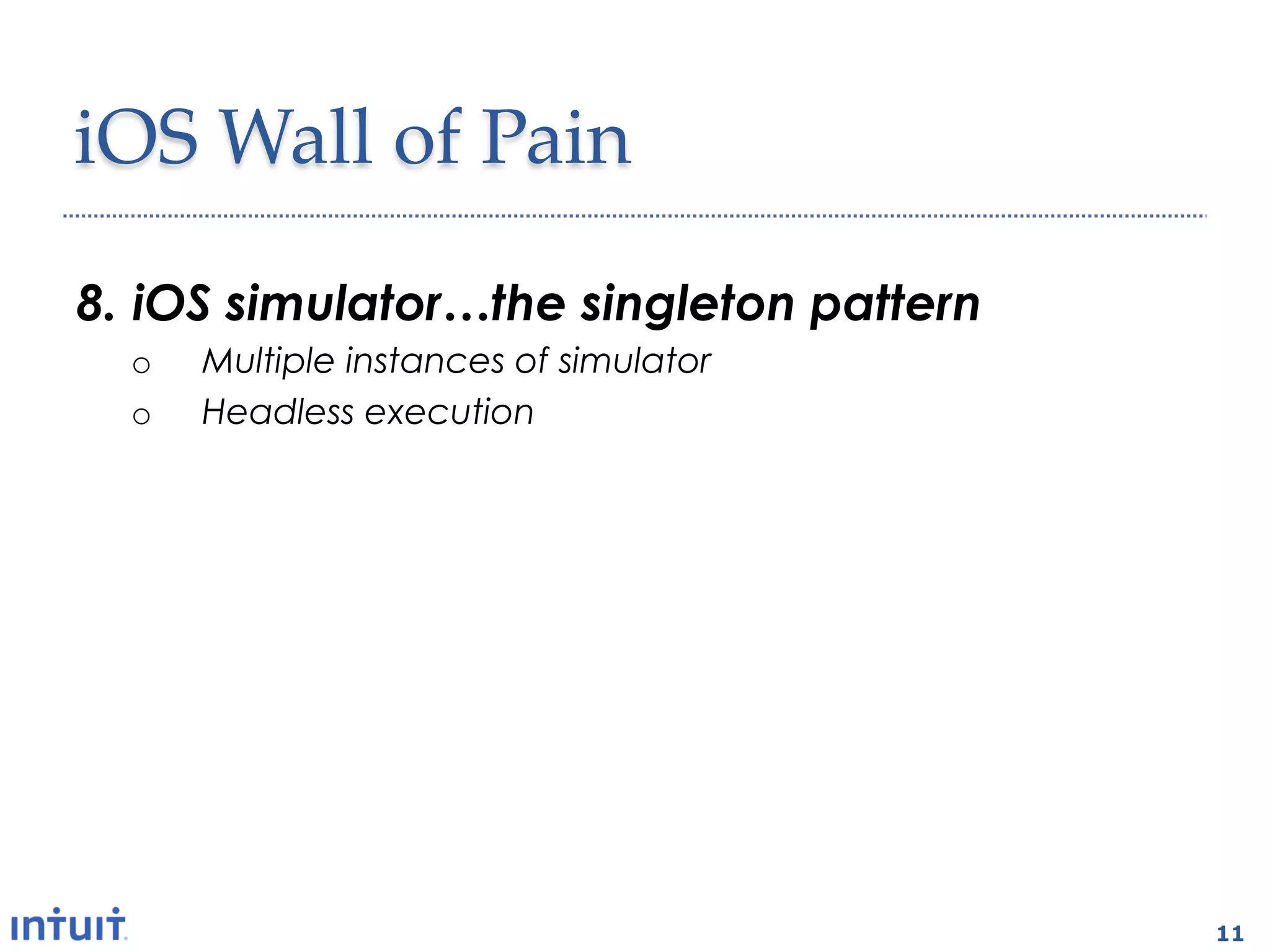

11. iOS Wall of Pain
8. iOS simulator…the singleton pattern
o Multiple instances of simulator
o Headless execution
7. What test harness ?
o Test grouping, test assertions, base test class
o Results needs to be displayable in browser
6. How about a CI plugin
o Test execution
o Code coverage
11

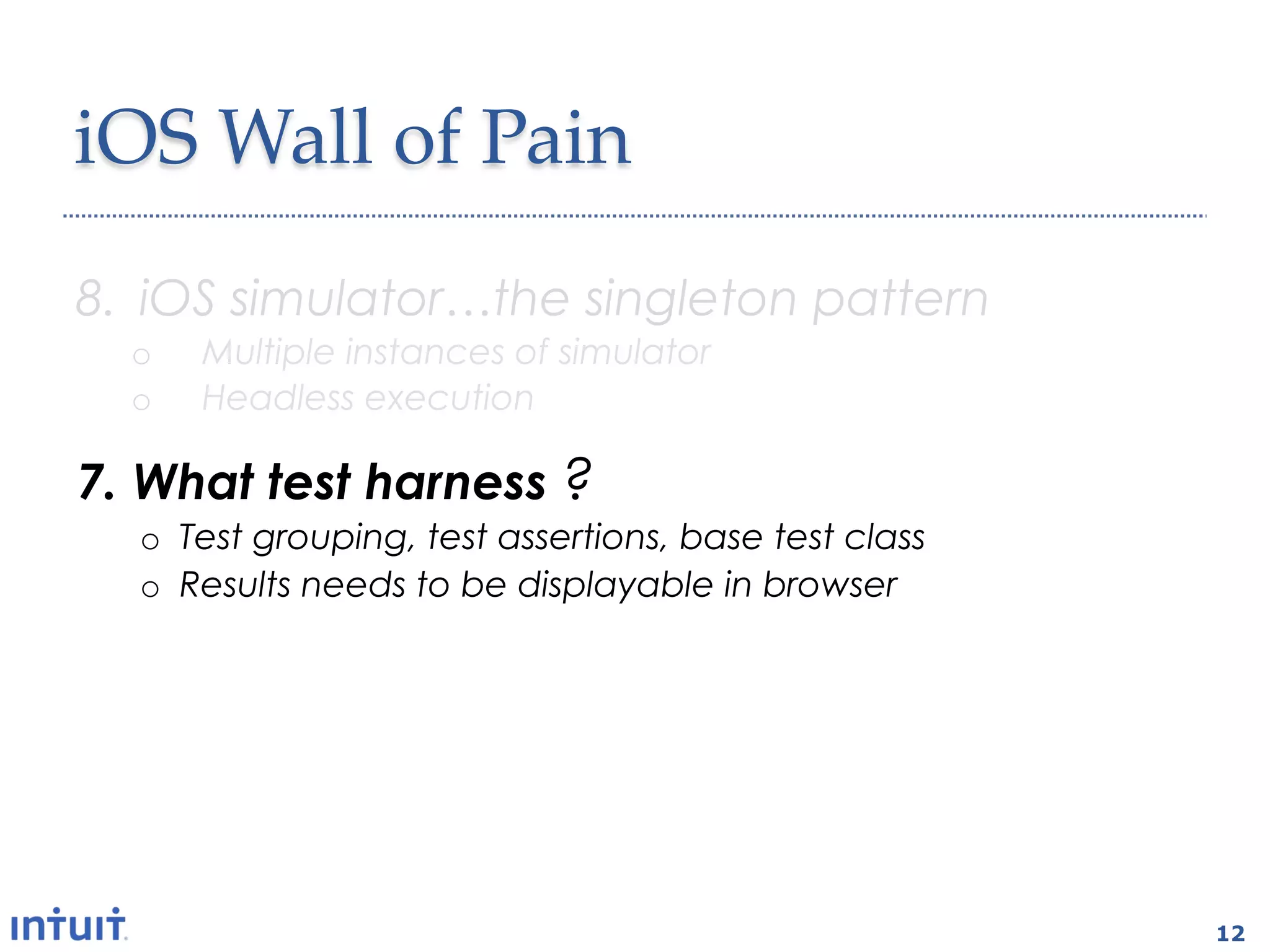

12. iOS Wall of Pain
8. iOS simulator…the singleton pattern
o Multiple instances of simulator
o Headless execution
7. What test harness ?
o Test grouping, test assertions, base test class
o Results needs to be displayable in browser
6. How about a CI plugin
o Test execution
o Code coverage
12

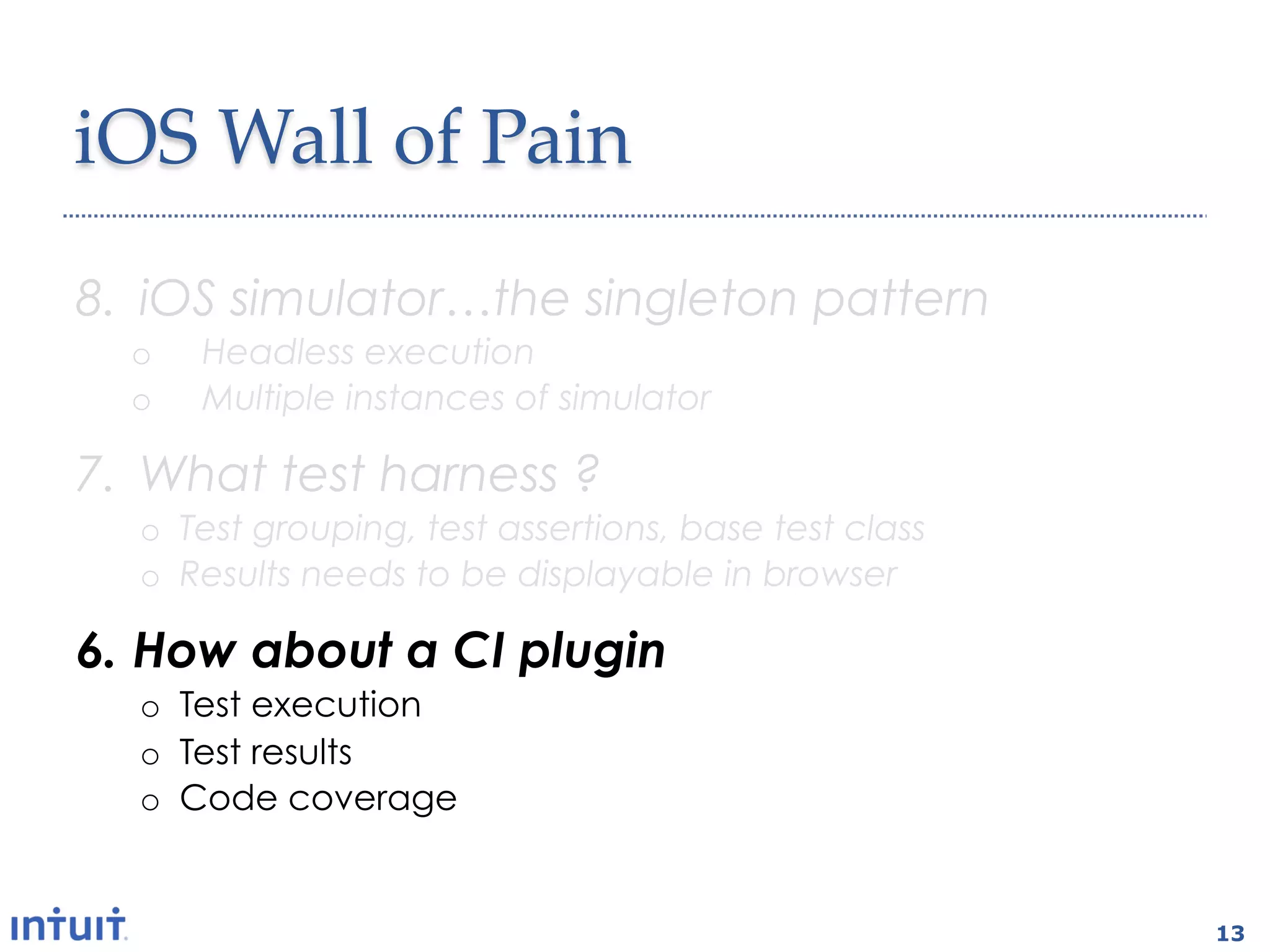

13. iOS Wall of Pain
8. iOS simulator…the singleton pattern
o Headless execution
o Multiple instances of simulator
7. What test harness ?
o Test grouping, test assertions, base test class
o Results needs to be displayable in browser
6. How about a CI plugin
o Test execution
o Test results
o Code coverage
13

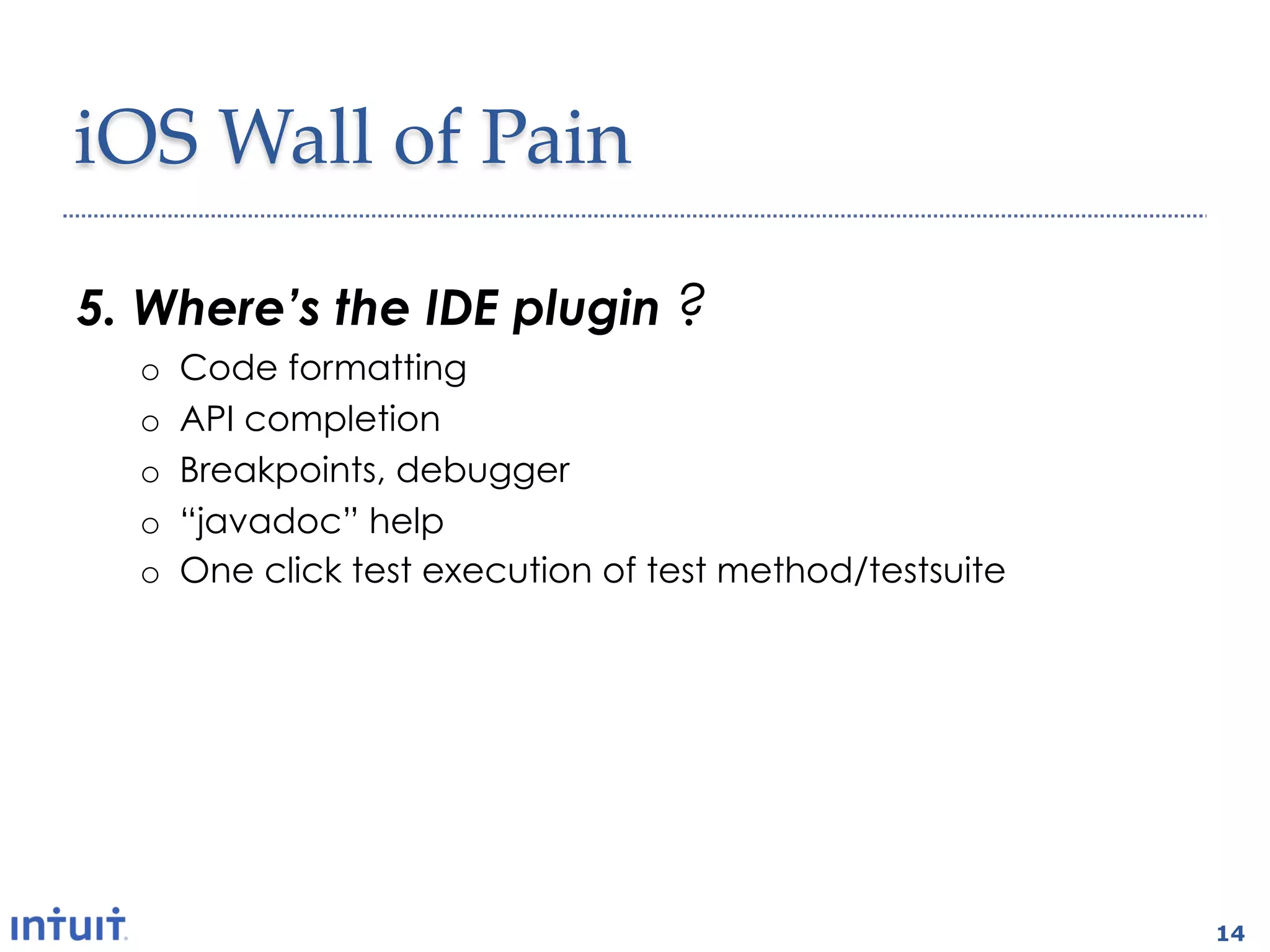

14. iOS Wall of Pain
5. Where’s the IDE plugin ?
o Code formatting
o API completion
o Breakpoints, debugger
o “javadoc” help
o One click test execution of test method/testsuite
14

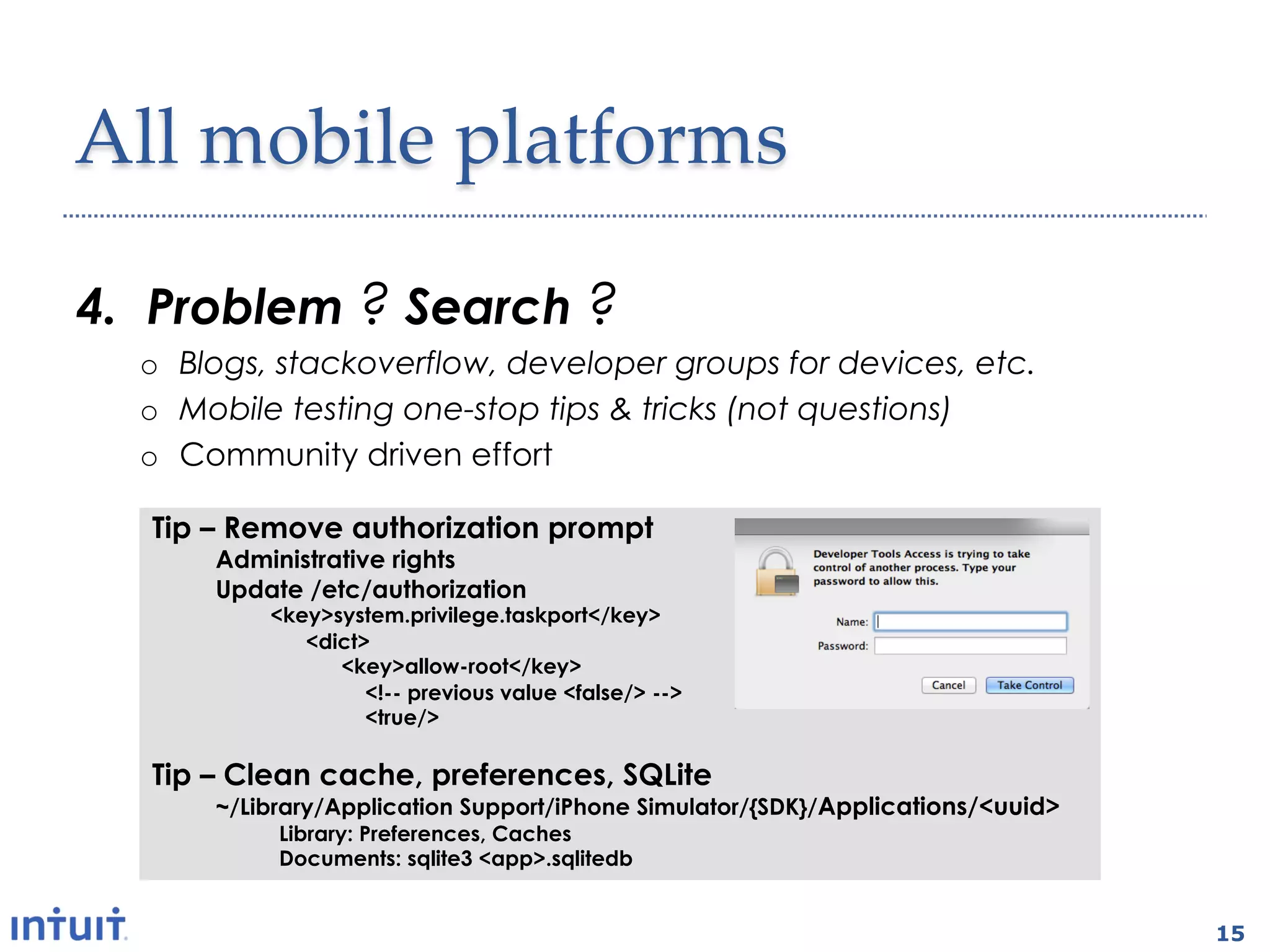

15. All mobile platforms
4. Problem ? Search ?
o Blogs, stackoverflow, developer groups for devices, etc.
o Mobile testing one-stop tips & tricks (not questions)
o Community driven effort
Tip – Remove authorization prompt
Administrative rights
Update /etc/authorization
<key>system.privilege.taskport</key>
<dict>
<key>allow-root</key>
<!-- previous value <false/> -->
<true/>
Tip – Clean cache, preferences, SQLite
~/Library/Application Support/iPhone Simulator/{SDK}/Applications/<uuid>
Library: Preferences, Caches
Documents: sqlite3 <app>.sqlitedb
15

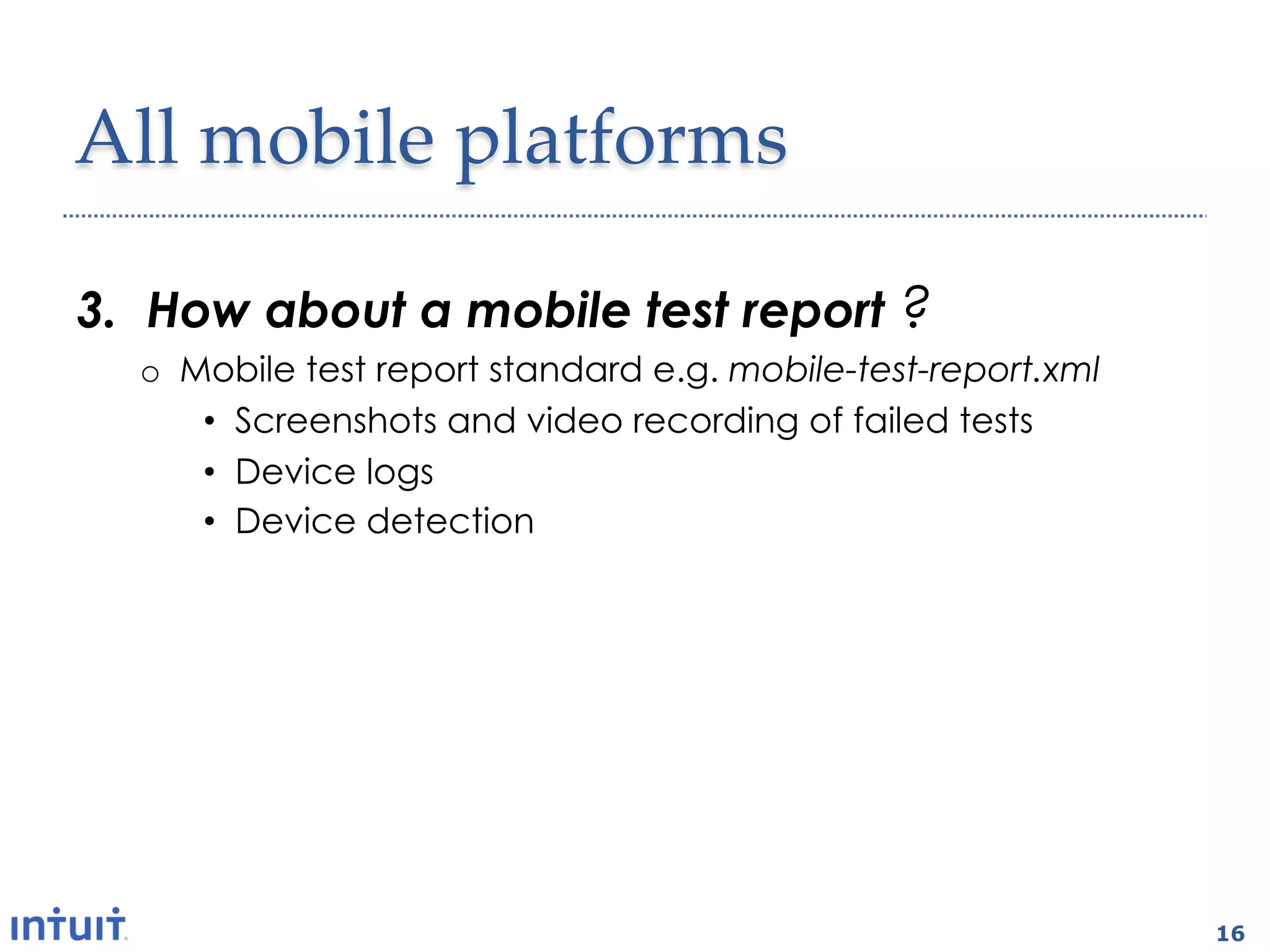

16. All mobile platforms
3. How about a mobile test report ?
o Mobile test report standard e.g. mobile-test-report.xml
• Screenshots and video recording of failed tests
• Device logs
• Device detection
2. Wireless?
o OTA app installation
o Testing via wifi and carrier networks
o Selenium grid-like test infrastructure
16

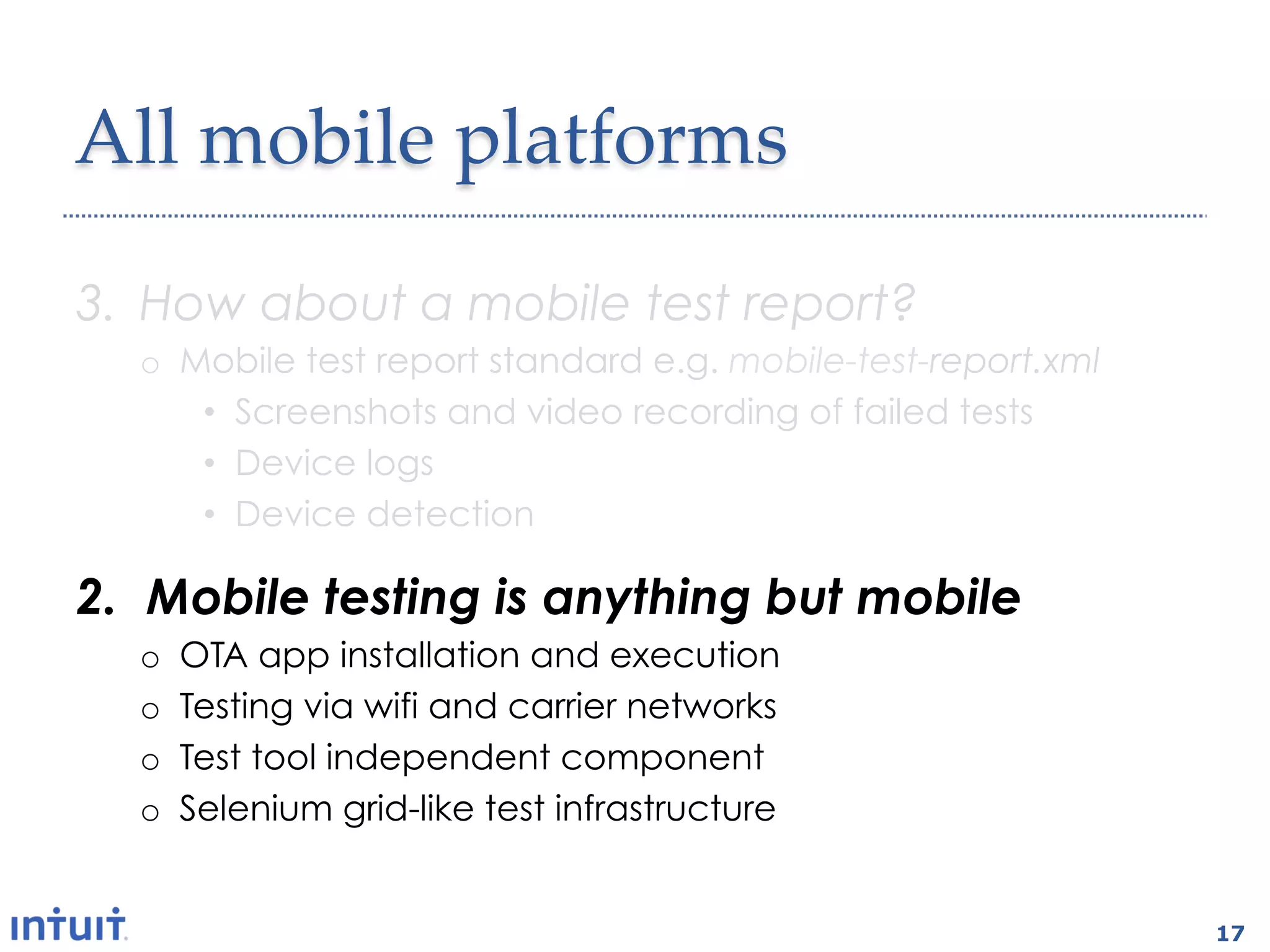

17. All mobile platforms
3. How about a mobile test report?
o Mobile test report standard e.g. mobile-test-report.xml
• Screenshots and video recording of failed tests
• Device logs
• Device detection
2. Mobile testing is anything but mobile
o OTA app installation and execution
o Testing via wifi and carrier networks
o Test tool independent component
o Selenium grid-like test infrastructure
17

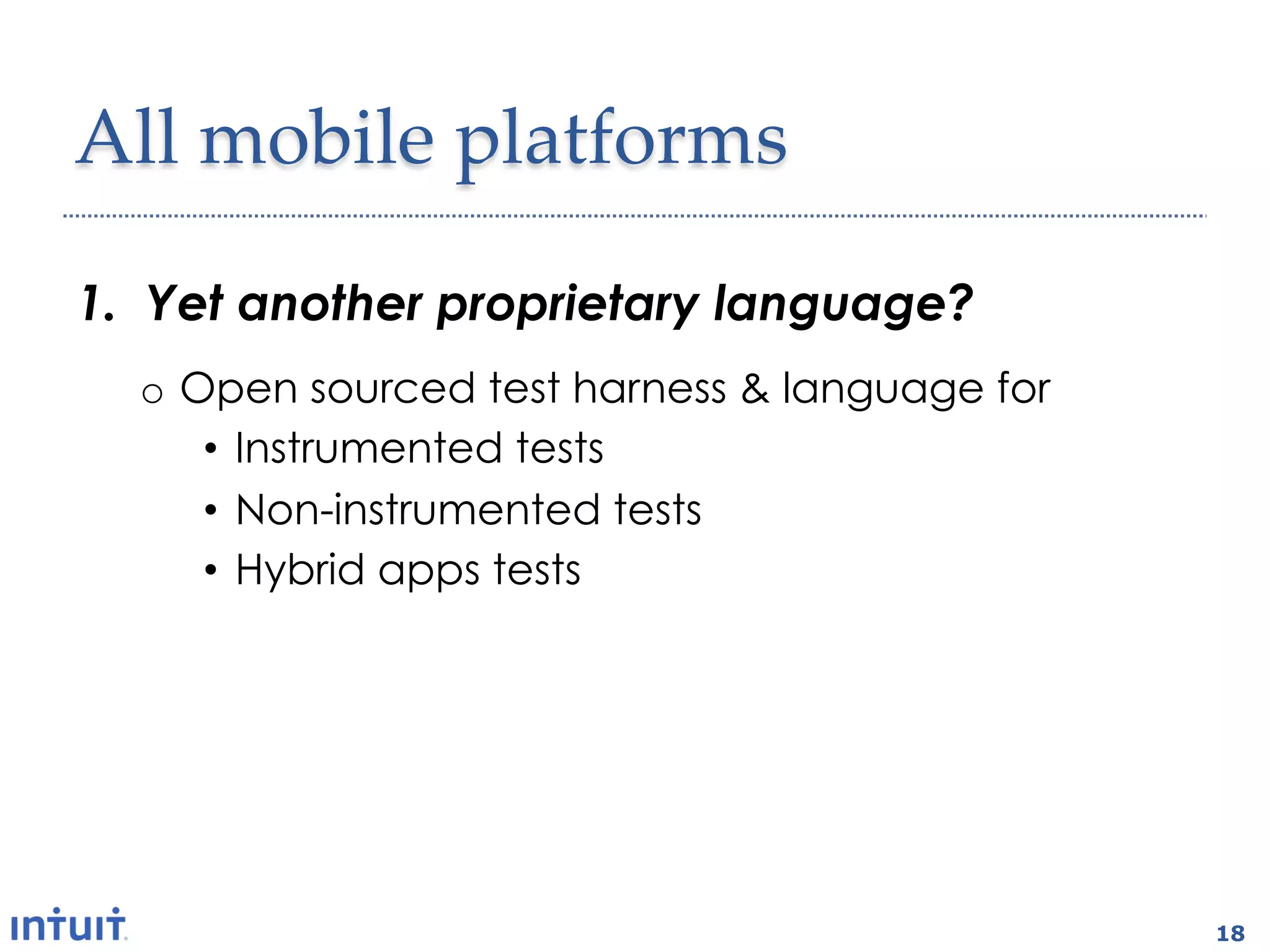

18. All mobile platforms
1. Yet another proprietary language?
o Open sourced test harness & language for
• Instrumented tests
• Non-instrumented tests
• Hybrid apps tests
18

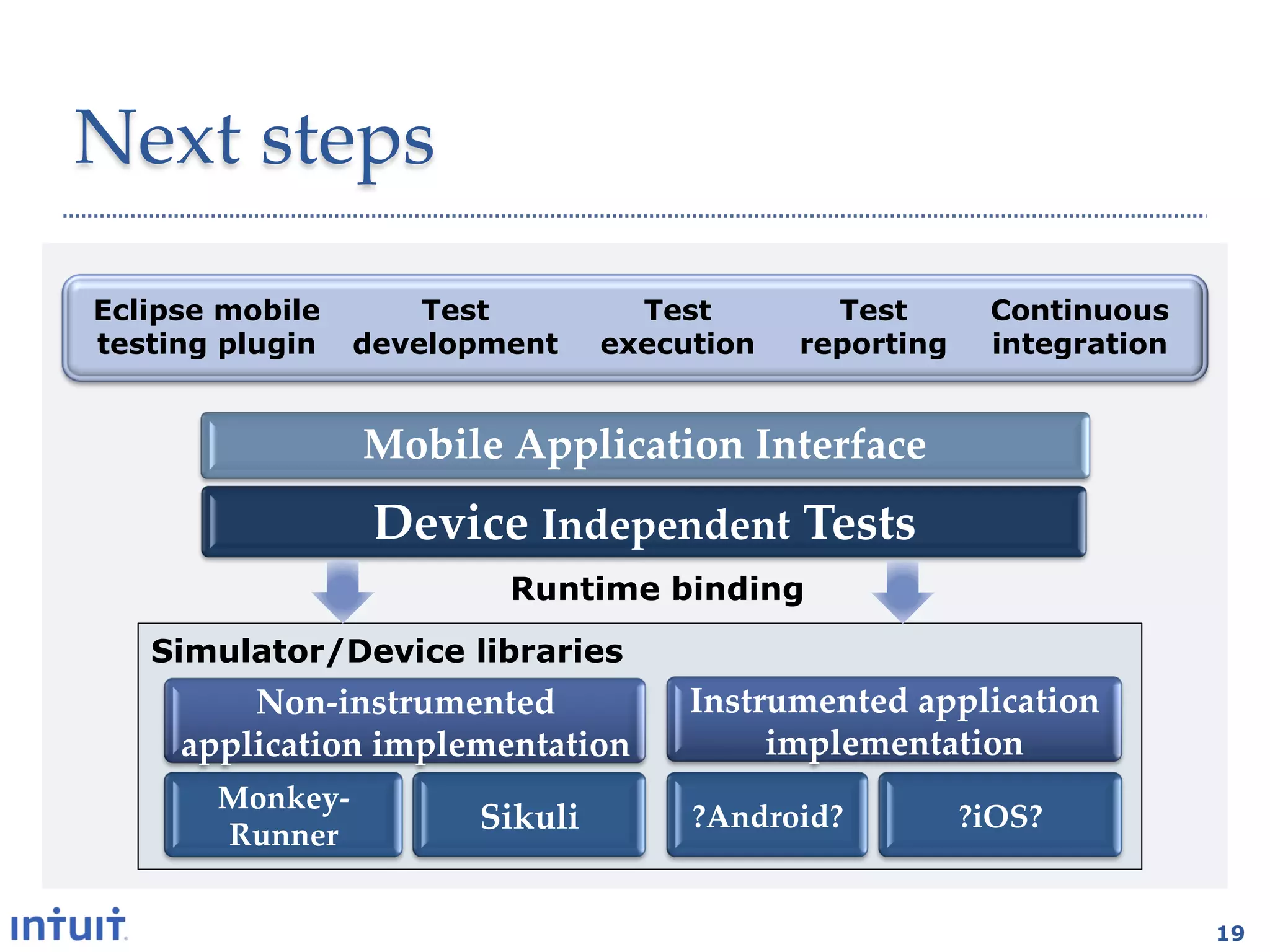

19. Next steps
Eclipse mobile Test Test Test Continuous
testing plugin development execution reporting integration
Mobile Application Interface
Device Independent Tests
Runtime binding
Simulator/Device libraries
Non-­‐‑instrumented Instrumented application
application implementation
implementation
Monkey-­‐‑
Sikuli
?Android?
?iOS?
Runner
19
