1. https://softuni.bg
Software University
SoftUni
Svetlin Nakov
Android App Test Automation
Appium: Mobile App Testing

2. 1. Appium
 Overview, Architecture, Installation
2. The Android Emulator
3. Appium for Android App Automation
 Inspecting Android apps UI from Appium
 Using AndroidDriver<AndroidElement>
 Using Appium for Android from NUnit
4. Testing on Physical Android Device

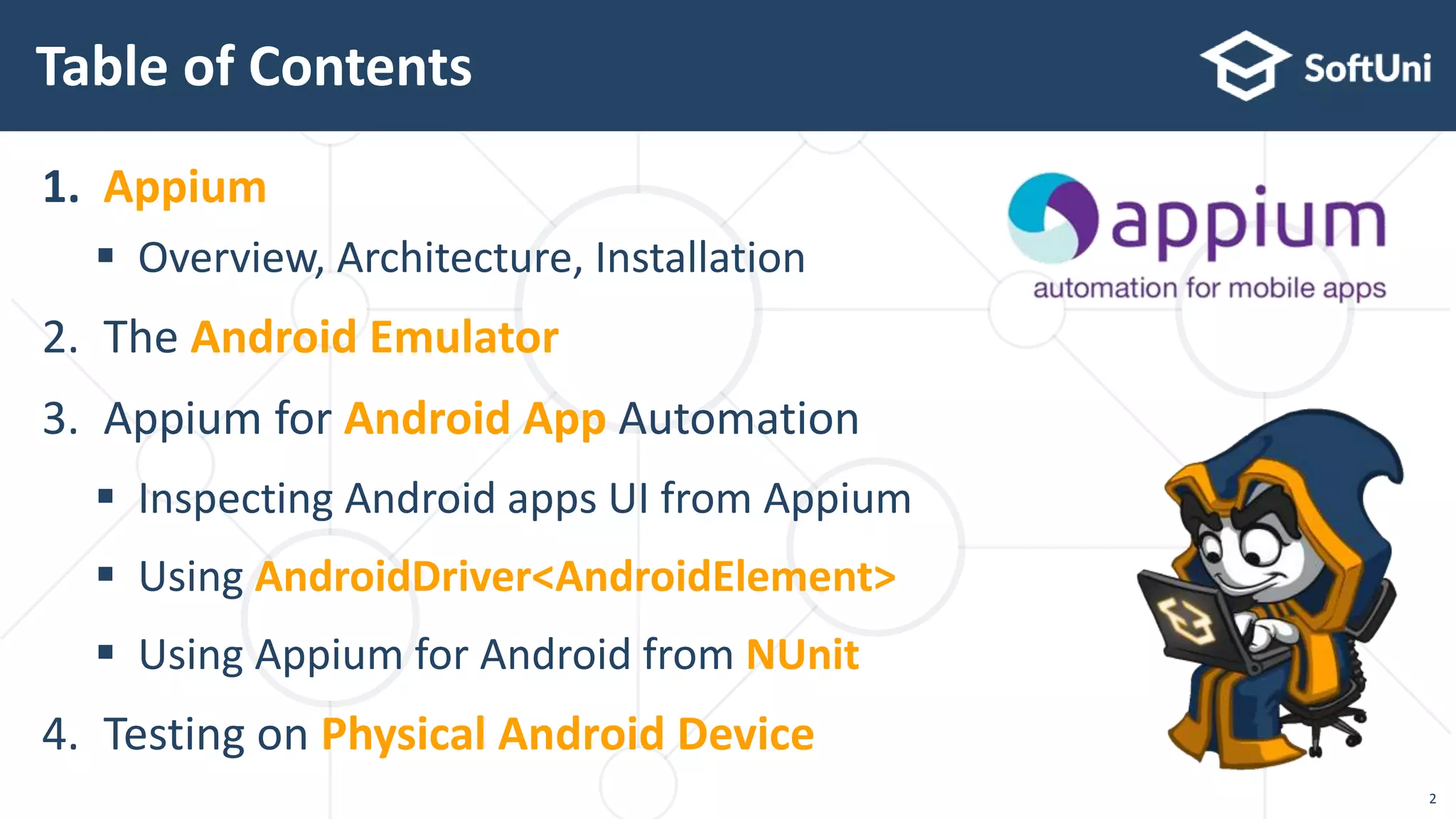

Table of Contents
2

3. Overview, Architecture, Installation
Appium

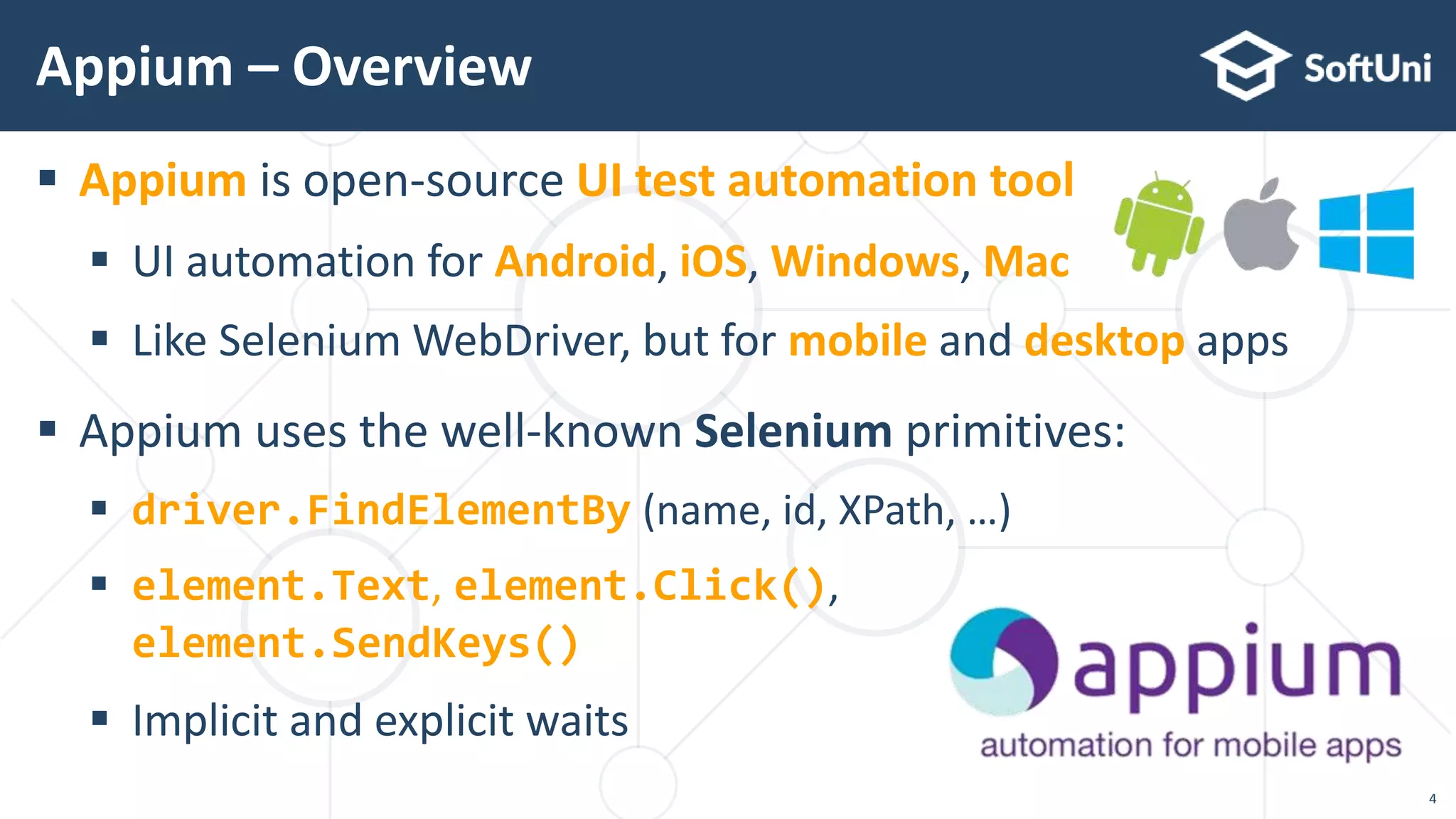

4. Appium – Overview
 Appium is open-source UI test automation tool
 UI automation for Android, iOS, Windows, Mac
 Like Selenium WebDriver, but for mobile and desktop apps
 Appium uses the well-known Selenium primitives:
 driver.FindElementBy (name, id, XPath, …)
 element.Text, element.Click(),
element.SendKeys()
 Implicit and explicit waits
4

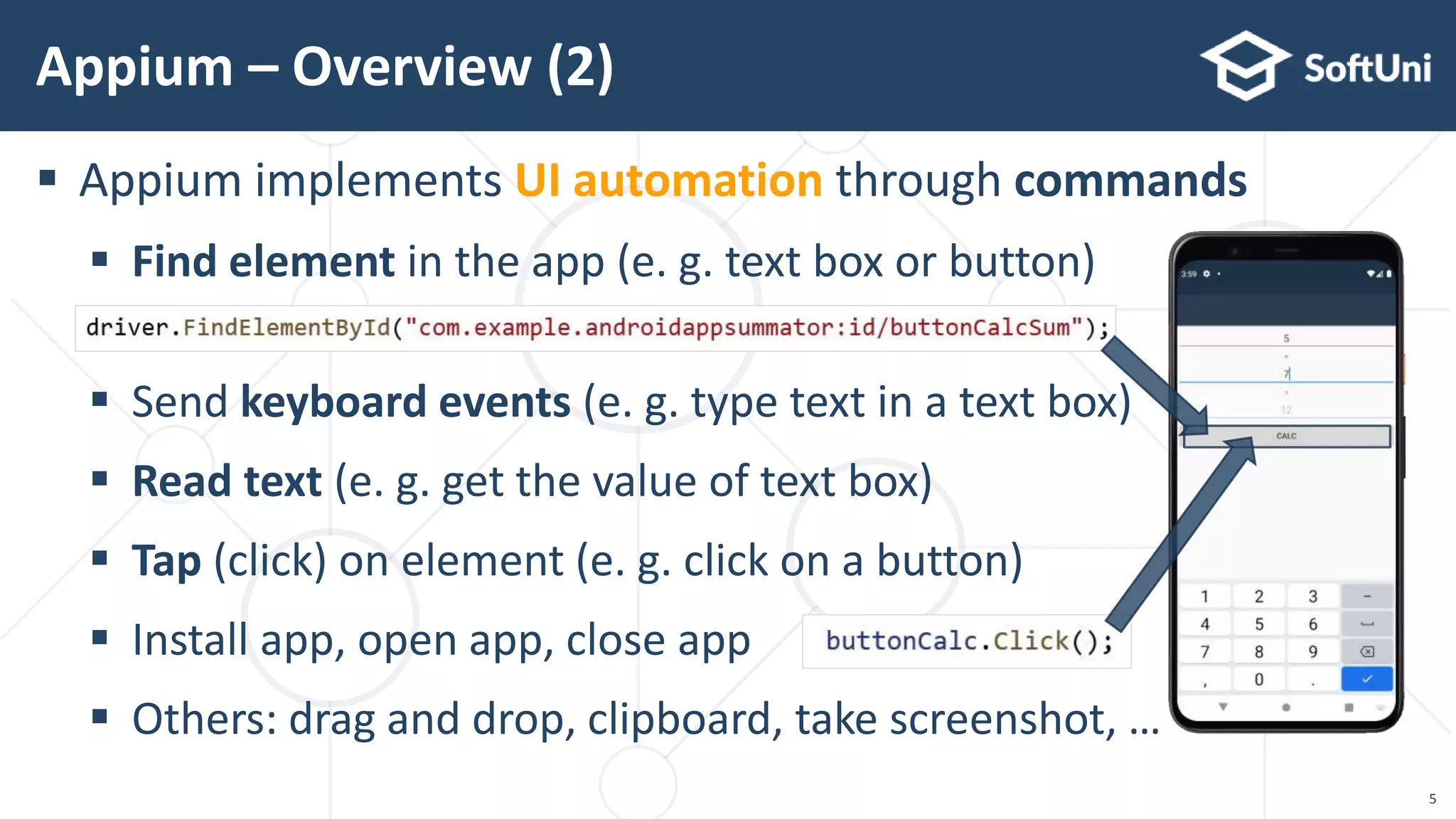

5. 5
 Appium implements UI automation through commands
 Find element in the app (e. g. text box or button)
 Send keyboard events (e. g. type text in a text box)
 Read text (e. g. get the value of text box)
 Tap (click) on element (e. g. click on a button)
 Install app, open app, close app
 Others: drag and drop, clipboard, take screenshot, …
Appium – Overview (2)

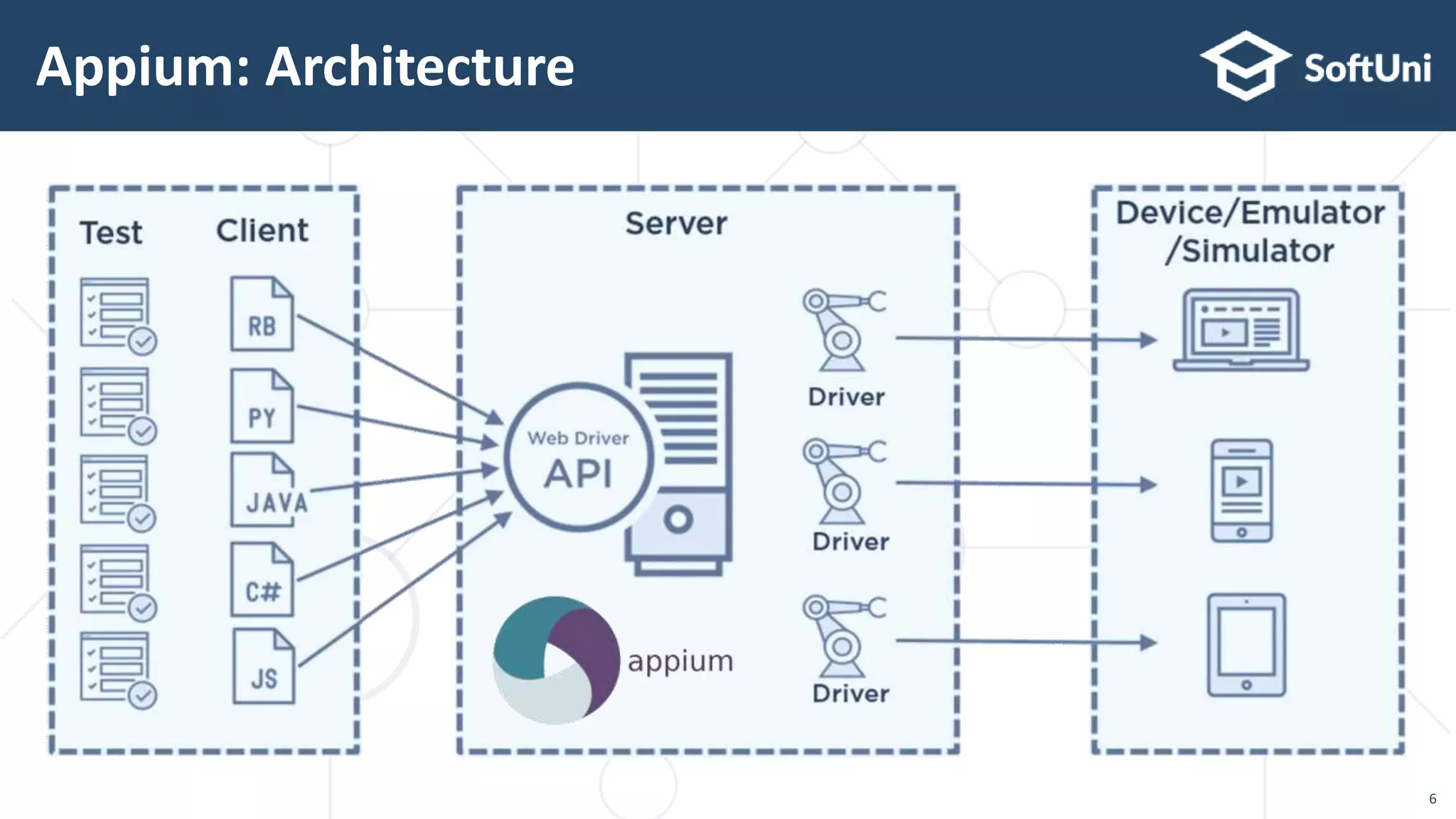

6. Appium: Architecture
6

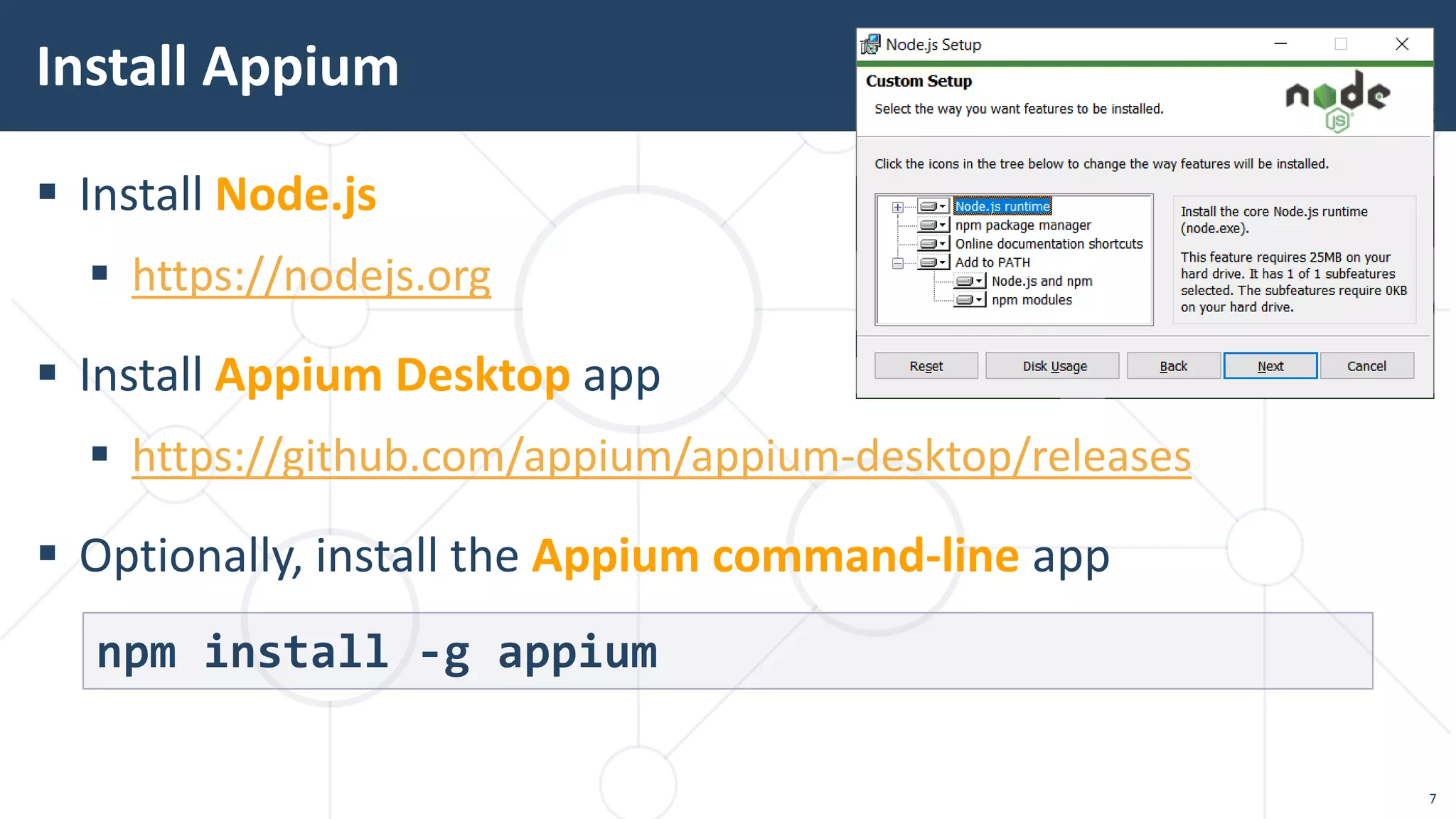

7.  Install Node.js
 https://nodejs.org
 Install Appium Desktop app
 https://github.com/appium/appium-desktop/releases
 Optionally, install the Appium command-line app
Install Appium
npm install -g appium
7

8. Running Android OS and Apps on Your Laptop
The Android Emulator

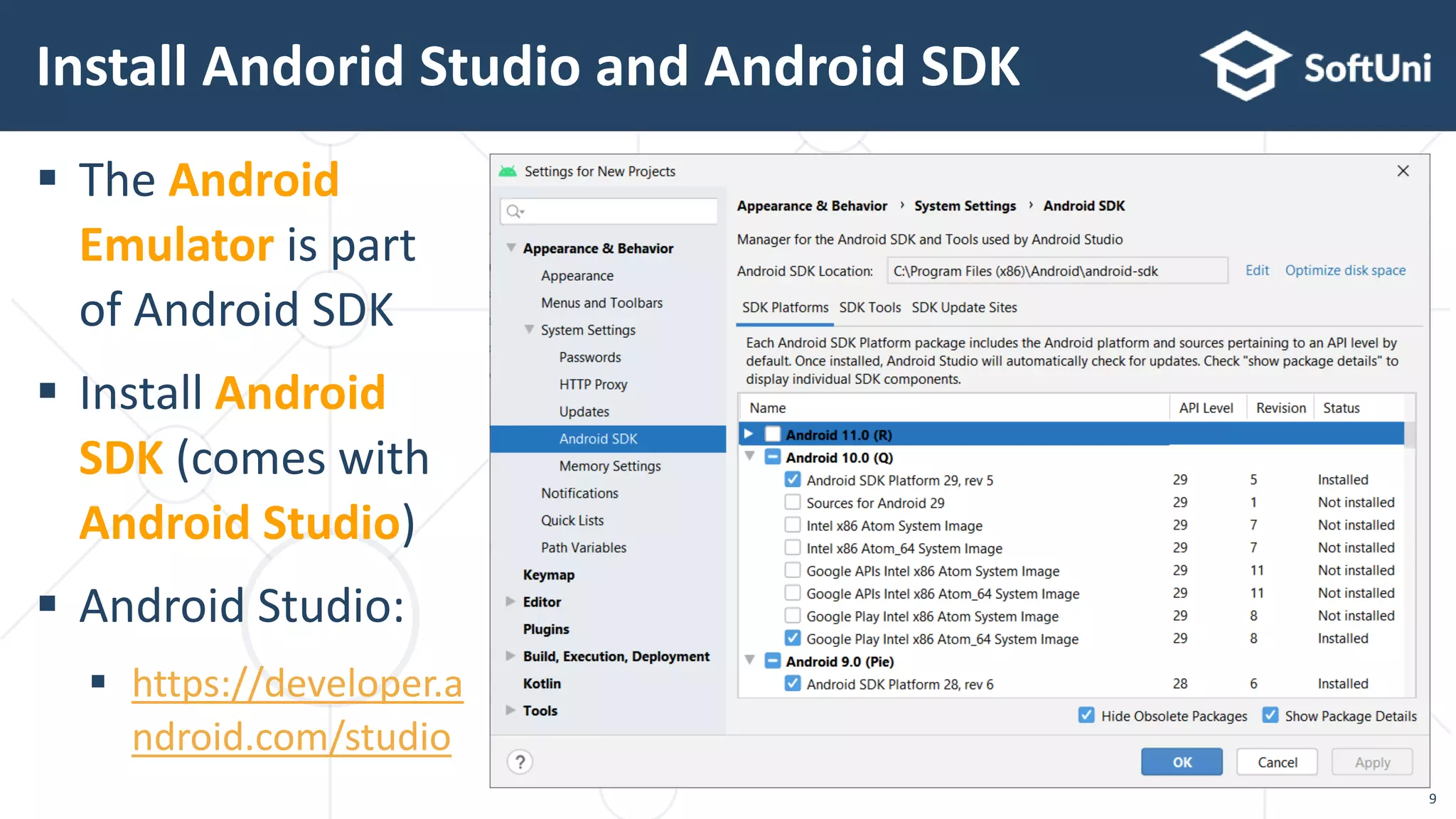

9.  The Android
Emulator is part
of Android SDK
 Install Android
SDK (comes with
Android Studio)
 Android Studio:
 https://developer.a
ndroid.com/studio
Install Andorid Studio and Android SDK
9

10. 10

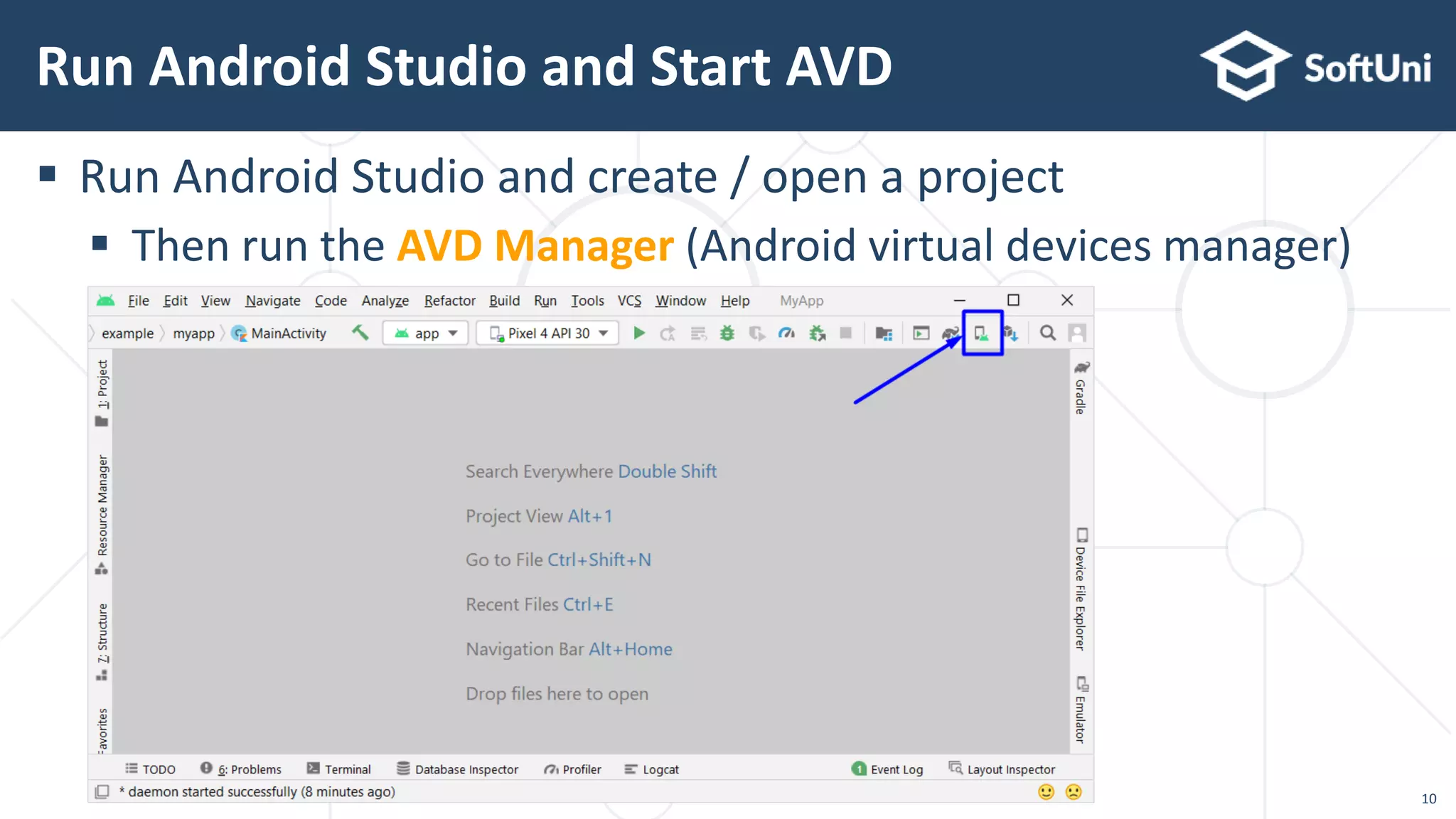

 Run Android Studio and create / open a project
 Then run the AVD Manager (Android virtual devices manager)
Run Android Studio and Start AVD

11. 11

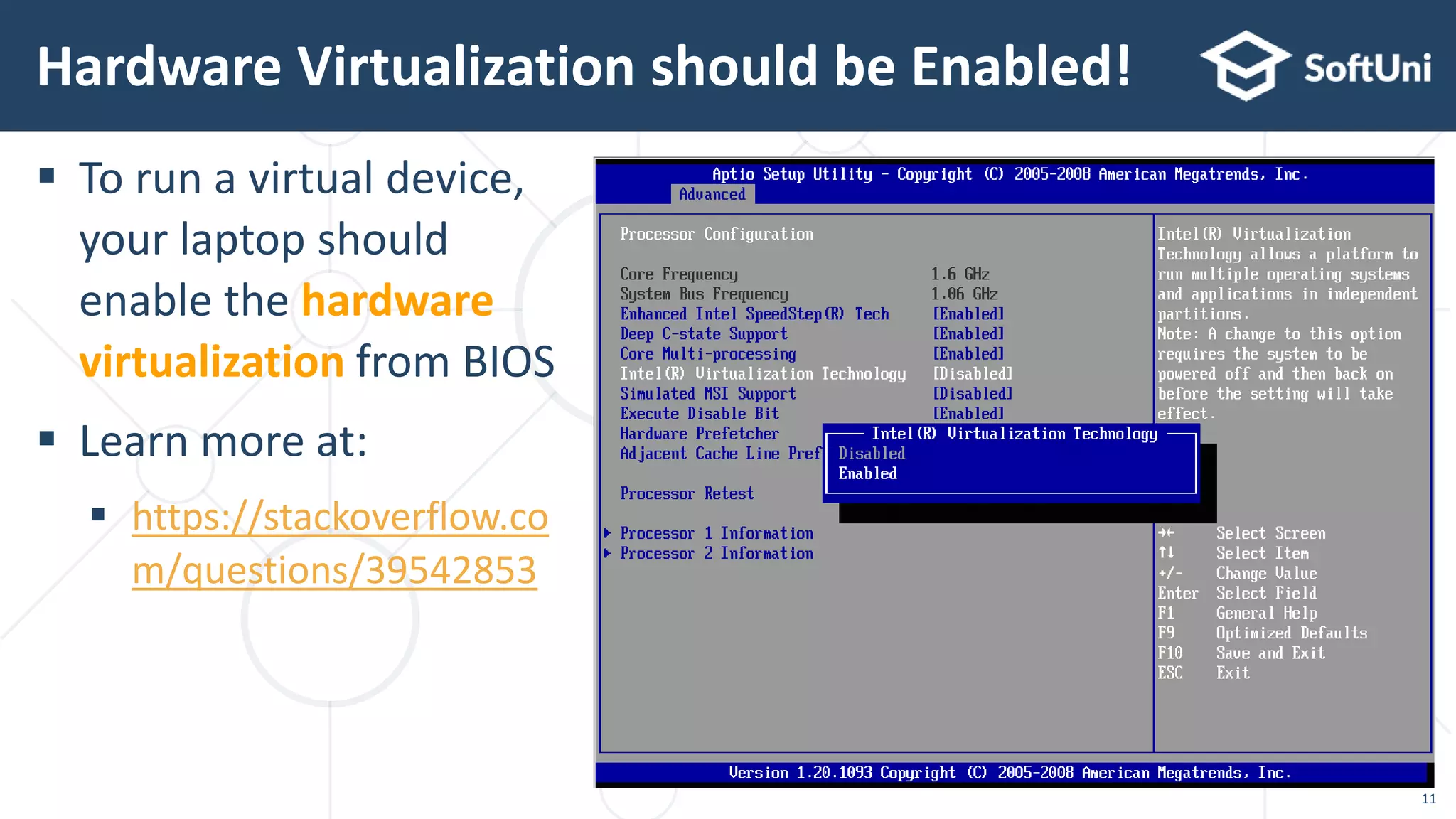

 To run a virtual device,
your laptop should
enable the hardware
virtualization from BIOS
 Learn more at:
 https://stackoverflow.co
m/questions/39542853
Hardware Virtualization should be Enabled!

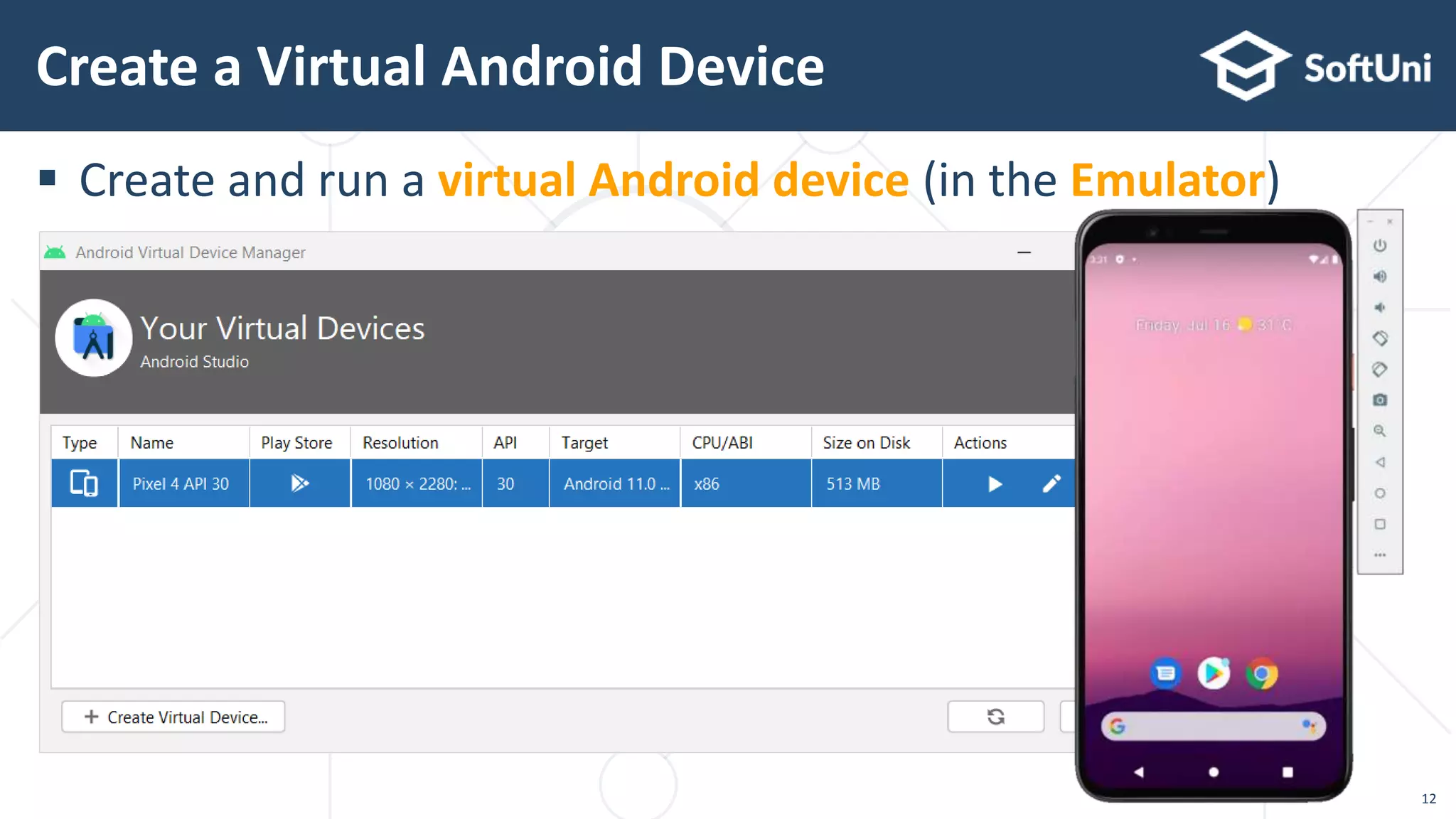

12.  Create and run a virtual Android device (in the Emulator)
Create a Virtual Android Device
12

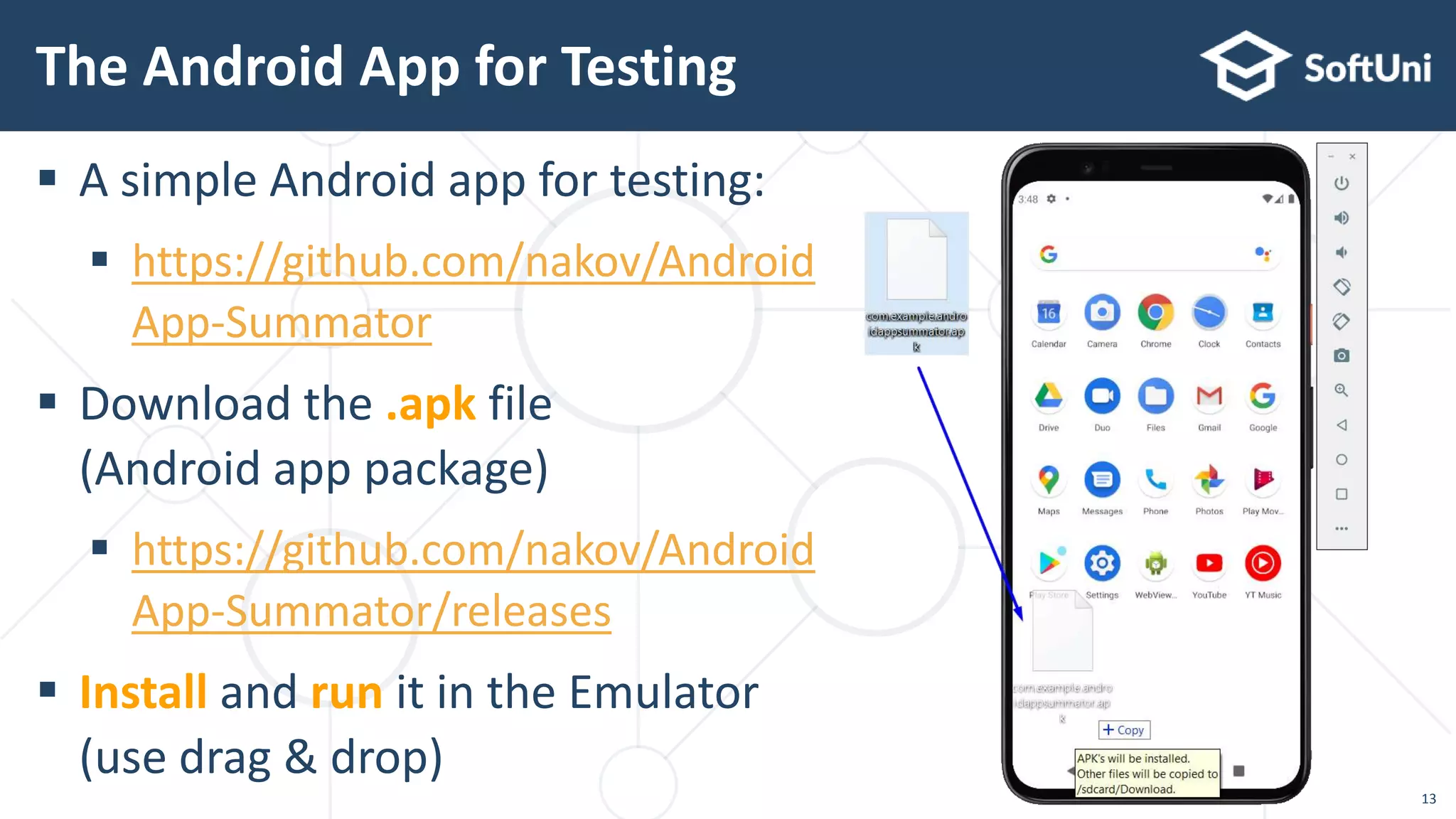

13.  A simple Android app for testing:
 https://github.com/nakov/Android
App-Summator
 Download the .apk file
(Android app package)
 https://github.com/nakov/Android
App-Summator/releases
 Install and run it in the Emulator
(use drag & drop)
The Android App for Testing
13

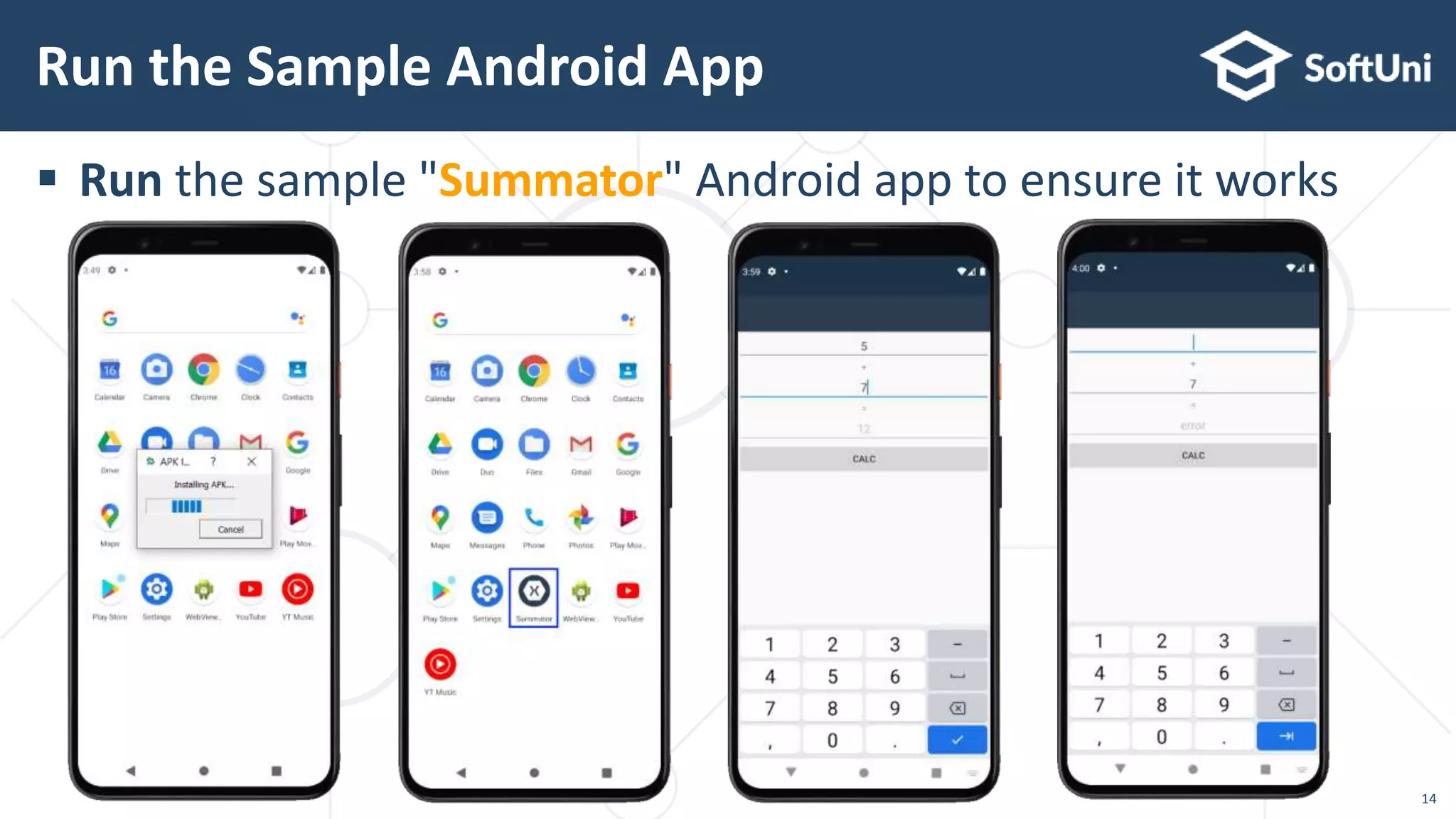

14.  Run the sample "Summator" Android app to ensure it works
Run the Sample Android App
14

15. Test Automation for Android Apps
Appium + AndroidDriver

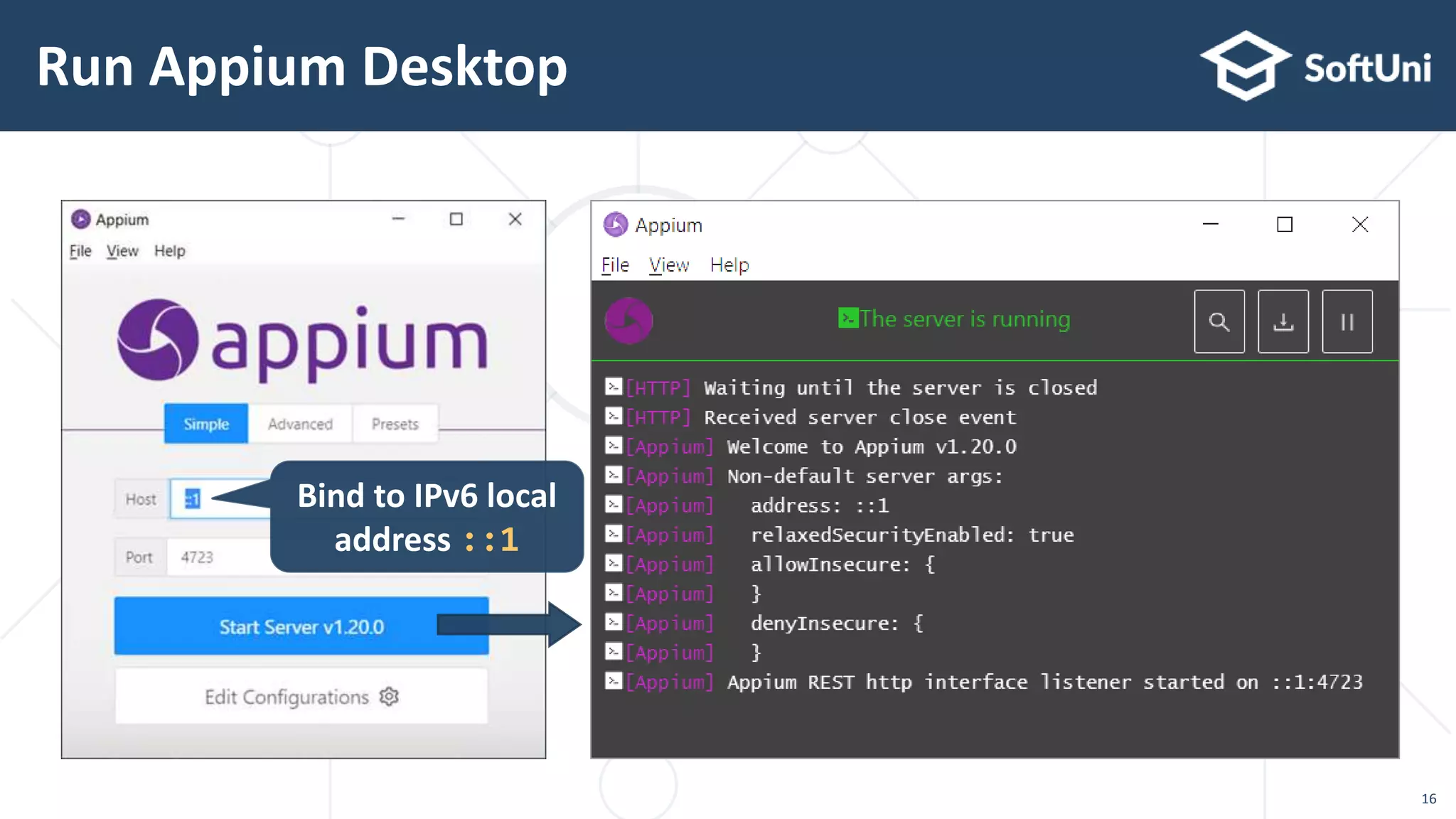

16. Run Appium Desktop
16
Bind to IPv6 local
address ::1

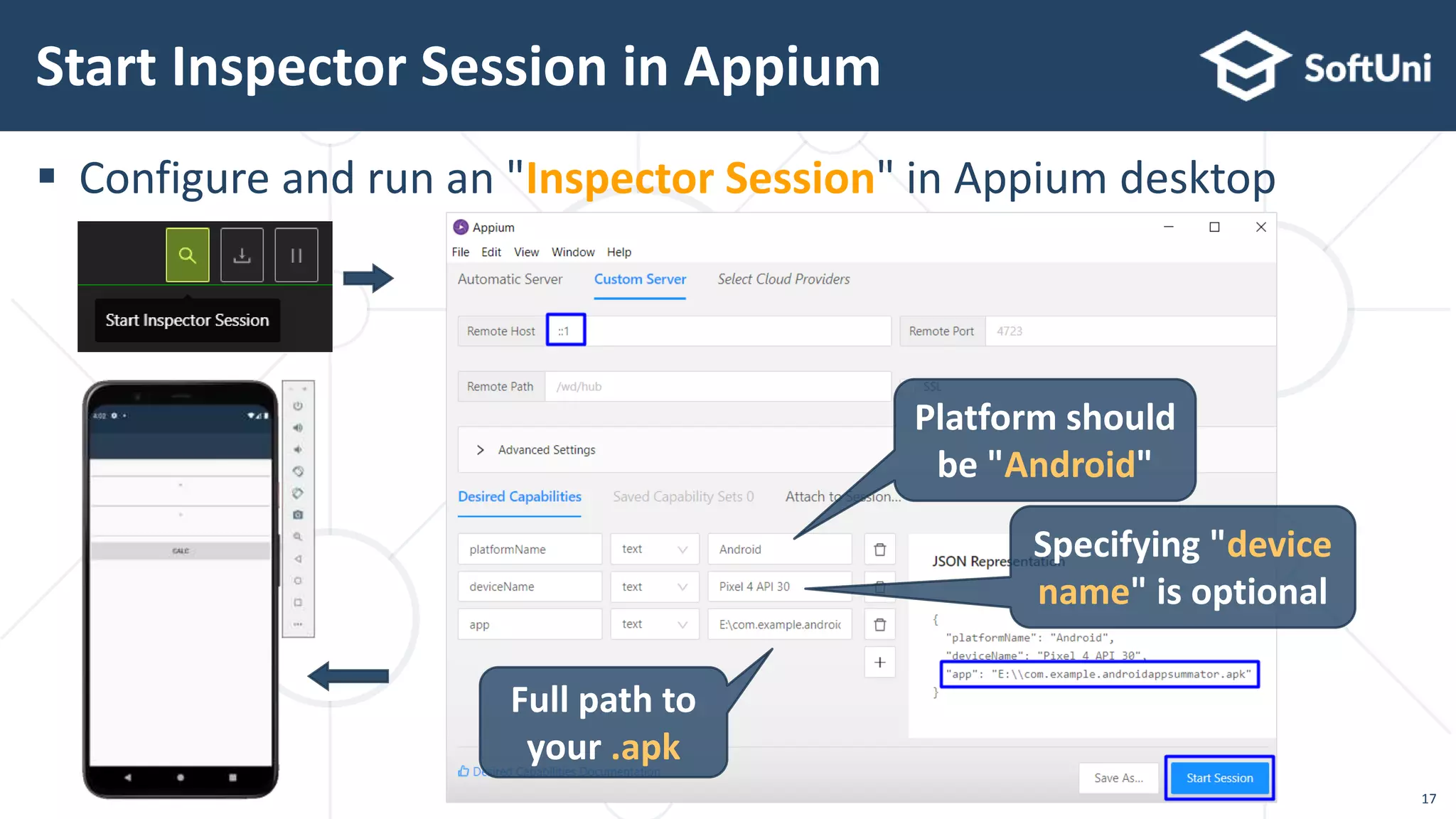

17.  Configure and run an "Inspector Session" in Appium desktop
Start Inspector Session in Appium
17
Platform should
be "Android"
Specifying "device
name" is optional
Full path to
your .apk

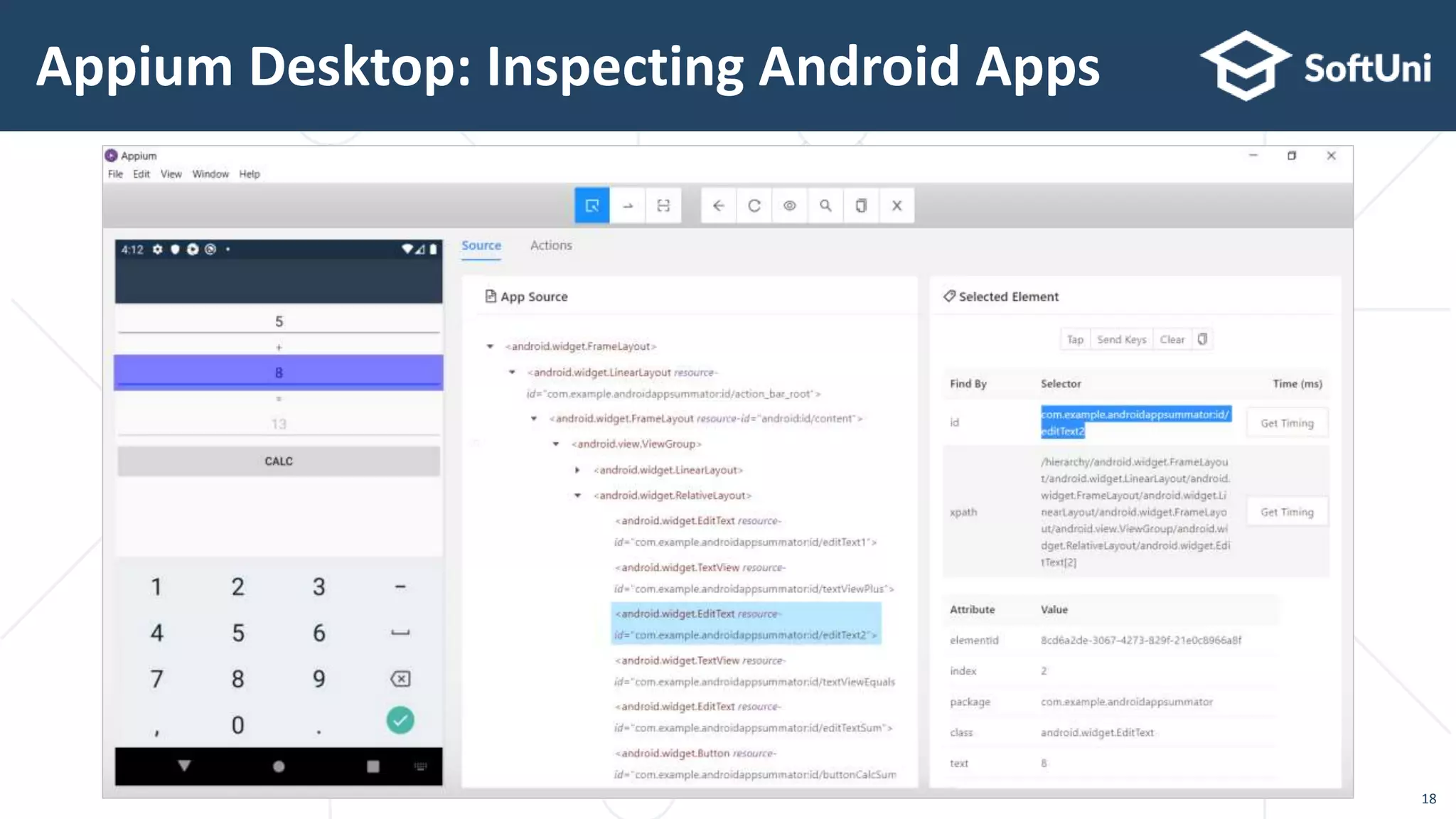

18. Appium Desktop: Inspecting Android Apps
18

19. Writing Appium Tests with C# and NUnit
Appium Tests for Android

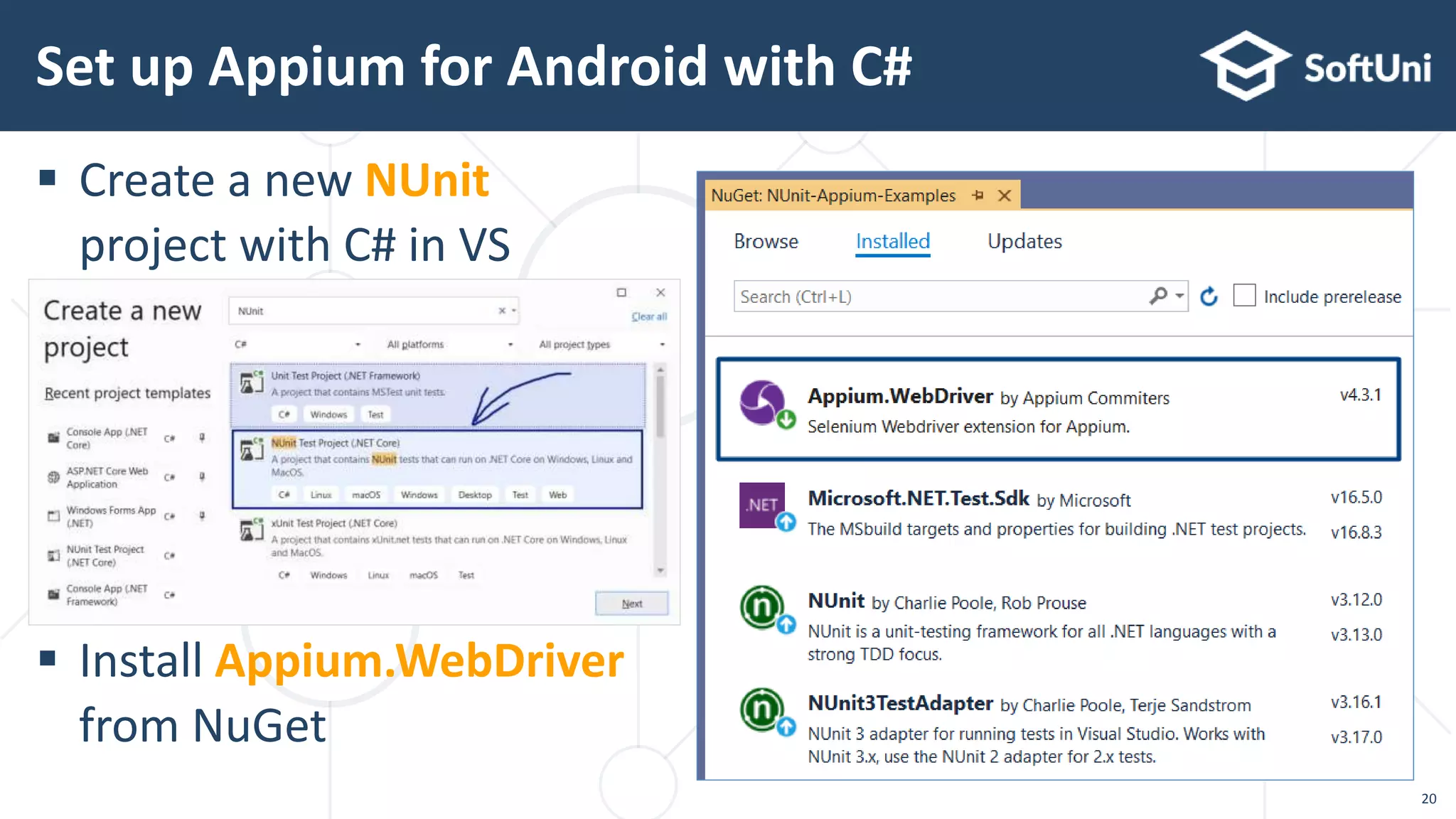

20.  Create a new NUnit
project with C# in VS
 Install Appium.WebDriver
from NuGet
Set up Appium for Android with C#
20

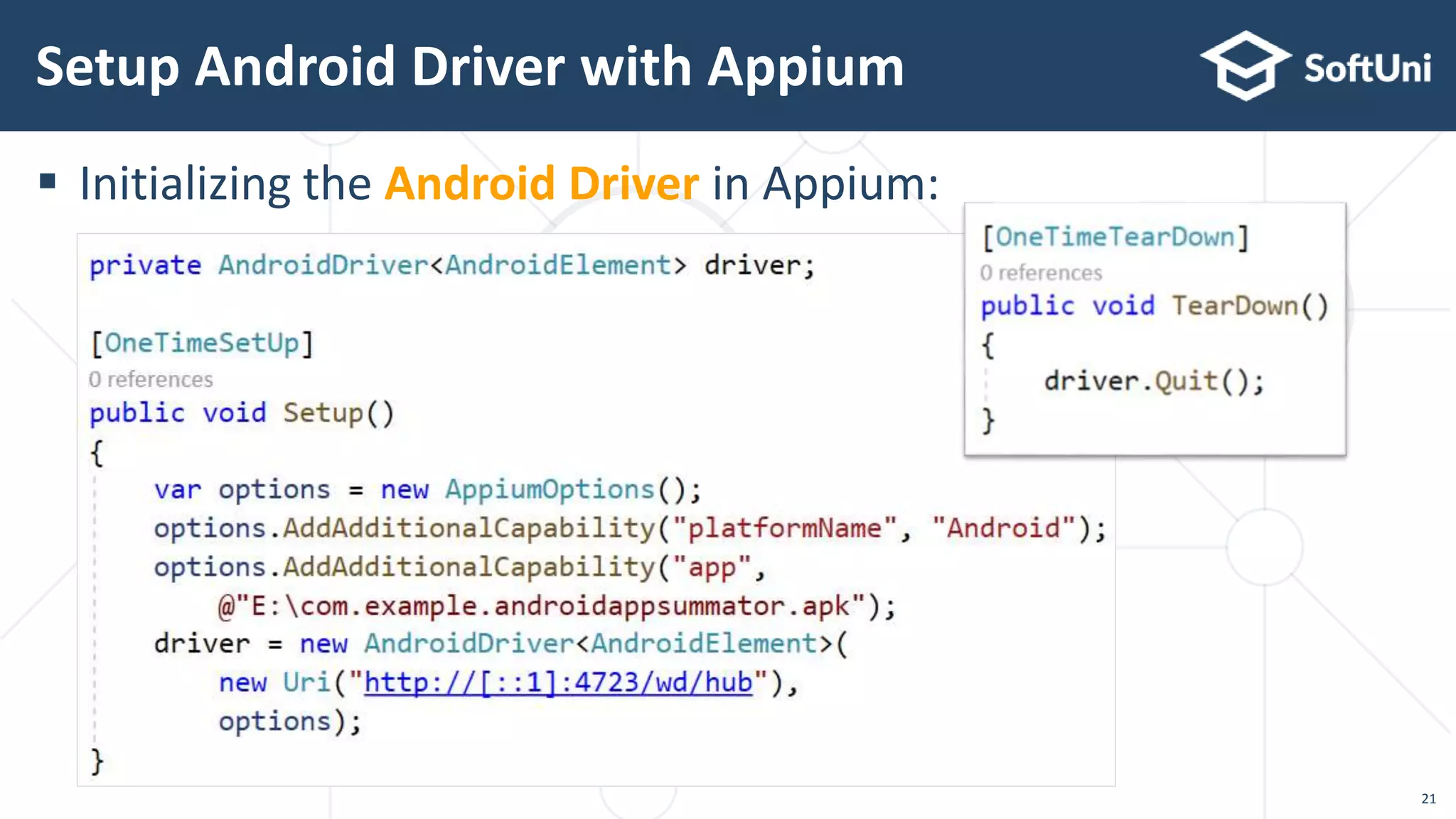

21.  Initializing the Android Driver in Appium:
Setup Android Driver with Appium
21

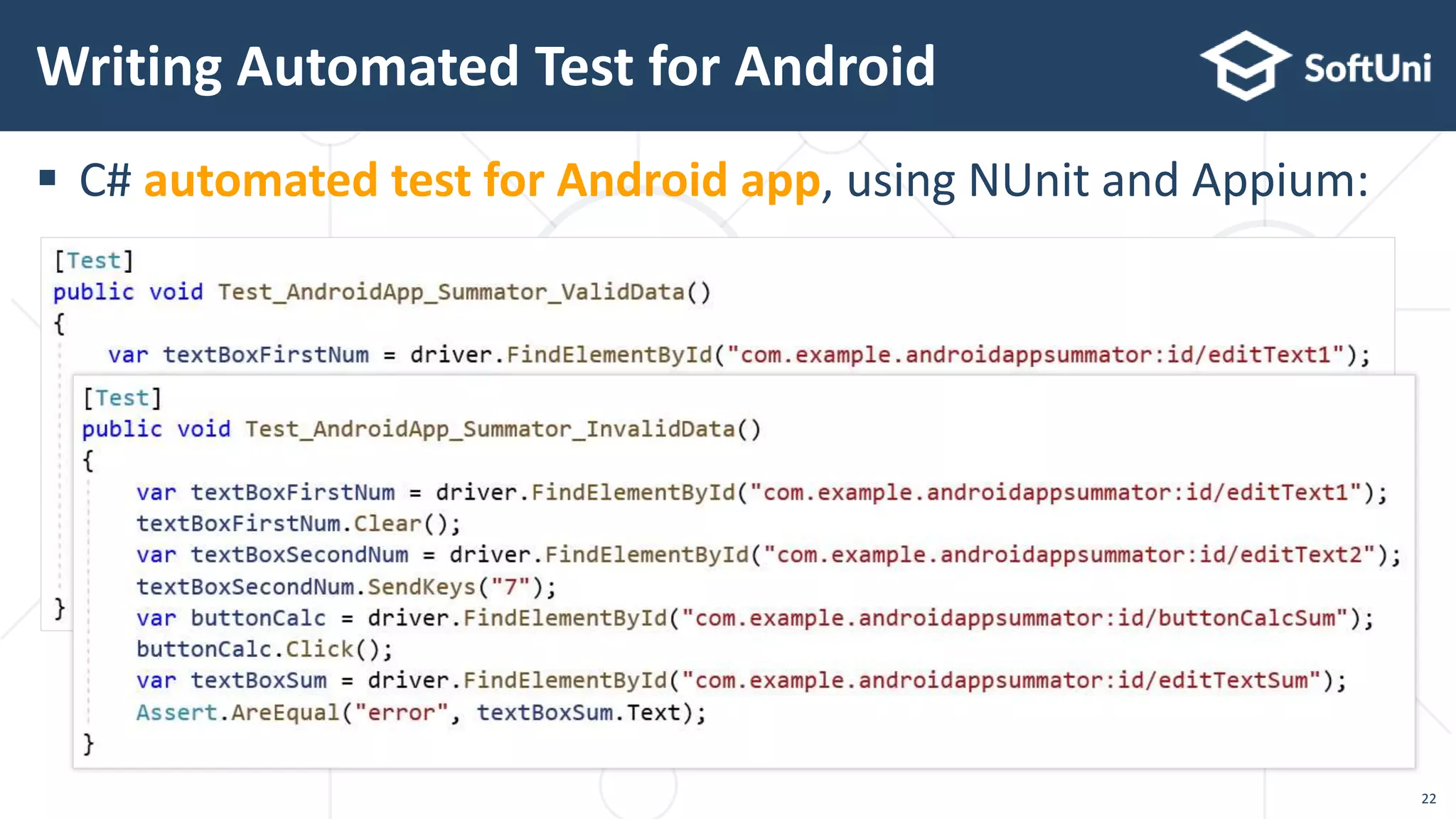

22.  C# automated test for Android app, using NUnit and Appium:
Writing Automated Test for Android
22

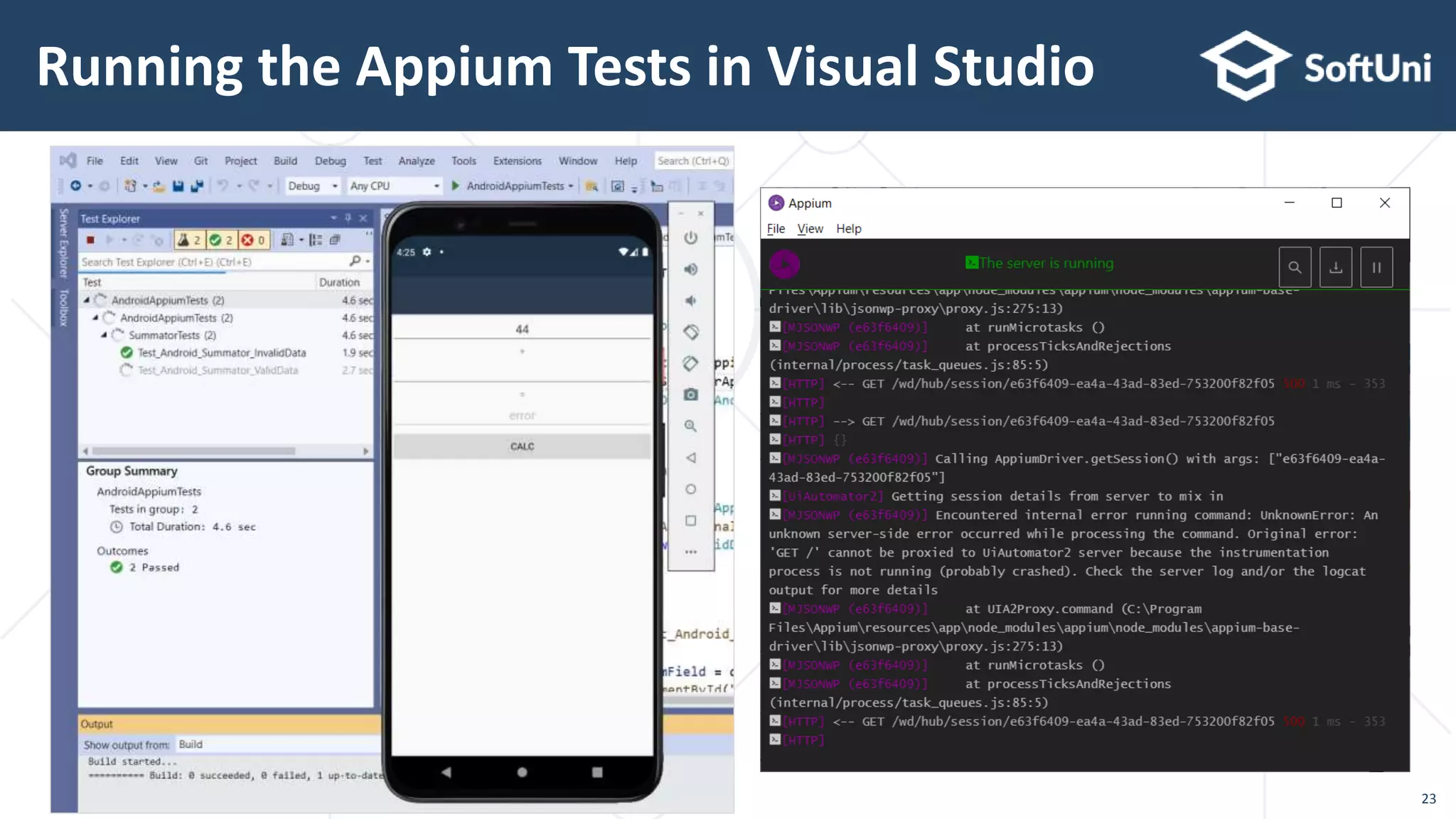

23. Running the Appium Tests in Visual Studio
23

24. Live Coding Example
Test the “Contact Book” App

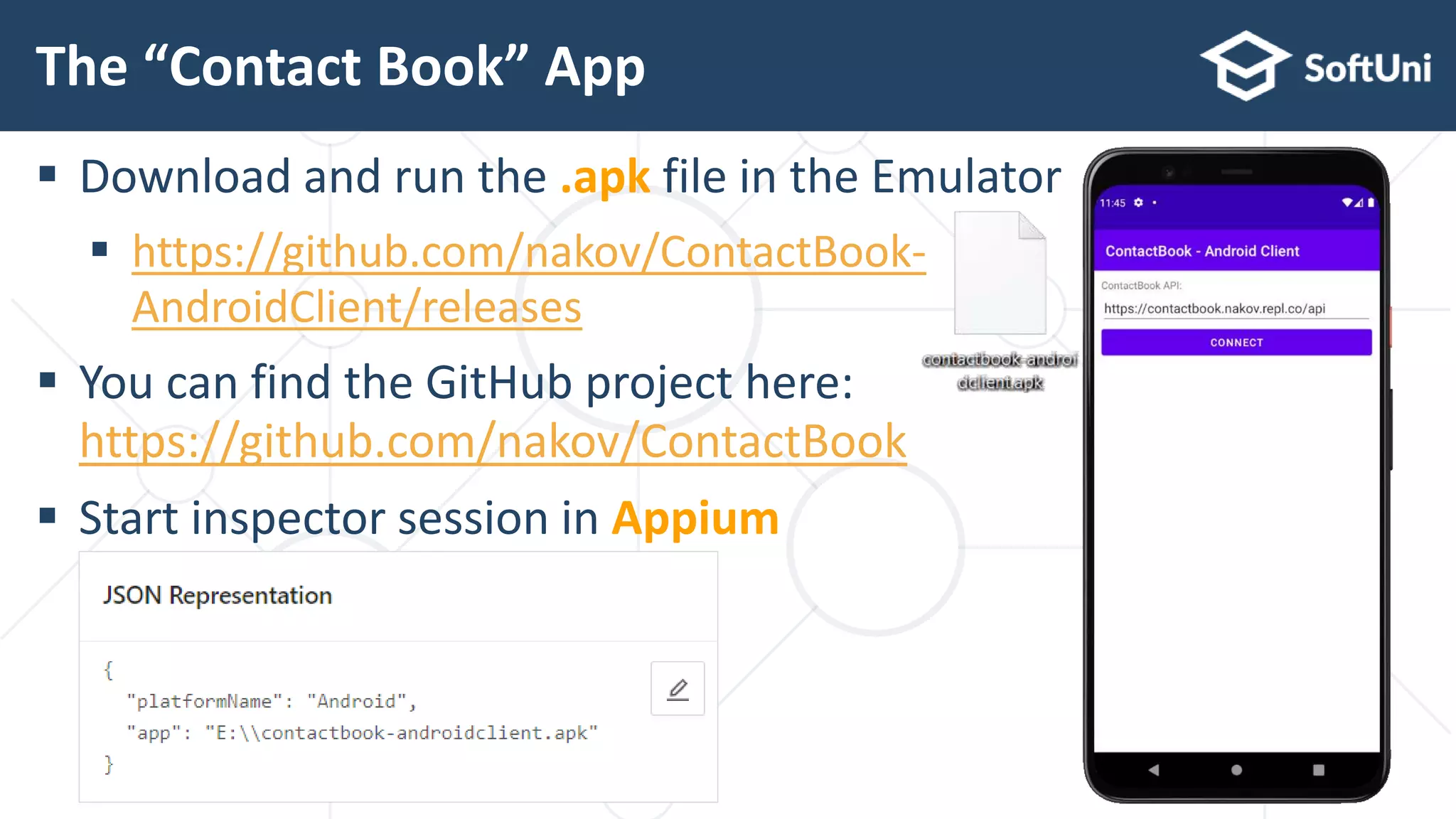

25.  Download and run the .apk file in the Emulator
 https://github.com/nakov/ContactBook-
AndroidClient/releases
 You can find the GitHub project here:
https://github.com/nakov/ContactBook
 Start inspector session in Appium
The “Contact Book” App

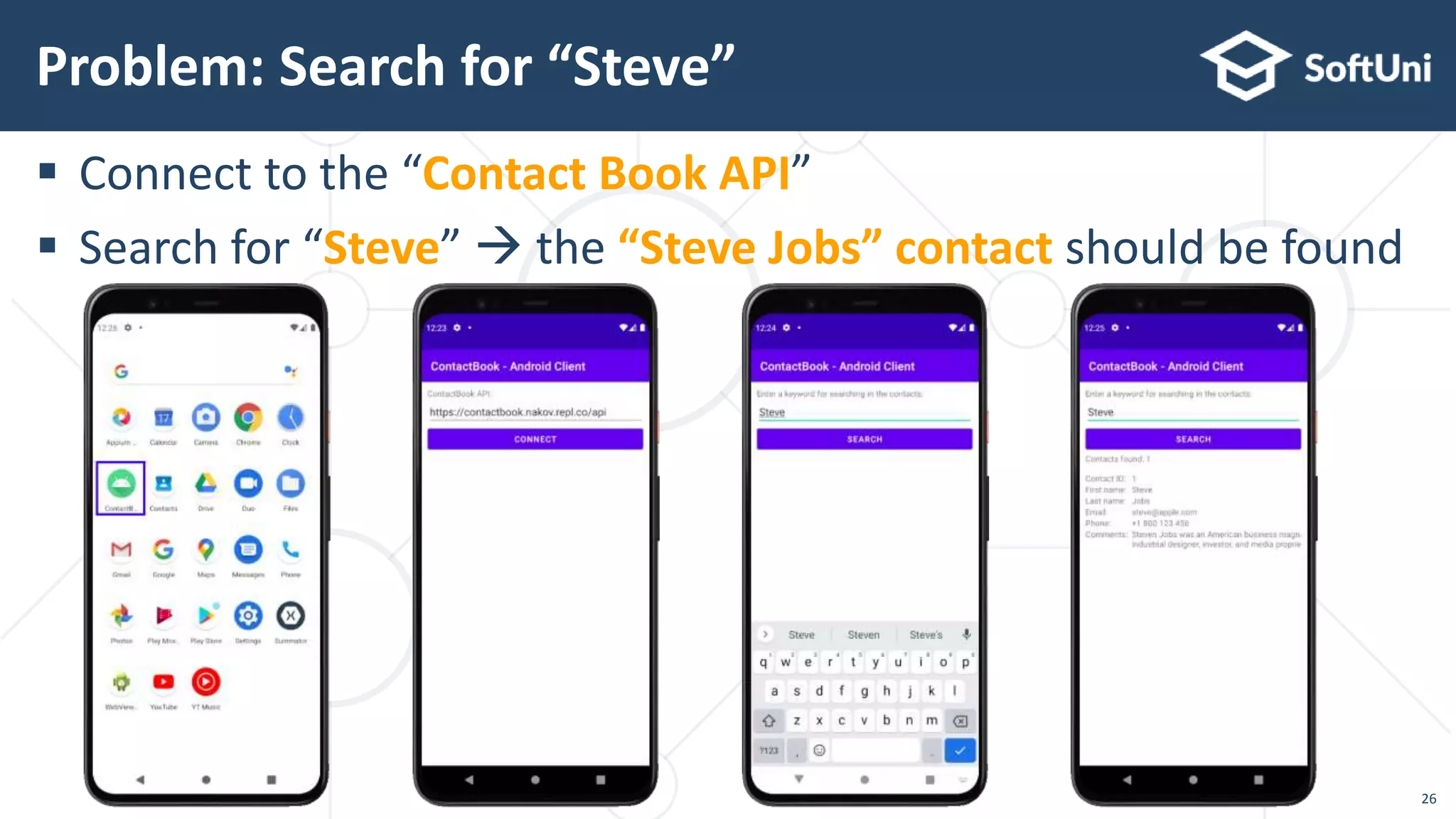

26. 26
 Connect to the “Contact Book API”
 Search for “Steve”  the “Steve Jobs” contact should be found
Problem: Search for “Steve”

27. 27

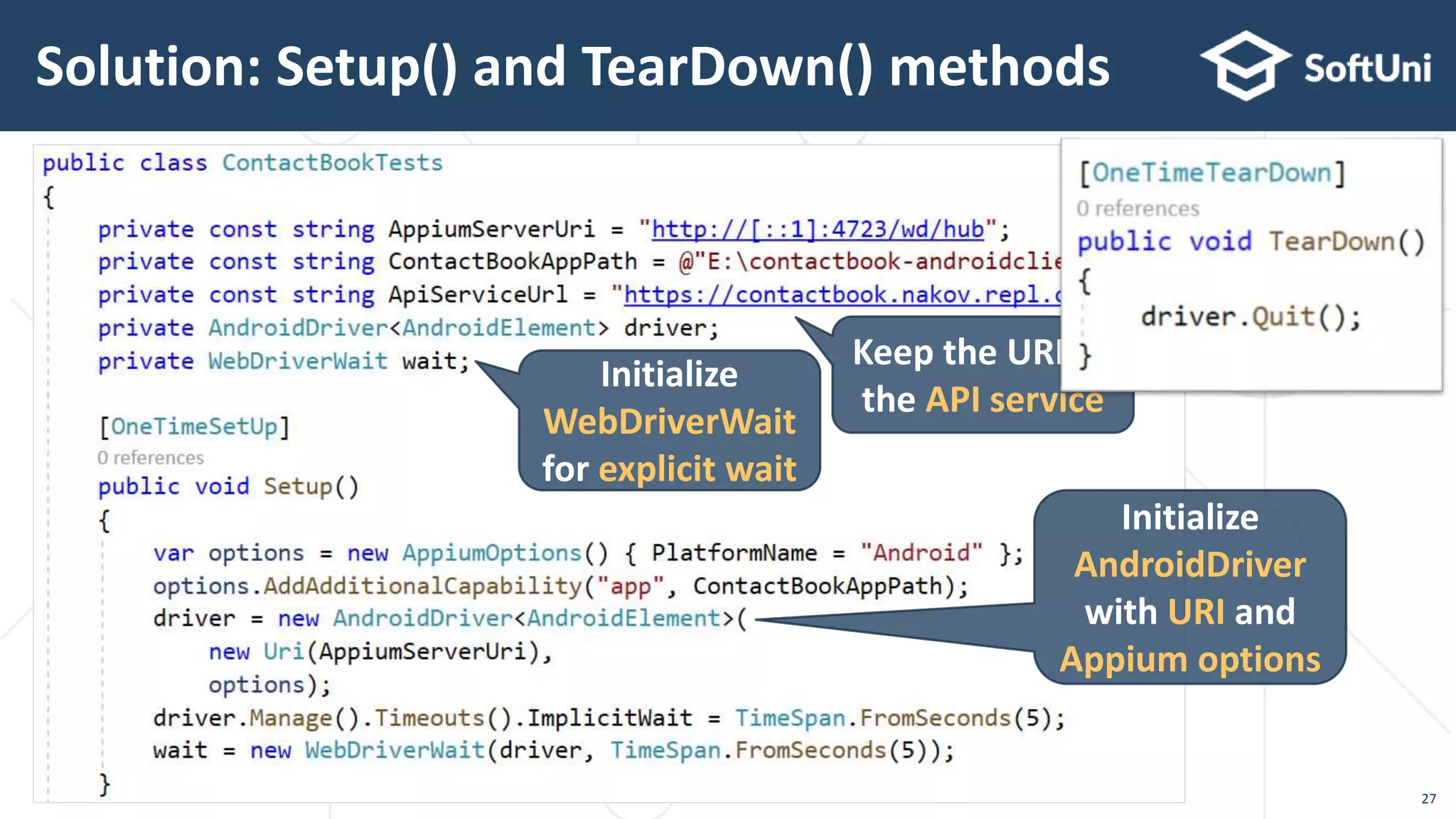

Solution: Setup() and TearDown() methods
Keep the URL of
the API service
Initialize
WebDriverWait
for explicit wait
Initialize
AndroidDriver
with URI and
Appium options

28. 28

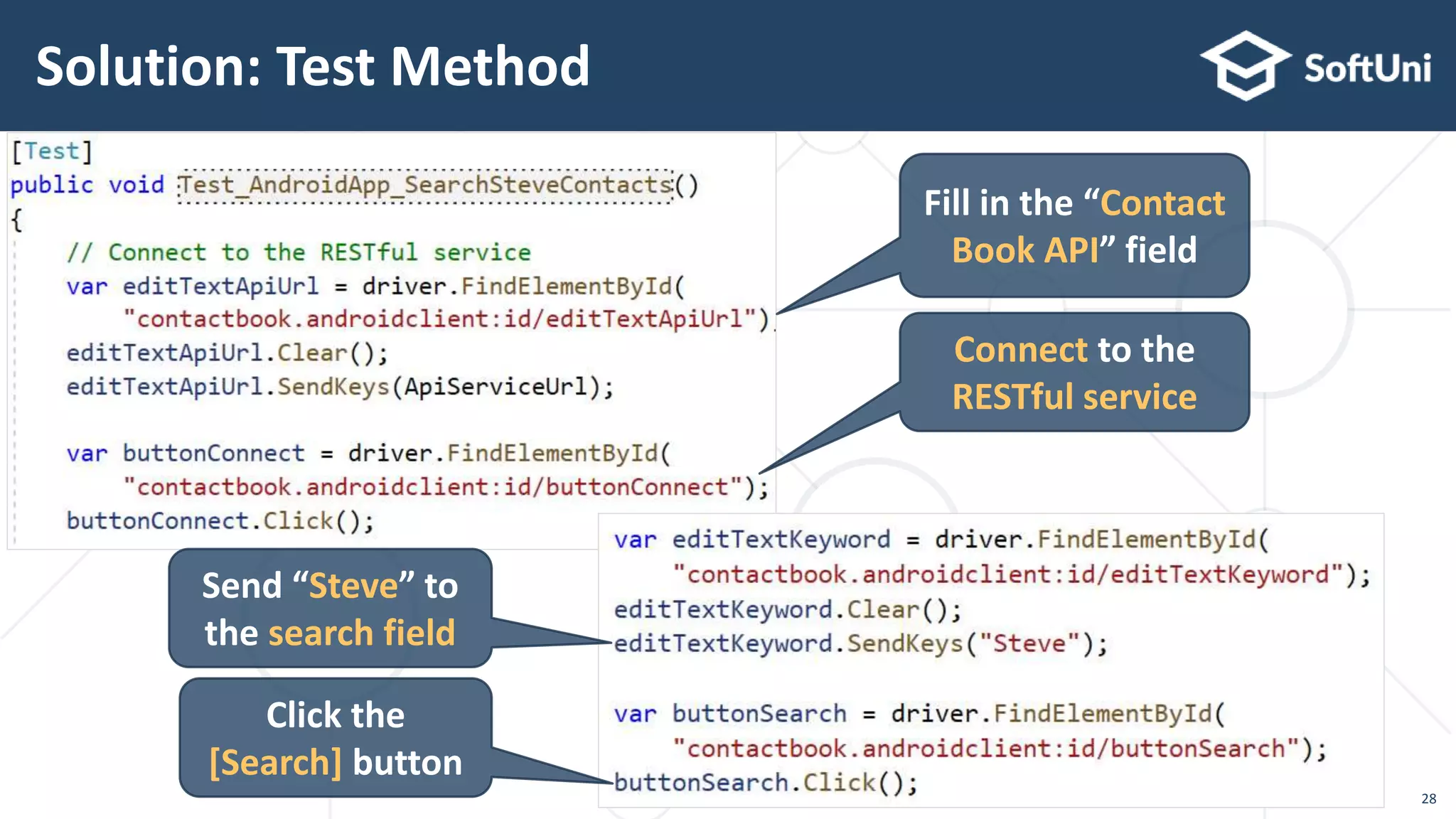

Solution: Test Method
Fill in the “Contact
Book API” field
Connect to the
RESTful service
Send “Steve” to
the search field
Click the
[Search] button

29. 29

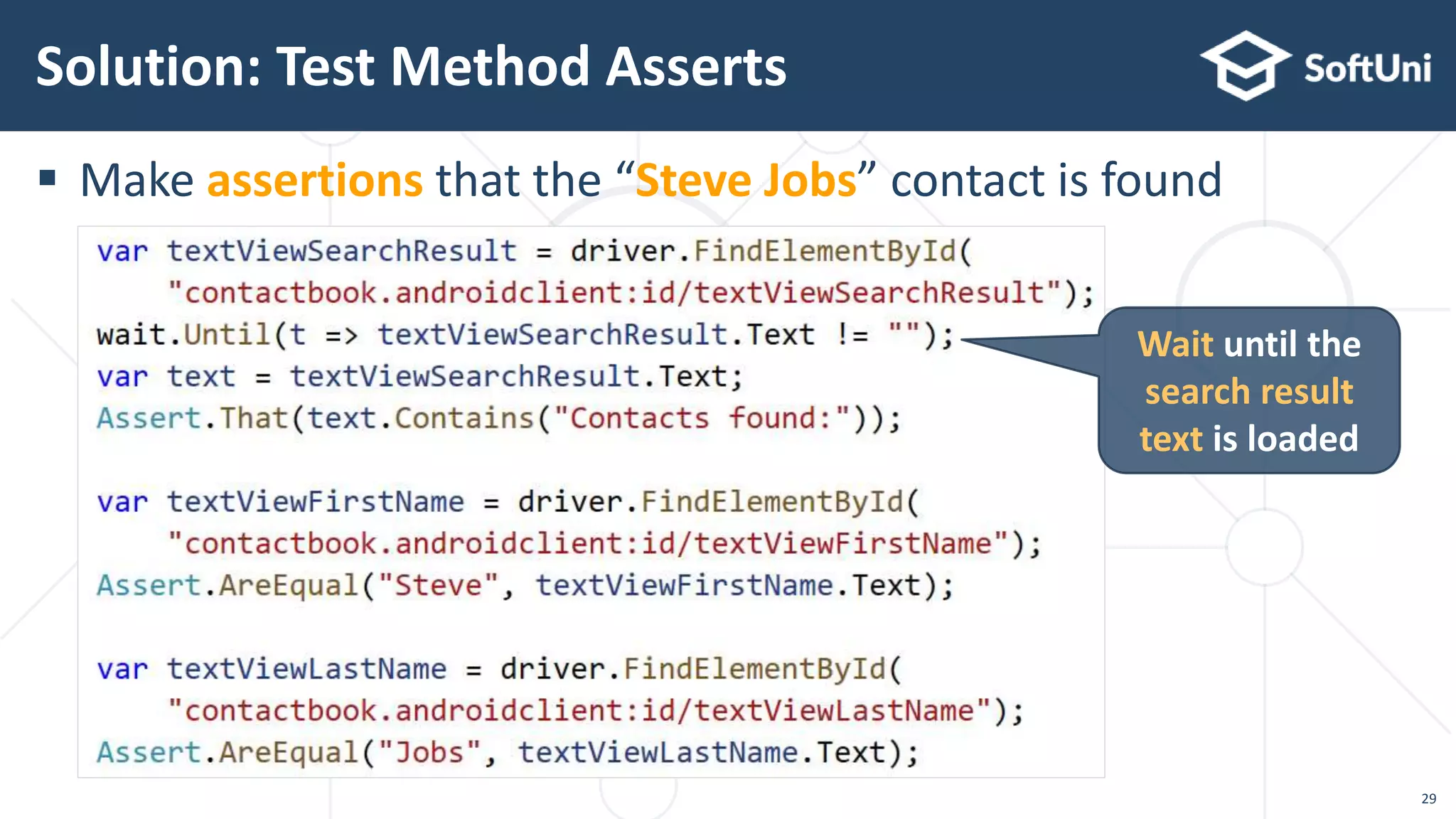

 Make assertions that the “Steve Jobs” contact is found
Solution: Test Method Asserts
Wait until the
search result
text is loaded

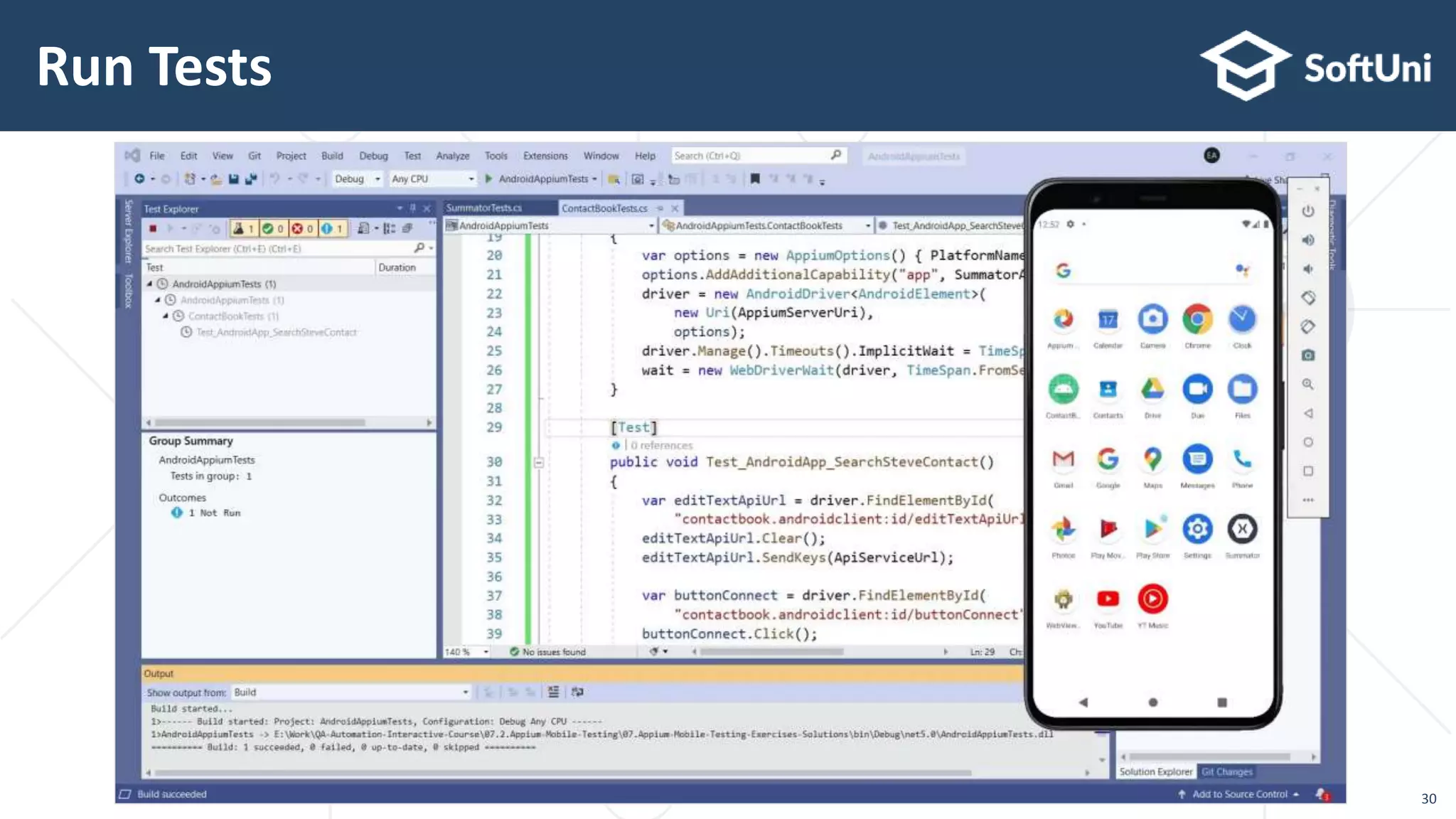

30. 30
Run Tests

31. Running Appium Tests on Your Physical Device
Testing on Physical Device

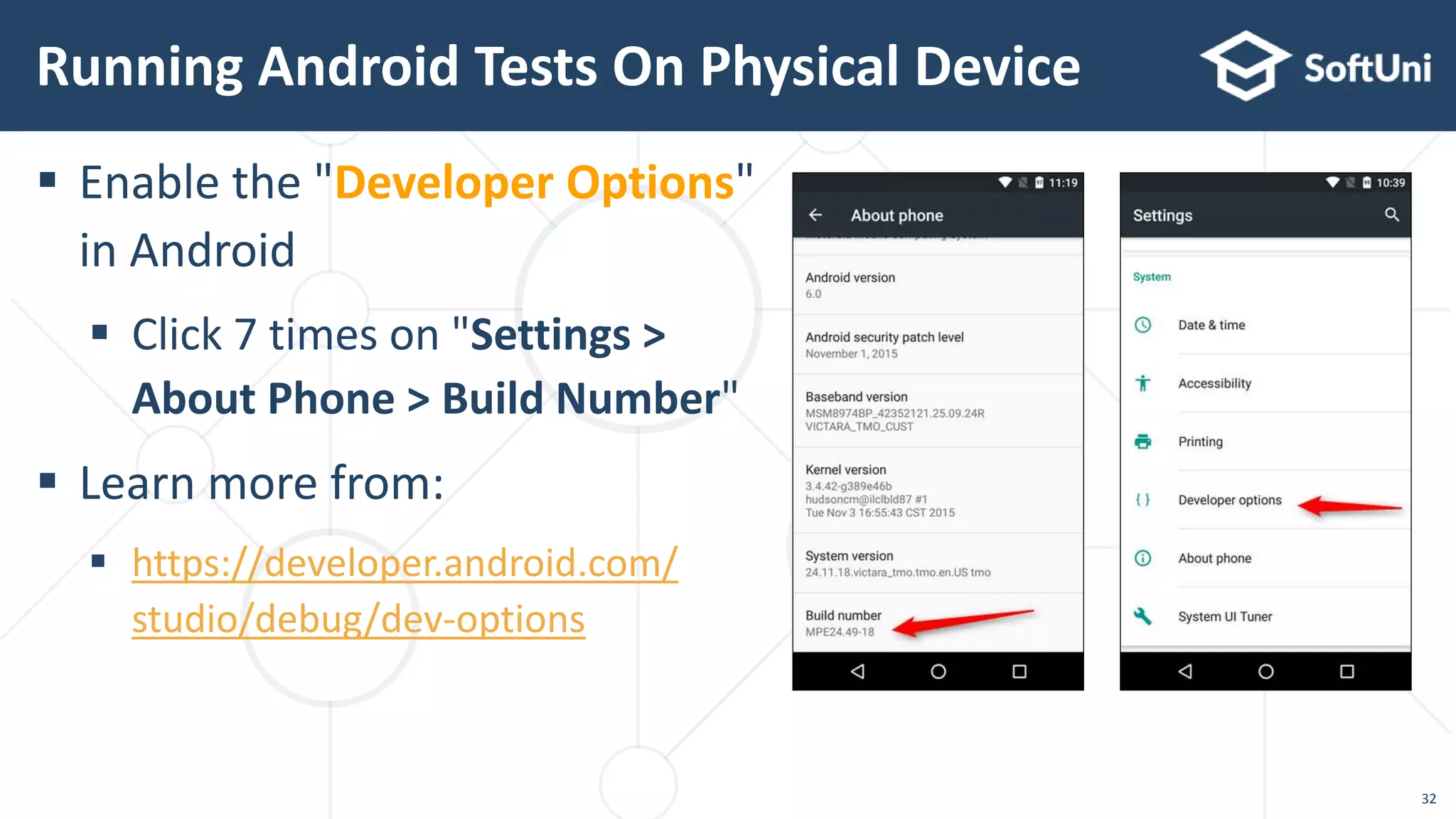

32.  Enable the "Developer Options"
in Android
 Click 7 times on "Settings >
About Phone > Build Number"
 Learn more from:
 https://developer.android.com/
studio/debug/dev-options
Running Android Tests On Physical Device
32

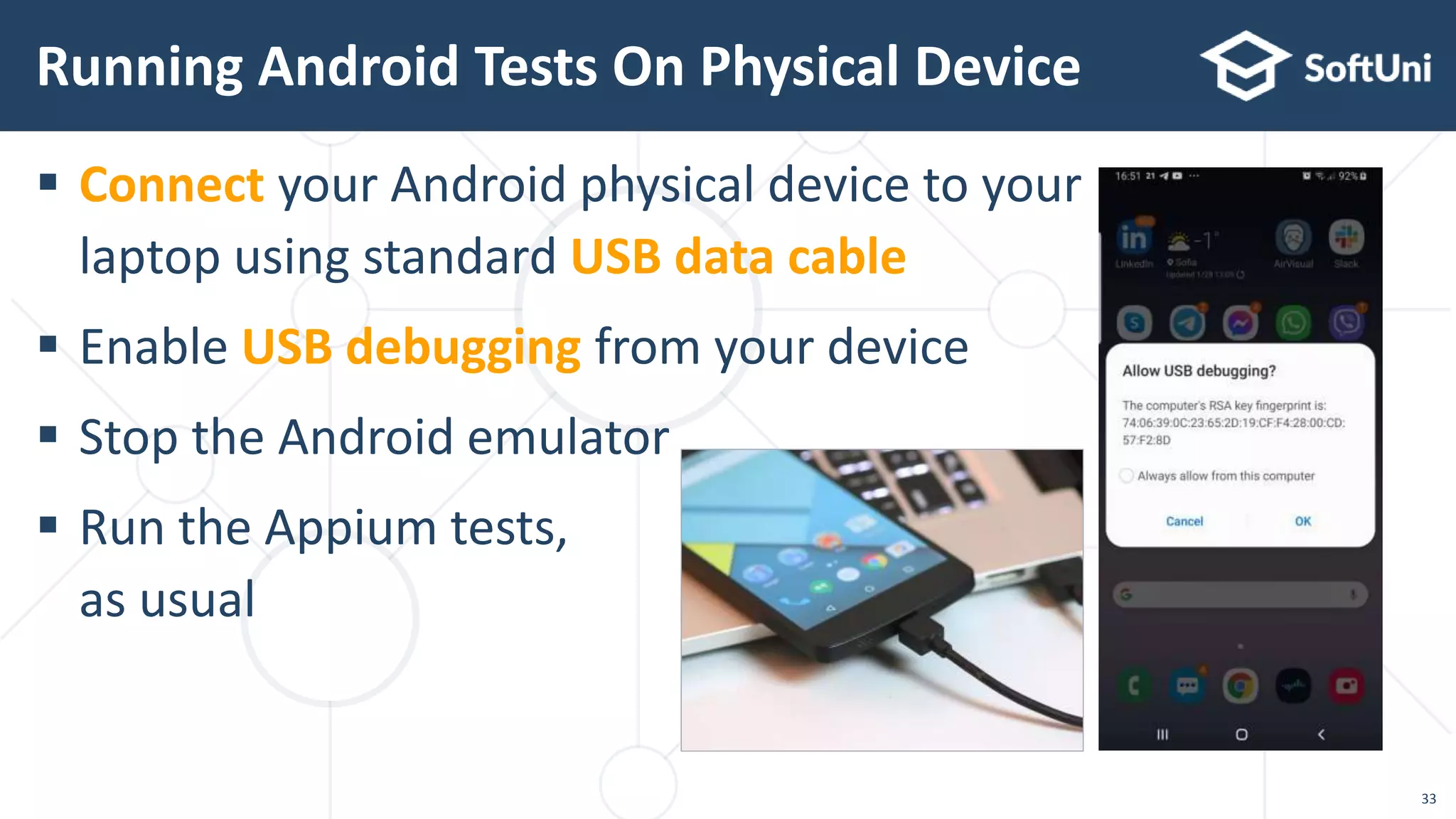

33.  Connect your Android physical device to your
laptop using standard USB data cable
 Enable USB debugging from your device
 Stop the Android emulator
 Run the Appium tests,
as usual
Running Android Tests On Physical Device
33

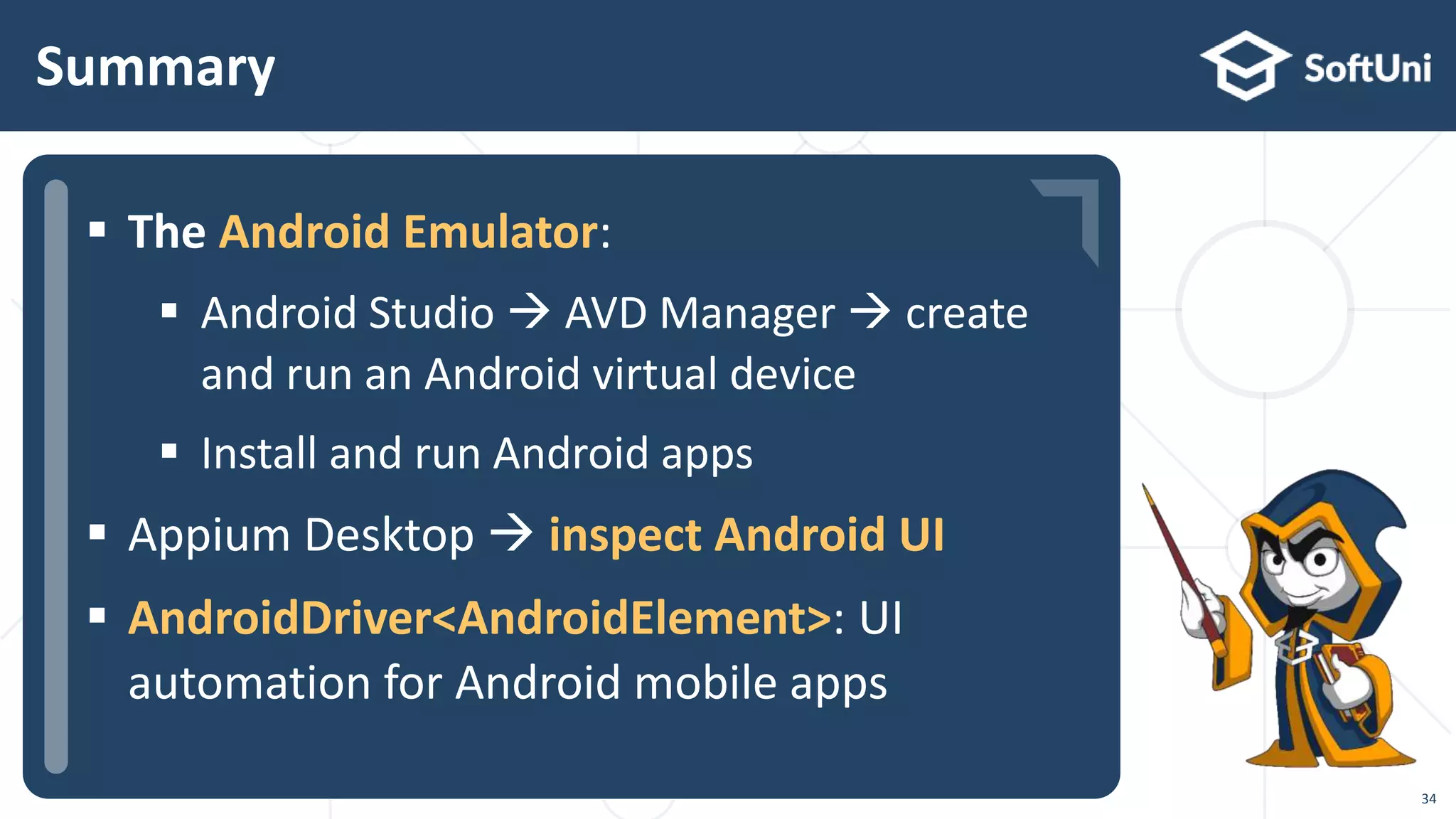

34.  The Android Emulator:
 Android Studio  AVD Manager  create
and run an Android virtual device
 Install and run Android apps
 Appium Desktop  inspect Android UI
 AndroidDriver<AndroidElement>: UI
automation for Android mobile apps
Summary
34
