1. Analytic construction of points
on modular elliptic curves
Congreso de J´ovenes Investigadores
Universidad de Murcia
Xavier Guitart 1 Marc Masdeu 2 Mehmet Haluk Sengun 3
1Universitat de Barcelona
2University of Warwick
3University of Sheffield
September 10, 2015
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 0 / 26

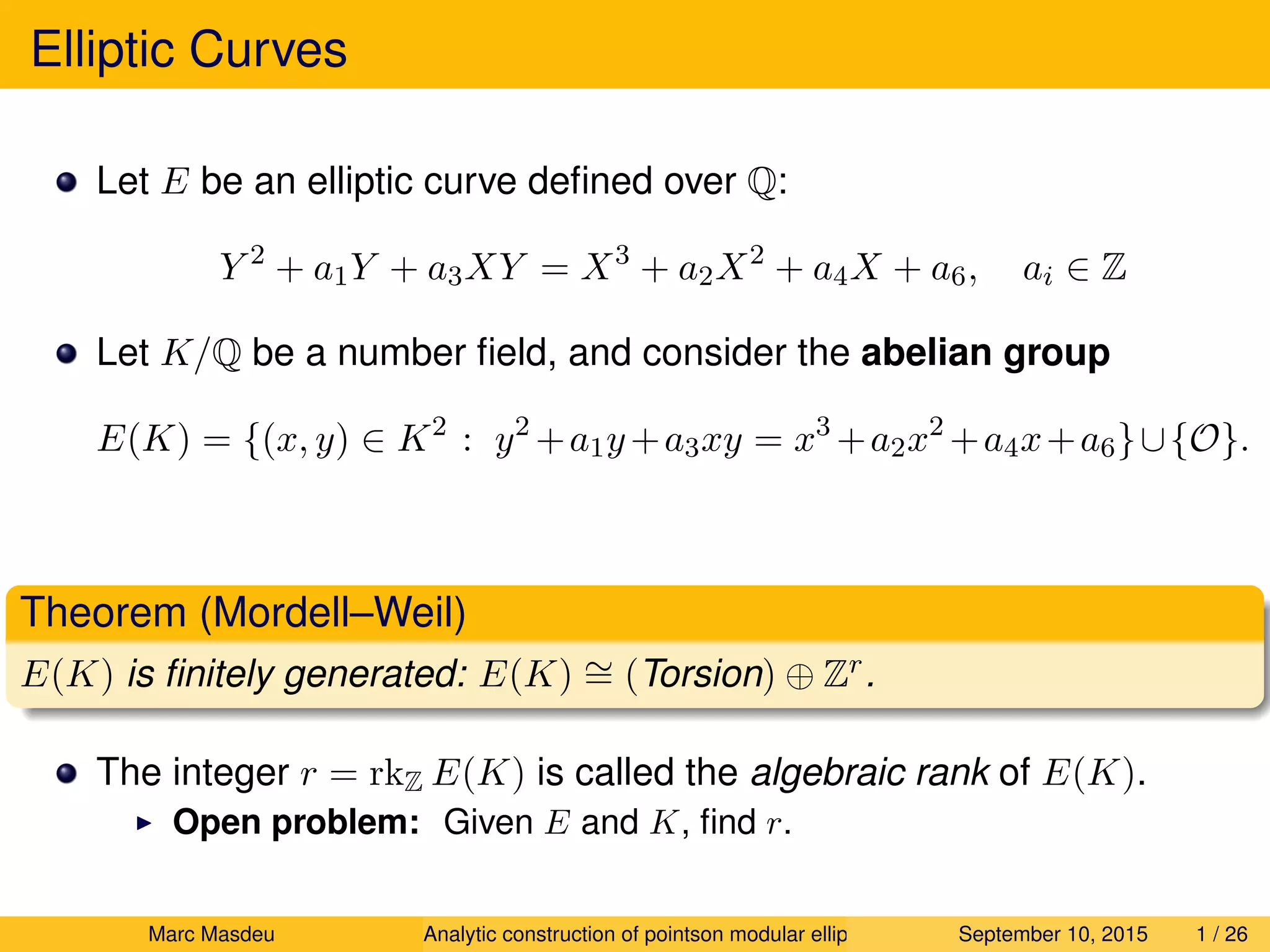

2. Elliptic Curves
Let E be an elliptic curve defined over Q:
Y 2
+ a1Y + a3XY = X3
+ a2X2
+ a4X + a6, ai ∈ Z
Let K/Q be a number field, and consider the abelian group
E(K) = {(x, y) ∈ K2
: y2
+a1y+a3xy = x3
+a2x2
+a4x+a6}∪{O}.
Theorem (Mordell–Weil)
E(K) is finitely generated: E(K) ∼= (Torsion) ⊕ Zr.
The integer r = rkZ E(K) is called the algebraic rank of E(K).
Open problem: Given E and K, find r.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 1 / 26

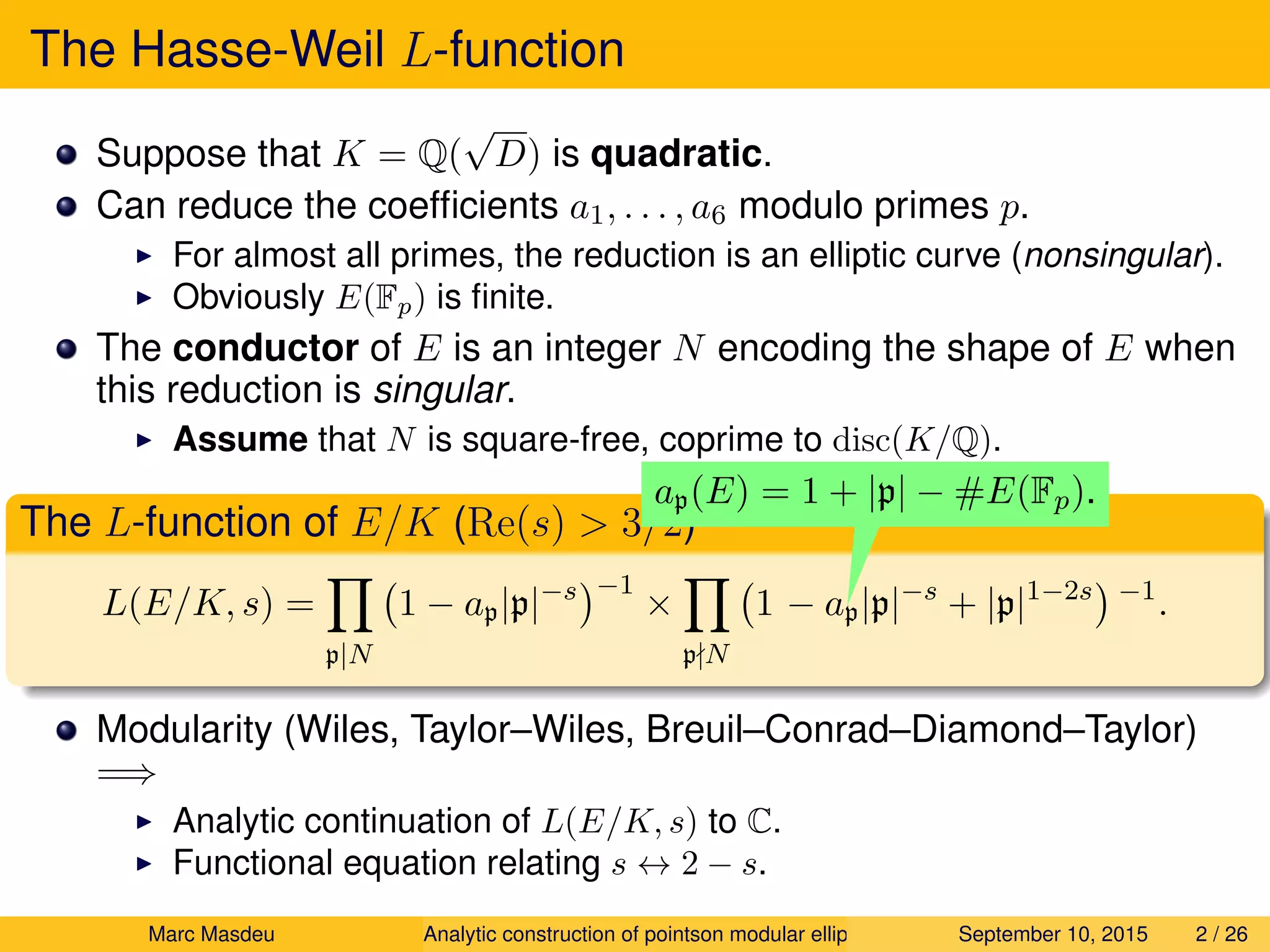

3. The Hasse-Weil L-function
Suppose that K = Q(
√
D) is quadratic.
Can reduce the coefficients a1, . . . , a6 modulo primes p.
For almost all primes, the reduction is an elliptic curve (nonsingular).
Obviously E(Fp) is finite.
The conductor of E is an integer N encoding the shape of E when
this reduction is singular.
Assume that N is square-free, coprime to disc(K/Q).
The L-function of E/K (Re(s) > 3/2)
L(E/K, s) =
p|N
1 − ap|p|−s −1
×
p N
1
ap(E) = 1 + |p| − #E(Fp).
− ap|p|−s
+ |p|1−2s −1
.
Modularity (Wiles, Taylor–Wiles, Breuil–Conrad–Diamond–Taylor)
=⇒
Analytic continuation of L(E/K, s) to C.
Functional equation relating s ↔ 2 − s.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 2 / 26

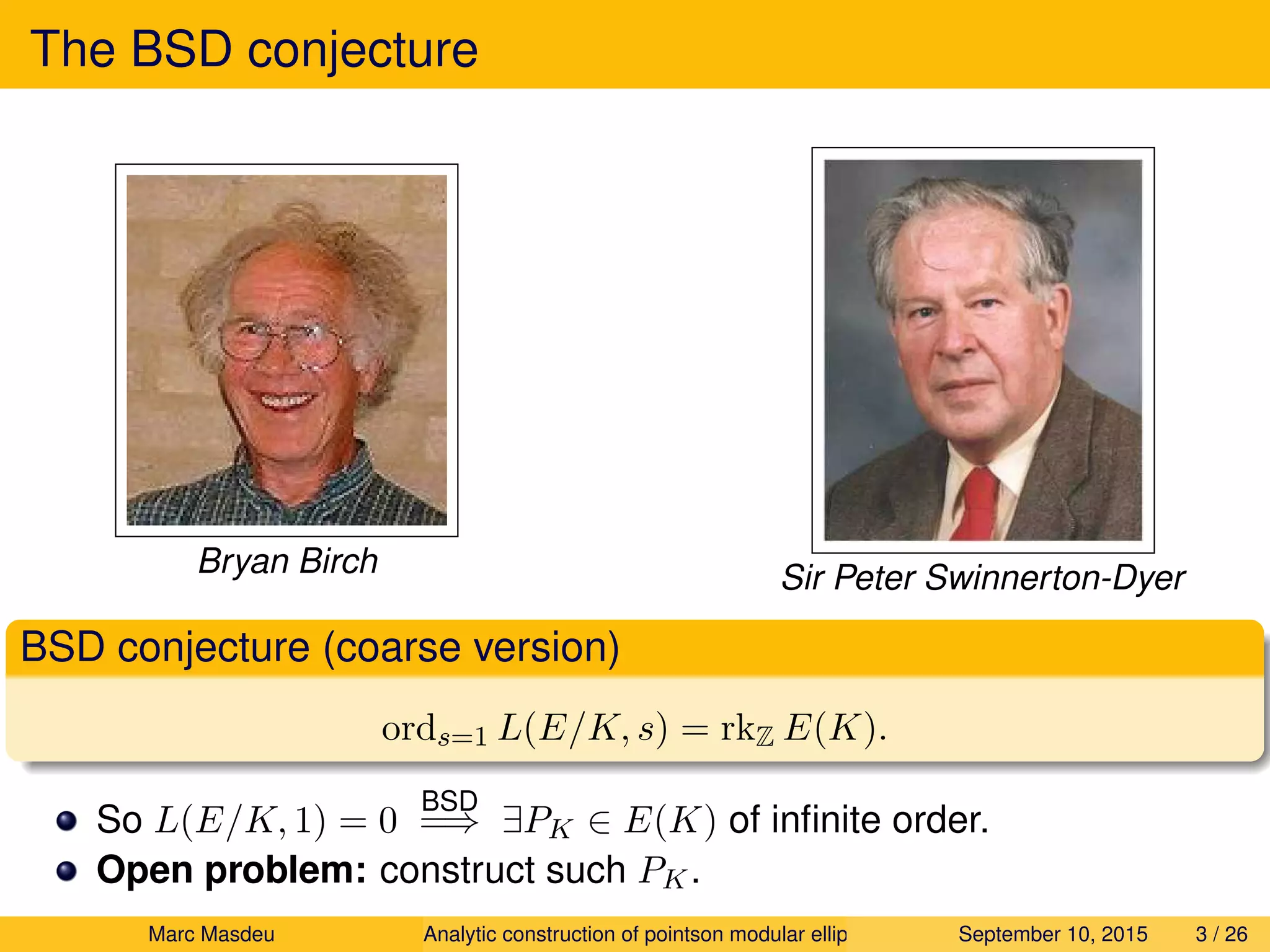

4. The BSD conjecture
Bryan Birch Sir Peter Swinnerton-Dyer
BSD conjecture (coarse version)
ords=1 L(E/K, s) = rkZ E(K).
So L(E/K, 1) = 0
BSD
=⇒ ∃PK ∈ E(K) of infinite order.
Open problem: construct such PK.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 3 / 26

5. Modular forms
Let N > 0 be an integer and consider
Γ0(N) = { a b
c d ∈ SL2(Z) : N | c}.
Γ0(N) acts on the upper-half plane H = {z ∈ C : Im(z) > 0}:
Via a b
c d · z = az+b
cz+d .
A cusp form of level N is a holomorphic map f : H → C such that:
1 f(γz) = (cz + d)2
f(z) for all γ = a b
c d ∈ Γ0(N).
2 Cuspidal: limz→i∞ f(z) = 0.
Since ( 1 1
0 1 ) ∈ Γ0(N), have Fourier expansions
f(z) =
∞
n=1
an(f)e2πinz
.
The (finite) vector space of all cusp forms is denoted by S2(Γ0(N)).
There is a family of commuting linear operators (Hecke algebra)
acting on S2(Γ0(N)), indexed by integers coprime to N.
A newform is a simultaneous eigenvector for the Hecke algebra. (. . . )
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 4 / 26

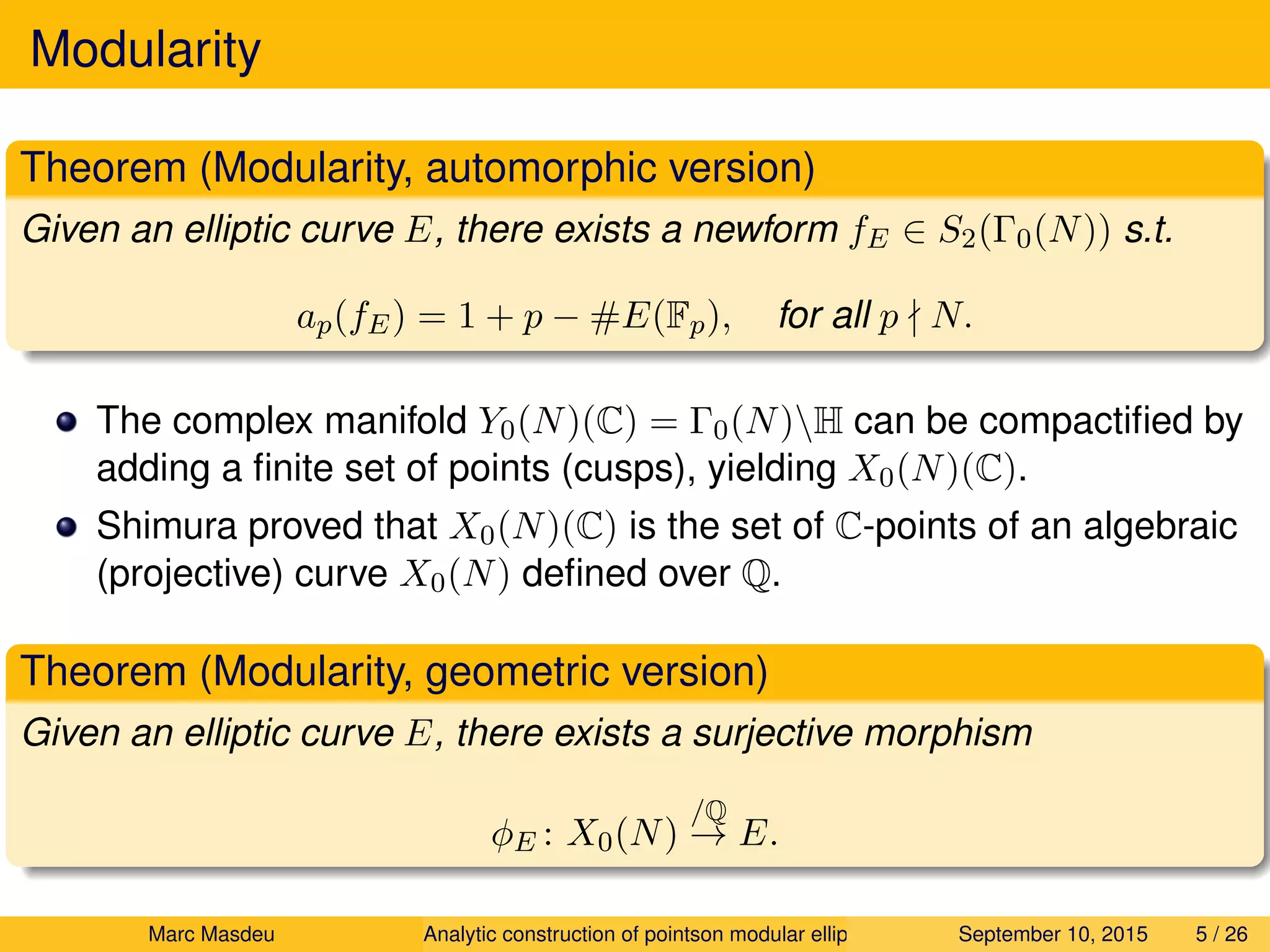

6. Modularity
Theorem (Modularity, automorphic version)
Given an elliptic curve E, there exists a newform fE ∈ S2(Γ0(N)) s.t.
ap(fE) = 1 + p − #E(Fp), for all p N.
The complex manifold Y0(N)(C) = Γ0(N)H can be compactified by
adding a finite set of points (cusps), yielding X0(N)(C).
Shimura proved that X0(N)(C) is the set of C-points of an algebraic
(projective) curve X0(N) defined over Q.
Theorem (Modularity, geometric version)
Given an elliptic curve E, there exists a surjective morphism
φE : X0(N)
/Q
→ E.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 5 / 26

7. Plan
1 Heegner points
2 After Heegner
3 Quadratic ATR points
4 Cubic (1, 1) points
5 Example
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 6 / 26

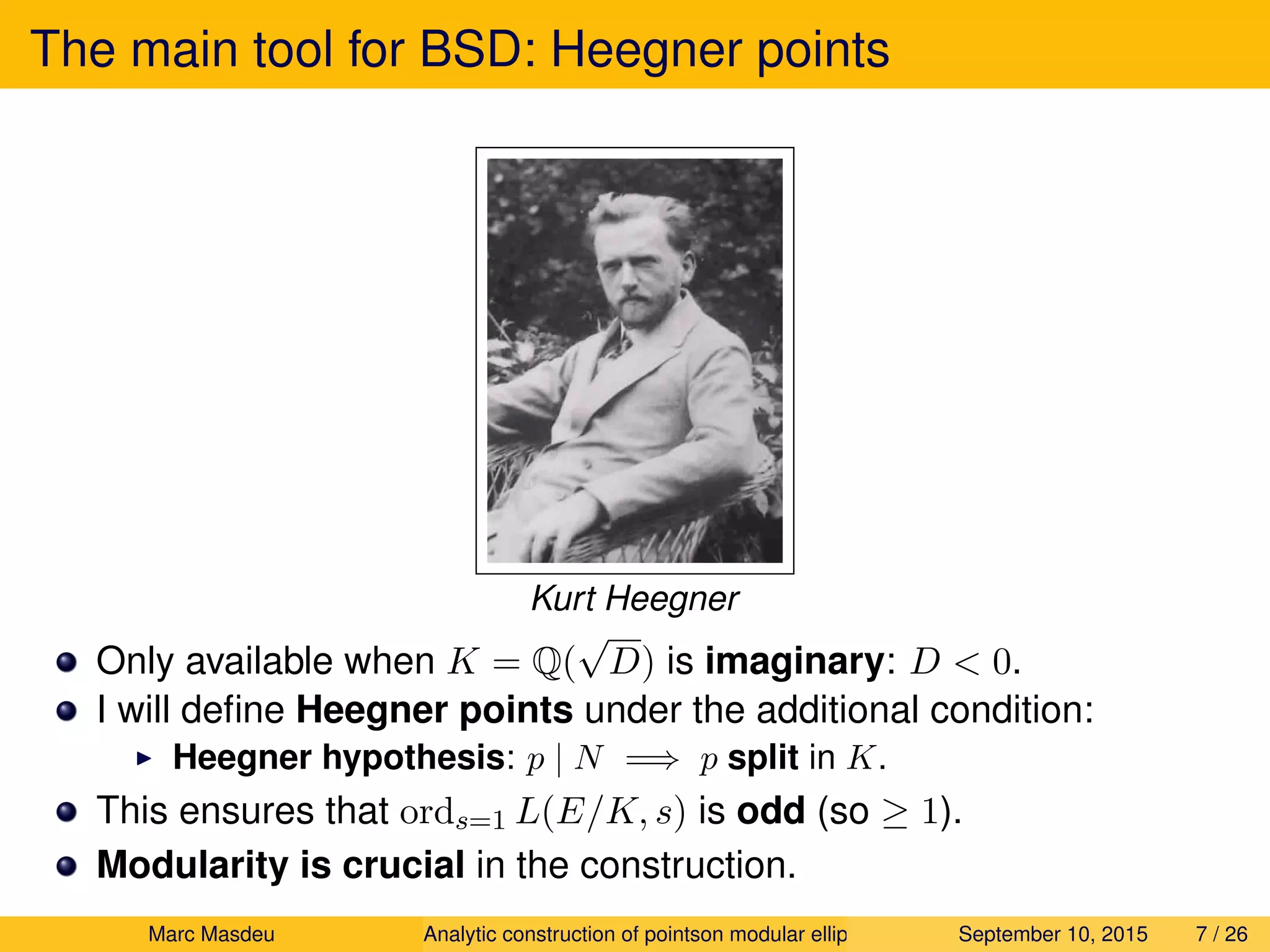

8. The main tool for BSD: Heegner points
Kurt Heegner
Only available when K = Q(
√
D) is imaginary: D < 0.
I will define Heegner points under the additional condition:
Heegner hypothesis: p | N =⇒ p split in K.
This ensures that ords=1 L(E/K, s) is odd (so ≥ 1).
Modularity is crucial in the construction.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 7 / 26

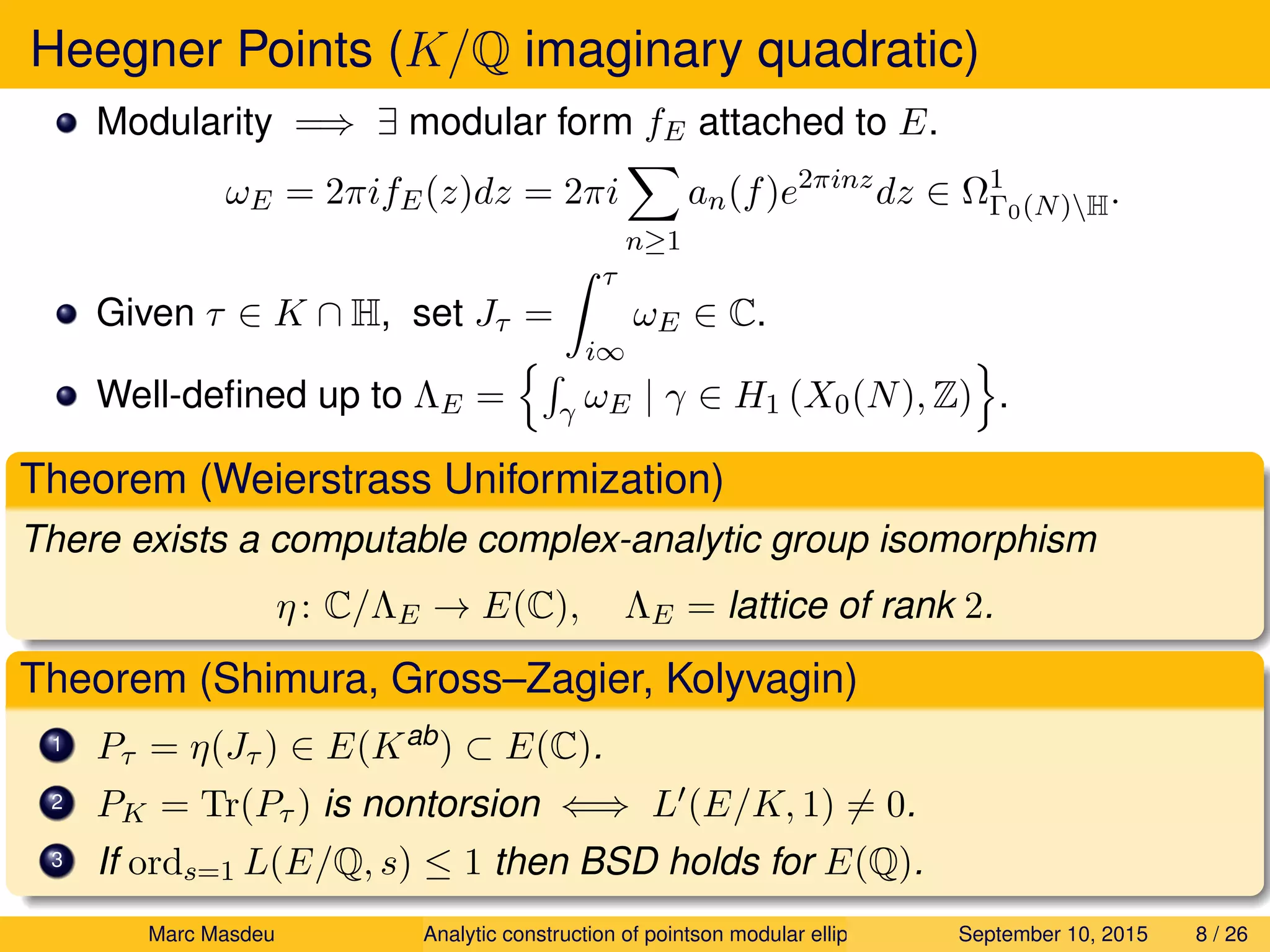

9. Heegner Points (K/Q imaginary quadratic)
Modularity =⇒ ∃ modular form fE attached to E.
ωE = 2πifE(z)dz = 2πi
n≥1
an(f)e2πinz
dz ∈ Ω1
Γ0(N)H.
Given τ ∈ K ∩ H, set Jτ =
τ
i∞
ωE ∈ C.
Well-defined up to ΛE = γ ωE | γ ∈ H1 (X0(N), Z) .
Theorem (Weierstrass Uniformization)
There exists a computable complex-analytic group isomorphism
η: C/ΛE → E(C), ΛE = lattice of rank 2.
Theorem (Shimura, Gross–Zagier, Kolyvagin)
1 Pτ = η(Jτ ) ∈ E(Kab) ⊂ E(C).
2 PK = Tr(Pτ ) is nontorsion ⇐⇒ L (E/K, 1) = 0.
3 If ords=1 L(E/Q, s) ≤ 1 then BSD holds for E(Q).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 8 / 26

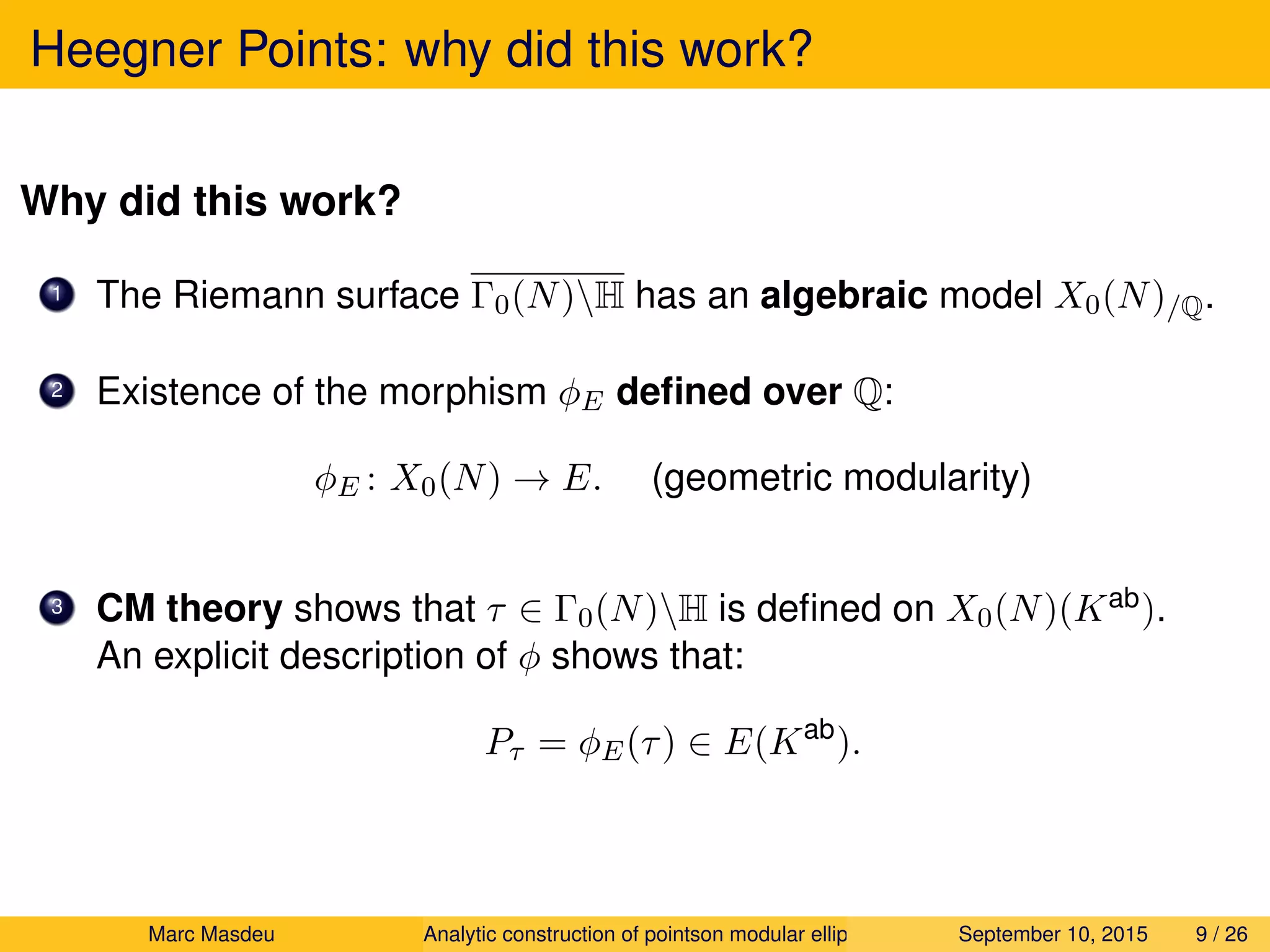

10. Heegner Points: why did this work?
Why did this work?
1 The Riemann surface Γ0(N)H has an algebraic model X0(N)/Q.
2 Existence of the morphism φE defined over Q:
φE : X0(N) → E. (geometric modularity)
3 CM theory shows that τ ∈ Γ0(N)H is defined on X0(N)(Kab).
An explicit description of φ shows that:
Pτ = φE(τ) ∈ E(Kab
).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 9 / 26

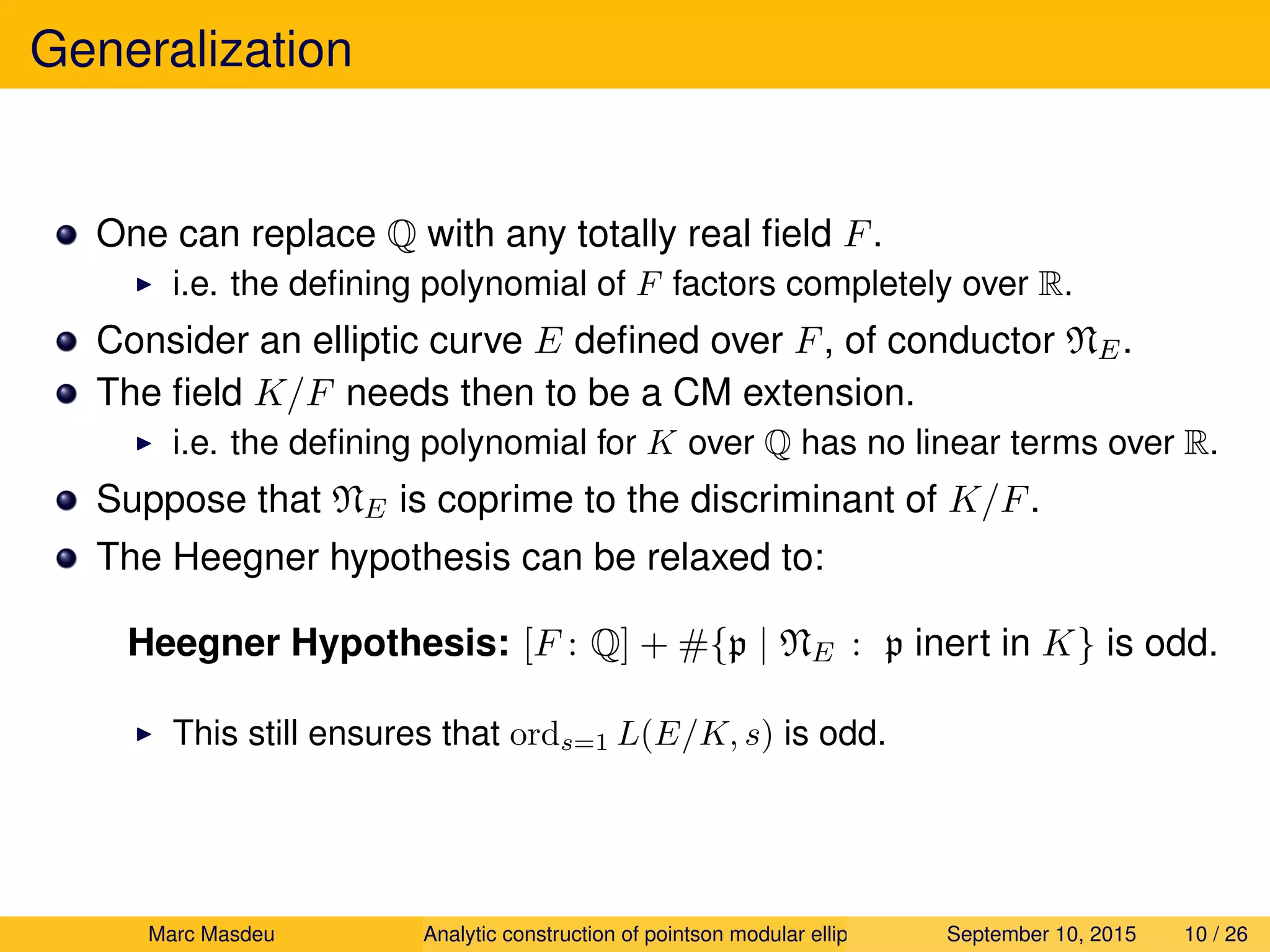

11. Generalization
One can replace Q with any totally real field F.
i.e. the defining polynomial of F factors completely over R.
Consider an elliptic curve E defined over F, of conductor NE.
The field K/F needs then to be a CM extension.
i.e. the defining polynomial for K over Q has no linear terms over R.
Suppose that NE is coprime to the discriminant of K/F.
The Heegner hypothesis can be relaxed to:
Heegner Hypothesis: [F : Q] + #{p | NE : p inert in K} is odd.
This still ensures that ords=1 L(E/K, s) is odd.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 10 / 26

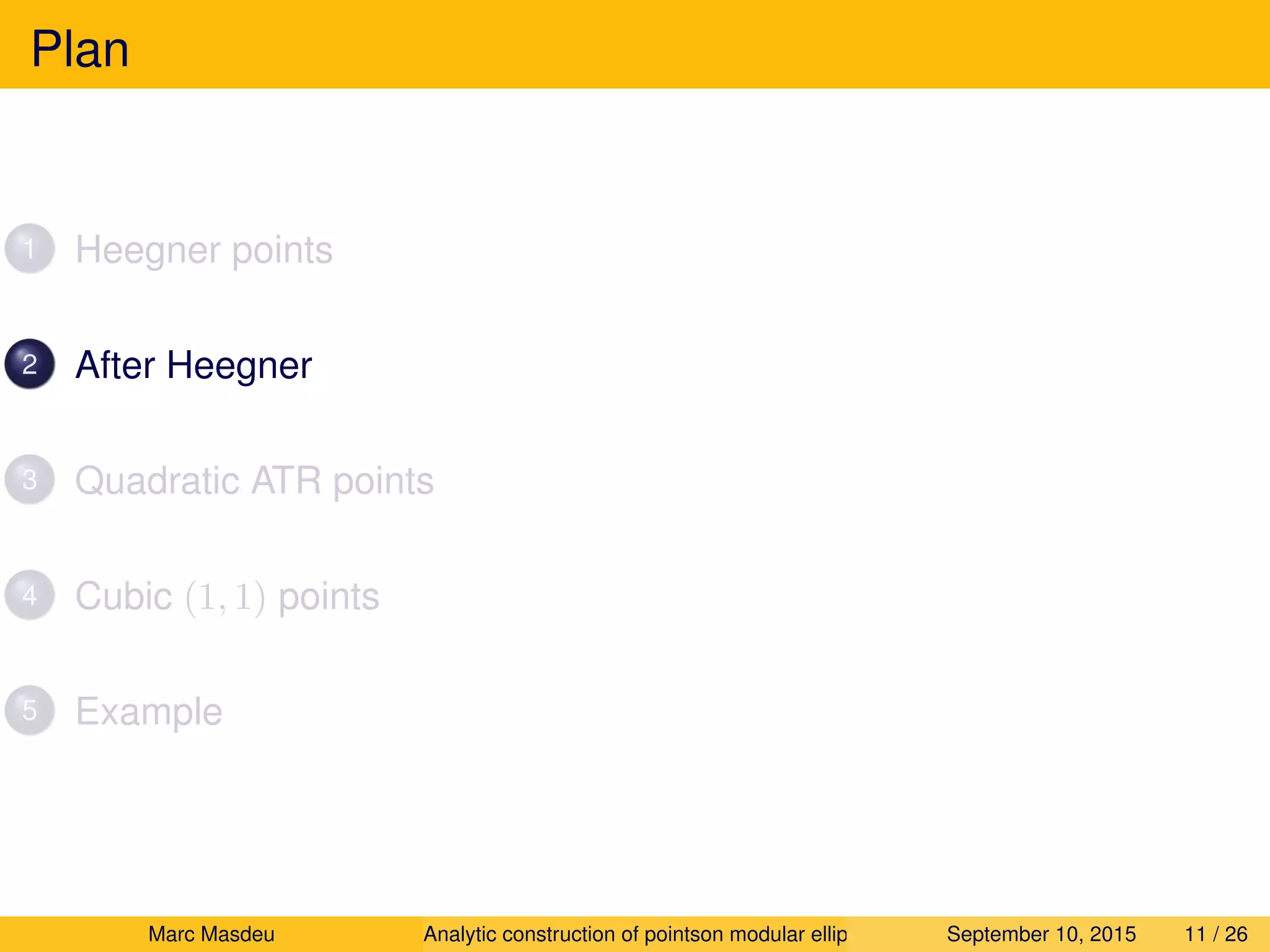

12. Plan
1 Heegner points
2 After Heegner
3 Quadratic ATR points
4 Cubic (1, 1) points
5 Example
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 11 / 26

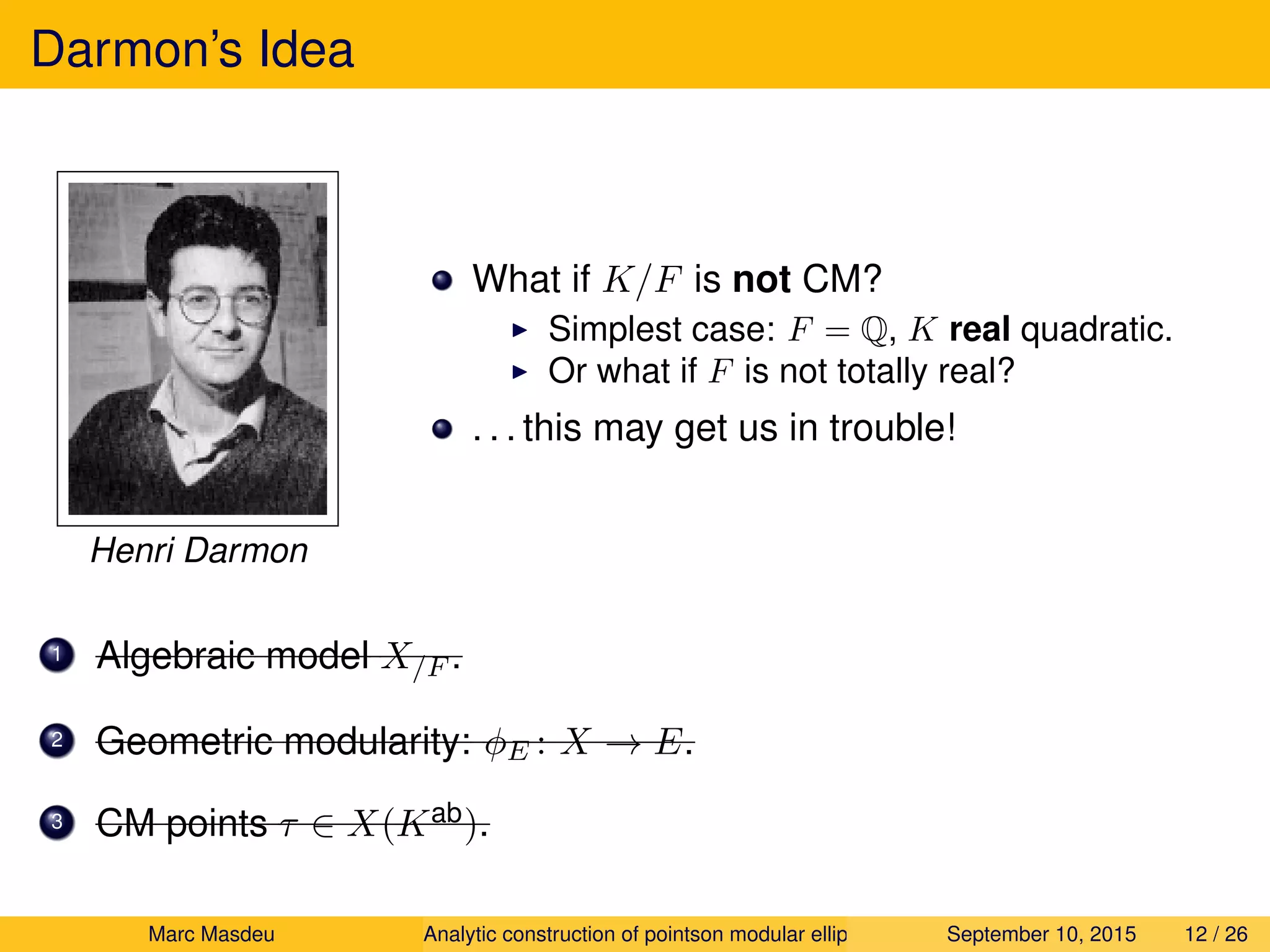

13. Darmon’s Idea
Henri Darmon
What if K/F is not CM?
Simplest case: F = Q, K real quadratic.
Or what if F is not totally real?
. . . this may get us in trouble!
1 Algebraic model X/F .
2 Geometric modularity: φE : X → E.
3 CM points τ ∈ X(Kab).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 12 / 26

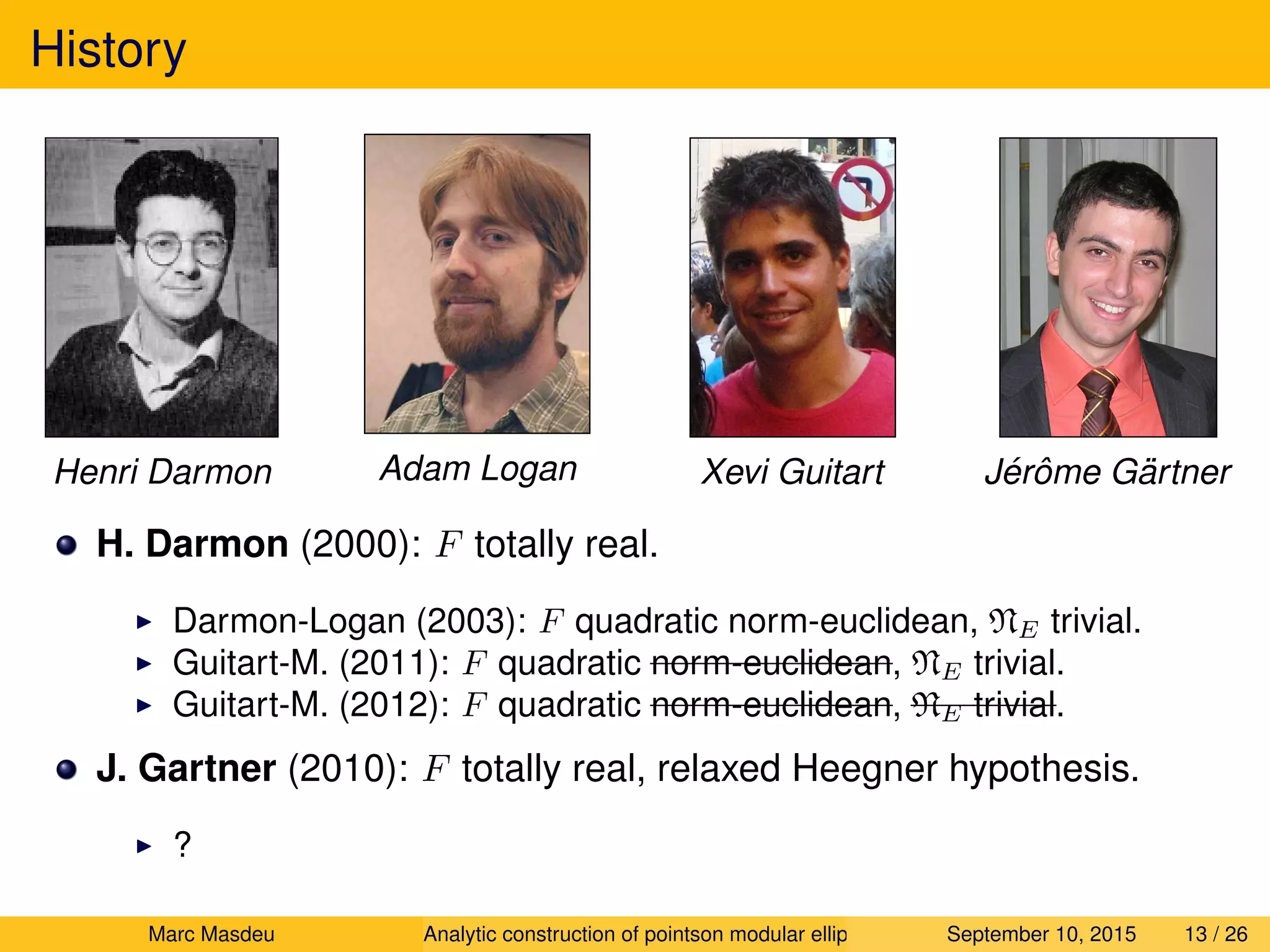

14. History
Henri Darmon Adam Logan Xevi Guitart J´erˆome G¨artner
H. Darmon (2000): F totally real.
Darmon-Logan (2003): F quadratic norm-euclidean, NE trivial.
Guitart-M. (2011): F quadratic norm-euclidean, NE trivial.
Guitart-M. (2012): F quadratic norm-euclidean, NE trivial.
J. Gartner (2010): F totally real, relaxed Heegner hypothesis.
?
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 13 / 26

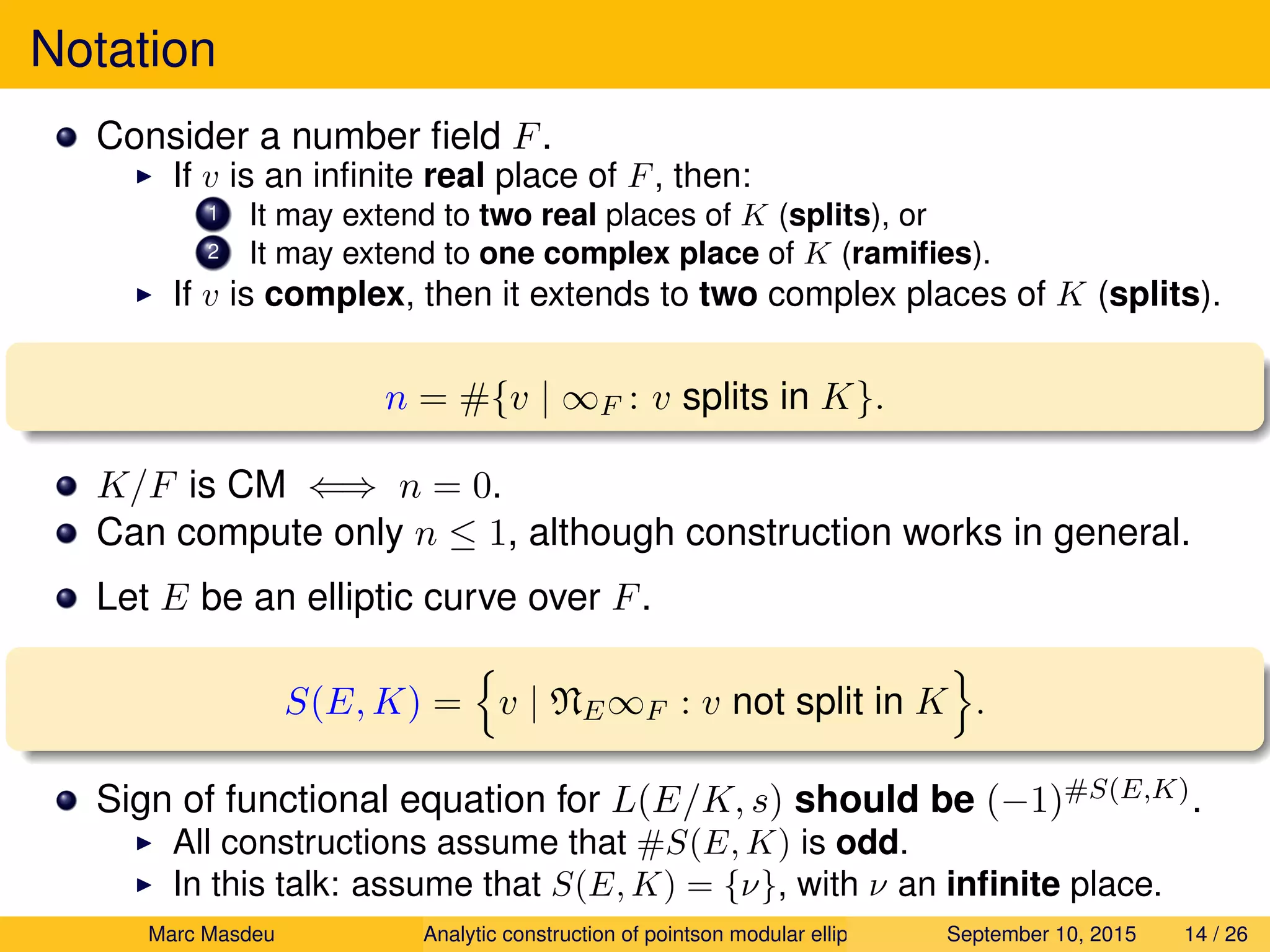

15. Notation
Consider a number field F.
If v is an infinite real place of F, then:
1 It may extend to two real places of K (splits), or
2 It may extend to one complex place of K (ramifies).
If v is complex, then it extends to two complex places of K (splits).
n = #{v | ∞F : v splits in K}.
K/F is CM ⇐⇒ n = 0.
Can compute only n ≤ 1, although construction works in general.
Let E be an elliptic curve over F.
S(E, K) = v | NE∞F : v not split in K .
Sign of functional equation for L(E/K, s) should be (−1)#S(E,K).
All constructions assume that #S(E, K) is odd.
In this talk: assume that S(E, K) = {ν}, with ν an infinite place.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 14 / 26

16. Plan
1 Heegner points
2 After Heegner
3 Quadratic ATR points
4 Cubic (1, 1) points
5 Example
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 15 / 26

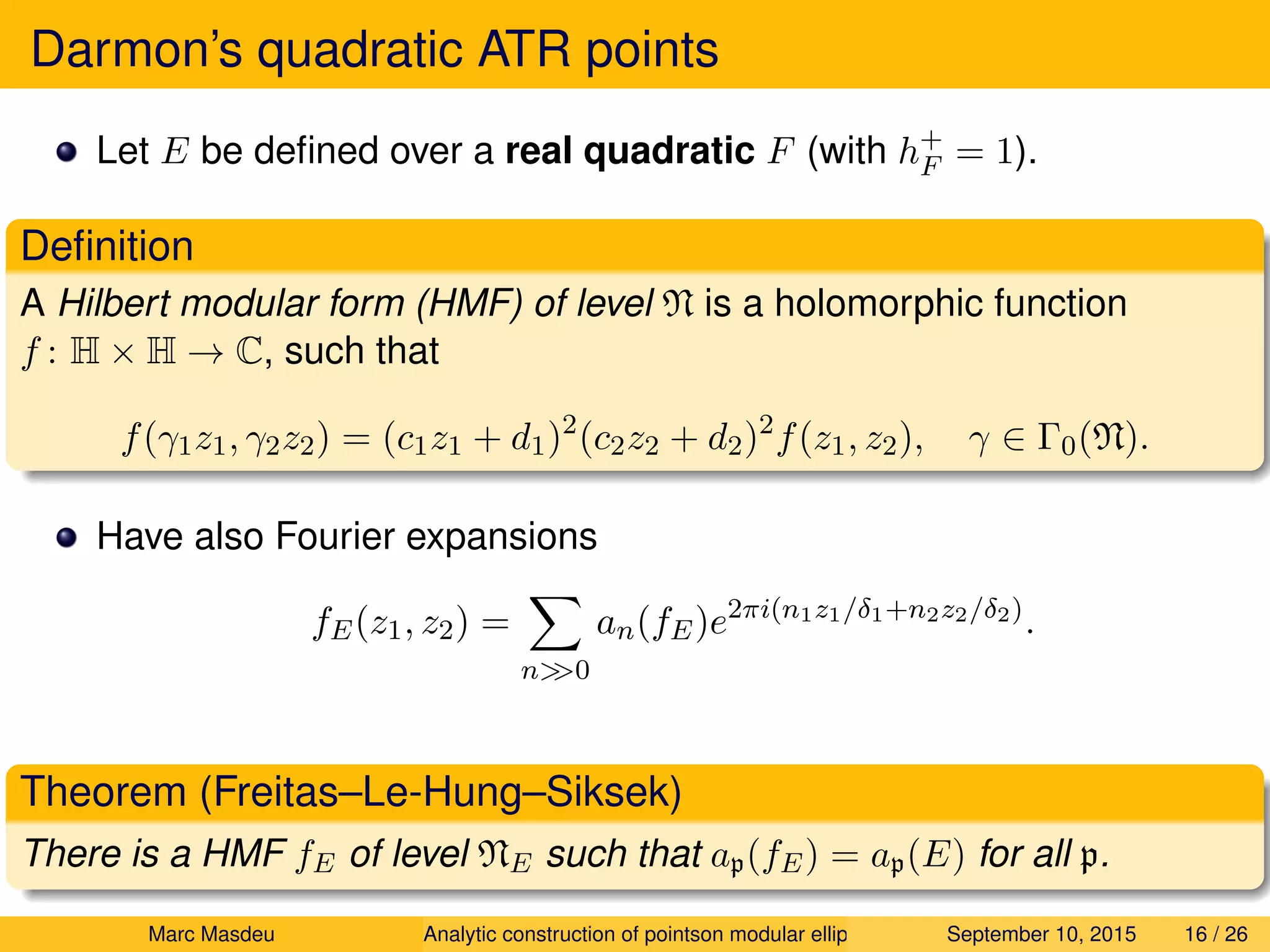

17. Darmon’s quadratic ATR points
Let E be defined over a real quadratic F (with h+
F = 1).
Definition
A Hilbert modular form (HMF) of level N is a holomorphic function
f : H × H → C, such that
f(γ1z1, γ2z2) = (c1z1 + d1)2
(c2z2 + d2)2
f(z1, z2), γ ∈ Γ0(N).
Have also Fourier expansions
fE(z1, z2) =
n>>0
an(fE)e2πi(n1z1/δ1+n2z2/δ2)
.
Theorem (Freitas–Le-Hung–Siksek)
There is a HMF fE of level NE such that ap(fE) = ap(E) for all p.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 16 / 26

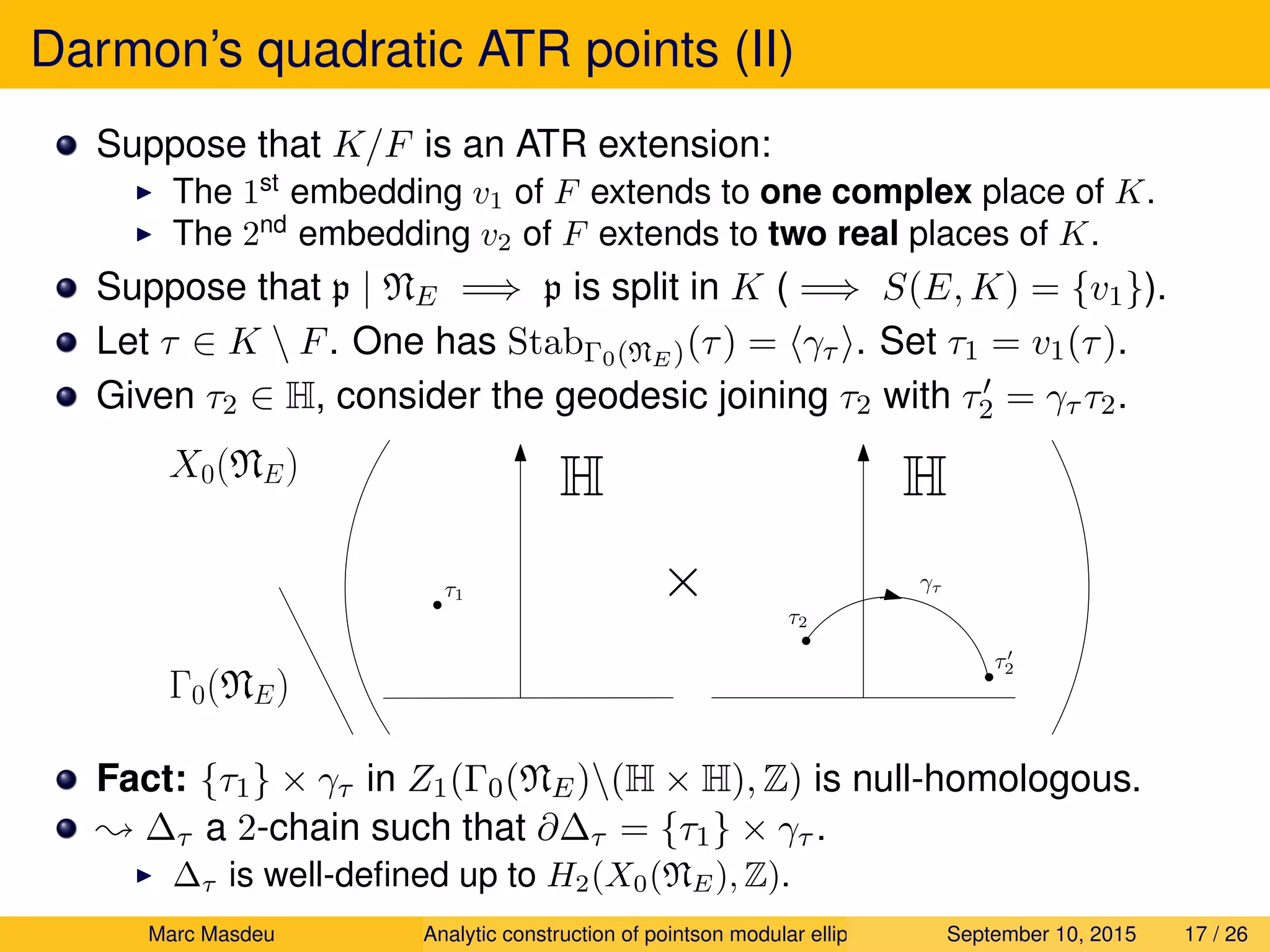

18. Darmon’s quadratic ATR points (II)
Suppose that K/F is an ATR extension:
The 1st
embedding v1 of F extends to one complex place of K.
The 2nd
embedding v2 of F extends to two real places of K.
Suppose that p | NE =⇒ p is split in K ( =⇒ S(E, K) = {v1}).
Let τ ∈ K F. One has StabΓ0(NE)(τ) = γτ . Set τ1 = v1(τ).
Given τ2 ∈ H, consider the geodesic joining τ2 with τ2 = γτ τ2.
×
H H
τ1
τ2
τ2
γτ
Γ0(NE)
X0(NE)
Fact: {τ1} × γτ in Z1(Γ0(NE)(H × H), Z) is null-homologous.
; ∆τ a 2-chain such that ∂∆τ = {τ1} × γτ .
∆τ is well-defined up to H2(X0(NE), Z).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 17 / 26

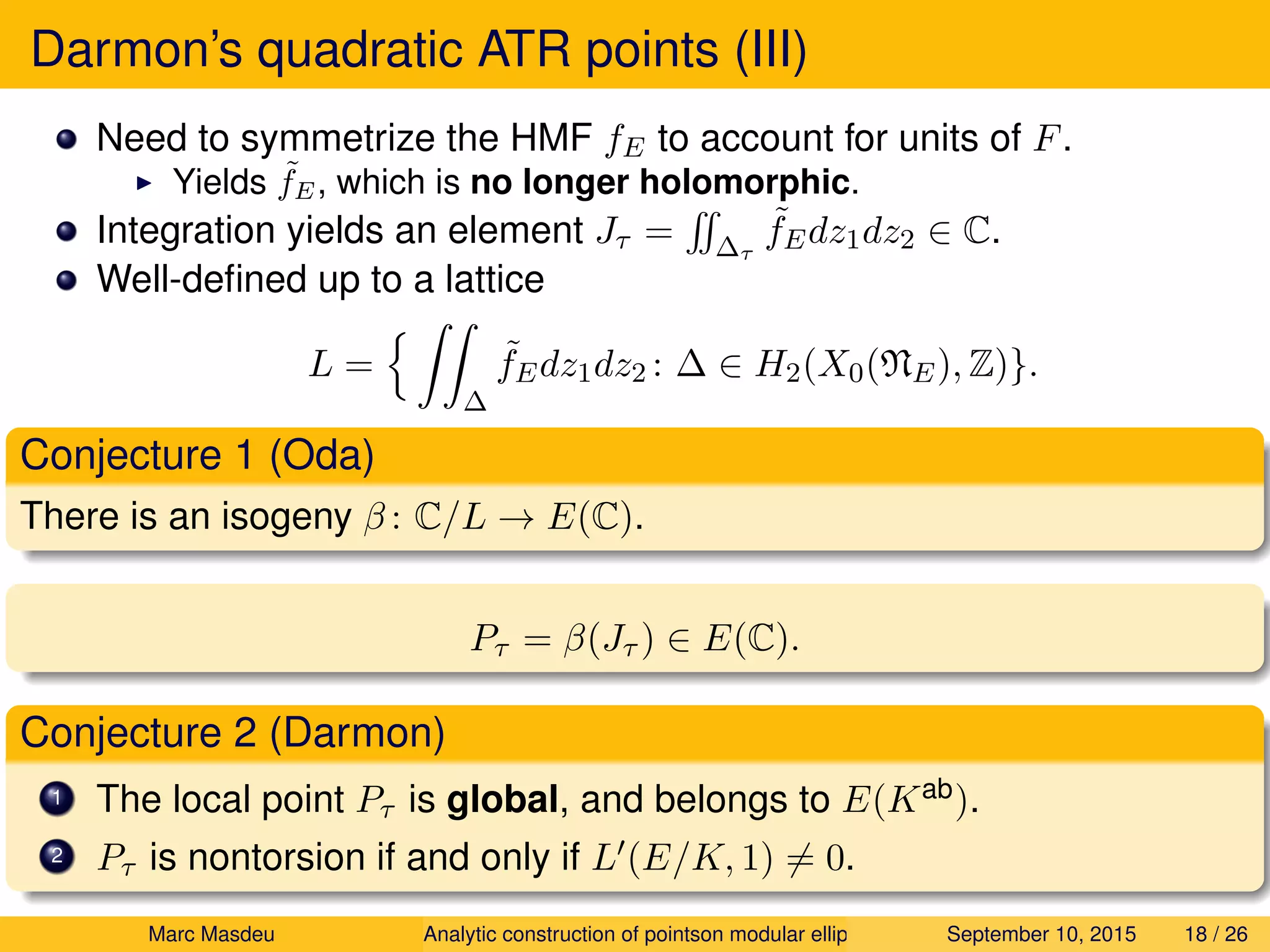

19. Darmon’s quadratic ATR points (III)
Need to symmetrize the HMF fE to account for units of F.
Yields ˜fE, which is no longer holomorphic.
Integration yields an element Jτ = ∆τ
˜fEdz1dz2 ∈ C.
Well-defined up to a lattice
L =
∆
˜fEdz1dz2 : ∆ ∈ H2(X0(NE), Z)}.
Conjecture 1 (Oda)
There is an isogeny β : C/L → E(C).
Pτ = β(Jτ ) ∈ E(C).
Conjecture 2 (Darmon)
1 The local point Pτ is global, and belongs to E(Kab).
2 Pτ is nontorsion if and only if L (E/K, 1) = 0.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 18 / 26

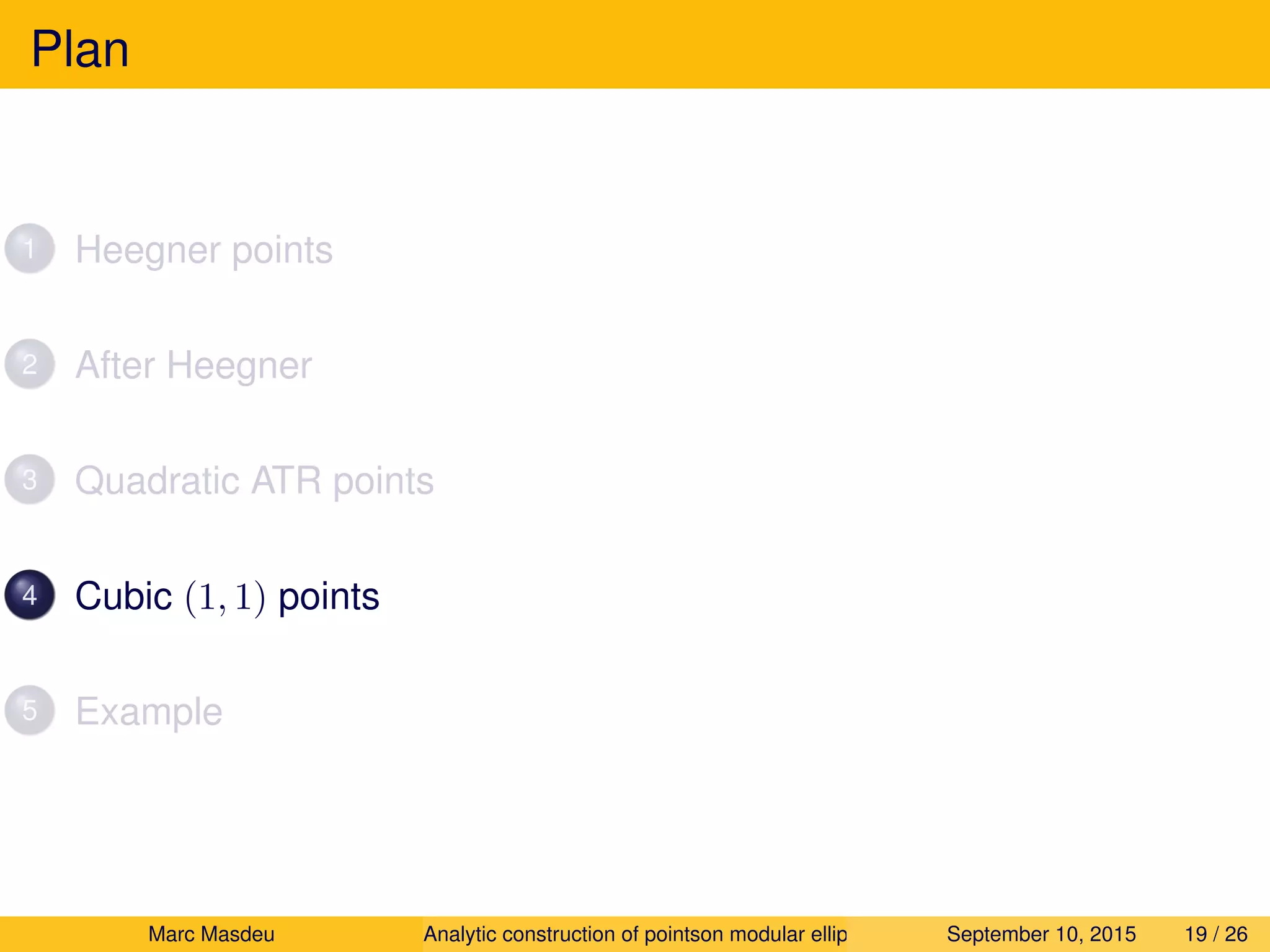

20. Plan
1 Heegner points
2 After Heegner
3 Quadratic ATR points
4 Cubic (1, 1) points
5 Example
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 19 / 26

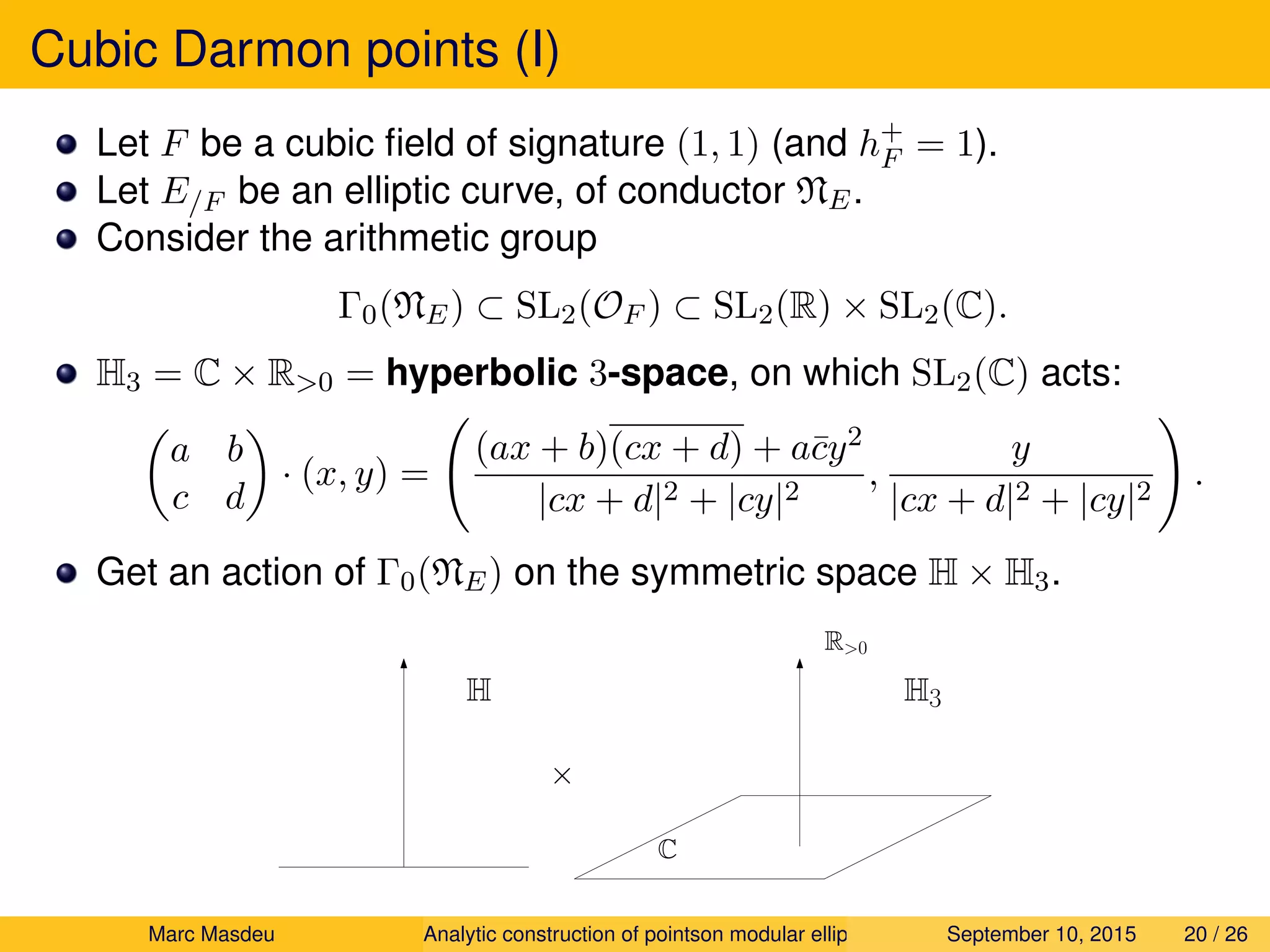

21. Cubic Darmon points (I)
Let F be a cubic field of signature (1, 1) (and h+
F = 1).
Let E/F be an elliptic curve, of conductor NE.
Consider the arithmetic group
Γ0(NE) ⊂ SL2(OF ) ⊂ SL2(R) × SL2(C).
H3 = C × R>0 = hyperbolic 3-space, on which SL2(C) acts:
a b
c d
· (x, y) =
(ax + b)(cx + d) + a¯cy2
|cx + d|2 + |cy|2
,
y
|cx + d|2 + |cy|2
.
Get an action of Γ0(NE) on the symmetric space H × H3.
R>0
C
×
H H3
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 20 / 26

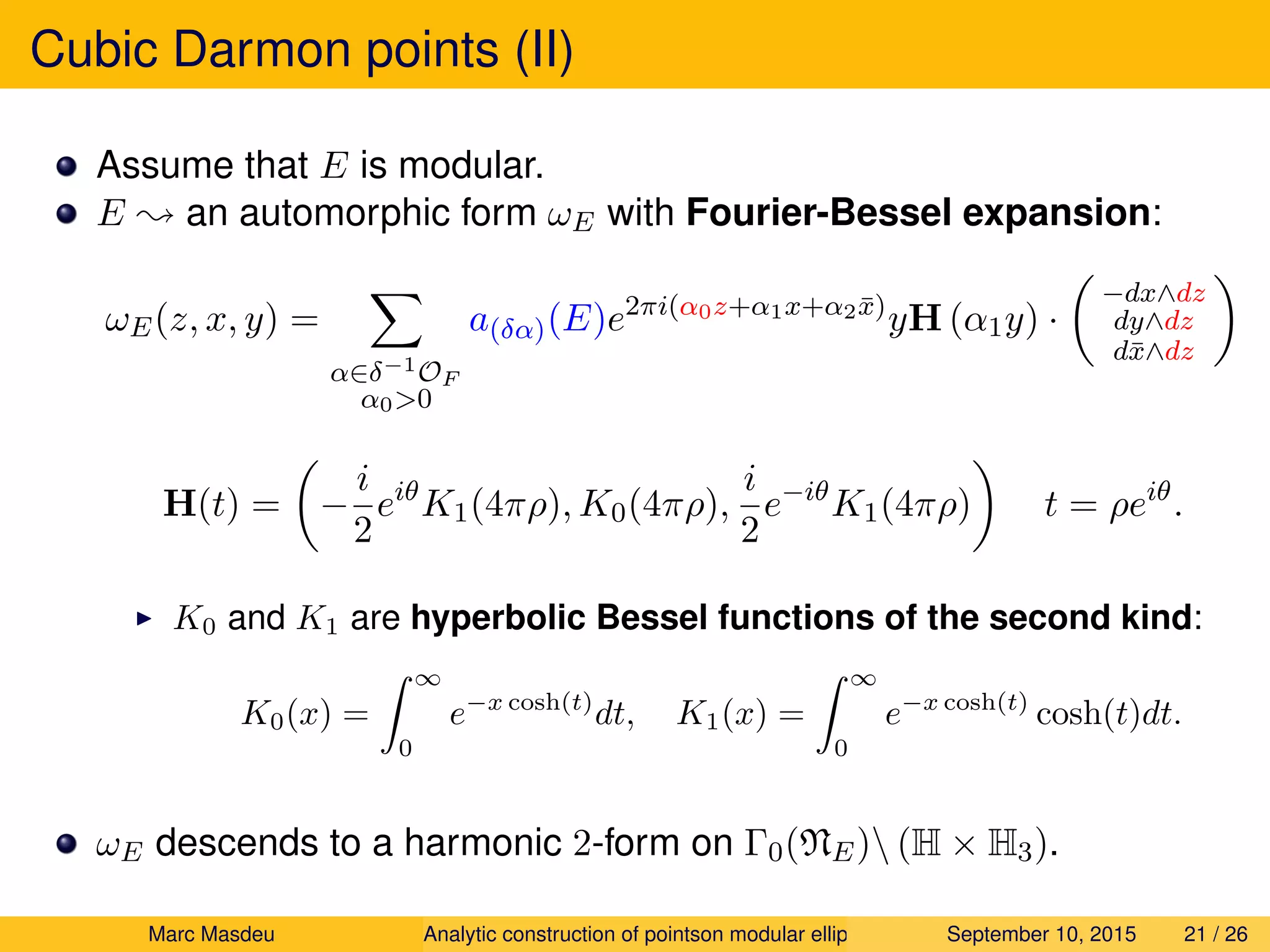

22. Cubic Darmon points (II)
Assume that E is modular.
E ; an automorphic form ωE with Fourier-Bessel expansion:
ωE(z, x, y) =
α∈δ−1OF
α0>0
a(δα)(E)e2πi(α0z+α1x+α2 ¯x)
yH (α1y) ·
−dx∧dz
dy∧dz
d¯x∧dz
H(t) = −
i
2
eiθ
K1(4πρ), K0(4πρ),
i
2
e−iθ
K1(4πρ) t = ρeiθ
.
K0 and K1 are hyperbolic Bessel functions of the second kind:
K0(x) =
∞
0
e−x cosh(t)
dt, K1(x) =
∞
0
e−x cosh(t)
cosh(t)dt.
ωE descends to a harmonic 2-form on Γ0(NE) (H × H3).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 21 / 26

23. Cubic Darmon points (III)
Let K be a totally complex quadratic extension of F.
Suppose that p | NE =⇒ p is split in K. ( =⇒ S(E, K) = {v1}).
Choose τ ∈ K F.
R>0
C
×
H H3
τ1
γτ
τ2
τ2
Γ0(NE)
τ ; ∆τ ∈ C2(Γ0(NE), Z).
Jτ =
∆τ
˜ωE ∈ C.
Jτ ; Pτ via C/ΛE → E(C).
Conjecture: Pτ is defined over a finite abelian extension of K.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 22 / 26

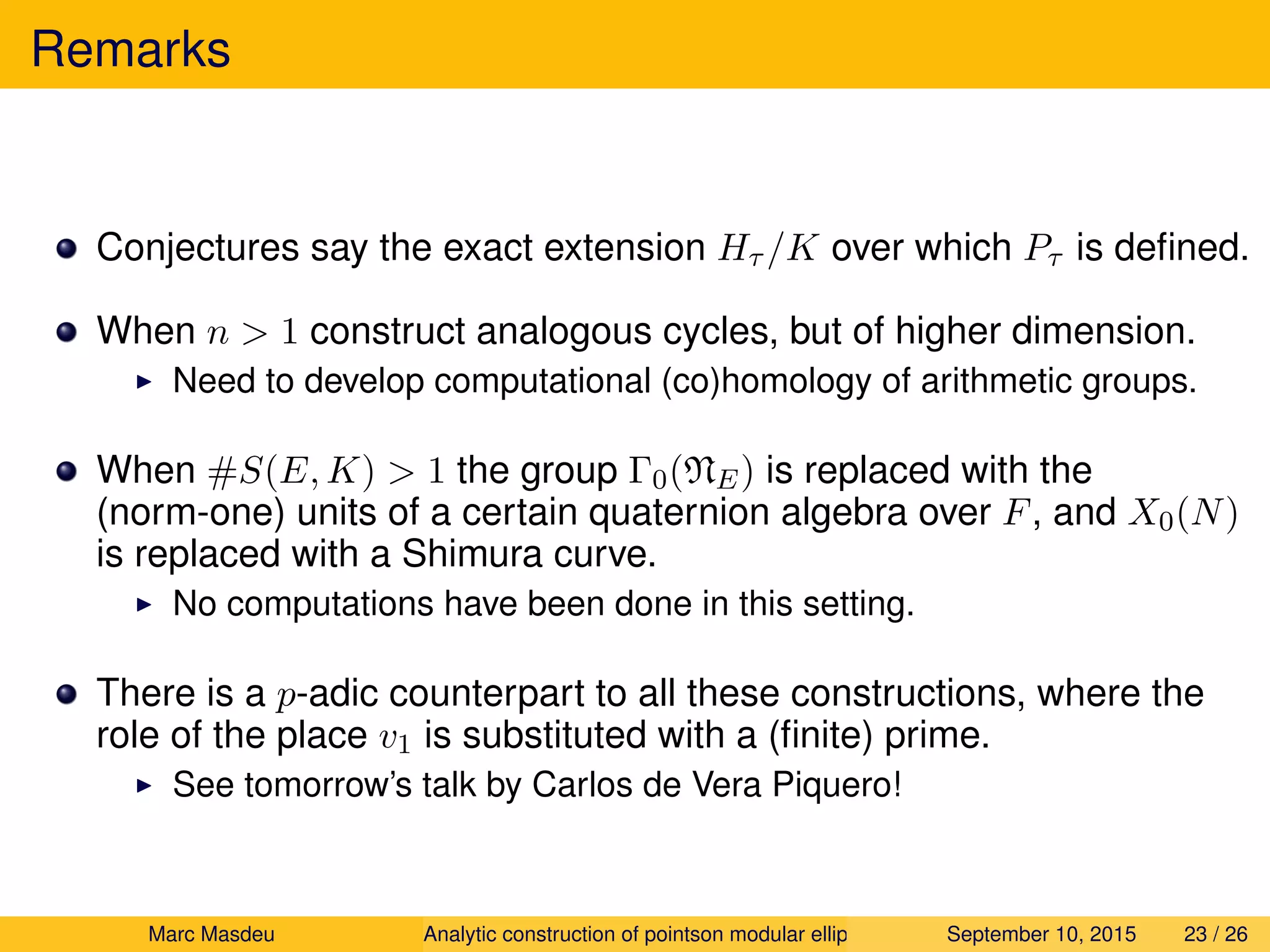

24. Remarks
Conjectures say the exact extension Hτ /K over which Pτ is defined.
When n > 1 construct analogous cycles, but of higher dimension.
Need to develop computational (co)homology of arithmetic groups.
When #S(E, K) > 1 the group Γ0(NE) is replaced with the
(norm-one) units of a certain quaternion algebra over F, and X0(N)
is replaced with a Shimura curve.
No computations have been done in this setting.
There is a p-adic counterpart to all these constructions, where the
role of the place v1 is substituted with a (finite) prime.
See tomorrow’s talk by Carlos de Vera Piquero!
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 23 / 26

25. Plan
1 Heegner points
2 After Heegner
3 Quadratic ATR points
4 Cubic (1, 1) points
5 Example
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 24 / 26

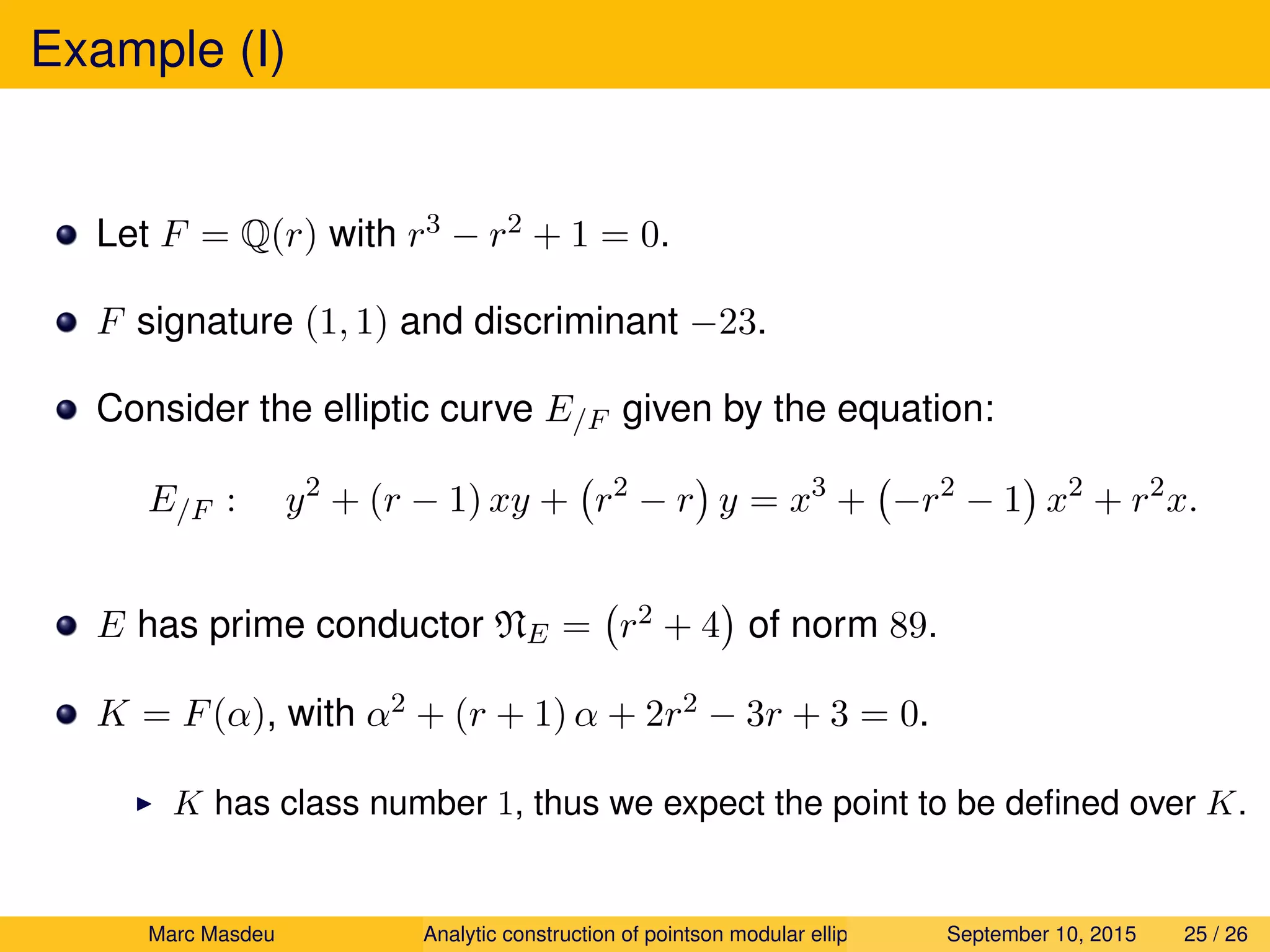

26. Example (I)
Let F = Q(r) with r3 − r2 + 1 = 0.
F signature (1, 1) and discriminant −23.
Consider the elliptic curve E/F given by the equation:
E/F : y2
+ (r − 1) xy + r2
− r y = x3
+ −r2
− 1 x2
+ r2
x.
E has prime conductor NE = r2 + 4 of norm 89.
K = F(α), with α2 + (r + 1) α + 2r2 − 3r + 3 = 0.
K has class number 1, thus we expect the point to be defined over K.
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 25 / 26

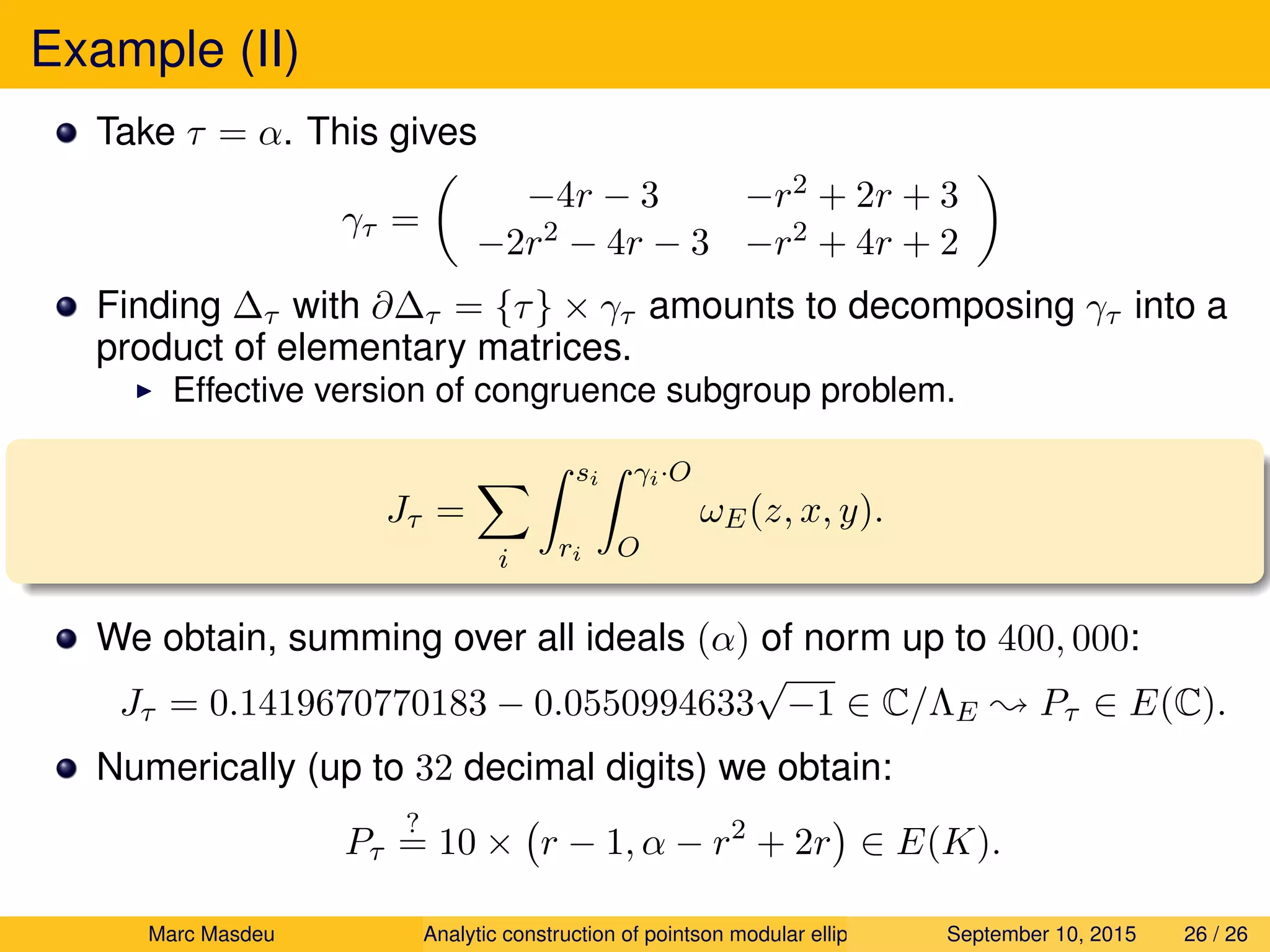

27. Example (II)
Take τ = α. This gives
γτ =
−4r − 3 −r2 + 2r + 3
−2r2 − 4r − 3 −r2 + 4r + 2
Finding ∆τ with ∂∆τ = {τ} × γτ amounts to decomposing γτ into a
product of elementary matrices.
Effective version of congruence subgroup problem.
Jτ =
i
si
ri
γi·O
O
ωE(z, x, y).
We obtain, summing over all ideals (α) of norm up to 400, 000:
Jτ = 0.1419670770183 − 0.0550994633
√
−1 ∈ C/ΛE ; Pτ ∈ E(C).
Numerically (up to 32 decimal digits) we obtain:
Pτ
?
= 10 × r − 1, α − r2
+ 2r ∈ E(K).
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 26 / 26

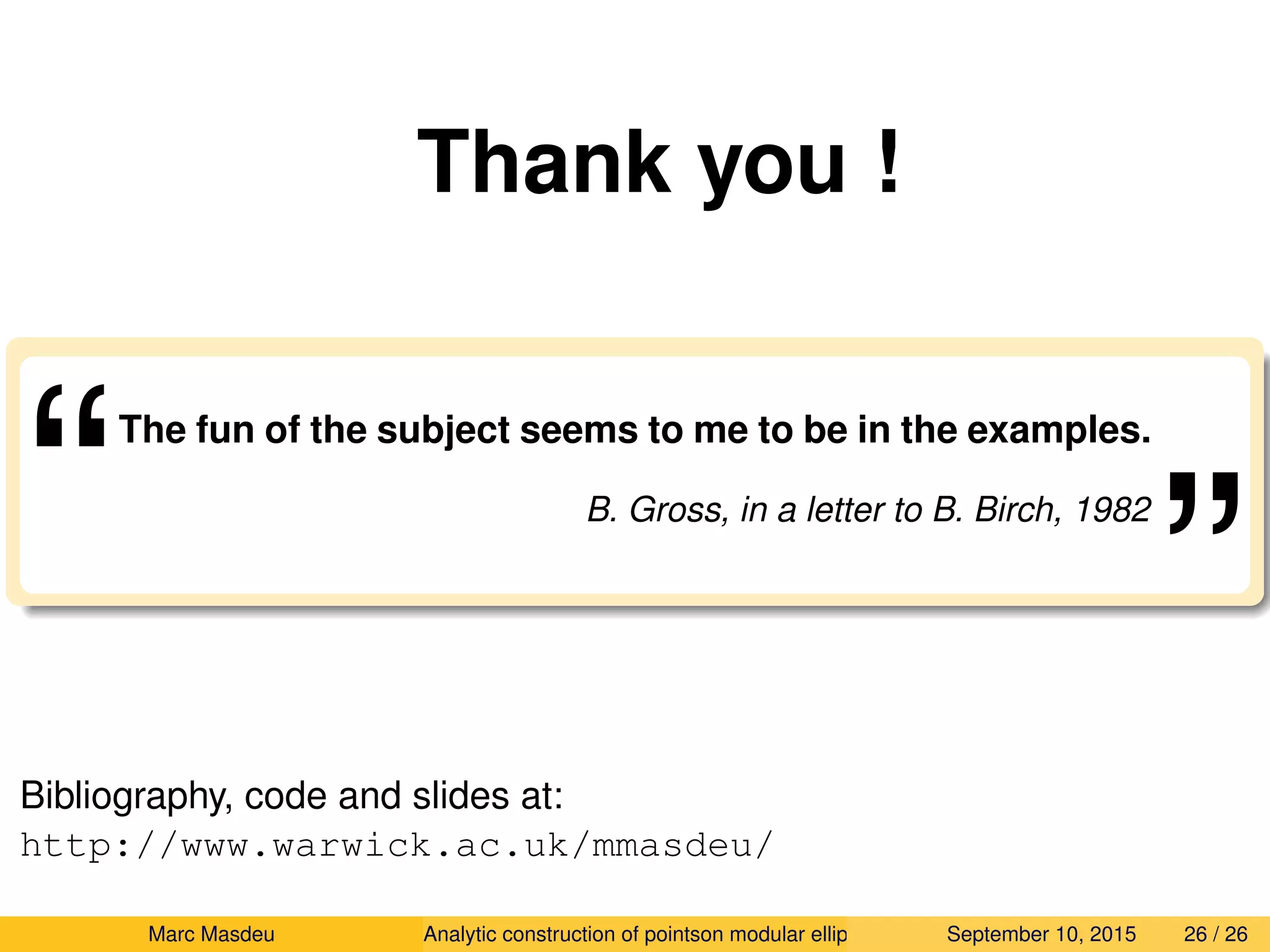

28. Thank you !
“The fun of the subject seems to me to be in the examples.
B. Gross, in a letter to B. Birch, 1982
”
Bibliography, code and slides at:
http://www.warwick.ac.uk/mmasdeu/
Marc Masdeu Analytic construction of pointson modular elliptic curves September 10, 2015 26 / 26
