This document provides an introduction to using MapReduce with MongoDB. It explains what MapReduce is, how it works, and provides examples of mapping and reducing sample data to calculate applications by state, applications by status and state, and average wages by visa class and status. It also discusses some limitations and considerations when using MapReduce with MongoDB.

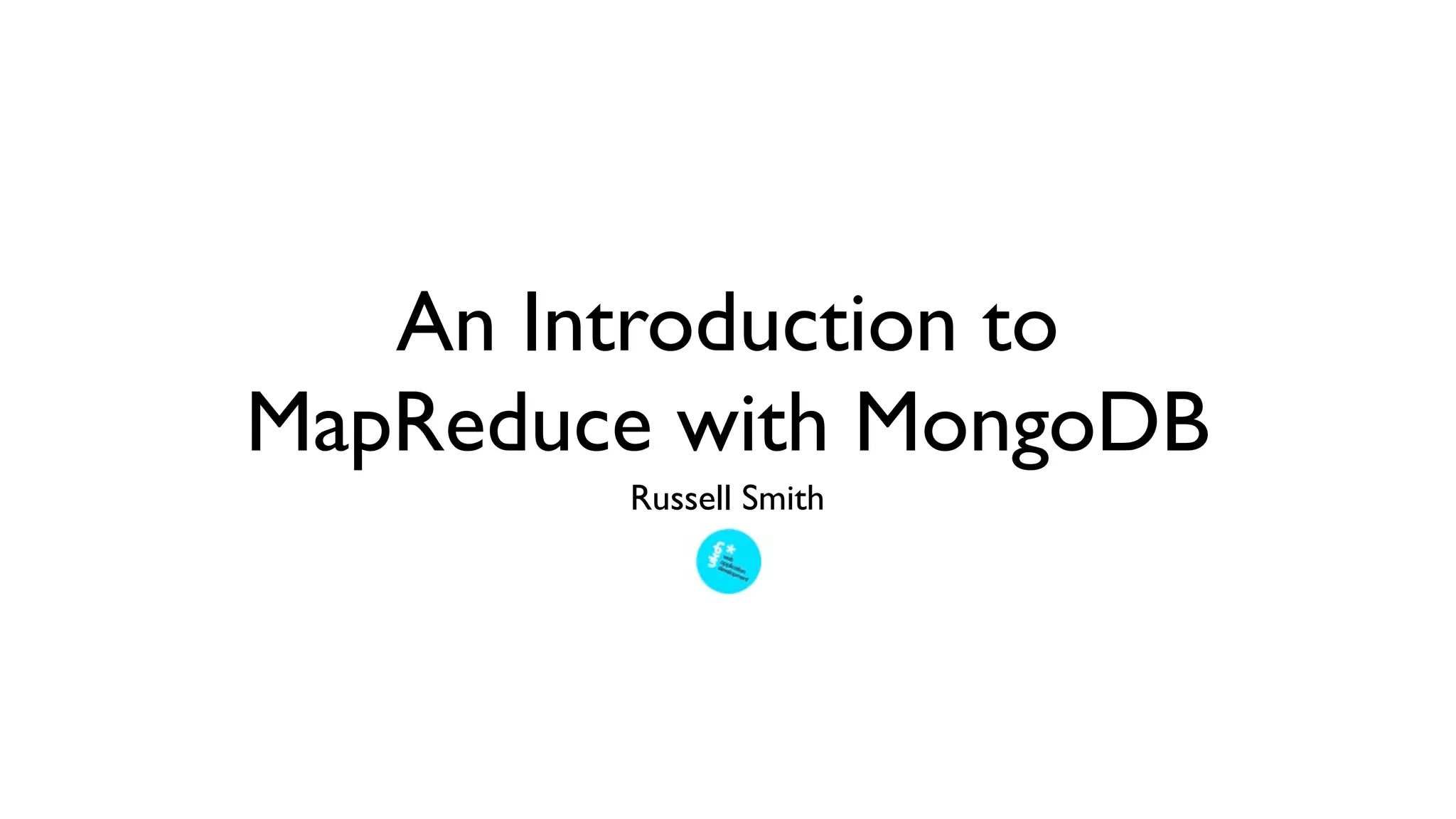

1. An Introduction to
MapReduce with MongoDB
Russell Smith

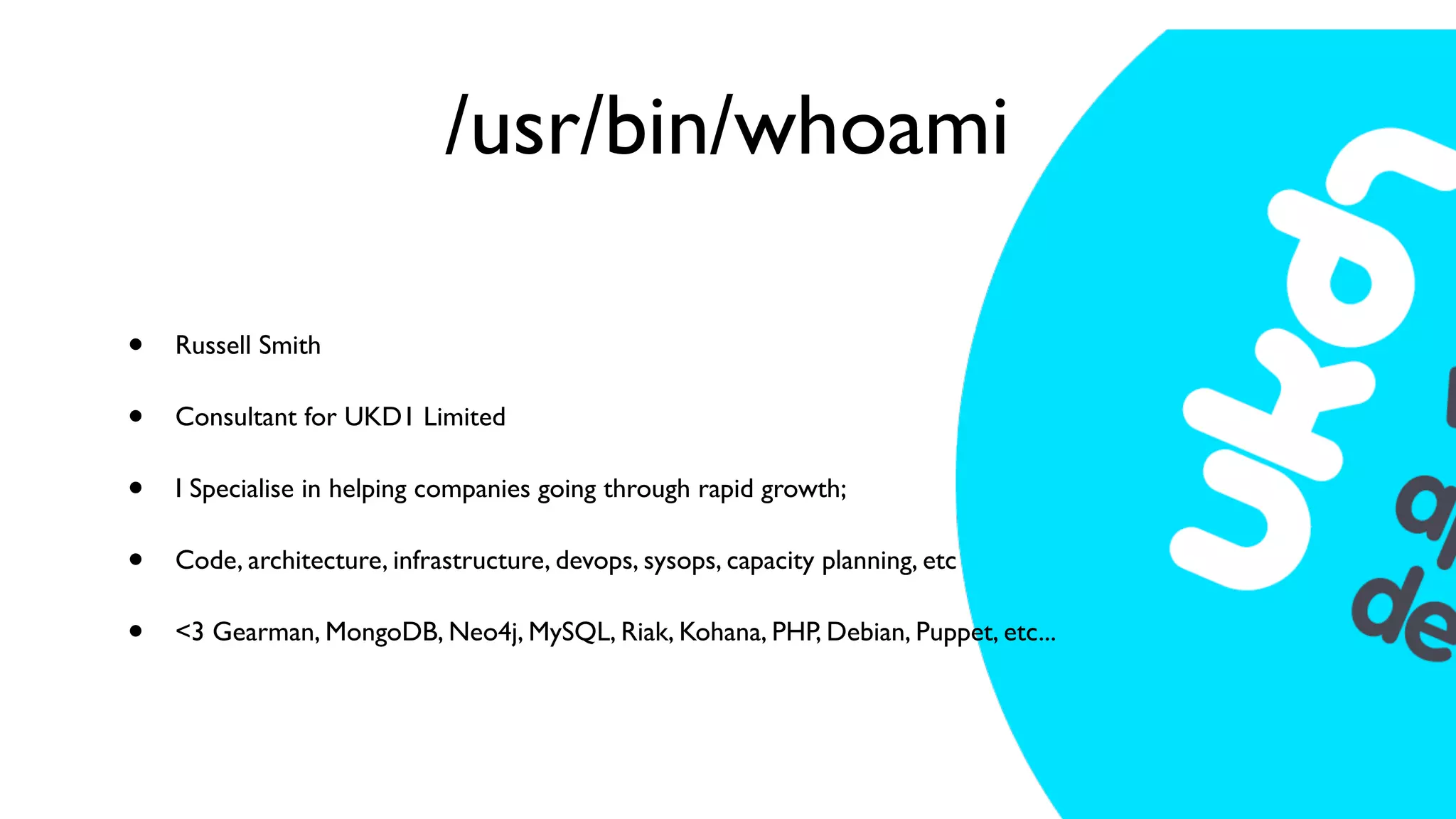

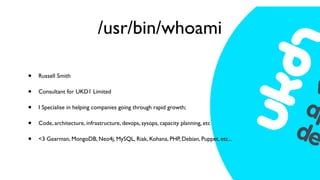

2. /usr/bin/whoami
• Russell Smith
• Consultant for UKD1 Limited
• I Specialise in helping companies going through rapid growth;
• Code, architecture, infrastructure, devops, sysops, capacity planning, etc
• <3 Gearman, MongoDB, Neo4j, MySQL, Riak, Kohana, PHP, Debian, Puppet, etc...

3. What is MongoDB
• A scalable, high-performance, open source, document-oriented
database.
• Stores JSON like documents
• Indexible on any attributes (like MySQL)
• Built in MapReduce

4. Requirements
• A running MongoDB server
http://www.mongodb.org/downloads
• Basic knowledge of MongoDB
• Basic Javascript

5. What is Map Reduce
• Allows aggregating data in parallel
• Some built in aggregation functions exist;
distinct, count
• If you need to do something more, either query or MapReduce

6. How does it work?
• You write two functions
• You write them in Javascript (currently)
• Map function:
Called once per document - returns a key + a value
• Reduce function:
Called once per key emitted, with an array of values
• Optional finalize function allowing rounding up of the reduce data

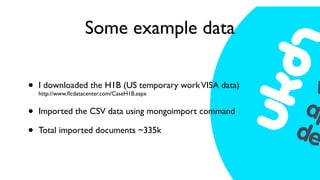

7. Some example data
• I downloaded the H1B (US temporary work VISA data)
http://www.flcdatacenter.com/CaseH1B.aspx
• Imported the CSV data using mongoimport command
• Total imported documents ~335k

8. What do the documents look like?
{
"_id" : ObjectId("4db7c981e243a6e23725570f"),
"LCA_CASE_NUMBER" : "I-200-09132-243675",
"STATUS" : "CERTIFIED",
"LCA_CASE_SUBMIT" : "7/14/2010 9:06:36",
•
"VISA_CLASS" : "H-1B",
LCA_CASE_EMPLOYER_STATE
"LCA_CASE_EMPLOYMENT_START_DATE" : "12/15/2010 0:00:00",
"LCA_CASE_EMPLOYMENT_END_DATE" : "12/15/2013 0:00:00",
"LCA_CASE_EMPLOYER_NAME" : "BRITISH SCHOOL OF AMERICA, LLC",
"LCA_CASE_EMPLOYER_ADDRESS" : "4211 WATONGA BLVD.",
"LCA_CASE_EMPLOYER_CITY" : "HOUSTON",
•
"LCA_CASE_EMPLOYER_STATE" : "TX",
STATUS
"LCA_CASE_EMPLOYER_POSTAL_CODE" : 77092,
"LCA_CASE_SOC_CODE" : "25-2022.00",
"LCA_CASE_SOC_NAME" : "Middle School Teachers, Except Special and Vocatio",
"LCA_CASE_JOB_TITLE" : "MIDDLE SCHOOL TEACHER/IB COORDINATOR",
"LCA_CASE_WAGE_RATE_FROM" : 51577.63,
•
"LCA_CASE_WAGE_RATE_UNIT" : "Year",
LCA_CASE_SUMBIT / Decision_Date
"FULL_TIME_POS" : "Y",
"TOTAL_WORKERS" : 1,
"LCA_CASE_WORKLOC1_CITY" : "HOUSTON",
"LCA_CASE_WORKLOC1_STATE" : "TX",
•
"PW_1" : 47827,
LCA_CASE_WAGE_RATE_FROM
"PW_UNIT_1" : "Year",
"PW_SOURCE_1" : "OES",
"OTHER_WAGE_SOURCE_1" : "OFLC ONLINE DATA CENTER",
"YR_SOURCE_PUB_1" : 2010,
"LCA_CASE_NAICS_CODE" : 611110,
"Decision_Date" : "7/20/2010 0:00:00r"
}

9. What we can do with the data?
• Work out the;
• Applications per state
• Applications by status per state
• Average time from submission to decision, by status

10. Applications by State
• Key will be LCA_CASE_EMPLOYER_STATE
• Assume (wrongly) one person per document

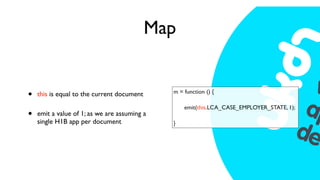

11. Map
• this is equal to the current document m = function () {
emit(this.LCA_CASE_EMPLOYER_STATE, 1);
• emit a value of 1; as we are assuming a
single H1B app per document }

12. Reduce
• Return a value; the length of the array r = function (k, v_arr) {
return v_arr.length
• This works as each value in the array is 1 }

13. Executing
• This will execute the map/reduce
db.text2010.mapReduce(m,r,
{out: 'workers_by_state',
• Output goes to a collection named
keeptemp:true, verbose:true})
workers_by_state

14. Result
{ "_id" : "NEW YORK", "value" : 512 }
{ "_id" : "IOWA", "value" : 15 }
{ "_id" : "KANSAS", "value" : 54 }
...

15. A more complex Map!
m = function () {
• The last example assumed one worker
per state...which is wrong. emit(this.LCA_CASE_EMPLOYER_STATE,
this.TOTAL_WORKERS);
• We now emit a numeric value per state
}

16. Reduce
r = function (k, v_arr) {
var total = 0;
var len = v_arr.length;
• As the array now contains values other
for (var i=0, i<len, i++)
than 1, we have to iterate over it
{
total = total + v_arr[i];
• This is standard Javascript
}
return total;
}

17. VISA Class by Application Status by
Average wage m = function () {
var k = this.VISA_CLASS + ' ' + this.STATUS;
switch (this.LCA_CASE_WAGE_RATE_UNIT)
{
•
case 'Year':
Assumptions: emit(k, this.LCA_CASE_WAGE_RATE_FROM);
break;
case 'Month':
• People work ~40 hour weeks emit(k, this.LCA_CASE_WAGE_RATE_FROM * 12);
break;
case 'Bi-Weekly':
•
emit(k, this.LCA_CASE_WAGE_RATE_FROM * 26);
Weekly wages are paid every week break;
rather than only the weeks worked case 'Week':
emit(k, this.LCA_CASE_WAGE_RATE_FROM * 52);
break;
• 'Select Pay Range' seems to the the case 'Hour':
emit(k, this.LCA_CASE_WAGE_RATE_FROM * 40 * 52);
default option... break;
default:
emit(k, 0);
}
}

18. Reduce
r = function (k, v_arr) {
var tot = 0;
var len = v_arr.length;
• Work out the average for each key
for (var i = 0; i < len; i++)
{
• Add each of the elements up
tot += v_arr[i];
}
• Average them
return tot / len;
}

19. Finalize
• A finalize function may be run after reduction.
• Called a single time per object
• The finalize function takes a key and a value, and returns a finalized
value.

20. Options
• Persist the output
• Filtering input documents
• Sorting input documents
• Javascript scope - allows you to pass in extra variables (cannot be
changed at runtime?)

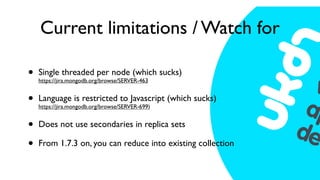

21. Current limitations / Watch for
• Single threaded per node (which sucks)
https://jira.mongodb.org/browse/SERVER-463
• Language is restricted to Javascript (which sucks)
https://jira.mongodb.org/browse/SERVER-699)
• Does not use secondaries in replica sets
• From 1.7.3 on, you can reduce into existing collection

22. ...
• Doesn't allow creation of full documents (which can be a pain for
perm MR collections if using libraries)
https://jira.mongodb.org/browse/SERVER-2517
• Slow; ~x20-30 slower than Hadoop with 1.8
https://jira.mongodb.org/browse/SERVER-3055

23. Using MongoDB with Hadoop
• https://github.com/mongodb/mongo-hadoop
• Open source
• Requires knowledge of Java
• Working Input and Output adapters for MongoDB are provided
• Alpha quality from what I can tell

24. The future

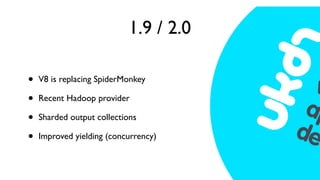

25. 1.9 / 2.0
• V8 is replacing SpiderMonkey
• Recent Hadoop provider
• Sharded output collections
• Improved yielding (concurrency)

26. > 2.0
• Multi-threaded
• Alternative languages
https://jira.mongodb.org/browse/SERVER-699
• ~2.2 native aggregation framework
• Js only mode is faster for lighter jobs
https://jira.mongodb.org/browse/SERVER-2976

27. Further reading
• I’ve only brushed on the details, but this should be enough to get you
interested / started with MongoDB Map Reduce. Some of the missing
stuff;
• Finalize functions - http://bit.ly/gEfKOr
• Some more examples - http://bit.ly/ig1Yfj
