Michael Tusi Santiago of Saudi Lighting Company presented a lighting design for an amphitheater being built at King Saud University's Sports City project. The design included general ambient lighting for when no performance is occurring, as well as lighting schemes for regular shows, special televised events, and before/after show times. Renderings showed the lighting plans from various angles and with color filters. The luminaire options were also presented.

1. AMPHITHEATER LIGHTING
Michael Tusi Santiago |REE.AILP.MIES.
LAD Engineer
Saudi Lighting Co.
King Saud University
SPORTS CITY PROJECT

2. DEFINITION
An amphitheatre (or amphitheater)
is an open-air venue used for
entertainment and performances.
The term derives from the ancient
Greek ἀμφί (amphi), meaning "on
both sides" or "around" and θέατρον
(théātron), meaning "place for
viewing".
Lighting will play an important role in bringing life
to performances and events that will be held
at night in the Sports City’s Amphitheater.
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

3. CONSIDERATIONS
Light should be useful at night
not a visual eyesore nor an
obstacle during the day
General Ambient Lighting
-During No Performance.
- Enough lighting so people can sit
and linger in the area.
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

4. LIGHTING SCHEMES
Before & After Show Lighting
- General Circulation
Lighting, crowds come in and go
& also during Cleaning
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

5. LIGHTING SCHEMES
Regular Shows Lighting
- Non-Televised
- where surrounding is at 50 lux but
stage is at 750 lux
Special Events
- During Televised shows
- Supplementary Lighting is
an option (followspot, color
filters, dimmers, LEDS, etc.)
- Target of 1250 lux on stage
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

6. LOCATION WITHIN CAMPUS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

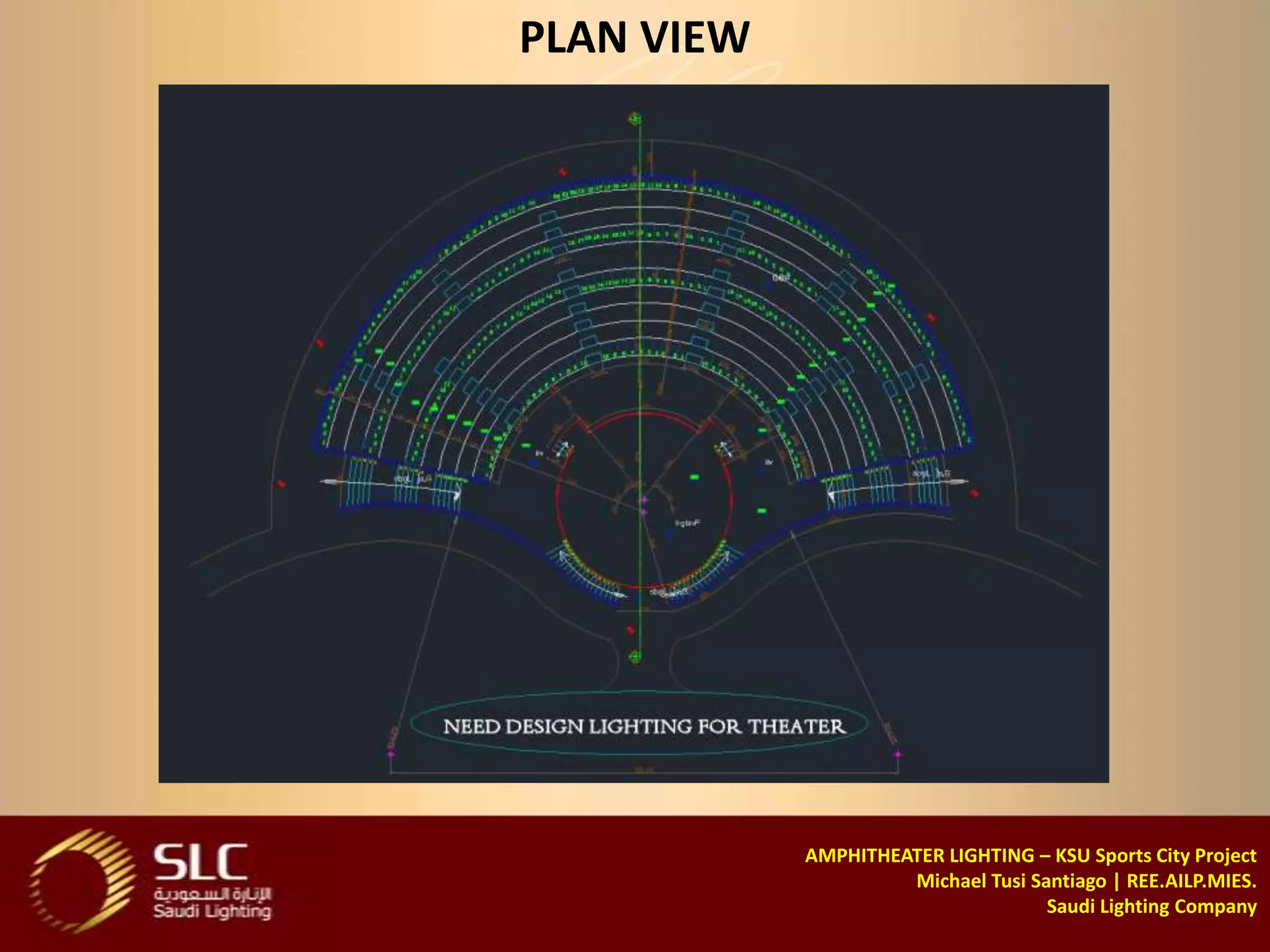

7. PLAN VIEW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

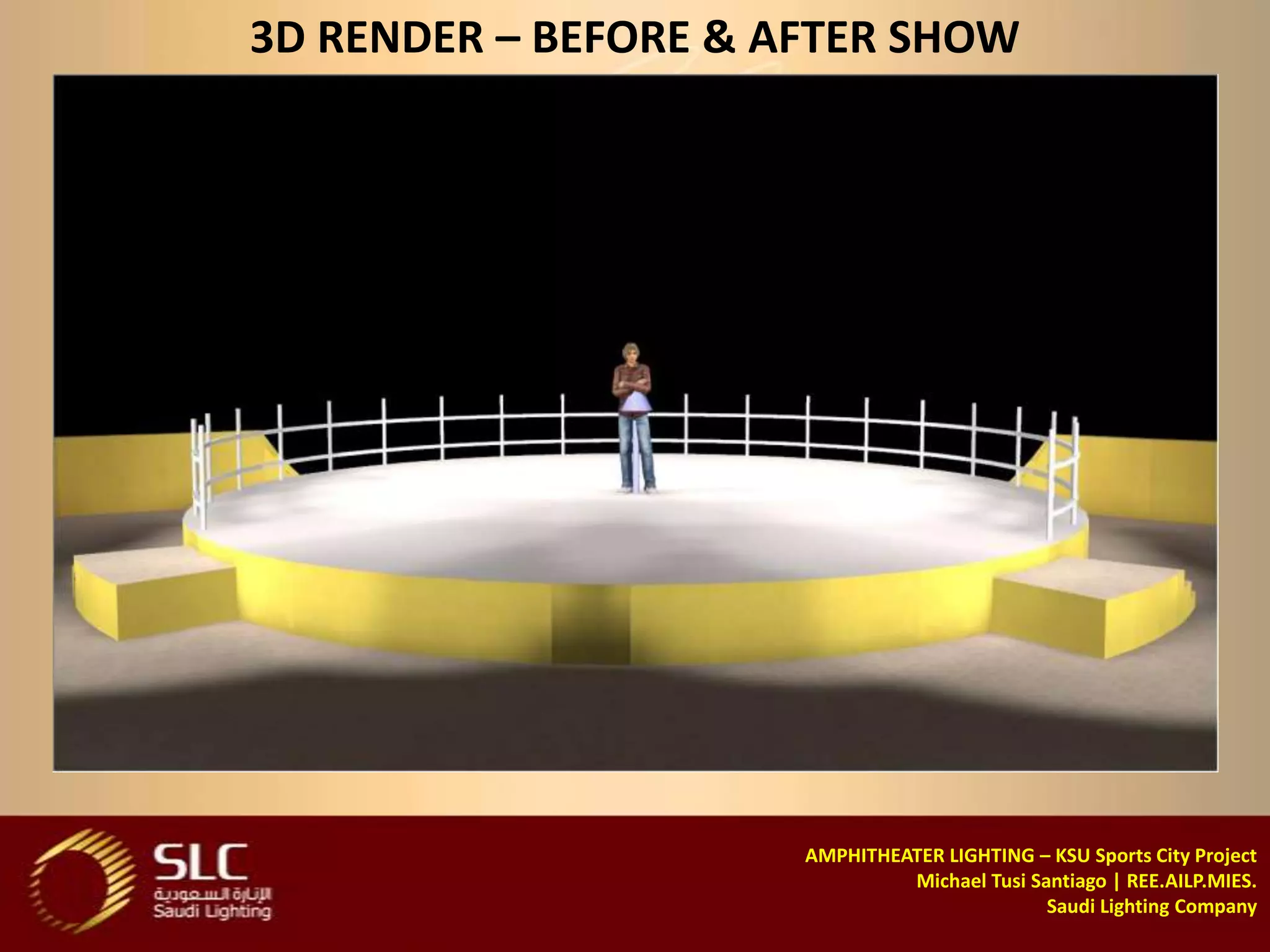

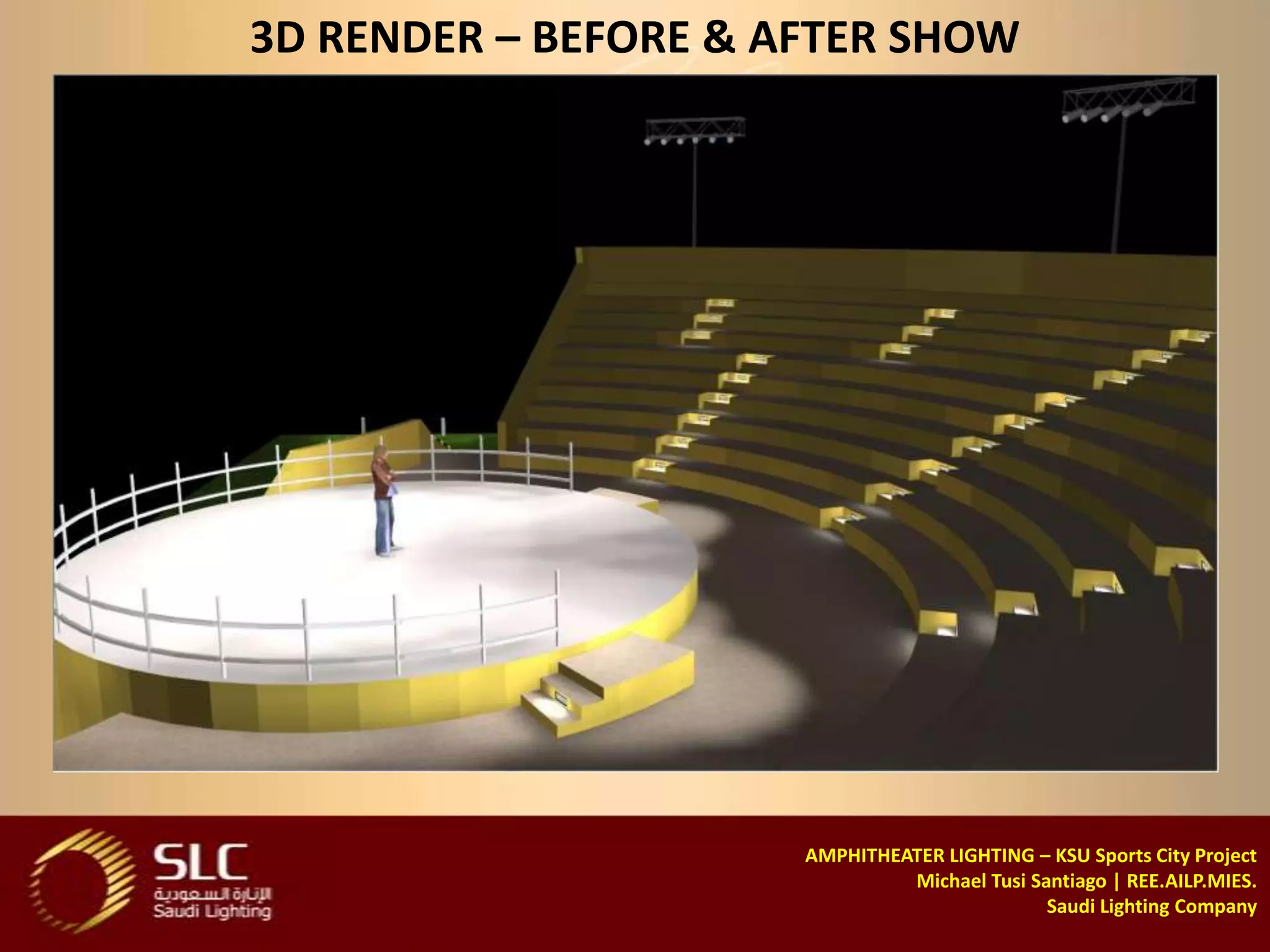

8. 3D RENDER – BEFORE & AFTER SHOW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

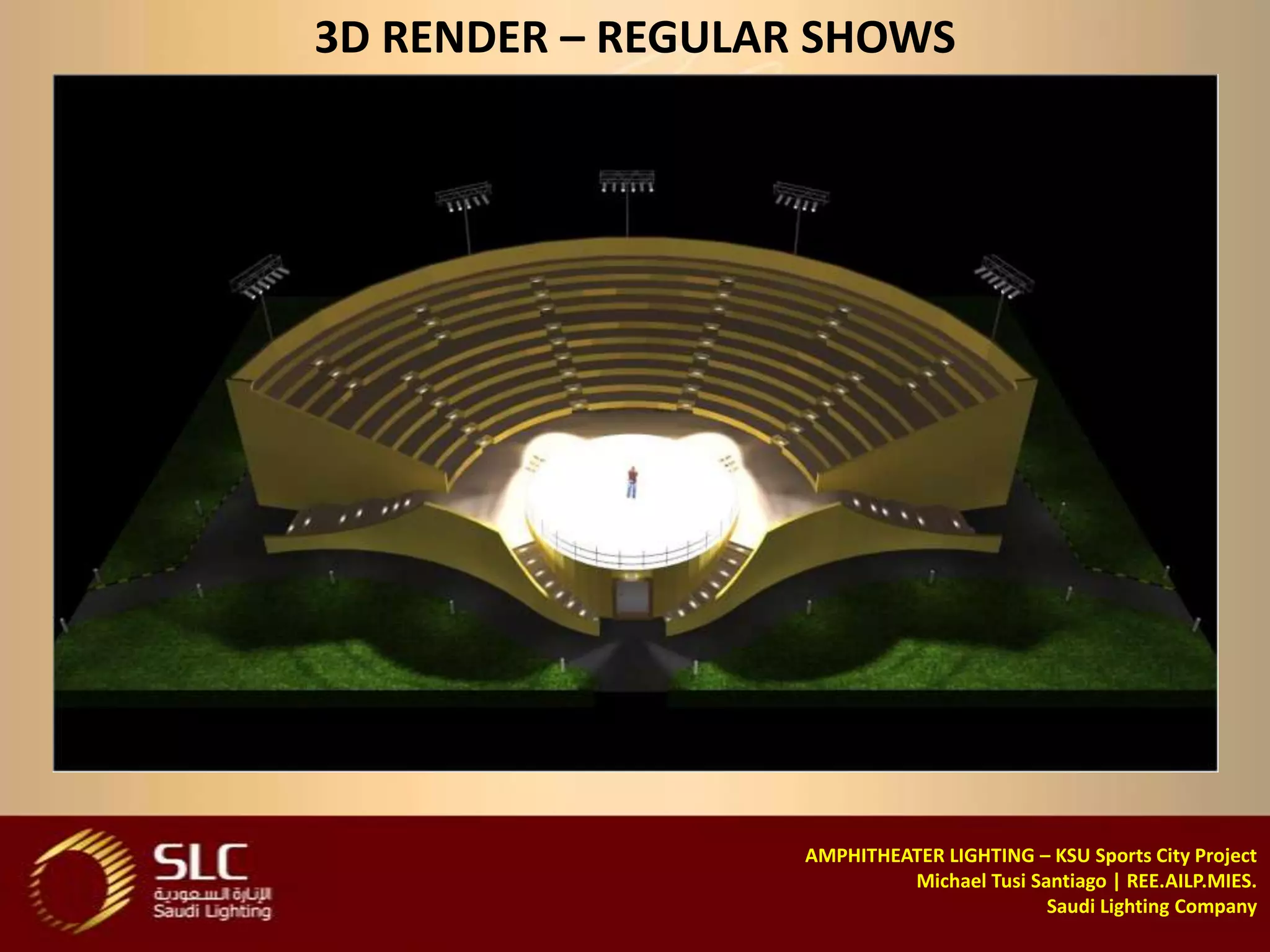

9. 3D RENDER – REGULAR SHOWS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

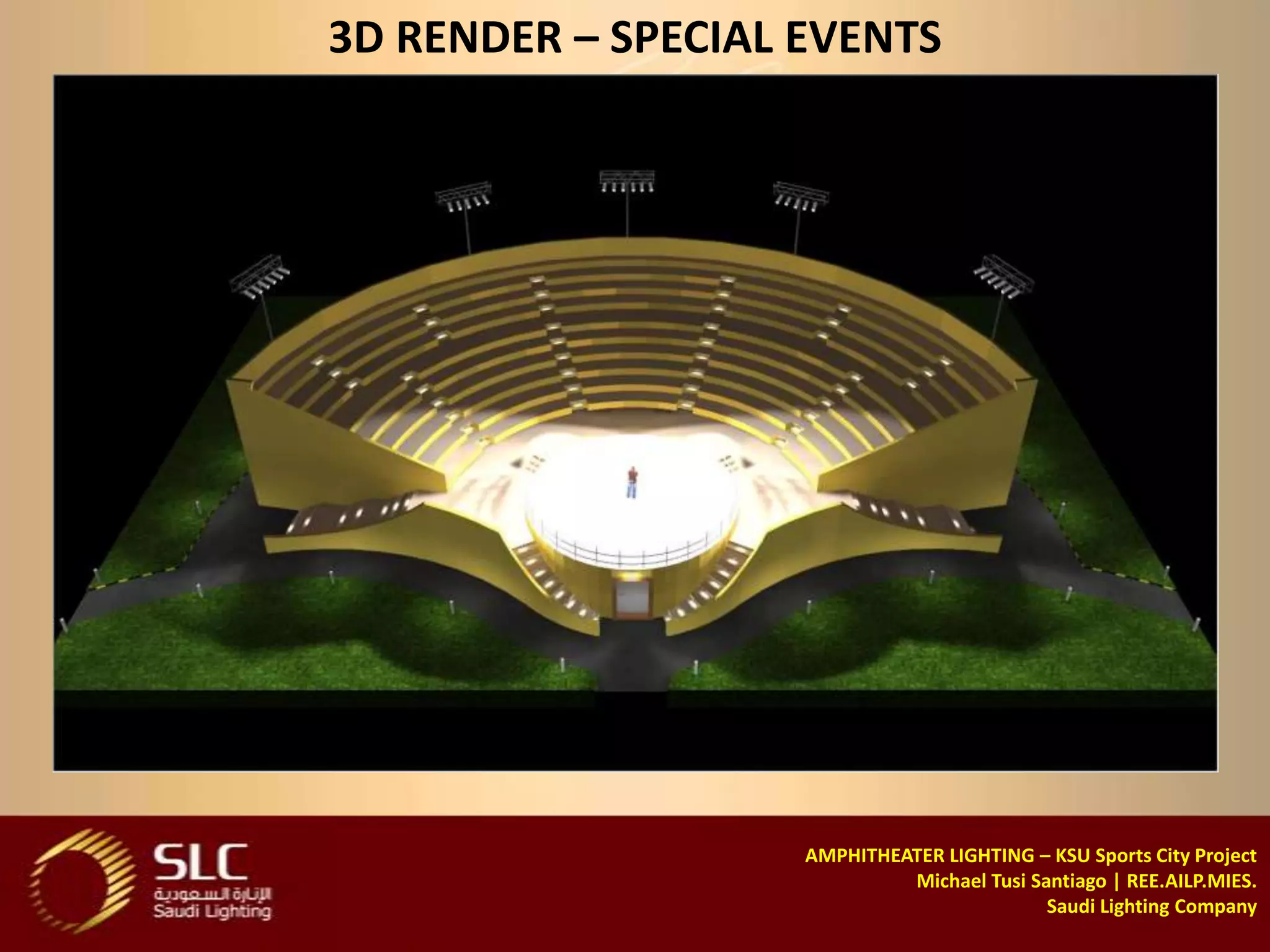

10. 3D RENDER – SPECIAL EVENTS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

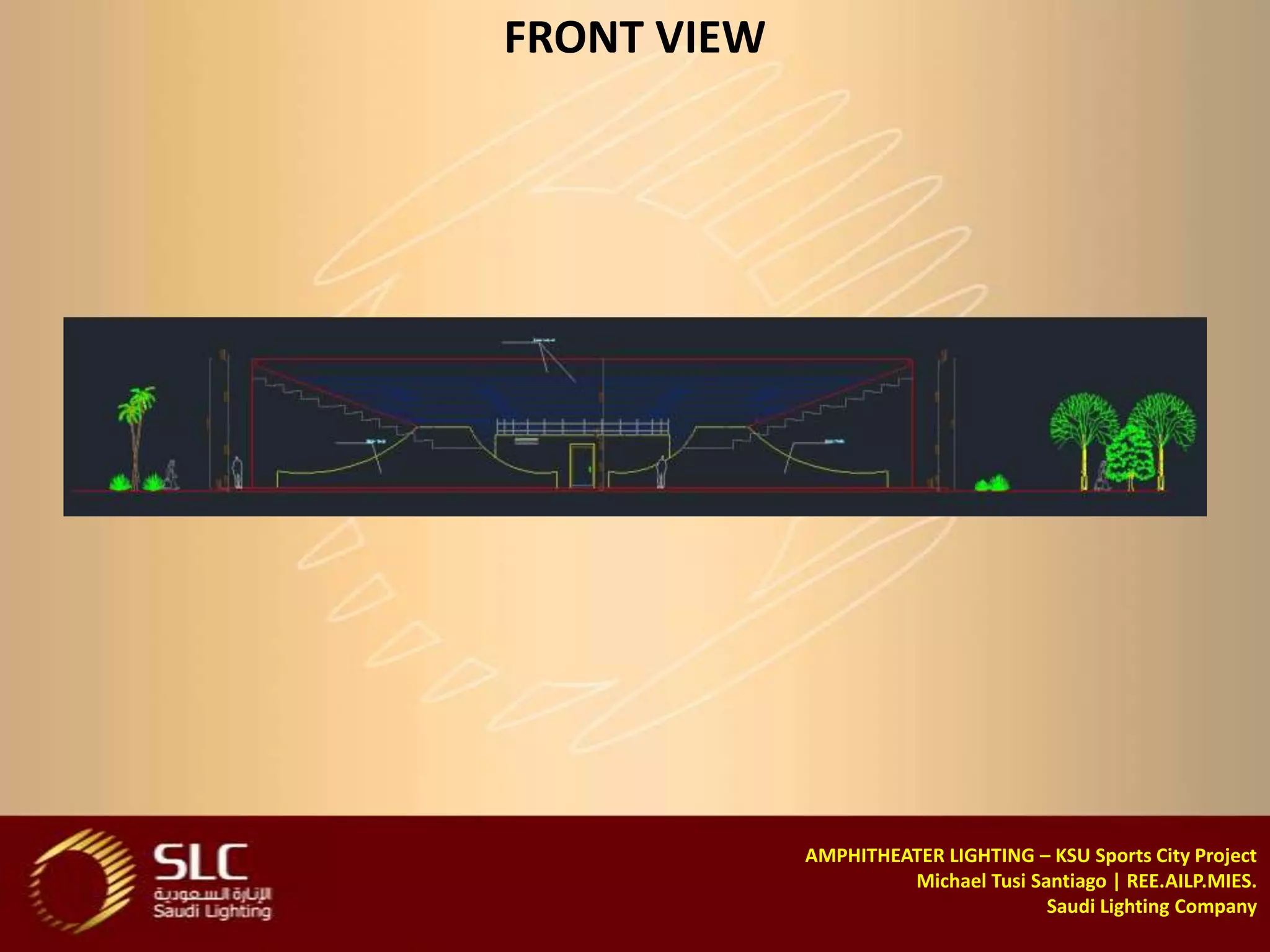

11. FRONT VIEW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

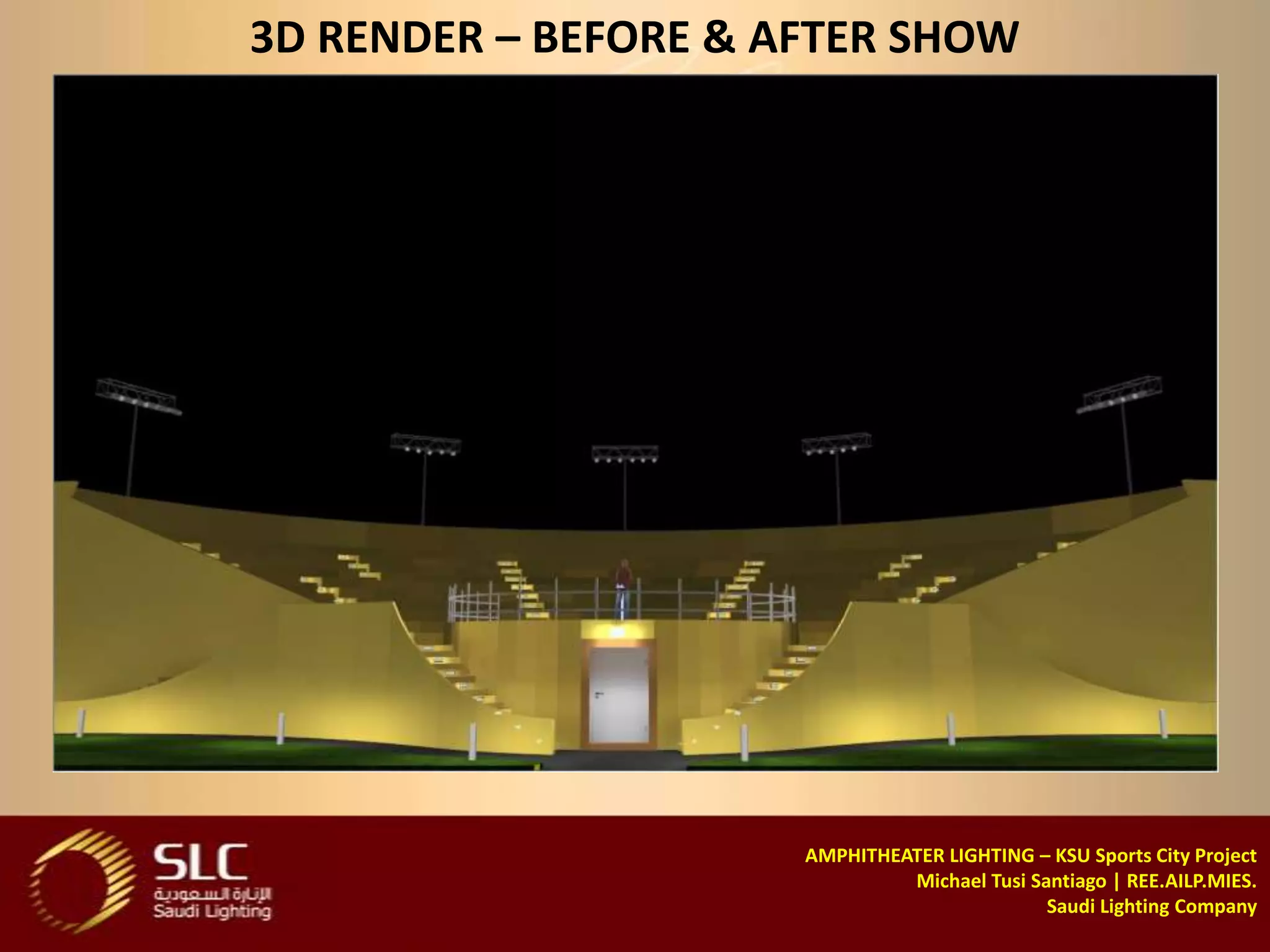

12. 3D RENDER – BEFORE & AFTER SHOW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

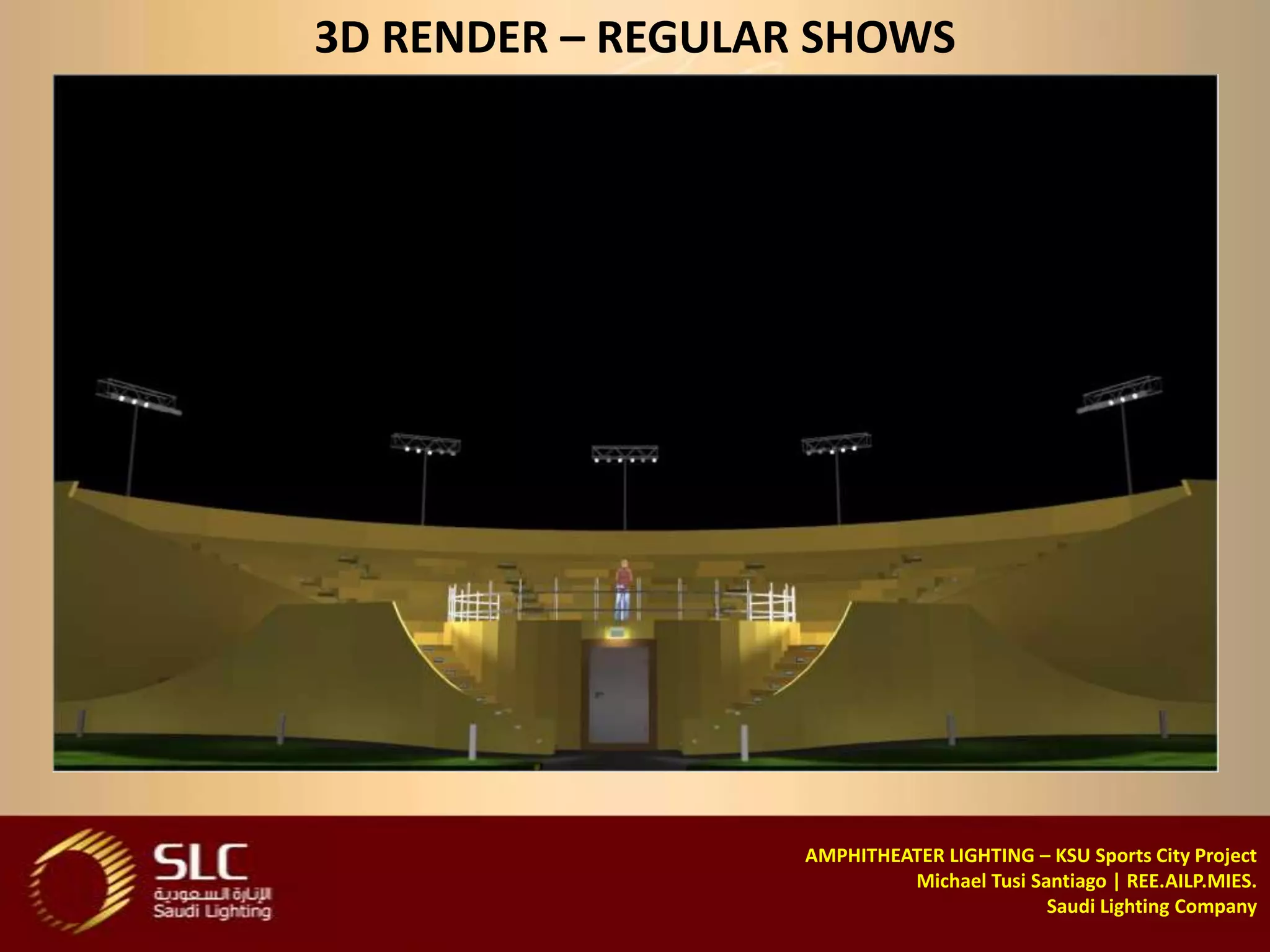

13. 3D RENDER – REGULAR SHOWS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

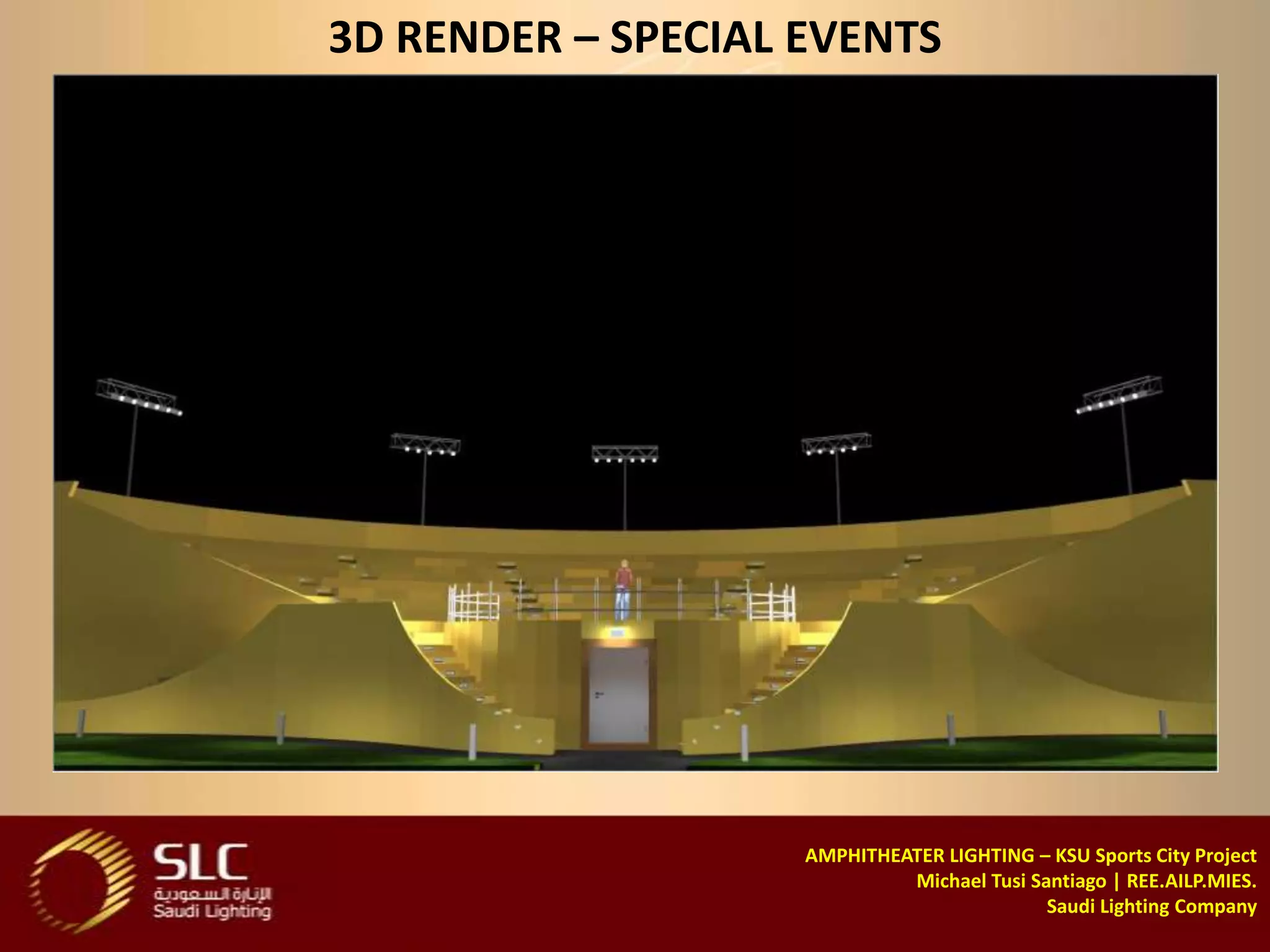

14. 3D RENDER – SPECIAL EVENTS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

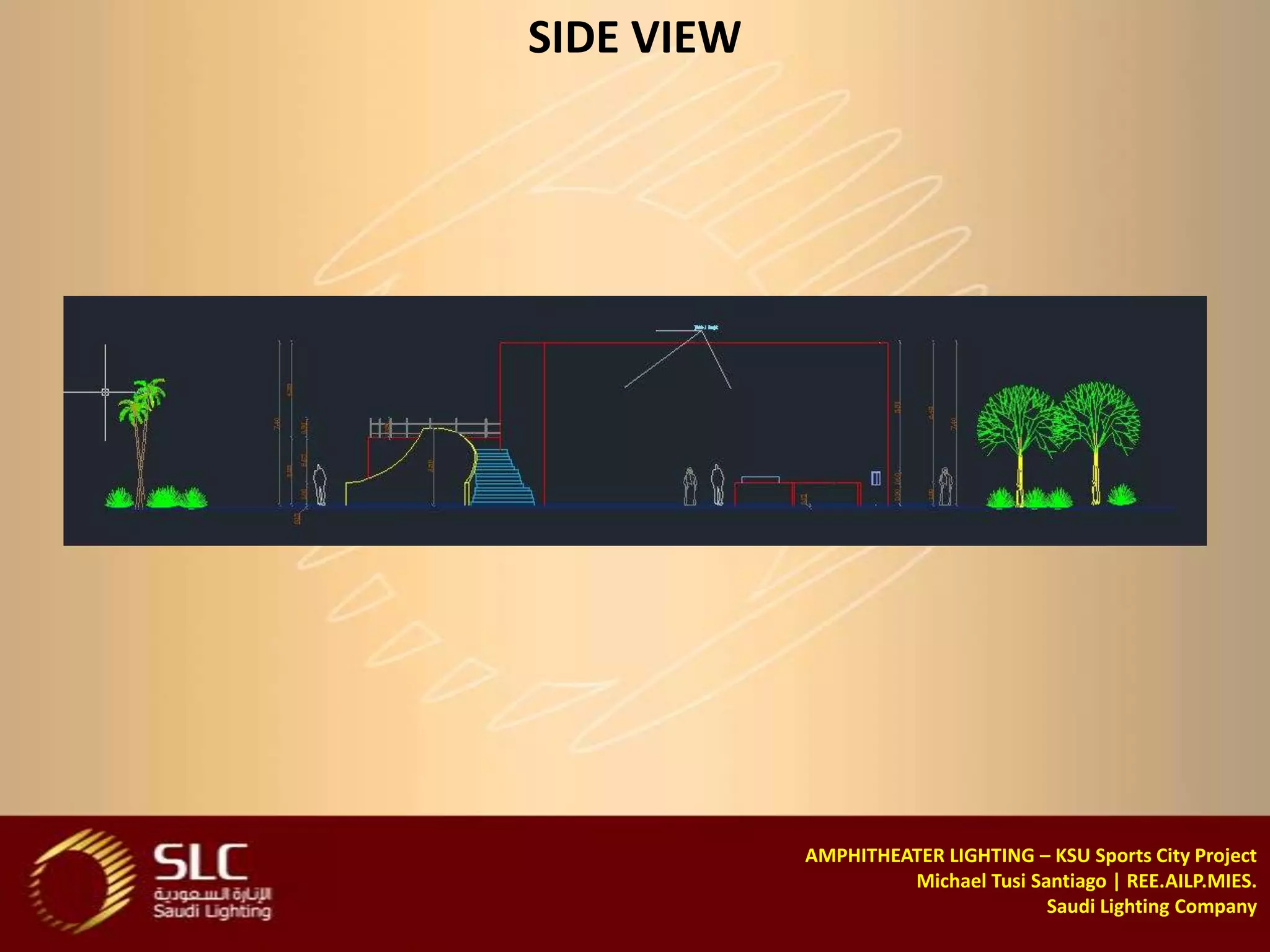

15. SIDE VIEW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

16. 3D RENDER – BEFORE & AFTER SHOW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

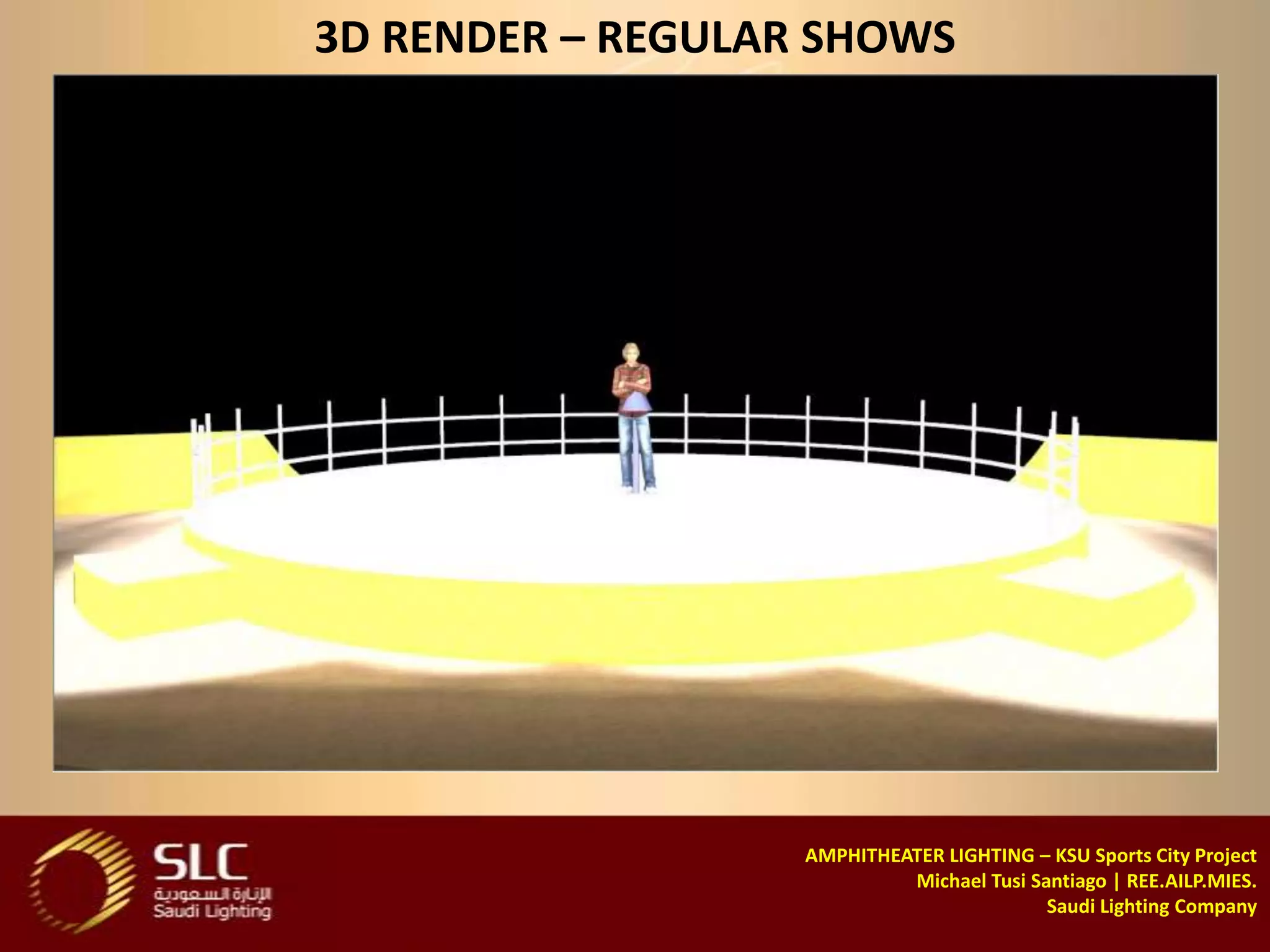

17. 3D RENDER – REGULAR SHOWS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

18. 3D RENDER – SPECIAL EVENTS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

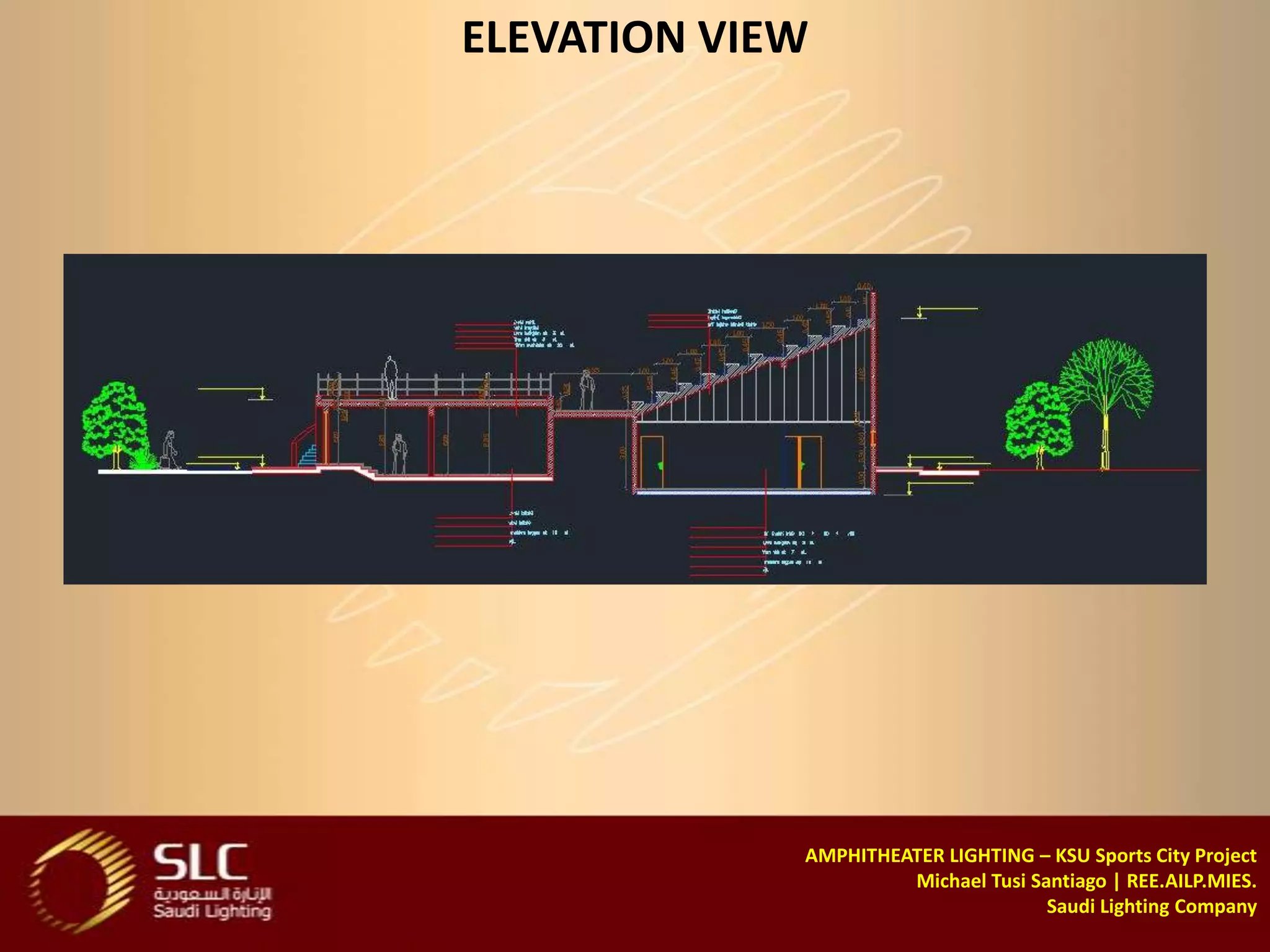

19. ELEVATION VIEW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

20. 3D RENDER – BEFORE & AFTER SHOW
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

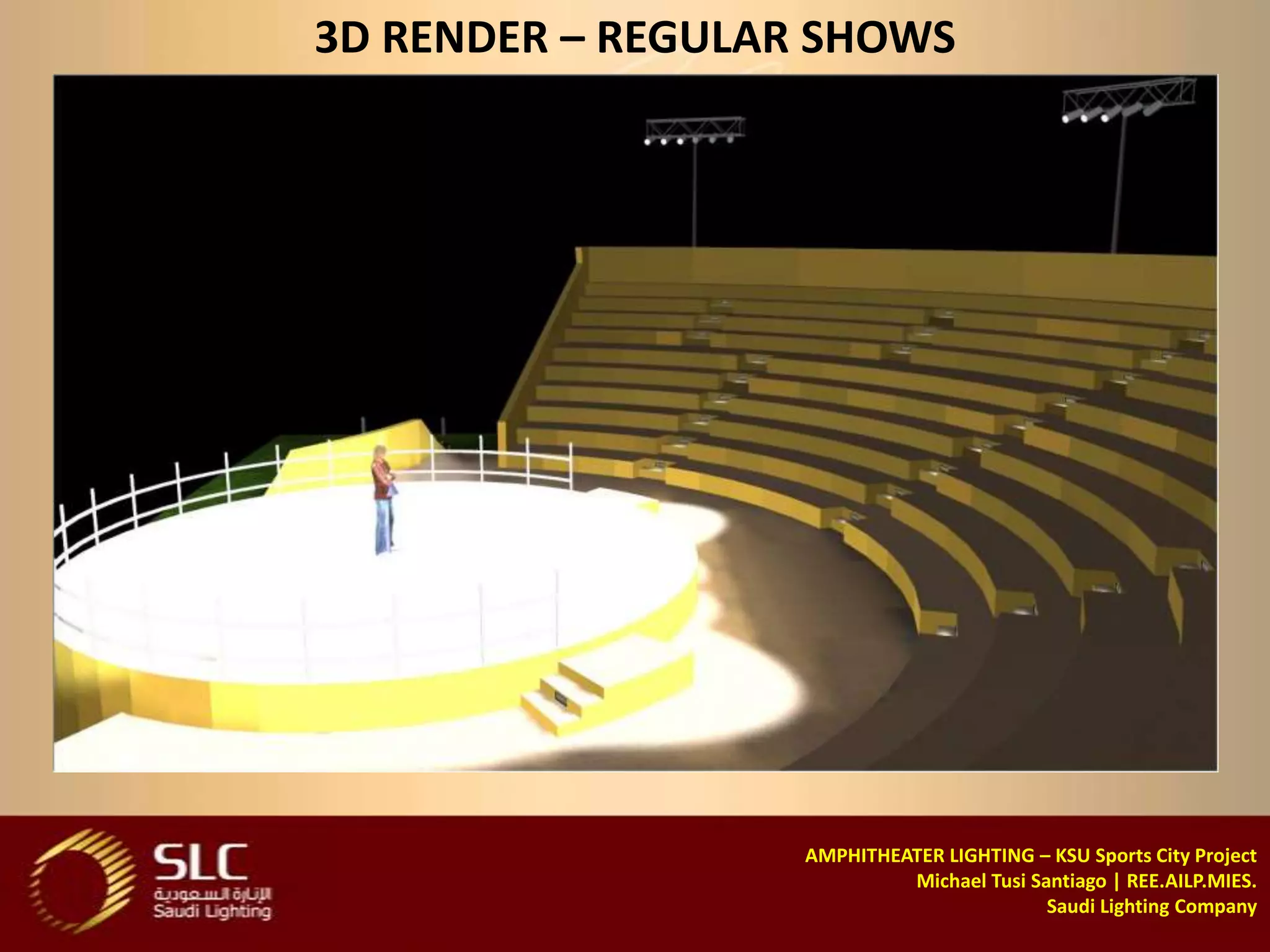

21. 3D RENDER – REGULAR SHOWS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

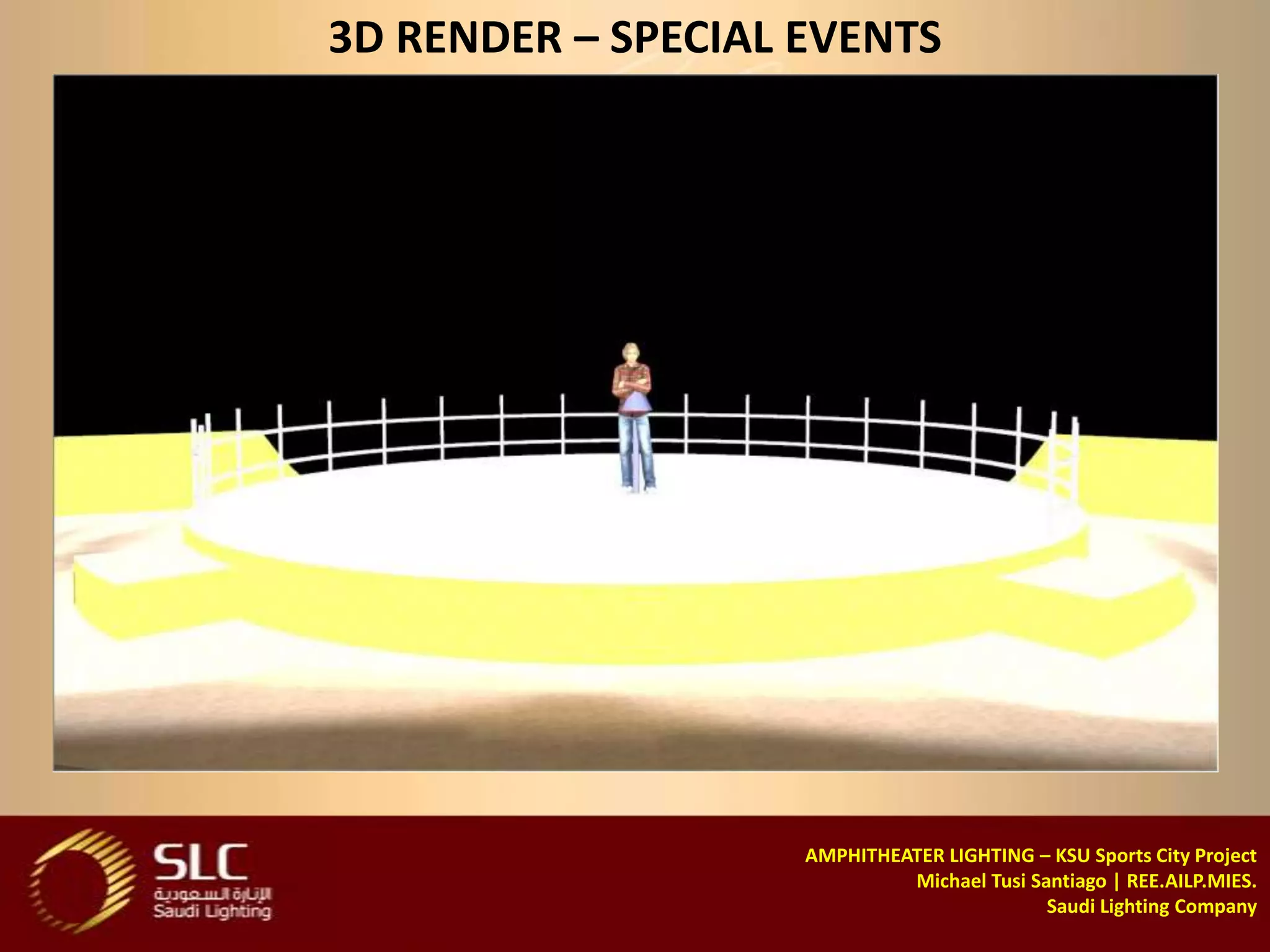

22. 3D RENDER – SPECIAL EVENTS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

23. LUMINAIRE USED
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

24. LUMINAIRE USED
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

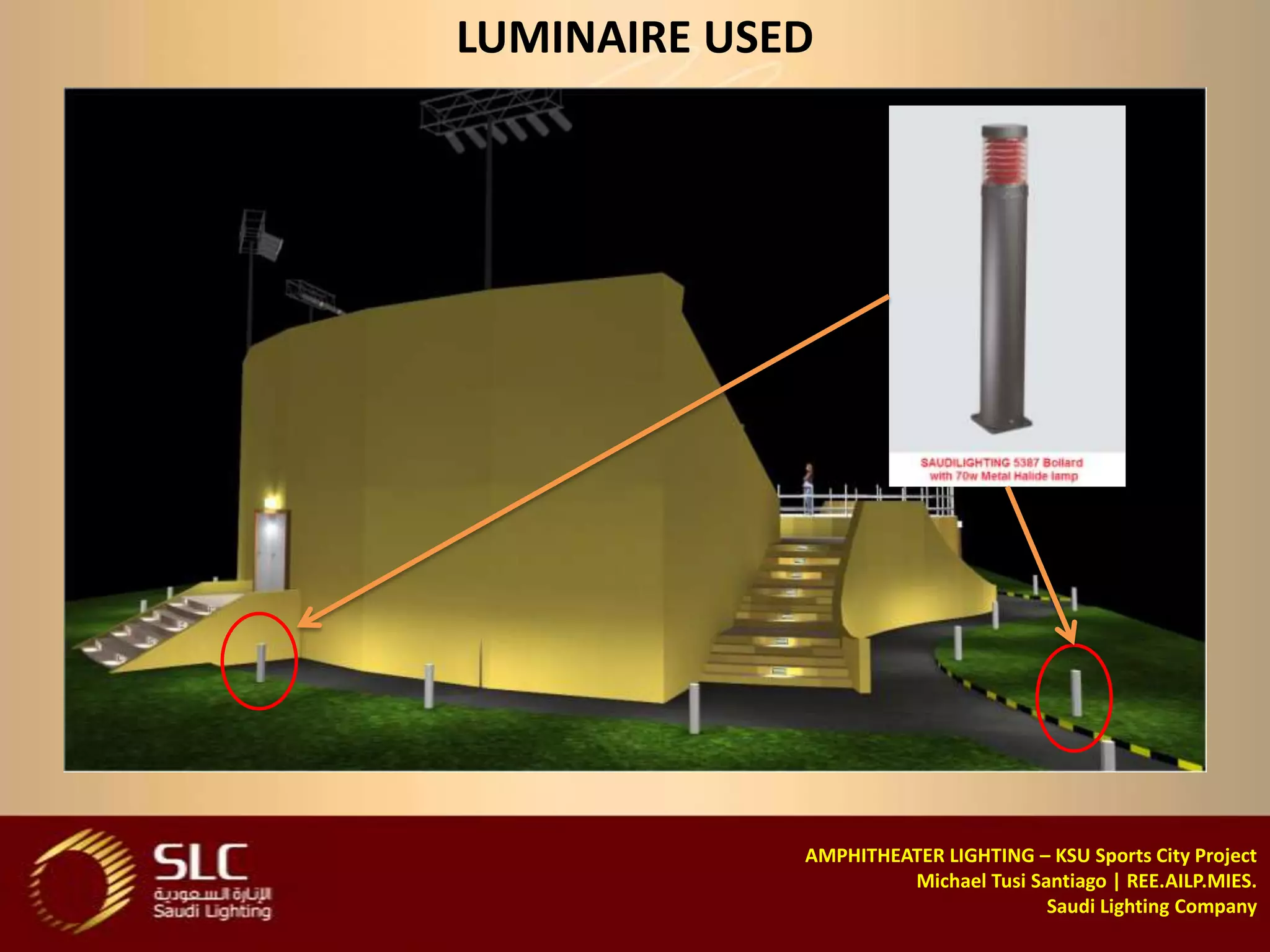

25. LUMINAIRE USED
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

26. LUMINAIRE USED
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

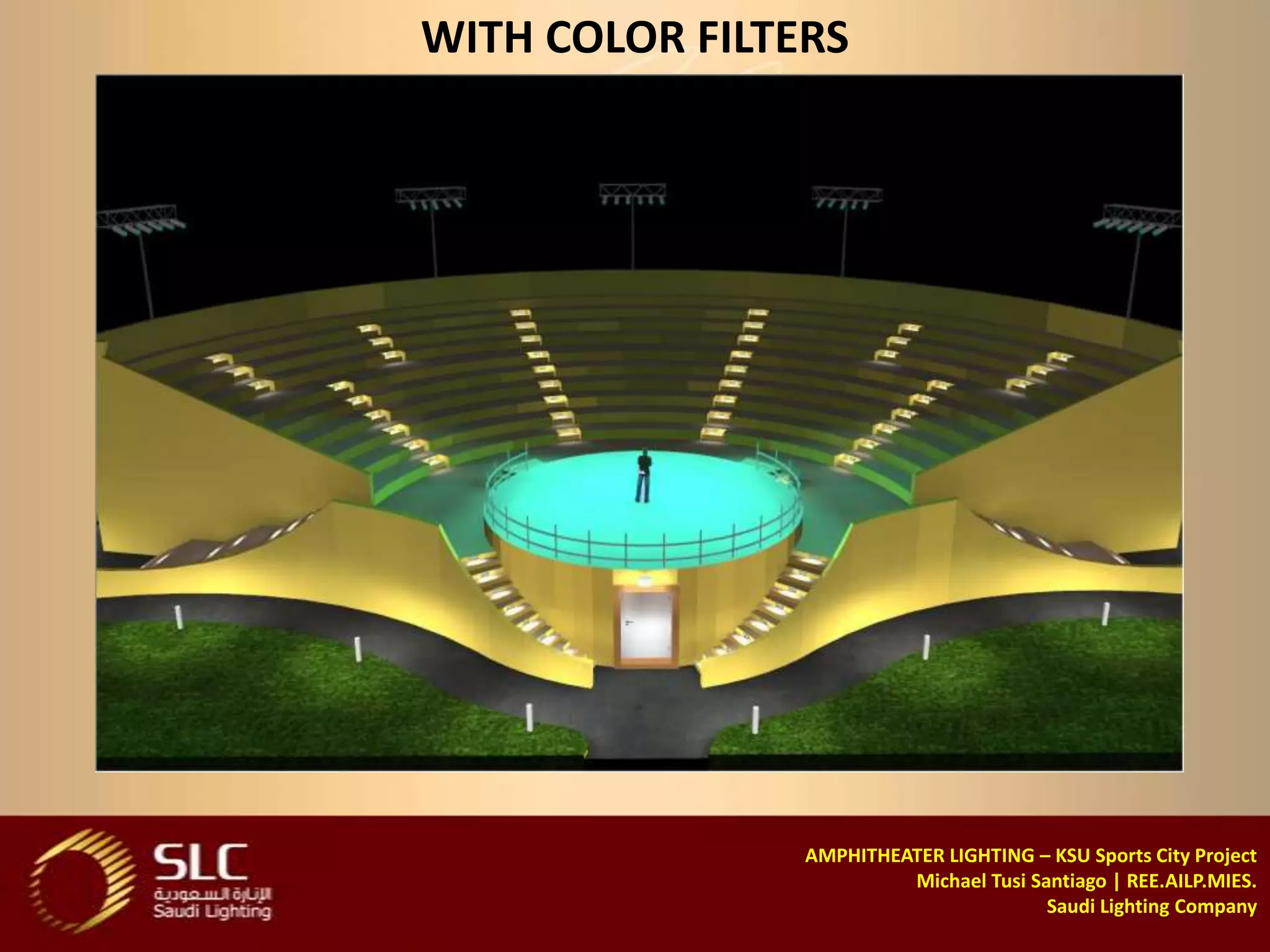

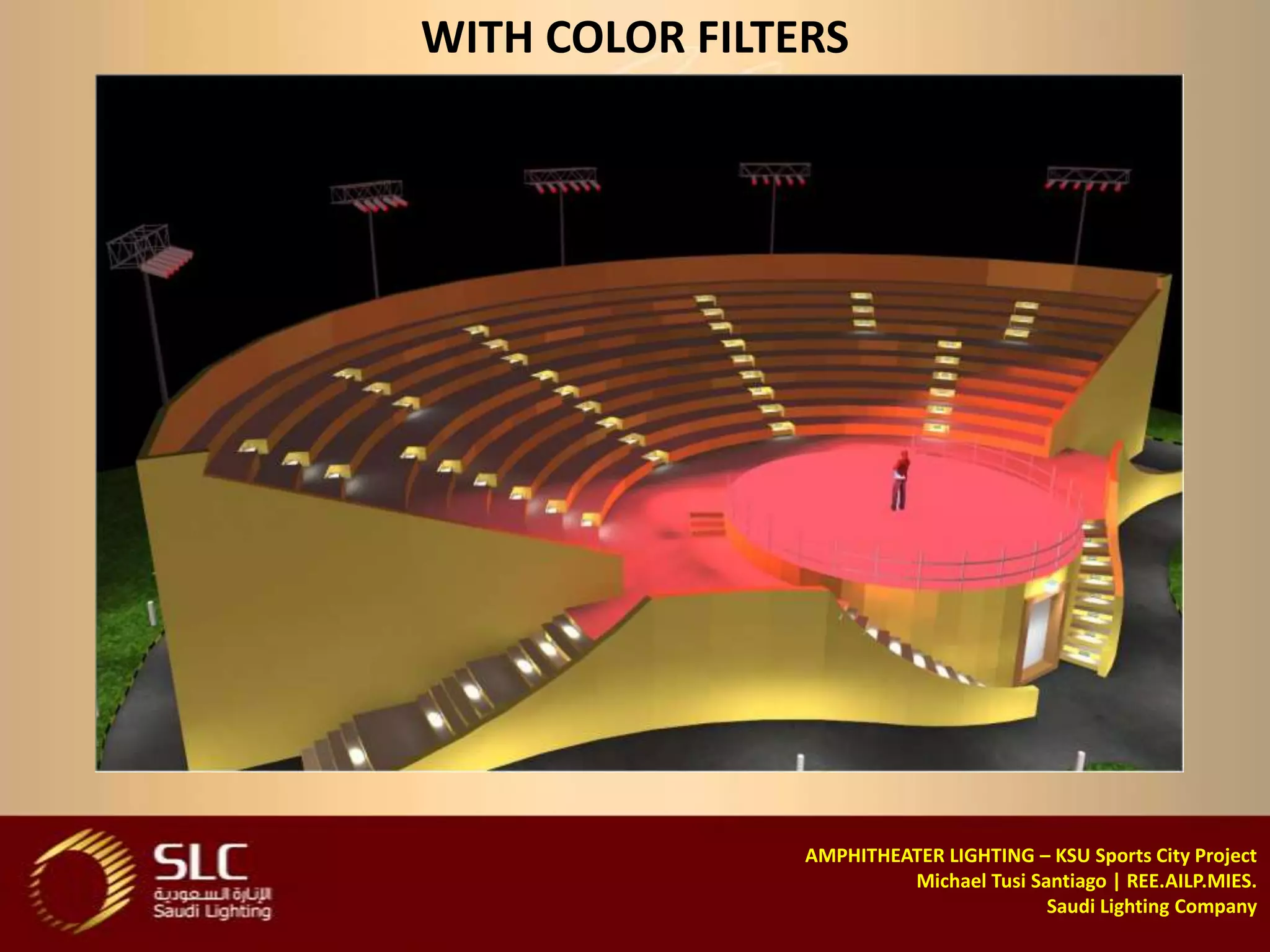

27. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

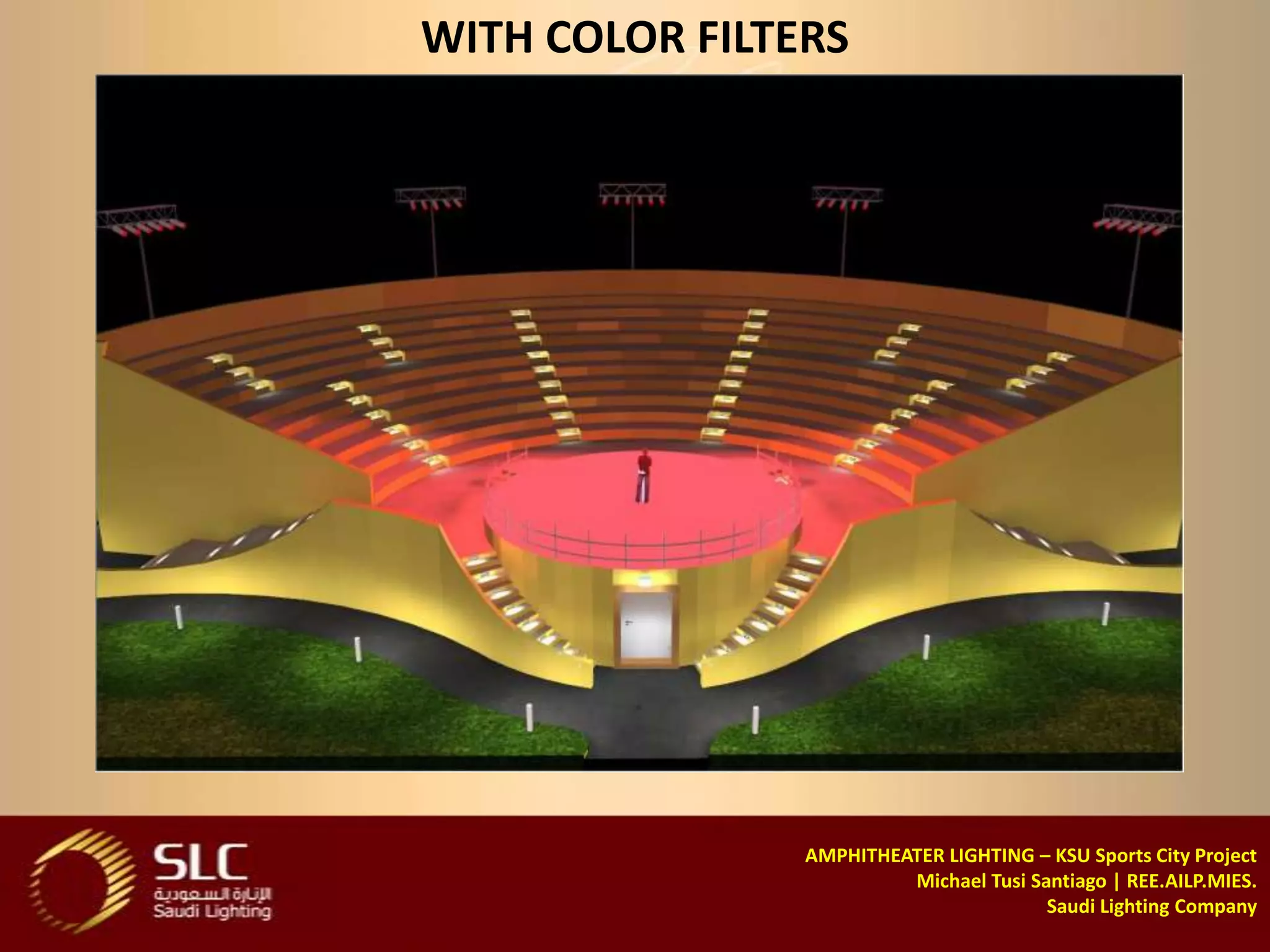

28. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

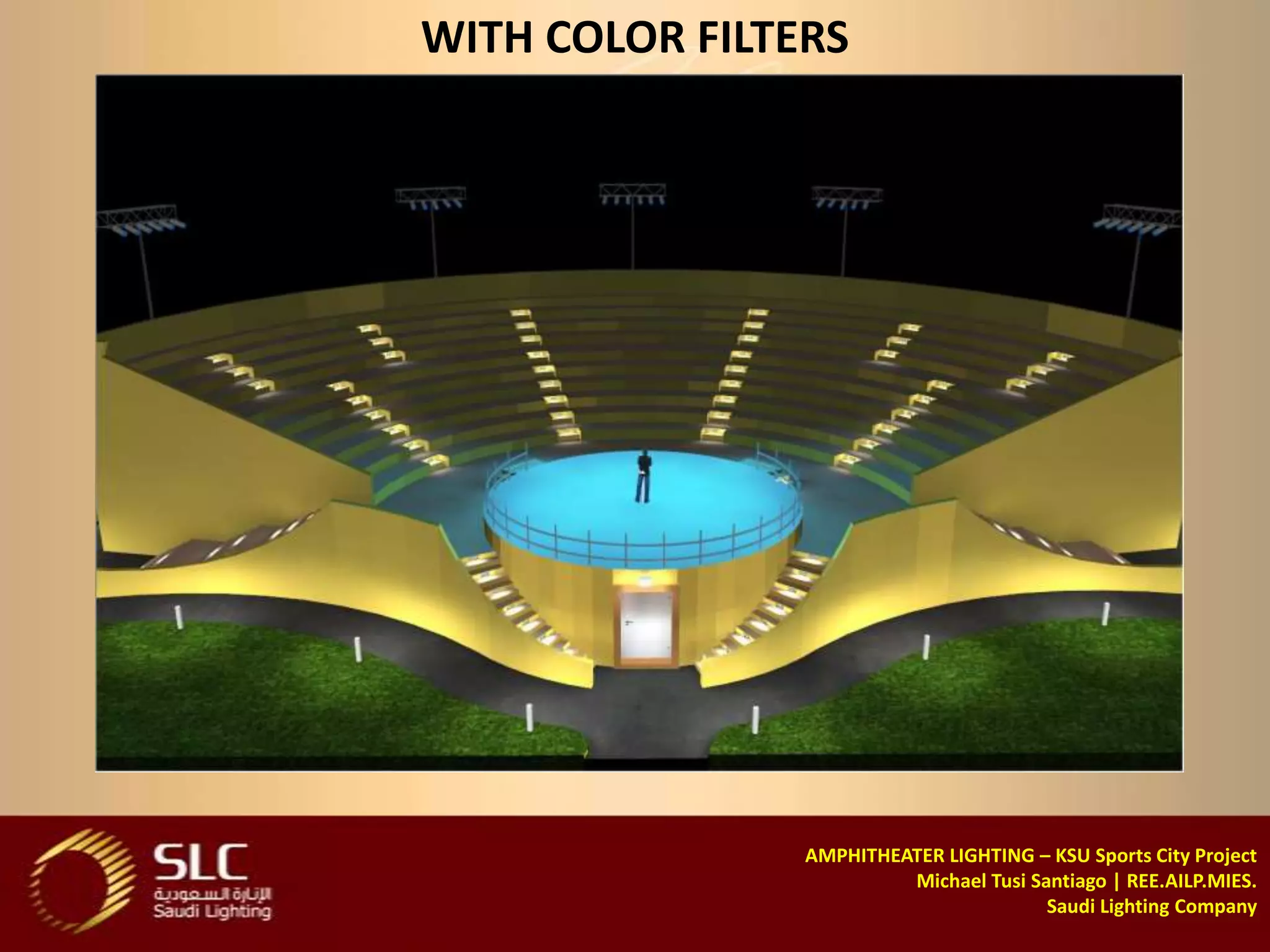

29. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

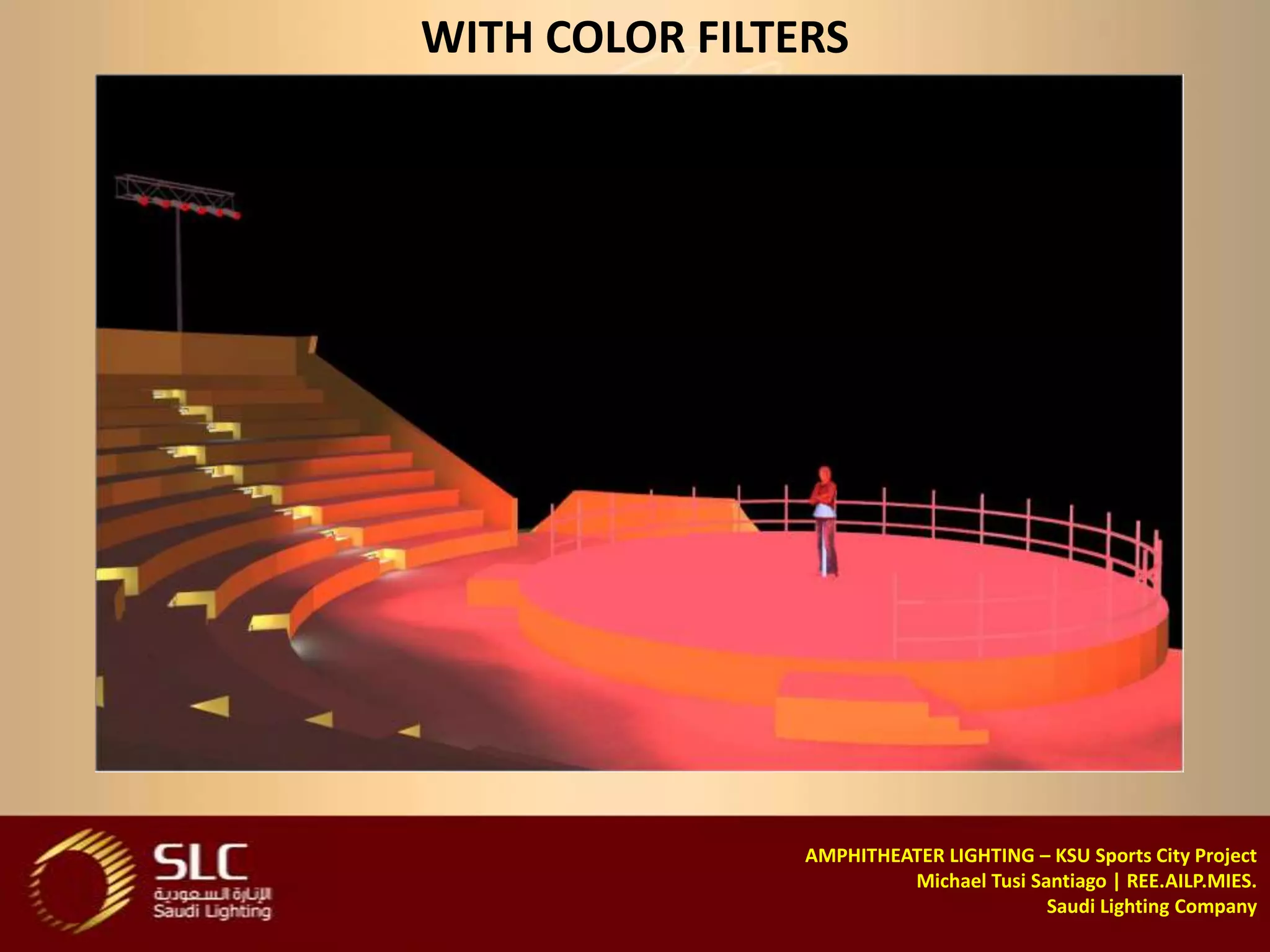

30. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

31. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

32. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

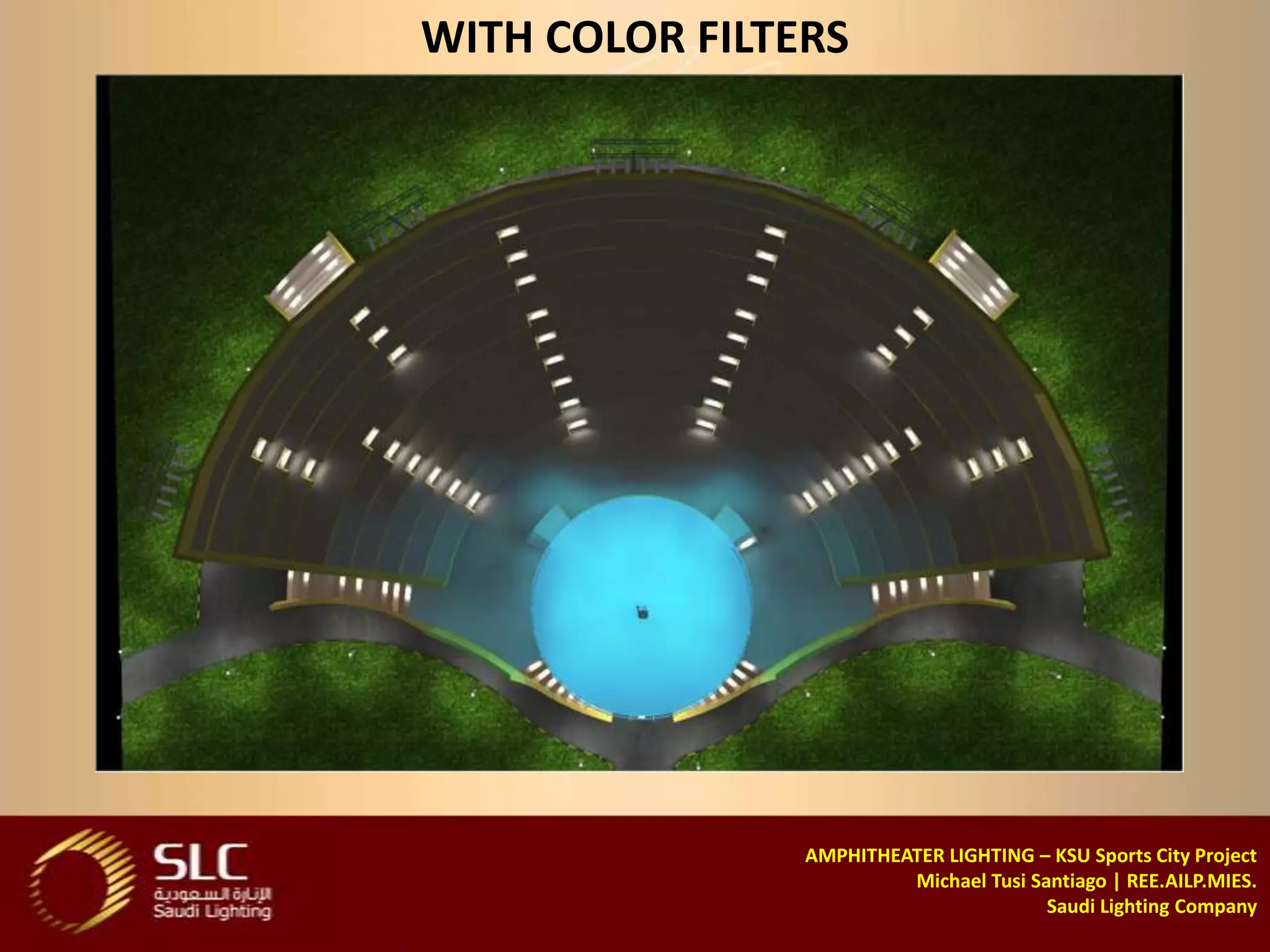

33. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

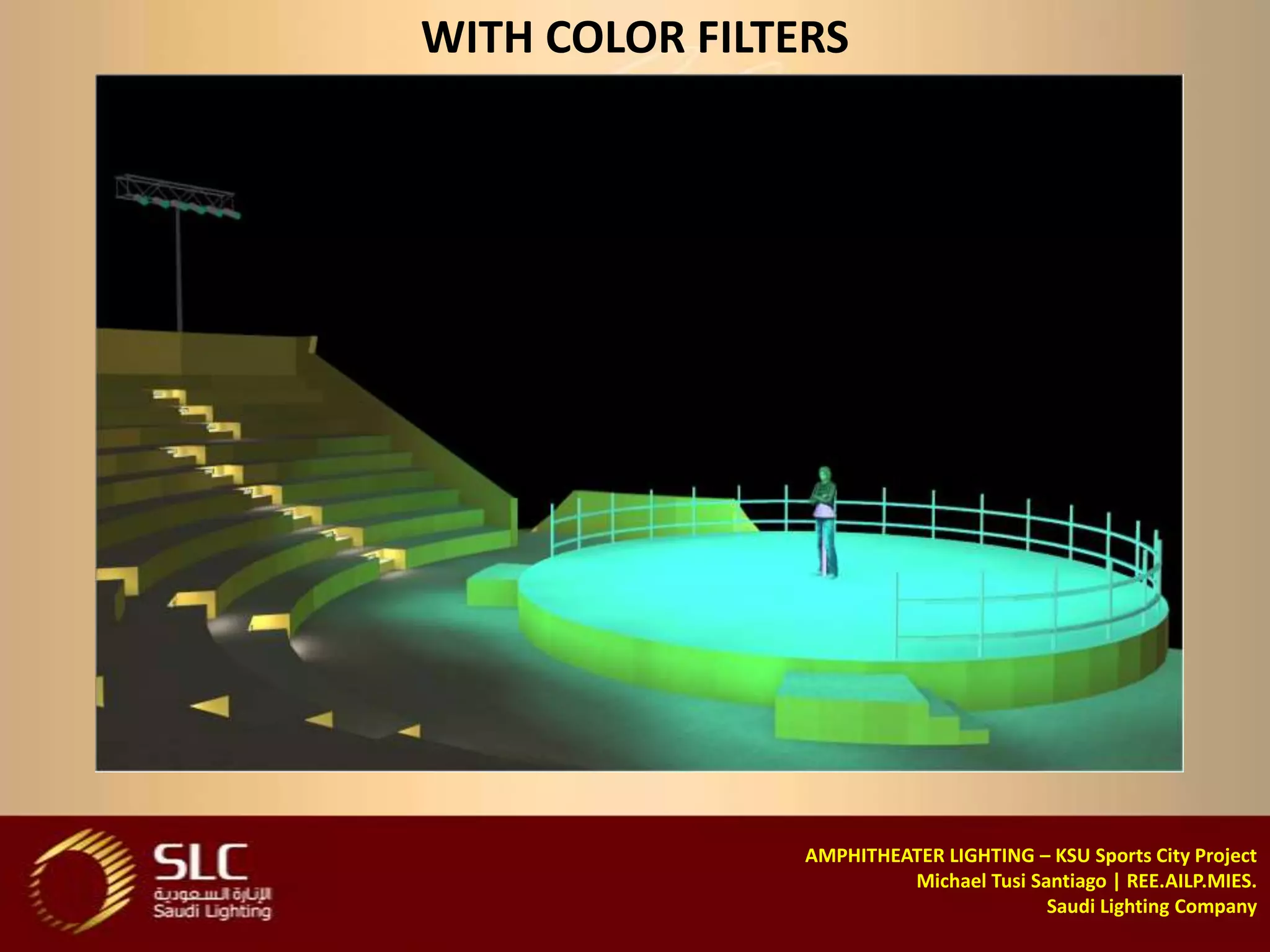

34. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

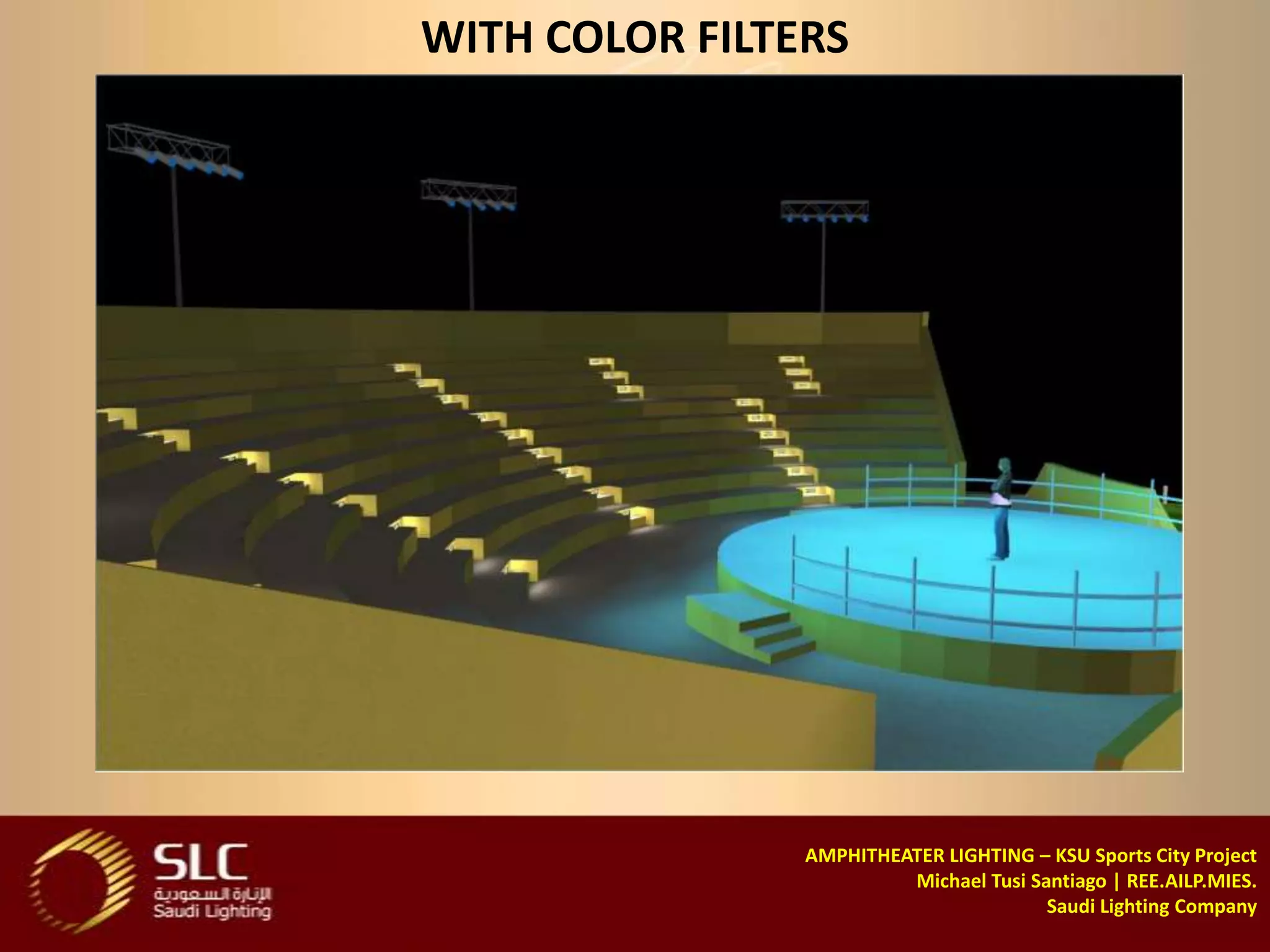

35. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

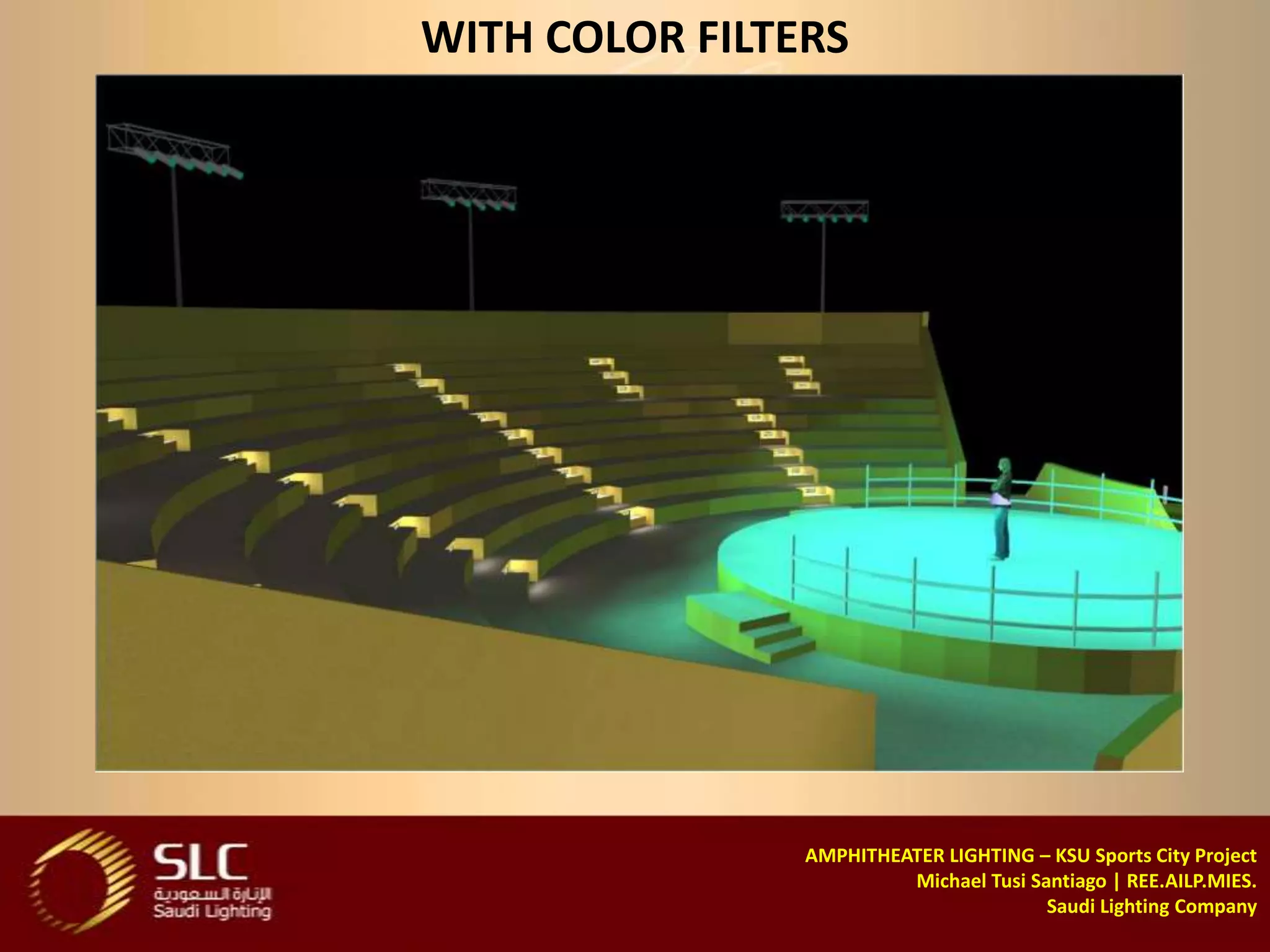

36. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

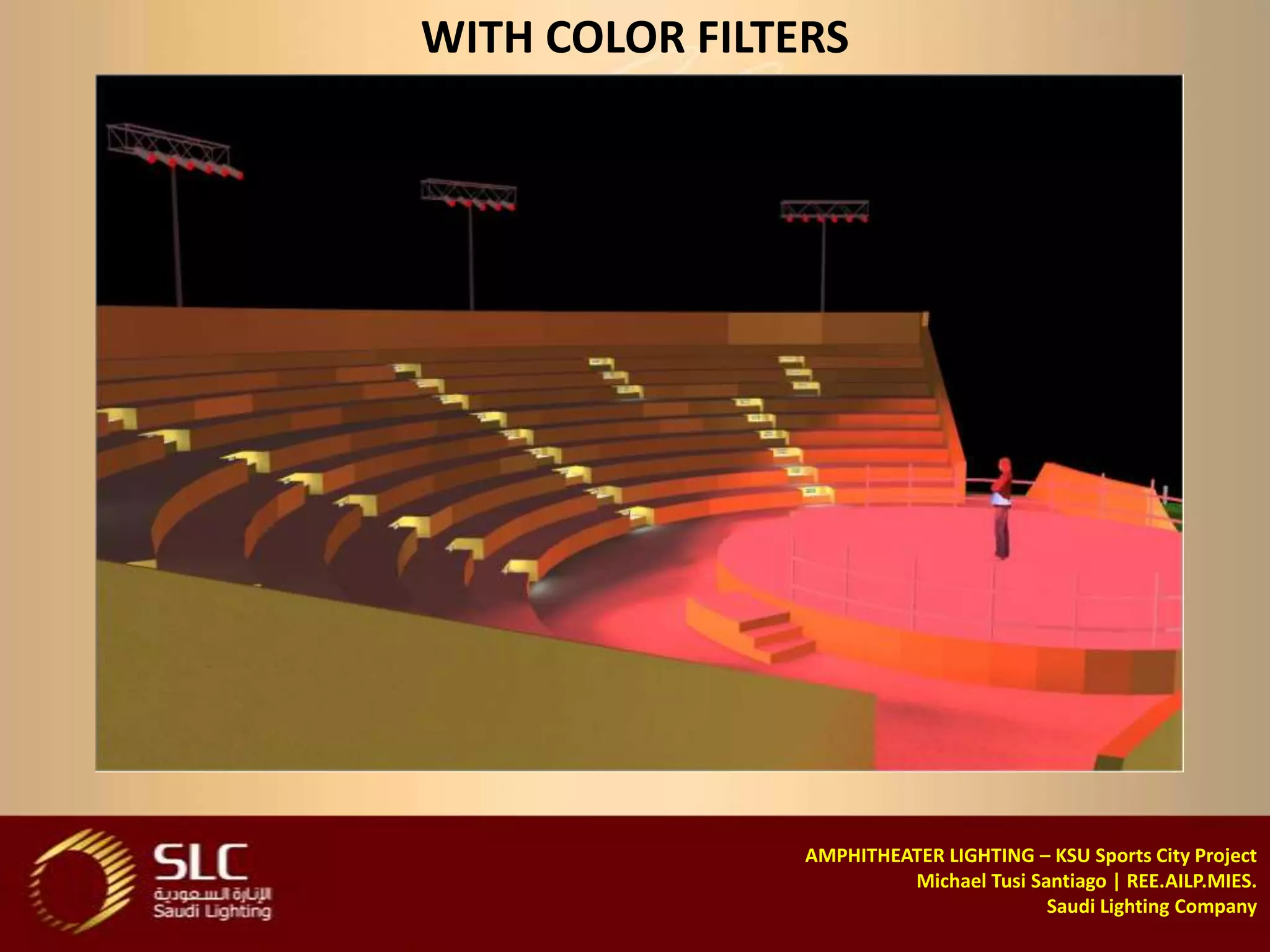

37. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

38. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

39. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

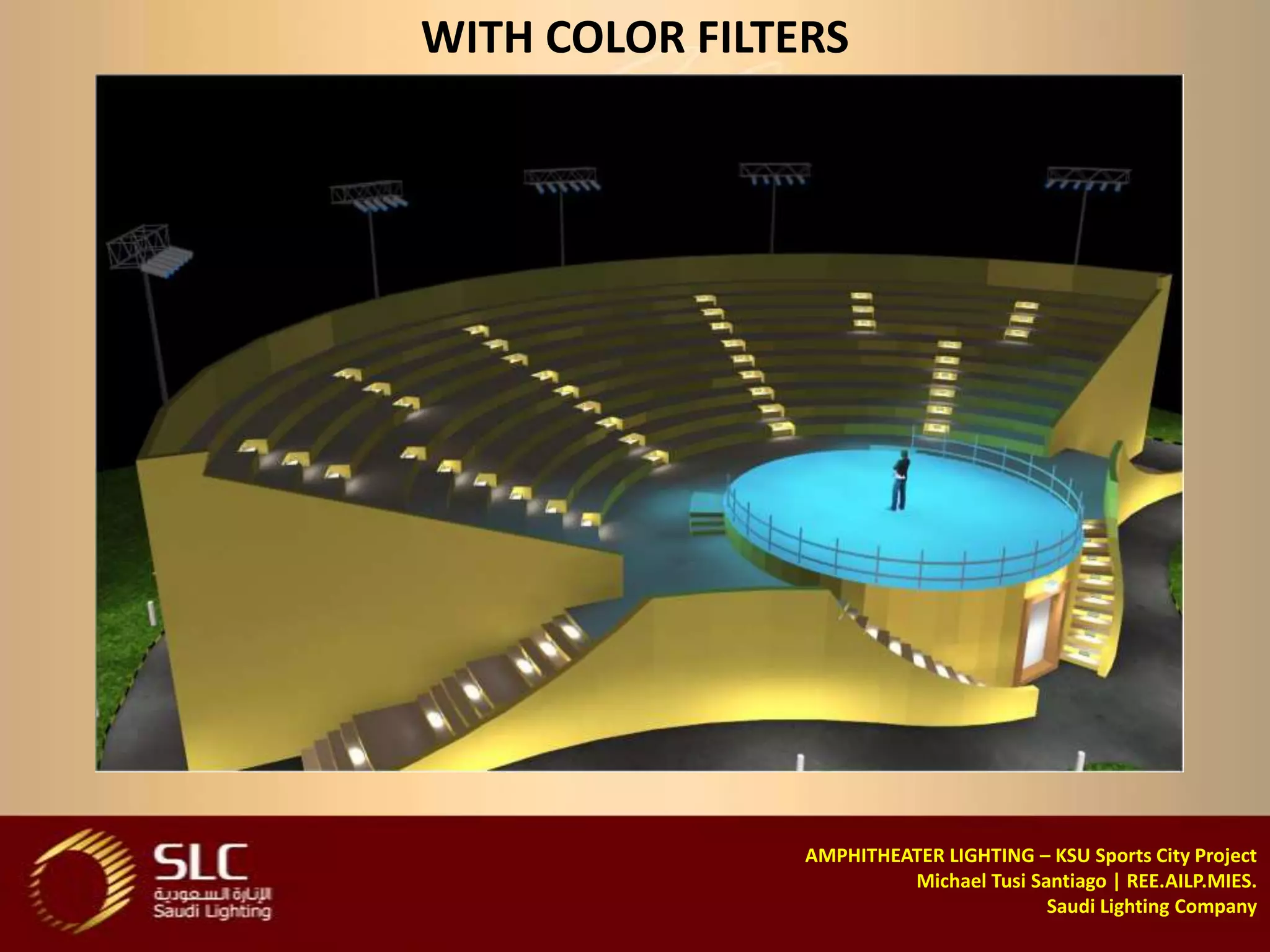

40. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

41. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

42. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

43. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

44. WITH COLOR FILTERS
AMPHITHEATER LIGHTING – KSU Sports City Project
Michael Tusi Santiago | REE.AILP.MIES.
Saudi Lighting Company

45. End of Presentation
