Required Test Reports & Cerificates for LED Luminaires

A BRIEF OVERVIEW OF
THIRD PARTY
TEST REPORTS & CERTIFICATES
Required by RCJY Specifications
for Indoor & Outdoor LED Luminaires
Presented by:
Engr Michael Santiago | ADVANCED LIGHTING COMPANY
RCJY Main Building | 10 March 2019

A BRIEF OVERVIEW OF THIRD PARTY TEST REPORTS & CERTIFICATES
Presented by:

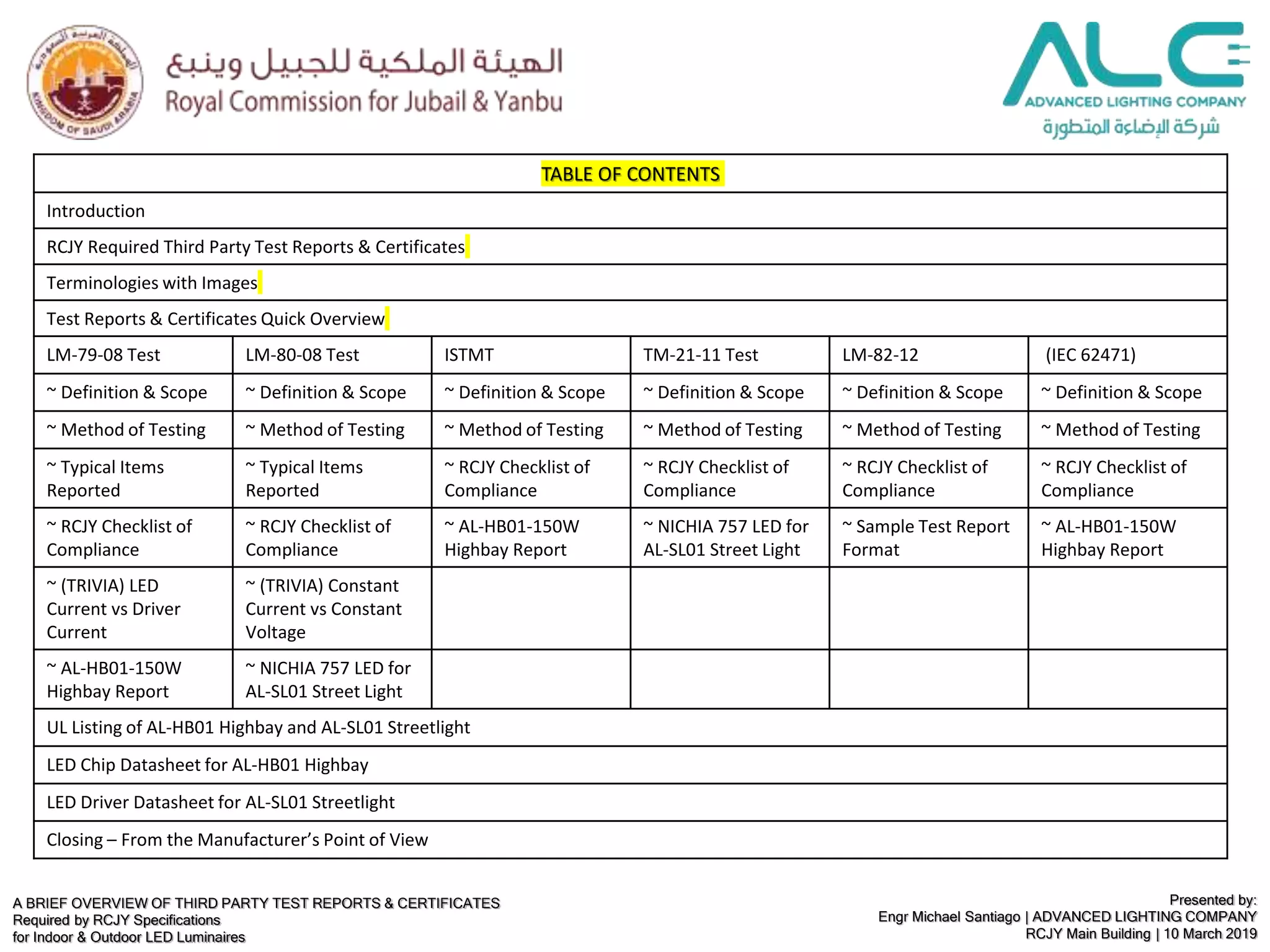

TABLE OF CONTENTS
Introduction
RCJY Required Third Party Test Reports & Certificates
Terminologies with Images
Test Reports & Certificates Quick Overview
LM-79-08 Test LM-80-08 Test ISTMT TM-21-11 Test LM-82-12 (IEC 62471)
~ Definition & Scope ~ Definition & Scope ~ Definition & Scope ~ Definition & Scope ~ Definition & Scope ~ Definition & Scope
~ Method of Testing ~ Method of Testing ~ Method of Testing ~ Method of Testing ~ Method of Testing ~ Method of Testing
~ Typical Items
Reported
~ Typical Items
Reported
~ RCJY Checklist of
Compliance
~ RCJY Checklist of
Compliance
~ RCJY Checklist of
Compliance
~ RCJY Checklist of
Compliance
~ RCJY Checklist of
Compliance
~ RCJY Checklist of
Compliance
~ AL-HB01-150W
Highbay Report
~ NICHIA 757 LED for
AL-SL01 Street Light

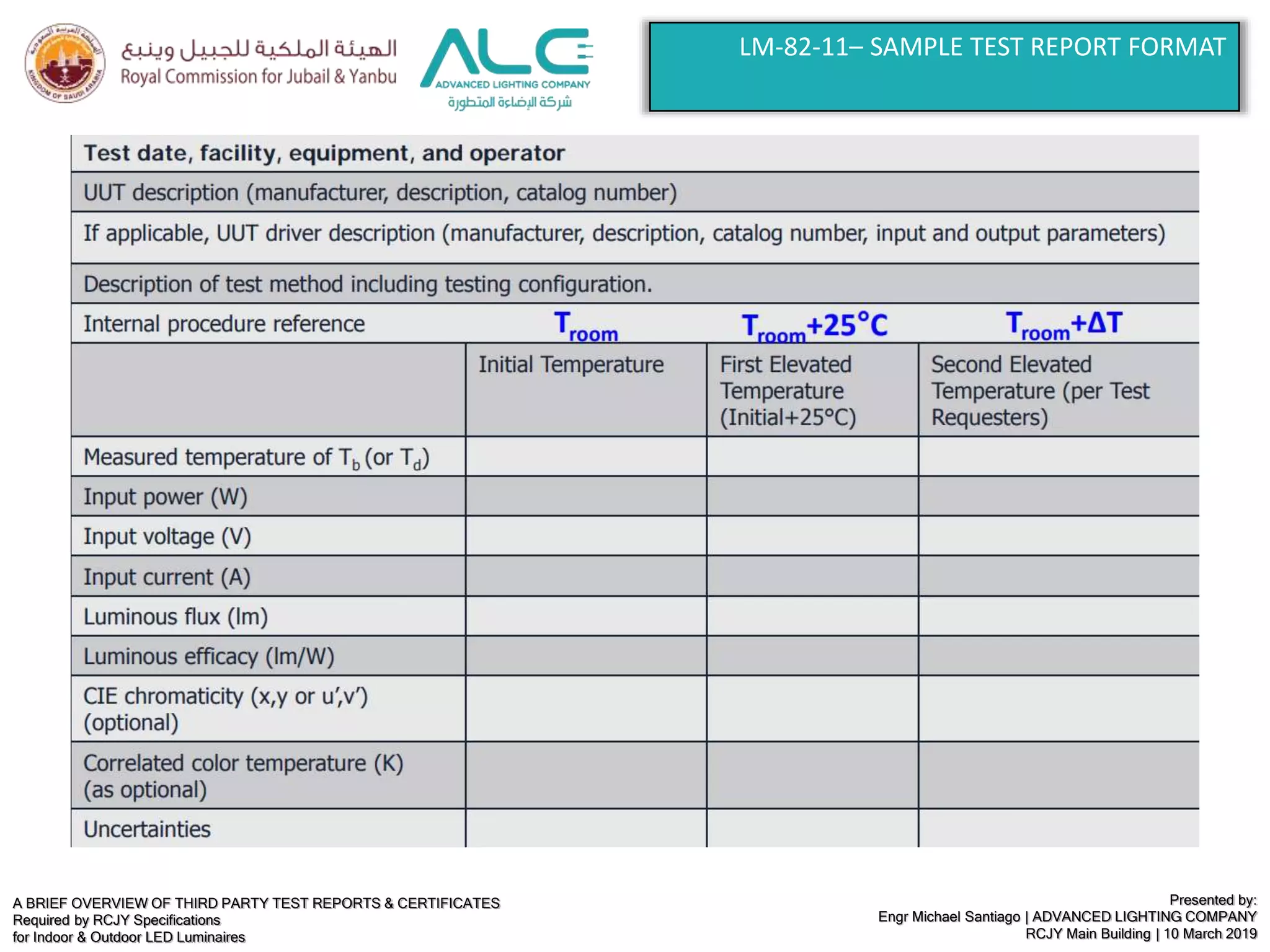

~ Sample Test Report
Format
~ AL-HB01-150W
Highbay Report
~ (TRIVIA) LED
Current vs Driver
Current
~ (TRIVIA) Constant
Current vs Constant
Voltage
~ AL-HB01-150W
Highbay Report
~ NICHIA 757 LED for
AL-SL01 Street Light

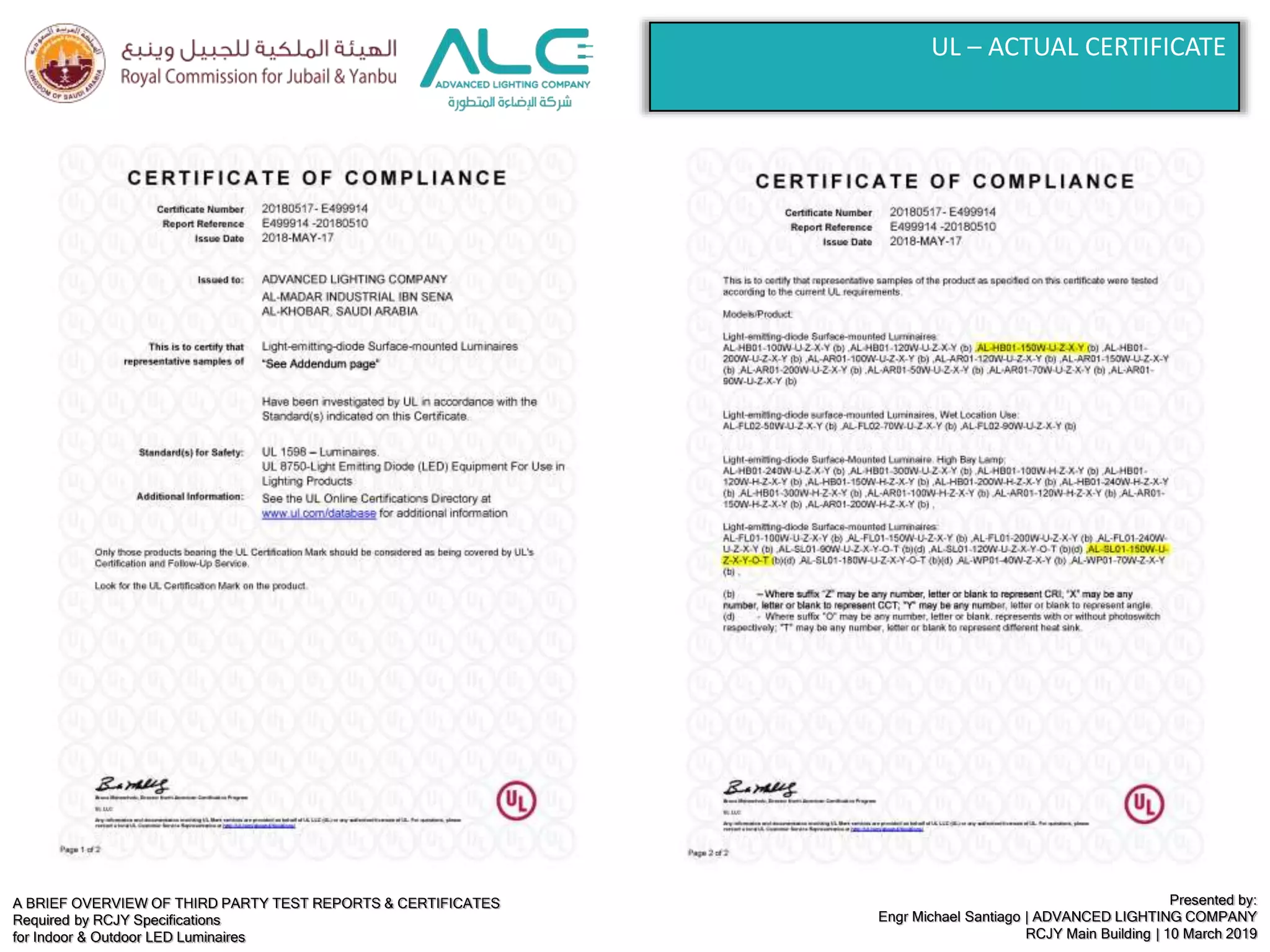

UL Listing of AL-HB01 Highbay and AL-SL01 Streetlight

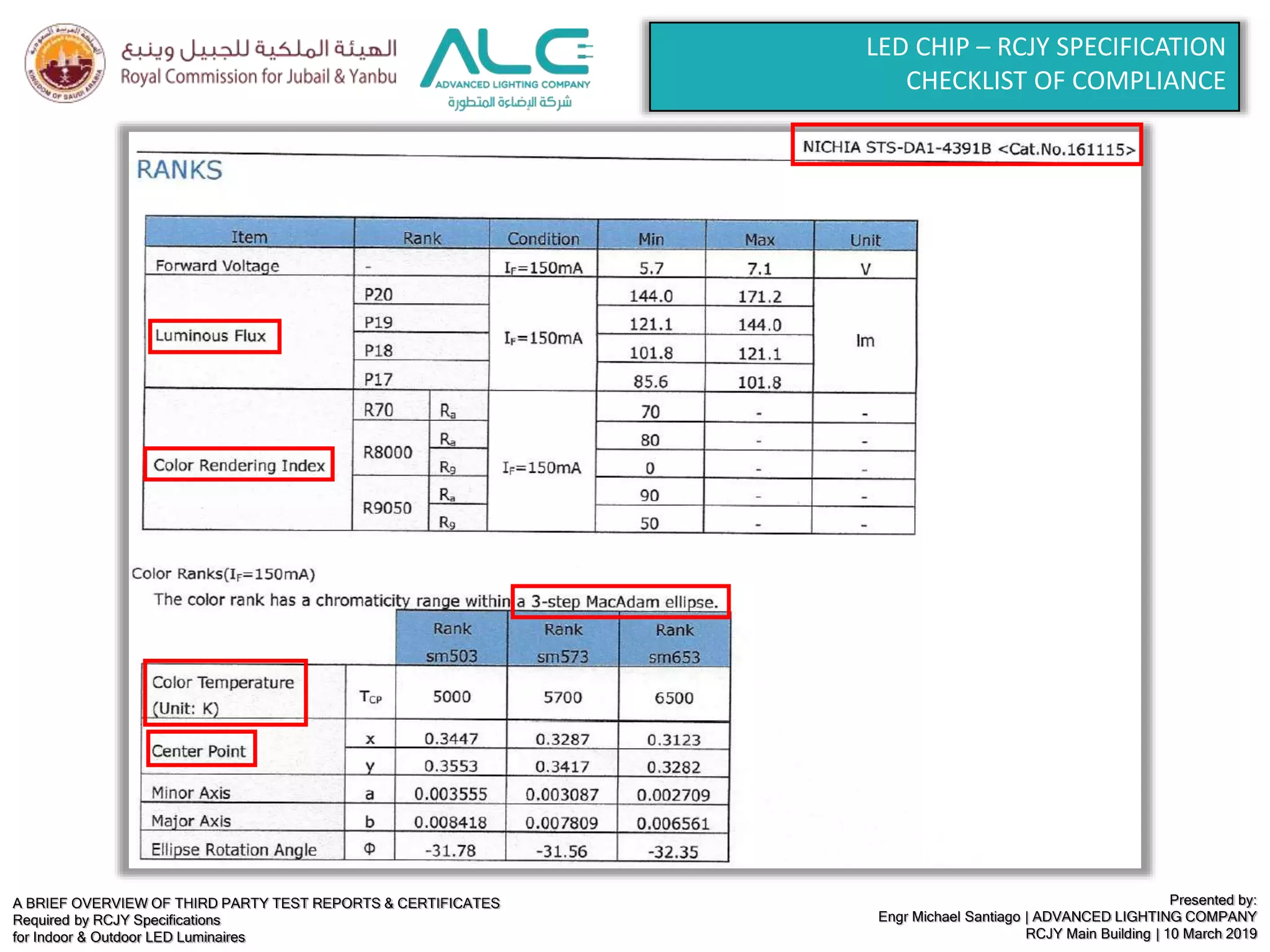

LED Chip Datasheet for AL-HB01 Highbay
LED Driver Datasheet for AL-SL01 Streetlight

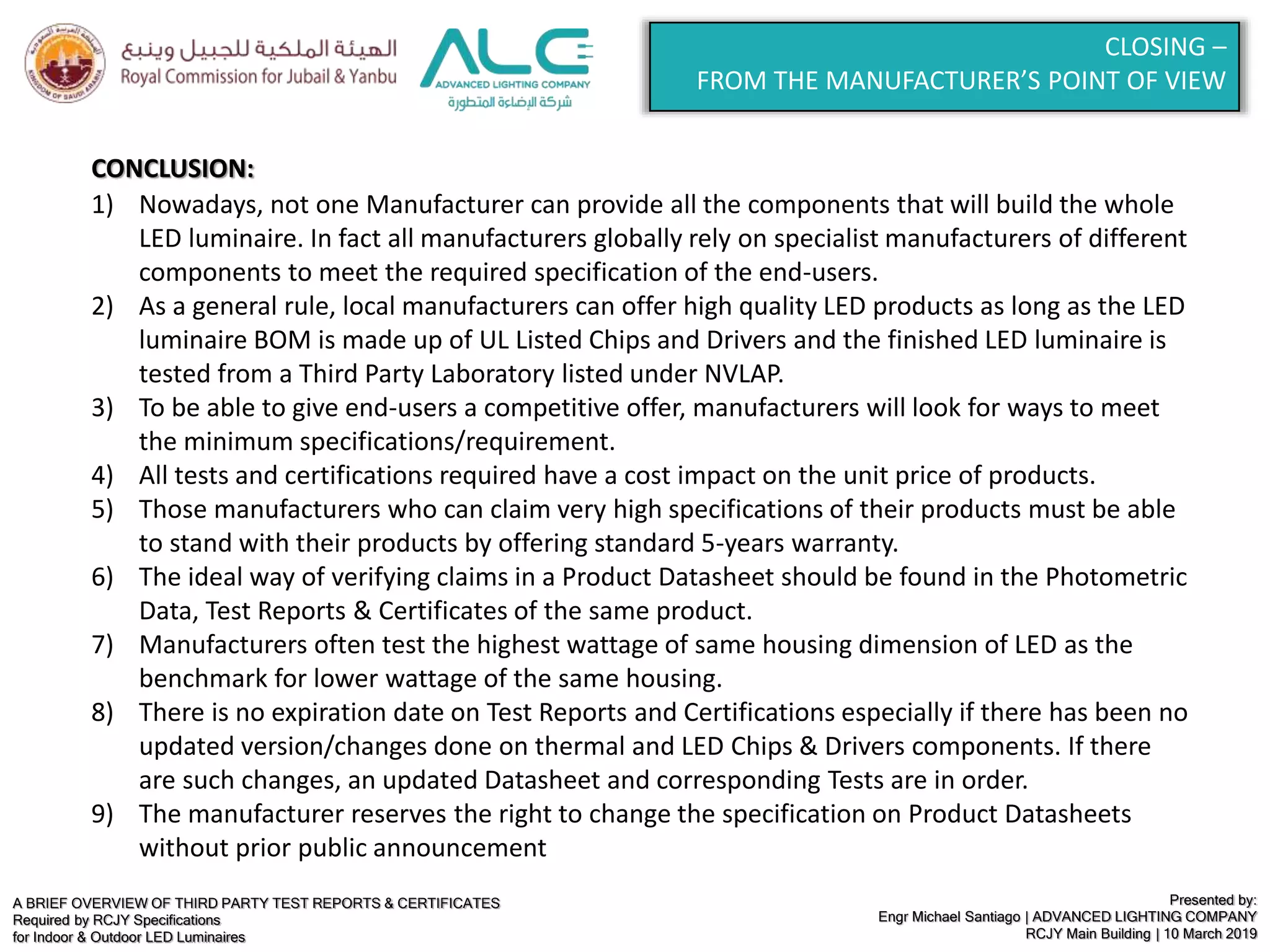

Closing – From the Manufacturer’s Point of View

Presented by:

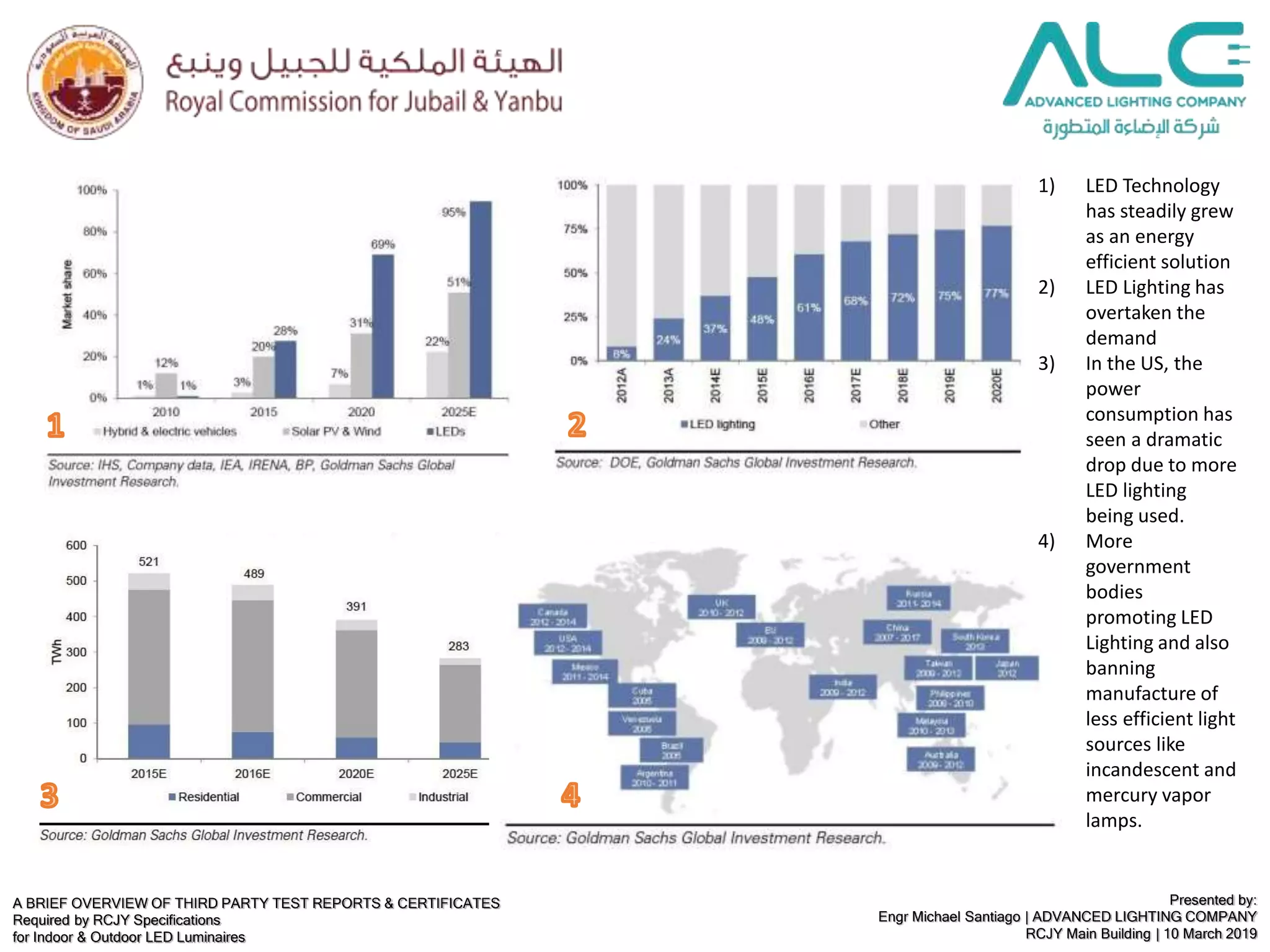

1) LED Technology
has steadily grew
as an energy
efficient solution
2) LED Lighting has
overtaken the
demand
3) In the US, the
power
consumption has
seen a dramatic
drop due to more
LED lighting
being used.
4) More
government
bodies
promoting LED
Lighting and also
banning
manufacture of
less efficient light
sources like
incandescent and
mercury vapor
lamps.

Presented by:

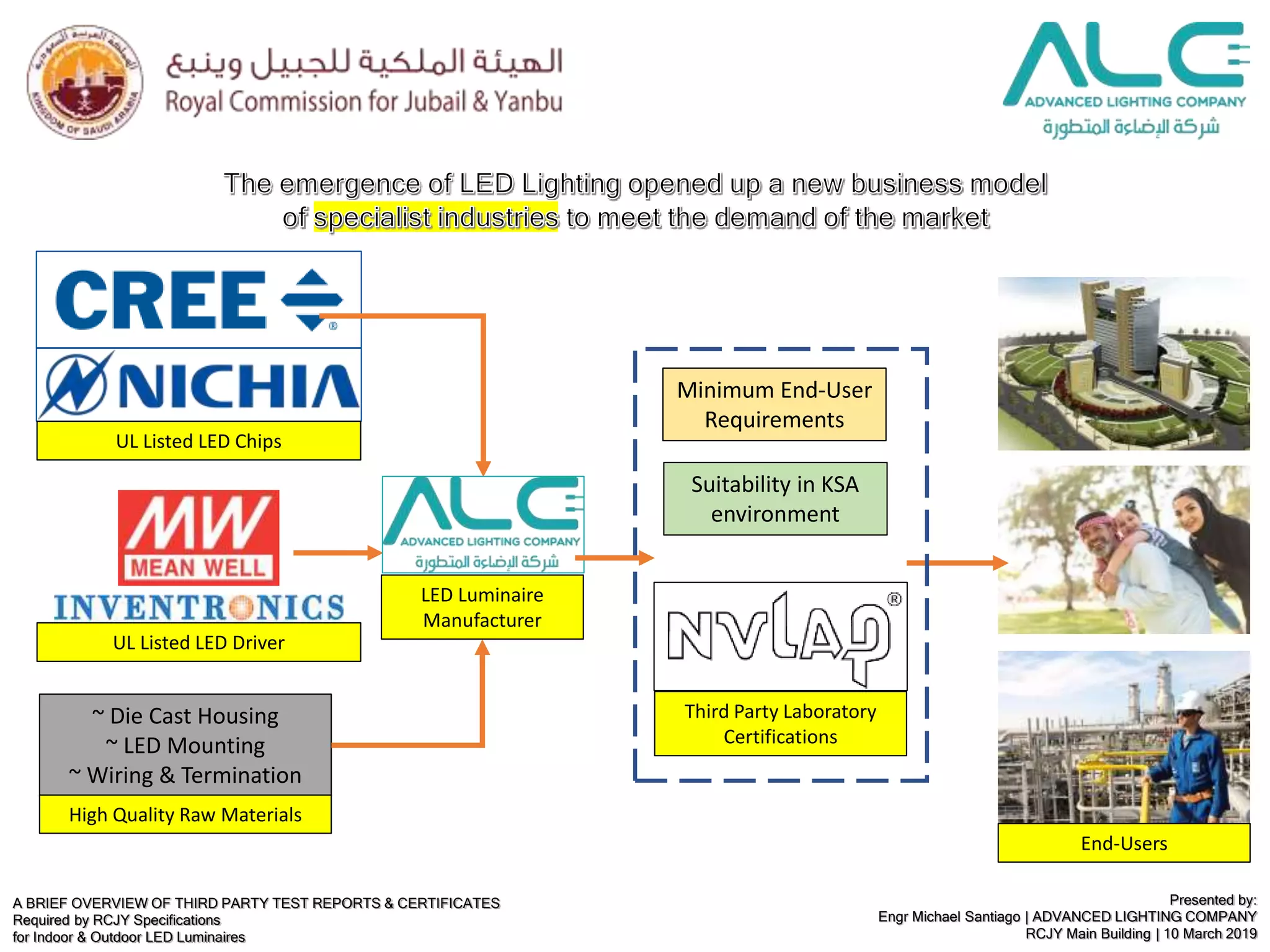

~ Die Cast Housing
~ LED Mounting
~ Wiring & Termination
Minimum End-User
Requirements
Suitability in KSA
environment
UL Listed LED Chips
UL Listed LED Driver
High Quality Raw Materials
LED Luminaire
Manufacturer
Third Party Laboratory
Certifications
End-Users

Presented by:
DATASHEETS
LUMINAIRE DATASHEET
LED CHIP DATASHEET
LED DRIVER DATASHEET
SURGE PROTECTION
DEVICE DATASHEET
TEST REPORTS
LM-79-08 TEST
LM-80-08 TEST
TM-21-11 TEST
LM-82-12 REPORT
ISTMT REPORT
PHOTOBIOLOGICAL
(IEC 62471)
OTHER REPORTS
IP RATING
IK RATING
TOTAL HARMONIC
DISTORTION
AERODYNAMIC TEST
FRAGMENTATION TEST
CORROSSION TEST
ELECTROMAGNETIC TEST
3-AXIS VIBRATION
CERTIFICATES
UL LISTING
CE
ROHS
SASO IEC 62717:2015

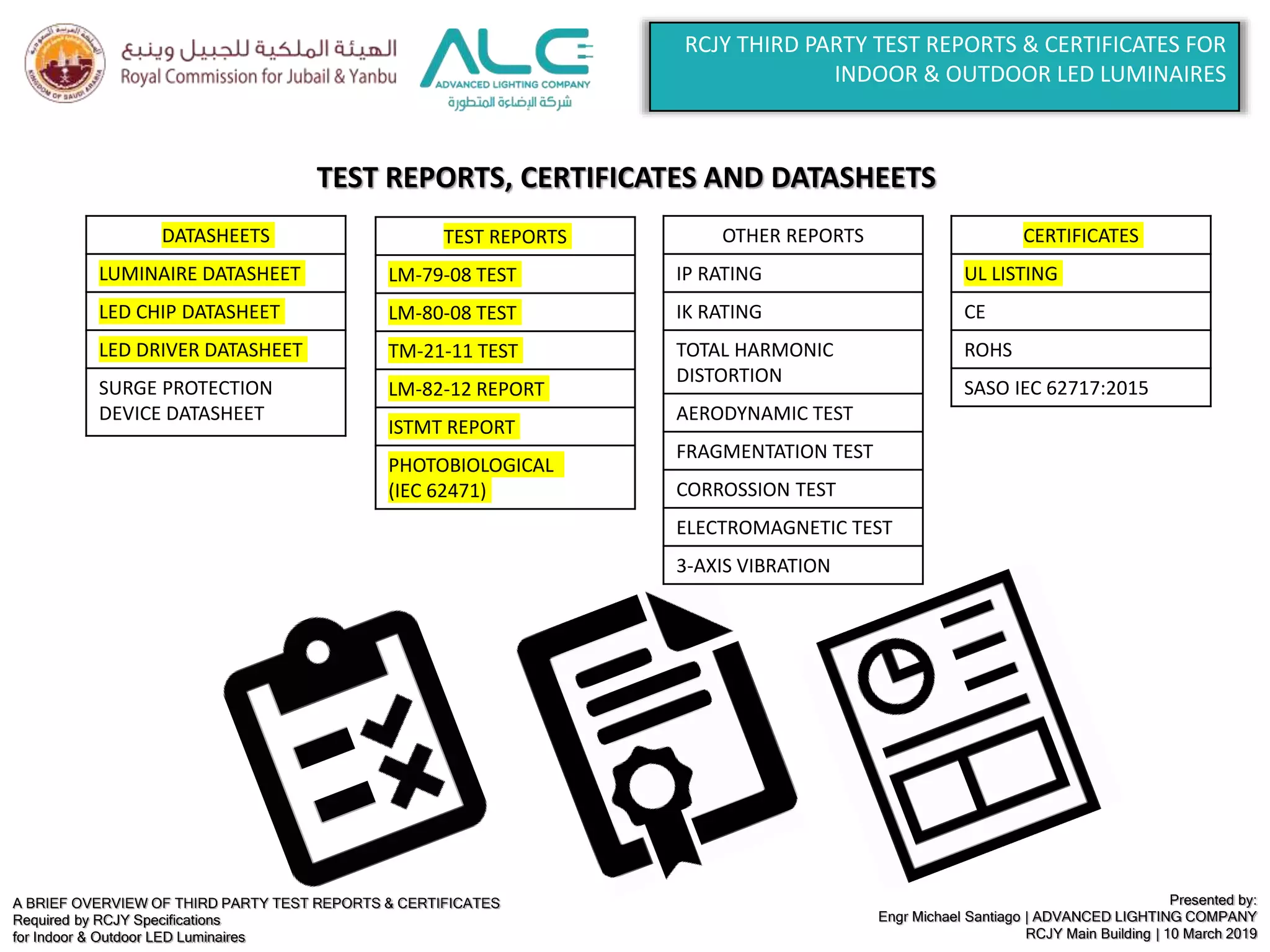

RCJY THIRD PARTY TEST REPORTS & CERTIFICATES FOR
INDOOR & OUTDOOR LED LUMINAIRES
TEST REPORTS, CERTIFICATES AND DATASHEETS

Presented by:

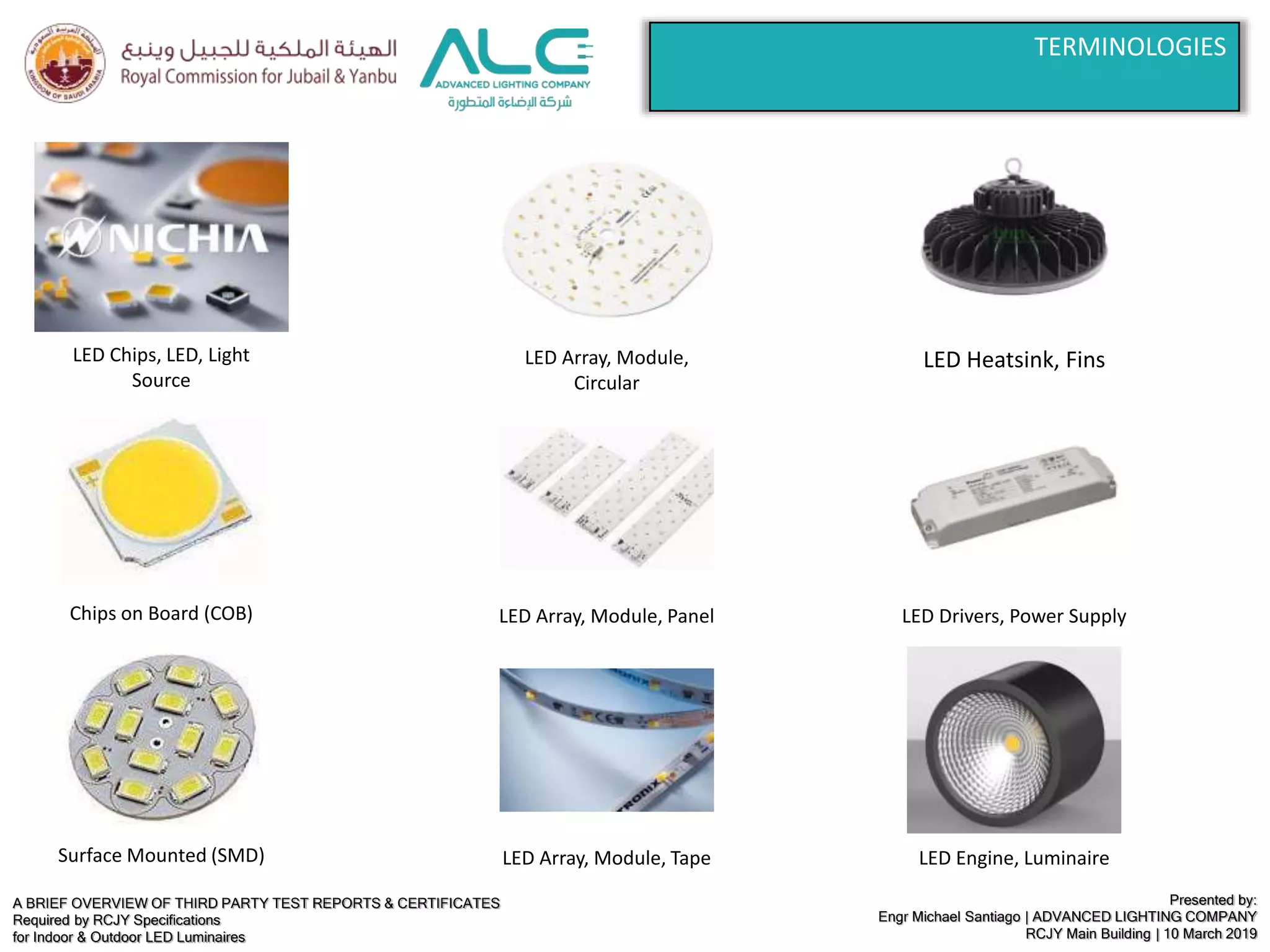

LED Chips, LED, Light
Source
Chips on Board (COB)
Surface Mounted (SMD)
LED Array, Module,
Circular
LED Array, Module, Panel
LED Array, Module, Tape
LED Heatsink, Fins
LED Drivers, Power Supply
LED Engine, Luminaire
TERMINOLOGIES

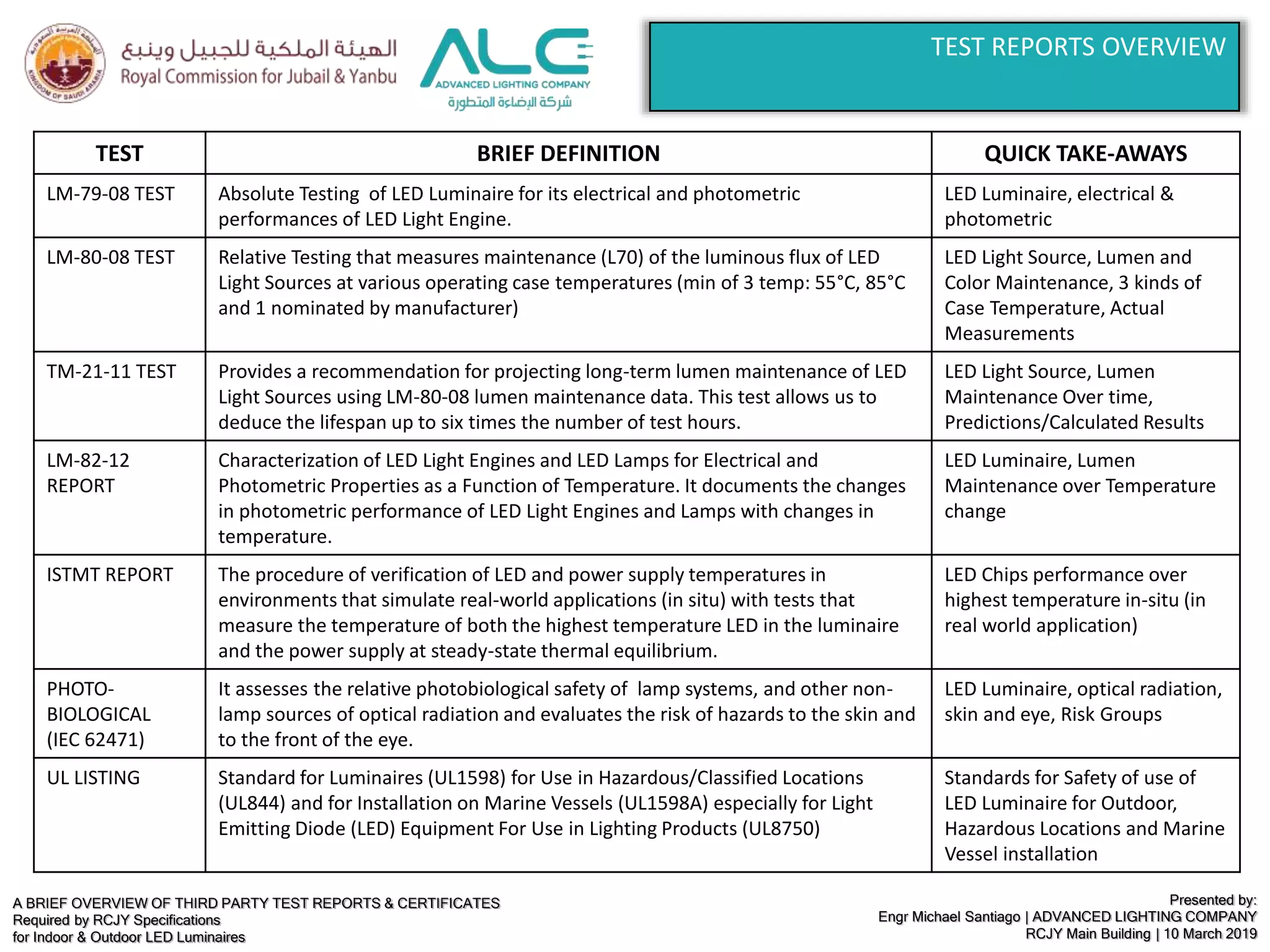

Presented by:
TEST BRIEF DEFINITION QUICK TAKE-AWAYS
LM-79-08 TEST Absolute Testing of LED Luminaire for its electrical and photometric
performances of LED Light Engine.
LED Luminaire, electrical &
photometric
LM-80-08 TEST Relative Testing that measures maintenance (L70) of the luminous flux of LED
Light Sources at various operating case temperatures (min of 3 temp: 55°C, 85°C
and 1 nominated by manufacturer)
LED Light Source, Lumen and
Color Maintenance, 3 kinds of
Case Temperature, Actual
Measurements

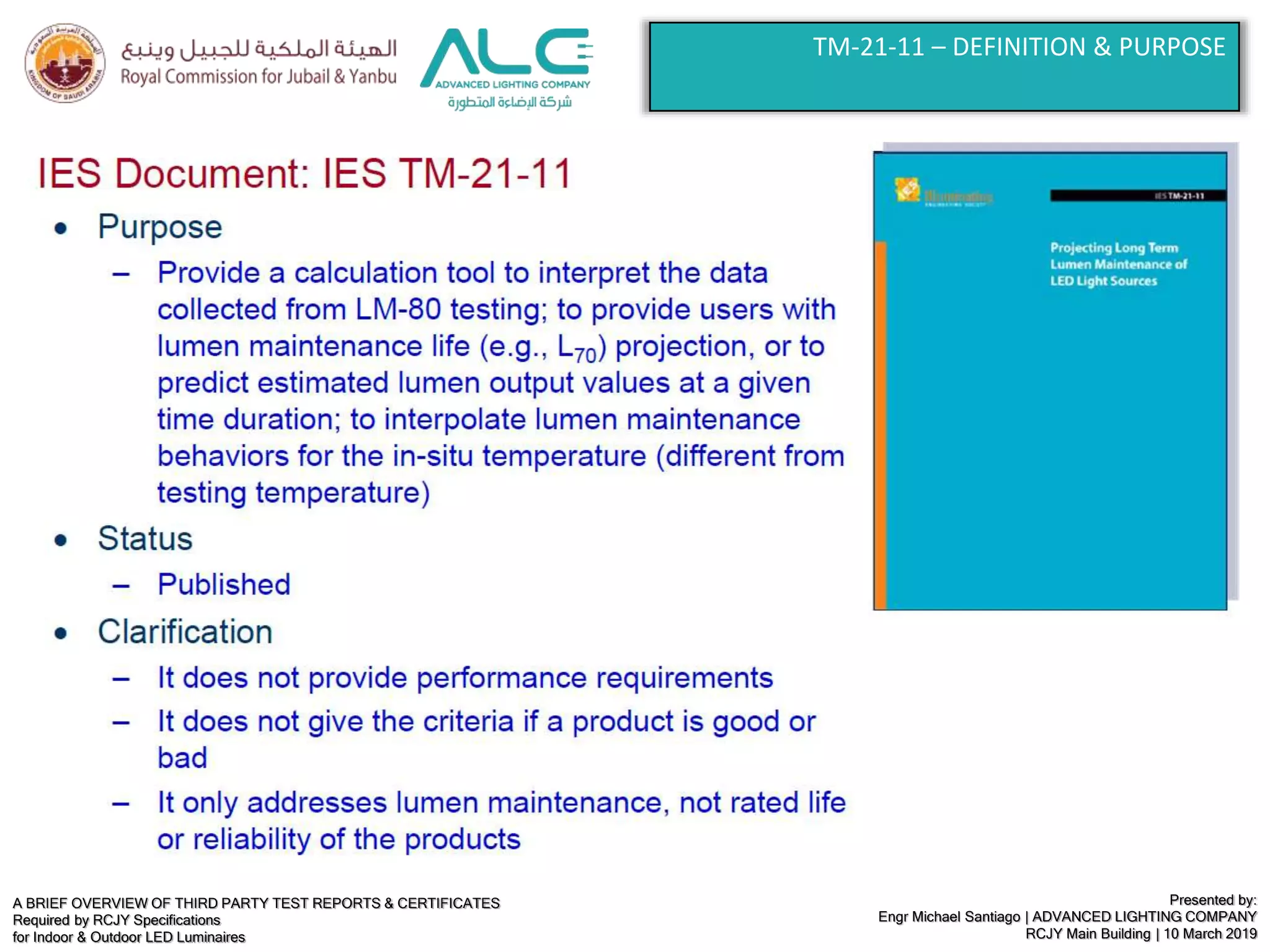

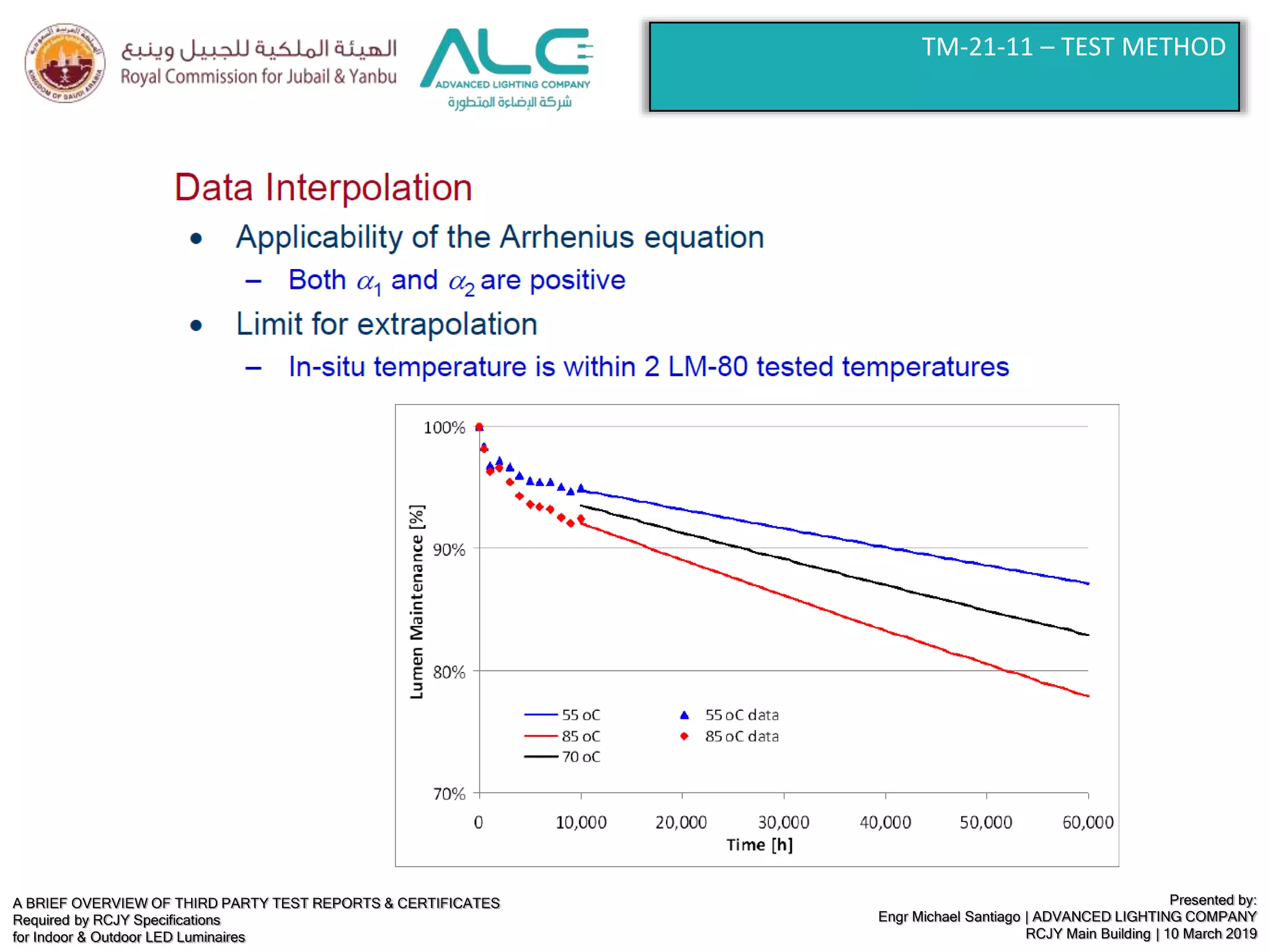

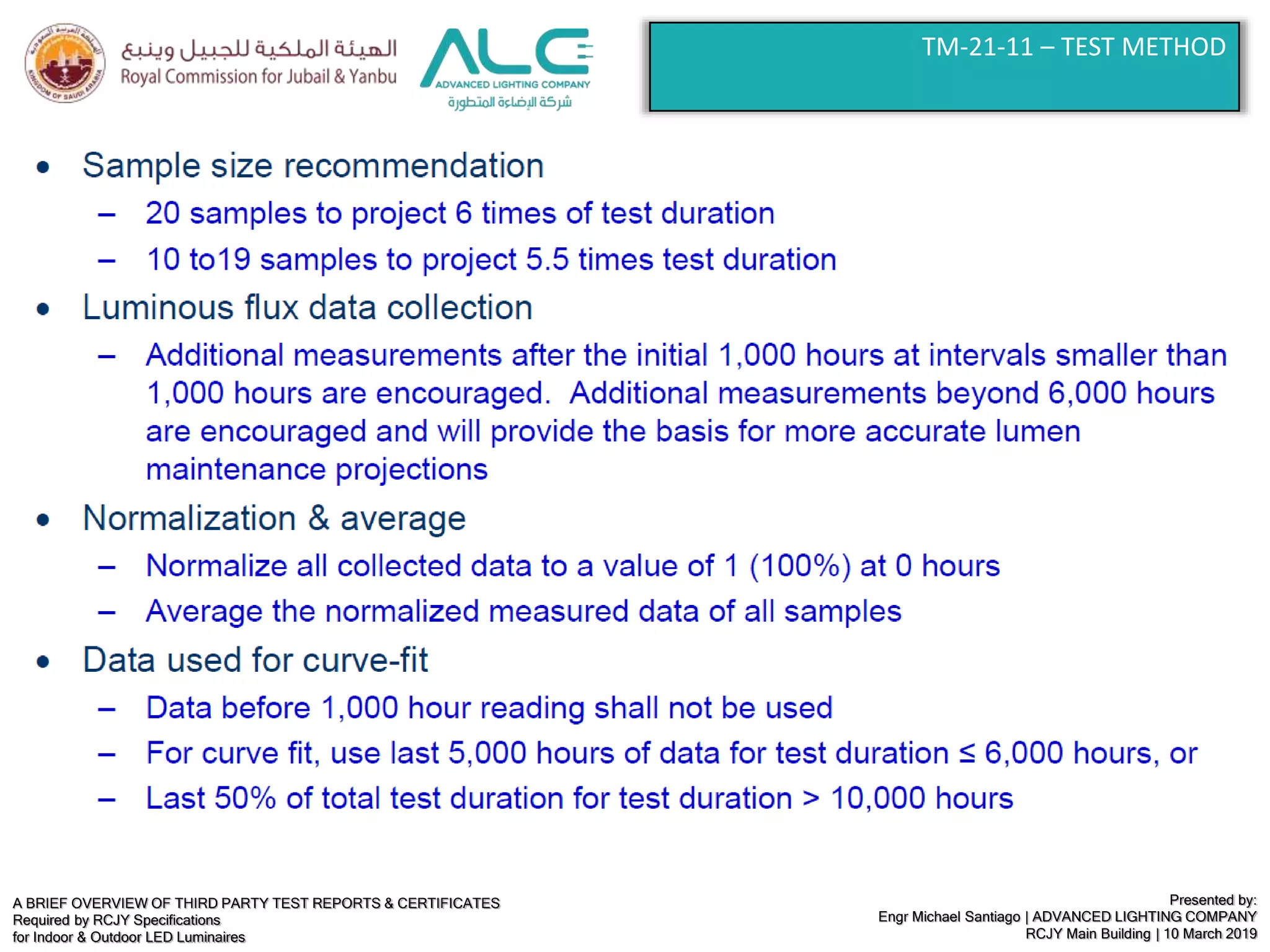

TM-21-11 TEST Provides a recommendation for projecting long-term lumen maintenance of LED
Light Sources using LM-80-08 lumen maintenance data. This test allows us to
deduce the lifespan up to six times the number of test hours.
LED Light Source, Lumen
Maintenance Over time,
Predictions/Calculated Results

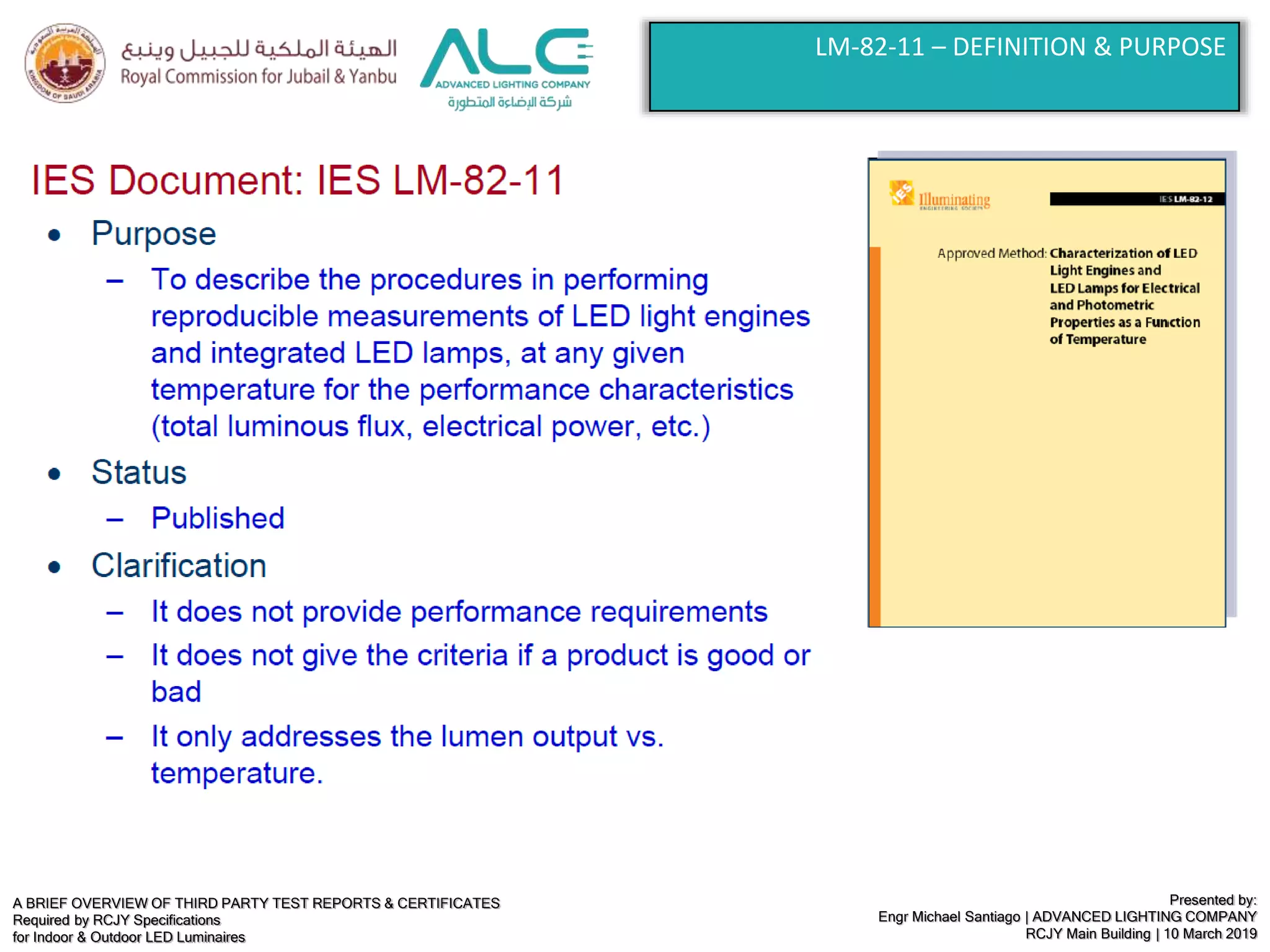

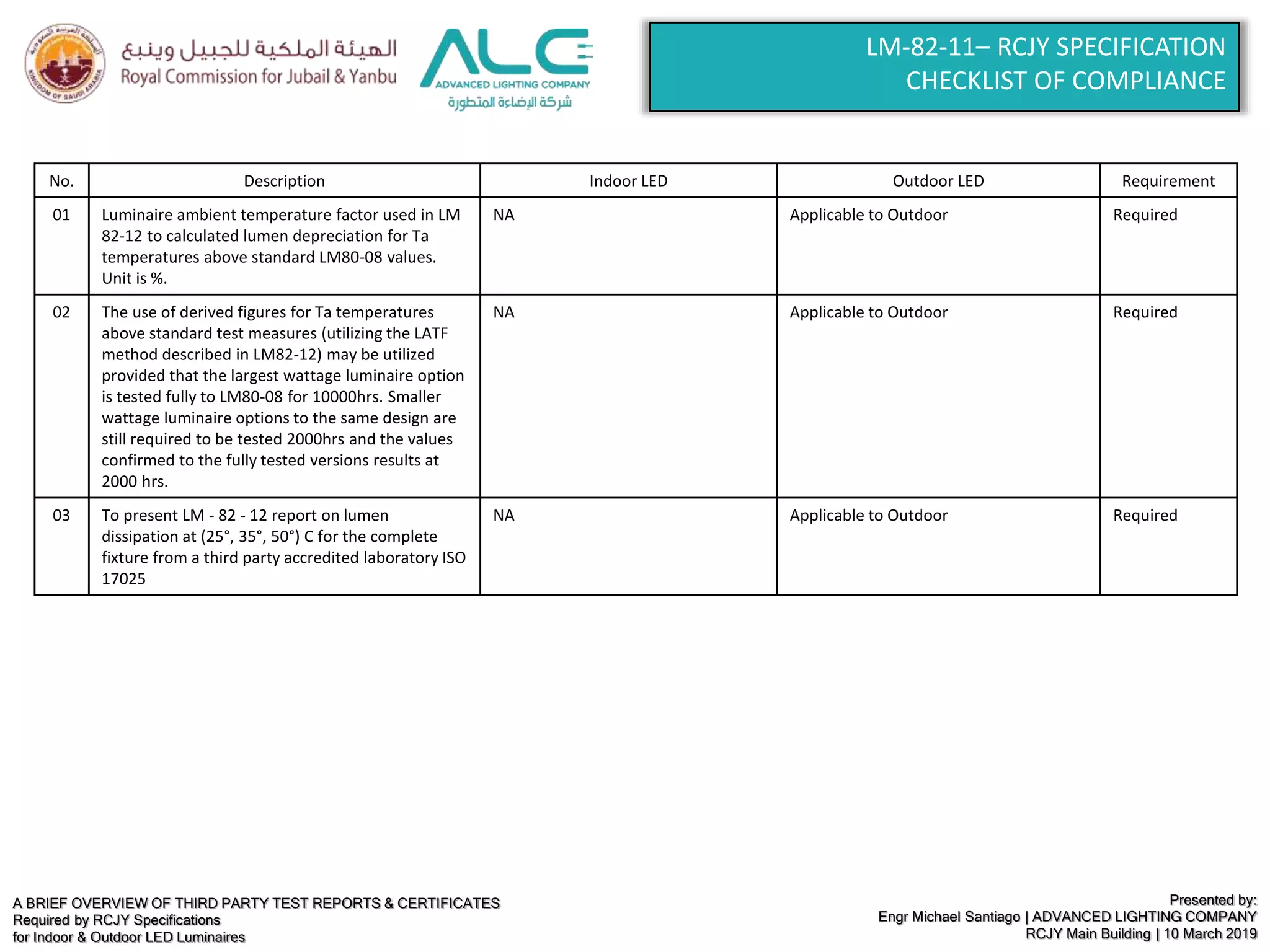

LM-82-12
REPORT
Characterization of LED Light Engines and LED Lamps for Electrical and
Photometric Properties as a Function of Temperature. It documents the changes
in photometric performance of LED Light Engines and Lamps with changes in
temperature.
LED Luminaire, Lumen
Maintenance over Temperature
change

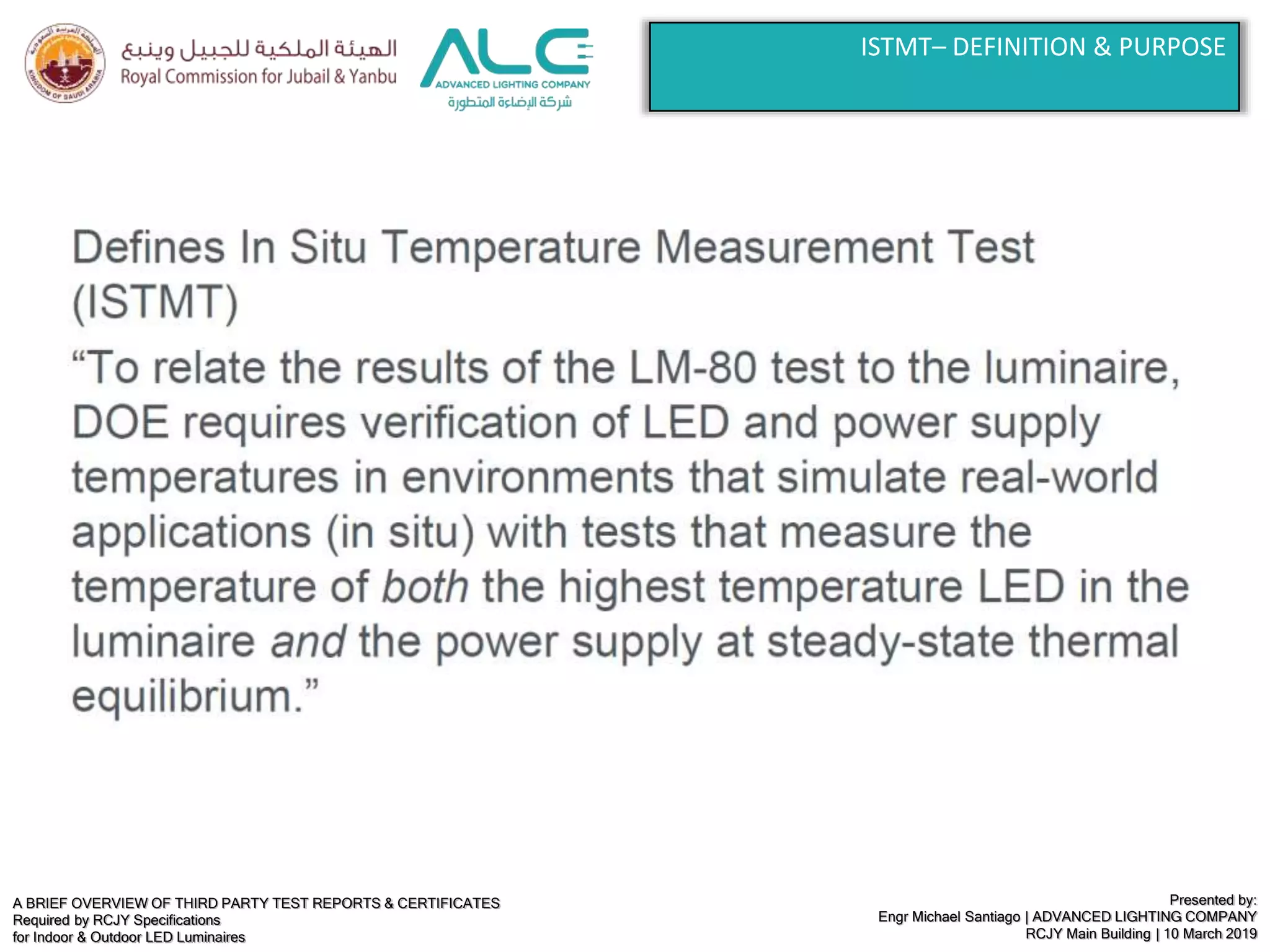

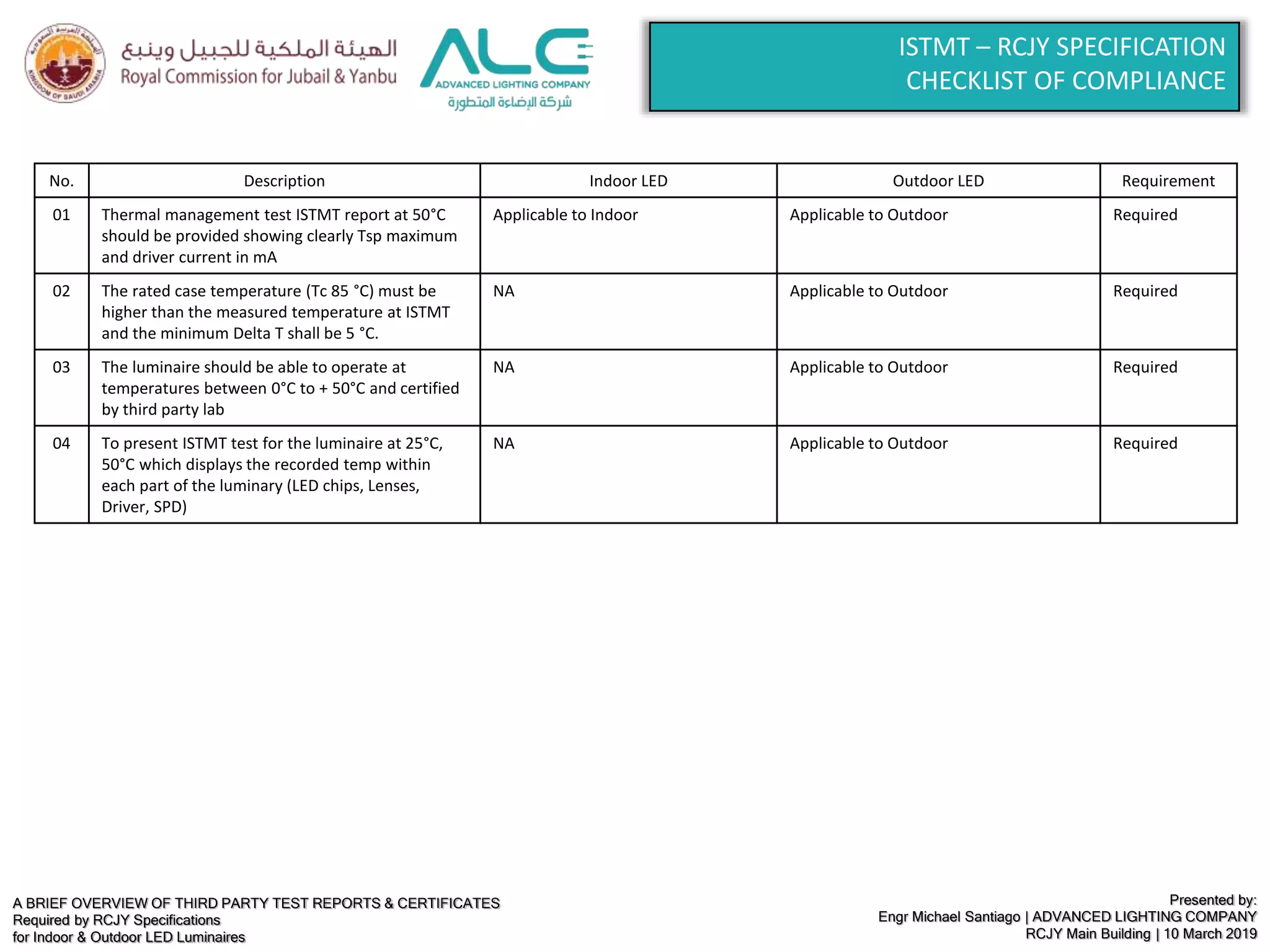

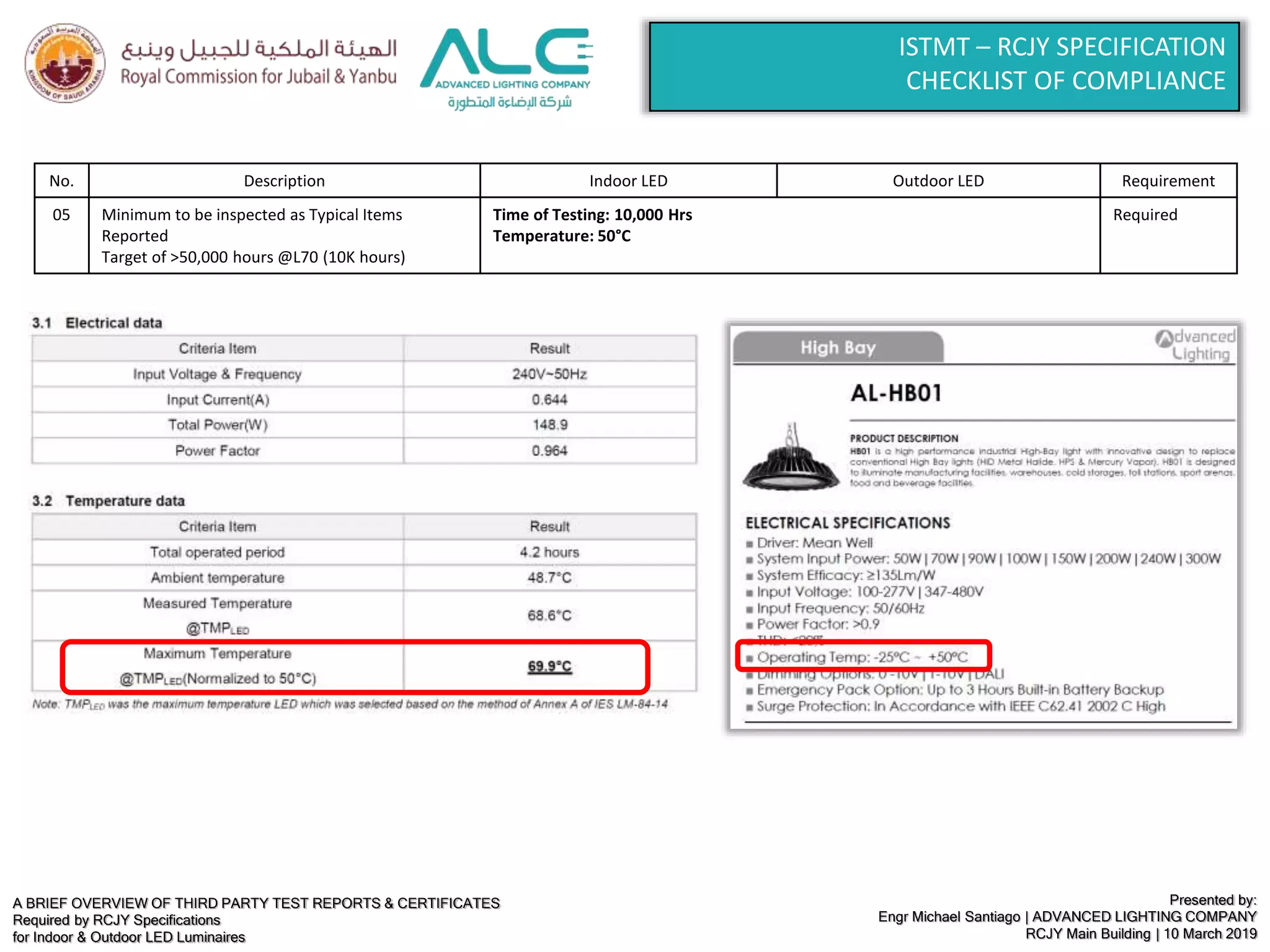

ISTMT REPORT The procedure of verification of LED and power supply temperatures in
environments that simulate real-world applications (in situ) with tests that
measure the temperature of both the highest temperature LED in the luminaire
and the power supply at steady-state thermal equilibrium.
LED Chips performance over
highest temperature in-situ (in
real world application)

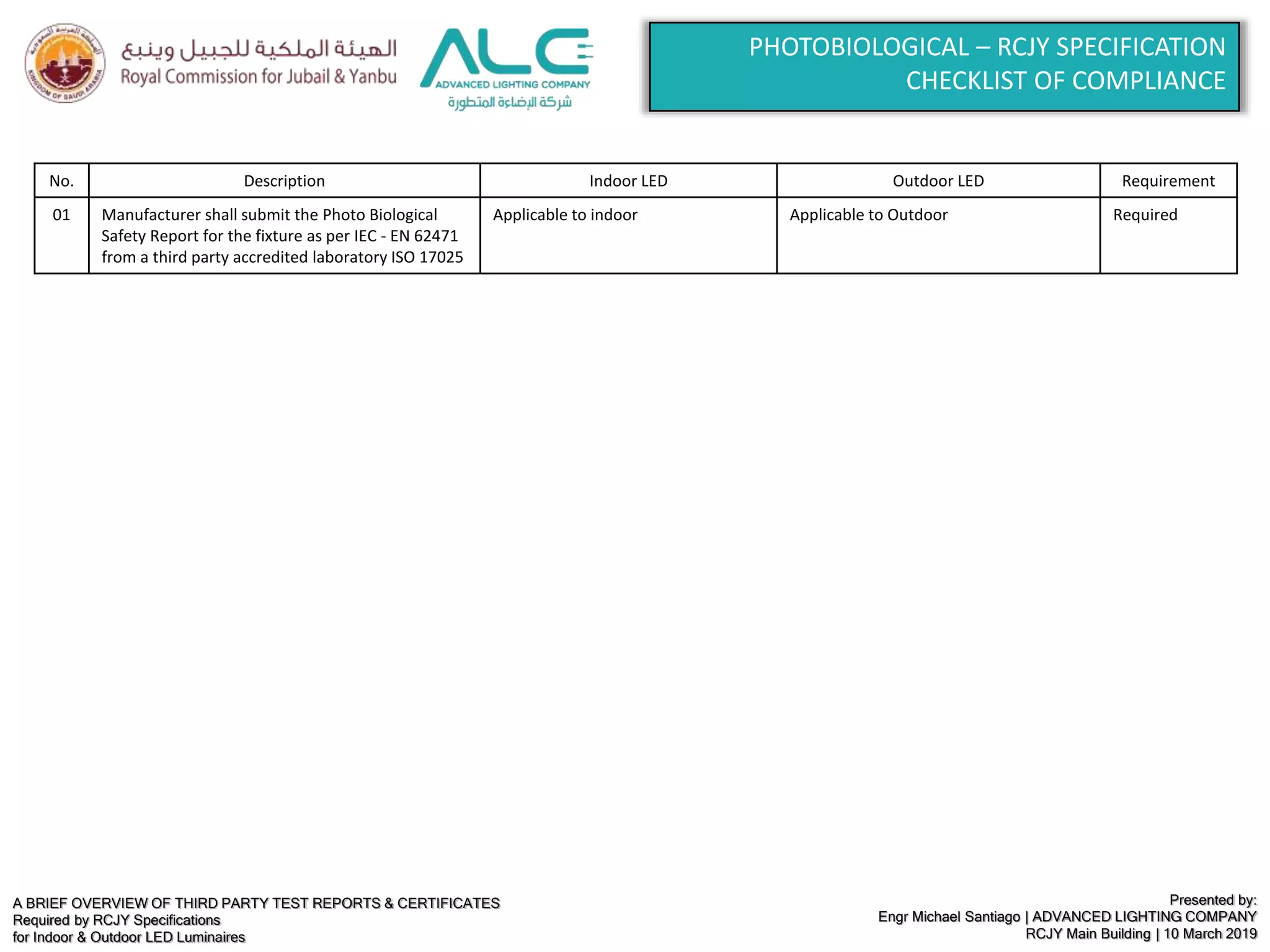

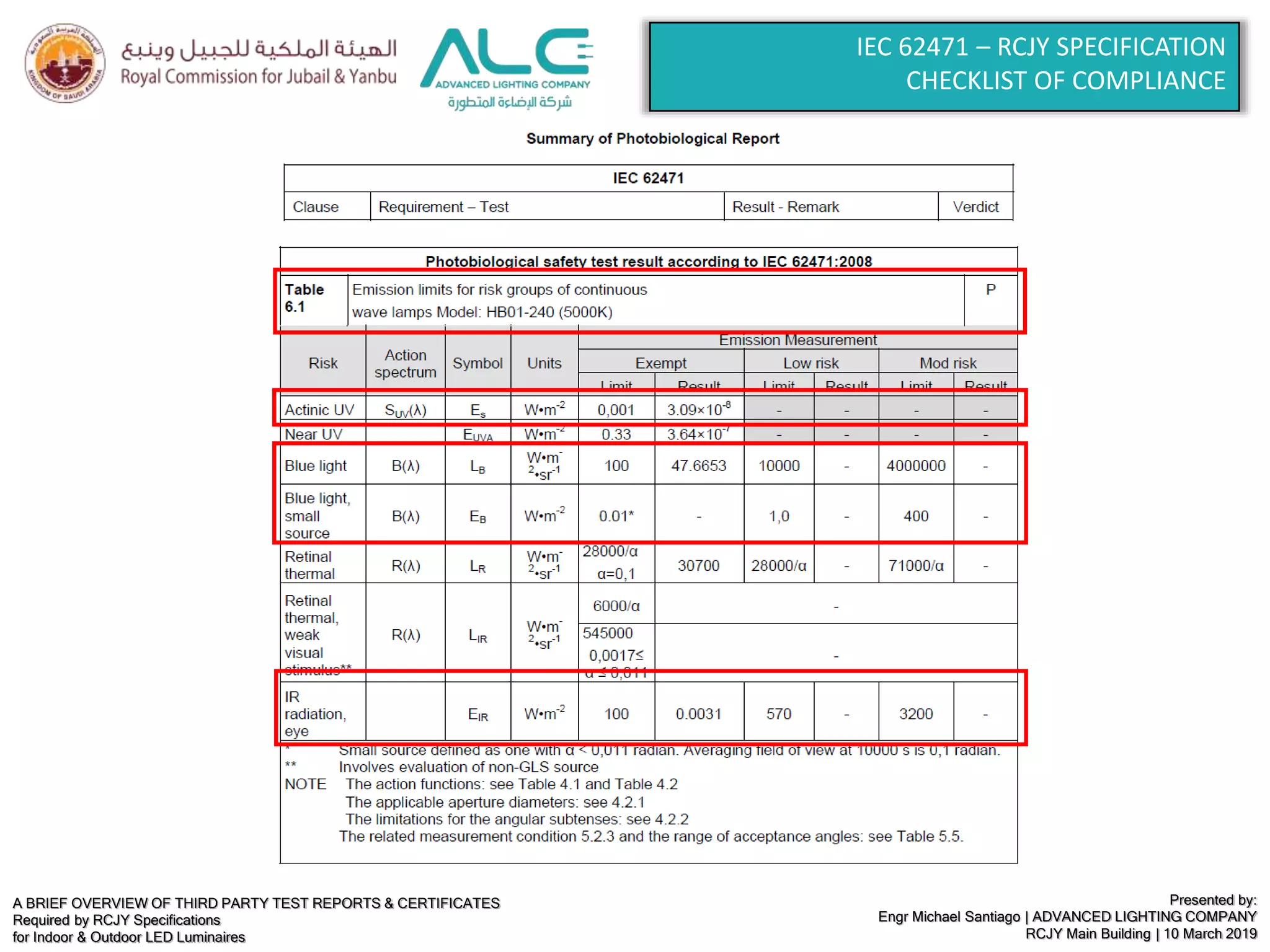

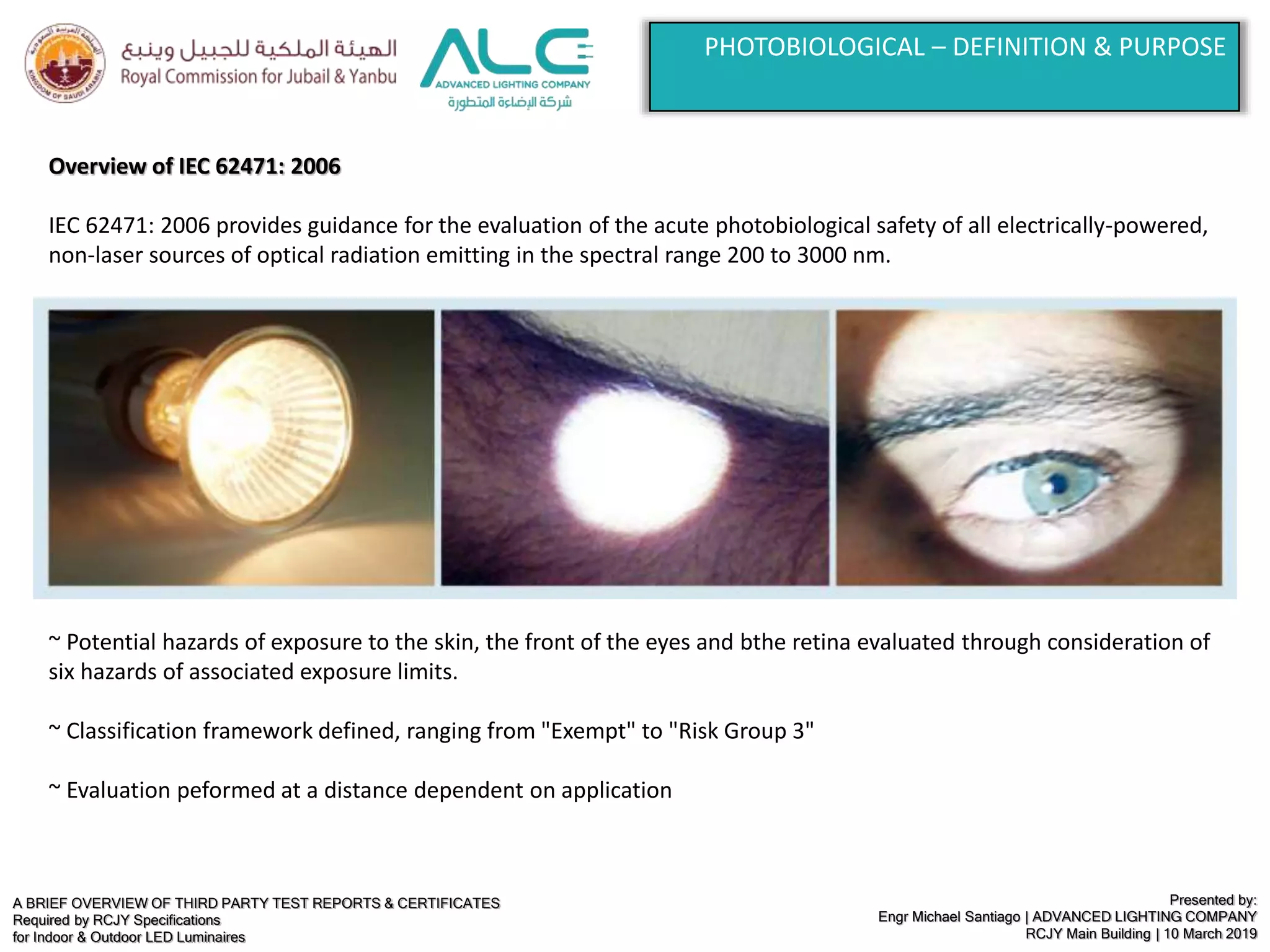

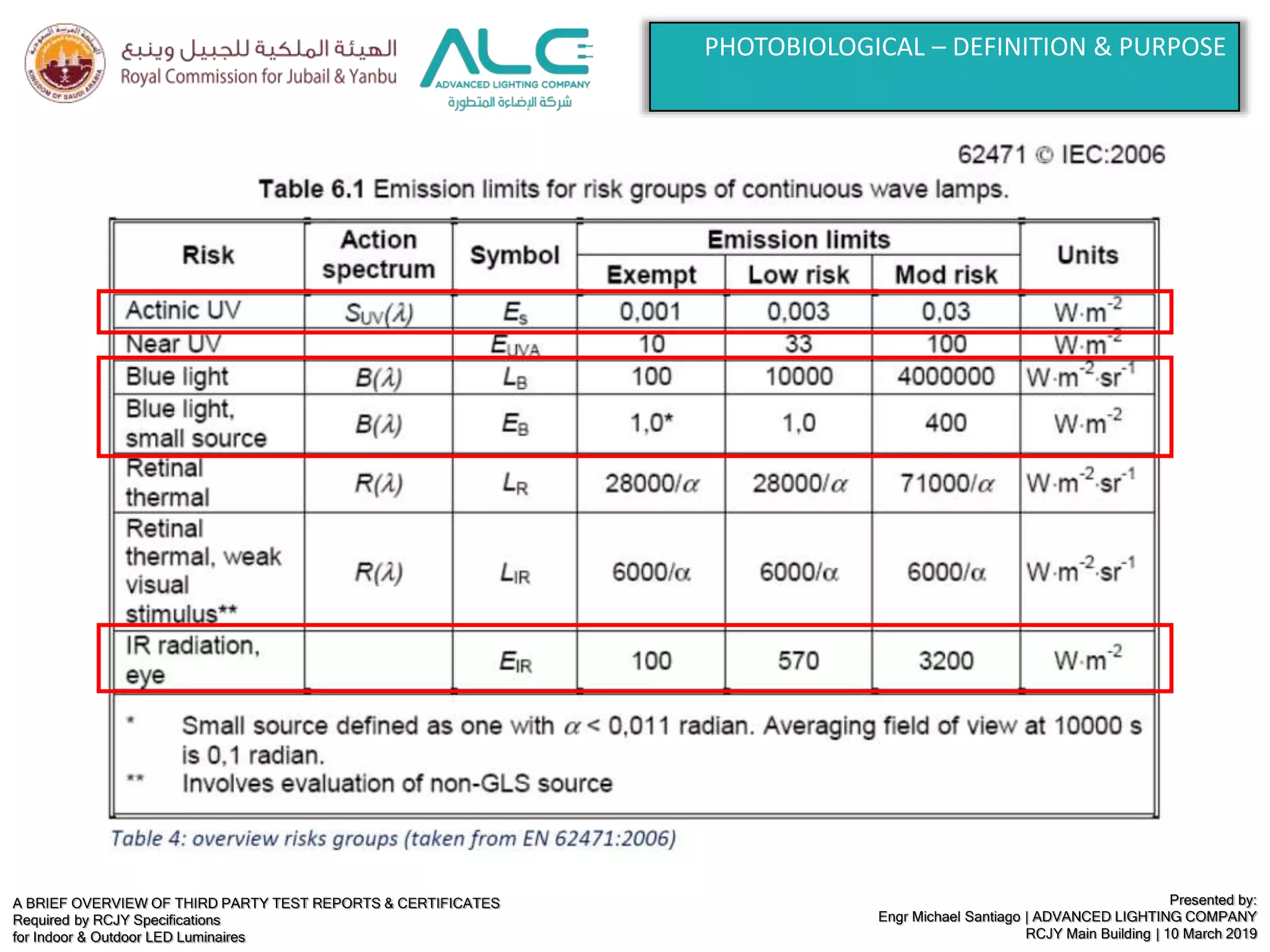

PHOTO-
BIOLOGICAL
(IEC 62471)
It assesses the relative photobiological safety of lamp systems, and other non-
lamp sources of optical radiation and evaluates the risk of hazards to the skin and
to the front of the eye.
LED Luminaire, optical radiation,
skin and eye, Risk Groups

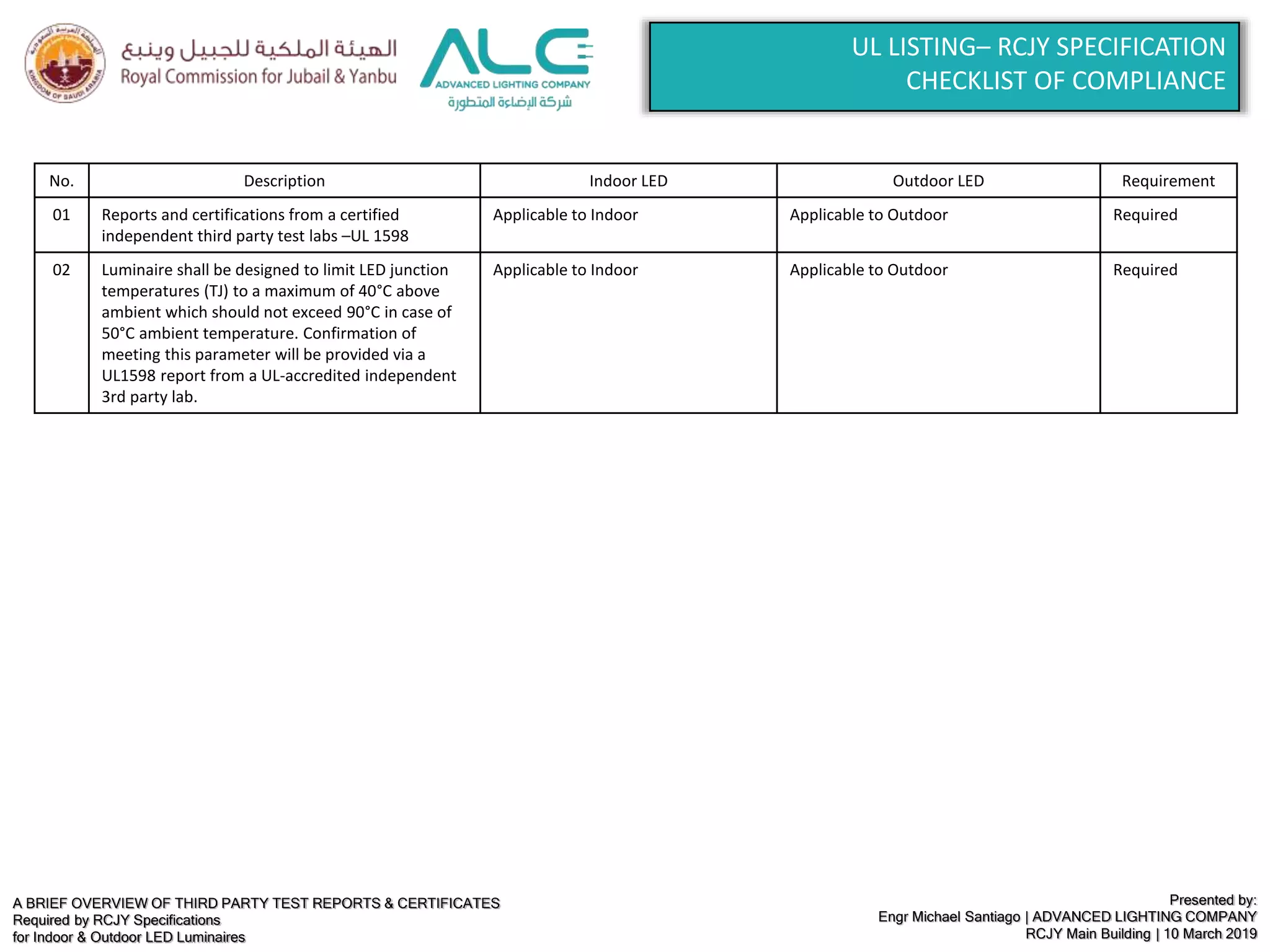

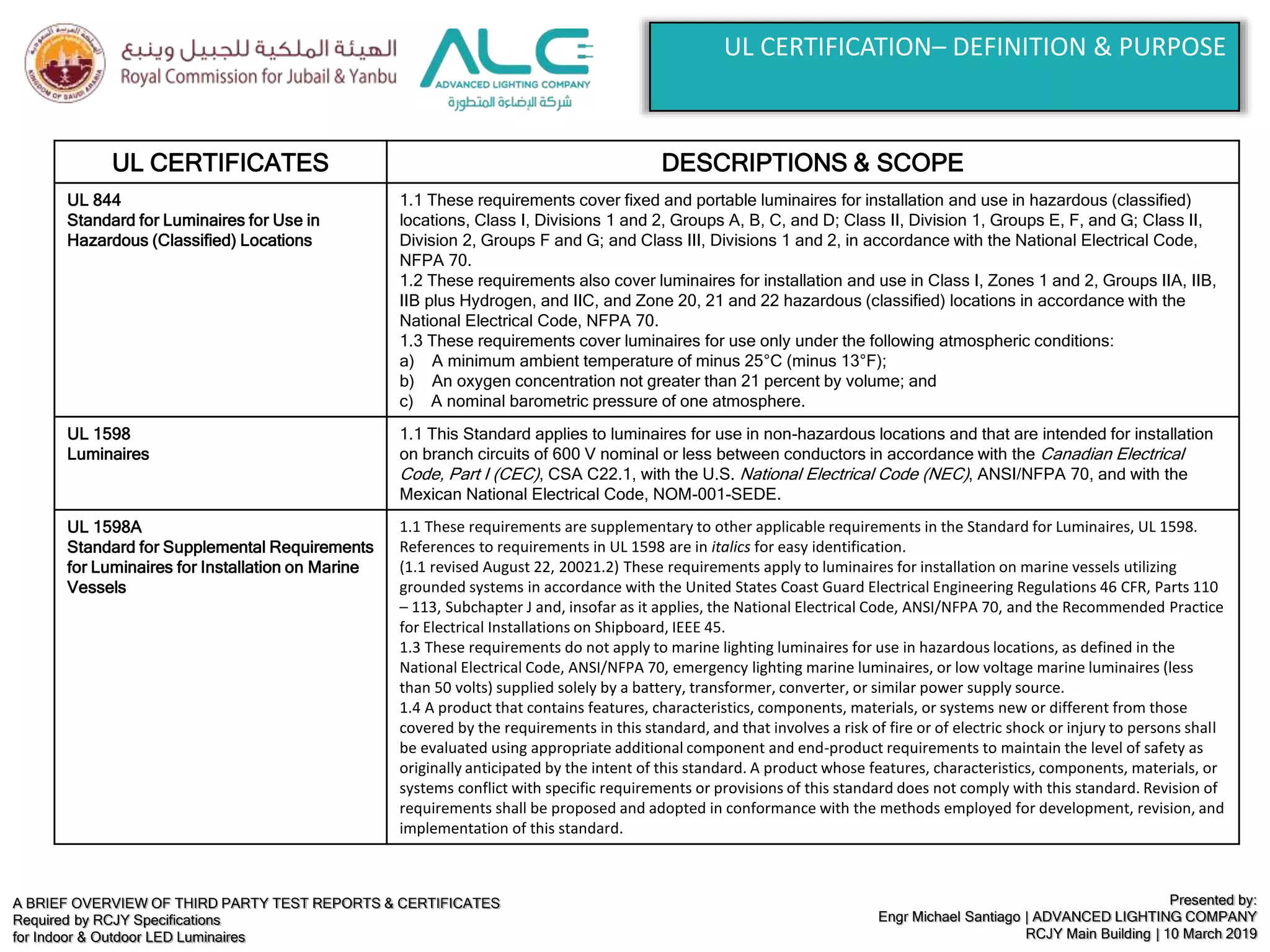

UL LISTING Standard for Luminaires (UL1598) for Use in Hazardous/Classified Locations
(UL844) and for Installation on Marine Vessels (UL1598A) especially for Light
Emitting Diode (LED) Equipment For Use in Lighting Products (UL8750)
Standards for Safety of use of
LED Luminaire for Outdoor,
Hazardous Locations and Marine
Vessel installation
TEST REPORTS OVERVIEW

LM-79-08 TEST
~ Definition & Scope
~ Method of Testing
~ Typical Items Reported
~ RCJY Checklist of Compliance
~ LED Current vs Driver Current (Trivia)
~ AL-HB01-150W Highbay Report
~ IFC Drawing & DIALux Report

Presented by:

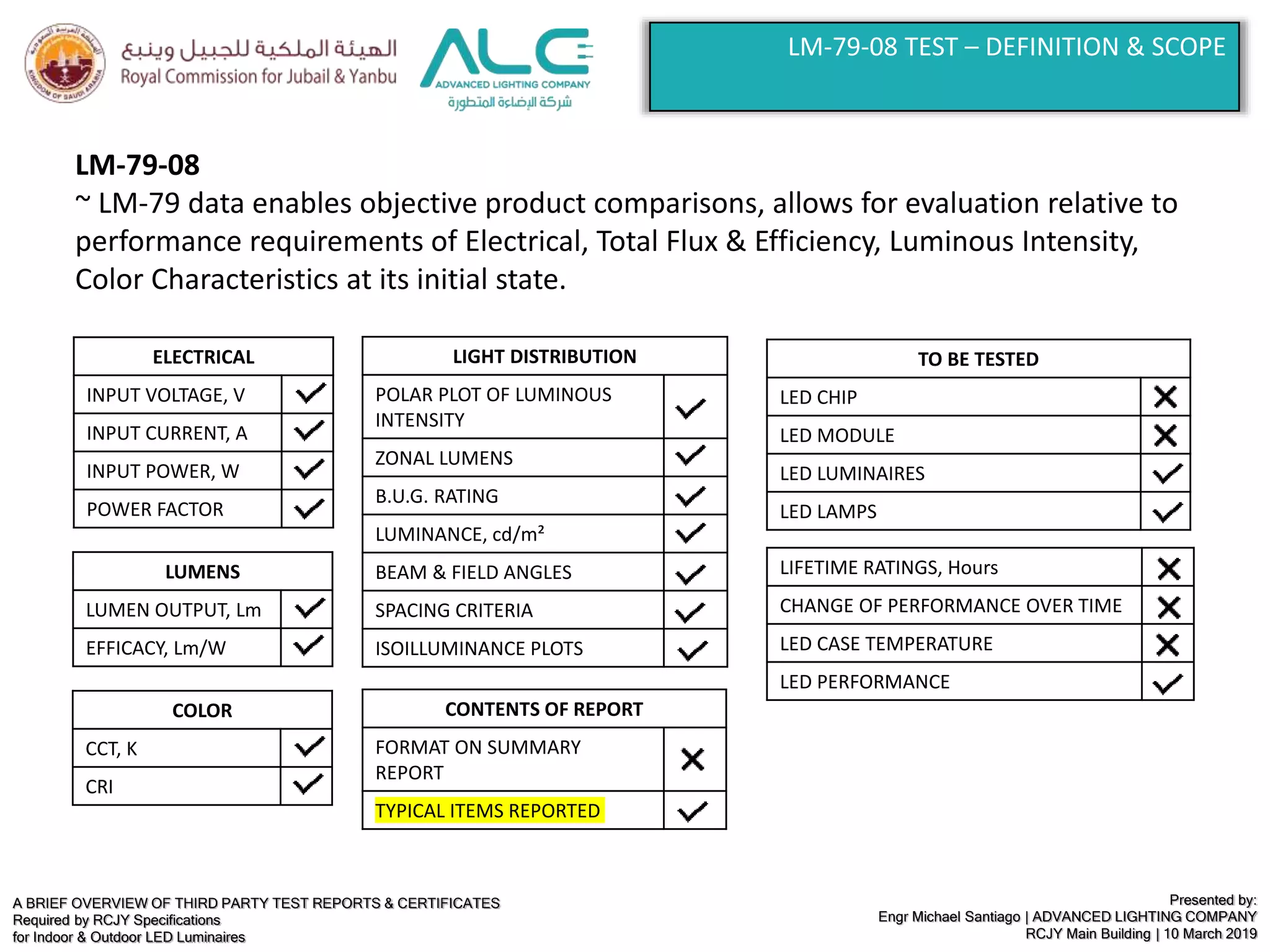

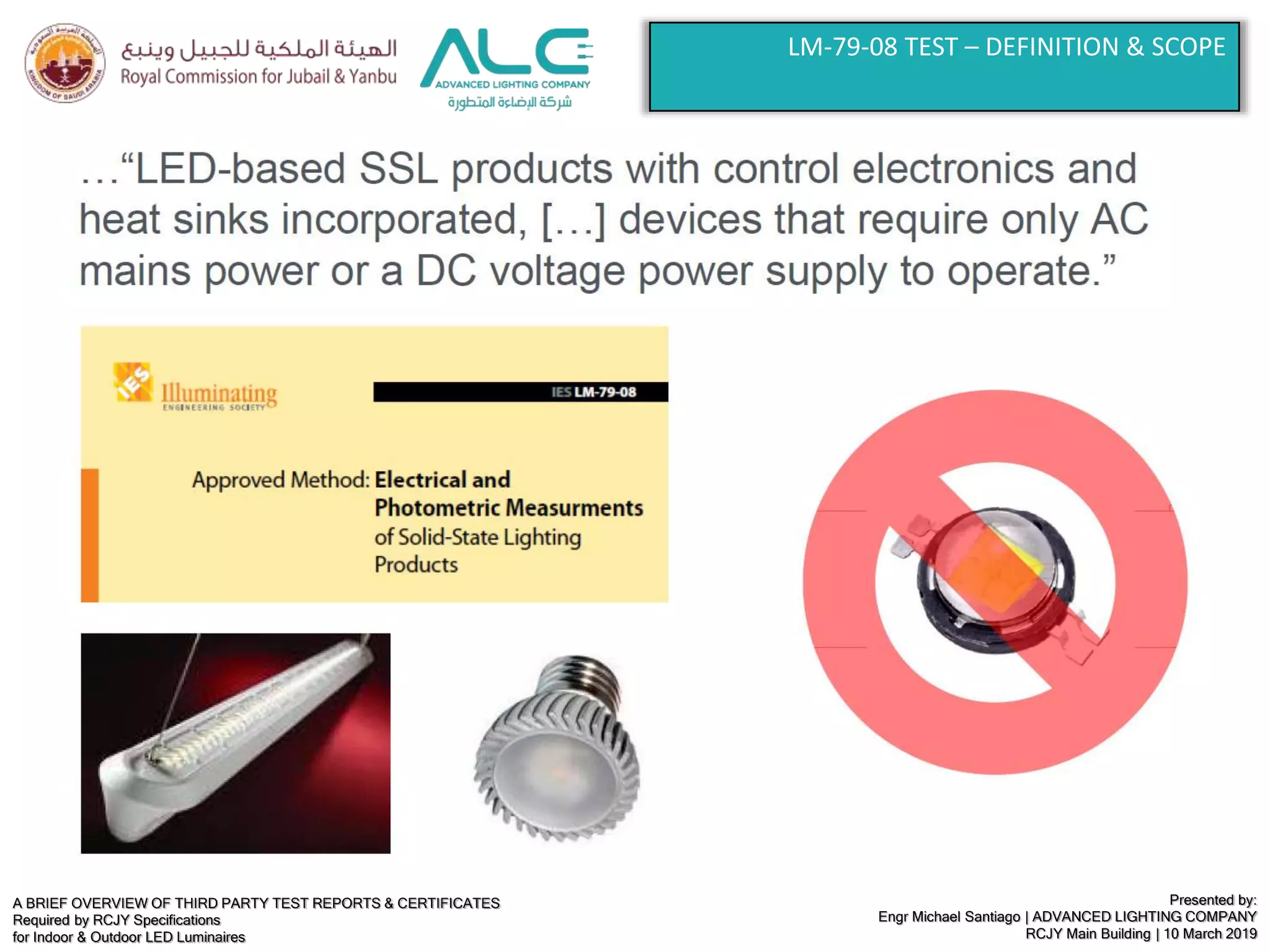

LM-79-08 TEST – DEFINITION & SCOPE

Presented by:
LM-79-08
~ LM-79 data enables objective product comparisons, allows for evaluation relative to
performance requirements of Electrical, Total Flux & Efficiency, Luminous Intensity,
Color Characteristics at its initial state.
TO BE TESTED
LED CHIP
LED MODULE
LED LUMINAIRES
LED LAMPS
ELECTRICAL
INPUT VOLTAGE, V
INPUT CURRENT, A
INPUT POWER, W
POWER FACTOR
LUMENS
LUMEN OUTPUT, Lm
EFFICACY, Lm/W
COLOR
CCT, K
CRI
LIGHT DISTRIBUTION
POLAR PLOT OF LUMINOUS
INTENSITY
ZONAL LUMENS
B.U.G. RATING
LUMINANCE, cd/m²
BEAM & FIELD ANGLES
SPACING CRITERIA
ISOILLUMINANCE PLOTS
LIFETIME RATINGS, Hours
CHANGE OF PERFORMANCE OVER TIME
LED CASE TEMPERATURE
LED PERFORMANCE
CONTENTS OF REPORT
FORMAT ON SUMMARY
REPORT
TYPICAL ITEMS REPORTED
LM-79-08 TEST – DEFINITION & SCOPE

Presented by:

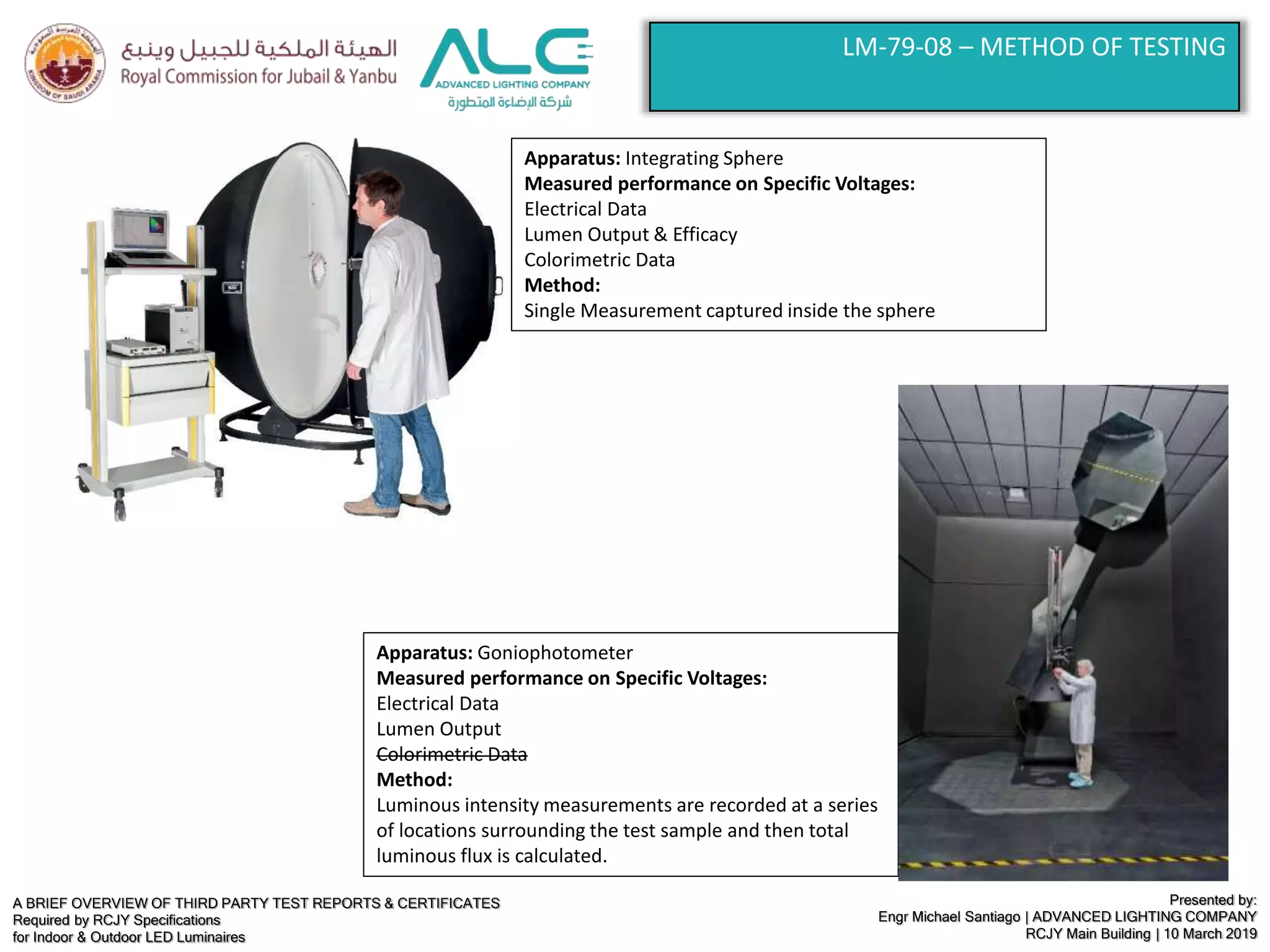

LM-79-08 – METHOD OF TESTING
Apparatus: Goniophotometer
Measured performance on Specific Voltages:
Electrical Data
Lumen Output
Colorimetric Data
Method:
Luminous intensity measurements are recorded at a series
of locations surrounding the test sample and then total
luminous flux is calculated.
Apparatus: Integrating Sphere
Measured performance on Specific Voltages:
Electrical Data
Lumen Output & Efficacy
Colorimetric Data
Method:
Single Measurement captured inside the sphere

Presented by:

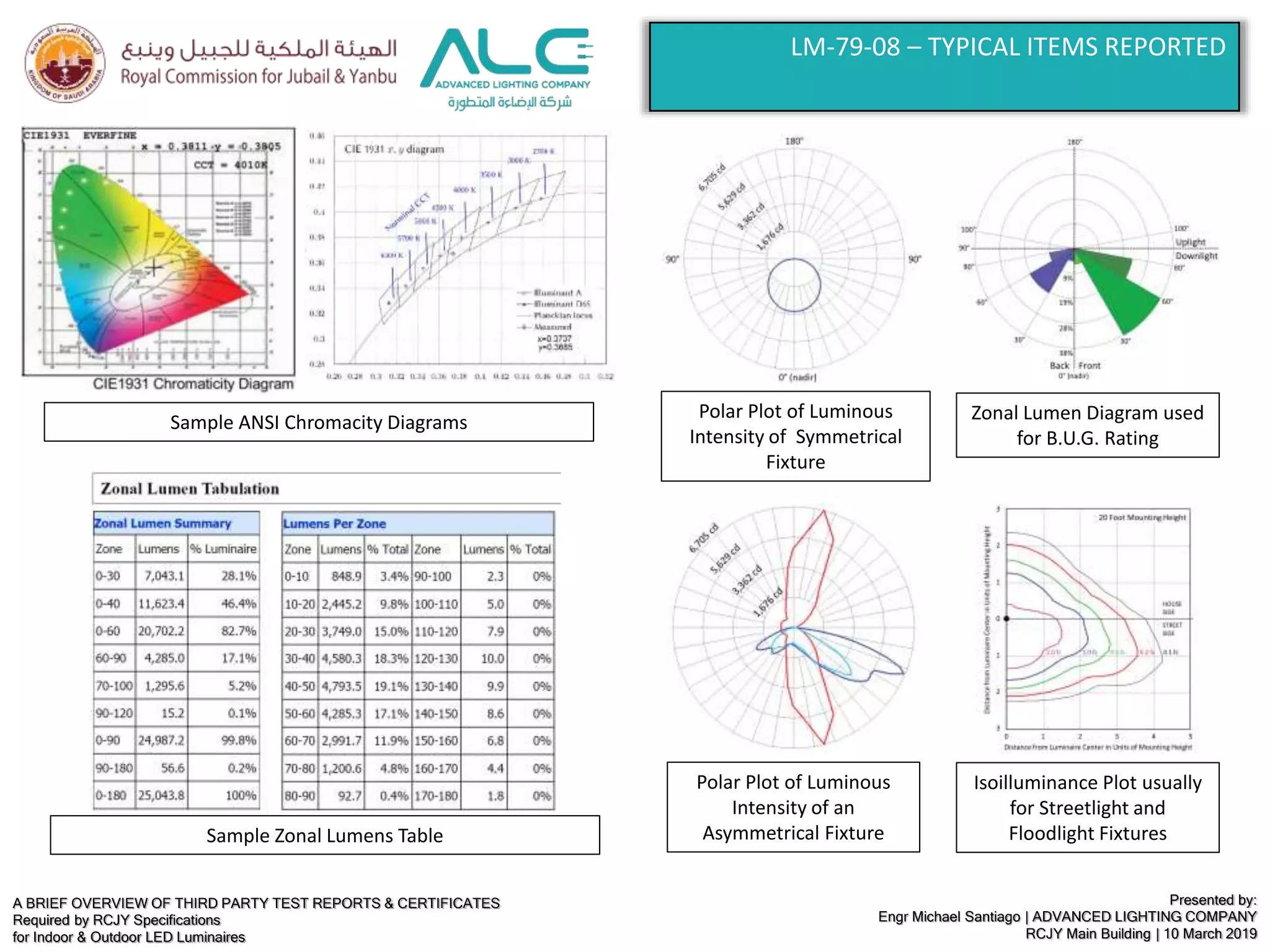

Polar Plot of Luminous
Intensity of Symmetrical
Fixture
Polar Plot of Luminous
Intensity of an
Asymmetrical Fixture
Zonal Lumen Diagram used
for B.U.G. Rating
Isoilluminance Plot usually
for Streetlight and
Floodlight Fixtures
Sample ANSI Chromacity Diagrams
Sample Zonal Lumens Table

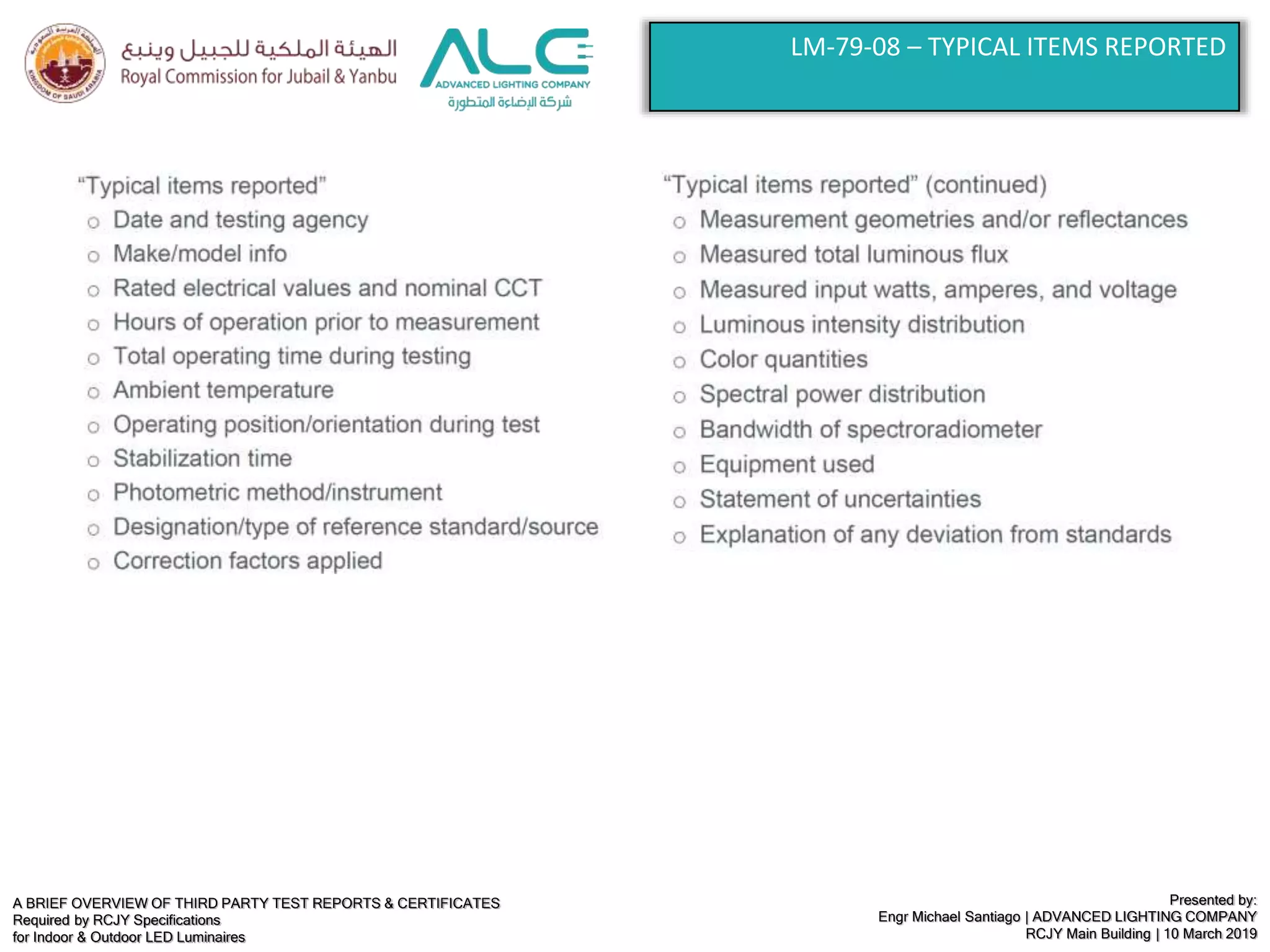

LM-79-08 – TYPICAL ITEMS REPORTED

Presented by:
LM-79-08 – TYPICAL ITEMS REPORTED

Presented by:

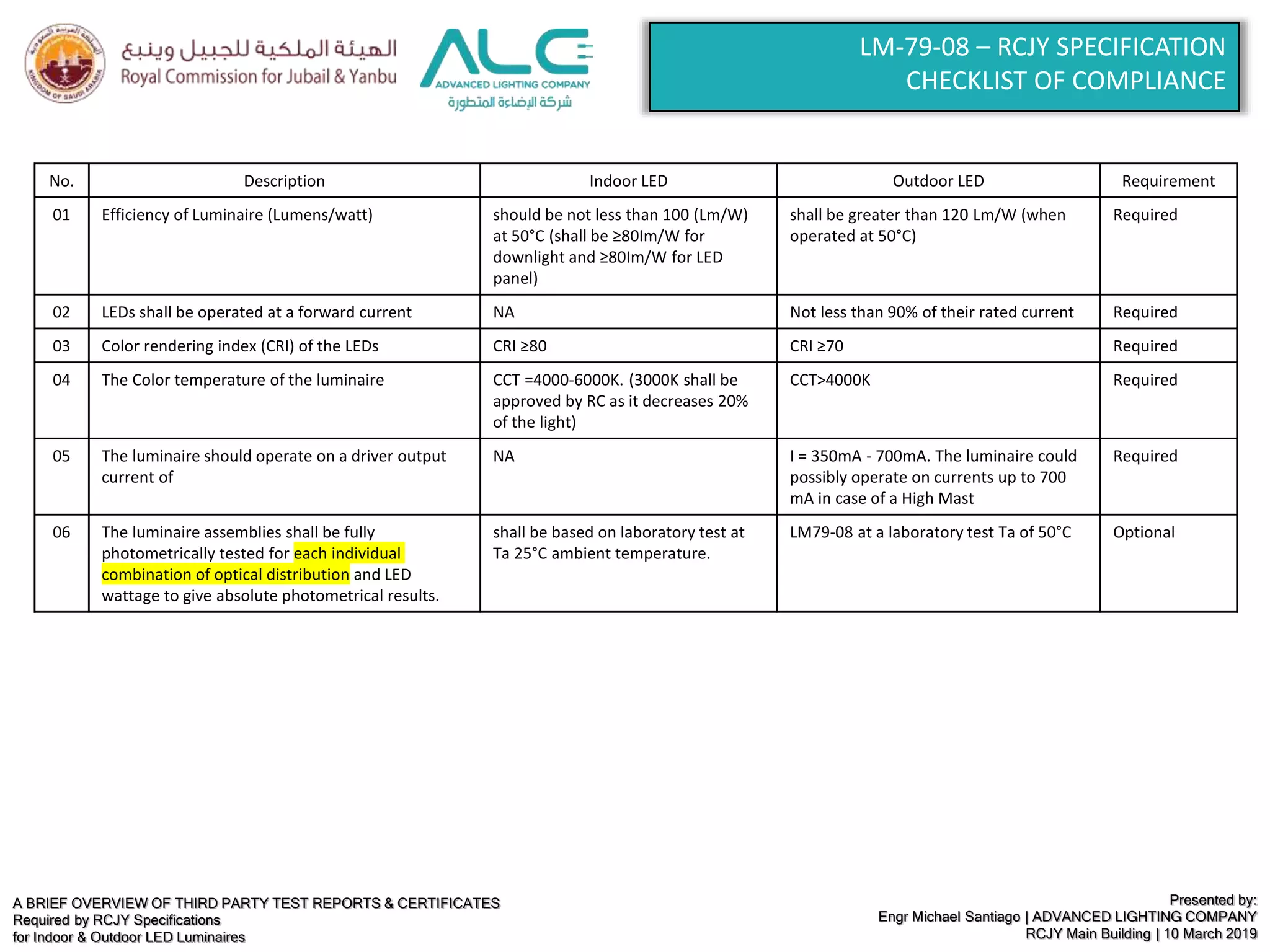

LM-79-08 – RCJY SPECIFICATION
CHECKLIST OF COMPLIANCE
No. Description Indoor LED Outdoor LED Requirement
01 Efficiency of Luminaire (Lumens/watt) should be not less than 100 (Lm/W)
at 50°C (shall be ≥80Im/W for
downlight and ≥80Im/W for LED
panel)
shall be greater than 120 Lm/W (when
operated at 50°C)
Required
02 LEDs shall be operated at a forward current NA Not less than 90% of their rated current Required
03 Color rendering index (CRI) of the LEDs CRI ≥80 CRI ≥70 Required
04 The Color temperature of the luminaire CCT =4000-6000K. (3000K shall be
approved by RC as it decreases 20%
of the light)
CCT>4000K Required
05 The luminaire should operate on a driver output
current of
NA I = 350mA - 700mA. The luminaire could
possibly operate on currents up to 700
mA in case of a High Mast
Required
06 The luminaire assemblies shall be fully
photometrically tested for each individual
combination of optical distribution and LED
wattage to give absolute photometrical results.
shall be based on laboratory test at
Ta 25°C ambient temperature.
LM79-08 at a laboratory test Ta of 50°C Optional

Presented by:

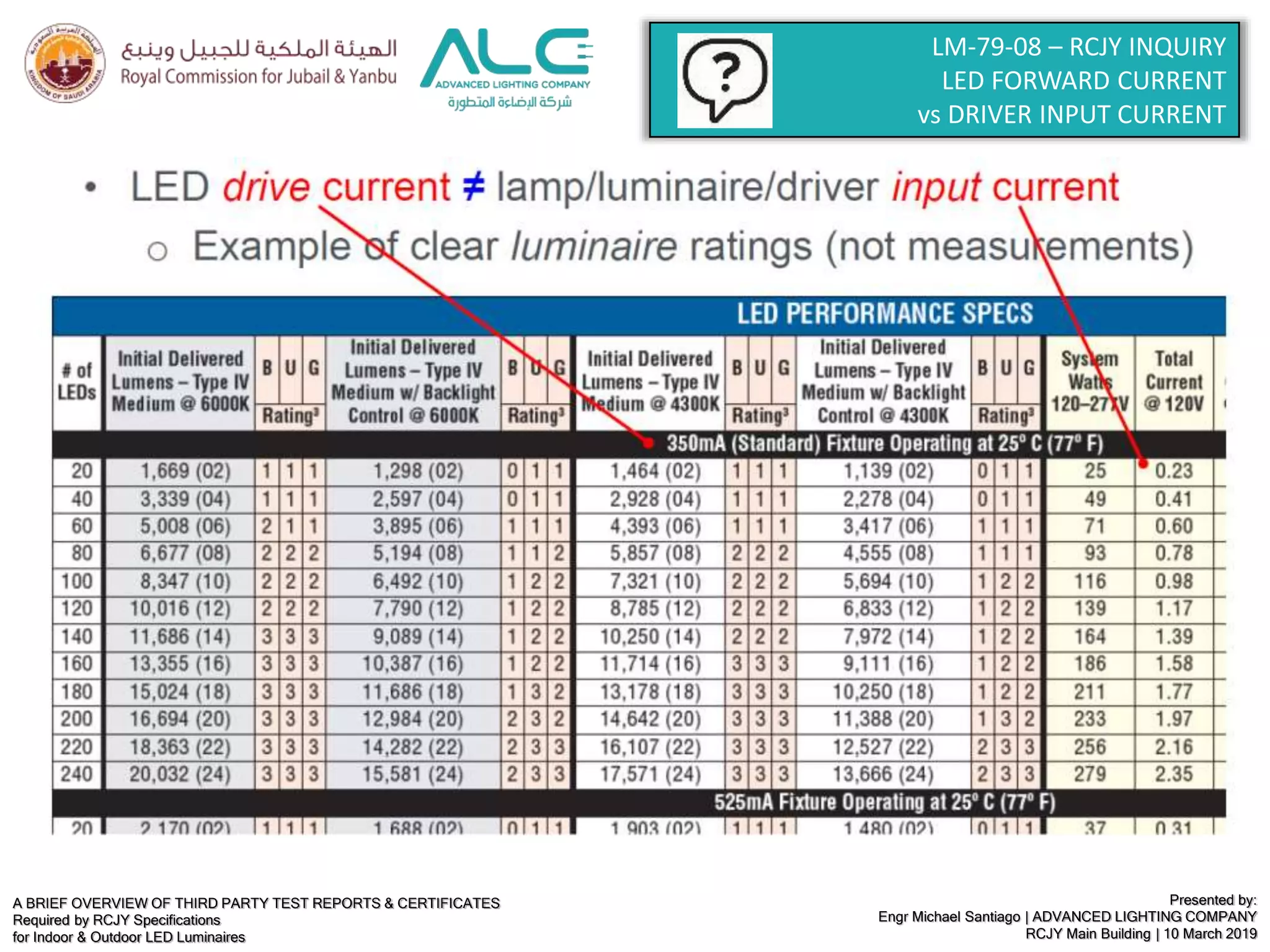

LM-79-08 – RCJY INQUIRY
LED FORWARD CURRENT
vs DRIVER INPUT CURRENT

Presented by:

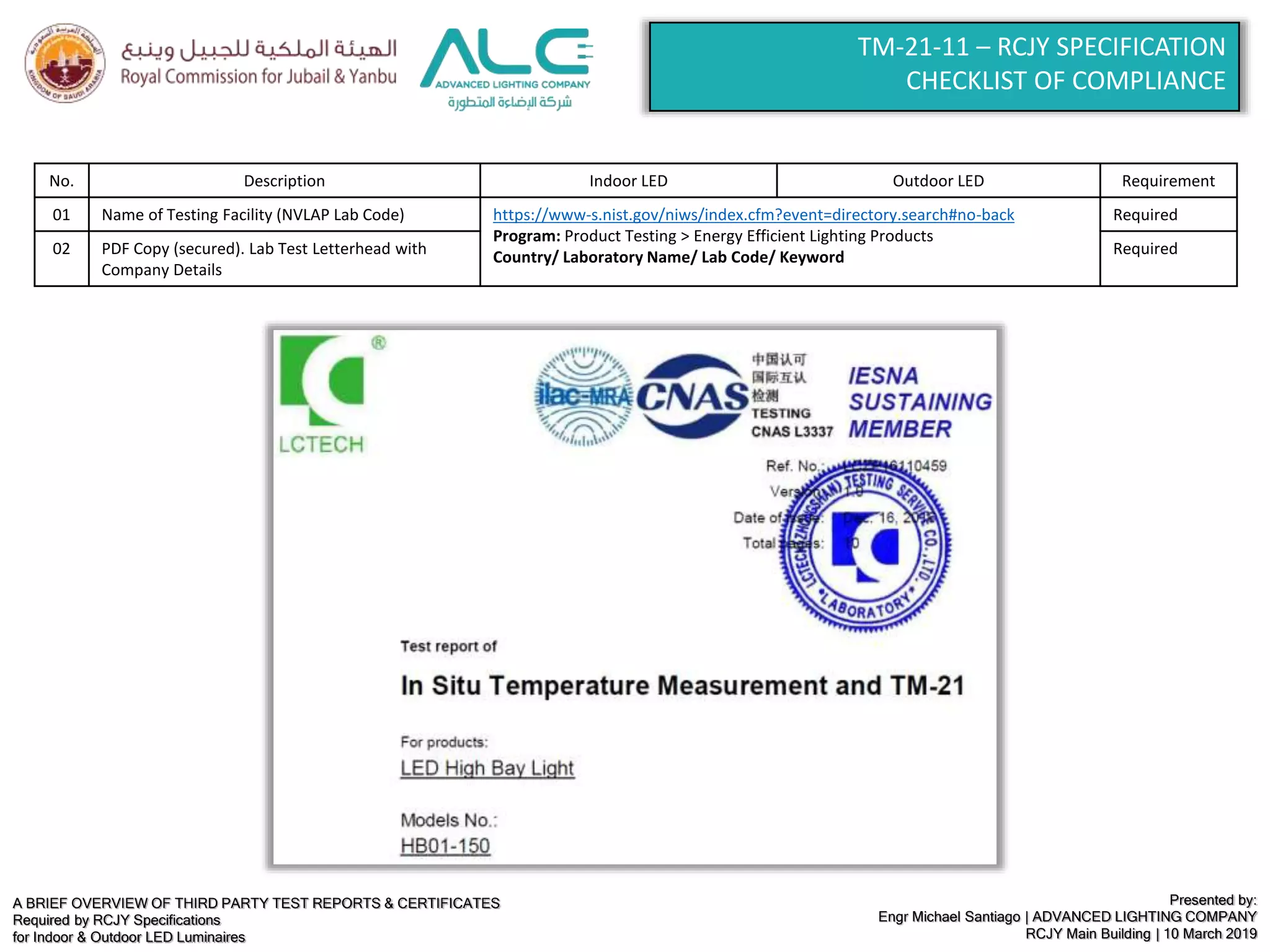

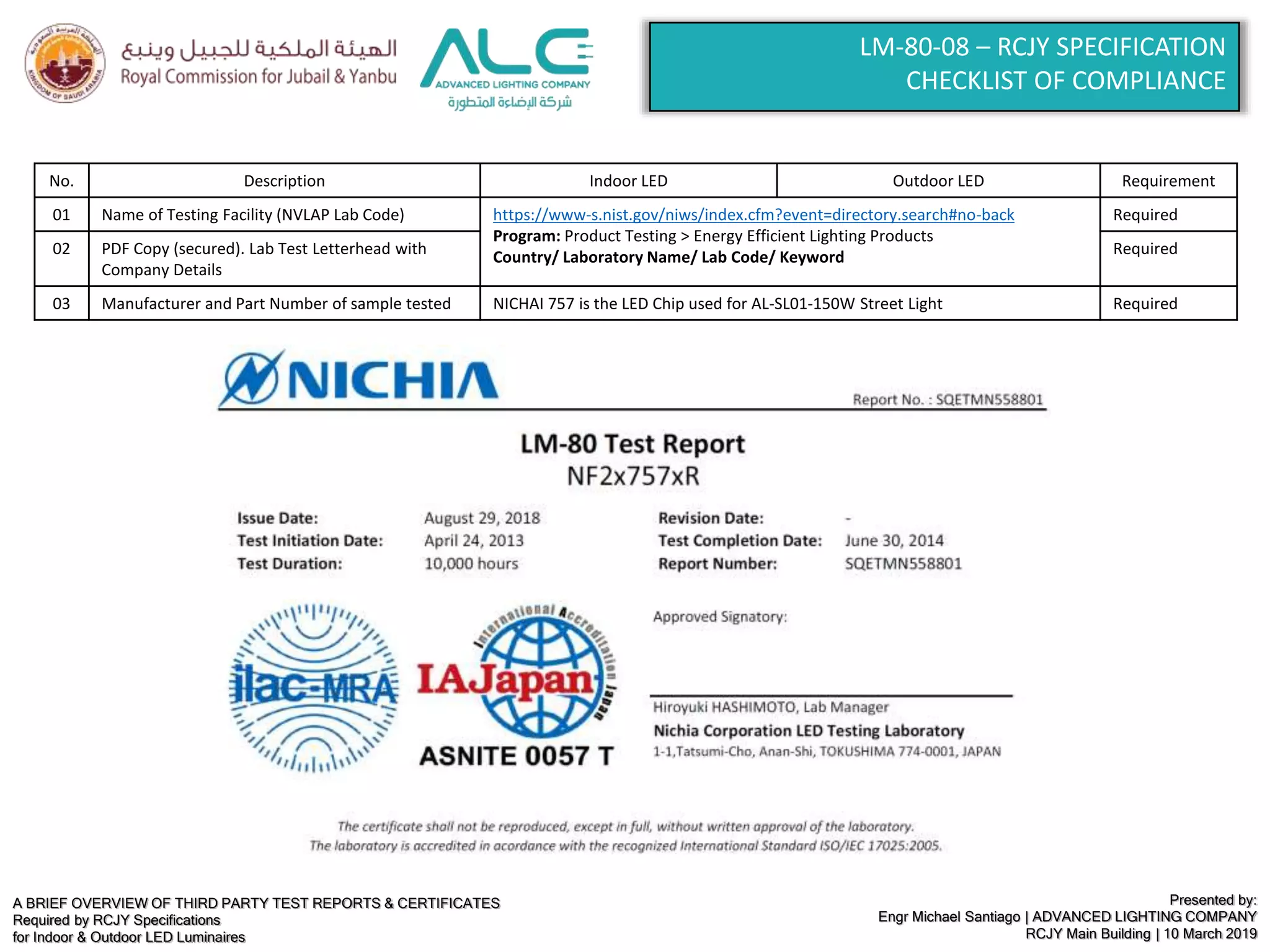

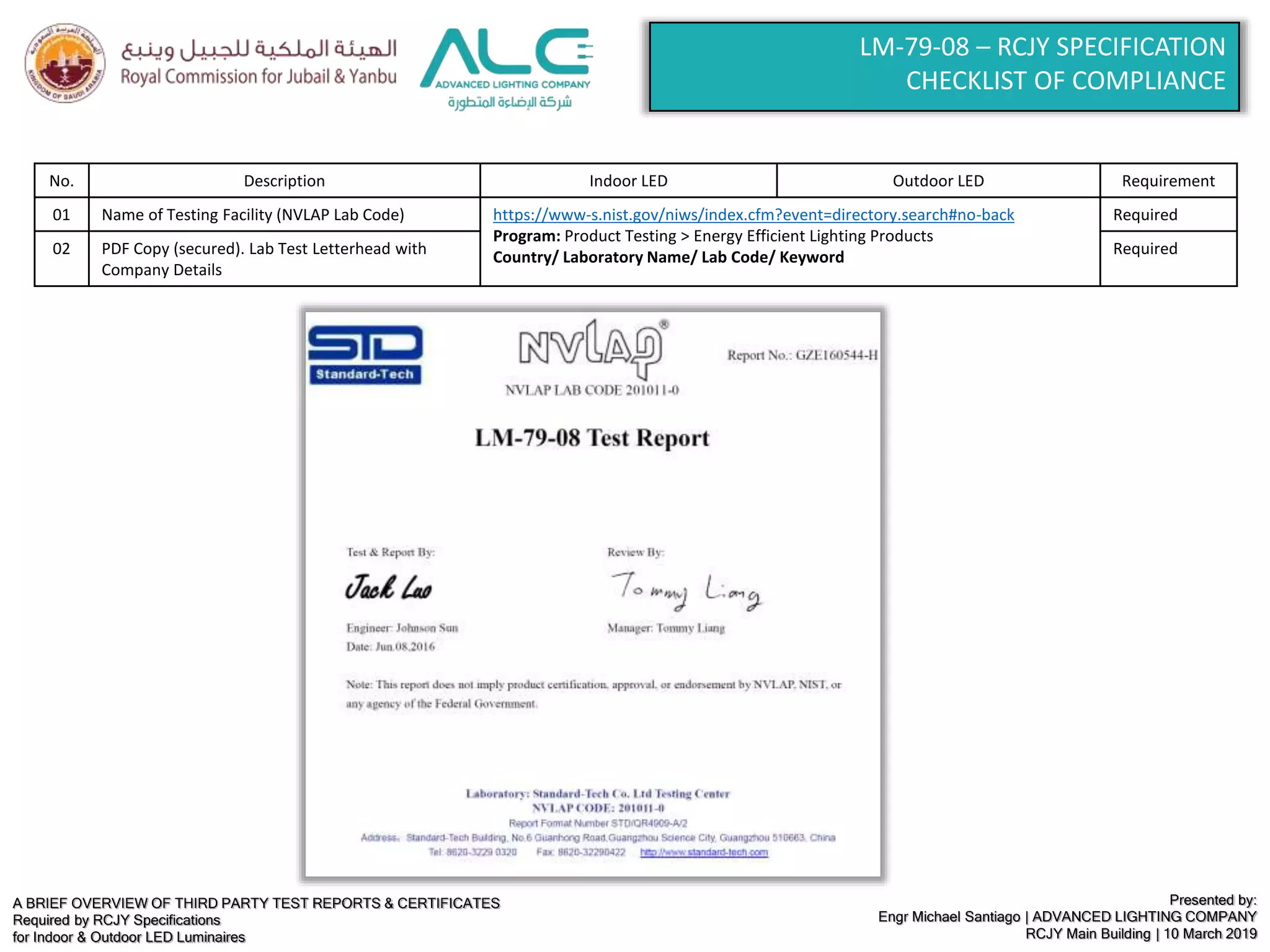

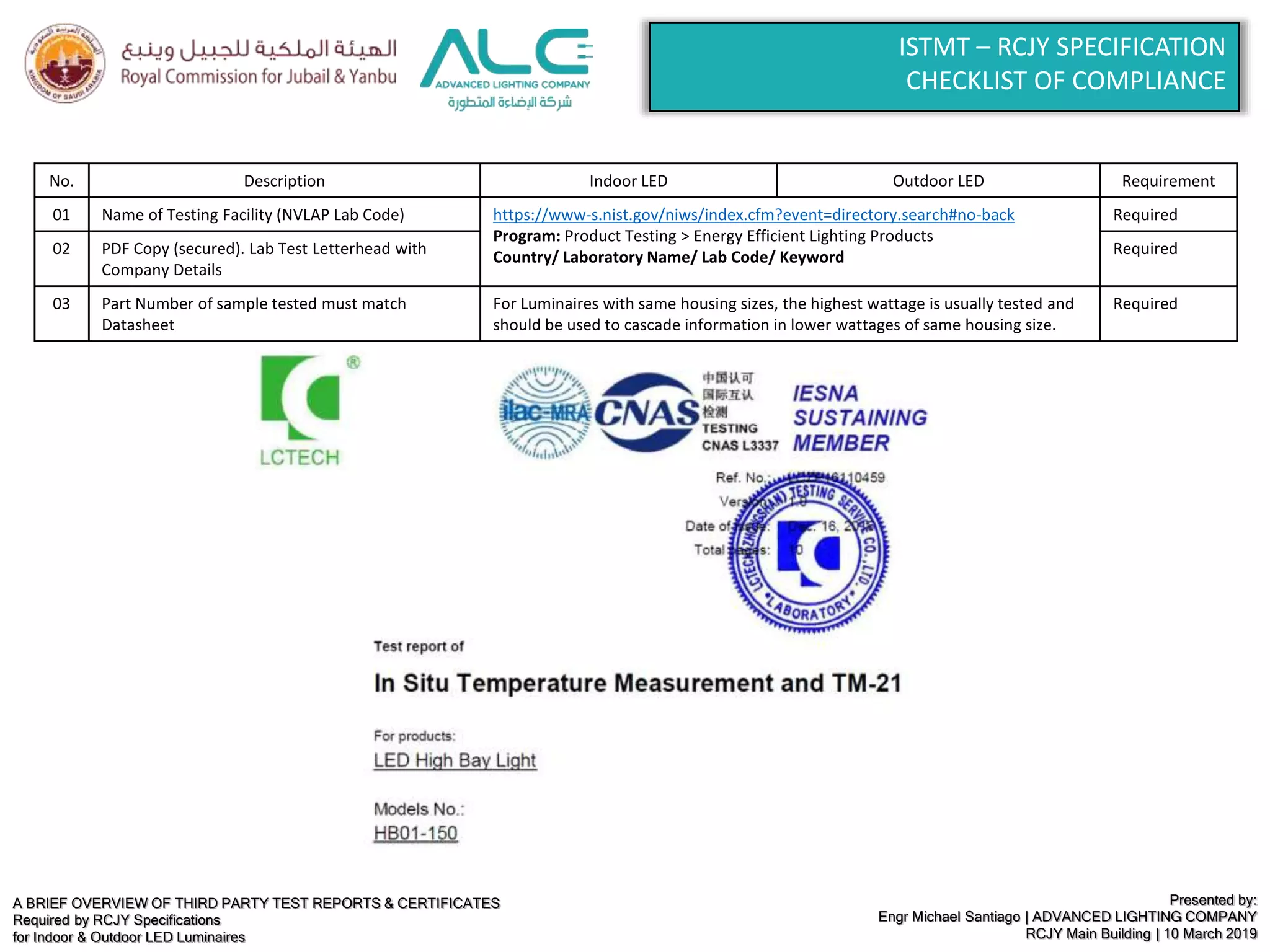

01 Name of Testing Facility (NVLAP Lab Code) https://www-s.nist.gov/niws/index.cfm?event=directory.search#no-back
Program: Product Testing > Energy Efficient Lighting Products
Country/ Laboratory Name/ Lab Code/ Keyword
Required
02 PDF Copy (secured). Lab Test Letterhead with
Company Details
Required

Presented by:

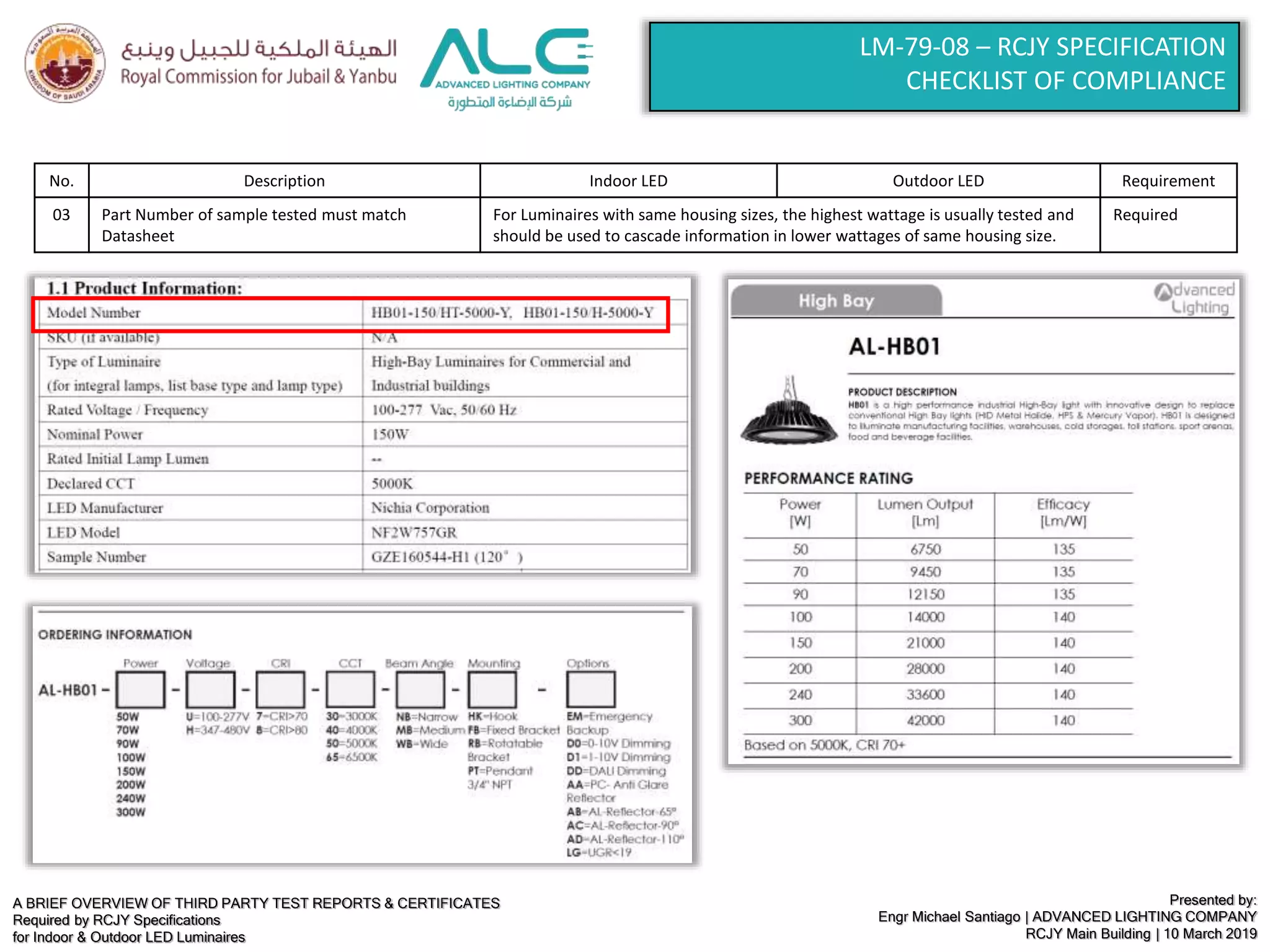

03 Part Number of sample tested must match
Datasheet
For Luminaires with same housing sizes, the highest wattage is usually tested and
should be used to cascade information in lower wattages of same housing size.
Required

Presented by:

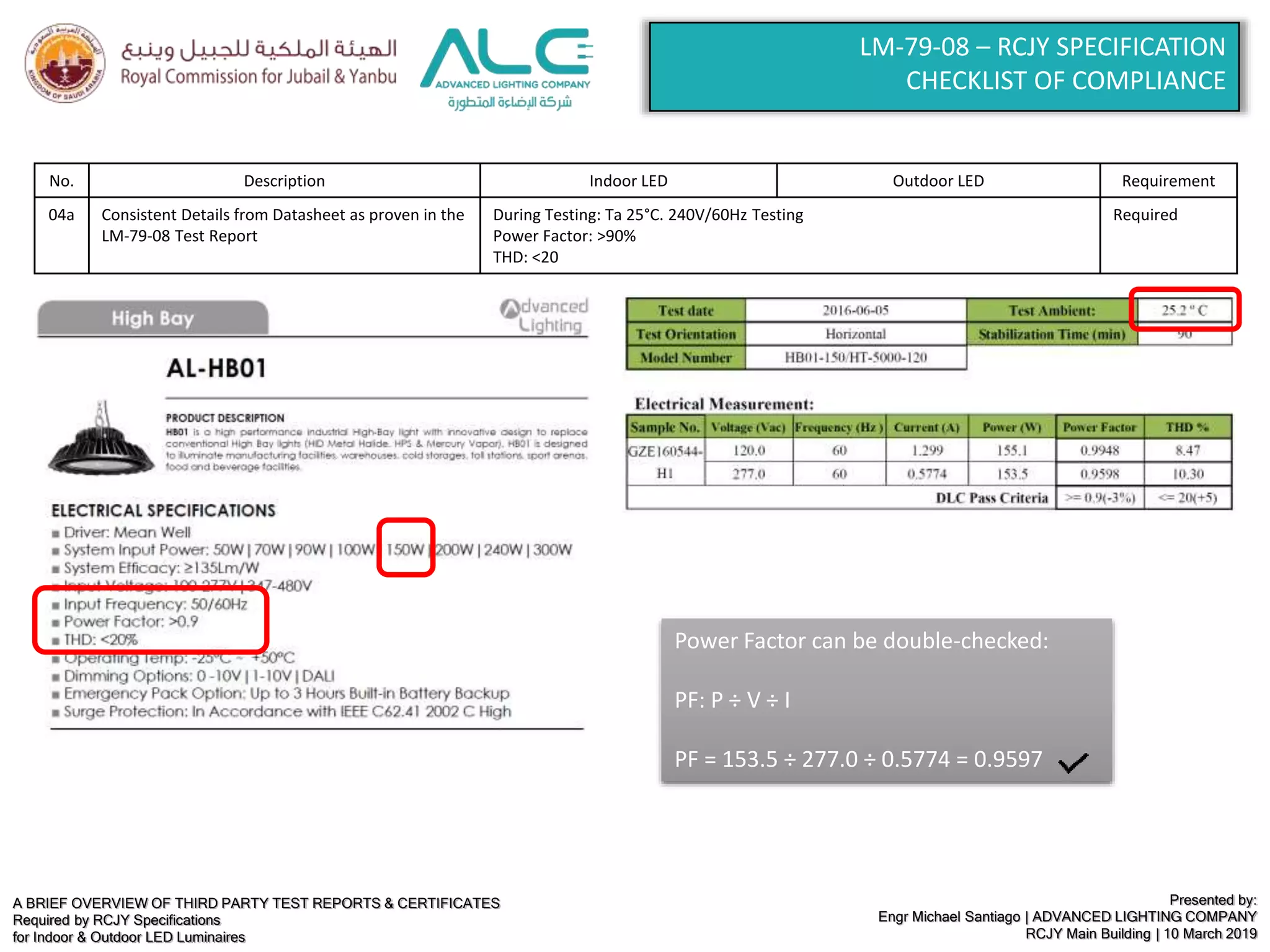

04a Consistent Details from Datasheet as proven in the
LM-79-08 Test Report
During Testing: Ta 25°C. 240V/60Hz Testing
Power Factor: >90%
THD: <20
Required
Power Factor can be double-checked:
PF: P ÷ V ÷ I
PF = 153.5 ÷ 277.0 ÷ 0.5774 = 0.9597

Presented by:

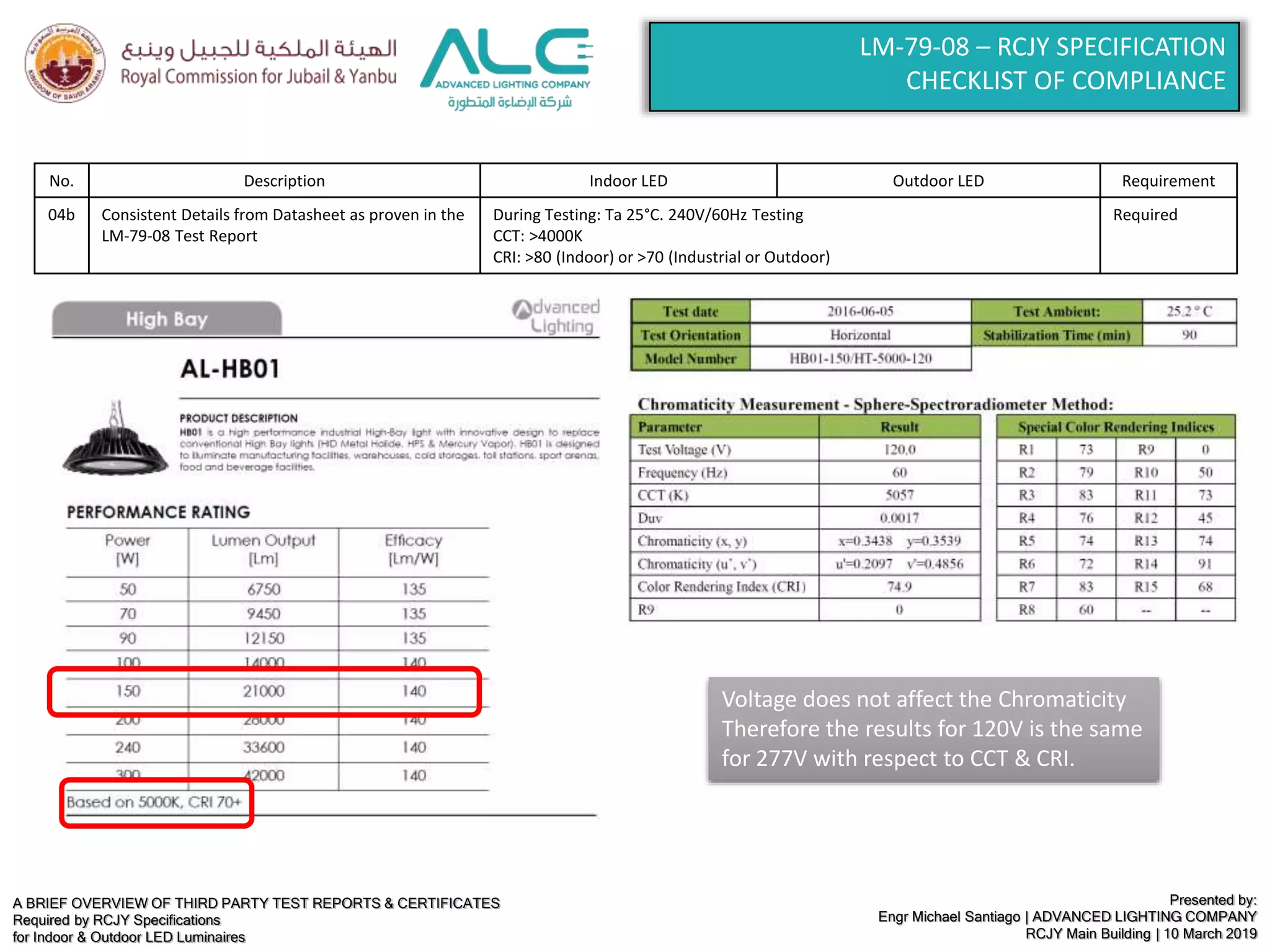

04b Consistent Details from Datasheet as proven in the
CCT: >4000K
CRI: >80 (Indoor) or >70 (Industrial or Outdoor)
Required
Voltage does not affect the Chromaticity
Therefore the results for 120V is the same
for 277V with respect to CCT & CRI.

Presented by:

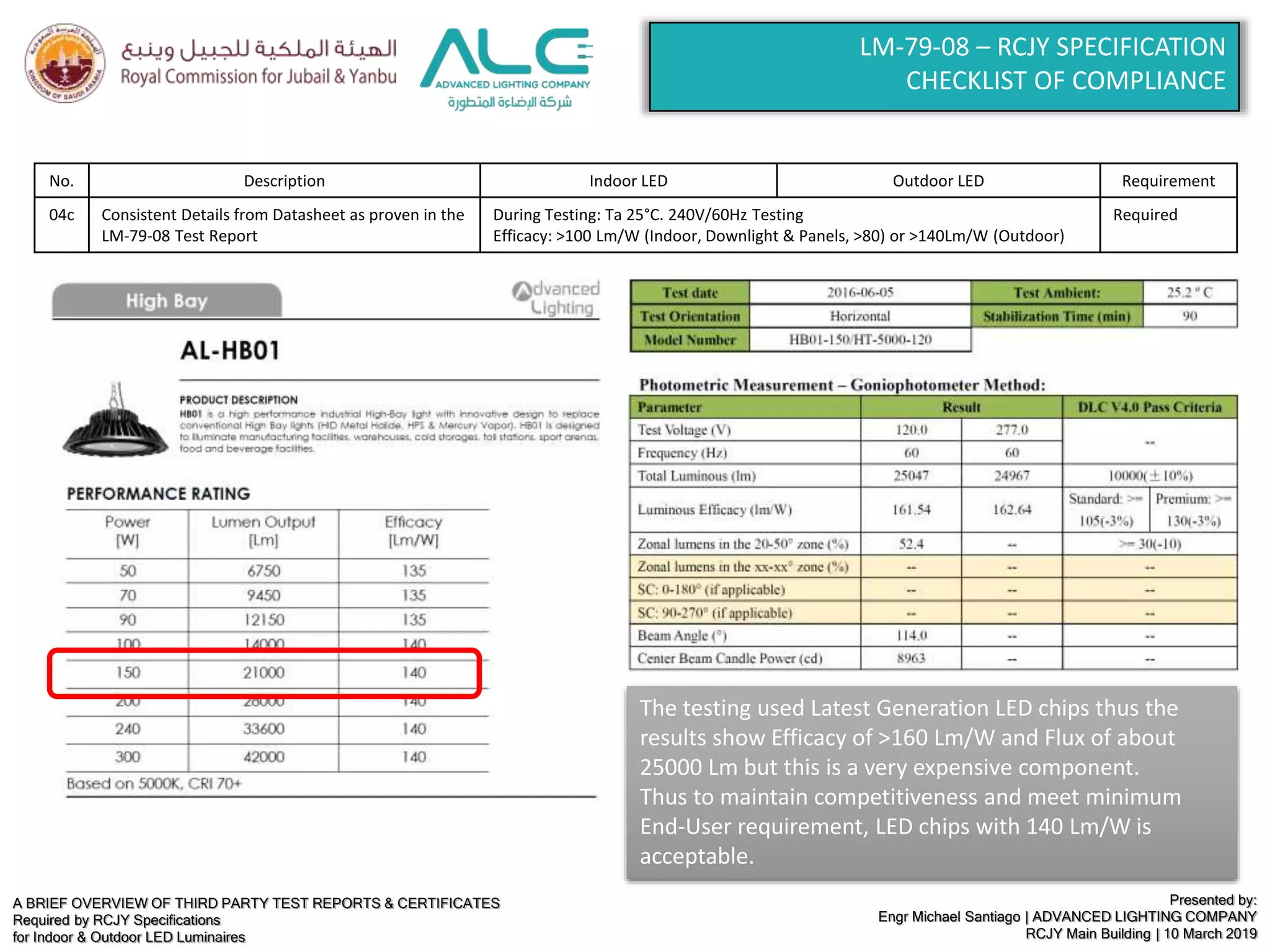

04c Consistent Details from Datasheet as proven in the
Efficacy: >100 Lm/W (Indoor, Downlight & Panels, >80) or >140Lm/W (Outdoor)
Required
The testing used Latest Generation LED chips thus the
results show Efficacy of >160 Lm/W and Flux of about
25000 Lm but this is a very expensive component.
Thus to maintain competitiveness and meet minimum
End-User requirement, LED chips with 140 Lm/W is
acceptable.

Presented by:

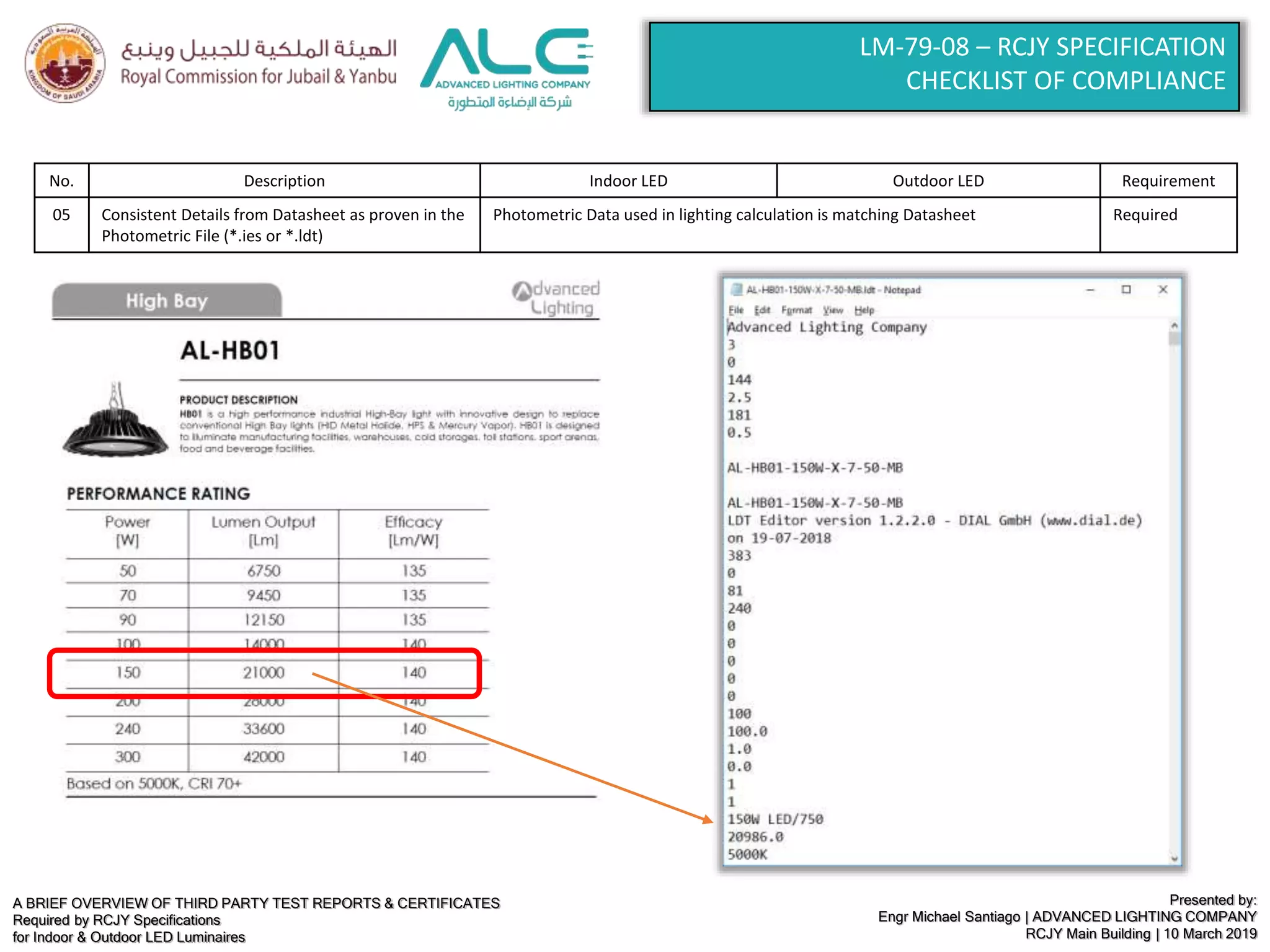

05 Consistent Details from Datasheet as proven in the
Photometric File (*.ies or *.ldt)
Photometric Data used in lighting calculation is matching Datasheet Required

Presented by:

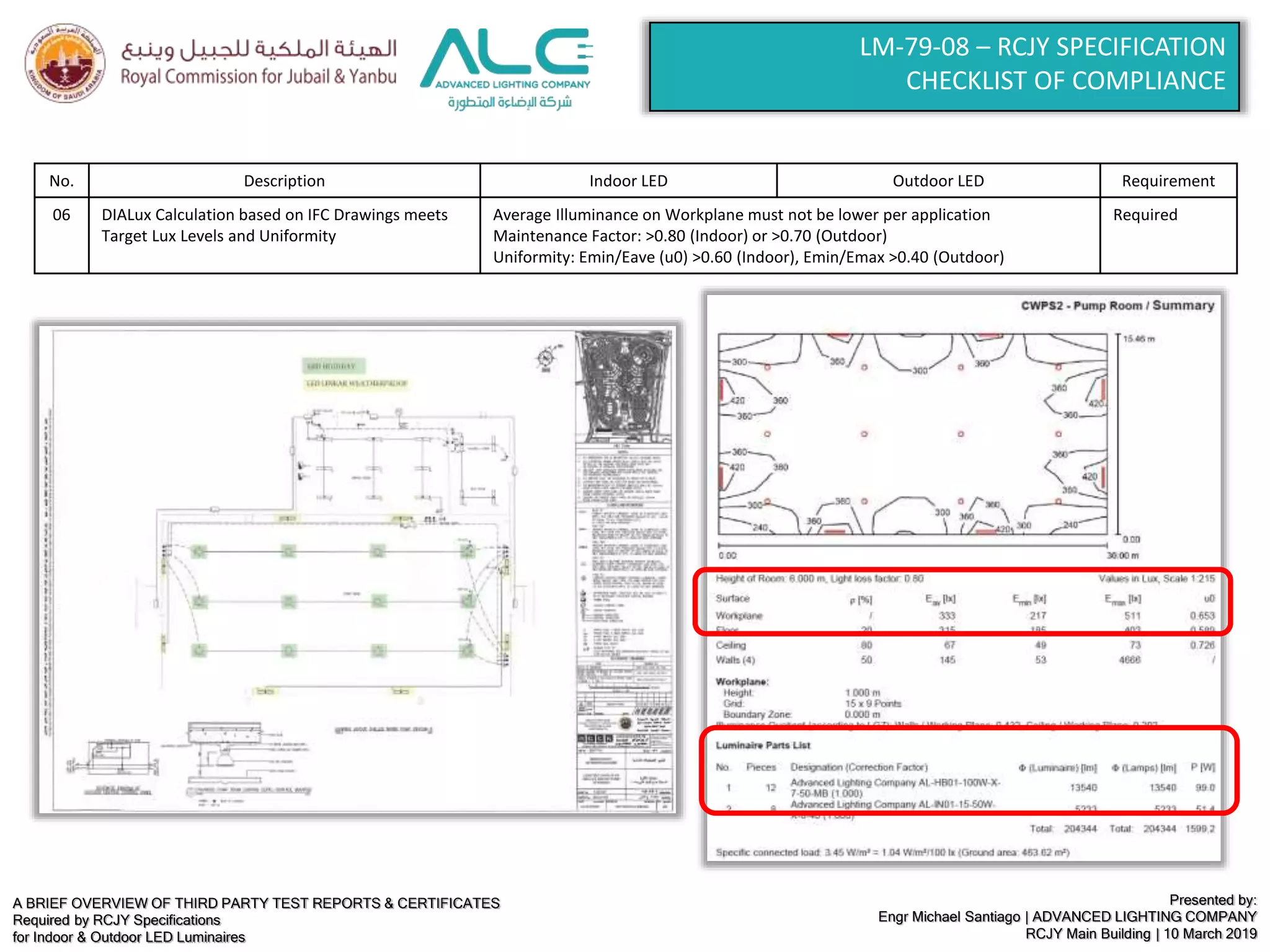

06 DIALux Calculation based on IFC Drawings meets
Target Lux Levels and Uniformity
Average Illuminance on Workplane must not be lower per application
Maintenance Factor: >0.80 (Indoor) or >0.70 (Outdoor)
Uniformity: Emin/Eave (u0) >0.60 (Indoor), Emin/Emax >0.40 (Outdoor)
Required

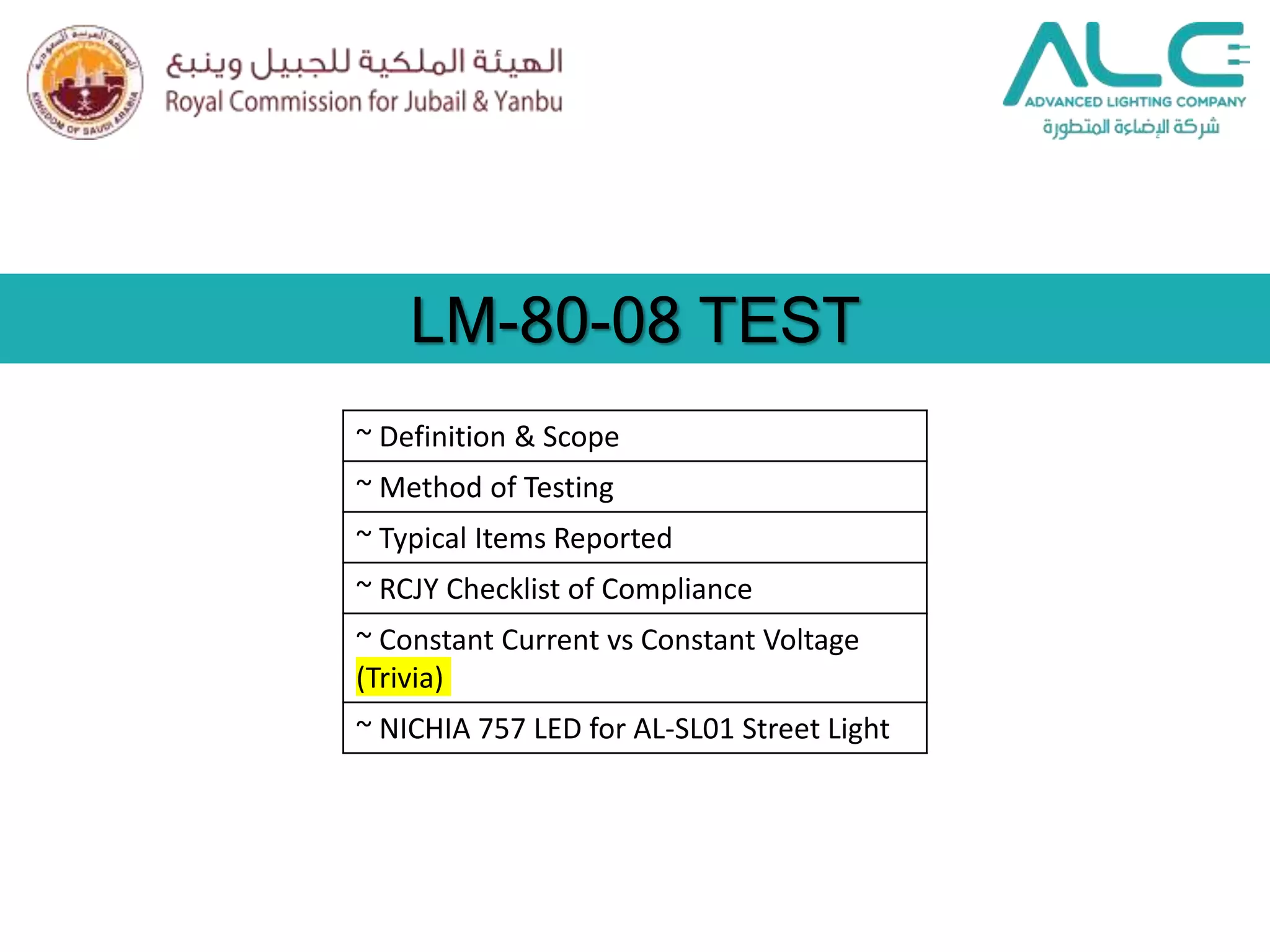

LM-80-08 TEST
~ Method of Testing
~ Typical Items Reported

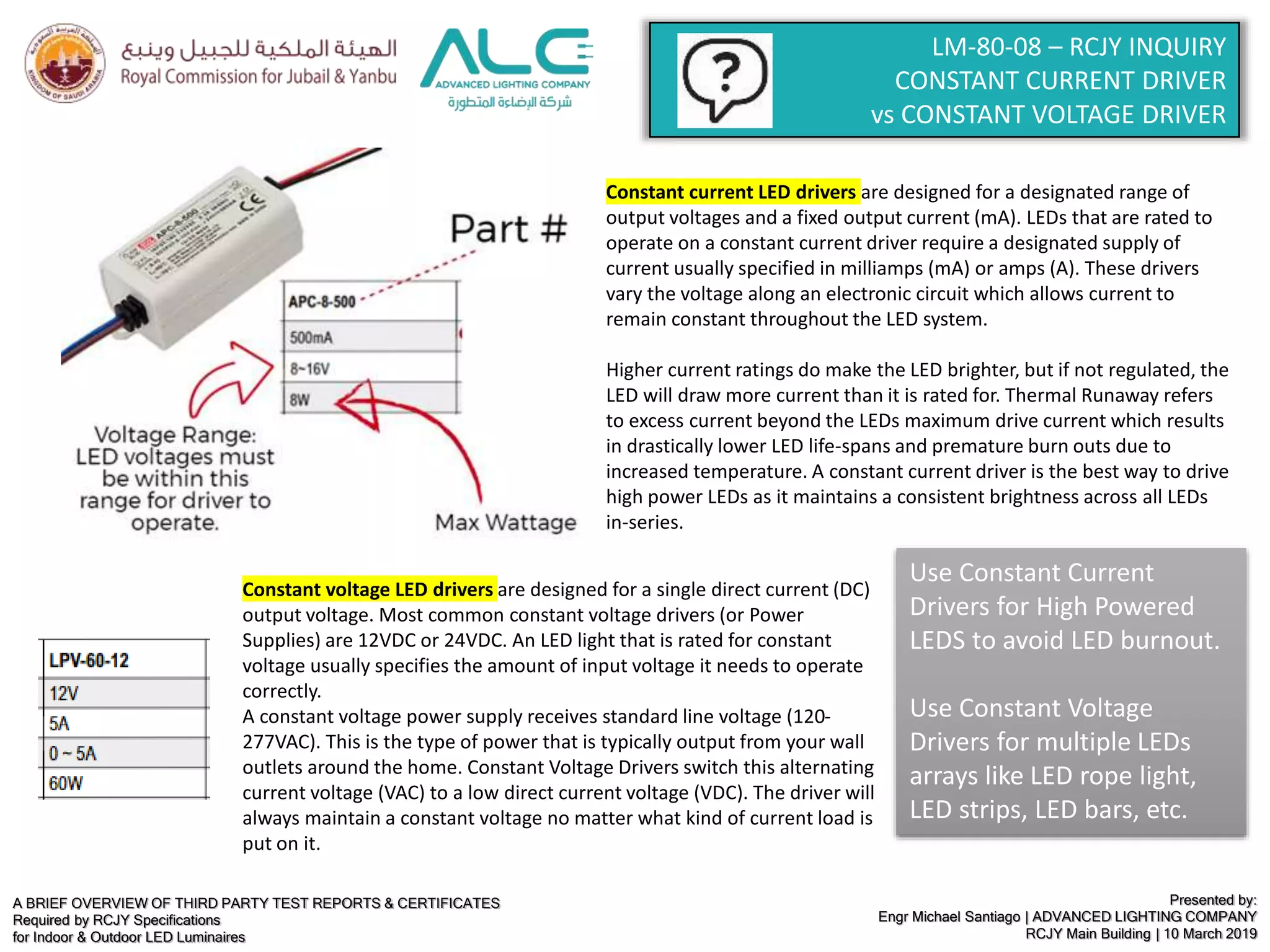

~ Constant Current vs Constant Voltage
(Trivia)
~ NICHIA 757 LED for AL-SL01 Street Light

Presented by:

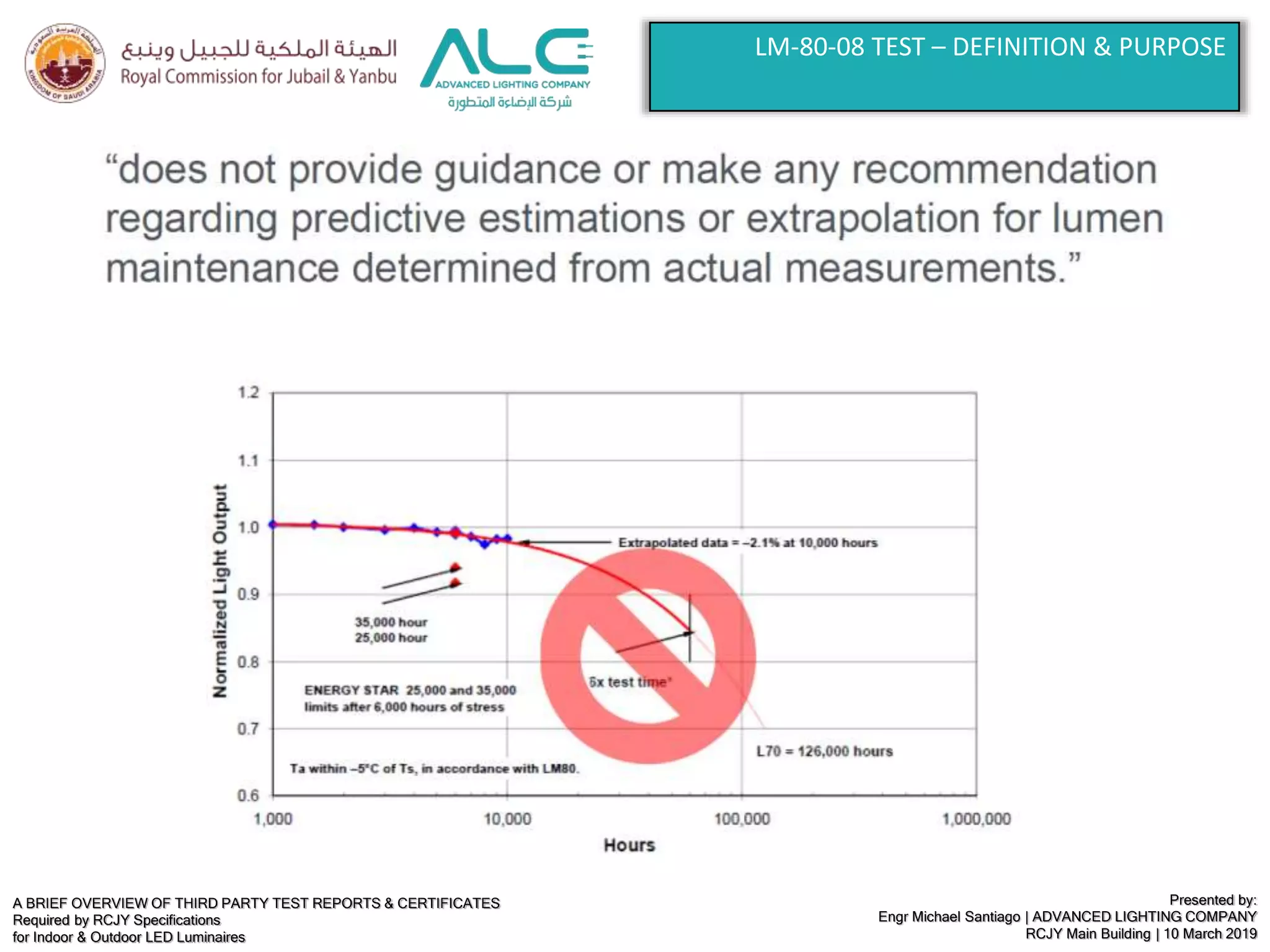

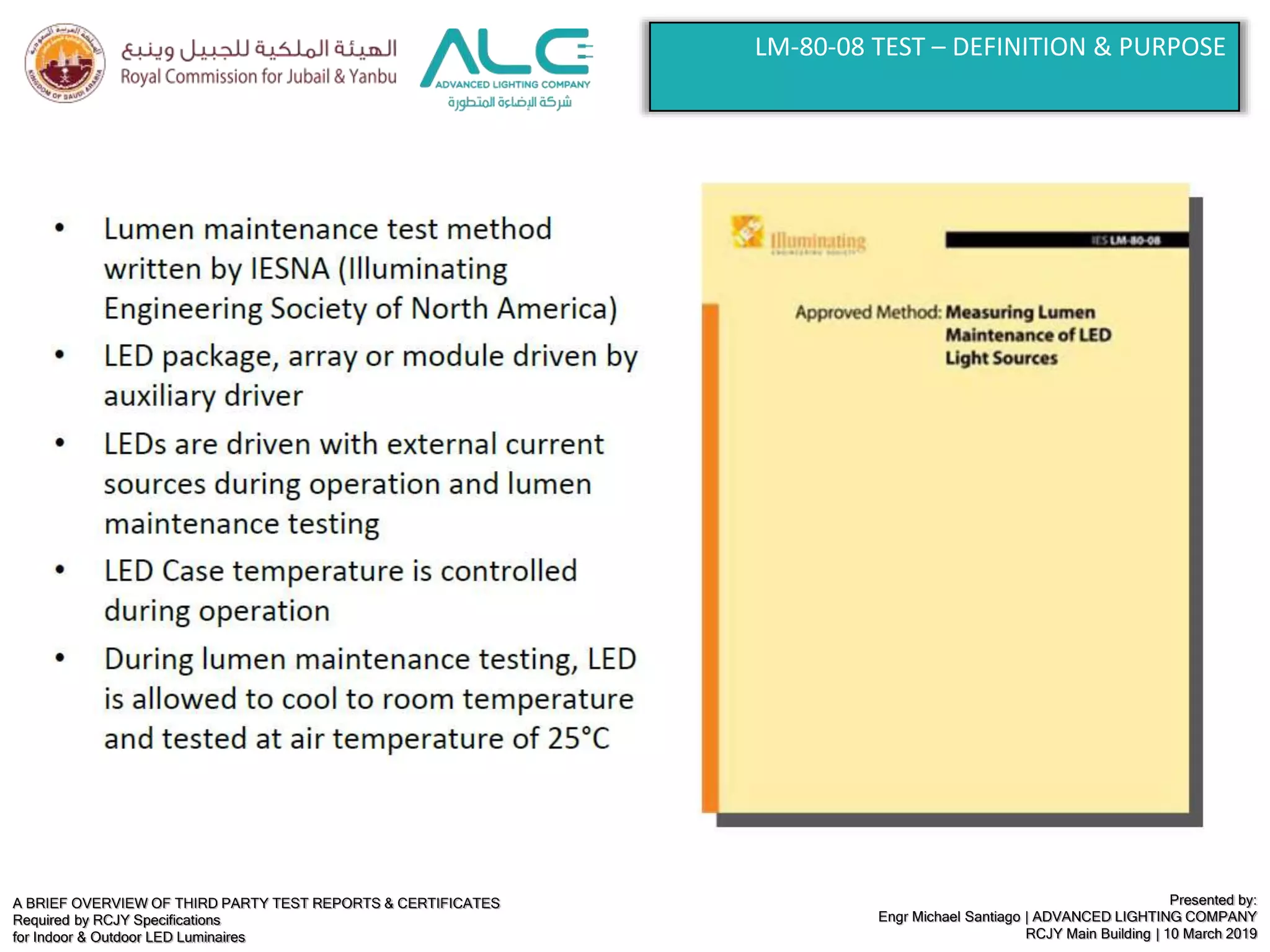

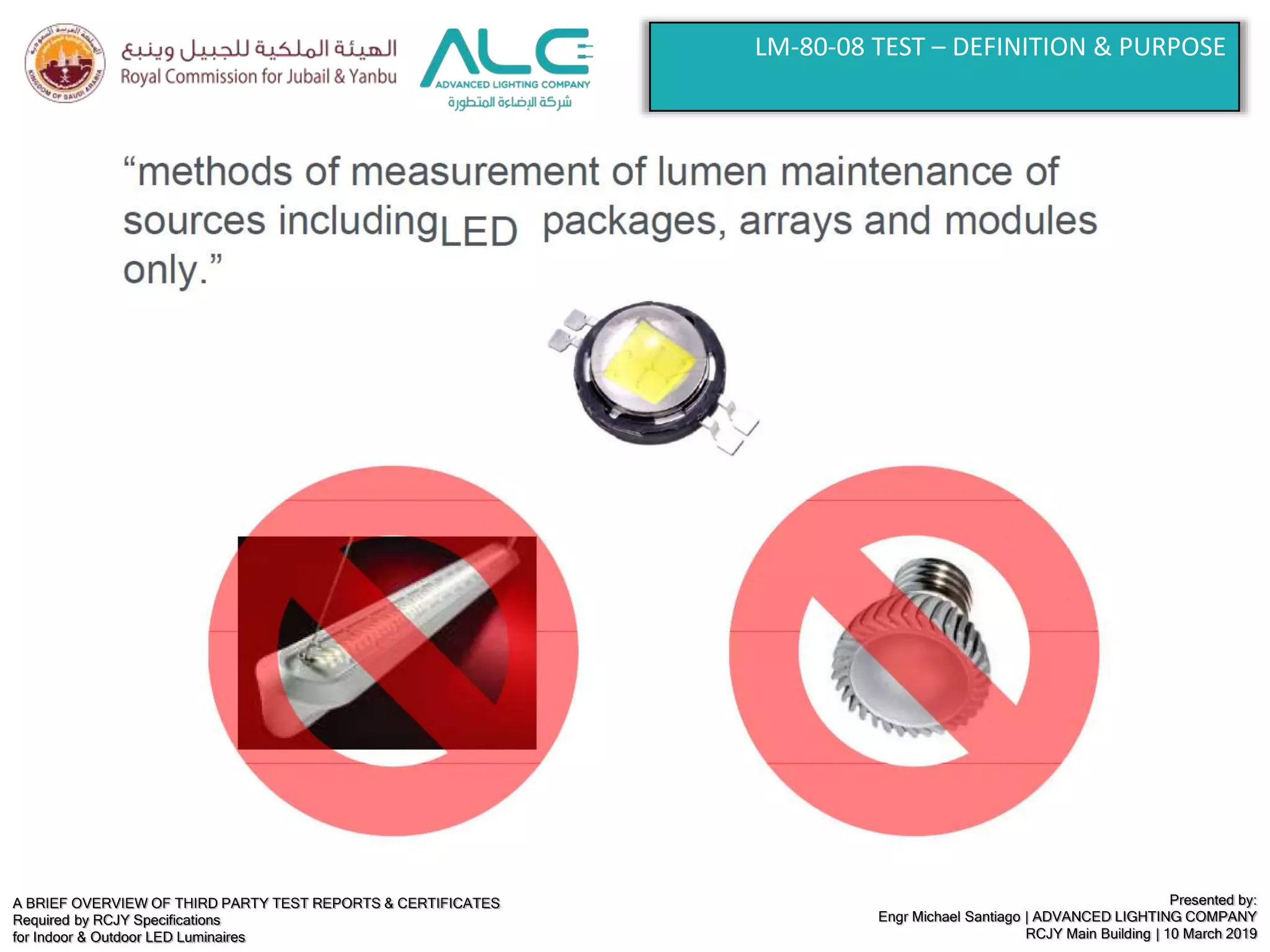

LM-80-08 TEST – DEFINITION & PURPOSE

Presented by:

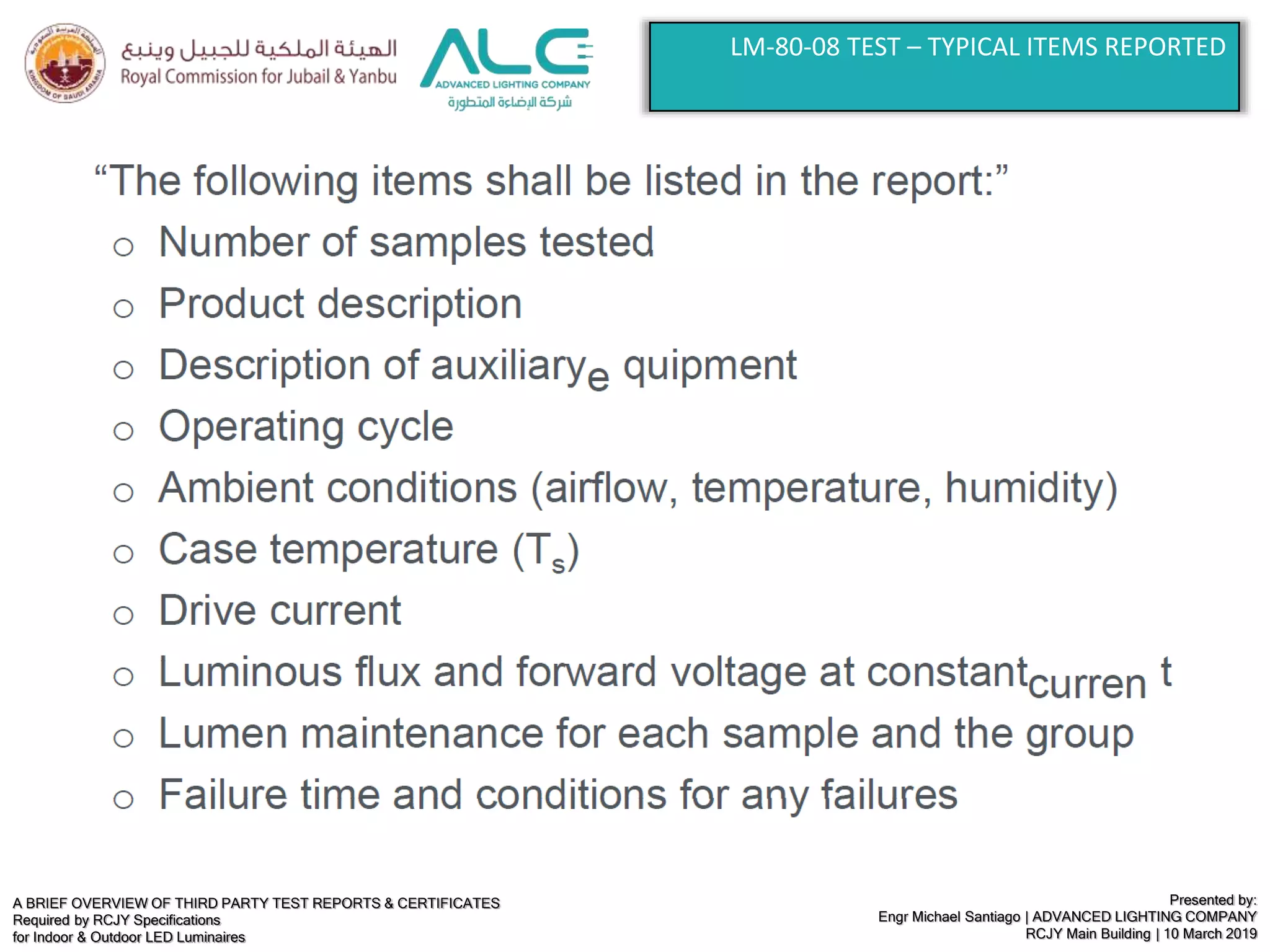

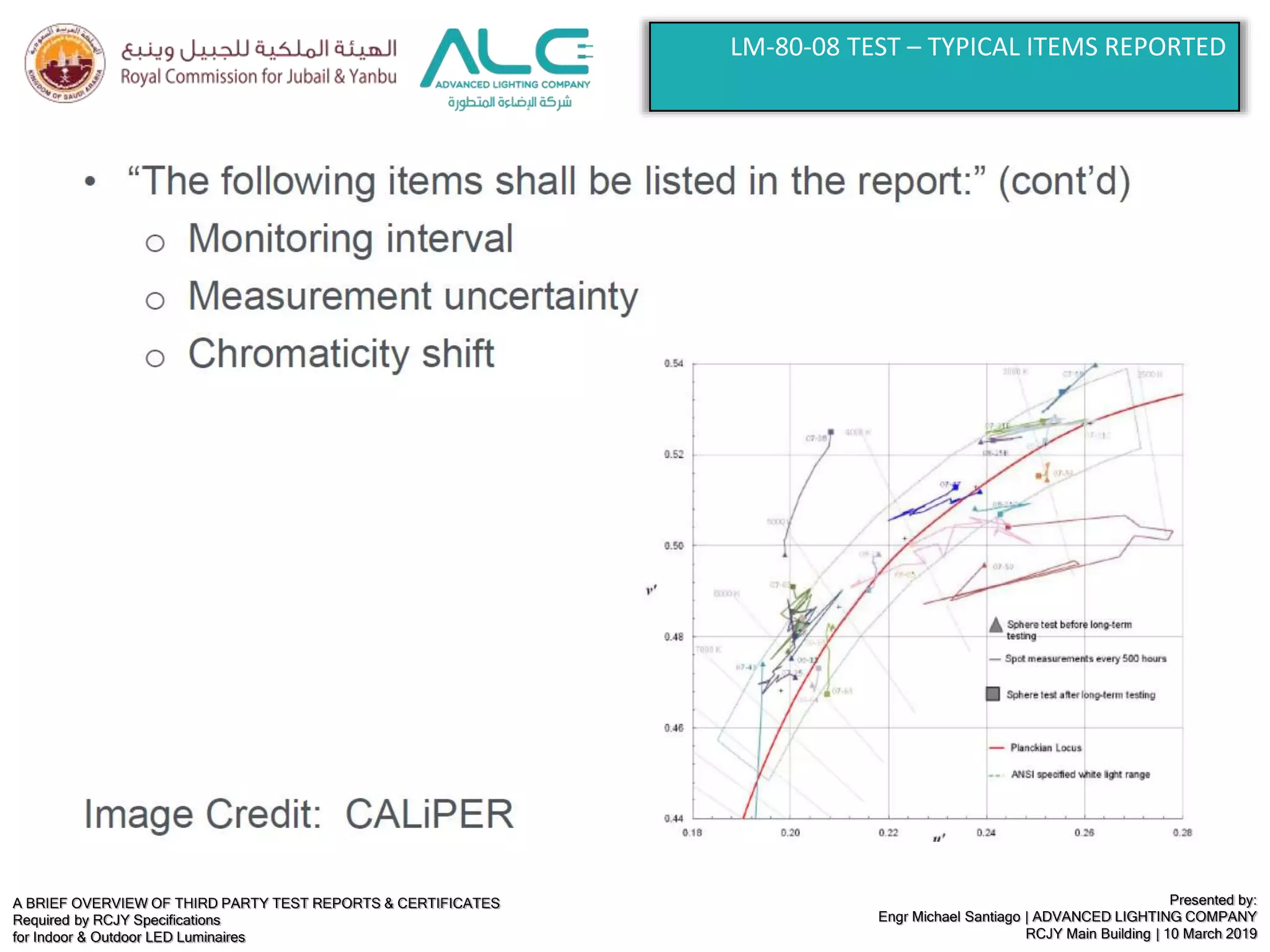

LM-80-08 TEST – TYPICAL ITEMS REPORTED

Presented by:

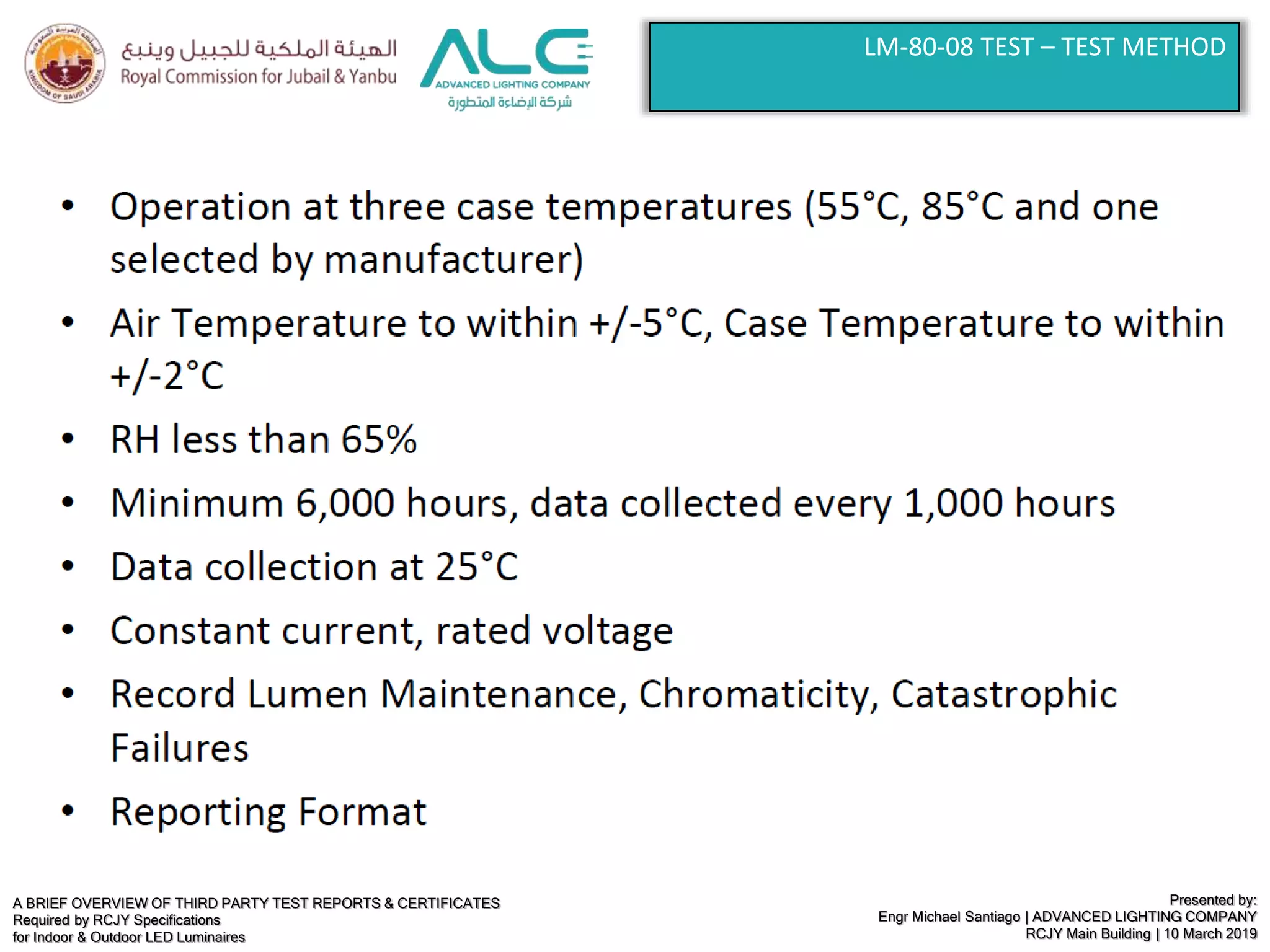

LM-80-08 TEST – TEST METHOD

Presented by:

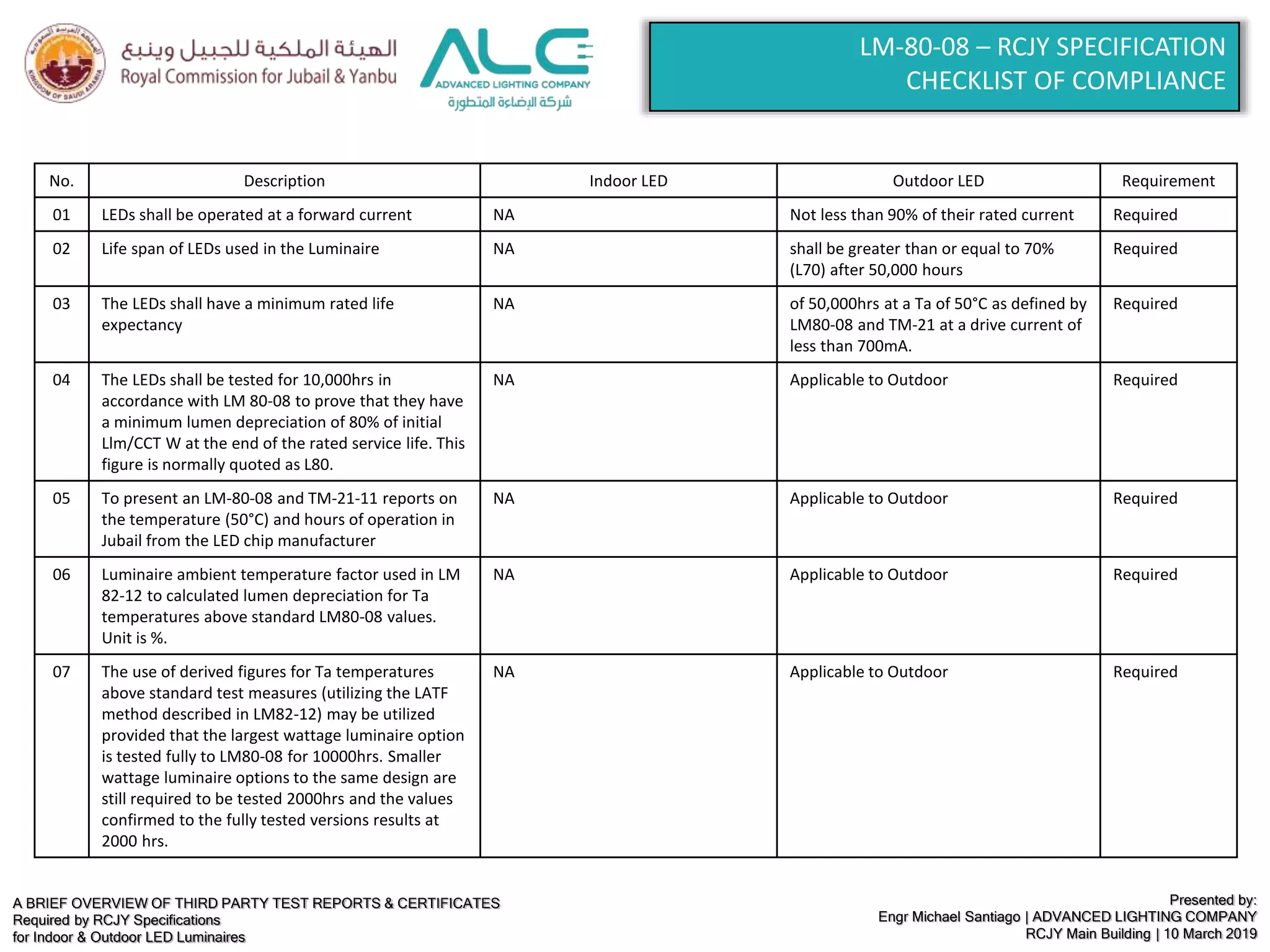

01 LEDs shall be operated at a forward current NA Not less than 90% of their rated current Required
02 Life span of LEDs used in the Luminaire NA shall be greater than or equal to 70%
(L70) after 50,000 hours
Required
03 The LEDs shall have a minimum rated life
expectancy
NA of 50,000hrs at a Ta of 50°C as defined by
LM80-08 and TM-21 at a drive current of
less than 700mA.
Required

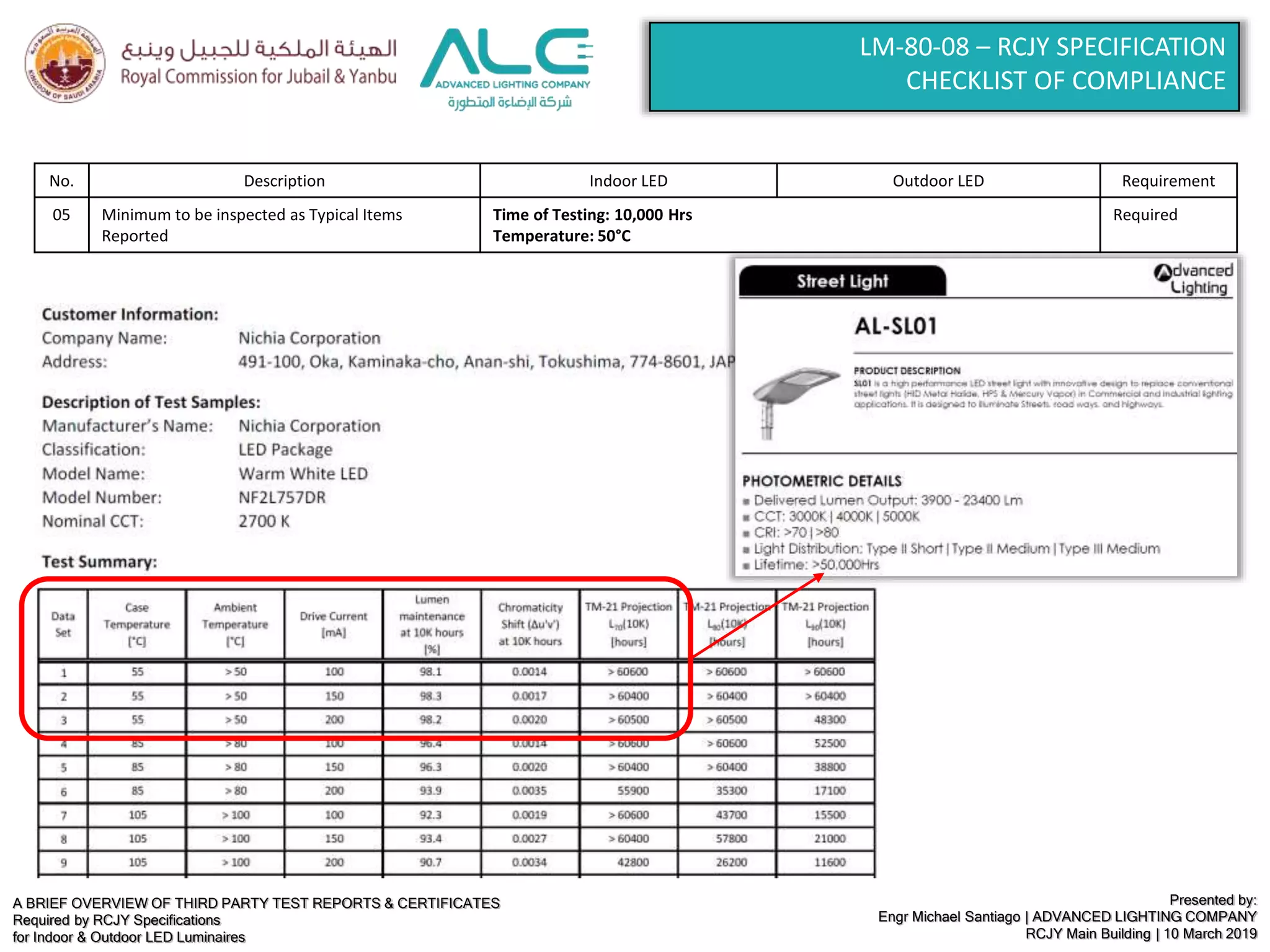

04 The LEDs shall be tested for 10,000hrs in
accordance with LM 80-08 to prove that they have
a minimum lumen depreciation of 80% of initial
Llm/CCT W at the end of the rated service life. This
figure is normally quoted as L80.
NA Applicable to Outdoor Required
05 To present an LM-80-08 and TM-21-11 reports on
the temperature (50°C) and hours of operation in
Jubail from the LED chip manufacturer
06 Luminaire ambient temperature factor used in LM
82-12 to calculated lumen depreciation for Ta
temperatures above standard LM80-08 values.
Unit is %.
07 The use of derived figures for Ta temperatures
above standard test measures (utilizing the LATF
method described in LM82-12) may be utilized
provided that the largest wattage luminaire option
is tested fully to LM80-08 for 10000hrs. Smaller
wattage luminaire options to the same design are
still required to be tested 2000hrs and the values
confirmed to the fully tested versions results at
2000 hrs.

Presented by:
LM-80-08 – RCJY INQUIRY
CONSTANT CURRENT DRIVER
vs CONSTANT VOLTAGE DRIVER
Constant current LED drivers are designed for a designated range of
output voltages and a fixed output current (mA). LEDs that are rated to
operate on a constant current driver require a designated supply of
current usually specified in milliamps (mA) or amps (A). These drivers
vary the voltage along an electronic circuit which allows current to
remain constant throughout the LED system.
Higher current ratings do make the LED brighter, but if not regulated, the
LED will draw more current than it is rated for. Thermal Runaway refers
to excess current beyond the LEDs maximum drive current which results
in drastically lower LED life-spans and premature burn outs due to
increased temperature. A constant current driver is the best way to drive
high power LEDs as it maintains a consistent brightness across all LEDs
in-series.
Constant voltage LED drivers are designed for a single direct current (DC)
output voltage. Most common constant voltage drivers (or Power
Supplies) are 12VDC or 24VDC. An LED light that is rated for constant
voltage usually specifies the amount of input voltage it needs to operate
correctly.
A constant voltage power supply receives standard line voltage (120-
277VAC). This is the type of power that is typically output from your wall
outlets around the home. Constant Voltage Drivers switch this alternating
current voltage (VAC) to a low direct current voltage (VDC). The driver will
always maintain a constant voltage no matter what kind of current load is
put on it.
Use Constant Current
Drivers for High Powered
LEDS to avoid LED burnout.
Use Constant Voltage
Drivers for multiple LEDs
arrays like LED rope light,
LED strips, LED bars, etc.

Presented by:
Required
Company Details
Required
03 Manufacturer and Part Number of sample tested NICHAI 757 is the LED Chip used for AL-SL01-150W Street Light Required

Presented by:
05 Minimum to be inspected as Typical Items
Reported
Time of Testing: 10,000 Hrs
Temperature: 50°C
Required

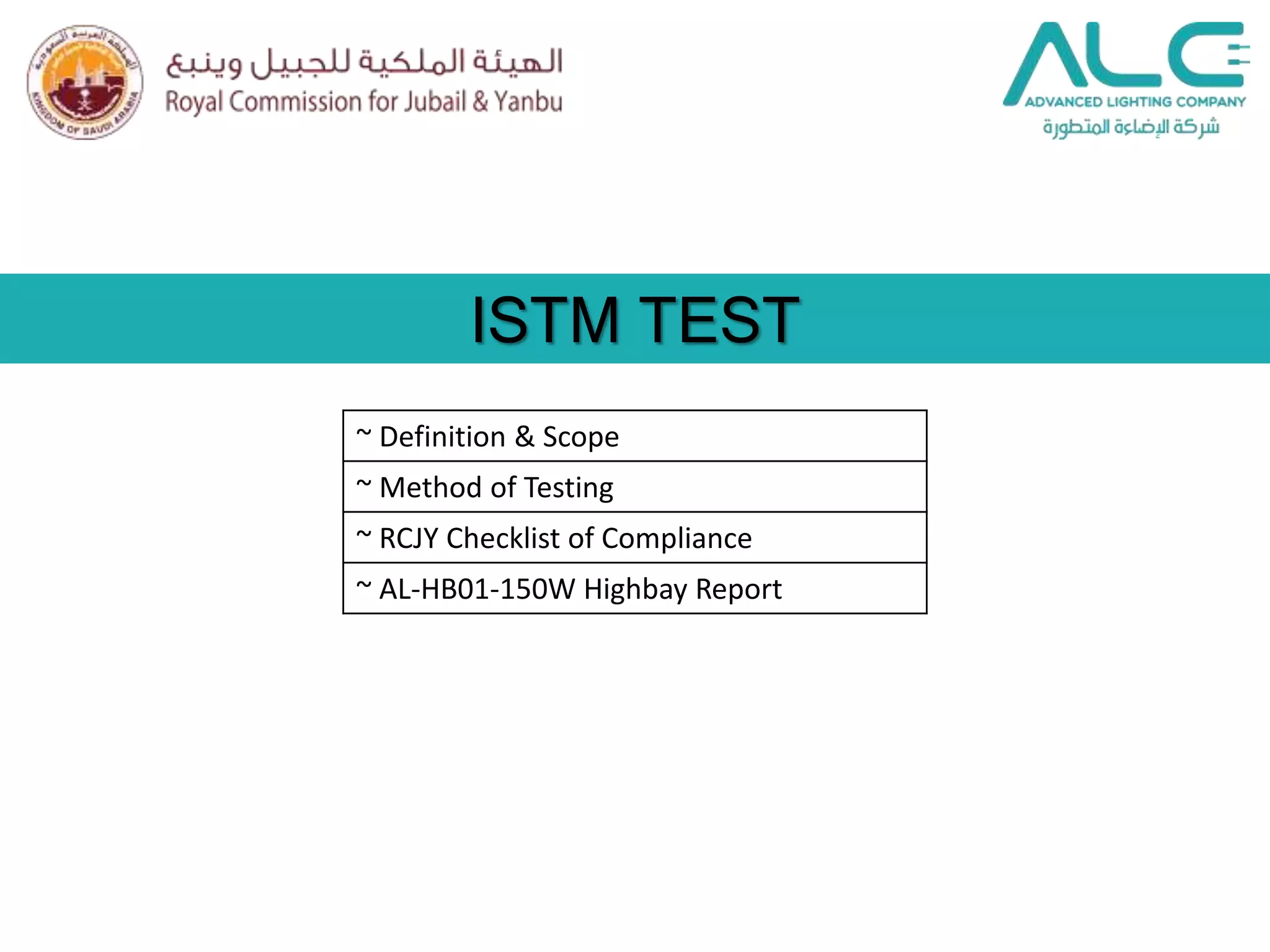

ISTM TEST
~ Method of Testing

Presented by:
ISTMT– DEFINITION & PURPOSE

Presented by:
ISTMT– TEST METHOD

Presented by:
ISTMT – RCJY SPECIFICATION
01 Thermal management test ISTMT report at 50°C
should be provided showing clearly Tsp maximum
and driver current in mA
Applicable to Indoor Applicable to Outdoor Required
02 The rated case temperature (Tc 85 °C) must be
higher than the measured temperature at ISTMT
and the minimum Delta T shall be 5 °C.
03 The luminaire should be able to operate at
temperatures between 0°C to + 50°C and certified
by third party lab
04 To present ISTMT test for the luminaire at 25°C,
50°C which displays the recorded temp within
each part of the luminary (LED chips, Lenses,
Driver, SPD)

Presented by:
Required
Company Details
Required
03 Part Number of sample tested must match
Datasheet
For Luminaires with same housing sizes, the highest wattage is usually tested and
should be used to cascade information in lower wattages of same housing size.
Required

Presented by:

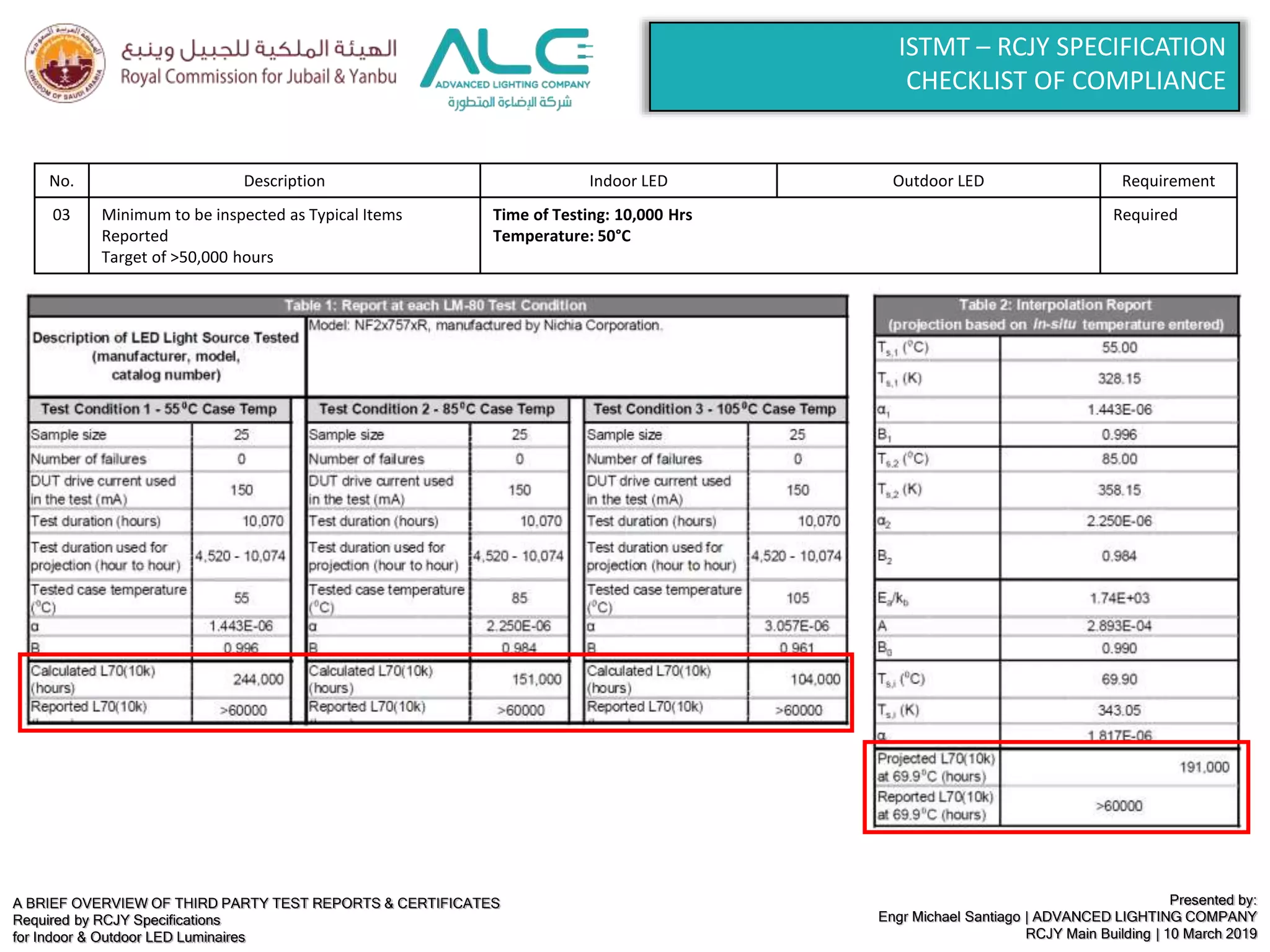

Reported
Target of >50,000 hours @L70 (10K hours)
Temperature: 50°C
Required

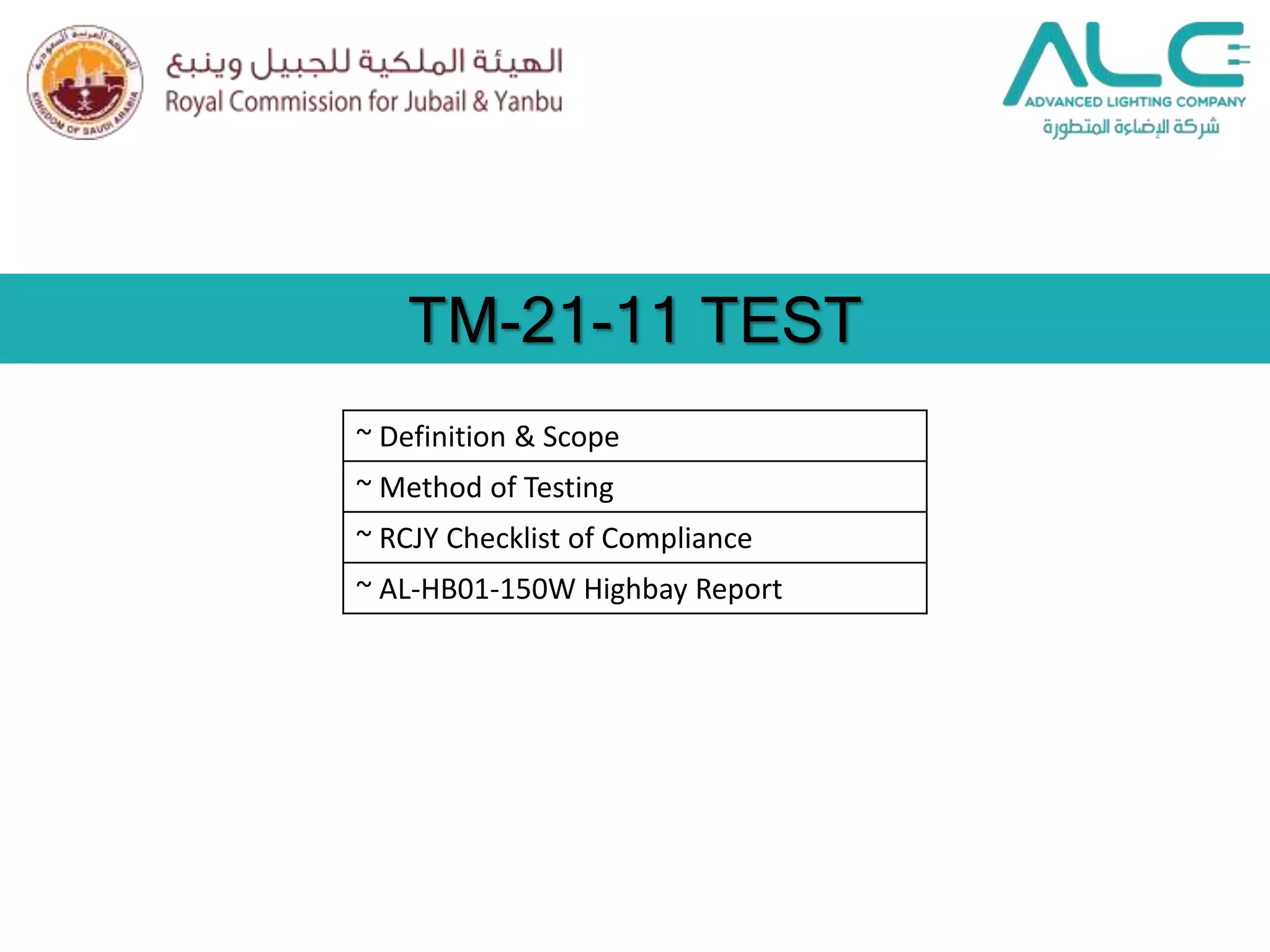

TM-21-11 TEST
~ Method of Testing

Presented by:
TM-21-11 – DEFINITION & PURPOSE

Presented by:
TM-21-11 – TEST METHOD

Presented by:

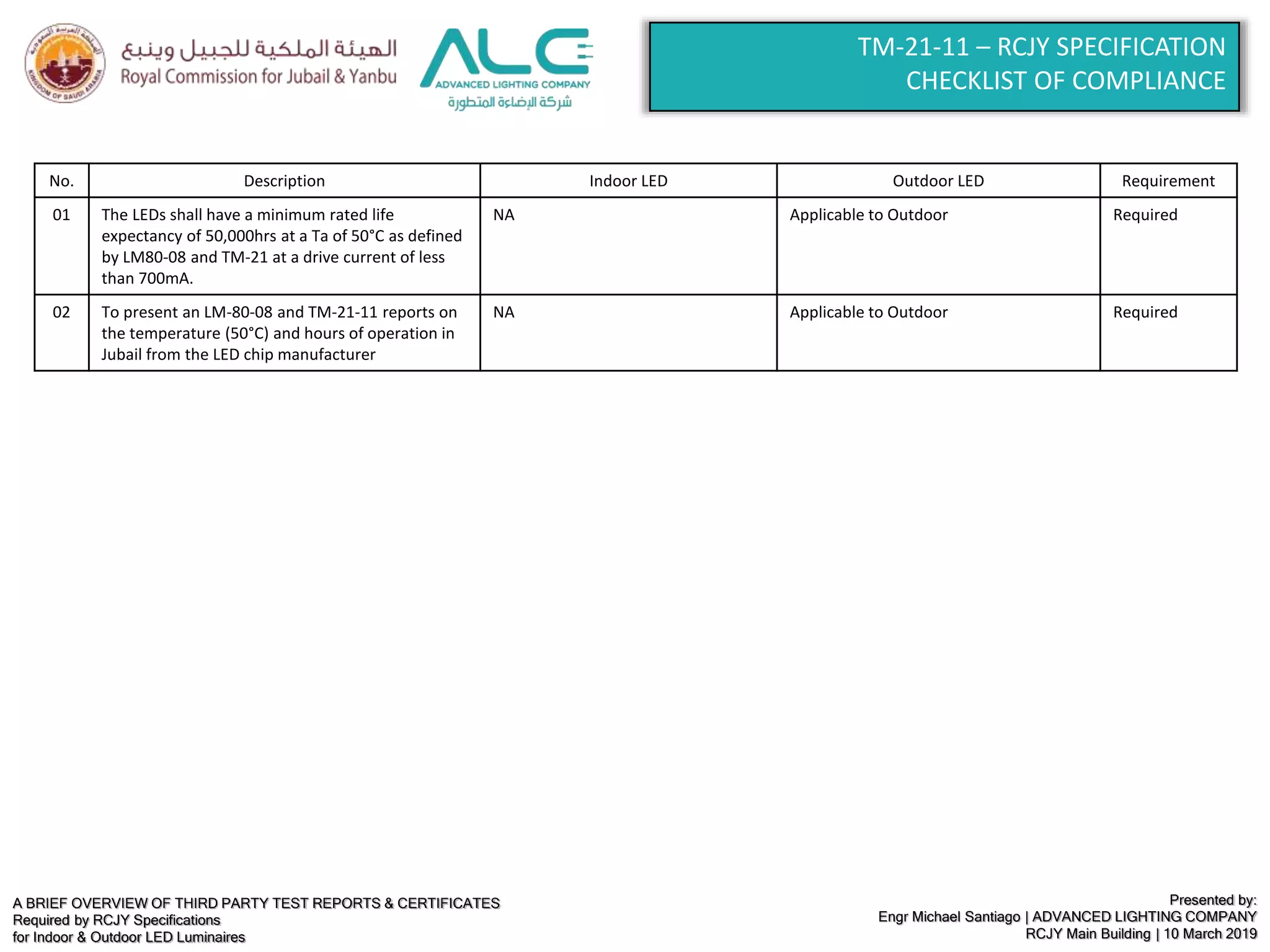

TM-21-11 – RCJY SPECIFICATION
01 The LEDs shall have a minimum rated life
expectancy of 50,000hrs at a Ta of 50°C as defined
by LM80-08 and TM-21 at a drive current of less
than 700mA.
02 To present an LM-80-08 and TM-21-11 reports on
the temperature (50°C) and hours of operation in
Jubail from the LED chip manufacturer

Presented by:
TM-21-11 – RCJY SPECIFICATION
Required
Company Details
Required

Presented by:
Reported
Target of >50,000 hours
Temperature: 50°C
Required

Presented by:
LM-82-11 – DEFINITION & PURPOSE

Presented by:

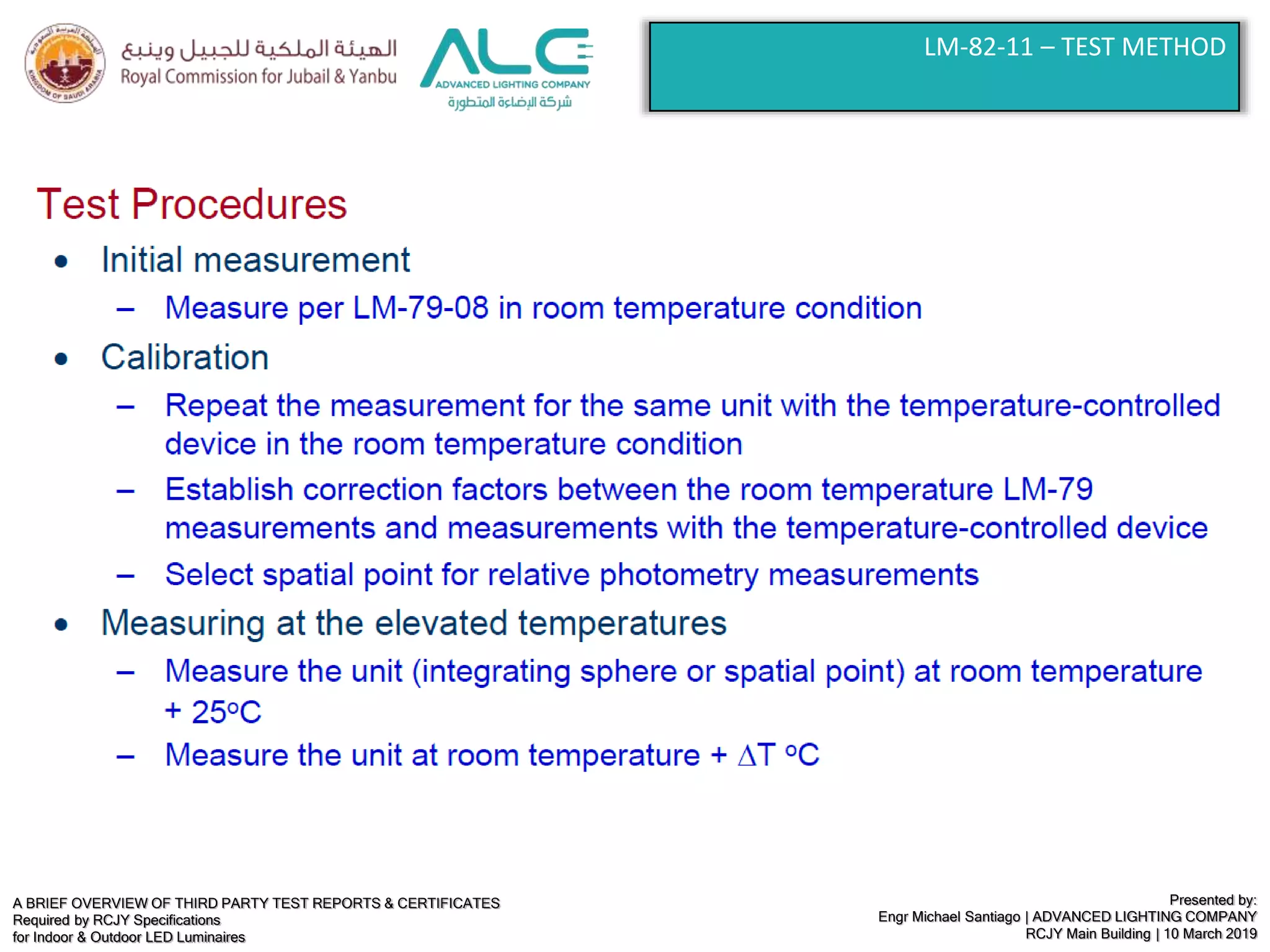

LM-82-11 – TEST METHOD

Presented by:
LM-82-11– RCJY SPECIFICATION
01 Luminaire ambient temperature factor used in LM
82-12 to calculated lumen depreciation for Ta
temperatures above standard LM80-08 values.
Unit is %.
02 The use of derived figures for Ta temperatures
above standard test measures (utilizing the LATF
method described in LM82-12) may be utilized
provided that the largest wattage luminaire option
is tested fully to LM80-08 for 10000hrs. Smaller
wattage luminaire options to the same design are
still required to be tested 2000hrs and the values
confirmed to the fully tested versions results at
2000 hrs.
03 To present LM - 82 - 12 report on lumen
dissipation at (25°, 35°, 50°) C for the complete
fixture from a third party accredited laboratory ISO
17025

Presented by:
LM-82-11– SAMPLE TEST REPORT FORMAT

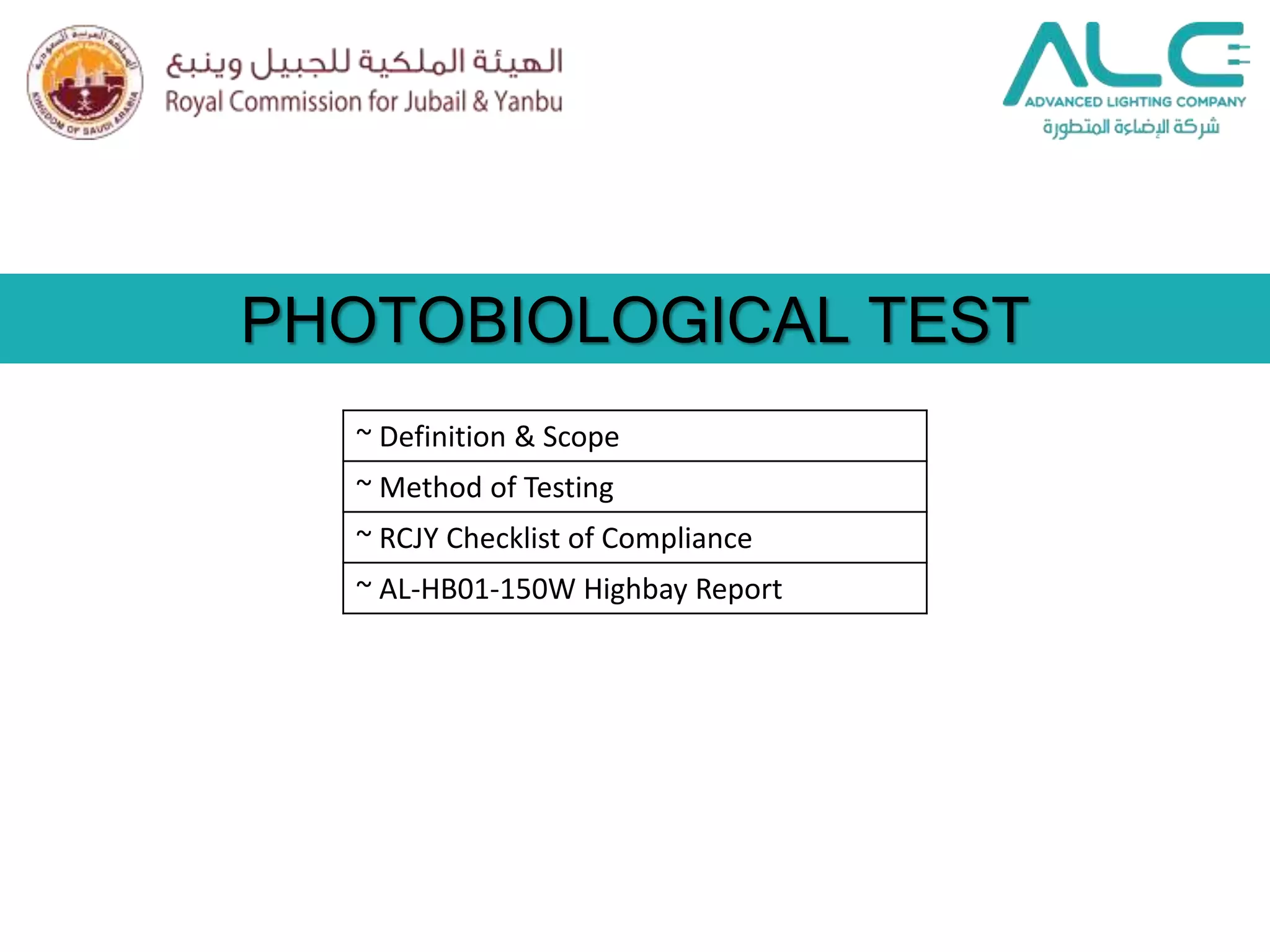

PHOTOBIOLOGICAL TEST
~ Method of Testing

Presented by:
PHOTOBIOLOGICAL – DEFINITION & PURPOSE
Overview of IEC 62471: 2006
IEC 62471: 2006 provides guidance for the evaluation of the acute photobiological safety of all electrically-powered,
non-laser sources of optical radiation emitting in the spectral range 200 to 3000 nm.
~ Potential hazards of exposure to the skin, the front of the eyes and bthe retina evaluated through consideration of
six hazards of associated exposure limits.
~ Classification framework defined, ranging from "Exempt" to "Risk Group 3"
~ Evaluation peformed at a distance dependent on application

Presented by:
PHOTOBIOLOGICAL – DEFINITION & PURPOSE

Presented by:
PHOTOBIOLOGICAL – METHOD OF TESTING
Measurement Field of View
@ 200mm
FOR OTHER LIGHT SOURCES
Measurement Field of View @
distance to produce 500 lux
FOR GLS lamps
Two Methods of
Measurement

Presented by:
PHOTOBIOLOGICAL – RCJY SPECIFICATION
01 Manufacturer shall submit the Photo Biological
Safety Report for the fixture as per IEC - EN 62471
from a third party accredited laboratory ISO 17025
Applicable to indoor Applicable to Outdoor Required

Presented by:
IEC 62471 – RCJY SPECIFICATION

UL CERTIFICATE
~ UL Certificate of Advanced Lighting
products

Presented by:
UL CERTIFICATION– DEFINITION & PURPOSE
UL CERTIFICATES DESCRIPTIONS & SCOPE
UL 844
Standard for Luminaires for Use in
Hazardous (Classified) Locations
1.1 These requirements cover fixed and portable luminaires for installation and use in hazardous (classified)
locations, Class I, Divisions 1 and 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II,
Division 2, Groups F and G; and Class III, Divisions 1 and 2, in accordance with the National Electrical Code,
NFPA 70.
1.2 These requirements also cover luminaires for installation and use in Class I, Zones 1 and 2, Groups IIA, IIB,
IIB plus Hydrogen, and IIC, and Zone 20, 21 and 22 hazardous (classified) locations in accordance with the
National Electrical Code, NFPA 70.
1.3 These requirements cover luminaires for use only under the following atmospheric conditions:
a) A minimum ambient temperature of minus 25°C (minus 13°F);
b) An oxygen concentration not greater than 21 percent by volume; and
c) A nominal barometric pressure of one atmosphere.
UL 1598
Luminaires
1.1 This Standard applies to luminaires for use in non-hazardous locations and that are intended for installation
on branch circuits of 600 V nominal or less between conductors in accordance with the Canadian Electrical
Code, Part I (CEC), CSA C22.1, with the U.S. National Electrical Code (NEC), ANSI/NFPA 70, and with the
Mexican National Electrical Code, NOM-001-SEDE.
UL 1598A
Standard for Supplemental Requirements
for Luminaires for Installation on Marine
Vessels
1.1 These requirements are supplementary to other applicable requirements in the Standard for Luminaires, UL 1598.
References to requirements in UL 1598 are in italics for easy identification.
(1.1 revised August 22, 20021.2) These requirements apply to luminaires for installation on marine vessels utilizing
grounded systems in accordance with the United States Coast Guard Electrical Engineering Regulations 46 CFR, Parts 110
– 113, Subchapter J and, insofar as it applies, the National Electrical Code, ANSI/NFPA 70, and the Recommended Practice
for Electrical Installations on Shipboard, IEEE 45.
1.3 These requirements do not apply to marine lighting luminaires for use in hazardous locations, as defined in the
National Electrical Code, ANSI/NFPA 70, emergency lighting marine luminaires, or low voltage marine luminaires (less
than 50 volts) supplied solely by a battery, transformer, converter, or similar power supply source.
1.4 A product that contains features, characteristics, components, materials, or systems new or different from those
covered by the requirements in this standard, and that involves a risk of fire or of electric shock or injury to persons shall
be evaluated using appropriate additional component and end-product requirements to maintain the level of safety as
originally anticipated by the intent of this standard. A product whose features, characteristics, components, materials, or
systems conflict with specific requirements or provisions of this standard does not comply with this standard. Revision of
requirements shall be proposed and adopted in conformance with the methods employed for development, revision, and
implementation of this standard.

Presented by:
UL LISTING– RCJY SPECIFICATION
01 Reports and certifications from a certified
independent third party test labs –UL 1598
02 Luminaire shall be designed to limit LED junction
temperatures (TJ) to a maximum of 40°C above
ambient which should not exceed 90°C in case of
50°C ambient temperature. Confirmation of
meeting this parameter will be provided via a
UL1598 report from a UL-accredited independent
3rd party lab.

Presented by:
UL – ACTUAL CERTIFICATE

LED CHIPS DATASHEET
~ NICHIA LED Chip for AL-HB01 Highbay
Light

Presented by:
LED CHIPS – RCJY SPECIFICATION
01 It should be high power white LED with more
than 95 LPW provided with LED Data Sheet.
Applicable to Indoor. Also mentioned
in LM-80.
Applicable to Outdoor. Also mentioned in
LM-80.
Required
02 Chromaticity coordinates CCx and CCy should be
step-3:4.
in LM-79.
LM-79.
Required
03 Macadam Ellipse and manufacture should
declare color recipe used by Nos
in LM-79.
LM-79.
Required
04 Correlated Color Temperature (CCT) as per CIE
1937
should be 4000-6000K (Nominal).
Also mentioned in LM-79.
should be 4000-4500K (Nominal) . Also
mentioned in LM-79.
Required
05 Color Rendering Index (CRI) >90. Also mentioned in LM-79. >70. Also mentioned in LM-79. Required
06 Chip manufacture should provide table for the
Initial Lumen Factor (ILF) at a defined ambient
temperature of 25 and 50°C
Applicable to Indoor. Applicable to Outdoor Required
07 The LED chips and associated components shall
be capable of being stored or suffering no
detrimental loss in performance when de-
energized for the ambient temperature range of
-40 °C to +85 °C at 95%RH.
08 The LEDs chosen by the manufacturer shall have
an off chip performance of not less than
140lm/w. The data shall be for hot lumens and
shall be derived in an ambient temperature of 50
°C. This performance shall be at a drive current
of not more than 500mA.

Presented by:
LED CHIP – RCJY SPECIFICATION

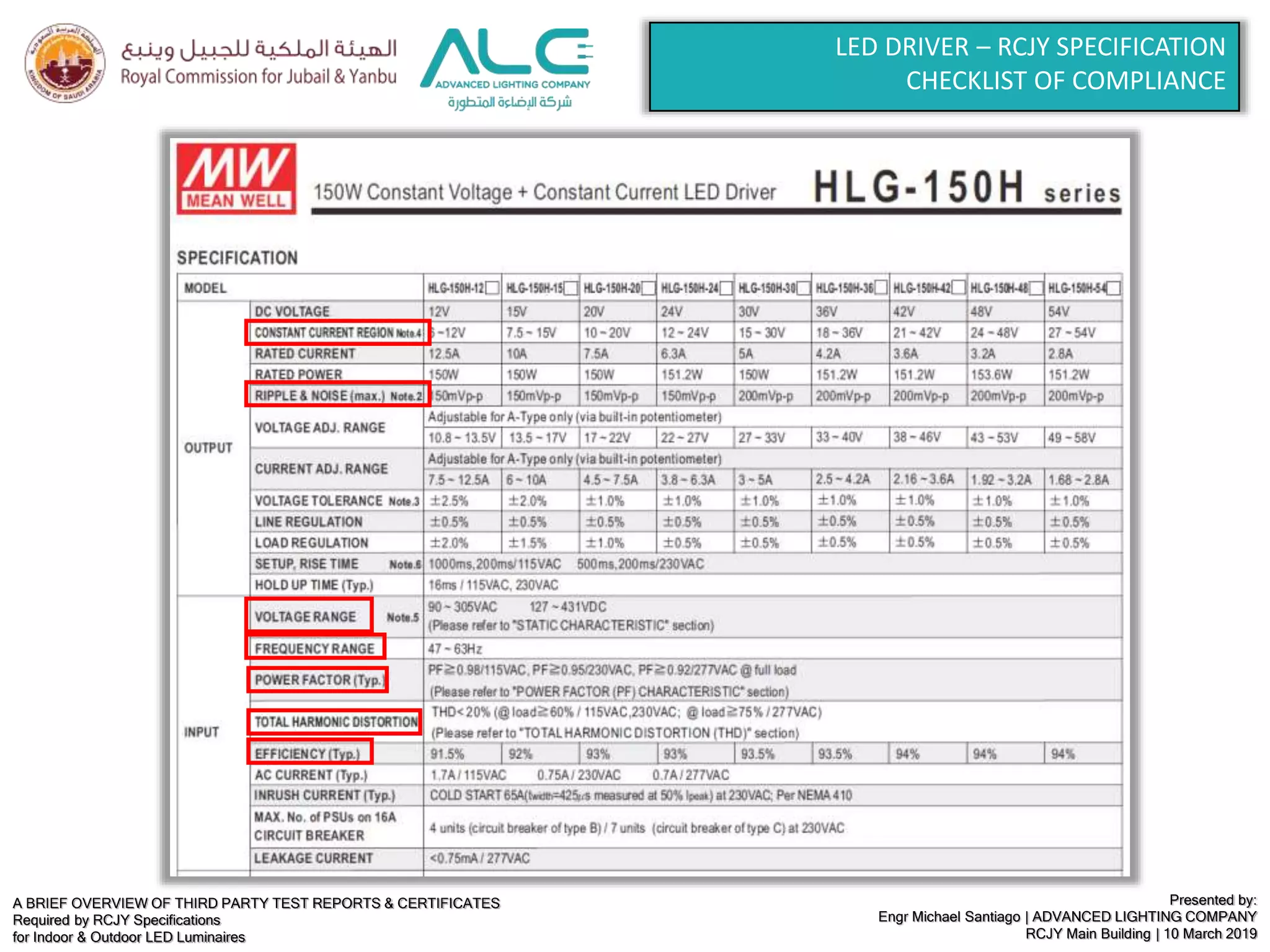

LED DRIVERS DATASHEET
~ MEANWELL LED Drivers for AL-HB01
Highbay Light

Presented by:

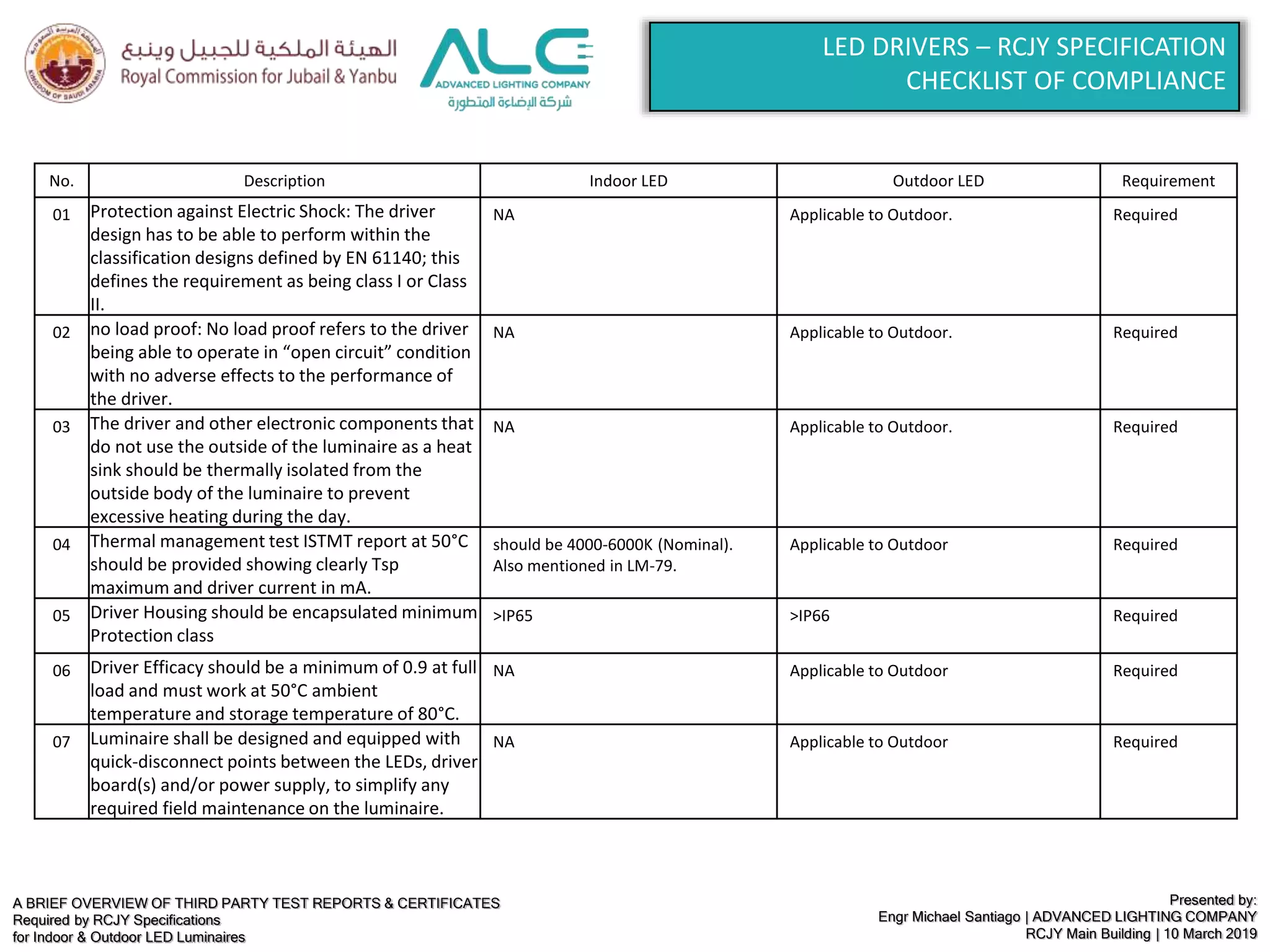

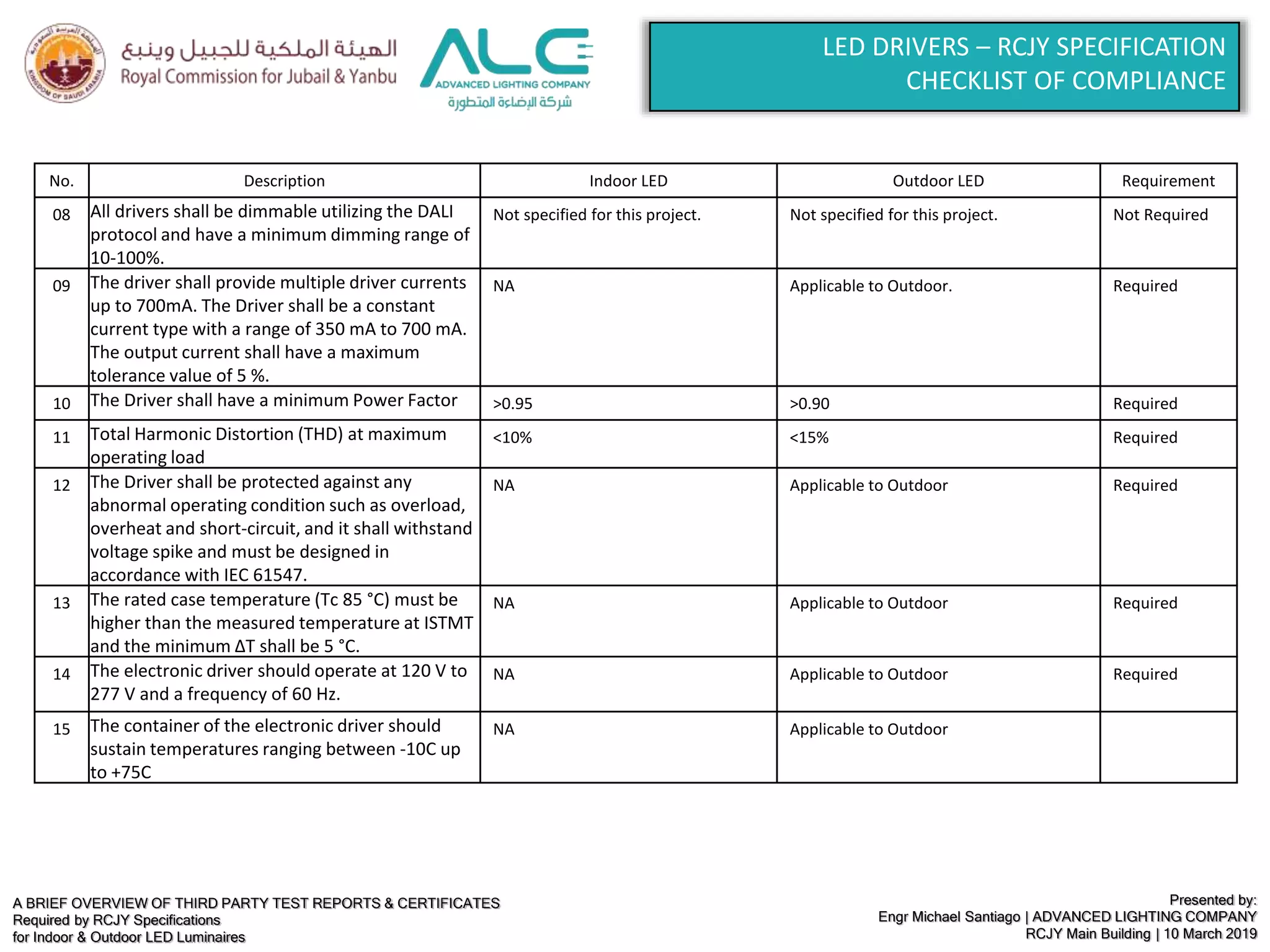

LED DRIVERS – RCJY SPECIFICATION
01 Protection against Electric Shock: The driver
design has to be able to perform within the
classification designs defined by EN 61140; this
defines the requirement as being class I or Class
II.
NA Applicable to Outdoor. Required
02 no load proof: No load proof refers to the driver
being able to operate in “open circuit” condition
with no adverse effects to the performance of
the driver.
03 The driver and other electronic components that
do not use the outside of the luminaire as a heat
sink should be thermally isolated from the
outside body of the luminaire to prevent
excessive heating during the day.
04 Thermal management test ISTMT report at 50°C
should be provided showing clearly Tsp
maximum and driver current in mA.
should be 4000-6000K (Nominal).
Also mentioned in LM-79.
Applicable to Outdoor Required
05 Driver Housing should be encapsulated minimum
Protection class
>IP65 >IP66 Required
06 Driver Efficacy should be a minimum of 0.9 at full
load and must work at 50°C ambient
temperature and storage temperature of 80°C.
07 Luminaire shall be designed and equipped with
quick-disconnect points between the LEDs, driver
board(s) and/or power supply, to simplify any
required field maintenance on the luminaire.

Presented by:
LED DRIVERS – RCJY SPECIFICATION
08 All drivers shall be dimmable utilizing the DALI
protocol and have a minimum dimming range of
10-100%.
Not specified for this project. Not specified for this project. Not Required
09 The driver shall provide multiple driver currents
up to 700mA. The Driver shall be a constant
current type with a range of 350 mA to 700 mA.
The output current shall have a maximum
tolerance value of 5 %.
10 The Driver shall have a minimum Power Factor >0.95 >0.90 Required
11 Total Harmonic Distortion (THD) at maximum
operating load
<10% <15% Required
12 The Driver shall be protected against any
abnormal operating condition such as overload,
overheat and short-circuit, and it shall withstand
voltage spike and must be designed in
accordance with IEC 61547.
13 The rated case temperature (Tc 85 °C) must be
higher than the measured temperature at ISTMT
and the minimum ΔT shall be 5 °C.
14 The electronic driver should operate at 120 V to
277 V and a frequency of 60 Hz.
15 The container of the electronic driver should
sustain temperatures ranging between -10C up
to +75C
NA Applicable to Outdoor

Presented by:
LED DRIVER – RCJY SPECIFICATION

CONCLUSION
FROM MANUIFACTURER’S POINT OF VIEW

Presented by:
CLOSING –
FROM THE MANUFACTURER’S POINT OF VIEW
CONCLUSION:
1) Nowadays, not one Manufacturer can provide all the components that will build the whole
LED luminaire. In fact all manufacturers globally rely on specialist manufacturers of different
components to meet the required specification of the end-users.
2) As a general rule, local manufacturers can offer high quality LED products as long as the LED
luminaire BOM is made up of UL Listed Chips and Drivers and the finished LED luminaire is
tested from a Third Party Laboratory listed under NVLAP.
3) To be able to give end-users a competitive offer, manufacturers will look for ways to meet
the minimum specifications/requirement.
4) All tests and certifications required have a cost impact on the unit price of products.
5) Those manufacturers who can claim very high specifications of their products must be able
to stand with their products by offering standard 5-years warranty.
6) The ideal way of verifying claims in a Product Datasheet should be found in the Photometric
Data, Test Reports & Certificates of the same product.
7) Manufacturers often test the highest wattage of same housing dimension of LED as the
benchmark for lower wattage of the same housing.
8) There is no expiration date on Test Reports and Certifications especially if there has been no
updated version/changes done on thermal and LED Chips & Drivers components. If there
are such changes, an updated Datasheet and corresponding Tests are in order.
9) The manufacturer reserves the right to change the specification on Product Datasheets
without prior public announcement

Presented by:
CLOSING
FEEL FREE TO CONTACT US FOR ANYTHING ABOUT LED & LIGHTING:
Tel: +966-13-893-5045 ext 221 | Mob: +966-56-262-3490
Email: msantiago@alc.sa | Website: https://www.alc.sa

Required Test Reports & Cerificates for LED Luminaires

More Related Content

Similar to Required Test Reports & Cerificates for LED Luminaires

More from Michael Santiago

Recently uploaded

Required Test Reports & Cerificates for LED Luminaires
