The document details the architectural façade lighting design for Olaya Towers, created by lighting engineer Michael T. Santiago in December 2010. It describes various lighting fixtures, including their specifications, materials, and functionalities, such as floodlights, recessed downlights, and linear luminaires. Included are 3D renders and fixture locations intended to highlight the building's architecture through illumination.

1. Architectural Facade Lighting Michael T. Santiago · Lighting Engineer OLAYA TOWERS

2. OLAYA TOWERS ARCHITECTURAL LIGHTING FAÇADE THORN Lighting Jeddah

3. OLAYA TOWERS Architectural Façade Lighting 3 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

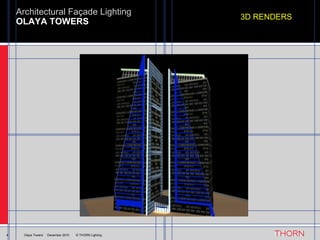

4. OLAYA TOWERS Architectural Façade Lighting 4 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

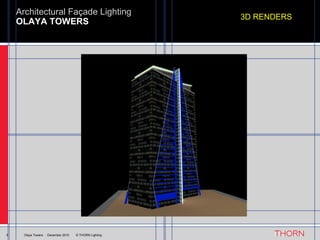

5. OLAYA TOWERS Architectural Façade Lighting 5 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

6. OLAYA TOWERS Architectural Façade Lighting 6 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

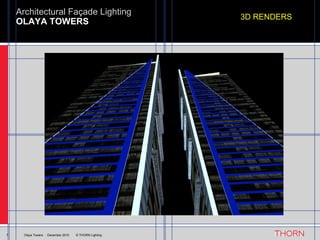

7. OLAYA TOWERS Architectural Façade Lighting 7 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

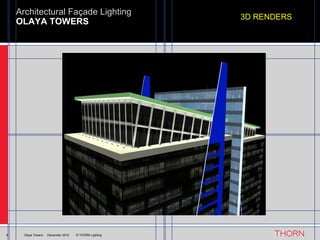

8. OLAYA TOWERS Architectural Façade Lighting 8 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

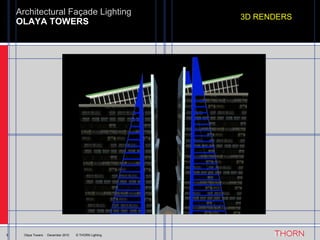

9. OLAYA TOWERS Architectural Façade Lighting 9 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

10. OLAYA TOWERS Architectural Façade Lighting 10 Olaya Towers · December 2010 © THORN Lighting 3D RENDERS

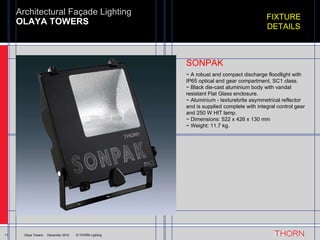

11. OLAYA TOWERS Architectural Façade Lighting 11 Olaya Towers · December 2010 © THORN Lighting FIXTURE DETAILS ~ A robust and compact discharge floodlight with IP65 optical and gear compartment, SC1 class. ~ Black die-cast aluminium body with vandal resistant Flat Glass enclosure. ~ Aluminium - texturebrite asymmetrical reflector and is supplied complete with integral control gear and 250 W HIT lamp. ~ Dimensions: 522 x 426 x 130 mm ~ Weight: 11.7 kg. SONPAK

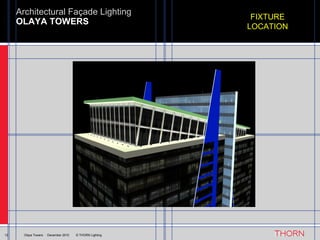

12. OLAYA TOWERS Architectural Façade Lighting 12 Olaya Towers · December 2010 © THORN Lighting FIXTURE LOCATION

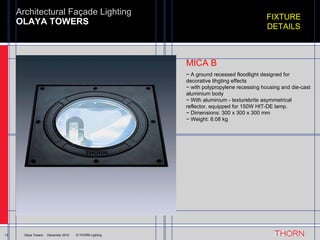

13. OLAYA TOWERS Architectural Façade Lighting 13 Olaya Towers · December 2010 © THORN Lighting FIXTURE DETAILS ~ A ground recessed floodlight designed for decorative lihgting effects ~ with polypropylene recessing housing and die-cast aluminium body ~ With aluminium - texturebrite asymmetrical reflector, equipped for 150W HIT-DE lamp. ~ Dimensions: 300 x 300 x 300 mm ~ Weight: 8.08 kg MICA B

14. OLAYA TOWERS Architectural Façade Lighting 14 Olaya Towers · December 2010 © THORN Lighting FIXTURE LOCATION

15. OLAYA TOWERS Architectural Façade Lighting 15 Olaya Towers · December 2010 © THORN Lighting FIXTURE DETAIL ~ A shallow recessed downlight for 1 x 70W HIT-CE lamp ~ With a variety of decorative attachments. ~ Body in white polycarbonate and reflector in specular vacuummetallised plastic. ~ Cut out 190mm Ø. ~ Dimensions: Ø205 x 190 mm ~ Weight: 2 kg CHALICE ~ Small size, recessed amenity luminaire with polypropylene recessing housing and die-cast aluminium body ~ Ground recessed luminaire for 50W QPAR-16 (abs) lamp. ~ Beam tilting adjustment of +/-15°. ~ Dimensions: Ø150 x 230 mm ~ Weight: 1.22 kg MICA S

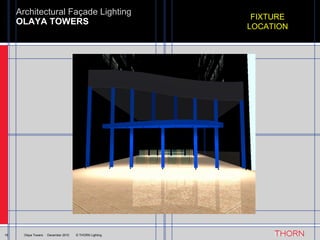

16. OLAYA TOWERS Architectural Façade Lighting 16 Olaya Towers · December 2010 © THORN Lighting FIXTURE LOCATION

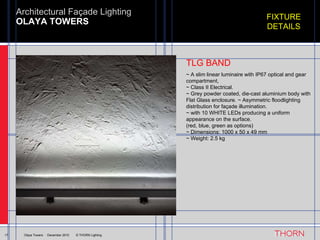

17. OLAYA TOWERS Architectural Façade Lighting 17 Olaya Towers · December 2010 © THORN Lighting FIXTURE DETAILS ~ A slim linear luminaire with IP67 optical and gear compartment, ~ Class II Electrical. ~ Grey powder coated, die-cast aluminium body with Flat Glass enclosure. ~ Asymmetric floodlighting distribution for façade illumination. ~ with 10 WHITE LEDs producing a uniform appearance on the surface. (red, blue, green as options) ~ Dimensions: 1000 x 50 x 49 mm ~ Weight: 2.5 kg TLG BAND

18. OLAYA TOWERS Architectural Façade Lighting 18 Olaya Towers · December 2010 © THORN Lighting FIXTURE LOCATION

19. OLAYA TOWERS Architectural Façade Lighting 19 Olaya Towers · December 2010 © THORN Lighting LINEAR LED ANIMATED OPTIONS OPTION No. 1 Still RED LINEAR LED OPTIONS

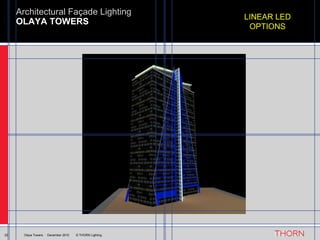

20. OLAYA TOWERS Architectural Façade Lighting 20 Olaya Towers · December 2010 © THORN Lighting LINEAR LED OPTIONS

21. OLAYA TOWERS Architectural Façade Lighting 21 Olaya Towers · December 2010 © THORN Lighting OPTION No. 2 Running Red LINEAR LED OPTIONS

22. OLAYA TOWERS Architectural Façade Lighting 22 Olaya Towers · December 2010 © THORN Lighting LINEAR LED OPTIONS

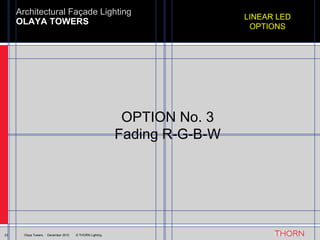

23. OLAYA TOWERS Architectural Façade Lighting 23 Olaya Towers · December 2010 © THORN Lighting OPTION No. 3 Fading R-G-B-W LINEAR LED OPTIONS

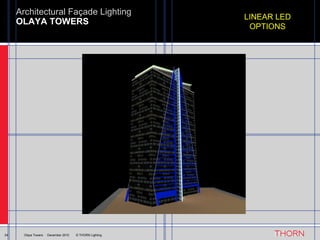

24. OLAYA TOWERS Architectural Façade Lighting 24 Olaya Towers · December 2010 © THORN Lighting LINEAR LED OPTIONS

25. Michael T. Santiago Lighting Engineer www.thornlighting.com Thank you!
