1. Everythingyou wanted to know about Trovebut didn't know whom to ask!
Nikhil Manchanda [HP]
PTL, Trove
Email: nikhil.manchanda@hp.com
IRC: SlickNik
Twitter:@SlickNik@hphelioncloud
Amrith Kumar [Tesora]
Core Reviewer, Trove
Email: a@tesora.com
IRC: amrith
Twitter: @amrithkumar@tesoracorp
Tweet about this presentation #openstack#trove

2. What is Trove
•Trove Mission
“To provide scalableand reliableCloud Database as a Service provisioningfunctionality for both relationaland non-relational database engines, and to continue to improve its fully-featured and extensible open sourceframework.”
https://wiki.openstack.org/wiki/Trove
•Provisioning and de-provisioning.
•Administration.
•Configuration.
•Backup and Restore.
•Clustering & Replication.
•Create and manipulate tables, collections, namespaces.
•Select, Insert, Update, Delete Data.
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
2

3. An Overviewof Trove
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
3

4. Trove Architecture[1]
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
4

5. Trove Architecture[2]
Keystone
Cinder Volume
Cinder Volume
Cinder Volume
Nova-Networking/Neutron
Trove API
Message Bus
Trove Conductor
Trove Task Manager
Compute Instance
Guest Agent
SQL/NoSQL
Backup
Data
Backup
Backups
DB
Backup
Backup
Guest Images
Data
Data
Nova
Cinder
Swift
Glance
Trove
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
5

6. Trove Architecture[3]
Trove Guest Instance
Operating System
Database Management System
Trove Guest Agent
Trove Controller
Trove API
Message Bus
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
6
Trove Taskmanager
Trove Conductor

7. Where Can I Get Trove?
•Use the source, Luke!
•OpenStack Trove Project
•https://git.openstack.org/cgit/openstack/trove
•Mirrored at -http://github.com/openstack/trove.git
•Trove python client binding and command line client
•https://git.openstack.org/cgit/openstack/python-troveclient
•Mirrored at –http://github.com/openstack/python-troveclient.git
•Trove design specifications for blueprints
•https://git.openstack.org/cgit/openstack/trove-specs
•Mirrored at –http://github.com/openstack/trove-specs
•Trove scriptsfor installation and testing, and elements for building guest images
•https://git.openstack.org/cgit/openstack/trove-integration
•Mirrored at –http://github.com/openstack/trove-integration.git
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
7

8. trove/guestagent/strategies
backup/
[…]
replication/
restore/
storage/
trove/guestagent/
[…]
backup/
common/
datastore/
[…]
strategies/
[…]
trove/guestagent/strategies/backup
base.py
base.pyc
couchbase_impl.py
couchbase_impl.pyc
__init__.py
__init__.pyc
mysql_impl.py
mysql_impl.pyc
postgresql_impl.py
grepclass guestagent/strategies/backup/mysql_impl.py
class MySQLDump(base.BackupRunner):
class InnoBackupEx(base.BackupRunner):
class InnoBackupExIncremental(InnoBackupEx):
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
8
Trove Modularity

9. Getting Startedwith Trove
•As a Trove user
•OpenStack distribution that includes Trove (such as HP Helion DevPlatform)
•http://www8.hp.com/us/en/cloud/hphelion-openstack.html
•TesoraDBaaS platform, a Trove packaging tailored for the enterprise
•http://tesora.com/download-tesora-dbaas-platform-enterprise-edition
•As a Trove developer
$ gitclone http://github.com/openstack/trove-integration
$ cd trove-integration/scripts
$ ./redstackinstall
$ ./redstackkick-start mysql
•On top of DevStack
•Add to localrc:
•ENABLED_SERVICES+=,trove,tr-api,tr-tmgr,tr-cond
•Swift should also be enabled for Backup and Restore.
•ENABLED_SERVICES+=,s-proxy,s-object,s-container,s-account
•SWIFT_HASH=<swift-hash-here>
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
9

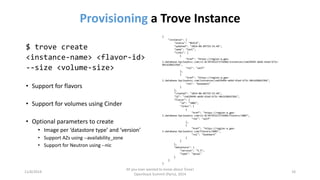

10. Provisioninga Trove Instance
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
10
$ trove create
<instance-name> <flavor-id>
--size <volume-size>
•Support for flavors
•Support for volumes using Cinder
•Optional parameters to create
•Image per ‘datastore type’ and ‘version’
•Support AZs using --availability_zone
•Support for Neutron using --nic
{
"instance": {
"status": "BUILD",
"updated": "2014-06-05T19:33:46",
"name": "test",
"links": [
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/v1.0/39745227274204/instances/ce629494-a64d-41ed-b73c- 04cb28bb33bb",
"rel": "self"
},
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/instances/ce629494-a64d-41ed-b73c-04cb28bb33bb",
"rel": "bookmark"
}
],
"created": "2014-06-05T19:33:46",
"id": "ce629494-a64d-41ed-b73c-04cb28bb33bb",
"flavor": {
"id": "1002",
"links": [
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/v1.0/39745227274204/flavors/1002",
"rel": "self"
},
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/flavors/1002",
"rel": "bookmark"
}
]
},
"datastore": {
"version": "5.5",
"type": "mysql"
}
}
}

11. Managingthe Trove Database
•Resize flavor
•Resize volume
•Datastore specific extensions:
•Create Database / Schema
•Create Users
•Grant Users Permissions on Databases
•Enable a Root User
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
11

12. Trove is Tuned
•Trove sets up sane defaults
•InnoDBonly
•Disable load data infileand select into outfile
•Ability to automatically tune settings by flavor –e.g. for my.cnf
•Buffer Pool Size,
•Log file size
•max_connections, etc.
•API to programmatically target configuration groups for settings
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
12

13. Trove is Secure
•Removes anonymous user
•Removes non-localhostusers
•Removes local file access
•Mangles root user password
•Sets up Security Groups to manage access (via API)
•User SSH access to datastore not required
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
13

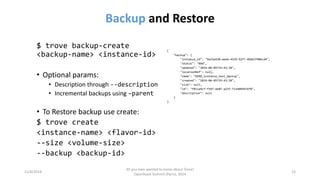

14. Backupand Restore
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
14
$ trove backup-create <backup-name> <instance-id>
•Optional params:
•Description through --description
•Incremental backups using –parent
•To Restore backup use create:
$ trove create
<instance-name> <flavor-id>
--size <volume-size>
--backup <backup-id>
{
"backup": {
"instance_id": "9a31e420-aee6-4329-92f7-4b6b3790bcd4",
"status": "NEW",
"updated": "2014-06-05T19:43:28",
"locationRef": null,
"name": "DEMO_instance_test_backup",
"created": "2014-06-05T19:43:28",
"size": null,
"id": "f811a9cf-f397-4e07-a21f-7134094976f8",
"description": null
}
}

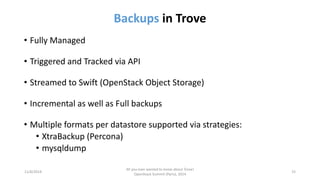

15. Backupsin Trove
•Fully Managed
•Triggered and Tracked via API
•Streamed to Swift (OpenStack Object Storage)
•Incremental as well as Full backups
•Multiple formats per datastore supported via strategies:
•XtraBackup(Percona)
•mysqldump
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
15

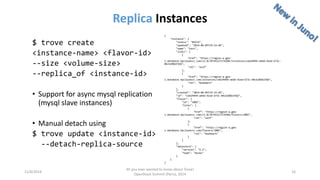

16. Replica Instances
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
16
$ trove create
<instance-name> <flavor-id>
--size <volume-size>
--replica_of<instance-id>
•Support for asyncmysqlreplication (mysqlslave instances)
•Manual detach using
$ trove update <instance-id>
--detach-replica-source
{
"instance": {
"status": "BUILD",
"updated": "2014-06-05T19:33:46",
"name": "test",
"links": [
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/v1.0/39745227274204/instances/ce629494-a64d-41ed-b73c- 04cb28bb33bb",
"rel": "self"
},
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/instances/ce629494-a64d-41ed-b73c-04cb28bb33bb",
"rel": "bookmark"
}
],
"created": "2014-06-05T19:33:46",
"id": "ce629494-a64d-41ed-b73c-04cb28bb33bb",
"flavor": {
"id": "1002",
"links": [
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/v1.0/39745227274204/flavors/1002",
"rel": "self"
},
{
"href": "https://region-a.geo- 1.database.hpcloudsvc.com/flavors/1002",
"rel": "bookmark"
}
]
},
"datastore": {
"version": "5.5",
"type": "mysql"
}
}
}

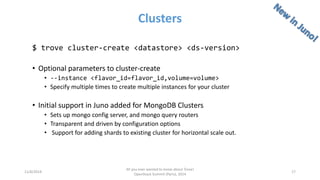

17. Clusters
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
17
$ trove cluster-create <datastore> <ds-version>
•Optional parameters to cluster-create
•--instance <flavor_id=flavor_id,volume=volume>
•Specify multiple times to create multiple instances for your cluster
•Initial support in Juno added for MongoDB Clusters
•Sets up mongo configserver, and mongo query routers
•Transparent and driven by configuration options
•Support for adding shards to existing cluster for horizontal scale out.

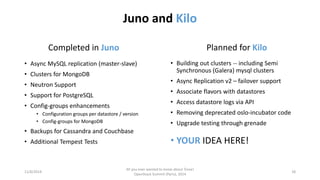

18. Juno and Kilo
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
18
Completed in Juno
•AsyncMySQL replication (master-slave)
•Clusters for MongoDB
•Neutron Support
•Support for PostgreSQL
•Config-groups enhancements
•Configuration groups per datastore / version
•Config-groups for MongoDB
•Backups for Cassandra and Couchbase
•Additional Tempest Tests
Planned for Kilo
•Building out clusters --including Semi Synchronous (Galera) mysqlclusters
•AsyncReplication v2 –failover support
•Associate flavors with datastores
•Access datastore logs via API
•Removing deprecated oslo-incubator code
•Upgrade testing through grenade
•YOURIDEA HERE!

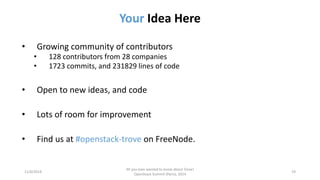

19. Your Idea Here
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
19
•Growing community of contributors
•128 contributors from 28 companies
•1723 commits, and 231829 lines of code
•Open to new ideas, and code
•Lots of room for improvement
•Find us at #openstack-troveon FreeNode.

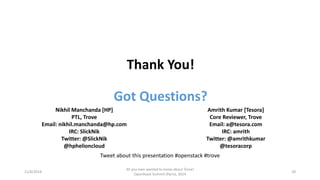

20. Thank You! Got Questions?
11/6/2014
All you ever wanted to know about Trove!
OpenStack Summit (Paris), 2014
20
Nikhil Manchanda [HP]
PTL, Trove
Email: nikhil.manchanda@hp.com
IRC: SlickNik
Twitter:@SlickNik@hphelioncloud
Amrith Kumar [Tesora]
Core Reviewer, Trove
Email: a@tesora.com
IRC: amrith
Twitter: @amrithkumar@tesoracorp
Tweet about this presentation #openstack#trove
