Terraform is a tool for building and safely iterating on infrastructure, while Consul provides service discovery, monitoring and orchestration. In this talk we discuss using Terraform and Consul together to build a Docker-based Service Oriented Architecture at scale. We use Consul to provide the runtime control plane for the datacenter, and Terraform is used to modify the underlying infrastructure to allow for elastic scalability.

1. Orchestrating Docker with
Consul and Terraform

2. Mitchell Hashimoto
@mitchellh

3. HashiCorp
Powering the software-managed datacenter.
hashicorp.com

5. What’s the problem?
“Orchestration” and why it is needed in a Docker world

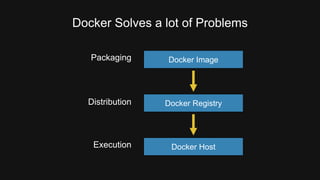

6. Docker Solves a lot of Problems
Packaging Docker Image
Docker Registry
Docker Host
Distribution
Execution

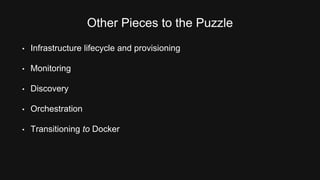

7. Other Pieces to the Puzzle
• Infrastructure lifecycle and provisioning
• Monitoring
• Discovery
• Orchestration
• Transitioning to Docker

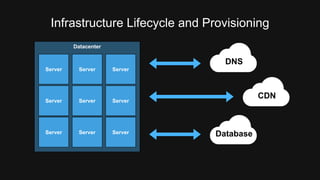

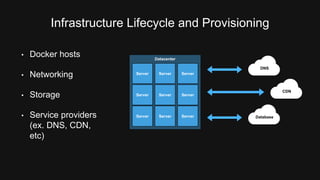

8. Infrastructure Lifecycle and Provisioning
Datacenter
Server Server Server
Server Server Server
Server Server Server
DNS
Database
CDN

9. Infrastructure Lifecycle and Provisioning
Datacenter
Server Server Server
Server Server Server
Server Server Server
DNS
Database
CDN
• Docker hosts
• Networking
• Storage
• Service providers
(ex. DNS, CDN,
etc)

10. Infrastructure Lifecycle and Provisioning
Datacenter
Server Server Server
Server Server Server
Server Server Server
DNS
Database
CDN
• Changing/Iterating
• Rolling deploys
• Canaries

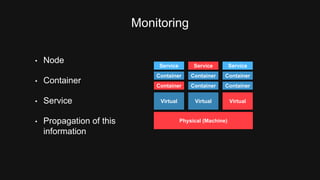

11. Monitoring
Container Container Container
Container Container Container
Virtual Virtual Virtual
Physical (Machine)
• Node
• Container
• Service
• Propagation of this
information
Service Service Service

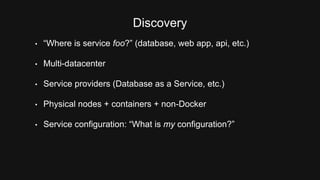

12. Discovery
• “Where is service foo?” (database, web app, api, etc.)
• Multi-datacenter
• Service providers (Database as a Service, etc.)
• Physical nodes + containers + non-Docker
• Service configuration: “What is my configuration?”

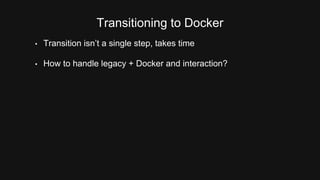

13. Transitioning to Docker
• Transition isn’t a single step, takes time
• How to handle legacy + Docker and interaction?

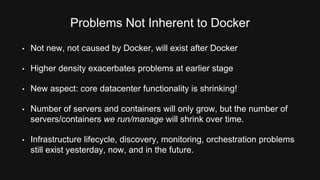

14. Problems Not Inherent to Docker
• Not new, not caused by Docker, will exist after Docker
• Higher density exacerbates problems at earlier stage
• New aspect: core datacenter functionality is shrinking!
• Number of servers and containers will only grow, but the number of
servers/containers we run/manage will shrink over time.
• Infrastructure lifecycle, discovery, monitoring, orchestration problems
still exist yesterday, now, and in the future.

15. Consul and Terraform
Infrastructure lifecycle, service discovery,
monitoring, and orchestration at scale
for all infrastructures.

16. terraform.io

17. Build, combine, and launch
infrastructure safely and efficiently.
terraform.io

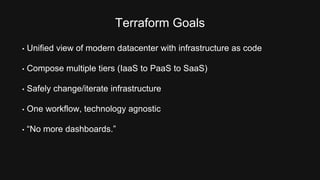

18. Terraform Goals
• Unified view of modern datacenter with infrastructure as code
• Compose multiple tiers (IaaS to PaaS to SaaS)
• Safely change/iterate infrastructure
• One workflow, technology agnostic
• “No more dashboards.”

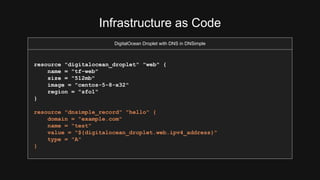

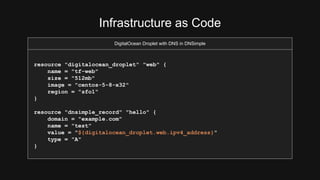

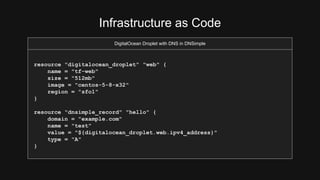

19. Infrastructure as Code
DigitalOcean Droplet with DNS in DNSimple
resource "digitalocean_droplet" "web" {
name = "tf-web"
size = "512mb"
image = "centos-5-8-x32"
region = "sfo1"
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "test"
value = "${digitalocean_droplet.web.ipv4_address}"
type = "A"
}

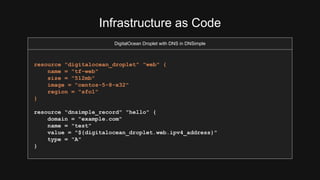

20. Infrastructure as Code
DigitalOcean Droplet with DNS in DNSimple
resource "digitalocean_droplet" "web" {
name = "tf-web"
size = "512mb"
image = "centos-5-8-x32"
region = "sfo1"
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "test"
value = "${digitalocean_droplet.web.ipv4_address}"
type = "A"
}

21. Infrastructure as Code
DigitalOcean Droplet with DNS in DNSimple
resource "digitalocean_droplet" "web" {
name = "tf-web"
size = "512mb"
image = "centos-5-8-x32"
region = "sfo1"
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "test"
value = "${digitalocean_droplet.web.ipv4_address}"
type = "A"
}

22. Infrastructure as Code
DigitalOcean Droplet with DNS in DNSimple
resource "digitalocean_droplet" "web" {
name = "tf-web"
size = "512mb"
image = "centos-5-8-x32"
region = "sfo1"
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "test"
value = "${digitalocean_droplet.web.ipv4_address}"
type = "A"
}

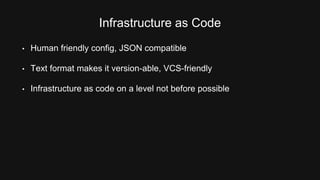

23. Infrastructure as Code
• Human friendly config, JSON compatible
• Text format makes it version-able, VCS-friendly
• Infrastructure as code on a level not before possible

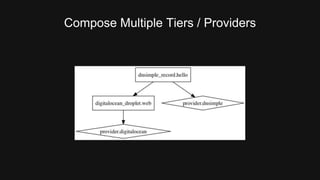

24. Compose Multiple Tiers / Providers

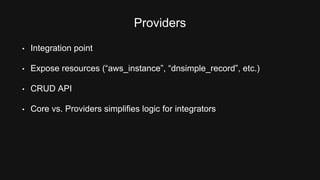

25. Providers
• Integration point
• Expose resources (“aws_instance”, “dnsimple_record”, etc.)
• CRUD API
• Core vs. Providers simplifies logic for integrators

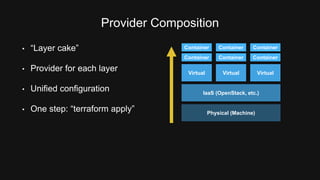

26. Provider Composition
• “Layer cake”
• Provider for each layer
• Unified configuration
Container Container Container
Container Container Container
Virtual Virtual Virtual
IaaS (OpenStack, etc.)
• One step: “terraform apply” Physical (Machine)

27. Safely Change/Iterate
Terraform Plan
+ digitalocean_droplet.web
backups: "" => "<computed>"
image: "" => "centos-5-8-x32"
ipv4_address: "" => "<computed>"
ipv4_address_private: "" => "<computed>"
name: "" => "tf-web"
private_networking: "" => "<computed>"
region: "" => "sfo1"
size: "" => "512mb"
status: "" => "<computed>"
+ dnsimple_record.hello
domain: "" => "example.com"
domain_id: "" => "<computed>"
hostname: "" => "<computed>"
name: "" => "test"
priority: "" => "<computed>"
ttl: "" => "<computed>"
type: "" => "A"
value: "" => "${digitalocean_droplet.web.ipv4_address}"

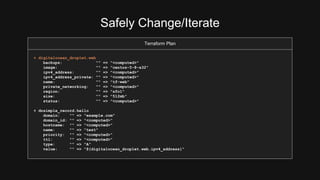

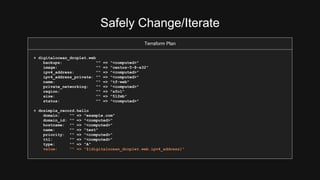

28. Safely Change/Iterate
Terraform Plan
+ digitalocean_droplet.web
backups: "" => "<computed>"
image: "" => "centos-5-8-x32"
ipv4_address: "" => "<computed>"
ipv4_address_private: "" => "<computed>"
name: "" => "tf-web"
private_networking: "" => "<computed>"
region: "" => "sfo1"
size: "" => "512mb"
status: "" => "<computed>"
+ dnsimple_record.hello
domain: "" => "example.com"
domain_id: "" => "<computed>"
hostname: "" => "<computed>"
name: "" => "test"
priority: "" => "<computed>"
ttl: "" => "<computed>"
type: "" => "A"
value: "" => "${digitalocean_droplet.web.ipv4_address}"

29. Safely Change/Iterate
Terraform Plan
+ digitalocean_droplet.web
backups: "" => "<computed>"
image: "" => "centos-5-8-x32"
ipv4_address: "" => "<computed>"
ipv4_address_private: "" => "<computed>"
name: "" => "tf-web"
private_networking: "" => "<computed>"
region: "" => "sfo1"
size: "" => "512mb"
status: "" => "<computed>"
+ dnsimple_record.hello
domain: "" => "example.com"
domain_id: "" => "<computed>"
hostname: "" => "<computed>"
name: "" => "test"
priority: "" => "<computed>"
ttl: "" => "<computed>"
type: "" => "A"
value: "" => "${digitalocean_droplet.web.ipv4_address}"

30. Safely Change/Iterate
• Plan shows you what will happen
• Save plans to guarantee what will happen
• Plans show reasons for certain actions (such as re-create)
• Prior to Terraform: Operators had to “divine” change ordering,
parallelization, rollout effect.

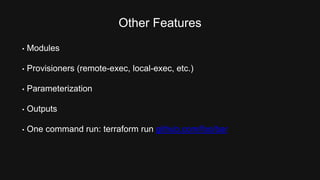

31. Other Features
• Modules
• Provisioners (remote-exec, local-exec, etc.)
• Parameterization
• Outputs
• One command run: terraform run github.com/foo/bar

32. consul.io

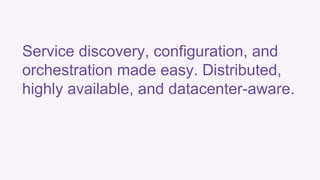

33. Service discovery, configuration, and
orchestration made easy. Distributed,
highly available, and datacenter-aware.

34. Service Discovery
Where is service foo?

35. Service Discovery
Service Discovery via DNS or HTTP
$ dig web-frontend.service.consul. +short
10.0.3.89
10.0.1.46
$ curl http://localhost:8500/v1/catalog/service/web-frontend
[{
“Node”: “node-e818f1”,
“Address”: “10.0.3.89”,
“ServiceID”: “web-frontend”,
…
}]

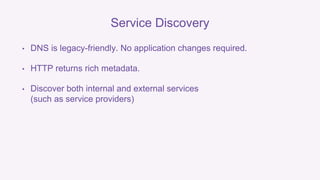

36. Service Discovery
• DNS is legacy-friendly. No application changes required.
• HTTP returns rich metadata.
• Discover both internal and external services
(such as service providers)

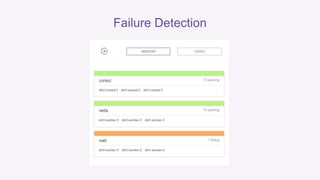

37. Failure Detection
Is service foo
healthy/available?

38. Failure Detection

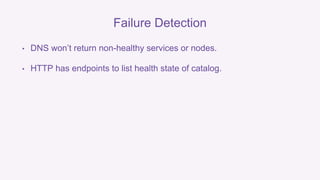

39. Failure Detection
• DNS won’t return non-healthy services or nodes.
• HTTP has endpoints to list health state of catalog.

40. Key/Value Storage
What is the config of service foo?

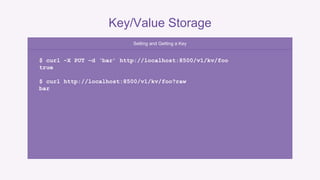

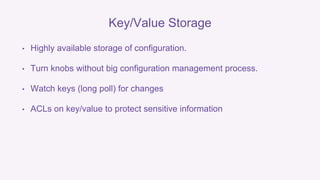

41. Key/Value Storage
Setting and Getting a Key
$ curl –X PUT –d ‘bar’ http://localhost:8500/v1/kv/foo
true
$ curl http://localhost:8500/v1/kv/foo?raw
bar

42. Key/Value Storage
• Highly available storage of configuration.
• Turn knobs without big configuration management process.
• Watch keys (long poll) for changes
• ACLs on key/value to protect sensitive information

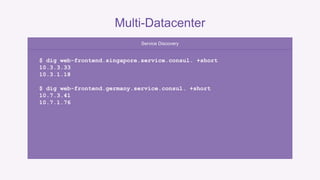

43. Multi-Datacenter

44. Multi-Datacenter
Service Discovery
$ dig web-frontend.singapore.service.consul. +short
10.3.3.33
10.3.1.18
$ dig web-frontend.germany.service.consul. +short
10.7.3.41
10.7.1.76

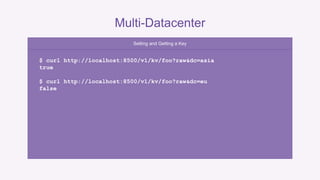

45. Multi-Datacenter
Setting and Getting a Key
$ curl http://localhost:8500/v1/kv/foo?raw&dc=asia
true
$ curl http://localhost:8500/v1/kv/foo?raw&dc=eu
false

46. Multi-Datacenter
• Local by default
• Can query other datacenters however you may need to
• Can view all datacenters within one UI

47. Orchestration
Events, Exec, Watches

48. Events, Exec, Watches

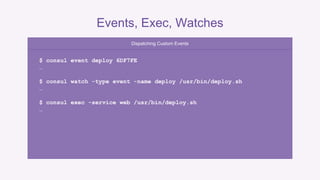

Dispatching Custom Events
$ consul event deploy 6DF7FE
…
$ consul watch -type event -name deploy /usr/bin/deploy.sh
…
$ consul exec -service web /usr/bin/deploy.sh
…

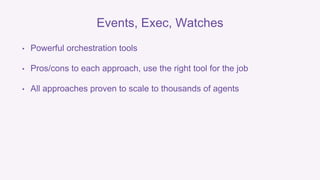

49. Events, Exec, Watches
• Powerful orchestration tools
• Pros/cons to each approach, use the right tool for the job
• All approaches proven to scale to thousands of agents

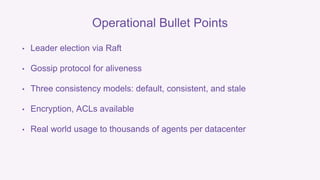

50. Operational Bullet Points
• Leader election via Raft
• Gossip protocol for aliveness
• Three consistency models: default, consistent, and stale
• Encryption, ACLs available
• Real world usage to thousands of agents per datacenter

51. Consul and Terraform + Docker

52. Consul + Docker
• progrium/consul (docker-consul)
• registrator
• Two options: Consul agent in or out of another Docker container.
Both are easy, well supported.

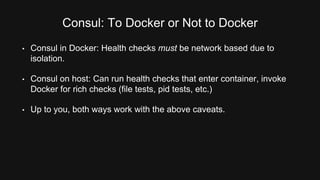

53. Consul: To Docker or Not to Docker
• Consul in Docker: Health checks must be network based due to
isolation.
• Consul on host: Can run health checks that enter container, invoke
Docker for rich checks (file tests, pid tests, etc.)
• Up to you, both ways work with the above caveats.

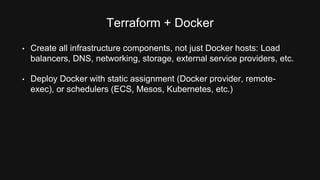

54. Terraform + Docker
• Create all infrastructure components, not just Docker hosts: Load
balancers, DNS, networking, storage, external service providers, etc.
• Deploy Docker with static assignment (Docker provider, remote-exec),
or schedulers (ECS, Mesos, Kubernetes, etc.)
