- 1. Coordinating the Many Tools of Big Data Big Data Spain 2012 http://www.bigdataspain.org/ Alan F. Gates @alanfgates Page 1

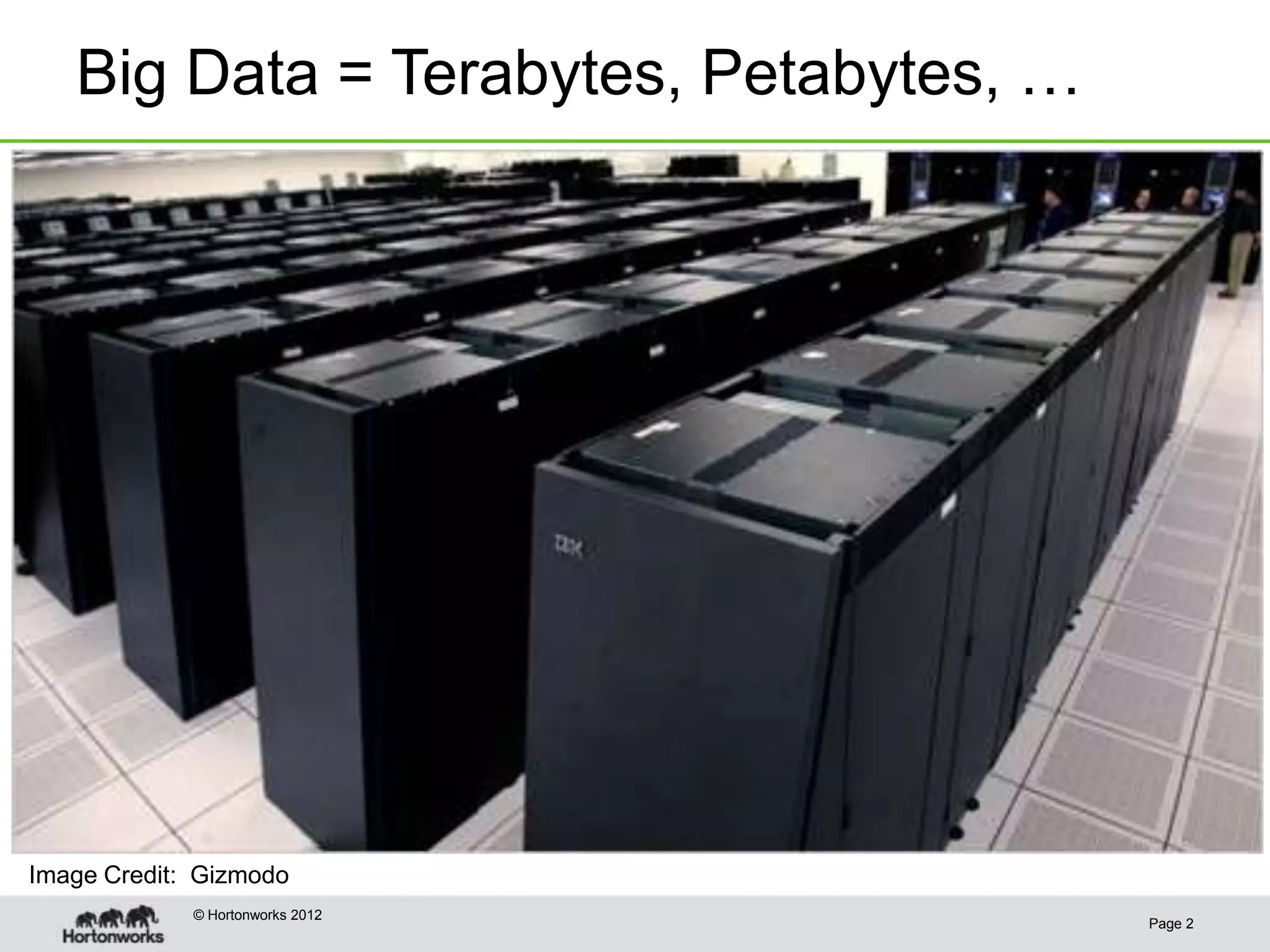

- 2. Big Data =Terabytes, Petabytes, … Image Credit: Gizmodo © Hortonworks 2012 Page 2

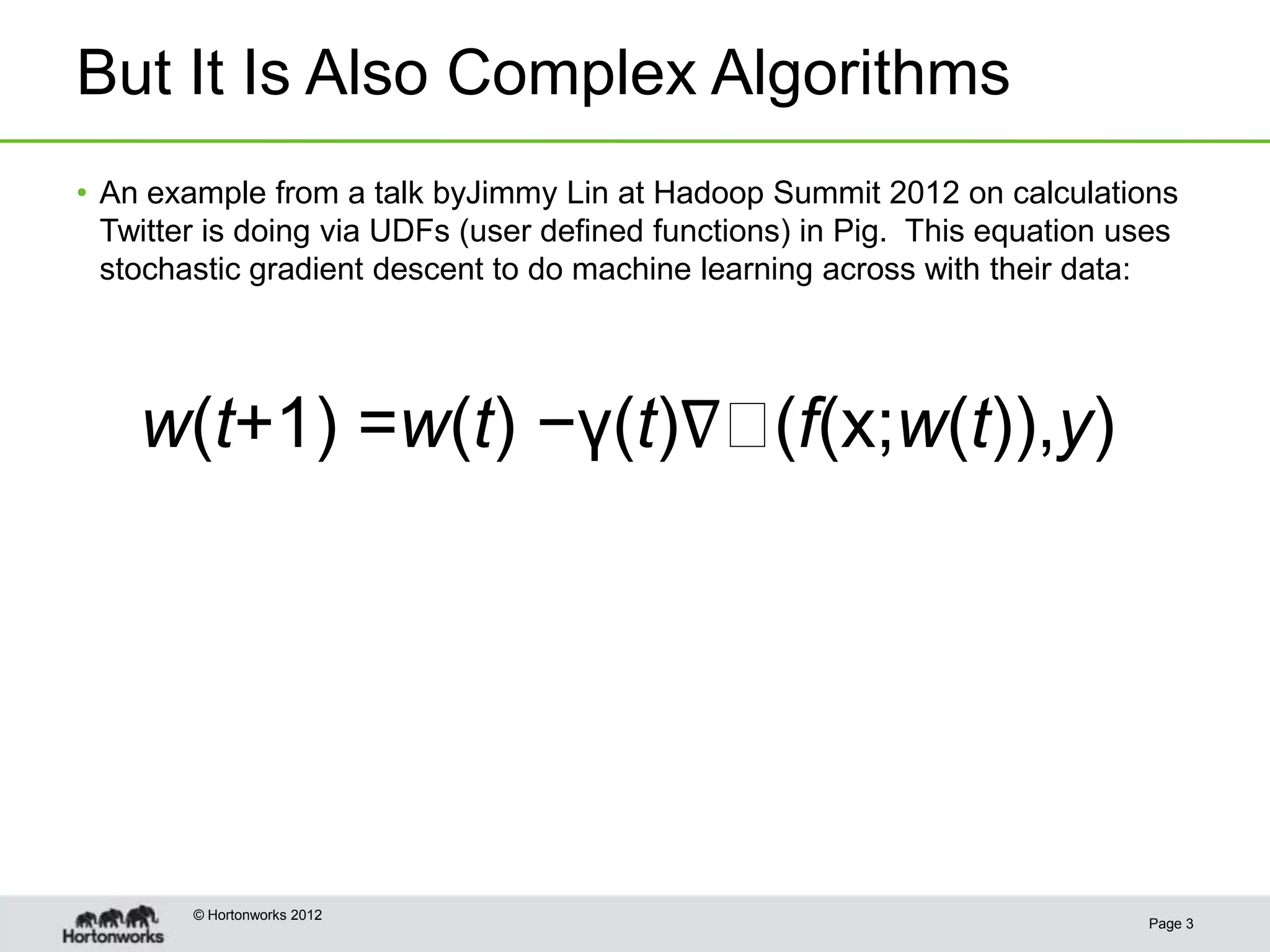

- 3. But It IsAlso Complex Algorithms • An example from a talk byJimmy Lin at Hadoop Summit 2012 on calculations Twitter is doing via UDFs (user defined functions) in Pig. This equation uses stochastic gradient descent to do machine learning across with their data: w(t+1) =w(t) −γ(t)∇(f(x;w(t)),y) © Hortonworks 2012 Page 3

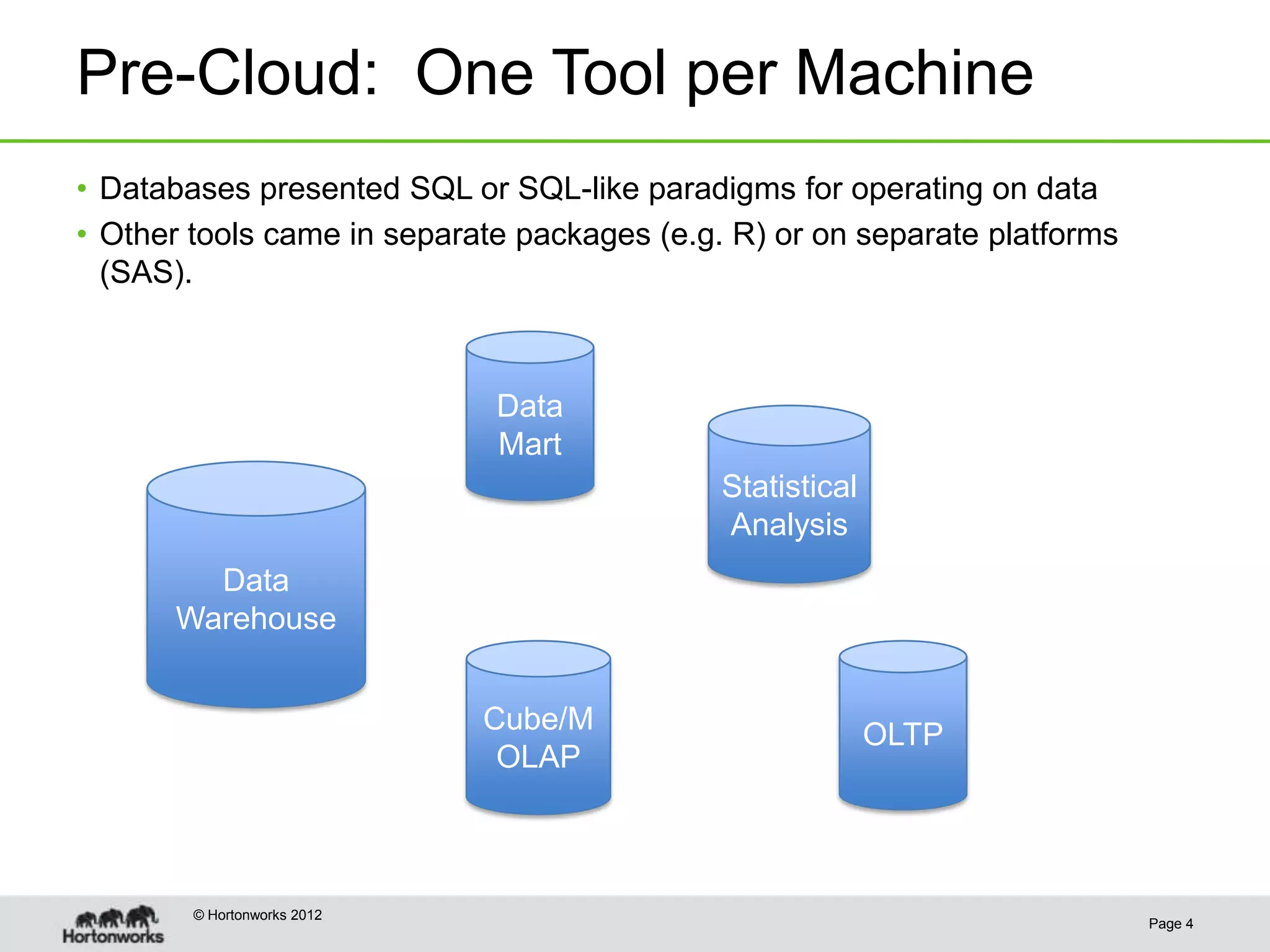

- 4. Pre-Cloud: One Toolper Machine • Databases presented SQL or SQL-like paradigms for operating on data • Other tools came in separate packages (e.g. R) or on separate platforms (SAS). Data Mart Statistical Analysis Data Warehouse Cube/M OLTP OLAP © Hortonworks 2012 Page 4

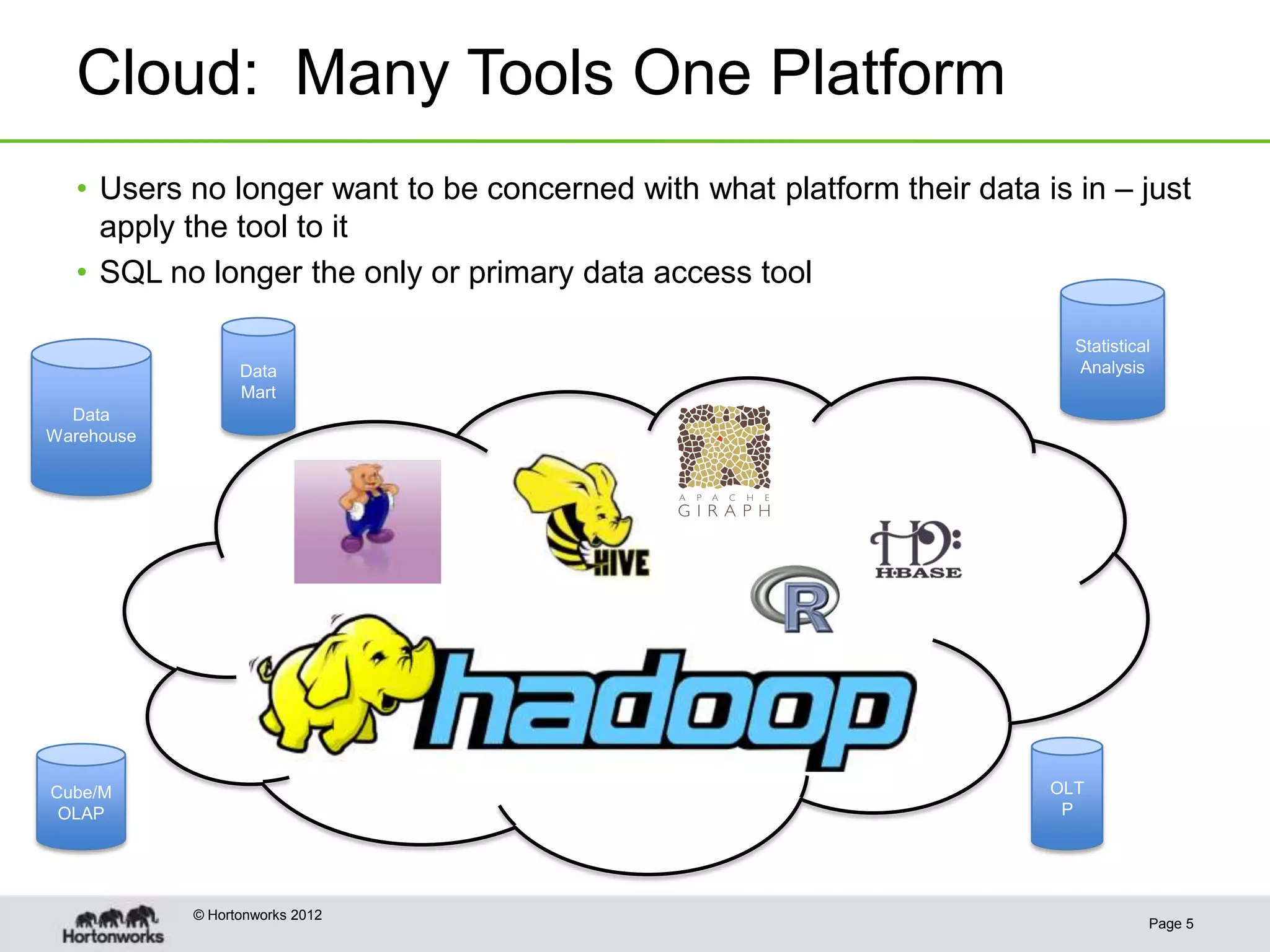

- 5. Cloud: Many ToolsOne Platform • Users no longer want to be concerned with what platform their data is in – just apply the tool to it • SQL no longer the only or primary data access tool Statistical Data Analysis Mart Data Warehouse Cube/M OLT OLAP P © Hortonworks 2012 Page 5
- 6. Upside - Pickthe Right Tool for the Job © Hortonworks 2012 Page 6
- 7. Downside – ToolsDon’t Play Well Together • Hard for users to share data between tools – Different storage formats – Different data models – Different user defined function interfaces © Hortonworks 2012 Page 7

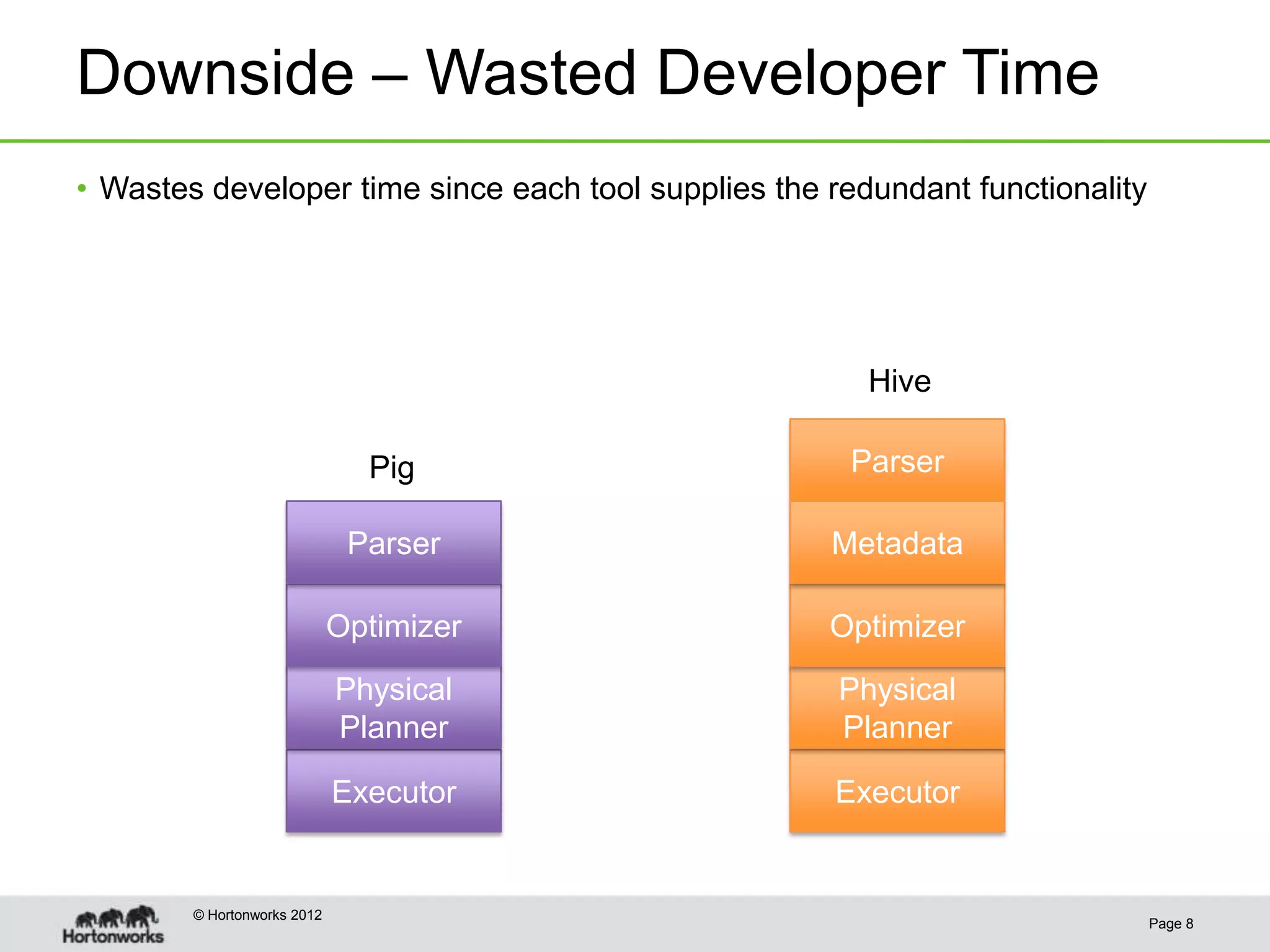

- 8. Downside – WastedDeveloper Time • Wastes developer time since each tool supplies the redundant functionality Hive Pig Parser Parser Metadata Optimizer Optimizer Physical Physical Planner Planner Executor Executor © Hortonworks 2012 Page 8

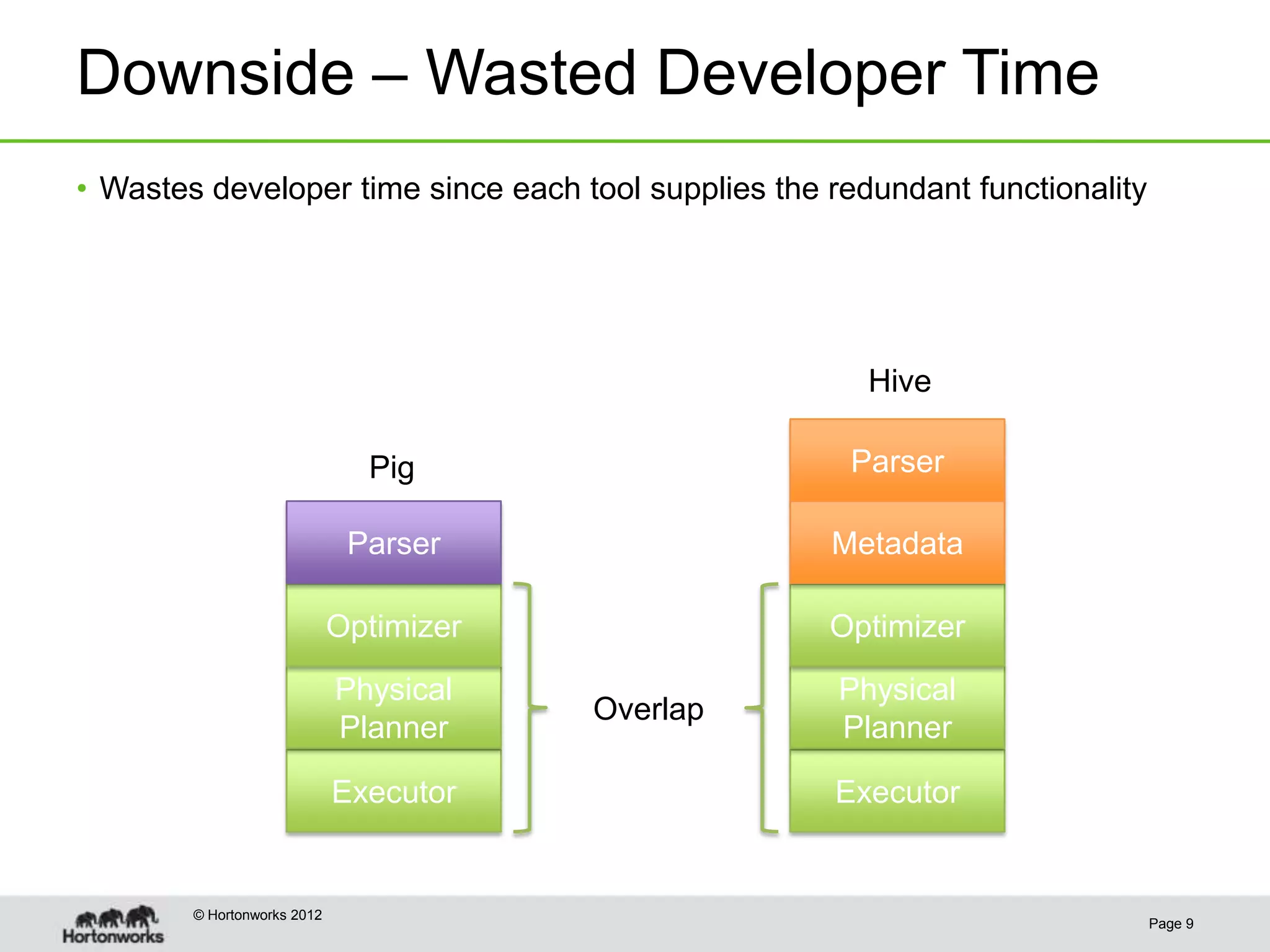

- 9. Downside – WastedDeveloper Time • Wastes developer time since each tool supplies the redundant functionality Hive Pig Parser Parser Metadata Optimizer Optimizer Physical Physical Overlap Planner Planner Executor Executor © Hortonworks 2012 Page 9
- 10. Conclusion: We NeedServices • We need to find a way to share services where we can. • Gives users the same experience across tools • Allows developers to share effort when it makes sense © Hortonworks 2012 Page 10

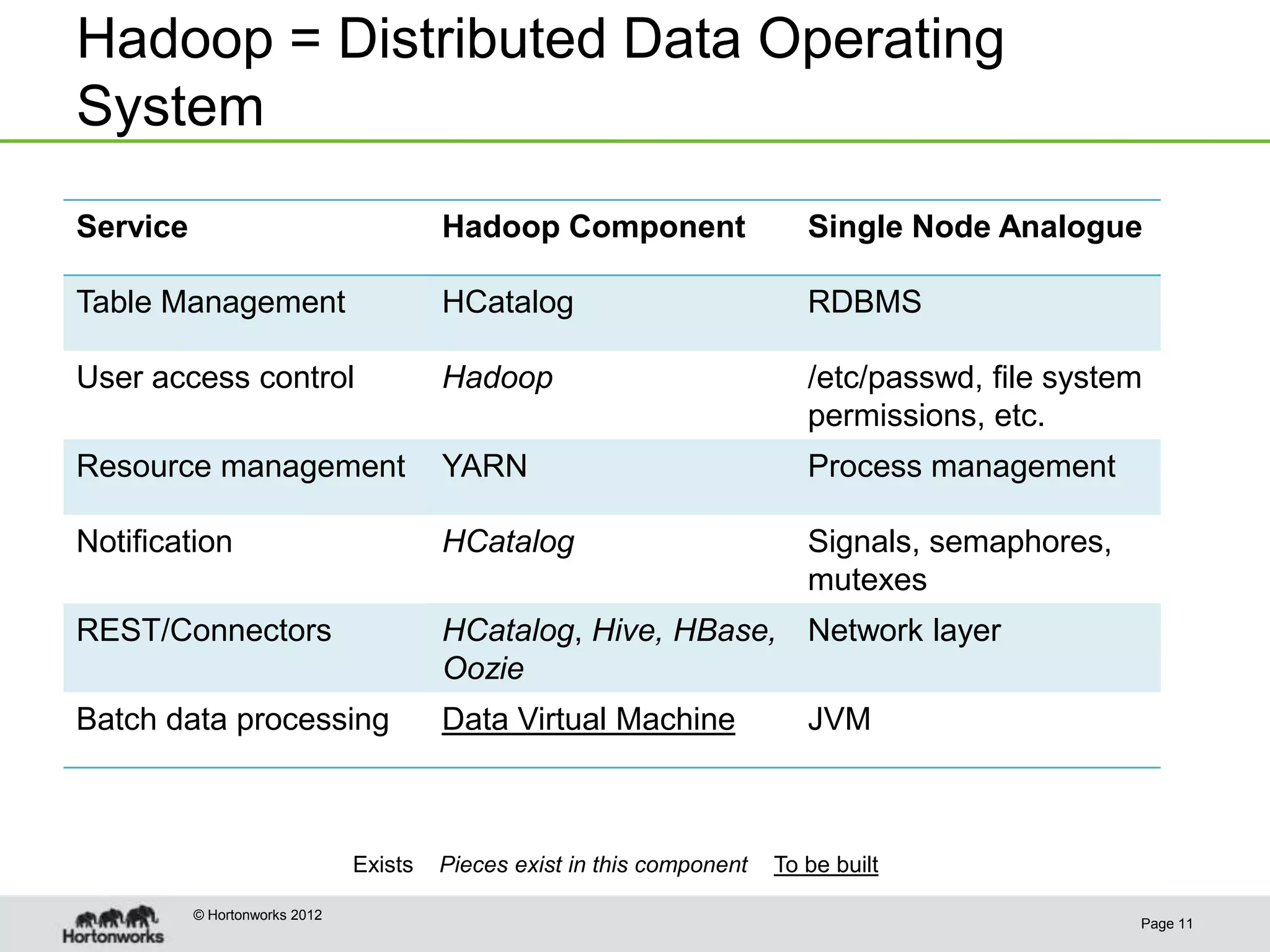

- 11. Hadoop = DistributedData Operating System Service Hadoop Component Single Node Analogue Table Management HCatalog RDBMS User access control Hadoop /etc/passwd, file system permissions, etc. Resource management YARN Process management Notification HCatalog Signals, semaphores, mutexes REST/Connectors HCatalog, Hive, HBase, Network layer Oozie Batch data processing Data Virtual Machine JVM Exists Pieces exist in this component To be built © Hortonworks 2012 Page 11

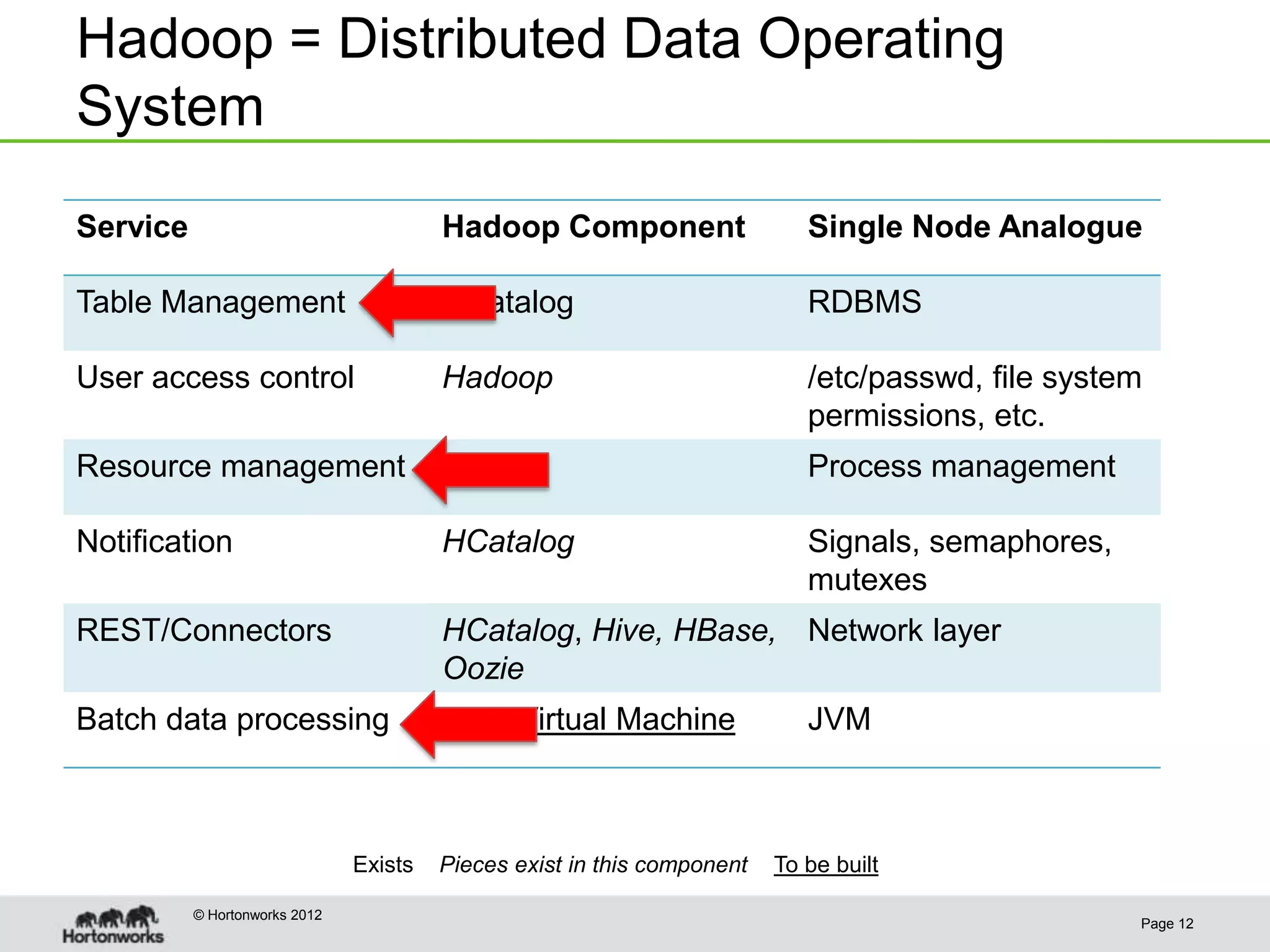

- 12. Hadoop = DistributedData Operating System Service Hadoop Component Single Node Analogue Table Management HCatalog RDBMS User access control Hadoop /etc/passwd, file system permissions, etc. Resource management YARN Process management Notification HCatalog Signals, semaphores, mutexes REST/Connectors HCatalog, Hive, HBase, Network layer Oozie Batch data processing Data Virtual Machine JVM Exists Pieces exist in this component To be built © Hortonworks 2012 Page 12

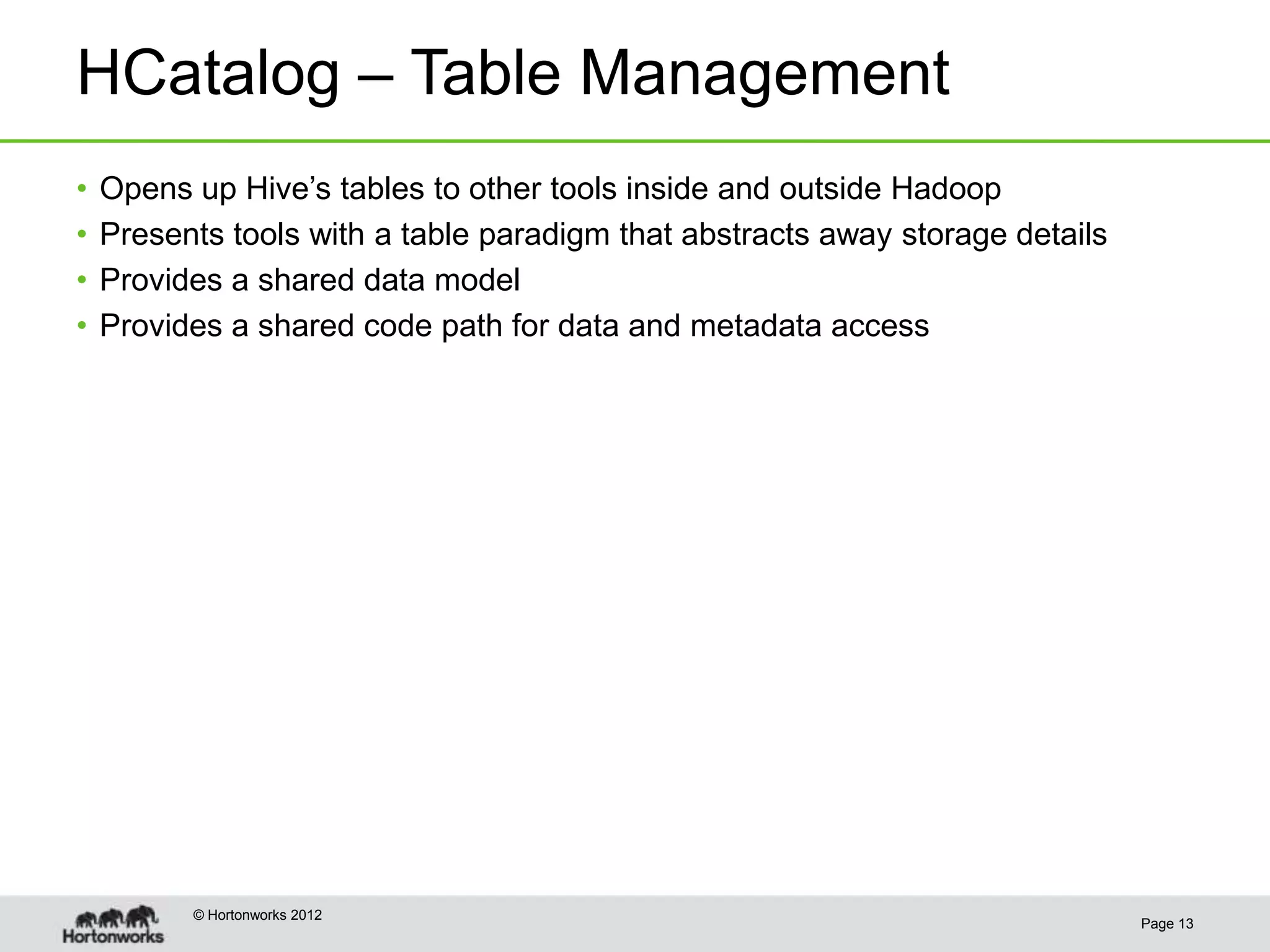

- 13. HCatalog – TableManagement • Opens up Hive’s tables to other tools inside and outside Hadoop • Presents tools with a table paradigm that abstracts away storage details • Provides a shared data model • Provides a shared code path for data and metadata access © Hortonworks 2012 Page 13

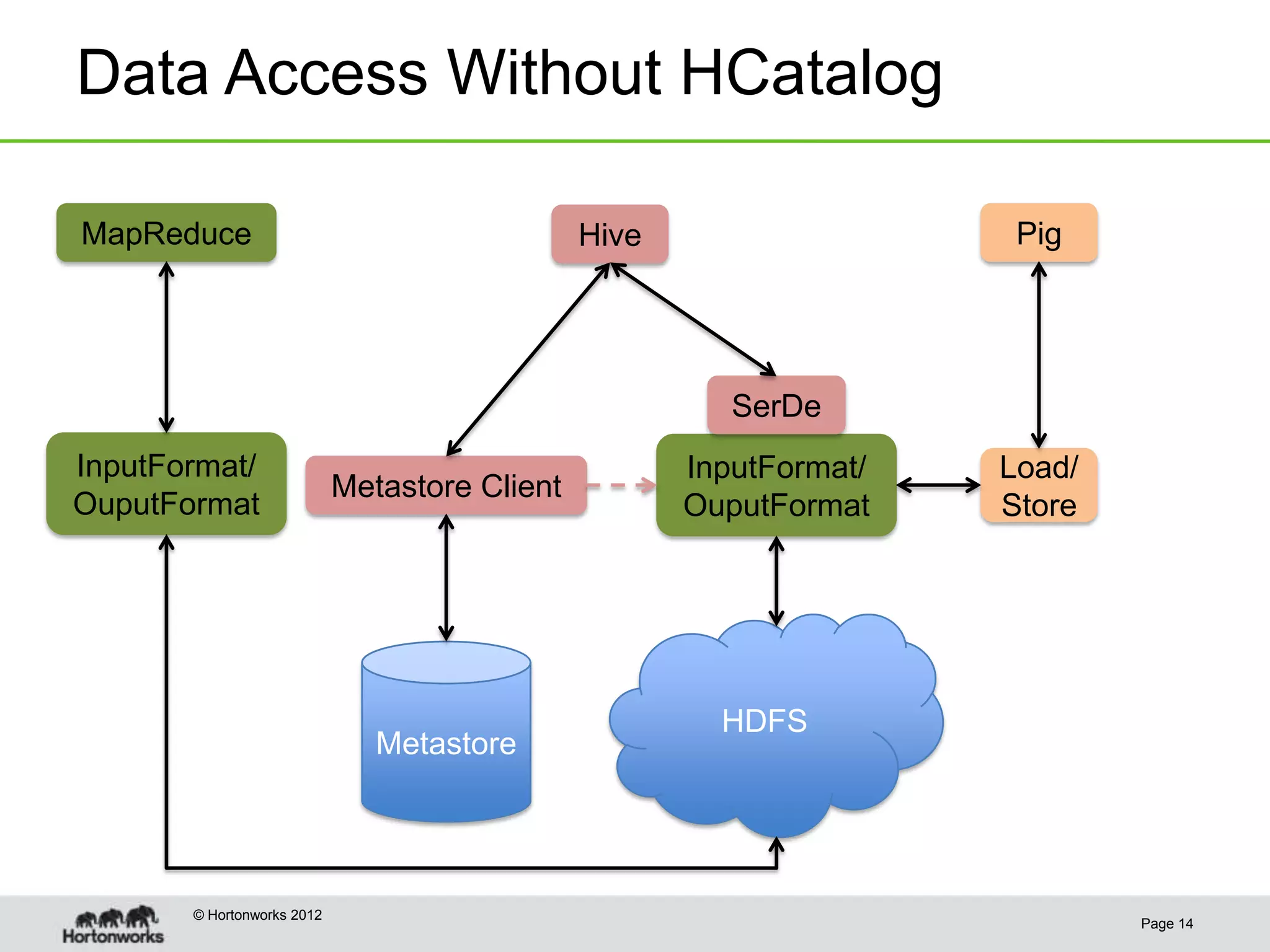

- 14. Data Access WithoutHCatalog MapReduce Hive Pig SerDe InputFormat/ InputFormat/ Load/ Metastore Client OuputFormat OuputFormat Store HDFS Metastore © Hortonworks 2012 Page 14

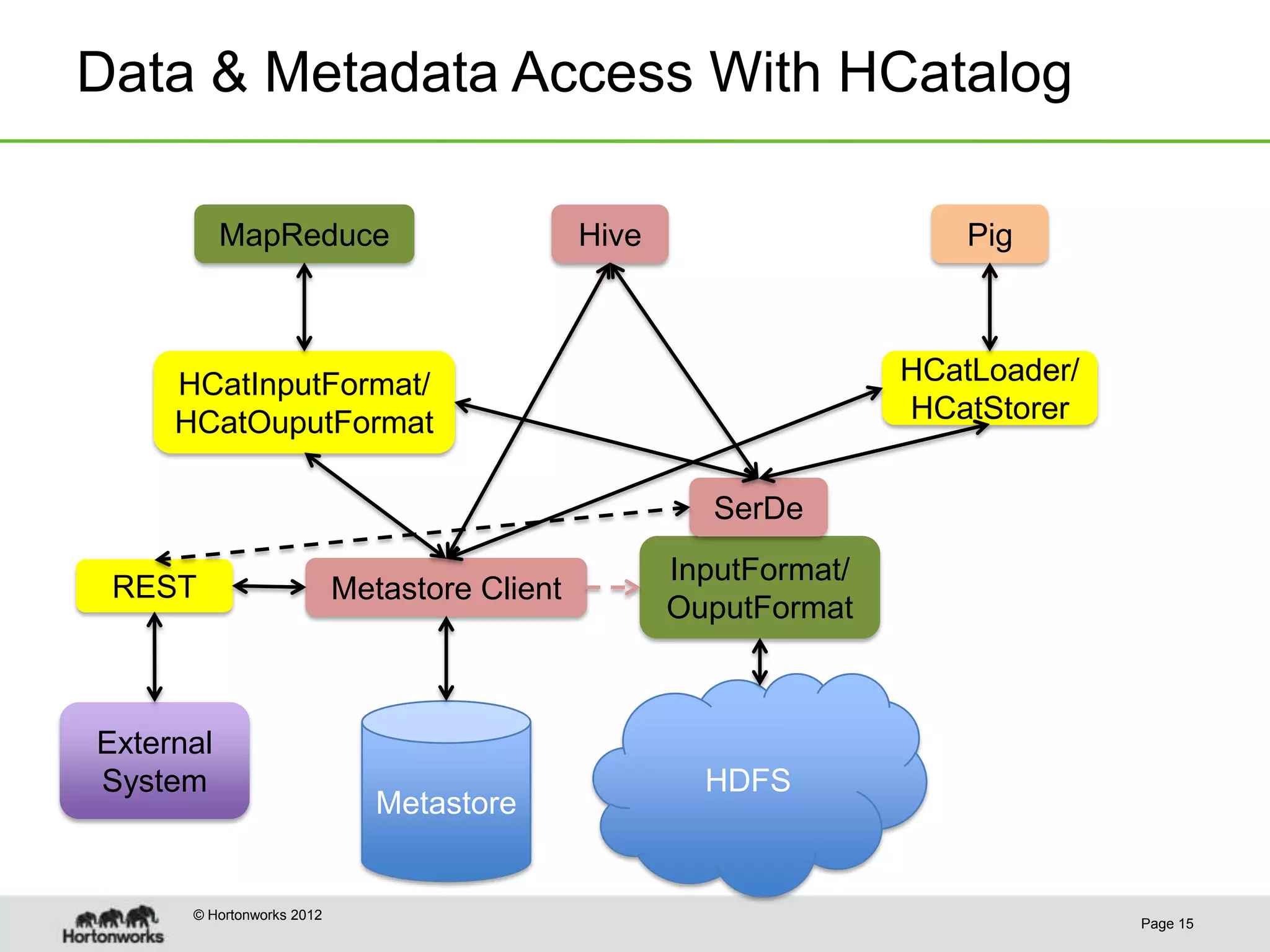

- 15. Data & MetadataAccess With HCatalog MapReduce Hive Pig HCatInputFormat/ HCatLoader/ HCatOuputFormat HCatStorer SerDe InputFormat/ REST Metastore Client OuputFormat External System HDFS Metastore © Hortonworks 2012 Page 15

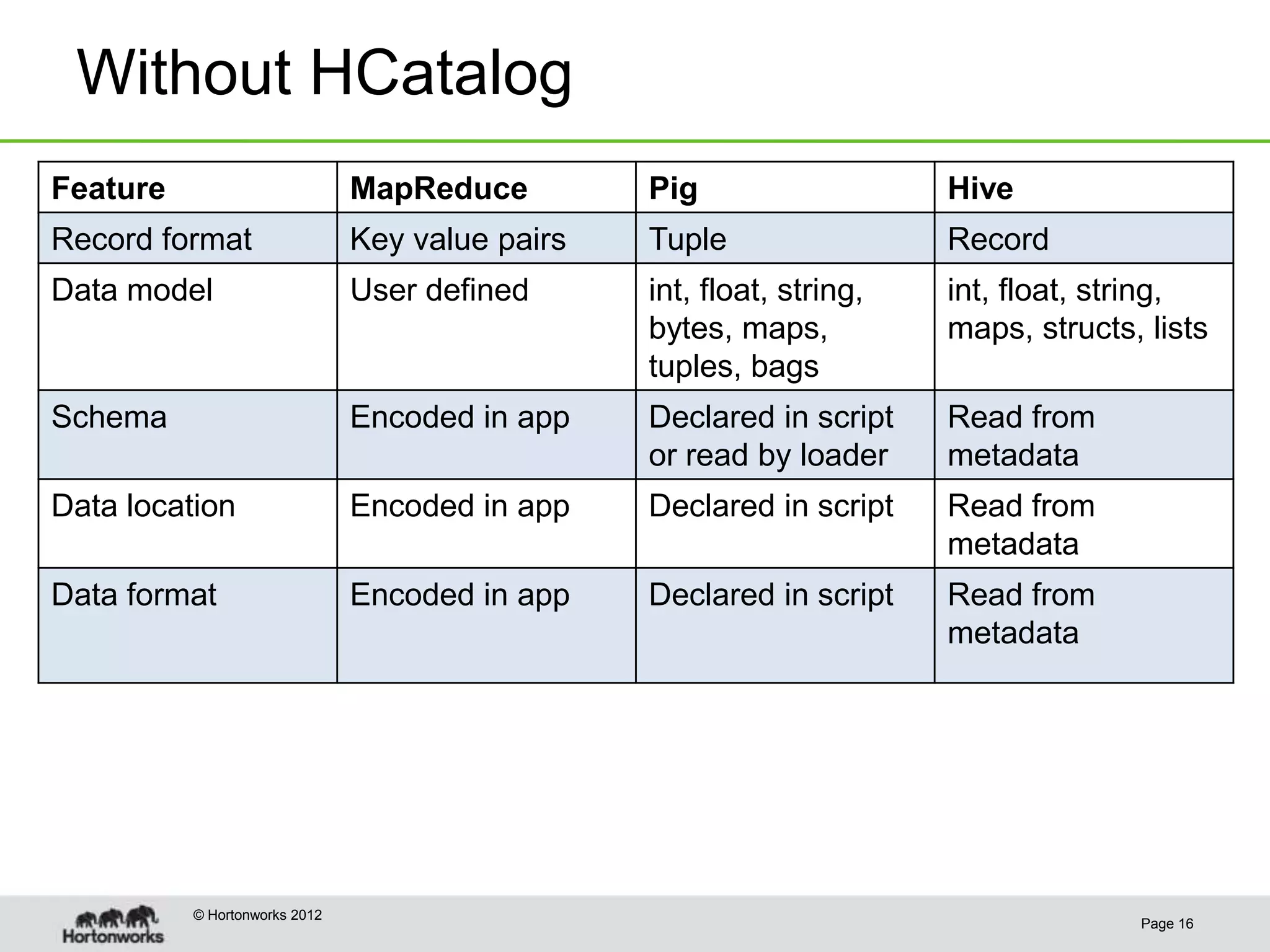

- 16. Without HCatalog Feature MapReduce Pig Hive Record format Key value pairs Tuple Record Data model User defined int, float, string, int, float, string, bytes, maps, maps, structs, lists tuples, bags Schema Encoded in app Declared in script Read from or read by loader metadata Data location Encoded in app Declared in script Read from metadata Data format Encoded in app Declared in script Read from metadata © Hortonworks 2012 Page 16

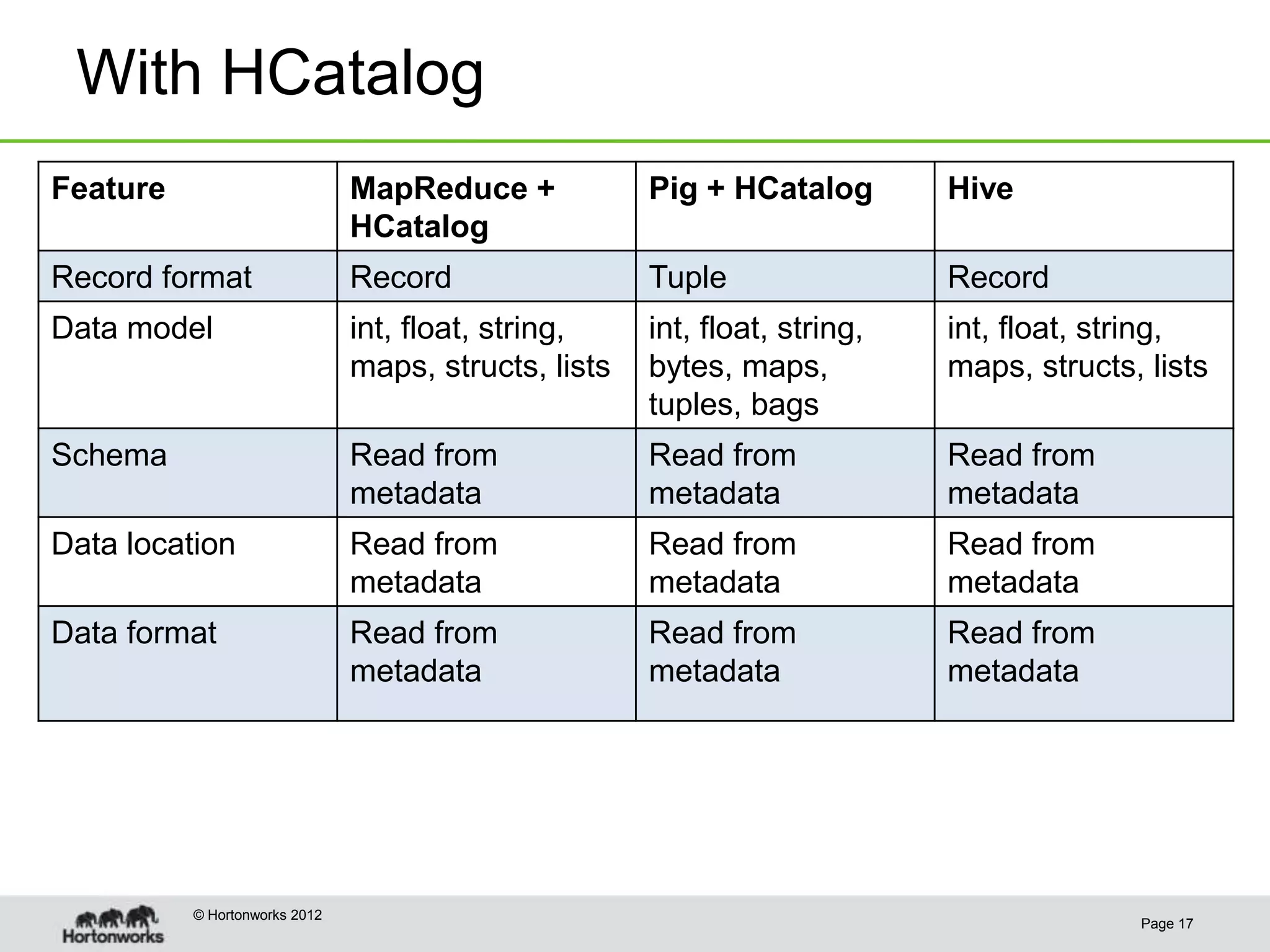

- 17. With HCatalog Feature MapReduce + Pig + HCatalog Hive HCatalog Record format Record Tuple Record Data model int, float, string, int, float, string, int, float, string, maps, structs, lists bytes, maps, maps, structs, lists tuples, bags Schema Read from Read from Read from metadata metadata metadata Data location Read from Read from Read from metadata metadata metadata Data format Read from Read from Read from metadata metadata metadata © Hortonworks 2012 Page 17

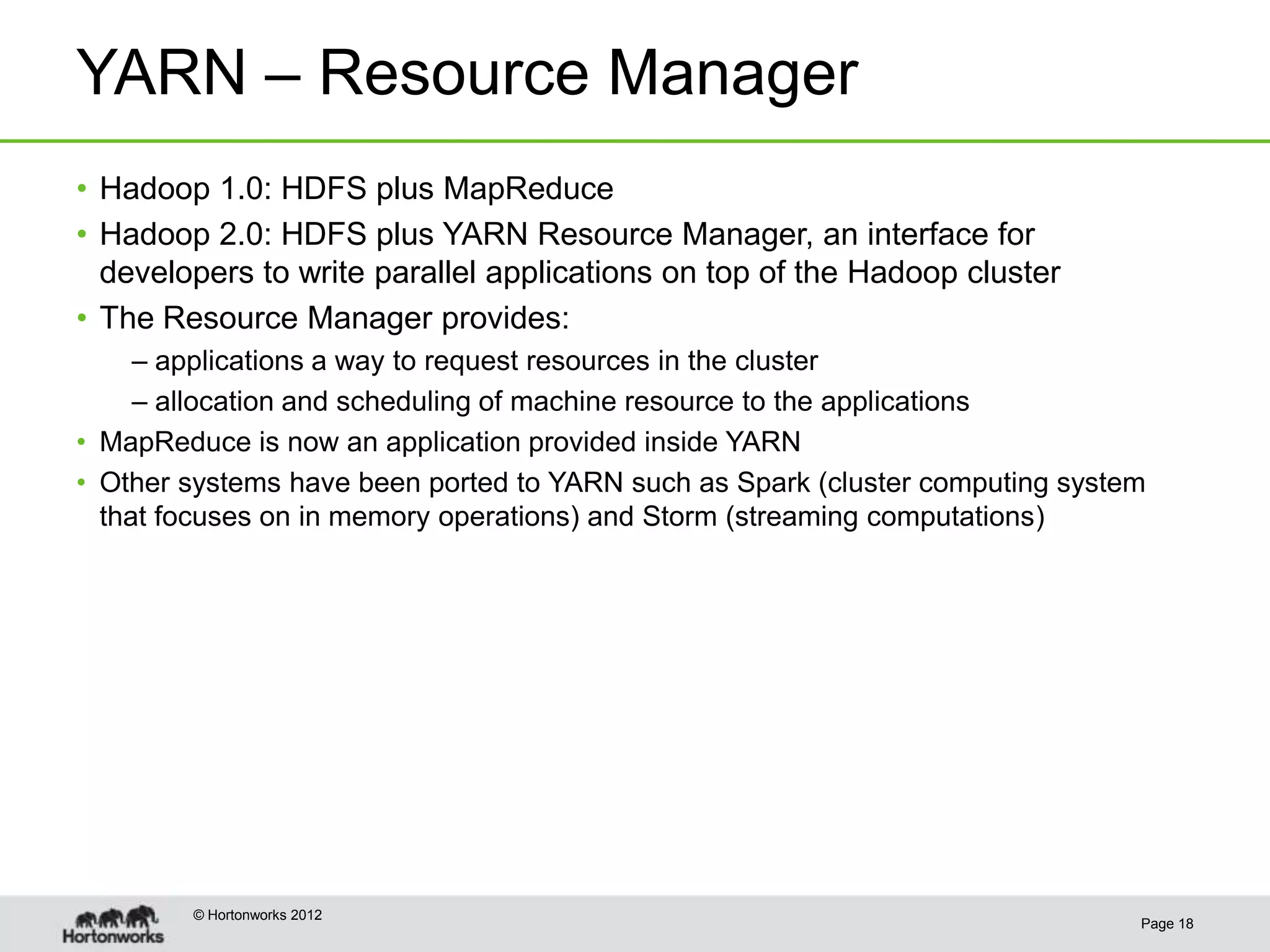

- 18. YARN – ResourceManager • Hadoop 1.0: HDFS plus MapReduce • Hadoop 2.0: HDFS plus YARN Resource Manager, an interface for developers to write parallel applications on top of the Hadoop cluster • The Resource Manager provides: – applications a way to request resources in the cluster – allocation and scheduling of machine resource to the applications • MapReduce is now an application provided inside YARN • Other systems have been ported to YARN such as Spark (cluster computing system that focuses on in memory operations) and Storm (streaming computations) © Hortonworks 2012 Page 18

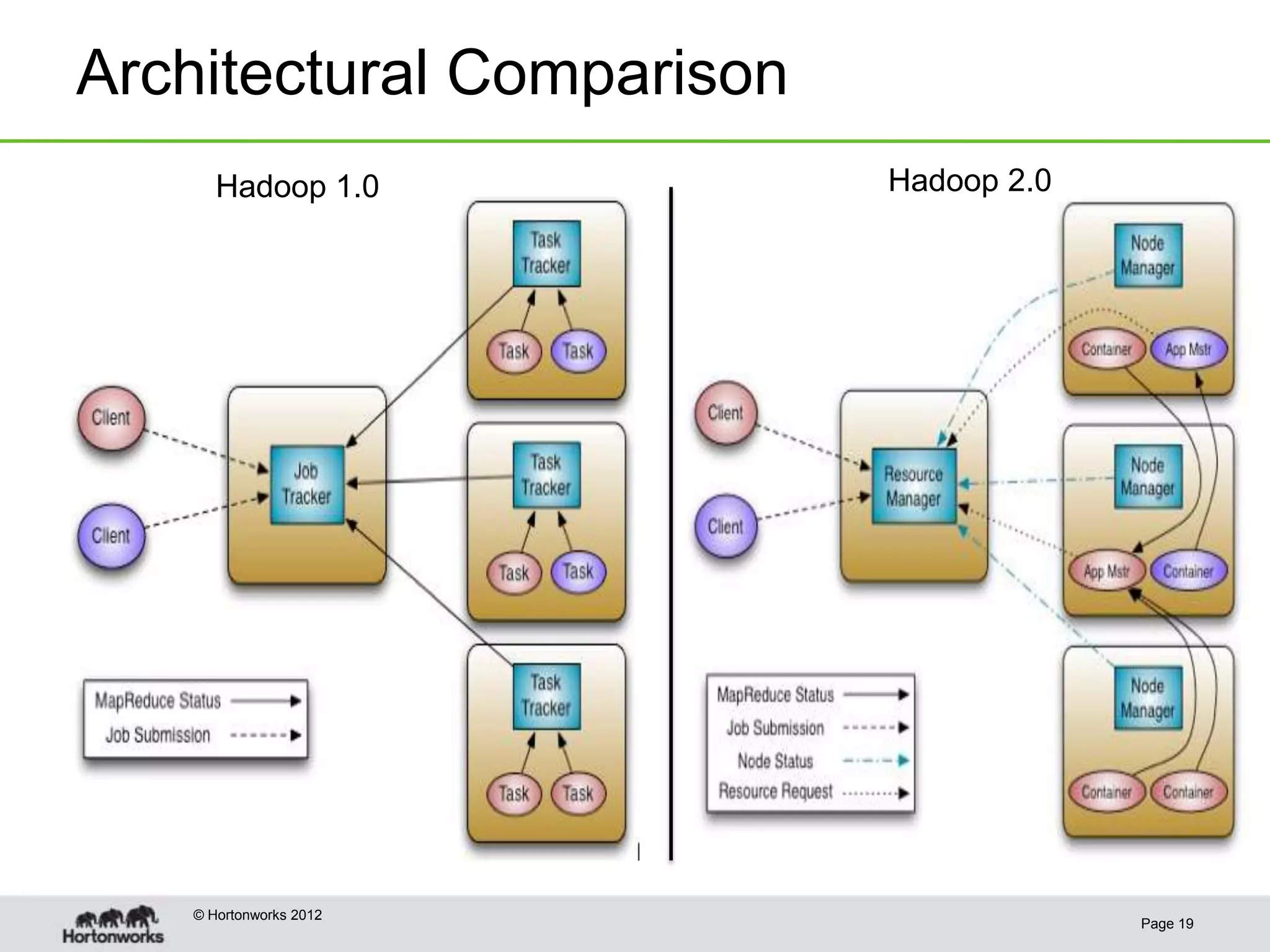

- 19. Architectural Comparison Hadoop 1.0 Hadoop 2.0 © Hortonworks 2012 Page 19

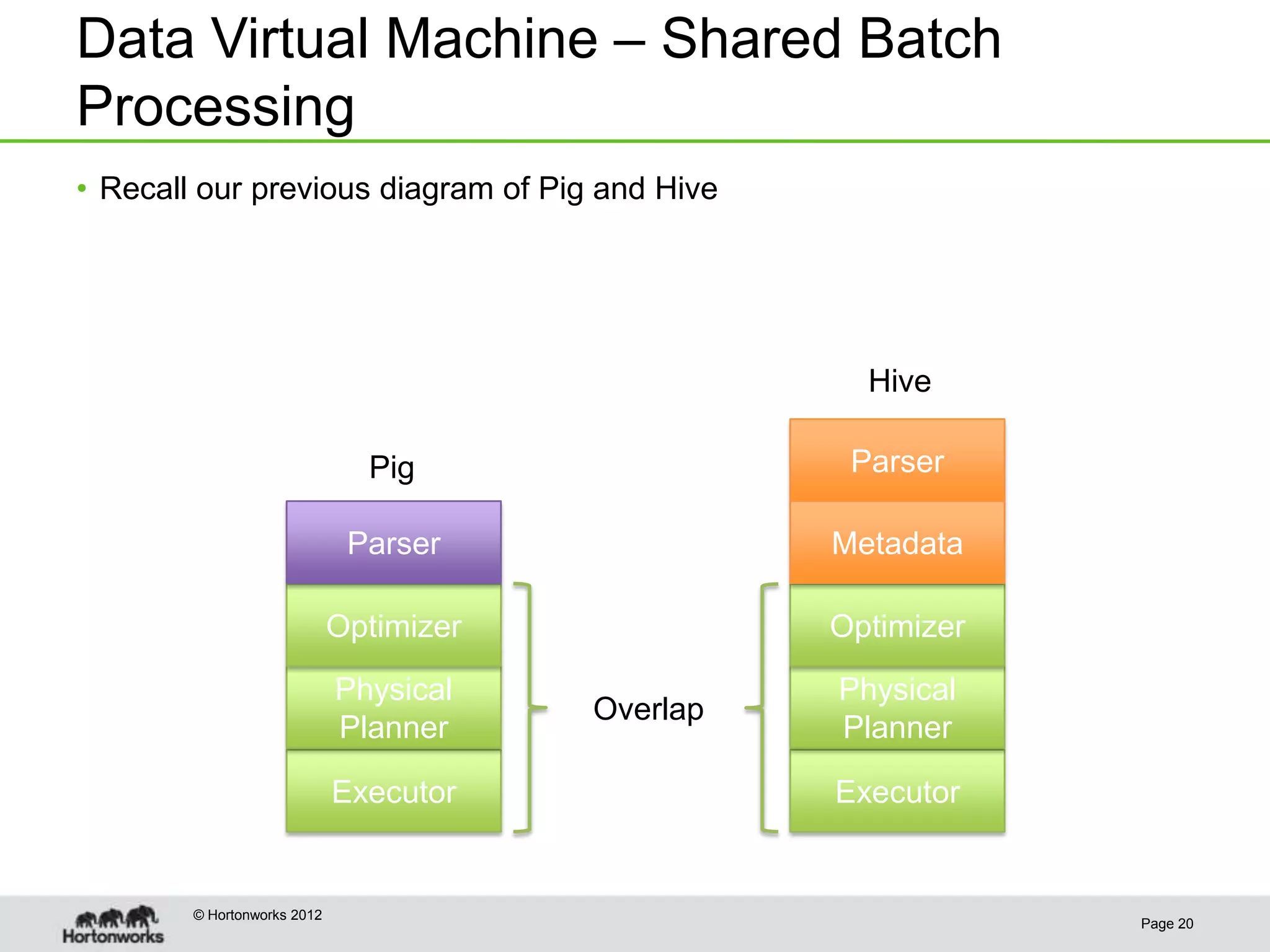

- 20. Data Virtual Machine– Shared Batch Processing • Recall our previous diagram of Pig and Hive Hive Pig Parser Parser Metadata Optimizer Optimizer Physical Physical Overlap Planner Planner Executor Executor © Hortonworks 2012 Page 20

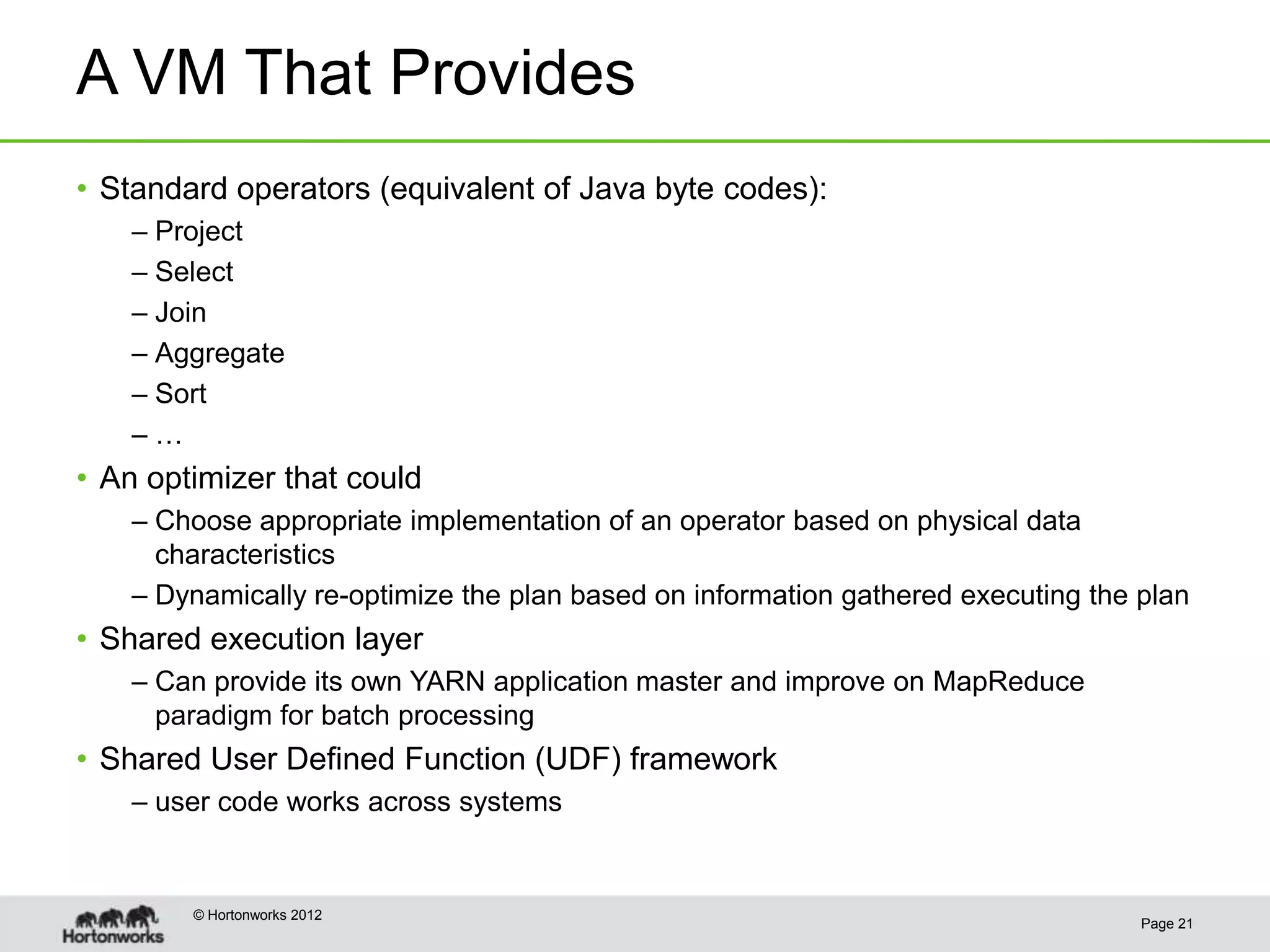

- 21. A VM ThatProvides • Standard operators (equivalent of Java byte codes): – Project – Select – Join – Aggregate – Sort –… • An optimizer that could – Choose appropriate implementation of an operator based on physical data characteristics – Dynamically re-optimize the plan based on information gathered executing the plan • Shared execution layer – Can provide its own YARN application master and improve on MapReduce paradigm for batch processing • Shared User Defined Function (UDF) framework – user code works across systems © Hortonworks 2012 Page 21

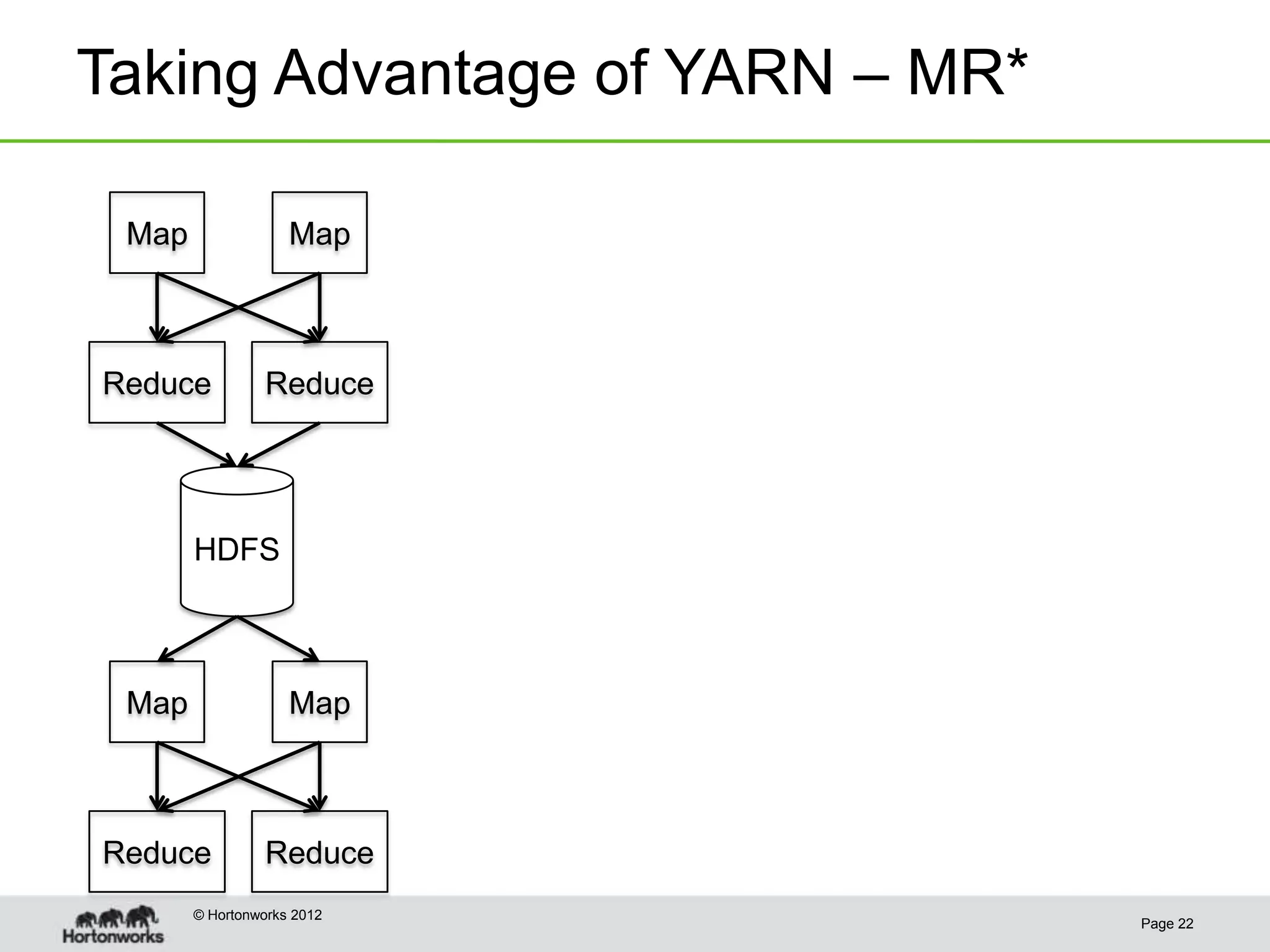

- 22. Taking Advantage ofYARN – MR* Map Map Reduce Reduce HDFS Map Map Reduce Reduce © Hortonworks 2012 Page 22

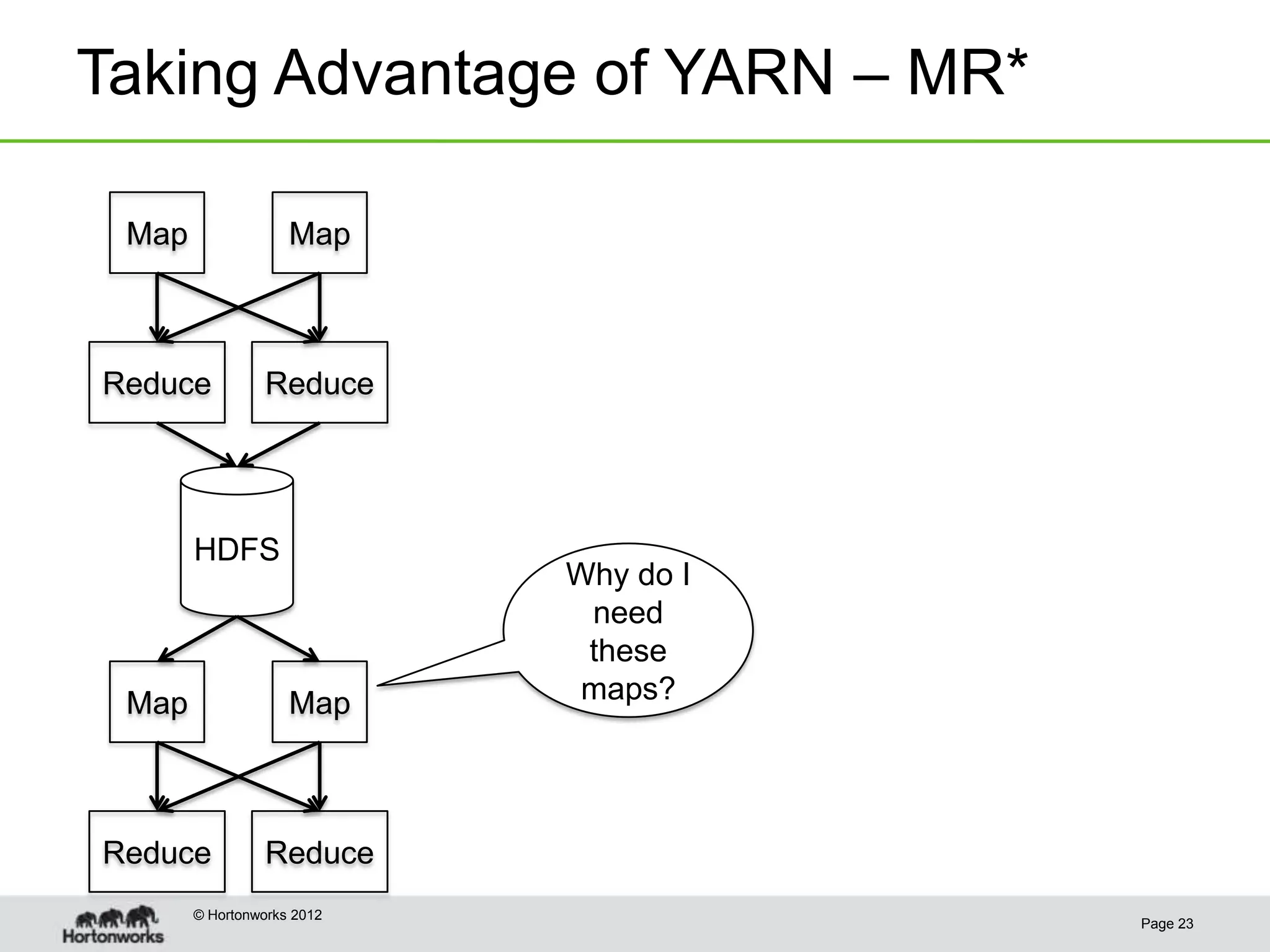

- 23. Taking Advantage ofYARN – MR* Map Map Reduce Reduce HDFS Why do I need these Map Map maps? Reduce Reduce © Hortonworks 2012 Page 23

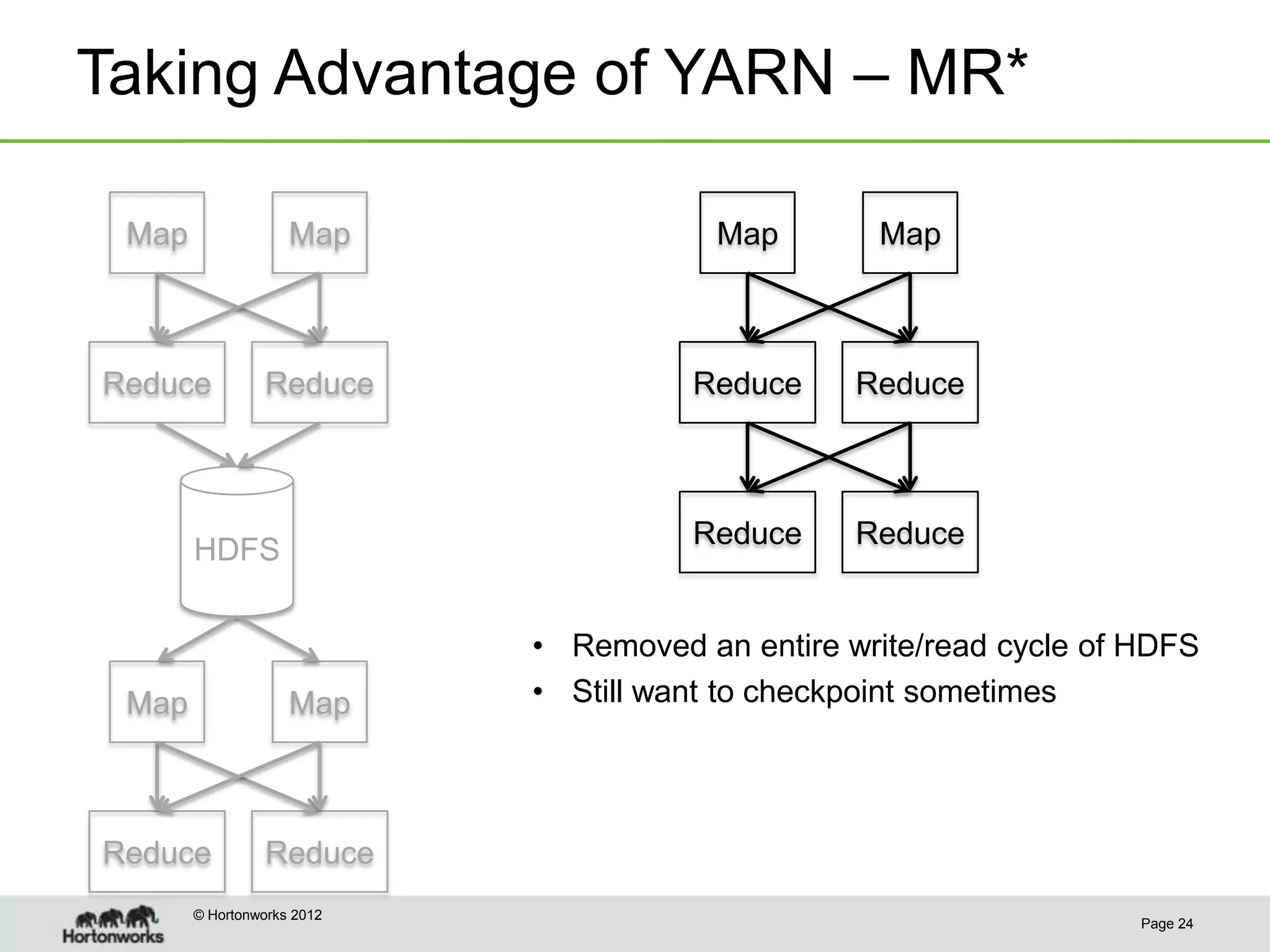

- 24. Taking Advantage ofYARN – MR* Map Map Map Map Reduce Reduce Reduce Reduce Reduce Reduce HDFS • Removed an entire write/read cycle of HDFS Map Map • Still want to checkpoint sometimes Reduce Reduce © Hortonworks 2012 Page 24

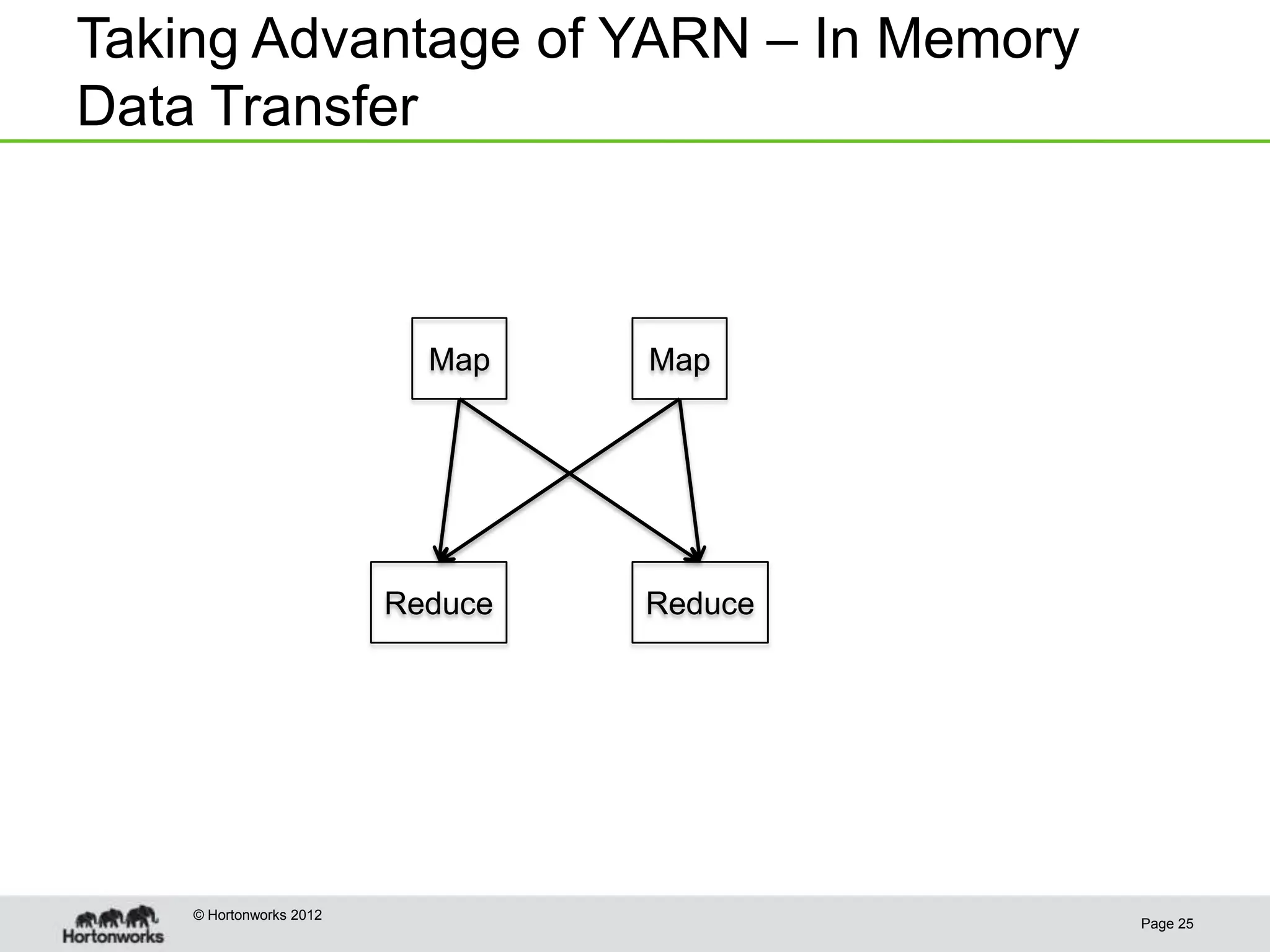

- 25. Taking Advantage ofYARN – In Memory Data Transfer Map Map Reduce Reduce © Hortonworks 2012 Page 25

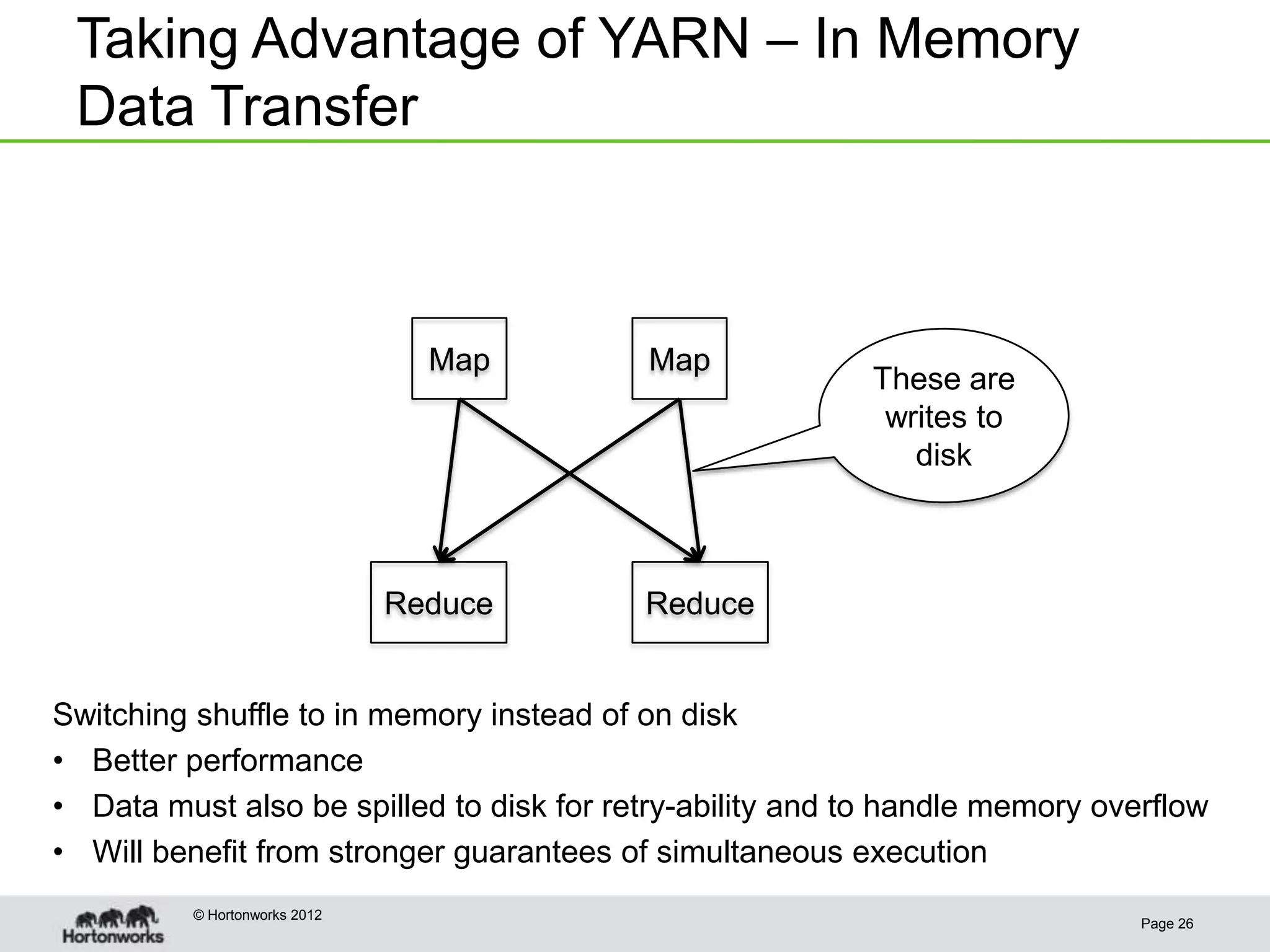

- 26. Taking Advantage ofYARN – In Memory Data Transfer Map Map These are writes to disk Reduce Reduce Switching shuffle to in memory instead of on disk • Better performance • Data must also be spilled to disk for retry-ability and to handle memory overflow • Will benefit from stronger guarantees of simultaneous execution © Hortonworks 2012 Page 26

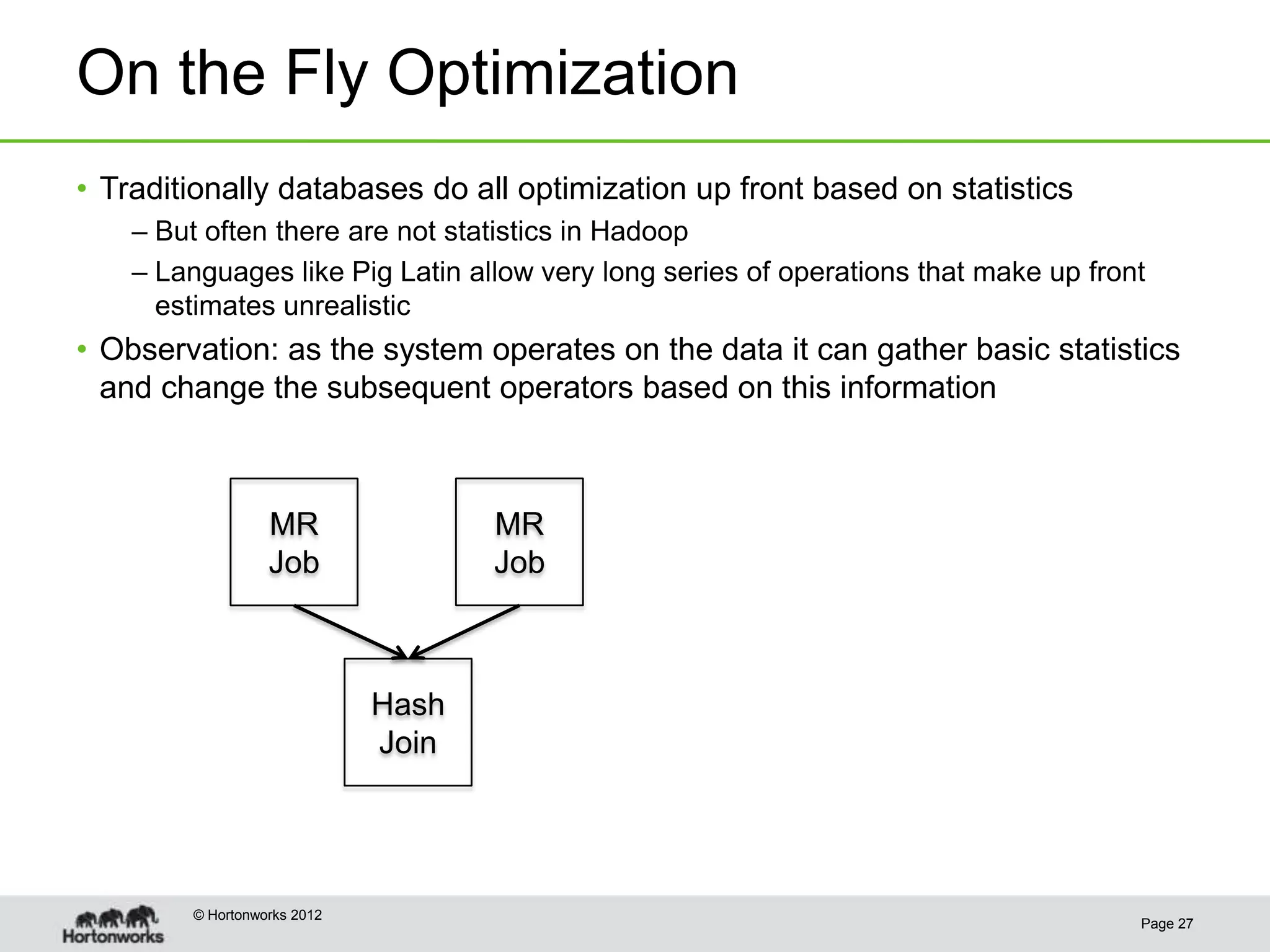

- 27. On the FlyOptimization • Traditionally databases do all optimization up front based on statistics – But often there are not statistics in Hadoop – Languages like Pig Latin allow very long series of operations that make up front estimates unrealistic • Observation: as the system operates on the data it can gather basic statistics and change the subsequent operators based on this information MR MR Job Job Hash Join © Hortonworks 2012 Page 27

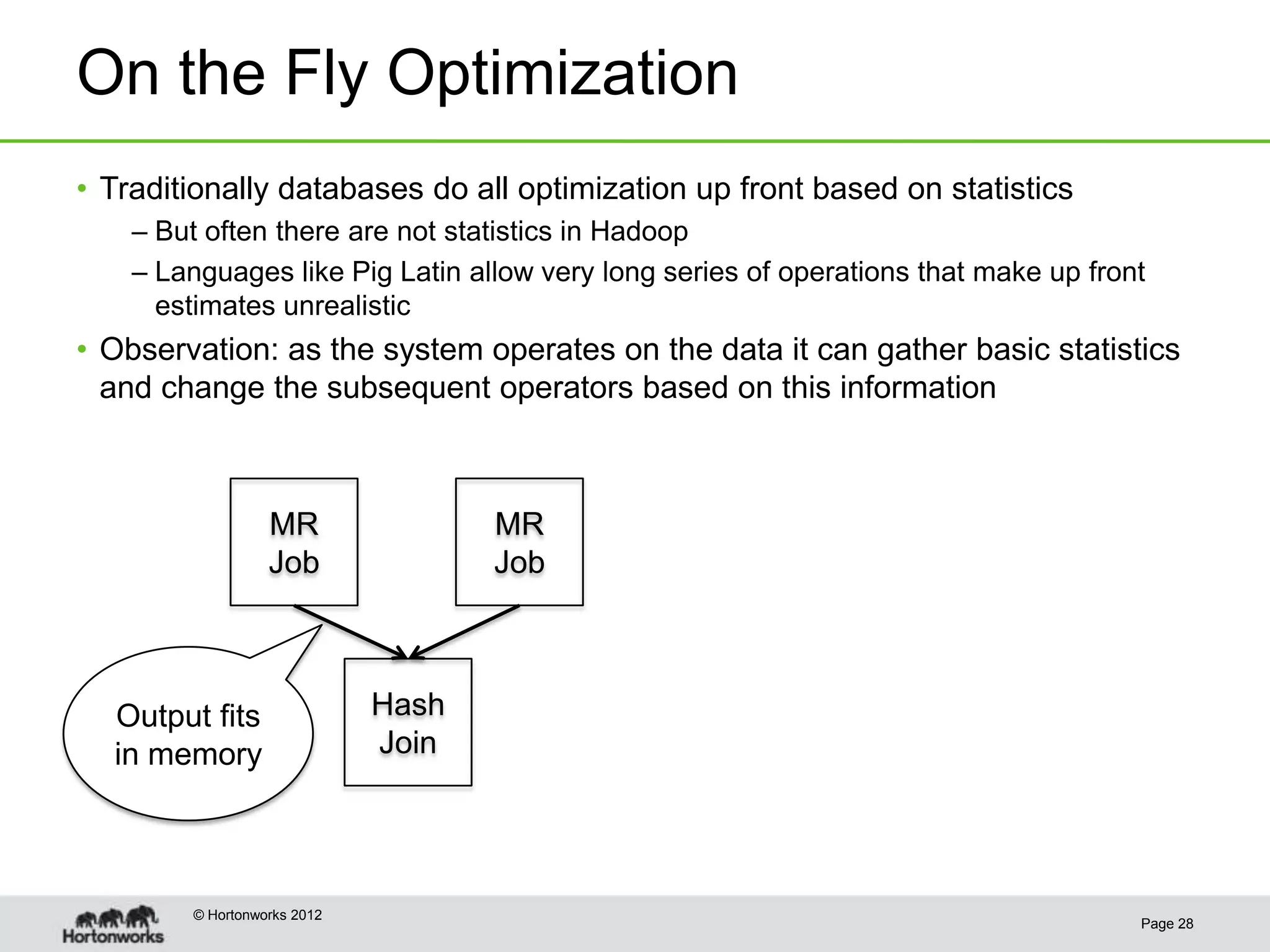

- 28. On the FlyOptimization • Traditionally databases do all optimization up front based on statistics – But often there are not statistics in Hadoop – Languages like Pig Latin allow very long series of operations that make up front estimates unrealistic • Observation: as the system operates on the data it can gather basic statistics and change the subsequent operators based on this information MR MR Job Job Output fits Hash in memory Join © Hortonworks 2012 Page 28

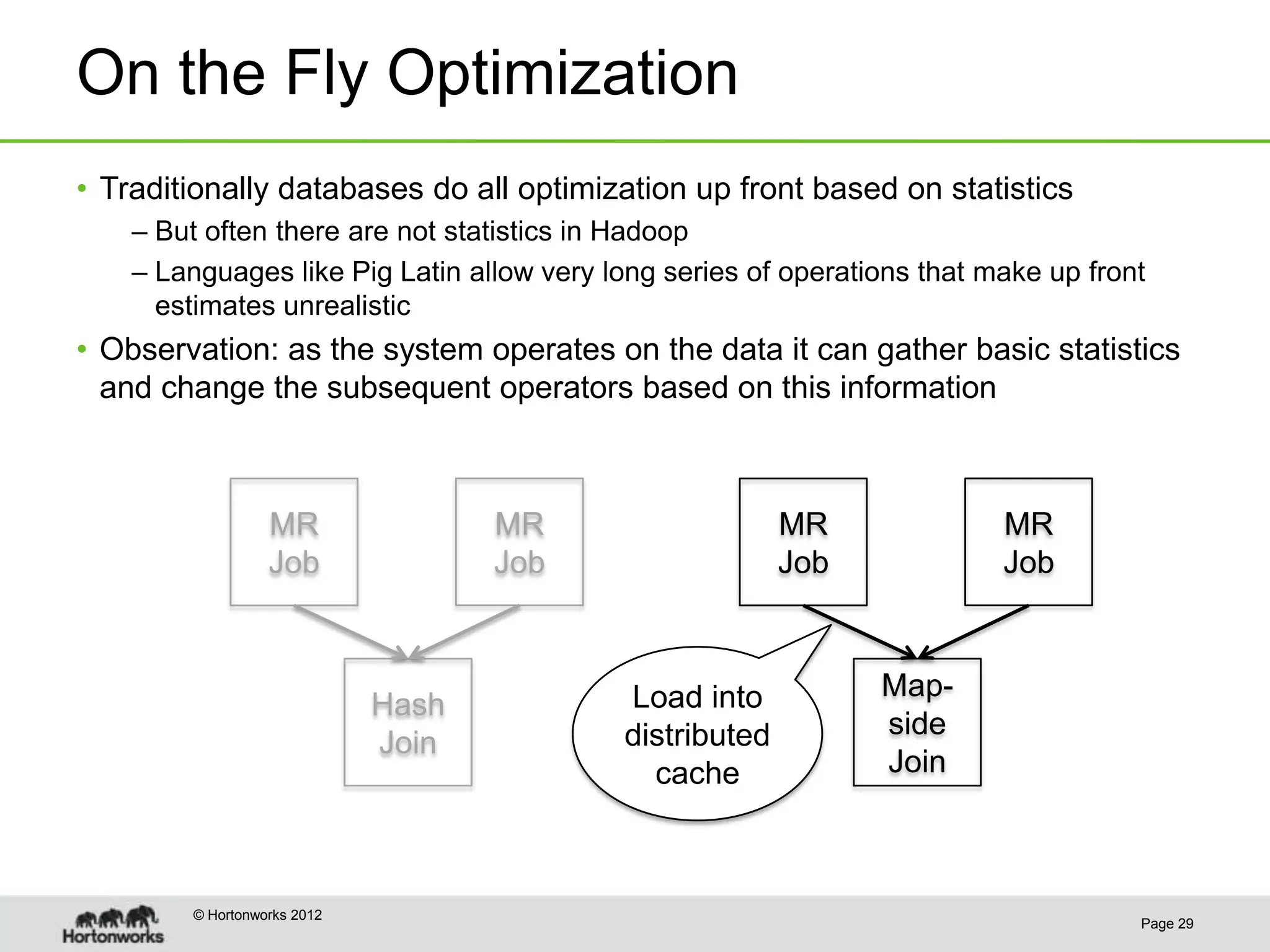

- 29. On the FlyOptimization • Traditionally databases do all optimization up front based on statistics – But often there are not statistics in Hadoop – Languages like Pig Latin allow very long series of operations that make up front estimates unrealistic • Observation: as the system operates on the data it can gather basic statistics and change the subsequent operators based on this information MR MR MR MR Job Job Job Job Load into Map- Hash distributed side Join cache Join © Hortonworks 2012 Page 29
- 30. Thank You BigData Spain © Hortonworks 2012 Page 30
Editor's Notes
- #3 This is how we tend to think of Big data
- #5 Limited in a couple of ways:Scalability limited by being on one machine or a small cluster that counts on all participants being upHard to apply different types of processing without moving data around
- #6 Hive is the only SQL based app in this pileOther apps still in the picture, it’s not like Hadoop is displacing everything
