1. Earthquake-Resistant
Building Technologies
 MYO ZIN AUNG
 28J16121
 Ship Design Lab.
(NAOE)

2. Contents
Base Isolation
Dampers
Tuned Mass Damper
Tuned Liquid Damper
Some famous buildings
Building Elevation Control
Invisibility Cloaks
Others
2

3. Base Isolation
3

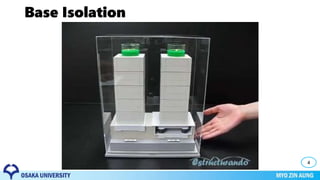

4. Base Isolation
4

5. Base Isolation
5

6. Base Isolation Bearings
6

7. Base Isolation - Comparison
7

8. Dampers
8

9. Some Seismic Energy Dissipation
Devices
9

10. Oil Damper - Shock Absorber
11

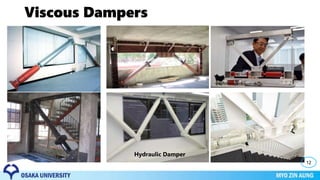

11. Viscous Dampers
Hydraulic Damper
12

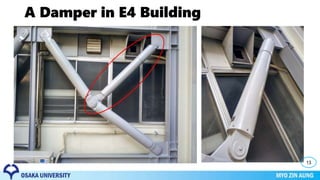

12. A Damper in E4 Building
13

13. Friction Damper
14
Friction Damper for
Tension–Compression
BracePall Friction Dampers

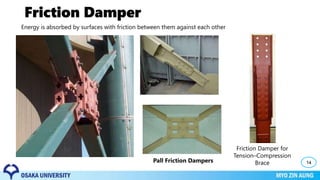

Energy is absorbed by surfaces with friction between them against each other

14. Friction Damper
15

15. Yielding Damper
16
Plastic Deformation (Yielding) of metal absorb significant amount of seismic energy.
But I am sure you don’t want such kind of deformation of the structure after the earthquake.
Even if the structure is not collapsed totally, the building must be demolished for the future safety

16. Yielding Damper
17Honeycomb Damper System
Energy is absorbed by deformation of the metal
Metallic Yielding-Friction Damper (MYFD)
Before
After

17. 18

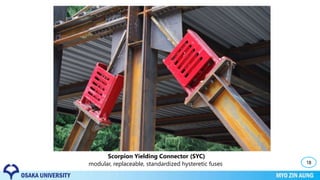

Scorpion Yielding Connector (SYC)
modular, replaceable, standardized hysteretic fuses

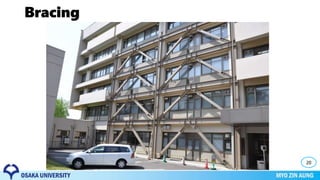

18. Bracing
19

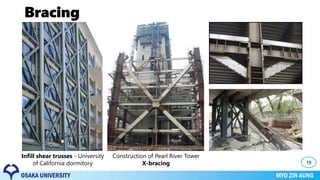

Infill shear trusses - University
of California dormitory
Construction of Pearl River Tower
X-bracing

19. Bracing
20

20. 21

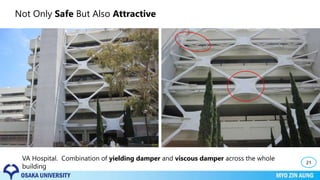

VA Hospital. Combination of yielding damper and viscous damper across the whole
building
Not Only Safe But Also Attractive

21. Tuned Mass Damping
22

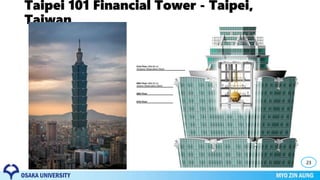

22. Taipei 101 Financial Tower - Taipei,
Taiwan
23

23. Taipei 101 TMD
24

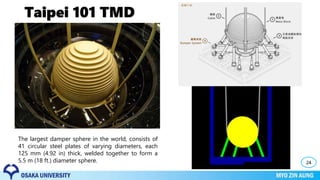

The largest damper sphere in the world, consists of
41 circular steel plates of varying diameters, each
125 mm (4.92 in) thick, welded together to form a
5.5 m (18 ft.) diameter sphere.

24. 25
Halving the Shaking Due to Long-Period Earthquake Ground Motion at Shinjuku Mitsui Building
Japan’s First Rooftop-Installed Ultra-Large Vibration Control Device (Approx. 1,800 tons)
Shinjuku Mitsui Building

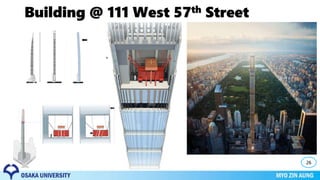

25. Building @ 111 West 57th Street
26

26. Tuned Liquid Column Damper (TLCD)
27

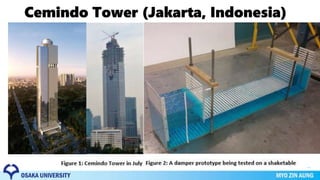

27. Cemindo Tower (Jakarta, Indonesia)
28

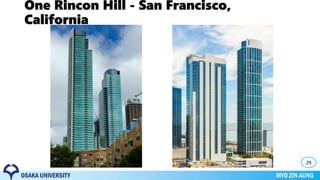

28. One Rincon Hill - San Francisco,
California
29

29. Tuned Liquid Damper - One Rincon
Hill
30

30. Tokyo Skytree, Japan
31A reinforced concrete core runs through the heart of the structure
core-wall construction to increase seismic performance at lower cost.

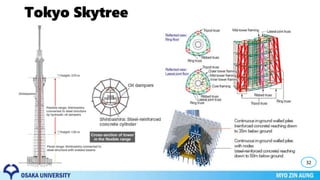

31. Tokyo Skytree
32

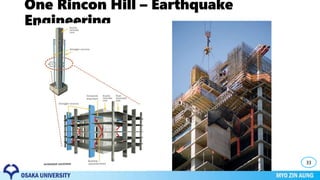

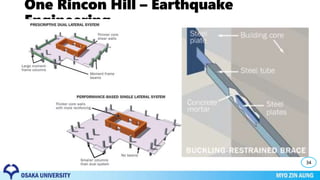

32. One Rincon Hill – Earthquake
Engineering
33

33. One Rincon Hill – Earthquake
Engineering
34

34. Building elevation control
35

35. Building elevation control (Cont;)
36
Transamerica Pyramid
building in San Francisco,
California
Ryugyong Hotel
Pyongyang, North Korea
Burj Khalifa, Dubai, UAE

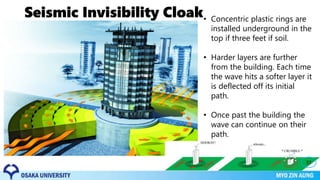

36. Seismic Invisibility Cloak• Concentric plastic rings are
installed underground in the
top if three feet if soil.
• Harder layers are further
from the building. Each time
the wave hits a softer layer it
is deflected off its initial
path.
• Once past the building the
wave can continue on their
path.
37

37. 38

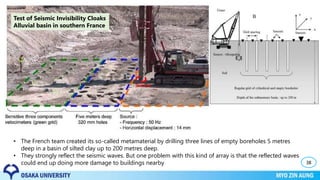

Test of Seismic Invisibility Cloaks
Alluvial basin in southern France
• The French team created its so-called metamaterial by drilling three lines of empty boreholes 5 metres
deep in a basin of silted clay up to 200 metres deep.
• They strongly reflect the seismic waves. But one problem with this kind of array is that the reflected waves
could end up doing more damage to buildings nearby

38. Shear Walls
39
Steel Plate Shear Wall (SPSW) consists of steel
infill plates bounded by boundary elements
Reinforced Concrete Shear Wall

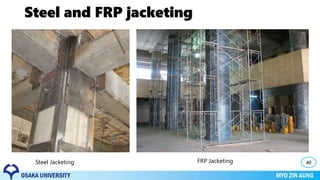

39. Steel and FRP jacketing
40Steel Jacketing FRP Jacketing

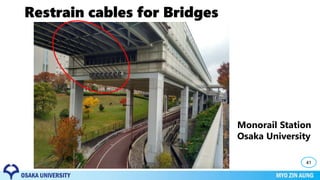

40. Restrain cables for Bridges
41
Monorail Station
Osaka University
