1. HYDRAULIC CIRCUITS
AND SYSTEMS

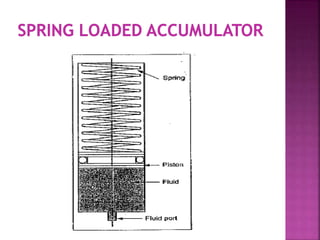

4. Classification of

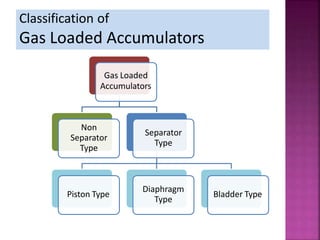

Gas Loaded Accumulators
Gas Loaded
Accumulators

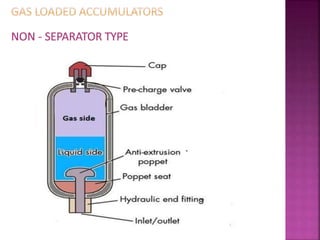

Non
Separator
Type
Separator
Type
Piston Type

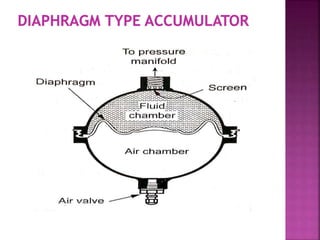

Diaphragm
Type
Bladder Type

10.  Dampen pulsationsand shocks of a periodic nature
 Increase the speed of the operationalcircuit.
 Clamping devices to hold the jaw vices and fixtures
 Standby power supplycircuits.
 Surge reductioncircuits
 Agricultural Machinery & Equipment
 Forestry Equipment
 Oil Field & Offshore
 Machine Tools and Off- Road Equipment
Mining Machinery & Equipment
 Mobile & Construction Equipment
 Suspension invehicles

11. ACCUMULATOR
HYDRAULIC CIRCUITS

18.  Pressure intensifiers, also known pressure
boosters are used to compress the liquid in a
hydraulic system to a value above the pump
discharge pressure.
 An intensifier is a device which converts a
large-volume, low-pressure fluid supply into
a proportionately small-volume, high-
pressure fluid outlet.
 It finds its application at places where a
liquid of very high pressure is to be
developed from available low pressure.
 Its used to hydraulic presses, riveting m/c.
spot welders.

21. DIFFERENT
HYDRAULIC CIRCUITS
