1. Advantages and disadvantages of
Bourdon Tube

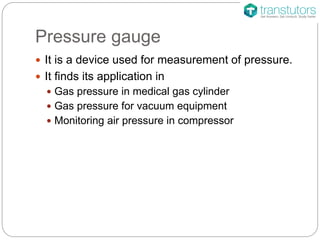

2. Pressure gauge
 It is a device used for measurement of pressure.
 It finds its application in
 Gas pressure in medical gas cylinder
 Gas pressure for vacuum equipment
 Monitoring air pressure in compressor

3. Bourdon tube pressure gauge
 It is a pressure indicator with ‘C’ shaped tube and
oval cross section.
 Curved tube straightens when pressure is
applied.
 It indicates gauge pressure.
 It is used to measure both low and high pressure

4. Advantages of Bourdon tube
 Construction is simple and cost is low.
 It has excellent sensitivity.
 It has high accuracy.
 For higher pressure bourdon tubes provide higher
accuracy.
 It is used to measure vacuum pressure.
 It is available for various ranges.

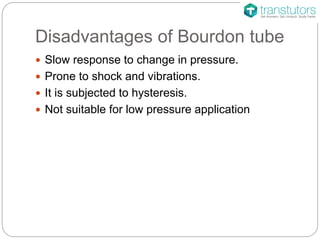

5. Disadvantages of Bourdon tube
 Slow response to change in pressure.
 Prone to shock and vibrations.
 It is subjected to hysteresis.
 Not suitable for low pressure application

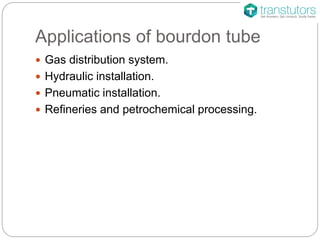

6. Applications of bourdon tube
 Gas distribution system.
 Hydraulic installation.
 Pneumatic installation.
 Refineries and petrochemical processing.
