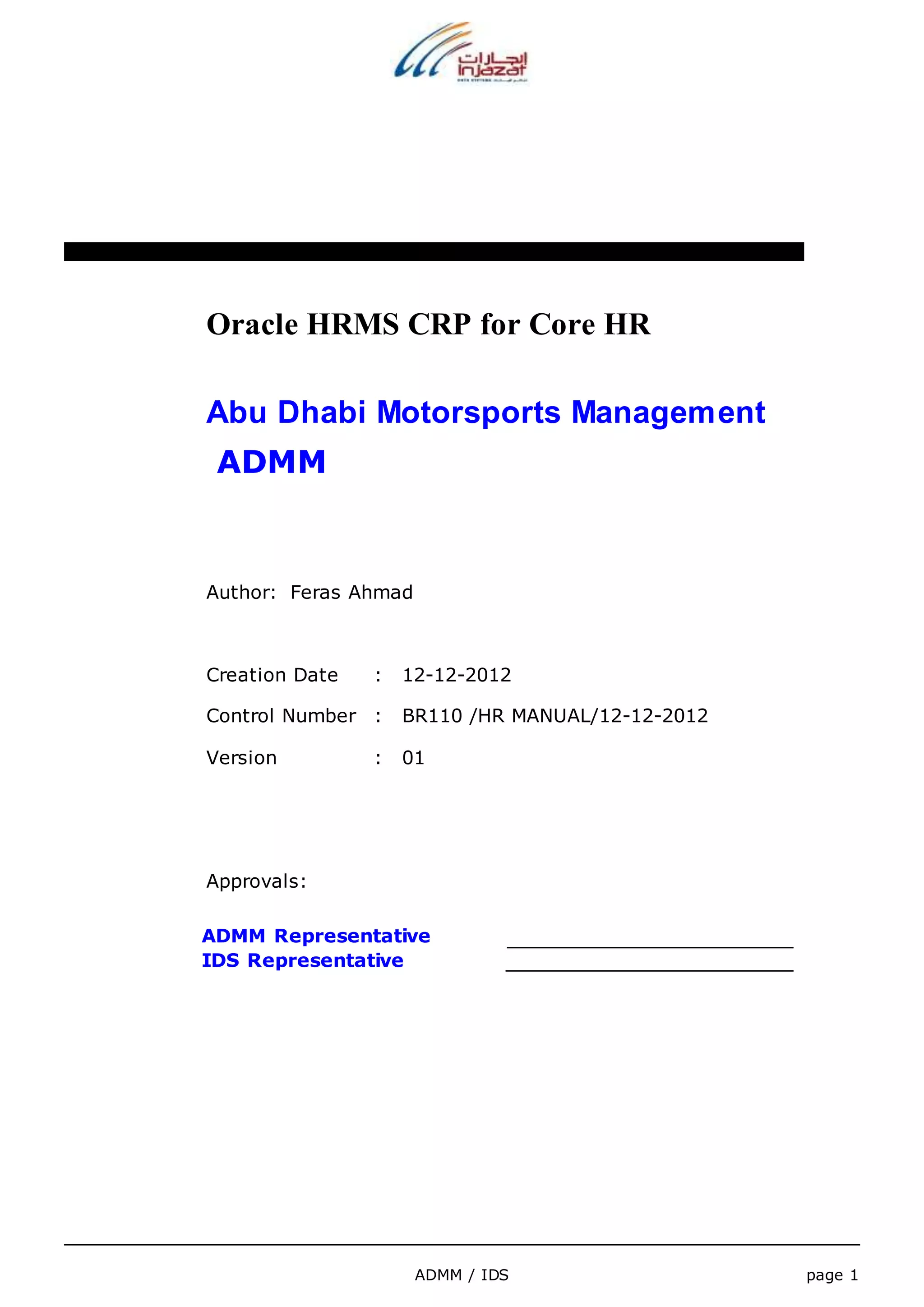

Oracle HRMS CRP for Core HR
Abu Dhabi Motorsports Management
ADMM
ADMM / IDS page 1
Author: Feras Ahmad
Creation Date : 12-12-2012
Control Number : BR110 /HR MANUAL/12-12-2012
Version : 01
Approvals:
ADMM Representative
IDS Representative

ADMM / IDS page 2
Document Control
Change Record
Date Author Version Change Reference
12-12-12 Feras Ahmad 01 No previous document
Reviewers
Name Position
Osama Al najjar Project manager
Distribution
Copy
No.
Name Location
1 Library Master Project Library
2 ADMM ADMM Office Library
3
4

ADMM / IDS page 3

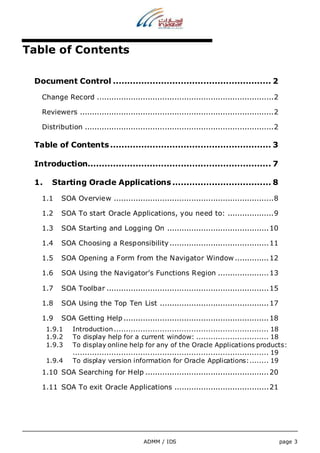

Table of Contents
Document Control ........................................................ 2
Change Record ......................................................................... 2
Reviewers ................................................................................ 2
Distribution .............................................................................. 2
Table of Contents ......................................................... 3
Introduction................................................................. 7
1. Starting Oracle Applications ................................... 8
1.1 SOA Overview .................................................................. 8
1.2 SOA To start Oracle Applications, you need to: ................... 9
1.3 SOA Starting and Logging On .......................................... 10
1.4 SOA Choosing a Responsibility ......................................... 11
1.5 SOA Opening a Form from the Navigator Window .............. 12
1.6 SOA Using the Navigator’s Functions Region ..................... 13

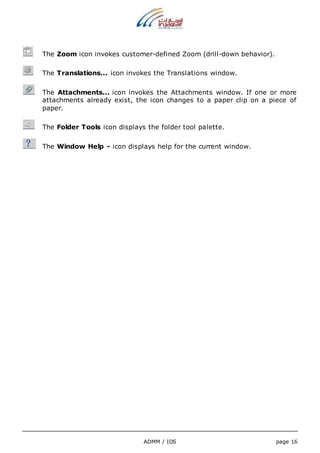

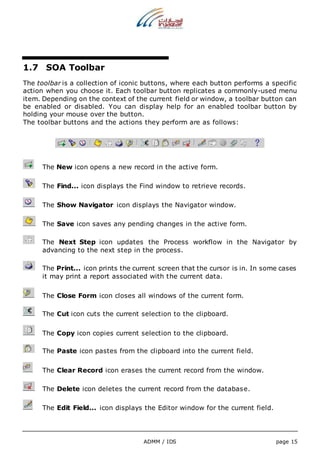

1.7 SOA Toolbar ................................................................... 15

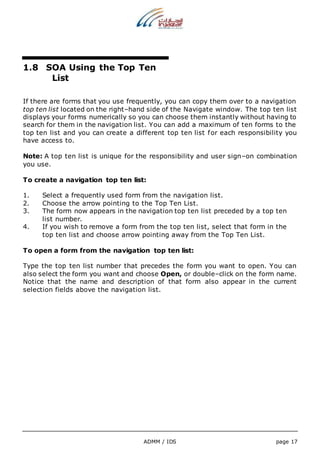

1.8 SOA Using the Top Ten List ............................................. 17

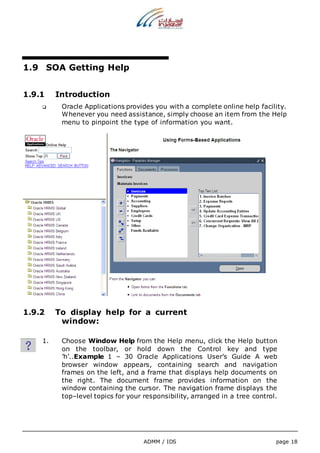

1.9 SOA Getting Help ............................................................ 18
1.9.1 Introduction ................................................................ 18
1.9.2 To display help for a current window: .............................. 18
1.9.3 To display online help for any of the Oracle Applications products:
................................................................................. 19
1.9.4 To display version information for Oracle Applications:........ 19

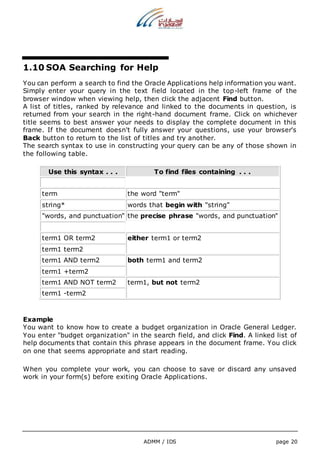

1.10 SOA Searching for Help ................................................... 20

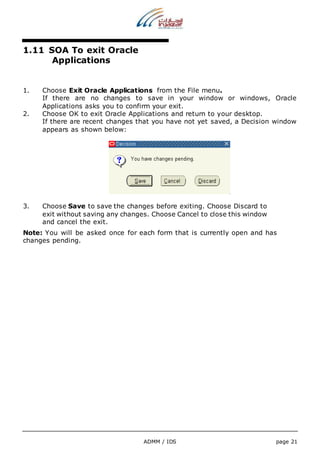

1.11 SOA To exit Oracle Applications ....................................... 21

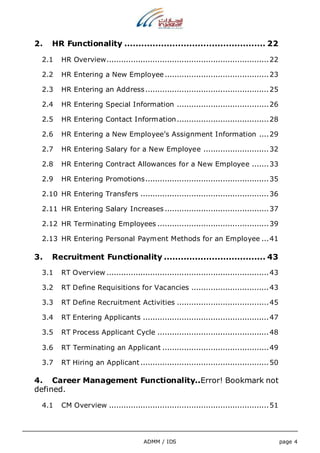

2. HR Functionality .................................................. 22
2.1 HR Overview................................................................... 22
2.2 HR Entering a New Employee ........................................... 23

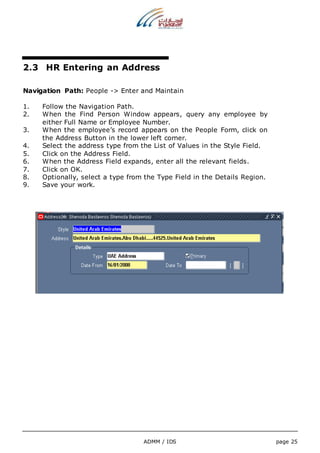

2.3 HR Entering an Address ................................................... 25

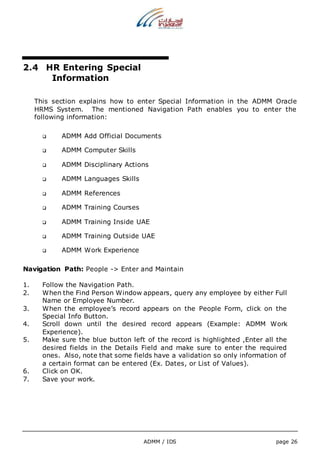

2.4 HR Entering Special Information ...................................... 26

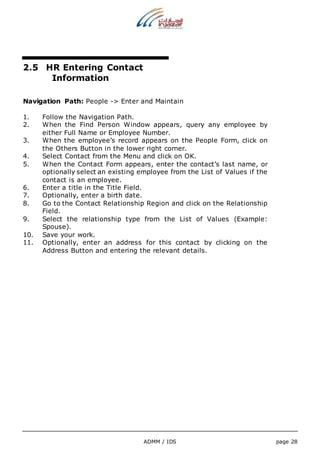

2.5 HR Entering Contact Information...................................... 28

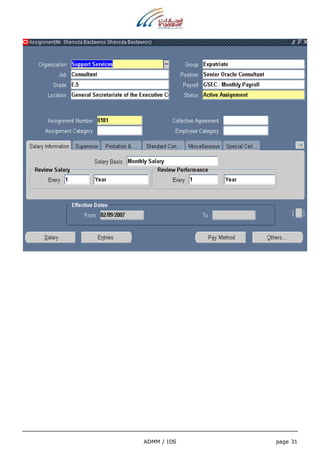

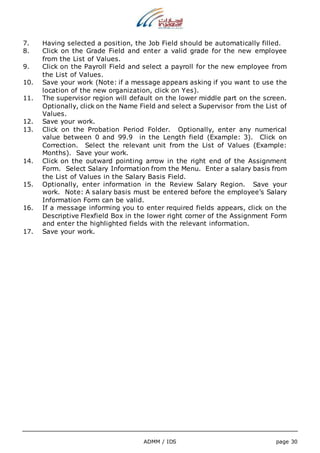

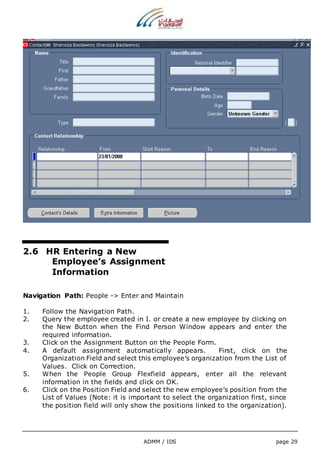

2.6 HR Entering a New Employee’s Assignment Information .... 29

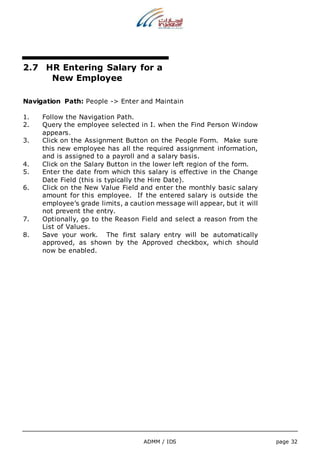

2.7 HR Entering Salary for a New Employee ........................... 32

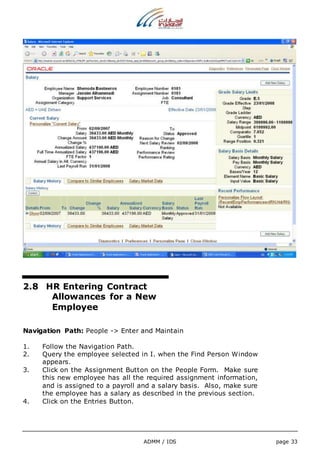

2.8 HR Entering Contract Allowances for a New Employee ....... 33

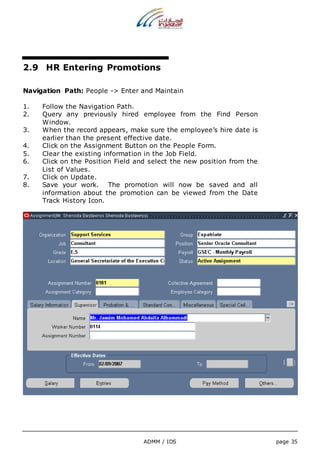

2.9 HR Entering Promotions................................................... 35
2.10 HR Entering Transfers ..................................................... 36

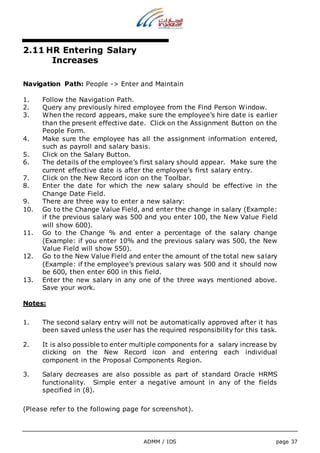

2.11 HR Entering Salary Increases ........................................... 37

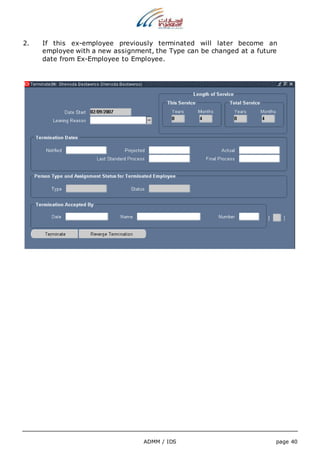

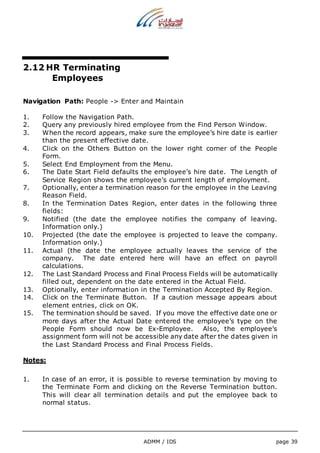

2.12 HR Terminating Employees .............................................. 39
2.13 HR Entering Personal Payment Methods for an Employee ... 41

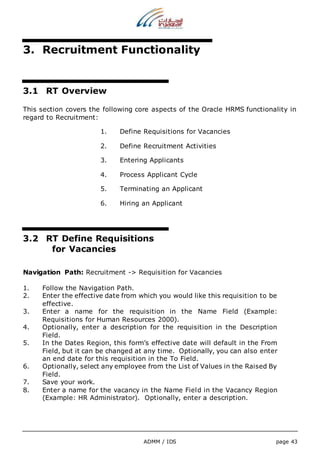

3. Recruitment Functionality .................................... 43
3.1 RT Overview ................................................................... 43
3.2 RT Define Requisitions for Vacancies ................................ 43

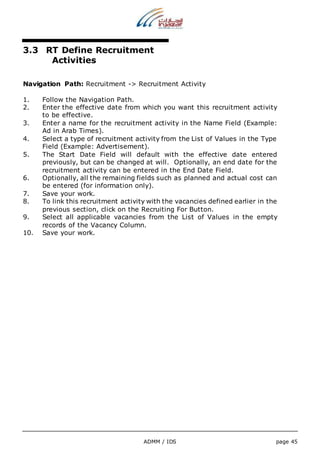

3.3 RT Define Recruitment Activities ...................................... 45

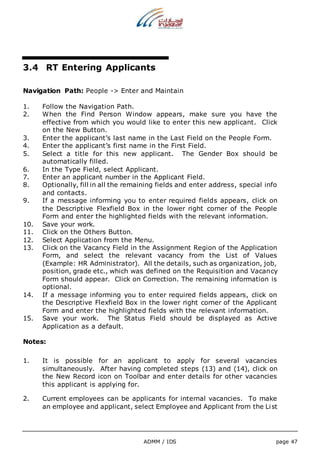

3.4 RT Entering Applicants .................................................... 47

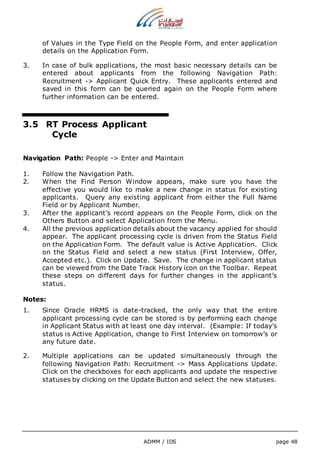

3.5 RT Process Applicant Cycle .............................................. 48
3.6 RT Terminating an Applicant ............................................ 49

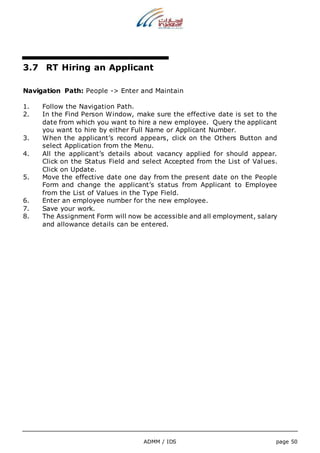

3.7 RT Hiring an Applicant ..................................................... 50
4. Career Management Functionality..Error! Bookmark not
defined.

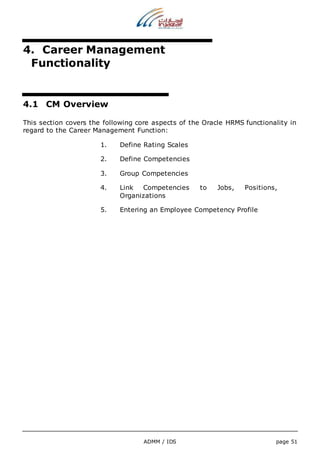

4.1 CM Overview .................................................................. 51
ADMM / IDS page 4

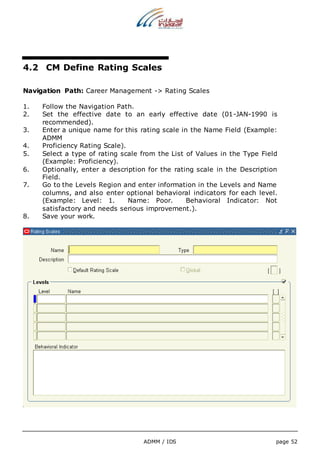

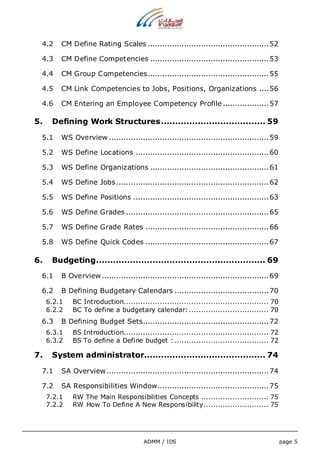

4.2 CM Define Rating Scales .................................................. 52

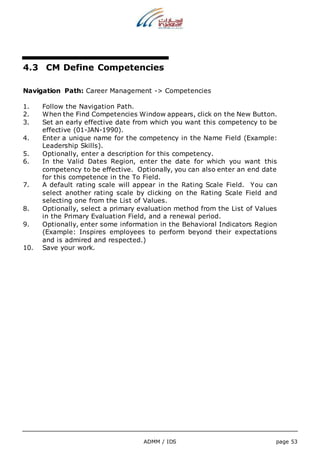

4.3 CM Define Competencies ................................................. 53

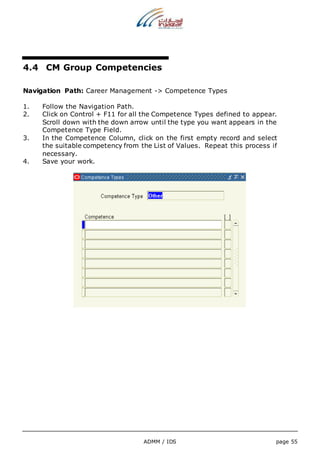

4.4 CM Group Competencies.................................................. 55

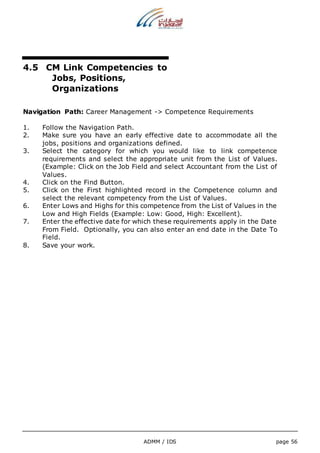

4.5 CM Link Competencies to Jobs, Positions, Organizations .... 56

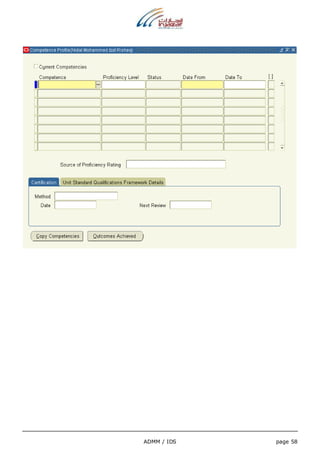

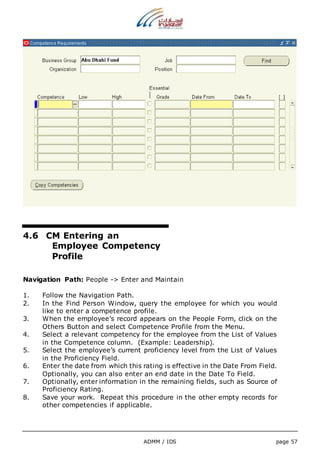

4.6 CM Entering an Employee Competency Profile ................... 57
5. Defining Work Structures ..................................... 59
5.1 WS Overview .................................................................. 59

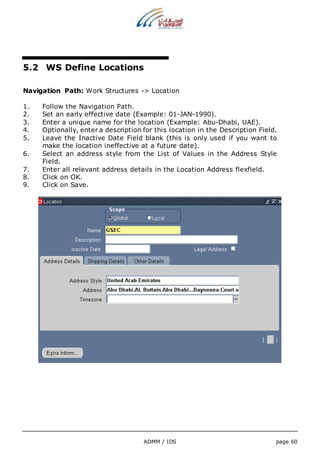

5.2 WS Define Locations ....................................................... 60

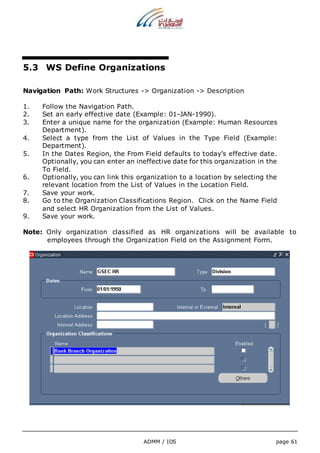

5.3 WS Define Organizations ................................................. 61

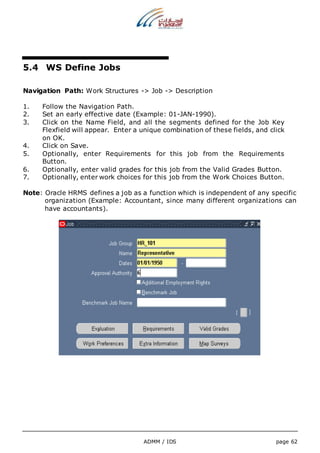

5.4 WS Define Jobs ............................................................... 62

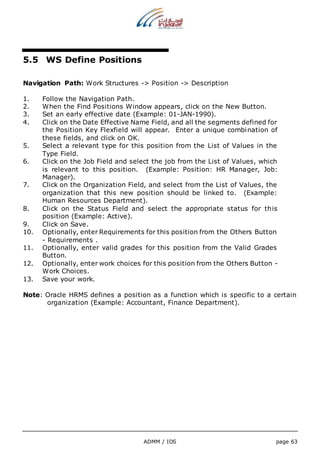

5.5 WS Define Positions ........................................................ 63

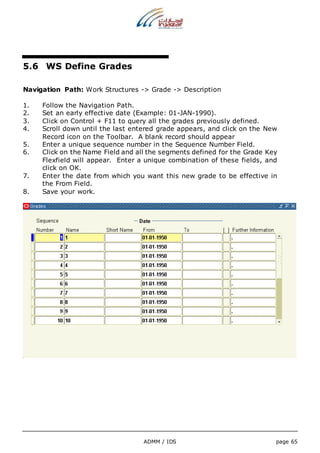

5.6 WS Define Grades ........................................................... 65

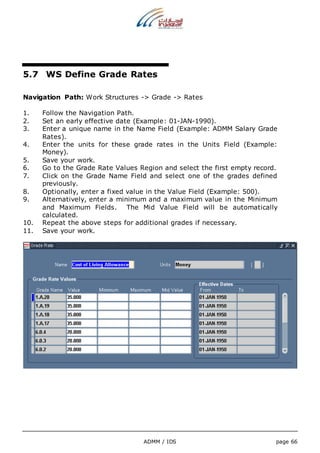

5.7 WS Define Grade Rates ................................................... 66

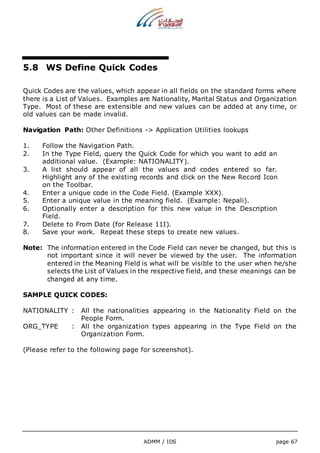

5.8 WS Define Quick Codes ................................................... 67

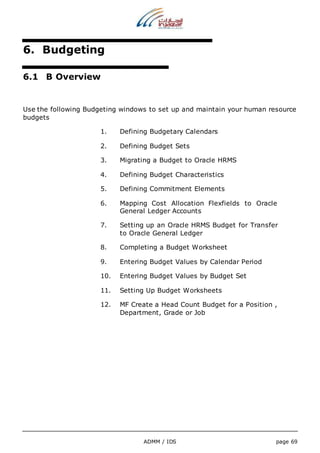

6. Budgeting ............................................................ 69
6.1 B Overview ..................................................................... 69

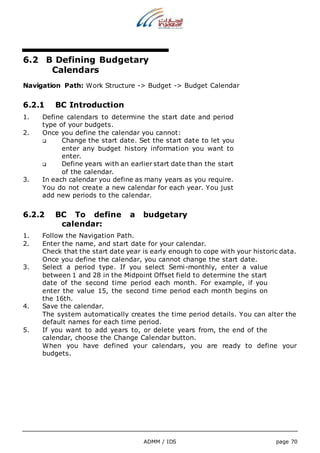

6.2 B Defining Budgetary Calendars ....................................... 70
6.2.1 BC Introduction............................................................ 70
6.2.2 BC To define a budgetary calendar: ................................. 70
6.3 B Defining Budget Sets.................................................... 72
6.3.1 BS Introduction............................................................ 72
6.3.2 BS To define a Define budget : ....................................... 72

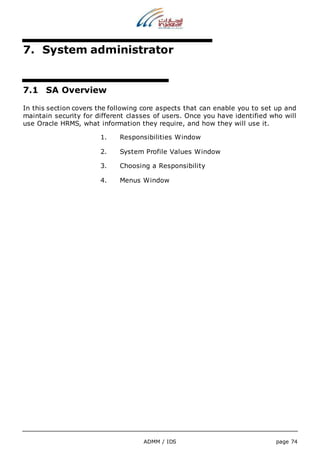

7. System administrator ........................................... 74
7.1 SA Overview ................................................................... 74

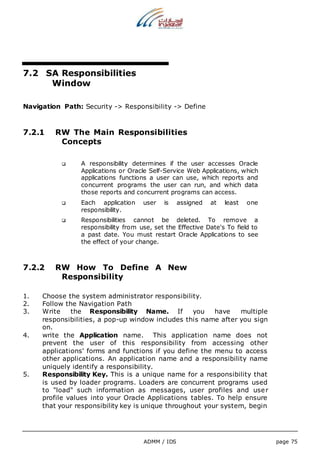

7.2 SA Responsibilities Window.............................................. 75
7.2.1 RW The Main Responsibilities Concepts ............................ 75
7.2.2 RW How To Define A New Responsibility ........................... 75
ADMM / IDS page 5

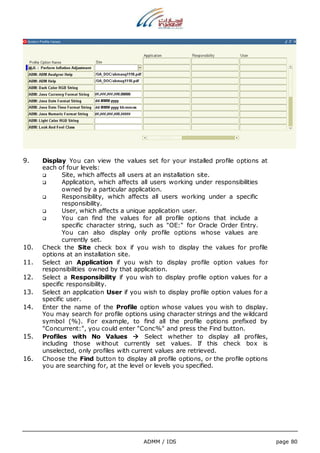

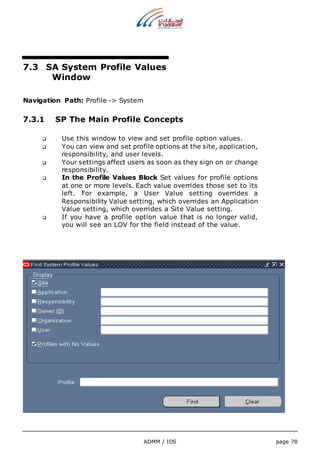

7.3 SA System Profile Values Window .................................... 78
7.3.1 SP The Main Profile Concepts.......................................... 78
7.3.2 SP How To Set the profile .............................................. 79

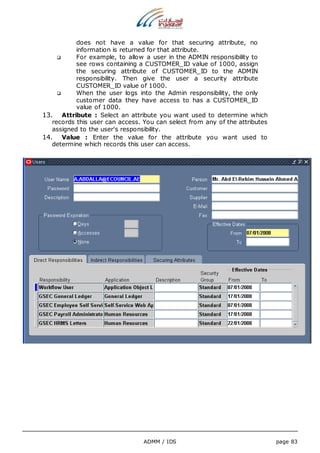

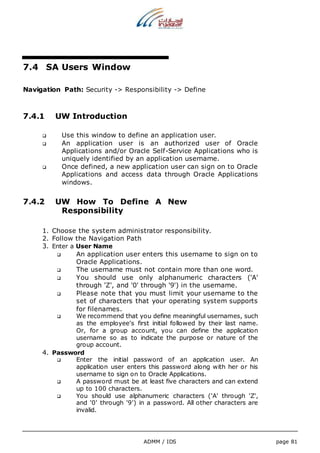

7.4 SA Users Window ............................................................ 81
7.4.1 UW Introduction........................................................... 81
7.4.2 UW How To Define A New Responsibility ........................... 81

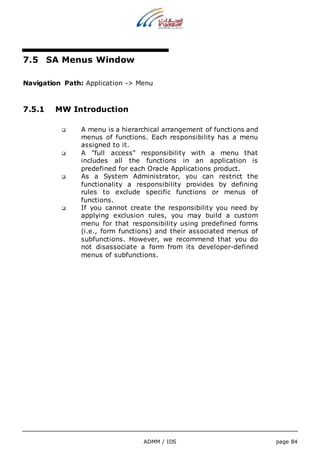

7.5 SA Menus Window........................................................... 84
7.5.1 MW Introduction .......................................................... 84

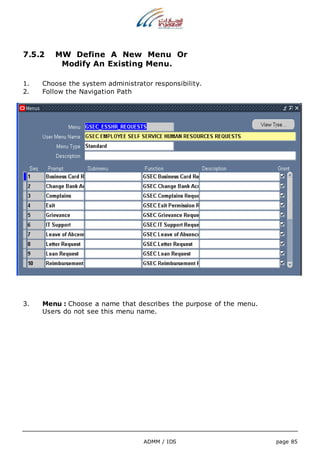

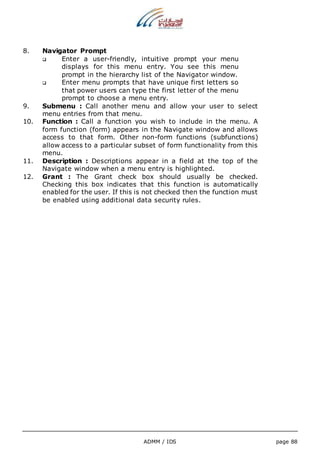

7.5.2 MW Define A New Menu Or Modify An Existing Menu........... 85

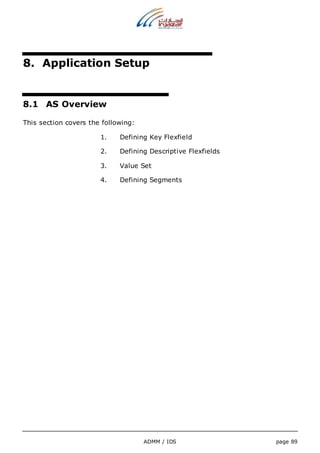

8. Application Setup ................................................. 89
8.1 AS Overview ................................................................... 89

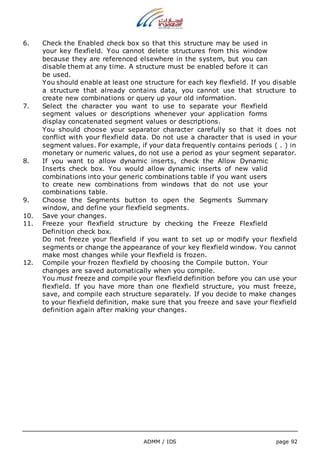

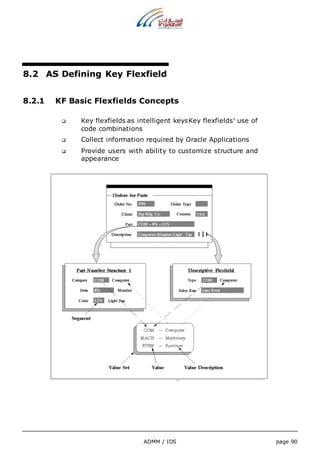

8.2 AS Defining Key Flexfield ................................................. 90
8.2.1 KF Basic Flexfields Concepts ........................................... 90

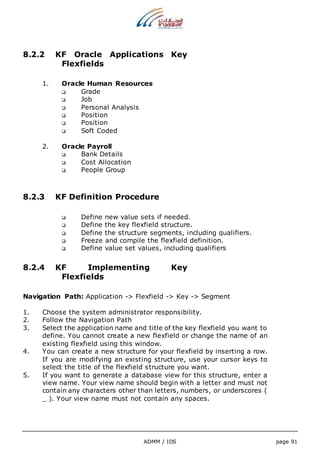

8.2.2 KF Oracle Applications Key Flexfields ............................... 91
8.2.3 KF Definition Procedure ................................................. 91
8.2.4 KF Implementing Key Flexfields ...................................... 91
8.3 AS Defining Descriptive Flexfields..................................... 94
8.3.1 DF Basic Flexfields Concepts........................................... 94
8.3.2 DF Definition Procedure ................................................. 95
8.3.3 DF Implementing Key Flexfields ...................................... 95

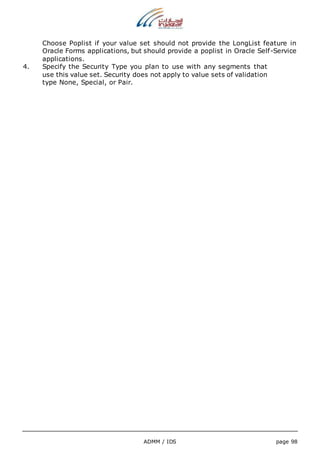

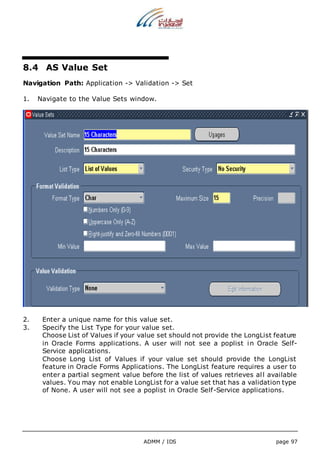

8.4 AS Value Set .................................................................. 97

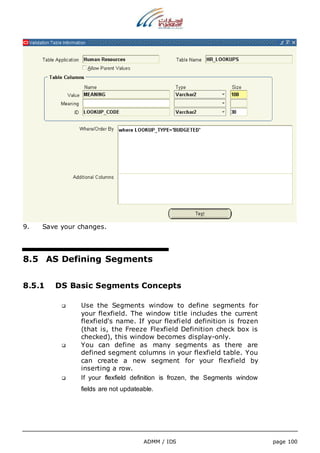

8.5 AS Defining Segments ................................................... 100
8.5.1 DS Basic Segments Concepts ........................................100

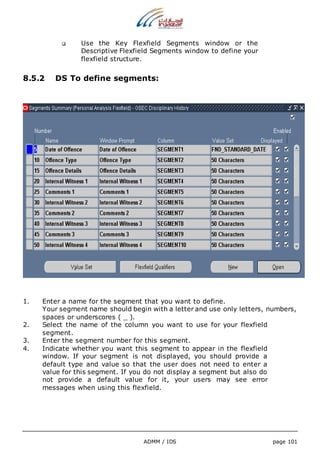

8.5.2 DS To define segments: ...............................................101
ADMM / IDS page 6

ADMM / IDS page 7

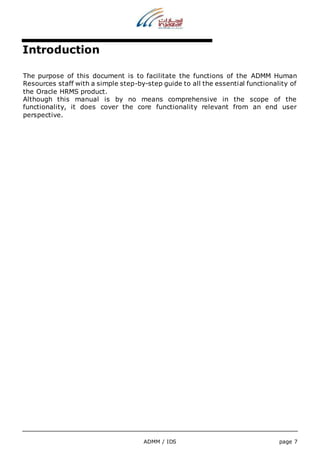

Introduction
The purpose of this document is to facilitate the functions of the ADMM Human
Resources staff with a simple step-by-step guide to all the essential functionality of
the Oracle HRMS product.
Although this manual is by no means comprehensive in the scope of the
functionality, it does cover the core functionality relevant from an end user
perspective.

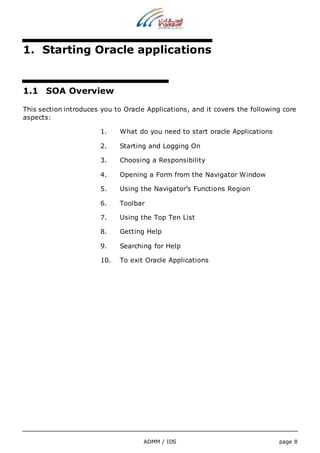

1. Starting Oracle applications
ADMM / IDS page 8
1.1 SOA Overview
This section introduces you to Oracle Applications, and it covers the following core
aspects:
1. What do you need to start oracle Applications
2. Starting and Logging On
3. Choosing a Responsibility
4. Opening a Form from the Navigator Window
5. Using the Navigator’s Functions Region
6. Toolbar
7. Using the Top Ten List
8. Getting Help
9. Searching for Help
10. To exit Oracle Applications

ADMM / IDS page 9
1.2 SOA to start Oracle
Applications, you need
to:
 Start up your computer system
 Start your Web Browser
 Start the Oracle Applications program
 Log on to Oracle Applications
 Choose a responsibility (if necessary)
 Navigate to an application window

ADMM / IDS page 10

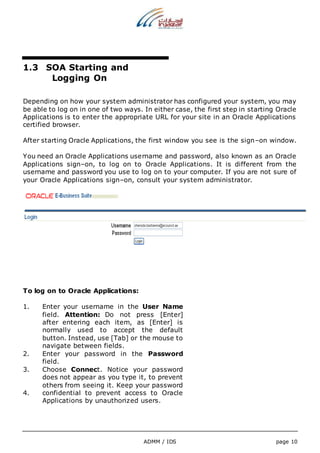

1.3 SOA Starting and
Logging On
Depending on how your system administrator has configured your system, you may
be able to log on in one of two ways. In either case, the first step in starting Oracle
Applications is to enter the appropriate URL for your site in an Oracle Applications
certified browser.
After starting Oracle Applications, the first window you see is the sign–on window.
You need an Oracle Applications username and password, also known as an Oracle
Applications sign–on, to log on to Oracle Applications. It is different from the
username and password you use to log on to your computer. If you are not sure of
your Oracle Applications sign–on, consult your system administrator.
To log on to Oracle Applications:
1. Enter your username in the User Name
field. Attention: Do not press [Enter]
after entering each item, as [Enter] is
normally used to accept the default
button. Instead, use [Tab] or the mouse to
navigate between fields.
2. Enter your password in the Password
field.
3. Choose Connect. Notice your password
does not appear as you type it, to prevent
others from seeing it. Keep your password
4. confidential to prevent access to Oracle
Applications by unauthorized users.

ADMM / IDS page 11

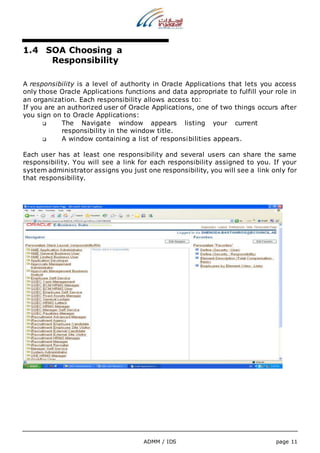

1.4 SOA Choosing a
Responsibility
A responsibility is a level of authority in Oracle Applications that lets you access
only those Oracle Applications functions and data appropriate to fulfill your role in
an organization. Each responsibility allows access to:
If you are an authorized user of Oracle Applications, one of two things occurs after
you sign on to Oracle Applications:
 The Navigate window appears listing your current
responsibility in the window title.
 A window containing a list of responsibilities appears.
Each user has at least one responsibility and several users can share the same
responsibility. You will see a link for each responsibility assigned to you. If your
system administrator assigns you just one responsibility, you will see a link only for
that responsibility.

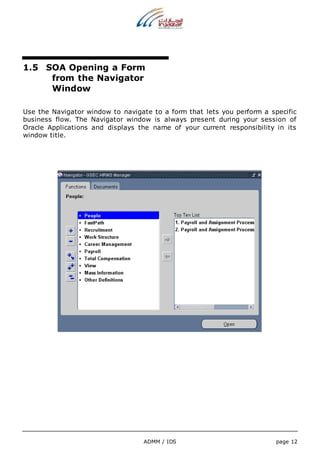

1.5 SOA Opening a Form
from the Navigator
Window
Use the Navigator window to navigate to a form that lets you perform a specific
business flow. The Navigator window is always present during your session of
Oracle Applications and displays the name of your current responsibility in its
window title.
ADMM / IDS page 12

ADMM / IDS page 13

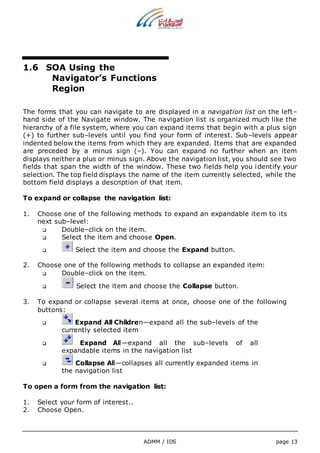

1.6 SOA Using the
Navigator’s Functions
Region
The forms that you can navigate to are displayed in a navigation list on the left–
hand side of the Navigate window. The navigation list is organized much like the
hierarchy of a file system, where you can expand items that begin with a plus sign
(+) to further sub–levels until you find your form of interest. Sub–levels appear
indented below the items from which they are expanded. Items that are expanded
are preceded by a minus sign (–). You can expand no further when an item
displays neither a plus or minus sign. Above the navigation list, you should see two
fields that span the width of the window. These two fields help you identify your
selection. The top field displays the name of the item currently selected, while the
bottom field displays a description of that item.
To expand or collapse the navigation list:
1. Choose one of the following methods to expand an expandable item to its
next sub–level:
 Double–click on the item.
 Select the item and choose Open.
 Select the item and choose the Expand button.
2. Choose one of the following methods to collapse an expanded item:
 Double–click on the item.
 Select the item and choose the Collapse button.
3. To expand or collapse several items at once, choose one of the following
buttons:
 Expand All Children—expand all the sub–levels of the
currently selected item
 Expand All—expand all the sub–levels of all
expandable items in the navigation list
 Collapse All—collapses all currently expanded items in
the navigation list
To open a form from the navigation list:
1. Select your form of interest..
2. Choose Open.

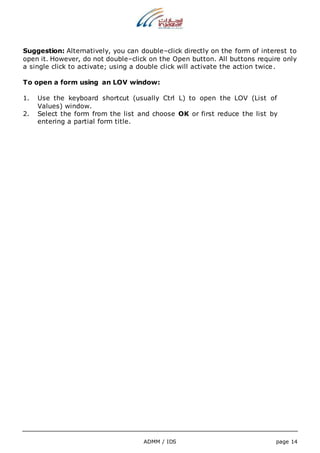

Suggestion: Alternatively, you can double–click directly on the form of interest to
open it. However, do not double–click on the Open button. All buttons require only
a single click to activate; using a double click will activate the action twice.
To open a form using an LOV window:
1. Use the keyboard shortcut (usually Ctrl L) to open the LOV (List of
ADMM / IDS page 14
Values) window.
2. Select the form from the list and choose OK or first reduce the list by
entering a partial form title.

ADMM / IDS page 15
1.7 SOA Toolbar
The toolbar is a collection of iconic buttons, where each button performs a specific
action when you choose it. Each toolbar button replicates a commonly-used menu
item. Depending on the context of the current field or window, a toolbar button can
be enabled or disabled. You can display help for an enabled toolbar button by
holding your mouse over the button.
The toolbar buttons and the actions they perform are as follows:
The New icon opens a new record in the active form.
The Find... icon displays the Find window to retrieve records.
The Show Navigator icon displays the Navigator window.
The Save icon saves any pending changes in the active form.
The Next Step icon updates the Process workflow in the Navigator by
advancing to the next step in the process.
The Print... icon prints the current screen that the cursor is in. In some cases
it may print a report associated with the current data.
The Close Form icon closes all windows of the current form.
The Cut icon cuts the current selection to the clipboard.
The Copy icon copies current selection to the clipboard.
The Paste icon pastes from the clipboard into the current field.
The Clear Record icon erases the current record from the window.
The Delete icon deletes the current record from the database.
The Edit Field... icon displays the Editor window for the current field.

The Zoom icon invokes customer-defined Zoom (drill-down behavior).
The Translations... icon invokes the Translations window.
The Attachments... icon invokes the Attachments window. If one or more
attachments already exist, the icon changes to a paper clip on a piece of
paper.
The Folder Tools icon displays the folder tool palette.
The Window Help - icon displays help for the current window.
ADMM / IDS page 16

1.8 SOA Using the Top Ten
ADMM / IDS page 17
List
If there are forms that you use frequently, you can copy them over to a navigation
top ten list located on the right–hand side of the Navigate window. The top ten list
displays your forms numerically so you can choose them instantly without having to
search for them in the navigation list. You can add a maximum of ten forms to the
top ten list and you can create a different top ten list for each responsibility you
have access to.
Note: A top ten list is unique for the responsibility and user sign–on combination
you use.
To create a navigation top ten list:
1. Select a frequently used form from the navigation list.
2. Choose the arrow pointing to the Top Ten List.
3. The form now appears in the navigation top ten list preceded by a top ten
list number.
4. If you wish to remove a form from the top ten list, select that form in the
top ten list and choose arrow pointing away from the Top Ten List.
To open a form from the navigation top ten list:
Type the top ten list number that precedes the form you want to open. You can
also select the form you want and choose Open, or double–click on the form name.
Notice that the name and description of that form also appear in the current
selection fields above the navigation list.

ADMM / IDS page 18
1.9 SOA Getting Help
1.9.1 Introduction
 Oracle Applications provides you with a complete online help facility.
Whenever you need assistance, simply choose an item from the Help
menu to pinpoint the type of information you want.
1.9.2 To display help for a current
window:
1. Choose Window Help from the Help menu, click the Help button
on the toolbar, or hold down the Control key and type
’h’..Example 1 – 30 Oracle Applications User’s Guide A web
browser window appears, containing search and navigation
frames on the left, and a frame that displays help documents on
the right. The document frame provides information on the
window containing the cursor. The navigation frame displays the
top–level topics for your responsibility, arranged in a tree control.

2. If the document frame contains a list of topics associated with the
window, click on a topic of interest to display more detailed
information.
3. You can navigate to other topics of interest in the help system, or
choose Close from your web browser’s File menu to close help.
Suppose you are using Oracle General Ledger and are in the Define Budget
Organization window. You want to know how to create a budget organization using
this window. Choose Window Help from the Help menu to display a help on this
topic.
1.9.3 To display online help for any
of the Oracle Applications
products:
1. Choose Oracle Applications Library from the Help menu. A web
browser window appears, containing search and navigation frames on
the left, and a document frame on the right.
2. In the navigation frame, click on the name of a product family to
display a list of products in that family. Click on a product name to
display the list of top–level topics in that product’s online
documentation.
3. Click on a topic of interest. Topics preceded by a plus sign (+) expand
to show subtopics. Help on the topic displays in the document frame.
4. To collapse sections of the tree you previously expanded, click on topics
ADMM / IDS page 19
preceded by a minus sign (–).
5. When you are finished, choose Close from the web browser’s File
menu to close help.
Note: A topic called ”Library” and topics corresponding to other products and
product families are often included on the navigation tree associated with a
particular responsibility.
1.9.4 To display version information
for Oracle Applications:
1. Choose About Oracle Applications from the Help menu.
2. An About Oracle Applications window appears on your screen. The
window provides details about the version of the Oracle Applications
components you are using, your login information, and information
about the current form you are using. You can supply this information
to your system administrator or to Oracle Customer Support if you
need to report a problem.
3. Choose OK to close this window.

1.10 SOA Searching for Help
You can perform a search to find the Oracle Applications help information you want.
Simply enter your query in the text field located in the top-left frame of the
browser window when viewing help, then click the adjacent Find button.
A list of titles, ranked by relevance and linked to the documents in question, is
returned from your search in the right-hand document frame. Click on whichever
title seems to best answer your needs to display the complete document in this
frame. If the document doesn't fully answer your questions, use your browser's
Back button to return to the list of titles and try another.
The search syntax to use in constructing your query can be any of those shown in
the following table.
Use this syntax . . . To find files containing . . .
term the word "term"
string* words that begin with "string"
"words, and punctuation" the precise phrase "words, and punctuation"
term1 OR term2 either term1 or term2
term1 term2
term1 AND term2 both term1 and term2
term1 +term2
term1 AND NOT term2 term1, but not term2
term1 -term2
Example
You want to know how to create a budget organization in Oracle General Ledger.
You enter "budget organization" in the search field, and click Find. A linked list of
help documents that contain this phrase appears in the document frame. You click
on one that seems appropriate and start reading.
When you complete your work, you can choose to save or discard any unsaved
work in your form(s) before exiting Oracle Applications.
ADMM / IDS page 20

ADMM / IDS page 21
1.11 SOA To exit Oracle
Applications
1. Choose Exit Oracle Applications from the File menu.
If there are no changes to save in your window or windows, Oracle
Applications asks you to confirm your exit.
2. Choose OK to exit Oracle Applications and return to your desktop.
If there are recent changes that you have not yet saved, a Decision window
appears as shown below:
3. Choose Save to save the changes before exiting. Choose Discard to
exit without saving any changes. Choose Cancel to close this window
and cancel the exit.
Note: You will be asked once for each form that is currently open and has
changes pending.

ADMM / IDS page 22
2. HR Functionality
2.1 HR Overview
This section covers the following core aspects of the Oracle HRMS functionality in
regard to the HR functionality:
1. Entering a New Employee
2. Entering an Address
3. Entering Special Information
4. Entering Contact Information
5. Entering a New Employee’s Assignment
Information
6. Entering a Salary for a New Employee
7. Entering Contract Allowances for a New
Employee
8. Entering Promotions
9. Entering Transfers
10. Entering Salary Increases for Employees
11. Terminating Employees
12. Entering a Personal Payment Method for an
Employee

ADMM / IDS page 23

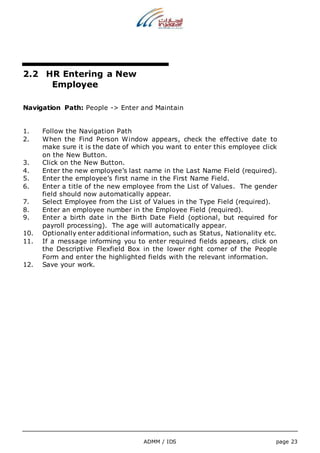

2.2 HR Entering a New
Employee
Navigation Path: People -> Enter and Maintain
1. Follow the Navigation Path
2. When the Find Person Window appears, check the effective date to
make sure it is the date of which you want to enter this employee click
on the New Button.
3. Click on the New Button.
4. Enter the new employee’s last name in the Last Name Field (required).
5. Enter the employee’s first name in the First Name Field.
6. Enter a title of the new employee from the List of Values. The gender
field should now automatically appear.
7. Select Employee from the List of Values in the Type Field (required).
8. Enter an employee number in the Employee Field (required).
9. Enter a birth date in the Birth Date Field (optional, but required for
payroll processing). The age will automatically appear.
10. Optionally enter additional information, such as Status, Nationality etc.
11. If a message informing you to enter required fields appears, click on
the Descriptive Flexfield Box in the lower right corner of the People
Form and enter the highlighted fields with the relevant information.
12. Save your work.

2.3 HR Entering an Address
1. Follow the Navigation Path.
2. When the Find Person Window appears, query any employee by
either Full Name or Employee Number.

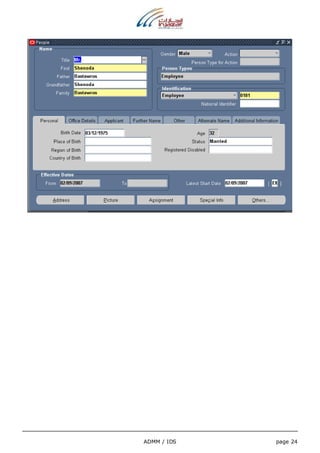

3. When the employee’s record appears on the People Form, click on
the Address Button in the lower left corner.
4. Select the address type from the List of Values in the Style Field.
5. Click on the Address Field.
6. When the Address Field expands, enter all the relevant fields.
7. Click on OK.
8. Optionally, select a type from the Type Field in the Details Region.
9. Save your work.
ADMM / IDS page 25

ADMM / IDS page 26
2.4 HR Entering Special
Information
This section explains how to enter Special Information in the ADMM Oracle
HRMS System. The mentioned Navigation Path enables you to enter the
following information:
 ADMM Add Official Documents
 ADMM Computer Skills
 ADMM Disciplinary Actions
 ADMM Languages Skills
 ADMM References
 ADMM Training Courses
 ADMM Training Inside UAE
 ADMM Training Outside UAE
 ADMM Work Experience
2. When the Find Person Window appears, query any employee by either Full
Name or Employee Number.
3. When the employee’s record appears on the People Form, click on the

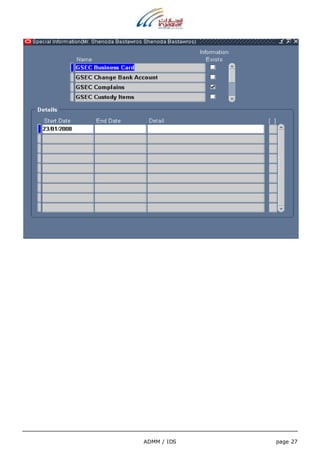

Special Info Button.
4. Scroll down until the desired record appears (Example: ADMM Work
Experience).
5. Make sure the blue button left of the record is highlighted ,Enter all the
desired fields in the Details Field and make sure to enter the required
ones. Also, note that some fields have a validation so only information of
a certain format can be entered (Ex. Dates, or List of Values).
6. Click on OK.
7. Save your work.

ADMM / IDS page 28
2.5 HR Entering Contact
Information
2. When the Find Person Window appears, query any employee by
either Full Name or Employee Number.
3. When the employee’s record appears on the People Form, click on
the Others Button in the lower right corner.
4. Select Contact from the Menu and click on OK.
5. When the Contact Form appears, enter the contact’s last name, or
optionally select an existing employee from the List of Values if the
contact is an employee.
6. Enter a title in the Title Field.
7. Optionally, enter a birth date.
8. Go to the Contact Relationship Region and click on the Relationship
Field.
9. Select the relationship type from the List of Values (Example:
Spouse).
10. Save your work.
11. Optionally, enter an address for this contact by clicking on the
Address Button and entering the relevant details.

ADMM / IDS page 29
2.6 HR Entering a New
Employee’s Assignment
Information
2. Query the employee created in I. or create a new employee by clicking on
the New Button when the Find Person Window appears and enter the
required information.
3. Click on the Assignment Button on the People Form.
4. A default assignment automatically appears. First, click on the
Organization Field and select this employee’s organization from the List of
Values. Click on Correction.
5. When the People Group Flexfield appears, enter all the relevant
information in the fields and click on OK.
6. Click on the Position Field and select the new employee’s position from the
List of Values (Note: it is important to select the organization first, since
the position field will only show the positions linked to the organization).

7. Having selected a position, the Job Field should be automatically filled.
8. Click on the Grade Field and enter a valid grade for the new employee
ADMM / IDS page 30
from the List of Values.
9. Click on the Payroll Field and select a payroll for the new employee from
the List of Values.
10. Save your work (Note: if a message appears asking if you want to use the
location of the new organization, click on Yes).
11. The supervisor region will default on the lower middle part on the screen.
Optionally, click on the Name Field and select a Supervisor from the List of
Values.
12. Save your work.
13. Click on the Probation Period Folder. Optionally, enter any numerical
value between 0 and 99.9 in the Length field (Example: 3). Click on
Correction. Select the relevant unit from the List of Values (Example:
Months). Save your work.
14. Click on the outward pointing arrow in the right end of the Assignment
Form. Select Salary Information from the Menu. Enter a salary basis from
the List of Values in the Salary Basis Field.
15. Optionally, enter information in the Review Salary Region. Save your
work. Note: A salary basis must be entered before the employee’s Salary
Information Form can be valid.
16. If a message informing you to enter required fields appears, click on the
Descriptive Flexfield Box in the lower right corner of the Assignment Form
and enter the highlighted fields with the relevant information.
17. Save your work.

2.7 HR Entering Salary for a
ADMM / IDS page 32
New Employee
2. Query the employee selected in I. when the Find Person Window
appears.
3. Click on the Assignment Button on the People Form. Make sure
this new employee has all the required assignment information,
and is assigned to a payroll and a salary basis.
4. Click on the Salary Button in the lower left region of the form.
5. Enter the date from which this salary is effective in the Change
Date Field (this is typically the Hire Date).
6. Click on the New Value Field and enter the monthly basic salary
amount for this employee. If the entered salary is outside the
employee’s grade limits, a caution message will appear, but it will
not prevent the entry.
7. Optionally, go to the Reason Field and select a reason from the
List of Values.
8. Save your work. The first salary entry will be automatically
approved, as shown by the Approved checkbox, which should
now be enabled.

2.8 HR Entering Contract
Allowances for a New
Employee
2. Query the employee selected in I. when the Find Person Window
ADMM / IDS page 33
appears.
3. Click on the Assignment Button on the People Form. Make sure
this new employee has all the required assignment information,
and is assigned to a payroll and a salary basis. Also, make sure
the employee has a salary as described in the previous section.
4. Click on the Entries Button.

5. The Monthly Salary element should appear on the first record in
ADMM / IDS page 34
the Element Name column.
6. Click on the Entry Values Button in the lower part of the form.
The salary entered previously should appear in the Monthly
Salary Field. Close the form.
7. To enter new allowances, click on the first empty record below SB
Basic Salary. Select the allowance you want to enter from the
List of Values (Example: Transportation Allowance).
8. Make sure the allowance is highlighted and click on the Entry
Values Button to enter the specific amounts and parameters, if
applicable.
9. Save your work. Close the form.
10. Repeat the steps above until all the required allowances have
been entered.
Note: Allowances can be either recurring or non-recurring. Recurring means that
once the allowances are entered they will remain effective across future pay
periods unless cancelled (Ex. Salary). Non-recurring means that these entries will
only be applicable for the pay period in which they are entered and will have to be
re- entered manually again for future periods (Example: Overtime).

2.9 HR Entering Promotions
2. Query any previously hired employee from the Find Person
ADMM / IDS page 35
Window.
3. When the record appears, make sure the employee’s hire date is
earlier than the present effective date.
5. Clear the existing information in the Job Field.
6. Click on the Position Field and select the new position from the
List of Values.
7. Click on Update.
8. Save your work. The promotion will now be saved and all
information about the promotion can be viewed from the Date
Track History Icon.

2.10 HR Entering Transfers
2. Query any previously hired employee from the Find Person
ADMM / IDS page 36
Window.
3. When the record appears, make sure the employee’s hire date is
earlier than the present effective date. Click on the Assignment
Button on the People Form.
4. Click on the Organization Field and select the new organization
from the List of Values.
5. Click on Update.
6. Clear the existing information in the Job Field.
7. Go to the Position Field and select the new position from the List
of Values (now only the positions specific to the newly selected
organization will appear).
8. Save your work. The transfer will now be saved and all
information about the transfer and new position details can be
viewed from the Date Track History Icon.

ADMM / IDS page 37
2.11 HR Entering Salary
Increases
2. Query any previously hired employee from the Find Person Window.
3. When the record appears, make sure the employee’s hire date is earlier
than the present effective date. Click on the Assignment Button on the
People Form.
4. Make sure the employee has all the assignment information entered,
such as payroll and salary basis.
5. Click on the Salary Button.
6. The details of the employee’s first salary should appear. Make sure the
current effective date is after the employee’s first salary entry.
7. Click on the New Record icon on the Toolbar.
8. Enter the date for which the new salary should be effective in the
Change Date Field.
9. There are three way to enter a new salary:
10. Go to the Change Value Field, and enter the change in salary (Example:
if the previous salary was 500 and you enter 100, the New Value Field
will show 600).
11. Go to the Change % and enter a percentage of the salary change
(Example: if you enter 10% and the previous salary was 500, the New
Value Field will show 550).
12. Go to the New Value Field and enter the amount of the total new salary
(Example: if the employee’s previous salary was 500 and it should now
be 600, then enter 600 in this field.
13. Enter the new salary in any one of the three ways mentioned above.
Save your work.
Notes:
1. The second salary entry will not be automatically approved after it has
been saved unless the user has the required responsibility for this task.
2. It is also possible to enter multiple components for a salary increase by
clicking on the New Record icon and entering each individual
component in the Proposal Components Region.
3. Salary decreases are also possible as part of standard Oracle HRMS
functionality. Simple enter a negative amount in any of the fields
specified in (8).

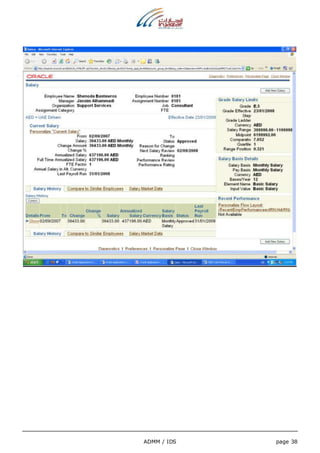

(Please refer to the following page for screenshot).

ADMM / IDS page 39
2.12 HR Terminating
Employees
2. Query any previously hired employee from the Find Person Window.
3. When the record appears, make sure the employee’s hire date is earlier
than the present effective date.
4. Click on the Others Button on the lower right corner of the People
Form.
5. Select End Employment from the Menu.
6. The Date Start Field defaults the employee’s hire date. The Length of
Service Region shows the employee’s current length of employment.
7. Optionally, enter a termination reason for the employee in the Leaving
Reason Field.
8. In the Termination Dates Region, enter dates in the following three
fields:
9. Notified (the date the employee notifies the company of leaving.
Information only.)
10. Projected (the date the employee is projected to leave the company.
Information only.)
11. Actual (the date the employee actually leaves the service of the
company. The date entered here will have an effect on payroll
calculations.
12. The Last Standard Process and Final Process Fields will be automatically
filled out, dependent on the date entered in the Actual Field.
13. Optionally, enter information in the Termination Accepted By Region.
14. Click on the Terminate Button. If a caution message appears about
element entries, click on OK.
15. The termination should be saved. If you move the effective date one or
more days after the Actual Date entered the employee’s type on the
People Form should now be Ex-Employee. Also, the employee’s
assignment form will not be accessible any date after the dates given in
the Last Standard Process and Final Process Fields.
Notes:
1. In case of an error, it is possible to reverse termination by moving to
the Terminate Form and clicking on the Reverse Termination button.
This will clear all termination details and put the employee back to
normal status.

2. If this ex-employee previously terminated will later become an
employee with a new assignment, the Type can be changed at a future
date from Ex-Employee to Employee.
ADMM / IDS page 40

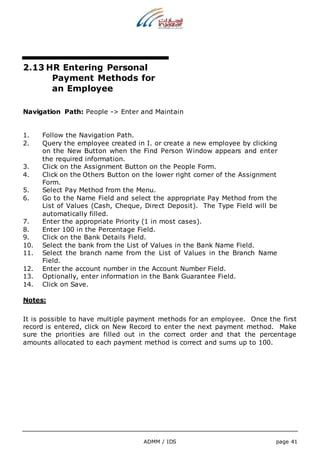

2.13 HR Entering Personal
Payment Methods for
an Employee
2. Query the employee created in I. or create a new employee by clicking
on the New Button when the Find Person Window appears and enter
the required information.
4. Click on the Others Button on the lower right corner of the Assignment
ADMM / IDS page 41
Form.
5. Select Pay Method from the Menu.
6. Go to the Name Field and select the appropriate Pay Method from the
List of Values (Cash, Cheque, Direct Deposit). The Type Field will be
automatically filled.
7. Enter the appropriate Priority (1 in most cases).
8. Enter 100 in the Percentage Field.
9. Click on the Bank Details Field.
10. Select the bank from the List of Values in the Bank Name Field.
11. Select the branch name from the List of Values in the Branch Name
Field.
12. Enter the account number in the Account Number Field.
13. Optionally, enter information in the Bank Guarantee Field.
14. Click on Save.
Notes:
It is possible to have multiple payment methods for an employee. Once the first
record is entered, click on New Record to enter the next payment method. Make
sure the priorities are filled out in the correct order and that the percentage
amounts allocated to each payment method is correct and sums up to 100.

3. Recruitment Functionality
ADMM / IDS page 43
3.1 RT Overview
regard to Recruitment:
1. Define Requisitions for Vacancies
2. Define Recruitment Activities
3. Entering Applicants
4. Process Applicant Cycle
5. Terminating an Applicant
6. Hiring an Applicant
3.2 RT Define Requisitions
for Vacancies
Navigation Path: Recruitment -> Requisition for Vacancies
2. Enter the effective date from which you would like this requisition to be
effective.
3. Enter a name for the requisition in the Name Field (Example:
Requisitions for Human Resources 2000).
4. Optionally, enter a description for the requisition in the Description
Field.
5. In the Dates Region, this form’s effective date will default in the From
Field, but it can be changed at any time. Optionally, you can also enter
an end date for this requisition in the To Field.
6. Optionally, select any employee from the List of Values in the Raised By
Field.
7. Save your work.

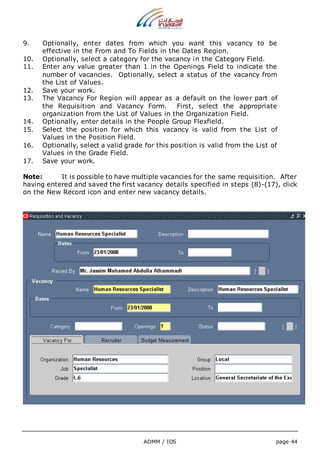

8. Enter a name for the vacancy in the Name Field in the Vacancy Region
(Example: HR Administrator). Optionally, enter a description.

9. Optionally, enter dates from which you want this vacancy to be
effective in the From and To Fields in the Dates Region.
10. Optionally, select a category for the vacancy in the Category Field.
11. Enter any value greater than 1 in the Openings Field to indicate the
number of vacancies. Optionally, select a status of the vacancy from
the List of Values.
12. Save your work.
13. The Vacancy For Region will appear as a default on the lower part of
the Requisition and Vacancy Form. First, select the appropriate
organization from the List of Values in the Organization Field.
14. Optionally, enter details in the People Group Flexfield.
15. Select the position for which this vacancy is valid from the List of
ADMM / IDS page 44
Values in the Position Field.
16. Optionally, select a valid grade for this position is valid from the List of
Values in the Grade Field.
17. Save your work.
Note: It is possible to have multiple vacancies for the same requisition. After
having entered and saved the first vacancy details specified in steps (8)-(17), click
on the New Record icon and enter new vacancy details.

3.3 RT Define Recruitment
ADMM / IDS page 45
Activities
Navigation Path: Recruitment -> Recruitment Activity
2. Enter the effective date from which you want this recruitment activity
to be effective.
3. Enter a name for the recruitment activity in the Name Field (Example:
Ad in Arab Times).
4. Select a type of recruitment activity from the List of Values in the Type
Field (Example: Advertisement).
5. The Start Date Field will default with the effective date entered
previously, but can be changed at will. Optionally, an end date for the
recruitment activity can be entered in the End Date Field.
6. Optionally, all the remaining fields such as planned and actual cost can
be entered (for information only).
7. Save your work.
8. To link this recruitment activity with the vacancies defined earlier in the
previous section, click on the Recruiting For Button.
9. Select all applicable vacancies from the List of Values in the empty
records of the Vacancy Column.
10. Save your work.

3.4 RT Entering Applicants
2. When the Find Person Window appears, make sure you have the
effective from which you would like to enter this new applicant. Click
on the New Button.
3. Enter the applicant’s last name in the Last Field on the People Form.
4. Enter the applicant’s first name in the First Field.
5. Select a title for this new applicant. The Gender Box should be
ADMM / IDS page 47
automatically filled.
6. In the Type Field, select Applicant.
7. Enter an applicant number in the Applicant Field.
8. Optionally, fill in all the remaining fields and enter address, special info
and contacts.
the Descriptive Flexfield Box in the lower right corner of the People
10. Save your work.
11. Click on the Others Button.
12. Select Application from the Menu.
13. Click on the Vacancy Field in the Assignment Region of the Application
Form, and select the relevant vacancy from the List of Values
(Example: HR Administrator). All the details, such as organization, job,
position, grade etc., which was defined on the Requisition and Vacancy
Form should appear. Click on Correction. The remaining information is
optional.
the Descriptive Flexfield Box in the lower right corner of the Applicant
15. Save your work. The Status Field should be displayed as Active
Application as a default.
Notes:
1. It is possible for an applicant to apply for several vacancies
simultaneously. After having completed steps (13) and (14), click on
the New Record icon on Toolbar and enter details for other vacancies
this applicant is applying for.
2. Current employees can be applicants for internal vacancies. To make
an employee and applicant, select Employee and Applicant from the List

of Values in the Type Field on the People Form, and enter application
details on the Application Form.
3. In case of bulk applications, the most basic necessary details can be
entered about applicants from the following Navigation Path:
Recruitment -> Applicant Quick Entry. These applicants entered and
saved in this form can be queried again on the People Form where
further information can be entered.
3.5 RT Process Applicant
ADMM / IDS page 48
Cycle
2. When the Find Person Window appears, make sure you have the
effective you would like to make a new change in status for existing
applicants. Query any existing applicant from either the Full Name
Field or by Applicant Number.
3. After the applicant’s record appears on the People Form, click on the
Others Button and select Application from the Menu.
4. All the previous application details about the vacancy applied for should
appear. The applicant processing cycle is driven from the Status Field
on the Application Form. The default value is Active Application. Click
on the Status Field and select a new status (First Interview, Offer,
Accepted etc.). Click on Update. Save. The change in applicant status
can be viewed from the Date Track History icon on the Toolbar. Repeat
these steps on different days for further changes in the applicant’s
status.
Notes:
1. Since Oracle HRMS is date-tracked, the only way that the entire
applicant processing cycle can be stored is by performing each change
in Applicant Status with at least one day interval. (Example: If today’s
status is Active Application, change to First Interview on tomorrow’s or
any future date.
2. Multiple applications can be updated simultaneously through the
following Navigation Path: Recruitment -> Mass Applications Update.
Click on the checkboxes for each applicants and update the respective
statuses by clicking on the Update Button and select the new statuses.

ADMM / IDS page 49
3.6 RT Terminating an
Applicant
2. In the Find Person Window, make sure that the effective date is set to
the date of which you want to terminate the applicant.
3. When the applicant’s record appears on the People Form, click on the
Others Button and select End Application from the Menu.
4. The date the applicant was first entered will appear as a default in the
Received Field. Enter the date the applicant will be terminated in the
Terminated Field.
5. Optionally, enter the termination reason from the List of Values in the
Reason Field.
6. Click on the Terminate Button.
7. The termination should be saved automatically, and the applicant’s type
will change on the People Form from Applicant to Ex-Applicant one day
after the date entered in the Terminated Field on the Applicant Form.
Note:
If an applicant was terminated by mistake, the termination can be cleared by
clicking on the Reverse Termination Button on the End Application Form, and the
applicant’s type on the People Form will revert back from Ex-Applicant to Applicant.

3.7 RT Hiring an Applicant
2. In the Find Person Window, make sure the effective date is set to the
date from which you want to hire a new employee. Query the applicant
you want to hire by either Full Name or Applicant Number.
3. When the applicant’s record appears, click on the Others Button and
select Application from the Menu.
4. All the applicant’s details about vacancy applied for should appear.
Click on the Status Field and select Accepted from the List of Values.
Click on Update.
5. Move the effective date one day from the present date on the People
Form and change the applicant’s status from Applicant to Employee
from the List of Values in the Type Field.
6. Enter an employee number for the new employee.
7. Save your work.
8. The Assignment Form will now be accessible and all employment, salary
and allowance details can be entered.
ADMM / IDS page 50

4. Career Management
Functionality
ADMM / IDS page 51
4.1 CM Overview
regard to the Career Management Function:
1. Define Rating Scales
2. Define Competencies
3. Group Competencies
4. Link Competencies to Jobs, Positions,
Organizations
5. Entering an Employee Competency Profile

4.2 CM Define Rating Scales
Navigation Path: Career Management -> Rating Scales
2. Set the effective date to an early effective date (01-JAN-1990 is
ADMM / IDS page 52
recommended).
3. Enter a unique name for this rating scale in the Name Field (Example:
ADMM
4. Proficiency Rating Scale).
5. Select a type of rating scale from the List of Values in the Type Field
(Example: Proficiency).
6. Optionally, enter a description for the rating scale in the Description
Field.
7. Go to the Levels Region and enter information in the Levels and Name
columns, and also enter optional behavioral indicators for each level.
(Example: Level: 1. Name: Poor. Behavioral Indicator: Not
satisfactory and needs serious improvement.).
8. Save your work.

4.3 CM Define Competencies
Navigation Path: Career Management -> Competencies
2. When the Find Competencies Window appears, click on the New Button.
3. Set an early effective date from which you want this competency to be
ADMM / IDS page 53
effective (01-JAN-1990).
4. Enter a unique name for the competency in the Name Field (Example:
Leadership Skills).
5. Optionally, enter a description for this competency.
6. In the Valid Dates Region, enter the date for which you want this
competency to be effective. Optionally, you can also enter an end date
for this competence in the To Field.
7. A default rating scale will appear in the Rating Scale Field. You can
select another rating scale by clicking on the Rating Scale Field and
selecting one from the List of Values.
8. Optionally, select a primary evaluation method from the List of Values
in the Primary Evaluation Field, and a renewal period.
9. Optionally, enter some information in the Behavioral Indicators Region
(Example: Inspires employees to perform beyond their expectations
and is admired and respected.)
10. Save your work.

4.4 CM Group Competencies
Navigation Path: Career Management -> Competence Types
2. Click on Control + F11 for all the Competence Types defined to appear.
Scroll down with the down arrow until the type you want appears in the
Competence Type Field.
3. In the Competence Column, click on the first empty record and select
the suitable competency from the List of Values. Repeat this process if
necessary.
ADMM / IDS page 55
4. Save your work.

4.5 CM Link Competencies to
ADMM / IDS page 56
Jobs, Positions,
Organizations
Navigation Path: Career Management -> Competence Requirements
2. Make sure you have an early effective date to accommodate all the
jobs, positions and organizations defined.
3. Select the category for which you would like to link competence
requirements and select the appropriate unit from the List of Values.
(Example: Click on the Job Field and select Accountant from the List of
Values.
4. Click on the Find Button.
5. Click on the First highlighted record in the Competence column and
select the relevant competency from the List of Values.
6. Enter Lows and Highs for this competence from the List of Values in the
Low and High Fields (Example: Low: Good, High: Excellent).
7. Enter the effective date for which these requirements apply in the Date
From Field. Optionally, you can also enter an end date in the Date To
Field.
8. Save your work.

ADMM / IDS page 57
4.6 CM Entering an
Employee Competency
Profile
2. In the Find Person Window, query the employee for which you would
like to enter a competence profile.
3. When the employee’s record appears on the People Form, click on the
Others Button and select Competence Profile from the Menu.
4. Select a relevant competency for the employee from the List of Values
in the Competence column. (Example: Leadership).
5. Select the employee’s current proficiency level from the List of Values
in the Proficiency Field.
6. Enter the date from which this rating is effective in the Date From Field.
Optionally, you can also enter an end date in the Date To Field.
7. Optionally, enter information in the remaining fields, such as Source of
Proficiency Rating.
8. Save your work. Repeat this procedure in the other empty records for
other competencies if applicable.

5. Defining Work Structures
ADMM / IDS page 59
5.1 WS Overview
regard to setting up new Work Structures:
1. Define Locations
2. Define Organizations
3. Define Jobs
4. Define Positions
5. Define Grades
6. Define Grade Rates
7. Define Quick Codes

5.2 WS Define Locations
Navigation Path: Work Structures -> Location
2. Set an early effective date (Example: 01-JAN-1990).
3. Enter a unique name for the location (Example: Abu-Dhabi, UAE).
4. Optionally, enter a description for this location in the Description Field.
5. Leave the Inactive Date Field blank (this is only used if you want to
make the location ineffective at a future date).
6. Select an address style from the List of Values in the Address Style
ADMM / IDS page 60
Field.
7. Enter all relevant address details in the Location Address flexfield.
8. Click on OK.
9. Click on Save.

5.3 WS Define Organizations
Navigation Path: Work Structures -> Organization -> Description
3. Enter a unique name for the organization (Example: Human Resources
ADMM / IDS page 61
Department).
4. Select a type from the List of Values in the Type Field (Example:
Department).
5. In the Dates Region, the From Field defaults to today’s effective date.
Optionally, you can enter an ineffective date for this organization in the
To Field.
6. Optionally, you can link this organization to a location by selecting the
relevant location from the List of Values in the Location Field.
7. Save your work.
8. Go to the Organization Classifications Region. Click on the Name Field
and select HR Organization from the List of Values.
9. Save your work.
Note: Only organization classified as HR organizations will be available to
employees through the Organization Field on the Assignment Form.

ADMM / IDS page 62
5.4 WS Define Jobs
Navigation Path: Work Structures -> Job -> Description
3. Click on the Name Field, and all the segments defined for the Job Key
Flexfield will appear. Enter a unique combination of these fields, and click
on OK.
4. Click on Save.
5. Optionally, enter Requirements for this job from the Requirements
Button.
6. Optionally, enter valid grades for this job from the Valid Grades Button.
7. Optionally, enter work choices for this job from the Work Choices Button.
Note: Oracle HRMS defines a job as a function which is independent of any specific
organization (Example: Accountant, since many different organizations can
have accountants).

ADMM / IDS page 63
5.5 WS Define Positions
Navigation Path: Work Structures -> Position -> Description
2. When the Find Positions Window appears, click on the New Button.
4. Click on the Date Effective Name Field, and all the segments defined for
the Position Key Flexfield will appear. Enter a unique combination of
these fields, and click on OK.
5. Select a relevant type for this position from the List of Values in the
Type Field.
6. Click on the Job Field and select the job from the List of Values, which
is relevant to this position. (Example: Position: HR Manager, Job:
Manager).
7. Click on the Organization Field, and select from the List of Values, the
organization that this new position should be linked to. (Example:
Human Resources Department).
8. Click on the Status Field and select the appropriate status for this
position (Example: Active).
9. Click on Save.
10. Optionally, enter Requirements for this position from the Others Button
- Requirements .
11. Optionally, enter valid grades for this position from the Valid Grades
Button.
12. Optionally, enter work choices for this position from the Others Button -
Work Choices.
13. Save your work.
Note: Oracle HRMS defines a position as a function which is specific to a certain
organization (Example: Accountant, Finance Department).

ADMM / IDS page 65
5.6 WS Define Grades
Navigation Path: Work Structures -> Grade -> Description
3. Click on Control + F11 to query all the grades previously defined.
4. Scroll down until the last entered grade appears, and click on the New
Record icon on the Toolbar. A blank record should appear
5. Enter a unique sequence number in the Sequence Number Field.
6. Click on the Name Field and all the segments defined for the Grade Key
Flexfield will appear. Enter a unique combination of these fields, and
click on OK.
7. Enter the date from which you want this new grade to be effective in
the From Field.
8. Save your work.

5.7 WS Define Grade Rates
Navigation Path: Work Structures -> Grade -> Rates
3. Enter a unique name in the Name Field (Example: ADMM Salary Grade
ADMM / IDS page 66
Rates).
4. Enter the units for these grade rates in the Units Field (Example:
Money).
5. Save your work.
6. Go to the Grade Rate Values Region and select the first empty record.
7. Click on the Grade Name Field and select one of the grades defined
previously.
8. Optionally, enter a fixed value in the Value Field (Example: 500).
9. Alternatively, enter a minimum and a maximum value in the Minimum
and Maximum Fields. The Mid Value Field will be automatically
calculated.
10. Repeat the above steps for additional grades if necessary.
11. Save your work.

5.8 WS Define Quick Codes
Quick Codes are the values, which appear in all fields on the standard forms where
there is a List of Values. Examples are Nationality, Marital Status and Organization
Type. Most of these are extensible and new values can be added at any time, or
old values can be made invalid.
Navigation Path: Other Definitions -> Application Utilities lookups
2. In the Type Field, query the Quick Code for which you want to add an
additional value. (Example: NATIONALITY).
3. A list should appear of all the values and codes entered so far.
Highlight any of the existing records and click on the New Record Icon
on the Toolbar.
4. Enter a unique code in the Code Field. (Example XXX).
5. Enter a unique value in the meaning field. (Example: Nepali).
6. Optionally enter a description for this new value in the Description
ADMM / IDS page 67
Field.
7. Delete to From Date (for Release 11I).
8. Save your work. Repeat these steps to create new values.
Note: The information entered in the Code Field can never be changed, but this is
not important since it will never be viewed by the user. The information
entered in the Meaning Field is what will be visible to the user when he/she
selects the List of Values in the respective field, and these meanings can be
changed at any time.
SAMPLE QUICK CODES:
NATIONALITY : All the nationalities appearing in the Nationality Field on the
People Form.
ORG_TYPE : All the organization types appearing in the Type Field on the
Organization Form.
(Please refer to the following page for screenshot).

ADMM / IDS page 69
6. Budgeting
6.1 B Overview
Use the following Budgeting windows to set up and maintain your human resource
budgets
1. Defining Budgetary Calendars
2. Defining Budget Sets
3. Migrating a Budget to Oracle HRMS
4. Defining Budget Characteristics
5. Defining Commitment Elements
6. Mapping Cost Allocation Flexfields to Oracle
General Ledger Accounts
7. Setting up an Oracle HRMS Budget for Transfer
to Oracle General Ledger
8. Completing a Budget Worksheet
9. Entering Budget Values by Calendar Period
10. Entering Budget Values by Budget Set
11. Setting Up Budget Worksheets
12. MF Create a Head Count Budget for a Position ,
Department, Grade or Job

6.2 B Defining Budgetary
ADMM / IDS page 70
Calendars
Navigation Path: Work Structure -> Budget -> Budget Calendar
6.2.1 BC Introduction
1. Define calendars to determine the start date and period
type of your budgets.
2. Once you define the calendar you cannot:
 Change the start date. Set the start date to let you
enter any budget history information you want to
enter.
 Define years with an earlier start date than the start
of the calendar.
3. In each calendar you define as many years as you require.
You do not create a new calendar for each year. You just
add new periods to the calendar.
6.2.2 BC To define a budgetary
calendar:
2. Enter the name, and start date for your calendar.
Check that the start date year is early enough to cope with your historic data.
Once you define the calendar, you cannot change the start date.
3. Select a period type. If you select Semi-monthly, enter a value
between 1 and 28 in the Midpoint Offset field to determine the start
date of the second time period each month. For example, if you
enter the value 15, the second time period each month begins on
the 16th.
4. Save the calendar.
The system automatically creates the time period details. You can alter the
default names for each time period.
5. If you want to add years to, or delete years from, the end of the
calendar, choose the Change Calendar button.
When you have defined your calendars, you are ready to define your
budgets.

6.3 B Defining Budget Sets
Navigation Path: Work Structure -> Budget -> Define Budget
6.3.1 BS Introduction
1. You define a budget set as one or more elements that you use to
record budget values. Each element in a budget set can have one
or more cost allocation funding sources.
2. Using budget sets, you can link budget entries you record in a
budget worksheet to the PAY elements you use to record
compensation and other values. You can run Oracle HRMS reports
to compare a budgeted value for an element to the run result
recorded for that element.
3. Use the Budget Set window to define a default budget set. You
can add or delete elements to a set in the budget worksheet.
6.3.2 BS To define a Define budget :
2. Enter or query a Budget Set.
3. Choose the Elements tab.
4. Select an Element you want to include in the budget set.
5. Enter the Default Percentage of the budget entry value that is
ADMM / IDS page 72
distributed to the element.
6. Repeat steps 3 and 4 for each element in the budget set.
7. Choose the Funding Sources tab.
8. Choose the left or right arrow button to select an element in the
budget set.
9. Click into the Cost Allocation field to open the Cost Allocation
Flexfield window.
10. Enter the cost allocation code combination by selecting a value
for each applicable field:
 Company
 Cost Center
 GL Code
 Labor Distribution
 Product
11. Choose OK to dismiss the Cost Allocation Flexfield window.
12. Enter a distribution Percentage for each code combination.
13. Save your work.

7. System administrator
ADMM / IDS page 74
7.1 SA Overview
In this section covers the following core aspects that can enable you to set up and
maintain security for different classes of users. Once you have identified who will
use Oracle HRMS, what information they require, and how they will use it.
1. Responsibilities Window
2. System Profile Values Window
3. Choosing a Responsibility
4. Menus Window

ADMM / IDS page 75
7.2 SA Responsibilities
Window
Navigation Path: Security -> Responsibility -> Define
7.2.1 RW The Main Responsibilities
Concepts
 A responsibility determines if the user accesses Oracle
Applications or Oracle Self-Service Web Applications, which
applications functions a user can use, which reports and
concurrent programs the user can run, and which data
those reports and concurrent programs can access.
 Each application user is assigned at least one
responsibility.
 Responsibilities cannot be deleted. To remove a
responsibility from use, set the Effective Date's To field to
a past date. You must restart Oracle Applications to see
the effect of your change.
7.2.2 RW How To Define A New
Responsibility
1. Choose the system administrator responsibility.
3. Write the Responsibility Name. If you have multiple
responsibilities, a pop-up window includes this name after you sign
on.
4. write the Application name. This application name does not
prevent the user of this responsibility from accessing other
applications' forms and functions if you define the menu to access
other applications. An application name and a responsibility name
uniquely identify a responsibility.
5. Responsibility Key. This is a unique name for a responsibility that
is used by loader programs. Loaders are concurrent programs used
to "load" such information as messages, user profiles and user
profile values into your Oracle Applications tables. To help ensure
that your responsibility key is unique throughout your system, begin

each Responsibility Key name with the application short name
associated with this responsibility.
6. Effective Dates ( From/To ). Enter the start/end dates on which
the responsibility becomes active/inactive. The default value for the
start date is the current date, and if you do not enter an end date,
the responsibility is valid indefinitely. You cannot delete a
responsibility because its information helps to provide an audit trail.
You can deactivate a responsibility at any time by setting the end
date to the current date. If you wish to reactivate the responsibility,
change the end date to a date after the current date, or clear the
end date.
7. Available From. A responsibility may be associated with only one
applications system. Select between Oracle Self-Service Web
Applications or Oracle Applications.
8. Data Group ( Name/Application ) The data group defines the
pairing of application and ORACLE username. Select the application
whose ORACLE username forms connect to when you choose this
responsibility. The ORACLE username determines the database
tables and table privileges accessible by your responsibility.
Transaction managers can only process requests from
responsibilities assigned the same data group as the transaction
manager.
9. The Menu whose name you enter must already be defined with
ADMM / IDS page 76
Oracle Applications.
10. Web Host Name If your Web Server resides on a different machine
from your database, you must designate the host name (URL) here.
Otherwise, the Web Host Name defaults to the current database host
server.
11. Enter the PL/SQL Agent Name for the database used by this
responsibility. If you do not specify an Agent Name, the
responsibility defaults to the agent name current at log-on.
12. Assign a Request Group ( Name/Application ). If you do not assign
a request security group to this responsibility, a user with this
responsibility cannot run requests, request sets, or concurrent
programs from the Submit Requests window, except for request sets
owned by the user. The user can access requests from a Submit
Requests window you customize with a request group code through
menu parameters.
13. Define function and Menu Exclusion rules to restrict the application
functionality accessible to a responsibility.
14. Select either Function or Menu as the Type of exclusion rule to apply
against this responsibility.
 When you exclude a function from a responsibility, all
occurrences of that function throughout the responsibility's
menu structure are excluded.

 When you exclude a menu, all of its menu entries, that is, all
the functions and menus of functions that it selects, are
excluded.
15. Select the Name of the function or menu you wish to exclude from
this responsibility. The function or menu you specify must already be
defined in Oracle Applications.
16. Self-Service Applications Security. Oracle Self-Service Web
Applications uses columns, rows and values in database tables to
define what information users can access. Table columns represent
"attributes" that can be assigned to a responsibility as Securing
Attributes or Excluded Attributes. These attributes are defined in the
Web Application Dictionary.
17. Excluded Items. Use the List of Values to select valid attributes.
You can assign any number of Excluded Attributes to a
responsibility.
18. Securing Attributes . Use the List of Values to select valid
attributes. You may assign any number of securing attributes to the
responsibility.
ADMM / IDS page 77

7.3 SA System Profile Values
ADMM / IDS page 78
Window
Navigation Path: Profile -> System
7.3.1 SP The Main Profile Concepts
 Use this window to view and set profile option values.
 You can view and set profile options at the site, application,
responsibility, and user levels.
 Your settings affect users as soon as they sign on or change
responsibility.
 In the Profile Values Block Set values for profile options
at one or more levels. Each value overrides those set to its
left. For example, a User Value setting overrides a
Responsibility Value setting, which overrides an Application
Value setting, which overrides a Site Value setting.
 If you have a profile option value that is no longer valid,
you will see an LOV for the field instead of the value.

7.3.2 SP How To Set the profile
3. In the Profile field you can displays the name of a profile option.
4. Site field displays the current value, if set, for all users at the
ADMM / IDS page 79
installation site.
5. Application displays the current value, if set, for all users working
under responsibilities owned by the application identified in the Find
Profile Values block.
6. Responsibility field is used to display the current value, if set, for
all users working under the responsibility identified in the Find Profile
Values block.
7. User field displays the current value, if set, for the application user
identified in the Find Profile Values block.
8. Find System Profile Values Block. Specify the level or levels at
which you wish to view and set profile option values.

9. Display You can view the values set for your installed profile options at
ADMM / IDS page 80
each of four levels:
 Site, which affects all users at an installation site.
 Application, which affects all users working under responsibilities
owned by a particular application.
 Responsibility, which affects all users working under a specific
responsibility.
 User, which affects a unique application user.
 You can find the values for all profile options that include a
specific character string, such as "OE:" for Oracle Order Entry.
You can also display only profile options whose values are
currently set.
10. Check the Site check box if you wish to display the values for profile
options at an installation site.
11. Select an Application if you wish to display profile option values for
responsibilities owned by that application.
12. Select a Responsibility if you wish to display profile option values for a
specific responsibility.
13. Select an application User if you wish to display profile option values for a
specific user.
14. Enter the name of the Profile option whose values you wish to display.
You may search for profile options using character strings and the wildcard
symbol (%). For example, to find all the profile options prefixed by
"Concurrent:", you could enter "Conc%" and press the Find button.
15. Profiles with No Values  Select whether to display all profiles,
including those without currently set values. If this check box is
unselected, only profiles with current values are retrieved.
16. Choose the Find button to display all profile options, or the profile options
you are searching for, at the level or levels you specified.

ADMM / IDS page 81
7.4 SA Users Window
Navigation Path: Security -> Responsibility -> Define
7.4.1 UW Introduction
 Use this window to define an application user.
 An application user is an authorized user of Oracle
Applications and/or Oracle Self-Service Applications who is
uniquely identified by an application username.
 Once defined, a new application user can sign on to Oracle
Applications and access data through Oracle Applications
windows.
7.4.2 UW How To Define A New
Responsibility
3. Enter a User Name
 An application user enters this username to sign on to
Oracle Applications.
 The username must not contain more than one word.
 You should use only alphanumeric characters ('A'
through 'Z', and '0' through '9') in the username.
 Please note that you must limit your username to the
set of characters that your operating system supports
for filenames.
 We recommend that you define meaningful usernames, such
as the employee's first initial followed by their last name.
Or, for a group account, you can define the application
username so as to indicate the purpose or nature of the
group account.
4. Password
 Enter the initial password of an application user. An
application user enters this password along with her or his
username to sign on to Oracle Applications.
 A password must be at least five characters and can extend
up to 100 characters.
 You should use alphanumeric characters ('A' through 'Z',
and '0' through '9') in a password. All other characters are
invalid.

 This window does not display the password you enter. After
you enter a password, you must re-enter it to ensure you
did not make a typing error.
5. Person, Customer, and Supplier : Use these fields to enter the name
of an employee (person), customer, or supplier contact. Enter the last
name and first name, separated by a comma, of the employee,
customer, or supplier who is using this application username and
password. Use the List of Values to select a valid name.
6. E-Mail/Fax : Enter the E-mail address and/or fax number for this user.
7. Password Expiration
 Days : Enter the maximum number of days between
password changes. A pop-up window prompts an application
user to change her or his password after the maximum
number of days you specify has elapsed.
 Accesses : Enter the maximum allowed number of sign-ons
to Oracle Applications allowed between password changes. A
pop-up window prompts an application user to change her
or his password after the maximum number of accesses you
specify has elapsed.
ADMM / IDS page 82
8. Effective Dates  From/To
 The user cannot sign onto Oracle Applications before the
start date and after the end date. The default for the start
date is the current date. If you do not enter an end date,
the username is valid indefinitely.
 You cannot delete an application user from Oracle
Applications because this information helps to provide an
audit trail. You can deactivate an Oracle Applications user at
any time by setting the End Date to the current date.
 If you wish to reactivate a user, change the End Date to a
date after the current date, or clear the End Date field.
9. Responsibility : Select the name of a responsibility you wish to assign
to this application user. A responsibility is uniquely identified by
application name and responsibility name.
10. Security Group : This field is for HRMS security only.
11. From/To
 You cannot delete a responsibility because this information
helps to provide an audit trail. You can deactivate a user's
responsibility at any time by setting the End Date to the
current date.
 If you wish to reactivate the responsibility for the user,
change the End Date to a date after the current date, or
clear the End Date.
12. Securing Attributes
 Securing attributes are used by Oracle Self-Service Web
Applications to allow rows (records) of data to be visible to
specified users or responsibilities based on the specific data
(attribute values) contained in the row.
 You may assign one or more values for any of the securing
attributes assigned to the user. If a securing attribute is
assigned to both a responsibility and to a user, but the user

does not have a value for that securing attribute, no
information is returned for that attribute.
 For example, to allow a user in the ADMIN responsibility to
see rows containing a CUSTOMER_ID value of 1000, assign
the securing attribute of CUSTOMER_ID to the ADMIN
responsibility. Then give the user a security attribute
CUSTOMER_ID value of 1000.
 When the user logs into the Admin responsibility, the only
customer data they have access to has a CUSTOMER_ID
value of 1000.
13. Attribute : Select an attribute you want used to determine which
records this user can access. You can select from any of the attributes
assigned to the user's responsibility.
14. Value : Enter the value for the attribute you want used to
determine which records this user can access.
ADMM / IDS page 83

ADMM / IDS page 84
7.5 SA Menus Window
Navigation Path: Application -> Menu
7.5.1 MW Introduction
 A menu is a hierarchical arrangement of functions and
menus of functions. Each responsibility has a menu
assigned to it.
 A "full access" responsibility with a menu that
includes all the functions in an application is
predefined for each Oracle Applications product.
 As a System Administrator, you can restrict the
functionality a responsibility provides by defining
rules to exclude specific functions or menus of
functions.
 If you cannot create the responsibility you need by
applying exclusion rules, you may build a custom
menu for that responsibility using predefined forms
(i.e., form functions) and their associated menus of
subfunctions. However, we recommend that you do
not disassociate a form from its developer-defined
menus of subfunctions.

7.5.2 MW Define A New Menu Or
Modify An Existing Menu.
3. Menu : Choose a name that describes the purpose of the menu.
Users do not see this menu name.
ADMM / IDS page 85

4. View Tree... : Once you have defined a menu, you can see its
hierarchical structure using the "View Tree..." button.
5. User Menu Name : You use the user menu name when a
responsibility calls a menu or when one menu calls another.
6. Menu Type : Optionally specify a menu type to describe the
ADMM / IDS page 86
purpose of your menu.
 Standard - for menus that would be used in the
Navigator form
 Tab - for menus used in self service applications tabs
 Security - for menus that are used to aggregate
functions for data security or specific function security
purposes, but would not be used in the Navigator
form
7. Sequence

 Enter a sequence number to specify where a menu
entry appears relative to other menu entries in a
menu. The default value for this field is the next
whole sequence number.
 A menu entry with a lower sequence number appears
before a menu entry with a higher sequence number.
 Use integers only as your sequence numbers.
 Once you save this work, you can go back and
renumber each entry to have the final sequence
number you want.
ADMM / IDS page 87

ADMM / IDS page 88
8. Navigator Prompt
 Enter a user-friendly, intuitive prompt your menu
displays for this menu entry. You see this menu
prompt in the hierarchy list of the Navigator window.
 Enter menu prompts that have unique first letters so
that power users can type the first letter of the menu
prompt to choose a menu entry.
9. Submenu : Call another menu and allow your user to select
menu entries from that menu.
10. Function : Call a function you wish to include in the menu. A
form function (form) appears in the Navigate window and allows
access to that form. Other non-form functions (subfunctions)
allow access to a particular subset of form functionality from this
menu.
11. Description : Descriptions appear in a field at the top of the
Navigate window when a menu entry is highlighted.
12. Grant : The Grant check box should usually be checked.
Checking this box indicates that this function is automatically
enabled for the user. If this is not checked then the function must
be enabled using additional data security rules.

8. Application Setup
ADMM / IDS page 89
8.1 AS Overview
This section covers the following:
1. Defining Key Flexfield
2. Defining Descriptive Flexfields
3. Value Set
4. Defining Segments

8.2 AS Defining Key Flexfield
8.2.1 KF Basic Flexfields Concepts
 Key flexfields as intelligent keysKey flexfields’ use of
ADMM / IDS page 90
code combinations
 Collect information required by Oracle Applications
 Provide users with ability to customize structure and
appearance

8.2.2 KF Oracle Applications Key
ADMM / IDS page 91
Flexfields
1. Oracle Human Resources
 Grade
 Job
 Personal Analysis
 Position
 Position
 Soft Coded
2. Oracle Payroll
 Bank Details
 Cost Allocation
 People Group
8.2.3 KF Definition Procedure
 Define new value sets if needed.
 Define the key flexfield structure.
 Define the structure segments, including qualifiers.
 Freeze and compile the flexfield definition.
 Define value set values, including qualifiers
8.2.4 KF Implementing Key
Flexfields
Navigation Path: Application -> Flexfield -> Key -> Segment
3. Select the application name and title of the key flexfield you want to
define. You cannot create a new flexfield or change the name of an
existing flexfield using this window.
4. You can create a new structure for your flexfield by inserting a row.
If you are modifying an existing structure, use your cursor keys to
select the title of the flexfield structure you want.
5. If you want to generate a database view for this structure, enter a
view name. Your view name should begin with a letter and must not
contain any characters other than letters, numbers, or underscores (
_ ). Your view name must not contain any spaces.

6. Check the Enabled check box so that this structure may be used in
your key flexfield. You cannot delete structures from this window
because they are referenced elsewhere in the system, but you can
disable them at any time. A structure must be enabled before it can
be used.
You should enable at least one structure for each key flexfield. If you disable
a structure that already contains data, you cannot use that structure to
create new combinations or query up your old information.
7. Select the character you want to use to separate your flexfield
segment values or descriptions whenever your application forms
display concatenated segment values or descriptions.
You should choose your separator character carefully so that it does not
conflict with your flexfield data. Do not use a character that is used in your
segment values. For example, if your data frequently contains periods ( . ) in
monetary or numeric values, do not use a period as your segment separator.
8. If you want to allow dynamic inserts, check the Allow Dynamic
Inserts check box. You would allow dynamic inserts of new valid
combinations into your generic combinations table if you want users
to create new combinations from windows that do not use your
combinations table.
9. Choose the Segments button to open the Segments Summary
window, and define your flexfield segments.
10. Save your changes.
11. Freeze your flexfield structure by checking the Freeze Flexfield
Definition check box.
Do not freeze your flexfield if you want to set up or modify your flexfield
segments or change the appearance of your key flexfield window. You cannot
make most changes while your flexfield is frozen.
12. Compile your frozen flexfield by choosing the Compile button. Your
changes are saved automatically when you compile.
You must freeze and compile your flexfield definition before you can use your
flexfield. If you have more than one flexfield structure, you must freeze,
save, and compile each structure separately. If you decide to make changes
to your flexfield definition, make sure that you freeze and save your flexfield
definition again after making your changes.
ADMM / IDS page 92

8.3 AS Defining Descriptive
ADMM / IDS page 94
Flexfields
8.3.1 DF Basic Flexfields Concepts
 Descriptive flexfields provide customizable "expansion
space" on your forms.
 descriptive flexfields is used to track additional
information, important and unique to your business,
that would not otherwise be captured by the form.
 Descriptive flexfields can be context sensitive, where
the information your application stores depends on
other values your users enter in other parts of the
form.

8.3.2 DF Definition Procedure
 Define new value sets if needed.
 Define the Descriptive flexfield structure.
 Define the structure segments, including qualifiers.
 Freeze and compile the Descriptive flexfield definition.
 Define value set values, including qualifiers
8.3.3 DF Implementing Key
ADMM / IDS page 95
Flexfields
Navigation Path: Application -> Flexfield -> Descriptive -> Segment
3. Select the application name and title of the Descriptive flexfield you
want to define. You cannot create a new Descriptive flexfield or
change the name of an existing Descriptive flexfield using this
window.
4. You can create a new structure for your Descriptive flexfield by
inserting a row. If you are modifying an existing structure, use your
cursor keys to select the title of the Descriptive flexfield structure
you want.
5. If you want to generate a database view for this structure, enter a
view name. Your view name should begin with a letter and must not
contain any characters other than letters, numbers, or underscores (
_ ). Your view name must not contain any spaces.
6. Check the Enabled check box so that this structure may be used in
your Descriptive flexfield. You cannot delete structures from this
window because they are referenced elsewhere in the system, but
you can disable them at any time. A structure must be enabled
before it can be used.
You should enable at least one structure for each Descriptive flexfield. If you
disable a structure that already contains data, you cannot use that structure
to create new combinations or query up your old information.
7. Select the character you want to use to separate your Descriptive
flexfield segment values or descriptions whenever your application
forms display concatenated segment values or descriptions.
You should choose your separator character carefully so that it does not
conflict with your Descriptive flexfield data. Do not use a character that is
used in your segment values. For example, if your data frequently contains
periods ( . ) in monetary or numeric values, do not use a period as your
segment separator.
8. If you want to allow dynamic inserts, check the Allow Dynamic
Inserts check box. You would allow dynamic inserts of new valid
combinations into your generic combinations table if you want users

to create new combinations from windows that do not use your
combinations table.
9. Choose the Segments button to open the Segments Summary
window, and define your Descriptive flexfield segments.
11. Freeze your Descriptive flexfield structure by checking the Freeze
Descriptive flexfield Definition check box.
Do not freeze your Descriptive flexfield if you want to set up or modify your
Descriptive flexfield segments or change the appearance of your Descriptive
flexfield window. You cannot make most changes while your Descriptive
flexfield is frozen.
12. Compile your frozen Descriptive flexfield by choosing the Compile
button. Your changes are saved automatically when you compile.
You must freeze and compile your Descriptive flexfield definition before you
can use your Descriptive flexfield. If you have more than one Descriptive
flexfield structure, you must freeze, save, and compile each structure
separately. If you decide to make changes to your Descriptive flexfield
definition, make sure that you freeze and save your Descriptive flexfield
definition again after making your changes.
ADMM / IDS page 96

ADMM / IDS page 97
8.4 AS Value Set
Navigation Path: Application -> Validation -> Set
1. Navigate to the Value Sets window.
2. Enter a unique name for this value set.
3. Specify the List Type for your value set.
Choose List of Values if your value set should not provide the LongList feature
in Oracle Forms applications. A user will not see a poplist in Oracle Self-
Service applications.
Choose Long List of Values if your value set should provide the LongList
feature in Oracle Forms Applications. The LongList feature requires a user to
enter a partial segment value before the list of values retrieves al l available
values. You may not enable LongList for a value set that has a validation type
of None. A user will not see a poplist in Oracle Self-Service applications.

Choose Poplist if your value set should not provide the LongList feature in
Oracle Forms applications, but should provide a poplist in Oracle Self-Service
applications.
4. Specify the Security Type you plan to use with any segments that
use this value set. Security does not apply to value sets of validation
type None, Special, or Pair.
ADMM / IDS page 98

The possible security types are:
 No Security - All security is disabled for this value set.
 Hierarchical Security - Hierarchical security is enabled. With
hierarchical security, the features of value security and
value hierarchies are combined. With this feature any
security rule that applies to a parent value also applies to
its child values.
 Non-Hierarchical Security - Security is enabled, but the
rules of hierarchical security do not apply. That is, a
security rule that applies to a parent value does not
"cascade down" to its child values.
5. Enter the type of format you want to use for your segment values.
Valid choices include: Char, Date, DateTime, Number, Standard
Date, Standard DateTime, and Time.
6. Enter formatting information appropriate to your format type,
including information such as whether your values should include
numbers only and whether they must fall within a certain range.
7. Select your validation type: Independent, Dependent, Table, None
(non-validated), Special, Pair, Translatable Independent, or
Translatable Dependent.
8. If you are creating a Dependent, Translatable Dependent, Table,
Special or Pair value set, choose the Edit Information button to open
the appropriate window. Enter any further information required for
your validation type.
The following table is the validation Table Information
ADMM / IDS page 99

ADMM / IDS page 100
8.5 AS Defining Segments
8.5.1 DS Basic Segments Concepts
 Use the Segments window to define segments for
your flexfield. The window title includes the current
flexfield's name. If your flexfield definition is frozen
(that is, the Freeze Flexfield Definition check box is
checked), this window becomes display-only.
 You can define as many segments as there are
defined segment columns in your flexfield table. You
can create a new segment for your flexfield by
inserting a row.
 If your flexfield definition is frozen, the Segments window
fields are not updateable.

 Use the Key Flexfield Segments window or the
Descriptive Flexfield Segments window to define your
flexfield structure.
8.5.2 DS To define segments:
1. Enter a name for the segment that you want to define.
Your segment name should begin with a letter and use only letters, numbers,
spaces or underscores ( _ ).
2. Select the name of the column you want to use for your flexfield
ADMM / IDS page 101
segment.
3. Enter the segment number for this segment.
4. Indicate whether you want this segment to appear in the flexfield
window. If your segment is not displayed, you should provide a
default type and value so that the user does not need to enter a
value for this segment. If you do not display a segment but also do
not provide a default value for it, your users may see error
messages when using this flexfield.

5. Enter the name of the value set you want your flexfield to use to
ADMM / IDS page 102
validate this segment.

6. Indicate whether you want to require a value for this segment. If
you do, users must enter a value before leaving the flexfield
window. If not, the segment is optional.
7. Indicate whether to allow security rules to be used for this segment.
Otherwise any defined security rules are disabled.
If the value set for this segment does not allow security rules, then this field
is display only.
8. If you want your flexfield to validate your segment value against the
value of another segment in this structure, then choose either Low
or High in the Range field. Segments with a range type of Low must
appear before segments with a range type of High (the low segment
must have a lower number than the high segment). For example, if
you plan two segments named "Start Date" and "End Date," you
may want to require users to enter an end date later than the start
date. You could have "Start Date" be Low and "End Date" be High.
In this example, the segment you name "Start Date" must appear
before the segment you name "End Date," or you cannot compile
your flexfield.
If you choose Low for one segment, you must also choose High for another
segment in that structure (and vice versa). Otherwise you cannot compile
your flexfield.
If your value set is of the type Pair, this field is display only, and the value
defaults to Pair.
9. Enter the display size and prompt information for the segment.
ADMM / IDS page 103

Admm crp oracle hr

More Related Content

What's hot

Viewers also liked

Similar to Admm crp oracle hr

More from Feras Ahmad

Recently uploaded

Admm crp oracle hr
