Oracle Inventory Complete Implementation Setups.

ORACLE APPLICATION R12
ORACLE APPLICATION R12 1
1

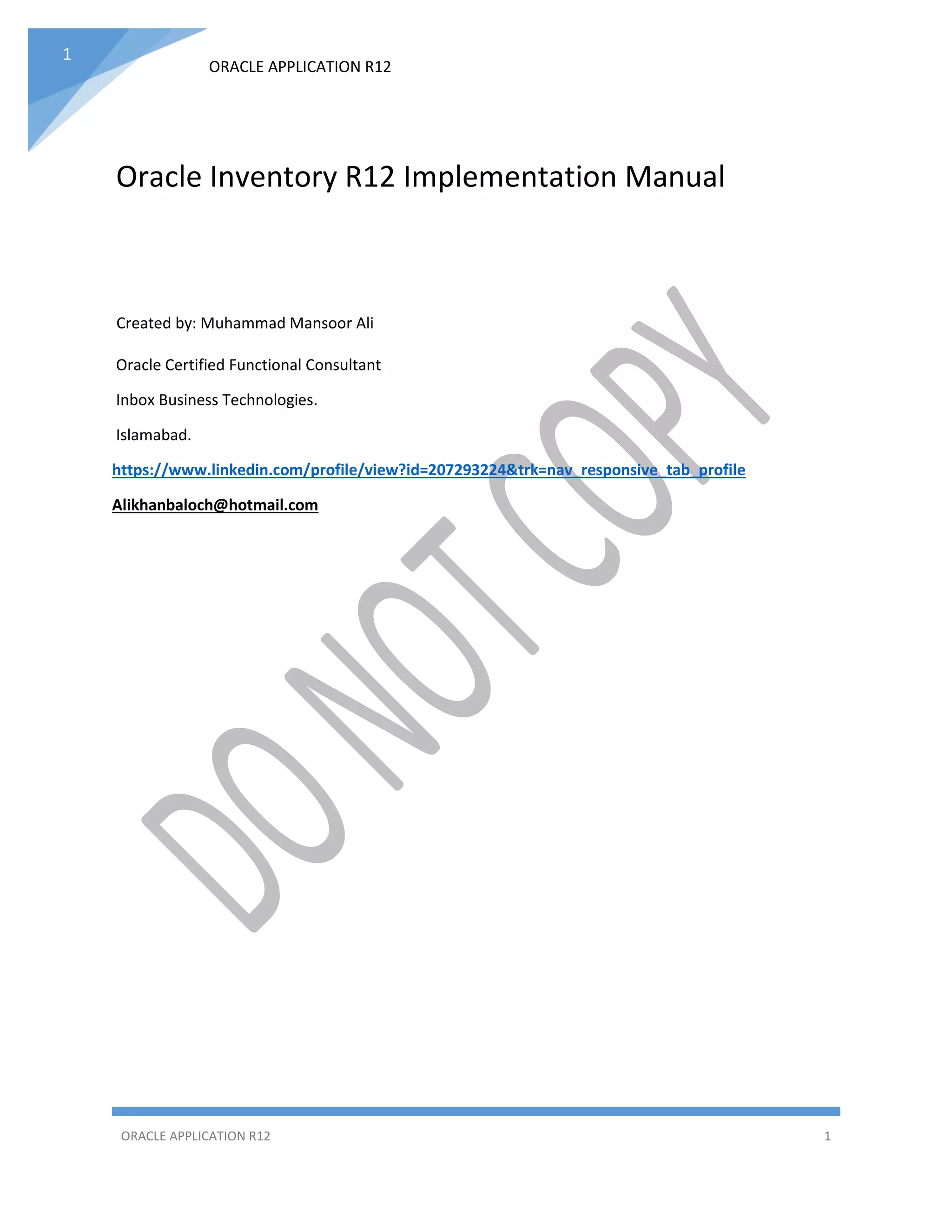

Oracle Inventory R12 Implementation Manual
Created by: Muhammad Mansoor Ali
Oracle Certified Functional Consultant
Inbox Business Technologies.
Islamabad.
https://www.linkedin.com/profile/view?id=207293224&trk=nav_responsive_tab_profile
Alikhanbaloch@hotmail.com

2

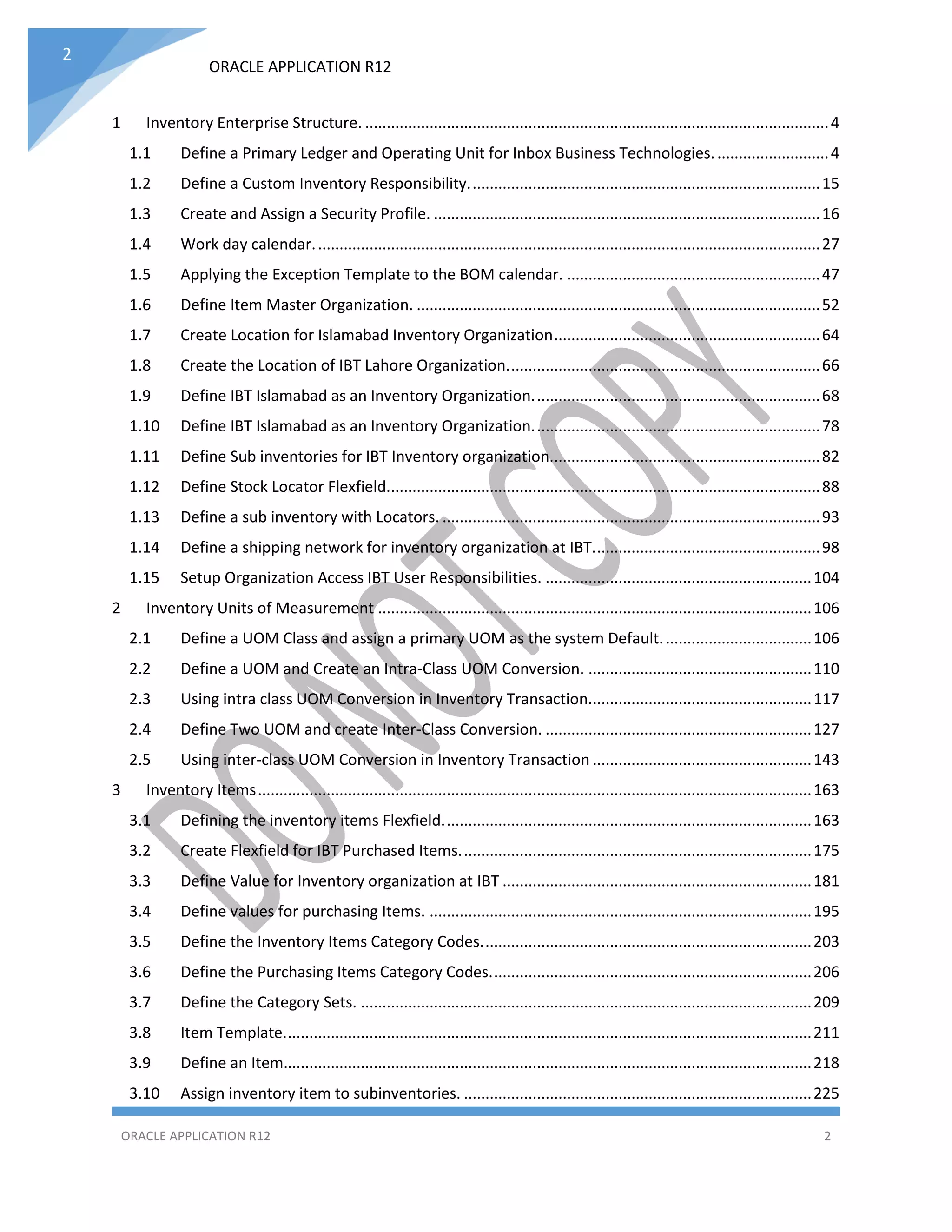

1 Inventory Enterprise Structure. ............................................................................................................4
1.1 Define a Primary Ledger and Operating Unit for Inbox Business Technologies...........................4
1.2 Define a Custom Inventory Responsibility..................................................................................15
1.3 Create and Assign a Security Profile. ..........................................................................................16
1.4 Work day calendar......................................................................................................................27
1.5 Applying the Exception Template to the BOM calendar. ...........................................................47
1.6 Define Item Master Organization. ..............................................................................................52
1.7 Create Location for Islamabad Inventory Organization..............................................................64
1.8 Create the Location of IBT Lahore Organization.........................................................................66
1.9 Define IBT Islamabad as an Inventory Organization...................................................................68
1.10 Define IBT Islamabad as an Inventory Organization...................................................................78
1.11 Define Sub inventories for IBT Inventory organization...............................................................82
1.12 Define Stock Locator Flexfield.....................................................................................................88
1.13 Define a sub inventory with Locators. ........................................................................................93
1.14 Define a shipping network for inventory organization at IBT.....................................................98
1.15 Setup Organization Access IBT User Responsibilities. ..............................................................104
2 Inventory Units of Measurement .....................................................................................................106
2.1 Define a UOM Class and assign a primary UOM as the system Default...................................106
2.2 Define a UOM and Create an Intra-Class UOM Conversion. ....................................................110
2.3 Using intra class UOM Conversion in Inventory Transaction....................................................117
2.4 Define Two UOM and create Inter-Class Conversion. ..............................................................127
2.5 Using inter-class UOM Conversion in Inventory Transaction ...................................................143
3 Inventory Items.................................................................................................................................163
3.1 Defining the inventory items Flexfield......................................................................................163
3.2 Create Flexfield for IBT Purchased Items..................................................................................175
3.3 Define Value for Inventory organization at IBT ........................................................................181
3.4 Define values for purchasing Items. .........................................................................................195
3.5 Define the Inventory Items Category Codes.............................................................................203
3.6 Define the Purchasing Items Category Codes...........................................................................206
3.7 Define the Category Sets. .........................................................................................................209
3.8 Item Template...........................................................................................................................211
3.9 Define an Item...........................................................................................................................218
3.10 Assign inventory item to subinventories. .................................................................................225

3
3.11 Define item cross references and relationships. ......................................................................228
4 Inventory Transaction Types.............................................................................................................232
4.1 Start the Cost Manager.............................................................................................................232
4.2 Perform Miscellaneous Receipt Transaction. ...........................................................................237
4.3 Perform Miscellaneous Issue Transaction. ...............................................................................244
4.4 Perform Sub Inventory Transfer ...............................................................................................248
4.5 Perform Subinventory Transfer through Move Order..............................................................262
4.6 Issue Material through a Move Order ......................................................................................283
4.7 Implement an Approval Process for Move Orders ...................................................................297
4.8 Inter Org Transfer with Intransit Shipment. .............................................................................325
4.9 Perform an Inter-Org Transfer with Direct Shipment...............................................................359
4.11 Setup Organization Parameters for Lots...................................................................................364
4.12 Create Grades For Lots..............................................................................................................367
4.13 Generate Lots and Serial Numbers...........................................................................................369
4.14 Perform Transactions with Lot and Serial Numbers.................................................................387
4.15 Implement Material Status.......................................................................................................400
4.16 Material Status on Subinventory Level.....................................................................................416
5 Inventory Replenishment..................................................................................................................422
5.1 Min-Max Planning at Organization Level..................................................................................422
5.2 Inventory Replenishment with Kanban Cards and Moves Orders............................................438
5.3 Inventory Replenishment with Kanban Cards and Purchase Requisition.................................458
6 Inventory Counting. ..........................................................................................................................467
6.1 Create ABC Compile for Cycle Counting. ..................................................................................467
6.2 Create ABC Classes and Assign Items to These Classes. ...........................................................473
6.3 Define a Cycle Count.................................................................................................................479
6.4 Schedule a Cycle Count.............................................................................................................483
6.5 Entering Cycle Count.................................................................................................................490
6.6 Approve a Cycle Count..............................................................................................................493
6.7 Define a Physical Inventory.......................................................................................................499
6.8 Generate Physical Inventory Tags.............................................................................................503
6.9 Perform Physical Inventory Counts...........................................................................................509

4
1 Inventory Enterprise Structure.
1.1Define a Primary Ledger and Operating Unit for Inbox Business Technologies.
1.1.1 Double Click on the Accounting Setups.
1.1.2 Click on Create Accounting setup.

5
1.1.3 Search the Legal Entity defined for IBT.
1.1.4 Select Chart of Accounts, Accounting Calendar and Currency which we have defined in
General Ledger Responsibility.

6
1.1.5 Primary Ledger is linked with existing Legal Entity.
1.1.6 This Message confirms we have successfully created the Fundamental of Primary Ledger.

7
1.1.7 Click on Update Button to update the Ledger Options.
1.1.8 Provide the Ledger Description if any.

8
1.1.9 Select the Retained Earning Account.
1.1.10 Click on Search for Suspense Account.

9
1.1.11 Select the Suspense Account.
1.1.12 Click on Search for Rounding Differences Tracking.

10
1.1.13 Select the Rounding Differences Tracking Account.
1.1.14 Click on Next Button.

11
1.1.15 Check to Enable Journal Reconciliation.
1.1.16 View the Detail of Information we entered, Press Finish Button to complete the Ledger
Options.

12
1.1.17 After Updating the Reporting Currencies, Balancing Segment Value Assignments, Update the
Operating Units.
1.1.18 Click on the Add Operating Unit Button.

13
1.1.19 Enter the Name and Short Code of Operating Unit, then Select the Business Group and
Default Legal Context from LOV.
1.1.20 After Updating All the Setup Step Click on the Complete Button to Complete the Accounting
Setup Manager.

14
1.1.21 Primary Ledger and Operating Unit have been created.

15
1.2Define a Custom Inventory Responsibility.
1.2.1 Double click on the Define.
1.2.2 Enter the Required Information.
1.2.3 Click on Save Button.

16
1.3Create and Assign a Security Profile.
1.3.1 We are using the Responsibility of Global HRMS Manager for Creating and assigning a
Security Profile.
1.3.2 Double Click on the Profile.

17
1.3.3 We are using the F11 Key to Retrieve the Record of Existing Profile.
1.3.4 Press CTRL+F11 Key.
1.3.5 The Security Profile We see here is Automatically Created by the System.

18
1.3.6 Click on the New Button.
NOTE: Here we are creating a New Profile for IBT, After Entering the Security Profile Name Attach the
Business Group we have define for IBT.
1.3.7 Select the Option from Drop down List that would allow us to List the Organizations which
would have access to Business Group

19
1.3.8 Select the Operating Unit in the Classification Field.
There is only one Operating Unit we have created So far for IBT, Click on the Save Button to Save the
Security Profile.
1.3.9 Run the Security List Maintenance Concurrent Request.

20
1.3.10 Click on the Submit a New Request Button.
1.3.11 Click on the OK Button.

21
Security List Maintenance program Maintains the Organizations, Positions, Employees and applications
that the user of security profile can Access any time, we create a new profile or modify the existing one,
and we must run this program to ensure the updating of Data.
1.3.12 Select Security List Maintenance.
1.3.13 We just need to run the program for just one Security profile.

22
1.3.14 After Selecting the Security Profile click on the OK Button.
1.3.15 Click on the Submit Button.

23
1.3.16 Request Submitted Successful.
1.3.17 Click on the NO Button.
1.3.18 Switch to the system Administrator Responsibility.

24
1.3.19 Double click on the system.
1.3.20 Select the Responsibility to whom you want to attach the Security Profile.
1.3.21 Select the HR Security Profile.

25
1.3.22 Select the IBT Pak Security Profile we created for IBT.
1.3.23 Click on the Torch Icon to Find.

26
1.3.24 Select HR Business Group Profile.
1.3.25 It got configured automatically.

27
1.4 Work day calendar.
1.4.1 Double Click on the Segments.
1.4.2 Select the Find in View Menu.

28
1.4.3 Select Bill of Material Application under the Title of Exception Template Dates.
1.4.4 Uncheck the Freeze Flexfiled Definition.
1.4.5 Click on the Segment Button.

29
1.4.6 Enter the Desired information in Value Sets Form.
1.4.7 Attach the Value Set to the Segment.

30
1.4.8 Check the Freeze Flexfield Definition.
1.4.9 Click on the Compile Button to Compile the Flexfield Definition.

31
1.4.11 Open the Descriptive Values Form.
1.4.12 Select the Value Set.
1.4.13 Click on the Find Button.

32
1.4.14 Enter the Detail of Exceptional Days.
1.4.15 Click on the Cross Button to close the form.

33
1.4.17 Switch to Bill of Material Responsibility.
1.4.18 Double Click on the Exception Templates.

34
1.4.19 Enter the Date.
1.4.20 Select the Exceptional Days related to Entered Dates.
1.4.21 Click on the Save Button.

35
1.4.22 Double Click on the Calendars.
1.4.23 Enter the Desired Information in Workday Calendar Form.
1.4.24 Click on the Workday Pattern.

36
1.4.25 Enter the Workday Patterns Detail

37
1.4.26 Click on the Shifts Button.
1.4.27 Enter the 1st Shift.
1.4.28 Click on Workday Pattern.

38
1.4.29 Enter the Shift days and Times.

39
1.4.30 To Enter the 2nd Shift.
1.4.31 Open the Workday Pattern Button.

40
1.4.32 Enter the Desired Timing.

41
1.4.33 Create the 3rd shift.
1.4.34 Create a 1st Shift Line 1.

42
1.4.35 Create 2nd Shift Line 1.

43
1.1.1 Enter the Desired Timing.

44
1.1.1 Created 3rd Shift Line 1 and leave it Blank to use it in Future, if any.

45
1.1.2 Select Build from Tools Bar Menu.

46
1.1.4 We Have Successfully created the IBT Calendars.

47
1.5Applying the Exception Template to the BOM calendar.
1.5.1 Double Click on the Calendars.
1.5.2 Select Find from View Menu or Select the Find from Tool Bar.

48
1.5.3 Click on the Exception List Button
1.5.4 Click on the Load Button.

49
1.5.5 Select the IBT ET Template from LOV
1.5.6 Click on the Ok Button.

50
Here we can find the Effect of Exceptional Template, Highlighted with yellow showing the off days.
1.5.7 Select the Build From Tools Menu to Have a Change Effects.

51

52
1.6 Define Item Master Organization.
1.6.1 Switch to IBT Inventory Manager Pakistan Responsibility.
1.6.2 Open the Organizations Form.

53
1.6.4 Enter the Desired Name in Name Field.
1.6.5 Attach the Location.
1.6.6 Select Inventory Organization in Organization Classifications Field.
1.6.7 Enable the Check by Press Space on Key Board.
1.6.8 Click on the Others Button.

54
1.6.9 Select the Accounting Information and Click on OK Button.
1.6.10 Select the Primary Ledger which we have created for IBT.
1.6.11 Select Legal Entity and Operating Unit.

55
1.6.12 Select the Inventory Information and Click on OK Button.
1.6.13 Enter the Desired Code and Name of Item Master Organization.
1.6.14 Fill the Other Information according to Implementation Need.

56
1.6.15 Select the Costing Method.
1.6.16 Select the Material Account in Valuation Accounts.

57
1.6.17 Click on the Revision, Lot, Serial And LPN Tab.
1.6.19 Click on the Inter-Org Information Tab.

58
1.6.20 Select the Transfer Credit Account.
1.6.21 Select the Purchase Price Variance Account.

59
1.6.22 Select the Receivable Account.
1.6.23 Select the Payable Account.

60
1.6.24 Select Intransit Account.
1.6.25 Click on the Other Accounts Tab.
1.6.26 Select the Purchase Price Variance Account.

61
1.6.27 Select the Invoice Price Variance.
1.6.28 Select the Inventory AP Accrual.

62
1.6.29 Select the Sales Account.
1.6.30 Select Cost of Goods Sold Account.

63
1.6.31 Select the Deferred COGS Account.

64
1.7Create Location for Islamabad Inventory Organization
1.7.1 Switch to IBT Inventory Manager Pakistan responsibility.
1.7.2 Open the Locations Form.

65
1.7.3 Enter the Name of Child Organization.
1.7.4 Select Pakistan from LOV in Address Style Field.
1.7.5 Enter the required information, click on save and exit.

66
1.8Create the Location of IBT Lahore Organization.
1.8.1 Double Click on the Location.
1.8.2 Enter the required information, click on save and exit.

67
1.8.3 Click on the Save Button or Press Ctr+S.

68
1.9Define IBT Islamabad as an Inventory Organization.
1.9.1 Double Click on the Organizations.

69
1.9.3 Enter the Required Information and Click on Others Button.
1.9.4 Select accounting information option and click on Ok button.

70
1.9.5 Enter the required information, click on OK, click on Ok again and finally click on save.
1.9.6 Select the Inventory Organization.
1.9.7 Click on others button and select Inventory Information.

71
1.9.8 Enter required information and click on “Costing Information” tab.
1.9.9 Enter required information and click on “Revision, Lot, Serial and LPN” tab.
1.9.10 Select the Material Account.

72
1.9.11 Select the Inventory Outside Processing Account.
1.9.12 Select the Material Overhead Account.

73
1.9.13 Select the Overhead Account.
1.9.14 Select the Resource Account.

74
1.9.15 Select the Expense Account.

75
1.9.16 Click on Revision. Lot, Serial and LPN tab.

76
1.9.20 Click on the other Accounts Tab.
1.9.21 Select the Accounts for Receiving Profit and Loss Accounts and Other Accounts.

77

78
1.10 Define IBT Islamabad as an Inventory Organization.
1.10.1 Fill the IBT Lahore Accounting and Inventory Information as we did earlier for IBT Islamabad.
1.10.2 Enter Accounting Information.

79
1.10.3 Click on the Inventory Organization.
1.10.5 Enter the Information in Inventory Parameters Tab.

80
1.10.6 Click on the Costing Information Tab.
1.10.9 Select the Accounts for each and Every field in Inter-organization Transfer Accounts.

81
1.10.10 Click on the Other Accounts.
1.10.11 Select the Accounts for Receiving, Profit and Loss Accounts and Other Accounts.

82
1.11 Define Sub inventories for IBT Inventory organization.
1.11.1 Double Click on the SubInventories.
1.11.2 Select the IBT Islamabad Organization.

83
1.11.4 Enter the Required Information and Click on Save Button.

84
1.11.5 Create Notebook Subinventory.

85
1.11.6 Create a Subinventory for Tablet.
1.11.7 Create a subinventory for Netbook.

86
1.11.8 Check the Status of Newly Created Subinventories.
1.11.9 Create same sub inventories for IBT Lahore inventory organization.

87

88
1.12 Define Stock Locator Flexfield.
1.12.1 Switch the Responsibility to System Administrator.
1.12.2 Double Click on the Segment Button.
1.12.3 Select Find in View Menu.

89
1.12.4 Search ‘Stock Locators” in Inventory Application. Uncheck “Freeze Flexfield Definition”.

90
1.12.6 Enter the required information, click on save and then click on value set button to create
value sets for the segments.
1.12.7 Enter the required information, click on save and then click on New to create new record.

91
1.12.8 Enter the required information, click on save and then click on New to create new record.
1.12.9 Enter the required information, click on save.
1.12.10Assign the newly created values sets to their respective segments. Click on save and exit.

92
1.12.11Check “Freeze Flexfield Definition”, click on save and then click on compile.
1.12.12Click on ‘Ok’.

93
1.13 Define a sub inventory with Locators.
1.13.1 Switch to IBT Inventory Manager Pakistan Responsibility.
1.13.2 Double Click on the Subinventories.

94
1.13.3 Create New Subinventory by Clicking on New Button.

95
1.13.5 Click on Save Button.
1.13.6 Click on the Locators Button.

96
1.13.7 Enter the Detail of Stock Locators.
1.13.8 Use DataLoad to Upload the Stock Locators.

97
1.13.9 Click on the Save Button and Exit.

98
1.14 Define a shipping network for inventory organization at IBT.
1.14.1 Double Click on the Shipping Networks

99
1.14.2 Select the Organization, which use the Transfer Type as Intransit.
1.14.3 Select the Organization to whom we do the Transfer.

100
1.14.4 Select the Transfer Type.
1.14.5 Select the Receipt Routing from available list.
1.14.6 Click on the Open Button.

101
1.14.7 Click on Open Button.
1.14.8 Select Predefined from Drop Down List in Inter-Organization Transfer Charge.

102
1.14.9 Enter the Predefined Rate.
1.14.11 Enter the Required Information using Direct as Transfer Type.

103
1.14.13 Enter the Type and Rate in Inter-organization Transfer Charge.

104
1.15 Setup Organization Access IBT User Responsibilities.
1.15.1 Double Click on the Organization Access.
1.15.2 Select the Organization Code in Organization Field.
1.15.3 Select the Application.
1.15.4 Select the Responsibility Name in Name Field.

105
1.15.5 Enter the Required Information, Save and Exit.

106
2 Inventory Units of Measurement
2.1Define a UOM Class and assign a primary UOM as the system Default.
2.1.1 Double click on the Classes.

107
2.1.3 Enter the required Information.
2.1.5 Switch to System Administrator Responsibility.

108
2.1.6 Double click on the System.
2.1.7 Select INV: Default Primary Unit of Measure Profile.

109
2.1.9 Select the Each in Site Field.

110
2.2Define a UOM and Create an Intra-Class UOM Conversion.
Suppose we have following DVD Spindles

111
2.2.1 Double Click on the Units of Measure.
2.2.2 Select the Organization.

112
2.2.3 Enter the Name, UOM, and Description.
2.2.4 Select the Class.
2.2.5 Click on the Conversions.
2.2.6 Enter the Unit and Conversion.

113
2.2.7 Let’s define the Intra class of UOM
2.2.10 Select the Spindle.

114
2.2.12 Click on the Intra-Class Tab.

115
2.2.13 Enter the Items and their Respective Conversion.

116
2.2.15 Find out the Spindle.
2.2.16 Check out the Filled Information.

117
2.3Using intra class UOM Conversion in Inventory Transaction.
2.3.1 Double Click on the On-hand Quantity.
2.3.2 Select the Item / Revision and Press Tab to show its Description.

118
2.3.4 Click on the availability Button.

119
2.3.5 We have 30 Spindles in Primary Quantity.
2.3.6 Double Click on the miscellaneous Transaction.

120
2.3.7 Select the Miscellaneous Issue in type Field.
2.3.8 Select the Account.

121
2.3.9 Click on the Transaction lines.
2.3.10 Select the Item, its Subinventory and Locator.

122
2.3.11 We have 30 Spindle in the Subinventory.
2.3.12 Change the SPN into Ea in UOM.

123
2.3.13 We have 3750 DVDs.
2.3.14 Let’s Issue 50 DVDs.

124
2.3.15 Enter the Reason and Reference (optional).
2.3.16 Click on the Save and Exit.

125
2.3.17 Double Click on the on-hand Quantity.
2.3.18 Type the Item in Item / Revision Field.
2.3.19 Press Tab to Have Description.

126
2.3.21 Click on the Availability Button.
2.3.22 We have 29.6 Spindle in Balance.

127
2.4Define Two UOM and create Inter-Class Conversion.
2.4.2 Enter the Name, UOM and Description.
2.4.3 Select the Class.

128
2.4.5 Enter the Unit and its Conversion.
2.4.6 Find out the Roll as Unit of Measure.

129

130
Suppose we have Two Cables.

131

132
UOM Class Quantity Length
Base UOM Each Foot
UOM 1 ROLL
UOM 2 BULK
For CAT 5 Cable
1 Roll = 50 Foot
For CAT 6 Cable
1 ROLL = 80 Foot
For CAT 5 Cable
1 Bulk = 1200 Foot
For CAT 6 Cable
1 Bulk = 1600 Foot
For CAT 5 Cable
1 ROLL= 1 Each = 50 Foot
So 1 Foot = (1/50) = 0.02 Each
Or 1 Foot = 0.02 Each
So 1 Bulk = 1200 Foot * 0.02
So 1 Bulk = 24 Each
For CAT 6 Cable
1 ROLL= 1 Each = 80 Foot
So 1 Foot = (1/80) = 0.0125 Each
Or 1 Foot = 0.0125 Each
So 1 Bulk = 1600 Foot * 0.0125
So 1 Bulk = 20 Each

133
2.4.8 Double Click on the Master Items.

134
2.4.10 Select Copy Form in Tools Menu.
2.4.11 Select Template.
2.4.12 Click on Apply and Done.

135
2.4.13 Change primary Unit from Each to ROLL.

136
2.4.15 Assign the Item to IBT Islamabad and Lahore.
2.4.16 Enter the Required information for CAT 5 Ethernet Cable.

137
2.4.17 Select the Copy From in Tools Menu.
2.4.18 Select the Template.

138
2.4.19 Change the Primary Unit of Measure.

139
2.4.21 Double click on the Conversions.

140
2.4.22 Click on the Inter-Class Tab.
2.4.24 Select the Item and Base Unit.
2.4.25 Enter the Conversion.

141
2.4.27 Click on the Intra-Class Tab.
2.4.28 Enter the Item and Unit.
2.4.29 Enter the Conversion.

142
2.4.30 Enter the same For Cat 5 Ethernet.

143
2.5Using inter-class UOM Conversion in Inventory Transaction

144
2.5.3 Type the Item in Item / Revision.
2.5.5 We have zero Quantity in Stock.

145
2.5.6 Double Click on the Miscellaneous Transaction.
2.5.7 Select the Miscellaneous Receipt.

146
2.5.8 Enter the Account information.
2.5.9 Enter the Item, Subinventory and Locator.

147
2.5.10 Change the UOM from ROL to BLK.
2.5.11 Enter the Quantity of Both Items.

148
2.5.12 Double Click on On-hand Quantity.
2.5.13 Type the Item.

149
We have 20 ROL in Balance.
For CAT 6 Cable,
1 Bulk = 1600 Foot
For CAT 6 Cable,
1 ROLL = 80 Foot
For CAT 6 Cable,
1 Bulk = 1600 Foot
Or
1 Bulk = (1600/80) ROLL
So 1 Bulk = 20 ROLL

150

151
We have the 24 ROL in Balance.
For CAT 5 Cable,
1 Bulk = 1200 Foot
For CAT 5 Cable,
1 ROLL = 50 Foot
For CAT 5 Cable,
1 Bulk = 1200 Foot
Or
1 Bulk = (1200/50) ROLL
So 1 Bulk = 24 ROLL

152
2.5.19 Double Click on the Material transactions.

153
2.5.20 Type the item in the Item Field.
2.5.22 Check out the Information.

154
2.5.23 Select the Find Material Transaction in window Menu.
2.5.24 Type the 2nd Item.

155
2.5.25 Check out the Information.
2.5.26 Double Click on the Item Costs.

156
2.5.27 Select the Item.

157
2.5.30 Enter the Required Information and Click on save.

158
2.5.32 Select the Miscellaneous Issue in Type Field.
2.5.33 Enter the Source.

159
2.5.35 Click on the Transaction Lines.
2.5.36 Change UOM from ROL to Foot.

160
2.5.37 Enter the Quantity.
2.5.39 Double click on the On-hand Quantity.

161
2.5.40 Type the item.
We have 19.75 ROL in Stock.

162
For CAT 6 Cable
Current on hand Quantity
= 1600 Foot – 20 Foot = 1580 Foot
= (1580 * 0.0125) Each
= 19.75 Each
= 19.75 ROLL

163
3 Inventory Items
3.1Defining the inventory items Flexfield.
3.1.1 Double Click on the Segment.
3.1.2 Select the Find in View Menu or Click on the Torch Icon on Tool Menu.

164
3.1.3 Select Inventory Application having the Title of Item Categories.

165
3.1.5 Enter the Flexfield Code, Title and Description.
3.1.7 Enter the Required information.

166
3.1.9 Enter the Description of Segment if any (Optional).
3.1.10 Click on the Value Set.
3.1.11 Enter the Required Information in Value sets.
3.1.12 Save and Exit.

167
3.1.13 Attach the Newly Created Value Set in Value Set under the Title of Validation.
3.1.14 Change the Display size Similar to Maximum Size we entered in Value set.
3.1.16 Click on Open Button.

168
3.1.20 Save and Exit.

169

170
3.1.28 Change Value Validation from Independent to Dependent.
3.1.29 Click on the Edit Information Button.

171
3.1.30 Select the Independent Value Set.
3.1.31 Enter the Dependent Default Value and Its Description.

172

173
3.1.36 Click on the Ok.
3.1.37 Click on the Compile Button.

174
3.1.39 Message Displaying the Confirmation of successful Compilation of Flexfield.

175
3.2Create Flexfield for IBT Purchased Items.
3.2.1 Double Click on the segments.
3.2.2 Select Inventory Application with the Title of Item Categories.

176
3.2.4 Enter the Code, Title and Description of Flexfield Structure.

177
3.2.5 Create Product Attributes segment. (Others Already Created)
3.2.8 Enter the Required information in Value sets.
3.2.9 Change the Validation Type from Validation type to Dependent.
3.2.10 Click on the Edit Information Button.

178
3.2.11 Select the Independent Value Set.
3.2.12 Enter the Value and Description under the title of Dependent Default Value.
3.2.13 Attach the Value Set in value Set under the Title of Validation.
3.2.14 Change the Display Size.
3.2.15 Click on Save and Exit.

179

180
3.2.20 Click on the Ok Button to endorse the Note.

181
3.3Define Value for Inventory organization at IBT
3.3.1 Double Click on the Values.
3.3.2 Select the Value Set in Name Field.

182
3.3.4 Click on the Find in View Menu.

183
3.3.5 Select the Value Set.
3.3.6 Click on Find Button.

184
3.3.8 Select the Find in the View Menu.
3.3.9 Select the Dependent Value Set.
3.3.10 Select the Independent Value.

185

186

187
3.3.20 Click on the Find Button

188

189

190
3.3.28 Click on OK Button.
3.3.29 Recompile to have Change Effects.
3.3.30 Double click on the Segment Button.

191
3.3.31 Select the Inventory with the Title of Item Categories.

192
3.3.33 Enter the Criteria to Find IBT Item Category.
3.3.35 Unfreeze the Freeze Flexfield Definition.

193

194
3.3.41 OK the Confirmation Message.

195
3.4Define values for purchasing Items.
3.4.1 Double click on the Values.

196
3.4.5 Upload the Data Using the Dataload.

197

198
3.4.10 Use DataLoad to Load the Data.

199

200
3.4.15 Enter the Data Manually or use the DataLoad.

201

202
3.4.20 Enter the Data Manually or use the DataLoad.
3.4.21 Click on Save and Exit.

203
3.5Define the Inventory Items Category Codes.
3.5.1 Double Click on the Category Codes.

204
3.5.3 Select the Structure Name.
3.5.4 Select the Item Category Code.
3.5.5 Enter the Description.

205
3.5.6 Create the 2nd
Category Code Combination.
3.5.7 Use the DataLoad to Load the Data.

206
3.6Define the Purchasing Items Category Codes.
3.6.1 Double click on Category Codes.

207
3.6.3 Select the Structure Name.
3.6.4 Select the Category Code.

208
3.6.5 Use DataLoad to Load Data.

209
3.7Define the Category Sets.
3.7.1 Double Click on the Category Sets.
3.7.2 Fill the Required Information .
3.7.3 Click on the F11 on Product Line.
3.7.4 Enter the % to View All Category Codes.
3.7.5 Add all Categroy Codes one by one.

210
3.7.6 Click on the Save to save Effects.
3.7.7 Use the same to Create a Category Set for IBT PO Items.

211
3.8Item Template.
3.8.1 Double Click on the Templates to Create a Custom Template.

212
3.8.3 Enter the Template Name and Description.
3.8.5 Select the Copy Template from Tool Menu.
3.8.6 Select Finished Goods as Copy Template.
3.8.7 Enter the Information according to Finished Goods Implementation Needs.

213
3.8.8 Select the Required information in Inventory Attribute.
3.8.9 Select the Required in Bill of Material Attribute.

214
3.8.10 Enter the Costing information in Costing Attribute.
3.8.11 Select the Purchasing Attribute and enter the Required Information.

215
3.8.12 Select the Requred information in General Planning Attribute.
3.8.13 Enter the Required Information in MPS / MRP Planning Attribute.

216
3.8.14 Enter the Required Inforamtiona in the Lead Times Attribute.
3.8.15 Enter the inforamtion in the Work in Process Attribute.

217
3.8.16 Enter the Required Inforamtion in order Management Attribute.
3.8.17 Enter the Required Information in Invoicing Attribute.

218
3.9Define an Item.

219
3.9.3 Select the Copy From in Tools menu.
3.9.4 Select the IBT Finished Goods in the Tempalte Field.
3.9.5 Click on the Apply and Done Button.

220
3.9.6 Click on the Inventory Tab to see the Effect of Customized Template.
3.9.7 Click on the General Planning Tab.

221
3.9.8 Select the Categories from Tools Menu.
3.9.9 Select the IBT Inventory And PO Item Category Set.
3.9.10 System Created the Default Categories.

222
3.9.11 Change the Category according to Item.

223
3.9.12 Leave the PO Item as it is.
3.9.13 Select the Organization Assignemnt in the Tools Menu.

224
3.9.14 Check the IBT Islamabad and Lahore to Assign the Item.

225
3.10 Assign inventory item to subinventories.
3.10.1 Double click on the Subiventories.

226
3.10.3 Select the Desktop as Subinventories.
3.10.4 Click on the Item/Subinventory.

227
3.10.5 Select the Newly created Item.

228
3.11 Define item cross references and relationships.
3.11.1 Double click on the Cross References.
3.11.2 Enter the Type and Description.

229
3.11.3 Select the Item in the Item and Value Field.
3.11.4 Uncheck the Applicable to All organiztions to have Application on the Specifice Organization.
3.11.5 Double click on the Item Relationships.

230
3.11.8 Select the promotional Upgrade from Drop Down list.

231

232
4 Inventory Transaction Types
4.1Start the Cost Manager
4.1.1 Double click on the Interface Managers.

233
4.1.3 To make the Cost Manager Active, Select Launch Manager from Tools Menu.
4.1.4 Click on the Schedule Button.

234
4.1.5 Enter the End Date in End At Field.
4.1.6 Enter the Desired Information in Re-run Every Field.

235
4.1.8 Click on the OK Button

236
4.1.9 Re open the Interface Managers by Double clicking on the Interface Managers.
4.1.10 Status of Cost Manager is Active Now.

237
4.2Perform Miscellaneous Receipt Transaction.
4.2.2 Select Miscellaneous receipt in the Type Field.

238
4.2.3 Enter the source.
4.2.6 Select the Subinventory.

239
4.2.7 Enter the Quantity and Unit Cost.
4.2.9 Double click on the on-hand Quantity.

240
4.2.10 Type the Item and press Tab to have Description.
4.2.13 We have 120 Quantity in Stock.

241
4.2.14 Click on the + Button to view each and every Information of item.
4.2.15 Double Click on the Material Transactions.

242
4.2.16 Type the Item in Item Field.
4.2.17 Press Tab to view the Description.
4.2.18 View the Transaction Quantity.

243
4.2.19 Click on the Transaction Type Tab.
4.2.20 View all the information about Miscellaneous Receipt.

244
4.3Perform Miscellaneous Issue Transaction.
4.3.1 Double click on the Miscellaneous Transaction.
4.3.2 Select the Miscellaneous Issue in the Type Field.

245

246
4.3.6 Enter the issuing Quantity after viewing the Available Quantity.

247
4.3.8 Type the Item and press Tab.
4.3.11 We have 200 Quantity on hand.

248
4.4Perform Sub Inventory Transfer
4.4.2 Type the Item and press Tab.

249
4.4.5 We have 85 Quantity as on hand.
4.4.6 Click + Icon on the Organization to View Detailed Information.

250
4.4.7 Click on the Organization Items.
4.4.8 Type the Item in the Item Field and press Tab.

251
4.4.10 Check the Restrict Subinventories if Not.
4.4.11 Select the Item Subinventories from Tools Menu.

252
4.4.12 Add the Notebook Subinventory.

253
4.4.14 Find the Notebook subinventory by click on the Torch Icon.
4.4.15 Click on the Item / Subinventory.
4.4.16 View that item is already attached to Subinventory.

254
4.4.17 Double click on the subinventory Transfer Button.
4.4.18 Select the Subinventory Transfer.

255
4.4.19 Type the item.
4.4.20 Enter the Subinventory which Contains the Item.
4.4.21 Enter the Destination Subinventory in To Subinventory Field.
4.4.22 Enter the Quantity to Tranfer.

256
4.4.24 Type the Item in the Item Field.
4.4.25 Select the subinventory Transfer in the Transaction Type Field.

257
4.4.27 View the Location of Items.

258
4.4.28 View the Transaction and Primary Quantity.
4.4.30 View the Detail Information of Transaction Type in view only.

259
4.4.32 Type the Item / Revision.
4.4.33 Press Tab Button.

260
4.4.35 We have Same 85 Quantity as on hand.
4.4.36 Double click on the Organization to see the Detail picture of Item.

261
4.4.37 We have 65 Quantity in Netbook Subinventory.
4.4.38 We have 20 Quantity in Notebook subinventory.

262
4.5Perform Subinventory Transfer through Move Order.
4.5.1 Double Click on the Move Orders Button.
4.5.2 Click on the Number Field.

263
4.5.3 System will Auto Generate the Number.
4.5.4 Enter the Description.
4.5.5 Select the Transaction Type as Move Order Transfer.
4.5.7 Click on the On Hand Button.

264
4.5.8 We have 65 Quantity as On hand.
4.5.9 Enter the Quantity to Transfer.

265
4.5.10 Click on the source Tab.
4.5.11 Select the Source Subinventory in Subinventory Field.
4.5.12 Click on the Destination Tab.
4.5.13 Enter the Destination Subinventory in Subinventory Field.

266
4.5.14 Check the Status of Move Order.
4.5.16 Status of Move Order Changed.

267
4.5.17 Double Click on the Transaction.

268
4.5.19 Select the Move Order Pick Slip.
4.5.21 Type the Move Order Button or Find from LOV.

269
4.5.24 Request Submitted.
4.5.25 Click on the No Button.

270
4.5.27 Click on the View Output Button.
4.5.28 View the Complete Detail.
4.5.29 Note the Task Status / Pick ID which is Unallocated.

271
4.5.30 Double Click on the Item Supply/Demand.
4.5.31 Type the Item and press Tab Button on Keyboard.
4.5.32 Select the All Subinventories from Drop Down List.

272
4.5.34 We have 85 Current on-hand Quantity.
4.5.35 Double click on the Transact Move Orders.

273
4.5.36 Type the Move Order Number or find From LOV.
4.5.38 Check the Select.
4.5.39 Click on the Allocate Button.

274
4.5.40 Type the Item and Press Tab in Query Material.
4.5.41 We have 65 as Primary Quantity.
4.5.42 Available to Reserve and Available to Transact are 45 respectively.

275

276
4.5.46 Type or Find the Move order From LOV.
4.5.47 Click on the OK button and Submit Button.

277
4.5.50 Status of Task Status / Pick ID changed from Unallocated to Pending.
4.5.51 Double Click on the Transact Move Orders.

278
4.5.52 Select the Move Order Number in Numbers Field.
4.5.54 Click on the Transact Button.

279

280
4.5.57 We have 45 primary, Reserve and Transact Quantity respectively.

281
4.5.59 Select Move Order Pick Slip.
4.5.61 Select the Move Order.
4.5.62 Click on Find and Submit Button.

282
4.5.64 Status of Task Status / Pick ID changed from Pending to Completed.

283
4.6Issue Material through a Move Order
4.6.1 Double Click on the Move Orders.
4.6.2 Select the Move Order Issue in Transaction Type Field.

284
4.6.3 Select the Source Subinventory.
4.6.5 Click on the on hand Button.

285
4.6.7 Enter the Quantity in the primary Quantity Field.

286
4.6.9 Double Click on Transactions.

287
4.6.11 Enter the Move Order Number or Search From LOV.
4.6.12 Click on OK and Submit Button respectively.
4.6.13 Select Request from View Menu.
4.6.14 Click on the Find button.

288
4.6.16 Status of Move order is Unallocated.

289
4.6.17 Double Click on the Item Supply/Demand Button
4.6.18 Type the Item in Item Field and press Tab Button on Keyboard.
4.6.19 Select the All subinventories from Drop down List.

290
4.6.21 View the Status of Item Quantity.
4.6.22 Double click on the Transact Move Orders.

291
4.6.23 Type the Move Order Number.
4.6.26 Click on the View/Update Allocation Button.

292

293
4.6.29 Double Click on the Transactions Button.
4.6.30 Click on the Copy Button.

294

295
4.6.34 Status of Move Order is completed.

296
4.6.36 Type the item in Item / Revision Field.
4.6.37 Press the Tab Button.
4.6.38 View the Primary Quantity.

297
4.7Implement an Approval Process for Move Orders
4.7.1 Double click on the Organizations.
4.7.2 Select IBT Lahore and click on the Find Button.

298
4.7.3 Select the Inventory Organization and Click on the Others.
4.7.4 Select the Inventory Information.
4.7.5 Enter the Days in Move order Time Out Period Field.

299
4.7.6 Select the Switch Responsibility in File Menu.
4.7.7 Select IBT HRMS Manager Responsibility.

300
4.7.8 Double Click on Enter and Maintain.
4.7.10 Click on Assignment Button.

301

302
4.7.14 Select Switch Responsibility in File Menu.
4.7.15 Switch to System Administrator.

303
4.7.16 Double Click on the Define Button.
4.7.17 Create a New User.
4.7.18 Attach the person to new User.

304
4.7.19 Click on New Button.
4.7.20 Create a User and Attach the Person.

305
4.7.21 Switch to IBT Inventory Manager Pakistan responsibility.
4.7.22 Double click on the Planner.

306
4.7.24 Enter the Name and Description.
4.7.25 Select the Employee.

307
4.7.26 Enter the 2nd
Planner.
4.7.27 Double click on the Organization Items.

308
4.7.28 Type the Item and Press Tab on Keyboard.
4.7.29 Click on the General Planning Tab.

309
4.7.30 Attach the Planner in Planner Field.
4.7.32 Use the Same Process to Attach the Planner to Multi Items.

310
4.7.33 Enter the User Name.
4.7.34 Enter the Password.
4.7.35 Click on the Move Orders.

311
4.7.37 Select the Transaction Type.

312
4.7.38 Select the Source Subinventory.
4.7.39 Type the Item and Press Tab.
4.7.40 Click on On-Hand Button.

313
4.7.41 We have 10 Quantity in Balance.
4.7.42 Click on the Destination Tab.
4.7.43 Select the Subinventory and Locators.

314
4.7.44 Enter the 2nd
item.
4.7.45 Click on the Approve Button.
4.7.46 Check the Status.

315
4.7.47 Enter the user Name
4.7.49 We have 2 Notifications in worklist.

316
4.7.50 Click on the Line 1 of Move Order.

317
4.7.51 Click on the Move Order Detail Form.
4.7.52 View the Detail of Move order.

318
4.7.53 Type the Required in Action Note and Click on Approve Button.
4.7.54 Click on the Line 2 of Move Order.

319
4.7.55 Type the Required in Action Note.
4.7.56 Click on the Reject Button.
4.7.57 Enter the User Name

320
4.7.59 Line 1 of Move order has been Approved.
4.7.60 Line 2 of Move Order has been rejected.

321
4.7.61 Double click on the Move order.
4.7.62 Press F11 on Keyboard.
4.7.64 Press CTRL plus F11 Button on Keyboard.

322
4.7.65 View the Status.
4.7.66 Double Click on the Transact Move orders.

323
4.7.67 Press F11 on Keyboard.
4.7.69 Press CTRL plus F11 Button on Keyboard.
4.7.71 Click on the Transact.

324

325
4.8Inter Org Transfer with Intransit Shipment.
4.8.2 Type the Item in Item / Revision Field.
4.8.3 Press Tab Button.

326
4.8.4 View the On hand Quantity.
4.8.5 Double Click on the Inter-Organization Transfer.

327
4.8.7 Type the Items in the Item and their Quantity Respectively.

328
4.8.10 Select the Intransit Shipment in the Transaction Type Field.

329
4.8.12 View the Location of Item in Location Tab.
4.8.13 View the Transaction Quantity, Transaction UOM and Primary Quantity in View only.

330
4.8.14 Click on the intransit Tab.
4.8.15 View the Item Along with their Shipment Number.
4.8.17 View the Transaction Type Detail.

331
4.8.19 View the on hand Quantity of the Item.

332
4.8.20 Double Click on the Multi-Organization Quantity.
4.8.21 Type the Master Item in Low and High Fields.

333
4.8.23 Enter the Sequence and Code of Organizations.
4.8.24 Click on the Run Button.
4.8.25 Click on the Request Button.

334
4.8.28 View the Multiple organization Inventory Report.

335
4.8.30 Type the Item and press Tab on the Keyboard.

336
4.8.31 We have the 50 primary and Available to Reserve Quantity.
4.8.32 Available to Transact showing Zero Quantity.
4.8.33 Get the Complete Detail By Clicking on the Organization.

337
4.8.35 Uncheck the on hand.
4.8.36 Check the inbound Button.

338
4.8.38 Click on the + Button on Organization.
4.8.39 We have Two Items in Inbound.

339
4.8.40 Double Click on the Receipts Button.

340
4.8.41 Select the Shipmen Number in Shipment Field.
4.8.42 Pressing Tab will generate the Supplier.

341
4.8.44 Copy the Receipt Number
4.8.45 Select the Location.

342

343
4.8.48 Uncheck the On-hand.
4.8.49 Check the Inbound Check Box.
4.8.50 Click the Find Button.

344
4.8.51 Inbound showing no Item after receipts.
4.8.52 Uncheck the inbound Check Box.
4.8.53 Check the Receiving Check Box.

345
4.8.55 We get the Item in receiving.
4.8.56 Double Click on the Organization or Clicking on the + will give the Detail Picture.

346
4.8.57 Double Click on the Multi-Organization Quantity.
4.8.58 Enter the Master Item in Low and High Fields.

347
4.8.59 Enter the Sequence.
4.8.60 Select the Code of Organization in Code Field.
4.8.61 Click on the Run Button.

348
4.8.63 Select the Request in View Menu.

349
4.8.65 View the Multiple Organization Inventory Report.
4.8.66 Click on the Item Supply/Demand.
4.8.67 Enter the Item in Item Field.
4.8.68 Select the All Subinventories from Drop down List.

350
4.8.70 We have Zero Current on-hand.
4.8.71 Double Click on the Receiving Transactions Button.

351
4.8.72 Select the receipt Number.
4.8.73 Click on the Find button.

352
4.8.74 Select the Subinventory for Both Items.
4.8.76 Double Click on the Material Transactions Button.

353
4.8.77 Select Inventory in Source Type Field.
4.8.78 Enter the Intransit Receipt in the Transaction type Field.

354
4.8.80 View the Complete Information in Location Tab.

355
4.8.81 Click on the Transaction Type Tab to view the Complete Information.

356
4.8.83 Type the Item and Press Tab.

357
Available to Transact Quantity Changed from Zero to 50.
4.8.85 WE MAY CHECK THE ON HAND AVALIBILITY OF IBT ISLAMABAD
4.8.86 Double Click on Hand Quantity.

358
4.8.88 Type the Item and press Tab on Keyboard.
4.8.89 View the on Hand Material Location.

359
4.9 Perform an Inter-Org Transfer with Direct Shipment.
4.9.1 Double Click on the Inter-organization Transfer.
4.9.2 Select the Organization in To Org.
4.9.3 Select the Direct org Transfer in Type Field.

360
4.9.5 Type the Item and Enter the Quantity to Transact.
4.9.6 Click on Save Button and Exit.
4.9.7 Double Click on On-hand Quantity.

361
4.9.8 Type the Item and Press Tab Button.
4.9.9 We have 20 On hand Quantity in Material Location.

362
4.9.11 Select Inventory as Source type.
4.9.12 Select Direct Organization transfer as Action.
4.9.13 Select Direct Org Transfer as Transaction Type.

363
4.9.14 View the Location Detail in Location tab.
4.9.15 Click on the Transaction Type Tab to view Complete Detail of Transaction.

364
4.11 Setup Organization Parameters for Lots.
4.11.1 Double Click on the Organization.
4.11.2 Select the Organization in Name Field

365
4.11.4 Select the Inventory Organization.
4.11.5 Click on the Others Button.
4.11.6 Select the Inventory Information and Click on OK Button.
4.11.7 Select the Revision, Lot, Serial And LPN Tab.
4.11.8 Select At Organization Level from Drop down List.

366
4.11.9 Enter the Prefix and Total Length.

367
4.12Create Grades For Lots.
4.12.1 Double Click on the Grades.

368
4.12.3 Enter the Grade and its Description.

369
4.13 Generate Lots and Serial Numbers
4.13.1 Double Click on the Attribute Controls.
4.13.2 Find Inventory with Lot Control Attribute.

370
4.13.3 Select Inventory with the serial Number Generation Attribute.

371
4.13.4 Make Sure Serial Number Generation must be controlled at Org Level.

372
4.13.6 Enter the Detail of New Item.
4.13.7 Select the IBT Purchased Item Template.

373
4.13.9 Click on the Inventory Tab.
4.13.10 Change Control from No Control to Full Control.

374
4.13.11 Attach the Grade in Default Grade Field.
4.13.12 Change Serial Generation from No Control to Predefined.

375
4.13.14 Enter the Starting Prefix and Number.

376
4.13.17 Type the item in Item / Revision Field and Press Tab Button on Keyboard.

377
4.13.19 We have Zero Quantity in Stock.
4.13.20 Double Click on the Lots.

378

379
4.13.23 Click on the Generate Lot Button.
4.13.24 We have Generated 4 Lots.

380
4.13.25 View the Detail of Lot.
4.13.26 Double Click on the Generate Serial Numbers.

381
4.13.28 Type the item in the Master Item Field.

382
4.13.30 Enter the Number of Serials.

383
4.13.32 Click on the No Button.
4.13.33 Request Completed with Normal Status.

384
4.13.34 Double Click on the Serial Numbers.
4.13.35 Type the item in Item Field and Press Tab.

385
4.13.37 View the Serial Number Starting from CN0000000001
4.13.38 Select Last via Record in View Menu.

386
4.13.39 Serial Number Ending with CN0000000080

387
4.14Perform Transactions with Lot and Serial Numbers.
Typically the process in IBT Islamabad encodes from overseas suppliers would be received against a
Purchase Order, However to simulate the process without including purchasing we will use the
miscellaneous Transaction.

388
4.14.2 Select the Miscellaneous receipt.
4.14.3 Enter the Source and Account.
4.14.4 Click on the Transaction Line.

389
4.14.7 Enter the Quantity.

390
4.14.8 Select the 1st Lot Number.
4.14.9 Enter the Quantity in Lot.
4.14.10 Click on the Serial Number Button.

391
4.14.11 Select the Start serial Number and End Serial Number.
4.14.12 Click on the Done Button.
4.14.13 Select 2nd Lot Number with Quantity.

392
4.14.14 Select the Start Serial Number and End Serial Number for 2nd Lot.
4.14.15 Select Final Lot Number with Remaining Quantity.
4.14.16 Click on the Serial Number Button.

393
4.14.17 Select the Remaining Serial Number in Start and End Serial Numbers Fields Respectively.
4.14.18 Click on the Save Button and Exit.

394
4.14.20 Type the item in Item/Revision Field and press Tab.

395
4.14.22 We have 80 Quantity as on-hand.
4.14.23 View the Complete Detail by Double Clicking on the Organizations.

396

397
4.14.27 Click on the View Genealogy Button.
4.14.28 View the Detail of First Lot and Its Serial Number.

398
4.14.29 Select the 2nd Lot and Click on the View Genealogy Button.
4.14.30 View the Detail of Serial Number Associated with 2nd Lot.

399
4.14.31 Click on the Lot Attribute Tab.
4.14.32 View the Detail of Lot.
4.14.33 Click on the Material Transaction Tab and view the Transaction Detail.

400
4.15 Implement Material Status.
4.15.1 Switch to System Administrator.
4.15.2 Double Click on the System.

401
4.15.3 Select the IBT Inventory Manager Pakistan
4.15.4 Select the INV: Material Status Button.
4.15.5 Select the Yes in Site Field.

402
4.15.6 Double Click on the Material Status.
4.15.7 Enter the Name and Description of Material Status.

403
4.15.8 Select the Perform Miscellaneous Issue of Material and click on the Move to Disallow
List.
4.15.9 Double Click on the Lots Button.

404
4.15.11 Type the Item in the Item Field and Press Tab on the Keyboard.

405
4.15.12 View the Status which is Active.
4.15.13 Double Click on the Material Status Button.

406
4.15.14 Select the Enter via Query by Example in View Menu.
4.15.15 Enter the Criteria as Active in Name Field

407
4.15.16 To Execute the Query Select the Run via Query by Example in View Menu.
4.15.17 Double Click on the Organization Items.

408
4.15.18 Type the Item in Item Field and Press the TAB Button on Keyboard.
4.15.19 Material Status Control Showing Lot and Serial Status unchecked.

409
4.15.20 Check the Lot and Serial Status Enabled Check Box.

410
4.15.22 Type the Item in Item Field and Press TAB Button on Keyboard.
4.15.23 Now we can change the Status.

411
4.15.24 Change the Active status to QC Ins.
4.15.26 Select the 2nd Lot and Click on the Serial Button.

412
4.15.27 Change the Status of First three Serial Numbers.

413
4.15.29 Select the Miscellaneous issue in type Field.

414
4.15.32 Type the Item and subinventory.
4.15.33 Click on the Lot Button.
4.15.34 We are unable to view the 1st
Lot.
4.15.35 Select the 2nd
lot.

415
We are unable to view the first Three Items Serial Numbers as we have changed the Status from Active to
QC insp, and we have disallowed the miscellaneous receipts transaction.

416
4.16 Material Status on Subinventory Level.
4.16.1 Double Click on Subinventories.

417
4.16.3 View the Status of Accessory subinventory.
4.16.4 Change the Status from Active to QC Insp.

418
4.16.6 Select the Miscellaneous Issue in type Field.
4.16.7 Enter the Account and Click on the Transaction Lines Button.

419
4.16.8 We are unable to view the Accessory subinventory as we have changed the Status.

420
4.16.10 View the Status of Accessory Subinventory.
4.16.11 Change it from QC Insp to Active.

421
4.16.12 Here comes the Accessory Subinventory in Miscellaneous issue Transaction.

422
5 Inventory Replenishment.
5.1 Min-Max Planning at Organization Level.

423
5.1.3 Type the Item and Press Tab on Keyboard.
5.1.5 Select the General Planning Tab.

424
5.1.6 View the Detail and Change if any.
5.1.7 Double Click on the Min-Max planning.

425
5.1.8 Select the Processors in the Low and High Fields.

426
5.1.11 Enter the Required Information and Click on OK Button.
5.1.12 Click on Submit Button.

427
5.1.13 Click on No Button.
5.1.14 Select the Request from View Menu.

428
5.1.16 Click on View Output Button.
5.1.17 View the Report.

429

430
5.1.19 Enter the Value in Fixed lot Multiplier.
5.1.20 Double Click on the Min-Max Planning.

431

432
5.1.23 Click on Submit Button.

433
5.1.25 Click on the View output Button.
5.1.26 View the Effect of Multiple in Report.

434
5.1.27 Switch to IBT Purchasing Responsibility.
5.1.28 Select the Request in View Menu.

435
5.1.30 Select the Operating Unit.

436
5.1.31 Enter the Required information and Click on OK Button.
5.1.32 Click on NO Button.

437

438
5.2 Inventory Replenishment with Kanban Cards and Moves Orders.

439
5.2.3 Type the Item and Press TAB Button on Keyboard.
5.2.4 Click on the MPS/MRP Planning Tab.

440
5.2.5 Select Kanban Item (Do Not Release) from Drop Down list.

441
5.2.7 Type the Item in Item / Revision Field and Press Tab on Keyboard.

442
5.2.9 Double Click on the Pull Sequences.

443
5.2.11 Type the Item

444
5.2.14 Change the Type to Intra Org.
5.2.15 Enter the Calculate as No of Cards.
5.2.16 Enter the Values in Size and Number of cards.

445
5.2.17 Click on the Generate Cards
5.2.18 Click on the Yes Button.

446
5.2.21 View the Kanban Cards.

447
5.2.22 Double Click on the Kanban Cards.

448
5.2.23 Type the item in Item Field.
5.2.25 Click on the Replenish Button.

449
5.2.26 Status have been changed from New to in process.
5.2.27 Double Click on the Move Orders.

450
5.2.28 Click on the Torch to find the Move Orders.
5.2.29 Type the Item in Item Field and Press Tab on keyboard.

451
5.2.31 Select the Number and Click on Open Button.
5.2.32 View the Status of Move Order.

452
5.2.33 Click on the Source Tab to View Detail.
5.2.34 Click on the Destination Tab to view Detail.

453
5.2.35 Click on the Control Tab to View Detail.
5.2.36 Double Click on the Transact Move Orders.

454
5.2.37 Type the Item in Item Field and Press Tab Button on Keyboard.
5.2.39 Check All 3 Move Orders

455
5.2.41 Click on the OK.

456
5.2.43 Type the item in Item / Revision Field and Press the Tab Button.
5.2.44 Double Click on the Kanban Cards.

Oracle Inventory Complete Implementation Setups.

Oracle Inventory Complete Implementation Setups.

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Oracle Inventory Complete Implementation Setups.

Similar to Oracle Inventory Complete Implementation Setups. (20)

Recently uploaded

Recently uploaded (20)

Oracle Inventory Complete Implementation Setups.
