1. Advance Database Management Systems : 9
Complex Objects
Prof Neeraj Bhargava
Vaibhav Khanna
Department of Computer Science
School of Engineering and Systems Sciences
Maharshi Dayanand Saraswati University Ajmer

2. 2

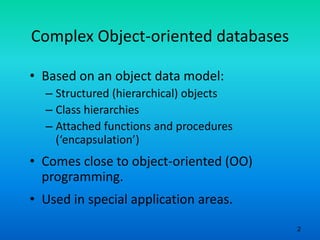

Complex Object-oriented databases
• Based on an object data model:
– Structured (hierarchical) objects
– Class hierarchies
– Attached functions and procedures
(‘encapsulation’)
• Comes close to object-oriented (OO)
programming.
• Used in special application areas.

3. 3

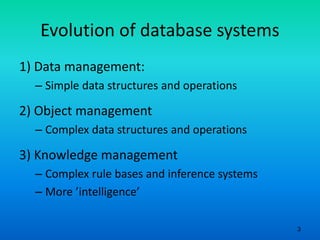

Evolution of database systems
1) Data management:
– Simple data structures and operations
2) Object management
– Complex data structures and operations
3) Knowledge management
– Complex rule bases and inference systems
– More ’intelligence’

4. 4

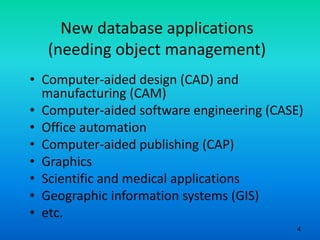

New database applications
(needing object management)
• Computer-aided design (CAD) and
manufacturing (CAM)
• Computer-aided software engineering (CASE)
• Office automation
• Computer-aided publishing (CAP)
• Graphics
• Scientific and medical applications
• Geographic information systems (GIS)
• etc.

5. 5
Object Data Management Needs
• Composite (complex) objects
• Unique and stable object identifiers
• Efficient references and integrity
• Object type hierarchy
• Associated procedures
• Object encapsulation
(hiding implementation details)
• Ordered sets (e.g. lists)

6. 6

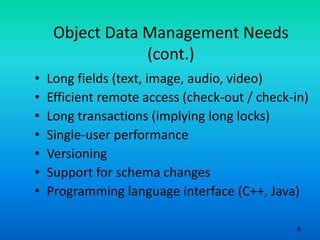

Object Data Management Needs
(cont.)
• Long fields (text, image, audio, video)
• Efficient remote access (check-out / check-in)
• Long transactions (implying long locks)
• Single-user performance
• Versioning
• Support for schema changes
• Programming language interface (C++, Java)

7. 7

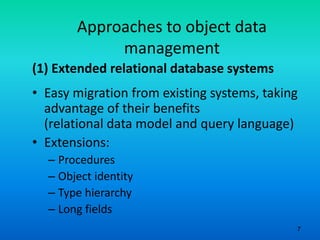

Approaches to object data
management
(1) Extended relational database systems
• Easy migration from existing systems, taking
advantage of their benefits
(relational data model and query language)
• Extensions:
– Procedures
– Object identity
– Type hierarchy
– Long fields

8. 8

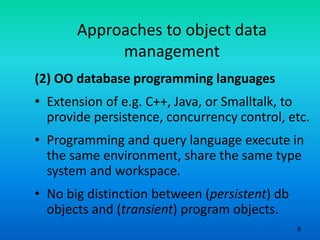

Approaches to object data
management
(2) OO database programming languages
• Extension of e.g. C++, Java, or Smalltalk, to
provide persistence, concurrency control, etc.
• Programming and query language execute in
the same environment, share the same type
system and workspace.
• No big distinction between (persistent) db
objects and (transient) program objects.

9. 9

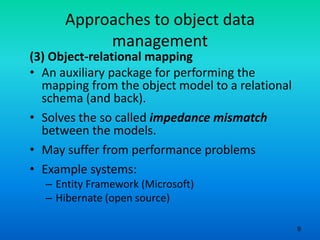

Approaches to object data
management
(3) Object-relational mapping
• An auxiliary package for performing the
mapping from the object model to a relational
schema (and back).
• Solves the so called impedance mismatch
between the models.
• May suffer from performance problems
• Example systems:
– Entity Framework (Microsoft)
– Hibernate (open source)

10. 10

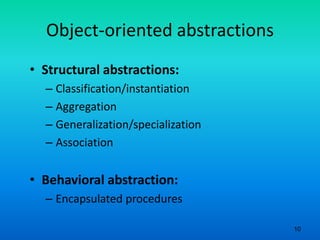

Object-oriented abstractions
• Structural abstractions:
– Classification/instantiation
– Aggregation
– Generalization/specialization
– Association
• Behavioral abstraction:
– Encapsulated procedures

11. 11

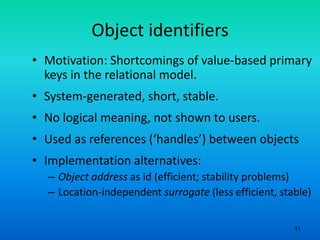

Object identifiers
• Motivation: Shortcomings of value-based primary
keys in the relational model.
• System-generated, short, stable.
• No logical meaning, not shown to users.
• Used as references (‘handles’) between objects
• Implementation alternatives:
– Object address as id (efficient; stability problems)
– Location-independent surrogate (less efficient, stable)

12. 12

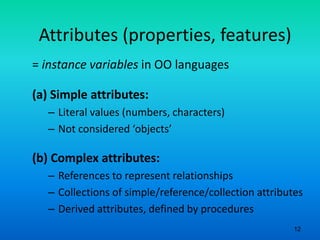

Attributes (properties, features)
= instance variables in OO languages
(a) Simple attributes:
– Literal values (numbers, characters)
– Not considered ‘objects’
(b) Complex attributes:
– References to represent relationships
– Collections of simple/reference/collection attributes
– Derived attributes, defined by procedures

13. 13

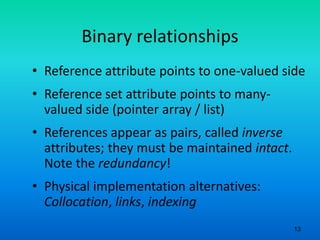

Binary relationships
• Reference attribute points to one-valued side
• Reference set attribute points to many-
valued side (pointer array / list)
• References appear as pairs, called inverse
attributes; they must be maintained intact.
Note the redundancy!
• Physical implementation alternatives:
Collocation, links, indexing

14. 14

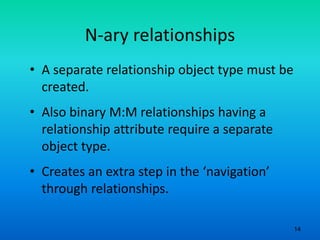

N-ary relationships
• A separate relationship object type must be
created.
• Also binary M:M relationships having a
relationship attribute require a separate
object type.
• Creates an extra step in the ‘navigation’
through relationships.

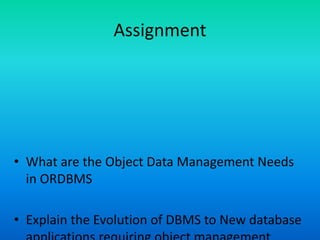

15. Assignment
• What are the Object Data Management Needs
in ORDBMS
• Explain the Evolution of DBMS to New database
