1. OBJECT DATABASE SYSTEM
DR. SUSHIL KULKARNI

2. Object Database System :
Objectives
Problems with RDBMS
What is ODBMS and ORDBMS ?
Advantages and Disadvantages
OO/ER model comparison and object
schema
Object type : Attributes and Methods
Collection types
2

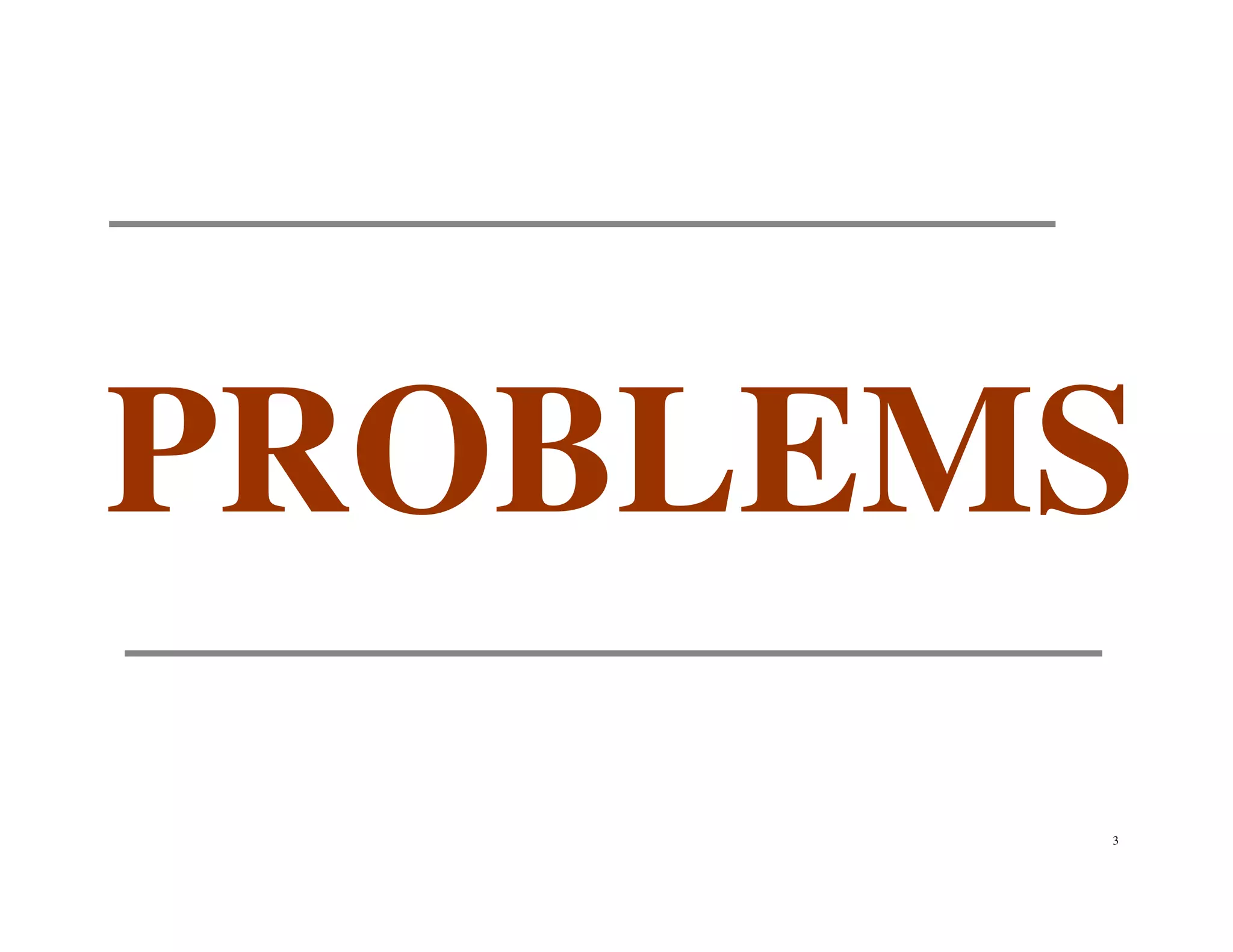

3. PROBLEMS
3

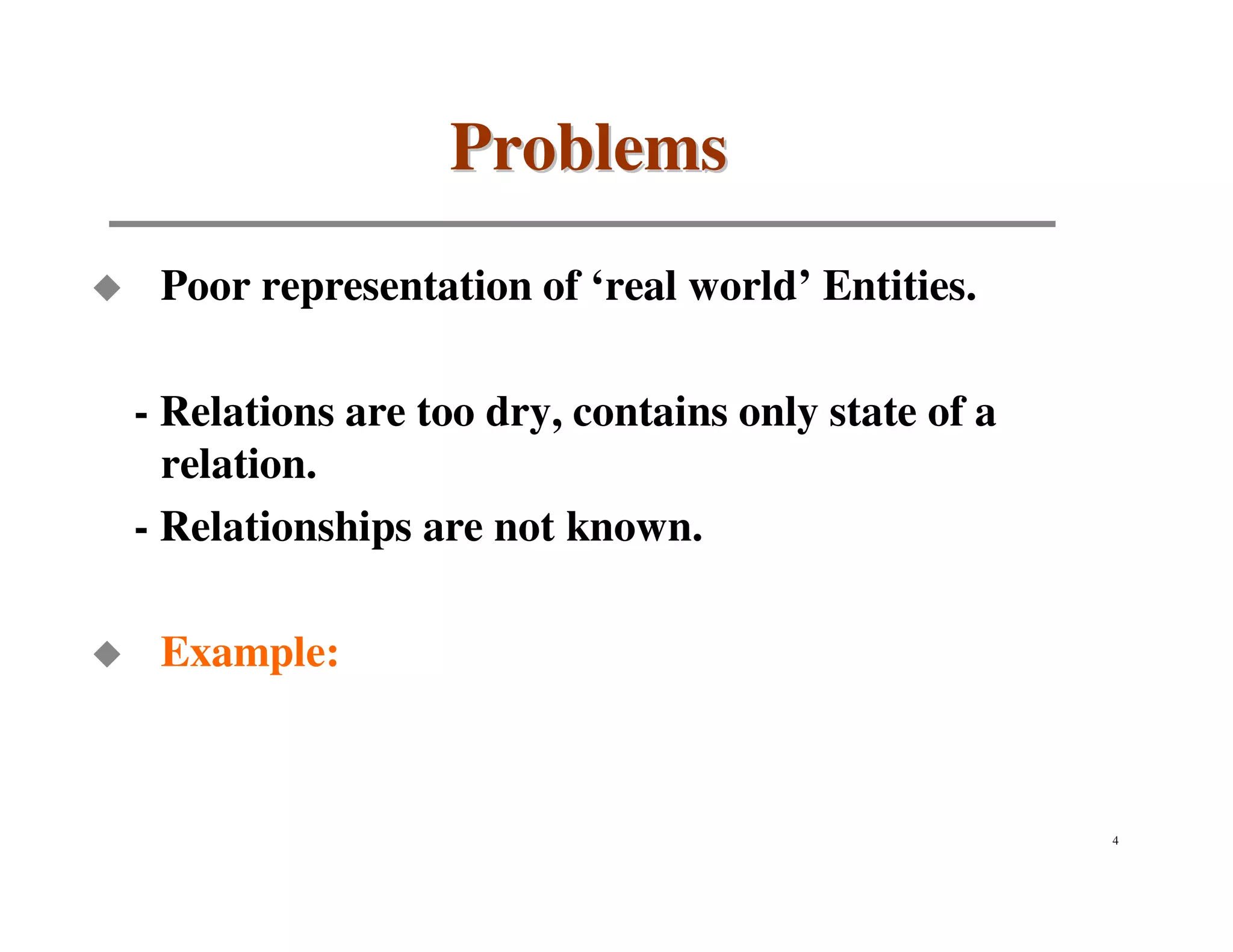

4. Problems
Poor representation of ‘real world’ Entities.
- Relations are too dry, contains only state of a
relation.
- Relationships are not known.
Example:
4

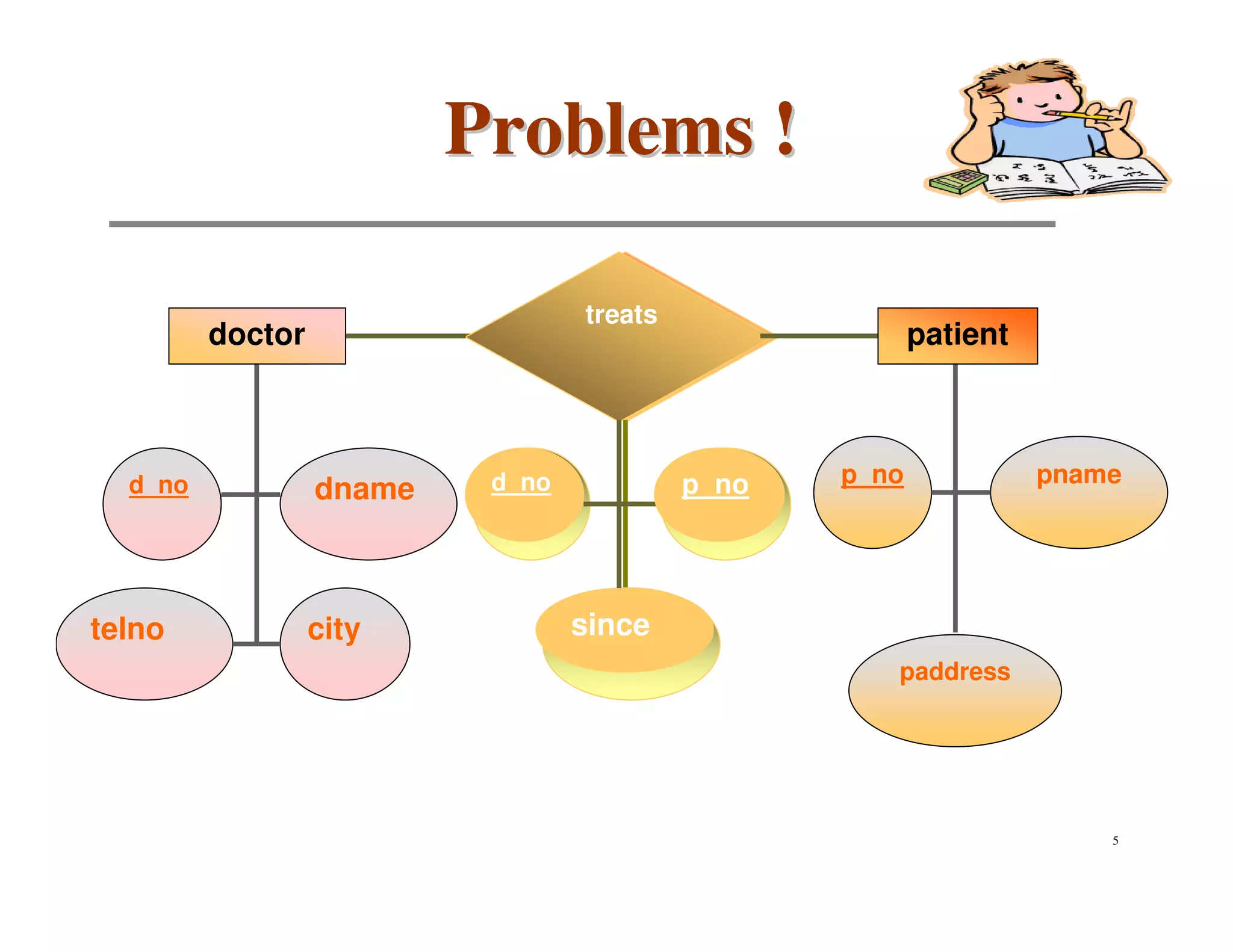

5. Problems !
treats
killed
doctor patient
d_no d_no
d_no p_no
p_no p_no pname
dname
telno city since
dok
paddress
5

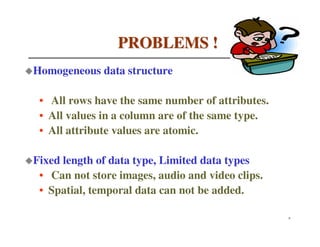

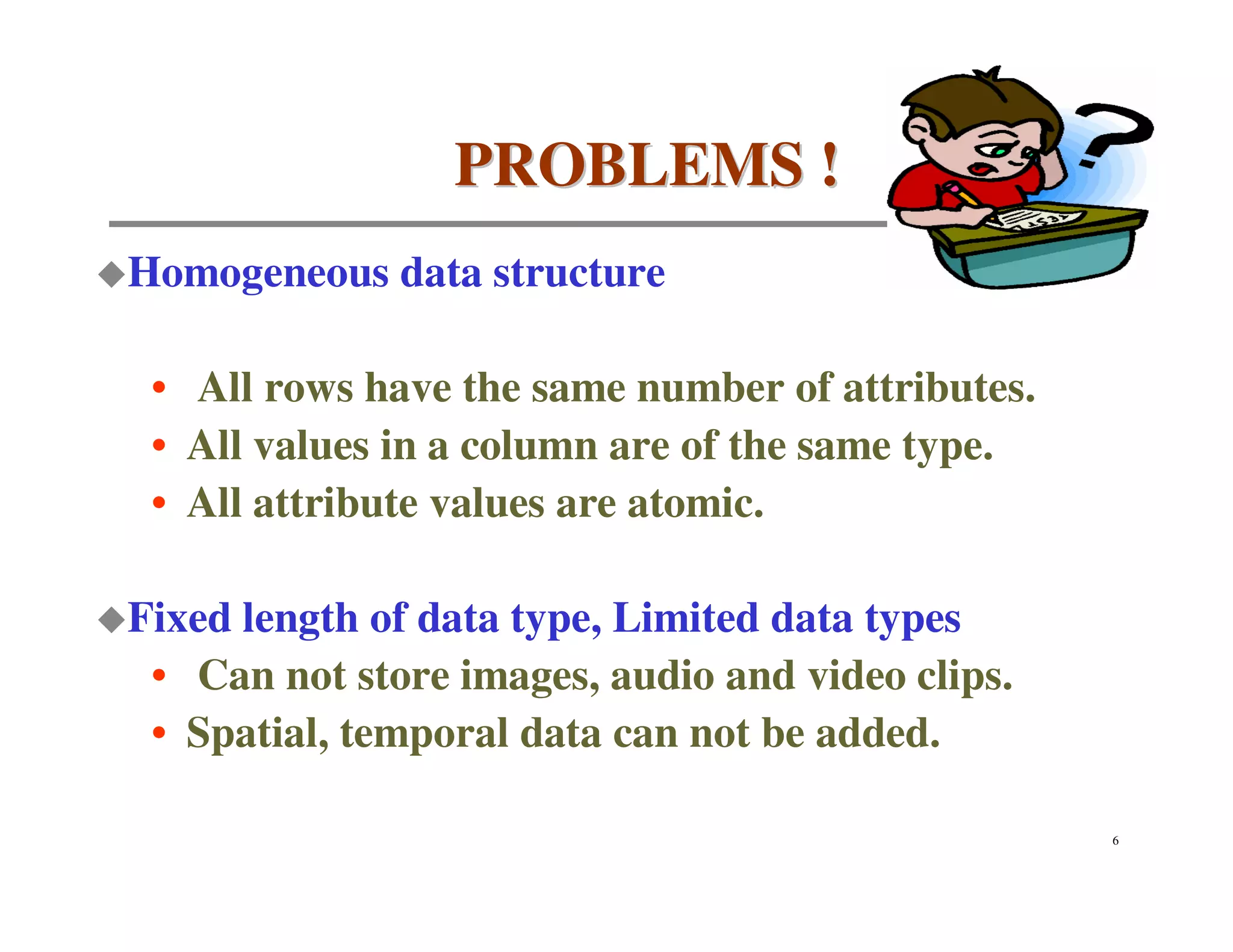

6. PROBLEMS !
Homogeneous data structure
• All rows have the same number of attributes.
• All values in a column are of the same type.
• All attribute values are atomic.
Fixed length of data type, Limited data types
• Can not store images, audio and video clips.
• Spatial, temporal data can not be added.
6

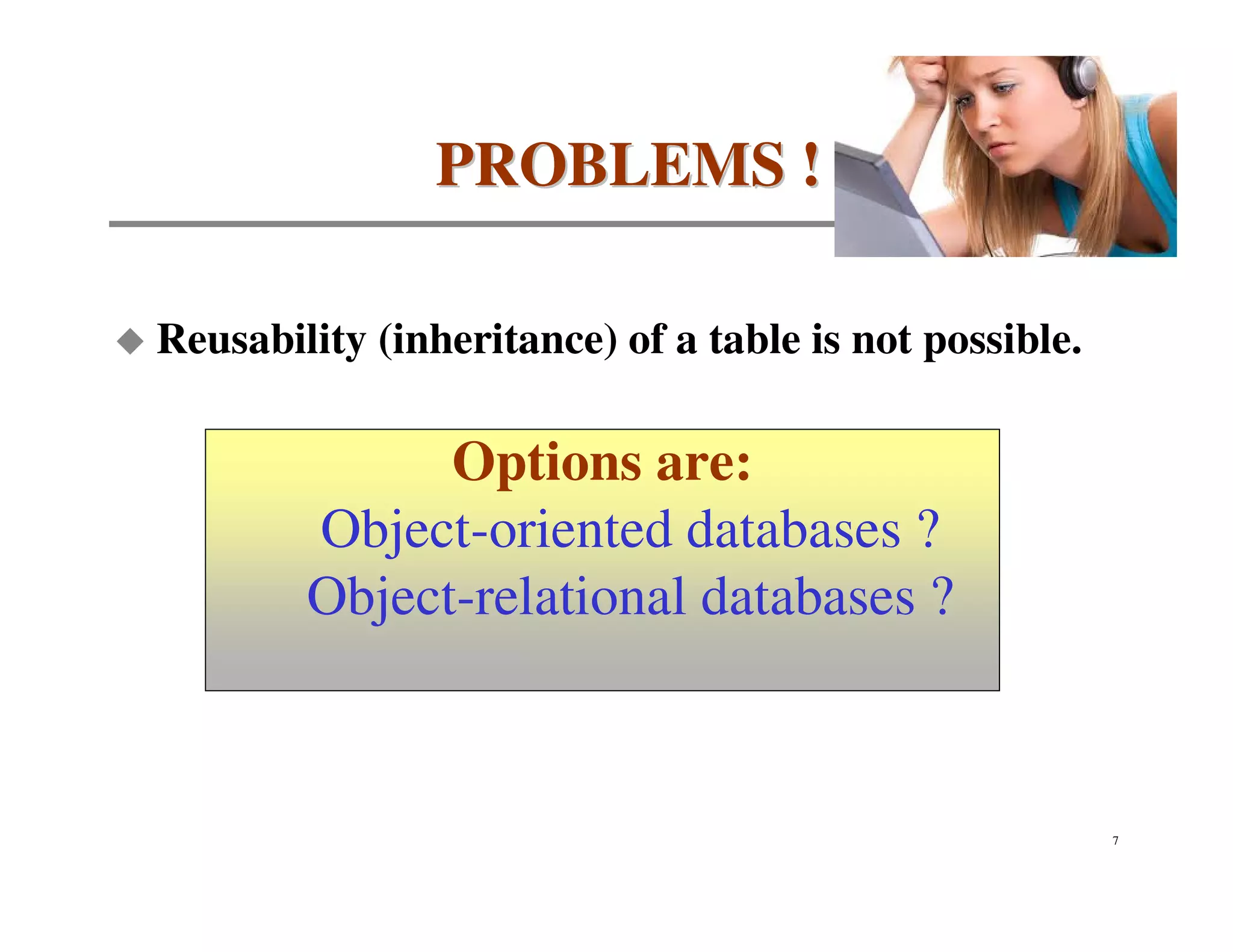

7. PROBLEMS !
Reusability (inheritance) of a table is not possible.
Options are:
Object-oriented databases ?
Object-relational databases ?
7

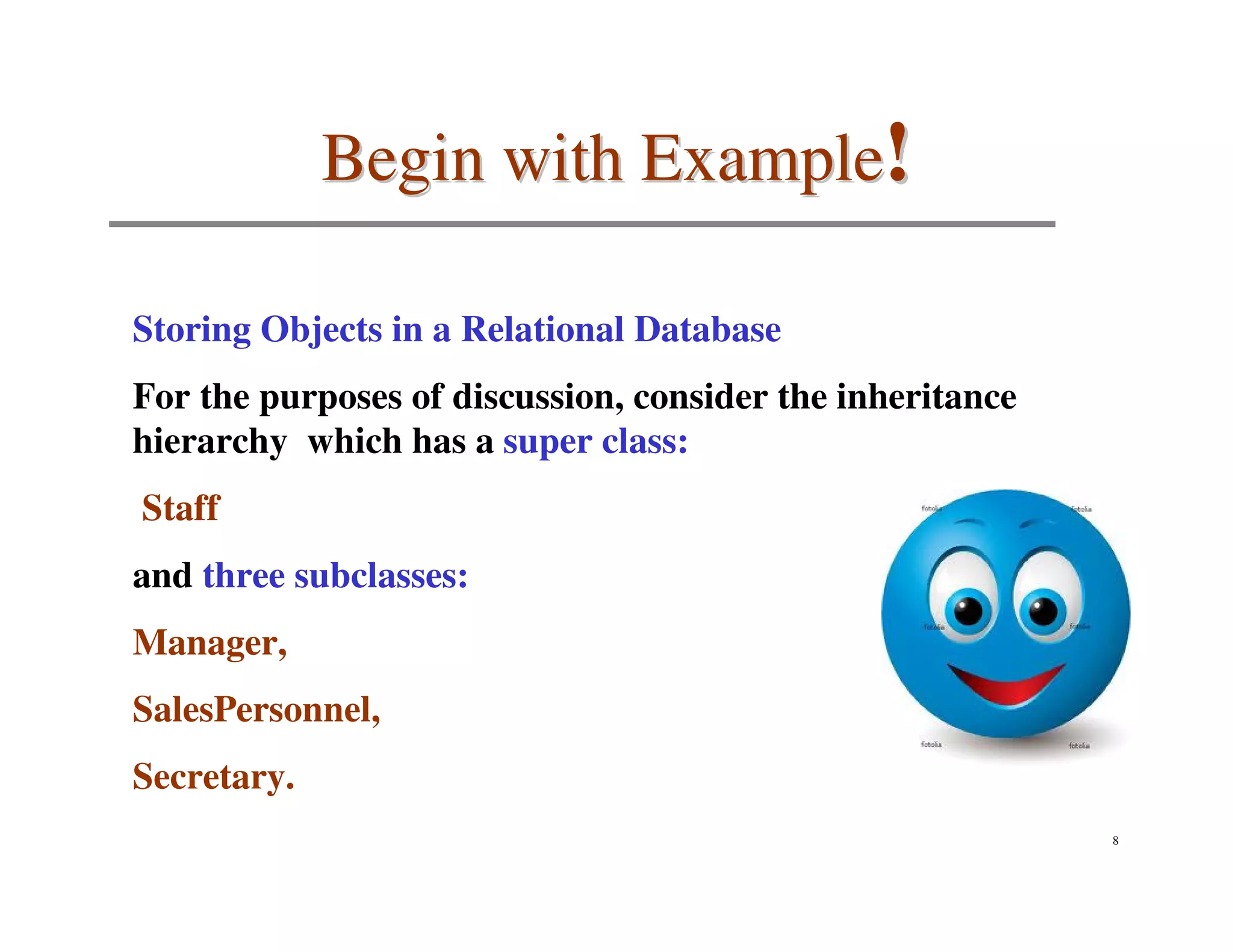

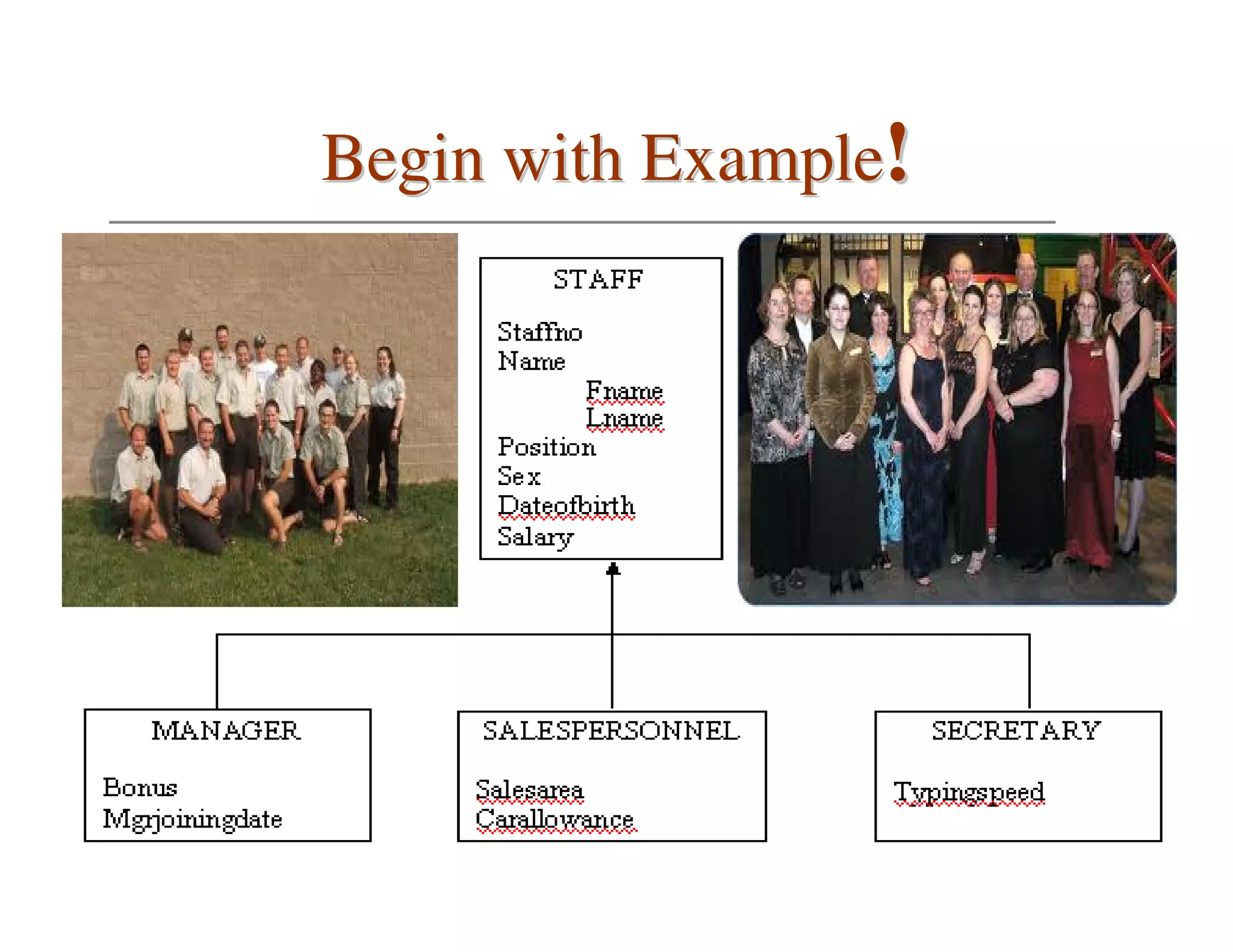

8. Begin with Example!
Storing Objects in a Relational Database
For the purposes of discussion, consider the inheritance
hierarchy which has a super class:
Staff
and three subclasses:
Manager,
SalesPersonnel,
Secretary.
8

9. Begin with Example!
9

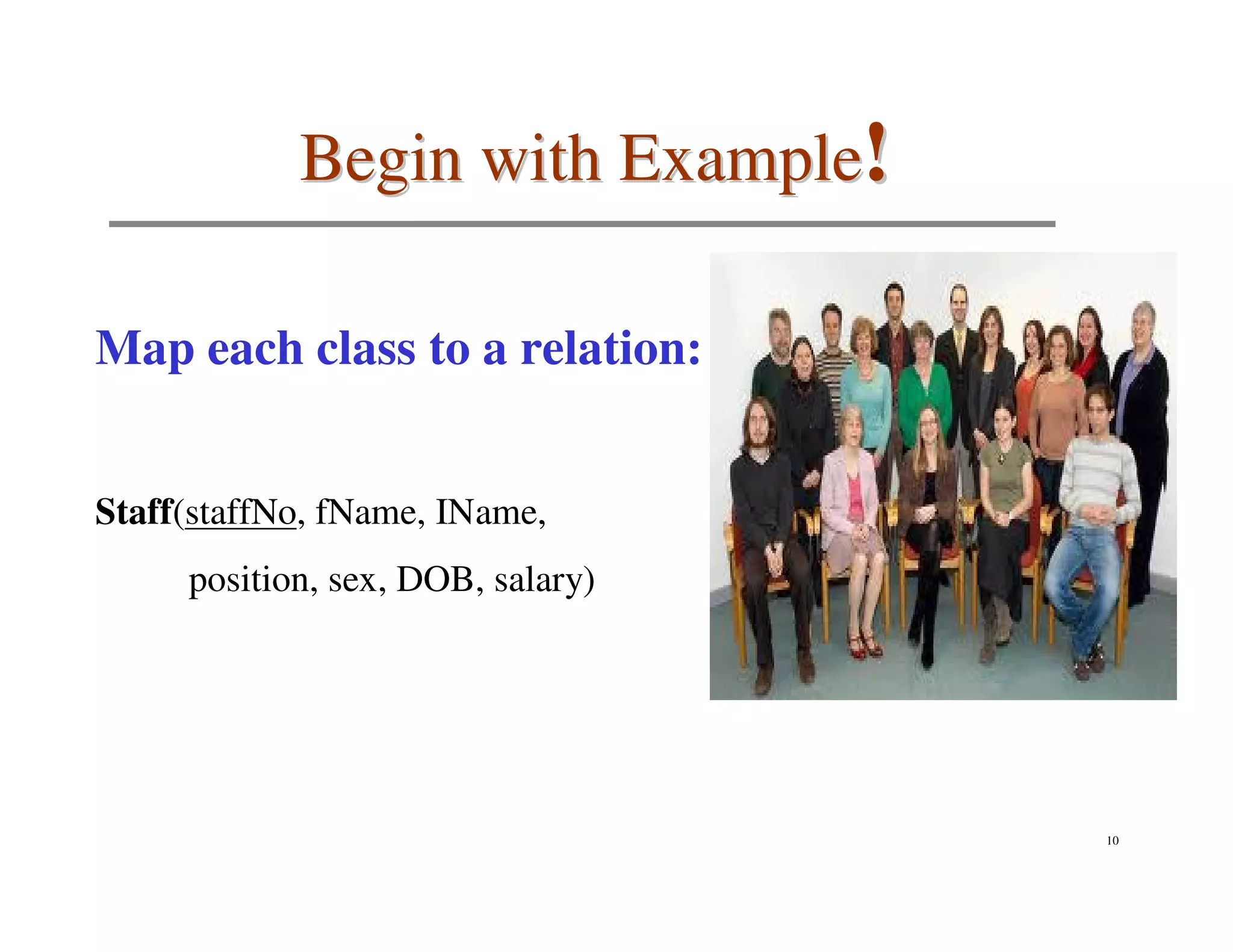

10. Begin with Example!
Map each class to a relation:
Staff(staffNo, fName, IName,
position, sex, DOB, salary)
10

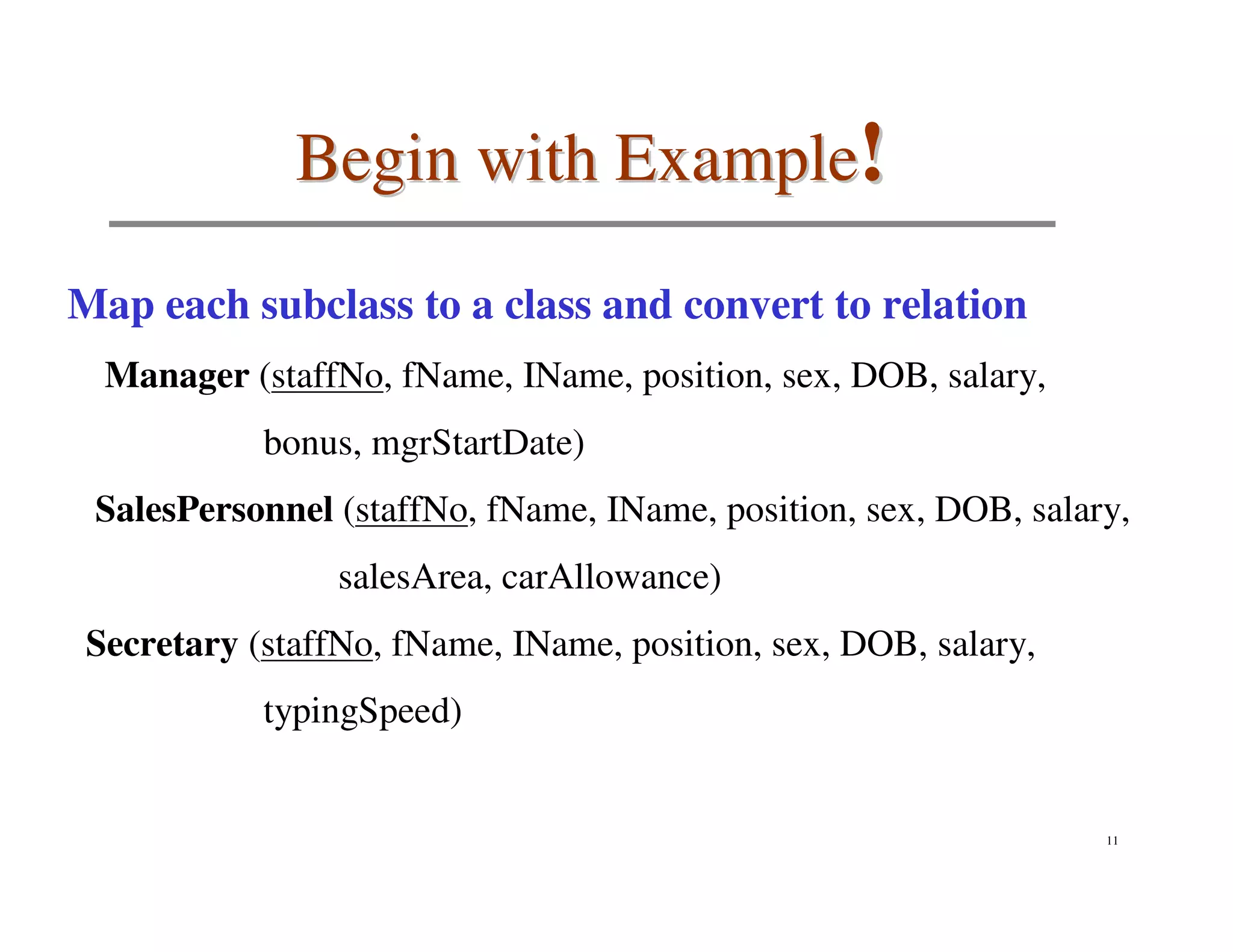

11. Begin with Example!
Map each subclass to a class and convert to relation
Manager (staffNo, fName, IName, position, sex, DOB, salary,
bonus, mgrStartDate)
SalesPersonnel (staffNo, fName, IName, position, sex, DOB, salary,
salesArea, carAllowance)
Secretary (staffNo, fName, IName, position, sex, DOB, salary,
typingSpeed)
11

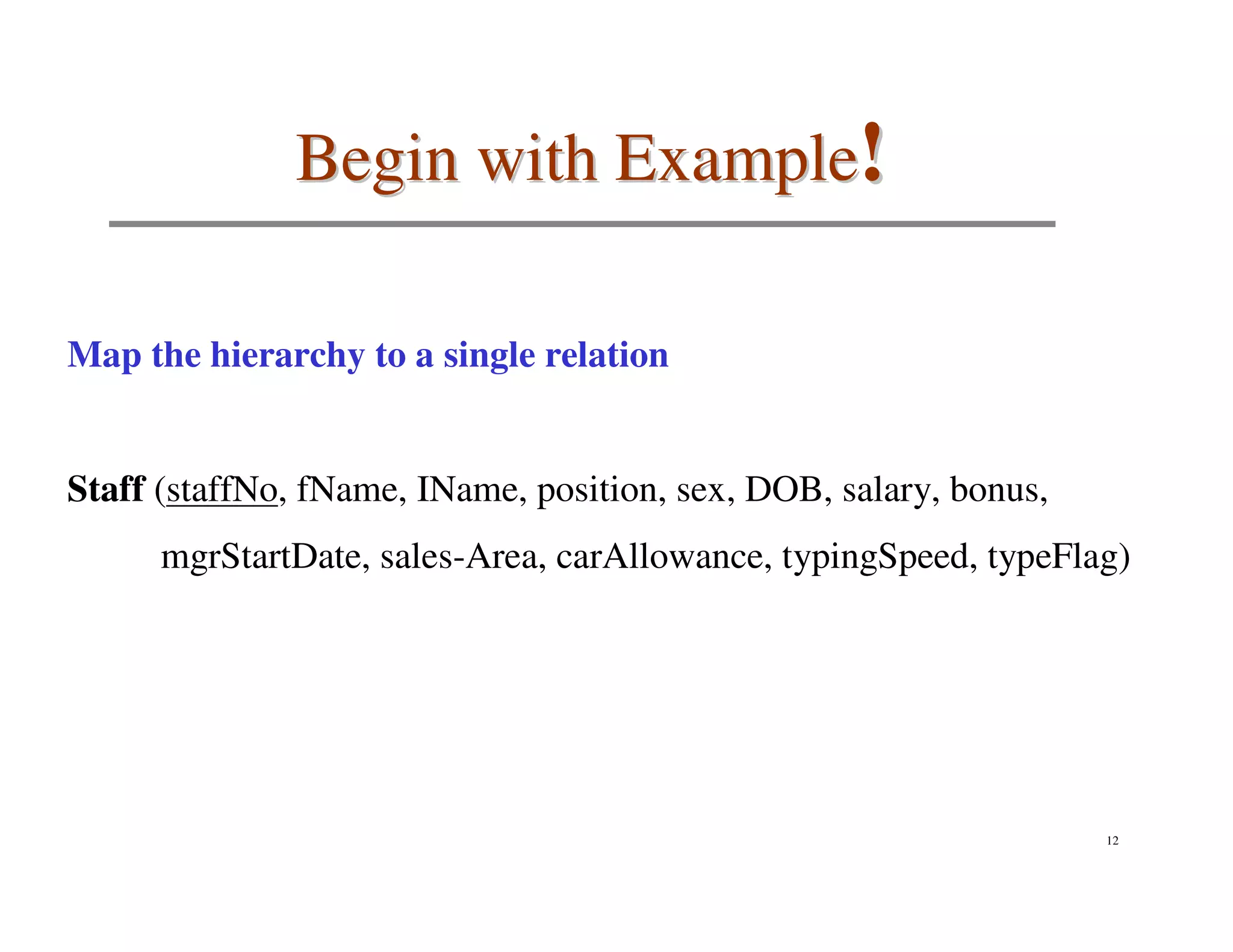

12. Begin with Example!
Map the hierarchy to a single relation
Staff (staffNo, fName, IName, position, sex, DOB, salary, bonus,
mgrStartDate, sales-Area, carAllowance, typingSpeed, typeFlag)
12

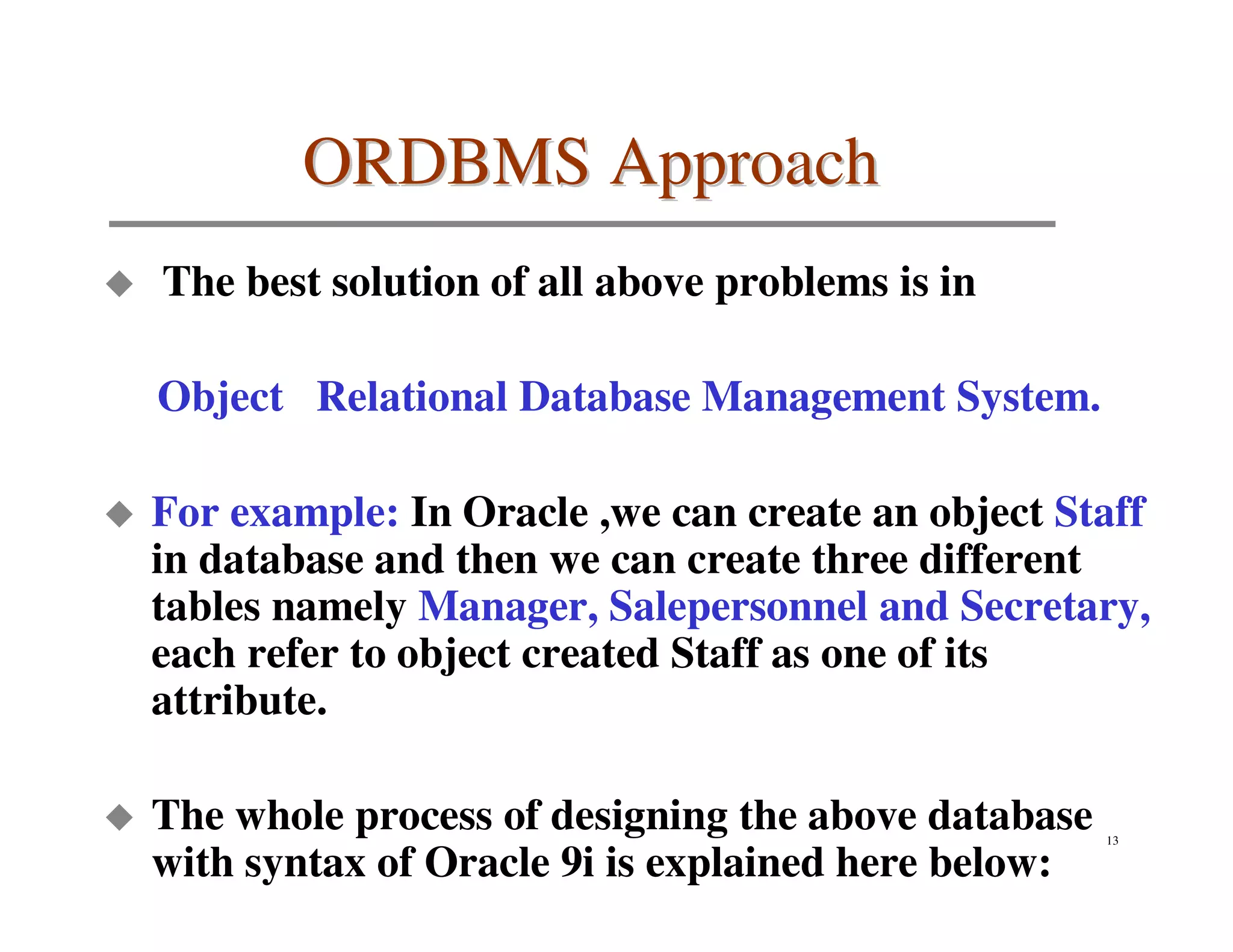

13. ORDBMS Approach
The best solution of all above problems is in
Object Relational Database Management System.
For example: In Oracle ,we can create an object Staff
in database and then we can create three different
tables namely Manager, Salepersonnel and Secretary,
each refer to object created Staff as one of its
attribute.
The whole process of designing the above database 13
with syntax of Oracle 9i is explained here below:

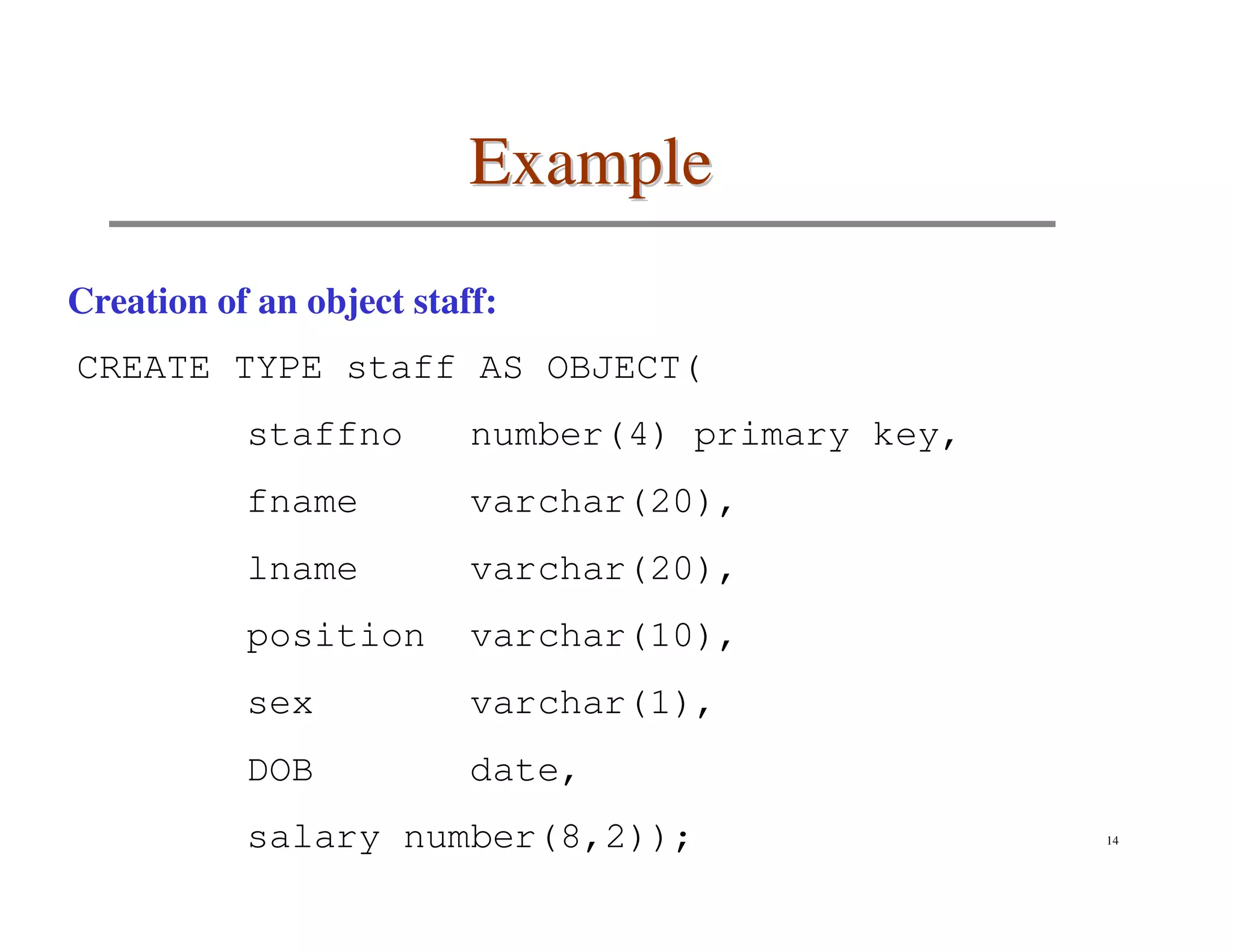

14. Example
Creation of an object staff:
CREATE TYPE staff AS OBJECT(
staffno number(4) primary key,
fname varchar(20),
lname varchar(20),
position varchar(10),
sex varchar(1),
DOB date,
salary number(8,2)); 14

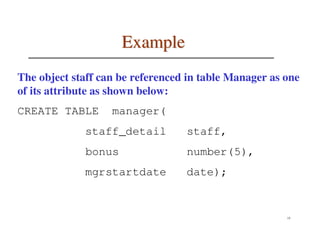

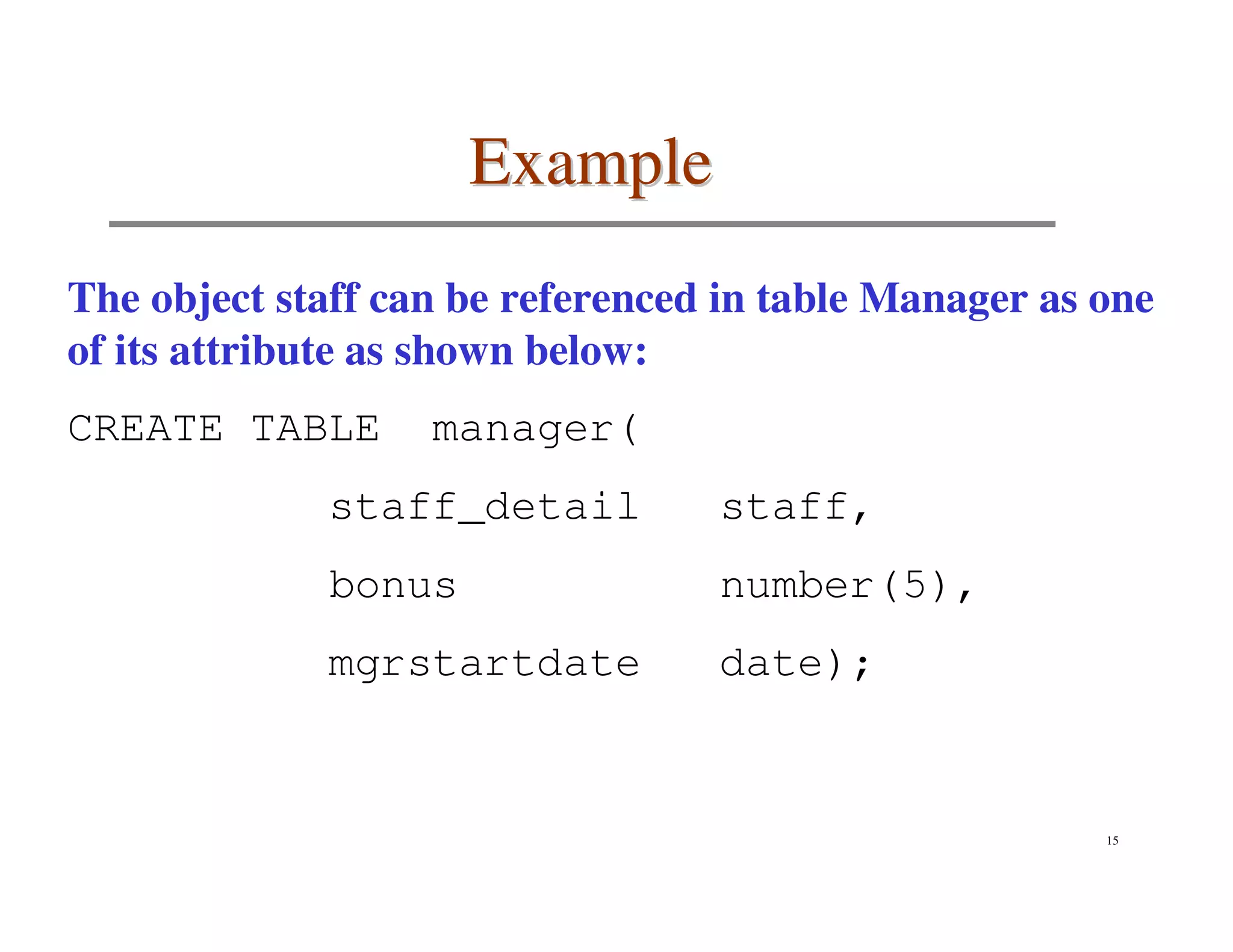

15. Example
The object staff can be referenced in table Manager as one
of its attribute as shown below:
CREATE TABLE manager(
staff_detail staff,
bonus number(5),
mgrstartdate date);
15

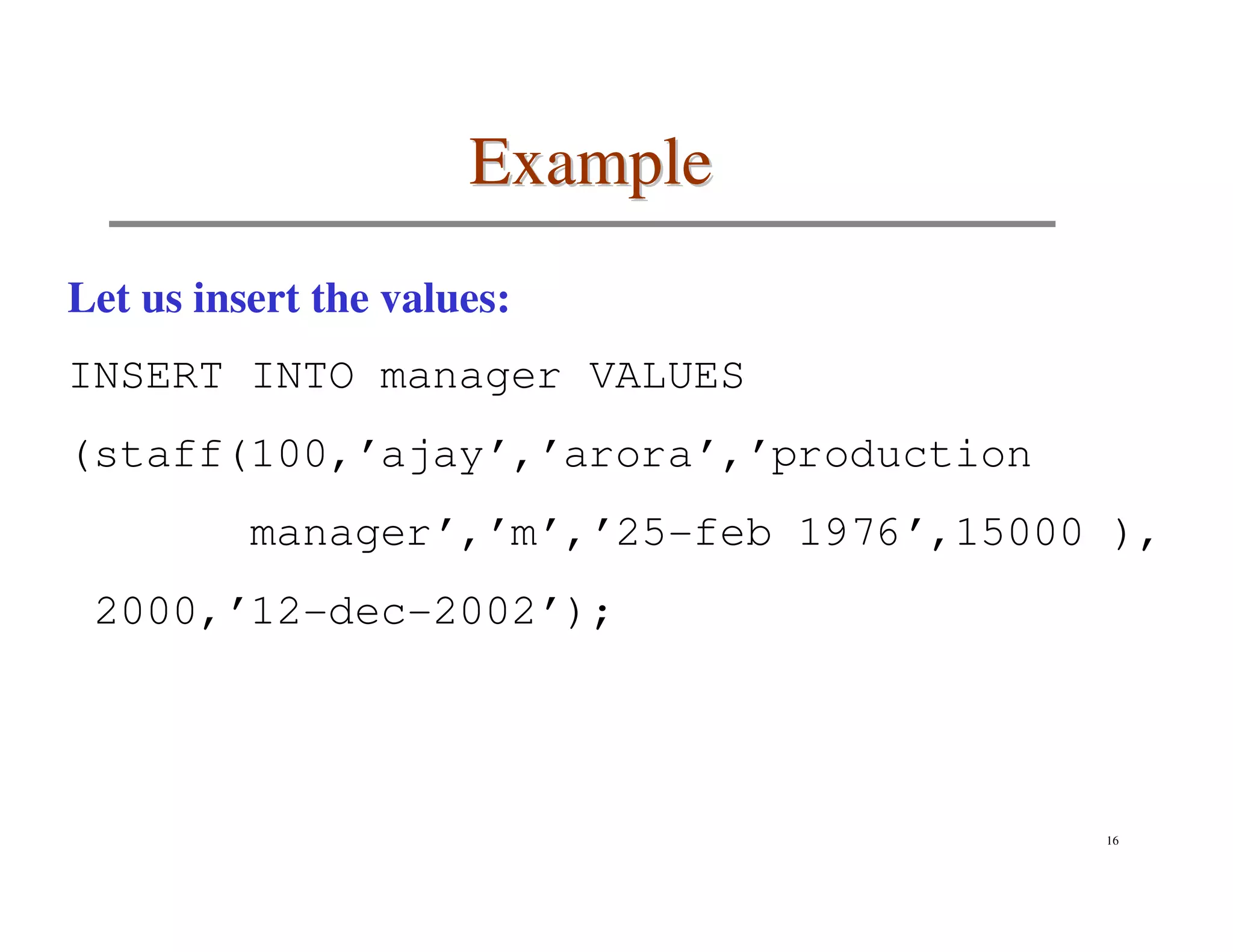

16. Example
Let us insert the values:
INSERT INTO manager VALUES
(staff(100,’ajay’,’arora’,’production
manager’,’m’,’25-feb 1976’,15000 ),
2000,’12-dec-2002’);
16

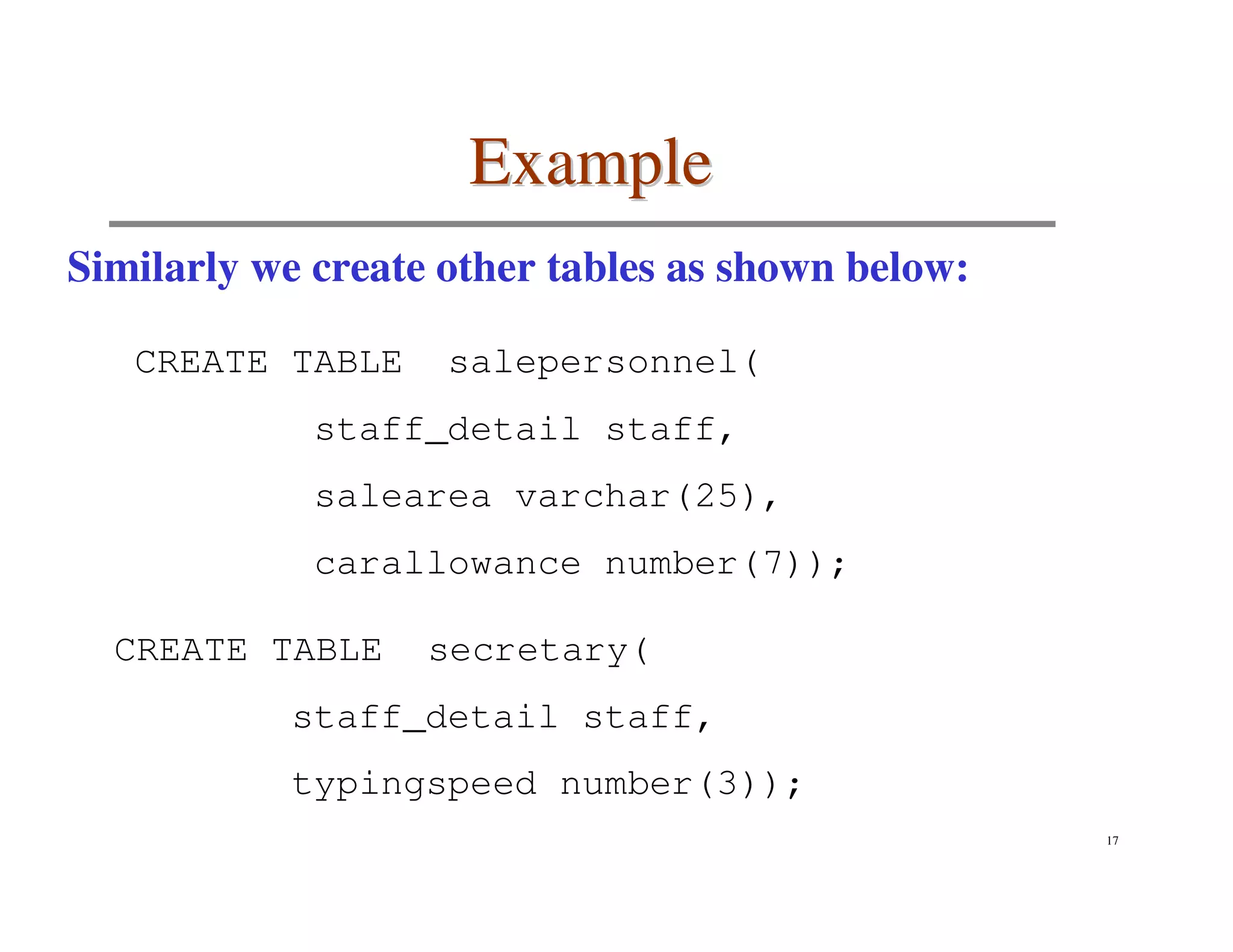

17. Example
Similarly we create other tables as shown below:
CREATE TABLE salepersonnel(
staff_detail staff,
salearea varchar(25),
carallowance number(7));
CREATE TABLE secretary(
staff_detail staff,
typingspeed number(3));
17

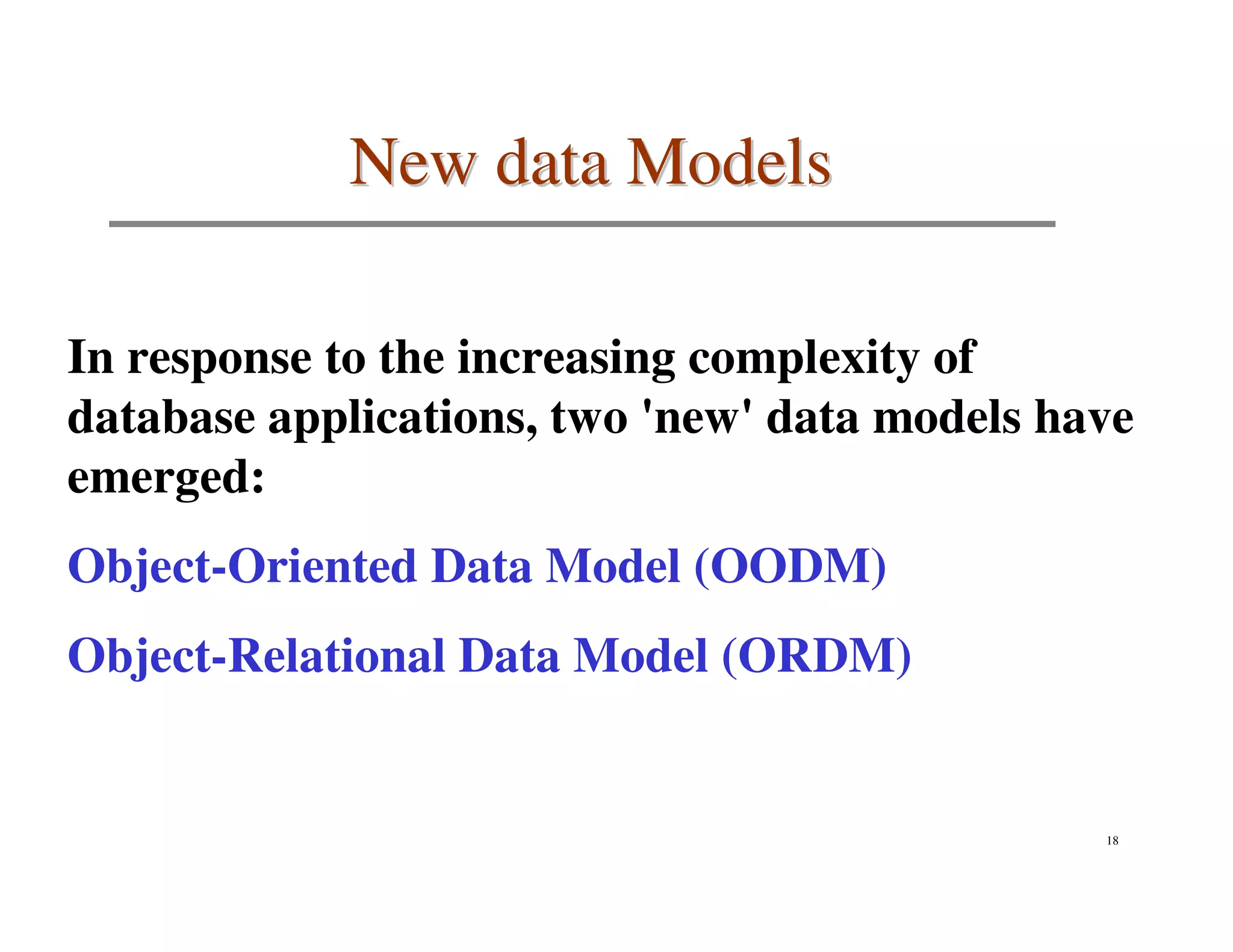

18. New data Models
In response to the increasing complexity of
database applications, two 'new' data models have
emerged:
Object-Oriented Data Model (OODM)
Object-Relational Data Model (ORDM)
18

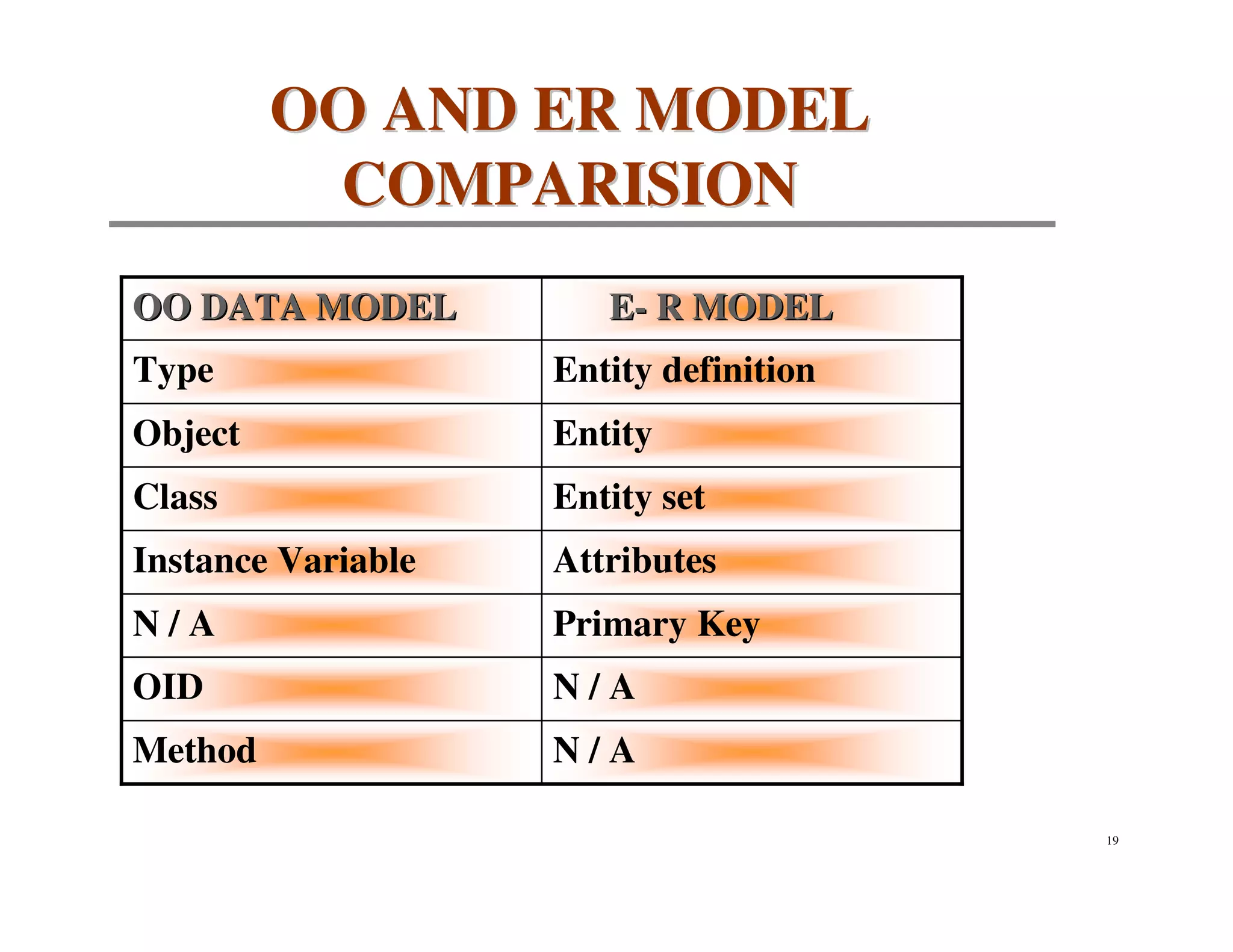

19. OO AND ER MODEL
COMPARISION
OO DATA MODEL E- R MODEL
Type Entity definition
Object Entity
Class Entity set
Instance Variable Attributes
N/A Primary Key
OID N/A
Method N/A
19

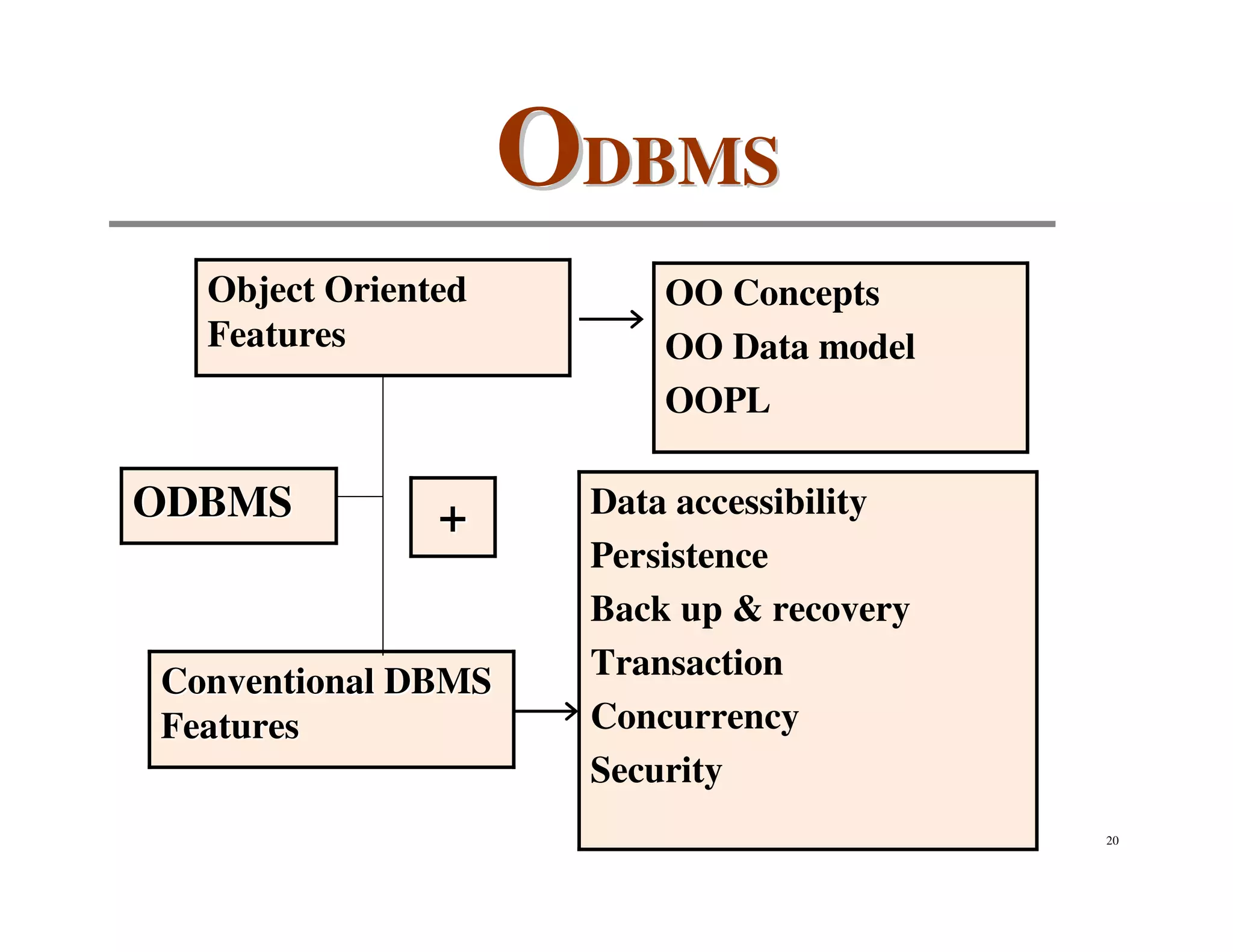

20. ODBMS
Object Oriented OO Concepts
Features OO Data model
OOPL
ODBMS + Data accessibility
Persistence
Back up & recovery
Transaction
Conventional DBMS
Features Concurrency
Security
20

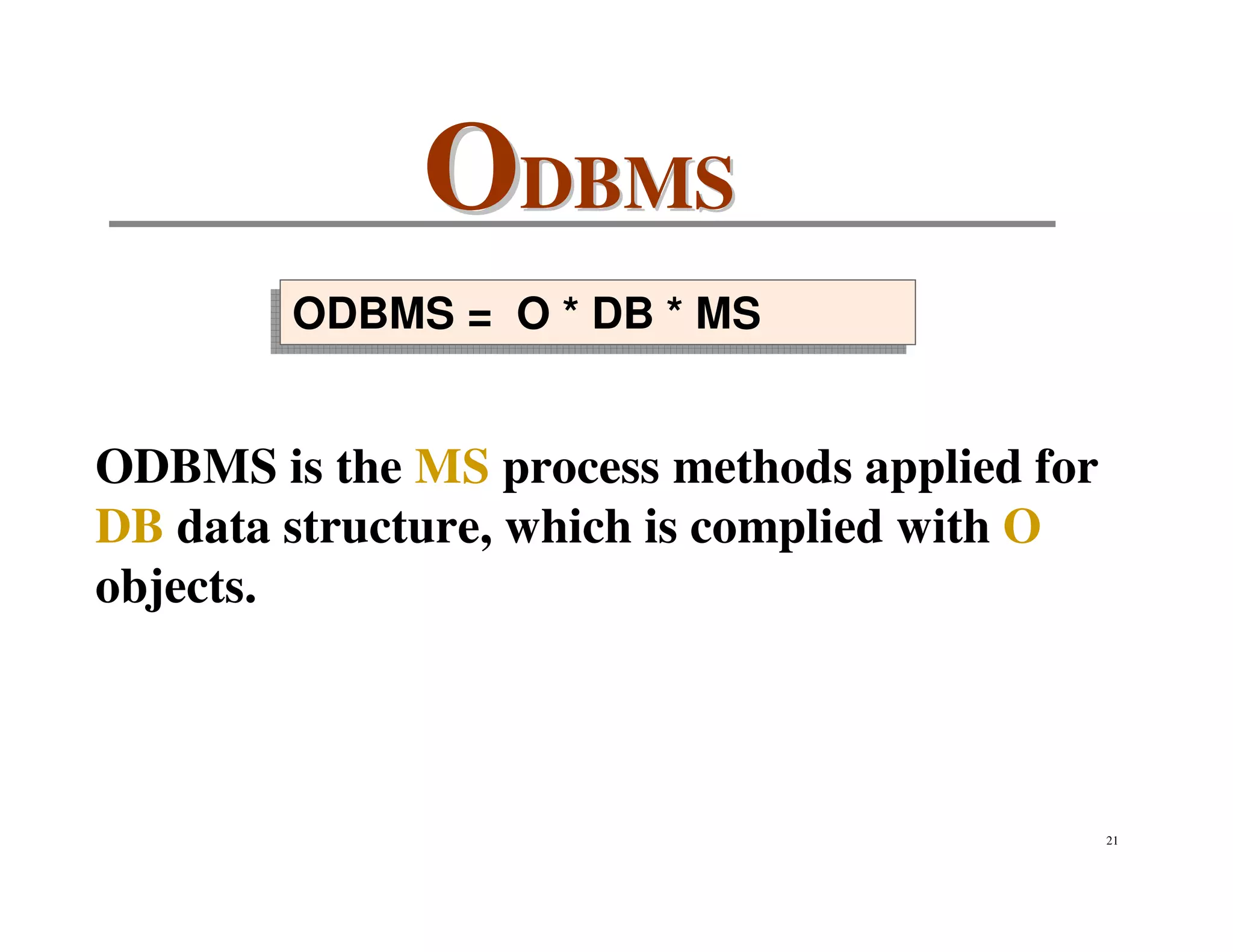

21. ODBMS
ODBMS = O ** DB ** MS
ODBMS = O DB MS
ODBMS is the MS process methods applied for
DB data structure, which is complied with O
objects.
21

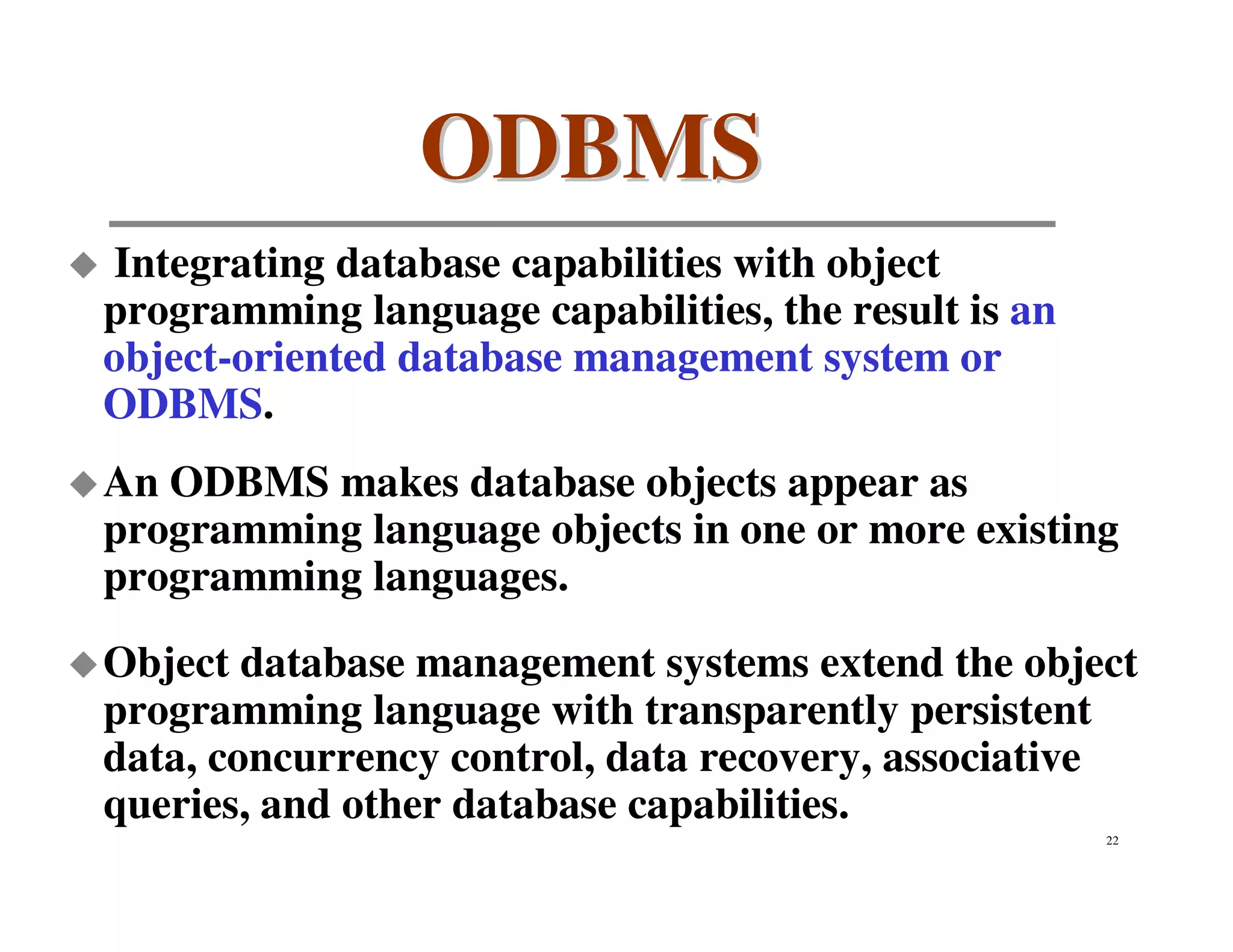

22. ODBMS
Integrating database capabilities with object
programming language capabilities, the result is an
object-oriented database management system or
ODBMS.
An ODBMS makes database objects appear as
programming language objects in one or more existing
programming languages.
Object database management systems extend the object
programming language with transparently persistent
data, concurrency control, data recovery, associative
queries, and other database capabilities.
22

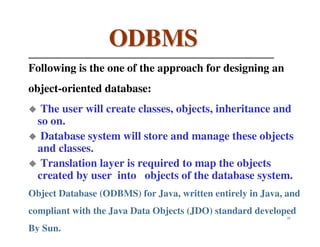

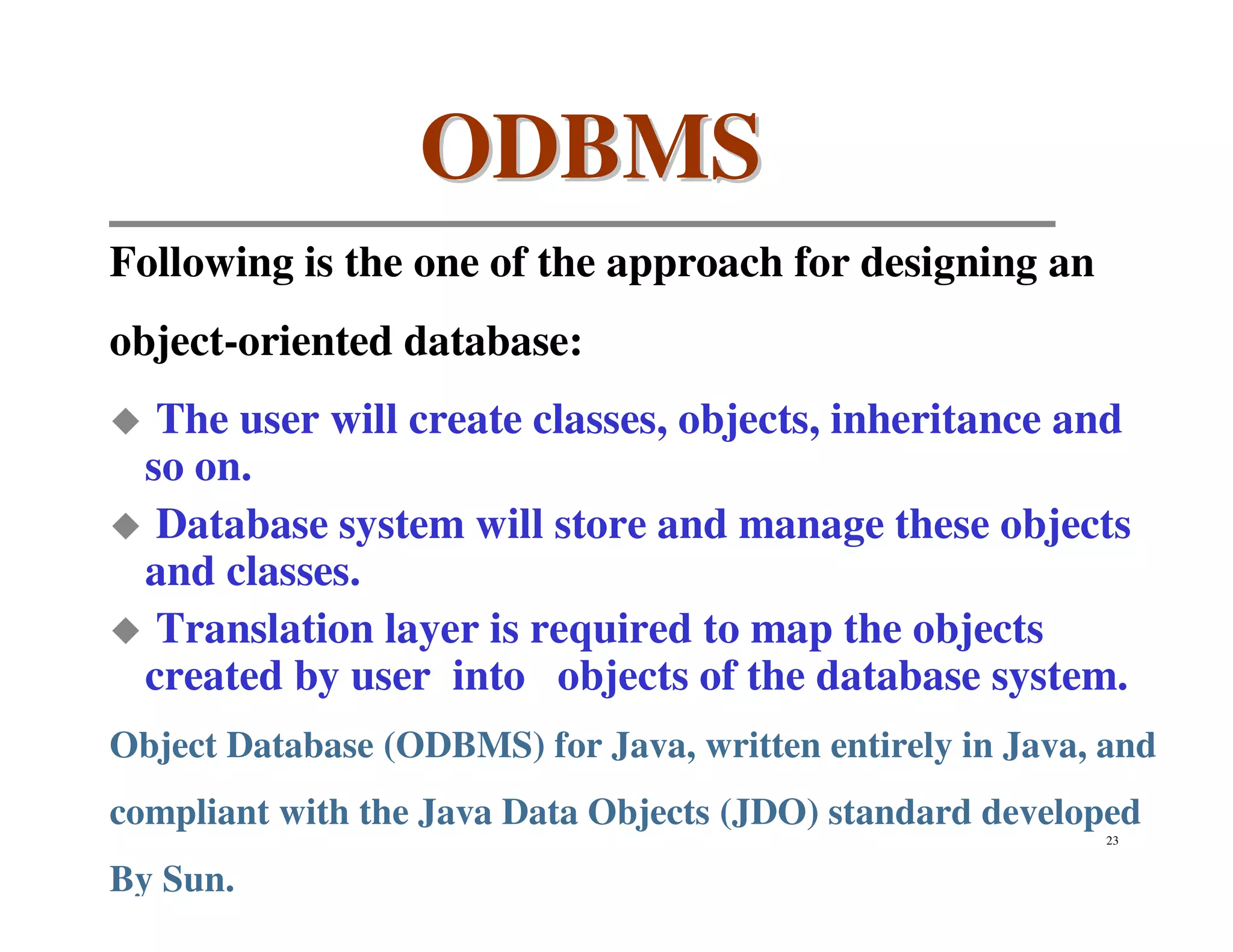

23. ODBMS
Following is the one of the approach for designing an
object-oriented database:
The user will create classes, objects, inheritance and
so on.
Database system will store and manage these objects
and classes.
Translation layer is required to map the objects
created by user into objects of the database system.
Object Database (ODBMS) for Java, written entirely in Java, and
compliant with the Java Data Objects (JDO) standard developed
23
By Sun.

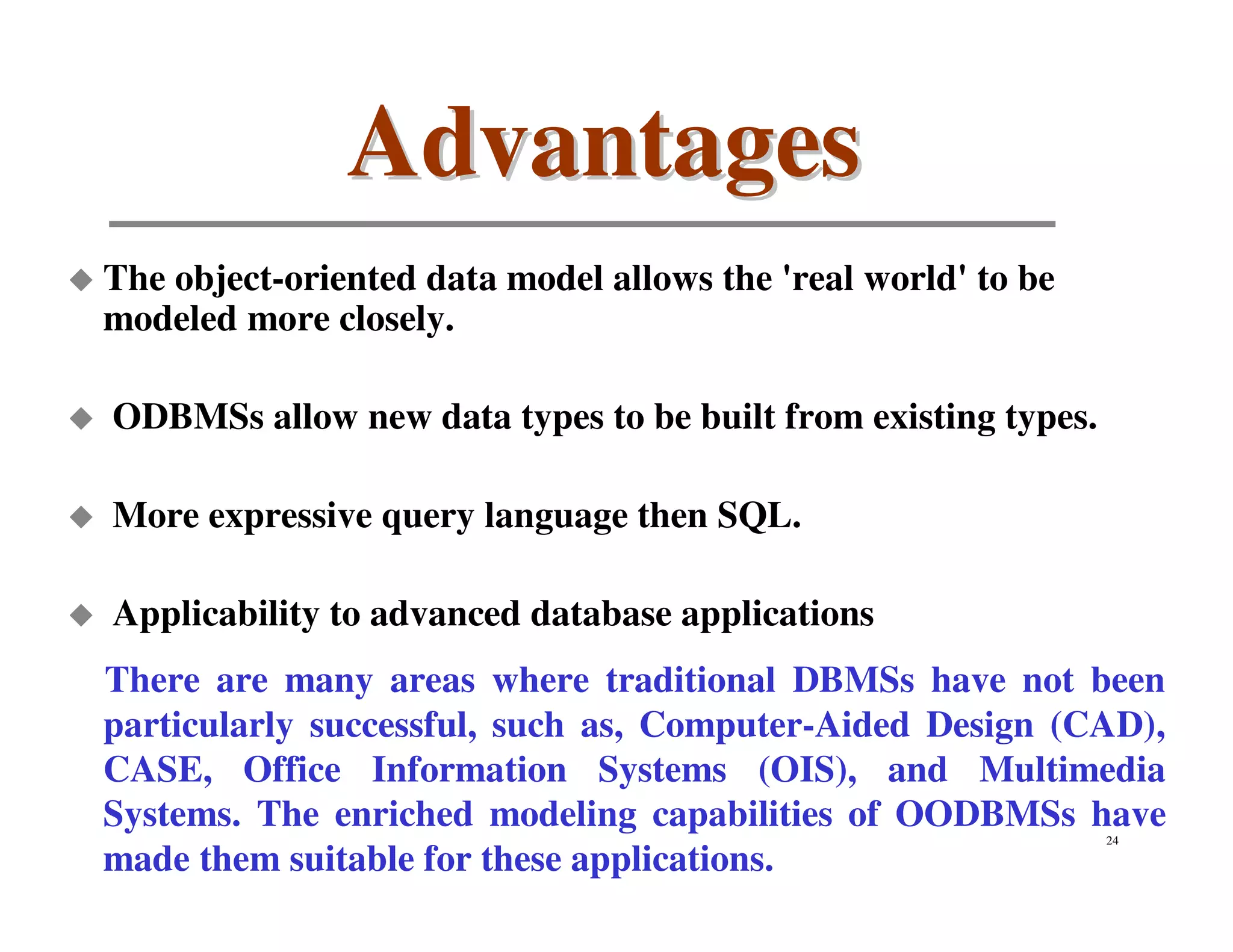

24. Advantages
The object-oriented data model allows the 'real world' to be
modeled more closely.
ODBMSs allow new data types to be built from existing types.
More expressive query language then SQL.
Applicability to advanced database applications
There are many areas where traditional DBMSs have not been
particularly successful, such as, Computer-Aided Design (CAD),
CASE, Office Information Systems (OIS), and Multimedia
Systems. The enriched modeling capabilities of OODBMSs have 24
made them suitable for these applications.

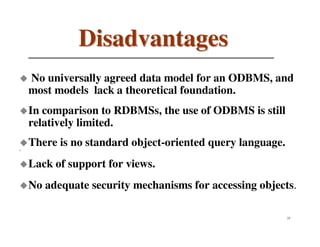

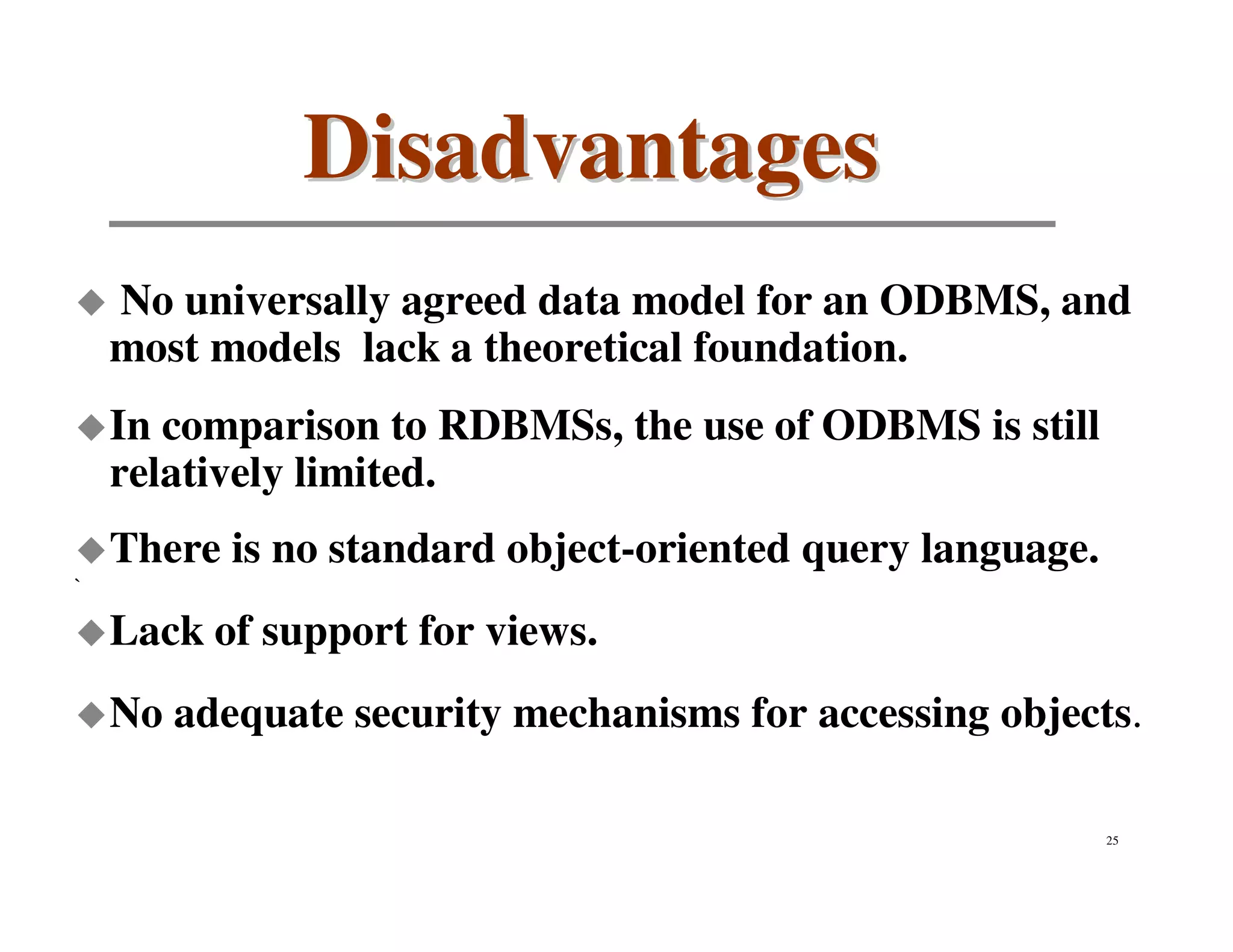

25. Disadvantages
No universally agreed data model for an ODBMS, and
most models lack a theoretical foundation.
In comparison to RDBMSs, the use of ODBMS is still
relatively limited.
There is no standard object-oriented query language.
`
Lack of support for views.
No adequate security mechanisms for accessing objects.
25

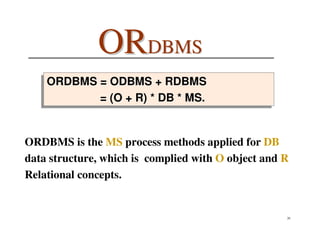

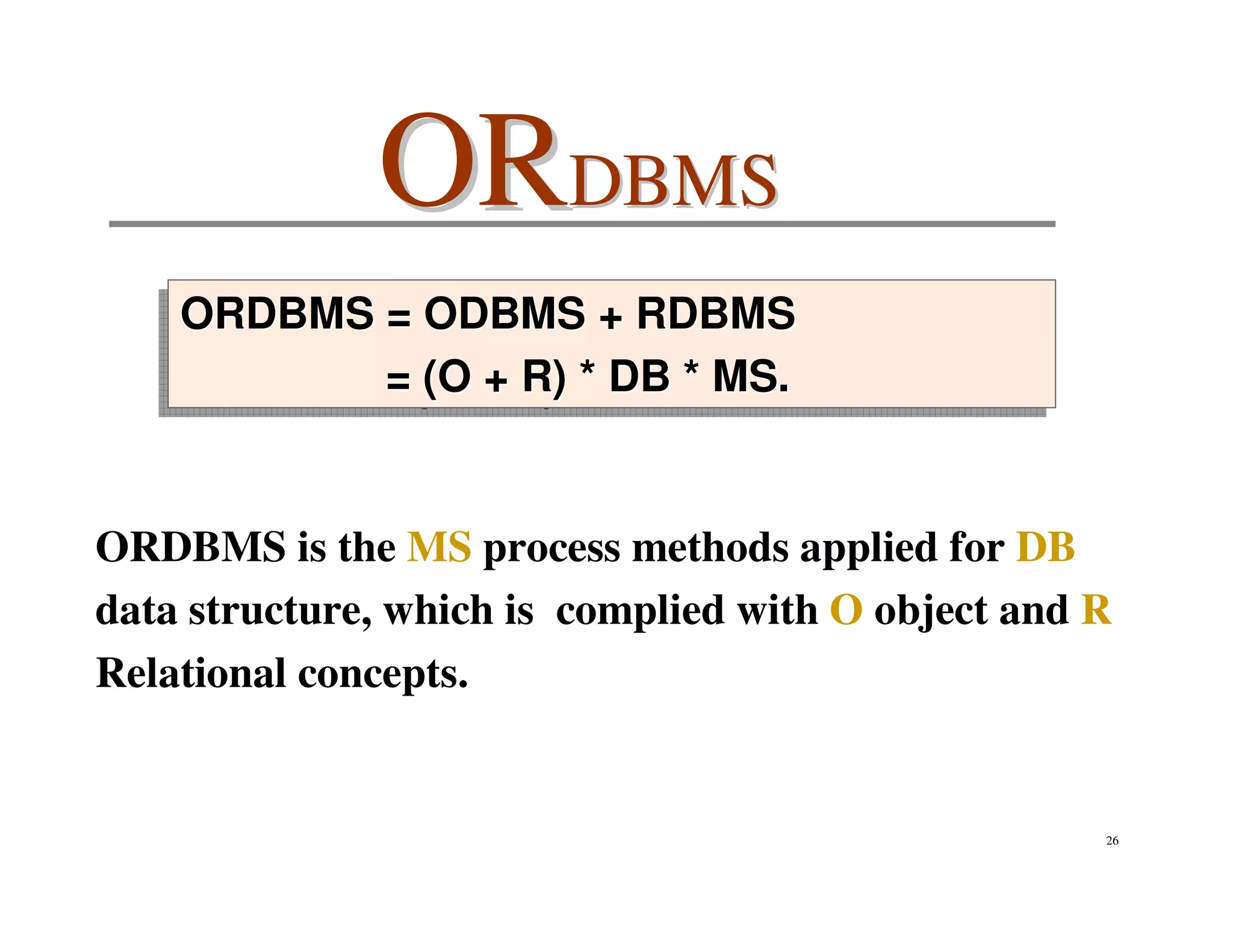

26. ORDBMS
ORDBMS = ODBMS + RDBMS
ORDBMS = ODBMS + RDBMS
= (O + R) ** DB ** MS.
= (O + R) DB MS.
ORDBMS is the MS process methods applied for DB
data structure, which is complied with O object and R
Relational concepts.
26

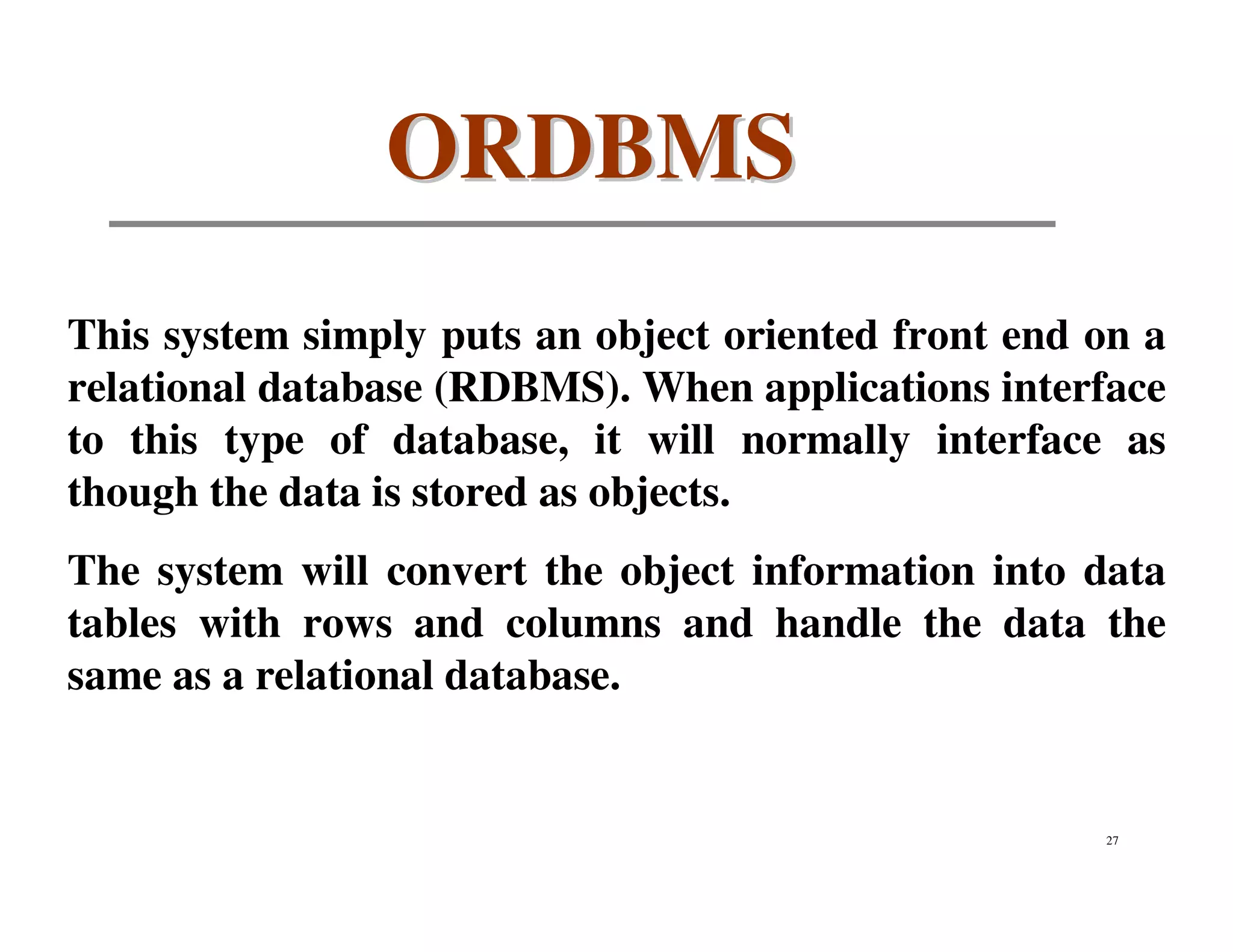

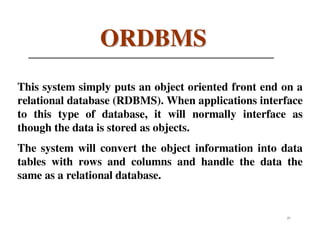

27. ORDBMS
This system simply puts an object oriented front end on a
relational database (RDBMS). When applications interface
to this type of database, it will normally interface as
though the data is stored as objects.
The system will convert the object information into data
tables with rows and columns and handle the data the
same as a relational database.
27

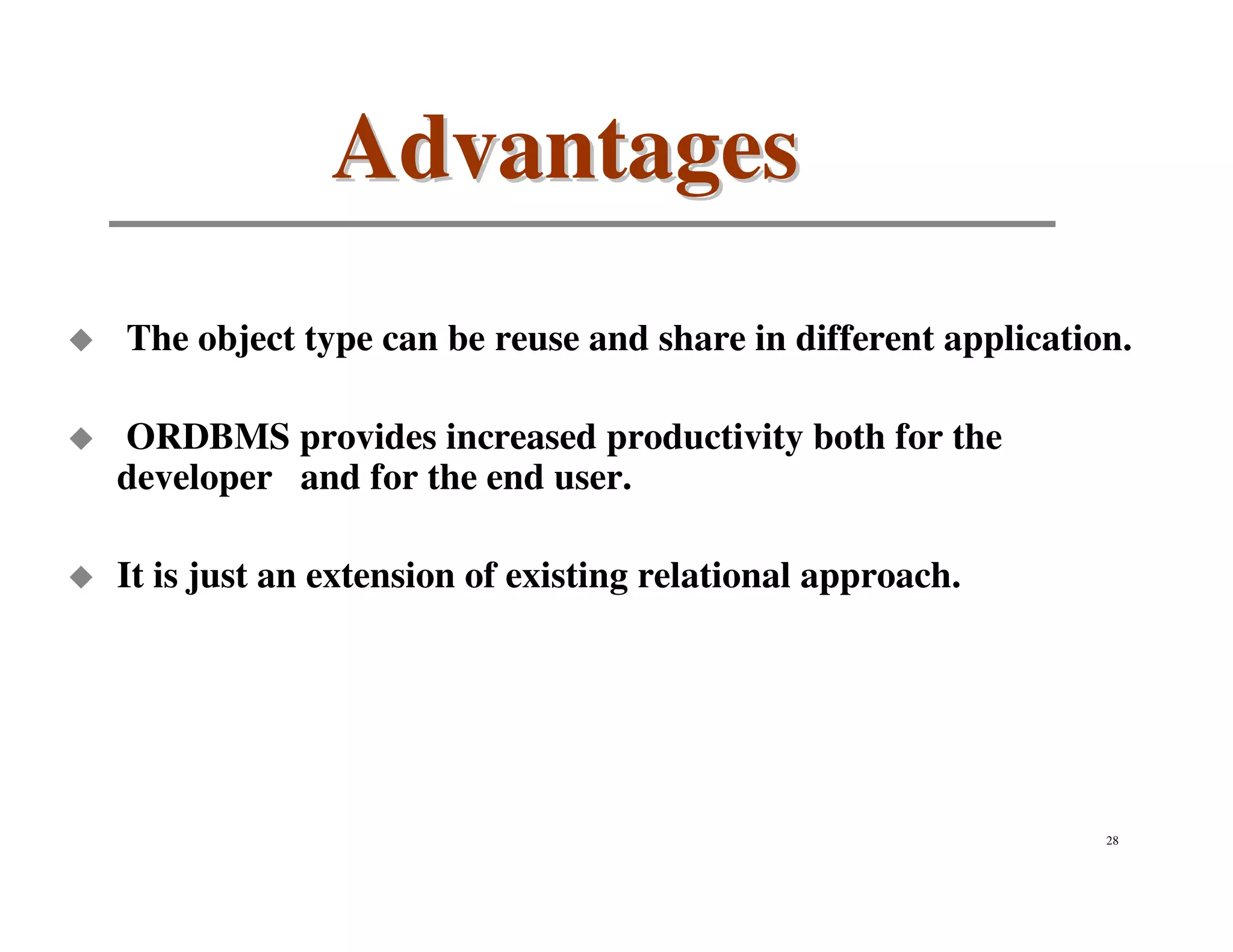

28. Advantages
The object type can be reuse and share in different application.
ORDBMS provides increased productivity both for the
developer and for the end user.
It is just an extension of existing relational approach.
28

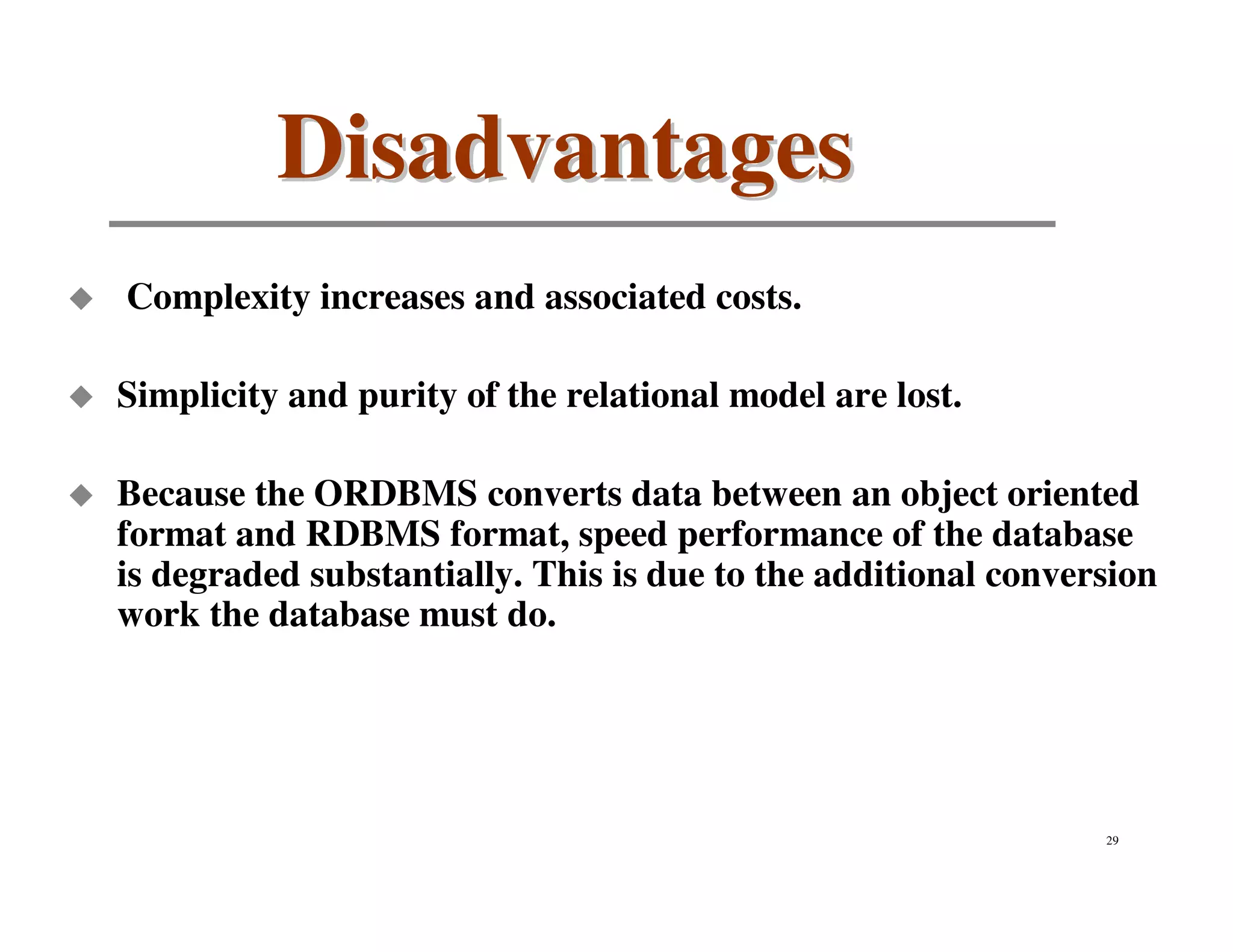

29. Disadvantages
Complexity increases and associated costs.
Simplicity and purity of the relational model are lost.
Because the ORDBMS converts data between an object oriented
format and RDBMS format, speed performance of the database
is degraded substantially. This is due to the additional conversion
work the database must do.
29

30. OBJECT
30

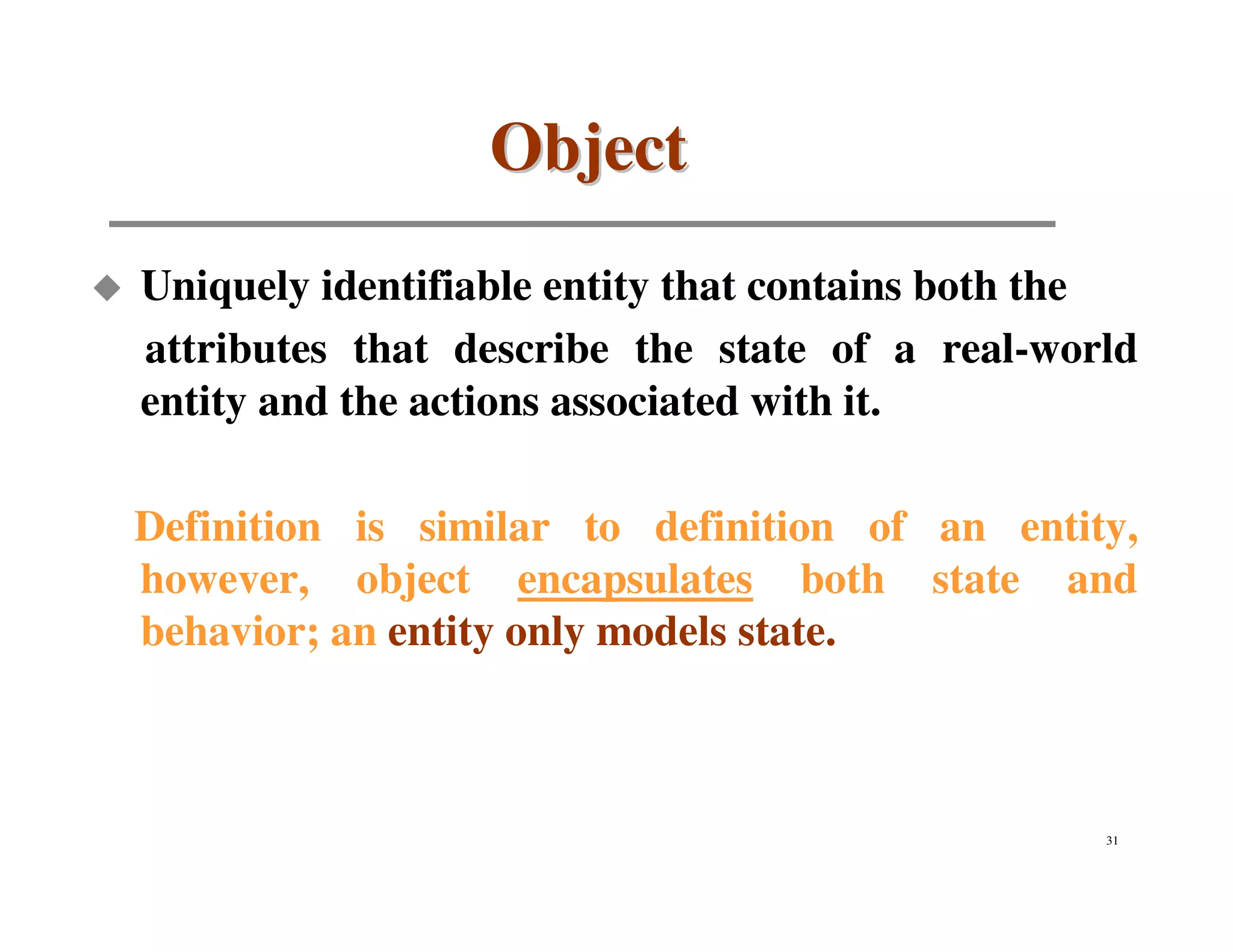

31. Object
Uniquely identifiable entity that contains both the
attributes that describe the state of a real-world
entity and the actions associated with it.
Definition is similar to definition of an entity,
however, object encapsulates both state and
behavior; an entity only models state.
31

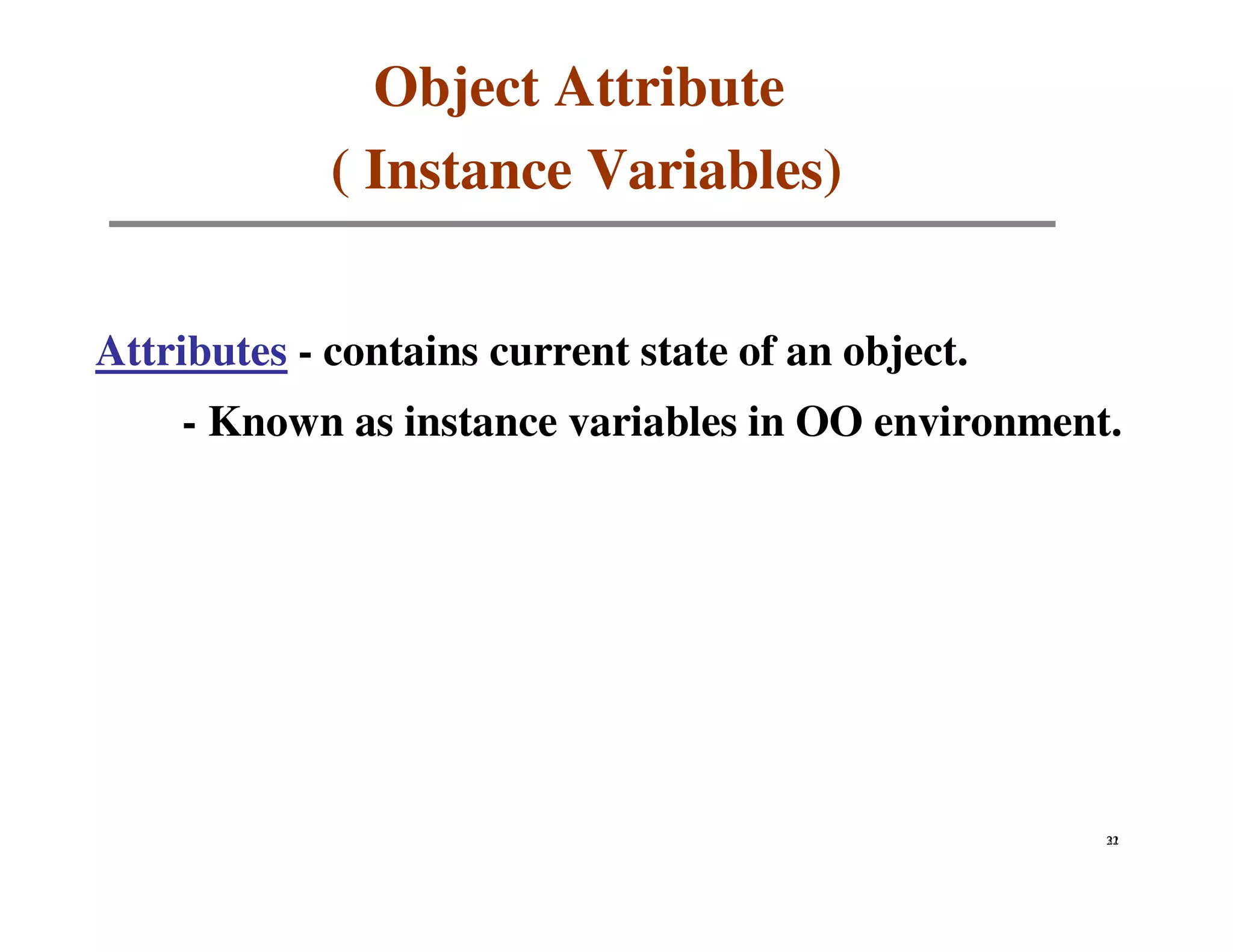

32. Object Attribute
( Instance Variables)
Attributes - contains current state of an object.
- Known as instance variables in OO environment.
32
21

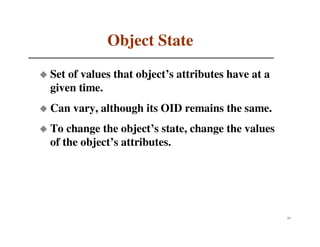

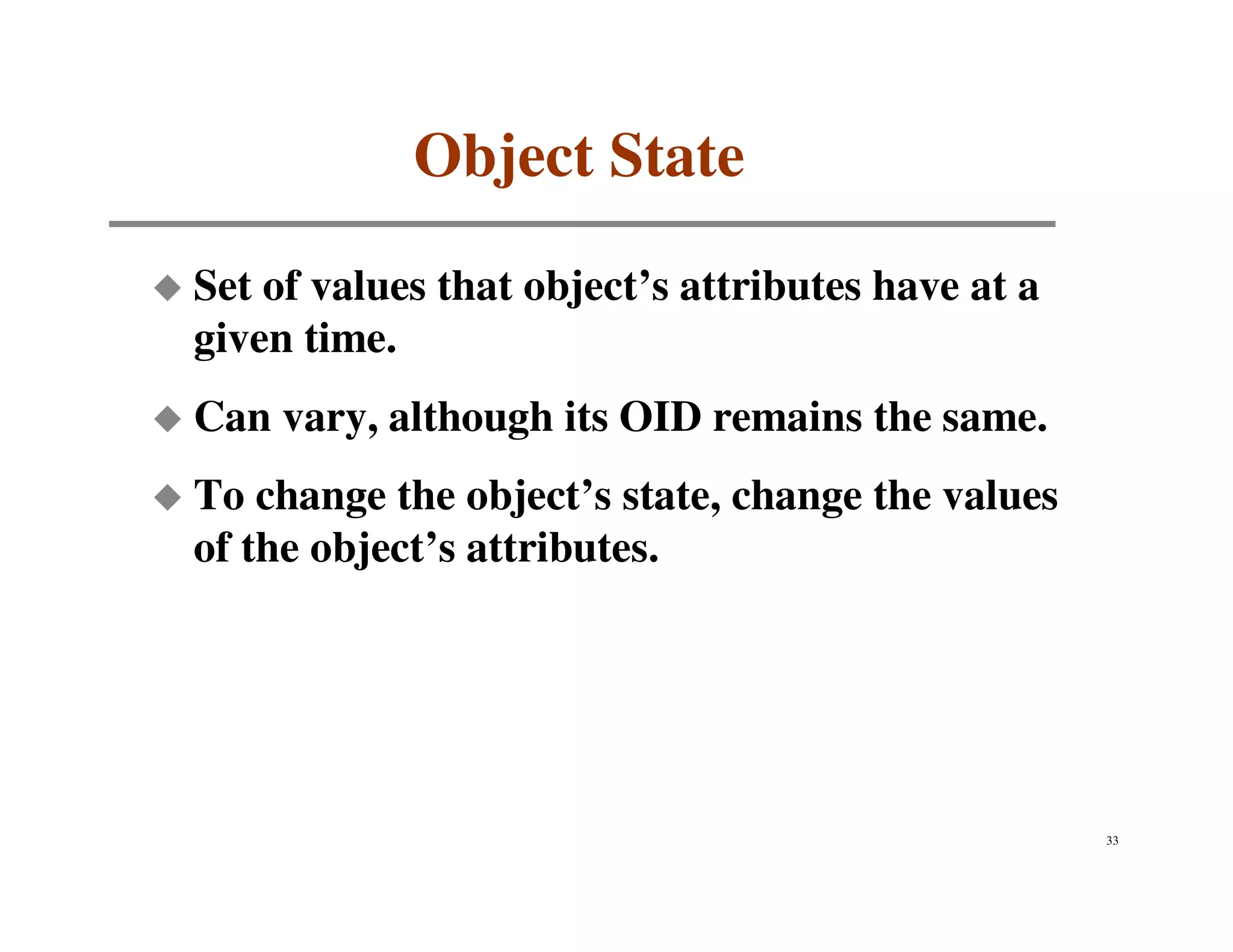

33. Object State
Set of values that object’s attributes have at a
given time.
Can vary, although its OID remains the same.
To change the object’s state, change the values
of the object’s attributes.
33

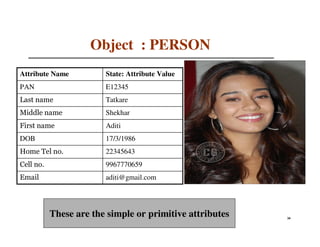

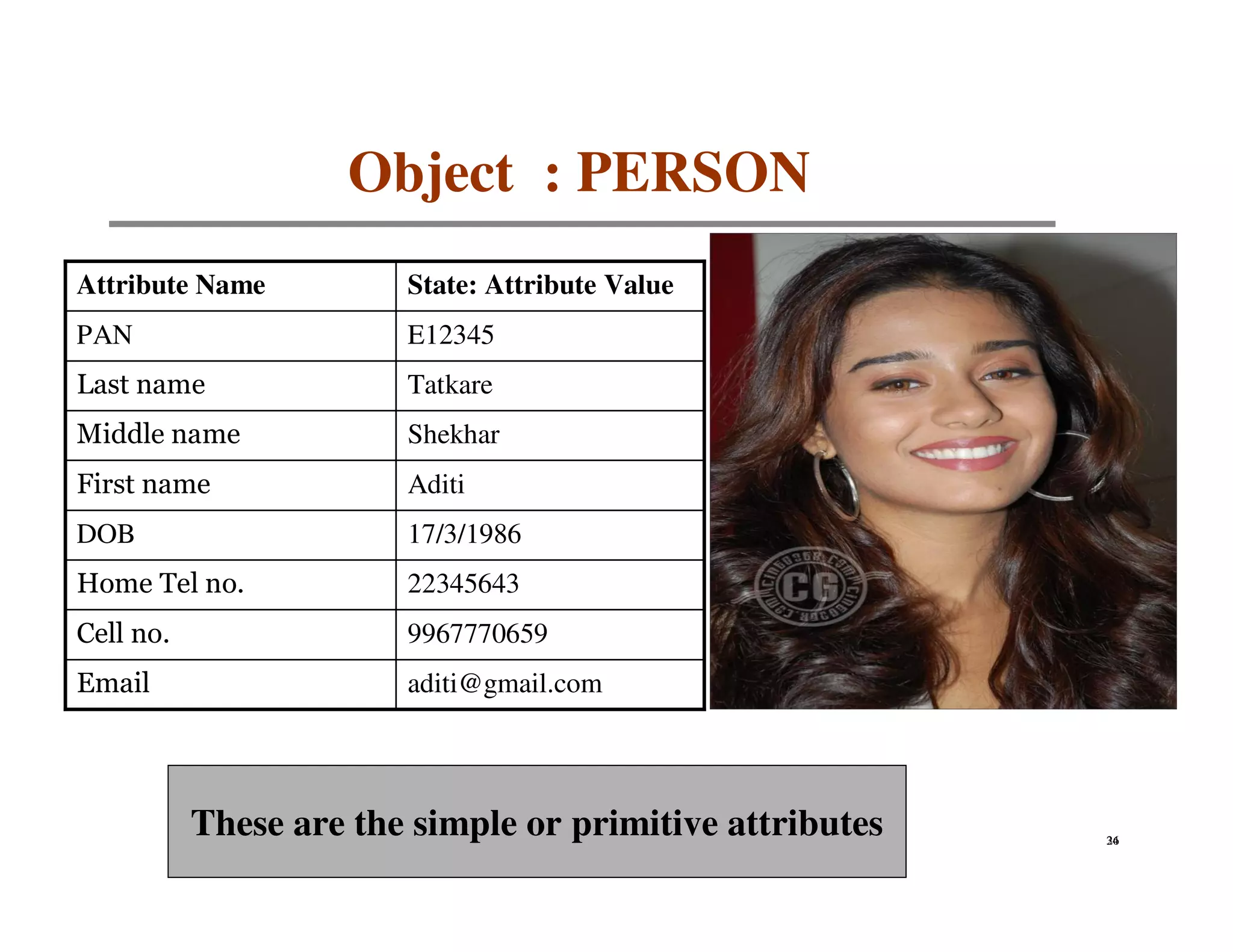

34. Object : PERSON
Attribute Name State: Attribute Value
PAN E12345
Last name Tatkare
Middle name Shekhar
First name Aditi
DOB 17/3/1986
Home Tel no. 22345643
Cell no. 9967770659
Email aditi@gmail.com
These are the simple or primitive attributes 34
26

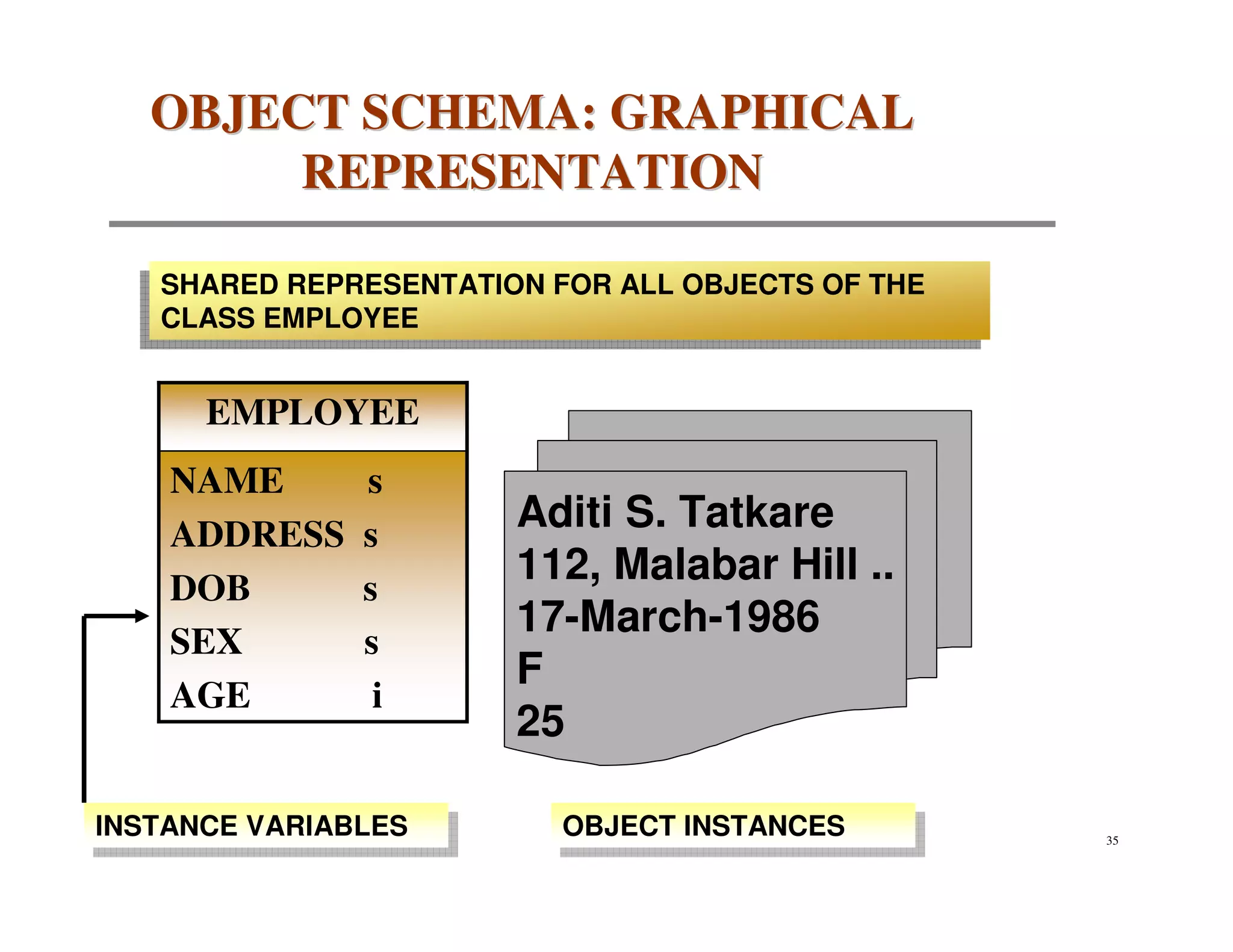

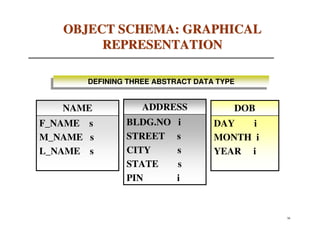

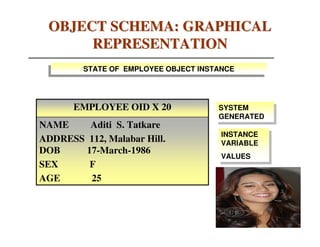

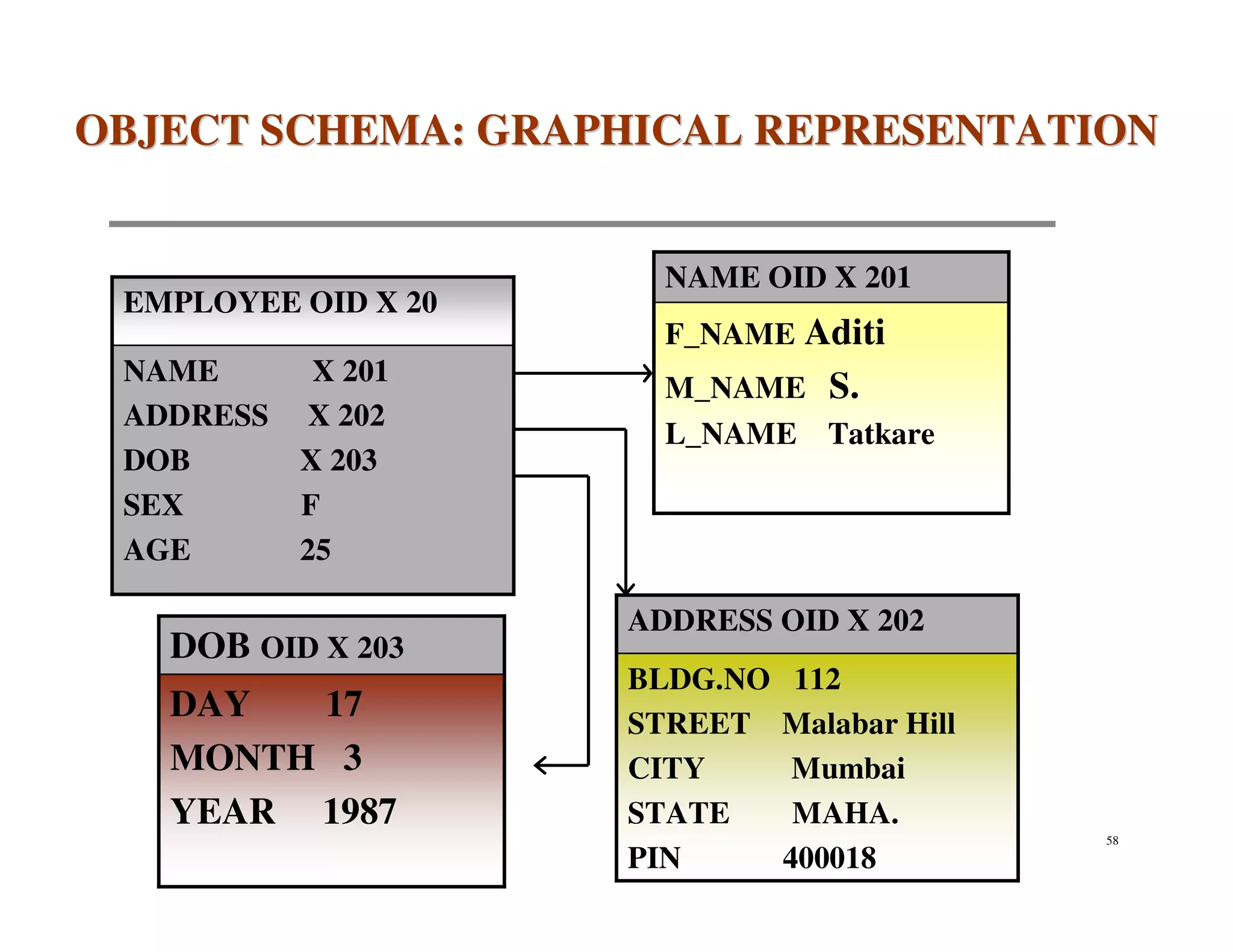

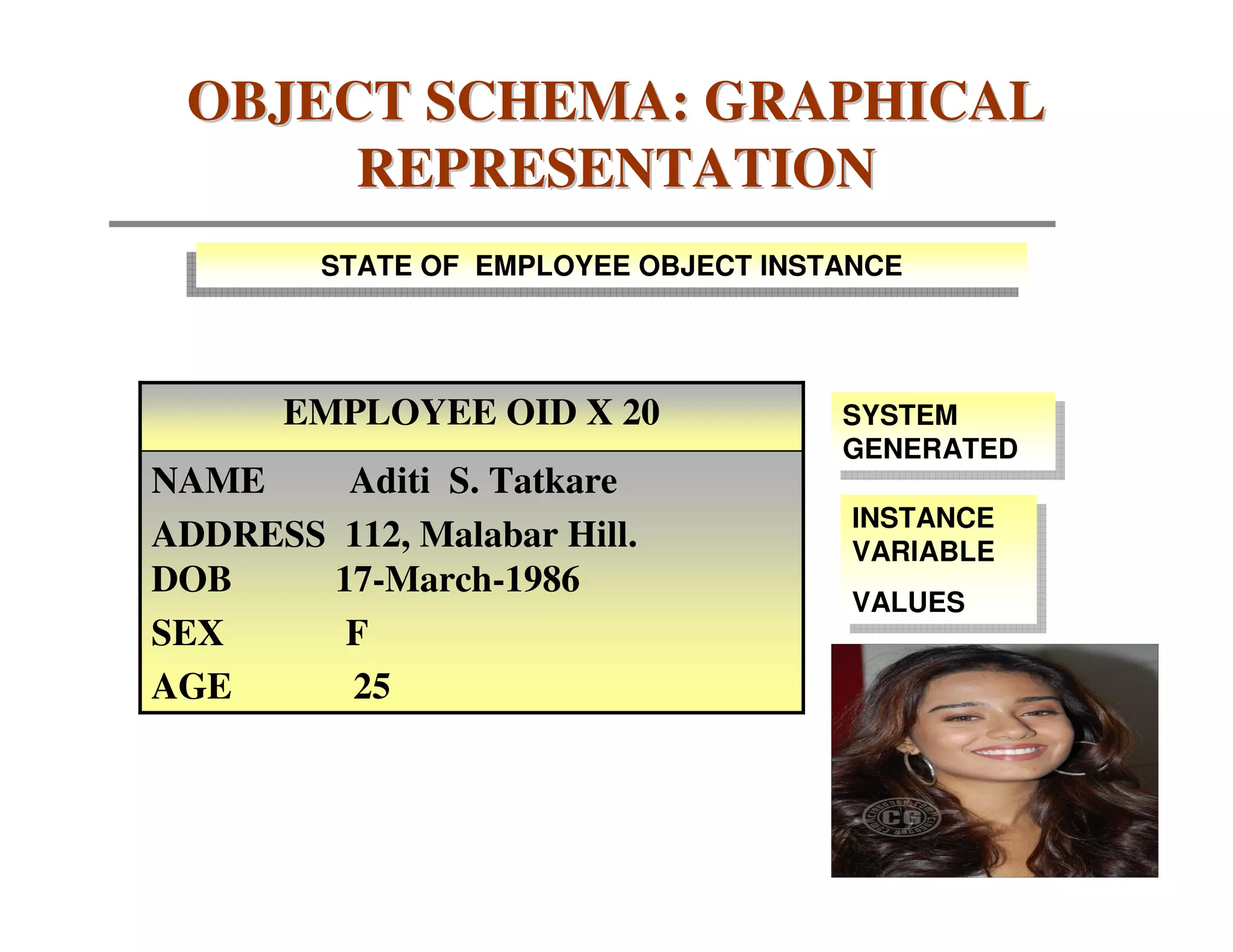

35. OBJECT SCHEMA: GRAPHICAL
REPRESENTATION
SHARED REPRESENTATION FOR ALL OBJECTS OF THE
SHARED REPRESENTATION FOR ALL OBJECTS OF THE
CLASS EMPLOYEE
CLASS EMPLOYEE
EMPLOYEE
NAME s
ADDRESS s
Aditi S. Tatkare
DOB s
112, Malabar Hill ..
17-March-1986
SEX s
F
AGE i
25
INSTANCE VARIABLES
INSTANCE VARIABLES OBJECT INSTANCES
OBJECT INSTANCES 35

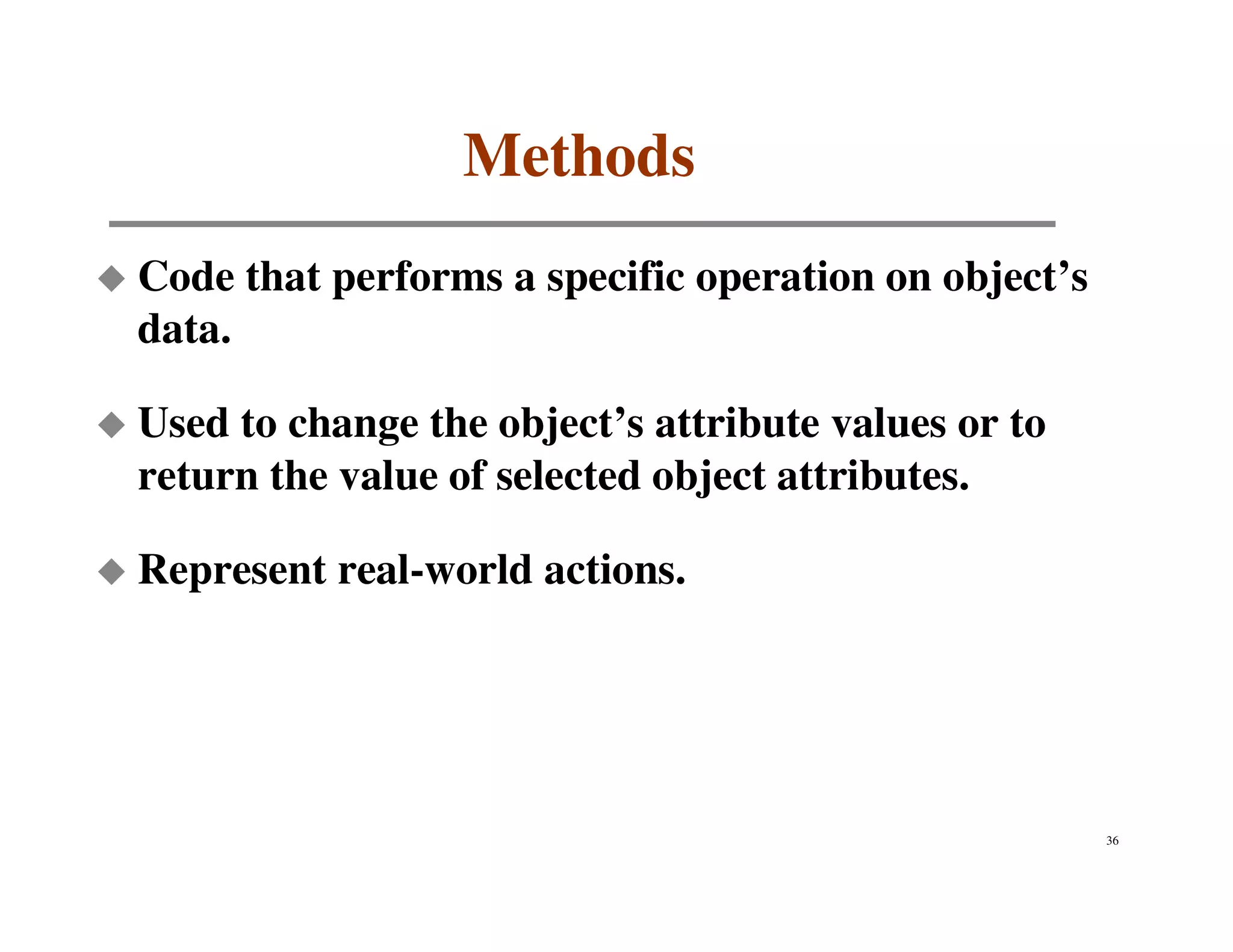

36. Methods
Code that performs a specific operation on object’s
data.
Used to change the object’s attribute values or to
return the value of selected object attributes.
Represent real-world actions.
36

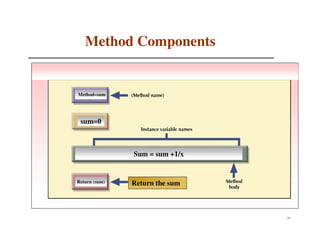

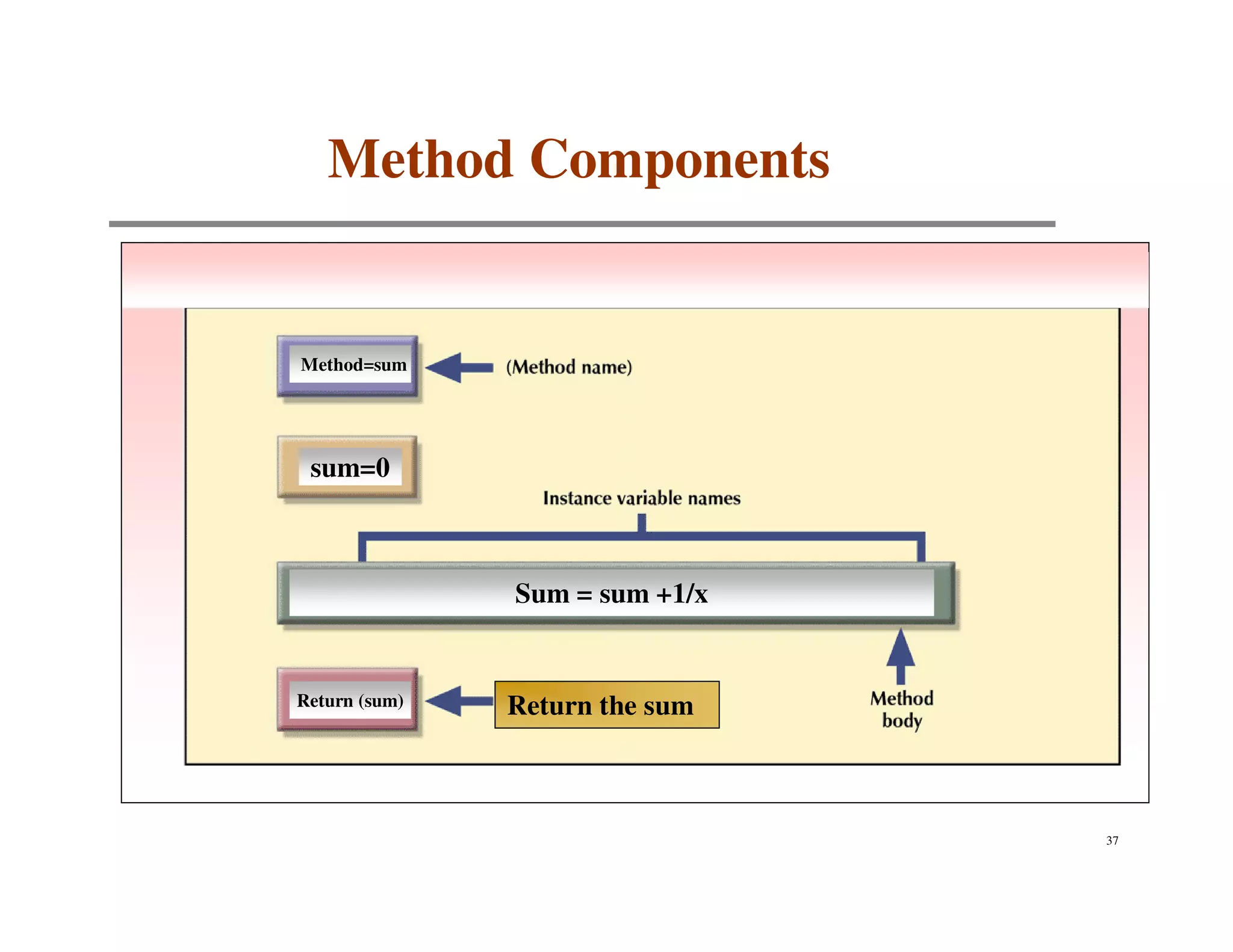

37. Method Components
Method=sum
sum=0
Sum = sum +1/x
Return (sum) Return the sum
37

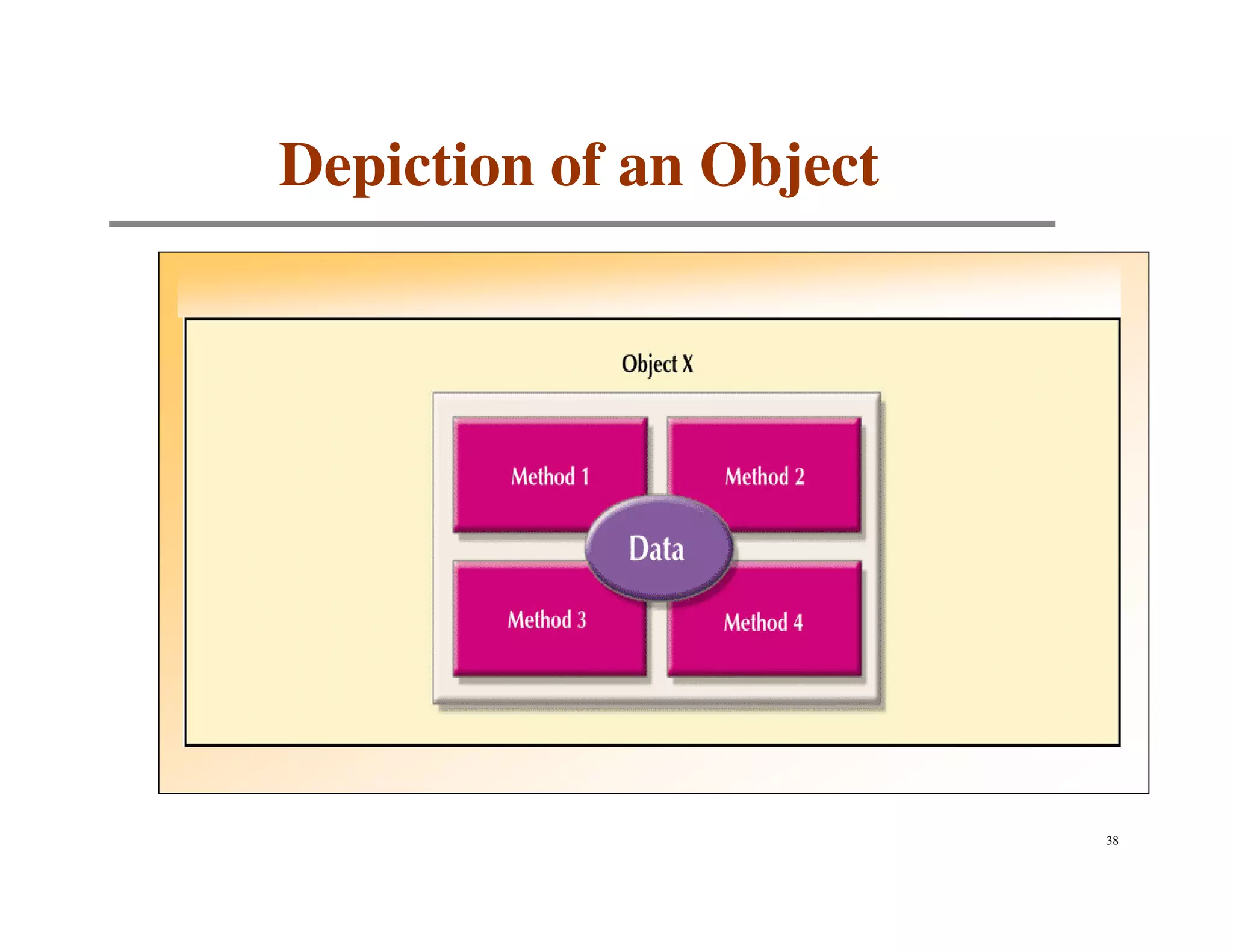

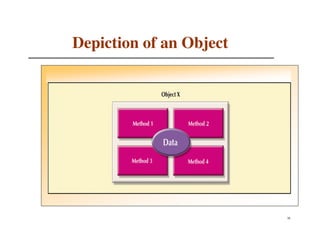

38. Depiction of an Object
38

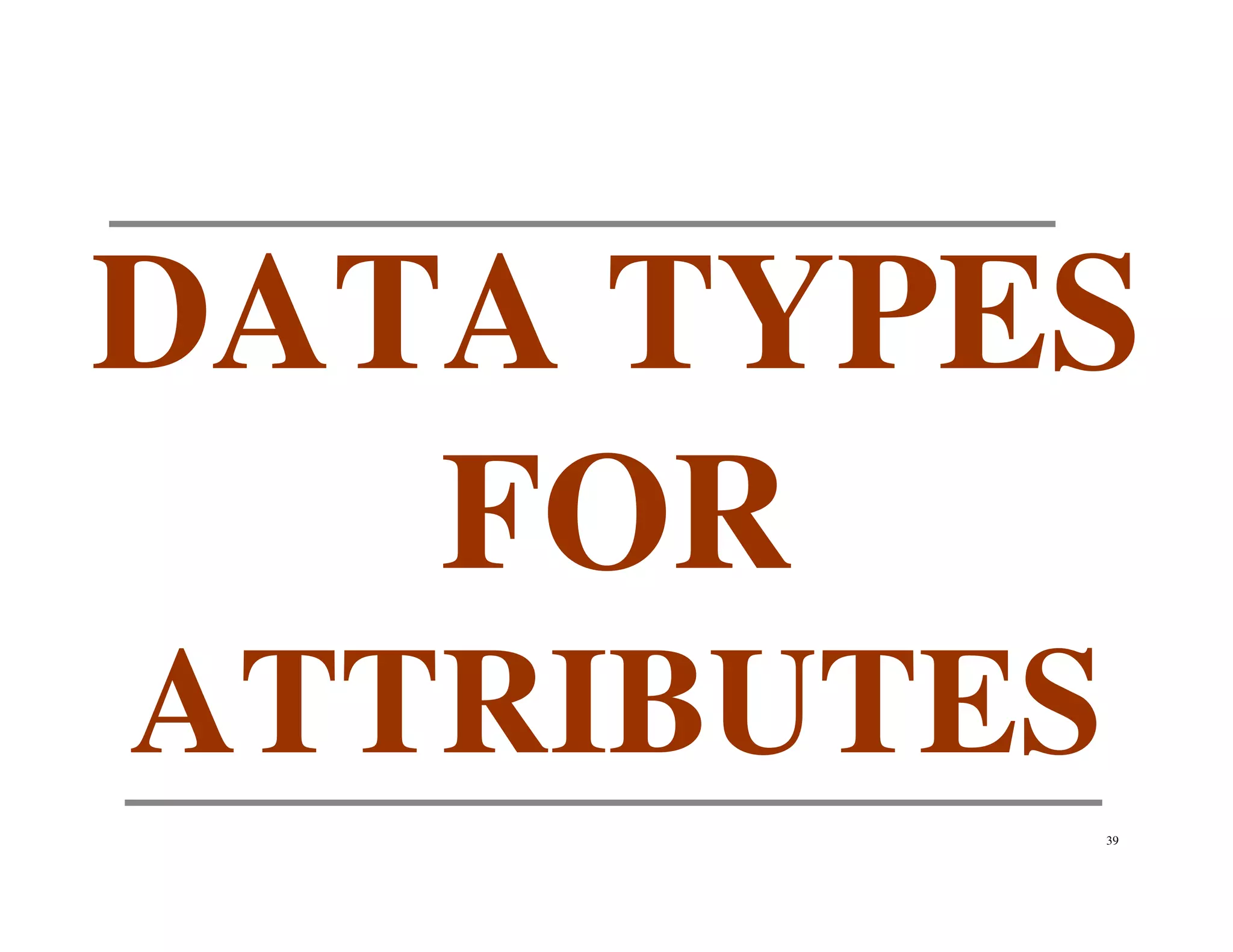

39. DATA TYPES
FOR
ATTRIBUTES
39

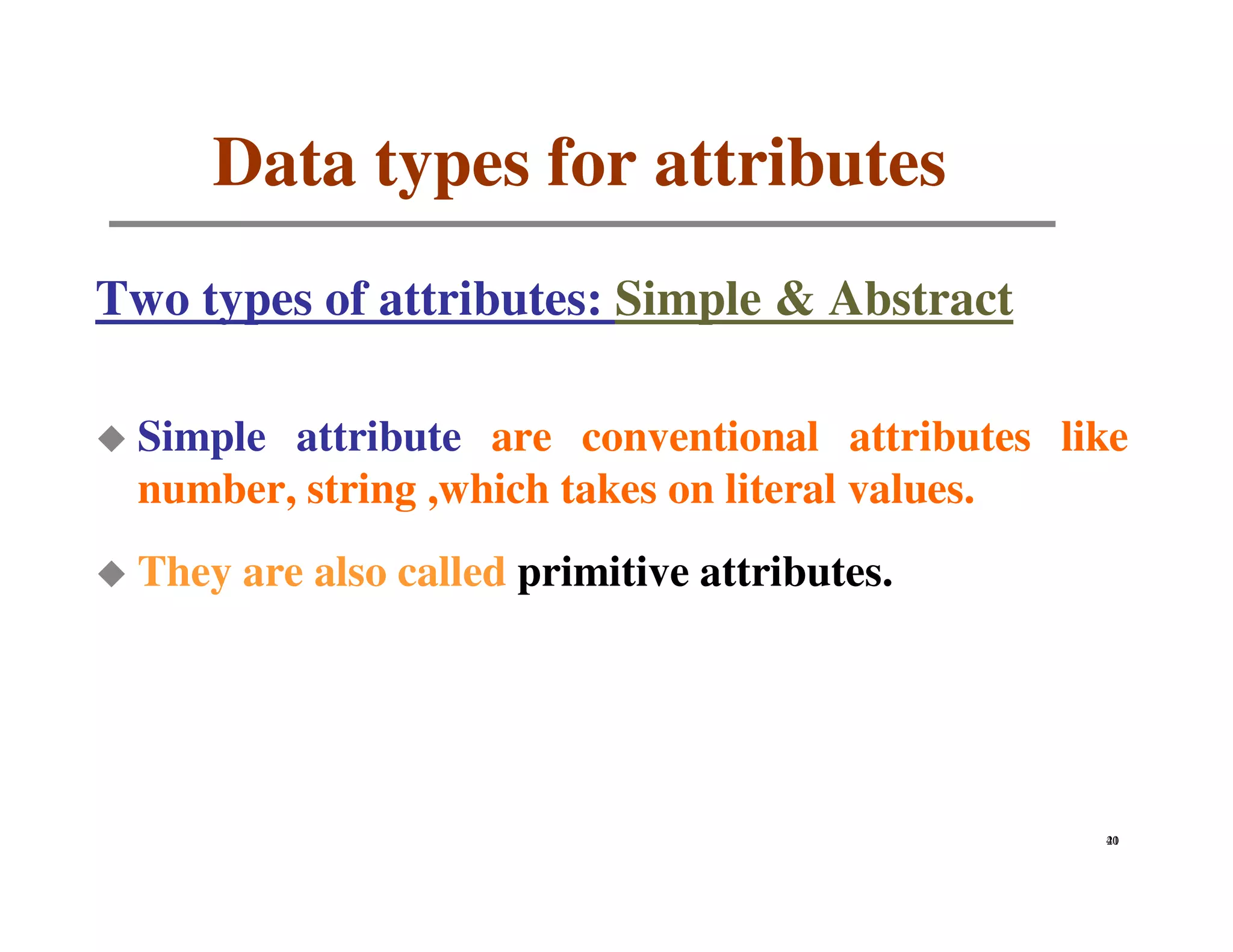

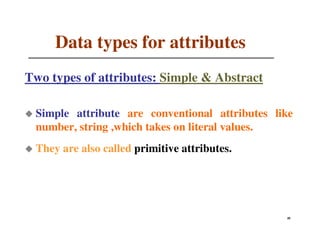

40. Data types for attributes
Two types of attributes: Simple & Abstract
Simple attribute are conventional attributes like
number, string ,which takes on literal values.
They are also called primitive attributes.
40
21

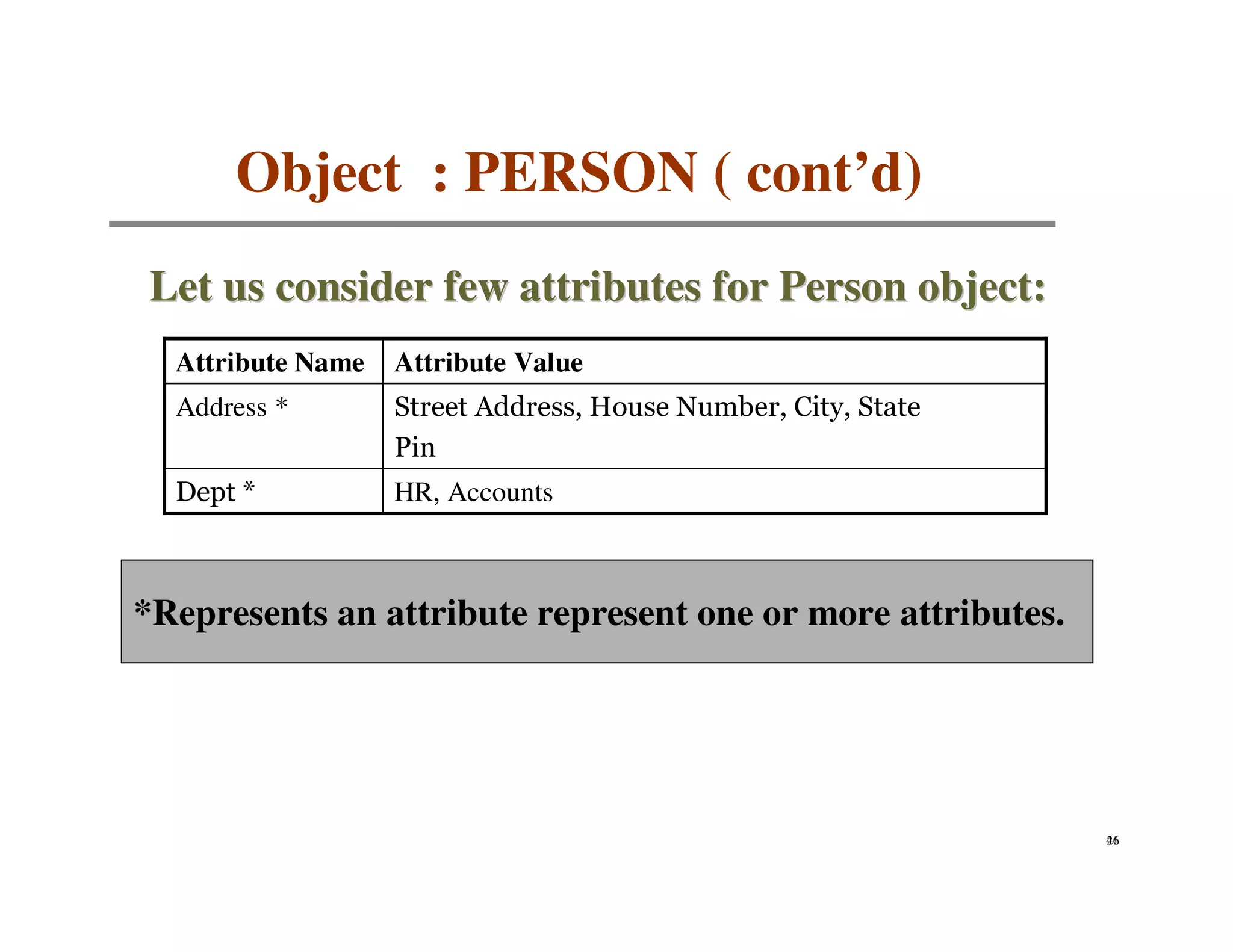

41. Object : PERSON ( cont’d)
Let us consider few attributes for Person object:
Attribute Name Attribute Value
Address * Street Address, House Number, City, State
Pin
Dept * HR, Accounts
*Represents an attribute represent one or more attributes.
41
26

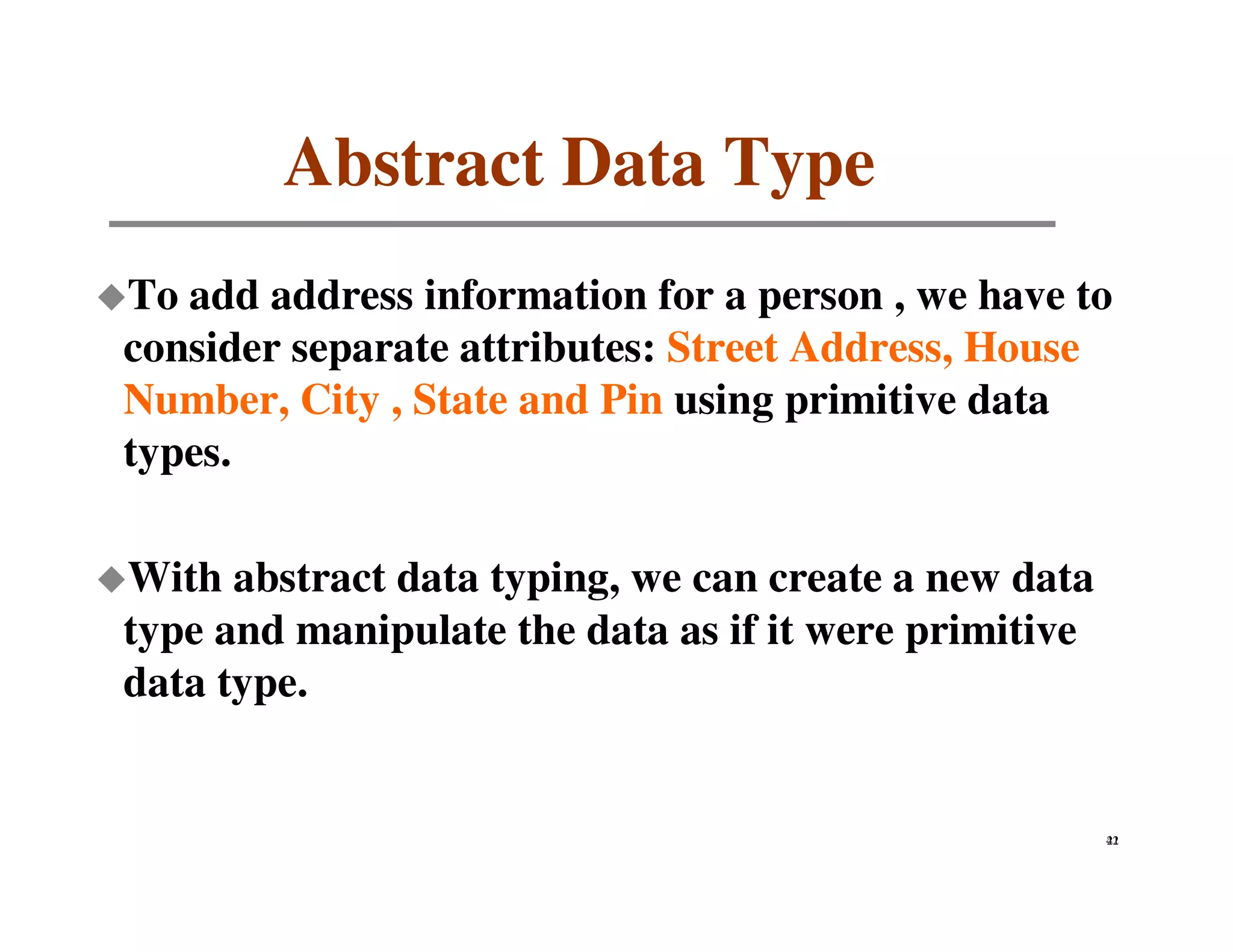

42. Abstract Data Type
To add address information for a person , we have to
consider separate attributes: Street Address, House
Number, City , State and Pin using primitive data
types.
With abstract data typing, we can create a new data
type and manipulate the data as if it were primitive
data type.
42
21

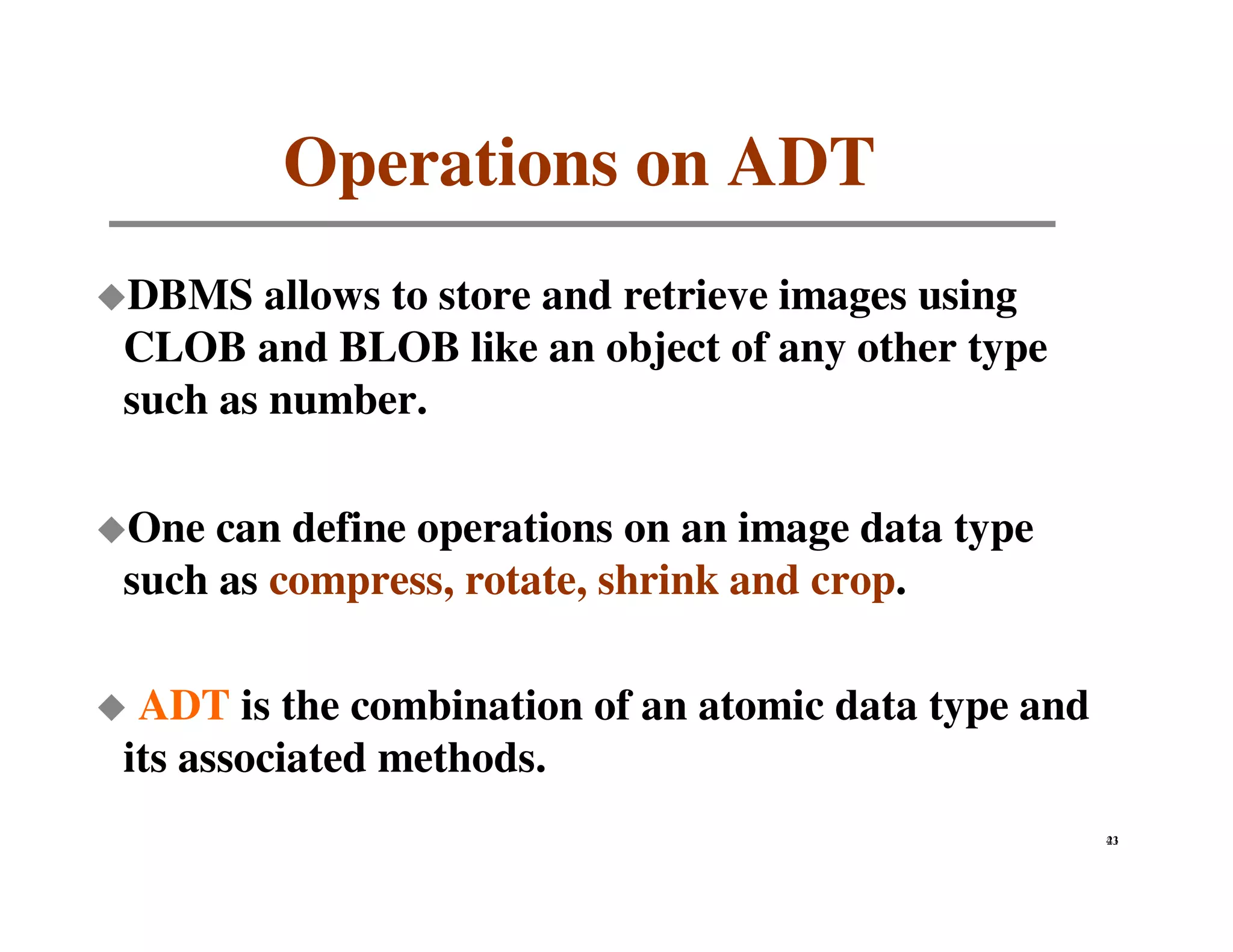

43. Operations on ADT
DBMS allows to store and retrieve images using
CLOB and BLOB like an object of any other type
such as number.
One can define operations on an image data type
such as compress, rotate, shrink and crop.
ADT is the combination of an atomic data type and
its associated methods.
43
21

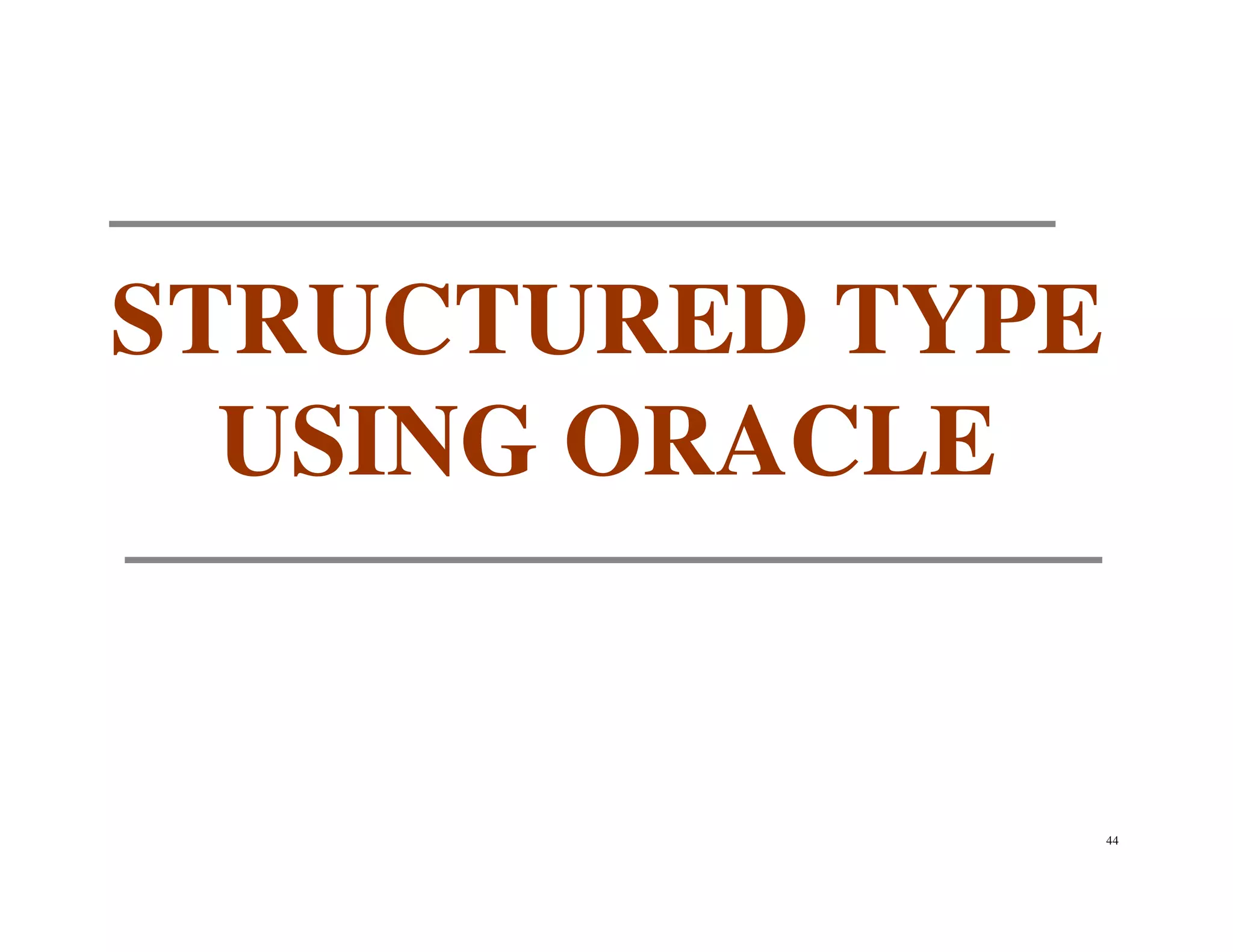

44. STRUCTURED TYPE
USING ORACLE
44

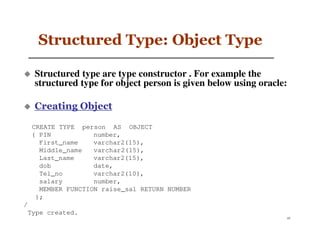

45. Structured Type: Object Type
Structured type are type constructor . For example the
structured type for object person is given below using oracle:
Creating Object
CREATE TYPE person AS OBJECT
( PIN number,
First_name varchar2(15),
Middle_name varchar2(15),
Last_name varchar2(15),
dob date,
Tel_no varchar2(10),
salary number,

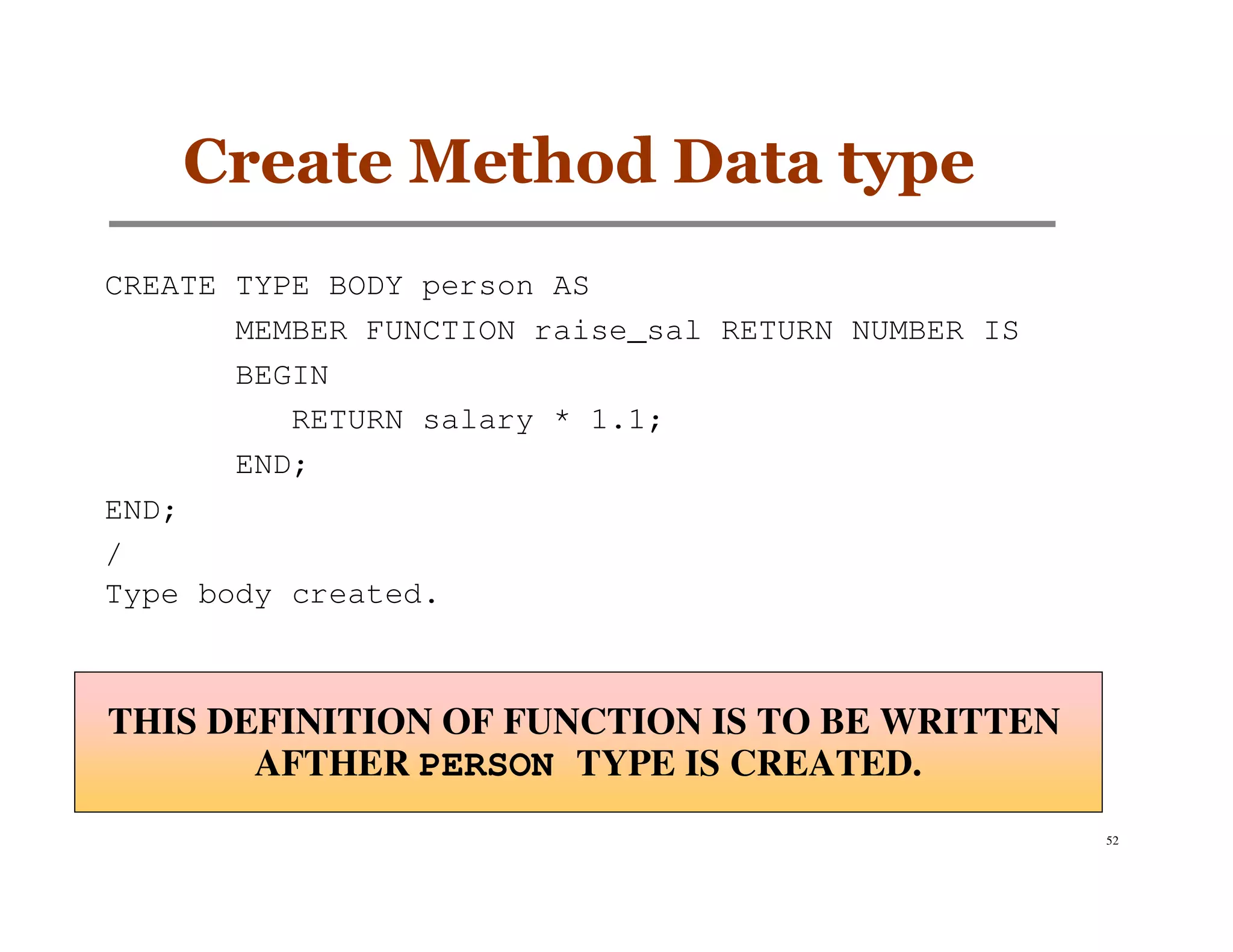

MEMBER FUNCTION raise_sal RETURN NUMBER
);
/
Type created.
45

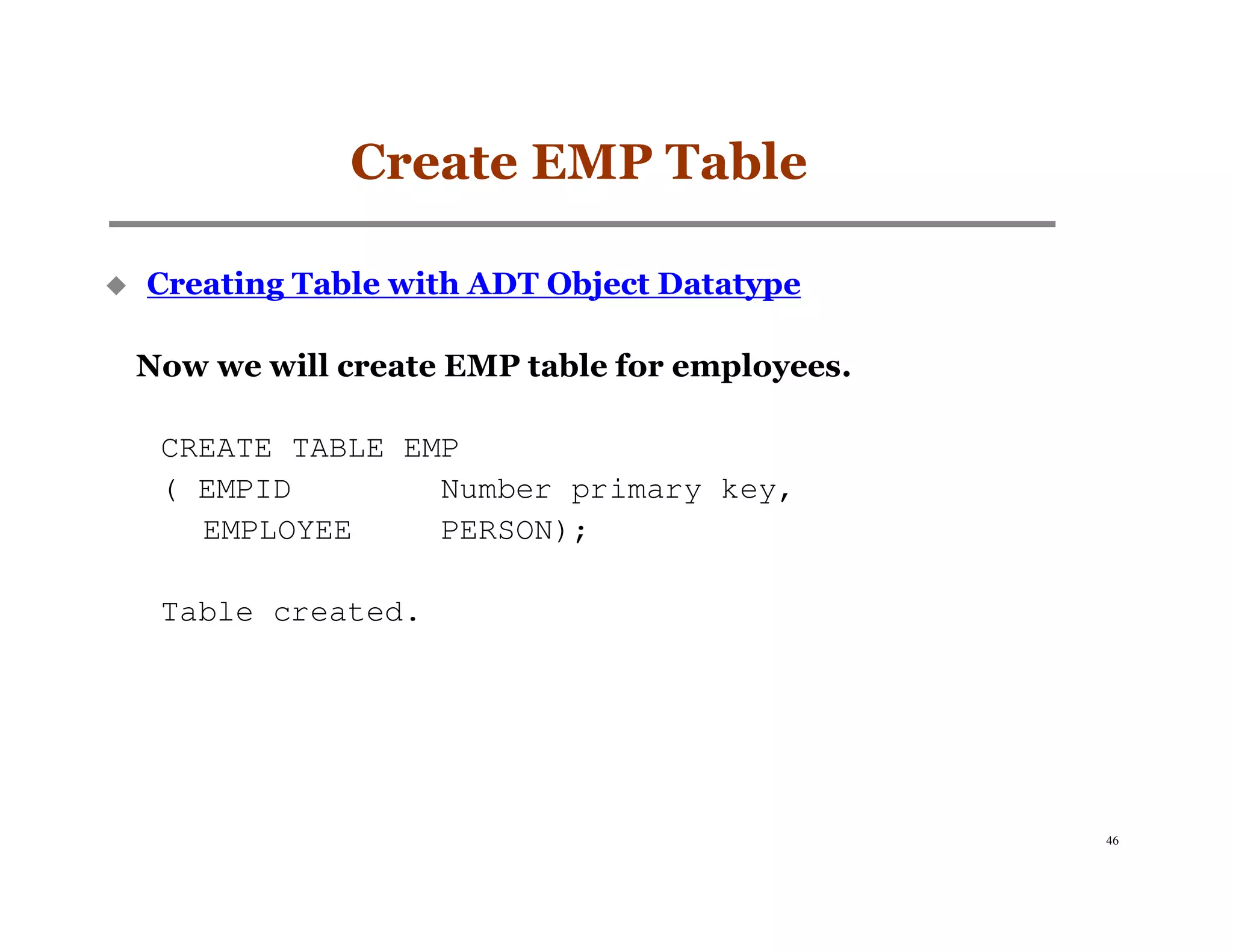

46. Create EMP Table
Creating Table with ADT Object Datatype
Now we will create EMP table for employees.
CREATE TABLE EMP
( EMPID Number primary key,
EMPLOYEE PERSON);
Table created.
46

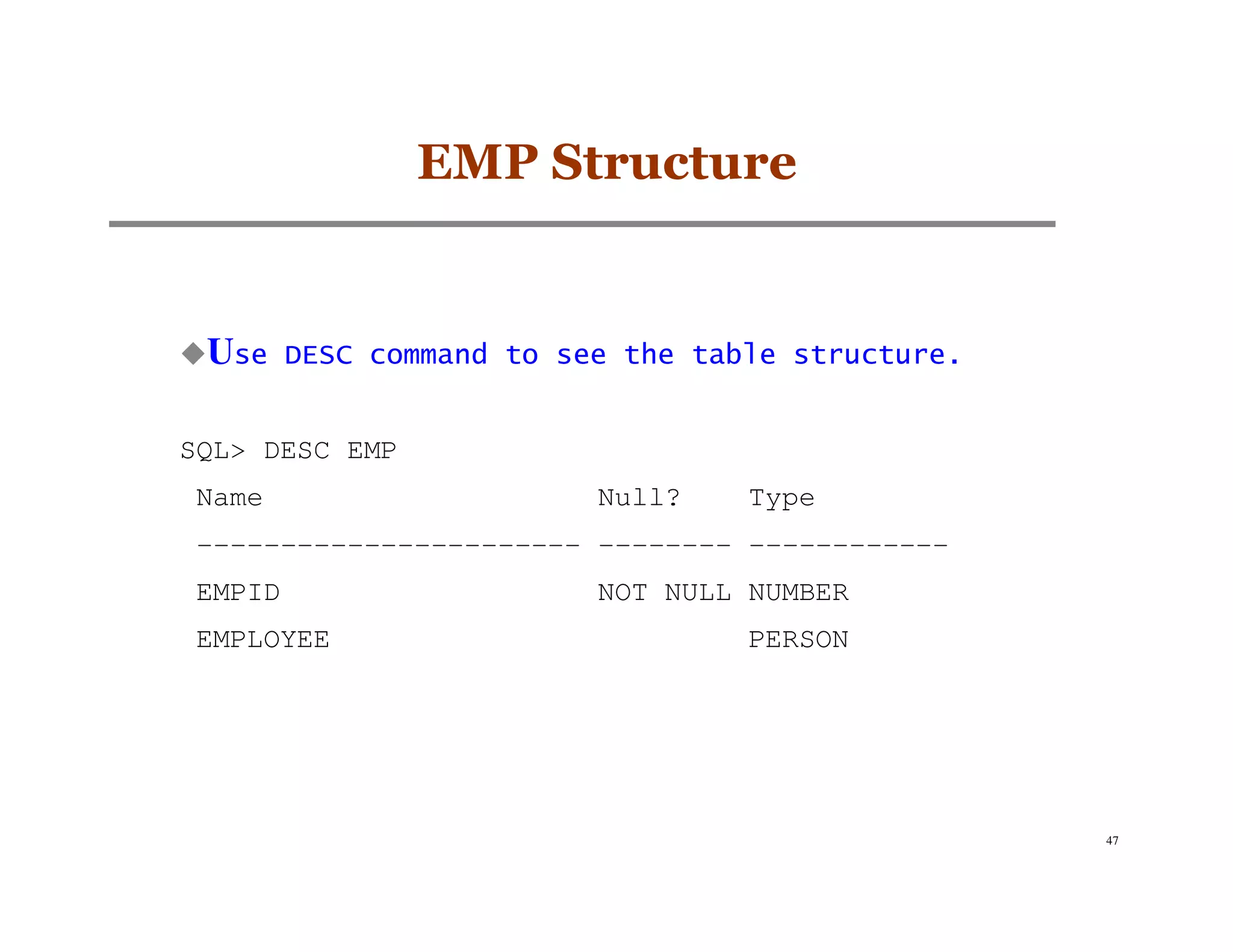

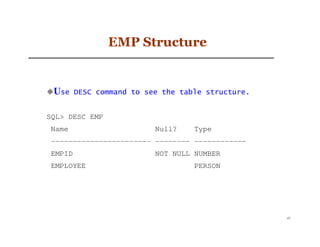

47. EMP Structure
Use DESC command to see the table structure.
SQL> DESC EMP
Name Null? Type
----------------------- -------- ------------
EMPID NOT NULL NUMBER
EMPLOYEE PERSON
47

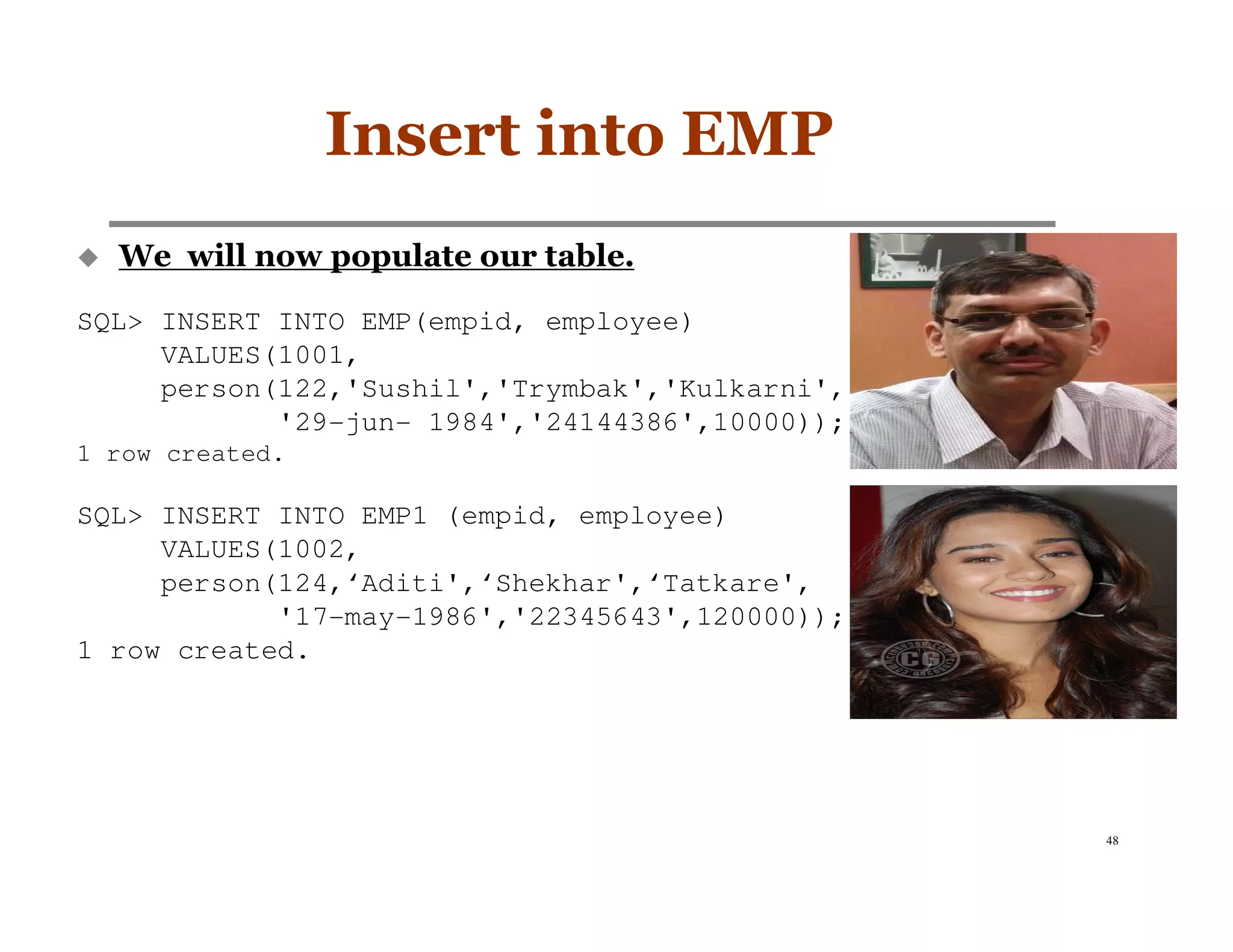

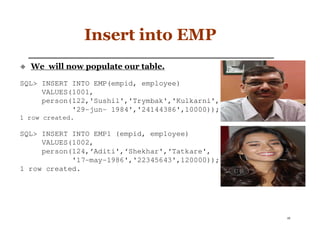

48. Insert into EMP
We will now populate our table.
SQL> INSERT INTO EMP(empid, employee)
VALUES(1001,
person(122,'Sushil','Trymbak','Kulkarni',
'29-jun- 1984','24144386',10000));
1 row created.
SQL> INSERT INTO EMP1 (empid, employee)
VALUES(1002,
person(124,‘Aditi',‘Shekhar',‘Tatkare',
'17-may-1986','22345643',120000));
1 row created.
48

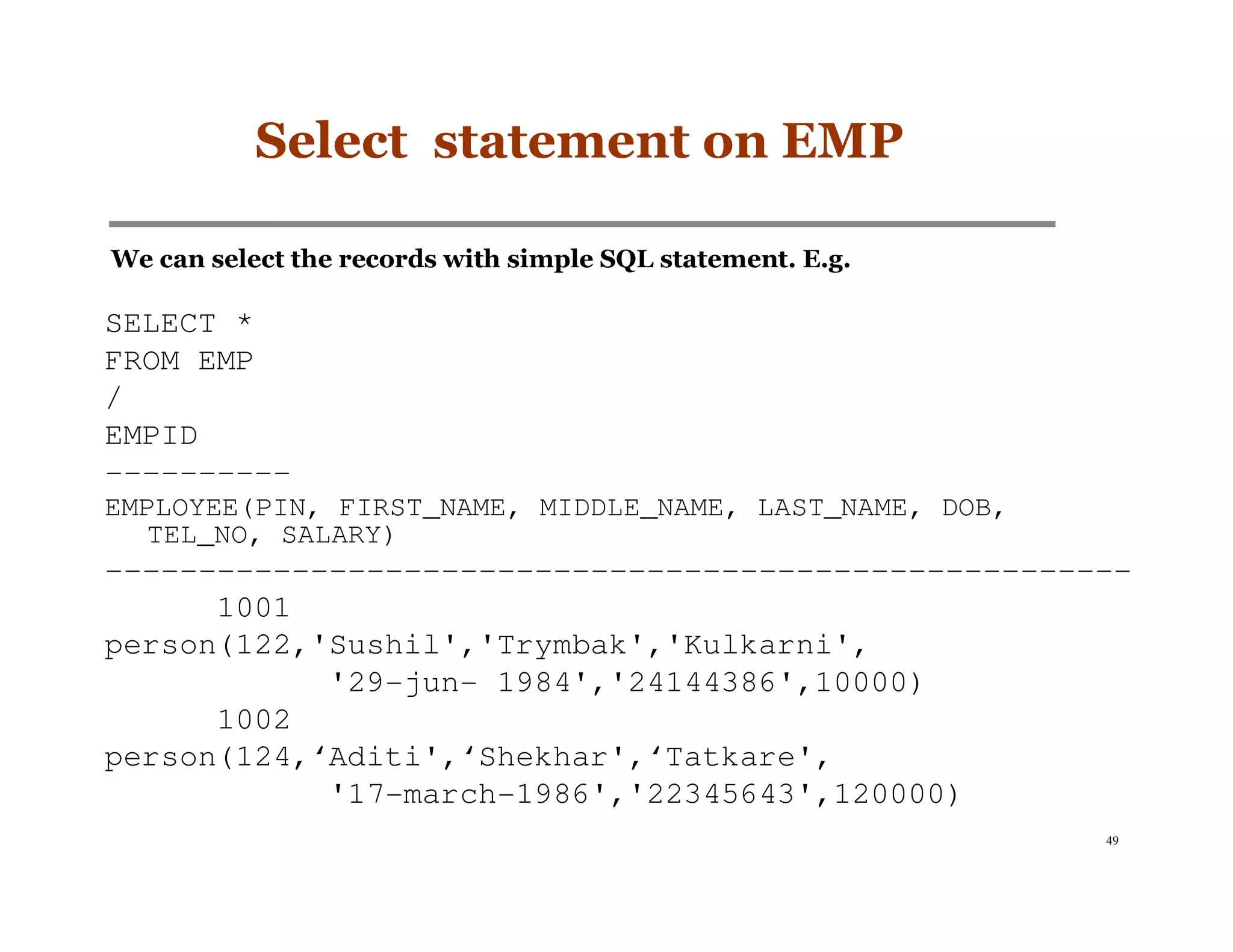

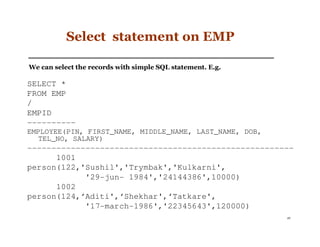

49. Select statement on EMP
We can select the records with simple SQL statement. E.g.
SELECT *
FROM EMP
/
EMPID
----------
EMPLOYEE(PIN, FIRST_NAME, MIDDLE_NAME, LAST_NAME, DOB,
TEL_NO, SALARY)
-------------------------------------------------------
1001
person(122,'Sushil','Trymbak','Kulkarni',
'29-jun- 1984','24144386',10000)
1002
person(124,‘Aditi',‘Shekhar',‘Tatkare',
'17-march-1986','22345643',120000)
49

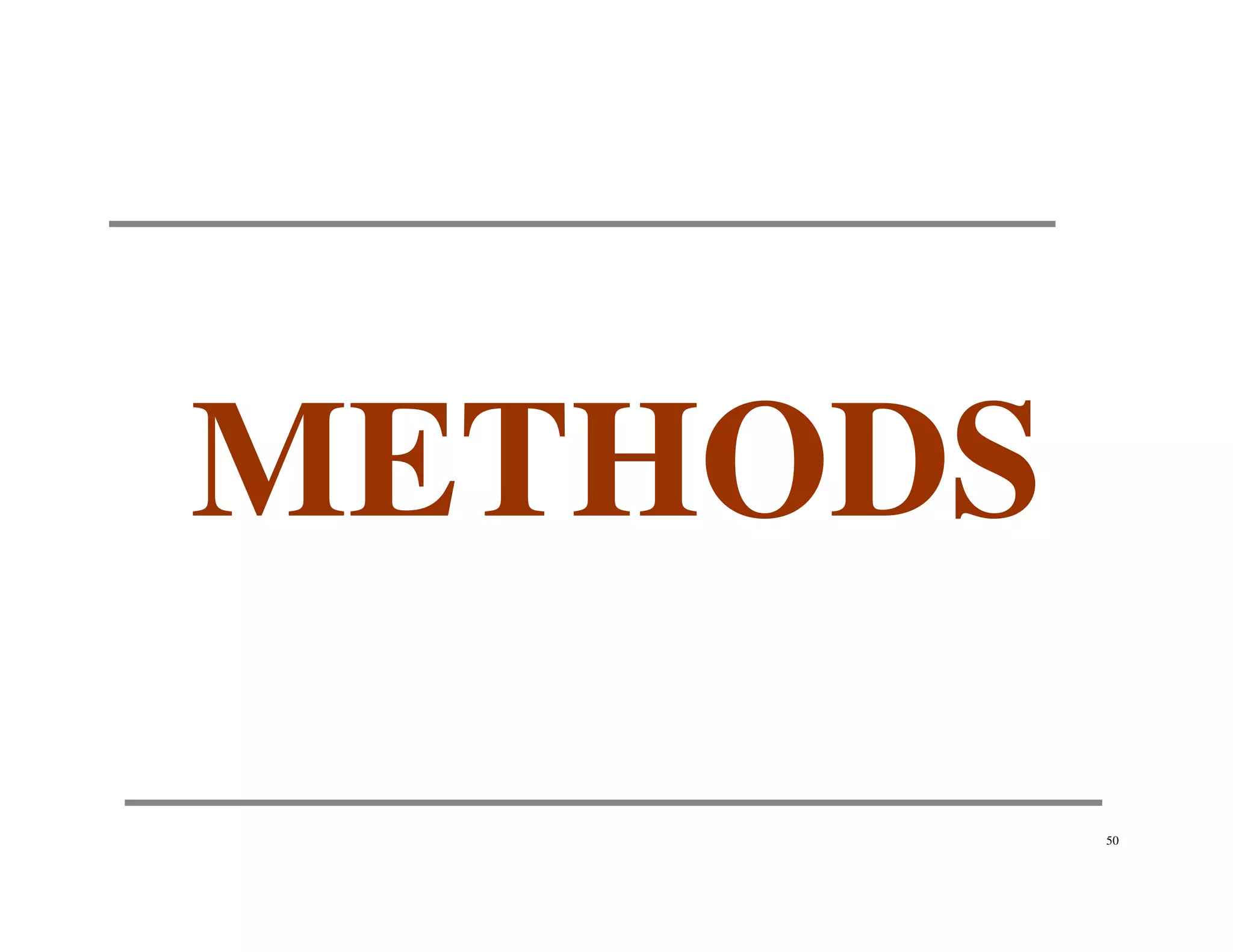

50. METHODS
50

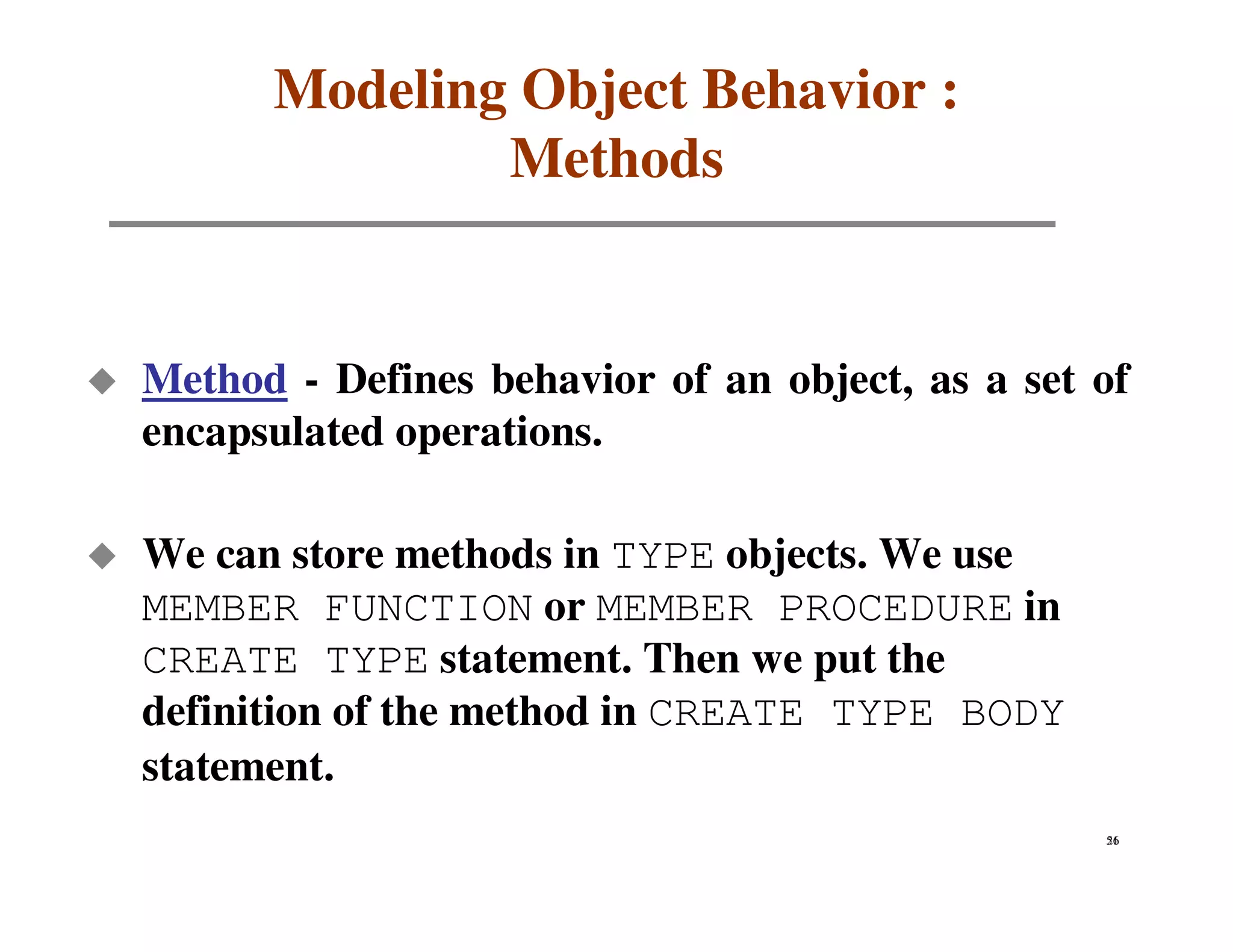

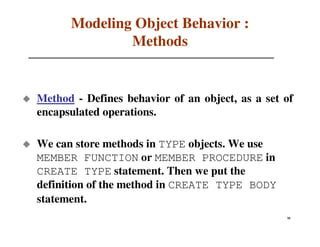

51. Modeling Object Behavior :
Methods
Method - Defines behavior of an object, as a set of
encapsulated operations.
We can store methods in TYPE objects. We use
MEMBER FUNCTION or MEMBER PROCEDURE in
CREATE TYPE statement. Then we put the
definition of the method in CREATE TYPE BODY
statement.
51
26

52. Create Method Data type
CREATE TYPE BODY person AS
MEMBER FUNCTION raise_sal RETURN NUMBER IS
BEGIN
RETURN salary * 1.1;
END;
END;
/
Type body created.
THIS DEFINITION OF FUNCTION IS TO BE WRITTEN
AFTHER PERSON TYPE IS CREATED.
52

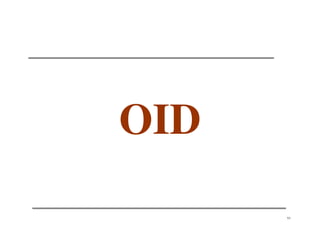

53. OID
53

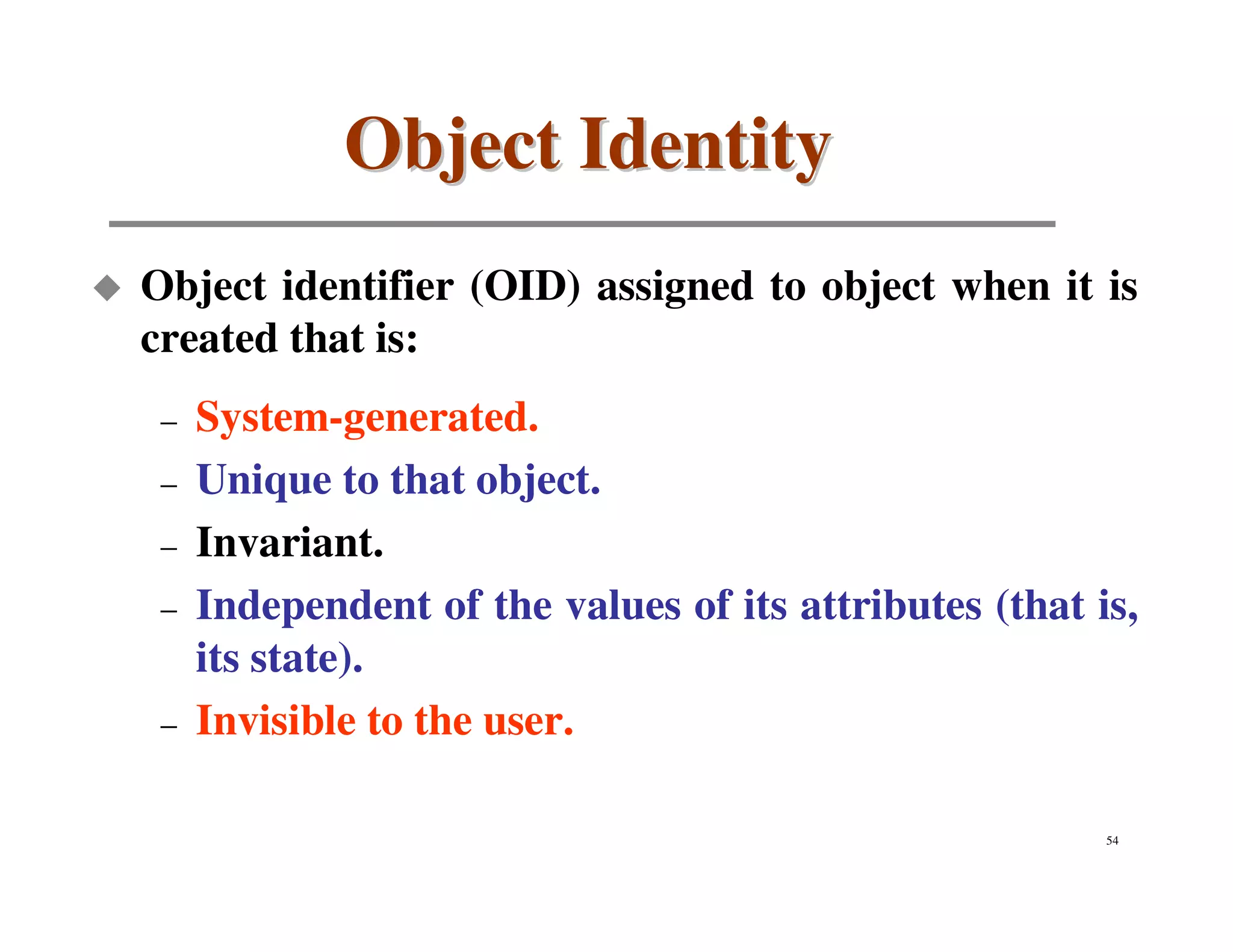

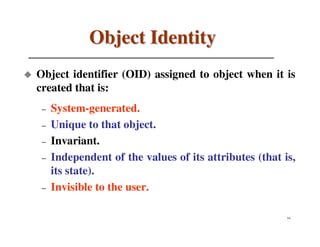

54. Object Identity
Object identifier (OID) assigned to object when it is
created that is:
– System-generated.
– Unique to that object.
– Invariant.
– Independent of the values of its attributes (that is,
its state).
– Invisible to the user.
54

55. OBJECT SCHEMA: GRAPHICAL
REPRESENTATION
STATE OF EMPLOYEE OBJECT INSTANCE
STATE OF EMPLOYEE OBJECT INSTANCE
EMPLOYEE OID X 20 SYSTEM
SYSTEM
GENERATED
GENERATED
NAME Aditi S. Tatkare
INSTANCE
INSTANCE
ADDRESS 112, Malabar Hill. VARIABLE
VARIABLE
DOB 17-March-1986
VALUES
VALUES
SEX F
AGE 25
55

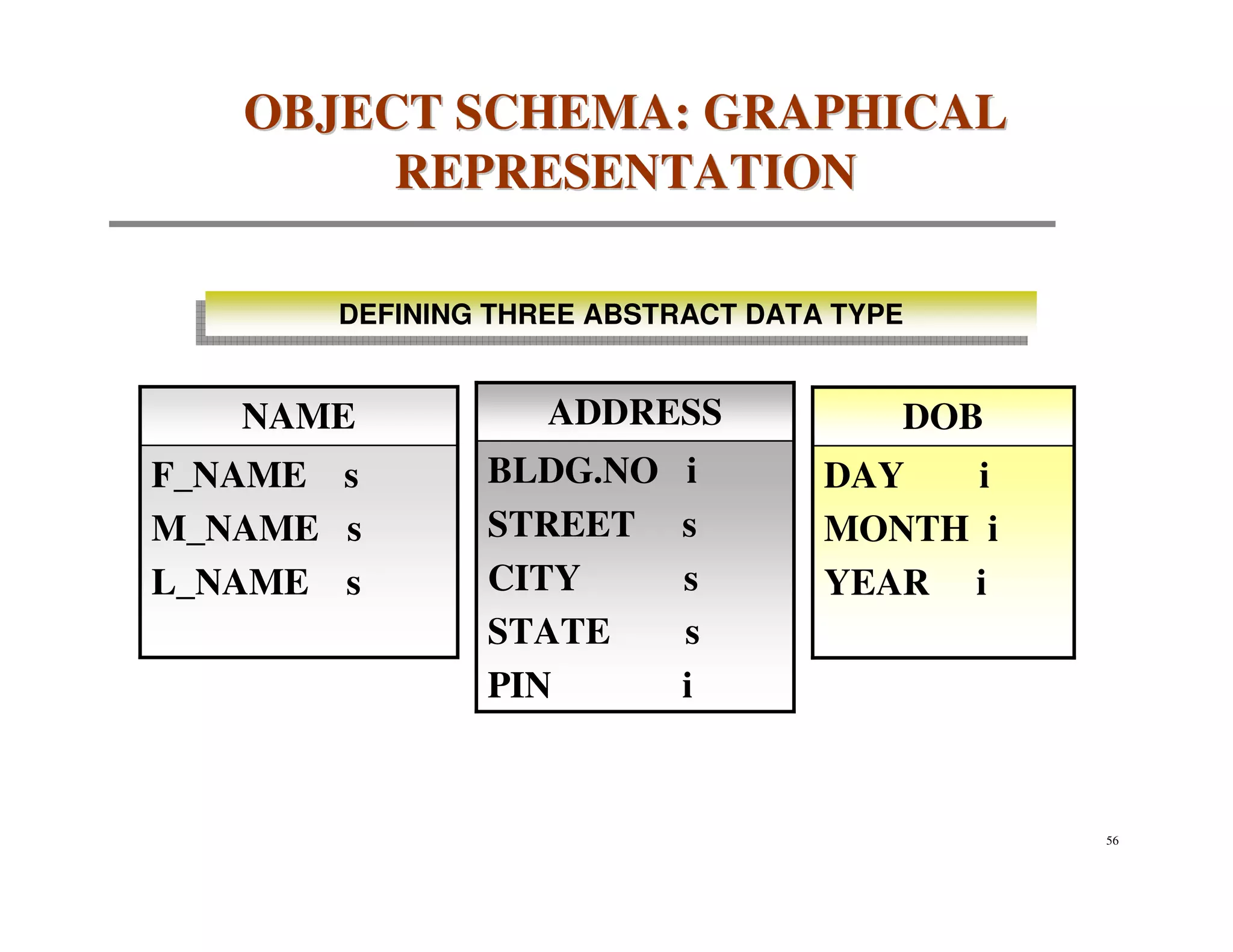

56. OBJECT SCHEMA: GRAPHICAL
REPRESENTATION
DEFINING THREE ABSTRACT DATA TYPE
DEFINING THREE ABSTRACT DATA TYPE
NAME ADDRESS DOB
F_NAME s BLDG.NO i DAY i
M_NAME s STREET s MONTH i
L_NAME s CITY s YEAR i
STATE s
PIN i
56

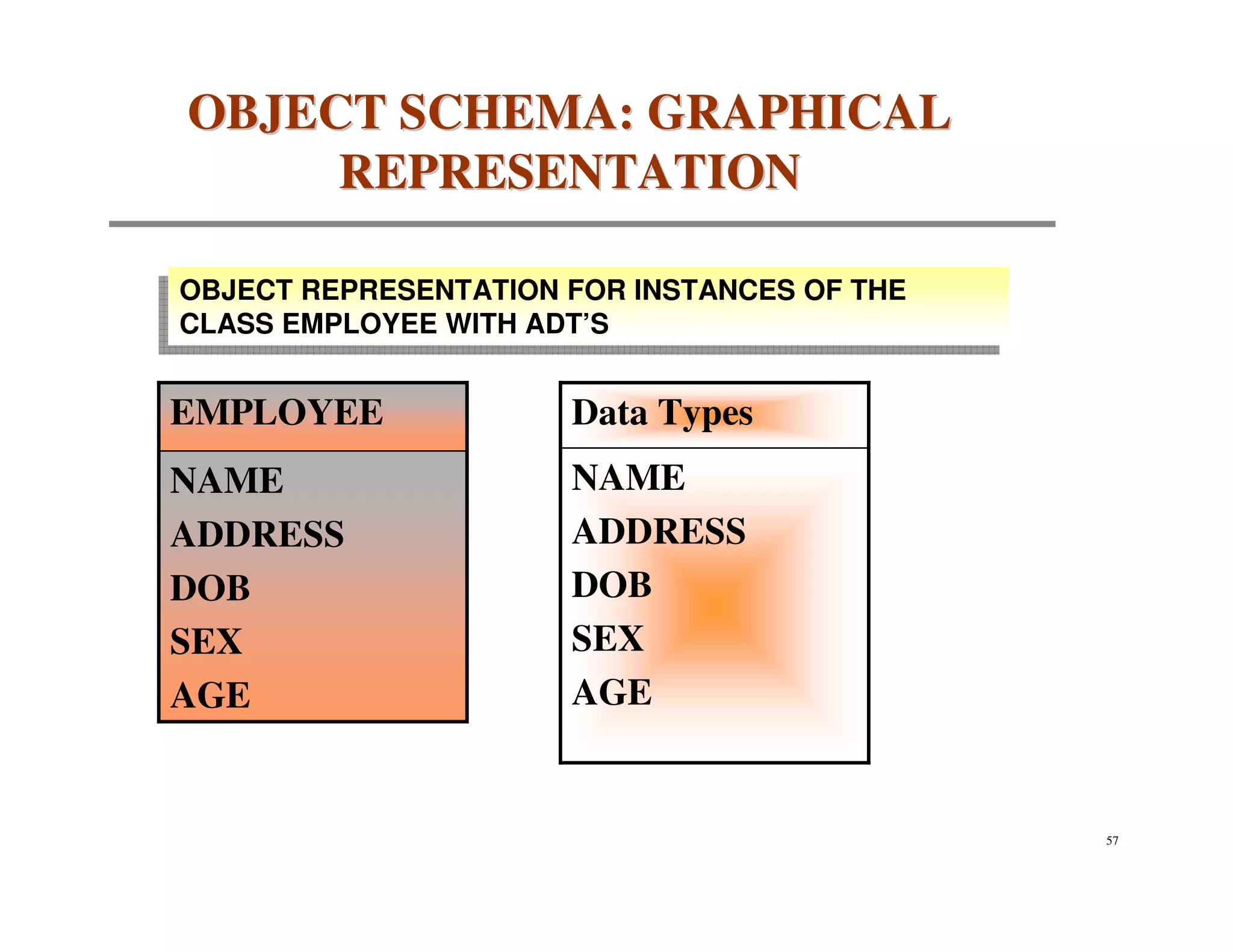

57. OBJECT SCHEMA: GRAPHICAL
REPRESENTATION
OBJECT REPRESENTATION FOR INSTANCES OF THE
OBJECT REPRESENTATION FOR INSTANCES OF THE
CLASS EMPLOYEE WITH ADT’S
CLASS EMPLOYEE WITH ADT’S
EMPLOYEE Data Types
NAME NAME
ADDRESS ADDRESS
DOB DOB
SEX SEX
AGE AGE
57

58. OBJECT SCHEMA: GRAPHICAL REPRESENTATION
NAME OID X 201
EMPLOYEE OID X 20
F_NAME Aditi
NAME X 201
M_NAME S.
ADDRESS X 202
L_NAME Tatkare
DOB X 203
SEX F
AGE 25
ADDRESS OID X 202
DOB OID X 203
BLDG.NO 112
DAY 17 STREET Malabar Hill
MONTH 3 CITY Mumbai
YEAR 1987 STATE MAHA.
58
PIN 400018

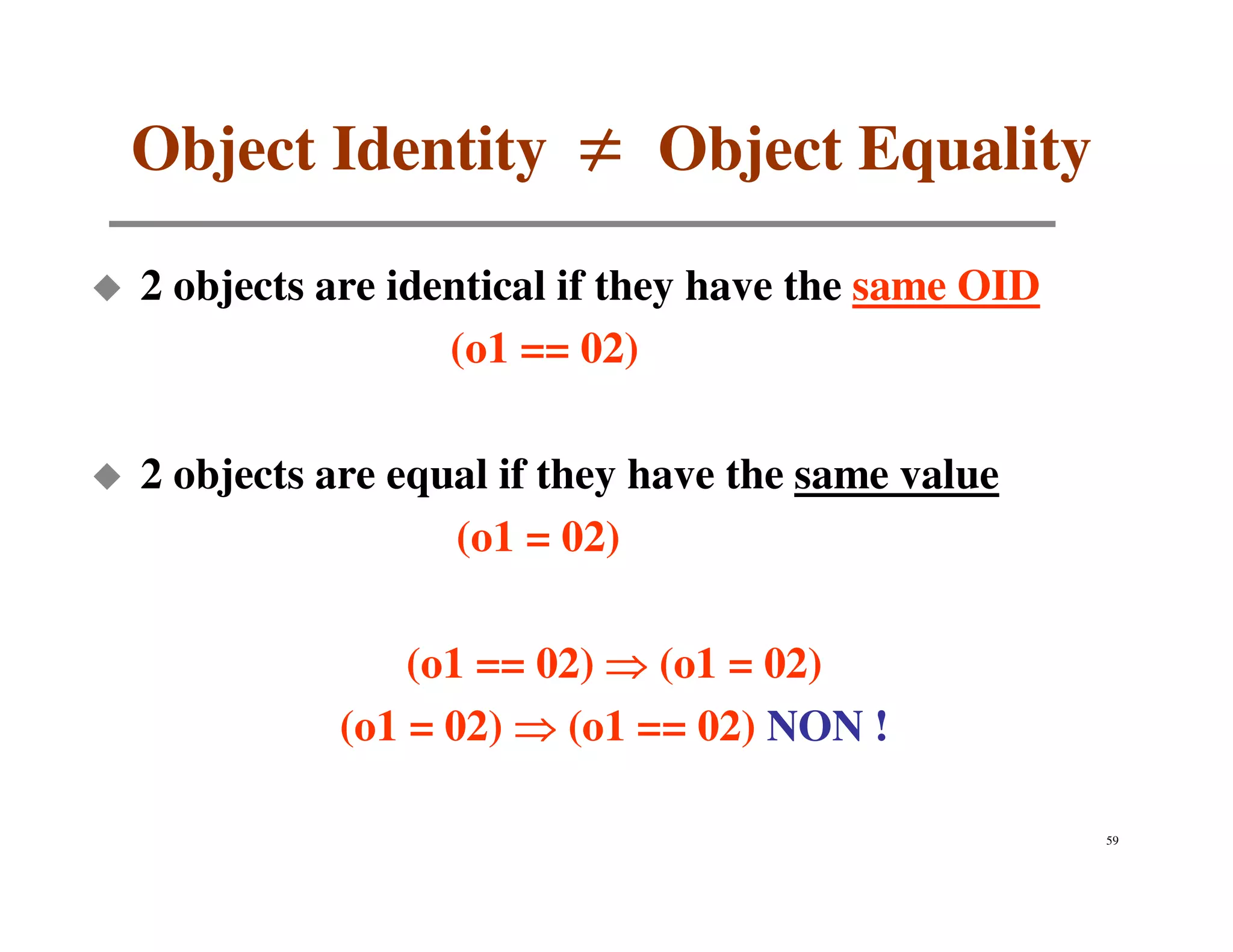

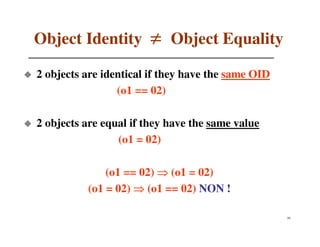

59. Object Identity ≠ Object Equality
2 objects are identical if they have the same OID
(o1 == 02)
2 objects are equal if they have the same value
(o1 = 02)
(o1 == 02) ⇒ (o1 = 02)
(o1 = 02) ⇒ (o1 == 02) NON !
59

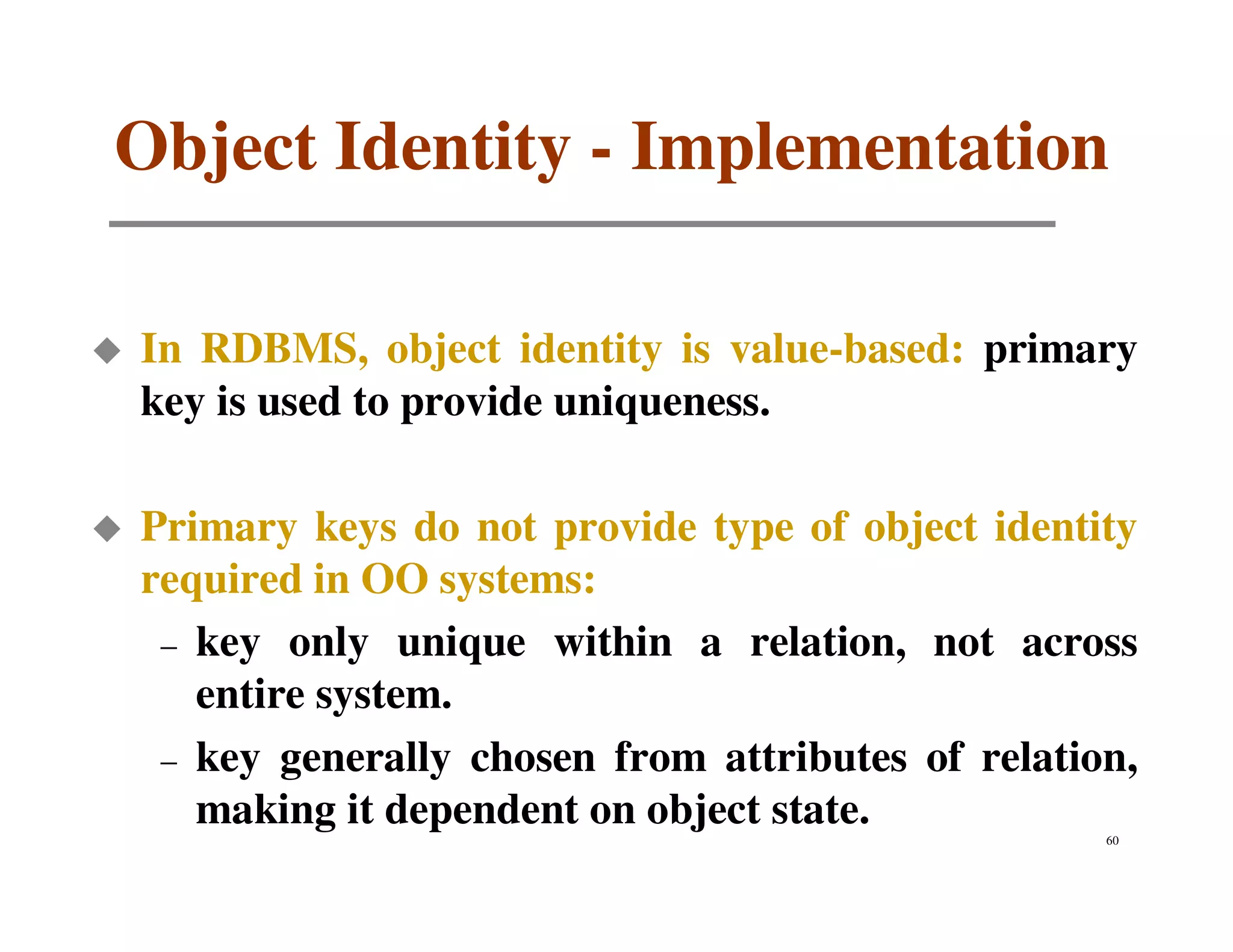

60. Object Identity - Implementation
In RDBMS, object identity is value-based: primary
key is used to provide uniqueness.
Primary keys do not provide type of object identity
required in OO systems:
– key only unique within a relation, not across
entire system.
– key generally chosen from attributes of relation,
making it dependent on object state. 60

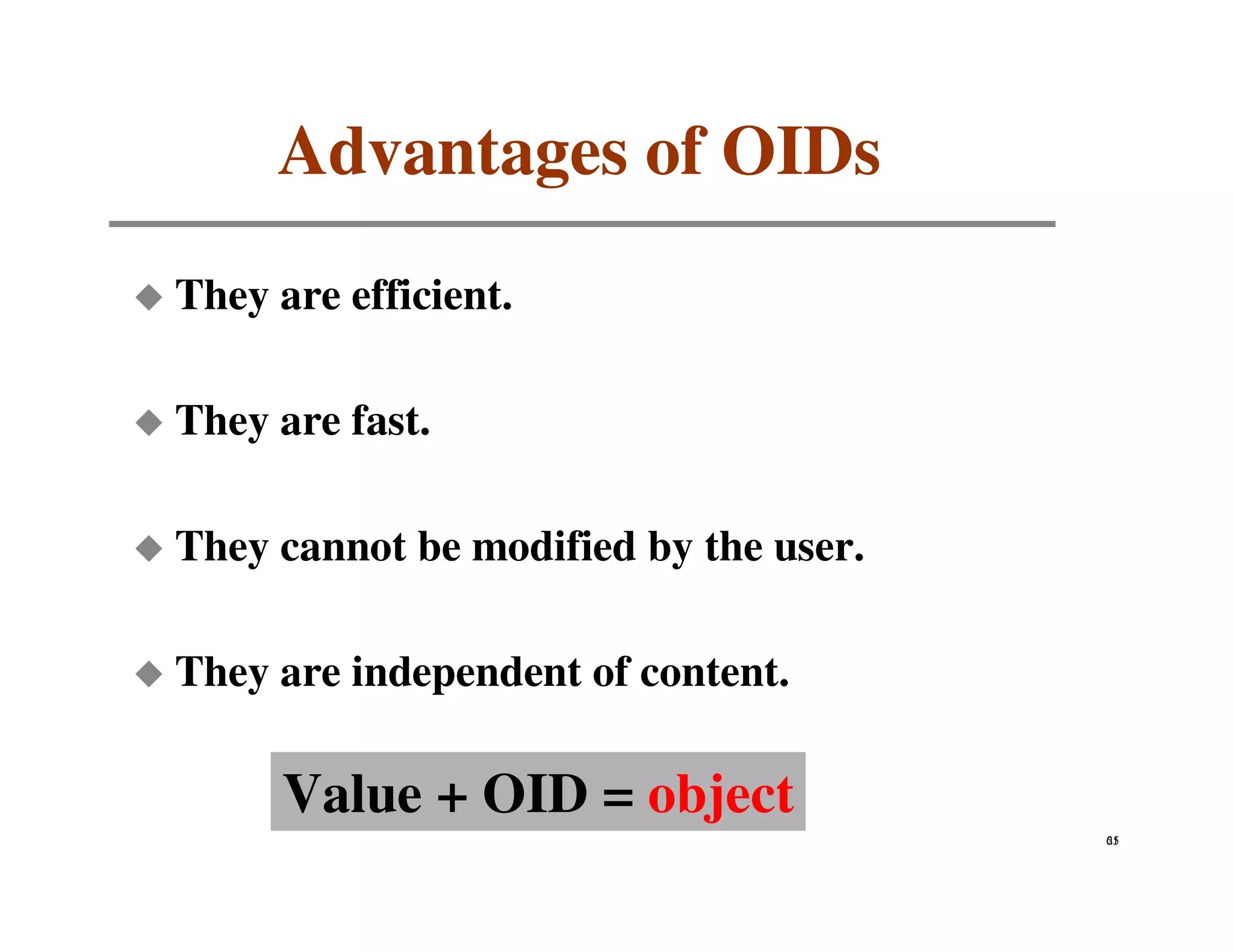

61. Advantages of OIDs
They are efficient.
They are fast.
They cannot be modified by the user.
They are independent of content.
Value + OID = object
61
25

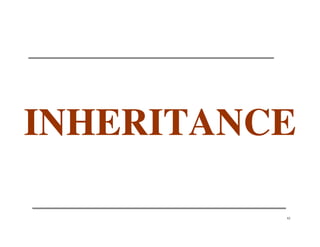

62. INHERITANCE
62

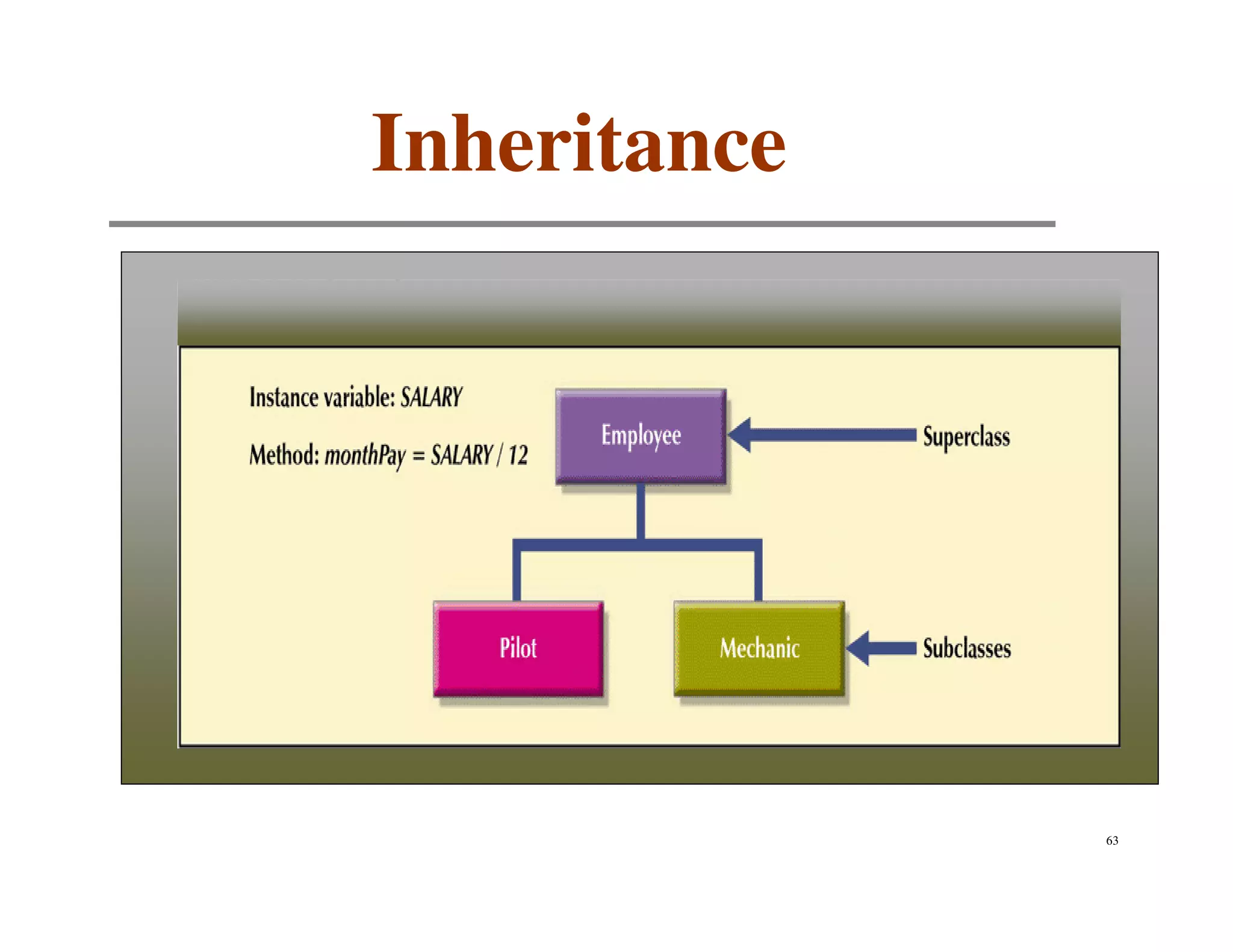

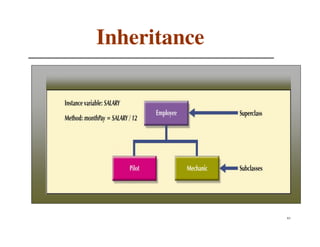

63. Inheritance
63

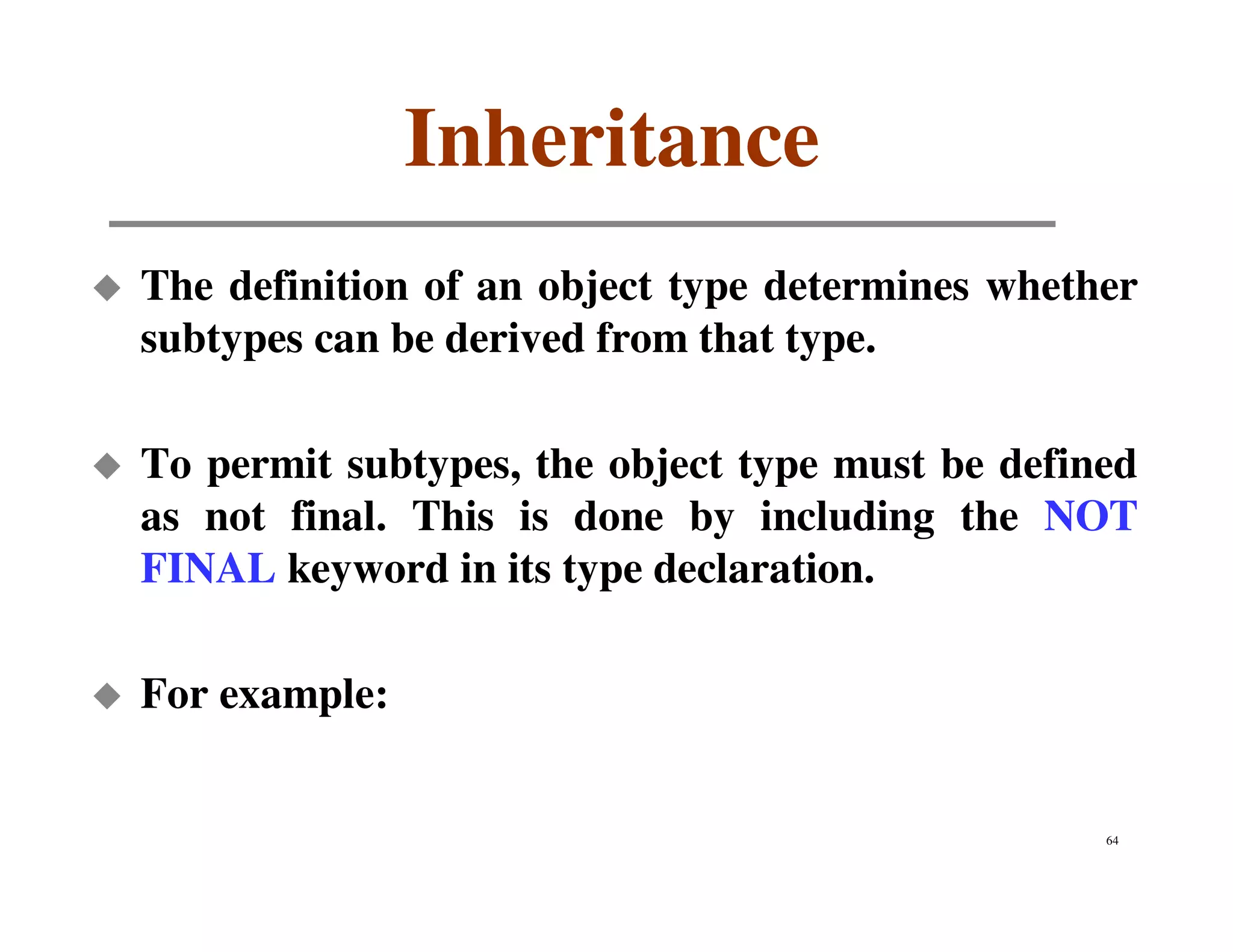

64. Inheritance
The definition of an object type determines whether
subtypes can be derived from that type.
To permit subtypes, the object type must be defined
as not final. This is done by including the NOT
FINAL keyword in its type declaration.
For example:
64

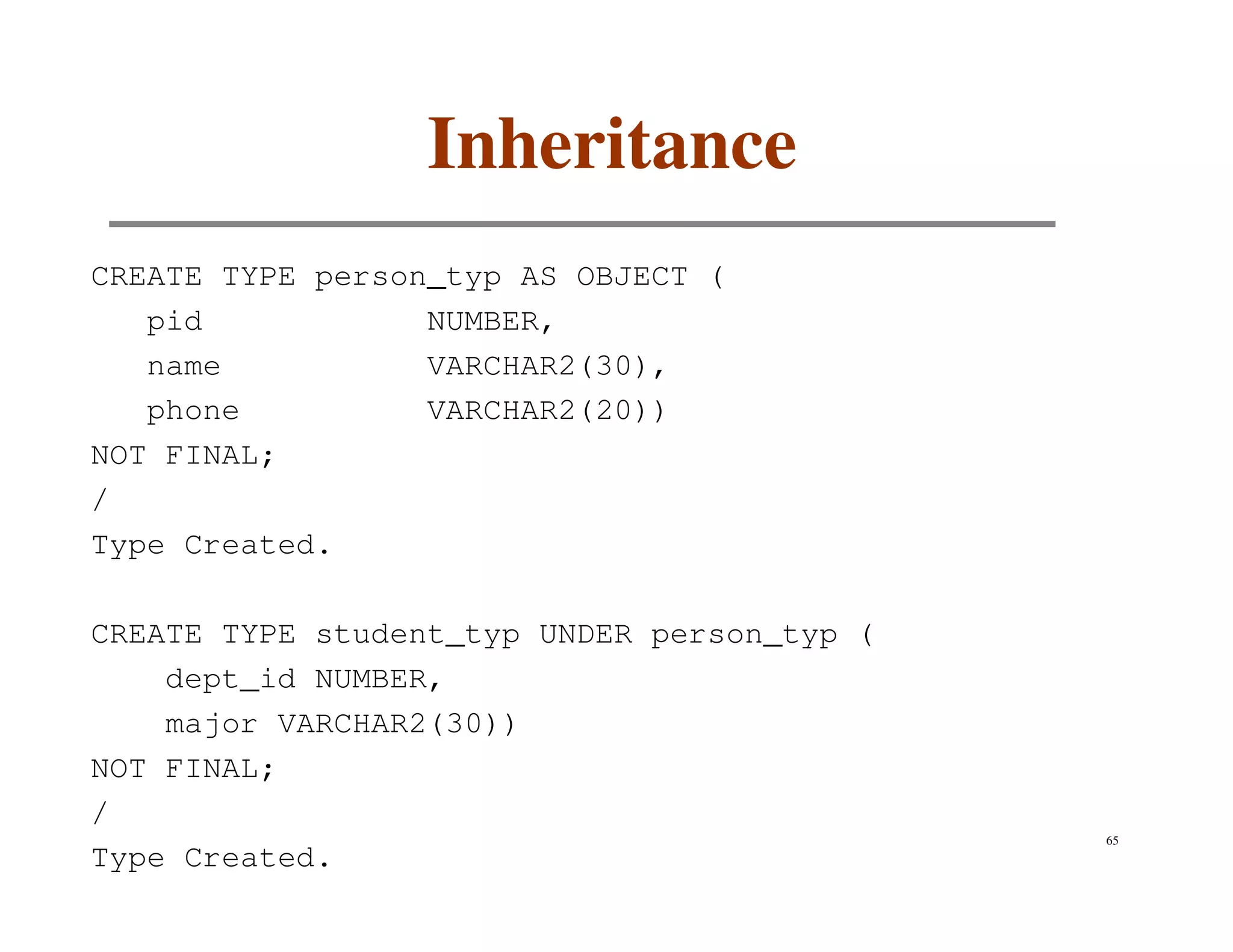

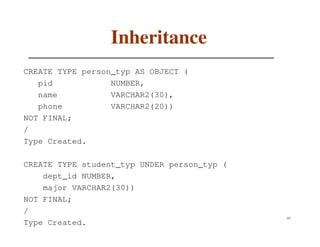

65. Inheritance
CREATE TYPE person_typ AS OBJECT (
pid NUMBER,
name VARCHAR2(30),
phone VARCHAR2(20))
NOT FINAL;
/
Type Created.
CREATE TYPE student_typ UNDER person_typ (
dept_id NUMBER,
major VARCHAR2(30))
NOT FINAL;
/
65
Type Created.

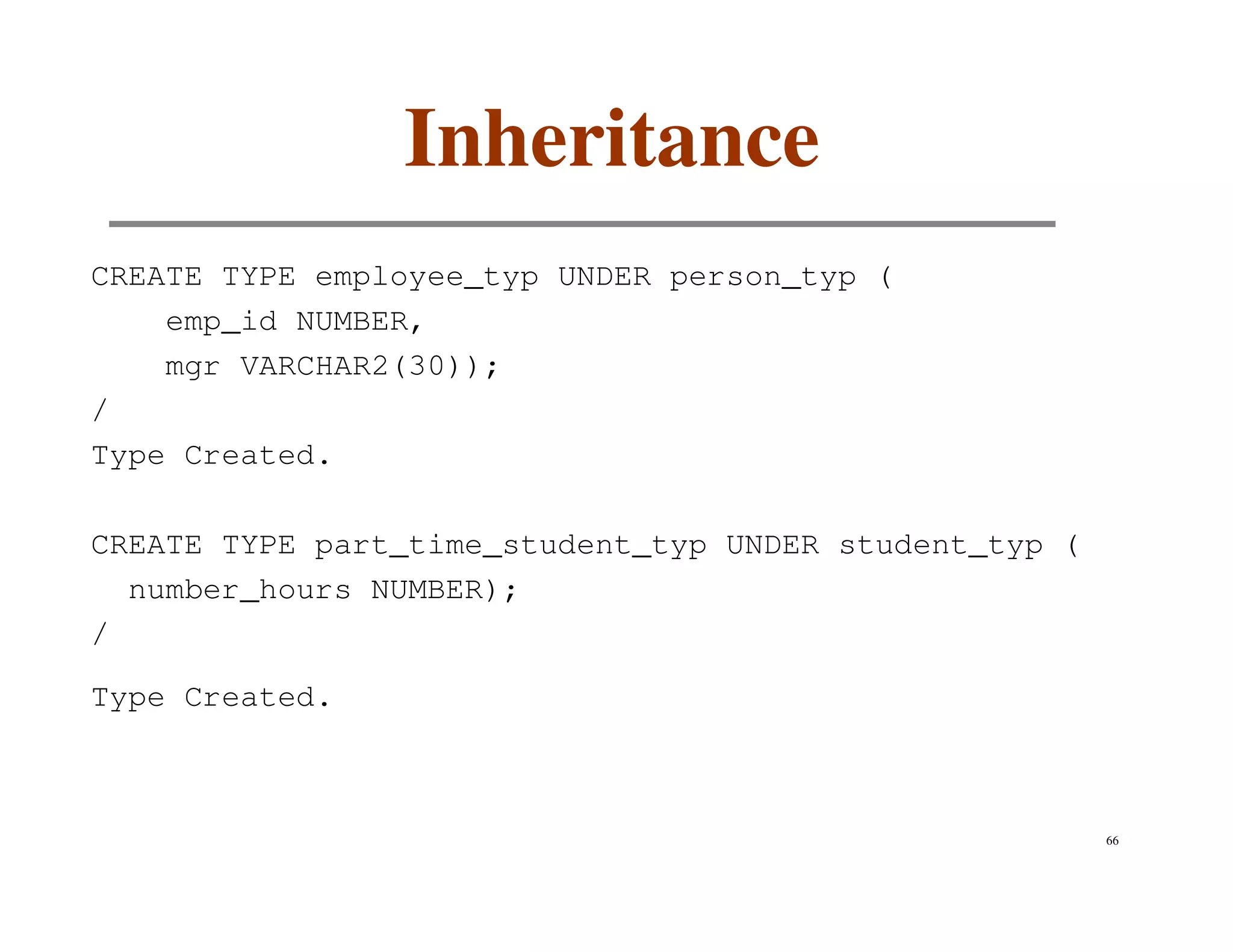

66. Inheritance
CREATE TYPE employee_typ UNDER person_typ (
emp_id NUMBER,
mgr VARCHAR2(30));
/
Type Created.
CREATE TYPE part_time_student_typ UNDER student_typ (
number_hours NUMBER);
/
Type Created.
66

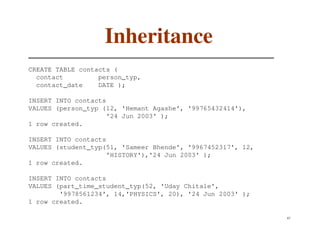

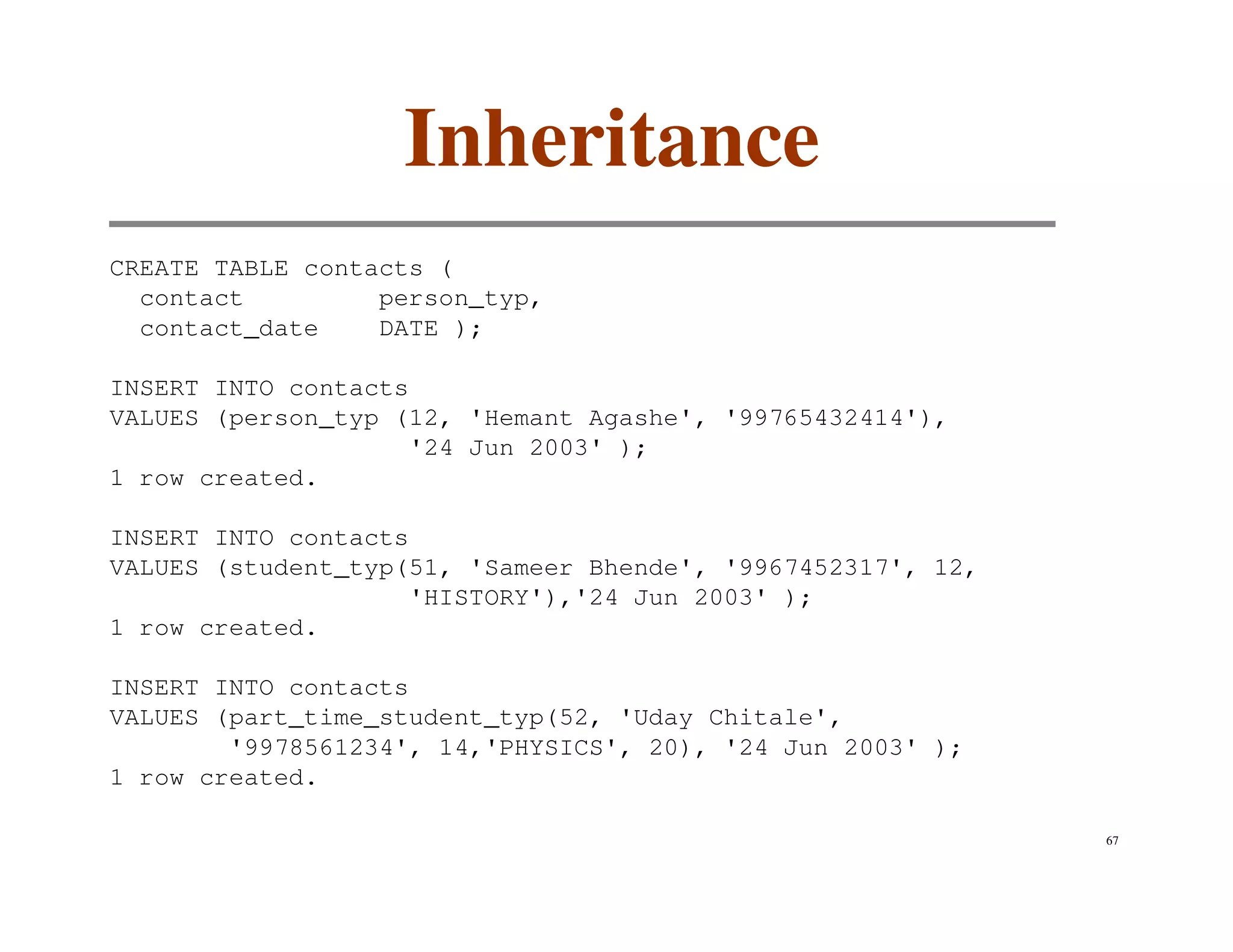

67. Inheritance
CREATE TABLE contacts (
contact person_typ,
contact_date DATE );
INSERT INTO contacts
VALUES (person_typ (12, 'Hemant Agashe', '99765432414'),
'24 Jun 2003' );
1 row created.
INSERT INTO contacts
VALUES (student_typ(51, 'Sameer Bhende', '9967452317', 12,
'HISTORY'),'24 Jun 2003' );
1 row created.
INSERT INTO contacts
VALUES (part_time_student_typ(52, 'Uday Chitale',
'9978561234', 14,'PHYSICS', 20), '24 Jun 2003' );
1 row created.
67

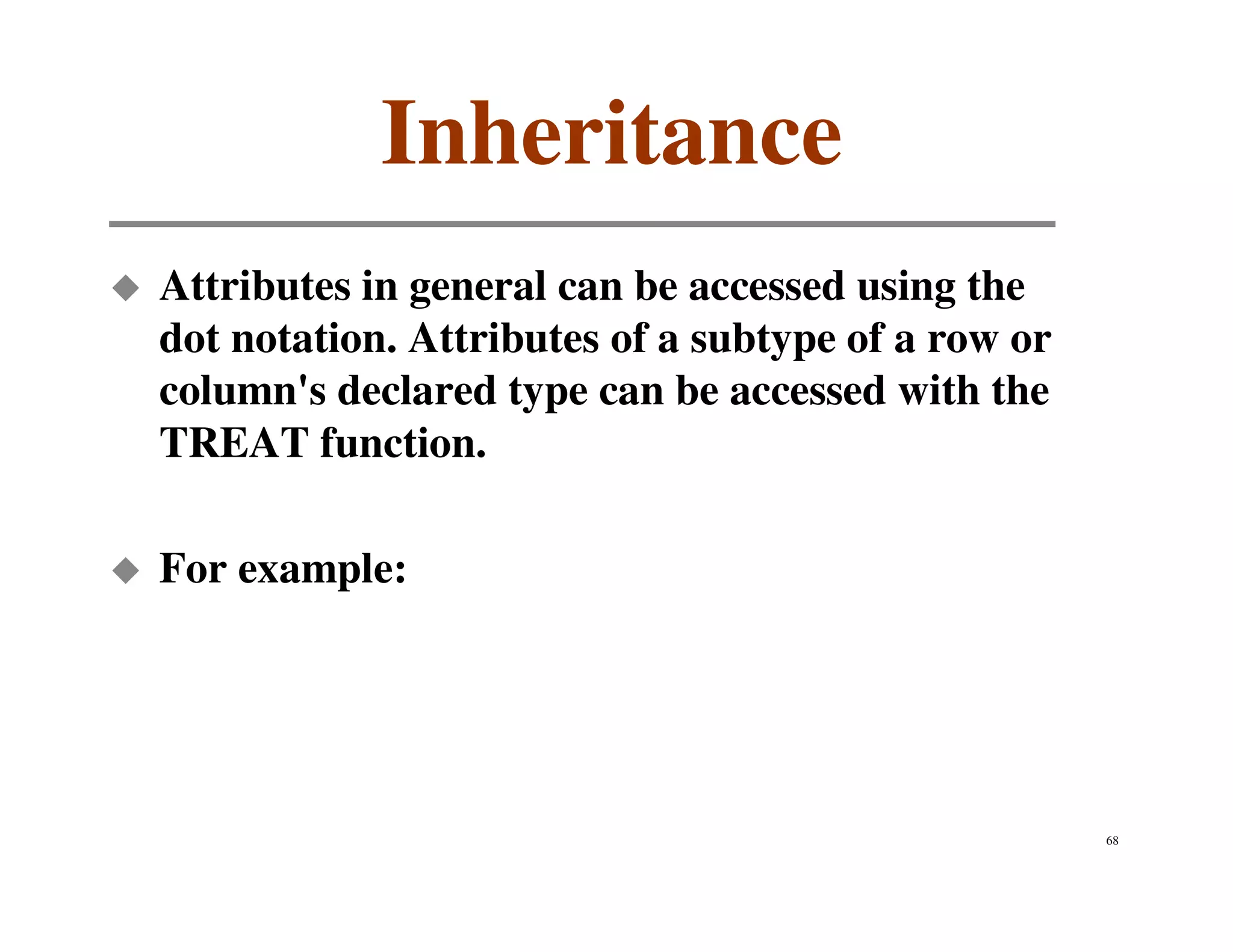

68. Inheritance
Attributes in general can be accessed using the
dot notation. Attributes of a subtype of a row or
column's declared type can be accessed with the
TREAT function.
For example:
68

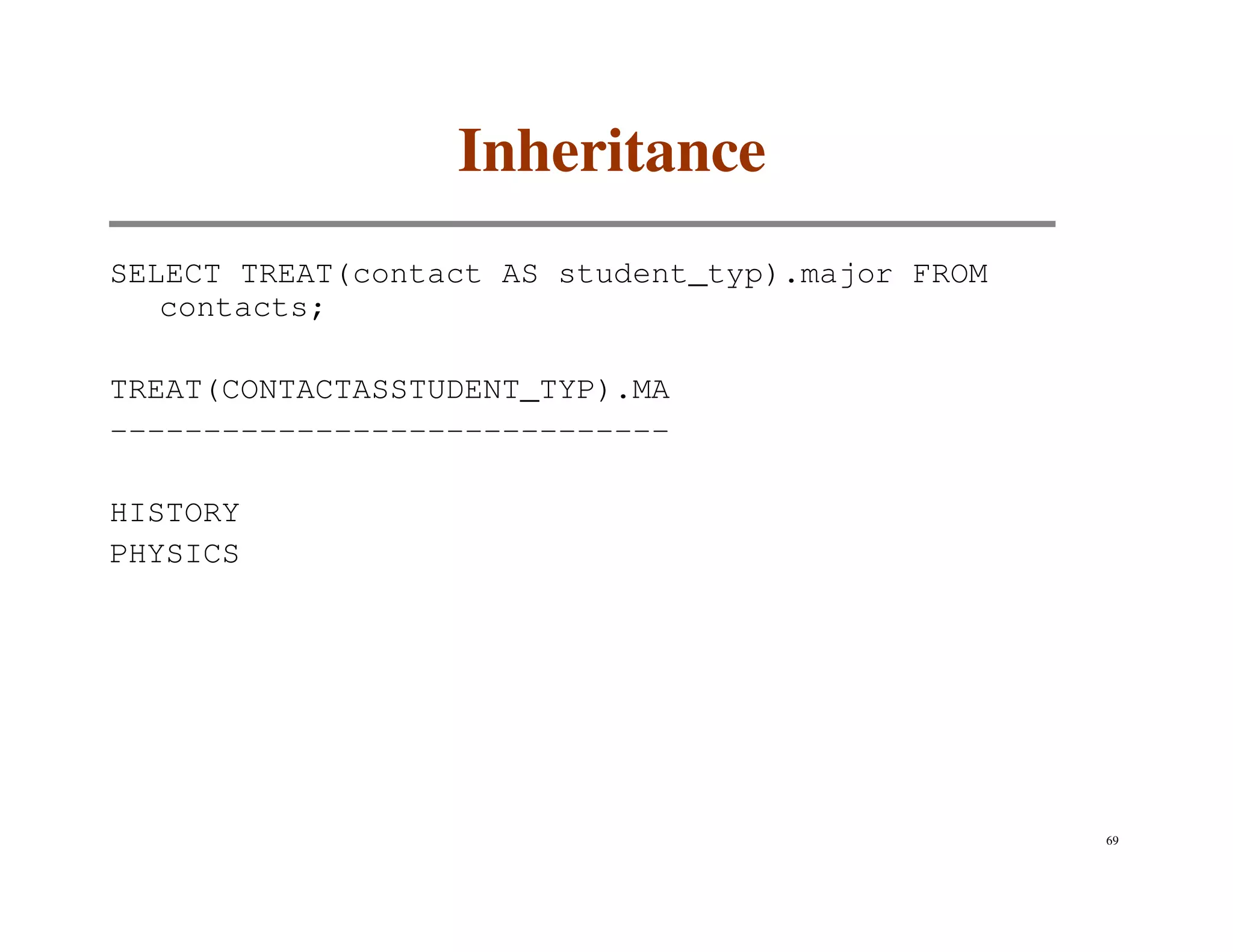

69. Inheritance
SELECT TREAT(contact AS student_typ).major FROM
contacts;
TREAT(CONTACTASSTUDENT_TYP).MA
------------------------------
HISTORY
PHYSICS
69

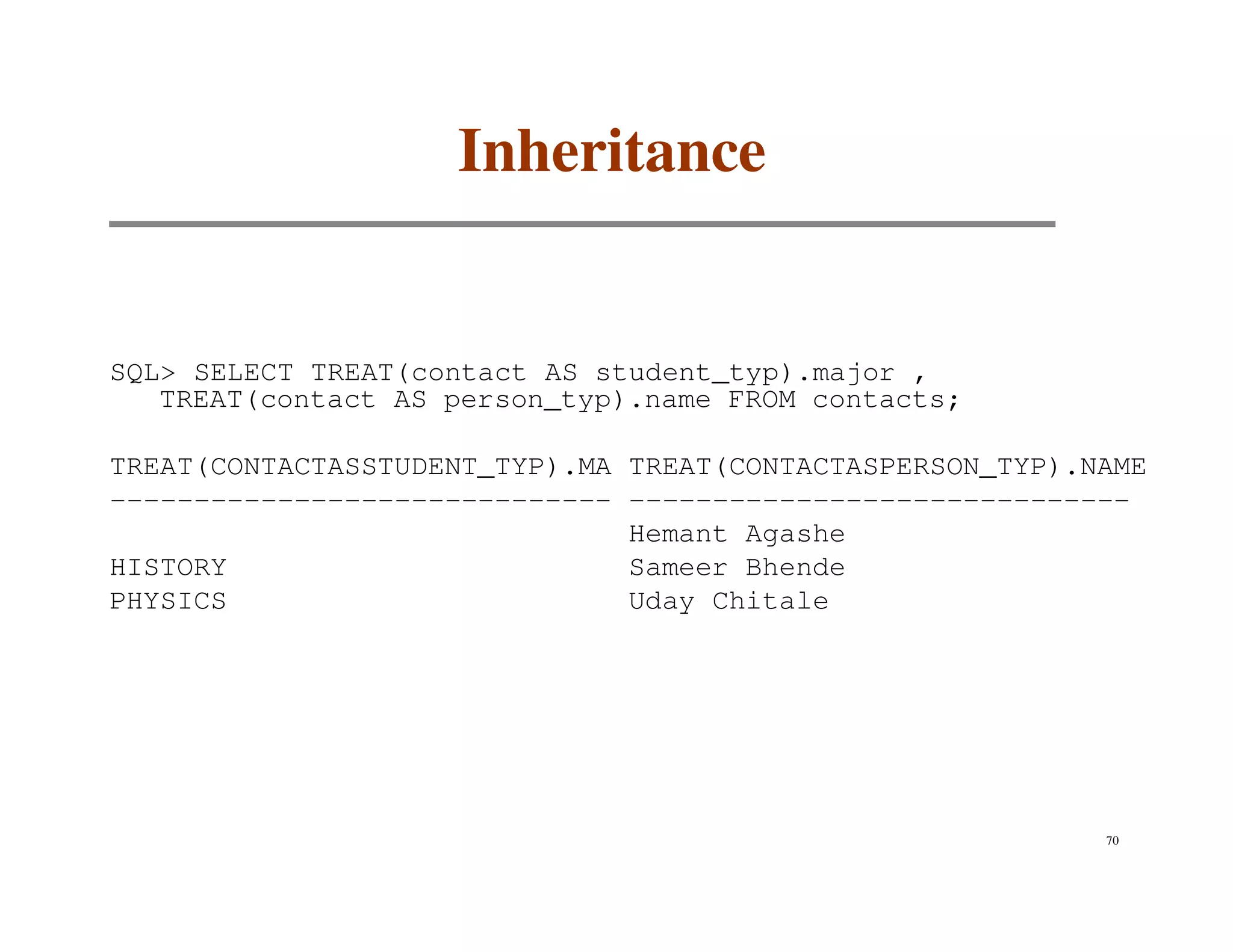

70. Inheritance
SQL> SELECT TREAT(contact AS student_typ).major ,
TREAT(contact AS person_typ).name FROM contacts;
TREAT(CONTACTASSTUDENT_TYP).MA TREAT(CONTACTASPERSON_TYP).NAME
------------------------------ ------------------------------
Hemant Agashe
HISTORY Sameer Bhende
PHYSICS Uday Chitale
70

71. COLLECTION
TYPE
71

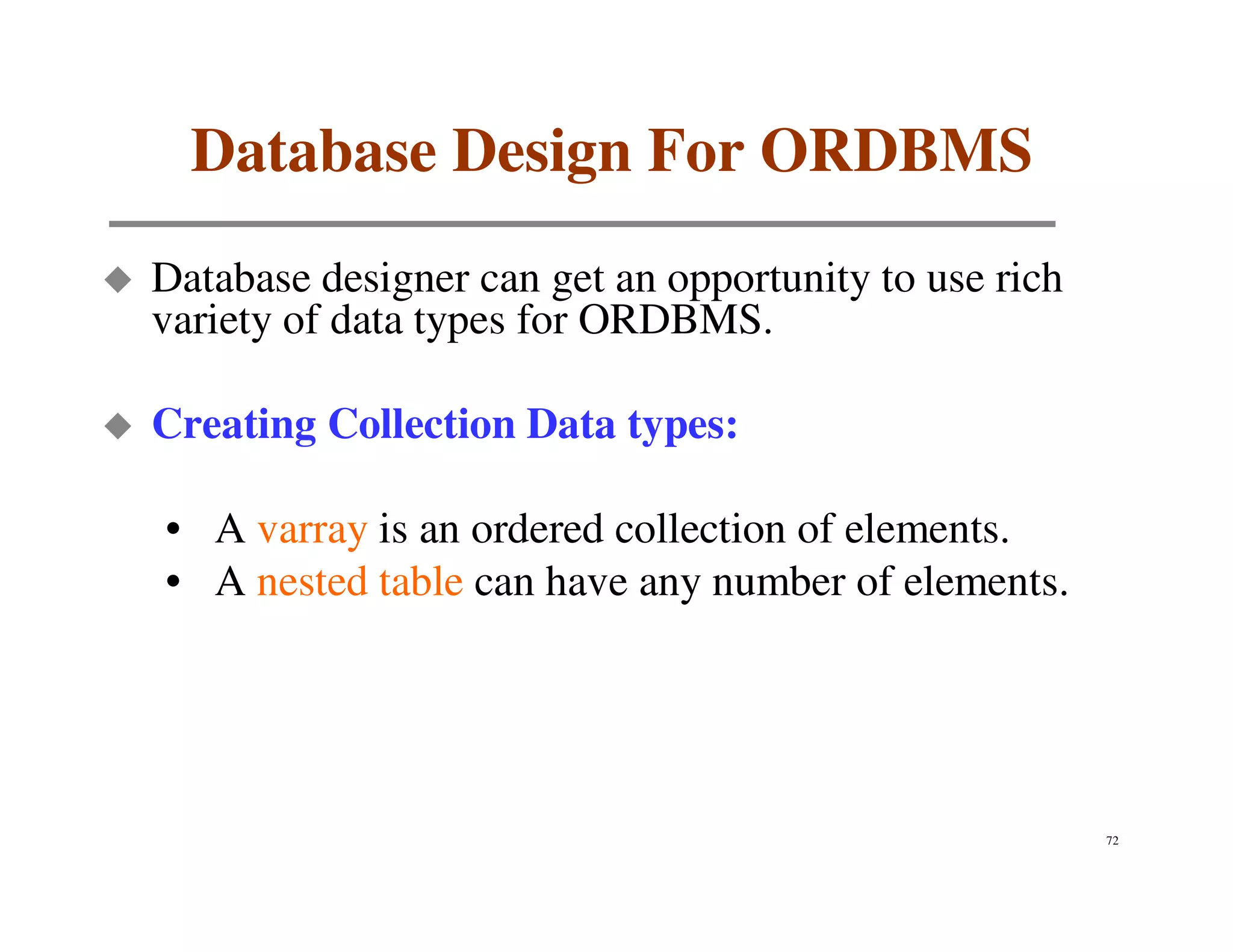

72. Database Design For ORDBMS
Database designer can get an opportunity to use rich
variety of data types for ORDBMS.
Creating Collection Data types:
• A varray is an ordered collection of elements.
• A nested table can have any number of elements.
72

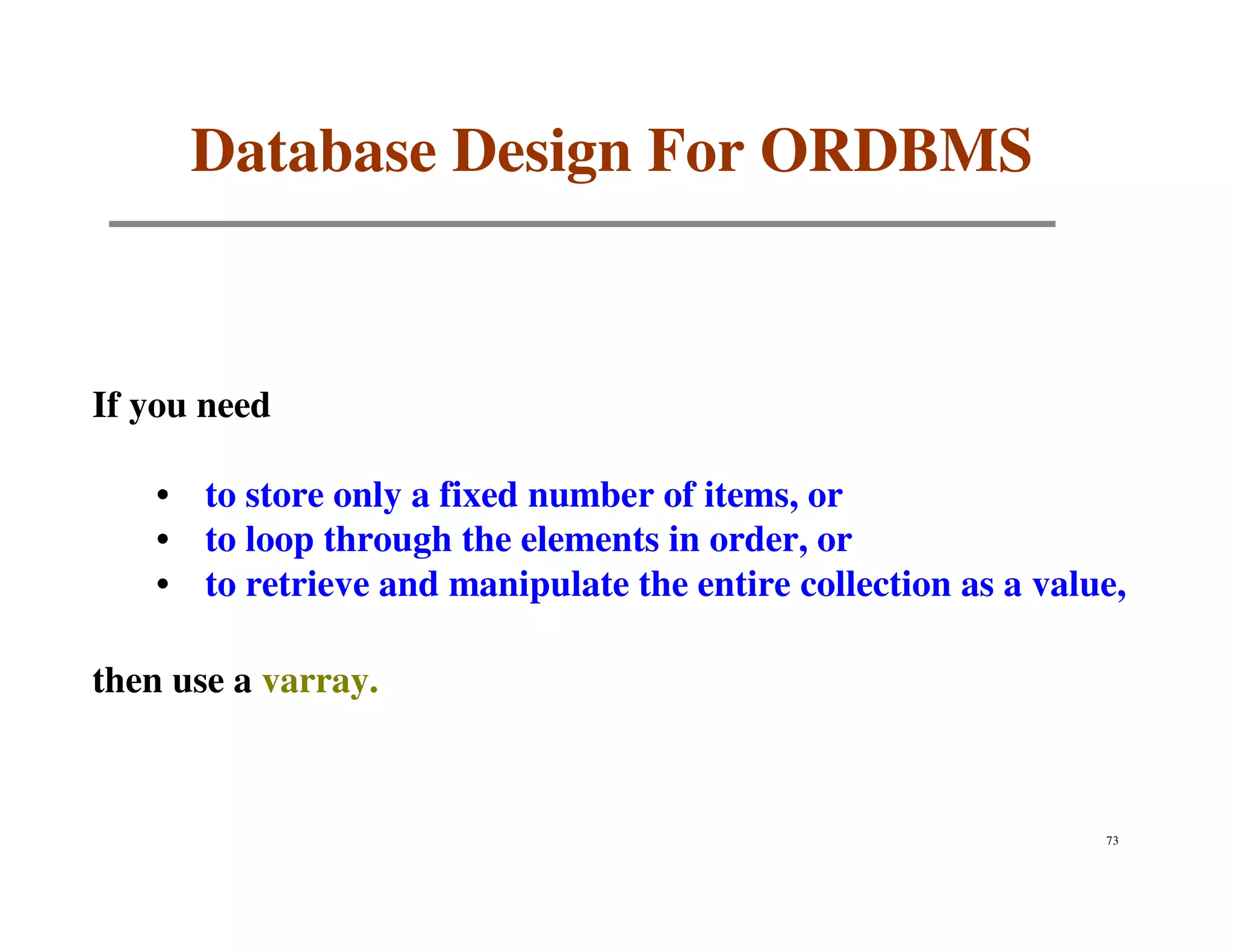

73. Database Design For ORDBMS
If you need
• to store only a fixed number of items, or
• to loop through the elements in order, or
• to retrieve and manipulate the entire collection as a value,
then use a varray.
73

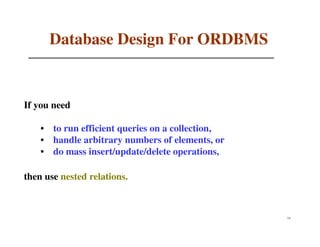

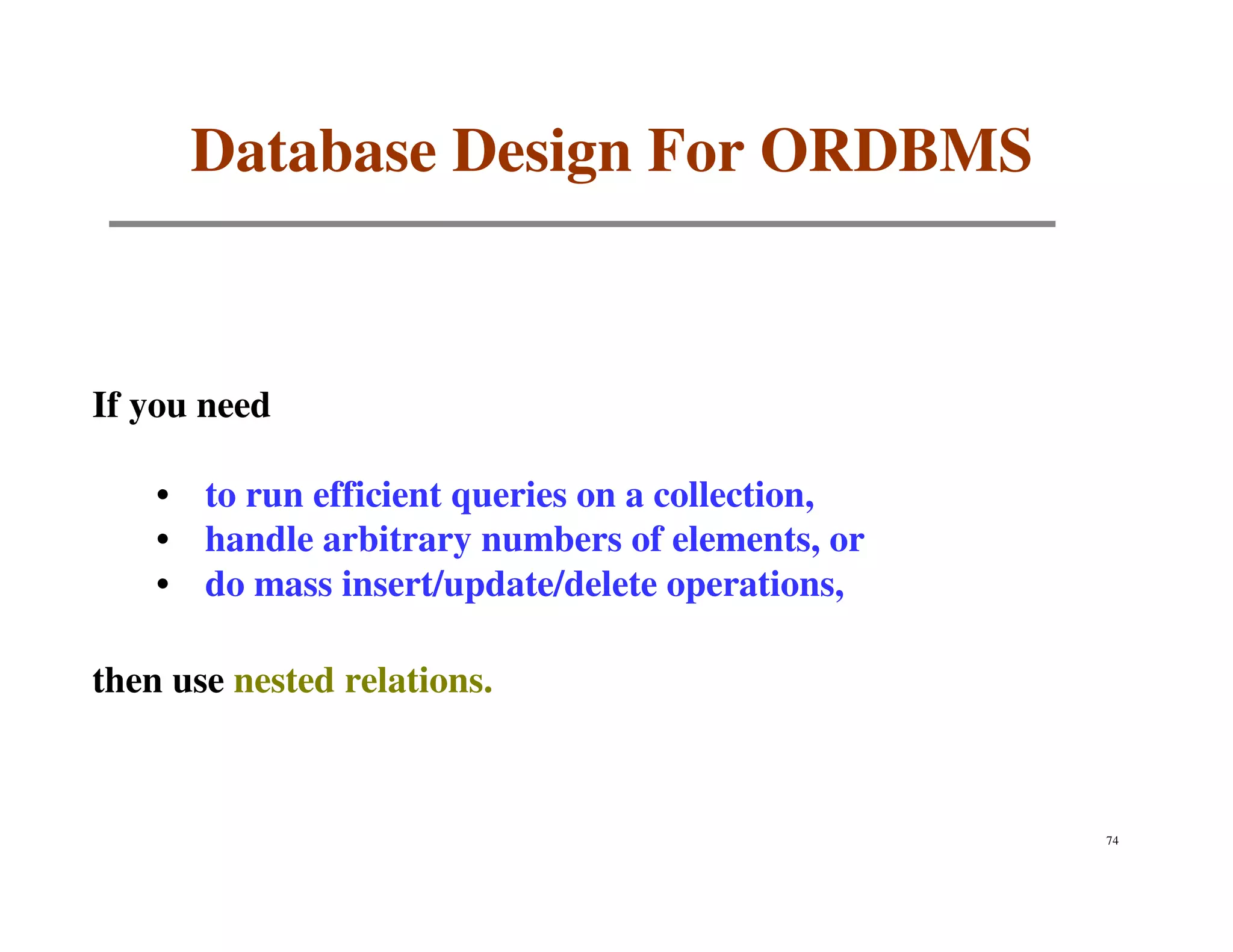

74. Database Design For ORDBMS
If you need
• to run efficient queries on a collection,
• handle arbitrary numbers of elements, or
• do mass insert/update/delete operations,
then use nested relations.
74

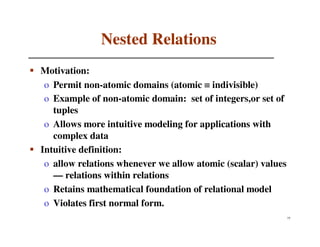

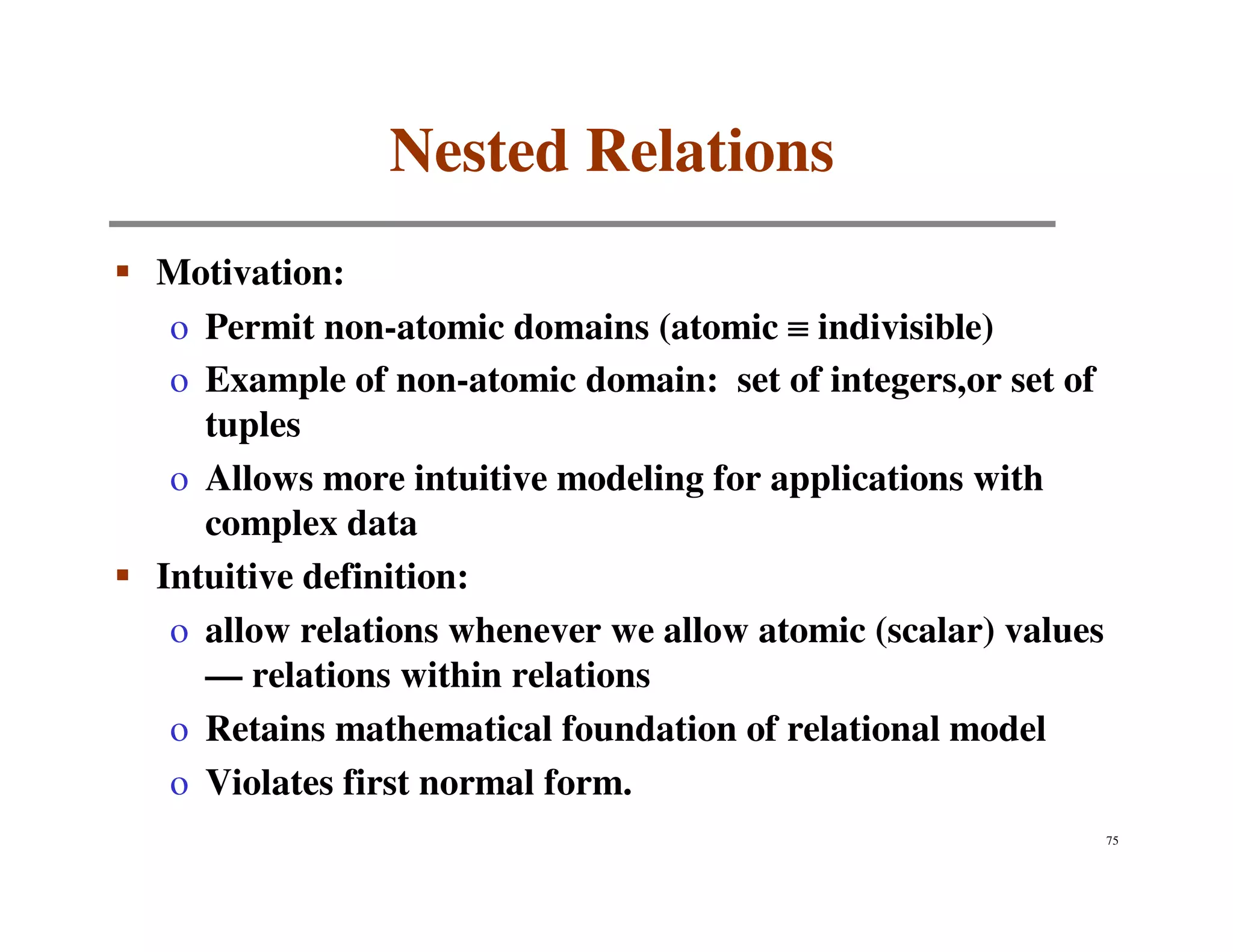

75. Nested Relations
Motivation:
o Permit non-atomic domains (atomic ≡ indivisible)
o Example of non-atomic domain: set of integers,or set of
tuples
o Allows more intuitive modeling for applications with
complex data
Intuitive definition:
o allow relations whenever we allow atomic (scalar) values
— relations within relations
o Retains mathematical foundation of relational model
o Violates first normal form.
75

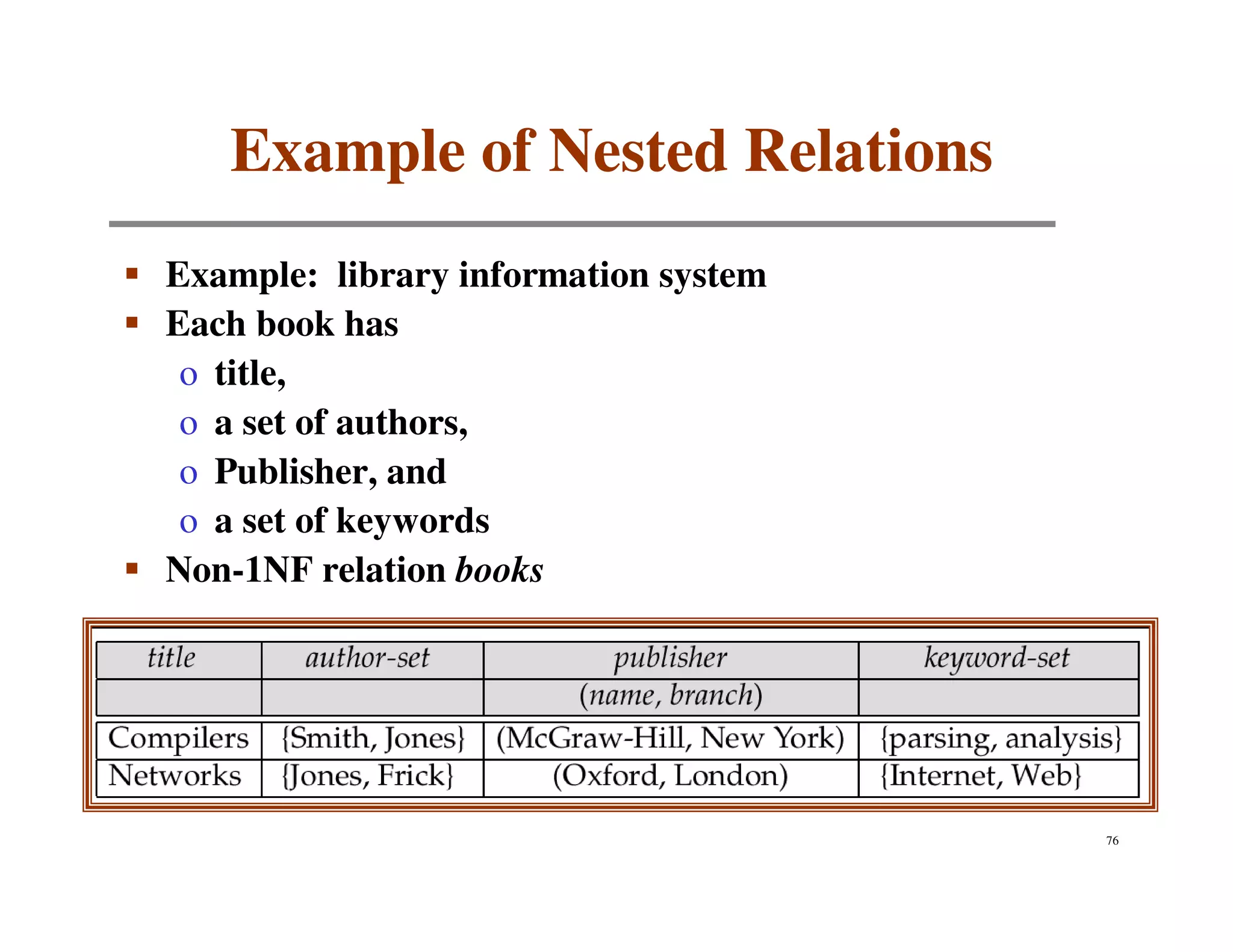

76. Example of Nested Relations
Example: library information system
Each book has
o title,
o a set of authors,
o Publisher, and
o a set of keywords
Non-1NF relation books
76

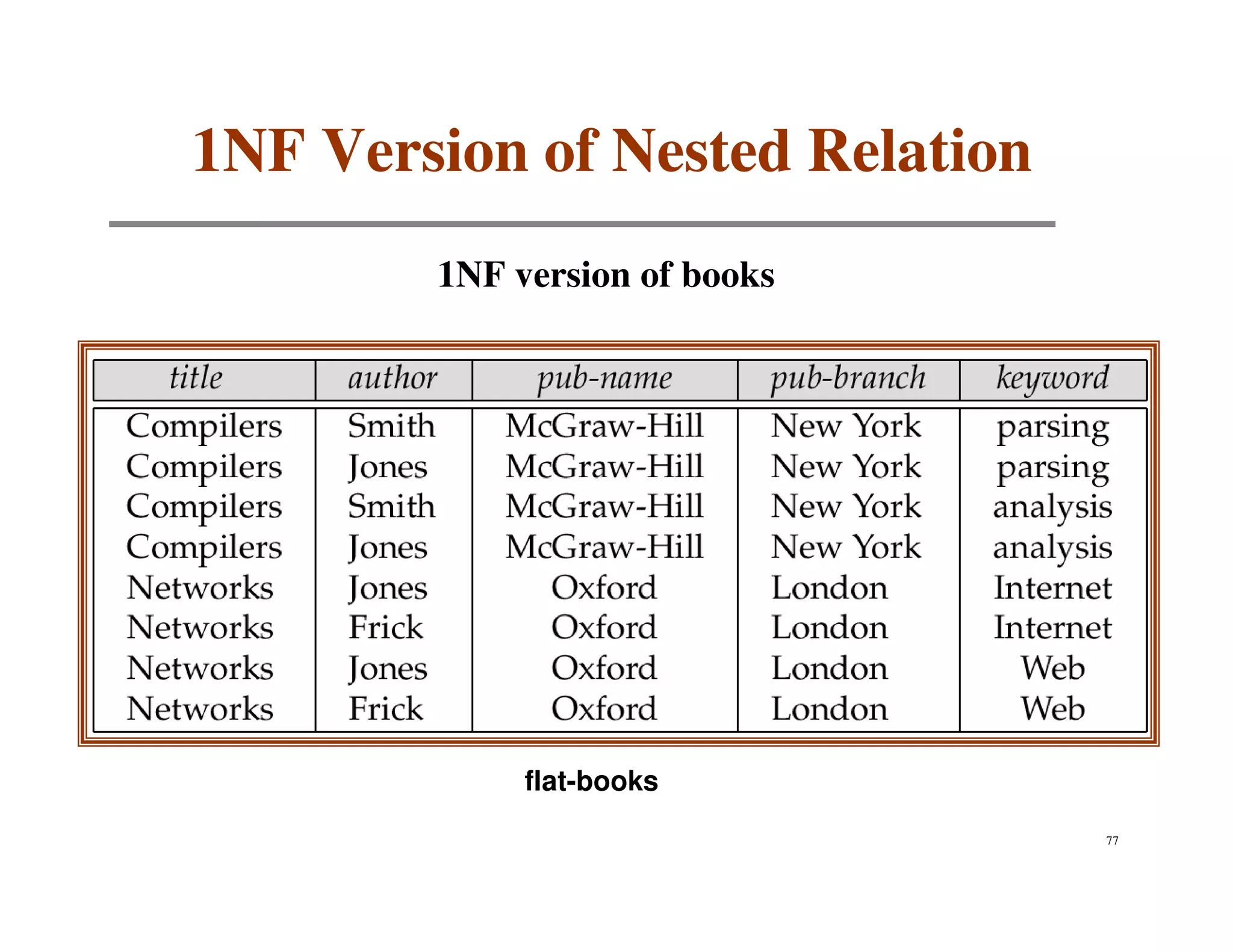

77. 1NF Version of Nested Relation
1NF version of books
flat-books
77

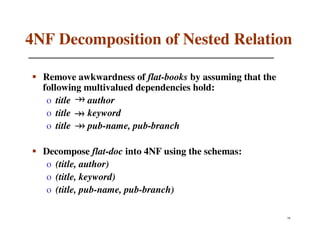

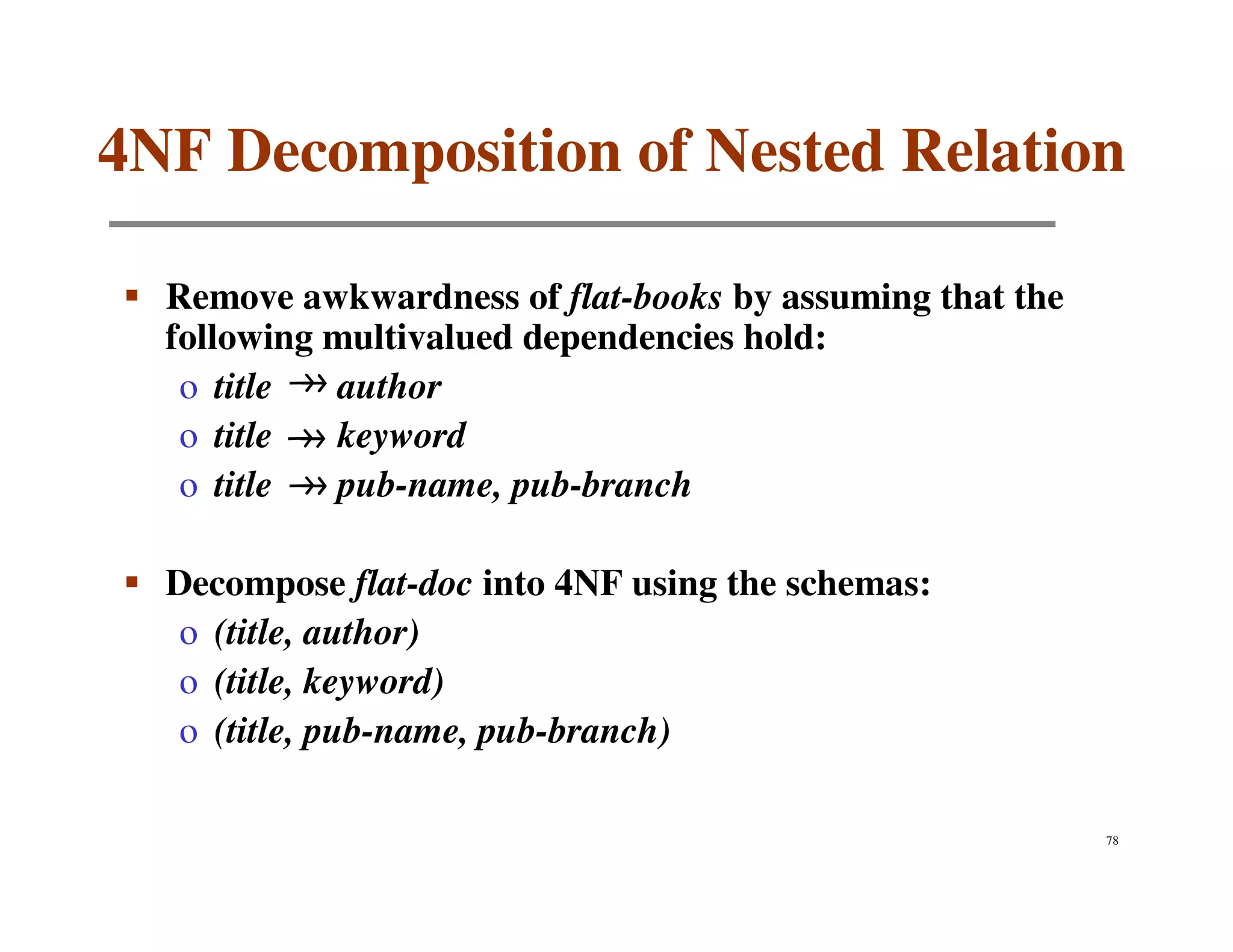

78. 4NF Decomposition of Nested Relation
Remove awkwardness of flat-books by assuming that the
following multivalued dependencies hold:
o title author
o title keyword
o title pub-name, pub-branch
Decompose flat-doc into 4NF using the schemas:
o (title, author)
o (title, keyword)
o (title, pub-name, pub-branch)
78

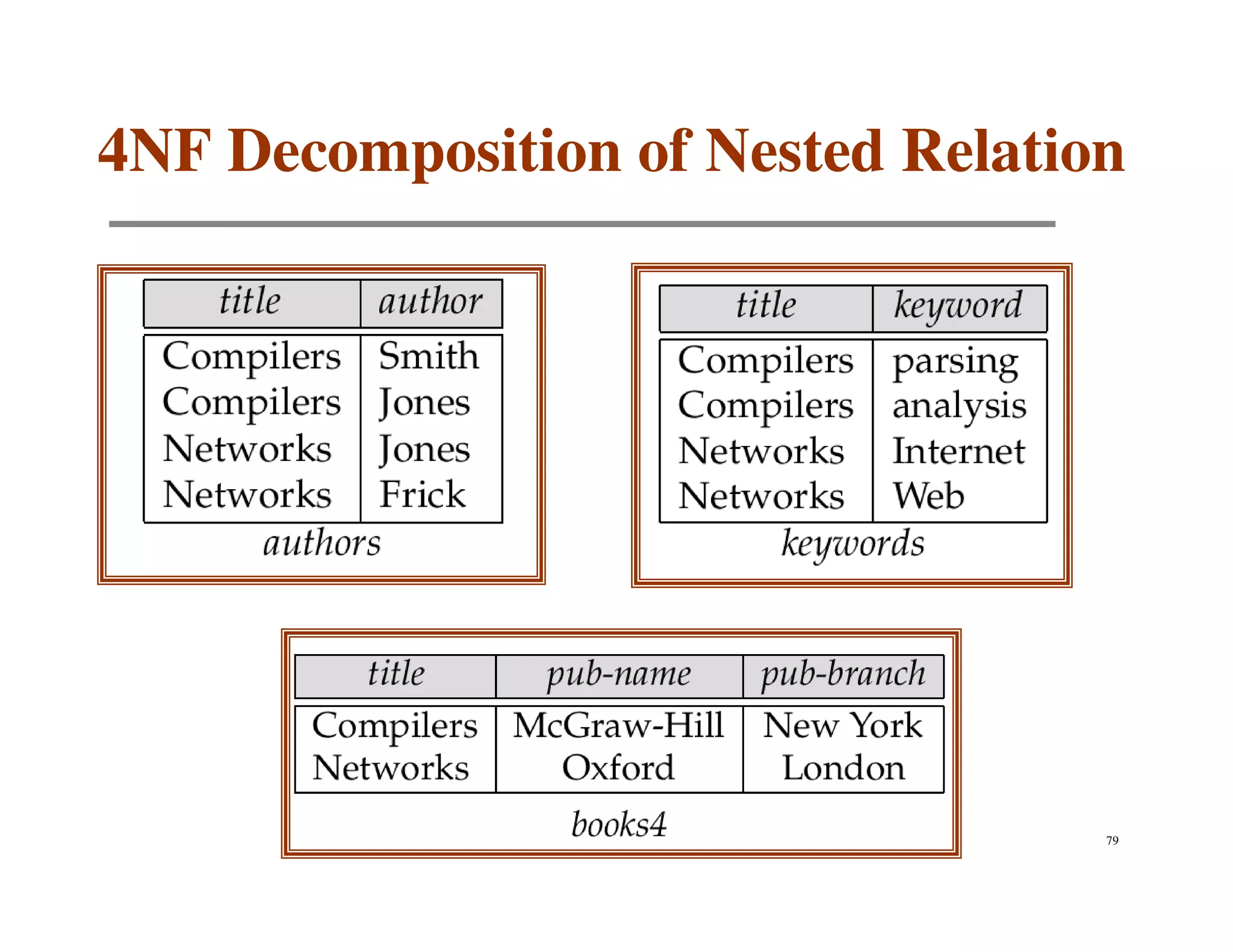

79. 4NF Decomposition of Nested Relation
79

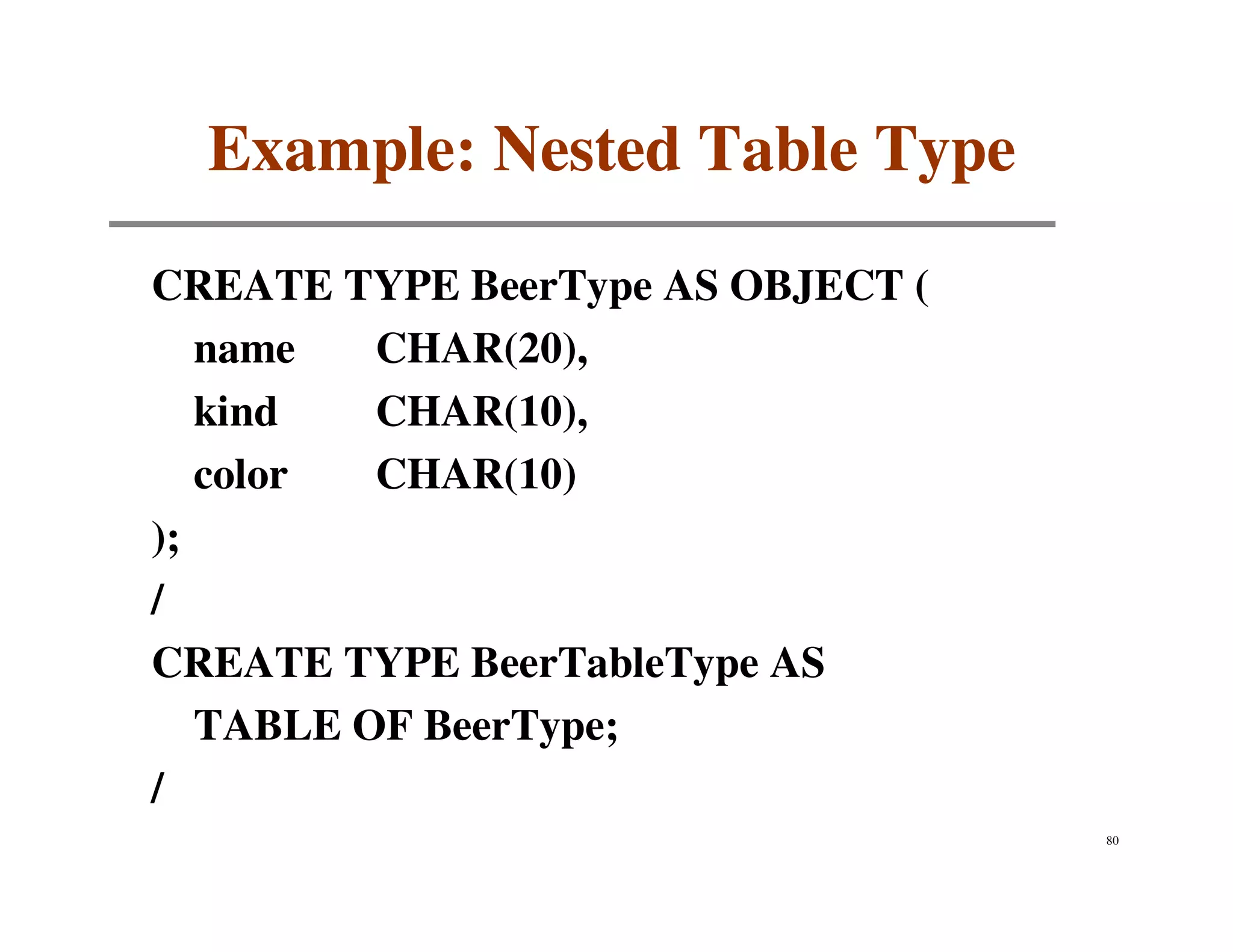

80. Example: Nested Table Type
CREATE TYPE BeerType AS OBJECT (
name CHAR(20),
kind CHAR(10),
color CHAR(10)
);
/
CREATE TYPE BeerTableType AS
TABLE OF BeerType;
/
80

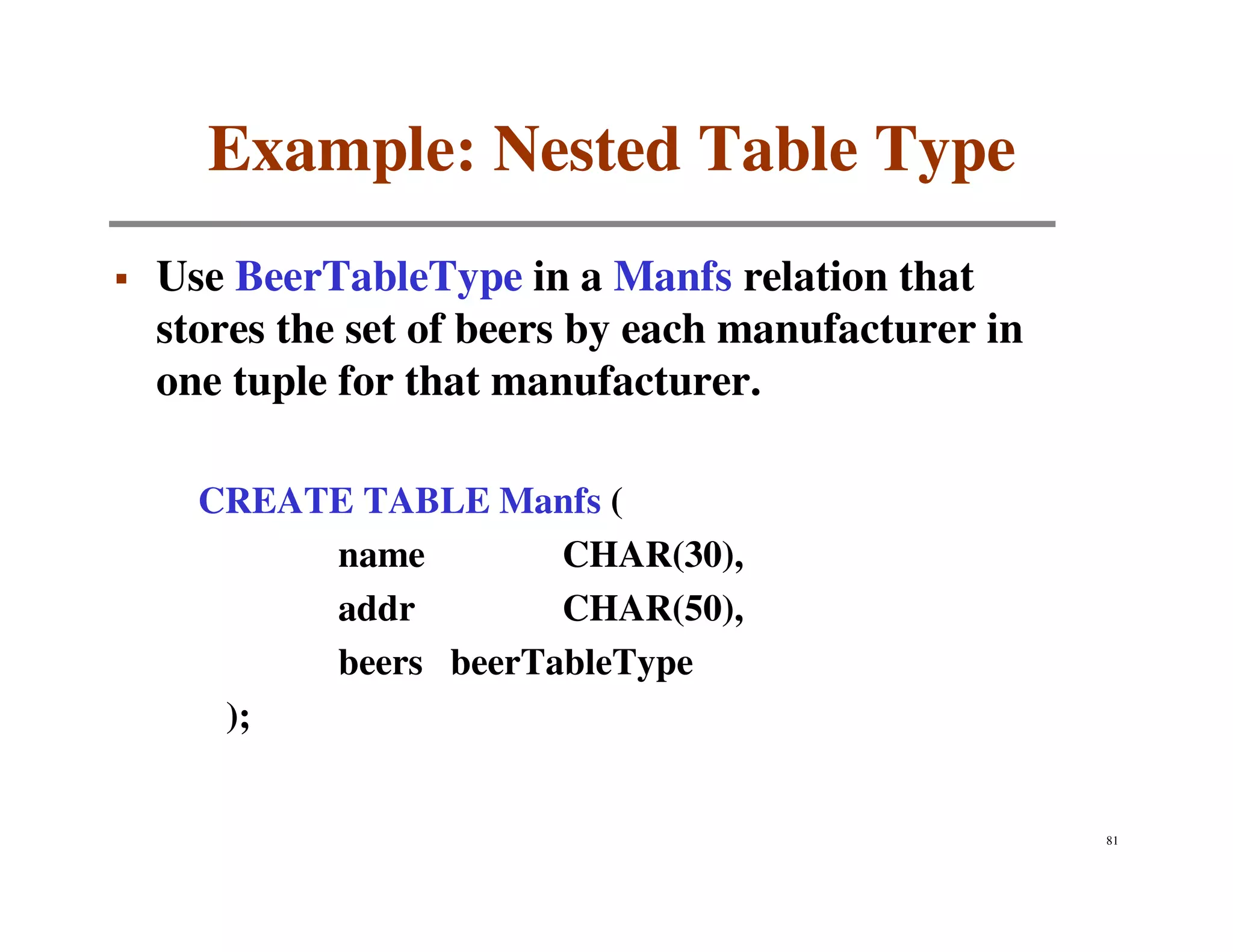

81. Example: Nested Table Type
Use BeerTableType in a Manfs relation that
stores the set of beers by each manufacturer in
one tuple for that manufacturer.
CREATE TABLE Manfs (
name CHAR(30),
addr CHAR(50),
beers beerTableType
);
81

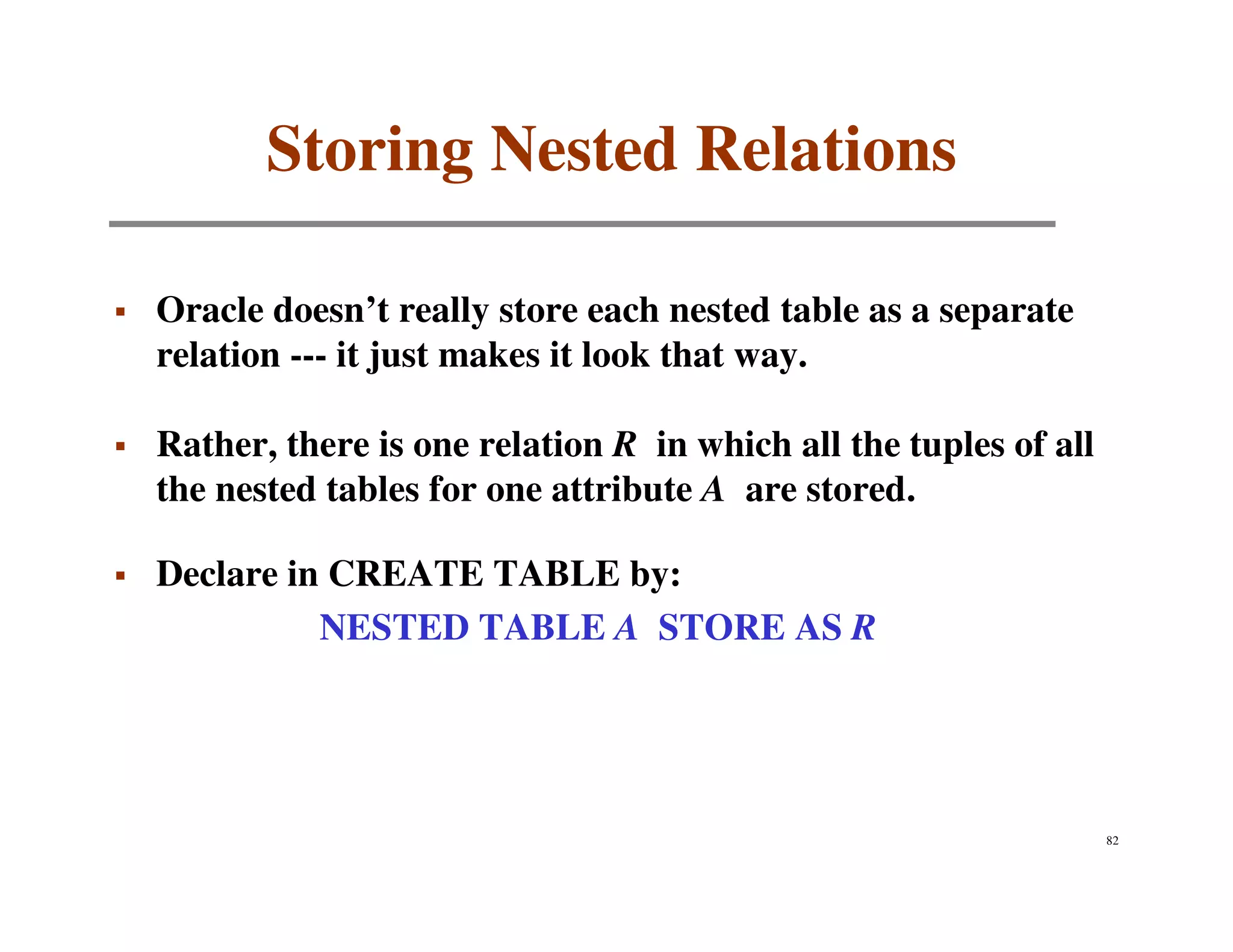

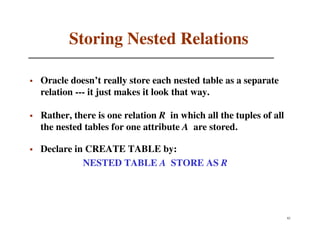

82. Storing Nested Relations
Oracle doesn’t really store each nested table as a separate
relation --- it just makes it look that way.
Rather, there is one relation R in which all the tuples of all
the nested tables for one attribute A are stored.
Declare in CREATE TABLE by:
NESTED TABLE A STORE AS R
82

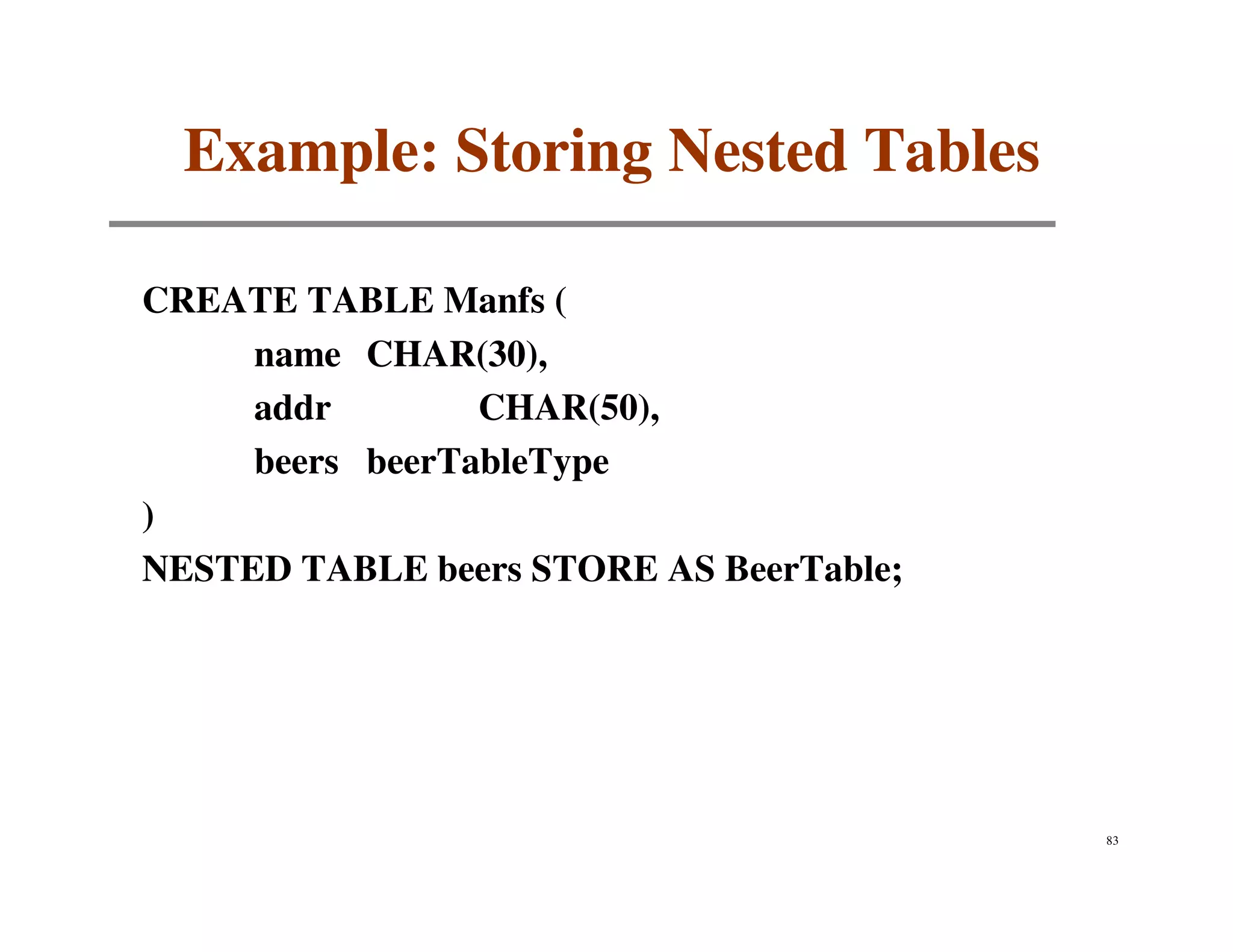

83. Example: Storing Nested Tables
CREATE TABLE Manfs (
name CHAR(30),
addr CHAR(50),
beers beerTableType
)
NESTED TABLE beers STORE AS BeerTable;
83

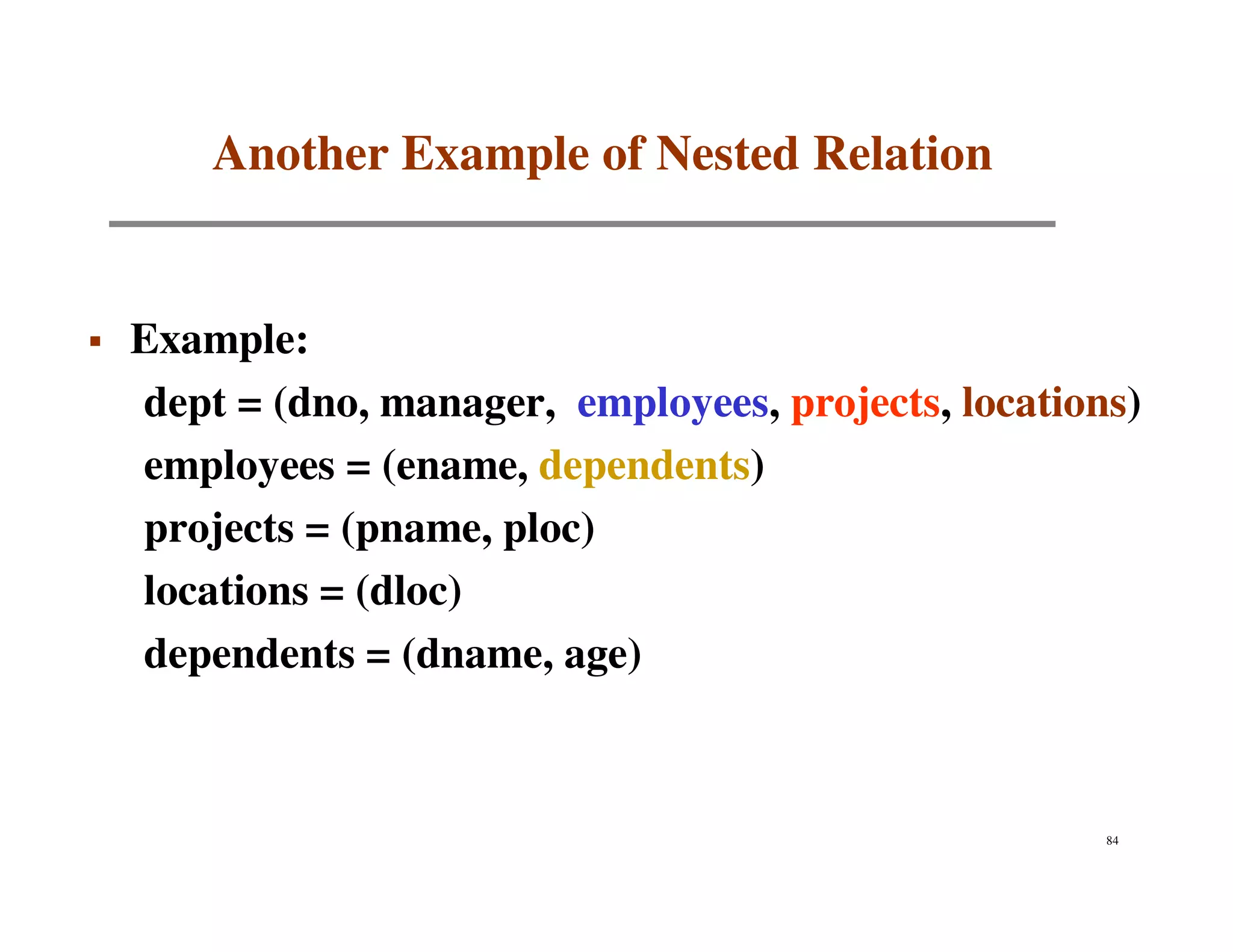

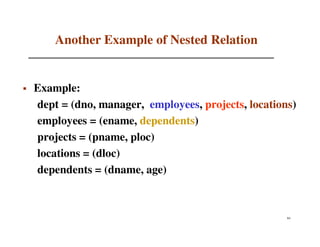

84. Another Example of Nested Relation
Example:
dept = (dno, manager, employees, projects, locations)
employees = (ename, dependents)
projects = (pname, ploc)
locations = (dloc)
dependents = (dname, age)
84

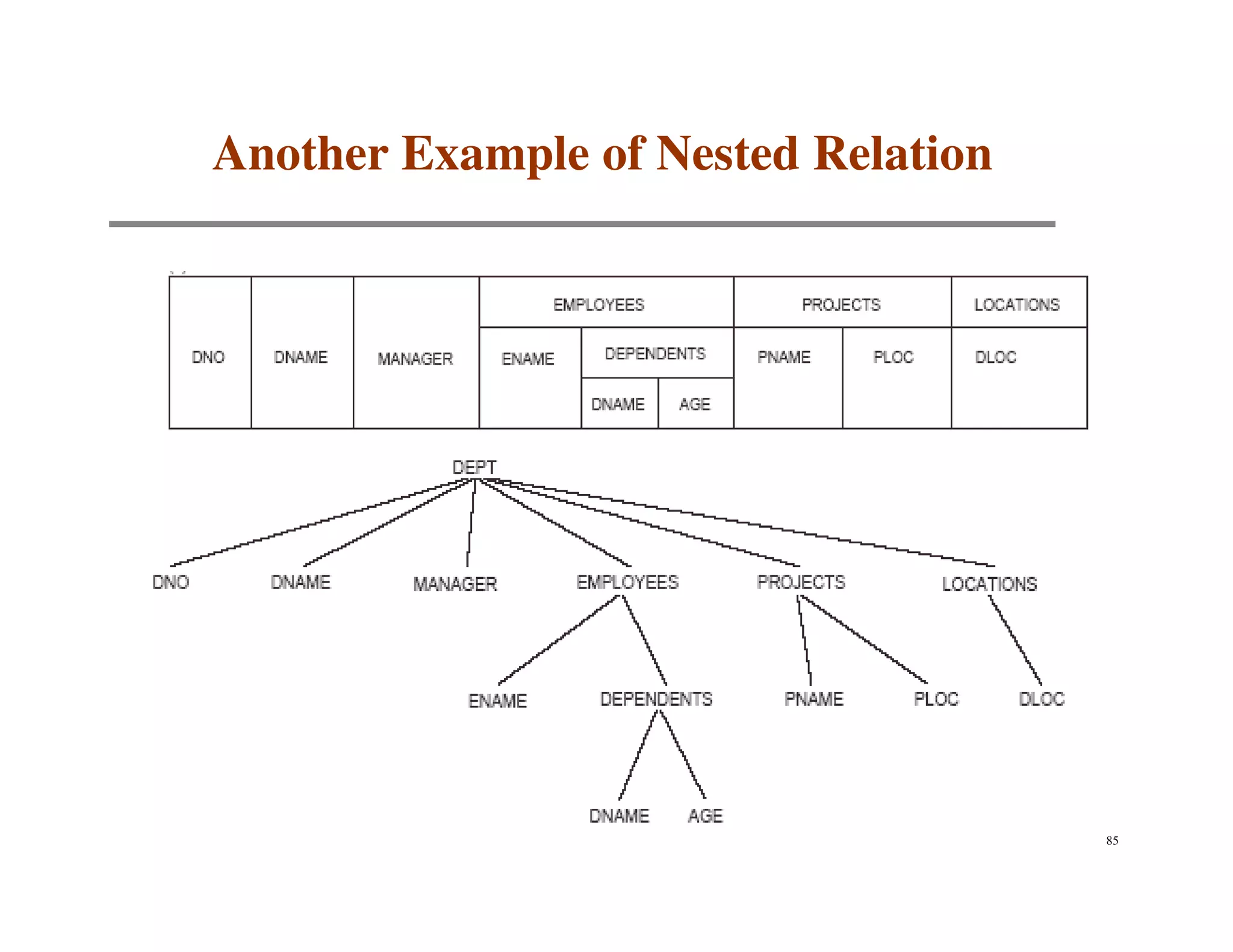

85. Another Example of Nested Relation
85

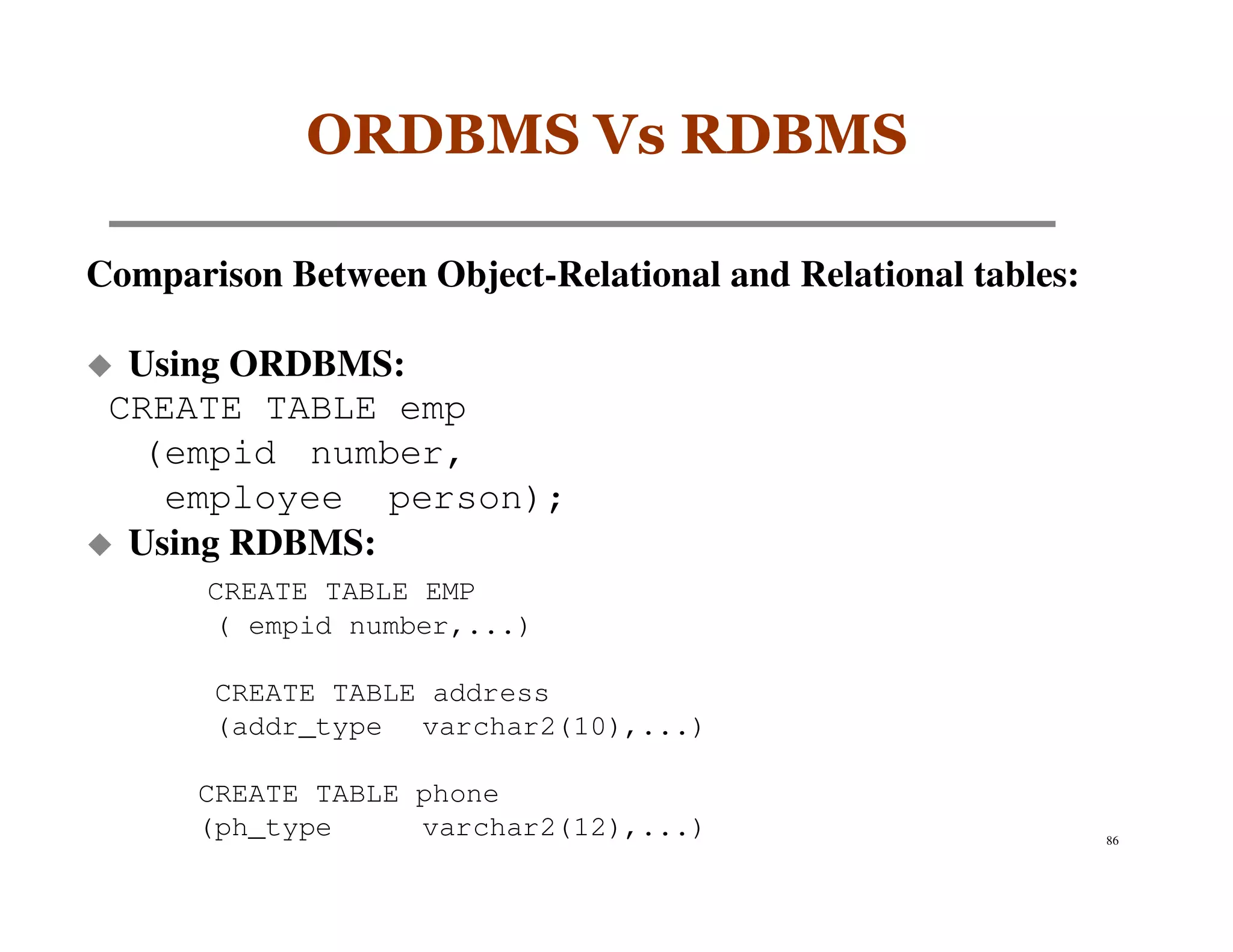

86. ORDBMS Vs RDBMS
Comparison Between Object-Relational and Relational tables:
Using ORDBMS:
CREATE TABLE emp
(empid number,
employee person);
Using RDBMS:
CREATE TABLE EMP
( empid number,...)
CREATE TABLE address
(addr_type varchar2(10),...)
CREATE TABLE phone
(ph_type varchar2(12),...) 86

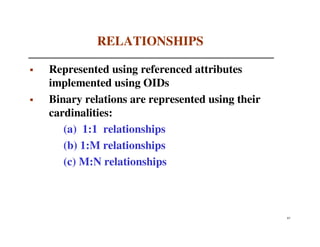

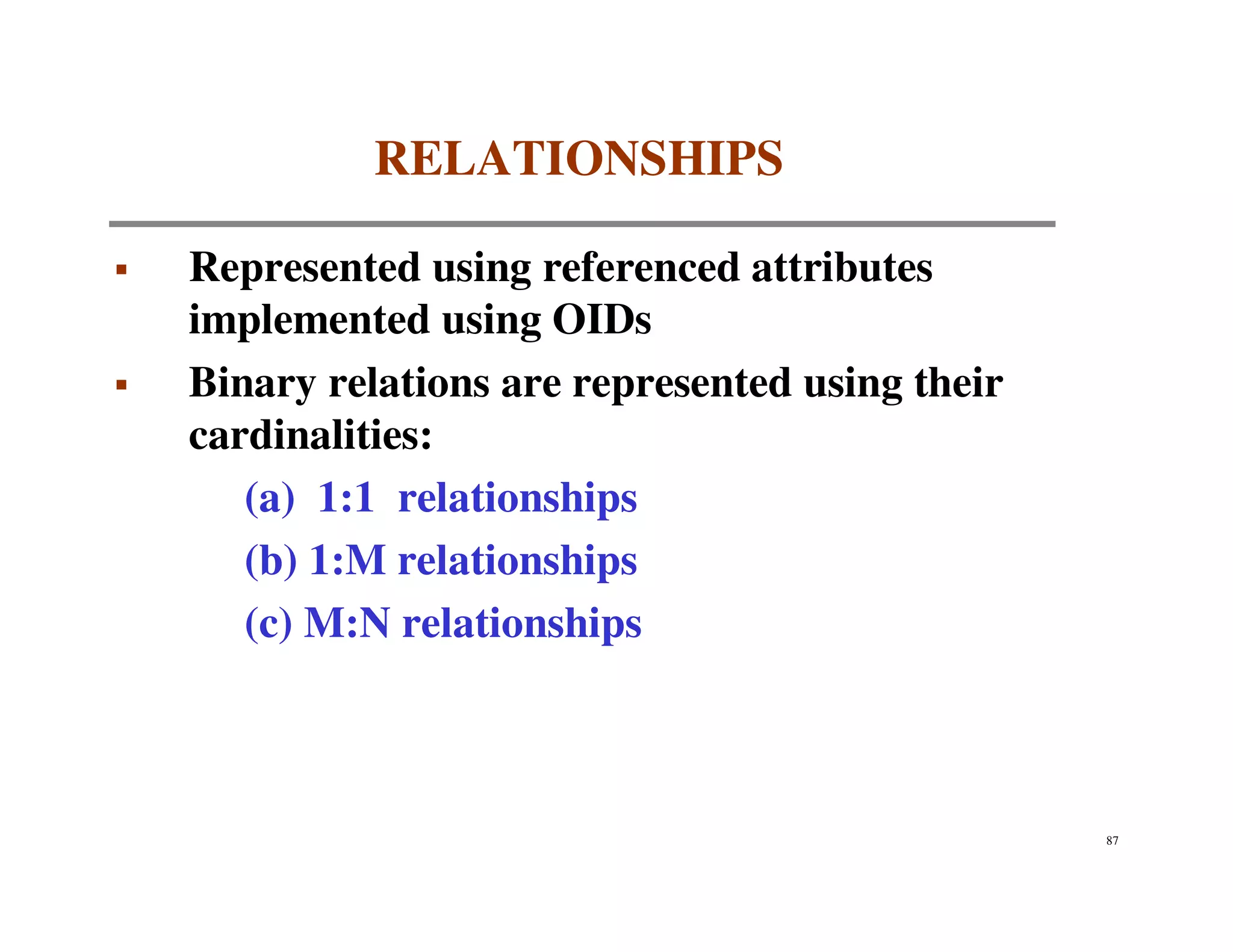

87. RELATIONSHIPS
Represented using referenced attributes
implemented using OIDs
Binary relations are represented using their
cardinalities:
(a) 1:1 relationships
(b) 1:M relationships
(c) M:N relationships
87

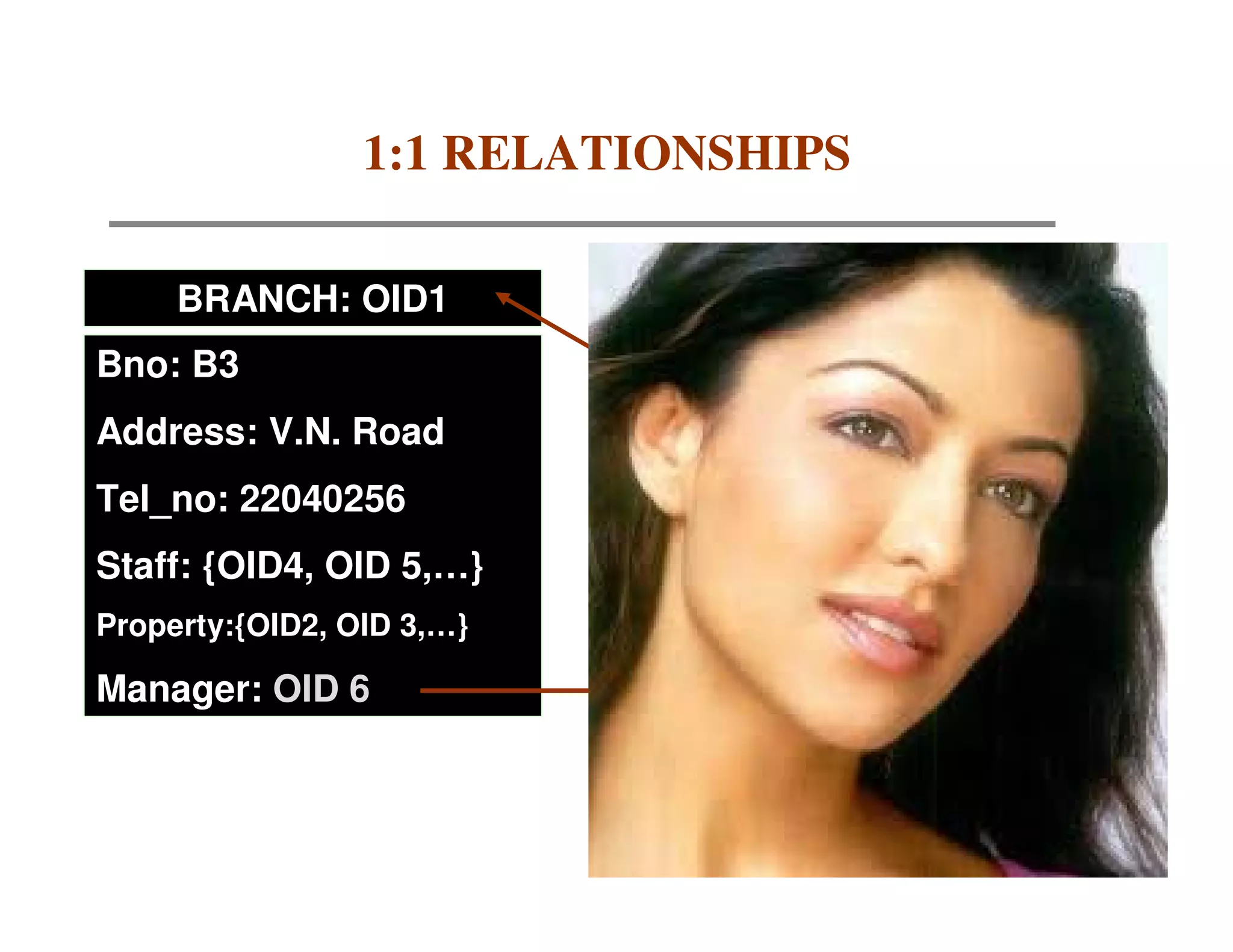

88. 1:1 RELATIONSHIPS
BRANCH: OID1 MANAGER: OID6
Bno: B3 sno:SG5
Address: V.N. Road Name: Aditi Govitrikar
Tel_no: 22040256 Address: 77, Kambala Hill
Staff: {OID4, OID 5,…} Position: Manager
Property:{OID2, OID 3,…} Tel_no: 2380 3336
Manager: OID 6 Sex: F
DOB: 3-Jan-85
Bno: OID 1 88

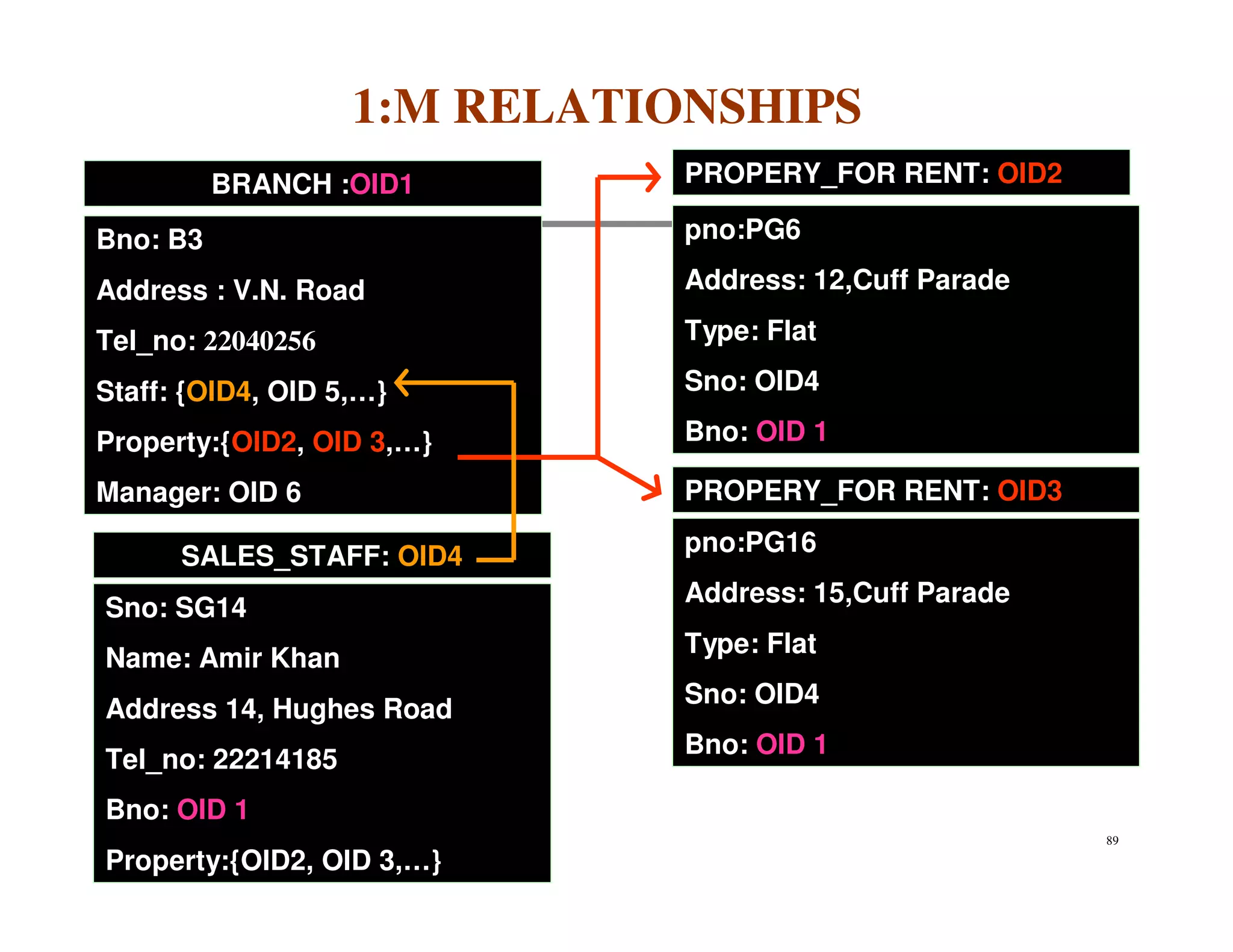

89. 1:M RELATIONSHIPS
BRANCH :OID1 PROPERY_FOR RENT: OID2
Bno: B3 pno:PG6
Address : V.N. Road Address: 12,Cuff Parade
Tel_no: 22040256 Type: Flat
Staff: {OID4, OID 5,…} Sno: OID4
Property:{OID2, OID 3,…} Bno: OID 1
Manager: OID 6 PROPERY_FOR RENT: OID3
SALES_STAFF: OID4 pno:PG16
Address: 15,Cuff Parade
Sno: SG14
Type: Flat
Name: Amir Khan
Sno: OID4
Address 14, Hughes Road
Bno: OID 1
Tel_no: 22214185
Bno: OID 1
89
Property:{OID2, OID 3,…}

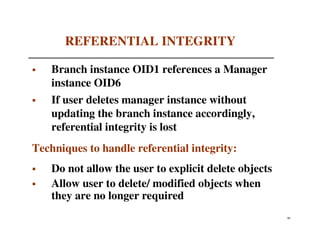

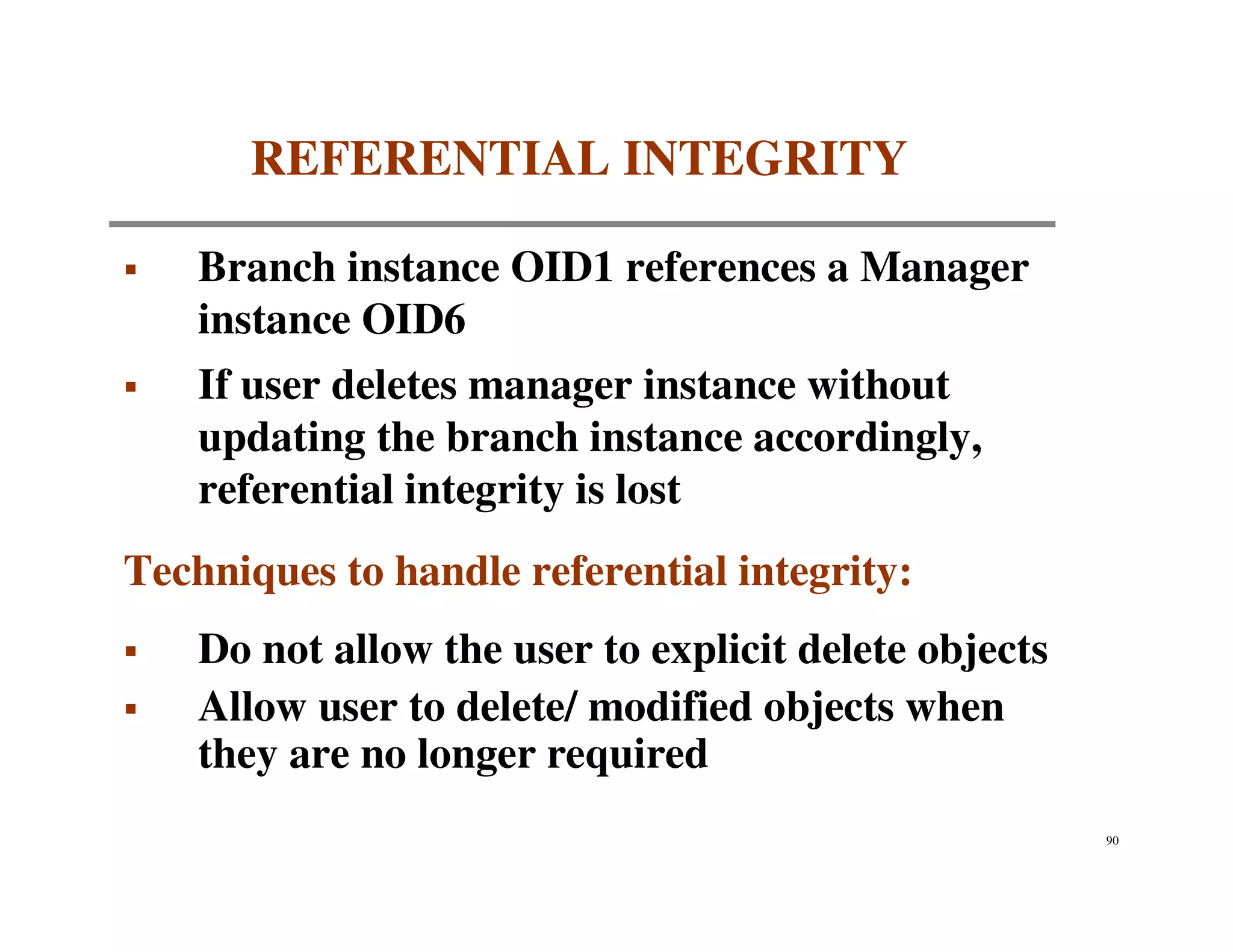

90. REFERENTIAL INTEGRITY
Branch instance OID1 references a Manager
instance OID6
If user deletes manager instance without
updating the branch instance accordingly,
referential integrity is lost
Techniques to handle referential integrity:
Do not allow the user to explicit delete objects
Allow user to delete/ modified objects when
they are no longer required
90

91. Email: sushiltry@yahoo.co.in
91
Community: http://tech.groups.yahoo.com/group/dbmsnotes/
