DASH is a C++ template library that offers distributed data structures and parallel algorithms for PGAS programming without a custom compiler. It provides a unified access to local and remote data through a global address space. DASH contains multidimensional distributed arrays, lists, maps and other containers, and growing set of parallel algorithms like fill, copy, reduce that also work on multidimensional ranges. It achieves portable efficiency through algorithms like SUMMA for matrix multiplication that leverage high performance libraries like Intel MKL. Benchmarks show DASH outperforms equivalent functions in ScaLAPACK, PLASMA and Intel MKL.

1. A Multidimensional
Distributed Array Abstraction
for PGAS
www.dash-project.org
Tobias Fuchs
fuchst@nm.ifi.lmu.de
Ludwig-Maximilians-Universität München, MNM-Team

2. | 2DASH

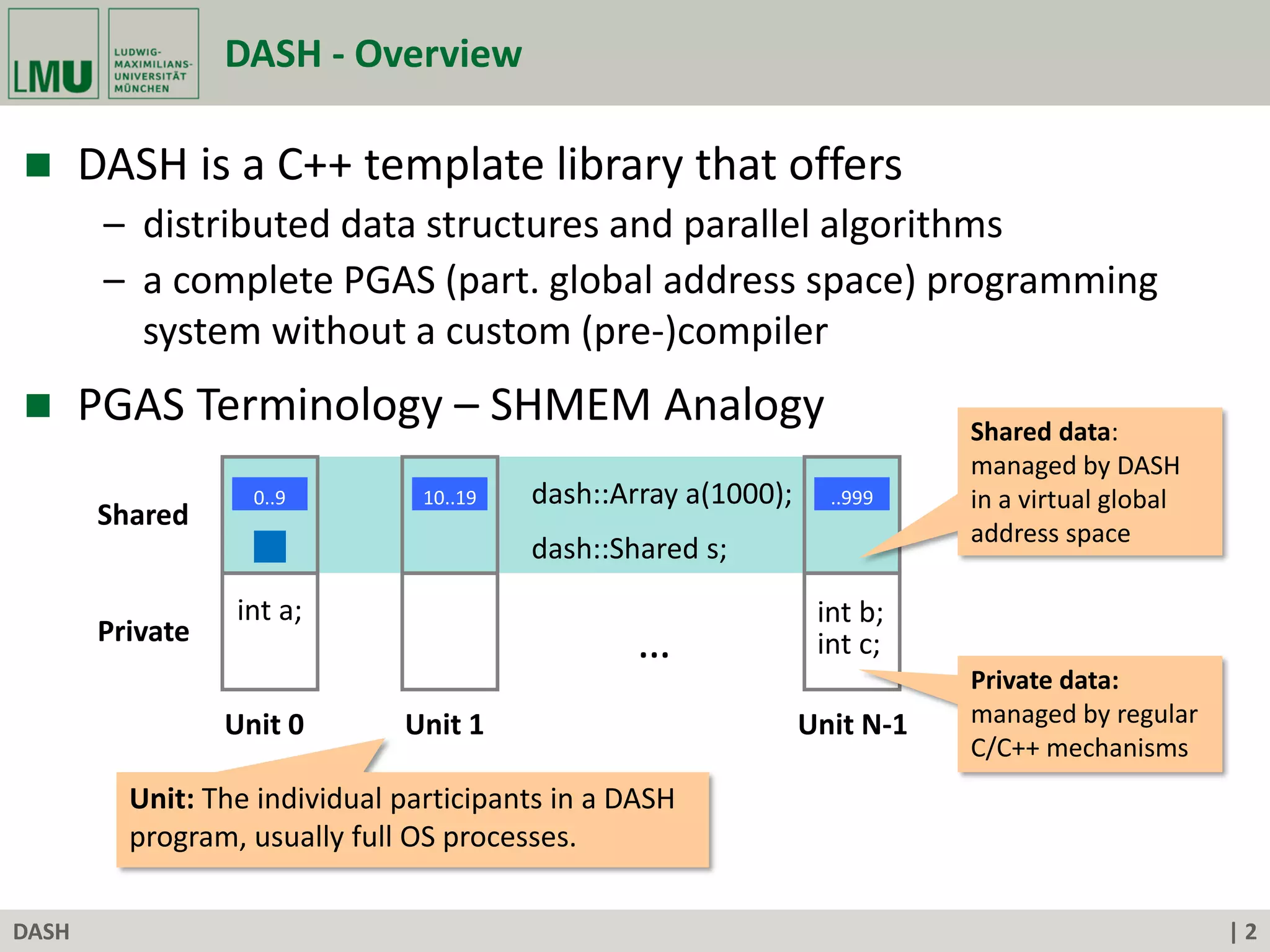

DASH - Overview
 DASH is a C++ template library that offers
– distributed data structures and parallel algorithms
– a complete PGAS (part. global address space) programming
system without a custom (pre-)compiler
 PGAS Terminology – SHMEM Analogy
Unit: The individual participants in a DASH
program, usually full OS processes.
Private
Shared
Unit 0 Unit 1 Unit N-1
int b;
int c;
dash::Array a(1000);
int a;
…
dash::Shared s;
10..190..9 ..999
Shared data:
managed by DASH
in a virtual global
address space
Private data:
managed by regular
C/C++ mechanisms

3. | 3DASH

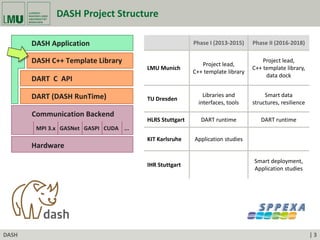

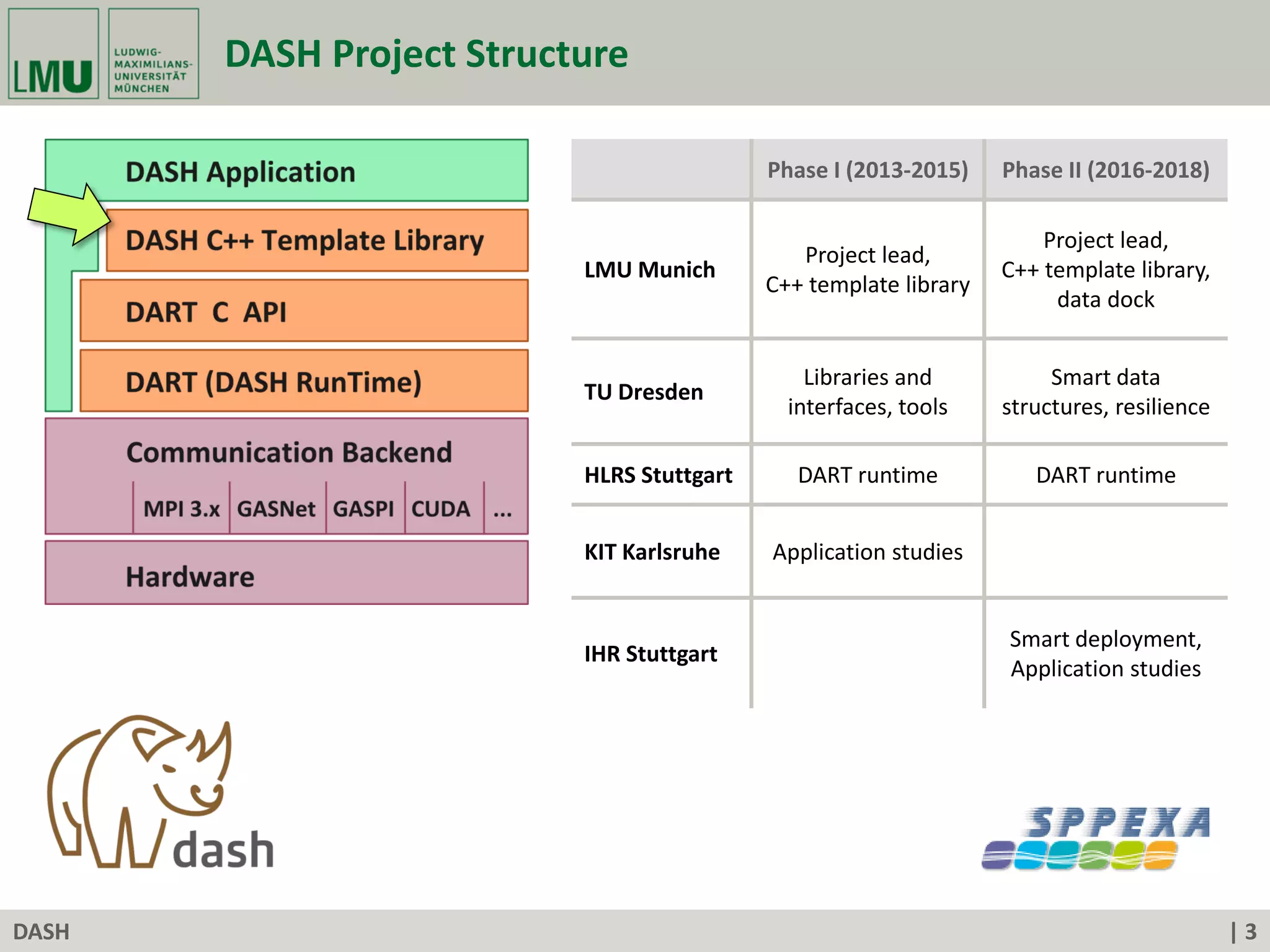

DASH Project Structure
Phase I (2013-2015) Phase II (2016-2018)
LMU Munich
Project lead,
C++ template library
Project lead,
C++ template library,
data dock
TU Dresden
Libraries and
interfaces, tools
Smart data
structures, resilience
HLRS Stuttgart DART runtime DART runtime
KIT Karlsruhe Application studies
IHR Stuttgart
Smart deployment,
Application studies

4. | 4DASH
DASH - Partitioned Global Address Space

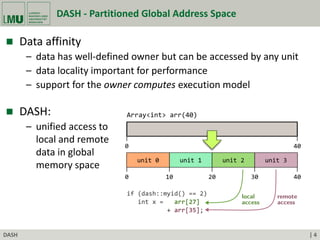

 Data affinity
– data has well-defined owner but can be accessed by any unit
– data locality important for performance
– support for the owner computes execution model
 DASH:
– unified access to
local and remote
data in global
memory space

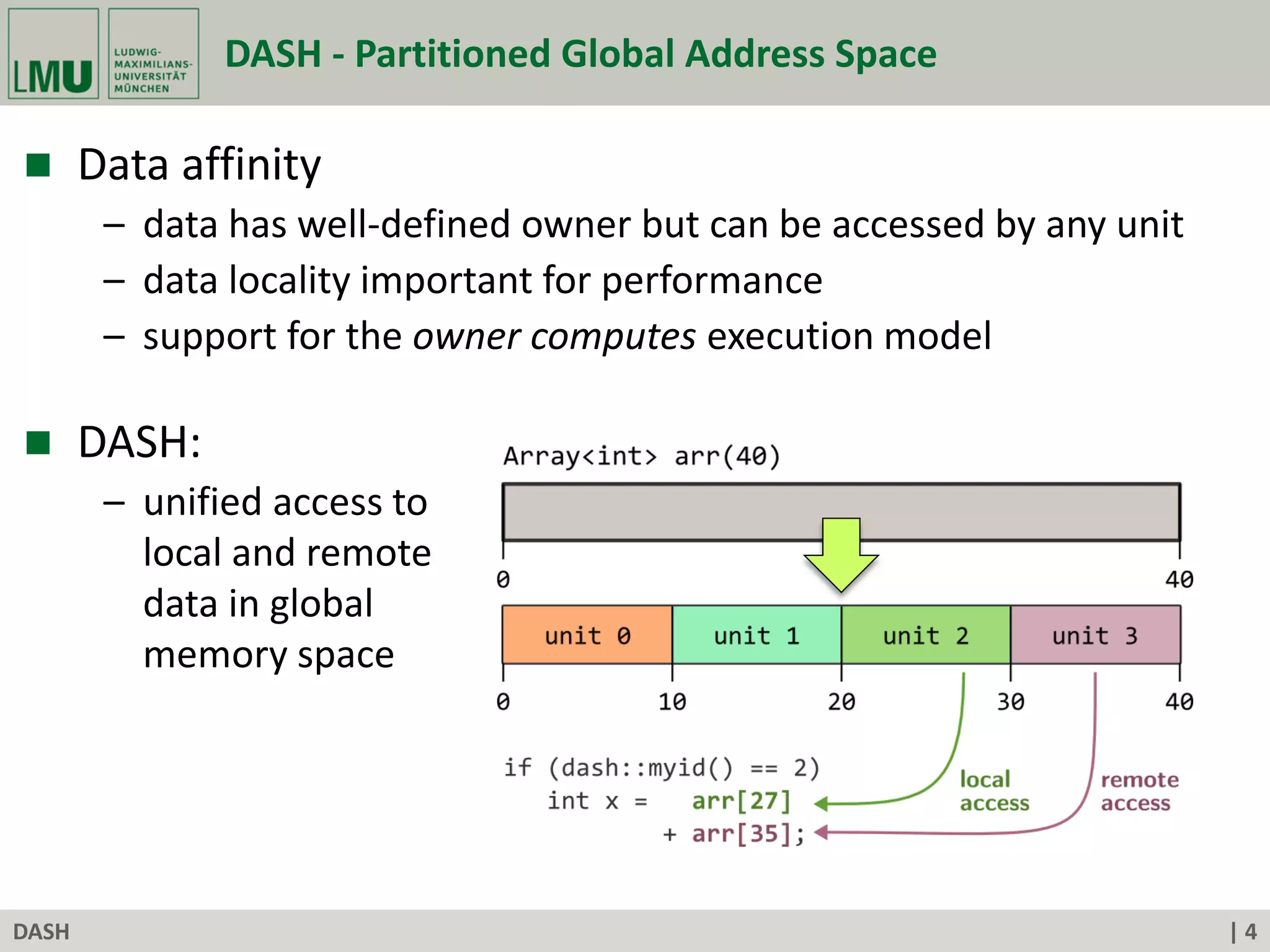

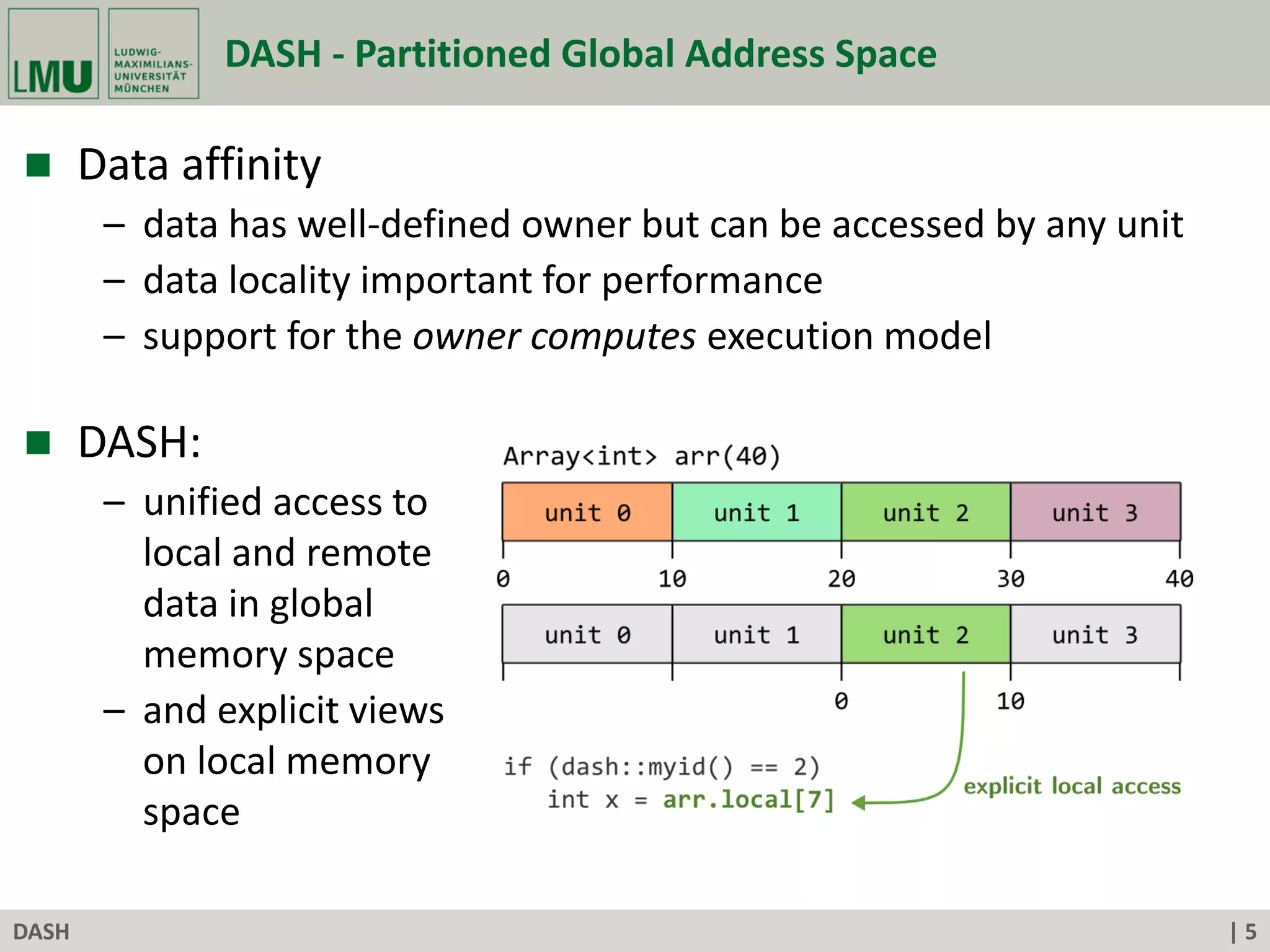

5. | 5DASH
DASH - Partitioned Global Address Space
 Data affinity
– data has well-defined owner but can be accessed by any unit
– data locality important for performance
– support for the owner computes execution model
 DASH:
– unified access to
local and remote
data in global
memory space
– and explicit views
on local memory
space

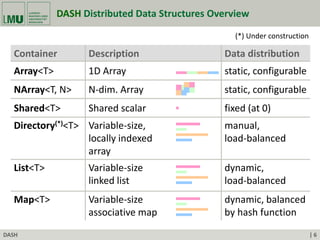

6. | 6DASH

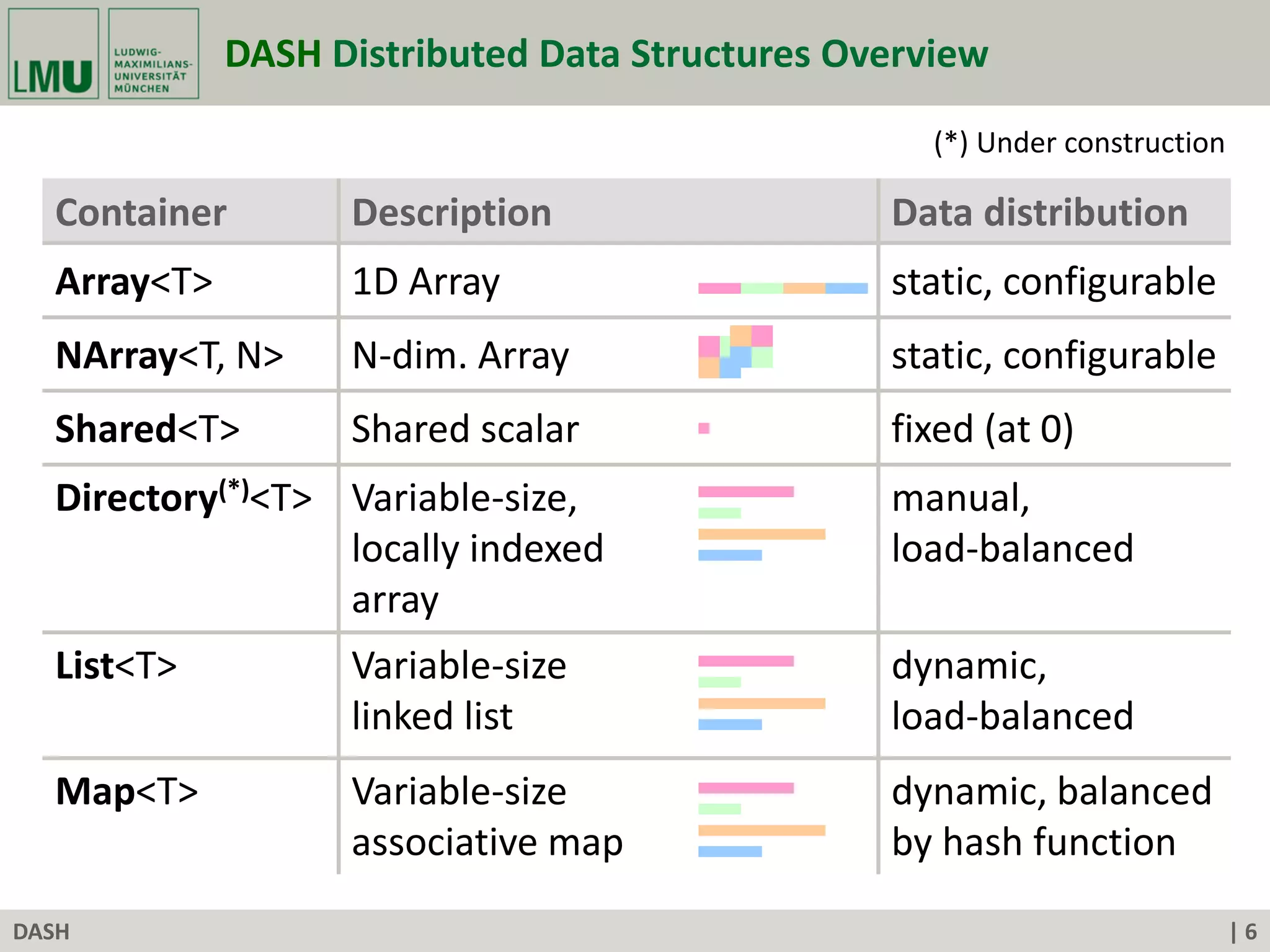

DASH Distributed Data Structures Overview
Container Description Data distribution
Array<T> 1D Array static, configurable
NArray<T, N> N-dim. Array static, configurable
Shared<T> Shared scalar fixed (at 0)
Directory(*)<T> Variable-size,
locally indexed
array
manual,
load-balanced
List<T> Variable-size
linked list
dynamic,
load-balanced
Map<T> Variable-size
associative map
dynamic, balanced
by hash function
(*) Under construction

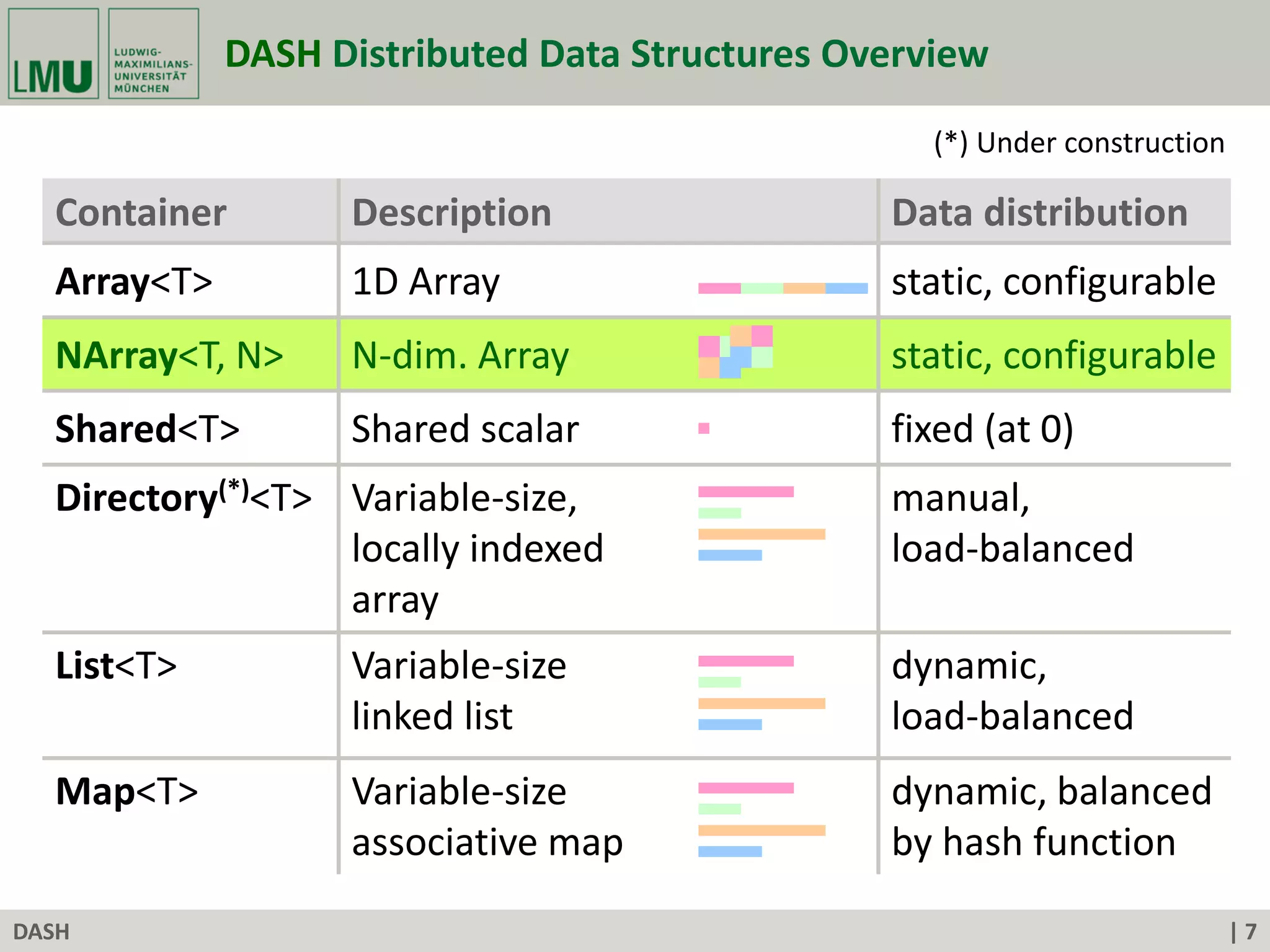

7. | 7DASH
DASH Distributed Data Structures Overview
Container Description Data distribution
Array<T> 1D Array static, configurable
NArray<T, N> N-dim. Array static, configurable
Shared<T> Shared scalar fixed (at 0)
Directory(*)<T> Variable-size,
locally indexed
array
manual,
load-balanced
List<T> Variable-size
linked list
dynamic,
load-balanced
Map<T> Variable-size
associative map
dynamic, balanced
by hash function
(*) Under construction

8. | 8DASH

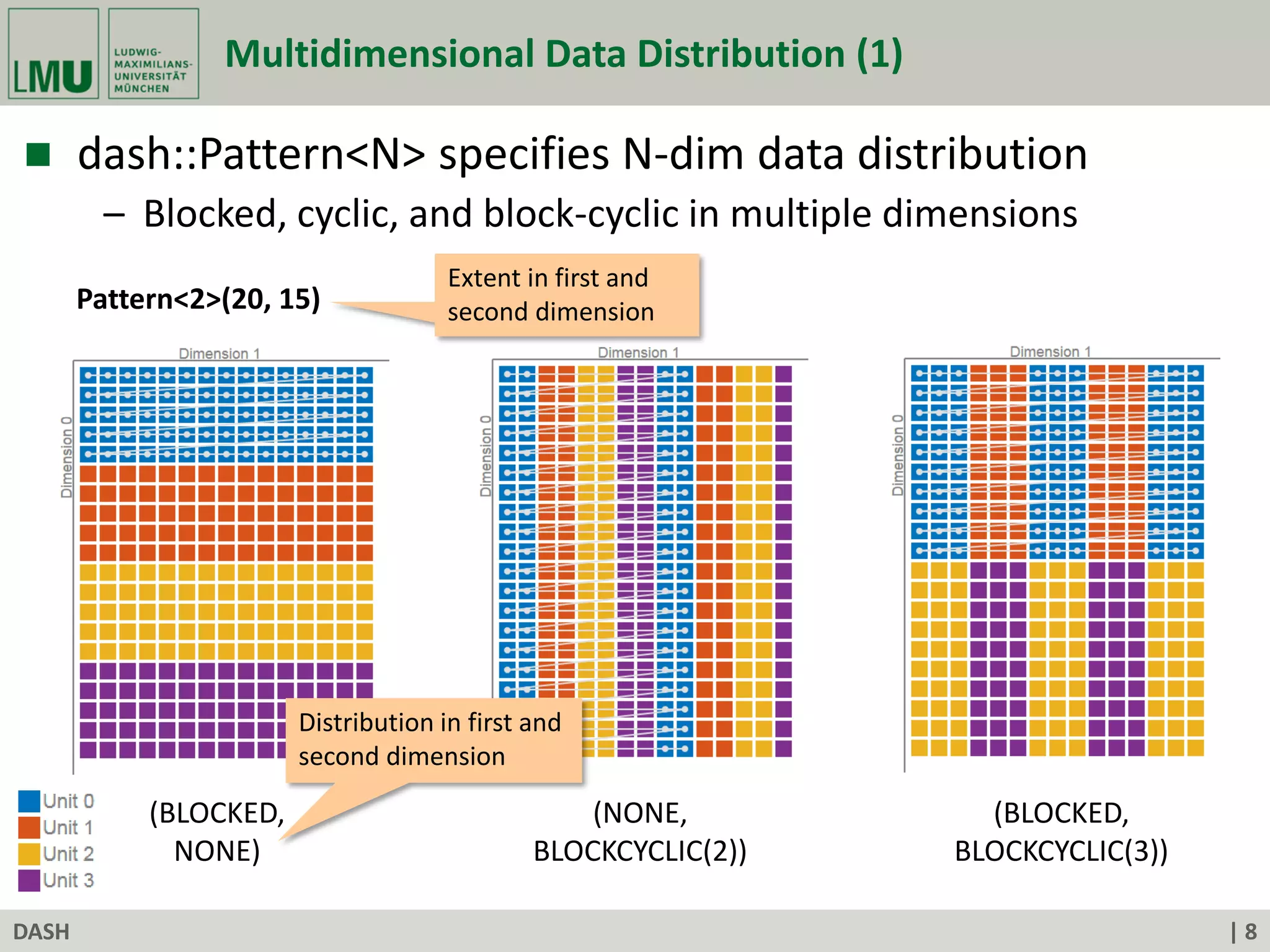

Multidimensional Data Distribution (1)
 dash::Pattern<N> specifies N-dim data distribution
– Blocked, cyclic, and block-cyclic in multiple dimensions
Pattern<2>(20, 15)
(BLOCKED,
NONE)
(NONE,
BLOCKCYCLIC(2))
(BLOCKED,
BLOCKCYCLIC(3))
Extent in first and
second dimension
Distribution in first and
second dimension

9. | 9DASH
Multidimensional Data Distribution (2)

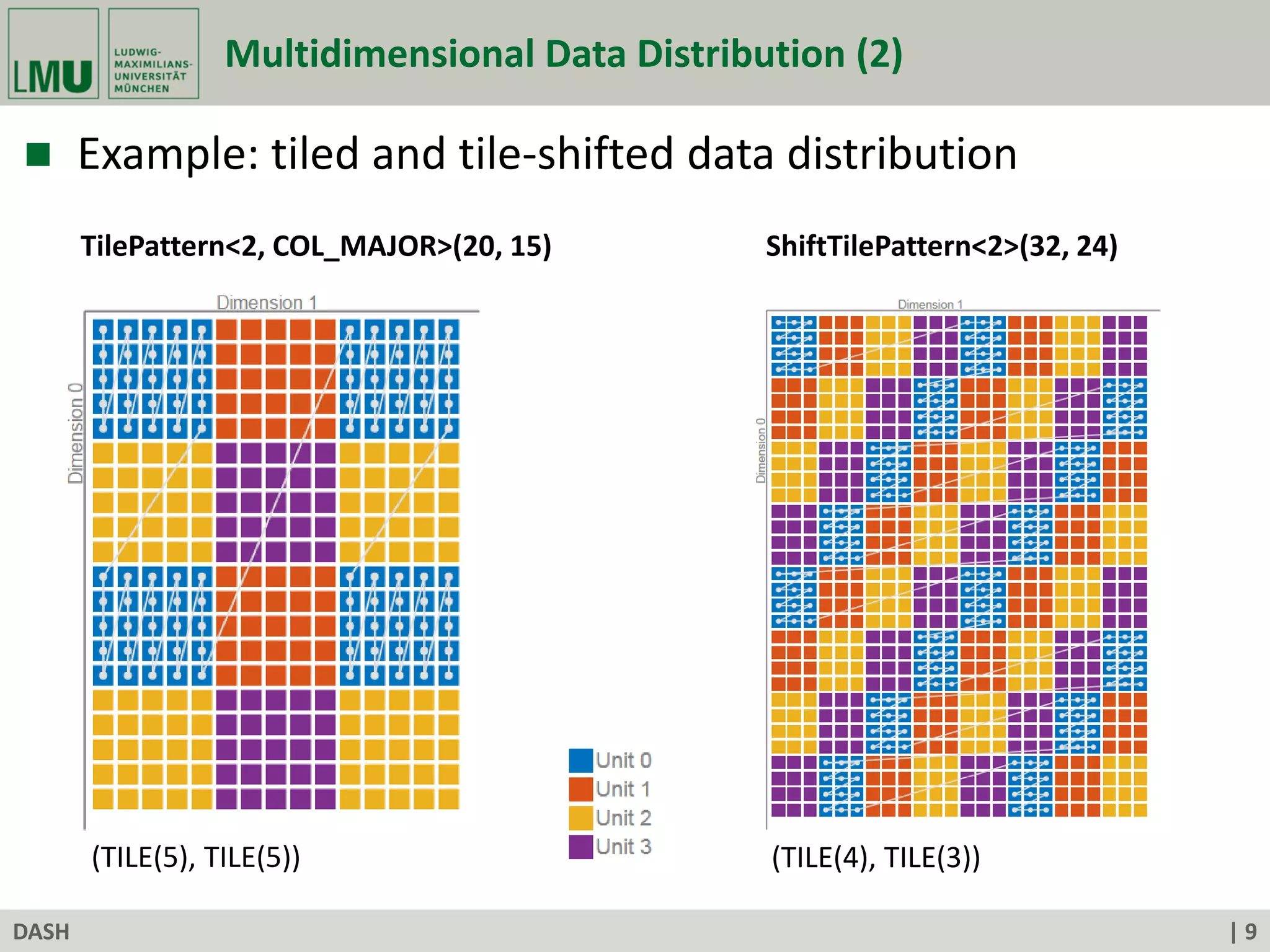

 Example: tiled and tile-shifted data distribution
(TILE(4), TILE(3))
ShiftTilePattern<2>(32, 24)TilePattern<2, COL_MAJOR>(20, 15)
(TILE(5), TILE(5))

10. | 10DASH

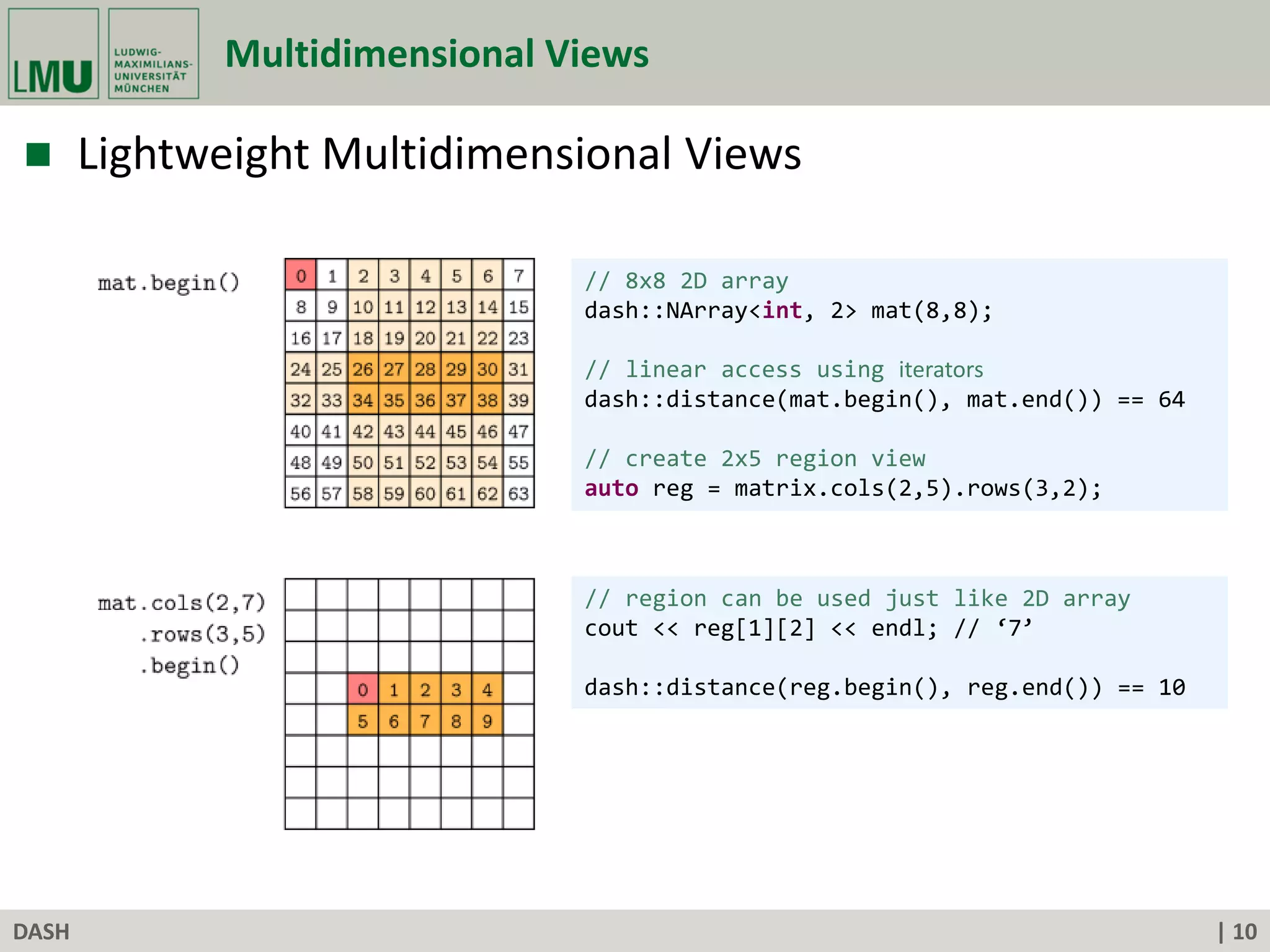

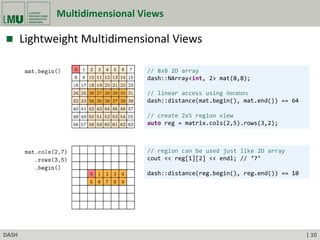

Multidimensional Views
 Lightweight Multidimensional Views
// 8x8 2D array
dash::NArray<int, 2> mat(8,8);
// linear access using iterators
dash::distance(mat.begin(), mat.end()) == 64
// create 2x5 region view
auto reg = matrix.cols(2,5).rows(3,2);
// region can be used just like 2D array
cout << reg[1][2] << endl; // ‘7’
dash::distance(reg.begin(), reg.end()) == 10

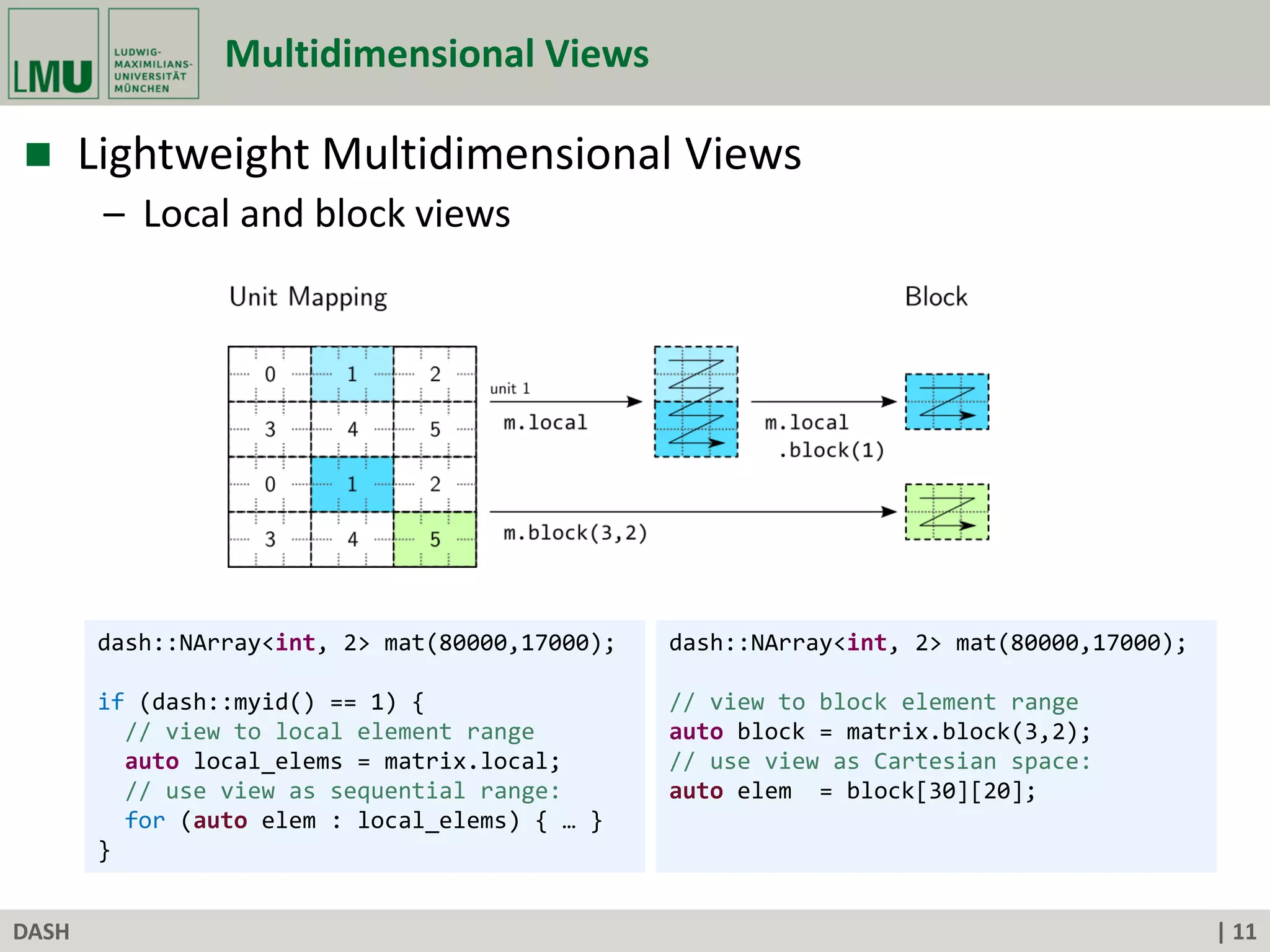

11. | 11DASH
Multidimensional Views
 Lightweight Multidimensional Views
– Local and block views
dash::NArray<int, 2> mat(80000,17000);
// view to block element range
auto block = matrix.block(3,2);
// use view as Cartesian space:
auto elem = block[30][20];
dash::NArray<int, 2> mat(80000,17000);
if (dash::myid() == 1) {
// view to local element range
auto local_elems = matrix.local;
// use view as sequential range:
for (auto elem : local_elems) { … }
}

12. | 12DASH
Multidimensional Views

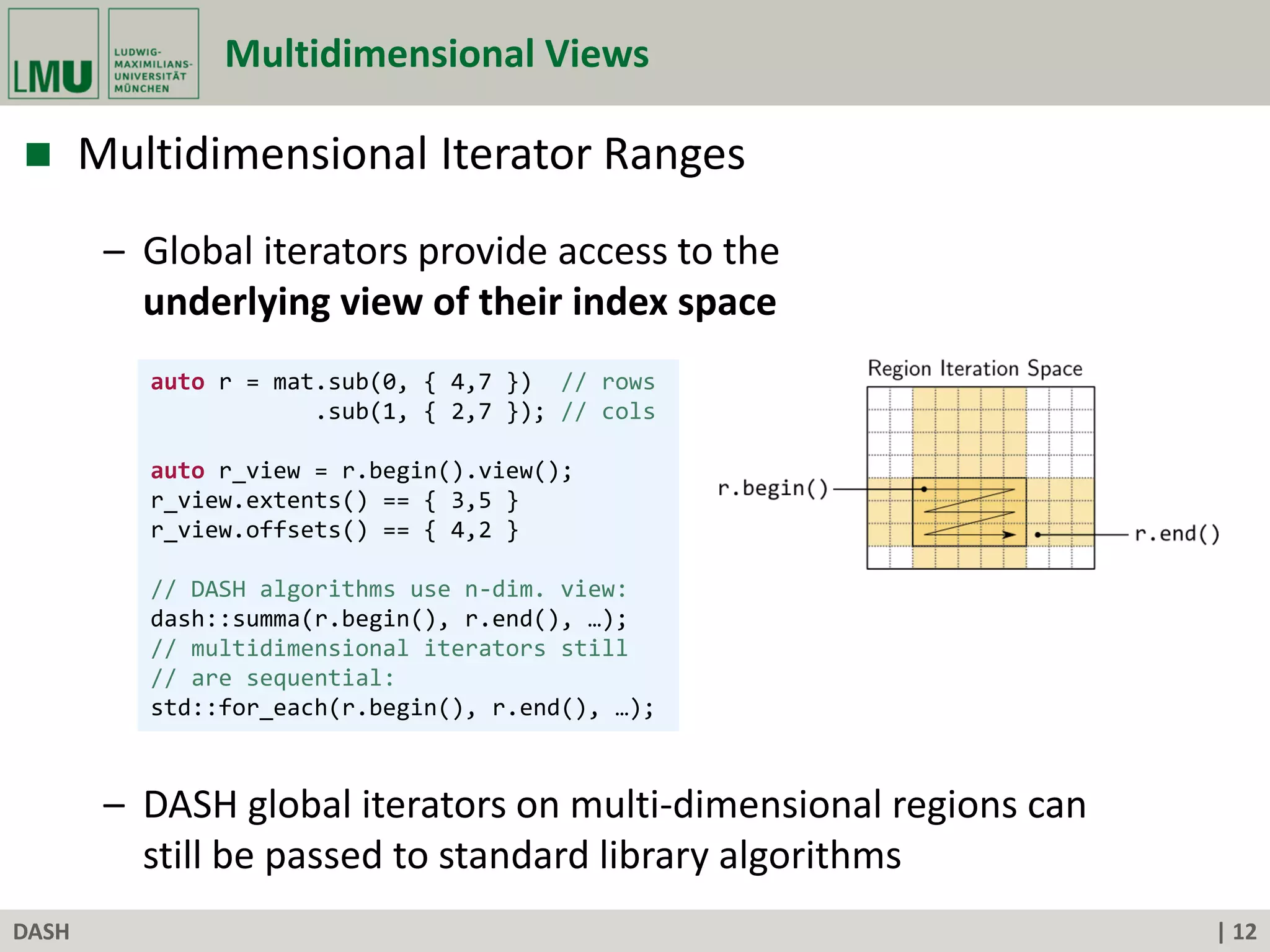

 Multidimensional Iterator Ranges
– Global iterators provide access to the
underlying view of their index space
– DASH global iterators on multi-dimensional regions can
still be passed to standard library algorithms
auto r = mat.sub(0, { 4,7 }) // rows
.sub(1, { 2,7 }); // cols
auto r_view = r.begin().view();
r_view.extents() == { 3,5 }
r_view.offsets() == { 4,2 }
// DASH algorithms use n-dim. view:
dash::summa(r.begin(), r.end(), …);
// multidimensional iterators still
// are sequential:
std::for_each(r.begin(), r.end(), …);

13. | 13DASH
Multidimensional Views

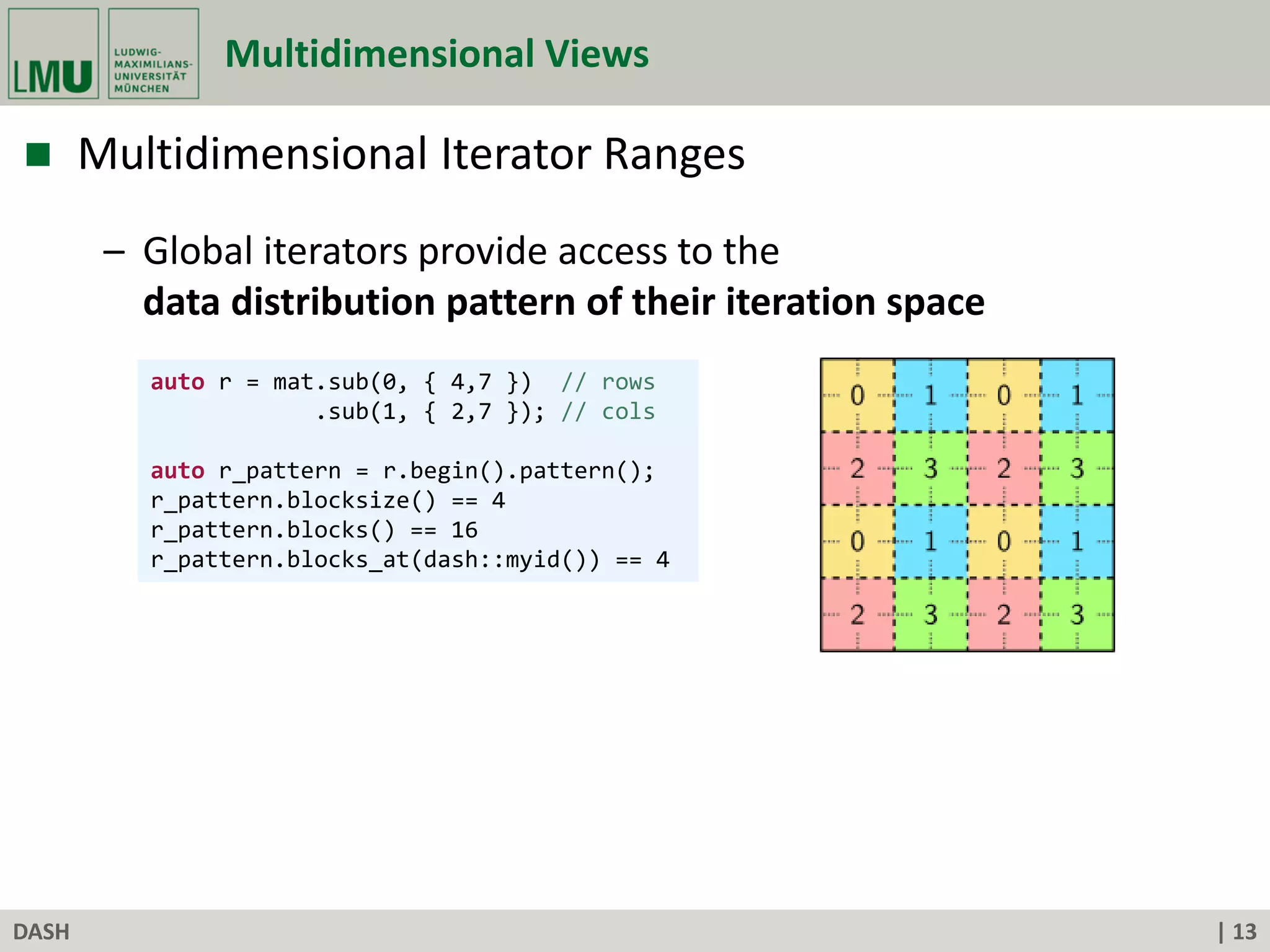

 Multidimensional Iterator Ranges
– Global iterators provide access to the
data distribution pattern of their iteration space
auto r = mat.sub(0, { 4,7 }) // rows
.sub(1, { 2,7 }); // cols
auto r_pattern = r.begin().pattern();
r_pattern.blocksize() == 4
r_pattern.blocks() == 16
r_pattern.blocks_at(dash::myid()) == 4

14. | 14DASH

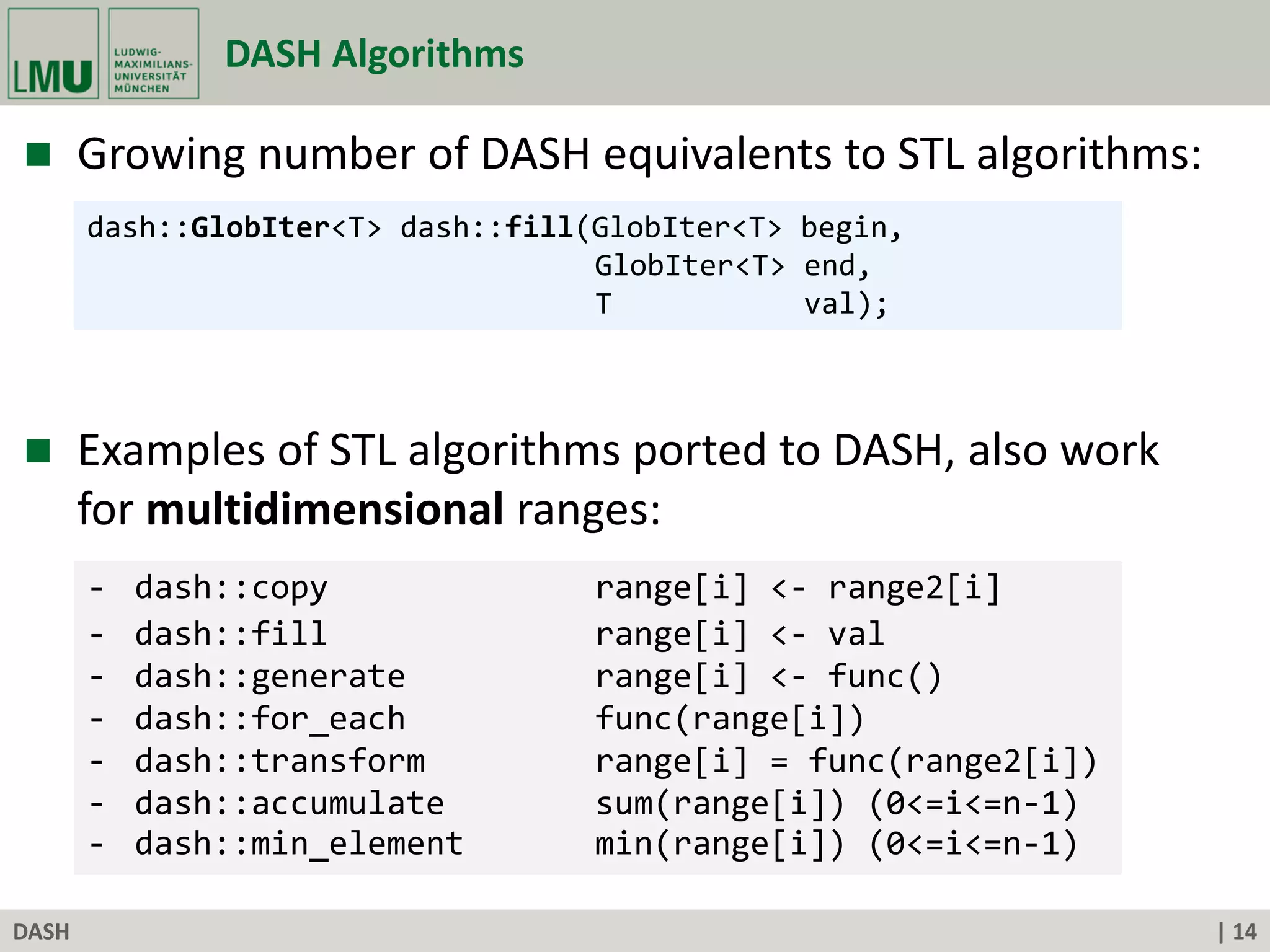

DASH Algorithms
 Growing number of DASH equivalents to STL algorithms:
 Examples of STL algorithms ported to DASH, also work
for multidimensional ranges:
dash::GlobIter<T> dash::fill(GlobIter<T> begin,
GlobIter<T> end,
T val);
- dash::fill range[i] <- val
- dash::generate range[i] <- func()
- dash::for_each func(range[i])
- dash::transform range[i] = func(range2[i])
- dash::accumulate sum(range[i]) (0<=i<=n-1)
- dash::min_element min(range[i]) (0<=i<=n-1)
- dash::copy range[i] <- range2[i]

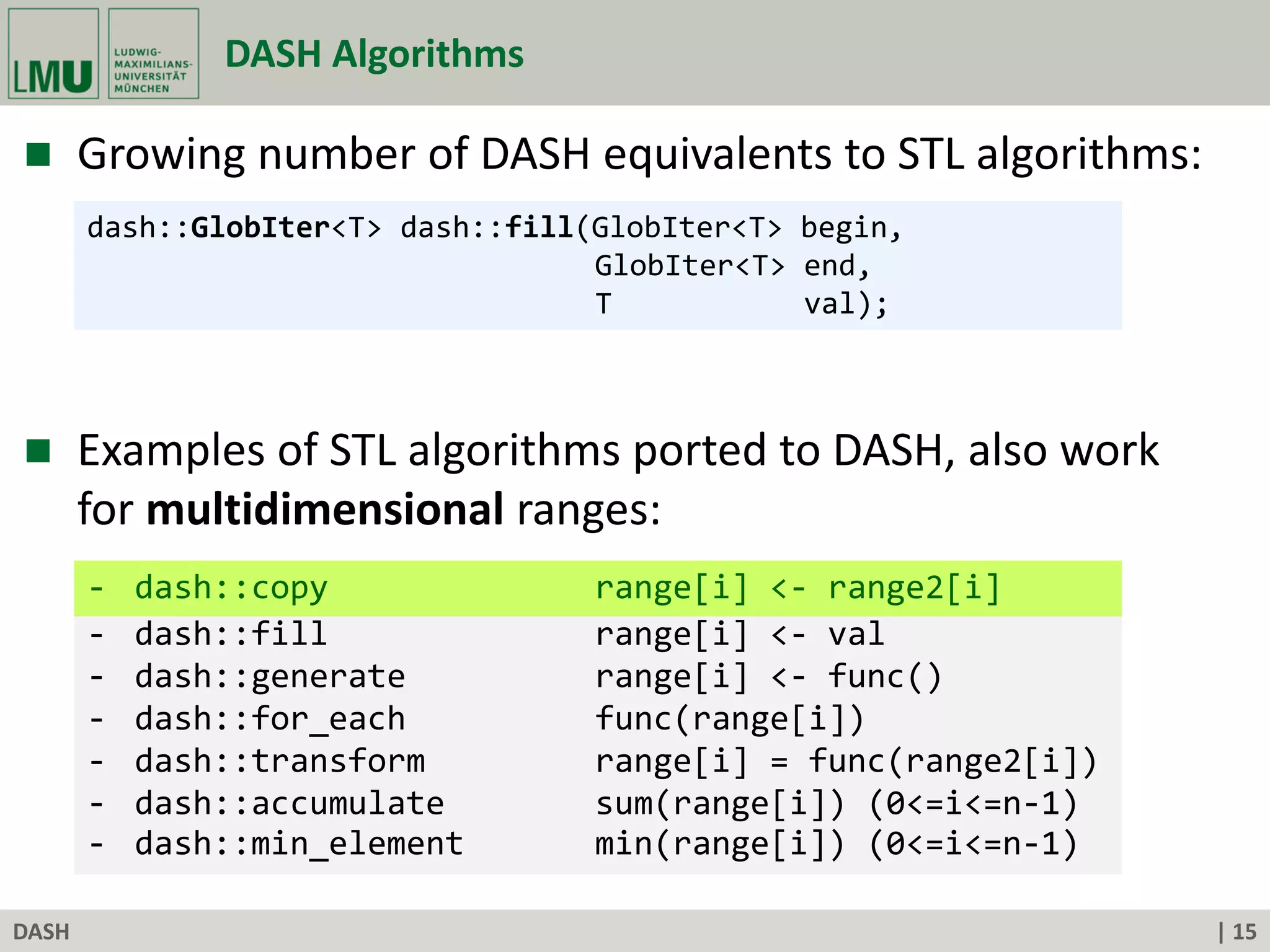

15. | 15DASH
DASH Algorithms
 Growing number of DASH equivalents to STL algorithms:
 Examples of STL algorithms ported to DASH, also work
for multidimensional ranges:
dash::GlobIter<T> dash::fill(GlobIter<T> begin,
GlobIter<T> end,
T val);
- dash::fill range[i] <- val
- dash::generate range[i] <- func()
- dash::for_each func(range[i])
- dash::transform range[i] = func(range2[i])
- dash::accumulate sum(range[i]) (0<=i<=n-1)
- dash::min_element min(range[i]) (0<=i<=n-1)
- dash::copy range[i] <- range2[i]

16. | 16DASH

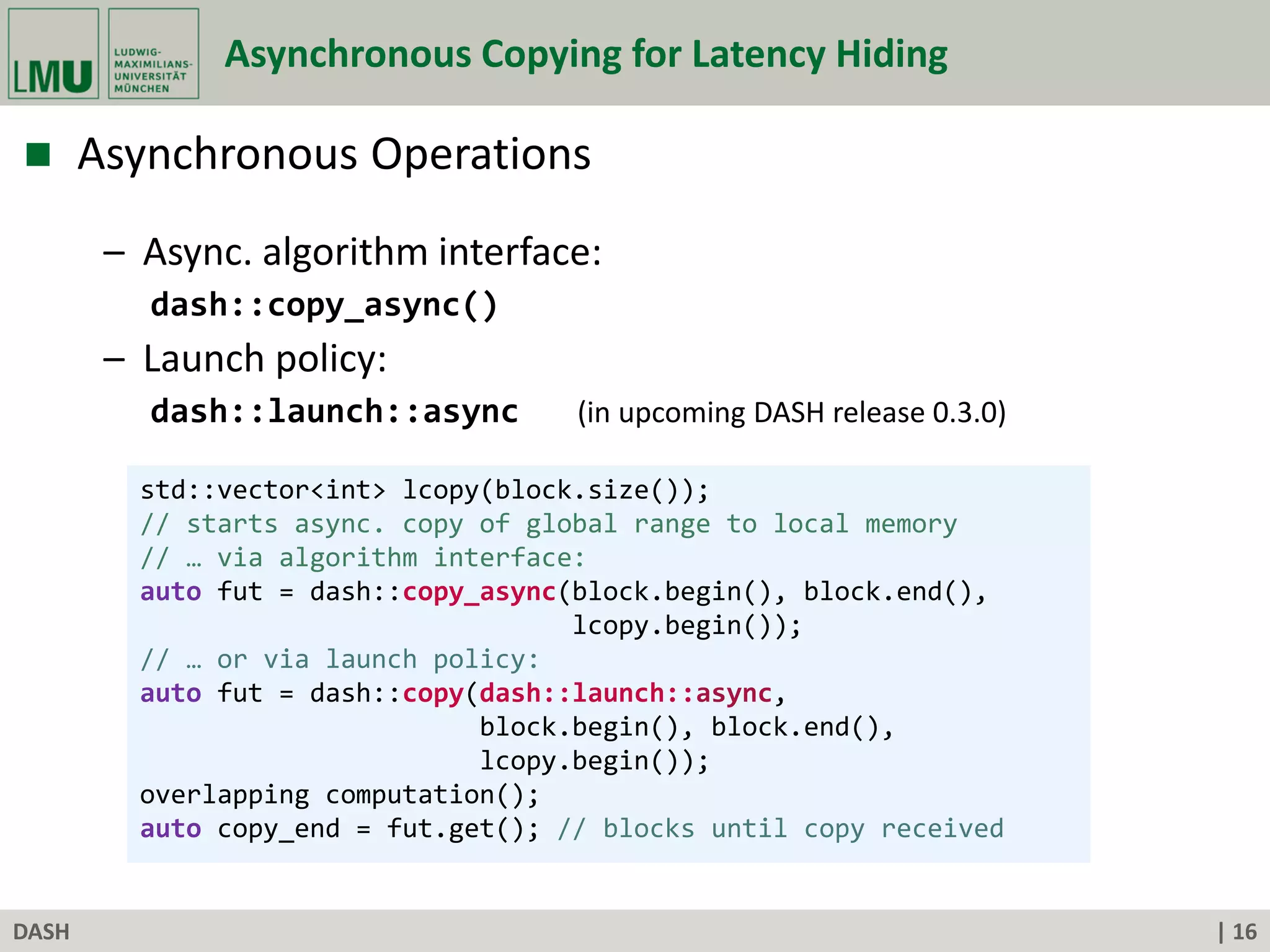

Asynchronous Copying for Latency Hiding
 Asynchronous Operations
– Async. algorithm interface:
dash::copy_async()
– Launch policy:
dash::launch::async (in upcoming DASH release 0.3.0)
std::vector<int> lcopy(block.size());
// starts async. copy of global range to local memory
// … via algorithm interface:
auto fut = dash::copy_async(block.begin(), block.end(),
lcopy.begin());
// … or via launch policy:
auto fut = dash::copy(dash::launch::async,
block.begin(), block.end(),
lcopy.begin());
overlapping computation();
auto copy_end = fut.get(); // blocks until copy received

17. | 17DASH

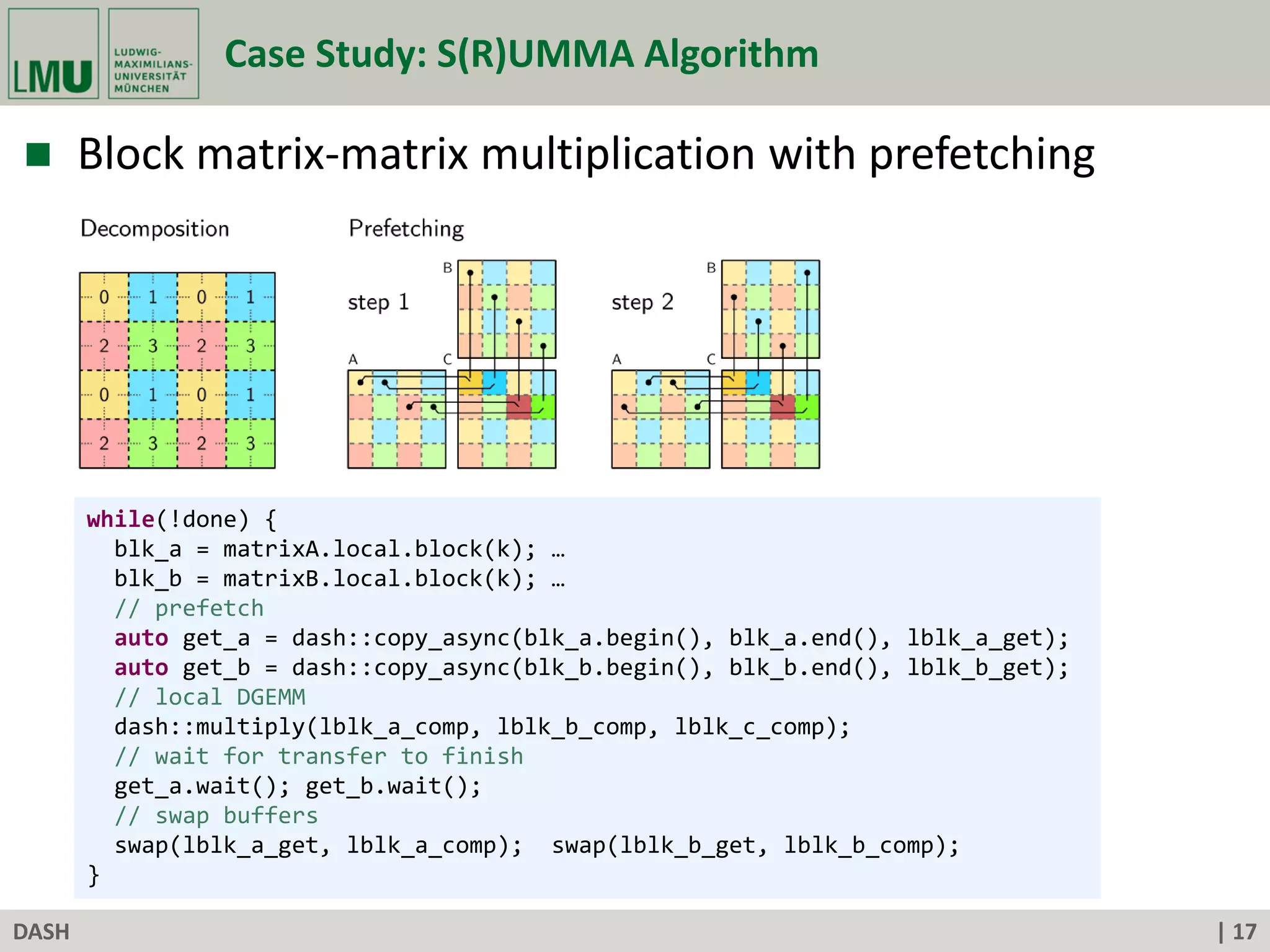

 Block matrix-matrix multiplication with prefetching
while(!done) {
blk_a = matrixA.local.block(k); …
blk_b = matrixB.local.block(k); …
// prefetch
auto get_a = dash::copy_async(blk_a.begin(), blk_a.end(), lblk_a_get);
auto get_b = dash::copy_async(blk_b.begin(), blk_b.end(), lblk_b_get);
// local DGEMM
dash::multiply(lblk_a_comp, lblk_b_comp, lblk_c_comp);
// wait for transfer to finish
get_a.wait(); get_b.wait();
// swap buffers
swap(lblk_a_get, lblk_a_comp); swap(lblk_b_get, lblk_b_comp);
}

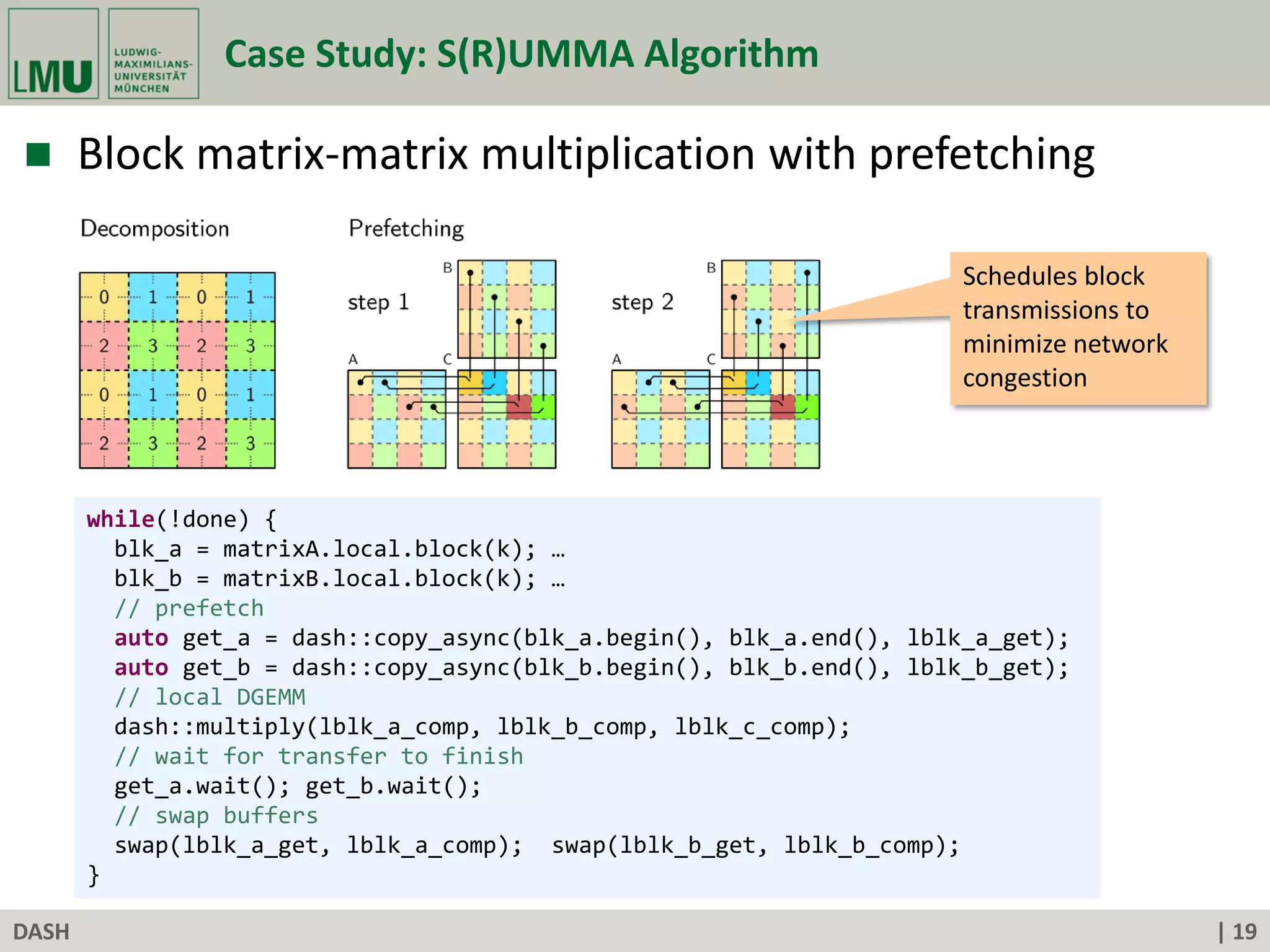

Case Study: S(R)UMMA Algorithm

18. | 18DASH
 Block matrix-matrix multiplication with prefetching
while(!done) {
blk_a = matrixA.local.block(k); …
blk_b = matrixB.local.block(k); …
// prefetch
auto get_a = dash::copy_async(blk_a.begin(), blk_a.end(), lblk_a_get);
auto get_b = dash::copy_async(blk_b.begin(), blk_b.end(), lblk_b_get);
// local DGEMM
dash::multiply(lblk_a_comp, lblk_b_comp, lblk_c_comp);
// wait for transfer to finish
get_a.wait(); get_b.wait();
// swap buffers
swap(lblk_a_get, lblk_a_comp); swap(lblk_b_get, lblk_b_comp);
}
Case Study: S(R)UMMA Algorithm
DISCLAIMER
This code is simplified for brevity.
Get the real source code here:
https://github.com/dash-project/dash/blob/development/dash/include/dash/algorithm/SUMMA.h

19. | 19DASH

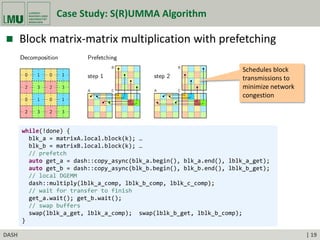

 Block matrix-matrix multiplication with prefetching
while(!done) {
blk_a = matrixA.local.block(k); …
blk_b = matrixB.local.block(k); …
// prefetch
auto get_a = dash::copy_async(blk_a.begin(), blk_a.end(), lblk_a_get);
auto get_b = dash::copy_async(blk_b.begin(), blk_b.end(), lblk_b_get);
// local DGEMM
dash::multiply(lblk_a_comp, lblk_b_comp, lblk_c_comp);
// wait for transfer to finish
get_a.wait(); get_b.wait();
// swap buffers
swap(lblk_a_get, lblk_a_comp); swap(lblk_b_get, lblk_b_comp);
}
Case Study: S(R)UMMA Algorithm
Schedules block
transmissions to
minimize network
congestion

20. | 20DASH

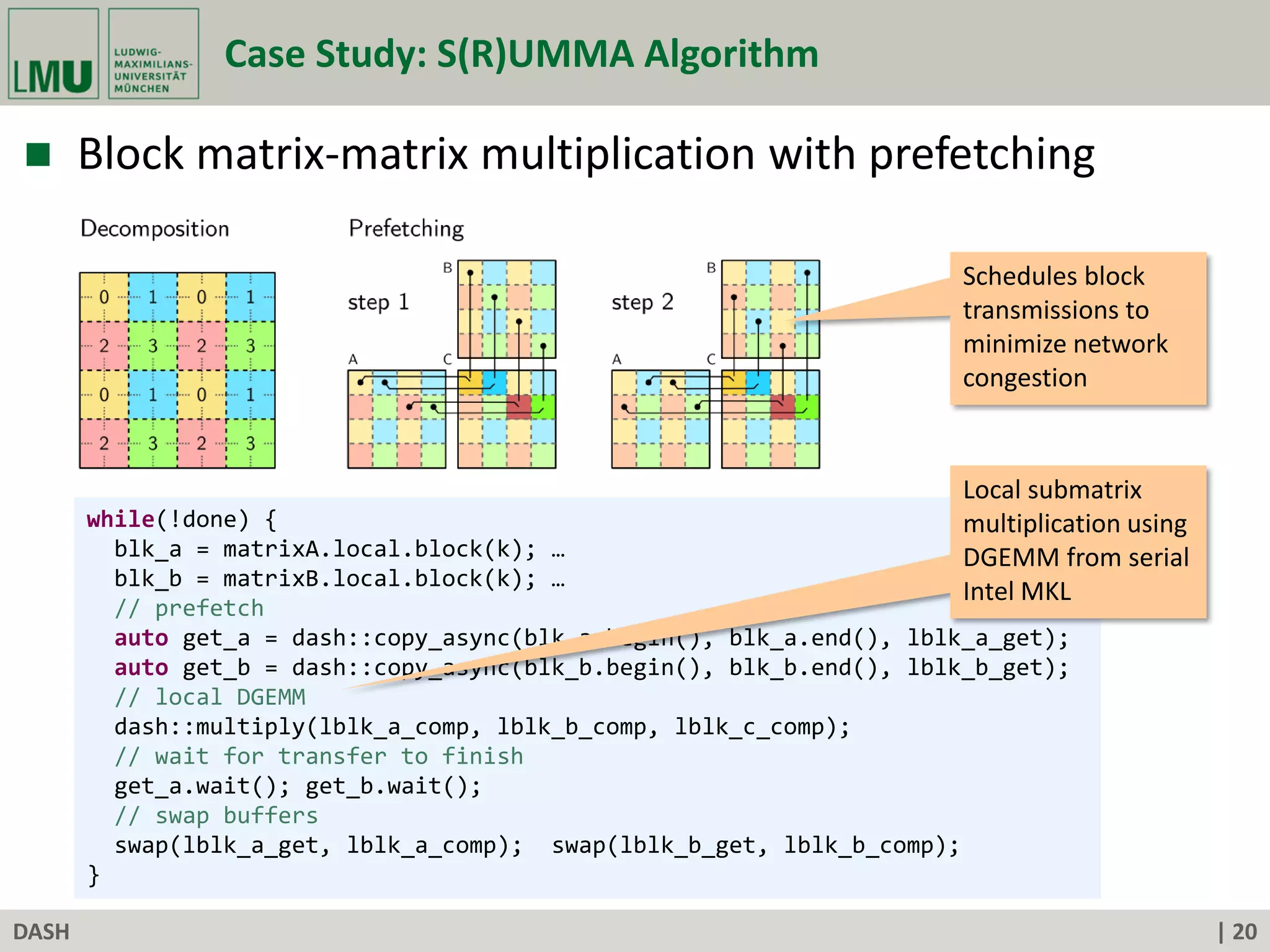

 Block matrix-matrix multiplication with prefetching
while(!done) {
blk_a = matrixA.local.block(k); …
blk_b = matrixB.local.block(k); …
// prefetch
auto get_a = dash::copy_async(blk_a.begin(), blk_a.end(), lblk_a_get);
auto get_b = dash::copy_async(blk_b.begin(), blk_b.end(), lblk_b_get);
// local DGEMM
dash::multiply(lblk_a_comp, lblk_b_comp, lblk_c_comp);
// wait for transfer to finish
get_a.wait(); get_b.wait();
// swap buffers
swap(lblk_a_get, lblk_a_comp); swap(lblk_b_get, lblk_b_comp);
}
Case Study: S(R)UMMA Algorithm
Local submatrix
multiplication using
DGEMM from serial
Intel MKL
Schedules block
transmissions to
minimize network
congestion

21. | 21DASH

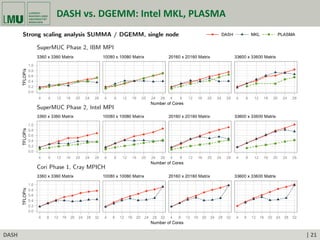

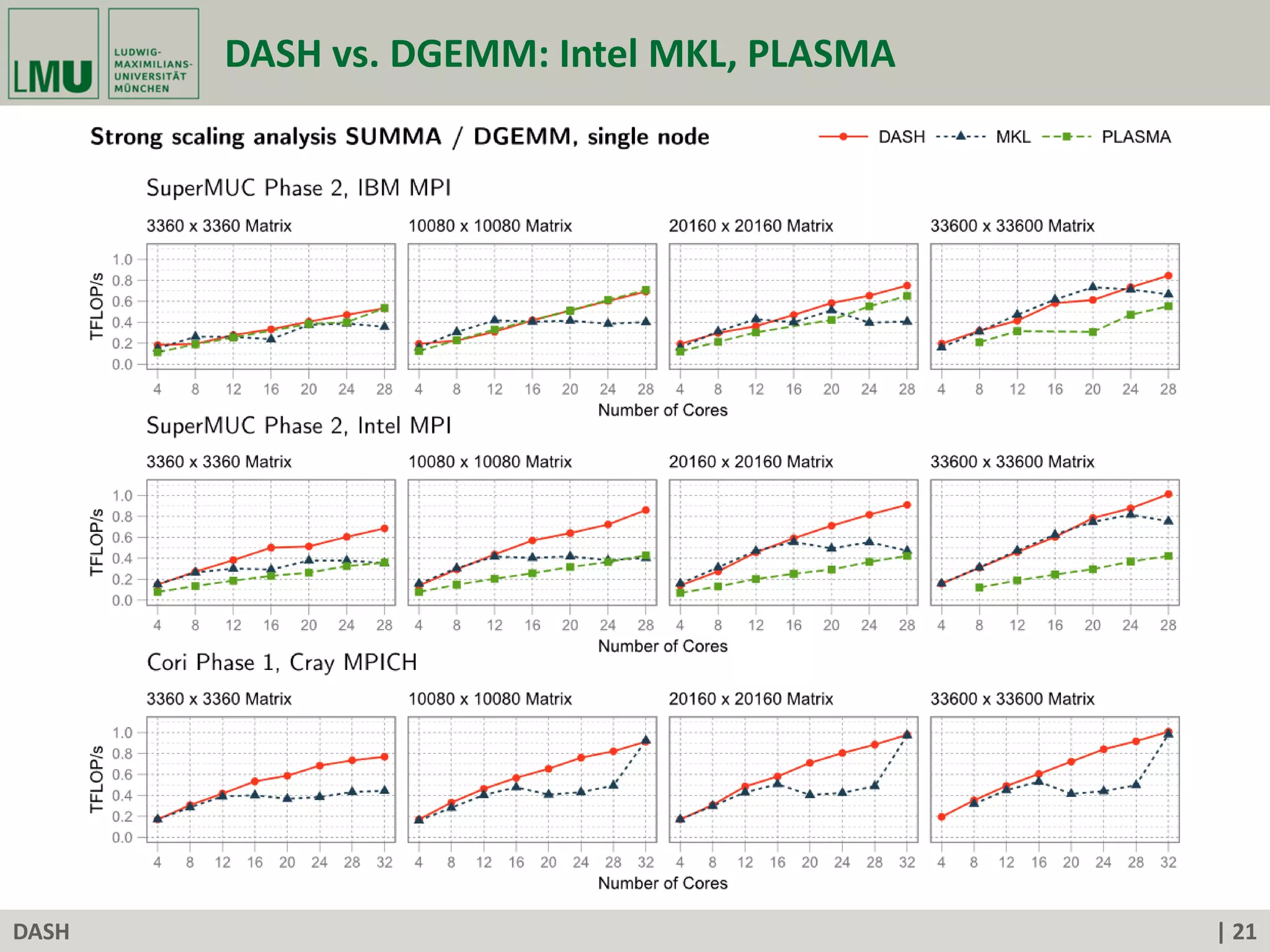

DASH vs. DGEMM: Intel MKL, PLASMA

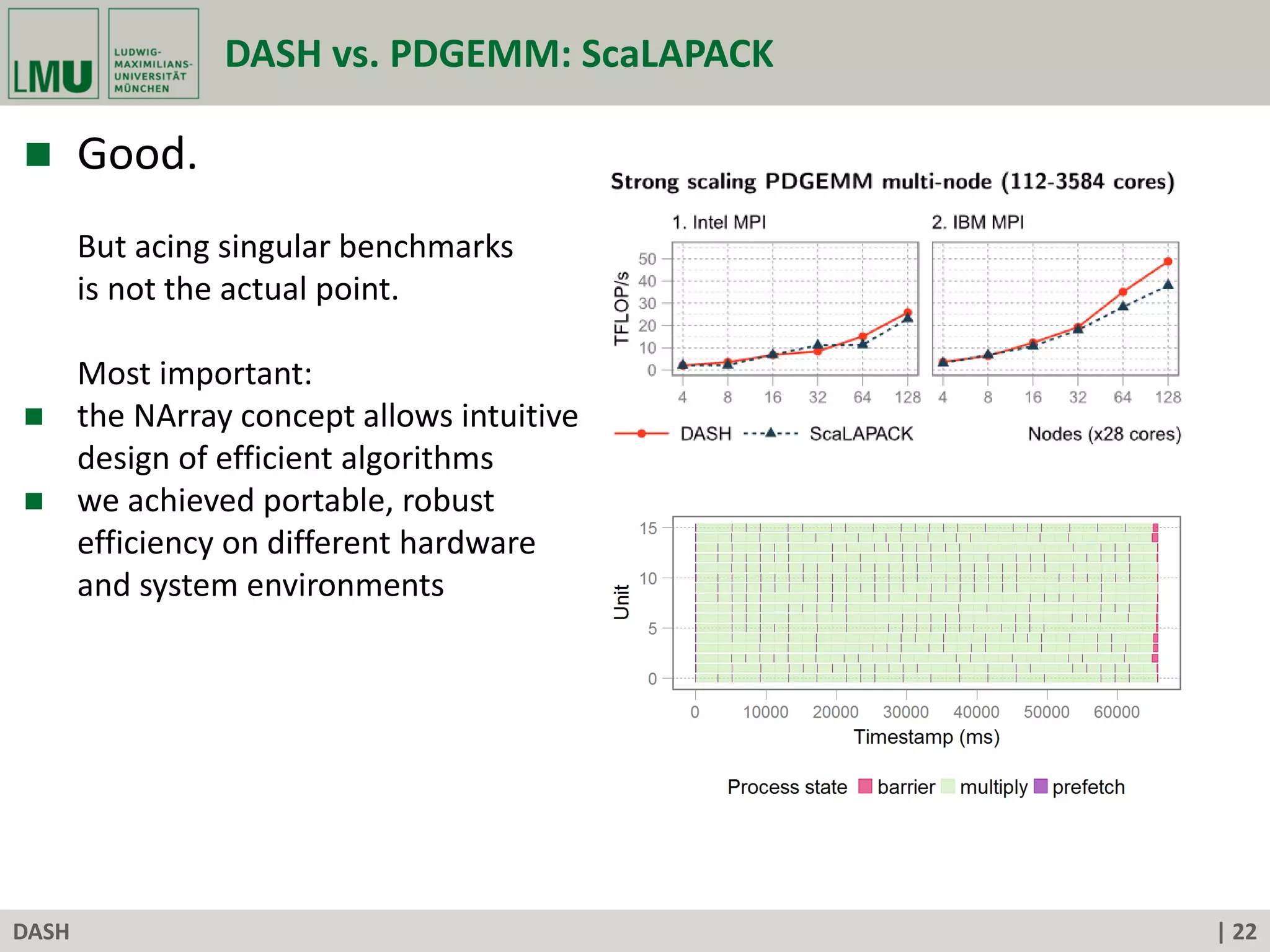

22. | 22DASH
DASH vs. PDGEMM: ScaLAPACK
 Good.
But acing singular benchmarks
is not the actual point.
Most important:
 the NArray concept allows intuitive
design of efficient algorithms
 we achieved portable, robust
efficiency on different hardware
and system environments

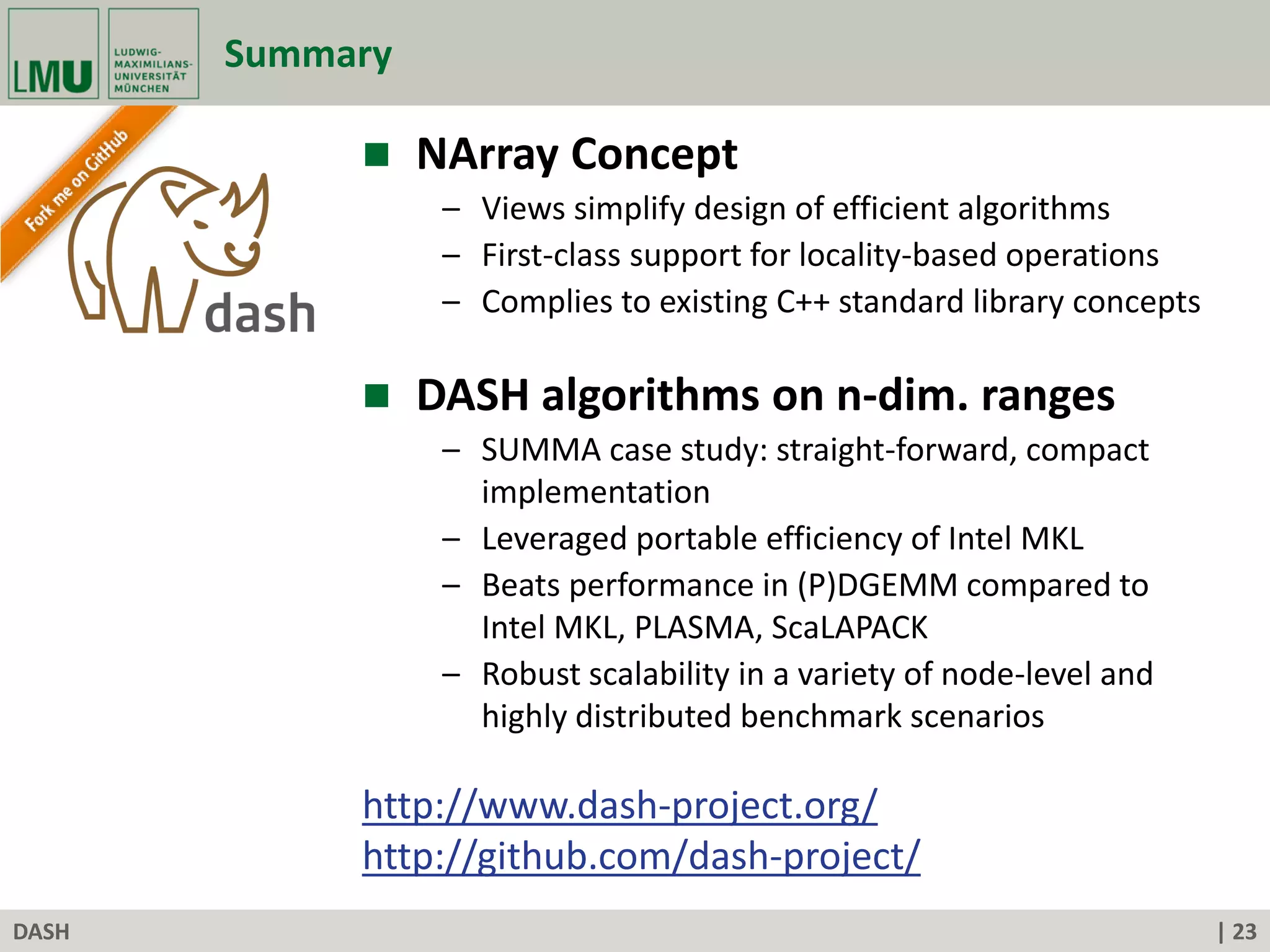

23. | 23DASH

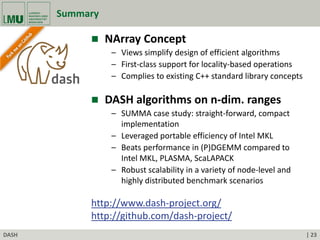

Summary
 NArray Concept
– Views simplify design of efficient algorithms
– First-class support for locality-based operations
– Complies to existing C++ standard library concepts
 DASH algorithms on n-dim. ranges
– SUMMA case study: straight-forward, compact
implementation
– Leveraged portable efficiency of Intel MKL
– Beats performance in (P)DGEMM compared to
Intel MKL, PLASMA, ScaLAPACK
– Robust scalability in a variety of node-level and
highly distributed benchmark scenarios
http://www.dash-project.org/
http://github.com/dash-project/

24. | 24DASH
Acknowledgements
DASH on GitHub:
https://github.com/dash-project/dash/
 Funding
 The DASH Team
T. Fuchs (LMU), R. Kowalewski (LMU), D. Hünich (TUD), A. Knüpfer
(TUD), J. Gracia (HLRS), C. Glass (HLRS), H. Zhou (HLRS), K. Idrees
(HLRS), J. Schuchart (HLRS), F. Mößbauer (LMU), K. Fürlinger (LMU)
