This document proposes two interpretability evaluation frameworks: ROAR (RemOve And Retrain) and KAR (Keep And Retrain). ROAR evaluates feature importance by removing salient features from inputs based on a trained model's saliency map, regenerating training and test data, and retraining the model. KAR keeps salient features and retrains instead of removing. The document introduces common interpretability methods like gradients, integrated gradients, and ensembling methods. It then explains the ROAR and KAR mechanisms and provides example results, concluding the frameworks can validate feature importance estimates and model reliability.

1. 김 성 철

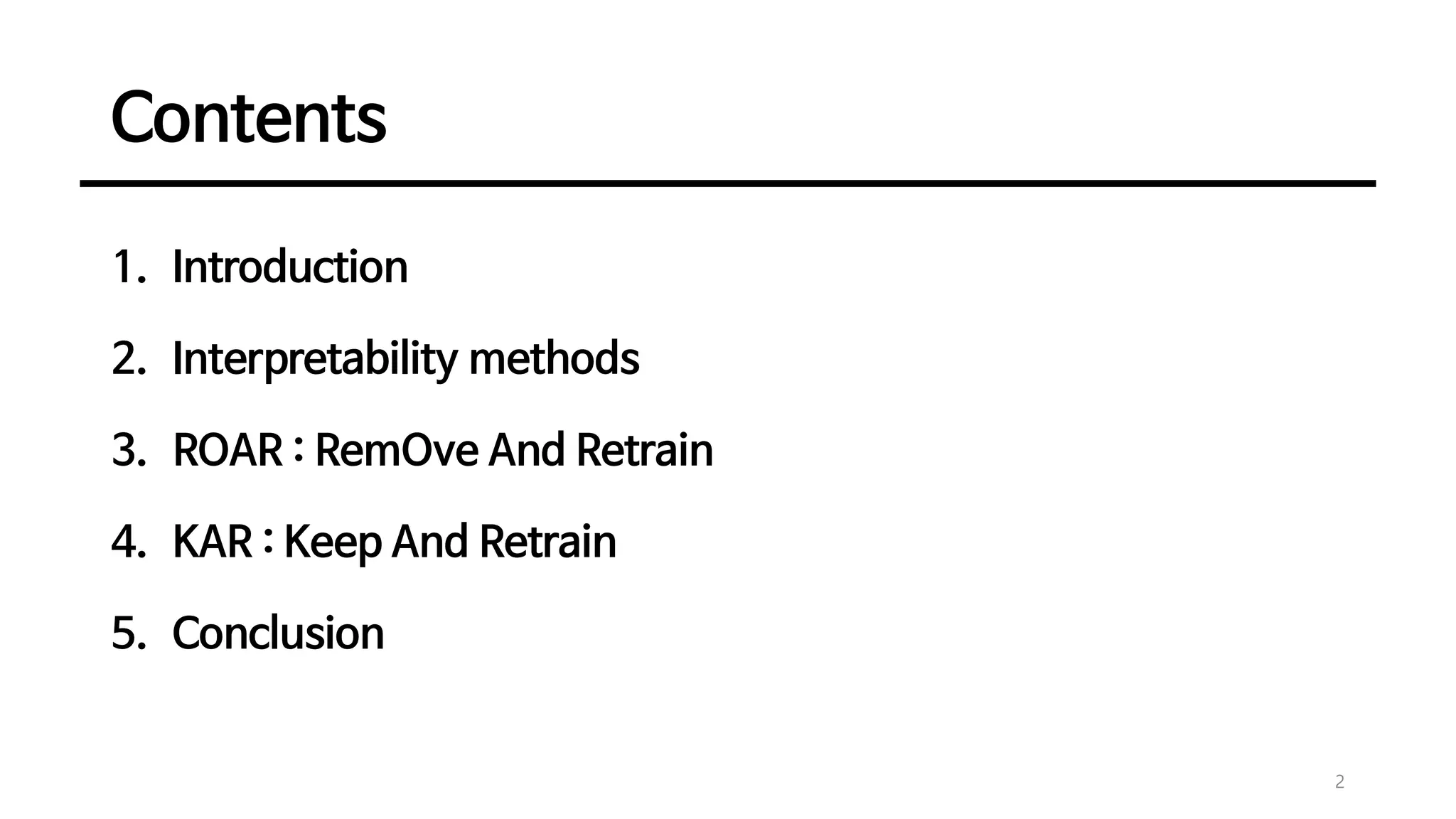

2. Contents
1. Introduction
2. Interpretability methods
3. ROAR : RemOve And Retrain
4. KAR : Keep And Retrain
5. Conclusion
2

3. Introduction
• XAI (Explainable AI)
1. There is no ground truth.
2. It is unclear which should select.
→ We need a framework to validate the relative merits and reliability
• Commonly used strategy
: Remove the informative features & look at how the classifier degrades
→ Samples where the features are removed come from a different distribution!
→ It is unclear whether the degradation in model performance comes from the
distribution shift.
3

4. Introduction
• RemOve And Retrain (ROAR)
4
Train the model
Get
the saliency map
from trained
model
Remove
informative
features
from inputs
Retrain
the model

5. Introduction
• RemOve And Retrain (ROAR)
5
Train the
model
Get
the saliency
map
from trained
model
Remove
informative
features
from inputs
Retrain
the model

6. Interpretability methods
• Base estimators
• Gradients or Sensitivity heatmaps (GRAD)
𝒆 =
𝝏𝑨 𝒏
𝒍
𝝏𝒙𝒊
• Guided Backpropagation (GB)
• Integrated Gradients (IG)
𝒆 = 𝒙𝒊 − 𝒙𝒊
𝟎
× ෍
𝒊=𝟏
𝒌
𝝏𝒇 𝒘(𝒙 𝟎
+
𝒊
𝒌
𝒙 − 𝒙 𝟎
)
𝝏𝒙𝒊
×
𝟏
𝒌
6
https://arxiv.org/pdf/1412.6806.pdf
https://arxiv.org/pdf/1703.01365.pdf

7. Interpretability methods
• Ensembling methods
• Classic SmoothGrad (SG)
𝒆 = ෍
𝒊=𝟏
𝑱
(𝒈𝒊 𝒙 + 𝜼, 𝑨 𝒏
𝒍
)
• SmoothGrad² (SG-SQ)
𝒆 = ෍
𝒊=𝟏
𝑱
(𝒈𝒊 𝒙 + 𝜼, 𝑨 𝒏
𝒍 𝟐
)
• VarGrad (Var)
• 𝒆 = Var(𝒈𝒊 𝒙 + 𝜼, 𝑨 𝒏
𝒍
) 7
https://arxiv.org/pdf/1706.03825.pdf

8. Interpretability methods
• Control Variants
• Random
• Sobel Edge Filter
8
https://m.blog.naver.com/PostView.nhn?blogId=roboholic84&logNo=220482877717&proxyReferer=https%3A%2F%2Fwww.google.com%2F

9. ROAR : RemOve And Retrain
• Mechanism
1. Get an estimate 𝒆 of feature importance from every input
2. Rank each 𝒆 into an ordered set 𝒆𝒊
𝒐
𝒊=𝟏
𝑵
3. Replace the corresponding pixels in the raw image with the per channel mean
4. Generate new train and testset at different degradation levels t = [0., 10., …, 100]
5. Retrain!
9Saliency map t = 10% t = 30% t = 70% t = 90%Input image

10. ROAR : RemOve And Retrain
• Why do we need to retrain the model?
1. The train and testset must have a similar distribution!
2.
10

11. ROAR : RemOve And Retrain
• Results
11

12. ROAR : RemOve And Retrain
• Results
12

13. KAR : Keep And Retrain
13

14. KAR : Keep And Retrain
• Results
14

15. Conclusion
15

16. 감 사 합 니 다
16
