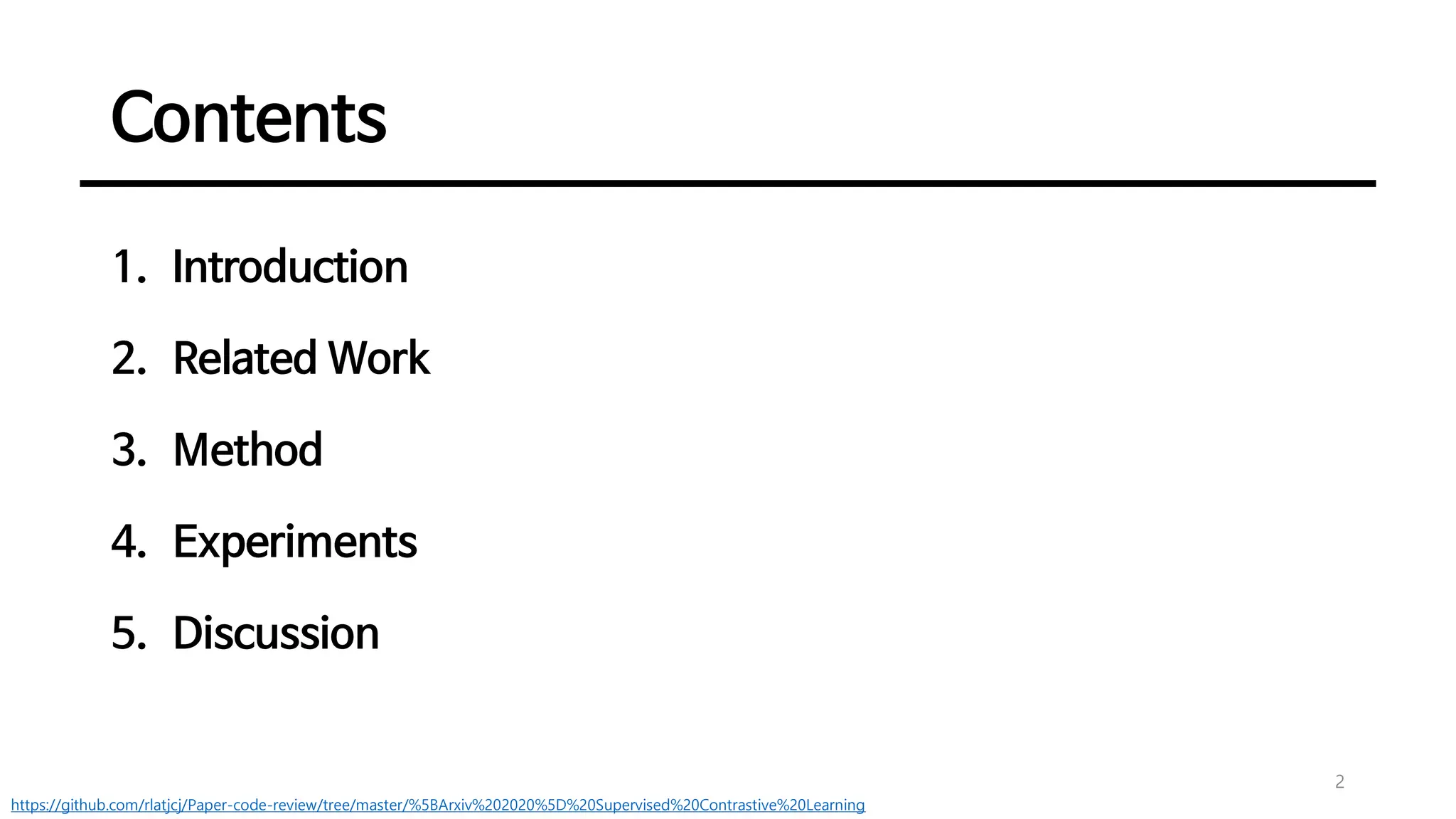

2. Contents
1. Introduction
2. Related Work
3. Method
4. Experiments
5. Discussion
2
https://github.com/rlatjcj/Paper-code-review/tree/master/%5BArxiv%202020%5D%20Supervised%20Contrastive%20Learning
3. Introduction
• Cross-entropy
• Supervised learning에서 많이 사용됨
• Label distribution과 empirical distribution의 KL-divergence로 생각할 수 있음
• 개선 : label smoothing, self-distillation, mixup, …
• 같은 클래스는 가깝게, 다른 클래스는 멀게 하는 supervised training loss
• Self-supervised learning에서 좋은 성능을 보이는 metric learning과 연관이 있는 contrastive objective functions
3
4. Introduction
• Supervised contrastive leaning
• Multiple positives를 적용한 contrastive loss로 full supervised setting에서 contrastive learning 진행
• Cross-entropy와 비교했을 때 top-1 accuracy와 robustness에서 SOTA
• Cross-entropy보다 hyperparameter 범위에 덜 민감
• Hard positive, negative의 학습을 촉진하는 gradient
• Single positive, negative가 사용되었을 때 triplet loss와 연관성
4
5. Related Work
• Self-supervised representation learning + Metric learning + Supervised learning
• Cross-entropy loss는 deep network를 학습하기 위한 좋은 loss function
• 하지만, 왜 target label이 정답이 되어야 하는지 명확하지 않음
• 더 좋은 target label vector가 존재함을 증명 (S. Yang et al., 2015)
• Cross-entropy loss의 다른 단점
• Sensitivity to noise labels (Z. Zhang et al., 2018., S. Sukhbaatar et al., 2014.)
• Adversarial examples (G Elsayed et al., 2018., K. Nar et al., 2019.)
• Poor margins (K. Cao et al., 2019.)
• 다른 loss제안, reference label distribution을 바꾸는 것이 더 효과적
• Label smoothing, Mixup, CutMix, Knowledge Distillation
5
S. Yang et al., 2015.
K. Cao et al., 2019.
6. Related Work
• 최근에 self-supervised representation learning이 각광받는 중
• Language domain
• Pre-trained embedding (BERT, Xlnet, …)
• Image domain
• Embedding을 배우기 위해 사용 (e.g. 가려진 signal부분을 가려지지 않은 부분으로 예측)
• Self-supervised representation learning은 contrastive learning으로 바뀌는 중
• Noise contrastive estimation, N-pair loss
• 학습할 때 deep network의 마지막 레이어에 loss를 적용
• 테스트 시 downstream transfer task, fine tuning, direct retrieval task를 위해 이전 레이어를 활용
6
7. Related Work
• Contrastive learning은 metric learning과 triplet loss와 연관있음
• 공통점은 powerful representation을 학습
• Triplet loss와 contrastive loss의 차이점
• Data point당 positive, negative pair 수
• Triplet loss : one positive, one negative
• Supervised metric learning : positive in same class, negative in different class (hard negative mining)
• Self-supervised contrastive loss : one positive pair selected using either co-occurrence or using data augmentation
• Supervised contrastive와 가장 유사한 것은 soft-nearest neighbor loss
• 공통점 : embedding을 normalize, euclidean distance를 inner product로 교체
• 개선 : data augmentation, disposable contrastive head, two-stage training
7
8. Method
• Representation Learning Framework
• Self-supervised contrastive learning을 사용한 Contrastive Multiview Coding, SimCLR과 구조적으로 유사
• 각 input image에 대해 두 개의 randomly augmented image 생성
• First stage : random crop + resize to the image’s native resolution
• Second stage : AutoAugment, RandAugment, SimAugment
• Encoder network(𝐸(⋅)) : augmented image 𝒙 를 representation vector 𝒓 = 𝐸 𝒙 ∈ ℛ 𝐷 𝐸 로 나타냄
• E.g. ResNet50의 마지막 pooling layer(𝐷 𝐸)를 representation vector로 사용, unit hypersphere로 항상 normalize
• Projection network (𝑃(⋅)) : normalized representation vector 𝒓 을 contrastive loss 계산에 적합한 vector 𝒛 =
𝑃 𝒓 ∈ ℛ 𝐷 𝑃로 나타냄
• E.g. 𝐷 𝐸의 output vector size를 가진 multi-layer perceptron 사용, unit hypersphere로 항상 normalize
• 학습이 완료되면, projection network를 없애고 single linear layer로 교체
8
9. Method
• Contrastive Losses: Self-supervised and Supervised
• Contrastive loss의 이점은 유지한 채 labeled data를 효과적으로 사용하는 contrastive loss
• Randomly sampling으로 N개의 image/label pairs 생성 ( 𝑥 𝑘, 𝑦 𝑘 𝑘=1…𝑁)
• 실질적으로 학습에 사용되는 minibatch는 2N pairs ( 𝑥 𝑘, 𝑦 𝑘 𝑘=1…2𝑁)
• 𝑥2𝑘, 𝑥2𝑘−1 : two random augmentation of 𝑥 𝑘 𝑘 = 1 … 𝑁
• 𝑦2𝑘−1 = 𝑦2𝑘 = 𝑦 𝑘
9
https://towardsdatascience.com/exploring-simclr-a-simple-framework-for-contrastive-learning-of-visual-representations-158c30601e7e
10. Method
• Contrastive Losses: Self-supervised and Supervised
• Self-Supervised Contrastive Loss
• 𝑖 ∈ 1 … 2𝑁 : the index of an arbitrary augmented image
• 𝑗 𝑖 : the index of the other augmented image originating from the same source image
• 𝑧𝑙 = 𝑃 𝐸 𝒙𝒍
• 𝑖 : anchor / 𝑗(𝑖) : positive / 𝑘 𝑘 = 1 … 2𝑁, 𝑘 ∉ 𝑖, 𝑗 : negatives
• 𝑧𝑖 ⋅ 𝑧𝑗 𝑖 : an inner product between the normalized vectors
• Similar view는 neighboring representation, dissimilar view는 non-neighbor representation으로 학습
10
11. Method
• Supervised Contrastive Loss
• Supervised learning은 같은 클래스에 속한 샘플이 하나보다 많기 때문에, Eq.2의 contrastive loss 사용할 수 없음
→ 임의의 positive를 사용하기 위한 loss제안
• 𝑁𝑦 𝑖
: the total number of images in the minibatch that have the same label, 𝑦𝑖, as the anchor, 𝑖
• Generalization to an arbitrary number of positives
• Loss는 encoder가 같은 클래스 내 모든 데이터를 Eq.2보다 더 robust clustering으로 가깝게 표현하도록 함
• Contrastive power increases with more negatives
• 분모에 positive는 물론 negative를 많이 추가하여 positive와 멀리 떨어지도록 함
11
12. Method
• Supervised Contrastive Loss Gradient Properties
• Supervised contrastive loss가 weak positive, negative보다 hard positive, negative에 초점을 둔 학습방법임을 증명
• Projection network 마지막에 normalization layer 추가 → gradient를 inner product할 때 조절
• 𝑤 : the projection network output immediately prior to normalize (e.g. 𝑧 = 𝑤/| 𝑤 |)
12
positives
negatives
13. Method
• Supervised Contrastive Loss Gradient Properties (Cont.)
• Easy positive, negative : small gradient / Hard positive, negative : large gradient
• Easy positive : 𝑧𝑖 ⋅ 𝑧𝑗 ≈ 1, 𝑃𝑖𝑗 is large
• Hard positive : 𝑧𝑖 ⋅ 𝑧𝑗 ≈ 0, 𝑃𝑖𝑗 is moderate
→ weak positive는 ||∇ 𝑧 𝑖
ℒ𝑖,𝑝𝑜𝑠
𝑠𝑢𝑝
|| 가 작고, hard positive는 큼
• Weak negative는 𝑧𝑖 ⋅ 𝑧𝑗 ≈ −1, hard negative는 𝑧𝑖 ⋅ 𝑧𝑗 ≈ 0이므로 𝑧 𝑘 − 𝑧𝑖 ⋅ 𝑧 𝑘 ⋅ 𝑧𝑖 ⋅ 𝑃𝑖𝑘에 영향을 미침
• ( 𝑧𝑖 ⋅ 𝑧𝑙 ⋅ 𝑧𝑙 − 𝑧𝑙)은 normalization layer가 projection network 마지막 에 붙어있을 때만 그 역할을 할 수 있음
→ network에 normalization을 사용해야함!
13
14. Method
• Connections to Triplet Loss
• Contrastive learning은 triplet loss와 밀접한 연관이 있음
• Triplet loss는 positive와 negative를 각각 하나씩 사용
→ Positive와 negative가 각각 하나 씩인 contrastive loss로 생각할 수 있음
• Anchor, positive의 representation이 anchor, negative보다 더 잘 맞춰졌다고 가정 (𝑧 𝑎 ⋅ 𝑧 𝑝 ≫ 𝑧 𝑎 ⋅ 𝑧 𝑛)
• Margin 𝛼 = 2𝜏인 triplet loss와 동일한 형태
• 물론 성능이 더 좋고 계산량도 적음
14
17. Experiments
• Hyperparameter Stability
• Hyperparameter의 변화에서도 안정된 성능 유지
• Different optimizer, data augmentation, learning rates
• Optimizer와 augmentation의 변화에서 작은 분산을 보임
• Hypersphere의 smoother geometry 덕분이라고 추측
17
18. Experiments
• Effect of Number of Positives
• Positive의 수의 영향에 대해 ablation study
• Positive의 수를 늘릴수록 성능이 좋아짐
• Positive의 수를 늘릴수록 computational cost가 높아지는 trade-off
• Positive에는 같은 데이터지만 다른 augmentation한 경우도 포함되고, 나머지는 같은 클래스지만 다른 샘플
• Self-supervised learning은 1positive
18
19. Experiments
• Training Details
• Epochs : 700 (pre-training stage)
• 각 스텝마다 cross-entropy보다 50%정도 느렸는데, 이는 미니배치 내 모든 요소들의 cross-product를 계산해야 했기 때문
• Batch size : ~8192 (2048도 충분)
• ResNet50은 8192, ResNet200은 2048 (큰 네트워크일수록 작은 batch size가 필요)
• 고정된 batch size에서 cross-entropy와 비슷한 성능을 갖는데 larger learning rate와 적은 epoch로 가능
• Temperature : 𝜏 = 0.07
• Temperature은 작을수록 좋은 성능을 보이지만, numerical stability 문제로 학습이 어려울 수 있음
• AutoAugment가 Supervised Contrastive와 Cross Entropy 모두에서 좋은 성능을 보임
• LARS, RMSProp, SGD with momentum을 different permutation으로 initial pre-training step, dense layer 학습
• ResNet을 cross entropy로 학습할 땐 momentum optimizer, supervised contrastive loss로 학습할 땐 pre-training에는 LARS,
dense layer 학습은 RMSProp
19
