Seven problems of Linux containers

parallels.com || openvz.org || criu.org
Seven Problems
of Linux Containers
Kir Kolyshkin
<kir@openvz.org>
28 April 2013 LinuxFest Northwest

Seventy Seven Problems
of Linux Containers
Kir Kolyshkin
<kir@openvz.org>
28 April 2013 LinuxFest Northwest
(of which I am going to cover six)

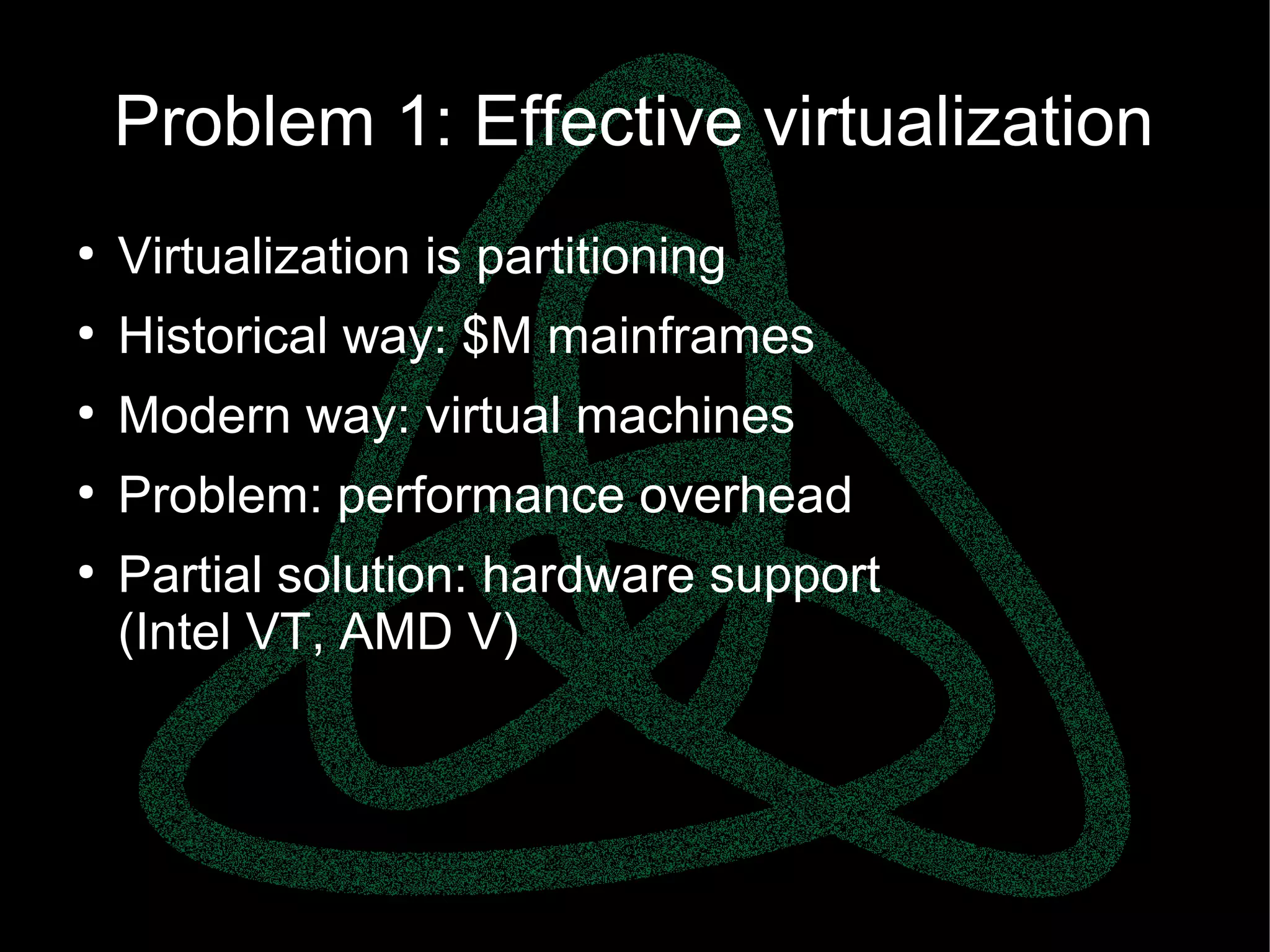

Problem 1: Effective virtualization
●
Virtualization is partitioning
●
Historical way: $M mainframes
●
Modern way: virtual machines
●
Problem: performance overhead
●
Partial solution: hardware support
(Intel VT, AMD V)

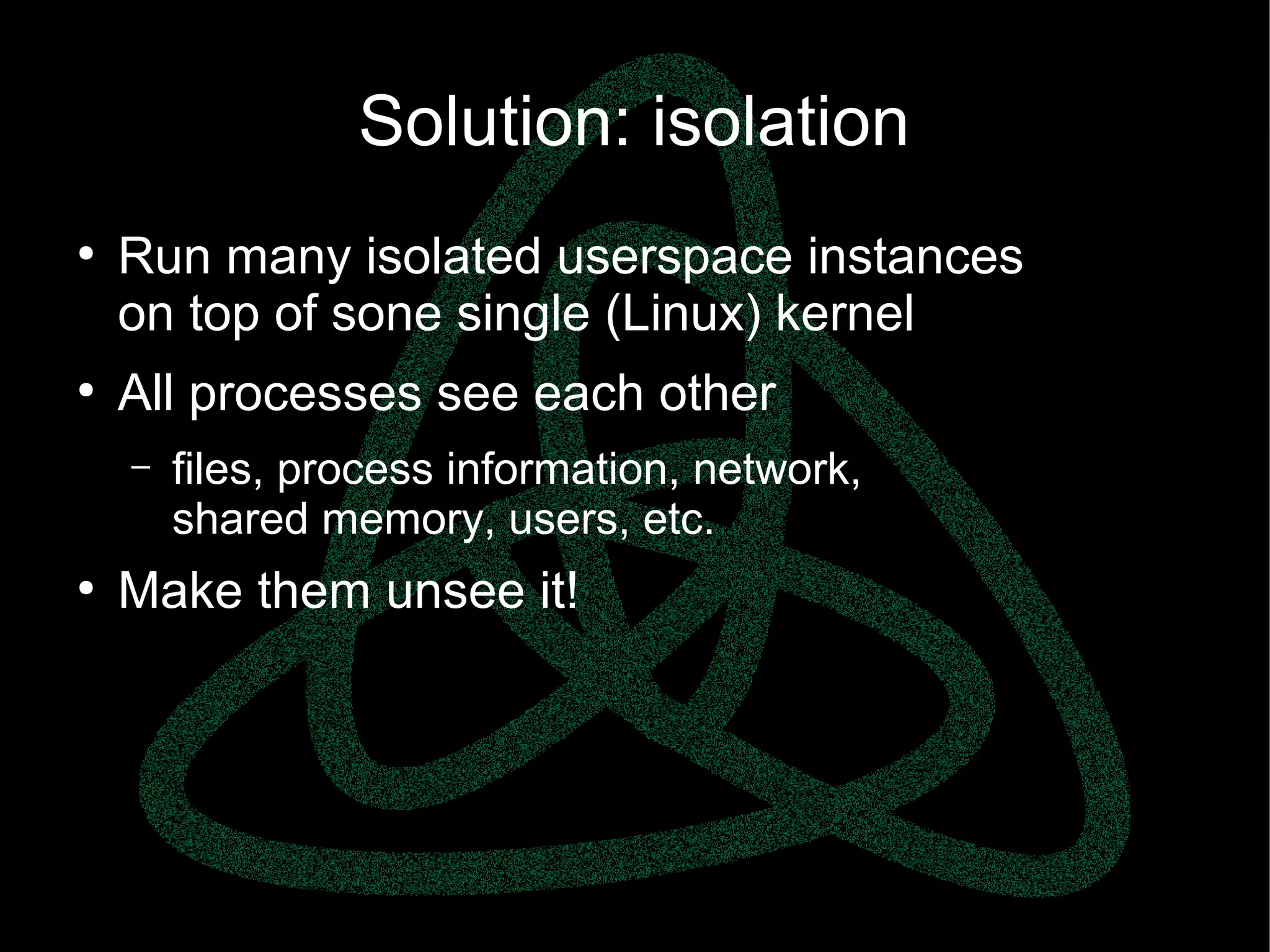

Solution: isolation
●
Run many isolated userspace instances
on top of sone single (Linux) kernel
●
All processes see each other
– files, process information, network,
shared memory, users, etc.
●
Make them unsee it!

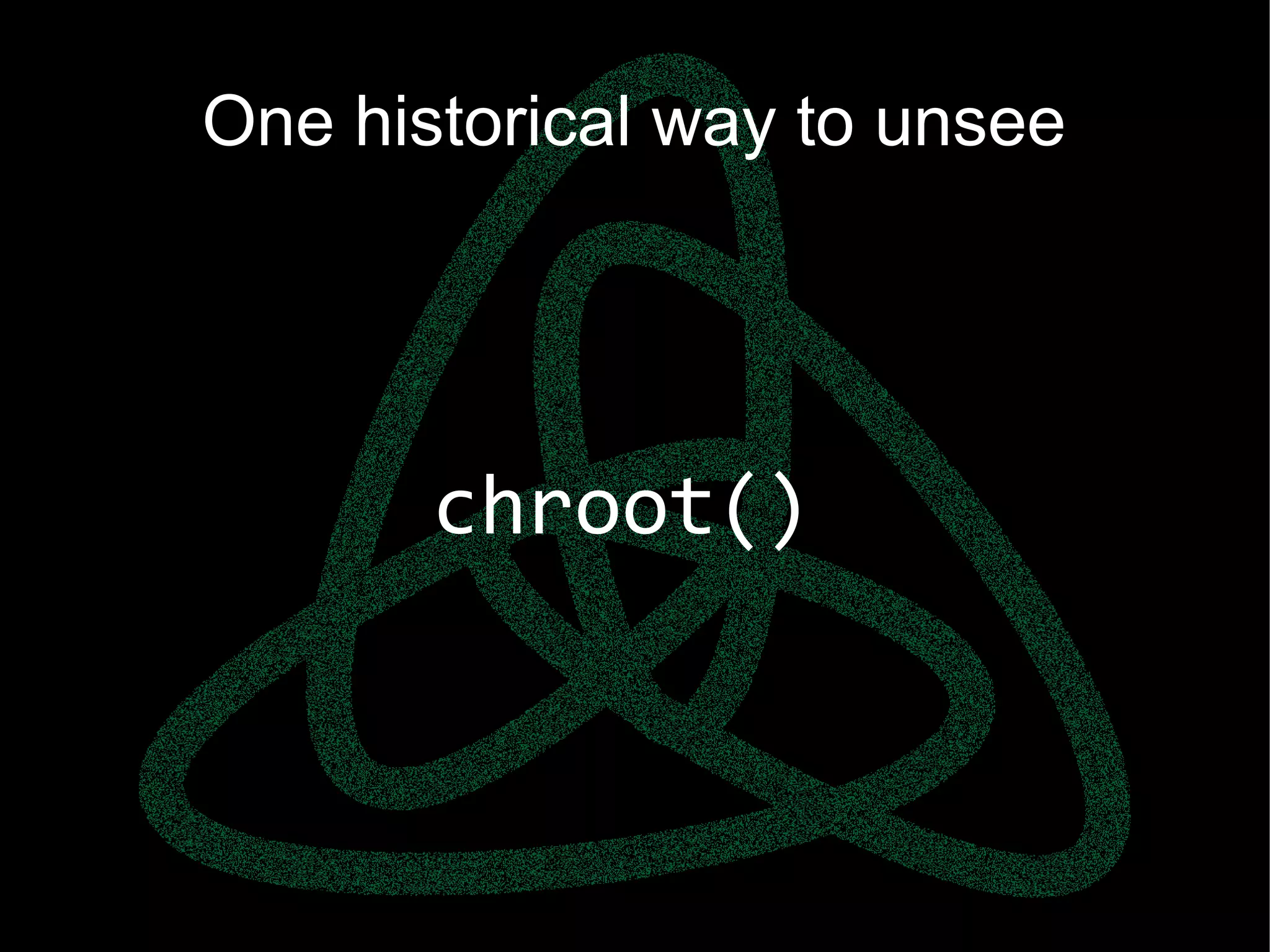

One historical way to unsee
chroot()

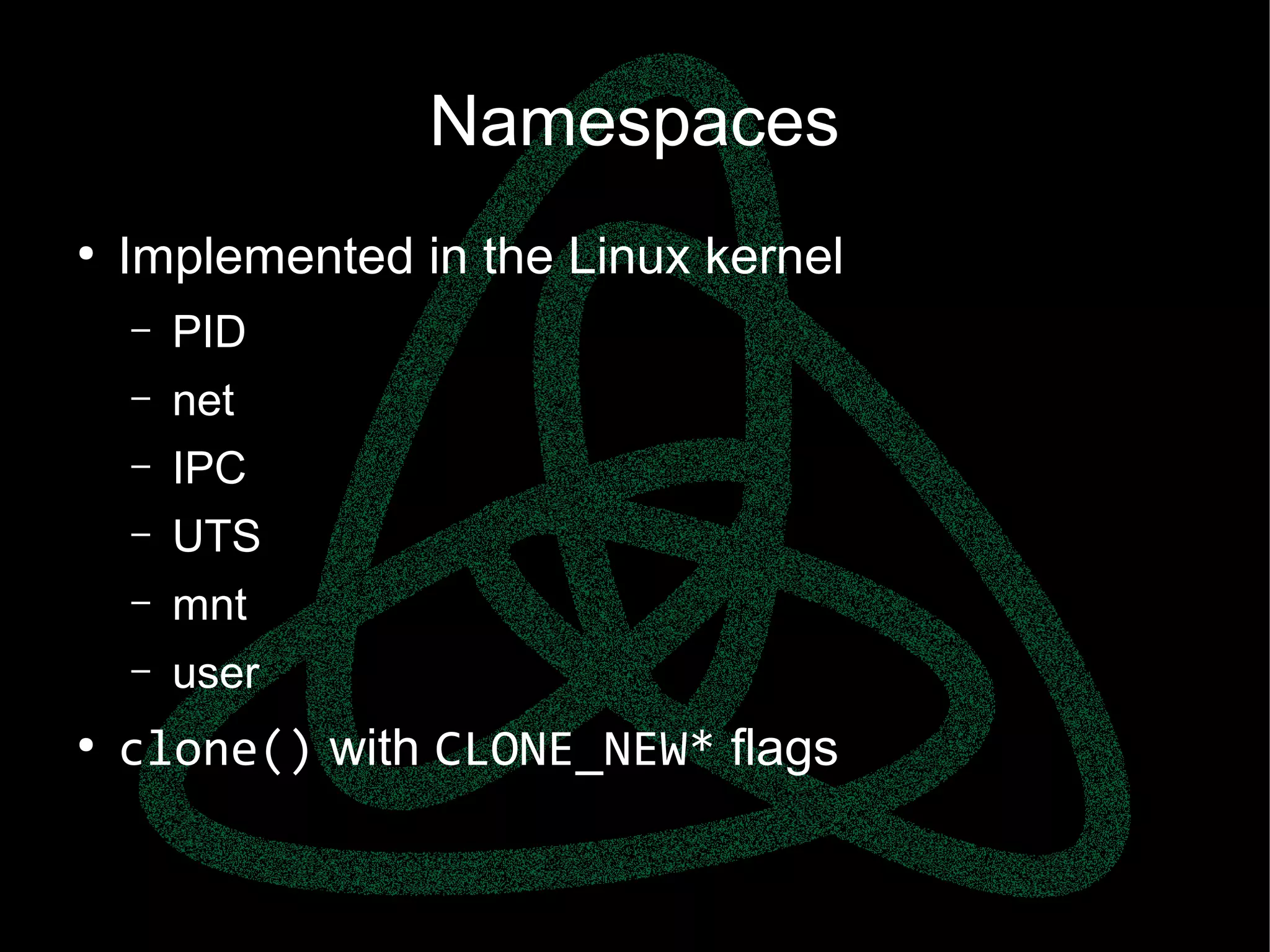

Namespaces
●
Implemented in the Linux kernel
– PID
– net
– IPC
– UTS
– mnt
– user
●
clone() with CLONE_NEW* flags

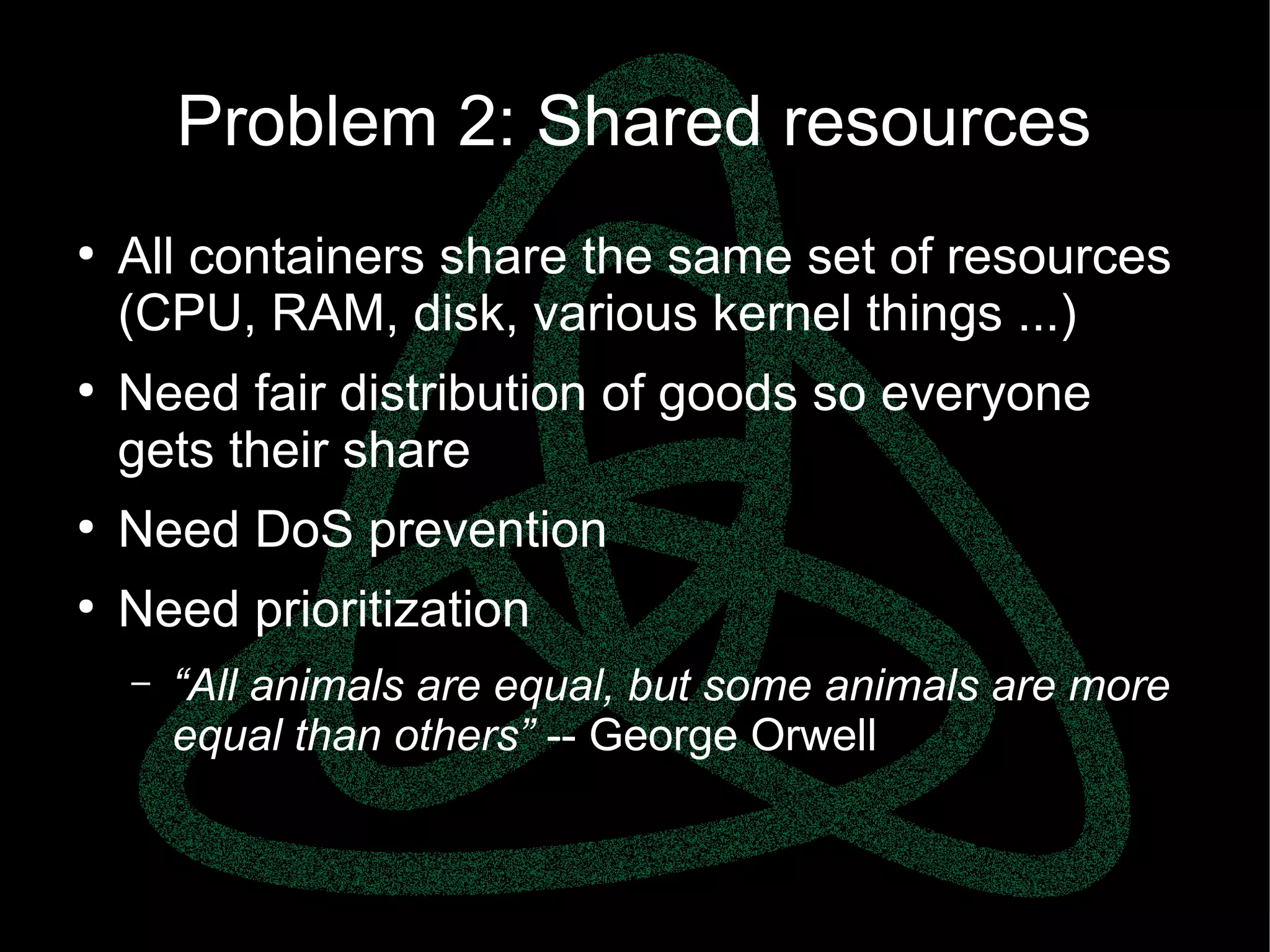

Problem 2: Shared resources
●
All containers share the same set of resources
(CPU, RAM, disk, various kernel things ...)
●
Need fair distribution of goods so everyone
gets their share
●
Need DoS prevention
●
Need prioritization
– “All animals are equal, but some animals are more
equal than others” -- George Orwell

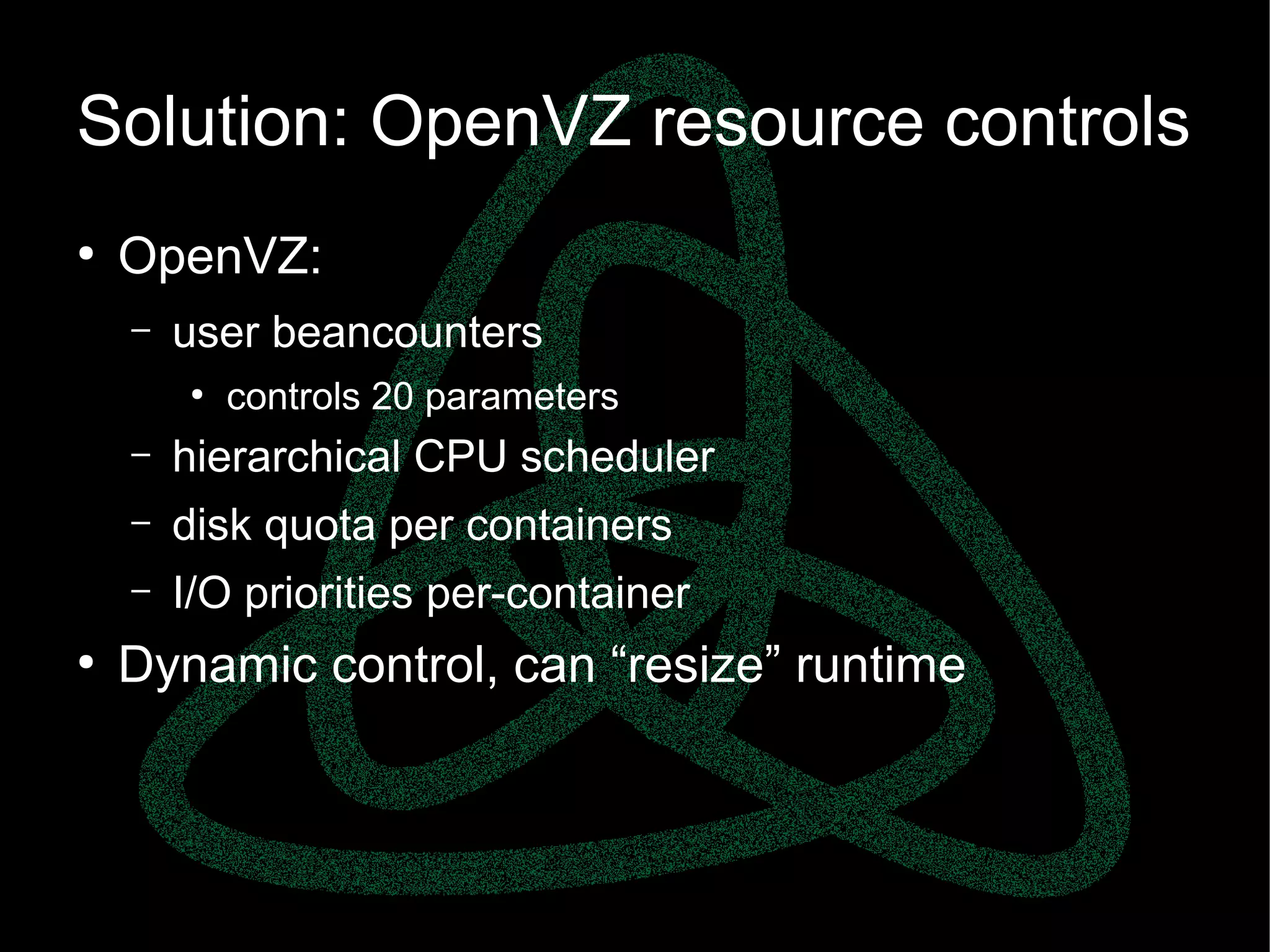

Solution: OpenVZ resource controls
●
OpenVZ:
– user beancounters
●
controls 20 parameters
– hierarchical CPU scheduler
– disk quota per containers
– I/O priorities per-container
●
Dynamic control, can “resize” runtime

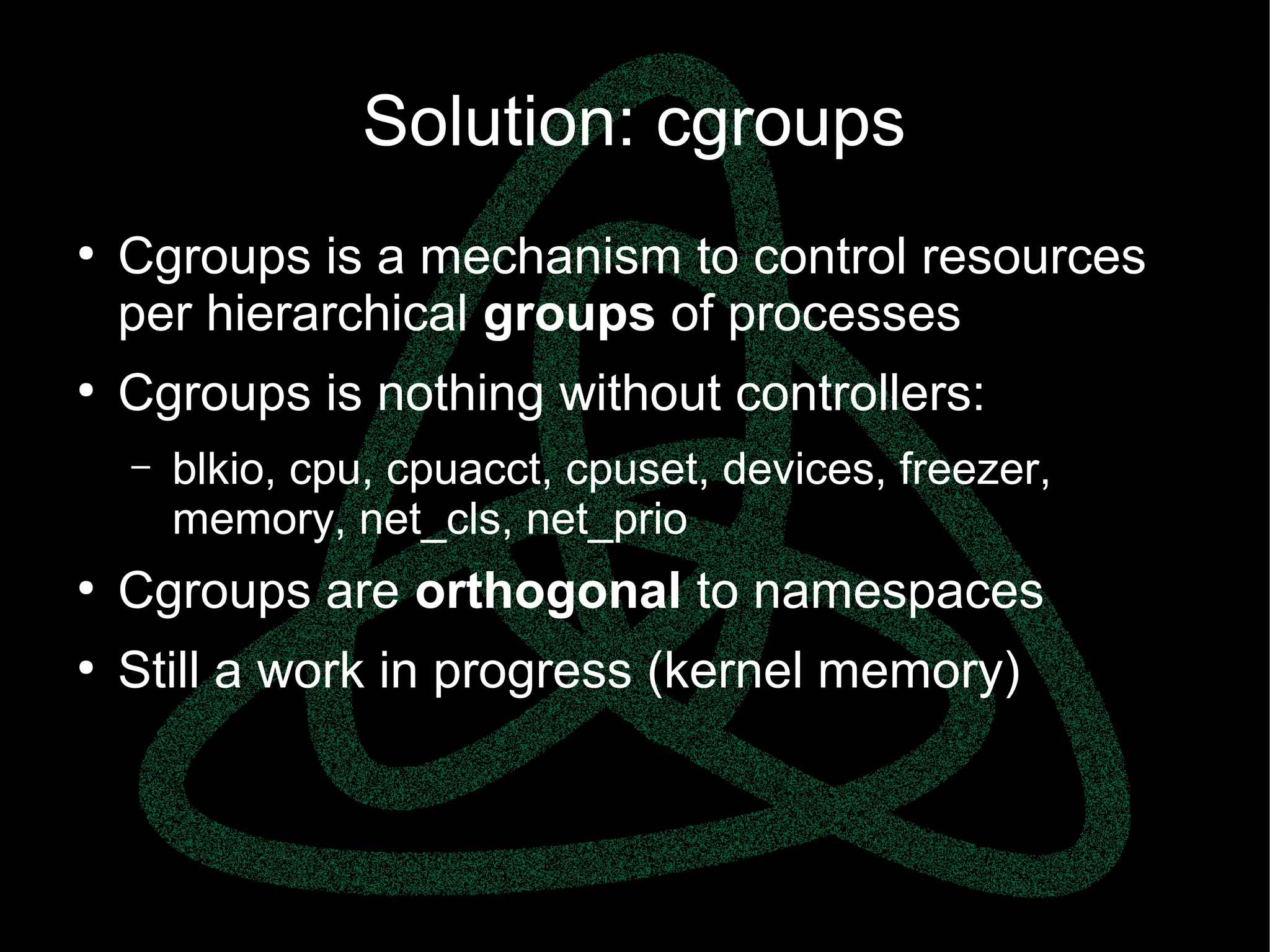

Solution: cgroups
●
Cgroups is a mechanism to control resources
per hierarchical groups of processes
●
Cgroups is nothing without controllers:
– blkio, cpu, cpuacct, cpuset, devices, freezer,
memory, net_cls, net_prio
●
Cgroups are orthogonal to namespaces
●
Still a work in progress (kernel memory)

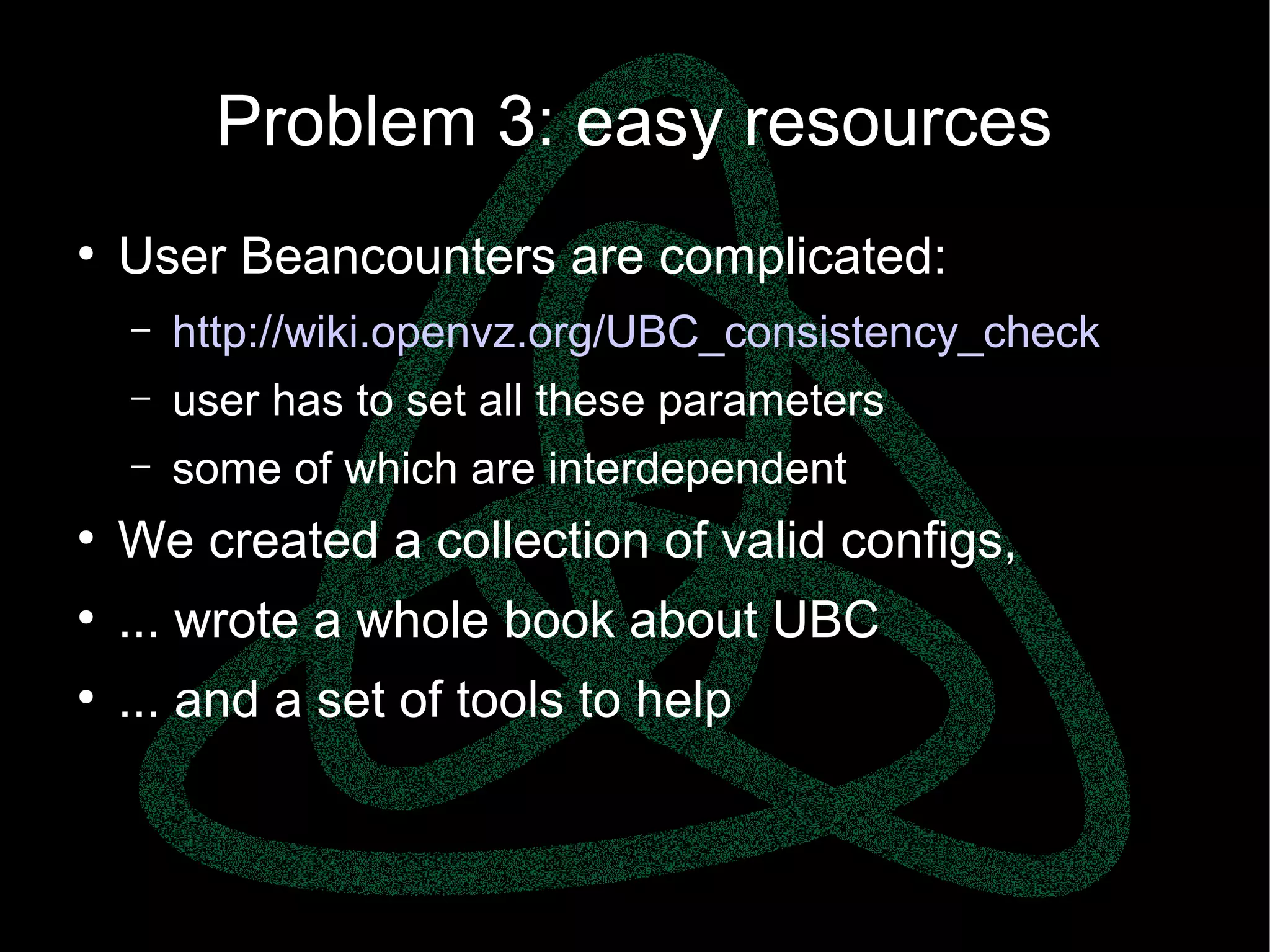

Problem 3: easy resources
●
User Beancounters are complicated:
– http://wiki.openvz.org/UBC_consistency_check
– user has to set all these parameters
– some of which are interdependent
●
We created a collection of valid configs,
●
... wrote a whole book about UBC
●
... and a set of tools to help

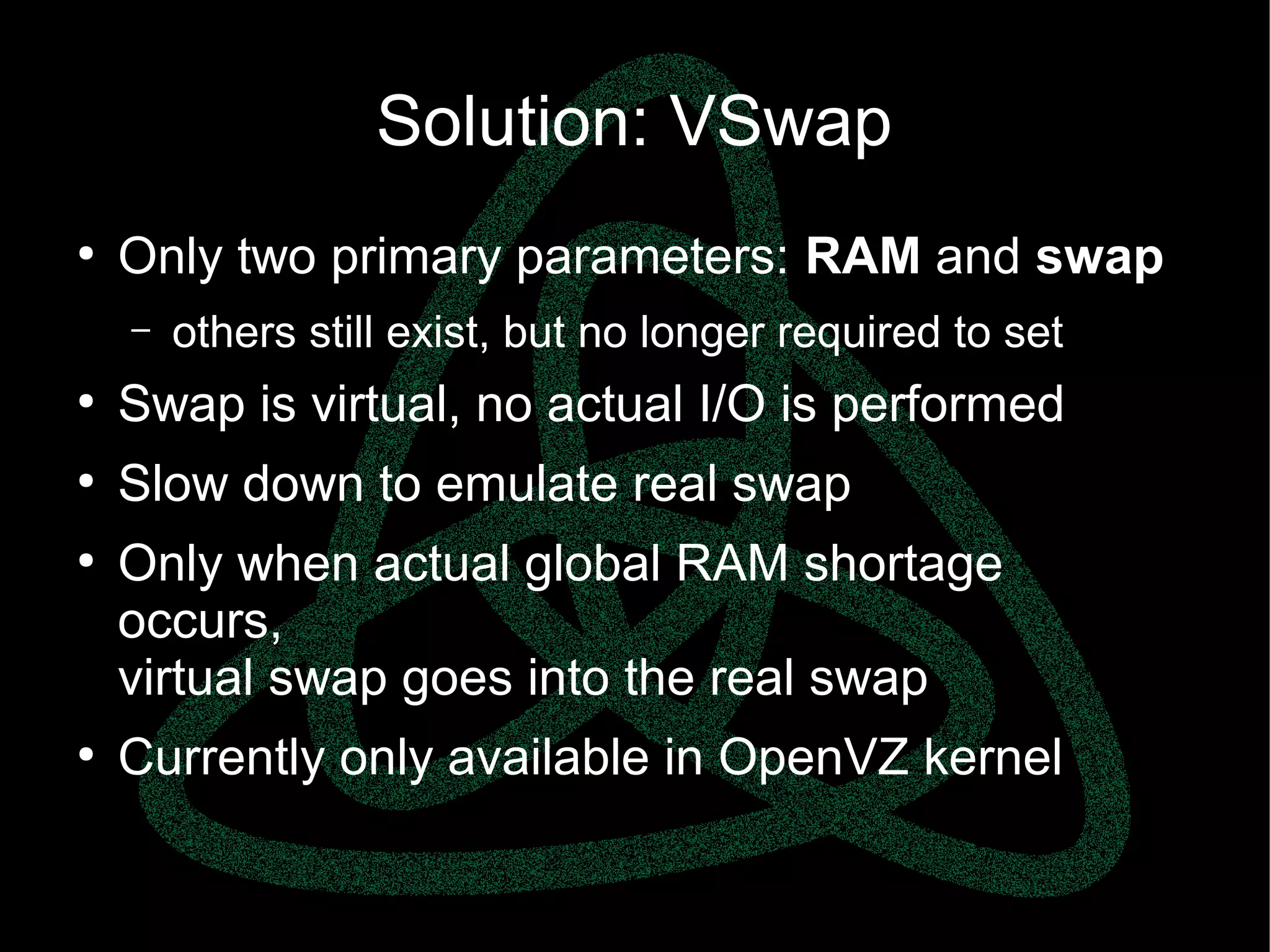

Solution: VSwap
●
Only two primary parameters: RAM and swap
– others still exist, but no longer required to set
●
Swap is virtual, no actual I/O is performed
●
Slow down to emulate real swap
●
Only when actual global RAM shortage
occurs,
virtual swap goes into the real swap
●
Currently only available in OpenVZ kernel

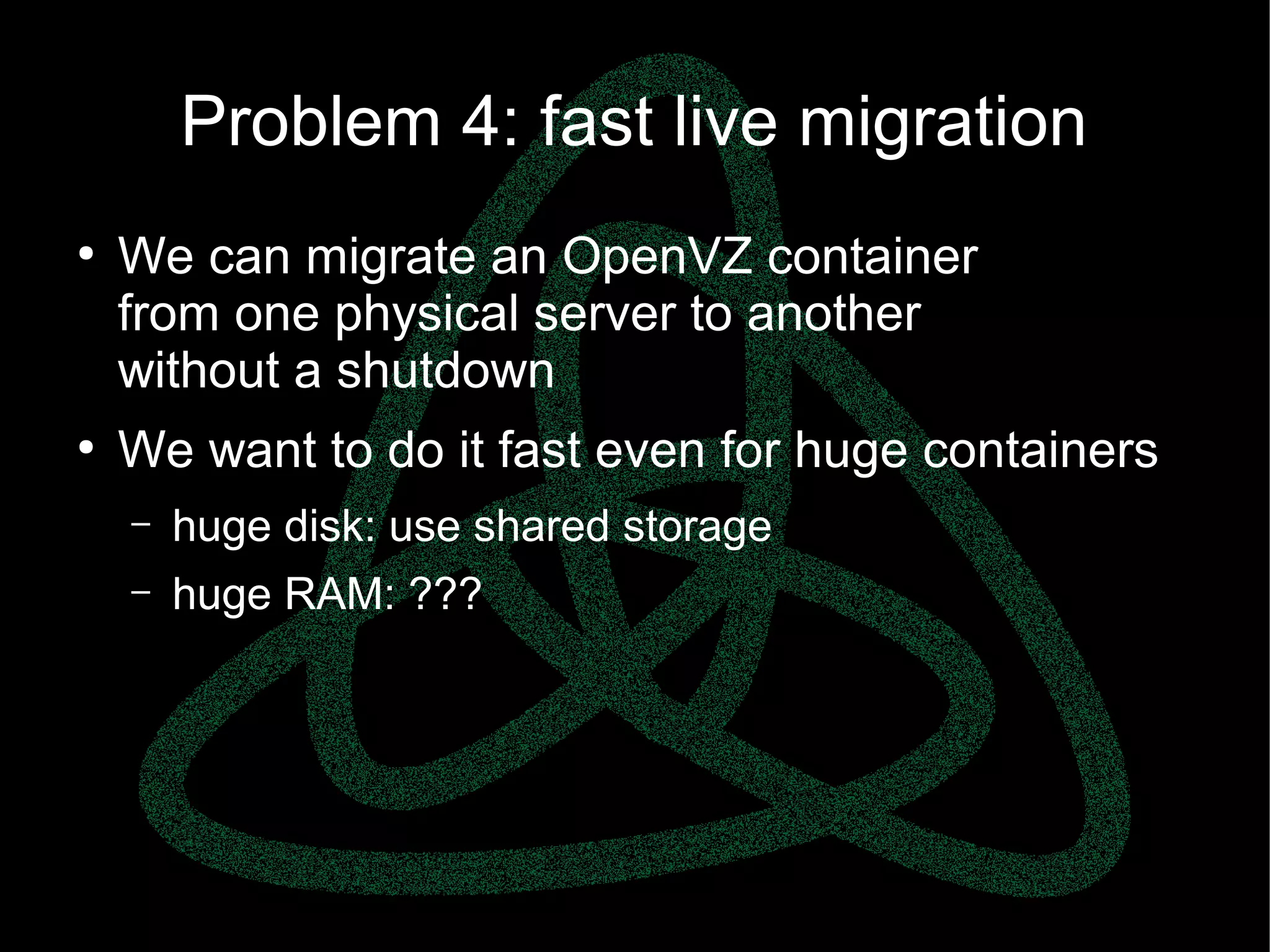

Problem 4: fast live migration
●
We can migrate an OpenVZ container
from one physical server to another
without a shutdown
●
We want to do it fast even for huge containers
– huge disk: use shared storage
– huge RAM: ???

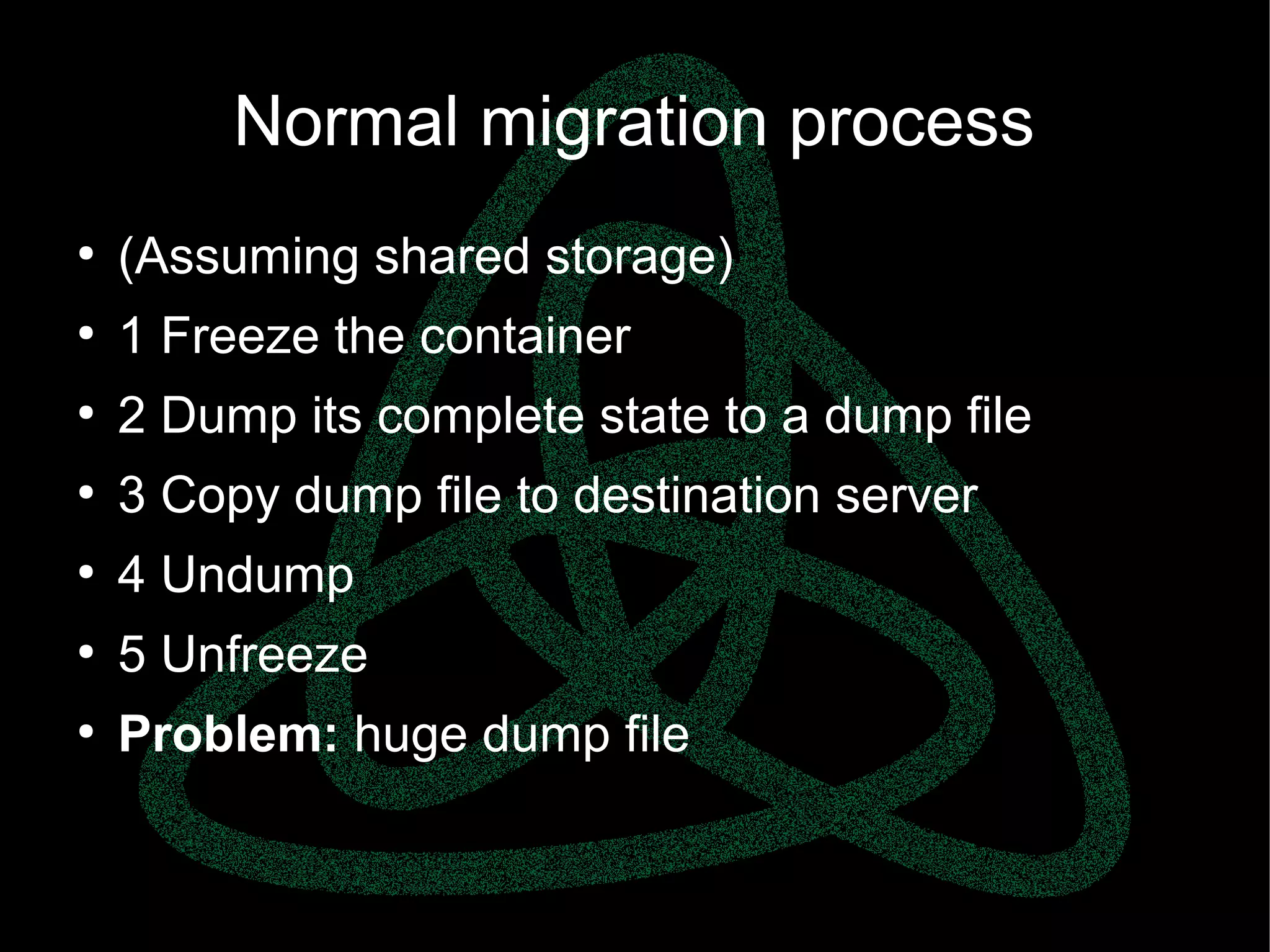

Normal migration process
●
(Assuming shared storage)
●
1 Freeze the container
●
2 Dump its complete state to a dump file
●
3 Copy dump file to destination server
●
4 Undump
●
5 Unfreeze
●
Problem: huge dump file

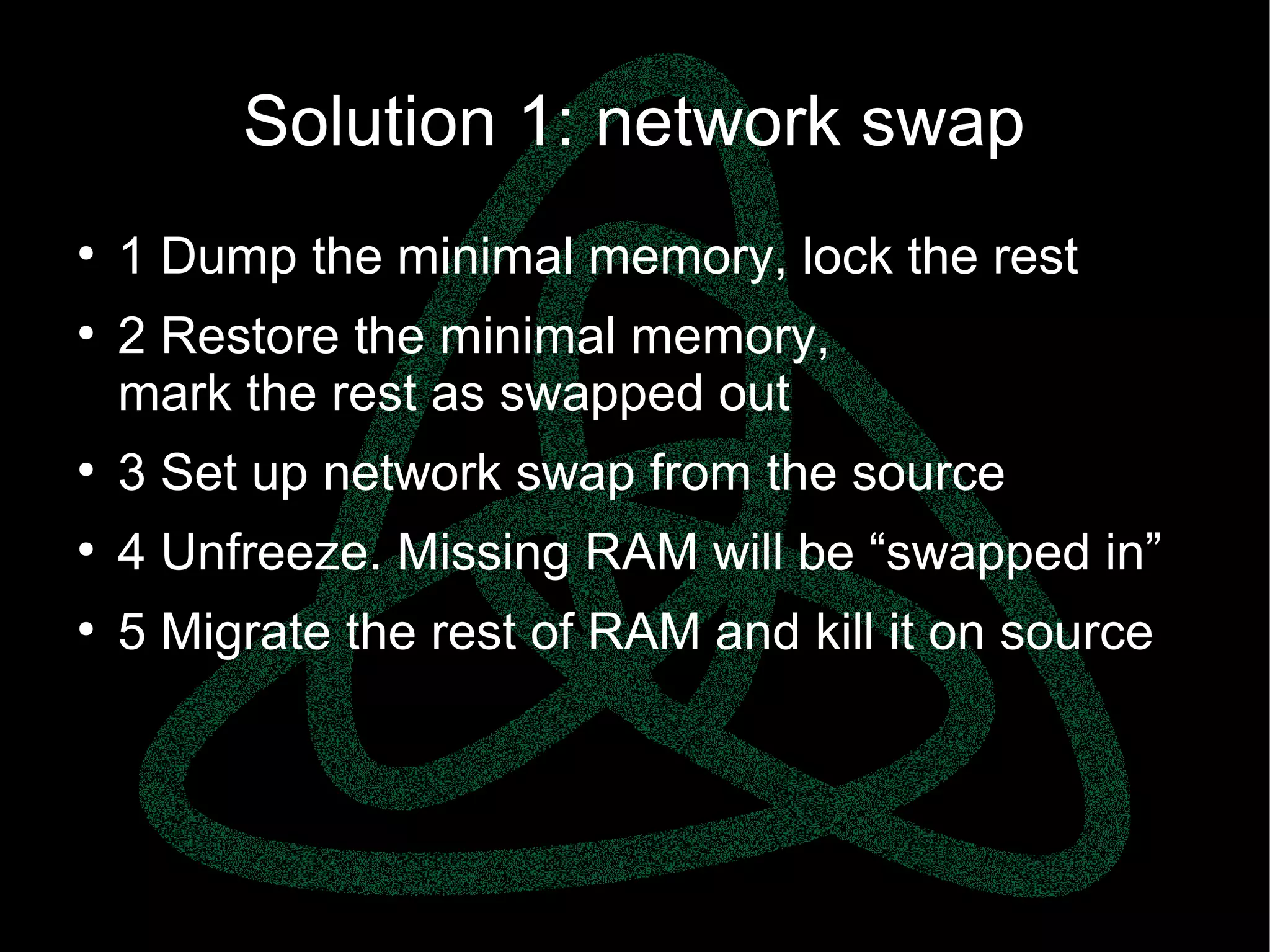

Solution 1: network swap
●
1 Dump the minimal memory, lock the rest
●
2 Restore the minimal memory,
mark the rest as swapped out
●
3 Set up network swap from the source
●
4 Unfreeze. Missing RAM will be “swapped in”
●
5 Migrate the rest of RAM and kill it on source

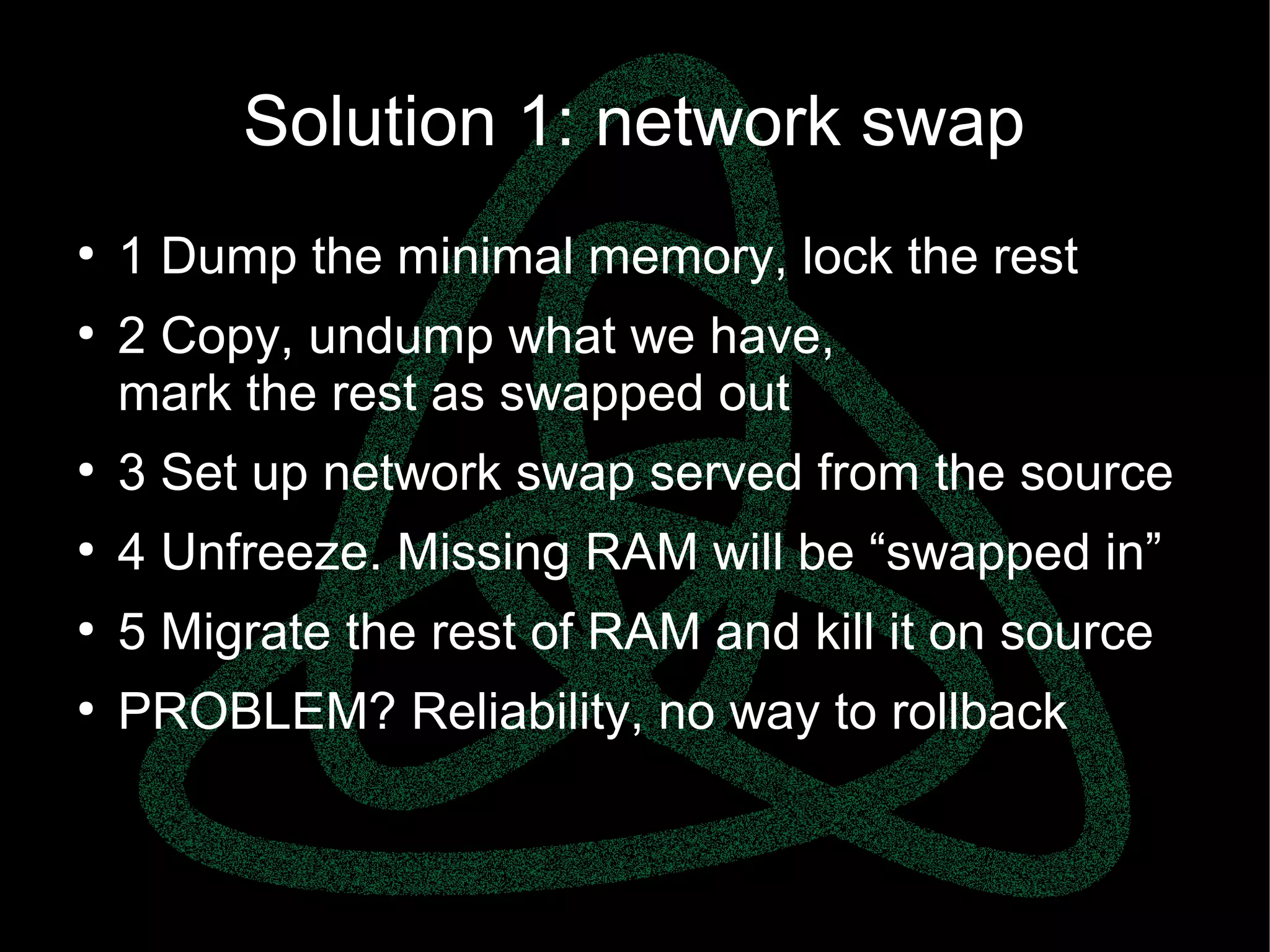

Solution 1: network swap
●
1 Dump the minimal memory, lock the rest
●
2 Copy, undump what we have,
mark the rest as swapped out
●
3 Set up network swap served from the source
●
4 Unfreeze. Missing RAM will be “swapped in”
●
5 Migrate the rest of RAM and kill it on source
●
PROBLEM? Reliability, no way to rollback

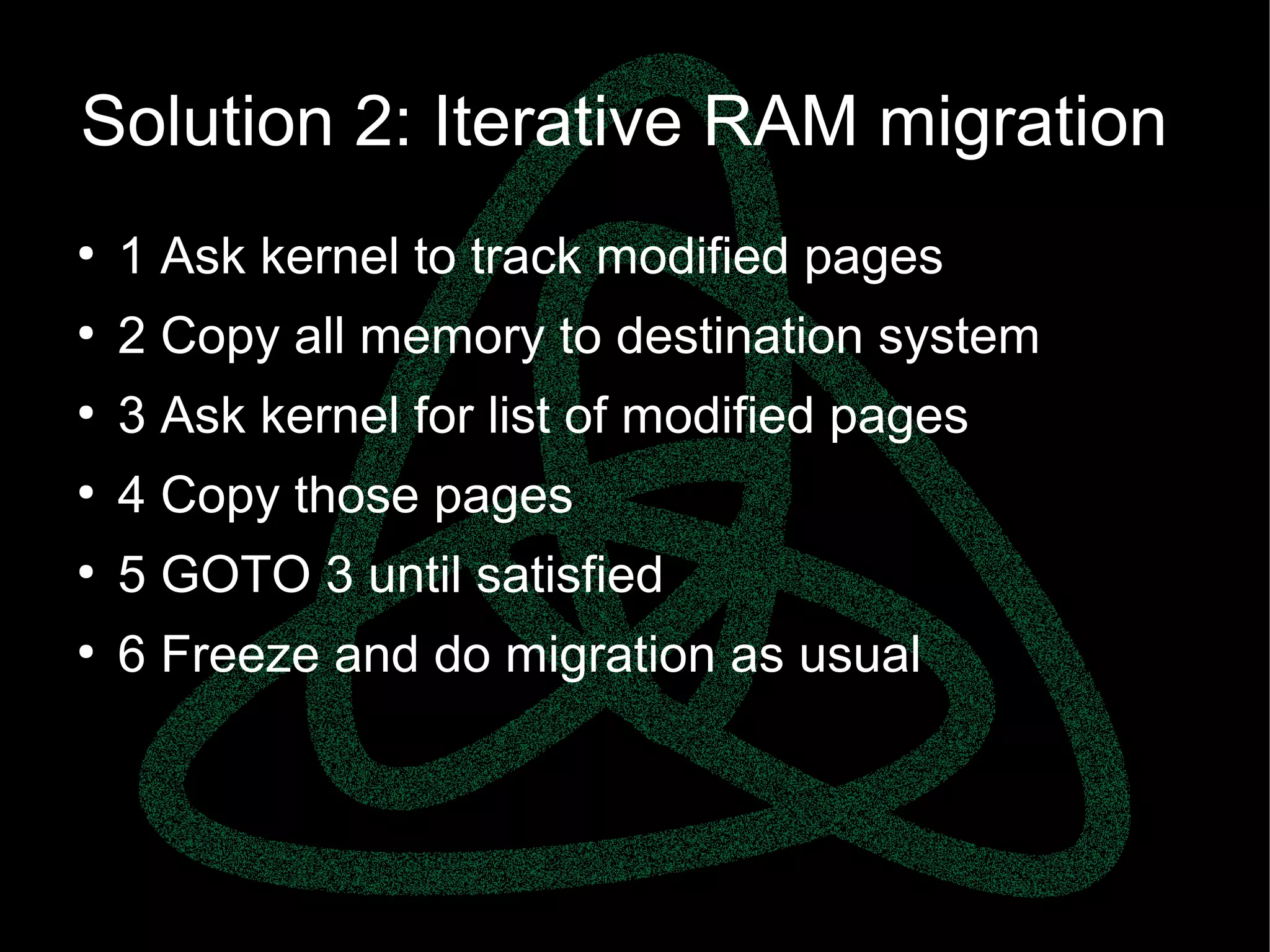

Solution 2: Iterative RAM migration
●
1 Ask kernel to track modified pages
●
2 Copy all memory to destination system
●
3 Ask kernel for list of modified pages
●
4 Copy those pages
●
5 GOTO 3 until satisfied
●
6 Freeze and do migration as usual

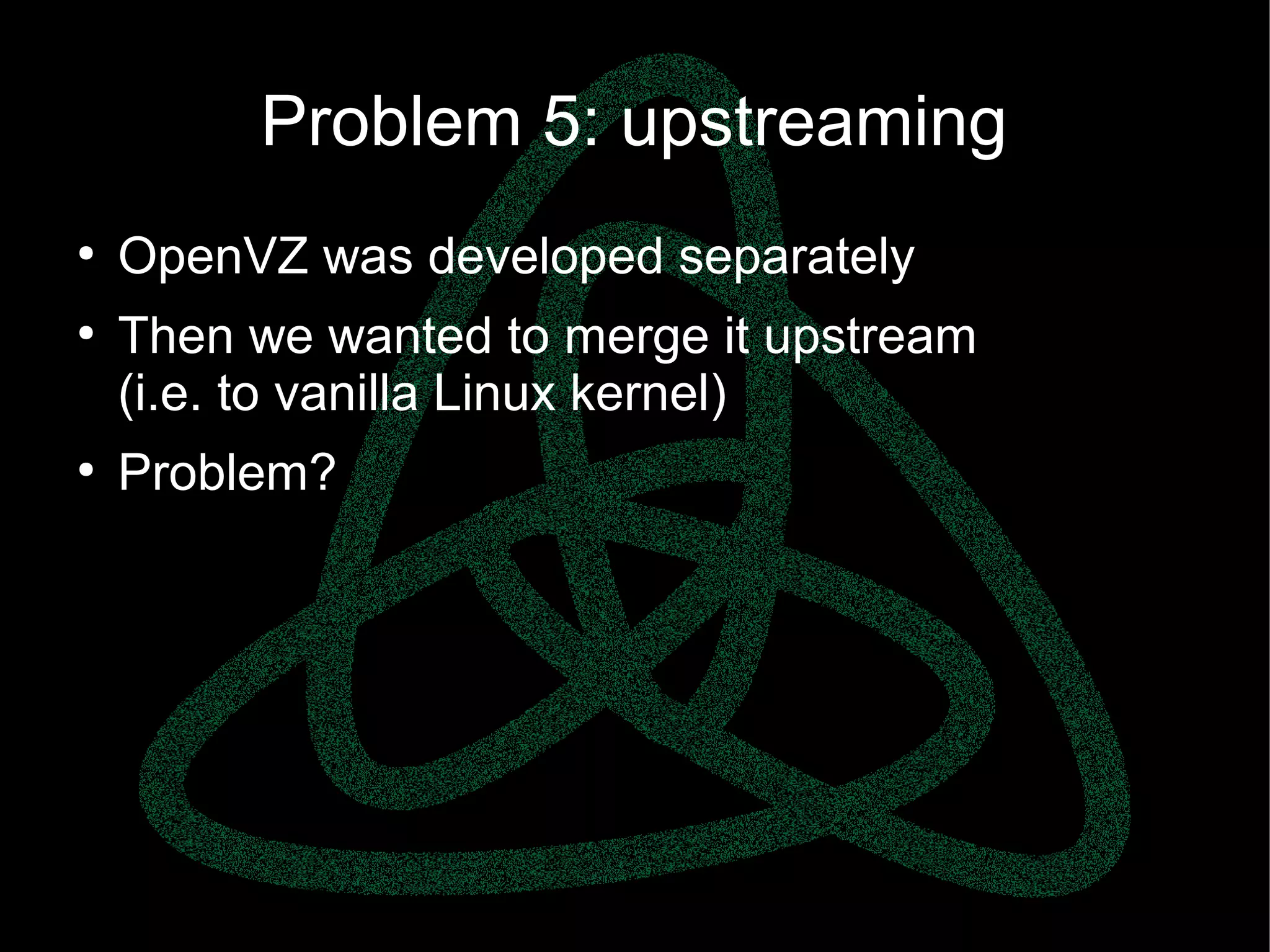

Problem 5: upstreaming
●
OpenVZ was developed separately
●
Then we wanted to merge it upstream
(i.e. to vanilla Linux kernel)
●
Problem?

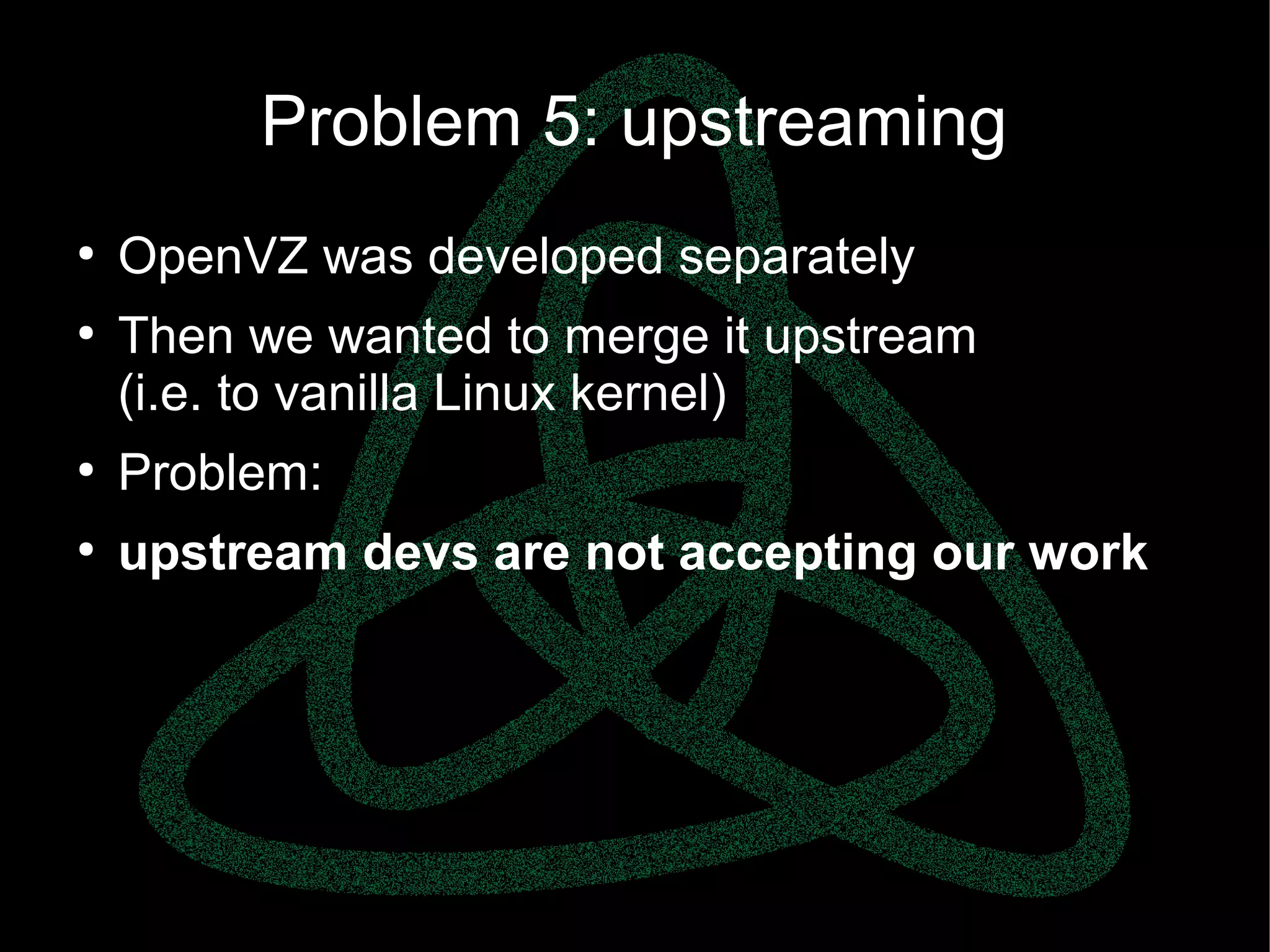

Problem 5: upstreaming
●
OpenVZ was developed separately
●
Then we wanted to merge it upstream
(i.e. to vanilla Linux kernel)
●
Problem:
●
upstream devs are not accepting our work

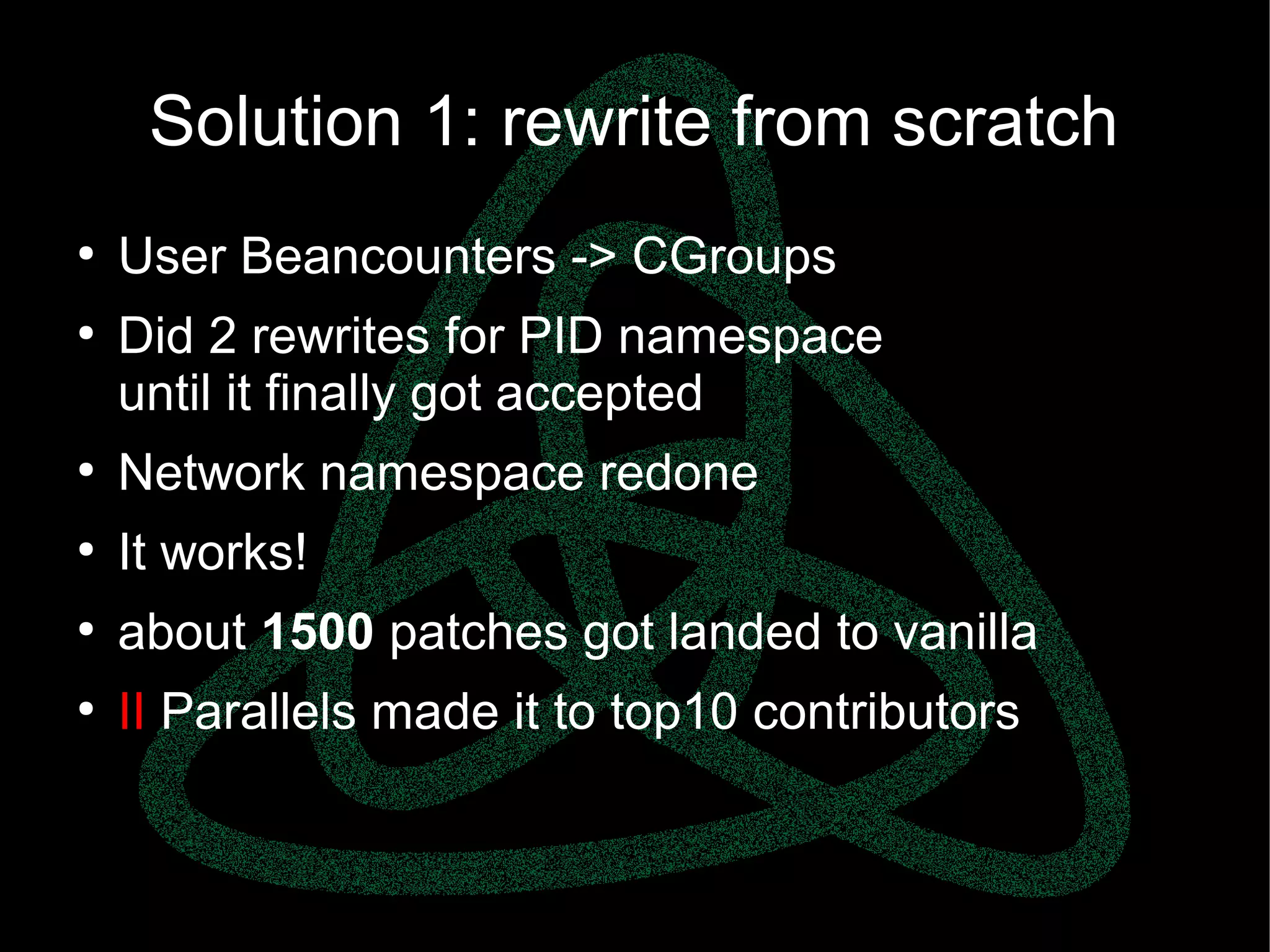

Solution 1: rewrite from scratch
●
User Beancounters -> CGroups
●
Did 2 rewrites for PID namespace
until it finally got accepted
●
Network namespace redone
●
It works!
●
about 1500 patches got landed to vanilla
●
II Parallels made it to top10 contributors

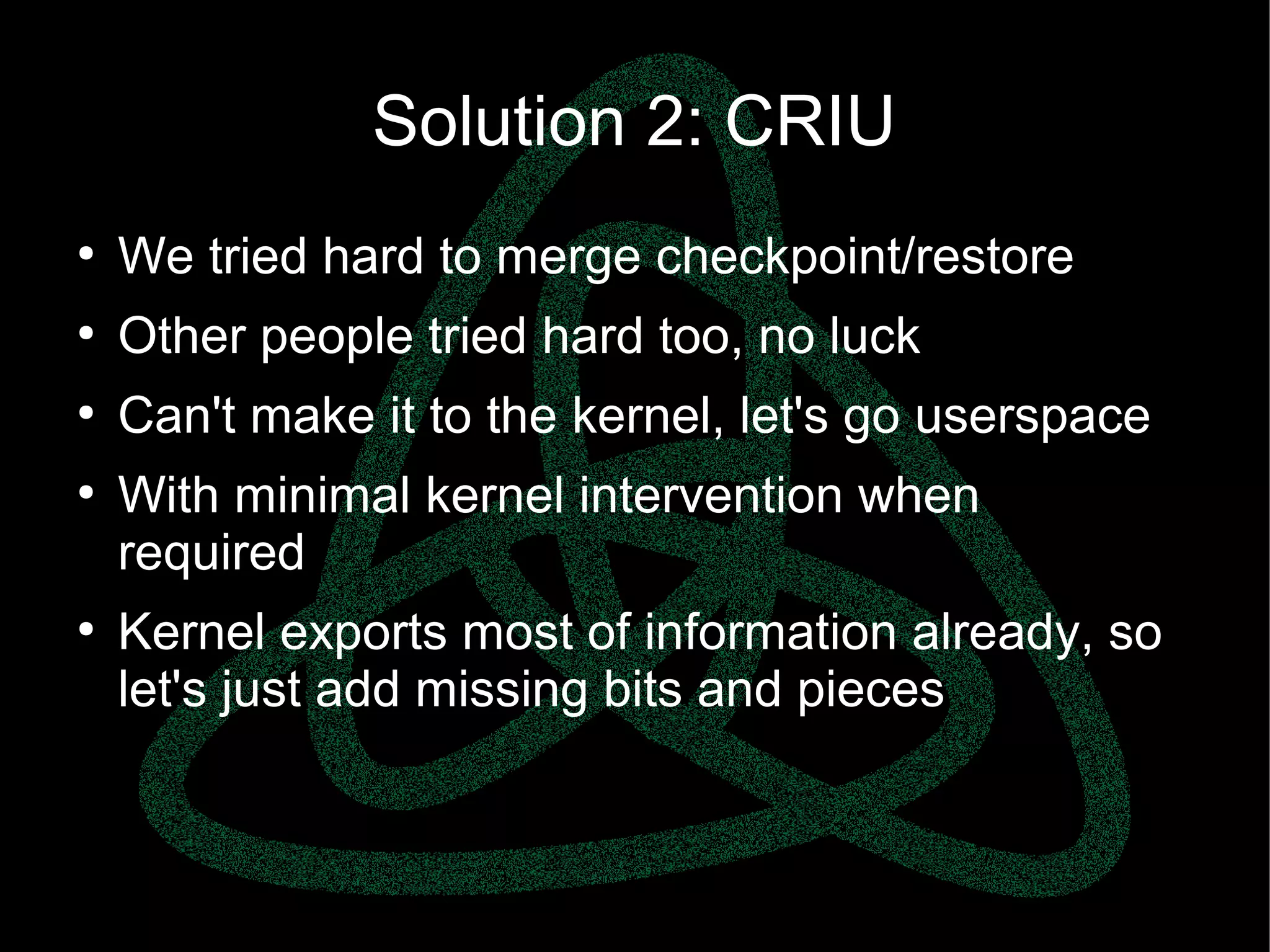

Solution 2: CRIU
●
We tried hard to merge checkpoint/restore
●
Other people tried hard too, no luck
●
Can't make it to the kernel, let's go userspace
●
With minimal kernel intervention when
required
●
Kernel exports most of information already, so
let's just add missing bits and pieces

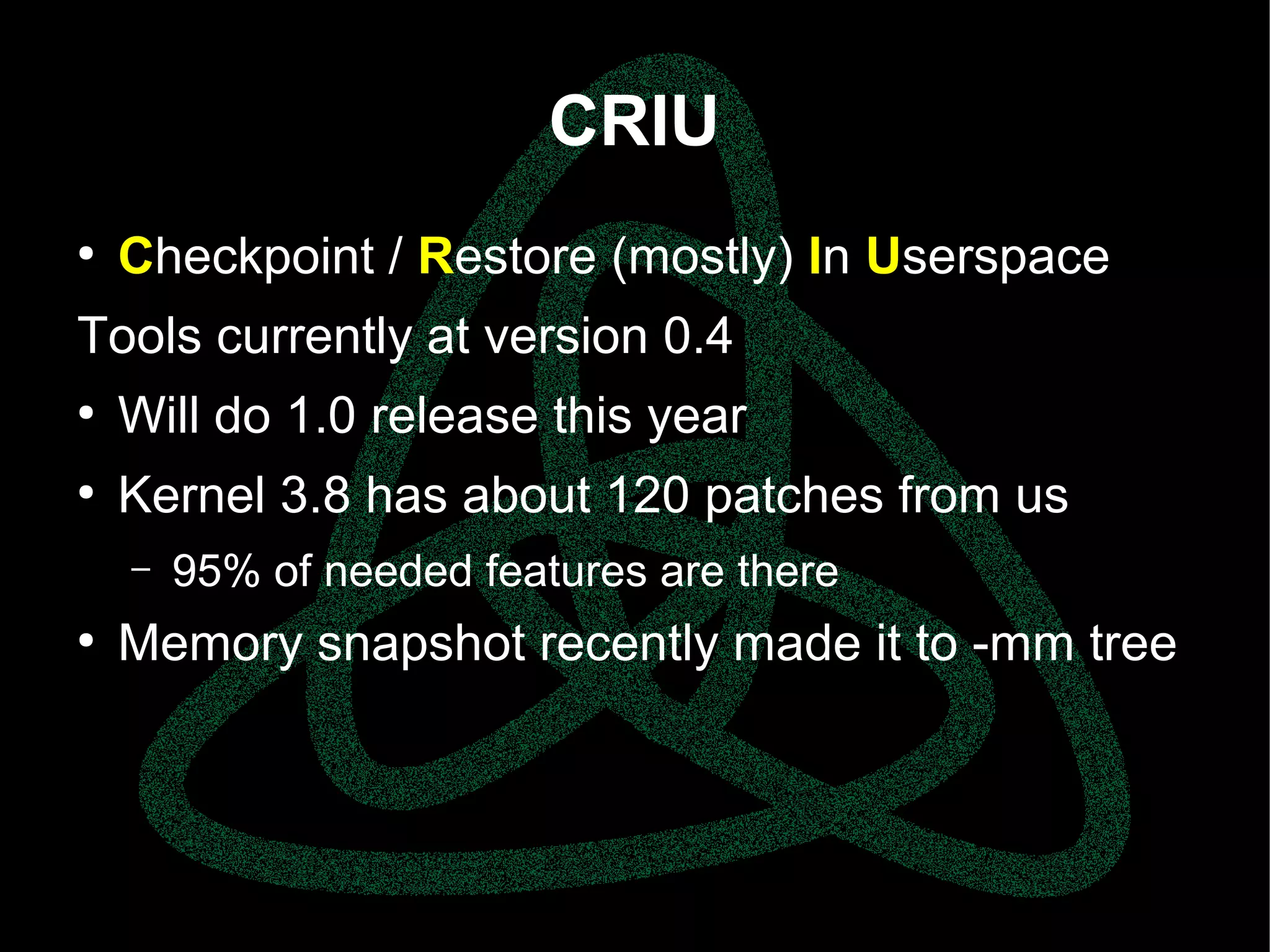

CRIU
●
Checkpoint / Restore (mostly) In Userspace
Tools currently at version 0.4
●
Will do 1.0 release this year
●
Kernel 3.8 has about 120 patches from us
– 95% of needed features are there
●
Memory snapshot recently made it to -mm tree

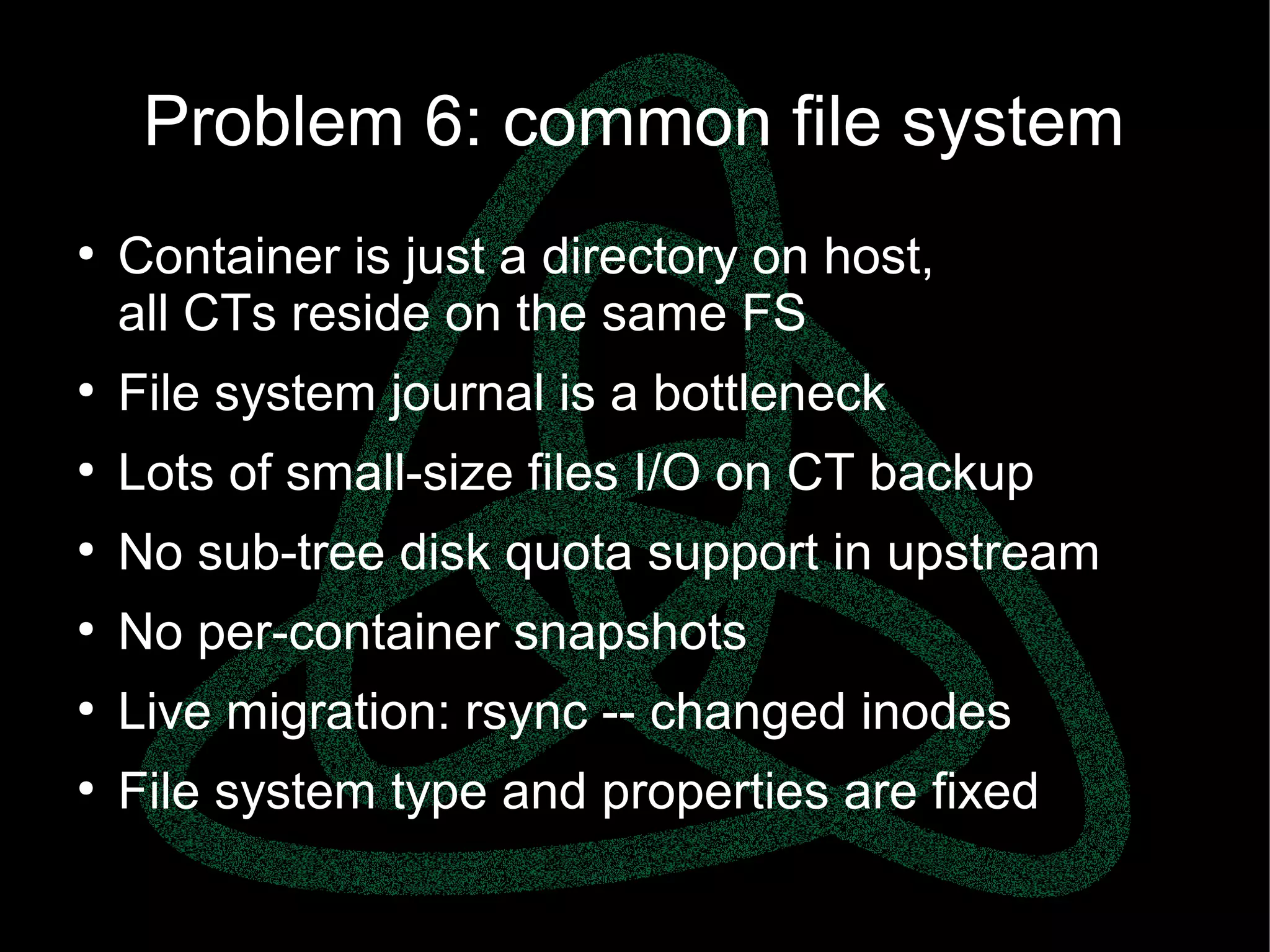

Problem 6: common file system
●
Container is just a directory on host,
all CTs reside on the same FS
●
File system journal is a bottleneck
●
Lots of small-size files I/O on CT backup
●
No sub-tree disk quota support in upstream
●
No per-container snapshots
●
Live migration: rsync -- changed inodes
●
File system type and properties are fixed

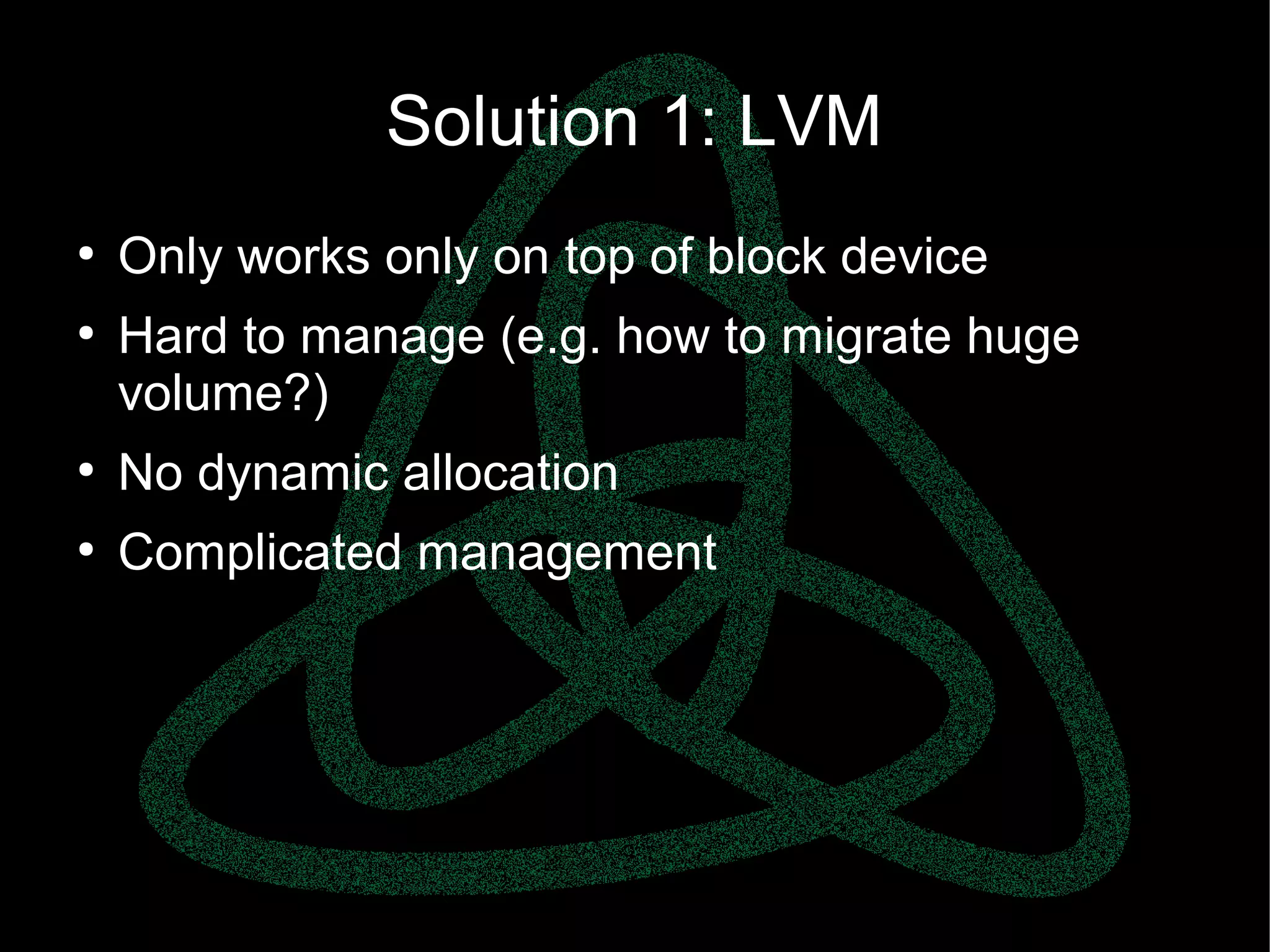

Solution 1: LVM
●
Only works only on top of block device
●
Hard to manage (e.g. how to migrate huge
volume?)
●
No dynamic allocation
●
Complicated management

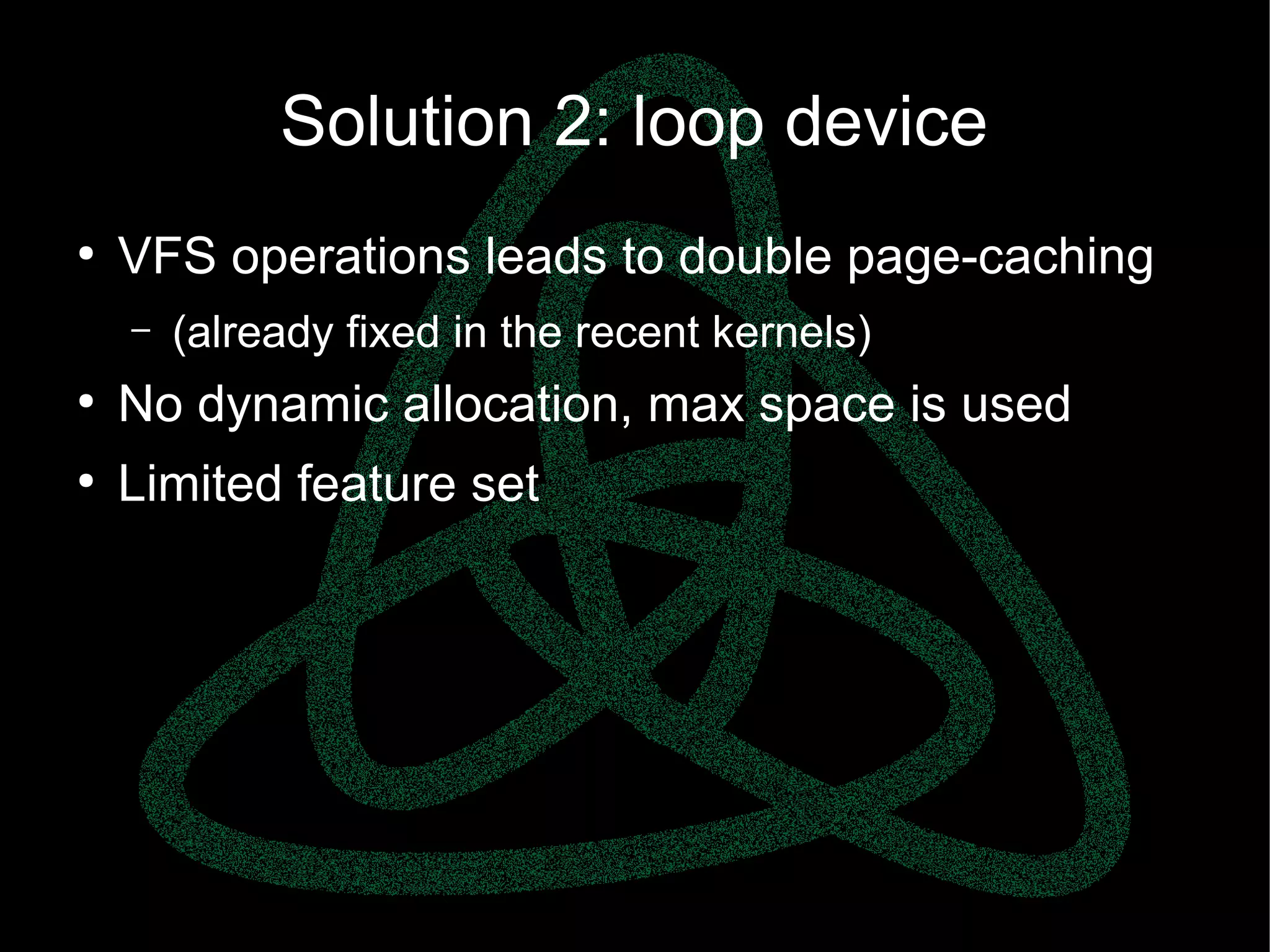

Solution 2: loop device
●
VFS operations leads to double page-caching
– (already fixed in the recent kernels)
●
No dynamic allocation, max space is used
●
Limited feature set

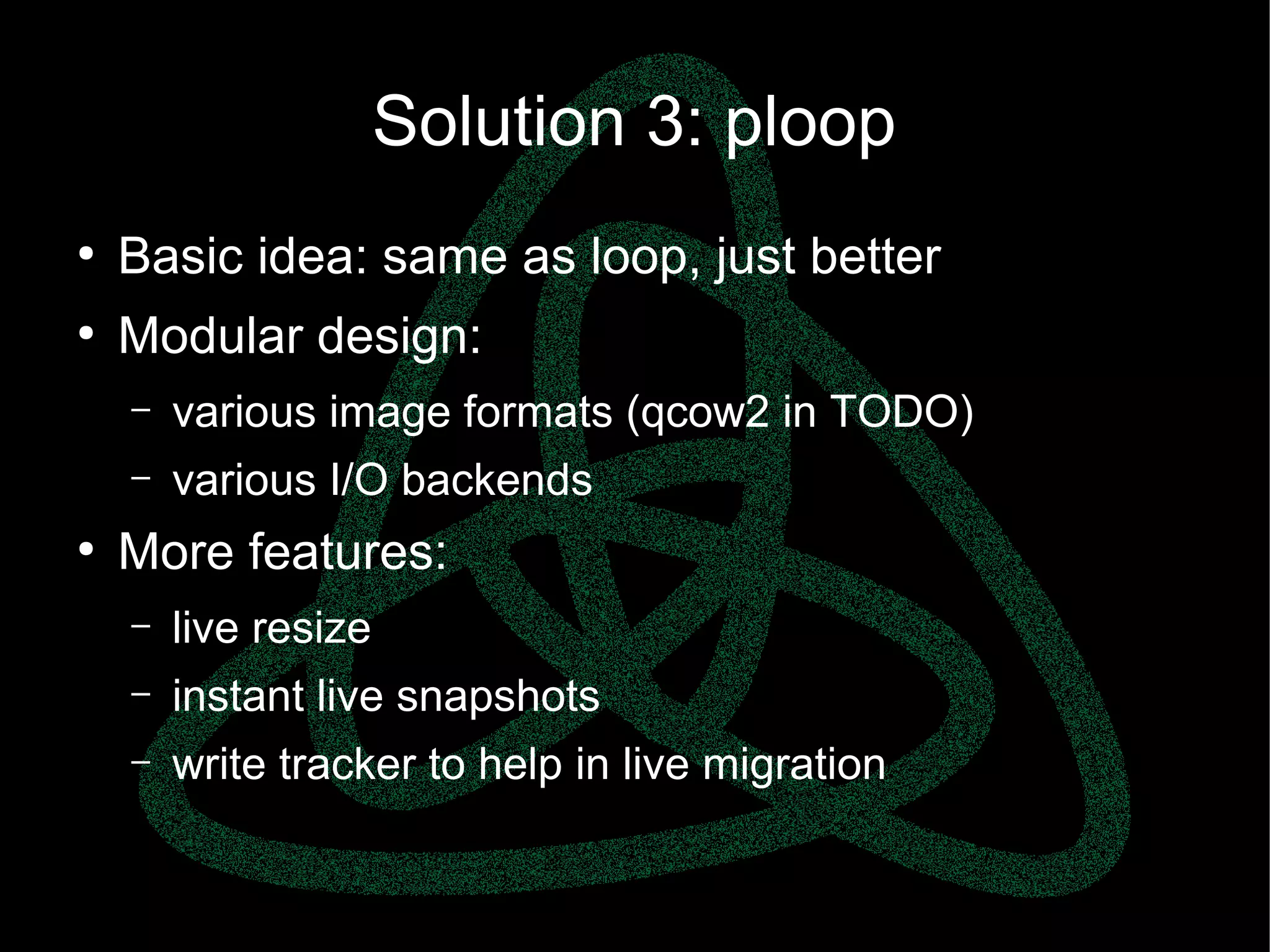

Solution 3: ploop
●
Basic idea: same as loop, just better
●
Modular design:
– various image formats (qcow2 in TODO)
– various I/O backends
●
More features:
– live resize
– instant live snapshots
– write tracker to help in live migration

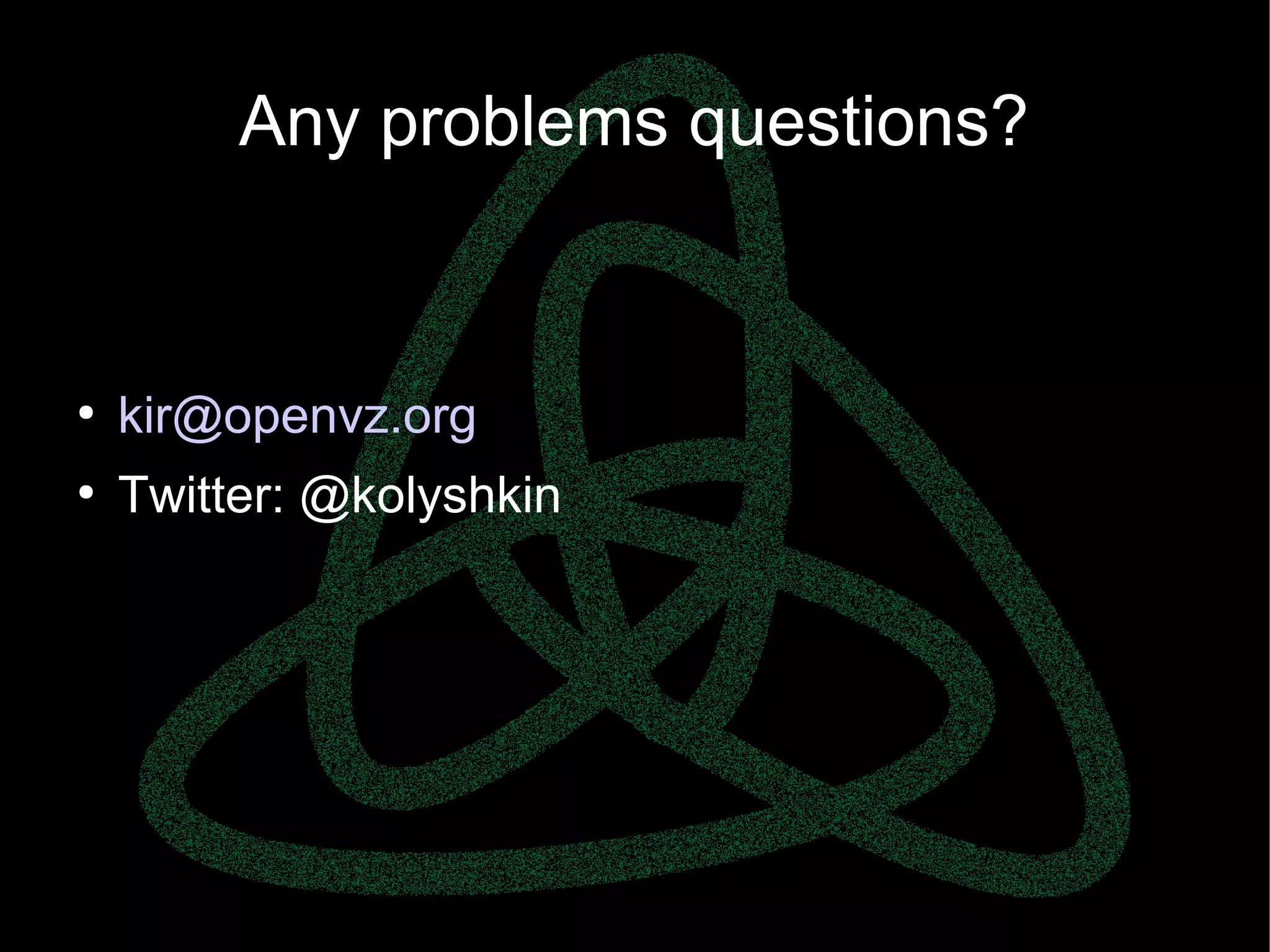

Any problems questions?
●
kir@openvz.org
●
Twitter: @kolyshkin
