44CON 2014: Using hadoop for malware, network, forensics and log analysis
The document discusses utilizing Hadoop for various types of analysis, including malware, network forensics, and log analysis. It details how Hadoop's components and infrastructure can be employed for tasks like malware sample processing, packet capture analysis, and file information ingestion and reporting. Additionally, it includes cost-saving strategies for cloud storage and processing of these analyses.
More Related Content
Similar to 44CON 2014: Using hadoop for malware, network, forensics and log analysis
44CON 2014: Using hadoop for malware, network, forensics and log analysis

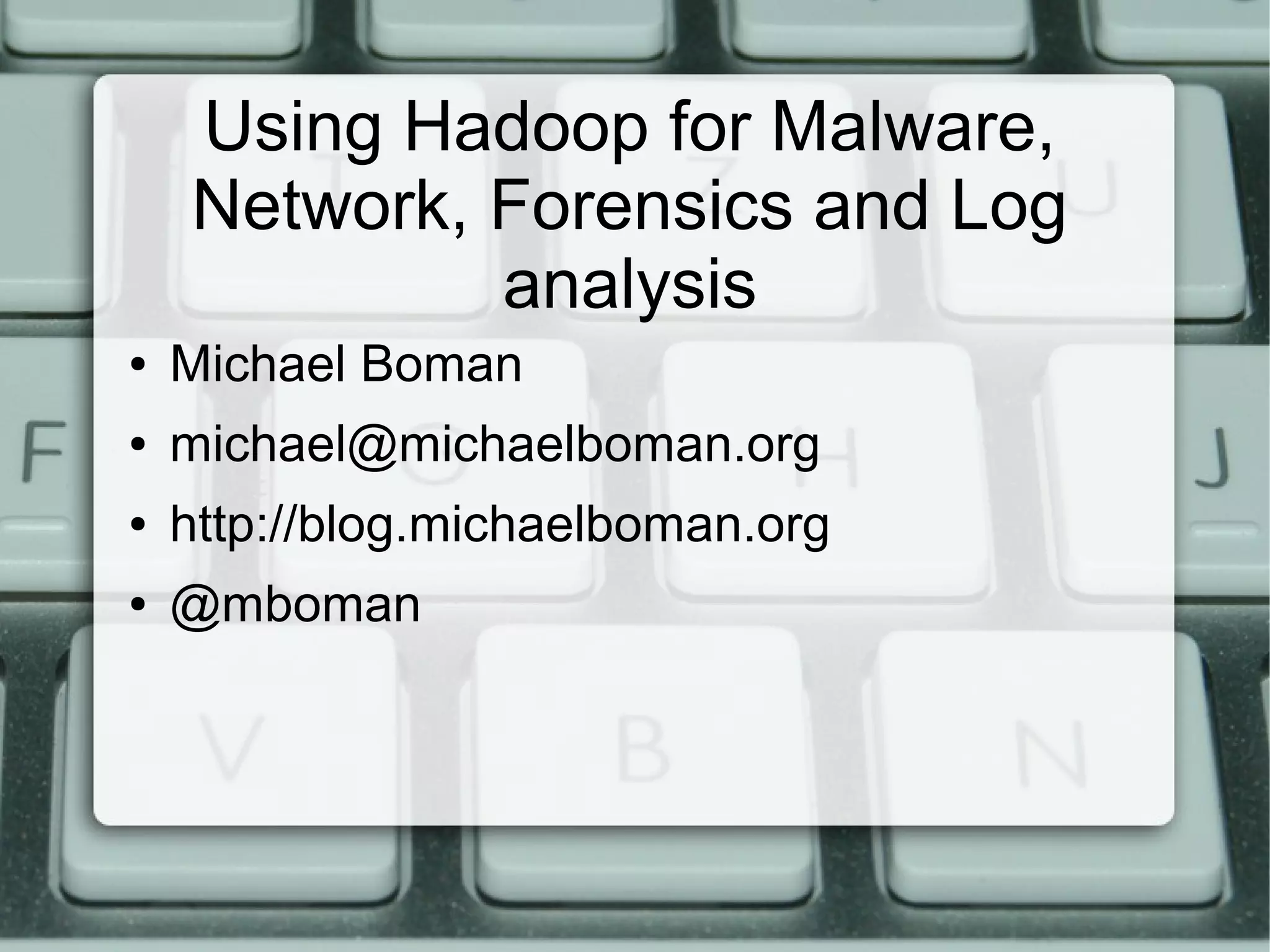

- 1. Using Hadoop forMalware, Network, Forensics and Log analysis ● Michael Boman ● michael@michaelboman.org ● http://blog.michaelboman.org ● @mboman
- 2. Background ● 44CON2012 – Malware analysis as a hobby ● DEEPSEC 2012 – Malware analysis on a shoe-string budget ● DEEPSEC 2013 - Malware Datamining and Attribution

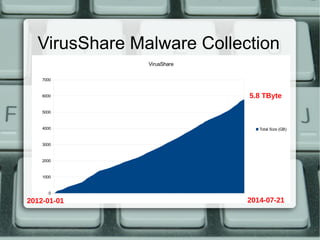

- 4. VirusShare Malware Collection 7000 6000 5000 4000 3000 2000 1000 0 VirusShare 5.8 TByte Total Size (GB) 2012-01-01 2014-07-21
- 5.

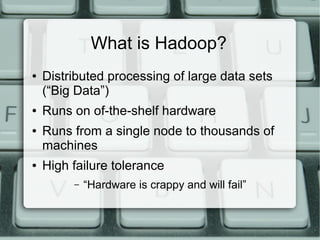

- 6. What is Hadoop? ● Distributed processing of large data sets (“Big Data”) ● Runs on of-the-shelf hardware ● Runs from a single node to thousands of machines ● High failure tolerance – “Hardware is crappy and will fail”

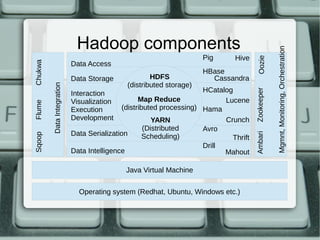

- 7. Hadoop components DataAccess Data Storage Interaction Visualization Execution Development Data Serialization Data Intelligence Java Virtual Machine Operating system (Redhat, Ubuntu, Windows etc.) Data Integration Sqoop Flume Chukwa HDFS (distributed storage) Map Reduce (distributed processing) YARN (Distributed Scheduling) Pig Hive HBase Cassandra HCatalog Lucene Hama Crunch Avro Thrift Drill Mahout Mgmnt, Monitoring, Orchestration Ambari Zookeeper Oozie

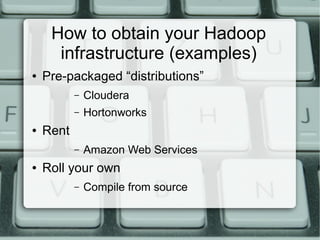

- 8. How to obtainyour Hadoop infrastructure (examples) ● Pre-packaged “distributions” – Cloudera – Hortonworks ● Rent – Amazon Web Services ● Roll your own – Compile from source

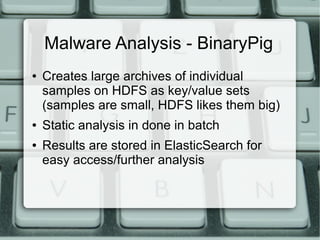

- 9. Malware Analysis -BinaryPig ● Creates large archives of individual samples on HDFS as key/value sets (samples are small, HDFS likes them big) ● Static analysis in done in batch ● Results are stored in ElasticSearch for easy access/further analysis

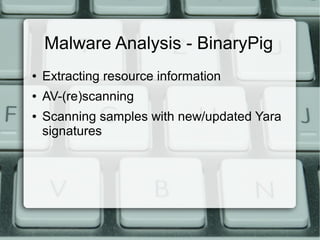

- 10. Malware Analysis -BinaryPig ● Extracting resource information ● AV-(re)scanning ● Scanning samples with new/updated Yara signatures

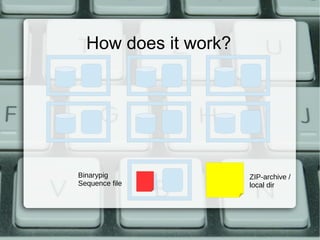

- 11. How does itwork? ZIP-archive / local dir Binarypig Sequence file

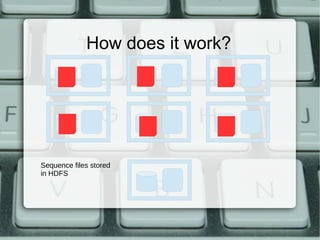

- 12. How does itwork? Sequence files stored in HDFS
- 13. How does itwork? Pig-scripts for: Hashes ClamAV Yara Strings

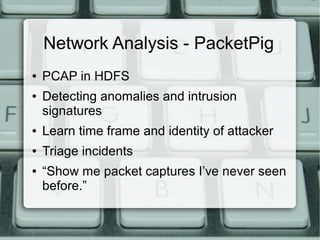

- 14. Network Analysis -PacketPig ● PCAP in HDFS ● Detecting anomalies and intrusion signatures ● Learn time frame and identity of attacker ● Triage incidents ● “Show me packet captures I’ve never seen before.”

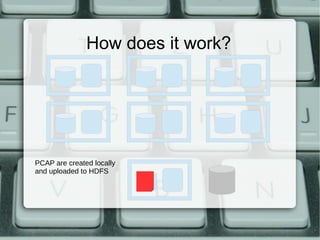

- 15. How does itwork? PCAP are created locally and uploaded to HDFS

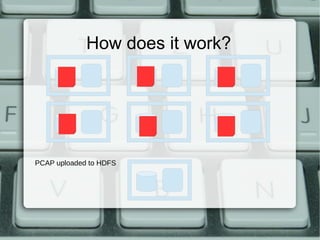

- 16. How does itwork? PCAP uploaded to HDFS

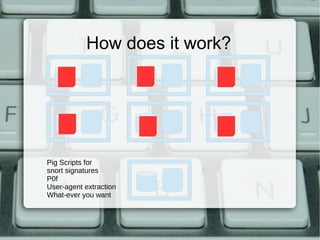

- 17. How does itwork? Pig Scripts for snort signatures P0f User-agent extraction What-ever you want

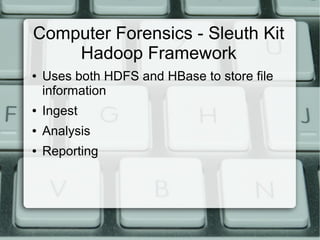

- 18. Computer Forensics -Sleuth Kit Hadoop Framework ● Uses both HDFS and HBase to store file information ● Ingest ● Analysis ● Reporting

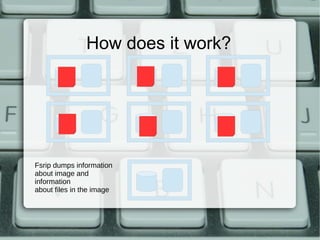

- 19. How does itwork? Fsrip dumps information about image and information about files in the image
- 20. How does itwork? Fsrip dumps information about image and information about files in the image

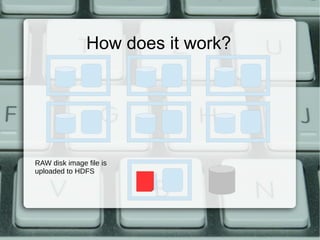

- 21. How does itwork? RAW disk image file is uploaded to HDFS
- 22. How does itwork? RAW disk image file is uploaded to HDFS
- 23. How does itwork? Populates HBase entries table with information from the hard drive files.
- 24. How does itwork? Extract raw filedata Keyword search Extracts text Tokenize Cluster similar objects Compare with other image
- 25. How does itwork? Build a report from previous steps

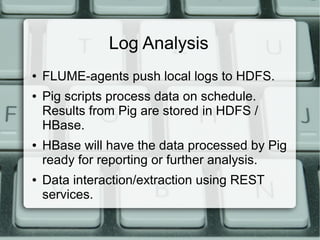

- 26. Log Analysis ●FLUME-agents push local logs to HDFS. ● Pig scripts process data on schedule. Results from Pig are stored in HDFS / HBase. ● HBase will have the data processed by Pig ready for reporting or further analysis. ● Data interaction/extraction using REST services.

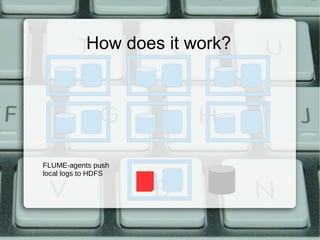

- 27. How does itwork? FLUME-agents push local logs to HDFS

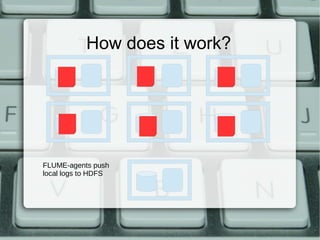

- 28. How does itwork? FLUME-agents push local logs to HDFS

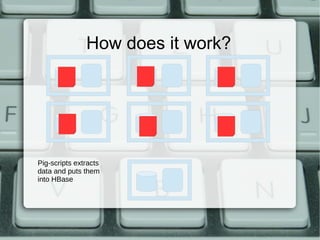

- 29. How does itwork? Pig-scripts extracts data and puts them into HBase
- 30. How does itwork? Pig-scripts can perform additional analysis on HBase data

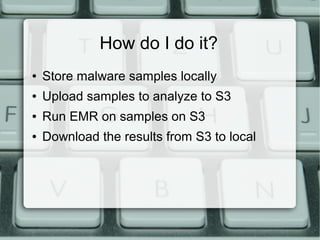

- 31. How do Ido it? ● Store malware samples locally ● Upload samples to analyze to S3 ● Run EMR on samples on S3 ● Download the results from S3 to local

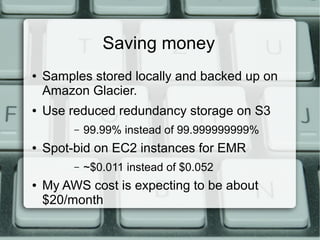

- 32. Saving money ●Samples stored locally and backed up on Amazon Glacier. ● Use reduced redundancy storage on S3 – 99.99% instead of 99.999999999% ● Spot-bid on EC2 instances for EMR – ~$0.011 instead of $0.052 ● My AWS cost is expecting to be about $20/month

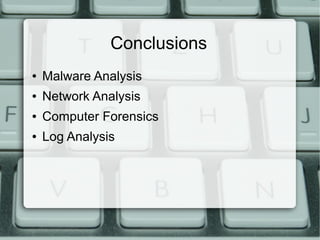

- 33. Conclusions ● MalwareAnalysis ● Network Analysis ● Computer Forensics ● Log Analysis

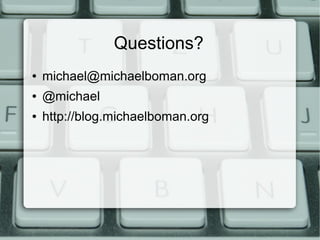

- 34. Questions? ● michael@michaelboman.org ● @michael ● http://blog.michaelboman.org
Editor's Notes
- #8 Hadoop Distributed File System: HDFS, the storage layer of Hadoop, is a distributed, scalable, Java-based file system adept at storing large volumes of unstructured data. MapReduce: MapReduce is a software framework that serves as the compute layer of Hadoop. MapReduce jobs are divided into two (obviously named) parts. The “Map” function divides a query into multiple parts and processes data at the node level. The “Reduce” function aggregates the results of the “Map” function to determine the “answer” to the query. Hive: Hive is a Hadoop-based data warehousing-like framework originally developed by Facebook. It allows users to write queries in a SQL-like language caled HiveQL, which are then converted to MapReduce. This allows SQL programmers with no MapReduce experience to use the warehouse and makes it easier to integrate with business intelligence and visualization tools such as Microstrategy, Tableau, Revolutions Analytics, etc. Pig: Pig Latin is a Hadoop-based language developed by Yahoo. It is relatively easy to learn and is adept at very deep, very long data pipelines (a limitation of SQL.) HBase: HBase is a non-relational database that allows for low-latency, quick lookups in Hadoop. It adds transactional capabilities to Hadoop, allowing users to conduct updates, inserts and deletes. EBay and Facebook use HBase heavily. Flume: Flume is a framework for populating Hadoop with data. Agents are populated throughout ones IT infrastructure – inside web servers, application servers and mobile devices, for example – to collect data and integrate it into Hadoop. Oozie: Oozie is a workflow processing system that lets users define a series of jobs written in multiple languages – such as Map Reduce, Pig and Hive -- then intelligently link them to one another. Oozie allows users to specify, for example, that a particular query is only to be initiated after specified previous jobs on which it relies for data are completed. Flume: Flume is a framework for populating Hadoop with data. Agents are populated throughout ones IT infrastructure – inside web servers, application servers and mobile devices, for example – to collect data and integrate it into Hadoop. Ambari: Ambari is a web-based set of tools for deploying, administering and monitoring Apache Hadoop clusters. It's development is being led by engineers from Hortonworoks, which include Ambari in its Hortonworks Data Platform. Avro: Avro is a data serialization system that allows for encoding the schema of Hadoop files. It is adept at parsing data and performing removed procedure calls. Mahout: Mahout is a data mining library. It takes the most popular data mining algorithms for performing clustering, regression testing and statistical modeling and implements them using the Map Reduce model. Sqoop: Sqoop is a connectivity tool for moving data from non-Hadoop data stores – such as relational databases and data warehouses – into Hadoop. It allows users to specify the target location inside of Hadoop and instruct Sqoop to move data from Oracle, Teradata or other relational databases to the target. HCatalog: HCatalog is a centralized metadata management and sharing service for Apache Hadoop. It allows for a unified view of all data in Hadoop clusters and allows diverse tools, including Pig and Hive, to process any data elements without needing to know physically where in the cluster the data is stored. BigTop: BigTop is an effort to create a more formal process or framework for packaging and interoperability testing of Hadoop's sub-projects and related components with the goal improving the Hadoop platform as a whole.
