Object oriented design (OOD) involves dividing a software system into modules (objects or classes) to deal with complexity. The key activities in OOD are problem analysis, program design, coding, documentation, testing, and maintenance. Successful OOD produces software with a clean internal structure to simplify tasks like testing, porting, and maintenance. This is achieved by properly characterizing classes and their relationships, operations, dependencies, and interfaces.

1. 1

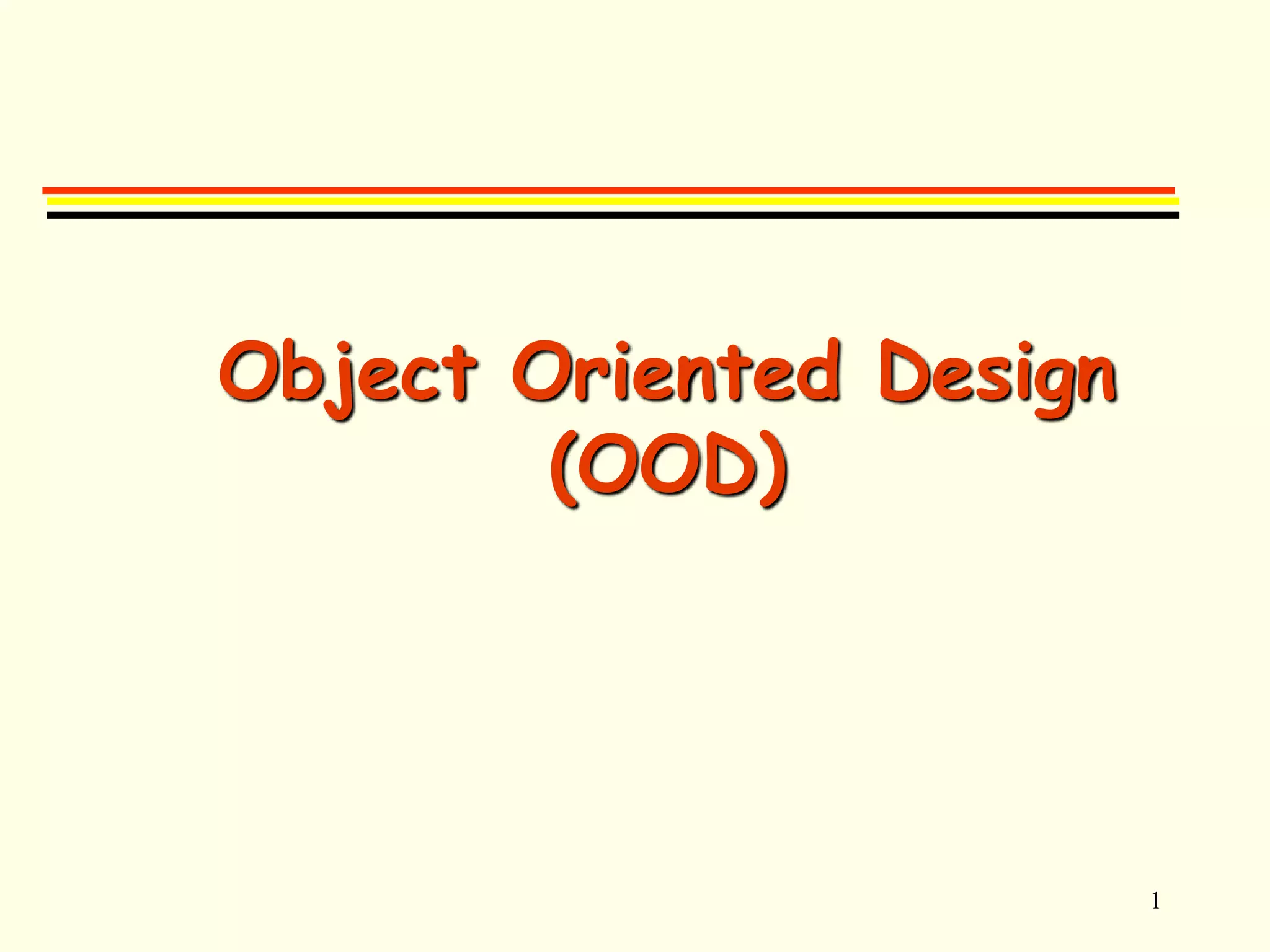

Object Oriented Design
(OOD)

2. 2

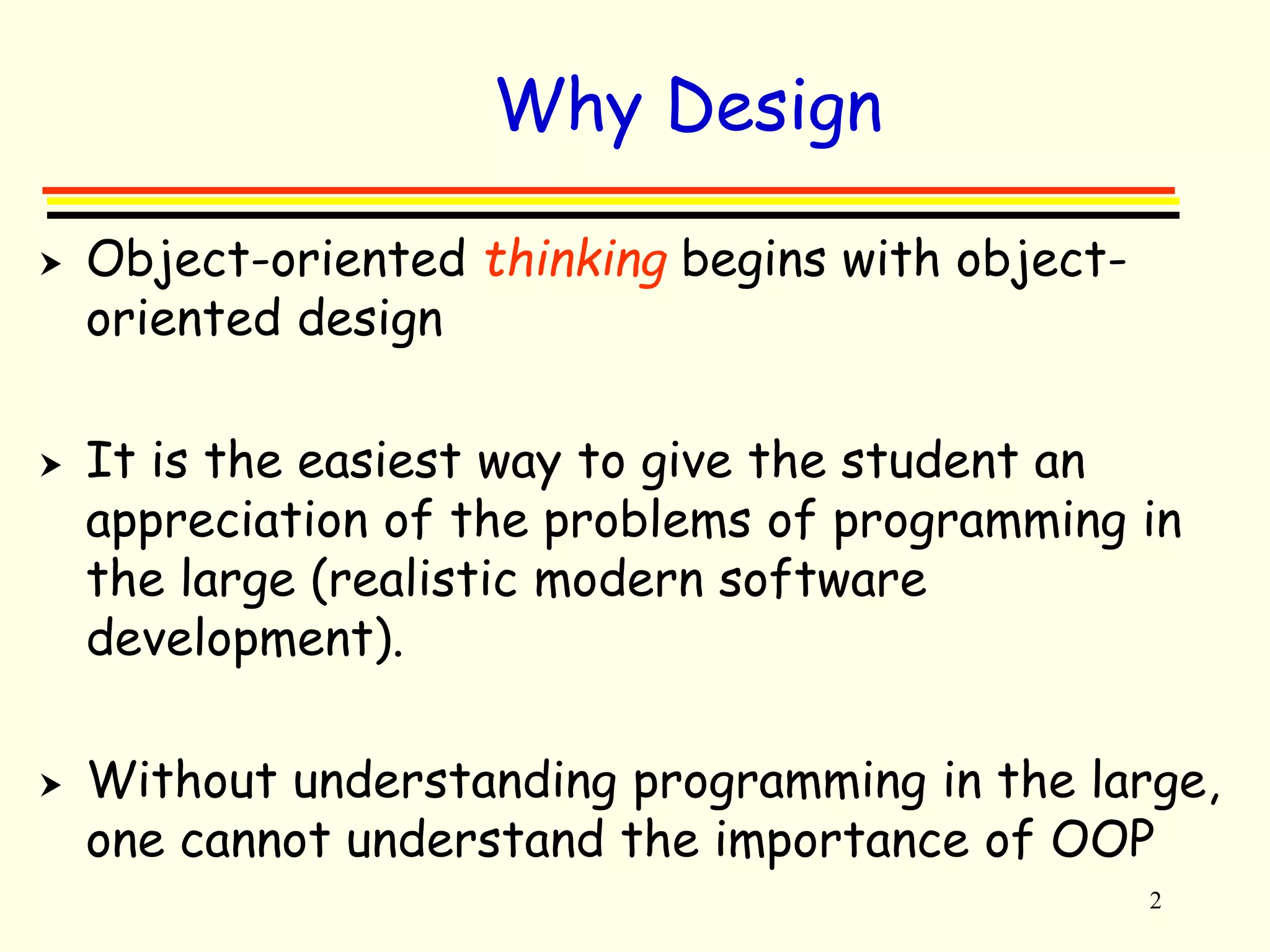

Why Design
 Object-oriented thinking begins with object-oriented
design
 It is the easiest way to give the student an
appreciation of the problems of programming in
the large (realistic modern software
development).
 Without understanding programming in the large,
one cannot understand the importance of OOP

3. 3
OOD –

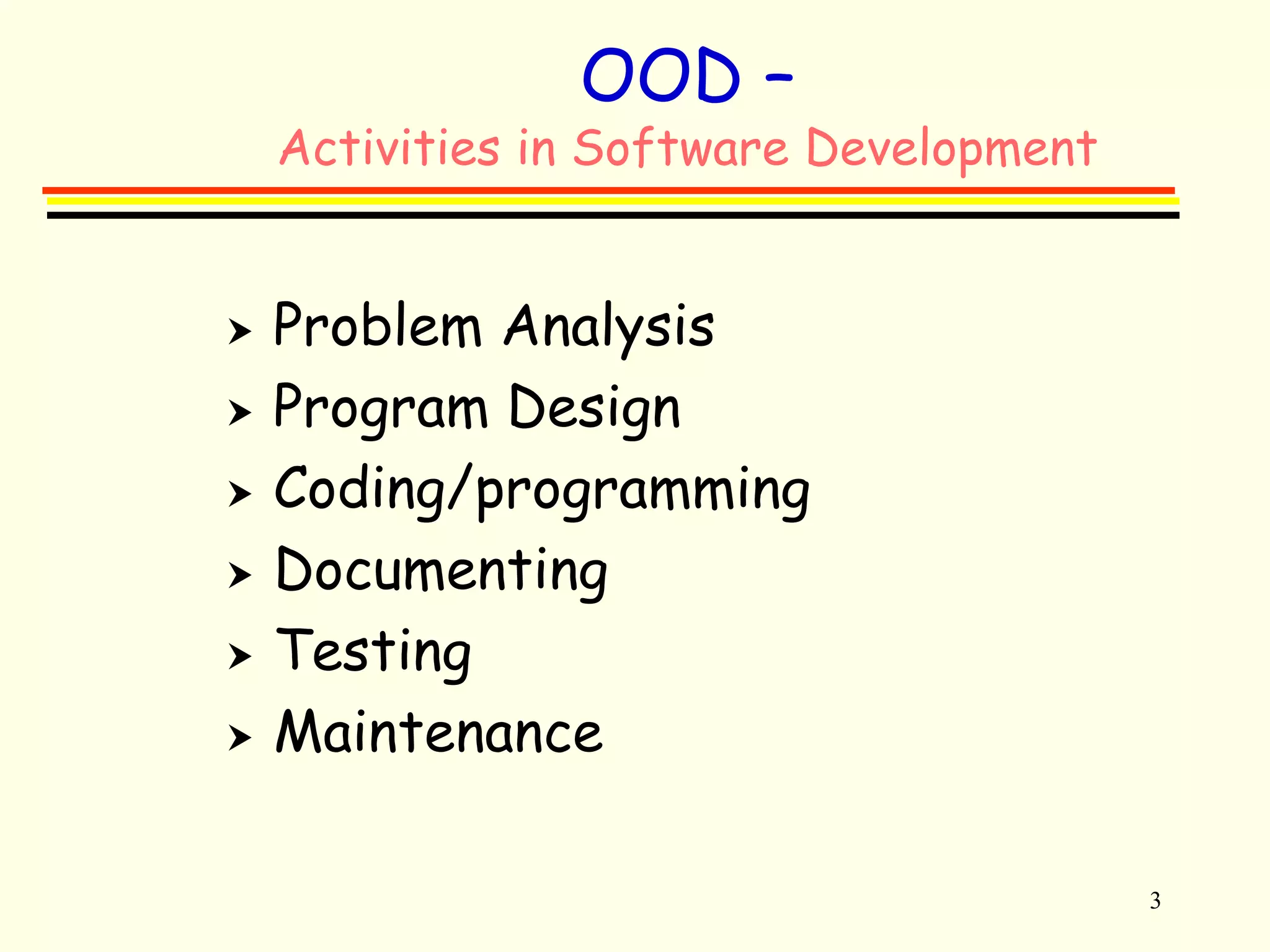

Activities in Software Development
 Problem Analysis
 Program Design
 Coding/programming
 Documenting
 Testing
 Maintenance

4. 4

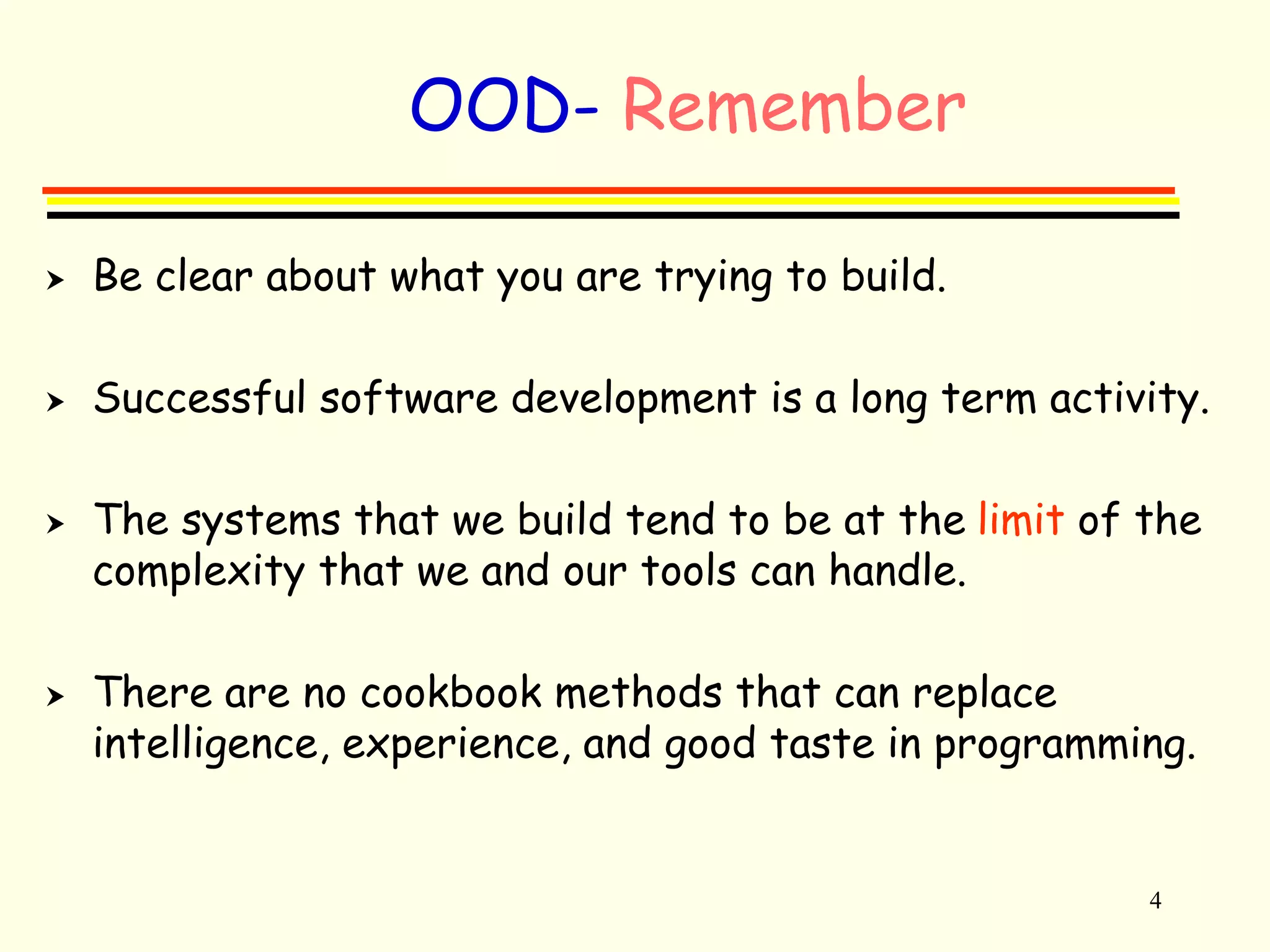

OOD- Remember
 Be clear about what you are trying to build.
 Successful software development is a long term activity.
 The systems that we build tend to be at the limit of the
complexity that we and our tools can handle.
 There are no cookbook methods that can replace
intelligence, experience, and good taste in programming.

5. 5

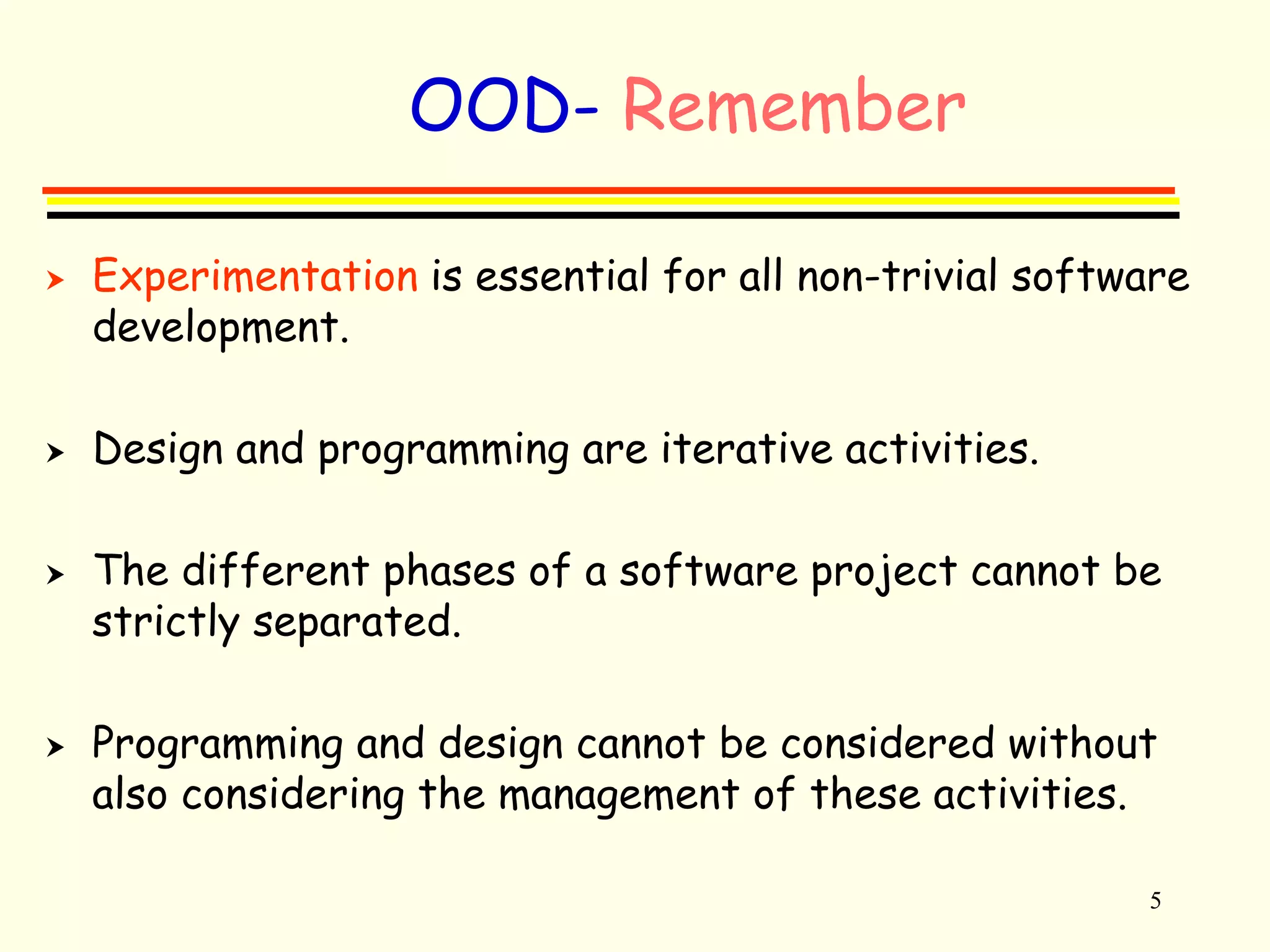

OOD- Remember
 Experimentation is essential for all non-trivial software
development.
 Design and programming are iterative activities.
 The different phases of a software project cannot be
strictly separated.
 Programming and design cannot be considered without
also considering the management of these activities.

6. 6

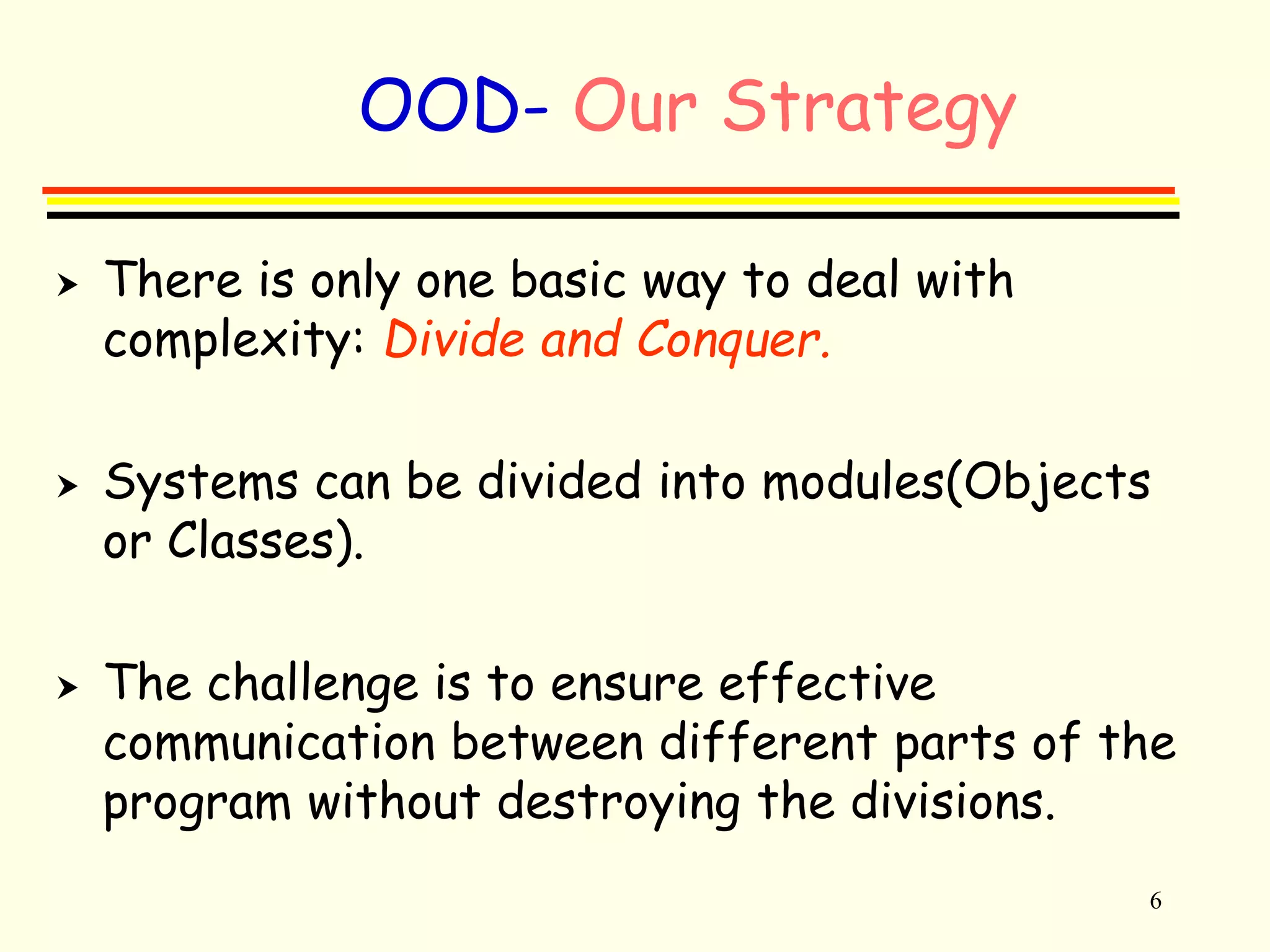

OOD- Our Strategy
 There is only one basic way to deal with
complexity: Divide and Conquer.
 Systems can be divided into modules(Objects
or Classes).
 The challenge is to ensure effective
communication between different parts of the
program without destroying the divisions.

7. 7

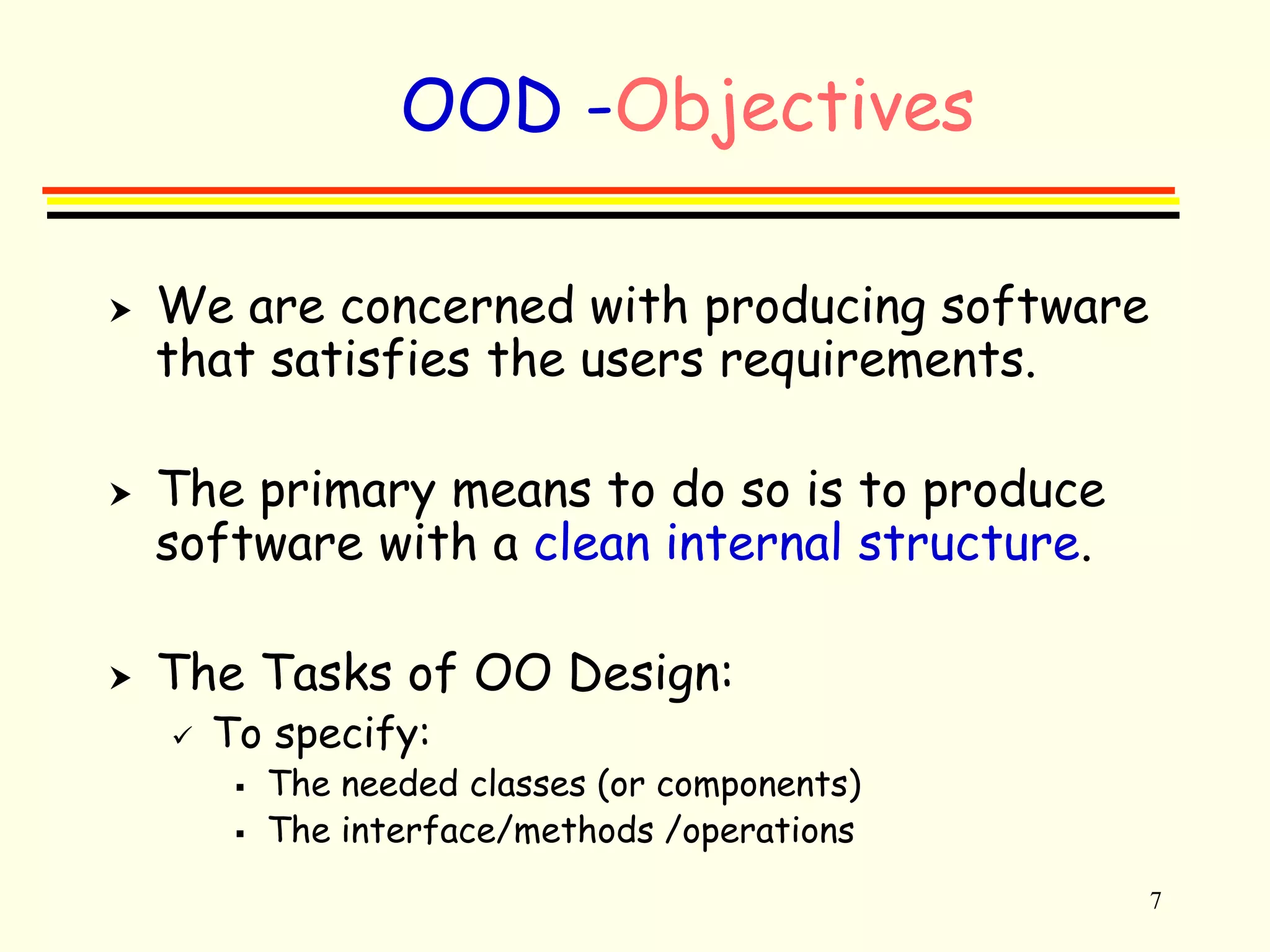

OOD -Objectives
 We are concerned with producing software
that satisfies the users requirements.
 The primary means to do so is to produce
software with a clean internal structure.
 The Tasks of OO Design:
 To specify:
 The needed classes (or components)
 The interface/methods /operations

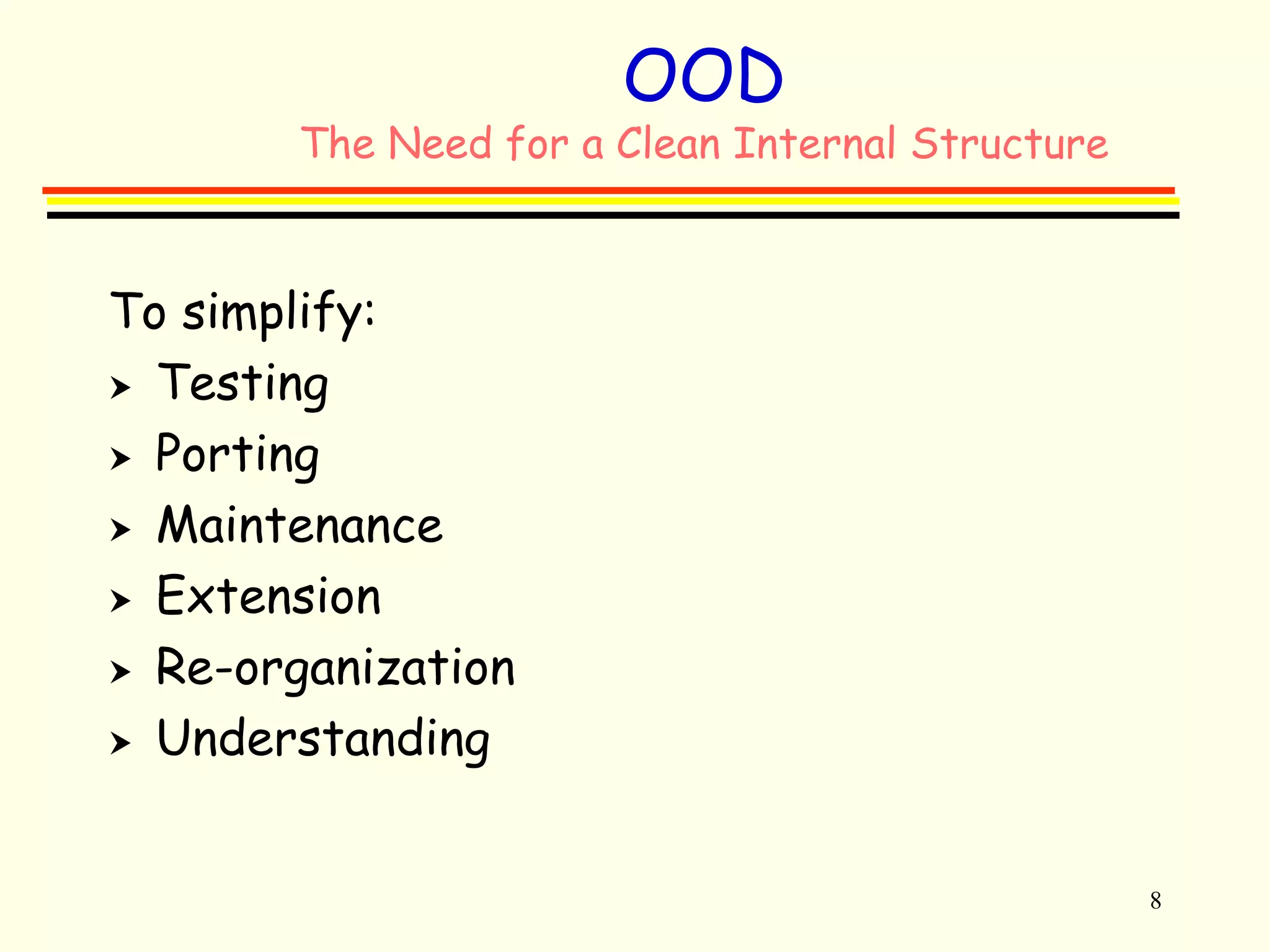

8. 8
OOD
The Need for a Clean Internal Structure
To simplify:
 Testing
 Porting
 Maintenance
 Extension
 Re-organization
 Understanding

9. 9
OOD

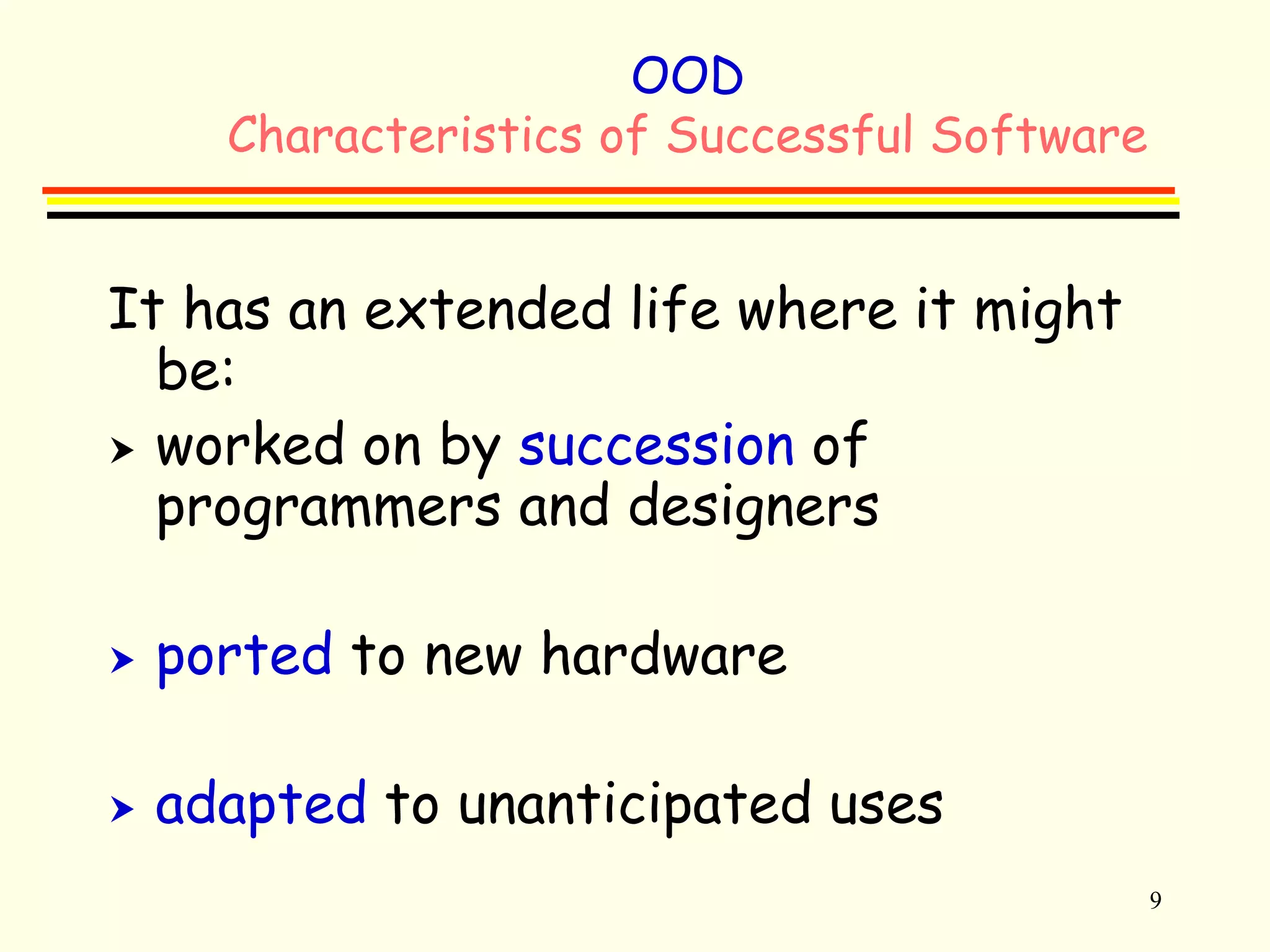

Characteristics of Successful Software
It has an extended life where it might
be:
 worked on by succession of
programmers and designers
 ported to new hardware
 adapted to unanticipated uses

10. 10
OOD

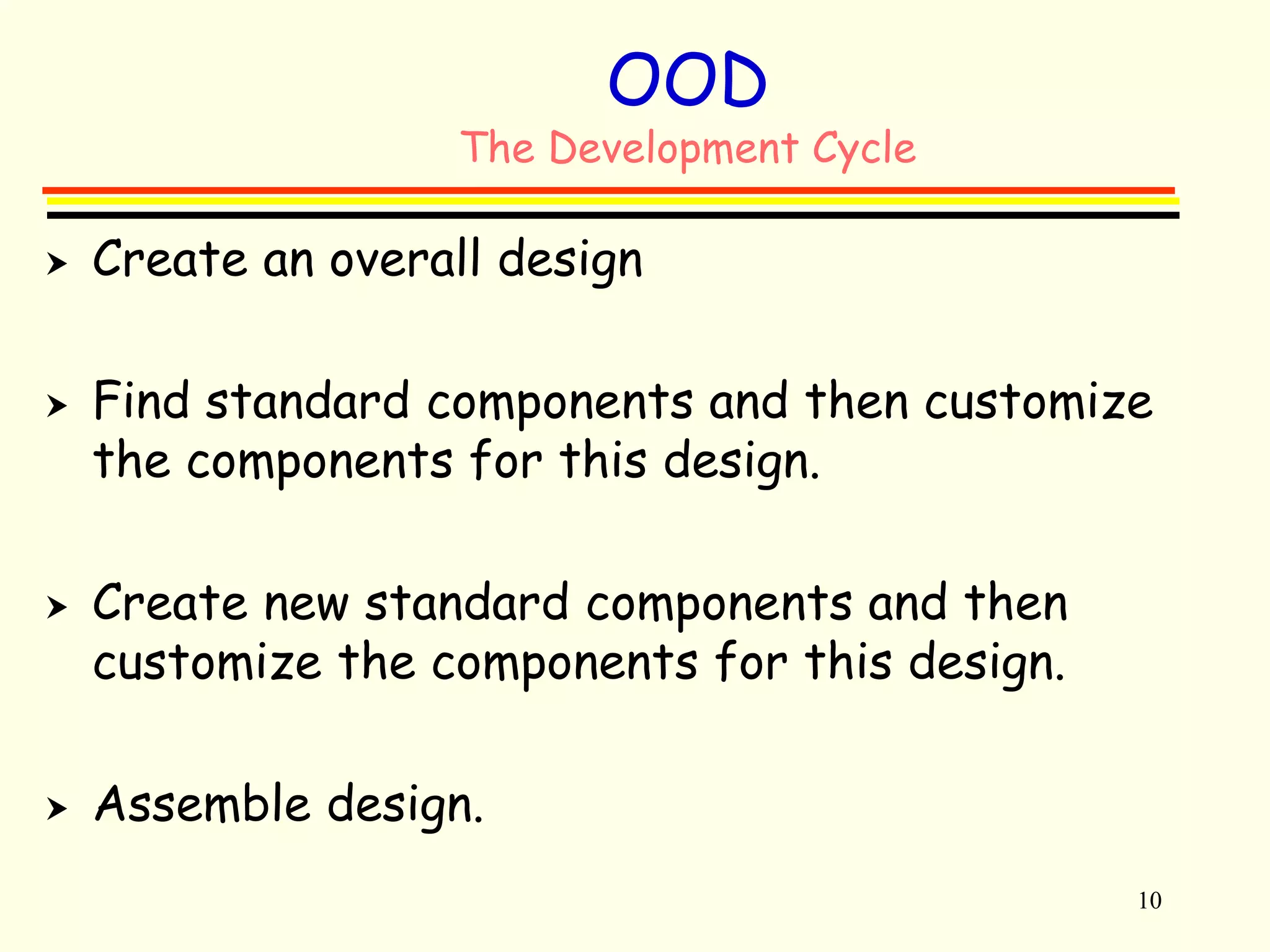

The Development Cycle
 Create an overall design
 Find standard components and then customize
the components for this design.
 Create new standard components and then
customize the components for this design.
 Assemble design.

11. 11
OOD

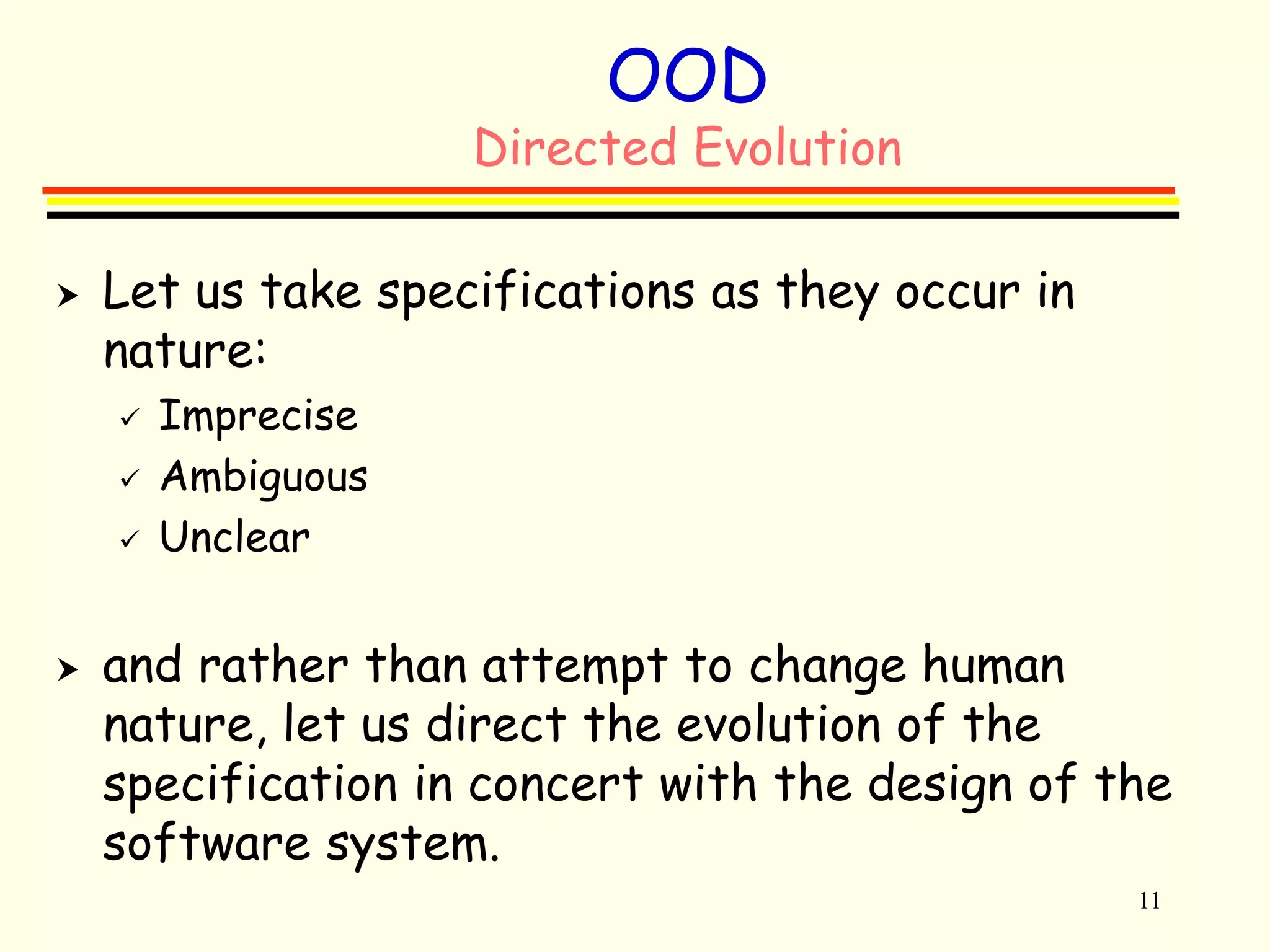

Directed Evolution
 Let us take specifications as they occur in
nature:
 Imprecise
 Ambiguous
 Unclear
 and rather than attempt to change human
nature, let us direct the evolution of the
specification in concert with the design of the
software system.

12. 12
OOD

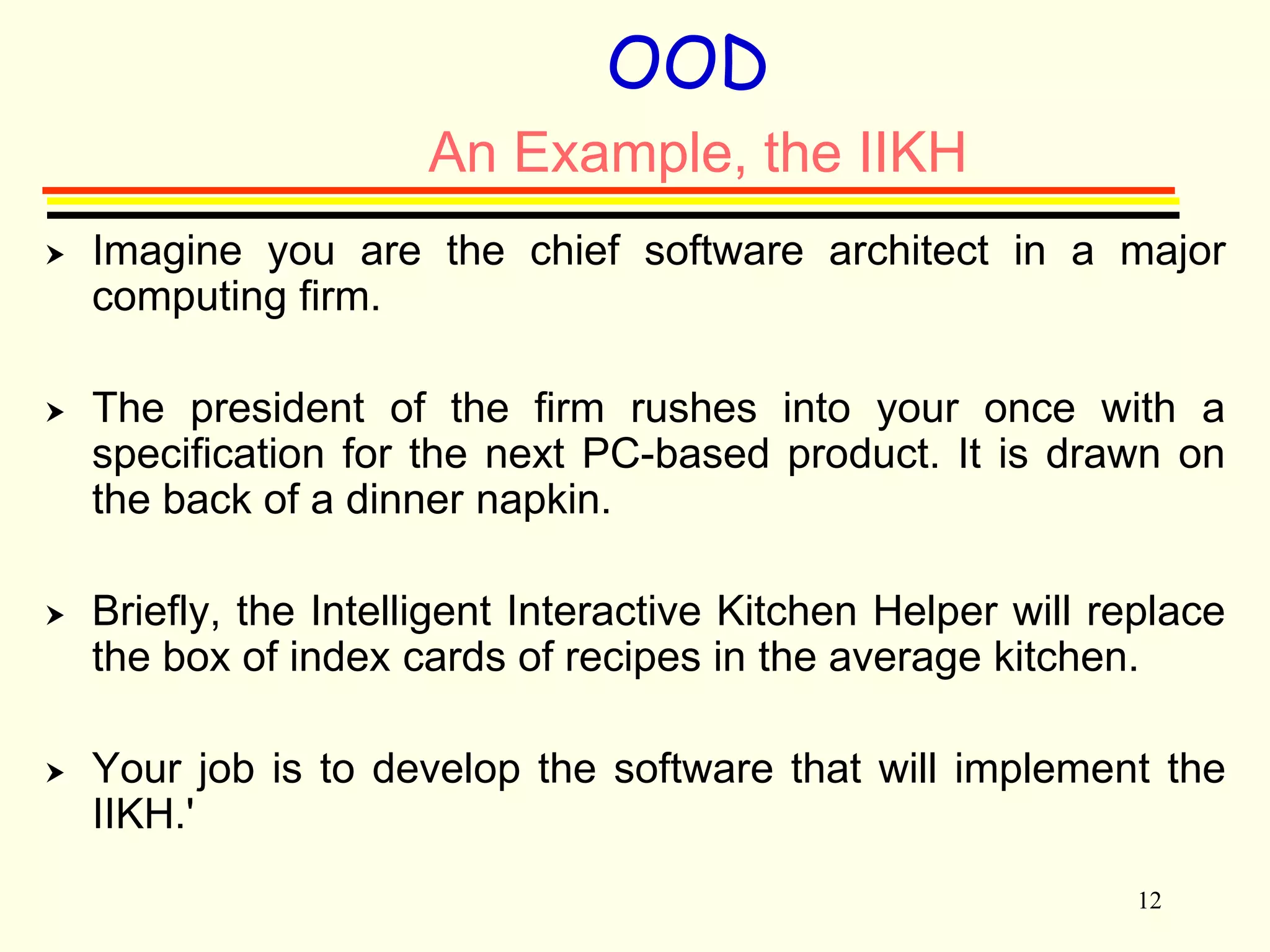

An Example, the IIKH
 Imagine you are the chief software architect in a major
computing firm.
 The president of the firm rushes into your once with a
specification for the next PC-based product. It is drawn on
the back of a dinner napkin.
 Briefly, the Intelligent Interactive Kitchen Helper will replace
the box of index cards of recipes in the average kitchen.
 Your job is to develop the software that will implement the
IIKH.'

13. 13

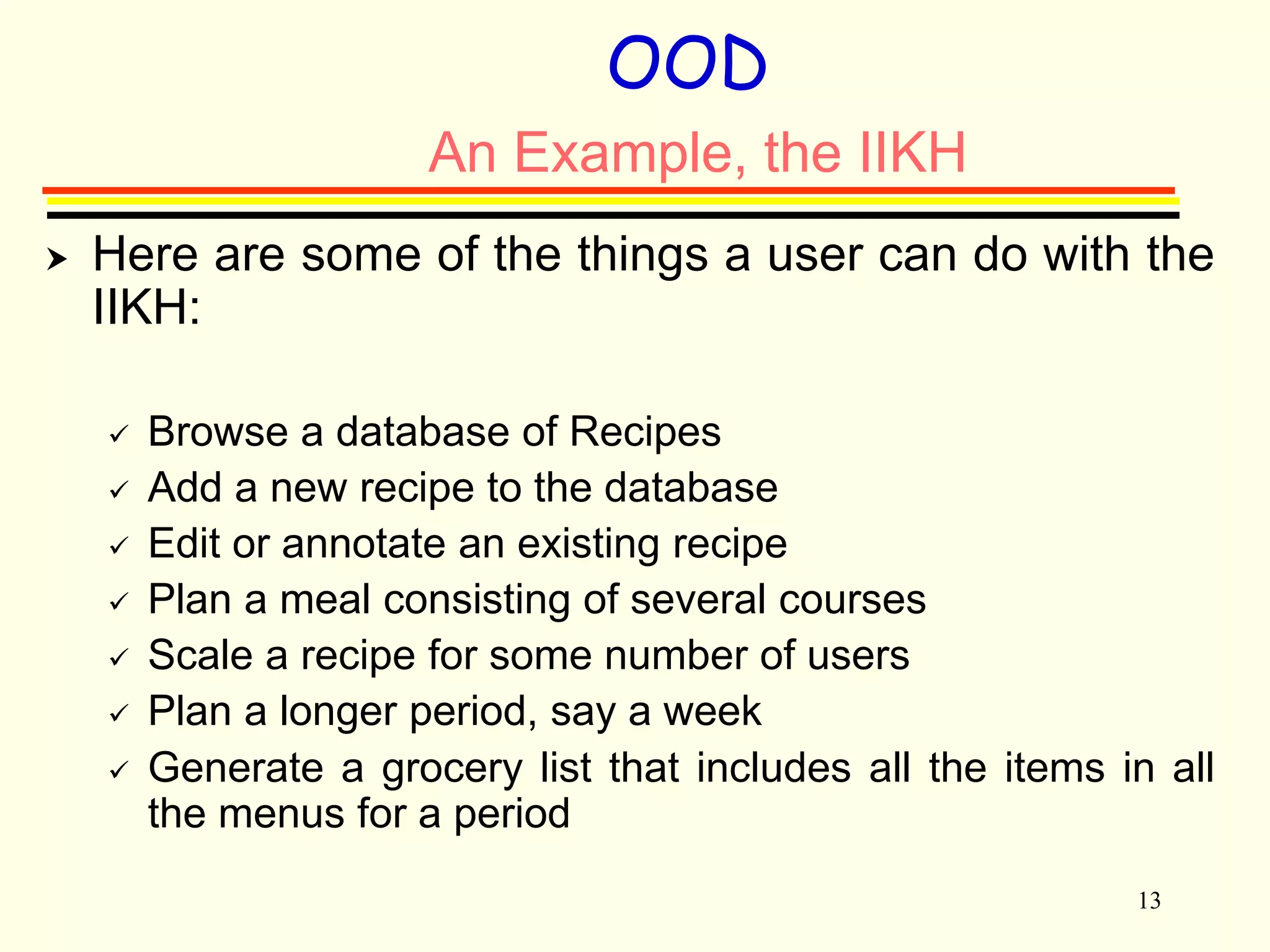

OOD
An Example, the IIKH
 Here are some of the things a user can do with the
IIKH:
 Browse a database of Recipes
 Add a new recipe to the database
 Edit or annotate an existing recipe
 Plan a meal consisting of several courses
 Scale a recipe for some number of users
 Plan a longer period, say a week
 Generate a grocery list that includes all the items in all
the menus for a period

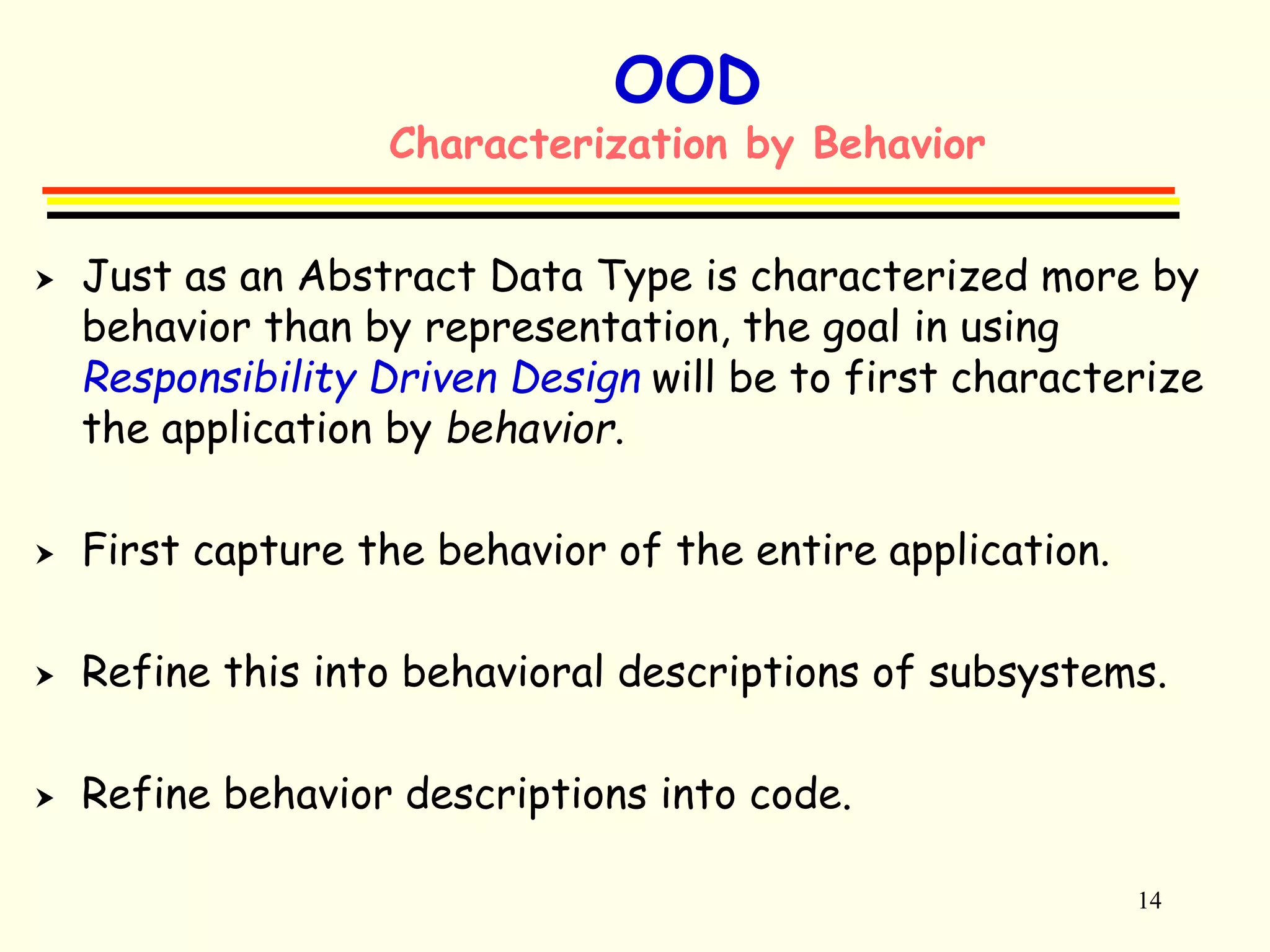

14. 14
OOD
Characterization by Behavior
 Just as an Abstract Data Type is characterized more by
behavior than by representation, the goal in using
Responsibility Driven Design will be to first characterize
the application by behavior.
 First capture the behavior of the entire application.
 Refine this into behavioral descriptions of subsystems.
 Refine behavior descriptions into code.

15. 15

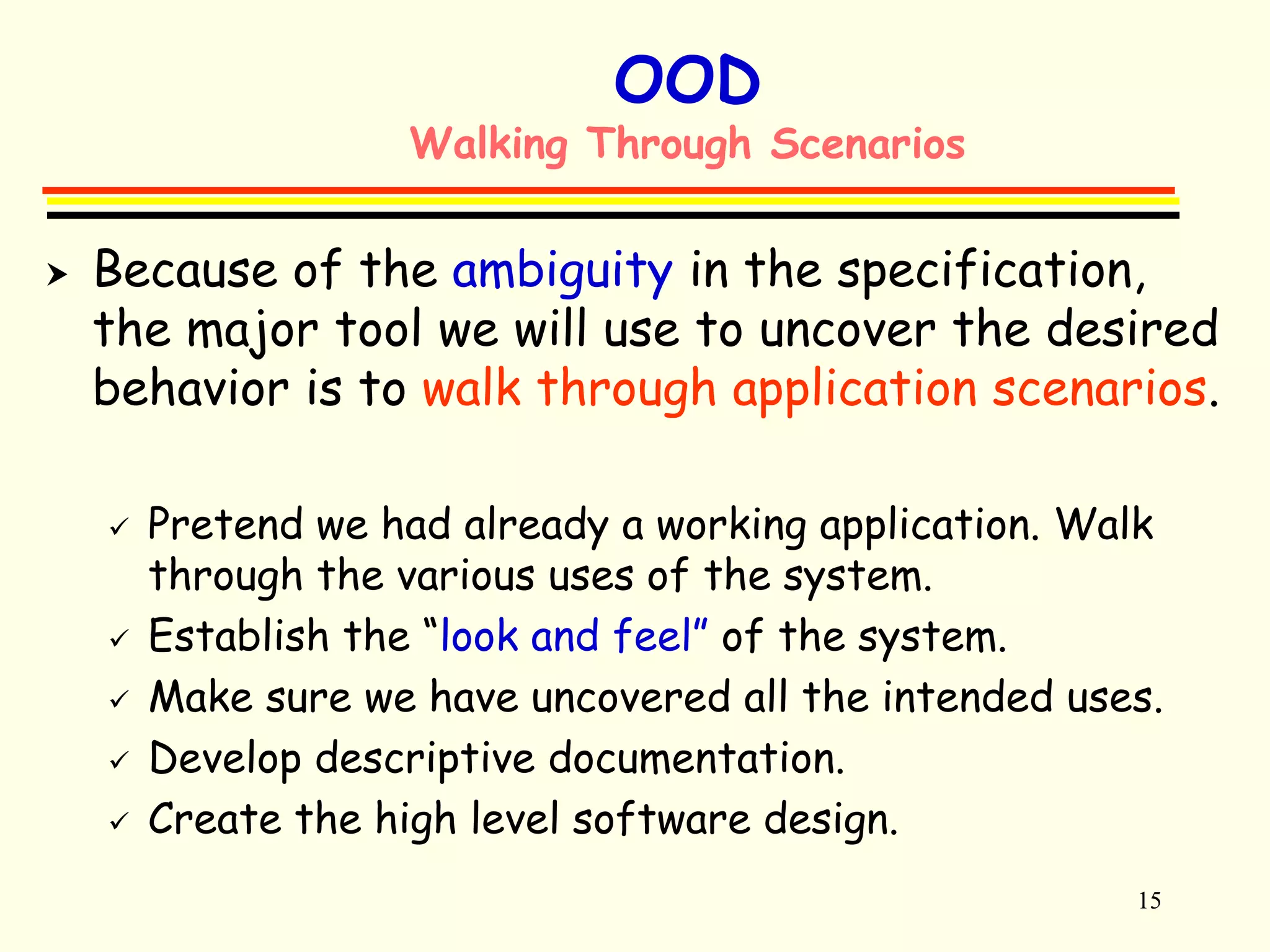

OOD
Walking Through Scenarios
 Because of the ambiguity in the specification,
the major tool we will use to uncover the desired
behavior is to walk through application scenarios.
 Pretend we had already a working application. Walk
through the various uses of the system.
 Establish the “look and feel” of the system.
 Make sure we have uncovered all the intended uses.
 Develop descriptive documentation.
 Create the high level software design.

16. 16
OOD

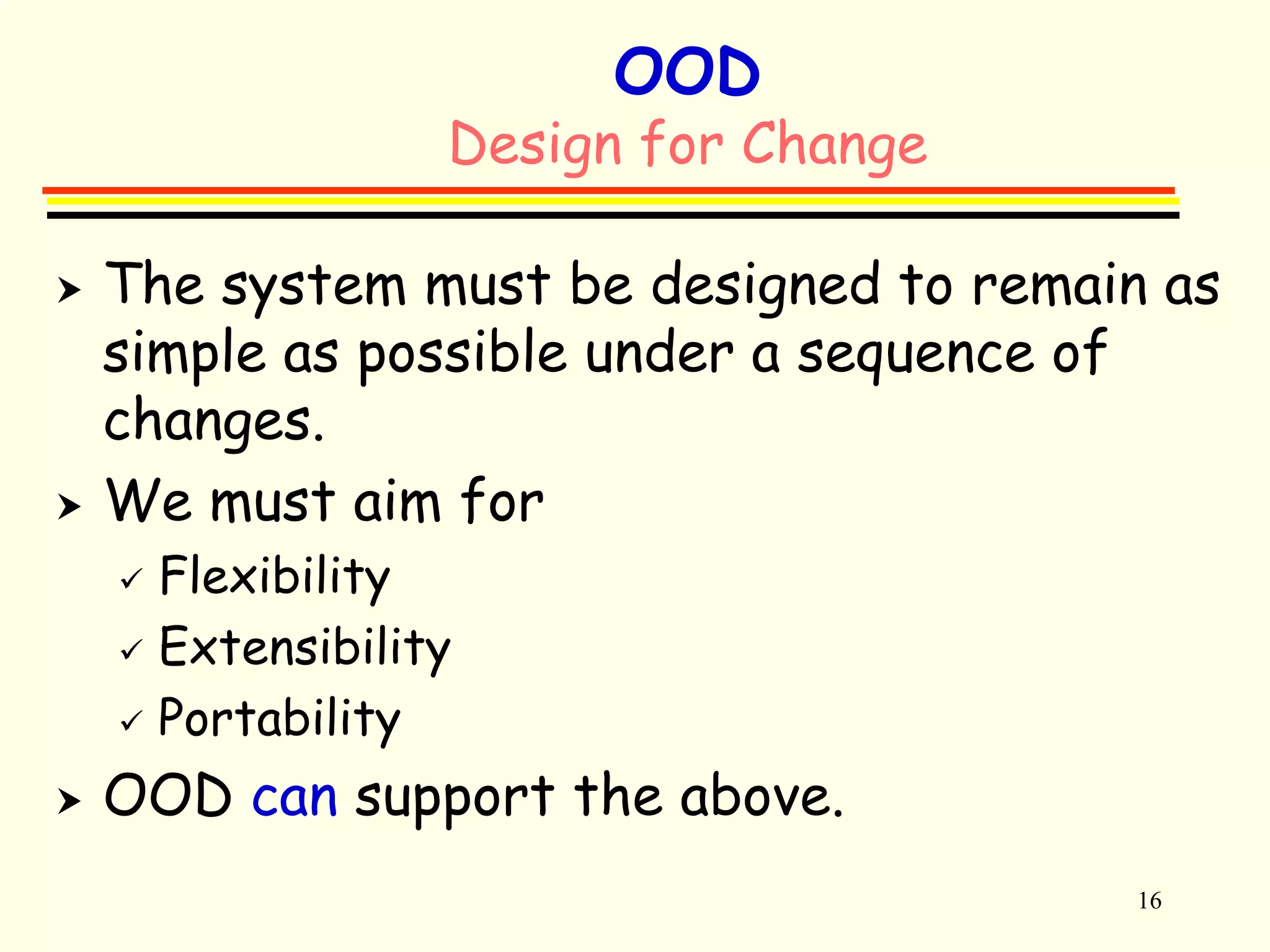

Design for Change
 The system must be designed to remain as
simple as possible under a sequence of
changes.
 We must aim for
 Flexibility
 Extensibility
 Portability
 OOD can support the above.

17. 17
OOD

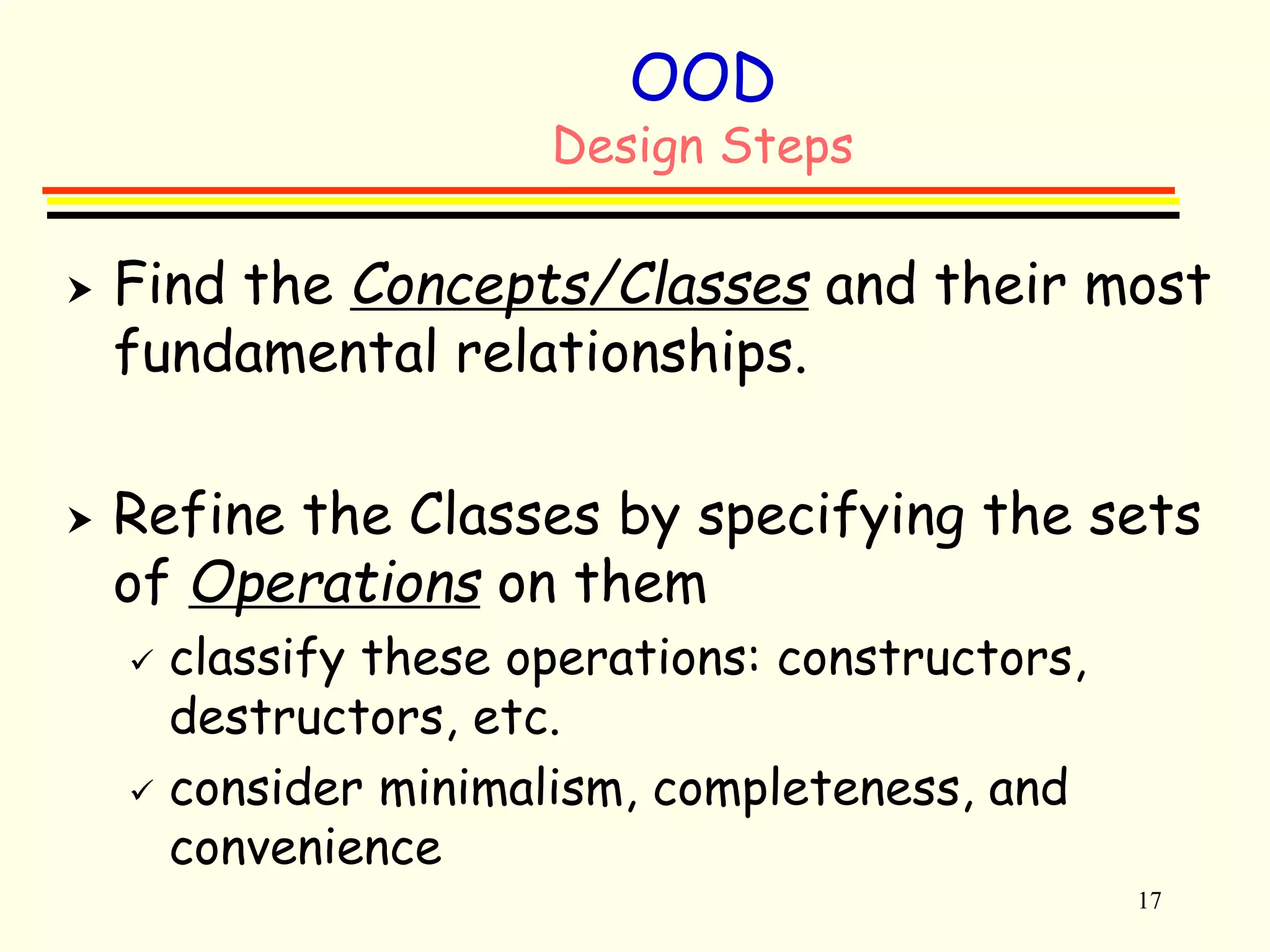

Design Steps
 Find the Concepts/Classes and their most
fundamental relationships.
 Refine the Classes by specifying the sets
of Operations on them
 classify these operations: constructors,
destructors, etc.
 consider minimalism, completeness, and
convenience

18. 18
OOD

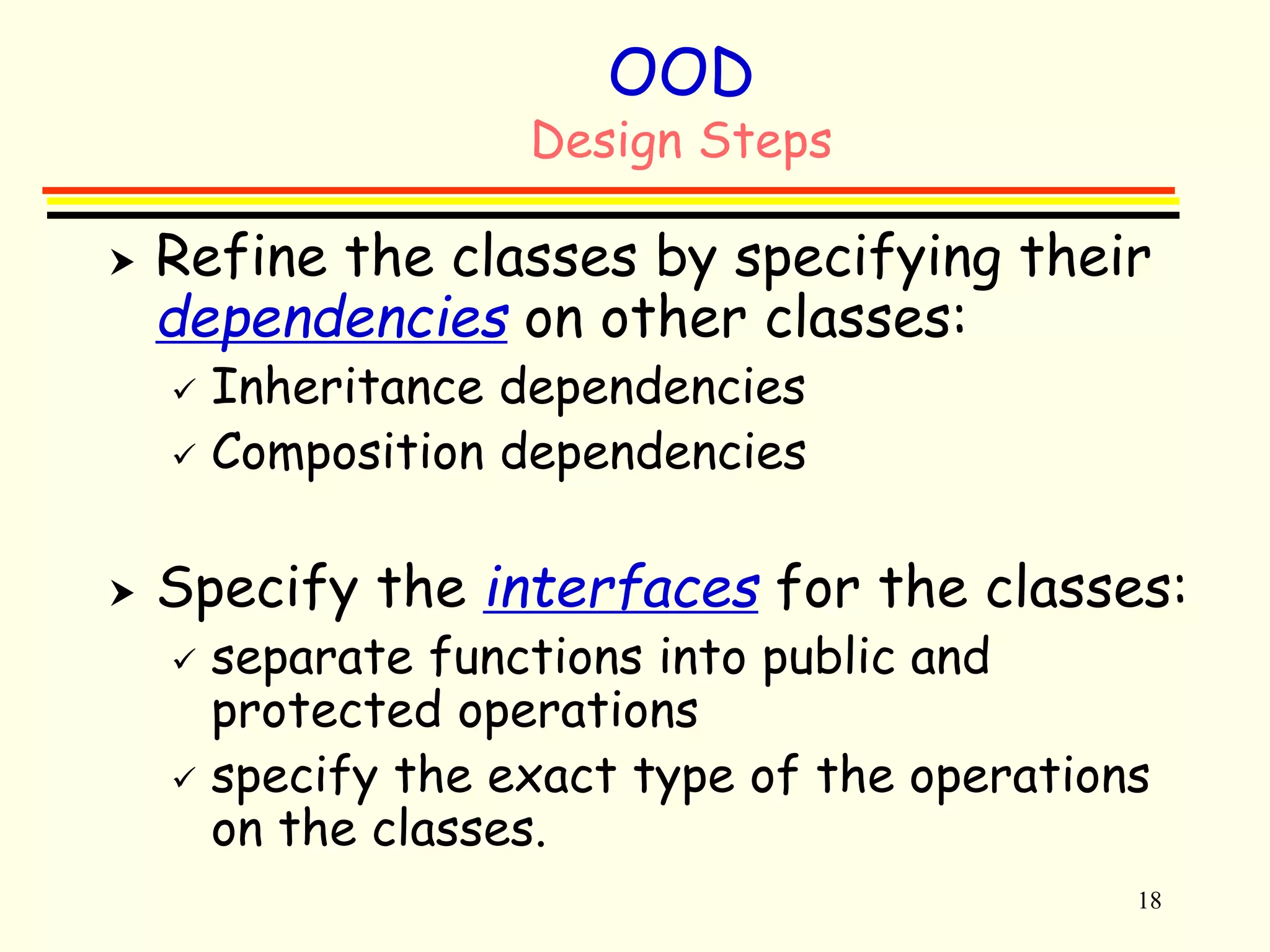

Design Steps
 Refine the classes by specifying their
dependencies on other classes:
 Inheritance dependencies
 Composition dependencies
 Specify the interfaces for the classes:
 separate functions into public and
protected operations
 specify the exact type of the operations
on the classes.

19. 19
OOD

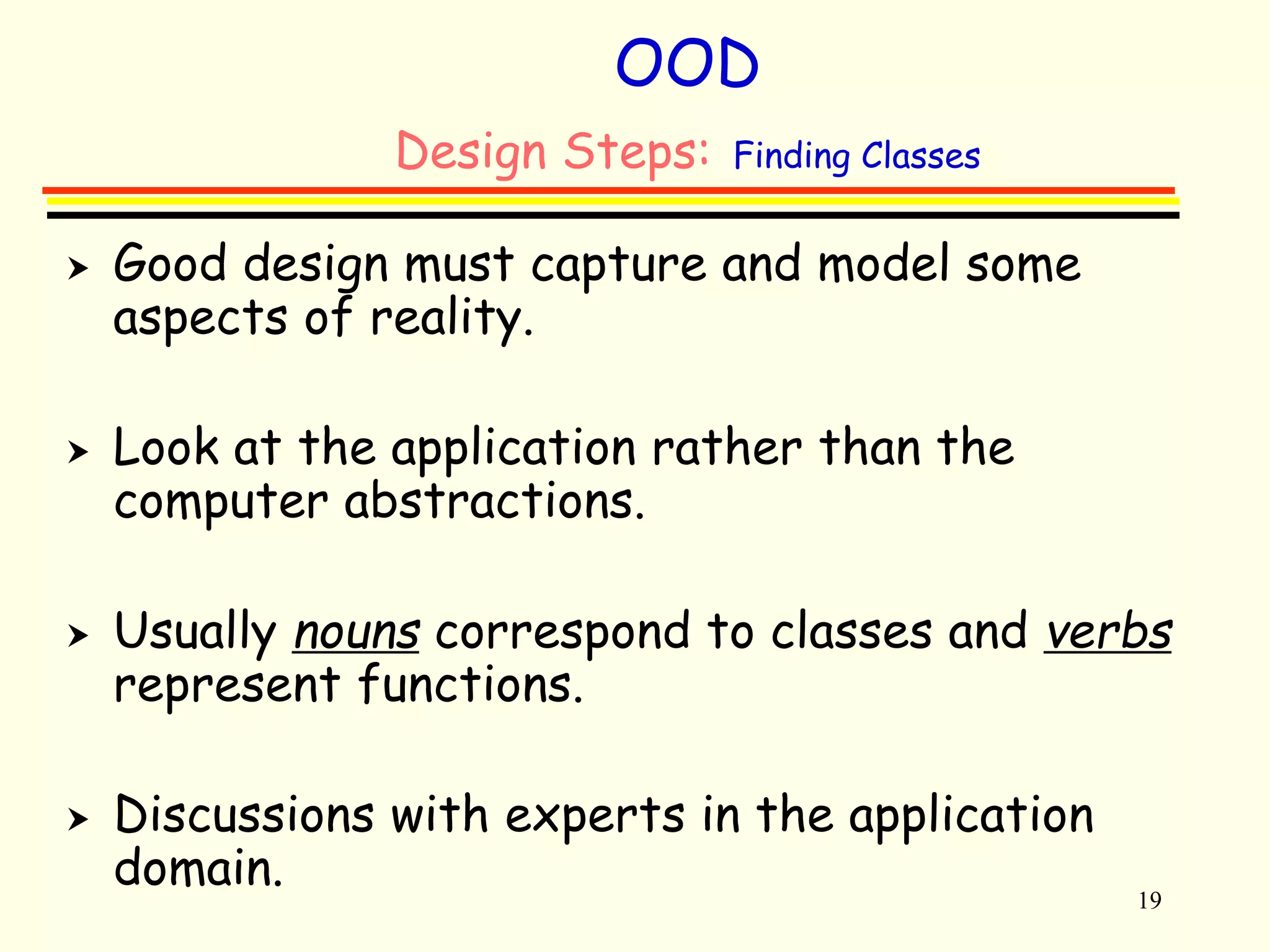

Design Steps: Finding Classes
 Good design must capture and model some
aspects of reality.
 Look at the application rather than the
computer abstractions.
 Usually nouns correspond to classes and verbs
represent functions.
 Discussions with experts in the application
domain.

20. 20

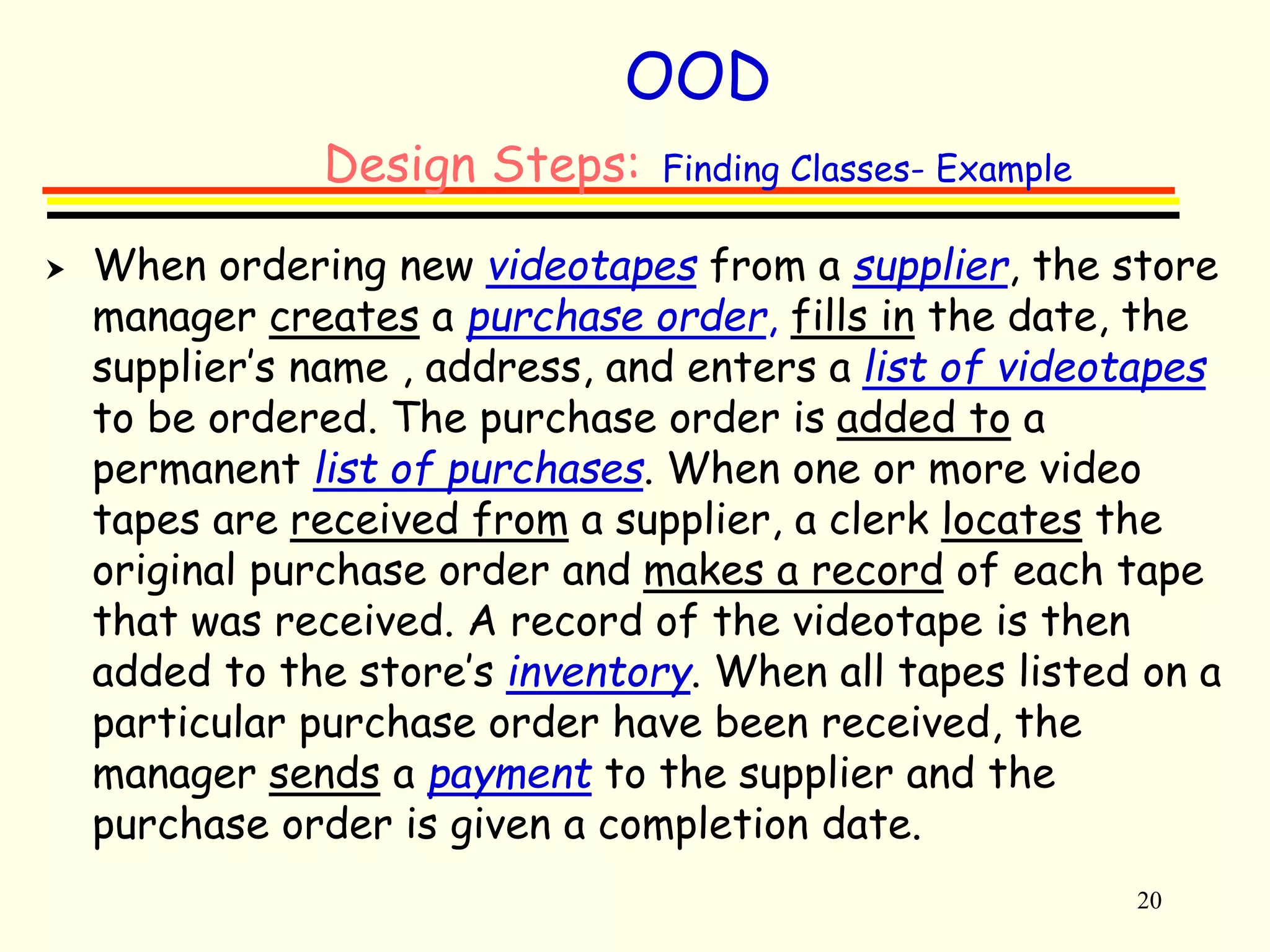

OOD
Design Steps: Finding Classes- Example
 When ordering new videotapes from a supplier, the store
manager creates a purchase order, fills in the date, the
supplier’s name , address, and enters a list of videotapes
to be ordered. The purchase order is added to a
permanent list of purchases. When one or more video
tapes are received from a supplier, a clerk locates the
original purchase order and makes a record of each tape
that was received. A record of the videotape is then
added to the store’s inventory. When all tapes listed on a
particular purchase order have been received, the
manager sends a payment to the supplier and the
purchase order is given a completion date.

21. 21

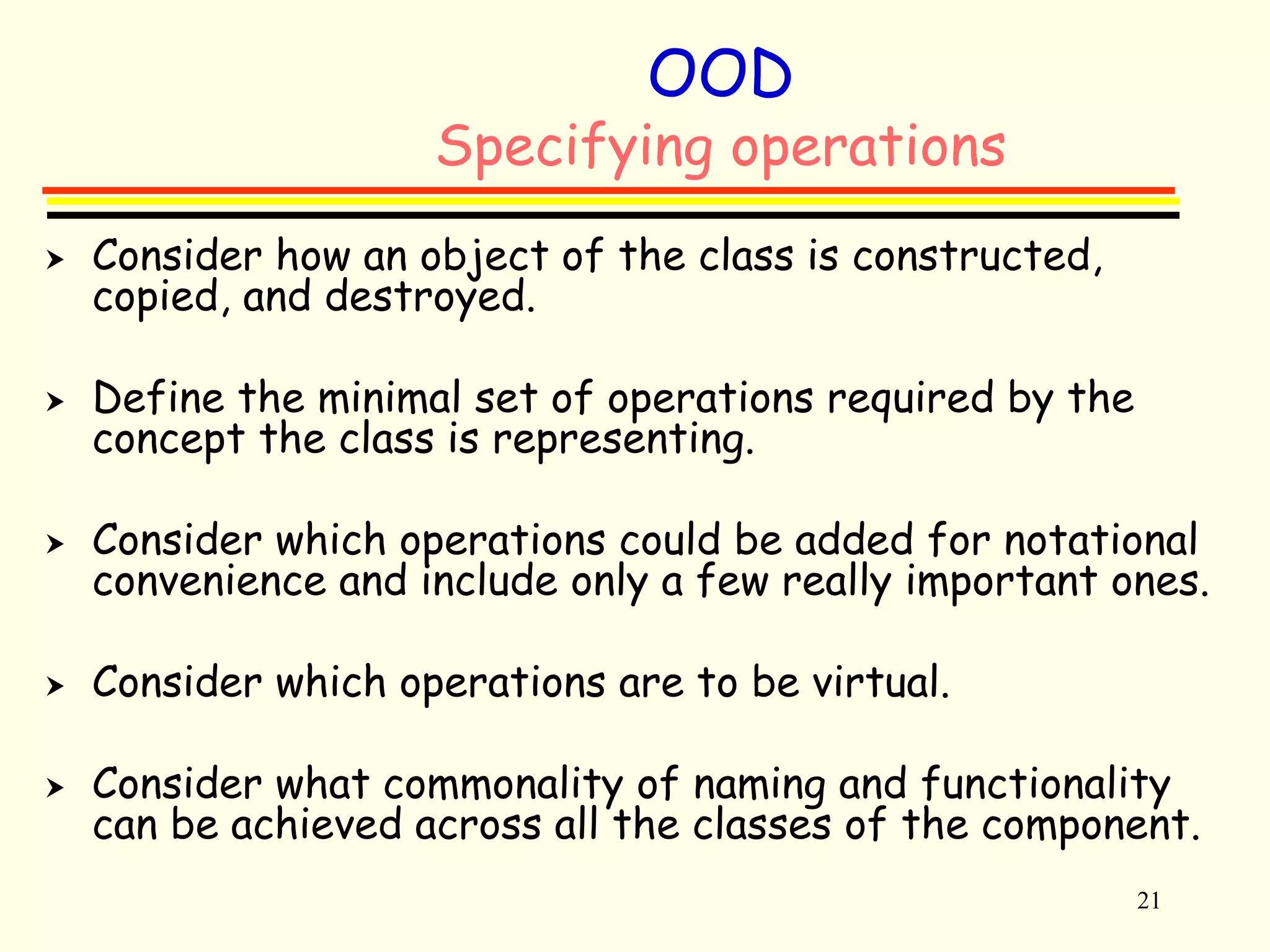

OOD
Specifying operations
 Consider how an object of the class is constructed,
copied, and destroyed.
 Define the minimal set of operations required by the
concept the class is representing.
 Consider which operations could be added for notational
convenience and include only a few really important ones.
 Consider which operations are to be virtual.
 Consider what commonality of naming and functionality
can be achieved across all the classes of the component.

22. 22
OOD

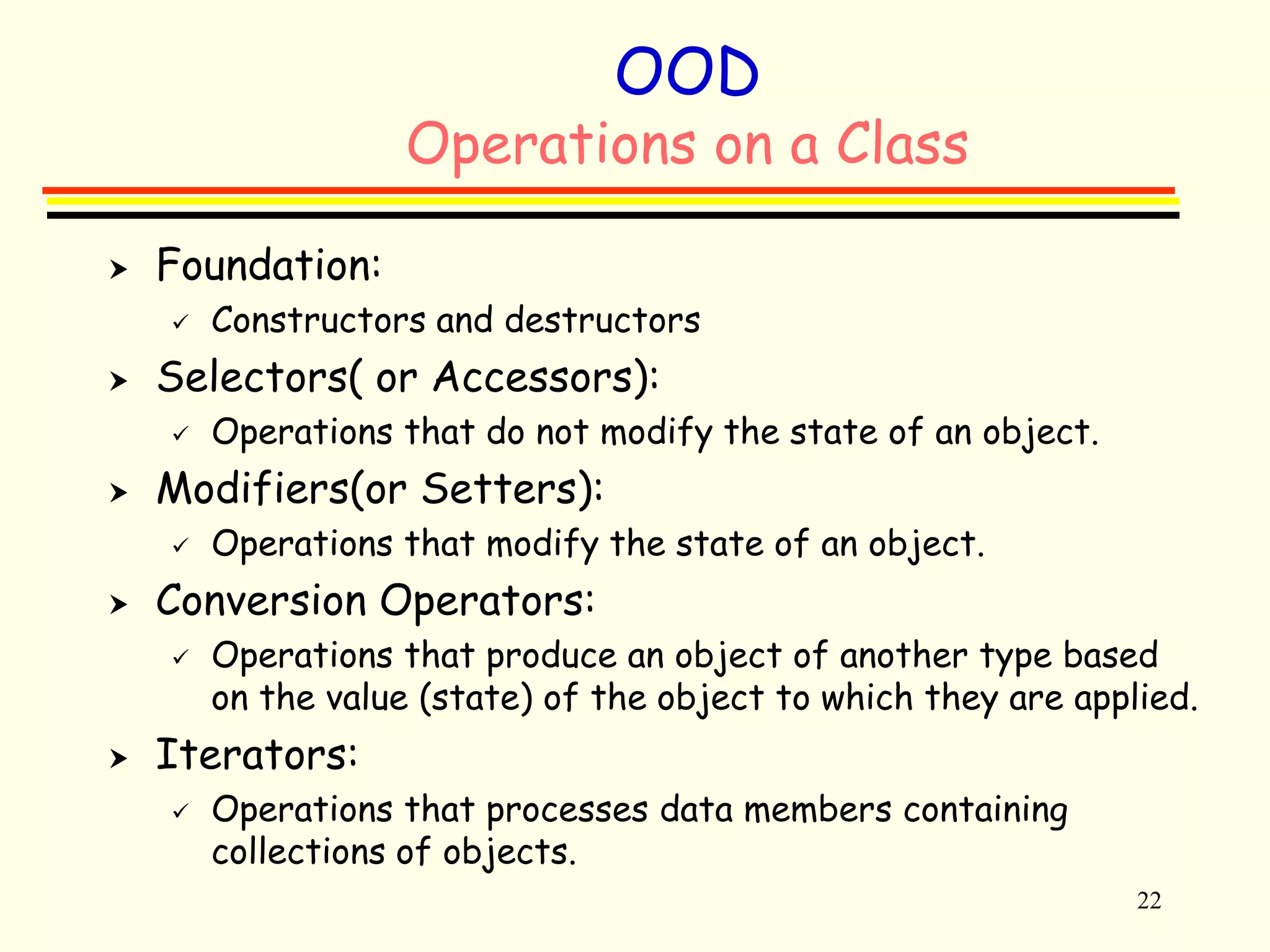

Operations on a Class
 Foundation:
 Constructors and destructors
 Selectors( or Accessors):
 Operations that do not modify the state of an object.
 Modifiers(or Setters):
 Operations that modify the state of an object.
 Conversion Operators:
 Operations that produce an object of another type based
on the value (state) of the object to which they are applied.
 Iterators:
 Operations that processes data members containing
collections of objects.

23. 23
OOD

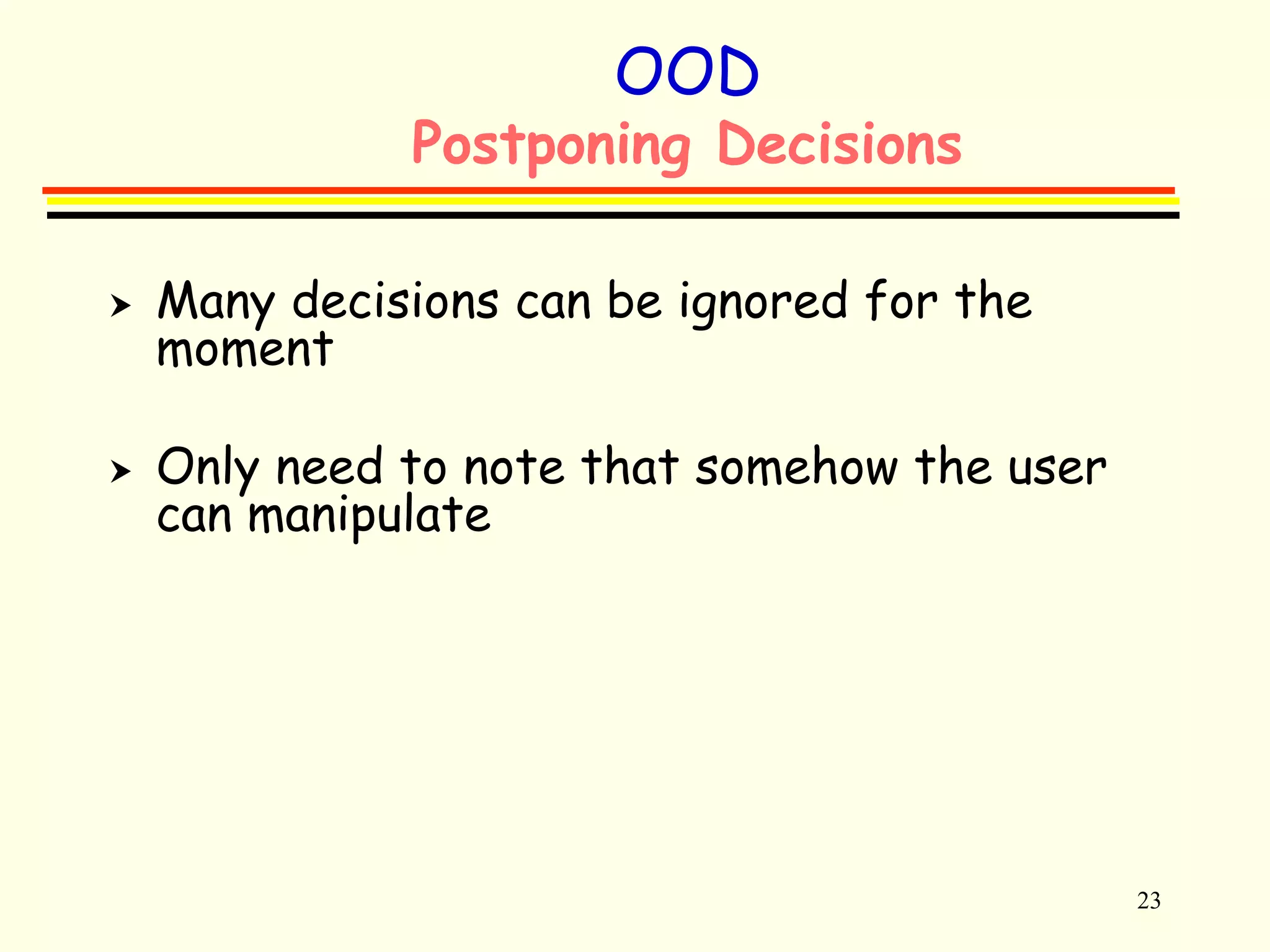

Postponing Decisions
 Many decisions can be ignored for the
moment
 Only need to note that somehow the user
can manipulate

24. 24
OOD

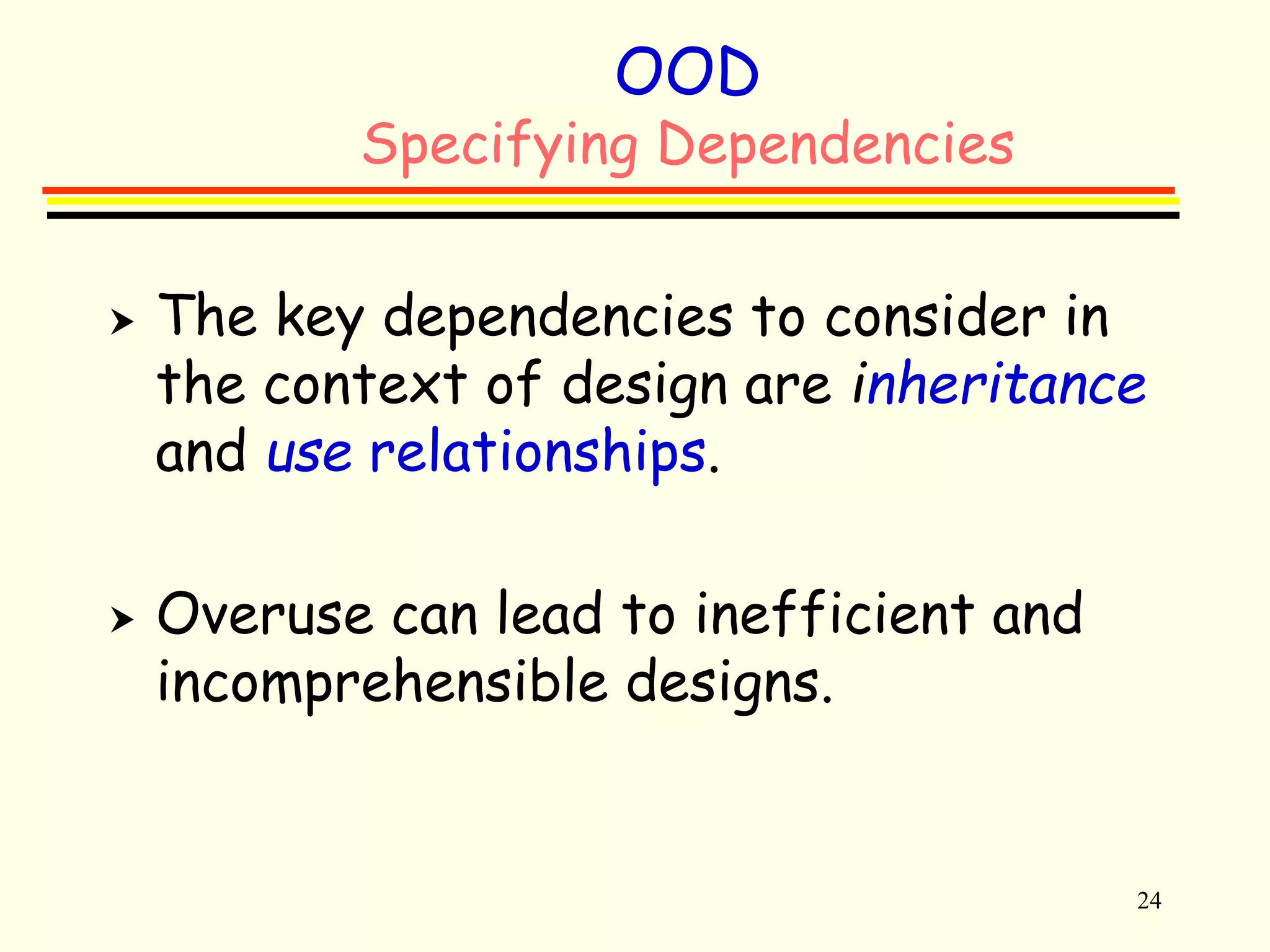

Specifying Dependencies
 The key dependencies to consider in
the context of design are inheritance
and use relationships.
 Overuse can lead to inefficient and
incomprehensible designs.

25. 25

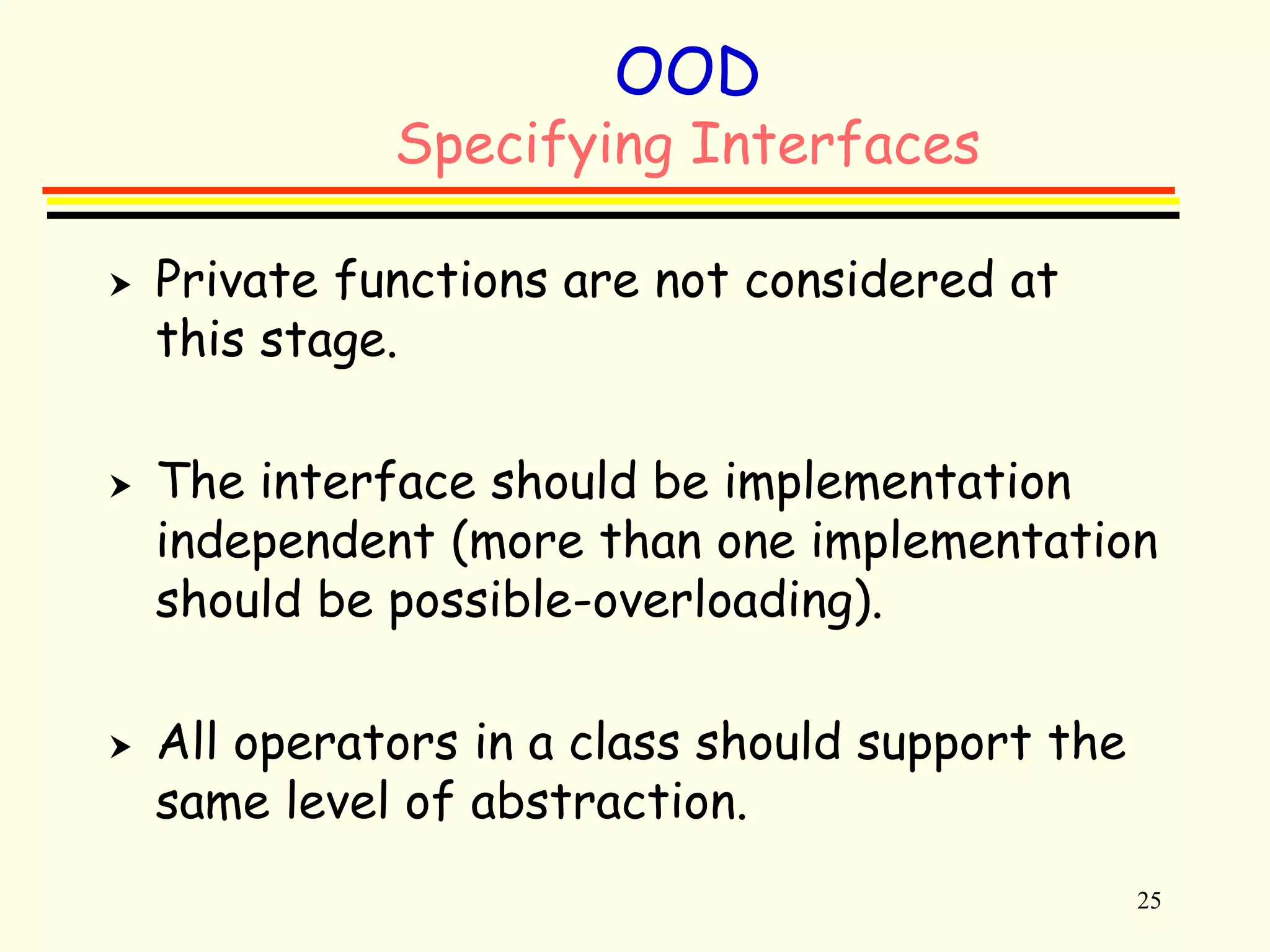

OOD
Specifying Interfaces
 Private functions are not considered at
this stage.
 The interface should be implementation
independent (more than one implementation
should be possible-overloading).
 All operators in a class should support the
same level of abstraction.

26. 26

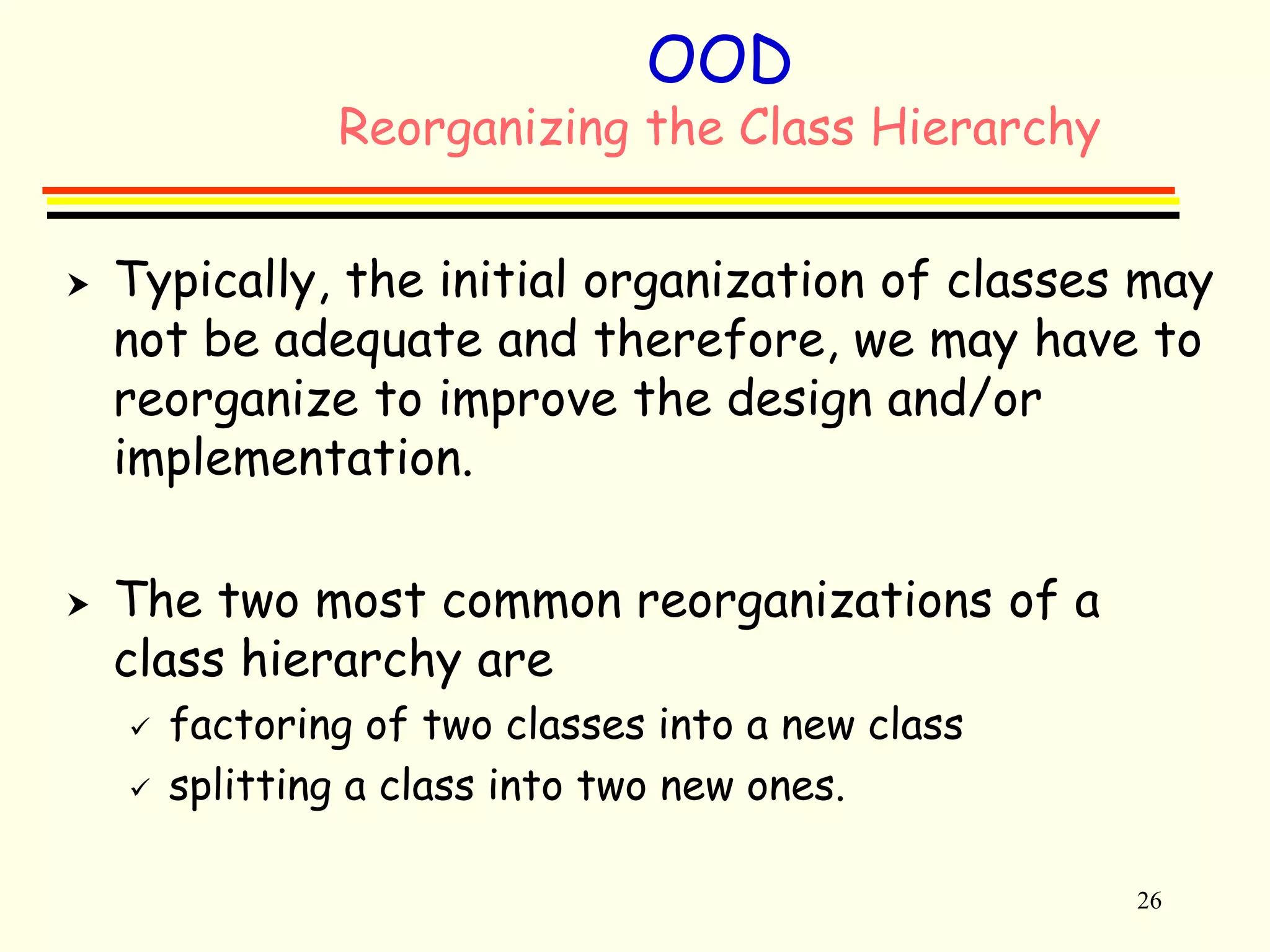

OOD
Reorganizing the Class Hierarchy
 Typically, the initial organization of classes may
not be adequate and therefore, we may have to
reorganize to improve the design and/or
implementation.
 The two most common reorganizations of a
class hierarchy are
 factoring of two classes into a new class
 splitting a class into two new ones.

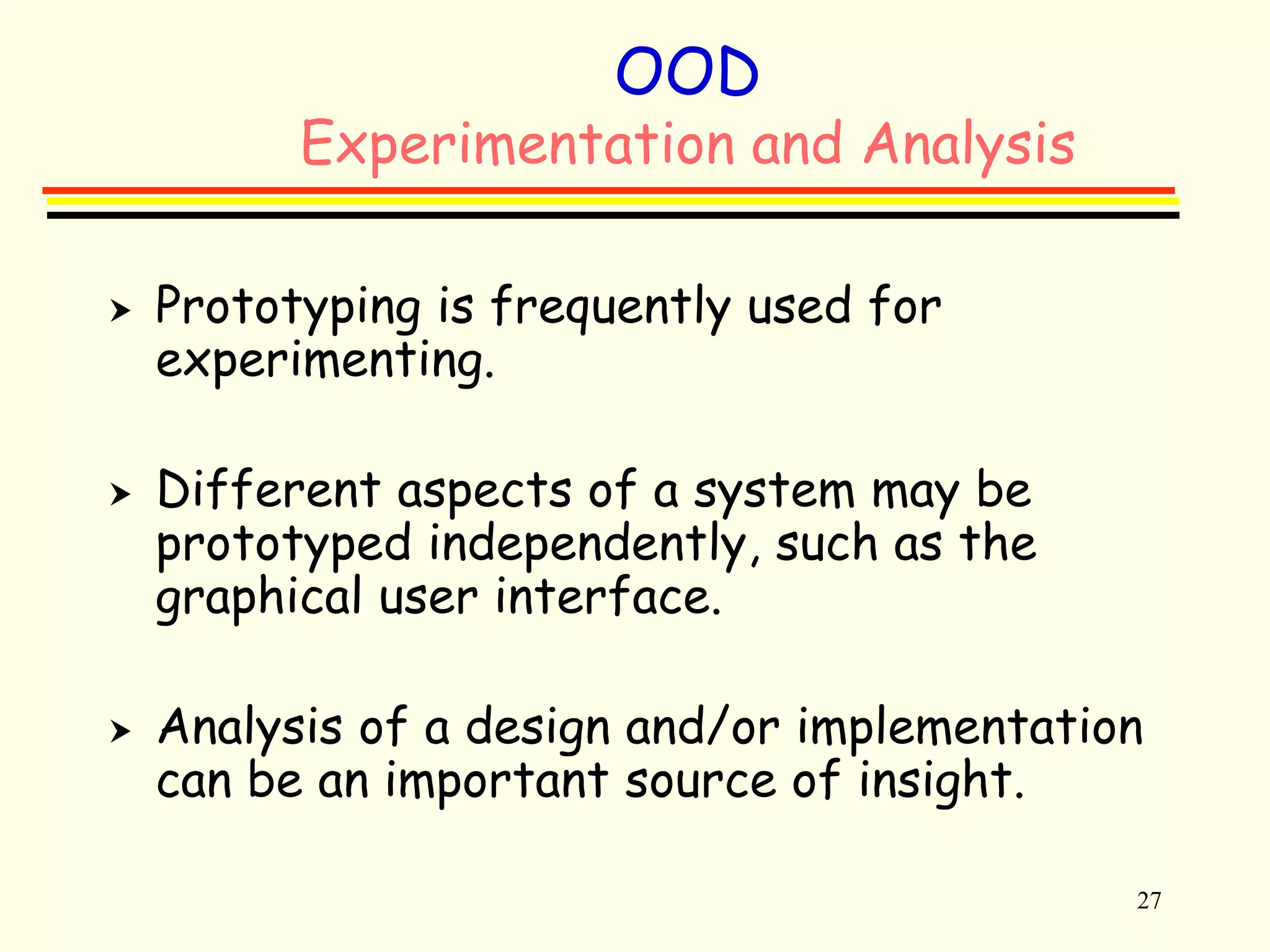

27. 27
OOD
Experimentation and Analysis
 Prototyping is frequently used for
experimenting.
 Different aspects of a system may be
prototyped independently, such as the
graphical user interface.
 Analysis of a design and/or implementation
can be an important source of insight.

28. 28

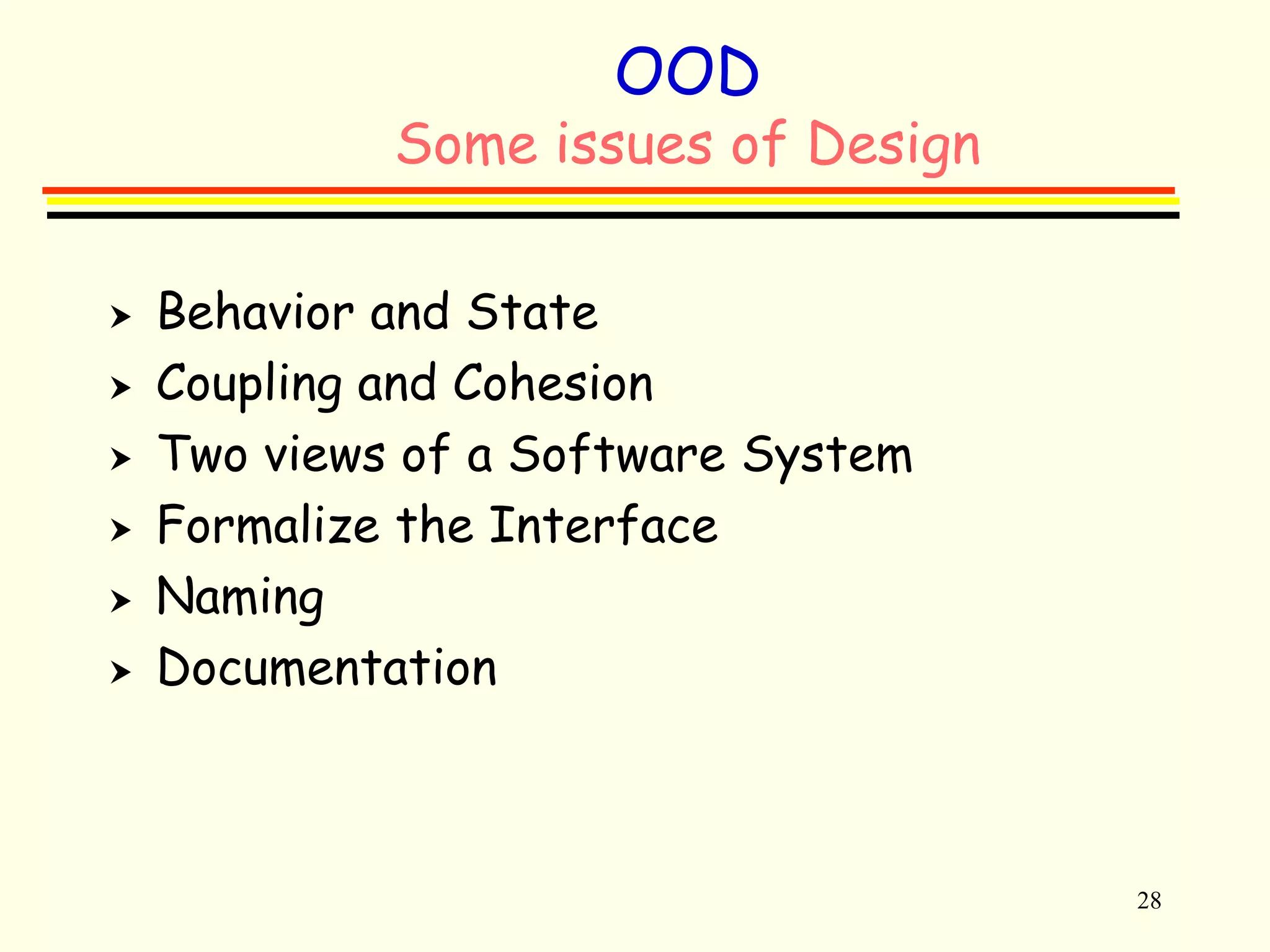

OOD
Some issues of Design
 Behavior and State
 Coupling and Cohesion
 Two views of a Software System
 Formalize the Interface
 Naming
 Documentation

29. 29
OOD

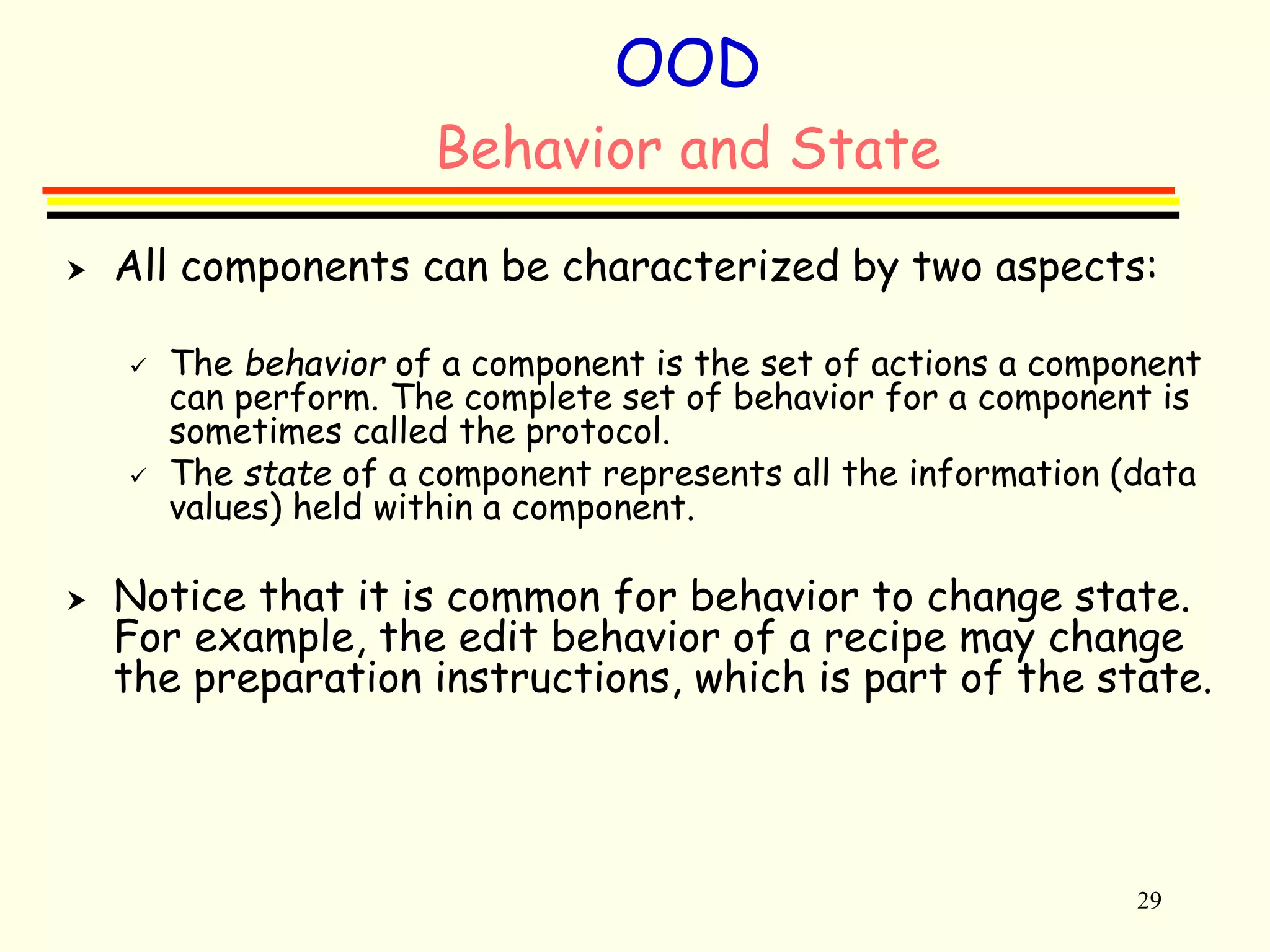

Behavior and State
 All components can be characterized by two aspects:
 The behavior of a component is the set of actions a component
can perform. The complete set of behavior for a component is
sometimes called the protocol.
 The state of a component represents all the information (data
values) held within a component.
 Notice that it is common for behavior to change state.
For example, the edit behavior of a recipe may change
the preparation instructions, which is part of the state.

30. 30

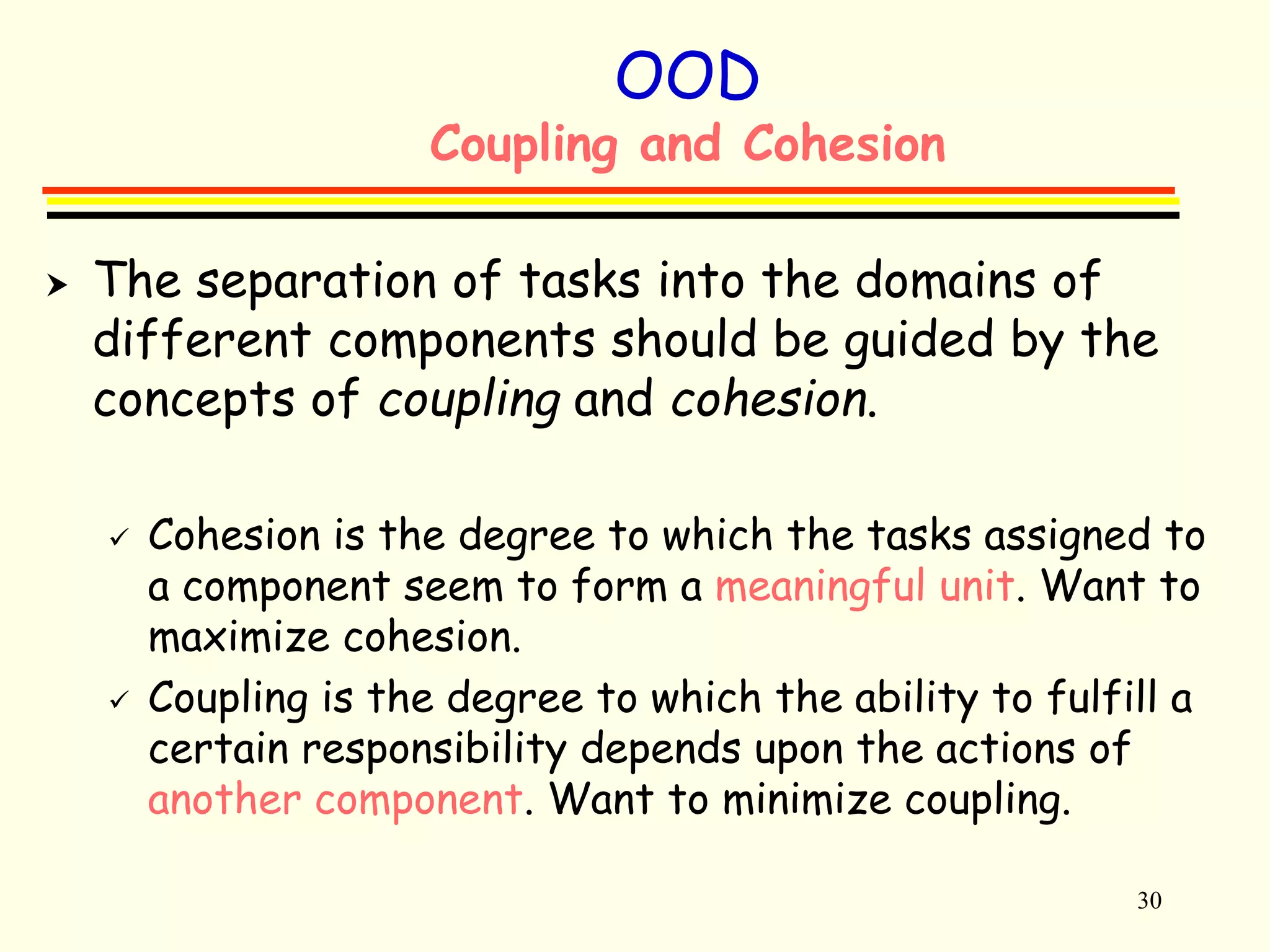

OOD
Coupling and Cohesion
 The separation of tasks into the domains of
different components should be guided by the
concepts of coupling and cohesion.
 Cohesion is the degree to which the tasks assigned to
a component seem to form a meaningful unit. Want to
maximize cohesion.
 Coupling is the degree to which the ability to fulfill a
certain responsibility depends upon the actions of
another component. Want to minimize coupling.

31. 31

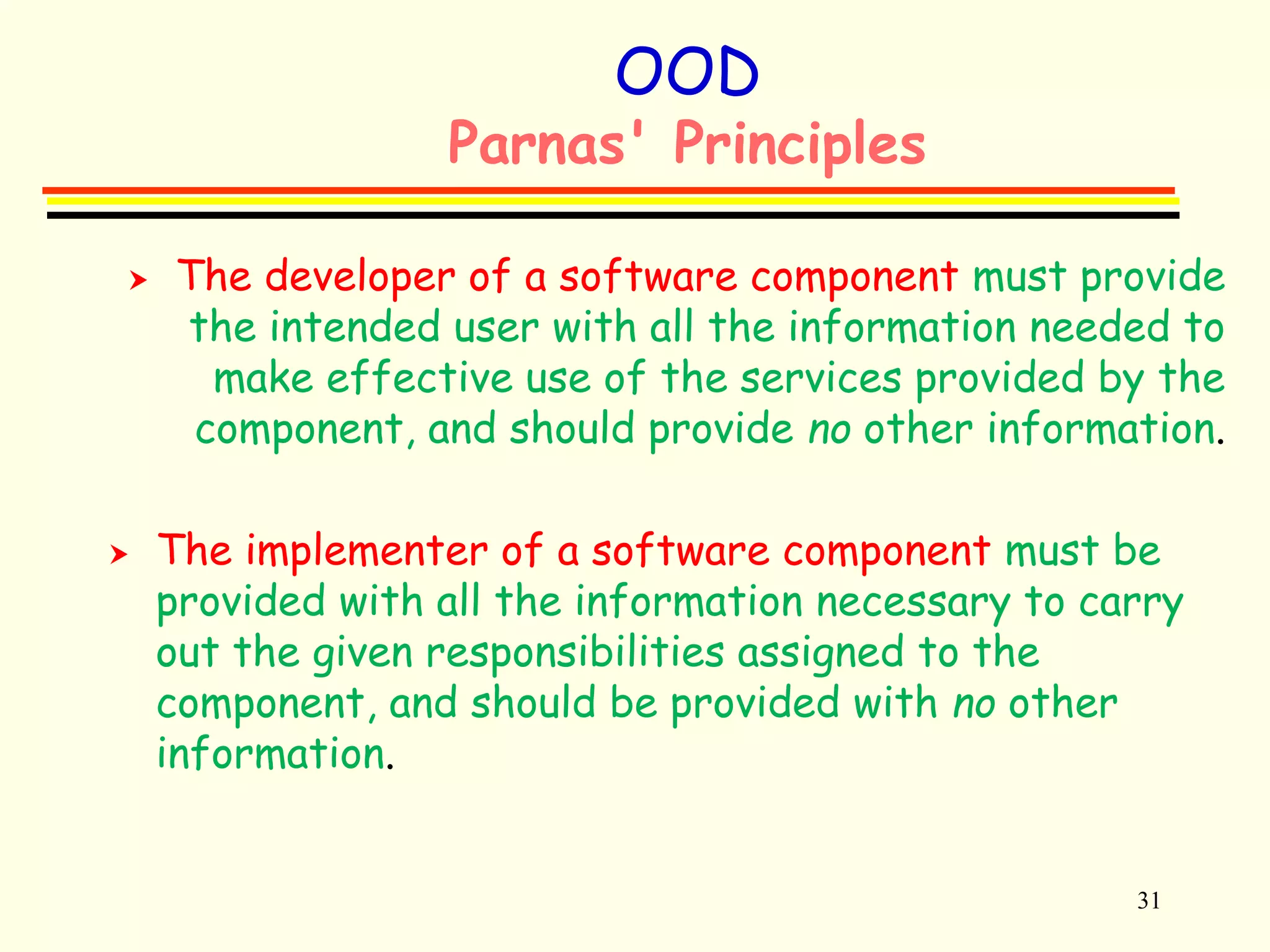

OOD
Parnas' Principles
 The developer of a software component must provide
the intended user with all the information needed to
make effective use of the services provided by the
component, and should provide no other information.
 The implementer of a software component must be
provided with all the information necessary to carry
out the given responsibilities assigned to the
component, and should be provided with no other
information.

32. 32

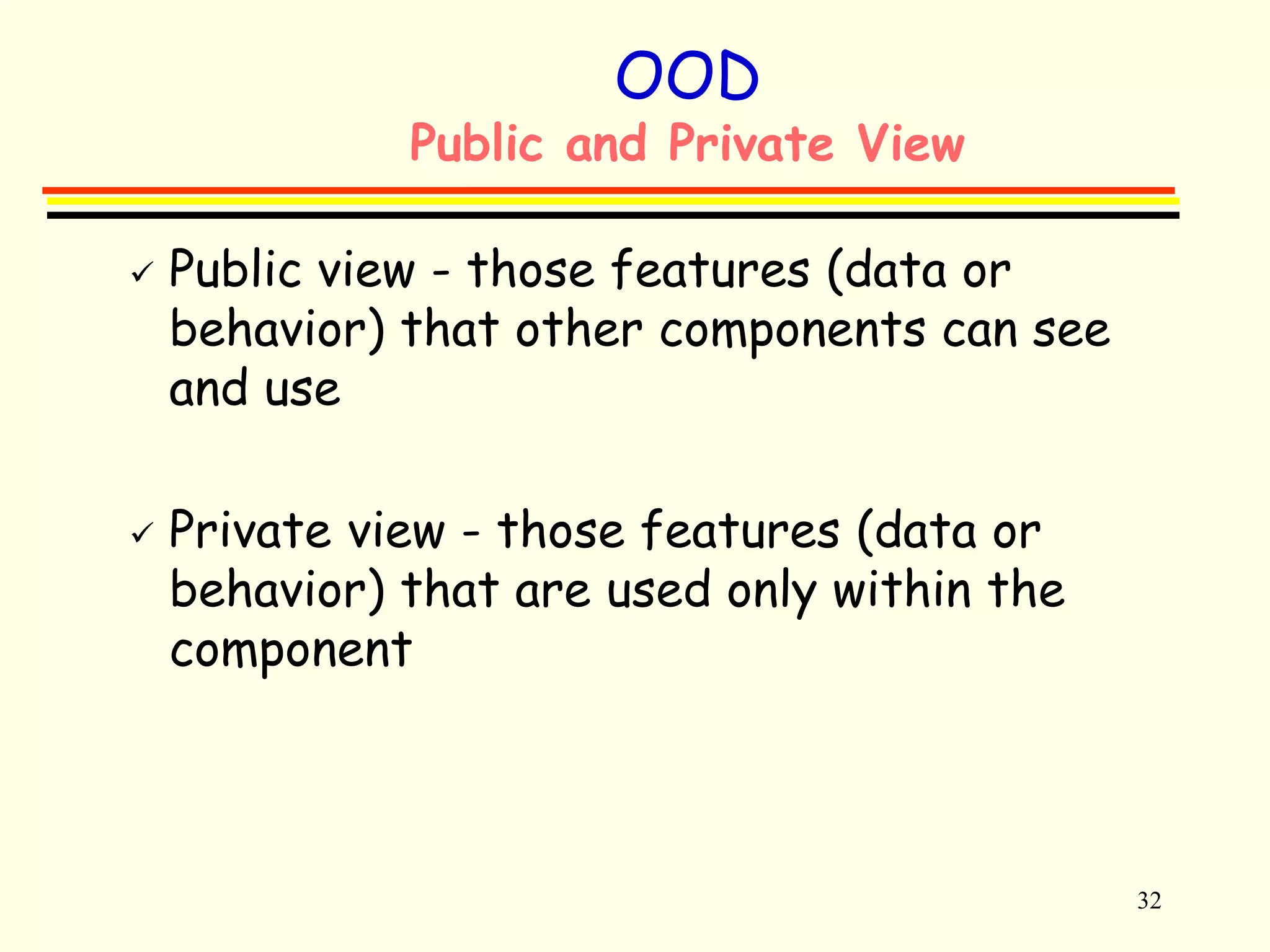

OOD
Public and Private View
 Public view - those features (data or
behavior) that other components can see
and use
 Private view - those features (data or
behavior) that are used only within the
component

33. 33

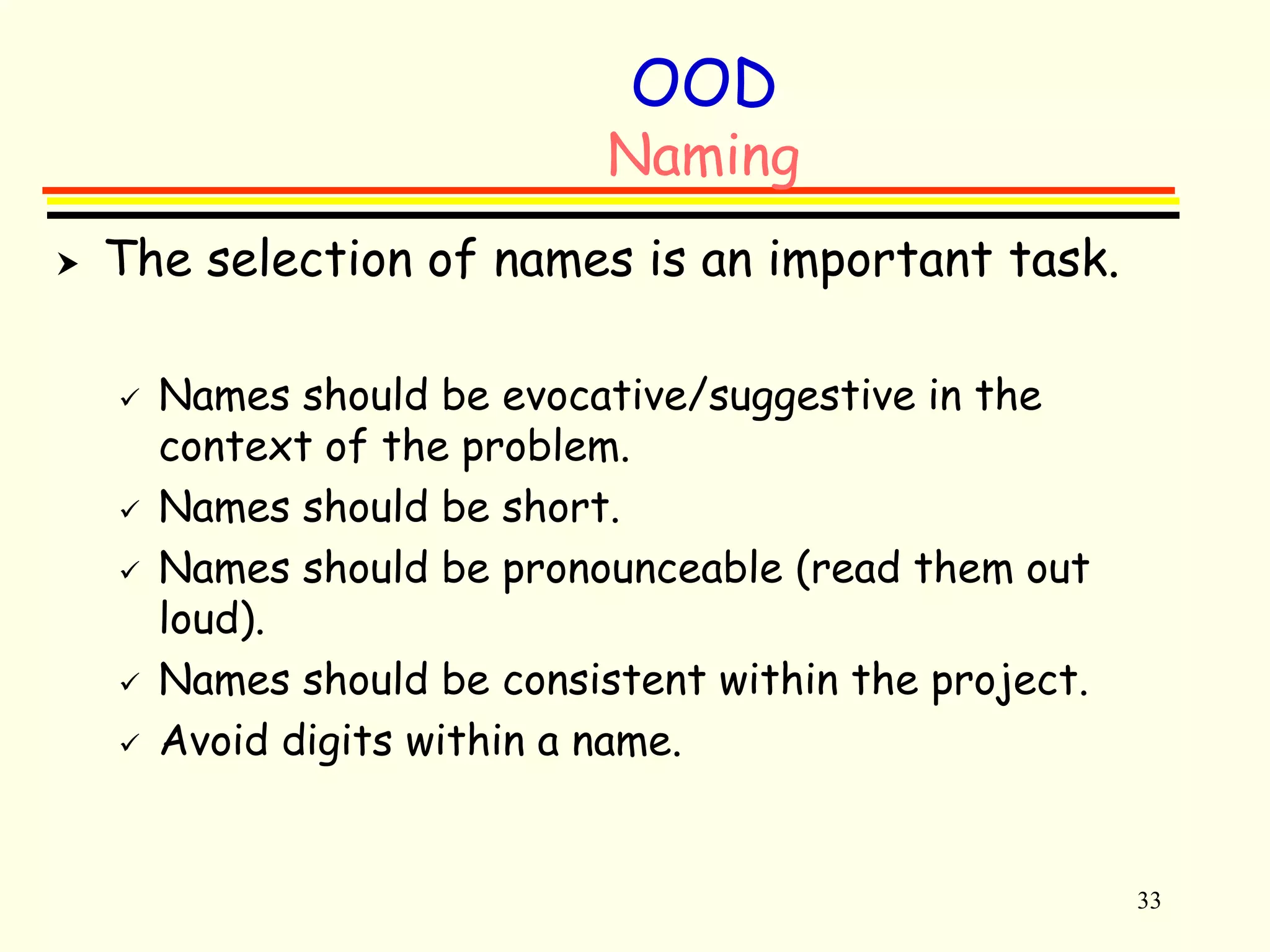

OOD
Naming
 The selection of names is an important task.
 Names should be evocative/suggestive in the
context of the problem.
 Names should be short.
 Names should be pronounceable (read them out
loud).
 Names should be consistent within the project.
 Avoid digits within a name.

34. 34
OOD

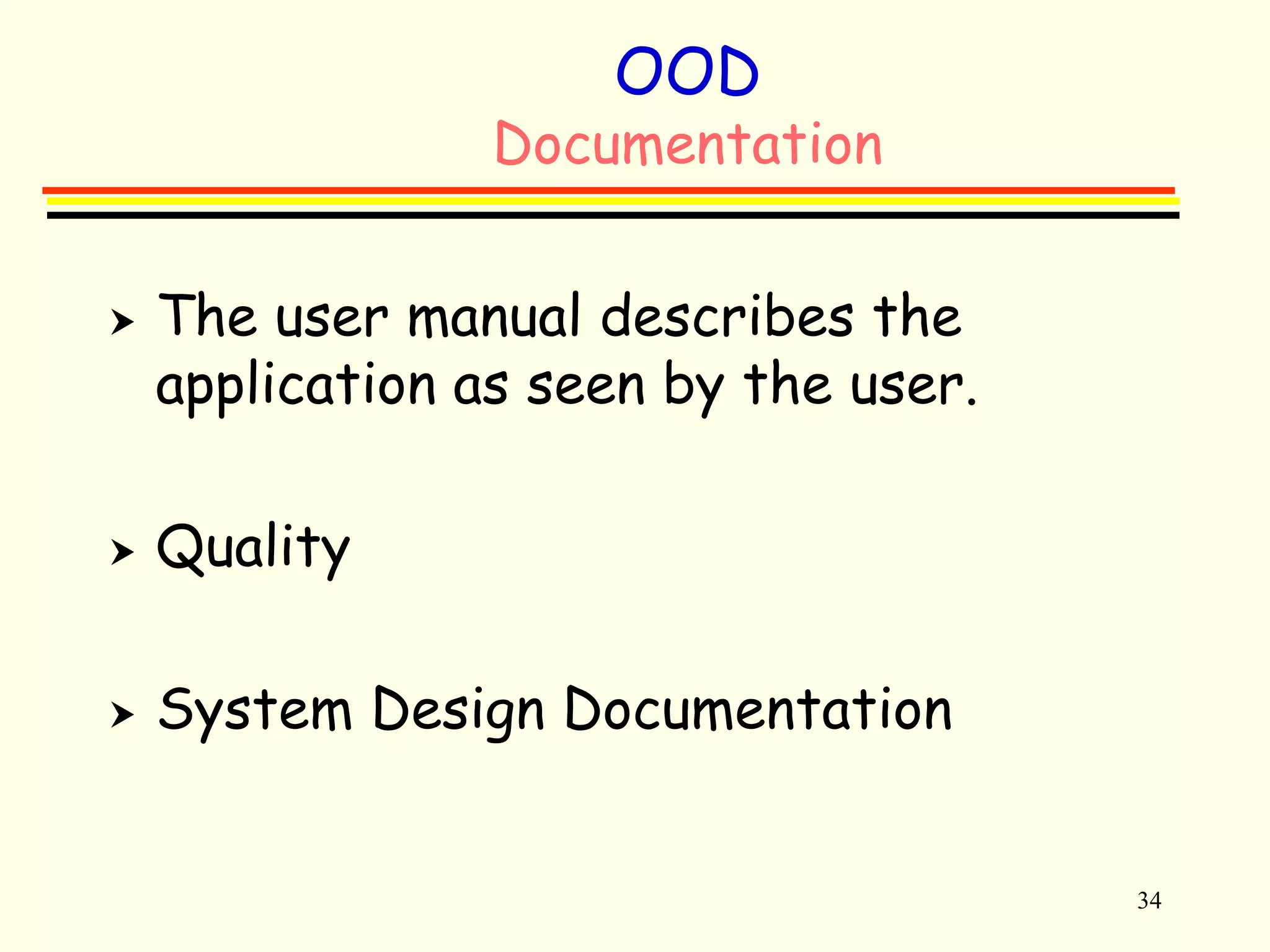

Documentation
 The user manual describes the
application as seen by the user.

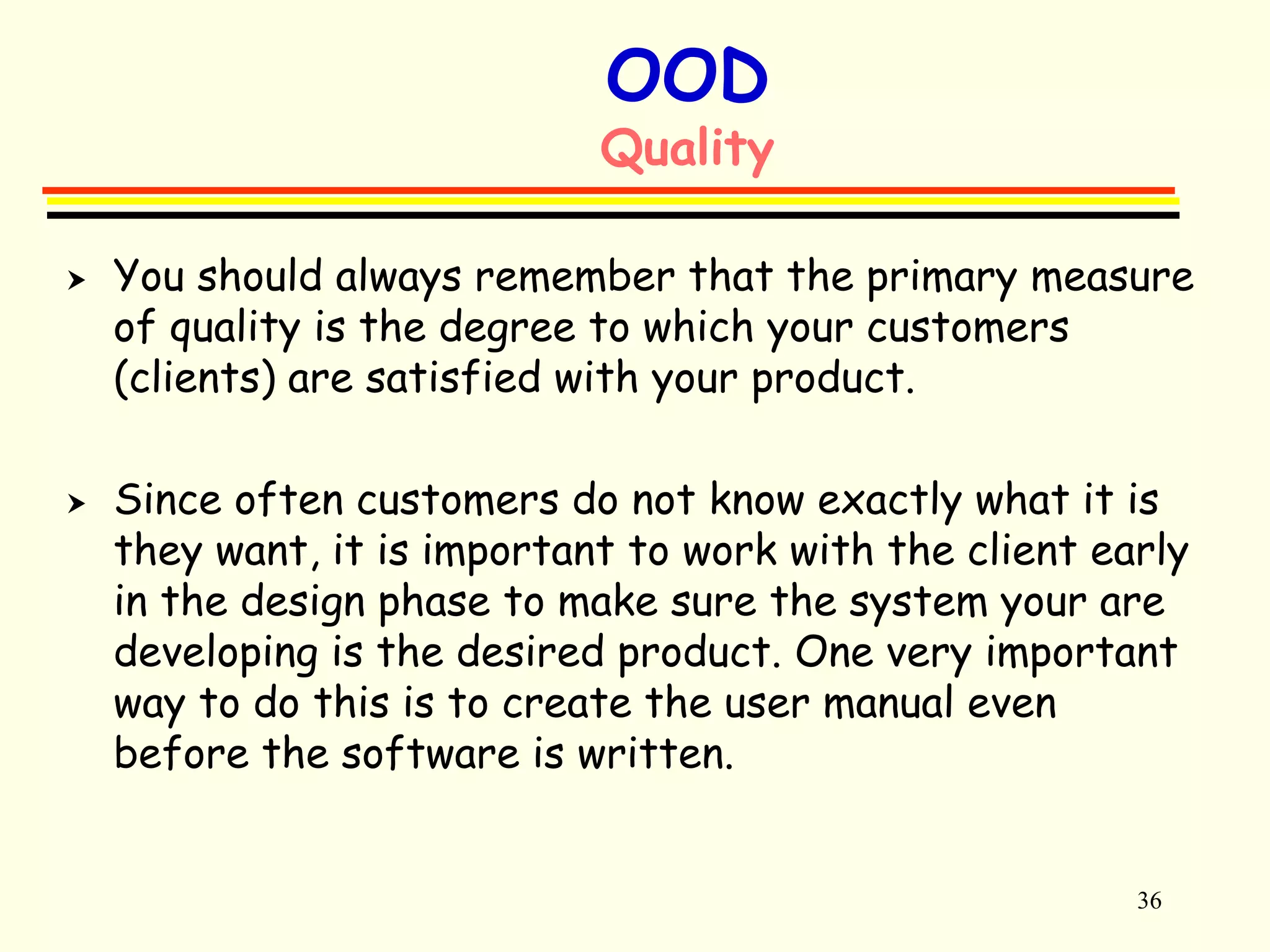

 Quality

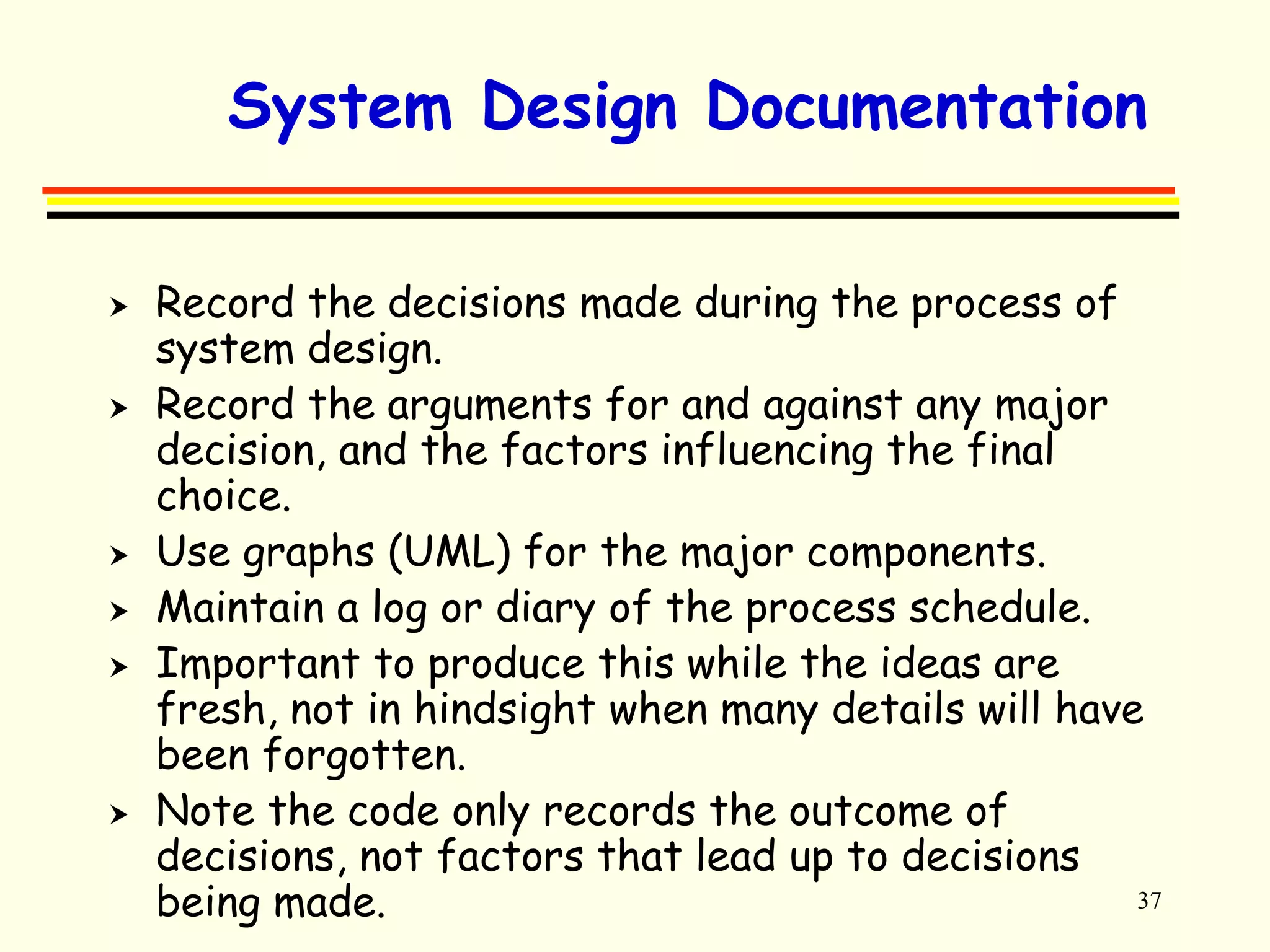

 System Design Documentation

35. 35
OOD

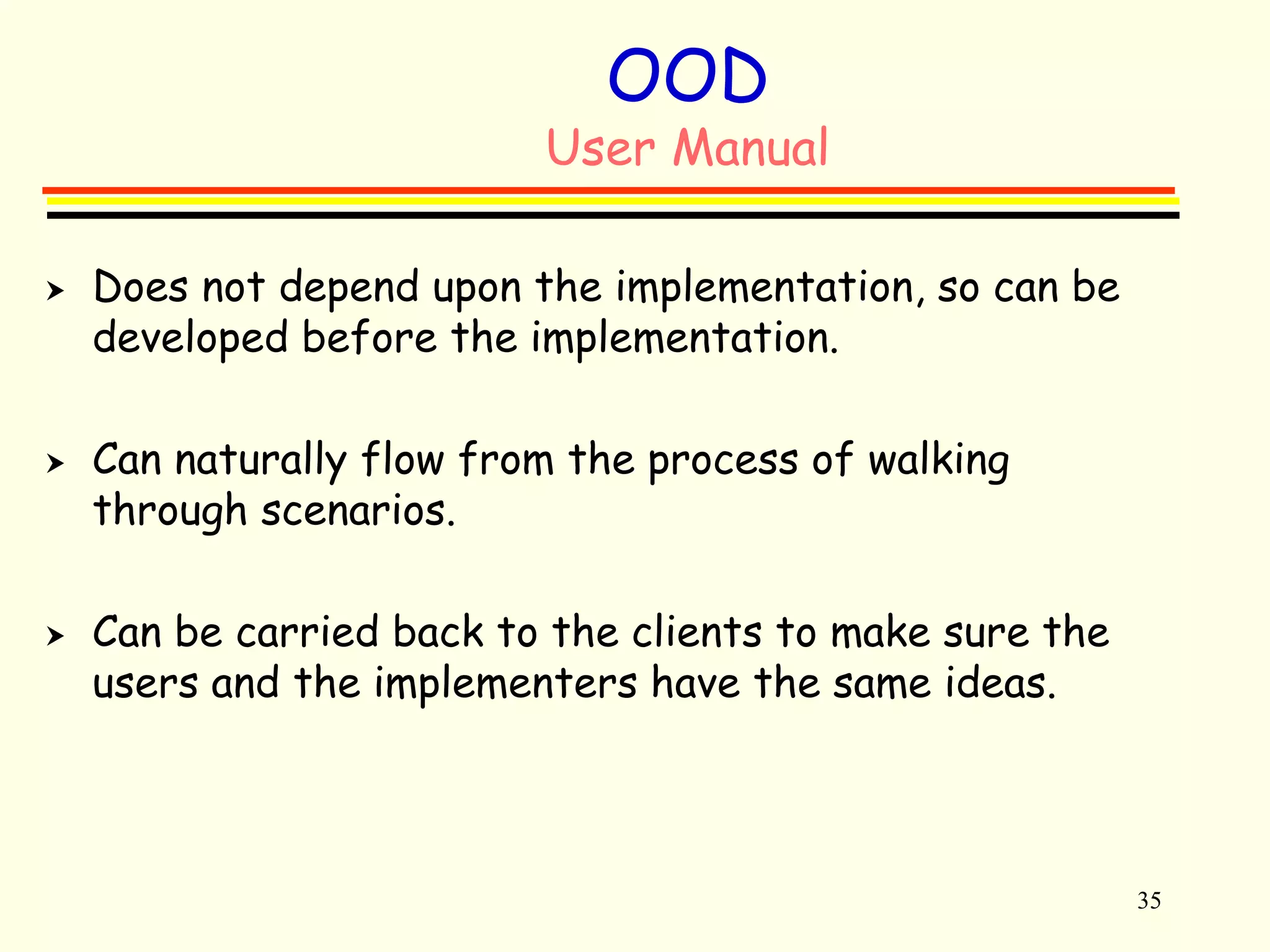

User Manual
 Does not depend upon the implementation, so can be
developed before the implementation.
 Can naturally flow from the process of walking
through scenarios.
 Can be carried back to the clients to make sure the
users and the implementers have the same ideas.

36. 36
OOD
Quality
 You should always remember that the primary measure
of quality is the degree to which your customers
(clients) are satisfied with your product.
 Since often customers do not know exactly what it is
they want, it is important to work with the client early
in the design phase to make sure the system your are
developing is the desired product. One very important
way to do this is to create the user manual even
before the software is written.

37. System Design Documentation
37
 Record the decisions made during the process of
system design.
 Record the arguments for and against any major
decision, and the factors influencing the final
choice.
 Use graphs (UML) for the major components.
 Maintain a log or diary of the process schedule.
 Important to produce this while the ideas are
fresh, not in hindsight when many details will have
been forgotten.
 Note the code only records the outcome of
decisions, not factors that lead up to decisions
being made.

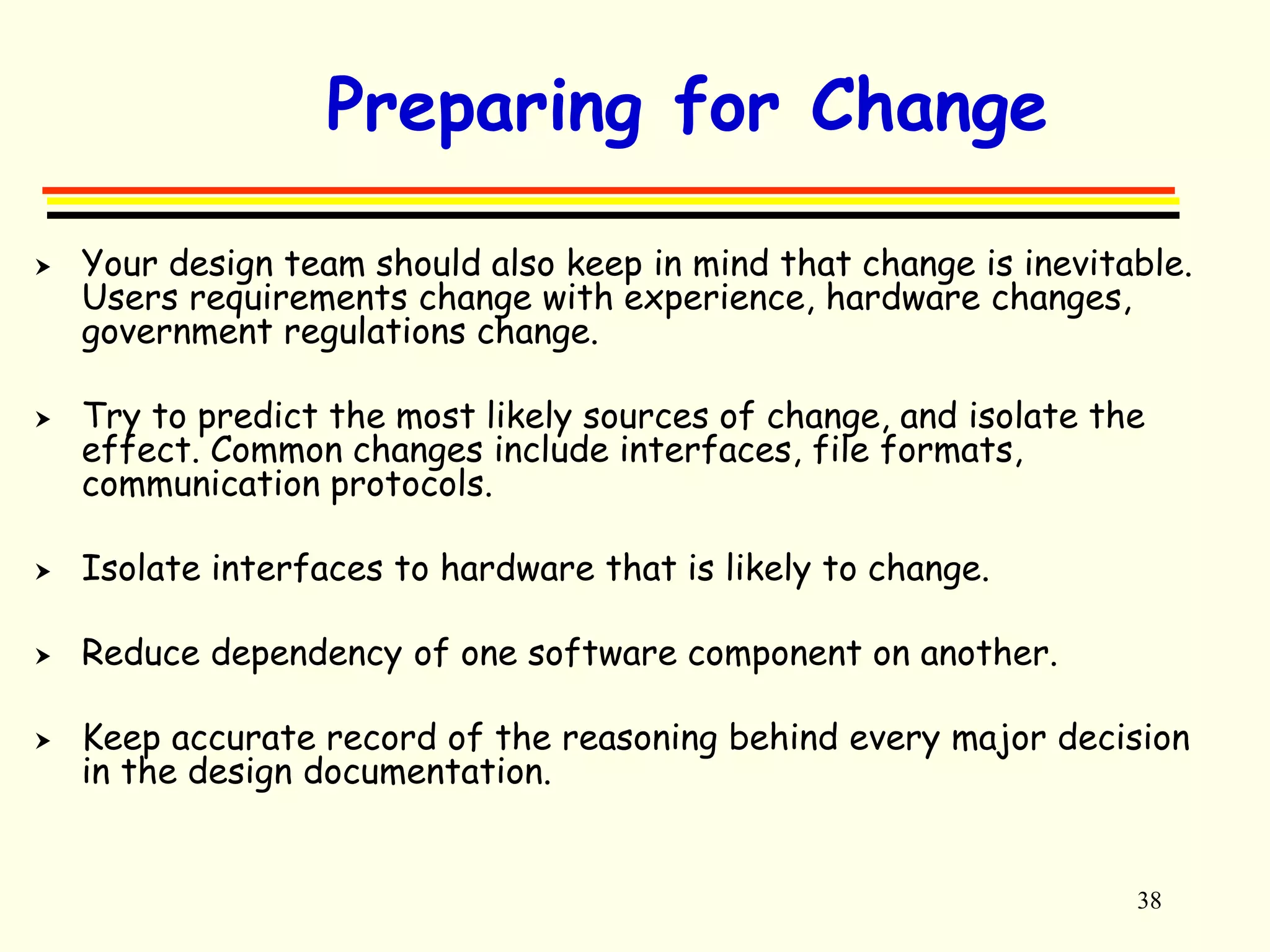

38. 38
Preparing for Change
 Your design team should also keep in mind that change is inevitable.
Users requirements change with experience, hardware changes,
government regulations change.
 Try to predict the most likely sources of change, and isolate the
effect. Common changes include interfaces, file formats,
communication protocols.
 Isolate interfaces to hardware that is likely to change.
 Reduce dependency of one software component on another.
 Keep accurate record of the reasoning behind every major decision
in the design documentation.

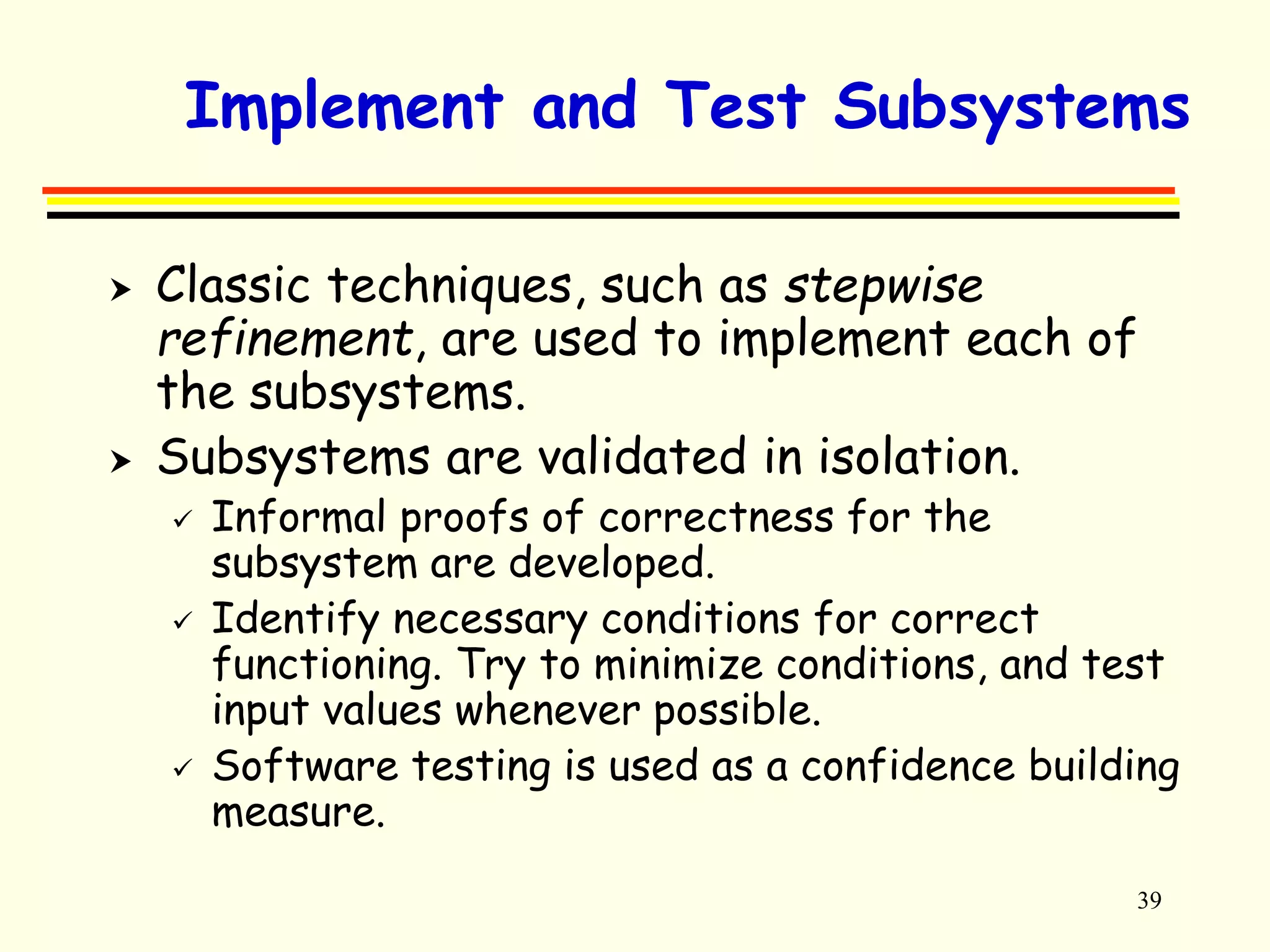

39. Implement and Test Subsystems
 Classic techniques, such as stepwise
refinement, are used to implement each of
the subsystems.
39
 Subsystems are validated in isolation.
 Informal proofs of correctness for the
subsystem are developed.
 Identify necessary conditions for correct
functioning. Try to minimize conditions, and test
input values whenever possible.
 Software testing is used as a confidence building
measure.

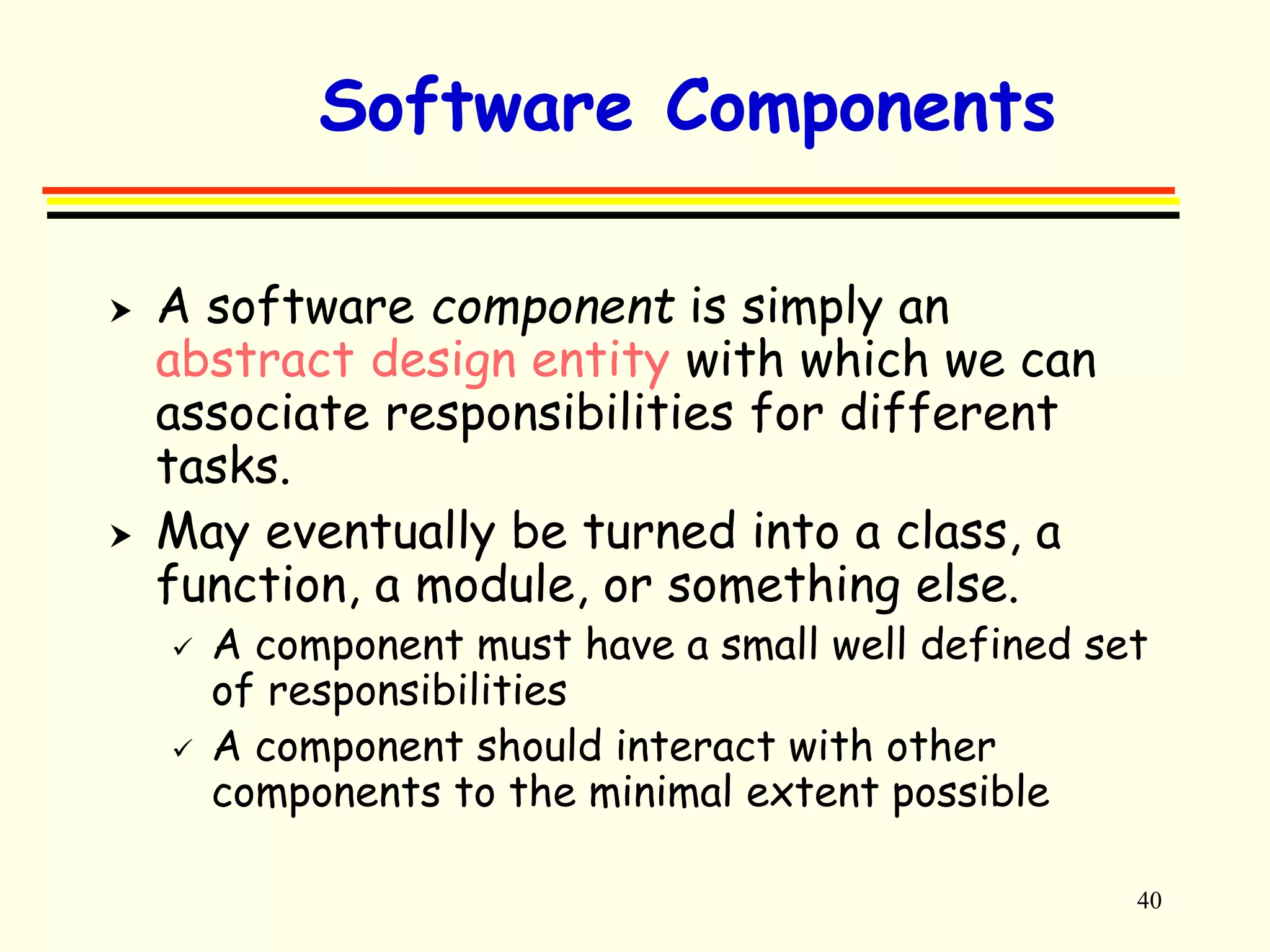

40. 40
Software Components
 A software component is simply an
abstract design entity with which we can
associate responsibilities for different
tasks.
 May eventually be turned into a class, a
function, a module, or something else.
 A component must have a small well defined set
of responsibilities
 A component should interact with other
components to the minimal extent possible

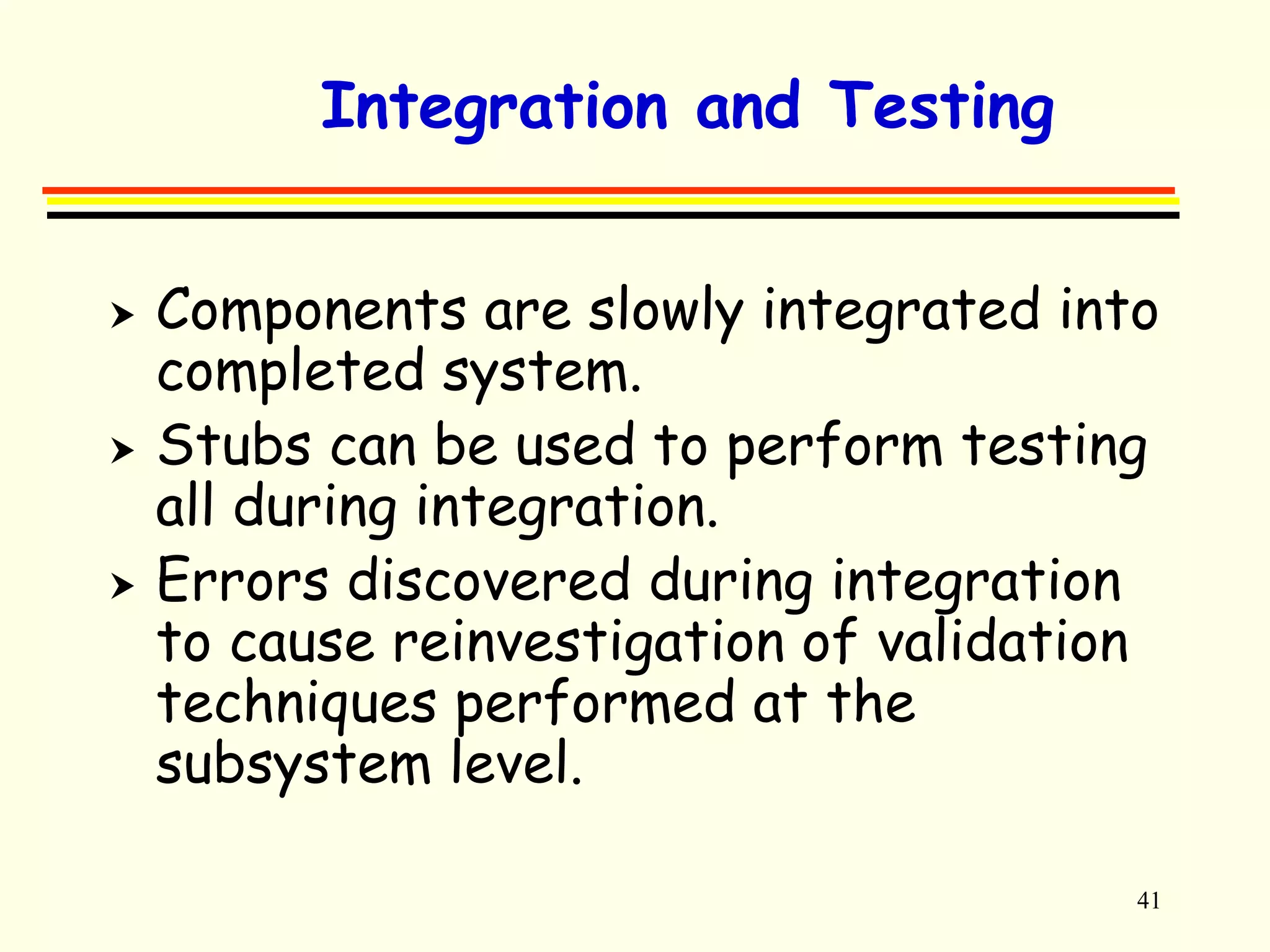

41. 41
Integration and Testing
 Components are slowly integrated into
completed system.
 Stubs can be used to perform testing
all during integration.
 Errors discovered during integration
to cause reinvestigation of validation
techniques performed at the
subsystem level.

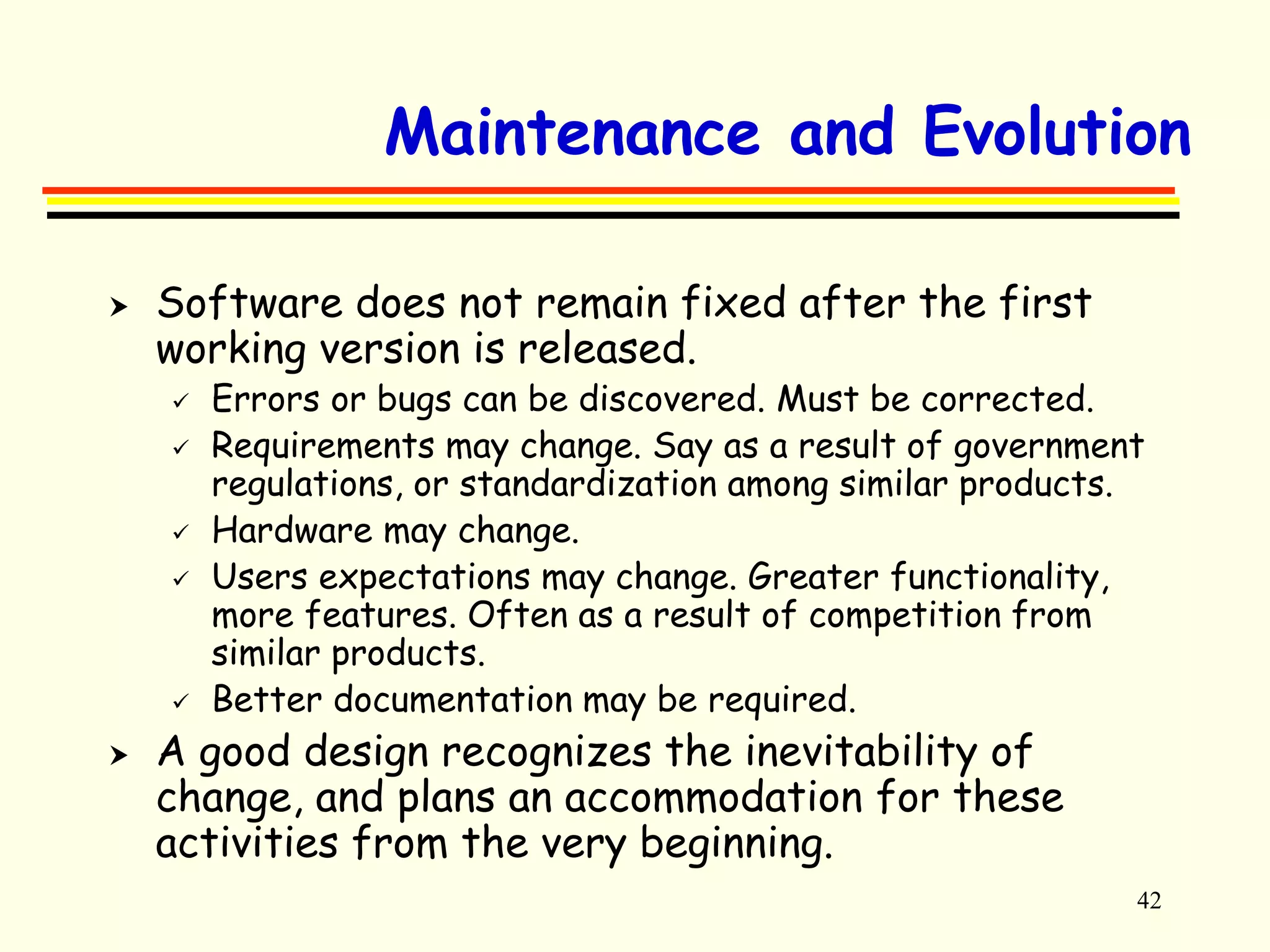

42. Maintenance and Evolution
42
 Software does not remain fixed after the first
working version is released.
 Errors or bugs can be discovered. Must be corrected.
 Requirements may change. Say as a result of government
regulations, or standardization among similar products.
 Hardware may change.
 Users expectations may change. Greater functionality,
more features. Often as a result of competition from
similar products.
 Better documentation may be required.
 A good design recognizes the inevitability of
change, and plans an accommodation for these
activities from the very beginning.

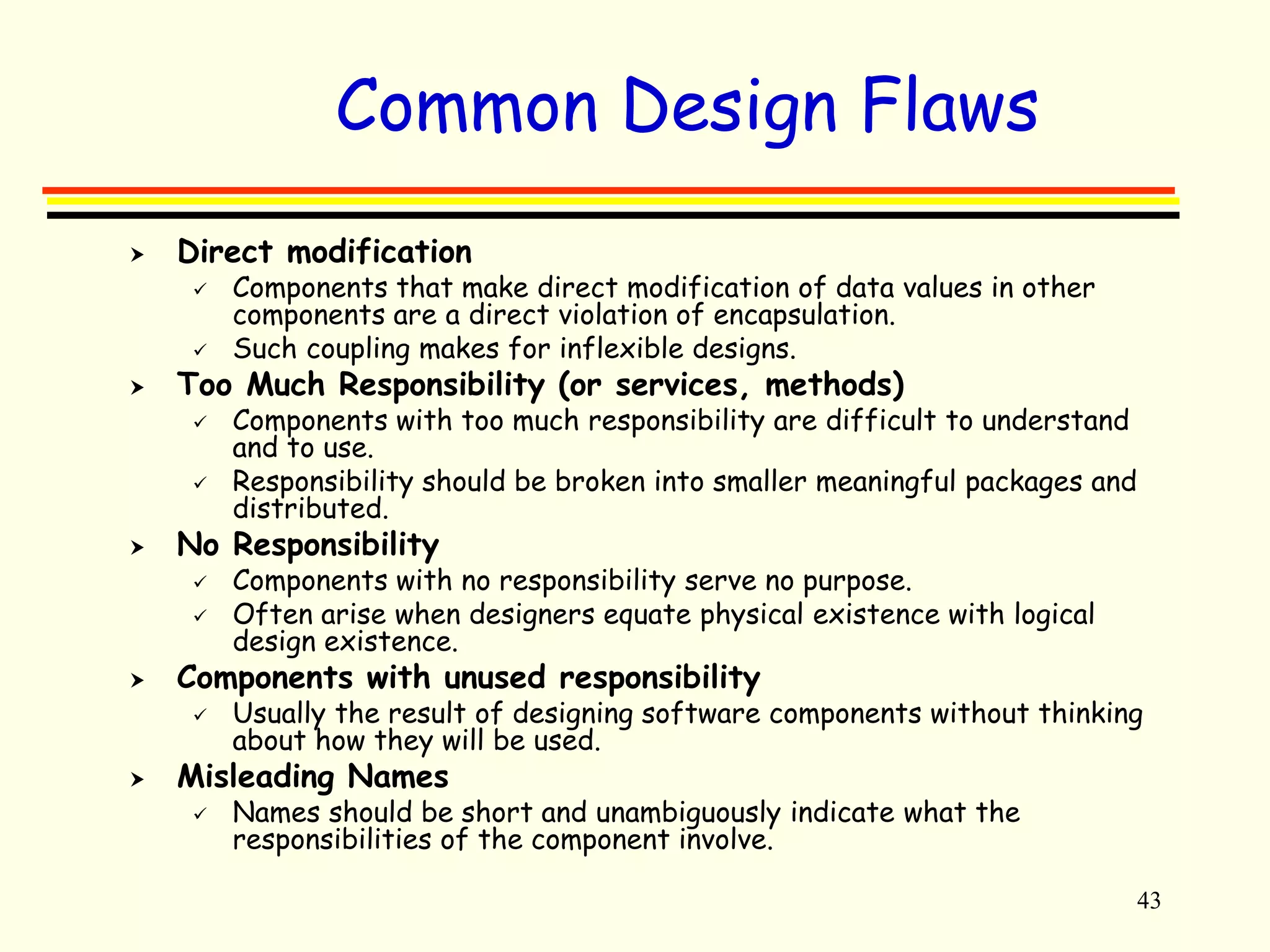

43. 43
Common Design Flaws
 Direct modification
 Components that make direct modification of data values in other
components are a direct violation of encapsulation.
 Such coupling makes for inflexible designs.
 Too Much Responsibility (or services, methods)
 Components with too much responsibility are difficult to understand
and to use.
 Responsibility should be broken into smaller meaningful packages and
distributed.
 No Responsibility
 Components with no responsibility serve no purpose.
 Often arise when designers equate physical existence with logical
design existence.
 Components with unused responsibility
 Usually the result of designing software components without thinking
about how they will be used.
 Misleading Names
 Names should be short and unambiguously indicate what the
responsibilities of the component involve.
