This document discusses structured systems development methods. It provides an overview of key concepts in structured methods including the waterfall model, structured programming, structured design, structured analysis of processes, data and events. Diagramming techniques are presented as core to structured methods for modeling systems at different levels of abstraction. Both process-driven and data-driven perspectives in structured analysis are examined.

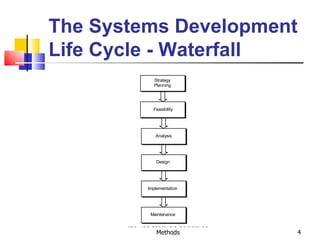

4. The Systems Development
Life Cycle - Waterfall
Strategy
Planning
Feasibility
Analysis
Design
Implementation
Maintenance
ISDM11 Lecture 3 Structured
Methods 4

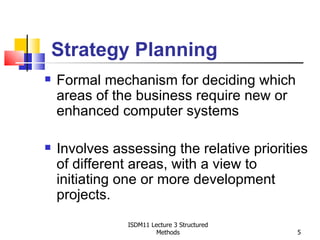

5. Strategy Planning
Formal mechanism for deciding which
areas of the business require new or
enhanced computer systems
Involves assessing the relative priorities
of different areas, with a view to
initiating one or more development
projects.
ISDM11 Lecture 3 Structured
Methods 5
6. Feasibility Study
Establish the feasibility of potential
systems ideas from strategy planning
Look at economic, technical and
operational feasibility (see Kendall and
Kendall)
ISDM11 Lecture 3 Structured
Methods 6
7. Systems Analysis
Establish the requirements of users,
and hence of the business
Concentrate on what it should deliver,
rather than how it should deliver it
ISDM11 Lecture 3 Structured
Methods 7

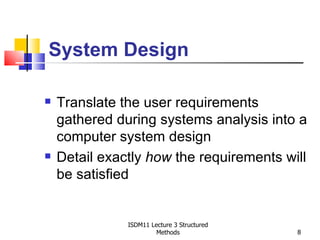

8. System Design
Translate the user requirements
gathered during systems analysis into a
computer system design
Detail exactly how the requirements will
be satisfied
ISDM11 Lecture 3 Structured
Methods 8

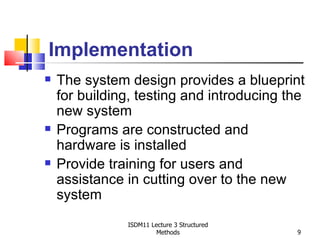

9. Implementation
The system design provides a blueprint
for building, testing and introducing the
new system
Programs are constructed and
hardware is installed
Provide training for users and
assistance in cutting over to the new
system
ISDM11 Lecture 3 Structured
Methods 9

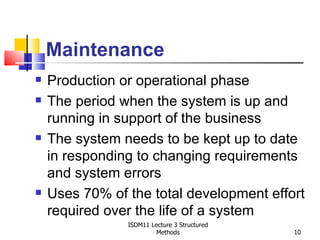

10. Maintenance
Production or operational phase
The period when the system is up and
running in support of the business
The system needs to be kept up to date
in responding to changing requirements
and system errors
Uses 70% of the total development effort
required over the life of a system
ISDM11 Lecture 3 Structured
Methods 10

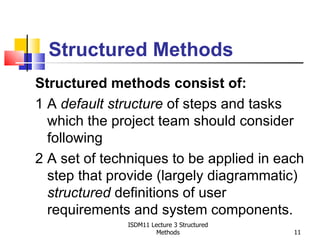

11. Structured Methods
Structured methods consist of:
1 A default structure of steps and tasks
which the project team should consider
following
2 A set of techniques to be applied in each
step that provide (largely diagrammatic)
structured definitions of user
requirements and system components.
ISDM11 Lecture 3 Structured
Methods 11

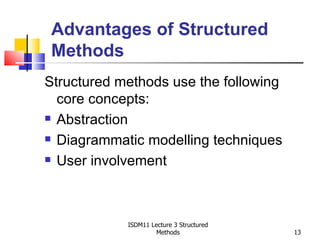

13. Advantages of Structured
Methods
Structured methods use the following
core concepts:
Abstraction
Diagrammatic modelling techniques
User involvement
ISDM11 Lecture 3 Structured
Methods 13

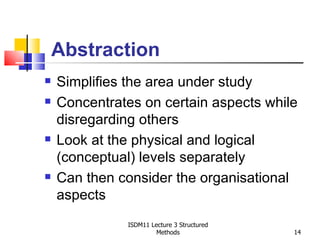

14. Abstraction
Simplifies the area under study
Concentrates on certain aspects while
disregarding others
Look at the physical and logical
(conceptual) levels separately
Can then consider the organisational
aspects
ISDM11 Lecture 3 Structured
Methods 14
15. Physical and Logical Levels of
Abstraction (Tudor and Tudor)
Existing Physical Required Physical
Required Logical
Existing Logical
User/business
Requirements
ISDM11 Lecture 3 Structured
Methods 15

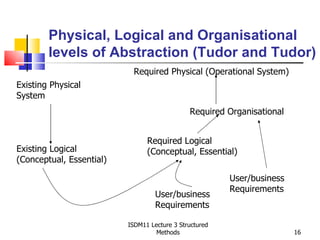

16. Physical, Logical and Organisational
levels of Abstraction (Tudor and Tudor)
Required Physical (Operational System)
Existing Physical
System
Required Organisational
Required Logical
Existing Logical (Conceptual, Essential)
(Conceptual, Essential)
User/business
Requirements
User/business
Requirements
ISDM11 Lecture 3 Structured
Methods 16

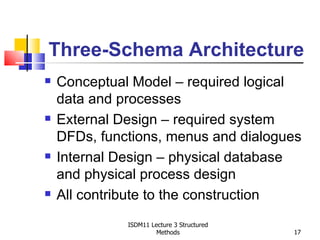

17. Three-Schema Architecture
Conceptual Model – required logical
data and processes
External Design – required system
DFDs, functions, menus and dialogues
Internal Design – physical database
and physical process design
All contribute to the construction
ISDM11 Lecture 3 Structured
Methods 17

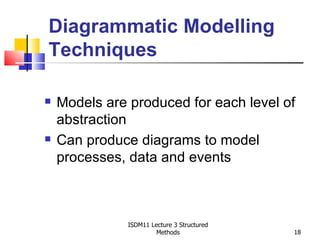

18. Diagrammatic Modelling
Techniques
Models are produced for each level of
abstraction
Can produce diagrams to model
processes, data and events
ISDM11 Lecture 3 Structured
Methods 18

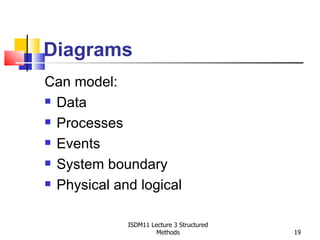

19. Diagrams
Can model:
Data
Processes
Events
System boundary
Physical and logical
ISDM11 Lecture 3 Structured
Methods 19
20. The Development of
Structured Methods
Structured programming
Structured design
Structured analysis – the process view
Structured analysis – the data view
Structured analysis – the event view
Blended methods
ISDM11 Lecture 3 Structured
Methods 20

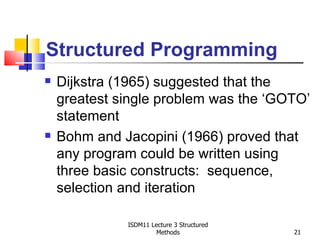

21. Structured Programming
Dijkstra (1965) suggested that the
greatest single problem was the ‘GOTO’
statement
Bohm and Jacopini (1966) proved that
any program could be written using
three basic constructs: sequence,
selection and iteration
ISDM11 Lecture 3 Structured
Methods 21

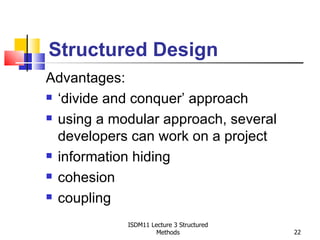

22. Structured Design
Advantages:
‘divide and conquer’ approach
using a modular approach, several
developers can work on a project
information hiding
cohesion
coupling
ISDM11 Lecture 3 Structured
Methods 22

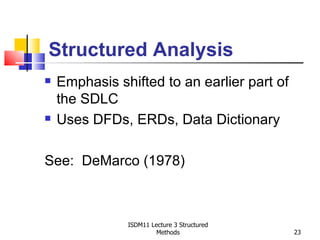

23. Structured Analysis
Emphasis shifted to an earlier part of
the SDLC
Uses DFDs, ERDs, Data Dictionary
See: DeMarco (1978)
ISDM11 Lecture 3 Structured
Methods 23

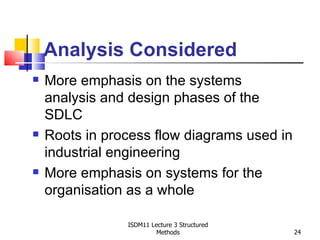

24. Analysis Considered
More emphasis on the systems
analysis and design phases of the
SDLC
Roots in process flow diagrams used in
industrial engineering
More emphasis on systems for the
organisation as a whole
ISDM11 Lecture 3 Structured
Methods 24

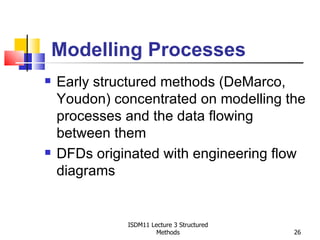

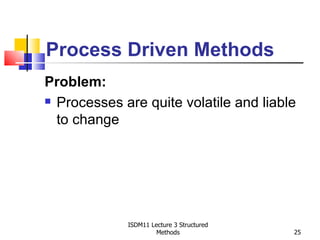

26. Modelling Processes
Early structured methods (DeMarco,
Youdon) concentrated on modelling the
processes and the data flowing
between them
DFDs originated with engineering flow
diagrams
ISDM11 Lecture 3 Structured
Methods 26

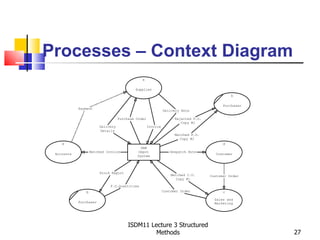

27. Processes – Context Diagram
a
Supplier
b
Purchaser
Payment
Delivery Note
Purchase Order Rejected P.O.
Copy #2
Delivery Invoice
Details
Matched P.O.
Copy #2
e d
SRW
Matched Invoice Depot Despatch Note
Accounts Customer
System
Stock Report
Matched C.O. Customer Order
Copy #1
P.O.Quantities
b Customer Order c
Sales and
Purchaser Marketing
ISDM11 Lecture 3 Structured
Methods 27

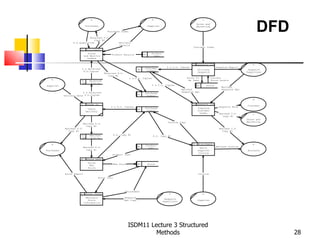

28. DFD
a b c
Sales and
Purchaser Supplier Marketing
Purchase Order
Rejected P.O.
Copy #2
P.O.Quantities Delivery
Details
Customer Order
1 P.O.Clerk
Place Product
Product Details M3
and Monitor Info
Orders
5 Despatch Clk f
Customer 2 x C.O. Copies Despatch Report
2 x Rejected M4 Allocate Despatch
P.O.Copies Orders
Despatch Supervisor
Rejected P.O.
Copy #1
2 x P.O. Copies Stock To Current
b Be Used Stock Levels
T1 Rejected
(M) P.O.'s
Supplier 2 x C.O. Copies M2 Stock
Matched
Matched Despatch Rpt
2 x Rejected Despatch Rpt
Purchase
M1
Delivery Note P.O.Copies Orders
d
2 Goods In 5 Despatch Clk
Customer
2 x P.O. Copies Despatch Note
Check Purchase Complete
M1
Delivery Orders Customer
Order Matched C.O. c
Copy #1
Sales and
Invoice Copy Marketing
Matched P.O.
Copy #1
Matched P.O. Matched C.O.
Copy #2 Copy #2
T2 Matched P.O. Copy #1
P.O. Copy #1
(M) P.O.'s
a 7 P.O.Clerk e
Product
Matched P.O. M3 Matched Invoice
Info Match
Purchaser Copy #1 Supplier Accounts
Invoice
Product Info
3 Stock Dept
Store
New Stock M2 Stock
New
Stock
Stock Report Invoice
Stock Info
Adjustment
4 Stock Clerk f b
Maintain Despatch
Despatch
Stock Rpt Copy Supplier
Supervisor
Information
ISDM11 Lecture 3 Structured
Methods 28

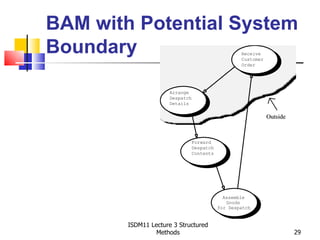

29. BAM with Potential System
Boundary Receive
Customer
Order
Arrange
Despatch
Details
Outside
Forward
Despatch
Contents
Assemble
Goods
for Despatch
ISDM11 Lecture 3 Structured
Methods 29

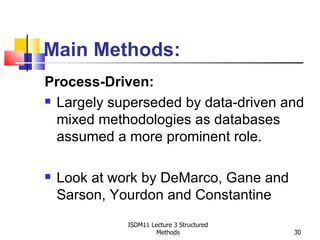

30. Main Methods:
Process-Driven:
Largely superseded by data-driven and
mixed methodologies as databases
assumed a more prominent role.
Look at work by DeMarco, Gane and
Sarson, Yourdon and Constantine
ISDM11 Lecture 3 Structured
Methods 30

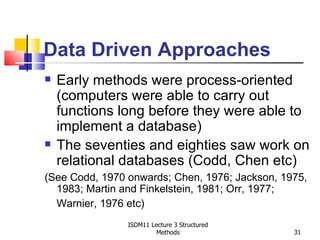

31. Data Driven Approaches
Early methods were process-oriented
(computers were able to carry out
functions long before they were able to
implement a database)
The seventies and eighties saw work on
relational databases (Codd, Chen etc)
(See Codd, 1970 onwards; Chen, 1976; Jackson, 1975,
1983; Martin and Finkelstein, 1981; Orr, 1977;
Warnier, 1976 etc)
ISDM11 Lecture 3 Structured
Methods 31

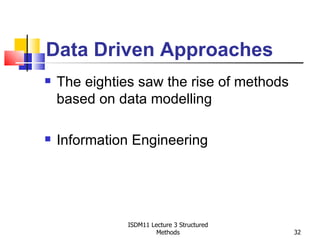

32. Data Driven Approaches
The eighties saw the rise of methods
based on data modelling
Information Engineering
ISDM11 Lecture 3 Structured
Methods 32

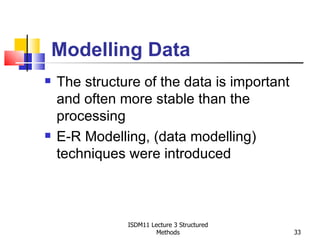

33. Modelling Data
The structure of the data is important
and often more stable than the
processing
E-R Modelling, (data modelling)
techniques were introduced
ISDM11 Lecture 3 Structured
Methods 33

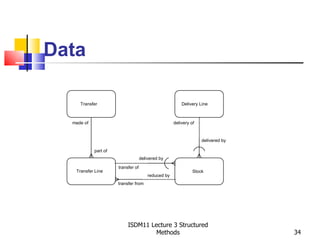

34. Data
Transfer Delivery Line
made of delivery of
delivered by
part of
delivered by
transfer of
Transfer Line Stock
reduced by
transfer from
ISDM11 Lecture 3 Structured
Methods 34

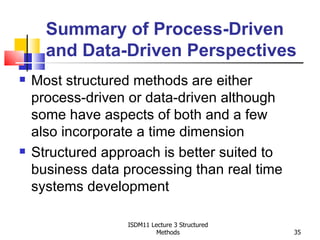

35. Summary of Process-Driven
and Data-Driven Perspectives
Most structured methods are either
process-driven or data-driven although
some have aspects of both and a few
also incorporate a time dimension
Structured approach is better suited to
business data processing than real time
systems development
ISDM11 Lecture 3 Structured
Methods 35
36. The Event View
So far the behaviour or state
perspective has been ignored
Introduction of the State Transition
Diagram to allow for a behaviour or
state perspective
ISDM11 Lecture 3 Structured
Methods 36

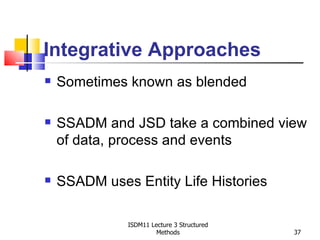

37. Integrative Approaches
Sometimes known as blended
SSADM and JSD take a combined view
of data, process and events
SSADM uses Entity Life Histories
ISDM11 Lecture 3 Structured
Methods 37

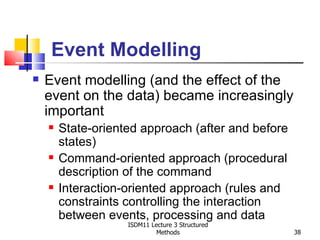

38. Event Modelling
Event modelling (and the effect of the
event on the data) became increasingly
important
State-oriented approach (after and before
states)
Command-oriented approach (procedural
description of the command
Interaction-oriented approach (rules and
constraints controlling the interaction
between events, processing and data
ISDM11 Lecture 3 Structured
Methods 38

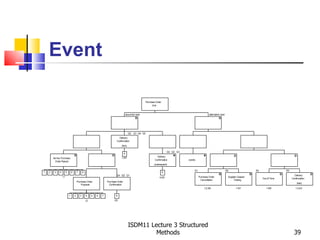

39. Event
Purchase Order
Line
assumed case alternative case
Q3 Q1 Q4 Q2
Delivery
Confirmation
(first)
Q4 Q2 Q3
9
1,3/4 Delivery
Ad Hoc Purchase
Confirmation events
Order Raised
(subsequent)
R1 R4 R2 R3
1 2 3 4 5 6 7 8 9
Q4 Q2 Q1 Delivery
-/1 4,5/5 Purchase Order Supplier Ceased
Out of Time Confirmation
Cancellation Trading
Purchase Order Purchase Order
(last)
Proposal Confirmation
1,2,3/6 1-5/7 1-5/8 1,3,4,5
1 2 3 4 5 6 7 8
-/2 2/3
ISDM11 Lecture 3 Structured
Methods 39
40. Another view of event
Delivery Number
Delivery Date
Supplier Number
Depot Number
Purchase Order Number Supplier Depot
Delivery Start Time
Delivery End Time
Product Number
Quantity Due
Delivery Set of
Delivery Line
Purchase Order
Delivery Line
Line
Purchase Order Line Purchase Order Line Purchase Order Line
(subsequent) (first) (last)
ISDM11 Lecture 3 Structured
Methods 40

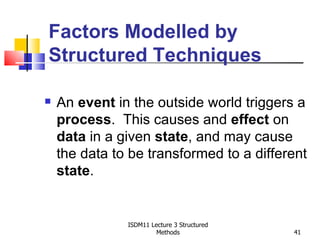

41. Factors Modelled by
Structured Techniques
An event in the outside world triggers a
process. This causes and effect on
data in a given state, and may cause
the data to be transformed to a different
state.
ISDM11 Lecture 3 Structured
Methods 41

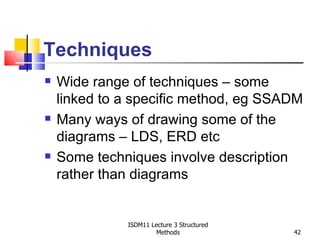

42. Techniques
Wide range of techniques – some
linked to a specific method, eg SSADM
Many ways of drawing some of the
diagrams – LDS, ERD etc
Some techniques involve description
rather than diagrams
ISDM11 Lecture 3 Structured
Methods 42

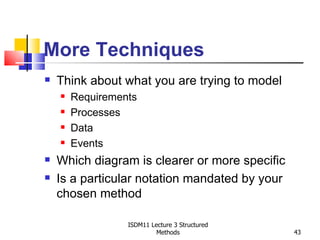

43. More Techniques
Think about what you are trying to model
Requirements
Processes
Data
Events
Which diagram is clearer or more specific
Is a particular notation mandated by your
chosen method
ISDM11 Lecture 3 Structured
Methods 43

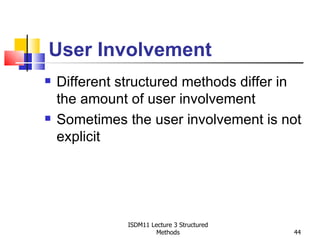

44. User Involvement
Different structured methods differ in
the amount of user involvement
Sometimes the user involvement is not
explicit
ISDM11 Lecture 3 Structured
Methods 44
45. How Do Methods Differ?
Life-cycle coverage
Underlying philosophy
User role
‘Structuredness’
Size of system aimed at
Techniques within the method
CASE tool support
ISDM11 Lecture 3 Structured
Methods 45

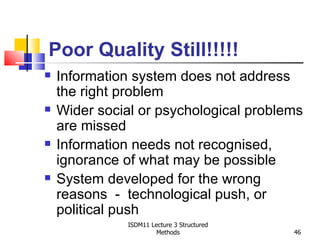

46. Poor Quality Still!!!!!
Information system does not address
the right problem
Wider social or psychological problems
are missed
Information needs not recognised,
ignorance of what may be possible
System developed for the wrong
reasons - technological push, or
political push
ISDM11 Lecture 3 Structured
Methods 46

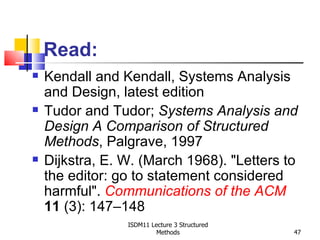

47. Read:
Kendall and Kendall, Systems Analysis
and Design, latest edition
Tudor and Tudor; Systems Analysis and
Design A Comparison of Structured
Methods, Palgrave, 1997
Dijkstra, E. W. (March 1968). "Letters to
the editor: go to statement considered
harmful". Communications of the ACM
11 (3): 147–148
ISDM11 Lecture 3 Structured
Methods 47

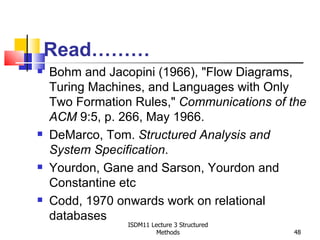

48. Read………
Bohm and Jacopini (1966), "Flow Diagrams,
Turing Machines, and Languages with Only
Two Formation Rules," Communications of the
ACM 9:5, p. 266, May 1966.
DeMarco, Tom. Structured Analysis and
System Specification.
Yourdon, Gane and Sarson, Yourdon and
Constantine etc
Codd, 1970 onwards work on relational
databases
ISDM11 Lecture 3 Structured
Methods 48

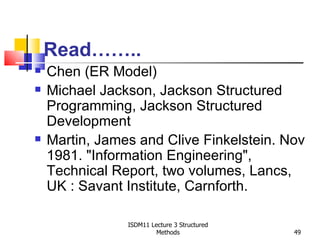

49. Read……..
Chen (ER Model)
Michael Jackson, Jackson Structured
Programming, Jackson Structured
Development
Martin, James and Clive Finkelstein. Nov
1981. "Information Engineering",
Technical Report, two volumes, Lancs,
UK : Savant Institute, Carnforth.
ISDM11 Lecture 3 Structured
Methods 49
50. Read…..
Kenneth T. Orr, Structured
Systems Development, Prentice
Hall PTR ;
Weaver, Lambrou and Walkley.
Practical Business Systems
Development Using SSADM,
Prentice Hall, 3rd ed, 2002
ISDM11 Lecture 3 Structured
Methods 50
