1. By:
Harmeet Singh (Taara)
Software Consultant

2. Agenda
1. Actor Model/Akka (Brief)
.
2. Finite State Machine (FSM)
3. Demo.
4. Leftover: The things we didn’t cover

5. ActorModel:Fundamentals
➔ All Computations is performed within Actor.
➔ Actors can communicate only through messages.
NOTE: Modeling a software this allows you to deal
with state in an atomic way, isolated way which is
core principal of actor model.

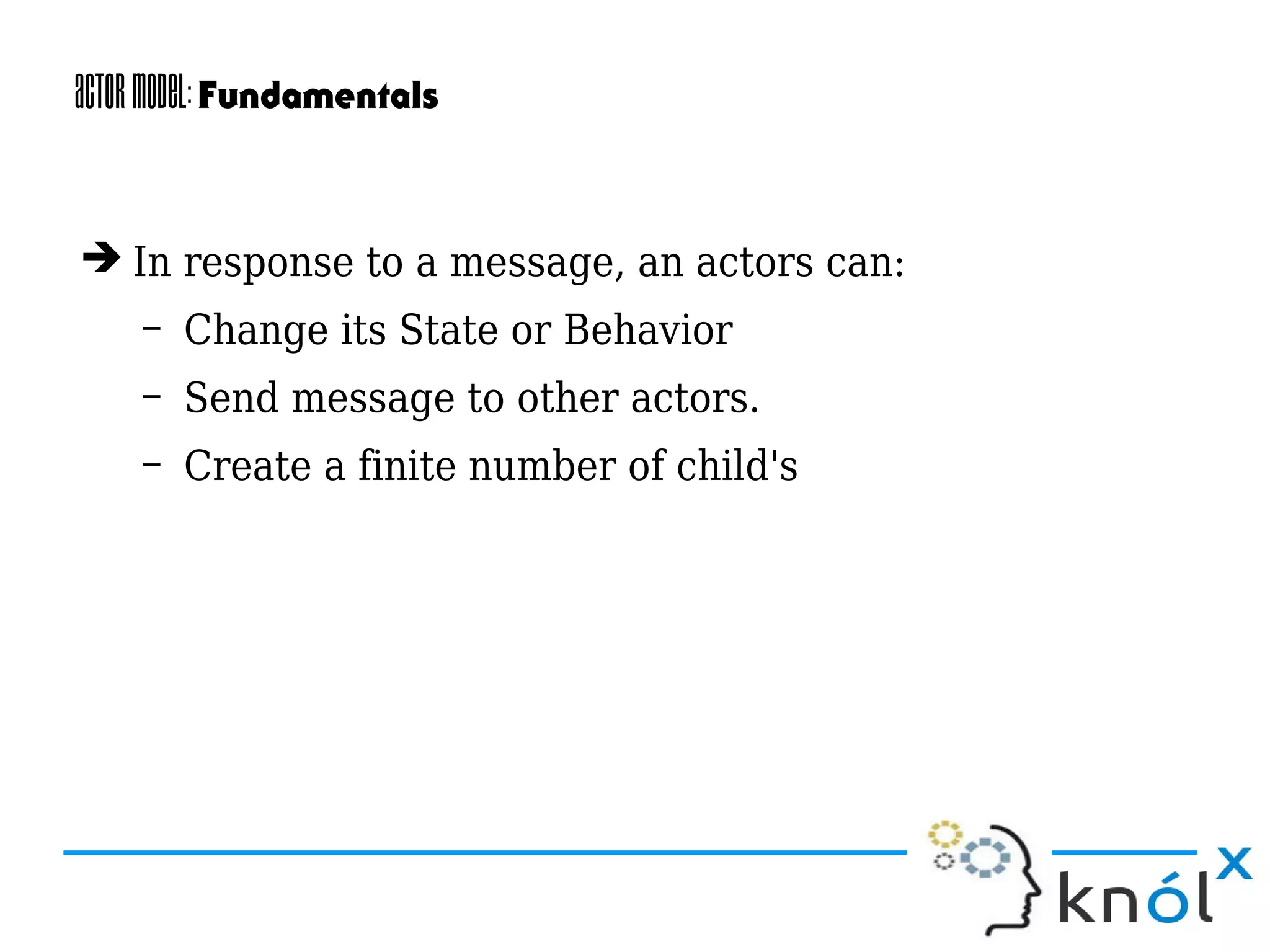

6. ActorModel:Fundamentals
➔ In response to a message, an actors can:
– Change its State or Behavior
– Send message to other actors.
– Create a finite number of child's

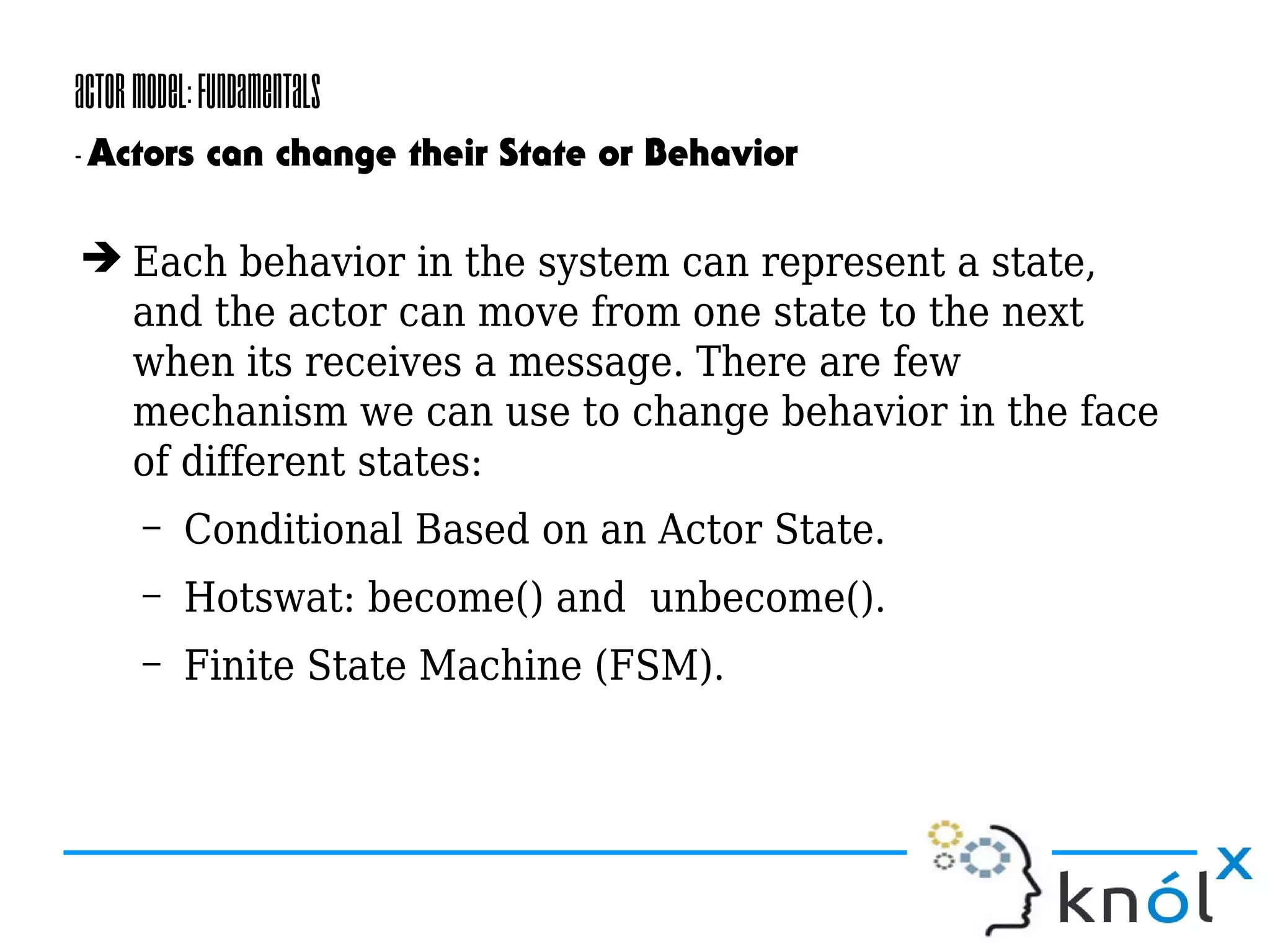

7. ActorModel:Fundamentals
-Actors can change their State or Behavior
➔ Each behavior in the system can represent a state,
and the actor can move from one state to the next
when its receives a message. There are few
mechanism we can use to change behavior in the face
of different states:
– Conditional Based on an Actor State.
– Hotswat: become() and unbecome().
– Finite State Machine (FSM).

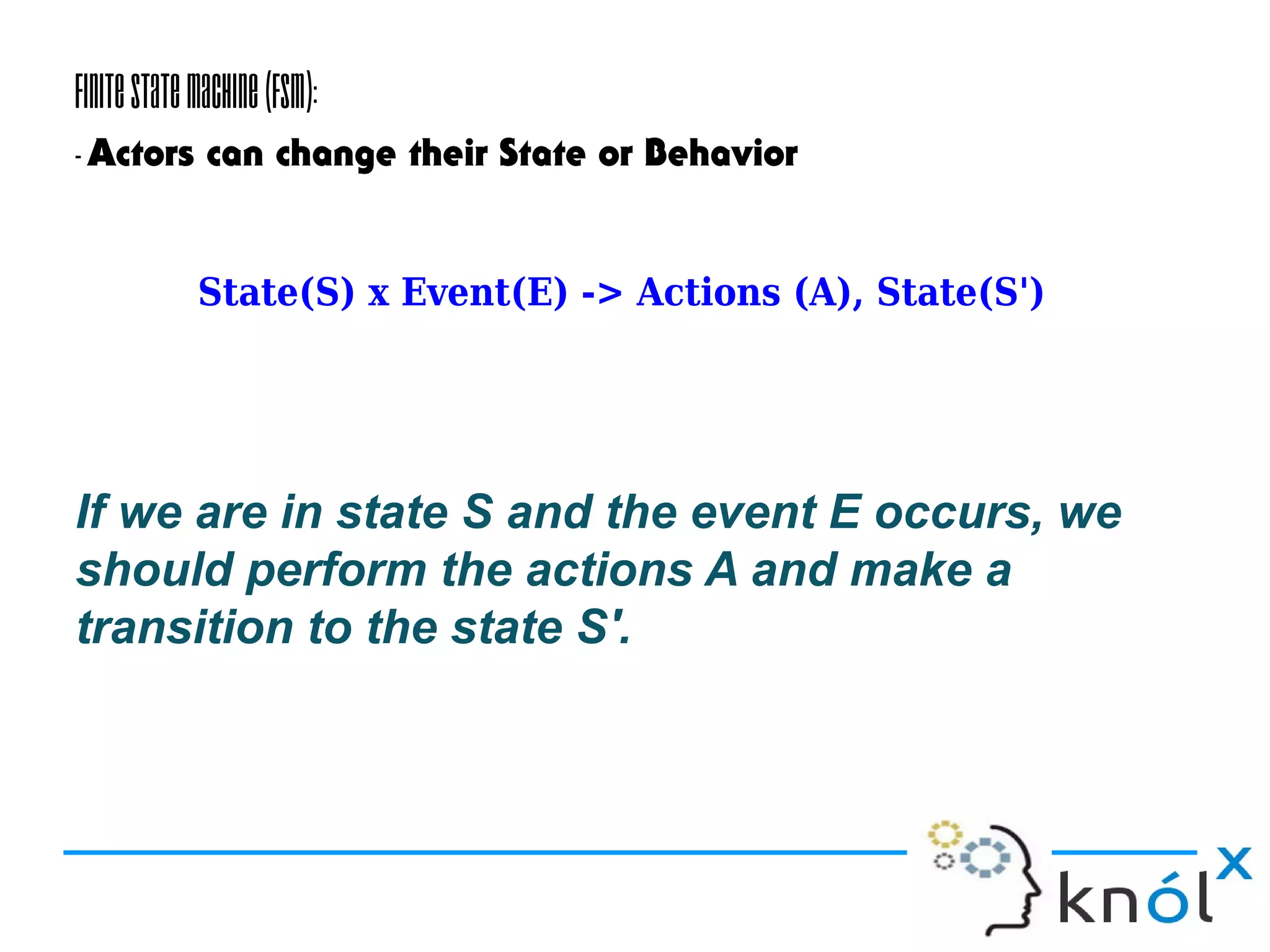

8. FiniteStateMachine(FSM):
-Actors can change their State or Behavior
If we are in state S and the event E occurs, we
should perform the actions A and make a
transition to the state S'.
State(S) x Event(E) -> Actions (A), State(S')

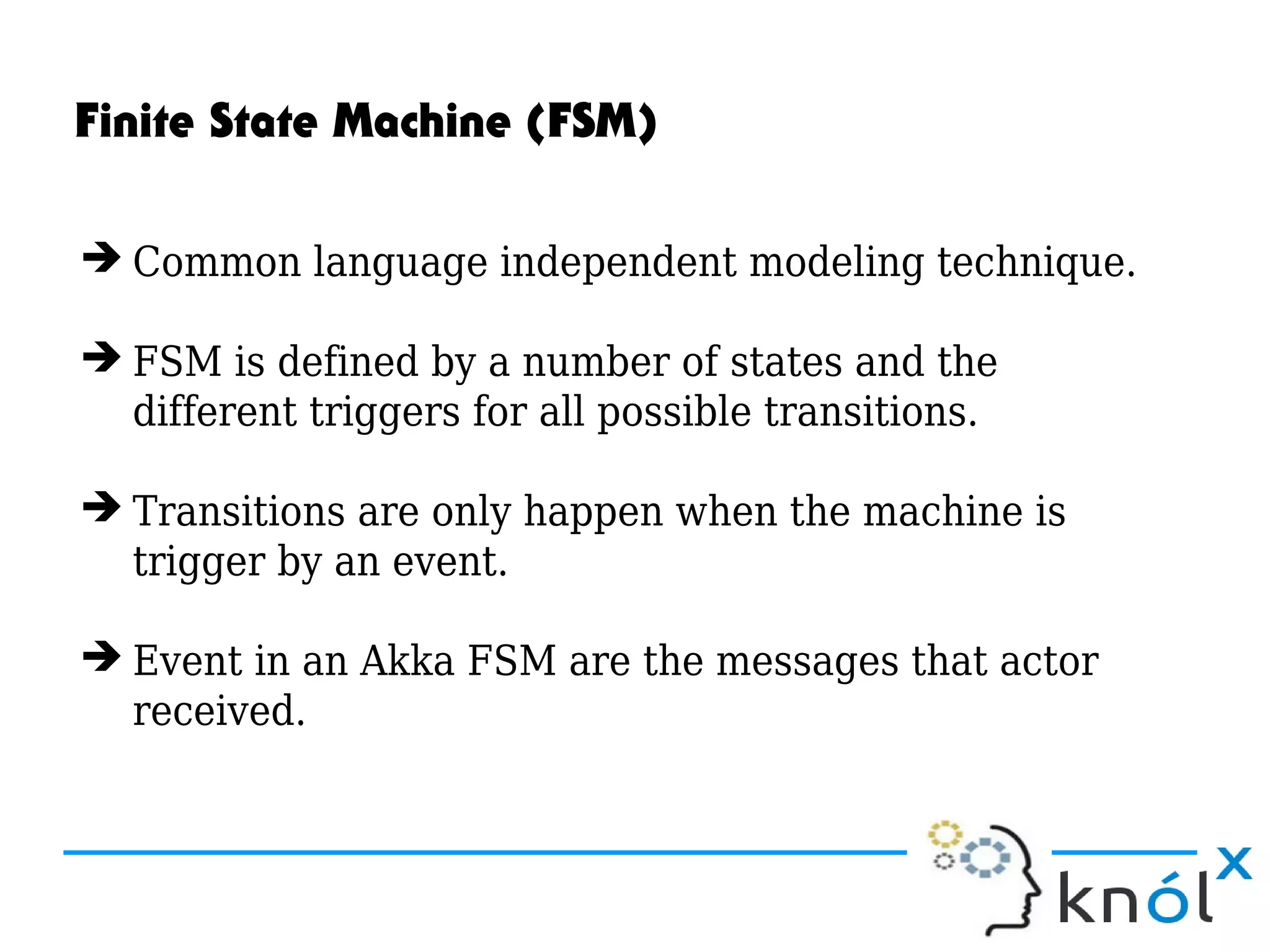

9. Finite State Machine (FSM)
➔ Common language independent modeling technique.
➔ FSM is defined by a number of states and the
different triggers for all possible transitions.
➔ Transitions are only happen when the machine is
trigger by an event.
➔ Event in an Akka FSM are the messages that actor
received.

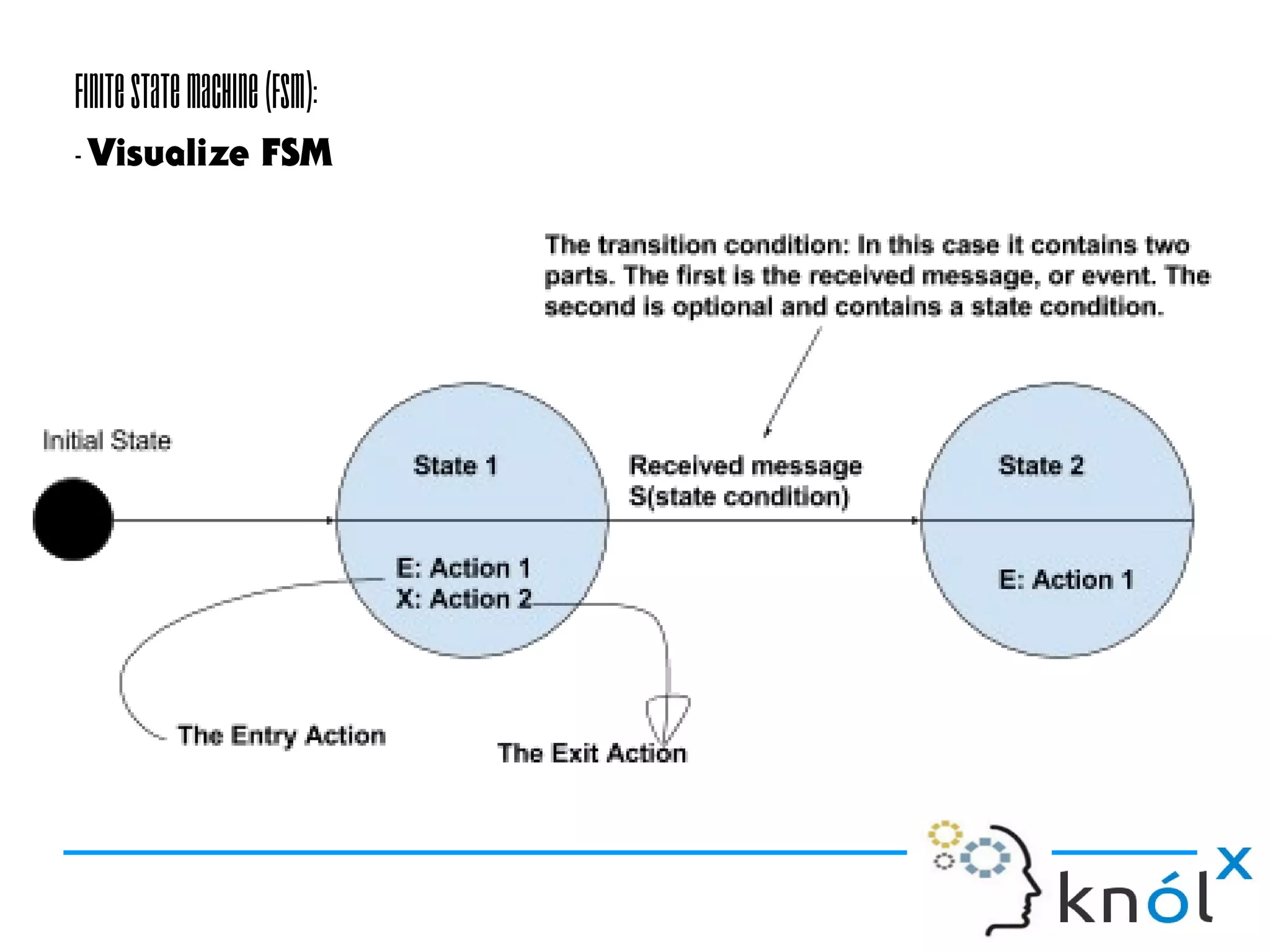

10. FiniteStateMachine(FSM):
-Visualize FSM

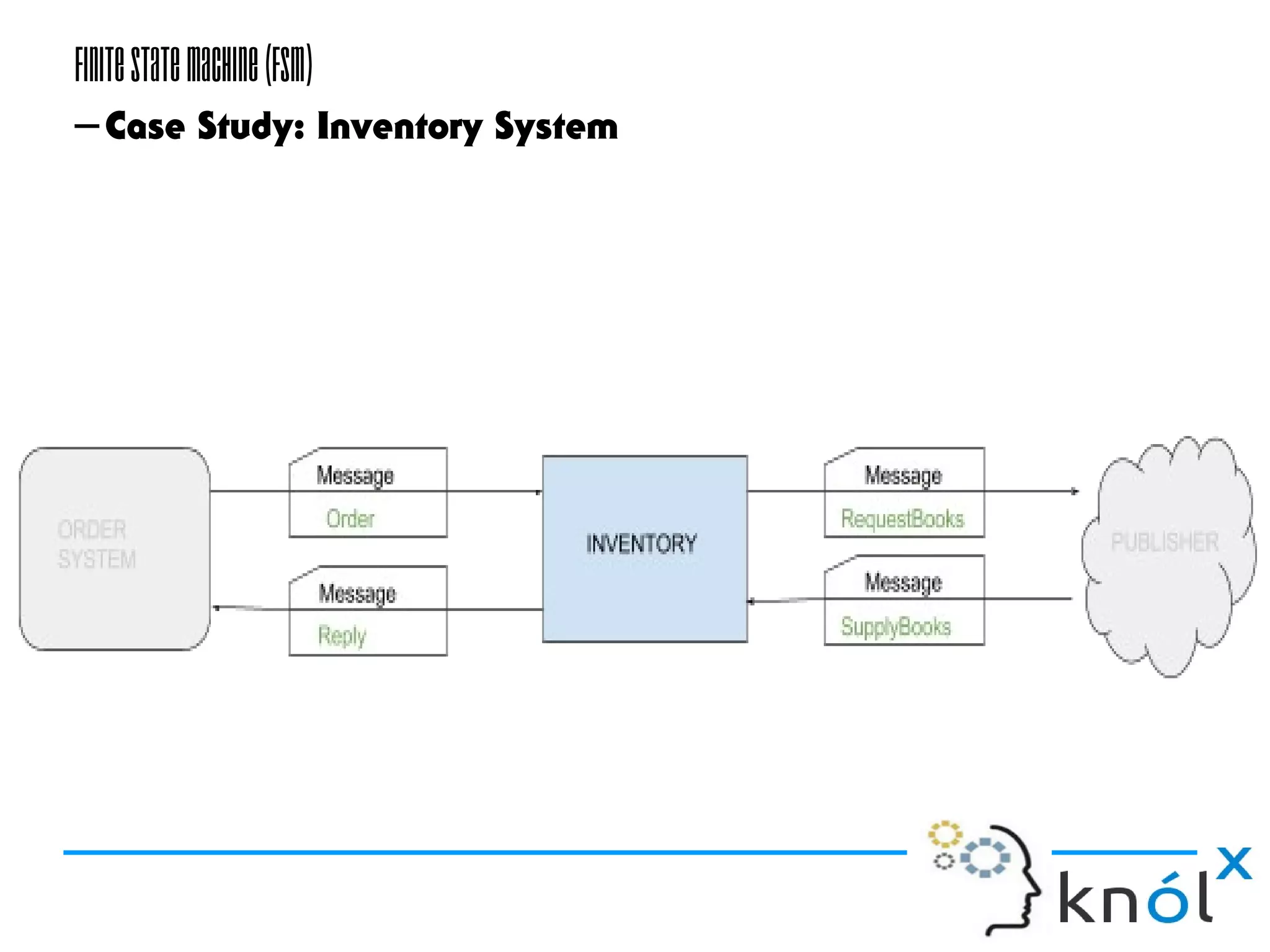

11. FiniteStateMachine(FSM)
–Case Study: Inventory System

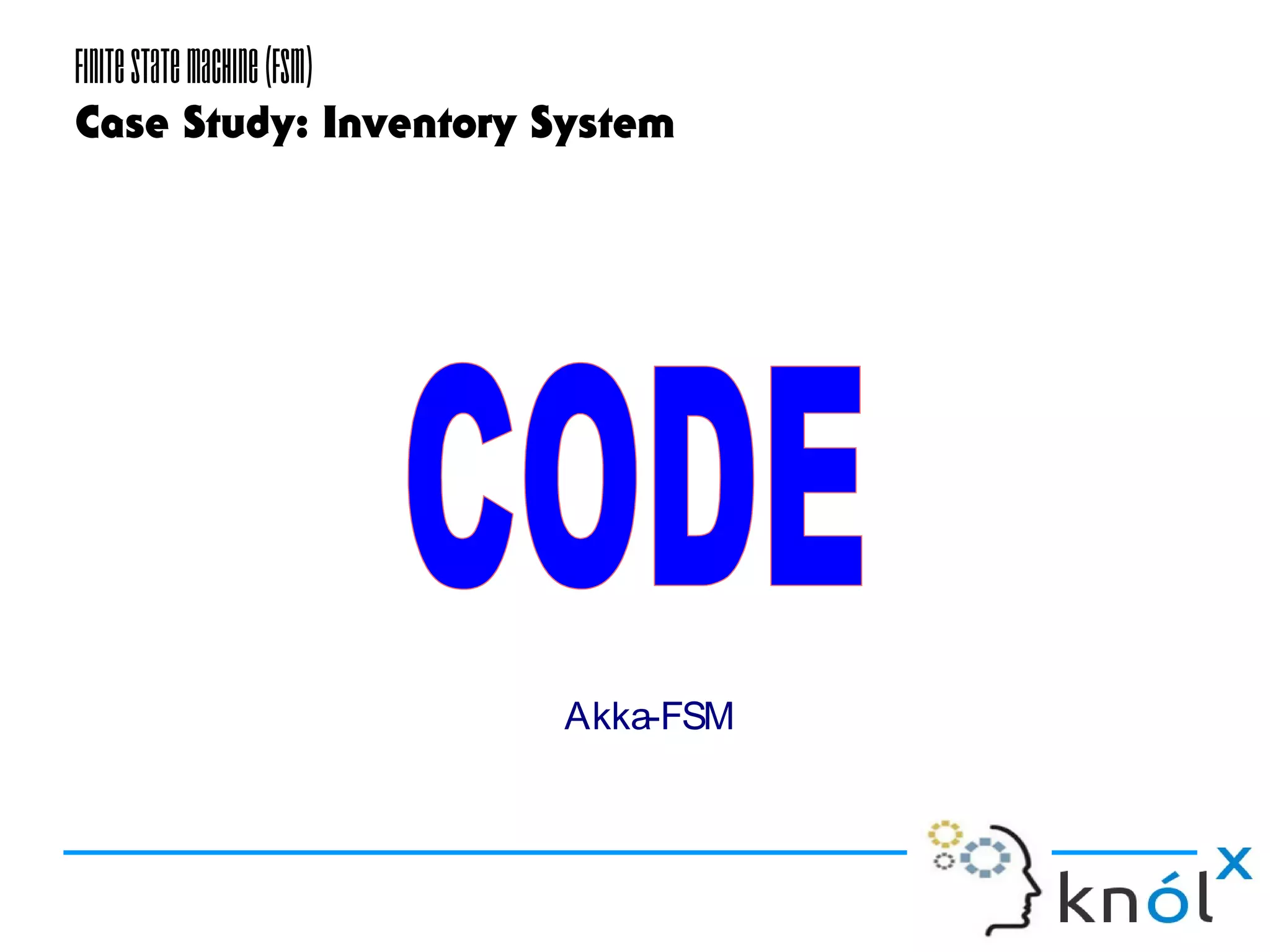

12. FiniteStateMachine(FSM)
Case Study: Inventory System
Akka-FSM

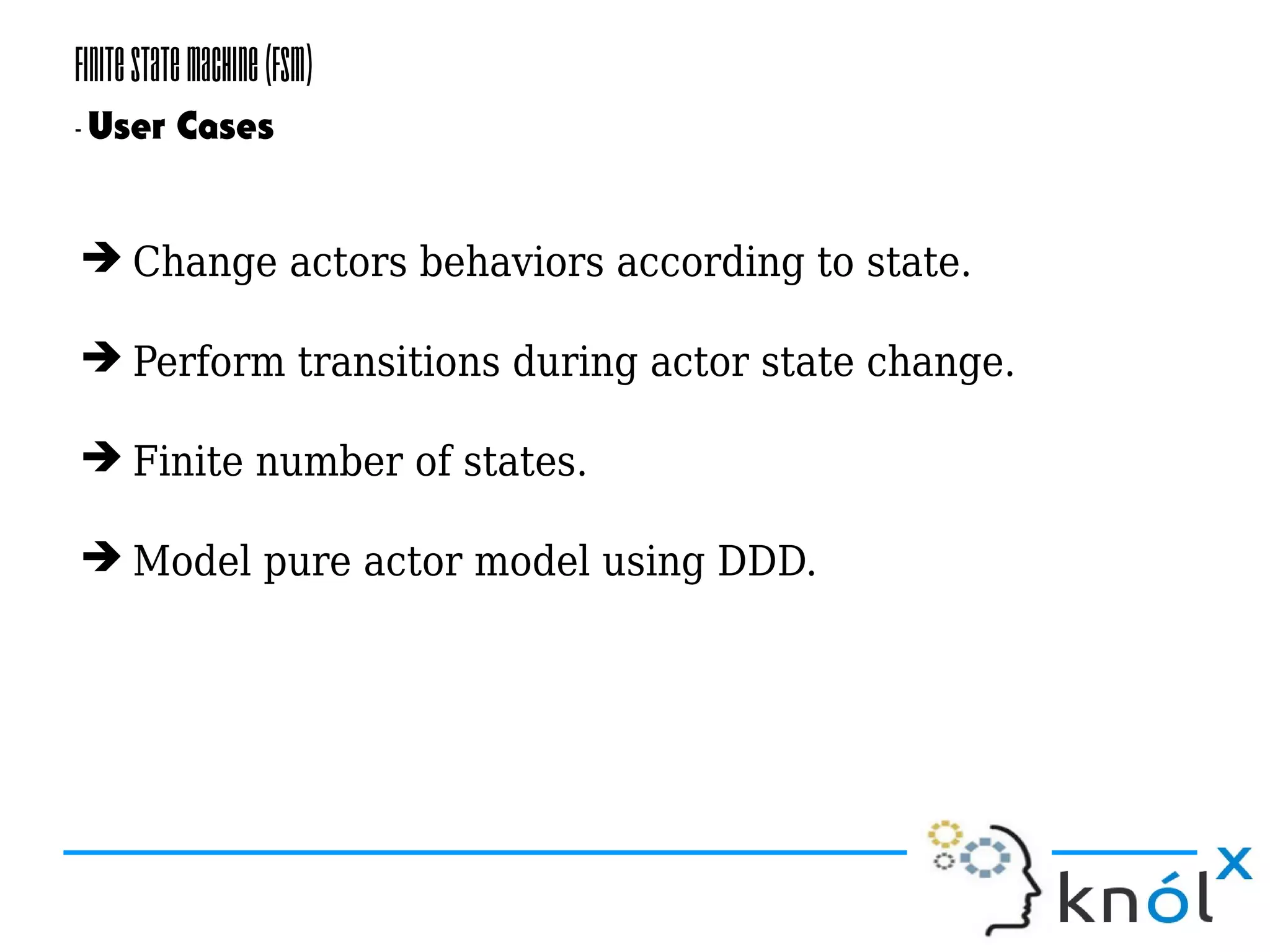

13. FiniteStateMachine(FSM)
-User Cases
➔ Change actors behaviors according to state.
➔ Perform transitions during actor state change.
➔ Finite number of states.
➔ Model pure actor model using DDD.

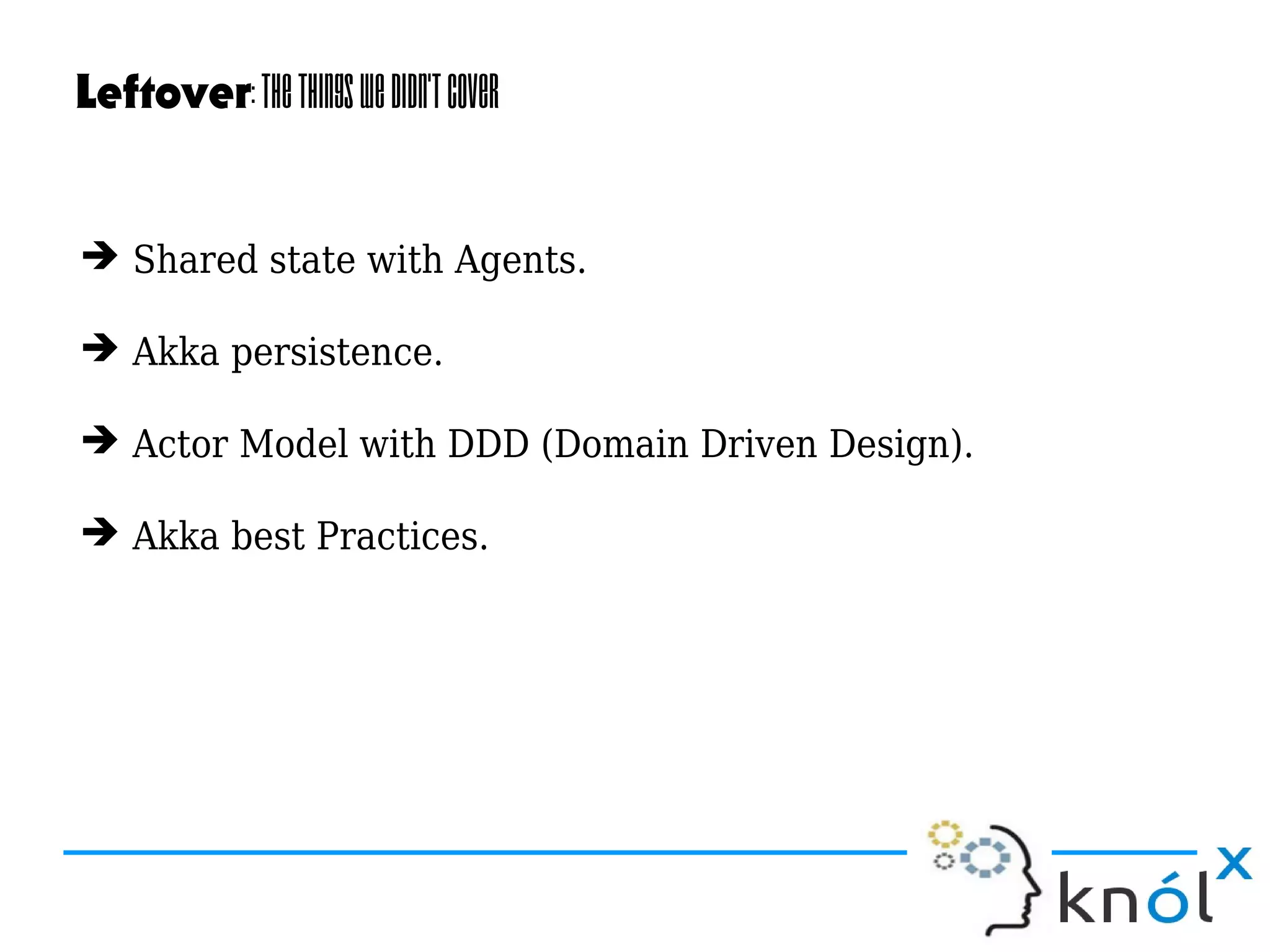

14. Leftover:Thethingswedidn’tcover
➔ Shared state with Agents.
➔ Akka persistence.
➔ Actor Model with DDD (Domain Driven Design).
➔ Akka best Practices.

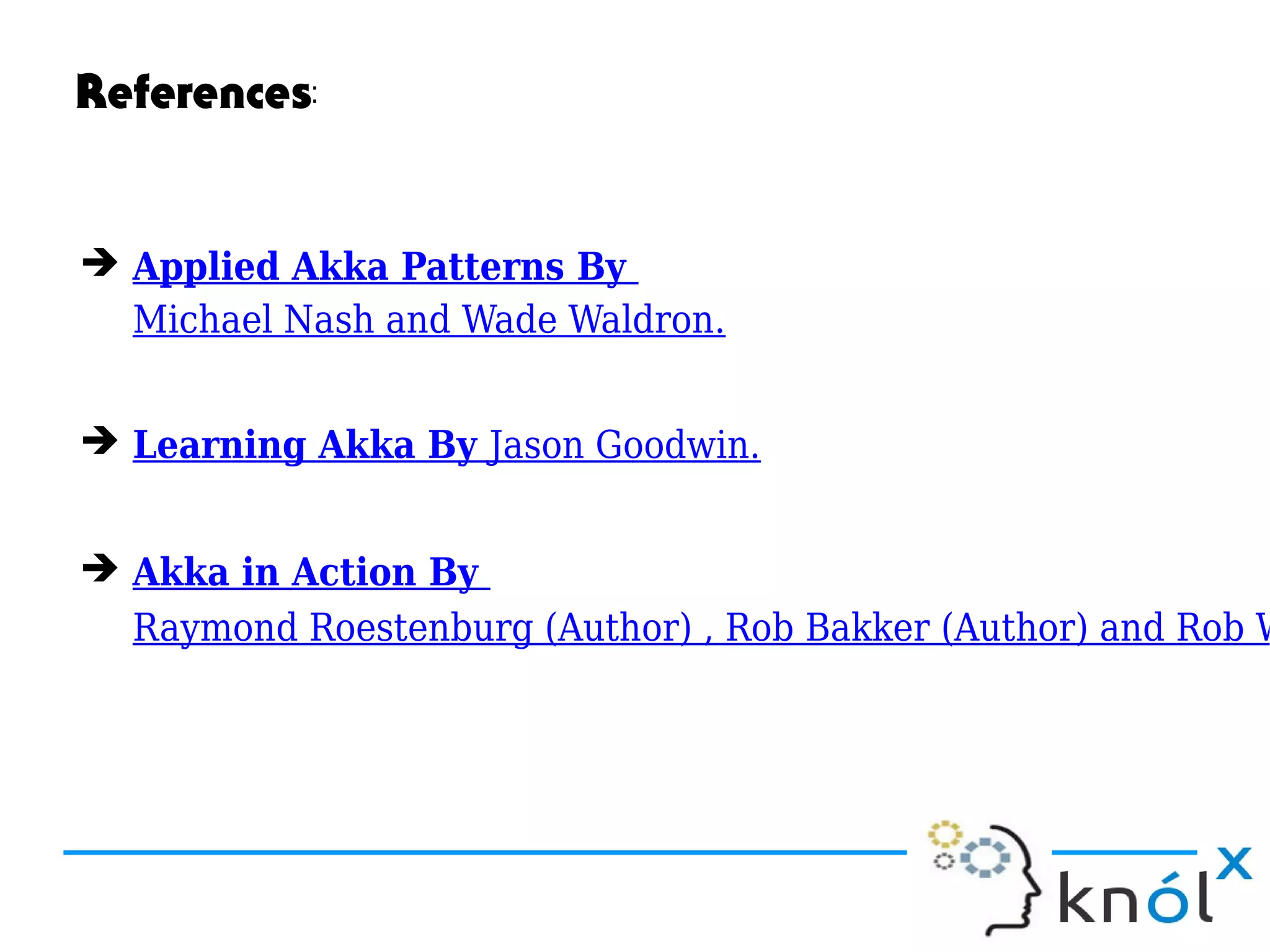

15. References:
➔ Applied Akka Patterns By
Michael Nash and Wade Waldron.
➔ Learning Akka By Jason Goodwin.
➔ Akka in Action By
Raymond Roestenburg (Author) , Rob Bakker (Author) and Rob W
