1. Elements of Mining
MNC 200
1

2. ELEMENTS OF MINING (MNC
200)
Syllabus:

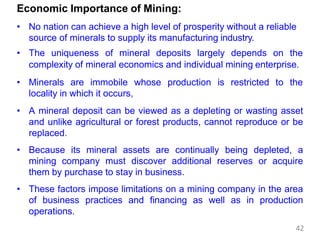

• Mining – definition and economic importance;
• Mine – definition, different types and classification;
• Mine life cycle;
• Mineral deposit – different types and their classification;

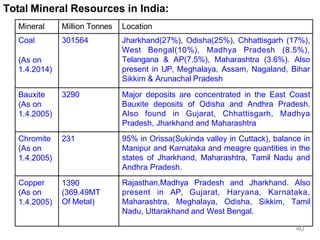

• Mineral resources of India;
• Modes of entry to a mine – shaft, incline, decline, adit and box-cut.
• Overview of surface mining: Types of surface mines, unit operations,
basic bench geometry, applicability & limitations and advantages &
disadvantages.
• Overview of underground mining:
- Different coal mining methods and their applicability &
limitations;
- Different metal mining methods and their applicability &
limitations;
• Basic concepts of transportation, ventilation, illumination and 2

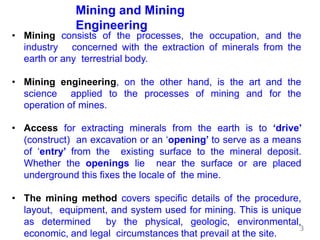

3. Mining and Mining
Engineering
• Mining consists of the processes, the occupation, and the
industry concerned with the extraction of minerals from the
earth or any terrestrial body.
• Mining engineering, on the other hand, is the art and the
science applied to the processes of mining and for the
operation of mines.
• Access for extracting minerals from the earth is to ‘drive’
(construct) an excavation or an ‘opening’ to serve as a means
of ‘entry’ from the existing surface to the mineral deposit.
Whether the openings lie near the surface or are placed
underground this fixes the locale of the mine.
• The mining method covers specific details of the procedure,
layout, equipment, and system used for mining. This is unique
as determined by the physical, geologic, environmental,
economic, and legal circumstances that prevail at the site.
3

4. In surface mining an open excavation is made to normally extract
thick deposits or near surface deposits. In surface mining or open
cast mining extraction of mineral is carried out strip by strip or in
benches. It often necessitates a large capital investment but
generally results in high productivity, low operating cost, and good
safety conditions.
Underground mining is started with drivage of either vertical or
horizontal or inclined entries into the orebody which may extend up
to few hundred meters or kilometres depending upon depth of
deposits. Underground mining method may be by unsupported,
supported, and caving methods which are differentiated by the
type of wall and roof supports.
The trained professional who relates mining and mining
engineering is the mining engineer;
He/she is responsible
- for helping to locate and prove minerals in the mines,
- for designing and developing mines, and
- for exploiting and managing mines successfully
- for mine closure to make it sustainable 4

5. MINING
TERMINOLOGY
5
5

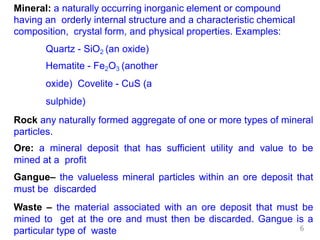

6. Mineral: a naturally occurring inorganic element or compound
having an orderly internal structure and a characteristic chemical
composition, crystal form, and physical properties. Examples:
Quartz - SiO2 (an oxide)
Hematite - Fe2O3 (another
oxide) Covelite - CuS (a
sulphide)
Rock any naturally formed aggregate of one or more types of mineral
particles.
Ore: a mineral deposit that has sufficient utility and value to be
mined at a profit
Gangue– the valueless mineral particles within an ore deposit that
must be discarded
Waste – the material associated with an ore deposit that must be
mined to get at the ore and must then be discarded. Gangue is a
particular type of waste 6

7. 7
7

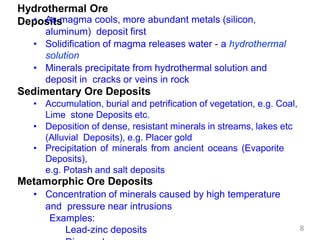

8. Hydrothermal Ore
Deposits
• As magma cools, more abundant metals (silicon,
aluminum) deposit first
• Solidification of magma releases water - a hydrothermal
solution
• Minerals precipitate from hydrothermal solution and
deposit in cracks or veins in rock
Sedimentary Ore Deposits
• Accumulation, burial and petrification of vegetation, e.g. Coal,
Lime stone Deposits etc.
• Deposition of dense, resistant minerals in streams, lakes etc
(Alluvial Deposits), e.g. Placer gold
• Precipitation of minerals from ancient oceans (Evaporite
Deposits),
e.g. Potash and salt deposits
Metamorphic Ore Deposits
• Concentration of minerals caused by high temperature
and pressure near intrusions
Examples:
Lead-zinc deposits 8

9. Metallic ores: those ores of ferrous metals (Iron,
manganese,
molybdenum and tungsten), the base metals(copper, lead, zinc,
and
tin), the precious metals (gold, silver, and the platinum group
metals), and the radioactive minerals(uranium, thorium and
radium)
Nonmetallic Minerals(also know as industrial minerals): the non
fuel mineral ores that are not associated with the production of
metals. These include phosphate, potash, halite, Trona, sand,
gravel, limestone, sulphur and many others.
Fossil fuels also known as mineral fuels – the organic mineral
substances that can be utilised as fuels such as coal, petroleum,
natural
gas, coal bed methane etc.
Economically important
metal concentration in
earth’s crust:
Metal
Concentration
(% by weight)
Aluminum
Iron
Copper
Nickel
Zinc
Uranium
Lead
Silver
Gold
8.0
5.8
0.0058
0.0072
0.0082
0.00016
0.001
0.000008
0.0000002
Note for
comparison:
Silicon 28%
Oxygen 46%
9

10. What is ore grade?
Ore grade is the concentration of economic mineral or metal in
an ore deposit and is expressed in:
• Weight percentage (base metals)
• Grams/tonne or oz/ton (precious metals)
Cutoff Grade: It is the grade at which the gross value of the ore
mined is
exactly equal to the cost of mining. Therefore mining
becomes
uneconomical for ore body with grade below cutoff
grade.
Cutoff grade = Cost /(Price x
recovery)
If Price of copper in India is Rs.600/kg and Production cost of
copper ore(cost of mining together with milling cost) is Rs.
5000/Tonne,
Cutoff grade of ore will be 8.33kg of copper per tonne of ore and if
recovery is 90% the cut off grade will be slightly higher i.e.
9.26Kg/tonne of ore or can also be expressed as 0.925% by
weight. 10

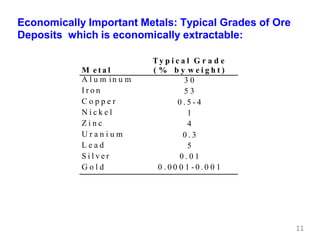

11. M e t a l
Ty p i c a l G r a d e
( % b y w e i g h t )
A l u m in u m
I r o n
C o p p e r
N i c k e l
Z i n c
U r a n i u m
L e a d
S i l v e r
G o l d
3 0
5 3
0 . 5 - 4
1
4
0 . 3
5
0 . 0 1
0 . 0 0 0 1 - 0 . 0 0 1
Economically Important Metals: Typical Grades of Ore
Deposits which is economically extractable:
11

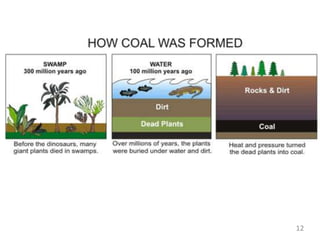

12. 12

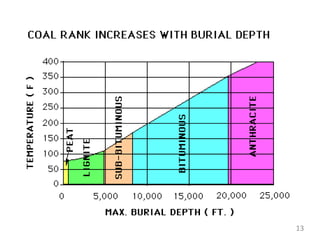

13. 13

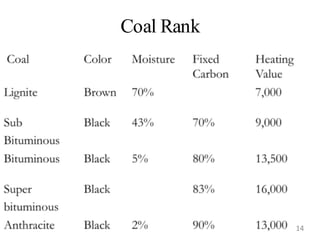

14. Coal Rank
14

15. Coal Rank
Coal Color Moisture Fixed
Carbo
n
Heatin
g
Value
Lignite Brown 70% 7,000
Sub
Bituminous
Black 43% 70% 9,000
Bituminous Black 5% 80% 13,500
Super
bituminous
Black 83% 16,000
Anthracite Black 2% 90% 13,000 15

16. Mining
Terminology:
Shaft is a vertical opening/access to a mine driven from the surface to
the ore body which is used for transport of ore/manpower & ventilation.
It is normally circular in cross-section with 6-7m dia.
• Downcast Shaft: Shaft through which intake/fresh air enters the
mine
• Upcast Shaft: Shaft through which return air comes out of the
mine

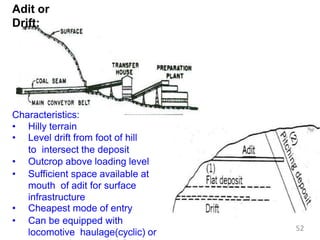

Adit is a horizontal or a nearly horizontal entrance to an underground
mine especially in a hilly deposit. It has normally rectangular cross-
section.
Slope/Incline: Primary inclined opening, usually a inclined shaft,
connecting surface with underground workings with normally rectangular
cross-section.
Decline: Secondary inclined opening or may be spiral, driven downward
to connect levels on the dip of a deposit with normally rectangular cross-
section.
Drifts/Cross Cuts are Horizontal or nearly horizontal underground
drivages to intersect orebody. It is primary or secondary horizontal or
near horizontal opening oriented parallel to the strike of the deposit. 16

17. 17

18. Incline entry into aseam.
1
7
18

19. Entrythrough a shaft
1
8
19

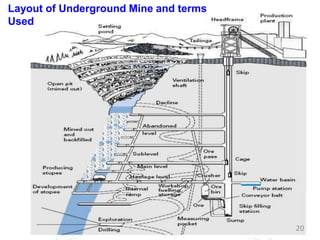

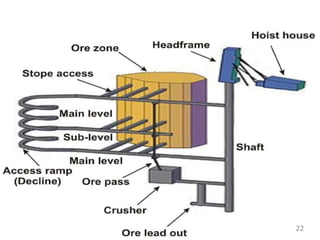

20. Layout of Underground Mine and terms
Used
20

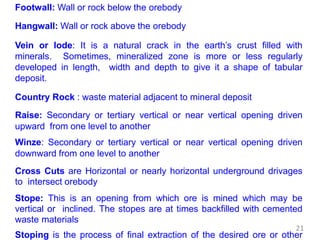

21. Footwall: Wall or rock below the orebody
Hangwall: Wall or rock above the orebody
Vein or lode: It is a natural crack in the earth’s crust filled with
minerals. Sometimes, mineralized zone is more or less regularly
developed in length, width and depth to give it a shape of tabular
deposit.
Country Rock : waste material adjacent to mineral deposit
Raise: Secondary or tertiary vertical or near vertical opening driven
upward from one level to another
Winze: Secondary or tertiary vertical or near vertical opening driven
downward from one level to another
Cross Cuts are Horizontal or nearly horizontal underground drivages
to intersect orebody
Stope: This is an opening from which ore is mined which may be
vertical or inclined. The stopes are at times backfilled with cemented
waste materials
Stoping is the process of final extraction of the desired ore or other
21

22. 22

23. Mine Life Cycle:
Using scientific principles, technological knowledge, and managerial
skills,
the mining engineer brings a mineral property through the four
stages in the life of a mine i.e. prospecting, exploration,
development and exploitation. Recently, reclamations has been
added as 5th stage which is now considered as statutory
obligation.
Prospecting :
Concerned with the discovery of minerals by geological
investigations
Exploration :
Determining the economic aspects of the discovered mineral deposit
and mining feasibilities
Development:
Making an access to the mine and creating
infrastructures or capacity building
Exploitation :
Winning of minerals by designing of suitable method of mining 23

24. Reclamation :
This is an important and latest mining activity which has been
made mandatory in almost all countries. This includes post
mining activities such as restoration of pre-mining site conditions
and ensuring similar biological conditions.
In fact the terminology of sustainable mining is being frequently
used these days and is being insisted upon by the society and
the Govt. The objective is not only to make mining sustainable
as well to maintain the healthy environmental conditions so as
to be sustainable.
This includes:
• selection of suitable mining technology
• adoption of mitigating measures for the expected level of air,
water and land pollution
• Not to disturb or to restore after mining the existing ecology,
flora and fauna etc so as to preserve the same for future
generation
24

25. 1. Prospecting Search for ore
(Mineral deposit) a. Prospecting me t h o d s
Direct: physical
geologic
Indirect: geophysical,
geochemical
b . Lo c a t e favorable loci
(maps, literature, old mines)
c. Air: aerial p h o t o g r a p h y,
a i r borne geophysics,
satellite
d. Surface: g r o u n d
geophysics, geology
e . S p o t a n o ma l y, analyze,
evaluate
2. Ex p l or a tion
( O r e b o d y)
Defining extent a n d value of 2 —5 yr
ore (examination/evaluation
a . S a mp l e (drilling o r
excavation), assay, test
b. Estimate t o n n a g e a n d g r a d e
c. Valuate deposit ( H o s k o l d
formula o r discount
method ): present
value = i n c ome — cost
Feasibility study: m a k e
decision t o a b a n d o n o r develop.
Precursorsto Mining 1 —3 yr
Stages in the life of a mine:
Stage/
(Project N a m e ) Procedure Ti m e
Precursors to Mining
25

26. Stage/
(Project Name) Procedure Time
Mining Proper
Opening up ore deposit for
production
a. Acquire mining rights
(purchase or lease), if
not done in stage 2
b. File environmental impact
statement, technology
assessment, permit
c. Construct access roads,
transport system
d. Locate surface plant,
construct facilities
e. Excavate deposit (strip
or sink shaft)
3. Development
(Prospect)
2 —5 yr
26

27. S t a g e /
( P r o j e c t N a m e ) P r o c e d u r e T i m e
4. E x p l o i t a t i o n
( M i n e )
L a r g e - s c a l e p r o d u c t i o n of
o r e
1 0 —3 0 y r
a. F a c t o r s i n c h o i c e o f
m e t h o d : g e o l o g i c ,
g e o g r a p h i c , e c o n o m i c ,
e n v i r o n m e n t a l , s o c i e t a l
s a fe t y
b . T y p e s o f m i n i n g m e t h o d s
S u r f a c e : o p e n pit, o p e n
c a s t , etc.
U n d e r g r o u n d : r o o m a n d
pillar, b l o c k c a v i n g , etc.
c. M o n i t o r c o s t s a n d e c o n o m i c
p a y b a c k ( 3 —1 0 y r )
P o s t - m i n i n g
5. R e c l a m a t i o n
( R e a l e s t a t e )
R e s t o r a t i o n o f site
a . R e m o v a l of p l a n t a n d
b u i l d i n g s
b . R e c l a m a t i o n o f w a s t e
a n d t a i l i n g s d u m p s
c . M o n i t o r i n g o f d i s c h a r g e s
1 —1 0 y r
27

28. Stages and Schemes of Mineral Exploration:
- Favourable areas identified by prospecting must be delineated by
exploration techniques
- once located the mineral deposits are sampled thoroughly and
impartially and the samples analyzed for grades etc.
- the sampling data are utilized to prepare an estimate of tonnage
with extent of deposit, as well grade from which the present worth
of the deposit can be calculated and recommendations made
regarding the economic feasibility of mining
Resource: It is a concentration or occurrence of mineral in such a form
and quantity that there are reasonable prospects for eventual economic
extraction
A mineral Reserve is the economically minable part of a measured or
indicated mineral resource that are economically minable at a given time.
It is to note that these two terms have the same relationship as
mineral deposit and ore deposit: that is all reserves are resources just as
all ore deposits are mineral deposits.
A reserve can become resource overnight if the market price for
the mineral in the deposit drops suddenly. 28

29. Measured/Proved mineral reserve: That part of a mineral resource
for which tonnage, densities, shape, physical characteristics,
grade, and mineral content can be estimated with a high level of
confidence. The data must be based on detailed and reliable
information from outcrops, trenches, pits, workings, and drill holes.
The location of the data points must be spaced closely enough to
confirm geological and or grade continuity
Indicated Mineral Resource: That part of a mineral resource for
which the tonnage, densities, shape, physical characteristics, grade,
and mineral content can be measured with reasonable level of
confidence. Data are gathered from similar points but locations are
widely spaced to confirm geological and or grade continuity.
Inferred Mineral Resource: That part of a mineral resource for
which tonnage, grade and mineral content can be estimated with
low level of confidence. It is inferred from geological evidence and
assumed but not verified.
29

30. RESOURCE ESTIMATION
METHODOLOGY
A resource estimate is based on prediction of the physical characteristics
of a mineral deposit through collection of data, analysis of the data, and
modeling the size, shape, and grade of the deposit.
Important physical characteristics of the ore body that must be predicted
include
1. the size, shape, and continuity of ore zones,
2. the frequency distribution of mineral grade, and
3. the spatial variability of mineral grade.
These physical characteristics of the mineral deposit are never
completely known, but are inferred from sample data. The sample data
consist of one or more of the following:
1. Physical samples taken by drilling, trenching, test pitting, and
channel sampling.
2. Measurement of the quantity of mineral in the samples
through assaying or other procedures.
3. Direct observations such as geologic mapping and drill core
logging.
4. Estimation of the resource requires analysis and synthesis of
these data to develop a resource model. 30

31. Methods used to develop the resource model may include
1. Compilation of the geologic and assay data into maps, reports, and
computer databases.
2. Delineation of the physical limits of the deposit based on geologic
interpretation of the mineralization controls at a reasonable range of
mining cutoff grades.
3. Compositing of samples into larger units such as mining bench
height, seam thickness, or minable vein width.
4. Modeling of the grade distribution based on histograms and
cumulative frequency plots of grades.
5. Evaluation of the spatial variability of grade using experimental
variograms.
6. Selection of a resource estimation method and estimation of quantity
and grade of the mineral resource.
7. The estimation procedure must be made with at least minimal
knowledge of the proposed mining method since different mining
methods may affect the size, shape, and/or grade of the potentially
minable ore reserve.
31

32. 3
1
32

33. Mining Sector In India: The mineral sector is indisputably one of
the fundamental strengths of the national economy, with its share
of contribution to GDP and employment.
India produces 95 minerals which includes 4 types of fuel
minerals, 10 types of metallic minerals, 23 types of non - metallic,
3 types of atomic and 55 types of minor minerals including
building materials and other such minerals
India ranks amongst the top producers of valuable minerals like
chromite, iron ore, coal, and bauxite. But yet to explore Manganese
ore, Baryte, Rare earth and Mineral salts etc
India is also a major exporter of many minerals, including bauxite,
iron , limestone, sand stone and mica etc.
But unfortunately, India is also major importer of many
mineral/metal including Coal especially coking coal, manganese,
copper, Gold, silver, zinc etc.
Mining sector is a success story in India especially Public sector
like Coal India Ltd. and off late Private sector like Tata steel and
Vedanta etc.
33

34. Public sector in India produces 93% of coal, 68% of tin concentrate,
69% of petroleum(crude), 99% of gold, 96% of phosphorite, 67% of
graphite, and 56% of magnesite.
Mineral production is reported from 22 states of India-
• About 92.6% of production value is confined to 13 states
including off shore areas.
• about 50% value comes from offshore areas and the top
three, states only namely Rajasthan, Odisha, and
Chattisgarh.
• about 69% of total value comes from fuel minerals,
• about 11% comes from metallic minerals and
• about 19% comes from nonmetallic (including minor) minerals
Mineral Exports from India is almost steady over last few years.
Mineral Imports have gone down significantly, from INR944,430
crore in 2012-13 to INR738,788 crore in 2016-17. Zinc ore imports
particularly have reduced significantly from 63 thousand tonnes to a
mere 385 tonnes from 2012-13 to 2016-17. This indicates that India
has achieved greater self - sufficiency in mineral production.
34

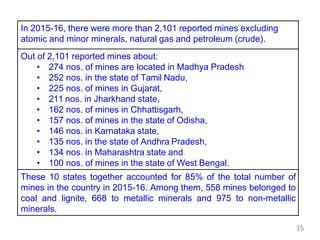

35. In 2015-16, there were more than 2,101 reported mines excluding
atomic and minor minerals, natural gas and petroleum (crude).
Out of 2,101 reported mines about:
• 274 nos. of mines are located in Madhya Pradesh
• 252 nos. in the state of Tamil Nadu,
• 225 nos. of mines in Gujarat,
• 211 nos. in Jharkhand state,
• 162 nos. of mines in Chhattisgarh,
• 157 nos. of mines in the state of Odisha,
• 146 nos. in Karnataka state,
• 135 nos. in the state of Andhra Pradesh,
• 134 nos. in Maharashtra state and
• 100 nos. of mines in the state of West Bengal.
These 10 states together accounted for 85% of the total number of
mines in the country in 2015-16. Among them, 558 mines belonged to
coal and lignite, 668 to metallic minerals and 975 to non-metallic
minerals.
35

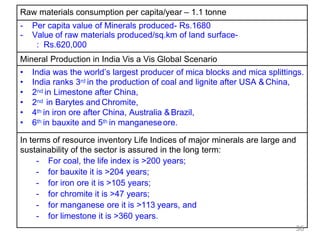

36. Raw materials consumption per capita/year – 1.1 tonne
- Per capita value of Minerals produced- Rs.1680
- Value of raw materials produced/sq.km of land surface-
: Rs.620,000
Mineral Production in India Vis a Vis Global Scenario
• India was the world’s largest producer of mica blocks and mica splittings.
• India ranks 3rd in the production of coal and lignite after USA &China,
• 2nd in Limestone after China,
• 2nd in Barytes and Chromite,
• 4th in iron ore after China, Australia &Brazil,
• 6th in bauxite and 5th in manganeseore.
In terms of resource inventory Life Indices of major minerals are large and
sustainability of the sector is assured in the long term:
- For coal, the life index is >200 years;
- for bauxite it is >204 years;
- for iron ore it is >105 years;
- for chromite it is >47 years;
- for manganese ore it is >113 years, and
- for limestone it is >360 years.
36

37. Global Coal Production
37

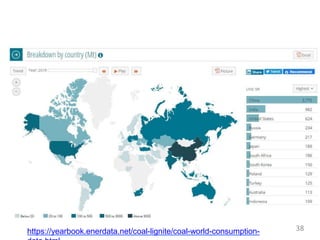

38. https://yearbook.enerdata.net/coal-lignite/coal-world-consumption- 38

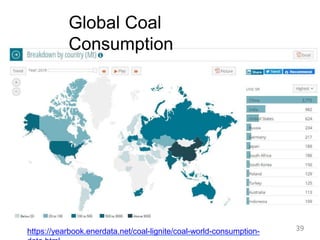

39. https://yearbook.enerdata.net/coal-lignite/coal-world-consumption-
Global Coal
Consumption
39

40. Total Mineral Resources in India:
Mineral Million Tonnes Location
Coal
(As on
1.4.2014)
301564 Jharkhand(27%), Odisha(25%), Chhattisgarh (17%),
West Bengal(10%), Madhya Pradesh (8.5%),
Telangana & AP(7.5%), Maharashtra (3.6%). Also
present in UP, Meghalaya, Assam, Nagaland, Bihar
Sikkim & Arunachal Pradesh
Bauxite
(As on
1.4.2005)
3290 Major deposits are concentrated in the East Coast
Bauxite deposits of Odisha and Andhra Pradesh.
Also found in Gujarat, Chhattisgarh, Madhya
Pradesh, Jharkhand and Maharashtra
Chromite
(As on
1.4.2005)
231 95% in Orissa(Sukinda valley in Cuttack), balance in
Manipur and Karnataka and meagre quantities in the
states of Jharkhand, Maharashtra, Tamil Nadu and
Andhra Pradesh.
Copper
(As on
1.4.2005)
1390
(369.49MT
Of Metal)
Rajasthan,Madhya Pradesh and Jharkhand. Also
present in AP, Gujarat, Haryana, Karnataka,
Maharashtra, Meghalaya, Odisha, Sikkim, Tamil
Nadu, Uttarakhand and West Bengal.
40

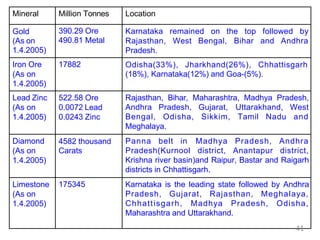

41. Mineral Million Tonnes Location
Gold
(As on
1.4.2005)
390.29 Ore
490.81 Metal
Karnataka remained on the top followed by
Rajasthan, West Bengal, Bihar and Andhra
Pradesh.
Iron Ore
(As on
1.4.2005)
17882 Odisha(33%), Jharkhand(26%), Chhattisgarh
(18%), Karnataka(12%) and Goa-(5%).
Lead Zinc
(As on
1.4.2005)
522.58 Ore
0.0072 Lead
0.0243 Zinc
Rajasthan, Bihar, Maharashtra, Madhya Pradesh,
Andhra Pradesh, Gujarat, Uttarakhand, West
Bengal, Odisha, Sikkim, Tamil Nadu and
Meghalaya.
Diamond
(As on
1.4.2005)
4582 thousand
Carats
Panna belt in Madhya Pradesh, Andhra
Pradesh(Kurnool district, Anantapur district,
Krishna river basin)and Raipur, Bastar and Raigarh
districts in Chhattisgarh.
Limestone
(As on
1.4.2005)
175345 Karnataka is the leading state followed by Andhra
Pradesh, Gujarat, Rajasthan, Meghalaya,
Chhattisgarh, Madhya Pradesh, Odisha,
Maharashtra and Uttarakhand.
41

42. Economic Importance of Mining:
• No nation can achieve a high level of prosperity without a reliable
source of minerals to supply its manufacturing industry.
• The uniqueness of mineral deposits largely depends on the
complexity of mineral economics and individual mining enterprise.
• Minerals are immobile whose production is restricted to the
locality in which it occurs,
• A mineral deposit can be viewed as a depleting or wasting asset
and unlike agricultural or forest products, cannot reproduce or be
replaced.
• Because its mineral assets are continually being depleted, a
mining company must discover additional reserves or acquire
them by purchase to stay in business.
• These factors impose limitations on a mining company in the area
of business practices and financing as well as in production
operations.
42

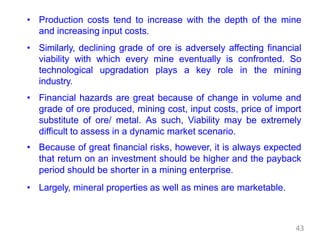

43. • Production costs tend to increase with the depth of the mine
and increasing input costs.
• Similarly, declining grade of ore is adversely affecting financial
viability with which every mine eventually is confronted. So
technological upgradation plays a key role in the mining
industry.
• Financial hazards are great because of change in volume and
grade of ore produced, mining cost, input costs, price of import
substitute of ore/ metal. As such, Viability may be extremely
difficult to assess in a dynamic market scenario.
• Because of great financial risks, however, it is always expected
that return on an investment should be higher and the payback
period should be shorter in a mining enterprise.
• Largely, mineral properties as well as mines are marketable.
43

44. Definition of a Mine: As per Mines act 1952
Mine means any excavation where any operation for the purpose of
searching for or for obtaining minerals has been or is being carried on
and includes
i. all borings, bore holes, oil wells and accessory crude conditioning
plants, including the pipe conveying mineral oil within the oilfields:
ii. all shafts, in or adjacent to and belonging to a mine, whether in the
course of being sunk or not:
iii. all levels and inclined planes in course of being driven;
iv. all conveyors or aerial ropeways provided for the bringing into or
removal from a mine of minerals or other articles or for the removal
of refuse therefrom;
v. all adits, levels, planes, machinery works, railways, tramways and
sidings in or adjacent to and belonging to a mine;
vi. all protective works being carried out in or adjacent to a mine;
44

45. vii. all workshop and store situated within the precincts of a mine and
the same management and used primarily for the purposes
connected with that mine or a number of mines under the same
management;
viii. all power stations, transformer sub-stations converter stations :
rectifier stations and accumulator storage stations for supplying
electricity solely or mainly for the purpose of working the mine or a
number of mines under the same management;
ix. any premises for the time being used for depositing sand or other
material for use in a mine or for depositing refuse from a mine or in
which any operations in connection with such and refuse or other
material is being carried on, being premises exclusively occupied
by the owner of the mine:
x. any premises in or adjacent to and belonging to a mine or which
any process ancillary to the getting, dressing or operation for sale
of minerals or of coke is being carried on;
xi. all opencast workings which means a quarry, that is to say an
excavation where any operation for the purpose of searching for or
obtaining minerals has been or is being carried on, not being a
shaft or an excavation which extends below superjacent ground 45

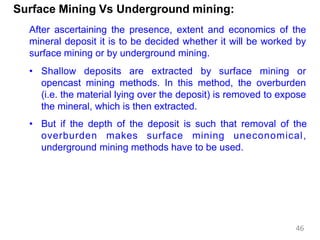

46. Surface Mining Vs Underground mining:
After ascertaining the presence, extent and economics of the
mineral deposit it is to be decided whether it will be worked by
surface mining or by underground mining.
• Shallow deposits are extracted by surface mining or
opencast mining methods. In this method, the overburden
(i.e. the material lying over the deposit) is removed to expose
the mineral, which is then extracted.
• But if the depth of the deposit is such that removal of the
overburden makes surface mining uneconomical,
underground mining methods have to be used.
46

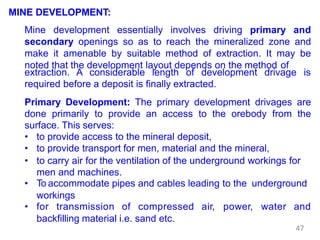

47. MINE DEVELOPMENT:
Mine development essentially involves driving primary and
secondary openings so as to reach the mineralized zone and
make it amenable by suitable method of extraction. It may be
noted that the development layout depends on the method of
extraction. A considerable length of development drivage is
required before a deposit is finally extracted.
Primary Development: The primary development drivages are
done primarily to provide an access to the orebody from the
surface. This serves:
• to provide access to the mineral deposit,
• to provide transport for men, material and the mineral,
• to carry air for the ventilation of the underground workings for
men and machines.
• To accommodate pipes and cables leading to the underground
workings
• for transmission of compressed air, power, water and
backfilling material i.e. sand etc.
47

48. Secondary Development: Secondary development
openings can be driven within the deposit, as in
practice in flat - lying coal seams (e.g., drifts, entries,
crosscuts), or outside the deposit, as is generally
practiced in three – dimensional ore bodies in metal
mines (e.g., adits, tunnels, drifts).
These supplements the main entries and serves the
same purpose.
Mine Entries: Following Mine Entries are normally
excavated for making access to the ore body:
- Vertical shaft or
- Inclined Shaft or
- Adit or
- Slope/Incline/Decline
48

49. Vertical
Shaf
t:
It is a vertically downward excavation of circular
cross
section suitable for skip winding. It is normally
sunk for
• Deep flat deposits(<300)
• Steeply Inclined(>700)
• Bad Natural Condition
• Moderate Production Capacity because of
cyclic vertical transportation
• Long life
49

50. Inclined
Shaft:
Characteristics:
• Excavation of normally rectangular cross section with
haulage- tub combination or even with skips in steep
shafts
• Moderately inclined deposit(300 to 700)
• Moderate Production Capacity because of cyclic
transportation on steep slope
• Moderate mine life
• Less horizontal development
• Exploration is also possible during drivage
50

51. Slope or
Decline:
Characteristics:
• Excavation of normally rectangular cross section
• Suitable for shallow to medium depth deposit
• Long life
• Trackless and noncyclic continuous mining
is possible in straight
slopes. As such, high production capacity mine can be
built up
with conveyors installed at 16%(9.10) gradient. 51

52. Adit or
Drift:
Characteristics:
• Hilly terrain
• Level drift from foot of hill
to intersect the deposit
• Outcrop above loading level
• Sufficient space available at
mouth of adit for surface
infrastructure
• Cheapest mode of entry
• Can be equipped with
locomotive haulage(cyclic) or 52

53. Vertical Shaft Vs inclined
shaft:
The main deciding factors are:
(i) type of mineral deposit and
(ii) depth of the deposit.
• For coal or other flat-lying formations, generally the depth is
the deciding factor. When an ore deposit lies at a depth not
exceeding 300-400m, Inclines/slopes are usually driven.
• But at greater depths, Shafts are the usual choice.
• If the ore-body is vertical or very steep, obviously Vertical
Shaft is a natural choice. We can have the shaft in the ore
body itself if the ore body is strong because shaft has to be
a stable and long lasting. But this may lock up a lot of the
mineral for the protection of the shaft.
• For inclined deposits, the choice will depend upon the dip of
the ore body. Vertical Shafts require cross-cuts to be driven
to the ore body. As such, at a greater depth the total length
of the cross-cuts increases as the depth of the shat
53

54. • So, to minimize the aggregate length of the cross-cuts we can
sink a inclined shaft in the footwall parallel to the ore body.
such a shaft has the advantage of short length of x-cuts,
stable, quick access, less expenditure on the short x-cuts
• If the deposit has a uniform dip, the vertical shaft should
intersect the deposit at half the ultimate depth of the mine so
that the aggregate length of the X-cuts is the shortest. (Say
500 m is the ultimate depth – shaft should intersect the vein at
250 m depth). In this case the upper part of the shaft is in the
hangwall but extraction of the ore body may damage the shaft.
Because the shaft has to last till the full life of the mine. So, we
have to keep a safe margin between the workings and the
shaft or we have to adopt a suitable method of mining so that
the shaft is not affected by the workings.
• When the dip of the ore body is not uniform the inclined shaft
can not be parallel to the orebody because this will reduce
hoisting capacity and increase the cost of operation. For the
most economical hoisting, inclined shafts should be straight. A
few bends of slight curvature may not have serious effects but
54

55. Location of Vertical or Inclined
Shaft:
For Choosing between a vertical and a inclined shaft, the overall economy
has to be worked out.
• Generally, inclined shafts are used for inclined ore bodies(300 to 700).
• Beyond 700(between 700 & 900) vertical shafts are more economical.
• An inclined shaft is larger in length hence costlier and requires more
maintenance. The production capacity of a mine with inclined shaft is
having 25% less than that with a vertical shaft of same cross section.
• The latest trend is to sink vertical shafts for obvious advantages of efficient
winding with optimal capex and opex.
55

56. VERTICAL SHAFTS VS
SLOPES/INCLINES:
Important Parameters For A
Mining Project
Time requirement for completion
Capital cost
Continuous transport of mineral
Capacity of ore/coal transport
Operational cost
Resistance to ventilation
Length of cable, pipeline
Possibility of uncertainty
Impacted by geological
factors
Loss of coal in protective pillar
Environmental problem
Shaft Inclines
More Less
More Less
Cyclic Continuous
Moderate Large
More Less
Less More
Less More
Less More
Less More
More Less 55
56

57. Broad
Classificatio
n
Class Method Applicable to
Coal/Metal/ Non-Metal
Traditional Mining:
Surface Mechanical Open Pit
Mining
Quarrying
Open cast (strip)
mining Auger Mining
Metal, Non
Metal Non
Metal
Coal Non
Metal Coal
Aqueous Placer Hydraulickin
g Dredging
Metal, Non
Metal Metal,
Non Metal
Solution In Situ
Techniques
Surface
Techniques
Metal, Non
Metal Metal
Underground Unsupported Room and Pillar
mining Stope and
Pillar mining
Shrinkage Stoping
Sublevel Stoping
Coal, Non Metal
Metal, Non
Metal Metal,
Non Metal
Metal, Non
Classification of Mining
57

58. Broad
Classificatio
n
Class Method Applicable to
Coal/ Metal/Non-
Metal
Underground Caving Longwall
Mining
Sublevel
Caving Block
Caving
Coal, Non
Metal Metal
Metal
Novel Mining:
Rapid Excavation
Automation, Robotics
Hydraulic Mining
Methane drainage
Underground
Gasification
Underground
Retorting Marine
Mining
Nuclear Mining
Extraterrestrial Mining
Non Coal(Hard
Rock) All
Coal, Soft Rock
Coal bed
Methane
Coal
Hydrocarbon
s
Metal, Non
Metal Non Coal
Metal, Non Metal
58
