C Prog. - Decision & Loop Controls

C Programming - Decision & Loop
Control

Organized By: Vinay Arora
Assistant Professor, CSED
Thapar University, Patiala

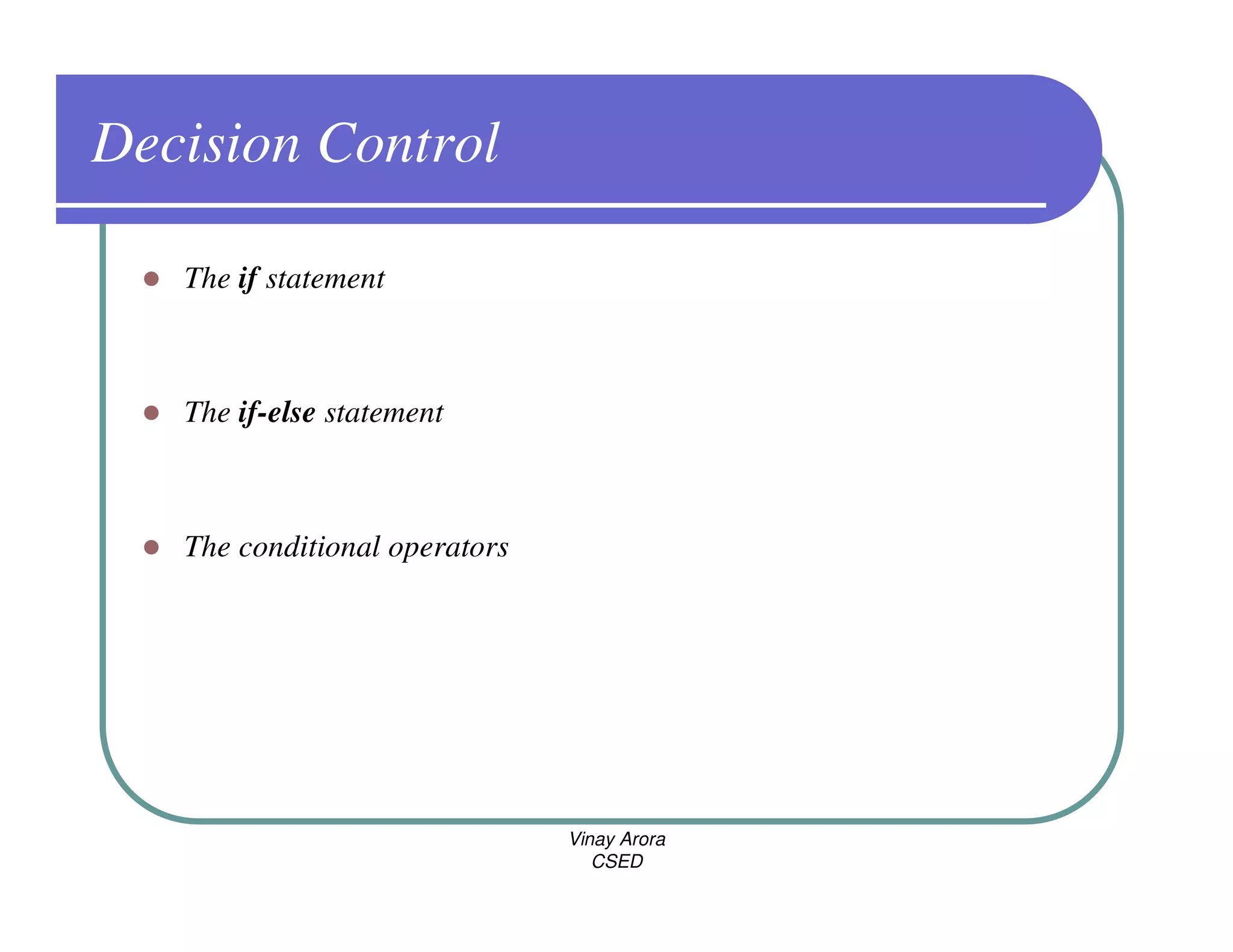

Decision Control

The if statement

The if-else statement

The conditional operators

Vinay Arora
CSED

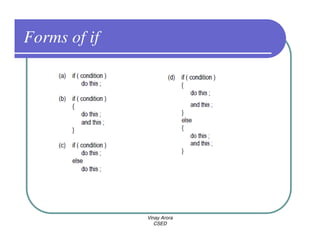

Forms of if

Vinay Arora
CSED

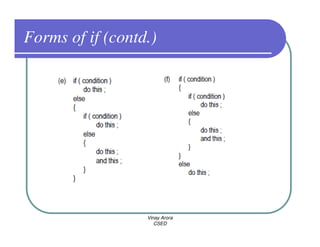

Forms of if (contd.)

Vinay Arora
CSED

Relational Operator

Vinay Arora
CSED

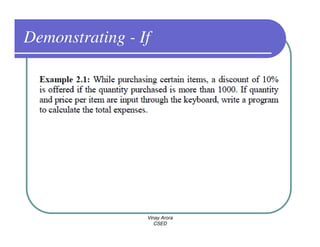

Demonstrating - If

Vinay Arora
CSED

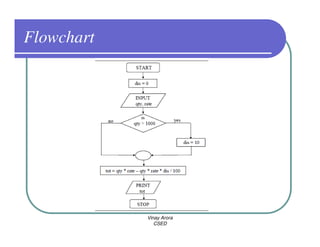

Flowchart

Vinay Arora
CSED

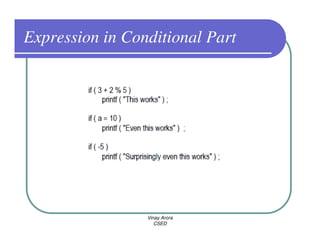

Expression in Conditional Part

Vinay Arora
CSED

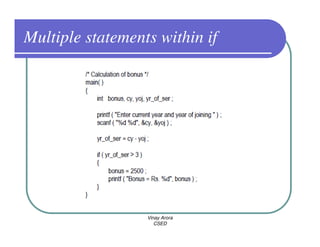

Multiple statements within if

Vinay Arora
CSED

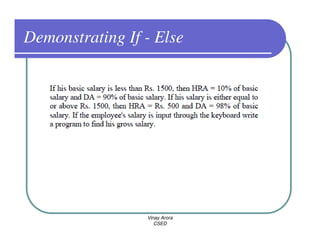

Demonstrating If - Else

Vinay Arora
CSED

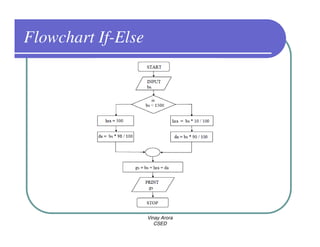

Flowchart If-Else

Vinay Arora
CSED

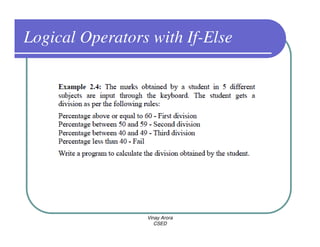

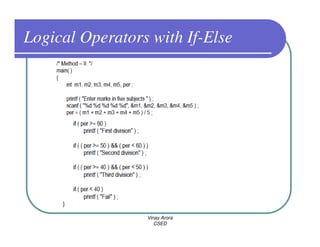

Logical Operators with If-Else

Vinay Arora
CSED

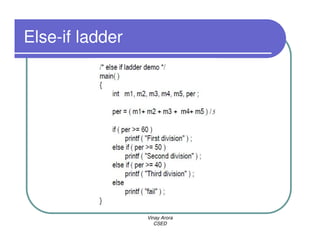

Else-if ladder

Vinay Arora
CSED

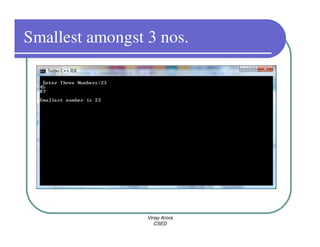

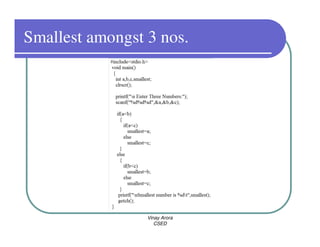

Smallest amongst 3 nos.

Vinay Arora
CSED

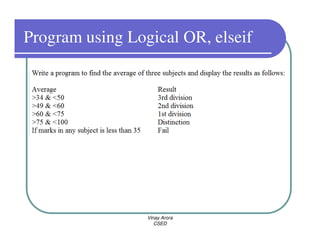

Program using Logical OR, elseif

Vinay Arora
CSED

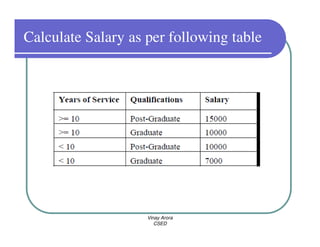

Calculate Salary as per following table

Vinay Arora
CSED

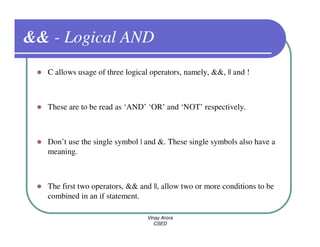

&& - Logical AND
C allows usage of three logical operators, namely, &&, || and !

These are to be read as ‘AND’ ‘OR’ and ‘NOT’ respectively.

Don’t use the single symbol | and &. These single symbols also have a
meaning.

The first two operators, && and ||, allow two or more conditions to be
combined in an if statement.

Vinay Arora
CSED

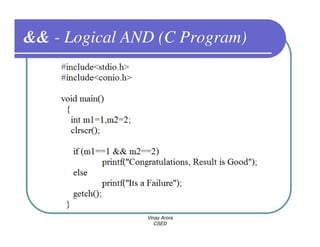

&& - Logical AND (C Program)

Vinay Arora
CSED

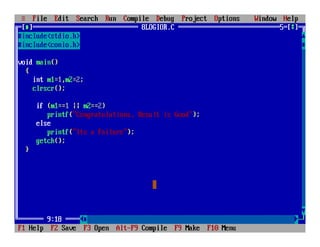

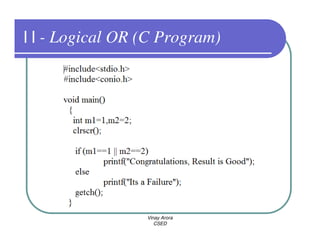

| | - Logical OR (C Program)

Vinay Arora
CSED

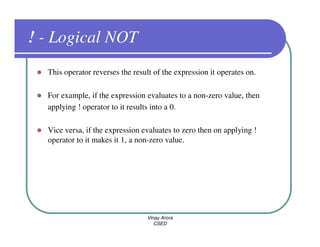

! - Logical NOT
This operator reverses the result of the expression it operates on.

For example, if the expression evaluates to a non-zero value, then
applying ! operator to it results into a 0.

Vice versa, if the expression evaluates to zero then on applying !
operator to it makes it 1, a non-zero value.

Vinay Arora
CSED

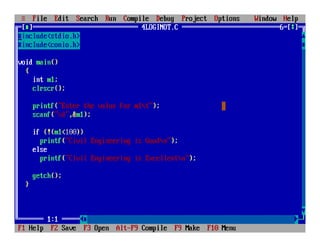

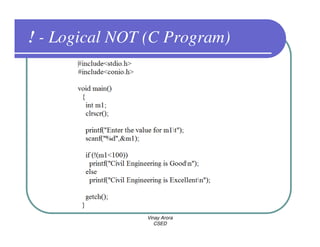

! - Logical NOT (C Program)

Vinay Arora
CSED

&&, ||, ! Operator

Vinay Arora
CSED

? : - Conditional Operator
The conditional operators ? and : are sometimes called Ternary
Operators since they take three arguments.

They form a kind of foreshortened if-then-else.

Their general form is, expression 1 ? expression 2 : expression 3

If expression 1 is true (that is, if its value is non-zero), then the value
returned will be expression 2, otherwise the value returned will be
expression 3.

Vinay Arora
CSED

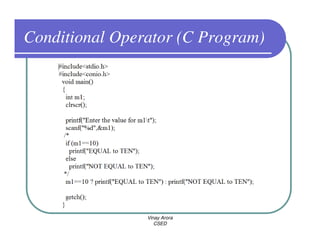

Conditional Operator (C Program)

Vinay Arora
CSED

goto Statement

goto is used to switch the control flow.

In a difficult programming situation it seems so easy to use a goto to
take the control.

In most of the scenarios use of goto is depreciated.

goto can be replaced by if-else, switch, for.

Vinay Arora
CSED

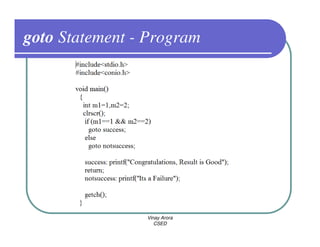

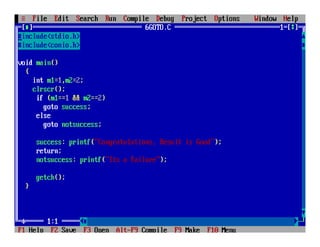

goto Statement - Program

Vinay Arora
CSED

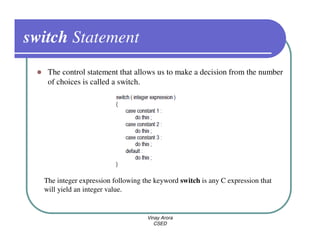

switch Statement
The control statement that allows us to make a decision from the number
of choices is called a switch.

The integer expression following the keyword switch is any C expression that
will yield an integer value.

Vinay Arora
CSED

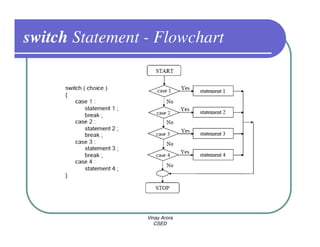

switch Statement - Flowchart

Vinay Arora
CSED

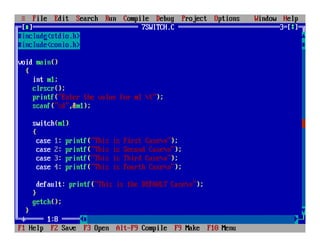

switch Statement - Program

Vinay Arora
CSED

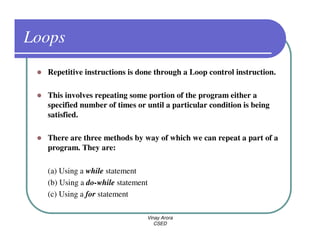

Loops
Repetitive instructions is done through a Loop control instruction.

This involves repeating some portion of the program either a
specified number of times or until a particular condition is being
satisfied.

There are three methods by way of which we can repeat a part of a
program. They are:

(a) Using a while statement
(b) Using a do-while statement
(c) Using a for statement

Vinay Arora
CSED

while Loop - Flowchart

Vinay Arora
CSED

while Loop – general form

Vinay Arora
CSED

while Loop – forms of conditions

Vinay Arora
CSED

while Loop – C Program

Vinay Arora
CSED

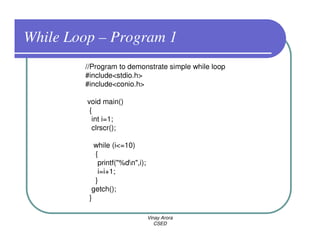

While Loop – Program 1
//Program to demonstrate simple while loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=10)
{
printf("%dn",i);
i=i+1;
}
getch();
}

Vinay Arora
CSED

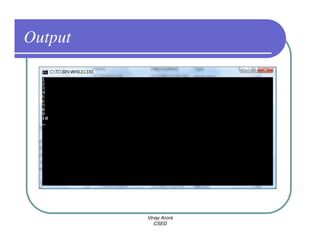

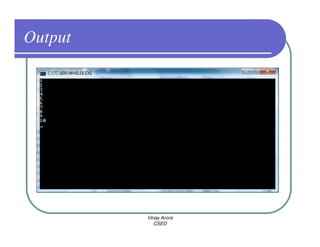

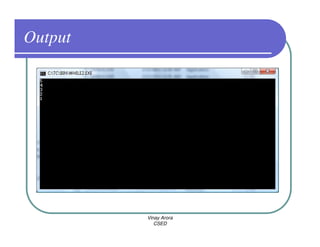

Output

Vinay Arora
CSED

//Program to demonstrate simple while loop with decrement operator
#include<stdio.h>
#include<conio.h>

void main()
{
int i=5;
clrscr();

while (i>=1)
{
printf("%dn",i);
i=i-1;
}
getch();
}

Vinay Arora
CSED

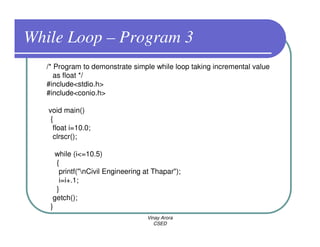

/* Program to demonstrate simple while loop taking incremental value
as float */
#include<stdio.h>
#include<conio.h>

void main()
{
float i=10.0;
clrscr();

while (i<=10.5)
{
printf("nCivil Engineering at Thapar");
i=i+.1;
}
getch();
}
Vinay Arora
CSED

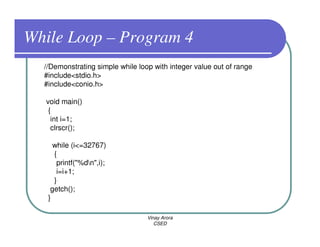

//Demonstrating simple while loop with integer value out of range
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=32767)
{
printf("%dn",i);
i=i+1;
}
getch();
}

Vinay Arora
CSED

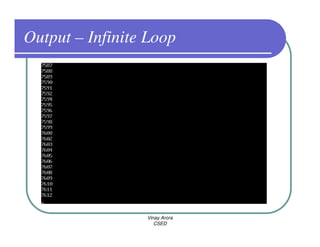

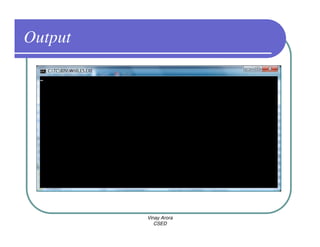

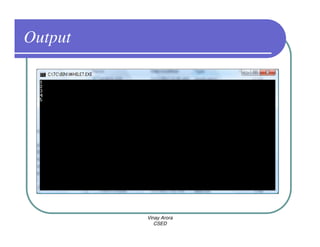

Output – Infinite Loop

Vinay Arora
CSED

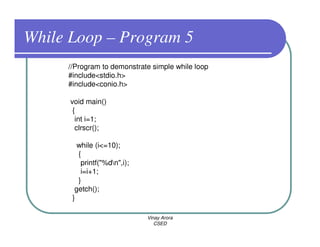

//Program to demonstrate simple while loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=10);
{
printf("%dn",i);
i=i+1;
}
getch();
}

Vinay Arora
CSED

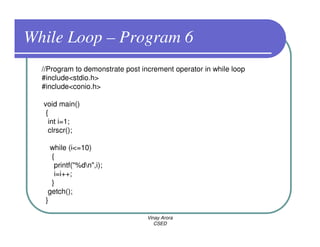

//Program to demonstrate post increment operator in while loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=10)
{
printf("%dn",i);
i=i++;
}
getch();
}

Vinay Arora
CSED

//Program to demonstrate compound assignment operator within while loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=5)
{
printf("%dn",i);
i+=1;
}
getch();
}

Vinay Arora
CSED

//Program to demonstrate post increment operator with while loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=0;
clrscr();

while (i++ < 5)
{
printf("%dn",i);

}
getch();
}

Vinay Arora
CSED

//Program to find out even numbers between 1-10
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

while (i<=10)
{
if (i%2==0)
printf("%dn",i);
i=i+1;
}
getch();
}
Vinay Arora
CSED

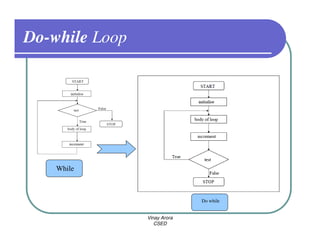

Do-while Loop

While

Do while

Vinay Arora
CSED

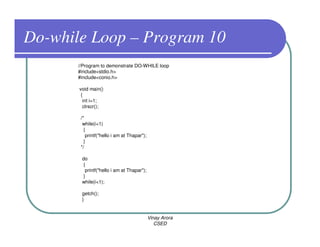

Do-while Loop – Program 10
//Program to demonstrate DO-WHILE loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

/*
while(i<1)
{

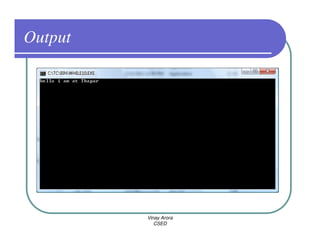

printf("hello i am at Thapar");
}
*/

do
{
printf("hello i am at Thapar");
}
while(i<1);

getch();
}

Vinay Arora
CSED

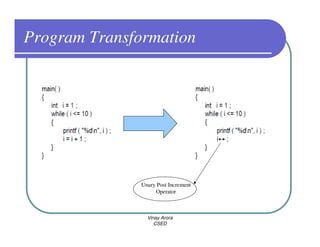

Program Transformation

Unary Post Increment
Operator

Vinay Arora
CSED

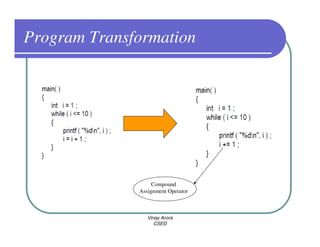

Program Transformation

Compound
Assignment Operator

Vinay Arora
CSED

For Loop
The for allows us to specify three things about a loop in a single line:

Vinay Arora
CSED

For Loop (Program-1)
//Program to demonstrate simple For loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i;
clrscr();

for (i=1; i<=10; i=i+1)
printf("%dn",i);

getch();
}

Vinay Arora
CSED

For Loop (Program-1 Output)

Vinay Arora
CSED

#include<stdio.h>
#include<conio.h>

void main()
{
int i;
clrscr();

for (i=1; i<=10;)
{
printf("%dn",i);
i=i+1;
}
getch();
}

Vinay Arora
CSED


Vinay Arora
CSED

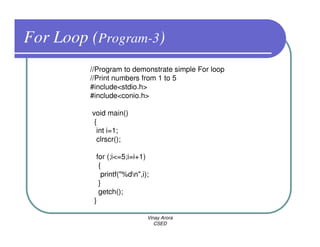

//Print numbers from 1 to 5
#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

for (;i<=5;i=i+1)
{
printf("%dn",i);
}
getch();
}

Vinay Arora
CSED


Vinay Arora
CSED

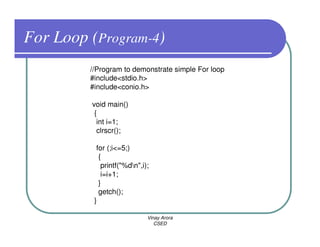

#include<stdio.h>
#include<conio.h>

void main()
{
int i=1;
clrscr();

for (;i<=5;)
{
printf("%dn",i);
i=i+1;
}
getch();
}

Vinay Arora
CSED


Vinay Arora
CSED

#include<stdio.h>
#include<conio.h>

void main()
{
int i;
clrscr();

for (i=0;i++<5;)
{
printf("%dn",i);
}
getch();
}

Vinay Arora
CSED


Vinay Arora
CSED

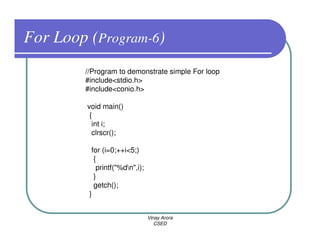

#include<stdio.h>
#include<conio.h>

void main()
{
int i;
clrscr();

for (i=0;++i<5;)
{
printf("%dn",i);
}
getch();
}

Vinay Arora
CSED


Vinay Arora
CSED

//Program to demonstrate NESTED For loop
#include<stdio.h>
#include<conio.h>

void main()
{
int i,j;
clrscr();

for (i=1;i<=5;i=i+1)
{
printf("n");
for (j=1;j<=i;j=j+1)
{
printf(" *");
}
}
getch();
}
Vinay Arora
CSED


Vinay Arora
CSED

Thnx…

Vinay Arora
CSED
