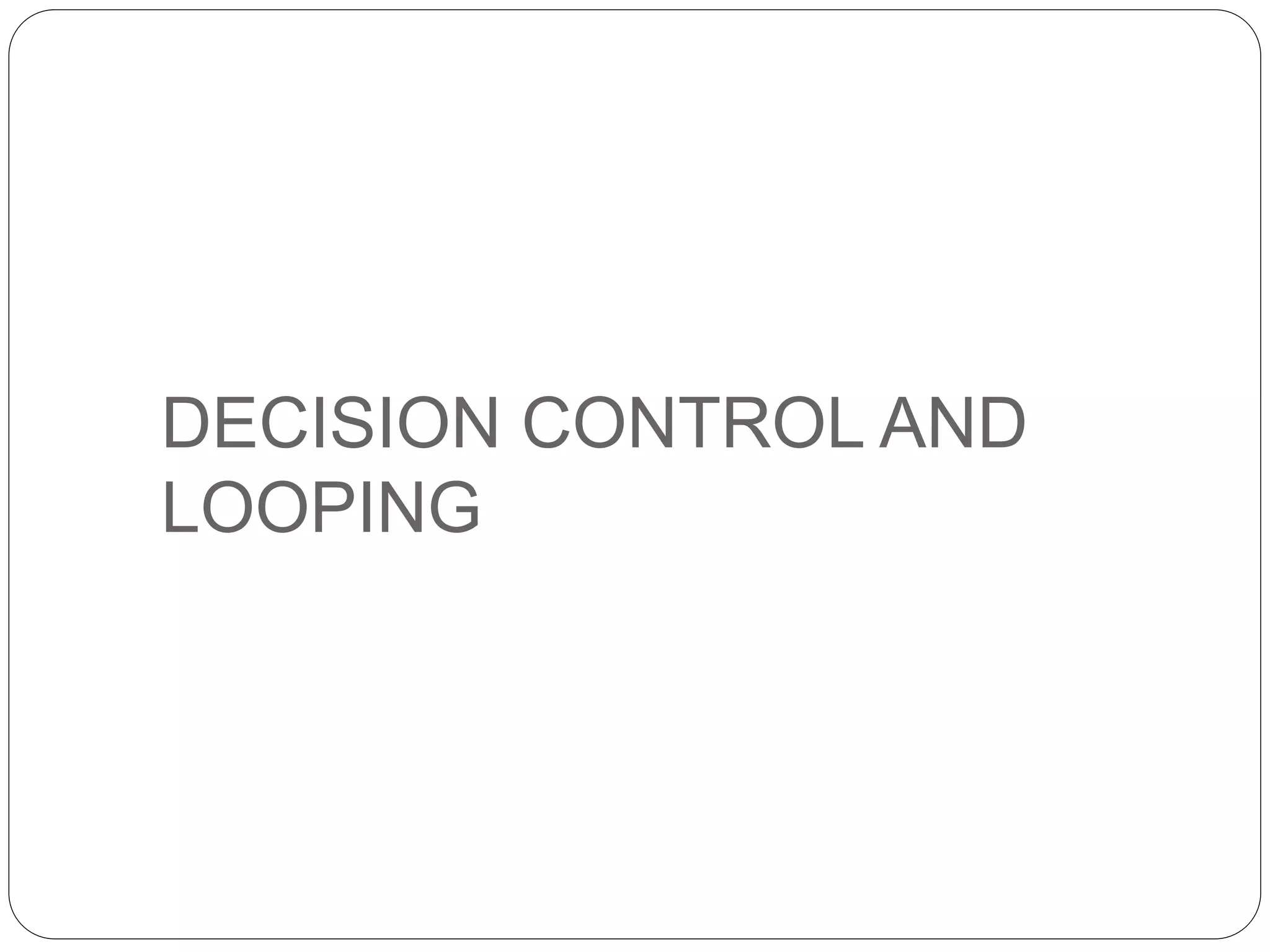

DECISION CONTROL AND
LOOPING

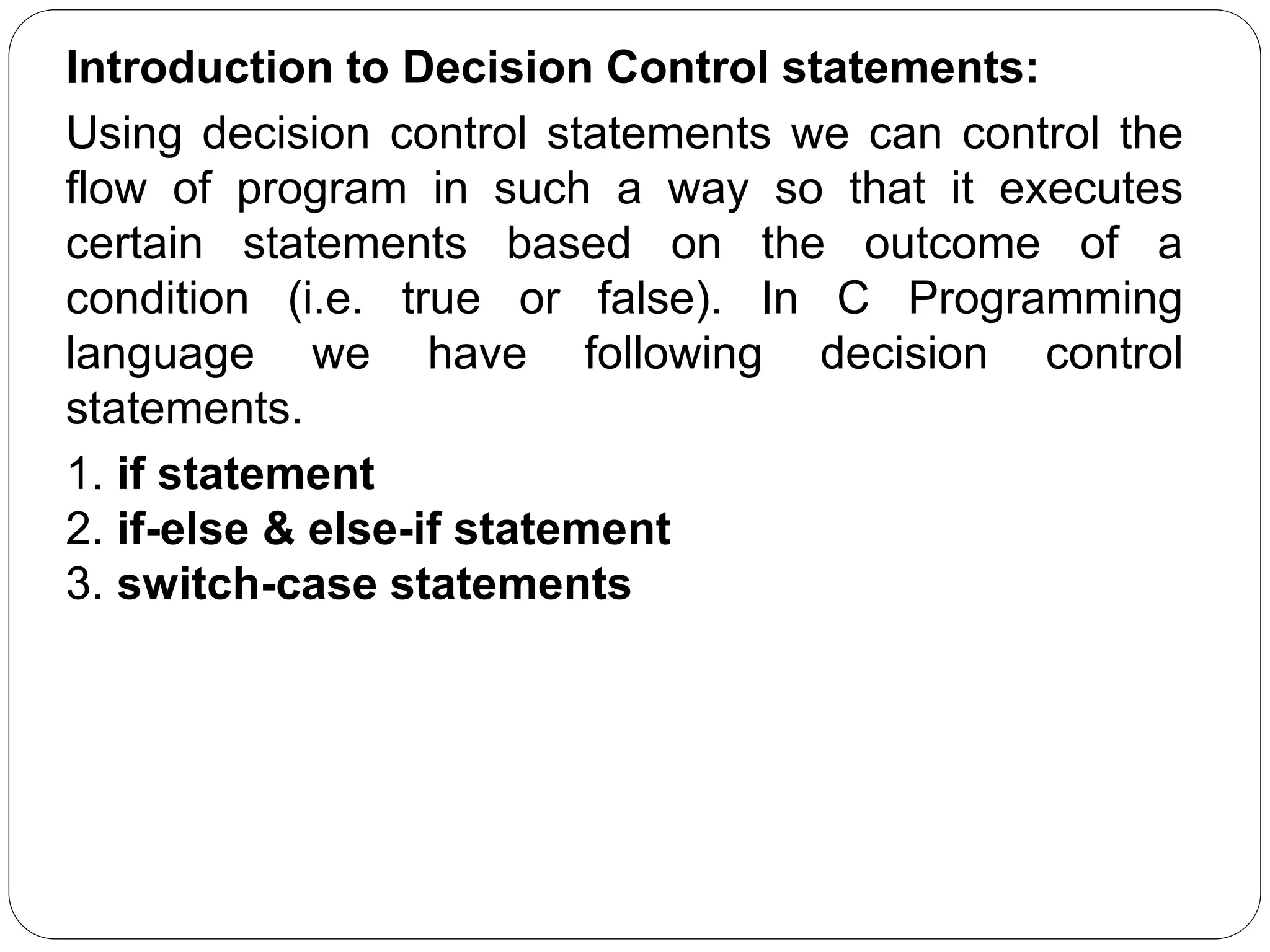

Introduction to Decision Control statements:
Using decision control statements we can control the
flow of program in such a way so that it executes
certain statements based on the outcome of a
condition (i.e. true or false). In C Programming
language we have following decision control
statements.
1. if statement
2. if-else & else-if statement
3. switch-case statements
The conditional branching statements help to jump
from one art of the program to another depending on
whether a particular condition is satisfied or not.
Generally they are two types of branching statements.
1. Two way selection
- if statement
- if-else statement
- if-else-if statement or nested-if
2. Multi way selection
- switch statement
IF:
The if statement is a powerful decision making
statement and is used to control the flow of execution
of statements. It is basically a two way decision
statement and is used in conjunction with an
expression. It takes the following form
if(test-expression)
It allows the computer to evaluate the expression first
and them depending on whether the value of the
expression is "true" or "false", it transfer the control to
a particular statements. This point of program has two
paths to flow, one for the true and the other for the
false condition.
if(test-expression)
{
statement-block
}
statement-x;
Example: C Program to check equivalence of two
numbers using if statement
void main()
{
int m,n,large;
clrscr();
printf(" n enter two numbers:");
scanf(" %d %d", &m, &n);
if(m>n)
large=m;
else
large=n;
printf(" n large number is = %d", large);
return 0;
}
if-else statement:
The if-else statement is an extension of the simple
if statement. The general form is
if(test-expression)
{true-block statements
}
else
{
false-block statements
}
statement-x
If the test-expression is true, then true-block statements immediately
following if statement are executed otherwise the false-block
statements are executed. In other case, either true-block or false-block
will be executed, not both.
Example: C program to find largest of two numbers
void main()
{
int m,n,large;
clrscr();
printf(" n enter two numbers:");
scanf(" %d %d", &m, &n);
if(m>n)
large=m;
else
large=n;
printf(" n large number is = %d", large);
return 0;
}
Nested if statement
If(test-condition-1)
{
if(test-condition-2)
{
statement-1;
}
else
{
statement-2;
}
}
else
{
statement-3;
}
statement-x
Iteration:
Iteration is the process where a set of instructions or
statements is executed repeatedly for a specified
number of time or until a condition is met. These
statements also alter the control flow of the program
and thus can also be classified as control
statements in C Programming Language.
Iteration statements are most commonly know as loops.
Also the repetition process in C is done by using loop
control instruction. There are three types of looping
statements:
For Loop
While Loop
Do-while loop
A loop basically consists of three parts:
initialization,testexpression, increment/decrement or upd
ate value. For the different type of loops, these
expressions might be present at different stages of the
loop. Have a look at this flow chart to better understand
the working of loops(the update expression might or
might not be present in the body of the loop in
case break statement is used):
C Programming Unit-2
FOR LOOP:
Example:
#include <stdio.h>
int main()
{
int i;
for(i=1; i<=5; i++)
printf("CodinGeekn");
return 0;
}
for(initialization; test expression; update expression)
{
//body of loop
}
Output:-
CodinGeek
CodinGeek
CodinGeek
CodinGeek
CodinGeek
DIFFERENT TYPES OF FOR LOOP
INFINITE FOR LOOP
An infinite for loop is the one which goes on
repeatedly for infinite times. This can happen in two
cases:
1.When the loop has no expressions.
for(;;)
{
printf("CodinGeek");
}
2.When the test condition never becomes false.
for(i=1;i<=5;)
{
printf("CodinGeek");
}
EMPTY FOR LOOP
for(i=1;i<=5;i++)
{ }
NESTED FOR LOOP:
for(initialization; test; update)
{
for(initialization;test;update)//using another variable
{
//body of the inner loop
}
//body of outer loop(might or might not be present)
}
Example:
The following program will illustrate the use of nested loops:
#include <stdio.h>
int main()
{
int i,j;
for(i=1;i<=5;i++)
{
for(j=1;j<=i;j++)
printf("%d",j);
printf("n");
}
return 0;
}
Output:-
1
12
123
1234
12345
Break Statement:
The break statement terminates the loop (for, while
and do...while loop) immediately when it is
encountered. Its syntax is:
break;
Example 1: break statement
// Program to calculate the sum of maximum of 10 numbers
// If negative number is entered, loop terminates and sum is displayed
# include <stdio.h>
int main()
{
int i;
double number, sum = 0.0;
for(i=1; i <= 10; ++i)
{
printf("Enter a n%d: ",i);
scanf("%lf",&number);
// If user enters negative number, loop is terminated
if(number < 0.0)
{
break;
}
sum += number; // sum = sum + number;
}
printf("Sum = %.2lf",sum);
return 0;
}
Output
Enter a n1: 2.4
Enter a n2: 4.5
Enter a n3: 3.4
Enter a n4: -3
Sum = 10.30
continue Statement
The continue statement skips statements after it inside
the loop. Its syntax is:
continue;
The continue statement is almost always used
with if...else statement
Example : continue statement
// Program to calculate sum of maximum of 10 numbers
// Negative numbers are skipped from calculation
# include <stdio.h>
int main()
{
int i;
double number, sum = 0.0;
for(i=1; i <= 10; ++i)
{
printf("Enter a n%d: ",i);
scanf("%lf",&number);
if(number < 0.0)
{
continue;
}
sum += number; // sum = sum + number;
}
printf("Sum = %.2lf",sum);
return 0;
}
Output
Enter a n1: 1.1
Enter a n2: 2.2
Enter a n3: 5.5
Enter a n4: 4.4
Enter a n5: -3.4
Enter a n6: -45.5
Enter a n7: 34.5
Enter a n8: -4.2
Enter a n9: -1000
Enter a n10: 12
Sum = 59.70
 GOTO:
A goto statement in C programming provides an
unconditional jump from the 'goto' to a labeled
statement in the same function.
Syntax:
The syntax for a goto statement in C is as follows
goto label;
..
.
label: statement;
Here label can be any plain text except C keyword
and it can be set anywhere in the C program above or
below to gotostatement.
C Programming Unit-2
Example:
#include <stdio.h>
int main () {
/* local variable definition */
int a = 10;
/* do loop execution */
LOOP:do {
if( a == 15) {
/* skip the iteration */
a = a + 1;
goto LOOP;
}
printf("value of a: %dn", a);
a++;
}while( a < 20 );
return 0;
}
Output:
value of a: 10
value of a: 11
value of a: 12
value of a: 13
value of a: 14
value of a: 16
value of a: 17
value of a: 18
value of a: 19
FUNCTIONS
C Functions
 In c, we can divide a large program into the basic
building blocks known as function. The function
contains the set of programming statements
enclosed by {}. A function can be called multiple
times to provide reusability and modularity to the C
program. In other words, we can say that the
collection of functions creates a program. The
function is also known as procedure or subroutine in
other programming languages.
SN C function aspects Syntax
1 Function declaration return_type function_name (argument list);
2 Function call function_name (argument_list)
3 Function definition return_type function_name (argument list) {function body;}
The syntax of creating function in c language is given below:
1. return_type function_name(data_type parameter...){
2. //code to be executed
3. }
Function Aspects:
There are three aspects of a C function.
 Function declaration A function must be declared globally in a c program to tell the
compiler about the function name, function parameters, and return type.
 Function call Function can be called from anywhere in the program. The parameter
list must not differ in function calling and function declaration. We must pass the same
number of functions as it is declared in the function declaration.
 Function definition It contains the actual statements which are to be executed. It is
the most important aspect to which the control comes when the function is called.
Here, we must notice that only one value can be returned from the function.
SN C function aspects Syntax
1 Function declaration return_type function_name (argument list);
2 Function call function_name (argument_list)
3 Function definition return_type function_name (argument list) {function body;}
Return Value:
 A C function may or may not return a value from the
function. If you don't have to return any value from
the function, use void for the return type.
 Let's see a simple example of C function that doesn't
return any value from the function.
 Example without return value:
void hello(){
printf("hello c");
}
 If you want to return any value from the function, you
need to use any data type such as int, long, char,
etc. The return type depends on the value to be
returned from the function.
 Let's see a simple example of C function that returns
int value from the function.
Example with return value:
int get(){
return 10;
}
 In the above example, we have to return 10 as a
value, so the return type is int. If you want to return
floating-point value (e.g., 10.2, 3.1, 54.5, etc), you
need to use float as the return type of the method.
Parameter Passing in C:
 Parameters are the data values that are passed from
calling function to called function.
 In C, there are two types of parameters they are
1. Actual Parameters
2. Formal Parameters
 The actual parameters are the parameters that are
speficified in calling function.
 The formal parameters are the parameters that are
declared at called function.
 When a function gets executed, the copy of actual
parameter values are copied into formal parameters.
 In C Programming Language, there are two methods
to pass parameters from calling function to called
function and they are as follows...
 Call by Value
 Call by Reference
Call by Value:
 In call by value parameter passing method, the
copy of actual parameter values are copied to formal
parameters and these formal parameters are used in
called function. The changes made on the formal
parameters does not effect the values of actual
parameters.
Example Program
#include<stdio.h>
#include<conio.h>
void main(){
int num1, num2 ;
void swap(int,int) ; // function declaration
clrscr() ;
num1 = 10 ;
num2 = 20 ;
printf("nBefore swap: num1 = %d, num2 = %d", num1, num2) ;
swap(num1, num2) ; // calling function
printf("nAfter swap: num1 = %dnnum2 = %d", num1, num2);
getch() ;
}
void swap(int a, int b) // called function
{
int temp ;
temp = a ;
a = b ;
b = temp ;
}
Output:
 Call by Reference
 In Call by Reference parameter passing method,
the memory location address of the actual
parameters is copied to formal parameters. This
address is used to access the memory locations of
the actual parameters in called function. In this
method of parameter passing, the formal parameters
must be pointer variables.
 That means in call by reference parameter passing
method, the address of the actual parameters is
passed to the called function and is recieved by the
formal parameters (pointers). Whenever we use
these formal parameters in called function, they
directly access the memory locations of actual
parameters. So the changes made on the formal
parameters effects the values of actual
Example Program
#include<stdio.h>
#include<conio.h>
void main(){
int num1, num2 ;
void swap(int *,int *) ; // function declaration
clrscr() ;
num1 = 10 ;
num2 = 20 ;
printf("nBefore swap: num1 = %d, num2 = %d", num1, num2) ;
swap(&num1, &num2) ; // calling function
printf("nAfter swap: num1 = %d, num2 = %d", num1, num2);
getch() ;
}
void swap(int *a, int *b) // called function
{
int temp ;
temp = *a ;
*a = *b ;
*b = temp ;
}
Output:
Scope of Variables:
 A scope is a region of a program. Variable Scope is
a region in a program where a variable is declared
and used. So, we can have three types of
scopes depending on the region where these are
declared and used –
1. Local variables are defined inside a function or a
block
2. Global variables are outside all functions
3. Formal parameters are defined in function
parameters
Local Variables:
 Variables that are declared inside a function or a
block are called local variables and are said to
have local scope. These local variables can only be
used within the function or block in which these are
declared.
 Local variables are created when the control reaches
the block or function containg the local variables and
then they get destroyed after that.
Example:
#include <stdio.h>
void fun1()
{
/*local variable of function fun1*/
int x = 4;
printf("%dn",x);
}
int main()
{
/*local variable of function main*/
int x = 10;
{
/*local variable of this block*/
int x = 5;
printf("%dn",x);
}
printf("%dn",x);
fun1();
}
Output
5
10
4
Global Variables
 Variables that are defined outside of all the functions
and are accessible throughout the program
are global variables and are said to have global
scope. Once declared, these can be accessed and
modified by any function in the program. We can
have the same name for a local and a global variable
but the local variable gets priority inside a function.
Example:
#include <stdio.h>
/*Global variable*/
int x = 10;
void fun1()
{
/*local variable of same name*/
int x = 5;
printf("%dn",x);
}
int main()
{
printf("%dn",x);
fun1();
}
Output
10
5
Storage Classes in C
 Storage classes in C are used to determine the
lifetime, visibility, memory location, and initial value
of a variable. There are four types of storage classes
in C
1. Automatic
2. External
3. Static
4. Register
Storage
Classes
Storage
Place
Default
Value
Scope Lifetime
auto RAM Garbage
Value
Local Within function
extern RAM Zero Global Till the end of the main program Maybe
declared anywhere in the program
static RAM Zero Local Till the end of the main program, Retains
value between multiple functions call
register Register Garbage
Value
Local Within the function
Automatic:
 Automatic variables are allocated memory automatically at runtime.
 The visibility of the automatic variables is limited to the block in which they are
defined.
 The scope of the automatic variables is limited to the block in which they are
defined.
 The automatic variables are initialized to garbage by default.
 The memory assigned to automatic variables gets freed upon exiting from the block.
 The keyword used for defining automatic variables is auto.
 Every local variable is automatic in C by default.
Example
#include <stdio.h>
int main()
{
int a; //auto
char b;
float c;
printf("%d %c %f",a,b,c); // printing initial default value of automatic variables a, b, and
c.
return 0;
}
Output:
Static:
 The variables defined as static specifier can hold their value between the
multiple function calls.
 Static local variables are visible only to the function or the block in which
they are defined.
 A same static variable can be declared many times but can be assigned at
only one time.
 Default initial value of the static integral variable is 0 otherwise null.
 The visibility of the static global variable is limited to the file in which it has
declared.
 The keyword used to define static variable is static.
Example
#include<stdio.h>
static char c;
static int i;
static float f;
static char s[100];
void main ()
{
printf("%d %d %f %s",c,i,f); // the initial default value of c, i, and f will be printed.
}
Output:
Register:
 The variables defined as the register is allocated the memory into the CPU
registers depending upon the size of the memory remaining in the CPU.
 We can not dereference the register variables, i.e., we can not use
&operator for the register variable.
 The access time of the register variables is faster than the automatic
variables.
 The initial default value of the register local variables is 0.
 The register keyword is used for the variable which should be stored in the
CPU register. However, it is compiler?s choice whether or not; the variables
can be stored in the register.
 We can store pointers into the register, i.e., a register can store the address
of a variable.
 Static variables can not be stored into the register since we can not use
more than one storage specifier for the same variable.
Example :
#include <stdio.h>
int main()
{
register int a; // variable a is allocated memory in the CPU register. The initial
default value of a is 0.
printf("%d",a);
}
Output:
External:
 The external storage class is used to tell the compiler that the variable
defined as extern is declared with an external linkage elsewhere in the
program.
 The variables declared as extern are not allocated any memory. It is only
declaration and intended to specify that the variable is declared elsewhere in
the program.
 The default initial value of external integral type is 0 otherwise null.
 We can only initialize the extern variable globally, i.e., we can not initialize
the external variable within any block or method.
 An external variable can be declared many times but can be initialized at
only once.
 If a variable is declared as external then the compiler searches for that
variable to be initialized somewhere in the program which may be extern or
static. If it is not, then the compiler will show an error.
Example 1
#include <stdio.h>
int main()
{
extern int a;
printf("%d",a);
}
Output
main.c:(.text+0x6): undefined reference to `a'collect2: error: ld returned 1 exit
status
Recursion in C
 Recursion is the process which comes into existence
when a function calls a copy of itself to work on a smaller
problem. Any function which calls itself is called recursive
function, and such function calls are called recursive
calls. Recursion involves several numbers of recursive
calls. However, it is important to impose a termination
condition of recursion. Recursion code is shorter than
iterative code however it is difficult to understand.
 Recursion cannot be applied to all the problem, but it is
more useful for the tasks that can be defined in terms of
similar subtasks. For Example, recursion may be applied
to sorting, searching, and traversal problems.
 Generally, iterative solutions are more efficient than
recursion since function call is always overhead. Any
problem that can be solved recursively, can also be
solved iteratively. However, some problems are best
suited to be solved by the recursion, for example, tower
of Hanoi, Fibonacci series, factorial finding, etc.
In the following example, recursion is used to calculate the factorial of a number.
#include <stdio.h>
int fact (int);
int main()
{
int n,f;
printf("Enter the number whose factorial you want to calculate?");
scanf("%d",&n);
f = fact(n);
printf("factorial = %d",f);
}
int fact(int n)
{
if (n==0)
{
return 0;
}
else if ( n == 1)
{
return 1;
}
else
{
return n*fact(n-1);
}
 We can understand the above program of the
recursive method call by the figure given below:

More Related Content

What's hot

Algorithm and c language
Algorithm and c languageAlgorithm and c language
Algorithm and c language
kamalbeydoun

user defined function
user defined functionuser defined function
user defined function
King Kavin Patel

Exception handling
Exception handlingException handling
Exception handling
Pranali Chaudhari

Classes objects in java
Classes objects in javaClasses objects in java
Classes objects in java
Madishetty Prathibha

Basic Structure of C Language and Related Term
Basic Structure of C Language  and Related TermBasic Structure of C Language  and Related Term
Basic Structure of C Language and Related Term
MuhammadWaseem305

Pointers
PointersPointers
Enums in c
Enums in cEnums in c
Pure virtual function and abstract class
Pure virtual function and abstract classPure virtual function and abstract class
Pure virtual function and abstract class
Amit Trivedi

Introduction to Selection control structures in C++
Introduction to Selection control structures in C++ Introduction to Selection control structures in C++
Introduction to Selection control structures in C++
Neeru Mittal

Data types IN JAVA
Data types IN JAVAData types IN JAVA
Data types IN JAVA
garishma bhatia

06. operator overloading
06. operator overloading06. operator overloading
06. operator overloading
Haresh Jaiswal

Pointers, virtual function and polymorphism
Pointers, virtual function and polymorphismPointers, virtual function and polymorphism
Pointers, virtual function and polymorphism
lalithambiga kamaraj

C fundamental
C fundamentalC fundamental
C fundamental
Selvam Edwin

Function in c
Function in cFunction in c
Function in c
savitamhaske

Decision making and looping
Decision making and loopingDecision making and looping
Decision making and looping
Hossain Md Shakhawat

Data types
Data typesData types
Data types
myrajendra

Prsentation on functions
Prsentation on functionsPrsentation on functions
Prsentation on functions
Alisha Korpal

Control structures in java
Control structures in javaControl structures in java
Control structures in java
VINOTH R

Pointers and call by value, reference, address in C
Pointers and call by value, reference, address in CPointers and call by value, reference, address in C
Pointers and call by value, reference, address in C
Syed Mustafa

File handling in c++
File handling in c++File handling in c++
File handling in c++
ProfSonaliGholveDoif


What's hot (20)

Algorithm and c language
Algorithm and c languageAlgorithm and c language
Algorithm and c language

user defined function
user defined functionuser defined function
user defined function

Exception handling
Exception handlingException handling
Exception handling

Classes objects in java
Classes objects in javaClasses objects in java
Classes objects in java

Basic Structure of C Language and Related Term
Basic Structure of C Language  and Related TermBasic Structure of C Language  and Related Term
Basic Structure of C Language and Related Term

Pointers
PointersPointers
Pointers

Enums in c
Enums in cEnums in c
Enums in c

Pure virtual function and abstract class
Pure virtual function and abstract classPure virtual function and abstract class
Pure virtual function and abstract class

Introduction to Selection control structures in C++
Introduction to Selection control structures in C++ Introduction to Selection control structures in C++
Introduction to Selection control structures in C++

Data types IN JAVA
Data types IN JAVAData types IN JAVA
Data types IN JAVA

06. operator overloading
06. operator overloading06. operator overloading
06. operator overloading

Pointers, virtual function and polymorphism
Pointers, virtual function and polymorphismPointers, virtual function and polymorphism
Pointers, virtual function and polymorphism

C fundamental
C fundamentalC fundamental
C fundamental

Function in c
Function in cFunction in c
Function in c

Decision making and looping
Decision making and loopingDecision making and looping
Decision making and looping

Data types
Data typesData types
Data types

Prsentation on functions
Prsentation on functionsPrsentation on functions
Prsentation on functions

Control structures in java
Control structures in javaControl structures in java
Control structures in java

Pointers and call by value, reference, address in C
Pointers and call by value, reference, address in CPointers and call by value, reference, address in C
Pointers and call by value, reference, address in C

File handling in c++
File handling in c++File handling in c++
File handling in c++


Similar to C Programming Unit-2

Control Structures in C
Control Structures in CControl Structures in C
Control Structures in C
sana shaikh

C UNIT-2 PREPARED Y M V BRAHMANANDA REDDY
C UNIT-2 PREPARED Y M V BRAHMANANDA REDDYC UNIT-2 PREPARED Y M V BRAHMANANDA REDDY
C UNIT-2 PREPARED Y M V BRAHMANANDA REDDY
Rajeshkumar Reddy

1584503386 1st chap
1584503386 1st chap1584503386 1st chap
1584503386 1st chap
thuhiendtk4

[C++][a] tutorial 2
[C++][a] tutorial 2[C++][a] tutorial 2
[C++][a] tutorial 2
yasir_cesc

Object oriented programming system with C++
Object oriented programming system with C++Object oriented programming system with C++
Object oriented programming system with C++
msharshitha03s

Elements of programming
Elements of programmingElements of programming
What is c
What is cWhat is c
What is c
Nitesh Saitwal

Programming in C
Programming in CProgramming in C
Programming in C
Nishant Munjal

Programming in Arduino (Part 2)
Programming in Arduino  (Part 2)Programming in Arduino  (Part 2)
Programming in Arduino (Part 2)
Niket Chandrawanshi

Lecture 2
Lecture 2Lecture 2
Lecture 2
Mohammed Saleh

Basics of Control Statement in C Languages
Basics of Control Statement in C LanguagesBasics of Control Statement in C Languages
Basics of Control Statement in C Languages
Chandrakant Divate

Unit 1
Unit 1Unit 1
Unit 1
Sowri Rajan

Programming basics
Programming basicsProgramming basics
Programming basics
246paa

Controls & Loops in C
Controls & Loops in C Controls & Loops in C
Controls & Loops in C
Thesis Scientist Private Limited

C programming session3
C programming  session3C programming  session3
C programming session3
Keroles karam khalil

C programming session3
C programming  session3C programming  session3
C programming session3
Keroles karam khalil

Looping statements
Looping statementsLooping statements
Looping statements
Chukka Nikhil Chakravarthy

C_Language_PS&PC_Notes.ppt
C_Language_PS&PC_Notes.pptC_Language_PS&PC_Notes.ppt
C_Language_PS&PC_Notes.ppt
ganeshkarthy

Ch3 repetition
Ch3 repetitionCh3 repetition
Ch3 repetition
Hattori Sidek

C++ decision making
C++ decision makingC++ decision making
C++ decision making
Zohaib Ahmed


Similar to C Programming Unit-2 (20)

Control Structures in C
Control Structures in CControl Structures in C
Control Structures in C

C UNIT-2 PREPARED Y M V BRAHMANANDA REDDY
C UNIT-2 PREPARED Y M V BRAHMANANDA REDDYC UNIT-2 PREPARED Y M V BRAHMANANDA REDDY
C UNIT-2 PREPARED Y M V BRAHMANANDA REDDY

1584503386 1st chap
1584503386 1st chap1584503386 1st chap
1584503386 1st chap

[C++][a] tutorial 2
[C++][a] tutorial 2[C++][a] tutorial 2
[C++][a] tutorial 2

Object oriented programming system with C++
Object oriented programming system with C++Object oriented programming system with C++
Object oriented programming system with C++

Elements of programming
Elements of programmingElements of programming
Elements of programming

What is c
What is cWhat is c
What is c

Programming in C
Programming in CProgramming in C
Programming in C

Programming in Arduino (Part 2)
Programming in Arduino  (Part 2)Programming in Arduino  (Part 2)
Programming in Arduino (Part 2)

Lecture 2
Lecture 2Lecture 2
Lecture 2

Basics of Control Statement in C Languages
Basics of Control Statement in C LanguagesBasics of Control Statement in C Languages
Basics of Control Statement in C Languages

Unit 1
Unit 1Unit 1
Unit 1

Programming basics
Programming basicsProgramming basics
Programming basics

Controls & Loops in C
Controls & Loops in C Controls & Loops in C
Controls & Loops in C

C programming session3
C programming  session3C programming  session3
C programming session3

C programming session3
C programming  session3C programming  session3
C programming session3

Looping statements
Looping statementsLooping statements
Looping statements

C_Language_PS&PC_Notes.ppt
C_Language_PS&PC_Notes.pptC_Language_PS&PC_Notes.ppt
C_Language_PS&PC_Notes.ppt

Ch3 repetition
Ch3 repetitionCh3 repetition
Ch3 repetition

C++ decision making
C++ decision makingC++ decision making
C++ decision making


More from Vikram Nandini

IoT: From Copper strip to Gold Bar
IoT: From Copper strip to Gold BarIoT: From Copper strip to Gold Bar
IoT: From Copper strip to Gold Bar
Vikram Nandini

Design Patterns
Design PatternsDesign Patterns
Design Patterns
Vikram Nandini

Linux File Trees and Commands
Linux File Trees and CommandsLinux File Trees and Commands
Linux File Trees and Commands
Vikram Nandini

Introduction to Linux & Basic Commands
Introduction to Linux & Basic CommandsIntroduction to Linux & Basic Commands
Introduction to Linux & Basic Commands
Vikram Nandini

INTRODUCTION to OOAD
INTRODUCTION to OOADINTRODUCTION to OOAD
INTRODUCTION to OOAD
Vikram Nandini

Ethics
EthicsEthics
Manufacturing - II Part
Manufacturing - II PartManufacturing - II Part
Manufacturing - II Part
Vikram Nandini

Manufacturing
ManufacturingManufacturing
Manufacturing
Vikram Nandini

Business Models
Business ModelsBusiness Models
Business Models
Vikram Nandini

Prototyping Online Components
Prototyping Online ComponentsPrototyping Online Components
Prototyping Online Components
Vikram Nandini

Artificial Neural Networks
Artificial Neural NetworksArtificial Neural Networks
Artificial Neural Networks
Vikram Nandini

IoT-Prototyping
IoT-PrototypingIoT-Prototyping
IoT-Prototyping
Vikram Nandini

Design Principles for Connected Devices
Design Principles for Connected DevicesDesign Principles for Connected Devices
Design Principles for Connected Devices
Vikram Nandini

Introduction to IoT
Introduction to IoTIntroduction to IoT
Introduction to IoT
Vikram Nandini

Embedded decices
Embedded decicesEmbedded decices
Embedded decices
Vikram Nandini

Communication in the IoT
Communication in the IoTCommunication in the IoT
Communication in the IoT
Vikram Nandini

Introduction to Cyber Security
Introduction to Cyber SecurityIntroduction to Cyber Security
Introduction to Cyber Security
Vikram Nandini

cloud computing UNIT-2.pdf
cloud computing UNIT-2.pdfcloud computing UNIT-2.pdf
cloud computing UNIT-2.pdf
Vikram Nandini

Introduction to Web Technologies
Introduction to Web TechnologiesIntroduction to Web Technologies
Introduction to Web Technologies
Vikram Nandini

Cascading Style Sheets
Cascading Style SheetsCascading Style Sheets
Cascading Style Sheets
Vikram Nandini


More from Vikram Nandini (20)

IoT: From Copper strip to Gold Bar
IoT: From Copper strip to Gold BarIoT: From Copper strip to Gold Bar
IoT: From Copper strip to Gold Bar

Design Patterns
Design PatternsDesign Patterns
Design Patterns

Linux File Trees and Commands
Linux File Trees and CommandsLinux File Trees and Commands
Linux File Trees and Commands

Introduction to Linux & Basic Commands
Introduction to Linux & Basic CommandsIntroduction to Linux & Basic Commands
Introduction to Linux & Basic Commands

INTRODUCTION to OOAD
INTRODUCTION to OOADINTRODUCTION to OOAD
INTRODUCTION to OOAD

Ethics
EthicsEthics
Ethics

Manufacturing - II Part
Manufacturing - II PartManufacturing - II Part
Manufacturing - II Part

Manufacturing
ManufacturingManufacturing
Manufacturing

Business Models
Business ModelsBusiness Models
Business Models

Prototyping Online Components
Prototyping Online ComponentsPrototyping Online Components
Prototyping Online Components

Artificial Neural Networks
Artificial Neural NetworksArtificial Neural Networks
Artificial Neural Networks

IoT-Prototyping
IoT-PrototypingIoT-Prototyping
IoT-Prototyping

Design Principles for Connected Devices
Design Principles for Connected DevicesDesign Principles for Connected Devices
Design Principles for Connected Devices

Introduction to IoT
Introduction to IoTIntroduction to IoT
Introduction to IoT

Embedded decices
Embedded decicesEmbedded decices
Embedded decices

Communication in the IoT
Communication in the IoTCommunication in the IoT
Communication in the IoT

Introduction to Cyber Security
Introduction to Cyber SecurityIntroduction to Cyber Security
Introduction to Cyber Security

cloud computing UNIT-2.pdf
cloud computing UNIT-2.pdfcloud computing UNIT-2.pdf
cloud computing UNIT-2.pdf

Introduction to Web Technologies
Introduction to Web TechnologiesIntroduction to Web Technologies
Introduction to Web Technologies

Cascading Style Sheets
Cascading Style SheetsCascading Style Sheets
Cascading Style Sheets


Recently uploaded

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat
Scholarhat

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten
SarahAlie1

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf
maricelrudela

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
artenzmartenkai

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat
Scholarhat

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17
Celine George

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V
DrRavindrakshirsagar1

Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour International

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008
Glenn Rivera

A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...
Association for Project Management

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use
Excellence Foundation for South Sudan

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George


Recently uploaded (20)

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence

Node JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHatNode JS Interview Question PDF By ScholarHat
Node JS Interview Question PDF By ScholarHat

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat

How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17How to Empty a One2Many Field in Odoo 17
How to Empty a One2Many Field in Odoo 17

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V

Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...
Codeavour 5.0 International Impact Report - The Biggest International AI, Cod...

DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008DepEd School Calendar 2024-2025 DO_s2024_008
DepEd School Calendar 2024-2025 DO_s2024_008

A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...A beginner’s guide to project reviews - everything you wanted to know but wer...
A beginner’s guide to project reviews - everything you wanted to know but wer...

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides


C Programming Unit-2

  • 2. Introduction to Decision Control statements: Using decision control statements we can control the flow of program in such a way so that it executes certain statements based on the outcome of a condition (i.e. true or false). In C Programming language we have following decision control statements. 1. if statement 2. if-else & else-if statement 3. switch-case statements
  • 3. The conditional branching statements help to jump from one art of the program to another depending on whether a particular condition is satisfied or not. Generally they are two types of branching statements. 1. Two way selection - if statement - if-else statement - if-else-if statement or nested-if 2. Multi way selection - switch statement
  • 4. IF: The if statement is a powerful decision making statement and is used to control the flow of execution of statements. It is basically a two way decision statement and is used in conjunction with an expression. It takes the following form if(test-expression) It allows the computer to evaluate the expression first and them depending on whether the value of the expression is "true" or "false", it transfer the control to a particular statements. This point of program has two paths to flow, one for the true and the other for the false condition.
  • 5. if(test-expression) { statement-block } statement-x; Example: C Program to check equivalence of two numbers using if statement void main() { int m,n,large; clrscr(); printf(" n enter two numbers:"); scanf(" %d %d", &m, &n); if(m>n) large=m; else large=n; printf(" n large number is = %d", large); return 0; }
  • 6. if-else statement: The if-else statement is an extension of the simple if statement. The general form is if(test-expression) {true-block statements } else { false-block statements } statement-x If the test-expression is true, then true-block statements immediately following if statement are executed otherwise the false-block statements are executed. In other case, either true-block or false-block will be executed, not both.
  • 7. Example: C program to find largest of two numbers void main() { int m,n,large; clrscr(); printf(" n enter two numbers:"); scanf(" %d %d", &m, &n); if(m>n) large=m; else large=n; printf(" n large number is = %d", large); return 0; }
  • 9. Iteration: Iteration is the process where a set of instructions or statements is executed repeatedly for a specified number of time or until a condition is met. These statements also alter the control flow of the program and thus can also be classified as control statements in C Programming Language.
  • 10. Iteration statements are most commonly know as loops. Also the repetition process in C is done by using loop control instruction. There are three types of looping statements: For Loop While Loop Do-while loop A loop basically consists of three parts: initialization,testexpression, increment/decrement or upd ate value. For the different type of loops, these expressions might be present at different stages of the loop. Have a look at this flow chart to better understand the working of loops(the update expression might or might not be present in the body of the loop in case break statement is used):
  • 12. FOR LOOP: Example: #include <stdio.h> int main() { int i; for(i=1; i<=5; i++) printf("CodinGeekn"); return 0; } for(initialization; test expression; update expression) { //body of loop } Output:- CodinGeek CodinGeek CodinGeek CodinGeek CodinGeek
  • 13. DIFFERENT TYPES OF FOR LOOP INFINITE FOR LOOP An infinite for loop is the one which goes on repeatedly for infinite times. This can happen in two cases: 1.When the loop has no expressions. for(;;) { printf("CodinGeek"); } 2.When the test condition never becomes false. for(i=1;i<=5;) { printf("CodinGeek"); }
  • 14. EMPTY FOR LOOP for(i=1;i<=5;i++) { } NESTED FOR LOOP: for(initialization; test; update) { for(initialization;test;update)//using another variable { //body of the inner loop } //body of outer loop(might or might not be present) }
  • 15. Example: The following program will illustrate the use of nested loops: #include <stdio.h> int main() { int i,j; for(i=1;i<=5;i++) { for(j=1;j<=i;j++) printf("%d",j); printf("n"); } return 0; } Output:- 1 12 123 1234 12345
  • 16. Break Statement: The break statement terminates the loop (for, while and do...while loop) immediately when it is encountered. Its syntax is: break;
  • 17. Example 1: break statement // Program to calculate the sum of maximum of 10 numbers // If negative number is entered, loop terminates and sum is displayed # include <stdio.h> int main() { int i; double number, sum = 0.0; for(i=1; i <= 10; ++i) { printf("Enter a n%d: ",i); scanf("%lf",&number); // If user enters negative number, loop is terminated if(number < 0.0) { break; } sum += number; // sum = sum + number; } printf("Sum = %.2lf",sum); return 0; } Output Enter a n1: 2.4 Enter a n2: 4.5 Enter a n3: 3.4 Enter a n4: -3 Sum = 10.30
  • 18. continue Statement The continue statement skips statements after it inside the loop. Its syntax is: continue; The continue statement is almost always used with if...else statement
  • 19. Example : continue statement // Program to calculate sum of maximum of 10 numbers // Negative numbers are skipped from calculation # include <stdio.h> int main() { int i; double number, sum = 0.0; for(i=1; i <= 10; ++i) { printf("Enter a n%d: ",i); scanf("%lf",&number); if(number < 0.0) { continue; } sum += number; // sum = sum + number; } printf("Sum = %.2lf",sum); return 0; } Output Enter a n1: 1.1 Enter a n2: 2.2 Enter a n3: 5.5 Enter a n4: 4.4 Enter a n5: -3.4 Enter a n6: -45.5 Enter a n7: 34.5 Enter a n8: -4.2 Enter a n9: -1000 Enter a n10: 12 Sum = 59.70
  • 20.  GOTO: A goto statement in C programming provides an unconditional jump from the 'goto' to a labeled statement in the same function. Syntax: The syntax for a goto statement in C is as follows goto label; .. . label: statement; Here label can be any plain text except C keyword and it can be set anywhere in the C program above or below to gotostatement.
  • 22. Example: #include <stdio.h> int main () { /* local variable definition */ int a = 10; /* do loop execution */ LOOP:do { if( a == 15) { /* skip the iteration */ a = a + 1; goto LOOP; } printf("value of a: %dn", a); a++; }while( a < 20 ); return 0; } Output: value of a: 10 value of a: 11 value of a: 12 value of a: 13 value of a: 14 value of a: 16 value of a: 17 value of a: 18 value of a: 19
  • 24. C Functions  In c, we can divide a large program into the basic building blocks known as function. The function contains the set of programming statements enclosed by {}. A function can be called multiple times to provide reusability and modularity to the C program. In other words, we can say that the collection of functions creates a program. The function is also known as procedure or subroutine in other programming languages.
  • 25. SN C function aspects Syntax 1 Function declaration return_type function_name (argument list); 2 Function call function_name (argument_list) 3 Function definition return_type function_name (argument list) {function body;} The syntax of creating function in c language is given below: 1. return_type function_name(data_type parameter...){ 2. //code to be executed 3. }
  • 26. Function Aspects: There are three aspects of a C function.  Function declaration A function must be declared globally in a c program to tell the compiler about the function name, function parameters, and return type.  Function call Function can be called from anywhere in the program. The parameter list must not differ in function calling and function declaration. We must pass the same number of functions as it is declared in the function declaration.  Function definition It contains the actual statements which are to be executed. It is the most important aspect to which the control comes when the function is called. Here, we must notice that only one value can be returned from the function. SN C function aspects Syntax 1 Function declaration return_type function_name (argument list); 2 Function call function_name (argument_list) 3 Function definition return_type function_name (argument list) {function body;}
  • 27. Return Value:  A C function may or may not return a value from the function. If you don't have to return any value from the function, use void for the return type.  Let's see a simple example of C function that doesn't return any value from the function.  Example without return value: void hello(){ printf("hello c"); }  If you want to return any value from the function, you need to use any data type such as int, long, char, etc. The return type depends on the value to be returned from the function.
  • 28.  Let's see a simple example of C function that returns int value from the function. Example with return value: int get(){ return 10; }  In the above example, we have to return 10 as a value, so the return type is int. If you want to return floating-point value (e.g., 10.2, 3.1, 54.5, etc), you need to use float as the return type of the method.
  • 29. Parameter Passing in C:  Parameters are the data values that are passed from calling function to called function.  In C, there are two types of parameters they are 1. Actual Parameters 2. Formal Parameters  The actual parameters are the parameters that are speficified in calling function.  The formal parameters are the parameters that are declared at called function.  When a function gets executed, the copy of actual parameter values are copied into formal parameters.
  • 30.  In C Programming Language, there are two methods to pass parameters from calling function to called function and they are as follows...  Call by Value  Call by Reference Call by Value:  In call by value parameter passing method, the copy of actual parameter values are copied to formal parameters and these formal parameters are used in called function. The changes made on the formal parameters does not effect the values of actual parameters.
  • 31. Example Program #include<stdio.h> #include<conio.h> void main(){ int num1, num2 ; void swap(int,int) ; // function declaration clrscr() ; num1 = 10 ; num2 = 20 ; printf("nBefore swap: num1 = %d, num2 = %d", num1, num2) ; swap(num1, num2) ; // calling function printf("nAfter swap: num1 = %dnnum2 = %d", num1, num2); getch() ; } void swap(int a, int b) // called function { int temp ; temp = a ; a = b ; b = temp ; } Output:
  • 32.  Call by Reference  In Call by Reference parameter passing method, the memory location address of the actual parameters is copied to formal parameters. This address is used to access the memory locations of the actual parameters in called function. In this method of parameter passing, the formal parameters must be pointer variables.  That means in call by reference parameter passing method, the address of the actual parameters is passed to the called function and is recieved by the formal parameters (pointers). Whenever we use these formal parameters in called function, they directly access the memory locations of actual parameters. So the changes made on the formal parameters effects the values of actual
  • 33. Example Program #include<stdio.h> #include<conio.h> void main(){ int num1, num2 ; void swap(int *,int *) ; // function declaration clrscr() ; num1 = 10 ; num2 = 20 ; printf("nBefore swap: num1 = %d, num2 = %d", num1, num2) ; swap(&num1, &num2) ; // calling function printf("nAfter swap: num1 = %d, num2 = %d", num1, num2); getch() ; } void swap(int *a, int *b) // called function { int temp ; temp = *a ; *a = *b ; *b = temp ; } Output:
  • 34. Scope of Variables:  A scope is a region of a program. Variable Scope is a region in a program where a variable is declared and used. So, we can have three types of scopes depending on the region where these are declared and used – 1. Local variables are defined inside a function or a block 2. Global variables are outside all functions 3. Formal parameters are defined in function parameters
  • 35. Local Variables:  Variables that are declared inside a function or a block are called local variables and are said to have local scope. These local variables can only be used within the function or block in which these are declared.  Local variables are created when the control reaches the block or function containg the local variables and then they get destroyed after that.
  • 36. Example: #include <stdio.h> void fun1() { /*local variable of function fun1*/ int x = 4; printf("%dn",x); } int main() { /*local variable of function main*/ int x = 10; { /*local variable of this block*/ int x = 5; printf("%dn",x); } printf("%dn",x); fun1(); } Output 5 10 4
  • 37. Global Variables  Variables that are defined outside of all the functions and are accessible throughout the program are global variables and are said to have global scope. Once declared, these can be accessed and modified by any function in the program. We can have the same name for a local and a global variable but the local variable gets priority inside a function.
  • 38. Example: #include <stdio.h> /*Global variable*/ int x = 10; void fun1() { /*local variable of same name*/ int x = 5; printf("%dn",x); } int main() { printf("%dn",x); fun1(); } Output 10 5
  • 39. Storage Classes in C  Storage classes in C are used to determine the lifetime, visibility, memory location, and initial value of a variable. There are four types of storage classes in C 1. Automatic 2. External 3. Static 4. Register
  • 40. Storage Classes Storage Place Default Value Scope Lifetime auto RAM Garbage Value Local Within function extern RAM Zero Global Till the end of the main program Maybe declared anywhere in the program static RAM Zero Local Till the end of the main program, Retains value between multiple functions call register Register Garbage Value Local Within the function
  • 41. Automatic:  Automatic variables are allocated memory automatically at runtime.  The visibility of the automatic variables is limited to the block in which they are defined.  The scope of the automatic variables is limited to the block in which they are defined.  The automatic variables are initialized to garbage by default.  The memory assigned to automatic variables gets freed upon exiting from the block.  The keyword used for defining automatic variables is auto.  Every local variable is automatic in C by default. Example #include <stdio.h> int main() { int a; //auto char b; float c; printf("%d %c %f",a,b,c); // printing initial default value of automatic variables a, b, and c. return 0; } Output:
  • 42. Static:  The variables defined as static specifier can hold their value between the multiple function calls.  Static local variables are visible only to the function or the block in which they are defined.  A same static variable can be declared many times but can be assigned at only one time.  Default initial value of the static integral variable is 0 otherwise null.  The visibility of the static global variable is limited to the file in which it has declared.  The keyword used to define static variable is static. Example #include<stdio.h> static char c; static int i; static float f; static char s[100]; void main () { printf("%d %d %f %s",c,i,f); // the initial default value of c, i, and f will be printed. } Output:
  • 43. Register:  The variables defined as the register is allocated the memory into the CPU registers depending upon the size of the memory remaining in the CPU.  We can not dereference the register variables, i.e., we can not use &operator for the register variable.  The access time of the register variables is faster than the automatic variables.  The initial default value of the register local variables is 0.  The register keyword is used for the variable which should be stored in the CPU register. However, it is compiler?s choice whether or not; the variables can be stored in the register.  We can store pointers into the register, i.e., a register can store the address of a variable.  Static variables can not be stored into the register since we can not use more than one storage specifier for the same variable. Example : #include <stdio.h> int main() { register int a; // variable a is allocated memory in the CPU register. The initial default value of a is 0. printf("%d",a); } Output:
  • 44. External:  The external storage class is used to tell the compiler that the variable defined as extern is declared with an external linkage elsewhere in the program.  The variables declared as extern are not allocated any memory. It is only declaration and intended to specify that the variable is declared elsewhere in the program.  The default initial value of external integral type is 0 otherwise null.  We can only initialize the extern variable globally, i.e., we can not initialize the external variable within any block or method.  An external variable can be declared many times but can be initialized at only once.  If a variable is declared as external then the compiler searches for that variable to be initialized somewhere in the program which may be extern or static. If it is not, then the compiler will show an error. Example 1 #include <stdio.h> int main() { extern int a; printf("%d",a); } Output main.c:(.text+0x6): undefined reference to `a'collect2: error: ld returned 1 exit status
  • 45. Recursion in C  Recursion is the process which comes into existence when a function calls a copy of itself to work on a smaller problem. Any function which calls itself is called recursive function, and such function calls are called recursive calls. Recursion involves several numbers of recursive calls. However, it is important to impose a termination condition of recursion. Recursion code is shorter than iterative code however it is difficult to understand.  Recursion cannot be applied to all the problem, but it is more useful for the tasks that can be defined in terms of similar subtasks. For Example, recursion may be applied to sorting, searching, and traversal problems.  Generally, iterative solutions are more efficient than recursion since function call is always overhead. Any problem that can be solved recursively, can also be solved iteratively. However, some problems are best suited to be solved by the recursion, for example, tower of Hanoi, Fibonacci series, factorial finding, etc.
  • 46. In the following example, recursion is used to calculate the factorial of a number. #include <stdio.h> int fact (int); int main() { int n,f; printf("Enter the number whose factorial you want to calculate?"); scanf("%d",&n); f = fact(n); printf("factorial = %d",f); } int fact(int n) { if (n==0) { return 0; } else if ( n == 1) { return 1; } else { return n*fact(n-1); }
  • 47.  We can understand the above program of the recursive method call by the figure given below:
