1. ORGANIZING AND PRESENTING DATA
1
College of Nursing
3rd stage
Biostatistics
Dr. Nazar A. Mahmood

2. 2

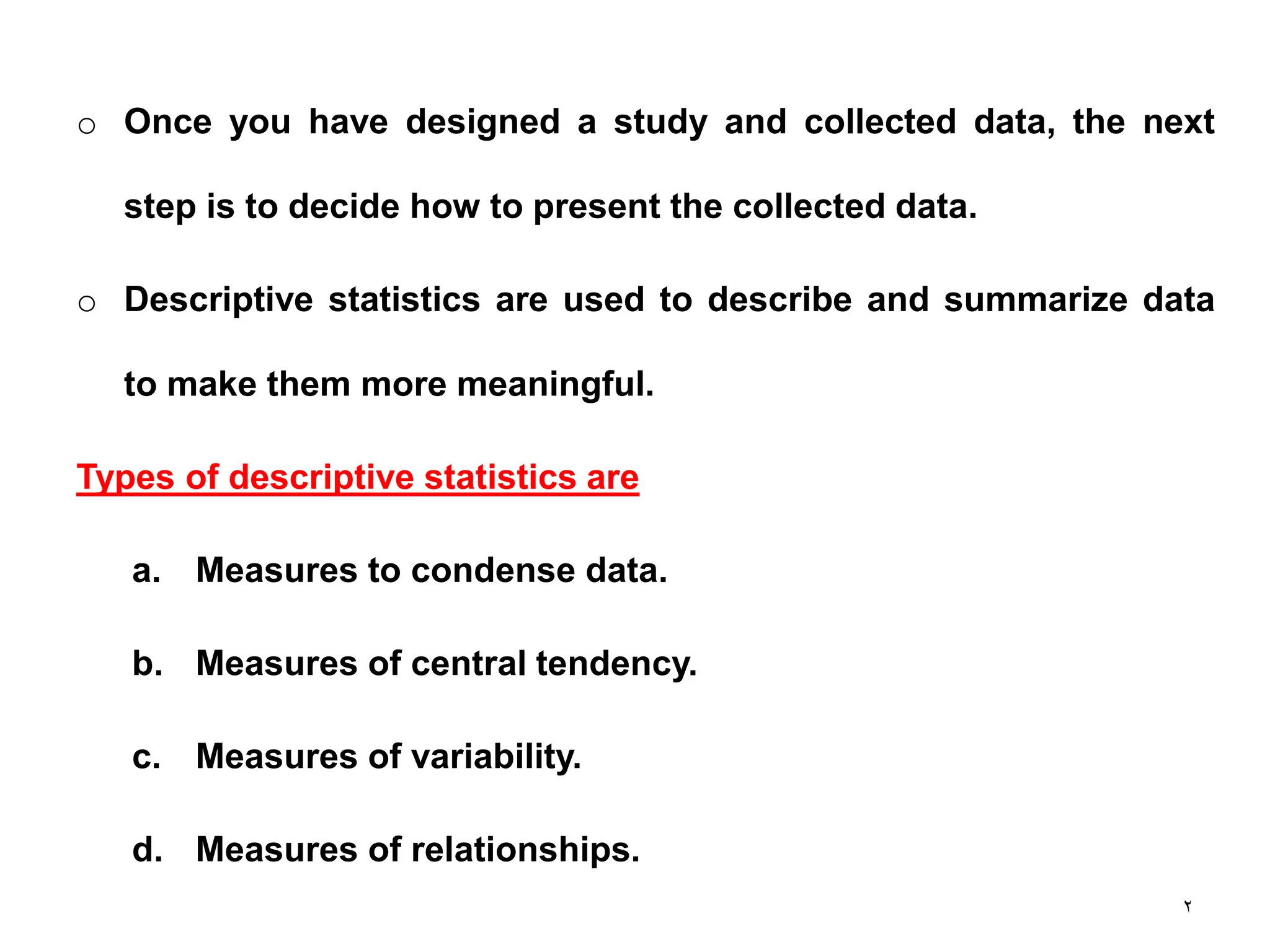

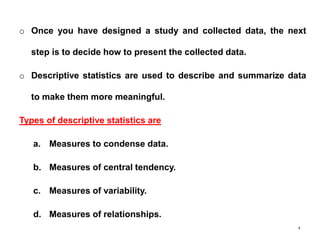

o Once you have designed a study and collected data, the next
step is to decide how to present the collected data.
o Descriptive statistics are used to describe and summarize data
to make them more meaningful.
Types of descriptive statistics are
a. Measures to condense data.
b. Measures of central tendency.
c. Measures of variability.
d. Measures of relationships.

3. 3
a. Measures to condense data are statistics that summarize
and condense data. Included in this category are:
1. Frequency distributions.
2. Graphic presentations.
3. Percentages.

4. 4

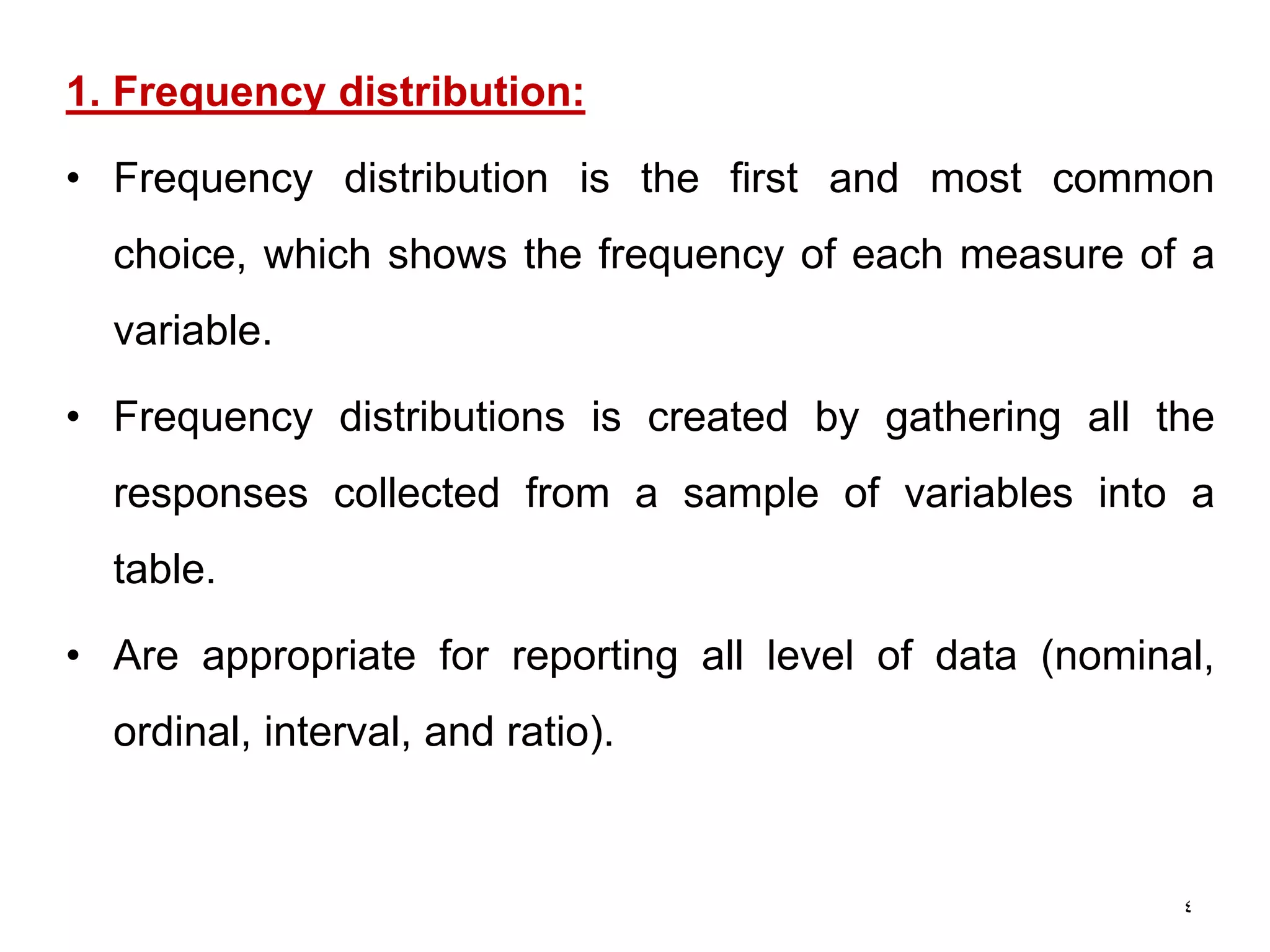

1. Frequency distribution:
• Frequency distribution is the first and most common
choice, which shows the frequency of each measure of a
variable.
• Frequency distributions is created by gathering all the
responses collected from a sample of variables into a
table.
• Are appropriate for reporting all level of data (nominal,
ordinal, interval, and ratio).

5. 5

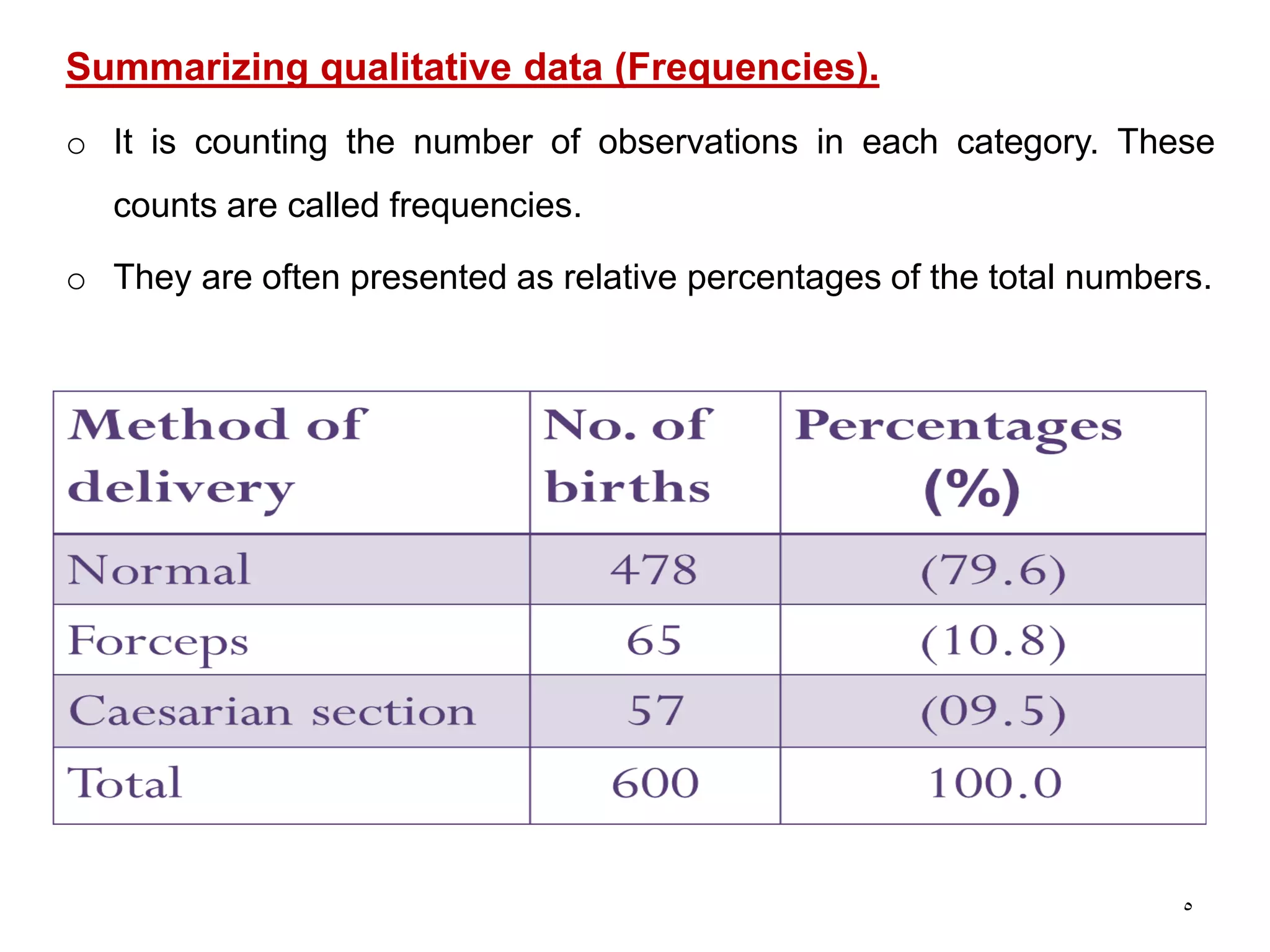

Summarizing qualitative data (Frequencies).
o It is counting the number of observations in each category. These
counts are called frequencies.
o They are often presented as relative percentages of the total numbers.

6. 6
Summarizing quantitative data (Frequencies).
o It is a tabulation of the values that one or more variables take in a
sample.
o Each entry in the table contains the frequency or count of the
occurrences of values within a particular group or interval, and in this
way the table summarizes the distribution of values in the sample.
o If the range of scores in a frequency distribution is small, say less than
20, each score may be listed individually (Ungrouped)
o Class intervals: (Grouped) When the range of scores is large, it may
be helpful to group the scores before counting frequencies

7. 7

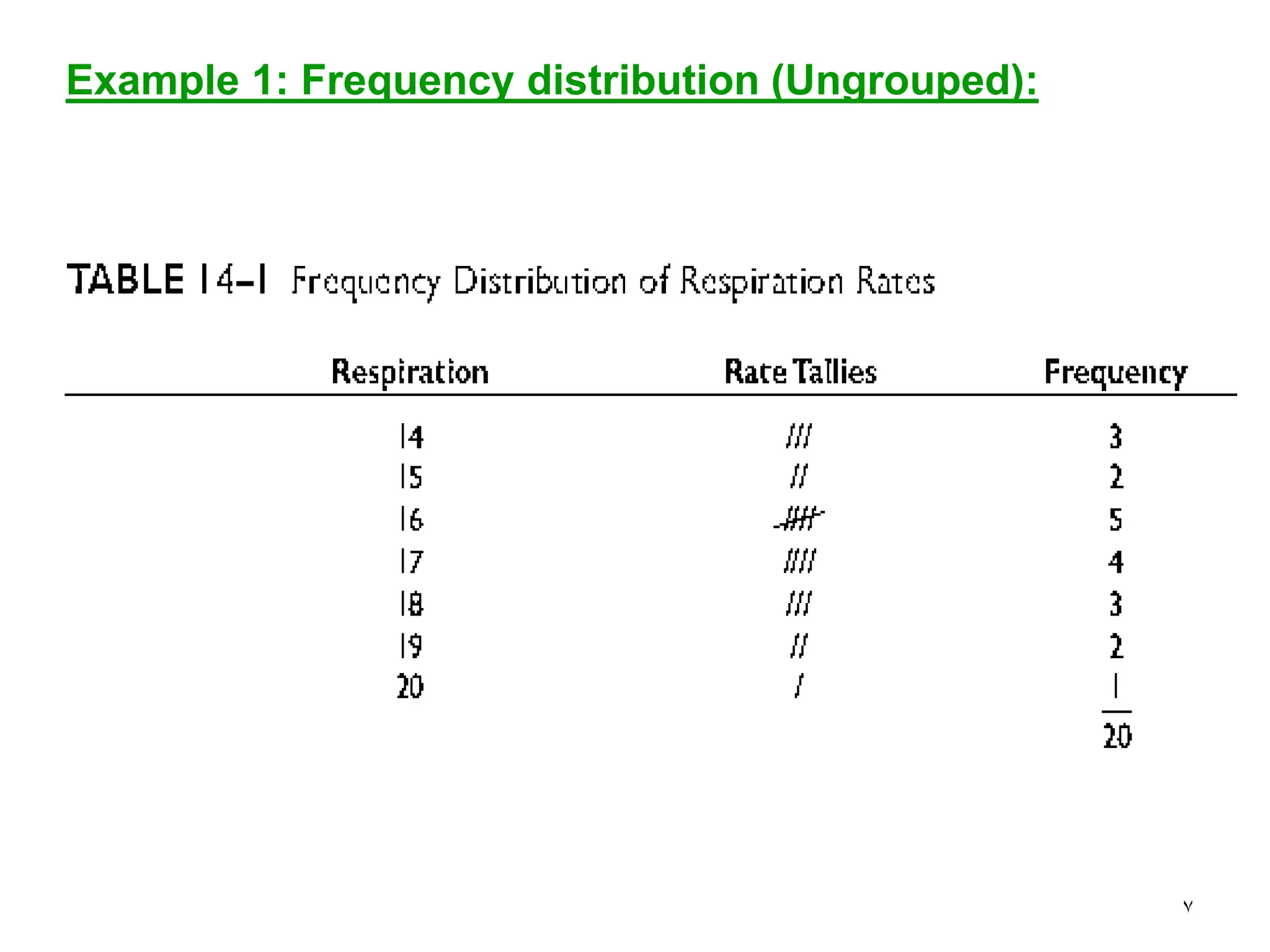

Example 1: Frequency distribution (Ungrouped):

8. 8

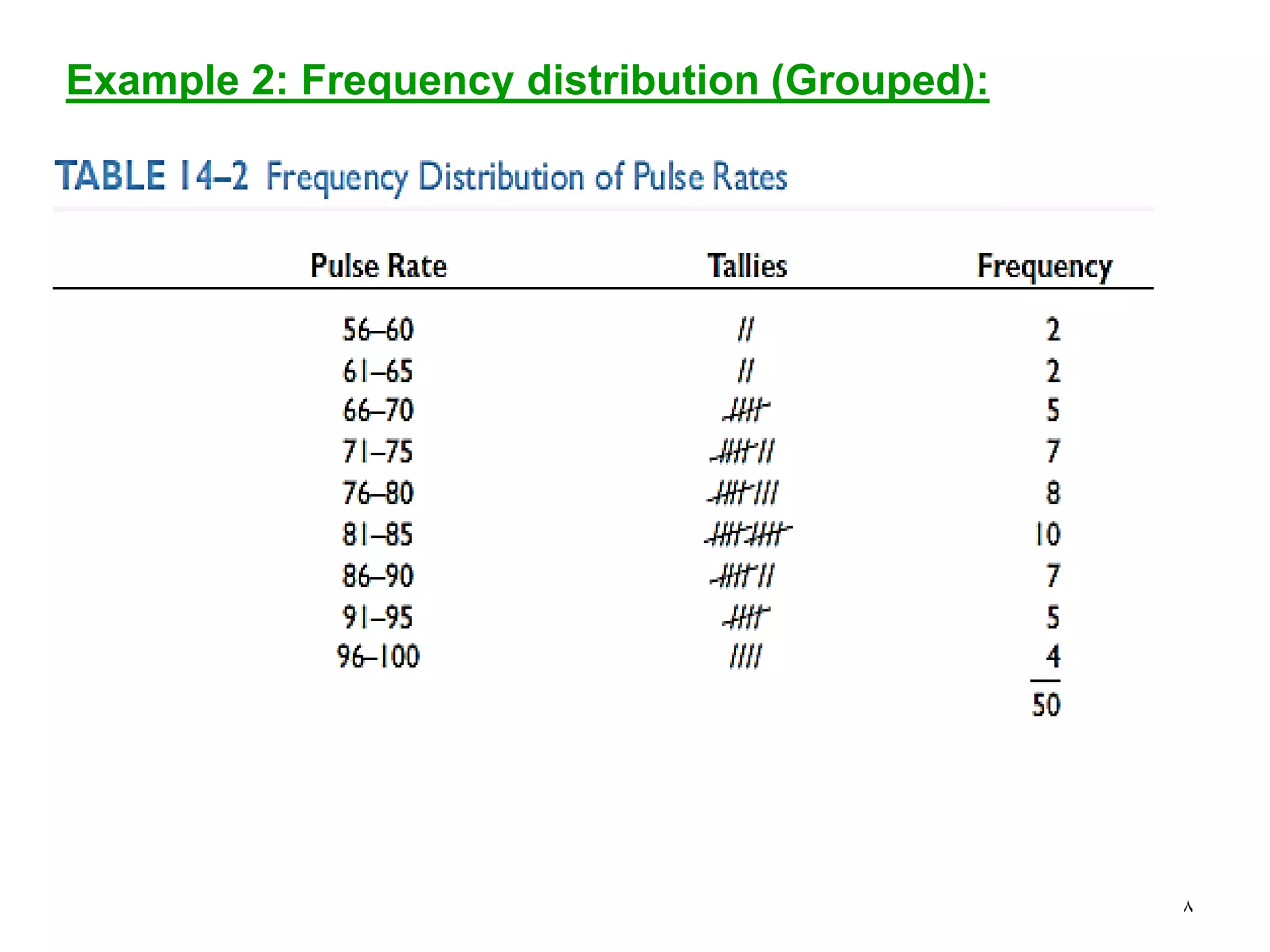

Example 2: Frequency distribution (Grouped):

9. 9

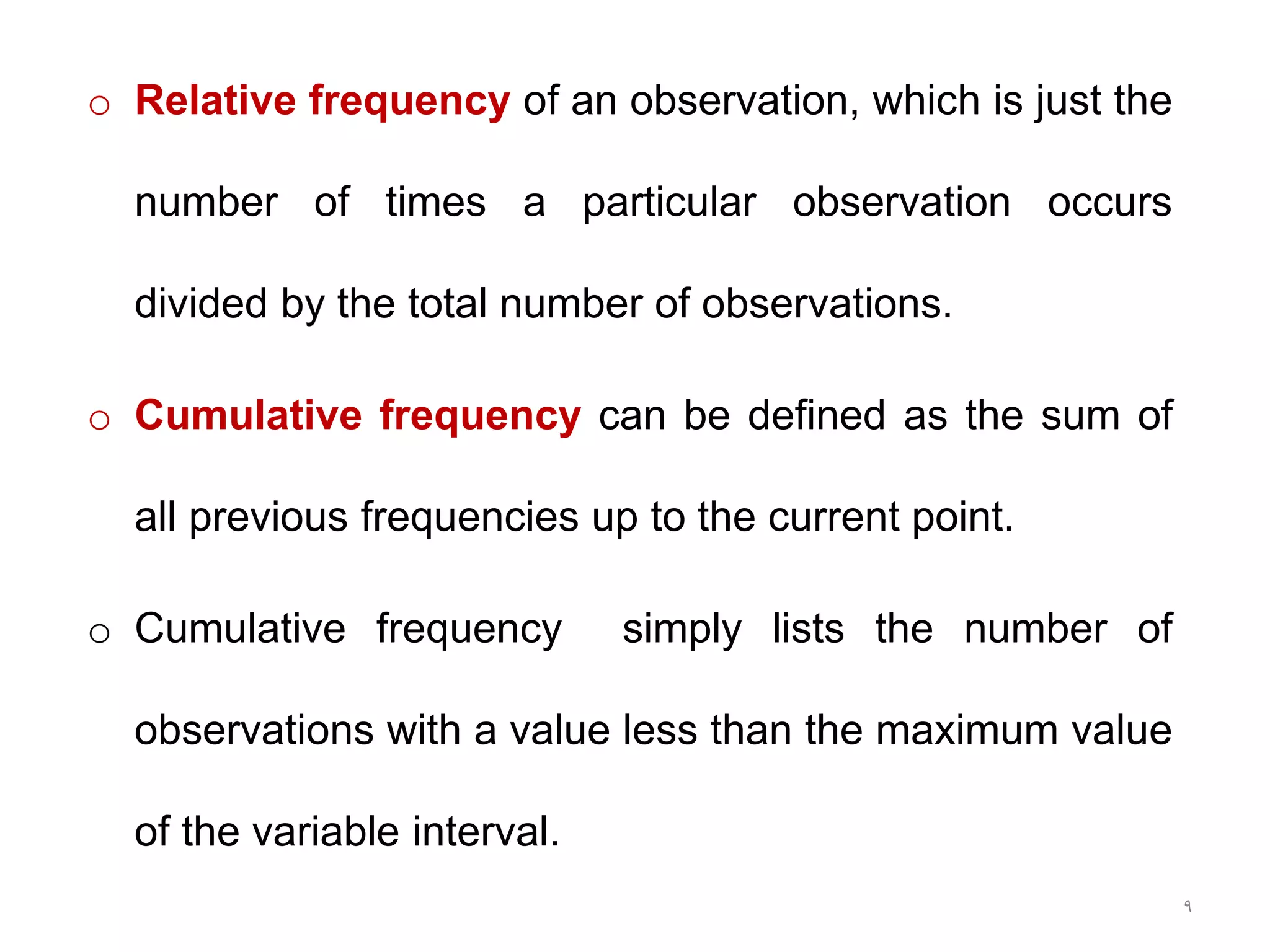

o Relative frequency of an observation, which is just the
number of times a particular observation occurs
divided by the total number of observations.
o Cumulative frequency can be defined as the sum of
all previous frequencies up to the current point.
o Cumulative frequency simply lists the number of
observations with a value less than the maximum value
of the variable interval.

10. 10

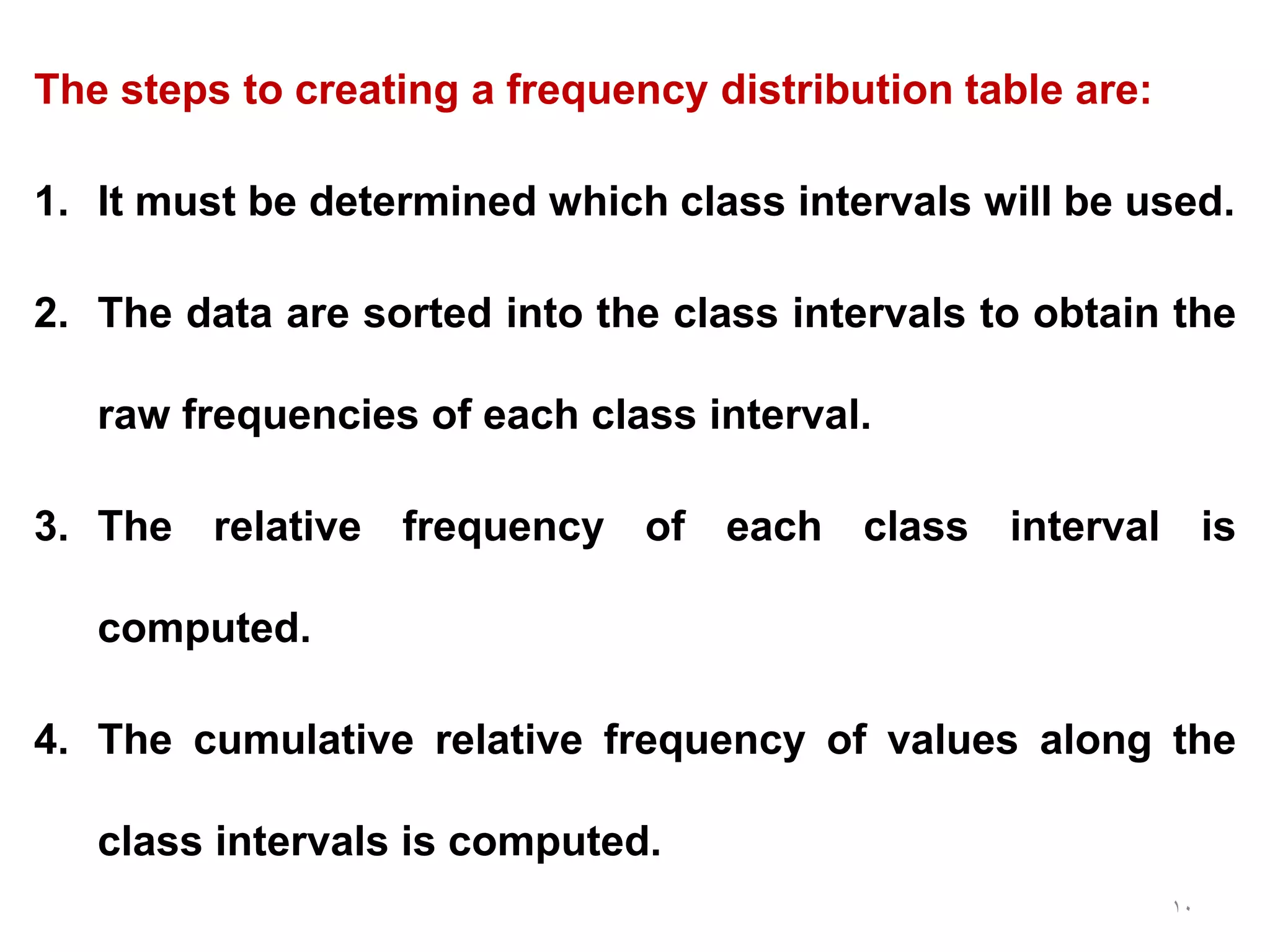

The steps to creating a frequency distribution table are:
1. It must be determined which class intervals will be used.
2. The data are sorted into the class intervals to obtain the
raw frequencies of each class interval.
3. The relative frequency of each class interval is
computed.
4. The cumulative relative frequency of values along the
class intervals is computed.

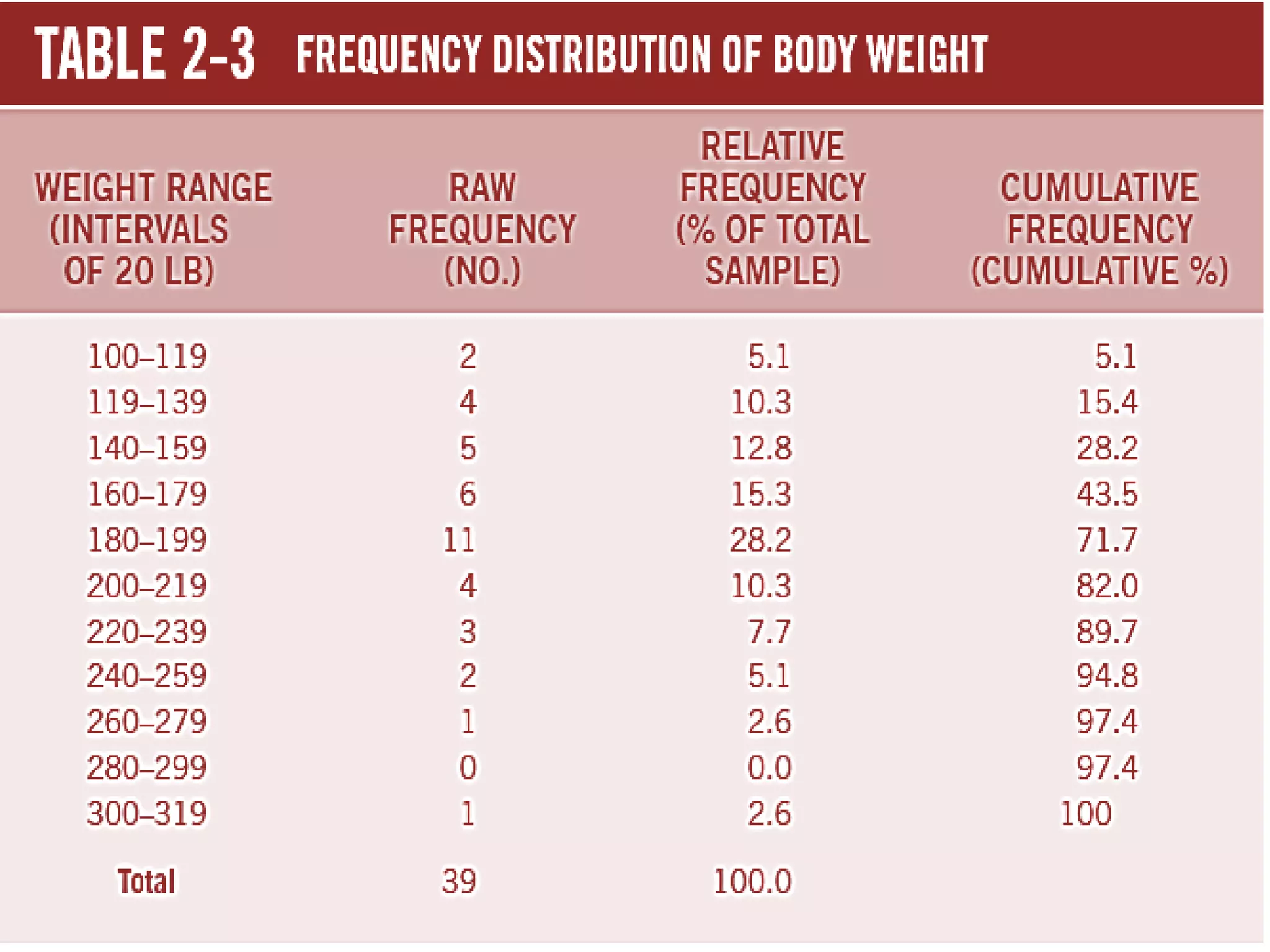

11. 11

12. 12

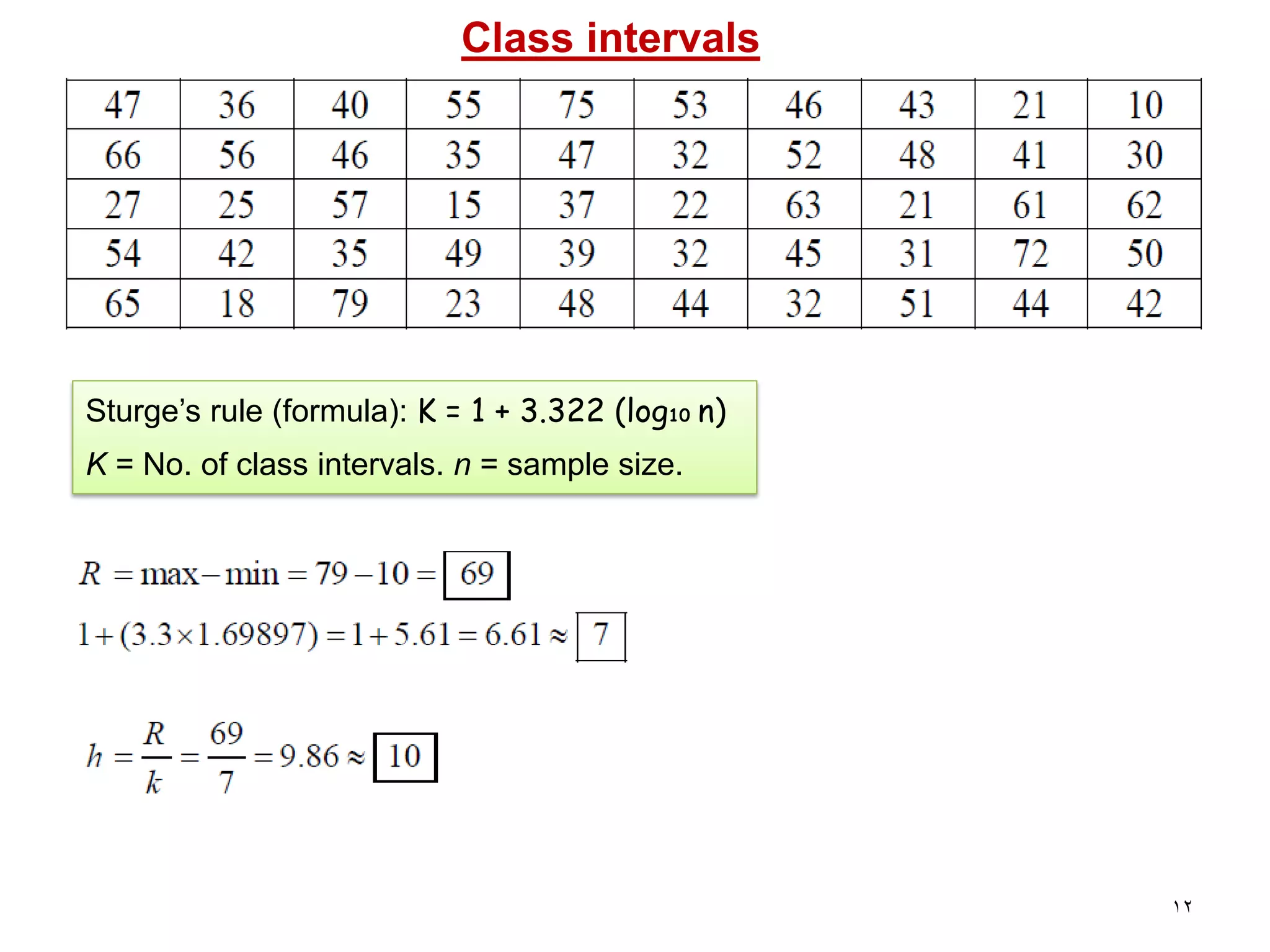

Class intervals
Sturge’s rule (formula): K = 1 + 3.322 (log10 n)
K = No. of class intervals. n = sample size.

13. 13

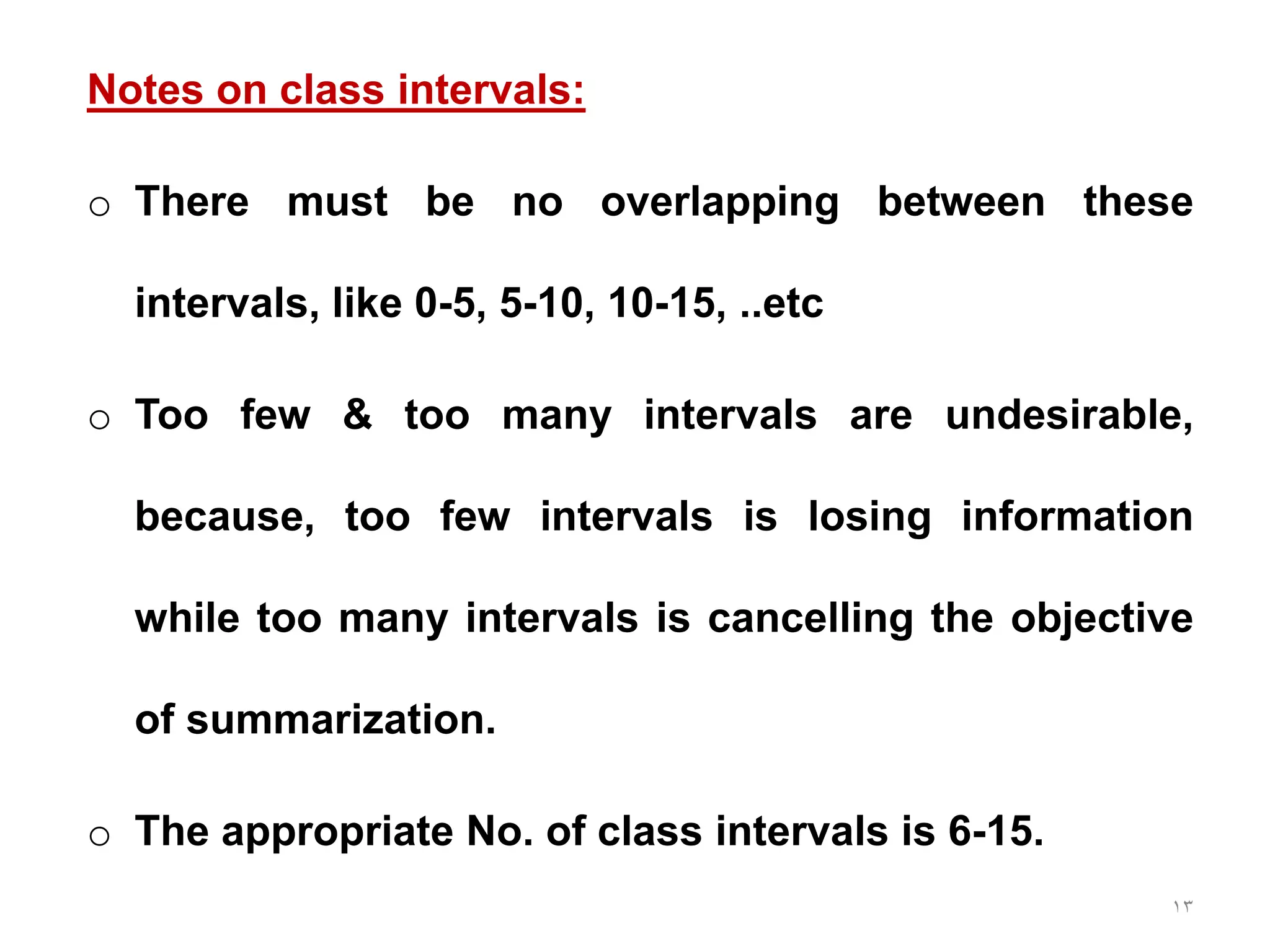

Notes on class intervals:
o There must be no overlapping between these
intervals, like 0-5, 5-10, 10-15, ..etc
o Too few & too many intervals are undesirable,
because, too few intervals is losing information
while too many intervals is cancelling the objective
of summarization.
o The appropriate No. of class intervals is 6-15.

14. 14

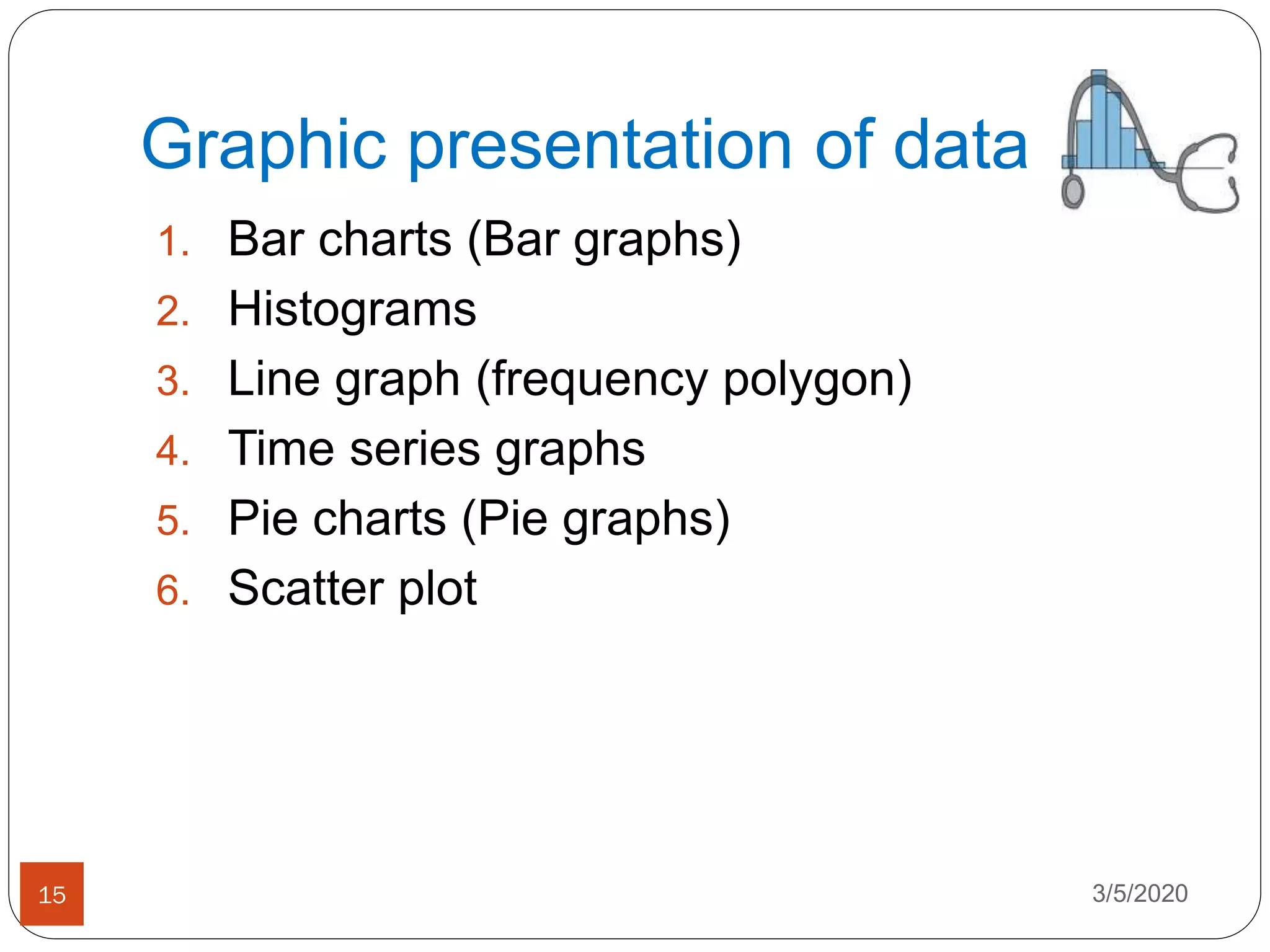

15. Graphic presentation of data
1. Bar charts (Bar graphs)
2. Histograms
3. Line graph (frequency polygon)
4. Time series graphs
5. Pie charts (Pie graphs)
6. Scatter plot
3/5/202015

16. 16
Bar Chart or Graph
• Bar charts are used to display variables of a nominal scale
and sometimes to display ordinal variables when the
ordinal variable has only a few categories.
• The bar graph is especially useful when the categories of
the variables are qualitative rather than numerical
• Bar graphs may be drawn with the bars extending in a
horizontal direction or with the bars extending in a vertical
direction.

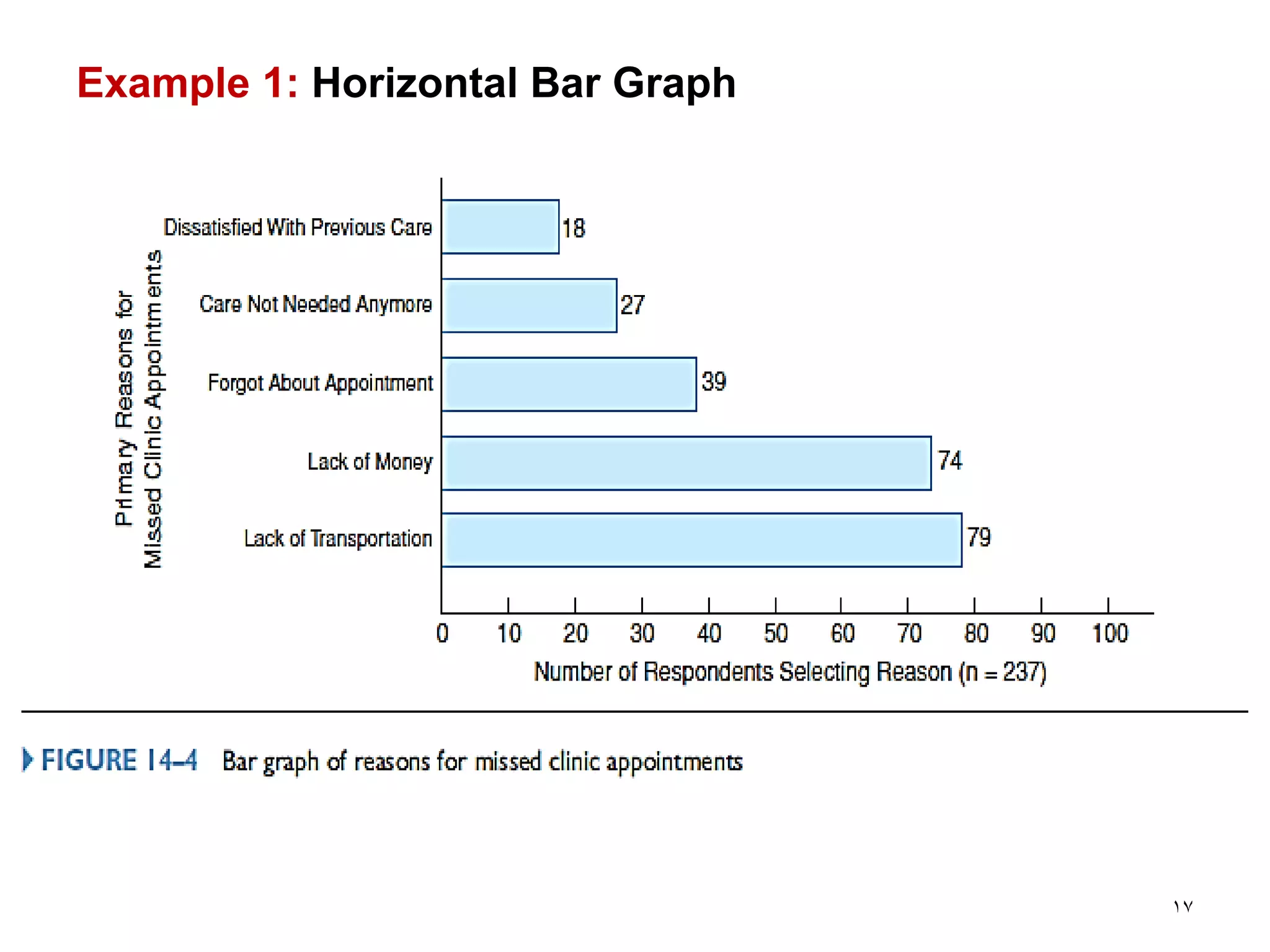

17. Example 1: Horizontal Bar Graph
17

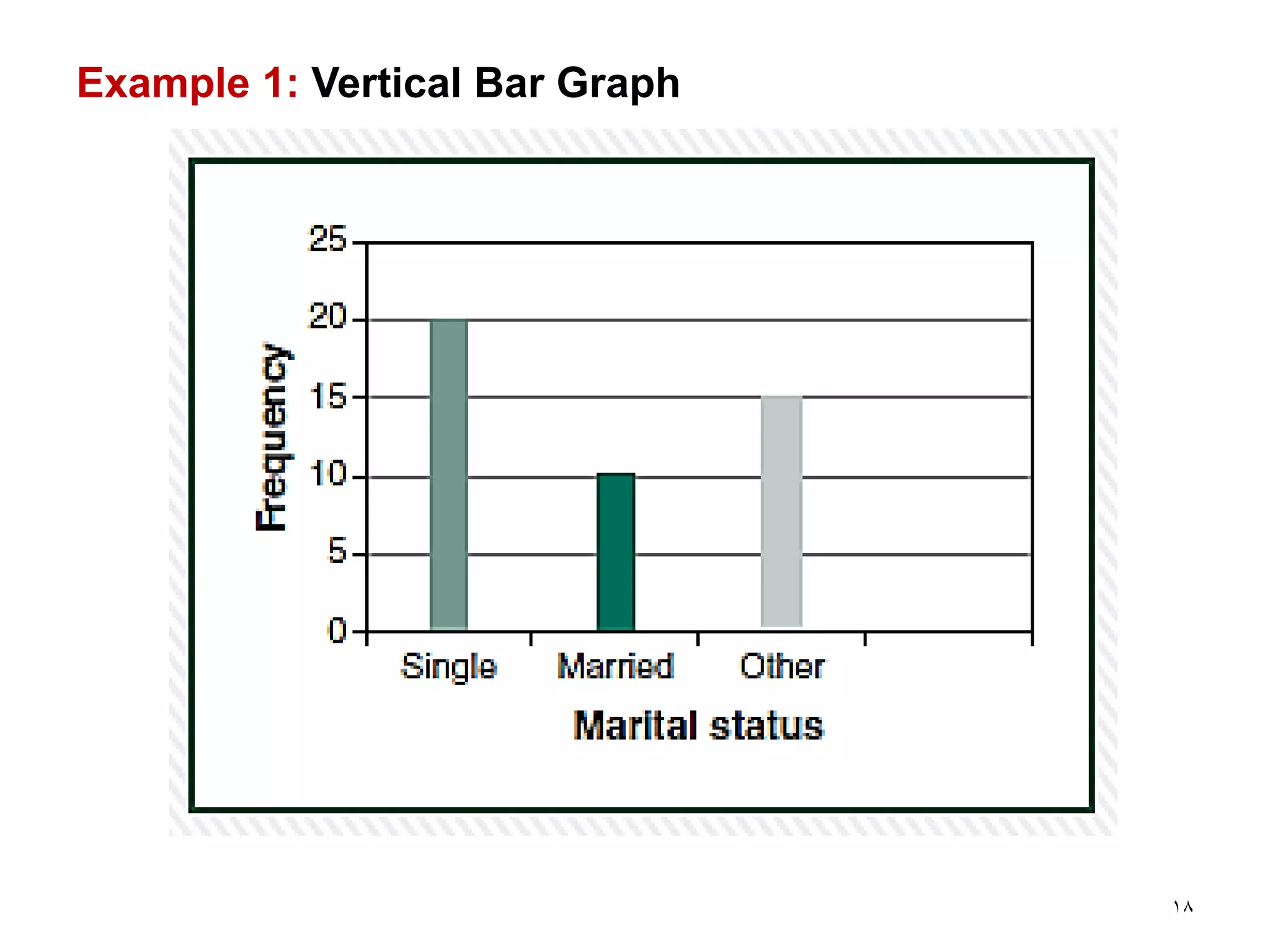

18. Example 1: Vertical Bar Graph
18

19. 19

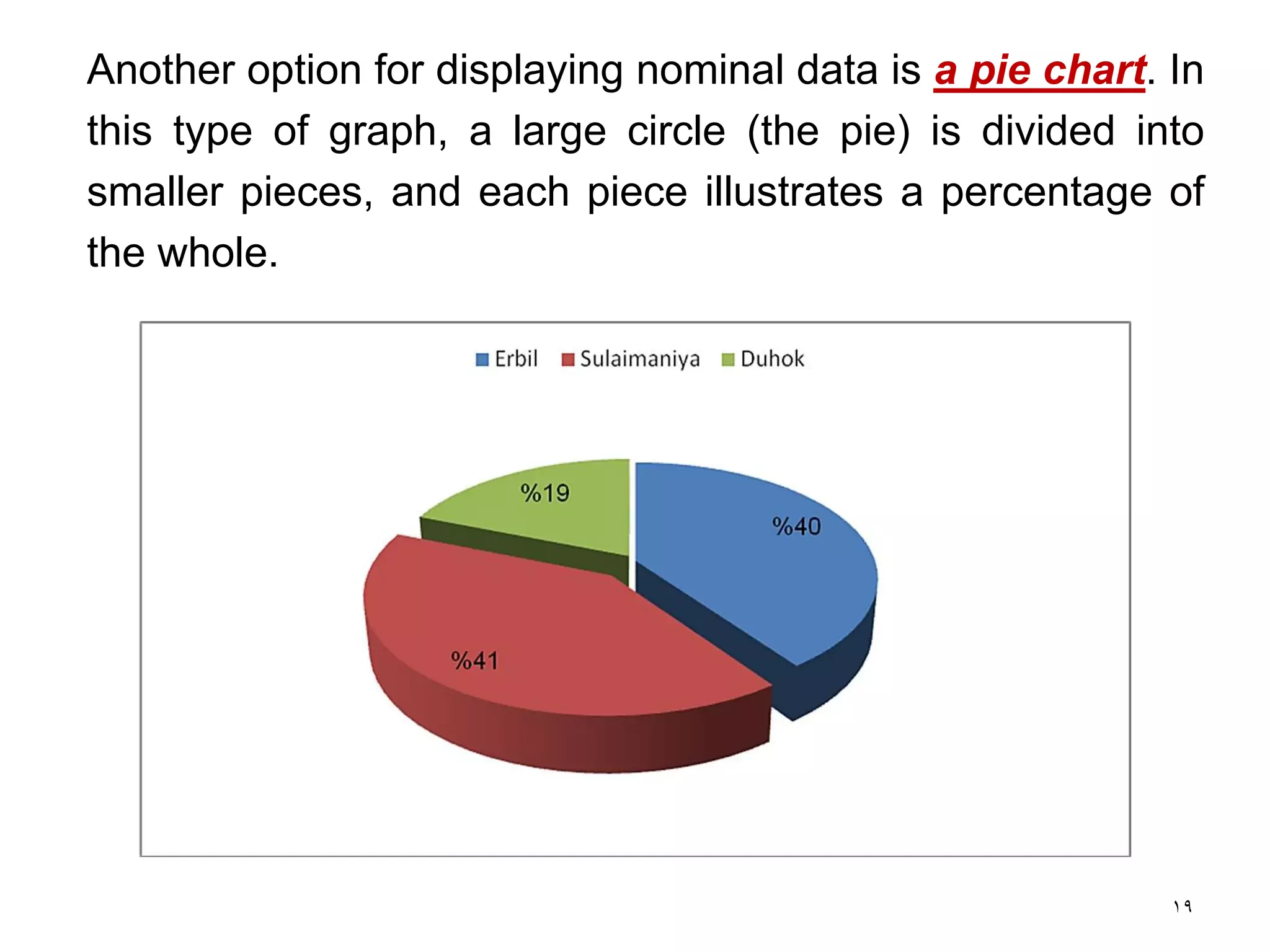

Another option for displaying nominal data is a pie chart. In
this type of graph, a large circle (the pie) is divided into
smaller pieces, and each piece illustrates a percentage of
the whole.

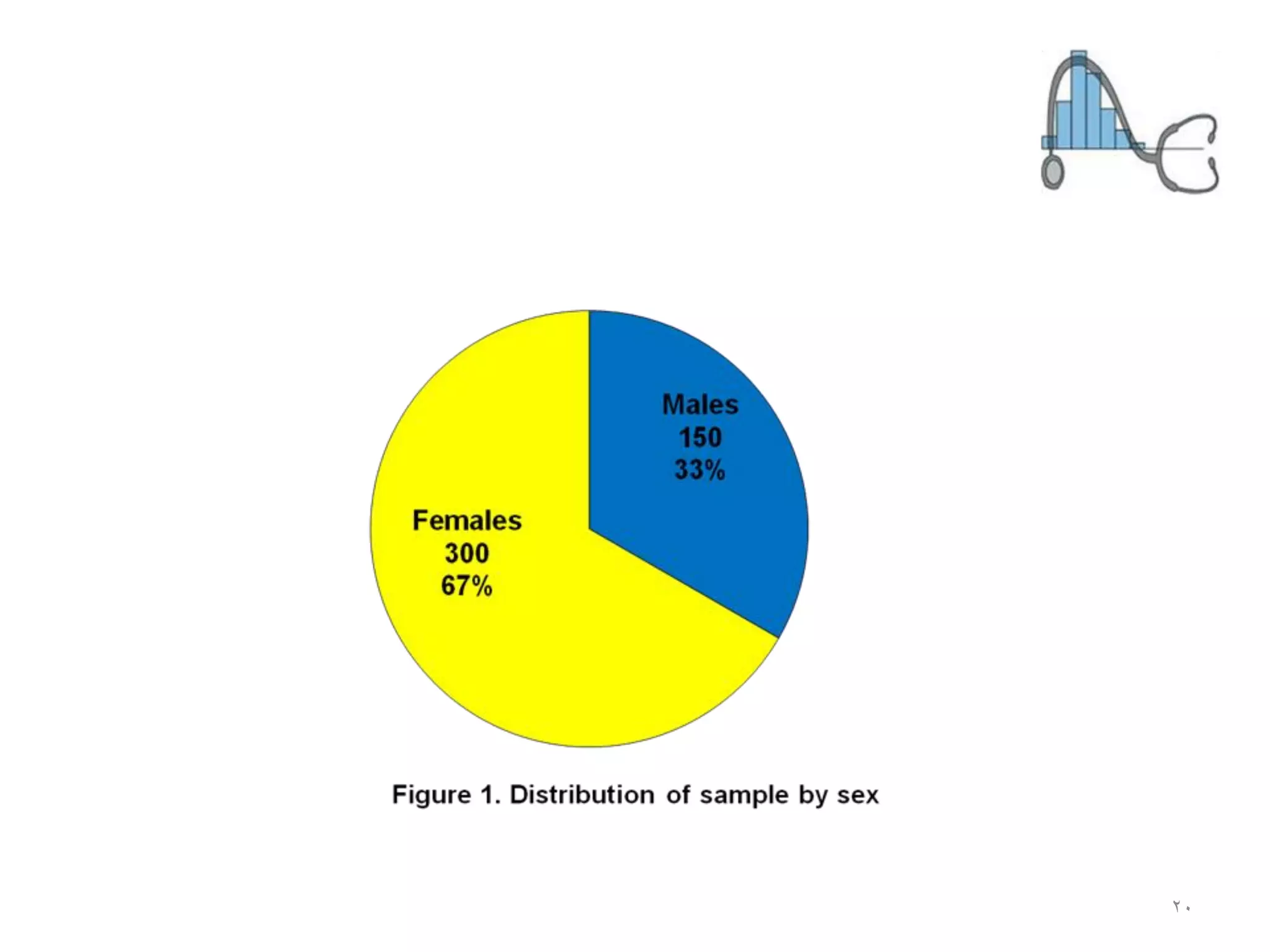

20. 20

21. 21

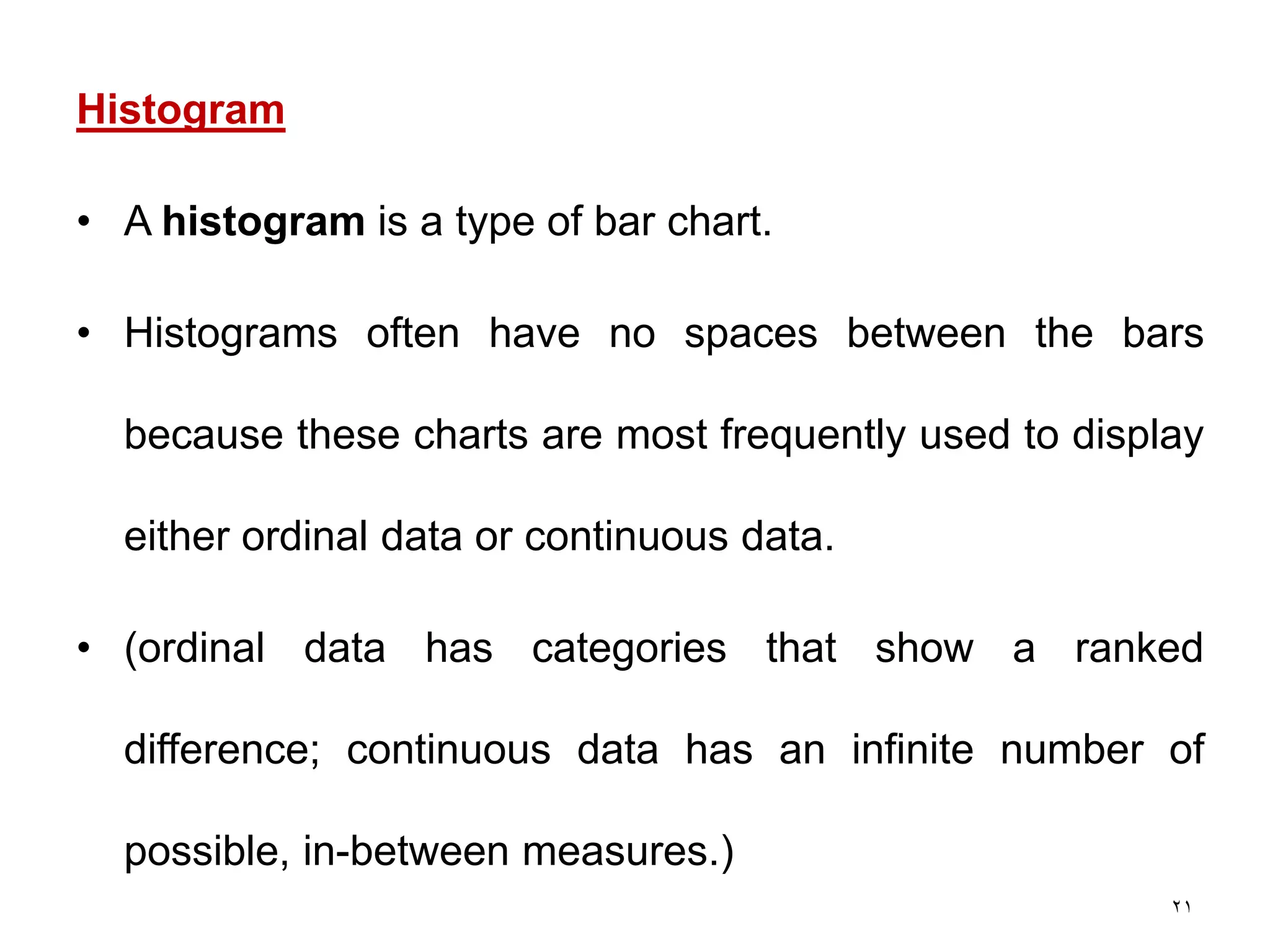

Histogram
• A histogram is a type of bar chart.
• Histograms often have no spaces between the bars
because these charts are most frequently used to display
either ordinal data or continuous data.
• (ordinal data has categories that show a ranked
difference; continuous data has an infinite number of
possible, in-between measures.)

22. 22

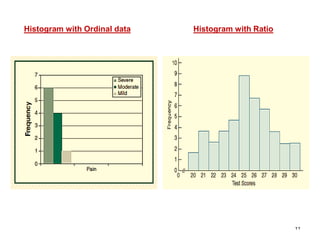

Histogram with Ordinal data Histogram with Ratio

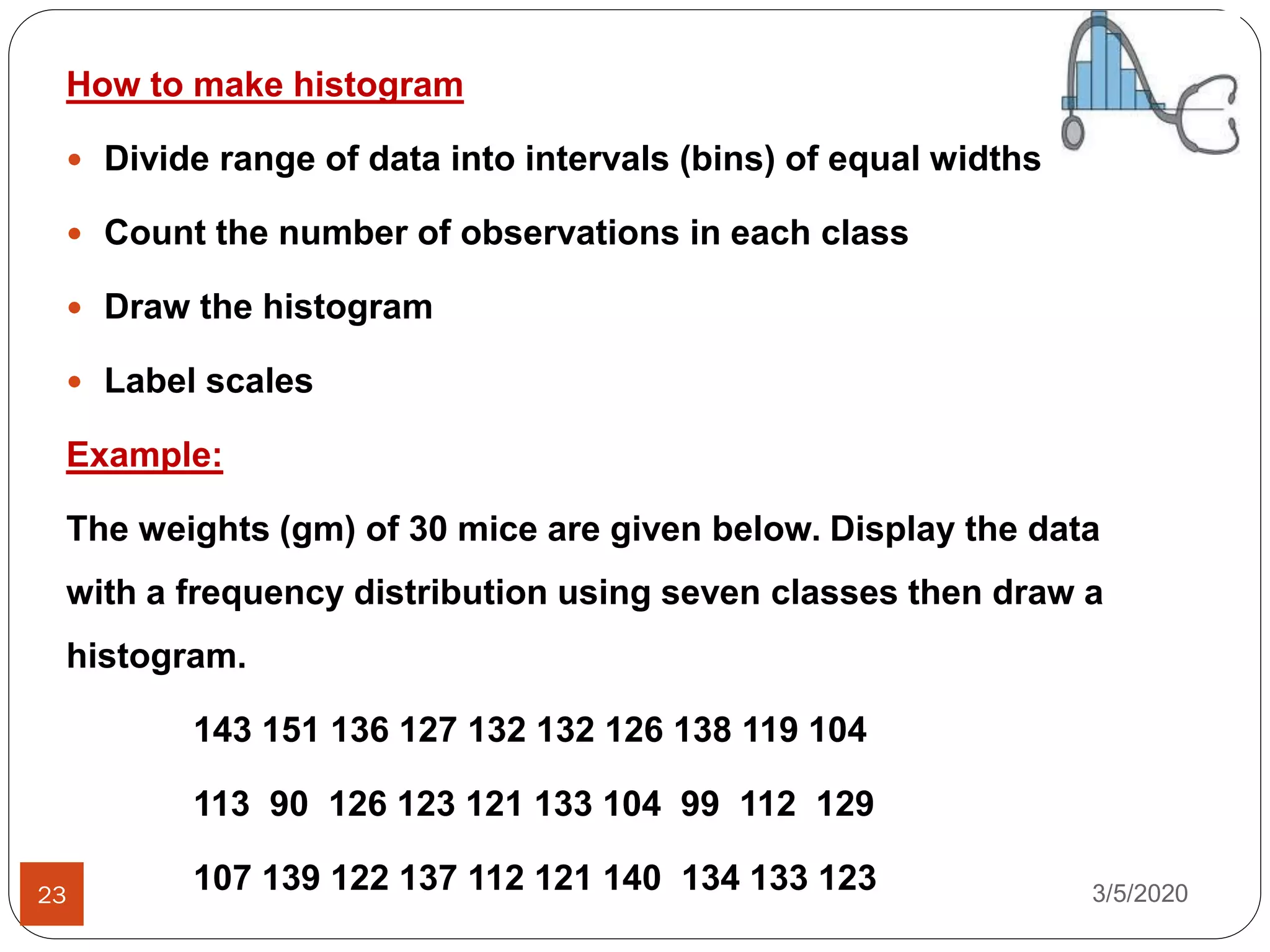

23. How to make histogram
 Divide range of data into intervals (bins) of equal widths
 Count the number of observations in each class
 Draw the histogram
 Label scales
Example:

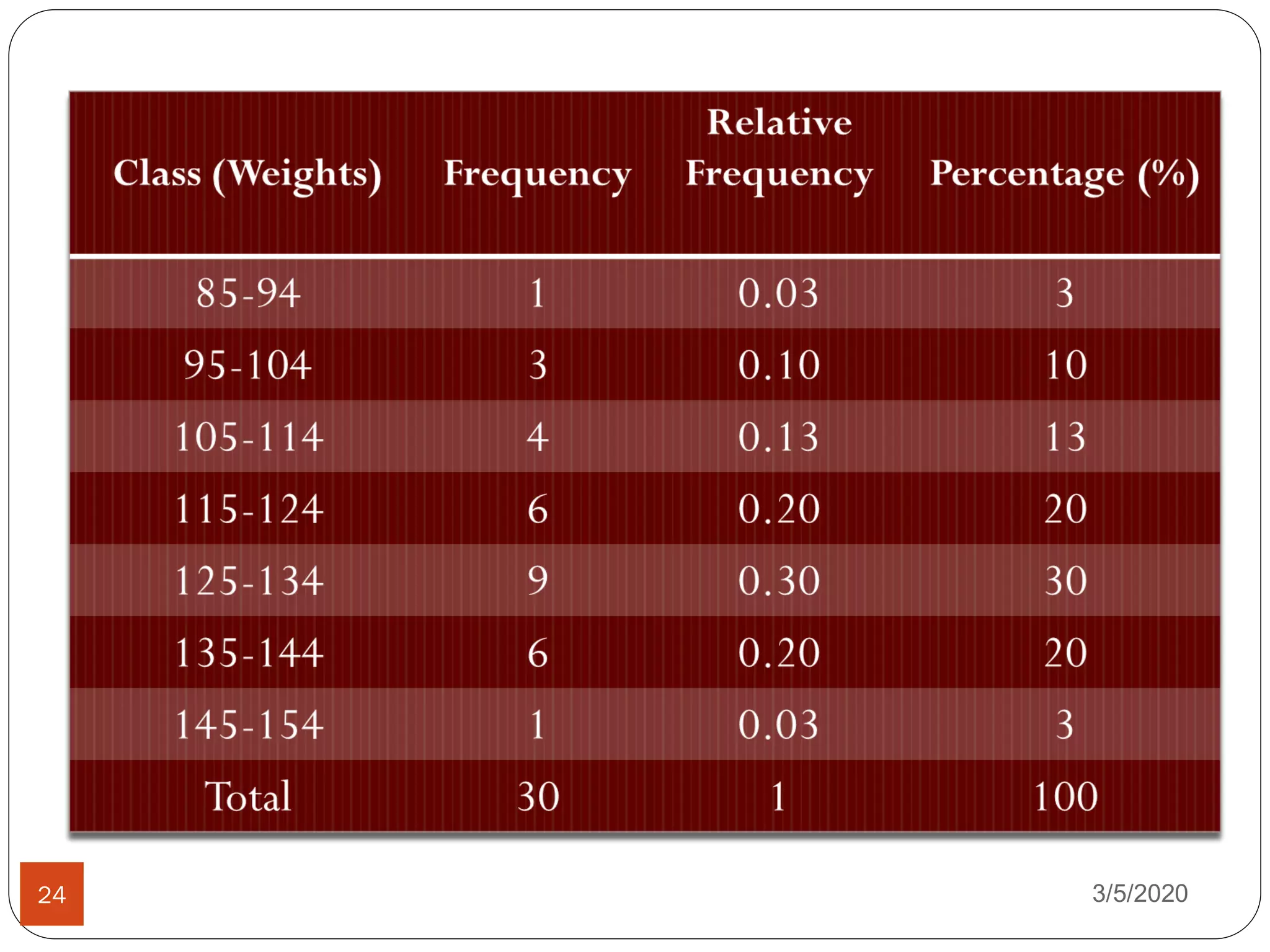

The weights (gm) of 30 mice are given below. Display the data
with a frequency distribution using seven classes then draw a
histogram.
143 151 136 127 132 132 126 138 119 104
113 90 126 123 121 133 104 99 112 129
107 139 122 137 112 121 140 134 133 123 3/5/202023

24. 3/5/202024

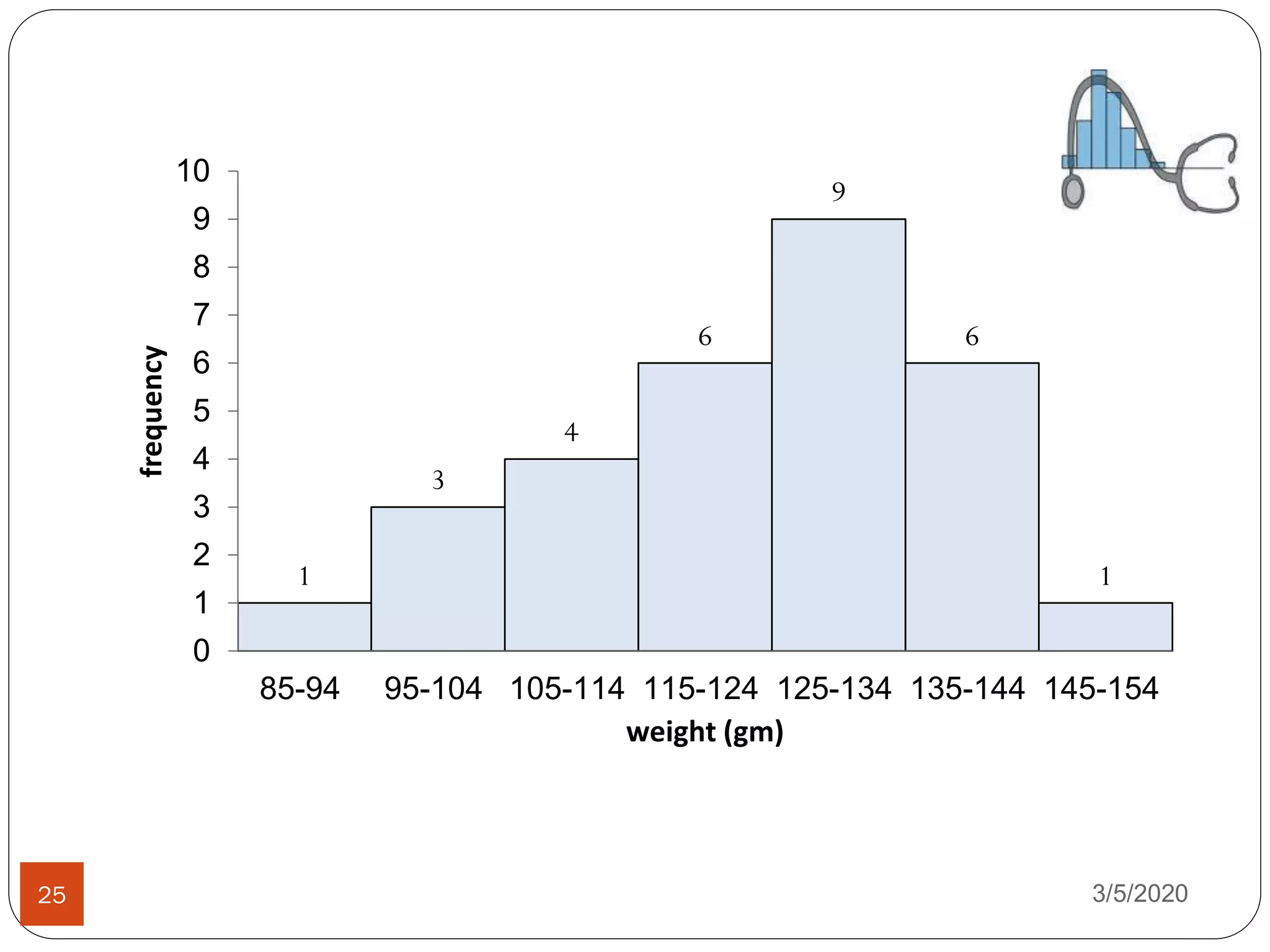

25. 3/5/202025
1
3
4
6
9
6
1
85-94 95-104 105-114 115-124 125-134 135-144 145-154
0
1
2
3
4
5
6
7
8
9
10
weight (gm)
frequency

26. 26

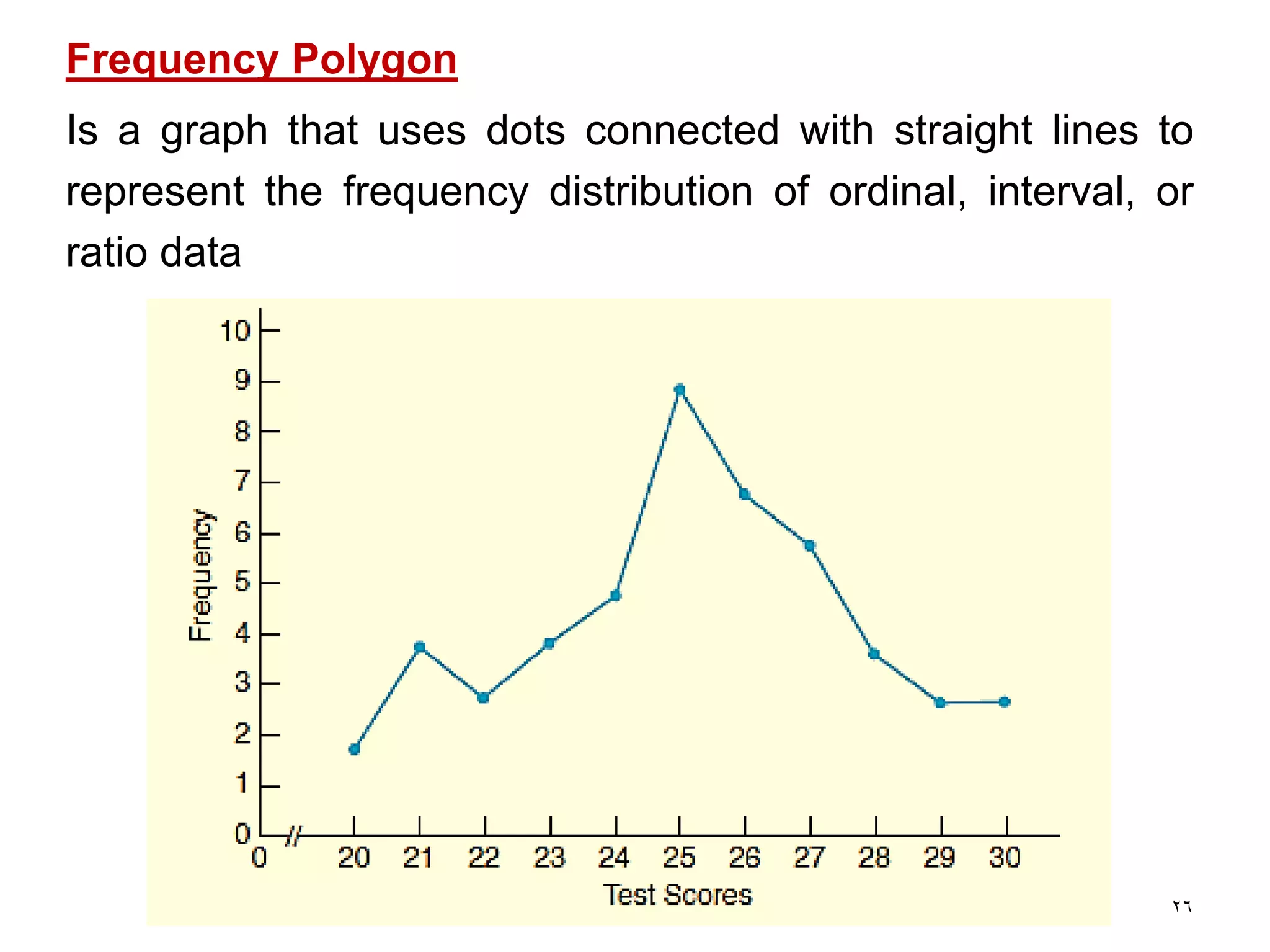

Frequency Polygon
Is a graph that uses dots connected with straight lines to
represent the frequency distribution of ordinal, interval, or
ratio data

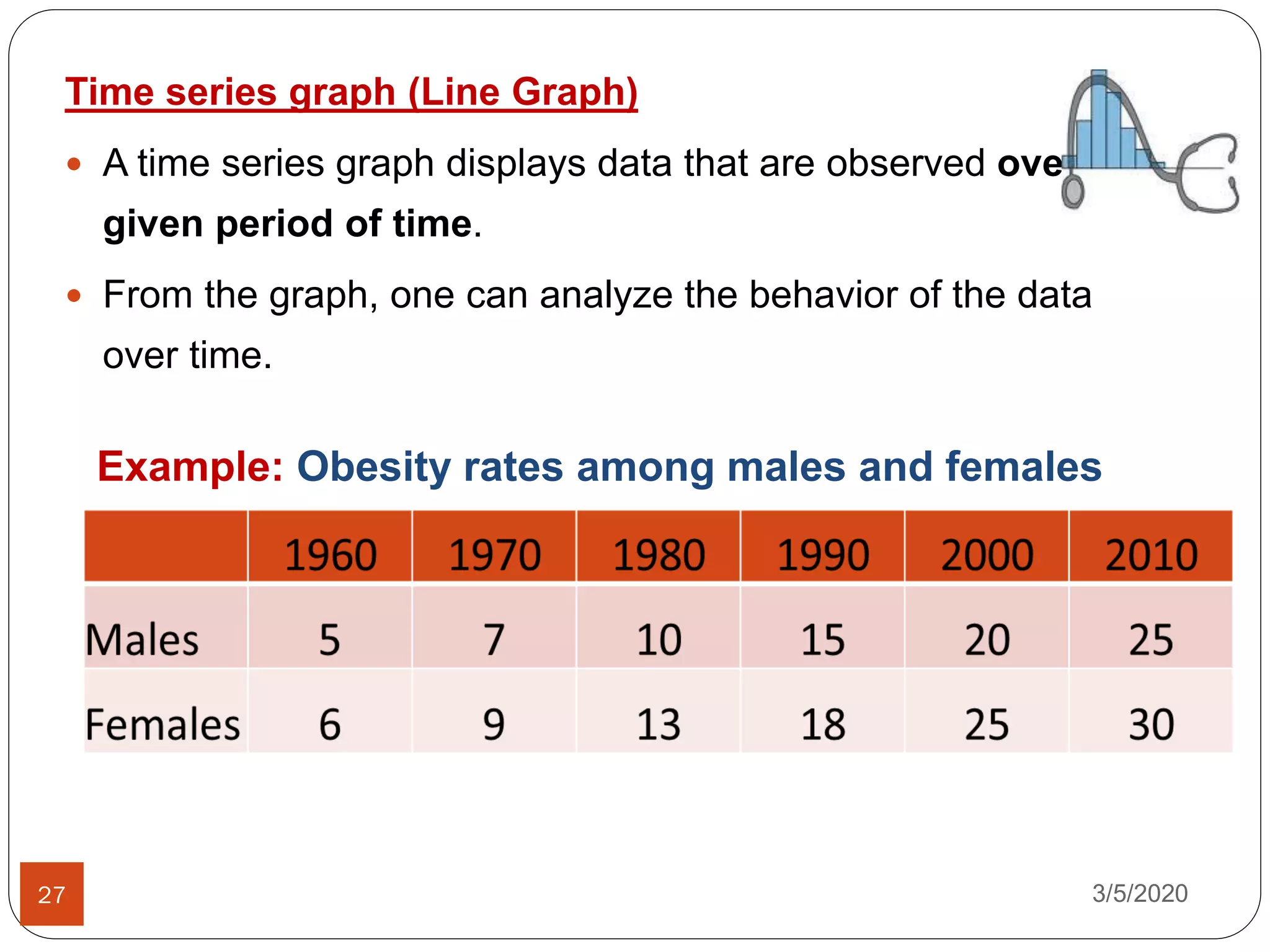

27. Time series graph (Line Graph)
 A time series graph displays data that are observed over a
given period of time.
 From the graph, one can analyze the behavior of the data
over time.
3/5/202027

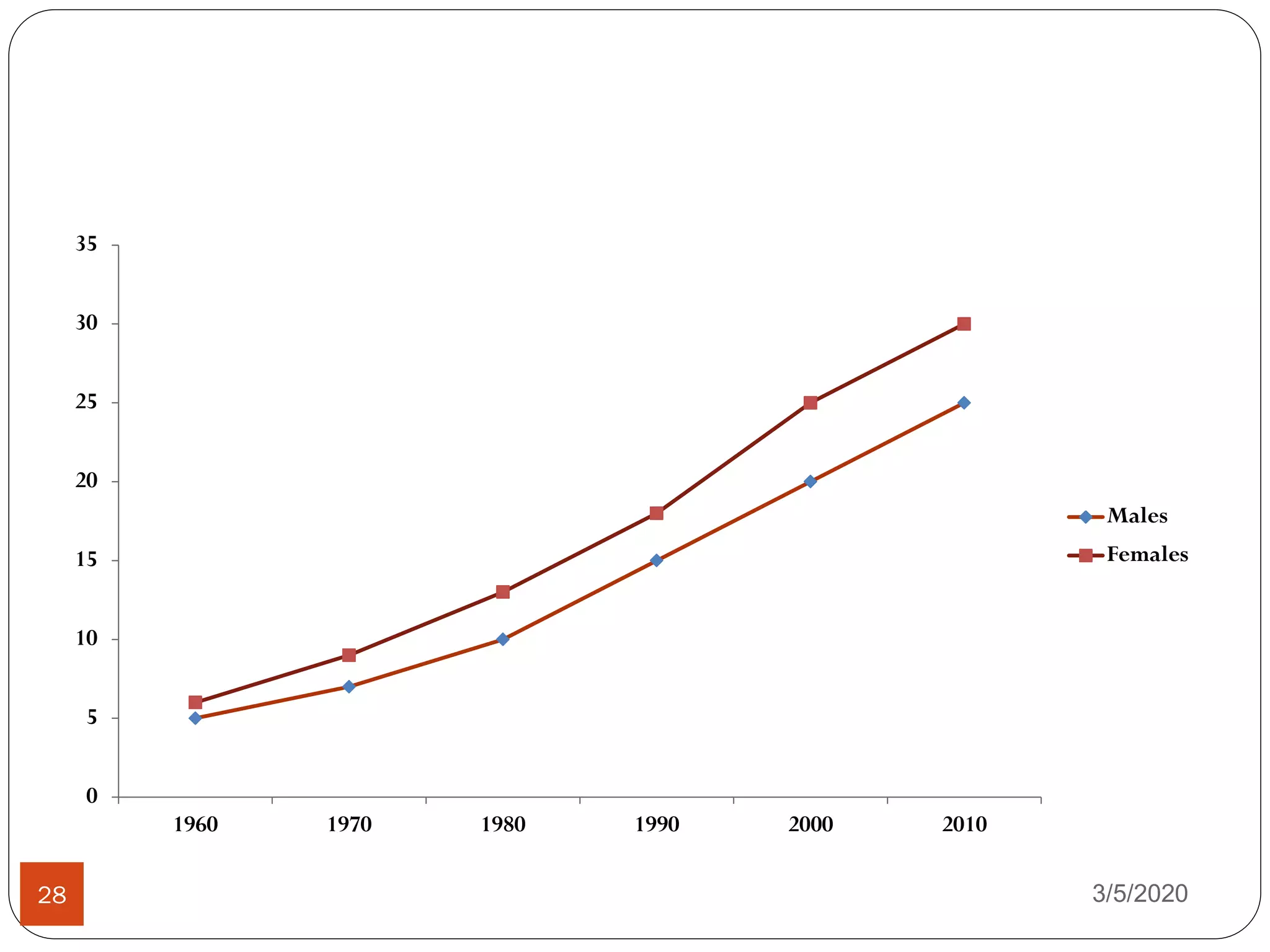

Example: Obesity rates among males and females

28. 3/5/202028
1960 1970 1980 1990 2000 2010
0
5
10
15
20
25
30
35
Males
Females

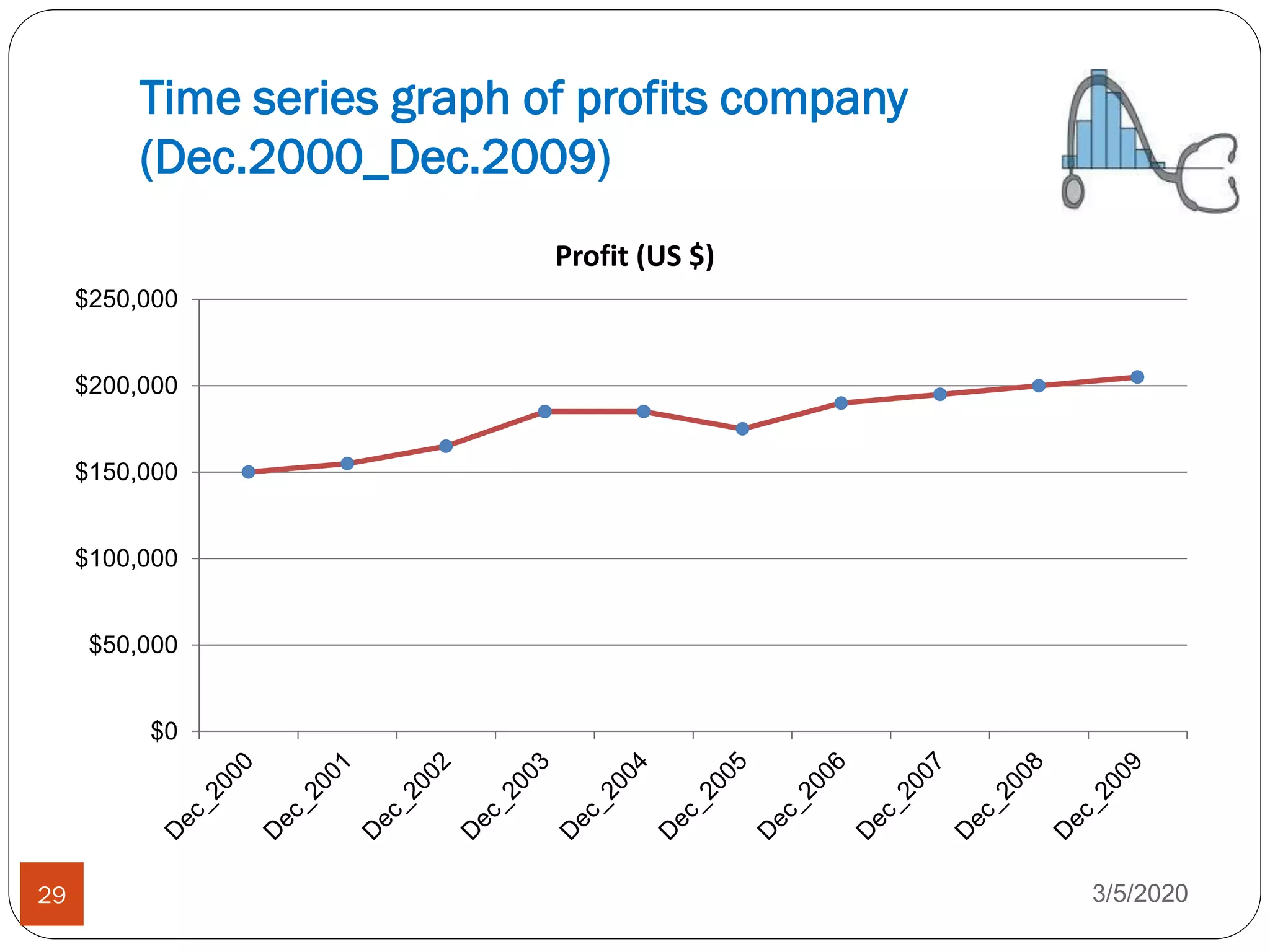

29. Time series graph of profits company
(Dec.2000_Dec.2009)
3/5/202029
$0
$50,000
$100,000
$150,000
$200,000
$250,000
Profit (US $)

30. 30

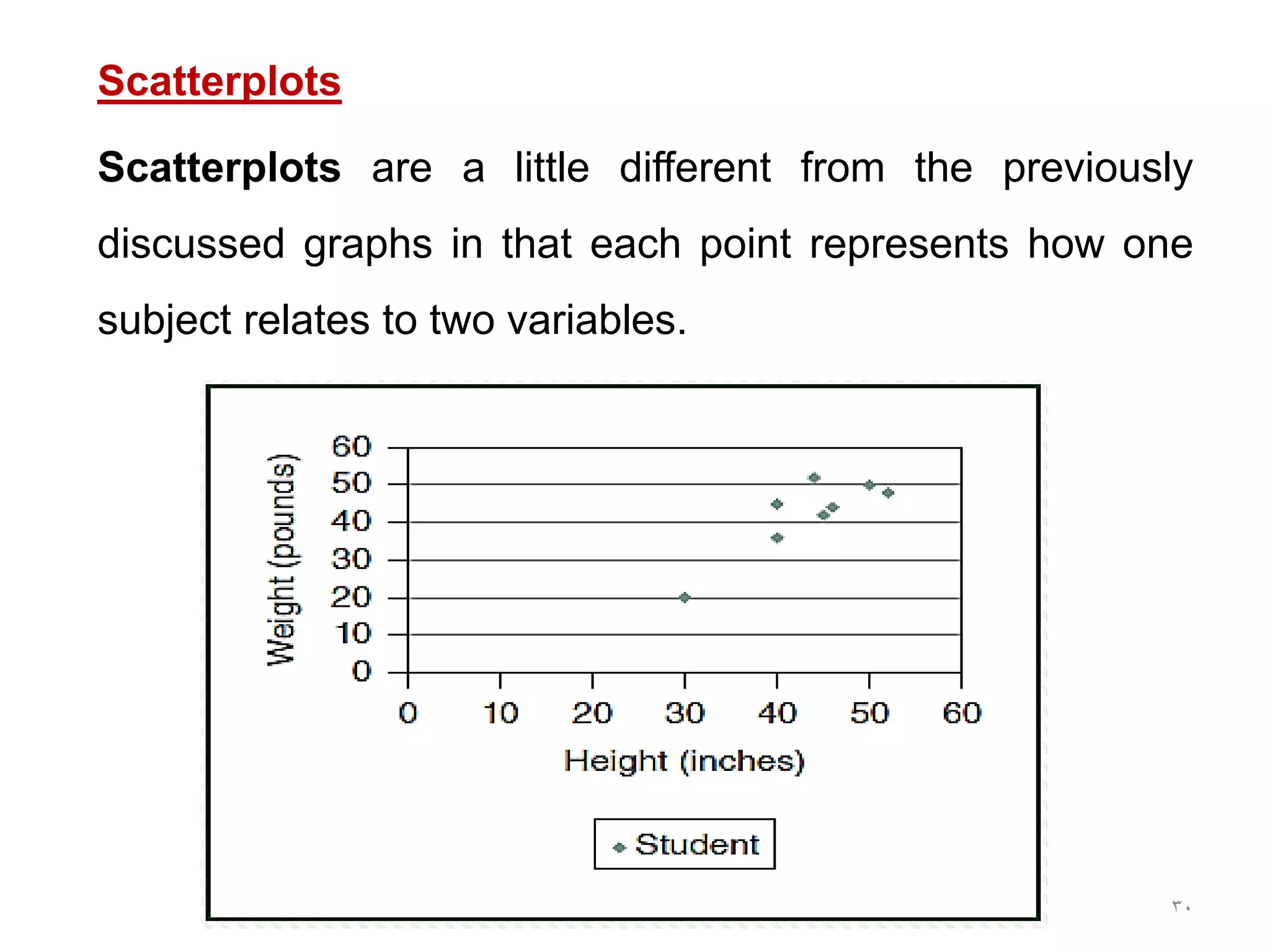

Scatterplots
Scatterplots are a little different from the previously
discussed graphs in that each point represents how one
subject relates to two variables.

31. 31

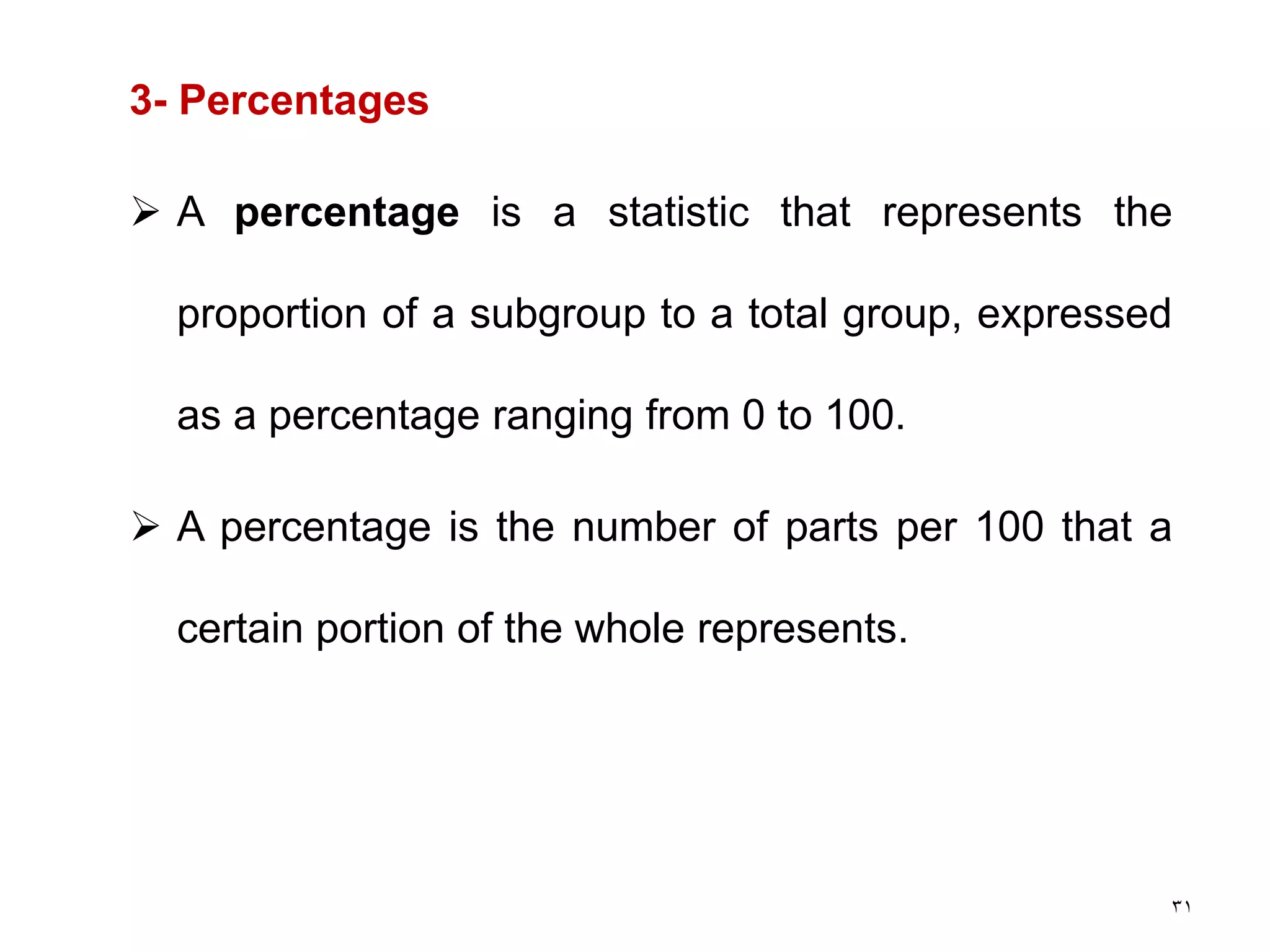

3- Percentages
 A percentage is a statistic that represents the
proportion of a subgroup to a total group, expressed
as a percentage ranging from 0 to 100.
 A percentage is the number of parts per 100 that a
certain portion of the whole represents.

32. 32

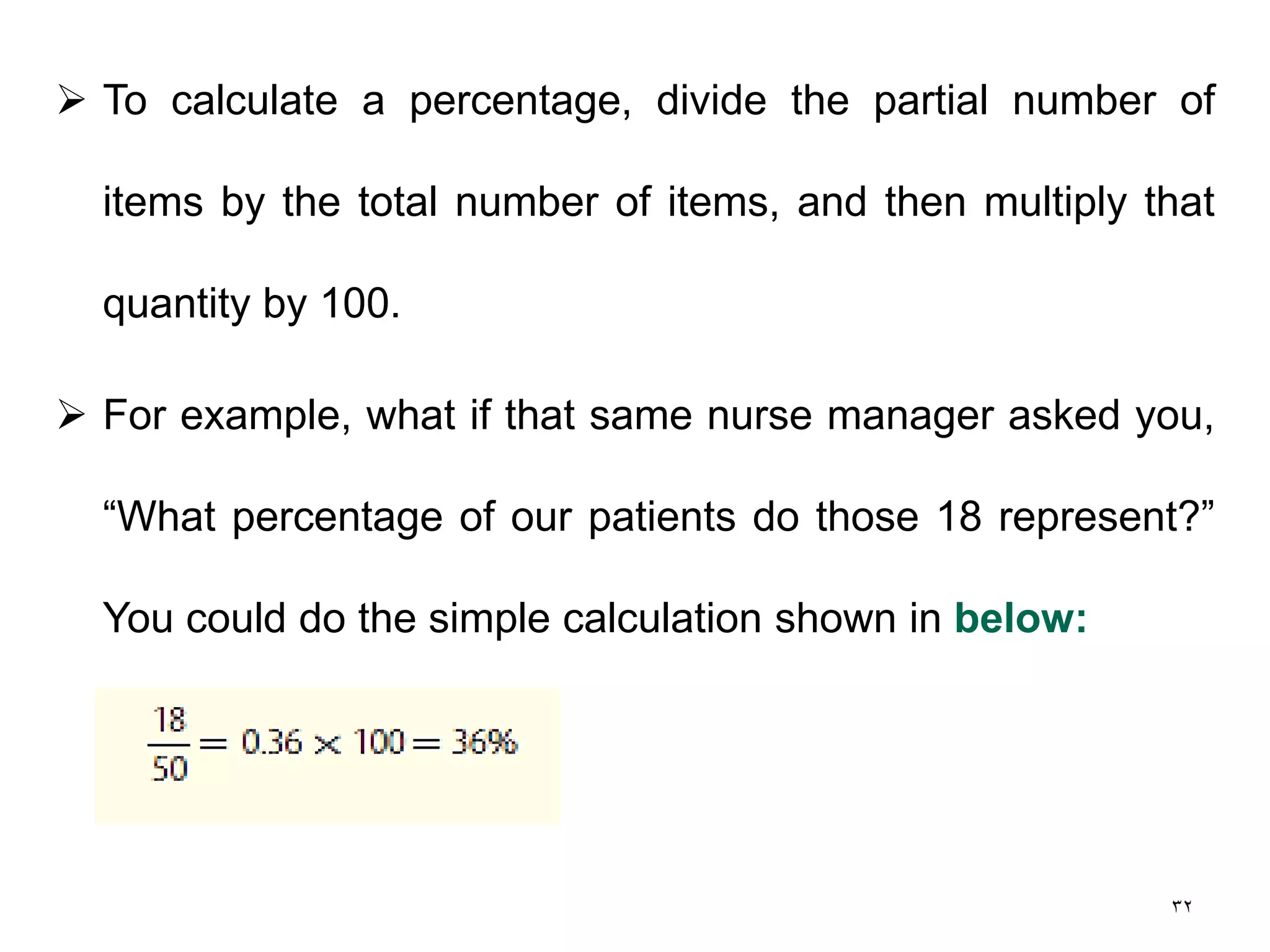

 To calculate a percentage, divide the partial number of
items by the total number of items, and then multiply that
quantity by 100.
 For example, what if that same nurse manager asked you,
“What percentage of our patients do those 18 represent?”
You could do the simple calculation shown in below:
