                                                                                                                            Presentation Outline

                                                                                                                                  •      History
                                                                                                                                  •      Definition
                                                                                                                                  •      Components
                                                                               GIS                                                •      Applications
                                                                           Fundamentals                                           •      Data models
                                                                                                                                  •      Raster Data
                                                                                                                                  •      Vector Data


                © Magendhiran Consultancy Services. All rights reserved.     www.mcsmapping.com   8/25/2010   1             © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   2




              Where did GIS come from?                                                                                            A Brief History of GIS
       • GIS is built upon knowledge from geography,                                                              • GIS’s origins lie in thematic cartography (manual map overlay)
                                                                                                                  • Computer cartography advances in 1950s and 1960s
         cartography, computer science and mathematics                                                            • Early influential data sets were the World Data Bank and the
       • Geographic Information Science is a new                                                                    GBF/DIME files. Early systems were CGIS, MLMIS, GRID and LUNR
                                                                                                                  • The Harvard University ODYSSEY system was influential due to its
         interdisciplinary field built out of the use and                                                           topological arc-node (vector) data structure
         theory of GIS                                                                                            • GIS was significantly altered by (1) the PC and (2) the workstation
                                                                                                                  • During the 1980s, new GIS software could better exploit more
                                                                                                                    advanced hardware
                                                                                                                  • User Interface developments led to GIS's vastly improved ease of
                                                                                                                    use during the 1990s
                                                                                                                  • During the 1980s, new GIS software could better exploit more
                                                                                                                    advanced hardware


                © Magendhiran Consultancy Services. All rights reserved.     www.mcsmapping.com                             © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com




                                       Defining GIS                                                               Geographic Information Systems (GIS)
       • Different definitions of a GIS have evolved in different                                                 • The common ground between information processing
         areas and disciplines                                                                                      and the many fields using spatial analysis techniques.
                                                                                                                    (Tomlinson, 1972)
       • All GIS definitions recognize that spatial data are unique
         because they are linked to maps (Space matters!)                                                         • A powerful set of tools for collecting, storing, retrieving,
                                                                                                                    transforming, and displaying spatial data from the real
       • A GIS at least consists of a database, map information,                                                    world. (Burroughs, 1986)
         and a computer-based link between them                                                                   • A computerized database management system for the
                                                                                                                    capture, storage, retrieval, analysis and display of spatial
                                                                                                                    data. (NCGIA, 1987)
                                                                                                                  • A decision support system involving the integration of
                                                                                                                    spatially referenced data in a problem solving
                                                                                                                    environment. (Cowen, 1988)

                © Magendhiran Consultancy Services. All rights reserved.     www.mcsmapping.com                             © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   6




Confidential                                                                                                                                                                                                                1
www.mcsmapping.com                                                                                                                                                                                  August 25, 2010




              An Inelegant Definition for GIS                                                                                     GIS: intuitive description
       A system of integrated computer-based tools for end-to-                                                     • A map with a database behind it.
         end processing (capture, storage, retrieval, analysis,                                                    • A virtual representation of the real world and its
         display) of data using location on the earth’s surface for                                                  infrastructure.
         interrelation in support of operations management,                                                        • A consistent “as-built” of the real world, natural and
         decision making, and science.                                                                               manmade
                                                                                                                     Which is
       • set of integrated tools for spatial analysis                                                              • queried to support on-going operations
       • encompasses end-to-end processing of data(capture,                                                        • summarized to support strategic decision making and
         storage, retrieval, analysis/ modification, display)                                                        policy formulation
       • uses explicit location on earth’s surface to relate data                                                  • analyzed to support scientific inquiry
       • aimed at decision support, as well as on-going
         operations and scientific inquiry
                  © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   7                © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   8




                                      Why Study GIS?                                                                  The major areas of GIS application
       • 80% of local government activities estimated to be geographically based                                   • Local Government
          – plats, zoning, public works (streets, water supply, sewers), garbage                                      – Public works/infrastructure management (roads, water, sewer)
             collection, land ownership and valuation
                                                                                                                      – Planning and environmental management
       • a significant portion of state government has a geographical component
          – natural resource management                                                                               – property records and appraisal
          – highways and transportation                                                                            • Real Estate and Marketing-Retail site selection, site evaluation
       • businesses use GIS for a very wide array of applications                                                  • Public safety-Crime analysis, fire prevention, emergency
          – retail site selection & customer analysis                                                                management
          – logistics: vehicle tracking & routing                                                                  • Natural resource exploration/extraction - Petroleum, minerals,
          – natural resource exploration (petroleum, etc.)                                                           quarrying
          – precision agriculture
                                                                                                                   • Transportation- Airline route planning, transportation modeling
          – civil engineering and construction
       • scientific research employs GIS                                                                           • Public health and epidemiology
          – geography, geology, botany                                                                             • The Geospatial Industry - Data development, application
          – anthropology, sociology, economics, political science                                                    development, programming
          – Epidemiology, criminology

                  © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   9                © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   10




                                  Advantages of GIS                                                                                Examples of Applied GIS
       1.  The potential and substantial benefits of using GIS make it a very                                              •     Urban Planning, Management & Policy
           important tool making the work of any organization easier and more                                                     – Zoning, subdivision planning
                                                                                                                                  – Land acquisition
           productive. Some of the potential benefits of GIS are:                                                                 – Economic development
       2. Opportunity to reduce sets of manual maps held and associated storage                                                   – Code enforcement
           costs.                                                                                                                 – Housing renovation programs
       3. Faster and more extensive access to geographic information.                                                             – Emergency response
                                                                                                                                  – Crime analysis
       4. Improved analysis e.g. Of areas, distances, patterns, etc.                                                              – Tax assessment
       5. Better communication of information to public officers, members.                                                 •     Environmental Sciences
                                                                                                                                  – Monitoring environmental risk
       6. Improved quality of services.                                                                                           – Modeling storm water runoff
       7. Better targeting and coordination of services.                                                                          – Management of watersheds, floodplains, wetlands, forests,
       8. Improved productivity in providing public information.                                                                     aquifers
                                                                                                                                  – Environmental Impact Analysis
       9. Improved efficiency in updating maps.                                                                                   – Hazardous or toxic facility sites
       10. The ability to track and monitor growth and development over time                                                      – Groundwater modeling and contamination tracking
       11. Improved ability to aggregate data for specific sub areas.                                                      •     Political Science
                                                                                                                                  – Redistricting
       12. Thus GIS's have become indispensable tools for governance, commerce,                                                   – Analysis of election results
           and environmental and social science.                                                                                  – Predictive modeling

                  © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   11               © Magendhiran Consultancy Services. All rights reserved.   www.mcsmapping.com   8/25/2010   12




Confidential                                                                                                                                                                                                                    2
www.mcsmapping.com                                                                                                                                                                                              August 25, 2010




          Examples of Applied GIS contd.                                                                                                            Components of GIS
               •Civil Engineering/Utility
                    •Locating underground facilities
                    •Designing alignment for freeways, transit
                    •Coordination of infrastructure maintenance
               • Business
                    •Demographic Analysis
                    •Market Penetration/ Share Analysis
                    •Site Selection
               •Education Administration
                    • Attendance Area Maintenance
                    • Enrollment Projections
                    • School Bus Routing
               •Real Estate
                    •Neighborhood land prices
                    •Traffic Impact Analysis
                    •Determination of Highest and Best Use
               •Health Care
                    •Epidemiology
                    • Needs Analysis
                    • Service Inventory


               © Magendhiran Consultancy Services. All rights reserved.                www.mcsmapping.com   8/25/2010   13            © Magendhiran Consultancy Services. All rights reserved.        www.mcsmapping.com   8/25/2010   14




       GIS System Architecture and Components                                                                                 The GIS Data Model: Implementation
                                                                                                                                                                                                 Administrative Boundaries
                                                                                                                                                                                                         Utilities
                                                                          Data Input
                                                                                                                                                                                                         Zoning
                                                                                                                                                                                                        Buildings
                                                                                                                                                                                                         Parcels
                                                                          Geographic
          Query Input                                                                                                                                                                                 Hydrography
                                                                           Database                                                                                                                      Streets
                                                                                                                                                                                                   Digital Orthophoto

                                                                                                                             • Data is organized by layers, coverages or themes (synonomous
                    Output: Display                                              Transformation                                concepts), with each layer representing a common feature.
                    and Reporting                                                  and Analysis
                                                                                                                             • Layers are integrated using explicit location on the earth’s
                                                                                                                               surface, thus geographic location is the organizing principal.

               © Magendhiran Consultancy Services. All rights reserved.                www.mcsmapping.com   8/25/2010   15            © Magendhiran Consultancy Services. All rights reserved.        www.mcsmapping.com   8/25/2010   16




                   The GIS Model: example                                                                                                 The GIS Model: example




               © Magendhiran Consultancy Services. All rights reserved.                www.mcsmapping.com   8/25/2010   17            © Magendhiran Consultancy Services. All rights reserved.        www.mcsmapping.com   8/25/2010   18




Confidential                                                                                                                                                                                                                                3
www.mcsmapping.com                                                                                                                                                                                               August 25, 2010




                        The GIS Model: example                                                                                        Spatial and Attribute Data
                                                            Here we have three layers or themes:
                                                                                                                         • Spatial data (where)
                                                             --roads,                                                       – specifies location
                   roads                                     --hydrology (water),                                           – stored in a shape file or similar geographic file
                                                             --topography (land elevation)
                    longitude                               They can be related because precise geographic
                                                                                                                         • Attribute (descriptive) data (what, how much, when)
                                                            coordinates are recorded for each theme.                        – specifies characteristics at that location, natural or human-
                                                                                                                              created
                                                           Layers are comprised of two data types
                                                                                                                            – stored in a data base table
               hydrology                                   •Spatial data which describes location (where)
                                                           •Attribute data specifying what, how much, when               • GIS systems traditionally maintain spatial and attribute data
                 longitude                                                                                                 separately, then “join” them for display or analysis
                                                           Layers may be represented in two ways:                           – for example, in QGIS, the Attributes of … table is used to join
                                                           •in vector format as points and lines                              a shapefile (spatial structure) with a data base table containing
                                                           •in raster(or image) format as pixels                              attribute information in order to display the attribute data
                topography
                                                                                                                              spatially on a map
                                                           All geographic data has 4 properties:
                                                            projection, scale, accuracy and resolution
                longitude
                    © Magendhiran Consultancy Services. All rights reserved.       www.mcsmapping.com   8/25/2010   19               © Magendhiran Consultancy Services. All rights reserved.          www.mcsmapping.com     8/25/2010   20




                                   Representing Data                                                                               Concept of Vector and Raster
                                                                                                                                                                                                                   Real World
       Raster Model
       •   area is covered by grid with (usually) equal-sized, square cells
       •   attributes are recorded by assigning each cell a single value based on the
           majority feature (attribute) in the cell, such as land use type.
       •   Image data is a special case of raster data in which the “attribute” is a
           reflectance value from the geomagnetic spectrum
            – cells in image data often called pixels (picture elements)
                                                                                                                            Raster Representation                                               Vector Representation
       Vector Model                                                                                                                       0 1 2 3 4 5 6 7 8 9
                                                                                                                                     0                 R T                                         point
       The fundamental concept of vector GIS is that all geographic features in the real
                                                                                                                                     1               R     T
          work can be represented either as:                                                                                         2     H         R
       • points or dots (nodes): trees, poles, fire plugs, airports, cities                                                          3               R                                                                      line
       • lines (arcs): streams, streets, sewers,                                                                                     4           R R
                                                                                                                                     5         R
       • areas (polygons): land parcels, cities, counties, forest, rock type                                                         6       R   T T   H
       Because representation depends on shape, QGIS refers to files containing vector                                               7       R   T T                                                       polygon
          data as shapefiles                                                                                                         8     R
                                                                                                                                     9     R

                    © Magendhiran Consultancy Services. All rights reserved.       www.mcsmapping.com   8/25/2010   21




                           Raster & Vector Data                                                                               The key properties of spatial data
              Advantages of raster data                                                                                   • Projection: the method by which the curved 3-D surface of the
              1. Simple data structure                                                                                      earth is represented by X,Y coordinates on a 2-D flat map/screen
              2. Easy and efficient overlaying                                                                               – distortion is inevitable
              3. Compatible with RS imagery                                                                               • Scale: the ratio of distance on a map to the equivalent distance on
              4. High spatial variability is efficiently represented                                                        the ground
              5. Simple for own programming                                                                                  – in theory GIS is scale independent but in practice there is an
              6. Same grid cells for several attributes                                                                        implicit range of scales for data output in any project
                                                                                                                          • Accuracy: how well does the database info match the real world
              Advantages of vector data                                                                                      – Positional: how close are features to their real world location?
                1. Compact data structure                                                                                    – Consistency: do feature characteristics in database match
                2. Efficient for network analysis                                                                              those in real world -is a road in the database a road in the real
                                                                                                                               world?
                3. Efficient projection transformation
                                                                                                                             – Completeness: are all real world instances of features present
                4. Accurate map output.
                                                                                                                               in the database? - Are all roads included.
                                                                                                                          • Resolution: the size of the smallest feature able to be recognized
                                                                                                                             – for raster data, it is the pixel size
                    © Magendhiran Consultancy Services. All rights reserved.       www.mcsmapping.com   8/25/2010   23               © Magendhiran Consultancy Services. All rights reserved.          www.mcsmapping.com     8/25/2010   24




Confidential                                                                                                                                                                                                                                   4

More Related Content

Viewers also liked

Defination of gis and components of arc gis
Defination of gis and components of arc gisDefination of gis and components of arc gis
Defination of gis and components of arc gisSreedhar Siddhu

Population policy in india since independence 1
Population policy in india since independence 1Population policy in india since independence 1
Population policy in india since independence 1
Ankita Sood

What is GIS?
What is GIS?What is GIS?
What is GIS?
Graeme Eyre

Introduction to GIS
Introduction to GISIntroduction to GIS
Introduction to GIS
Joey Li

What is GIS
What is GISWhat is GIS
What is GIS
Esri

Geographic information system
Geographic information systemGeographic information system
Geographic information system
Sumanta Das

Gis (geographic information system)
Gis (geographic information system)Gis (geographic information system)
Gis (geographic information system)
Saad Bare

What Is GIS?
What Is GIS?What Is GIS?
What Is GIS?
Allan Laframboise

GIS presentation
GIS presentationGIS presentation
GIS presentation
arniontech

My ppt on gis
My ppt on gisMy ppt on gis
My ppt on gis
gargsonakshi1


Viewers also liked (10)

Defination of gis and components of arc gis
Defination of gis and components of arc gisDefination of gis and components of arc gis
Defination of gis and components of arc gis

Population policy in india since independence 1
Population policy in india since independence 1Population policy in india since independence 1
Population policy in india since independence 1

What is GIS?
What is GIS?What is GIS?
What is GIS?

Introduction to GIS
Introduction to GISIntroduction to GIS
Introduction to GIS

What is GIS
What is GISWhat is GIS
What is GIS

Geographic information system
Geographic information systemGeographic information system
Geographic information system

Gis (geographic information system)
Gis (geographic information system)Gis (geographic information system)
Gis (geographic information system)

What Is GIS?
What Is GIS?What Is GIS?
What Is GIS?

GIS presentation
GIS presentationGIS presentation
GIS presentation

My ppt on gis
My ppt on gisMy ppt on gis
My ppt on gis


Similar to 1.gis

Concept, approach, history, trend
Concept, approach, history, trendConcept, approach, history, trend
Concept, approach, history, trend
Md Zahirul Islam Faruk

ArcGIS
ArcGISArcGIS
ArcGIS
Esri

GIS Geographical Information System
GIS Geographical Information SystemGIS Geographical Information System
GIS Geographical Information System
Muhammad Hamza Khan KaimKhani

Geographical information system
Geographical information systemGeographical information system
Geographical information system
Bipin Karki

Geographical information system
Geographical information systemGeographical information system
Geographical information system
Bipin Karki

Q GIS Training Presentation
Q GIS Training PresentationQ GIS Training Presentation
Q GIS Training Presentation
Shahid Imran Khan

GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)
subhashB10

Geographical information system
Geographical information system Geographical information system
Geographical information system
Maharshi Dave

Introduction to Geographic Information System.pptx
Introduction to Geographic Information System.pptxIntroduction to Geographic Information System.pptx
Introduction to Geographic Information System.pptx
ElijahEmmanuel6

Geographical Information System
Geographical Information SystemGeographical Information System
Geographical Information System
BZU university Multan

Geographic Information System for Egyptian Railway System(GIS)
Geographic Information System for Egyptian Railway System(GIS)Geographic Information System for Egyptian Railway System(GIS)
Geographic Information System for Egyptian Railway System(GIS)
Ismail El Gayar

NSDI_ Concepts and Components
NSDI_ Concepts and ComponentsNSDI_ Concepts and Components
NSDI_ Concepts and Components
Jayantha Samarasinghe

2011 ArcGIS 10 Land Records Seminar
2011 ArcGIS 10 Land Records Seminar2011 ArcGIS 10 Land Records Seminar
2011 ArcGIS 10 Land Records Seminar
WV Assocation of Geospatial Professionals

Geographical information system
Geographical information systemGeographical information system
Geographical information system
Gautham Kuragayala K

Lecture_1.ppt netwok and security system by mr desu
Lecture_1.ppt netwok and security system by mr desuLecture_1.ppt netwok and security system by mr desu
Lecture_1.ppt netwok and security system by mr desu
desalewminale

Gis
GisGis
GIS enabled eGovernance
GIS enabled eGovernanceGIS enabled eGovernance
GIS enabled eGovernanceEsri India

Lecture 1_ Intro n Basics_GIS.pptx
Lecture 1_ Intro n Basics_GIS.pptxLecture 1_ Intro n Basics_GIS.pptx
Lecture 1_ Intro n Basics_GIS.pptx
nobelhasssan


Similar to 1.gis (20)

Concept, approach, history, trend
Concept, approach, history, trendConcept, approach, history, trend
Concept, approach, history, trend

ArcGIS
ArcGISArcGIS
ArcGIS

GIS Geographical Information System
GIS Geographical Information SystemGIS Geographical Information System
GIS Geographical Information System

Geographical information system
Geographical information systemGeographical information system
Geographical information system

Geographical information system
Geographical information systemGeographical information system
Geographical information system

Q GIS Training Presentation
Q GIS Training PresentationQ GIS Training Presentation
Q GIS Training Presentation

GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)

L1 GIS.pptx
L1 GIS.pptxL1 GIS.pptx
L1 GIS.pptx

Geographical information system
Geographical information system Geographical information system
Geographical information system

Introduction to Geographic Information System.pptx
Introduction to Geographic Information System.pptxIntroduction to Geographic Information System.pptx
Introduction to Geographic Information System.pptx

Geographical Information System
Geographical Information SystemGeographical Information System
Geographical Information System

Geographic Information System for Egyptian Railway System(GIS)
Geographic Information System for Egyptian Railway System(GIS)Geographic Information System for Egyptian Railway System(GIS)
Geographic Information System for Egyptian Railway System(GIS)

NSDI_ Concepts and Components
NSDI_ Concepts and ComponentsNSDI_ Concepts and Components
NSDI_ Concepts and Components

2011 ArcGIS 10 Land Records Seminar
2011 ArcGIS 10 Land Records Seminar2011 ArcGIS 10 Land Records Seminar
2011 ArcGIS 10 Land Records Seminar

gis
gisgis
gis

Geographical information system
Geographical information systemGeographical information system
Geographical information system

Lecture_1.ppt netwok and security system by mr desu
Lecture_1.ppt netwok and security system by mr desuLecture_1.ppt netwok and security system by mr desu
Lecture_1.ppt netwok and security system by mr desu

Gis
GisGis
Gis

GIS enabled eGovernance
GIS enabled eGovernanceGIS enabled eGovernance
GIS enabled eGovernance

Lecture 1_ Intro n Basics_GIS.pptx
Lecture 1_ Intro n Basics_GIS.pptxLecture 1_ Intro n Basics_GIS.pptx
Lecture 1_ Intro n Basics_GIS.pptx


Recently uploaded

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method
Celine George

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...
RitikBhardwaj56

Top five deadliest dog breeds in America
Top five deadliest dog breeds in AmericaTop five deadliest dog breeds in America
Top five deadliest dog breeds in America
Bisnar Chase Personal Injury Attorneys

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
Levi Shapiro

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module
Celine George

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf
Jean Carlos Nunes Paixão

"Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe..."Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe...
SACHIN R KONDAGURI

Assignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docxAssignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docx
ArianaBusciglio

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx
ArianaBusciglio

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
EugeneSaldivar

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf
Thiyagu K

Delivering Micro-Credentials in Technical and Vocational Education and Training
Delivering Micro-Credentials in Technical and Vocational Education and TrainingDelivering Micro-Credentials in Technical and Vocational Education and Training
Delivering Micro-Credentials in Technical and Vocational Education and Training
AG2 Design

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
TechSoup

Normal Labour/ Stages of Labour/ Mechanism of Labour
Normal Labour/ Stages of Labour/ Mechanism of LabourNormal Labour/ Stages of Labour/ Mechanism of Labour
Normal Labour/ Stages of Labour/ Mechanism of Labour
Wasim Ak

BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...
BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...
BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...
Nguyen Thanh Tu Collection

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
Priyankaranawat4

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
IreneSebastianRueco1

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection
Israel Genealogy Research Association

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin


Recently uploaded (20)

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...

Top five deadliest dog breeds in America
Top five deadliest dog breeds in AmericaTop five deadliest dog breeds in America
Top five deadliest dog breeds in America

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf

"Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe..."Protectable subject matters, Protection in biotechnology, Protection of othe...
"Protectable subject matters, Protection in biotechnology, Protection of othe...

Assignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docxAssignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docx

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf

Delivering Micro-Credentials in Technical and Vocational Education and Training
Delivering Micro-Credentials in Technical and Vocational Education and TrainingDelivering Micro-Credentials in Technical and Vocational Education and Training
Delivering Micro-Credentials in Technical and Vocational Education and Training

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion

Normal Labour/ Stages of Labour/ Mechanism of Labour
Normal Labour/ Stages of Labour/ Mechanism of LabourNormal Labour/ Stages of Labour/ Mechanism of Labour
Normal Labour/ Stages of Labour/ Mechanism of Labour

BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...
BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...
BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...


1.gis

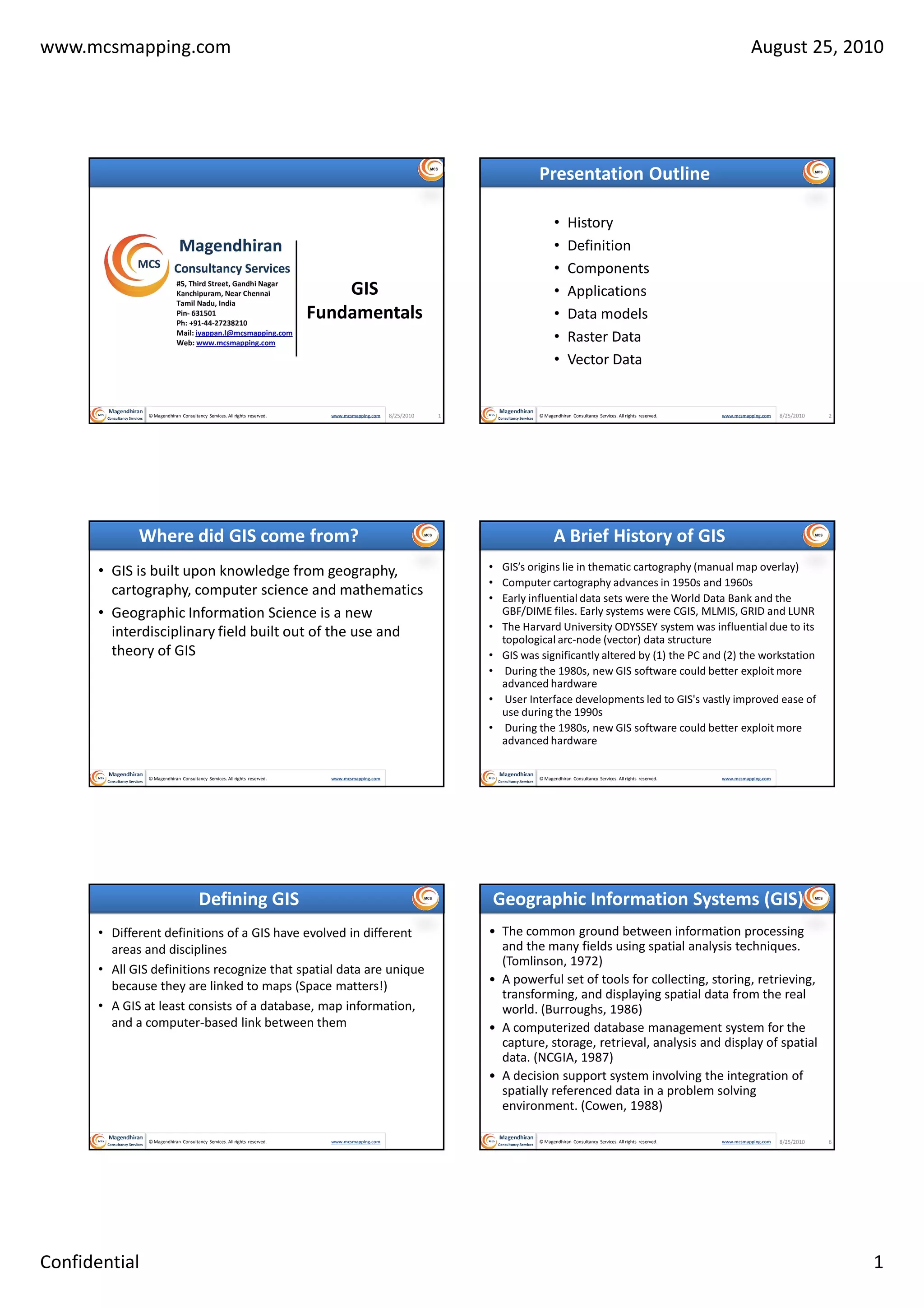

  • 1. www.mcsmapping.com August 25, 2010 Presentation Outline • History • Definition • Components GIS • Applications Fundamentals • Data models • Raster Data • Vector Data © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 1 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 2 Where did GIS come from? A Brief History of GIS • GIS is built upon knowledge from geography, • GIS’s origins lie in thematic cartography (manual map overlay) • Computer cartography advances in 1950s and 1960s cartography, computer science and mathematics • Early influential data sets were the World Data Bank and the • Geographic Information Science is a new GBF/DIME files. Early systems were CGIS, MLMIS, GRID and LUNR • The Harvard University ODYSSEY system was influential due to its interdisciplinary field built out of the use and topological arc-node (vector) data structure theory of GIS • GIS was significantly altered by (1) the PC and (2) the workstation • During the 1980s, new GIS software could better exploit more advanced hardware • User Interface developments led to GIS's vastly improved ease of use during the 1990s • During the 1980s, new GIS software could better exploit more advanced hardware © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com Defining GIS Geographic Information Systems (GIS) • Different definitions of a GIS have evolved in different • The common ground between information processing areas and disciplines and the many fields using spatial analysis techniques. (Tomlinson, 1972) • All GIS definitions recognize that spatial data are unique because they are linked to maps (Space matters!) • A powerful set of tools for collecting, storing, retrieving, transforming, and displaying spatial data from the real • A GIS at least consists of a database, map information, world. (Burroughs, 1986) and a computer-based link between them • A computerized database management system for the capture, storage, retrieval, analysis and display of spatial data. (NCGIA, 1987) • A decision support system involving the integration of spatially referenced data in a problem solving environment. (Cowen, 1988) © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 6 Confidential 1
  • 2. www.mcsmapping.com August 25, 2010 An Inelegant Definition for GIS GIS: intuitive description A system of integrated computer-based tools for end-to- • A map with a database behind it. end processing (capture, storage, retrieval, analysis, • A virtual representation of the real world and its display) of data using location on the earth’s surface for infrastructure. interrelation in support of operations management, • A consistent “as-built” of the real world, natural and decision making, and science. manmade Which is • set of integrated tools for spatial analysis • queried to support on-going operations • encompasses end-to-end processing of data(capture, • summarized to support strategic decision making and storage, retrieval, analysis/ modification, display) policy formulation • uses explicit location on earth’s surface to relate data • analyzed to support scientific inquiry • aimed at decision support, as well as on-going operations and scientific inquiry © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 7 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 8 Why Study GIS? The major areas of GIS application • 80% of local government activities estimated to be geographically based • Local Government – plats, zoning, public works (streets, water supply, sewers), garbage – Public works/infrastructure management (roads, water, sewer) collection, land ownership and valuation – Planning and environmental management • a significant portion of state government has a geographical component – natural resource management – property records and appraisal – highways and transportation • Real Estate and Marketing-Retail site selection, site evaluation • businesses use GIS for a very wide array of applications • Public safety-Crime analysis, fire prevention, emergency – retail site selection & customer analysis management – logistics: vehicle tracking & routing • Natural resource exploration/extraction - Petroleum, minerals, – natural resource exploration (petroleum, etc.) quarrying – precision agriculture • Transportation- Airline route planning, transportation modeling – civil engineering and construction • scientific research employs GIS • Public health and epidemiology – geography, geology, botany • The Geospatial Industry - Data development, application – anthropology, sociology, economics, political science development, programming – Epidemiology, criminology © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 9 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 10 Advantages of GIS Examples of Applied GIS 1. The potential and substantial benefits of using GIS make it a very • Urban Planning, Management & Policy important tool making the work of any organization easier and more – Zoning, subdivision planning – Land acquisition productive. Some of the potential benefits of GIS are: – Economic development 2. Opportunity to reduce sets of manual maps held and associated storage – Code enforcement costs. – Housing renovation programs 3. Faster and more extensive access to geographic information. – Emergency response – Crime analysis 4. Improved analysis e.g. Of areas, distances, patterns, etc. – Tax assessment 5. Better communication of information to public officers, members. • Environmental Sciences – Monitoring environmental risk 6. Improved quality of services. – Modeling storm water runoff 7. Better targeting and coordination of services. – Management of watersheds, floodplains, wetlands, forests, 8. Improved productivity in providing public information. aquifers – Environmental Impact Analysis 9. Improved efficiency in updating maps. – Hazardous or toxic facility sites 10. The ability to track and monitor growth and development over time – Groundwater modeling and contamination tracking 11. Improved ability to aggregate data for specific sub areas. • Political Science – Redistricting 12. Thus GIS's have become indispensable tools for governance, commerce, – Analysis of election results and environmental and social science. – Predictive modeling © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 11 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 12 Confidential 2
  • 3. www.mcsmapping.com August 25, 2010 Examples of Applied GIS contd. Components of GIS •Civil Engineering/Utility •Locating underground facilities •Designing alignment for freeways, transit •Coordination of infrastructure maintenance • Business •Demographic Analysis •Market Penetration/ Share Analysis •Site Selection •Education Administration • Attendance Area Maintenance • Enrollment Projections • School Bus Routing •Real Estate •Neighborhood land prices •Traffic Impact Analysis •Determination of Highest and Best Use •Health Care •Epidemiology • Needs Analysis • Service Inventory © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 13 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 14 GIS System Architecture and Components The GIS Data Model: Implementation Administrative Boundaries Utilities Data Input Zoning Buildings Parcels Geographic Query Input Hydrography Database Streets Digital Orthophoto • Data is organized by layers, coverages or themes (synonomous Output: Display Transformation concepts), with each layer representing a common feature. and Reporting and Analysis • Layers are integrated using explicit location on the earth’s surface, thus geographic location is the organizing principal. © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 15 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 16 The GIS Model: example The GIS Model: example © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 17 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 18 Confidential 3
  • 4. www.mcsmapping.com August 25, 2010 The GIS Model: example Spatial and Attribute Data Here we have three layers or themes: • Spatial data (where) --roads, – specifies location roads --hydrology (water), – stored in a shape file or similar geographic file --topography (land elevation) longitude They can be related because precise geographic • Attribute (descriptive) data (what, how much, when) coordinates are recorded for each theme. – specifies characteristics at that location, natural or human- created Layers are comprised of two data types – stored in a data base table hydrology •Spatial data which describes location (where) •Attribute data specifying what, how much, when • GIS systems traditionally maintain spatial and attribute data longitude separately, then “join” them for display or analysis Layers may be represented in two ways: – for example, in QGIS, the Attributes of … table is used to join •in vector format as points and lines a shapefile (spatial structure) with a data base table containing •in raster(or image) format as pixels attribute information in order to display the attribute data topography spatially on a map All geographic data has 4 properties: projection, scale, accuracy and resolution longitude © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 19 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 20 Representing Data Concept of Vector and Raster Real World Raster Model • area is covered by grid with (usually) equal-sized, square cells • attributes are recorded by assigning each cell a single value based on the majority feature (attribute) in the cell, such as land use type. • Image data is a special case of raster data in which the “attribute” is a reflectance value from the geomagnetic spectrum – cells in image data often called pixels (picture elements) Raster Representation Vector Representation Vector Model 0 1 2 3 4 5 6 7 8 9 0 R T point The fundamental concept of vector GIS is that all geographic features in the real 1 R T work can be represented either as: 2 H R • points or dots (nodes): trees, poles, fire plugs, airports, cities 3 R line • lines (arcs): streams, streets, sewers, 4 R R 5 R • areas (polygons): land parcels, cities, counties, forest, rock type 6 R T T H Because representation depends on shape, QGIS refers to files containing vector 7 R T T polygon data as shapefiles 8 R 9 R © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 21 Raster & Vector Data The key properties of spatial data Advantages of raster data • Projection: the method by which the curved 3-D surface of the 1. Simple data structure earth is represented by X,Y coordinates on a 2-D flat map/screen 2. Easy and efficient overlaying – distortion is inevitable 3. Compatible with RS imagery • Scale: the ratio of distance on a map to the equivalent distance on 4. High spatial variability is efficiently represented the ground 5. Simple for own programming – in theory GIS is scale independent but in practice there is an 6. Same grid cells for several attributes implicit range of scales for data output in any project • Accuracy: how well does the database info match the real world Advantages of vector data – Positional: how close are features to their real world location? 1. Compact data structure – Consistency: do feature characteristics in database match 2. Efficient for network analysis those in real world -is a road in the database a road in the real world? 3. Efficient projection transformation – Completeness: are all real world instances of features present 4. Accurate map output. in the database? - Are all roads included. • Resolution: the size of the smallest feature able to be recognized – for raster data, it is the pixel size © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 23 © Magendhiran Consultancy Services. All rights reserved. www.mcsmapping.com 8/25/2010 24 Confidential 4
