The document describes a Cyber Threat Assessment Program that analyzes a network's security, user productivity, and network utilization through deploying a FortiGate appliance on the network for log collection. It discusses deploying the FortiGate in transparent or one-arm sniffer mode, collecting logs locally or sending to FortiAnalyzer, and generating a report analyzing security effectiveness, applications/users, and network performance improvement areas. The program aims to assess network performance and security in order to identify issues and recommend enhancements.

1. © Copyright Fortinet Inc. All rights reserved.
Cyber Threat Assessment Program
Alessandro Berta – Systems Engineer
15 Aprile 2016

2. 2

3. 3
it’s
FAST
and
FREE
ASSESS YOUR NETWORK
PERFORMANCE AND SECURITY

4. 4
3 AREAS OF ANALYSIS
SECURITY
& THREAT PREVENTION
USER
PRODUCTIVITY
NETWORK
UTILIZATION

5. 5
REPORTED DATA
» Network security solution effectiveness
» Application vulnerabilities
» Malware/botnets detection
» “At risk” devices within the network
» Applications and web resources usage within the network
» Peer to peer, social media, instant messaging share of the network usage
» Usage of client-server and web-based applications in alignment with corporate
policies
» Network performance improvement area
» Throughput, session and bandwidth requirements during peak hours
» Security solution sizing and optimization for your actual usage

6. 6

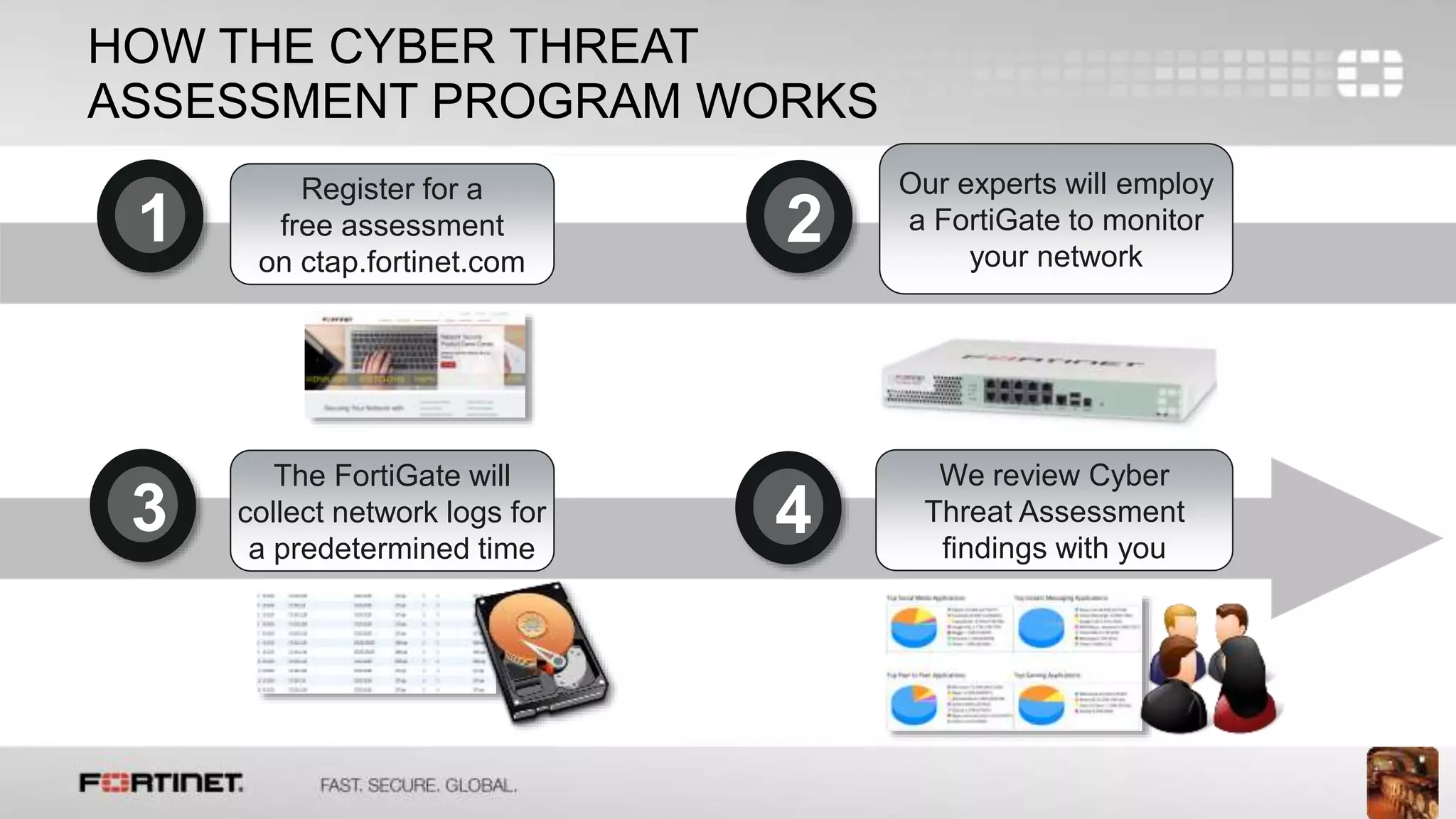

HOW THE CYBER THREAT
ASSESSMENT PROGRAM WORKS
Register for a
free assessment
on ctap.fortinet.com
1
Our experts will employ
a FortiGate to monitor
your network
2
The FortiGate will
collect network logs for
a predetermined time
3
We review Cyber
Threat Assessment
findings with you
4

7. 7

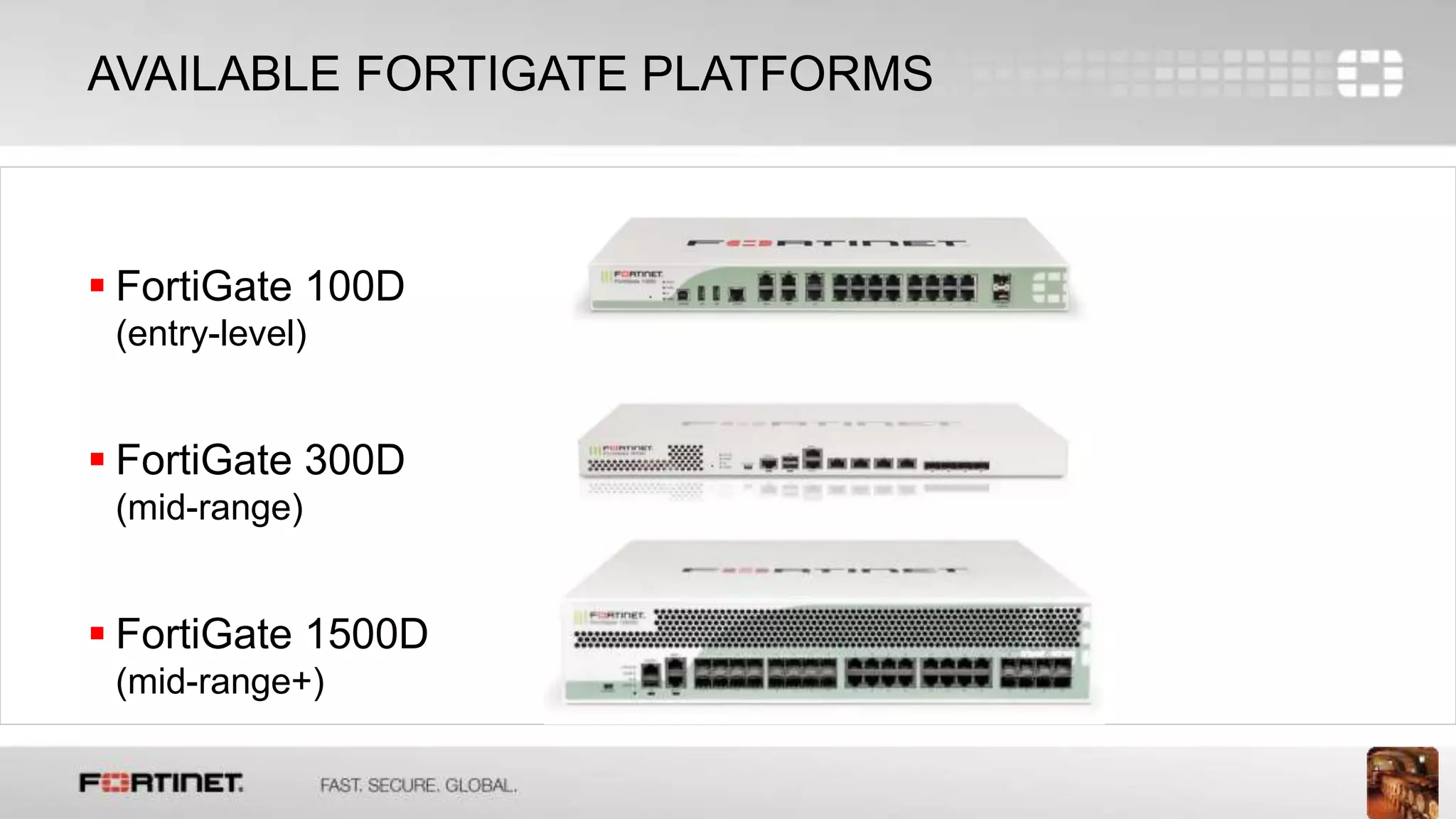

AVAILABLE FORTIGATE PLATFORMS
 FortiGate 100D
(entry-level)
 FortiGate 300D
(mid-range)
 FortiGate 1500D
(mid-range+)

8. 8
2 DEPLOYMENT MODES
TRANSPARENT MODE
USING PORT PAIRS
ONE-ARM SNIFFER
USING PORT MIRRORING

9. 9

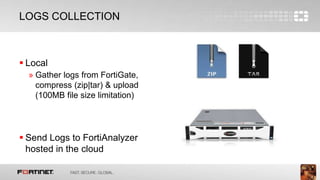

LOGS COLLECTION
 Local
» Gather logs from FortiGate,
compress (zip|tar) & upload
(100MB file size limitation)
 Send Logs to FortiAnalyzer
hosted in the cloud

10. 10

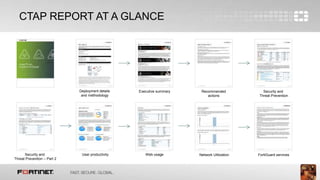

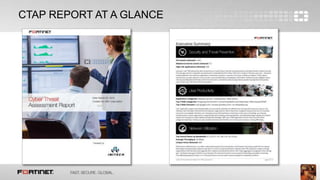

CTAP REPORT AT A GLANCE

11. 11
CTAP REPORT AT A GLANCE
Deployment details
and methodology
Executive summary Recommended
actions
Security and
Threat Prevention
Security and
Threat Prevention – Part 2
User productivity Web usage Network Utilization FortiGuard services

12. 12

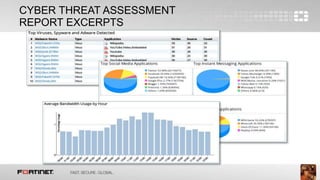

CYBER THREAT ASSESSMENT
REPORT EXCERPTS

13. 13

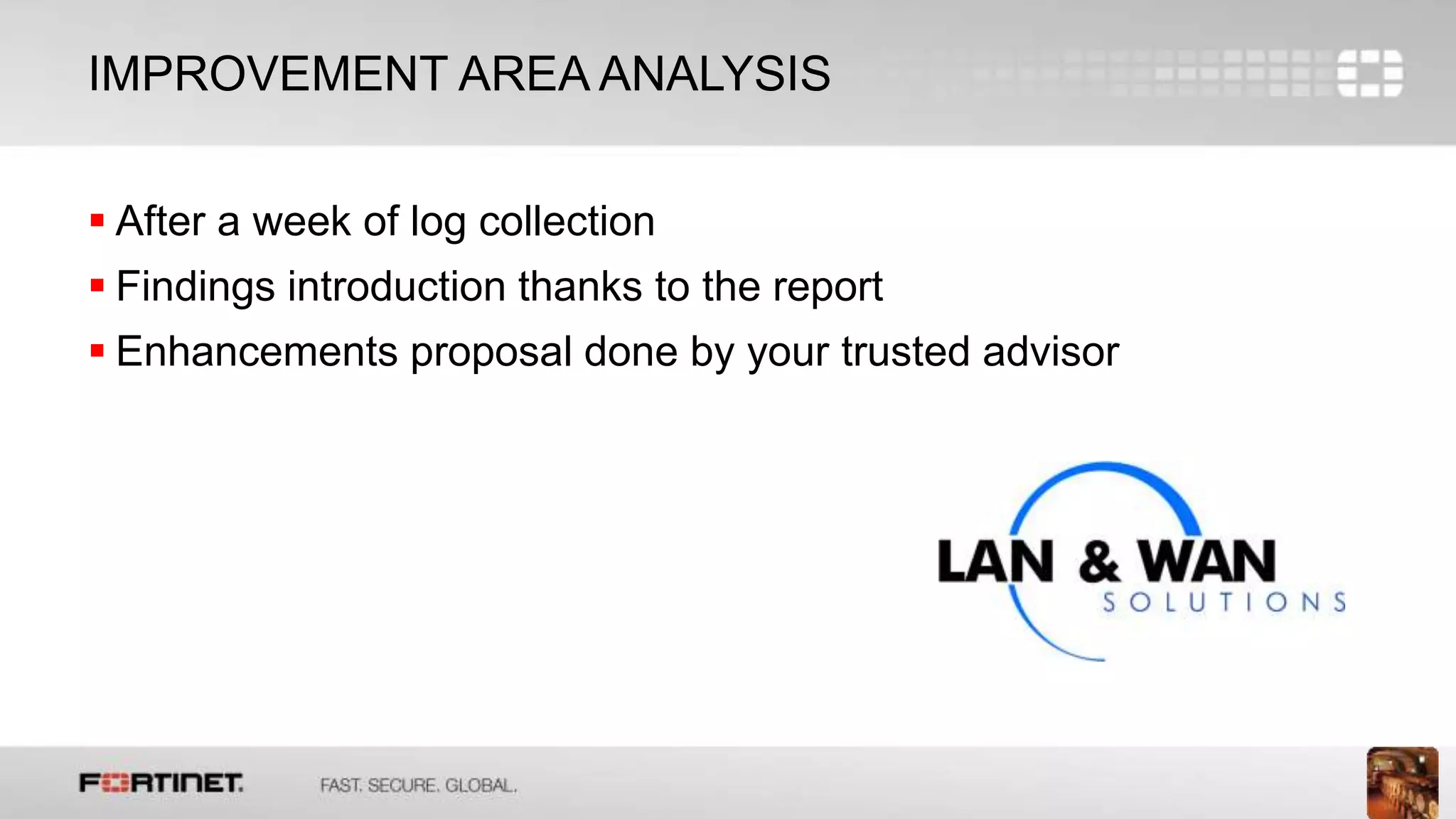

IMPROVEMENT AREA ANALYSIS
 After a week of log collection
 Findings introduction thanks to the report
 Enhancements proposal done by your trusted advisor
