The document summarizes a lecture on texture mapping in computer graphics. It discusses topics like texture mapping fundamentals, texture coordinates, texture filtering including mipmapping and anisotropic filtering, wrap modes, cube maps, and texture formats. It also provides examples of texture mapping in games and an overview of the texture sampling process in the graphics pipeline.

1. CS 354 Texture Mapping Mark Kilgard University of Texas February 23, 2012

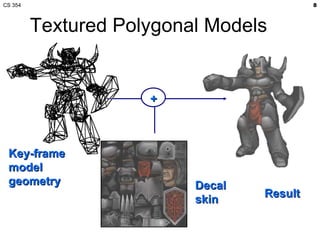

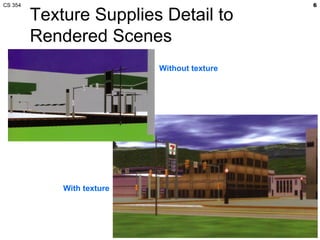

8. Textured Polygonal Models + Result Key-frame model geometry Decal skin

9. Multiple Textures for Involved Shading Key-frame model geometry Decal skin texture Bump skin texture Gloss skin texture +

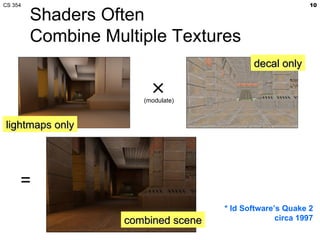

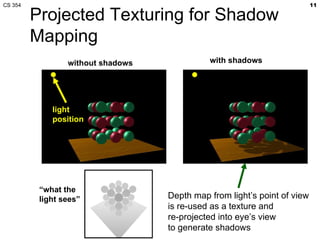

12. Shadow Mapping Explained Planar distance from light Depth map projected onto scene ≤ = less than True “un-shadowed” region shown green equals

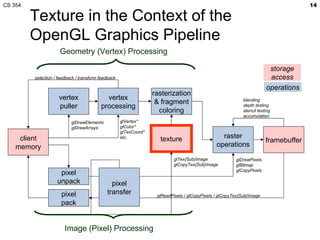

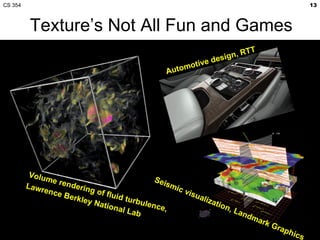

14. Texture in the Context of the OpenGL Graphics Pipeline vertex processing rasterization & fragment coloring texture raster operations framebuffer pixel unpack pixel pack vertex puller client memory pixel transfer glReadPixels / glCopyPixels / glCopyTex{Sub}Image glDrawPixels glBitmap glCopyPixels glTex{Sub}Image glCopyTex{Sub}Image glDrawElements glDrawArrays selection / feedback / transform feedback glVertex* glColor* glTexCoord* etc. blending depth testing stencil testing accumulation storage access operations Image (Pixel) Processing Geometry (Vertex) Processing

15. Simple Texture Mapping glBegin ( GL_TRIANGLES ); glTexCoord2f (0, 0); glVertex2f (-0.8, 0.8); glTexCoord2f (1, 0); glVertex2f (0.8, 0.8); glTexCoord2f (0.5, 1); glVertex2f (0.0, -0.8); glEnd (); + glTexCoord2f like glColor4f but sets “current” texture coordinate instead of color glMultiTexCoord2f takes texture unit parameter so glMultiTexCoord2f ( GL_TEXTURE0 , s,t) same as glTexCoord2f (s,t) ST = (0,0) ST = (1,1)

16. Texture Coordinates Assigned at Each Vertex XYZ = (0,-0.8) ST = (0.5,1) XYZ = (0.8,0.8) ST = (1,0) XYZ = (-0.8,0.8) ST = (0,0)

23. Anatomy of a Texture Fetch Filtered texel vector Texel Selection Texel Combination Texel offsets Texel data Texture images Combination parameters Texture parameters

28. Environment Mapping via Texture Cube Maps Access texture by surface reflection vector

29. More Cube Mapping

30. Dynamic Cube Map Textures Rendered scene Dynamically created cube map image Image credit: “Guts” GeForce 2 GTS demo, Thant Thessman

34. Mipmap Texture Filtering E. Angel and D. Shreiner: Interactive Computer Graphics 6E © Addison-Wesley 2012 point sampling mipmapped point sampling mipmapped linear filtering linear filtering

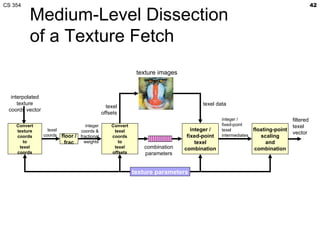

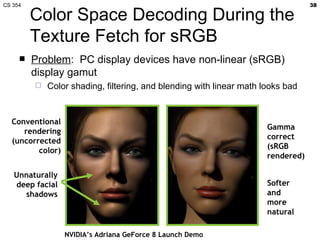

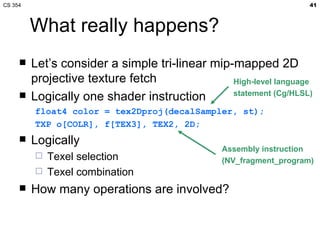

42. Medium-Level Dissection of a Texture Fetch Convert texel coords to texel offsets integer / fixed-point texel combination texel offsets texel data texture images combination parameters interpolated texture coords vector texture parameters Convert texture coords to texel coords filtered texel vector texel coords floor / frac integer coords & fractional weights floating-point scaling and combination integer / fixed-point texel intermediates
