1. Extreme DXT Compression
Peter Uličiansky
Cauldron, Ltd.
Overview
• Simple highly optimized algorithm
• Uses SSE2 and SSSE3 for maximum performance
• Quality comparable to “Real-Time DXT Compression” algorithm
• Performance roughly 300%
• What’s identical to “Real-Time DXT Compression”
o Only non-transparent compression scheme for DXT1
o Only six intermediate alpha values compression scheme for DXT5
o Uses bounding box method for representative color and alpha values
• Computes color and alpha indices by division (fixed point multiplication)
o Uses lookup tables for color/alpha dividers
( R − R min) + (G − G min) + ( B − B min)
ColorIndex = 4 ∗
( R max − R min) + (G max − G min) + ( B max − B min)
( A − A min)
AlphaIndex = 8 ∗
( A max − A min)
• Converts natural index ordering to DXT index ordering by lookup tables
o Tightly packs natural indices first
o Then converts four color indices at once/two alpha indices at once
• Just two functions (CompressImageDXT1, CompressImageDXT5)
o Saves function call overhead
• No comparisons, jumps, loops (except height/width loops)
• Processes two 4x4 blocks at once
o Better utilization of registers
o Hides instruction latency in some places
o No need to “extract block” first
• Constant/temporary data just 24 * 16 = 384 bytes
• Lookup tables just 3072 + 1024 + 256 + 1280 = 5632 bytes
• Although some parts of DXT1/DXT5 compression algorithms are identical
different instruction ordering is crucial for maximum performance
• Code is optimized for Core 2 Duo so Pentium 4 performance is not optimal
(Don’t see much point in optimizing for Pentium 4 these days)

2. Color Compression Comparison
Original image Extreme DXT Comp. Real-Time DXT Comp.
Alpha Compression Comparison
Original image Extreme DXT Comp. Real-Time DXT Comp.

3. Performance
• 256x256 texture graphs show maximum possible performance of the algorithms
(all used data can fit and is already prepared in the cache memory)
• 4096x4096 texture graphs show more real-life performance
(source data cannot fit or is not already in the cache memory)
• The 256x256 Lena image was used for the 256x256 texture performance tests
• The same image was 16x16 tiled to create 4096x4096 texture for the 4096x4096
texture performance tests
• The blue channel was replicated to the alpha channel for the DXT5 tests
• The DXT1 compression creates correct results regardless of the alpha information
in the source texture and never outputs transparent pixels

4. The Algorithm
Read 4x4 pixel block (movdqa)
Pixel03 Pixel02 Pixel01 Pixel00
Pixel13 Pixel12 Pixel11 Pixel10
Pixel23 Pixel22 Pixel21 Pixel20
Pixel33 Pixel32 Pixel31 Pixel30
Compute bounding box and store minimum (movdqa, pmaxub, pminub, pshufd)
Max Max Max Max
Min Min Min Min
Compute and store range (movdqa, punpcklbw, psubw, movq)
Range Range Range Range Range Range Range Range
Inset bounding box and interleave max’/min’ values (psrlw, psubw, paddw, punpcklwd)
Min’ Max’ Min’ Max’ Min’ Max’ Min’ Max’
Shift and mask max’/min’ values as needed in the DXT block (pmulw, pand, movdqa)
Min’ Max’ Min’ Max’ Min’ Max’ Min‘ Max’
Pack and store max’/min’ values to the DXT block (mov, shr, or)
Min’ Max’ Min’ Max’
Load 4x4 pixel block again, subtract minimum, prepare for the division
(SSSE3: movdqa, psubb, pmaddubsw, phaddw)
(SSE2: movdqa, psubb, pand, pmaddwd, psrlw, psllw, paddw, packssdw)
DXT1
8(R+G+B)13 8(R+G+B)12 8(R+G+B)11 8(R+G+B)10 8(R+G+B)03 8(R+G+B)02 8(R+G+B)01 8(R+G+B)00
8(R+G+B)33 8(R+G+B)32 8(R+G+B)31 8(R+G+B)30 8(R+G+B)23 8(R+G+B)22 8(R+G+B)21 8(R+G+B)20
DXT5
8A03 8(R+G+B)03 8A02 8(R+G+B)02 8A01 8(R+G+B)01 8A00 8(R+G+B)00
8A13 8(R+G+B)13 8A12 8(R+G+B)12 8A11 8(R+G+B)11 8A10 8(R+G+B)10
8A23 8(R+G+B)23 8A22 8(R+G+B)22 8A21 8(R+G+B)21 8A20 8(R+G+B)20
8A33 8(R+G+B)33 8A32 8(R+G+B)32 8A31 8(R+G+B)31 8A30 8(R+G+B)30

5. Prepare dividers according to the range (mov, add, or, movd, pshufd)
DXT1
ColorDivider ColorDivider ColorDivider ColorDivider ColorDivider ColorDivider ColorDivider ColorDivider
DXT5
AlphaDivider ColorDivider AlphaDivider ColorDivider AlphaDivider ColorDivider AlphaDivider ColorDivider
Perform the division (fixed point multiplication) to get indices (pmulhw)
DXT1
ColorIndex13 ColorIndex12 ColorIndex11 ColorIndex10 ColorIndex03 ColorIndex02 ColorIndex01 ColorIndex00
ColorIndex33 ColorIndex32 ColorIndex31 ColorIndex30 ColorIndex23 ColorIndex22 ColorIndex21 ColorIndex20
DXT5
AlphaIndex03 ColorIndex03 AlphaIndex02 ColorIndex02 AlphaIndex01 ColorIndex01 AlphaIndex00 ColorIndex00
AlphaIndex13 ColorIndex13 AlphaIndex12 ColorIndex12 AlphaIndex11 ColorIndex11 AlphaIndex10 ColorIndex10
AlphaIndex23 ColorIndex23 AlphaIndex22 ColorIndex22 AlphaIndex21 ColorIndex21 AlphaIndex20 ColorIndex20
AlphaIndex33 ColorIndex33 AlphaIndex32 ColorIndex32 AlphaIndex31 ColorIndex31 AlphaIndex30 ColorIndex30
Pack indices together and store them to the temporary buffer
(SSSE3: packuswb, pshufb, pmaddubsw, pmaddwd, movdqa)
(SSE2: pshuflw, pshufhw, pmaddwd, packssdw, movdqa)
DXT1
ColorIndex33…30 ColorIndex23…20 ColorIndex13…10 ColorIndex03…00
DXT5
AlphaIndex13…10 ColorIndex13…10 AlphaIndex03…00 ColorIndex03…00
AlphaIndex33…30 ColorIndex33…30 AlphaIndex23…20 ColorIndex23…20
Convert packed indices to final DXT indices and store them to the DXT block (mov, or)
Set3 Set2 Set1 Set0 Min’ Max’ Set2 Set1 Set0 Min’ Max’

6. /*************************************************************************************************************
Extreme DXT Compression
Copyright (C) 2008 Cauldron, Ltd.
Written by Peter Uličiansky
Microsoft Public License (Ms-PL)
This license governs use of the accompanying software.
If you use the software, you accept this license.
If you do not accept the license, do not use the software.
1. Definitions
The terms "reproduce," "reproduction," "derivative works," and "distribution" have the same meaning here as
under U.S. copyright law. A "contribution" is the original software, or any additions or changes to the
software. A "contributor" is any person that distributes its contribution under this license. "Licensed
patents" are a contributor's patent claims that read directly on its contribution.
2. Grant of Rights
(A) Copyright Grant- Subject to the terms of this license, including the license conditions and limitations in
section 3, each contributor grants you a non-exclusive, worldwide, royalty-free copyright license to reproduce
its contribution, prepare derivative works of its contribution, and distribute its contribution or any
derivative works that you create.
(B) Patent Grant- Subject to the terms of this license, including the license conditions and limitations in
section 3, each contributor grants you a non-exclusive, worldwide, royalty-free license under its licensed
patents to make, have made, use, sell, offer for sale, import, and/or otherwise dispose of its contribution in
the software or derivative works of the contribution in the software.
3. Conditions and Limitations
(A) No Trademark License- This license does not grant you rights to use any contributors' name, logo, or
trademarks.
(B) If you bring a patent claim against any contributor over patents that you claim are infringed by the
software, your patent license from such contributor to the software ends automatically.
(C) If you distribute any portion of the software, you must retain all copyright, patent, trademark, and
attribution notices that are present in the software.
(D) If you distribute any portion of the software in source code form, you may do so only under this license
by including a complete copy of this license with your distribution. If you distribute any portion of the
software in compiled or object code form, you may only do so under a license that complies with this license.
(E) The software is licensed "as-is." You bear the risk of using it. The contributors give no express
warranties, guarantees, or conditions. You may have additional consumer rights under your local laws which
this license cannot change. To the extent permitted under your local laws, the contributors exclude the
implied warranties of merchantability, fitness for a particular purpose and non-infringement.
*************************************************************************************************************/
DWORD COLOR_DIVIDER_TABLE[768];
DWORD ALPHA_DIVIDER_TABLE[256];
BYTE COLOR_INDICES_TABLE[256];
WORD ALPHA_INDICES_TABLE[640];
__declspec(align(16)) const BYTE SSE2_BYTE_0 [1 * 16] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
__declspec(align(16)) const BYTE SSE2_WORD_1 [1 * 16] =
{0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00};
__declspec(align(16)) const BYTE SSE2_WORD_8 [1 * 16] =
{0x08,0x00,0x08,0x00,0x08,0x00,0x08,0x00,0x08,0x00,0x08,0x00,0x08,0x00,0x08,0x00};
__declspec(align(16)) const BYTE SSE2_BOUNDS_MASK [1 * 16] =
{0x00,0x1F,0x00,0x1F,0xE0,0x07,0xE0,0x07,0x00,0xF8,0x00,0xF8,0x00,0xFF,0xFF,0x00};
__declspec(align(16)) const BYTE SSE2_BOUNDS_SCALE [1 * 16] =
{0x20,0x00,0x20,0x00,0x08,0x00,0x08,0x00,0x00,0x01,0x00,0x01,0x00,0x01,0x01,0x00};
__declspec(align(16)) const BYTE SSE2_INDICES_MASK_0 [1 * 16] =
{0xFF,0x00,0xFF,0x00,0xFF,0x00,0xFF,0x00,0xFF,0x00,0xFF,0x00,0xFF,0x00,0xFF,0x00};
__declspec(align(16)) const BYTE SSE2_INDICES_MASK_1 [1 * 16] =
{0x00,0xFF,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0xFF,0x00,0x00};
__declspec(align(16)) const BYTE SSE2_INDICES_MASK_2 [1 * 16] =
{0x08,0x08,0x08,0x00,0x08,0x08,0x08,0x00,0x08,0x08,0x08,0x00,0x08,0x08,0x08,0x00};
__declspec(align(16)) const BYTE SSE2_INDICES_SCALE_0[1 * 16] =
{0x01,0x00,0x04,0x00,0x10,0x00,0x40,0x00,0x01,0x00,0x04,0x00,0x10,0x00,0x40,0x00};
__declspec(align(16)) const BYTE SSE2_INDICES_SCALE_1[1 * 16] =
{0x01,0x00,0x04,0x00,0x01,0x00,0x08,0x00,0x10,0x00,0x40,0x00,0x00,0x01,0x00,0x08};
__declspec(align(16)) const BYTE SSE2_INDICES_SCALE_2[1 * 16] =
{0x01,0x04,0x10,0x40,0x01,0x04,0x10,0x40,0x01,0x04,0x10,0x40,0x01,0x04,0x10,0x40};
__declspec(align(16)) const BYTE SSE2_INDICES_SCALE_3[1 * 16] =
{0x01,0x04,0x01,0x04,0x01,0x08,0x01,0x08,0x01,0x04,0x01,0x04,0x01,0x08,0x01,0x08};
__declspec(align(16)) const BYTE SSE2_INDICES_SCALE_4[1 * 16] =
{0x01,0x00,0x10,0x00,0x01,0x00,0x00,0x01,0x01,0x00,0x10,0x00,0x01,0x00,0x00,0x01};
__declspec(align(16)) const BYTE SSE2_INDICES_SHUFFLE[1 * 16] =
{0x00,0x02,0x04,0x06,0x01,0x03,0x05,0x07,0x08,0x0A,0x0C,0x0E,0x09,0x0B,0x0D,0x0F};
__declspec(align(16)) BYTE sse2_minimum[2 * 16];
__declspec(align(16)) BYTE sse2_range [2 * 16];
__declspec(align(16)) BYTE sse2_bounds [2 * 16];
__declspec(align(16)) BYTE sse2_indices[4 * 16];

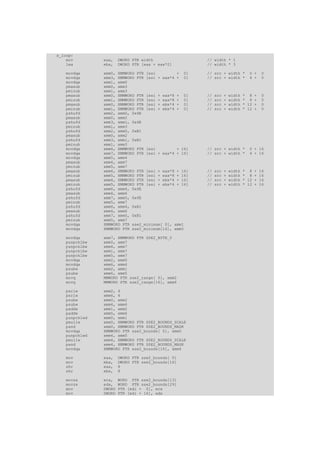

7. void CompressImageDXT1(const BYTE* argb, BYTE* dxt1, int width, int height) {
int x_count;
int y_count;
__asm {
mov esi, DWORD PTR argb // src
mov edi, DWORD PTR dxt1 // dst
mov eax, DWORD PTR height
mov DWORD PTR y_count, eax
y_loop:
mov eax, DWORD PTR width
mov DWORD PTR x_count, eax
x_loop:
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
movdqa xmm0, XMMWORD PTR [esi + 0] // src + width * 0 + 0
movdqa xmm3, XMMWORD PTR [esi + eax*4 + 0] // src + width * 4 + 0
movdqa xmm1, xmm0
pmaxub xmm0, xmm3
pmaxub xmm0, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
pmaxub xmm0, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
pminub xmm1, xmm3
pminub xmm1, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
pminub xmm1, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
pshufd xmm2, xmm0, 0x4E
pshufd xmm3, xmm1, 0x4E
pmaxub xmm0, xmm2
pminub xmm1, xmm3
pshufd xmm2, xmm0, 0xB1
pshufd xmm3, xmm1, 0xB1
pmaxub xmm0, xmm2
pminub xmm1, xmm3
movdqa xmm4, XMMWORD PTR [esi + 16] // src + width * 0 + 16
movdqa xmm7, XMMWORD PTR [esi + eax*4 + 16] // src + width * 4 + 16
movdqa xmm5, xmm4
pmaxub xmm4, xmm7
pmaxub xmm4, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
pmaxub xmm4, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
pminub xmm5, xmm7
pminub xmm5, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
pminub xmm5, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
pshufd xmm6, xmm4, 0x4E
pshufd xmm7, xmm5, 0x4E
pmaxub xmm4, xmm6
pminub xmm5, xmm7
pshufd xmm6, xmm4, 0xB1
pshufd xmm7, xmm5, 0xB1
pmaxub xmm4, xmm6
pminub xmm5, xmm7
movdqa XMMWORD PTR sse2_minimum[ 0], xmm1
movdqa XMMWORD PTR sse2_minimum[16], xmm5
movdqa xmm7, XMMWORD PTR SSE2_BYTE_0
punpcklbw xmm0, xmm7
punpcklbw xmm4, xmm7
punpcklbw xmm1, xmm7
punpcklbw xmm5, xmm7
movdqa xmm2, xmm0
movdqa xmm6, xmm4
psubw xmm2, xmm1
psubw xmm6, xmm5
movq MMWORD PTR sse2_range[ 0], xmm2
movq MMWORD PTR sse2_range[16], xmm6
psrlw xmm2, 4
psrlw xmm6, 4
psubw xmm0, xmm2
psubw xmm4, xmm6
paddw xmm1, xmm2
paddw xmm5, xmm6
punpcklwd xmm0, xmm1
pmullw xmm0, XMMWORD PTR SSE2_BOUNDS_SCALE
pand xmm0, XMMWORD PTR SSE2_BOUNDS_MASK
movdqa XMMWORD PTR sse2_bounds[ 0], xmm0

8. punpcklwd xmm4, xmm5
pmullw xmm4, XMMWORD PTR SSE2_BOUNDS_SCALE
pand xmm4, XMMWORD PTR SSE2_BOUNDS_MASK
movdqa XMMWORD PTR sse2_bounds[16], xmm4
movzx ecx, WORD PTR sse2_range [ 0]
movzx edx, WORD PTR sse2_range [16]
mov eax, DWORD PTR sse2_bounds[ 0]
mov ebx, DWORD PTR sse2_bounds[16]
shr eax, 8
shr ebx, 8
or eax, DWORD PTR sse2_bounds[ 4]
or ebx, DWORD PTR sse2_bounds[20]
or eax, DWORD PTR sse2_bounds[ 8]
or ebx, DWORD PTR sse2_bounds[24]
mov DWORD PTR [edi + 0], eax
mov DWORD PTR [edi + 8], ebx
add cx, WORD PTR sse2_range [ 2]
add dx, WORD PTR sse2_range [18]
add cx, WORD PTR sse2_range [ 4]
add dx, WORD PTR sse2_range [20]
mov ecx, DWORD PTR COLOR_DIVIDER_TABLE[ecx*4]
mov edx, DWORD PTR COLOR_DIVIDER_TABLE[edx*4]
#ifdef FIX_DXT1_BUG
movzx eax, WORD PTR [edi + 0]
xor ax, WORD PTR [edi + 2]
cmovz ecx, eax
movzx ebx, WORD PTR [edi + 8]
xor bx, WORD PTR [edi + 10]
cmovz edx, ebx
#endif // FIX_DXT1_BUG
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
movdqa xmm0, XMMWORD PTR [esi + 0] // src + width * 0 + 0
movdqa xmm1, XMMWORD PTR [esi + eax*4 + 0] // src + width * 4 + 0
movdqa xmm7, XMMWORD PTR sse2_minimum[ 0]
psubb xmm0, xmm7
psubb xmm1, xmm7
movdqa xmm2, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
movdqa xmm3, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
psubb xmm2, xmm7
psubb xmm3, xmm7
#ifdef USE_SSSE3
movd xmm7, ecx
pshufd xmm7, xmm7, 0x00
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_2
pmaddubsw xmm0, xmm6
pmaddubsw xmm1, xmm6
phaddw xmm0, xmm1
pmaddubsw xmm2, xmm6
pmaddubsw xmm3, xmm6
phaddw xmm2, xmm3
pmulhw xmm0, xmm7
pmulhw xmm2, xmm7
packuswb xmm0, xmm2
pmaddubsw xmm0, XMMWORD PTR SSE2_INDICES_SCALE_2
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[ 0], xmm0
#else // USE_SSSE3
movdqa xmm4, xmm0
movdqa xmm5, xmm1
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_0
movdqa xmm7, XMMWORD PTR SSE2_INDICES_MASK_1
pand xmm0, xmm6
pand xmm1, xmm6
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_8
pmaddwd xmm1, XMMWORD PTR SSE2_WORD_8
pand xmm4, xmm7
pand xmm5, xmm7

9. psrlw xmm4, 5
psrlw xmm5, 5
paddw xmm0, xmm4
paddw xmm1, xmm5
movdqa xmm4, xmm2
movdqa xmm5, xmm3
pand xmm2, xmm6
pand xmm3, xmm6
pmaddwd xmm2, XMMWORD PTR SSE2_WORD_8
pmaddwd xmm3, XMMWORD PTR SSE2_WORD_8
pand xmm4, xmm7
pand xmm5, xmm7
psrlw xmm4, 5
psrlw xmm5, 5
paddw xmm2, xmm4
paddw xmm3, xmm5
movd xmm7, ecx
pshufd xmm7, xmm7, 0x00
packssdw xmm0, xmm1
pmulhw xmm0, xmm7
pmaddwd xmm0, XMMWORD PTR SSE2_INDICES_SCALE_0
packssdw xmm2, xmm3
pmulhw xmm2, xmm7
pmaddwd xmm2, XMMWORD PTR SSE2_INDICES_SCALE_0
packssdw xmm0, xmm2
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[ 0], xmm0
#endif // USE_SSSE3
movdqa xmm0, XMMWORD PTR [esi + 16] // src + width * 0 + 16
movdqa xmm1, XMMWORD PTR [esi + eax*4 + 16] // src + width * 4 + 16
movdqa xmm7, XMMWORD PTR sse2_minimum[16]
psubb xmm0, xmm7
psubb xmm1, xmm7
movdqa xmm2, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
movdqa xmm3, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
psubb xmm2, xmm7
psubb xmm3, xmm7
#ifdef USE_SSSE3
movd xmm7, edx
pshufd xmm7, xmm7, 0x00
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_2
pmaddubsw xmm0, xmm6
pmaddubsw xmm2, xmm6
pmaddubsw xmm1, xmm6
pmaddubsw xmm3, xmm6
phaddw xmm0, xmm1
phaddw xmm2, xmm3
pmulhw xmm0, xmm7
pmulhw xmm2, xmm7
packuswb xmm0, xmm2
pmaddubsw xmm0, XMMWORD PTR SSE2_INDICES_SCALE_2
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[32], xmm0
#else // USE_SSSE3
movdqa xmm4, xmm0
movdqa xmm5, xmm1
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_0
movdqa xmm7, XMMWORD PTR SSE2_INDICES_MASK_1
pand xmm4, xmm7
pand xmm5, xmm7
psrlw xmm4, 5
psrlw xmm5, 5
pand xmm0, xmm6
pand xmm1, xmm6
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_8
pmaddwd xmm1, XMMWORD PTR SSE2_WORD_8
paddw xmm0, xmm4
paddw xmm1, xmm5
movdqa xmm4, xmm2
movdqa xmm5, xmm3
pand xmm4, xmm7
pand xmm5, xmm7

10. psrlw xmm4, 5
psrlw xmm5, 5
pand xmm2, xmm6
pand xmm3, xmm6
pmaddwd xmm2, XMMWORD PTR SSE2_WORD_8
pmaddwd xmm3, XMMWORD PTR SSE2_WORD_8
paddw xmm2, xmm4
paddw xmm3, xmm5
movd xmm7, edx
pshufd xmm7, xmm7, 0x00
packssdw xmm0, xmm1
pmulhw xmm0, xmm7
pmaddwd xmm0, XMMWORD PTR SSE2_INDICES_SCALE_0
packssdw xmm2, xmm3
pmulhw xmm2, xmm7
pmaddwd xmm2, XMMWORD PTR SSE2_INDICES_SCALE_0
packssdw xmm0, xmm2
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[32], xmm0
#endif // USE_SSSE3
movzx eax, BYTE PTR sse2_indices[ 0]
movzx ebx, BYTE PTR sse2_indices[ 4]
mov cl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov ch, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 4], cl
mov BYTE PTR [edi + 5], ch
movzx eax, BYTE PTR sse2_indices[ 8]
movzx ebx, BYTE PTR sse2_indices[12]
mov dl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov dh, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 6], dl
mov BYTE PTR [edi + 7], dh
movzx eax, BYTE PTR sse2_indices[32]
movzx ebx, BYTE PTR sse2_indices[36]
mov cl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov ch, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 12], cl
mov BYTE PTR [edi + 13], ch
movzx eax, BYTE PTR sse2_indices[40]
movzx ebx, BYTE PTR sse2_indices[44]
mov dl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov dh, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 14], dl
mov BYTE PTR [edi + 15], dh
add esi, 32 // src += 32
add edi, 16 // dst += 16
sub DWORD PTR x_count, 8
jnz x_loop
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
lea esi, DWORD PTR [esi + ebx*4] // src += width * 12
sub DWORD PTR y_count, 4
jnz y_loop
}
}
void CompressImageDXT5(const BYTE* argb, BYTE* dxt5, int width, int height) {
int x_count;
int y_count;
__asm {
mov esi, DWORD PTR argb // src
mov edi, DWORD PTR dxt5 // dst
mov eax, DWORD PTR height
mov DWORD PTR y_count, eax
y_loop:
mov eax, DWORD PTR width
mov DWORD PTR x_count, eax

11. x_loop:
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
movdqa xmm0, XMMWORD PTR [esi + 0] // src + width * 0 + 0
movdqa xmm3, XMMWORD PTR [esi + eax*4 + 0] // src + width * 4 + 0
movdqa xmm1, xmm0
pmaxub xmm0, xmm3
pminub xmm1, xmm3
pmaxub xmm0, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
pminub xmm1, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
pmaxub xmm0, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
pminub xmm1, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
pshufd xmm2, xmm0, 0x4E
pmaxub xmm0, xmm2
pshufd xmm3, xmm1, 0x4E
pminub xmm1, xmm3
pshufd xmm2, xmm0, 0xB1
pmaxub xmm0, xmm2
pshufd xmm3, xmm1, 0xB1
pminub xmm1, xmm3
movdqa xmm4, XMMWORD PTR [esi + 16] // src + width * 0 + 16
movdqa xmm7, XMMWORD PTR [esi + eax*4 + 16] // src + width * 4 + 16
movdqa xmm5, xmm4
pmaxub xmm4, xmm7
pminub xmm5, xmm7
pmaxub xmm4, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
pminub xmm5, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
pmaxub xmm4, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
pminub xmm5, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
pshufd xmm6, xmm4, 0x4E
pmaxub xmm4, xmm6
pshufd xmm7, xmm5, 0x4E
pminub xmm5, xmm7
pshufd xmm6, xmm4, 0xB1
pmaxub xmm4, xmm6
pshufd xmm7, xmm5, 0xB1
pminub xmm5, xmm7
movdqa XMMWORD PTR sse2_minimum[ 0], xmm1
movdqa XMMWORD PTR sse2_minimum[16], xmm5
movdqa xmm7, XMMWORD PTR SSE2_BYTE_0
punpcklbw xmm0, xmm7
punpcklbw xmm4, xmm7
punpcklbw xmm1, xmm7
punpcklbw xmm5, xmm7
movdqa xmm2, xmm0
movdqa xmm6, xmm4
psubw xmm2, xmm1
psubw xmm6, xmm5
movq MMWORD PTR sse2_range[ 0], xmm2
movq MMWORD PTR sse2_range[16], xmm6
psrlw xmm2, 4
psrlw xmm6, 4
psubw xmm0, xmm2
psubw xmm4, xmm6
paddw xmm1, xmm2
paddw xmm5, xmm6
punpcklwd xmm0, xmm1
pmullw xmm0, XMMWORD PTR SSE2_BOUNDS_SCALE
pand xmm0, XMMWORD PTR SSE2_BOUNDS_MASK
movdqa XMMWORD PTR sse2_bounds[ 0], xmm0
punpcklwd xmm4, xmm5
pmullw xmm4, XMMWORD PTR SSE2_BOUNDS_SCALE
pand xmm4, XMMWORD PTR SSE2_BOUNDS_MASK
movdqa XMMWORD PTR sse2_bounds[16], xmm4
mov eax, DWORD PTR sse2_bounds[ 0]
mov ebx, DWORD PTR sse2_bounds[16]
shr eax, 8
shr ebx, 8
movzx ecx, WORD PTR sse2_bounds[13]
movzx edx, WORD PTR sse2_bounds[29]
mov DWORD PTR [edi + 0], ecx
mov DWORD PTR [edi + 16], edx

12. or eax, DWORD PTR sse2_bounds[ 4]
or ebx, DWORD PTR sse2_bounds[20]
or eax, DWORD PTR sse2_bounds[ 8]
or ebx, DWORD PTR sse2_bounds[24]
mov DWORD PTR [edi + 8], eax
mov DWORD PTR [edi + 24], ebx
movzx ecx, WORD PTR sse2_range [ 0]
movzx edx, WORD PTR sse2_range [16]
add cx, WORD PTR sse2_range [ 2]
add dx, WORD PTR sse2_range [18]
add cx, WORD PTR sse2_range [ 4]
add dx, WORD PTR sse2_range [20]
movzx ecx, WORD PTR COLOR_DIVIDER_TABLE[ecx*4]
movzx edx, WORD PTR COLOR_DIVIDER_TABLE[edx*4]
#ifdef FIX_DXT5_BUG
movzx eax, WORD PTR [edi + 8]
xor ax, WORD PTR [edi + 10]
cmovz ecx, eax
movzx ebx, WORD PTR [edi + 24]
xor bx, WORD PTR [edi + 26]
cmovz edx, ebx
#endif // FIX_DXT5_BUG
movzx eax, WORD PTR sse2_range [ 6]
movzx ebx, WORD PTR sse2_range [22]
mov eax, DWORD PTR ALPHA_DIVIDER_TABLE[eax*4]
mov ebx, DWORD PTR ALPHA_DIVIDER_TABLE[ebx*4]
or ecx, eax
or edx, ebx
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
movdqa xmm0, XMMWORD PTR [esi + 0] // src + width * 0 + 0
movdqa xmm1, XMMWORD PTR [esi + eax*4 + 0] // src + width * 4 + 0
movdqa xmm7, XMMWORD PTR sse2_minimum[ 0]
psubb xmm0, xmm7
psubb xmm1, xmm7
movdqa xmm2, XMMWORD PTR [esi + eax*8 + 0] // src + width * 8 + 0
psubb xmm2, xmm7
movdqa xmm3, XMMWORD PTR [esi + ebx*4 + 0] // src + width * 12 + 0
psubb xmm3, xmm7
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_0
movdqa xmm7, XMMWORD PTR SSE2_WORD_8
movdqa xmm4, xmm0
movdqa xmm5, xmm1
pand xmm0, xmm6
pand xmm1, xmm6
psrlw xmm4, 8
psrlw xmm5, 8
pmaddwd xmm0, xmm7
pmaddwd xmm1, xmm7
psllw xmm4, 3
psllw xmm5, 3
paddw xmm0, xmm4
paddw xmm1, xmm5
movdqa xmm4, xmm2
movdqa xmm5, xmm3
pand xmm2, xmm6
pand xmm3, xmm6
psrlw xmm4, 8
psrlw xmm5, 8
pmaddwd xmm2, xmm7
pmaddwd xmm3, xmm7
psllw xmm4, 3
psllw xmm5, 3
paddw xmm2, xmm4
paddw xmm3, xmm5
#ifdef USE_SSSE3
movd xmm7, ecx
pshufd xmm7, xmm7, 0x00
movdqa xmm5, XMMWORD PTR SSE2_INDICES_SCALE_3
movdqa xmm6, XMMWORD PTR SSE2_INDICES_SCALE_4

13. pmulhw xmm0, xmm7
pmulhw xmm1, xmm7
pmulhw xmm2, xmm7
pmulhw xmm3, xmm7
packuswb xmm0, xmm1
pshufb xmm0, XMMWORD PTR SSE2_INDICES_SHUFFLE
pmaddubsw xmm0, xmm5
pmaddwd xmm0, xmm6
movdqa XMMWORD PTR sse2_indices[ 0], xmm0
packuswb xmm2, xmm3
pshufb xmm2, XMMWORD PTR SSE2_INDICES_SHUFFLE
pmaddubsw xmm2, xmm5
pmaddwd xmm2, xmm6
movdqa XMMWORD PTR sse2_indices[16], xmm2
#else // USE_SSSE3
movd xmm7, ecx
pshufd xmm7, xmm7, 0x00
pmulhw xmm0, xmm7
pmulhw xmm1, xmm7
pshuflw xmm0, xmm0, 0xD8
pshufhw xmm0, xmm0, 0xD8
pshuflw xmm1, xmm1, 0xD8
pshufhw xmm1, xmm1, 0xD8
movdqa xmm6, XMMWORD PTR SSE2_INDICES_SCALE_1
pmaddwd xmm0, xmm6
pmaddwd xmm1, xmm6
packssdw xmm0, xmm1
pshuflw xmm0, xmm0, 0xD8
pshufhw xmm0, xmm0, 0xD8
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[ 0], xmm0
pmulhw xmm2, xmm7
pmulhw xmm3, xmm7
pshuflw xmm2, xmm2, 0xD8
pshufhw xmm2, xmm2, 0xD8
pshuflw xmm3, xmm3, 0xD8
pshufhw xmm3, xmm3, 0xD8
pmaddwd xmm2, xmm6
pmaddwd xmm3, xmm6
packssdw xmm2, xmm3
pshuflw xmm2, xmm2, 0xD8
pshufhw xmm2, xmm2, 0xD8
pmaddwd xmm2, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[16], xmm2
#endif // USE_SSSE3
movdqa xmm0, XMMWORD PTR [esi + 16] // src + width * 0 + 16
movdqa xmm1, XMMWORD PTR [esi + eax*4 + 16] // src + width * 4 + 16
movdqa xmm7, XMMWORD PTR sse2_minimum[16]
psubb xmm0, xmm7
psubb xmm1, xmm7
movdqa xmm2, XMMWORD PTR [esi + eax*8 + 16] // src + width * 8 + 16
psubb xmm2, xmm7
movdqa xmm3, XMMWORD PTR [esi + ebx*4 + 16] // src + width * 12 + 16
psubb xmm3, xmm7
movdqa xmm6, XMMWORD PTR SSE2_INDICES_MASK_0
movdqa xmm7, XMMWORD PTR SSE2_WORD_8
movdqa xmm4, xmm0
movdqa xmm5, xmm1
pand xmm0, xmm6
pand xmm1, xmm6
pmaddwd xmm0, xmm7
pmaddwd xmm1, xmm7
psrlw xmm4, 8
psrlw xmm5, 8
psllw xmm4, 3
psllw xmm5, 3
paddw xmm0, xmm4
paddw xmm1, xmm5
movdqa xmm4, xmm2
movdqa xmm5, xmm3
pand xmm2, xmm6
pand xmm3, xmm6
pmaddwd xmm2, xmm7
pmaddwd xmm3, xmm7

14. psrlw xmm4, 8
psrlw xmm5, 8
psllw xmm4, 3
psllw xmm5, 3
paddw xmm2, xmm4
paddw xmm3, xmm5
#ifdef USE_SSSE3
movd xmm7, edx
pshufd xmm7, xmm7, 0x00
movdqa xmm5, XMMWORD PTR SSE2_INDICES_SCALE_3
movdqa xmm6, XMMWORD PTR SSE2_INDICES_SCALE_4
pmulhw xmm0, xmm7
pmulhw xmm1, xmm7
pmulhw xmm2, xmm7
pmulhw xmm3, xmm7
packuswb xmm0, xmm1
pshufb xmm0, XMMWORD PTR SSE2_INDICES_SHUFFLE
pmaddubsw xmm0, xmm5
pmaddwd xmm0, xmm6
movdqa XMMWORD PTR sse2_indices[32], xmm0
packuswb xmm2, xmm3
pshufb xmm2, XMMWORD PTR SSE2_INDICES_SHUFFLE
pmaddubsw xmm2, xmm5
pmaddwd xmm2, xmm6
movdqa XMMWORD PTR sse2_indices[48], xmm2
#else // USE_SSSE3
movd xmm7, edx
pshufd xmm7, xmm7, 0x00
pmulhw xmm0, xmm7
pmulhw xmm1, xmm7
pshuflw xmm0, xmm0, 0xD8
pshufhw xmm0, xmm0, 0xD8
pshuflw xmm1, xmm1, 0xD8
pshufhw xmm1, xmm1, 0xD8
movdqa xmm6, XMMWORD PTR SSE2_INDICES_SCALE_1
pmaddwd xmm0, xmm6
pmaddwd xmm1, xmm6
packssdw xmm0, xmm1
pshuflw xmm0, xmm0, 0xD8
pshufhw xmm0, xmm0, 0xD8
pmaddwd xmm0, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[32], xmm0
pmulhw xmm2, xmm7
pmulhw xmm3, xmm7
pshuflw xmm2, xmm2, 0xD8
pshufhw xmm2, xmm2, 0xD8
pshuflw xmm3, xmm3, 0xD8
pshufhw xmm3, xmm3, 0xD8
pmaddwd xmm2, xmm6
pmaddwd xmm3, xmm6
packssdw xmm2, xmm3
pshuflw xmm2, xmm2, 0xD8
pshufhw xmm2, xmm2, 0xD8
pmaddwd xmm2, XMMWORD PTR SSE2_WORD_1
movdqa XMMWORD PTR sse2_indices[48], xmm2
#endif // USE_SSSE3
movzx eax, BYTE PTR sse2_indices[ 0]
movzx ebx, BYTE PTR sse2_indices[ 8]
mov cl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov ch, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 12], cl
mov BYTE PTR [edi + 13], ch
movzx eax, BYTE PTR sse2_indices[16]
movzx ebx, BYTE PTR sse2_indices[24]
mov dl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov dh, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 14], dl
mov BYTE PTR [edi + 15], dh
movzx eax, BYTE PTR sse2_indices[32]
movzx ebx, BYTE PTR sse2_indices[40]
mov cl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov ch, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 28], cl
mov BYTE PTR [edi + 29], ch

15. movzx eax, BYTE PTR sse2_indices[48]
movzx ebx, BYTE PTR sse2_indices[56]
mov dl, BYTE PTR COLOR_INDICES_TABLE[eax*1 + 0]
mov dh, BYTE PTR COLOR_INDICES_TABLE[ebx*1 + 0]
mov BYTE PTR [edi + 30], dl
mov BYTE PTR [edi + 31], dh
movzx eax, BYTE PTR sse2_indices[ 4]
movzx ebx, BYTE PTR sse2_indices[36]
mov cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 0]
mov dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 0]
movzx eax, BYTE PTR sse2_indices[ 5]
movzx ebx, BYTE PTR sse2_indices[37]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 128]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 128]
movzx eax, BYTE PTR sse2_indices[12]
movzx ebx, BYTE PTR sse2_indices[44]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 256]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 256]
mov WORD PTR [edi + 2], cx
mov WORD PTR [edi + 18], dx
mov cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 384]
mov dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 384]
movzx eax, BYTE PTR sse2_indices[13]
movzx ebx, BYTE PTR sse2_indices[45]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 512]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 512]
movzx eax, BYTE PTR sse2_indices[20]
movzx ebx, BYTE PTR sse2_indices[52]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 640]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 640]
movzx eax, BYTE PTR sse2_indices[21]
movzx ebx, BYTE PTR sse2_indices[53]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 768]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 768]
mov WORD PTR [edi + 4], cx
mov WORD PTR [edi + 20], dx
mov cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 896]
mov dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 896]
movzx eax, BYTE PTR sse2_indices[28]
movzx ebx, BYTE PTR sse2_indices[60]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 1024]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 1024]
movzx eax, BYTE PTR sse2_indices[29]
movzx ebx, BYTE PTR sse2_indices[61]
or cx, WORD PTR ALPHA_INDICES_TABLE[eax*2 + 1152]
or dx, WORD PTR ALPHA_INDICES_TABLE[ebx*2 + 1152]
mov WORD PTR [edi + 6], cx
mov WORD PTR [edi + 22], dx
add esi, 32 // src += 32
add edi, 32 // dst += 32
sub DWORD PTR x_count, 8
jnz x_loop
mov eax, DWORD PTR width // width * 1
lea ebx, DWORD PTR [eax + eax*2] // width * 3
lea esi, DWORD PTR [esi + ebx*4] // src += width * 12
sub DWORD PTR y_count, 4
jnz y_loop
}
}

16. void PrepareColorDividerTable() {
for (int i = 0; i < 768; i++) {
COLOR_DIVIDER_TABLE[i] = (((1 << 15) / (i + 1)) << 16) | ((1 << 15) / (i + 1));
}
}
void PrepareAlphaDividerTable() {
for (int i = 0; i < 256; i++) {
ALPHA_DIVIDER_TABLE[i] = (((1 << 16) / (i + 1)) << 16);
}
}
void PrepareColorIndicesTable() {
const BYTE COLOR_INDEX[] = {1, 3, 2, 0};
for (int i = 0; i < 256; i++) {
BYTE ci3 = COLOR_INDEX[(i & 0xC0) >> 6] << 6;
BYTE ci2 = COLOR_INDEX[(i & 0x30) >> 4] << 4;
BYTE ci1 = COLOR_INDEX[(i & 0x0C) >> 2] << 2;
BYTE ci0 = COLOR_INDEX[(i & 0x03) >> 0] << 0;
COLOR_INDICES_TABLE[i] = ci3 | ci2 | ci1 | ci0;
}
}
void PrepareAlphaIndicesTable() {
const int SHIFT_LEFT [] = {0, 1, 2, 0, 1, 2, 3, 0, 1, 2};
const int SHIFT_RIGHT[] = {0, 0, 0, 2, 2, 2, 2, 1, 1, 1};
const WORD ALPHA_INDEX[] = {1, 7, 6, 5, 4, 3, 2, 0};
for (int j = 0; j < 10; j++) {
int sl = SHIFT_LEFT [j] * 6;
int sr = SHIFT_RIGHT[j] * 2;
for (int i = 0; i < 64; i++) {
WORD ai1 = ALPHA_INDEX[(i & 0x38) >> 3] << 3;
WORD ai0 = ALPHA_INDEX[(i & 0x07) >> 0] << 0;
ALPHA_INDICES_TABLE[(j * 64) + i] = ((ai1 | ai0) << sl) >> sr;
}
}
}
