This document describes the components and structure of a WordprocessingML glossary document. A glossary document stores supplementary document content like AutoText entries. It contains individual glossary entries, each with properties defining how/where the entry inserts and a docPartBody containing the entry's block content. The glossary document functions as a separate mini-document within the WordprocessingML package.

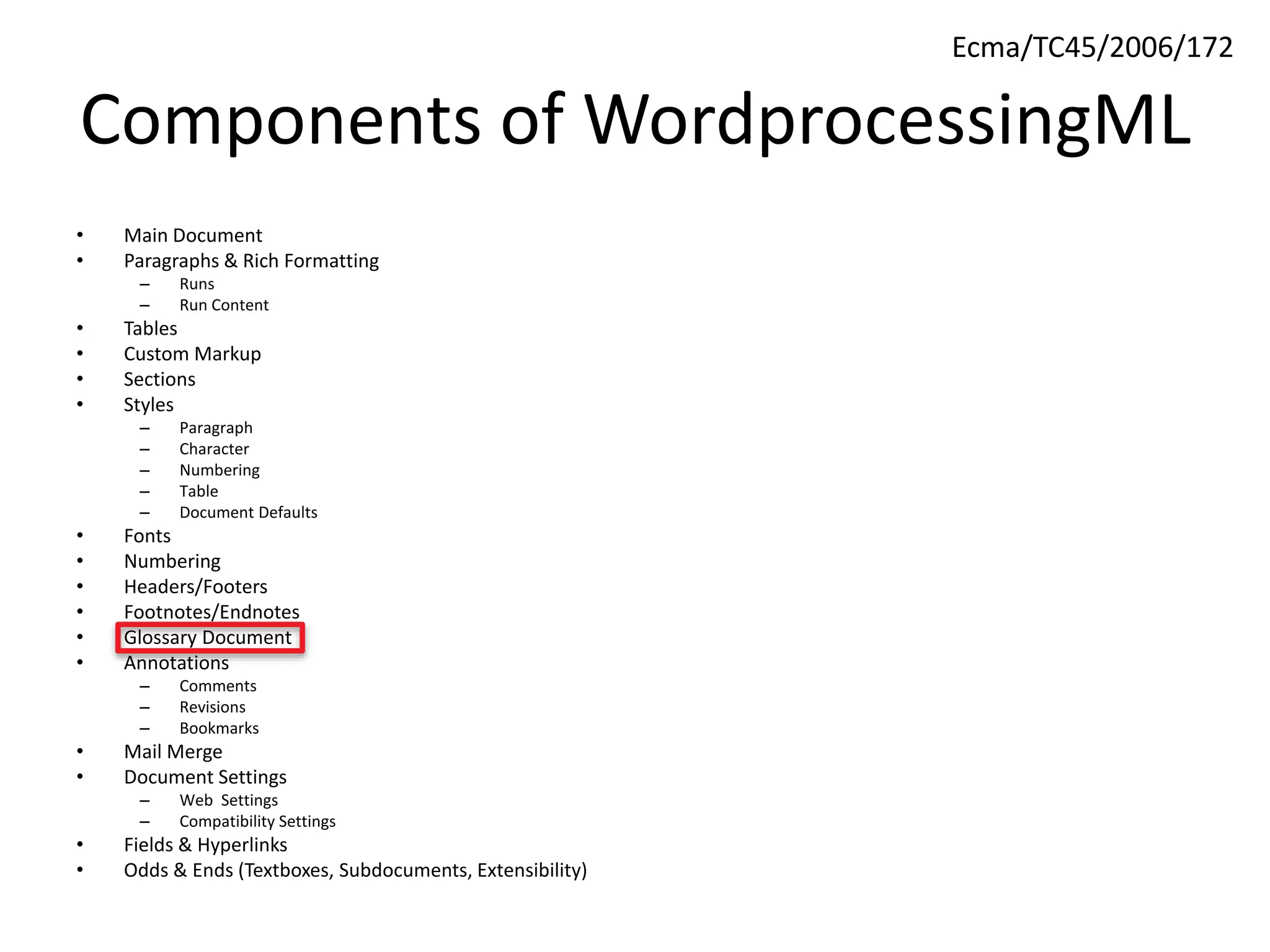

1. Components of WordprocessingML
• Main Document
• Paragraphs & Rich Formatting
– Runs
– Run Content
• Tables
• Custom Markup
• Sections
• Styles
– Paragraph
– Character
– Numbering
– Table
– Document Defaults
• Fonts
• Numbering
• Headers/Footers
• Footnotes/Endnotes
• Glossary Document
• Annotations
– Comments
– Revisions
– Bookmarks
• Mail Merge
• Document Settings
– Web Settings
– Compatibility Settings
• Fields & Hyperlinks
• Odds & Ends (Textboxes, Subdocuments, Extensibility)
Ecma/TC45/2006/172

2. WordprocessingML – Glossary
Document

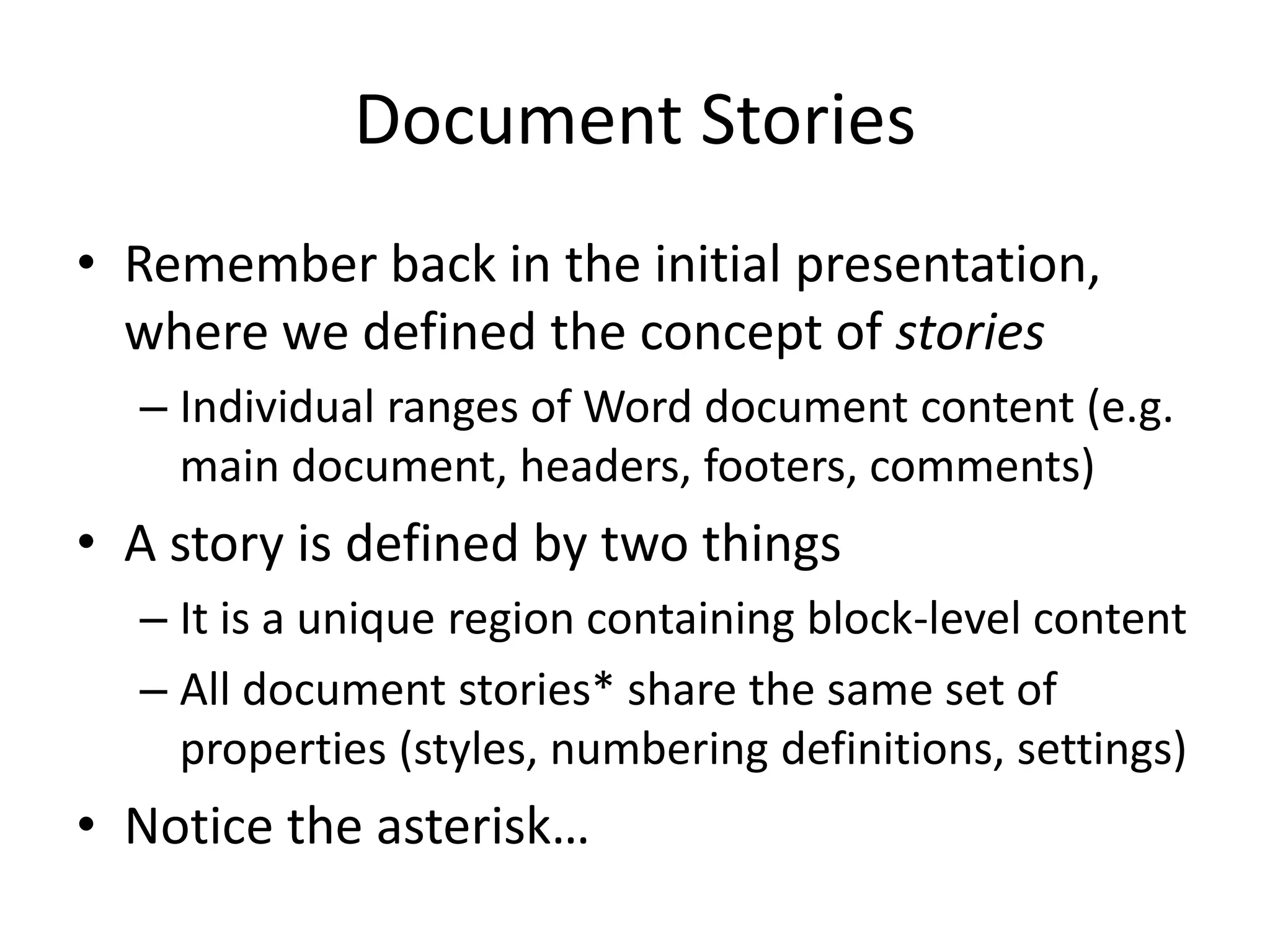

3. Document Stories
• Remember back in the initial presentation,
where we defined the concept of stories
– Individual ranges of Word document content (e.g.
main document, headers, footers, comments)
• A story is defined by two things
– It is a unique region containing block-level content
– All document stories* share the same set of
properties (styles, numbering definitions, settings)
• Notice the asterisk…

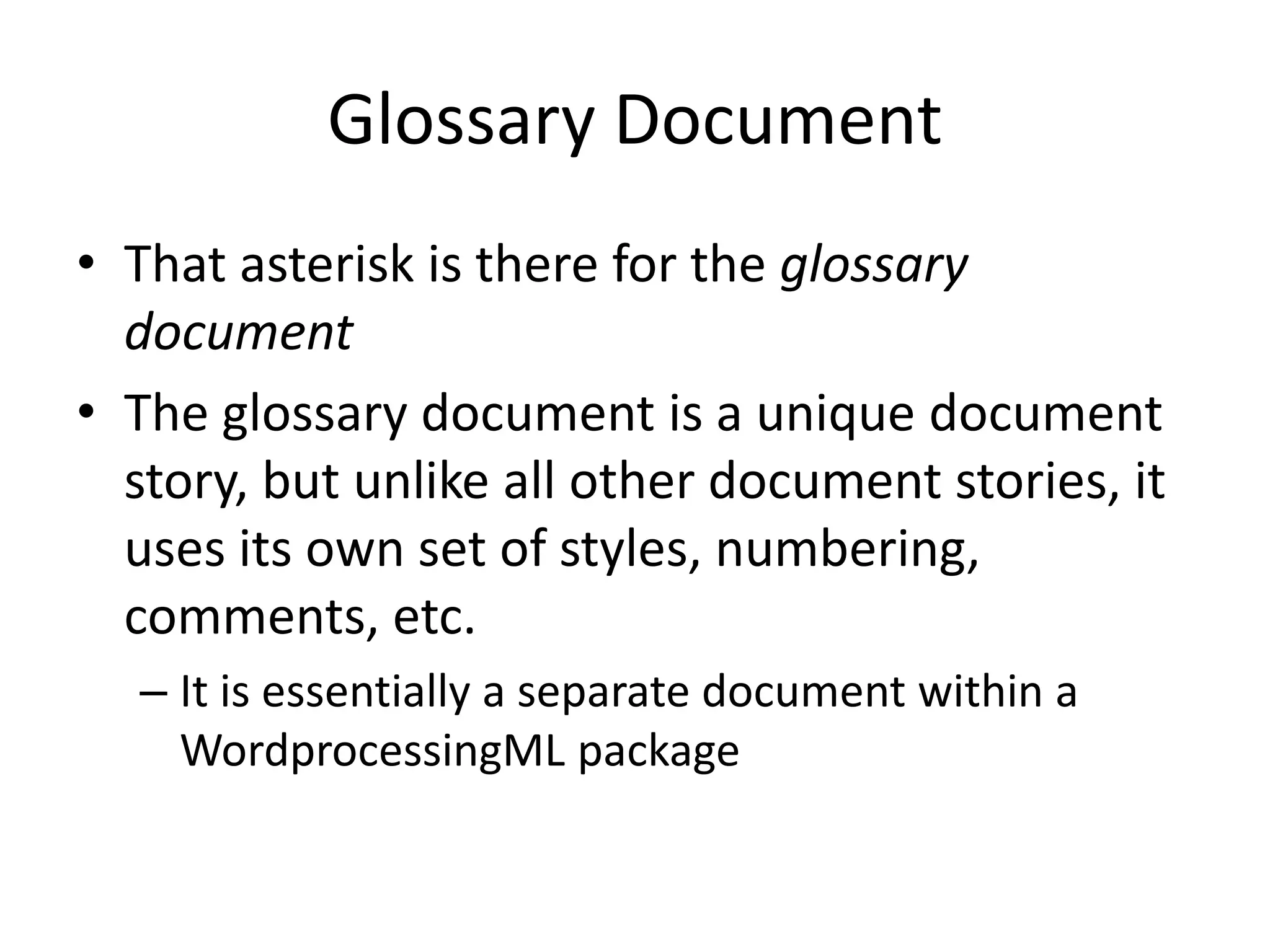

4. Glossary Document
• That asterisk is there for the glossary
document
• The glossary document is a unique document
story, but unlike all other document stories, it
uses its own set of styles, numbering,
comments, etc.
– It is essentially a separate document within a
WordprocessingML package

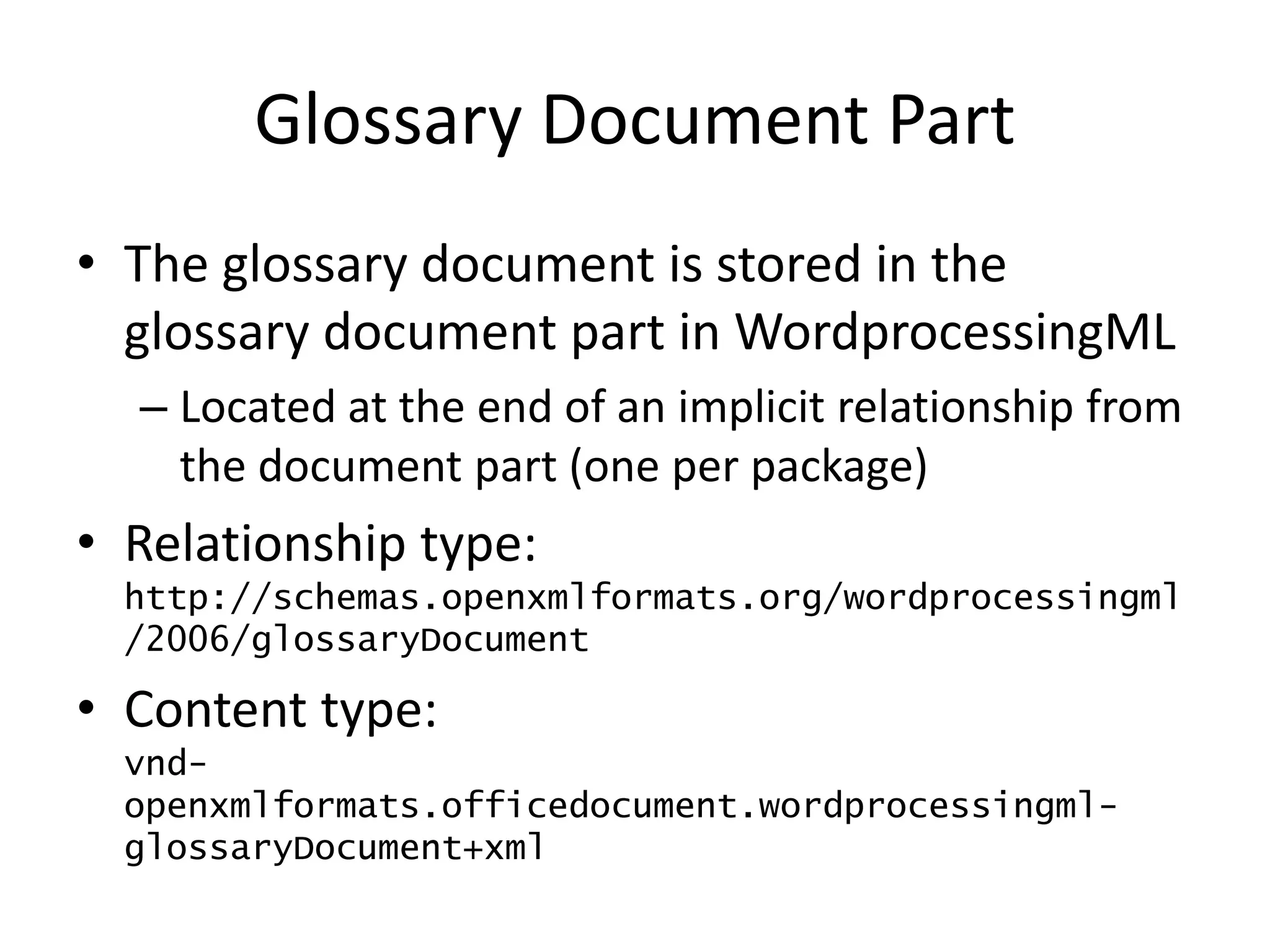

5. Glossary Document Part
• The glossary document is stored in the
glossary document part in WordprocessingML
– Located at the end of an implicit relationship from
the document part (one per package)
• Relationship type:
http://schemas.openxmlformats.org/wordprocessingml
/2006/glossaryDocument
• Content type:
vnd-
openxmlformats.officedocument.wordprocessingml-
glossaryDocument+xml

6. Glossary Document
• So what’s in the glossary document?
• The glossary document stores supplementary
document content
– Rich document content which travels with the
document to be accessible, but is not displayed
– e.g. If you’re familiar with Word, AutoText entries
are one example of this

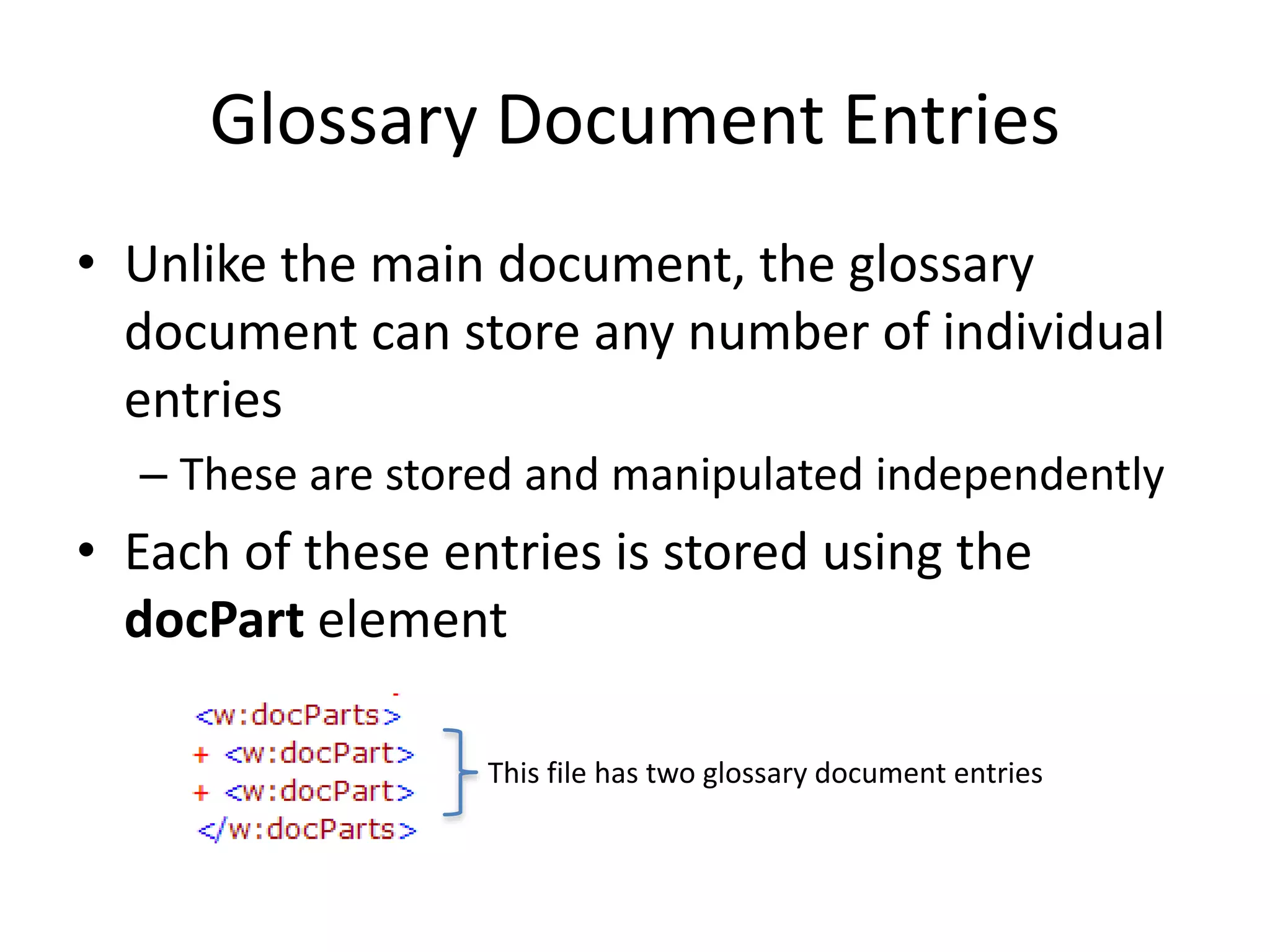

7. Glossary Document Entries
• Unlike the main document, the glossary
document can store any number of individual
entries
– These are stored and manipulated independently
• Each of these entries is stored using the
docPart element
This file has two glossary document entries

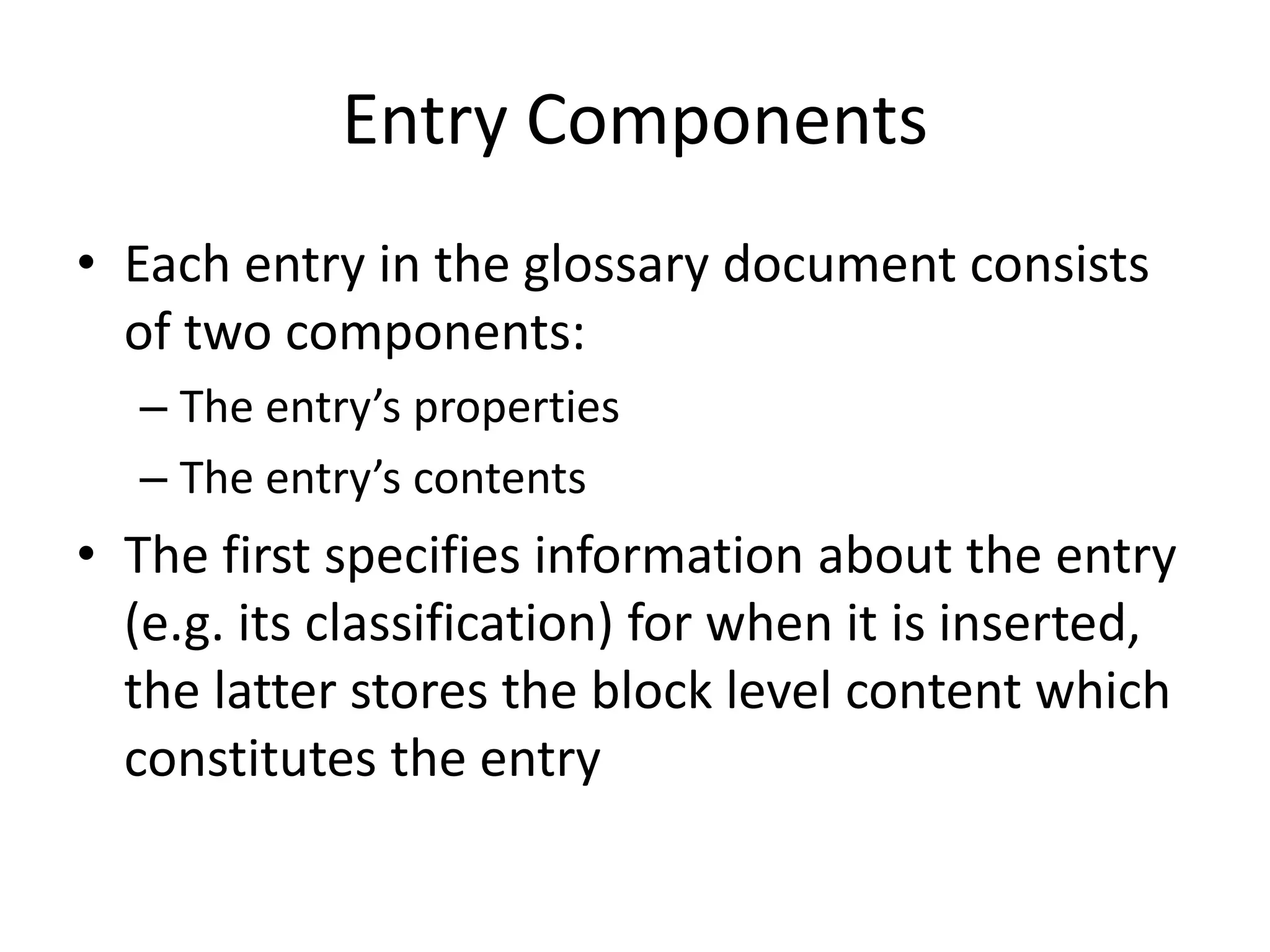

8. Entry Components
• Each entry in the glossary document consists
of two components:
– The entry’s properties
– The entry’s contents
• The first specifies information about the entry
(e.g. its classification) for when it is inserted,
the latter stores the block level content which
constitutes the entry

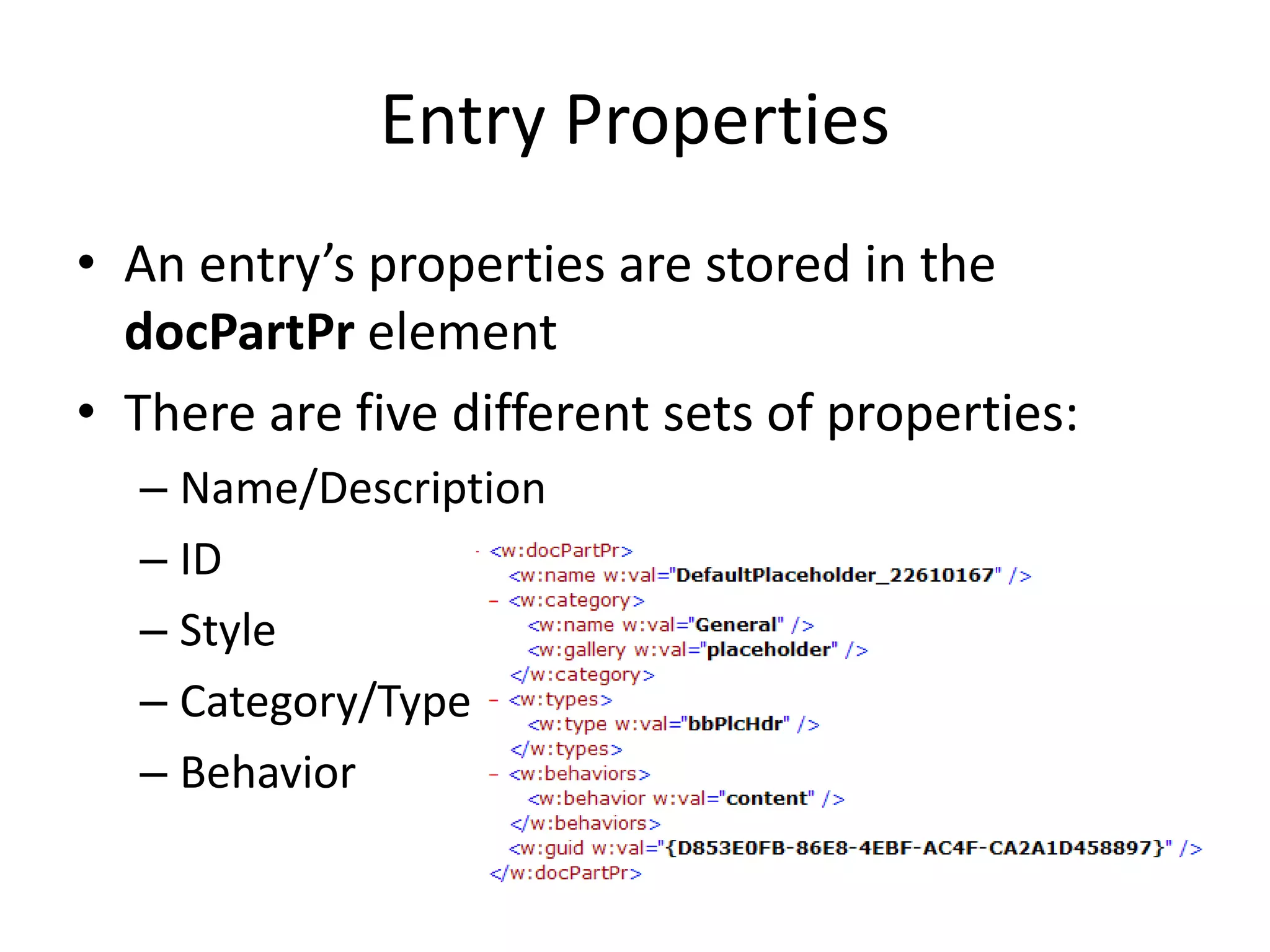

9. Entry Properties
• An entry’s properties are stored in the
docPartPr element
• There are five different sets of properties:
– Name/Description
– ID
– Style
– Category/Type
– Behavior

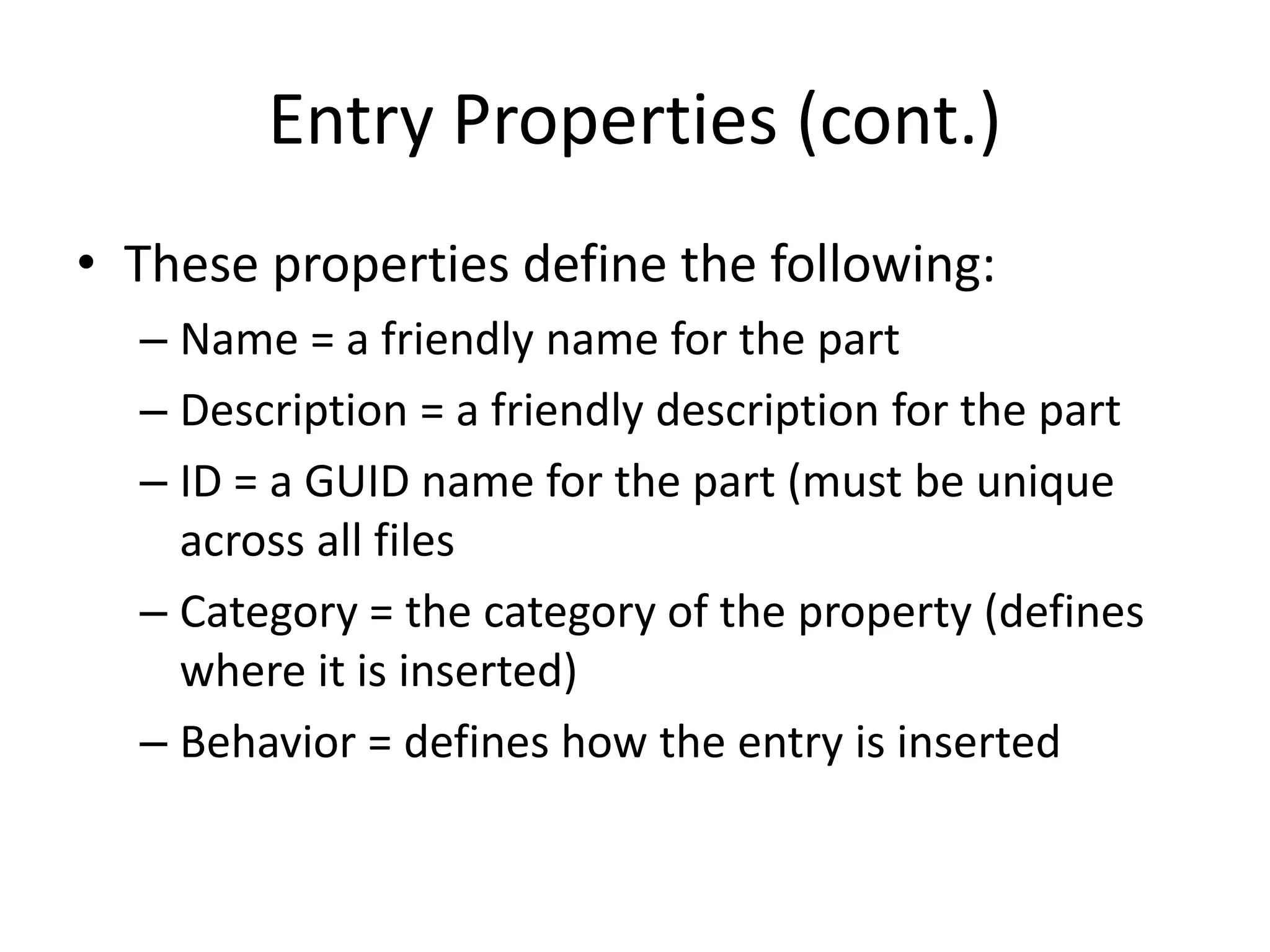

10. Entry Properties (cont.)
• These properties define the following:
– Name = a friendly name for the part
– Description = a friendly description for the part
– ID = a GUID name for the part (must be unique
across all files
– Category = the category of the property (defines
where it is inserted)
– Behavior = defines how the entry is inserted

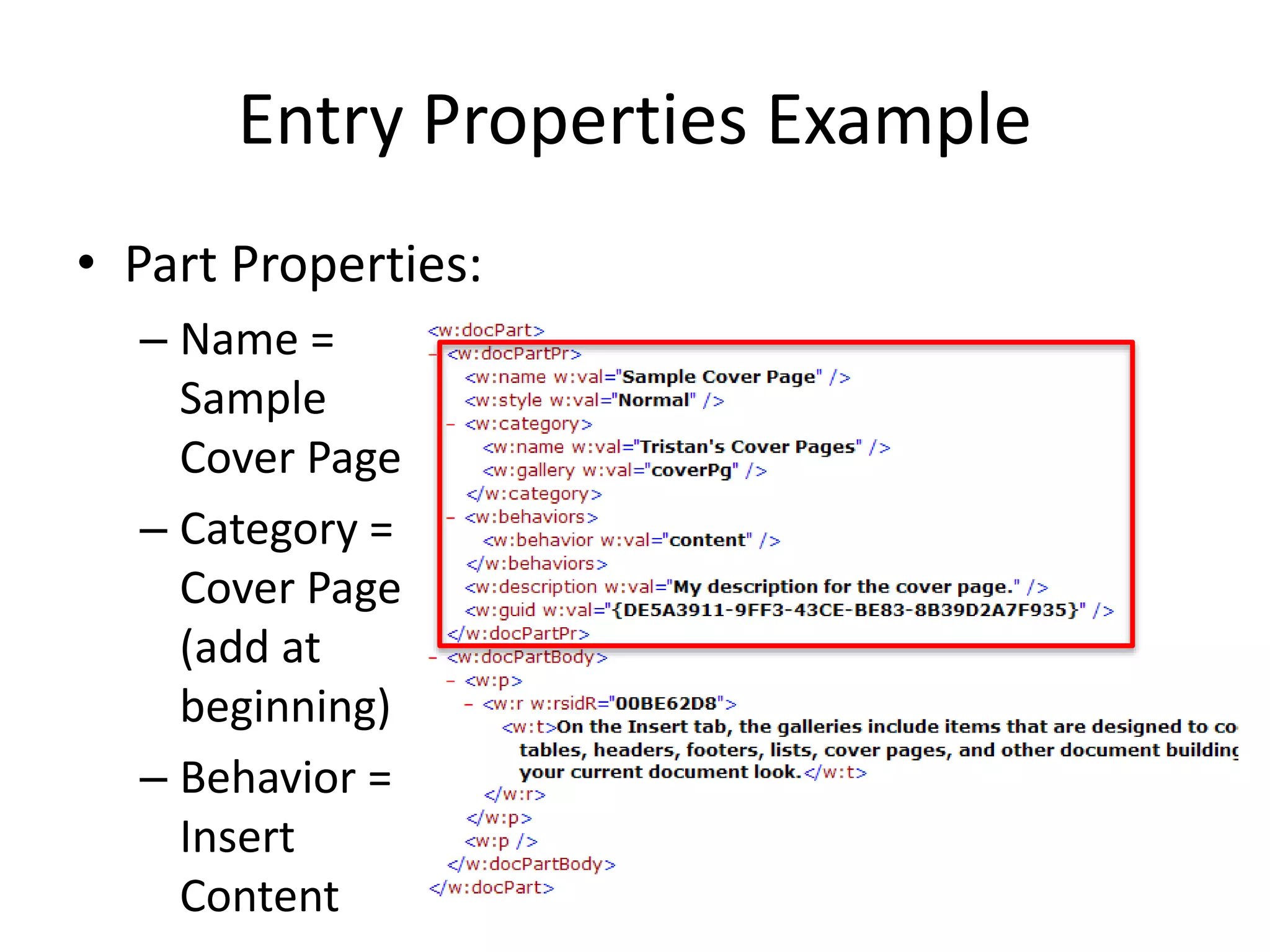

11. Entry Properties Example
• Part Properties:
– Name =
Sample
Cover Page
– Category =
Cover Page
(add at
beginning)
– Behavior =
Insert
Content

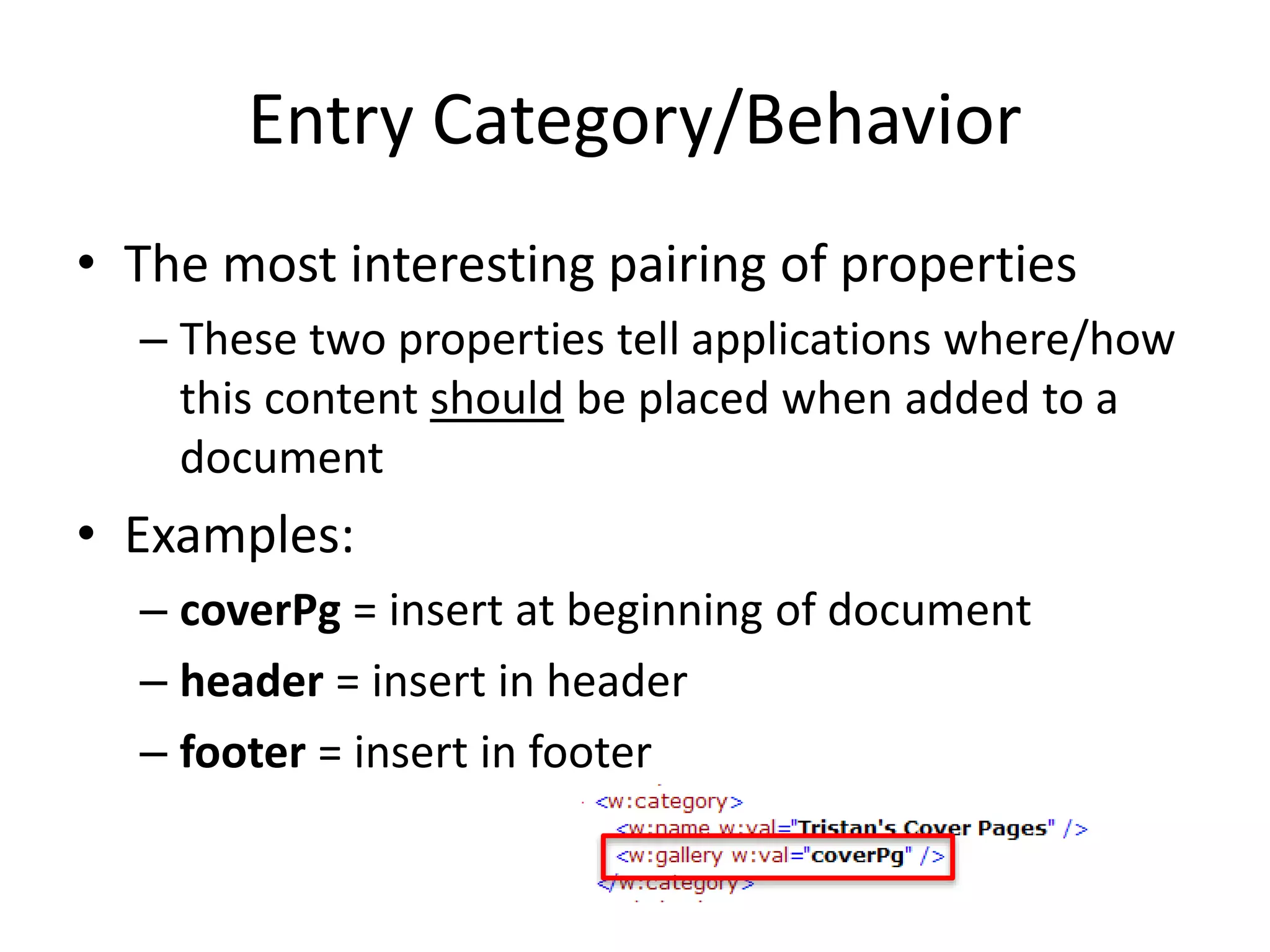

12. Entry Category/Behavior
• The most interesting pairing of properties
– These two properties tell applications where/how
this content should be placed when added to a
document
• Examples:
– coverPg = insert at beginning of document
– header = insert in header
– footer = insert in footer

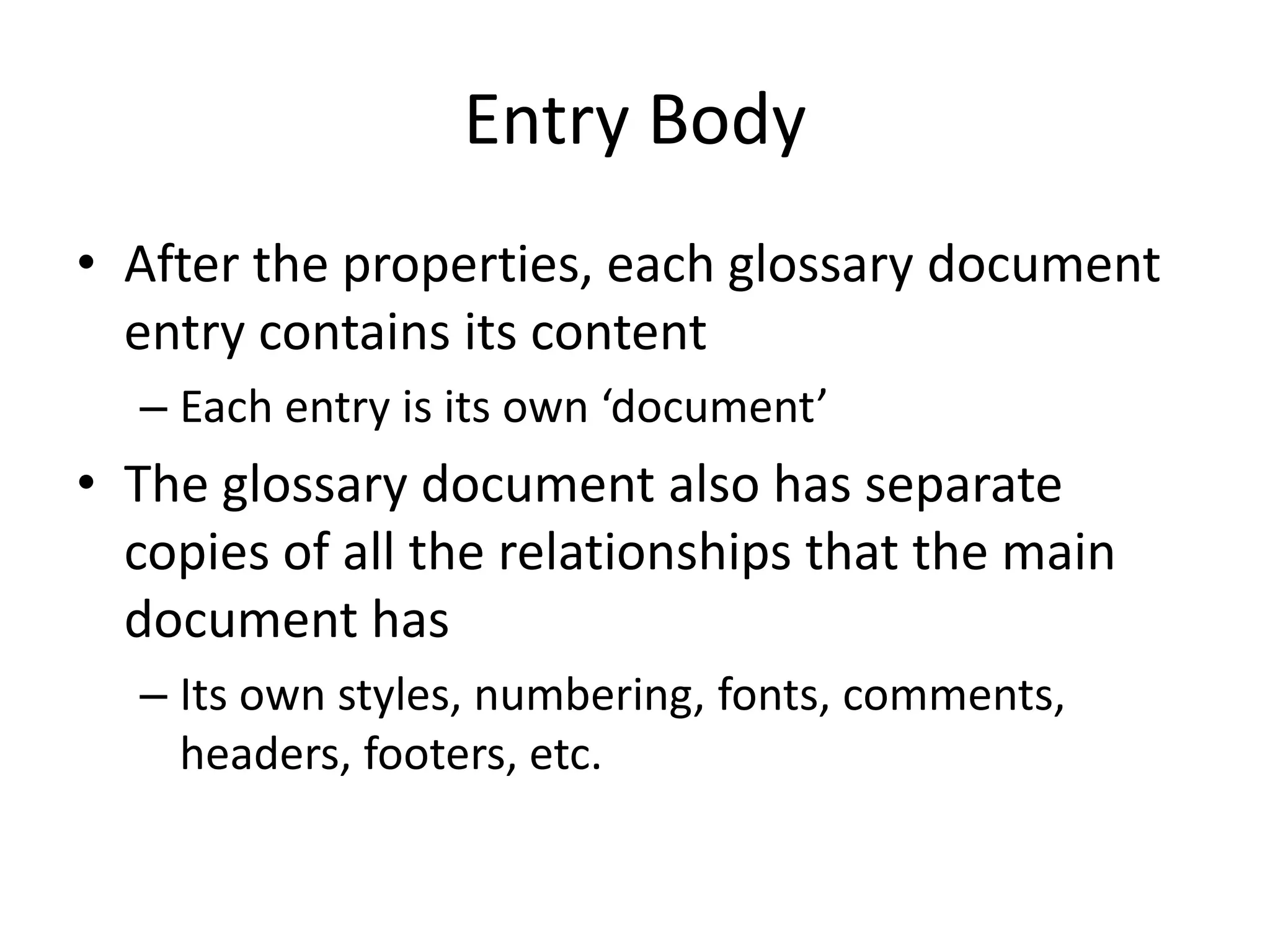

13. Entry Body
• After the properties, each glossary document
entry contains its content
– Each entry is its own ‘document’
• The glossary document also has separate
copies of all the relationships that the main
document has
– Its own styles, numbering, fonts, comments,
headers, footers, etc.

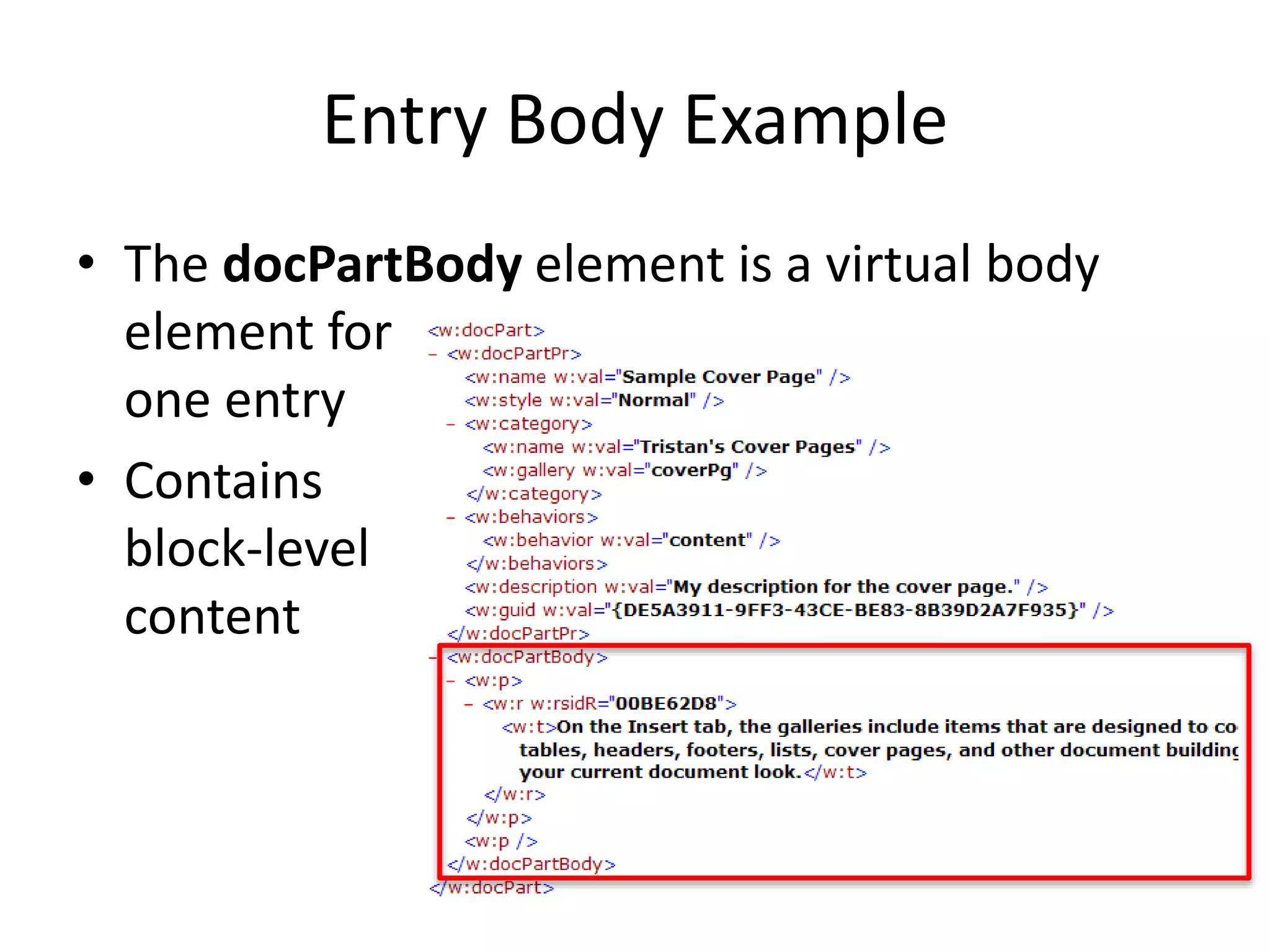

14. Entry Body Example
• The docPartBody element is a virtual body
element for
one entry
• Contains
block-level
content

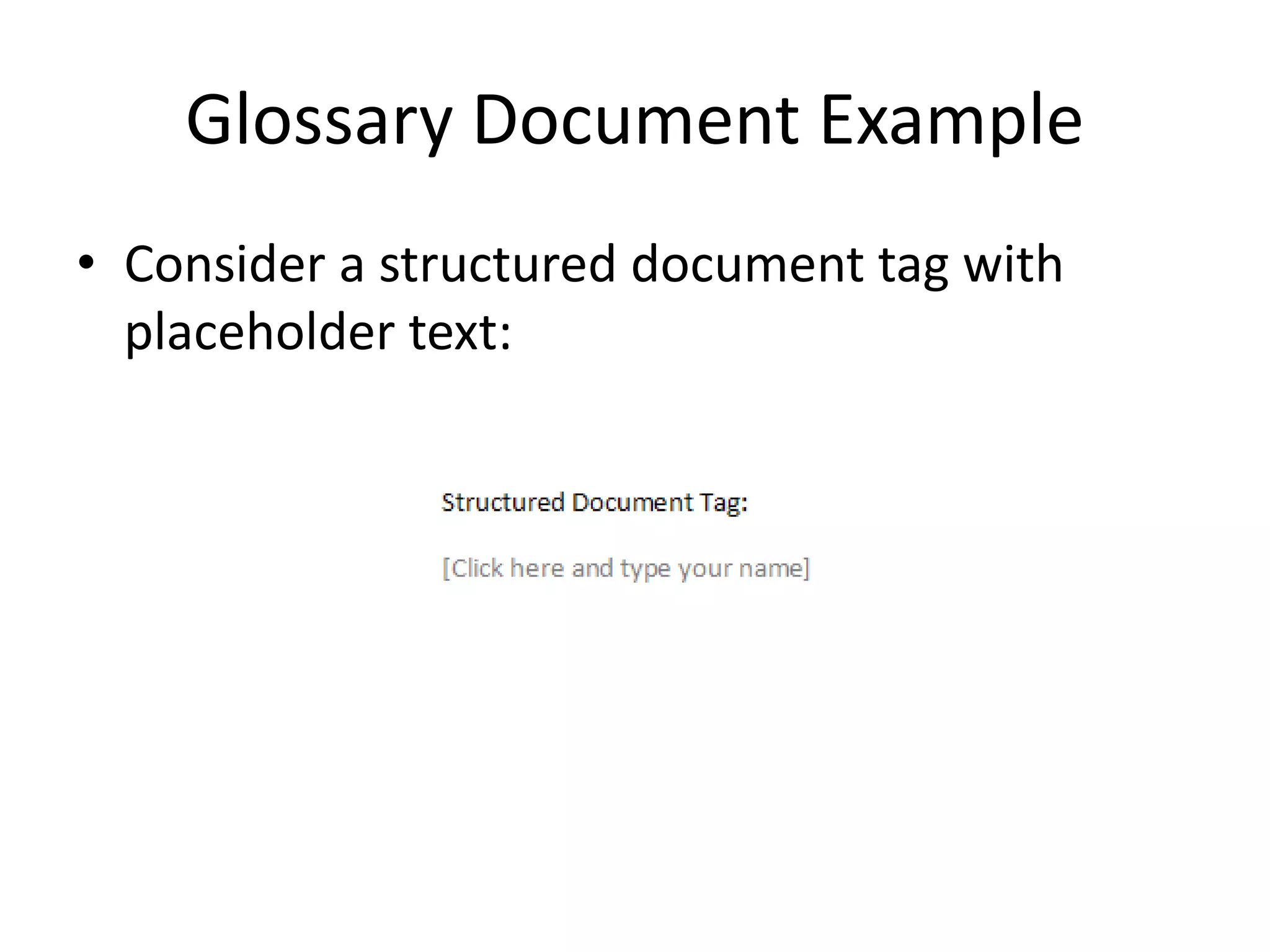

15. Glossary Document Example
• Consider a structured document tag with
placeholder text:

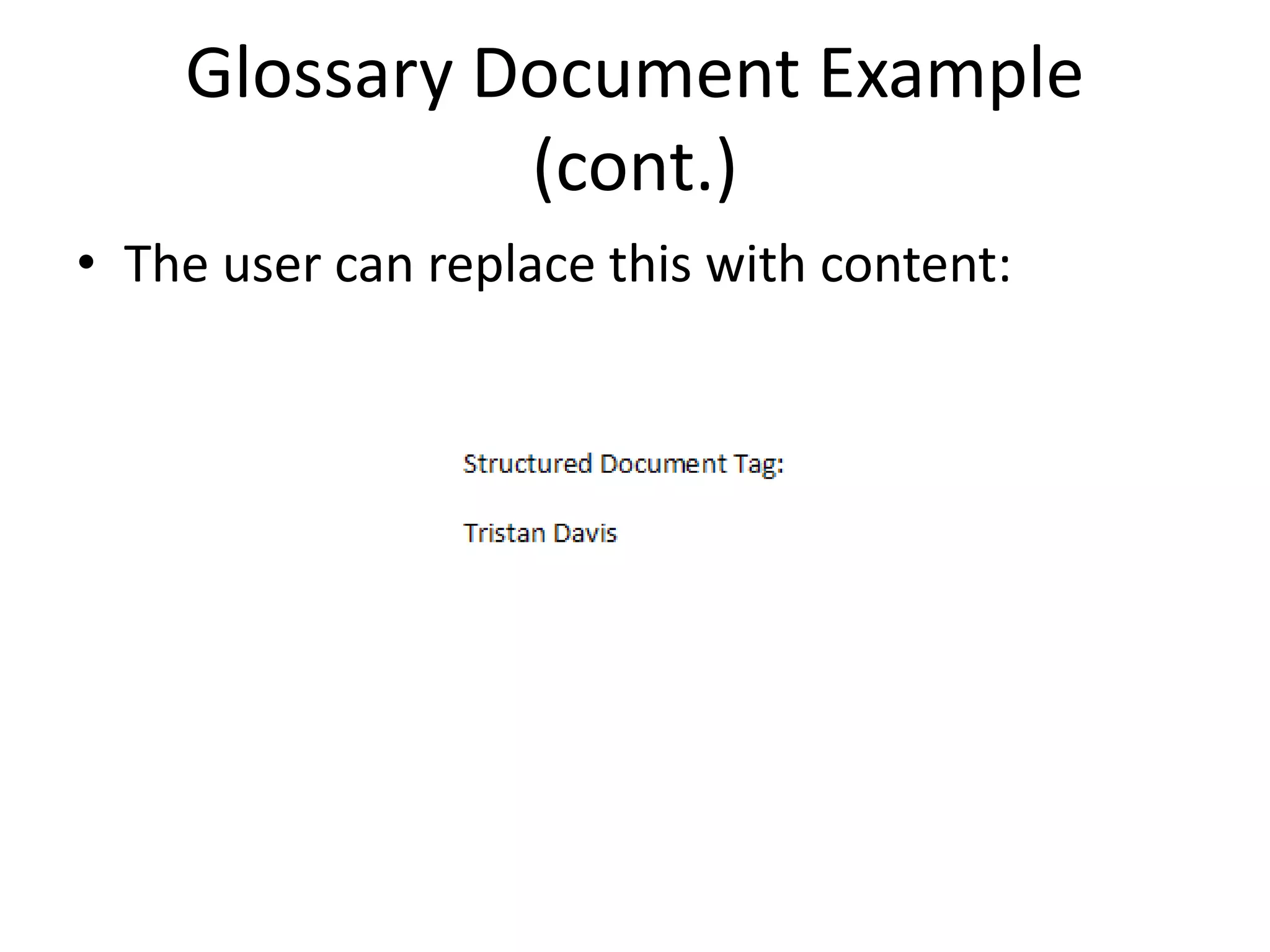

16. Glossary Document Example
(cont.)
• The user can replace this with content:

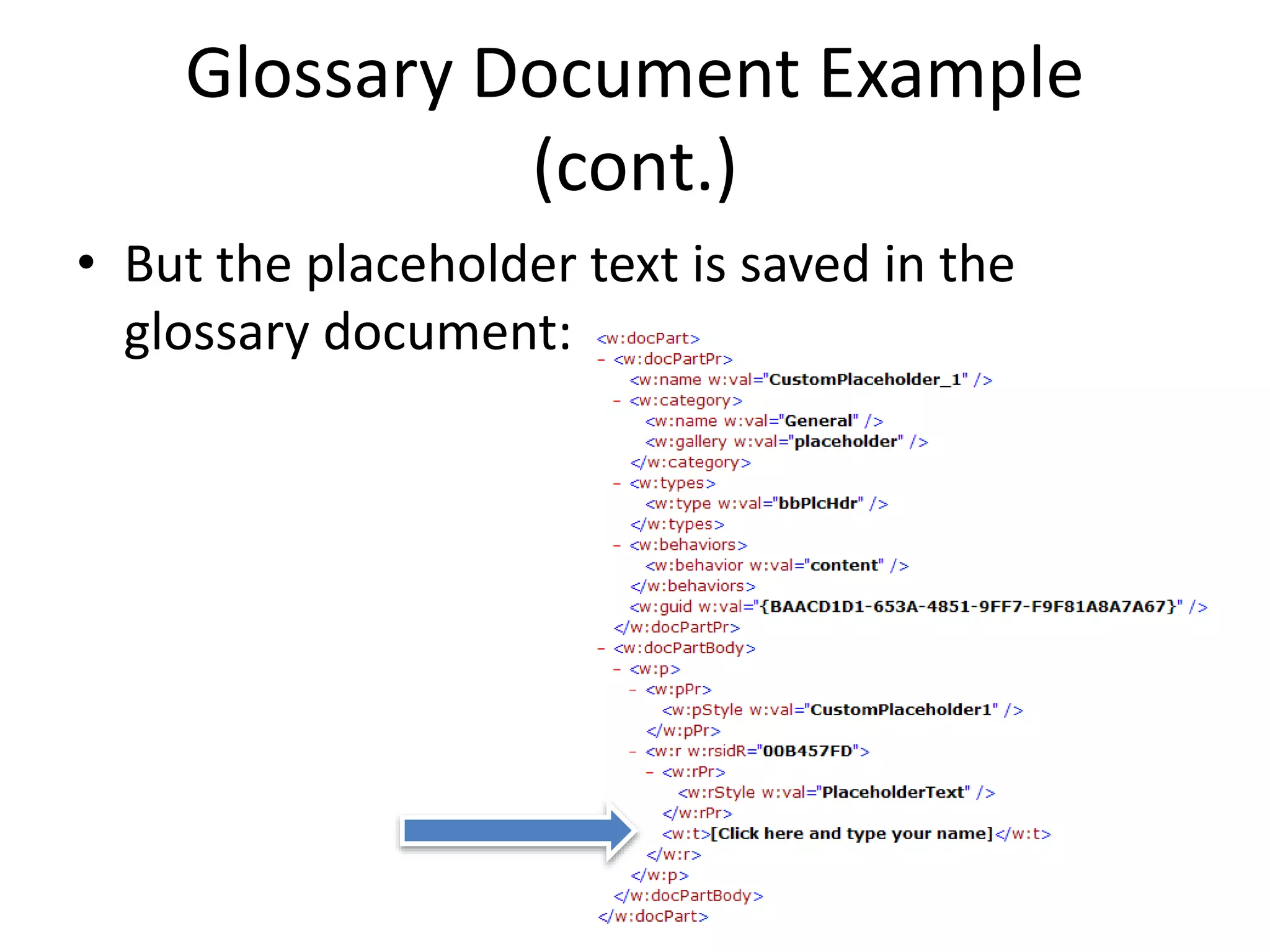

17. Glossary Document Example
(cont.)
• But the placeholder text is saved in the
glossary document:

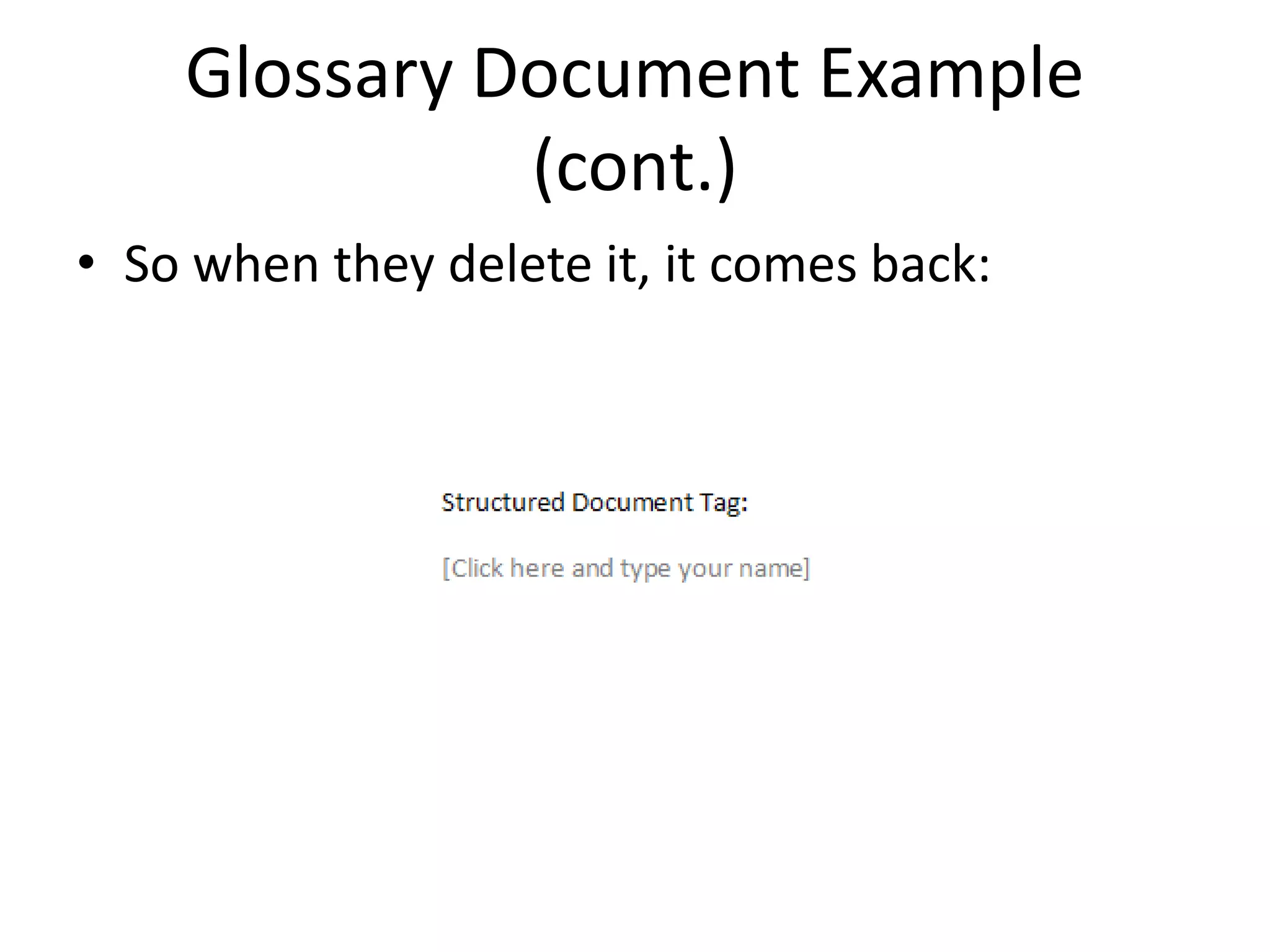

18. Glossary Document Example
(cont.)
• So when they delete it, it comes back:

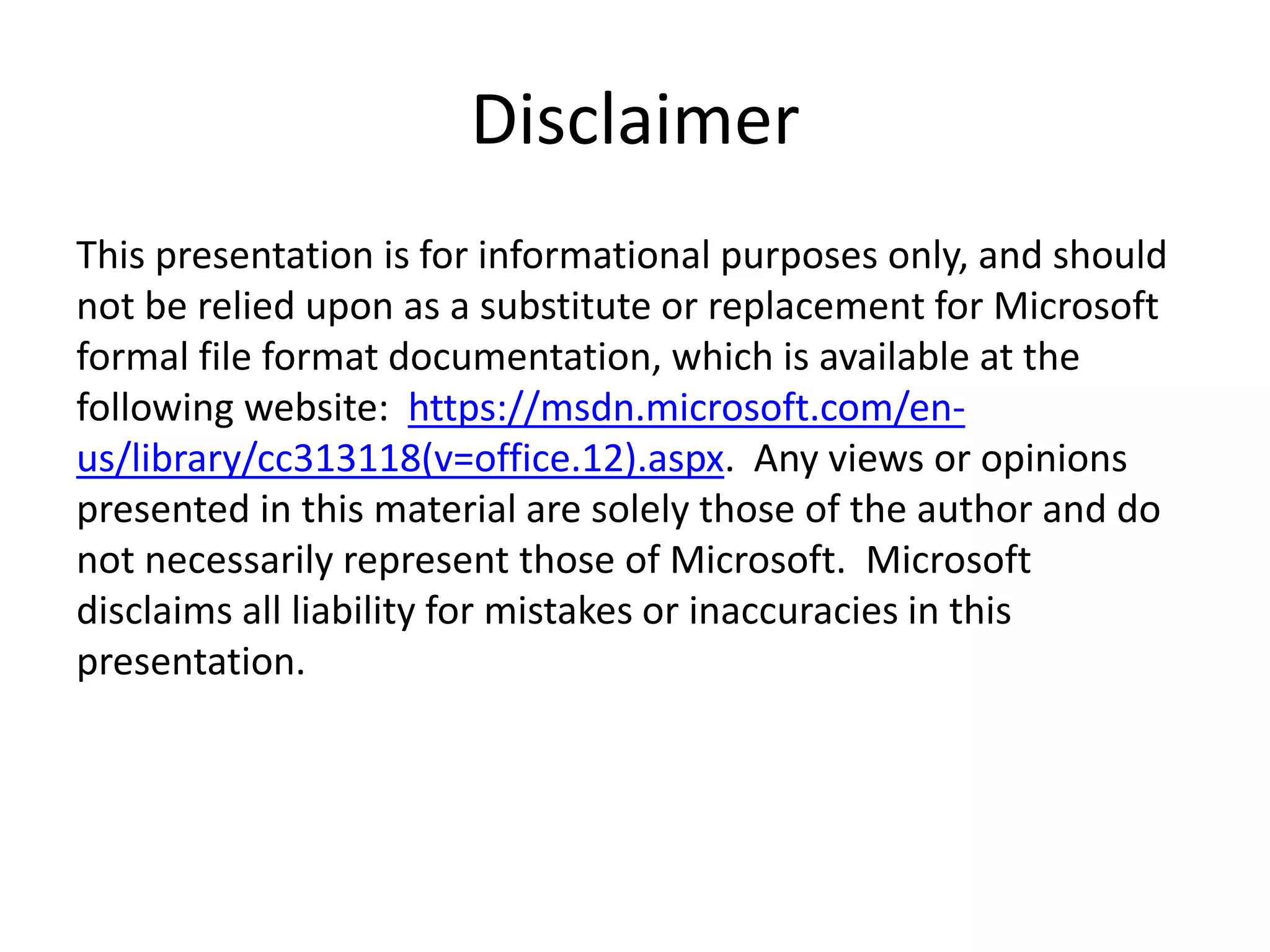

19. Disclaimer
