1. Introduction to Machine
Learning
(Supervised learning)
Dmytro Fishman (dmytro@ut.ee)

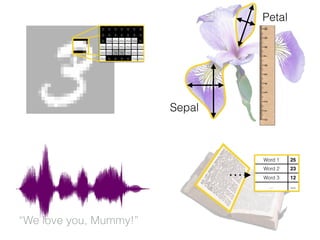

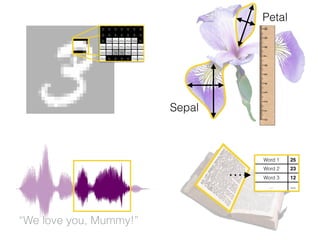

3. This is an introduction to the topic

4. This is an introduction to the topic
We will try to provide a beautiful scenery

5. “We love you, Mummy!”

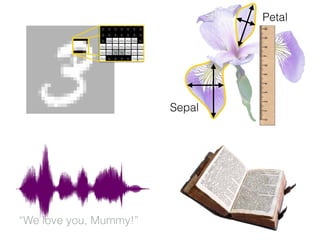

6. 0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
“We love you, Mummy!”

7. 0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
“We love you, Mummy!”
Petal
Sepal

8. 0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
“We love you, Mummy!”
Petal
Sepal
Word 1 25
Word 2 23
Word 3 12
… …

9. Petal
Sepal
0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
Word 1 25
Word 2 23
Word 3 12
… …
“We love you, Mummy!”

10. http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
Big DataBig Data: Astronomical or Genomical? http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195

11. http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
Big Data
Astronomical?
Youtubical?
Big Data: Astronomical or Genomical? http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
Genomical?

12. http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
Big Data
Astronomical? Genomical?
Youtubical?
1 Exabyte/year 2-40 Exabyte/year
1-2 Exabyte/year
Big Data: Astronomical or Genomical? http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195

13. http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
Big Data
Astronomical? Genomical?
Youtubical?
1 Exabyte/year 2-40 Exabyte/year
1-2 Exabyte/year
Big Data: Astronomical or Genomical? http://journals.plos.org/plosbiology/article?id=10.1371/journal.pbio.1002195
1 Exabyte =1012 Mb

14. There is a lot of data
produced nowadays
But there are also a vast number of potential ways to use this
data

15. Supervised Learning

16. Benign Malignant
Skin cancer example

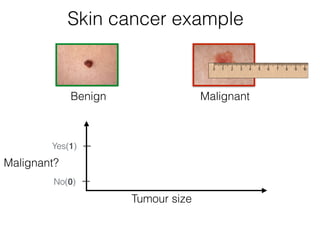

17. Malignant?
Tumour size
Benign Malignant
Skin cancer example
Yes(1)
No(0)

18. Malignant?
Tumour size
Benign Malignant
Skin cancer example
Yes(1)
No(0)

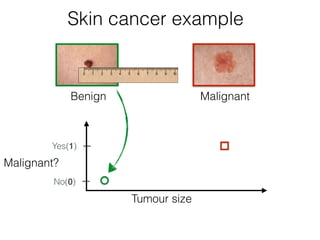

19. Malignant?
Tumour size
Benign Malignant
Skin cancer example
Yes(1)
No(0)

20. Malignant?
Tumour size
Yes(1)
Benign Malignant
Skin cancer example
No(0)

21. Malignant?
Tumour size
Yes(1)
No(0)
Benign Malignant
Skin cancer example
Malignant?

22. Tumour size
Age

23. Tumour size
Age
Malignant?

24. Tumour size
Age
Malignant?

25. Tumour size
Age
Malignant?
Other features:
Lesion type
Lesion configuration
Texture
Location
Distribution
…
Potentially infinitely many features!

26. Classification task
Predicting discrete value output using previously labeled
examples
Binary classification

27. Classification task
Predicting discrete value output using previously labeled
examples
also binary classification

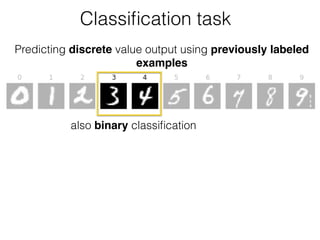

28. Classification task
Predicting discrete value output using previously labeled
examples
also binary classification
Every time you have to distinguish between TWO
CLASSES it is a binary classification

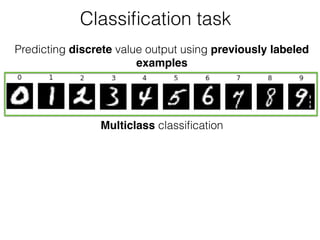

29. Classification task
Multiclass classification
Predicting discrete value output using previously labeled
examples

30. Housing price prediction

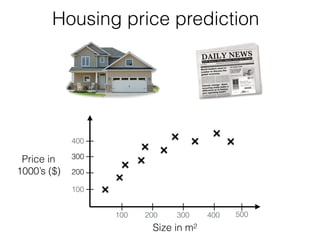

31. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500

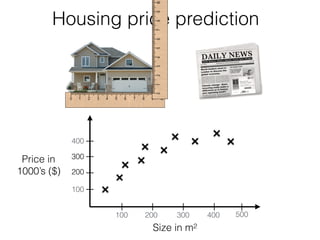

32. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500

33. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500
Price?

34. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500
Price?

35. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500
Price

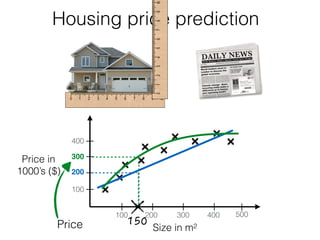

36. Housing price prediction
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500
Price

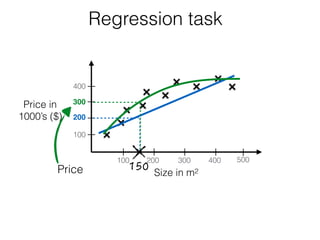

37. Regression task
Size in m2
Price in
1000’s ($)
400
100
200
300
100 200 300 400 500
Price

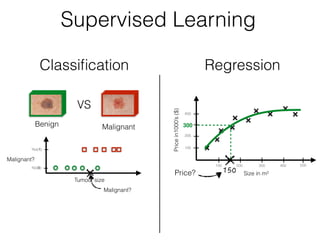

38. Malignant?
Tumour size
Yes(1)
No(0)
Benign Malignant
Malignant?
VS
Classification Regression
Supervised Learning
Size in m2
Pricein1000’s($)
400
100
200
300
100 200 300 400 500
Price?

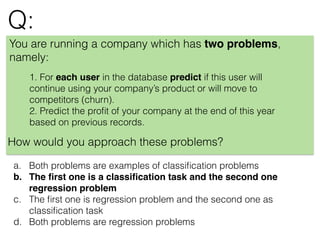

39. You are running a company which has two problems,
namely:
Q:
a. Both problems are examples of classification problems
b. The first one is a classification task and the second one
regression problem
c. The first one is regression problem and the second one as
classification task
d. Both problems are regression problems
1. For each user in the database predict if this user will
continue using your company’s product or will move to
competitors (churn).
2. Predict the profit of your company at the end of this year
based on previous records.
How would you approach these problems?

40. You are running a company which has two problems,
namely:
Q:
a. Both problems are examples of classification problems
b. The first one is a classification task and the second one
regression problem
c. The first one is regression problem and the second one as
classification task
d. Both problems are regression problems
1. For each user in the database predict if this user will
continue using your company’s product or will move to
competitors (churn).
2. Predict the profit of your company at the end of this year
based on previous records.
How would you approach these problems?

41. Unsupervised Learning
examples slides
Clustering with google queries
On a contrary to the first category we don’t have labels to our
classes (graphs with two features from previous examples
turns into unlabelled one)
Gene expression clustering
Quiz question: “of the following examples, which would you
address using a n unsupervised learning algorithm?”

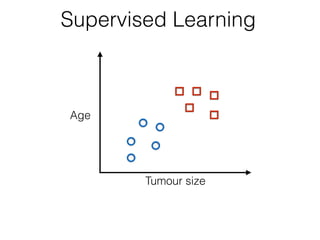

42. Tumour size
Age
Supervised Learning

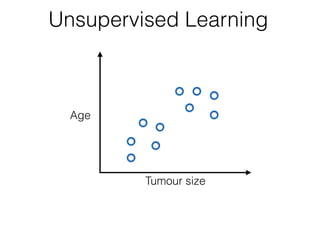

43. Tumour size
Age
Unsupervised Learning

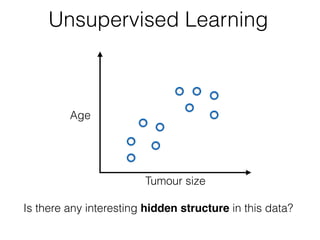

44. Tumour size
Age
Unsupervised Learning
Is there any interesting hidden structure in this data?

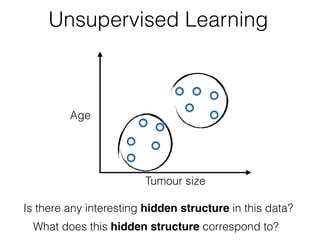

45. Tumour size
Age
Unsupervised Learning
Is there any interesting hidden structure in this data?
What does this hidden structure correspond to?

46. Gene expression

47. Gene expression
Two interesting
groups of
species

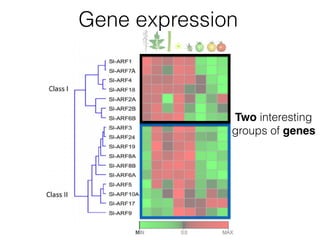

48. Gene expression
Two interesting
groups of genes

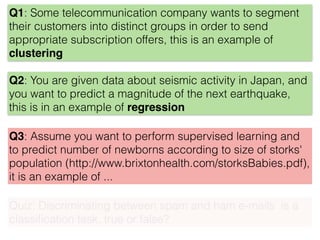

56. Q1: Some telecommunication company wants to segment
their customers into distinct groups in order to send
appropriate subscription offers, this is an example of ...
Q2: You are given data about seismic activity in Japan, and
you want to predict a magnitude of the next earthquake,
this is in an example of ...
Q3: Assume you want to perform supervised learning and
to predict number of newborns according to size of storks'
population (http://www.brixtonhealth.com/storksBabies.pdf),
it is an example of ...
Q4: Discriminating between spam and ham e-mails is a
classification task, true or false?

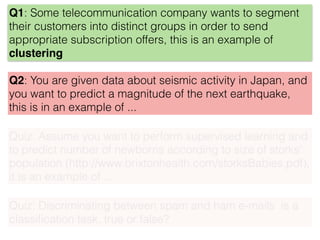

57. Q1: Some telecommunication company wants to segment
their customers into distinct groups in order to send
appropriate subscription offers, this is an example of
clustering
Q2: You are given data about seismic activity in Japan, and
you want to predict a magnitude of the next earthquake,
this is in an example of ...
Quiz: Assume you want to perform supervised learning and
to predict number of newborns according to size of storks'
population (http://www.brixtonhealth.com/storksBabies.pdf),
it is an example of ...
Quiz: Discriminating between spam and ham e-mails is a
classification task, true or false?

58. Q1: Some telecommunication company wants to segment
their customers into distinct groups in order to send
appropriate subscription offers, this is an example of
clustering
Q2: You are given data about seismic activity in Japan, and
you want to predict a magnitude of the next earthquake,
this is in an example of regression
Q3: Assume you want to perform supervised learning and
to predict number of newborns according to size of storks'
population (http://www.brixtonhealth.com/storksBabies.pdf),
it is an example of ...
Quiz: Discriminating between spam and ham e-mails is a
classification task, true or false?

59. Q3: Assume you want to perform supervised learning and
to predict number of newborns according to size of storks'
population (http://www.brixtonhealth.com/storksBabies.pdf),
it is an example of stupidity regression
Q4: Discriminating between spam and ham e-mails is a
classification task, true or false?
Q2: You are given data about seismic activity in Japan, and
you want to predict a magnitude of the next earthquake,
this is in an example of regression
Q1: Some telecommunication company wants to segment
their customers into distinct groups in order to send
appropriate subscription offers, this is an example of
clustering

60. Q4: Discriminating between spam and ham e-mails is a
classification task.
Q3: Assume you want to perform supervised learning and
to predict number of newborns according to size of storks'
population (http://www.brixtonhealth.com/storksBabies.pdf),
it is an example of stupidity regression
Q2: You are given data about seismic activity in Japan, and
you want to predict a magnitude of the next earthquake,
this is in an example of regression
Q1: Some telecommunication company wants to segment
their customers into distinct groups in order to send
appropriate subscription offers, this is an example of
clustering

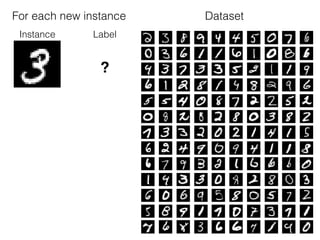

61. MNIST dataset
(10000 images)
Instance Label
28px
28px
3

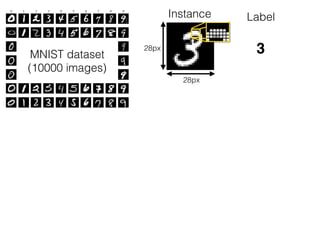

62. MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
3

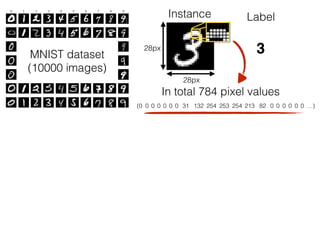

63. MNIST dataset
(10000 images)
In total 784 pixel values
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
3

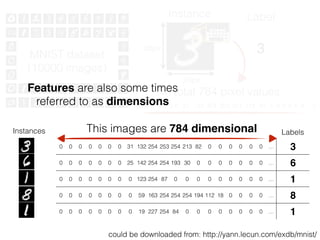

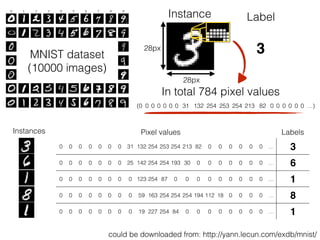

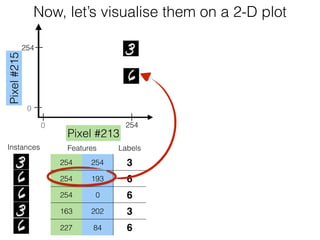

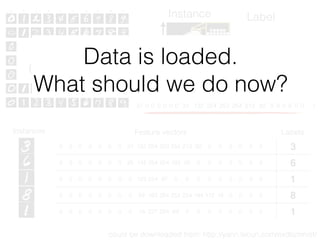

64. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values

65. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Feature

66. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Feature

67. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Feature

68. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel valuesFeatures are also some times
referred to as dimensions

69. Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel valuesFeatures are also some times
referred to as dimensions
This images are 784 dimensional

70. Pixel values Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values

71. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Data is loaded.
What should we do now?

72. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Data is loaded.
What should we do now?
We would like to build a tool that would
be able to automatically recognise
handwritten images

73. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 1
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 8
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 1
Instances
MNIST dataset
(10000 images)
Instance Label0 0 0 0 0 0 0
0 0 0 0 0 0 0
0 155 255 255 255 155 0
255 255 255 255 255 255 255
255 155 78 78 155 255 255
255 0 0 0 0 155 255
28px
28px
(0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 …)
could be downloaded from: http://yann.lecun.com/exdb/mnist/
3
In total 784 pixel values
Data is loaded.
What should we do now?
We would like to build a tool that would
be able to automatically recognise
handwritten images
Let’s get to the first algorithm

74. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR

75. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
What about computing their pixel-wise difference?
OR

76. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci|Σ
784
|Ai - Bi|i i

77. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci|Σ
784
|Ai - Bi|i i

78. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci|Σ
784
|Ai - Bi|i i

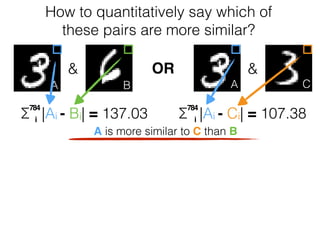

79. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci| = 107.38Σ
784
|Ai - Bi| = 137.03i i

80. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci| = 107.38Σ
784
|Ai - Bi| = 137.03i i
A is more similar to C than B

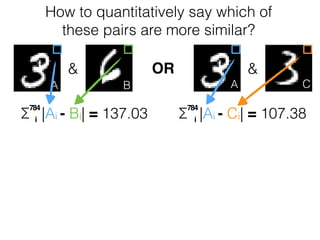

81. How to quantitatively say which of
these pairs are more similar?
& &
A B CA
OR
Σ
784
|Ai - Ci| = 107.38Σ
784
|Ai - Bi| = 137.03i i
A is more similar (closer) to C than B

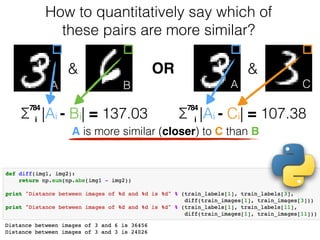

82. Σ
784
|Ai - Ci| = 107.38Σ
784
|Ai - Bi| = 137.03
How to quantitatively say which of
these pairs are more similar?
& &
A B CA
i i
OR
A is more similar (closer) to C than B

83. Σ
784
|Ai - Ci| = 107.38Σ
784
|Ai - Bi| = 137.03
How to quantitatively say which of
these pairs are more similar?
& &
A B CA
i i
OR
A is more similar (closer) to C than B

84. Instance Label
?
DatasetFor each new instance
We asked our friend to
write a bunch of new
digits so that we can
have something to
recognise, here is the
first one of them

85. Instance Label
?

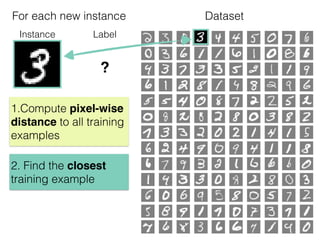

DatasetFor each new instance

86. Instance Label
?

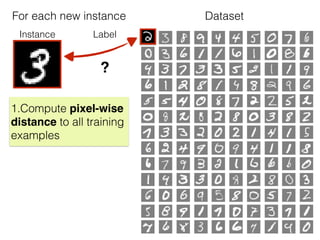

1.Compute pixel-wise
distance to all training
examples
For each new instance Dataset

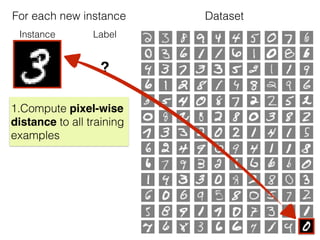

87. Instance Label
?
1.Compute pixel-wise
distance to all training
examples
For each new instance Dataset

88. Instance Label
?
1.Compute pixel-wise
distance to all training
examples
For each new instance Dataset

89. Instance Label
?
1.Compute pixel-wise
distance to all training
examples
For each new instance Dataset

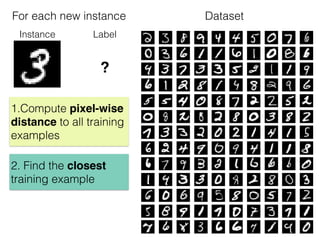

90. Instance Label
?
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
For each new instance Dataset

91. Instance Label
?
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
For each new instance Dataset

92. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Nearest Neighbour
classifier
For each new instance Dataset

93. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
For each new instance

94. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label

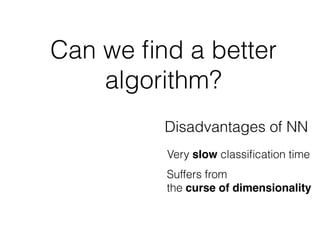

Advantages of NN
Disadvantages of NN
Very easy to implement
For each new instance

95. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Very easy to implement
Very slow classification time
For each new instance

96. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Very easy to implement
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
For each new instance
Very slow classification time

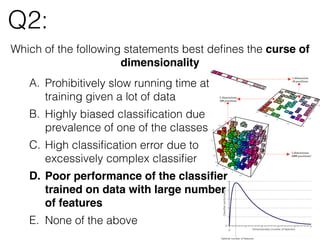

97. Curse of dimensionality
Remember we said
that our instances are
784 dimensional?

98. Curse of dimensionality
Remember we said
that our instances are
784 dimensional?
This is a lot!

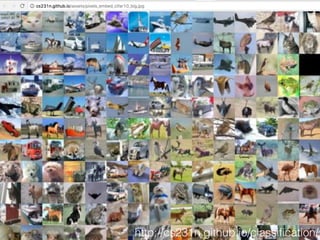

100. http://cs231n.github.io/classification/

101. http://cs231n.github.io/classification/

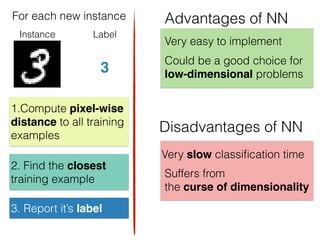

102. Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
For each new instance

103. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
NN is rarely used in
practice

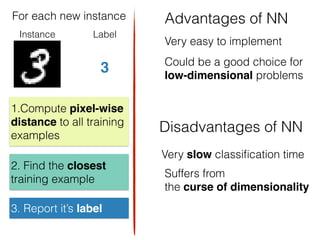

104. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
Can we find a better
algorithm?
Very slow classification time

105. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec

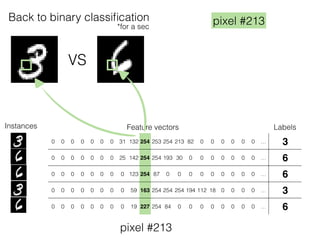

106. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec
pixel #213
pixel #213

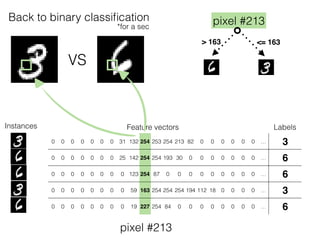

107. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec
pixel #213
> 163 <= 163
pixel #213

108. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec
pixel #213
> 163 <= 163
pixel #216
pixel #216
> 30 <= 30

109. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
pixel #216
VS
Back to binary classification
*for a sec
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree

110. Instances
pixel #216
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
pixel #216
> 30 <= 30
VS

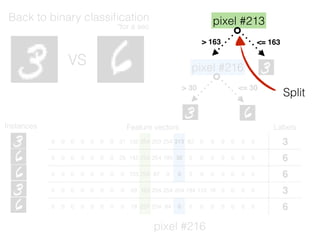

Back to binary classification
*for a sec
pixel #213
> 163 <= 163
Split

111. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification pixel #213
> 163 <= 163
pixel #216
pixel #216
> 30 <= 30

112. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
How do you know which
features to use for best splits?
Split

113. VS
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Back to binary classification
*for a sec
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30

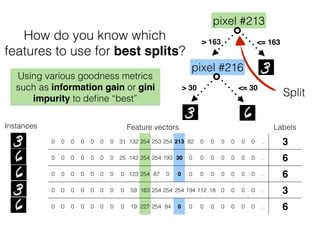

How do you know which
features to use for best splits?
Split
Using various goodness metrics
such as information gain or gini
impurity to define “best”

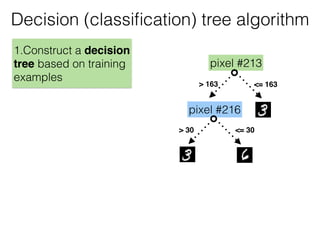

114. Decision (classification) tree algorithm
1.Construct a decision
tree based on training
examples

115. Decision (classification) tree algorithm
1.Construct a decision
tree based on training
examples
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30

116. Decision (classification) tree algorithm
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Instance Label
?
2.Make corresponding
comparisons
1.Construct a decision
tree based on training
examples
#213
For each new instance

117. Decision (classification) tree algorithm
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Instance Label
?
2.Make corresponding
comparisons
1.Construct a decision
tree based on training
examples
#213
#216
For each new instance

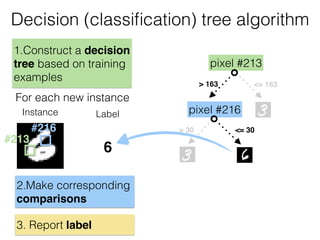

118. Decision (classification) tree algorithm
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Instance Label
6
3. Report label
1.Construct a decision
tree based on training
examples
2.Make corresponding
comparisons
#213
#216
For each new instance

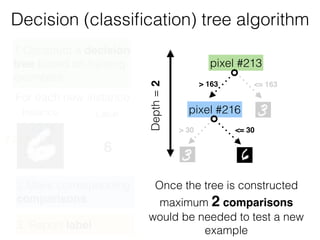

119. Decision (classification) tree algorithm
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Instance Label
6 Depth=2
Once the tree is constructed
maximum 2 comparisons
would be needed to test a new
example3. Report label
1.Construct a decision
tree based on training
examples
2.Make corresponding
comparisons
#213
#216
For each new instance

120. Decision (classification) tree algorithm
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Instance Label
6 Depth=2
In general decision trees are
*always faster than NN
algorithm3. Report label
1.Construct a decision
tree based on training
examples
2.Make corresponding
comparisons
*remember, shit happens
#213
#216
For each new instance

121. Can we find a better
algorithm?
Disadvantages of NN
Very slow classification time
Suffers from
the curse of dimensionality

122. Can we find a better
algorithm?
Disadvantages of NNDisadvantages of DT
Very slow classification time Very slow classification time
Suffers from
the curse of dimensionality

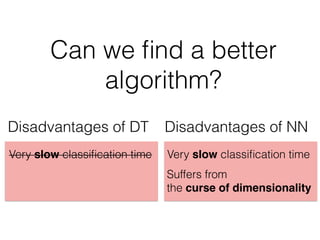

123. Can we find a better
algorithm?
Disadvantages of NNDisadvantages of DT
Also suffers from
the curse of dimensionality
Very slow classification time Very slow classification time
Suffers from
the curse of dimensionality

124. Is there a way to break the curse?

125. Is there a way to break the curse?

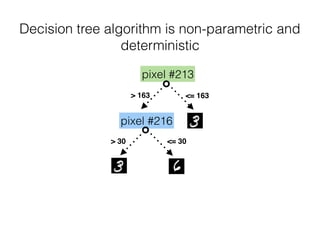

126. pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic

127. pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic
The shape of the
tree is determined
by data not our
choice

128. pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic
This means that we will always have the same
output given the same input…
The shape of the
tree is determined
by data not our
choice

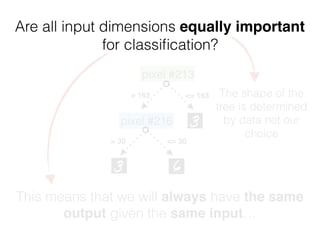

129. The shape of the
tree is determined
by data not our
choice
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic
This means that we will always have the same
output given the same input…
Are all input dimensions equally important
for classification?

130. The shape of the
tree is determined
by data not our
choice
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic
This means that we will always have the same
output given the same input…
How about building a lot of trees from
random parts of the data and then merging
their predictions?
Are all input dimensions equally important
for classification?

131. The shape of the
tree is determined
by data not our
choice
pixel #213
> 163 <= 163
pixel #216
> 30 <= 30
Decision tree algorithm is non-parametric and
deterministic
This means that we will always have the same
output given the same input…
How about building a lot of trees from
random parts of the data and then merging
their predictions?
Are all input dimensions equally important
for classification?

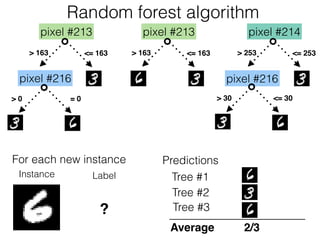

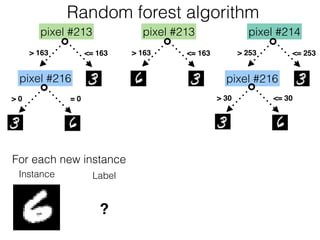

Random forest algorithm

132. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Random forest algorithm

133. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Random forest algorithm

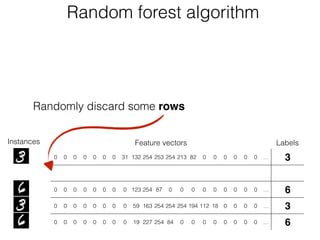

Randomly discard some rows

134. Randomly discard some rows and columns
Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances

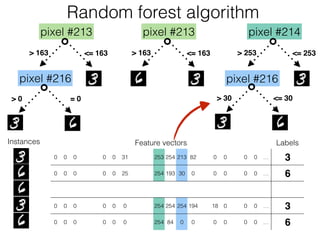

Random forest algorithm

135. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Random forest algorithm
Build a decision tree
based on remaining data
pixel #213
> 163 <= 163
pixel #216
> 0 = 0

136. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances

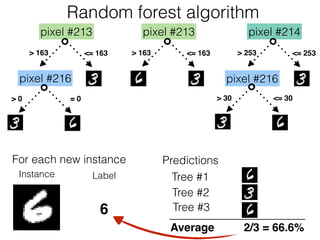

Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
Build a decision tree
based on remaining data

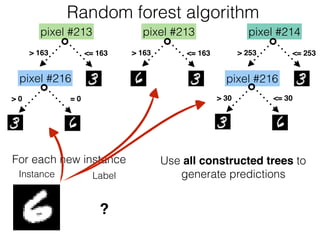

Repeat N times until N trees
are constructed

137. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163

138. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 254 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30

139. Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30
Instance Label
?
For each new instance

140. Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30
Instance Label
?
For each new instance Use all constructed trees to
generate predictions

141. Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30
Instance Label
?
For each new instance Predictions
Tree #2
Tree #1
Tree #3

142. Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30
Instance Label
For each new instance Predictions
Tree #2
Tree #1
Tree #3?
Average 2/3

143. Random forest algorithm
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30
Instance Label
For each new instance Predictions
Tree #2
Tree #1
Tree #36
Average 2/3 = 66.6%

144. Random forest algorithm
Instance Label
6
For each new instance Predictions
Tree #2
Tree #1
Tree #3
Average 2/3 = 66.6%
Quiz time
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
pixel #213
> 163 <= 163
pixel #214
> 253 <= 253
pixel #216
> 30 <= 30

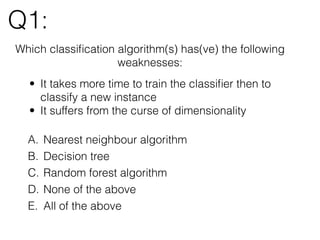

145. Q1:
Which classification algorithm(s) has(ve) the following
weaknesses:
• It takes more time to train the classifier then to
classify a new instance
• It suffers from the curse of dimensionality
A. Nearest neighbour algorithm
B. Decision tree
C. Random forest algorithm
D. None of the above
E. All of the above

146. Q1:
A. Nearest neighbour algorithm
B. Decision tree
C. Random forest algorithm
D. None of the above
E. All of the above
• It takes more time to train the classifier then to
classify a new example
• It suffers from the curse of dimensionality
pixel #213
> 163 <= 163
pixel #216
> 0 = 0
Which classification algorithm(s) has(ve) the following
weaknesses:

147. Q2:
A. Prohibitively slow running time at
training given a lot of data
B. Highly biased classification due
prevalence of one of the classes
C. High classification error due to
excessively complex classifier
D. Poor performance of the classifier
trained on data with large number of
features
E. None of the above

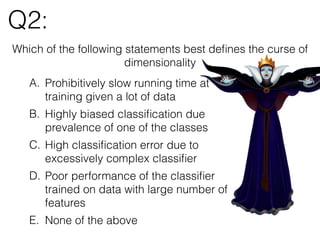

Which of the following statements best defines the curse of
dimensionality

148. Q2:
Which of the following statements best defines the curse of
dimensionality
A. Prohibitively slow running time at
training given a lot of data
B. Highly biased classification due
prevalence of one of the classes
C. High classification error due to
excessively complex classifier
D. Poor performance of the classifier
trained on data with large number
of features
E. None of the above

149. Q3:
Which of the following algorithms you would prefer If you
would have to classify instances from low-dimensional data?
A. Nearest neighbour algorithm
B. Decision tree algorithm
C. Random forest algorithm
D. All mentioned would cope
E. None of the above are suitable

150. A. Nearest neighbour algorithm
B. Decision tree algorithm
C. Random forest algorithm
D. All mentioned would cope
E. None of the above are suitable
Q3:
Which of the following algorithm(s) you would prefer If you
would have to classify instances from low-dimensional data?

151. Support Vector
Machine

152. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 202 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Let us go primitive, and focus only on two
pixels

153. Feature vectors Labels
0 0 0 0 0 0 0 31 132 254 253 254 213 82 0 0 0 0 0 0 … 3
0 0 0 0 0 0 0 25 142 254 254 193 30 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 123 254 87 0 0 0 0 0 0 0 0 0 … 6
0 0 0 0 0 0 0 0 59 163 254 202 254 194 112 18 0 0 0 0 … 3
0 0 0 0 0 0 0 0 19 227 254 84 0 0 0 0 0 0 0 0 … 6
Instances
Let us go primitive, and focus only on two
pixels
It does not really matter, which ones. I will take these two
because we got use to them already :)

154. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Let us go primitive, and focus only on two
pixels

155. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances

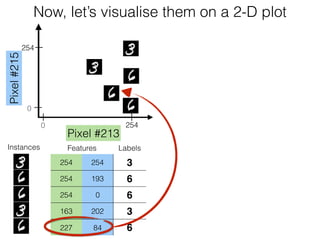

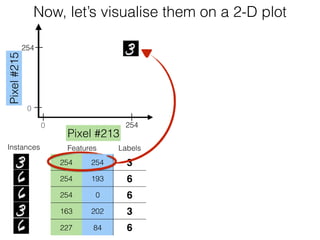

Now, let’s visualise them on a 2-D plotPixel#215
Pixel #213
254
2540
0

156. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Now, let’s visualise them on a 2-D plotPixel#215
Pixel #213
254
2540
0

157. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Now, let’s visualise them on a 2-D plotPixel#215
Pixel #213
254
2540
0

158. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Now, let’s visualise them on a 2-D plotPixel#215
Pixel #213
254
2540
0

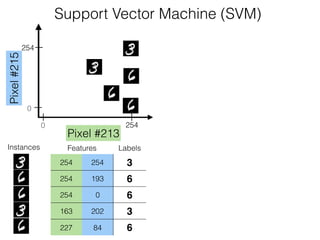

159. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Support Vector Machine (SVM)Pixel#215
Pixel #213
254
2540
0

160. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
A
B C
Is it A, B or C?
Support Vector Machine (SVM)

161. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)

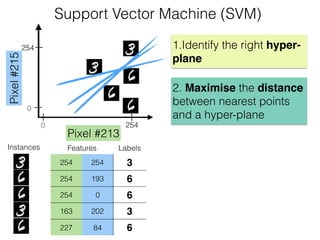

162. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0

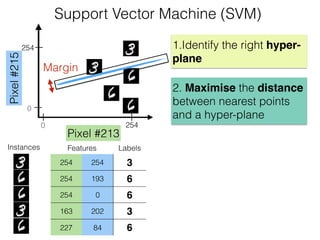

1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Margin
Support Vector Machine (SVM)

163. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Margin
Support Vector Machine (SVM)

164. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
Closest points that define hyper-
plane are called support vectors

165. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
more
confidence
Support Vector Machine (SVM)
Closest points that define hyper-
plane are called support vectors

166. Features Labels
254 254 3
254 193 6
254 0 6
163 202 3
227 84 6
Instances
Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
Closest points that define hyper-
plane are called support vectors

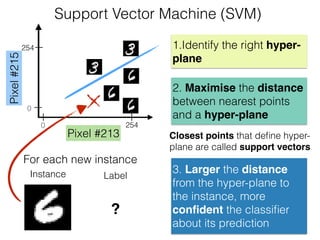

167. Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
Closest points that define hyper-
plane are called support vectors
Instance Label
?
For each new instance

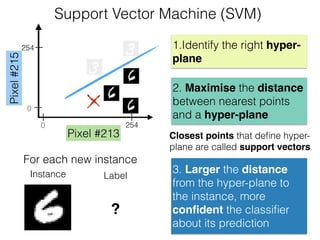

168. Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
Closest points that define hyper-
plane are called support vectors
Instance Label
?
For each new instance

169. Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
Closest points that define hyper-
plane are called support vectors
Instance Label
6
For each new instance

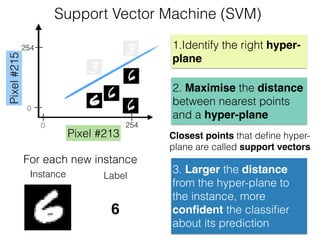

170. Pixel#215
Pixel #213
254
2540
0
1.Identify the right hyper-
plane
2. Maximise the distance
between nearest points
and a hyper-plane
Support Vector Machine (SVM)
3. Larger the distance
from the hyper-plane to
the instance, more
confident the classifier
about its prediction
Closest points that define hyper-
plane are called support vectors
Instance Label
6
For each new instance

171. Pixel#215
Pixel #213
254
2540
0
Support Vector Machine (SVM)
What should we do now?

172. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=

173. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=
z
x
2540
0

174. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=
z
x
2540
0

175. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=
z
x
2540
0

176. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=
z
x
2540
0
This transformation is called a kernel trick
and function z is the kernel

177. y
x
254
2540
0
Support Vector Machine (SVM)
Let’s make another dimension
z a*x2 b*y2+=
z
x
2540
0
This transformation is called a kernel trick
and function z is the kernel
Wow, wow, wow, hold on!
How does this actually work?

178. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
Comparison with SVM
Disadvantages of SVM
Very slow classification time
Suffers from
the curse of dimensionality

179. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
Comparison with SVM
Disadvantages of SVM
Very slow classification time
Suffers from
the curse of dimensionality

180. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
Comparison with SVM
Disadvantages of SVM
Very slow classification time
Suffers from
the curse of dimensionality

181. For each test example
Instance Label
3
1.Compute pixel-wise
distance to all training
examples
2. Find the closest
training example
3. Report it’s label
Advantages of NN
Disadvantages of NN
Fast training time O(C)
Very easy to implement
Very slow classification time
Suffers from
the curse of dimensionality
Could be a good choice for
low-dimensional problems
Comparison with SVM
Disadvantages of SVM
Very slow classification time
Suffers from
the curse of dimensionality
It might be tricky to choose
the right kernel

182. Quiz time

183. Q:
How would you approach a multi-classification task using
SVM?

184. Q:
How would you approach a multi-classification task using
SVM?
Pixel#215
Pixel #213
254
2540
0

185. Support Vector Machine (SVM)

186. Support Vector Machine (SVM)

187. Support Vector Machine (SVM)

188. Support Vector Machine (SVM)
100% accurate!

189. 100% accurate!

190. accuracy =
correctly classified instances
total number of instances
100% accurate!

191. Can we trust this model?
100% accurate!

192. Can we trust this model?
Consider the following example:
100% accurate!

193. Can we trust this model?
Consider the following example:
Whatever happens,
predict 0
100% accurate!

194. Can we trust this model?
Consider the following example:
Whatever happens,
predict 0
Accuracy = 49/50
100% accurate!

195. Can we trust this model?
Consider the following example:
Whatever happens,
predict 0
Accuracy = 98%
100% accurate!

196. Can we trust this model?
Consider the following example:
Count
Histogram could help you figure
out if your dataset is unbalanced
100% accurate!

197. Can we trust this model?
Consider the following example:
What if my data is unbalanced?
Count
Histogram could help you figure
out if your dataset is unbalanced
100% accurate!

198. Can we trust this model?
Consider the following example:
There are few ways, we are
going to discuss them later Count
What if my data is unbalanced?
Histogram could help you figure
out if your dataset is unbalanced
100% accurate!

199. Can we trust this model?
In our case data is balanced:
100% accurate!

200. 100% accurate!
Can we trust this model?
We have balanced data:

201. 100% accurate!
Can we trust this model?
We have balanced data:

202. 100% accurate!
Can we trust this model?
We have balanced data:

203. 100% accurate!
Can we trust this model?
We have balanced data:
😒

204. So, what happened?
100% accurate!

205. Training the model
Feature#2
Feature #1
Let’s add more examples

206. Training the model
Feature#2
Feature #1

207. Training the model
Still linearly separable
Feature#2
Feature #1

208. Still linearly separable
Training the model
Feature#2
Feature #1

209. Training the model
Feature#2
Feature #1

210. Training the model
Feature#2
Feature #1
How about now?

211. Feature#2
Feature #1
Training the model
Feature#2
Feature #1

212. Simple; not perfect fit Complicated; ideal fit
Which model we should use?
Training the model
Feature#2
Feature #1
Feature#2
Feature #1

213. Simple; not perfect fit Complicated; ideal fit
Training the model
Which model we should use?
Feature#2
Feature #1
Feature#2
Feature #1

214. Simple; not perfect fit Complicated; ideal fit
Training the model
Which model we should use?
Feature#2
Feature #1
Feature#2
Feature #1

215. Simple; not perfect fit Complicated; ideal fit
Training the model
Which model we should use?
Feature#2
Feature #1
Feature#2
Feature #1

216. So, what happened?
Overfitting
100% accurate!

217. So, what happened?
Too general
model
Just right! Overfitting
100% accurate!

218. So, what happened?
Too general
model
Just right! Overfitting
We should split our data into train and test sets
100% accurate!

219. Split into train and test

220. Split into train and test
Normally we would
split data into 80%
train and 20% test
sets

221. Split into train and test
Normally we would
split data into 80%
train and 20% test
sets
As we have a lot of
data we can afford
50/50 ratio

222. Split into train and test
Can we do better than 90%?
Normally we would
split data into 80%
train and 20% test
sets
As we have a lot of
data we can afford
50/50 ratio

223. Parameter tuning

224. Model
hyper-parameter

225. Pixel#215
Pixel #213
254
2540
0
Model
hyper-parameter

226. Pixel#215
Pixel #213
254
2540
0
C = 1

227. Pixel#215
Pixel #213
254
2540
0
In red are ares where
penalty is applied to
instances close to the line
C = 1

228. Pixel#215
Pixel #213
254
2540
0
In red are ares where
penalty is applied to
instances close to the line
In green are areas where
no penalty is applied
C = 1

229. Pixel#215
Pixel #213
254
2540
0
In red are ares where
penalty is applied to
instances close to the line
In green are areas where
no penalty is applied
Total amount of penalty applied to the classifier is called loss
Classifiers try to minimise loss by adjusting their parameters
C = 1

230. Pixel#215
Pixel #213
254
2540
0
In red are ares where
penalty is applied to
instances close to the line
In green are areas where
no penalty is applied
Total amount of penalty applied to the classifier is called loss
Classifiers try to minimise loss by adjusting their parameters
C = 1
This instance increases
the penalty

231. Pixel#215
Pixel #213
254
2540
0
Total amount of penalty applied to the classifier is called loss
Classifiers try to minimise loss by adjusting their parameters
Now it is in a green area
In red are ares where
penalty is applied to
instances close to the line
In green are areas where
no penalty is applied
C = 1

232. Parameter tuning
Algorithm Hyper-parameters
K-nearest
neighbour
K - number of neighbours, (1,…,100)
Decision Tree Metric (‘gini’, ‘information gain’)
Random Forest
Number of trees (3,…,100, more better),
metric (‘gini’, information gain’)
SVM C (10-5,…,102) and gamma (10-15,…,102)

234. Let’s try different C maybe
our score will improve

235. Let’s try different C maybe
our score will improve
Nope…

236. Let’s try different C maybe
our score will improve
Fail again…

237. Let’s try different C maybe
our score will improve
It is getting depressive…

238. Let’s try different C maybe
our score will improve
Hurrah!

239. Let’s try different C maybe
our score will improve
Hurrah!
You may not have noticed but…

240. Let’s try different C maybe
our score will improve
Hurrah!
You may not have noticed but…
We are overfitting again…

241. The whole
dataset 100%

242. Training 60%
The whole
dataset 100%

243. Training 60%
For fitting initial model
The whole
dataset 100%

244. Training 60%
For fitting initial model
Validation 20%
The whole
dataset 100%

245. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
5/7

246. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
5/7

247. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
5/7

248. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
5/7

249. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
7/7

250. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
7/7
Testing 20%

251. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
7/7
Testing 20%
For one shot evaluation
of trained model
5/5

252. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
7/7
Testing 20%
For one shot evaluation
of trained model
5/5
But what happens when you overfit
validation set?

253. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
Testing 20%
For one shot evaluation
of trained model
5/5You’re doing great!
🙂

254. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
Testing 20%
For one shot evaluation
of trained model
5/5You’re doing great!
🙂

255. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
Testing 20%
For one shot evaluation
of trained model
4/5You’re doing great!
🙂

256. The whole
dataset 100%
Training 60%
For fitting initial model
Validation 20%
For parameter tuning &
performance evaluation
Testing 20%
For one shot evaluation
of trained model
4/5You’re doing great!
🙂 😒

257. The whole dataset 100%
Cross Validation (CV) Algorithm

258. Training data 80%
Cross Validation (CV) Algorithm
Test 20%

259. Training data 80%
Cross Validation (CV) Algorithm

260. 20%20%20% 20%
Training data 80%
Cross Validation (CV) Algorithm

261. Training data 80%
Cross Validation (CV) Algorithm
20%20%20% 20%
Train on 60% of data Validate on
20%
20%20%20% 20%

262. 20%20%20% 20%
Training data 80%
Cross Validation (CV) Algorithm
TrainTrainTrain Val
Train on 60% of data Validate on
20%

263. Cross Validation (CV) Algorithm
0.75
20%20%20% 20%
Training data 80%
TrainTrainTrain Val
Train on 60% of data Validate on
20%

264. Cross Validation (CV) Algorithm
0.75
ValTrainTrain Train 0.85
20%20%20% 20%
Training data 80%
TrainTrainTrain Val

265. 20%20%20% 20%
Training data 80%
Cross Validation (CV) Algorithm
0.75
ValTrainTrain Train 0.85
TrainTrainTrain Val
TrainValTrain Train 0.91

266. Cross Validation (CV) Algorithm
0.75
0.85
TrainTrainVal Train
0.91
0.68
20%20%20% 20%
Training data 80%
ValTrainTrain Train
TrainTrainTrain Val
TrainValTrain Train

267. TrainTrainVal Train
20%20%20% 20%
Training data 80%
ValTrainTrain Train
TrainTrainTrain Val
TrainValTrain Train
Cross Validation (CV) Algorithm
0.75
0.85
0.91
0.68
MEAN (0.75, 0.85, 0.91, 0.68) = ?

268. TrainTrainVal Train
20%20%20% 20%
Training data 80%
ValTrainTrain Train
TrainTrainTrain Val
TrainValTrain Train
Cross Validation (CV) Algorithm
0.75
0.85
0.91
0.68
MEAN (0.75, 0.85, 0.91, 0.68) = 0.75

269. TrainTrainVal Train
20%20%20% 20%
Training data 80%
ValTrainTrain Train
TrainTrainTrain Val
TrainValTrain Train
Cross Validation (CV) Algorithm
0.75
0.85
0.91
0.68
MEAN (0.75, 0.85, 0.91, 0.68) = 0.75
Choose the best model/paramters based on
this estimate and then apply it to test set

270. Machine Learning pipeline

271. Raw Data
Machine Learning pipeline

272. Raw Data Preprocessing
Machine Learning pipeline

273. Raw Data Preprocessing
Feature
extraction
Machine Learning pipeline

274. Raw Data Preprocessing
Feature
extraction
Split into
train & test
Machine Learning pipeline

275. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Machine Learning pipeline

276. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Machine Learning pipeline

277. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Machine Learning pipeline

278. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Machine Learning pipeline

279. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Train the model
on the whole
training set
Machine Learning pipeline

280. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Train the model
on the whole
training set
Evaluate final
model on
the test set
test set
Machine Learning pipeline

281. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Train the model
on the whole
training set
Evaluate final
model on
the test set
test set
Machine Learning pipeline
Report your results

282. Raw Data Preprocessing
Feature
extraction
Split into
train & test
test set
Choose a model
Find best
parameters
using CV
Train the model
on the whole
training set
Evaluate final
model on
the test set
test set
Machine Learning pipeline
Report your results
Problem

283. A machine learning algorithm usually
corresponds to a combination of the
following 3 elements
The choice of a specific mapping function family F (K-NN,
SVM, DT, RF, Neural Networks etc.).

284. A machine learning algorithm usually
corresponds to a combination of the
following 3 elements
Way to evaluate the quality of a function f out of F. Ways of
saying how bad/good this function f is doing in classifying
real world objects.
The choice of a specific mapping function family F (K-NN,
SVM, DT, RF, Neural Networks etc.).

285. A machine learning algorithm usually
corresponds to a combination of the
following 3 elements
a way to search for a better function f out of F. How to
choose parameters so that the performance of f would
improve.
Way to evaluate the quality of a function f out of F. Ways of
saying how bad/good this function f is doing in classifying
real world objects.
The choice of a specific mapping function family F (K-NN,
SVM, DT, RF, Neural Networks etc.).

286. https://github.com/sugyan/tensorflow-mnist

288. References
• Machine Learning by Andrew Ng (https://www.coursera.org/learn/machine-
learning)
• Introduction to Machine Learning by Pascal Vincent given at Deep Learning
Summer School, Montreal 2015 (http://videolectures.net/
deeplearning2015_vincent_machine_learning/)
• Welcome to Machine Learning by Konstantin Tretyakov delivered at AACIMP
Summer School 2015 (http://kt.era.ee/lectures/aacimp2015/1-intro.pdf)
• Stanford CS class: Convolutional Neural Networks for Visual Recognition by
Andrej Karpathy (http://cs231n.github.io/)
• Data Mining Course by Jaak Vilo at University of Tartu (https://courses.cs.ut.ee/
MTAT.03.183/2017_spring/uploads/Main/DM_05_Clustering.pdf)
• Machine Learning Essential Conepts by Ilya Kuzovkin (https://
www.slideshare.net/iljakuzovkin)
• From the brain to deep learning and back by Raul Vicente Zafra and Ilya
Kuzovkin (http://www.uttv.ee/naita?id=23585&keel=eng)

289. www.biit.cs.ut.ee www.ut.ee www.quretec.ee

291. You, guys, rock!
