This document provides an introduction to machine learning concepts. It defines machine learning as allowing computers to learn without being explicitly programmed. Two main types are described: supervised learning, where the goal is to predict known outputs from inputs, and unsupervised learning, where patterns in unknown data are identified. Supervised learning is further divided into classification and regression problems. Example algorithms covered include k-nearest neighbors, decision trees, and linear regression. Key concepts like bias, variance, and dimensionality are also introduced.

1. INTRO TO MACHINE
LEARNING
Justin Sebok

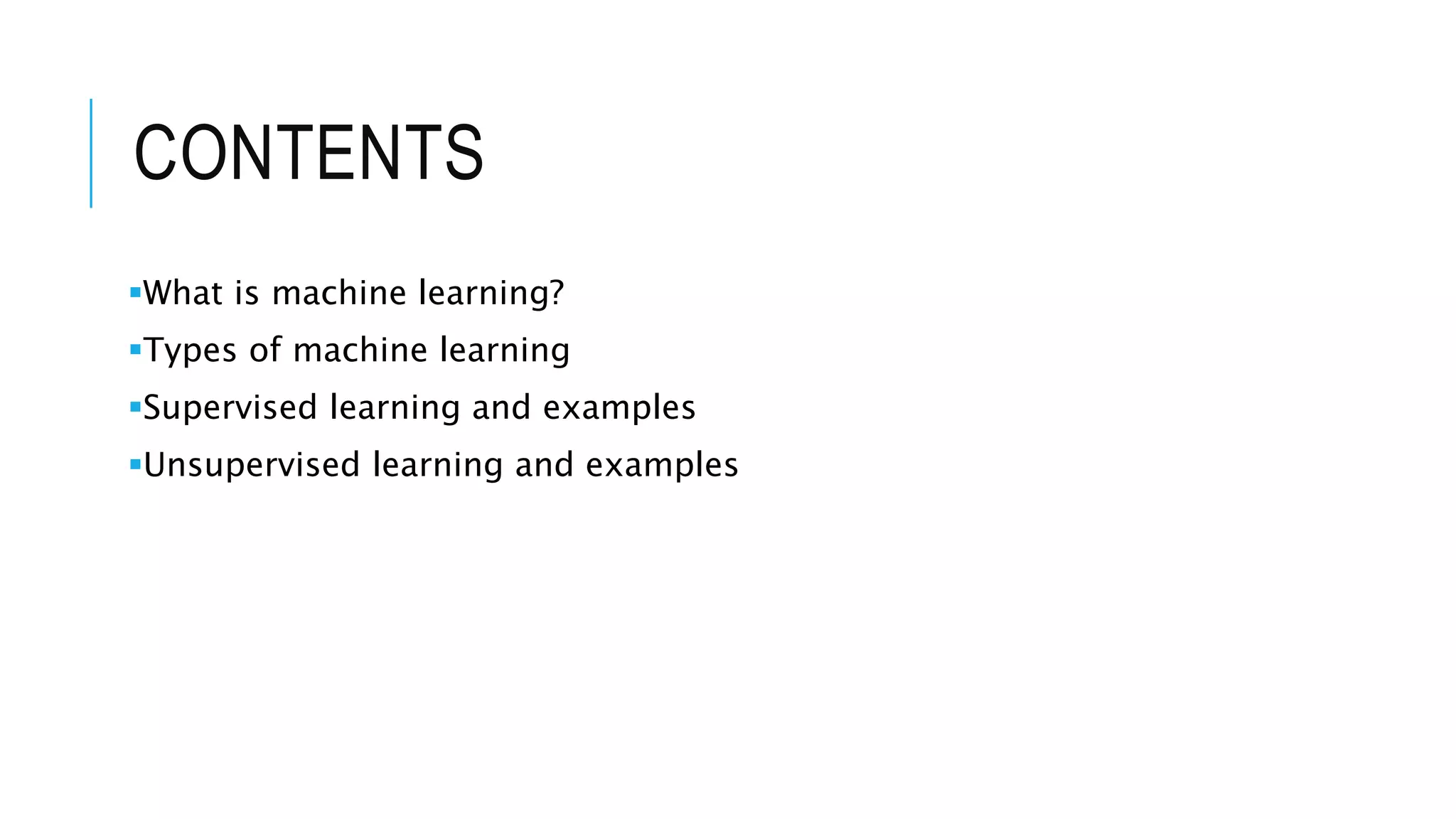

2. CONTENTS
What is machine learning?
Types of machine learning
Supervised learning and examples
Unsupervised learning and examples

3. WHAT IS MACHINE LEARNING?
Wikipedia: Machine Learning is a subfield of computer science which
gives computers the ability to learn without being explicitly
programmed.

4. WHAT IS MACHINE LEARNING?
Wikipedia: Machine Learning is a subfield of computer science which
gives computers the ability to learn without being explicitly
programmed.
WTF does that mean?!

5. WHAT IS MACHINE LEARNING?
Wikipedia: Machine Learning is a subfield of computer science which
gives computers the ability to learn without being explicitly
programmed.
WTF does that mean?!
Basically, Machine Learning involves using some “algorithms” which
learn using data to improve their predictions of something using
patterns in the data.
Data Algorith
m
Prediction
s

6. WHAT IS MACHINE LEARNING?
“… without being explicitly programmed”
This is what makes machine learning so powerful. Rather than
requiring specific instructions like in traditional computing, machine
learning allows the computers to improve their predictions just using
the data inputs.

7. TWO MAIN TYPES OF MACHINE
LEARNING ALGORITHM
Supervised Learning: We know what we are trying to predict. We
use some examples that we (and the model) know the answer to, to
“train” our model. It can then generate predictions to examples we
don’t know the answer to.
Examples: Predict the price a house will sell at. Identify the gender of
someone based on a photograph.
Unsupervised Learning: We don’t know what we are trying to
predict. We are trying to identify some naturally occurring patterns in
the data which may be informative.
Examples: Try to identify “clusters” of customers based on data we
have on them

8. TWO MAIN TYPES OF MACHINE
LEARNING ALGORITHM
Supervised Learning: We know what we are trying to predict. We
use some examples that we (and the model) know the answer to, to
“train” our model. It can then generate predictions to examples we
don’t know the answer to.
Examples: Predict the price a house will sell at. Identify the gender of
someone based on a photograph.
Unsupervised Learning: We don’t know what we are trying to
predict. We are trying to identify some naturally occurring patterns in
the data which may be informative.
Examples: Try to identify “clusters” of customers based on data we
have on them

9. TWO MAIN TYPES OF MACHINE
LEARNING ALGORITHM
Supervised Learning: We know what we are trying to predict. We
use some examples that we (and the model) know the answer to, to
“train” our model. It can then generate predictions to examples we
don’t know the answer to.
Examples: Predict the price a house will sell at. Identify the gender of
someone based on a photograph.
Unsupervised Learning: We don’t know what we are trying to
predict. We are trying to identify some naturally occurring patterns in
the data which may be informative.
Examples: Try to identify “clusters” of customers based on data we
have on them

10. TYPES OF SUPERVISED LEARNING
Supervised learning can be further broken down based on two
possible types of problem they may be trying to solve.
Classification Problems: These are problems where there is a finite
and countable number of possible solutions. There may be as few as
2 or as many as 1000+ possible solutions, but as long as we can
identify and count them all this doesn’t matter.
Examples: Identify the colour seen in a picture.
Regression Problems: These are problems where the feature we
are trying to predict is a number on a continuous scale.
Examples: Predict someone’s height.

11. TYPES OF SUPERVISED LEARNING
Supervised learning can be further broken down based on two
possible types of problem they may be trying to solve.
Classification Problems: These are problems where there is a finite
and countable number of possible solutions. These are categories or
classes. There may be as few as 2 or as many as 1000+ possible
solutions, but as long as we can identify and count them all this
doesn’t matter.
Examples: Identify plant species.
Regression Problems: These are problems where the feature we
are trying to predict is a number on a continuous scale.
Examples: Predict someone’s height.

12. TYPES OF SUPERVISED LEARNING
Supervised learning can be further broken down based on two
possible types of problem they may be trying to solve.
Classification Problems: These are problems where there is a finite
and countable number of possible solutions. These are categories or
classes. There may be as few as 2 or as many as 1000+ possible
solutions, but as long as we can identify and count them all this
doesn’t matter.
Examples: Identify plant species.
Regression Problems: These are problems where the feature we
are trying to predict is a number on a continuous scale.
Examples: Predict someone’s height.

13. INTRO TO A FEW SUPERVISED
LEARNING MODELS
Nearest Neighbours (Classification and Regression)
Decision Trees (Classification and Regression)
Linear Regression (Regression)

14. QUICK TERMINOLOGY
Observation: One of the “things” we are looking at. Could be a
person, a time, or a place.
Feature: Some aspect of the observation that we know. Could be a
person’s hair colour, the latitude and longitude of a city, or the
number of rooms a house has. May be denoted as x
Label: The feature of an observation which we are trying to predict.
For labelled observations, we already know the answer. May be
denoted as y

15. NEAREST NEIGHBOURS
Conceptually one of the simplest Machine Learning algorithms.
Uses the proximity or similarity of observations to make predictions
about them

16. NEAREST NEIGHBOURS
Conceptually one of the simplest Machine Learning algorithms.
Uses the proximity or similarity of observations to make predictions
about them
Method:
For the 1-Nearest Neighbour algorithm, find the closest labelled
observation to the unlabelled observation and apply the same label.
While it may seem very simple, it is often very effective!
It can be used for classification or regression

17. 1 NEAREST NEIGHBOUR
PREDICTIONS

18. 1 NEAREST NEIGHBOUR
PREDICTIONS
?

19. 1 NEAREST NEIGHBOUR
PREDICTIONS

20. 1 NEAREST NEIGHBOUR
PREDICTIONS
?

21. 1 NEAREST NEIGHBOUR
PREDICTIONS

22. 1 NEAREST NEIGHBOUR
PREDICTIONS
?

23. 1 NEAREST NEIGHBOUR
PREDICTIONS
?
Here there is
some
ambiguity. We
are equal
distance from
both classes.
In this case, for
1-NN we would
just flip a coin
to choose a
class at random

24. 1 NEAREST NEIGHBOUR
PREDICTIONS
?
6
3 0
8
6
1.5
5

25. 1 NEAREST NEIGHBOUR
PREDICTIONS
6
3 0
8
6
1.5
5
8

26. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
What is an outlier?

27. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
What is an outlier?
Outlier is a point which is distant or very different from other
observations.
This may be a legitimate datapoint, or may be an example of “noise”
in the data

28. ANY OUTLIERS HERE?

29. ANY OUTLIERS HERE?

30. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
How could we attempt to counteract this problem?

31. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
How could we attempt to counteract this problem?
Why not try 2-Nearest Neighbours? Simply look at the 2 nearest
labelled examples and apply the label that they have.

32. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
How could we attempt to counteract this problem?
Why not try 2-Nearest Neighbours? Simply look at the 2 nearest
labelled examples and apply the label that they have.
What happens when we have a tie?

33. K-NEAREST NEIGHBOURS
The problem with 1-Nearest Neighbours is that outliers may result in
incorrect predictions.
How could we attempt to counteract this problem?
Why not try 2-Nearest Neighbours? Simply look at the 2 nearest
labelled examples and apply the label that they have.
What happens when we have a tie?
Flip a coin…
Or we could use 3-Nearest Neighbours – No ties if we only have 2
classes

34. 3-NEAREST NEIGHBOUR
PREDICTIONS
?

35. 3-NEAREST NEIGHBOUR
PREDICTIONS

36. 3-NEAREST NEIGHBOUR
PREDICTIONS
?
6
3 0
8
6
1.5
5
How can we
use the 3-
nearest
neighbour
approach in
regression?

37. 3 NEAREST NEIGHBOUR
PREDICTIONS
6
3 0
8
6
1.5
5
4.67

38. SO WHAT K-VALUE DO I USE?
Choice of how many neighbours to use illustrates one of the main
trade-offs seen in machine learning:
Variance vs Bias

39. SO WHAT K-VALUE DO I USE?
Choice of how many neighbours to use illustrates one of the main
trade-offs seen in machine learning:
Variance vs Bias
Variance is the error in prediction we get from following our training
data too closely. We end up basing our predictions on “random noise”
in the data. If we choose too small a k-value, we may have a high
level of variance.

40. SO WHAT K-VALUE DO I USE?
Choice of how many neighbours to use illustrates one of the main
trade-offs seen in machine learning:
Variance vs Bias
Variance is the error in prediction we get from following our training
data too closely. We end up basing our predictions on “random noise”
in the data. If we choose too small a k-value, we may have a high
level of variance.
Bias is the error in prediction we get from using a simplified model to
predict very complex real-world things. If we choose too large a k-
value, we may have a high level of bias.

41. VARIANCE VS BIAS
One big part of machine learning is striking the right balance
between these two types of errors.

42. PROBLEM OF DIMENSIONALITY
1 Dimension: 5
observations to fill the
space
How many observations
do we need to fill 2
dimensions?

43. PROBLEM OF DIMENSIONALITY
1 Dimension: 5
observations to fill the
space
2 Dimensions: 25
observations to fill the
space
How many
observations do we
need to fill 3
dimensions?

44. PROBLEM OF DIMENSIONALITY
1 Dimension: 5
observations to fill the
space
2 Dimensions: 25
observations to fill the
space
3 Dimensions: 125
observations to fill the
space
As dimensionality increases, the
number of observations required
to “fill the space” increases
exponentially

45. DECISION TREES
Another quite simple Machine Learning technique.
We attempt to “cut” the space where our observations exist and
predict labels based on the sections our observations end up in.

46. DECISION TREES
We can display these cuts in the
form of a tree, hence the name.
Here is an example of such a
tree used for predicting height
Another quite simple Machine Learning technique.
We attempt to “cut” the space where our observations exist and
predict labels based on the sections our observations end up in.

47. DECISION TREE – “CUTTING THE
SPACE”

48. DECISION TREE - “CUTTING THE
SPACE”
This is an
example of
“cutting the
space”

49. DECISION TREES
Once we have cut our space into chunks, how do we generate
predictions in that area?
?

50. DECISION TREES
Once we have cut our space into chunks, how do we generate
predictions in that area?

51. DECISION TREES
Once we have cut our space into chunks, how do we generate
predictions in that area?
6 8
5
?

52. DECISION TREES
Once we have cut our space into chunks, how do we generate
predictions in that area?
6 8
5
6.33

53. DECISION TREE – WHERE DO WE
CUT?
Each cut should
improve the
prediction
accuracy by as
much as
possible

54. DECISION TREE – WHERE DO WE
CUT?

55. DECISION TREE – WHERE DO WE
CUT?

56. HOW COULD WE CUT A
“REGRESSION” DECISION TREE?

57. HOW COULD WE CUT A
“REGRESSION” DECISION TREE?
Very similar to the way classification trees are cut.
Each cut should reduce the difference between predicted output in an
area and the actual training output

58. BIAS AND VARIANCE IN DECISION
TREES
What would a decision tree with a high degree of bias look like?
What would a decision tree with a high degree of variance look like?

59. LINEAR REGRESSION
I will assume everyone knows the basics of linear regression.
While I won’t go into any of the maths, it is very useful to look at this
with the other models.

60. LINEAR REGRESSION
I will assume everyone knows the basics of linear regression.
What is a very basic definition of linear regression?

61. LINEAR REGRESSION
What would a linear regression line with a high degree of bias look
like?
What would a linear regression line with a high
degree of variance look like?

62. SPECTRUM OF SUPERVISED
LEARNING TECHNIQUES
No
assumptions
about data
Lots of
assumptions
about data
Where do the techniques we
have discussed fall on this
spectrum?

63. SPECTRUM OF SUPERVISED
LEARNING TECHNIQUES
No
assumptions
about data
Lots of
assumptions
about data
Not
computationa
lly efficient
Very
computationally
efficient
The more assumptions we can make
about our data, the more
computationally efficient we can make it

64. SPECTRUM OF SUPERVISED
LEARNING TECHNIQUES
No
assumptions
about data
Lots of
assumptions
about data
Not
computationa
lly efficient
Very
computationally
efficient
K-Nearest
Neighbour
s
Decisi
on
Trees
Linear
Regression
