SQL Server - High availability
This document summarizes an SQL Server 2008 training course on implementing high availability features. It discusses database snapshots that allow querying from a point-in-time version of a database. It also covers configuring database mirroring, which provides redundancy by synchronizing a principal database to a mirror. Other topics include partitioned tables for improved concurrency, using SQL Agent proxies for job security, performing online index operations for minimal locking, and setting up mirrored backups.
More Related Content
Similar to SQL Server - High availability
SQL Server - High availability
- 1. SQL Server 2008for DevelopersUTS Short Course
- 2. Peter GfaderSpecializes inC# and .NET (Java not anymore)TestingAutomated testsAgile, ScrumCertified Scrum TrainerTechnology aficionado SilverlightASP.NETWindows Forms
- 3.
- 4.

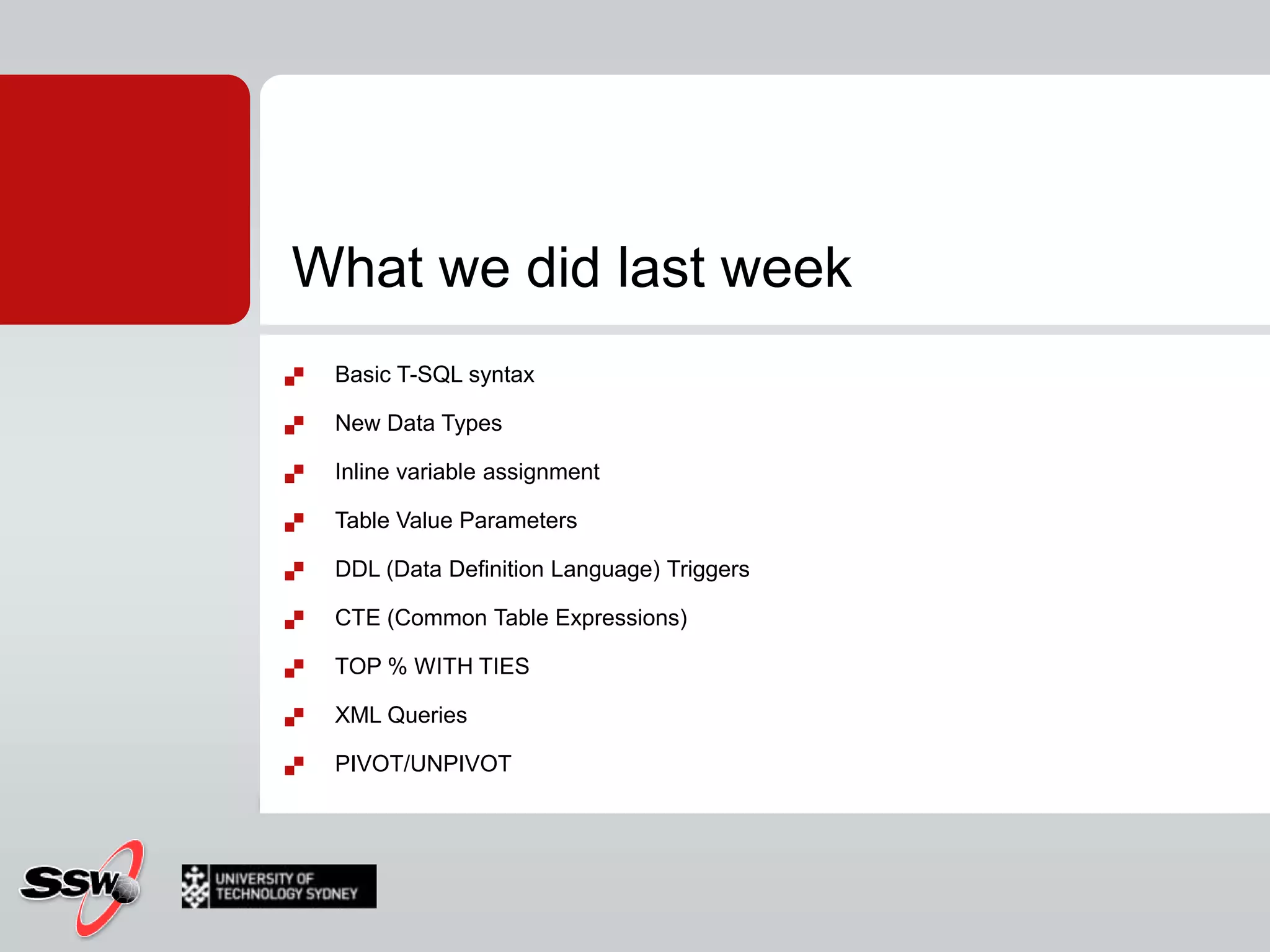

- 5. What we didlast weekBasic T-SQL syntaxNew Data TypesInline variable assignmentTable Value ParametersDDL (Data Definition Language) TriggersCTE (Common Table Expressions)TOP % WITH TIESXML QueriesPIVOT/UNPIVOT
- 6.

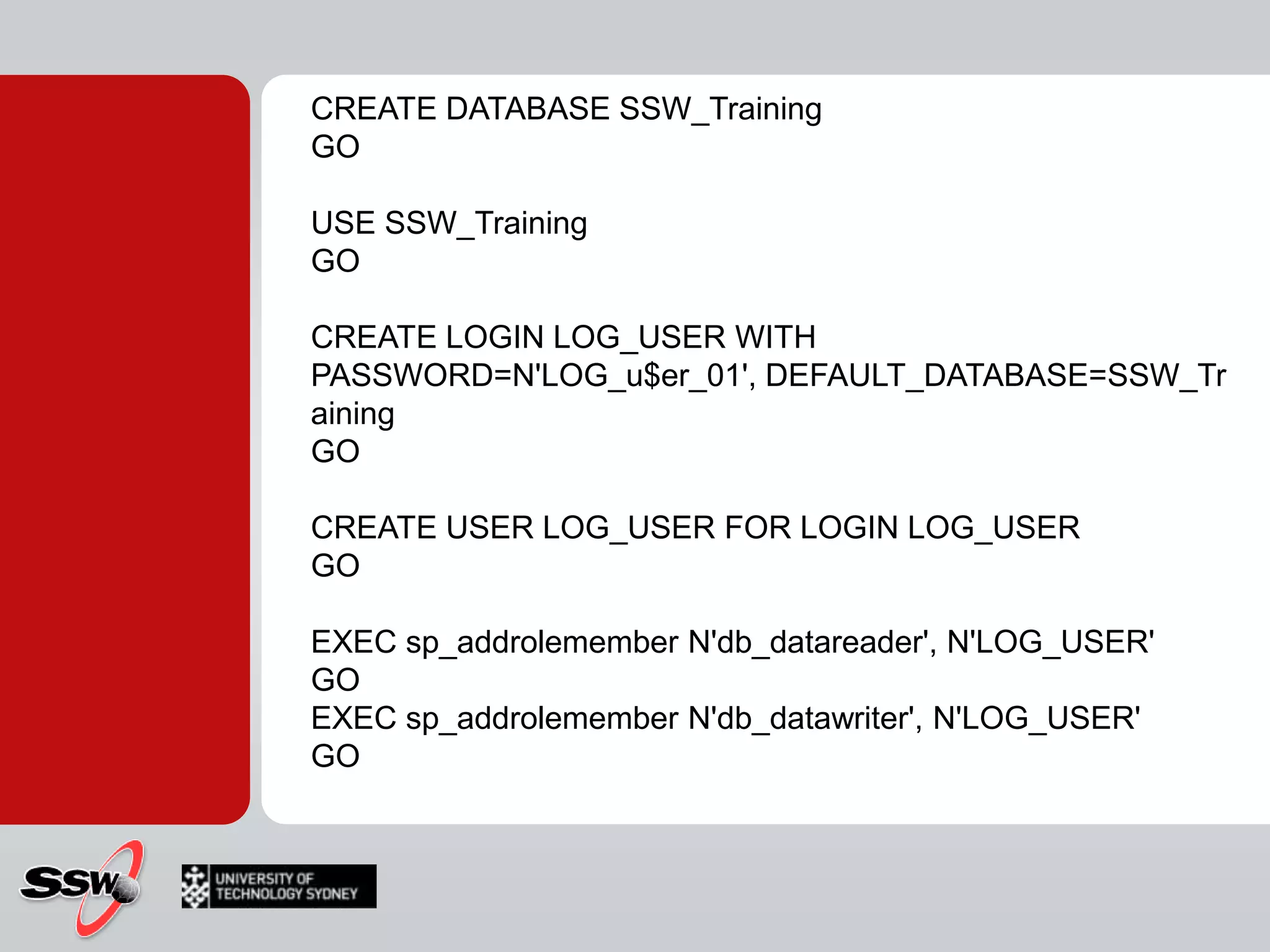

- 7. CREATE DATABASE SSW_TrainingGOUSESSW_TrainingGOCREATE LOGIN LOG_USER WITH PASSWORD=N'LOG_u$er_01', DEFAULT_DATABASE=SSW_TrainingGOCREATE USER LOG_USER FOR LOGIN LOG_USERGOEXEC sp_addrolememberN'db_datareader', N'LOG_USER'GOEXEC sp_addrolememberN'db_datawriter', N'LOG_USER'GO

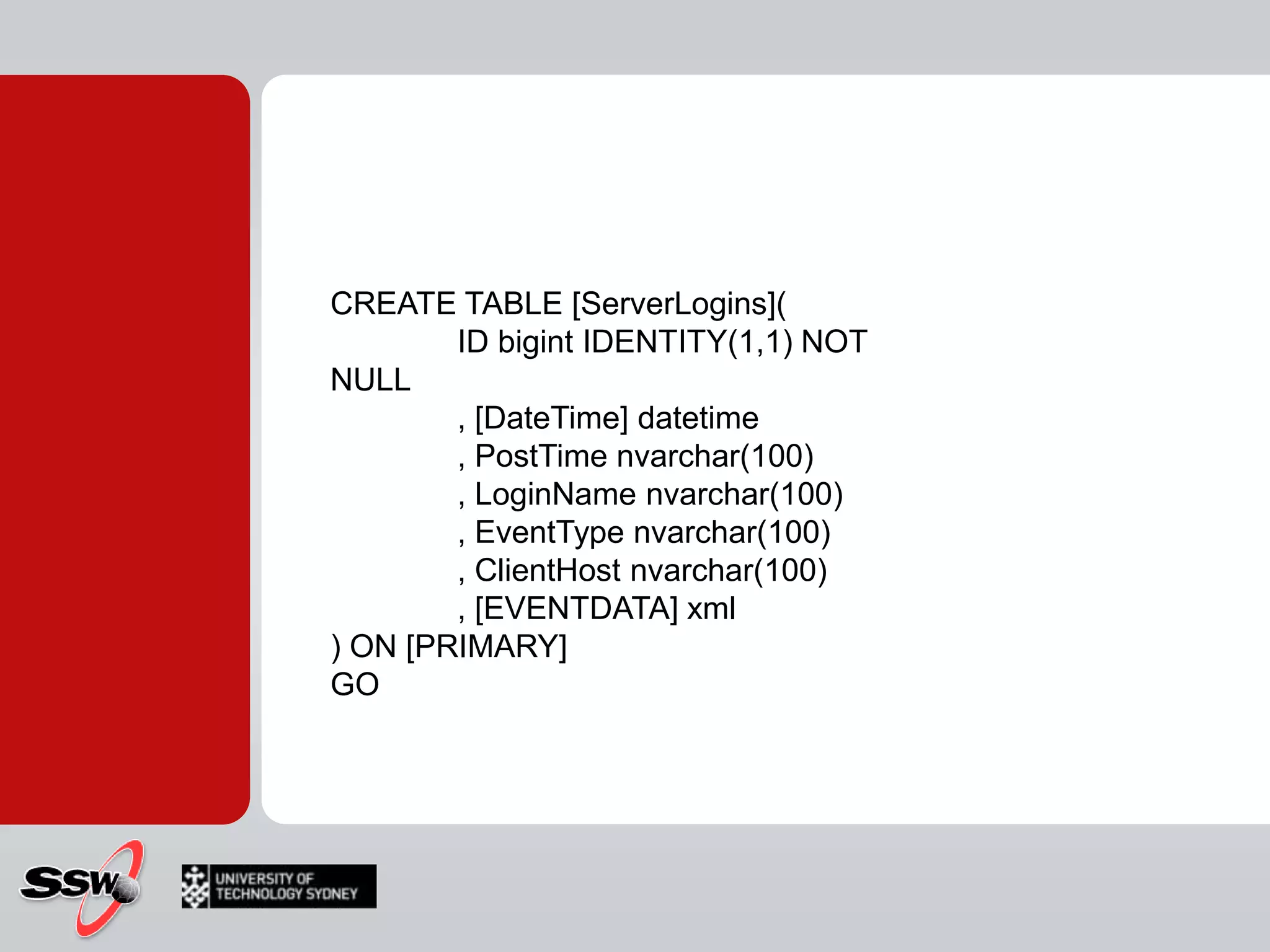

- 8. CREATE TABLE [ServerLogins]( IDbigint IDENTITY(1,1) NOT NULL , [DateTime] datetime , PostTimenvarchar(100) , LoginNamenvarchar(100) , EventTypenvarchar(100) , ClientHostnvarchar(100) , [EVENTDATA] xml) ON [PRIMARY]GO

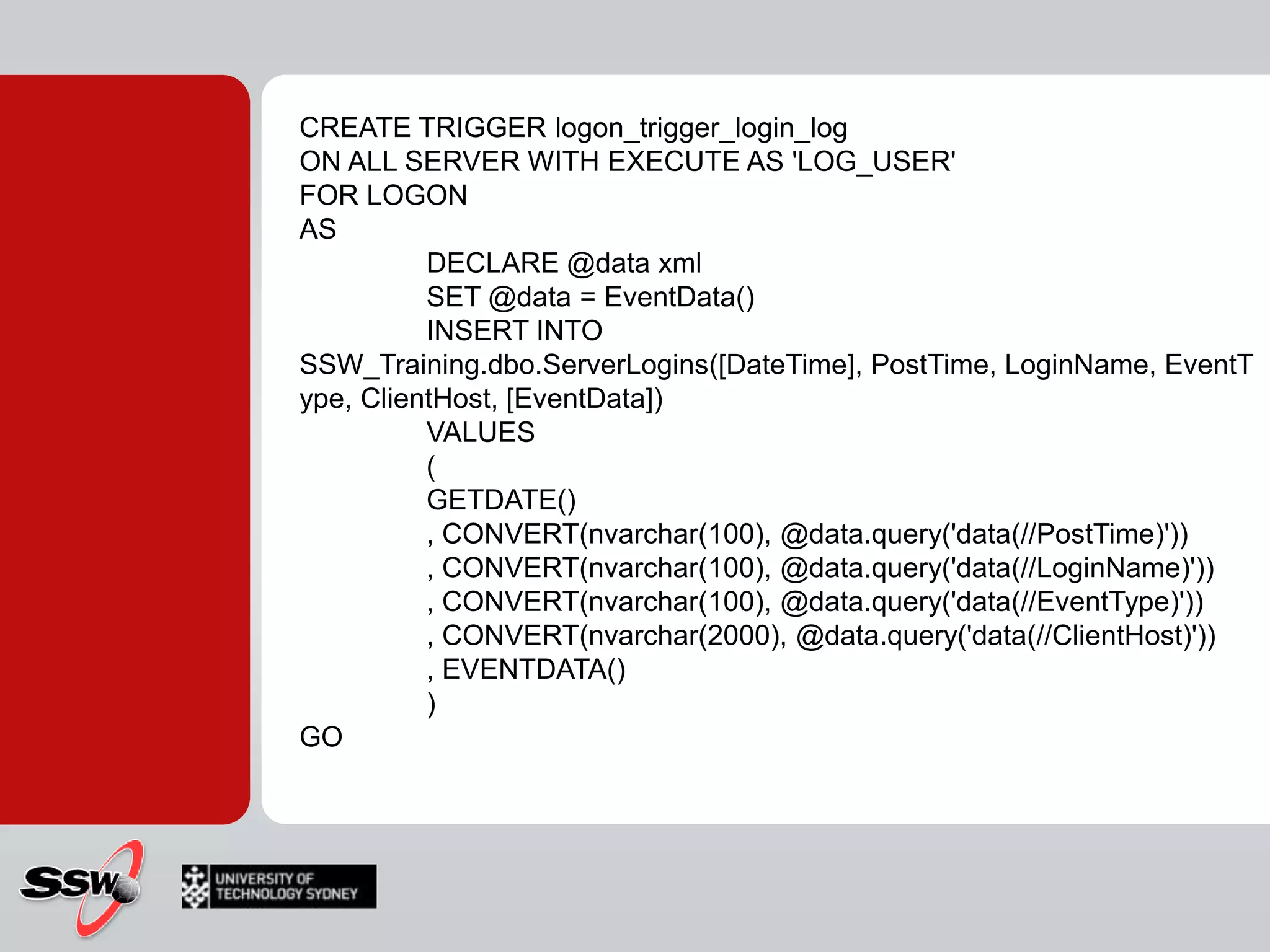

- 9. CREATE TRIGGER logon_trigger_login_logONALL SERVER WITH EXECUTE AS 'LOG_USER'FOR LOGONAS DECLARE @data xml SET @data = EventData() INSERT INTO SSW_Training.dbo.ServerLogins([DateTime], PostTime, LoginName, EventType, ClientHost, [EventData]) VALUES ( GETDATE() , CONVERT(nvarchar(100), @data.query('data(//PostTime)')) , CONVERT(nvarchar(100), @data.query('data(//LoginName)')) , CONVERT(nvarchar(100), @data.query('data(//EventType)')) , CONVERT(nvarchar(2000), @data.query('data(//ClientHost)')) , EVENTDATA() )GO

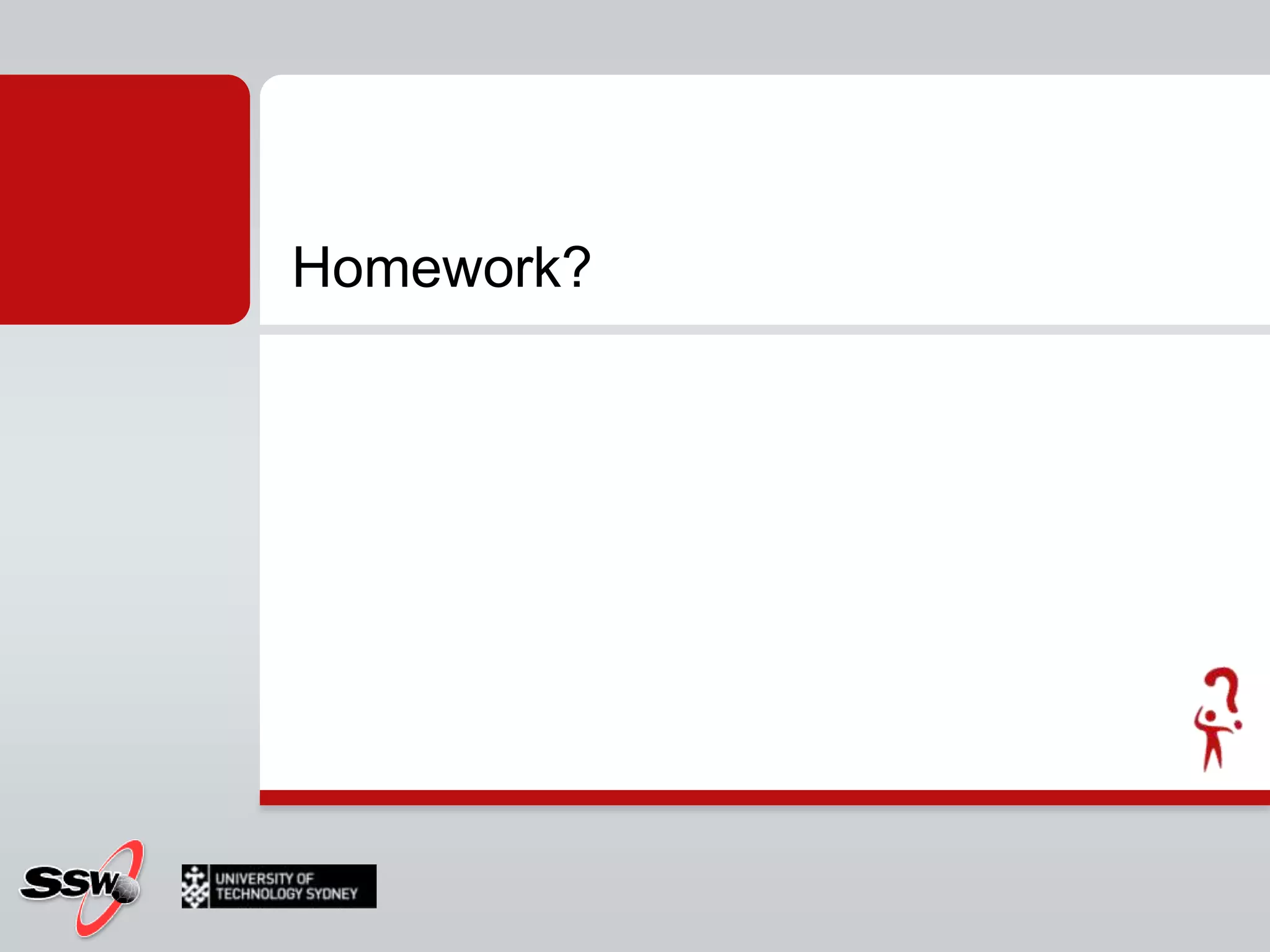

- 10. SELECTgeometry::STGeomFromText('LINESTRING (0 0,0 2, 1 3, 2 2, 2 0, 0 2, 2 2, 0 0, 2 0)', 0) Envelope;Homework?
- 11. Session 3SQL 2008High Availability Features
- 12. AgendaAgendaWhat is HighAvailability?What can go wrong?What can we do about it?

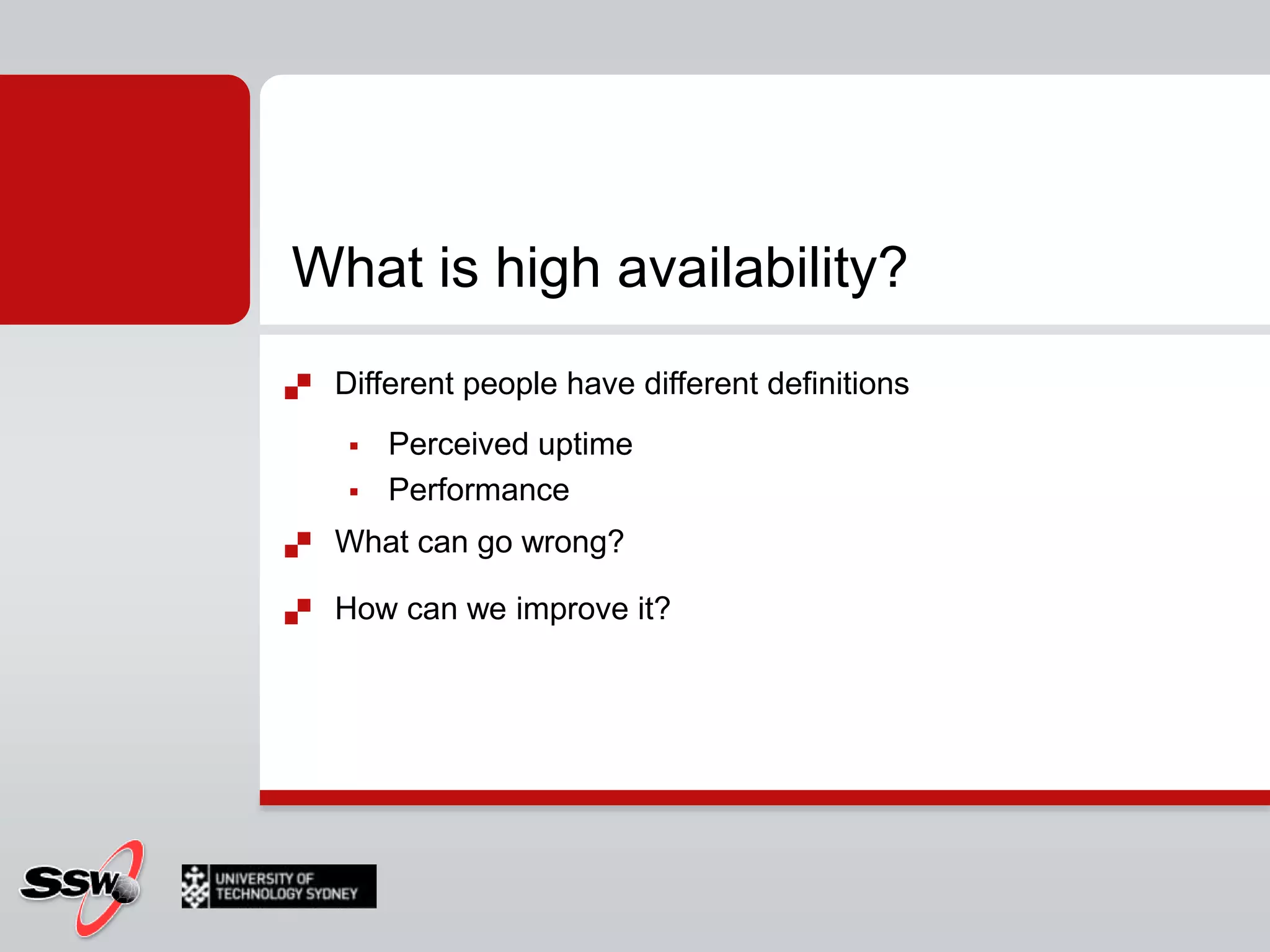

- 13. What is highavailability?Different people have different definitionsPerceived uptimePerformanceWhat can go wrong?How can we improve it?

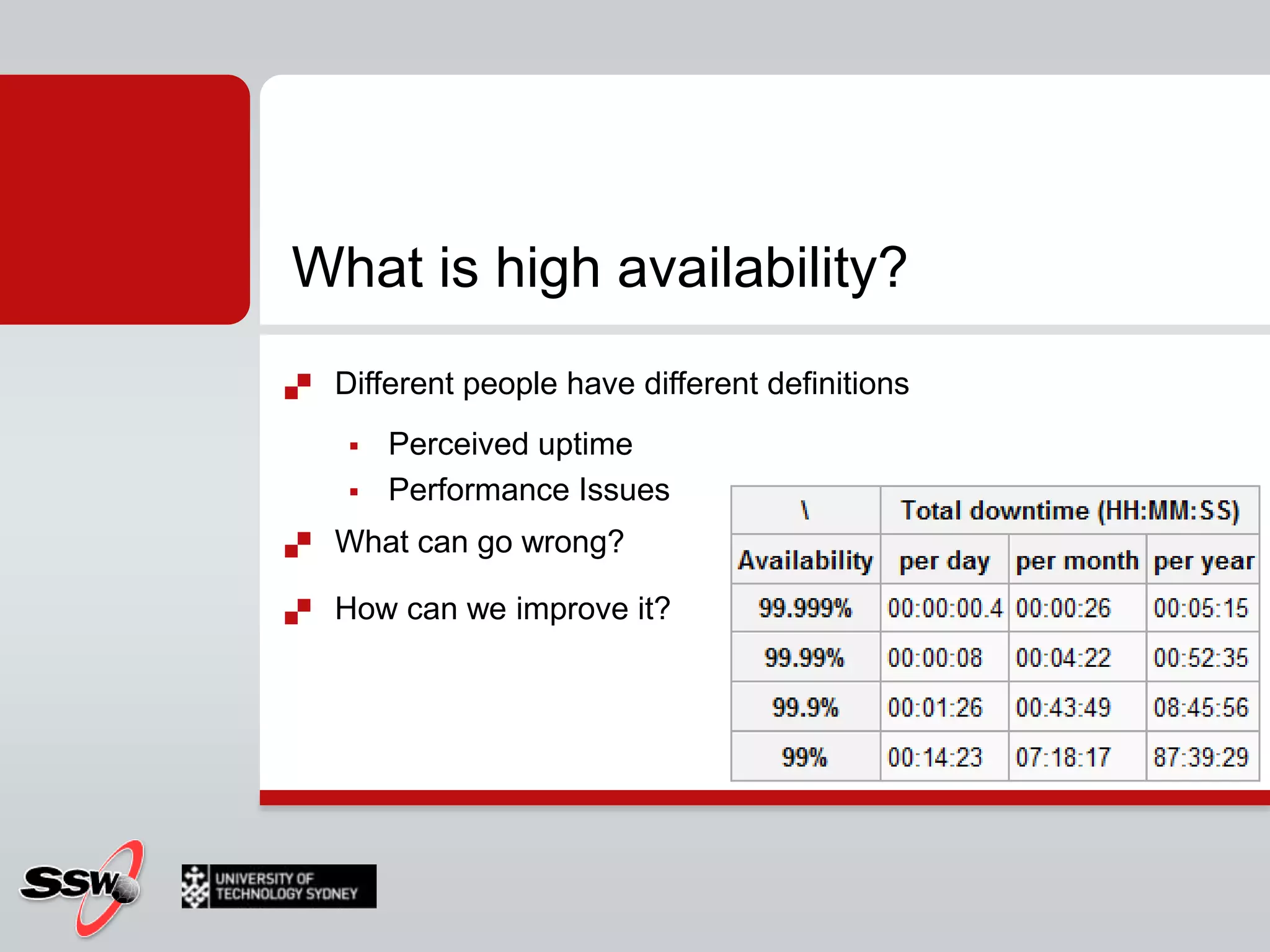

- 14. What is highavailability?Different people have different definitionsPerceived uptimePerformance IssuesWhat can go wrong?How can we improve it?

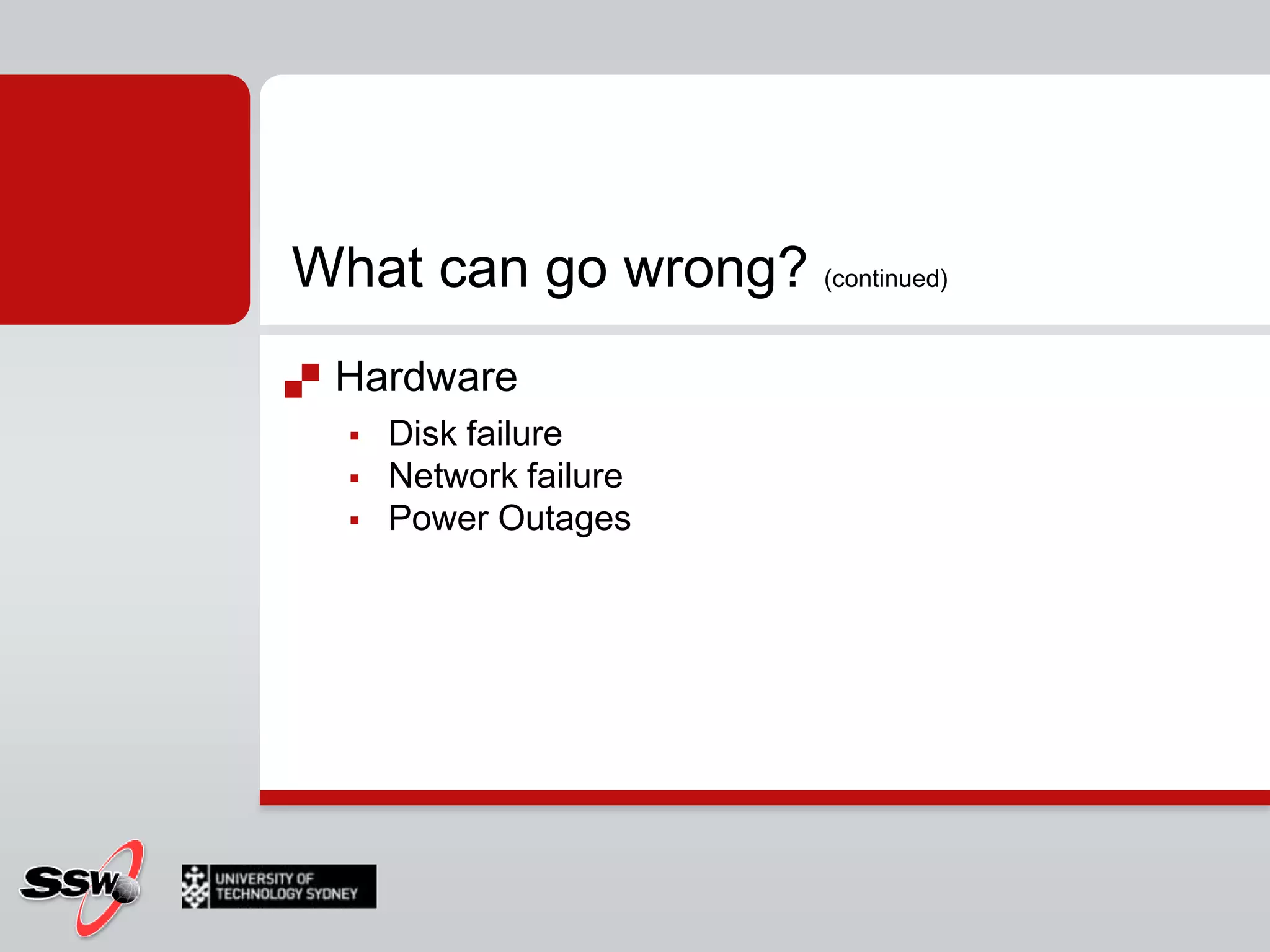

- 15. What can gowrong? (continued)Hardware Disk failureNetwork failurePower Outages

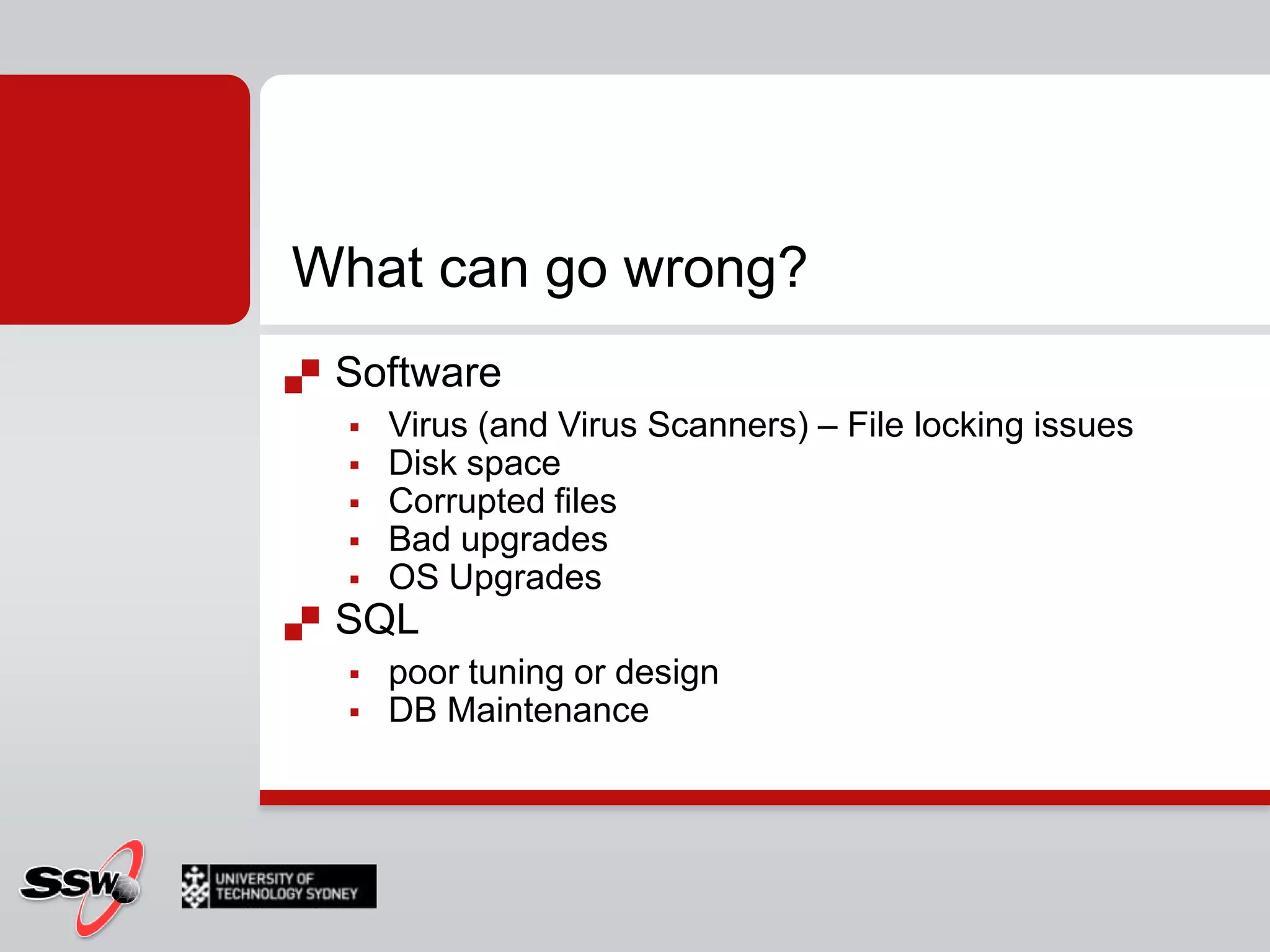

- 16. What can gowrong?SoftwareVirus (and Virus Scanners) – File locking issuesDisk spaceCorrupted filesBad upgradesOS UpgradesSQL poor tuning or designDB Maintenance

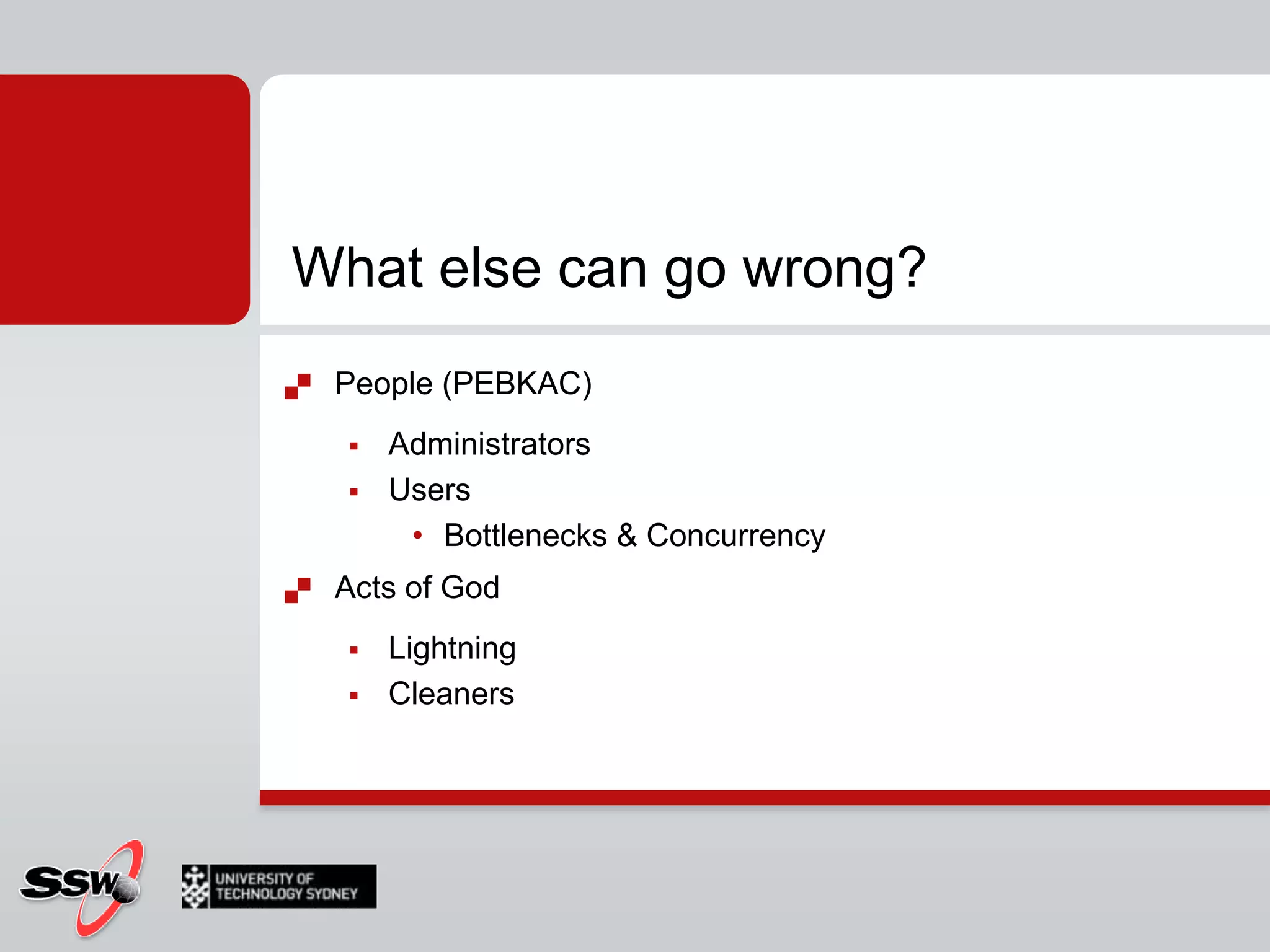

- 17. What else cango wrong?People (PEBKAC)Administrators UsersBottlenecks & ConcurrencyActs of GodLightningCleaners

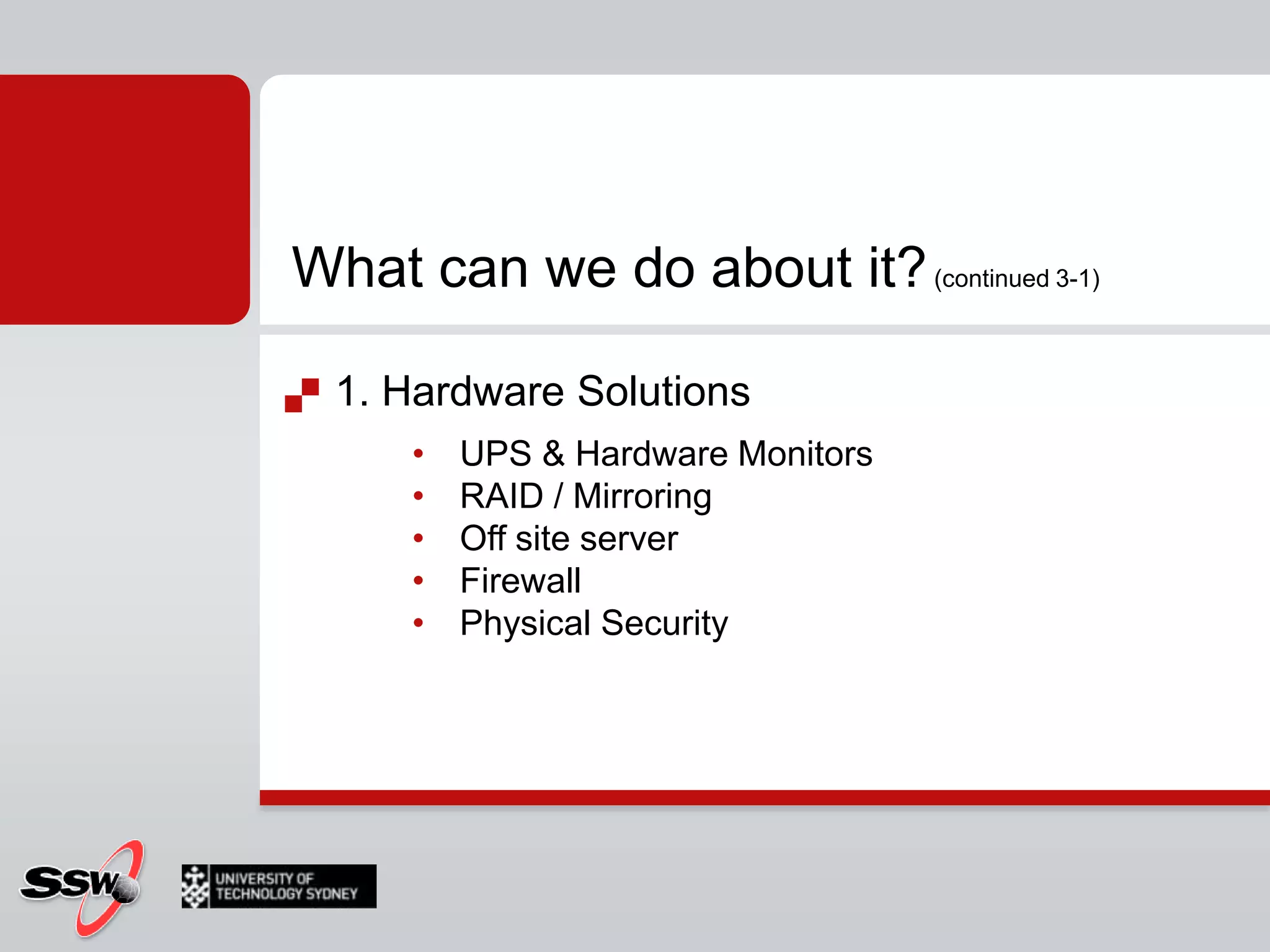

- 19. What can wedo about it? (continued 3-1)1. Hardware SolutionsUPS & Hardware MonitorsRAID / MirroringOff site serverFirewallPhysical Security

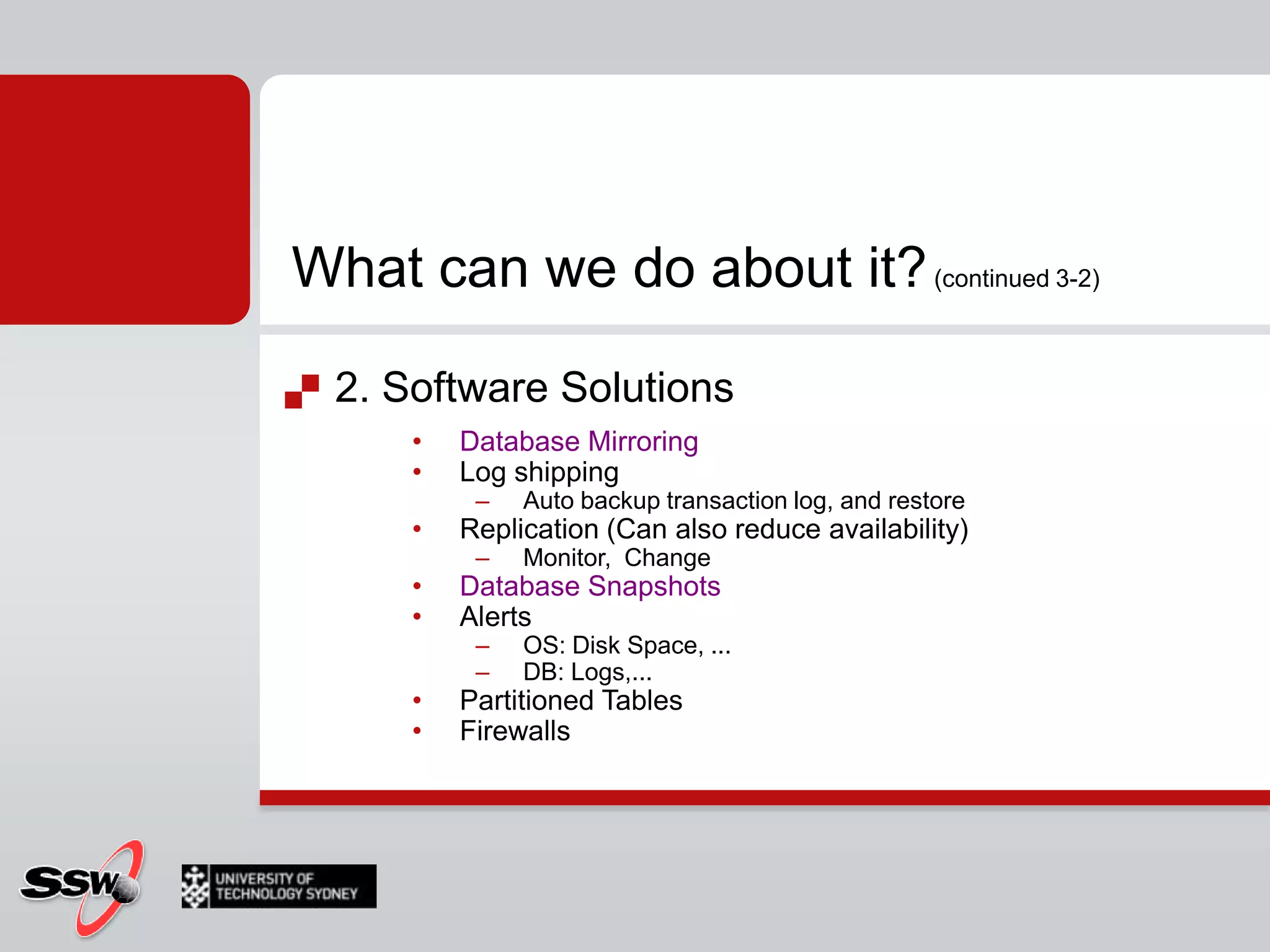

- 20. What can wedo about it? (continued 3-2)2. Software SolutionsDatabase MirroringLog shippingAuto backup transaction log, and restoreReplication (Can also reduce availability)Monitor, ChangeDatabase SnapshotsAlertsOS: Disk Space, ...DB: Logs,...Partitioned TablesFirewalls

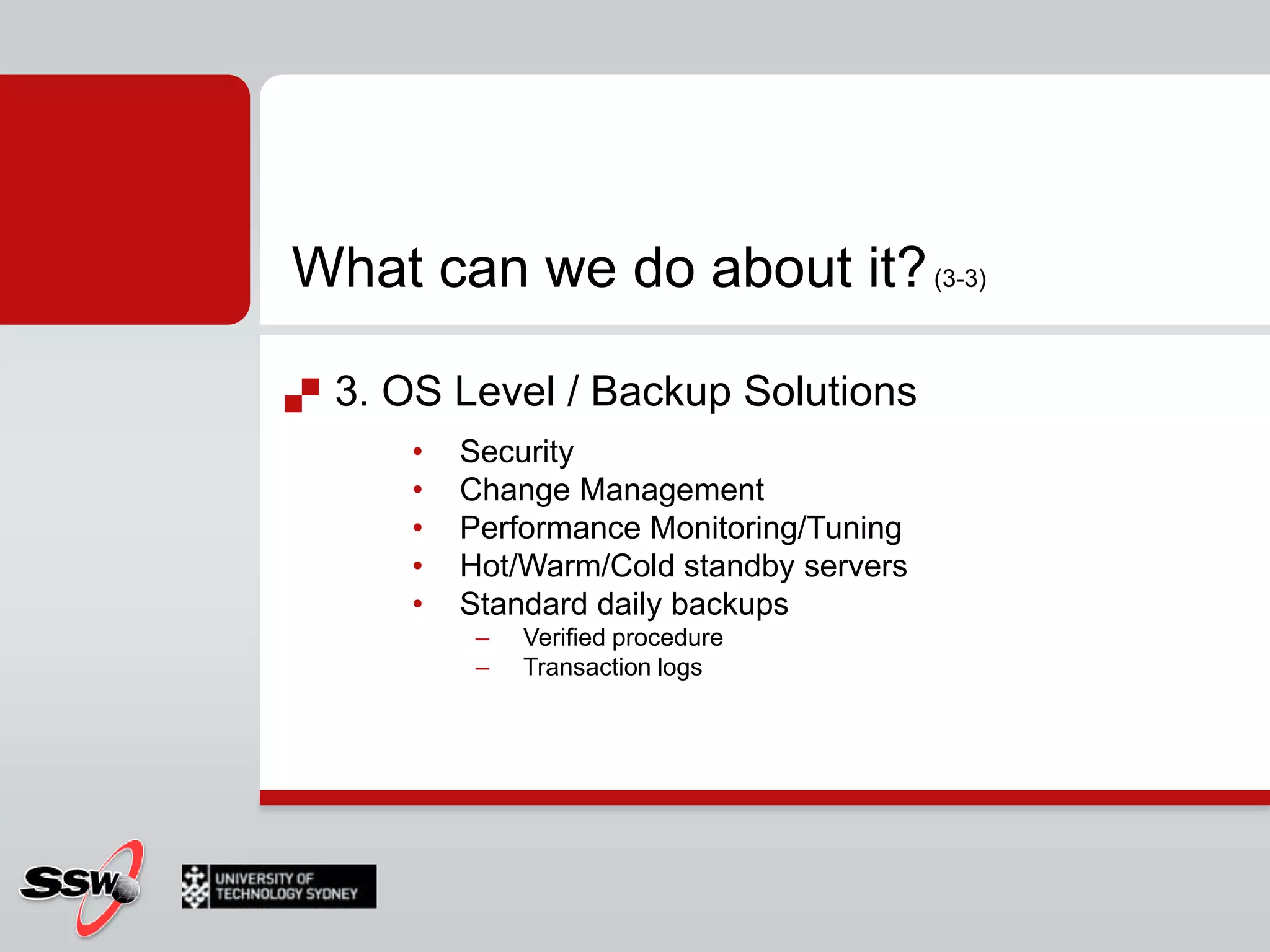

- 21. What can wedo about it? (3-3)3. OS Level / Backup SolutionsSecurityChange ManagementPerformance Monitoring/TuningHot/Warm/Cold standby serversStandard daily backupsVerified procedureTransaction logs

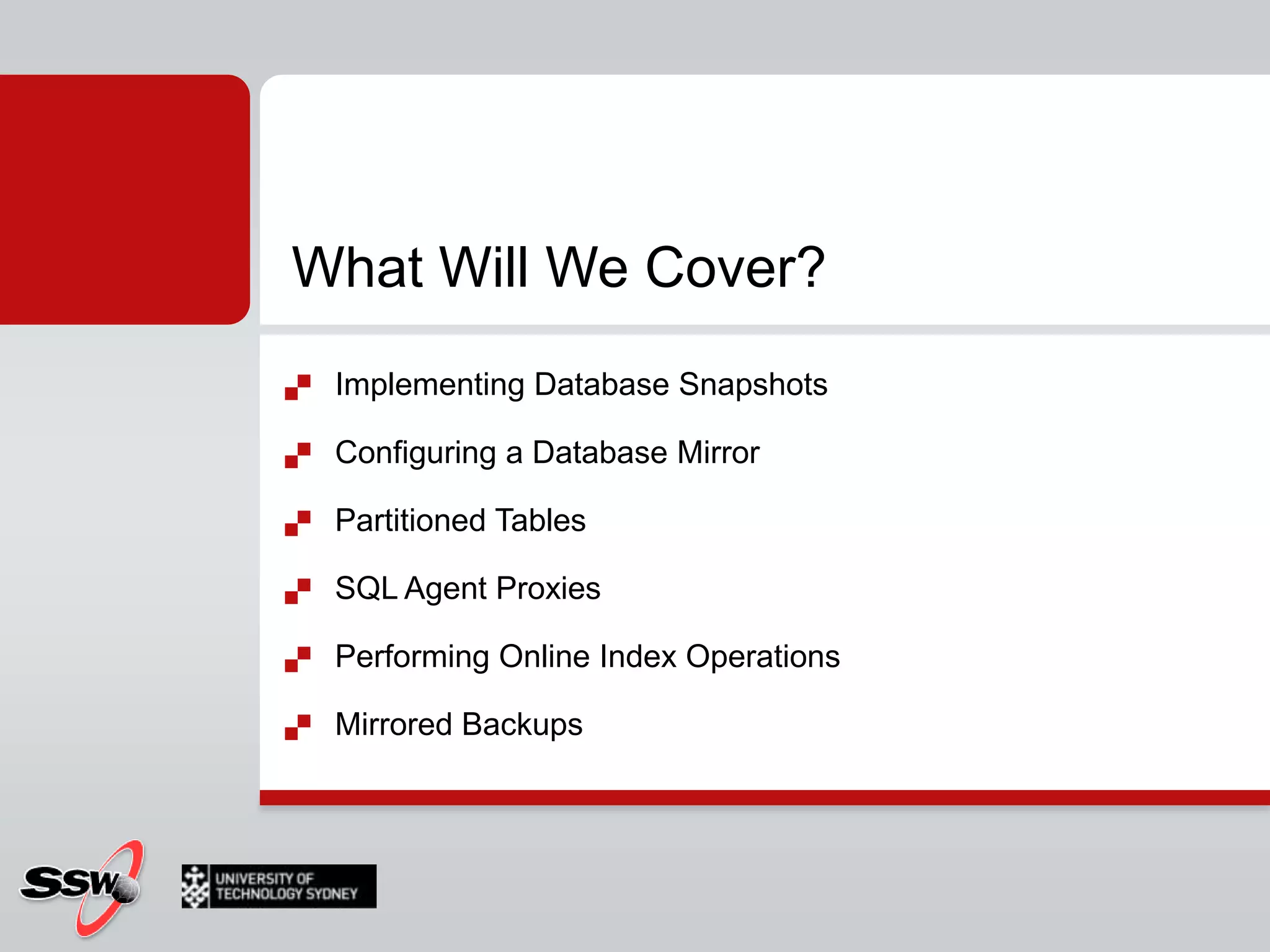

- 22. What Will WeCover?Implementing Database SnapshotsConfiguring a Database MirrorPartitioned TablesSQL Agent ProxiesPerforming Online Index OperationsMirrored Backups
- 23.

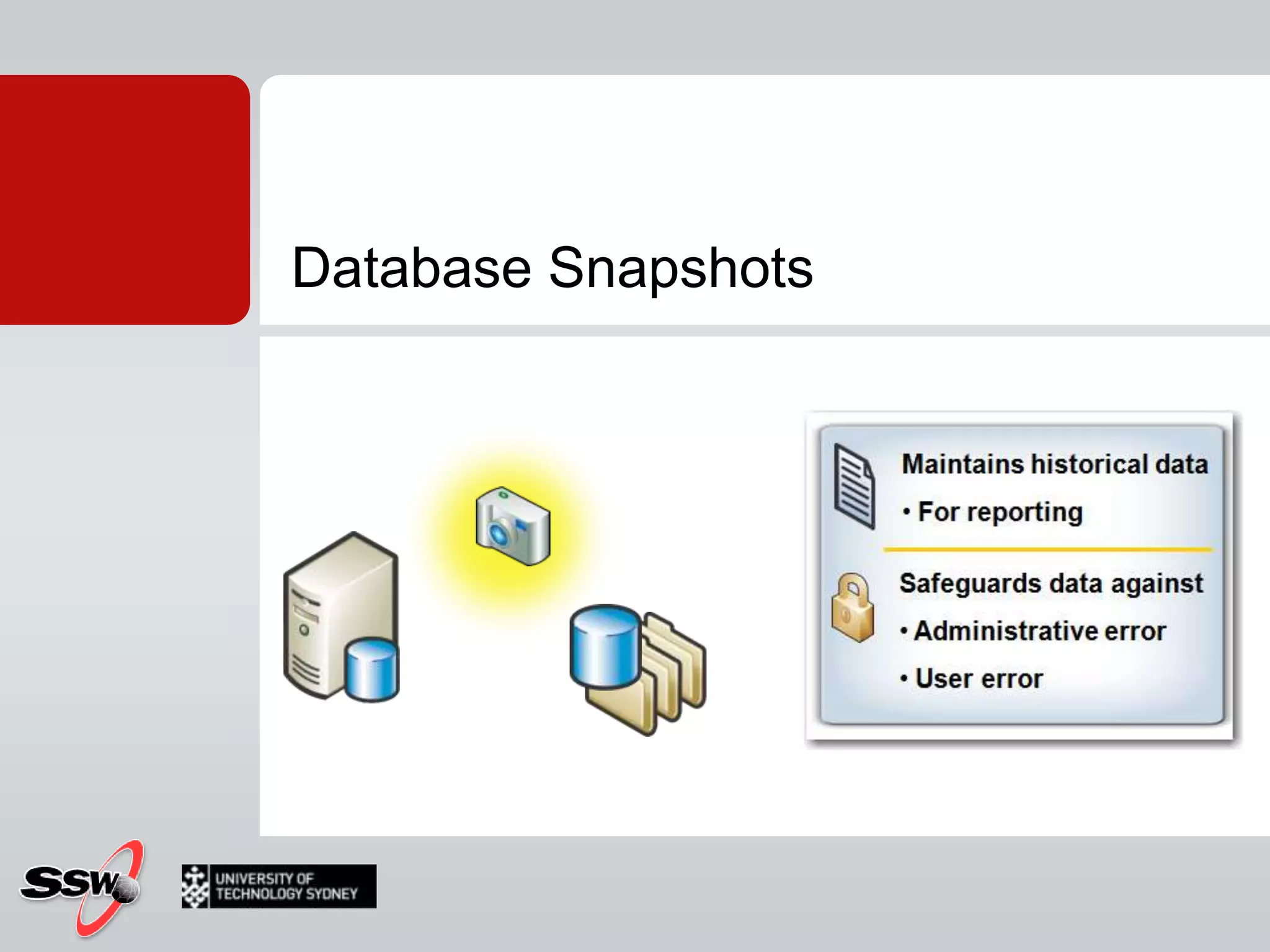

- 24.

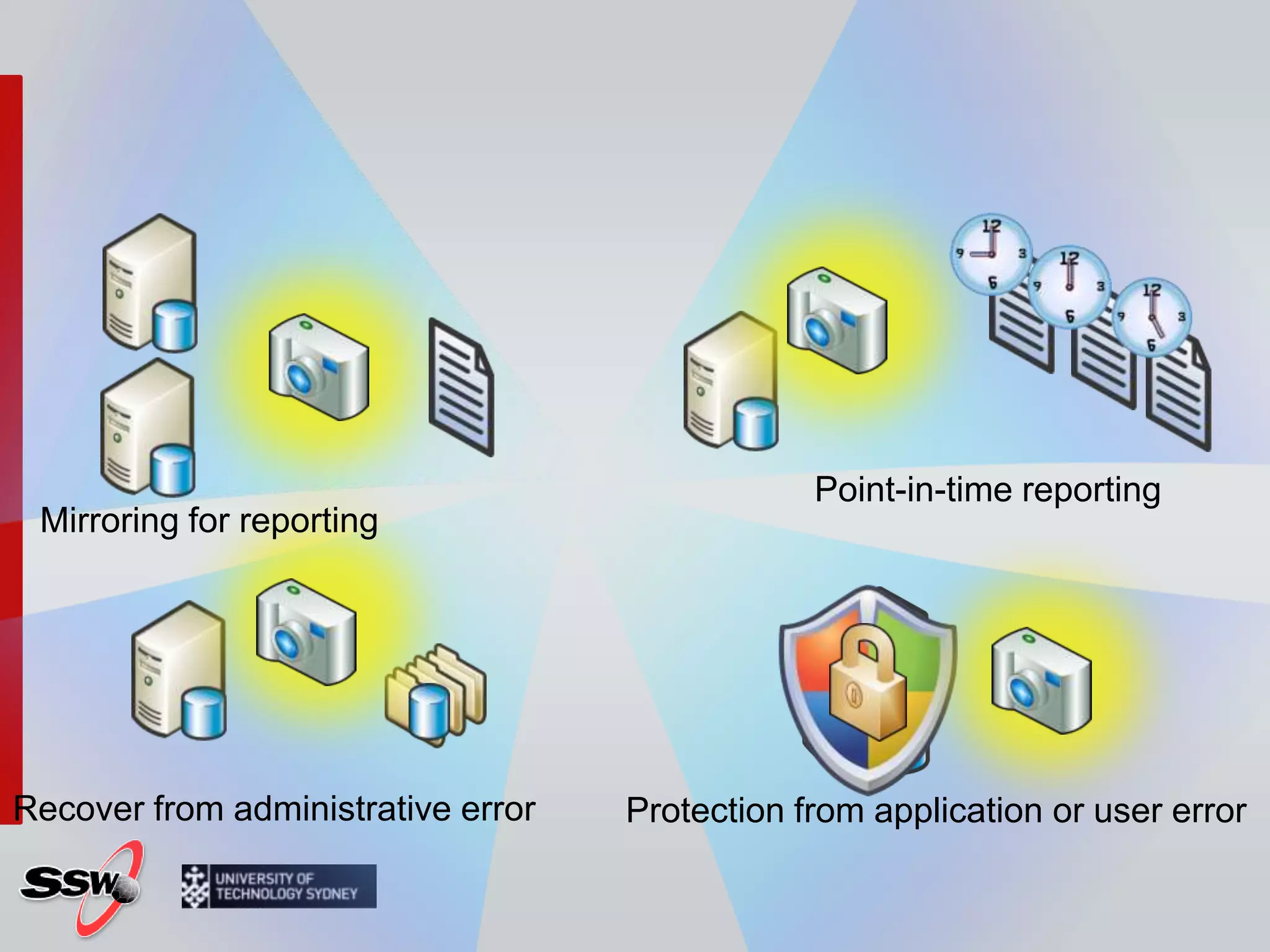

- 25. Point-in-time reportingMirroring forreportingRecover from administrative errorProtection from application or user error

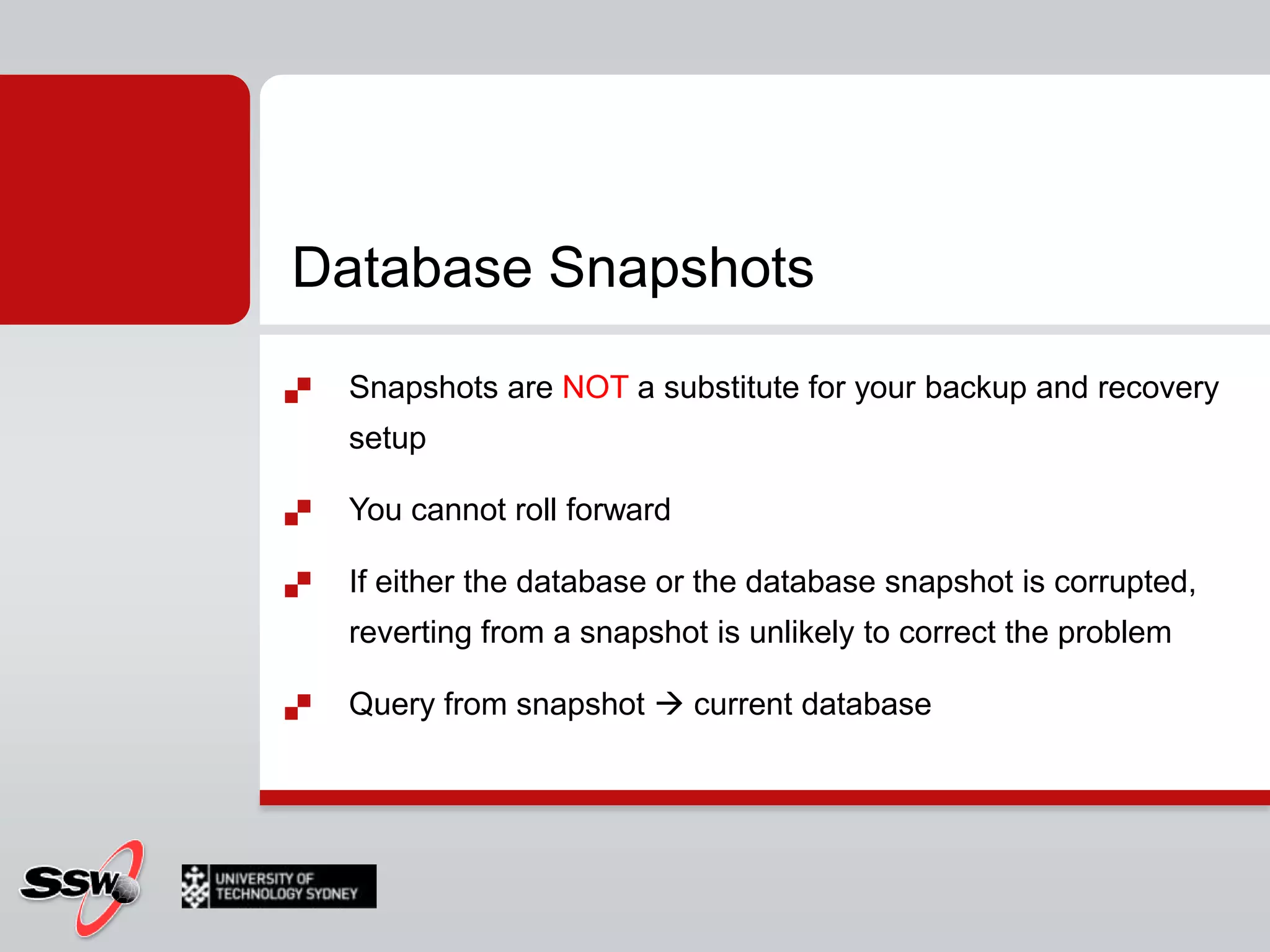

- 26. Database SnapshotsSnapshots areNOT a substitute for your backup and recovery setupYou cannot roll forwardIf either the database or the database snapshot is corrupted, reverting from a snapshot is unlikely to correct the problemQuery from snapshot current database

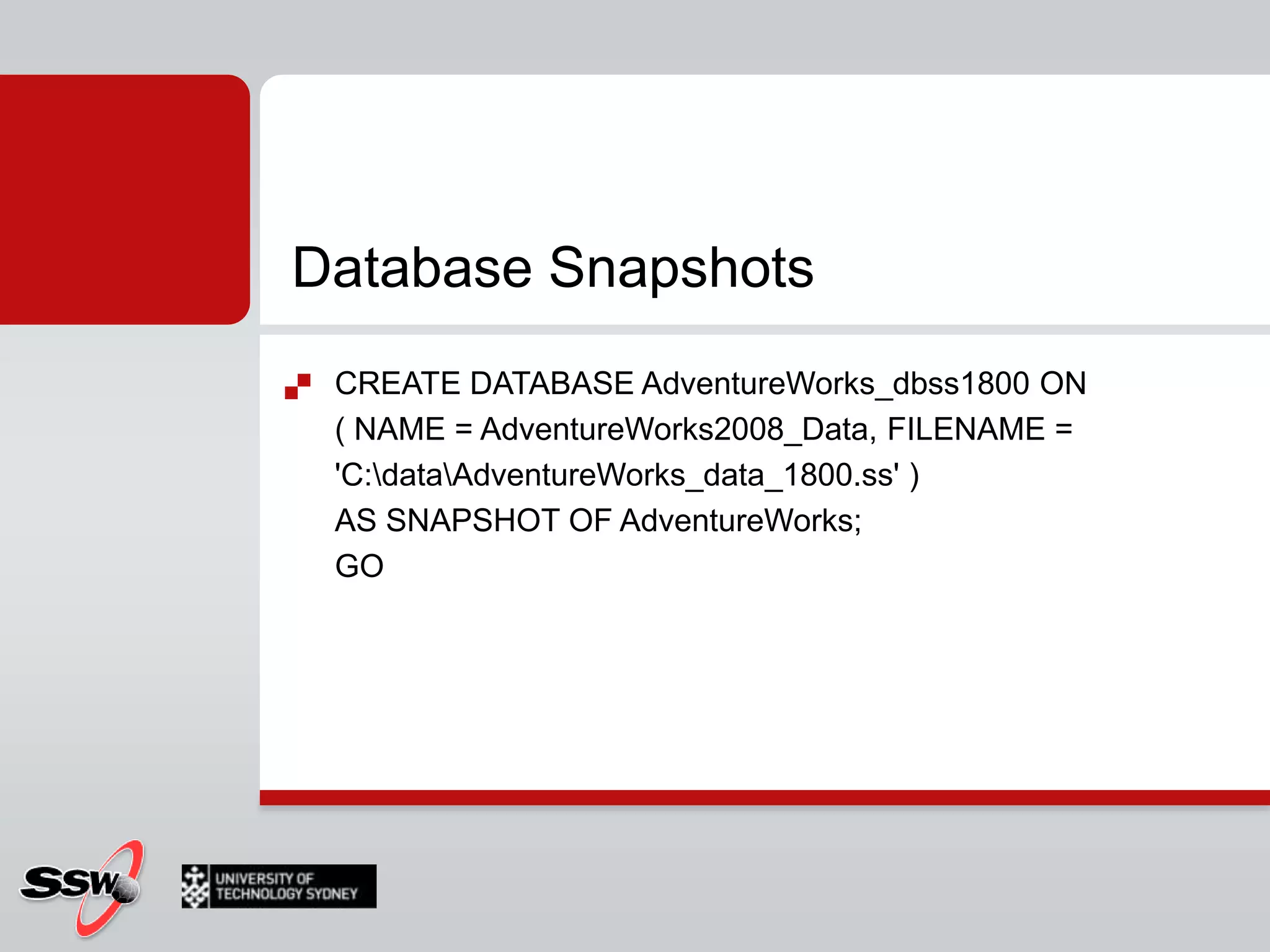

- 27. Database SnapshotsCREATE DATABASEAdventureWorks_dbss1800 ON( NAME = AdventureWorks2008_Data, FILENAME = 'C:\data\AdventureWorks_data_1800.ss' )AS SNAPSHOT OF AdventureWorks;GO
- 28.

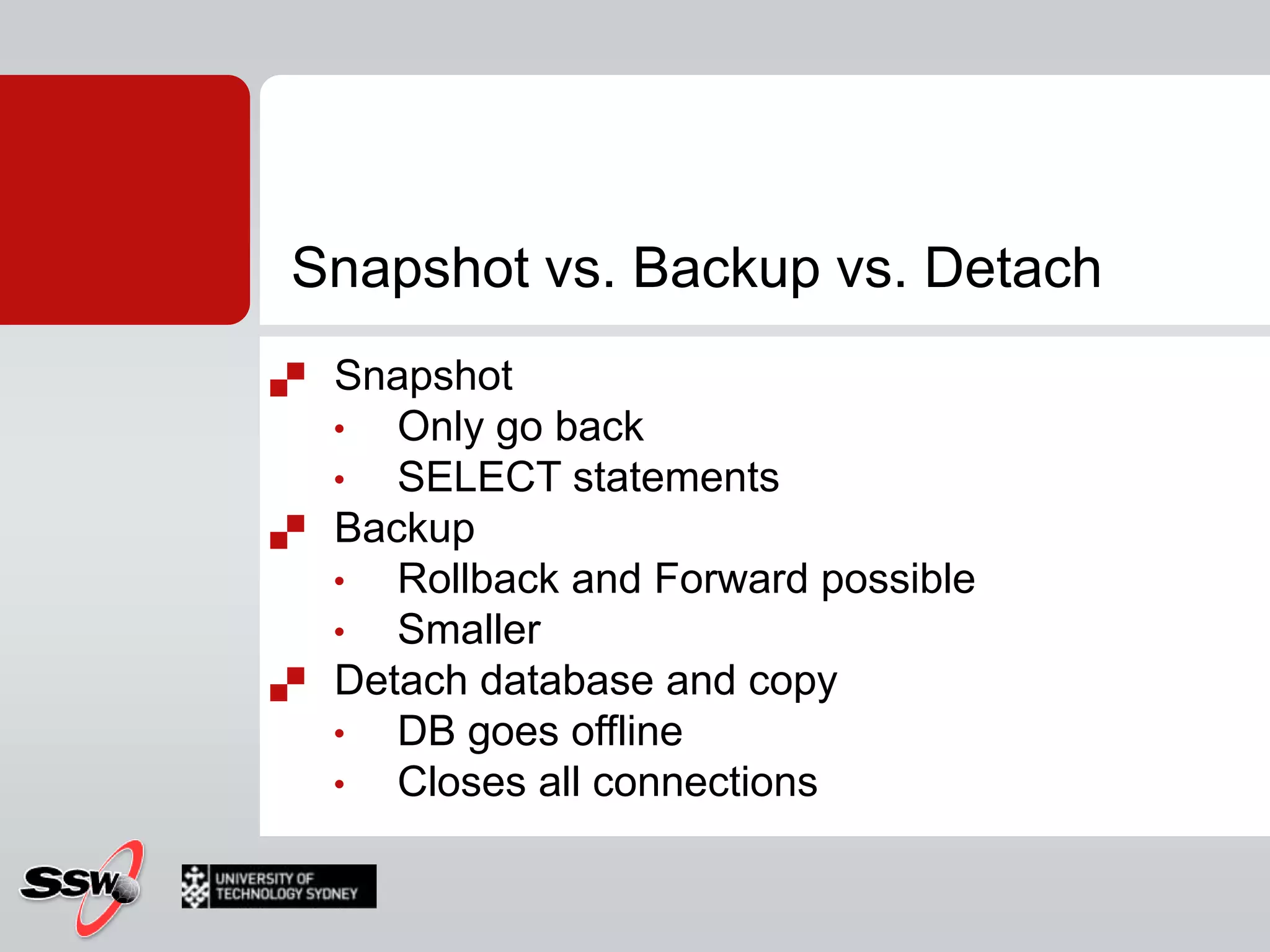

- 29. Snapshot vs. Backupvs. DetachSnapshot
- 30.
- 31.
- 32.
- 33. Rollback and Forwardpossible
- 34.
- 35.
- 36.
- 37.
- 38. Configuring a DatabaseMirrorNo special hardware

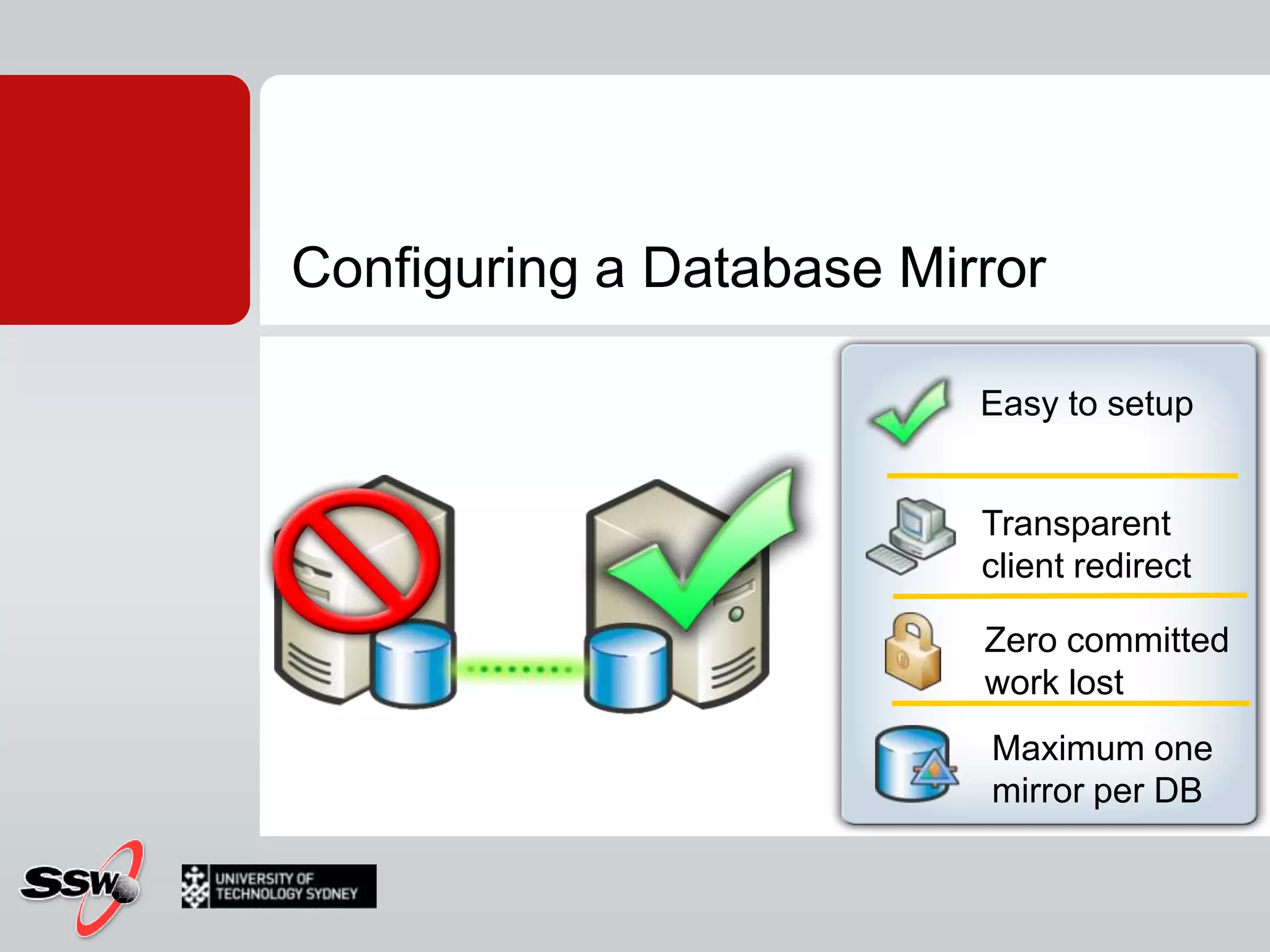

- 39. Easy to setupTransparentclient redirectZero committed work lostMaximum one mirror per DBConfiguring a Database Mirror

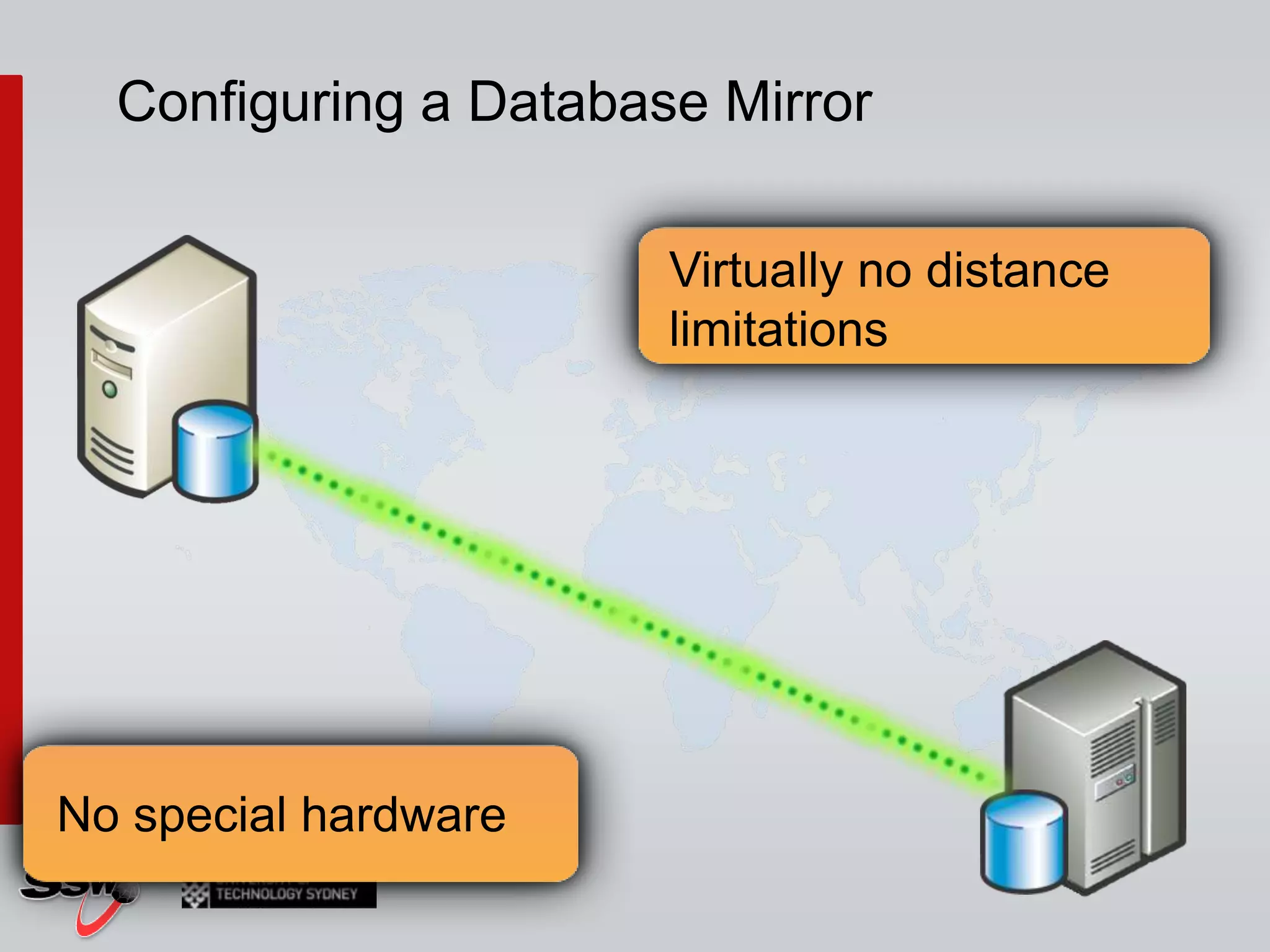

- 40. Configuring a DatabaseMirrorVirtually no distance limitationsNo special hardware

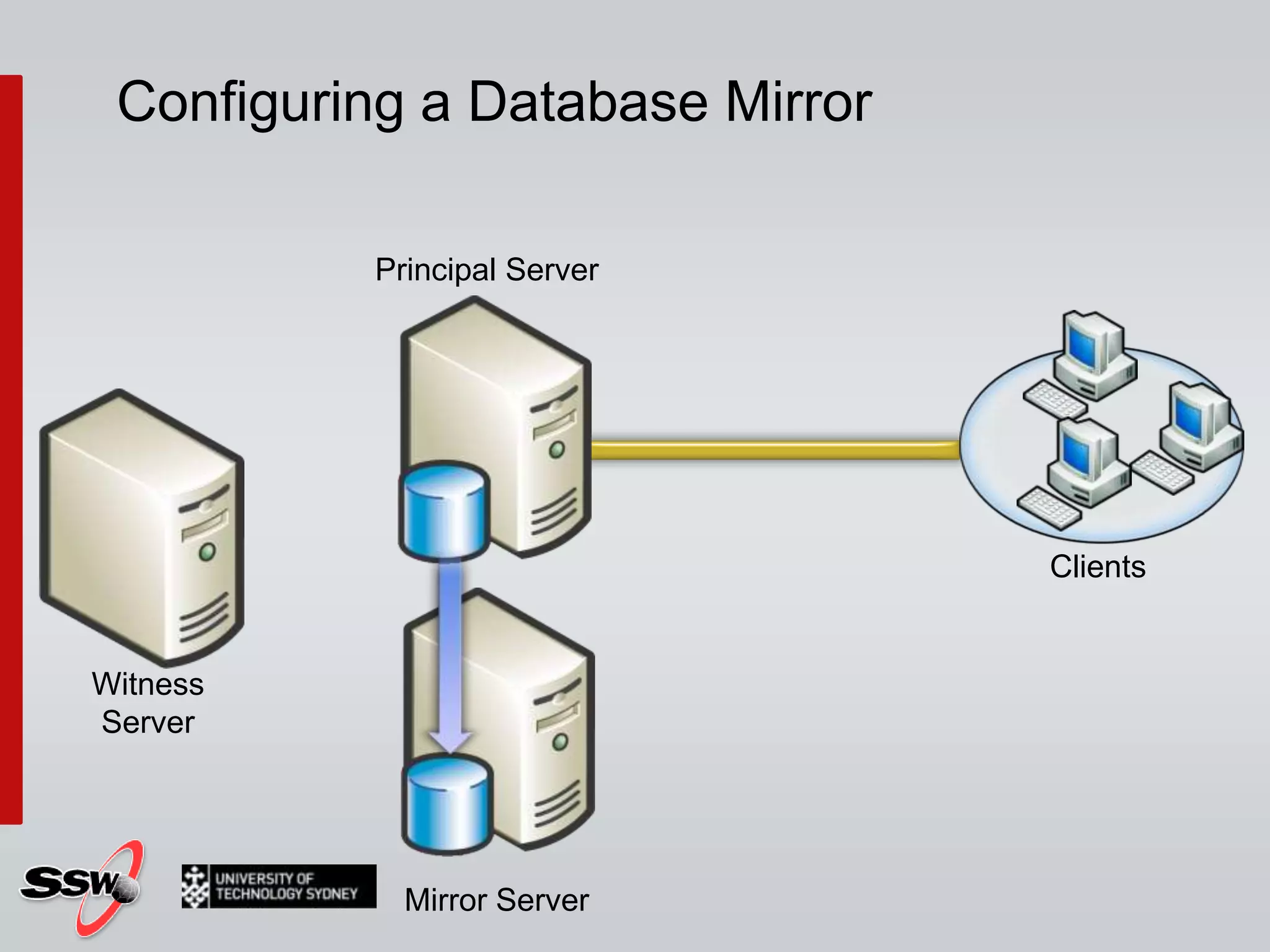

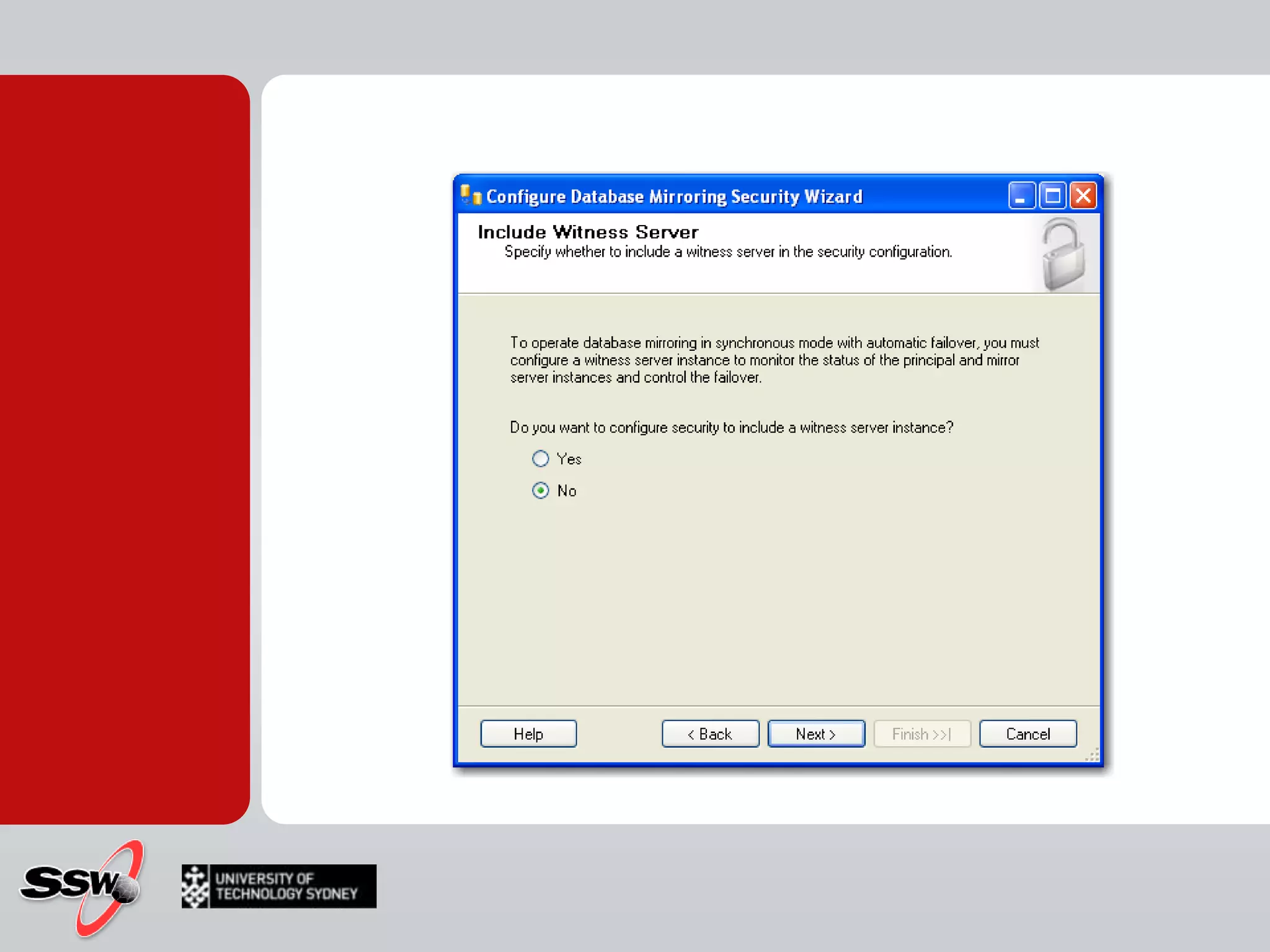

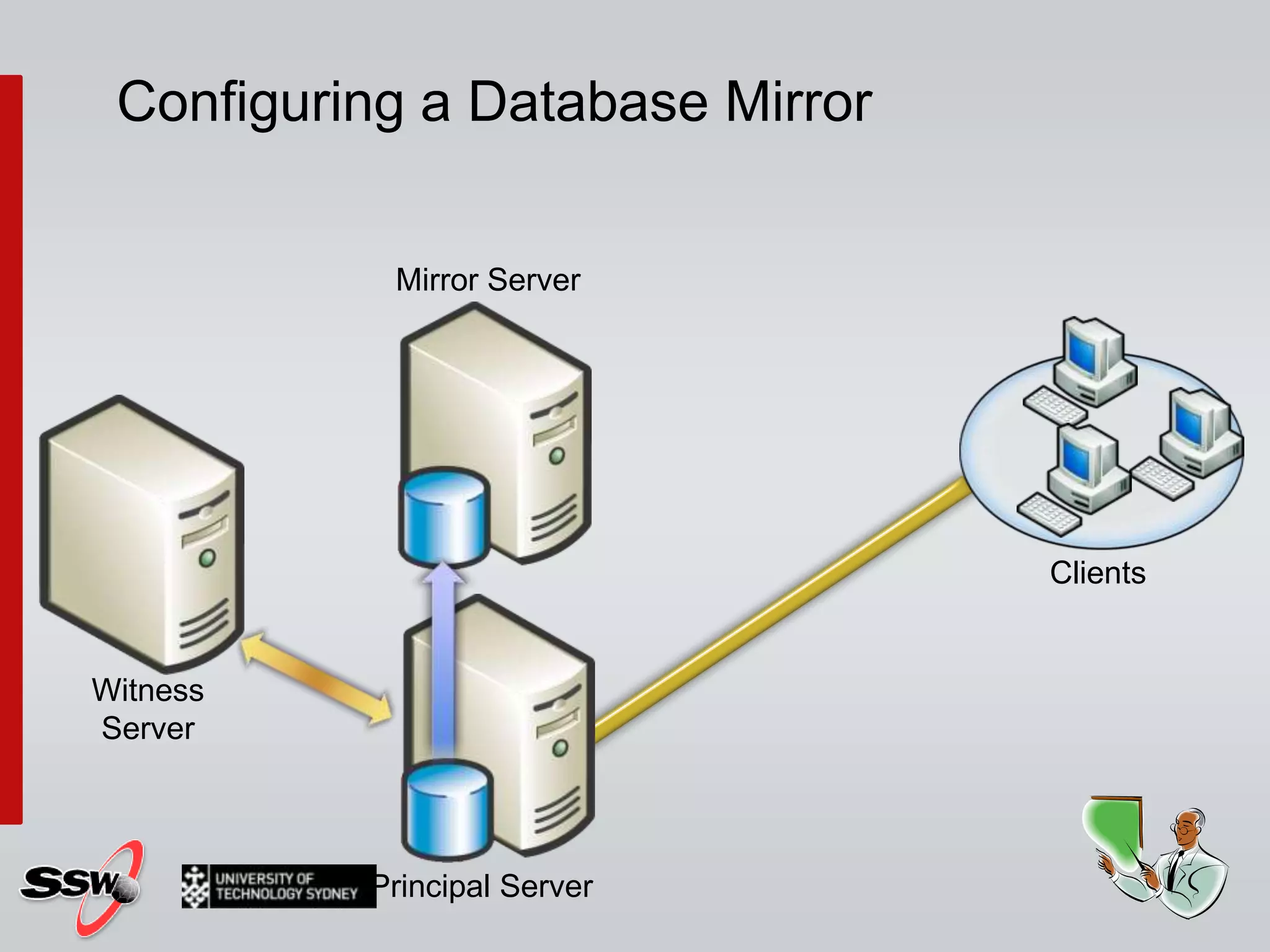

- 41. Configuring a DatabaseMirrorClientsPrincipal ServerWitness ServerMirror Server

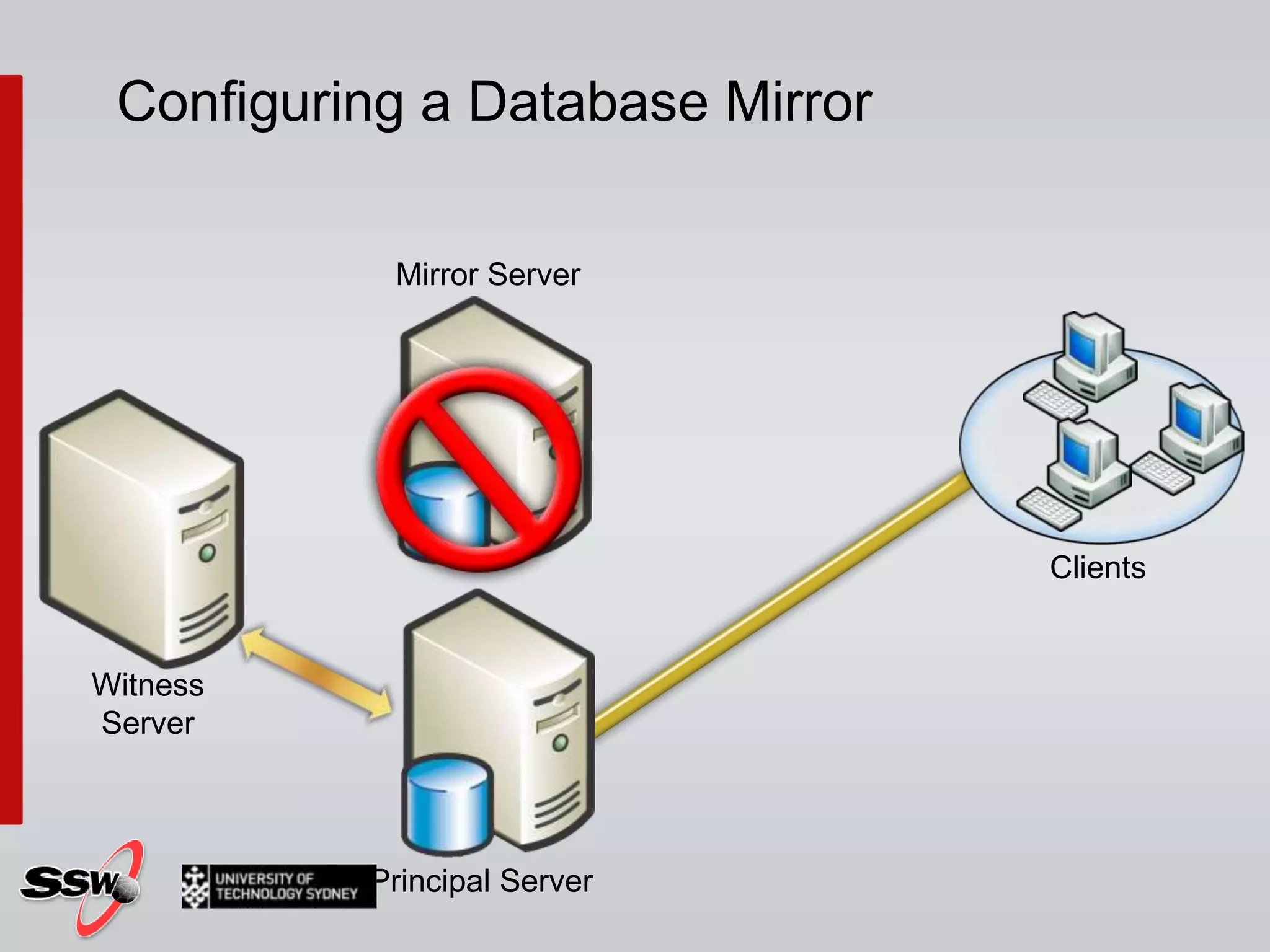

- 42. Configuring a DatabaseMirrorClientsMirror ServerWitness ServerPrincipal Server
- 43. Configuring a DatabaseMirrorClientsMirror ServerWitness ServerPrincipal Server

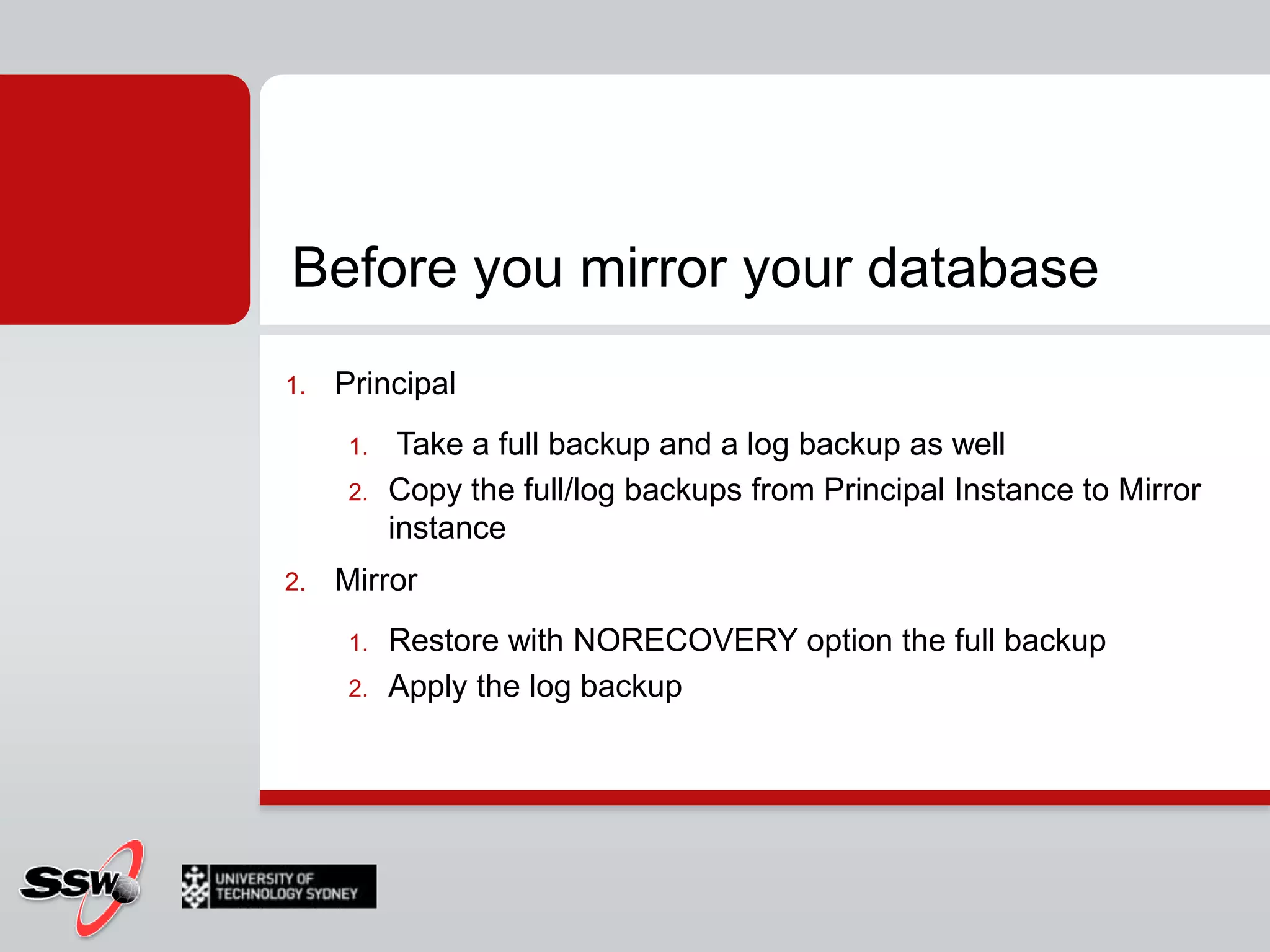

- 44. Before you mirroryour databasePrincipal Take a full backup and a log backup as wellCopy the full/log backups from Principal Instance to Mirror instanceMirrorRestore with NORECOVERY option the full backupApply the log backup

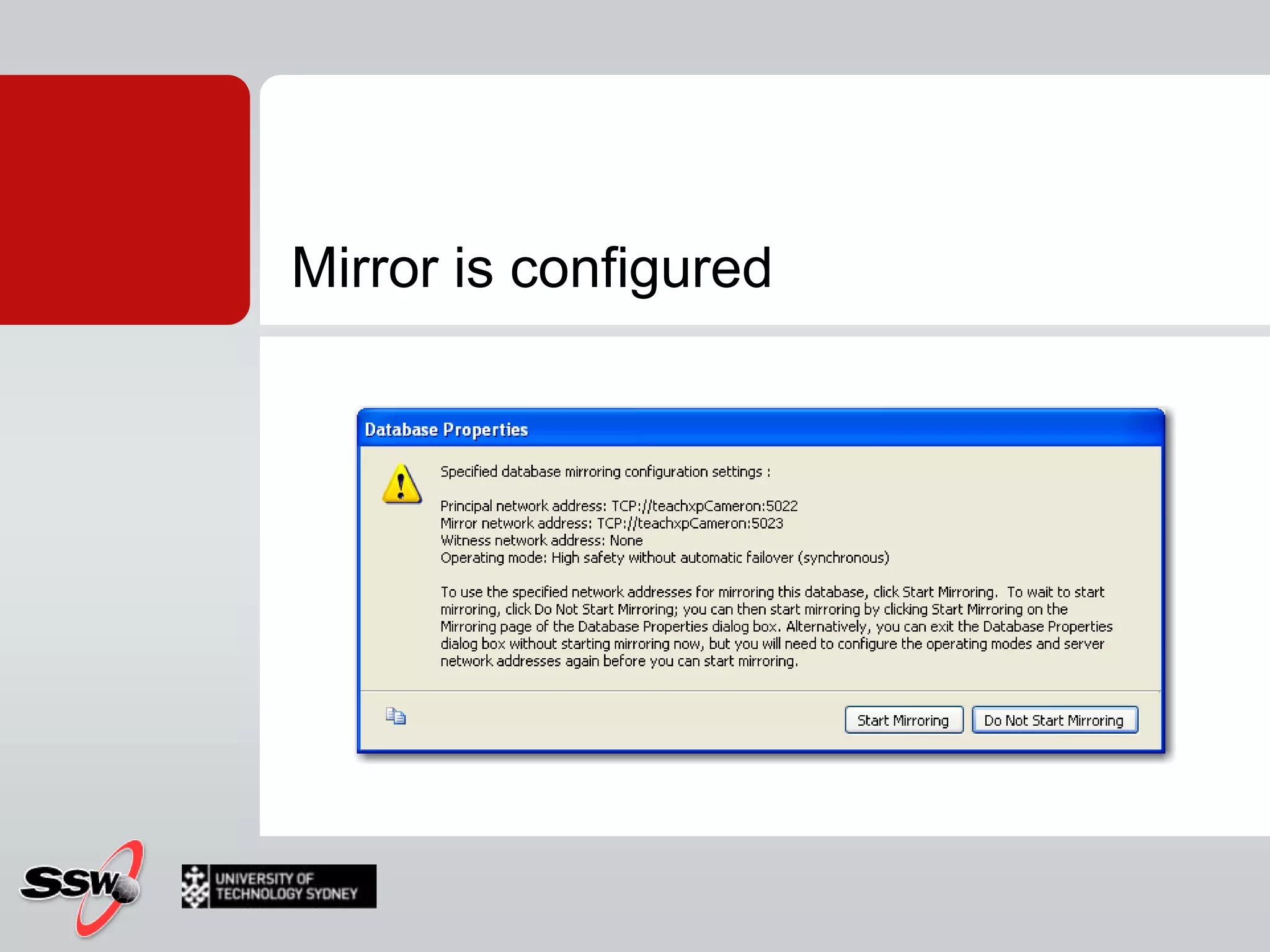

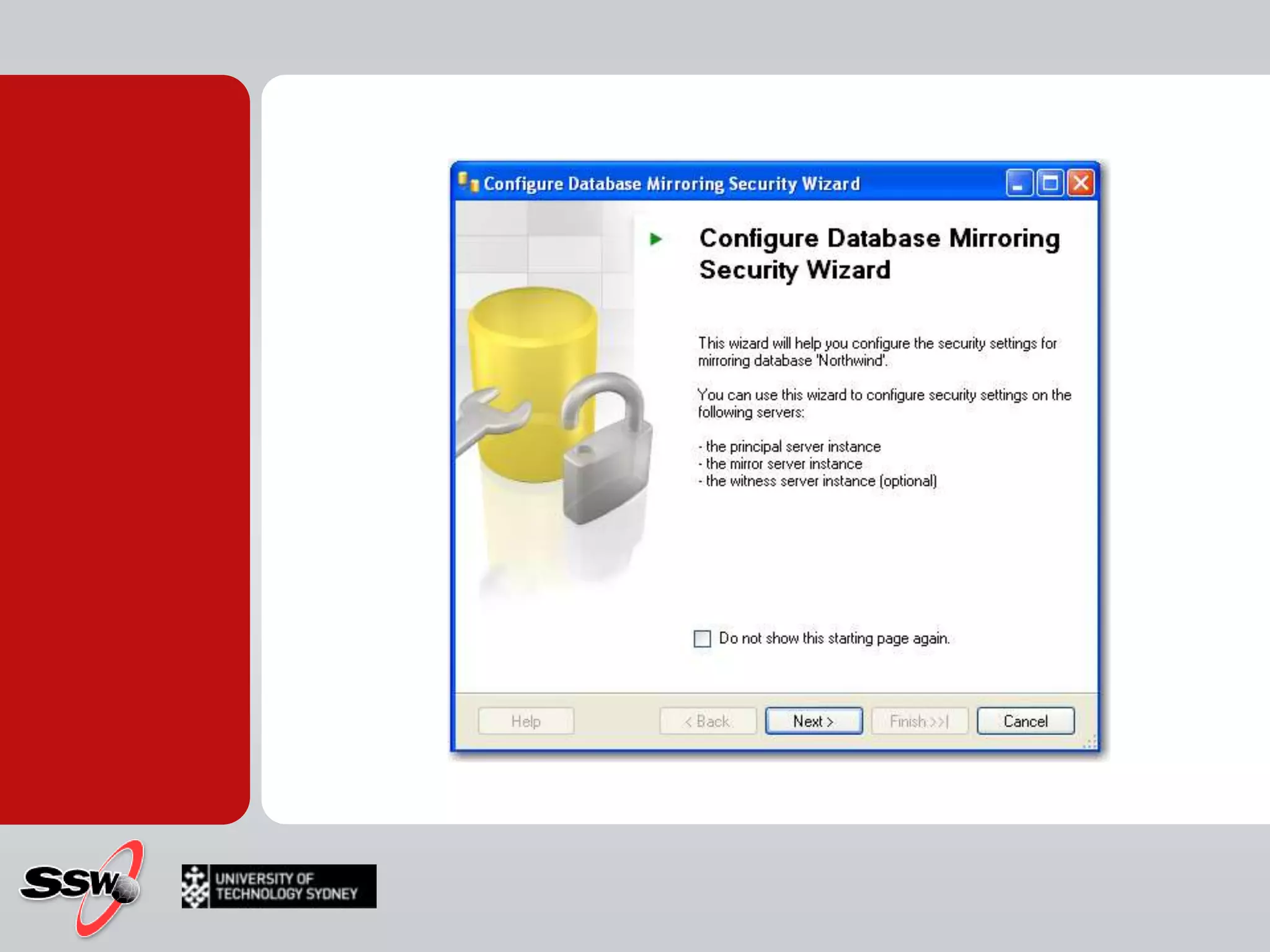

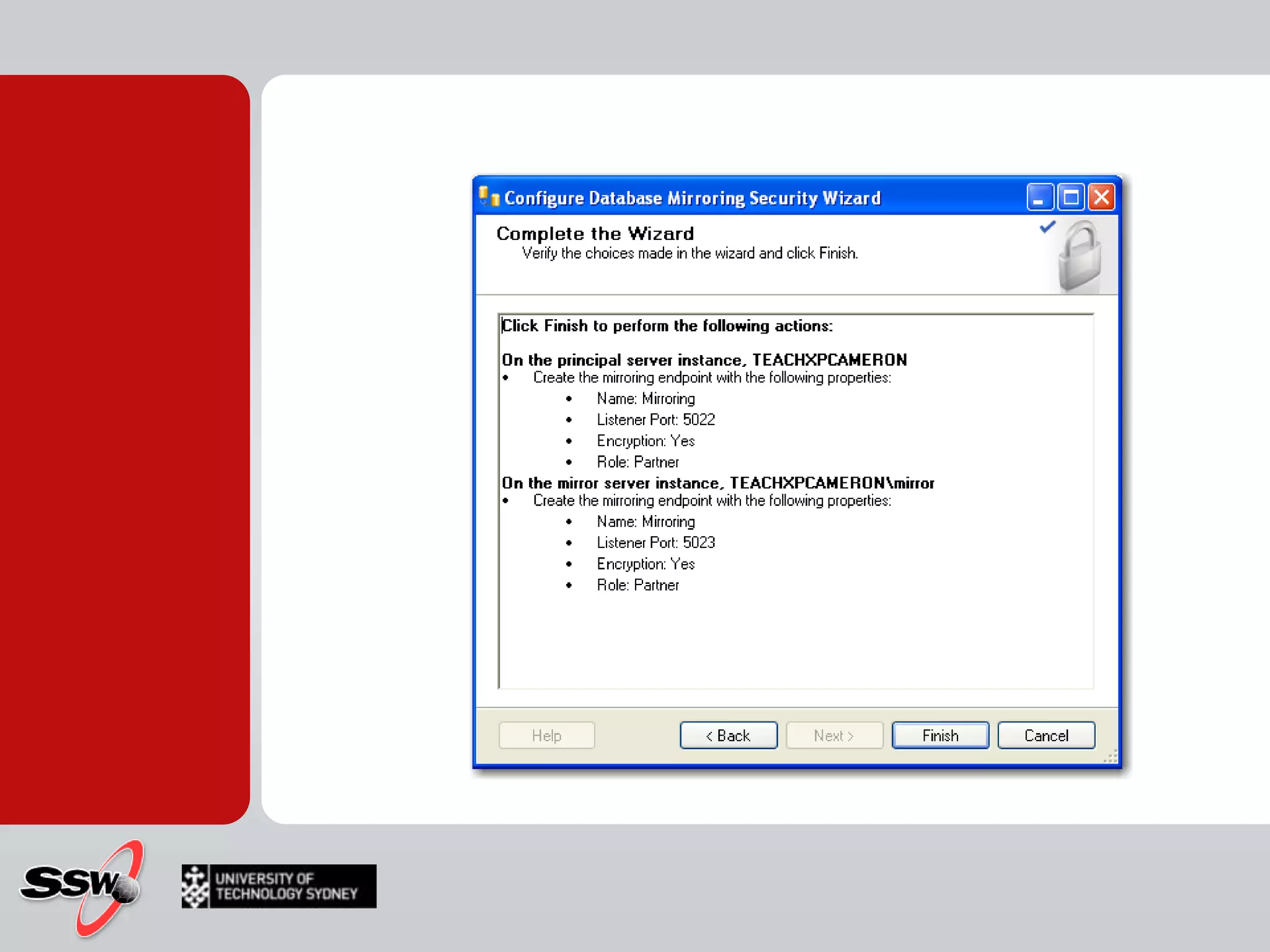

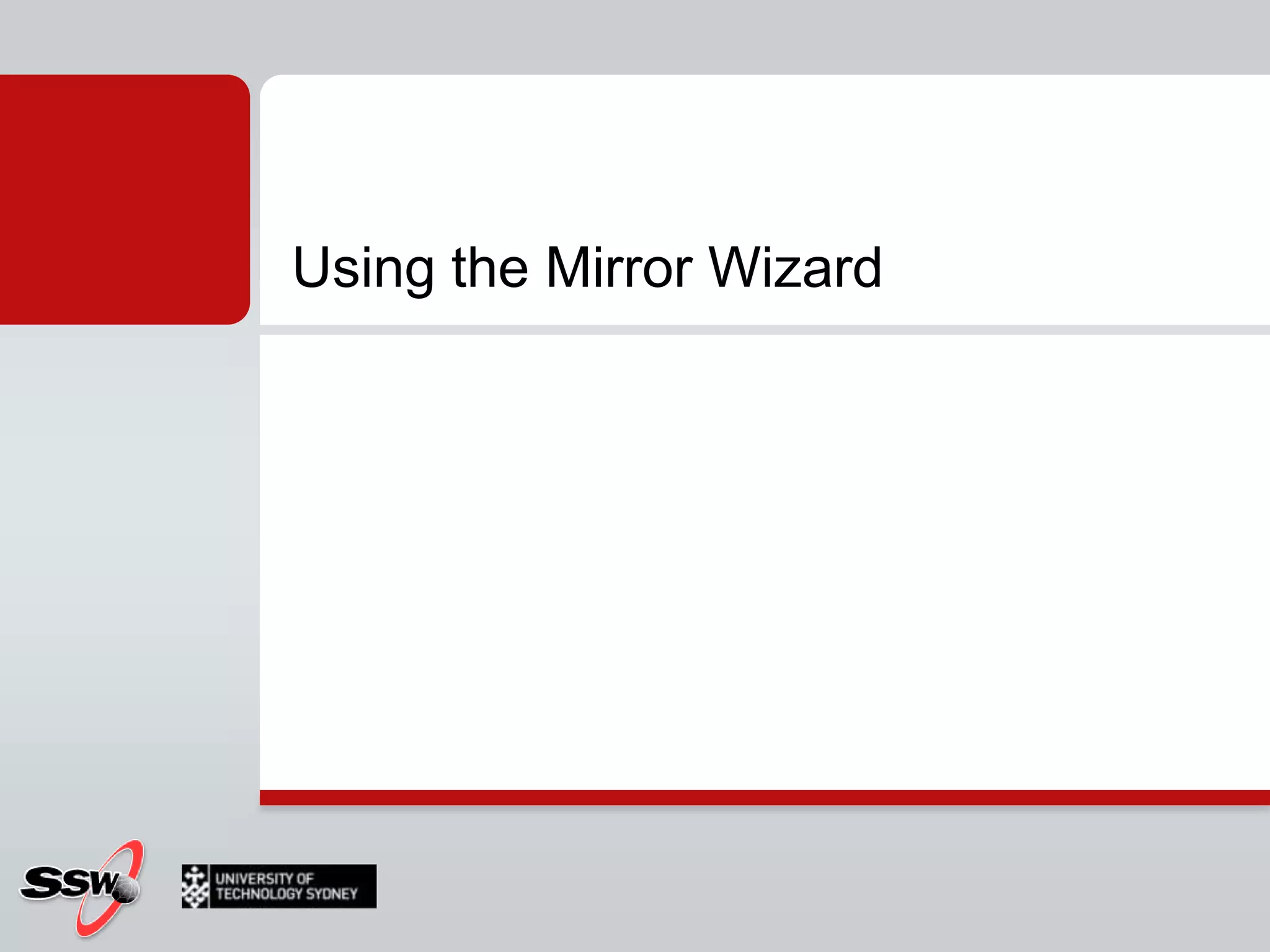

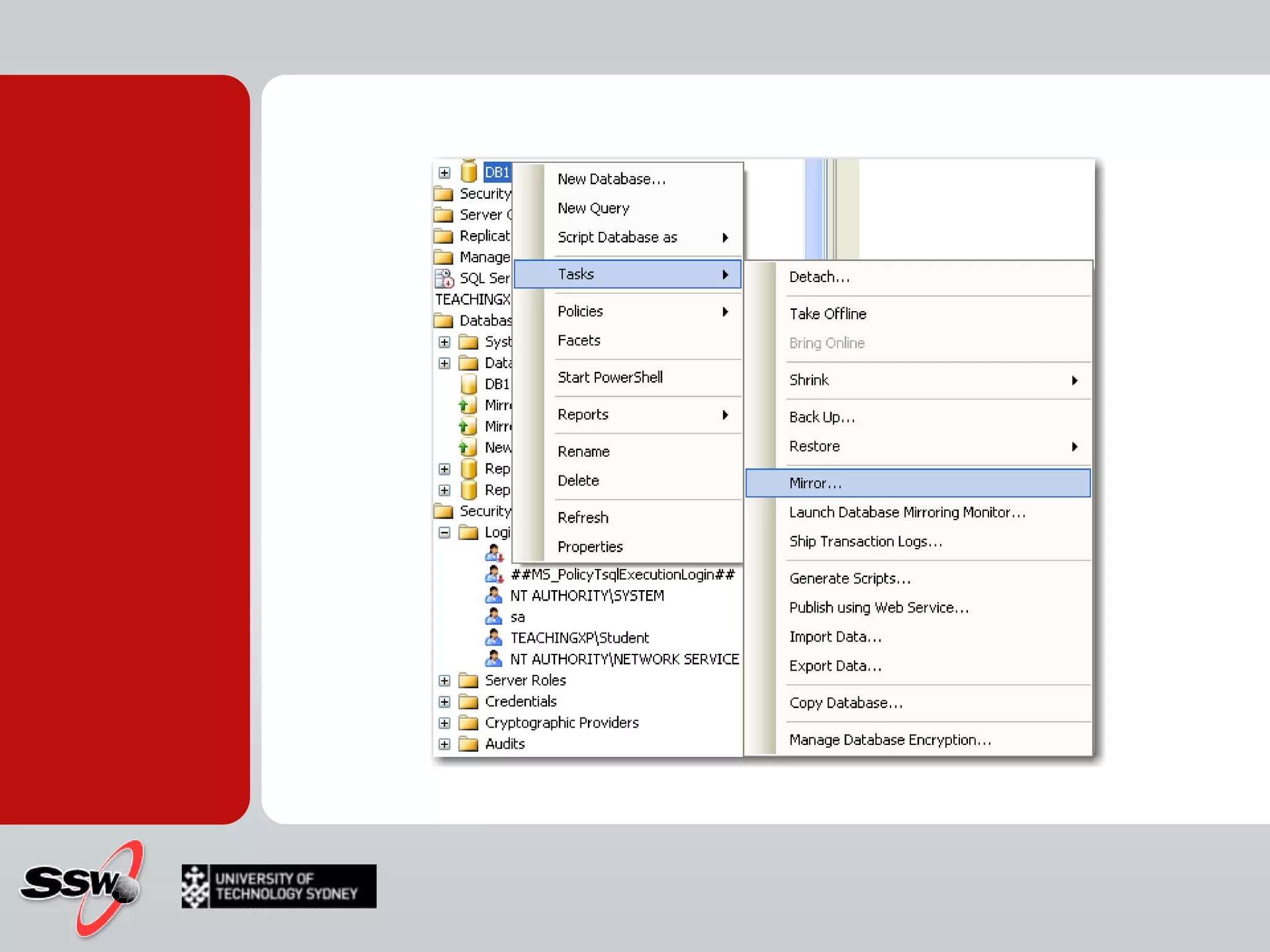

- 45. Using the MirrorWizard

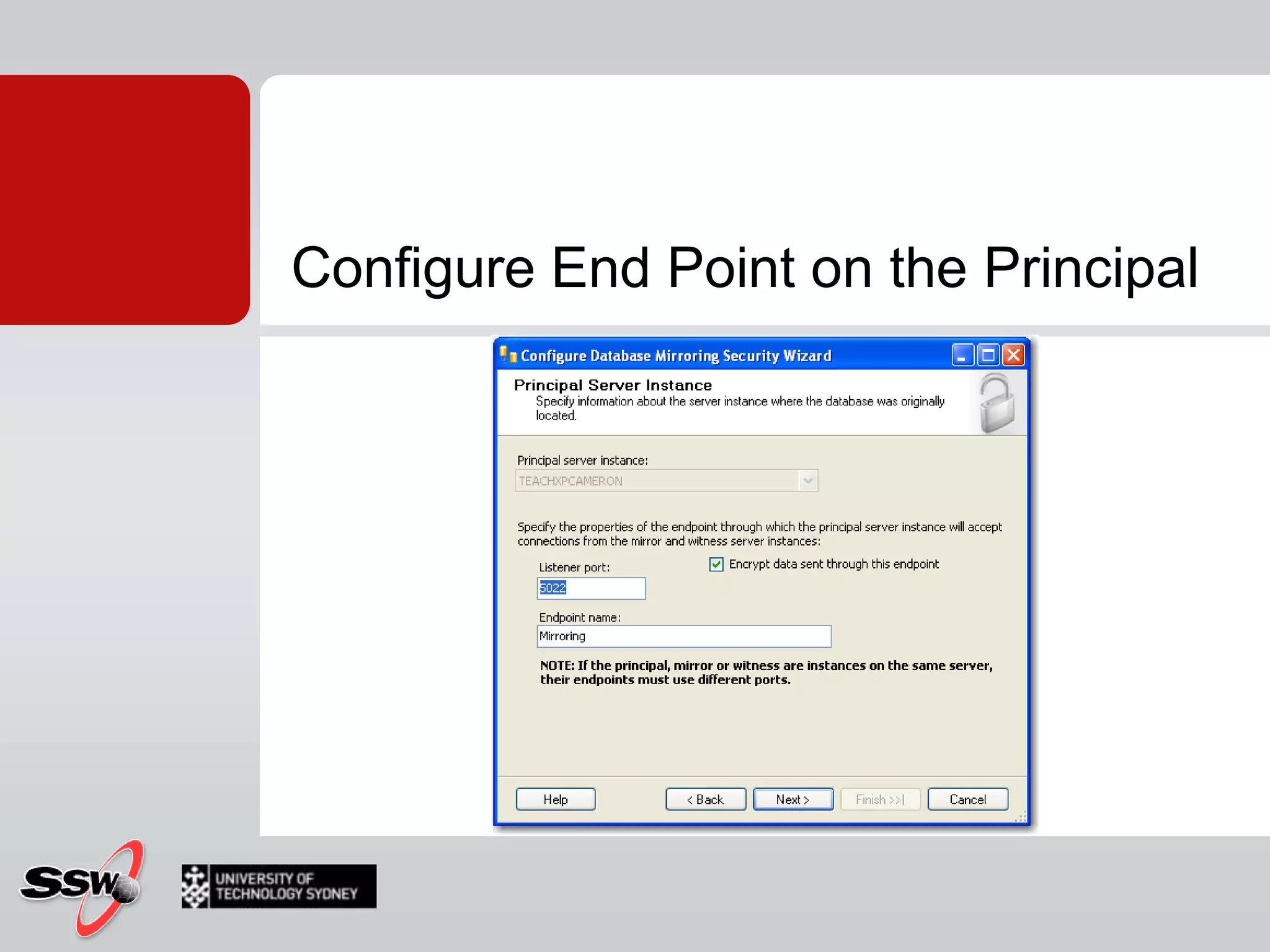

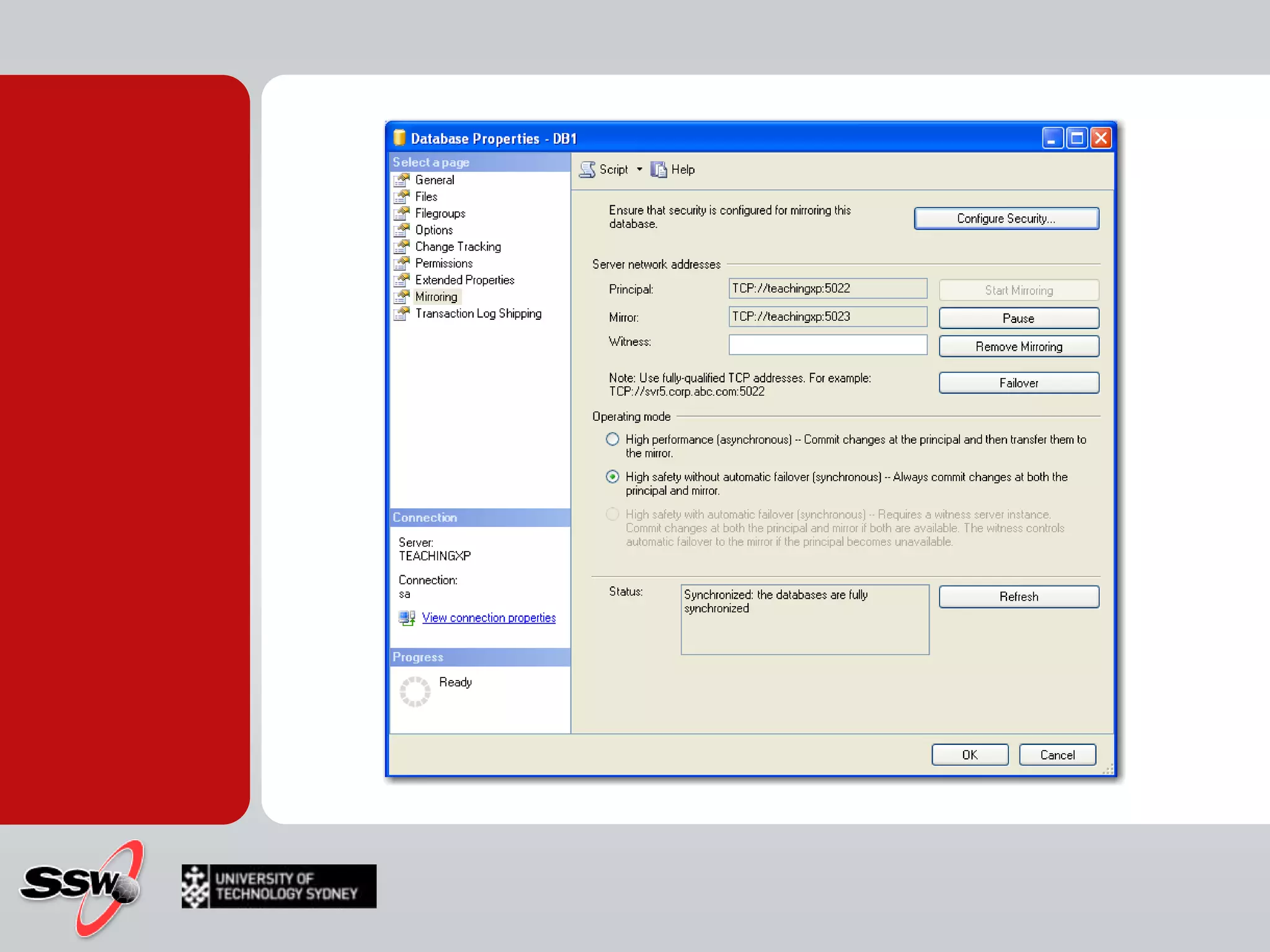

- 49. Configure End Pointon the Principal

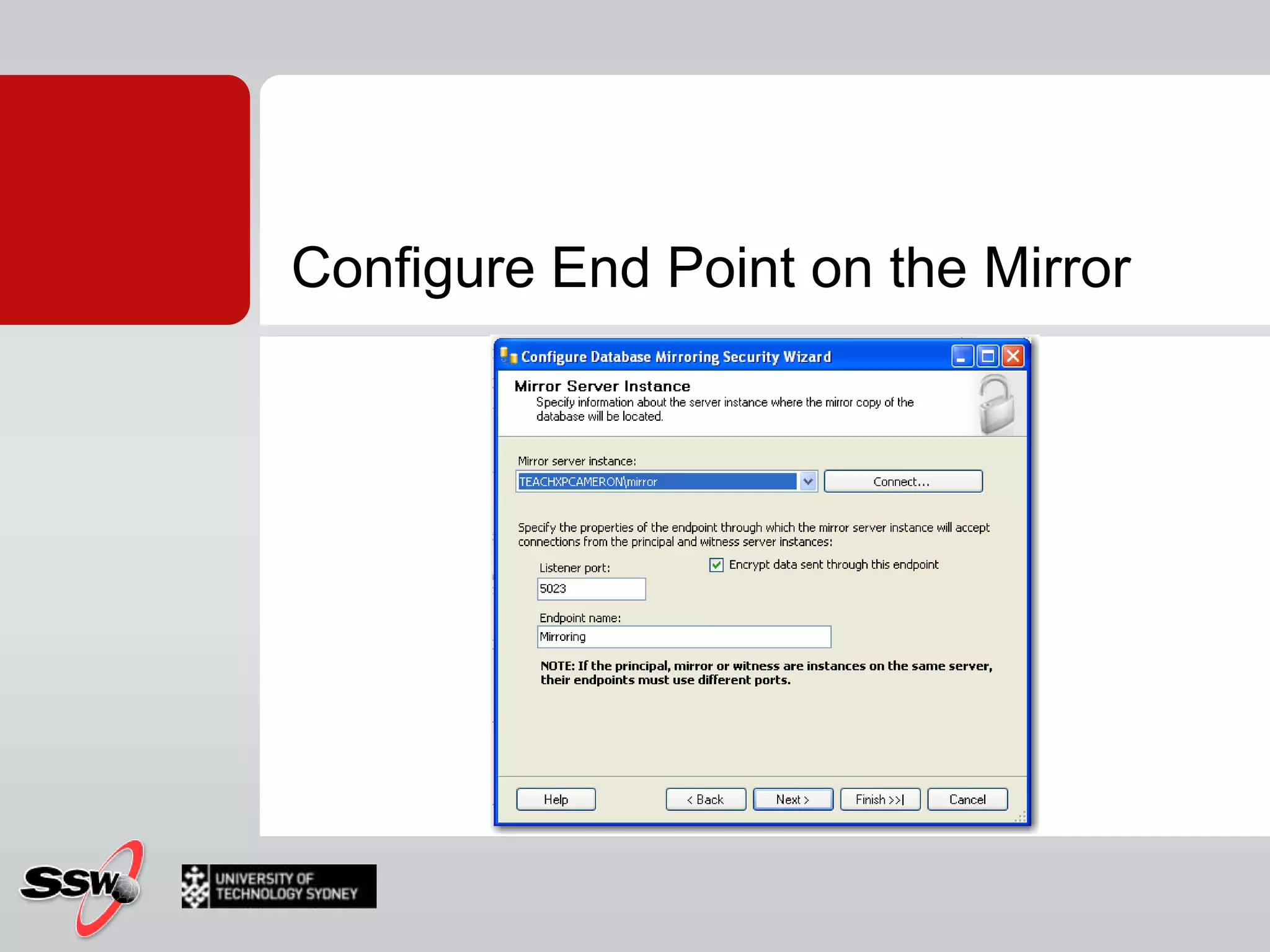

- 50. Configure End Pointon the Mirror

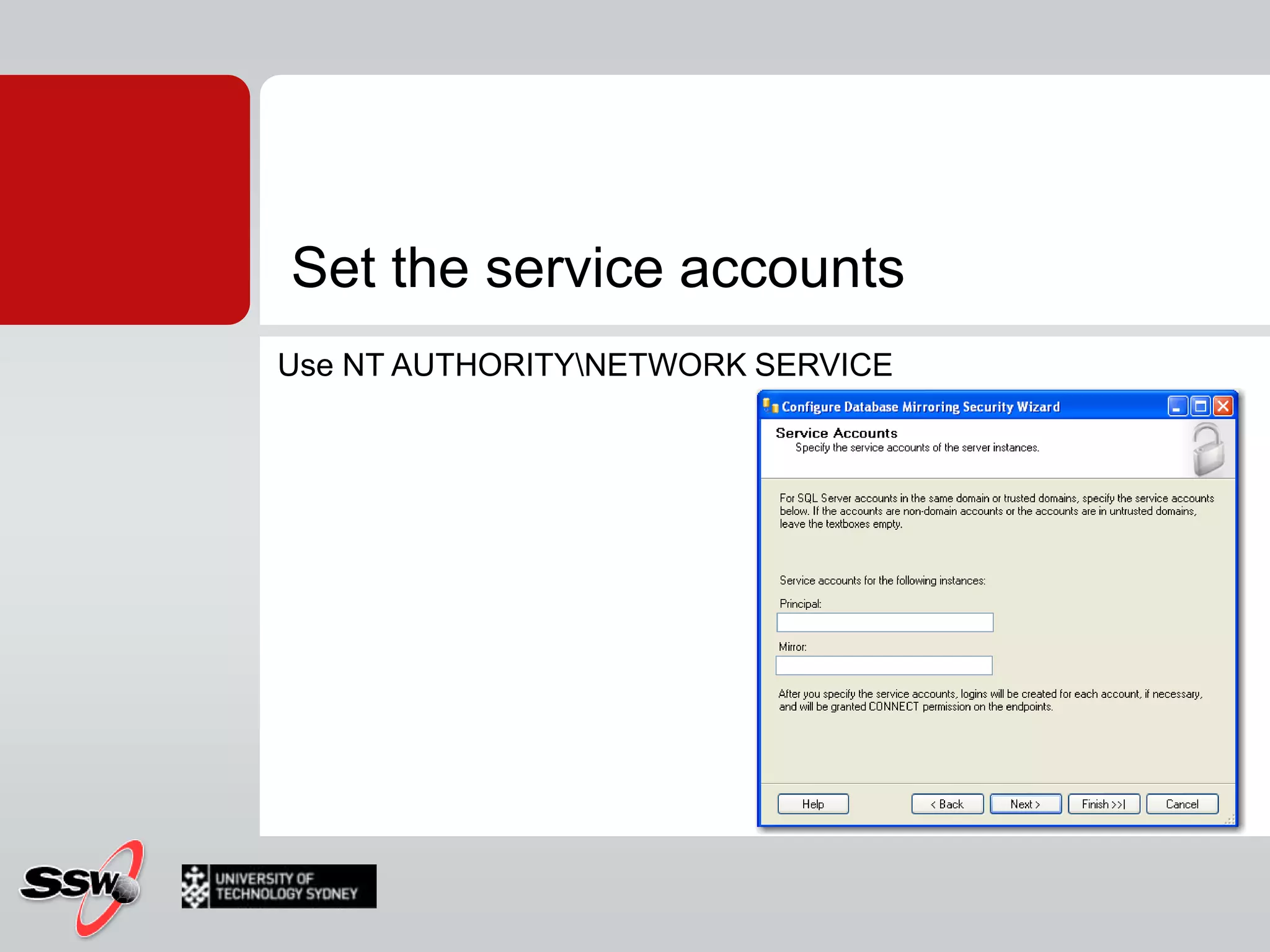

- 51. Set the serviceaccountsUse NT AUTHORITY\NETWORK SERVICE
- 53.
- 54.

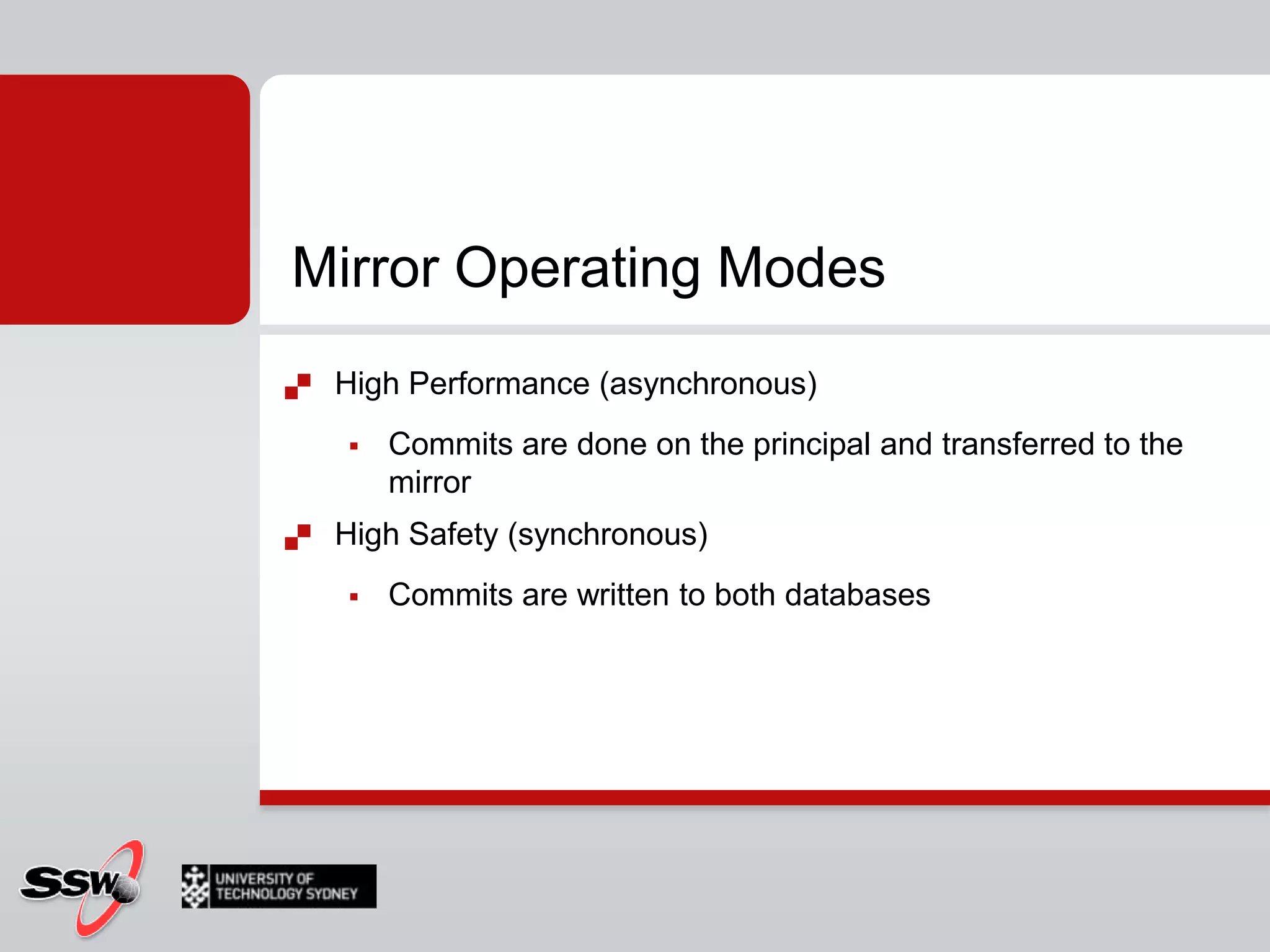

- 55. Mirror Operating ModesHighPerformance (asynchronous)Commits are done on the principal and transferred to the mirrorHigh Safety (synchronous)Commits are written to both databases

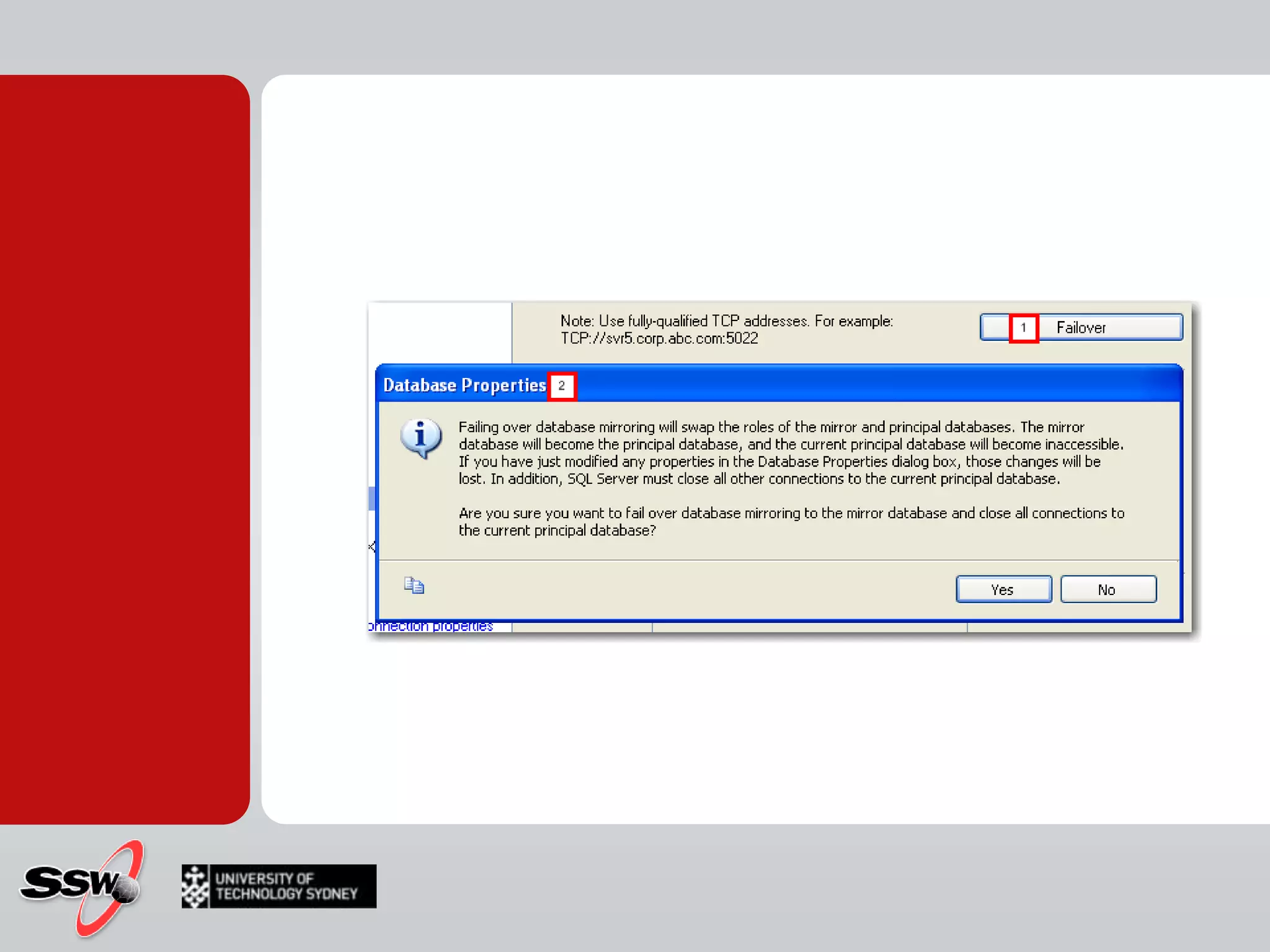

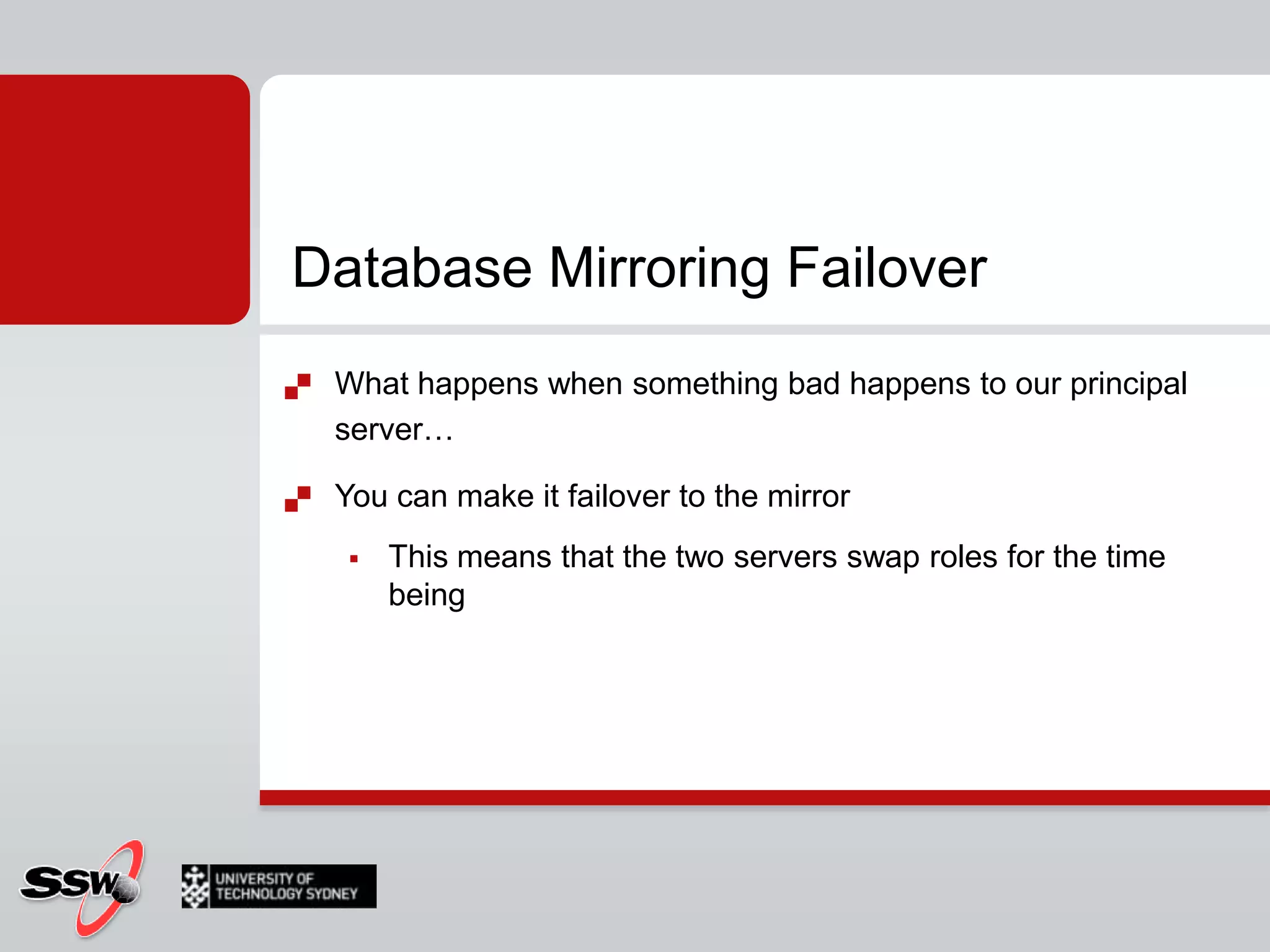

- 57. Database Mirroring FailoverWhathappens when something bad happens to our principal server…You can make it failover to the mirrorThis means that the two servers swap roles for the time being

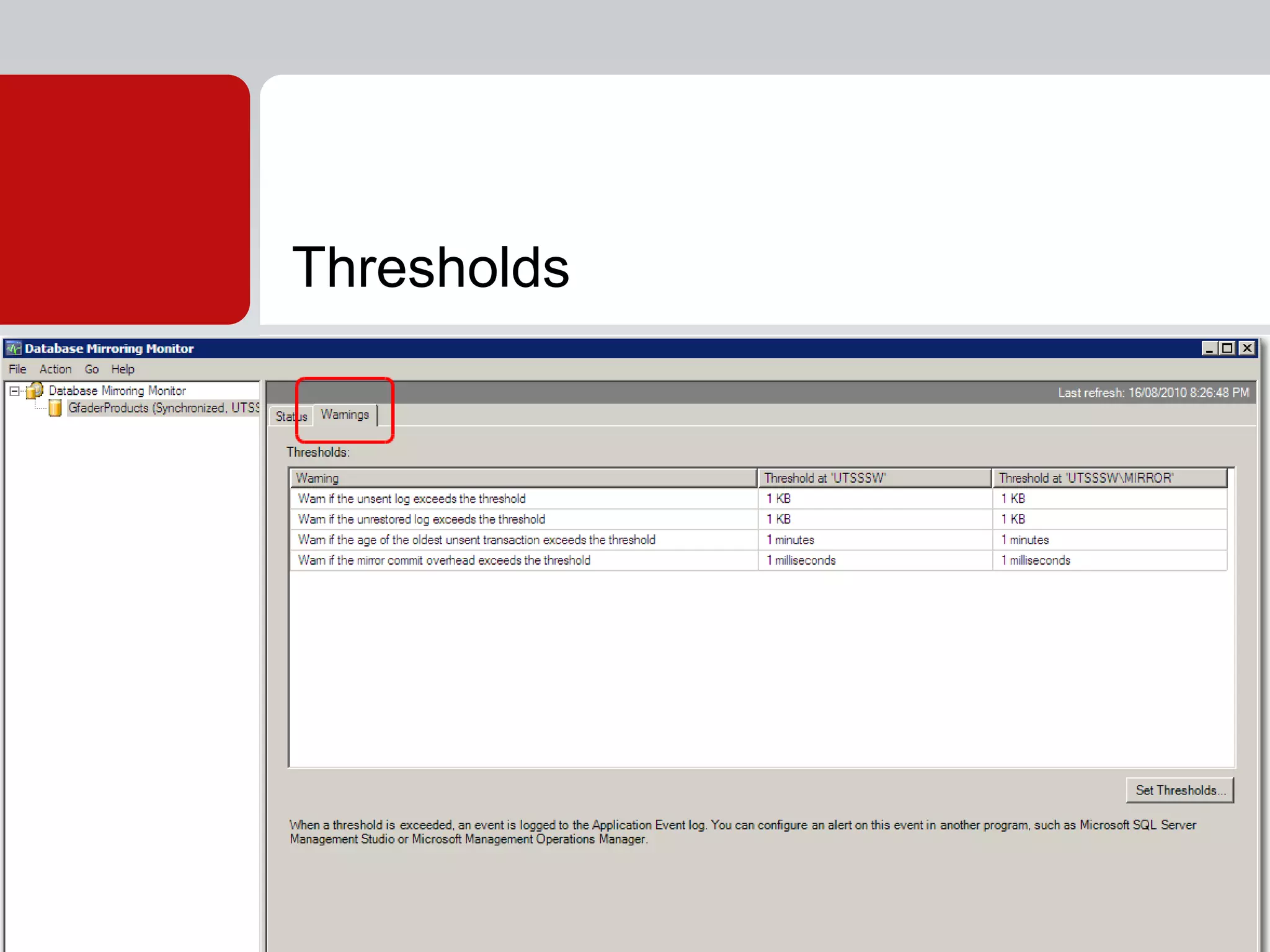

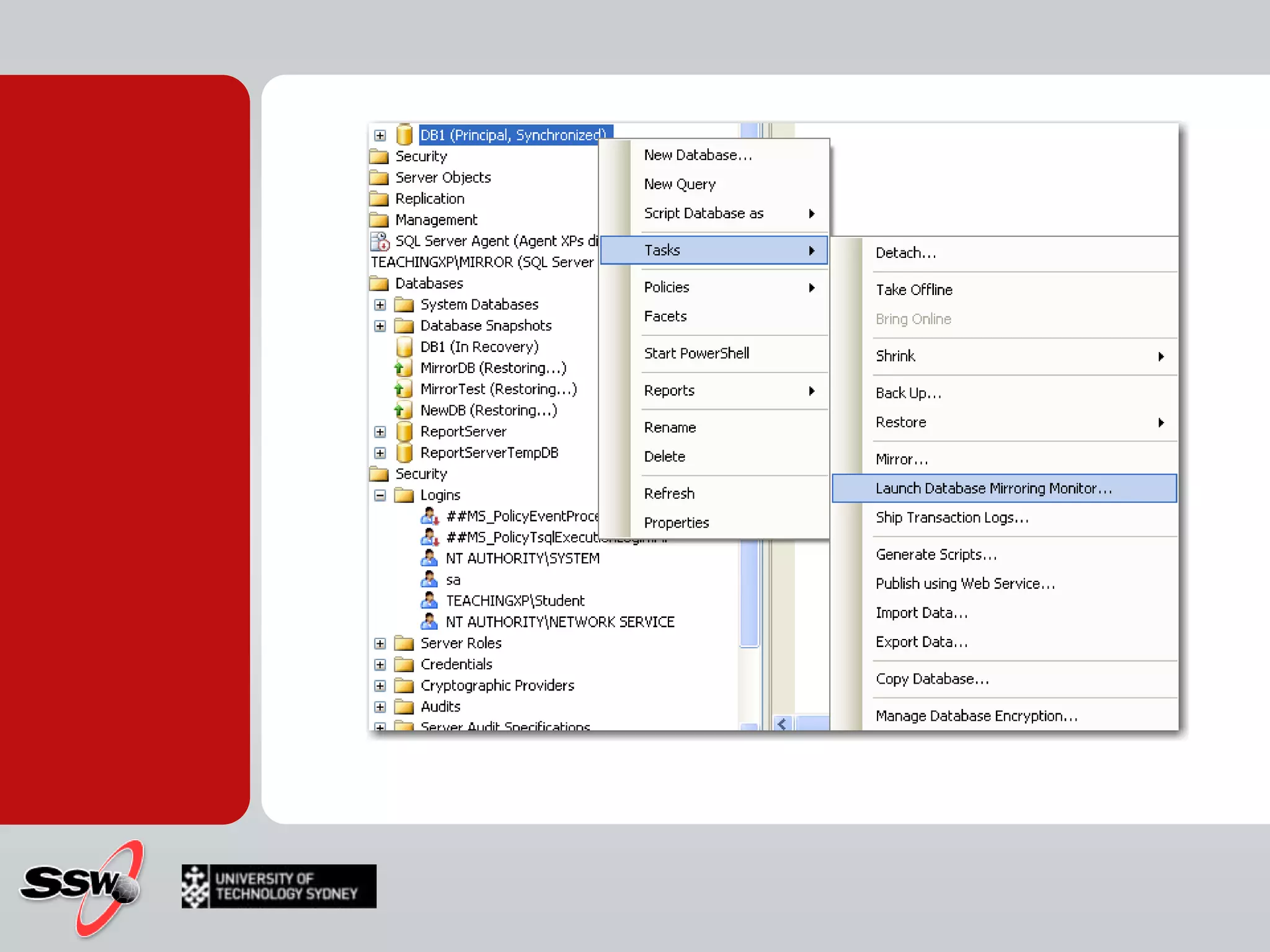

- 59. Database Mirroring MonitorLetsyou view the status and history of your current mirrors
- 62.

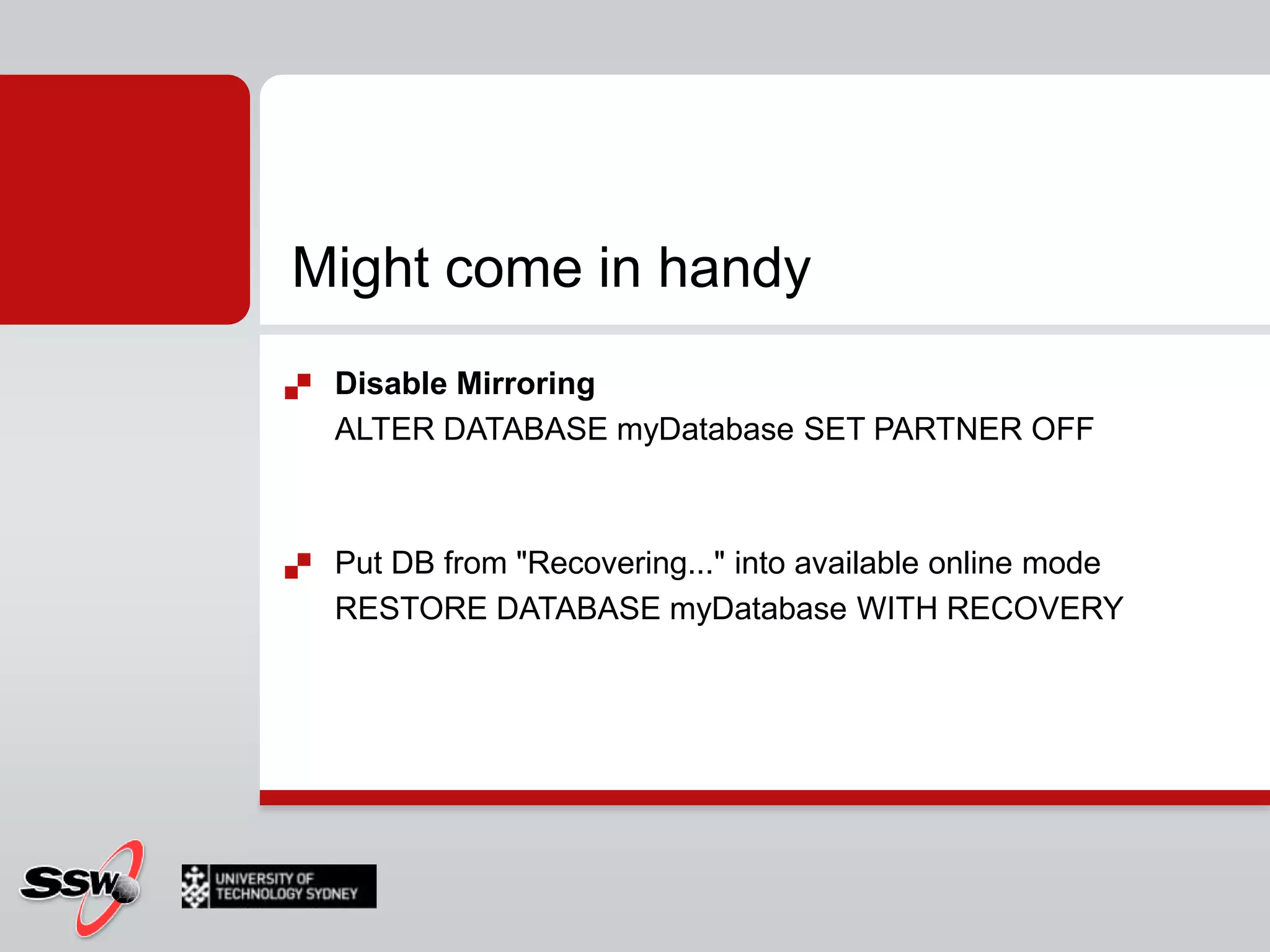

- 64. Might come inhandyDisable MirroringALTER DATABASE myDatabase SET PARTNER OFFPut DB from "Recovering..." into available online modeRESTORE DATABASE myDatabase WITH RECOVERY
- 65.
- 66.

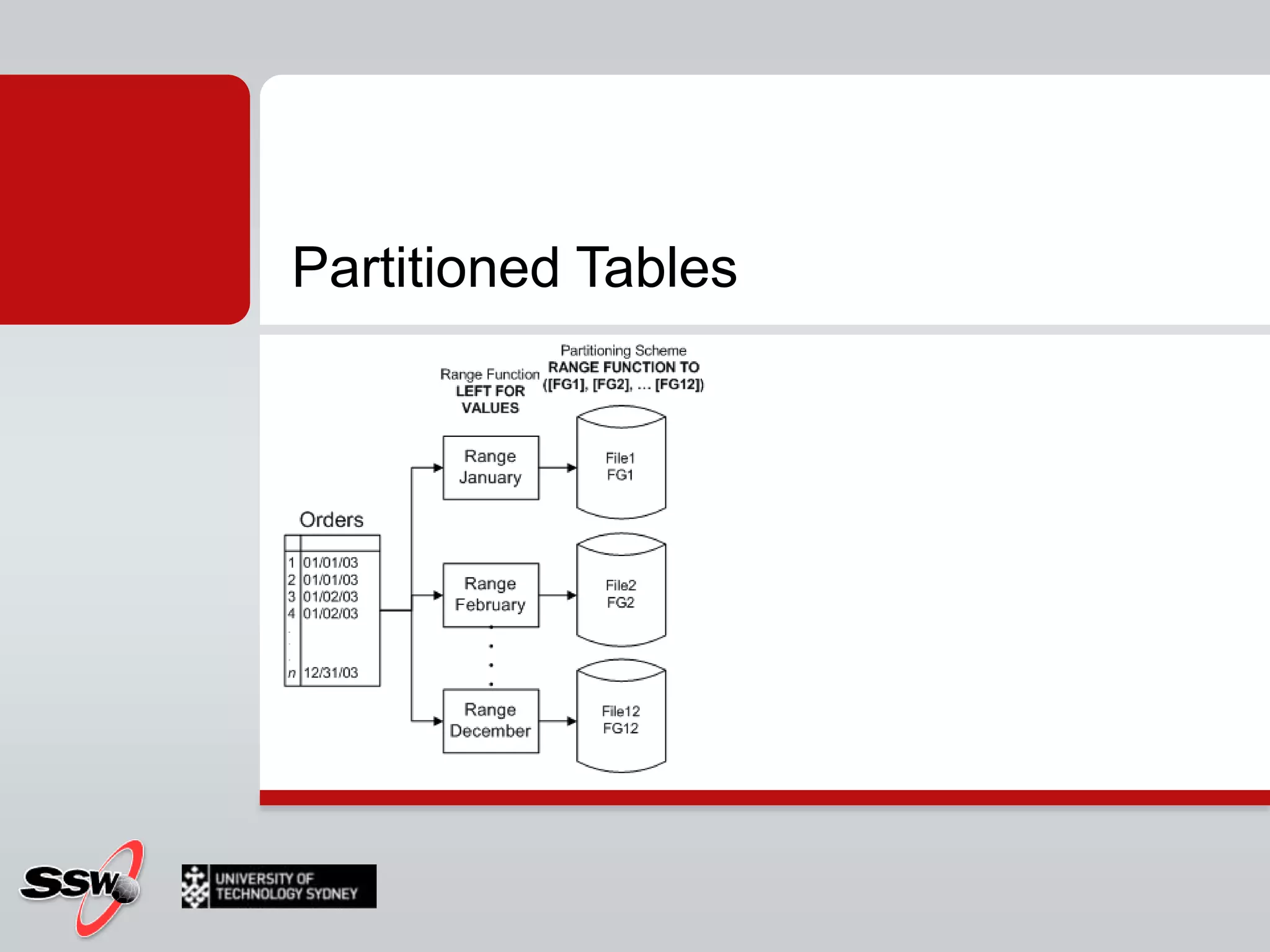

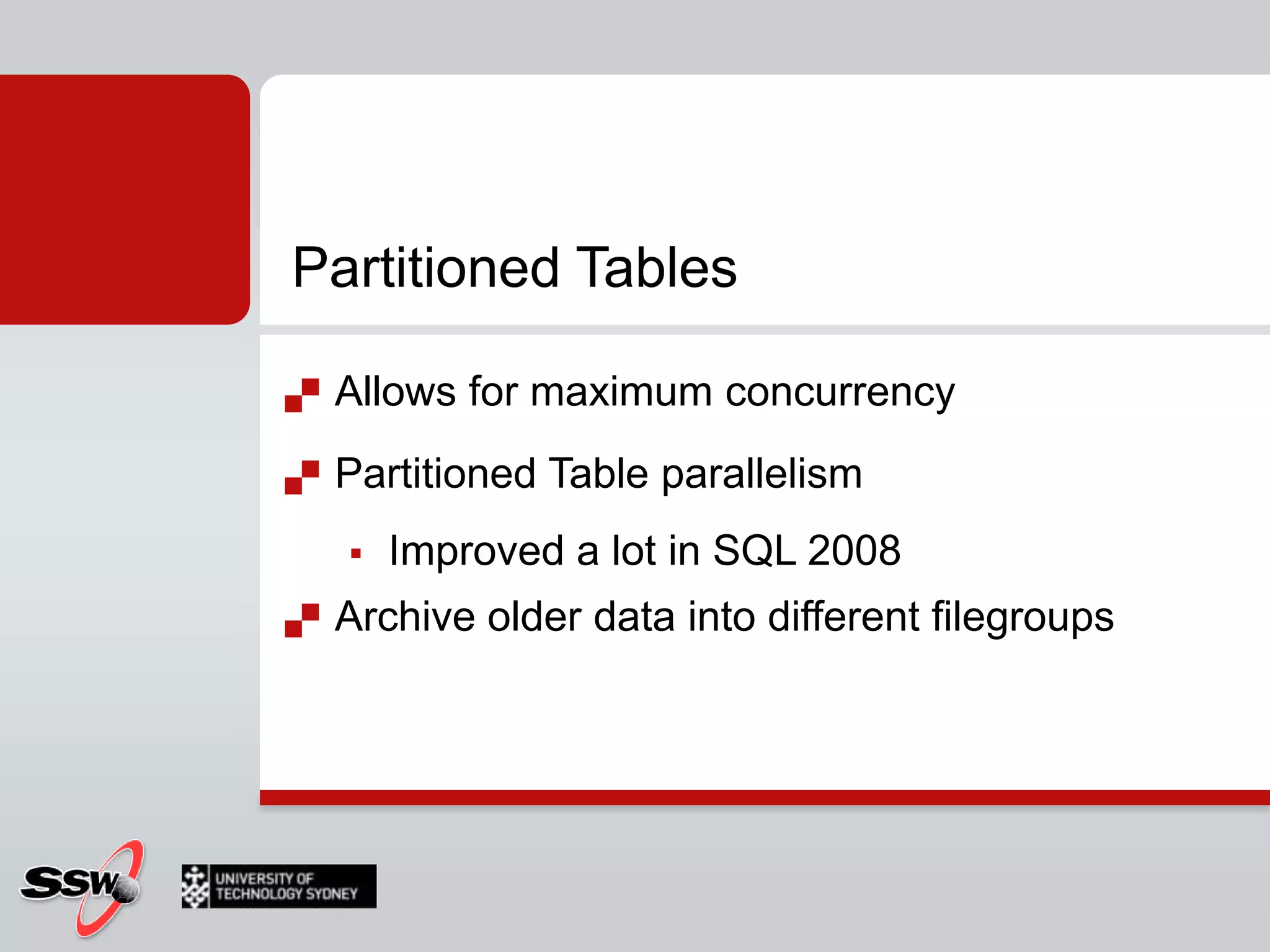

- 67. Partitioned TablesAllows formaximum concurrencyPartitioned Table parallelismImproved a lot in SQL 2008Archive older data into different filegroups
- 68.

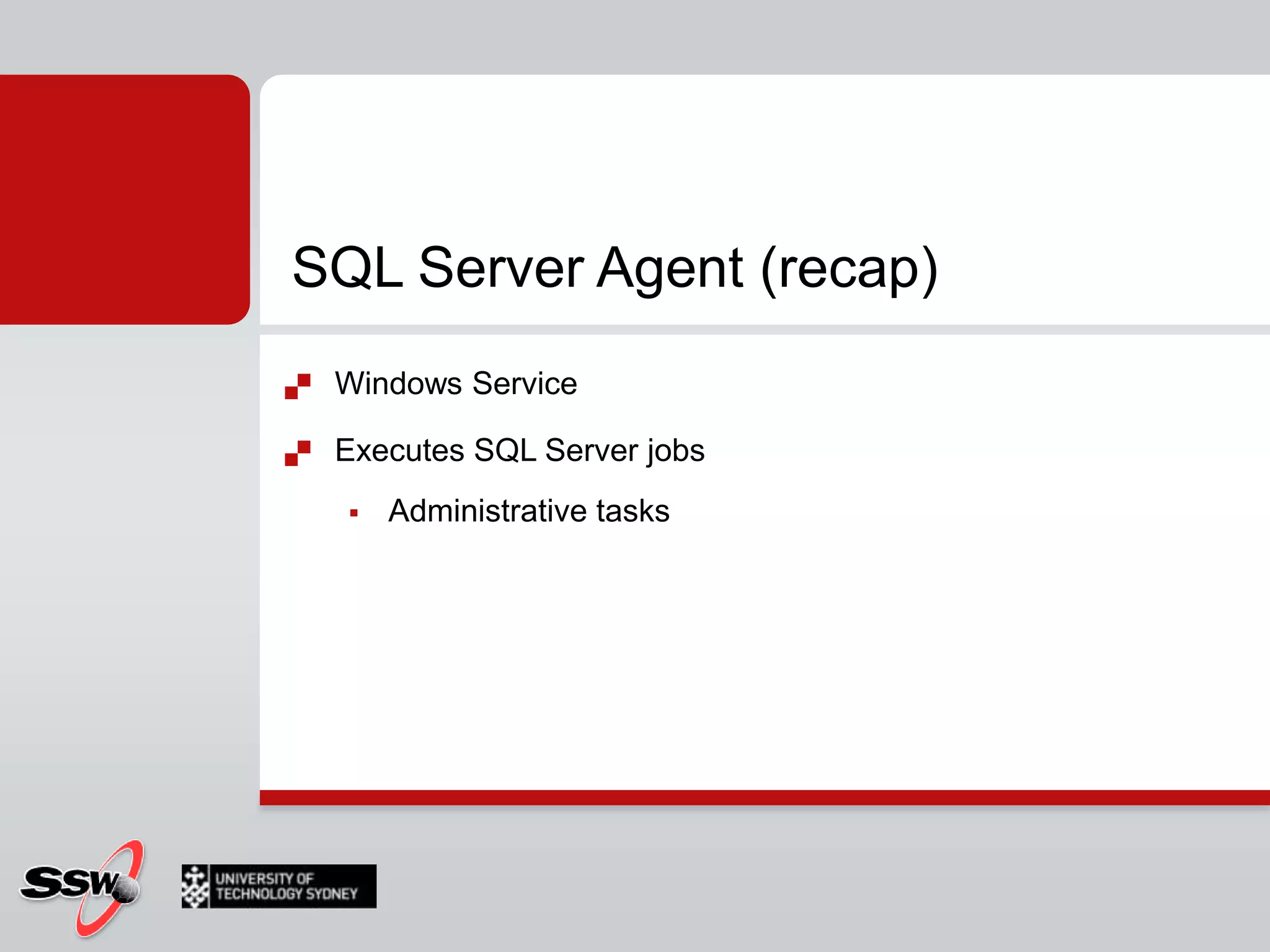

- 69. SQL Server Agent(recap)Windows ServiceExecutes SQL Server jobsAdministrative tasks

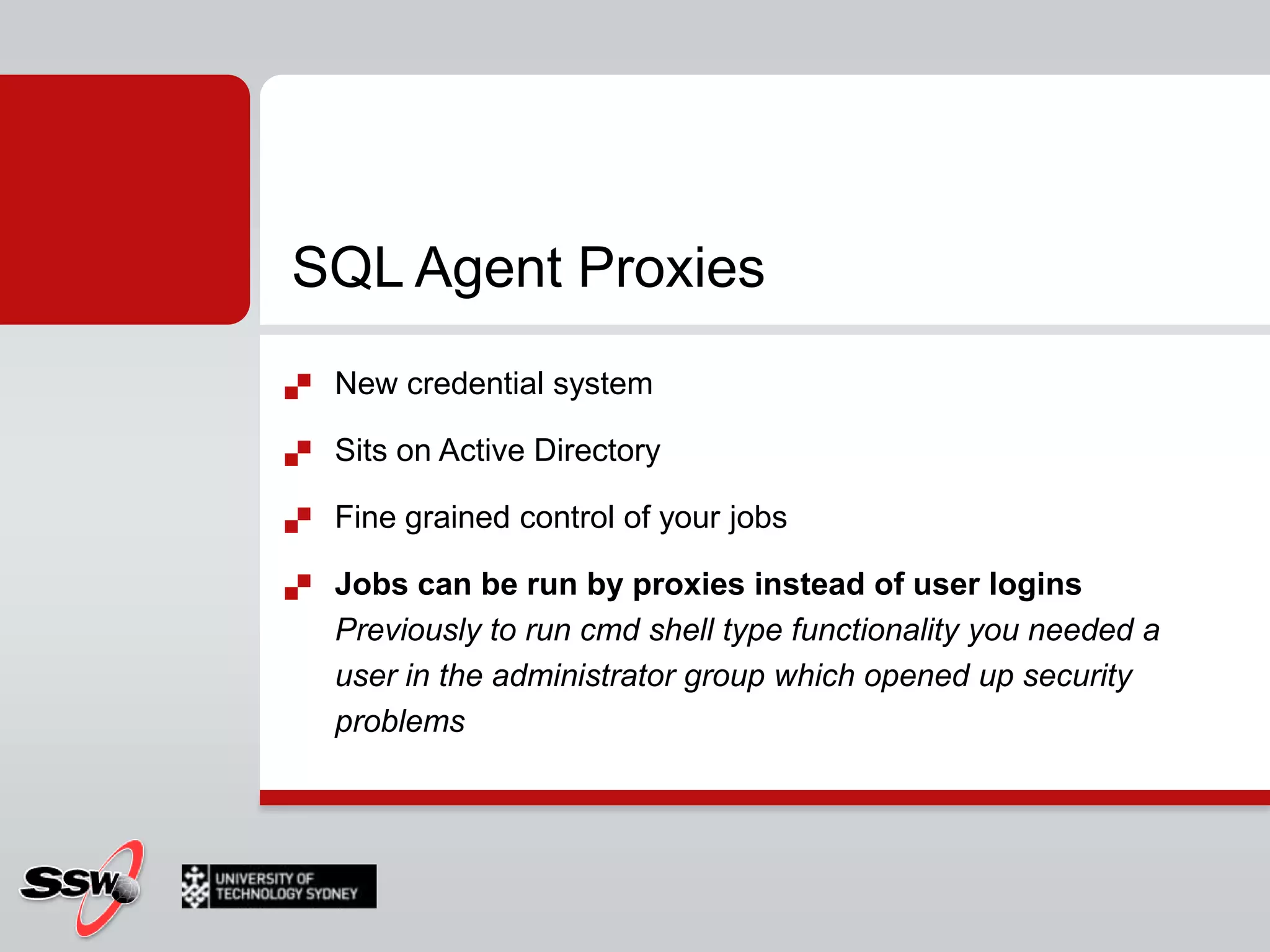

- 70. SQL Agent ProxiesNewcredential system Sits on Active DirectoryFine grained control of your jobsJobs can be run by proxies instead of user loginsPreviously to run cmd shell type functionality you needed a user in the administrator group which opened up security problems
- 71.
- 72. Online Index Operations-Table is accessible for read and update Non-clustered indexes are available during clustered index creationIndex CreatedTable
- 73. Concurrent UsersTarget (ClusteredIndex)LockingSource (Table)Online Clustered Index OperationCREATE CLUSTERED INDEX index_name ON table_name … WITH (ONLINE = ON)

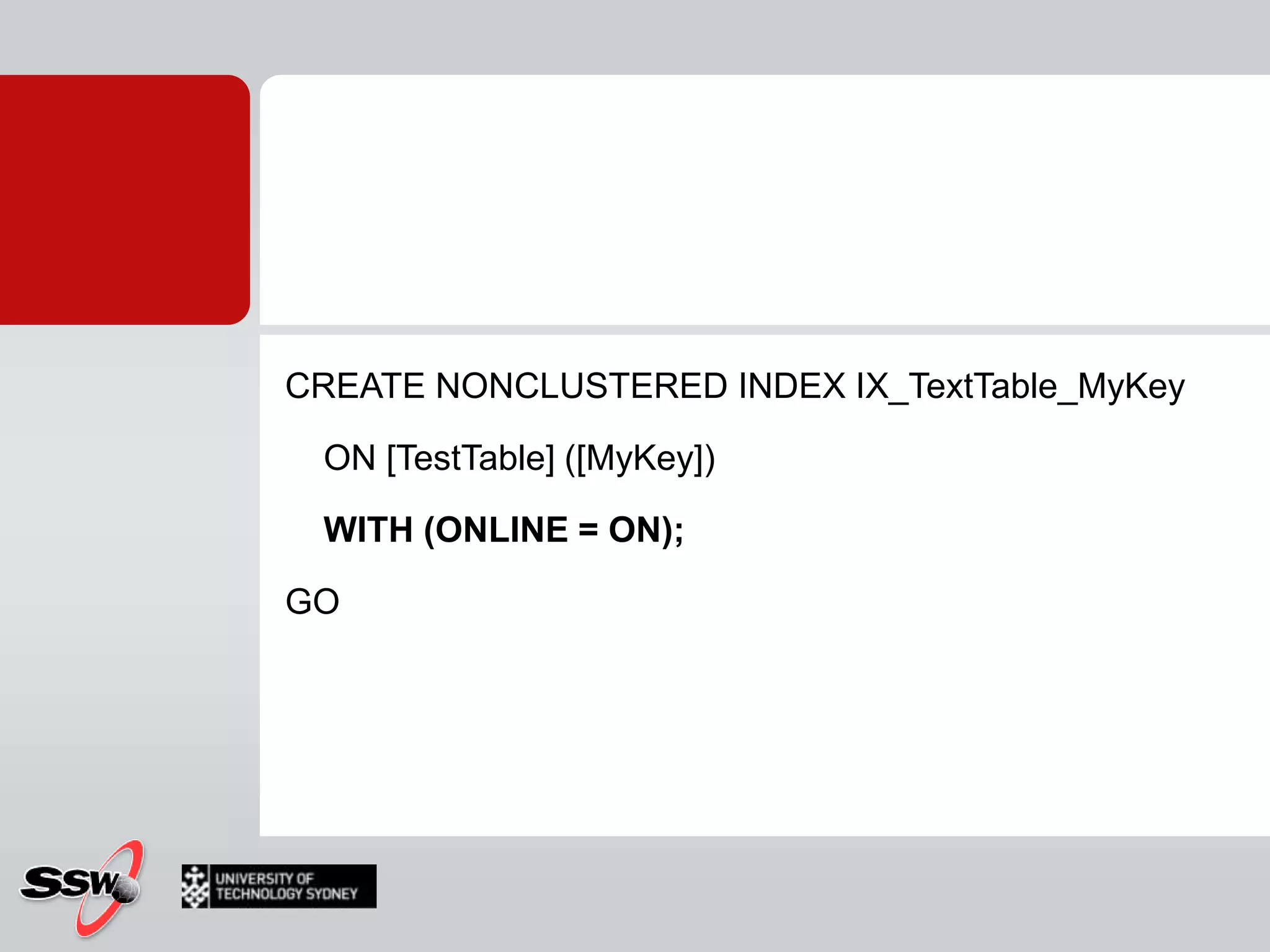

- 74. CREATE NONCLUSTERED INDEXIX_TextTable_MyKey ON [TestTable] ([MyKey]) WITH (ONLINE = ON);GO
- 75.
- 76.

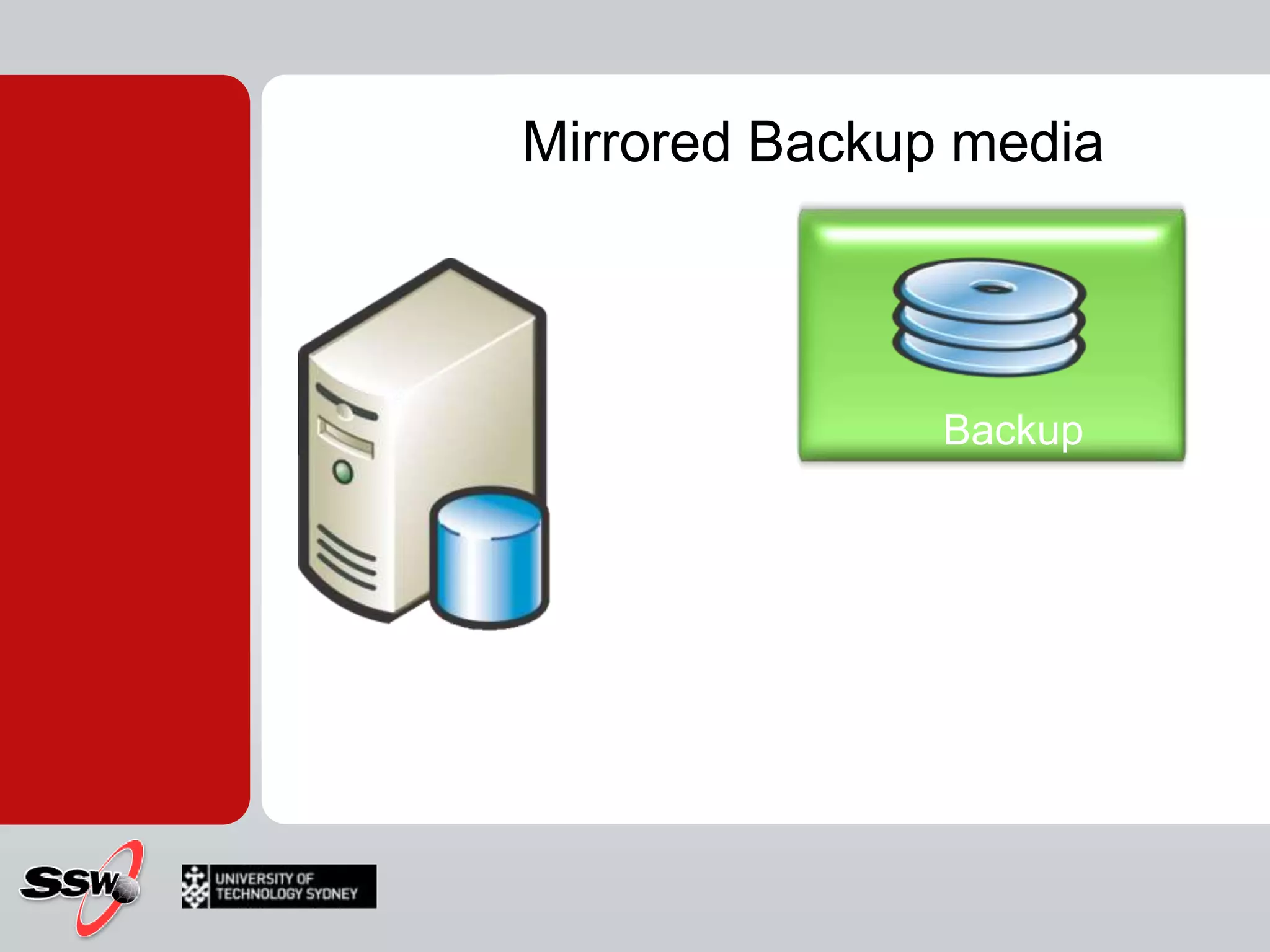

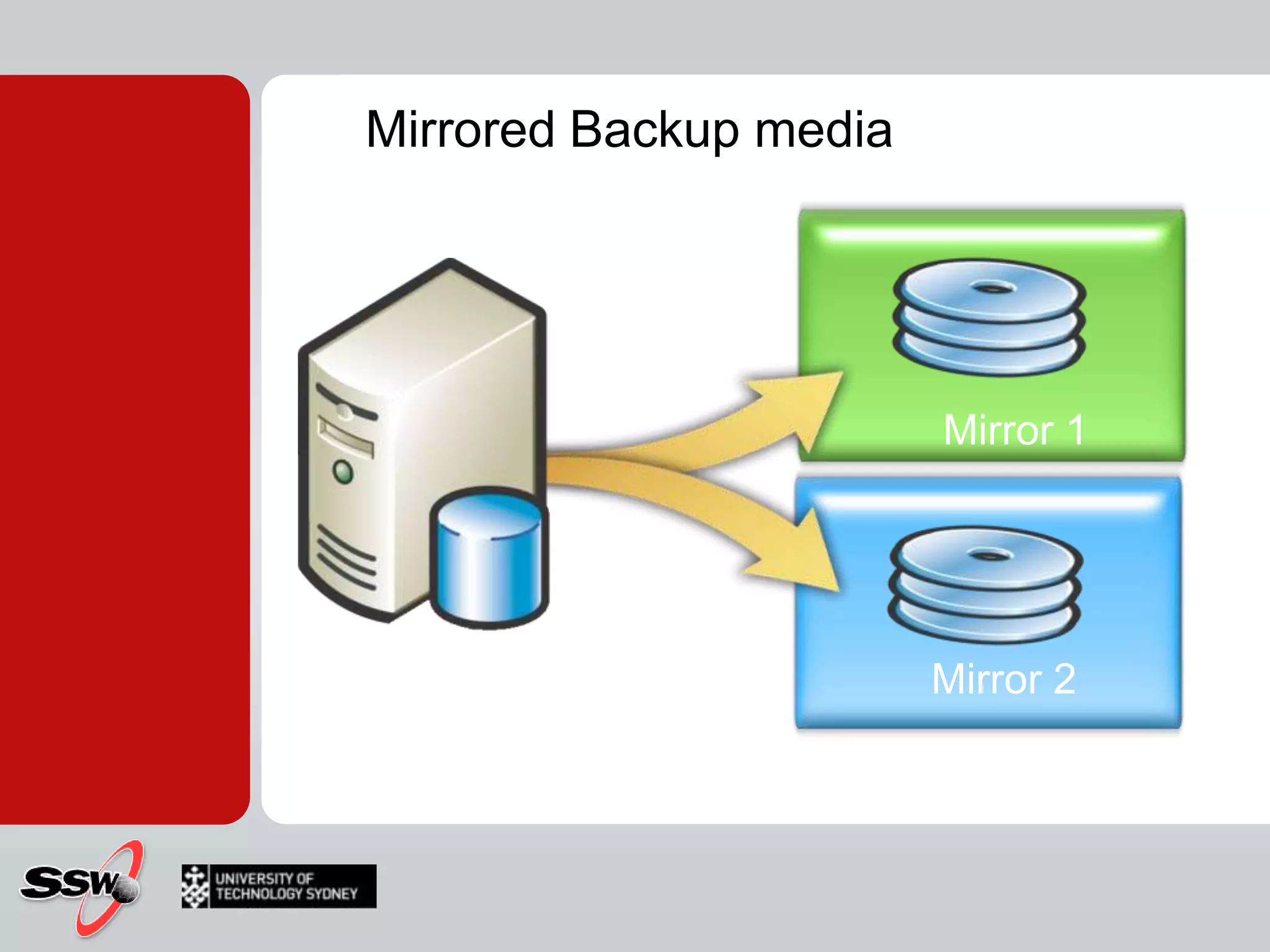

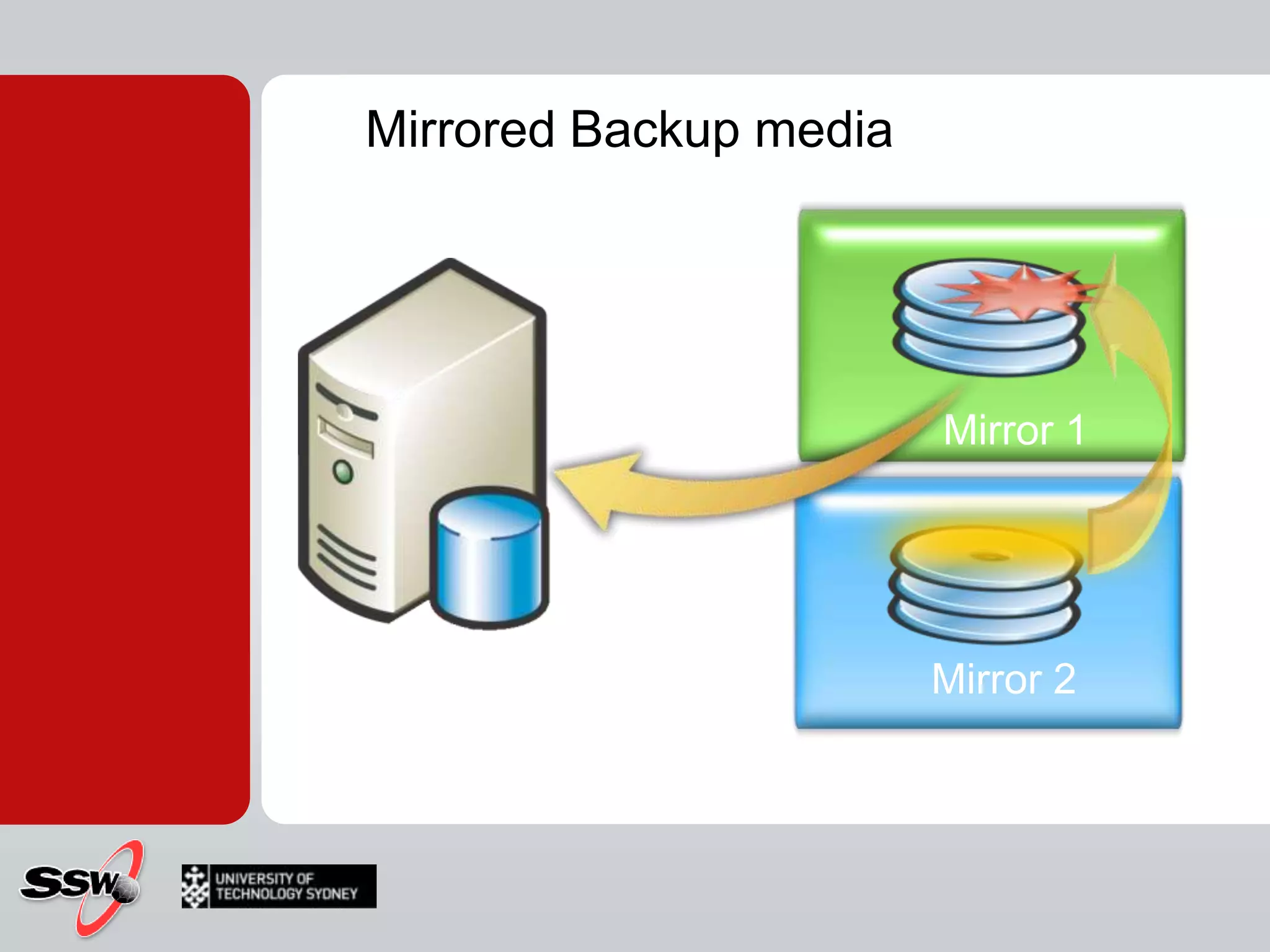

- 77. Mirrored Backup mediaMirror1Mirror 2
- 78. Mirrored Backup mediaMirror1Mirror 2

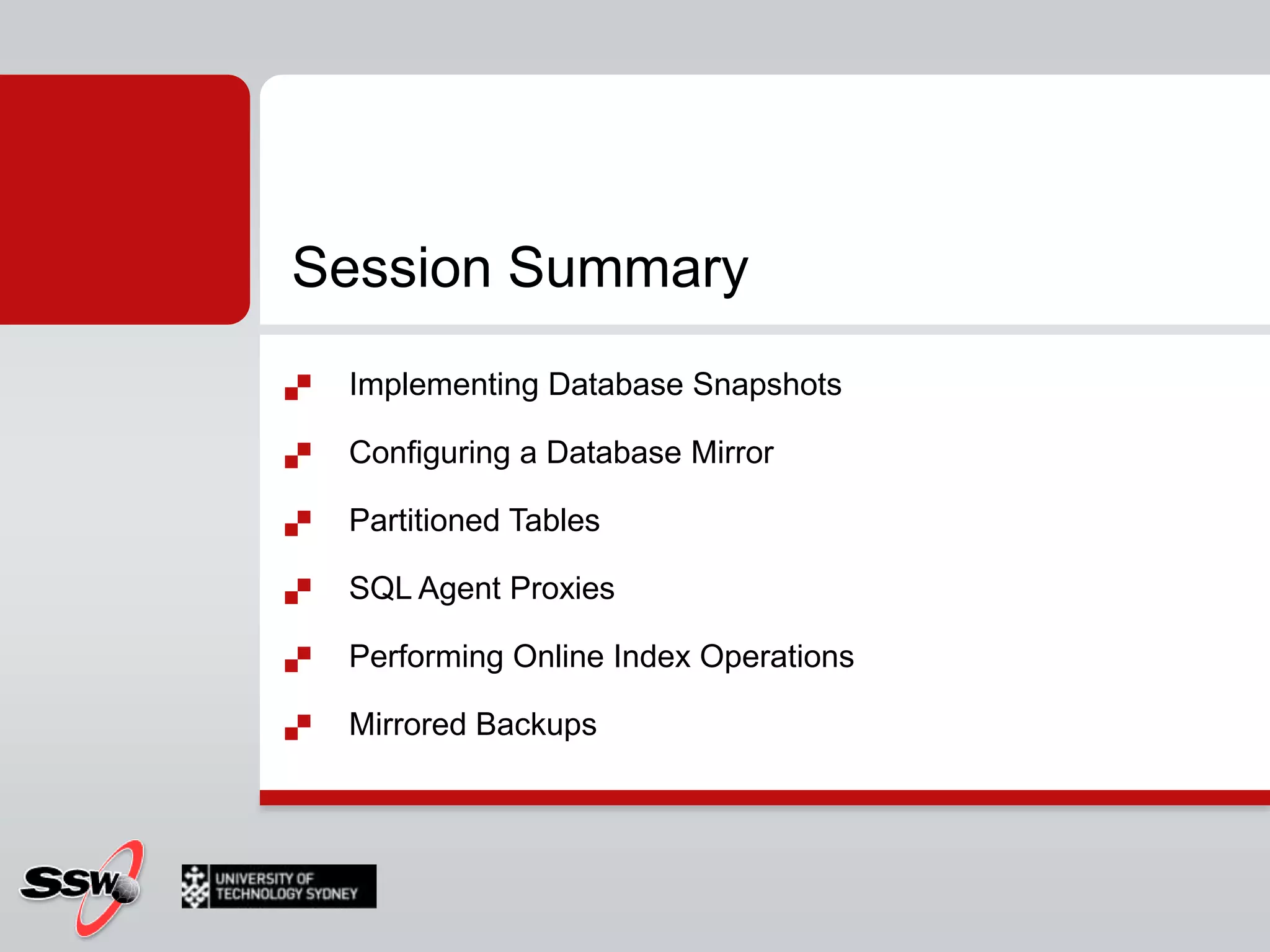

- 79. Session SummaryImplementing DatabaseSnapshotsConfiguring a Database MirrorPartitioned TablesSQL Agent ProxiesPerforming Online Index OperationsMirrored Backups

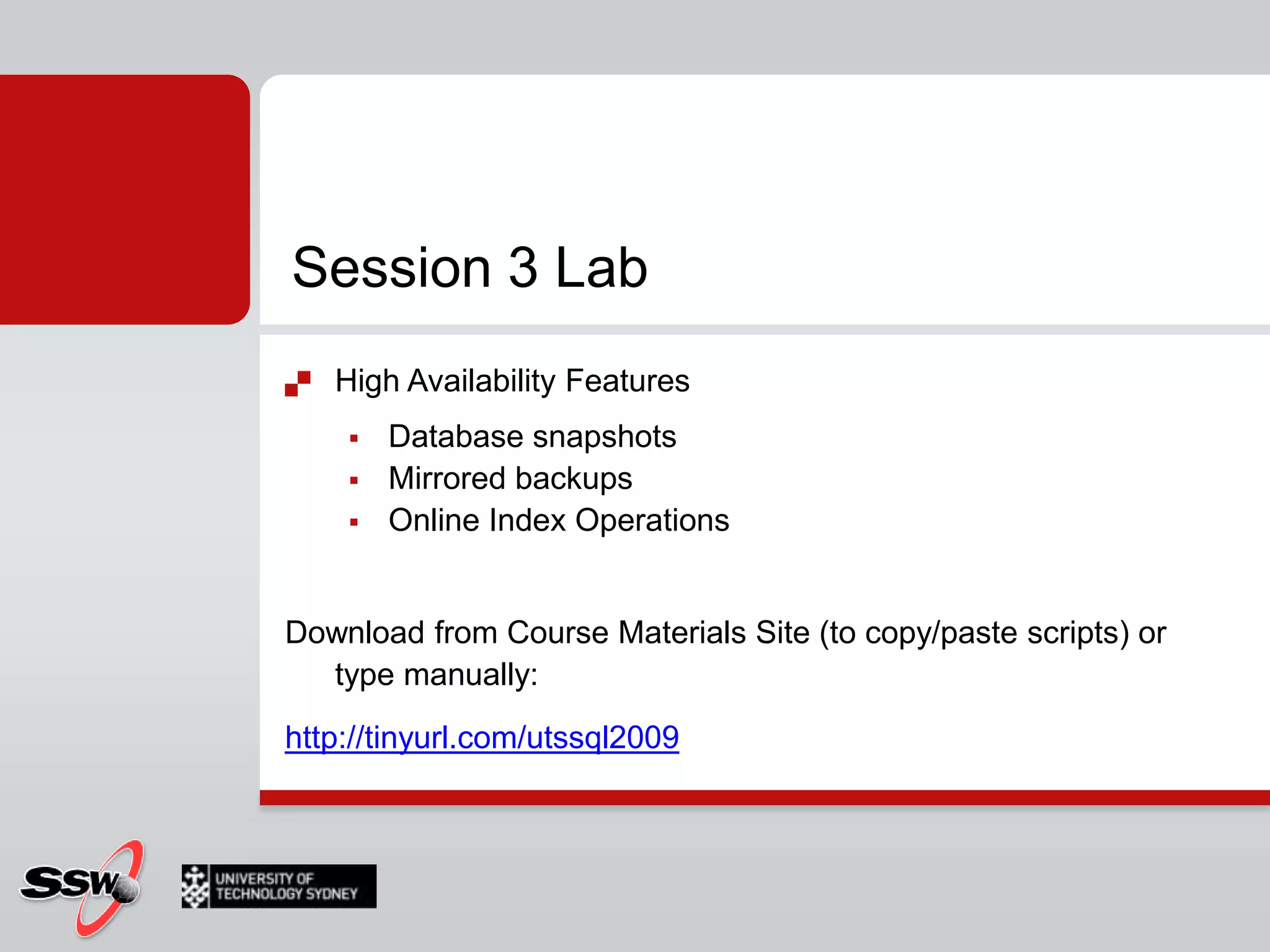

- 80. Session 3 LabHigh Availability FeaturesDatabase snapshotsMirrored backupsOnline Index OperationsDownload from Course Materials Site (to copy/paste scripts) or type manually:http://tinyurl.com/utssql2009

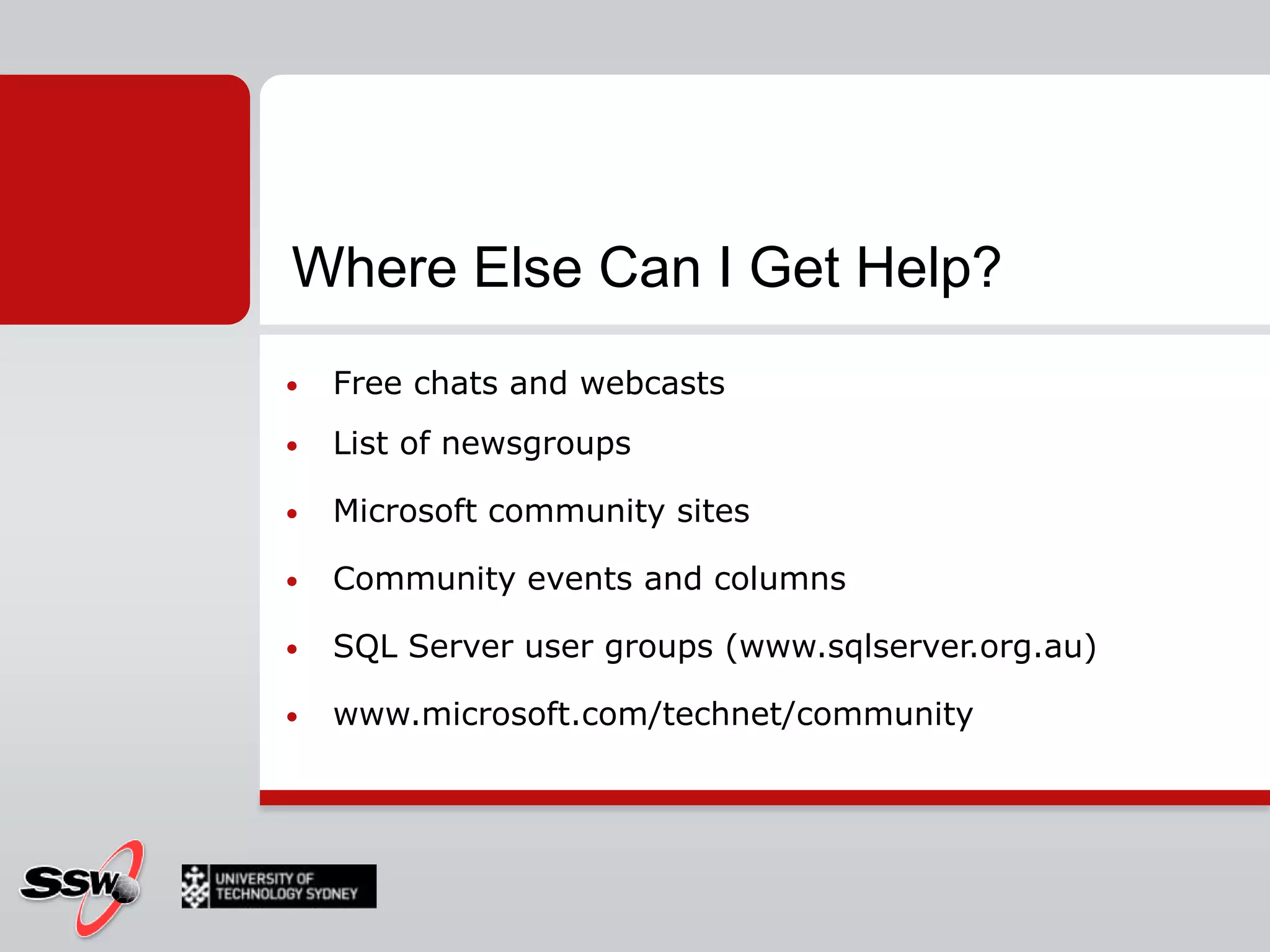

- 81. Where Else CanI Get Help?Free chats and webcasts
- 82.
- 83.
- 84. Community events andcolumns
- 85. SQL Server usergroups (www.sqlserver.org.au)
- 86.
- 87.
- 88. Thank You!Gateway CourtSuite 10 81 - 91 Military Road Neutral Bay, Sydney NSW 2089 AUSTRALIA ABN: 21 069 371 900 Phone: + 61 2 9953 3000 Fax: + 61 2 9953 3105 info@ssw.com.auwww.ssw.com.au
