1. High Availability & Disaster Recovery with
SQL Server AlwaysOn Availability Groups
Turgay Sahtiyan
Microsoft – Senior SQL Server PFE
www.turgaysahtiyan.com
@ @turgaysahtiyan

2. Sponsors

3. Turgay Sahtiyan
Istanbul, Turkey
Microsoft GBS Team - Senior SQL Server PFE
+12 years IT experience / Last 8 years SQL Server
Key areas : HA&DR Solutions, Performance Tuning, PDW
Community geek
Founder and Former President of SQLPass Turkey Chapter
Former SQL Server MVP
Speaker / Writer / Presenter at Microsoft & SQLSaturdays & Local User
Groups
Social Media
Twitter : @turgaysahtiyan
Blog : www.turgaysahtiyan.com
Linkedin : http://aka.ms/turgaysahtiyan_li
2

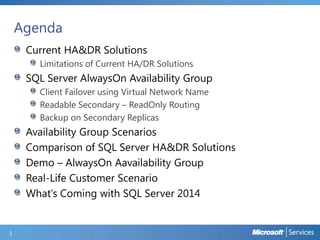

4. Agenda
Current HA&DR Solutions
Limitations of Current HA/DR Solutions
SQL Server AlwaysOn Availability Group
Client Failover using Virtual Network Name
Readable Secondary – ReadOnly Routing
Backup on Secondary Replicas
Availability Group Scenarios
Comparison of SQL Server HA&DR Solutions
Demo – AlwaysOn Aavailability Group
Real-Life Customer Scenario
What’s Coming with SQL Server 2014
3

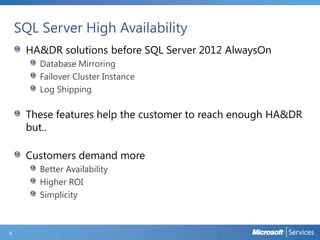

5. SQL Server High Availability
HA&DR solutions before SQL Server 2012 AlwaysOn
Database Mirroring
Failover Cluster Instance
Log Shipping
These features help the customer to reach enough HA&DR
but..
Customers demand more
Better Availability
Higher ROI
Simplicity
4

6. Failover Cluster
Public
SQL Server
Instance
SQL Server
Instance
Shared
Storage
5
Instance level
redundancy
Local or
Remote Site
Presents VNN
Automatic
Failover
Does not
protect
against data
loss

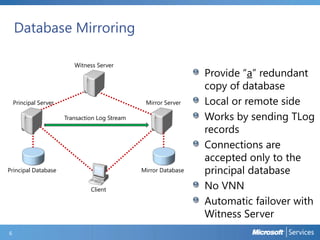

7. Database Mirroring
Witness Server
Mirror Server
Principal Server
Transaction Log Stream
Principal Database
Mirror Database
Client
6
Provide “a” redundant
copy of database
Local or remote side
Works by sending TLog
records
Connections are
accepted only to the
principal database
No VNN
Automatic failover with
Witness Server

8. Log Shipping
7

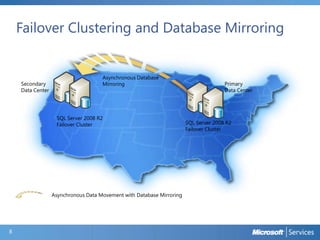

9. Failover Clustering and Database Mirroring
Secondary
Data Center
Asynchronous Database
Mirroring
SQL Server 2008 R2
Failover Cluster
Asynchronous Data Movement with Database Mirroring
8
Primary
Data Center
SQL Server 2008 R2
Failover Cluster

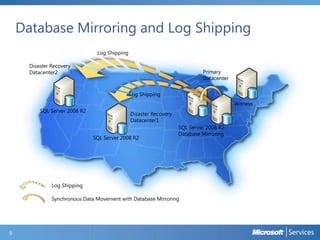

10. Database Mirroring and Log Shipping
Log Shipping
Disaster Recovery
Datacenter2
Primary
Datacenter
Log Shipping
Witness
SQL Server 2008 R2
Disaster Recovery
Datacenter1
SQL Server 2008 R2
SQL Server 2008 R2
Database Mirroring
Log Shipping
Synchronous Data Movement with Database Mirroring
9

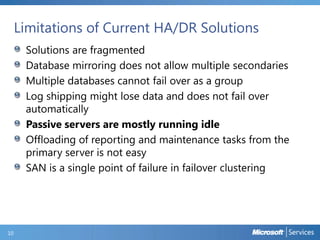

11. Limitations of Current HA/DR Solutions
Solutions are fragmented
Database mirroring does not allow multiple secondaries
Multiple databases cannot fail over as a group
Log shipping might lose data and does not fail over
automatically
Passive servers are mostly running idle
Offloading of reporting and maintenance tasks from the
primary server is not easy
SAN is a single point of failure in failover clustering
10

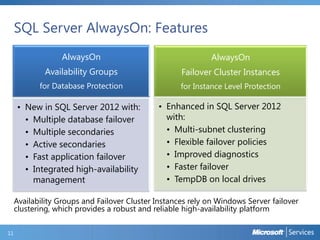

12. SQL Server AlwaysOn: Features
AlwaysOn
AlwaysOn
Availability Groups
Failover Cluster Instances
for Database Protection
for Instance Level Protection
• New in SQL Server 2012 with:
• Multiple database failover
• Multiple secondaries
• Active secondaries
• Fast application failover
• Integrated high-availability
management
• Enhanced in SQL Server 2012
with:
• Multi-subnet clustering
• Flexible failover policies
• Improved diagnostics
• Faster failover
• TempDB on local drives
Availability Groups and Failover Cluster Instances rely on Windows Server failover
clustering, which provides a robust and reliable high-availability platform
11

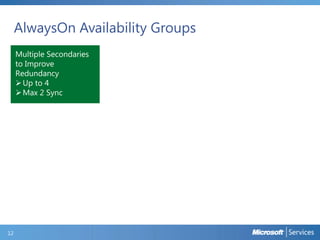

13. AlwaysOn Availability Groups
to Improve
Redundancy
12

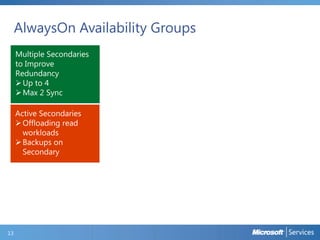

14. AlwaysOn Availability Groups
to Improve
Redundancy
13

15. AlwaysOn Availability Groups
to Improve
Redundancy
14

16. AlwaysOn Availability Groups
to Improve
Redundancy
15

17. AlwaysOn Availability Groups
to Improve
Redundancy
16

18. AlwaysOn Availability Groups
to Improve
Redundancy
Secondary
Data Center
Replica 4
A
A
Replica 3
A
Backups
Backups
Reports
17
Primary
Data Center
Reports
A
Replica 2
Replica 1

19. Client Failover using Virtual Name
Availability Group Virtual Name allow applications
to failover seamlessly on availability group failover
Application reconnects using a virtual name after a
failover to a secondary
ServerA
ServerC
ServerB
HRDB
HRDB
HRDB
AGHR
HRVNN
Primary
Secondary
Primary
Secondary
Application retry during failover
-server HRVNN;-catalog HRDB
18
Connect to new primary once
failover is complete
and the virtual name is online

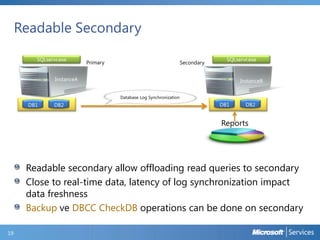

20. Readable Secondary
SQLservr.exe
Primary
Secondary
SQLservr.exe
InstanceA
InstanceB
Database Log Synchronization
DB1
DB2
DB1
DB2
Reports
Readable secondary allow offloading read queries to secondary
Close to real-time data, latency of log synchronization impact
data freshness
Backup ve DBCC CheckDB operations can be done on secondary
19

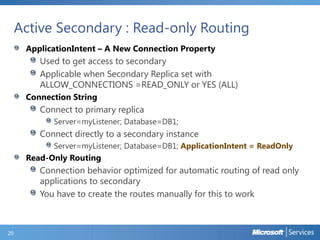

21. Active Secondary : Read-only Routing
ApplicationIntent – A New Connection Property
Used to get access to secondary
Applicable when Secondary Replica set with
ALLOW_CONNECTIONS =READ_ONLY or YES (ALL)
Connection String
Connect to primary replica
Server=myListener; Database=DB1;
Connect directly to a secondary instance
Server=myListener; Database=DB1; ApplicationIntent = ReadOnly
Read-Only Routing
Connection behavior optimized for automatic routing of read only
applications to secondary
You have to create the routes manually for this to work
20

22. Active Secondary : Read-only Routing
21

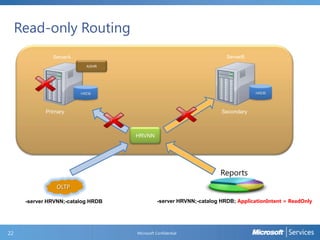

23. Read-only Routing
ServerB
ServerA
AGHR
HRDB
HRDB
Primary
Secondary
HRVNN
Reports
OLTP
-server HRVNN;-catalog HRDB
22
-server HRVNN;-catalog HRDB; ApplicationIntent = ReadOnly
Microsoft Confidential

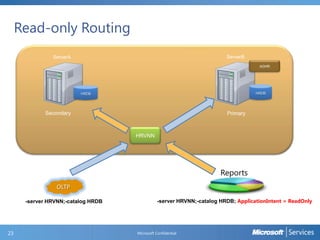

24. Read-only Routing
ServerB
ServerA
AGHR
HRDB
HRDB
Secondary
Primary
HRVNN
Reports
OLTP
-server HRVNN;-catalog HRDB
23
-server HRVNN;-catalog HRDB; ApplicationIntent = ReadOnly
Microsoft Confidential

25. Backup on Secondary Replicas
Backups can be done on any replica of a database
Log backups done on all replicas form a single log chain
Backups on primary replica still works
Supported backup types on secondary:
Full - COPY_ONLY method is only one supported Availability Replica
Transaction Log
Differential - Not Supported
Backup Preference
Prefer Secondary
Secondary Only
Primary
Any Replica
sys.fn_hadr_backup_is_preferred_replica
24

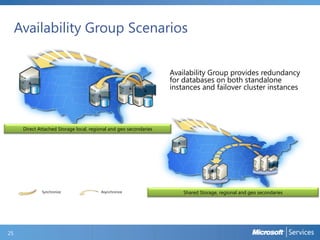

26. Availability Group Scenarios
A
A
A
Availability Group provides redundancy
for databases on both standalone
instances and failover cluster instances
A
Direct Attached Storage local, regional and geo secondaries
A
A
A
Synchronize
25
Asynchronize
Shared Storage, regional and geo secondaries

27. Comparison of SQL Server High-Availability
and Disaster-Recovery Solutions
Technology
AlwaysOn
Failover
Clustering
Instances
AlwaysOn
Availability
Groups
Database
Mirroring
Zero data loss
*
 **
 **
Instance Redundancy



 **
 **

 ***
Database
Redundancy
Auto Failover

Readable Copy
Multiple Secondaries
26
*

Microsoft Confidential
Log
Shipping

 ****


28. Demo
Synchronize
Secondary
Data Center
Asynchronize
Primary
Data Center
A
A
A
Replica 3
Reports
myListener
27
Replica 2
Replica 1

29. Real-Life Customer Scenario
Primary
Data Center
A
FCI
A
Secondary
Data Center
A
Backups
Reports
Backups
Synchronize
28
Asynchronize

30. What’s Coming with SQL Server 2014
Increase number of secondaries to 8 (from 4)
Increase availability of Readable Secondaries
Use readable secondaries despite network failures (important in
geo-distributed environments)
AlwaysOn Availability Groups Add Azure Replica Wizard
Support for Windows Server 2012 Cluster Shared Volumes
(CSV)
Enhanced Diagnostics
29
