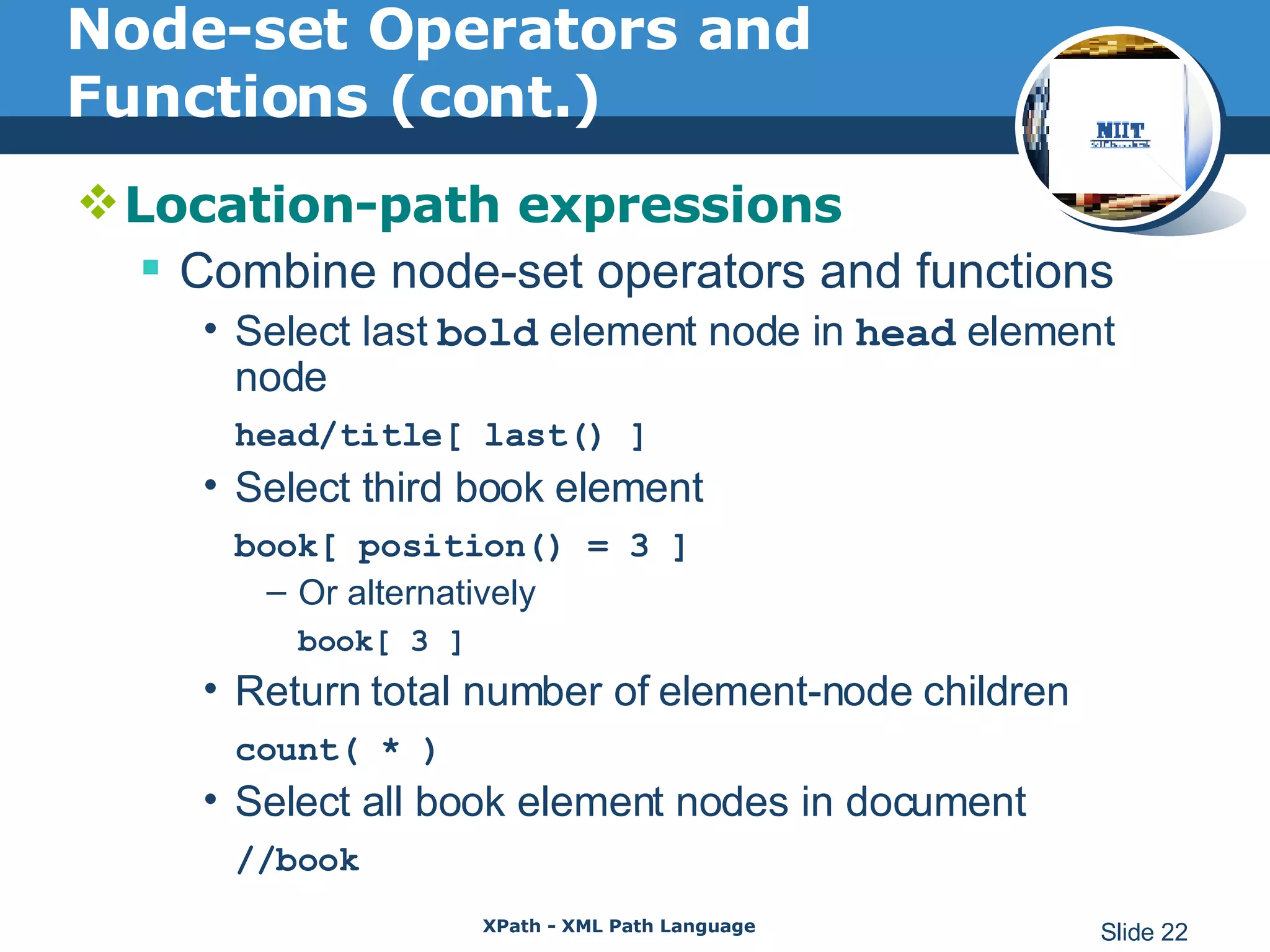

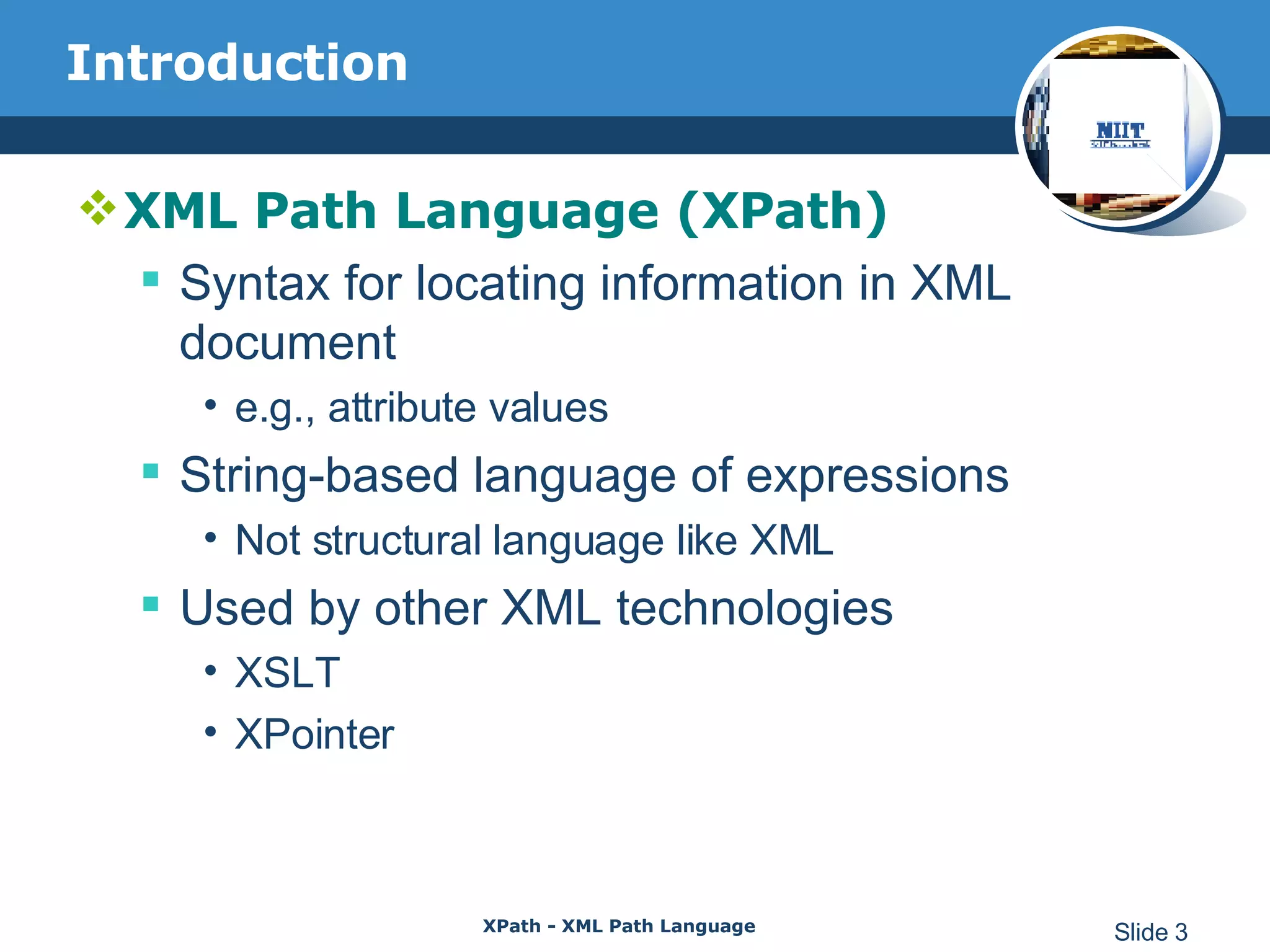

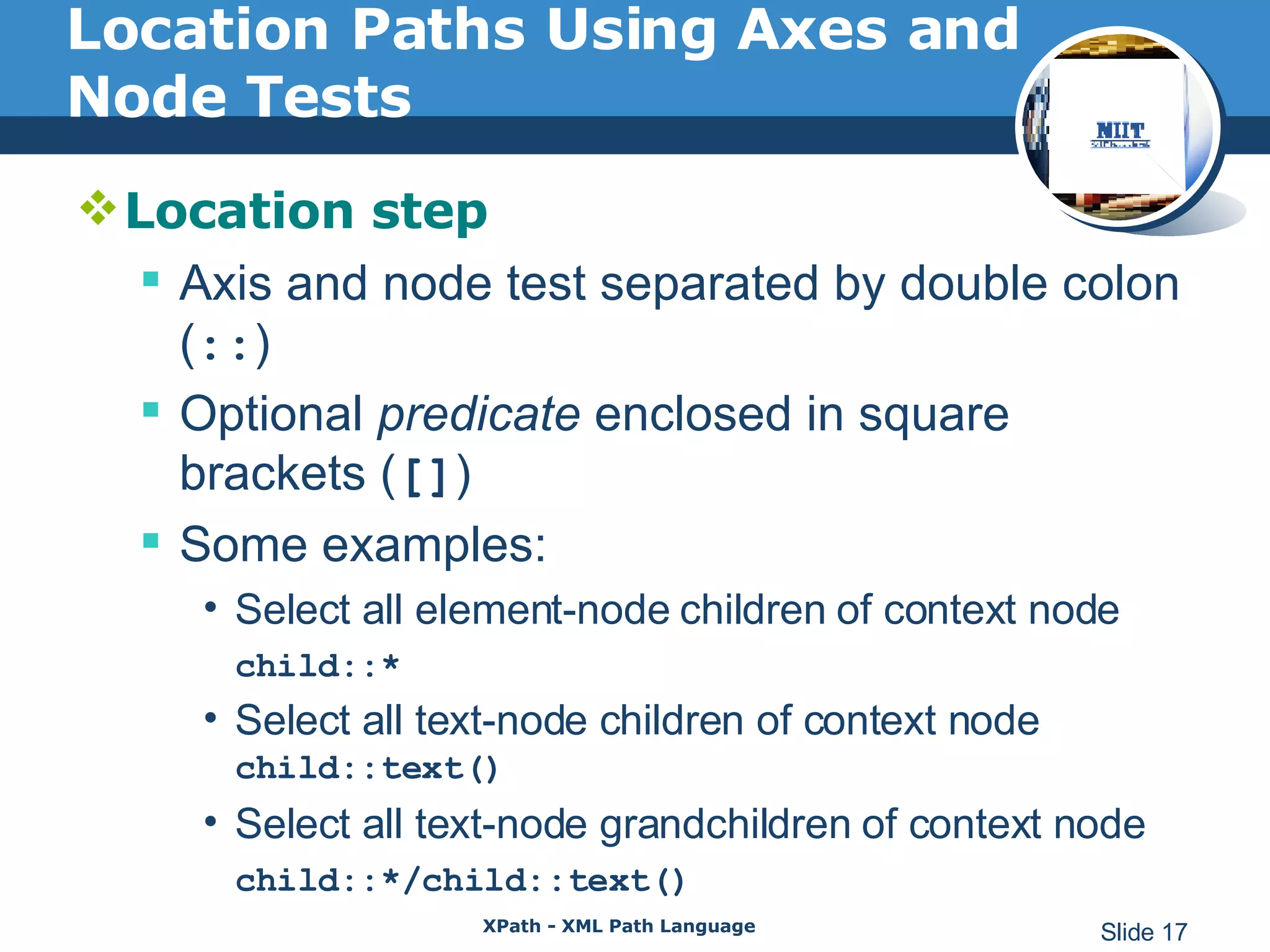

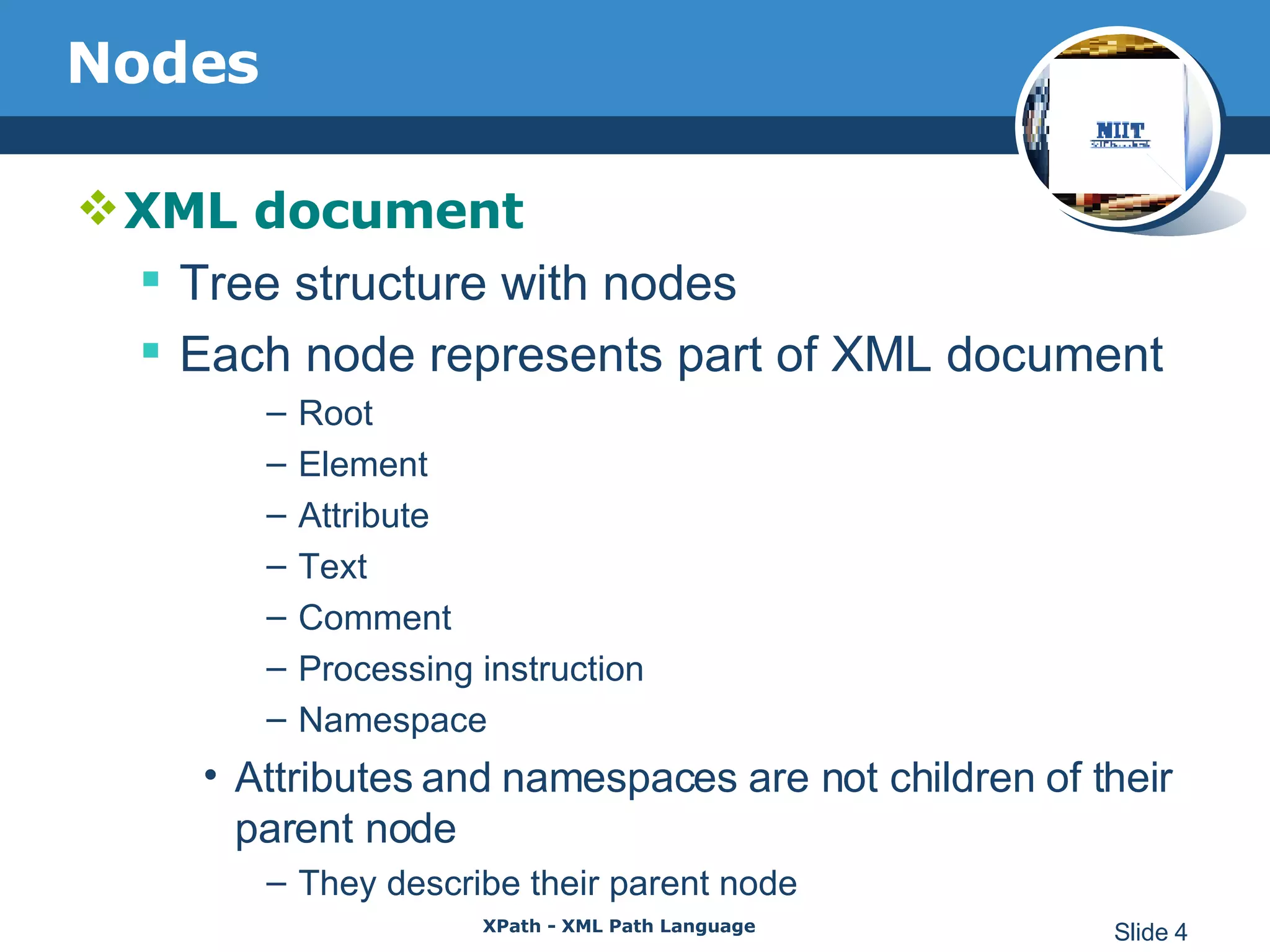

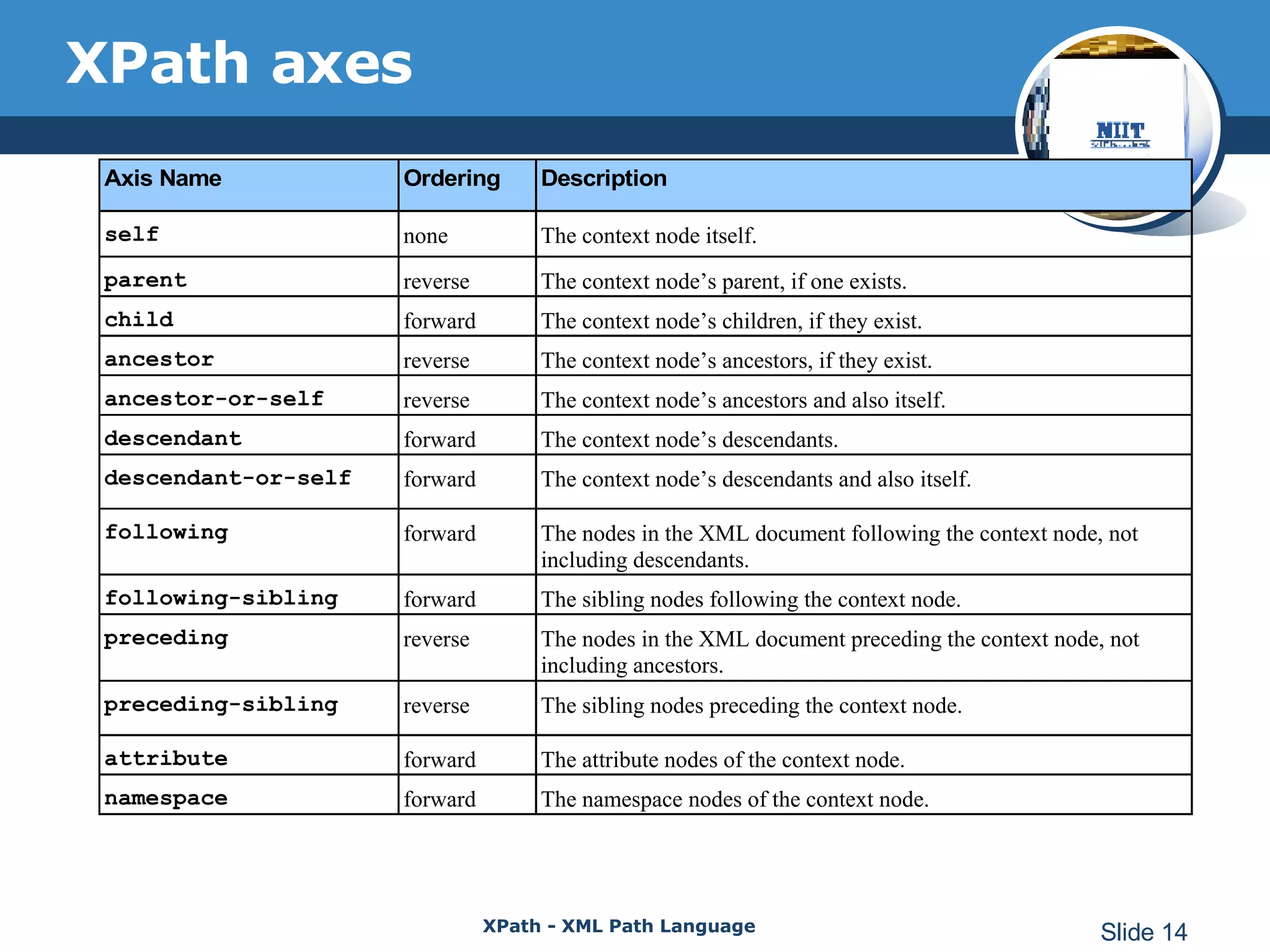

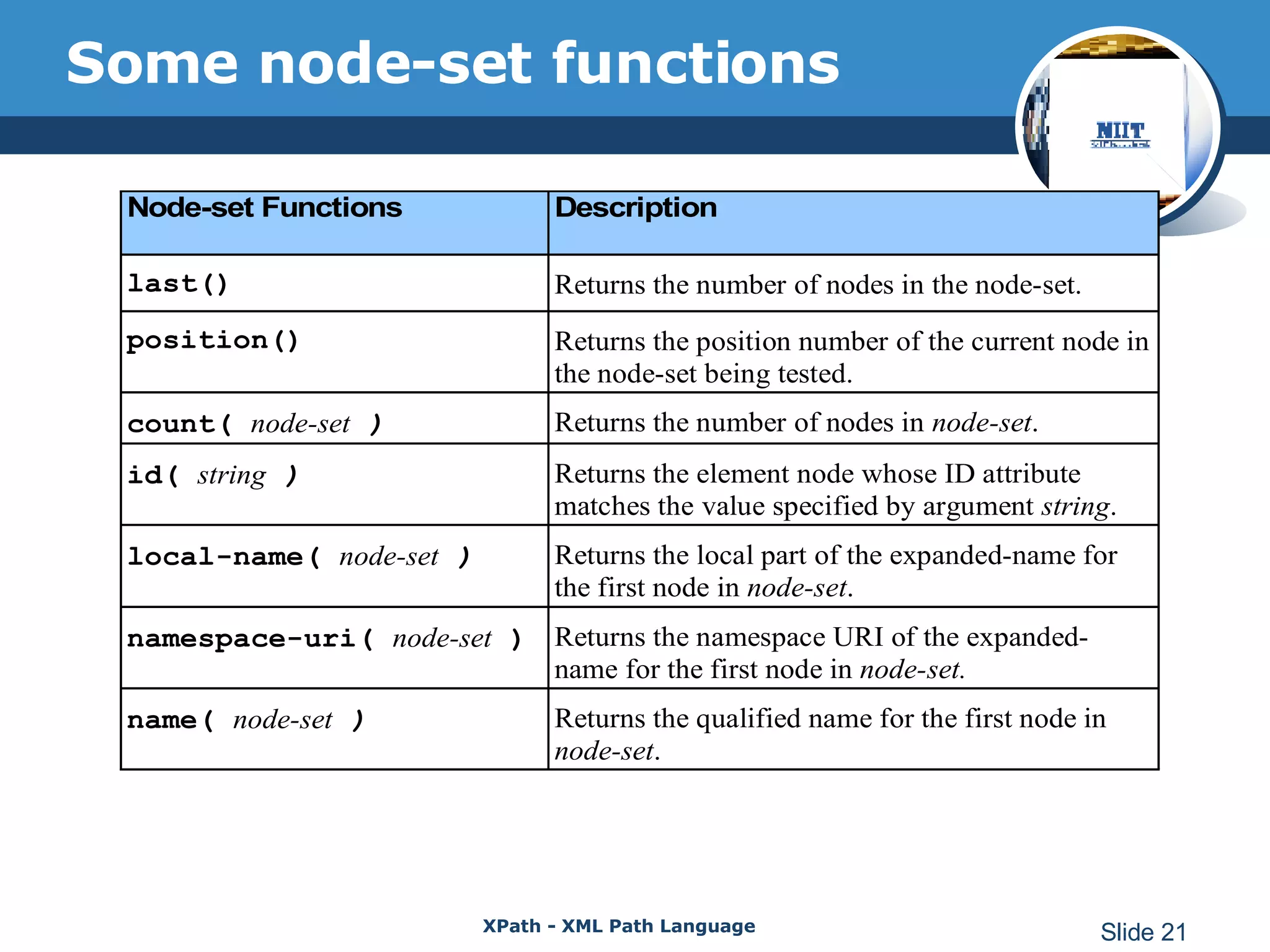

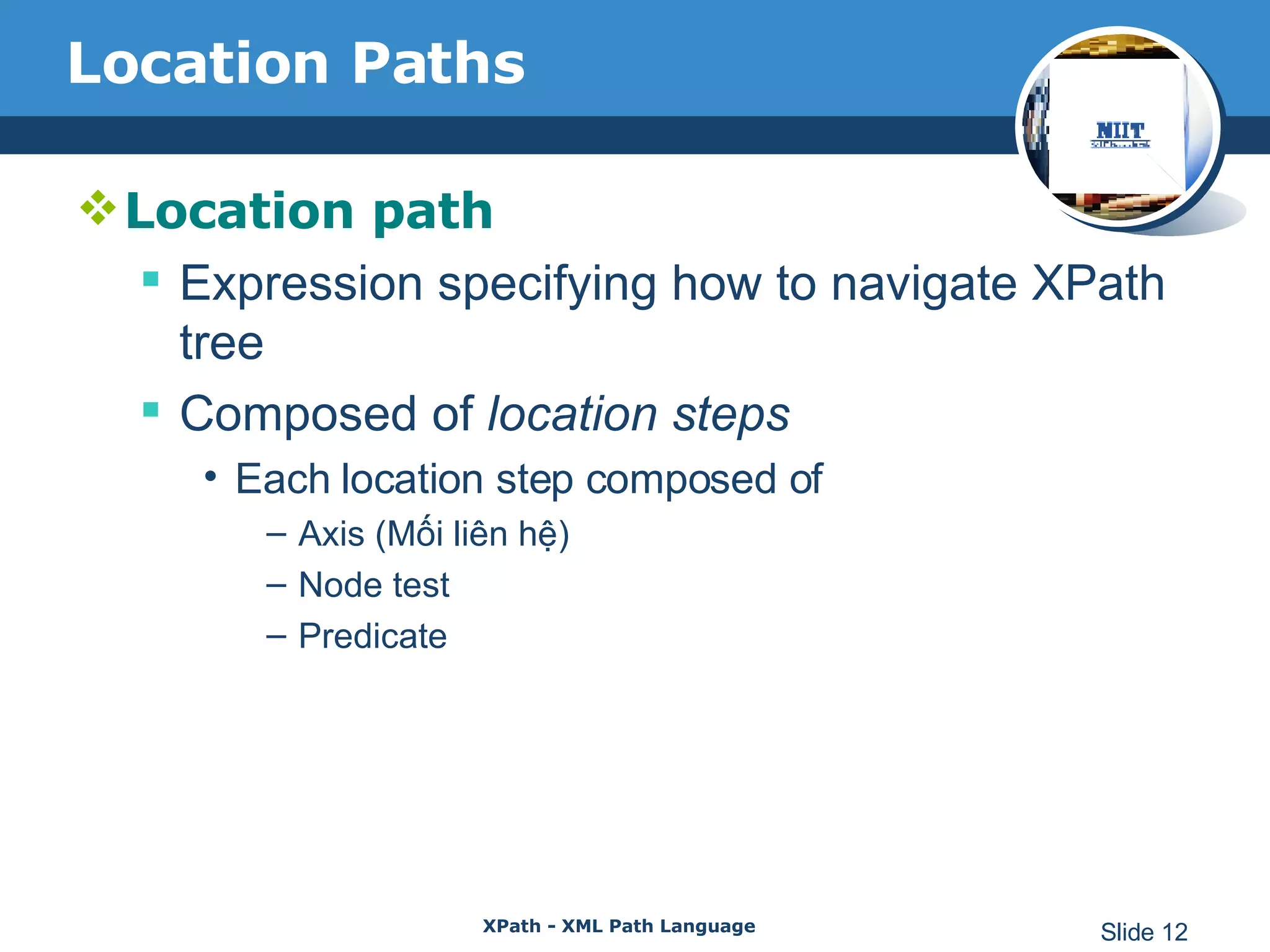

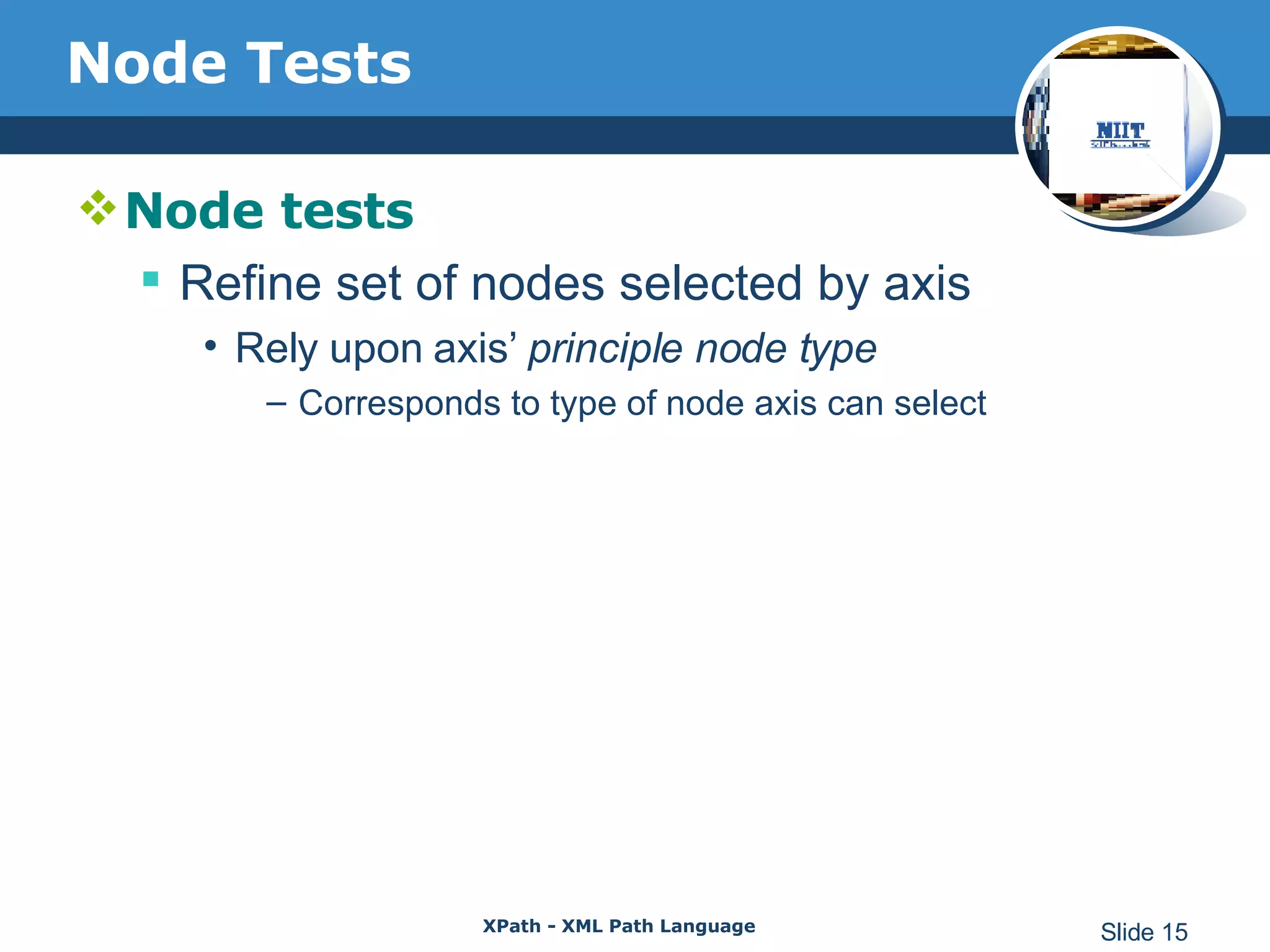

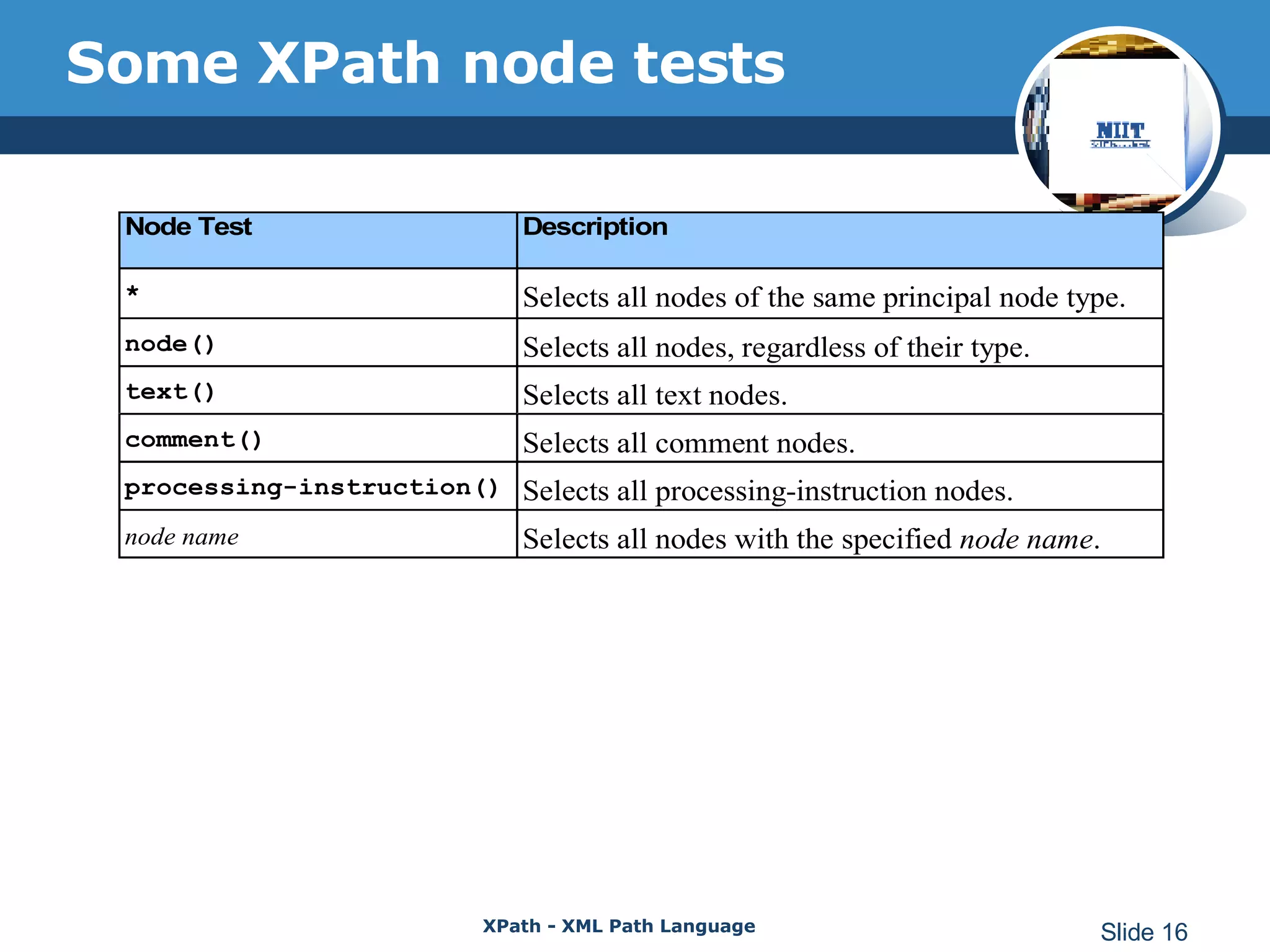

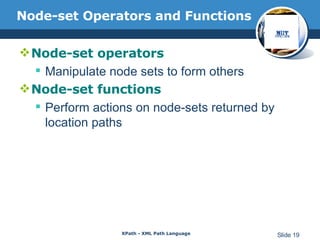

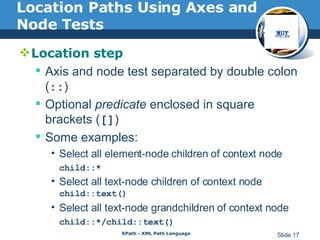

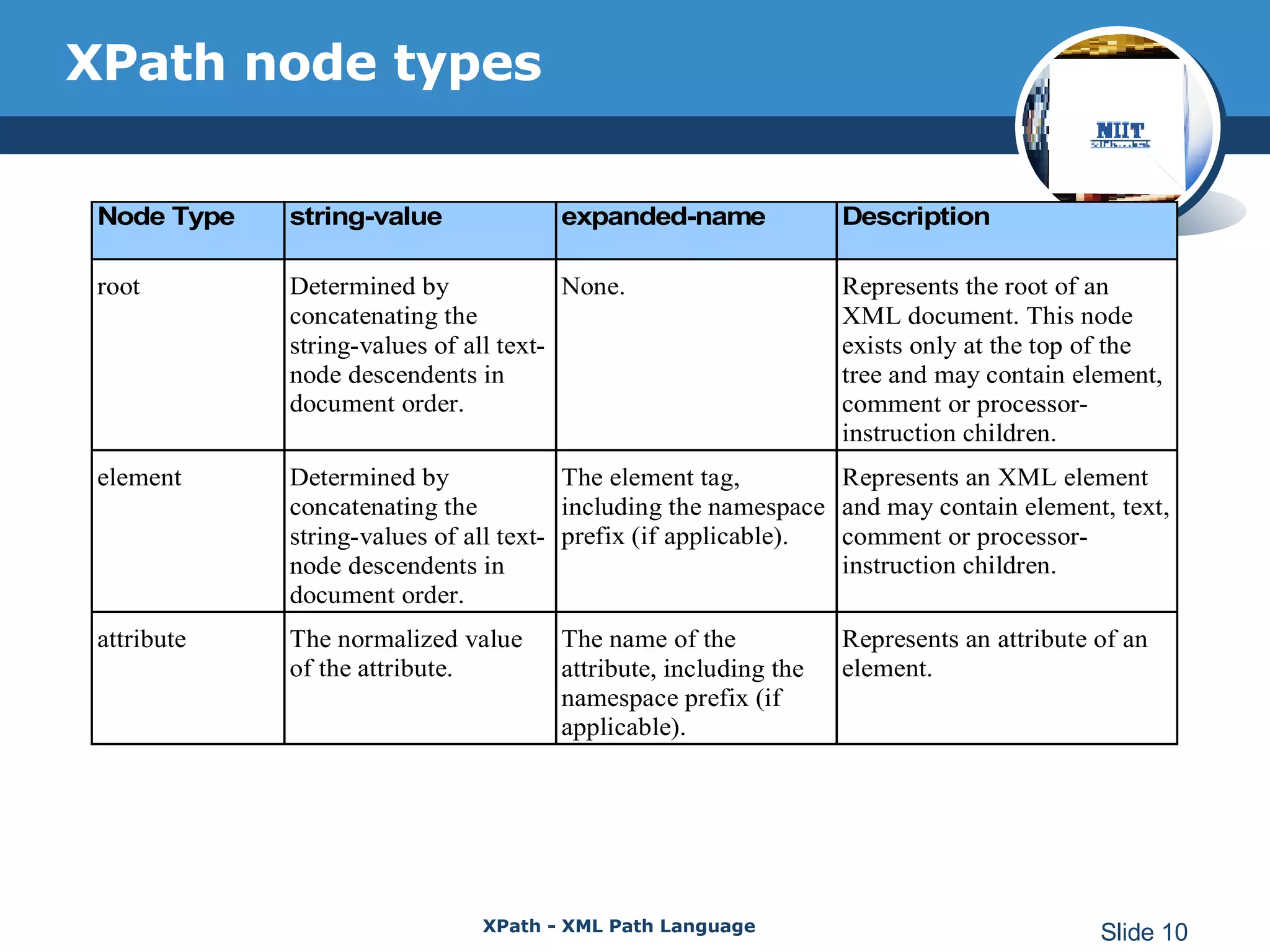

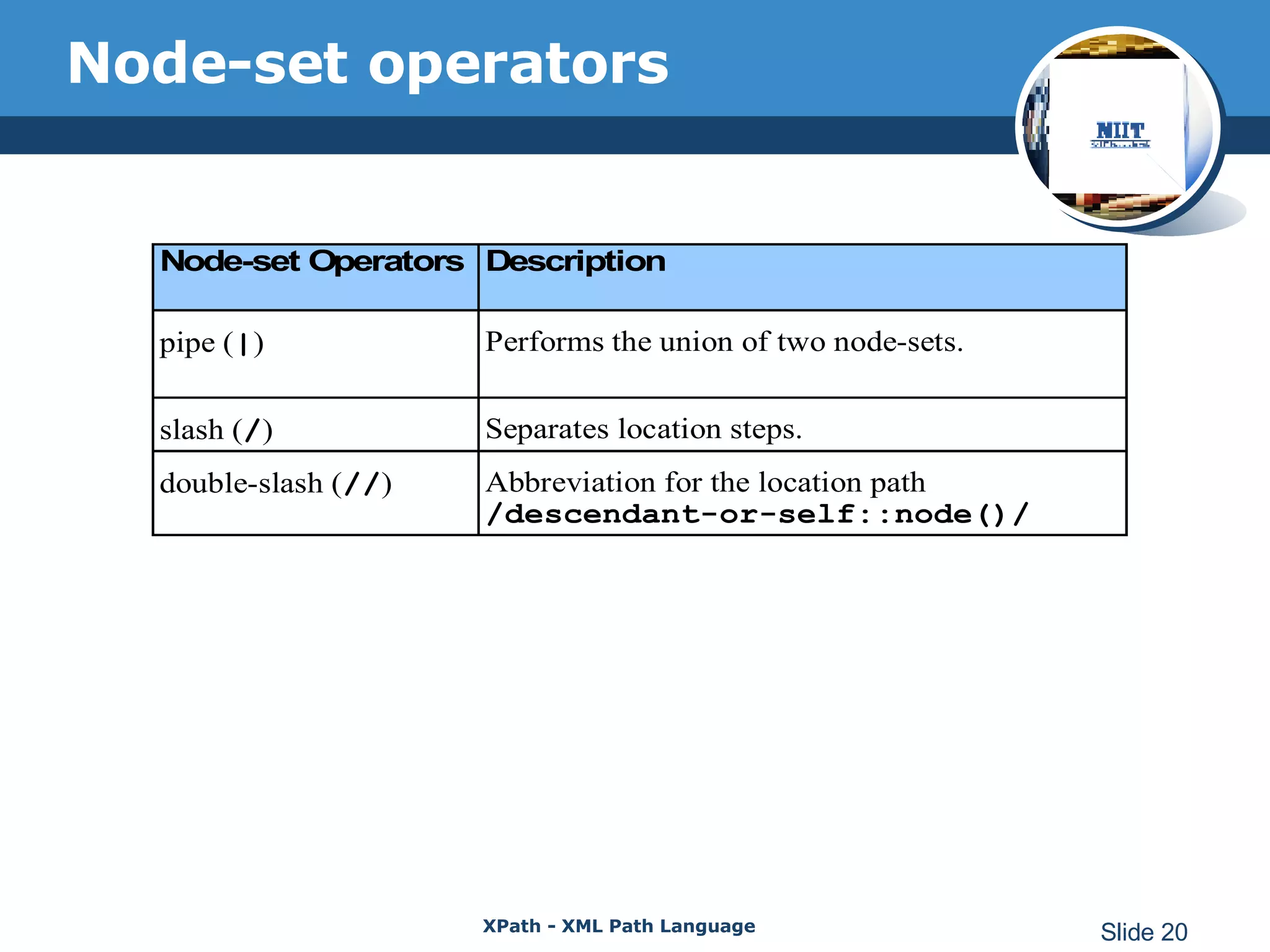

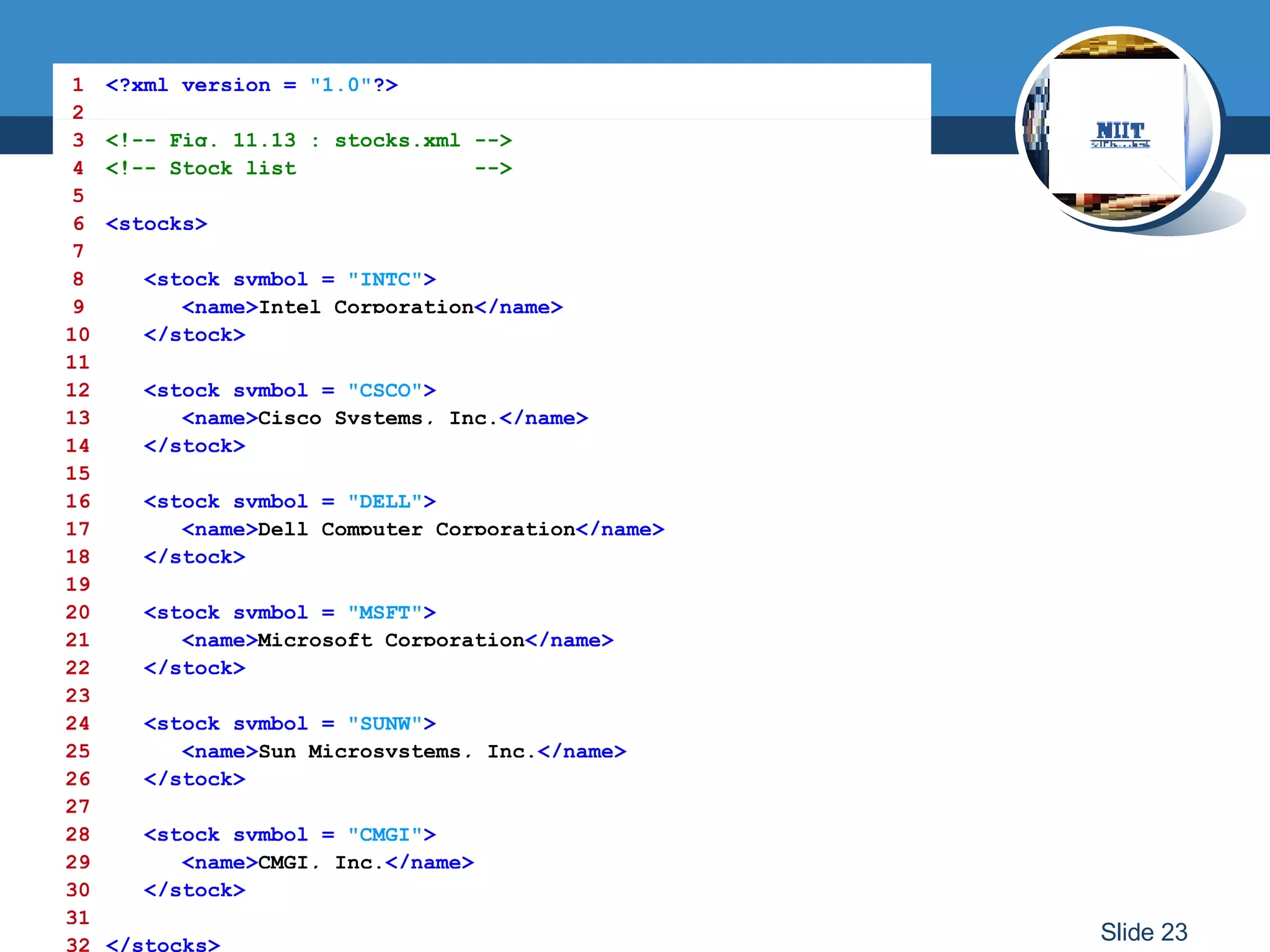

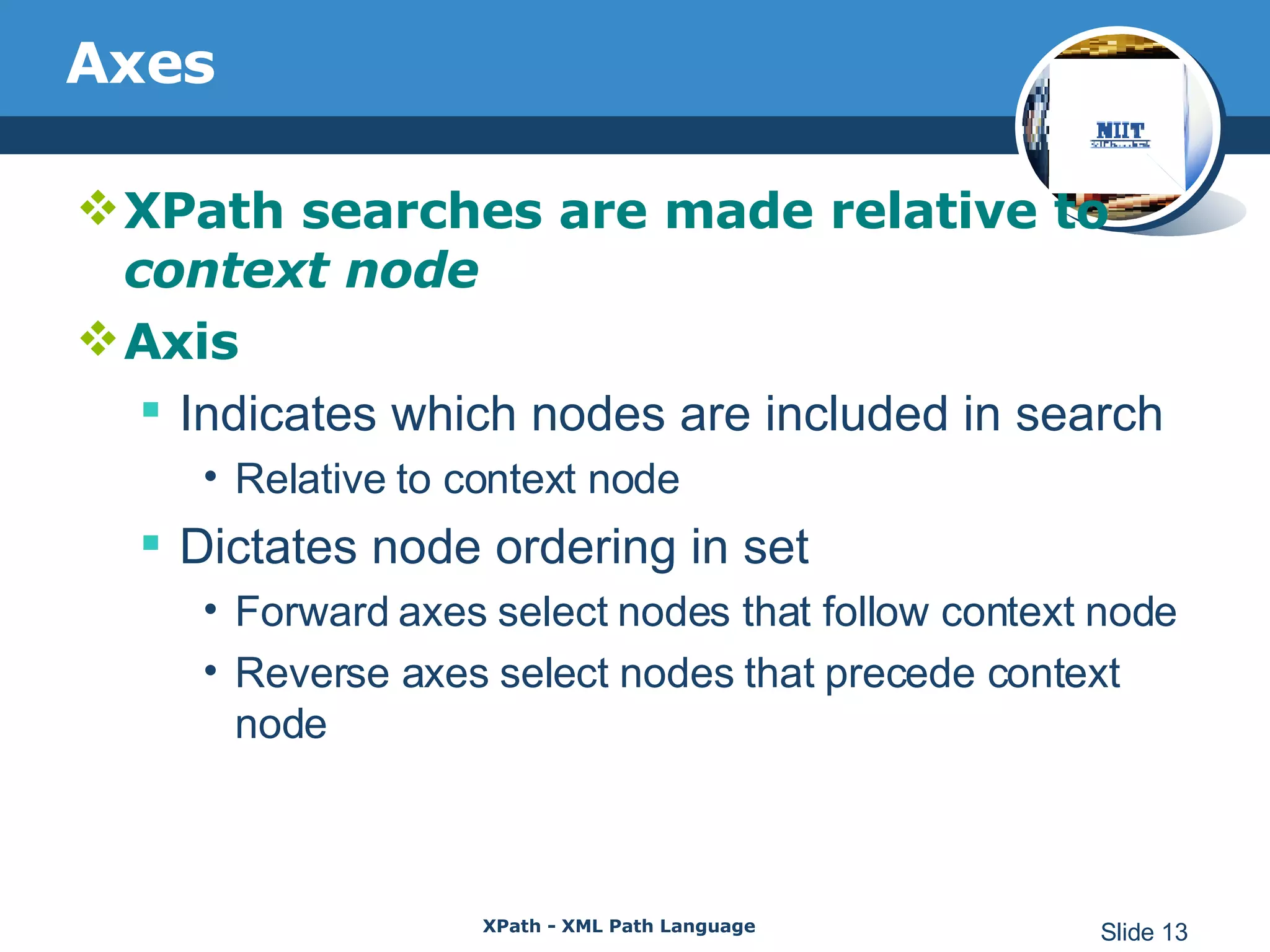

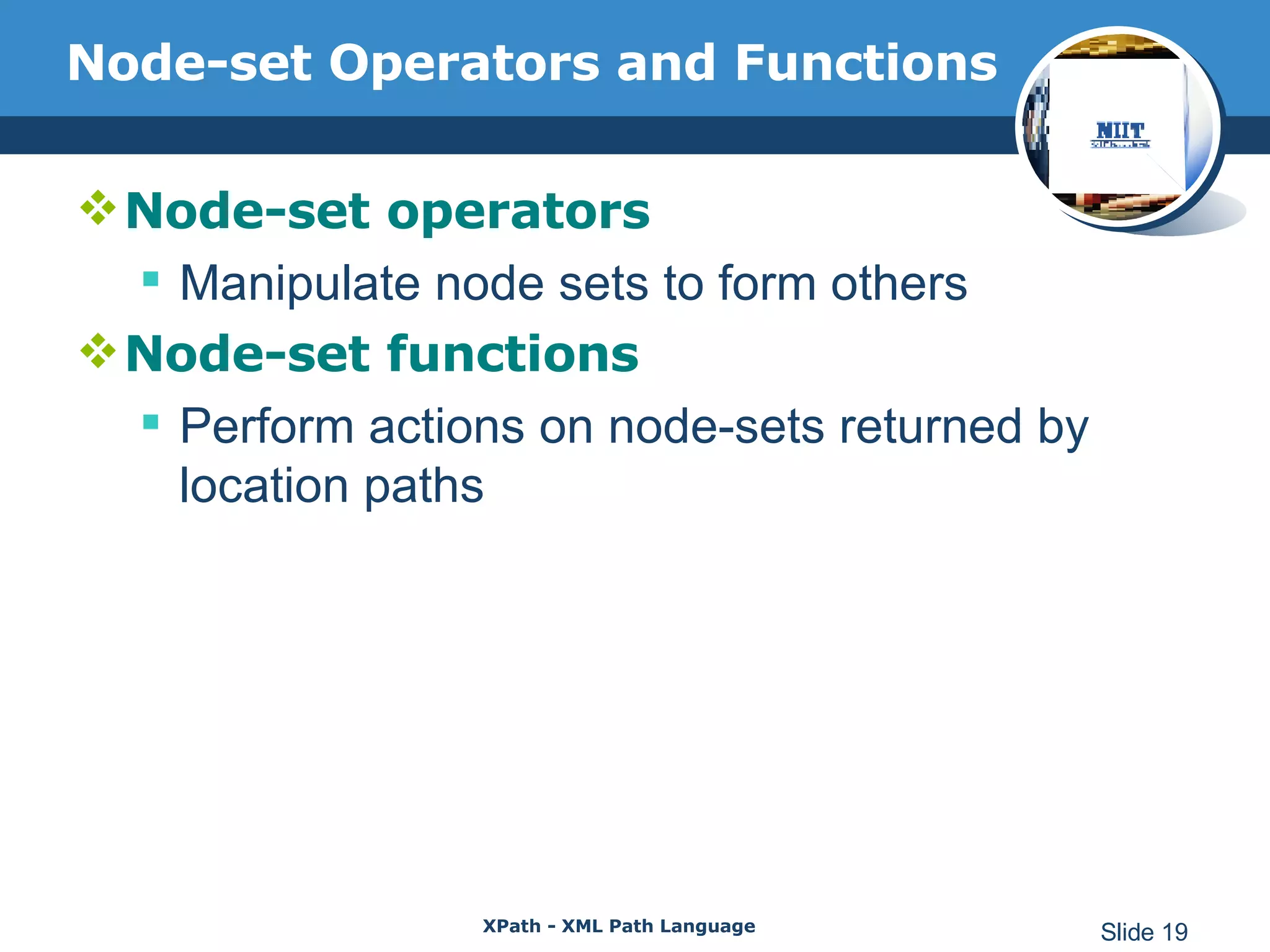

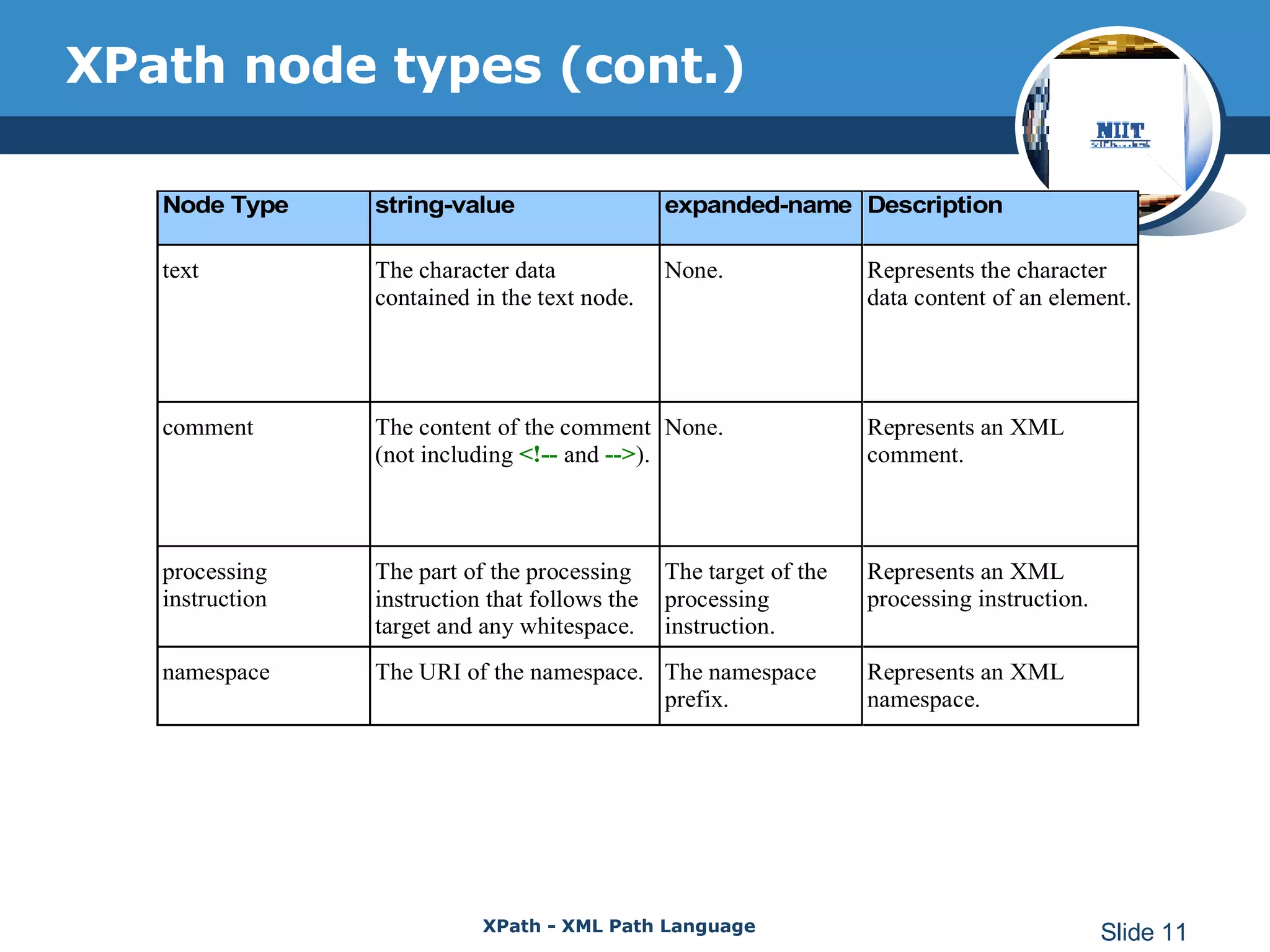

This document provides an introduction to XML Path Language (XPath), which is a syntax for locating information in an XML document. It describes the different node types in an XML document and XPath tree, such as element nodes, attribute nodes, and text nodes. It also explains some basic XPath concepts like axes, node tests, and location paths that allow navigating the XPath tree using steps separated by axes and node tests. Some examples of XPath functions and operators for manipulating node sets returned from location paths are also presented. Finally, it provides sample XML documents and uses XPath to select nodes and extract information from them.

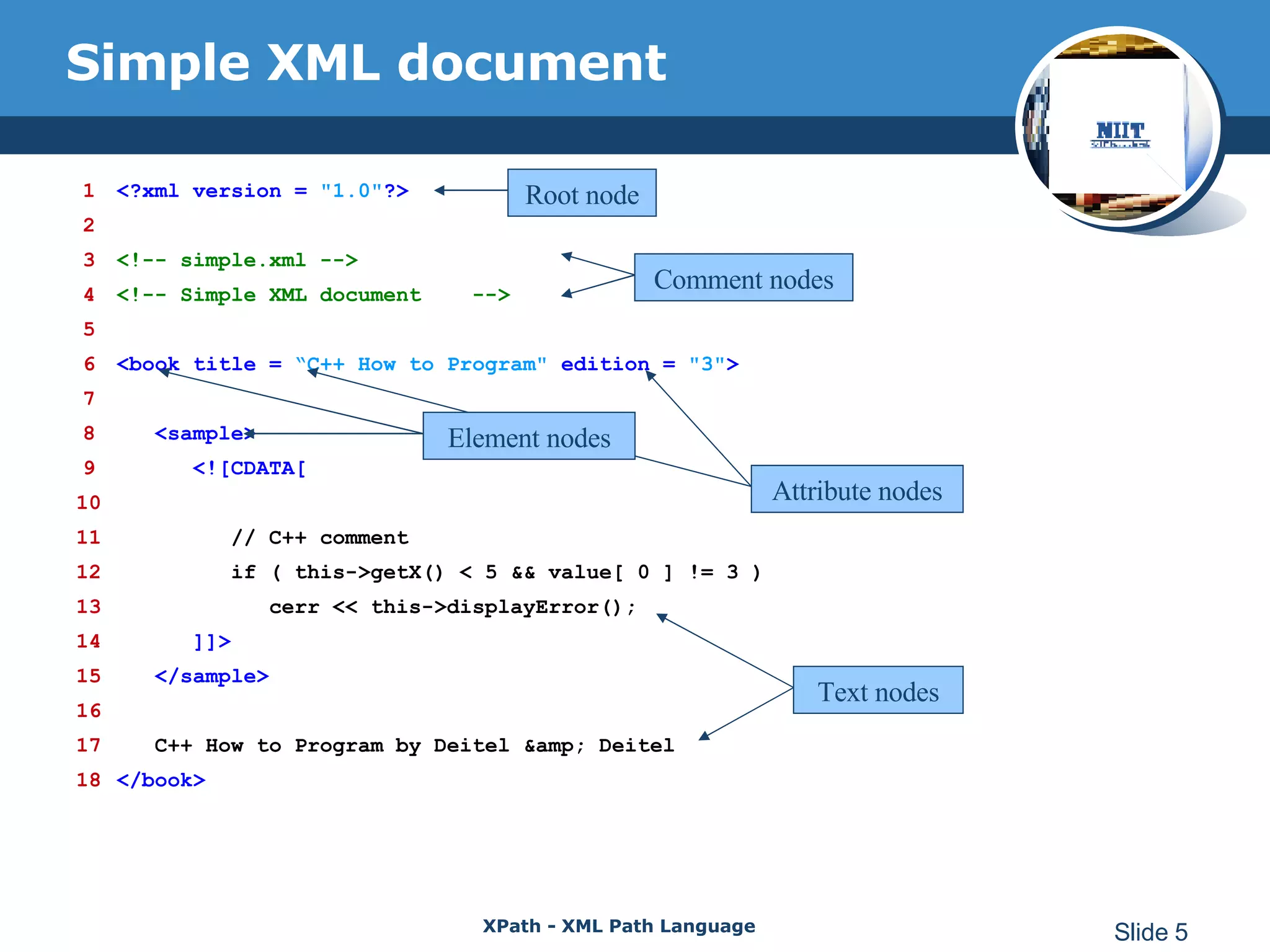

5. Simple XML document 1 <?xml version = "1.0" ?> 2 3 <!-- simple.xml --> 4 <!-- Simple XML document --> 5 6 <book title = “C++ How to Program" edition = "3" > 7 8 <sample> 9 <![CDATA[ 10 11 // C++ comment 12 if ( this->getX() < 5 && value[ 0 ] != 3 ) 13 cerr << this->displayError(); 14 ]]> 15 </sample> 16 17 C++ How to Program by Deitel & Deitel 18 </book> Root node Comment nodes Attribute nodes Element nodes Text nodes

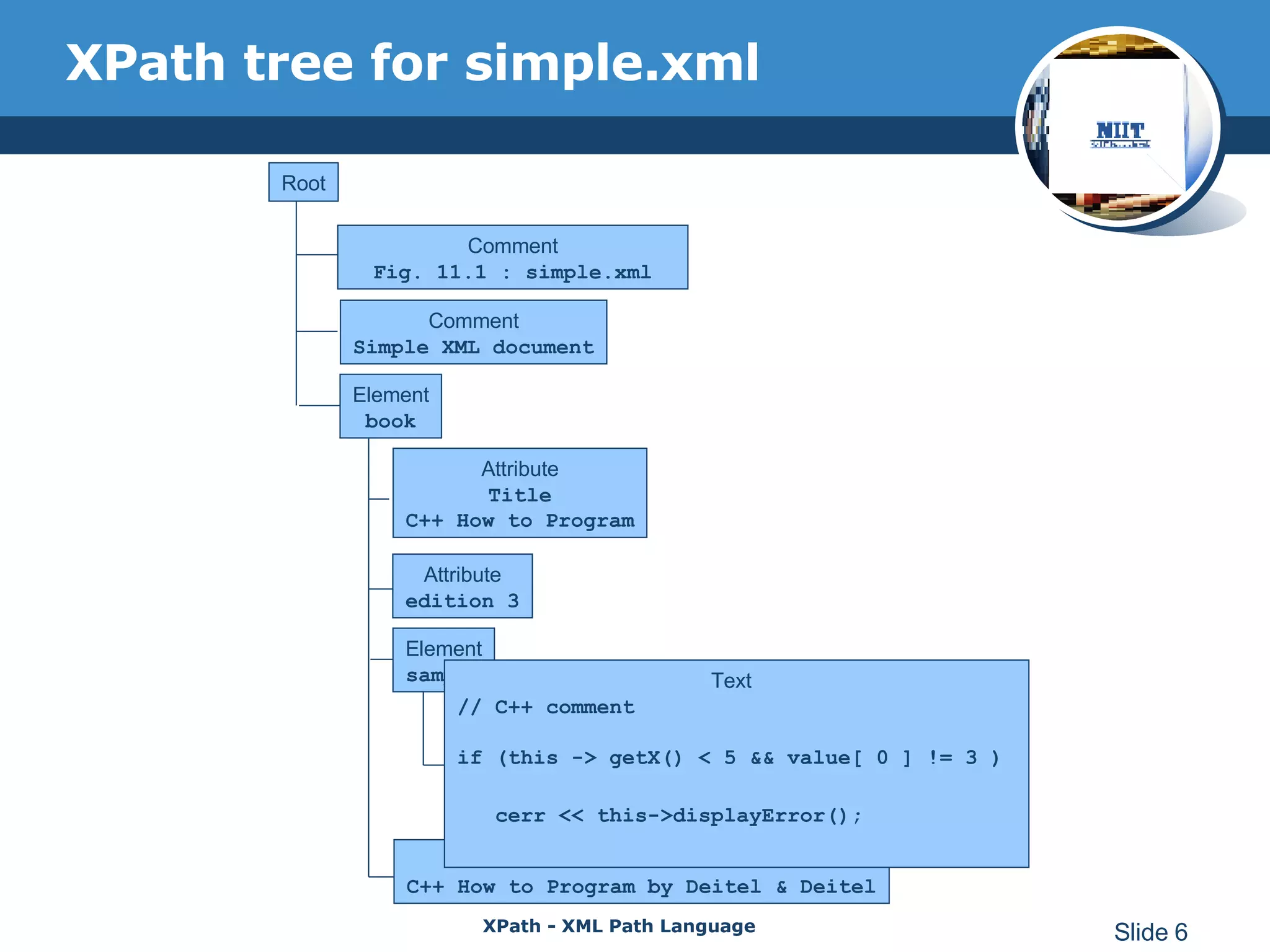

6. XPath tree for simple.xml Attribute Title C++ How to Program Element book Comment Fig. 11.1 : simple.xml Comment Simple XML document Attribute edition 3 Root Text C++ How to Program by Deitel & Deitel Element sample Text // C++ comment if (this -> getX() < 5 && value[ 0 ] != 3 ) cerr << this->displayError();

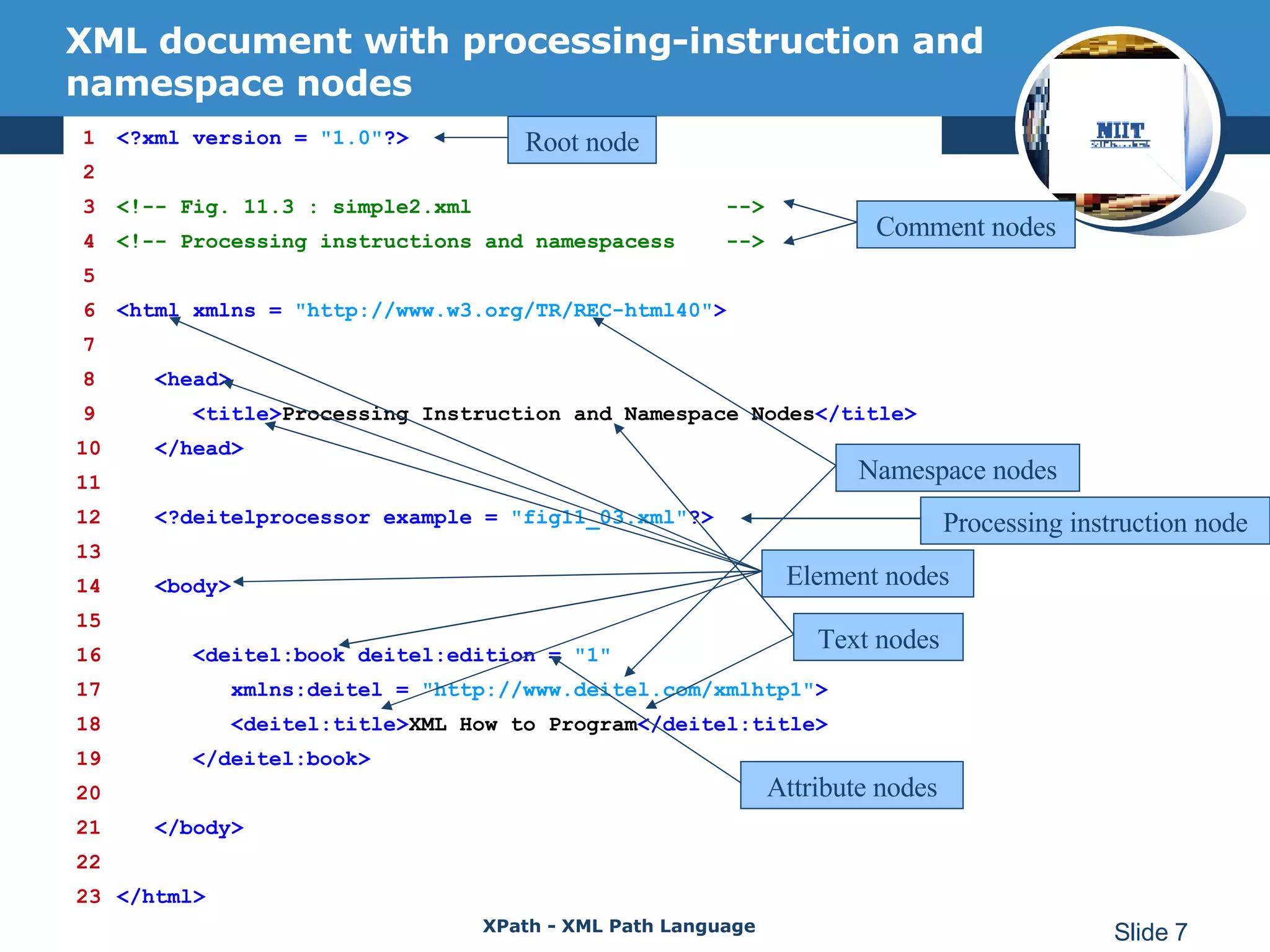

7. XML document with processing-instruction and namespace nodes 1 <?xml version = "1.0" ?> 2 3 <!-- Fig. 11.3 : simple2.xml --> 4 <!-- Processing instructions and namespacess --> 5 6 <html xmlns = "http://www.w3.org/TR/REC-html40" > 7 8 <head> 9 <title> Processing Instruction and Namespace Nodes </title> 10 </head> 11 12 <?deitelprocessor example = "fig11_03.xml" ?> 13 14 <body> 15 16 <deitel:book deitel:edition = "1" 17 xmlns:deitel = "http://www.deitel.com/xmlhtp1" > 18 <deitel:title> XML How to Program </deitel:title> 19 </deitel:book> 20 21 </body> 22 23 </html> Root node Comment nodes Namespace nodes Processing instruction node Element nodes Text nodes Attribute nodes

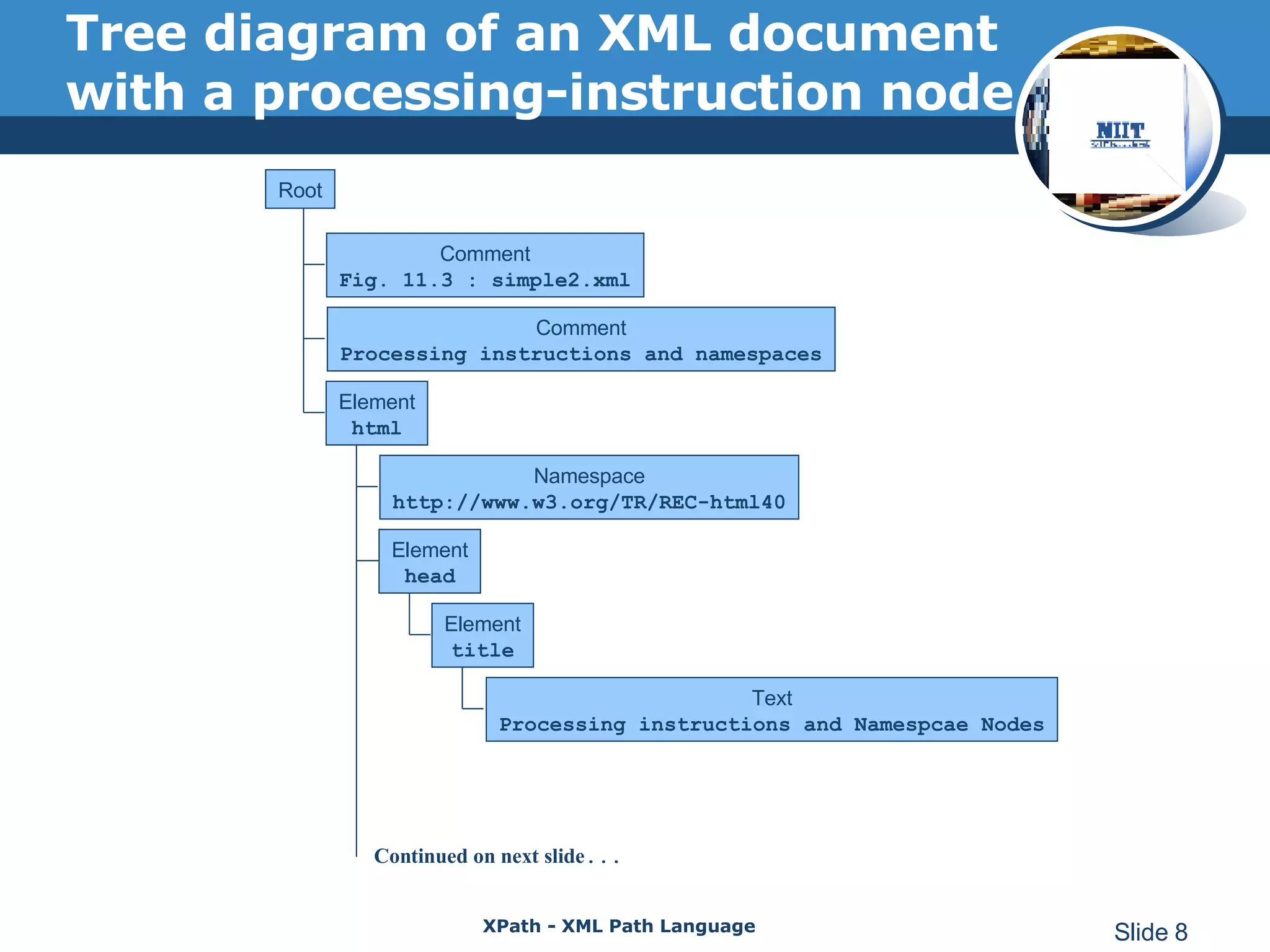

8. Tree diagram of an XML document with a processing-instruction node Continued on next slide ... Root Comment Fig. 11.3 : simple2.xml Comment Processing instructions and namespaces Element html Namespace http://www.w3.org/TR/REC-html40 Element head Text Processing instructions and Namespcae Nodes Element title

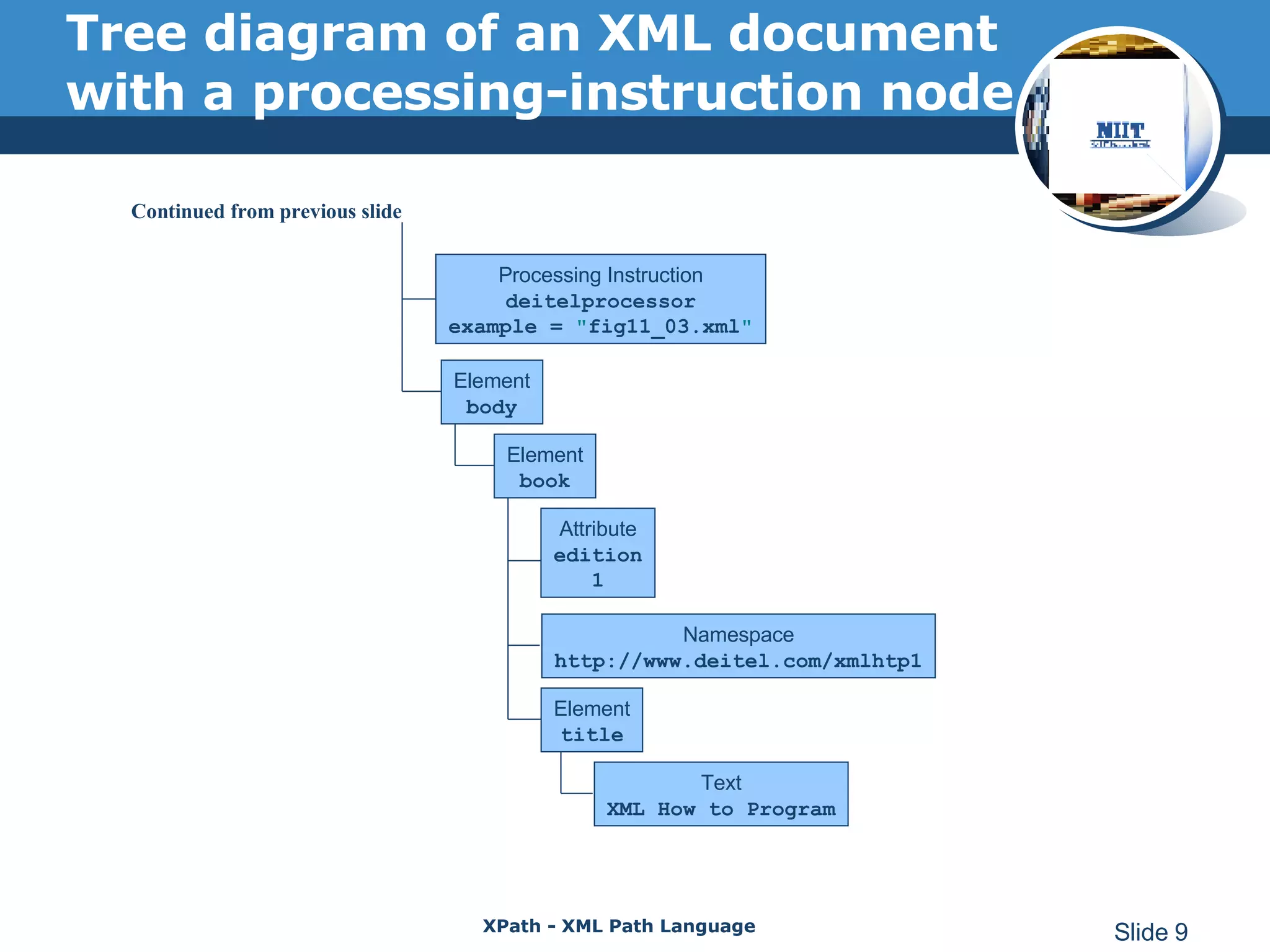

9. Tree diagram of an XML document with a processing-instruction node Continued from previous slide Processing Instruction deitelprocessor example = " fig11_03.xml " Element body Element book Attribute edition 1 Namespace http://www.deitel.com/xmlhtp1 Element title Text XML How to Program
