The document summarizes troubleshooting techniques for the XenServer virtualization platform. It describes the XenServer architecture including the Xen domain 0, guest OS internals, XAPI management interface, and storage manager. It then covers various troubleshooting tools and techniques such as useful Linux commands, XenServer log files, debugging XenCenter logs, and examining the object model and CLI.

1. Citrix® XenServer Webcast 26. März 2010 Advanced Troubleshooting Thomas Krampe Citrix Technology Professional

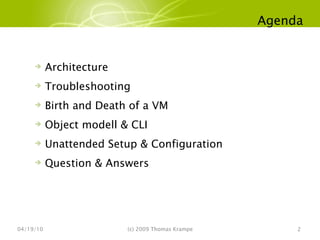

2. Agenda 04/19/10 (c) 2009 Thomas Krampe Architecture Troubleshooting Birth and Death of a VM Object modell & CLI Unattended Setup & Configuration Question & Answers

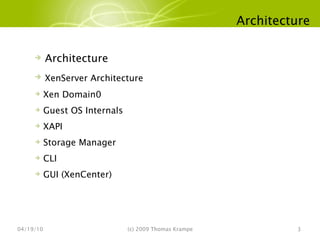

3. Architecture 04/19/10 (c) 2009 Thomas Krampe Architecture XenServer Architecture Xen Domain0 Guest OS Internals XAPI Storage Manager CLI GUI (XenCenter)

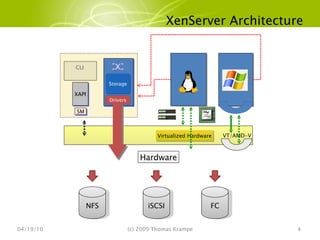

4. XenServer Architecture 04/19/10 (c) 2009 Thomas Krampe SM Virtualized Hardware Hardware VT/AMD-V XAPI Drivers Storage CLI NFS iSCSI FC

5. Xen Domain0 04/19/10 (c) 2009 Thomas Krampe Dom0 kernel and initrd passed on start up Dom0 has direct access to HW Bootloader /boot/grub/grub.conf /boot/extlinux.conf [Ctrl-A] 3 times will trap into the Xen debug console

6. Guest OS internals 04/19/10 (c) 2009 Thomas Krampe PV Guest Modified Kernel (“Xenified”) Kernel name will have “xs” somewhere in the filename Guest agent reports VM stats Use pygrub bootloader HVM Guest (Windows) Unmodified Kernel Need PV drivers Event Channel, Network and Block Guest agent uses WMI

7. XAPI 04/19/10 (c) 2009 Thomas Krampe /opt/xensource/bin/xapi Service, autostarted on boot Implements the Xen API spec Talks to Storage Manager (sm) for SR control operations Stores configuration in sqlite DB /var/xapi/state.db sqlite3 /var/xapi/state.db DB is replicated on all hosts in a pool Sets up SR defaults on firstboot Failing firstboot scripts might cause issues /var/xapi/generate-* and /var/xapi/firstboot-* Defaults from /etc/xensource-inventory

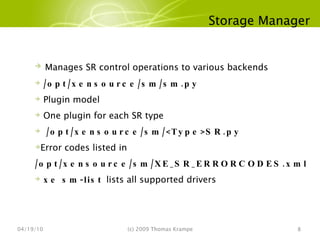

8. Storage Manager 04/19/10 (c) 2009 Thomas Krampe Manages SR control operations to various backends /opt/xensource/sm/sm.py Plugin model One plugin for each SR type /opt/xensource/sm/<Type>SR.py Error codes listed in /opt/xensource/sm/XE_SR_ERRORCODES.xml xe sm-list lists all supported drivers

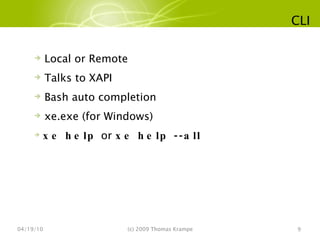

9. CLI 04/19/10 (c) 2009 Thomas Krampe Local or Remote Talks to XAPI Bash auto completion xe.exe (for Windows) xe help or xe help --all

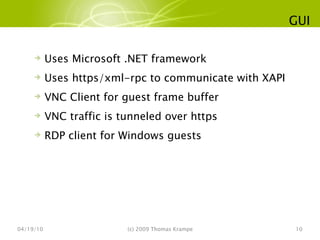

10. GUI 04/19/10 (c) 2009 Thomas Krampe Uses Microsoft .NET framework Uses https/xml-rpc to communicate with XAPI VNC Client for guest frame buffer VNC traffic is tunneled over https RDP client for Windows guests

11. Troubleshooting 04/19/10 (c) 2009 Thomas Krampe Troubleshooting Server Install Useful Linux Commands Server Diagnostics & Inventory Saving System State XS Server Log Files XenSource Agent XenCenter Logging Summery

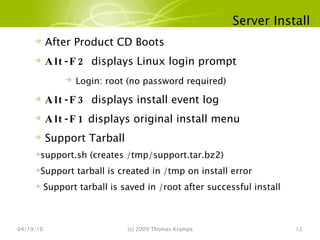

12. Server Install 04/19/10 (c) 2009 Thomas Krampe After Product CD Boots Alt-F2 displays Linux login prompt Login: root (no password required) Alt-F3 displays install event log Alt-F1 displays original install menu Support Tarball support.sh (creates /tmp/support.tar.bz2) Support tarball is created in /tmp on install error Support tarball is saved in /root after successful install

13. Useful Linux Commands 04/19/10 (c) 2009 Thomas Krampe Storage List Disks detected fdisk –l Network Show NIC configuration ifconfig eth0 [eth1 ..] ifup eth0 TCP/IP Tools ping, route -n dhclient eth0

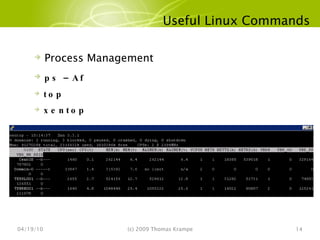

14. Useful Linux Commands 04/19/10 (c) 2009 Thomas Krampe Process Management ps –Af top xentop

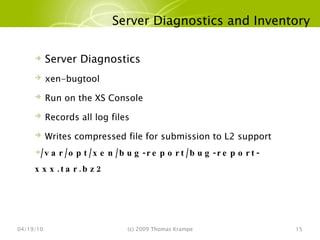

15. Server Diagnostics and Inventory 04/19/10 (c) 2009 Thomas Krampe Server Diagnostics xen-bugtool Run on the XS Console Records all log files Writes compressed file for submission to L2 support /var/opt/xen/bug-report/bug-report-xxx.tar.bz2

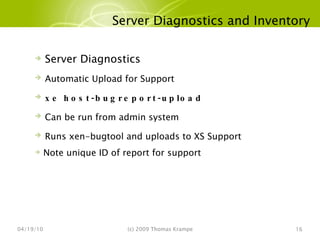

16. Server Diagnostics and Inventory 04/19/10 (c) 2009 Thomas Krampe Server Diagnostics Automatic Upload for Support xe host-bugreport-upload Can be run from admin system Runs xen-bugtool and uploads to XS Support Note unique ID of report for support

17. Server Diagnostics and Inventory 04/19/10 (c) 2009 Thomas Krampe Server Inventory system-info.sh | less Interactive script that captures all non-log state Hardware devices & Device drivers Storage repository and VM configurations

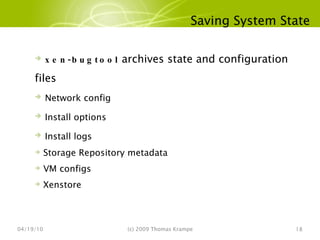

18. Saving System State 04/19/10 (c) 2009 Thomas Krampe xen-bugtool archives state and configuration files Network config Install options Install logs Storage Repository metadata VM configs Xenstore

19. XS Server Log Files 04/19/10 (c) 2009 Thomas Krampe XenSource XAPI Agent /var/log/messages Contains other system logging /var/log/xensource.log Xen/Domain 0 Xen Boot Messages xe host-dmesg Domain 0 Boot Messages dmesg

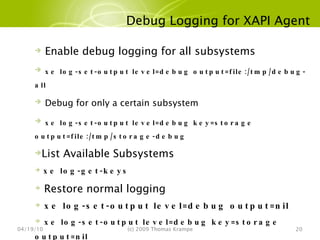

20. Debug Logging for XAPI Agent 04/19/10 (c) 2009 Thomas Krampe Enable debug logging for all subsystems xe log-set-output level=debug output=file:/tmp/debug-all Debug for only a certain subsystem xe log-set-output level=debug key=storage output=file:/tmp/storage-debug List Available Subsystems xe log-get-keys Restore normal logging xe log-set-output level=debug output=nil xe log-set-output level=debug key=storage output=nil

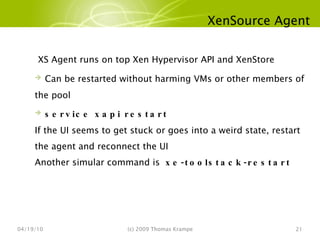

21. XenSource Agent 04/19/10 (c) 2009 Thomas Krampe XS Agent runs on top Xen Hypervisor API and XenStore Can be restarted without harming VMs or other members of the pool service xapi restart If the UI seems to get stuck or goes into a weird state, restart the agent and reconnect the UI Another simular command is xe-toolstack-restart

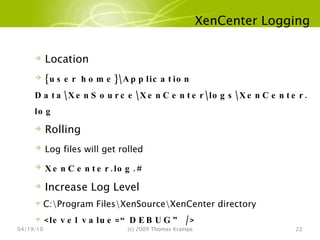

22. XenCenter Logging 04/19/10 (c) 2009 Thomas Krampe Location {user home}\Application Data\XenSource\XenCenter\logs\XenCenter.log Rolling Log files will get rolled XenCenter.log.# Increase Log Level C:\Program Files\XenSource\XenCenter directory <level value=“DEBUG” />

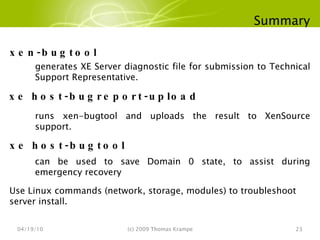

23. Summary 04/19/10 (c) 2009 Thomas Krampe xen-bugtool generates XE Server diagnostic file for submission to Technical Support Representative. xe host-bugreport-upload runs xen-bugtool and uploads the result to XenSource support. xe host-bugtool can be used to save Domain 0 state, to assist during emergency recovery Use Linux commands (network, storage, modules) to troubleshoot server install.

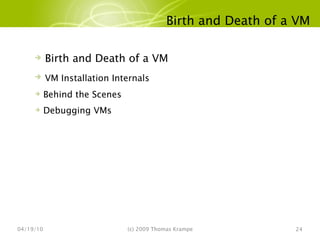

24. Birth and Death of a VM 04/19/10 (c) 2009 Thomas Krampe Birth and Death of a VM VM Installation Internals Behind the Scenes Debugging VMs

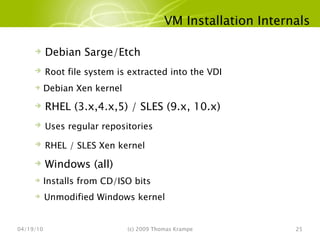

25. VM Installation Internals 04/19/10 (c) 2009 Thomas Krampe Debian Sarge/Etch Root file system is extracted into the VDI Debian Xen kernel RHEL (3.x,4.x,5) / SLES (9.x, 10.x) Uses regular repositories RHEL / SLES Xen kernel Windows (all) Installs from CD/ISO bits Unmodified Windows kernel

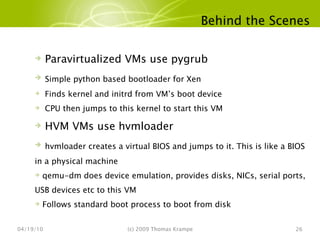

26. Behind the Scenes 04/19/10 (c) 2009 Thomas Krampe Paravirtualized VMs use pygrub Simple python based bootloader for Xen Finds kernel and initrd from VM’s boot device CPU then jumps to this kernel to start this VM HVM VMs use hvmloader hvmloader creates a virtual BIOS and jumps to it. This is like a BIOS in a physical machine qemu-dm does device emulation, provides disks, NICs, serial ports, USB devices etc to this VM Follows standard boot process to boot from disk

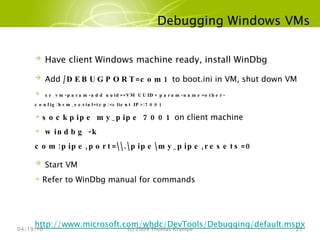

27. Debugging Windows VMs 04/19/10 (c) 2009 Thomas Krampe Have client Windows machine ready, install WinDbg Add /DEBUGPORT=com1 to boot.ini in VM, shut down VM xe vm-param-add uuid=<VM UUID> param-name=other-config:hvm_serial=tcp:<client IP>:7001 sockpipe my_pipe 7001 on client machine windbg -k com:pipe,port=\\.\pipe\my_pipe,resets=0 Start VM Refer to WinDbg manual for commands http://www.microsoft.com/whdc/DevTools/Debugging/default.mspx

28. Object Model and CLI 04/19/10 (c) 2009 Thomas Krampe Object Model and CLI Object Model CLI Command Format Maps Constarining Information Interesting Commands Looking inside a log file

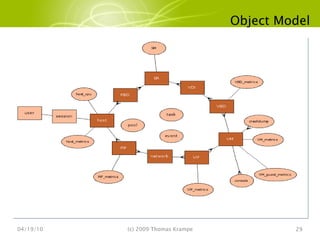

29. Object Model 04/19/10 (c) 2009 Thomas Krampe

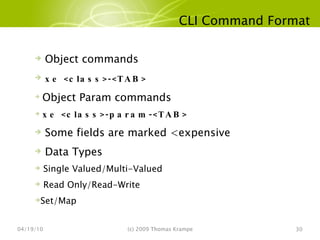

30. CLI Command Format 04/19/10 (c) 2009 Thomas Krampe Object commands xe <class>-<TAB> Object Param commands xe <class>-param-<TAB> Some fields are marked <expensive Data Types Single Valued/Multi-Valued Read Only/Read-Write Set/Map

31. Maps 04/19/10 (c) 2009 Thomas Krampe Setting Map values [root@localhost] xe vm-param-set uuid=VM uuid other-config:foo=baa Getting Map values [root@localhost] xe vm-param-get uuid=VM-uuid param-name=other-config mac_seed: 6fjafhahffhadfbadfad [root@localhost] xe vm-param-get uuid=VM-uuid param-name=other-config param-key=mac_seed 6fjafhahffhadfbadfad

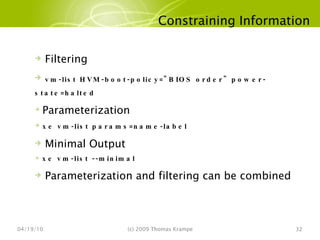

32. Constraining Information 04/19/10 (c) 2009 Thomas Krampe Filtering vm-list HVM-boot-policy=&quot;BIOS order&quot; power-state=halted Parameterization xe vm-list params=name-label Minimal Output xe vm-list --minimal Parameterization and filtering can be combined

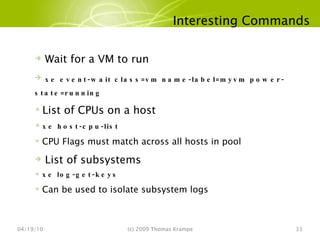

33. Interesting Commands 04/19/10 (c) 2009 Thomas Krampe Wait for a VM to run xe event-wait class=vm name-label=myvm power-state=running List of CPUs on a host xe host-cpu-list CPU Flags must match across all hosts in pool List of subsystems xe log-get-keys Can be used to isolate subsystem logs

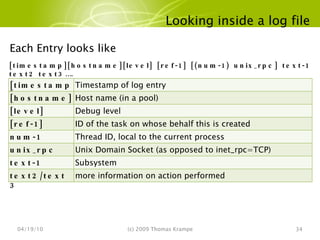

34. Looking inside a log file 04/19/10 (c) 2009 Thomas Krampe Each Entry looks like [timestamp][hostname][level] [ref-1] [(num-1) unix_rpc] text-1 text2 text3…. [timestamp] Timestamp of log entry [hostname] Host name (in a pool) [level] Debug level [ref-1] ID of the task on whose behalf this is created num-1 Thread ID, local to the current process unix_rpc Unix Domain Socket (as opposed to inet_rpc=TCP) text-1 Subsystem text2/text3 more information on action performed

35. Looking inside a log file 04/19/10 (c) 2009 Thomas Krampe xensource.log [20100209 16:58:28.688|debug|localhost|3078703|SR scanner D:dfd9ef0b708d|helpers] login done [20100209 16:58:28.921|debug|localhost|3078706 unix-RPC|SR.scan R:1ac783270499|taskhelper] task destroyed [root@localhost log]# Xenstored-access.log [20100209 16:49:05.381] D35 write data/meminfo_free 551040 [20100209 16:49:05.381] D35 write data/meminfo_total 1035760 [20100209 16:49:05.381] D35 write data/updated 1 messages Feb 9 17:04:58 fragmgrid2001 xapi: [ info|localhost|3078916|SR scanner D:dfd9ef0b708d|dispatcher] spawning a new thread to handle the current task Feb 9 17:04:58 fragmgrid2001 xapi: [ info|localhost|3078917 unix-RPC|session.slave_login D:58b671575b1e|xapi] Session.create trackid=ea252f3e59cc6f0d2d3de1345967d54b pool=true uname= is_local_superuser=true auth_user_sid= Feb 9 17:04:58 fragmgrid2001 xapi: [ info|localhost|3078919 unix-RPC|dispatch:SR.scan D:64e76e160ebc|taskhelper] task SR.scan R:98637b78c34f (uuid:6e8469dc-724d-0260-a584-44d36bca2953) created (trackid=ea252f3e59cc6f0d2d3de1345967d54b) by task D:dfd9ef0b708d

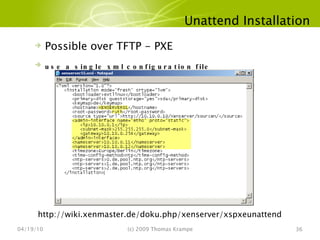

36. Unattend Installation 04/19/10 (c) 2009 Thomas Krampe Possible over TFTP - PXE use a single xml configuration file http://wiki.xenmaster.de/doku.php/xenserver/xspxeunattend

37. Questions & Answers 04/19/10 (c) 2009 Thomas Krampe
