1. vSphere 5.0 – What’s New
Lovas Balázs
Vmware oktató
Arrow ECS Kft.

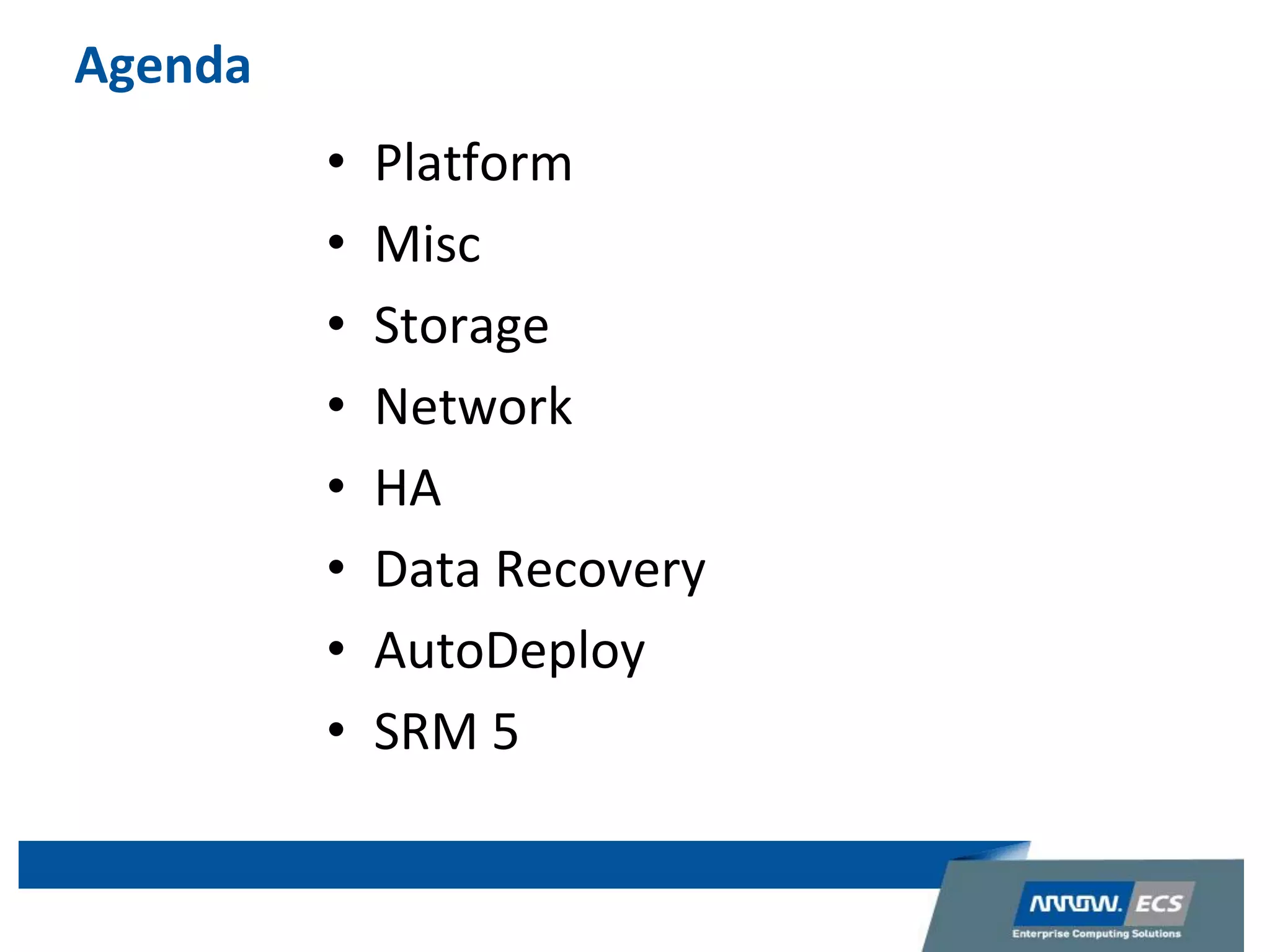

2. Agenda
• Platform
• Misc
• Storage
• Network
• HA
• Data Recovery
• AutoDeploy
• SRM 5

3. PLATFORM

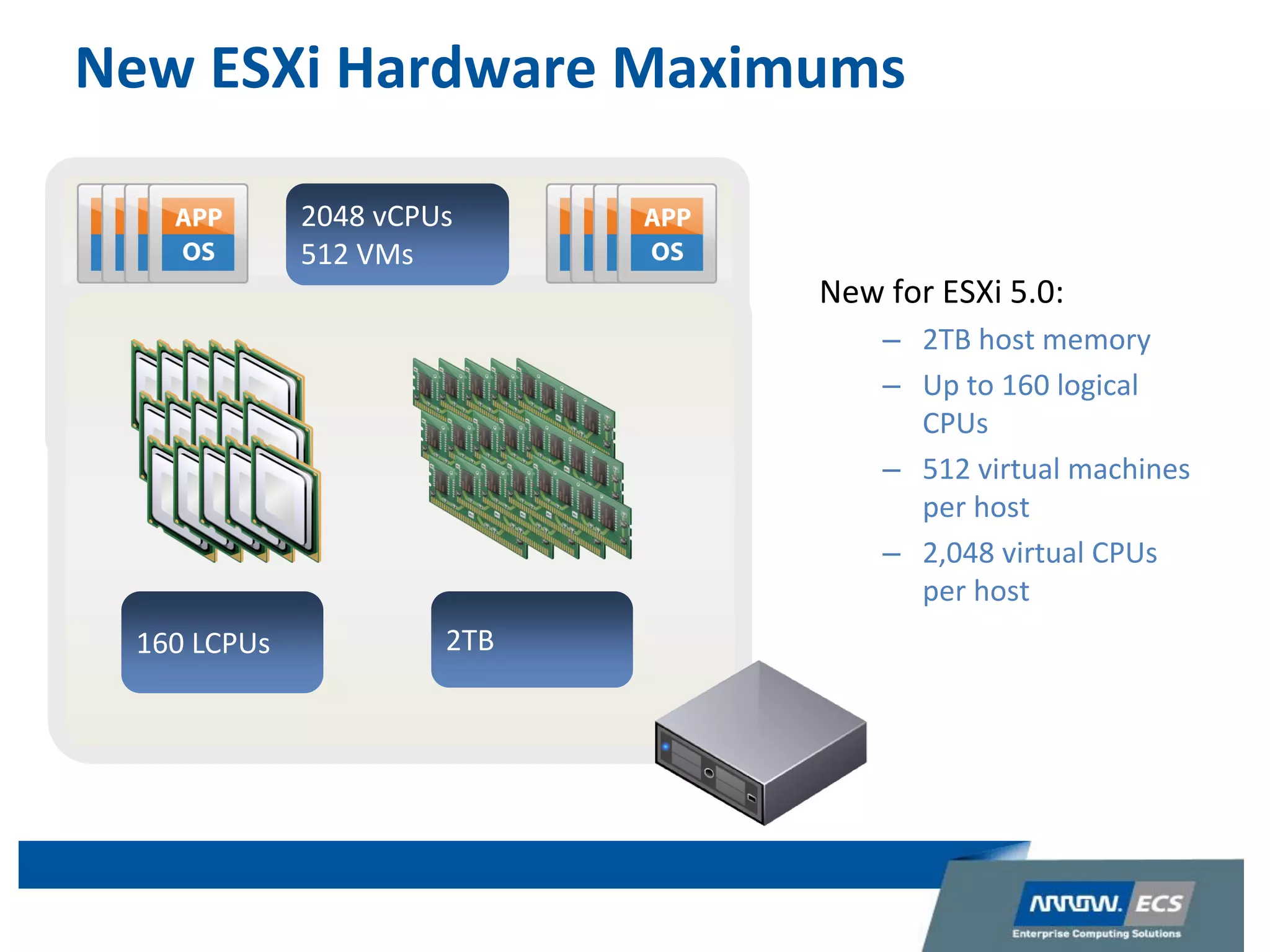

4. New ESXi Hardware Maximums
New for ESXi 5.0:
– 2TB host memory
– Up to 160 logical
CPUs
– 512 virtual machines
per host
– 2,048 virtual CPUs
per host
2TB160 LCPUs
2048 vCPUs
512 VMs

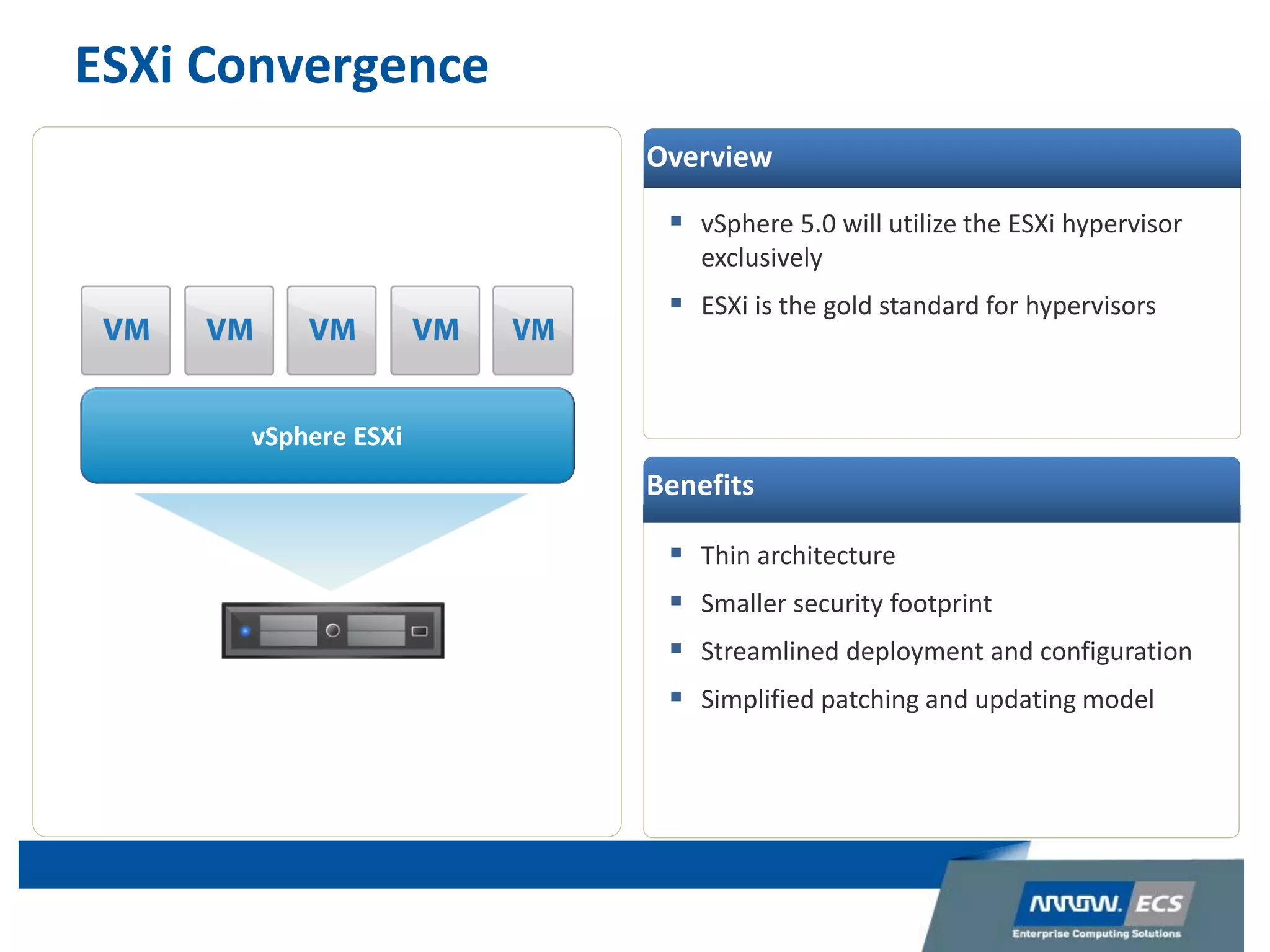

5. ESXi Convergence
Most Trusted
vSphere ESXi
 vSphere 5.0 will utilize the ESXi hypervisor
exclusively
 ESXi is the gold standard for hypervisors
Overview
Benefits
 Thin architecture
 Smaller security footprint
 Streamlined deployment and configuration
 Simplified patching and updating model

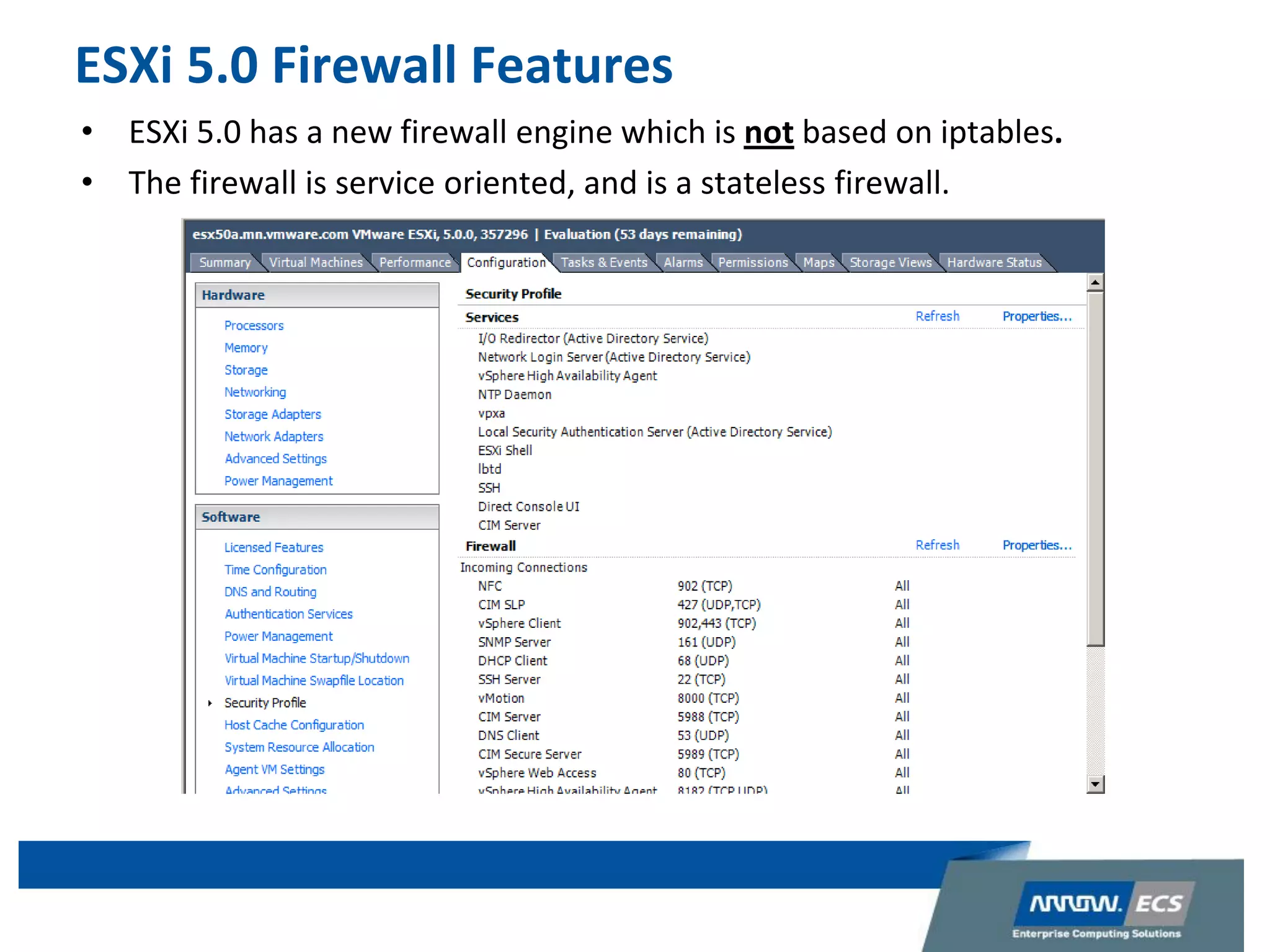

6. ESXi 5.0 Firewall Features
• ESXi 5.0 has a new firewall engine which is not based on iptables.
• The firewall is service oriented, and is a stateless firewall.

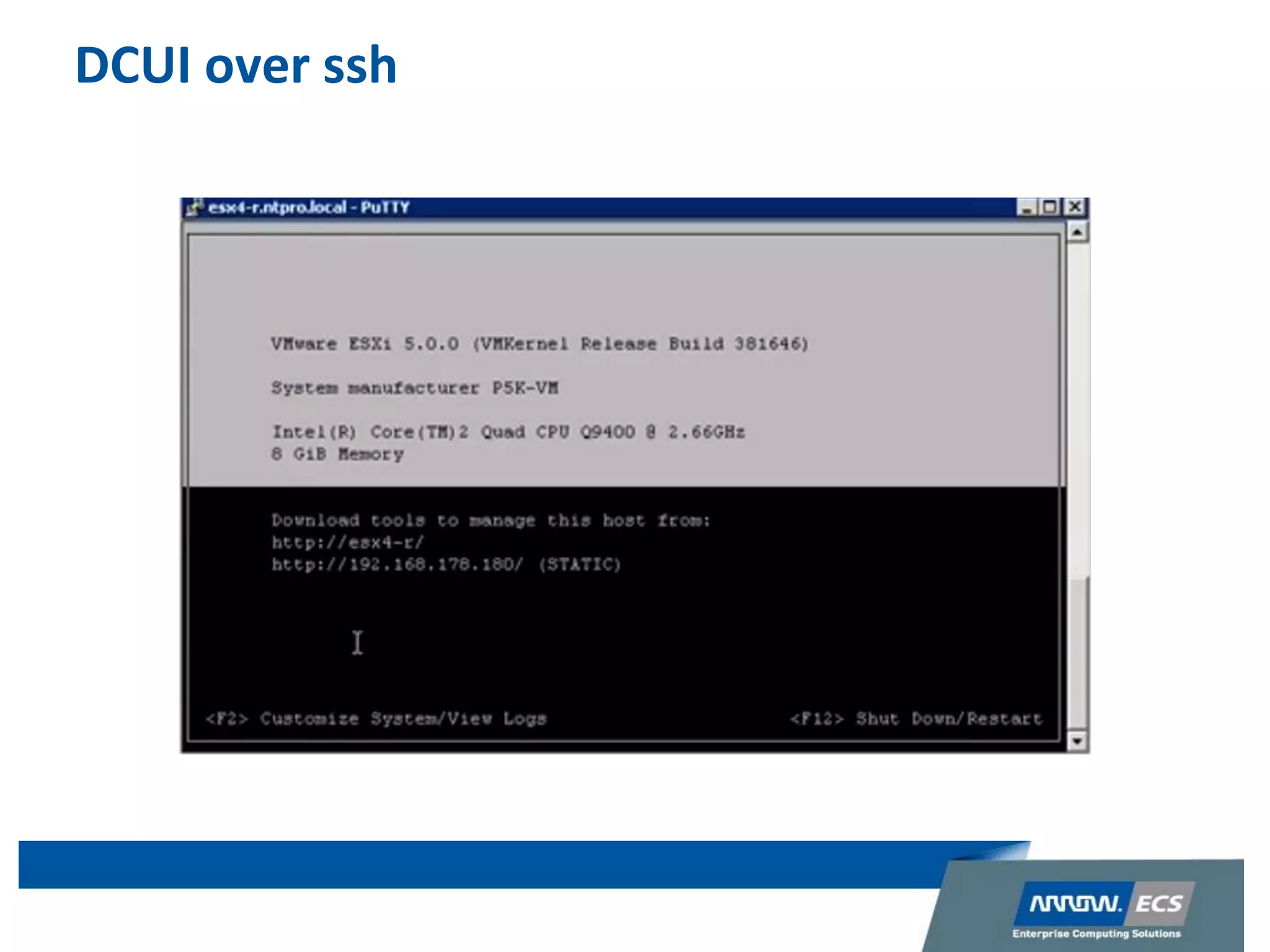

7. DCUI over ssh

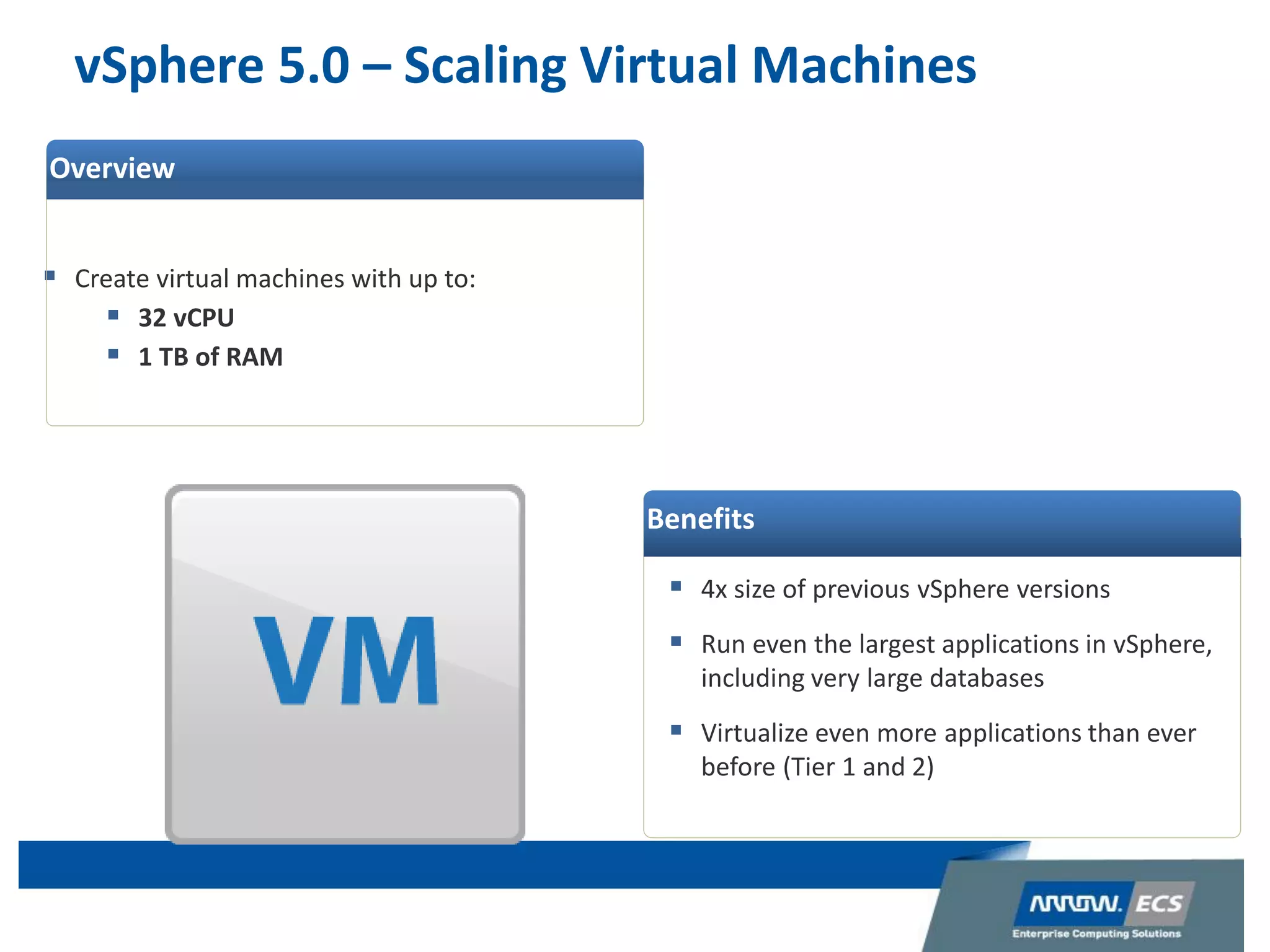

8.  Create virtual machines with up to:
 32 vCPU
 1 TB of RAM
 4x size of previous vSphere versions
 Run even the largest applications in vSphere,
including very large databases
 Virtualize even more applications than ever
before (Tier 1 and 2)
vSphere 5.0 – Scaling Virtual Machines
Overview
Benefits

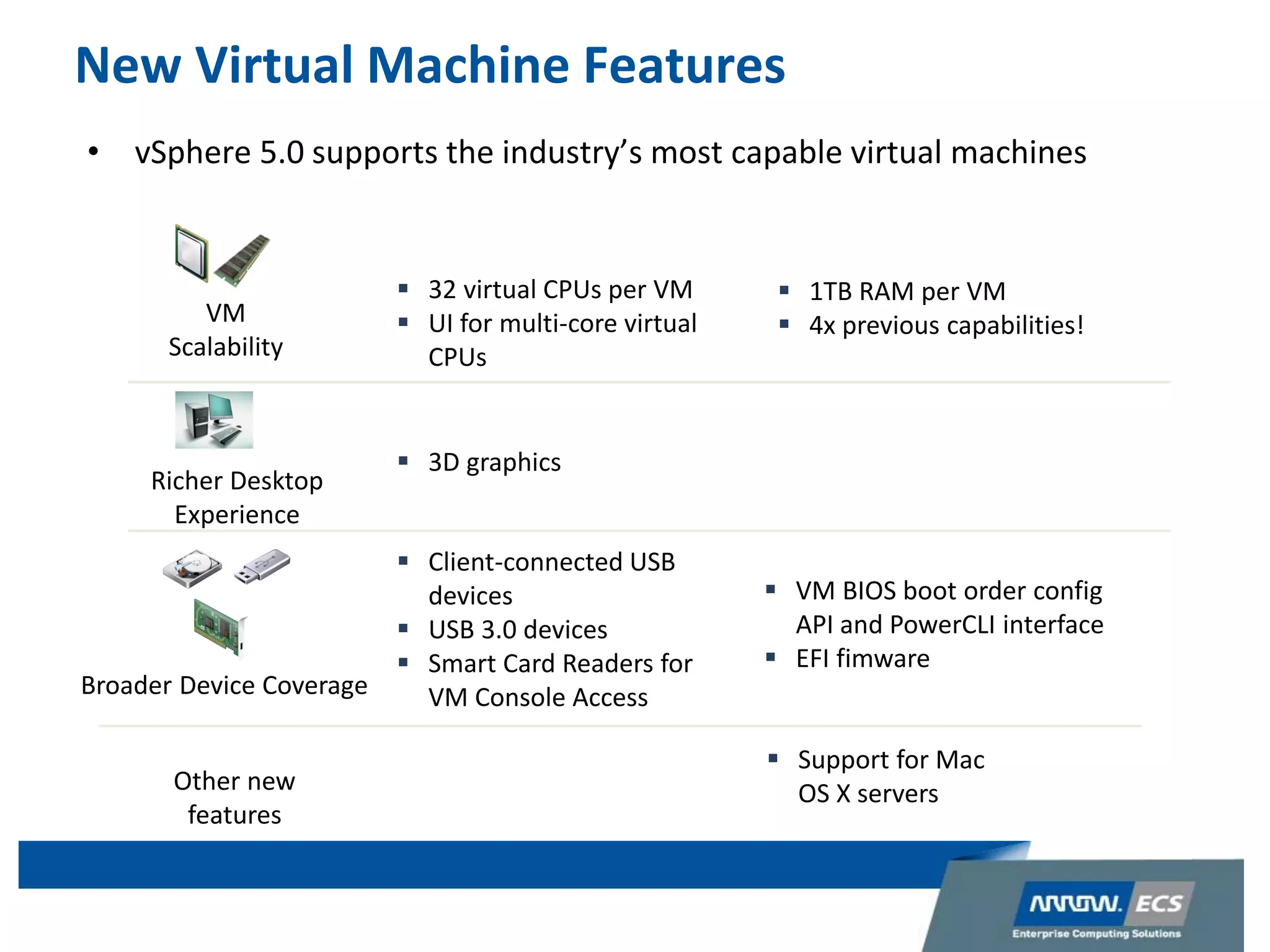

9. New Virtual Machine Features
• vSphere 5.0 supports the industry’s most capable virtual machines
Other new
features
VM
Scalability
Broader Device Coverage
 32 virtual CPUs per VM
 UI for multi-core virtual
CPUs
 Client-connected USB
devices
 USB 3.0 devices
 Smart Card Readers for
VM Console Access
 1TB RAM per VM
 4x previous capabilities!
 Support for Mac
OS X servers
Richer Desktop
Experience
 3D graphics
 VM BIOS boot order config
API and PowerCLI interface
 EFI fimware

10. Misc

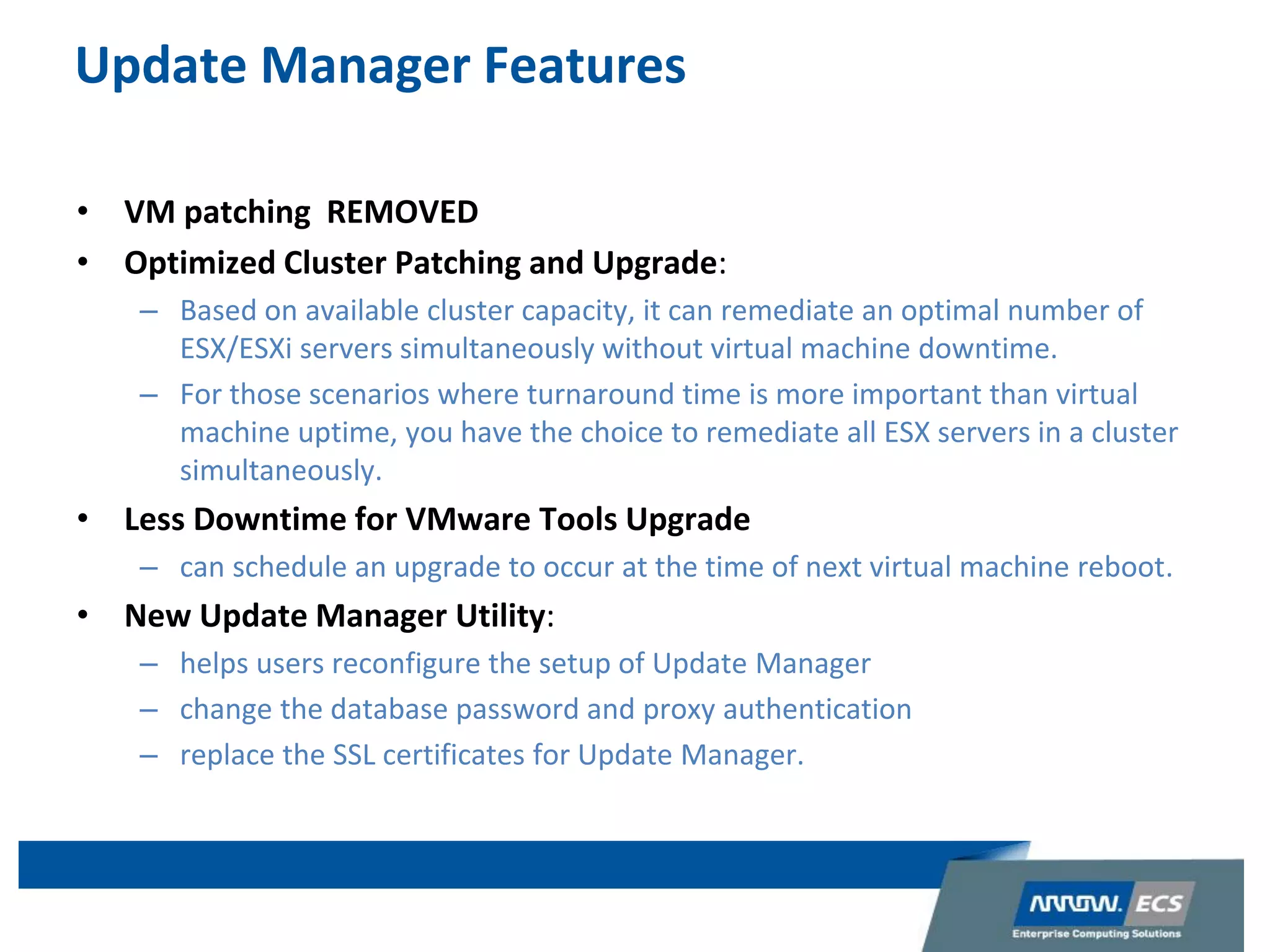

11. Update Manager Features
• VM patching REMOVED
• Optimized Cluster Patching and Upgrade:
– Based on available cluster capacity, it can remediate an optimal number of
ESX/ESXi servers simultaneously without virtual machine downtime.
– For those scenarios where turnaround time is more important than virtual
machine uptime, you have the choice to remediate all ESX servers in a cluster
simultaneously.
• Less Downtime for VMware Tools Upgrade
– can schedule an upgrade to occur at the time of next virtual machine reboot.
• New Update Manager Utility:
– helps users reconfigure the setup of Update Manager
– change the database password and proxy authentication
– replace the SSL certificates for Update Manager.

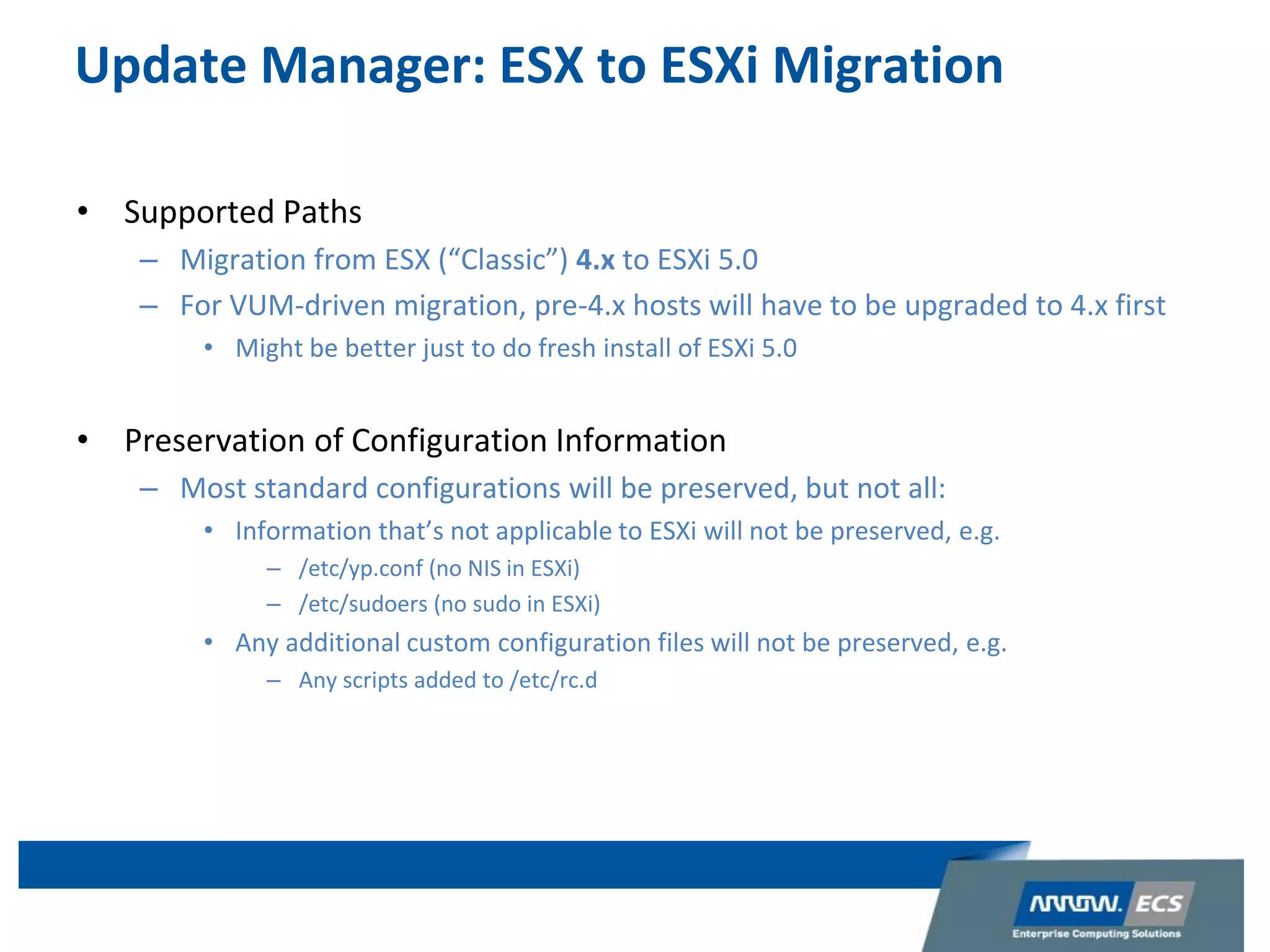

12. Update Manager: ESX to ESXi Migration
• Supported Paths
– Migration from ESX (“Classic”) 4.x to ESXi 5.0
– For VUM-driven migration, pre-4.x hosts will have to be upgraded to 4.x first
• Might be better just to do fresh install of ESXi 5.0
• Preservation of Configuration Information
– Most standard configurations will be preserved, but not all:
• Information that’s not applicable to ESXi will not be preserved, e.g.
– /etc/yp.conf (no NIS in ESXi)
– /etc/sudoers (no sudo in ESXi)
• Any additional custom configuration files will not be preserved, e.g.
– Any scripts added to /etc/rc.d
12

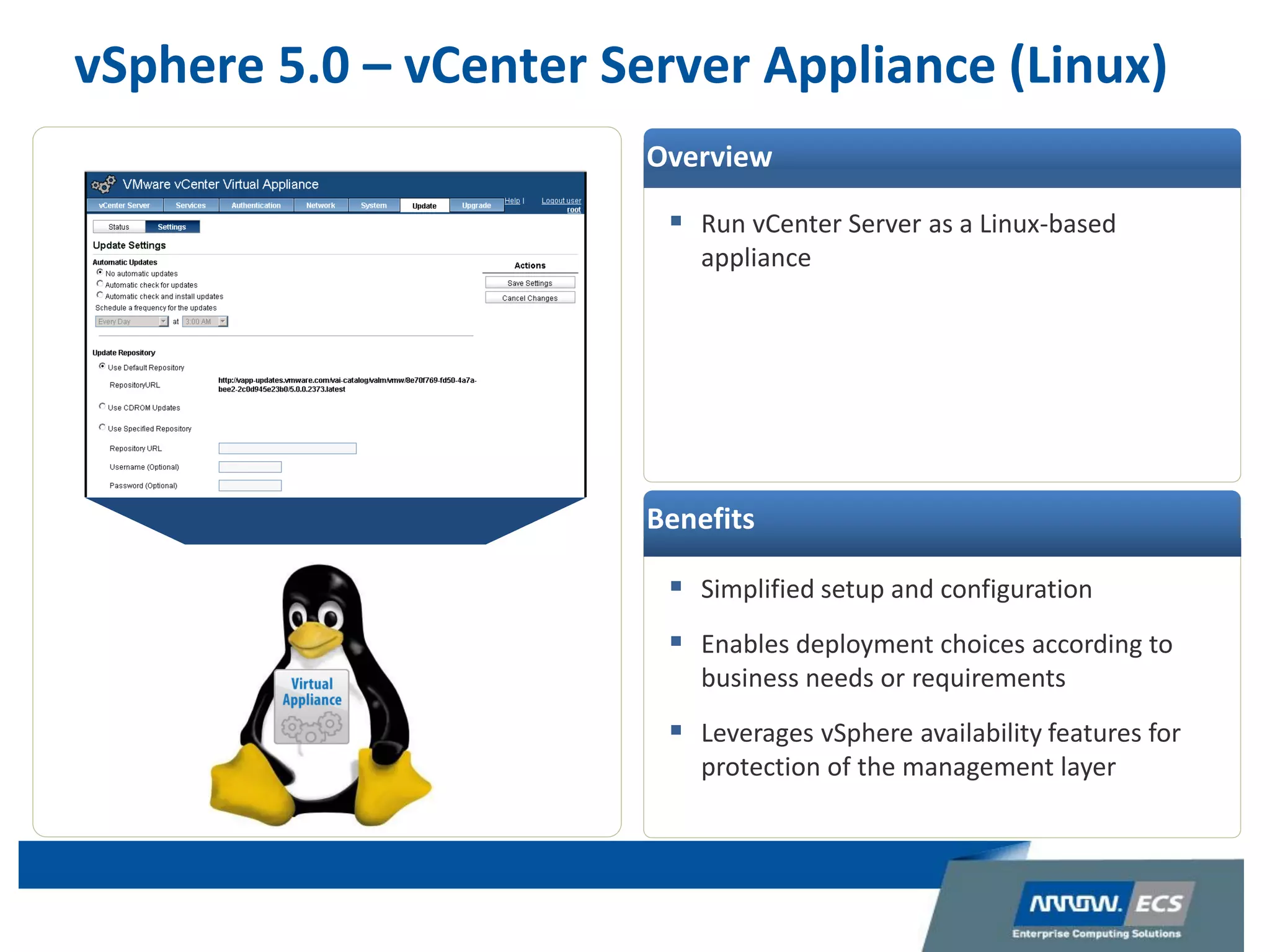

13. vSphere 5.0 – vCenter Server Appliance (Linux)
 Run vCenter Server as a Linux-based
appliance
 Simplified setup and configuration
 Enables deployment choices according to
business needs or requirements
 Leverages vSphere availability features for
protection of the management layer
Overview
Benefits

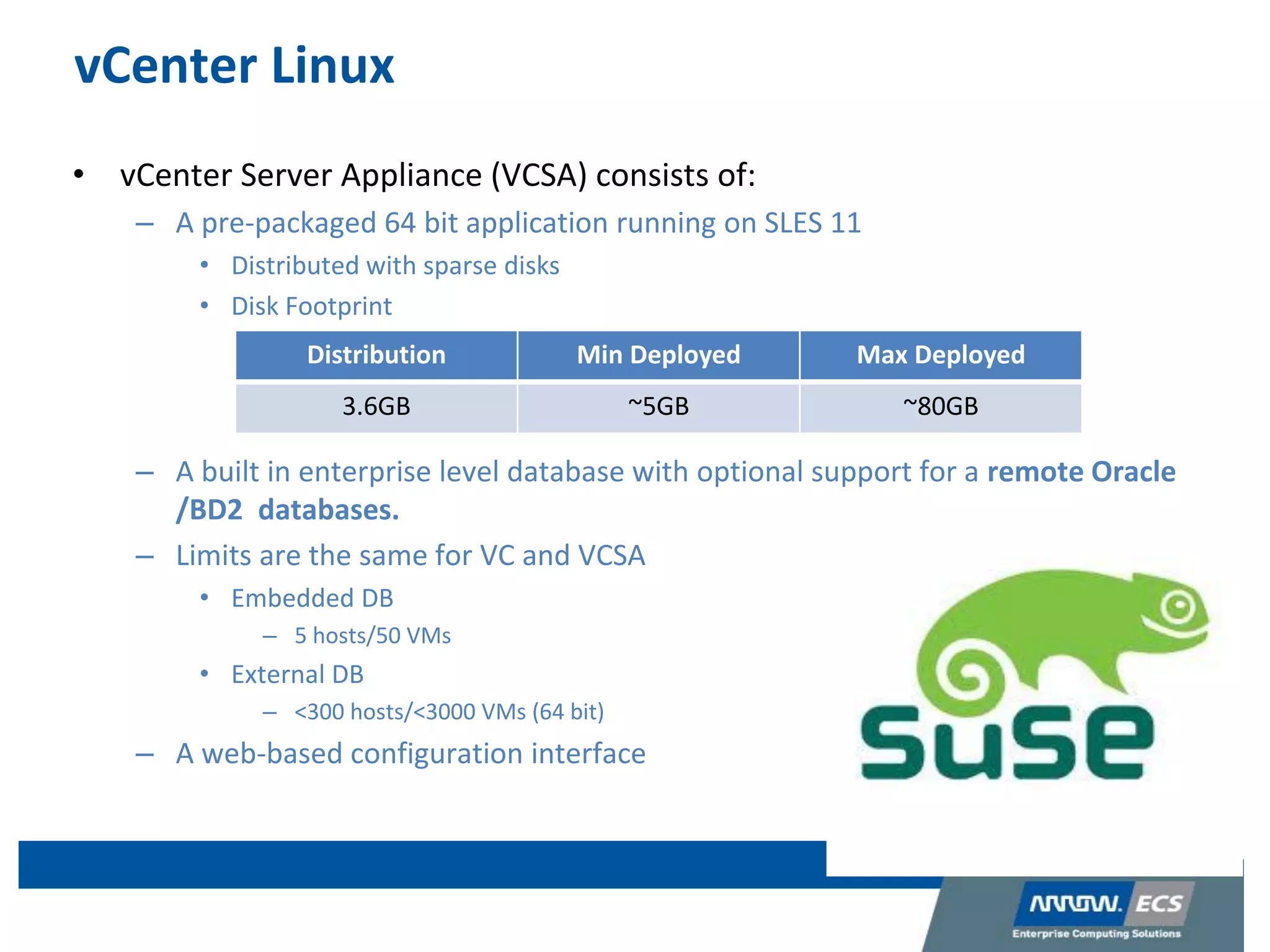

14. vCenter Linux
• vCenter Server Appliance (VCSA) consists of:
– A pre-packaged 64 bit application running on SLES 11
• Distributed with sparse disks
• Disk Footprint
– A built in enterprise level database with optional support for a remote Oracle
/BD2 databases.
– Limits are the same for VC and VCSA
• Embedded DB
– 5 hosts/50 VMs
• External DB
– <300 hosts/<3000 VMs (64 bit)
– A web-based configuration interface
Distribution Min Deployed Max Deployed
3.6GB ~5GB ~80GB

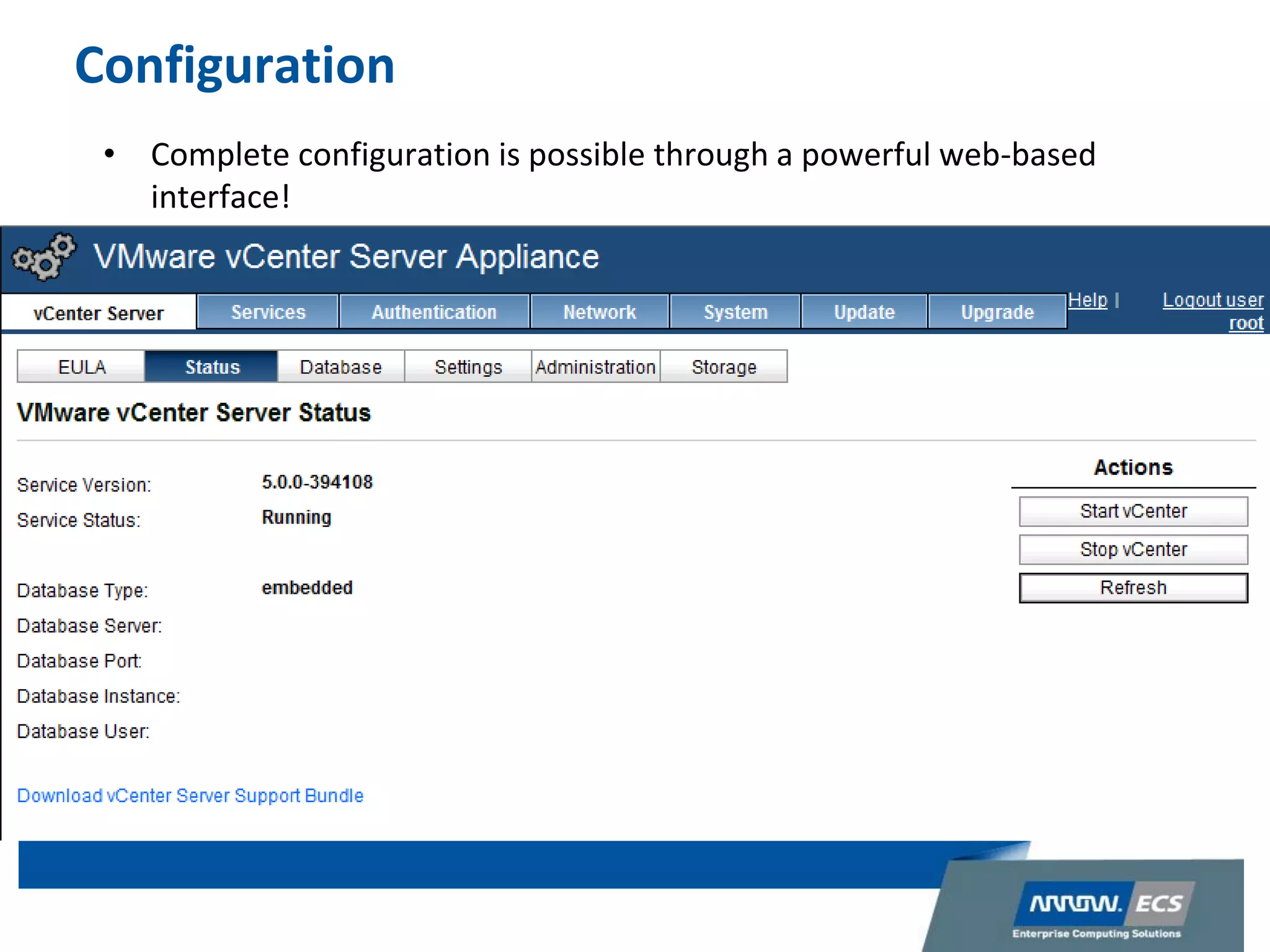

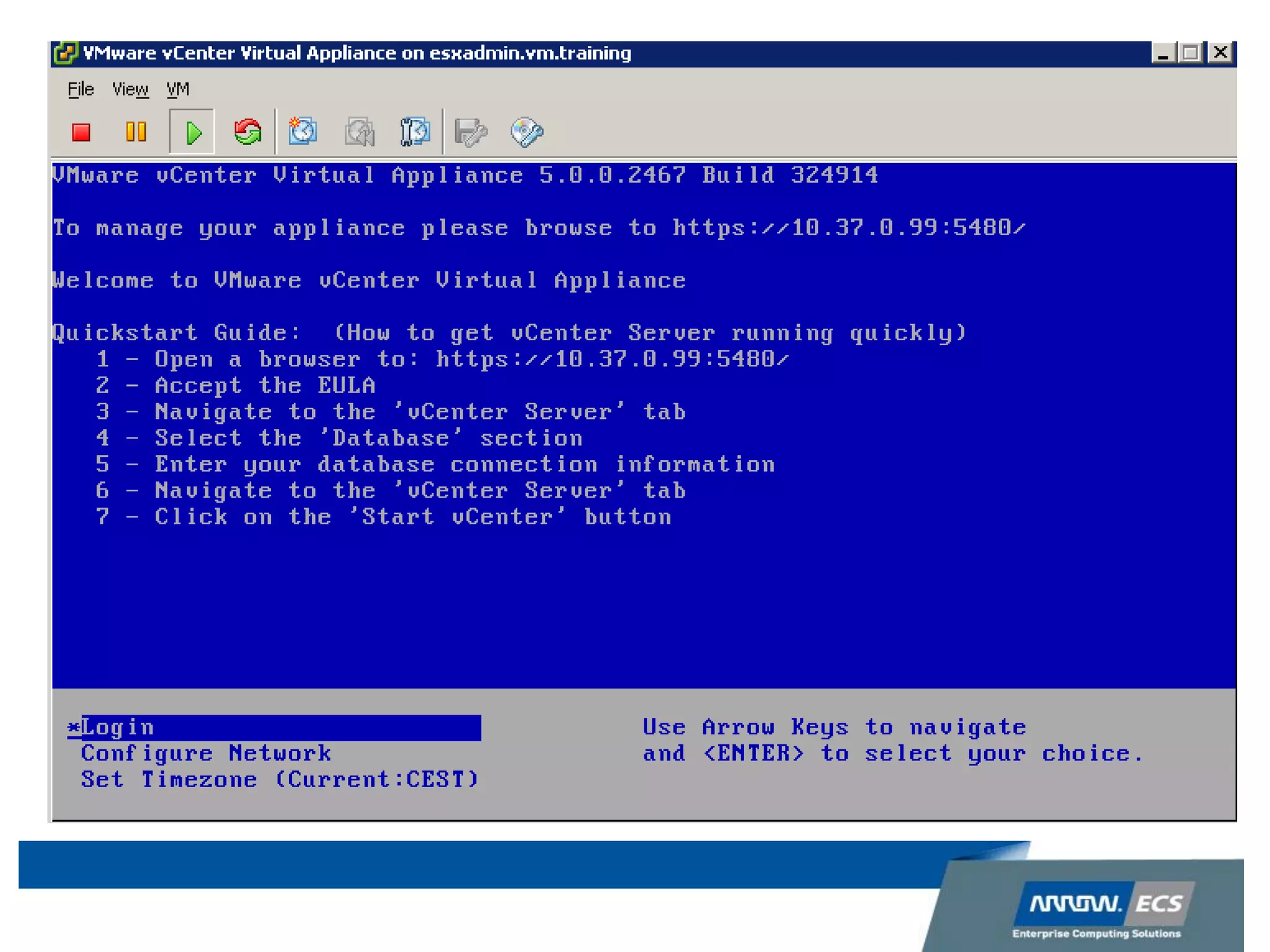

16. Configuration
• Complete configuration is possible through a powerful web-based
interface!

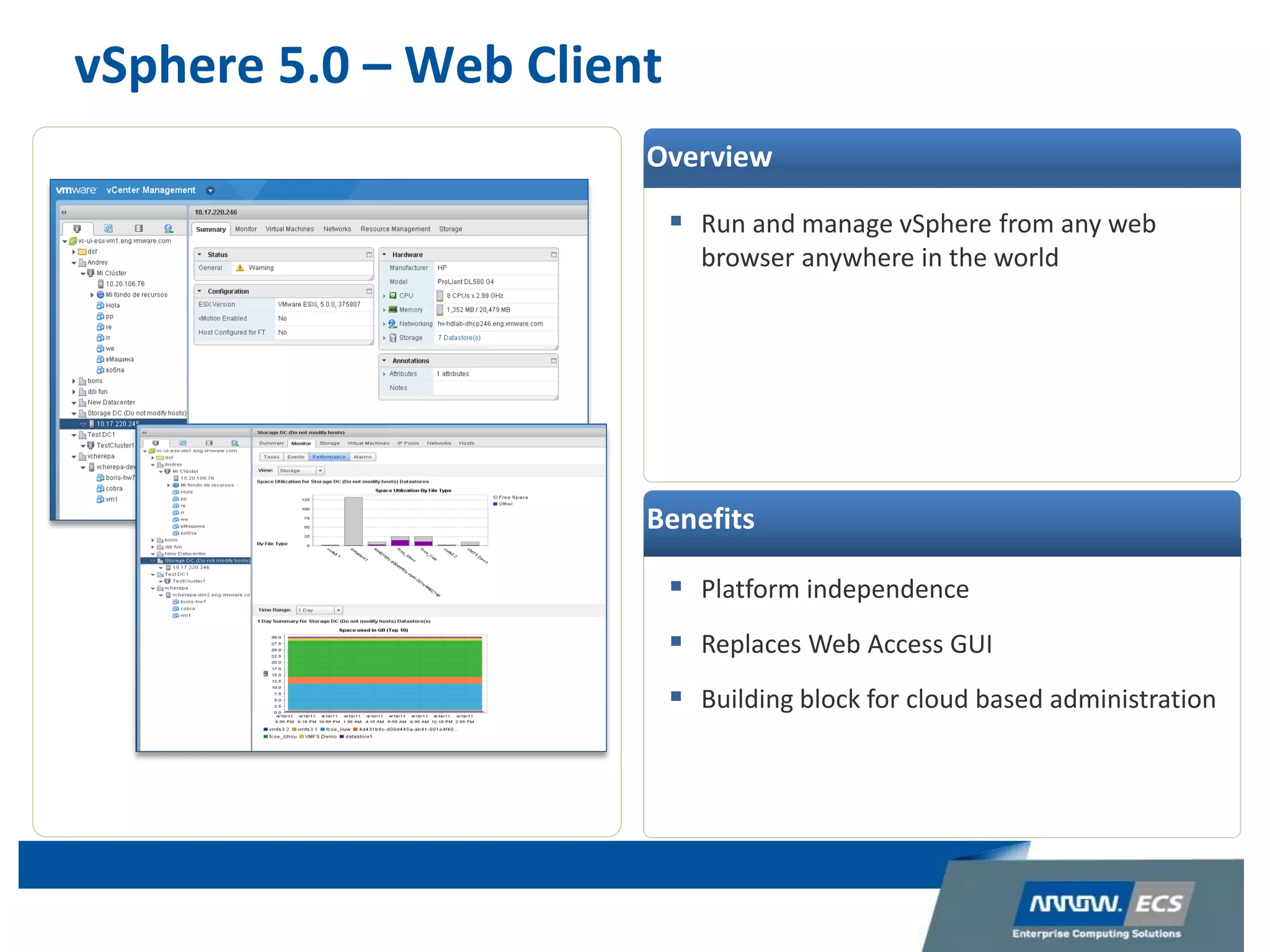

17. vSphere 5.0 – Web Client
 Run and manage vSphere from any web
browser anywhere in the world
 Platform independence
 Replaces Web Access GUI
 Building block for cloud based administration
Overview
Benefits

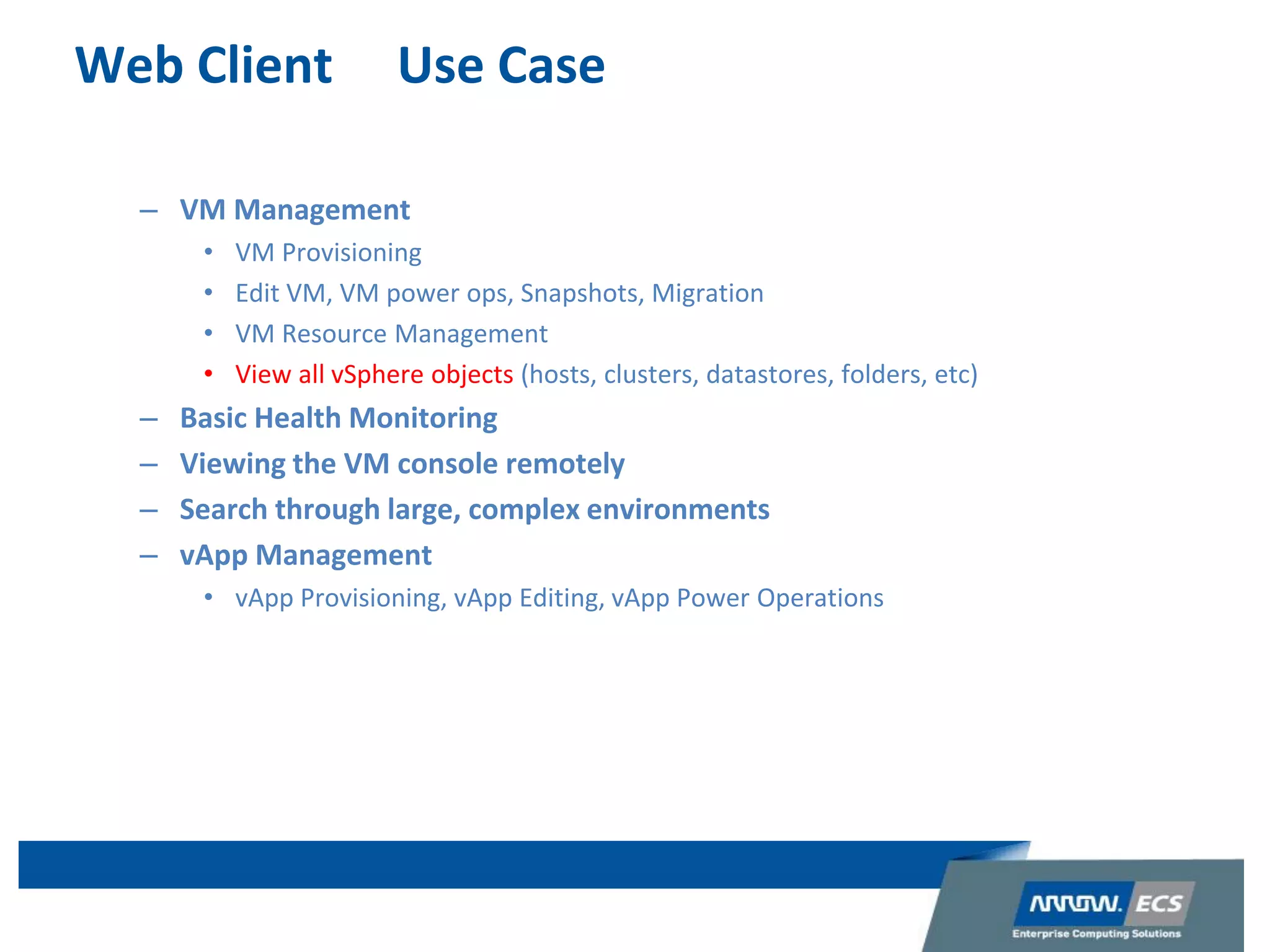

18. Web Client Use Case
– VM Management
• VM Provisioning
• Edit VM, VM power ops, Snapshots, Migration
• VM Resource Management
• View all vSphere objects (hosts, clusters, datastores, folders, etc)
– Basic Health Monitoring
– Viewing the VM console remotely
– Search through large, complex environments
– vApp Management
• vApp Provisioning, vApp Editing, vApp Power Operations

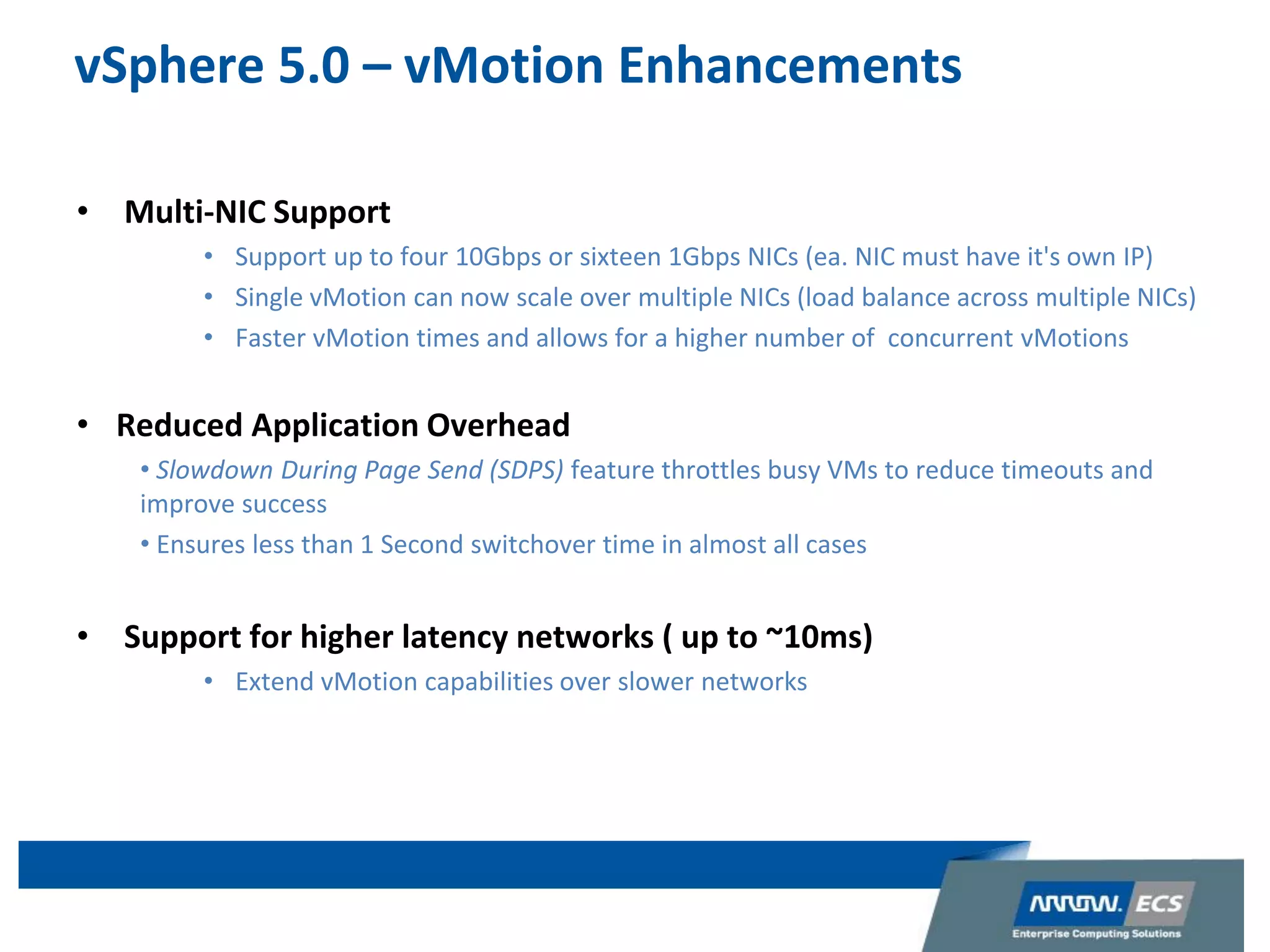

19. vSphere 5.0 – vMotion Enhancements
• Multi-NIC Support
• Support up to four 10Gbps or sixteen 1Gbps NICs (ea. NIC must have it's own IP)
• Single vMotion can now scale over multiple NICs (load balance across multiple NICs)
• Faster vMotion times and allows for a higher number of concurrent vMotions
• Reduced Application Overhead
• Slowdown During Page Send (SDPS) feature throttles busy VMs to reduce timeouts and
improve success
• Ensures less than 1 Second switchover time in almost all cases
• Support for higher latency networks ( up to ~10ms)
• Extend vMotion capabilities over slower networks

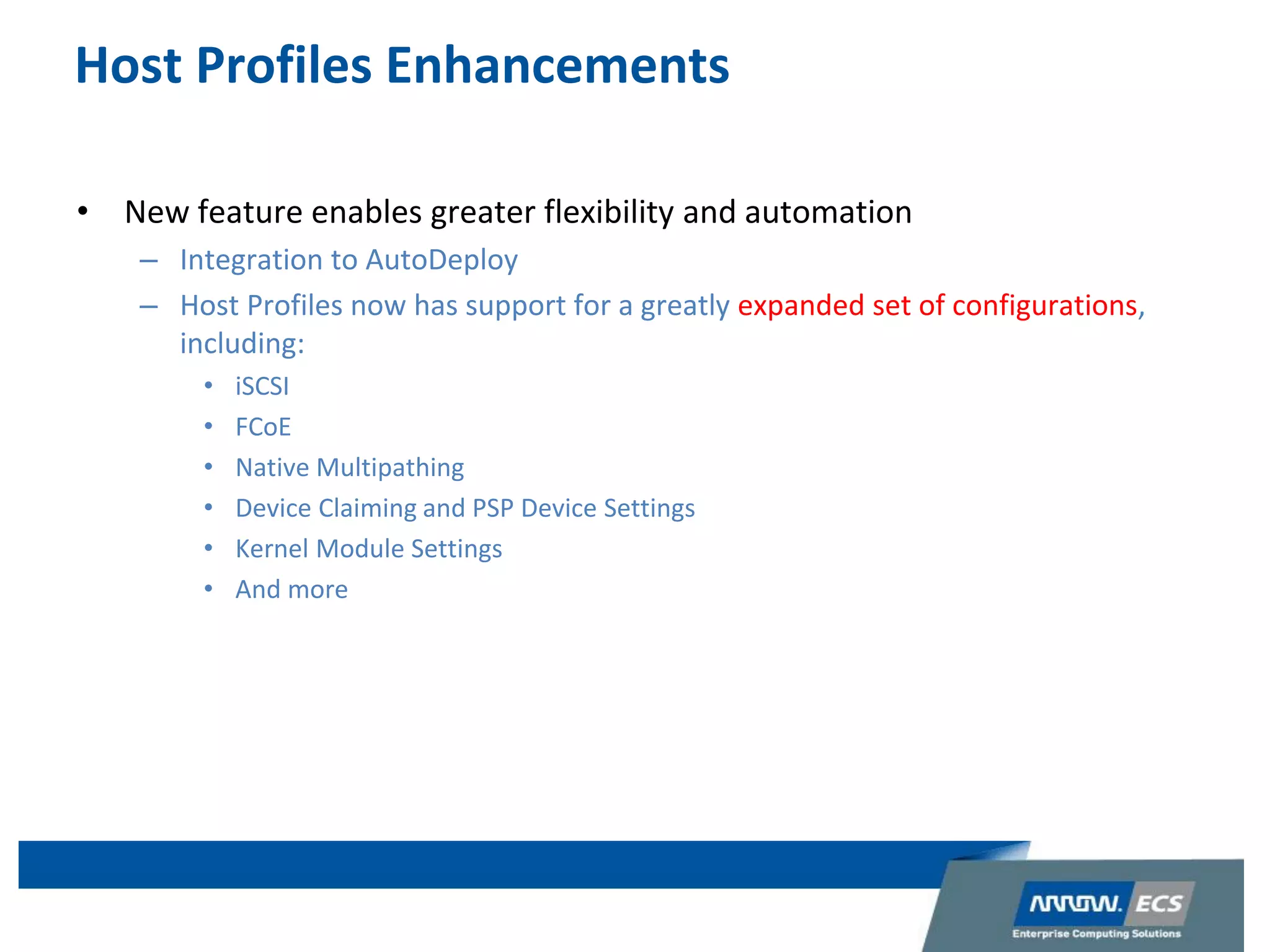

20. Host Profiles Enhancements
• New feature enables greater flexibility and automation
– Integration to AutoDeploy
– Host Profiles now has support for a greatly expanded set of configurations,
including:
• iSCSI
• FCoE
• Native Multipathing
• Device Claiming and PSP Device Settings
• Kernel Module Settings
• And more

21. STORAGE

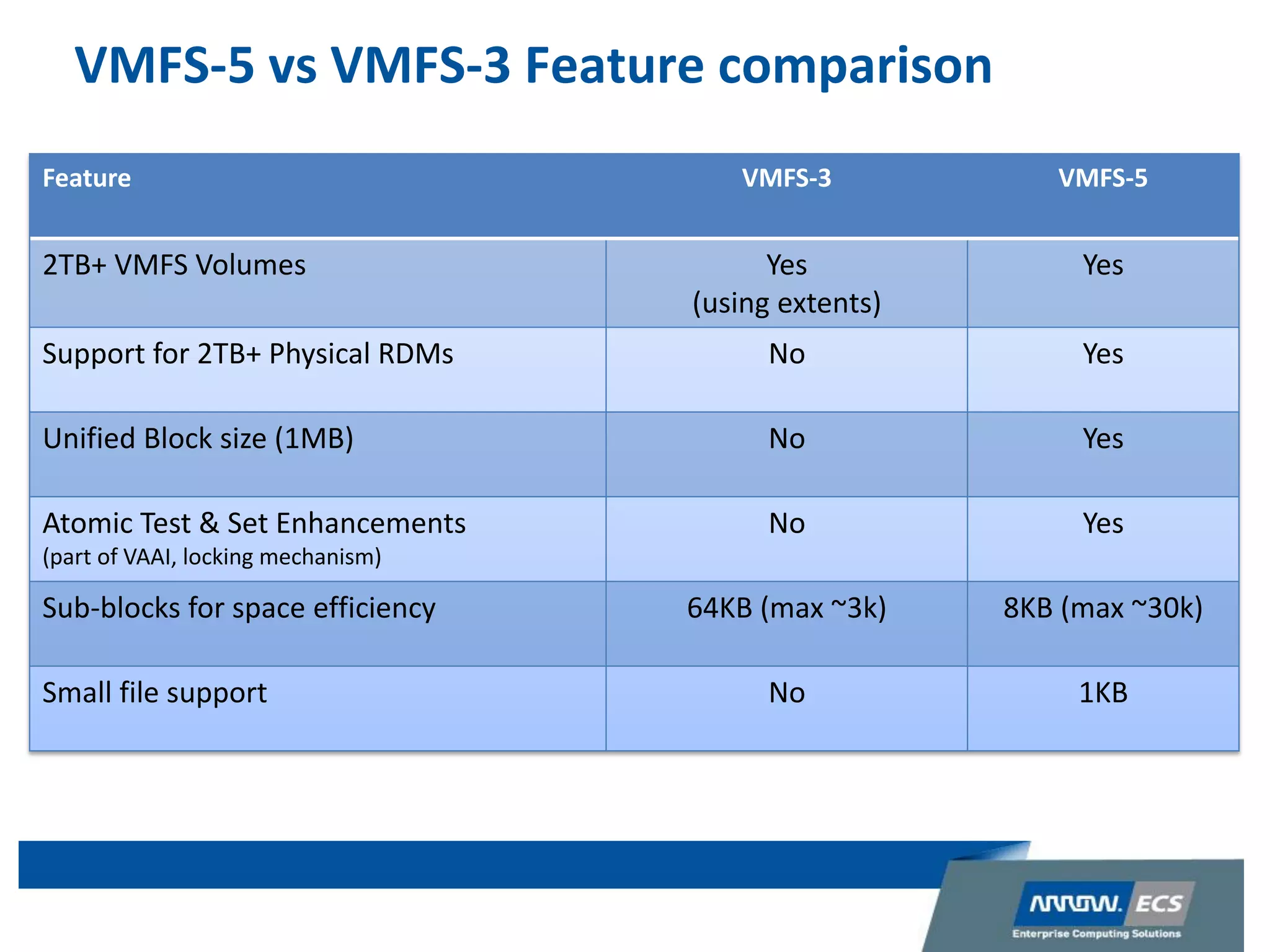

22. VMFS-5 vs VMFS-3 Feature comparison
Feature VMFS-3 VMFS-5
2TB+ VMFS Volumes Yes
(using extents)
Yes
Support for 2TB+ Physical RDMs No Yes
Unified Block size (1MB) No Yes
Atomic Test & Set Enhancements
(part of VAAI, locking mechanism)
No Yes
Sub-blocks for space efficiency 64KB (max ~3k) 8KB (max ~30k)
Small file support No 1KB

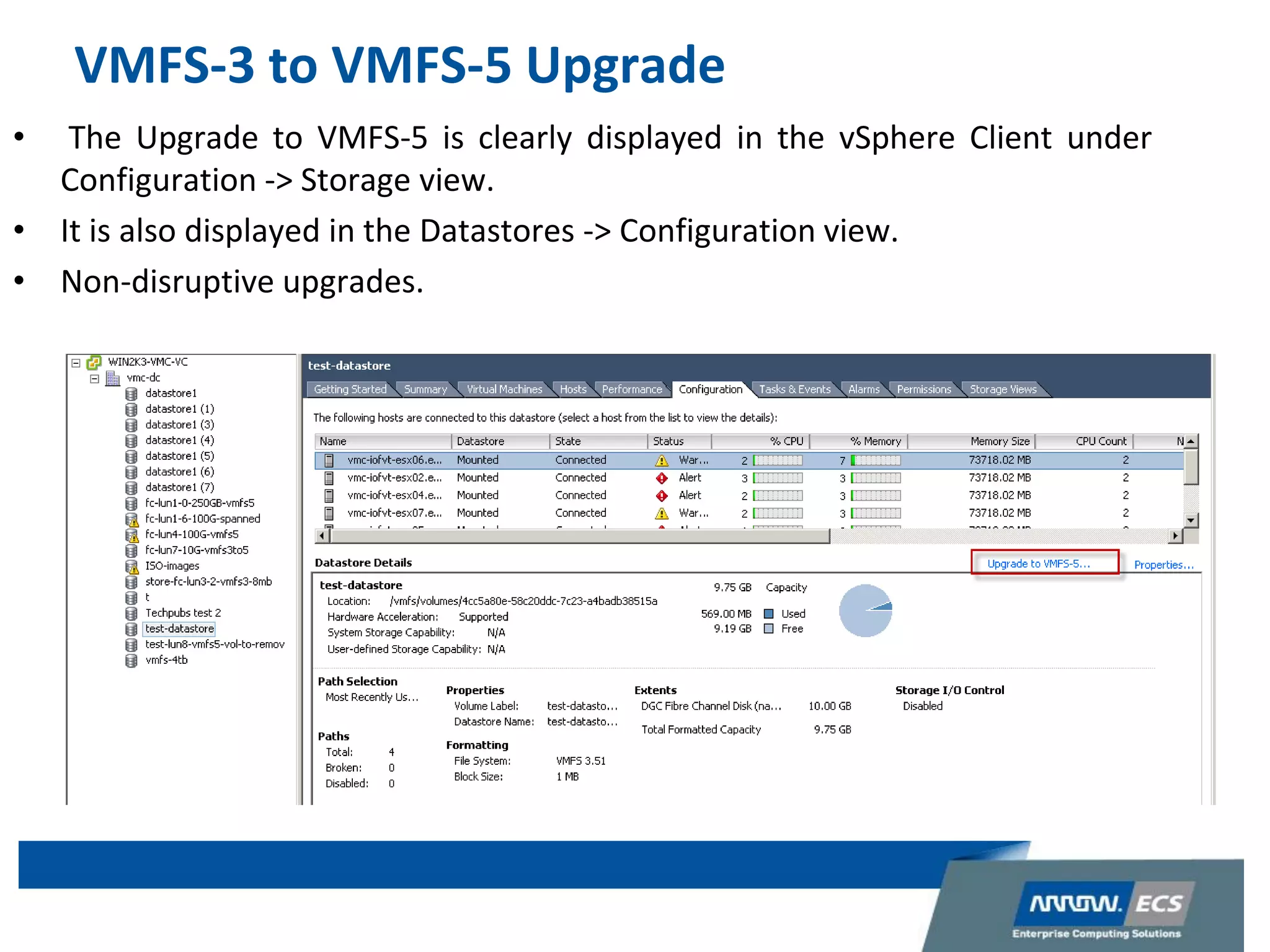

23. VMFS-3 to VMFS-5 Upgrade
• The Upgrade to VMFS-5 is clearly displayed in the vSphere Client under
Configuration -> Storage view.
• It is also displayed in the Datastores -> Configuration view.
• Non-disruptive upgrades.

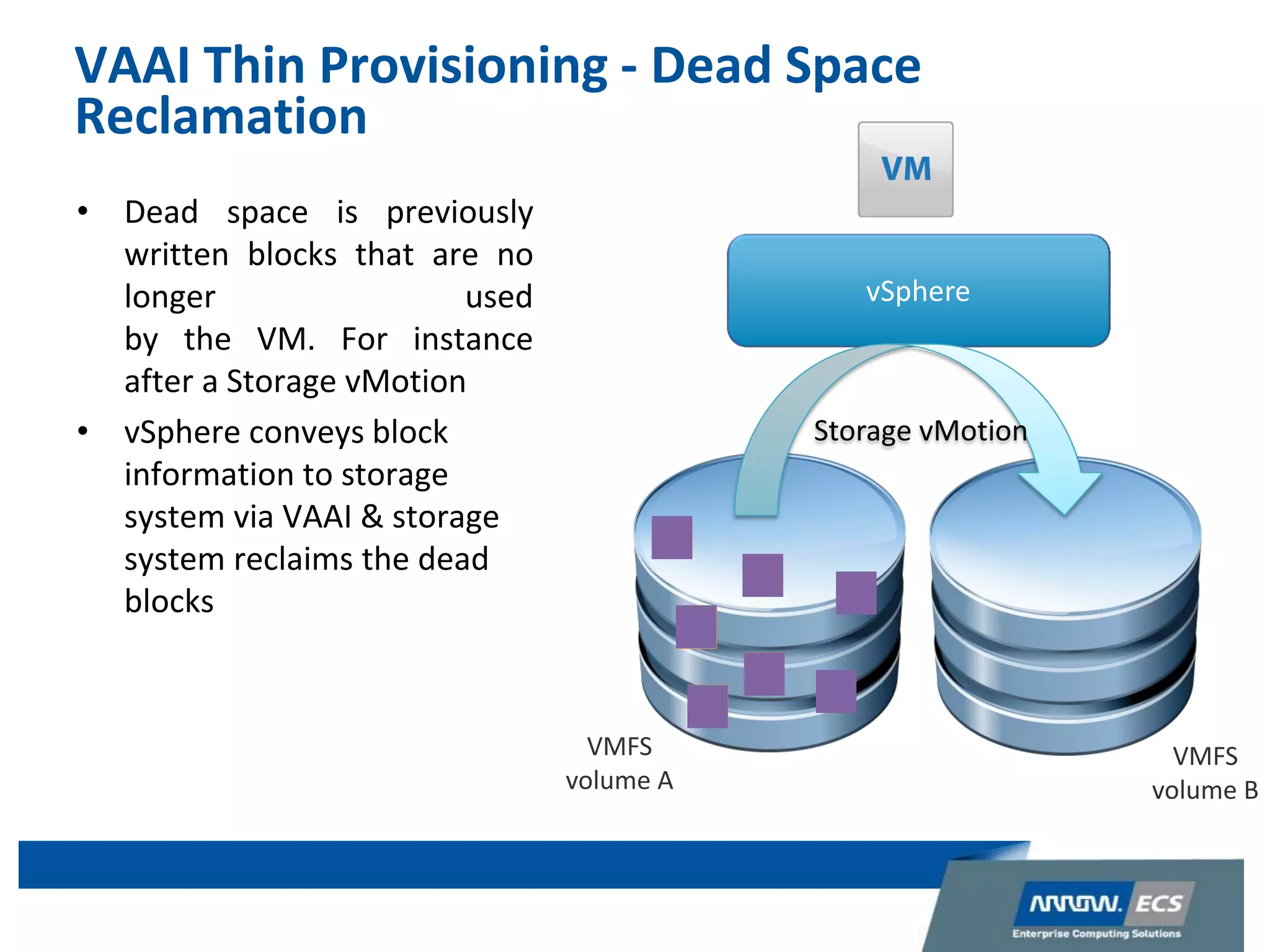

24. VAAI Thin Provisioning - Dead Space
Reclamation
• Dead space is previously
written blocks that are no
longer used
by the VM. For instance
after a Storage vMotion
• vSphere conveys block
information to storage
system via VAAI & storage
system reclaims the dead
blocks
vSphere
VMFS
volume A
VMFS
volume B
Storage vMotion

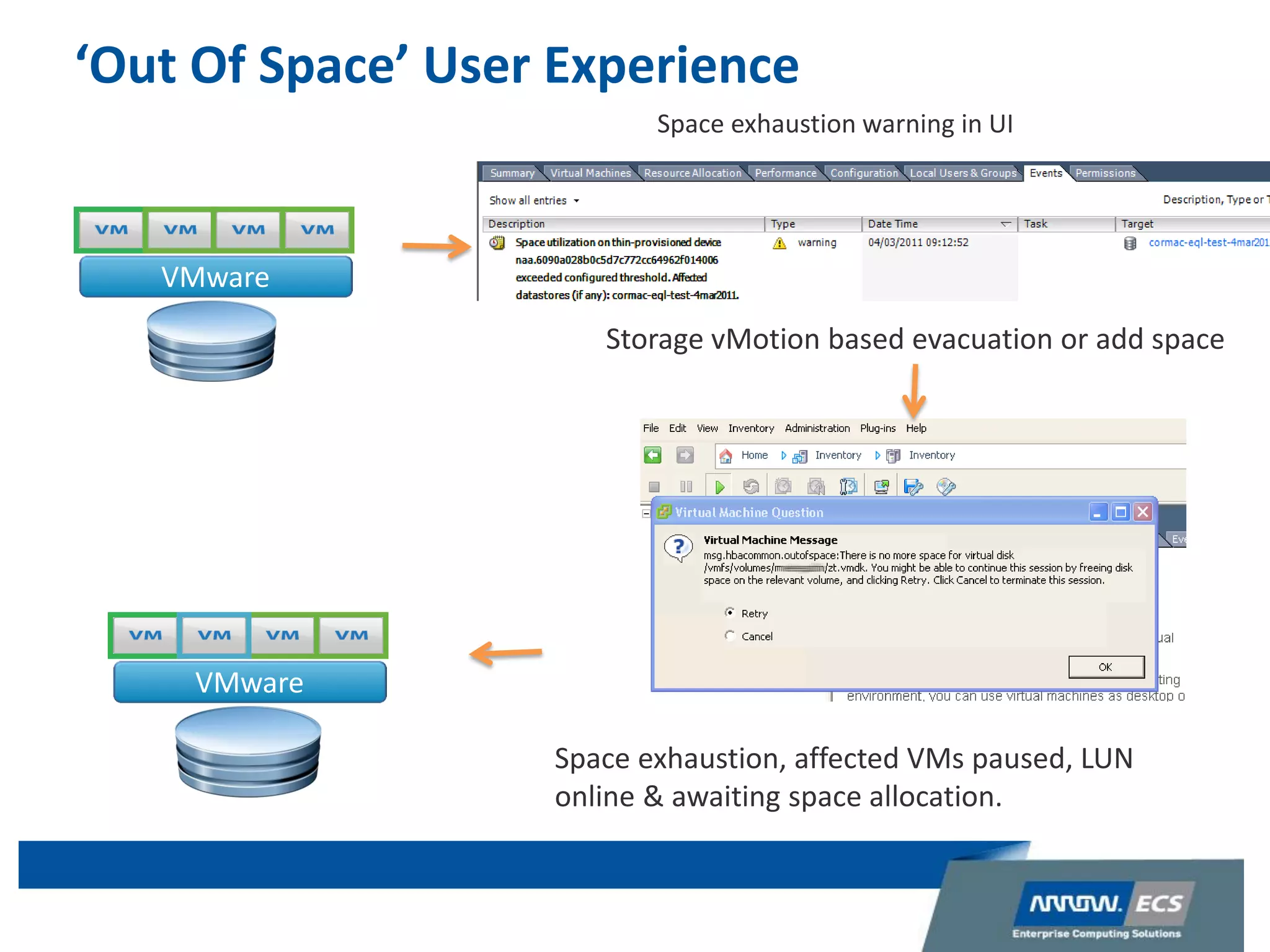

25. ‘Out Of Space’ User Experience
VMware
VMware
Space exhaustion, affected VMs paused, LUN
online & awaiting space allocation.
Space exhaustion warning in UI
Storage vMotion based evacuation or add space

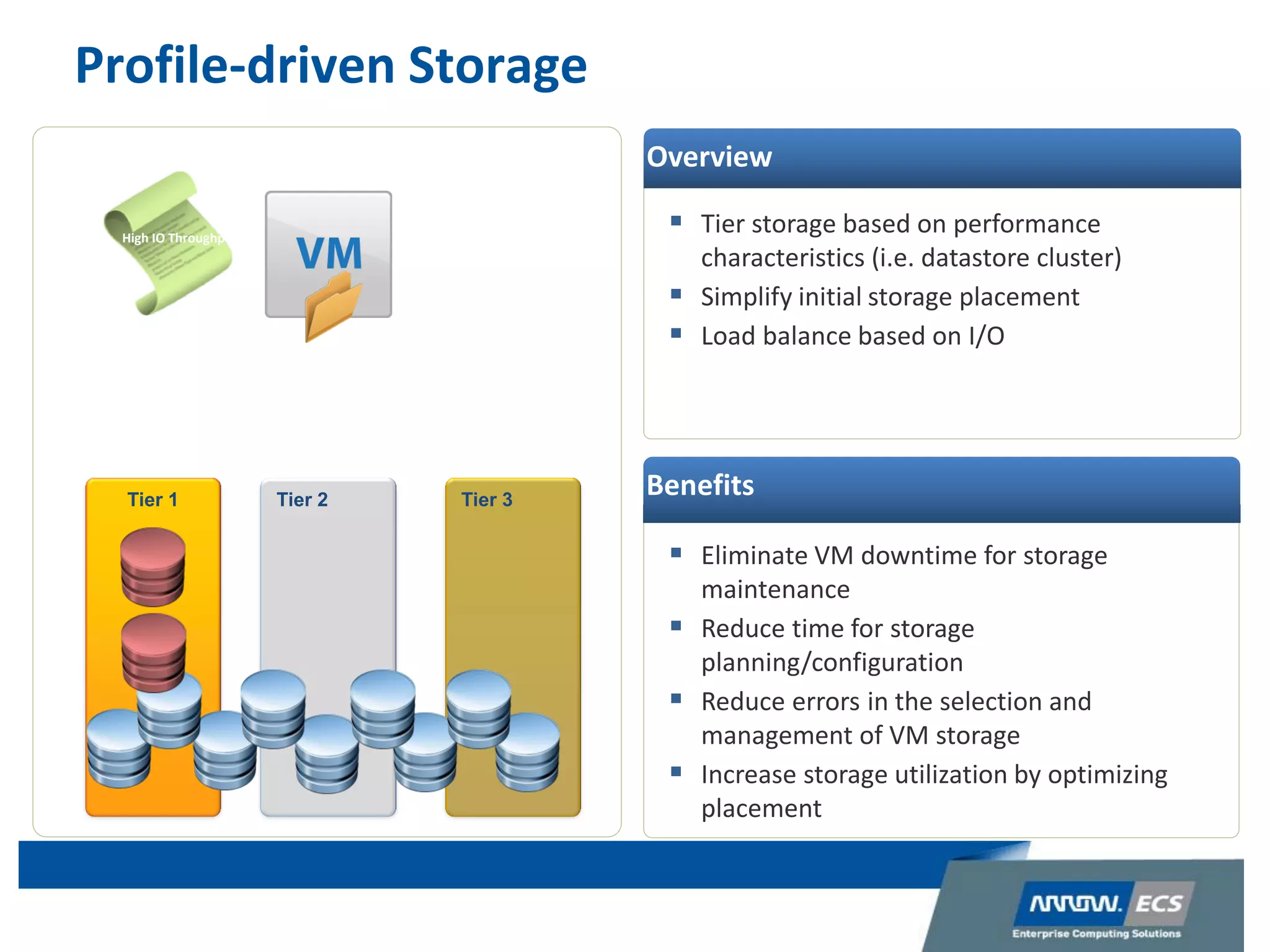

26. Tier 1 Tier 2 Tier 3
 Tier storage based on performance
characteristics (i.e. datastore cluster)
 Simplify initial storage placement
 Load balance based on I/O
Overview
Benefits
 Eliminate VM downtime for storage
maintenance
 Reduce time for storage
planning/configuration
 Reduce errors in the selection and
management of VM storage
 Increase storage utilization by optimizing
placement
High IO Throughput
Profile-driven Storage

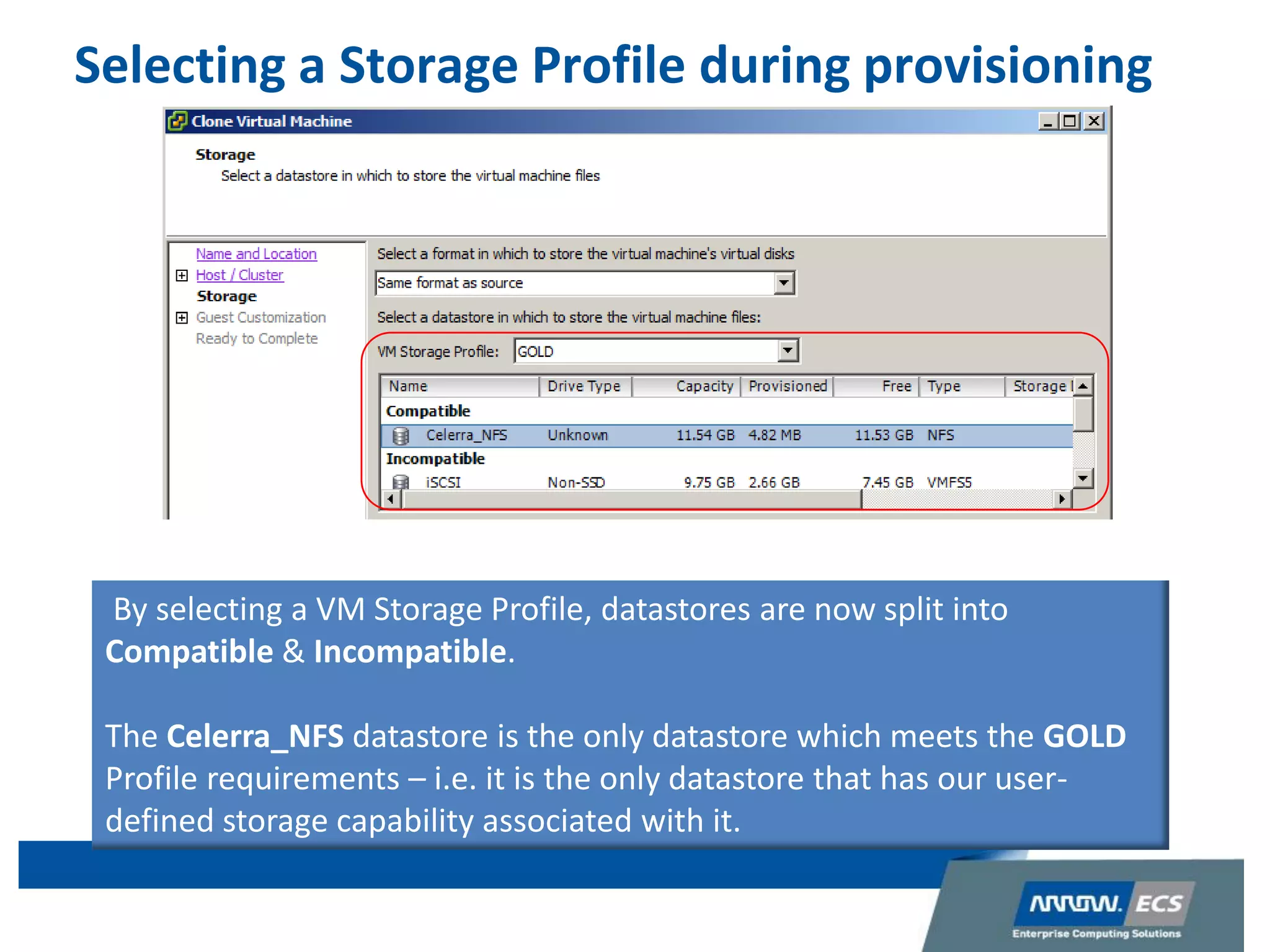

27. Selecting a Storage Profile during provisioning
By selecting a VM Storage Profile, datastores are now split into
Compatible & Incompatible.
The Celerra_NFS datastore is the only datastore which meets the GOLD
Profile requirements – i.e. it is the only datastore that has our user-
defined storage capability associated with it.

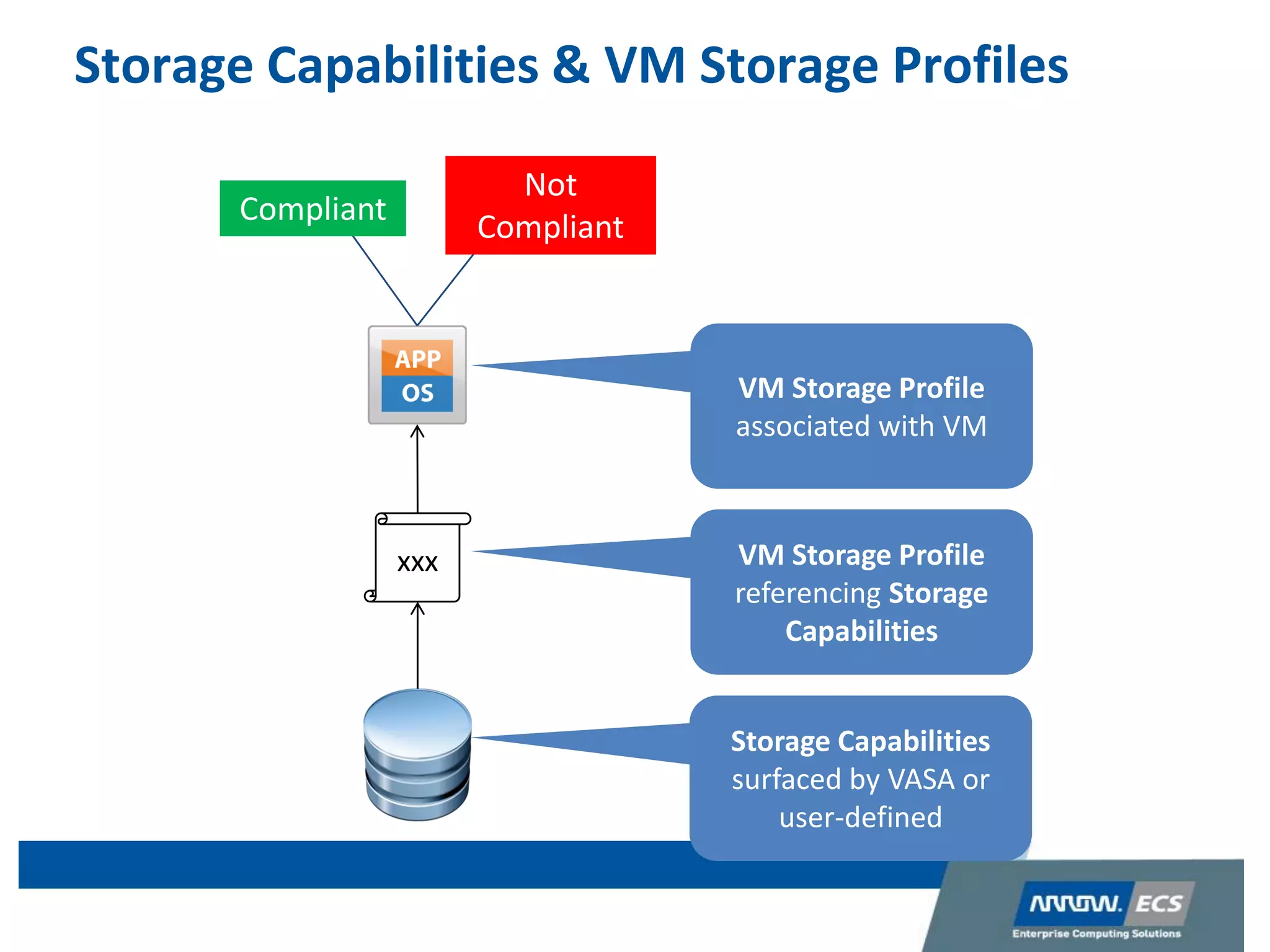

28. Storage Capabilities & VM Storage Profiles
Storage Capabilities
surfaced by VASA or
user-defined
xxx VM Storage Profile
referencing Storage
Capabilities
VM Storage Profile
associated with VM
Compliant
Not
Compliant

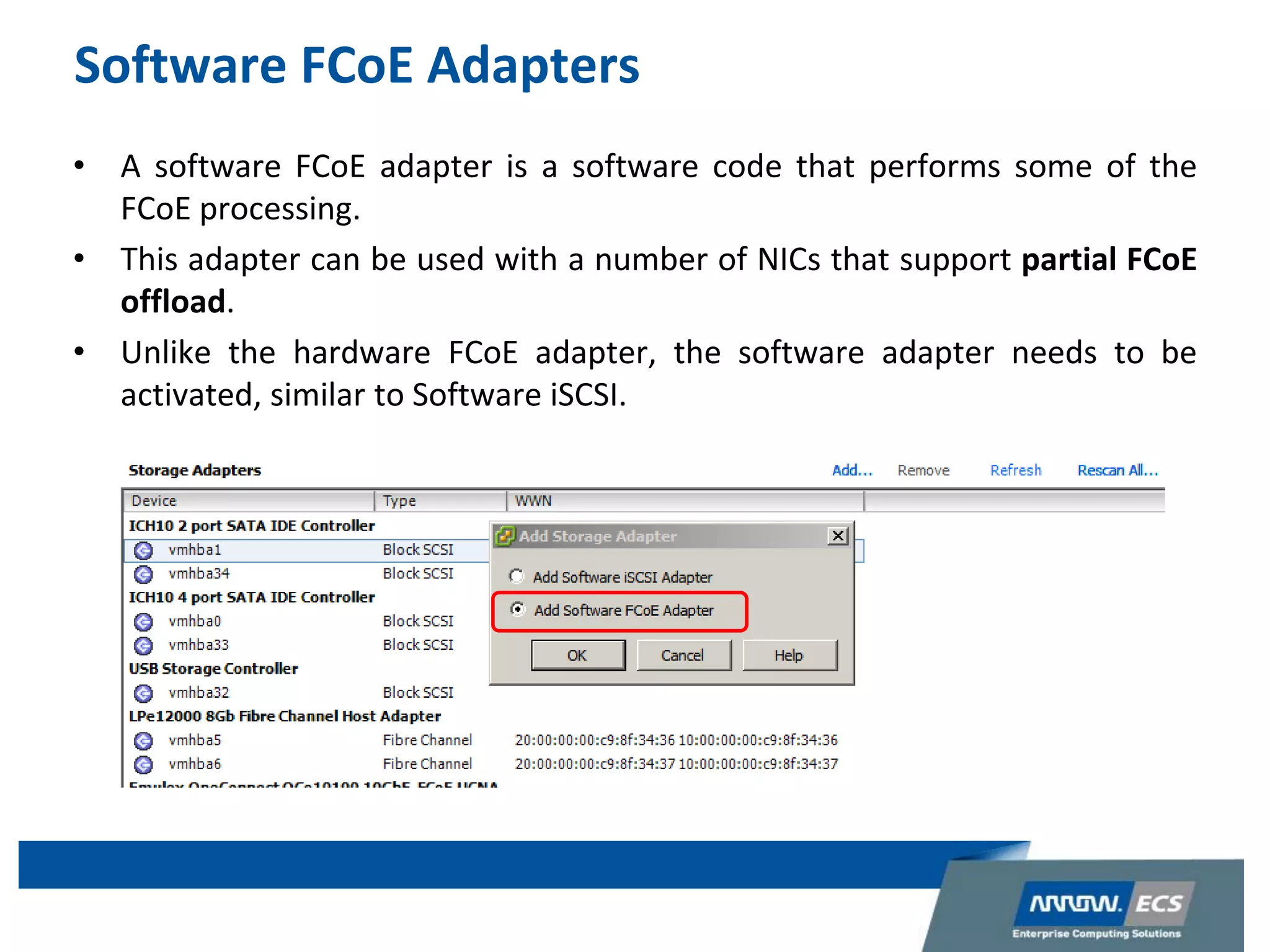

29. Software FCoE Adapters
• A software FCoE adapter is a software code that performs some of the
FCoE processing.
• This adapter can be used with a number of NICs that support partial FCoE
offload.
• Unlike the hardware FCoE adapter, the software adapter needs to be
activated, similar to Software iSCSI.

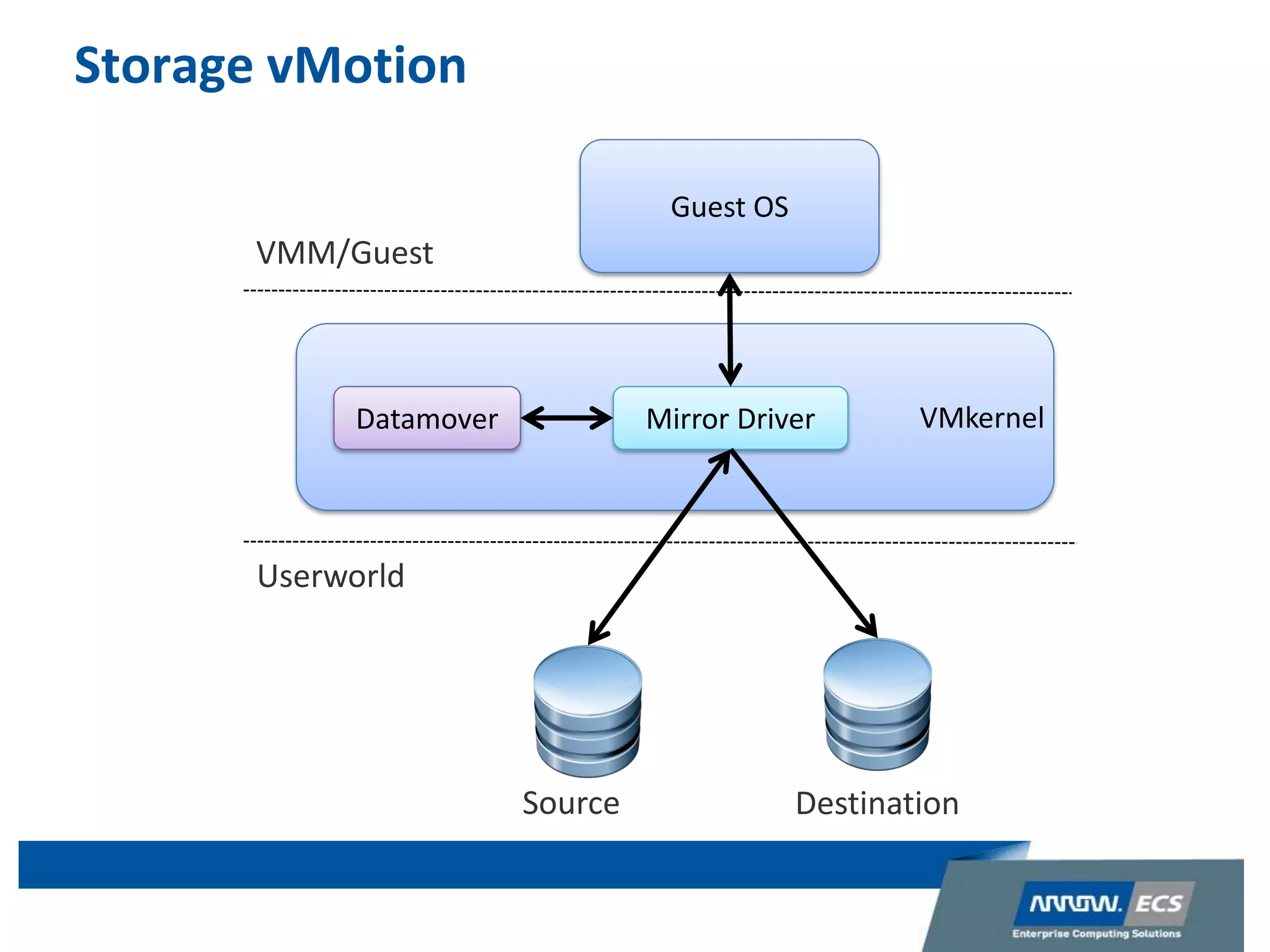

30. Storage vMotion
VMkernel
Guest OS
Mirror Driver
Source Destination
Datamover
VMM/Guest
Userworld

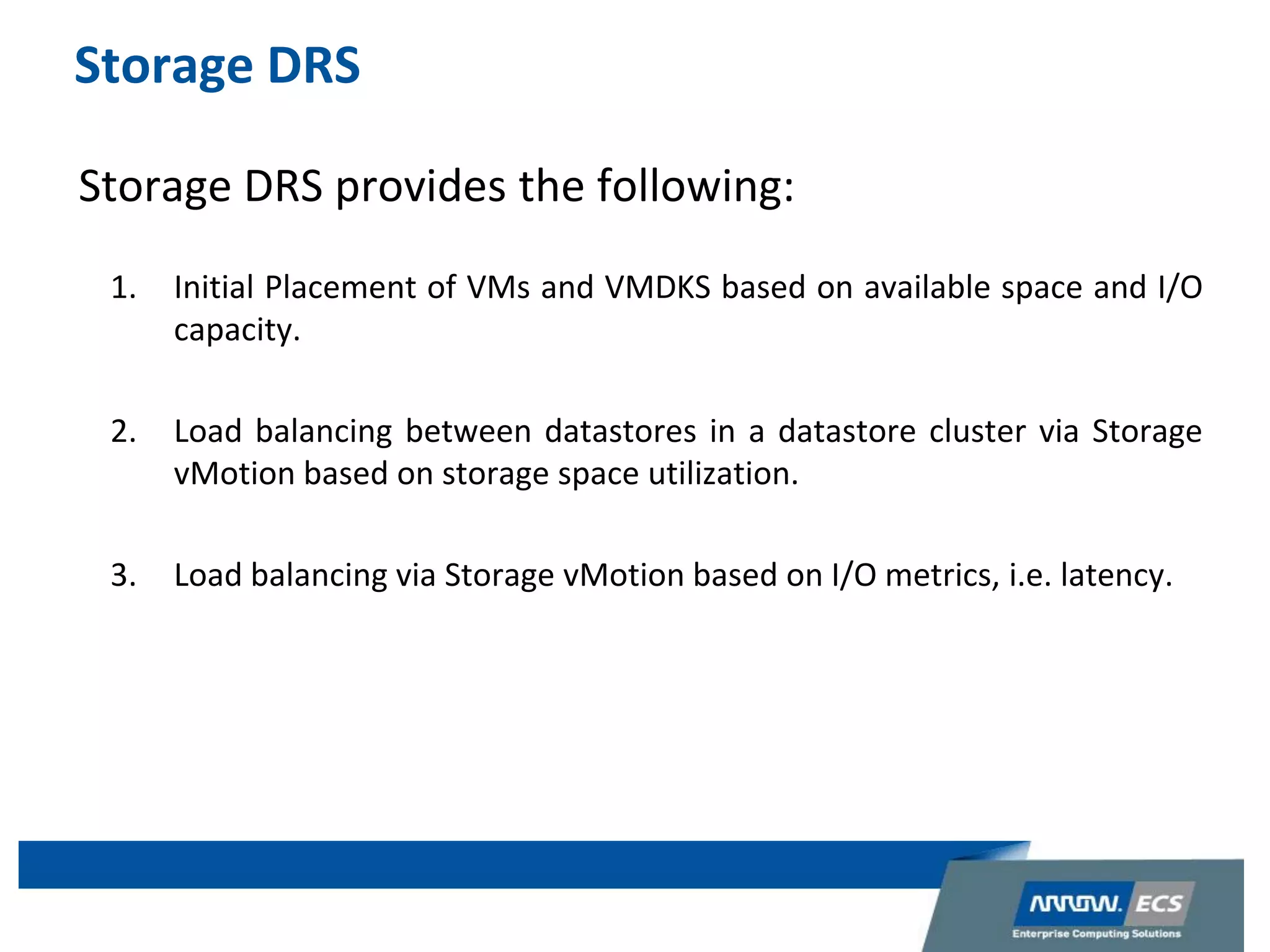

31. Storage DRS
Storage DRS provides the following:
1. Initial Placement of VMs and VMDKS based on available space and I/O
capacity.
2. Load balancing between datastores in a datastore cluster via Storage
vMotion based on storage space utilization.
3. Load balancing via Storage vMotion based on I/O metrics, i.e. latency.

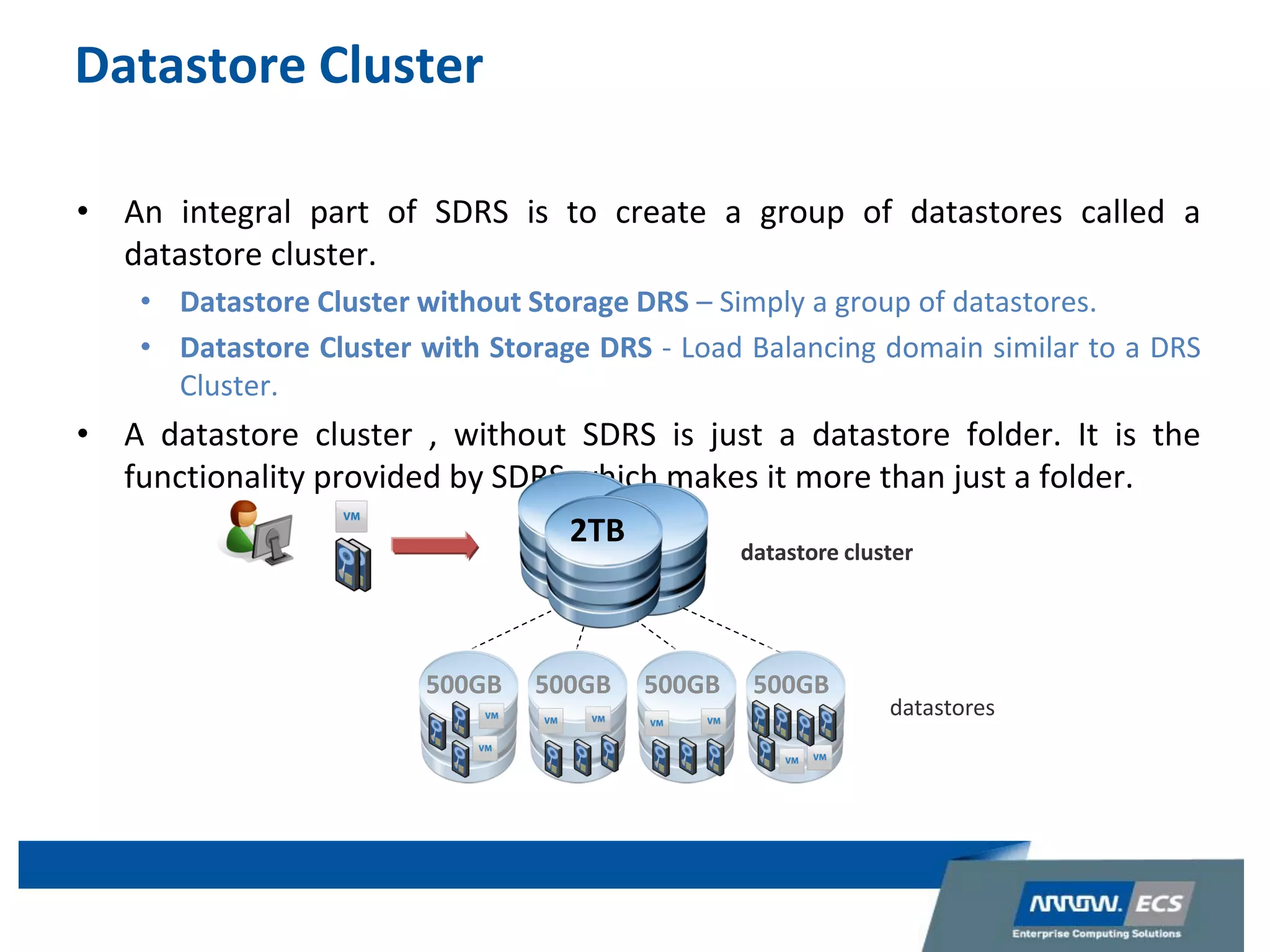

32. Datastore Cluster
• An integral part of SDRS is to create a group of datastores called a
datastore cluster.
• Datastore Cluster without Storage DRS – Simply a group of datastores.
• Datastore Cluster with Storage DRS - Load Balancing domain similar to a DRS
Cluster.
• A datastore cluster , without SDRS is just a datastore folder. It is the
functionality provided by SDRS which makes it more than just a folder.
datastore cluster
2TB
datastores
500GB 500GB 500GB 500GB

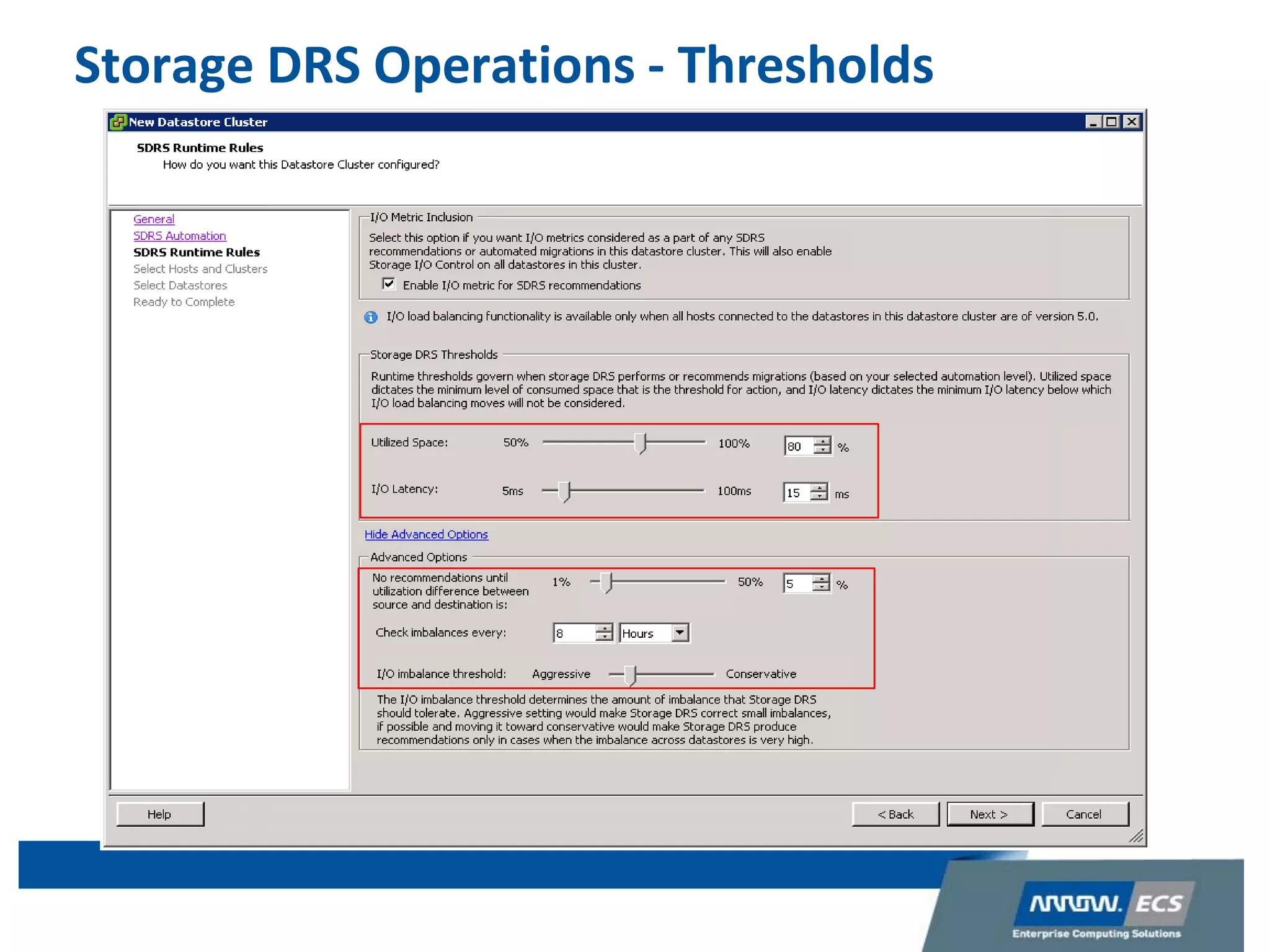

33. Storage DRS Operations - Thresholds

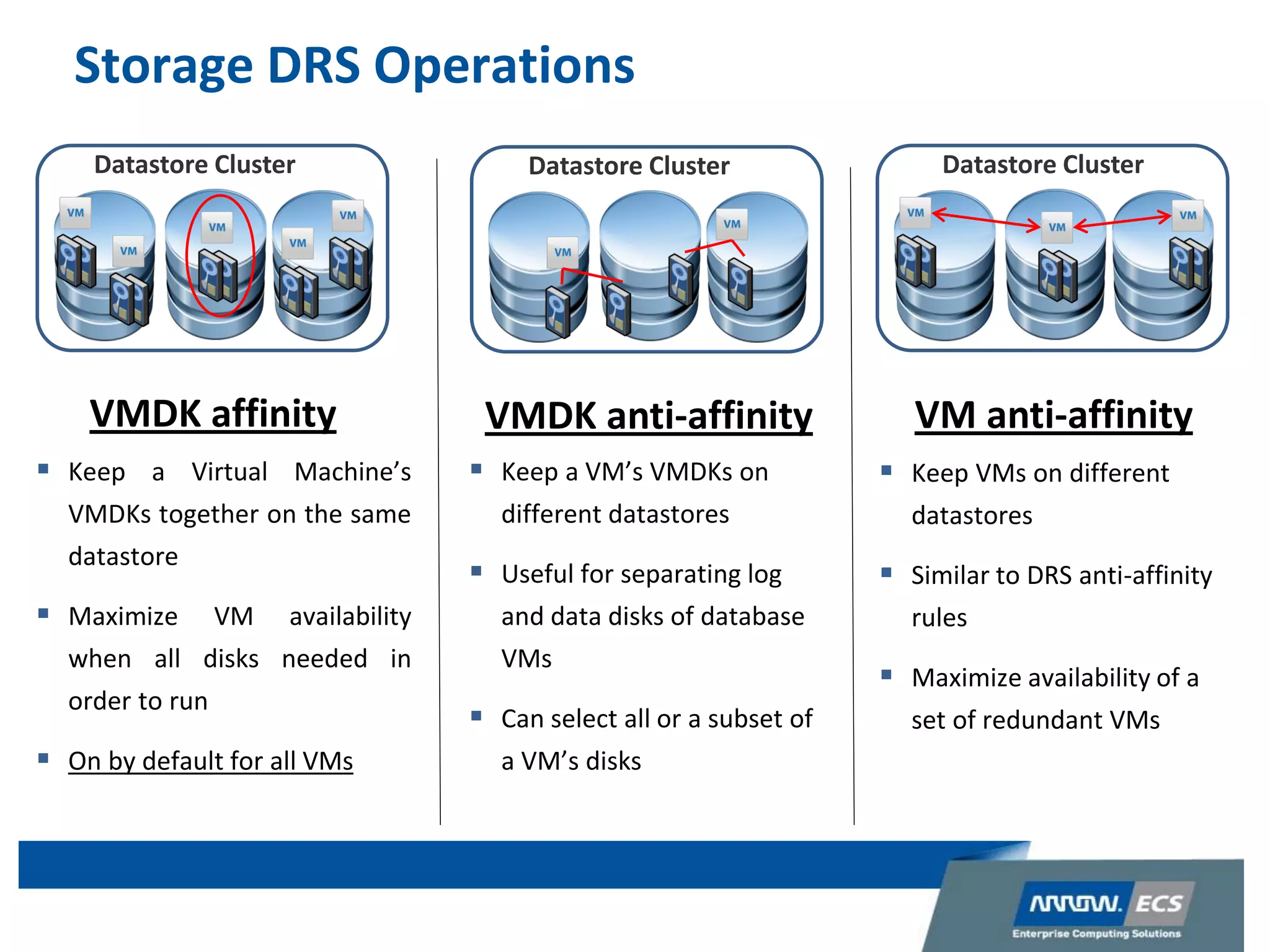

34. Storage DRS Operations
Datastore Cluster
VMDK affinity
 Keep a Virtual Machine’s
VMDKs together on the same
datastore
 Maximize VM availability
when all disks needed in
order to run
 On by default for all VMs
VMDK anti-affinity
 Keep a VM’s VMDKs on
different datastores
 Useful for separating log
and data disks of database
VMs
 Can select all or a subset of
a VM’s disks
Datastore Cluster
VM anti-affinity
 Keep VMs on different
datastores
 Similar to DRS anti-affinity
rules
 Maximize availability of a
set of redundant VMs
Datastore Cluster

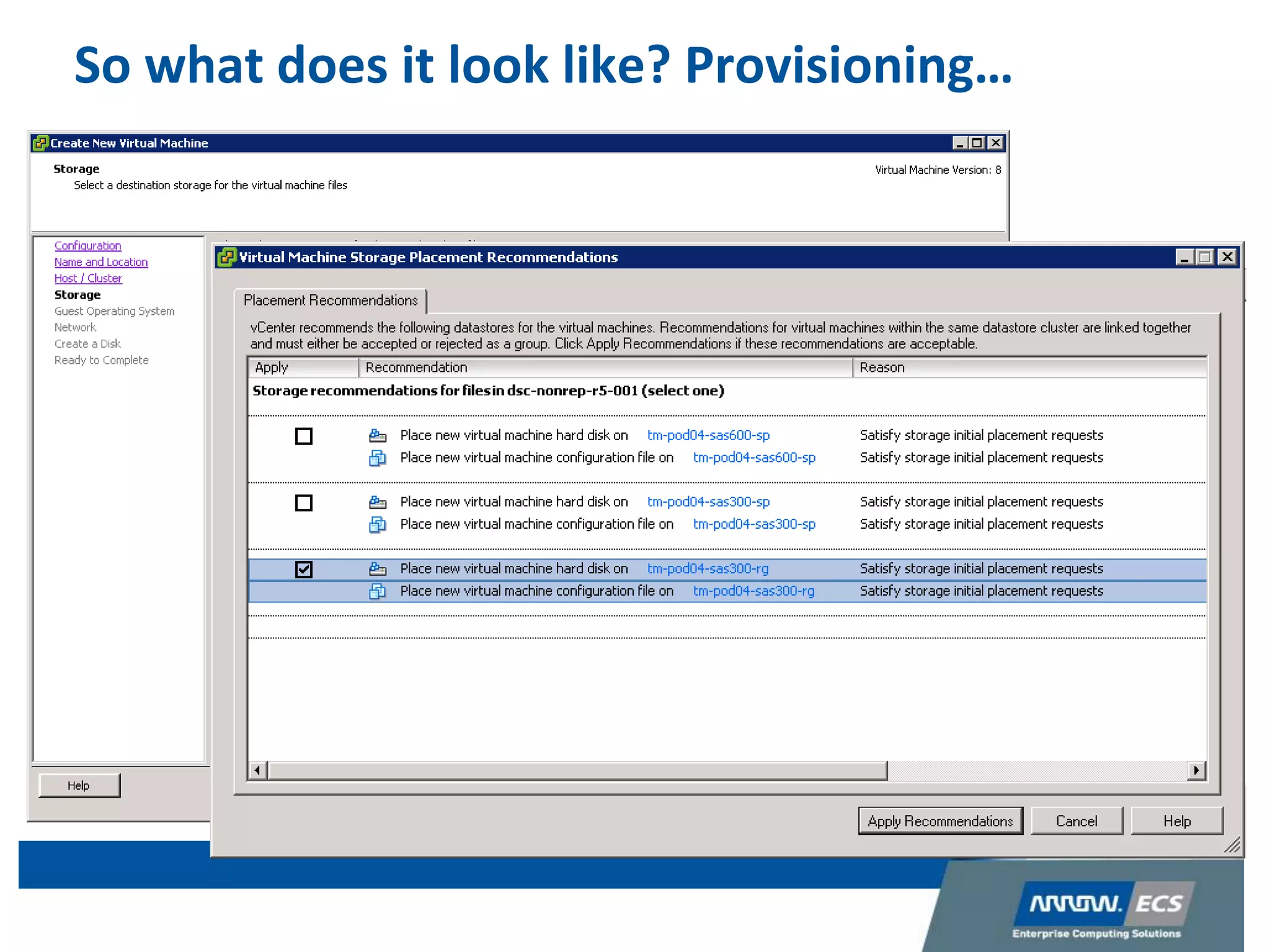

35. So what does it look like? Provisioning…

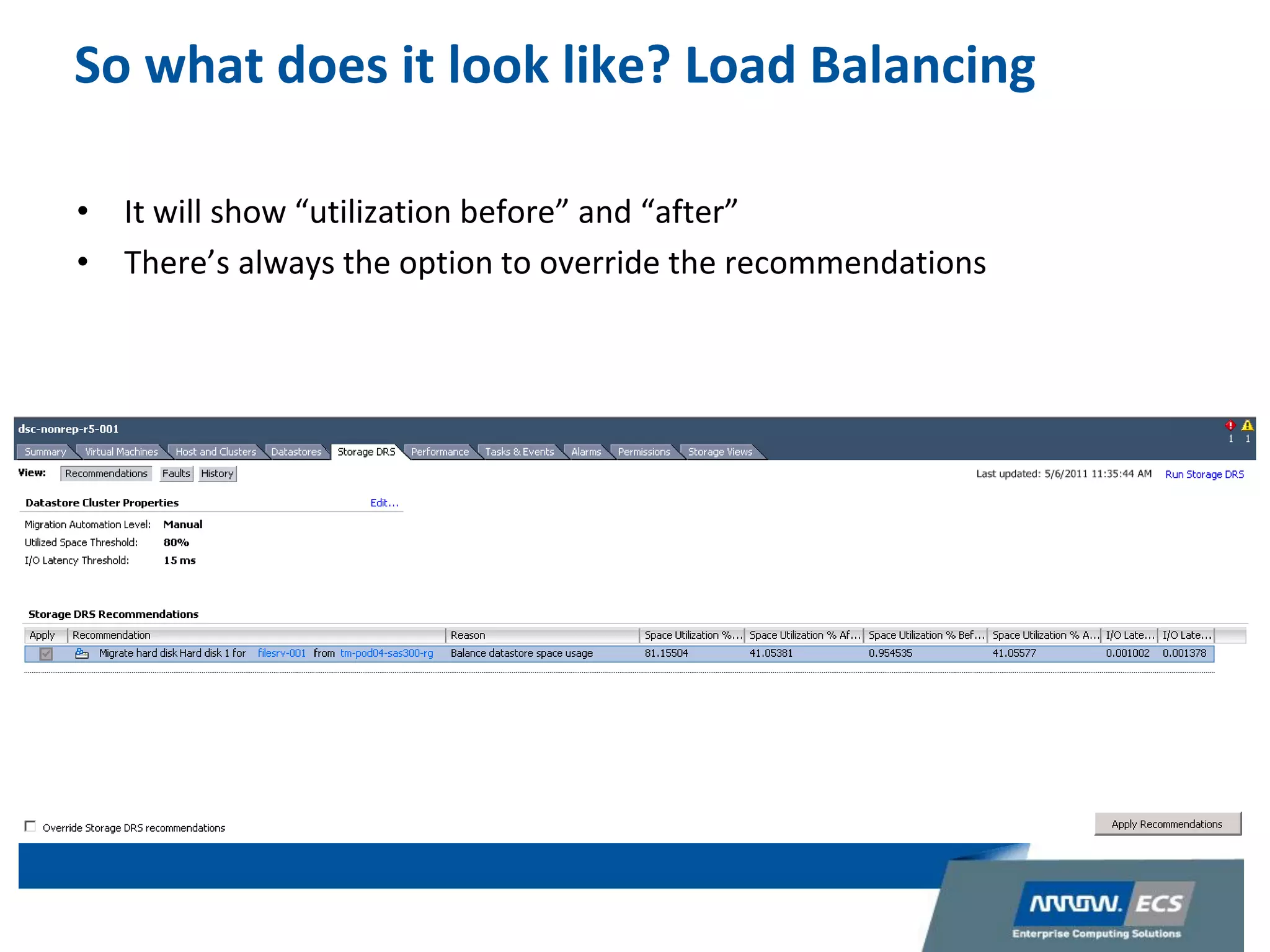

36. So what does it look like? Load Balancing
• It will show “utilization before” and “after”
• There’s always the option to override the recommendations

37. VSA
vSphere Storage Appliance

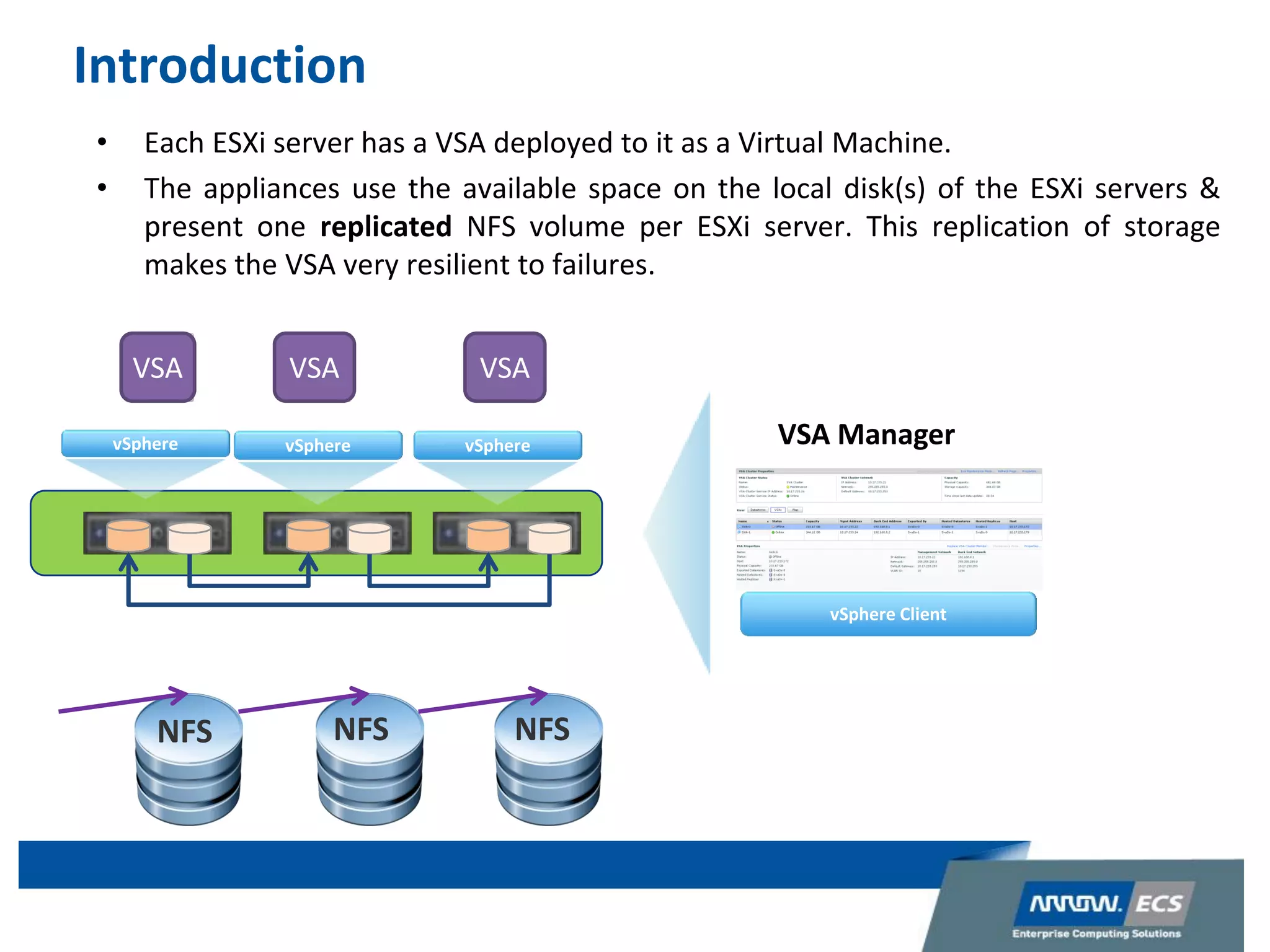

38. Introduction
• Each ESXi server has a VSA deployed to it as a Virtual Machine.
• The appliances use the available space on the local disk(s) of the ESXi servers &
present one replicated NFS volume per ESXi server. This replication of storage
makes the VSA very resilient to failures.
vSpherevSphere vSphere
VSA VSA VSA
NFS NFS NFS
vSphere Client
VSA Manager

39. vCenter Server
Manage

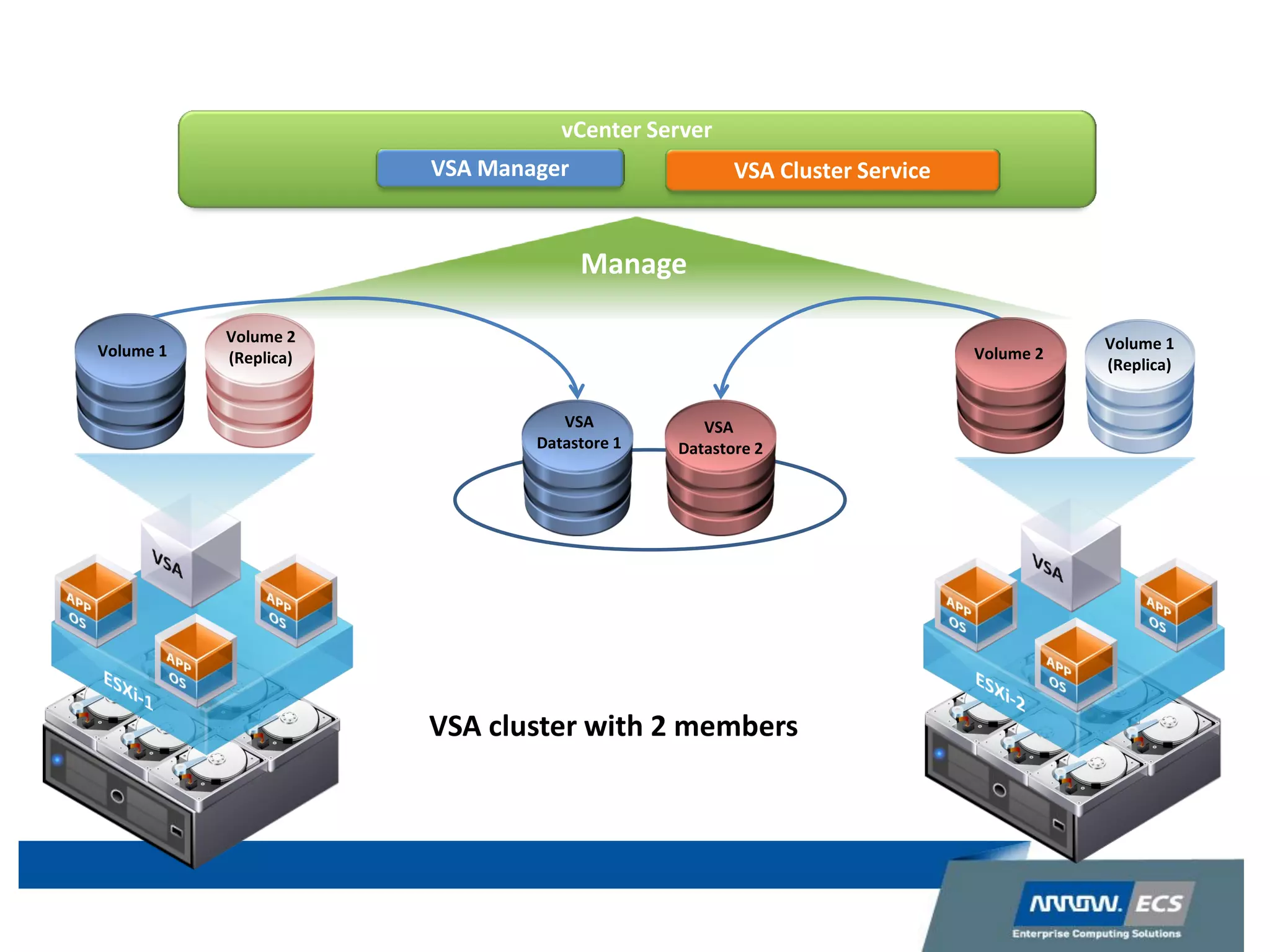

VSA Manager VSA Cluster Service
VSA
Datastore 2
VSA
Datastore 1
Volume 1
(Replica)
Volume 2
VSA cluster with 2 members
Volume 1
Volume 2
(Replica)

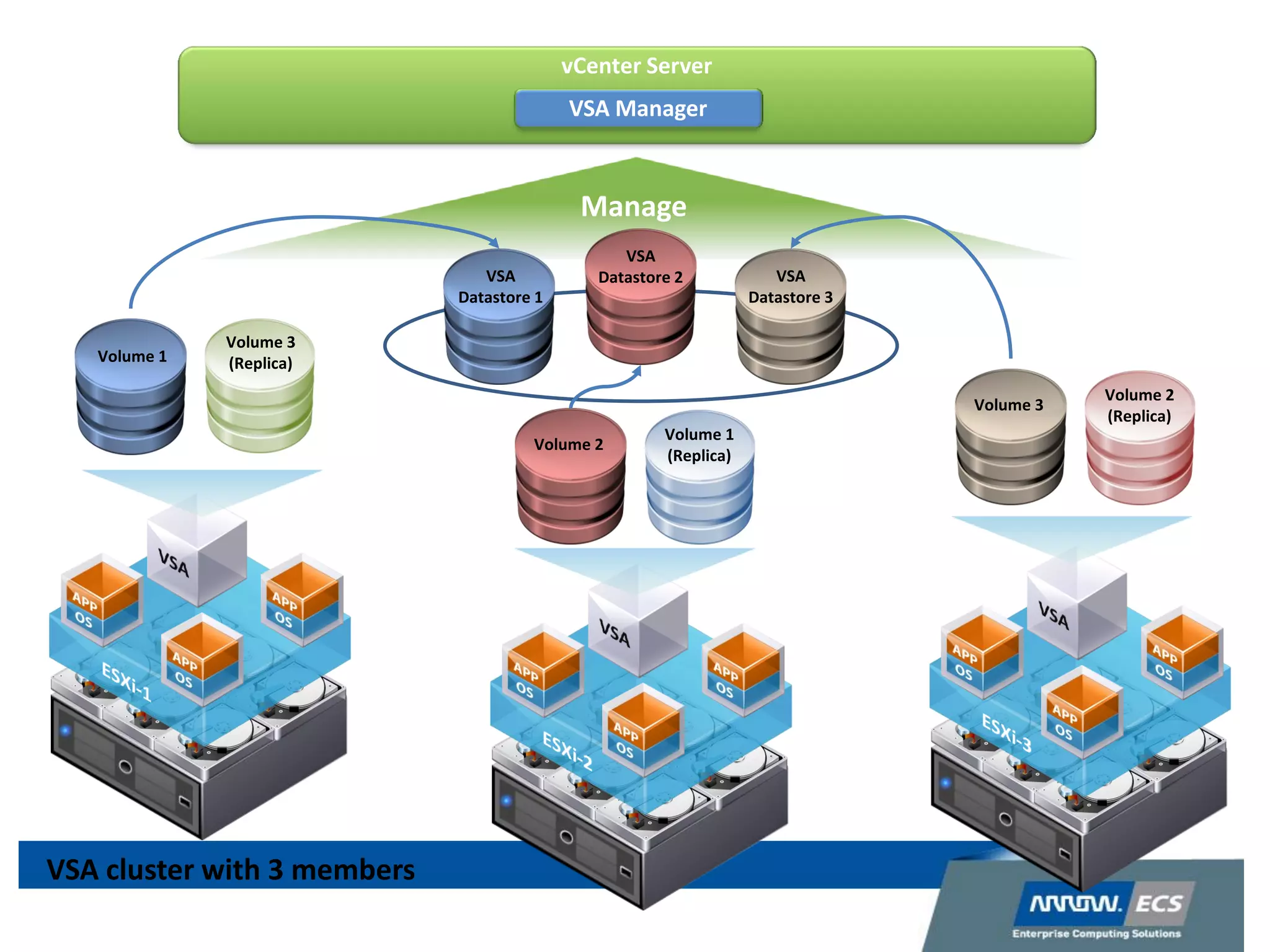

40. vCenter Server
Manage
VSA Manager
Volume 1
Volume 3
(Replica)
Volume 2
(Replica)
Volume 3
Volume 1
(Replica)
Volume 2
VSA
Datastore 2 VSA
Datastore 3
VSA
Datastore 1
VSA cluster with 3 members

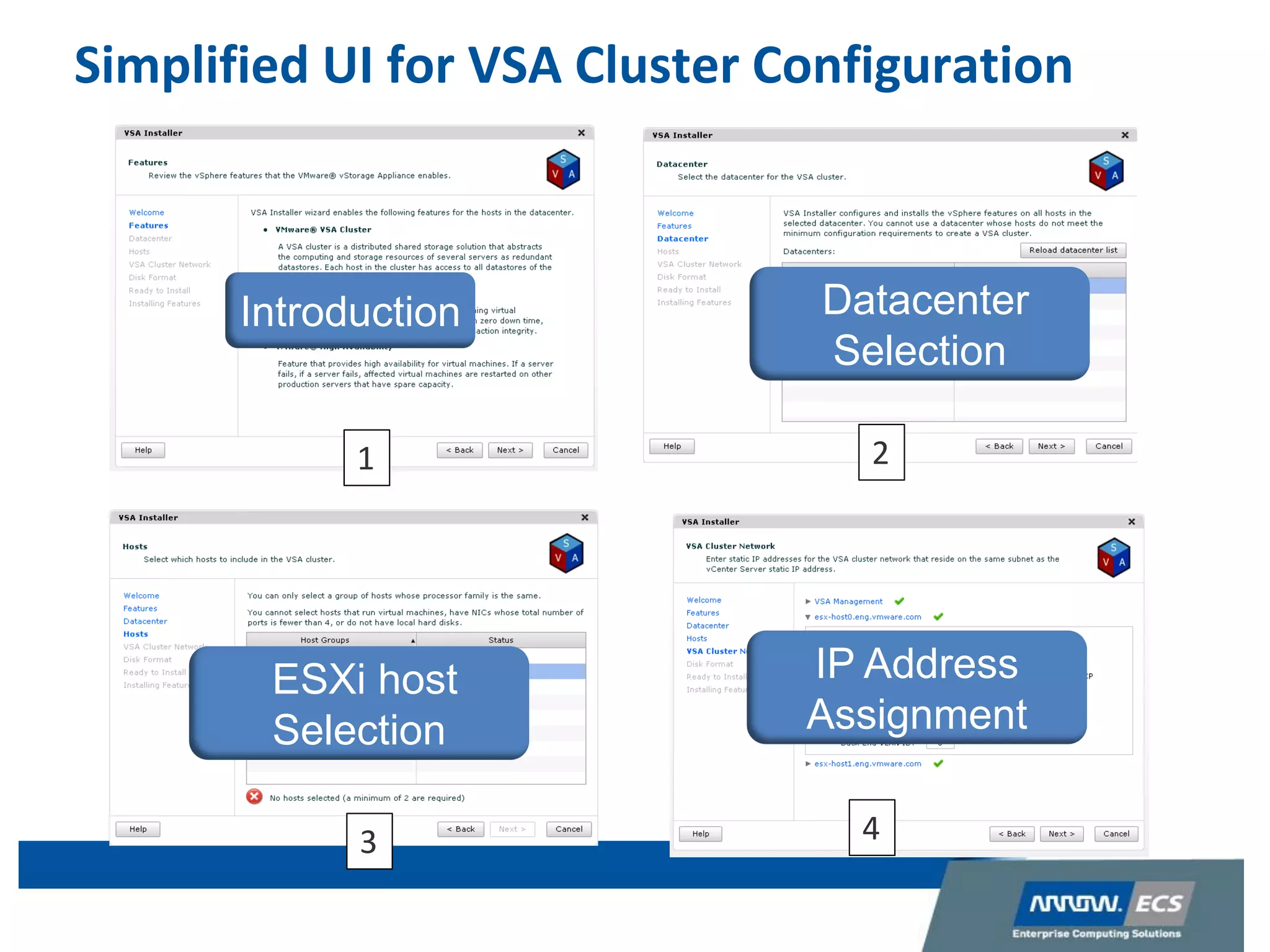

41. Simplified UI for VSA Cluster Configuration
1 2
3 4
Introduction Datacenter
Selection
ESXi host
Selection
IP Address
Assignment

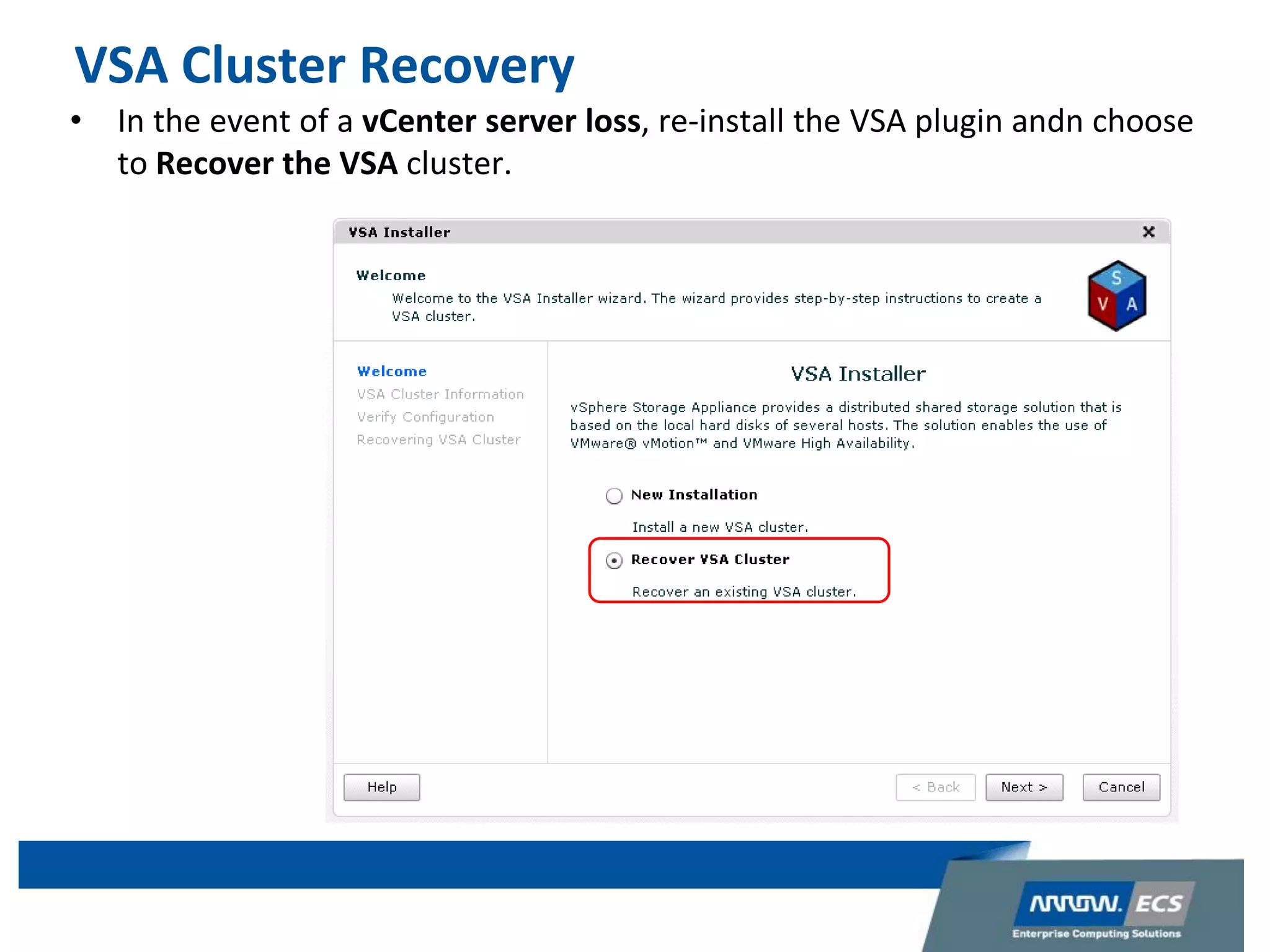

42. VSA Cluster Recovery
• In the event of a vCenter server loss, re-install the VSA plugin andn choose
to Recover the VSA cluster.

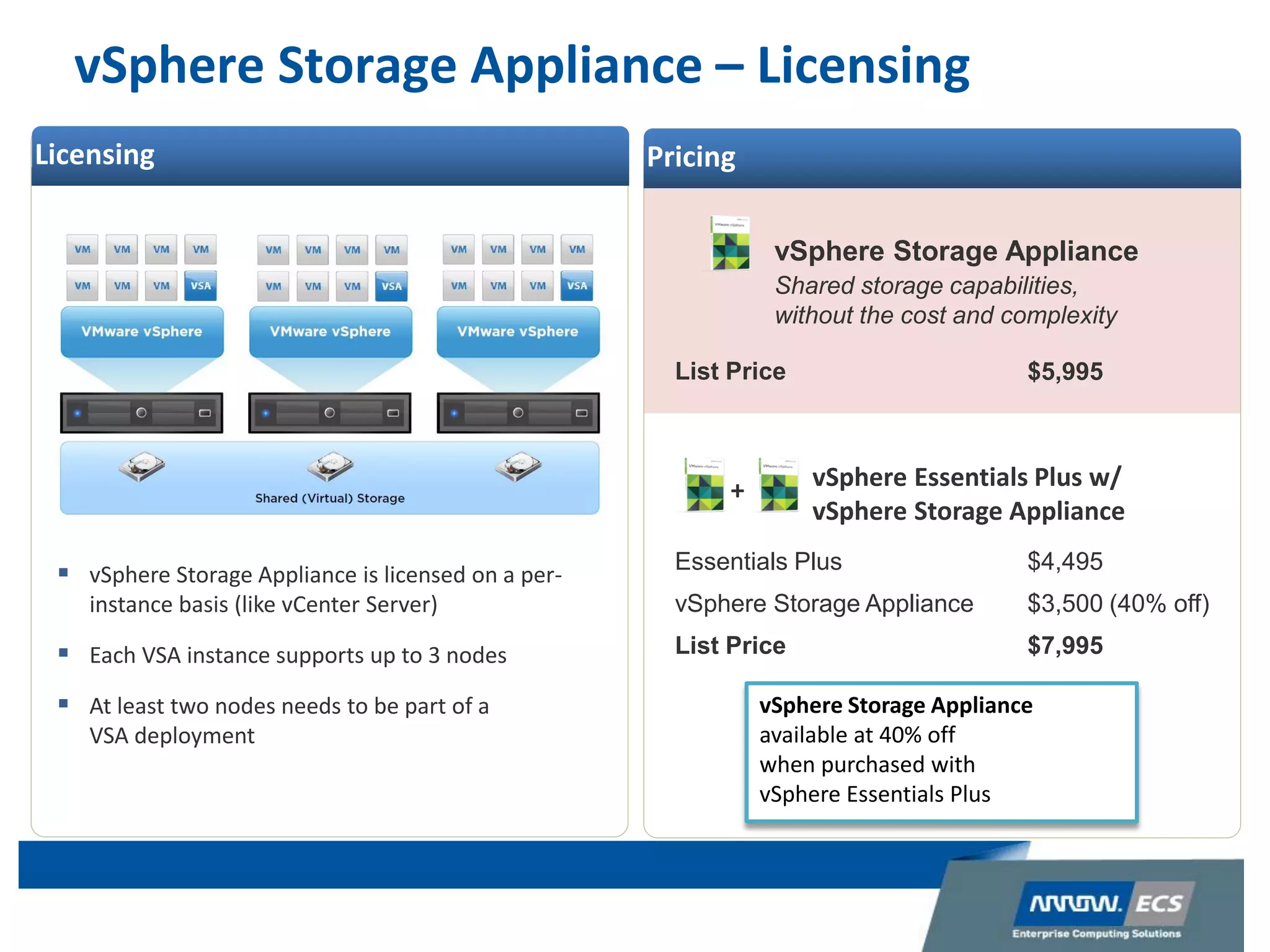

43. vSphere Storage Appliance – Licensing
Shared storage capabilities,
without the cost and complexity
vSphere Storage Appliance
$5,995List Price
PricingLicensing
 vSphere Storage Appliance is licensed on a per-
instance basis (like vCenter Server)
 Each VSA instance supports up to 3 nodes
 At least two nodes needs to be part of a
VSA deployment
vSphere Storage Appliance
available at 40% off
when purchased with
vSphere Essentials Plus
vSphere Essentials Plus w/
vSphere Storage Appliance
+
$4,495Essentials Plus
$7,995List Price
$3,500 (40% off)vSphere Storage Appliance

44. NETWORK

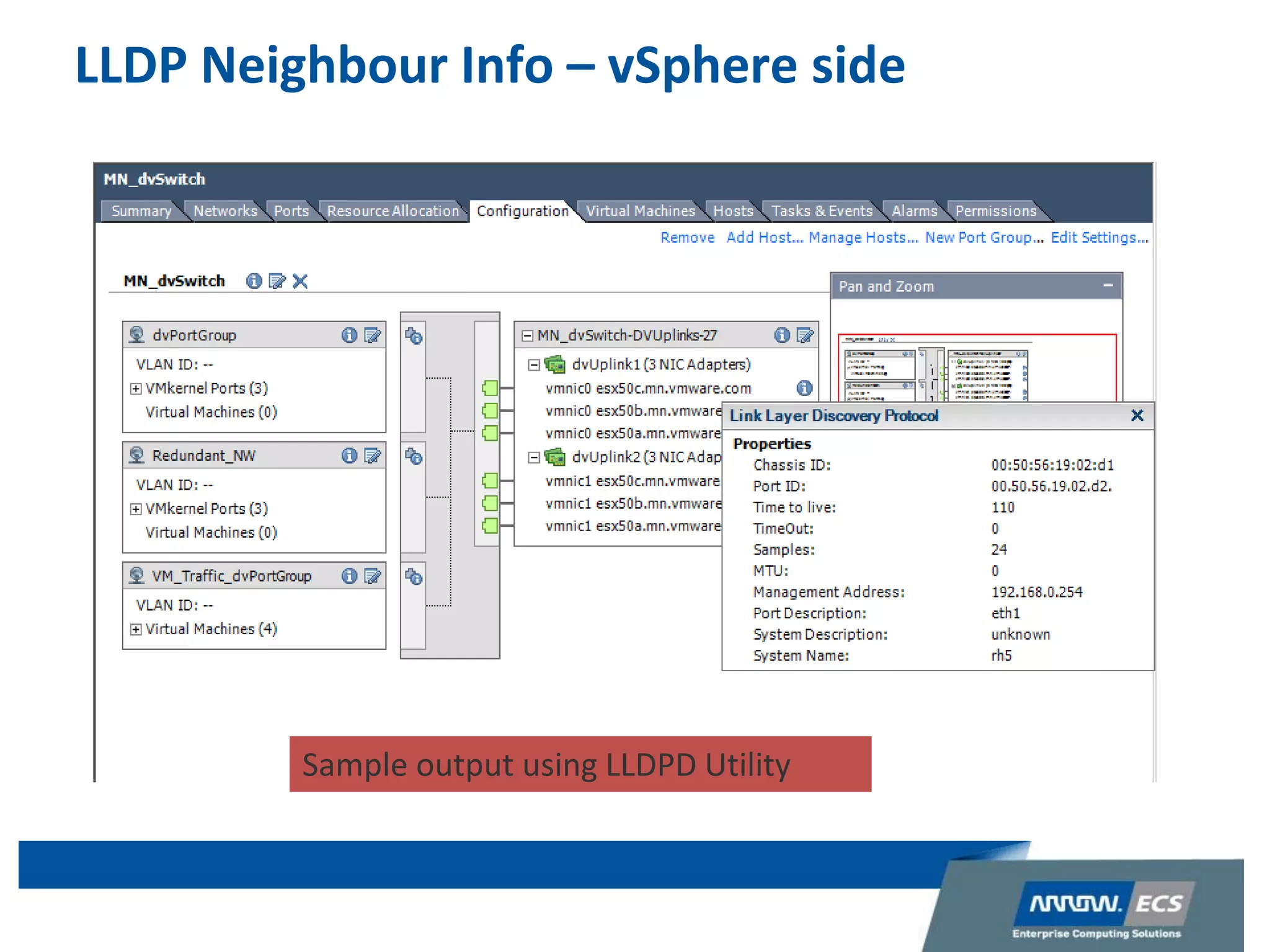

45. LLDP Neighbour Info – vSphere side
Sample output using LLDPD Utility

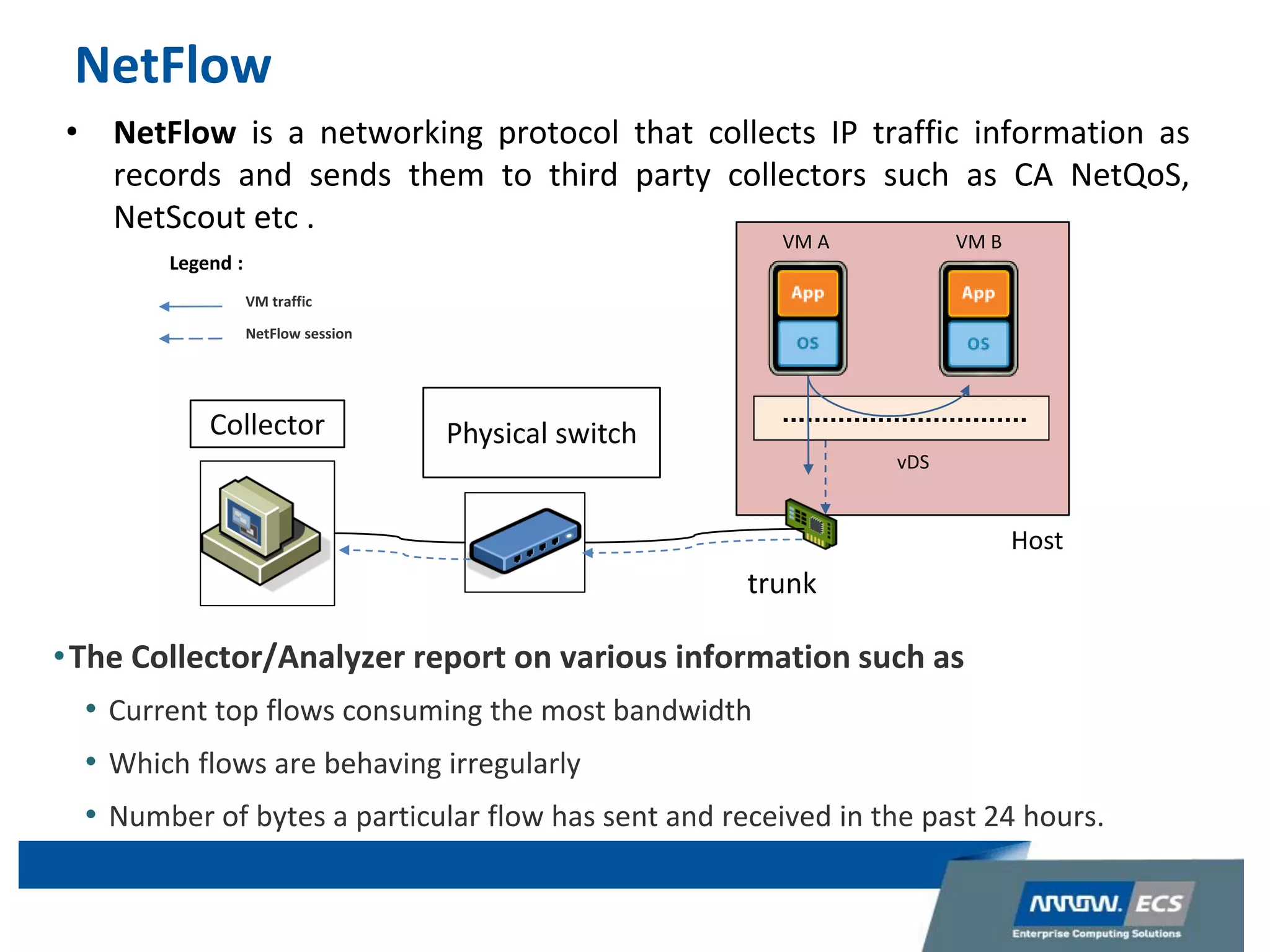

46. NetFlow
• NetFlow is a networking protocol that collects IP traffic information as
records and sends them to third party collectors such as CA NetQoS,
NetScout etc .
vDS
VM A VM B
trunk
Physical switchCollector
•The Collector/Analyzer report on various information such as
• Current top flows consuming the most bandwidth
• Which flows are behaving irregularly
• Number of bytes a particular flow has sent and received in the past 24 hours.
NetFlow session
Host
VM traffic
Legend :

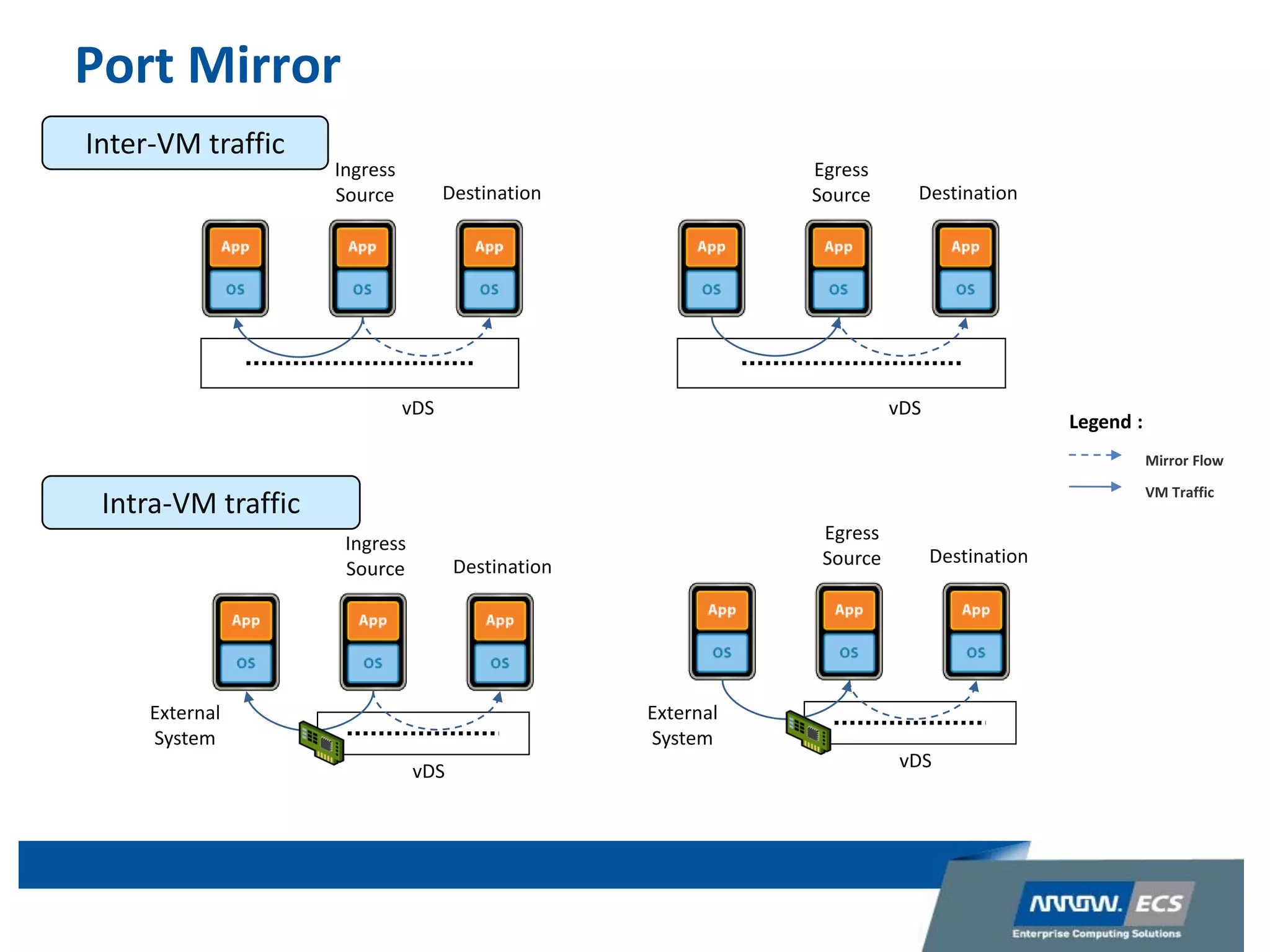

47. Port Mirror
Ingress
Source Destination
vDS
Egress
Source Destination
vDS
Ingress
Source Destination
vDS
External
System
Egress
Source Destination
vDS
External
System
Intra-VM traffic
Inter-VM traffic
Mirror Flow
Legend :
VM Traffic

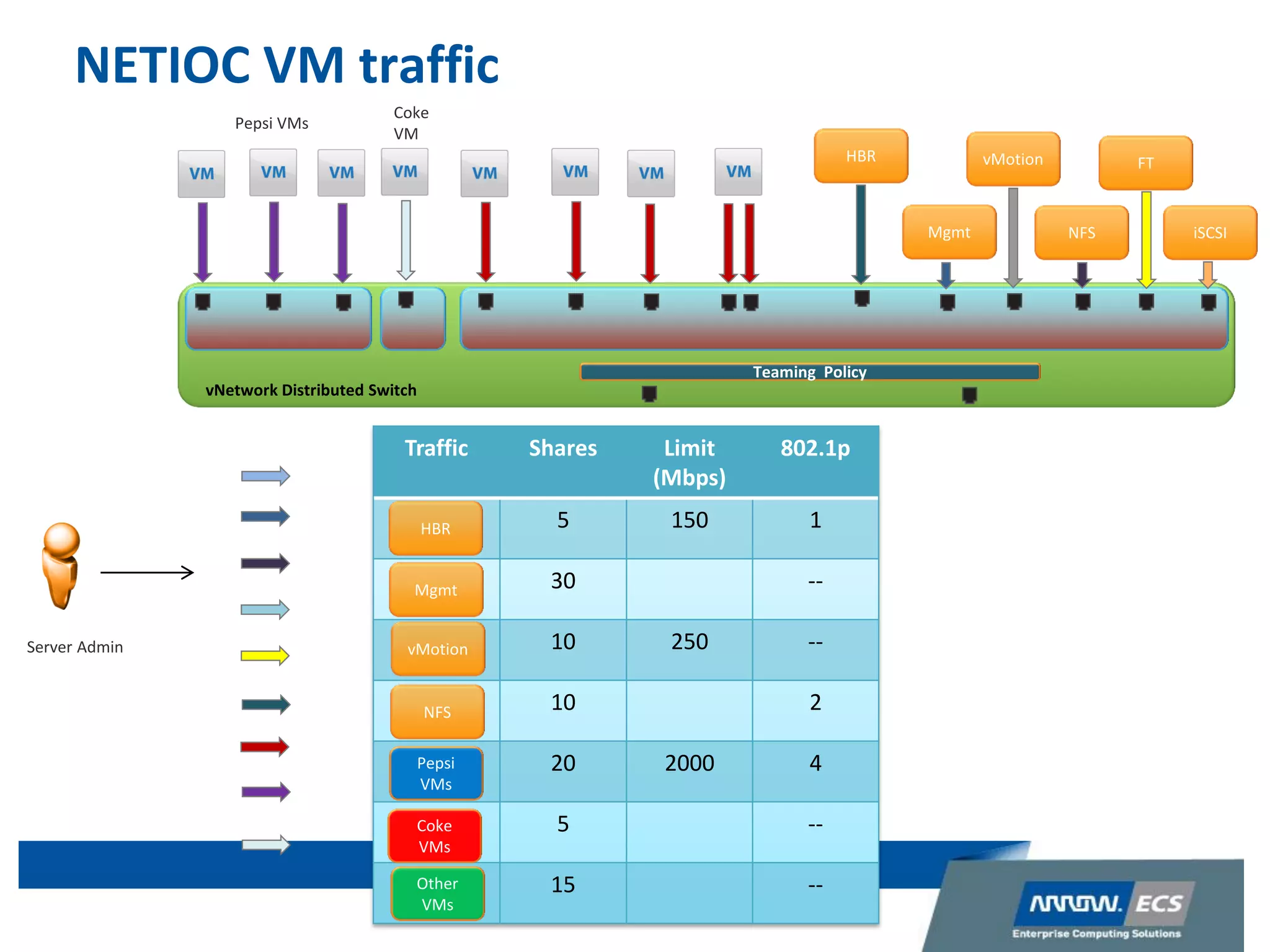

48. Server Admin
Mgmt NFS iSCSI
vMotion FT
Traffic Shares Limit
(Mbps)
802.1p
5 150 1
30 --
10 250 --
10 2
20 2000 4
5 --
15 --
Teaming Policy
vNetwork Distributed Switch
HBR
NETIOC VM traffic
Coke
VM
Pepsi VMs
HBR
Mgmt
vMotion
NFS
Pepsi
VMs
Coke
VMs
Other
VMs

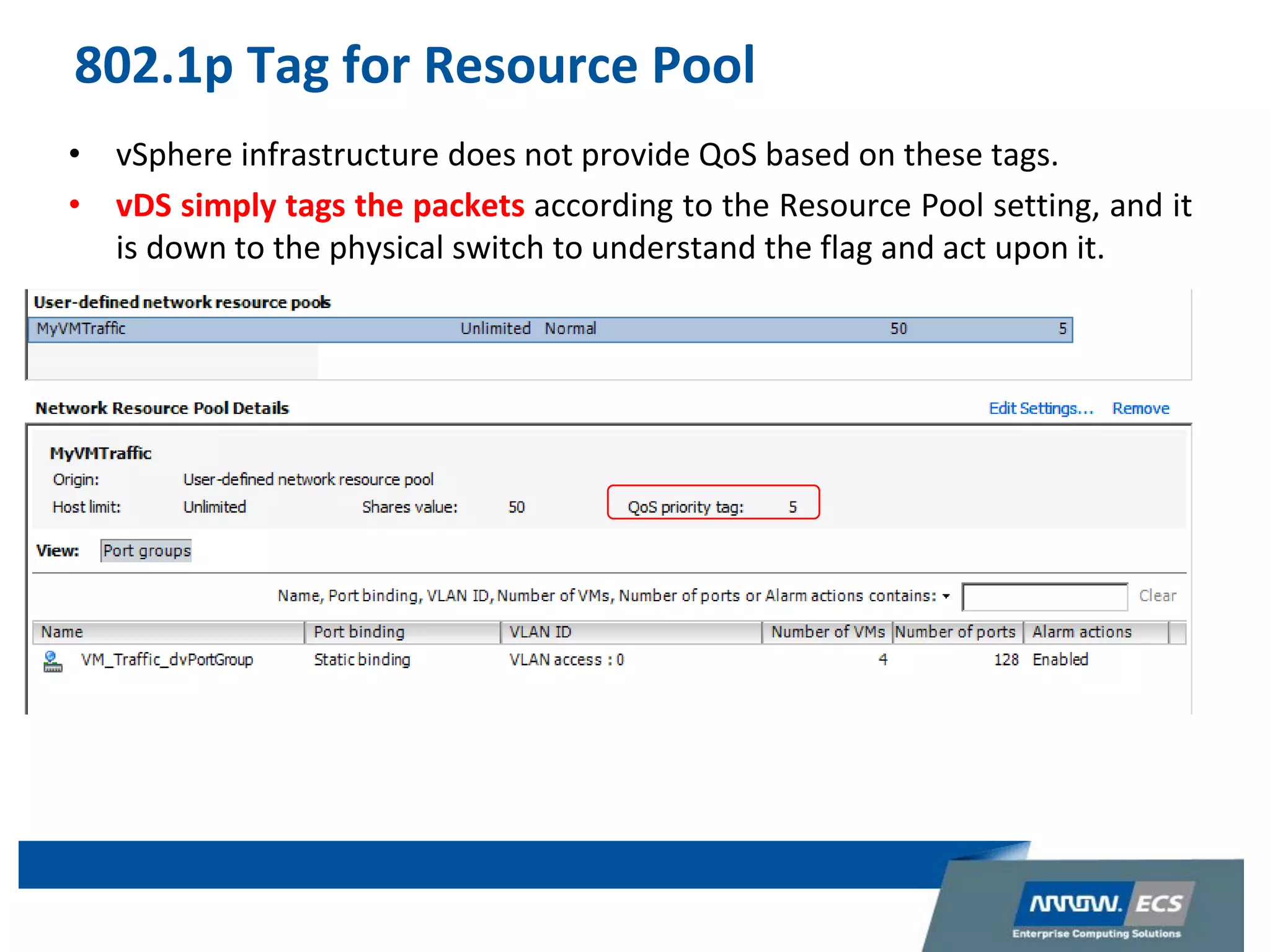

49. 802.1p Tag for Resource Pool
• vSphere infrastructure does not provide QoS based on these tags.
• vDS simply tags the packets according to the Resource Pool setting, and it
is down to the physical switch to understand the flag and act upon it.

50. High Availability

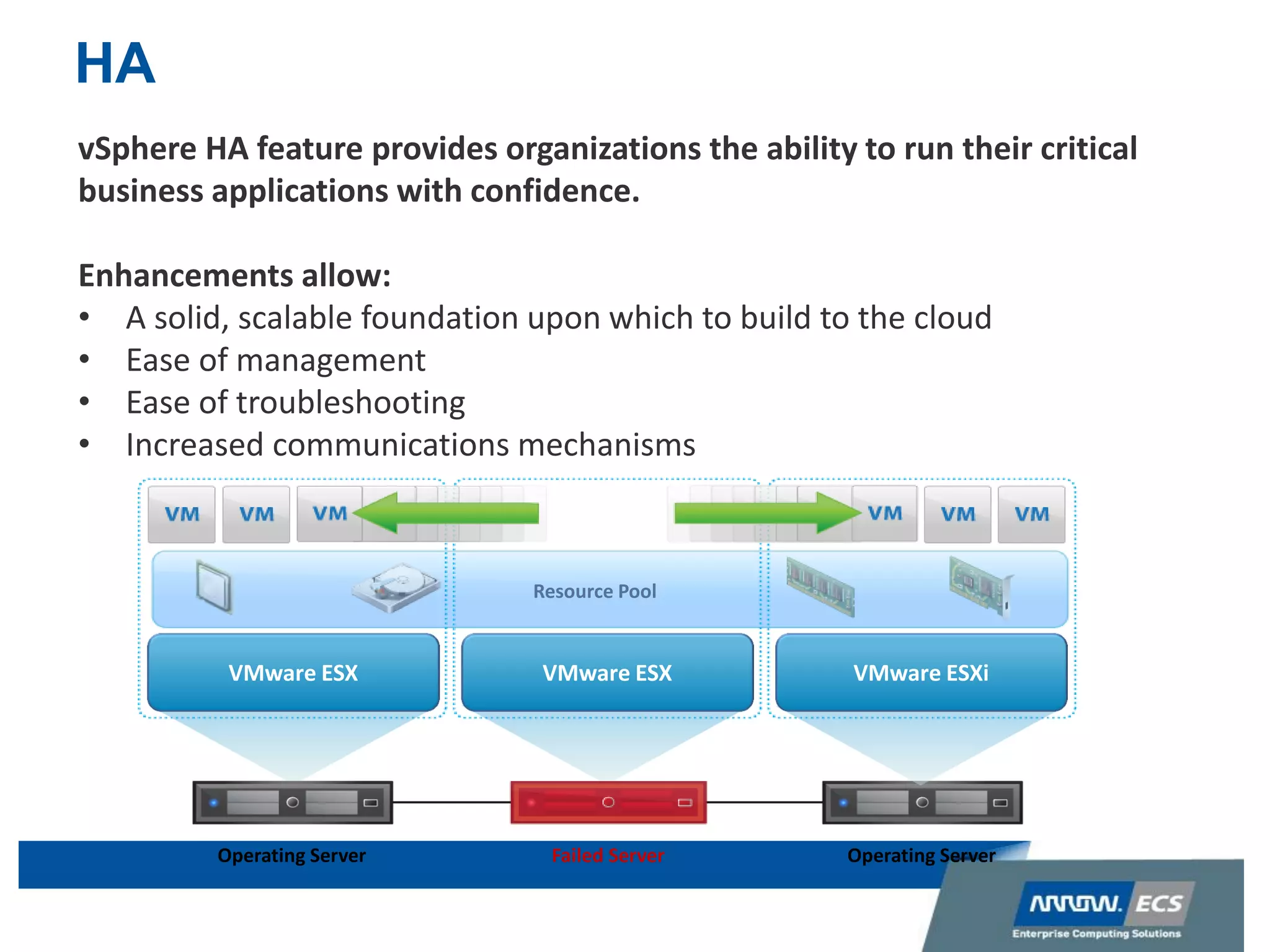

51. HA
vSphere HA feature provides organizations the ability to run their critical
business applications with confidence.
Enhancements allow:
• A solid, scalable foundation upon which to build to the cloud
• Ease of management
• Ease of troubleshooting
• Increased communications mechanisms
VMware ESX VMware ESX VMware ESXi
Resource Pool
Failed Server Operating ServerOperating Server

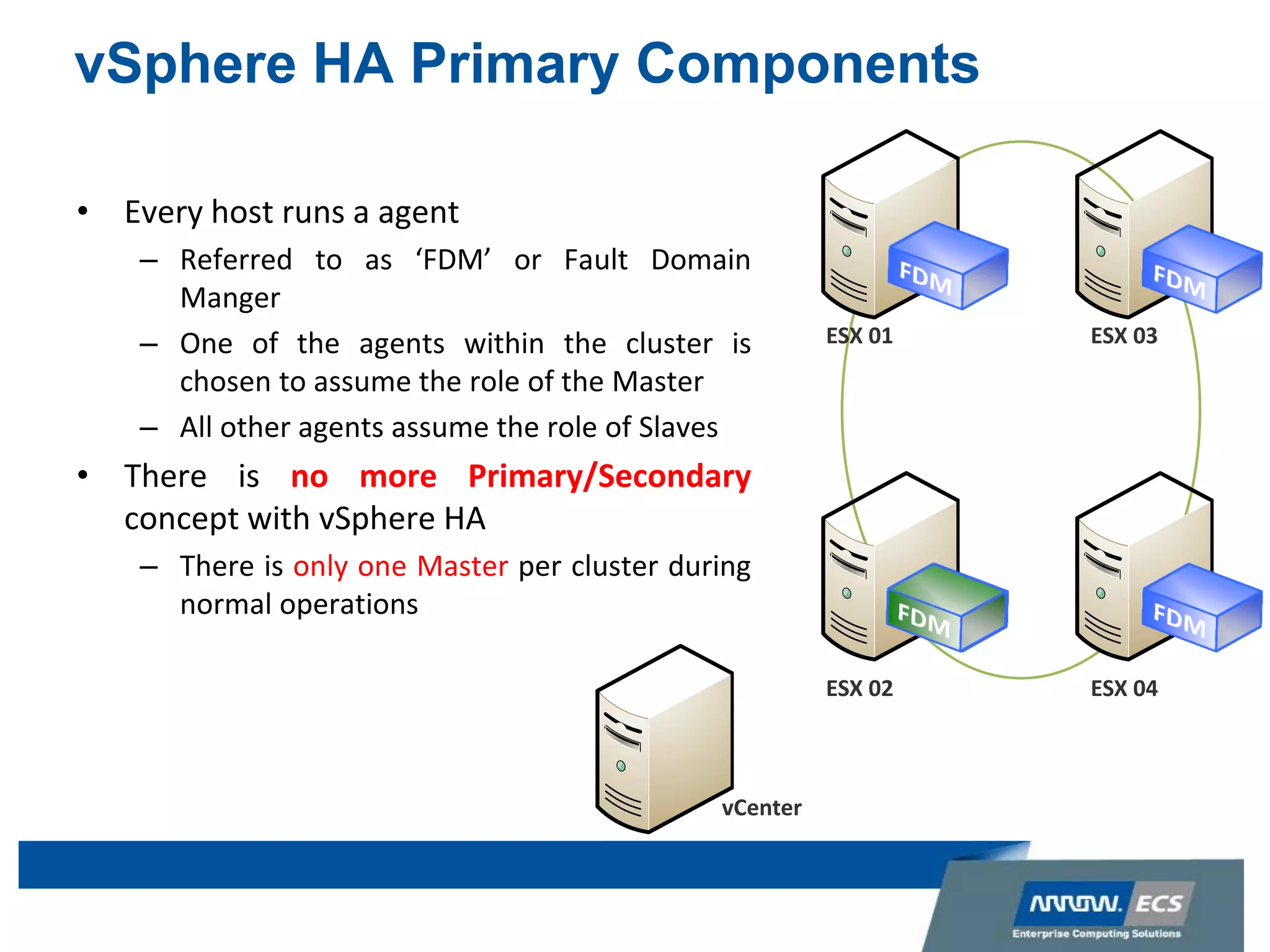

52. vSphere HA Primary Components
• Every host runs a agent
– Referred to as ‘FDM’ or Fault Domain
Manger
– One of the agents within the cluster is
chosen to assume the role of the Master
– All other agents assume the role of Slaves
• There is no more Primary/Secondary
concept with vSphere HA
– There is only one Master per cluster during
normal operations
vCenter
ESX 02
ESX 01 ESX 03
ESX 04

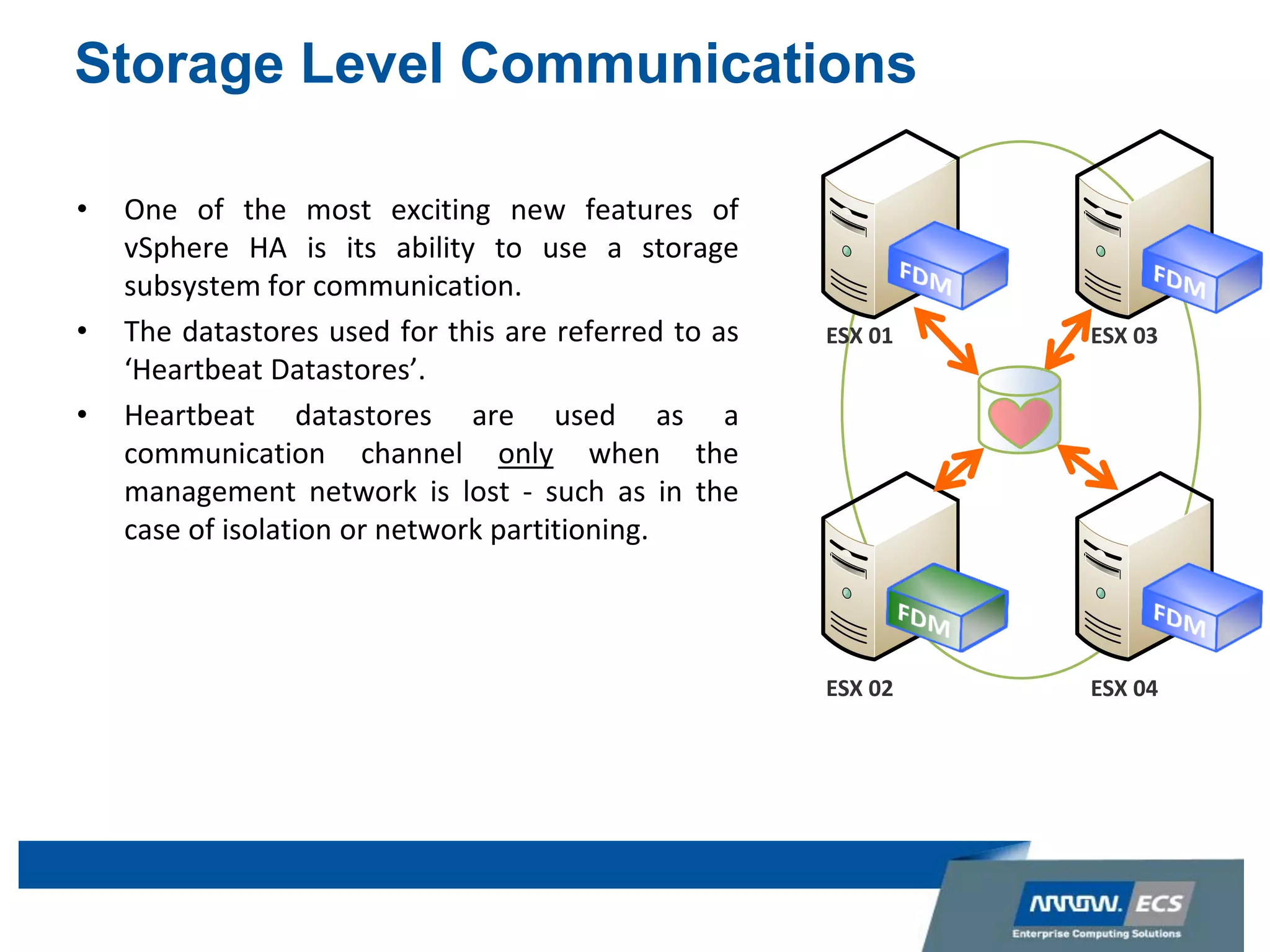

53. Storage Level Communications
• One of the most exciting new features of
vSphere HA is its ability to use a storage
subsystem for communication.
• The datastores used for this are referred to as
‘Heartbeat Datastores’.
• Heartbeat datastores are used as a
communication channel only when the
management network is lost - such as in the
case of isolation or network partitioning.
ESX 02
ESX 01 ESX 03
ESX 04

54. Data Recovery

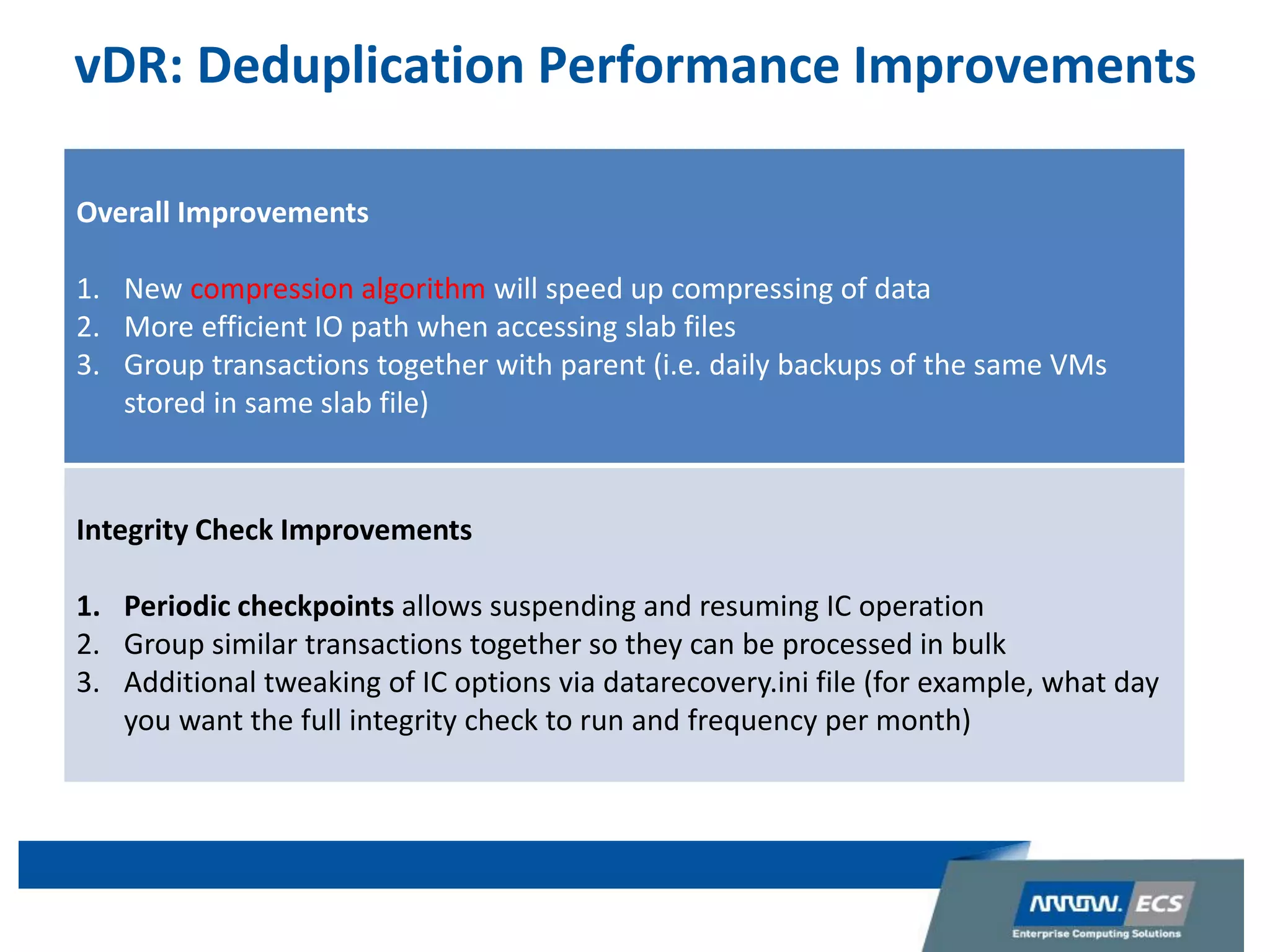

55. vDR: Deduplication Performance Improvements
Overall Improvements
1. New compression algorithm will speed up compressing of data
2. More efficient IO path when accessing slab files
3. Group transactions together with parent (i.e. daily backups of the same VMs
stored in same slab file)
Integrity Check Improvements
1. Periodic checkpoints allows suspending and resuming IC operation
2. Group similar transactions together so they can be processed in bulk
3. Additional tweaking of IC options via datarecovery.ini file (for example, what day
you want the full integrity check to run and frequency per month)

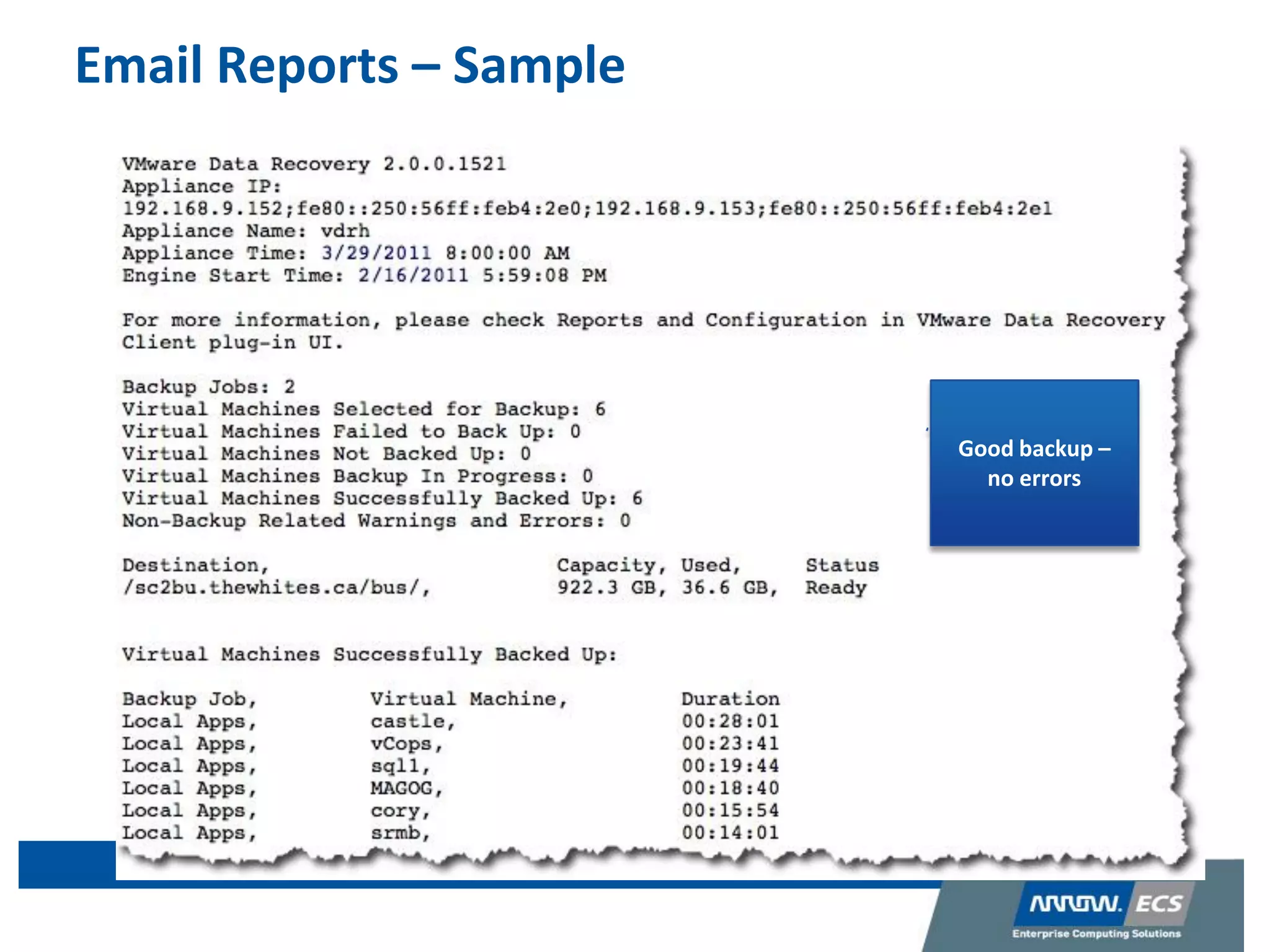

56. Email Reports – Sample
Good backup –
no errors

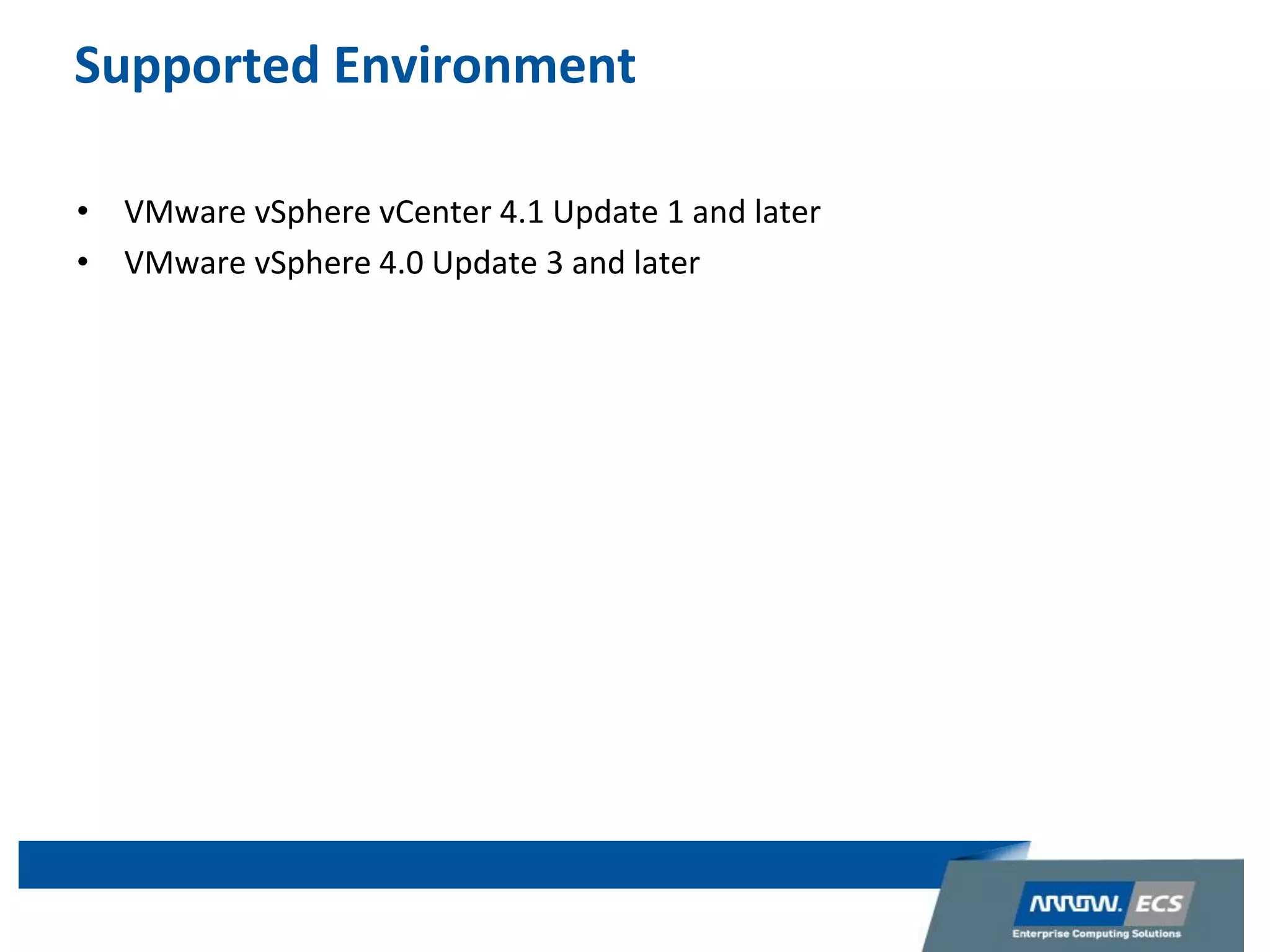

57. Supported Environment
• VMware vSphere vCenter 4.1 Update 1 and later
• VMware vSphere 4.0 Update 3 and later

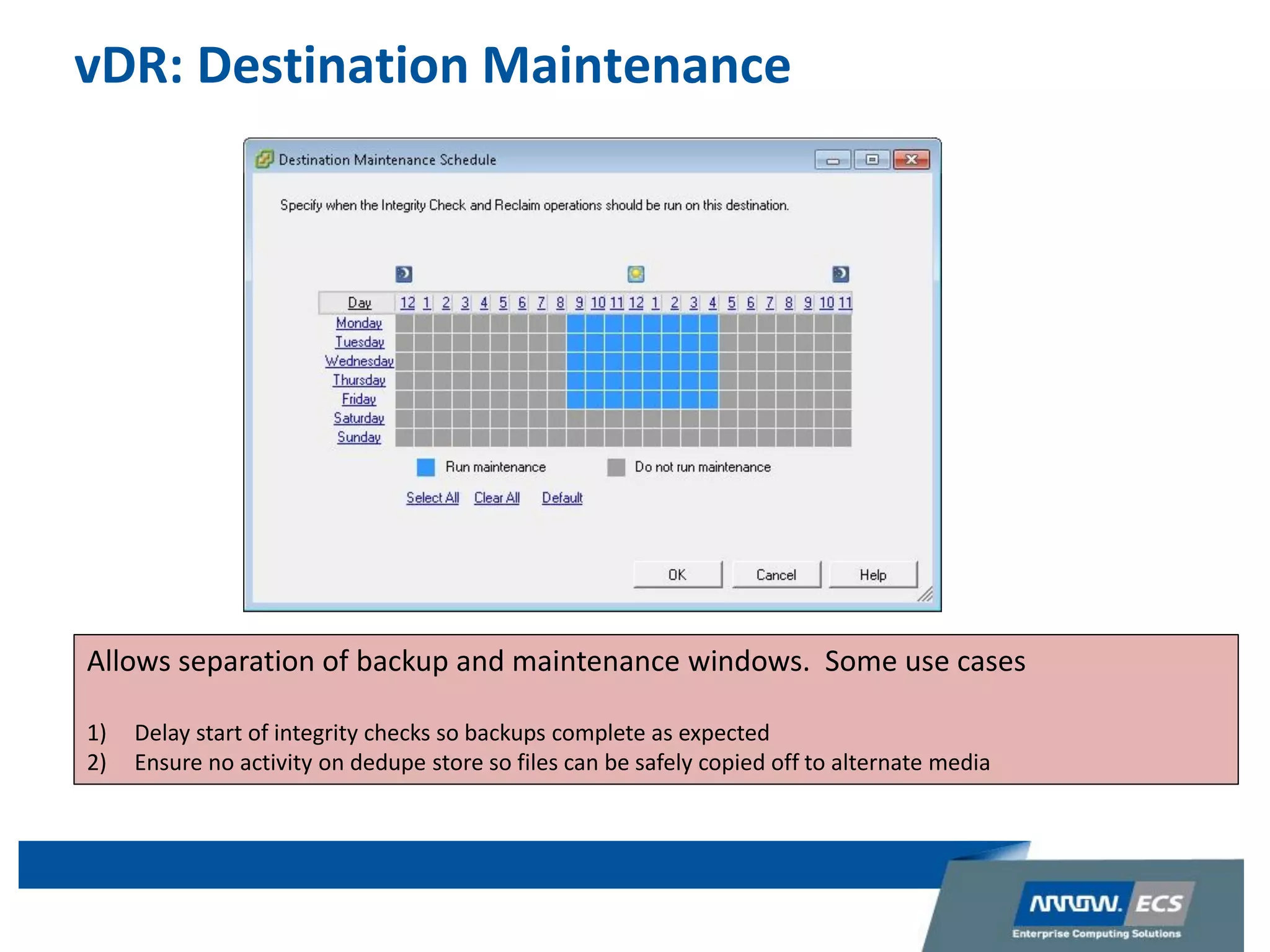

58. vDR: Destination Maintenance
Allows separation of backup and maintenance windows. Some use cases
1) Delay start of integrity checks so backups complete as expected
2) Ensure no activity on dedupe store so files can be safely copied off to alternate media

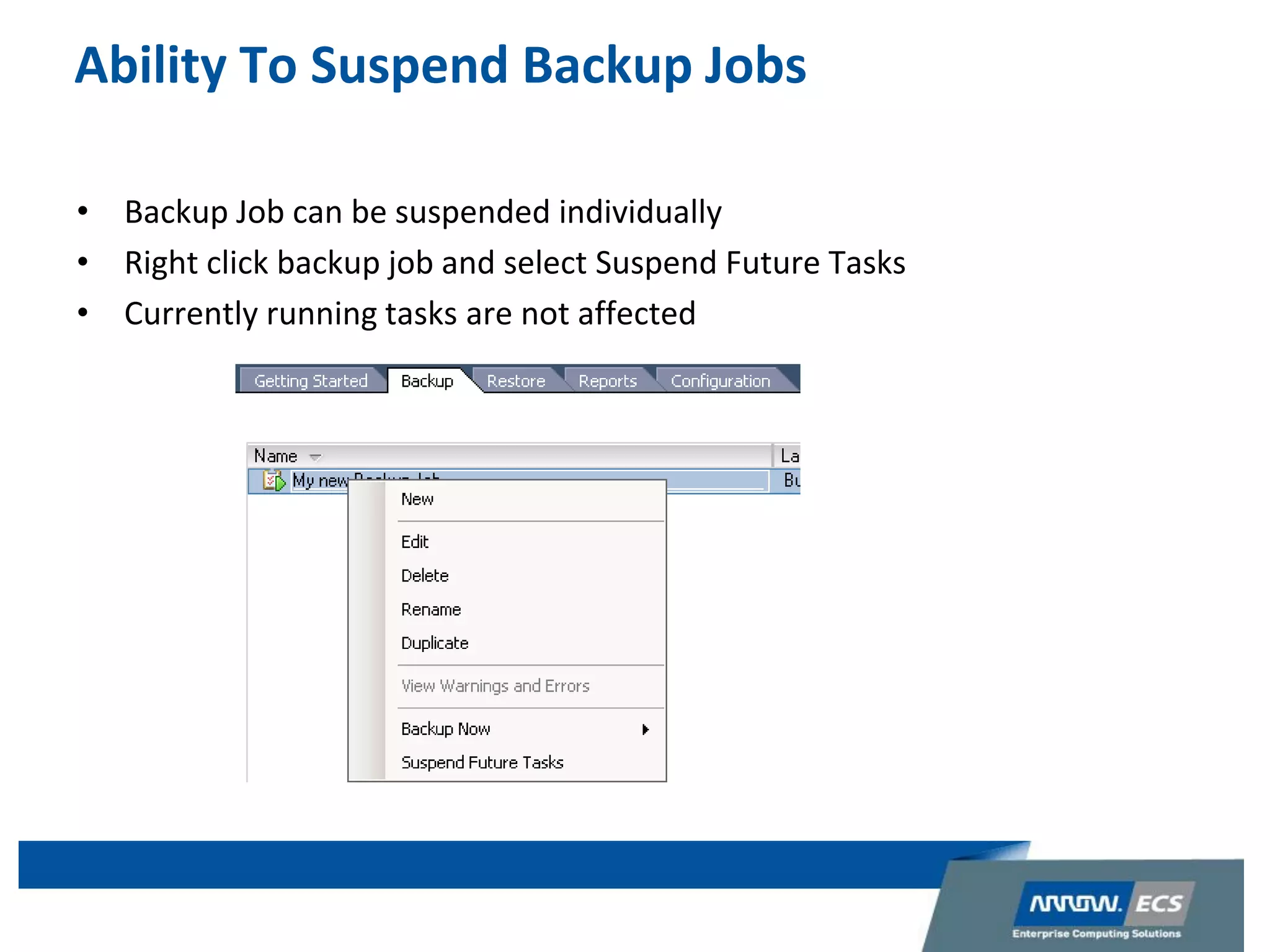

59. Ability To Suspend Backup Jobs
• Backup Job can be suspended individually
• Right click backup job and select Suspend Future Tasks
• Currently running tasks are not affected

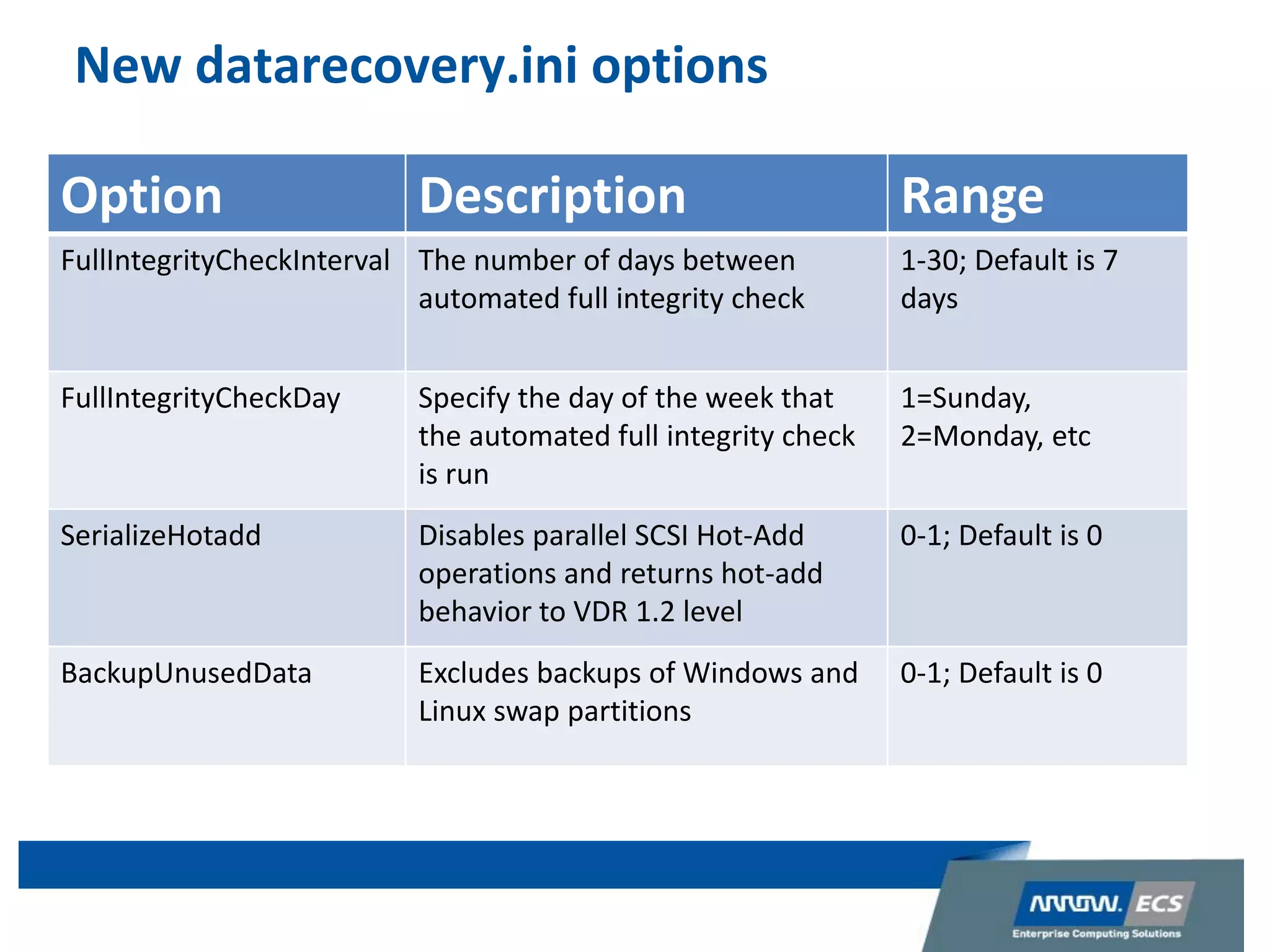

60. New datarecovery.ini options
Option Description Range
FullIntegrityCheckInterval The number of days between
automated full integrity check
1-30; Default is 7
days
FullIntegrityCheckDay Specify the day of the week that
the automated full integrity check
is run
1=Sunday,
2=Monday, etc
SerializeHotadd Disables parallel SCSI Hot-Add
operations and returns hot-add
behavior to VDR 1.2 level
0-1; Default is 0
BackupUnusedData Excludes backups of Windows and
Linux swap partitions
0-1; Default is 0

61. Auto Deploy

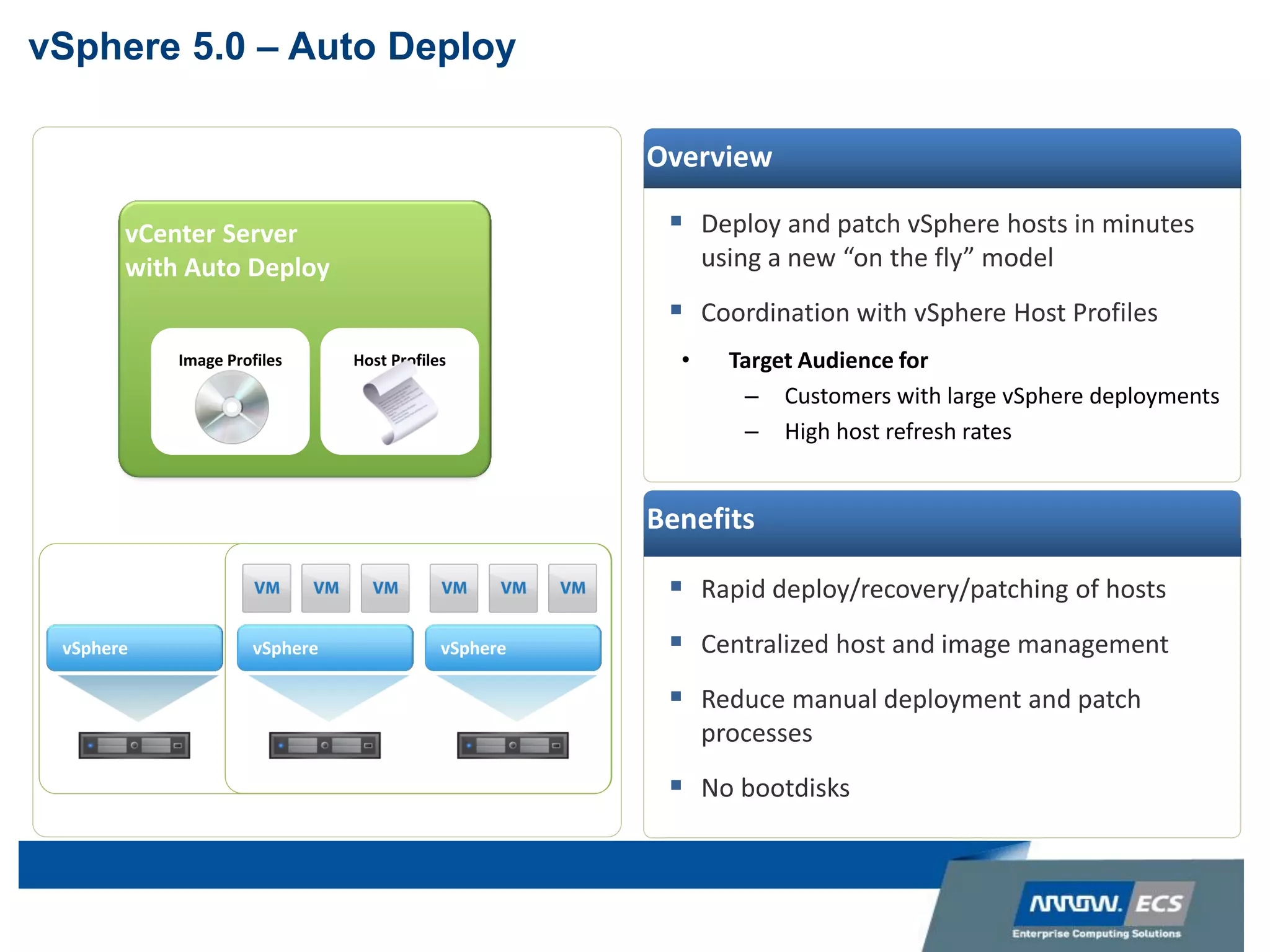

62. vSphere vSpherevSphere
vSphere 5.0 – Auto Deploy
vCenter Server
with Auto Deploy
Host ProfilesImage Profiles
 Deploy and patch vSphere hosts in minutes
using a new “on the fly” model
 Coordination with vSphere Host Profiles
Overview
Benefits
 Rapid deploy/recovery/patching of hosts
 Centralized host and image management
 Reduce manual deployment and patch
processes
 No bootdisks
vSphere
• Target Audience for
– Customers with large vSphere deployments
– High host refresh rates

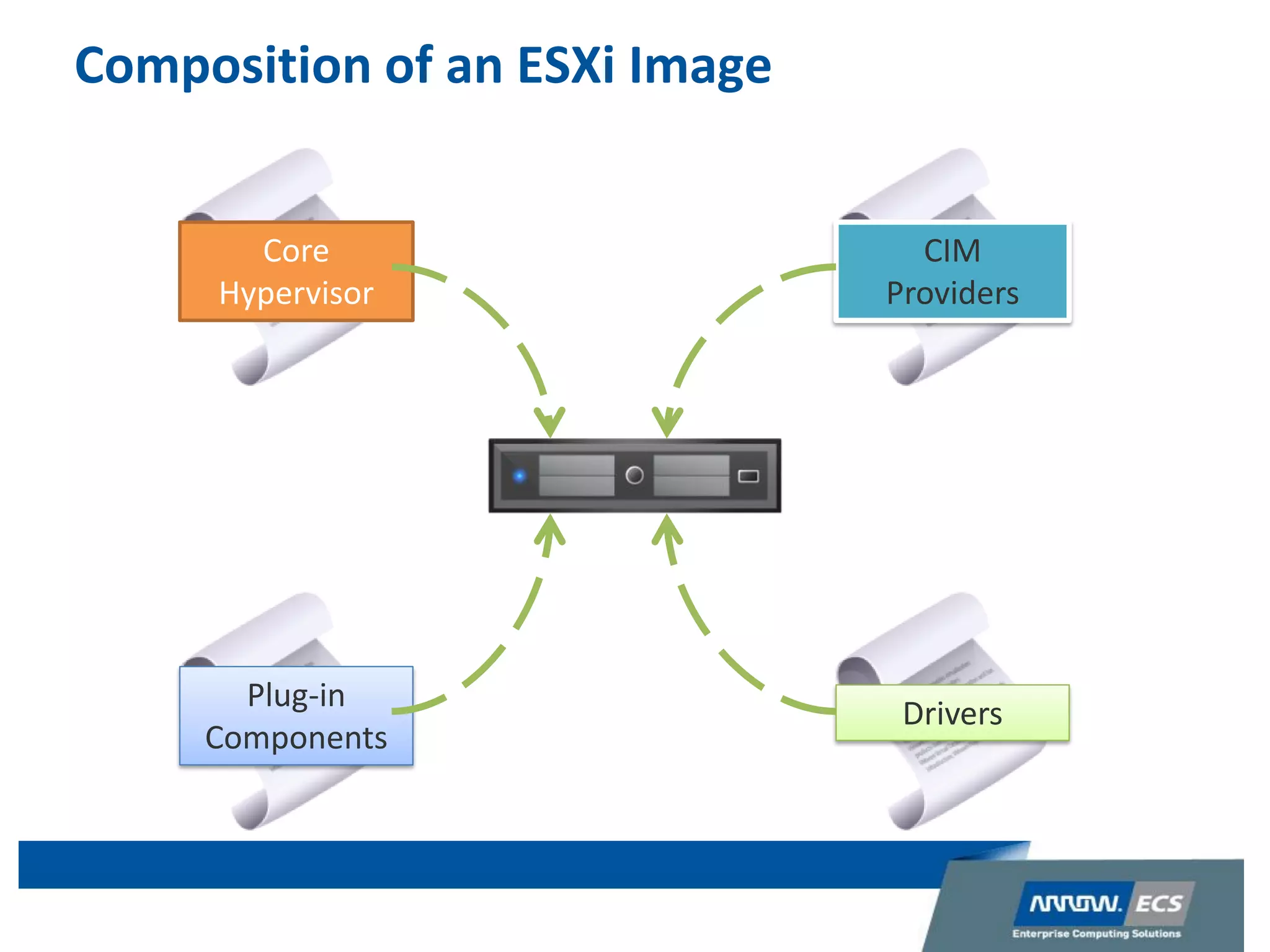

63. Composition of an ESXi Image
CIM
Providers
Drivers
Core
Hypervisor
Plug-in
Components

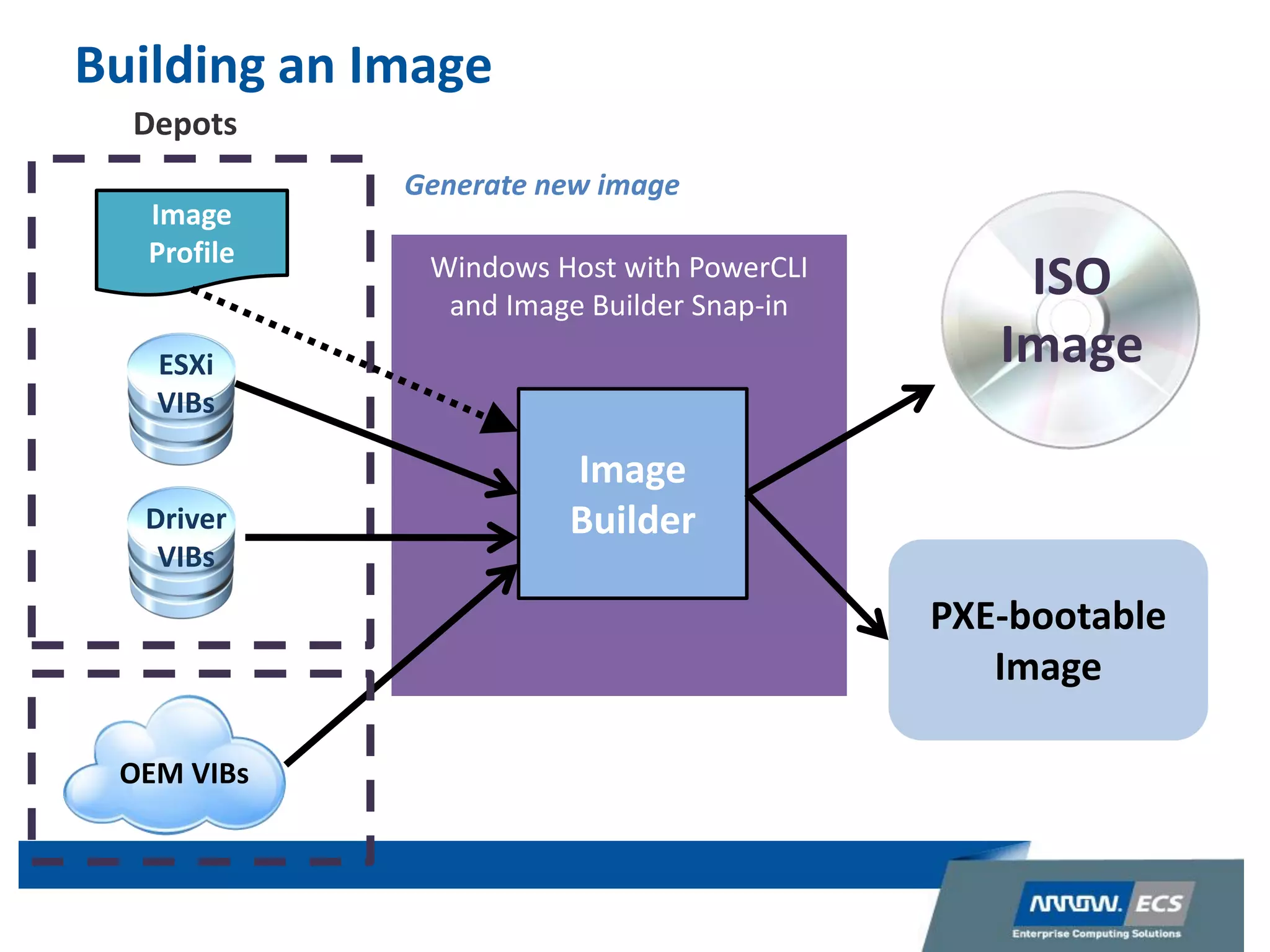

64. Windows Host with PowerCLI
and Image Builder Snap-in
Building an Image
Builder
OEM VIBs
Driver
VIBs
ESXi
VIBs
Profile
PXE-bootable
ISO
Depots
Generate new image

65. Auto
Deploy
Depots

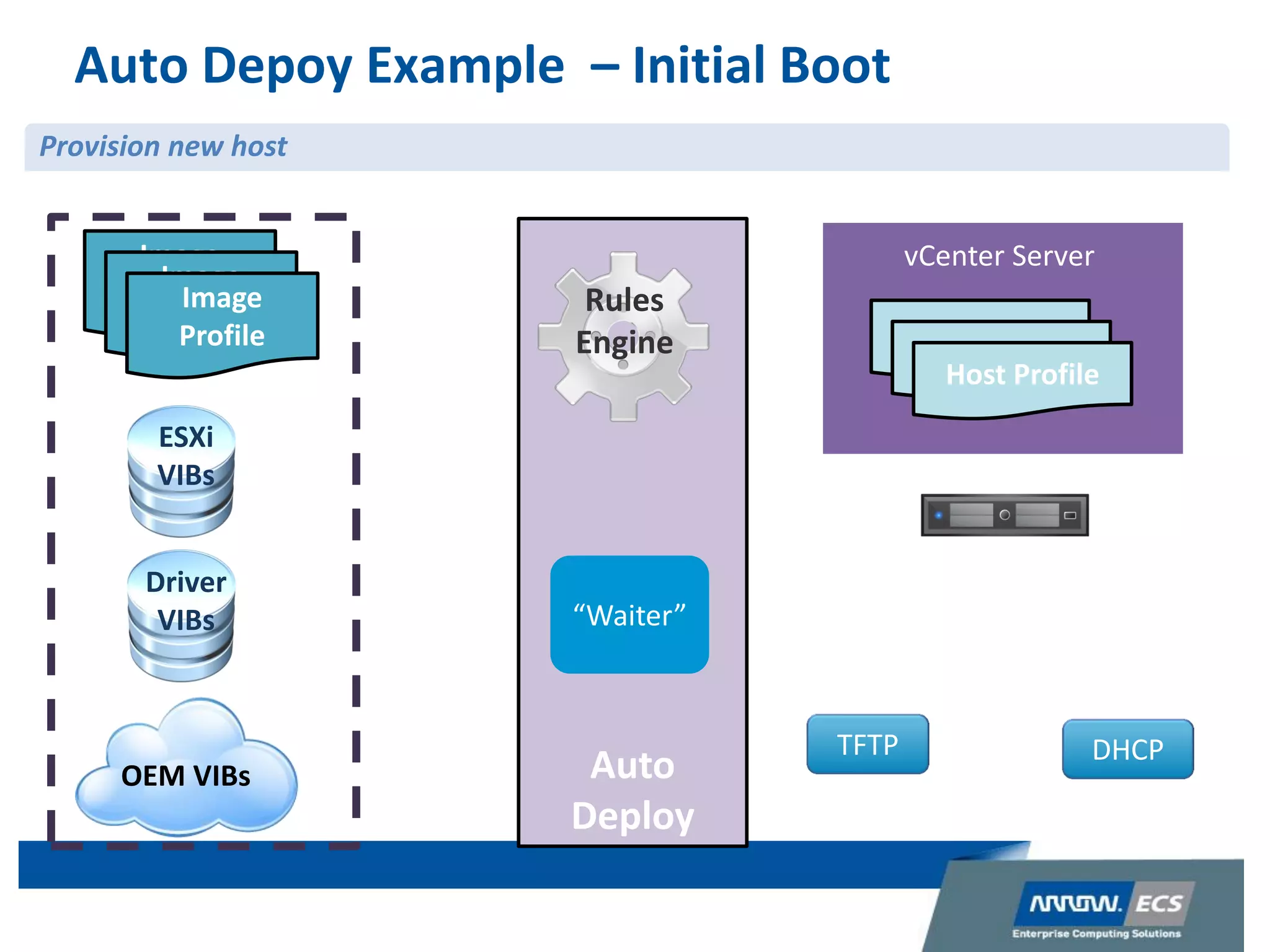

Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
Provision new host
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile
TFTP DHCP

66. Auto
Deploy
Depots

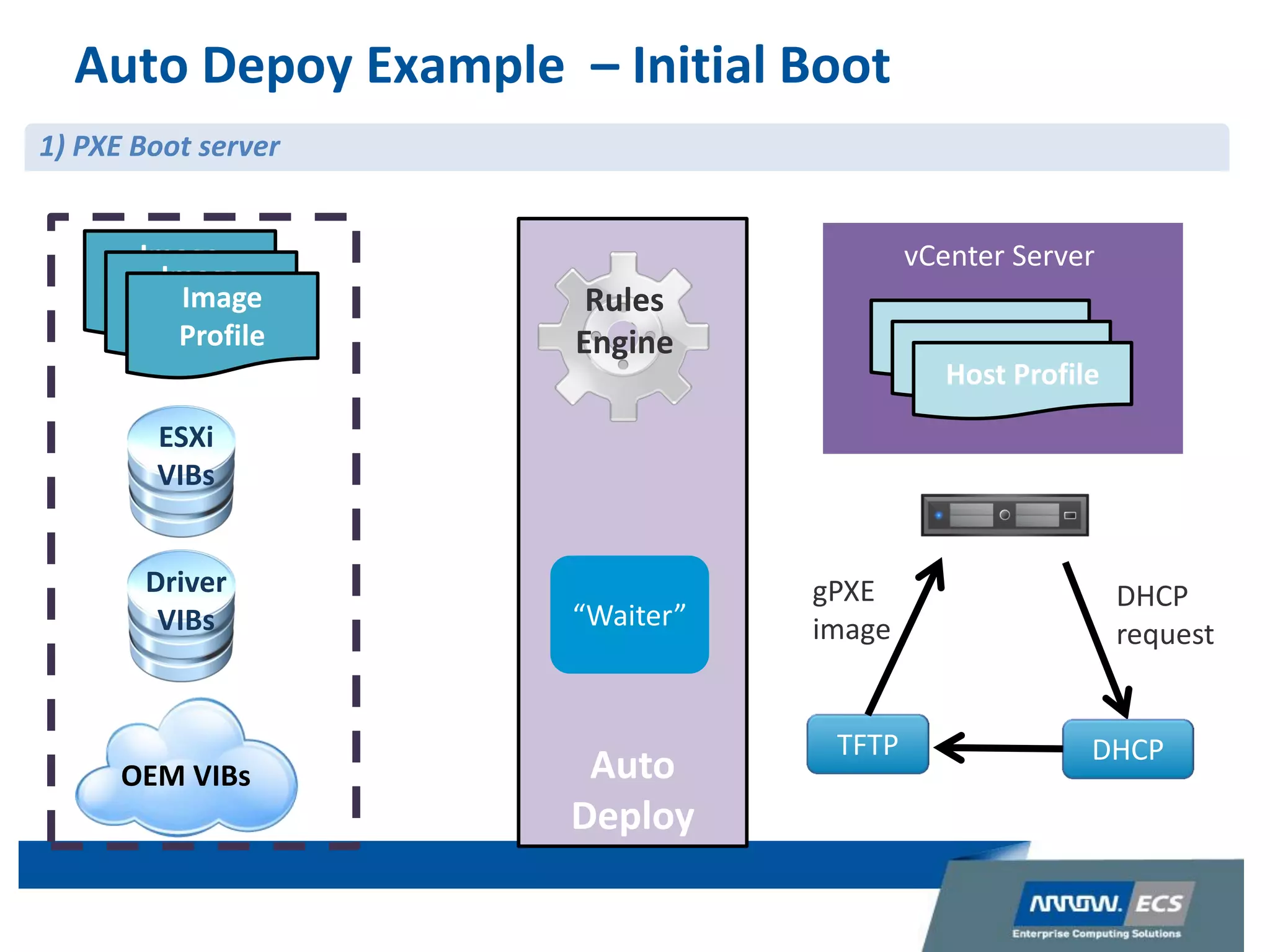

Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
1) PXE Boot server
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile
TFTP DHCP
DHCP
request
gPXE

67. Auto
Deploy
Depots

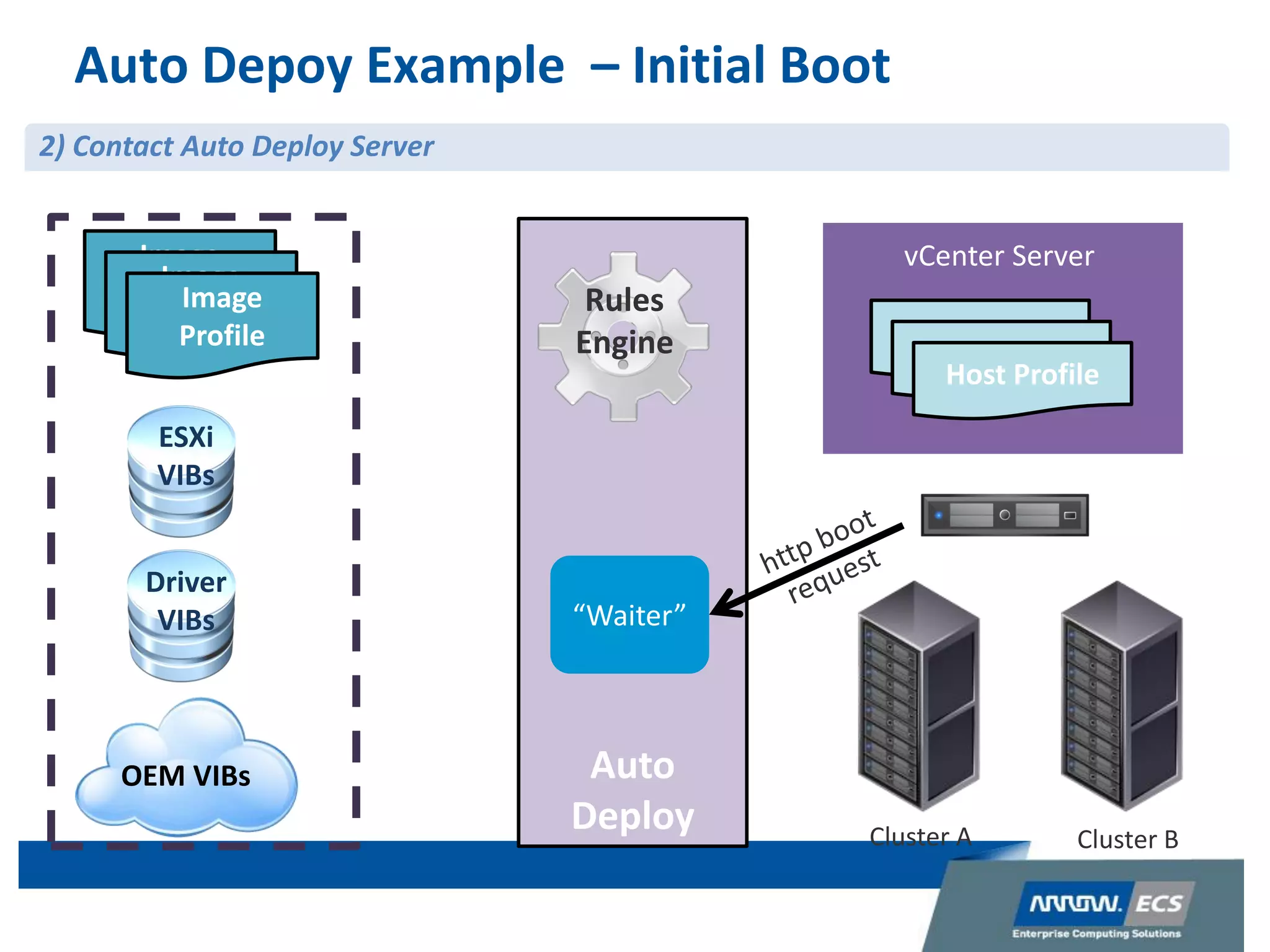

Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
2) Contact Auto Deploy Server
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile
Cluster A Cluster B

68. Auto
Deploy
Depots
Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile

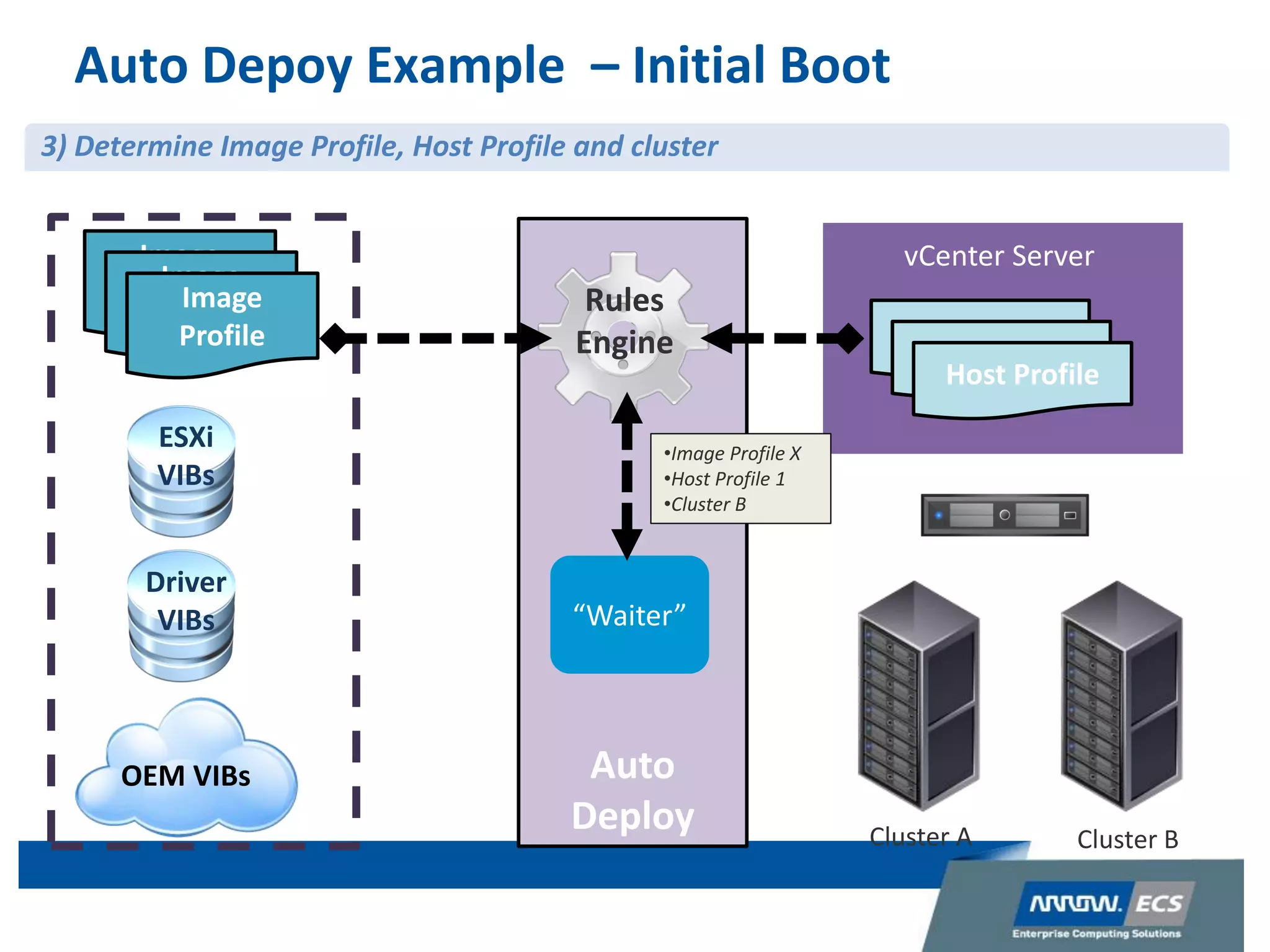

3) Determine Image Profile, Host Profile and cluster
•Image Profile X
•Host Profile 1
•Cluster B
Cluster A Cluster B

69. Auto
Deploy
Depots
Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile

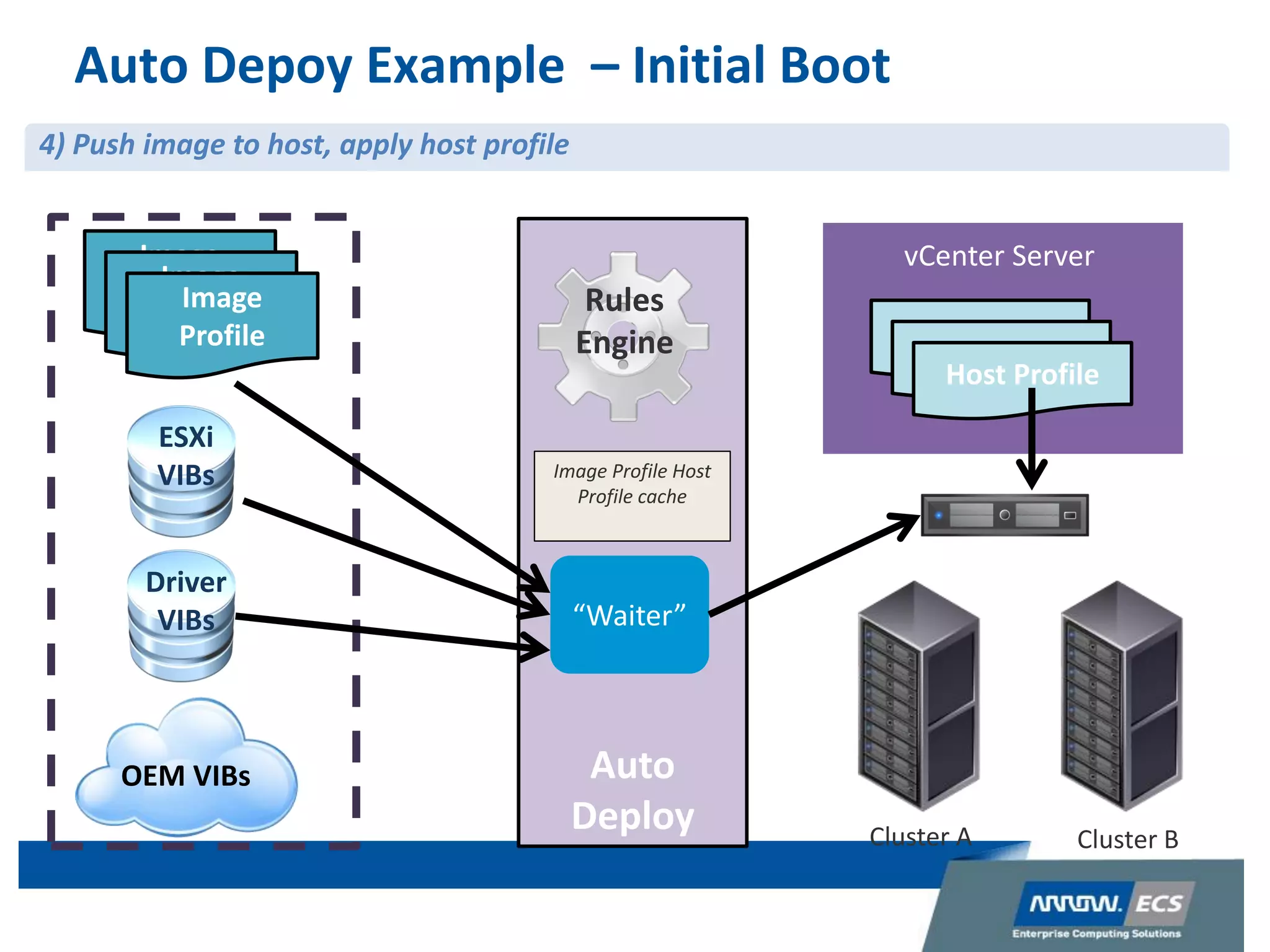

4) Push image to host, apply host profile
Cluster A Cluster B
Image Profile Host
Profile cache

70. Auto
Deploy
Depots

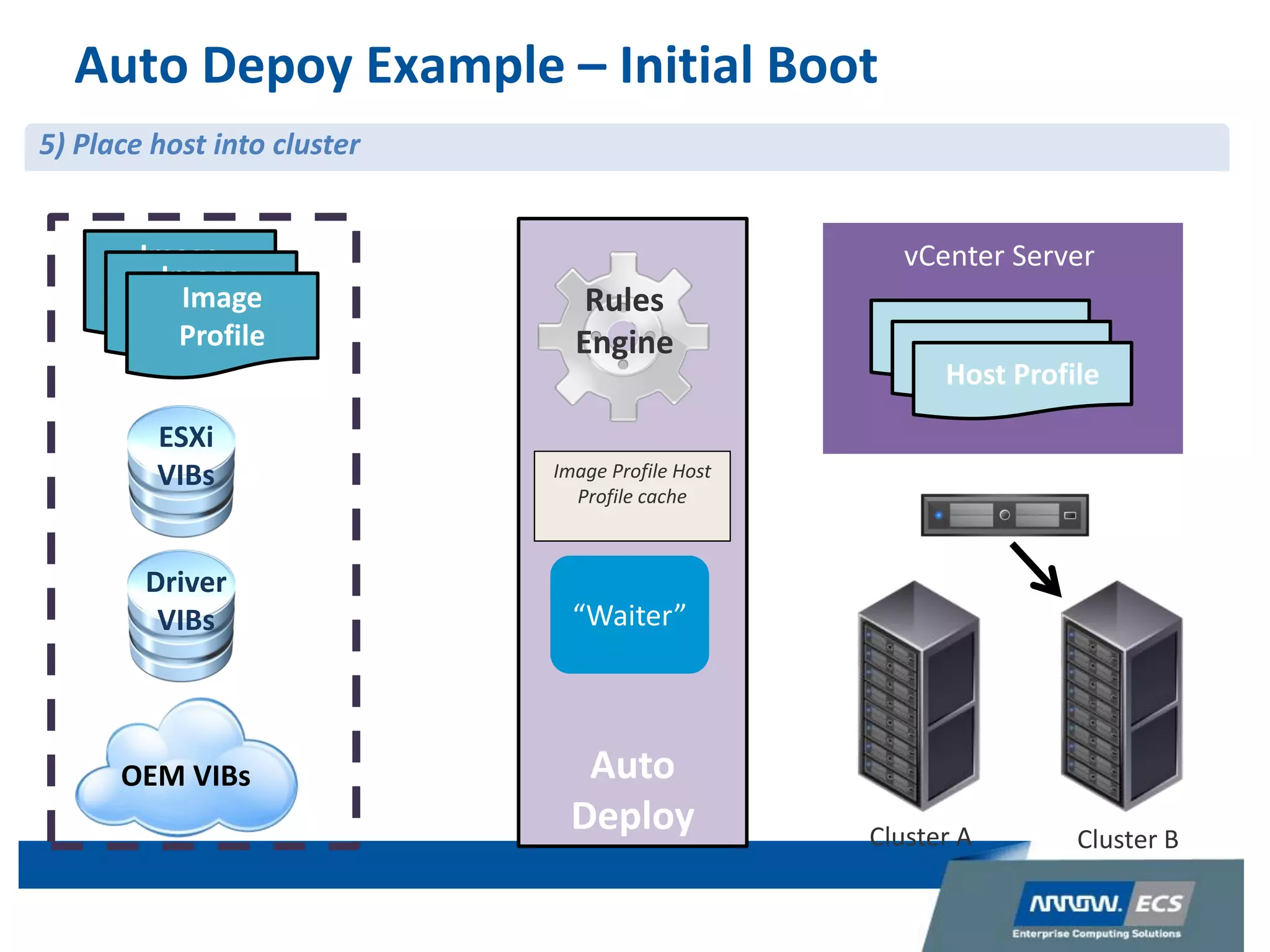

Auto Depoy Example – Initial Boot
OEM VIBs
Driver
VIBs
ESXi
VIBs
Rules
Engine
“Waiter”
Profile
Profile
Profile
vCenter Server
Host Profile
Host Profile
Host Profile
5) Place host into cluster
Cluster A Cluster B
Image Profile Host
Profile cache

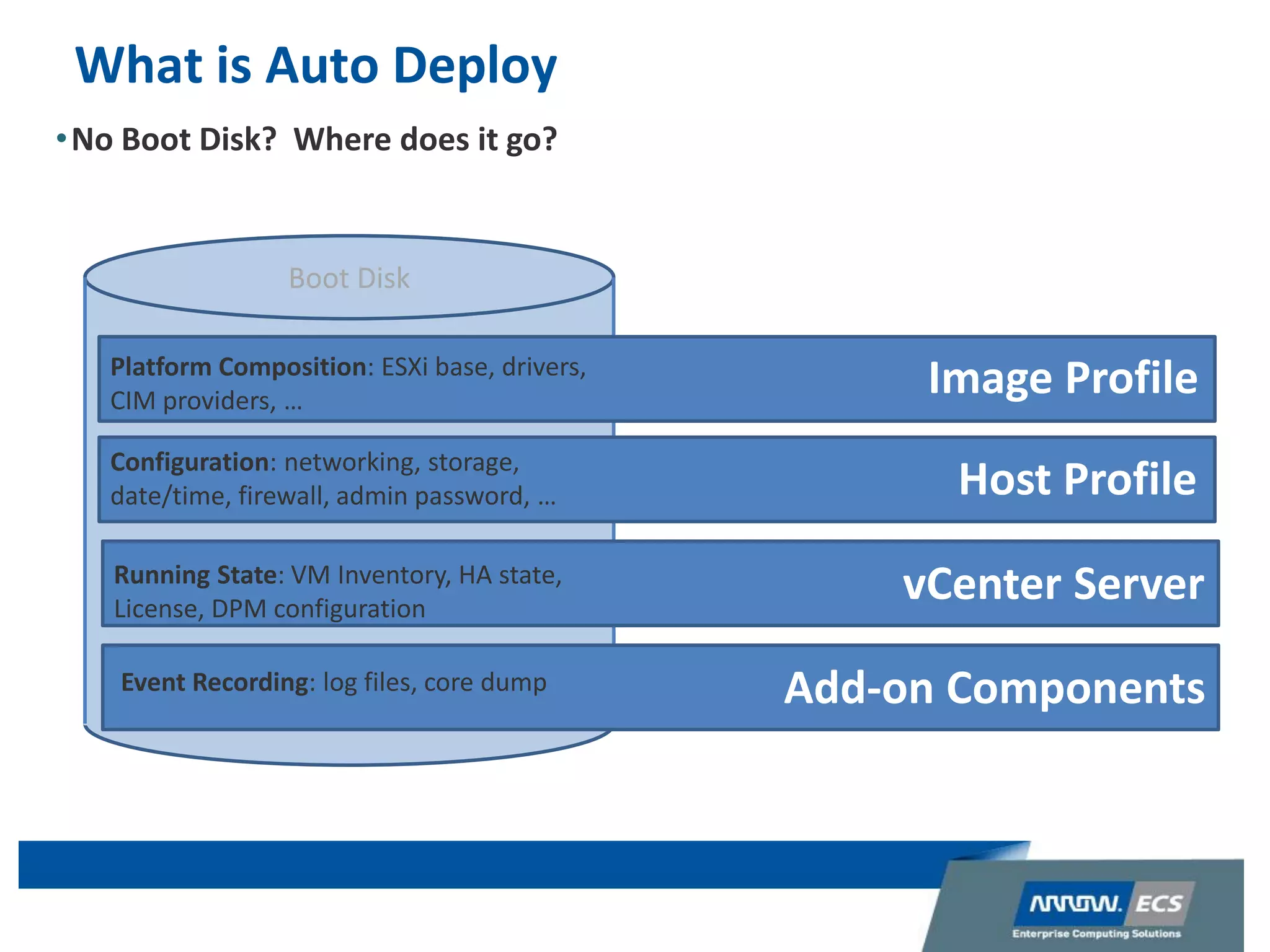

71. Boot Disk
What is Auto Deploy
Configuration: networking, storage,
date/time, firewall, admin password, …
Running State: VM Inventory, HA state,
License, DPM configuration
Event Recording: log files, core dump
Platform Composition: ESXi base, drivers,
CIM providers, …
•No Boot Disk? Where does it go?
Image Profile
Host Profile
vCenter Server
Add-on Components

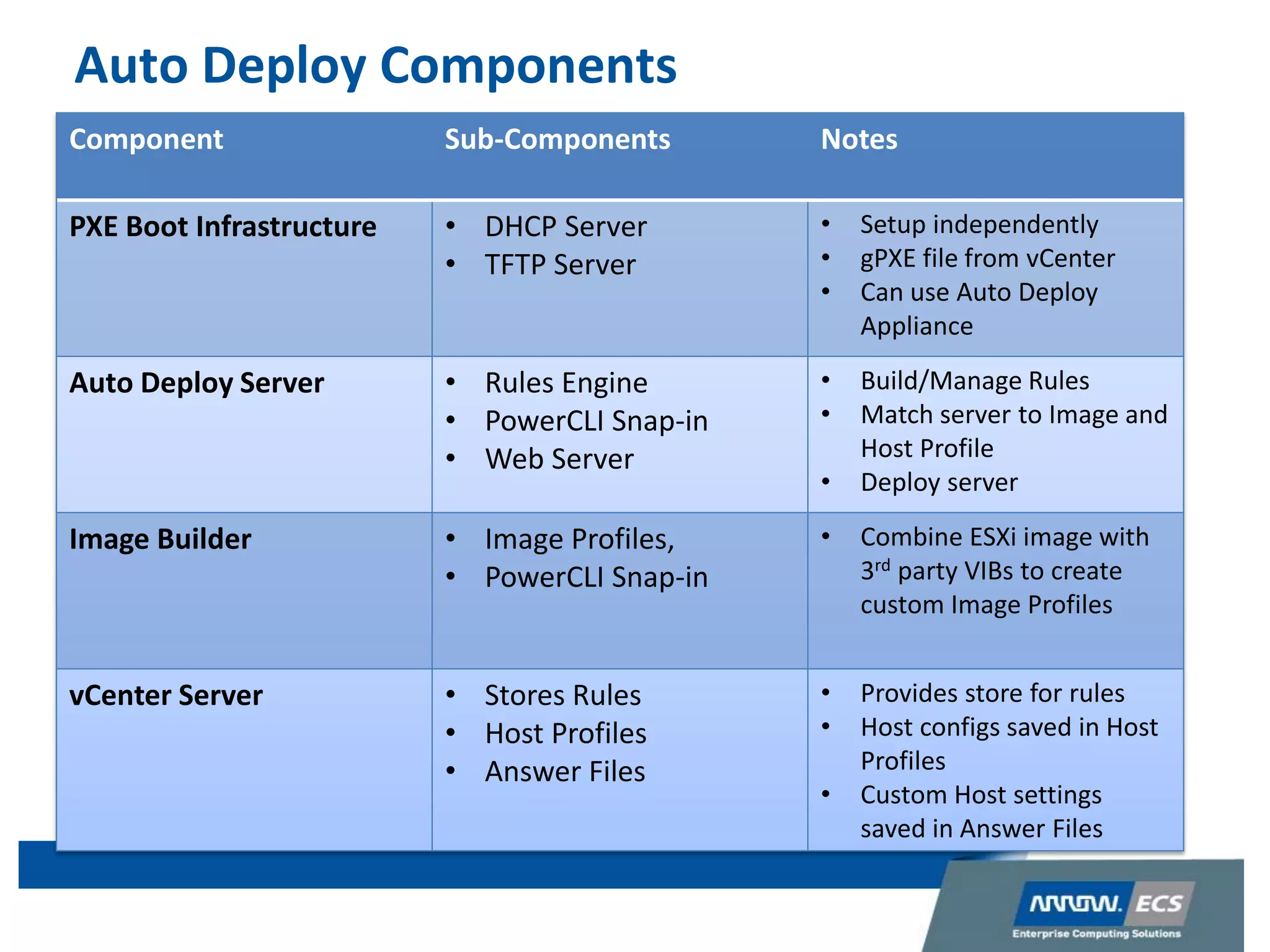

72. Auto Deploy Components
Component Sub-Components Notes
PXE Boot Infrastructure • DHCP Server
• TFTP Server
• Setup independently
• gPXE file from vCenter
• Can use Auto Deploy
Appliance
Auto Deploy Server • Rules Engine
• PowerCLI Snap-in
• Web Server
• Build/Manage Rules
• Match server to Image and
Host Profile
• Deploy server
Image Builder • Image Profiles,
• PowerCLI Snap-in
• Combine ESXi image with
3rd party VIBs to create
custom Image Profiles
vCenter Server • Stores Rules
• Host Profiles
• Answer Files
• Provides store for rules
• Host configs saved in Host
Profiles
• Custom Host settings
saved in Answer Files

73. Oktatás

74. vSphere oktatás - ARROW ECS
vSphere 5: What's New (2 nap)
AKCIÓS jelentkezés év végéig
• Két mérnök akció: hallgató páronként 338.000,. helyett 255.000.- ft
• VCP upgrade : What's New + VCP vizsgakupon 189.000.- ft
A tanfolyam ára: 169.000.-
Időpontok:
• Okt. 3.
• Okt 27.
• Nov 24.
vmware@arrowecs.hu

75. vSphere oktatás - ARROW ECS
VMware vSphere: Install, Manage, Configure [v5] (4 nap)
Listaár: 290.000.-
Ingyenes VCP kupon a Webex résztvevőknek!
Kupon kód: webex
Tanfolyami időpontok:
Okt 17.
Nov 14.
vmware@arrowecs.hu

76. Q/A

77. SRM v5

78. ESXi
Recovery SiteProtected Site
ESXESXESXi
VSR Agent vSphere
Replication
Server
Tightly Integrated With SRM, vCenter and ESX
Site Recovery
Manager
Site Recovery
Manager
vSphere Replication
Management Server
vSphere Replication
Management Server
Any storage
supported by
vSphere
Any storage
supported by
vSphere
vCenter Server vCenter Server

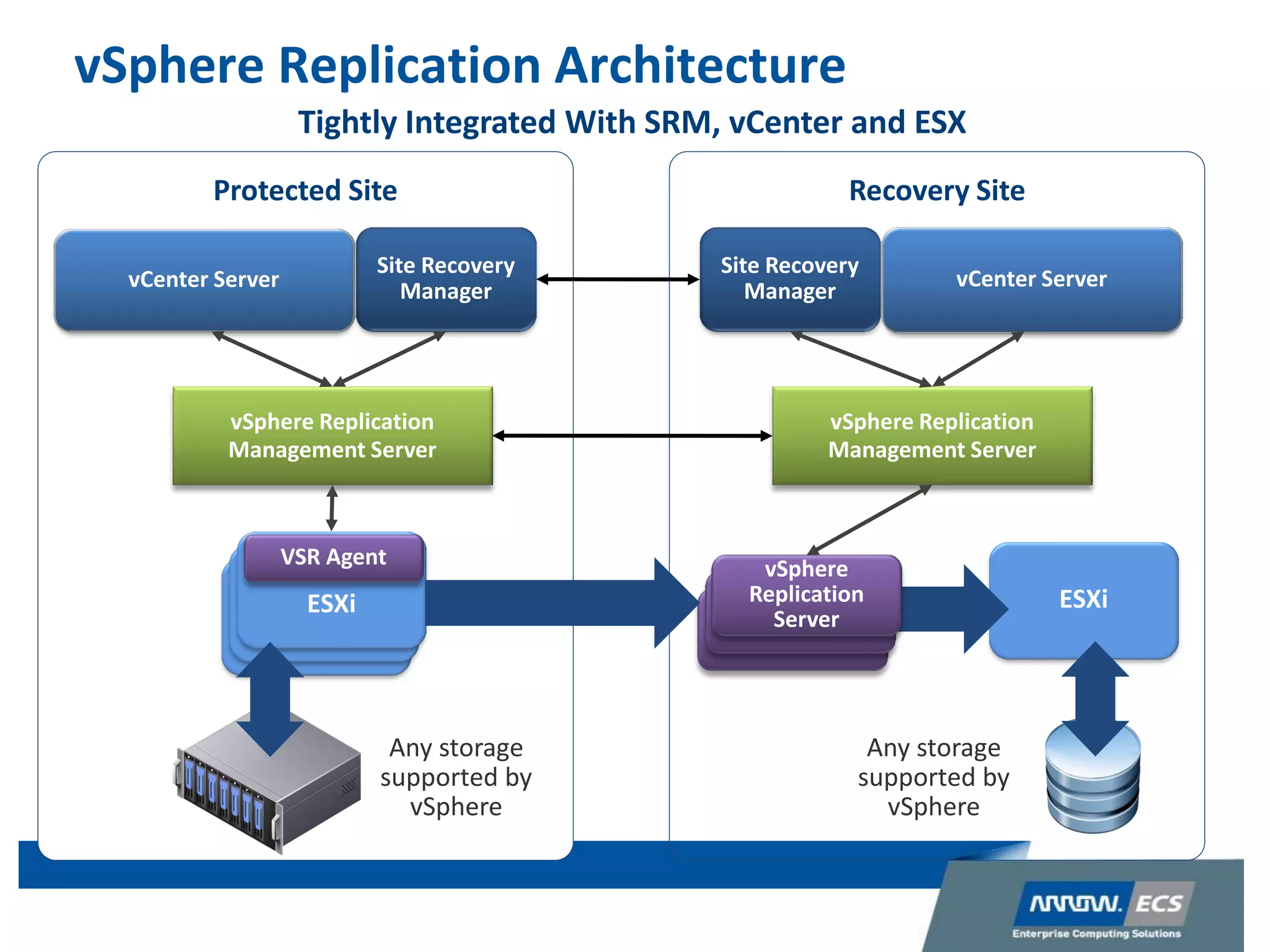

vSphere Replication Architecture

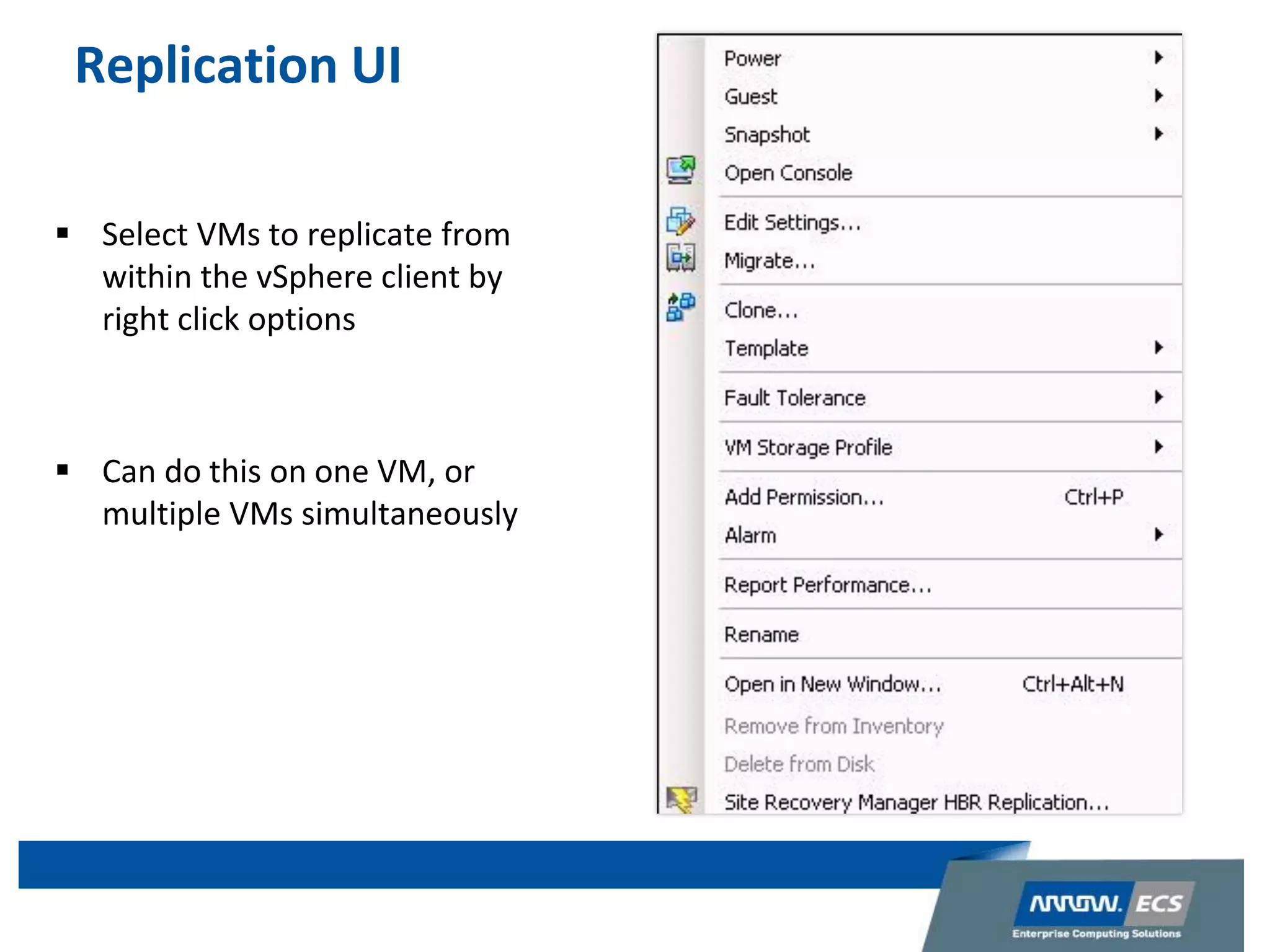

79. Replication UI
 Select VMs to replicate from
within the vSphere client by
right click options
 Can do this on one VM, or
multiple VMs simultaneously

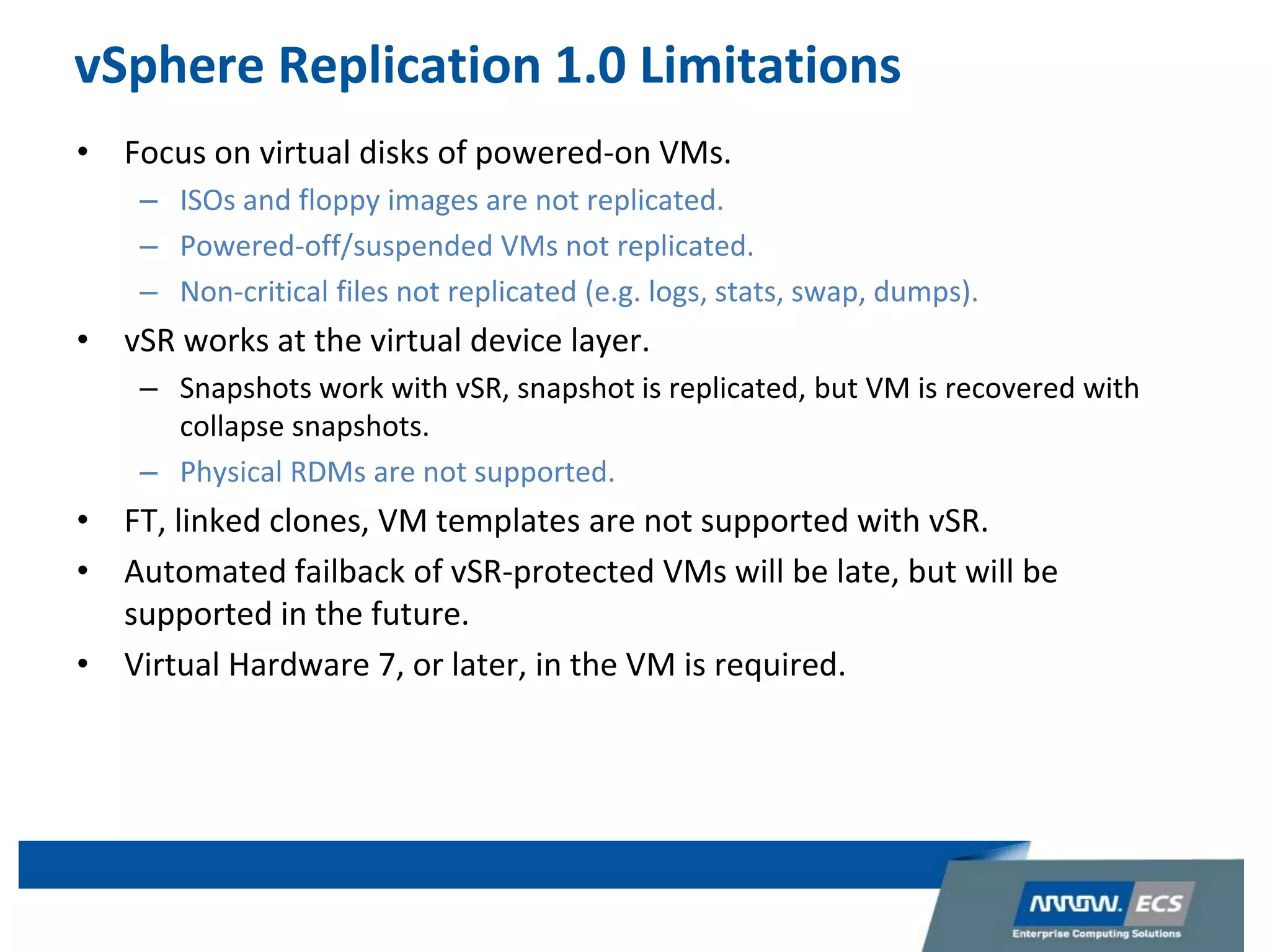

80. vSphere Replication 1.0 Limitations
• Focus on virtual disks of powered-on VMs.
– ISOs and floppy images are not replicated.
– Powered-off/suspended VMs not replicated.
– Non-critical files not replicated (e.g. logs, stats, swap, dumps).
• vSR works at the virtual device layer.
– Snapshots work with vSR, snapshot is replicated, but VM is recovered with
collapse snapshots.
– Physical RDMs are not supported.
• FT, linked clones, VM templates are not supported with vSR.
• Automated failback of vSR-protected VMs will be late, but will be
supported in the future.
• Virtual Hardware 7, or later, in the VM is required.

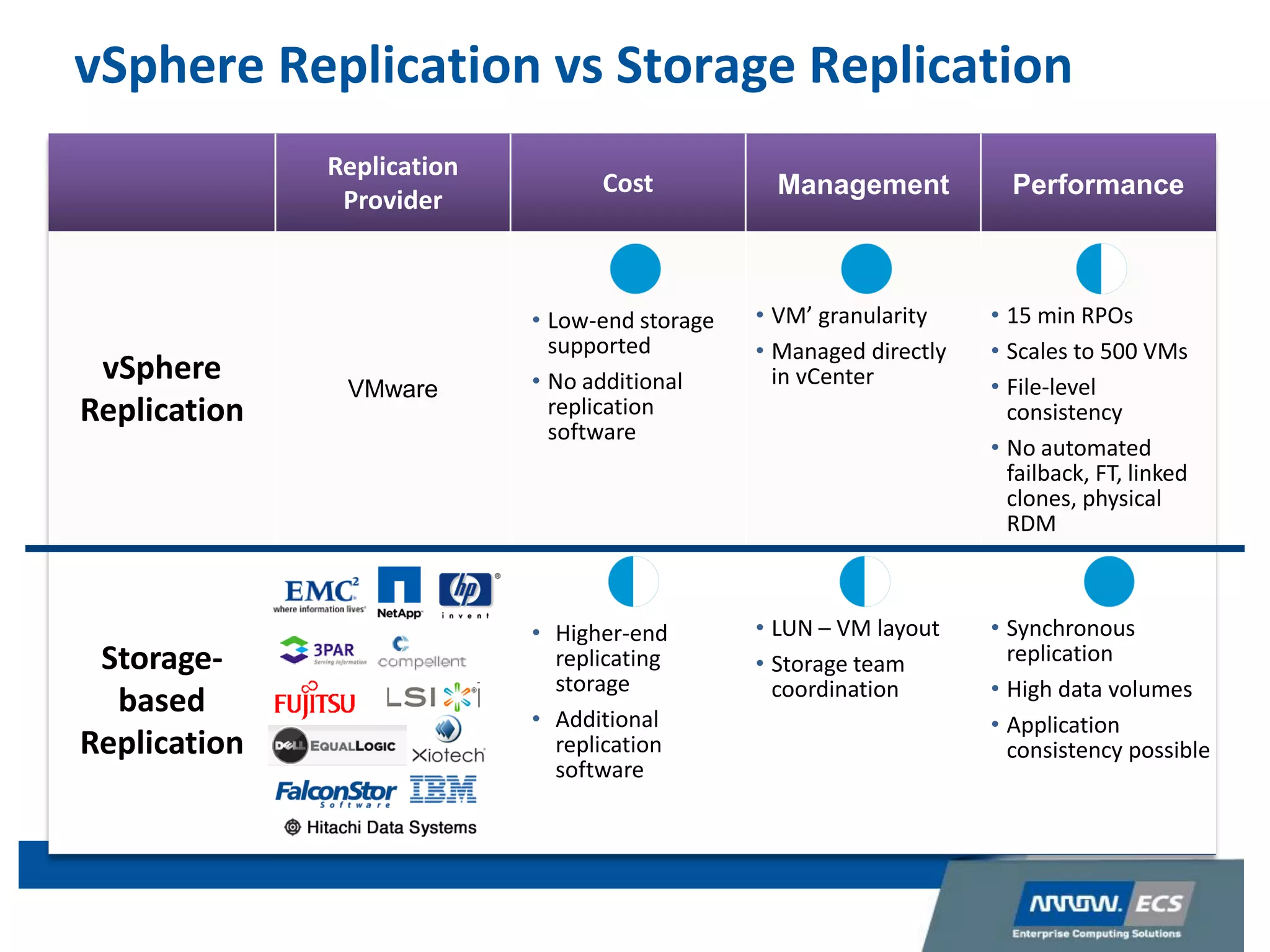

81. vSphere Replication vs Storage Replication
Replication
Provider
Cost Management Performance
vSphere
Replication
VMware
• Low-end storage
supported
• No additional
replication
software
• VM’ granularity
• Managed directly
in vCenter
• 15 min RPOs
• Scales to 500 VMs
• File-level
consistency
• No automated
failback, FT, linked
clones, physical
RDM
Storage-
based
Replication
• Higher-end
replicating
storage
• Additional
replication
software
• LUN – VM layout
• Storage team
coordination
• Synchronous
replication
• High data volumes
• Application
consistency possible

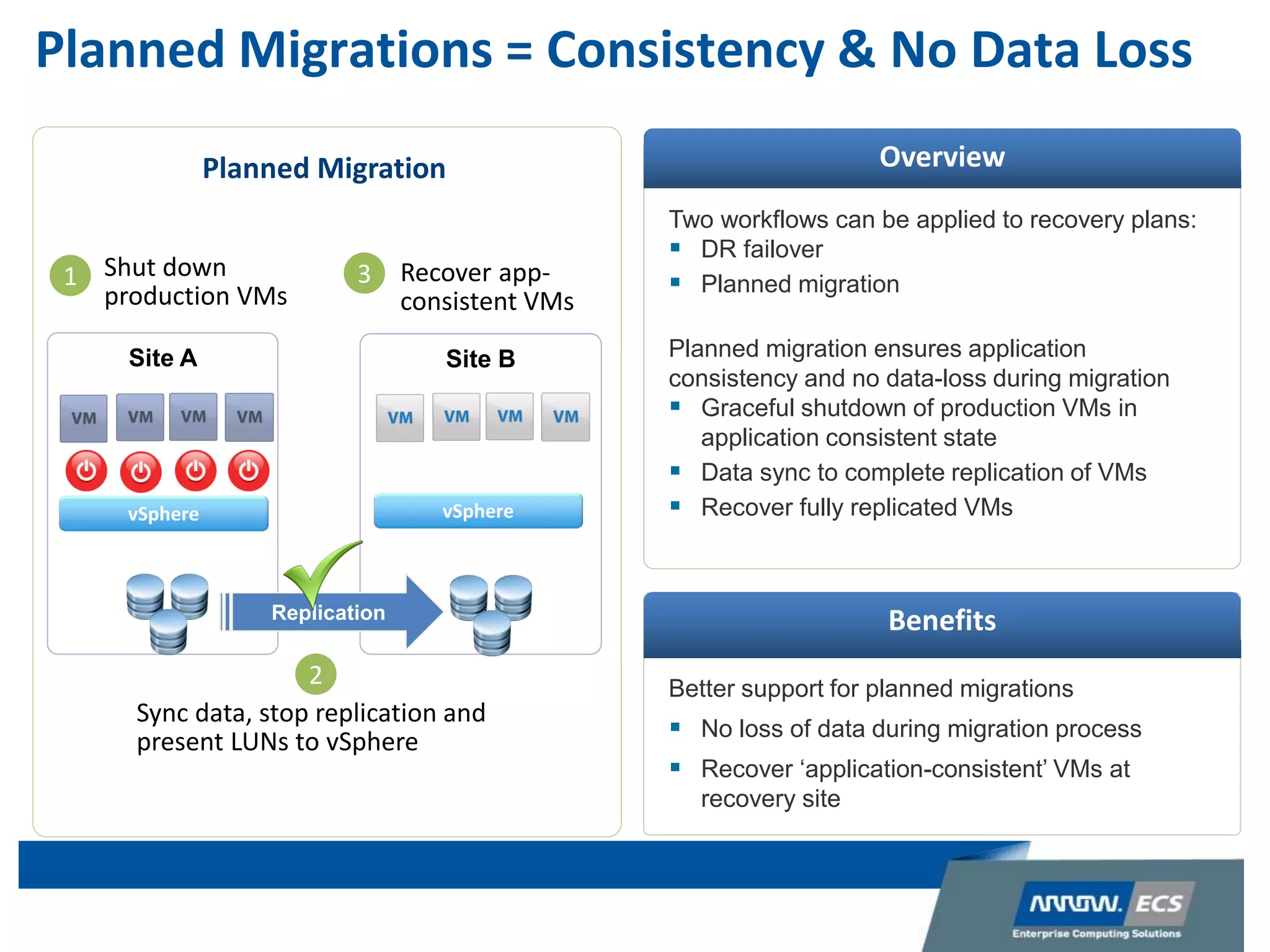

82. Planned Migrations = Consistency & No Data Loss
Overview
Benefits
Two workflows can be applied to recovery plans:
 DR failover
 Planned migration
Planned migration ensures application
consistency and no data-loss during migration
 Graceful shutdown of production VMs in
application consistent state
 Data sync to complete replication of VMs
 Recover fully replicated VMs
Better support for planned migrations
 No loss of data during migration process
 Recover ‘application-consistent’ VMs at
recovery site
Planned Migration
Site BSite A
Replication
1 Shut down
production VMs
2
Sync data, stop replication and
present LUNs to vSphere
3 Recover app-
consistent VMs
vSphere vSphere

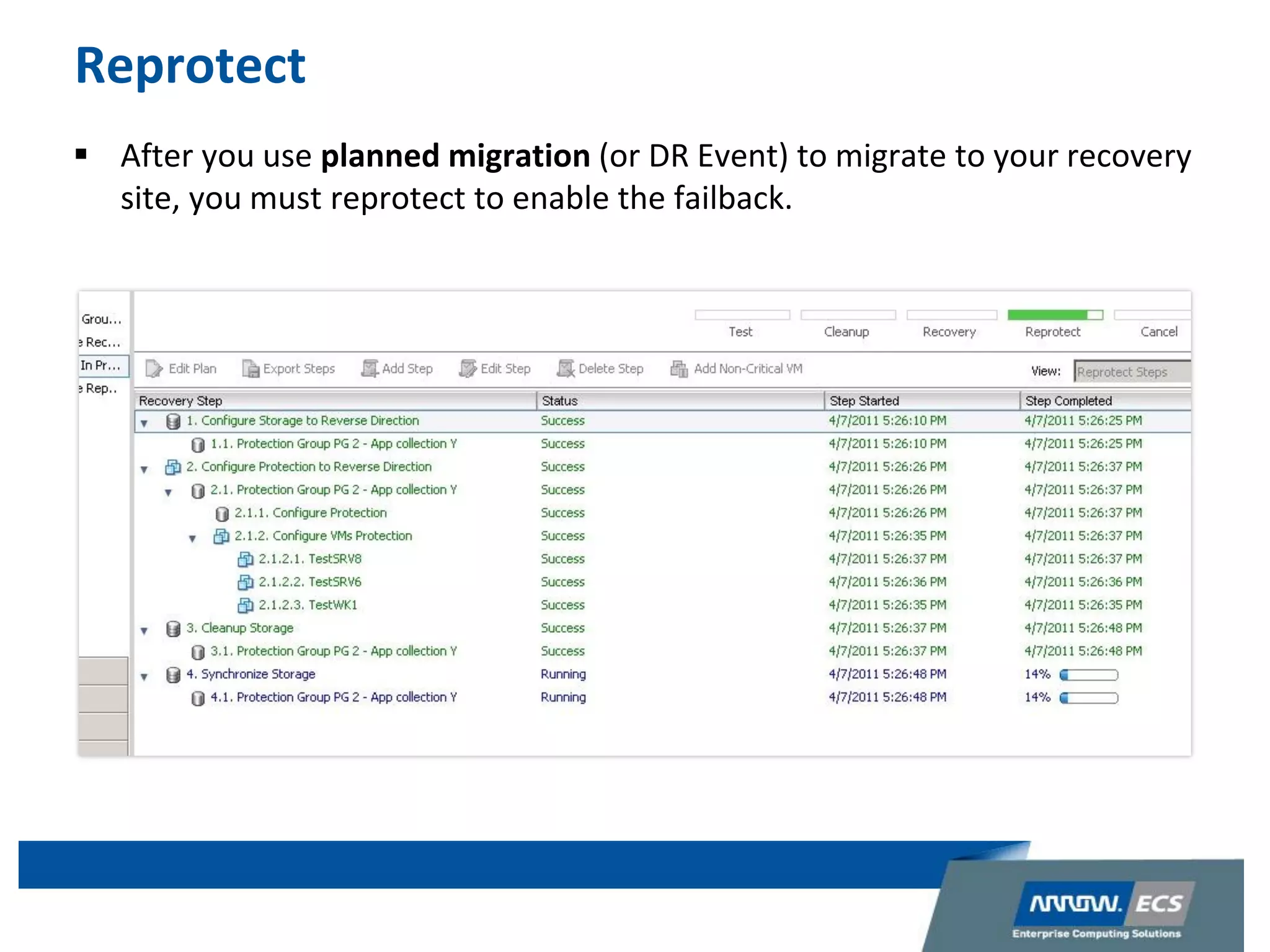

83. Reprotect
 After you use planned migration (or DR Event) to migrate to your recovery
site, you must reprotect to enable the failback.

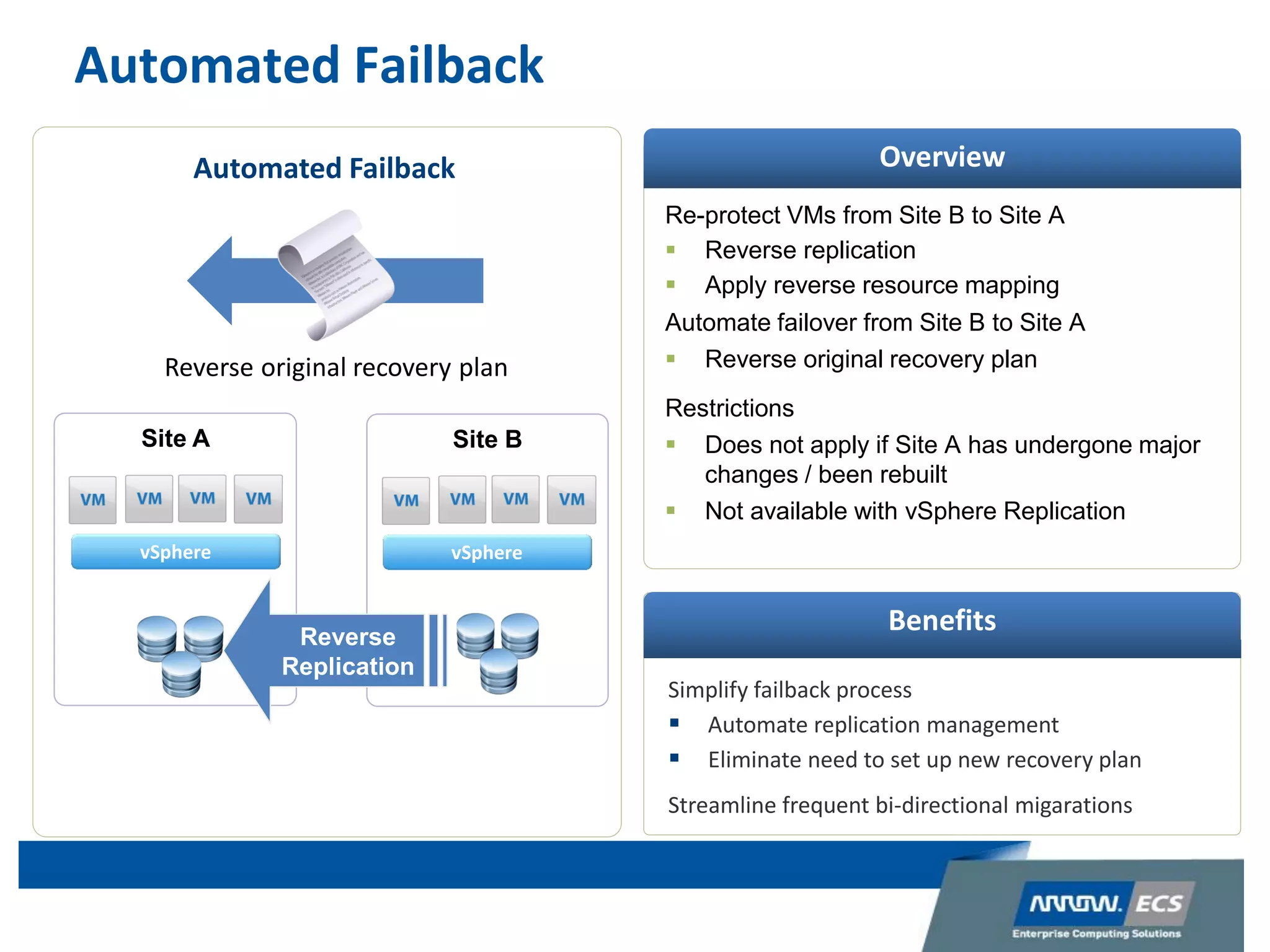

84. Simplify failback process
 Automate replication management
 Eliminate need to set up new recovery plan
Streamline frequent bi-directional migarations
Automated Failback
Re-protect VMs from Site B to Site A
 Reverse replication
 Apply reverse resource mapping
Automate failover from Site B to Site A
 Reverse original recovery plan
Restrictions
 Does not apply if Site A has undergone major
changes / been rebuilt
 Not available with vSphere Replication
Overview
Benefits
Automated Failback
Site BSite A
Reverse
Replication
Reverse original recovery plan
vSphere vSphere

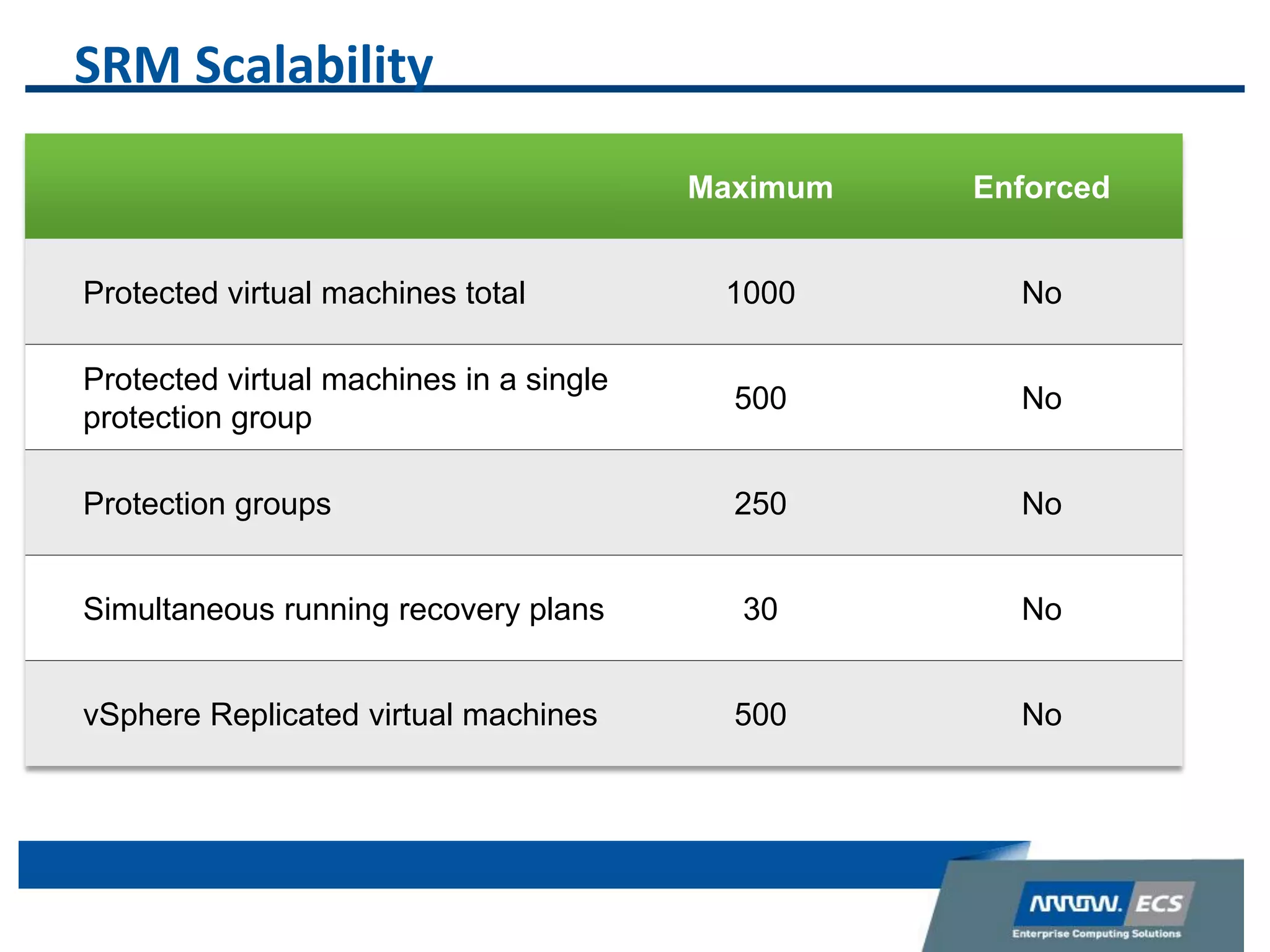

85. SRM Scalability
Maximum Enforced
Protected virtual machines total 1000 No
Protected virtual machines in a single
protection group
500 No
Protection groups 250 No
Simultaneous running recovery plans 30 No
vSphere Replicated virtual machines 500 No

86. Q/A
