1. Problem Reporting and Analysis Linux on System z -
How to survive a Linux Critical Situation
Sven Schuetz
Linux on System z Development and Service
sven@de.ibm.com
1 © 2011 IBM Corporation

2. IBM Live Virtual Class – Linux on System z

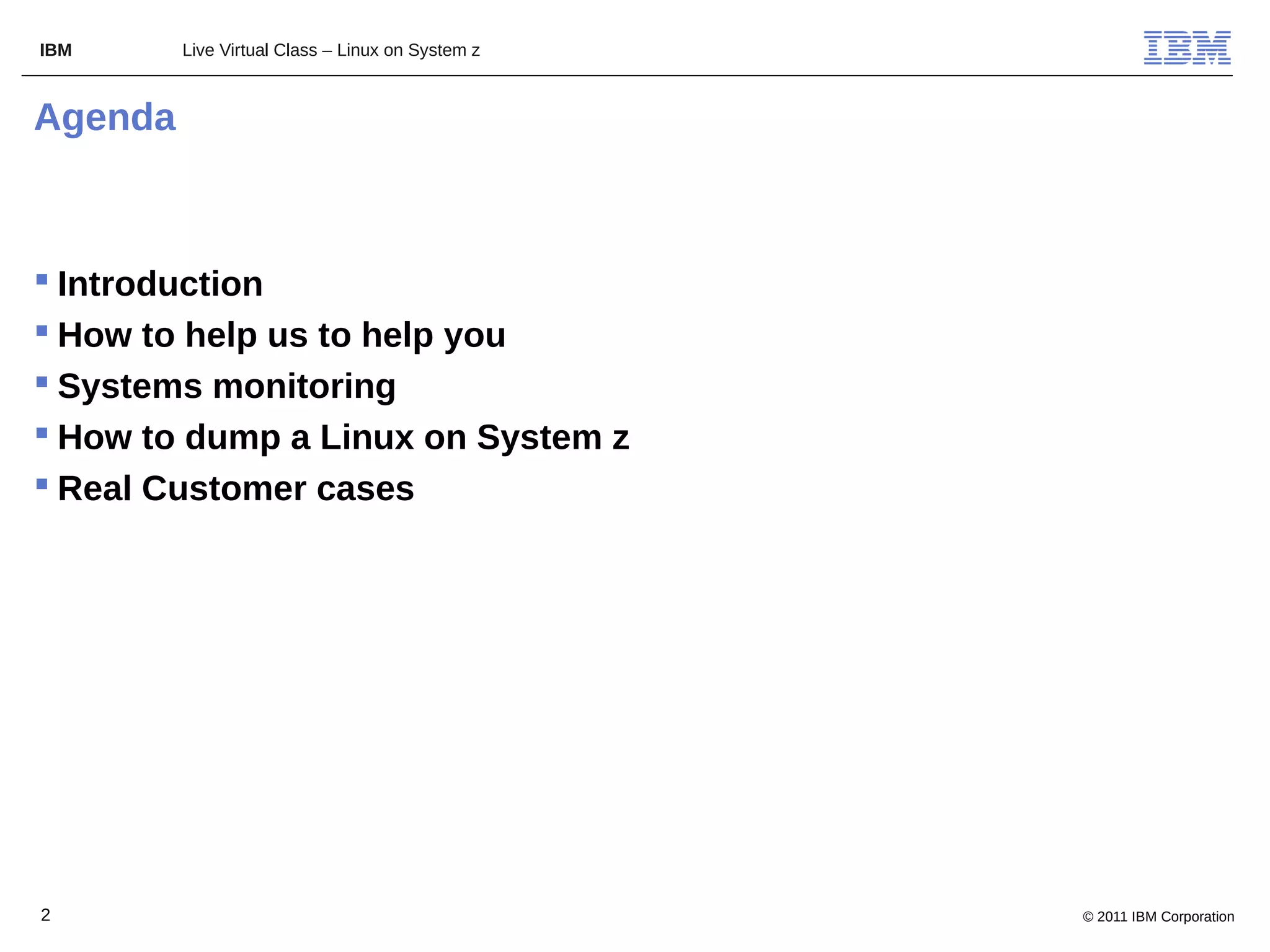

Agenda
 Introduction
 How to help us to help you
 Systems monitoring
 How to dump a Linux on System z
 Real Customer cases
2 © 2011 IBM Corporation

3. IBM Live Virtual Class – Linux on System z

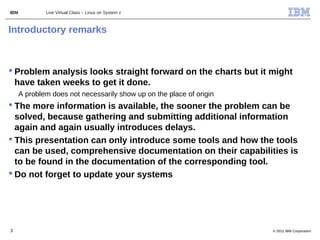

Introductory remarks
 Problem analysis looks straight forward on the charts but it might
have taken weeks to get it done.
A problem does not necessarily show up on the place of origin
 The more information is available, the sooner the problem can be
solved, because gathering and submitting additional information
again and again usually introduces delays.
 This presentation can only introduce some tools and how the tools
can be used, comprehensive documentation on their capabilities is
to be found in the documentation of the corresponding tool.
 Do not forget to update your systems
3 © 2011 IBM Corporation

4. IBM Live Virtual Class – Linux on System z

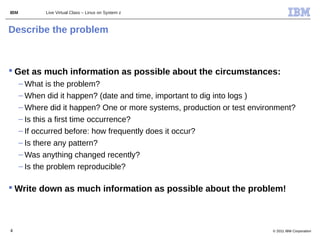

Describe the problem
 Get as much information as possible about the circumstances:
– What is the problem?
– When did it happen? (date and time, important to dig into logs )
– Where did it happen? One or more systems, production or test environment?
– Is this a first time occurrence?
– If occurred before: how frequently does it occur?
– Is there any pattern?
– Was anything changed recently?
– Is the problem reproducible?
 Write down as much information as possible about the problem!
4 © 2011 IBM Corporation

5. IBM Live Virtual Class – Linux on System z

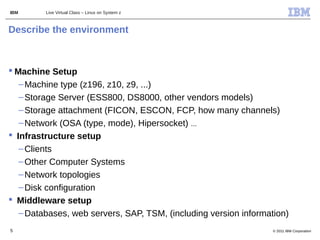

Describe the environment
 Machine Setup
– Machine type (z196, z10, z9, ...)
– Storage Server (ESS800, DS8000, other vendors models)
– Storage attachment (FICON, ESCON, FCP, how many channels)
– Network (OSA (type, mode), Hipersocket) ...
 Infrastructure setup
– Clients
– Other Computer Systems
– Network topologies
– Disk configuration
 Middleware setup
– Databases, web servers, SAP, TSM, (including version information)
5 © 2011 IBM Corporation

6. IBM Live Virtual Class – Linux on System z
Trouble Shooting First-Aid Kit (1/2)
 Install packages required for debugging
– s390-tools/s390-utils
• dbginfo.sh
– sysstat
• sadc/sar
• iostat
– procps
• vmstat, top, ps
– net-tools
• netstat
– dump tools crash / lcrash
• lcrash (lkcdutils) available with SLES9 and SLES10
• crash available on SLES11
• crash in all RHEL distributions
6 © 2011 IBM Corporation

7. IBM Live Virtual Class – Linux on System z

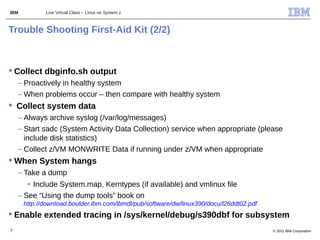

Trouble Shooting First-Aid Kit (2/2)
 Collect dbginfo.sh output
– Proactively in healthy system
– When problems occur – then compare with healthy system
 Collect system data
– Always archive syslog (/var/log/messages)
– Start sadc (System Activity Data Collection) service when appropriate (please
include disk statistics)
– Collect z/VM MONWRITE Data if running under z/VM when appropriate
 When System hangs
– Take a dump
• Include System.map, Kerntypes (if available) and vmlinux file
– See “Using the dump tools” book on
http://download.boulder.ibm.com/ibmdl/pub/software/dw/linux390/docu/l26ddt02.pdf
 Enable extended tracing in /sys/kernel/debug/s390dbf for subsystem
7 © 2011 IBM Corporation

8. IBM Live Virtual Class – Linux on System z
dbginfo Script (1/2)
 dbginfo.sh is a script to collect various system related files, for
debugging purposes. It generates a tar-archive which can be
attached to PMRs / Bugzilla entries
 part of the s390-tools package in SUSE and recent Red Hat
distributions
– dbginfo.sh gets continuously improved by service and development
Can be downloaded at the developerWorks website directly
http://www.ibm.com/developerworks/linux/linux390/s390-tools.html
 It is similar to the RedHat tool sosreport or supportconfig from Novell
root@larsson:~> dbginfo.sh
Create target directory /tmp/DBGINFO-2011-01-15-22-06-
20-t6345057
Change to target directory /tmp/DBGINFO-2011-01-15-22-
06-20-t6345057
8 [...] © 2011 IBM Corporation

9. IBM Live Virtual Class – Linux on System z

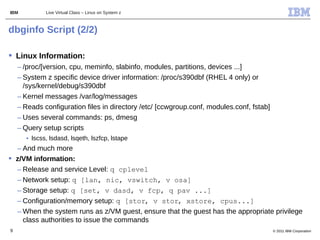

dbginfo Script (2/2)
 Linux Information:
– /proc/[version, cpu, meminfo, slabinfo, modules, partitions, devices ...]
– System z specific device driver information: /proc/s390dbf (RHEL 4 only) or
/sys/kernel/debug/s390dbf
– Kernel messages /var/log/messages
– Reads configuration files in directory /etc/ [ccwgroup.conf, modules.conf, fstab]
– Uses several commands: ps, dmesg
– Query setup scripts
• lscss, lsdasd, lsqeth, lszfcp, lstape
– And much more
 z/VM information:
– Release and service Level: q cplevel
– Network setup: q [lan, nic, vswitch, v osa]
– Storage setup: q [set, v dasd, v fcp, q pav ...]
– Configuration/memory setup: q [stor, v stor, xstore, cpus...]
– When the system runs as z/VM guest, ensure that the guest has the appropriate privilege
class authorities to issue the commands
9 © 2011 IBM Corporation

10. IBM Live Virtual Class – Linux on System z

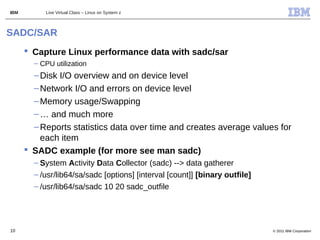

SADC/SAR
 Capture Linux performance data with sadc/sar
– CPU utilization
– Disk I/O overview and on device level
– Network I/O and errors on device level
– Memory usage/Swapping
– … and much more
– Reports statistics data over time and creates average values for
each item
 SADC example (for more see man sadc)
– System Activity Data Collector (sadc) --> data gatherer
– /usr/lib64/sa/sadc [options] [interval [count]] [binary outfile]
– /usr/lib64/sa/sadc 10 20 sadc_outfile
10 © 2011 IBM Corporation

11. IBM Live Virtual Class – Linux on System z

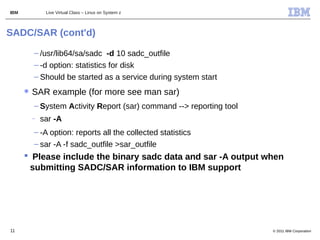

SADC/SAR (cont'd)
– /usr/lib64/sa/sadc -d 10 sadc_outfile
– -d option: statistics for disk
– Should be started as a service during system start
✱ SAR example (for more see man sar)
– System Activity Report (sar) command --> reporting tool
– sar -A
– -A option: reports all the collected statistics
– sar -A -f sadc_outfile >sar_outfile
 Please include the binary sadc data and sar -A output when
submitting SADC/SAR information to IBM support
11 © 2011 IBM Corporation

12. IBM Live Virtual Class – Linux on System z

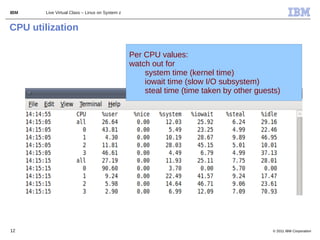

CPU utilization
Per CPU values:
watch out for
system time (kernel time)
iowait time (slow I/O subsystem)
steal time (time taken by other guests)
12 © 2011 IBM Corporation

13. IBM Live Virtual Class – Linux on System z

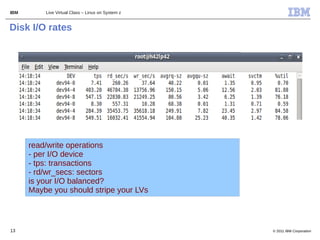

Disk I/O rates
read/write operations
- per I/O device
- tps: transactions
- rd/wr_secs: sectors
is your I/O balanced?
Maybe you should stripe your LVs
13 © 2011 IBM Corporation

14. IBM Live Virtual Class – Linux on System z
Linux on System z dump tools
 DASD dump tool
– Writes dump directly on DASD partition
– Uses s390 standalone dump format
– ECKD and FBA DASDs supported
– Single volume and multiple volume (for large systems) dump possible
– Works in z/VM and in LPAR
 SCSI dump tool
– Writes dump into filesystem
– Uses lckd dump format
– Works in z/VM and in LPAR
 VMDUMP
– Writes dump to vm spool space (VM reader)
– z/VM specific dump format, dump must be converted
– Only available when running under z/VM
 Tape dump tool
– Writes dump directly on ESCON/FICON Tape device
14
– Uses s390 standalone dump format © 2011 IBM Corporation

15. IBM Live Virtual Class – Linux on System z

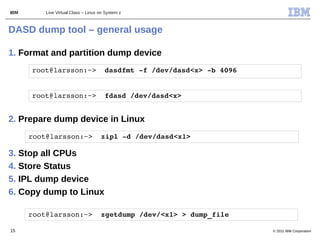

DASD dump tool – general usage
1. Format and partition dump device
root@larsson:~> dasdfmt ­f /dev/dasd<x> ­b 4096
root@larsson:~> fdasd /dev/dasd<x>
2. Prepare dump device in Linux
root@larsson:~> zipl ­d /dev/dasd<x1>
3. Stop all CPUs
4. Store Status
5. IPL dump device
6. Copy dump to Linux
root@larsson:~> zgetdump /dev/<x1> > dump_file
15 © 2011 IBM Corporation

16. IBM Live Virtual Class – Linux on System z

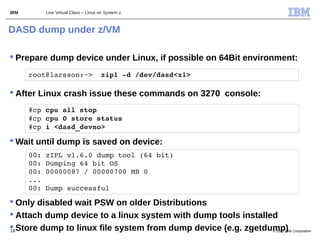

DASD dump under z/VM
 Prepare dump device under Linux, if possible on 64Bit environment:
root@larsson:~> zipl ­d /dev/dasd<x1>
 After Linux crash issue these commands on 3270 console:
#cp cpu all stop
#cp cpu 0 store status
#cp i <dasd_devno>
 Wait until dump is saved on device:
00: zIPL v1.6.0 dump tool (64 bit)
00: Dumping 64 bit OS
00: 00000087 / 00000700 MB 0
...
00: Dump successful
 Only disabled wait PSW on older Distributions
 Attach dump device to a linux system with dump tools installed
 Store dump to linux file system from dump device (e.g. zgetdump) Corporation
16 © 2011 IBM

17. IBM Live Virtual Class – Linux on System z

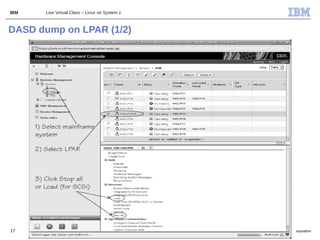

DASD dump on LPAR (1/2)
17 © 2011 IBM Corporation

18. IBM Live Virtual Class – Linux on System z

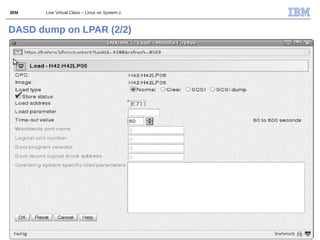

DASD dump on LPAR (2/2)
18 © 2011 IBM Corporation

19. IBM Live Virtual Class – Linux on System z

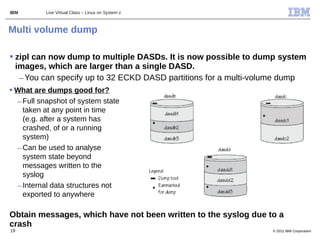

Multi volume dump
 zipl can now dump to multiple DASDs. It is now possible to dump system
images, which are larger than a single DASD.
– You can specify up to 32 ECKD DASD partitions for a multi-volume dump
 What are dumps good for?
– Full snapshot of system state
taken at any point in time
(e.g. after a system has
crashed, of or a running
system)
– Can be used to analyse
system state beyond
messages written to the
syslog
– Internal data structures not
exported to anywhere
Obtain messages, which have not been written to the syslog due to a
crash
19 © 2011 IBM Corporation

20. IBM Live Virtual Class – Linux on System z

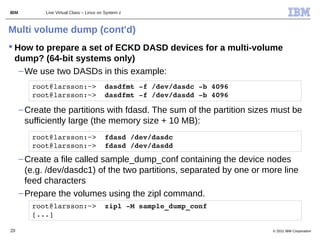

Multi volume dump (cont'd)
 How to prepare a set of ECKD DASD devices for a multi-volume
dump? (64-bit systems only)
– We use two DASDs in this example:
root@larsson:~> dasdfmt ­f /dev/dasdc ­b 4096
root@larsson:~> dasdfmt ­f /dev/dasdd ­b 4096
– Create the partitions with fdasd. The sum of the partition sizes must be
sufficiently large (the memory size + 10 MB):
root@larsson:~> fdasd /dev/dasdc
root@larsson:~> fdasd /dev/dasdd
– Create a file called sample_dump_conf containing the device nodes
(e.g. /dev/dasdc1) of the two partitions, separated by one or more line
feed characters
– Prepare the volumes using the zipl command.
root@larsson:~> zipl ­M sample_dump_conf
[...]
20 © 2011 IBM Corporation

21. IBM Live Virtual Class – Linux on System z

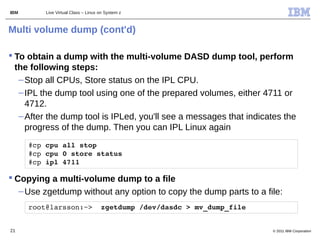

Multi volume dump (cont'd)
 To obtain a dump with the multi-volume DASD dump tool, perform
the following steps:
– Stop all CPUs, Store status on the IPL CPU.
– IPL the dump tool using one of the prepared volumes, either 4711 or
4712.
– After the dump tool is IPLed, you'll see a messages that indicates the
progress of the dump. Then you can IPL Linux again
#cp cpu all stop
#cp cpu 0 store status
#cp ipl 4711
 Copying a multi-volume dump to a file
– Use zgetdump without any option to copy the dump parts to a file:
root@larsson:~> zgetdump /dev/dasdc > mv_dump_file
21 © 2011 IBM Corporation

22. IBM Live Virtual Class – Linux on System z

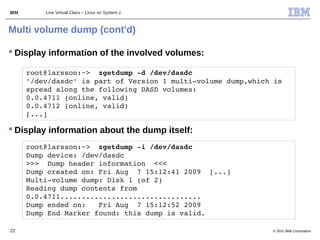

Multi volume dump (cont'd)
 Display information of the involved volumes:
root@larsson:~> zgetdump ­d /dev/dasdc
'/dev/dasdc' is part of Version 1 multi­volume dump,which is
spread along the following DASD volumes:
0.0.4711 (online, valid)
0.0.4712 (online, valid)
[...]
 Display information about the dump itself:
root@larsson:~> zgetdump ­i /dev/dasdc
Dump device: /dev/dasdc
>>> Dump header information <<<
Dump created on: Fri Aug 7 15:12:41 2009 [...]
Multi­volume dump: Disk 1 (of 2)
Reading dump contents from
0.0.4711.................................
Dump ended on: Fri Aug 7 15:12:52 2009
Dump End Marker found: this dump is valid.
22 © 2011 IBM Corporation

23. IBM Live Virtual Class – Linux on System z

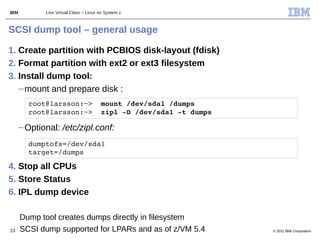

SCSI dump tool – general usage
1. Create partition with PCBIOS disk-layout (fdisk)
2. Format partition with ext2 or ext3 filesystem
3. Install dump tool:
– mount and prepare disk :
root@larsson:~> mount /dev/sda1 /dumps
root@larsson:~> zipl ­D /dev/sda1 ­t dumps
– Optional: /etc/zipl.conf:
dumptofs=/dev/sda1
target=/dumps
4. Stop all CPUs
5. Store Status
6. IPL dump device
Dump tool creates dumps directly in filesystem
23 SCSI dump supported for LPARs and as of z/VM 5.4 © 2011 IBM Corporation

24. IBM Live Virtual Class – Linux on System z
SCSI dump under z/VM
 SCSI dump from z/VM is supported as of z/VM 5.4
 Issue SCSI dump
#cp cpu all stop
#cp cpu 0 store status
#cp set dumpdev portname 47120763 00ce93a7 lun 47120000
00000000 bootprog 0
#cp ipl 4b49 dump
 To access the dump, mount the dump partition
24 © 2011 IBM Corporation

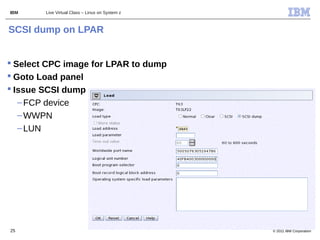

25. IBM Live Virtual Class – Linux on System z
SCSI dump on LPAR
 Select CPC image for LPAR to dump
 Goto Load panel
 Issue SCSI dump
– FCP device
– WWPN
– LUN
25 © 2011 IBM Corporation

26. IBM Live Virtual Class – Linux on System z
VMDUMP
 The only method to dump NSSes or DCSSes under z/VM
 Works nondisruptive
 Create dump:
#cp vmdump to cmsguest
 Receive dump:
– Store the dump from the reader into CMS dump file:
#cp dumpload
– Transfer the dump to linux from CMS e.g. FTP
– NEW: vmur device driver:
root@larsson:~> vmur rec <spoolid> vmdump
 Linux tool to convert vmdump to lkcd format:
root@larsson:~> vmconvert vmdump linux.dump
 Problem: Dump process relatively slow
26 © 2011 IBM Corporation

27. IBM Live Virtual Class – Linux on System z

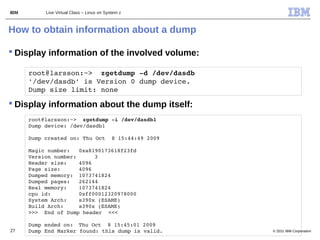

How to obtain information about a dump
 Display information of the involved volume:
root@larsson:~> zgetdump ­d /dev/dasdb
'/dev/dasdb' is Version 0 dump device.
Dump size limit: none
 Display information about the dump itself:
root@larsson:~> zgetdump ­i /dev/dasdb1
Dump device: /dev/dasdb1
Dump created on: Thu Oct 8 15:44:49 2009
Magic number: 0xa8190173618f23fd
Version number: 3
Header size: 4096
Page size: 4096
Dumped memory: 1073741824
Dumped pages: 262144
Real memory: 1073741824
cpu id: 0xff00012320978000
System Arch: s390x (ESAME)
Build Arch: s390x (ESAME)
>>> End of Dump header <<<
Dump ended on: Thu Oct 8 15:45:01 2009
27 Dump End Marker found: this dump is valid. © 2011 IBM Corporation

28. IBM Live Virtual Class – Linux on System z

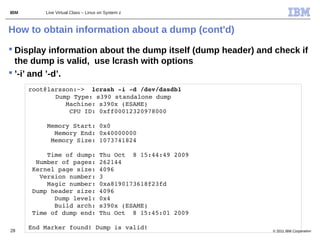

How to obtain information about a dump (cont'd)
 Display information about the dump itself (dump header) and check if
the dump is valid, use lcrash with options
 ’-i’ and ’-d’.
root@larsson:~> lcrash ­i ­d /dev/dasdb1
Dump Type: s390 standalone dump
Machine: s390x (ESAME)
CPU ID: 0xff00012320978000
Memory Start: 0x0
Memory End: 0x40000000
Memory Size: 1073741824
Time of dump: Thu Oct 8 15:44:49 2009
Number of pages: 262144
Kernel page size: 4096
Version number: 3
Magic number: 0xa8190173618f23fd
Dump header size: 4096
Dump level: 0x4
Build arch: s390x (ESAME)
Time of dump end: Thu Oct 8 15:45:01 2009
28
End Marker found! Dump is valid! © 2011 IBM Corporation

29. IBM Live Virtual Class – Linux on System z
Automatic dump on panic (SLES 10/11, RHEL 5/6): dumpconf
 The dumpconf tool configures a dump device that is used for automatic
dump in case of a kernel panic.
– The command can be installed as service script under /etc/init.d/dumpconf
or can be called manually.
– Start service: # service dumpconf start
– It reads the configuration file /etc/sysconfig/dumpconf.
– Example configuration for CCW dump device (DASD) and reipl after dump:
ON_PANIC=dump_reipl
DUMP_TYPE=ccw
DEVICE=0.0.4711
29 © 2011 IBM Corporation

30. IBM Live Virtual Class – Linux on System z

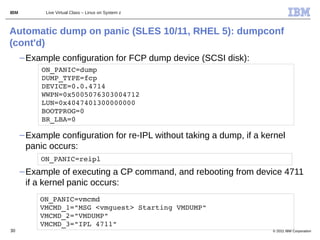

Automatic dump on panic (SLES 10/11, RHEL 5): dumpconf
(cont'd)
– Example configuration for FCP dump device (SCSI disk):
ON_PANIC=dump
DUMP_TYPE=fcp
DEVICE=0.0.4714
WWPN=0x5005076303004712
LUN=0x4047401300000000
BOOTPROG=0
BR_LBA=0
– Example configuration for re-IPL without taking a dump, if a kernel
panic occurs:
ON_PANIC=reipl
– Example of executing a CP command, and rebooting from device 4711
if a kernel panic occurs:
ON_PANIC=vmcmd
VMCMD_1="MSG <vmguest> Starting VMDUMP"
VMCMD_2="VMDUMP"
VMCMD_3="IPL 4711"
30 © 2011 IBM Corporation

31. IBM Live Virtual Class – Linux on System z
Get dump and send it to service organization
 DASD/Tape:
– Store dump to Linux file system from dump device:
root@larsson:~> zgetdump /dev/<device node> > dump_file
– Alternative: lcrash (Compression possible)
root@larsson:~> lcrash ­d /dev/dasdxx ­s <dir>
 SCSI:
– Get dump from filesystem
 Additional files needed for dump analysis:
– SUSE (lcrash tool): /boot/System.map-xxx and /boot/Kerntypes-xxx
– Redhat & SUSE (crash tool): vmlinux file (kernel with debug info) contained in
debug kernel rpms:
• RedHat: kernel-debuginfo-xxx.rpm and kernel-debuginfo-common-xxx.rpm
• SUSE: kernel-default-debuginfo-xxx.rpm
31 © 2011 IBM Corporation

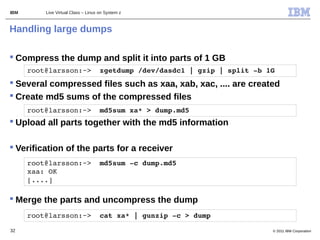

32. IBM Live Virtual Class – Linux on System z
Handling large dumps
 Compress the dump and split it into parts of 1 GB
root@larsson:~> zgetdump /dev/dasdc1 | gzip | split ­b 1G
 Several compressed files such as xaa, xab, xac, .... are created
 Create md5 sums of the compressed files
root@larsson:~> md5sum xa* > dump.md5
 Upload all parts together with the md5 information
 Verification of the parts for a receiver
root@larsson:~> md5sum ­c dump.md5
xaa: OK
[....]
 Merge the parts and uncompress the dump
root@larsson:~> cat xa* | gunzip ­c > dump
32 © 2011 IBM Corporation

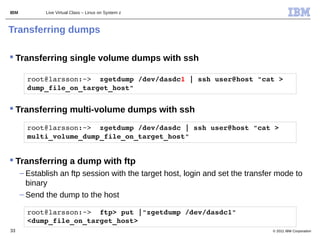

33. IBM Live Virtual Class – Linux on System z
Transferring dumps
 Transferring single volume dumps with ssh
root@larsson:~> zgetdump /dev/dasdc1 | ssh user@host "cat >
dump_file_on_target_host"
 Transferring multi-volume dumps with ssh
root@larsson:~> zgetdump /dev/dasdc | ssh user@host "cat >
multi_volume_dump_file_on_target_host"
 Transferring a dump with ftp
– Establish an ftp session with the target host, login and set the transfer mode to
binary
– Send the dump to the host
root@larsson:~> ftp> put |"zgetdump /dev/dasdc1"
<dump_file_on_target_host>
33 © 2011 IBM Corporation

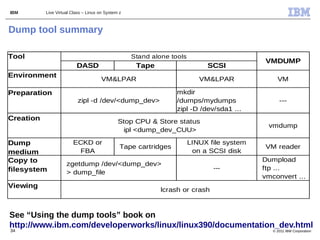

34. IBM Live Virtual Class – Linux on System z
Dump tool summary
Tool Stand alone tools
VMDUMP
DASD Tape SCSI
Environment
VM&LPAR VM&LPAR VM
Preparation mkdir
zipl -d /dev/<dump_dev> /dumps/mydumps ---
zipl -D /dev/sda1 ...
Creation Stop CPU & Store status
vmdump
ipl <dump_dev_CUU>
Dump ECKD or LINUX file system
Tape cartridges VM reader
medium FBA on a SCSI disk
Copy to Dumpload
zgetdump /dev/<dump_dev>
filesystem --- ftp ...
> dump_file
vmconvert ...
Viewing
lcrash or crash
See “Using the dump tools” book on
http://www.ibm.com/developerworks/linux/linux390/documentation_dev.html
34 © 2011 IBM Corporation

35. IBM Live Virtual Class – Linux on System z

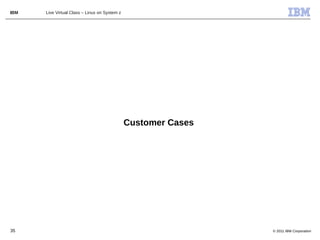

Customer Cases
35 © 2011 IBM Corporation

36. IBM Live Virtual Class – Linux on System z

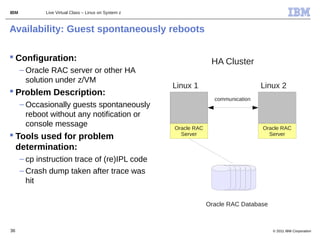

Availability: Guest spontaneously reboots
 Configuration: HA Cluster
– Oracle RAC server or other HA
solution under z/VM
Linux 1 Linux 2
 Problem Description:
communication
– Occasionally guests spontaneously
reboot without any notification or
console message Oracle RAC Oracle RAC
 Tools used for problem Server Server
determination:
– cp instruction trace of (re)IPL code
– Crash dump taken after trace was
hit
Oracle RAC Database
36 © 2011 IBM Corporation

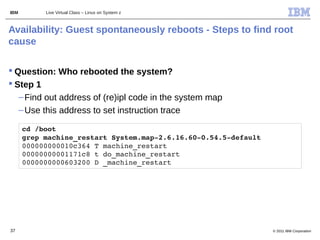

37. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots - Steps to find root
cause
 Question: Who rebooted the system?
 Step 1
– Find out address of (re)ipl code in the system map
– Use this address to set instruction trace
cd /boot
grep machine_restart System.map­2.6.16.60­0.54.5­default
000000000010c364 T machine_restart
00000000001171c8 t do_machine_restart
0000000000603200 D _machine_restart
37 © 2011 IBM Corporation

38. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots - Steps to find root
cause (cont'd)
 Step 2
– Set CP instruction trace on the reboot address
– System is halted at that address, when a reboot is triggered
CP CPU ALL TR IN R 10C364.4
HCPTRI1027I An active trace set has turned RUN off
CP Q TR
NAME INITIAL (ACTIVE)
1 INSTR PSWA 0010C364­0010C367
TERM NOPRINT NORUN SIM
SKIP 00000 PASS 00000 STOP 00000 STEP 00000
CMD NONE
­> 000000000010C364' STMF EBCFF0780024 >> 000000003A557D48
CC 2
38 © 2011 IBM Corporation

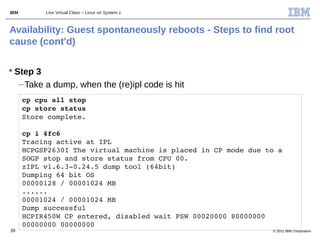

39. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots - Steps to find root
cause (cont'd)
 Step 3
– Take a dump, when the (re)ipl code is hit
cp cpu all stop
cp store status
Store complete.
cp i 4fc6
Tracing active at IPL
HCPGSP2630I The virtual machine is placed in CP mode due to a
SOGP stop and store status from CPU 00.
zIPL v1.6.3­0.24.5 dump tool (64bit)
Dumping 64 bit OS
00000128 / 00001024 MB
......
00001024 / 00001024 MB
Dump successful
HCPIR450W CP entered, disabled wait PSW 00020000 80000000
00000000 00000000
39 © 2011 IBM Corporation

40. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots - Steps to find root
cause (cont'd)
 Step 4
– Save dump in a file
zgetdump /dev/dasdb1 > dump_file
Dump device: /dev/dasdb1
>>> Dump header information <<<
Dump created on: Wed Oct 27 12:00:40 2010
Magic number: 0xa8190173618f23fd
Version number: 4
Header size: 4096
Page size: 4096
Dumped memory: 1073741824
Dumped pages: 262144
Real memory: 1073741824
cpu id: 0xff00012320948000
System Arch: s390x (ESAME)
Build Arch: s390x (ESAME)
>>> End of Dump header <<<
Reading dump content ................................
Dump ended on: Wed Oct 27 12:00:52 2010
40 © 2011 IBM Corporation
Dump End Marker found: this dump is valid.

41. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots - Steps to find root
cause (cont'd)
 Step 5
– Use (l)crash, to find out, which process has triggered the reboot
STACK:
0 start_kernel+950 [0x6a690e]
1 _stext+32 [0x100020]
================================================================
TASK HAS CPU (1): 0x3f720650 (oprocd.bin):
LOWCORE INFO:
­psw : 0x0704200180000000 0x000000000010c36a
­function : machine_restart+6
­prefix : 0x3f438000
­cpu timer: 0x7fffffff 0xff9e6c00
­clock cmp: 0x00c6ca69 0x22337760
­general registers:
<snip> /var/opt/oracle/product/crs/bin/oprocd.bin
STACK:
0 __handle_sysrq+248 [0x361240]
1 write_sysrq_trigger+98 [0x2be796]
2 sys_write+392 [0x225a68]
41 3 sysc_noemu+16 [0x1179a8] © 2011 IBM Corporation

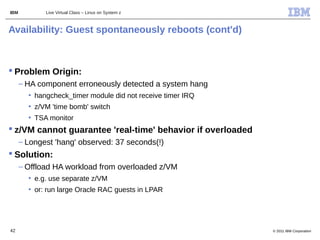

42. IBM Live Virtual Class – Linux on System z
Availability: Guest spontaneously reboots (cont'd)
 Problem Origin:
– HA component erroneously detected a system hang
• hangcheck_timer module did not receive timer IRQ
• z/VM 'time bomb' switch
• TSA monitor
 z/VM cannot guarantee 'real-time' behavior if overloaded
– Longest 'hang' observed: 37 seconds(!)
 Solution:
– Offload HA workload from overloaded z/VM
• e.g. use separate z/VM
• or: run large Oracle RAC guests in LPAR
42 © 2011 IBM Corporation

43. IBM Live Virtual Class – Linux on System z

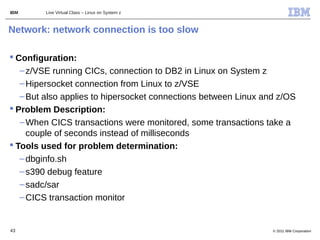

Network: network connection is too slow
 Configuration:
– z/VSE running CICs, connection to DB2 in Linux on System z
– Hipersocket connection from Linux to z/VSE
– But also applies to hipersocket connections between Linux and z/OS
 Problem Description:
– When CICS transactions were monitored, some transactions take a
couple of seconds instead of milliseconds
 Tools used for problem determination:
– dbginfo.sh
– s390 debug feature
– sadc/sar
– CICS transaction monitor
43 © 2011 IBM Corporation

44. IBM Live Virtual Class – Linux on System z
Network: network connection is too slow (cont'd)
 s390 debug feature
– Check for qeth errors:
cat /sys/kernel/debug/s390dbf/qeth_qerr
00 01282632346:099575 2 ­ 00 0000000180b20218 71 6f 75 74 65 72 72 00 | qouterr.
00 01282632346:099575 2 ­ 00 0000000180b20298 20 46 31 35 3d 31 30 00 | F15=10.
00 01282632346:099576 2 ­ 00 0000000180b20318 20 46 31 34 3d 30 30 00 | F14=00.
00 01282632346:099576 2 ­ 00 0000000180b20390 20 71 65 72 72 3d 41 46 | qerr=AF
00 01282632346:099576 2 ­ 00 0000000180b20408 20 73 65 72 72 3d 32 00 | serr=2.
 dbginfo file
– Check for buffer count:
cat /sys/devices/qeth/0.0.1e00/buffer_count
16
 Problem Origin:
– Too few inbound buffers
44 © 2011 IBM Corporation

45. IBM Live Virtual Class – Linux on System z

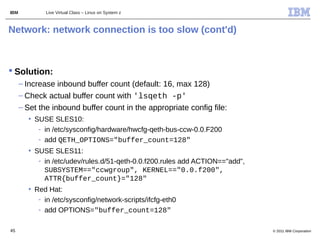

Network: network connection is too slow (cont'd)
 Solution:
– Increase inbound buffer count (default: 16, max 128)
– Check actual buffer count with 'lsqeth -p'
– Set the inbound buffer count in the appropriate config file:
• SUSE SLES10:
- in /etc/sysconfig/hardware/hwcfg-qeth-bus-ccw-0.0.F200
- add QETH_OPTIONS="buffer_count=128"
• SUSE SLES11:
- in /etc/udev/rules.d/51-qeth-0.0.f200.rules add ACTION=="add",
SUBSYSTEM=="ccwgroup", KERNEL=="0.0.f200",
ATTR{buffer_count}="128"
• Red Hat:
- in /etc/sysconfig/network-scripts/ifcfg-eth0
- add OPTIONS="buffer_count=128"
45 © 2011 IBM Corporation

46. IBM Live Virtual Class – Linux on System z

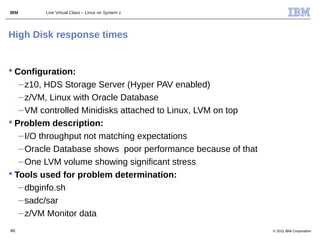

High Disk response times
 Configuration:
– z10, HDS Storage Server (Hyper PAV enabled)
– z/VM, Linux with Oracle Database
– VM controlled Minidisks attached to Linux, LVM on top
 Problem description:
– I/O throughput not matching expectations
– Oracle Database shows poor performance because of that
– One LVM volume showing significant stress
 Tools used for problem determination:
– dbginfo.sh
– sadc/sar
– z/VM Monitor data
46 © 2011 IBM Corporation

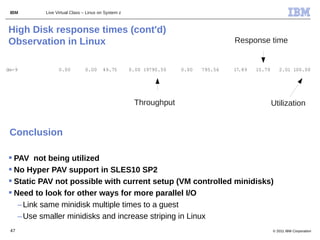

47. IBM Live Virtual Class – Linux on System z
High Disk response times (cont'd)
Observation in Linux Response time
dm-9 0.00 0.00 49.75 0.00 19790.50 0.00 795.56 17.89 15.79 2.01 100.00
Throughput Utilization
Conclusion
 PAV not being utilized
 No Hyper PAV support in SLES10 SP2
 Static PAV not possible with current setup (VM controlled minidisks)
 Need to look for other ways for more parallel I/O
– Link same minidisk multiple times to a guest
– Use smaller minidisks and increase striping in Linux
47 © 2011 IBM Corporation

48. IBM Live Virtual Class – Linux on System z
High Disk response times (cont'd)

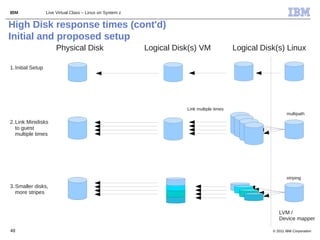

Initial and proposed setup
Physical Disk Logical Disk(s) VM Logical Disk(s) Linux
1. Initial Setup
Link multiple times
multipath
2. Link Minidisks
to guest
multiple times
striping
3. Smaller disks,
more stripes
LVM /
Device mapper
48 © 2011 IBM Corporation

49. IBM Live Virtual Class – Linux on System z
High Disk response times (cont'd)

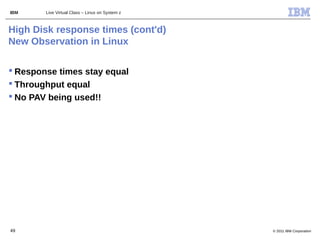

New Observation in Linux
 Response times stay equal
 Throughput equal
 No PAV being used!!
49 © 2011 IBM Corporation

50. IBM Live Virtual Class – Linux on System z
High Disk response times (cont'd)

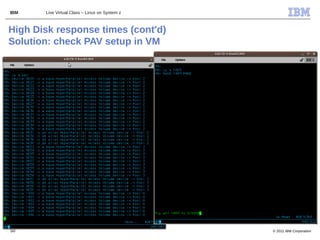

Solution: check PAV setup in VM
50 © 2011 IBM Corporation

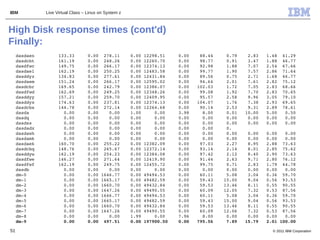

51. IBM Live Virtual Class – Linux on System z
High Disk response times (cont'd)
Finally:
dasdaen 133.33 0.00 278.11 0.00 12298.51 0.00 88.44 0.79 2.83 1.48 41.29
dasdcbt 161.19 0.00 248.26 0.00 12260.70 0.00 98.77 0.91 3.47 1.88 46.77
dasdfwc 149.75 0.00 266.17 0.00 12374.13 0.00 92.98 1.88 7.07 2.54 67.66
dasdael 162.19 0.00 250.25 0.00 12483.58 0.00 99.77 1.90 7.57 2.86 71.64
dasddyz 134.83 0.00 277.61 0.00 12431.84 0.00 89.56 0.75 2.71 1.68 46.77
dasdaem 151.24 0.00 266.17 0.00 12595.02 0.00 94.64 2.01 7.61 2.82 75.12
dasdcbr 169.65 0.00 242.79 0.00 12386.07 0.00 102.03 1.72 7.05 2.83 68.66
dasdfwd 162.69 0.00 249.25 0.00 12348.26 0.00 99.08 1.92 7.70 2.83 70.65
dasddyy 157.21 0.00 259.70 0.00 12409.95 0.00 95.57 2.58 9.96 3.05 79.10
dasddyx 174.63 0.00 237.81 0.00 12374.13 0.00 104.07 1.76 7.38 2.93 69.65
dasdcbs 144.78 0.00 272.14 0.00 12264.68 0.00 90.14 2.53 9.31 2.89 78.61
dasda 0.00 0.00 0.00 1.00 0.00 3.98 8.00 0.01 10.00 5.00 0.50
dasdq 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
dasdss 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
dasdadx 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.
dasdawh 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
dasdamk 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
dasdaek 160.70 0.00 255.22 0.00 12382.09 0.00 97.03 2.27 8.95 2.88 73.63
dasdcbq 148.76 0.00 265.67 0.00 12372.14 0.00 93.14 2.14 8.01 2.85 75.62
dasddyw 162.19 0.00 254.23 0.00 12384.08 0.00 97.42 2.12 8.40 2.90 73.63
dasdfwe 146.27 0.00 271.64 0.00 12419.90 0.00 91.44 2.63 9.71 2.80 76.12
dasdfwf 162.19 0.00 249.75 0.00 12455.72 0.00 99.75 0.71 2.83 1.79 44.78
dasdb 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
dm­0 0.00 0.00 1646.77 0.00 49494.53 0.00 60.11 5.08 3.04 0.36 59.70
dm­1 0.00 0.00 1665.17 0.00 49482.59 0.00 59.43 15.00 9.04 0.56 93.53
dm­2 0.00 0.00 1660.70 0.00 49432.84 0.00 59.53 13.46 8.11 0.55 90.55
dm­3 0.00 0.00 1647.26 0.00 49490.55 0.00 60.09 12.05 7.32 0.53 87.56
dm­4 0.00 0.00 1646.77 0.00 49494.53 0.00 60.11 5.08 3.04 0.36 59.70
dm­5 0.00 0.00 1665.17 0.00 49482.59 0.00 59.43 15.00 9.04 0.56 93.53
dm­6 0.00 0.00 1660.70 0.00 49432.84 0.00 59.53 13.46 8.11 0.55 90.55
dm­7 0.00 0.00 1647.26 0.00 49490.55 0.00 60.09 12.06 7.32 0.53 87.56
dm­8 0.00 0.00 0.00 1.99 0.00 7.96 8.00 0.00 0.00 0.00 0.00
dm­9 0.00 0.00 497.51 0.00 197900.50 0.00 795.56 7.89 15.79 2.01 100.00
51 © 2011 IBM Corporation

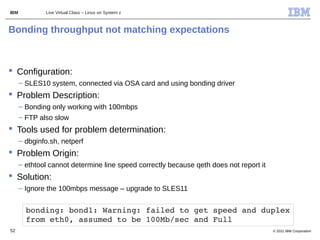

52. IBM Live Virtual Class – Linux on System z
Bonding throughput not matching expectations
 Configuration:
– SLES10 system, connected via OSA card and using bonding driver
 Problem Description:
– Bonding only working with 100mbps
– FTP also slow
 Tools used for problem determination:
– dbginfo.sh, netperf
 Problem Origin:
– ethtool cannot determine line speed correctly because qeth does not report it
 Solution:
– Ignore the 100mbps message – upgrade to SLES11
bonding: bond1: Warning: failed to get speed and duplex
from eth0, assumed to be 100Mb/sec and Full
52 © 2011 IBM Corporation

53. IBM Live Virtual Class – Linux on System z

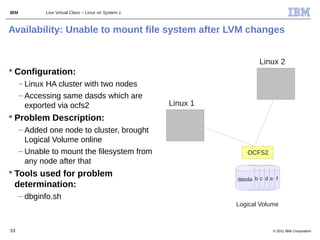

Availability: Unable to mount file system after LVM changes
Linux 2
 Configuration:
– Linux HA cluster with two nodes
– Accessing same dasds which are
exported via ocfs2 Linux 1
 Problem Description:
– Added one node to cluster, brought
Logical Volume online
– Unable to mount the filesystem from OCFS2
any node after that
 Tools used for problem
dasda b c d e f
determination:
– dbginfo.sh
Logical Volume
53 © 2011 IBM Corporation

54. IBM Live Virtual Class – Linux on System z
Availability: Unable to mount file system after LVM changes
(cont'd)
Linux 2
 Problem Origin:
– LVM metadata was
overwritten when
adding 3rd node Linux 3
Linux 1
– e.g. superblock not
found
 Solution:
– Extract meta data from {pv|vg|lv}create
running node OCFS2
(/etc/lvm/backup) and
write to disk again
dasdf e c a b d
Logical Volume
54 © 2011 IBM Corporation

55. IBM Live Virtual Class – Linux on System z

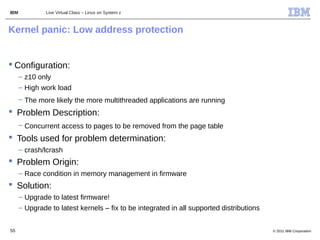

Kernel panic: Low address protection
 Configuration:
– z10 only
– High work load
– The more likely the more multithreaded applications are running
 Problem Description:
– Concurrent access to pages to be removed from the page table
 Tools used for problem determination:
– crash/lcrash
 Problem Origin:
– Race condition in memory management in firmware
 Solution:
– Upgrade to latest firmware!
– Upgrade to latest kernels – fix to be integrated in all supported distributions
55 © 2011 IBM Corporation
