This document discusses operating systems mechanisms and overhead for embedded systems. It covers the differences between general-purpose and real-time operating system schedulers, memory management techniques including those used in Windows CE, interrupt handling, and context switching overhead. It also discusses embedded file systems, wear leveling, log-structured file systems, and verification of concurrent systems using model checking and temporal logic properties.

1. J.SUDARSHANREDDY
Chapter 4, part 2: Processes
and Operating Systems
High Performance Embedded
Computing
Wayne Wolf
1/25/2015

2. J.SUDARSHANREDDY
Topics
 Operating systems mechanisms and
overhead.
 Embedded file systems.
 Concurrent system verification.
1/25/2015

3. J.SUDARSHANREDDY

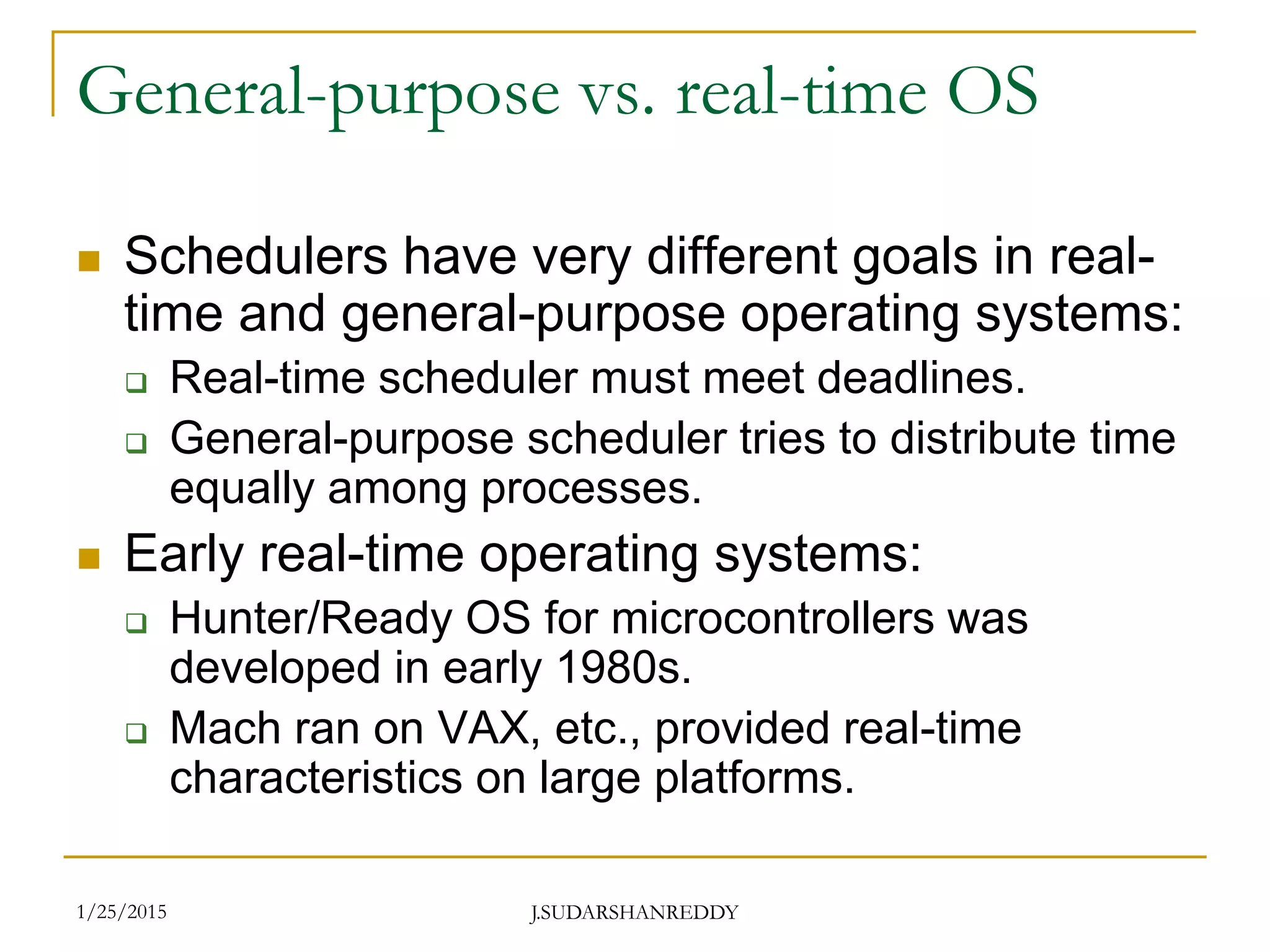

General-purpose vs. real-time OS
 Schedulers have very different goals in real-
time and general-purpose operating systems:
 Real-time scheduler must meet deadlines.
 General-purpose scheduler tries to distribute time
equally among processes.
 Early real-time operating systems:
 Hunter/Ready OS for microcontrollers was
developed in early 1980s.
 Mach ran on VAX, etc., provided real-time
characteristics on large platforms.
1/25/2015

4. J.SUDARSHANREDDY
Memory management
 Memory management allows RTOS to run
outside applications.
 Cell phones run downloaded, user-installed
programs.
 Memory management helps the RTOS
manage a large virtual address space.
 Flash may be used as a paging device.
1/25/2015

5. J.SUDARSHANREDDY

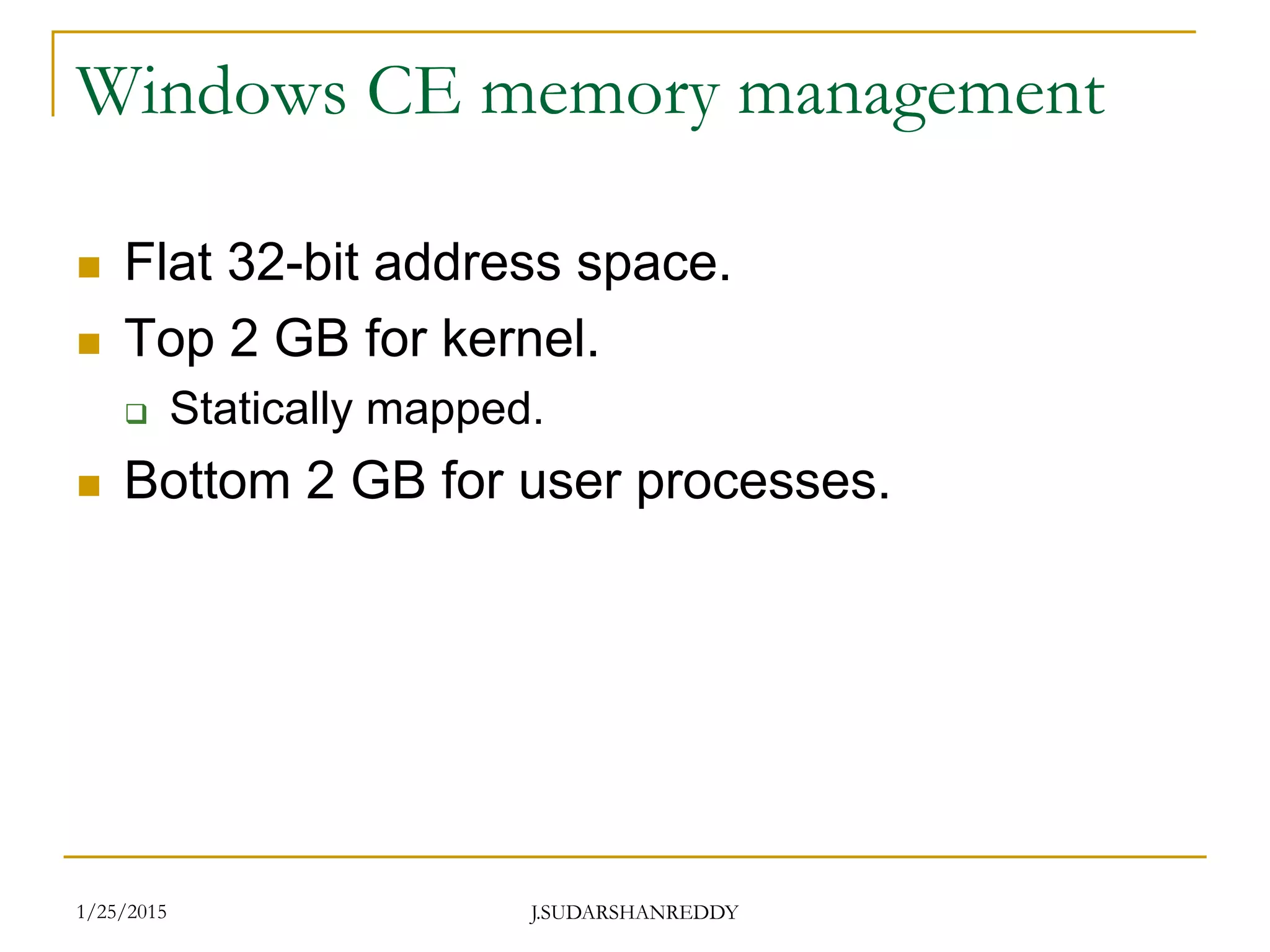

Windows CE memory management
 Flat 32-bit address space.
 Top 2 GB for kernel.
 Statically mapped.
 Bottom 2 GB for user processes.
1/25/2015

6. J.SUDARSHANREDDY

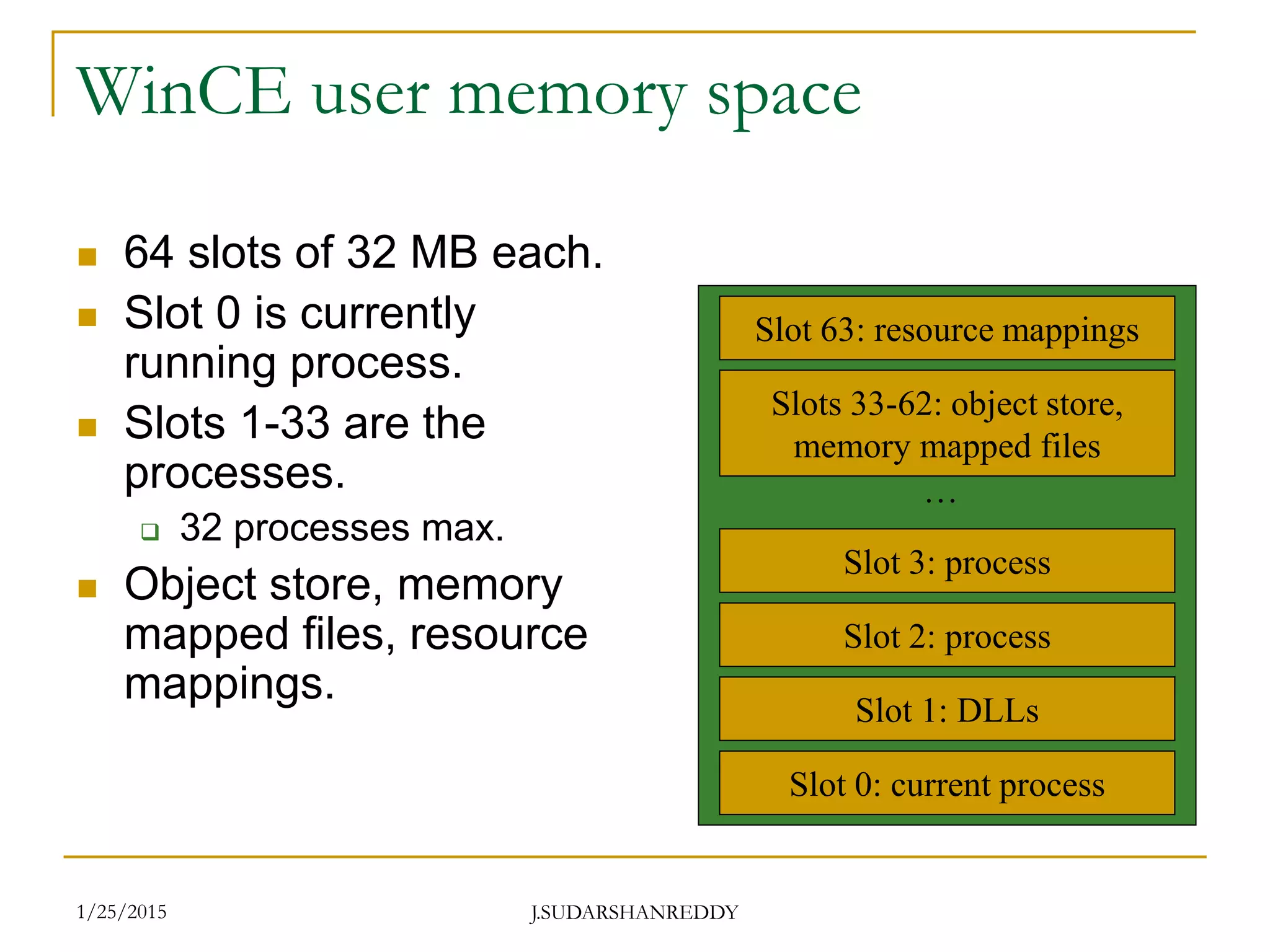

WinCE user memory space
 64 slots of 32 MB each.
 Slot 0 is currently
running process.
 Slots 1-33 are the
processes.
 32 processes max.
 Object store, memory
mapped files, resource
mappings.
Slot 0: current process
Slot 1: DLLs
Slot 2: process
Slot 3: process
…
Slots 33-62: object store,
memory mapped files
Slot 63: resource mappings
1/25/2015

7. J.SUDARSHANREDDY
Mechanisms for real time operation
 Two key mechanisms for real time:
 Interrupt handler.
 Scheduler.
 Interrupt handler is part of the priority system.
 Also introduces overhead.
 Scheduler determines ability to meet
deadlines.
1/25/2015

8. J.SUDARSHANREDDY

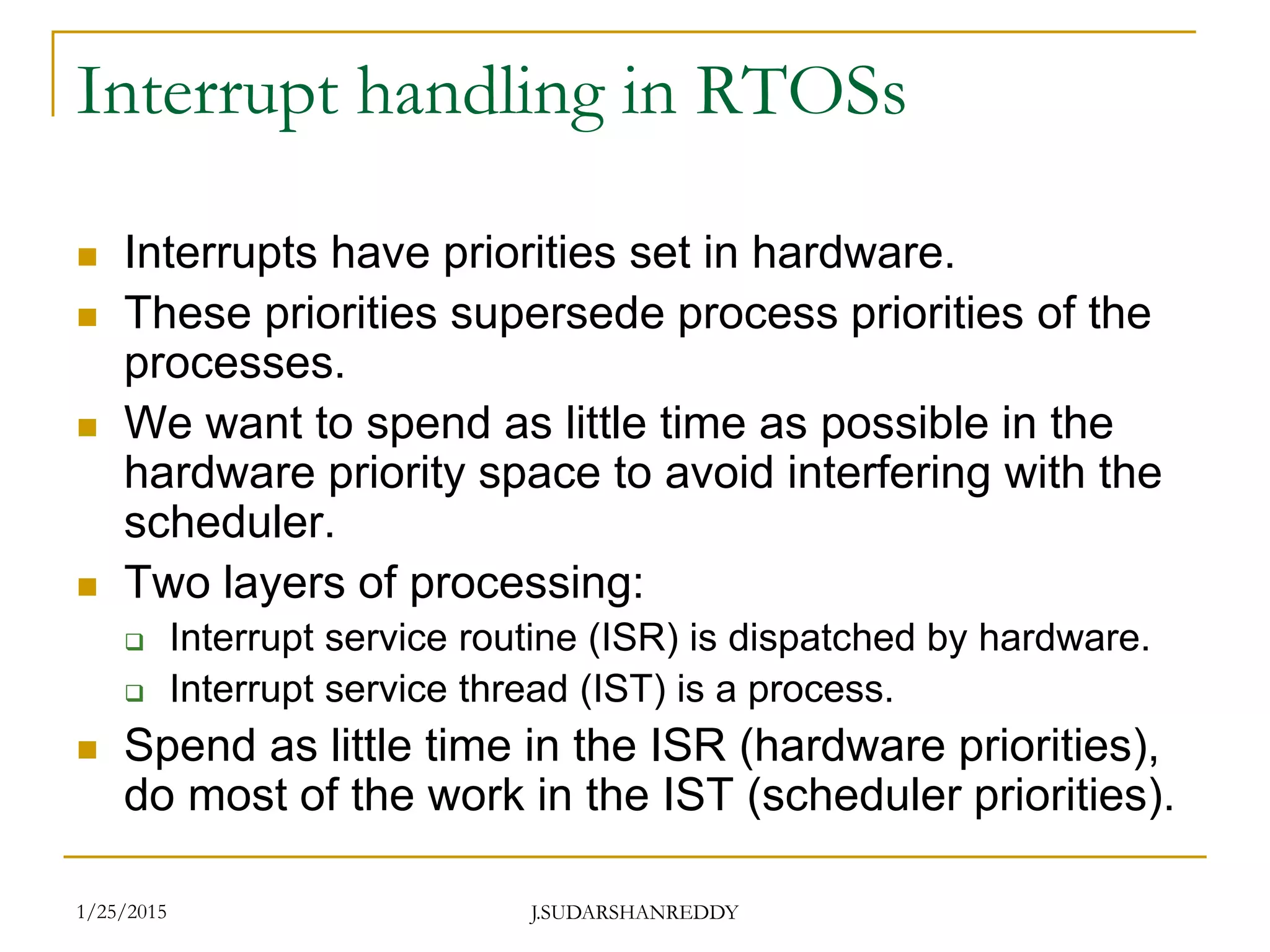

Interrupt handling in RTOSs
 Interrupts have priorities set in hardware.
 These priorities supersede process priorities of the
processes.
 We want to spend as little time as possible in the
hardware priority space to avoid interfering with the
scheduler.
 Two layers of processing:
 Interrupt service routine (ISR) is dispatched by hardware.
 Interrupt service thread (IST) is a process.
 Spend as little time in the ISR (hardware priorities),
do most of the work in the IST (scheduler priorities).
1/25/2015

9. J.SUDARSHANREDDY
Windows CE interrupts
 Two types of ISRs:
 Static iSRs are built into kernel, one-way
communication to IST.
 Installable ISR can be dynamically loaded, uses
shared memory to communicate with IST.
1/25/2015

10. J.SUDARSHANREDDY

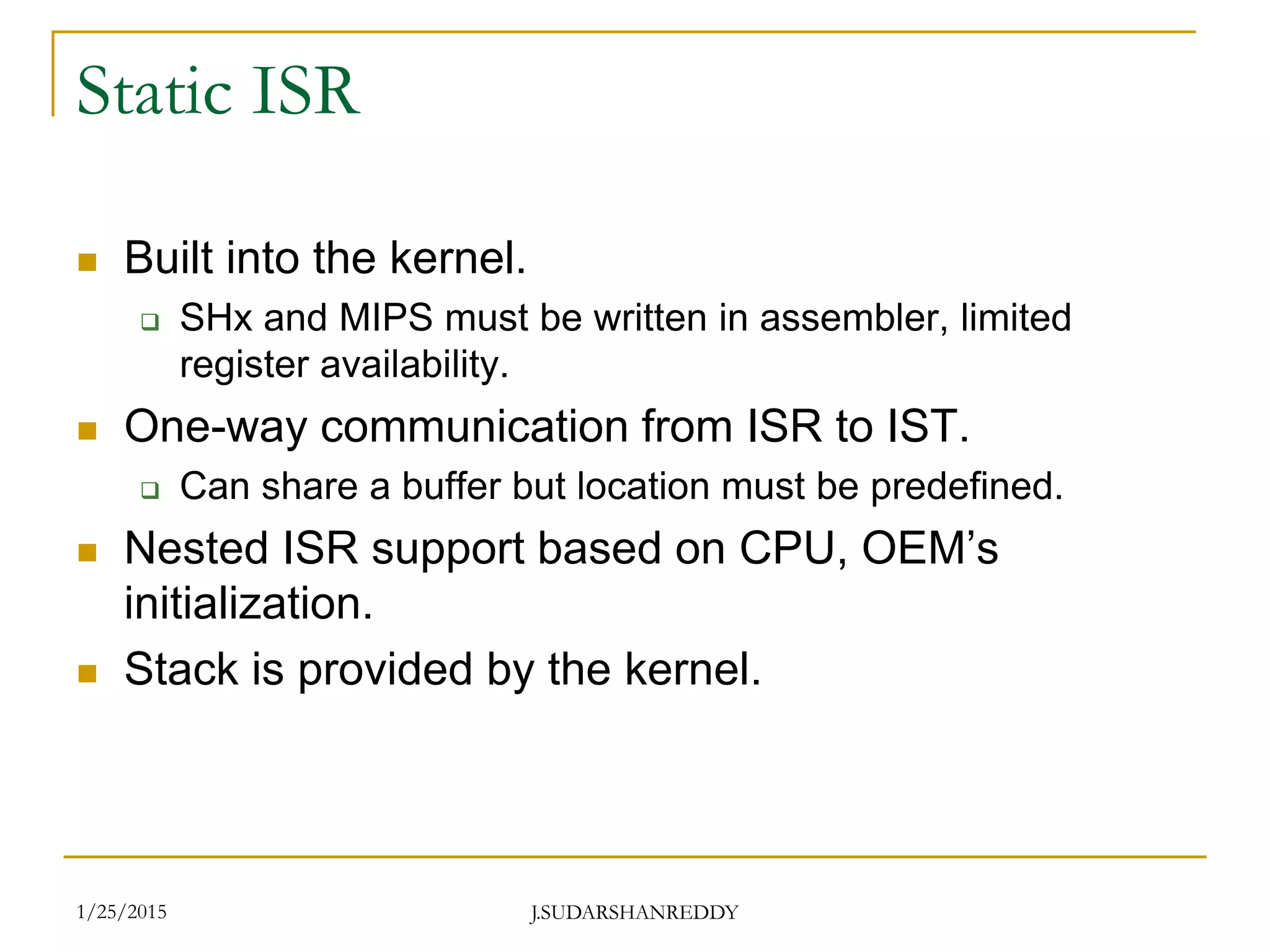

Static ISR
 Built into the kernel.
 SHx and MIPS must be written in assembler, limited
register availability.
 One-way communication from ISR to IST.
 Can share a buffer but location must be predefined.
 Nested ISR support based on CPU, OEM’s
initialization.
 Stack is provided by the kernel.
1/25/2015

11. J.SUDARSHANREDDY
Installable ISR
 Can be dynamically loaded into kernel.
 Loads a C DLL.
 Can use shared memory for communication.
 ISRs are processed in the order they were
installed.
 Limited stack size.
1/25/2015

12. J.SUDARSHANREDDY
WinCE 4.x interrupts
All higher
enabled
HWkernelOALI-ISRthread
All enabled
Except ID
All enabled
ISH Set event Enable ID
ISR ISR
ISR ISR
IST processing
device
1/25/2015

13. J.SUDARSHANREDDY
Operating system overhead
 Rhodes and Wolf studied context switching
overhead using simulation.
 Two-CPU system with bus.
 100 random task graphs.
 Varying amounts of slack: none, 10%, 20%,
40%.
1/25/2015

14. J.SUDARSHANREDDY
OS overhead results
[Rho99] © 1999 IEEE Computer Society1/25/2015

15. J.SUDARSHANREDDY
Support for scheduling
 Adomat et al.: RTU scheduling accelerator
supported up to 3 CPUs, evaluated readiness
and priority.
 Burleson et al.: Spring scheduling accelerator
supported dynamically appearing tasks.
 Kohout et al.: RTM scheduler used tree
network to sort processes for scheduling.
1/25/2015

16. J.SUDARSHANREDDY
Interprocess communication
 IPC often used for large-scale communication
in general-purpose systems.
 Mailboxes are specialized memories, used
for small, fast transfers.
 Multimedia systems can be supported by
quality-of-service (QoS) oriented interprocess
communication services.
1/25/2015

17. J.SUDARSHANREDDY

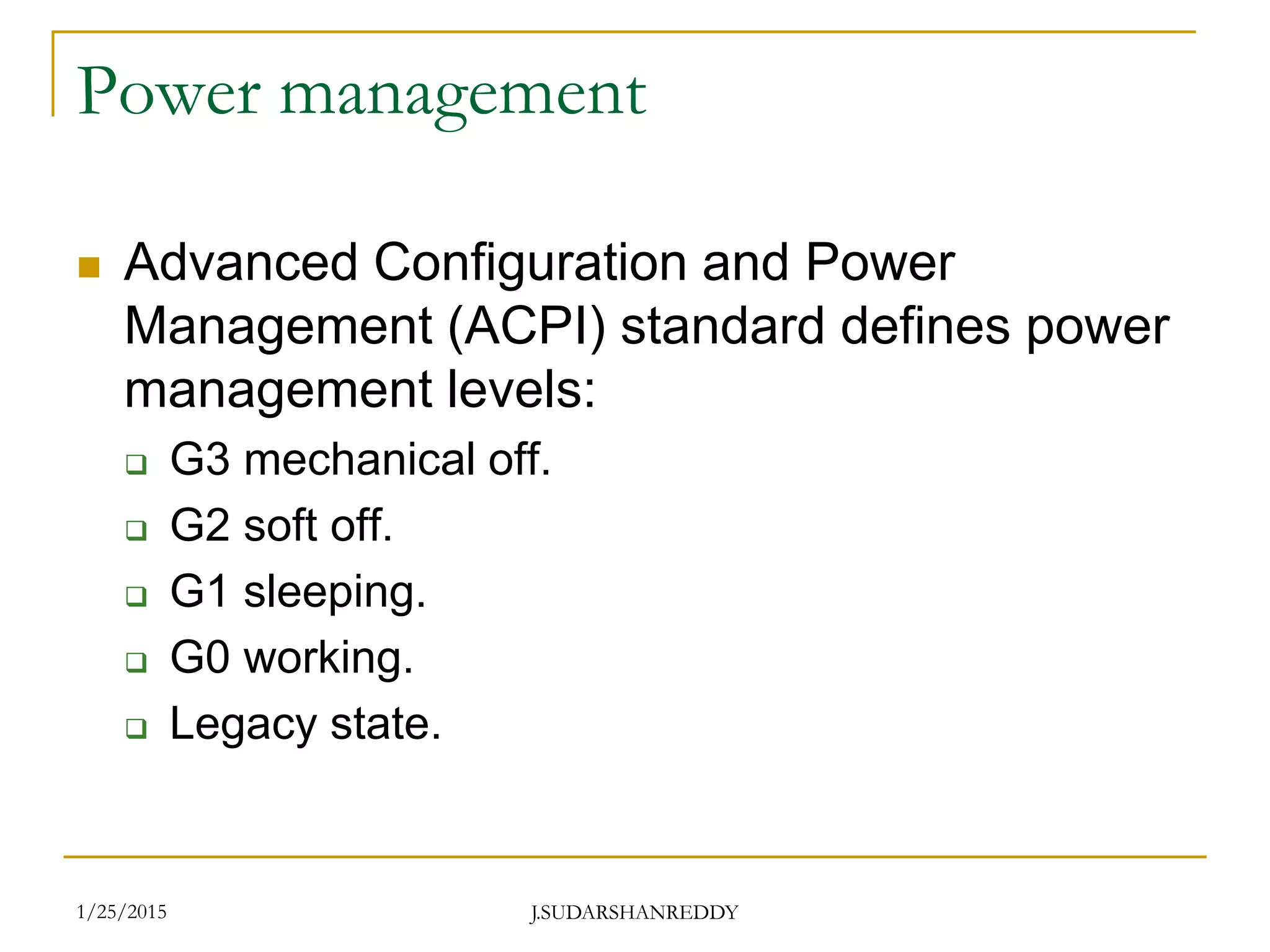

Power management
 Advanced Configuration and Power
Management (ACPI) standard defines power
management levels:
 G3 mechanical off.
 G2 soft off.
 G1 sleeping.
 G0 working.
 Legacy state.
1/25/2015

18. J.SUDARSHANREDDY
Stochastic power management
 Benini et al. modeled system and workload
as Markov chains.
 Service requester models workload as a
sequence of service requests.
 Service provider is a Markov chain whose
probabilities are controlled by power manager
commands.
 A linear program can find a minimum-power
policy that meets performance constraints.
1/25/2015

19. J.SUDARSHANREDDY
Embedded file systems
 Generally means flash memory storage.
 Many embedded file systems need to be
compatible with PCs.
 Some file systems are primarily for reading,
others for reading and writing.
1/25/2015

20. J.SUDARSHANREDDY
Flash memory characteristics
 Flash is electrically erasable.
 Flash memory wears out during writing.
 Early memories lasted for 10,000 cycles.
 Modern memories last for 1 million cycles.
 Two types of flash:
 NOR flash operates similar to RAM.
 NAND is block oriented, gives more transient
failures.
 NAND is faster, may dominate in future.
1/25/2015

21. J.SUDARSHANREDDY

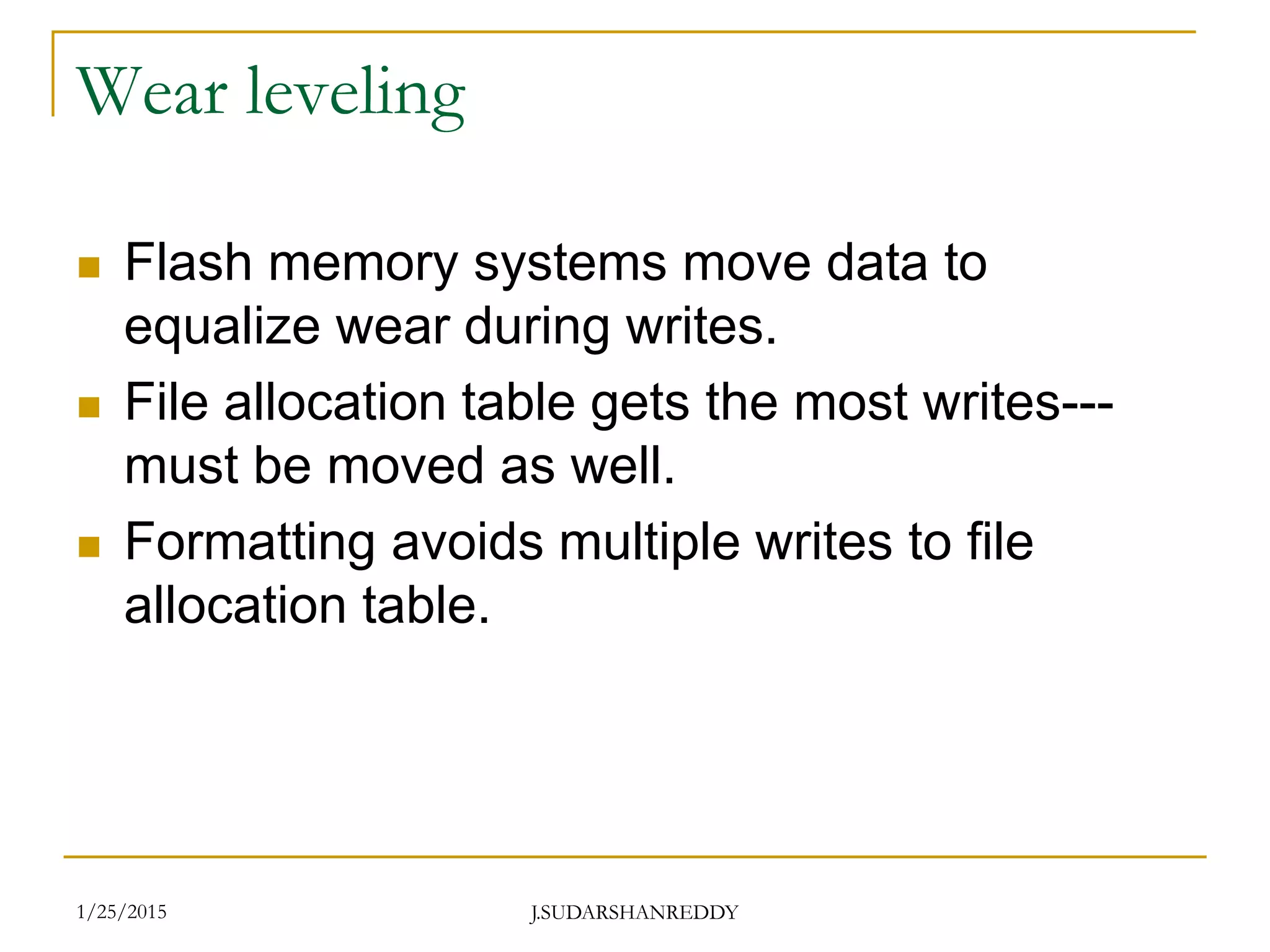

Wear leveling
 Flash memory systems move data to
equalize wear during writes.
 File allocation table gets the most writes---
must be moved as well.
 Formatting avoids multiple writes to file
allocation table.
1/25/2015

22. J.SUDARSHANREDDY
Virtual mapping
 Virtual mapping system
stands between file API and
physical file system:
 Schedules erasures.
 Consolidates data.
 Identifies bad blocks.
 Moves data for wear
leveling.
 Virtual mapping system
keeps a table to translate
virtual to physical
addresses.
File system
Virtual mapping system
Flash memory
Virtual address
Physical address
1/25/2015

23. J.SUDARSHANREDDY
Log-structured file system
 Stores log of changes to file, not the original
file.
 Also known as journaling.
 Developed for general-purpose systems, useful
for flash.
 Journaling Flash File System (JFFS)
maintains consistency during power losses.
 Yet Another Flash Filing System (YAFFS) is
log-structured file system for NAND flash.
1/25/2015

24. J.SUDARSHANREDDY
Verification
 System design is often specified using an
abstract model.
 Allows verification before implementation.
 Eliminates unimportant programming details.
 Interesting properties:
 A system is live if it moves through the states.
 A system is in deadlock if components are waiting
on each other.
1/25/2015

25. J.SUDARSHANREDDY

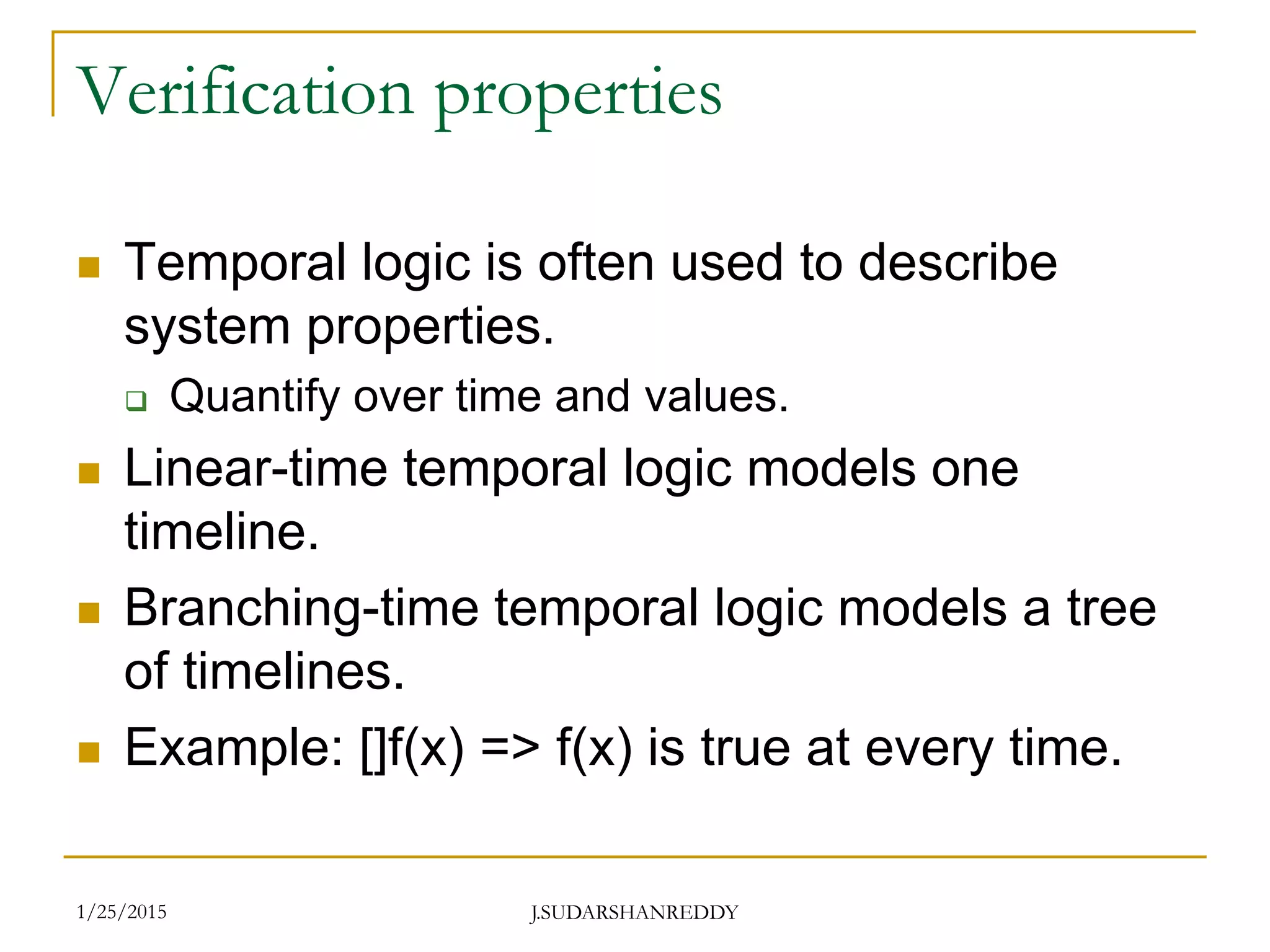

Verification properties
 Temporal logic is often used to describe
system properties.
 Quantify over time and values.
 Linear-time temporal logic models one
timeline.
 Branching-time temporal logic models a tree
of timelines.
 Example: []f(x) => f(x) is true at every time.
1/25/2015

26. J.SUDARSHANREDDY
SPIN
 Model checker for
distributed software.
 Protocols to be verified
described in PROMELA
language.
 Systems defined over
infinite input sequences.
 Combines depth-first
search, automaton
reduction, binary decision
diagrams, etc. to efficiently
search the design space.
[Hol97] © 1997 IEEE1/25/2015

27. J.SUDARSHANREDDY

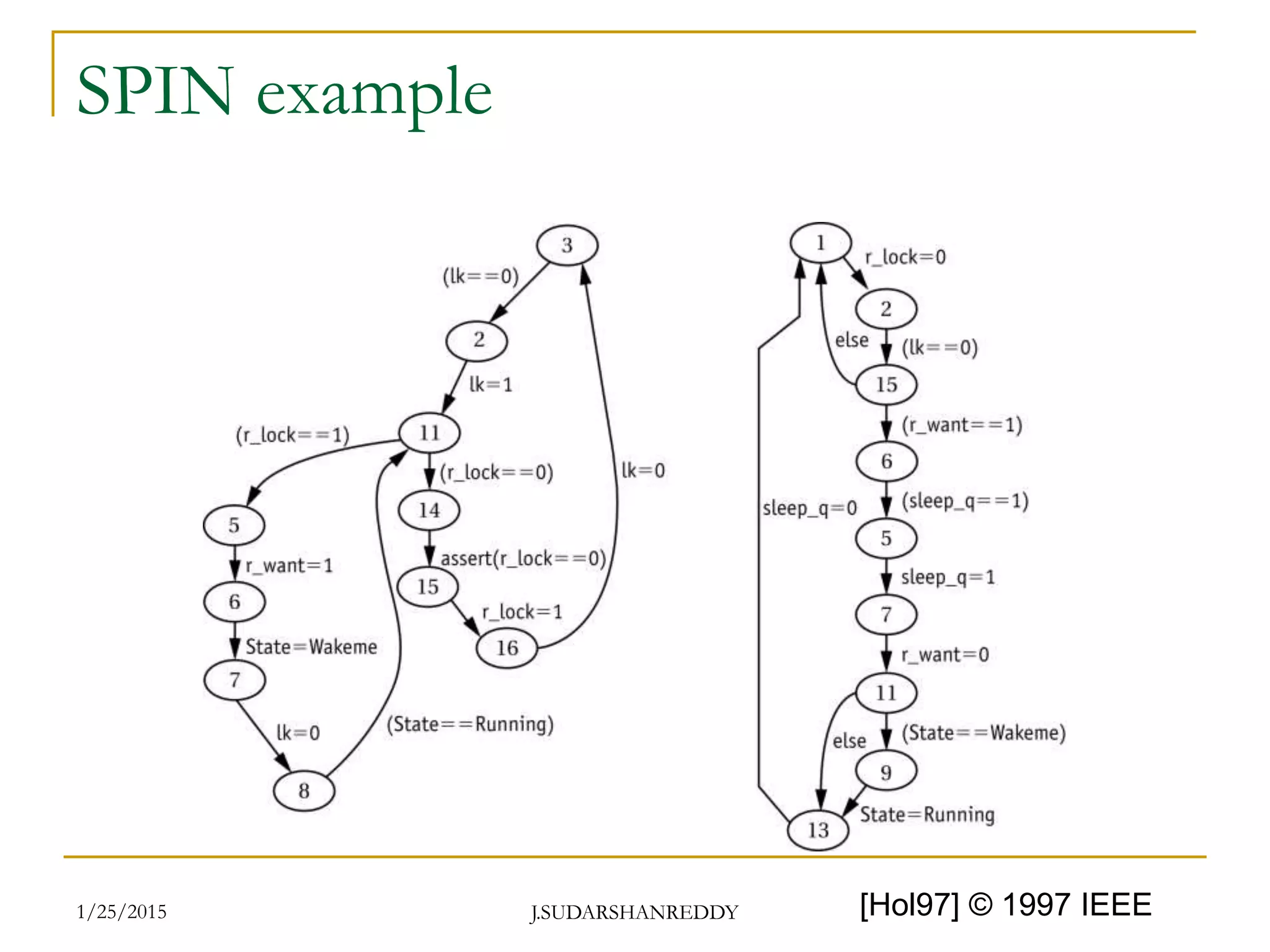

SPIN example
[Hol97] © 1997 IEEE1/25/2015
