Windows xp and windows 7 installaton

Submitted By:- Chaitanya Deshmukh(11) Akshta Deshpande(12) Amber Dhanani(13) Swapnil Dhuttekar(14) Jamir Gavandi(16) Navin Gelot(17) Leena Ghorpade(18) Vishal Jadhav(19) Siddharth Jain(20)

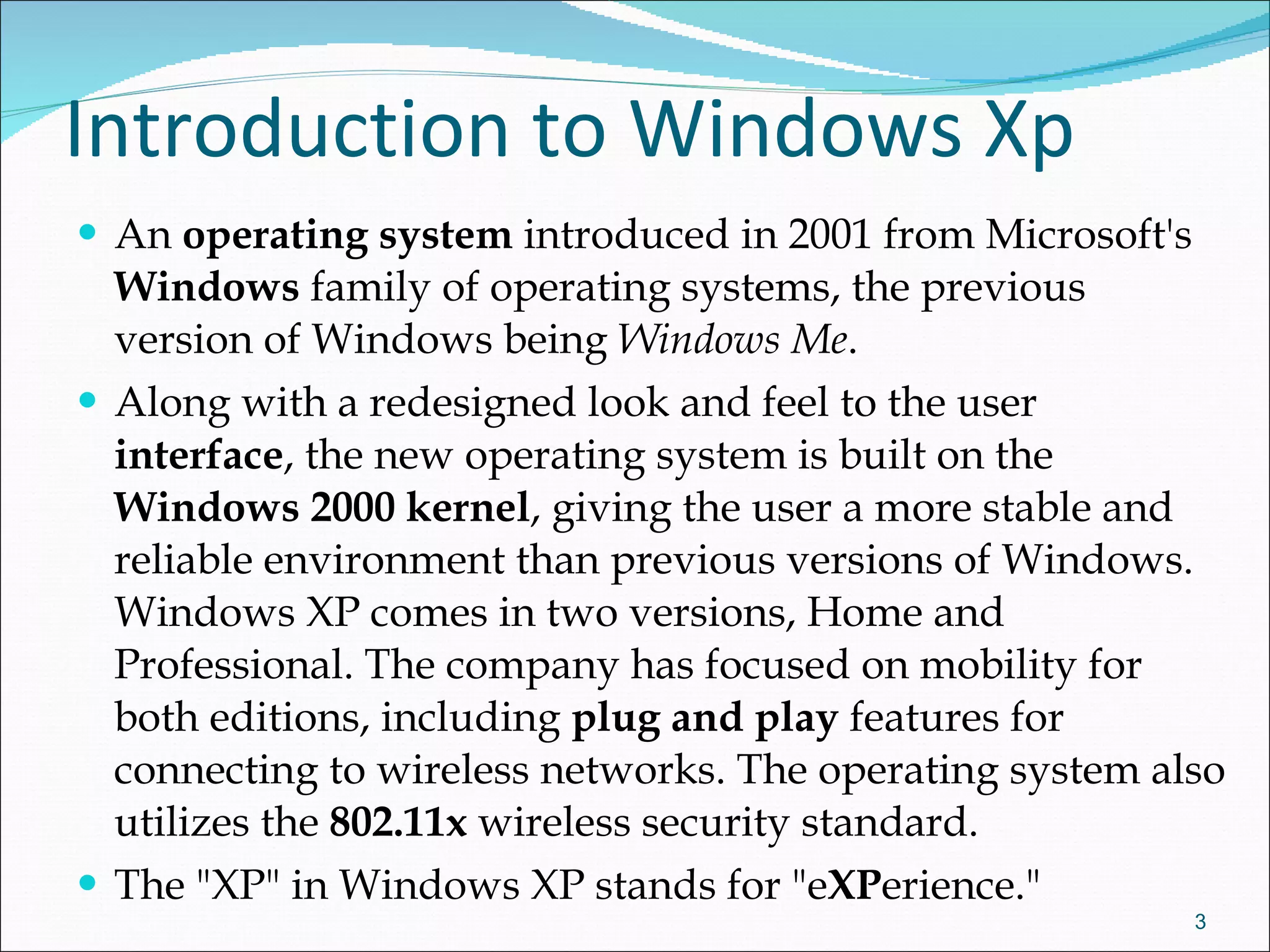

Introduction to Windows Xp An operating system introduced in 2001 from Microsoft's Windows family of operating systems, the previous version of Windows being Windows Me . Along with a redesigned look and feel to the user interface , the new operating system is built on the Windows 2000 kernel , giving the user a more stable and reliable environment than previous versions of Windows. Windows XP comes in two versions, Home and Professional. The company has focused on mobility for both editions, including plug and play features for connecting to wireless networks. The operating system also utilizes the 802.11x wireless security standard. The "XP" in Windows XP stands for "e XP erience."

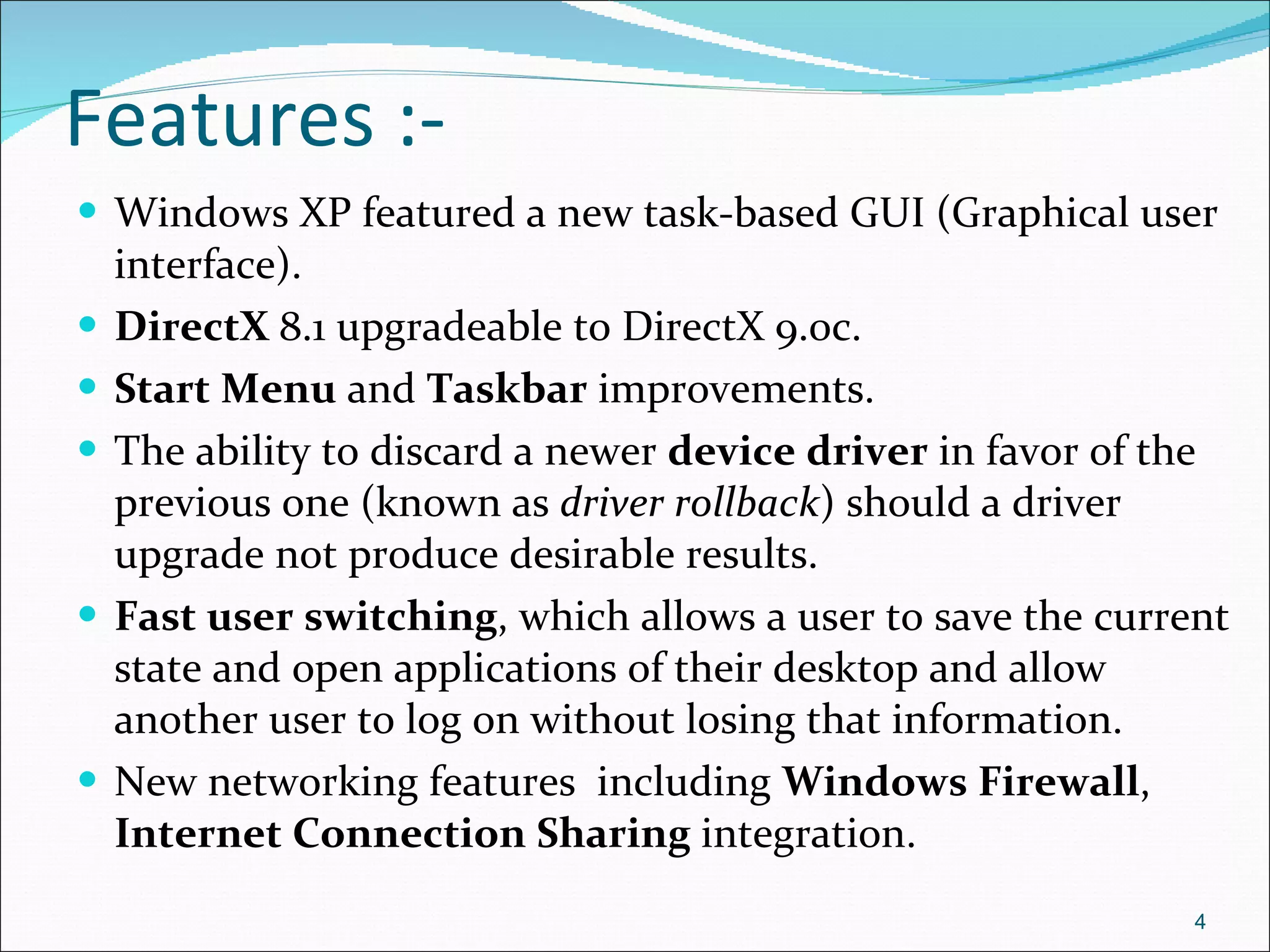

Features :- Windows XP featured a new task-based GUI (Graphical user interface). DirectX 8.1 upgradeable to DirectX 9.0c. Start Menu and Taskbar improvements. The ability to discard a newer device driver in favor of the previous one (known as driver rollback ) should a driver upgrade not produce desirable results. Fast user switching , which allows a user to save the current state and open applications of their desktop and allow another user to log on without losing that information. New networking features including Windows Firewall , Internet Connection Sharing integration.

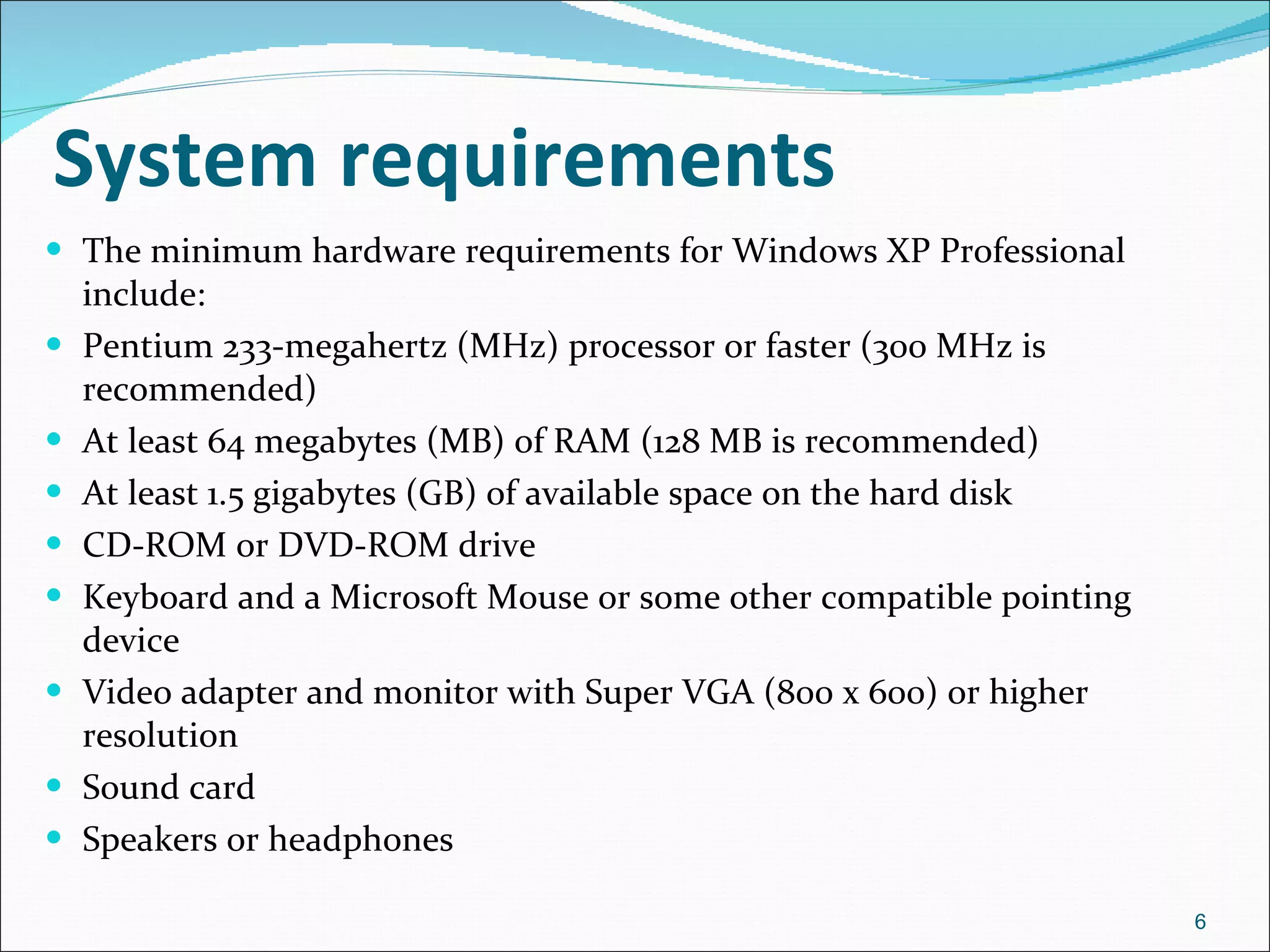

System requirements The minimum hardware requirements for Windows XP Professional include: Pentium 233-megahertz (MHz) processor or faster (300 MHz is recommended) At least 64 megabytes (MB) of RAM (128 MB is recommended) At least 1.5 gigabytes (GB) of available space on the hard disk CD-ROM or DVD-ROM drive Keyboard and a Microsoft Mouse or some other compatible pointing device Video adapter and monitor with Super VGA (800 x 600) or higher resolution Sound card Speakers or headphones

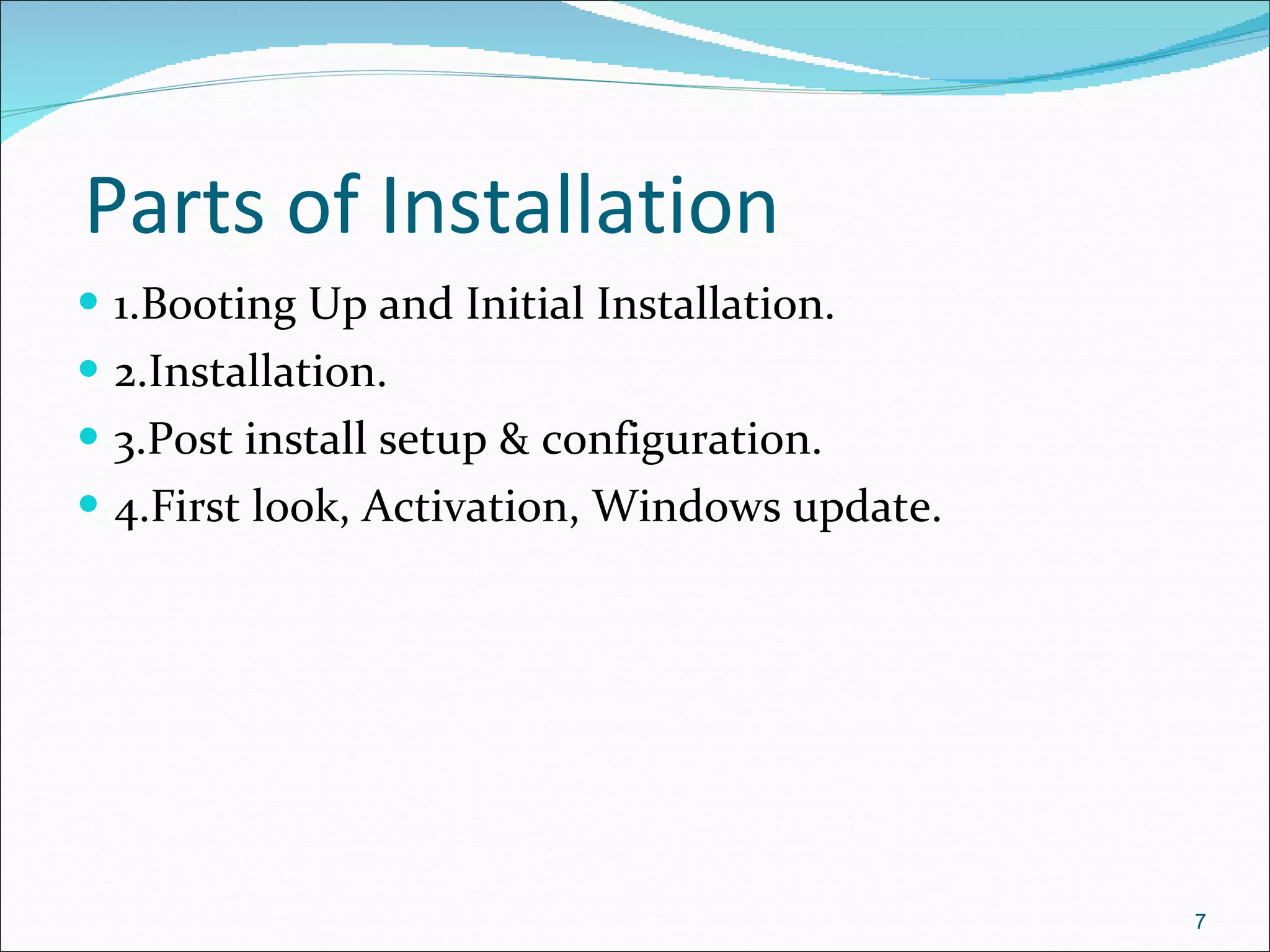

Parts of Installation 1.Booting Up and Initial Installation. 2.Installation. 3.Post install setup & configuration. 4.First look, Activation, Windows update.

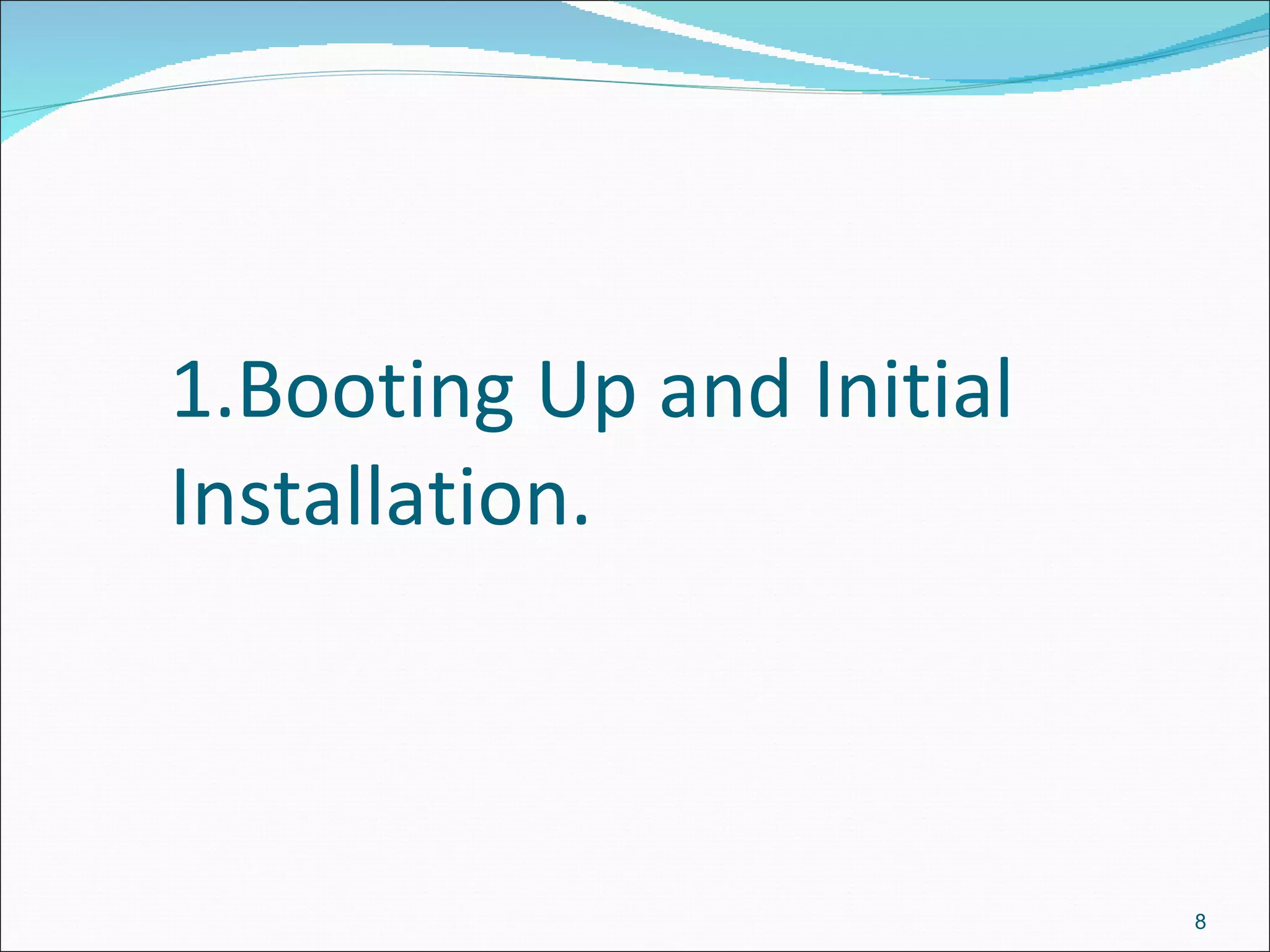

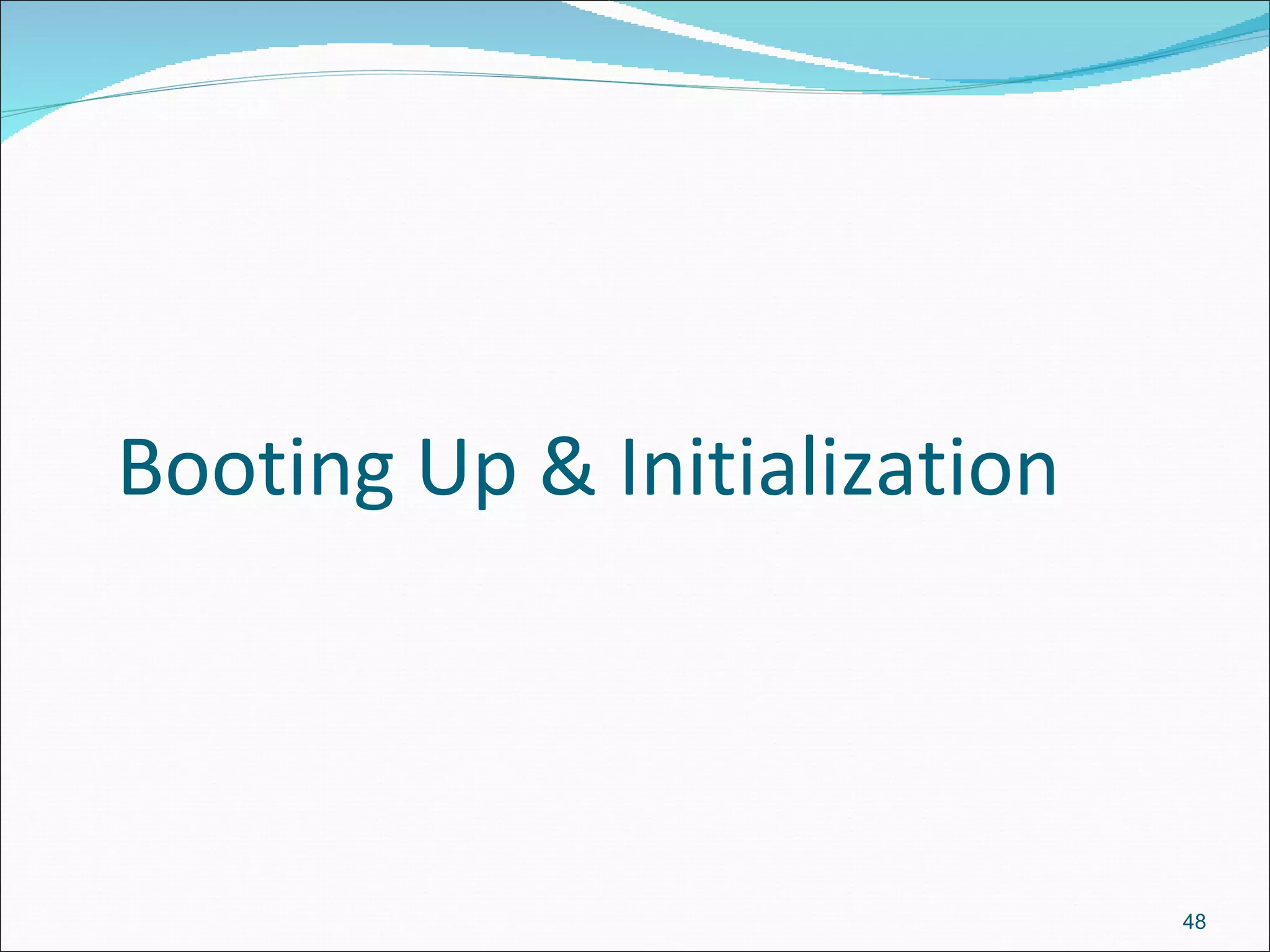

1.Booting Up and Initial Installation.

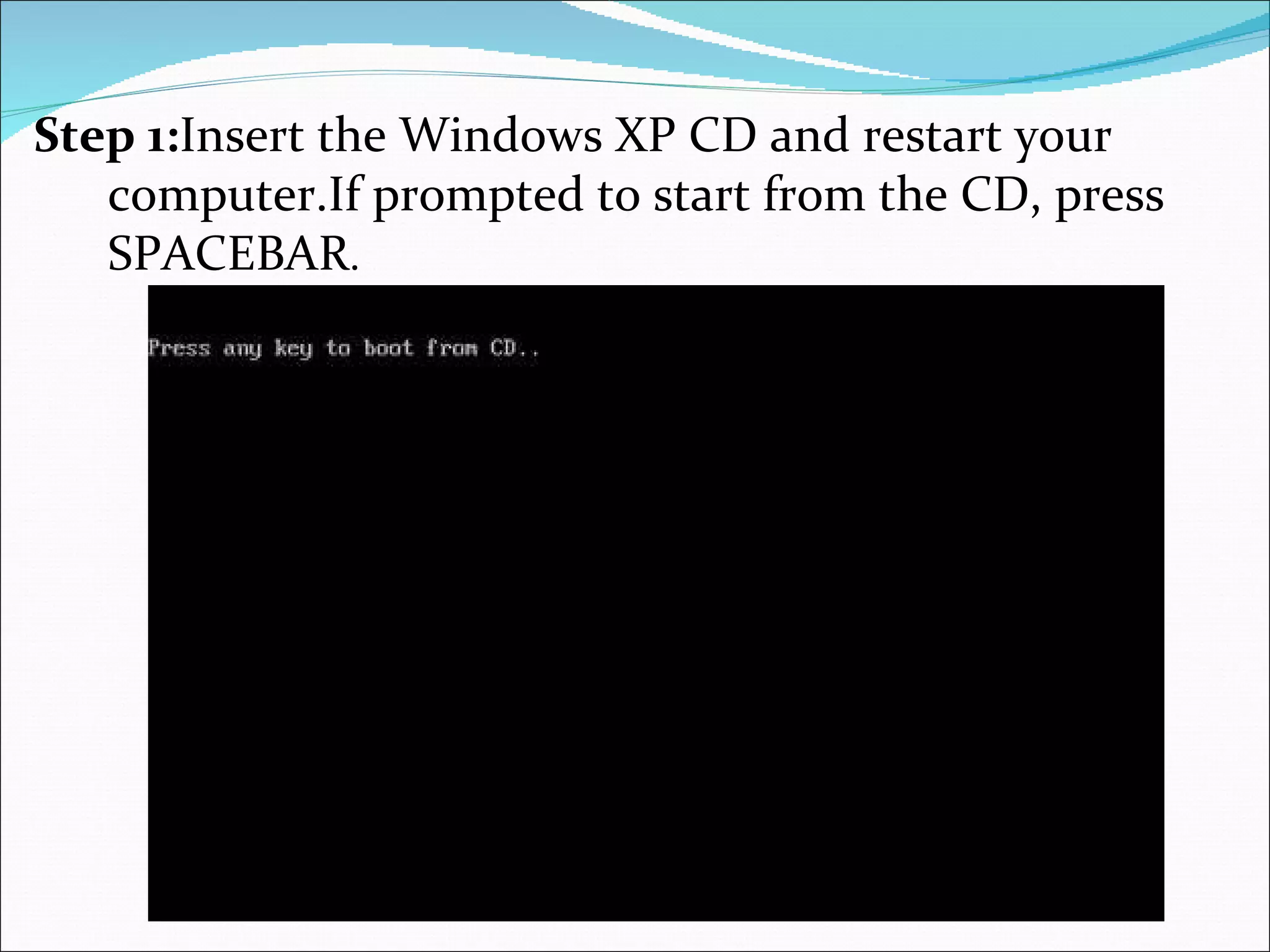

Step 1: Insert the Windows XP CD and restart your computer.If prompted to start from the CD, press SPACEBAR .

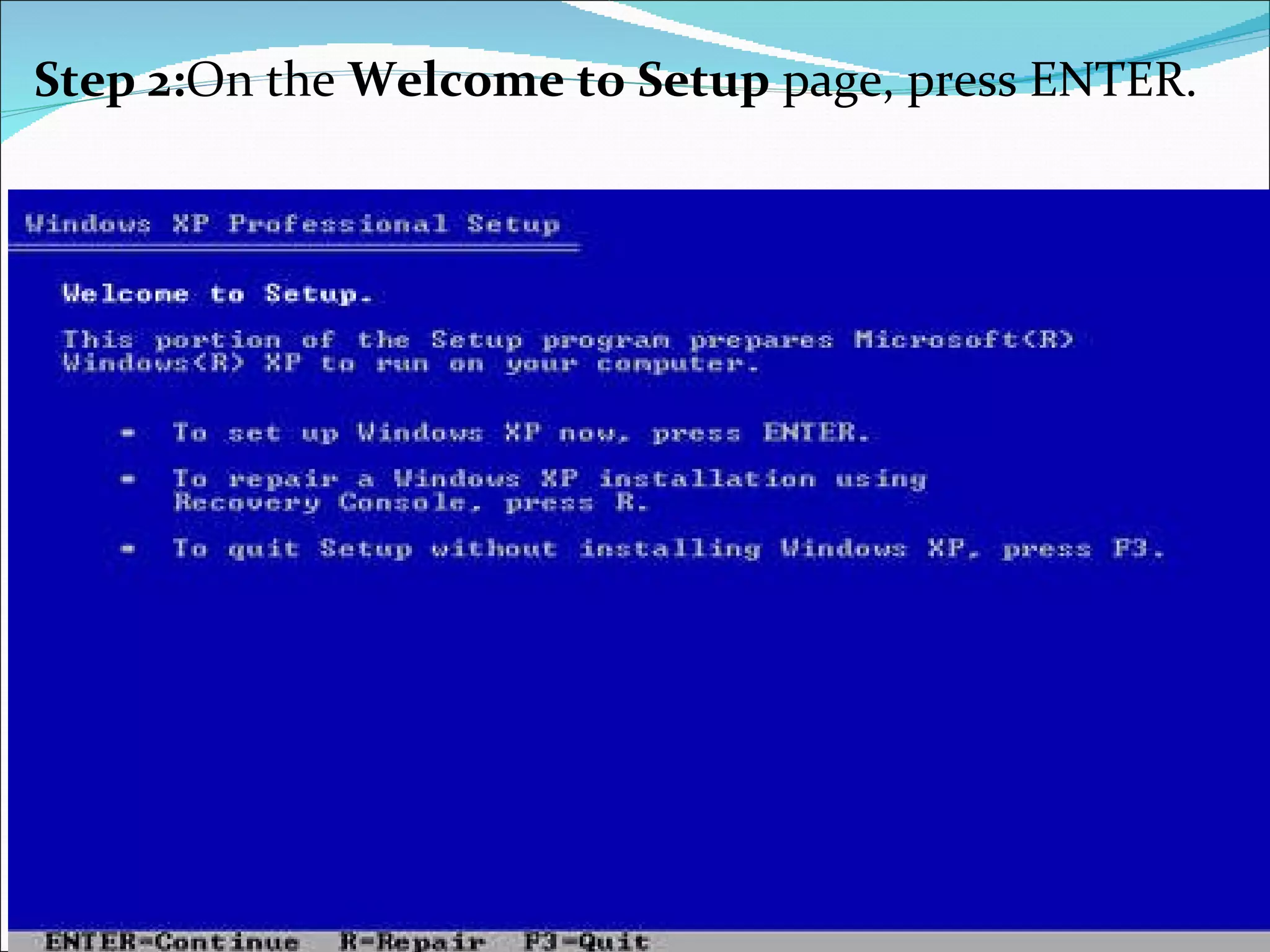

Step 2: On the Welcome to Setup page, press ENTER.

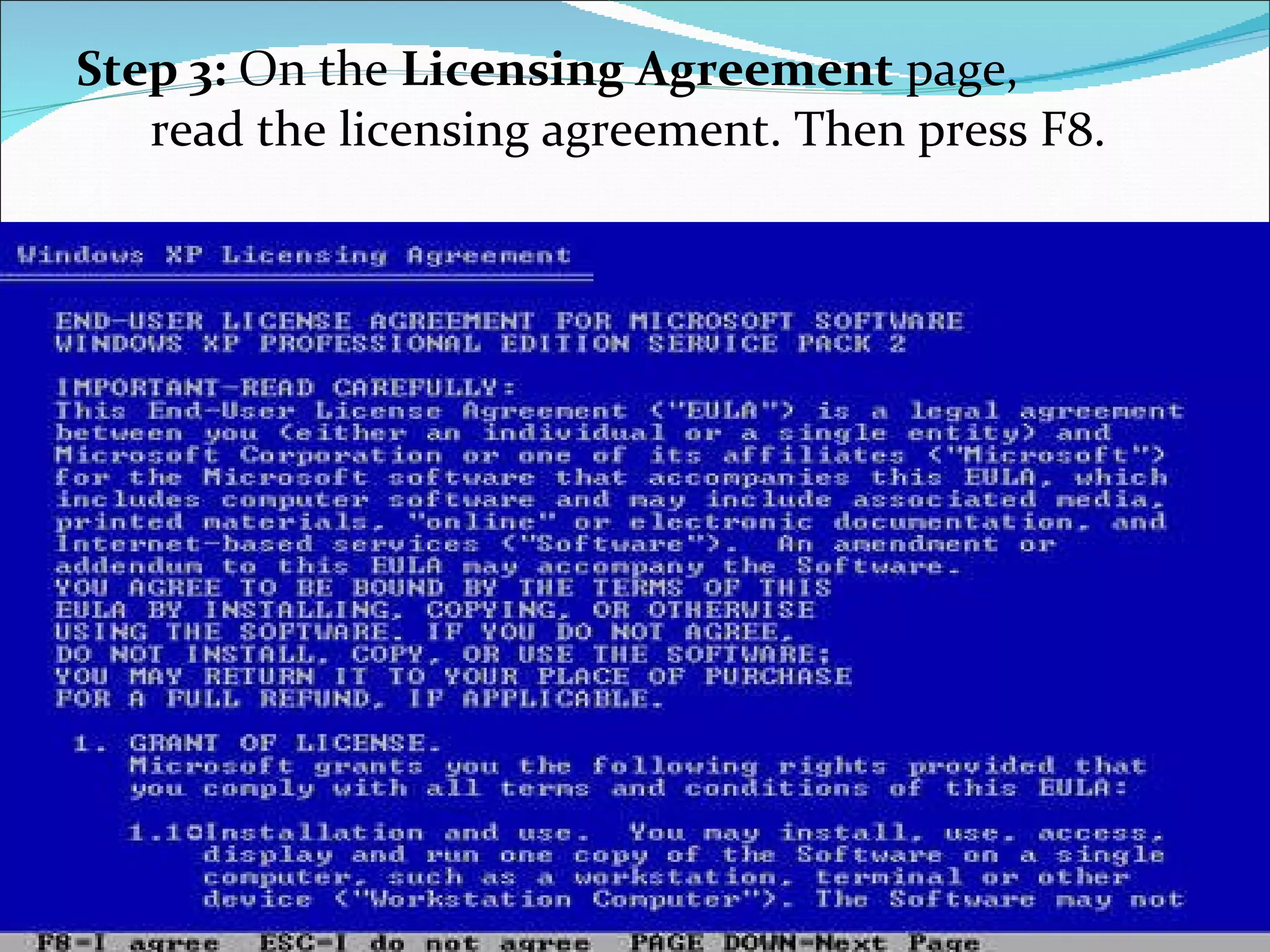

Step 3: On the Licensing Agreement page, read the licensing agreement. Then press F8.

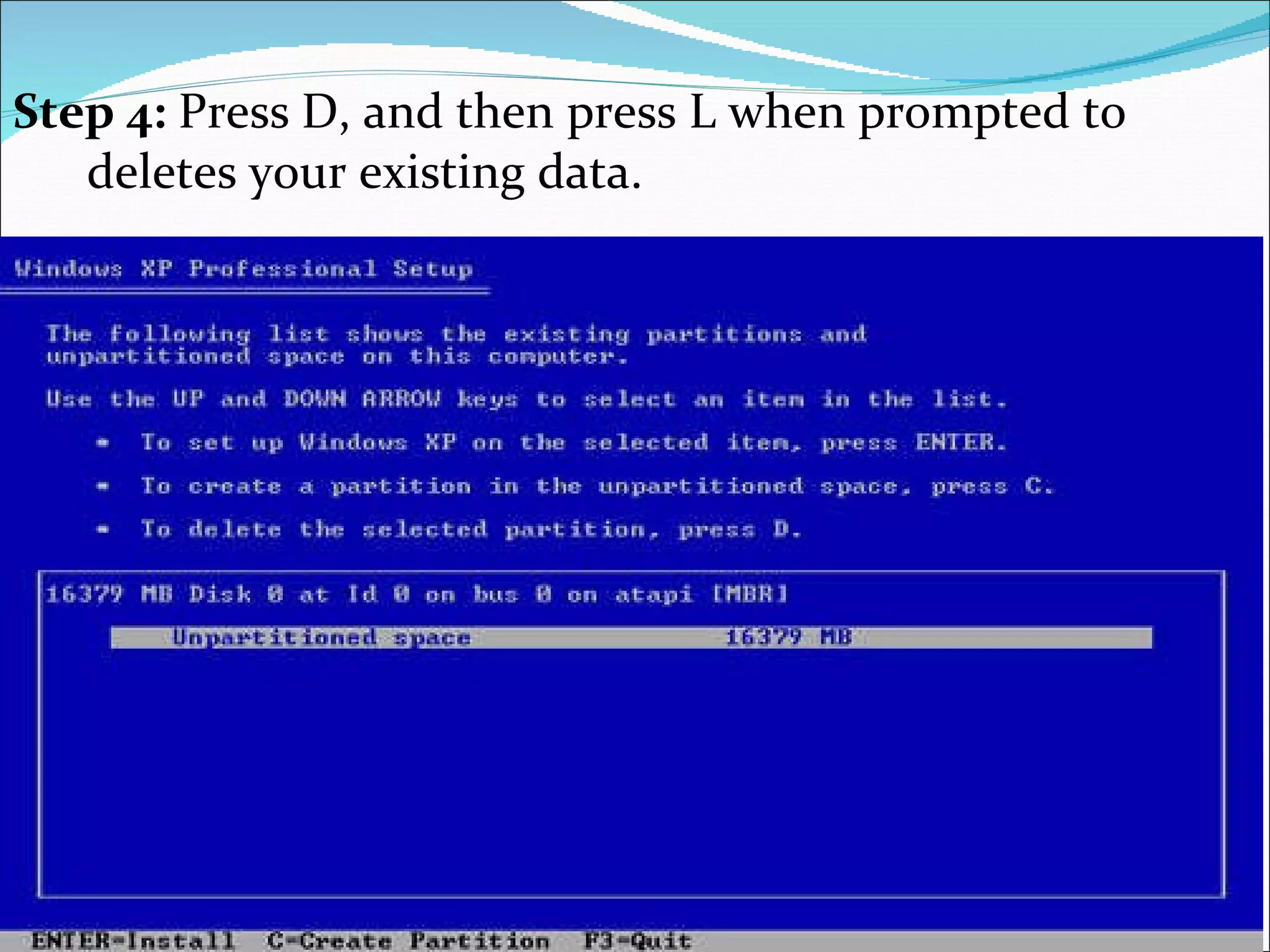

Step 4: Press D, and then press L when prompted to deletes your existing data.

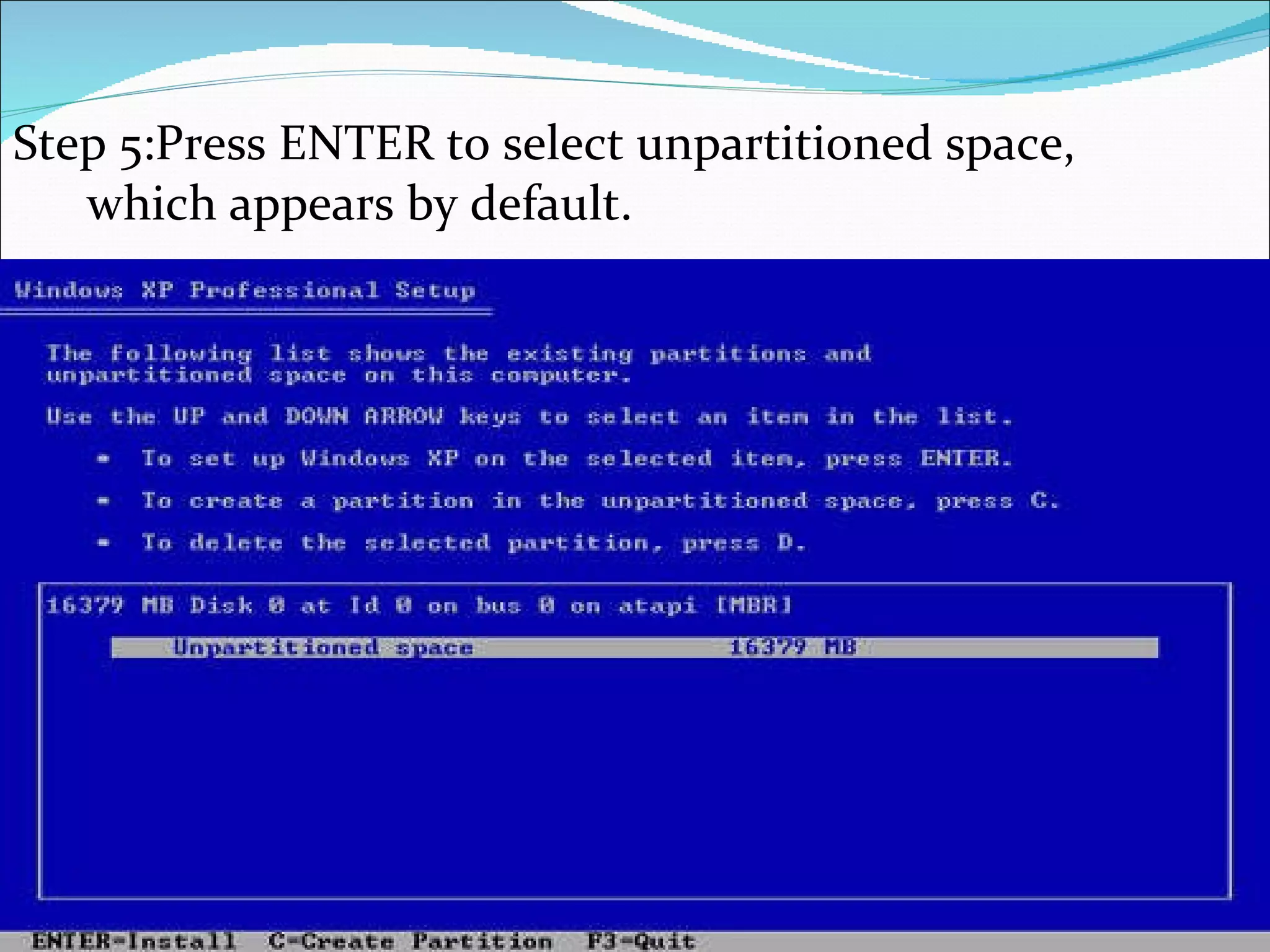

Step 5:Press ENTER to select unpartitioned space, which appears by default.

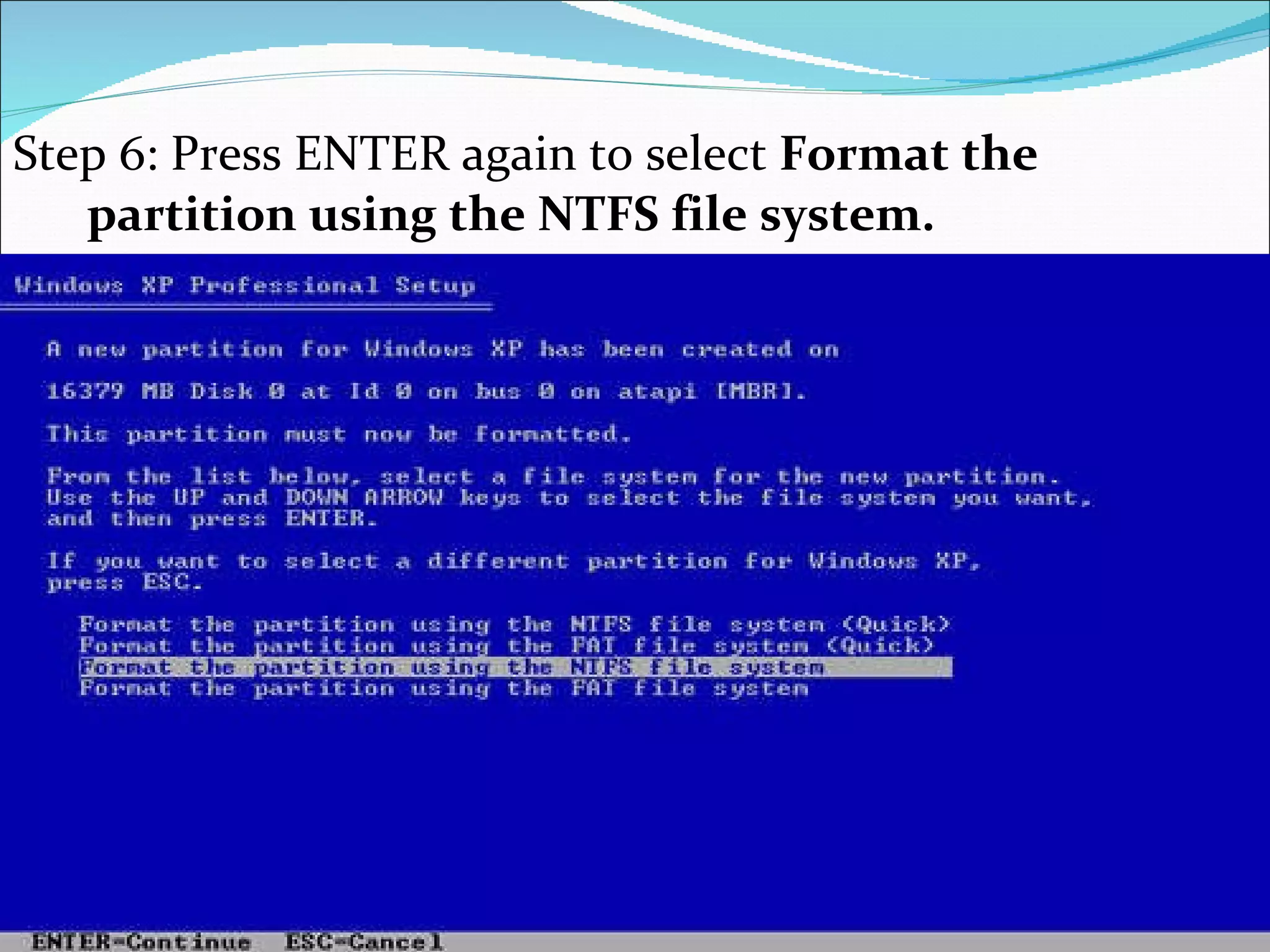

Step 6: Press ENTER again to select Format the partition using the NTFS file system.

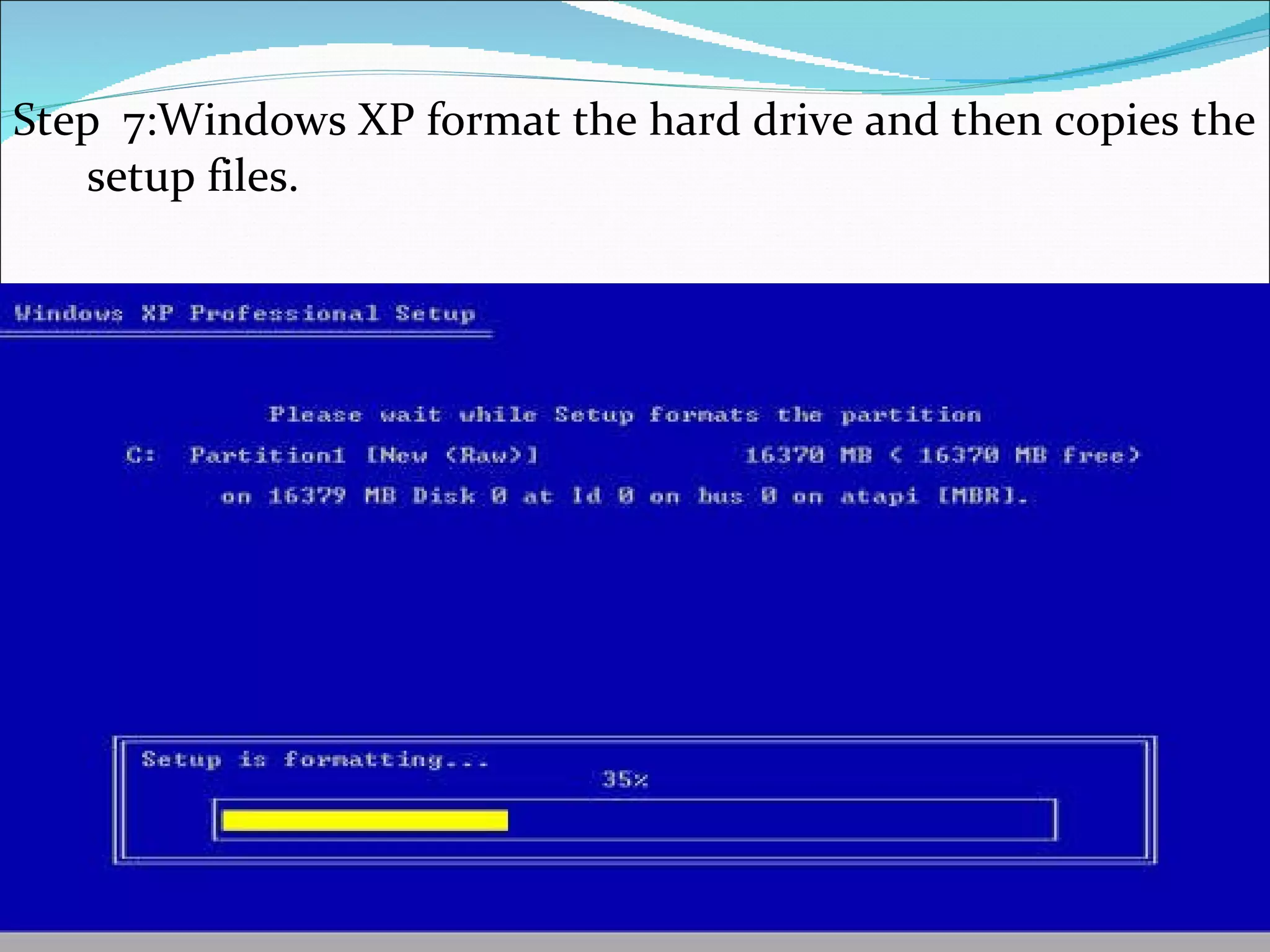

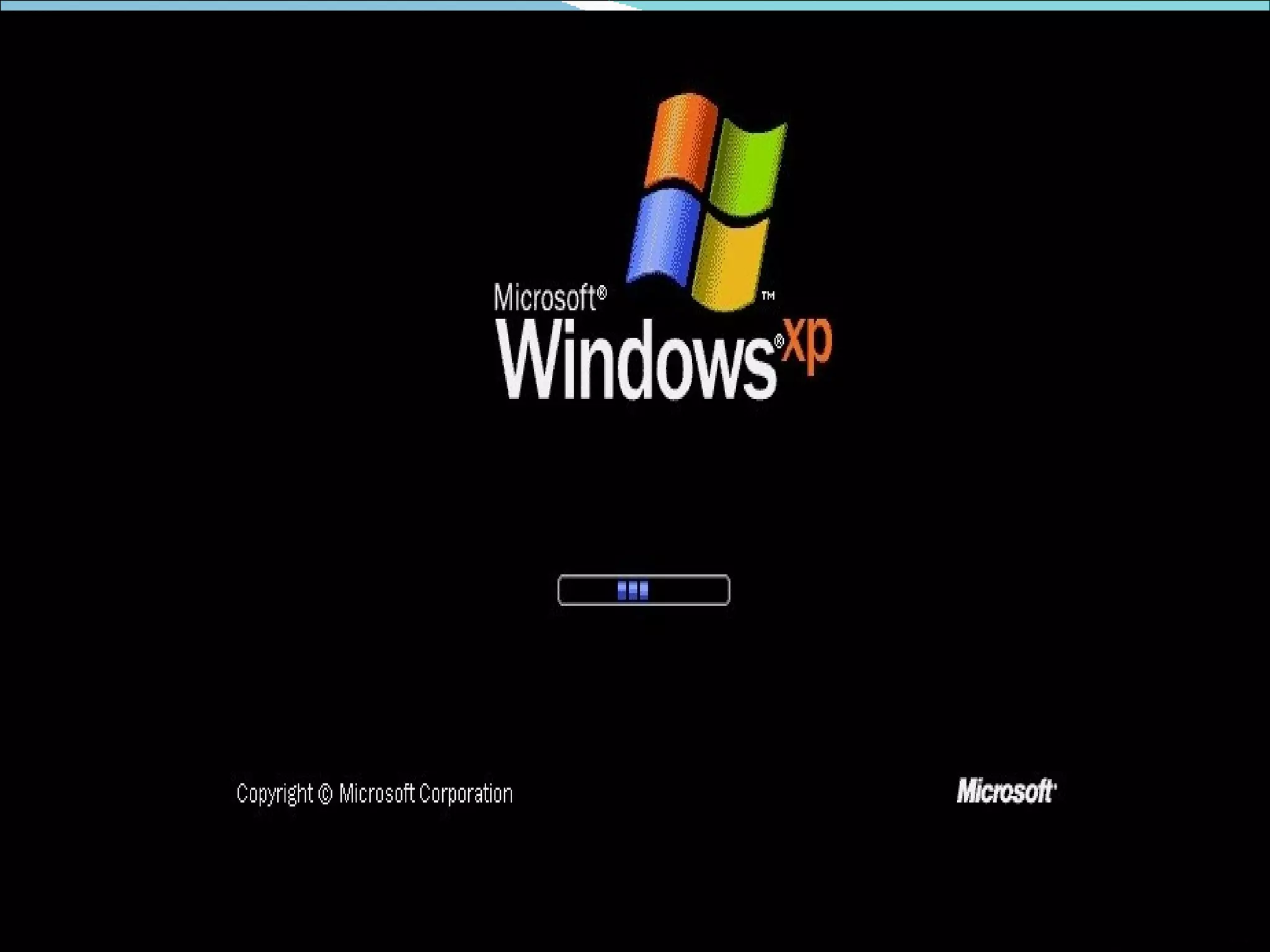

Step 7:Windows XP format the hard drive and then copies the setup files.

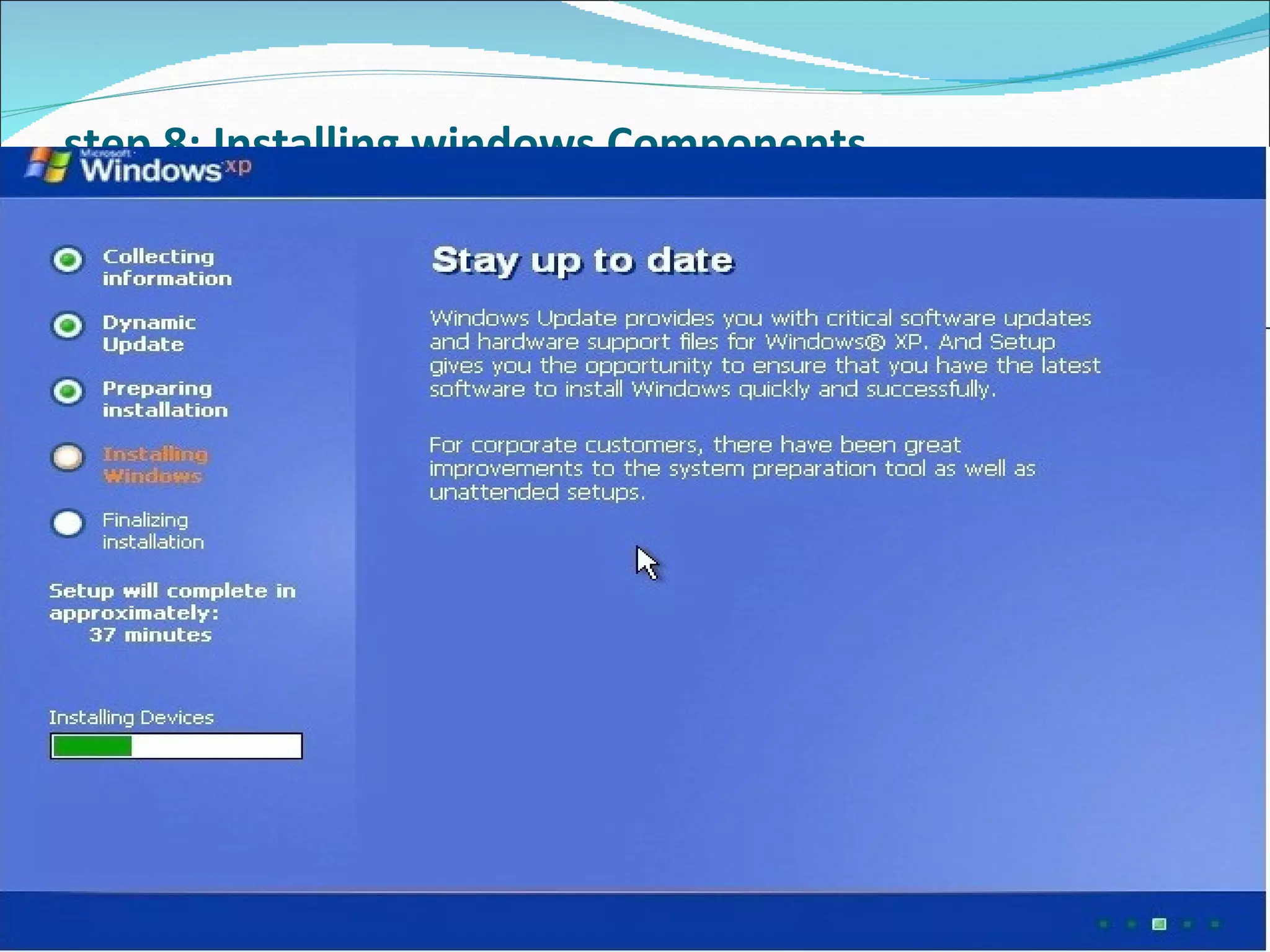

step 8: Installing windows Components

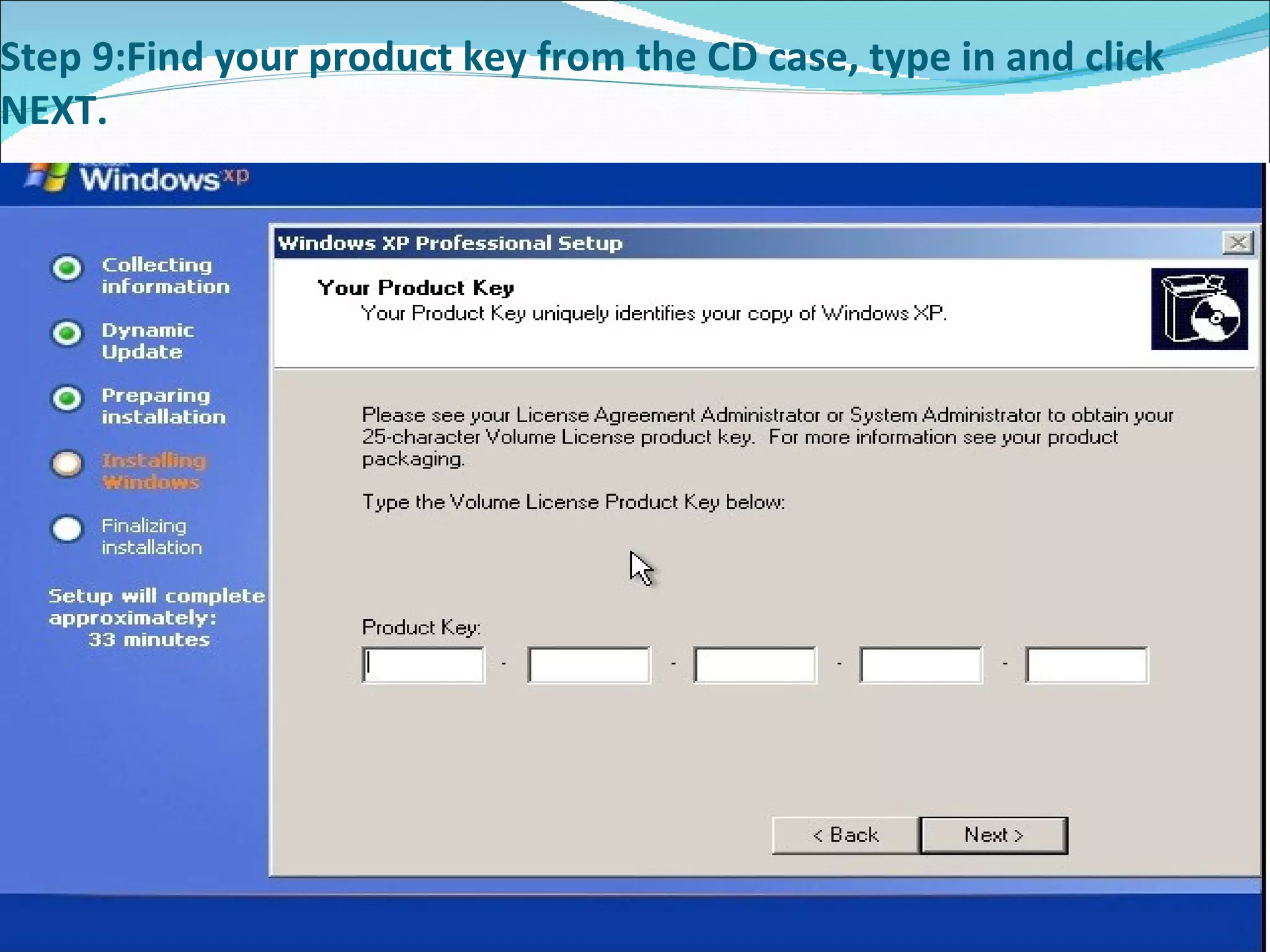

Step 9:Find your product key from the CD case, type in and click NEXT.

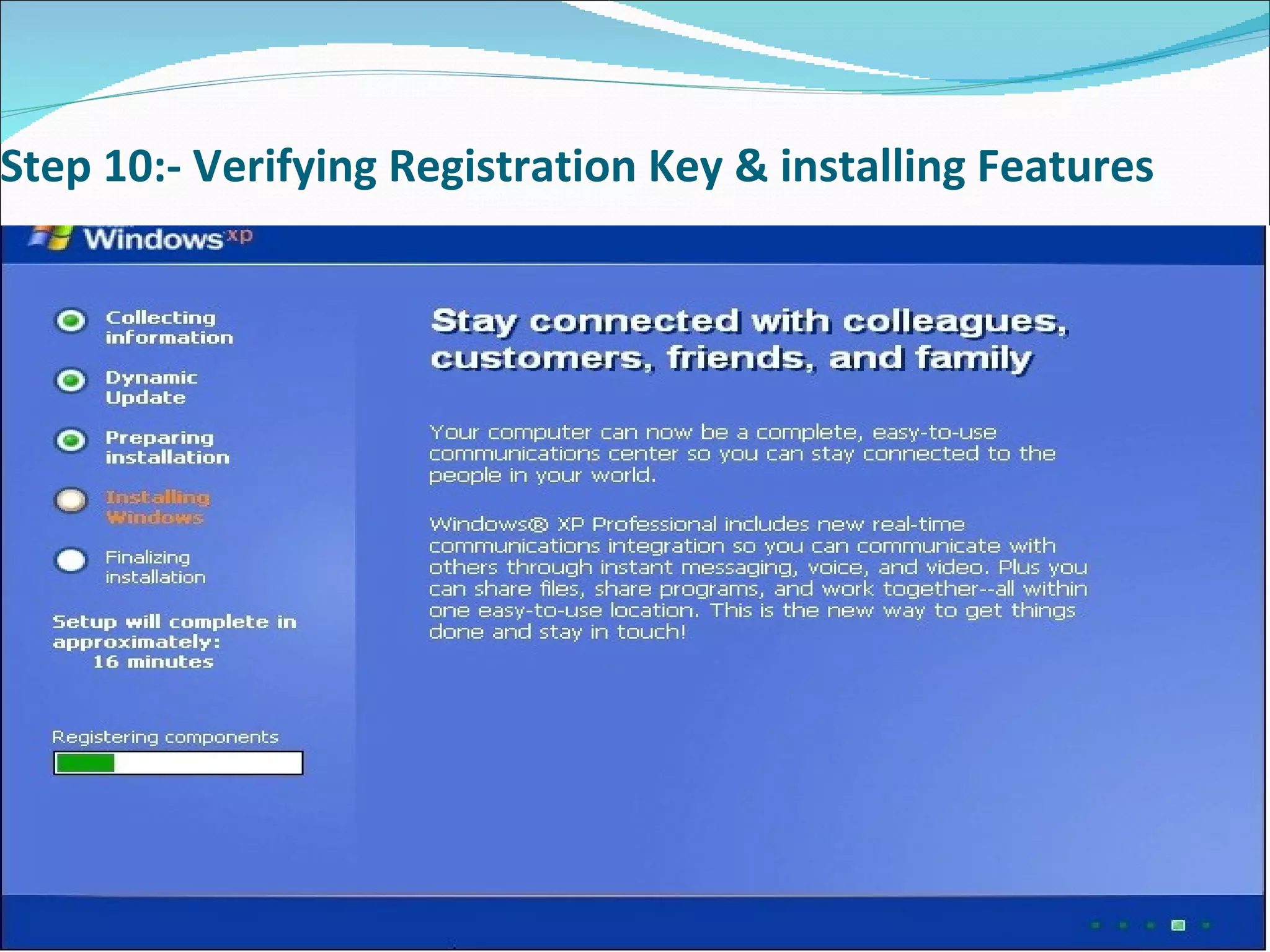

Step 10:- Verifying Registration Key & installing Features

Post Install Setup and Configuration

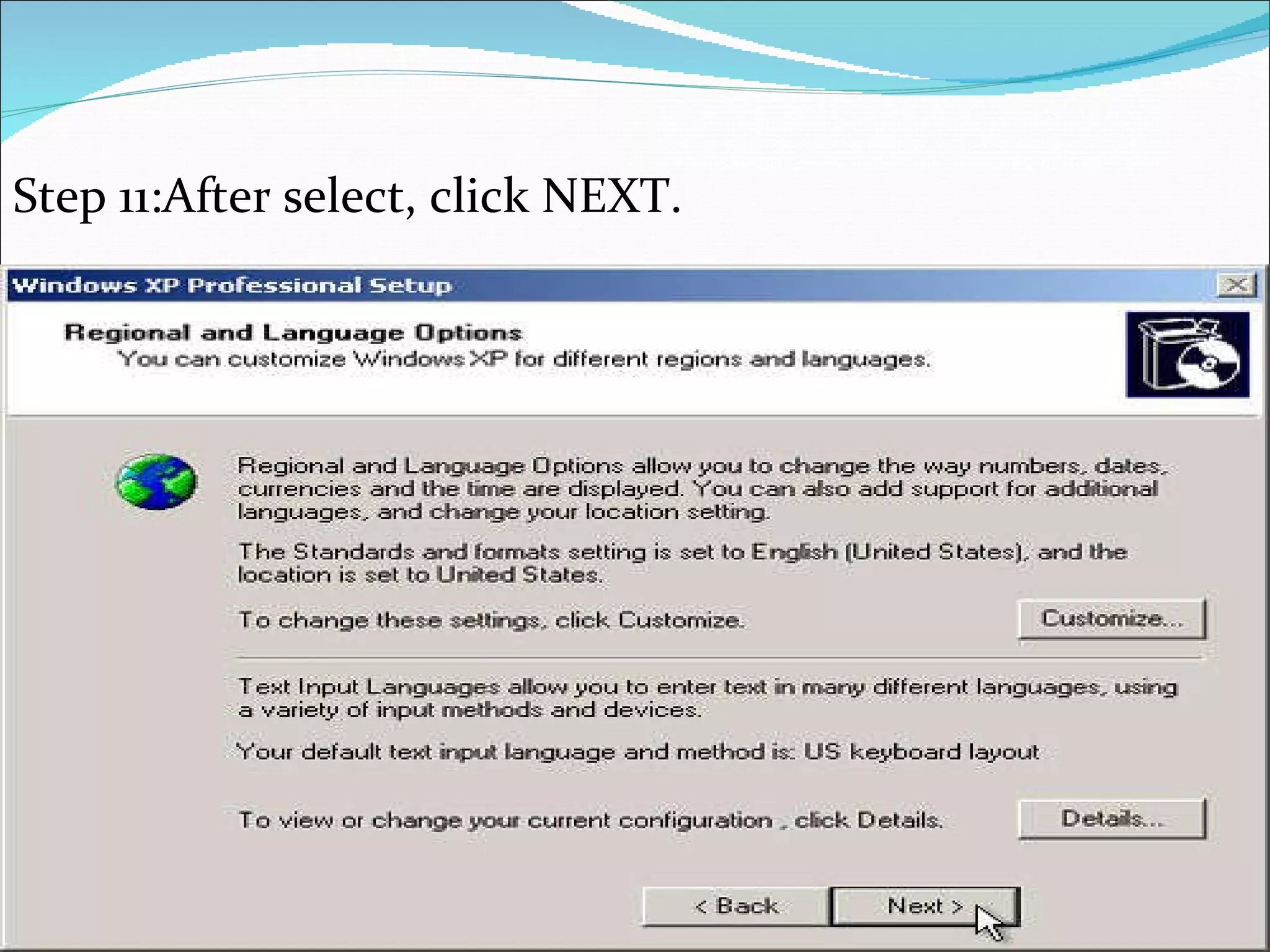

Step 11:After select, click NEXT.

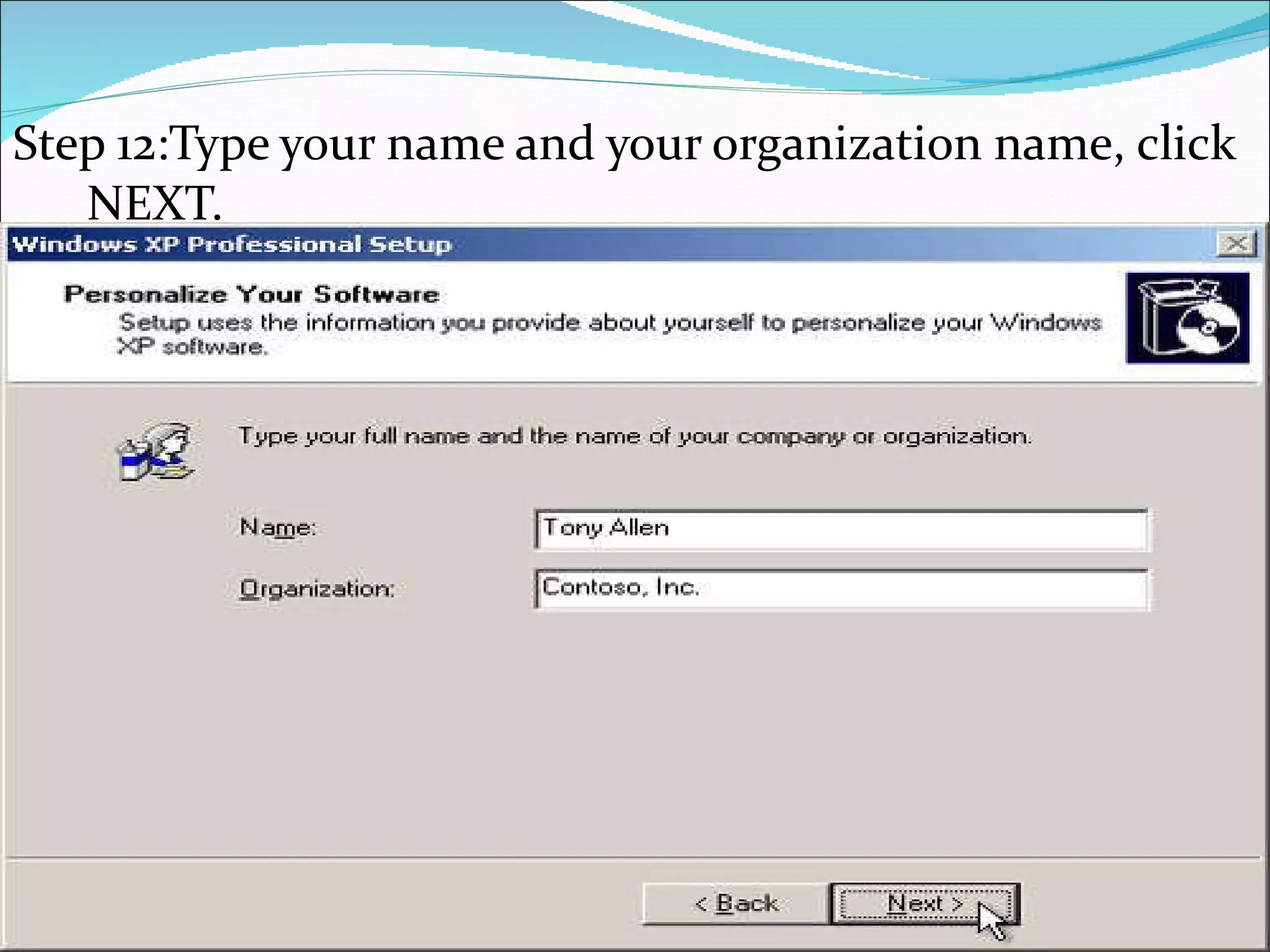

Step 12:Type your name and your organization name, click NEXT.

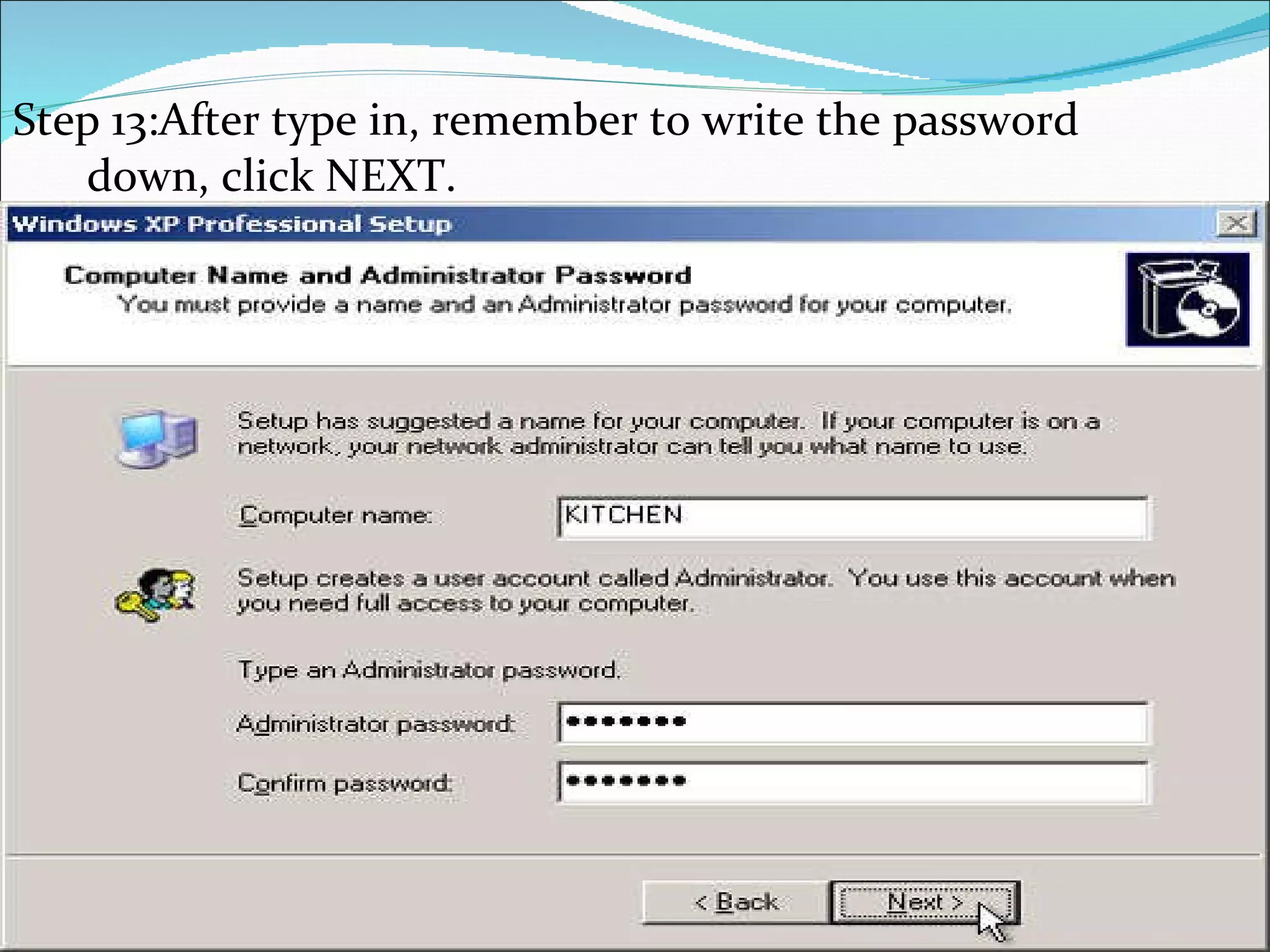

Step 13:After type in, remember to write the password down, click NEXT.

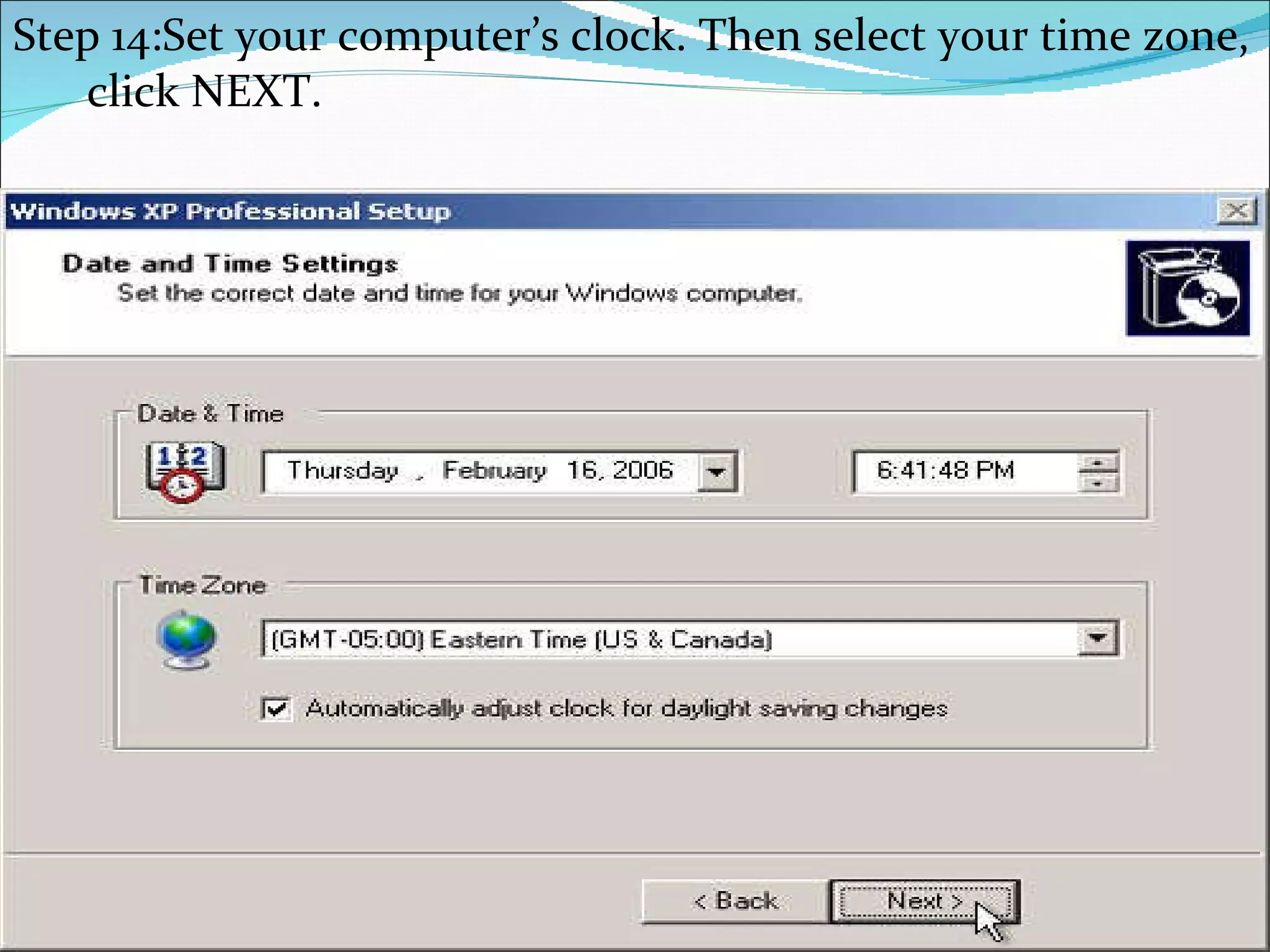

Step 14:Set your computer’s clock. Then select your time zone, click NEXT.

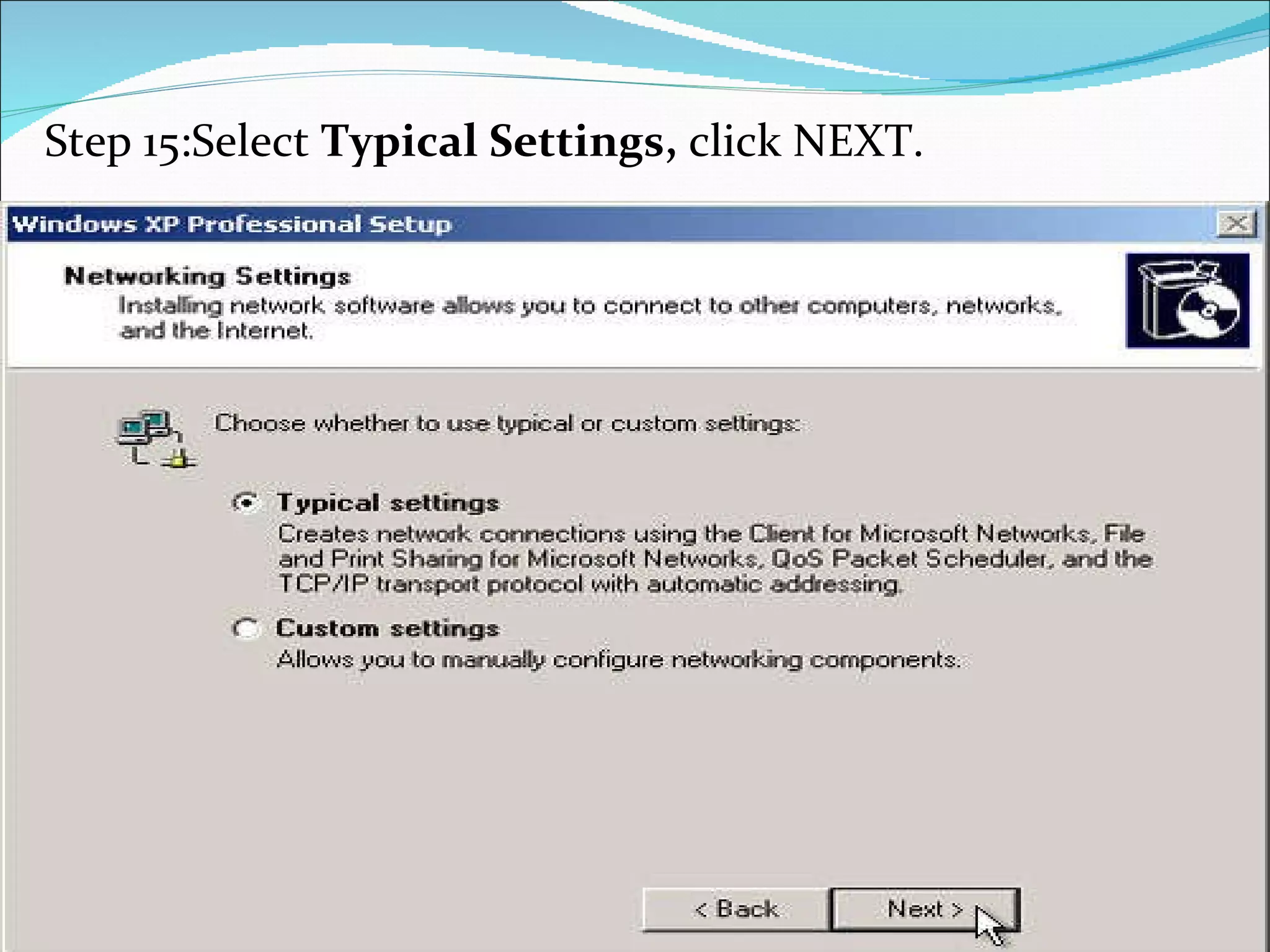

Step 15:Select Typical Settings, click NEXT.

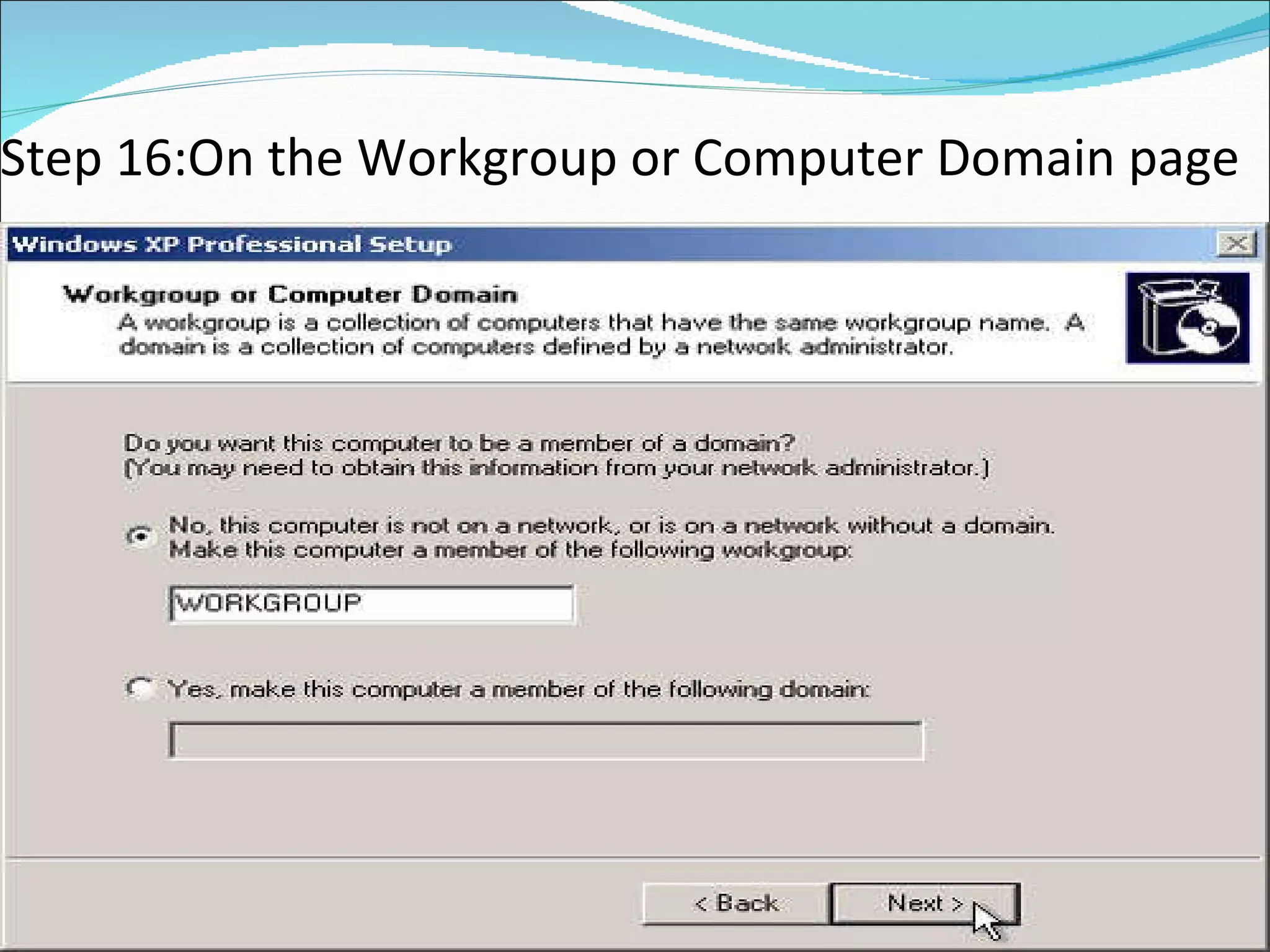

Step 16:On the Workgroup or Computer Domain page

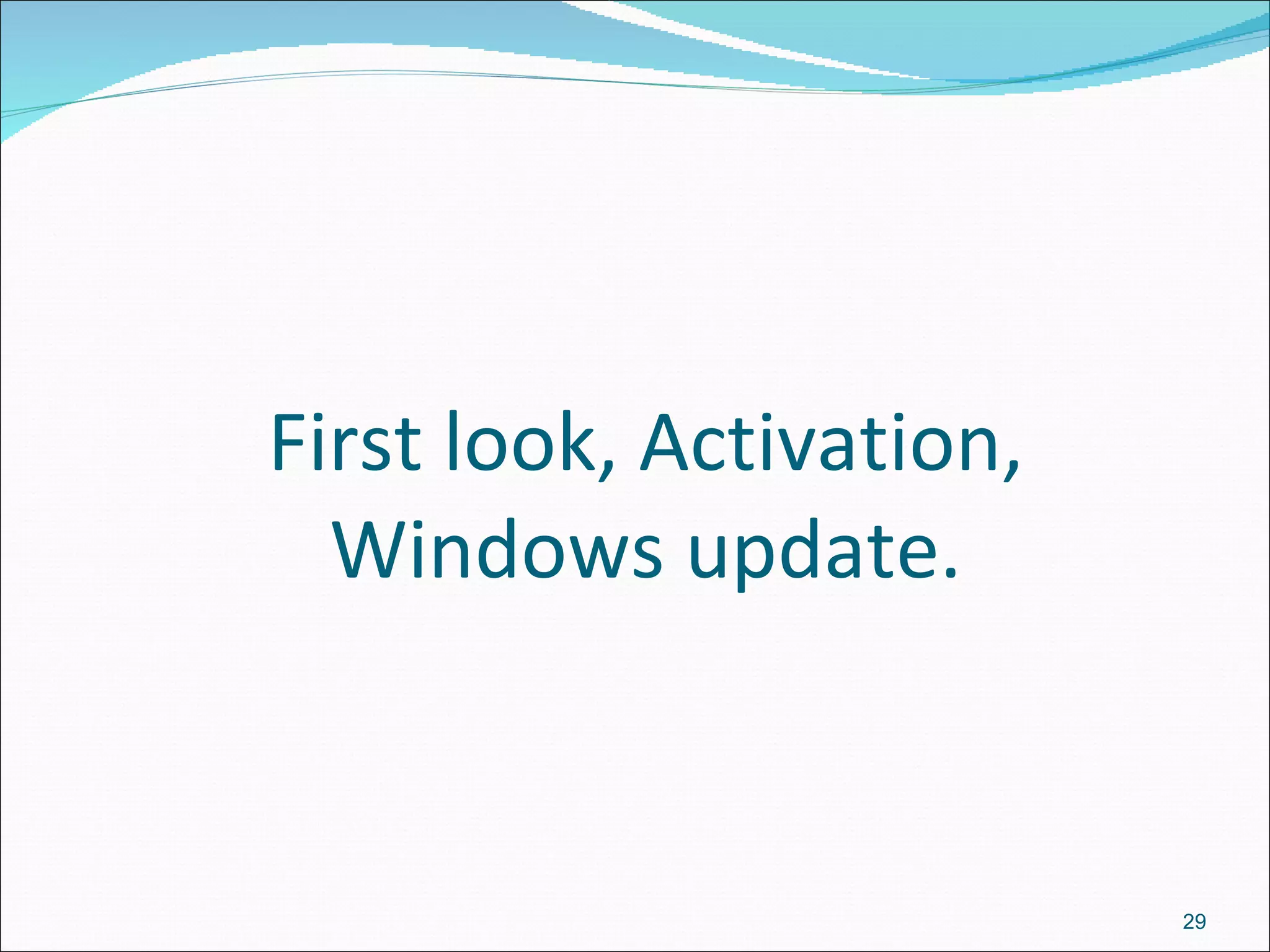

First look, Activation, Windows update.

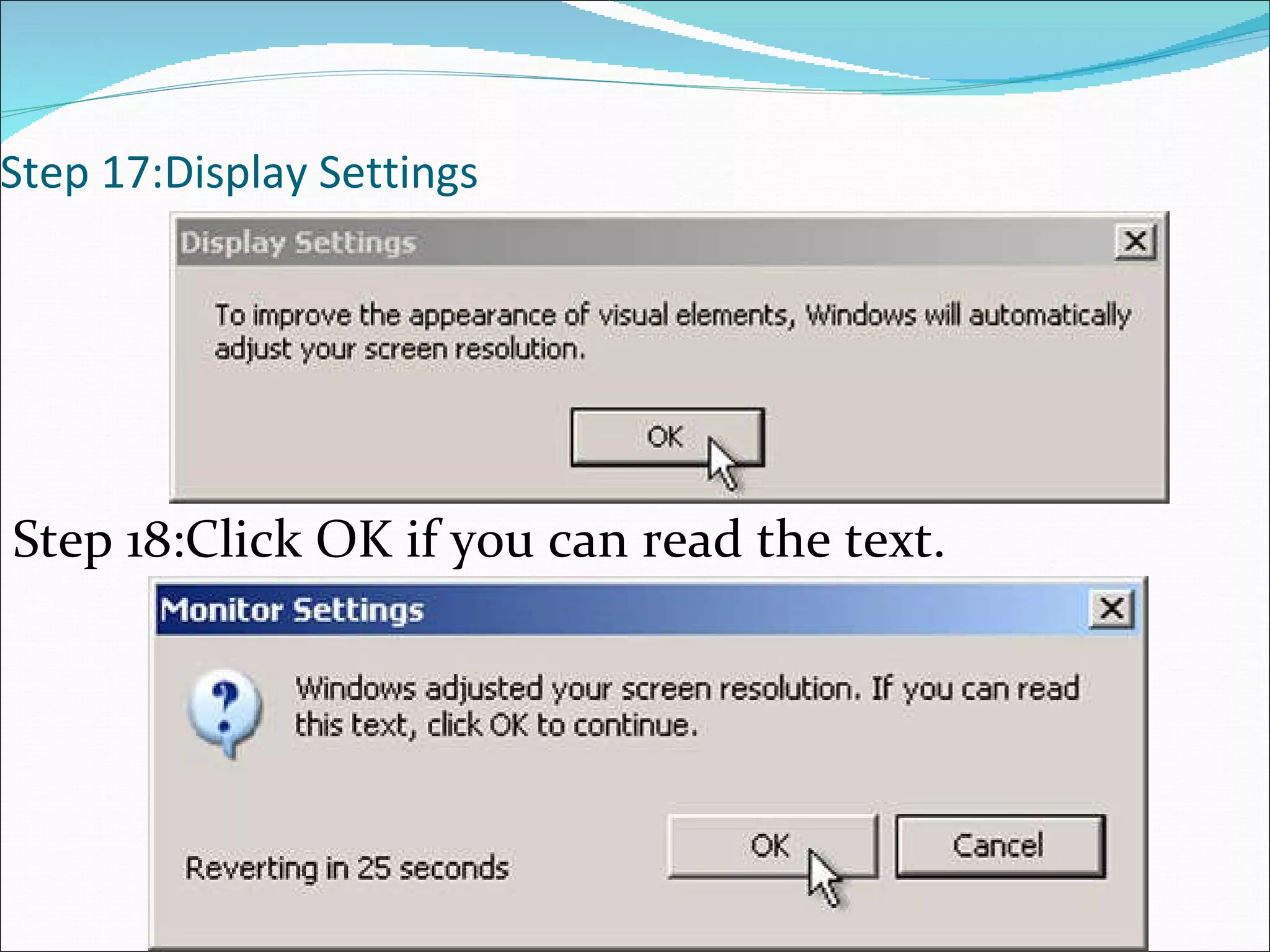

Step 17:Display Settings Step 18:Click OK if you can read the text.

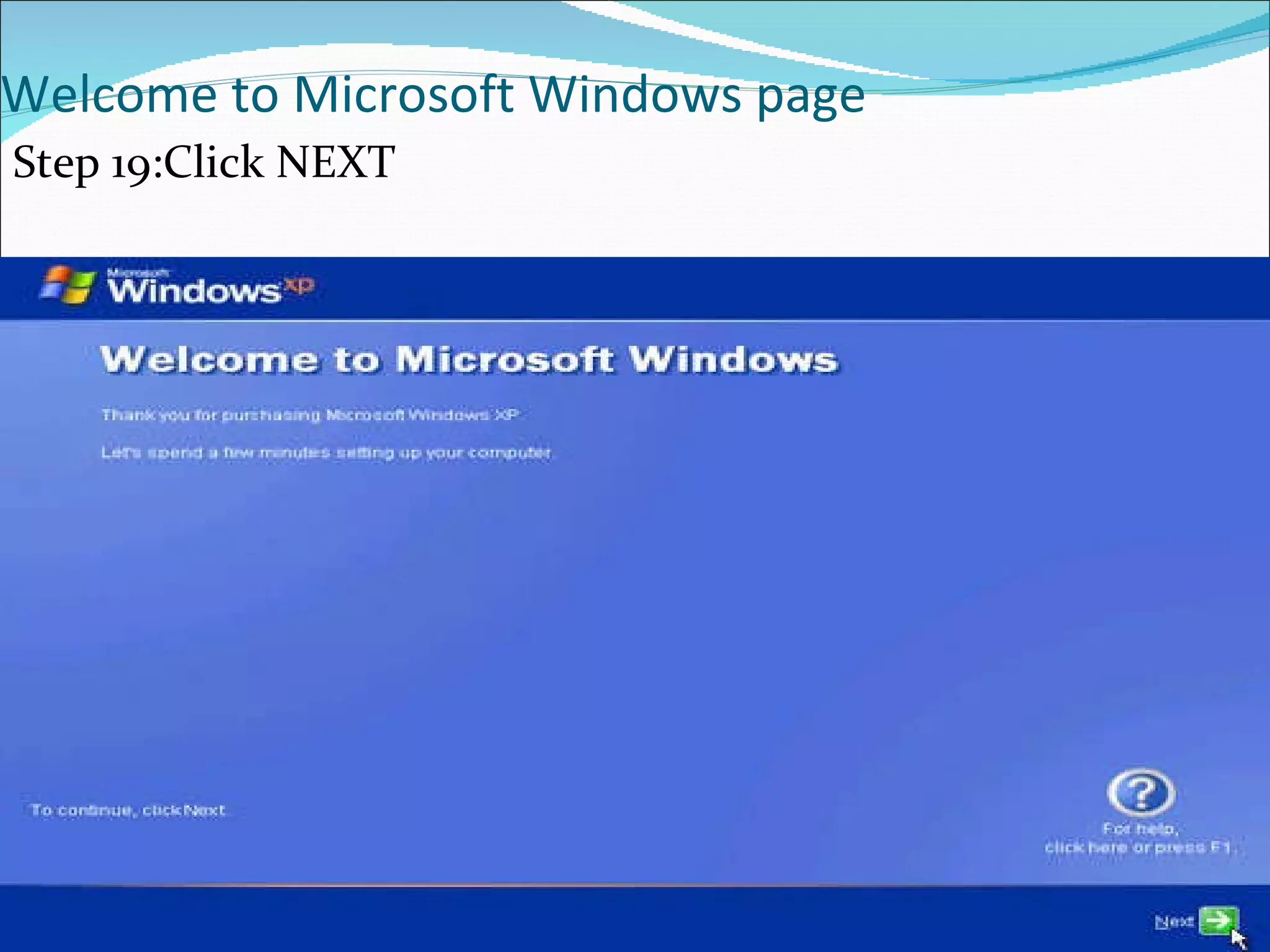

Welcome to Microsoft Windows page Step 19:Click NEXT

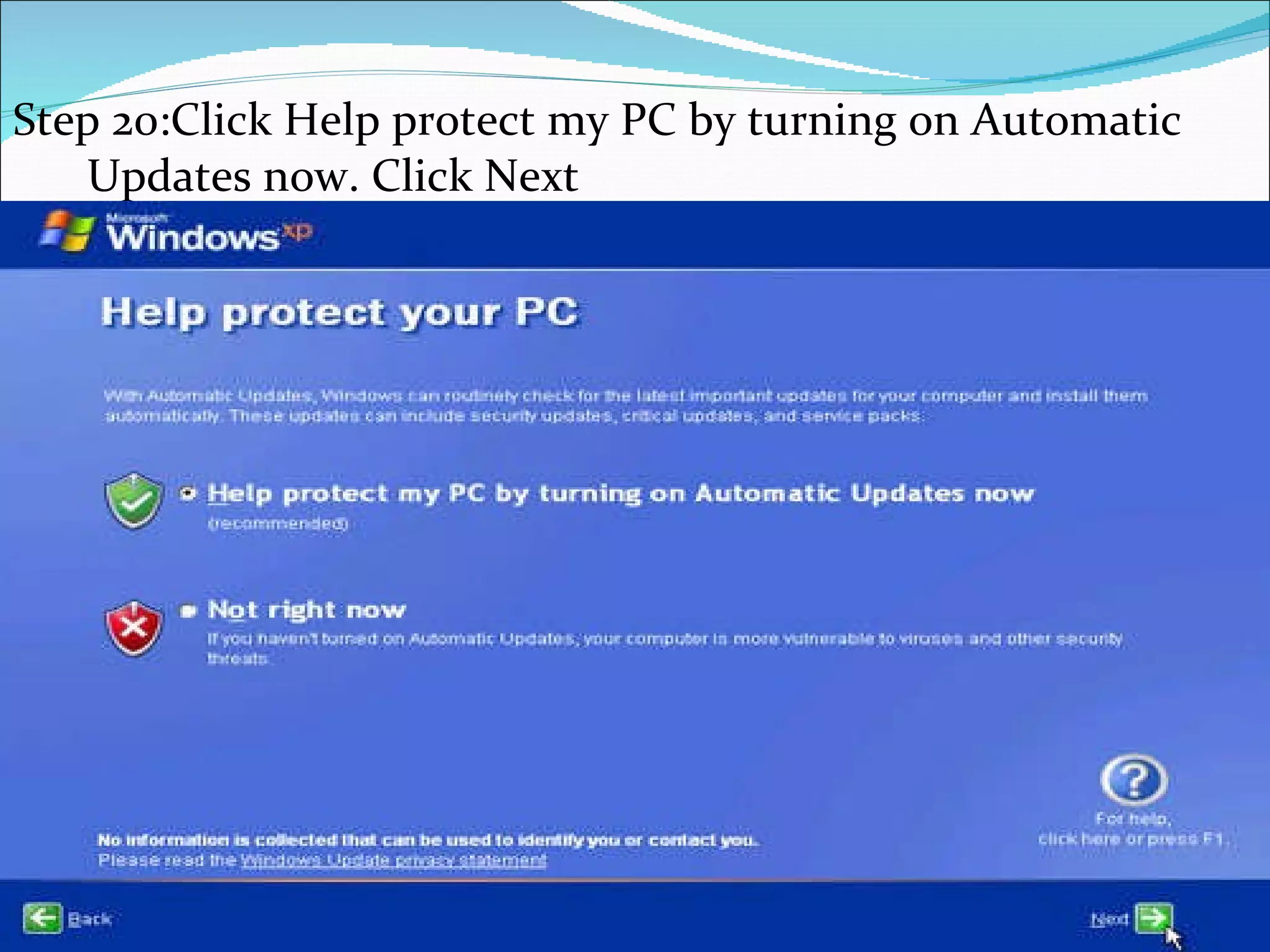

Step 20:Click Help protect my PC by turning on Automatic Updates now. Click Next

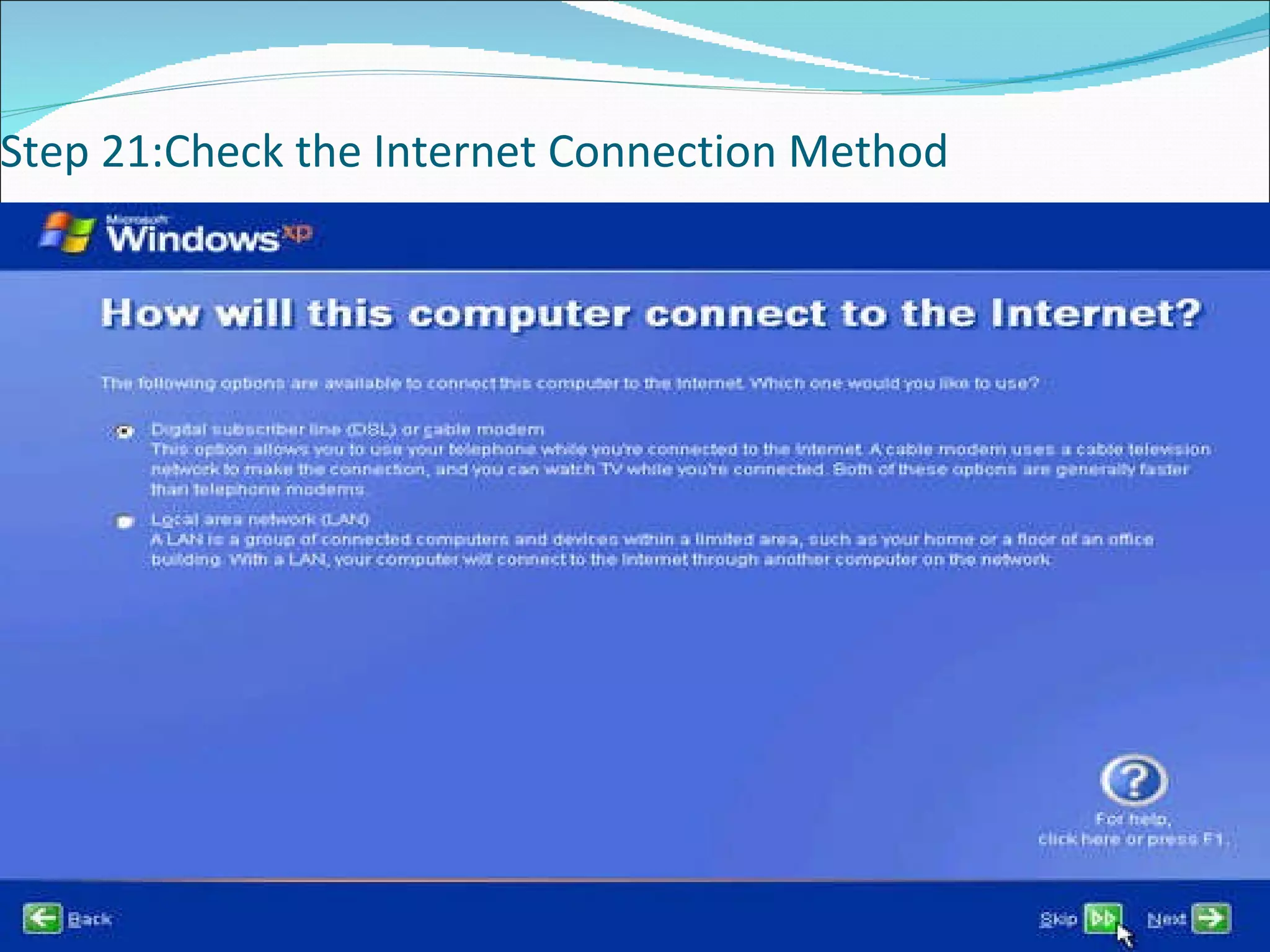

Step 21:Check the Internet Connection Method

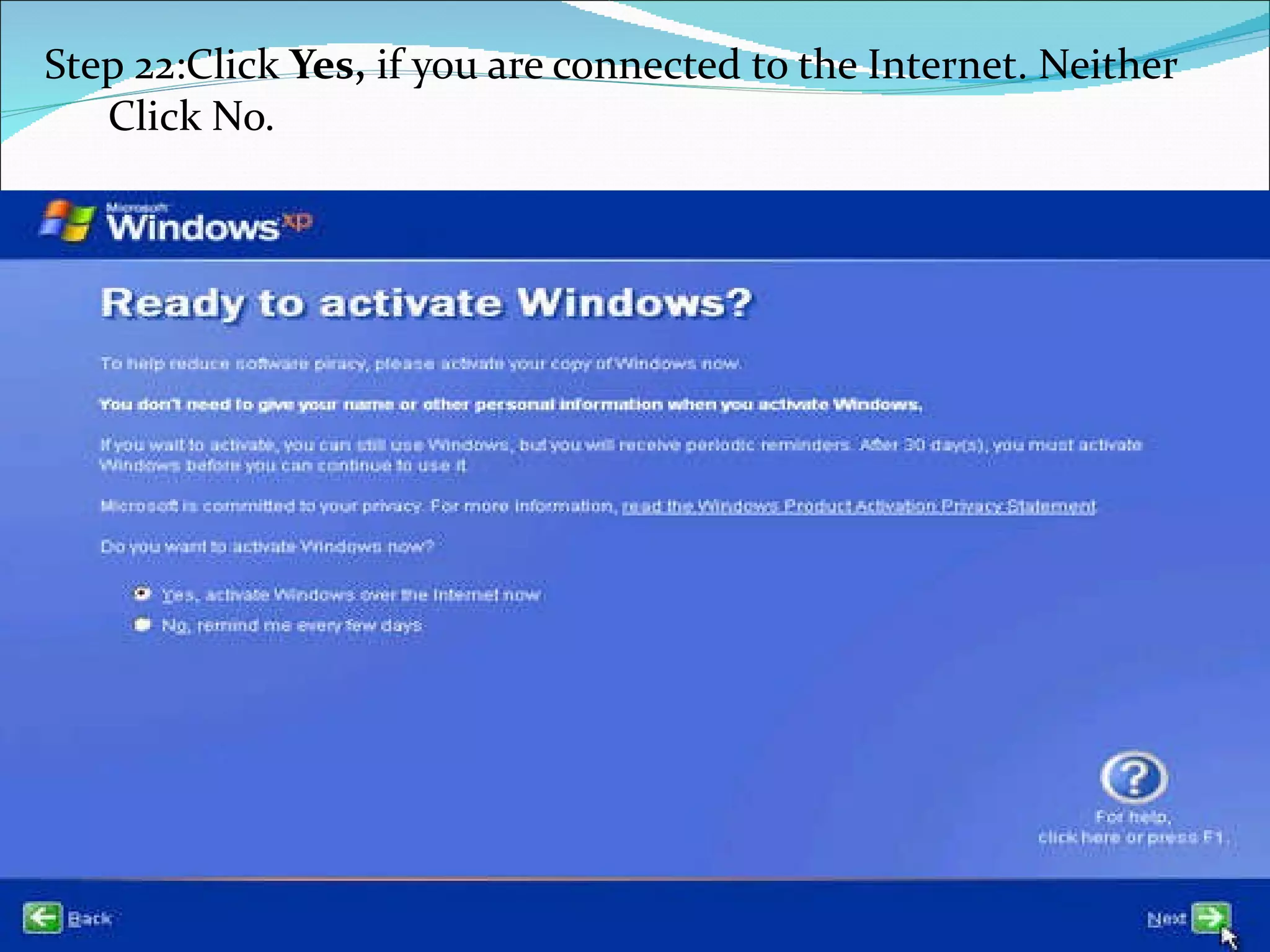

Step 22:Click Yes, if you are connected to the Internet. Neither Click No.

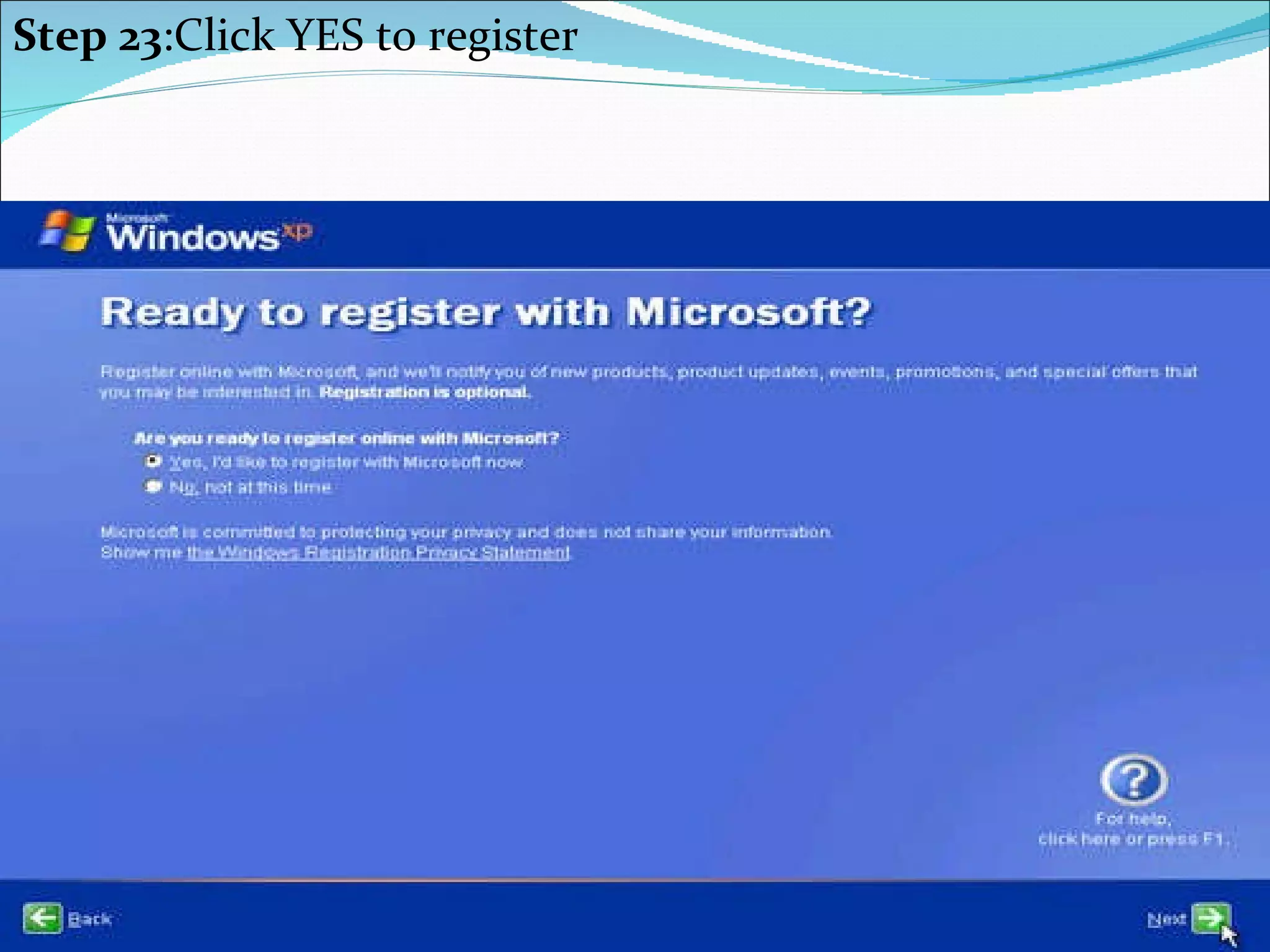

Step 23 :Click YES to register

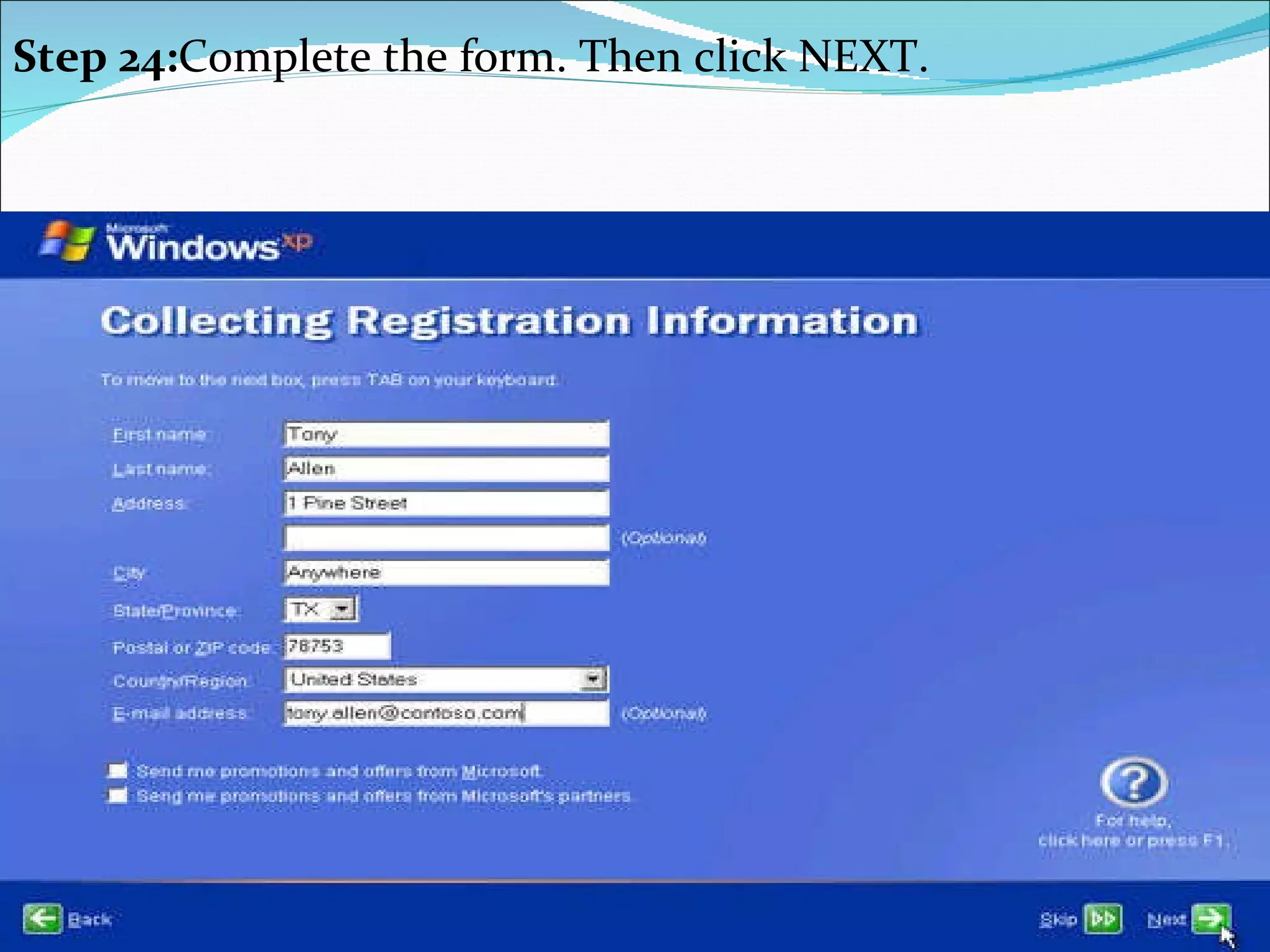

Step 24: Complete the form. Then click NEXT.

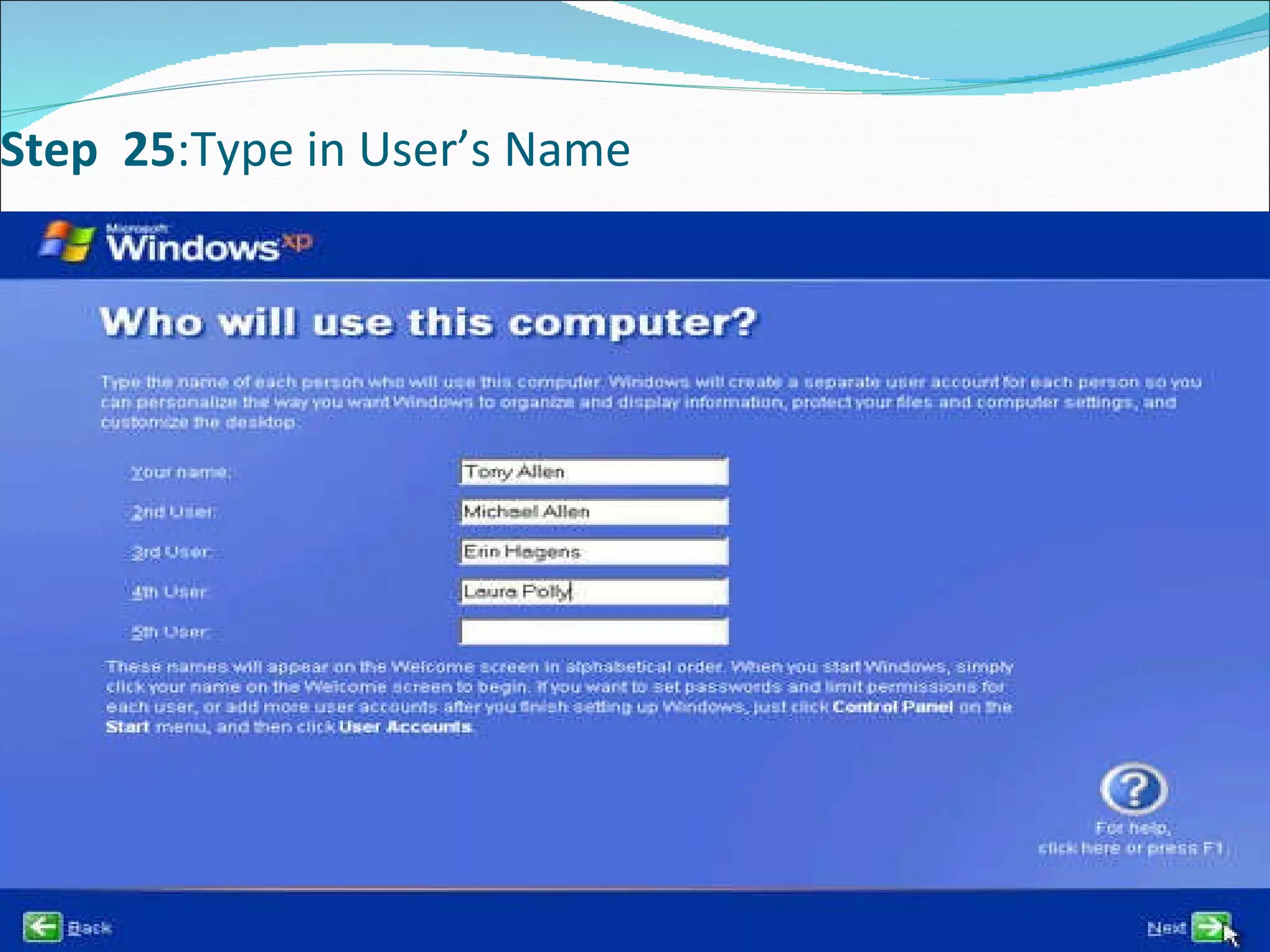

Step 25 :Type in User’s Name

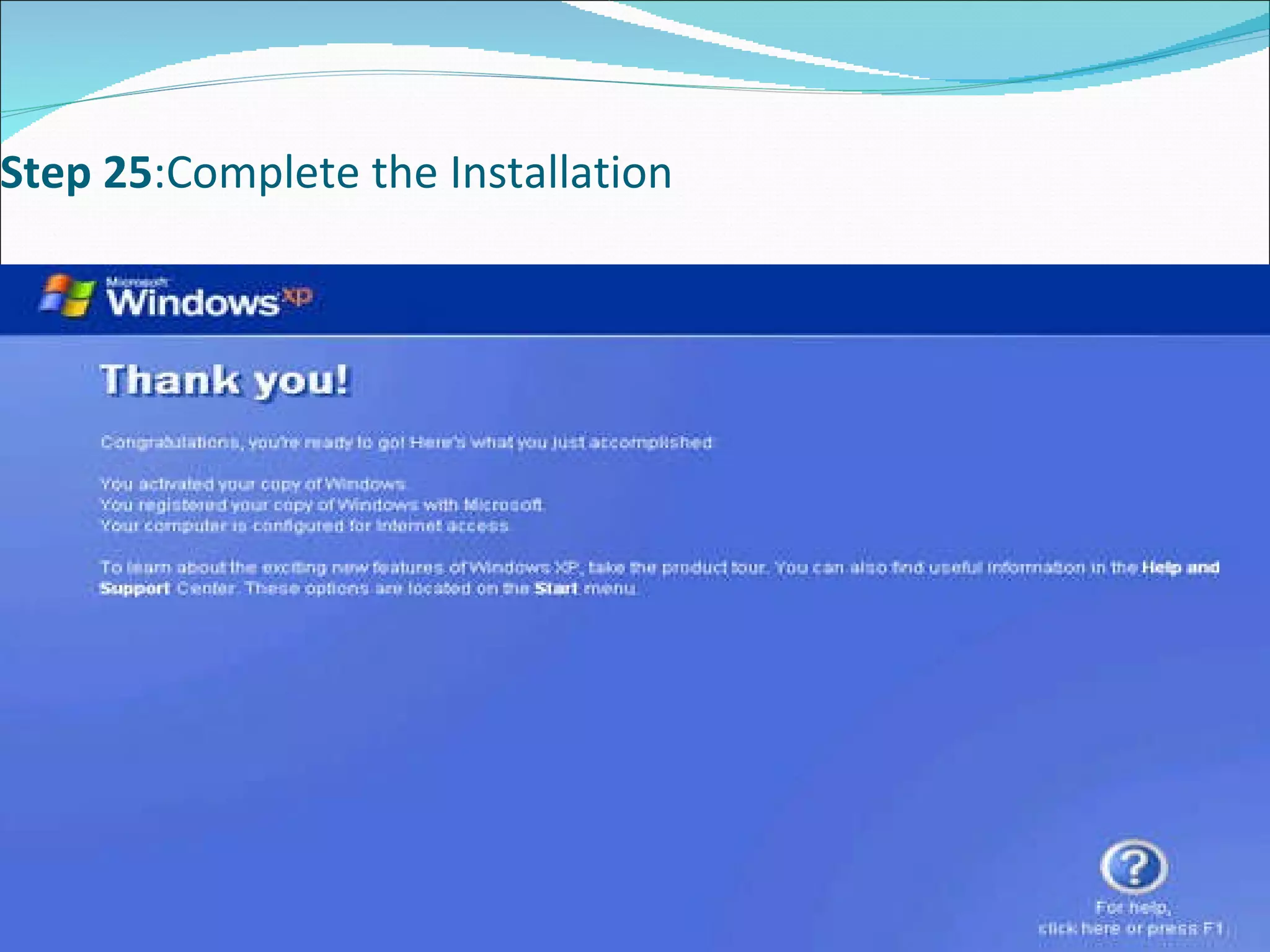

Step 25 :Complete the Installation

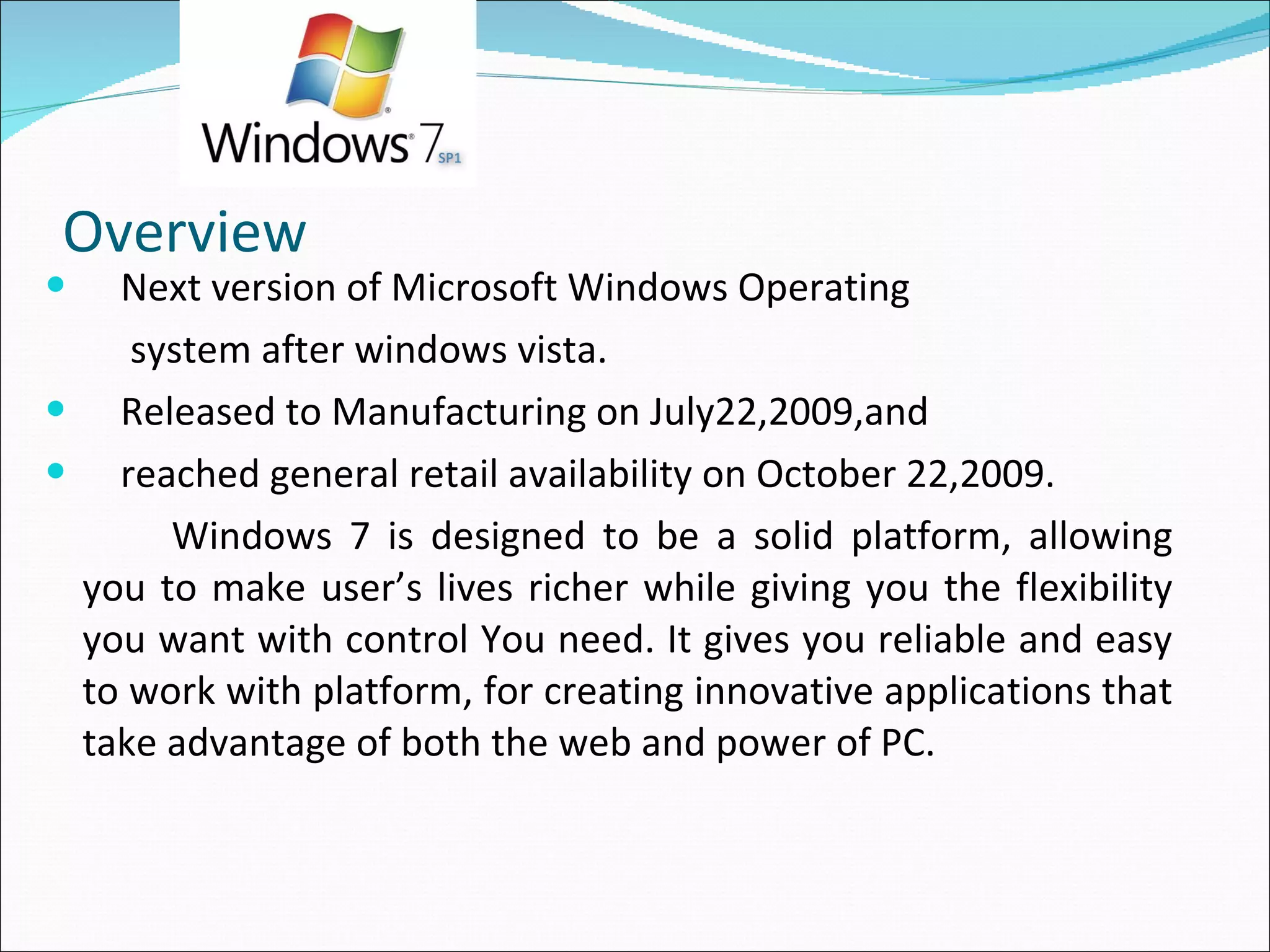

Overview Next version of Microsoft Windows Operating system after windows vista. Released to Manufacturing on July22,2009,and reached general retail availability on October 22,2009. Windows 7 is designed to be a solid platform, allowing you to make user’s lives richer while giving you the flexibility you want with control You need. It gives you reliable and easy to work with platform, for creating innovative applications that take advantage of both the web and power of PC.

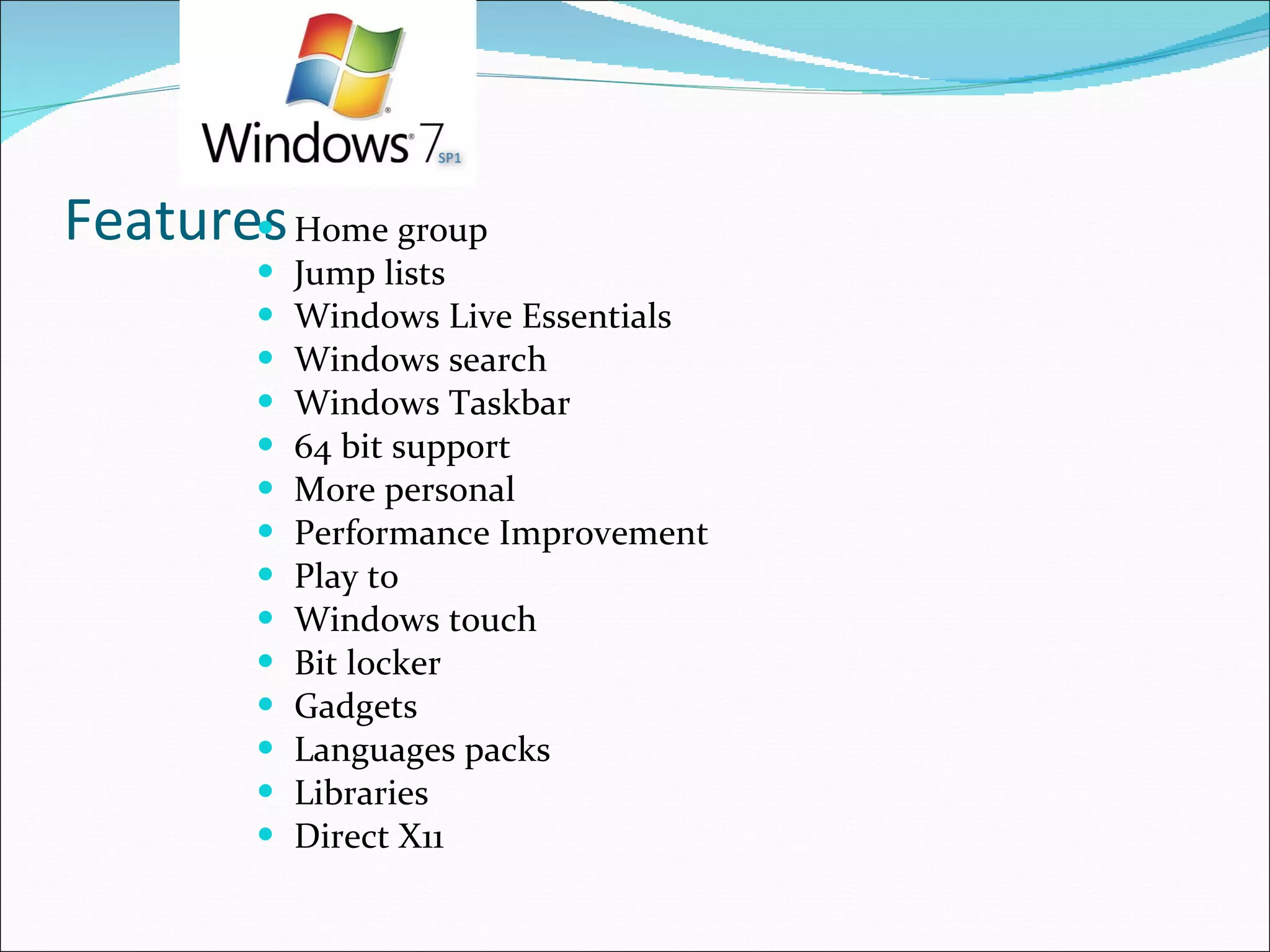

Features Home group Jump lists Windows Live Essentials Windows search Windows Taskbar 64 bit support More personal Performance Improvement Play to Windows touch Bit locker Gadgets Languages packs Libraries Direct X11

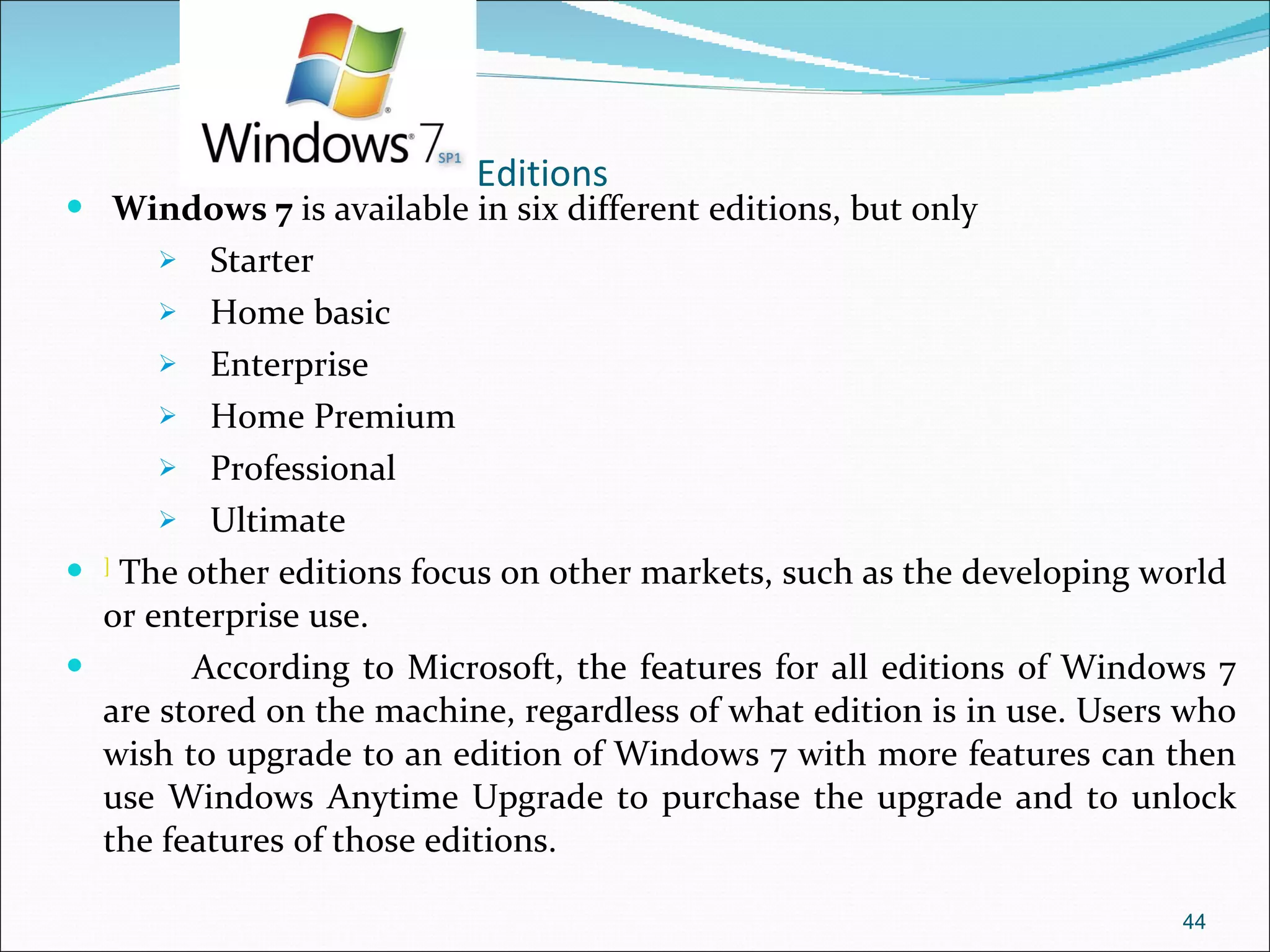

Editions Windows 7 is available in six different editions, but only Starter Home basic Enterprise Home Premium Professional Ultimate ] The other editions focus on other markets, such as the developing world or enterprise use. According to Microsoft, the features for all editions of Windows 7 are stored on the machine, regardless of what edition is in use. Users who wish to upgrade to an edition of Windows 7 with more features can then use Windows Anytime Upgrade to purchase the upgrade and to unlock the features of those editions.

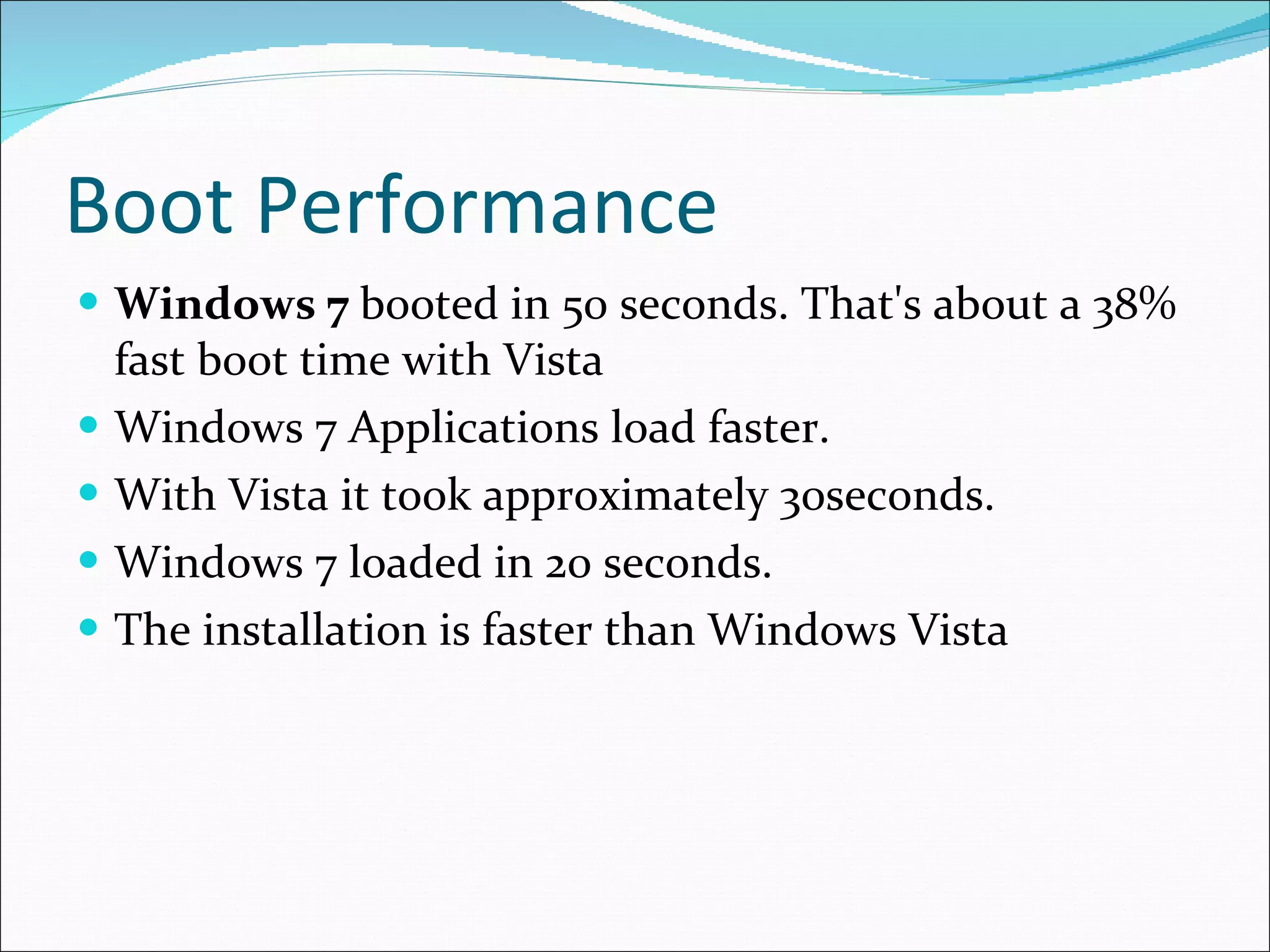

Boot Performance Windows 7 booted in 50 seconds. That's about a 38% fast boot time with Vista Windows 7 Applications load faster. With Vista it took approximately 30seconds. Windows 7 loaded in 20 seconds. The installation is faster than Windows Vista

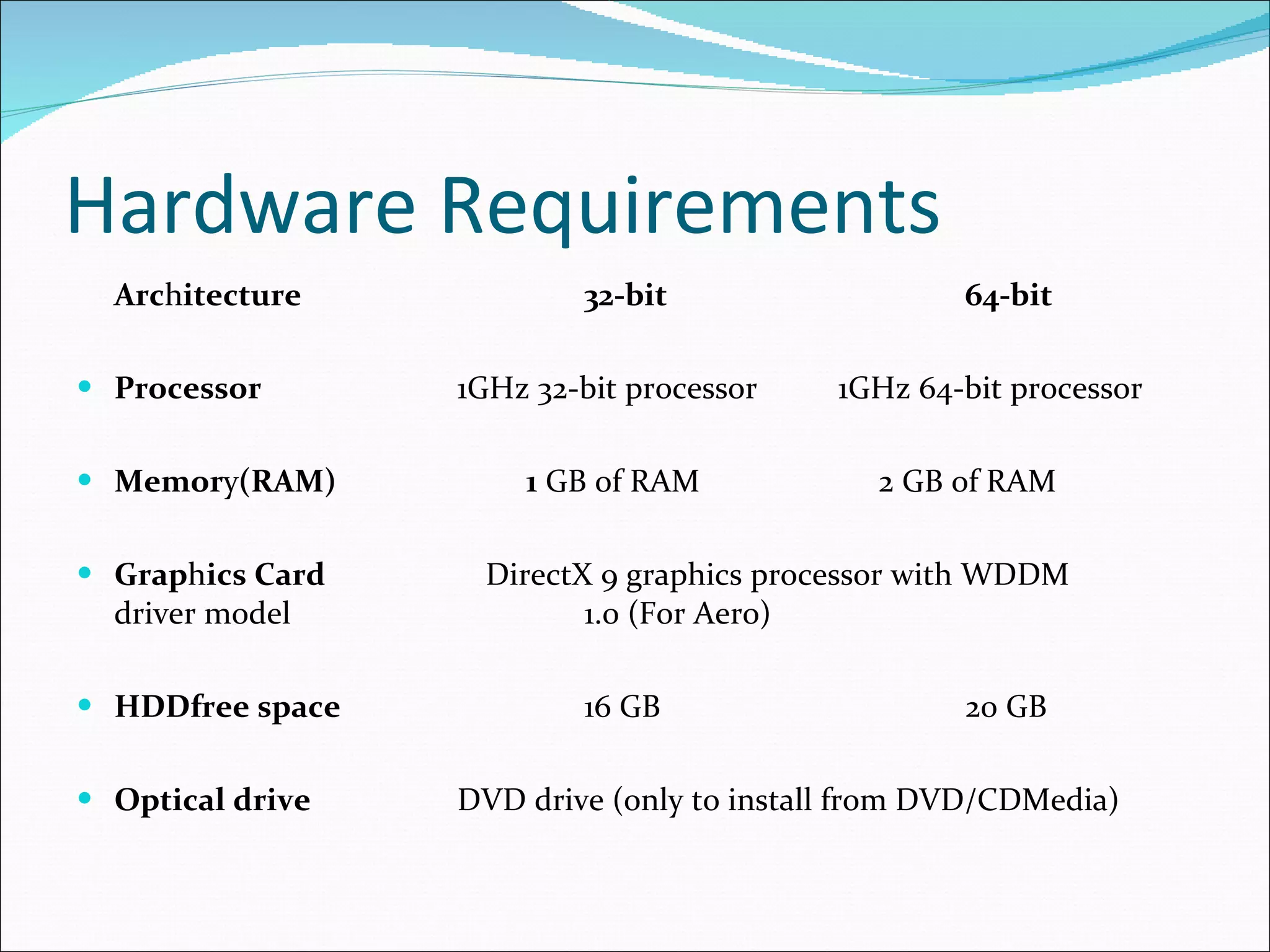

Hardware Requirements Arc h itecture 32-bit 64-bit Processor 1GHz 32-bit processor 1GHz 64-bit processor Memor y (RAM) 1 GB of RAM 2 GB of RAM Grap h ics Card DirectX 9 graphics processor with WDDM driver model 1.0 (For Aero) HDDfree space 16 GB 20 GB Optical drive DVD drive (only to install from DVD/CDMedia)

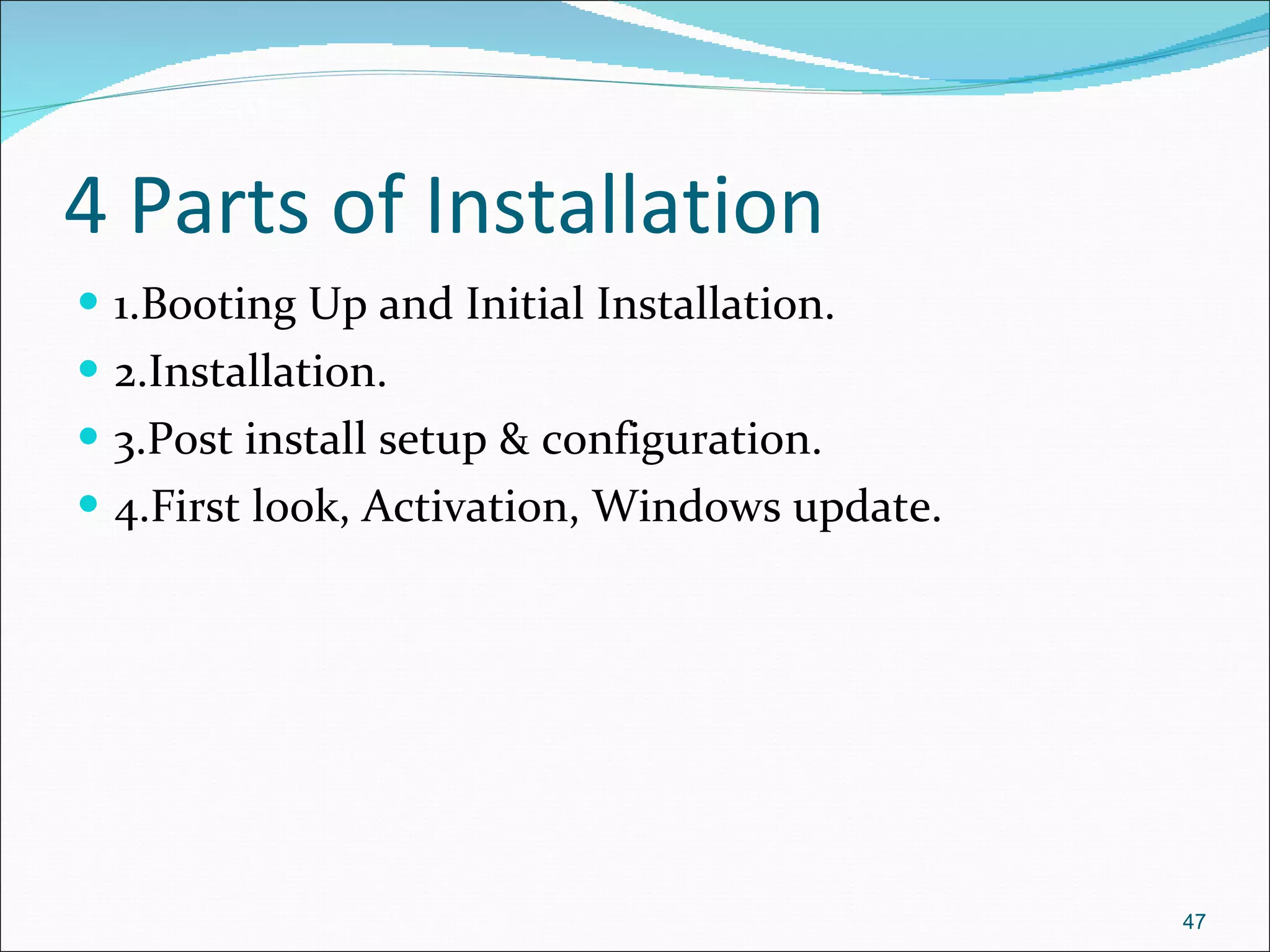

4 Parts of Installation 1.Booting Up and Initial Installation. 2.Installation. 3.Post install setup & configuration. 4.First look, Activation, Windows update.

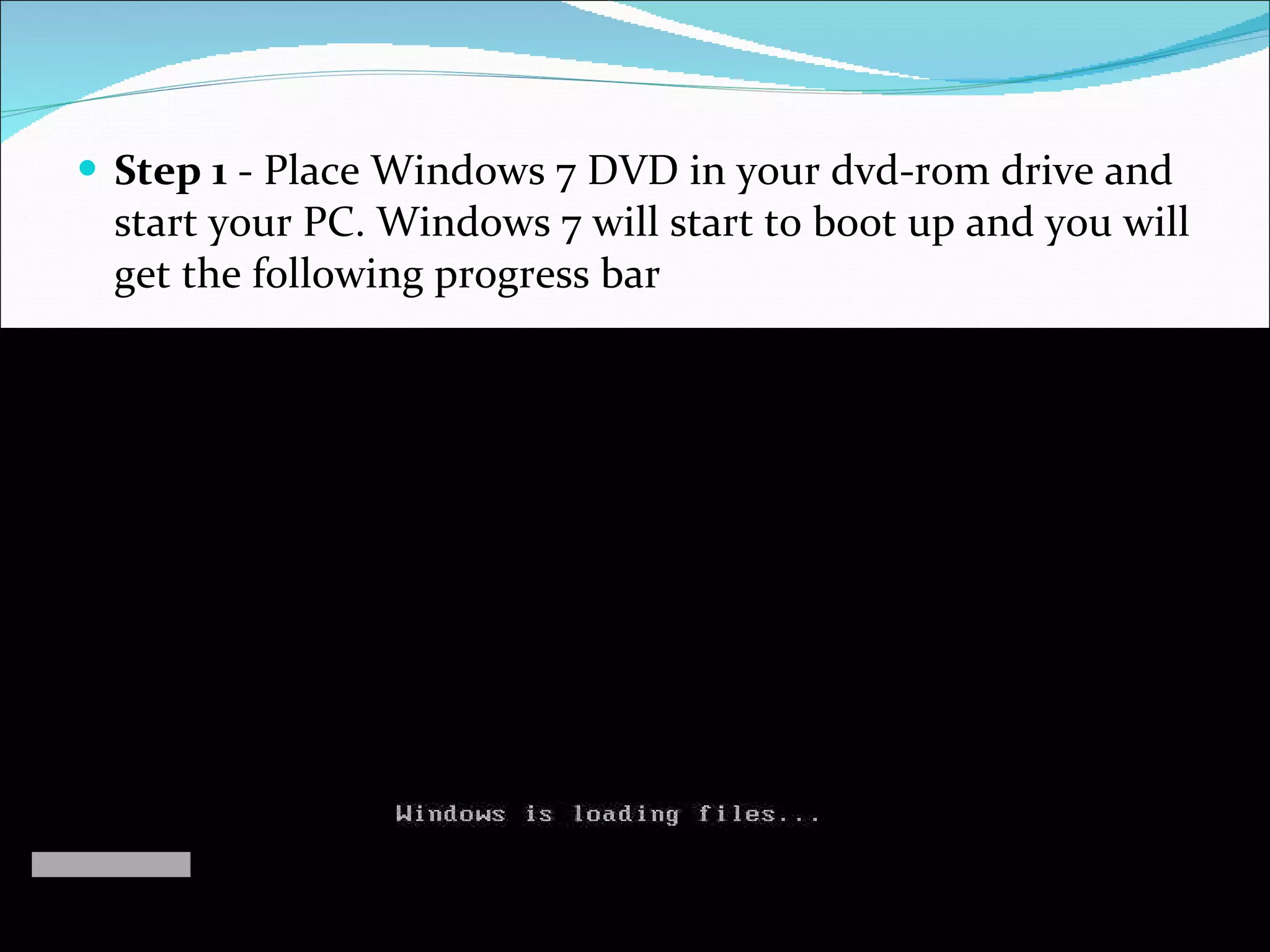

Step 1 - Place Windows 7 DVD in your dvd-rom drive and start your PC. Windows 7 will start to boot up and you will get the following progress bar

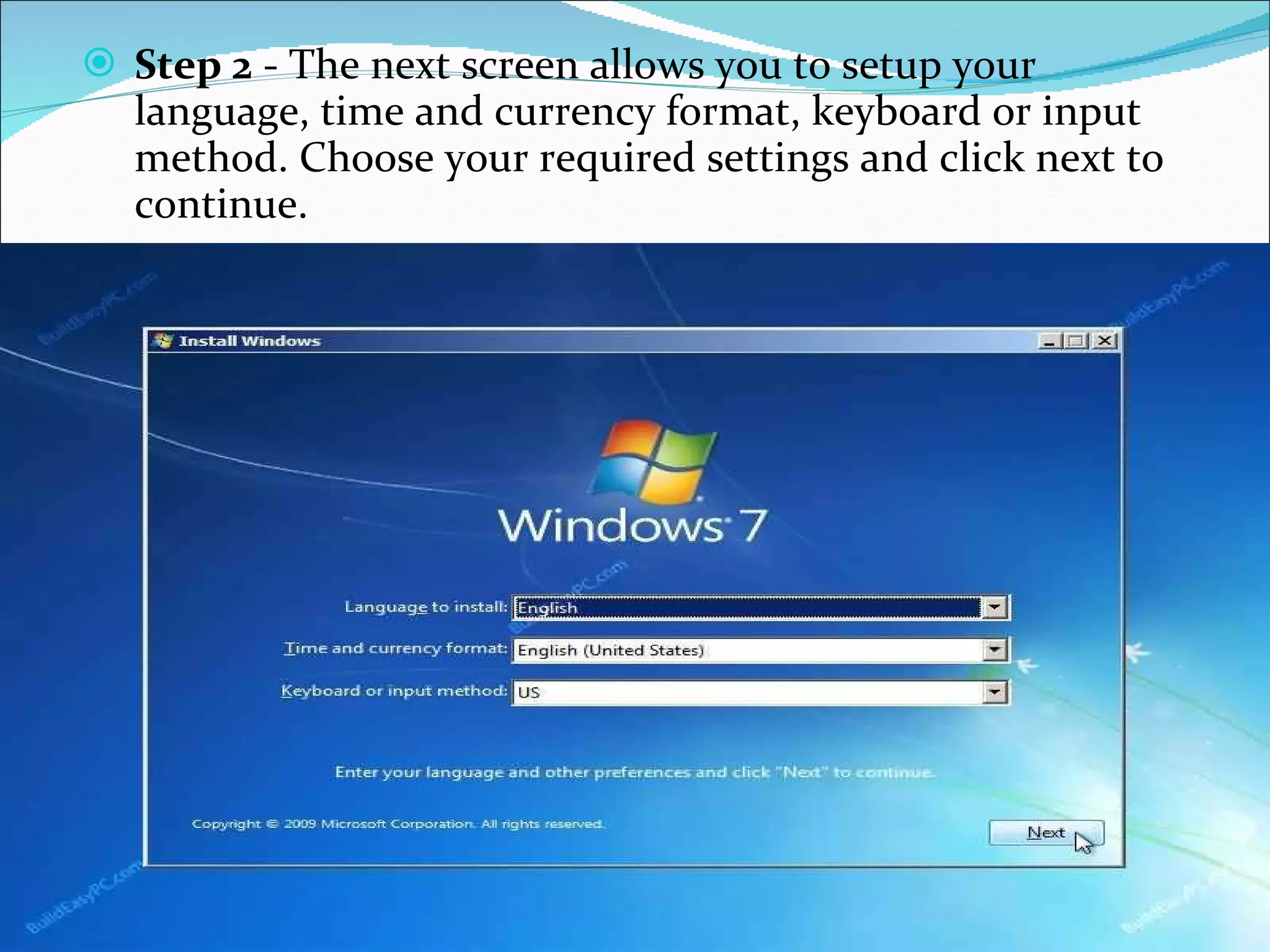

Step 2 - The next screen allows you to setup your language, time and currency format, keyboard or input method. Choose your required settings and click next to continue.

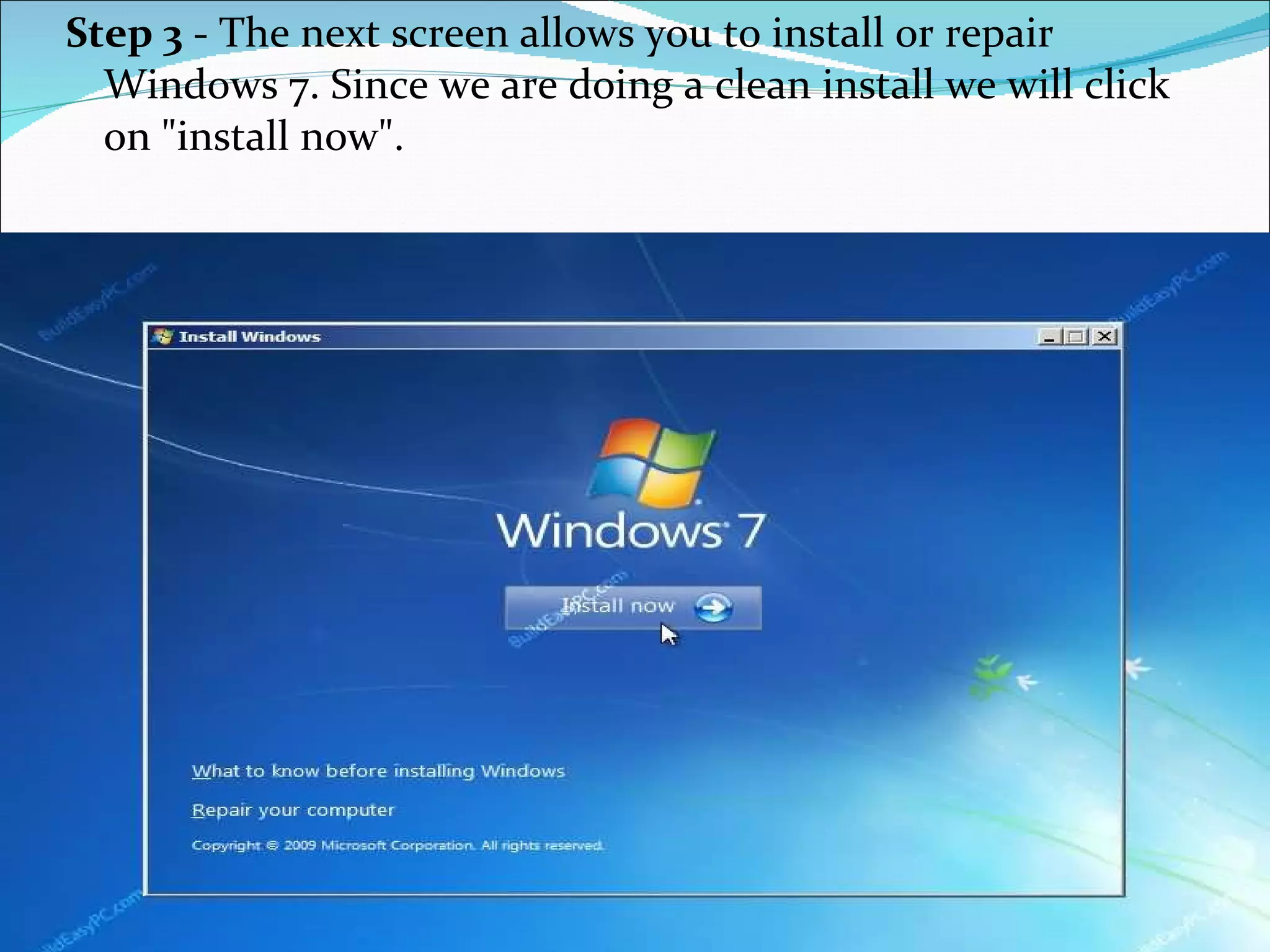

Step 3 - The next screen allows you to install or repair Windows 7. Since we are doing a clean install we will click on "install now".

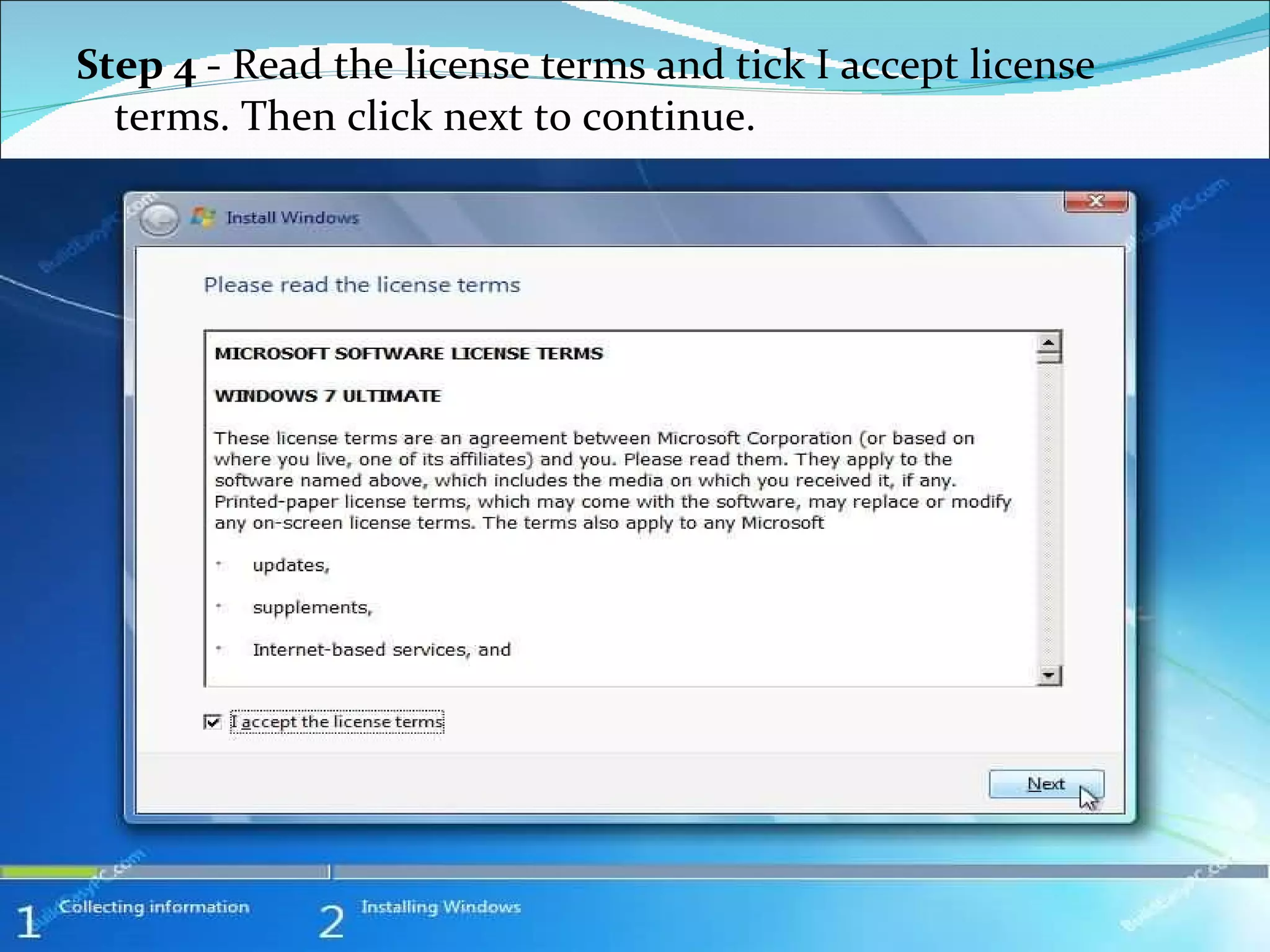

Step 4 - Read the license terms and tick I accept license terms. Then click next to continue.

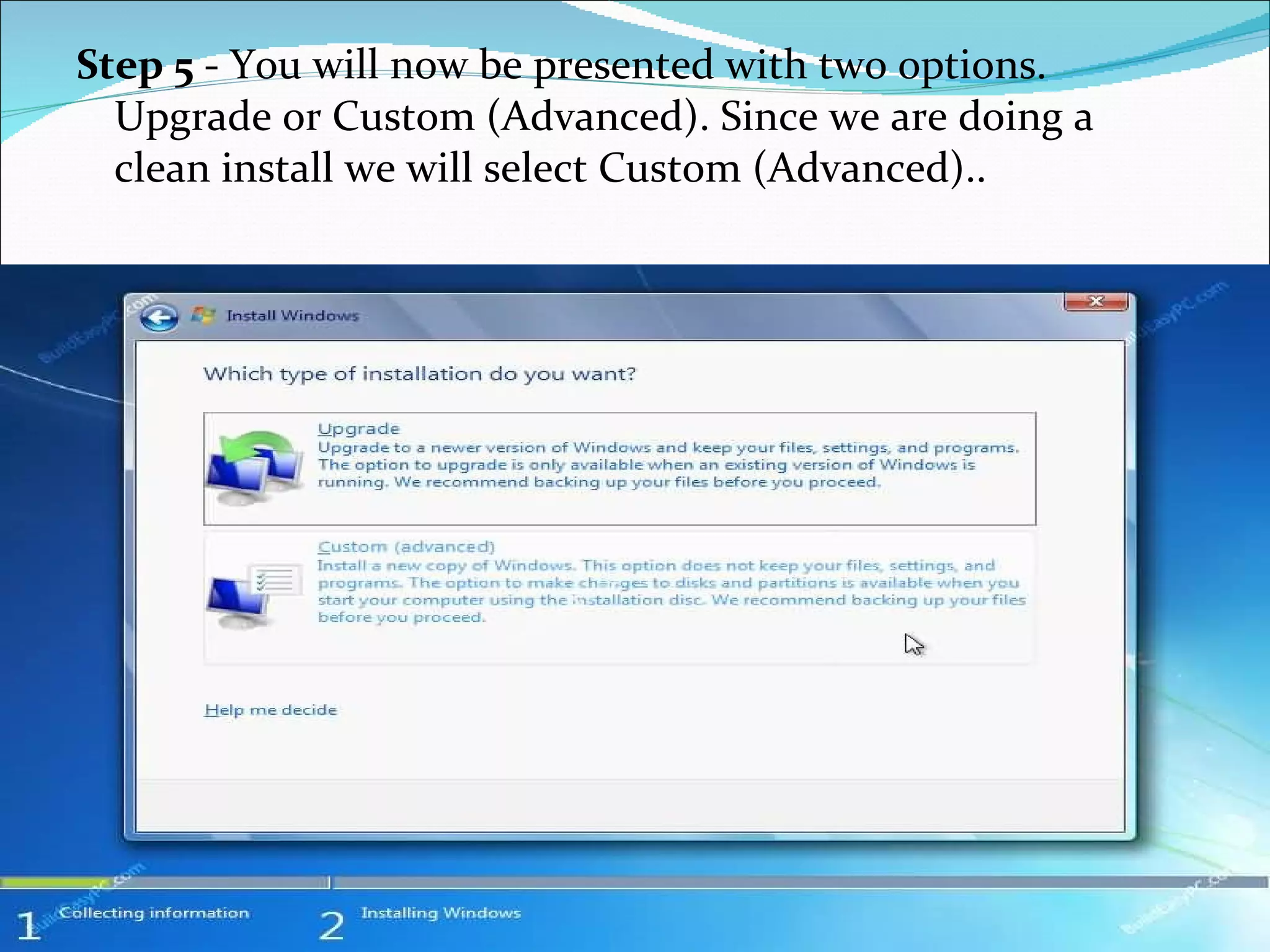

Step 5 - You will now be presented with two options. Upgrade or Custom (Advanced). Since we are doing a clean install we will select Custom (Advanced)..

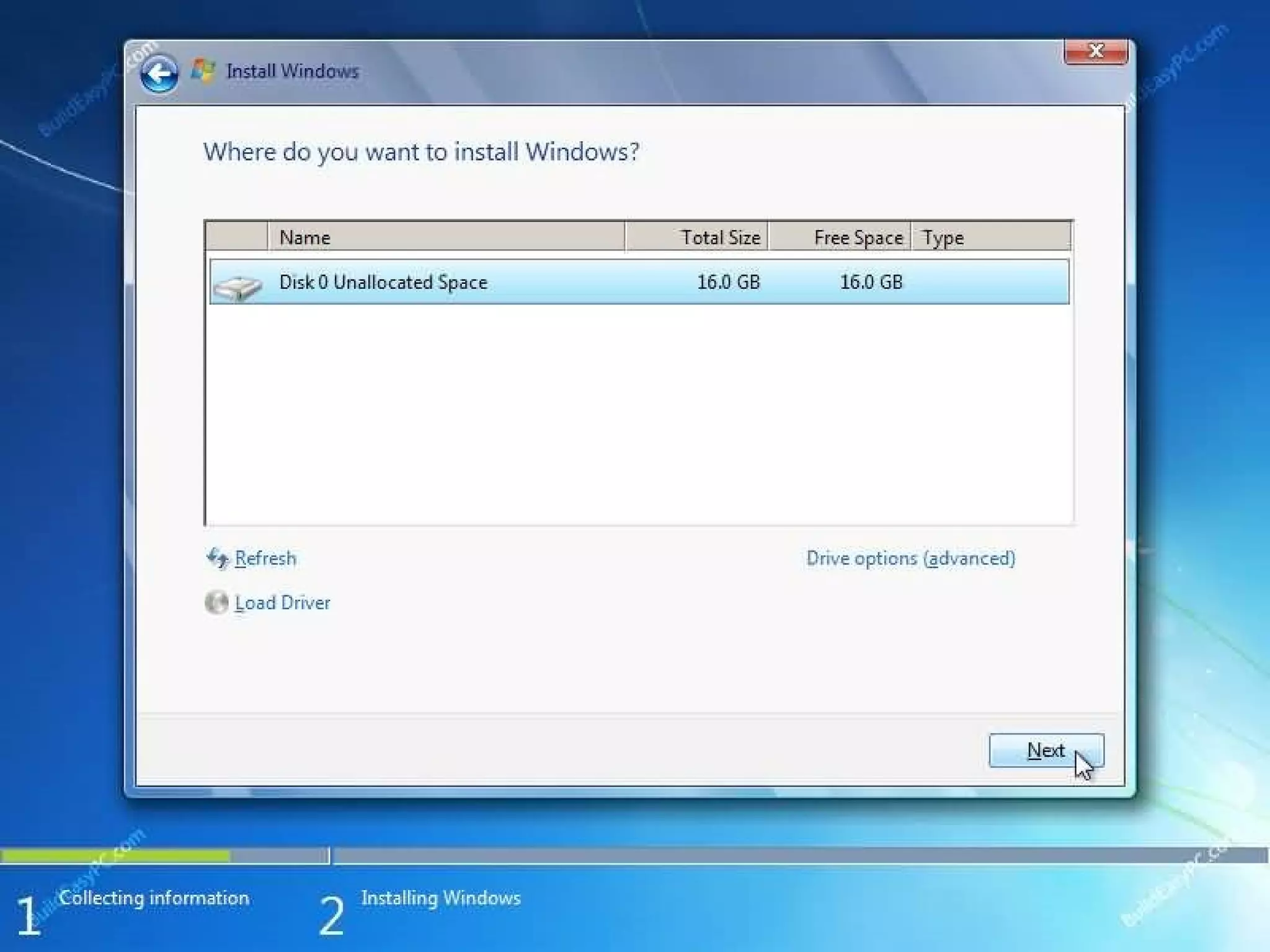

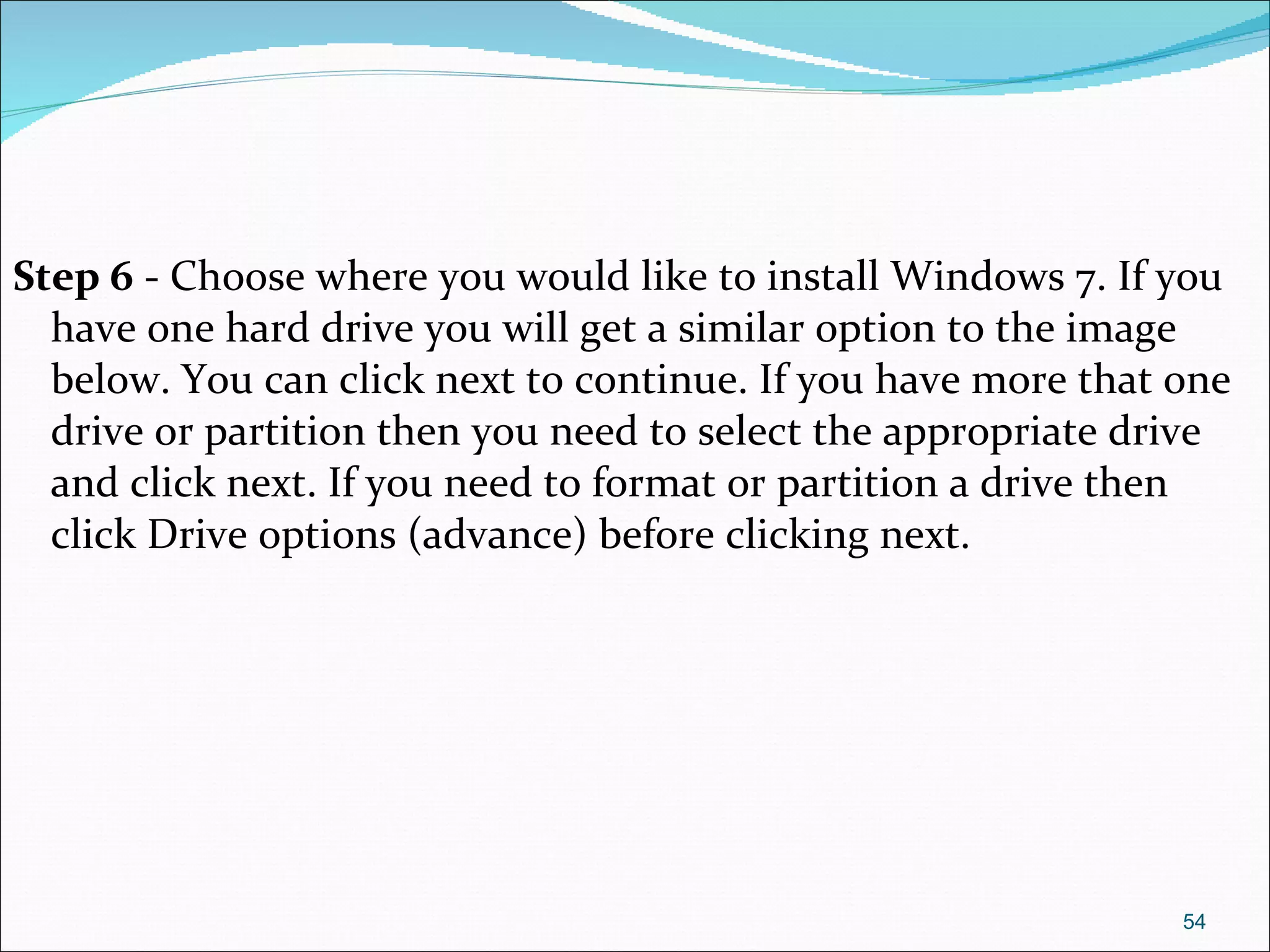

Step 6 - Choose where you would like to install Windows 7. If you have one hard drive you will get a similar option to the image below. You can click next to continue. If you have more that one drive or partition then you need to select the appropriate drive and click next. If you need to format or partition a drive then click Drive options (advance) before clicking next.

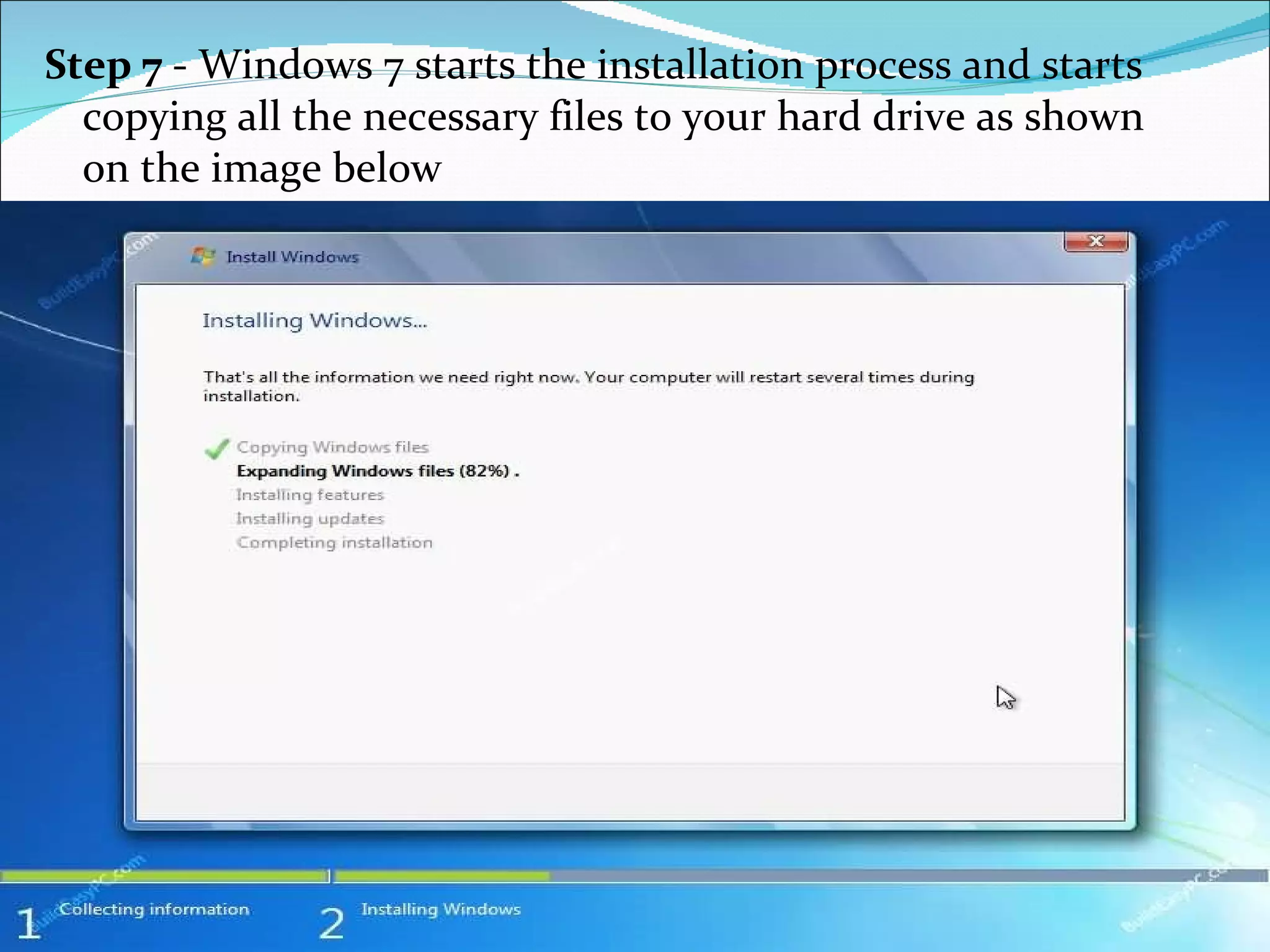

Step 7 - Windows 7 starts the installation process and starts copying all the necessary files to your hard drive as shown on the image below

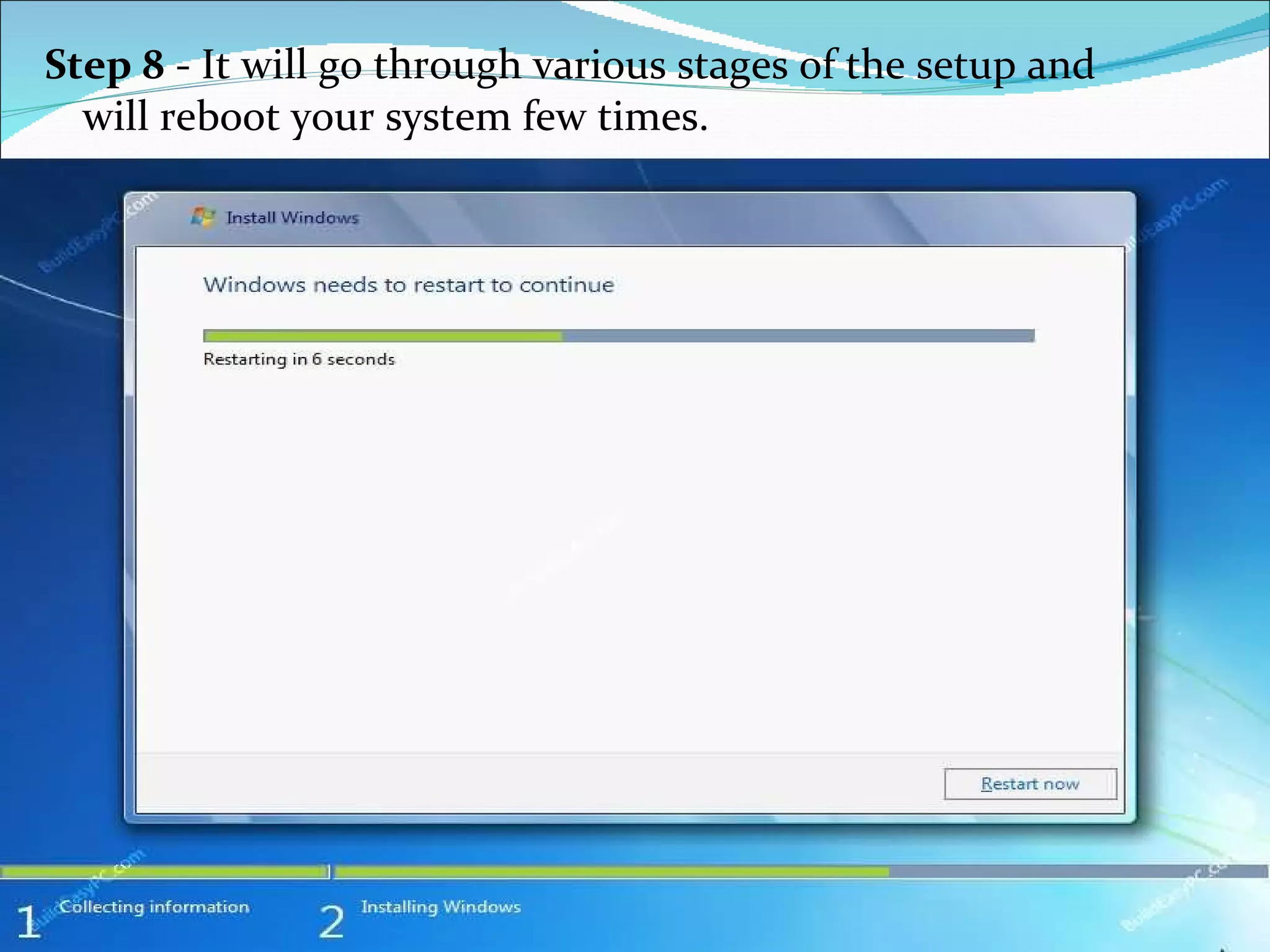

Step 8 - It will go through various stages of the setup and will reboot your system few times.

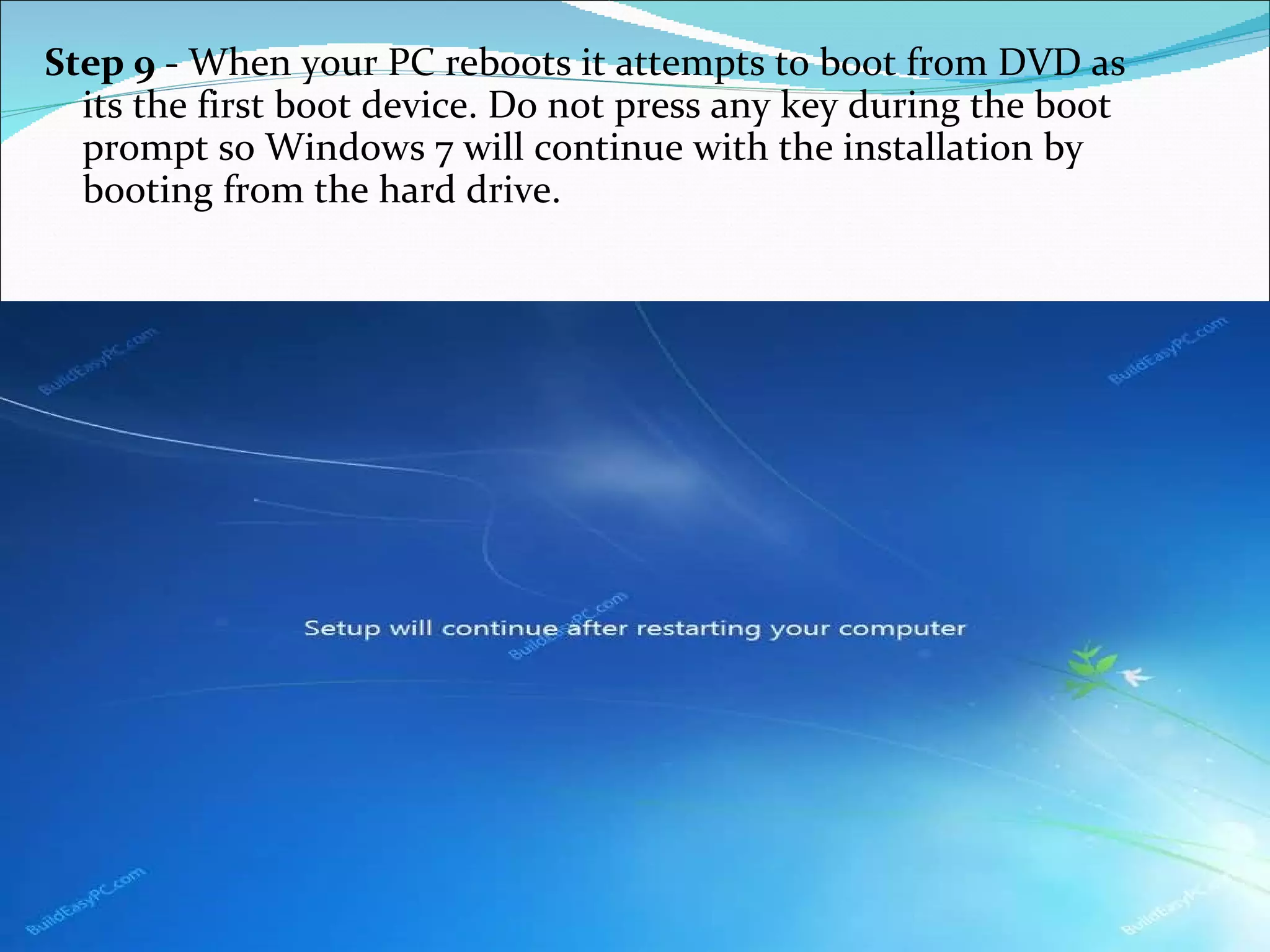

Step 9 - When your PC reboots it attempts to boot from DVD as its the first boot device. Do not press any key during the boot prompt so Windows 7 will continue with the installation by booting from the hard drive.

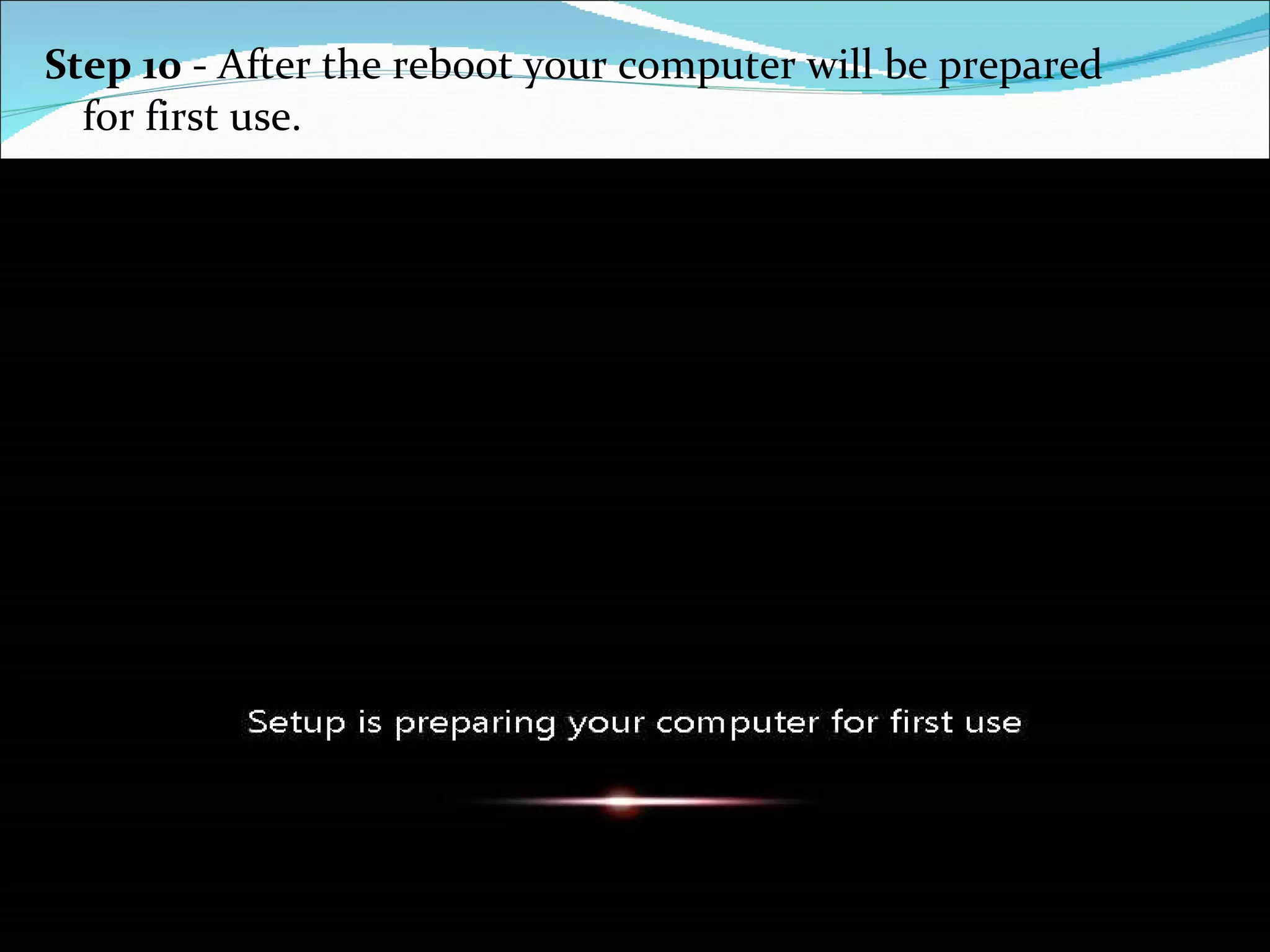

Step 10 - After the reboot your computer will be prepared for first use.

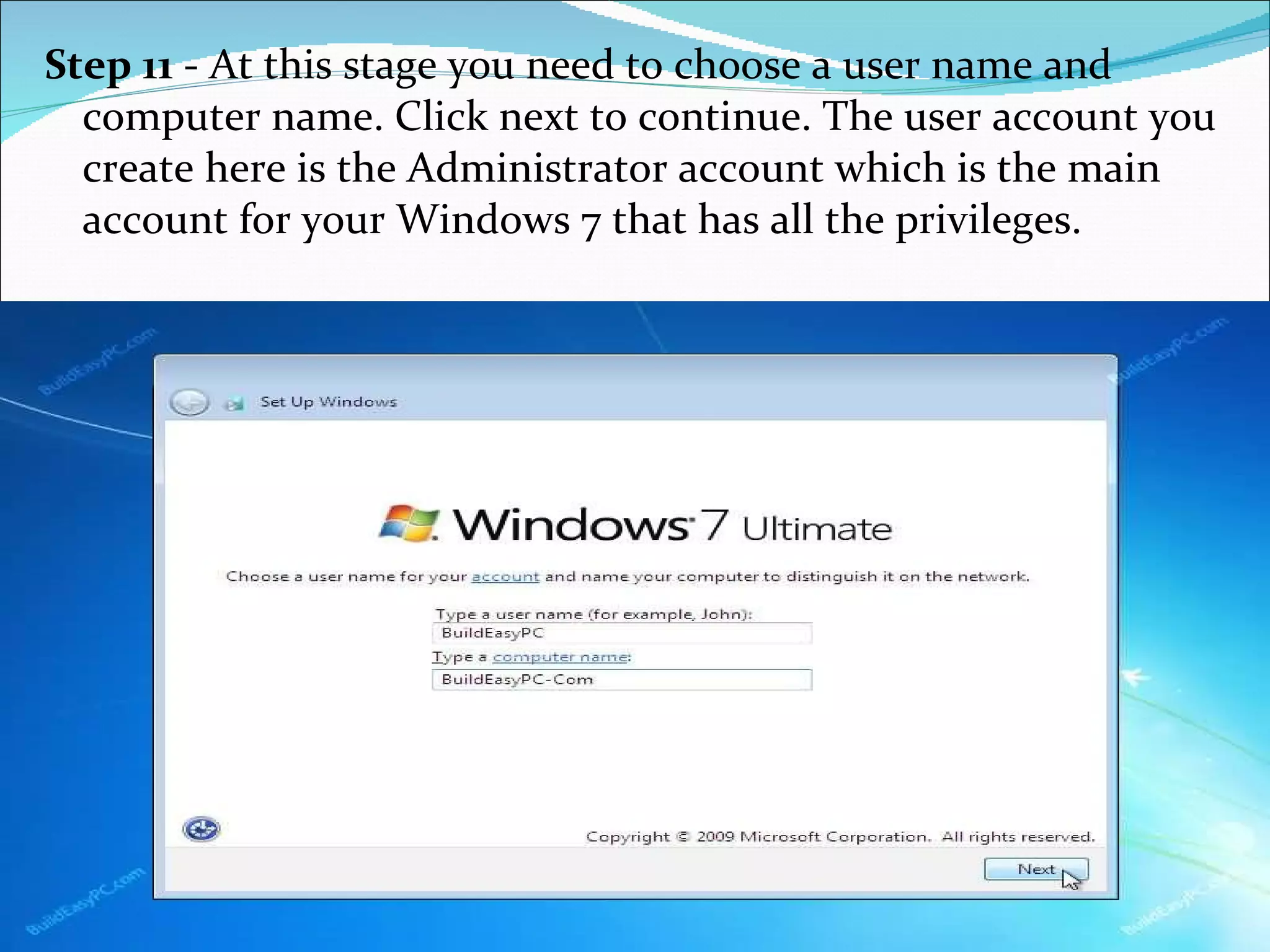

Step 11 - At this stage you need to choose a user name and computer name. Click next to continue. The user account you create here is the Administrator account which is the main account for your Windows 7 that has all the privileges.

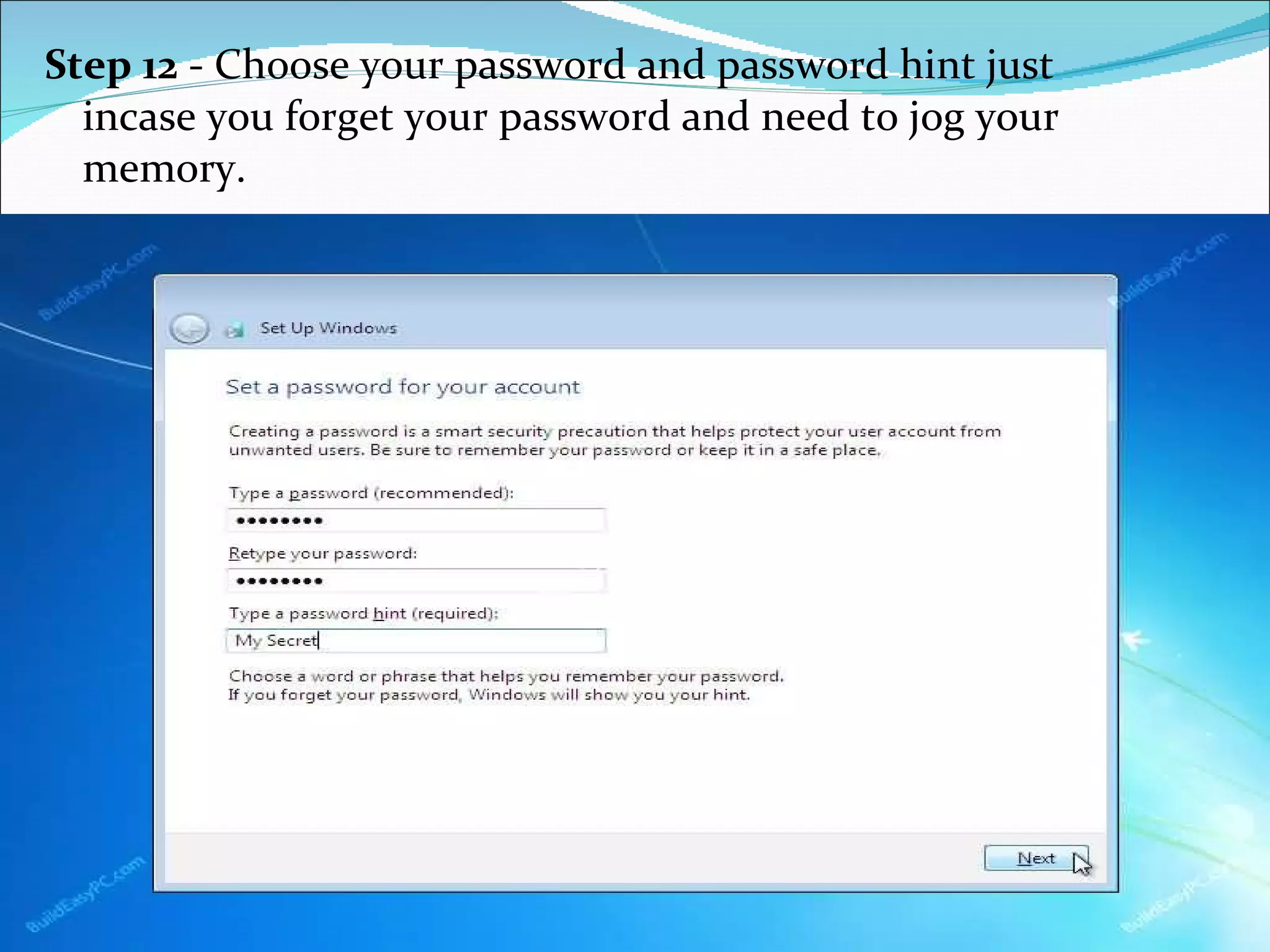

Step 12 - Choose your password and password hint just incase you forget your password and need to jog your memory.

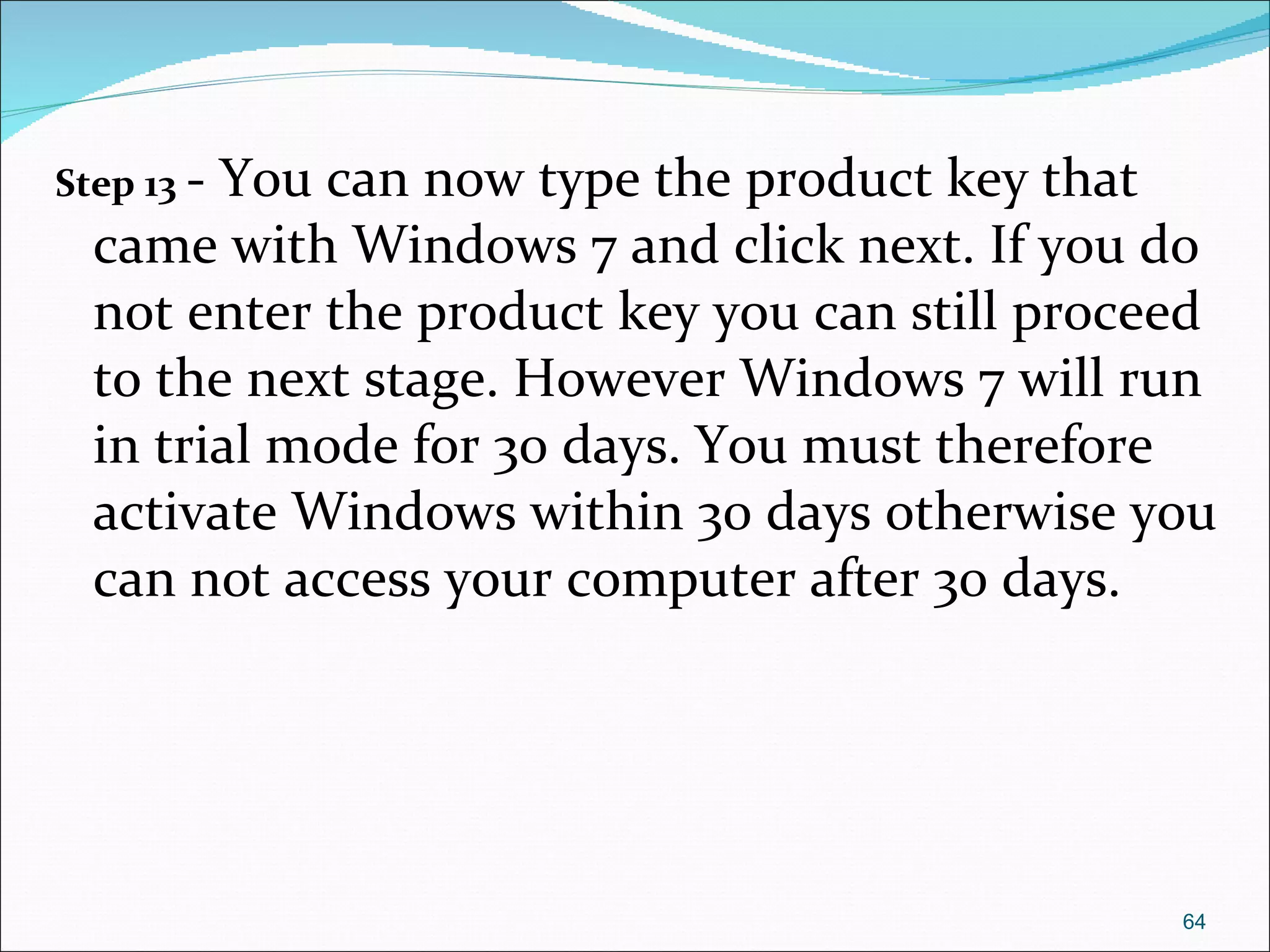

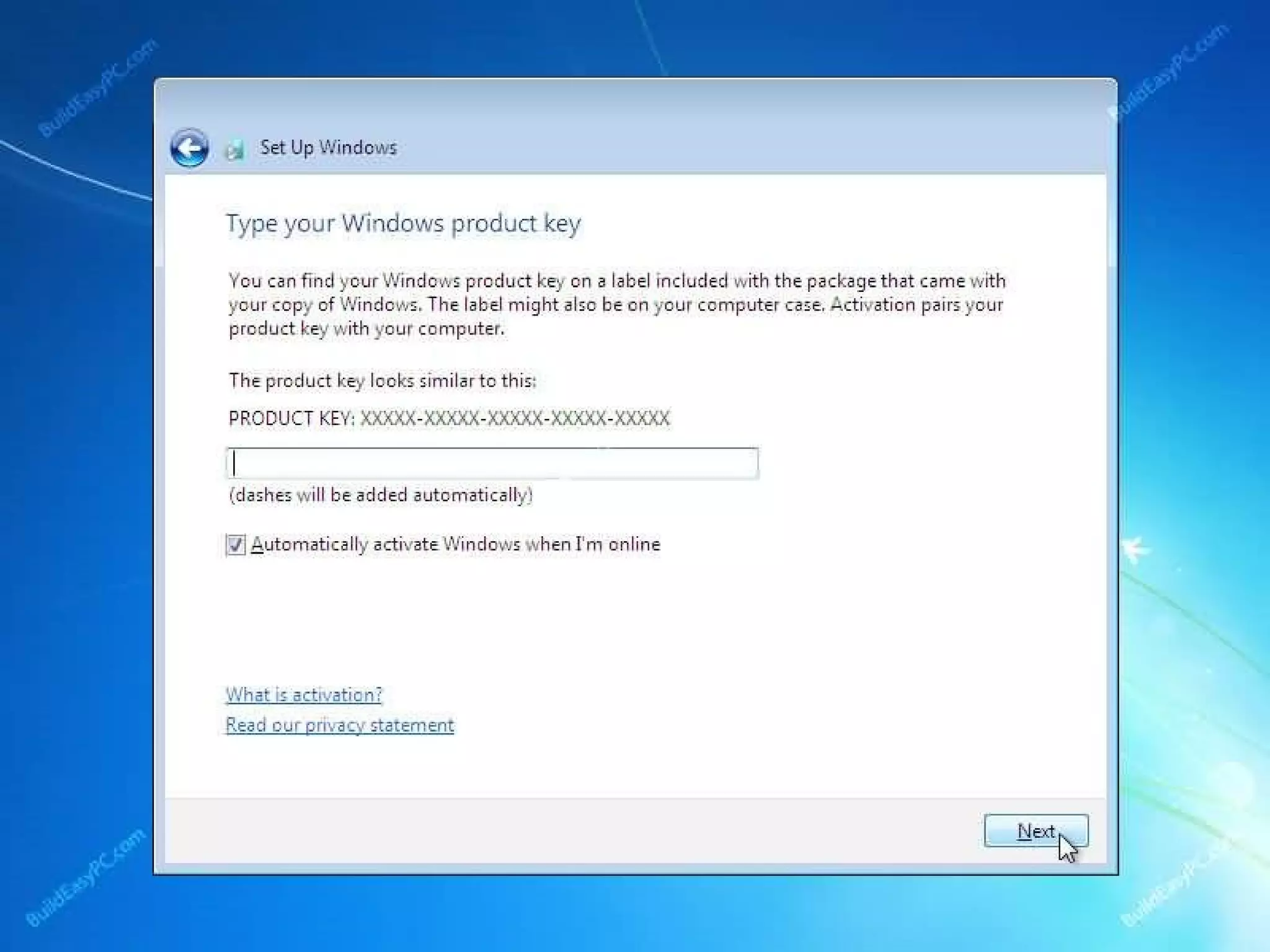

Step 13 - You can now type the product key that came with Windows 7 and click next. If you do not enter the product key you can still proceed to the next stage. However Windows 7 will run in trial mode for 30 days. You must therefore activate Windows within 30 days otherwise you can not access your computer after 30 days.

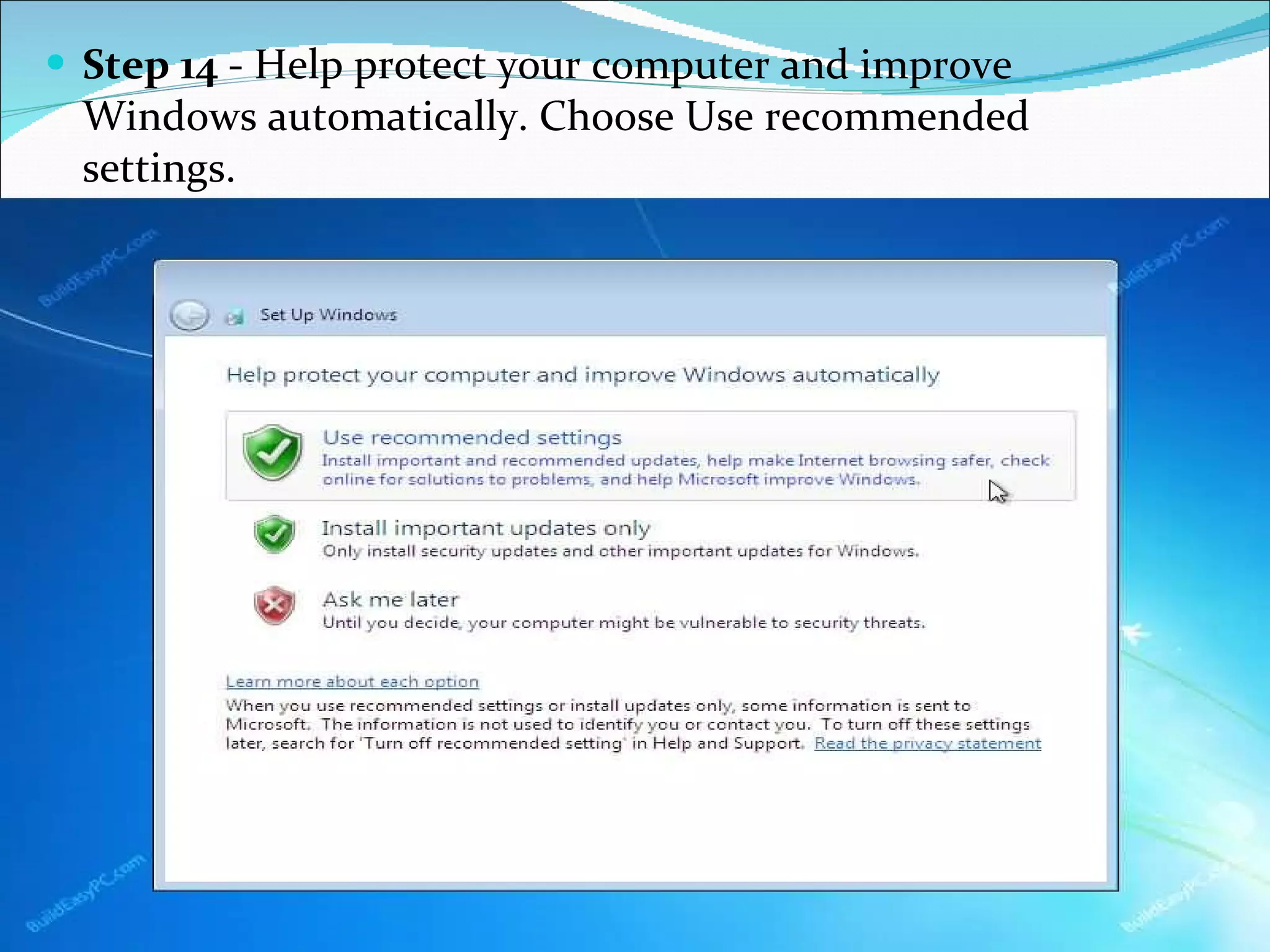

Step 14 - Help protect your computer and improve Windows automatically. Choose Use recommended settings.

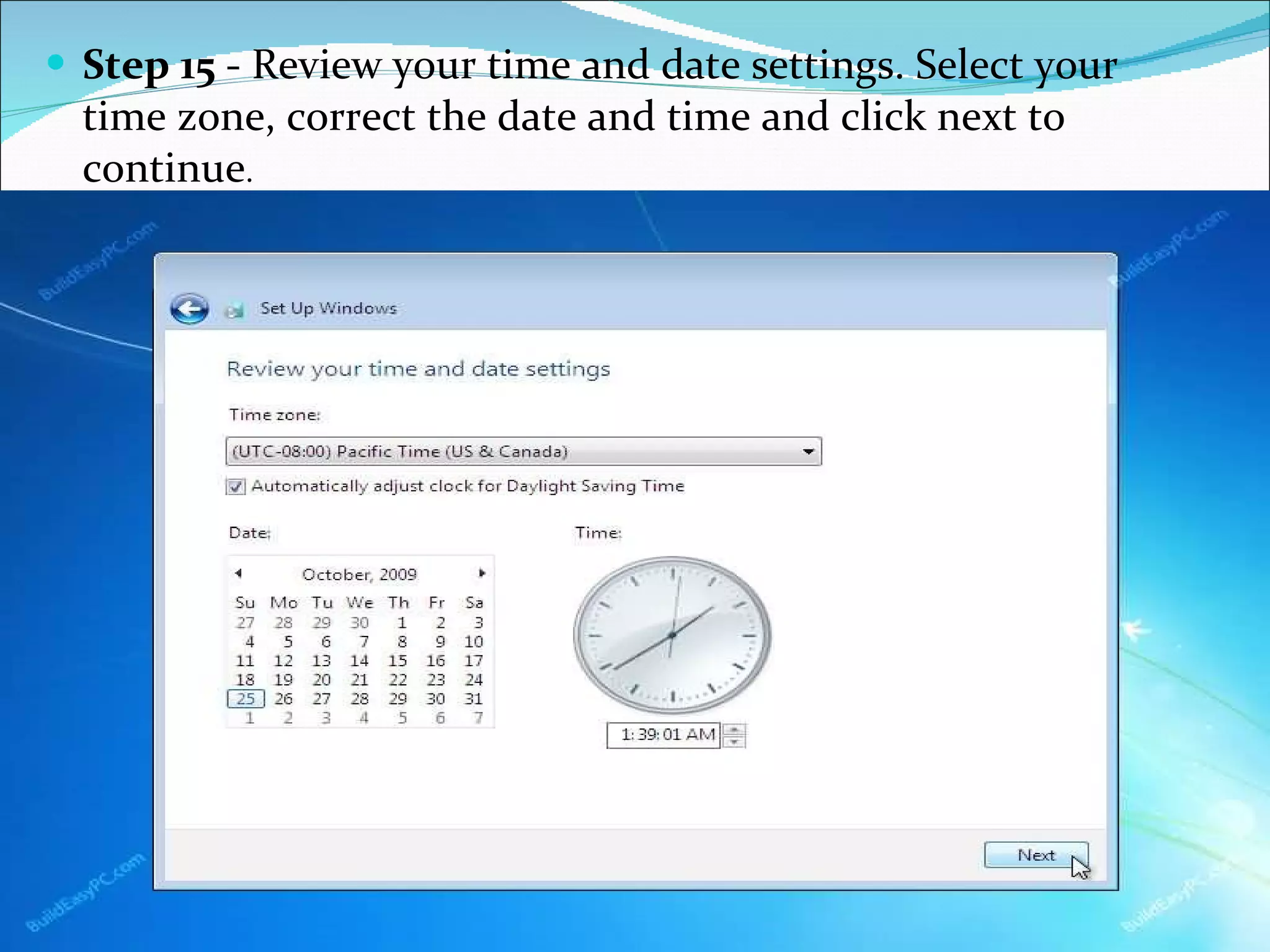

Step 15 - Review your time and date settings. Select your time zone, correct the date and time and click next to continue .

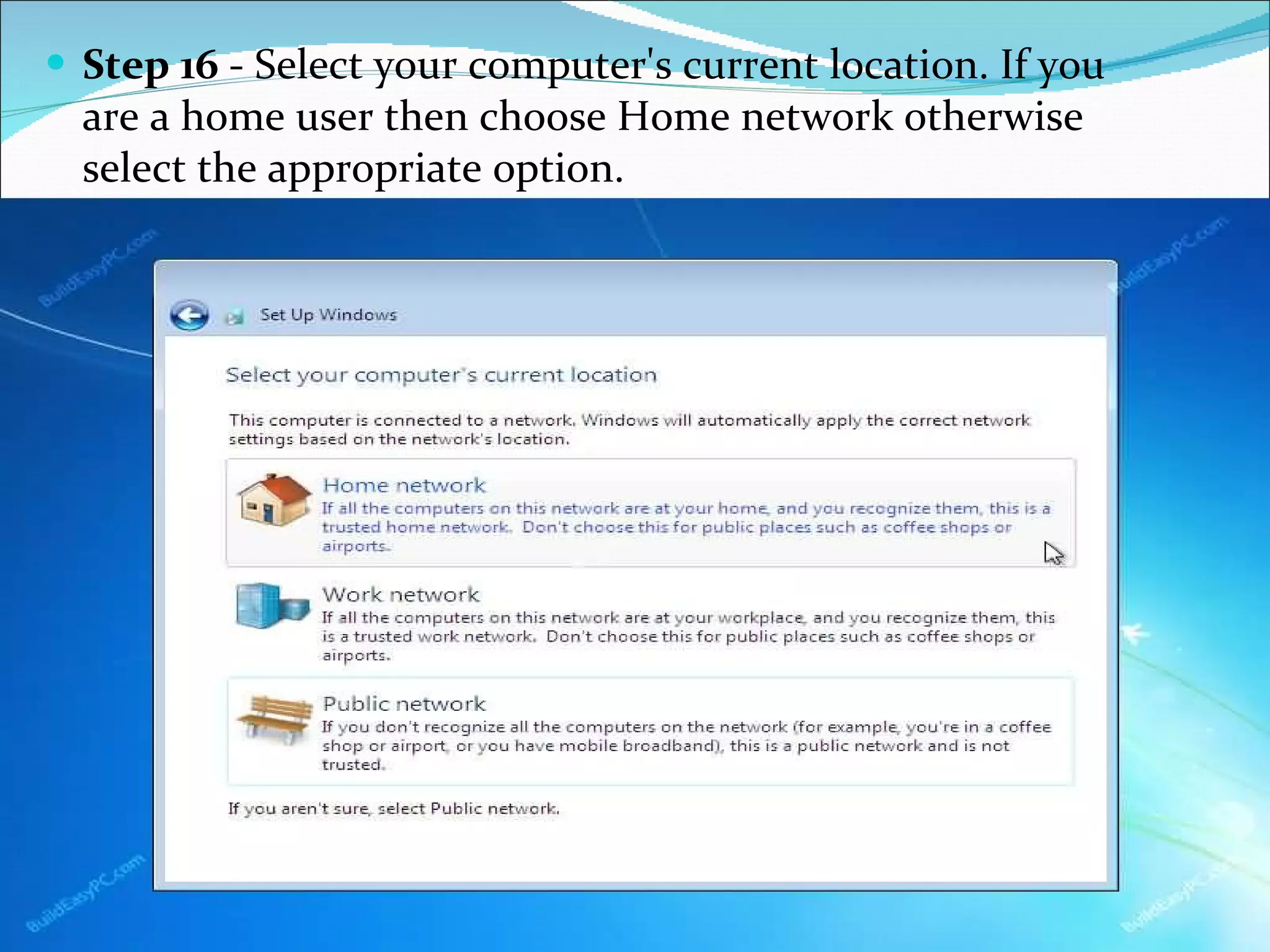

Step 16 - Select your computer's current location. If you are a home user then choose Home network otherwise select the appropriate option.

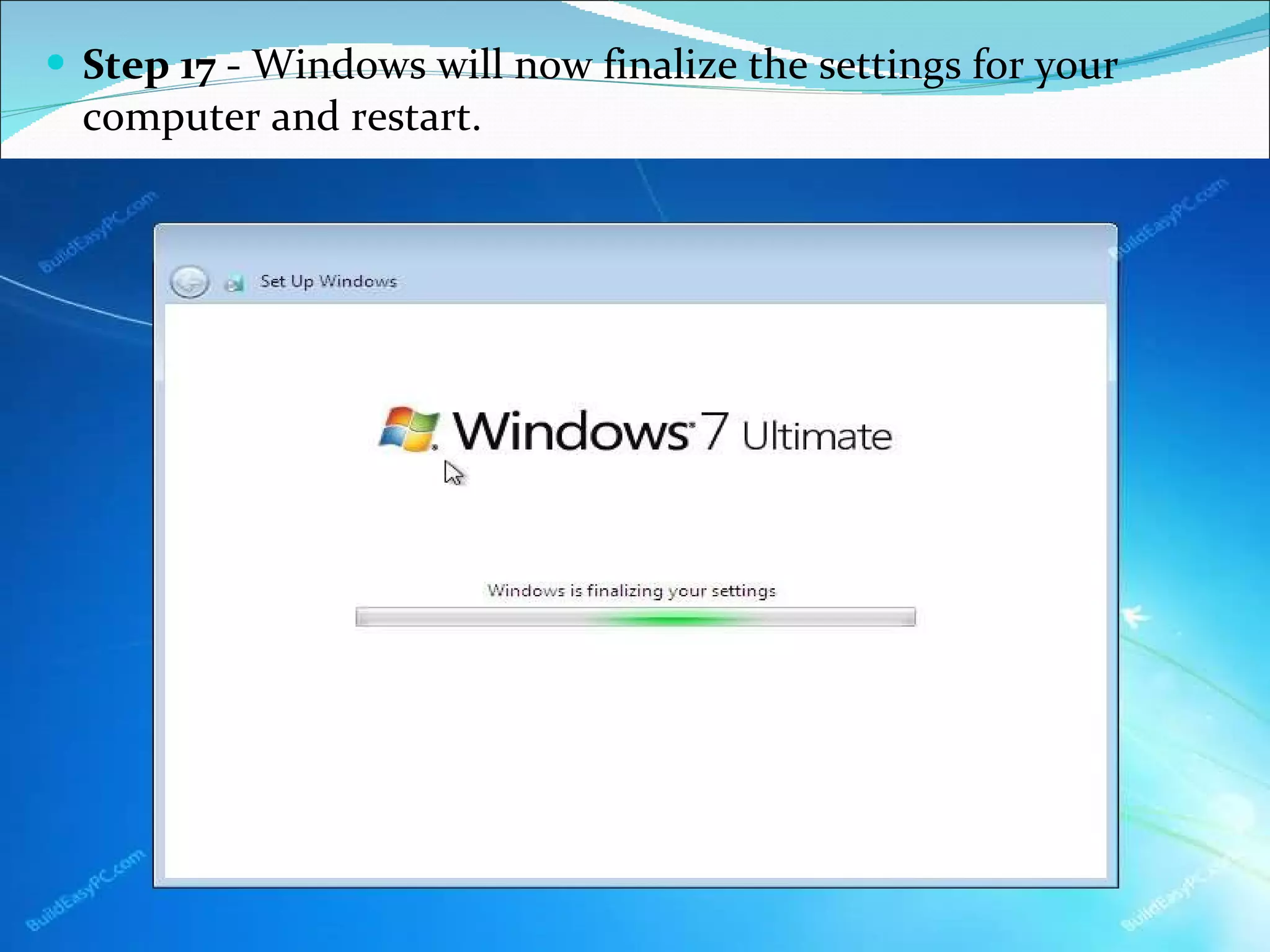

Step 17 - Windows will now finalize the settings for your computer and restart.

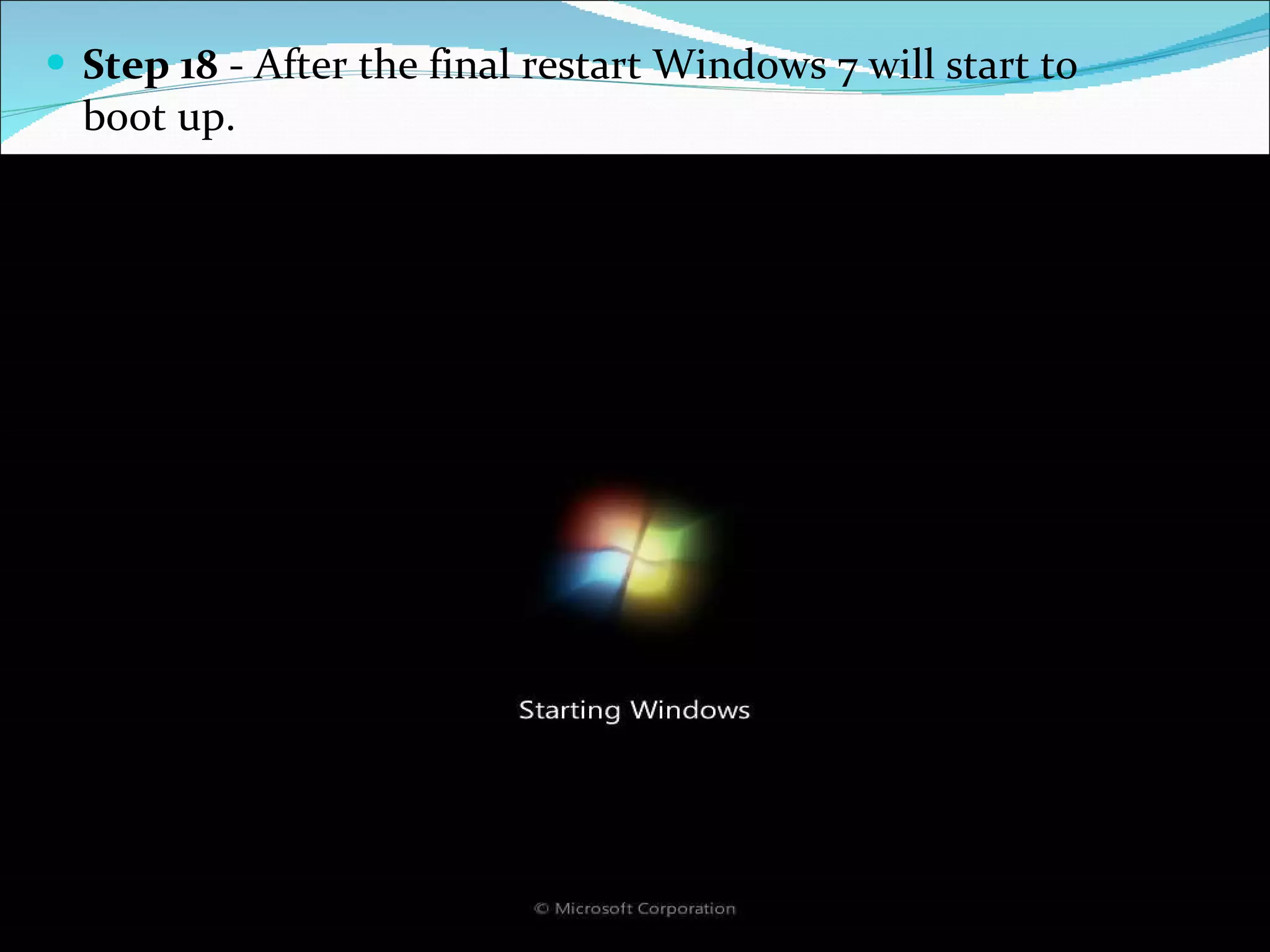

Step 18 - After the final restart Windows 7 will start to boot up.

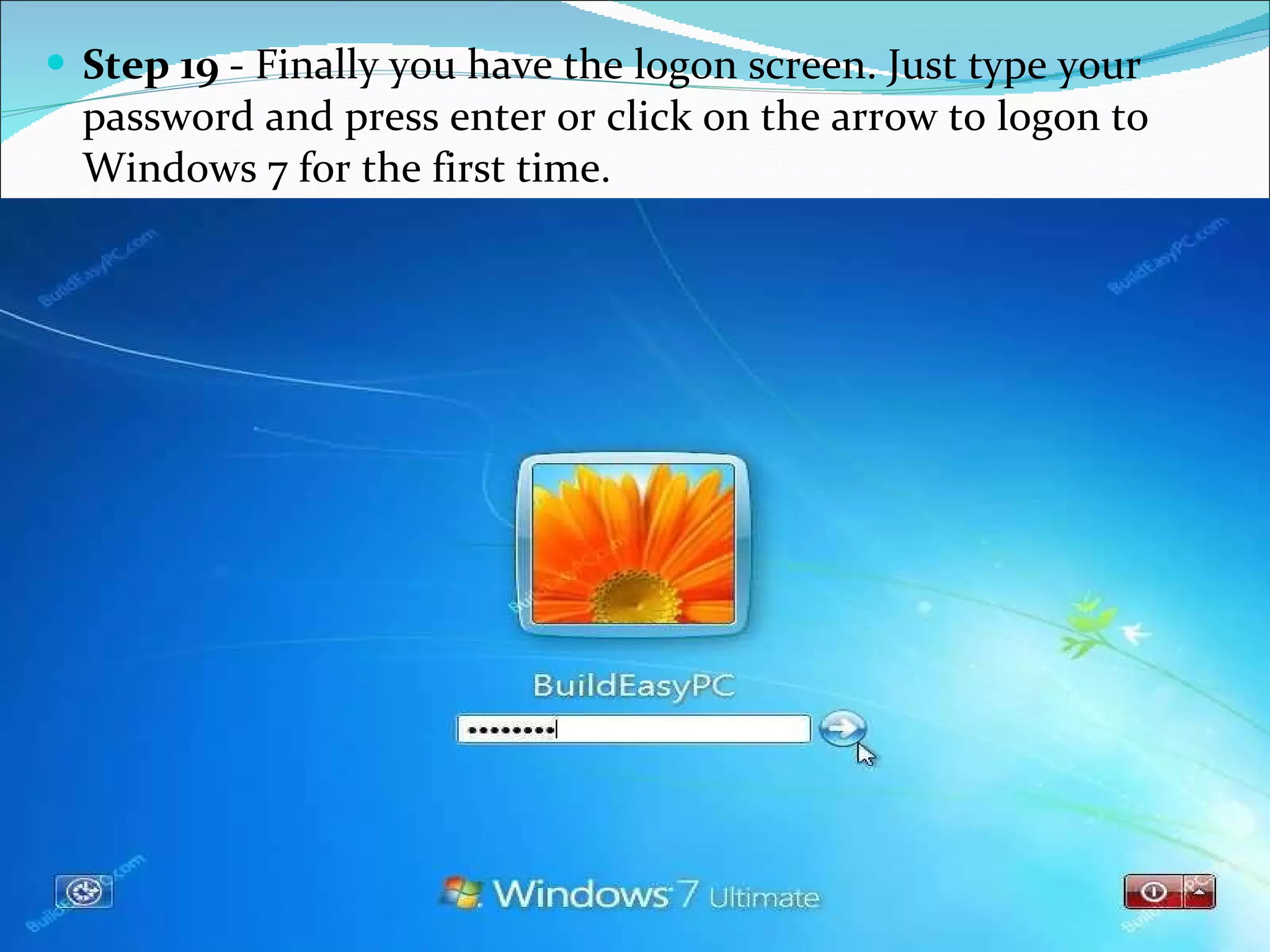

Step 19 - Finally you have the logon screen. Just type your password and press enter or click on the arrow to logon to Windows 7 for the first time.

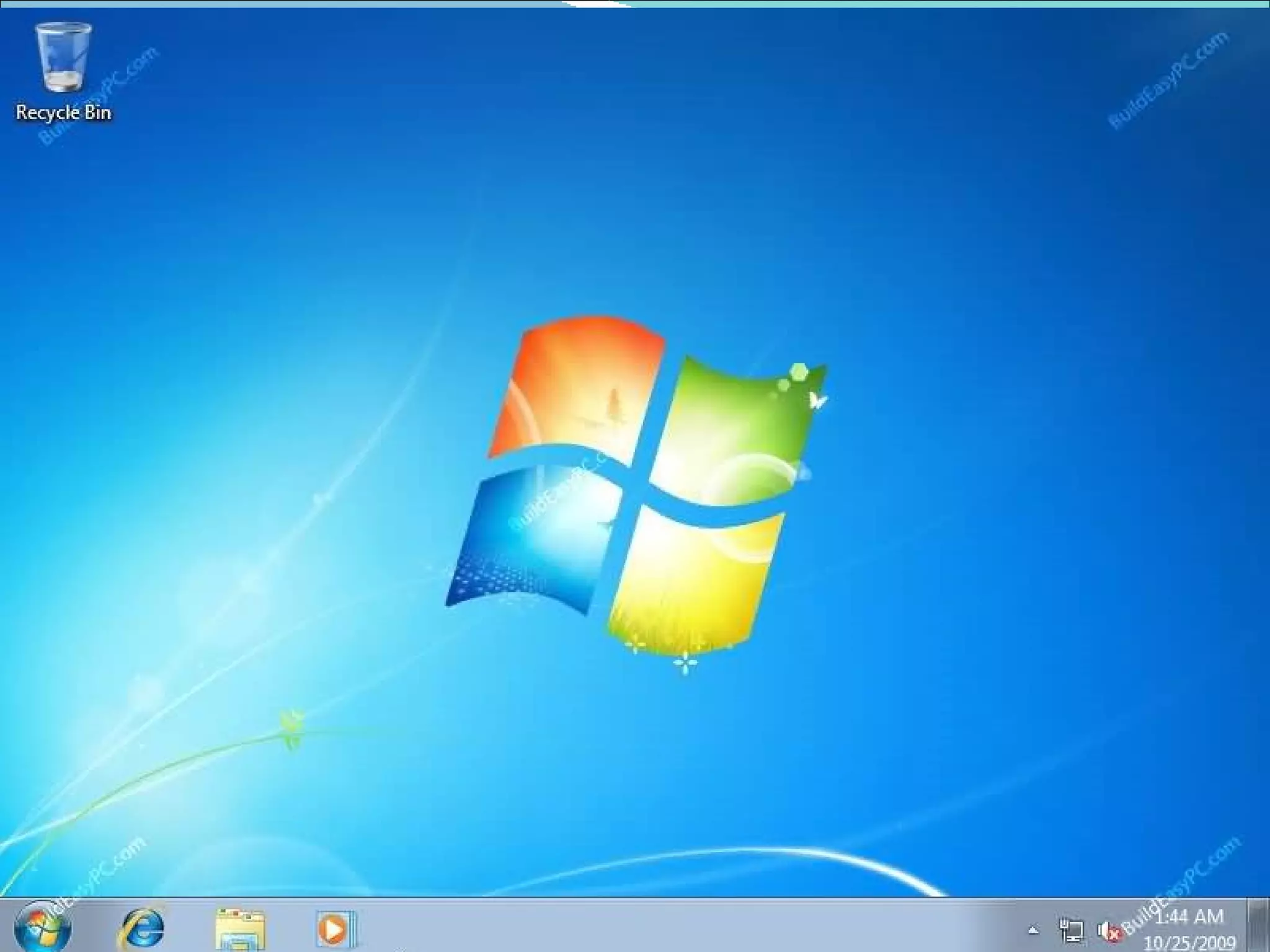

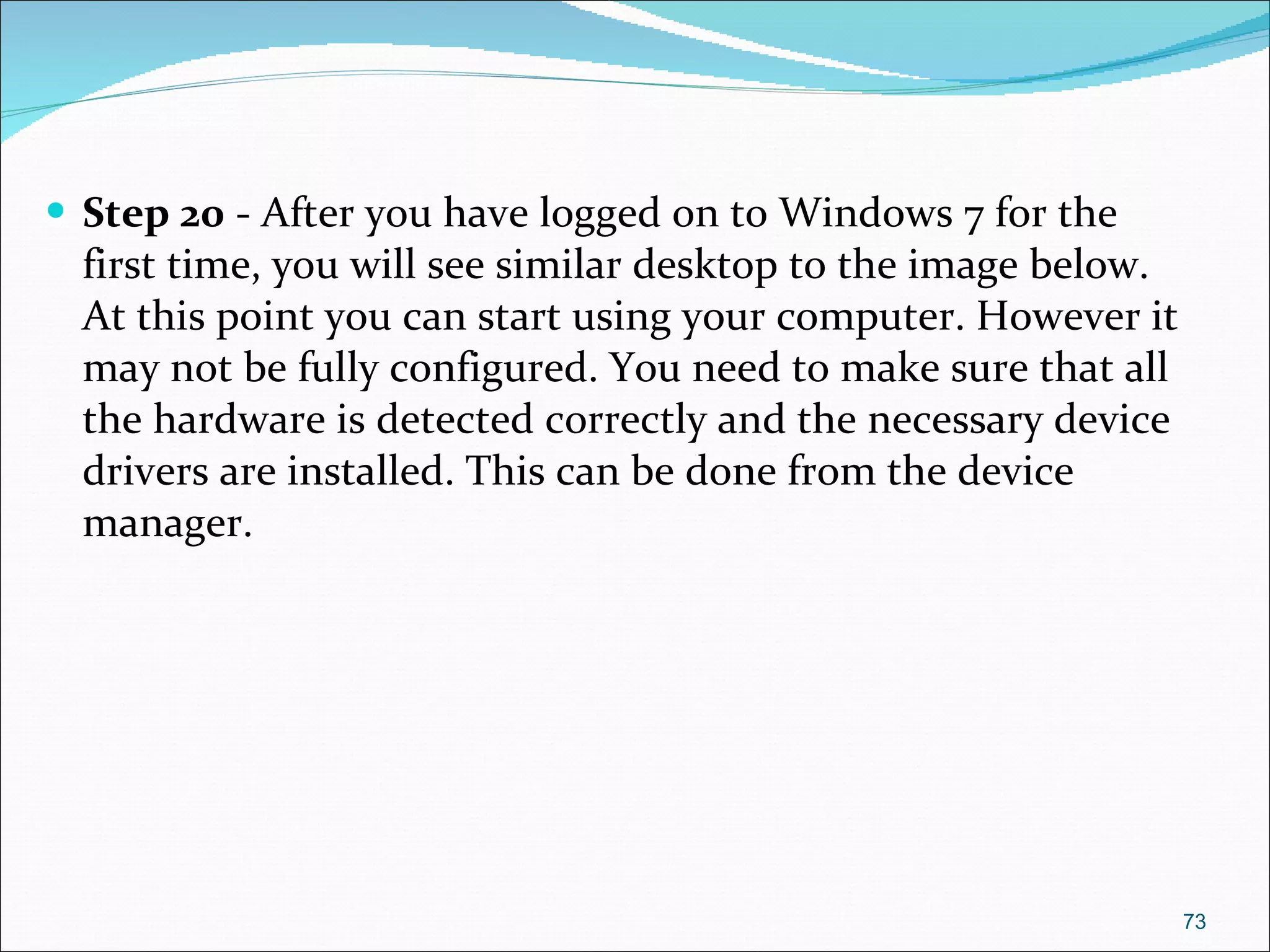

Step 20 - After you have logged on to Windows 7 for the first time, you will see similar desktop to the image below. At this point you can start using your computer. However it may not be fully configured. You need to make sure that all the hardware is detected correctly and the necessary device drivers are installed. This can be done from the device manager.

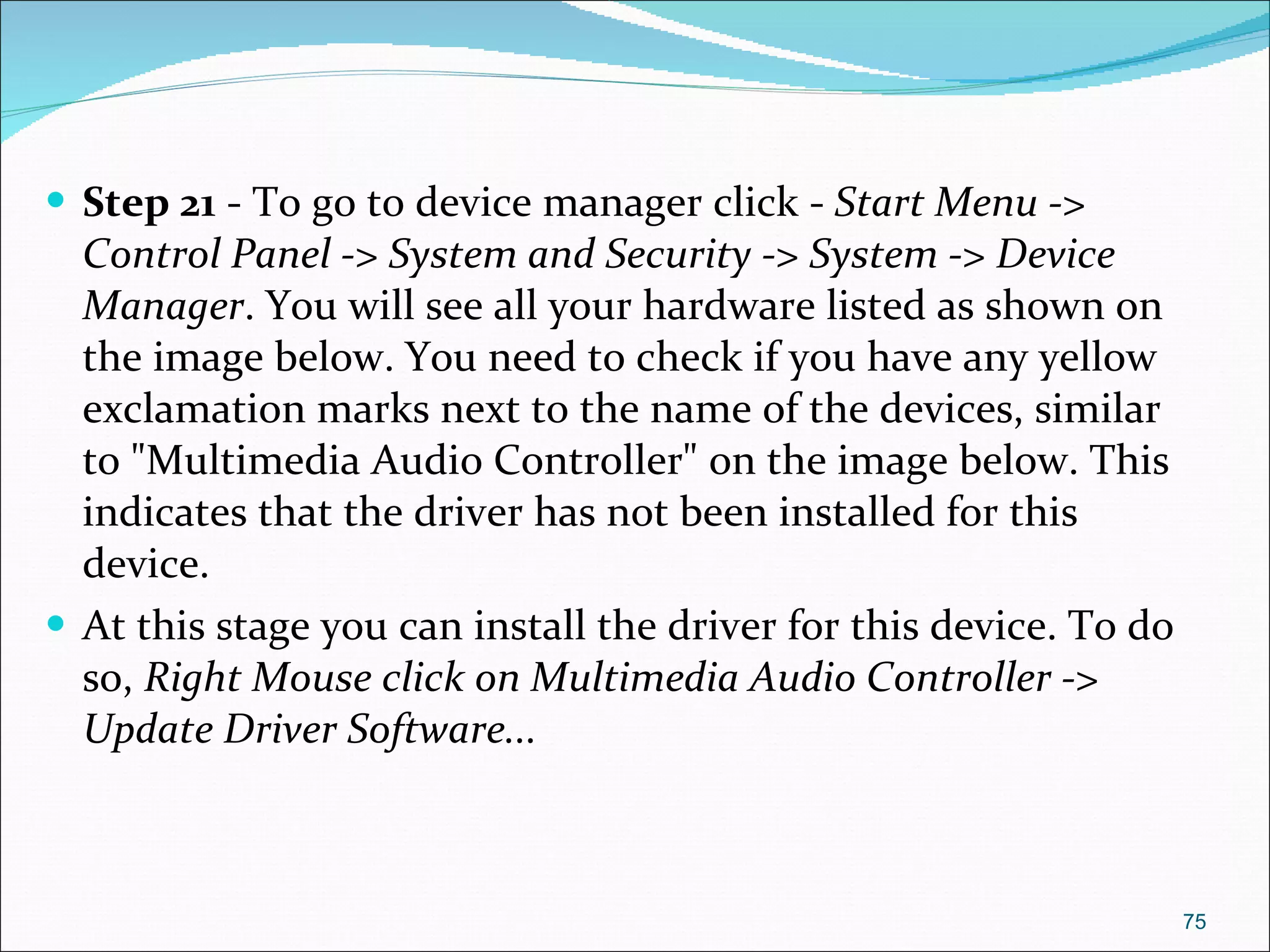

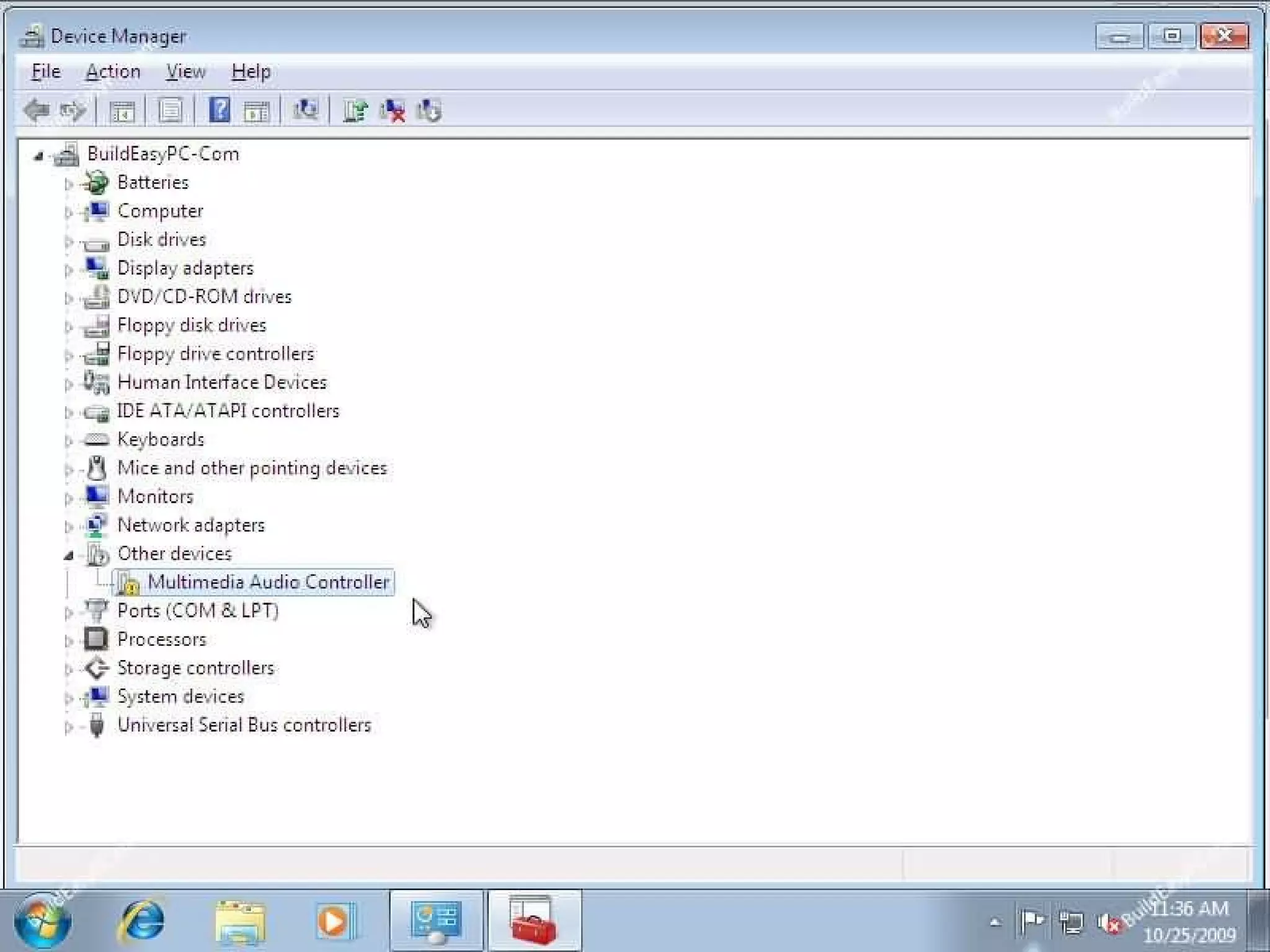

Step 21 - To go to device manager click - Start Menu -> Control Panel -> System and Security -> System -> Device Manager . You will see all your hardware listed as shown on the image below. You need to check if you have any yellow exclamation marks next to the name of the devices, similar to "Multimedia Audio Controller" on the image below. This indicates that the driver has not been installed for this device. At this stage you can install the driver for this device. To do so, Right Mouse click on Multimedia Audio Controller -> Update Driver Software...

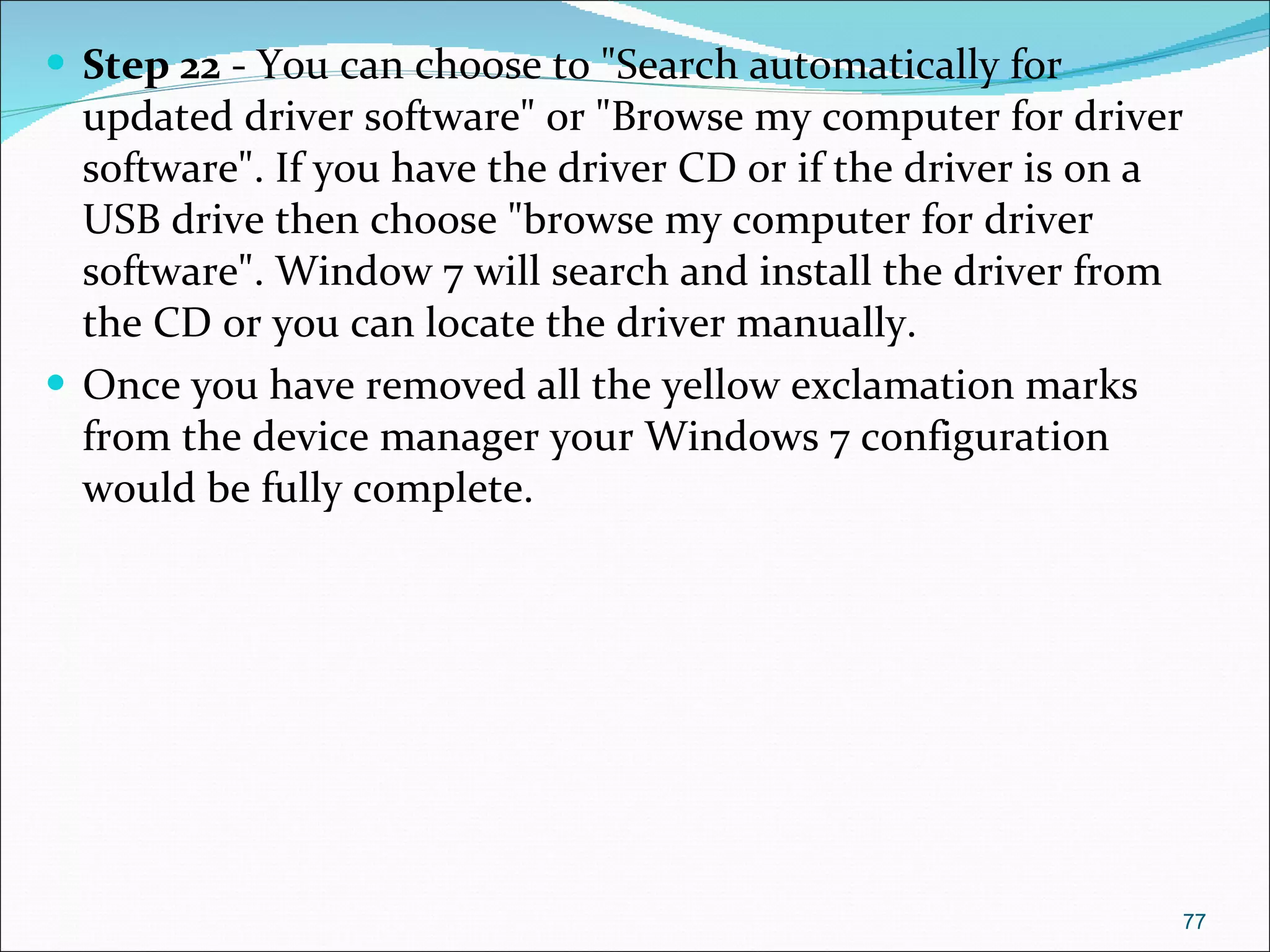

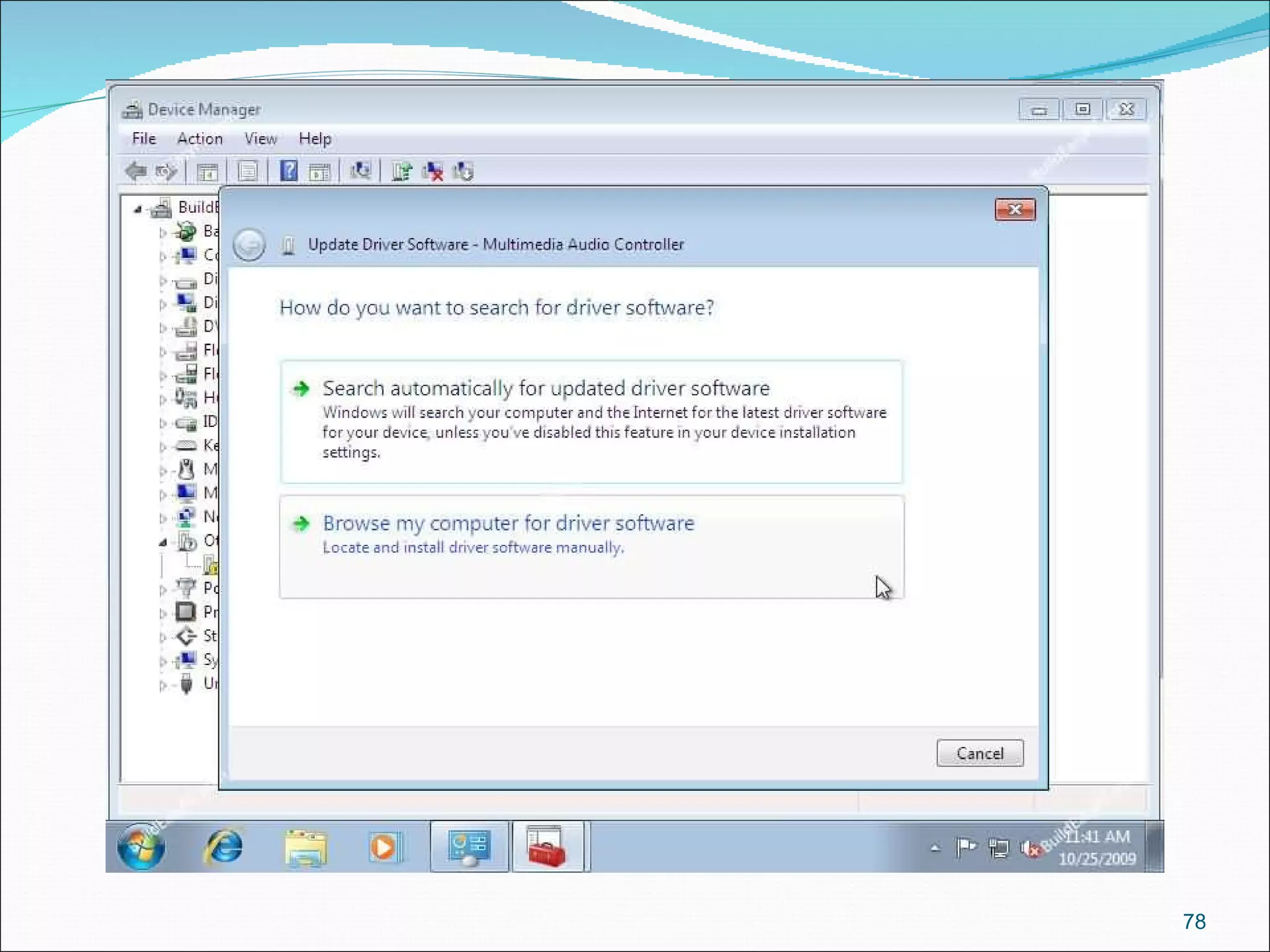

Step 22 - You can choose to "Search automatically for updated driver software" or "Browse my computer for driver software". If you have the driver CD or if the driver is on a USB drive then choose "browse my computer for driver software". Window 7 will search and install the driver from the CD or you can locate the driver manually. Once you have removed all the yellow exclamation marks from the device manager your Windows 7 configuration would be fully complete.

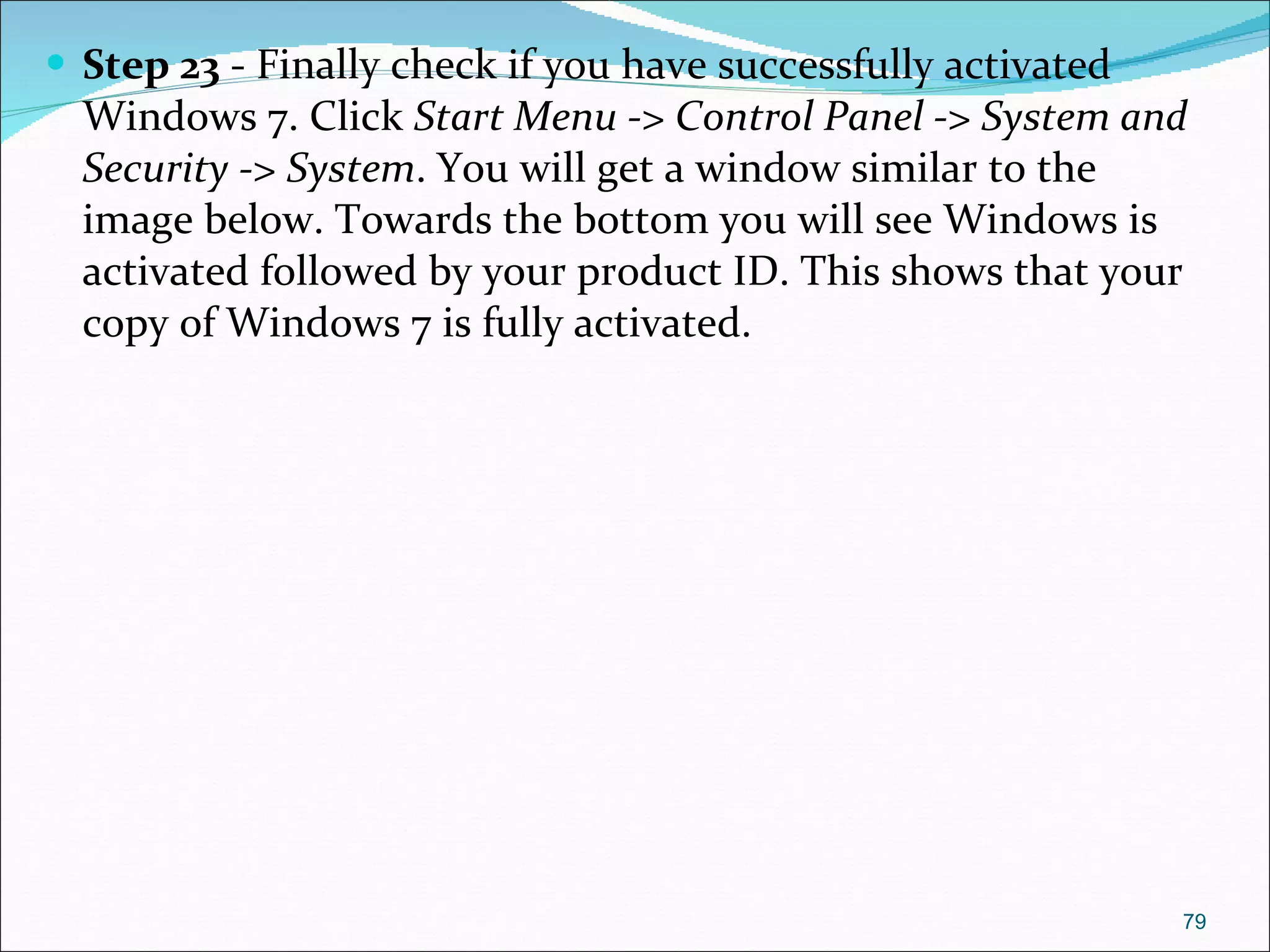

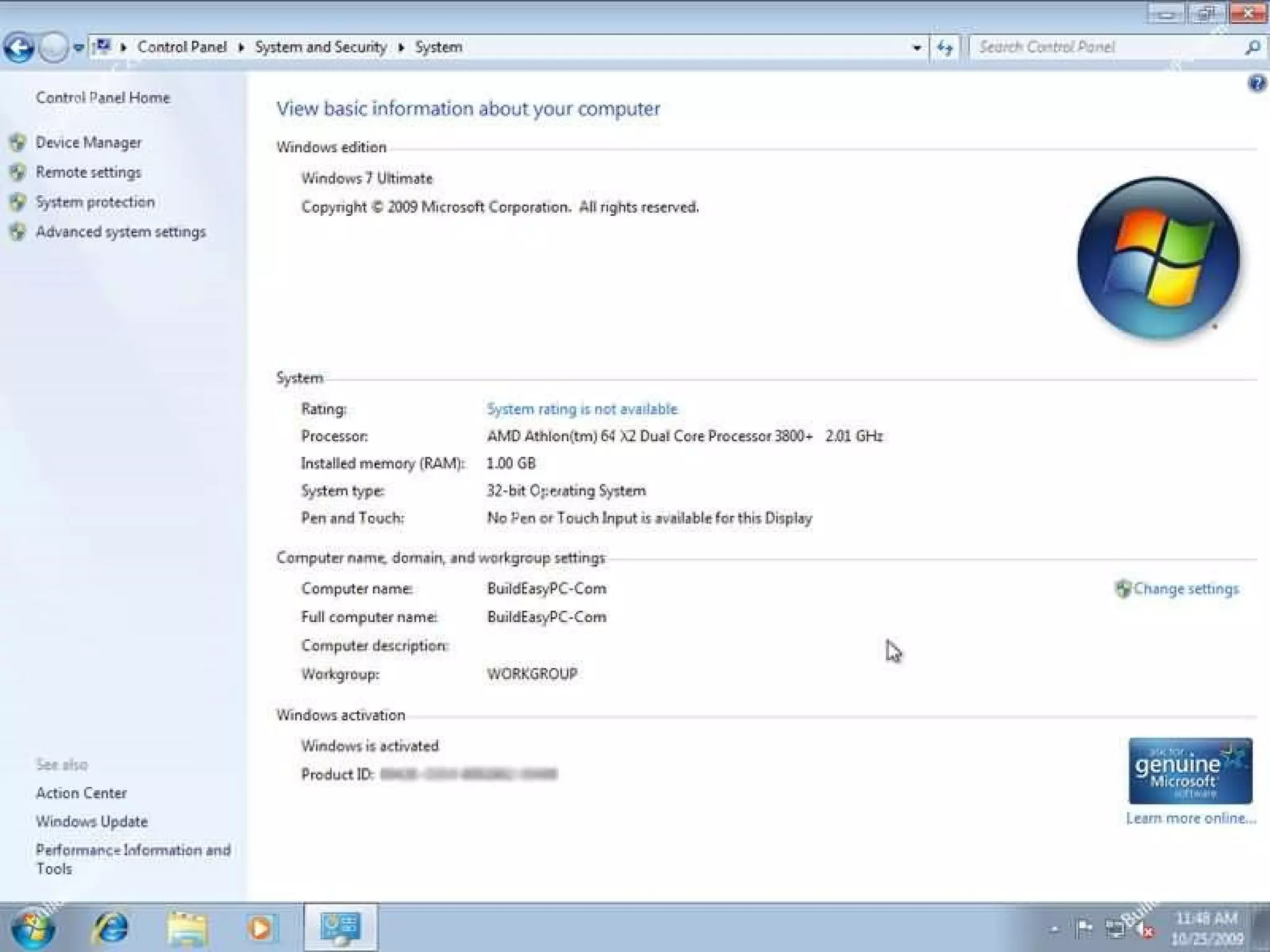

Step 23 - Finally check if you have successfully activated Windows 7. Click Start Menu -> Control Panel -> System and Security -> System . You will get a window similar to the image below. Towards the bottom you will see Windows is activated followed by your product ID. This shows that your copy of Windows 7 is fully activated.

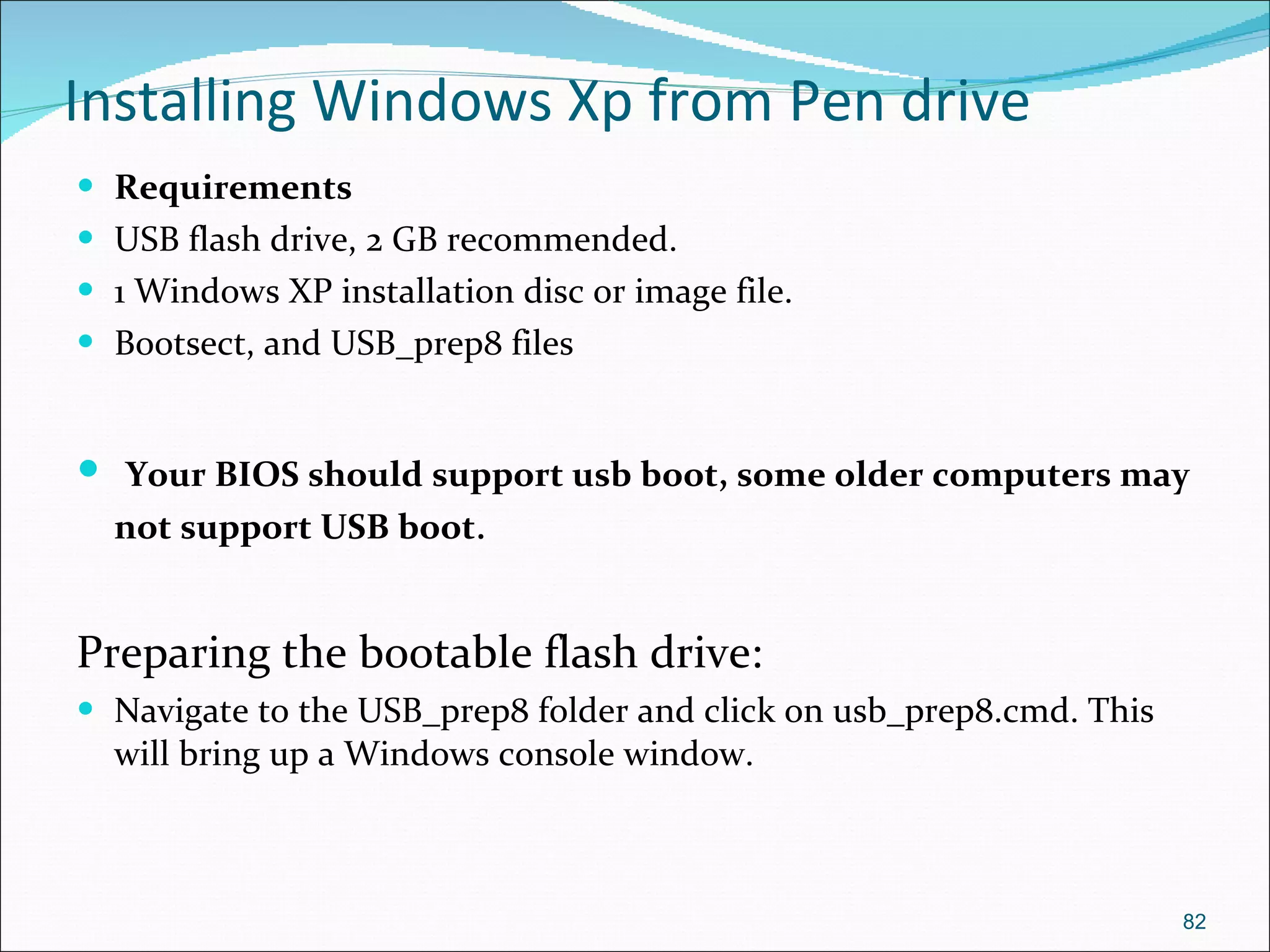

Installing Windows Xp from Pen drive Requirements USB flash drive, 2 GB recommended. 1 Windows XP installation disc or image file. Bootsect, and USB_prep8 files Your BIOS should support usb boot, some older computers may not support USB boot . Preparing the bootable flash drive: Navigate to the USB_prep8 folder and click on usb_prep8.cmd. This will bring up a Windows console window.

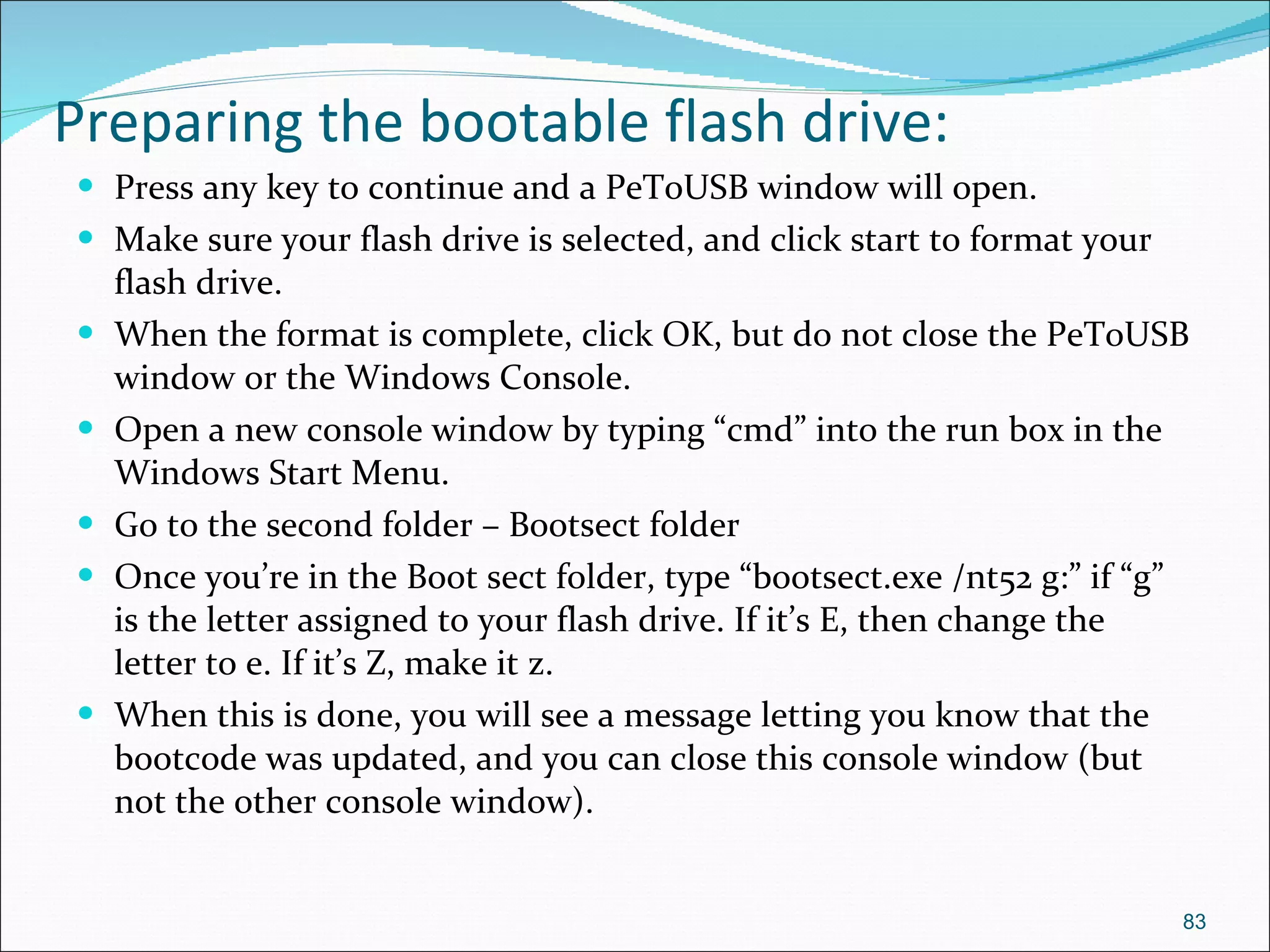

Preparing the bootable flash drive: Press any key to continue and a PeToUSB window will open. Make sure your flash drive is selected, and click start to format your flash drive. When the format is complete, click OK, but do not close the PeToUSB window or the Windows Console. Open a new console window by typing “cmd” into the run box in the Windows Start Menu. Go to the second folder – Bootsect folder Once you’re in the Boot sect folder, type “bootsect.exe /nt52 g:” if “g” is the letter assigned to your flash drive. If it’s E, then change the letter to e. If it’s Z, make it z. When this is done, you will see a message letting you know that the bootcode was updated, and you can close this console window (but not the other console window).

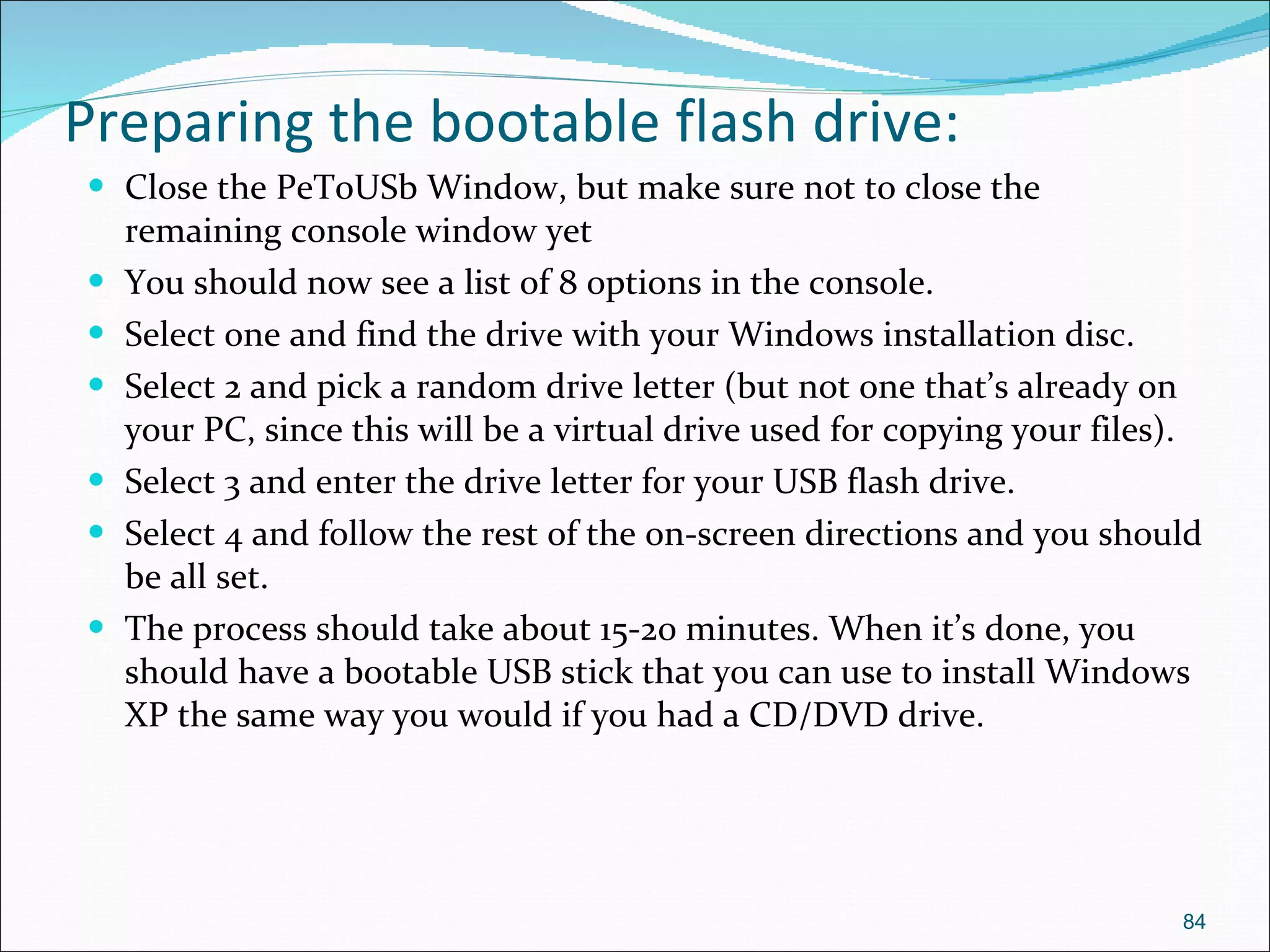

Preparing the bootable flash drive: Close the PeToUSb Window, but make sure not to close the remaining console window yet You should now see a list of 8 options in the console. Select one and find the drive with your Windows installation disc. Select 2 and pick a random drive letter (but not one that’s already on your PC, since this will be a virtual drive used for copying your files). Select 3 and enter the drive letter for your USB flash drive. Select 4 and follow the rest of the on-screen directions and you should be all set. The process should take about 15-20 minutes. When it’s done, you should have a bootable USB stick that you can use to install Windows XP the same way you would if you had a CD/DVD drive.

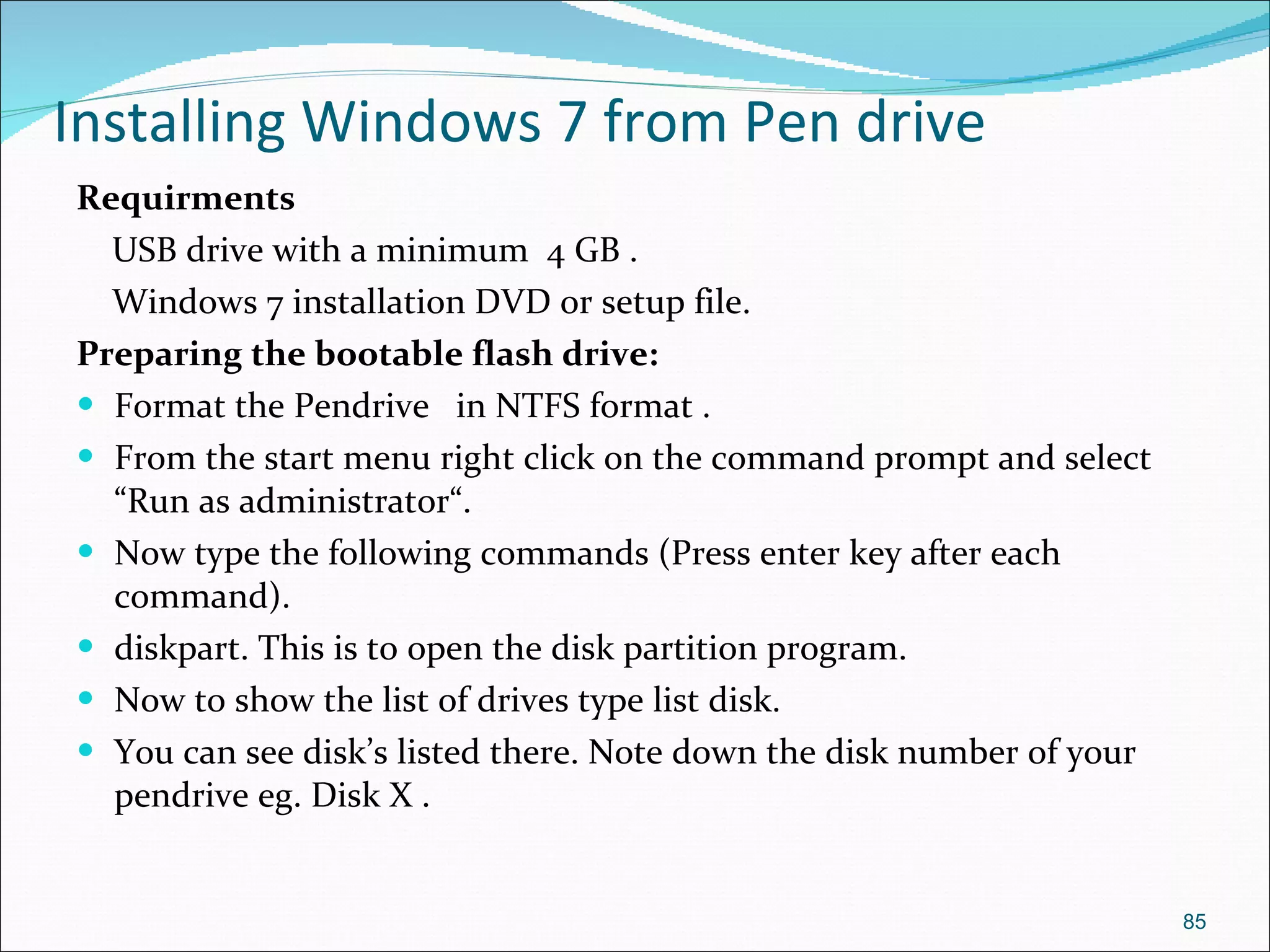

Installing Windows 7 from Pen drive Requirments USB drive with a minimum 4 GB . Windows 7 installation DVD or setup file. Preparing the bootable flash drive: Format the Pendrive in NTFS format . From the start menu right click on the command prompt and select “Run as administrator“. Now type the following commands (Press enter key after each command). diskpart. This is to open the disk partition program. Now to show the list of drives type list disk. You can see disk’s listed there. Note down the disk number of your pendrive eg. Disk X .

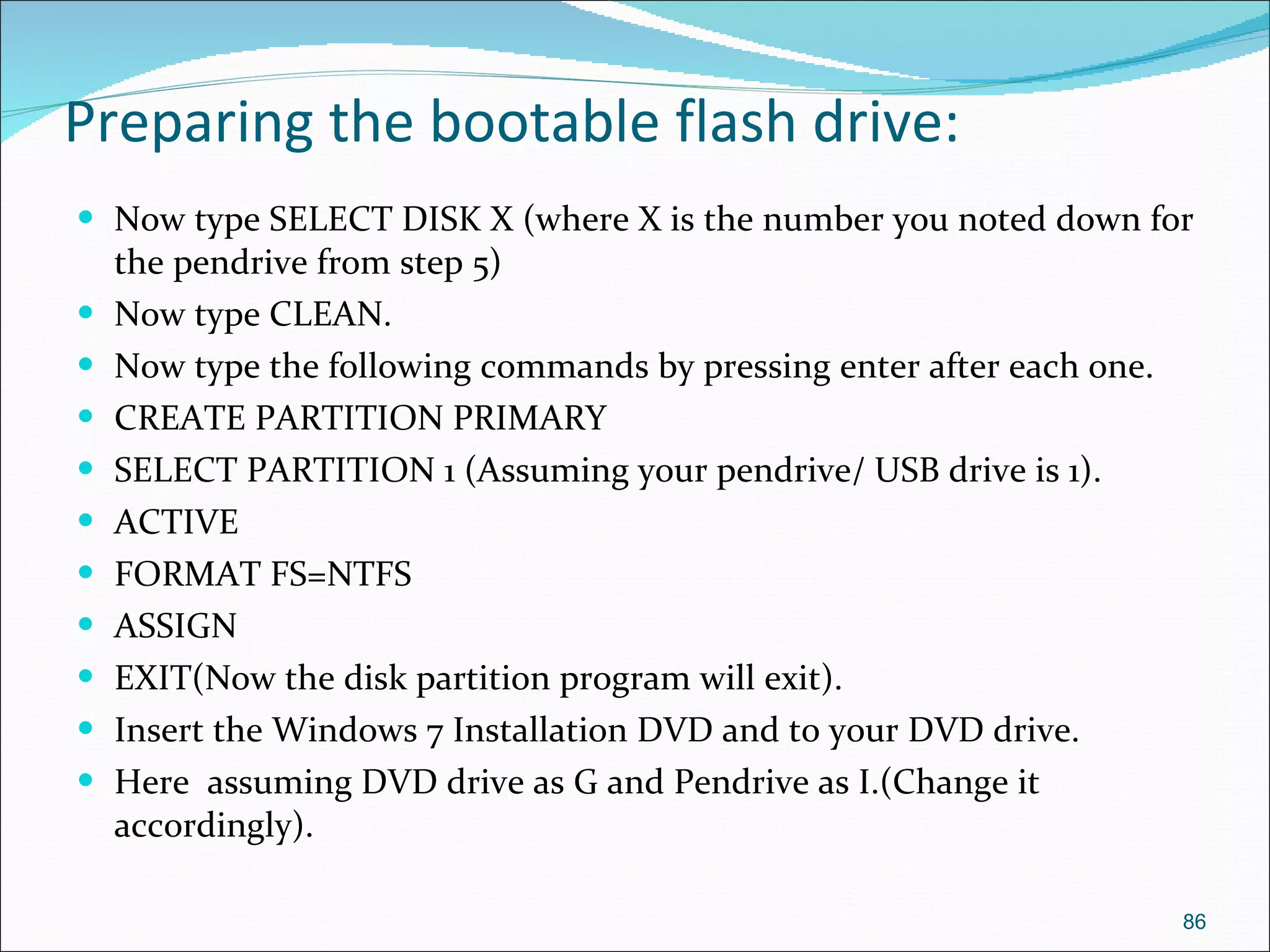

Preparing the bootable flash drive: Now type SELECT DISK X (where X is the number you noted down for the pendrive from step 5) Now type CLEAN. Now type the following commands by pressing enter after each one. CREATE PARTITION PRIMARY SELECT PARTITION 1 (Assuming your pendrive/ USB drive is 1). ACTIVE FORMAT FS=NTFS ASSIGN EXIT(Now the disk partition program will exit). Insert the Windows 7 Installation DVD and to your DVD drive. Here assuming DVD drive as G and Pendrive as I.(Change it accordingly).

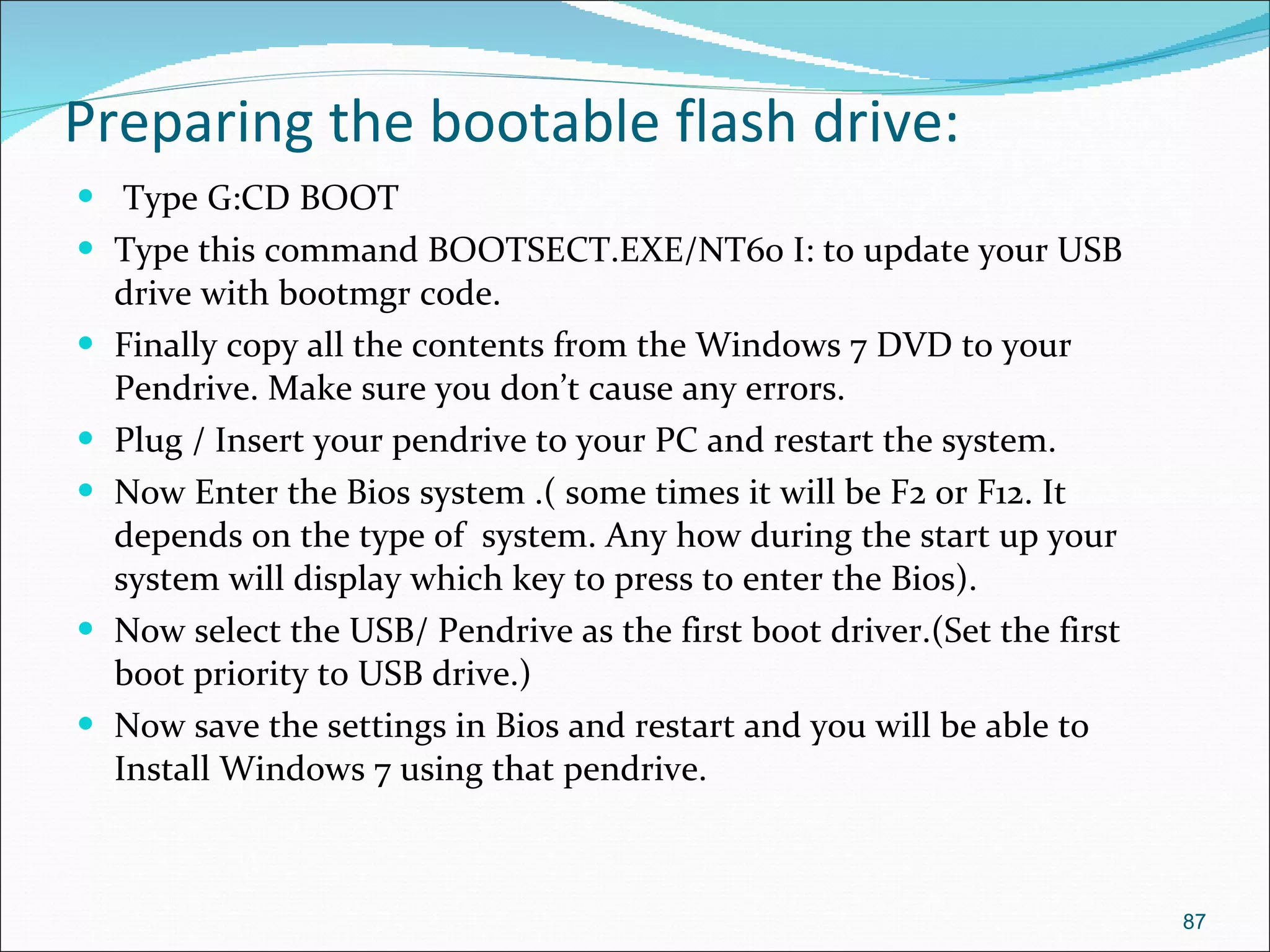

Preparing the bootable flash drive: Type G:CD BOOT Type this command BOOTSECT.EXE/NT60 I: to update your USB drive with bootmgr code. Finally copy all the contents from the Windows 7 DVD to your Pendrive. Make sure you don’t cause any errors. Plug / Insert your pendrive to your PC and restart the system. Now Enter the Bios system .( some times it will be F2 or F12. It depends on the type of system. Any how during the start up your system will display which key to press to enter the Bios). Now select the USB/ Pendrive as the first boot driver.(Set the first boot priority to USB drive.) Now save the settings in Bios and restart and you will be able to Install Windows 7 using that pendrive.
