WHAT TO EXPECT
WHEN YOU ARE
VISUALIZING
Krist Wongsuphasawat / @kristw
Based on true stories
Forever querying
Never-ending cleaning
Hopelessly prototyping
Last minute coding
and many more…
Computer Engineer
Bangkok, Thailand
PhD in Computer Science
Information Visualization
Univ. of Maryland
IBM
Microsoft
Data Visualization Scientist
Twitter
Krist Wongsuphasawat / @kristw

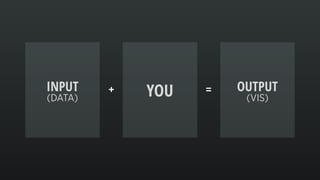

VISUALIZE DATA
INPUT
(DATA)
=YOU+ OUTPUT
(VIS)
EXPECT THE MISMATCHES
INPUT (DATA)
What clients think they have
INPUT (DATA)
What clients think they have What they usually have
YOU
What clients think you are
YOU
What clients think you are What they will get
OUTPUT (VIS)
What clients ask for
OUTPUT (VIS)
What clients ask for What they really need
I need this. Take this.
I need this. Here you are.
I need this. Take this.
EXPECT THESE TASKS
INPUT
(DATA)
=YOU+ OUTPUT
(VIS)

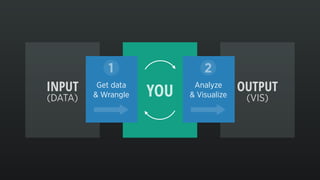

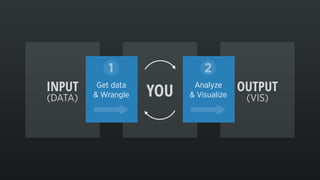

INPUT
(DATA)
=YOU+ OUTPUT
(VIS)
+
Get data
& Wrangle
1
+
Analyze
& Visualize
2
GET DATA & WRANGLE1
DATA SOURCES
Open data
Publicly available
Internal data
Private, owned by clients’ organization
Self-collected data
Manual, site scraping, etc.
Combine the above
MANY FORMS OF DATA
Standalone files
txt, csv, tsv, json, Google Docs, …, pdf*
APIs
better quality with more overhead
Databases
doesn’t necessary mean they are organized
Big data
bigger pain
HAVING ALL TWEETS
How people think I feel.
How people think I feel. How I really feel.
HAVING ALL TWEETS
CHALLENGES
Get relevant Tweets
hashtag: #oscars
keywords: “spotlight” (movie name)
Too big
Need to aggregate & reduce size
Slow
Long processing time (hours)
Hadoop Cluster

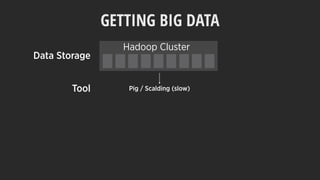

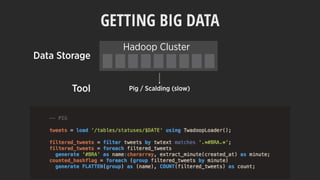

GETTING BIG DATA
Data Storage
Pig / Scalding (slow)
GETTING BIG DATA
Hadoop Cluster
Data Storage
Tool
Hadoop Cluster
Pig / Scalding (slow)
GETTING BIG DATA
Data Storage
Tool
Pig / Scalding (slow)

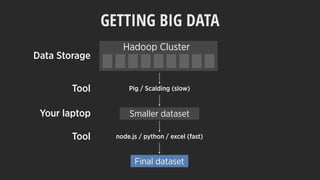

GETTING BIG DATA
Hadoop Cluster
Data Storage
Tool
Your laptop Smaller dataset
Hadoop Cluster
Pig / Scalding (slow)
Data Storage
Tool
Final dataset
Tool node.js / python / excel (fast)
Your laptop
GETTING BIG DATA
Smaller dataset
EXPECT TO WAIT FOR (BIG) DATA

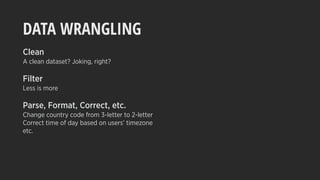

DATA WRANGLING
Clean
A clean dataset? Joking, right?
Filter
Less is more
Parse, Format, Correct, etc.
Change country code from 3-letter to 2-letter
Correct time of day based on users’ timezone
etc.
EXPECT A LOT OF TIME
WITH DATA WRANGLING
70-80% of time
“Data Janitor”
RECOMMENDATIONS
Always think that you will have to do it again
document the process, automation
Reusable scripts
break a gigantic do-it-all function into smaller ones
Reusable data
keep for future project
ANALYZE & VISUALIZE2
EXPECT DIFFERENT REQUIREMENTS

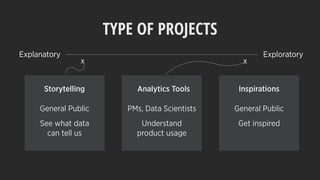

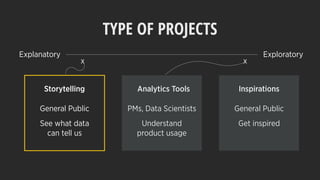

TYPE OF PROJECTS
Explanatory Exploratory
Storytelling Analytics Tools Inspirations
x x
PMs, Data ScientistsGeneral Public General Public
Understand
product usage
See what data
can tell us
Get inspired
TYPE OF PROJECTS
Explanatory Exploratory
Storytelling Analytics Tools Inspirations
x x
PMs, Data ScientistsGeneral Public General Public
Understand
product usage
See what data
can tell us
Get inspired
So many things
we could learn
from Twitter data
Give us interesting vis
about xxxx by Nov 10

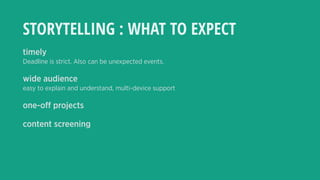

STORYTELLING : WHAT TO EXPECT
timely
Deadline is strict. Also can be unexpected events.
wide audience
easy to explain and understand, multi-device support
one-off projects
content screening

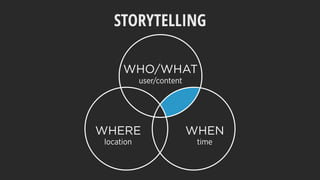

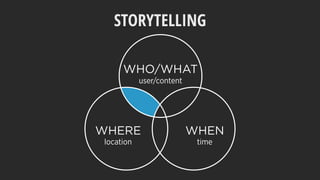

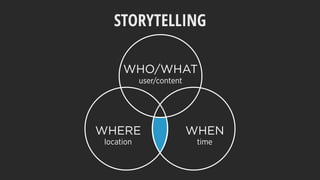

WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content
TIME : TWEETS/SECOND
by Miguel Rios
TIME : TWEETS/SECOND
by Miguel Rios
TIME : TWEETS/SECOND + ANNOTATION
http://www.flickr.com/photos/twitteroffice/5681263084/
by Miguel Rios
IT DOESN’T HAVE TO BE COMPLEX.

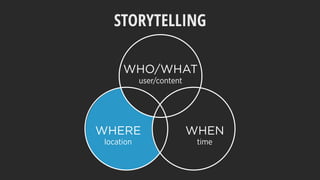

WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content

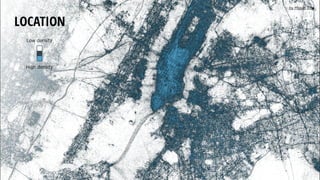

LOCATION
Low density
High density
by Miguel Rios
LOCATION
flickr.com/photos/twitteroffice/8798020541
San Francisco
Low density
High density
by Miguel Rios
Rebuild the world
based on
tweet density
twitter.github.io/interactive/andes/
by Nicolas Garcia Belmonte
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content

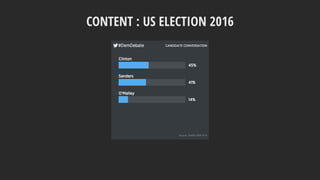

CONTENT : US ELECTION 2016

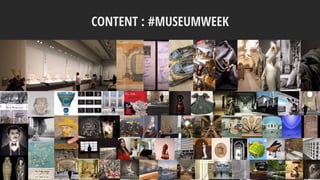

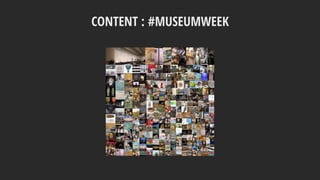

CONTENT : #MUSEUMWEEK
CONTENT : #MUSEUMWEEK
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content

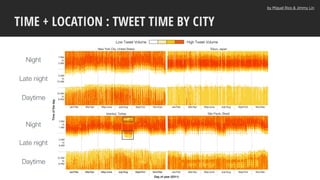

TIME + LOCATION : TWEET TIME BY CITY
Night
Late night
Daytime
Night
Late night
Daytime
by Miguel Rios & Jimmy Lin
Night
Late night
Daytime
Night
Late night
Daytime
TIME + LOCATION : TWEET TIME BY CITY
by Miguel Rios & Jimmy Lin
Night
Late night
Daytime
Night
Late night
Daytime
TIME + LOCATION : TWEET TIME BY CITY
by Miguel Rios & Jimmy Lin
TIME + LOCATION : TWEET TIME BY CITY
Night
Late night
Daytime
Night
Late night
Daytime
by Miguel Rios & Jimmy Lin
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content

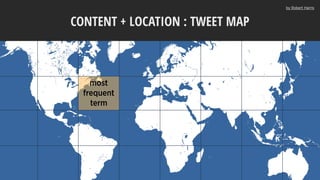

CONTENT + LOCATION : TWEET MAP
by Robert Harris
CONTENT + LOCATION : TWEET MAP
by Robert Harris
most
frequent
term
CONTENT + LOCATION : TWEET MAP
by Robert Harris
Gmail was down
Jan 24, 2014
CONTENT + LOCATION : TWEET MAP
by Robert Harris

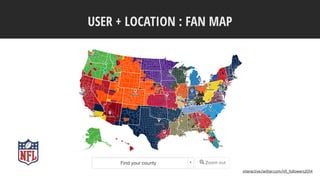

USER + LOCATION : FAN MAP
interactive.twitter.com/nfl_followers2014
USER + LOCATION : FAN MAP
interactive.twitter.com/nba_followers
USER + LOCATION : FAN MAP
interactive.twitter.com/premierleague
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content
CONTENT + TIME : STREAMGRAPH
CONTENT + TIME : MATCH SUMMARY
Biggest tournament for European soccer clubs
CONTENT + TIME : MATCH SUMMARY
Count Tweets mentioning the teams every minute
Dortmund Bayern Munich
Team 1 Team 2
time
begin
end

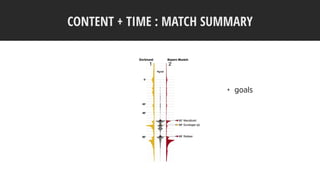

CONTENT + TIME : MATCH SUMMARY
CONTENT + TIME : MATCH SUMMARY
+ goals
CONTENT + TIME : MATCH SUMMARY
+ goals
+ players
CONTENT + TIME : COMPETITION SUMMARY
A B C D
A C
C
vs vs
vs + =
uclfinal.twitter.com
WHO/WHAT
STORYTELLING
WHERE WHEN
location time
user/content
CONTENT + TIME + LOCATION : NEW YEAR 2014
twitter.github.io/interactive/newyear2014/
BEHIND THE SCENE
https://interactive.twitter.com/tenyears
Project / Twitter 10 years
REQUEST
EXPECT FUNNY REQUESTS

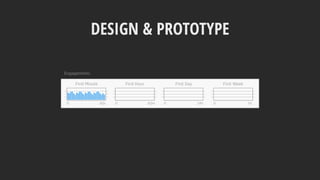

DESIGN & PROTOTYPE
Engagements
First Minute First Hour First Day First Week
0 24h 0 7d0 60s 0 60m
EXPECT REVISIONS
Visualization is an important piece, but not the entire experience.
DON’T FORGET THE BIG PICTURE.
https://interactive.twitter.com/tenyears
Demo / Twitter 10 years

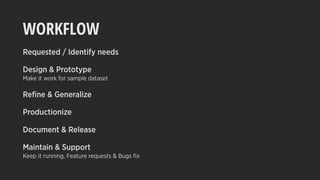

WORKFLOW
Requested / Identify needs
Design & Prototype
Refine
Mobile, Embed
Logging
Release
EXPECT THE UNEXPECTED

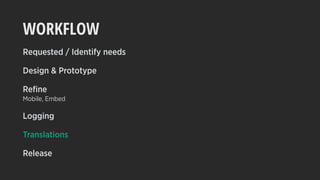

WORKFLOW
Requested / Identify needs
Design & Prototype
Refine
Mobile, Embed
Logging
Translations
Release
TYPE OF PROJECTS
Explanatory Exploratory
Storytelling Analytics Tools Inspirations
x x
PMs, Data ScientistsGeneral Public General Public
Understand
product usage
See what data
can tell us
Get inspired

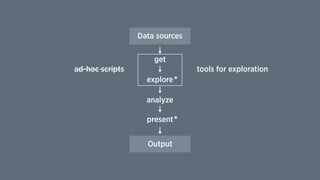

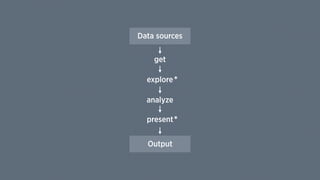

Data sources
Output
explore
analyze
present
get
*
*
Data sources
Output
explore
analyze
present
get
*
*
ad-hoc scripts

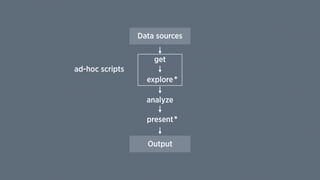

Data sources
Output
explore
analyze
present
get
*
*
ad-hoc scripts tools for exploration
ANALYTICS TOOLS : WHAT TO EXPECT
richer, more features
to support exploration of complex data
more technical audience
product managers, engineers, data scientists
accuracy
designed for dynamic input
long-term projects
USER ACTIVITY LOGS
UsersUseTwitter
UsersUse
Product Managers
Curious
Twitter
UsersUse
Curious
Engineers
Log data
in Hadoop
Write Twitter
Instrument
Product Managers

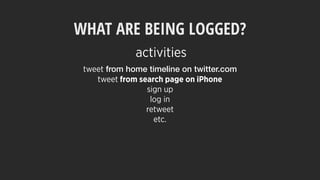

WHAT ARE BEING LOGGED?
tweet
activities
WHAT ARE BEING LOGGED?
tweet from home timeline on twitter.com
tweet from search page on iPhone
activities
WHAT ARE BEING LOGGED?
tweet from home timeline on twitter.com
tweet from search page on iPhone
sign up
log in
retweet
etc.
activities
ORGANIZE?
LOG EVENT A.K.A. “CLIENT EVENT”
[Lee et al. 2012]
LOG EVENT A.K.A. “CLIENT EVENT”
client : page : section : component : element : action
web : home : timeline : tweet_box : button : tweet
1) User ID
2) Timestamp
3) Event name
4) Event detail
[Lee et al. 2012]
LOG DATA
UsersUse
Curious
Engineers
Log data
in Hadoop
Twitter
Instrument
Write
Product Managers
bigger than
Tweet data
UsersUse
Curious
Engineers
Log data
in Hadoop
Data Scientists
Ask
Twitter
Instrument
Write
Product Managers
UsersUse
Curious
Engineers
Log data
in Hadoop
Data Scientists
Find
Ask
Twitter
Instrument
Write
Product Managers
LOG DATA
UsersUse
Curious
Engineers
Log data
in Hadoop
Data Scientists
Find, Clean
Ask
Twitter
Instrument
Write
Product Managers
UsersUse
Curious
Engineers
Log data
in Hadoop
Data Scientists
Find, Clean
Ask
Monitor
Twitter
Instrument
Write
Product Managers
UsersUse
Curious
Engineers
Log data
in Hadoop
Data Scientists
Find, Clean, Analyze
Ask
Monitor
Twitter
Instrument
Write
Product Managers
Log data
EngineersData Scientists
Usersin Hadoop
Find, Clean, Analyze
Use
Monitor
Ask
Curious
1 2
Twitter
Instrument
Write
Product Managers
Scribe Radar
Project / Find & Monitor client events
Log data
in Hadoop
Engineers & Data Scientists
billions of rows

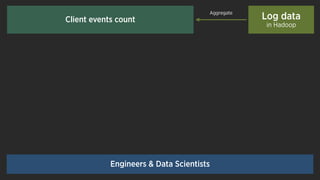

Log data
in Hadoop
Aggregate
Client events count
Engineers & Data Scientists
Log data
in Hadoop
Aggregate
Find
client page section component element action
Search
Client events count
Engineers & Data Scientists
Log data
in Hadoop
Aggregate
Find
client page section component element action
Search
Client events count
Engineers & Data Scientists
SECTION?
COMPONENT?
ELEMENT?
client page section component element action
Search
Find
Log data
in Hadoop
Aggregate
web home * * impression*
Client events count
Engineers & Data Scientists
client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
web : home : wtf : - : - : impression
Aggregate
web home * * impression*
Client events count
Engineers & Data Scientists

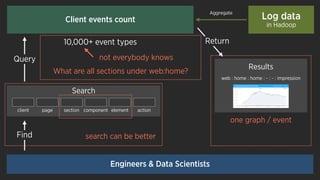

client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
web : home : wtf : - : - : impression
Aggregate
search can be better
Client events count
Engineers & Data Scientists
client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
web : home : wtf : - : - : impression
Aggregate
10,000+ event types
search can be better
Client events count
Engineers & Data Scientists
client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
web : home : wtf : - : - : impression
Aggregate
search can be better
10,000+ event types
not everybody knows
What are all sections under web:home?
Client events count
Engineers & Data Scientists
client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
Aggregate
one graph / event
10,000+ event types
not everybody knows
What are all sections under web:home?
Client events count
Engineers & Data Scientists
search can be better
client page section component element action
Search
Find
Query
Return
Log data
in Hadoop
Results
web : home : home : - : - : impression
Aggregate
one graph / event
x 10,000
10,000+ event types
not everybody knows
What are all sections under web:home?
Client events count
Engineers & Data Scientists
search can be better
GOALS
Search for client events
Explore client event collection
Monitor changes
DESIGN

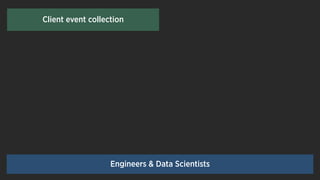

Client event collection
Engineers & Data Scientists
See
Client event collection
Engineers & Data Scientists
See

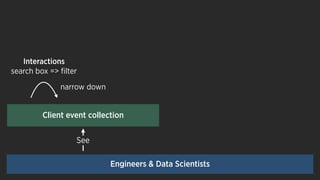

Client event collection
Engineers & Data Scientists
narrow down
Interactions
search box => filter
See
HOW TO VISUALIZE?
narrow down
Client event collection
Engineers & Data Scientists
Interactions
search box => filter
See
Client event collection
Engineers & Data Scientists
client : page : section : component : element : action
HOW TO VISUALIZE?
narrow down
Interactions
search box => filter
CLIENT EVENT HIERARCHY
iphone home -
- - impression
tweet tweet click
iphone:home:-:-:-:impression
iphone:home:-:tweet:tweet:click

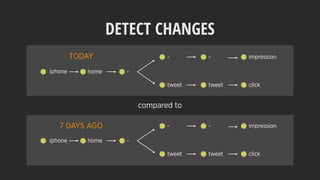

DETECT CHANGES
iphone home -
- - impression
tweet tweet click
iphone home -
- - impression
tweet tweet click
TODAY
7 DAYS AGO
compared to
CALCULATE CHANGES
+5% +5% +5%
+10% +10% +10%
-5% -5% -5%
DIFF

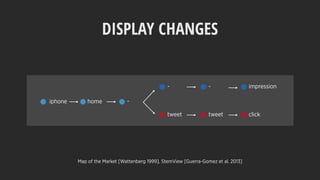

DISPLAY CHANGES
iphone home -
- - impression
tweet tweet click
Map of the Market [Wattenberg 1999], StemView [Guerra-Gomez et al. 2013]

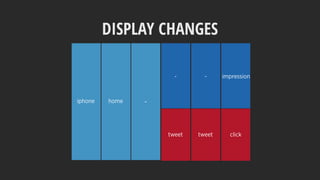

DISPLAY CHANGES
home -
- - impression
tweet tweet click
iphone
Demo Demo Demo
Demo / Scribe Radar
Twitter for Banana
Flying Sessions
Project / Funnel Analysis
COUNT PAGE VISITS
banana : home : - : - : - : impression
home page

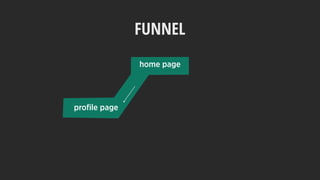

FUNNEL
home page
profile page
FUNNEL ANALYSIS
1 jobhome page
profile page
1 hourbanana : home : - : - : - : impression
banana : profile : - : - : - : impression
FUNNEL ANALYSIS
banana : home : - : - : - : impression
banana : profile : - : - : - : impression banana : search : - : - : - : impression
home page
profile page search page
2 jobs
2 hours
FUNNEL ANALYSIS
banana : home : - : - : - : impression
banana : profile : - : - : - : impression banana : search : - : - : - : impression
home page
profile page search page
Specify all funnels manually!
n jobs
Time to find a
new job

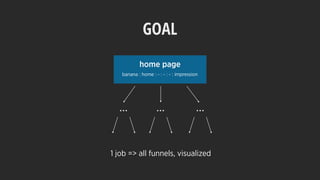

GOAL
banana : home : - : - : - : impression
… ……
1 job => all funnels, visualized
home page
USER SESSIONS
Session#1
A
B
end
Session#4
Start
end
A
Session#2
B
end
A
Session#3
C
end
A
StartStartStart

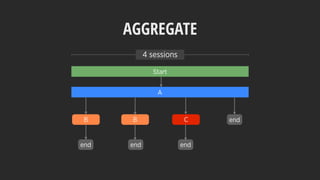

AGGREGATE
A
BB C
Start
end endend
A A
end
A
4 sessions
AGGREGATE
A
BB C
Start
end endend
end
4 sessions

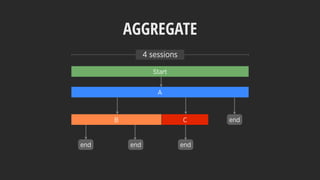

AGGREGATE
C
Start
end endend
end
A
B
4 sessions
AGGREGATE
C
Start
end endend
end
A
B
4 sessions
AGGREGATE
C
Start
end endend
A
B end
4 sessions
AGGREGATE
C
Start
endend
A
B end
4 sessions

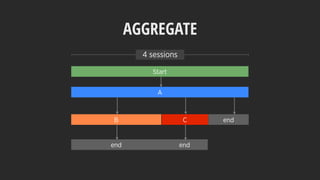

AGGREGATE
C
Start
endend
A
B end
4 sessions

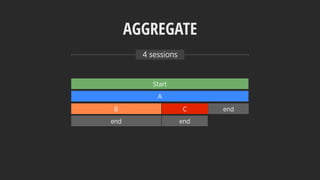

AGGREGATE
Start
endend
A
CB end
4 sessions

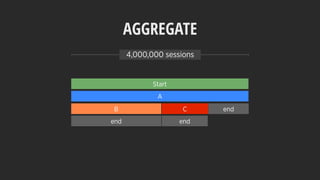

AGGREGATE
endend
A
CB end
Start
4,000,000 sessions
(~millions sessions, 10,000+ event types)
TRY WITH SAMPLE DATA

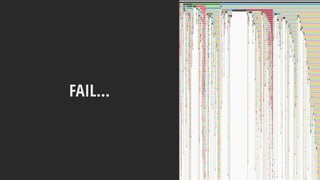

FAIL…
Keep trying to make it work
EXPECT TRIALS AND ERRORS
Read the details in
Krist Wongsuphasawat and Jimmy Lin.
“Using Visualizations to Monitor Changes and Harvest Insights from a Global-Scale Logging Infrastructure at Twitter “
Proc. IEEE Conference on Visual Analytics Science and Technology (VAST) 2014
HOW TO MAKE IT WORK?
Demo Demo Demo
Demo / Flying Sessions
WORKFLOW
Requested / Identify needs
Design & Prototype
Make it work for sample dataset
Refine & Generalize
Productionize
Document & Release
Maintain & Support
Keep it running, Feature requests & Bugs fix
TYPE OF PROJECTS
Explanatory Exploratory
Storytelling Analytics Tools Inspirations
x x
PMs, Data ScientistsGeneral Public General Public
Understand
product usage
See what data
can tell us
Get inspired
https://medium.com/@kristw/designing-the-game-of-tweets-7f87c30dc5a2
Project / Game of Tweets
EXPECT HARDWARE COMPLICATIONS
INPUT
(DATA)
=YOU+ OUTPUT
(VIS)
+
Get data
& Wrangle
1
+
Analyze
& Visualize
2
INPUT
(DATA)
=YOU+ OUTPUT
(VIS)
+
Get data
& Wrangle
1
+
Analyze
& Visualize
2
EXPECT TO IMPROVE
HOW TO BE BETTER?
Time is limited.

Grow the team
Expand skills
Improve tooling
Solve a problem once and for all
Automate repetitive tasks
http://twitter.github.io/labella.js
Demo / Labella.js
https://github.com/twitter/d3kit
Demo / d3Kit
http://www.slideshare.net/kristw/d3kit
yeoman.io
Demo / Yeoman
TO SUM UP
INPUT
(DATA)
=YOU+ OUTPUT
(VIS)
+
Get data
& Wrangle
1
+
Analyze
& Visualize
2
TYPE OF PROJECTS
Explanatory Exploratory
Storytelling Analytics Tools Inspirations
x x
PMs, Data ScientistsGeneral Public General Public
Understand
product usage
See what data
can tell us
Get inspired

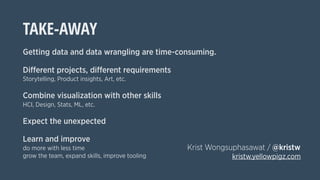

TAKE-AWAY
Getting data and data wrangling are time-consuming.
Different projects, different requirements
Storytelling, Product insights, Art, etc.
Combine visualization with other skills
HCI, Design, Stats, ML, etc.
Expect the unexpected
Learn and improve
do more with less time
grow the team, expand skills, improve tooling
Krist Wongsuphasawat / @kristw
kristw.yellowpigz.com
Nicolas Garcia Belmonte, Robert Harris, Miguel Rios,
Simon Rogers, Jimmy Lin, Linus Lee, Chuang Liu,
and many colleagues at Twitter.
Lastly, to my wife for taking care of our 3 months old baby, so I had time to prepare these slides.
ACKNOWLEDGEMENT
RESOURCES
Images
Banana phone http://goo.gl/GmcMPq
Bar chart https://goo.gl/1G1GBg
Boss https://goo.gl/gcY8Kw
Champions League http://goo.gl/DjtNKE
Database http://goo.gl/5N7zZz
Fishing shark http://goo.gl/2fp4zW
Globe visualization http://goo.gl/UiGMMj
Harry Potter http://goo.gl/Q9Cy64
Holding phone http://goo.gl/It2TzH
Kiwi orange http://goo.gl/ejQ73y
Kiwi http://goo.gl/9yk7o5
Library https://goo.gl/HVeE6h
Library earthquake http://goo.gl/rBqBrs
Minion http://goo.gl/I19Ijg
NBA http://goo.gl/p7HBdG
NFL http://goo.gl/feQMZs
Orange & Apple http://goo.gl/NG6RIL
Pile of paper http://goo.gl/mGLQTx
Premier League http://goo.gl/AqIINO
Scrooge McDuck https://goo.gl/aKv8D7
The Sound of Music https://goo.gl/dqHlzj
Trash pile http://goo.gl/OsFfo3
Tyrion http://goo.gl/WaBonl
Watercolor Map by Stamen Design
THANK YOU

More Related Content

What's hot

Fe Colleges Conference
Fe Colleges ConferenceFe Colleges Conference
Fe Colleges Conference
Alun John

Connecting to the pulse of the planet with Twitter APIs
Connecting to the pulse of the planet with Twitter APIsConnecting to the pulse of the planet with Twitter APIs
Connecting to the pulse of the planet with Twitter APIs
Andy Piper

Alexis max-Creating a bot experience as good as your user experience - Alexis...
Alexis max-Creating a bot experience as good as your user experience - Alexis...Alexis max-Creating a bot experience as good as your user experience - Alexis...
Alexis max-Creating a bot experience as good as your user experience - Alexis...
WeLoveSEO

Redefining technical SEO & how we should be thinking about it as an industry ...
Redefining technical SEO & how we should be thinking about it as an industry ...Redefining technical SEO & how we should be thinking about it as an industry ...
Redefining technical SEO & how we should be thinking about it as an industry ...
WeLoveSEO

A Secret Algo Project (MozCast)
A Secret Algo Project (MozCast)A Secret Algo Project (MozCast)
A Secret Algo Project (MozCast)
Peter "Dr. Pete" Meyers

Conducting Twitter Reserch
Conducting Twitter ReserchConducting Twitter Reserch
Conducting Twitter Reserch
Kim Holmberg

Branko Rihtman Linklove London 2012
Branko Rihtman Linklove London 2012 Branko Rihtman Linklove London 2012
Branko Rihtman Linklove London 2012
Branko Rihtman

When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...
When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...
When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...
Christopher Brown

TechSEO Boost 2017: The State of Technical SEO
TechSEO Boost 2017: The State of Technical SEOTechSEO Boost 2017: The State of Technical SEO
TechSEO Boost 2017: The State of Technical SEO
Catalyst

Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...
Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...
Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...
Ted Drake


What's hot (10)

Fe Colleges Conference
Fe Colleges ConferenceFe Colleges Conference
Fe Colleges Conference

Connecting to the pulse of the planet with Twitter APIs
Connecting to the pulse of the planet with Twitter APIsConnecting to the pulse of the planet with Twitter APIs
Connecting to the pulse of the planet with Twitter APIs

Alexis max-Creating a bot experience as good as your user experience - Alexis...
Alexis max-Creating a bot experience as good as your user experience - Alexis...Alexis max-Creating a bot experience as good as your user experience - Alexis...
Alexis max-Creating a bot experience as good as your user experience - Alexis...

Redefining technical SEO & how we should be thinking about it as an industry ...
Redefining technical SEO & how we should be thinking about it as an industry ...Redefining technical SEO & how we should be thinking about it as an industry ...
Redefining technical SEO & how we should be thinking about it as an industry ...

A Secret Algo Project (MozCast)
A Secret Algo Project (MozCast)A Secret Algo Project (MozCast)
A Secret Algo Project (MozCast)

Conducting Twitter Reserch
Conducting Twitter ReserchConducting Twitter Reserch
Conducting Twitter Reserch

Branko Rihtman Linklove London 2012
Branko Rihtman Linklove London 2012 Branko Rihtman Linklove London 2012
Branko Rihtman Linklove London 2012

When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...
When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...
When there is no Vendor: Statistics for Free Clickthroughs via the Online Cat...

TechSEO Boost 2017: The State of Technical SEO
TechSEO Boost 2017: The State of Technical SEOTechSEO Boost 2017: The State of Technical SEO
TechSEO Boost 2017: The State of Technical SEO

Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...
Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...
Open Source Search Tools for www2010 conferencesourcesearchtoolswww20100426dA...


Viewers also liked

Diagnostico de muerte cerebral(1)
Diagnostico de muerte cerebral(1)Diagnostico de muerte cerebral(1)
Diagnostico de muerte cerebral(1)
Alvaro Gudiño

Master Soluciones constructivas Prefabricados de hormigón
Master Soluciones constructivas Prefabricados de hormigónMaster Soluciones constructivas Prefabricados de hormigón
Master Soluciones constructivas Prefabricados de hormigón
Andrés Lorenzo Rodríguez

Exploring the Science of Remote Viewing
Exploring the Science of Remote ViewingExploring the Science of Remote Viewing
Exploring the Science of Remote Viewing
Cyrusps

안랩 -053800- 알고리즘 기업분석 보고서
안랩 -053800- 알고리즘 기업분석 보고서안랩 -053800- 알고리즘 기업분석 보고서
안랩 -053800- 알고리즘 기업분석 보고서
알고리즘 기업분석 컨설팅-알기컨,algikeon

Investimento pela lógica do cidadão
Investimento pela lógica do cidadãoInvestimento pela lógica do cidadão
Investimento pela lógica do cidadão
Instituto Locomotiva

Futuristic Education
Futuristic EducationFuturistic Education
Futuristic Education
Ashish Ahuja

Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...
Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...
Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...
kosthom

O que você tem a ver com a corrupção?
O que você tem a ver com a corrupção?O que você tem a ver com a corrupção?
O que você tem a ver com a corrupção?
Ministério Público de Santa Catarina

Hipercoagulabilidad
HipercoagulabilidadHipercoagulabilidad
Hipercoagulabilidad
Alvaro Gudiño

Modulo 1/3. Competencias del Administrador. Prob.Admon.2014
Modulo 1/3. Competencias del Administrador. Prob.Admon.2014Modulo 1/3. Competencias del Administrador. Prob.Admon.2014
Modulo 1/3. Competencias del Administrador. Prob.Admon.2014
JOSE ANGEL FERREIRA

(In) Security graph database in real world
(In) Security graph database in real world (In) Security graph database in real world
(In) Security graph database in real world
Miguel Hernández Boza

Koning Albert wil vermogen herschikken
Koning Albert wil vermogen herschikkenKoning Albert wil vermogen herschikken
Koning Albert wil vermogen herschikken
Thierry Debels

PIXTAにおけるCloudSearchのコスト削減
PIXTAにおけるCloudSearchのコスト削減PIXTAにおけるCloudSearchのコスト削減
PIXTAにおけるCloudSearchのコスト削減
PIXTA Inc.

Le rôle du manager
Le rôle du managerLe rôle du manager
Le rôle du manager
keyros

おーぷんここんセルフCDライター
おーぷんここんセルフCDライターおーぷんここんセルフCDライター
おーぷんここんセルフCDライター
shimadah

Notes are not enough! Why relying on your notes will lead you down the garden...
Notes are not enough! Why relying on your notes will lead you down the garden...Notes are not enough! Why relying on your notes will lead you down the garden...
Notes are not enough! Why relying on your notes will lead you down the garden...
Ash Donaldson

Scikit learnで学ぶ機械学習入門
Scikit learnで学ぶ機械学習入門Scikit learnで学ぶ機械学習入門
Scikit learnで学ぶ機械学習入門
Takami Sato

Snapshot of Digital India - March 2017
Snapshot of Digital India - March 2017Snapshot of Digital India - March 2017
Snapshot of Digital India - March 2017
Ethinos Digital Marketing

Design In Tech Report 2016
Design In Tech Report 2016Design In Tech Report 2016
Design In Tech Report 2016
John Maeda


Viewers also liked (19)

Diagnostico de muerte cerebral(1)
Diagnostico de muerte cerebral(1)Diagnostico de muerte cerebral(1)
Diagnostico de muerte cerebral(1)

Master Soluciones constructivas Prefabricados de hormigón
Master Soluciones constructivas Prefabricados de hormigónMaster Soluciones constructivas Prefabricados de hormigón
Master Soluciones constructivas Prefabricados de hormigón

Exploring the Science of Remote Viewing
Exploring the Science of Remote ViewingExploring the Science of Remote Viewing
Exploring the Science of Remote Viewing

안랩 -053800- 알고리즘 기업분석 보고서
안랩 -053800- 알고리즘 기업분석 보고서안랩 -053800- 알고리즘 기업분석 보고서
안랩 -053800- 알고리즘 기업분석 보고서

Investimento pela lógica do cidadão
Investimento pela lógica do cidadãoInvestimento pela lógica do cidadão
Investimento pela lógica do cidadão

Futuristic Education
Futuristic EducationFuturistic Education
Futuristic Education

Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...
Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...
Περιβαλλοντικά οφέλη και επιπτώσεις από την αξιοποίηση της γεωθερμίας στο αστ...

O que você tem a ver com a corrupção?
O que você tem a ver com a corrupção?O que você tem a ver com a corrupção?
O que você tem a ver com a corrupção?

Hipercoagulabilidad
HipercoagulabilidadHipercoagulabilidad
Hipercoagulabilidad

Modulo 1/3. Competencias del Administrador. Prob.Admon.2014
Modulo 1/3. Competencias del Administrador. Prob.Admon.2014Modulo 1/3. Competencias del Administrador. Prob.Admon.2014
Modulo 1/3. Competencias del Administrador. Prob.Admon.2014

(In) Security graph database in real world
(In) Security graph database in real world (In) Security graph database in real world
(In) Security graph database in real world

Koning Albert wil vermogen herschikken
Koning Albert wil vermogen herschikkenKoning Albert wil vermogen herschikken
Koning Albert wil vermogen herschikken

PIXTAにおけるCloudSearchのコスト削減
PIXTAにおけるCloudSearchのコスト削減PIXTAにおけるCloudSearchのコスト削減
PIXTAにおけるCloudSearchのコスト削減

Le rôle du manager
Le rôle du managerLe rôle du manager
Le rôle du manager

おーぷんここんセルフCDライター
おーぷんここんセルフCDライターおーぷんここんセルフCDライター
おーぷんここんセルフCDライター

Notes are not enough! Why relying on your notes will lead you down the garden...
Notes are not enough! Why relying on your notes will lead you down the garden...Notes are not enough! Why relying on your notes will lead you down the garden...
Notes are not enough! Why relying on your notes will lead you down the garden...

Scikit learnで学ぶ機械学習入門
Scikit learnで学ぶ機械学習入門Scikit learnで学ぶ機械学習入門
Scikit learnで学ぶ機械学習入門

Snapshot of Digital India - March 2017
Snapshot of Digital India - March 2017Snapshot of Digital India - March 2017
Snapshot of Digital India - March 2017

Design In Tech Report 2016
Design In Tech Report 2016Design In Tech Report 2016
Design In Tech Report 2016


Similar to What to expect when you are visualizing

Data Visualization: A Quick Tour for Data Science Enthusiasts
Data Visualization: A Quick Tour for Data Science EnthusiastsData Visualization: A Quick Tour for Data Science Enthusiasts
Data Visualization: A Quick Tour for Data Science Enthusiasts
Krist Wongsuphasawat

Data Visualization
Data VisualizationData Visualization
Data Visualization
Vera Kovaleva

How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...
How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...
How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...
Dana Gardner

Analyzing social media with Python and other tools (2/4)
Analyzing social media with Python and other tools (2/4) Analyzing social media with Python and other tools (2/4)
Analyzing social media with Python and other tools (2/4)
Department of Communication Science, University of Amsterdam

Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...
Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...
Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...
Yael Garten

Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...
Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...
Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...
Shirshanka Das

Unlock your Big Data with Analytics and BI on Office 365
Unlock your Big Data with Analytics and BI on Office 365Unlock your Big Data with Analytics and BI on Office 365
Unlock your Big Data with Analytics and BI on Office 365
Brian Culver

OSINT using Twitter & Python
OSINT using Twitter & PythonOSINT using Twitter & Python
OSINT using Twitter & Python
37point2

The 3 Key Barriers Keeping Companies from Deploying Data Products
The 3 Key Barriers Keeping Companies from Deploying Data Products The 3 Key Barriers Keeping Companies from Deploying Data Products
The 3 Key Barriers Keeping Companies from Deploying Data Products
Dataiku

SPT 104 Unlock your big data with analytics and BI on Office 365
SPT 104 Unlock your big data with analytics and BI on Office 365SPT 104 Unlock your big data with analytics and BI on Office 365
SPT 104 Unlock your big data with analytics and BI on Office 365
Brian Culver

The New Simple: Predictive Analytics for the Mainstream
The New Simple: Predictive Analytics for the Mainstream The New Simple: Predictive Analytics for the Mainstream
The New Simple: Predictive Analytics for the Mainstream
Inside Analysis

SXSW2018 - Designing & Building for a Data Science Future
SXSW2018 - Designing & Building for a Data Science FutureSXSW2018 - Designing & Building for a Data Science Future
SXSW2018 - Designing & Building for a Data Science Future
Dan Chuparkoff

The Role of Data Wrangling in Driving Hadoop Adoption
The Role of Data Wrangling in Driving Hadoop AdoptionThe Role of Data Wrangling in Driving Hadoop Adoption
The Role of Data Wrangling in Driving Hadoop Adoption
Inside Analysis

#rstats lessons for #measure
#rstats lessons for #measure#rstats lessons for #measure
#rstats lessons for #measure
Mark Edmondson

Accidental DataOps
Accidental DataOpsAccidental DataOps
Accidental DataOps
Steve Ross

Big Data in Action – Real-World Solution Showcase
 Big Data in Action – Real-World Solution Showcase Big Data in Action – Real-World Solution Showcase
Big Data in Action – Real-World Solution Showcase
Inside Analysis

Analyzing Real Time News
Analyzing Real Time NewsAnalyzing Real Time News
Analyzing Real Time News
Marco Fusi

Big Data Enabled: How YARN Changes the Game
Big Data Enabled: How YARN Changes the GameBig Data Enabled: How YARN Changes the Game
Big Data Enabled: How YARN Changes the Game
Inside Analysis

SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365
SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365
SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365
Brian Culver

Architecture of Big Data Solutions
Architecture of Big Data SolutionsArchitecture of Big Data Solutions
Architecture of Big Data Solutions
Guido Schmutz


Similar to What to expect when you are visualizing (20)

Data Visualization: A Quick Tour for Data Science Enthusiasts
Data Visualization: A Quick Tour for Data Science EnthusiastsData Visualization: A Quick Tour for Data Science Enthusiasts
Data Visualization: A Quick Tour for Data Science Enthusiasts

Data Visualization
Data VisualizationData Visualization
Data Visualization

How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...
How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...
How a Hackathon Approach Juices Innovation on Big Data Applications for Thoms...

Analyzing social media with Python and other tools (2/4)
Analyzing social media with Python and other tools (2/4) Analyzing social media with Python and other tools (2/4)
Analyzing social media with Python and other tools (2/4)

Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...
Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...
Building a healthy data ecosystem around Kafka and Hadoop: Lessons learned at...

Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...
Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...
Strata 2017 (San Jose): Building a healthy data ecosystem around Kafka and Ha...

Unlock your Big Data with Analytics and BI on Office 365
Unlock your Big Data with Analytics and BI on Office 365Unlock your Big Data with Analytics and BI on Office 365
Unlock your Big Data with Analytics and BI on Office 365

OSINT using Twitter & Python
OSINT using Twitter & PythonOSINT using Twitter & Python
OSINT using Twitter & Python

The 3 Key Barriers Keeping Companies from Deploying Data Products
The 3 Key Barriers Keeping Companies from Deploying Data Products The 3 Key Barriers Keeping Companies from Deploying Data Products
The 3 Key Barriers Keeping Companies from Deploying Data Products

SPT 104 Unlock your big data with analytics and BI on Office 365
SPT 104 Unlock your big data with analytics and BI on Office 365SPT 104 Unlock your big data with analytics and BI on Office 365
SPT 104 Unlock your big data with analytics and BI on Office 365

The New Simple: Predictive Analytics for the Mainstream
The New Simple: Predictive Analytics for the Mainstream The New Simple: Predictive Analytics for the Mainstream
The New Simple: Predictive Analytics for the Mainstream

SXSW2018 - Designing & Building for a Data Science Future
SXSW2018 - Designing & Building for a Data Science FutureSXSW2018 - Designing & Building for a Data Science Future
SXSW2018 - Designing & Building for a Data Science Future

The Role of Data Wrangling in Driving Hadoop Adoption
The Role of Data Wrangling in Driving Hadoop AdoptionThe Role of Data Wrangling in Driving Hadoop Adoption
The Role of Data Wrangling in Driving Hadoop Adoption

#rstats lessons for #measure
#rstats lessons for #measure#rstats lessons for #measure
#rstats lessons for #measure

Accidental DataOps
Accidental DataOpsAccidental DataOps
Accidental DataOps

Big Data in Action – Real-World Solution Showcase
 Big Data in Action – Real-World Solution Showcase Big Data in Action – Real-World Solution Showcase
Big Data in Action – Real-World Solution Showcase

Analyzing Real Time News
Analyzing Real Time NewsAnalyzing Real Time News
Analyzing Real Time News

Big Data Enabled: How YARN Changes the Game
Big Data Enabled: How YARN Changes the GameBig Data Enabled: How YARN Changes the Game
Big Data Enabled: How YARN Changes the Game

SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365
SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365
SPS Utah 2016 - Unlock your big data with analytics and BI on Office 365

Architecture of Big Data Solutions
Architecture of Big Data SolutionsArchitecture of Big Data Solutions
Architecture of Big Data Solutions


More from Krist Wongsuphasawat

What I tell myself before visualizing
What I tell myself before visualizingWhat I tell myself before visualizing
What I tell myself before visualizing
Krist Wongsuphasawat

Navigating the Wide World of Data Visualization Libraries
Navigating the Wide World of Data Visualization LibrariesNavigating the Wide World of Data Visualization Libraries
Navigating the Wide World of Data Visualization Libraries
Krist Wongsuphasawat

Encodable: Configurable Grammar for Visualization Components
Encodable: Configurable Grammar for Visualization ComponentsEncodable: Configurable Grammar for Visualization Components
Encodable: Configurable Grammar for Visualization Components
Krist Wongsuphasawat

6 things to expect when you are visualizing (2020 Edition)
6 things to expect when you are visualizing (2020 Edition)6 things to expect when you are visualizing (2020 Edition)
6 things to expect when you are visualizing (2020 Edition)
Krist Wongsuphasawat

Increasing the Impact of Visualization Research
Increasing the Impact of Visualization ResearchIncreasing the Impact of Visualization Research
Increasing the Impact of Visualization Research
Krist Wongsuphasawat

6 things to expect when you are visualizing
6 things to expect when you are visualizing6 things to expect when you are visualizing
6 things to expect when you are visualizing
Krist Wongsuphasawat

What to expect when you are visualizing (v.2)
What to expect when you are visualizing (v.2)What to expect when you are visualizing (v.2)
What to expect when you are visualizing (v.2)
Krist Wongsuphasawat

ร้อยเรื่องราวจากข้อมูล / Storytelling with Data
ร้อยเรื่องราวจากข้อมูล / Storytelling with Dataร้อยเรื่องราวจากข้อมูล / Storytelling with Data
ร้อยเรื่องราวจากข้อมูล / Storytelling with Data
Krist Wongsuphasawat

Reveal the talking points of every episode of Game of Thrones from fans' conv...
Reveal the talking points of every episode of Game of Thrones from fans' conv...Reveal the talking points of every episode of Game of Thrones from fans' conv...
Reveal the talking points of every episode of Game of Thrones from fans' conv...
Krist Wongsuphasawat

d3Kit
d3Kitd3Kit
Making Sense of Millions of Thoughts: Finding Patterns in the Tweets
Making Sense of Millions of Thoughts: Finding Patterns in the TweetsMaking Sense of Millions of Thoughts: Finding Patterns in the Tweets
Making Sense of Millions of Thoughts: Finding Patterns in the Tweets
Krist Wongsuphasawat

From Data to Visualization, what happens in between?
From Data to Visualization, what happens in between?From Data to Visualization, what happens in between?
From Data to Visualization, what happens in between?
Krist Wongsuphasawat

A Narrative Display for Sports Tournament Recap
A Narrative Display for Sports Tournament RecapA Narrative Display for Sports Tournament Recap
A Narrative Display for Sports Tournament Recap
Krist Wongsuphasawat

Visualization for Event Sequences Exploration
Visualization for Event Sequences ExplorationVisualization for Event Sequences Exploration
Visualization for Event Sequences Exploration
Krist Wongsuphasawat

Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...
Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...
Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...
Krist Wongsuphasawat

Usability of Google Docs
Usability of Google DocsUsability of Google Docs
Usability of Google Docs
Krist Wongsuphasawat

Outflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences
Outflow: Exploring Flow, Factors and Outcome of Temporal Event SequencesOutflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences
Outflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences
Krist Wongsuphasawat

Information Visualization for Knowledge Discovery
Information Visualization for Knowledge DiscoveryInformation Visualization for Knowledge Discovery
Information Visualization for Knowledge Discovery
Krist Wongsuphasawat

Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...
Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...
Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...
Krist Wongsuphasawat

Information Visualization for Health Care
Information Visualization for Health CareInformation Visualization for Health Care
Information Visualization for Health Care
Krist Wongsuphasawat


More from Krist Wongsuphasawat (20)

What I tell myself before visualizing
What I tell myself before visualizingWhat I tell myself before visualizing
What I tell myself before visualizing

Navigating the Wide World of Data Visualization Libraries
Navigating the Wide World of Data Visualization LibrariesNavigating the Wide World of Data Visualization Libraries
Navigating the Wide World of Data Visualization Libraries

Encodable: Configurable Grammar for Visualization Components
Encodable: Configurable Grammar for Visualization ComponentsEncodable: Configurable Grammar for Visualization Components
Encodable: Configurable Grammar for Visualization Components

6 things to expect when you are visualizing (2020 Edition)
6 things to expect when you are visualizing (2020 Edition)6 things to expect when you are visualizing (2020 Edition)
6 things to expect when you are visualizing (2020 Edition)

Increasing the Impact of Visualization Research
Increasing the Impact of Visualization ResearchIncreasing the Impact of Visualization Research
Increasing the Impact of Visualization Research

6 things to expect when you are visualizing
6 things to expect when you are visualizing6 things to expect when you are visualizing
6 things to expect when you are visualizing

What to expect when you are visualizing (v.2)
What to expect when you are visualizing (v.2)What to expect when you are visualizing (v.2)
What to expect when you are visualizing (v.2)

ร้อยเรื่องราวจากข้อมูล / Storytelling with Data
ร้อยเรื่องราวจากข้อมูล / Storytelling with Dataร้อยเรื่องราวจากข้อมูล / Storytelling with Data
ร้อยเรื่องราวจากข้อมูล / Storytelling with Data

Reveal the talking points of every episode of Game of Thrones from fans' conv...
Reveal the talking points of every episode of Game of Thrones from fans' conv...Reveal the talking points of every episode of Game of Thrones from fans' conv...
Reveal the talking points of every episode of Game of Thrones from fans' conv...

d3Kit
d3Kitd3Kit
d3Kit

Making Sense of Millions of Thoughts: Finding Patterns in the Tweets
Making Sense of Millions of Thoughts: Finding Patterns in the TweetsMaking Sense of Millions of Thoughts: Finding Patterns in the Tweets
Making Sense of Millions of Thoughts: Finding Patterns in the Tweets

From Data to Visualization, what happens in between?
From Data to Visualization, what happens in between?From Data to Visualization, what happens in between?
From Data to Visualization, what happens in between?

A Narrative Display for Sports Tournament Recap
A Narrative Display for Sports Tournament RecapA Narrative Display for Sports Tournament Recap
A Narrative Display for Sports Tournament Recap

Visualization for Event Sequences Exploration
Visualization for Event Sequences ExplorationVisualization for Event Sequences Exploration
Visualization for Event Sequences Exploration

Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...
Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...
Krist Wongsuphasawat's Dissertation Proposal Slides: Interactive Exploration ...

Usability of Google Docs
Usability of Google DocsUsability of Google Docs
Usability of Google Docs

Outflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences
Outflow: Exploring Flow, Factors and Outcome of Temporal Event SequencesOutflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences
Outflow: Exploring Flow, Factors and Outcome of Temporal Event Sequences

Information Visualization for Knowledge Discovery
Information Visualization for Knowledge DiscoveryInformation Visualization for Knowledge Discovery
Information Visualization for Knowledge Discovery

Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...
Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...
Krist Wongsuphasawat's Dissertation Defense: Interactive Exploration of Tempo...

Information Visualization for Health Care
Information Visualization for Health CareInformation Visualization for Health Care
Information Visualization for Health Care


Recently uploaded

一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
aguty

Template xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptxTemplate xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptx
TeukuEriSyahputra

Drownings spike from May to August in children
Drownings spike from May to August in childrenDrownings spike from May to August in children
Drownings spike from May to August in children
Bisnar Chase Personal Injury Attorneys

一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理
一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理
一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理
lzdvtmy8

原版一比一多伦多大学毕业证(UofT毕业证书)如何办理
原版一比一多伦多大学毕业证(UofT毕业证书)如何办理原版一比一多伦多大学毕业证(UofT毕业证书)如何办理
原版一比一多伦多大学毕业证(UofT毕业证书)如何办理
mkkikqvo

A gentle exploration of Retrieval Augmented Generation
A gentle exploration of Retrieval Augmented GenerationA gentle exploration of Retrieval Augmented Generation
A gentle exploration of Retrieval Augmented Generation
dataschool1

一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理
一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理
一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理
uevausa

How To Control IO Usage using Resource Manager
How To Control IO Usage using Resource ManagerHow To Control IO Usage using Resource Manager
How To Control IO Usage using Resource Manager
Alireza Kamrani

一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理
一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理
一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理
xclpvhuk

Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Aggregage

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理
bmucuha

一比一原版悉尼大学毕业证如何办理
一比一原版悉尼大学毕业证如何办理一比一原版悉尼大学毕业证如何办理
一比一原版悉尼大学毕业证如何办理
keesa2

Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging DataPredictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Kiwi Creative

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines
Timothy Spann

The Ipsos - AI - Monitor 2024 Report.pdf
The  Ipsos - AI - Monitor 2024 Report.pdfThe  Ipsos - AI - Monitor 2024 Report.pdf
The Ipsos - AI - Monitor 2024 Report.pdf
Social Samosa

一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
asyed10

社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .
NABLAS株式会社

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf
inaya7568

一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理
一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理
一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理
hqfek

Build applications with generative AI on Google Cloud
Build applications with generative AI on Google CloudBuild applications with generative AI on Google Cloud
Build applications with generative AI on Google Cloud
Márton Kodok


Recently uploaded (20)

一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理

Template xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptxTemplate xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptx

Drownings spike from May to August in children
Drownings spike from May to August in childrenDrownings spike from May to August in children
Drownings spike from May to August in children

一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理
一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理
一比一原版格里菲斯大学毕业证(Griffith毕业证书)学历如何办理

原版一比一多伦多大学毕业证(UofT毕业证书)如何办理
原版一比一多伦多大学毕业证(UofT毕业证书)如何办理原版一比一多伦多大学毕业证(UofT毕业证书)如何办理
原版一比一多伦多大学毕业证(UofT毕业证书)如何办理

A gentle exploration of Retrieval Augmented Generation
A gentle exploration of Retrieval Augmented GenerationA gentle exploration of Retrieval Augmented Generation
A gentle exploration of Retrieval Augmented Generation

一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理
一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理
一比一原版加拿大渥太华大学毕业证(uottawa毕业证书)如何办理

How To Control IO Usage using Resource Manager
How To Control IO Usage using Resource ManagerHow To Control IO Usage using Resource Manager
How To Control IO Usage using Resource Manager

一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理
一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理
一比一原版(Unimelb毕业证书)墨尔本大学毕业证如何办理

Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理

一比一原版悉尼大学毕业证如何办理
一比一原版悉尼大学毕业证如何办理一比一原版悉尼大学毕业证如何办理
一比一原版悉尼大学毕业证如何办理

Predictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging DataPredictably Improve Your B2B Tech Company's Performance by Leveraging Data
Predictably Improve Your B2B Tech Company's Performance by Leveraging Data

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines

The Ipsos - AI - Monitor 2024 Report.pdf
The  Ipsos - AI - Monitor 2024 Report.pdfThe  Ipsos - AI - Monitor 2024 Report.pdf
The Ipsos - AI - Monitor 2024 Report.pdf

一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理

社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf

一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理
一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理
一比一原版爱尔兰都柏林大学毕业证(本硕)ucd学位证书如何办理

Build applications with generative AI on Google Cloud
Build applications with generative AI on Google CloudBuild applications with generative AI on Google Cloud
Build applications with generative AI on Google Cloud


What to expect when you are visualizing
