1. Encodable <.>
Krist Wongsuphasawat / @kristw
Configurable Grammar for Visualization Components
Presented at IEEE VIS 2020.

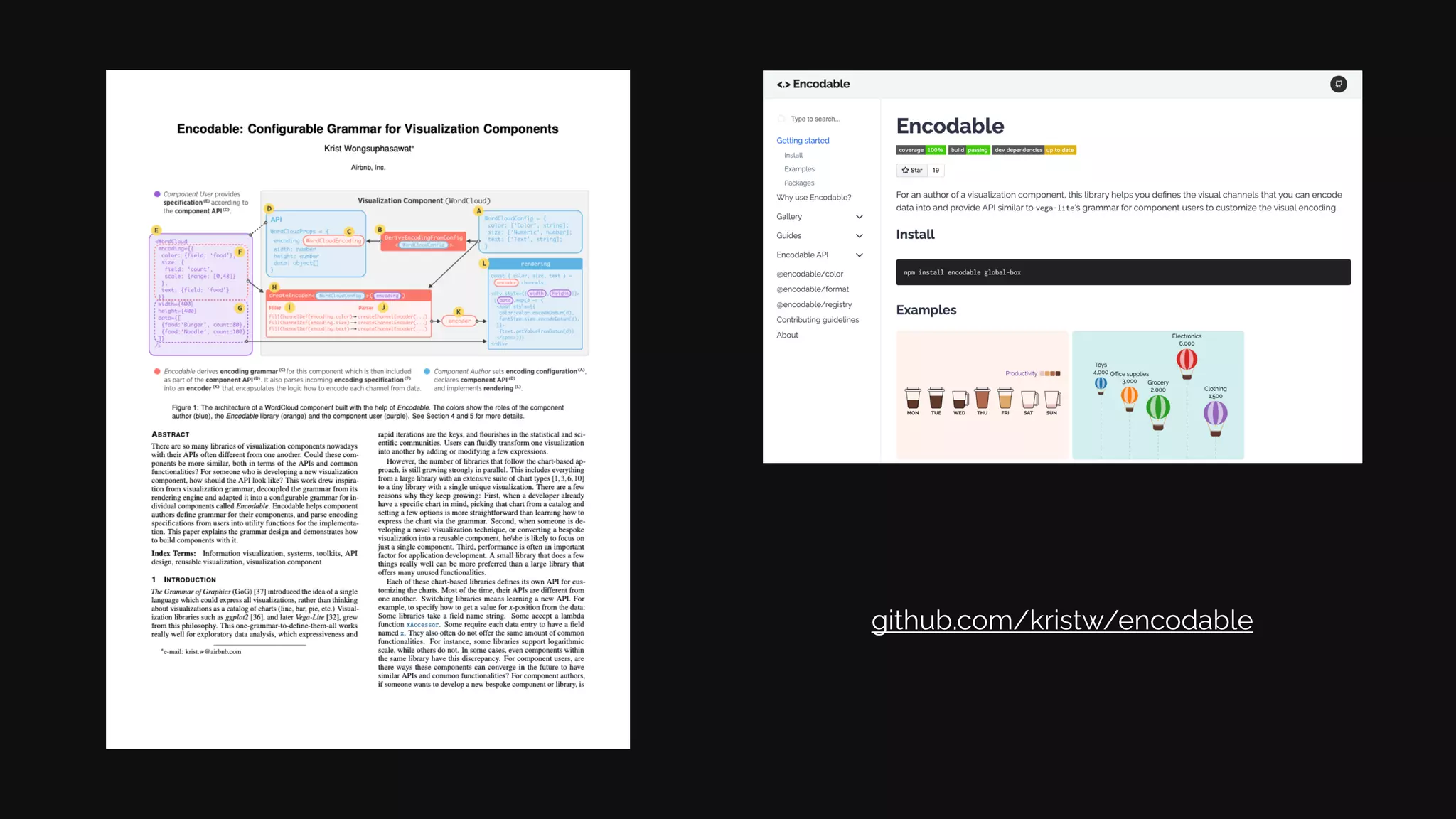

See additional information at github.com/kristw/encodable
Data Experience Team
Airbnb, Inc.

2. Solution
Inspiration
Results
Conclusions
Motivation

3. Many programmatic ways
to create a visualization

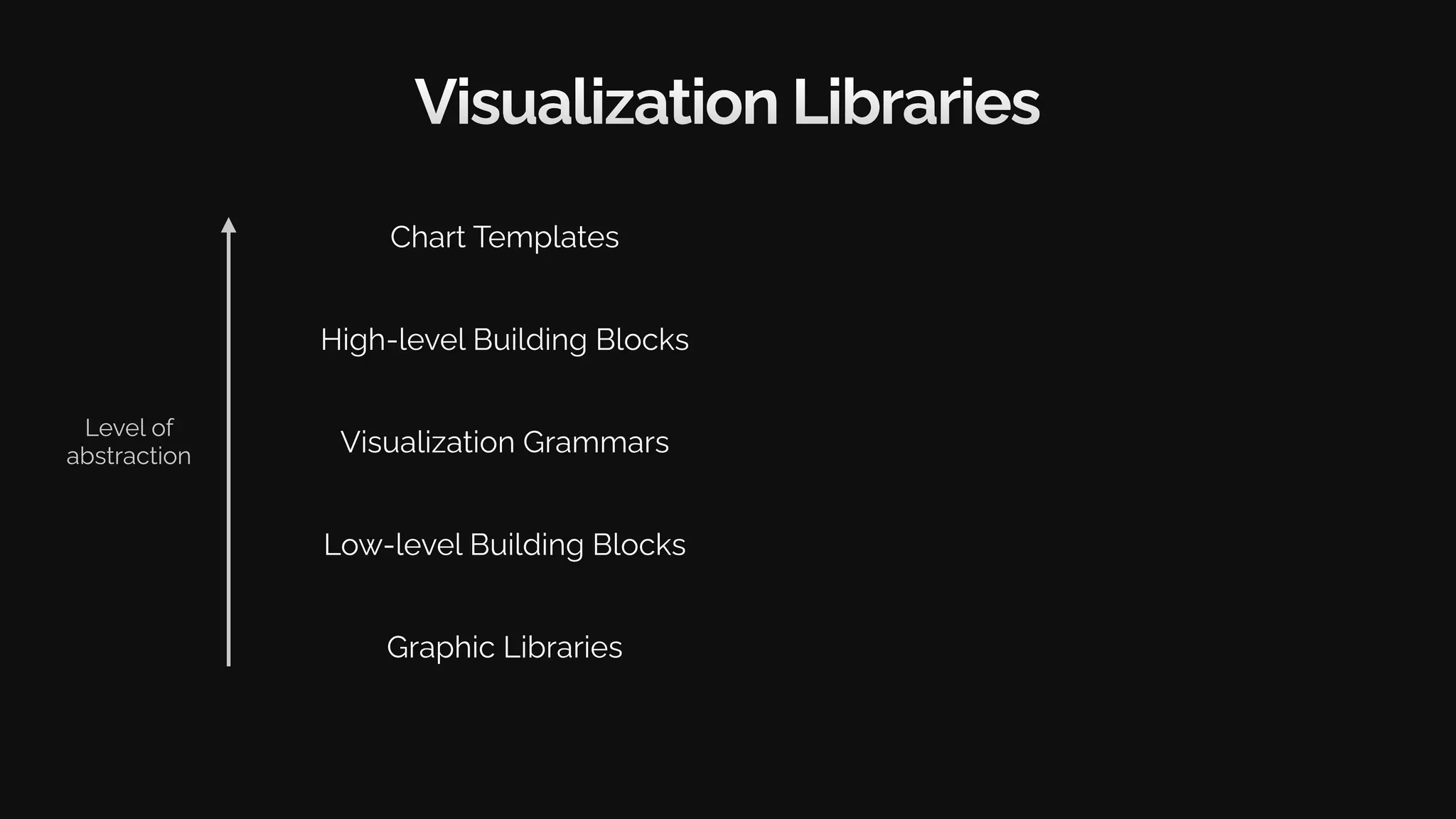

4. Visualization Libraries
Graphic Libraries
Low-level Building Blocks
Visualization Grammars
High-level Building Blocks
Chart Templates
Level of
abstraction

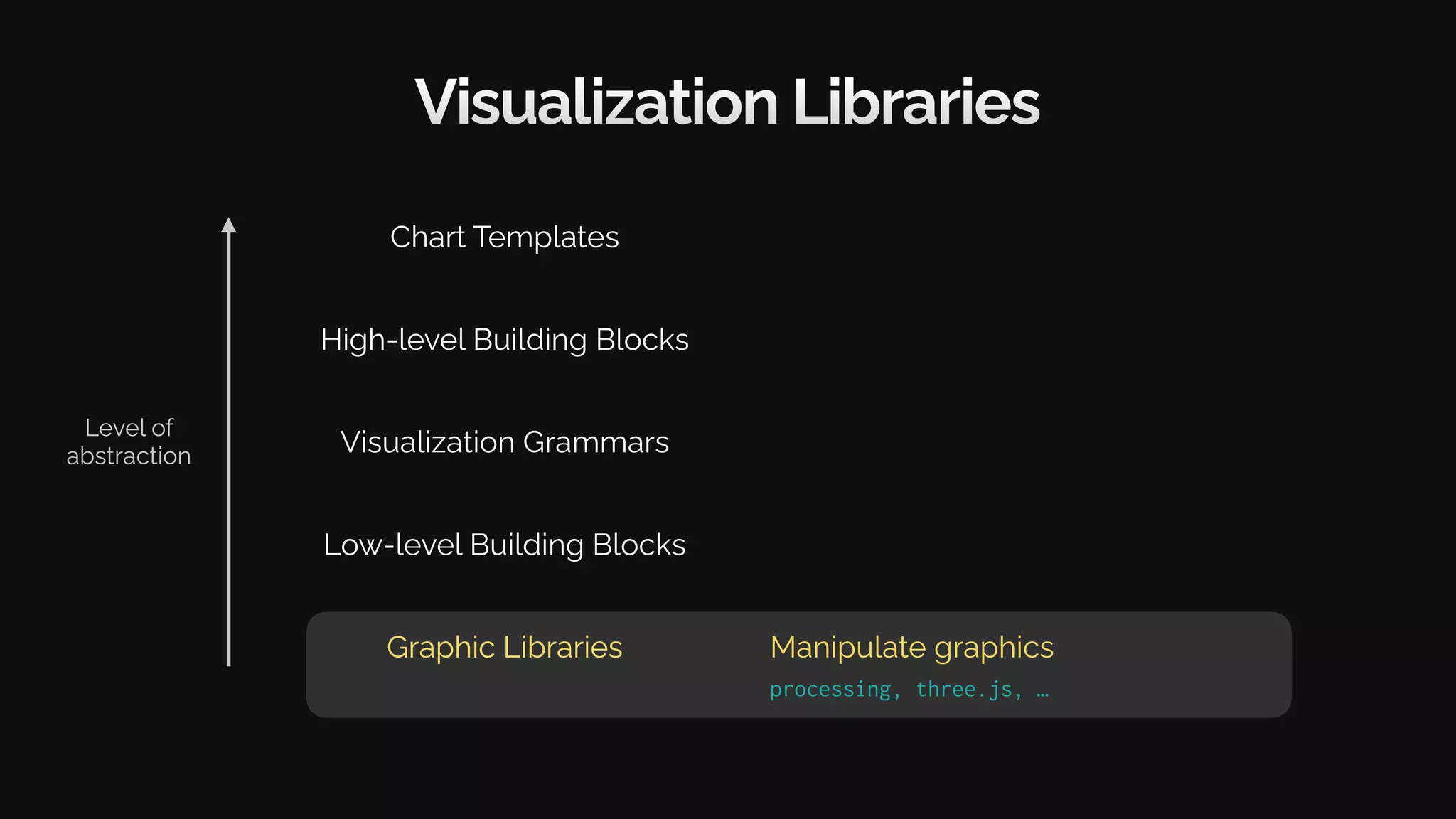

5. Visualization Libraries
Graphic Libraries
Low-level Building Blocks
Visualization Grammars
High-level Building Blocks
Chart Templates
Level of
abstraction
Graphic Libraries Manipulate graphics
processing, three.js, …

6. Visualization Libraries
Graphic Libraries
Low-level Building Blocks
Visualization Grammars
High-level Building Blocks
Chart Templates
Manipulate graphics
processing, three.js, …
Level of
abstraction

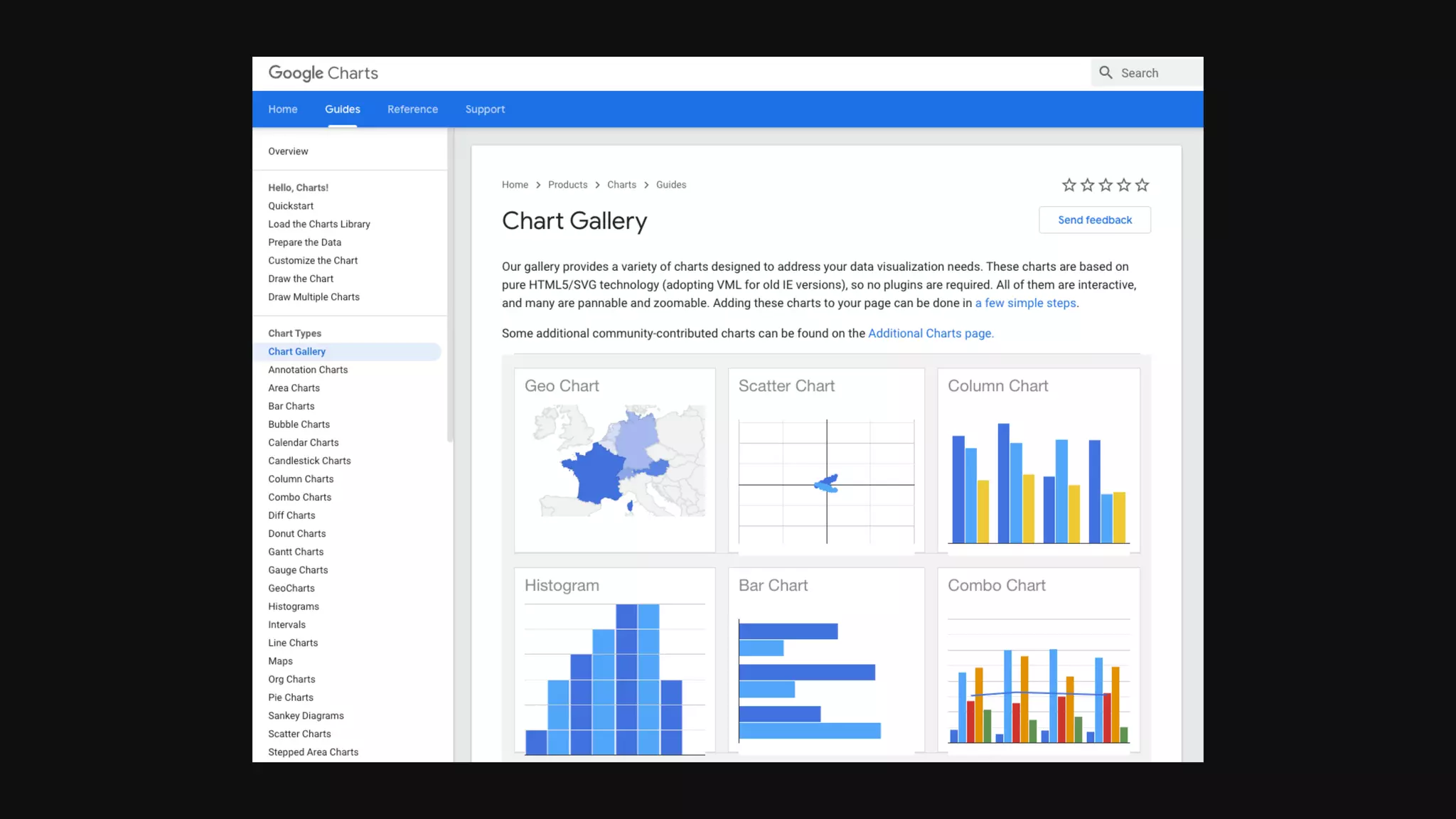

Chart Templates
Google Charts, nivo, FusionCharts, …
A catalog of charts by “chart types”

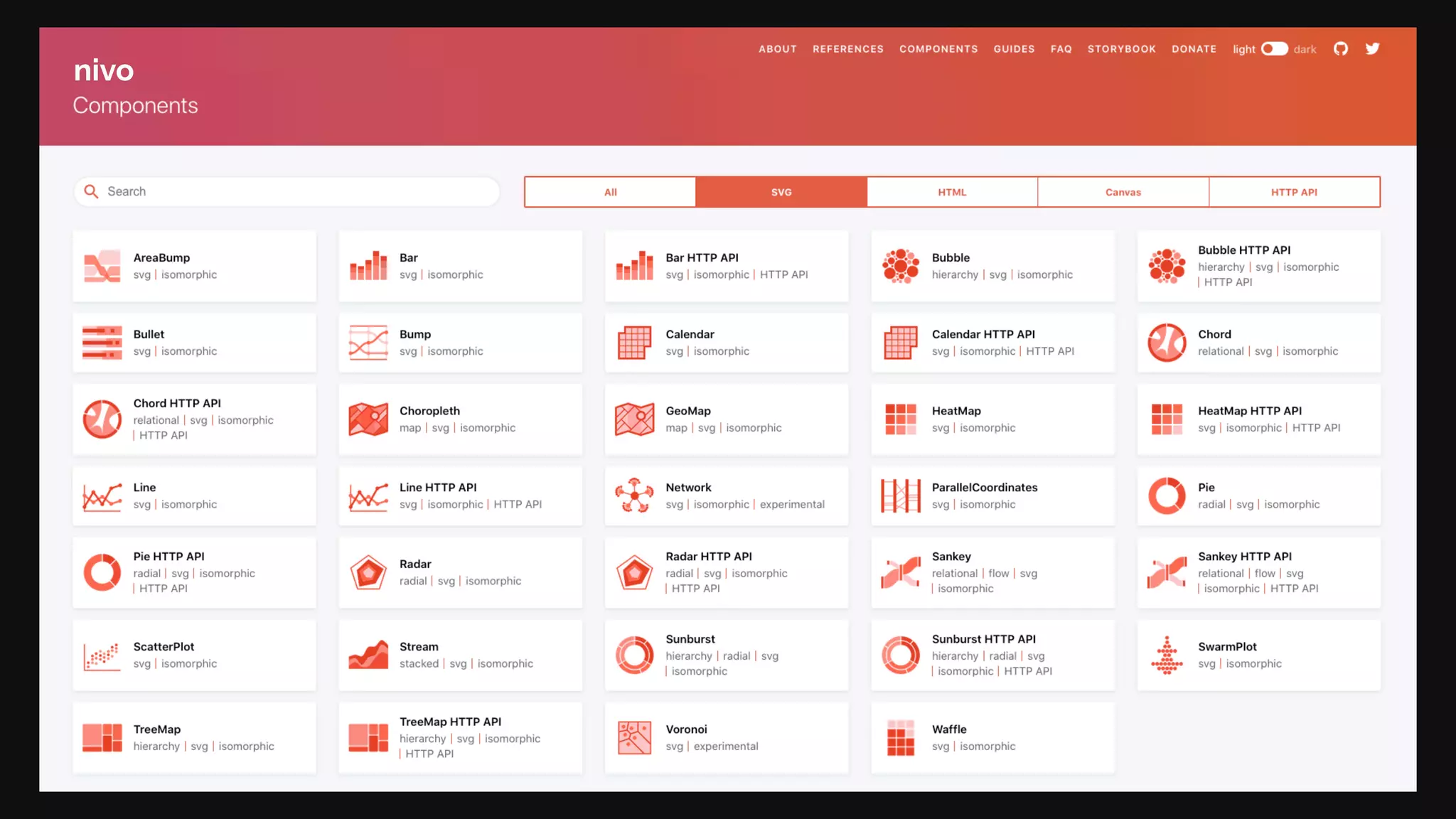

8. nivo

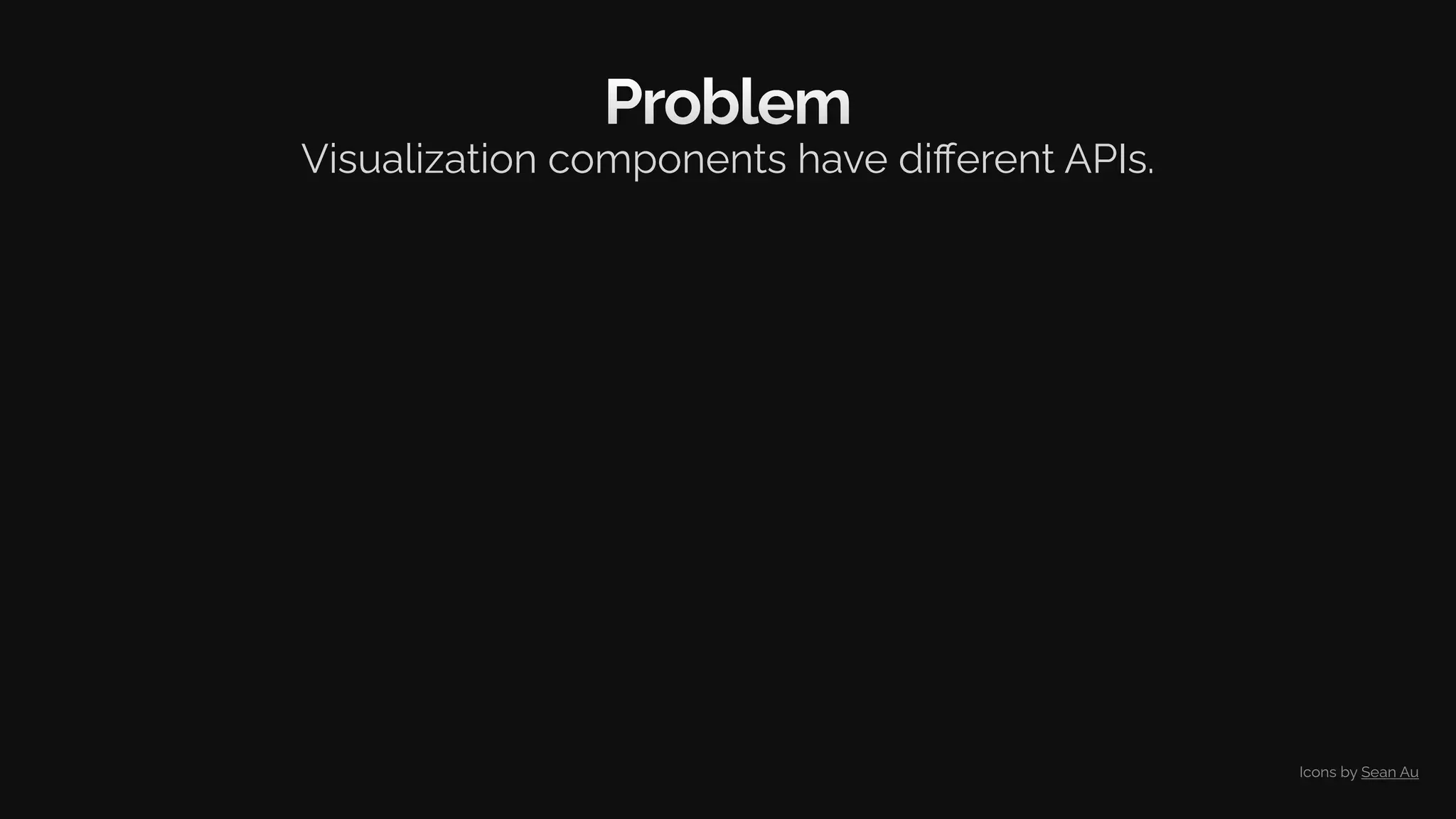

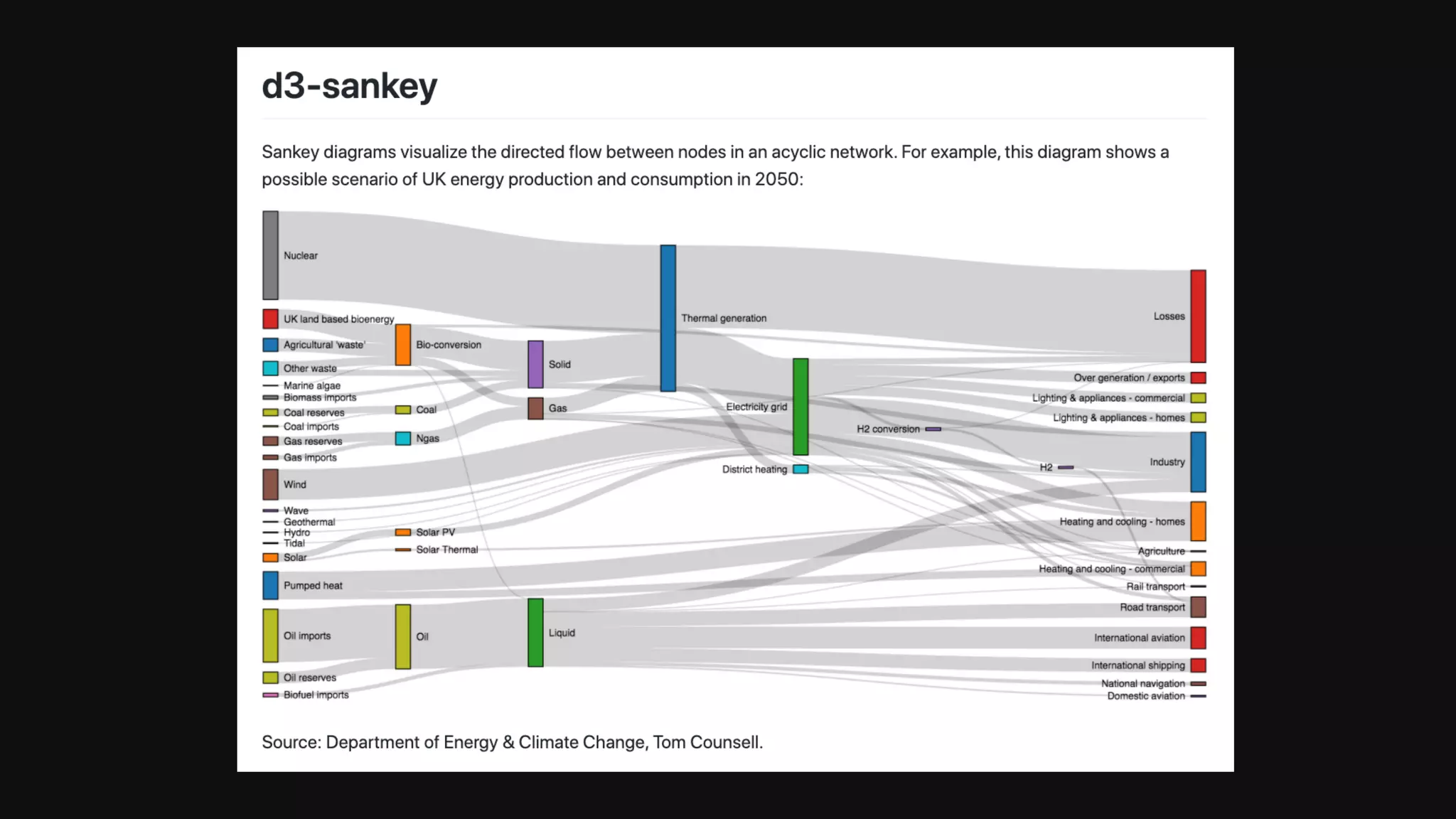

10. Problem
Visualization components have different APIs.
Icons by Sean Au

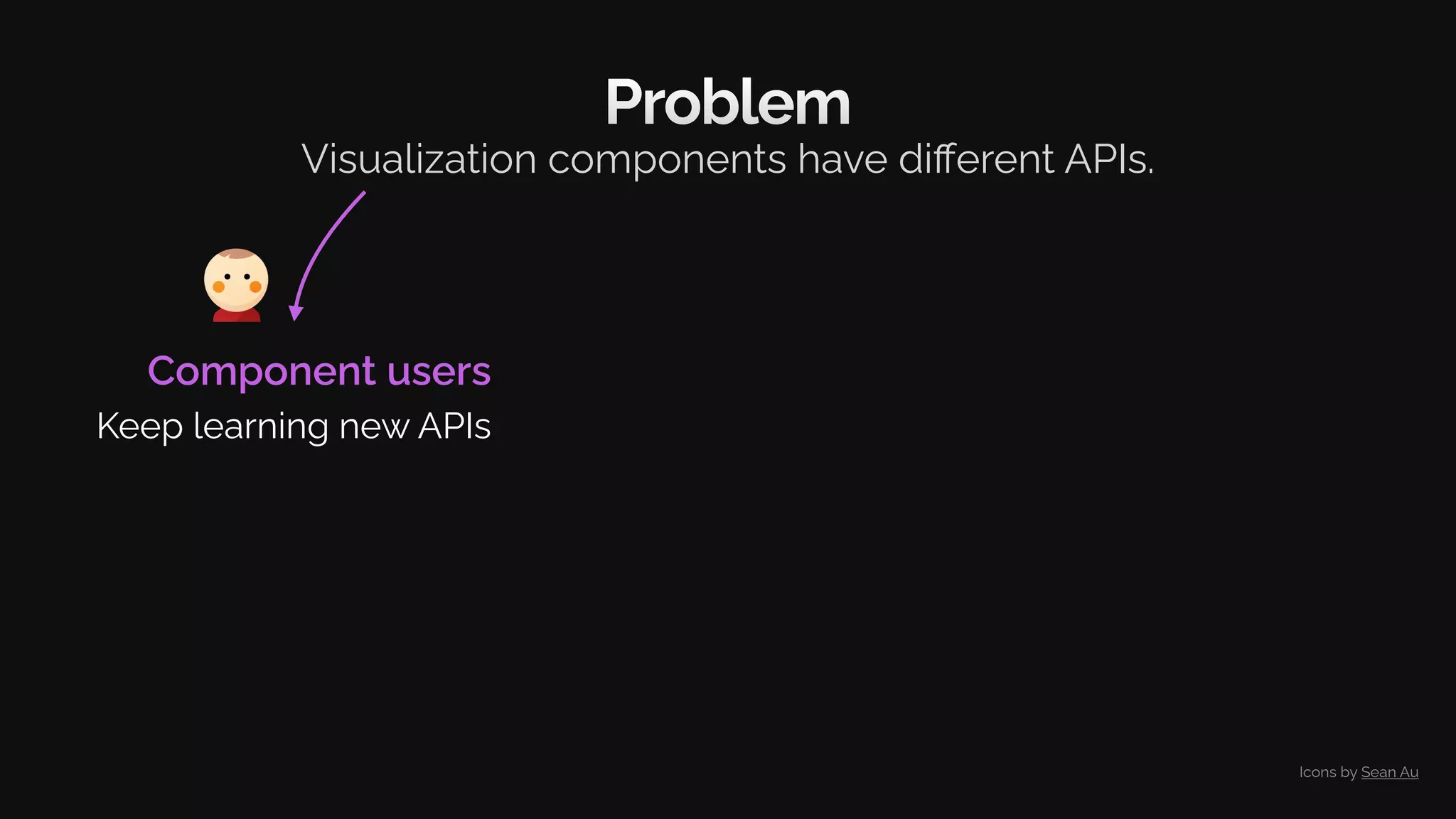

11. Problem
Visualization components have different APIs.
Component users
Keep learning new APIs
Icons by Sean Au

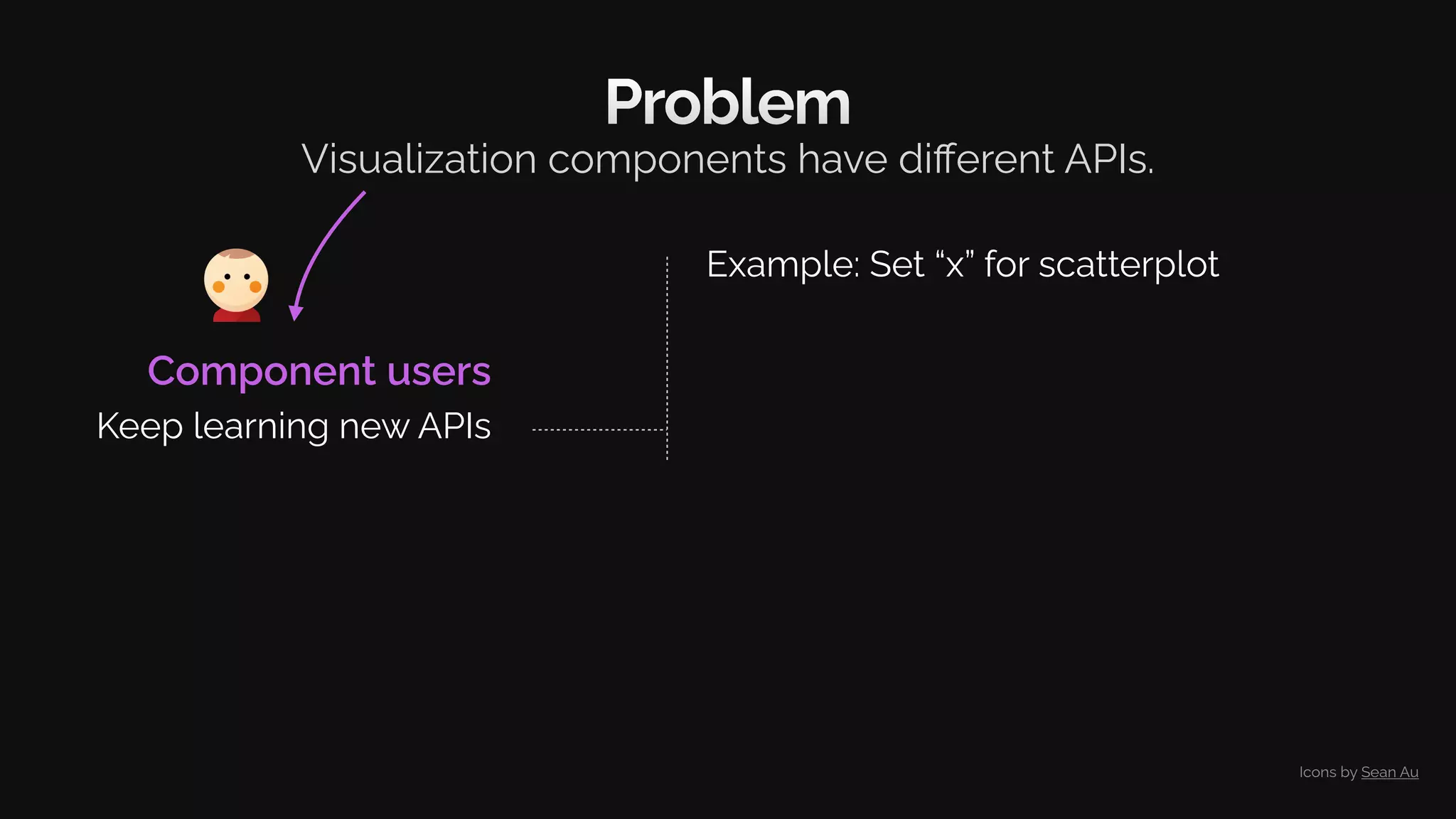

12. Problem
Visualization components have different APIs.
Component users
Keep learning new APIs
Example: Set “x” for scatterplot
Icons by Sean Au

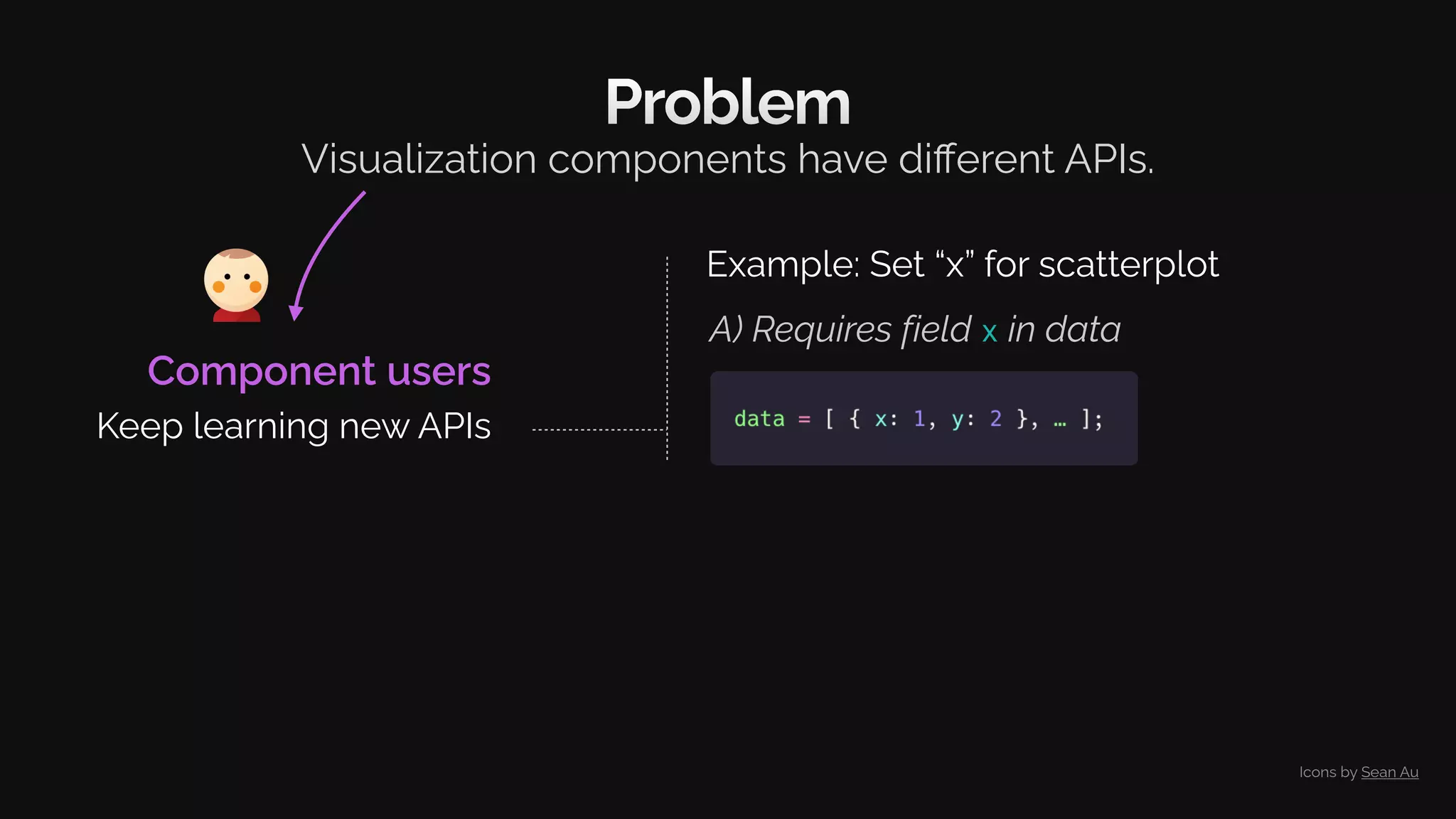

13. Problem
Visualization components have different APIs.
A) Requires field x in data
Component users
Keep learning new APIs
Example: Set “x” for scatterplot
Icons by Sean Au

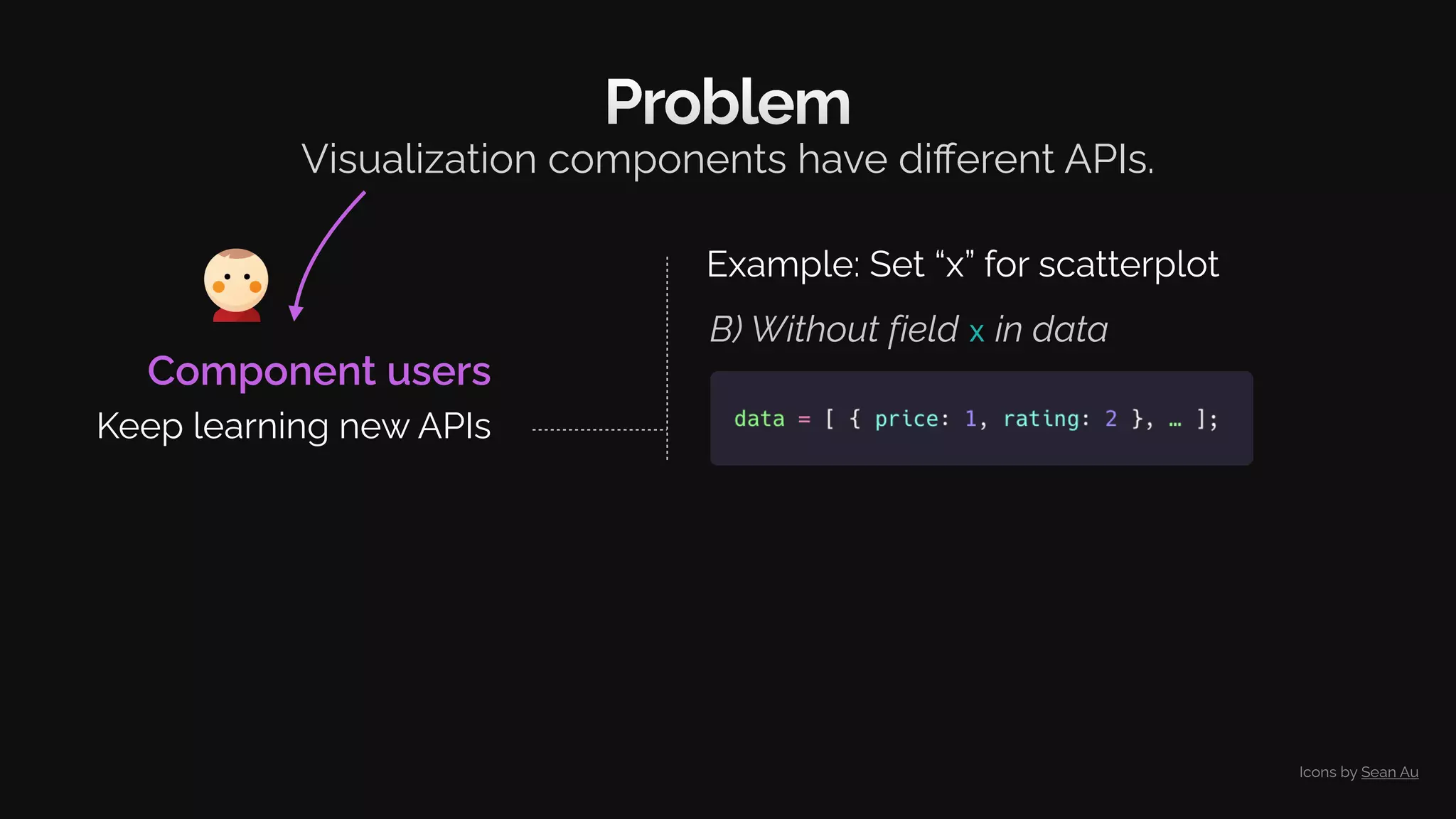

14. B) Without field x in data
Problem
Visualization components have different APIs.
Component users
Keep learning new APIs
Example: Set “x” for scatterplot
Icons by Sean Au

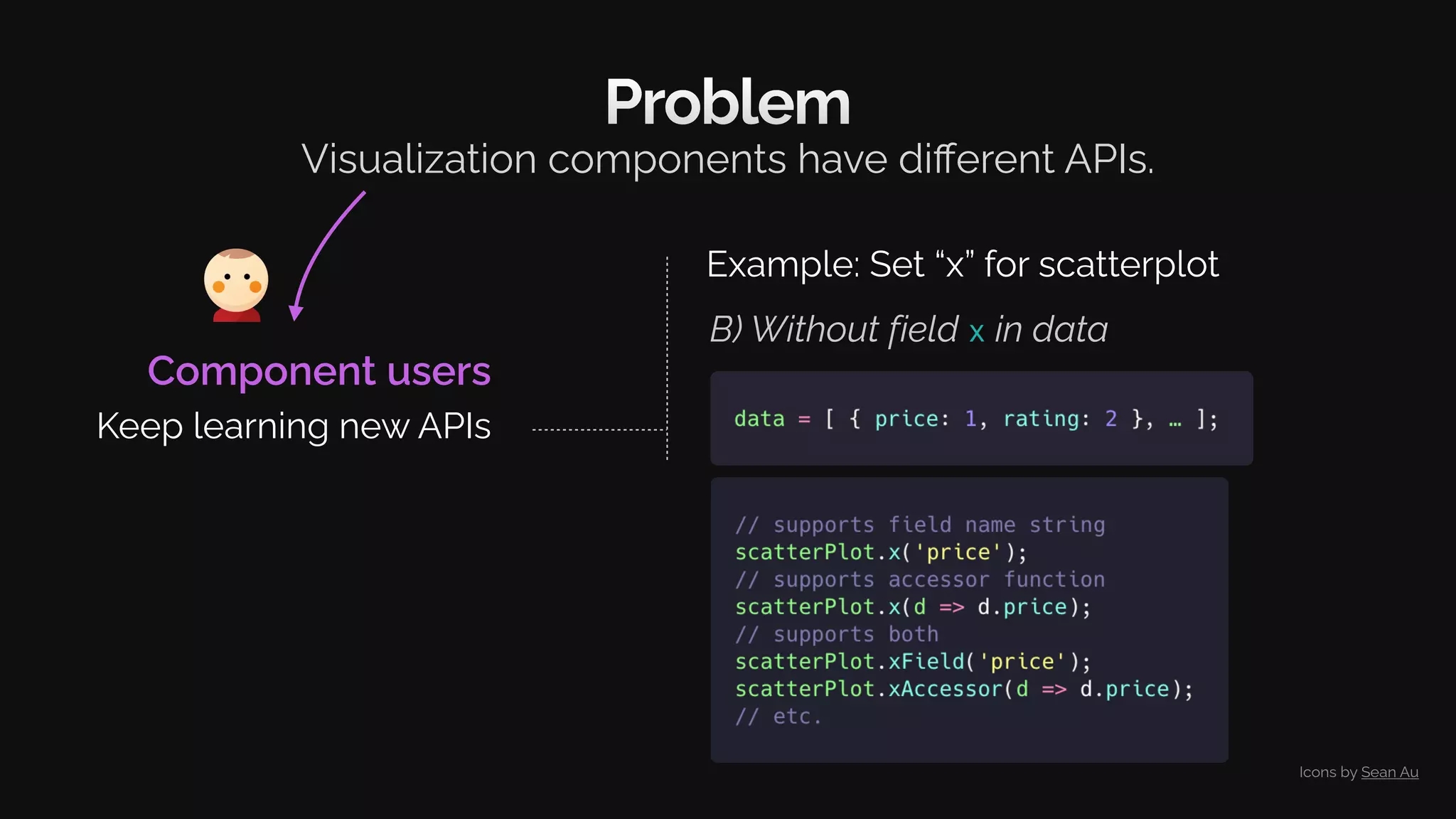

15. B) Without field x in data
Problem
Visualization components have different APIs.
Component users
Keep learning new APIs
Example: Set “x” for scatterplot
Icons by Sean Au

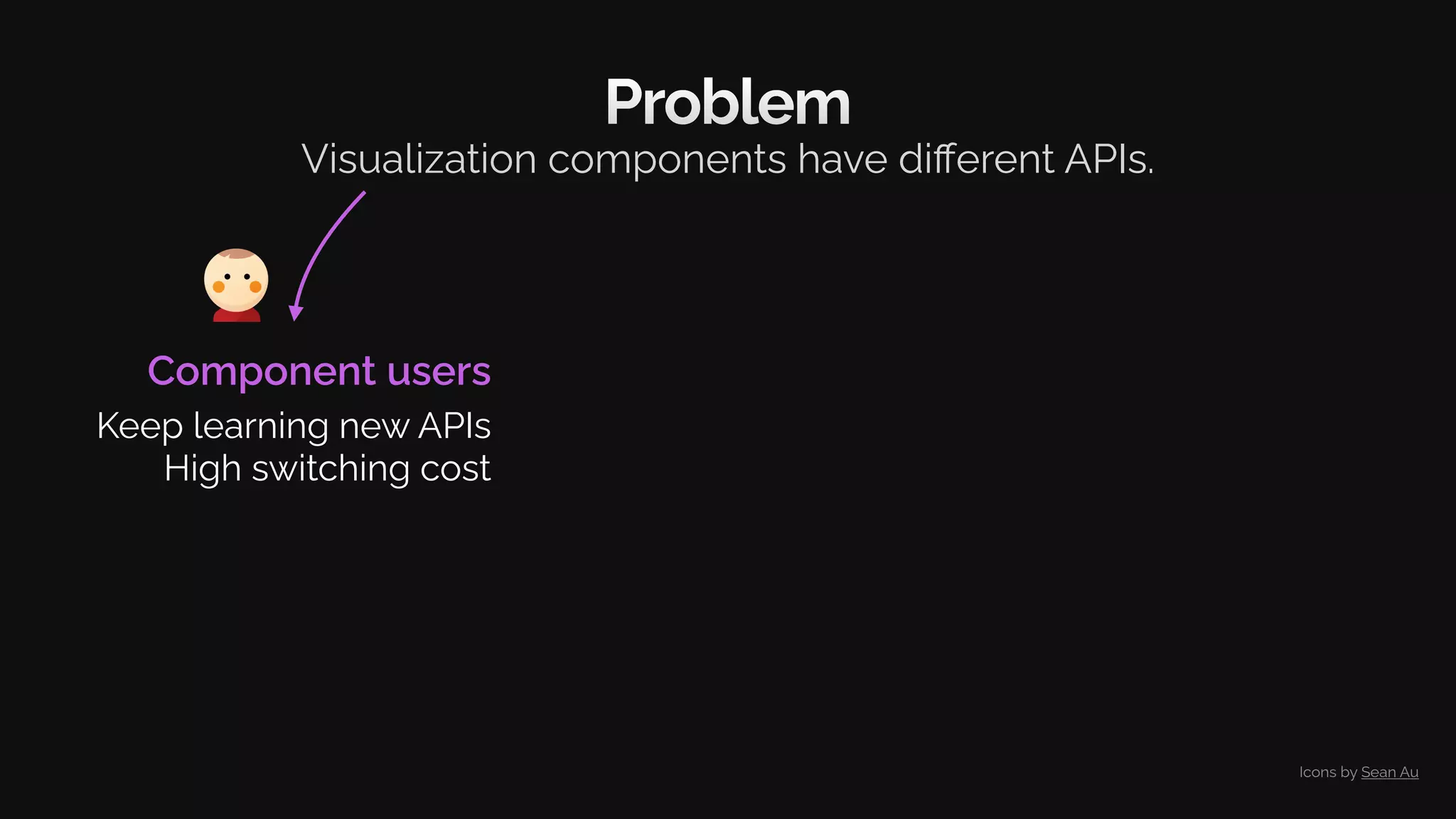

16. Problem
Component users
Keep learning new APIs
High switching cost
Visualization components have different APIs.
Icons by Sean Au

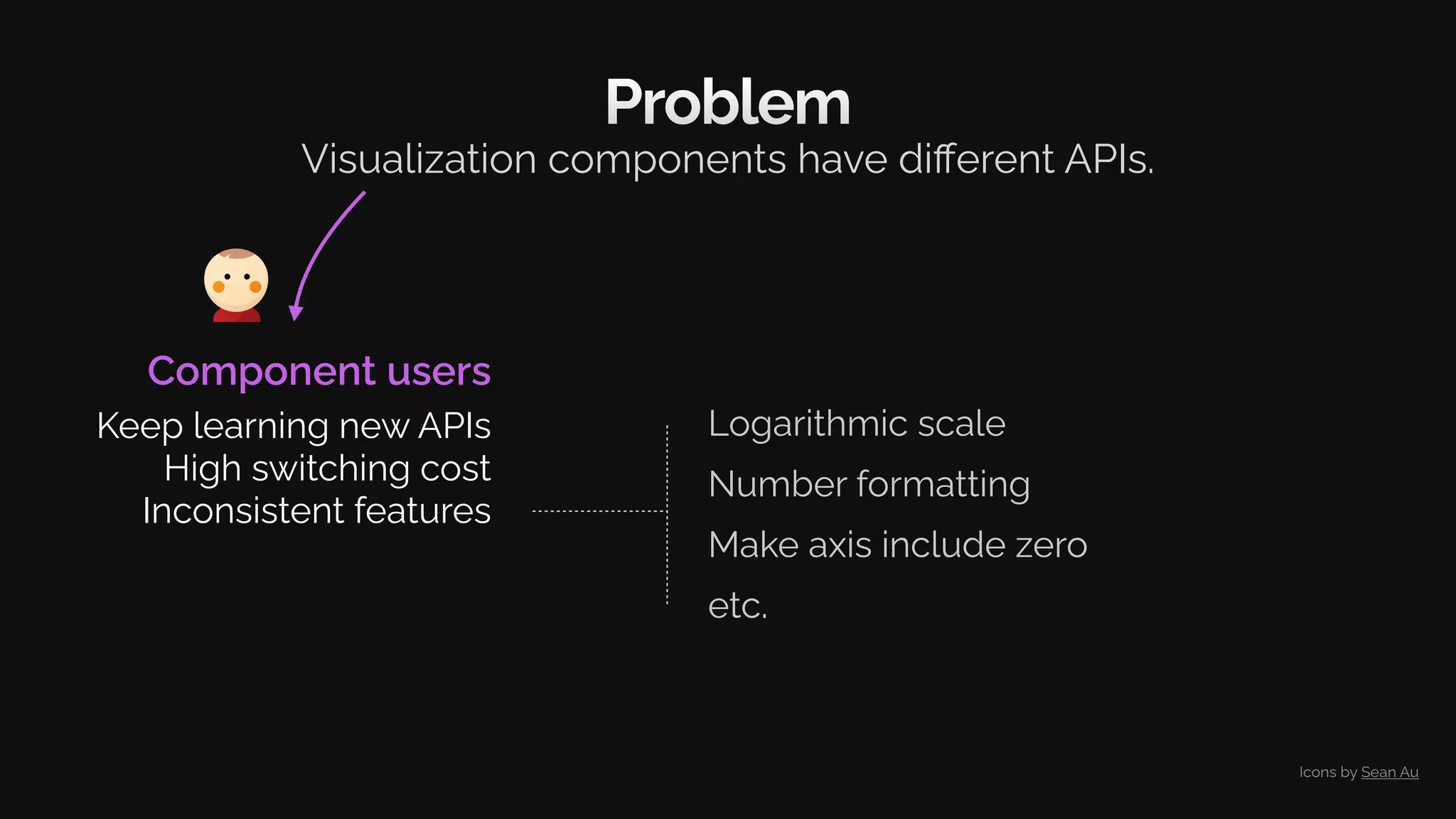

17. Problem
Component users
Keep learning new APIs
High switching cost
Inconsistent features
Visualization components have different APIs.
Logarithmic scale
Number formatting
Make axis include zero
etc.
Icons by Sean Au

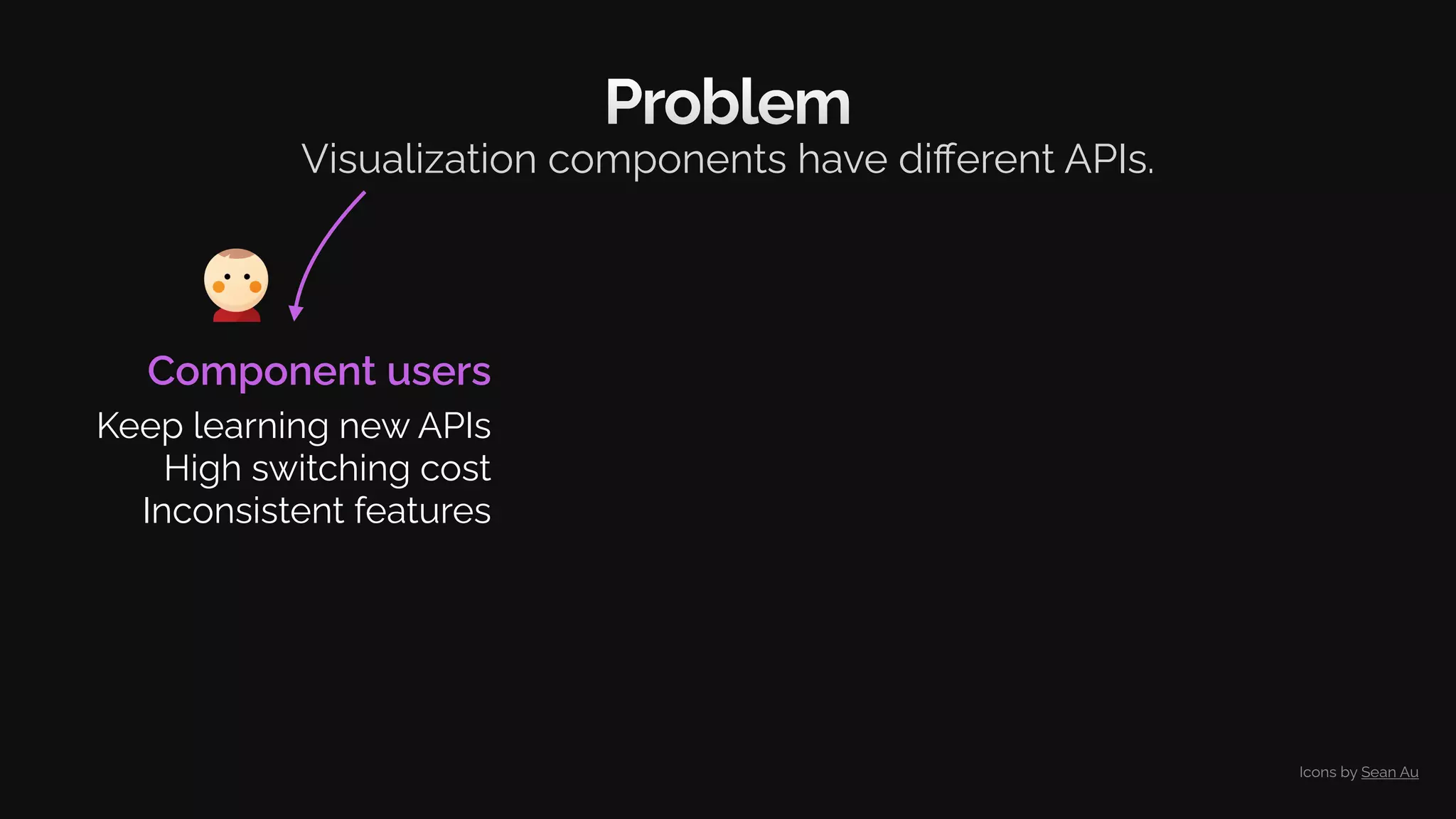

18. Problem
Visualization components have different APIs.
Component users
Keep learning new APIs
High switching cost
Inconsistent features
Icons by Sean Au

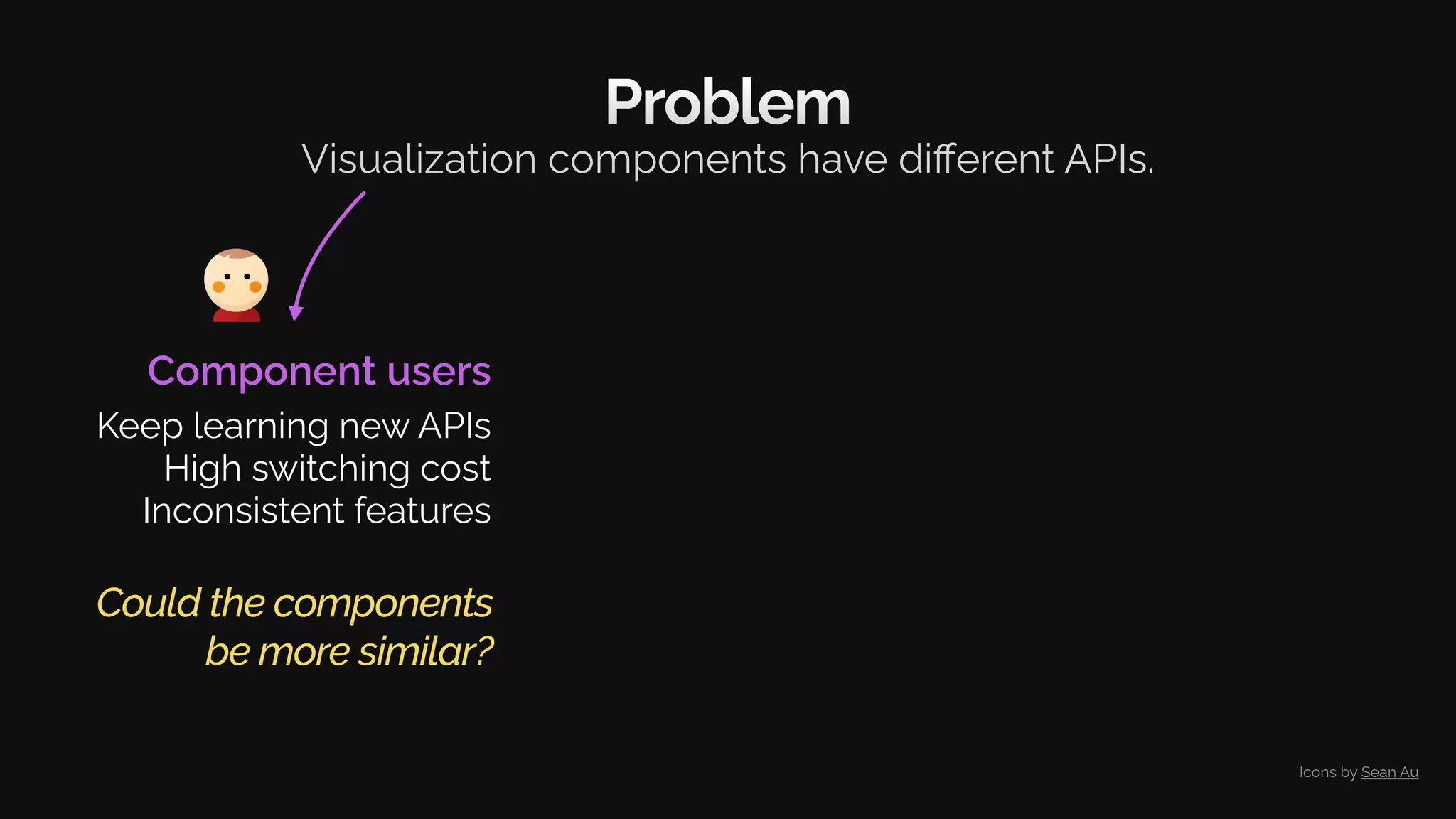

19. Problem
Visualization components have different APIs.
Could the components
be more similar?
Component users
Keep learning new APIs
High switching cost
Inconsistent features
Icons by Sean Au

20. Problem
Visualization components have different APIs.
Could the components
be more similar?
Component authors
No API standard
No help
Component users
Keep learning new APIs
High switching cost
Inconsistent features
Icons by Sean Au

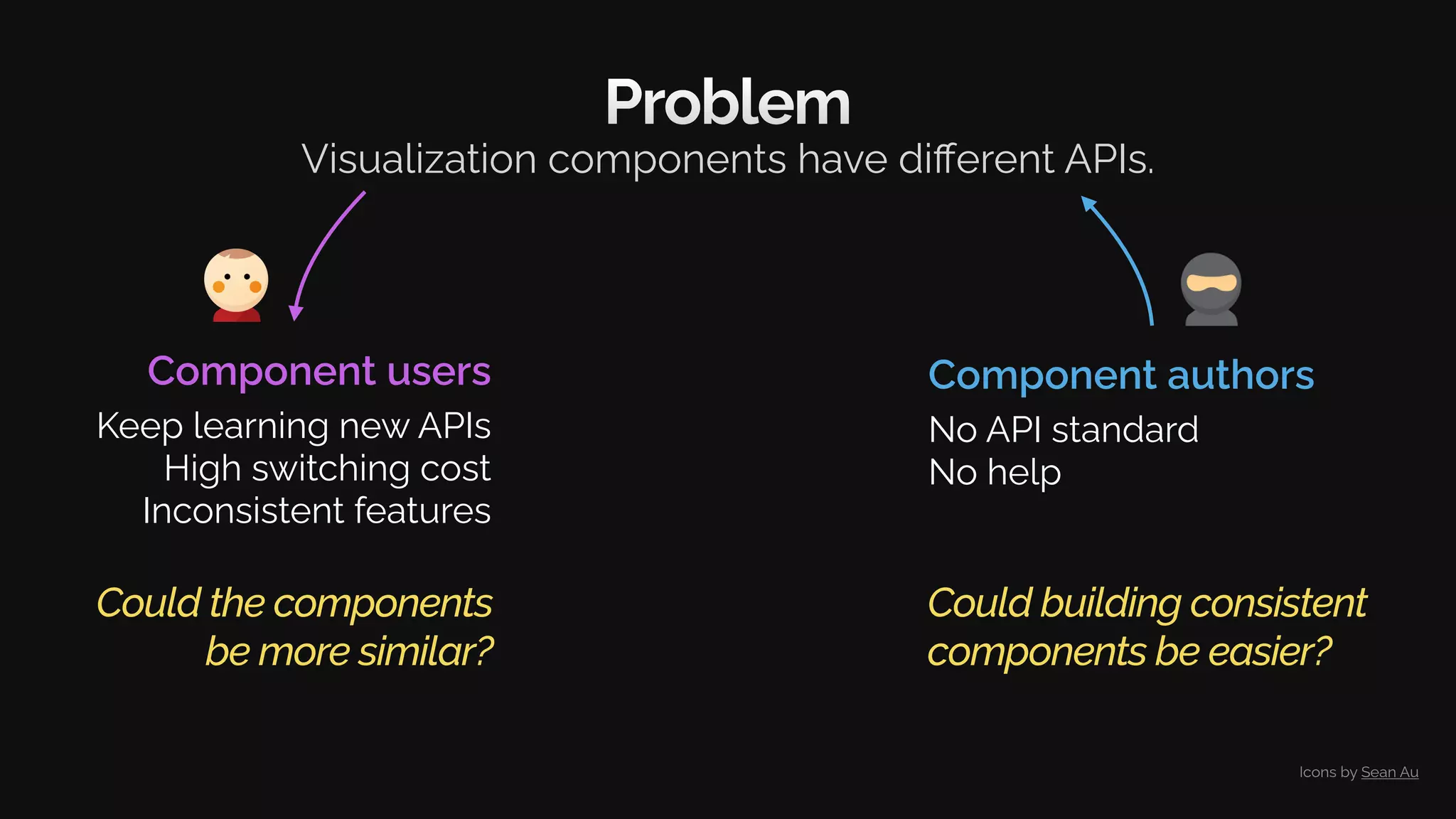

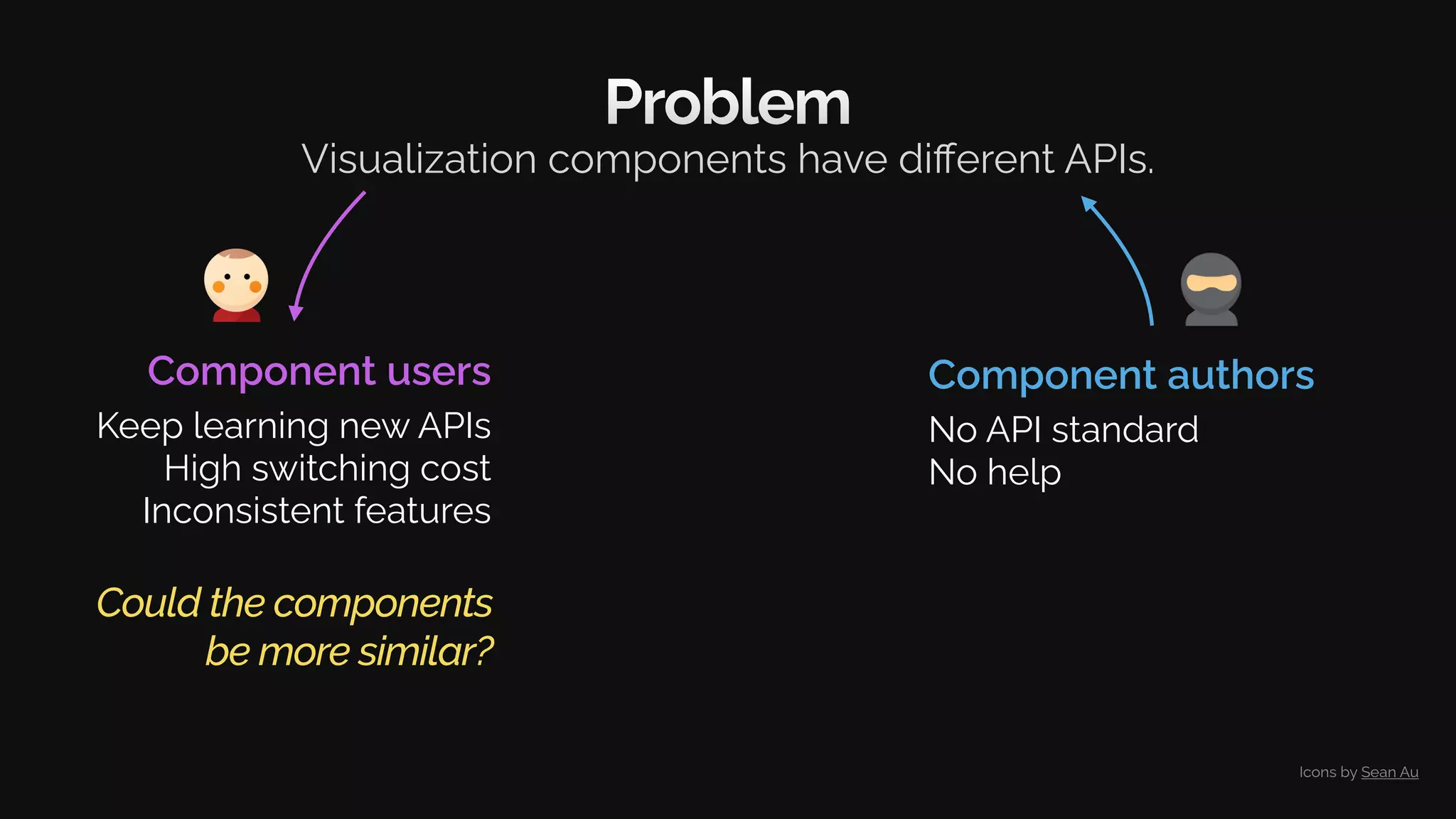

21. Problem
Visualization components have different APIs.
Could the components
be more similar?
Could building consistent
components be easier?
Component authors
No API standard
No help
Component users
Keep learning new APIs
High switching cost
Inconsistent features
Icons by Sean Au

22. Solution
Inspiration
Results
Conclusions
Motivation

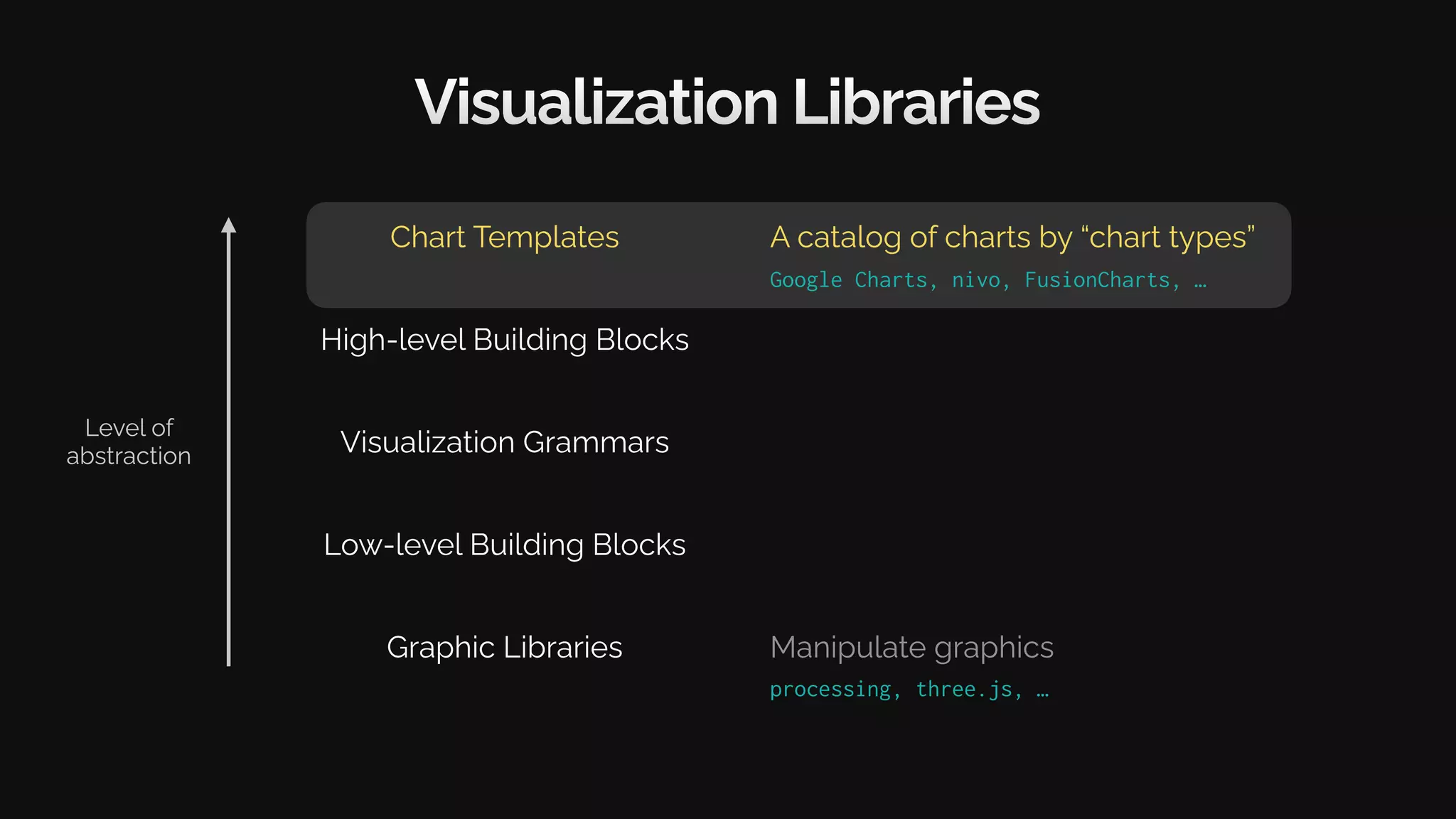

23. Visualization Libraries
Graphic Libraries
Visualization Grammars
Chart Templates
Level of
abstraction
Google Charts, nivo, FusionCharts, …
processing, three.js, …
Manipulate graphics
A catalog of charts by “chart types”
Low-level Building Blocks
High-level Building Blocks

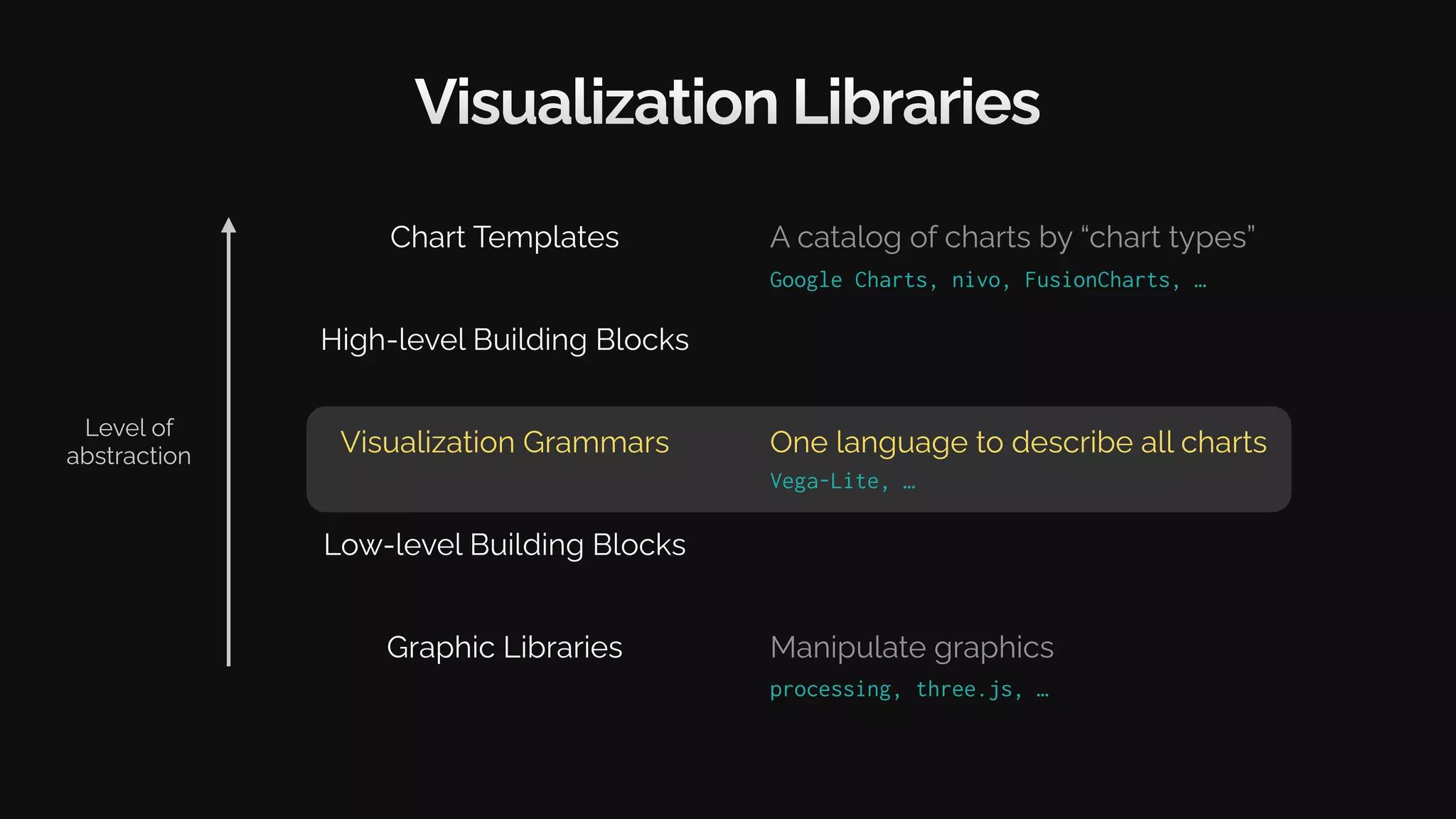

24. Visualization Libraries
Graphic Libraries
Visualization Grammars
Chart Templates
One language to describe all charts
A catalog of charts by “chart types”
Low-level Building Blocks
High-level Building Blocks
Vega-Lite, …
Google Charts, nivo, FusionCharts, …
Level of
abstraction
Manipulate graphics
processing, three.js, …

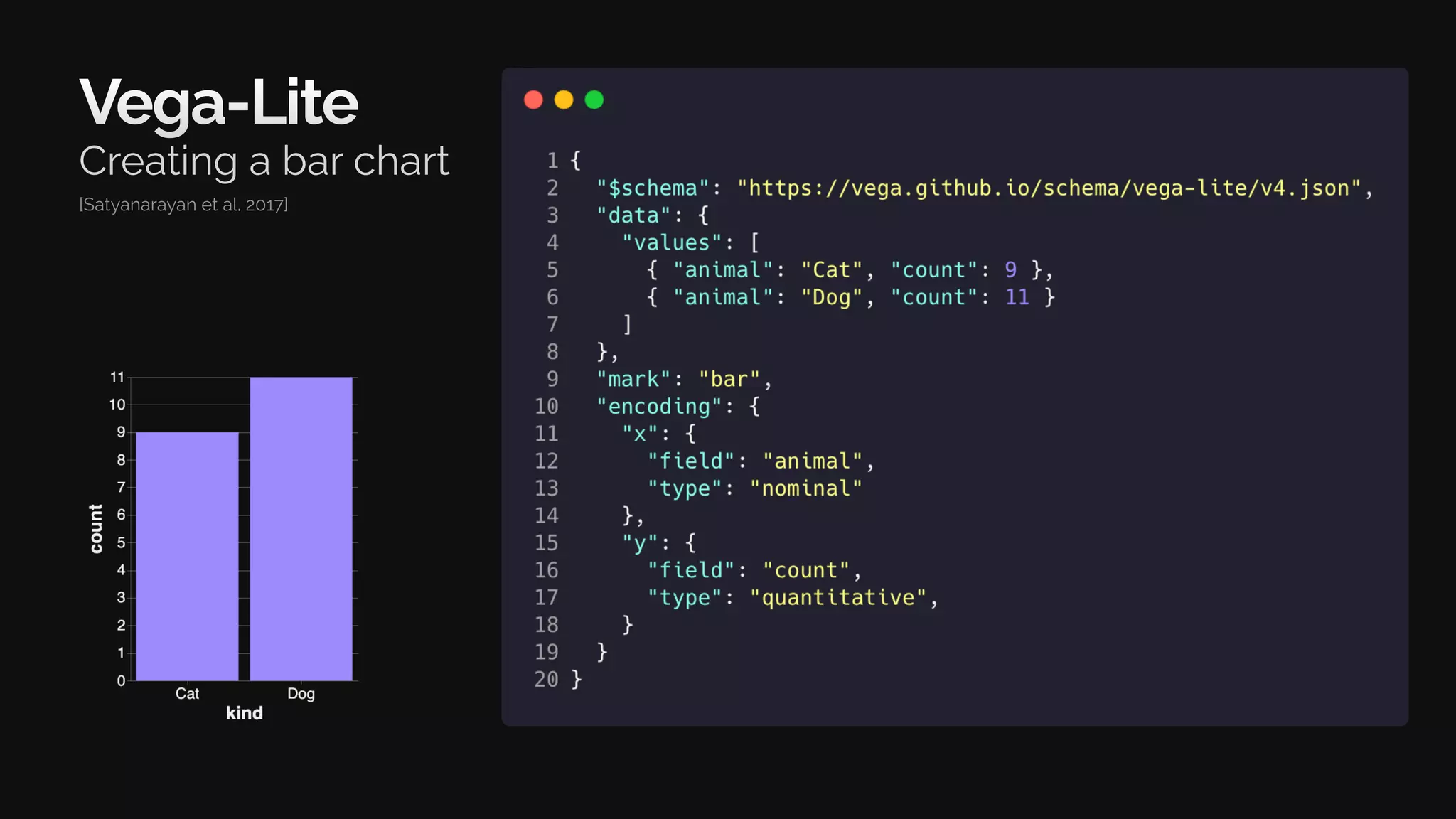

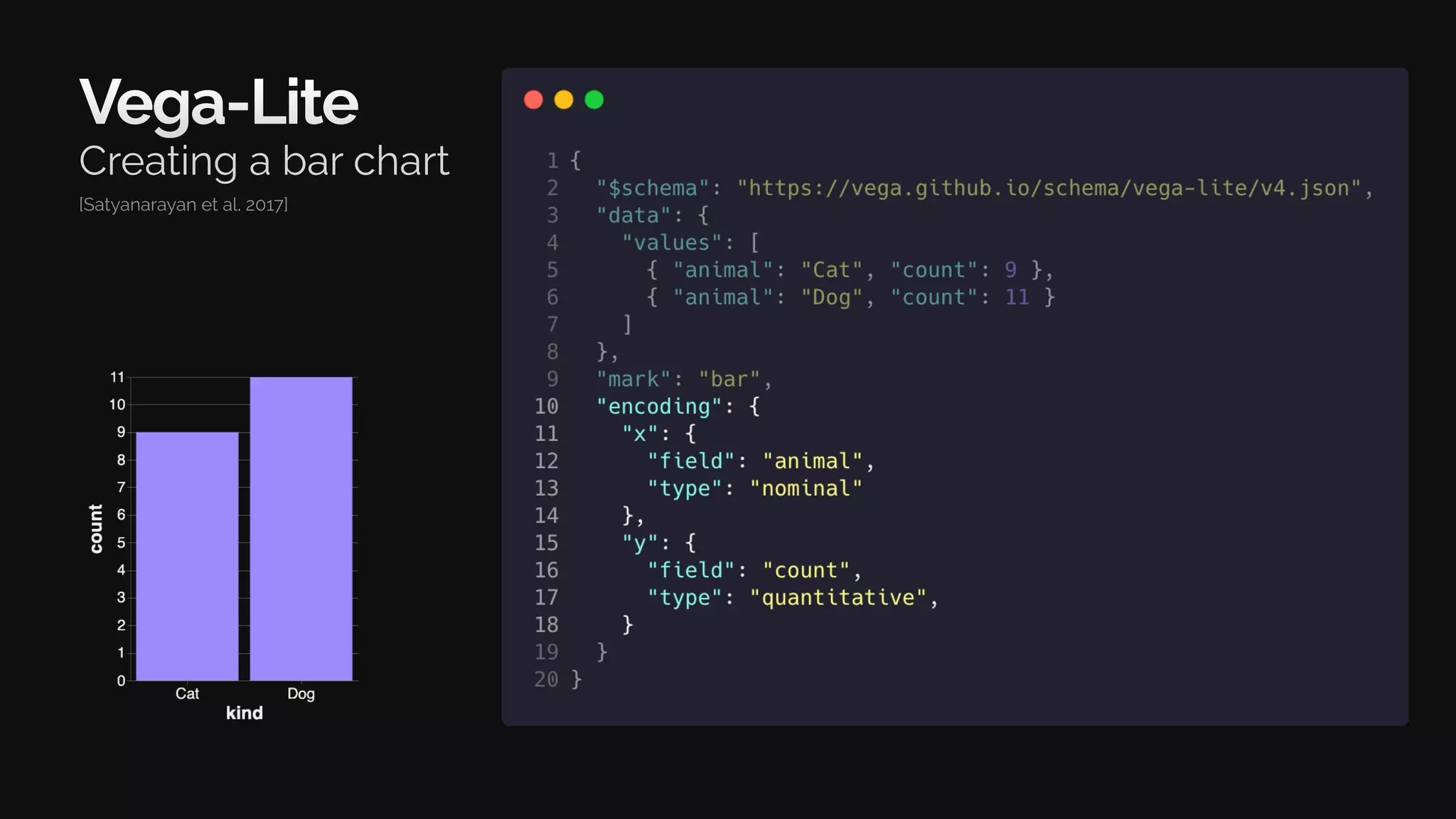

25. Vega-Lite
Creating a bar chart
[Satyanarayan et al. 2017]

26. Vega-Lite
Creating a bar chart
[Satyanarayan et al. 2017]

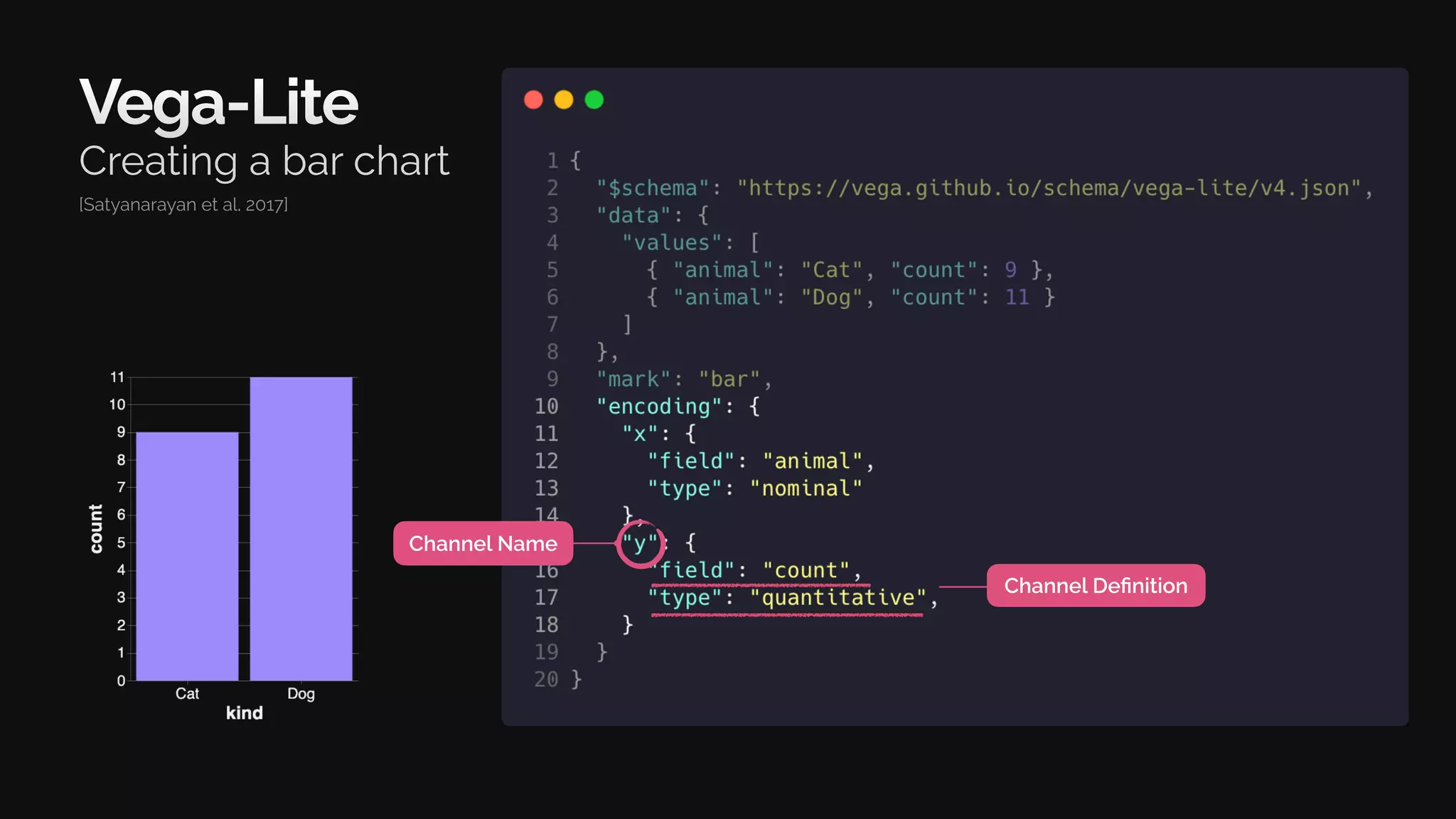

27. Vega-Lite
Creating a bar chart
Channel Name
Channel Definition
[Satyanarayan et al. 2017]

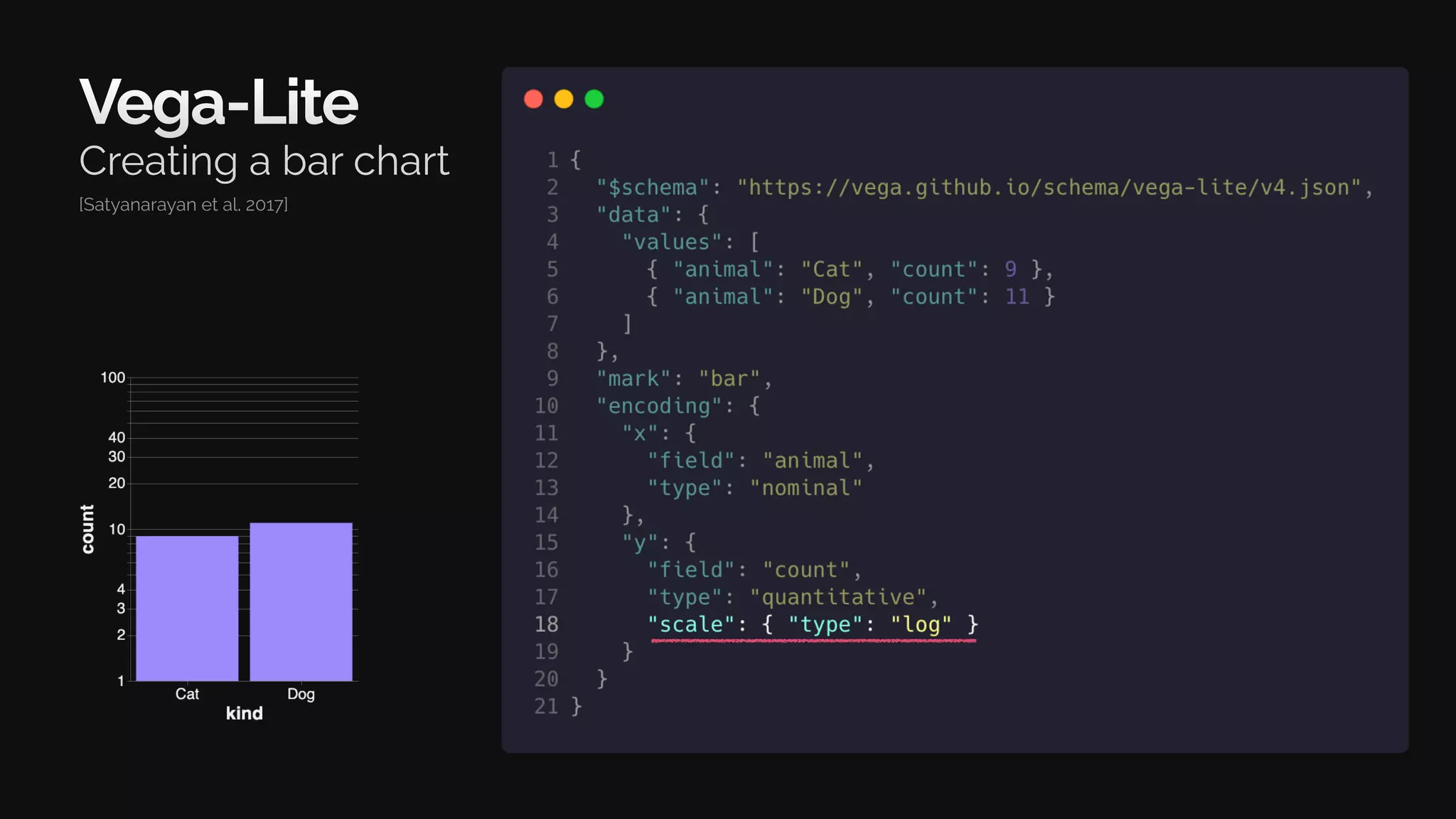

28. Vega-Lite
Creating a bar chart
[Satyanarayan et al. 2017]

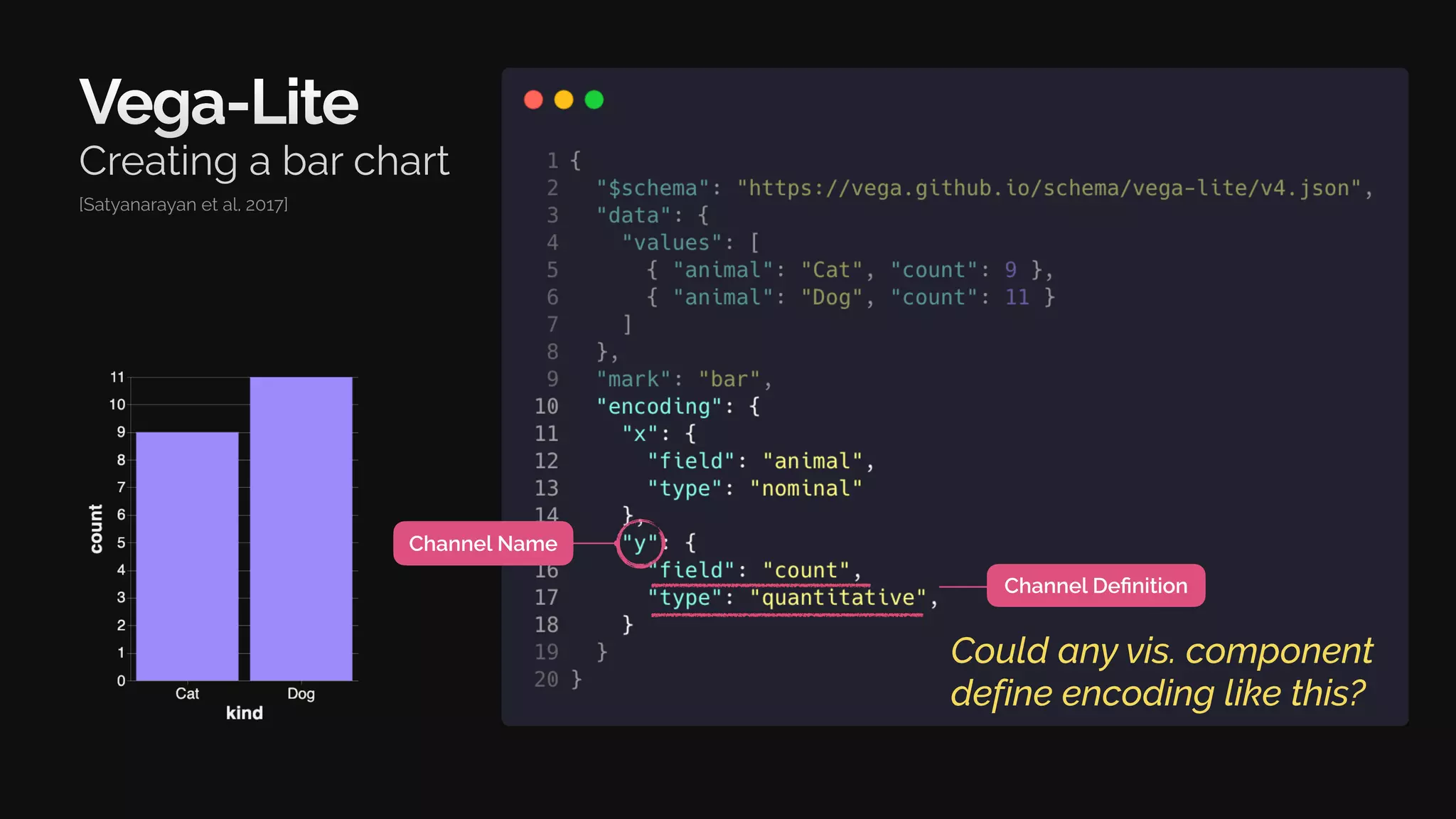

29. Vega-Lite
Creating a bar chart
Channel Name
Channel Definition
[Satyanarayan et al. 2017]
Could any vis. component
define encoding like this?

30. Solution
Inspiration
Results
Conclusions
Motivation

31. Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
Analyze
vega-lite

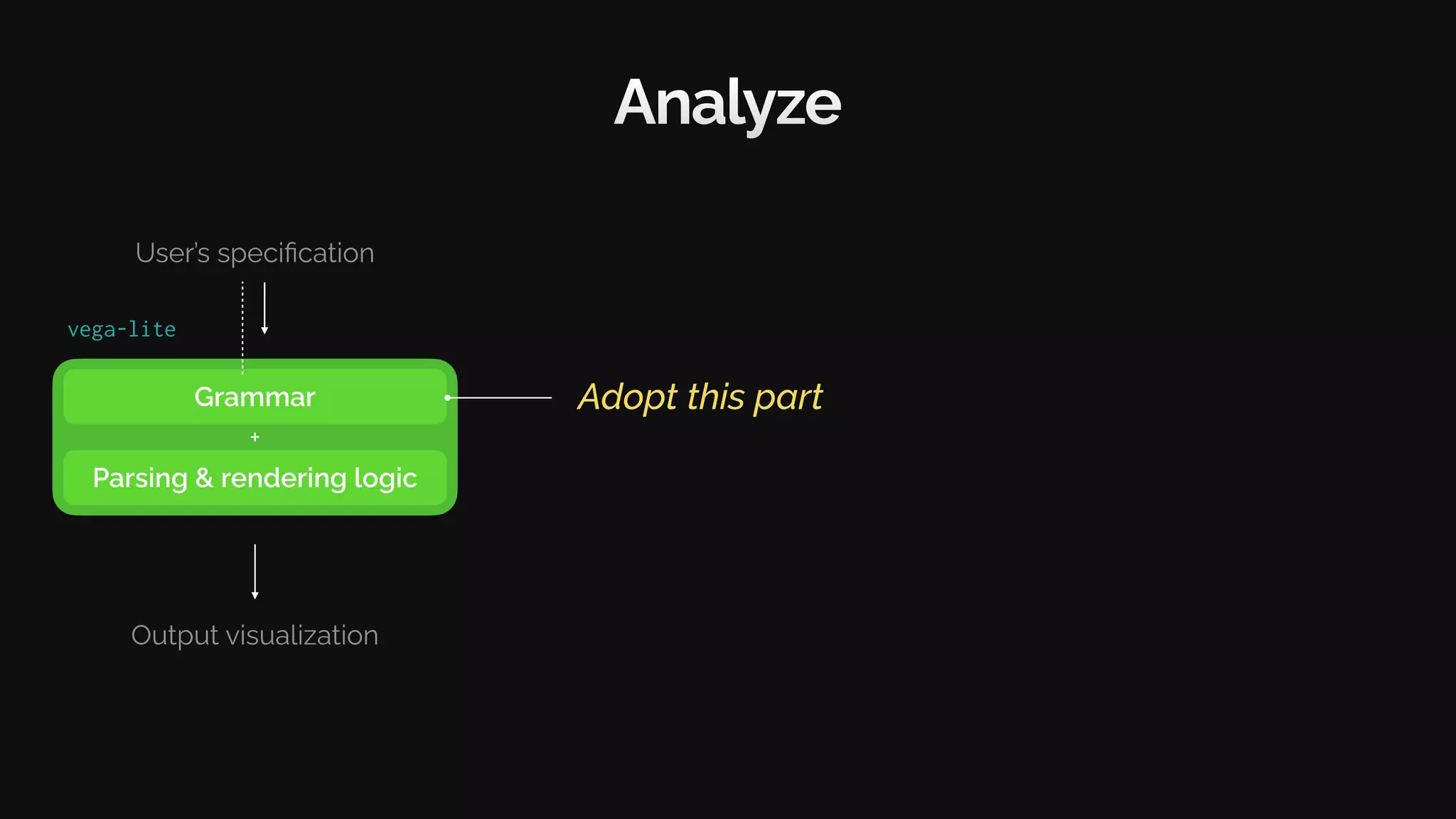

32. Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
Analyze
Adopt this part
vega-lite

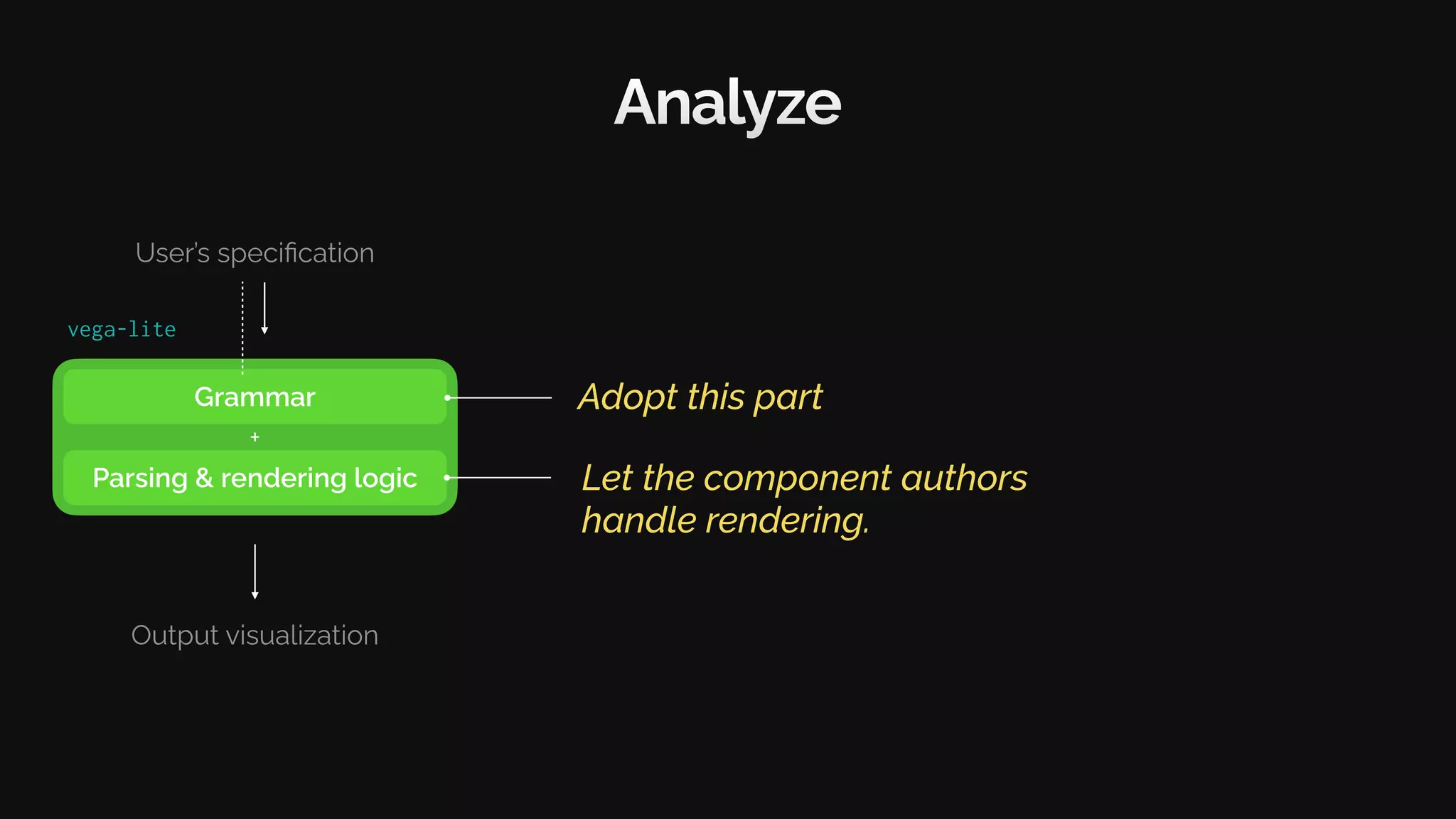

33. Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
Analyze
Adopt this part
vega-lite
Let the component authors
handle rendering.

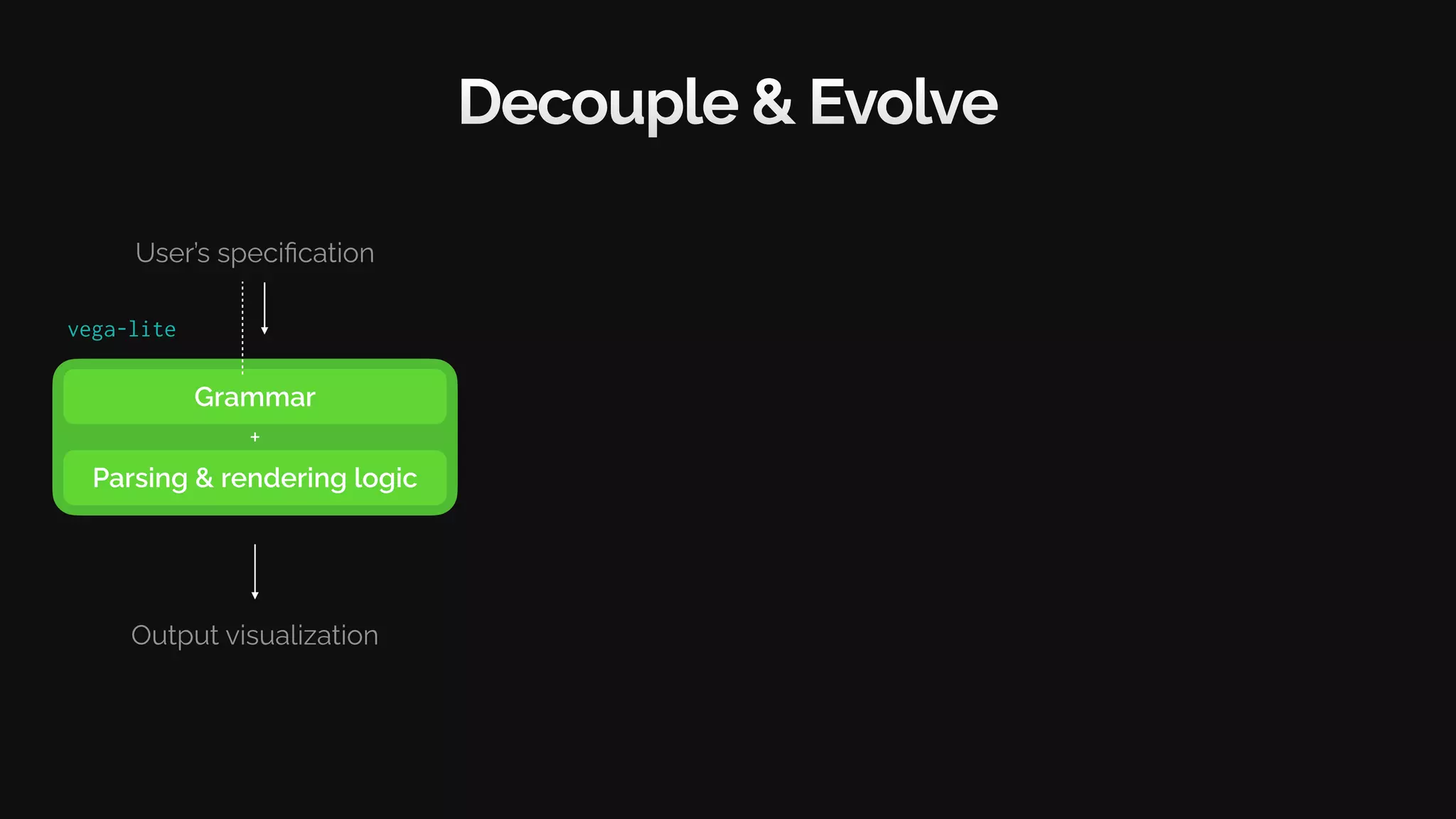

34. Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
Decouple & Evolve
vega-lite

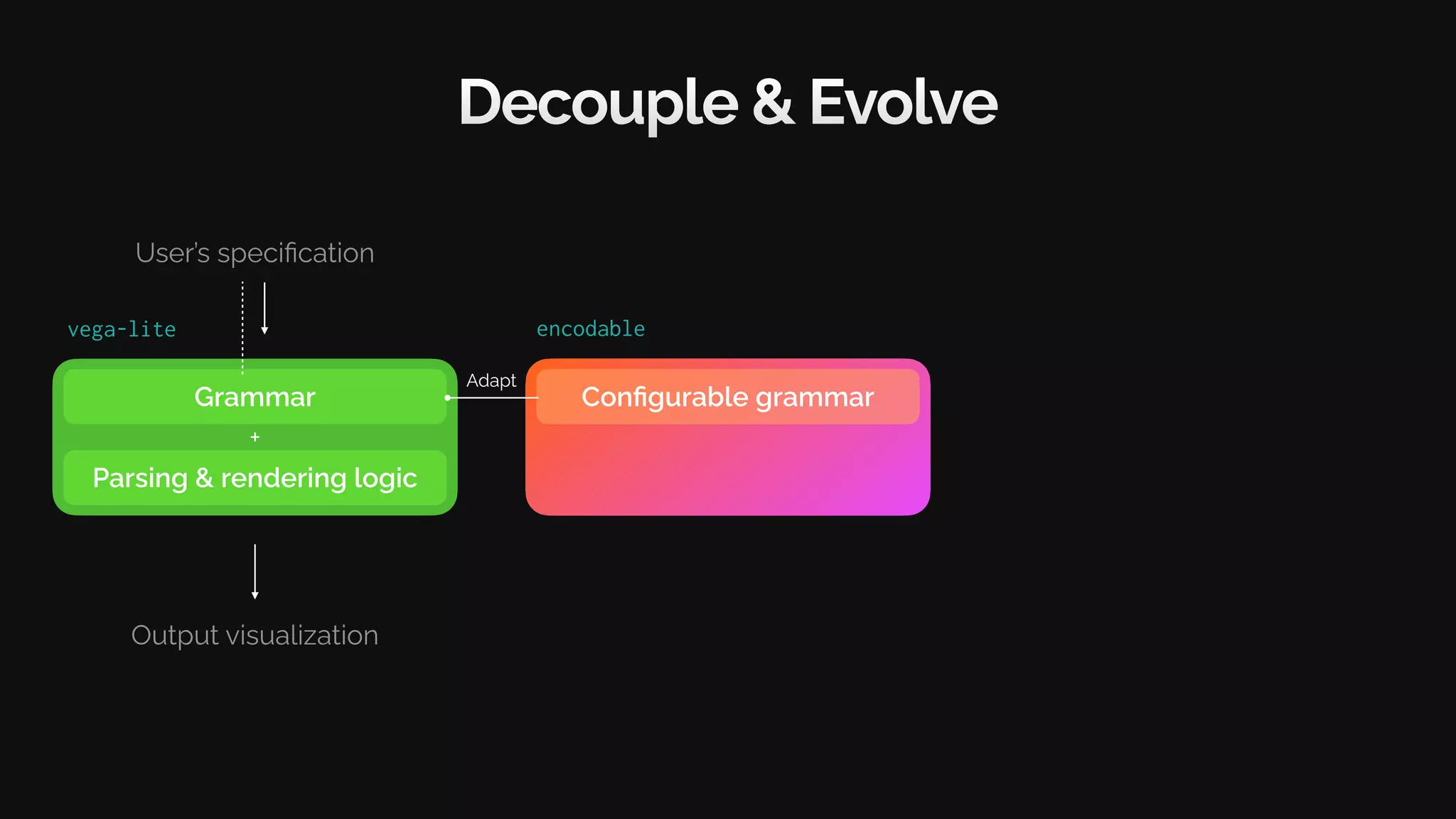

35. Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
Decouple & Evolve
vega-lite encodable
Parser
+
Configurable grammar
Adapt

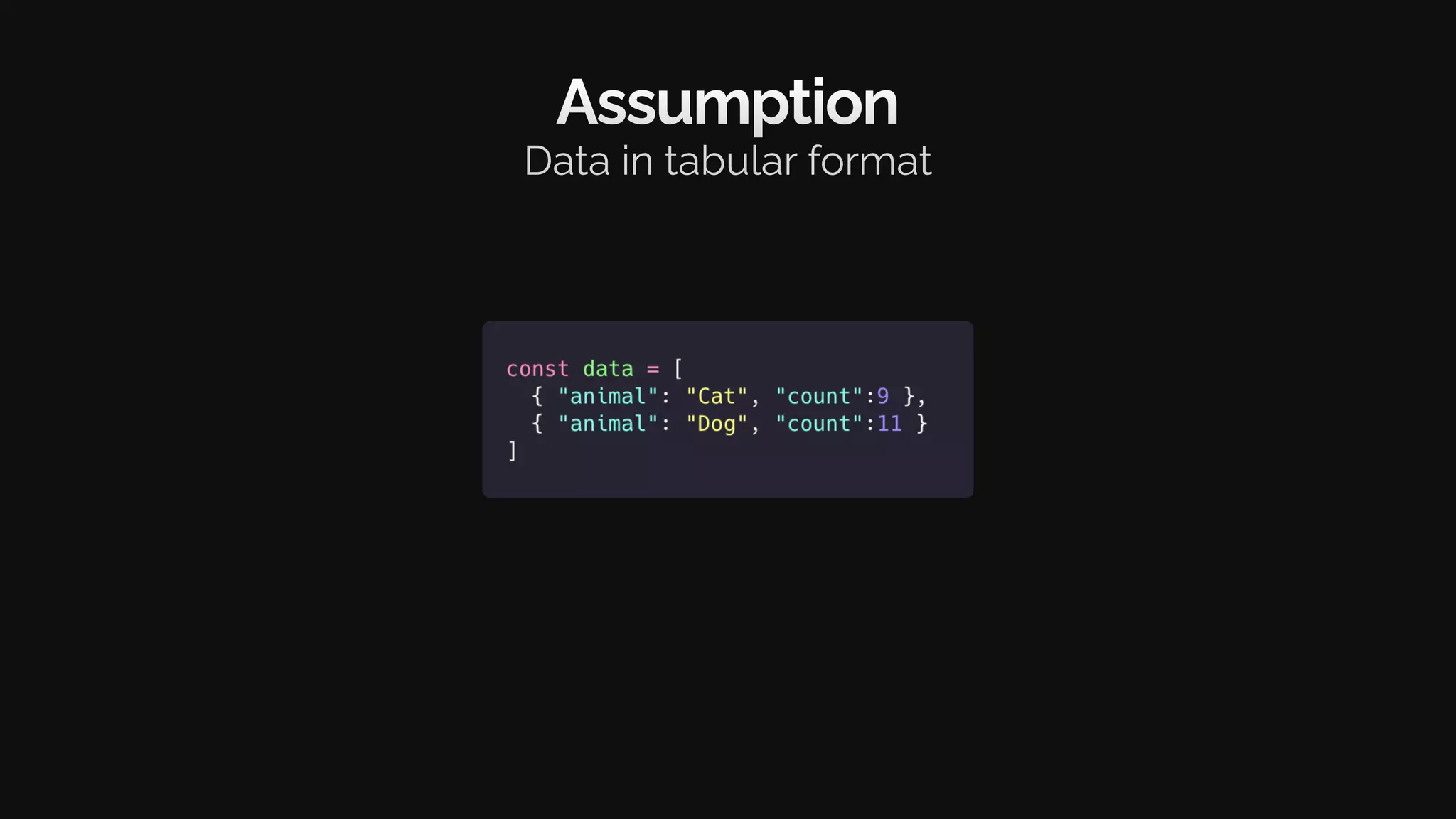

36. Assumption
Data in tabular format

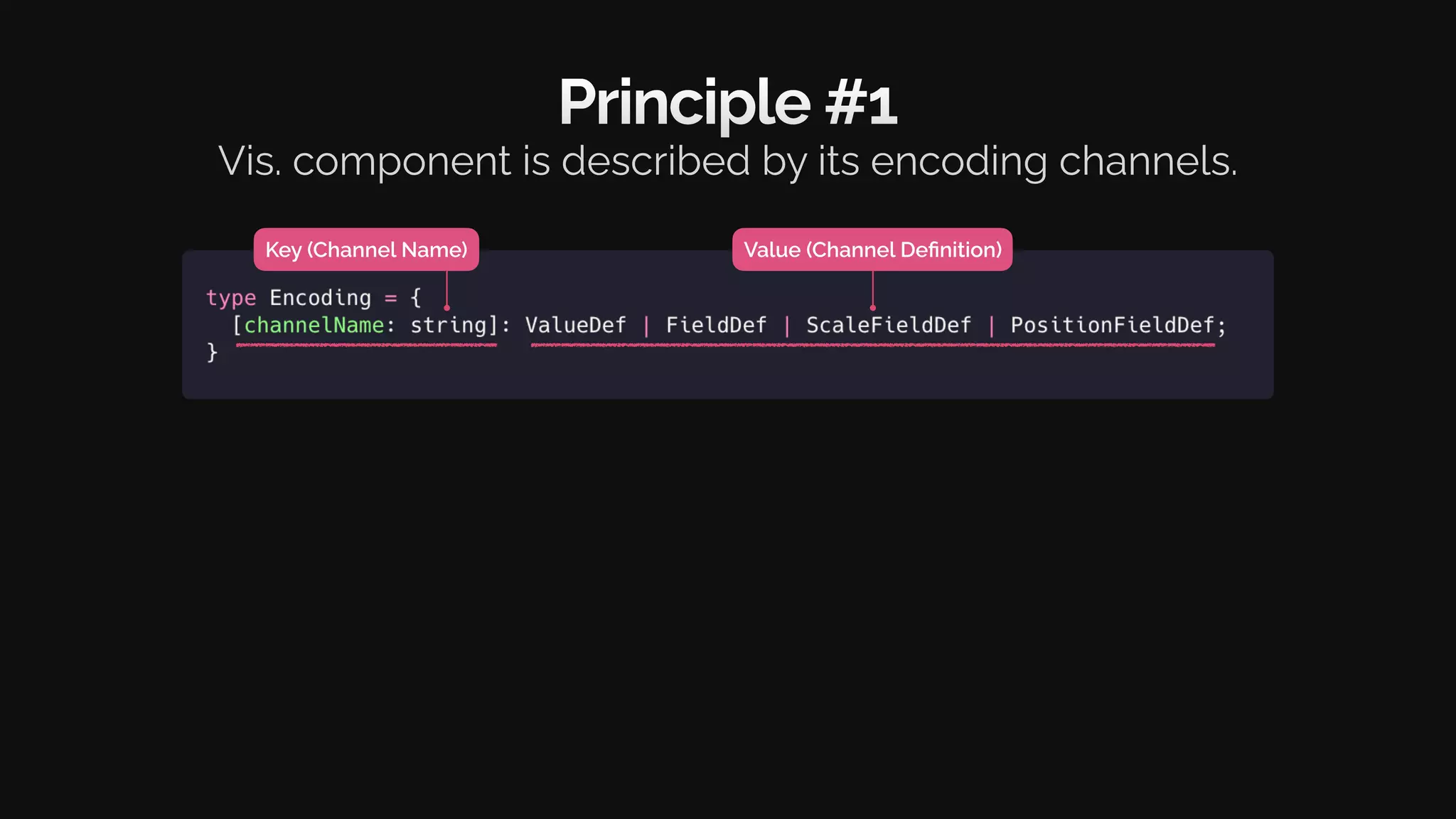

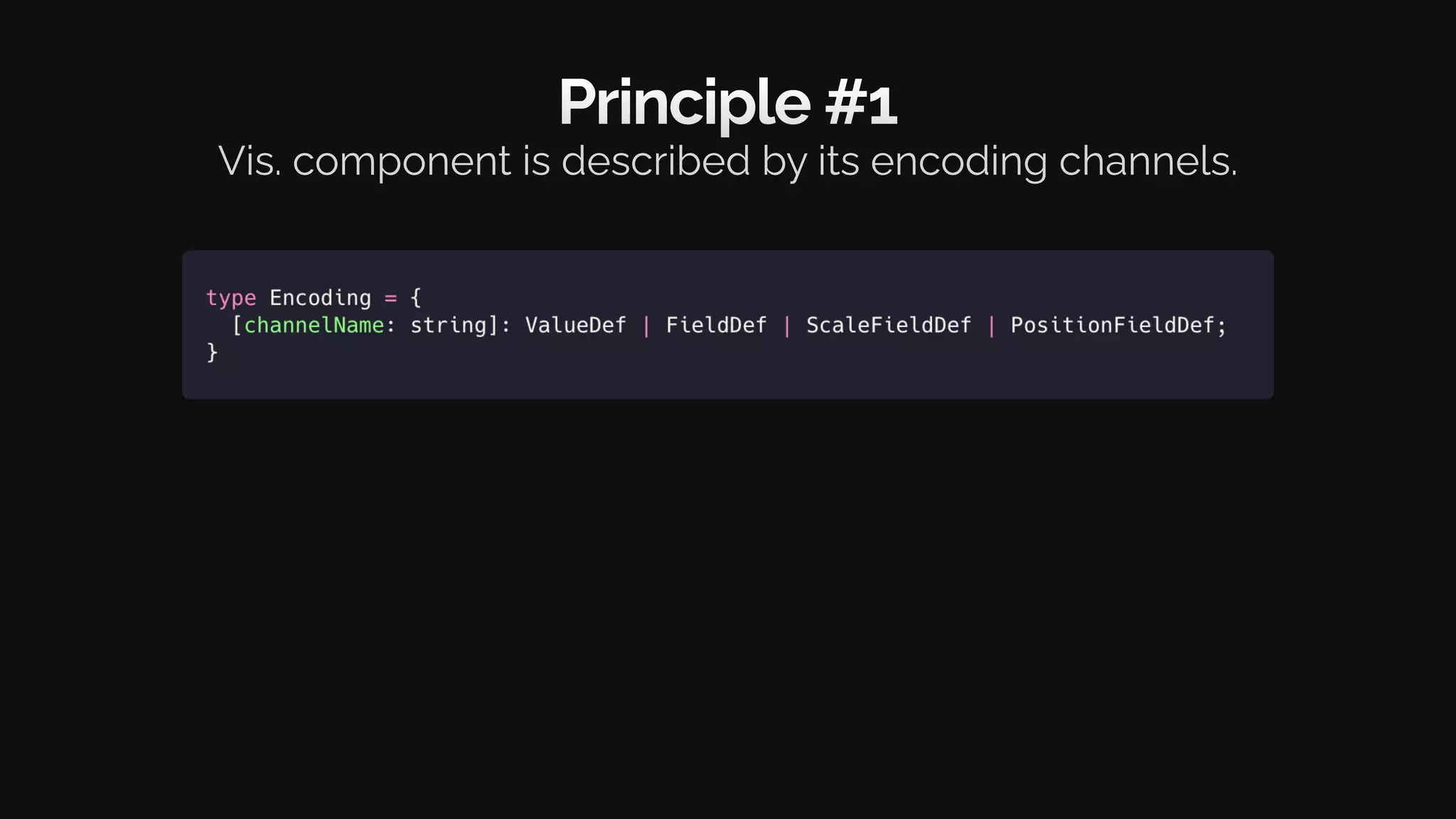

37. Principle #1
Vis. component is described by its encoding channels.

38. Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

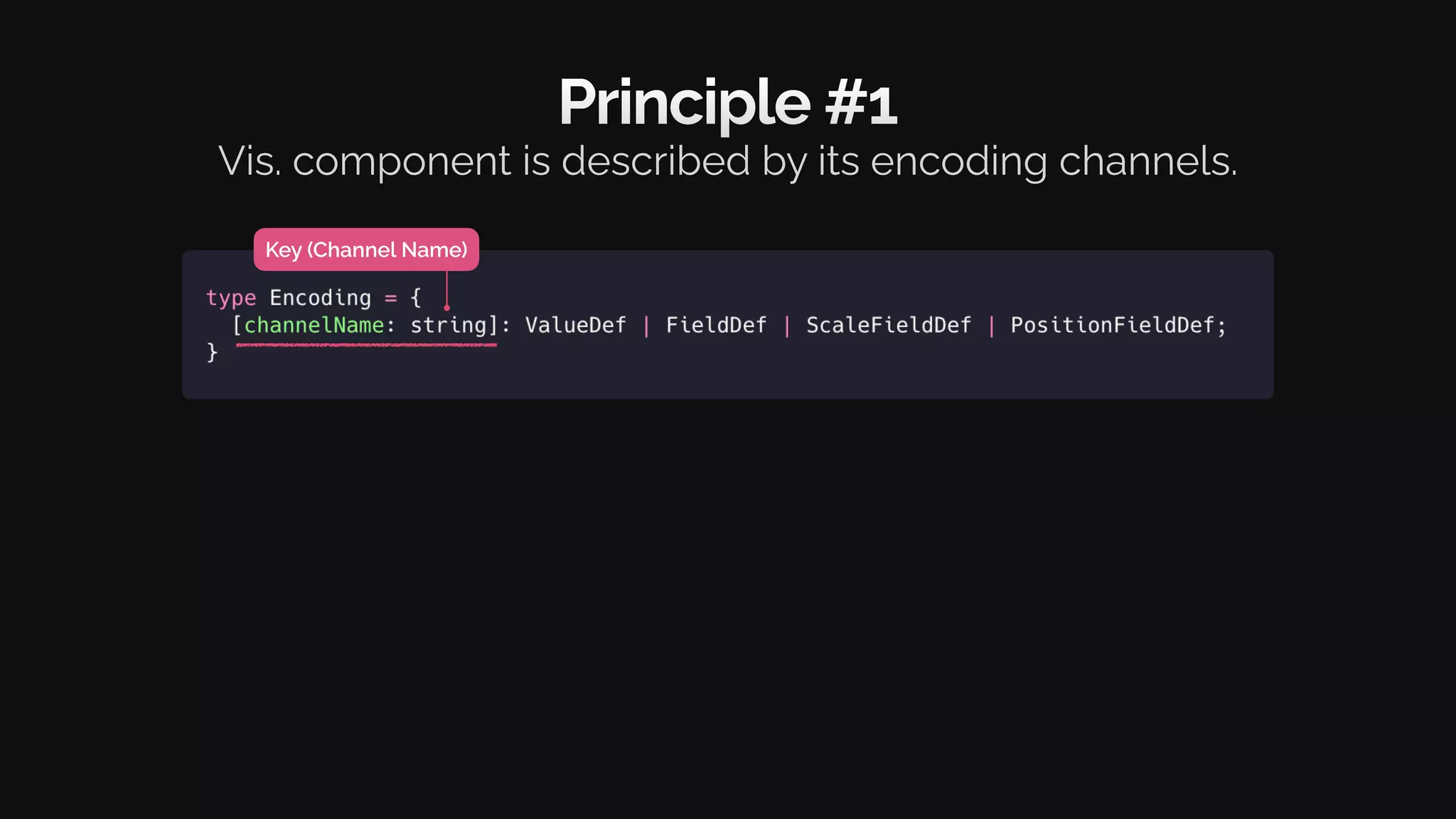

39. Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.
Value (Channel Definition)

40. Value (Channel Definition)
Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

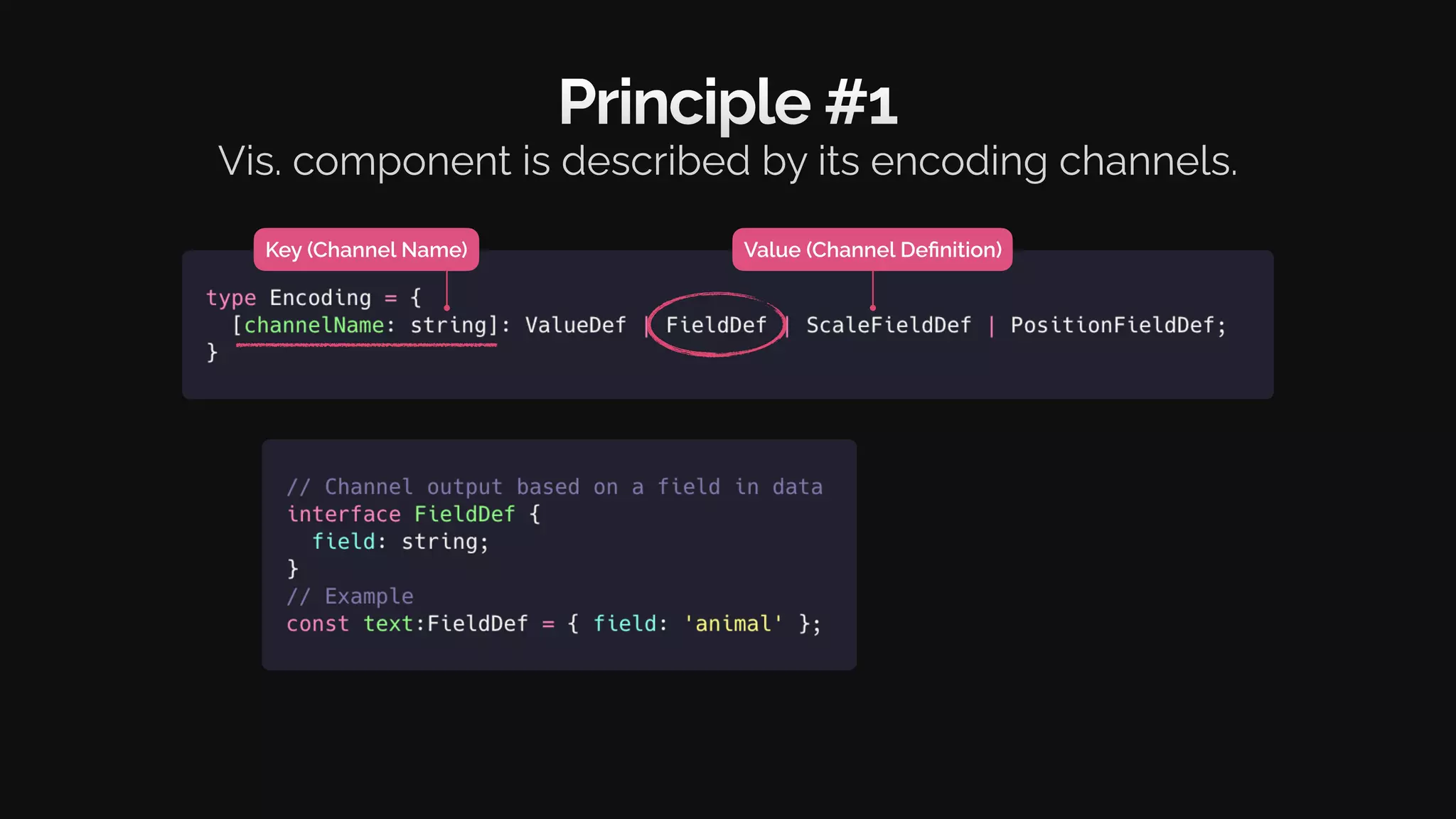

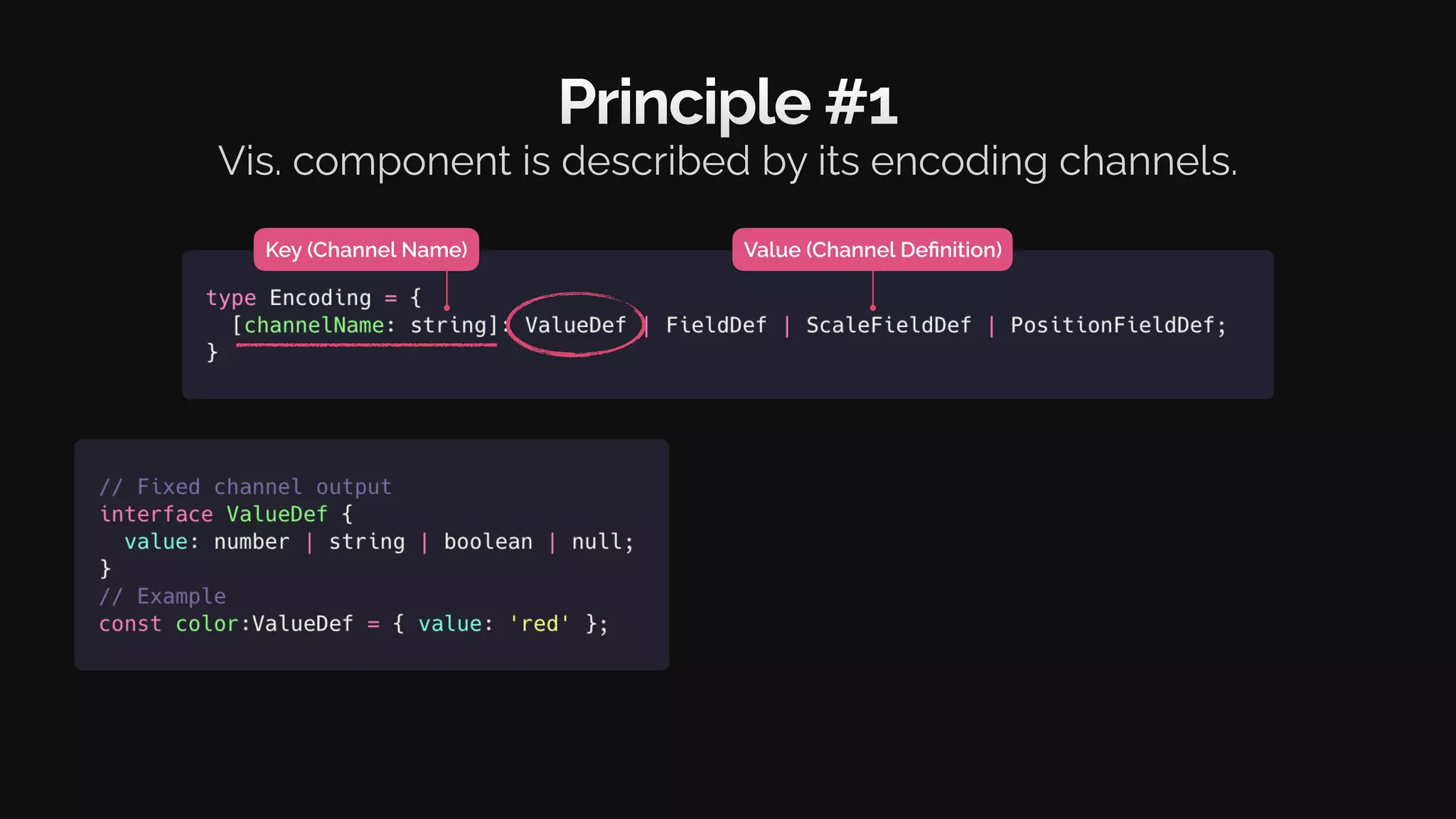

41. Value (Channel Definition)
Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

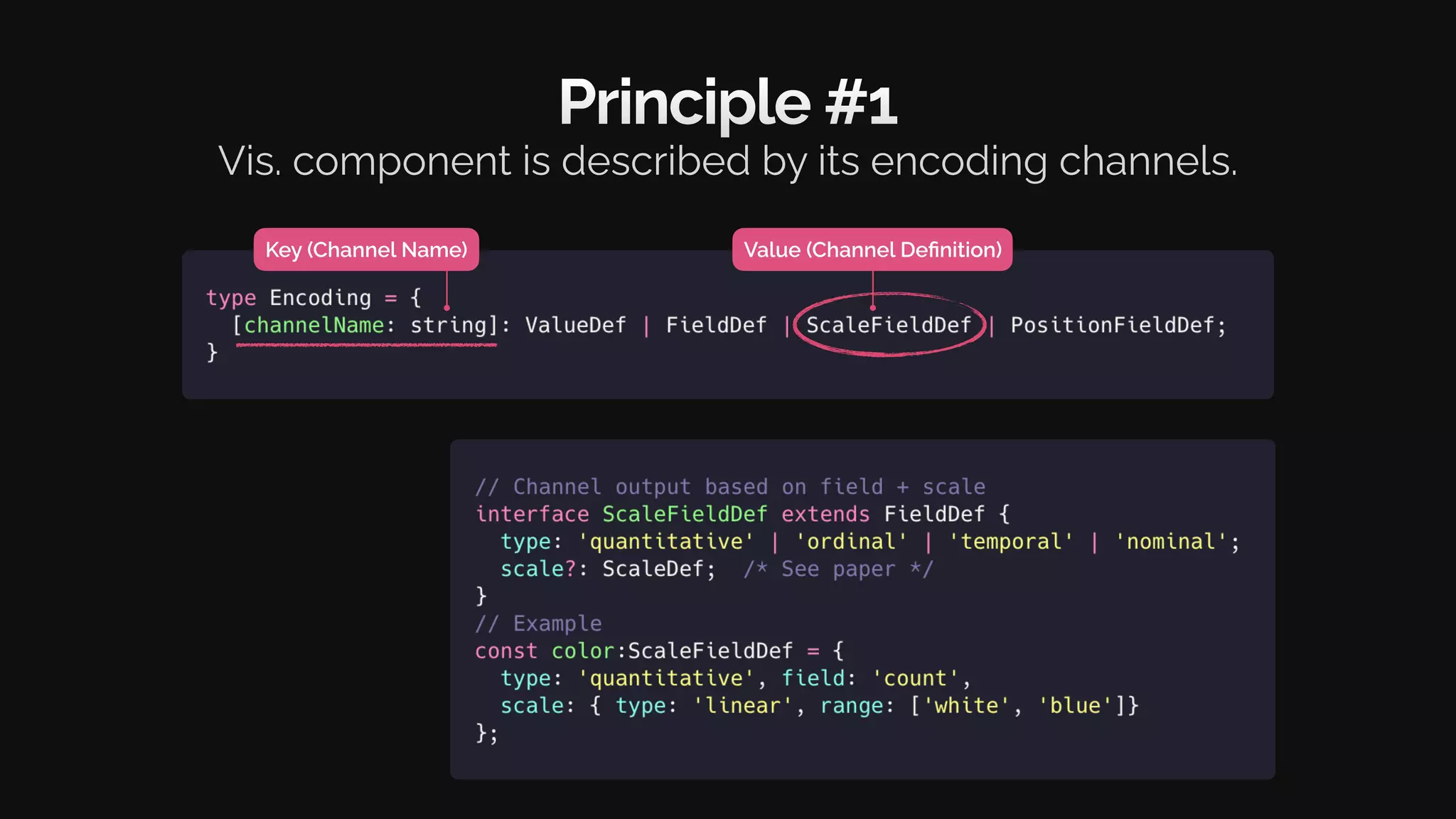

42. Value (Channel Definition)
Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

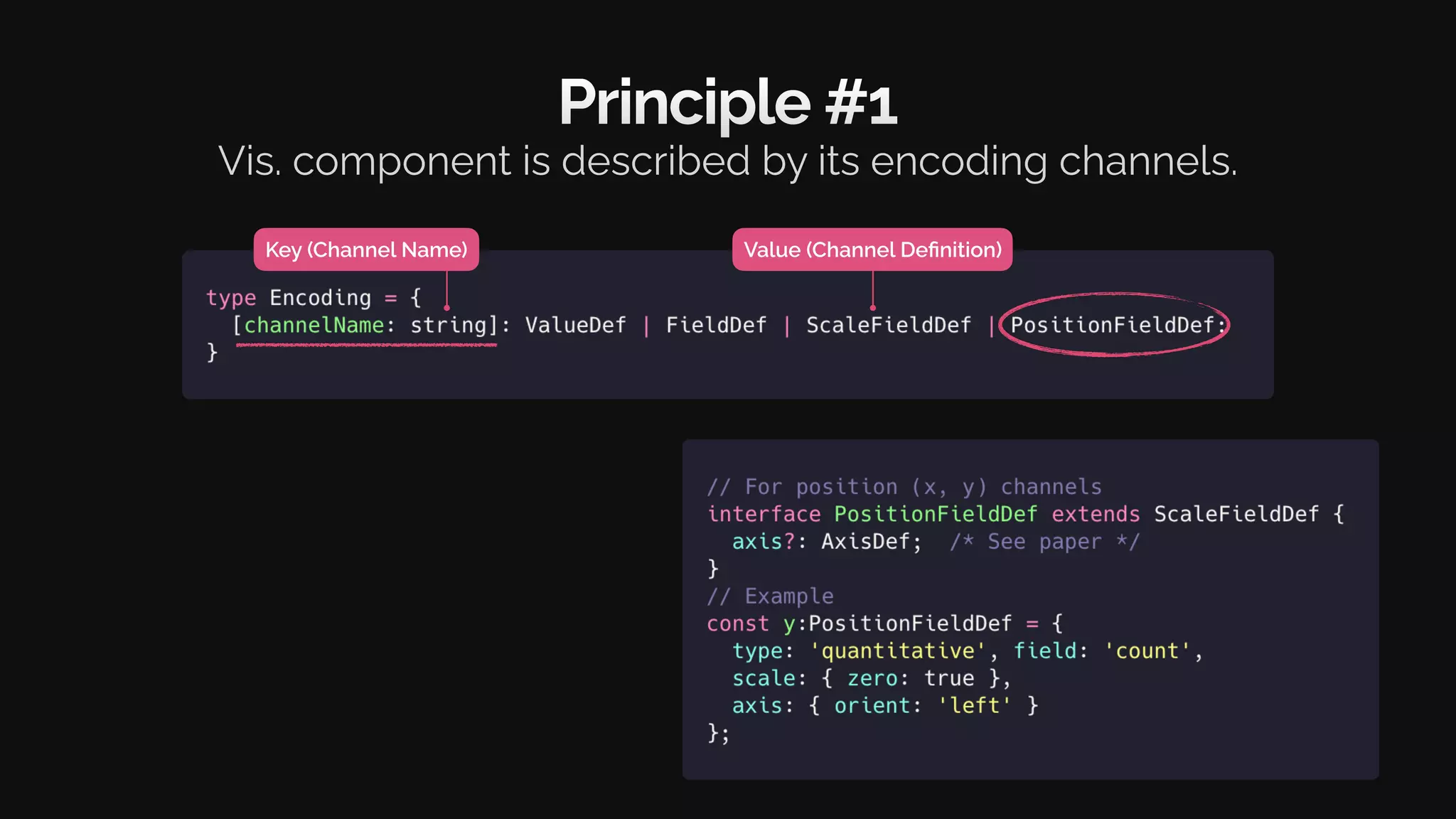

43. Value (Channel Definition)
Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

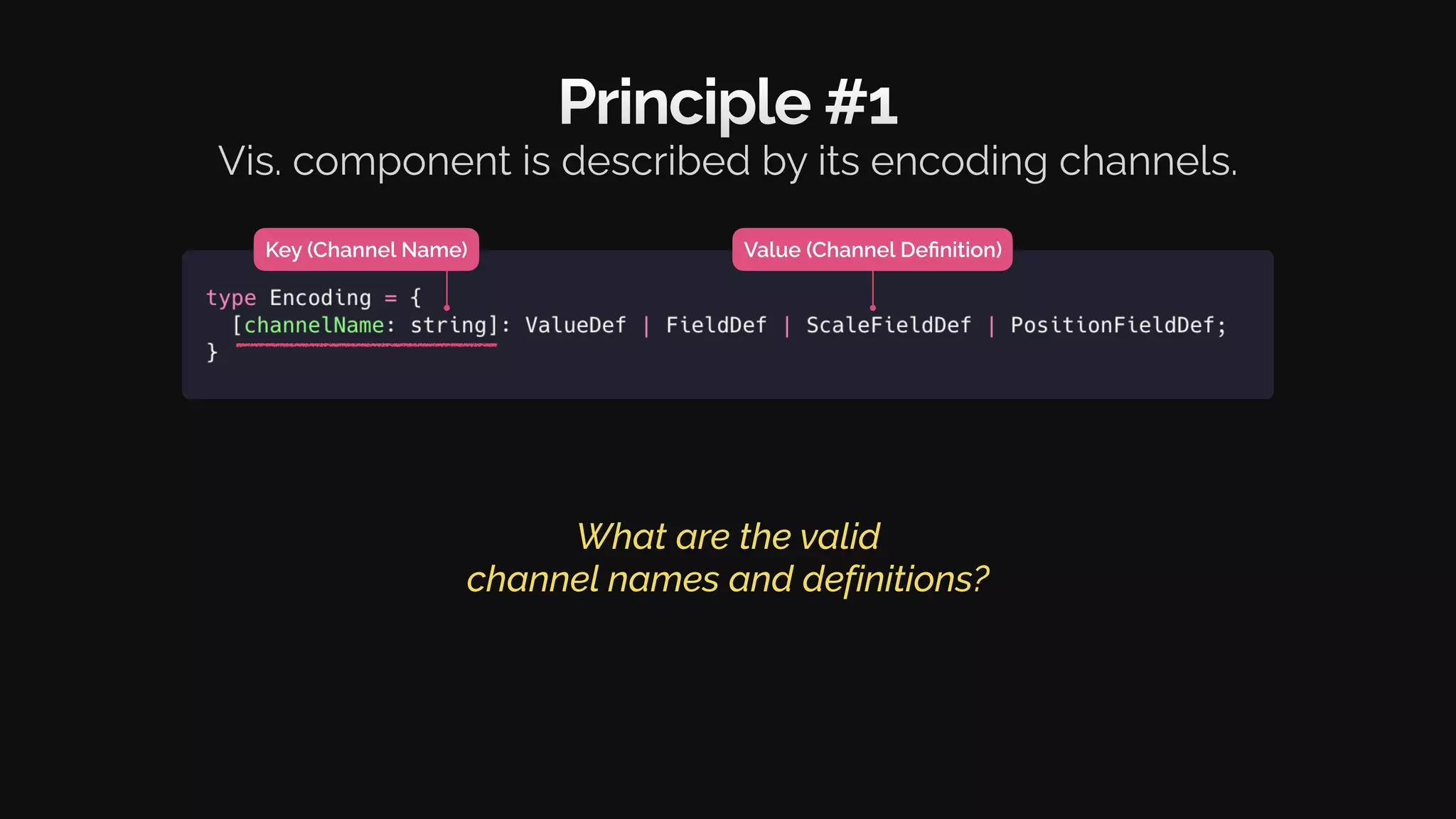

44. What are the valid
channel names and definitions?
Value (Channel Definition)
Key (Channel Name)
Principle #1
Vis. component is described by its encoding channels.

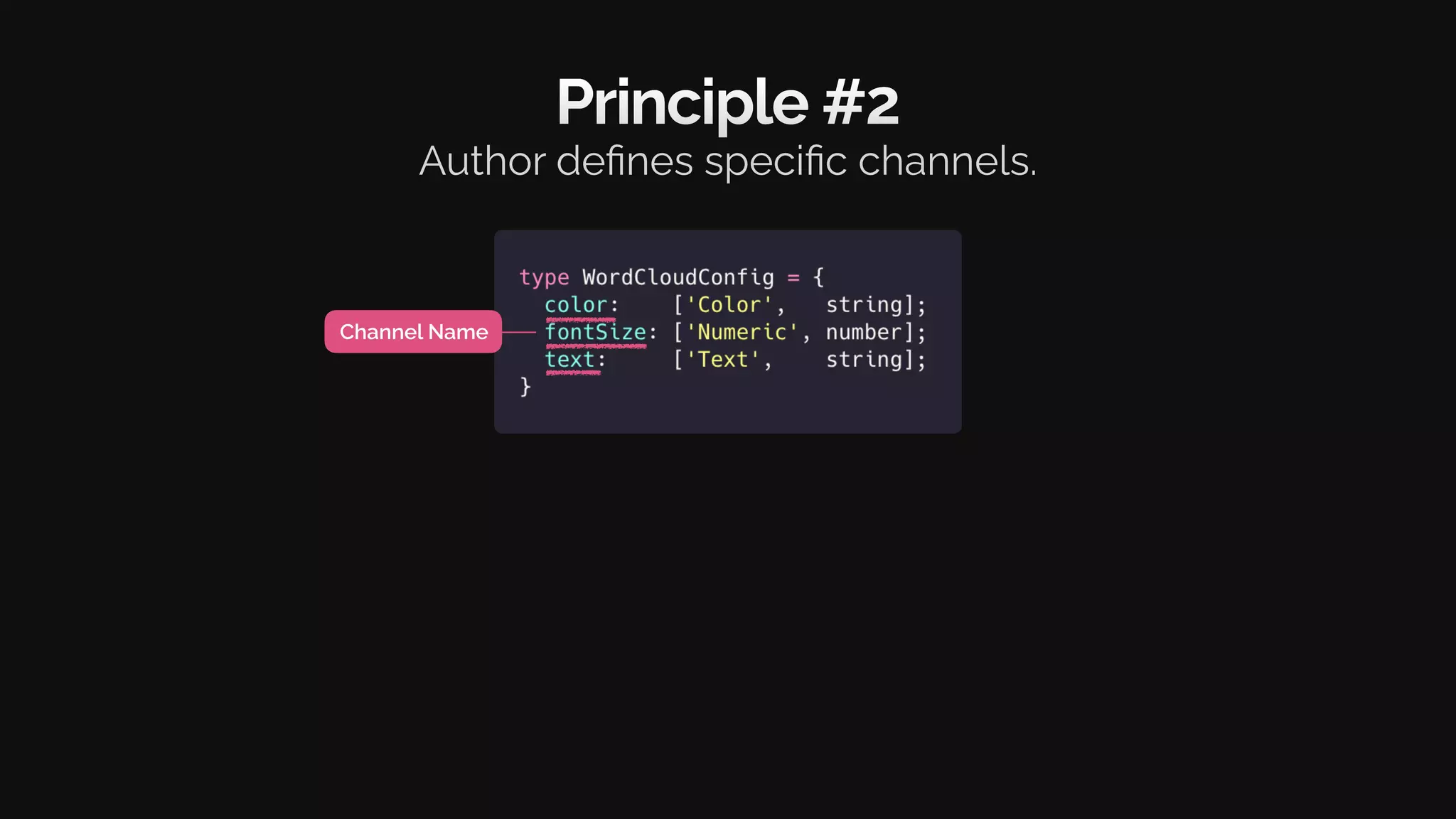

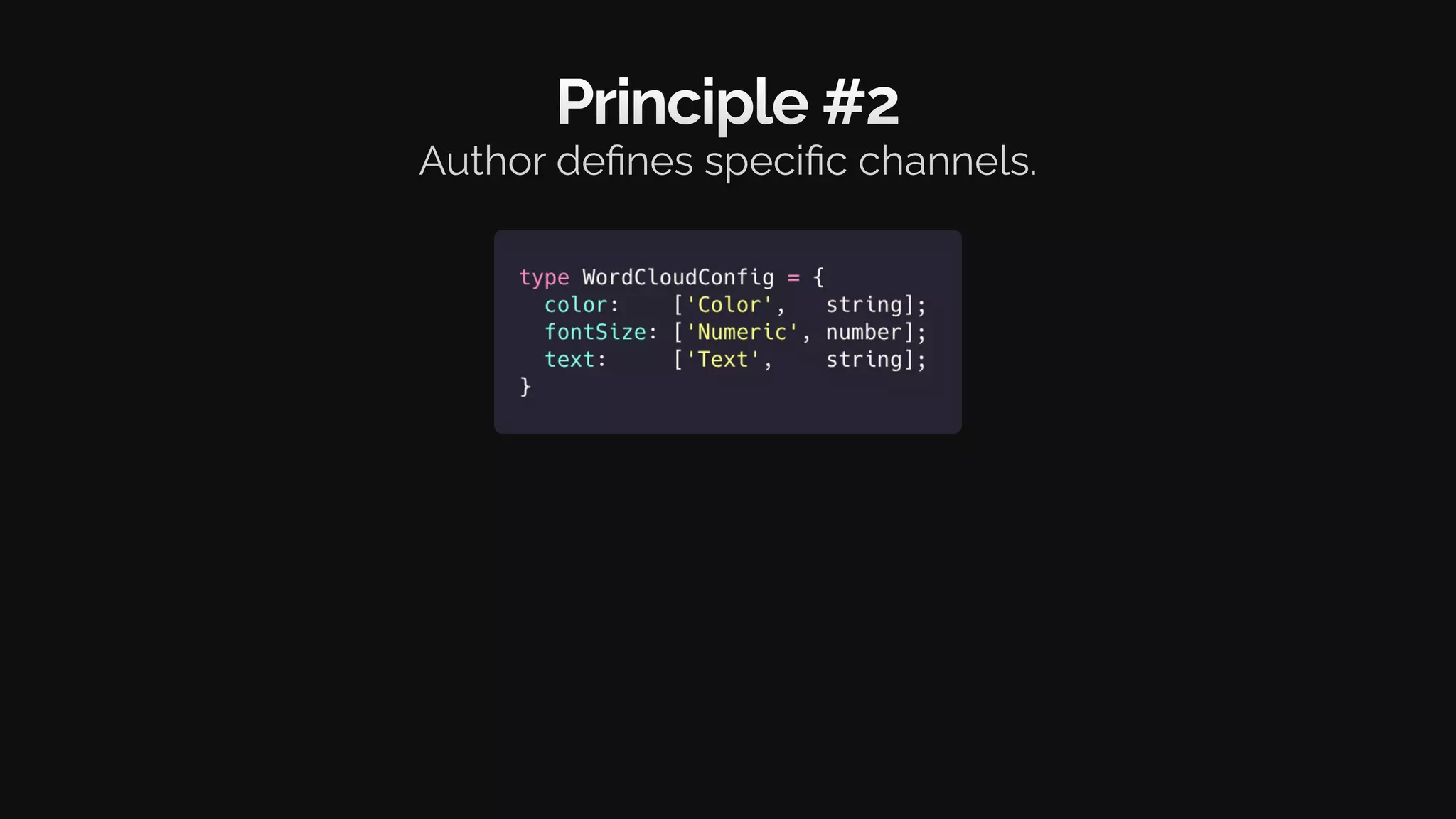

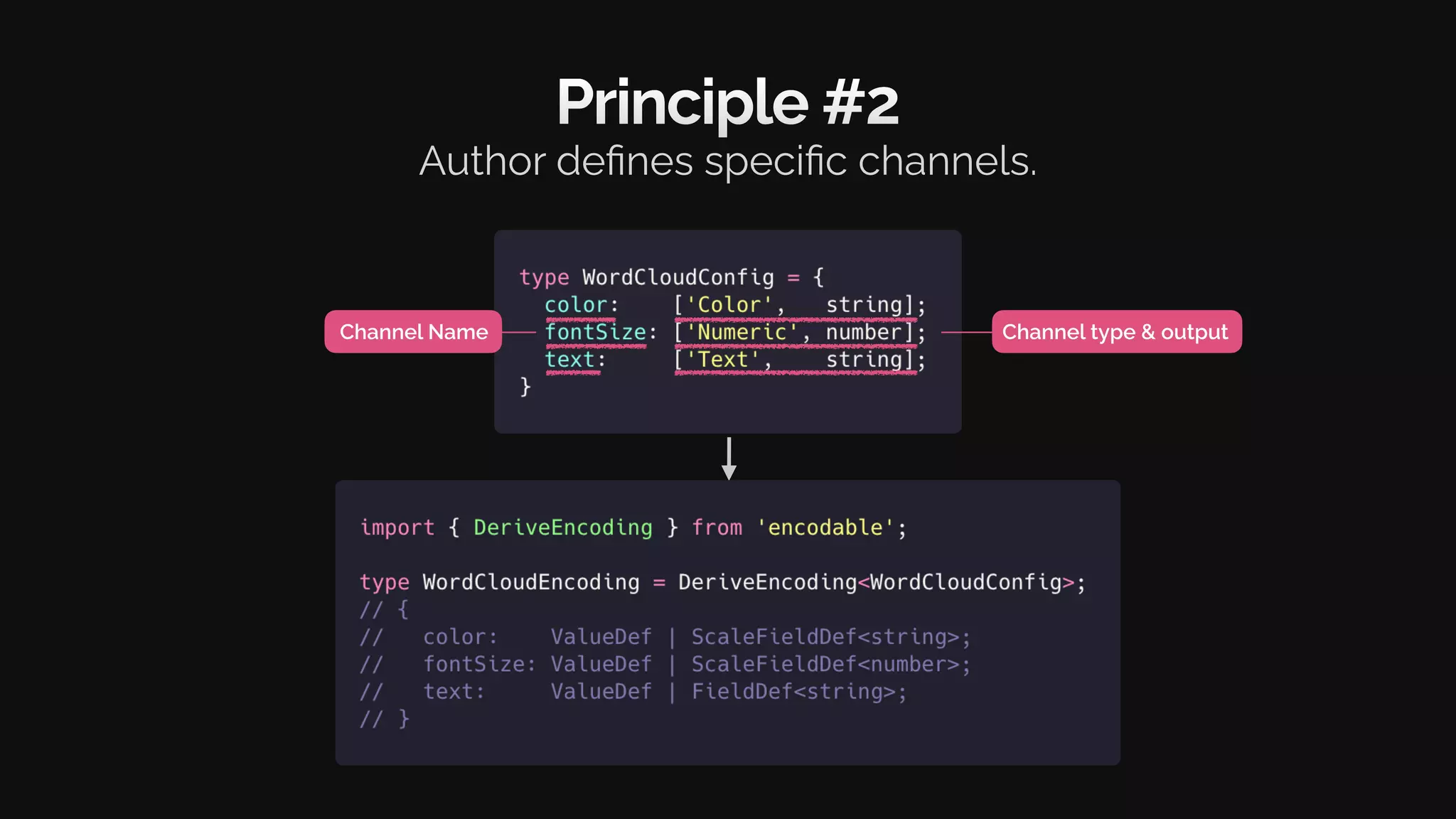

45. Principle #2
Author defines specific channels.

46. Principle #2
Author defines specific channels.
Channel Name

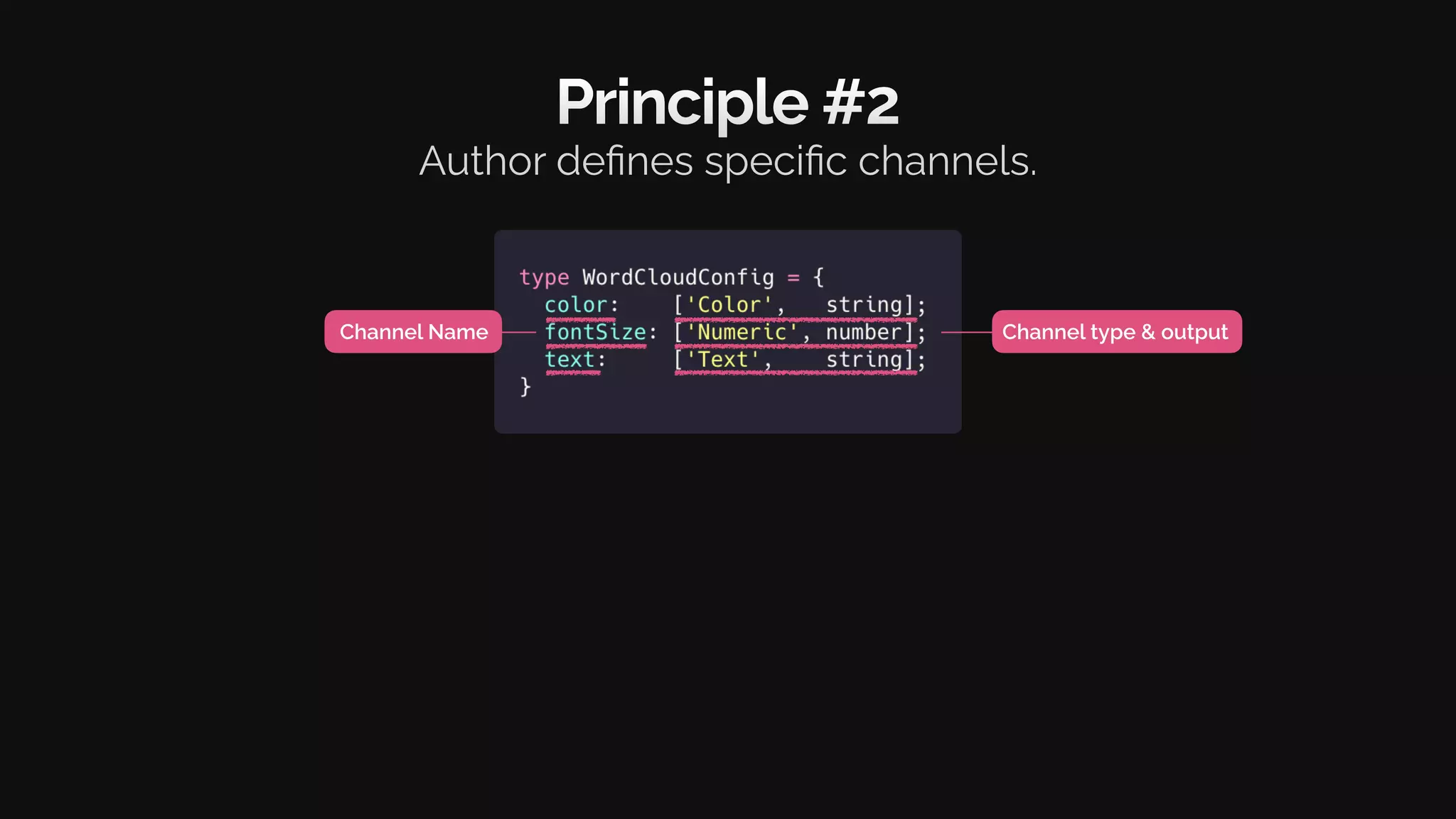

47. Principle #2
Author defines specific channels.
Channel Name Channel type & output

48. Principle #2
Author defines specific channels.
Channel Name Channel type & output

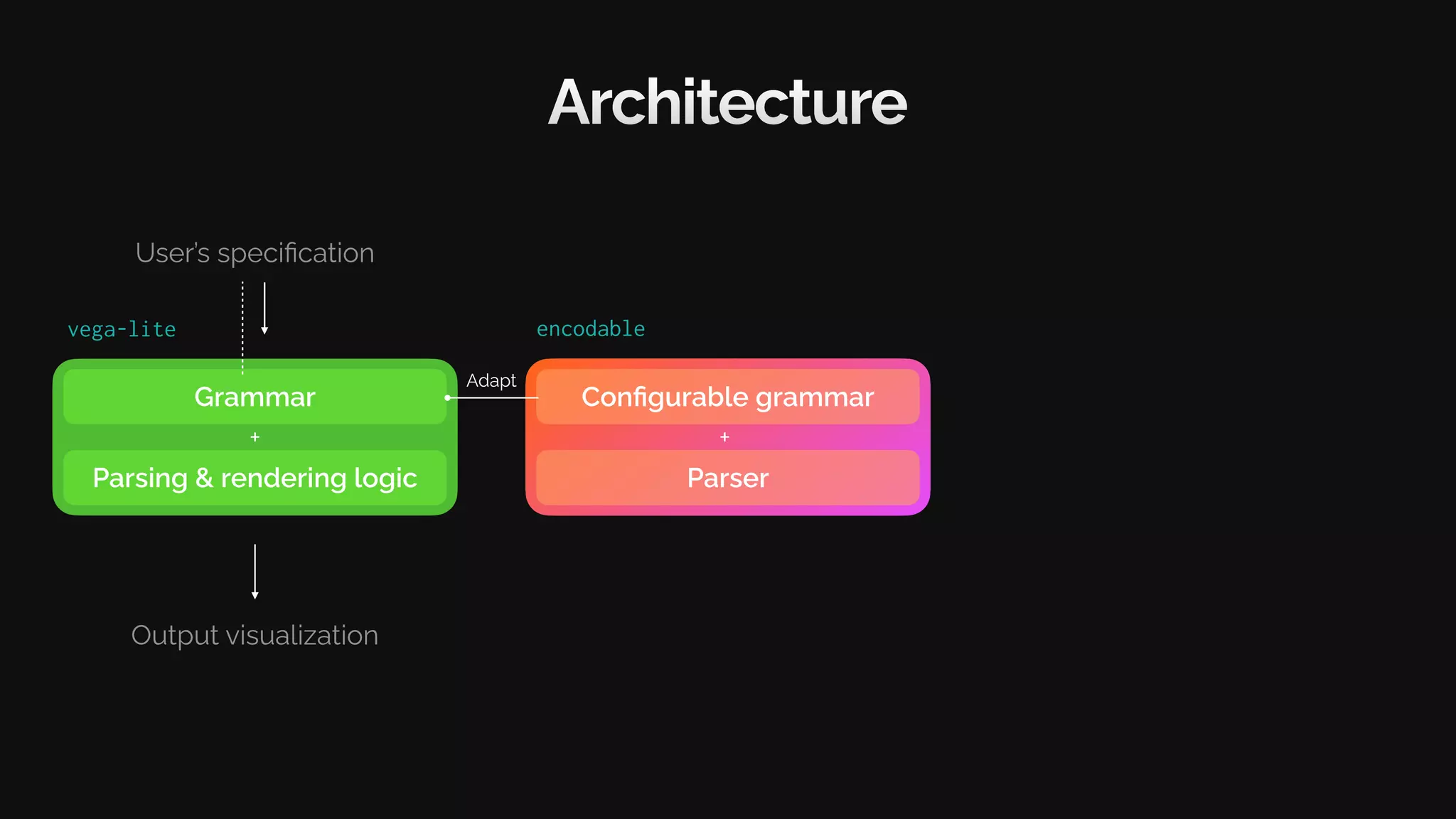

49. Architecture
Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
vega-lite
Configurable grammar
encodable
Parser
+
Adapt

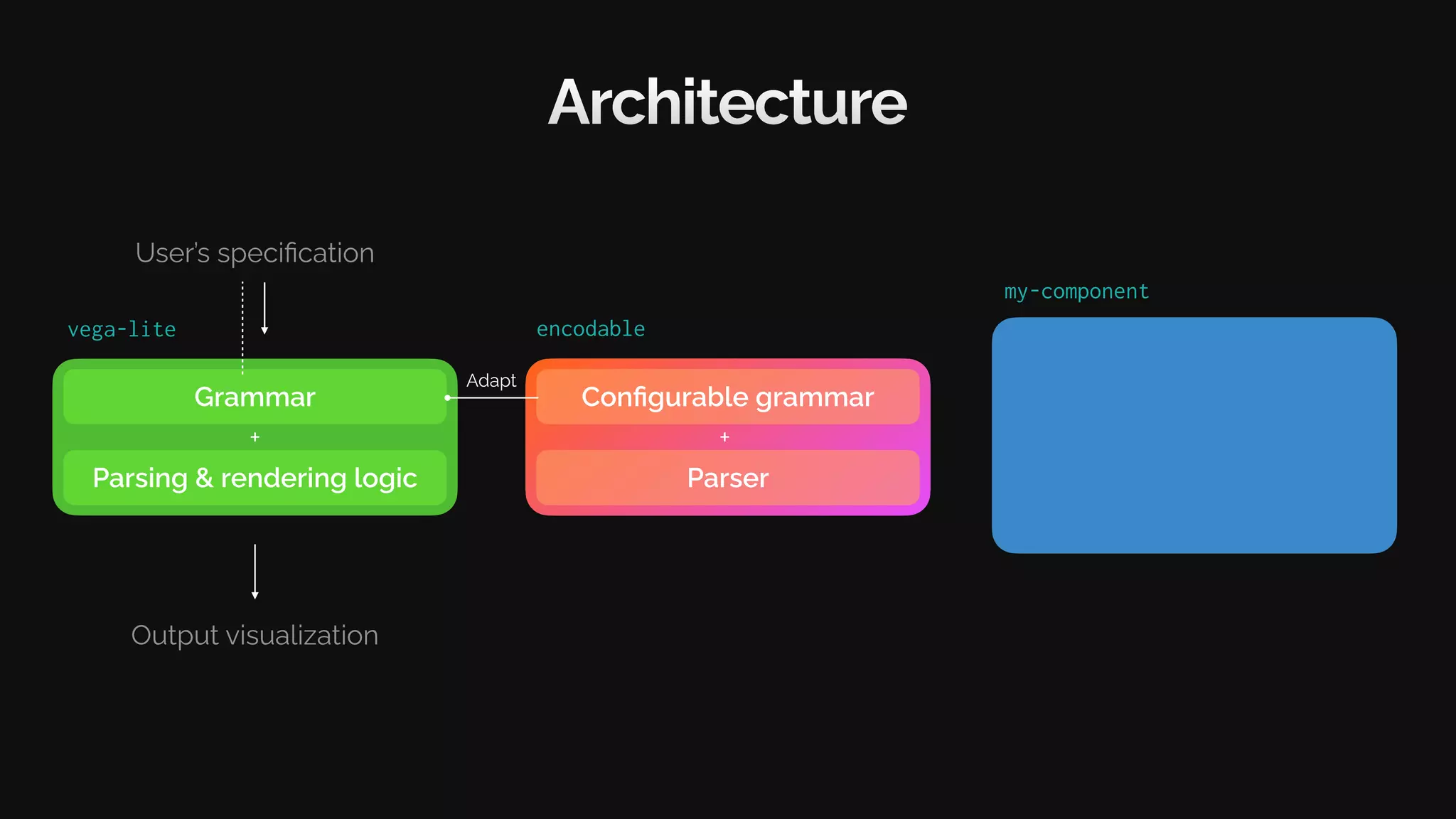

50. my-component
Architecture
Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
vega-lite
Configurable grammar
encodable
Parser
+
Adapt

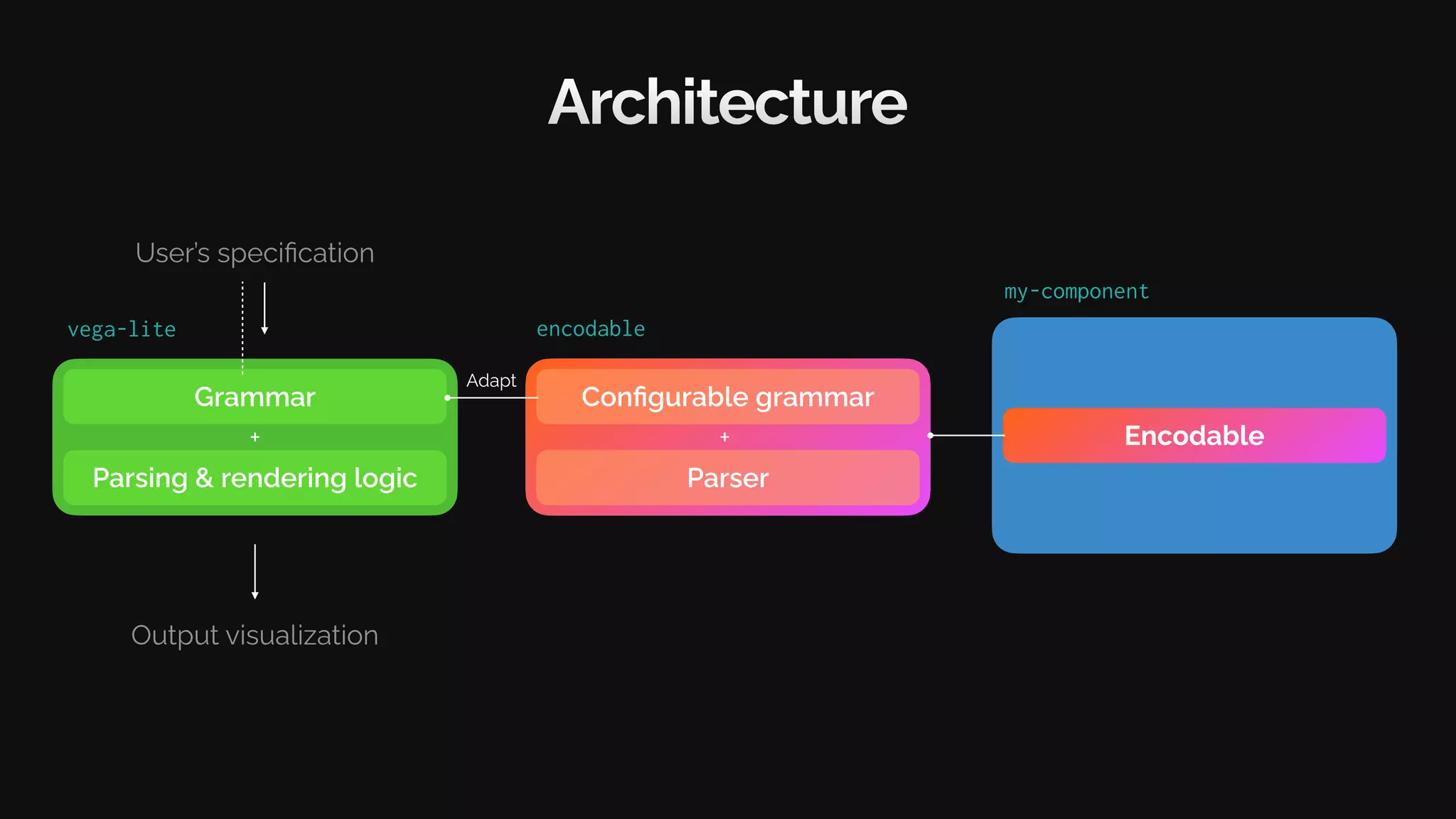

51. my-component
Architecture
Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
vega-lite
Configurable grammar
encodable
Parser
+ Encodable
Adapt

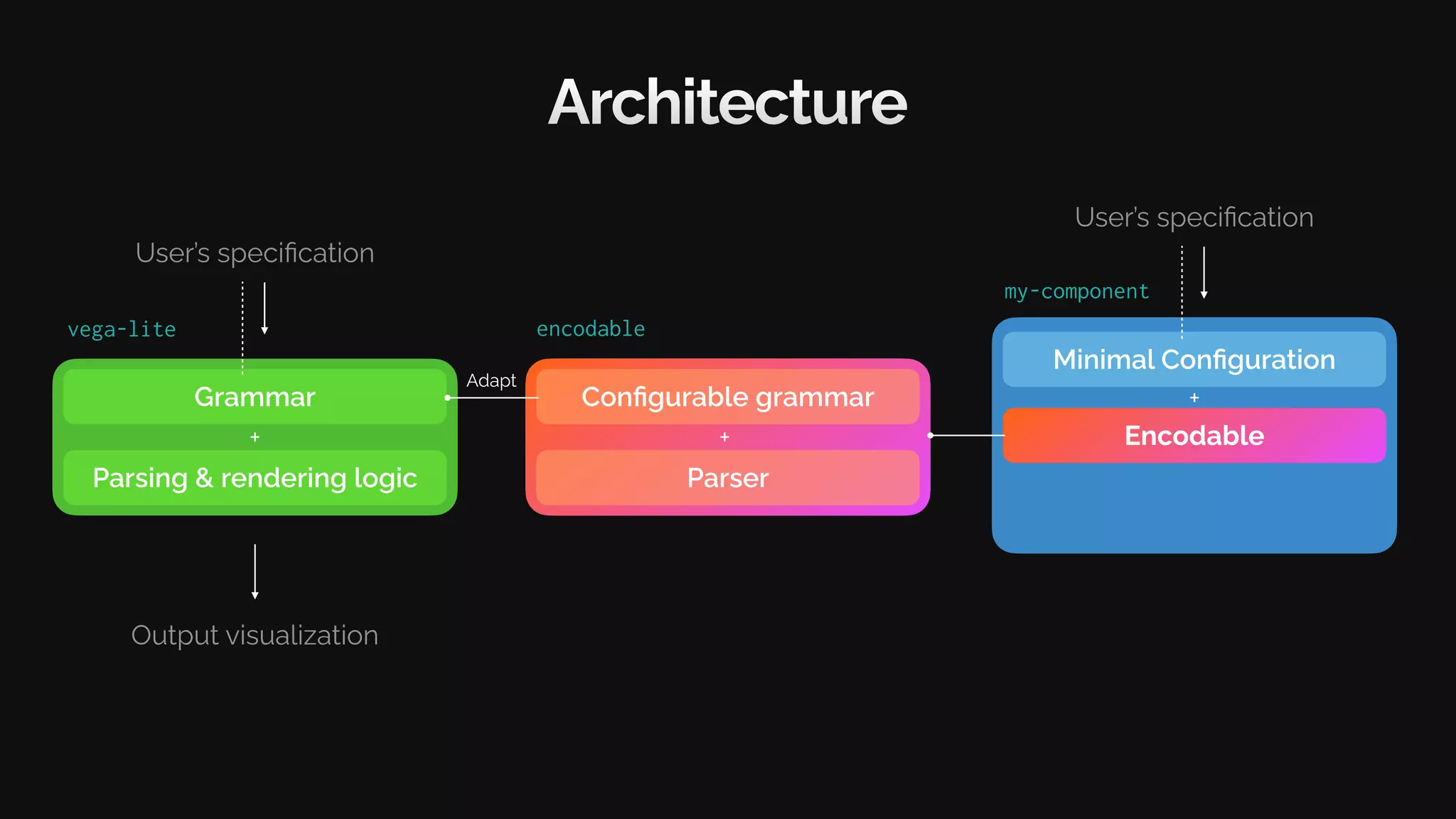

52. my-component
Architecture
Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
vega-lite
Configurable grammar
encodable
Parser
+ Encodable
Adapt
Minimal Configuration
User’s specification
+

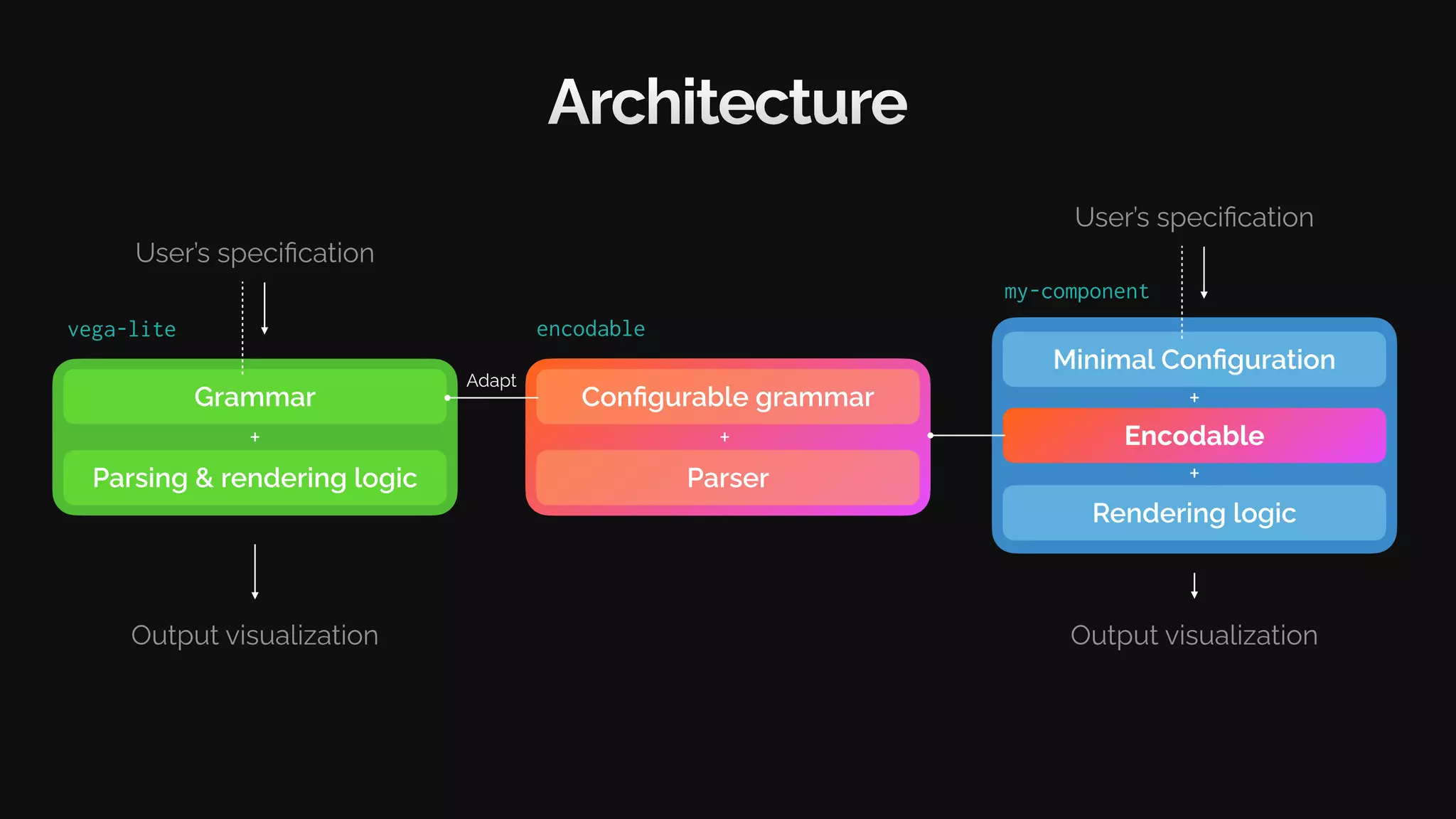

53. my-component
Architecture
Grammar
Parsing & rendering logic
User’s specification
Output visualization
+
vega-lite
Configurable grammar
encodable
Parser
+ Encodable
Adapt
Minimal Configuration
User’s specification
+
Rendering logic
Output visualization
+

54. Build a component
with .
Encodable

56. Visualization Component (WordCloud)

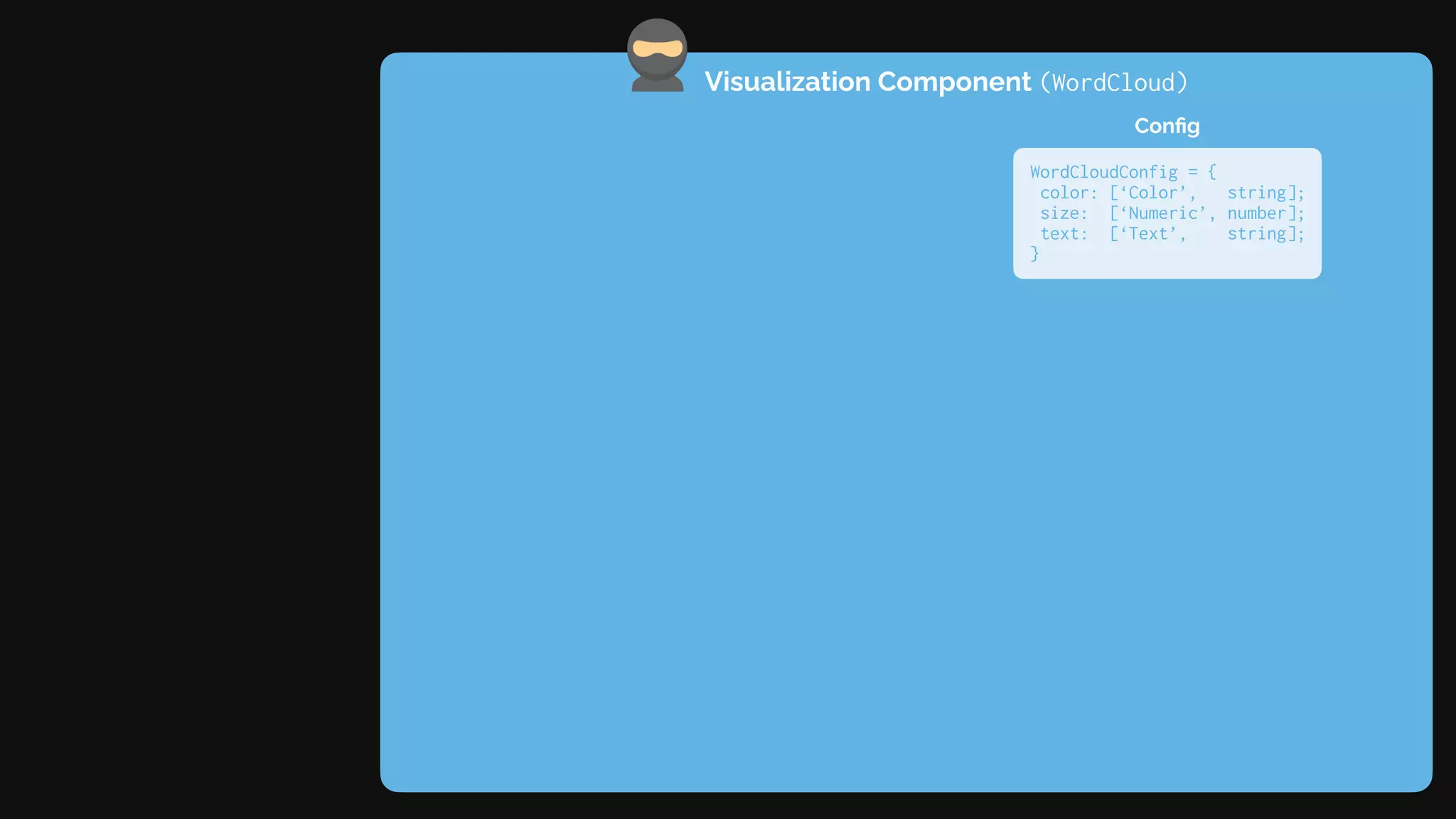

57. Visualization Component (WordCloud)
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}

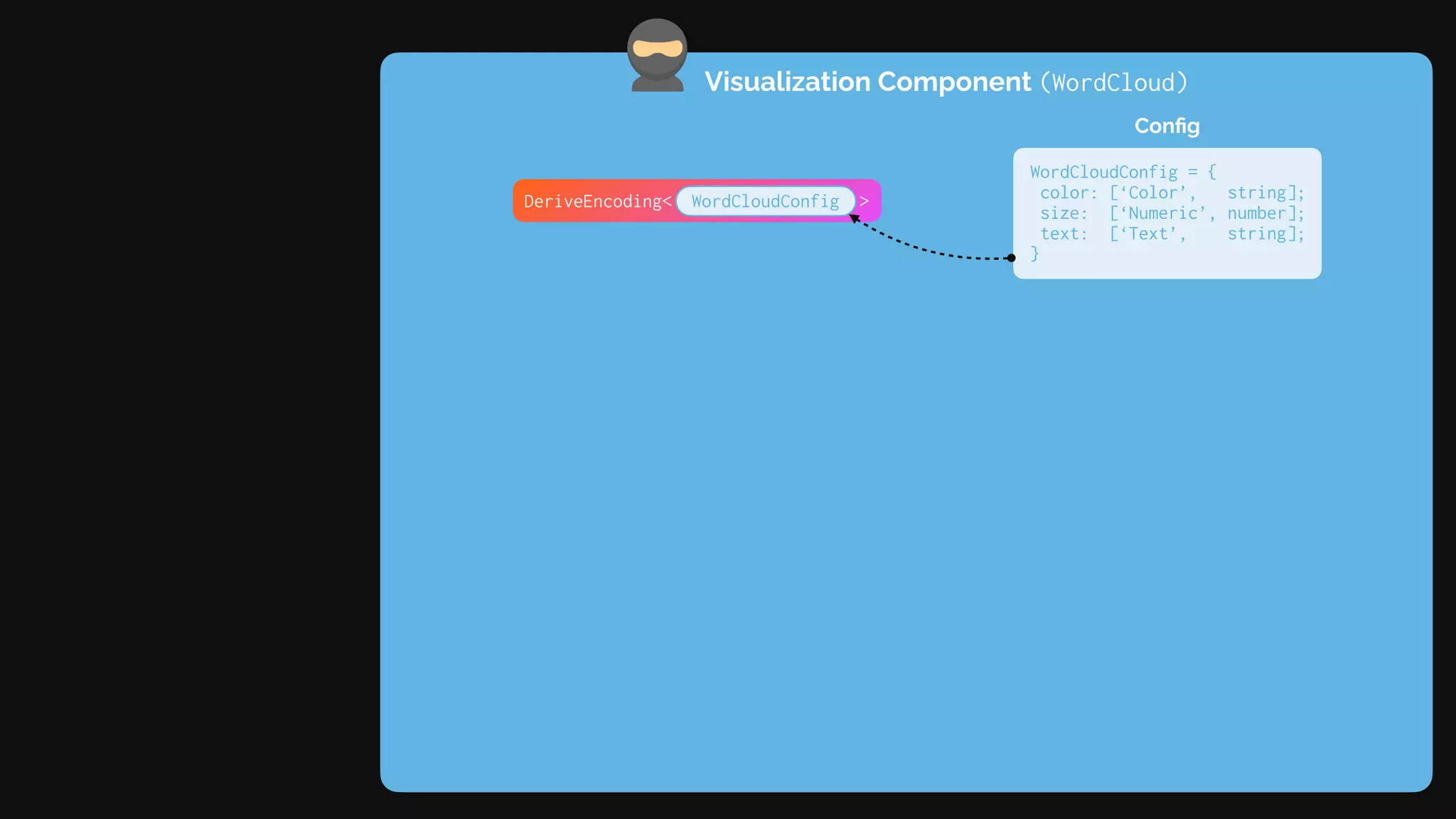

58. Visualization Component (WordCloud)
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >

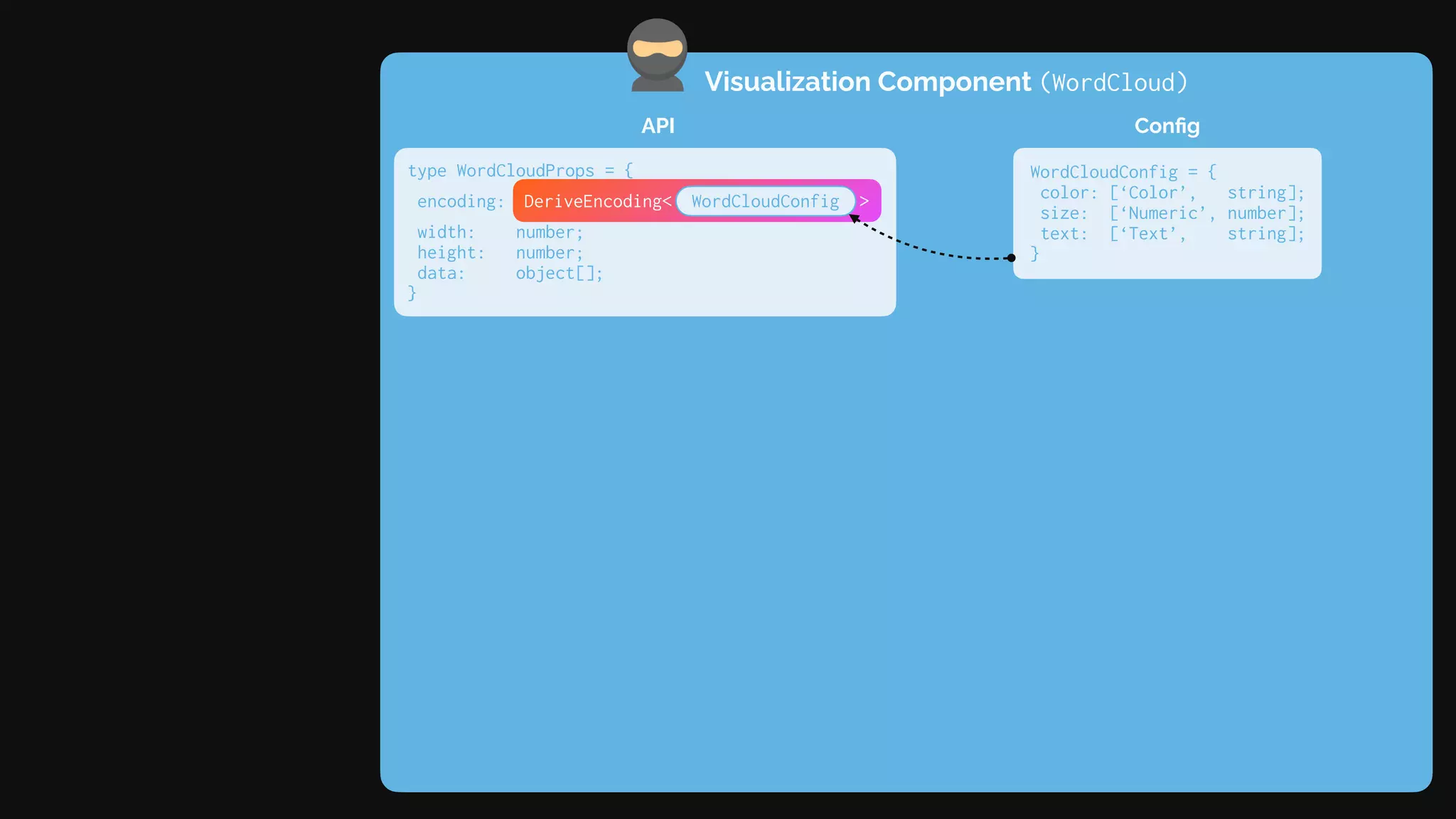

59. Visualization Component (WordCloud)
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >

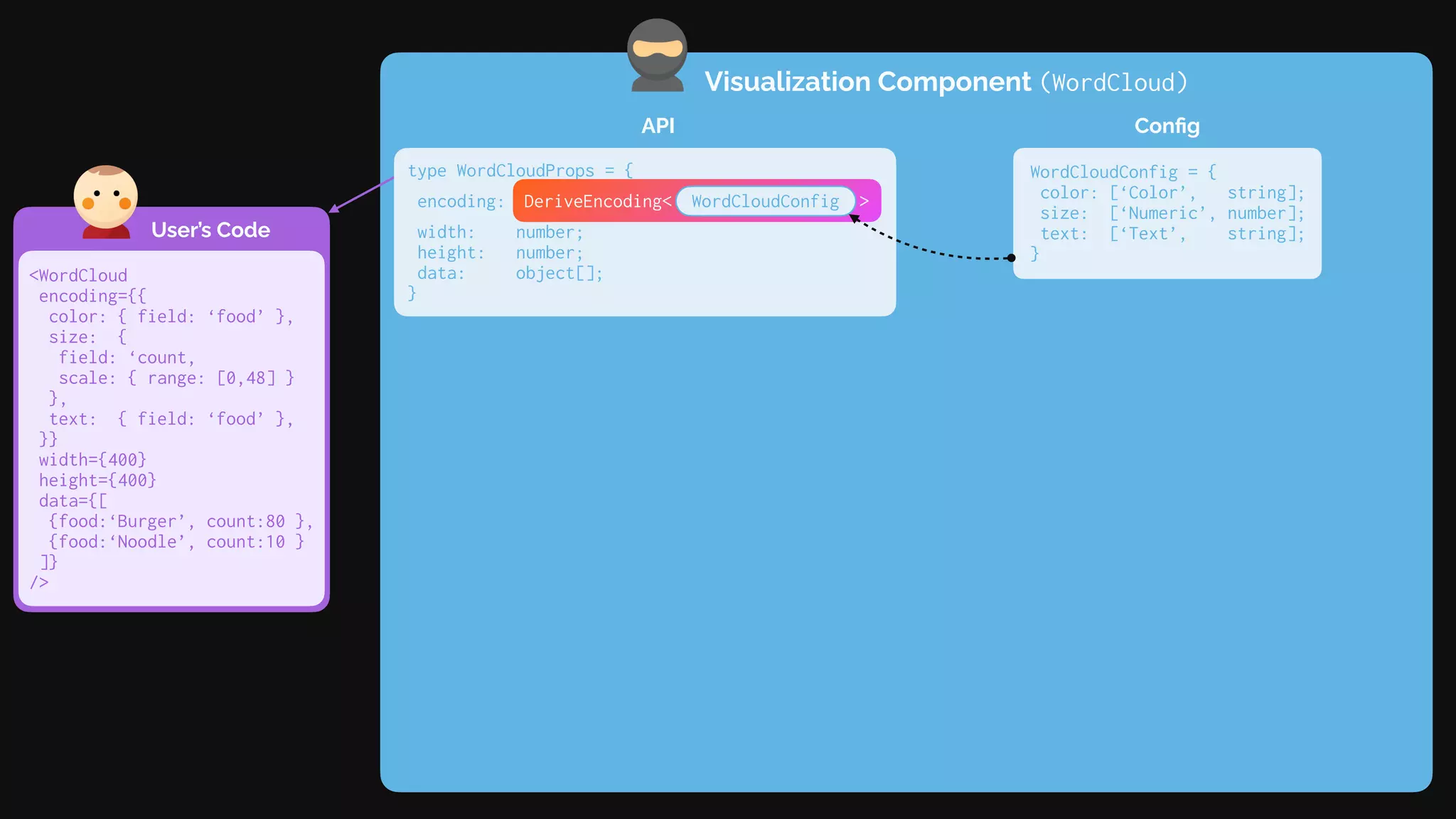

60. Visualization Component (WordCloud)
User’s Code
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
<WordCloud
encoding={{
color: { field: ‘food’ },
size: {
field: ‘count,
scale: { range: [0,48] }
},
text: { field: ‘food’ },
}}
width={400}
height={400}
data={[
{food:‘Burger’, count:80 },
{food:‘Noodle’, count:10 }
]}
/>
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >

61. Visualization Component (WordCloud)
User’s Code
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
Rendering
function WordCloud({
width, height, data , encoding
}: WordCloudProps) {
const encoder =
encoder.setDomainFromDataset( data );
const channels = encoder.channels;
return (<div style={{ width , height }}>
{ data .map(d => (<span style={{
color: channels.color.encodeDatum(d),
fontSize: channels.size.encodeDatum(d),
}}>
{channels.text.getValueFromDatum(d)}
</span>))}
</div>);
}
<WordCloud
encoding={{
color: { field: ‘food’ },
size: {
field: ‘count,
scale: { range: [0,48] }
},
text: { field: ‘food’ },
}}
width={400}
height={400}
data={[
{food:‘Burger’, count:80 },
{food:‘Noodle’, count:10 }
]}
/>
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >

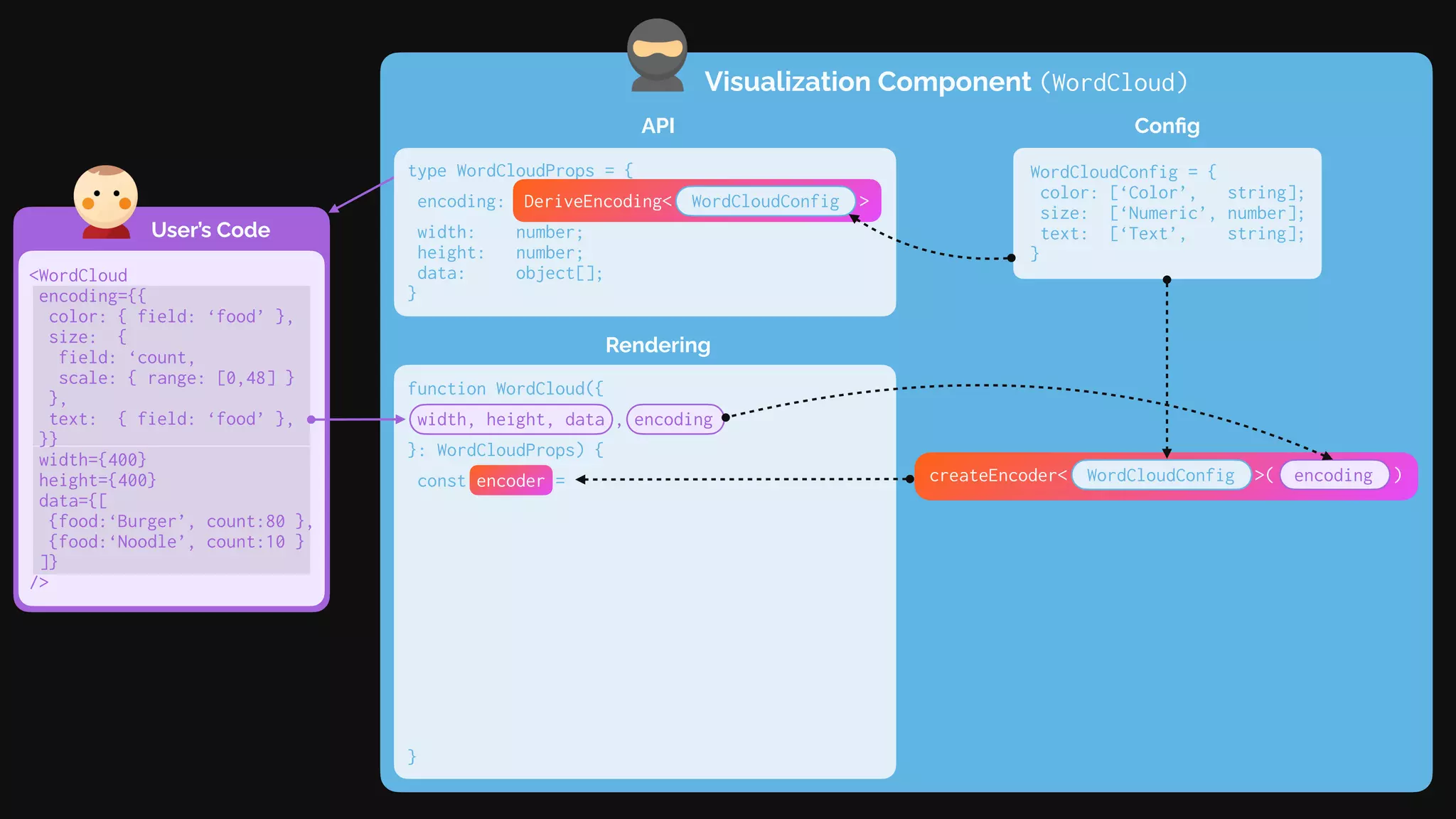

62. Visualization Component (WordCloud)
User’s Code
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
Rendering
function WordCloud({
width, height, data , encoding
}: WordCloudProps) {
const encoder =
encoder.setDomainFromDataset( data );
const channels = encoder.channels;
return (<div style={{ width , height }}>
{ data .map(d => (<span style={{
color: channels.color.encodeDatum(d),
fontSize: channels.size.encodeDatum(d),
}}>
{channels.text.getValueFromDatum(d)}
</span>))}
</div>);
}
<WordCloud
encoding={{
color: { field: ‘food’ },
size: {
field: ‘count,
scale: { range: [0,48] }
},
text: { field: ‘food’ },
}}
width={400}
height={400}
data={[
{food:‘Burger’, count:80 },
{food:‘Noodle’, count:10 }
]}
/>
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >
createEncoder< WordCloudConfig >( encoding )

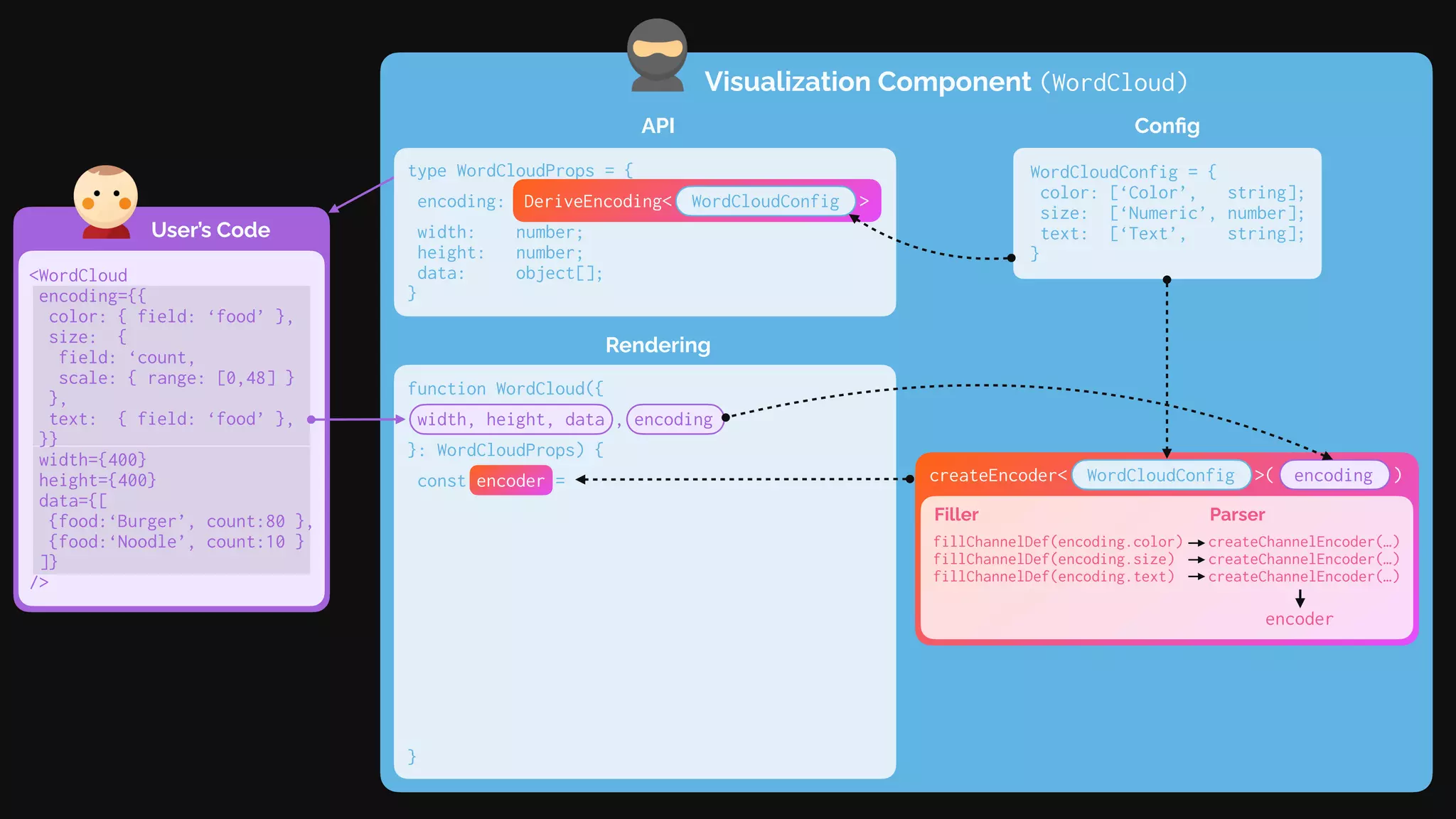

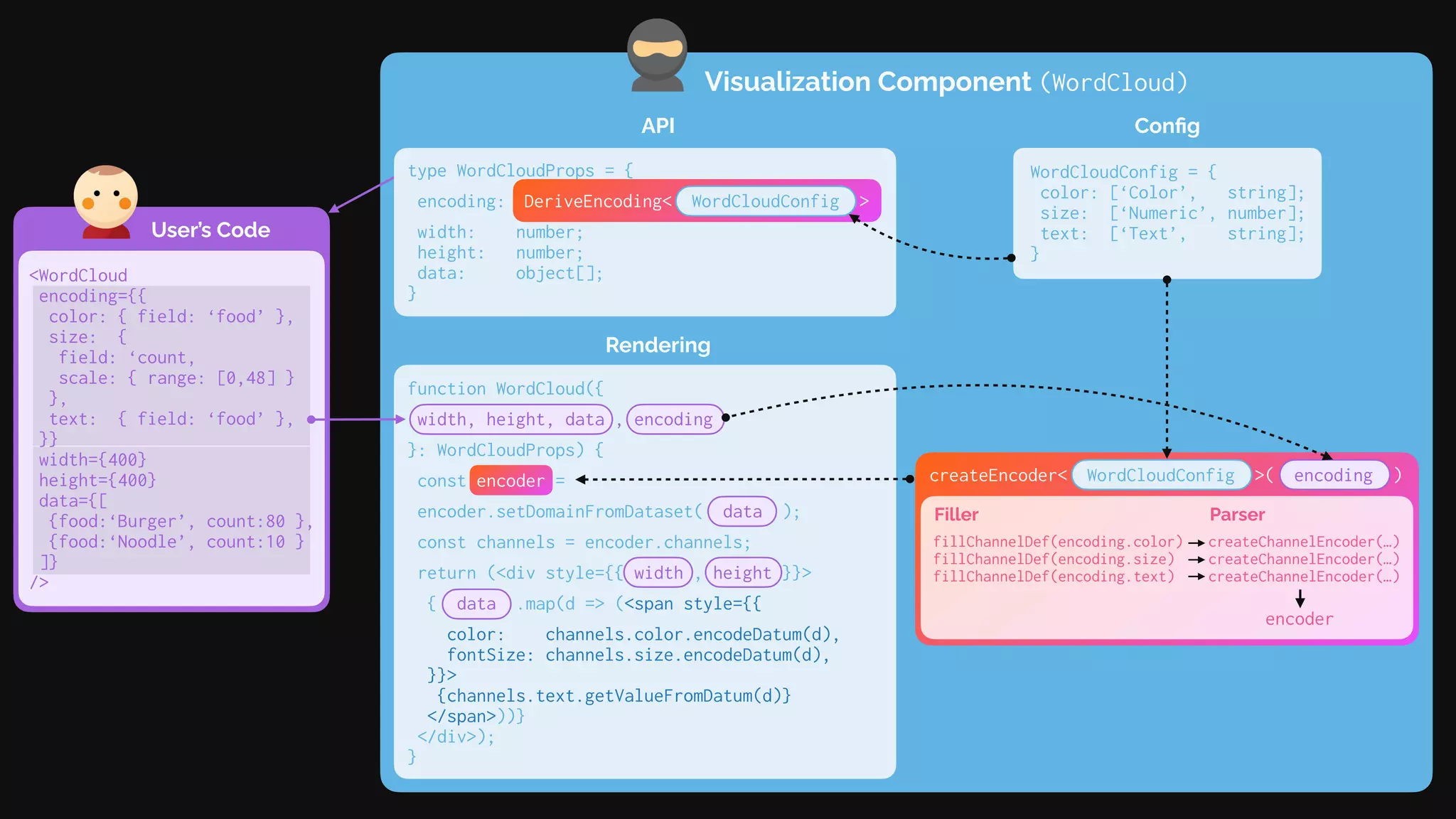

63. Visualization Component (WordCloud)
User’s Code
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
Rendering
function WordCloud({
width, height, data , encoding
}: WordCloudProps) {
const encoder =
encoder.setDomainFromDataset( data );
const channels = encoder.channels;
return (<div style={{ width , height }}>
{ data .map(d => (<span style={{
color: channels.color.encodeDatum(d),
fontSize: channels.size.encodeDatum(d),
}}>
{channels.text.getValueFromDatum(d)}
</span>))}
</div>);
}
<WordCloud
encoding={{
color: { field: ‘food’ },
size: {
field: ‘count,
scale: { range: [0,48] }
},
text: { field: ‘food’ },
}}
width={400}
height={400}
data={[
{food:‘Burger’, count:80 },
{food:‘Noodle’, count:10 }
]}
/>
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >
createEncoder< WordCloudConfig >( encoding )
fillChannelDef(encoding.color) createChannelEncoder(…)
fillChannelDef(encoding.size) createChannelEncoder(…)
fillChannelDef(encoding.text) createChannelEncoder(…)
Filler Parser
encoder

64. Visualization Component (WordCloud)
User’s Code
API
type WordCloudProps = {
encoding:
width: number;
height: number;
data: object[];
}
Rendering
function WordCloud({
width, height, data , encoding
}: WordCloudProps) {
const encoder =
encoder.setDomainFromDataset( data );
const channels = encoder.channels;
return (<div style={{ width , height }}>
{ data .map(d => (<span style={{
color: channels.color.encodeDatum(d),
fontSize: channels.size.encodeDatum(d),
}}>
{channels.text.getValueFromDatum(d)}
</span>))}
</div>);
}
<WordCloud
encoding={{
color: { field: ‘food’ },
size: {
field: ‘count,
scale: { range: [0,48] }
},
text: { field: ‘food’ },
}}
width={400}
height={400}
data={[
{food:‘Burger’, count:80 },
{food:‘Noodle’, count:10 }
]}
/>
Config
WordCloudConfig = {
color: [‘Color’, string];
size: [‘Numeric’, number];
text: [‘Text’, string];
}
DeriveEncoding< WordCloudConfig >
createEncoder< WordCloudConfig >( encoding )
fillChannelDef(encoding.color) createChannelEncoder(…)
fillChannelDef(encoding.size) createChannelEncoder(…)
fillChannelDef(encoding.text) createChannelEncoder(…)
Filler Parser
encoder

65. Solution
Inspiration
Results
Conclusions
Motivation

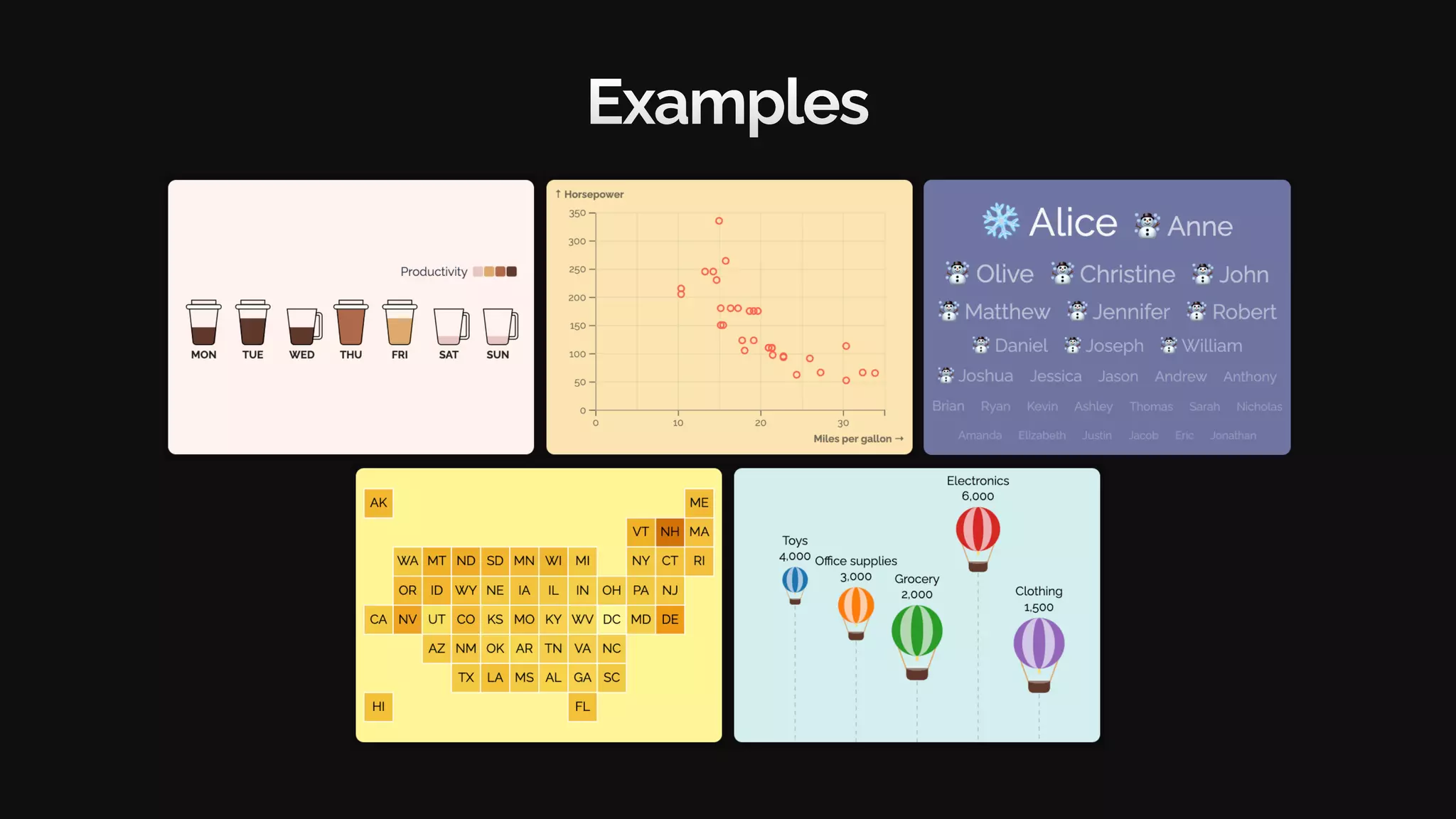

66. Examples

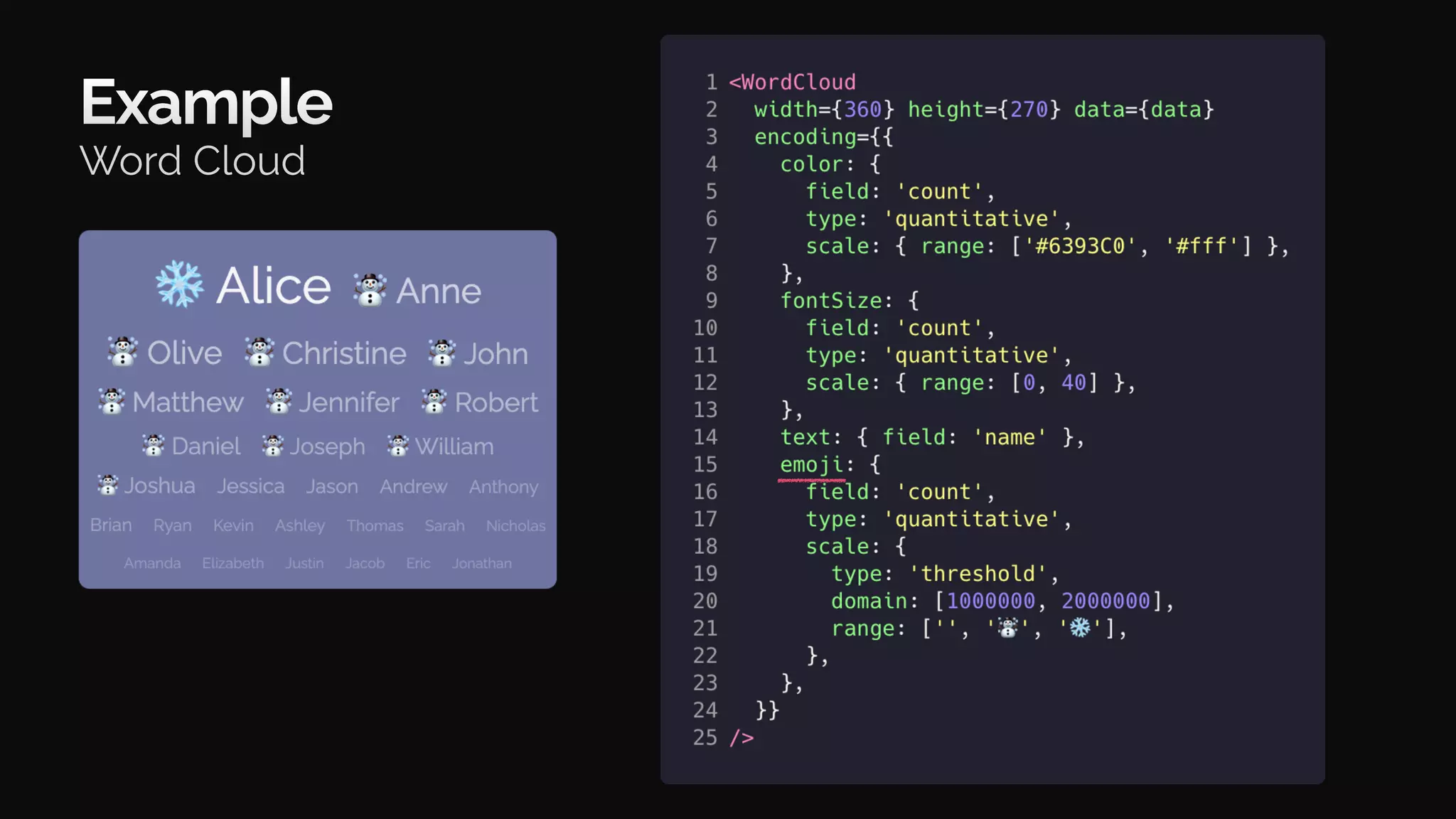

67. Example
Word Cloud

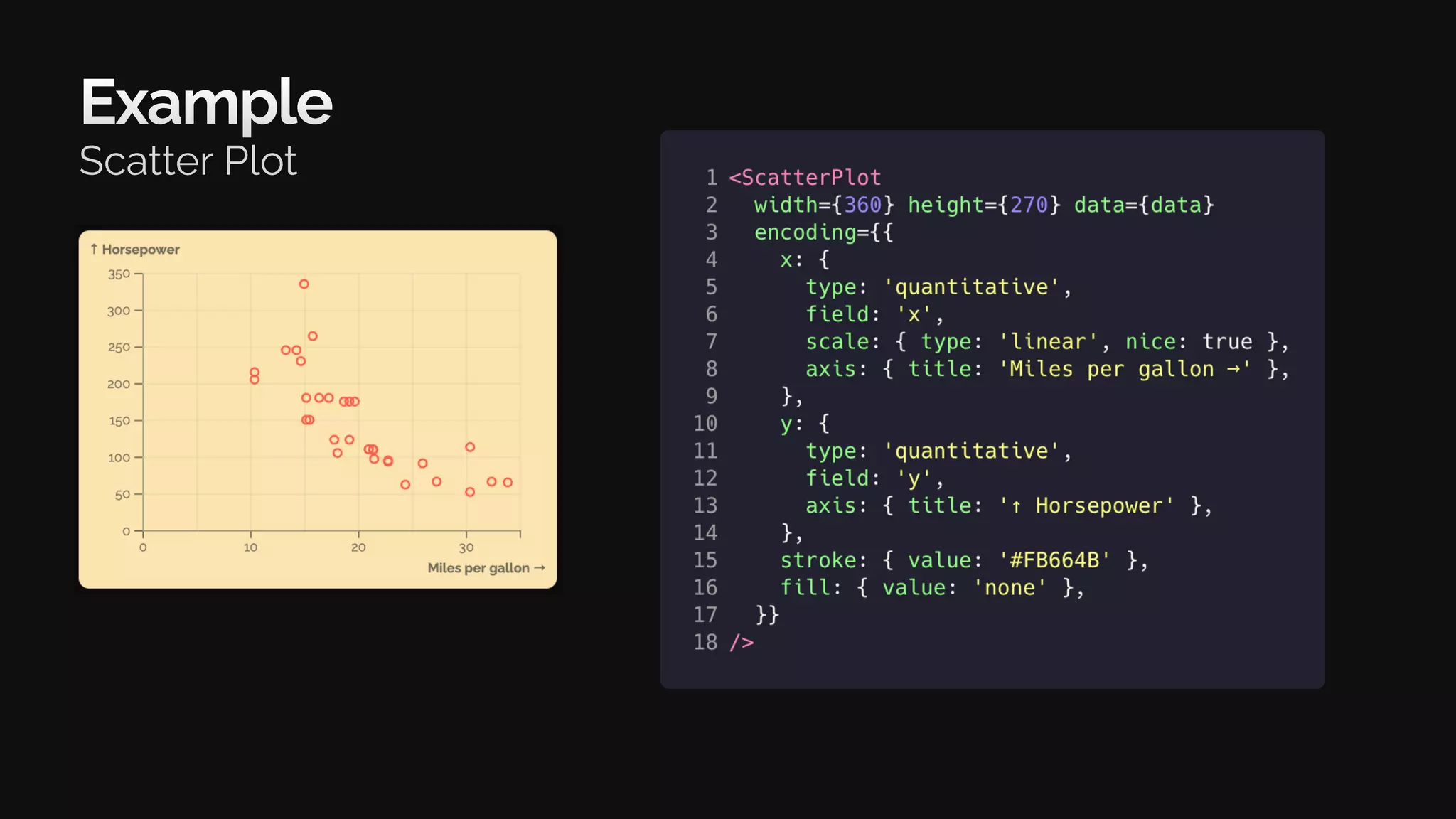

68. Example
Scatter Plot

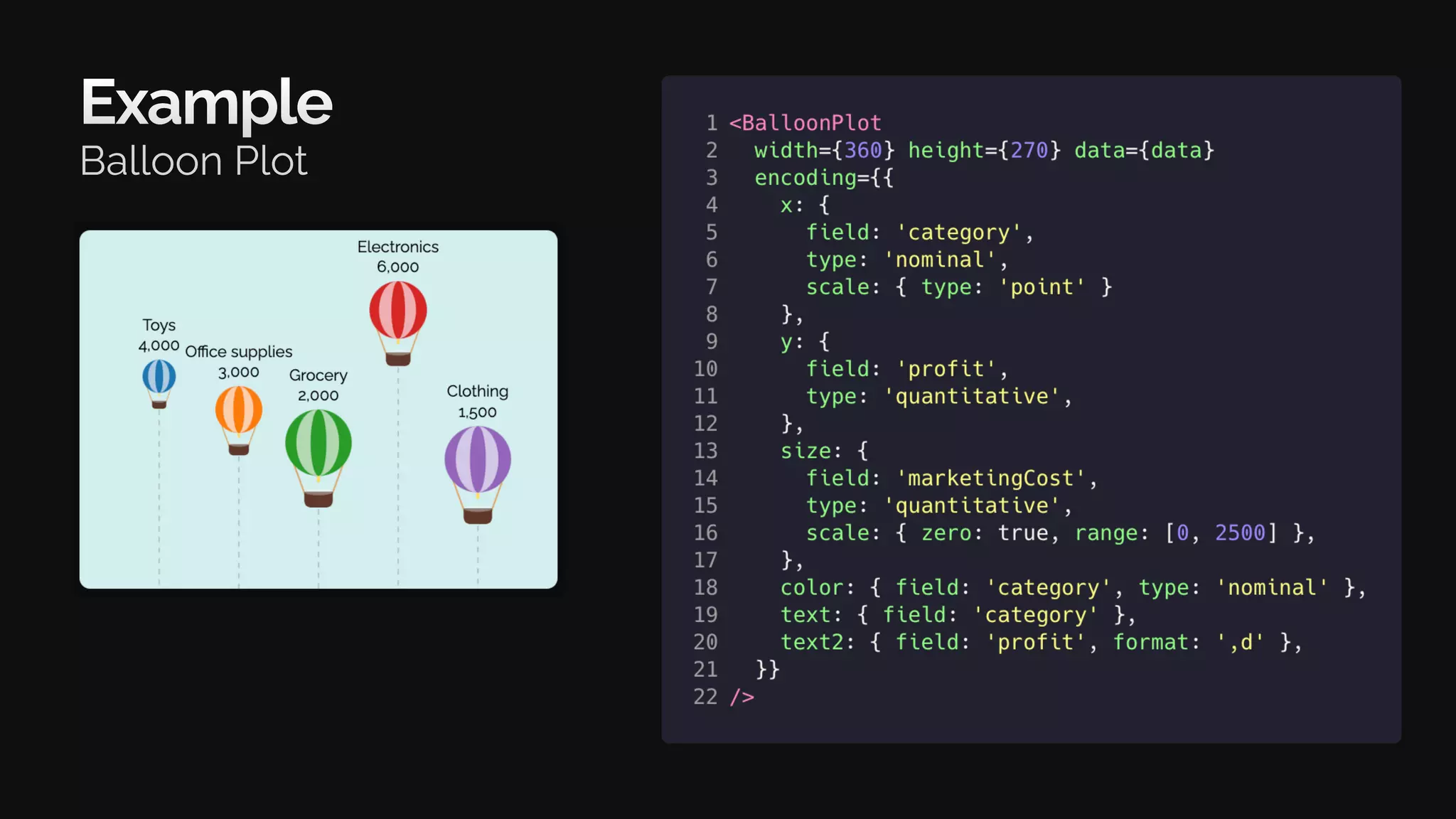

69. Example
Balloon Plot

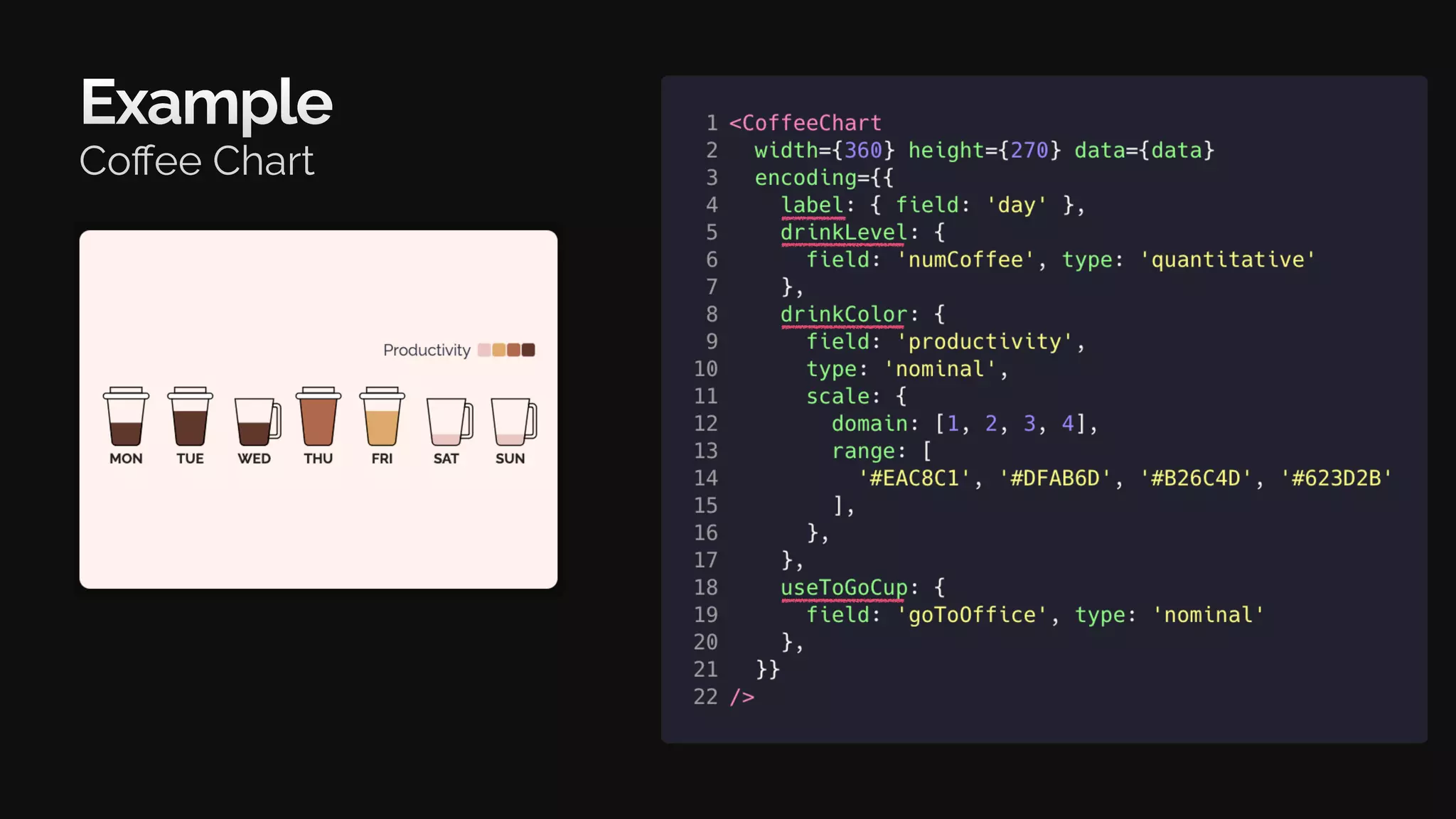

70. Example
Coffee Chart

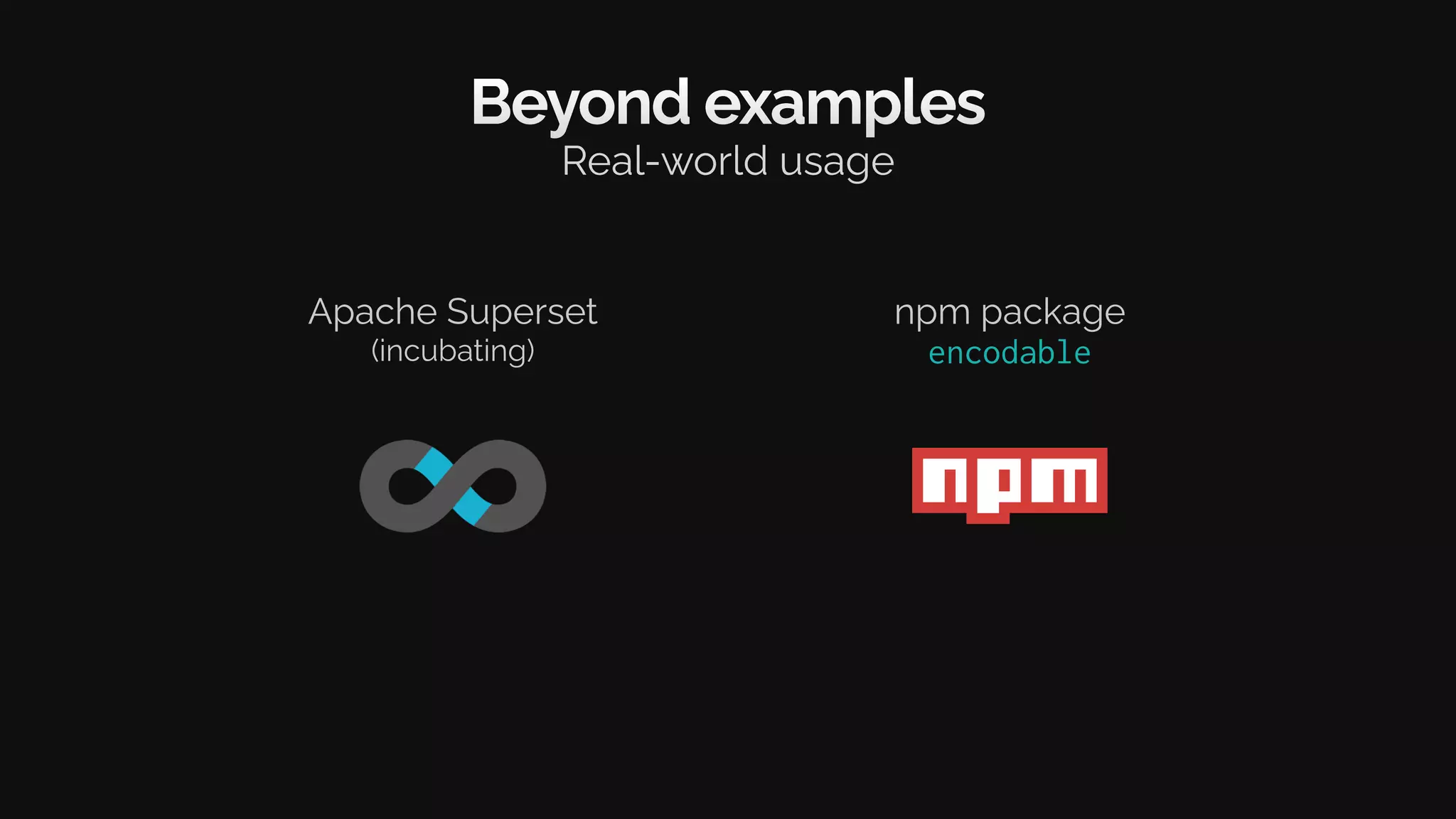

71. Beyond examples
Real-world usage
Apache Superset
(incubating)
npm package
encodable

72. Solution
Inspiration
Results
Conclusions
Motivation

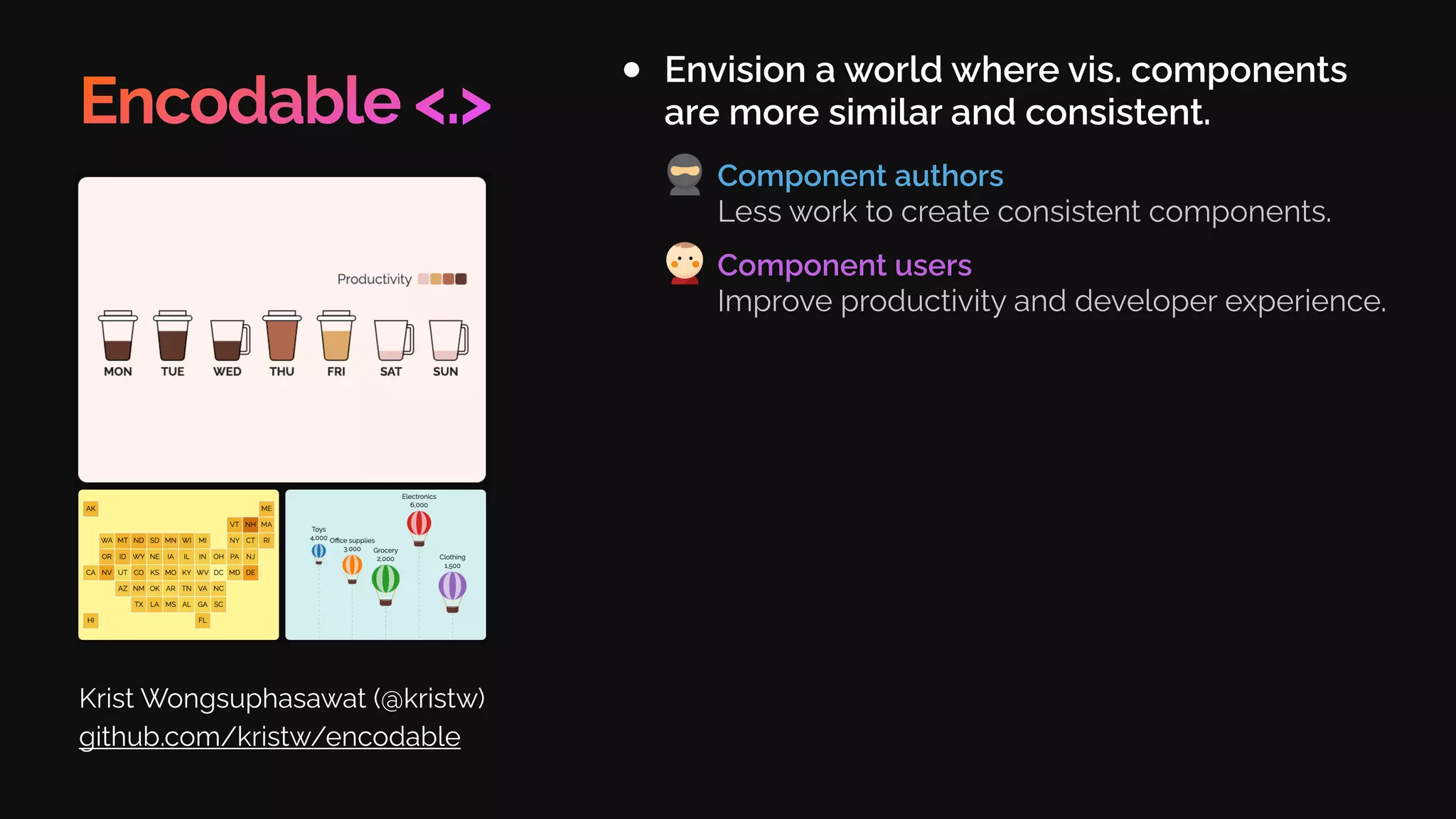

73. Encodable <.>
Envision a world where vis. components
are more similar and consistent.
Krist Wongsuphasawat (@kristw)
github.com/kristw/encodable
Component authors
Less work to create consistent components.
Component users
Improve productivity and developer experience.

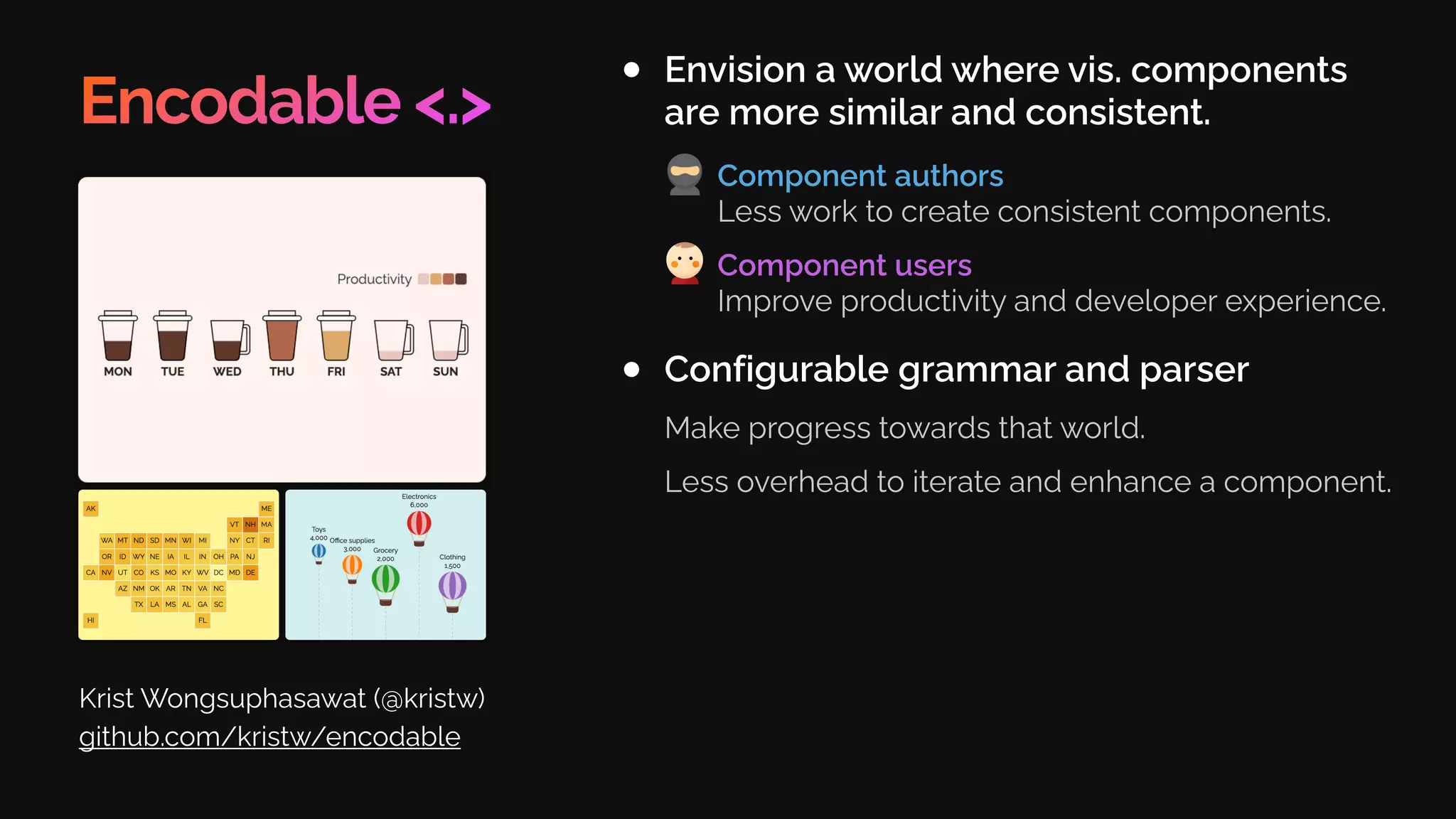

74. Encodable <.>
Envision a world where vis. components
are more similar and consistent.
Krist Wongsuphasawat (@kristw)
github.com/kristw/encodable
Configurable grammar and parser
Make progress towards that world.
Less overhead to iterate and enhance a component.
Component authors
Less work to create consistent components.
Component users
Improve productivity and developer experience.

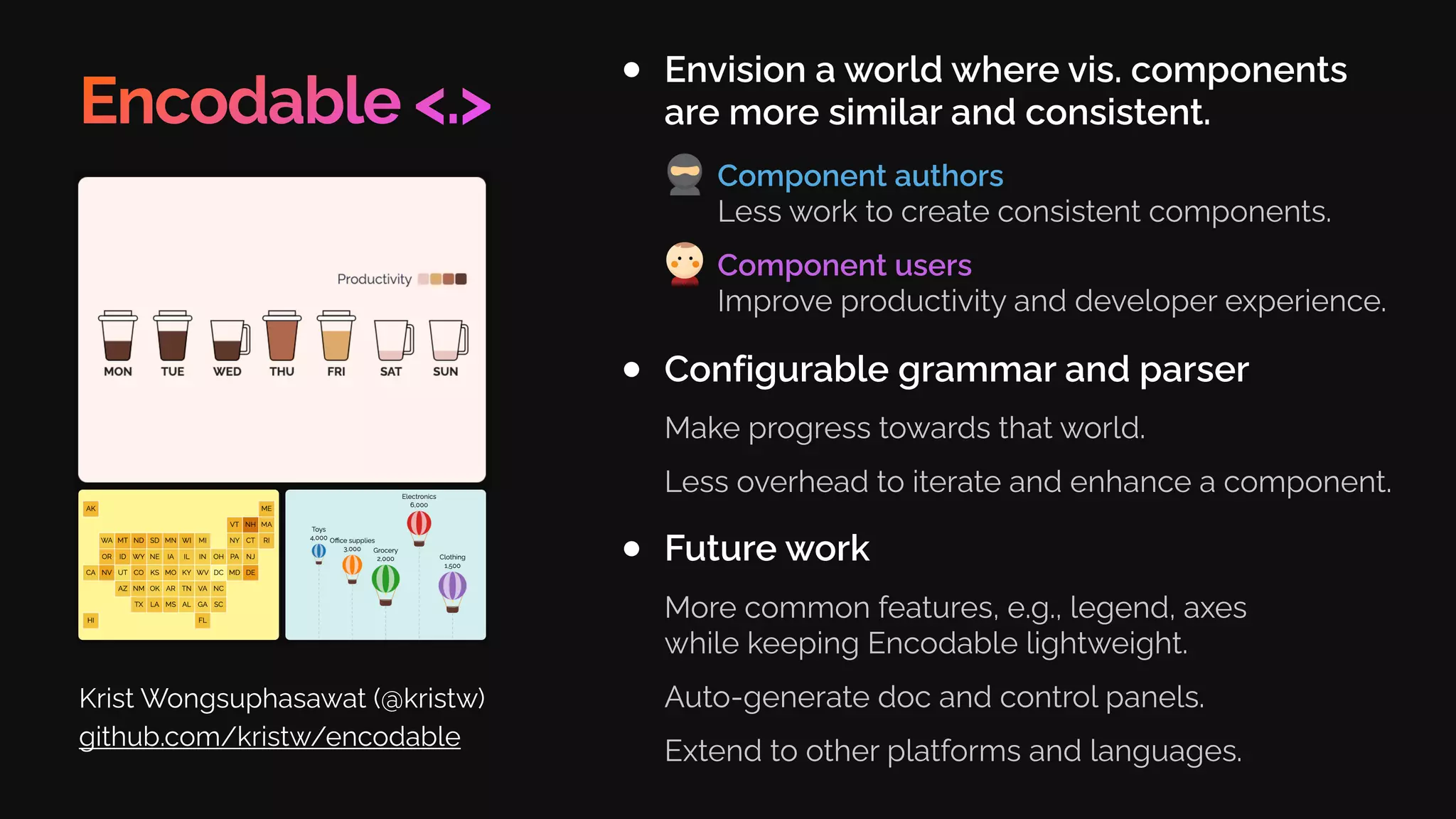

75. Encodable <.>
Envision a world where vis. components
are more similar and consistent.
Krist Wongsuphasawat (@kristw)
github.com/kristw/encodable
Configurable grammar and parser
Make progress towards that world.
Less overhead to iterate and enhance a component.
Future work
More common features, e.g., legend, axes
while keeping Encodable lightweight.
Auto-generate doc and control panels.
Extend to other platforms and languages.
Component authors
Less work to create consistent components.
Component users
Improve productivity and developer experience.

76. github.com/kristw/encodable

77. Acknowledgement
Kanit Wongsuphasawat
Dominik Moritz
Chris Williams
Airbnb Data Experience team
Benjawan Chanthaworakit

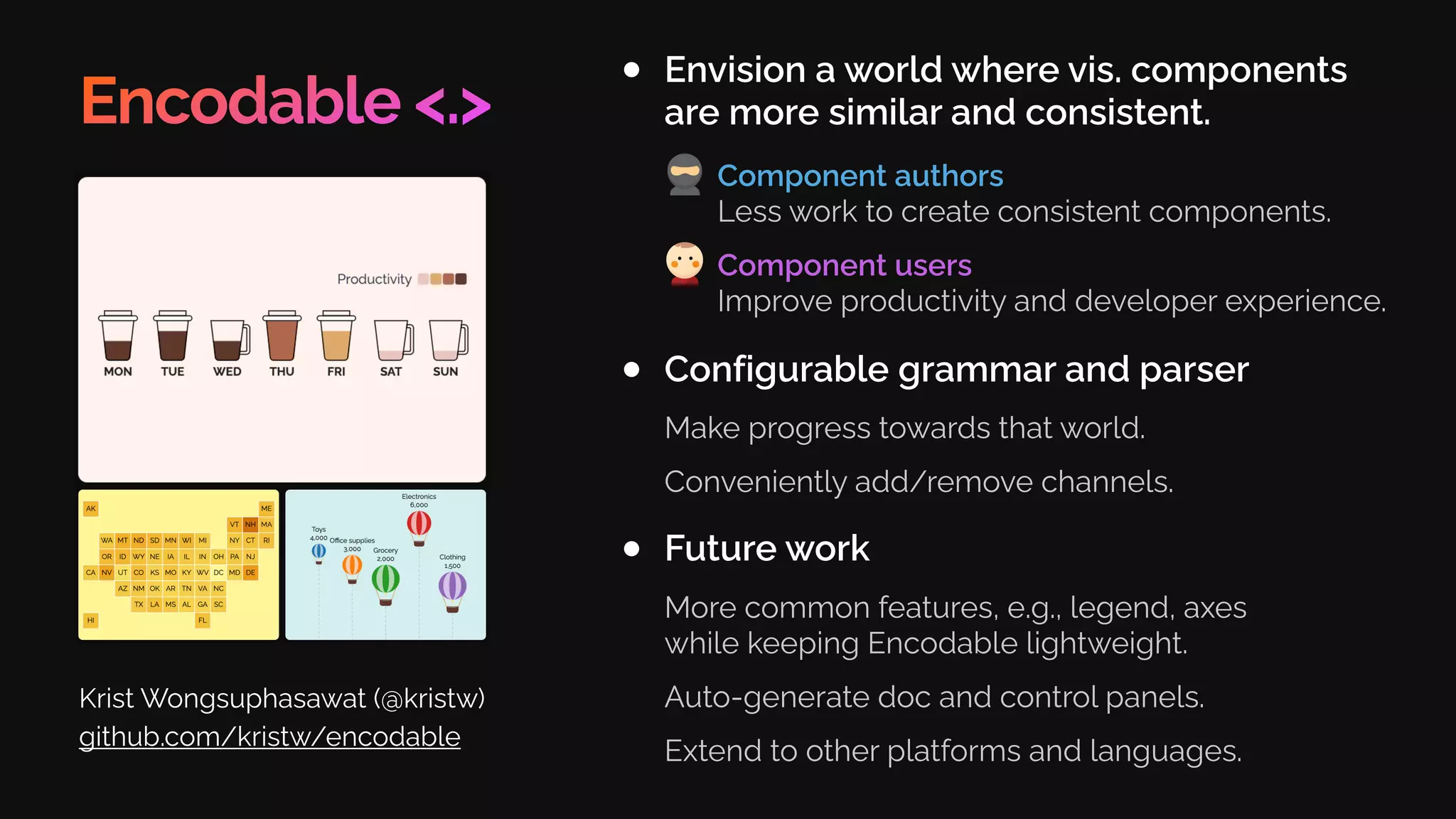

78. Encodable <.>
Envision a world where vis. components
are more similar and consistent.
Krist Wongsuphasawat (@kristw)
github.com/kristw/encodable
Configurable grammar and parser
Make progress towards that world.
Conveniently add/remove channels.
Future work
More common features, e.g., legend, axes
while keeping Encodable lightweight.
Auto-generate doc and control panels.
Extend to other platforms and languages.
Component authors
Less work to create consistent components.
Component users
Improve productivity and developer experience.

79. Thank you
