In this series I intend to simplify a beautiful branch of computer science that we as humans use it in everyday life without knowing. Pattern recognition is a sub-branch of the computer vision research and is tightly related to digital signal processing research as well as machine learning and artificial intelligence.

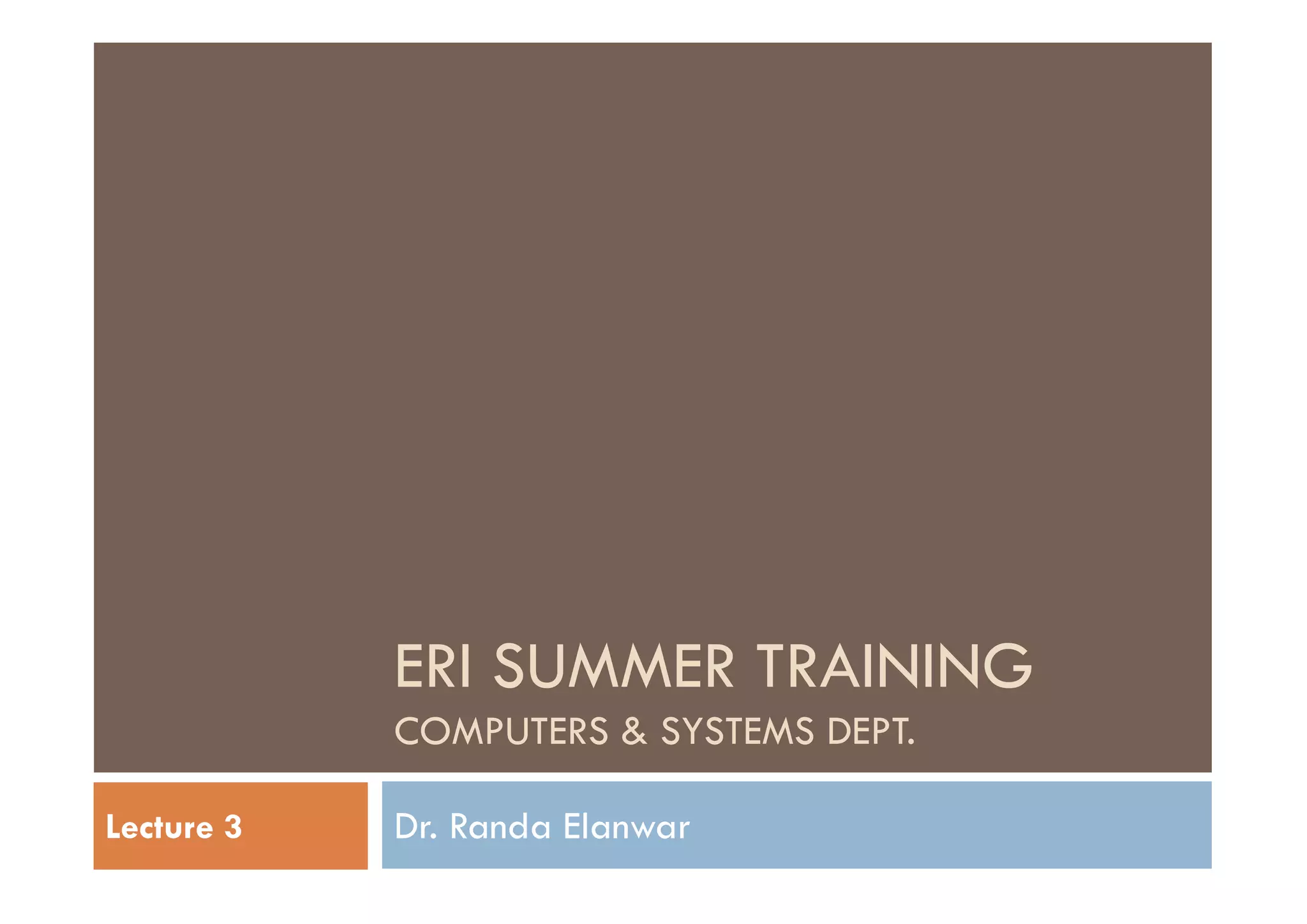

1. ERI SUMMER TRAINING
COMPUTERS & SYSTEMS DEPT.
Dr. Randa ElanwarLecture 3

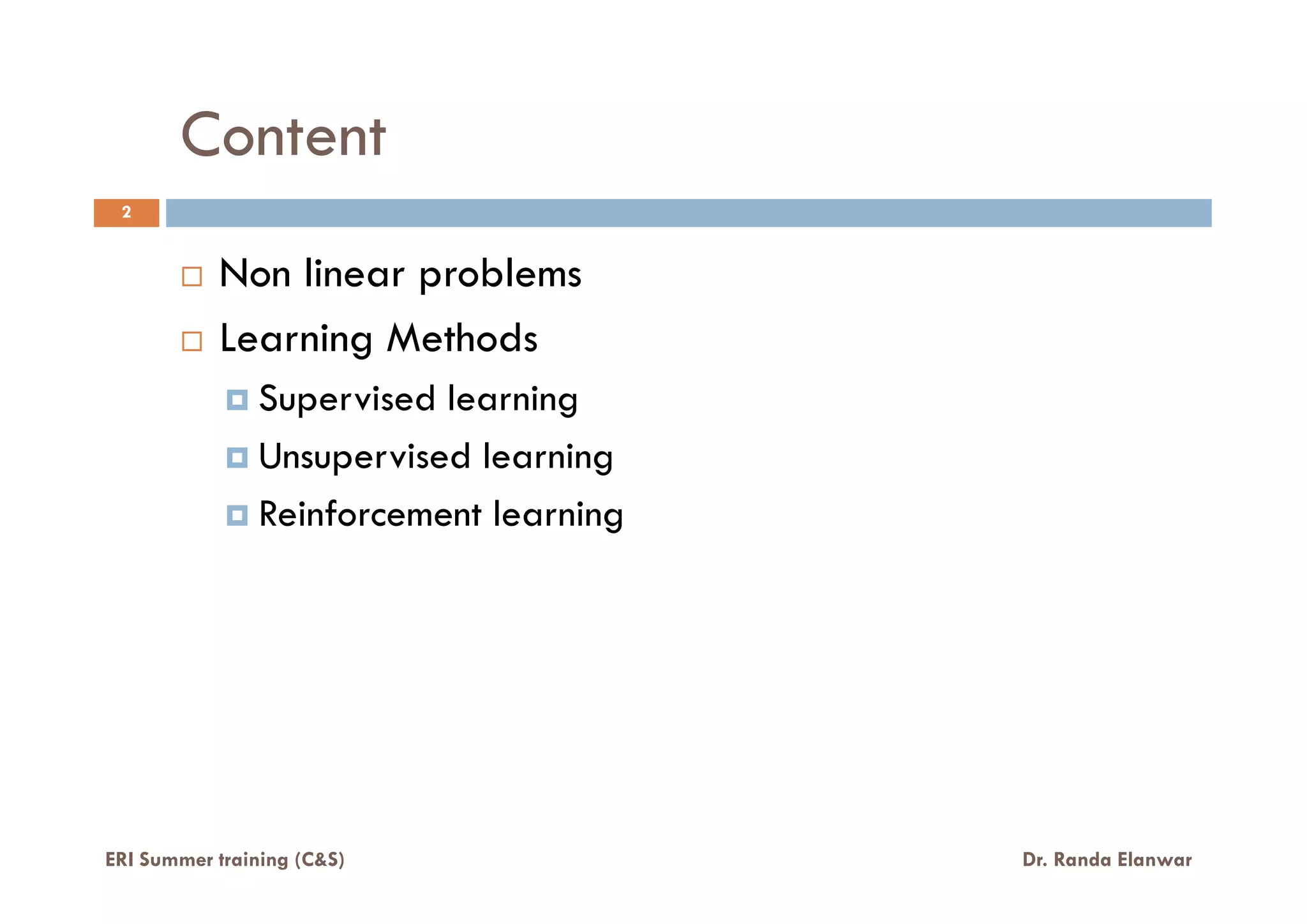

2. Content
Non linear problems
Learning Methods
Supervised learning
Unsupervised learning
2
ERI Summer training (C&S) Dr. Randa Elanwar
Unsupervised learning
Reinforcement learning

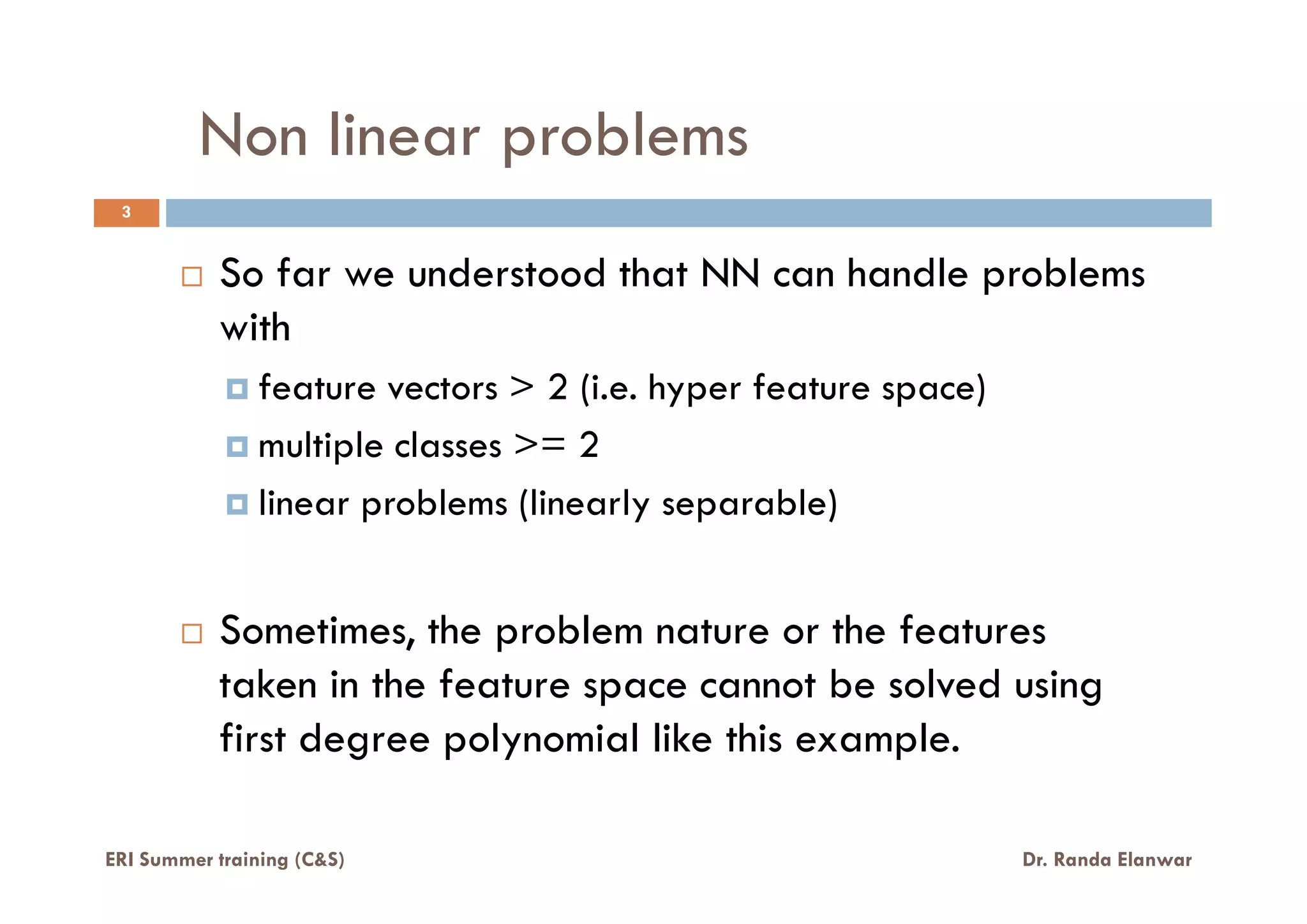

3. Non linear problems
3
So far we understood that NN can handle problems
with
feature vectors > 2 (i.e. hyper feature space)
multiple classes >= 2multiple classes >= 2
linear problems (linearly separable)
Sometimes, the problem nature or the features
taken in the feature space cannot be solved using
first degree polynomial like this example.
ERI Summer training (C&S) Dr. Randa Elanwar

4. Non linear problems

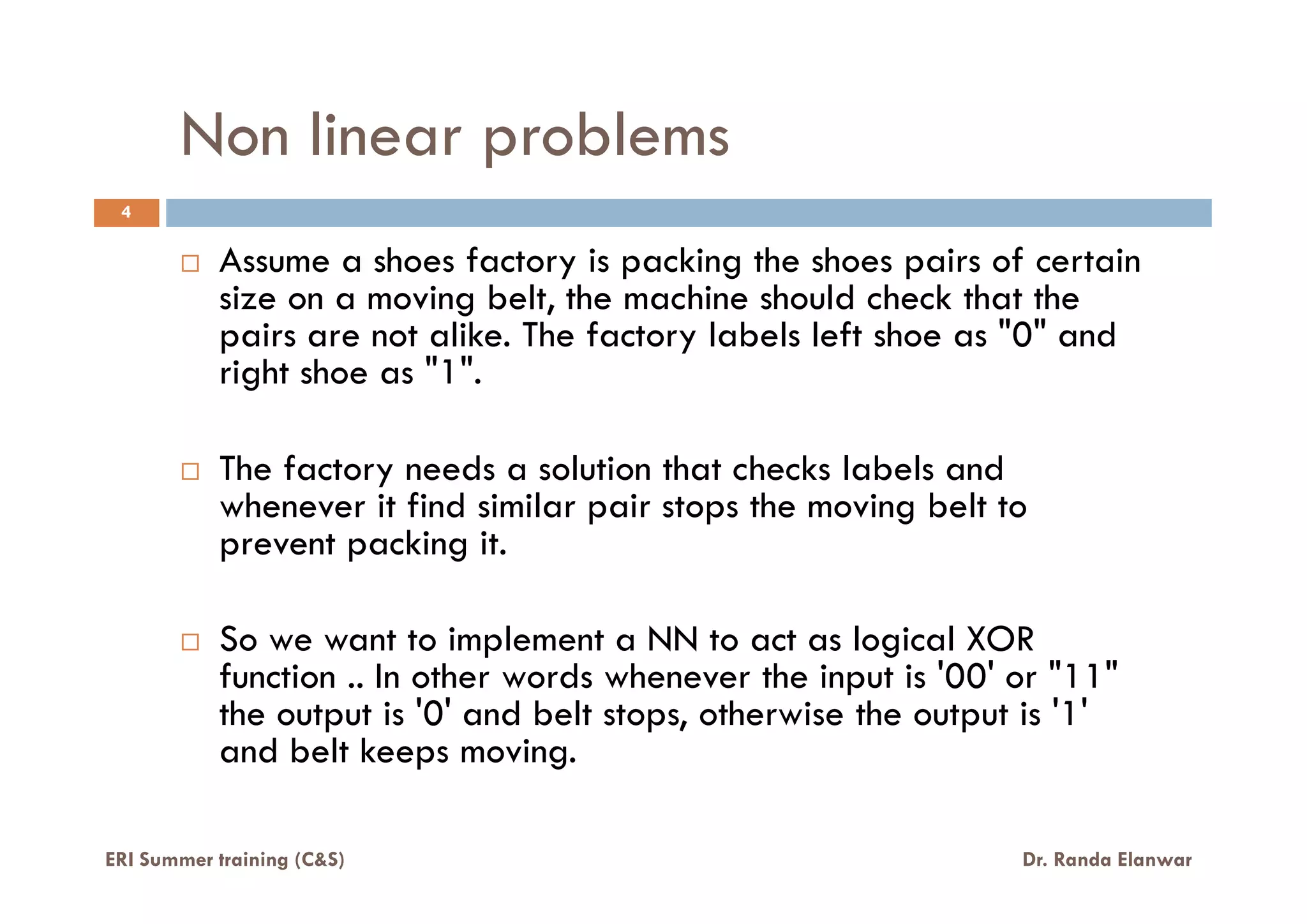

Assume a shoes factory is packing the shoes pairs of certain
size on a moving belt, the machine should check that the
pairs are not alike. The factory labels left shoe as "0" and
right shoe as "1".
The factory needs a solution that checks labels and
4
ERI Summer training (C&S) Dr. Randa Elanwar
The factory needs a solution that checks labels and
whenever it find similar pair stops the moving belt to
prevent packing it.
So we want to implement a NN to act as logical XOR
function .. In other words whenever the input is '00' or "11"
the output is '0' and belt stops, otherwise the output is '1'
and belt keeps moving.

5. Non linear problems
5

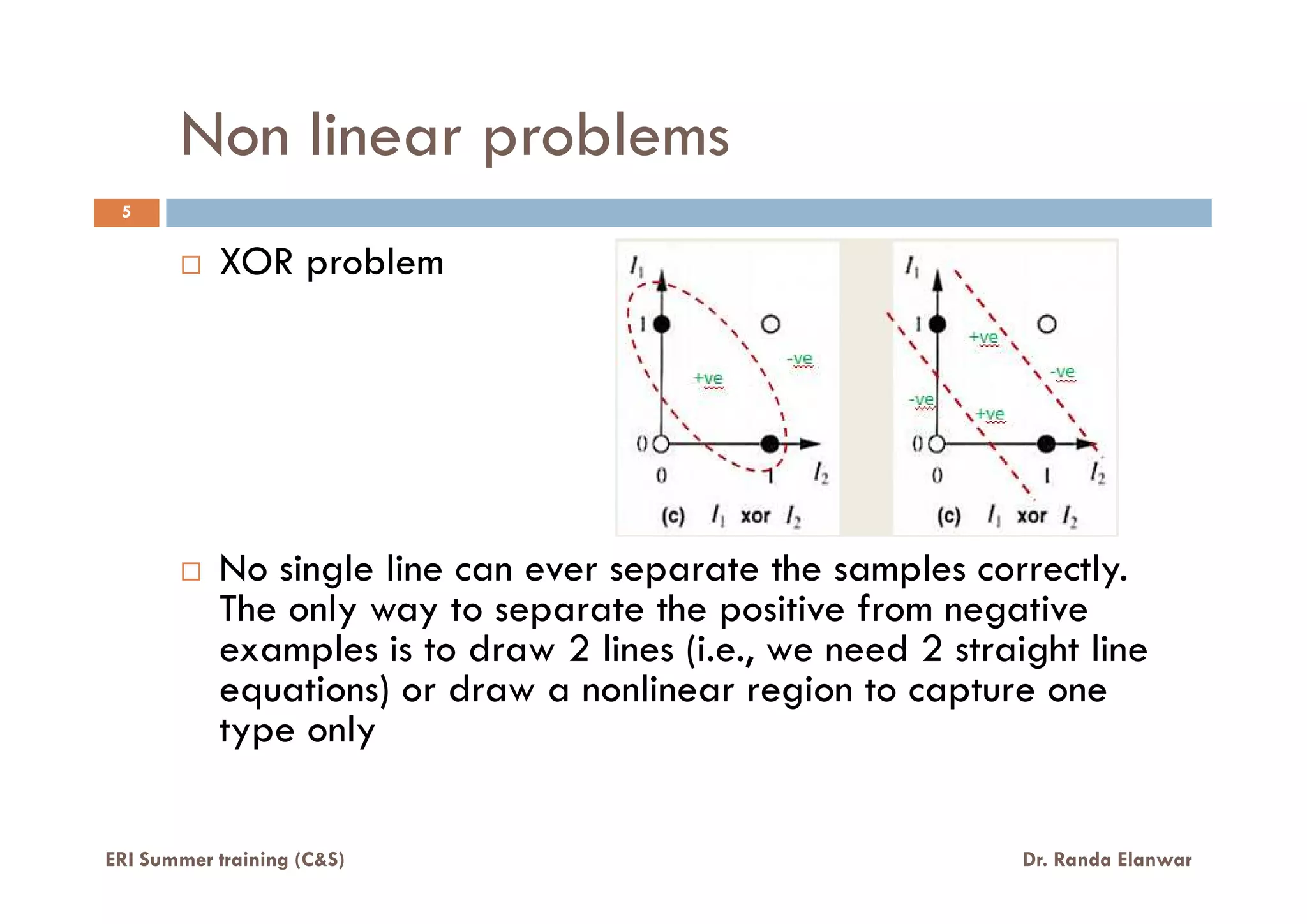

XOR problem
No single line can ever separate the samples correctly.
The only way to separate the positive from negative
examples is to draw 2 lines (i.e., we need 2 straight line
equations) or draw a nonlinear region to capture one
type only
ERI Summer training (C&S) Dr. Randa Elanwar

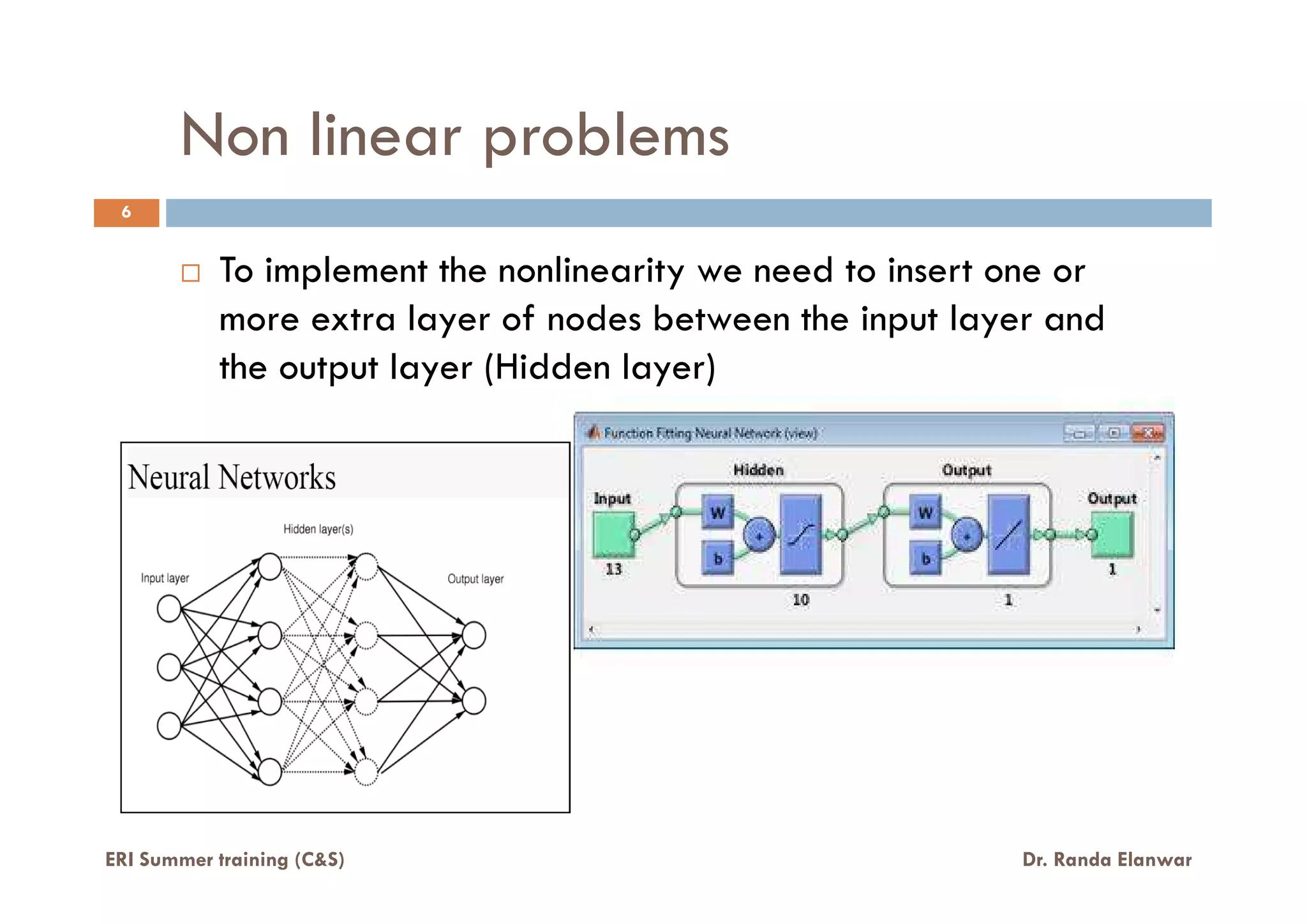

6. Non linear problems
To implement the nonlinearity we need to insert one or
more extra layer of nodes between the input layer and
the output layer (Hidden layer)
6
ERI Summer training (C&S) Dr. Randa Elanwar

7. Non linear problems
7

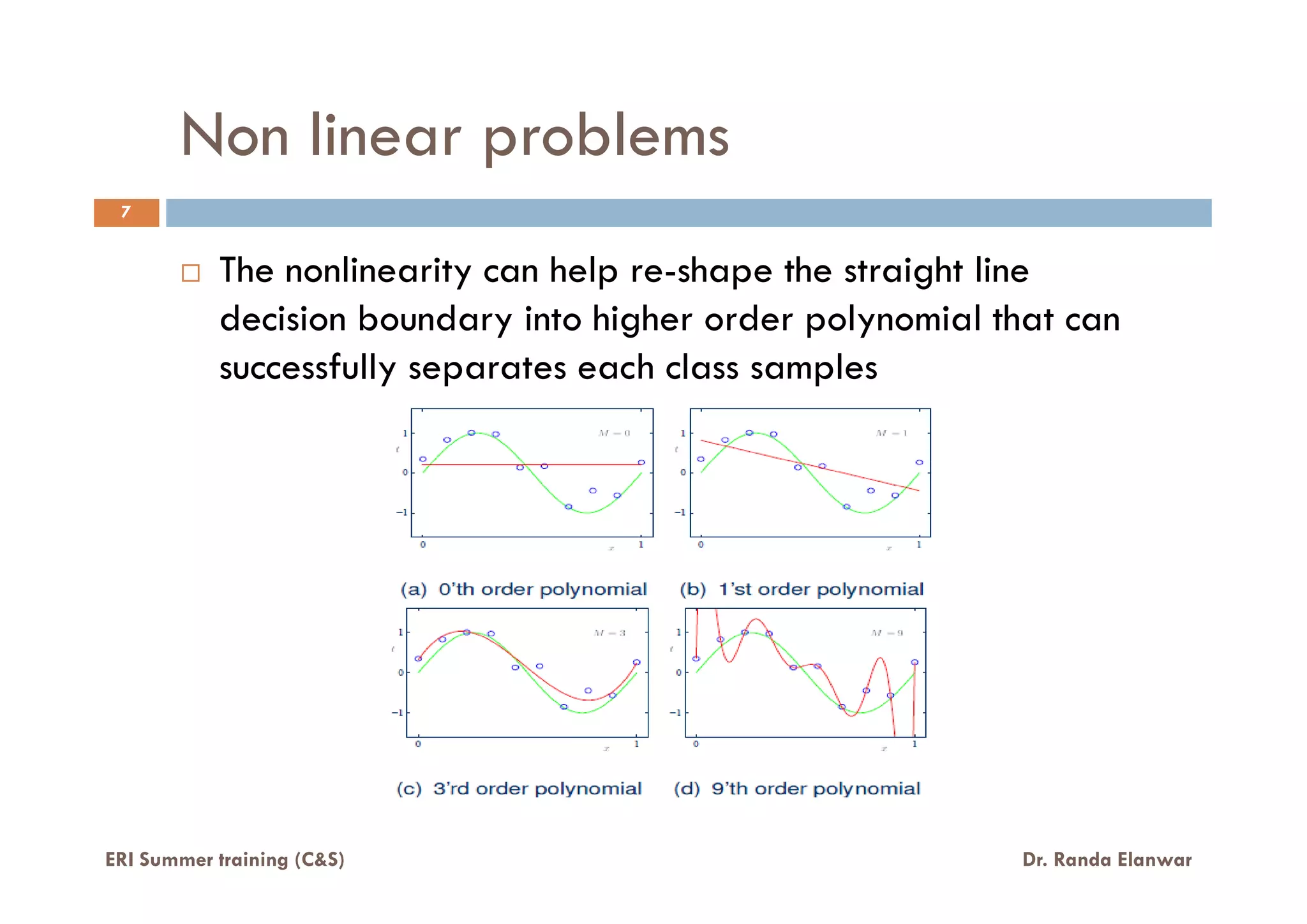

The nonlinearity can help re-shape the straight line
decision boundary into higher order polynomial that can
successfully separates each class samples
ERI Summer training (C&S) Dr. Randa Elanwar

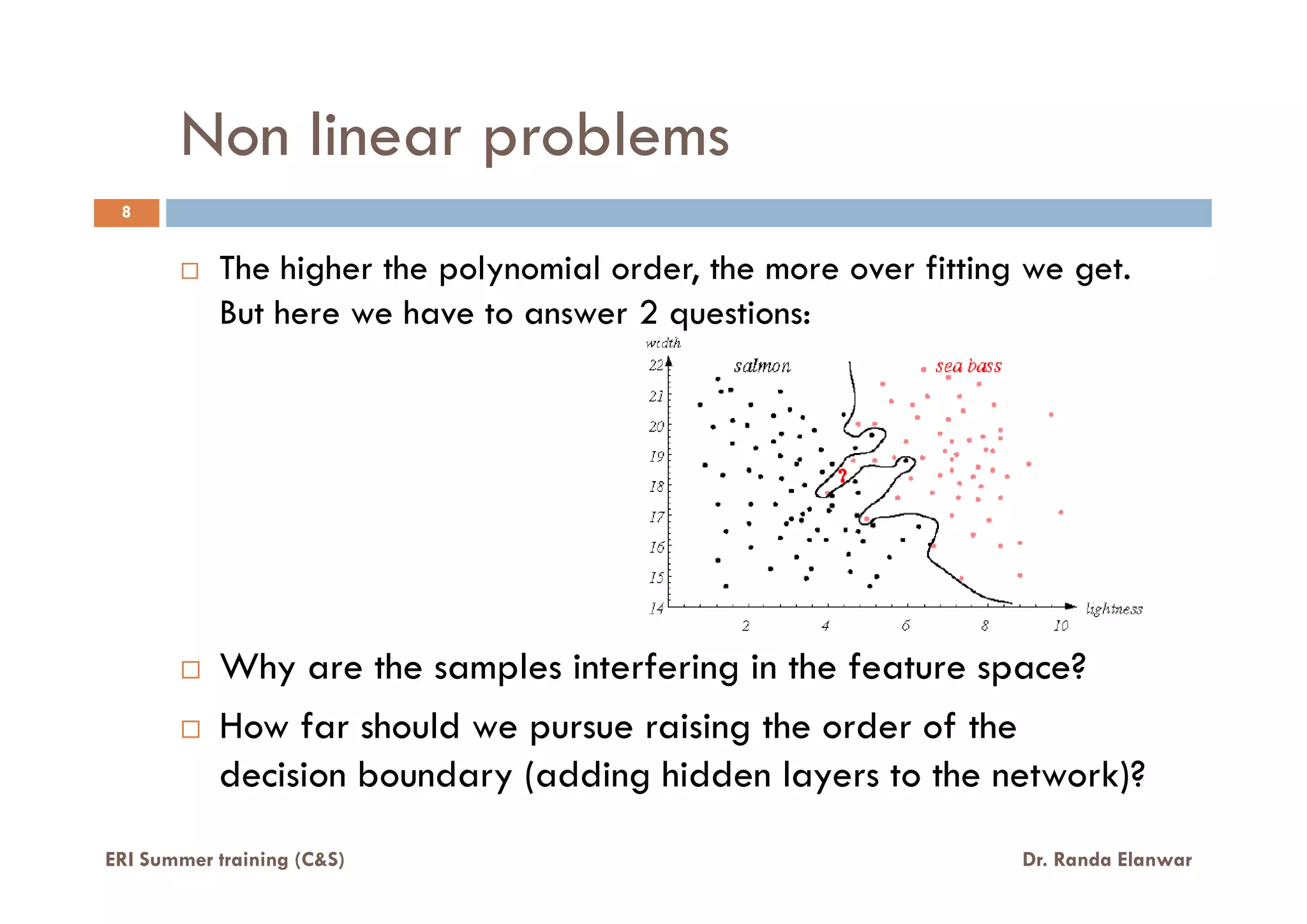

8. Non linear problems
The higher the polynomial order, the more over fitting we get.
But here we have to answer 2 questions:
8
ERI Summer training (C&S) Dr. Randa Elanwar
Why are the samples interfering in the feature space?
How far should we pursue raising the order of the
decision boundary (adding hidden layers to the network)?

9. Non linear problems
9

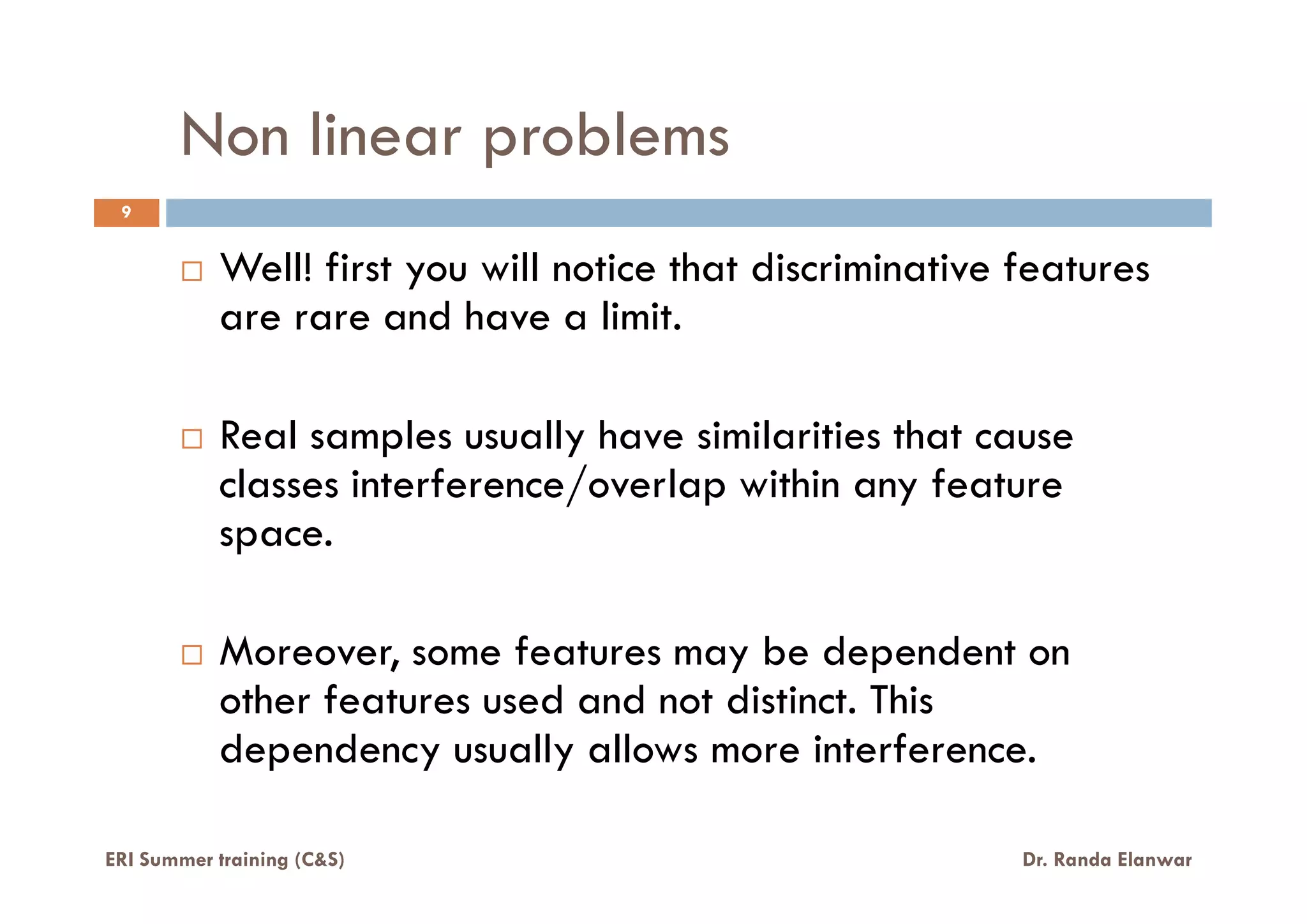

Well! first you will notice that discriminative features
are rare and have a limit.
Real samples usually have similarities that cause
classes interference/overlap within any featureclasses interference/overlap within any feature
space.
Moreover, some features may be dependent on
other features used and not distinct. This
dependency usually allows more interference.
ERI Summer training (C&S) Dr. Randa Elanwar

10. Non linear problems

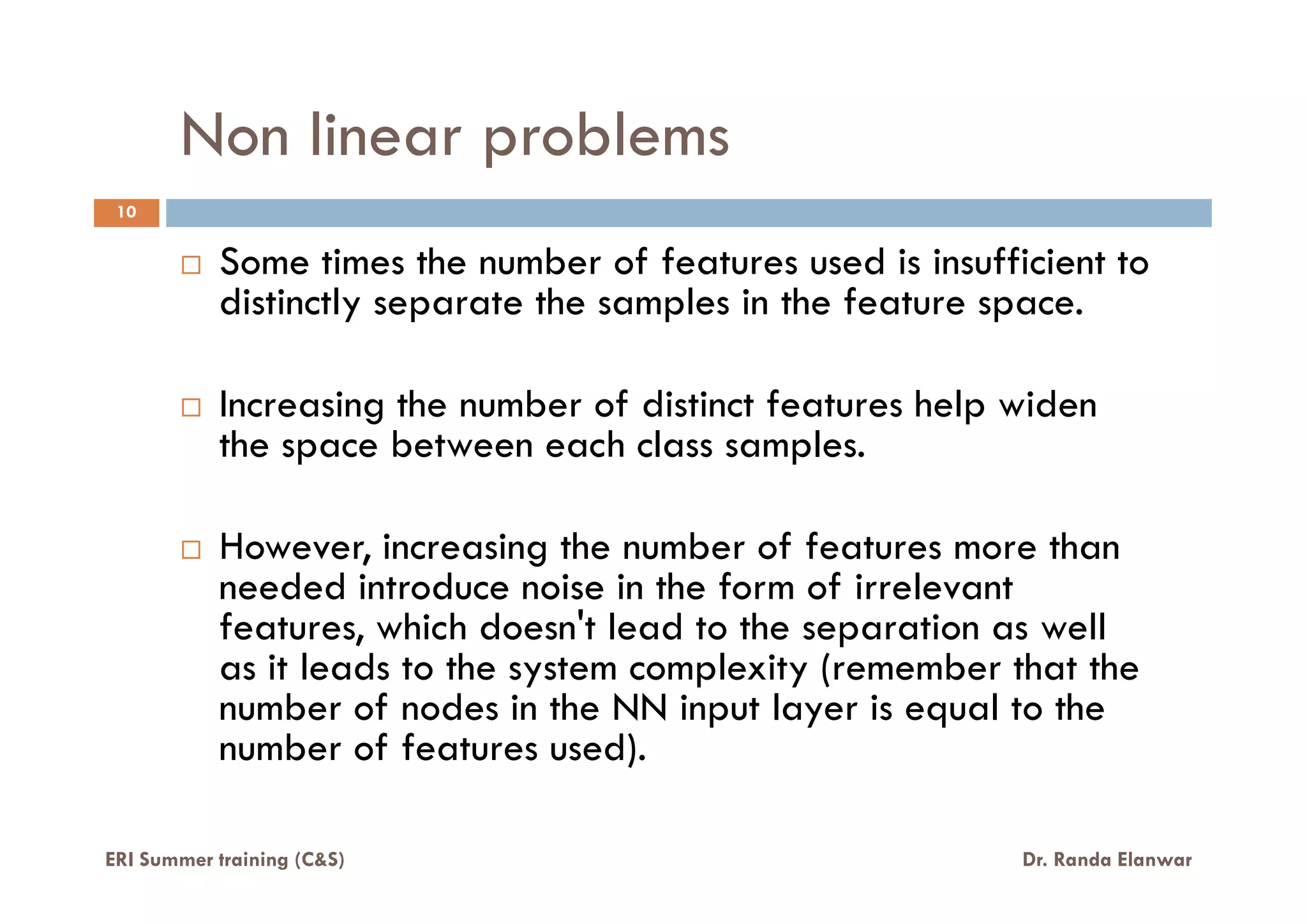

Some times the number of features used is insufficient to
distinctly separate the samples in the feature space.
Increasing the number of distinct features help widen
the space between each class samples.
10
ERI Summer training (C&S) Dr. Randa Elanwar
the space between each class samples.
However, increasing the number of features more than
needed introduce noise in the form of irrelevant
features, which doesn't lead to the separation as well
as it leads to the system complexity (remember that the
number of nodes in the NN input layer is equal to the
number of features used).

11. Non linear problems
11

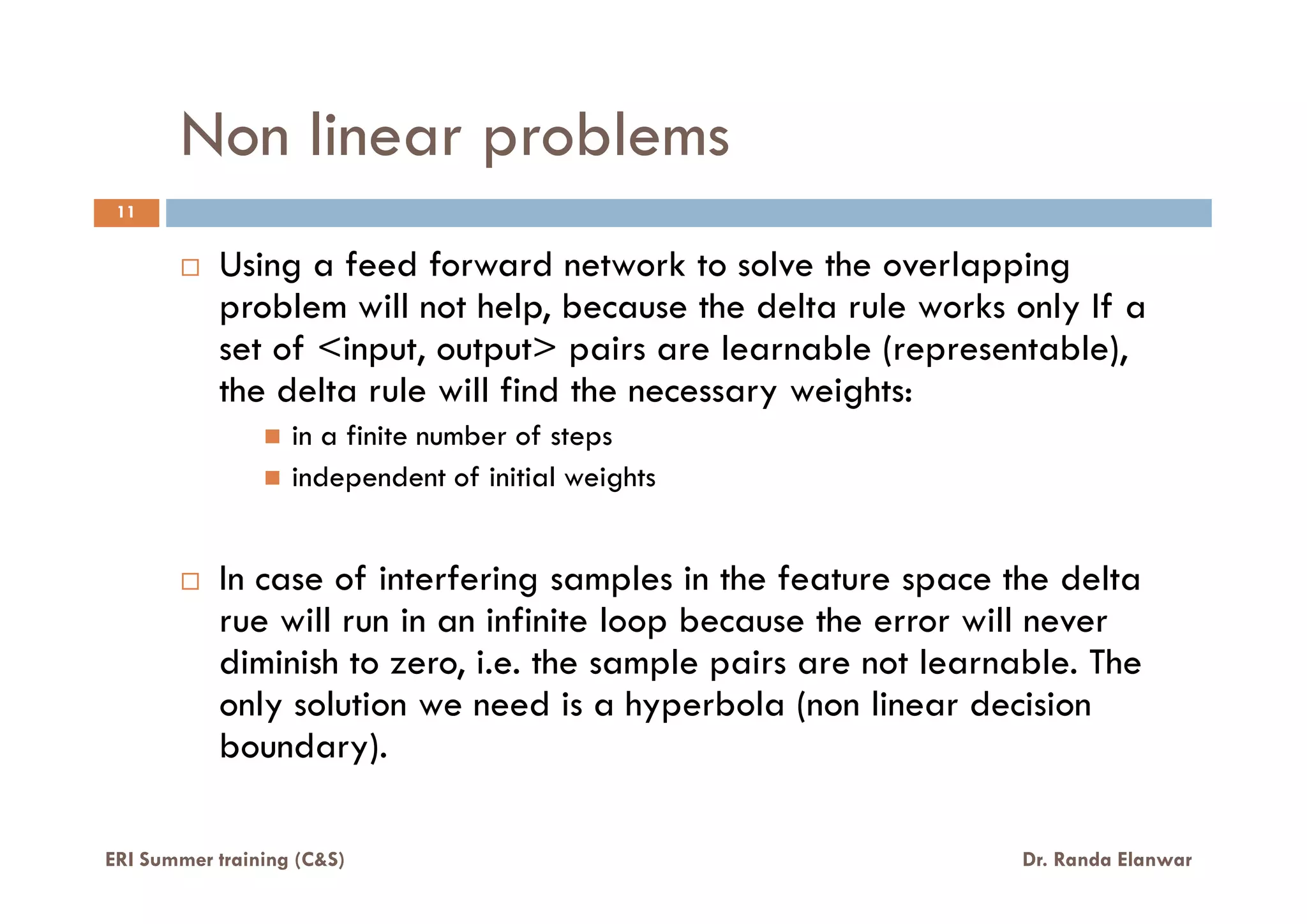

Using a feed forward network to solve the overlapping
problem will not help, because the delta rule works only If a
set of <input, output> pairs are learnable (representable),
the delta rule will find the necessary weights:
in a finite number of steps
independent of initial weightsindependent of initial weights
In case of interfering samples in the feature space the delta
rue will run in an infinite loop because the error will never
diminish to zero, i.e. the sample pairs are not learnable. The
only solution we need is a hyperbola (non linear decision
boundary).
ERI Summer training (C&S) Dr. Randa Elanwar

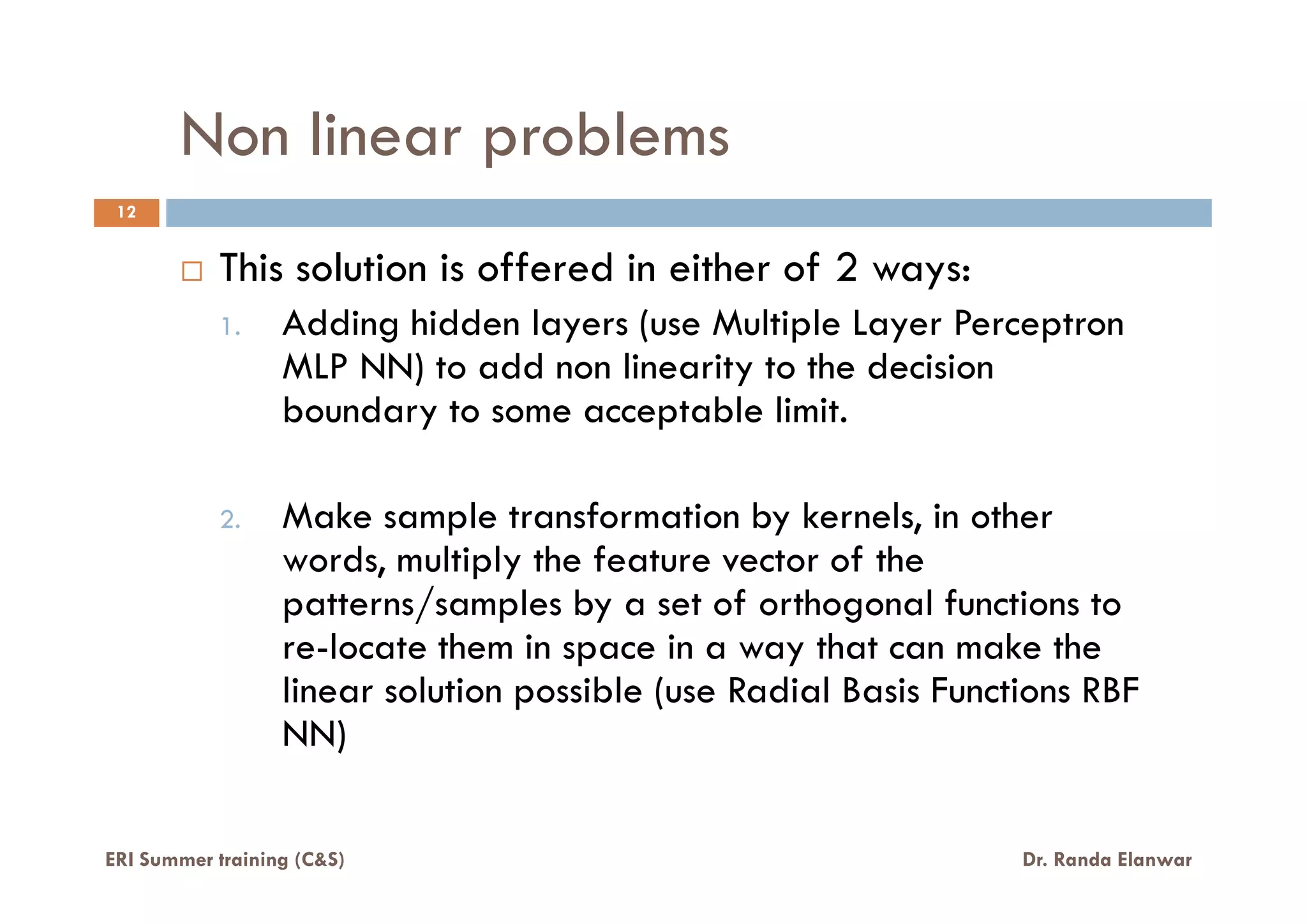

12. Non linear problems
This solution is offered in either of 2 ways:
1. Adding hidden layers (use Multiple Layer Perceptron
MLP NN) to add non linearity to the decision
boundary to some acceptable limit.
12
ERI Summer training (C&S) Dr. Randa Elanwar
2. Make sample transformation by kernels, in other
words, multiply the feature vector of the
patterns/samples by a set of orthogonal functions to
re-locate them in space in a way that can make the
linear solution possible (use Radial Basis Functions RBF
NN)

13. Non linear problems
13

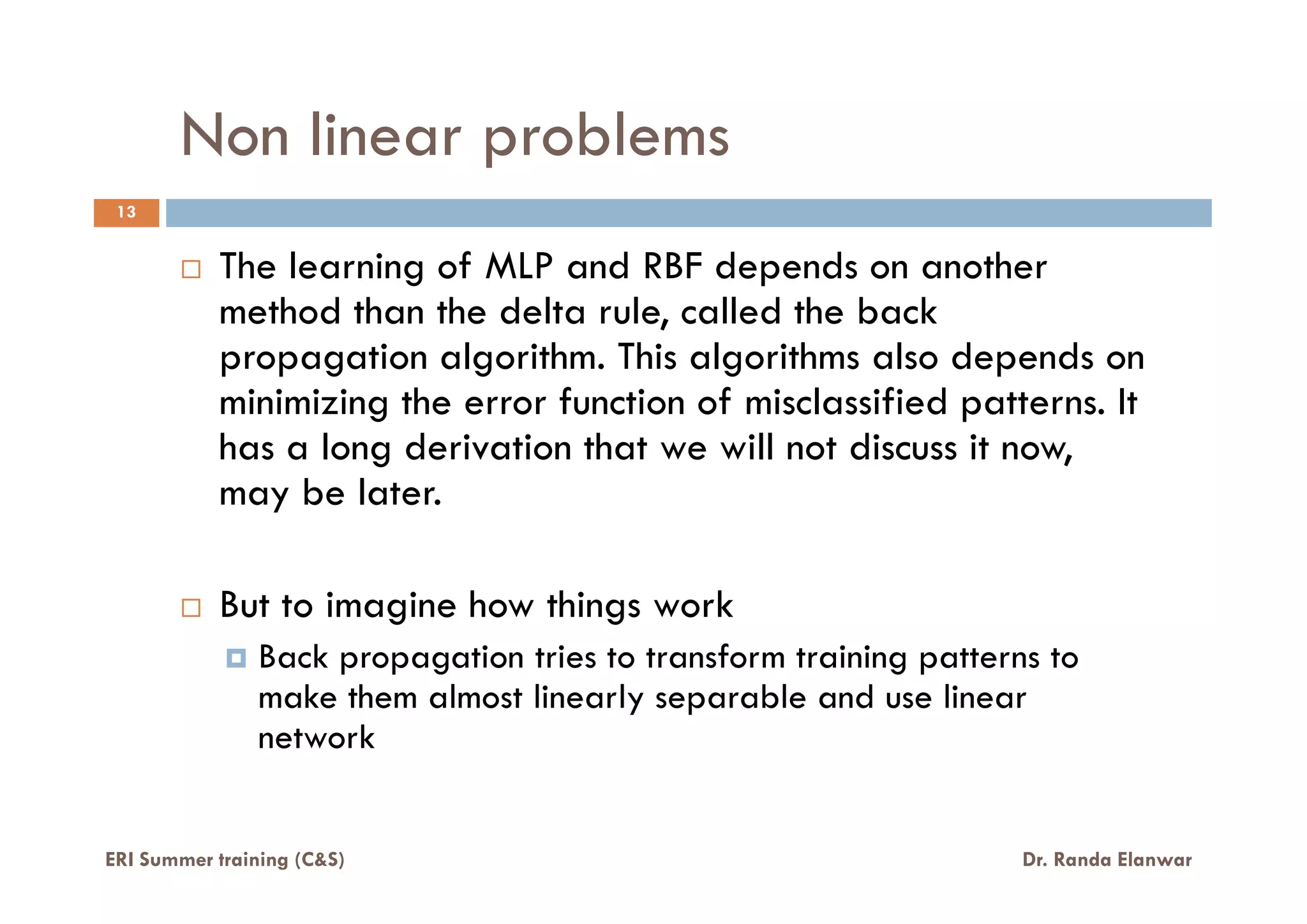

The learning of MLP and RBF depends on another
method than the delta rule, called the back
propagation algorithm. This algorithms also depends on
minimizing the error function of misclassified patterns. It
has a long derivation that we will not discuss it now,has a long derivation that we will not discuss it now,
may be later.
But to imagine how things work
Back propagation tries to transform training patterns to
make them almost linearly separable and use linear
network
ERI Summer training (C&S) Dr. Randa Elanwar

14. Non linear problems

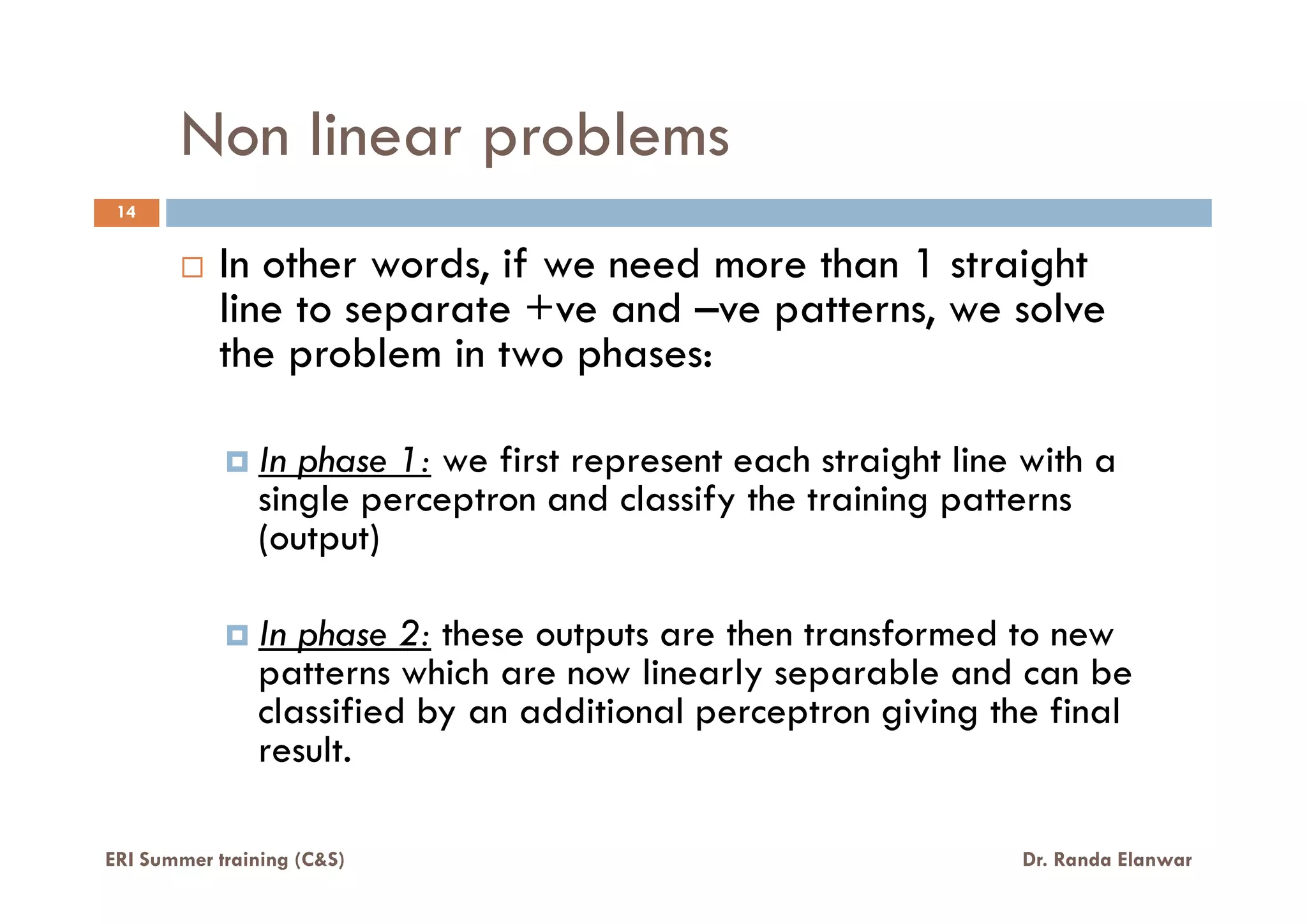

In other words, if we need more than 1 straight
line to separate +ve and –ve patterns, we solve
the problem in two phases:
In phase 1: we first represent each straight line with a
14
ERI Summer training (C&S) Dr. Randa Elanwar
In phase 1: we first represent each straight line with a
single perceptron and classify the training patterns
(output)
In phase 2: these outputs are then transformed to new
patterns which are now linearly separable and can be
classified by an additional perceptron giving the final
result.

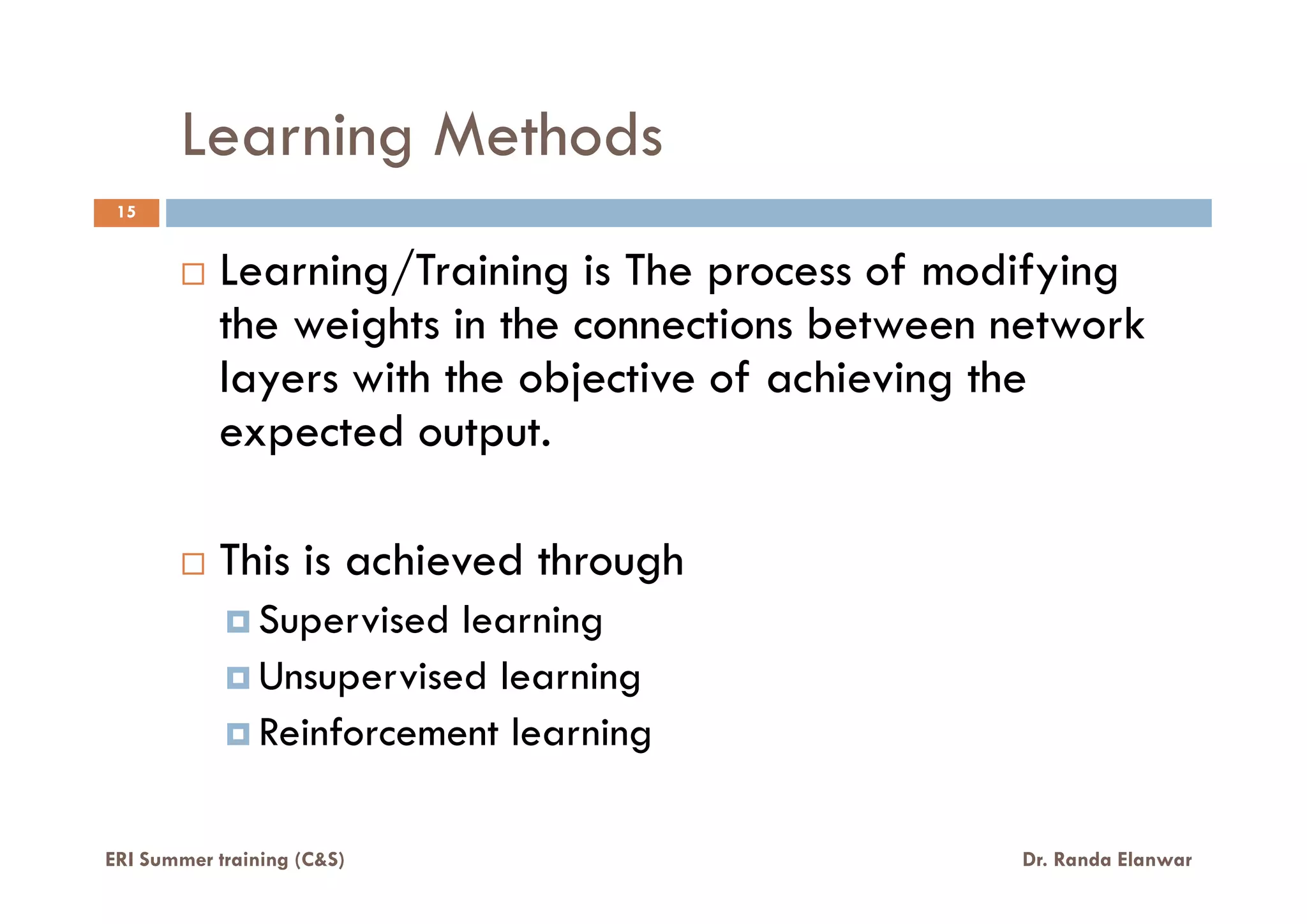

15. Learning Methods
15
Learning/Training is The process of modifying
the weights in the connections between network
layers with the objective of achieving the
expected output.
This is achieved through
Supervised learning
Unsupervised learning
Reinforcement learning
ERI Summer training (C&S) Dr. Randa Elanwar

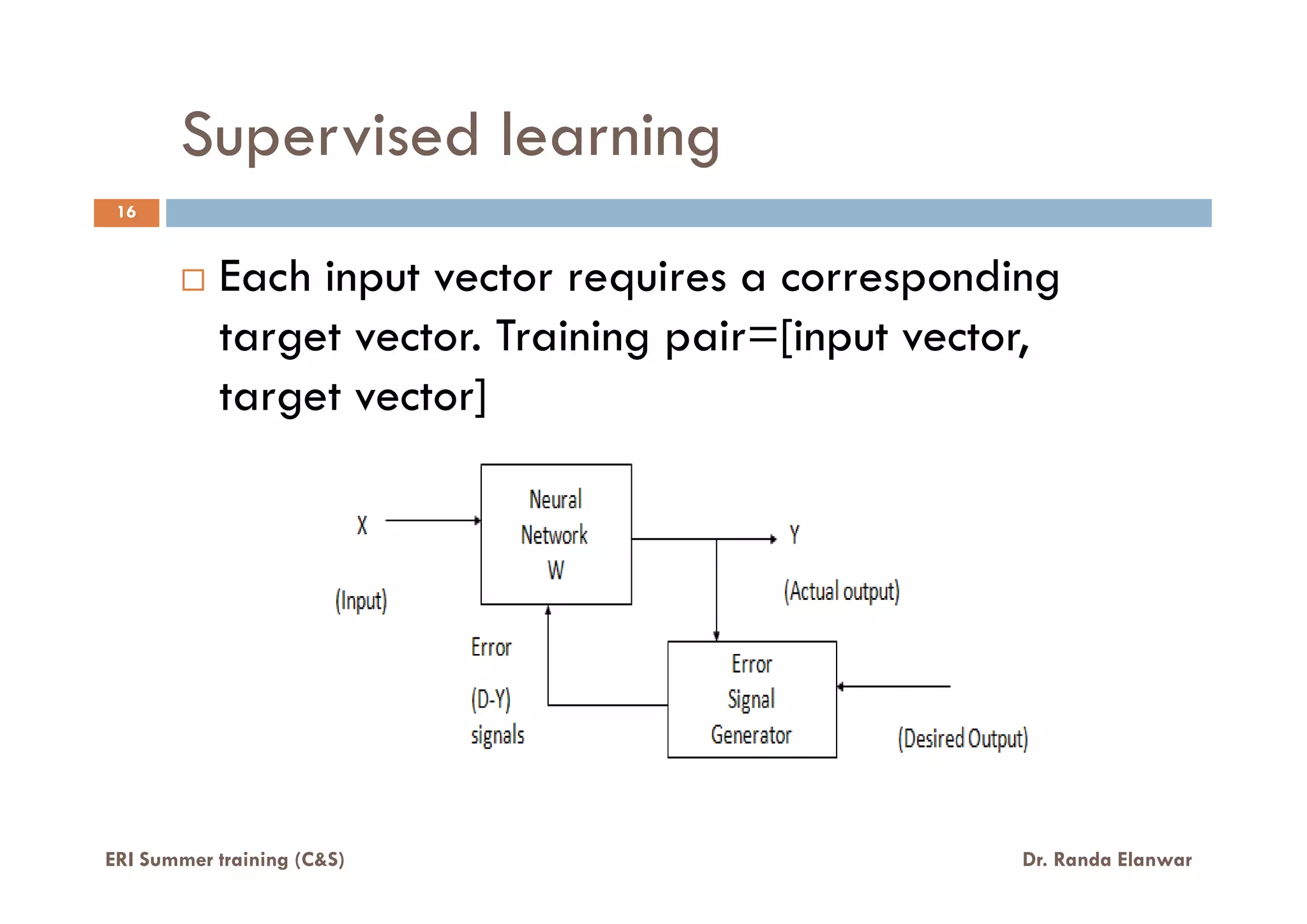

16. Supervised learning
Each input vector requires a corresponding
target vector. Training pair=[input vector,
target vector]
16
ERI Summer training (C&S) Dr. Randa Elanwar

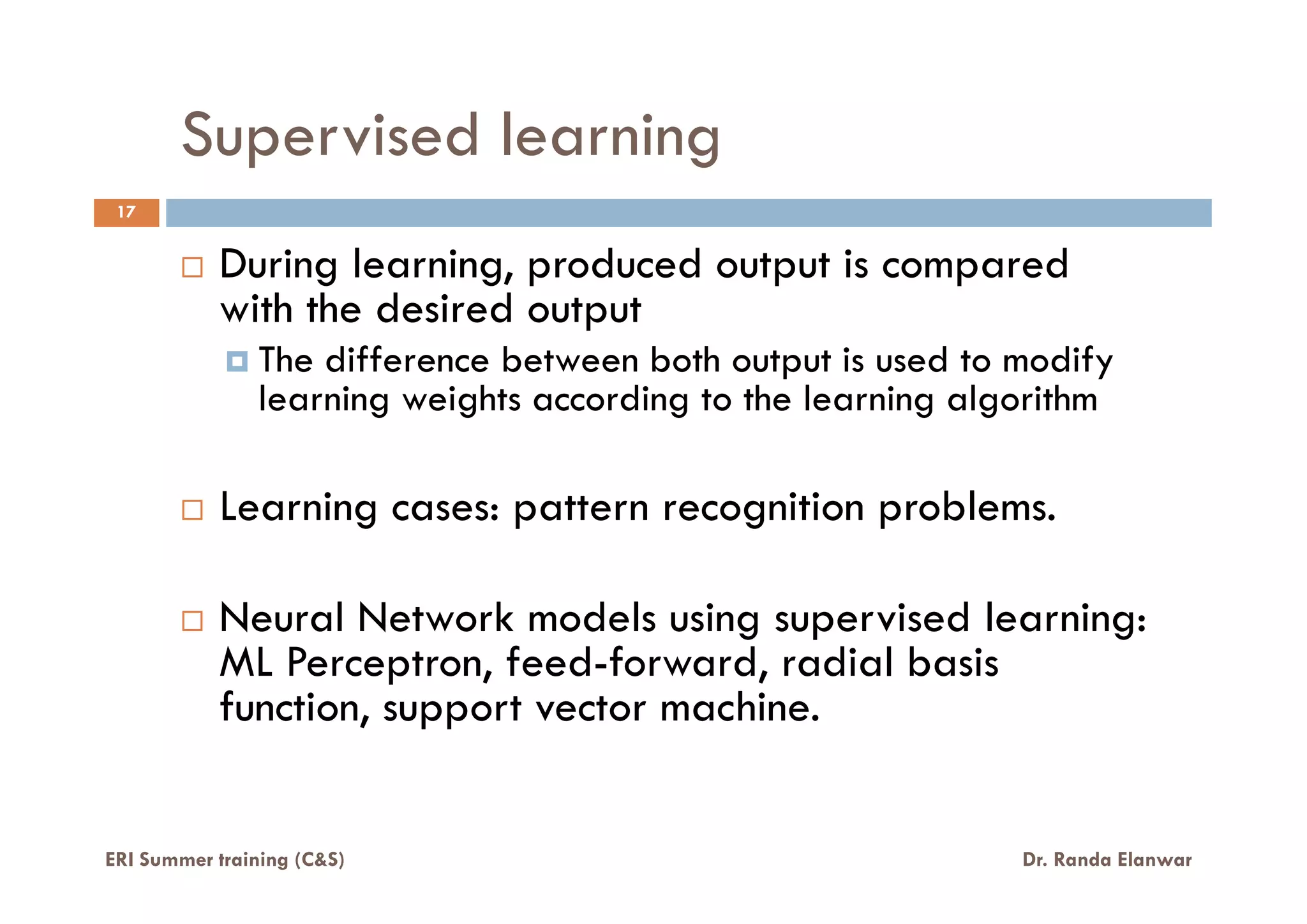

17. Supervised learning
17
During learning, produced output is compared
with the desired output
The difference between both output is used to modify
learning weights according to the learning algorithm
Learning cases: pattern recognition problems.
Neural Network models using supervised learning:
ML Perceptron, feed-forward, radial basis
function, support vector machine.
ERI Summer training (C&S) Dr. Randa Elanwar

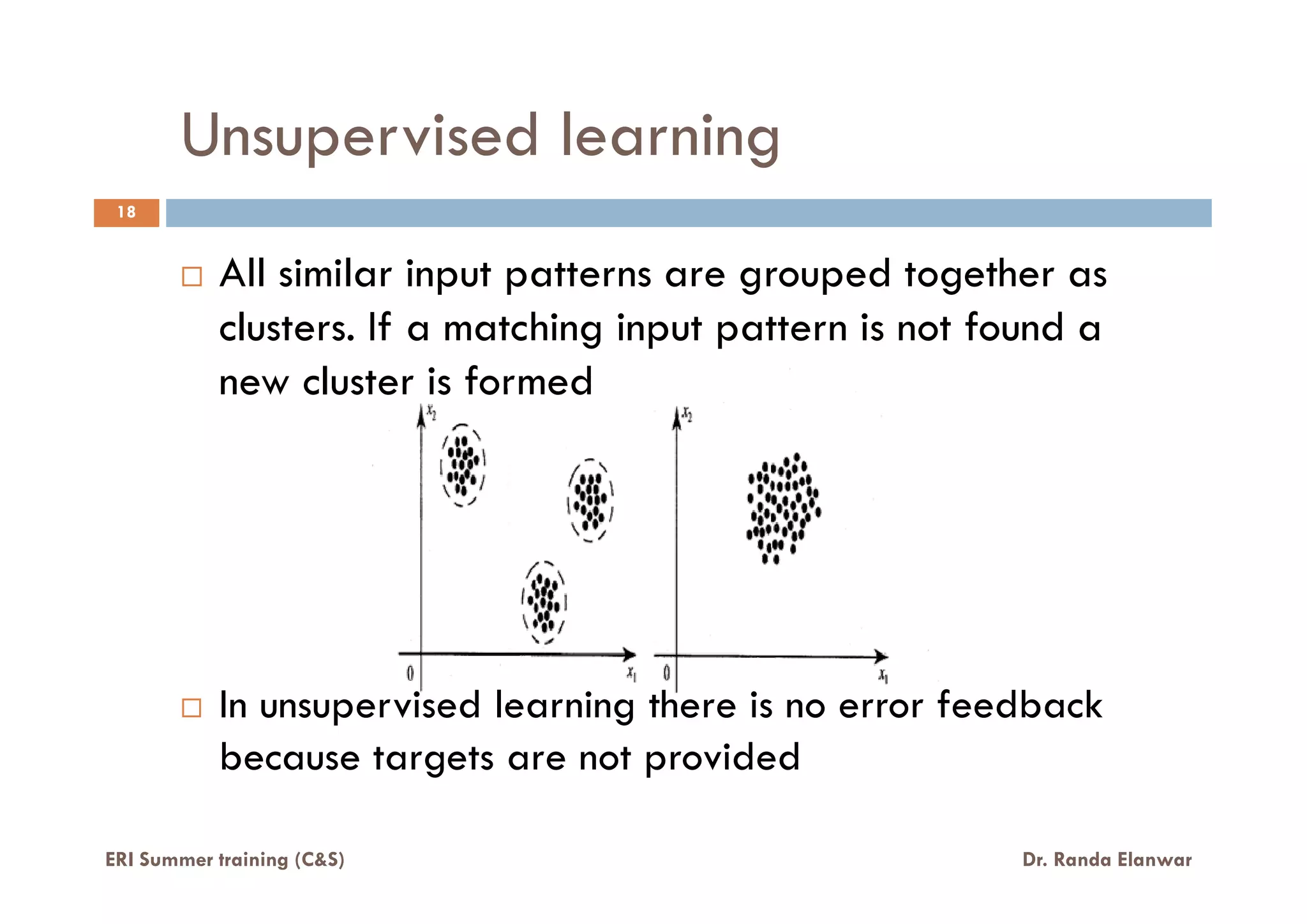

18. Unsupervised learning
18
All similar input patterns are grouped together as
clusters. If a matching input pattern is not found a
new cluster is formed
In unsupervised learning there is no error feedback
because targets are not provided
ERI Summer training (C&S) Dr. Randa Elanwar

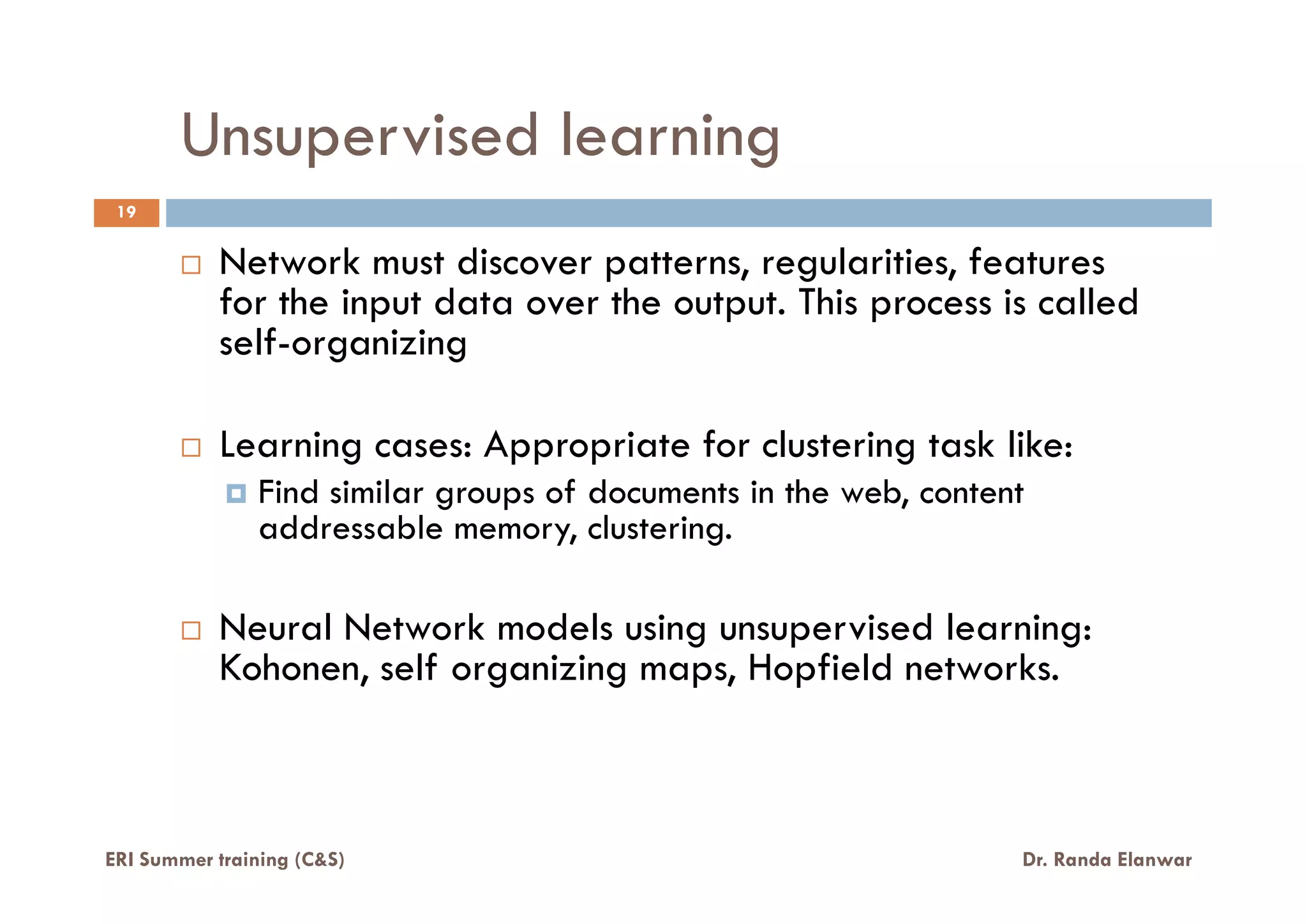

19. Unsupervised learning
Network must discover patterns, regularities, features
for the input data over the output. This process is called
self-organizing
Learning cases: Appropriate for clustering task like:
19
ERI Summer training (C&S) Dr. Randa Elanwar
Learning cases: Appropriate for clustering task like:
Find similar groups of documents in the web, content
addressable memory, clustering.
Neural Network models using unsupervised learning:
Kohonen, self organizing maps, Hopfield networks.

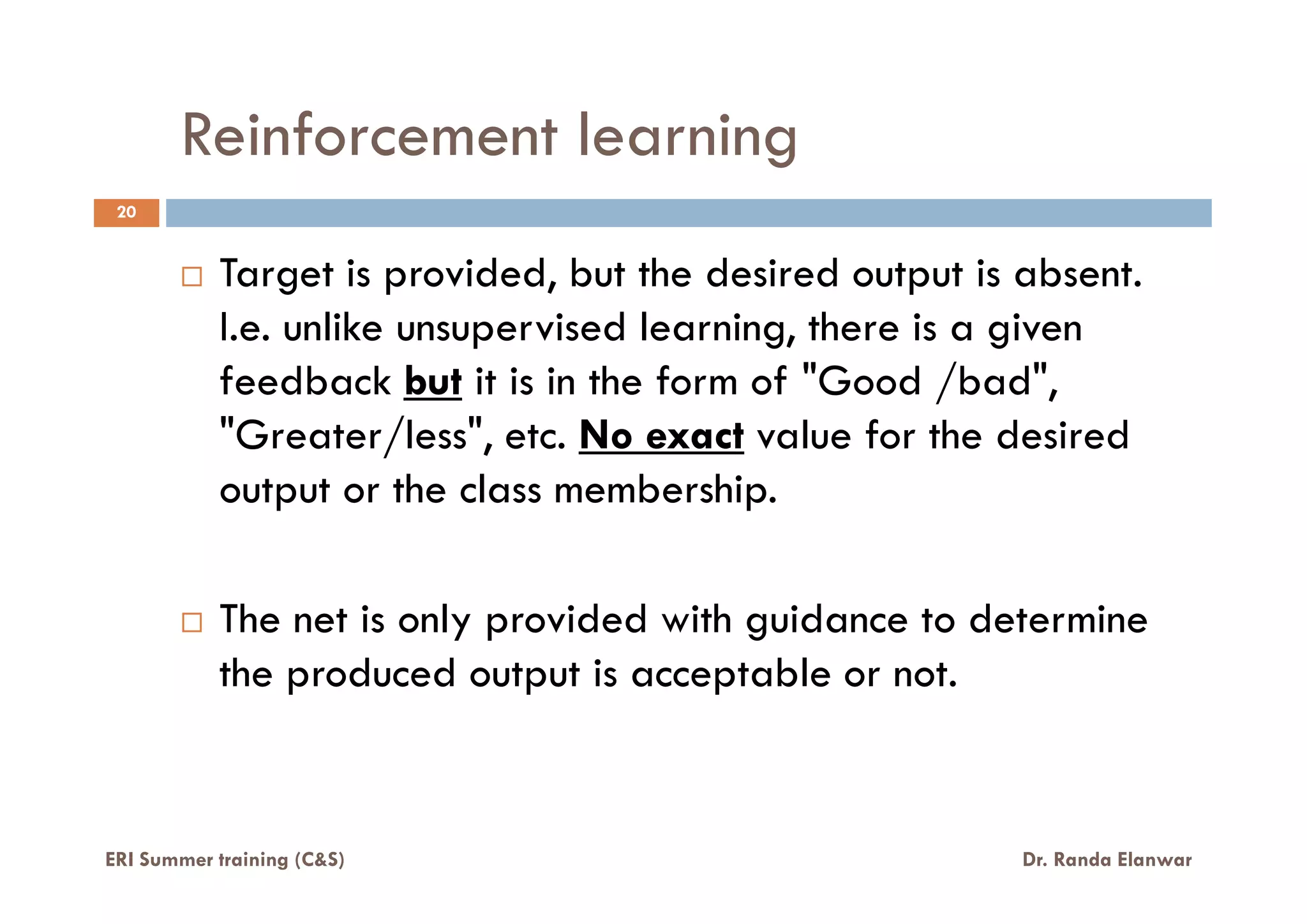

20. Reinforcement learning
Target is provided, but the desired output is absent.
I.e. unlike unsupervised learning, there is a given
feedback but it is in the form of "Good /bad",
"Greater/less", etc. No exact value for the desired
output or the class membership.
20
ERI Summer training (C&S) Dr. Randa Elanwar
output or the class membership.
The net is only provided with guidance to determine
the produced output is acceptable or not.

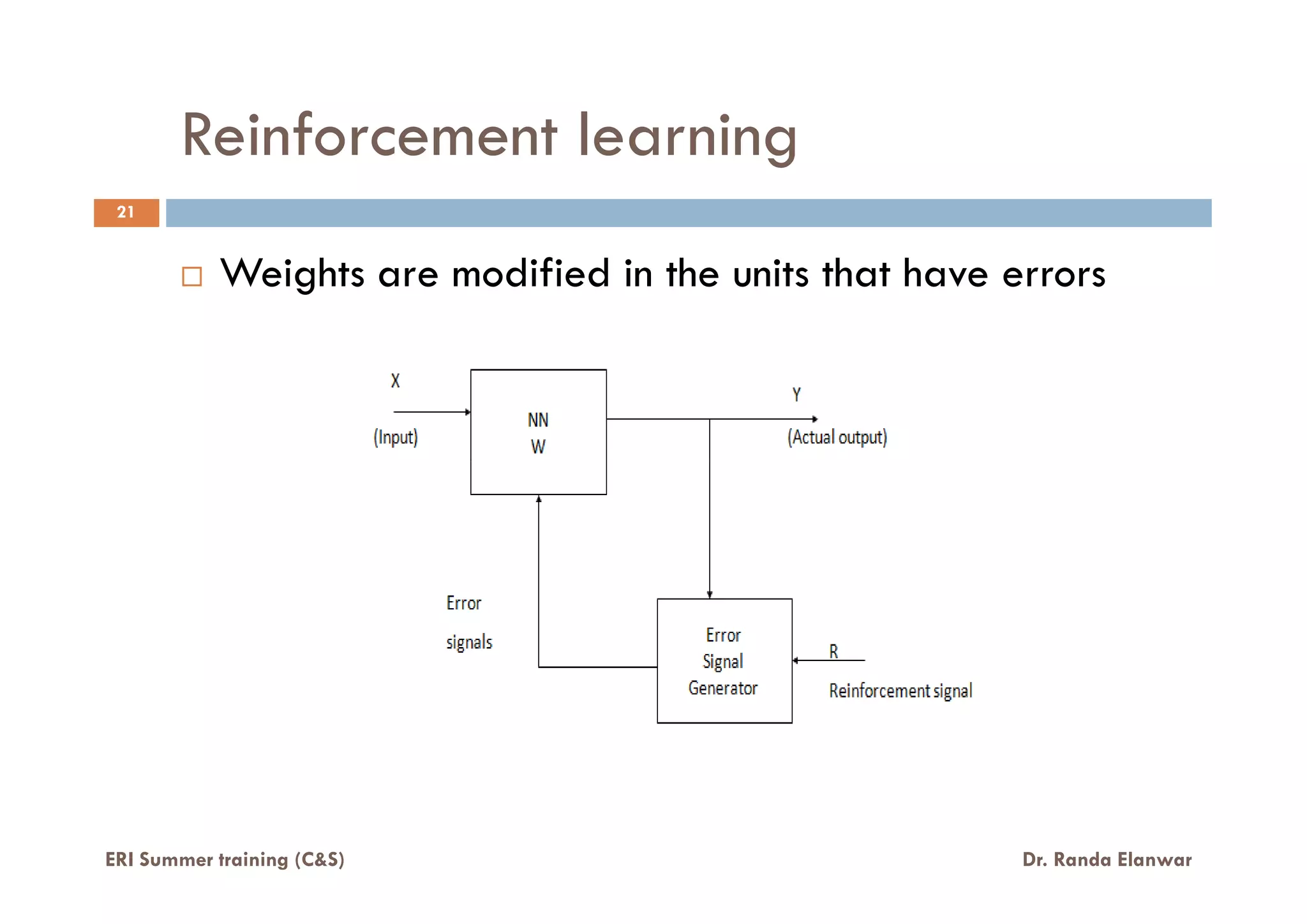

21. Reinforcement learning
21
Weights are modified in the units that have errors
ERI Summer training (C&S) Dr. Randa Elanwar

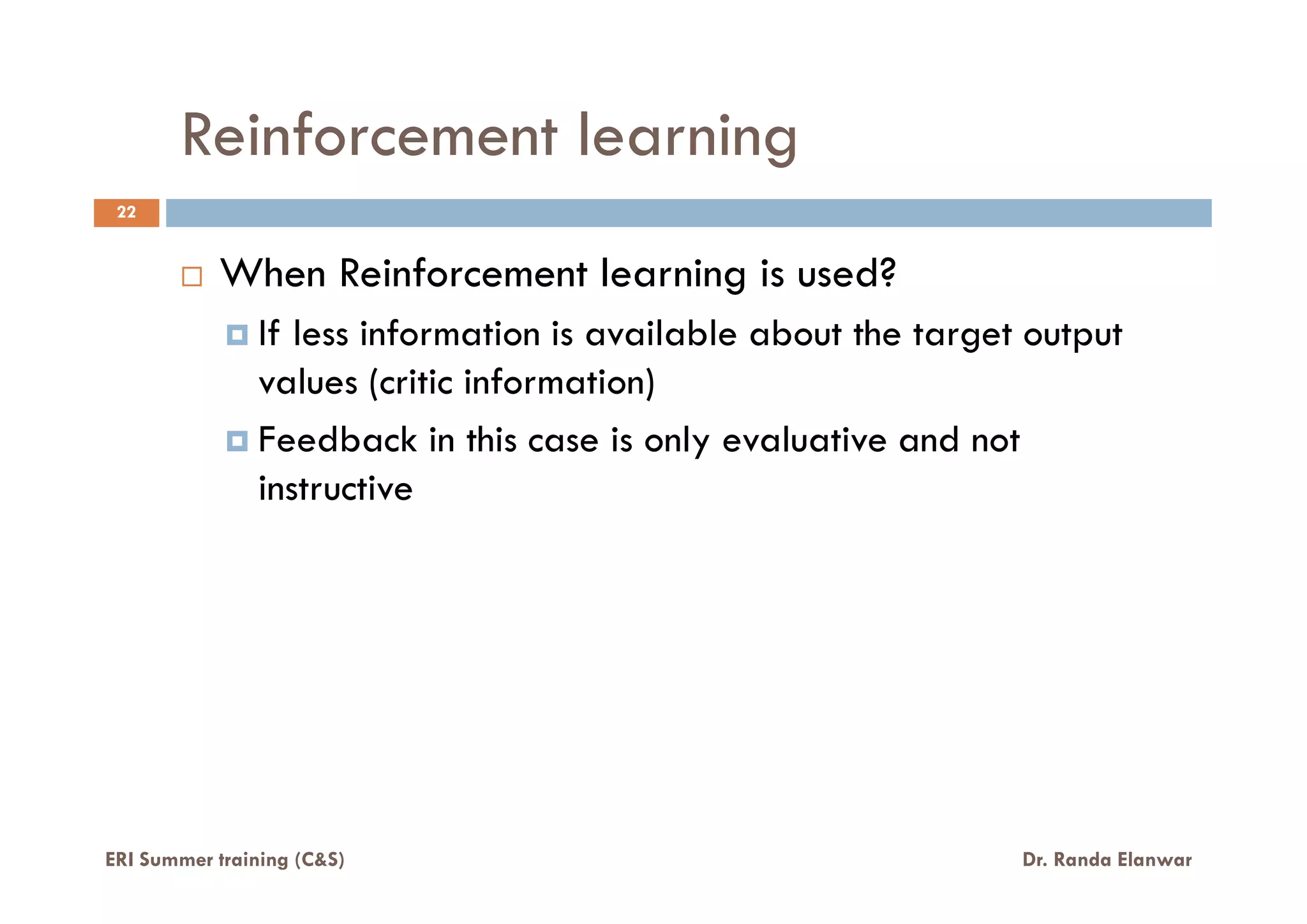

22. Reinforcement learning
When Reinforcement learning is used?
If less information is available about the target output
values (critic information)
Feedback in this case is only evaluative and not
22
ERI Summer training (C&S) Dr. Randa Elanwar
instructive
