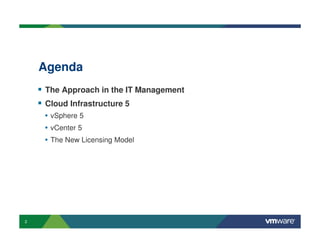

2. Agenda
The Approach in the IT Management
Cloud Infrastructure 5
• vSphere 5
• vCenter 5
• The New Licensing Model
2

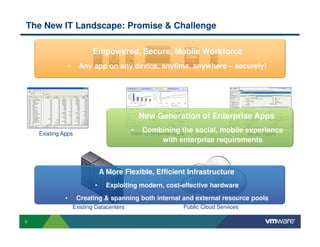

3. The New IT Landscape: Promise & Challenge
Empowered, Secure, Mobile Workforce
• Any app on any device, anytime, anywhere – securely!
New Generation of Enterprise Apps
Existing Apps
• Combining the social, mobile experience
New Enterprise Apps SaaS Apps
with enterprise requirements
A More Flexible, Efficient Infrastructure
• Exploiting modern, cost-effective hardware
• Creating & spanning both internal and external resource pools
Existing Datacenters Public Cloud Services
3

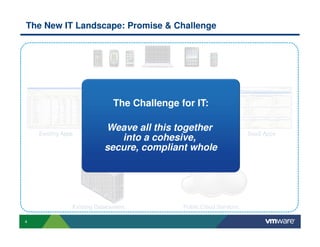

4. The New IT Landscape: Promise & Challenge
The Challenge for IT:
Existing Apps
Weave all this Apps
New Enterprise
together SaaS Apps
into a cohesive,
secure, compliant whole
Existing Datacenters Public Cloud Services
4

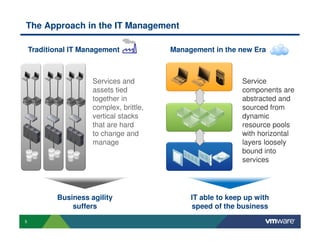

5. The Approach in the IT Management
Traditional IT Management Management in the new Era
Services and Service
assets tied components are
together in abstracted and
complex, brittle, sourced from
vertical stacks dynamic
that are hard resource pools
to change and with horizontal
manage layers loosely
bound into
services
Business agility IT able to keep up with
suffers speed of the business
5

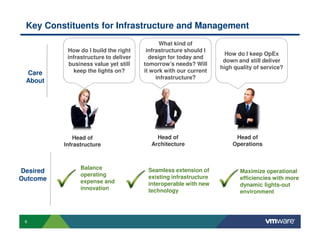

6. Key Constituents for Infrastructure and Management
What kind of
How do I build the right infrastructure should I
How do I keep OpEx
infrastructure to deliver design for today and
down and still deliver
business value yet still tomorrow’s needs? Will
high quality of service?
Care keep the lights on? it work with our current
infrastructure?
About
Head of Head of Head of
Infrastructure Architecture Operations
Balance Seamless extension of
Desired Maximize operational
operating existing infrastructure
Outcome efficiencies with more
expense and interoperable with new dynamic lights-out
innovation technology environment
6

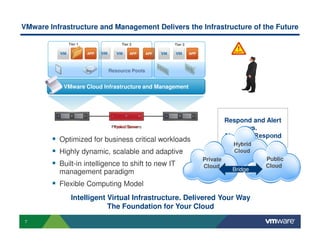

7. VMware Infrastructure and Management Delivers the Infrastructure of the Future
Tier 1 Tier 2 Tier 3
APP APP APP APP APP
Resource Pools
VMware Cloud Infrastructure and Management
Respond and Alert
Physical Server
Failed Servers
vs.
Alert and Respond
Optimized for business critical workloads
Hybrid
Highly dynamic, scalable and adaptive Cloud
Private Public
Built-in intelligence to shift to new IT Cloud Cloud
management paradigm Bridge
Flexible Computing Model
Intelligent Virtual Infrastructure. Delivered Your Way
The Foundation for Your Cloud
7

8. The Cloud Infrastructure 5
8

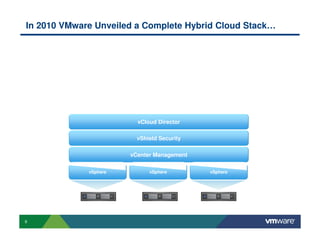

9. In 2010 VMware Unveiled a Complete Hybrid Cloud Stack…
vCloud Director
vShield Security
vCenter Management
vSphere vSphere vSphere
9

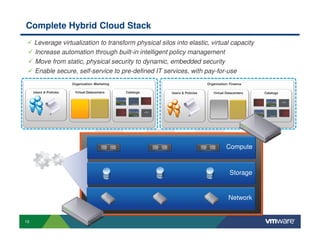

10. Complete Hybrid Cloud Stack
Leverage virtualization to transform physical silos into elastic, virtual capacity
Increase automation through built-in intelligent policy management
Move from static, physical security to dynamic, embedded security
Enable secure, self-service to pre-defined IT services, with pay-for-use
Organization: Marketing Organization: Finance
Users & Policies Virtual Datacenters Catalogs Users & Policies Virtual Datacenters Catalogs
Compute
Storage
Network
10

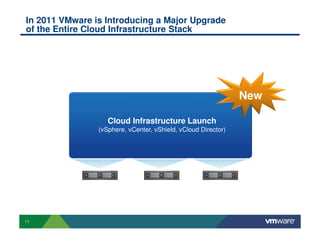

11. In 2011 VMware is Introducing a Major Upgrade
of the Entire Cloud Infrastructure Stack
vCloud Director 1.5
vCloud Director
New
vShield Security
vShield 5.0
Cloud Infrastructure Launch
(vSphere, vCenter,Operations 1.0 Director)
vCenter vShield, vCloud
vCenter Management
vCenter SRM 5.0
vSphere vSphere 5.0
vSphere vSphere
11

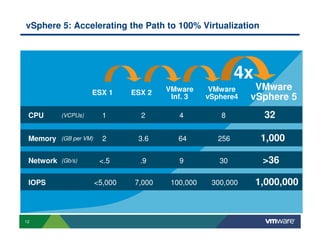

12. vSphere 5: Accelerating the Path to 100% Virtualization
4x
VMware VMware VMware
ESX 1 ESX 2
Inf. 3 vSphere4 vSphere 5
CPU (VCPUs) 1 2 4 8 32
Memory (GB per VM) 2 3.6 64 256 1,000
Network (Gb/s) <.5 .9 9 30 >36
IOPS <5,000 7,000 100,000 300,000 1,000,000
12

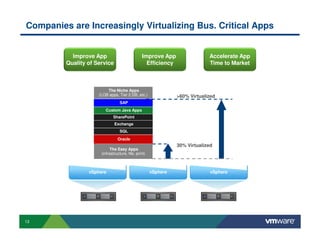

13. Companies are Increasingly Virtualizing Bus. Critical Apps
Improve App Improve App Accelerate App
Quality of Service Efficiency Time to Market
The Niche Apps
(LOB apps, Tier 2 DB, etc.) >60% Virtualized
SAP
Custom Java Apps
SharePoint
Exchange
SQL
Oracle
30% Virtualized
The Easy Apps
(infrastructure, file, print)
vSphere vSphere vSphere
13

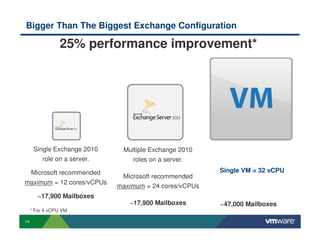

14. Bigger Than The Biggest Exchange Configuration
25% performance improvement*
Single Exchange 2010 Multiple Exchange 2010
role on a server. roles on a server.
Microsoft recommended Single VM = 32 vCPU
Microsoft recommended
maximum = 12 cores/vCPUs
maximum = 24 cores/vCPUs
~17,900 Mailboxes
~17,900 Mailboxes ~47,000 Mailboxes
* For 4 vCPU VM
14

15. Performance Comparison: Scaling SAP Native and SAP Virtual
SAP on VMware scales extremely well, closely matching
physical scaling factors even for the largest workloads
15

16. vSphere 5
What’s new
16

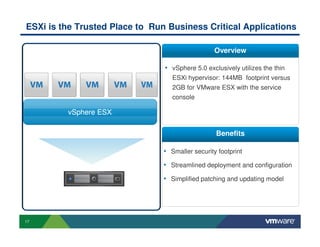

17. ESXi is the Trusted Place to Run Business Critical Applications
Overview
• vSphere 5.0 exclusively utilizes the thin
ESXi hypervisor: 144MB footprint versus
2GB for VMware ESX with the service
console
vSphere ESXi
ESX
Benefits
• Smaller security footprint
• Streamlined deployment and configuration
• Simplified patching and updating model
17

18. Capacity: vSphere 5 with Autodeploy
Before After
vSphere vSphere vSphere vSphere
Time: 30 mins Time: 30 mins Time: 30 mins
...Repeat 37 more times…
Total time: 20 Hours! Total time: 10 Minutes!
18

19. New Virtual Machine Features
vSphere 5.0 supports the industry’s most capable virtual machines
’
• 32 virtual CPUs per • 1TB RAM per VM
VM • 4x previous capabilities!
VM Scalability
• 3D graphics
Richer Desktop
Experience
• Client-connected USB • VM BIOS boot order config API
devices and PowerCLI interface
• USB 3.0 devices • EFI BIOS
Broader Device • Smart Card Readers for
Coverage VM Console Access
• UI for multi-core virtual • Support for Mac OS X
Other new CPUs servers
features • Extended VMware
Tools compatibility
Items which require HW version 8 in orange
19

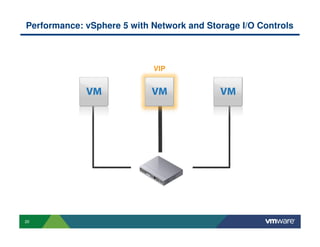

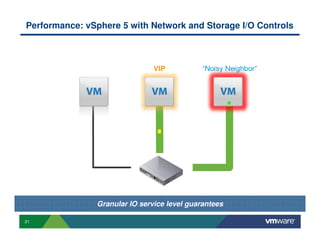

20. Performance: vSphere 5 with Network and Storage I/O Controls
VIP
20

21. Performance: vSphere 5 with Network and Storage I/O Controls
VIP “Noisy Neighbor”
Granular IO service level guarantees
21

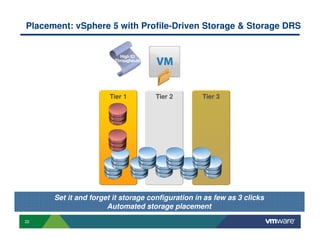

22. Placement: vSphere 5 with Profile-Driven Storage & Storage DRS
High IO
Throughputs
Tier 1 Tier 2 Tier 3
Set it and forget it storage configuration in as few as 3 clicks
Automated storage placement
22

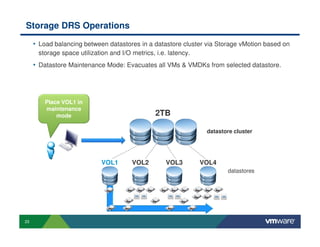

23. Storage DRS Operations
• Load balancing between datastores in a datastore cluster via Storage vMotion based on
storage space utilization and I/O metrics, i.e. latency.
• Datastore Maintenance Mode: Evacuates all VMs & VMDKs from selected datastore.
Place VOL1 in
maintenance
mode 2TB
datastore cluster
VOL1 VOL2 VOL3 VOL4
datastores
23

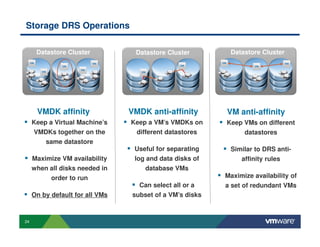

24. Storage DRS Operations
Datastore Cluster Datastore Cluster Datastore Cluster
VMDK affinity VMDK anti-affinity VM anti-affinity
Keep a Virtual Machine’s Keep a VM’s VMDKs on Keep VMs on different
VMDKs together on the different datastores datastores
same datastore
Useful for separating Similar to DRS anti-
Maximize VM availability log and data disks of affinity rules
when all disks needed in database VMs
order to run Maximize availability of
Can select all or a a set of redundant VMs
On by default for all VMs subset of a VM’s disks
24

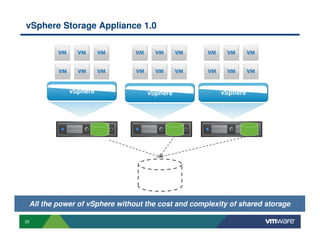

25. vSphere Storage Appliance 1.0
vSphere vSphere vSphere
All the power of vSphere without the cost and complexity of shared storage
25

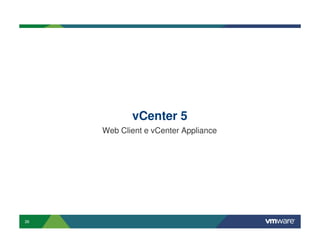

26. vCenter 5
Web Client e vCenter Appliance
26

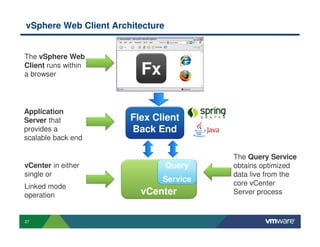

27. vSphere Web Client Architecture
The vSphere Web
Client runs within
a browser Fx
Application
Server that Flex Client
provides a Back End
scalable back end
The Query Service
vCenter in either Query obtains optimized
single or data live from the
Service core vCenter
Linked mode
operation vCenter Server process
27

28. Introducing vCenter Server Appliance
The vCenter Server Appliance is the answer!
• Simplifies Deployment and Configuration
• Streamlines patching and upgrades
• Reduces the TCO for vCenter
Enables companies to respond to business faster!
VMware
vCenter Server
Virtual Appliance
Automation Visibility
Scalability
28

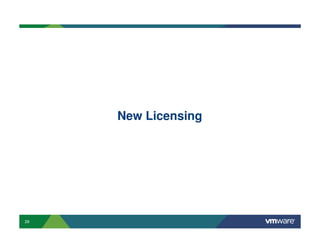

29. New Licensing
29

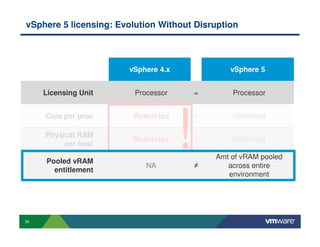

30. vSphere 5 licensing: Evolution Without Disruption
vSphere 4.x vSphere 5
Licensing Unit Processor = Processor
!
Core per proc Restricted < Unlimited
Physical RAM
Restricted < Unlimited
per host
Amt of vRAM pooled
Pooled vRAM
NA ≠ across entire
entitlement
environment
30

31. What is vRAM?
Virtual memory configured
√ to virtual machines
≠
Physical RAM available in
X the server
31

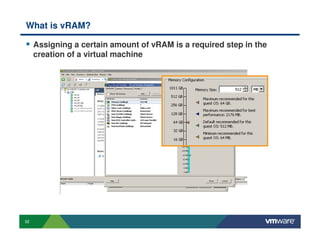

32. What is vRAM?
Assigning a certain amount of vRAM is a required step in the
creation of a virtual machine
32

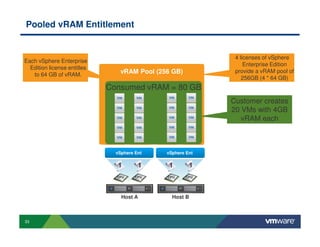

33. Pooled vRAM Entitlement
4 licenses of vSphere
Each vSphere Enterprise
Enterprise Edition
Edition license entitles
to 64 GB of vRAM. vRAM Pool (256 GB) provide a vRAM pool of
256GB (4 * 64 GB)
Consumed vRAM = 80 GB
64GB 64GB 64GB 64GB
Customer creates
20 VMs with 4GB
vRAM each
vSphere Ent vSphere Ent
1 1 1 1
CPU CPU CPU CPU
Host A Host B
33

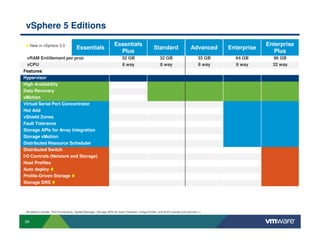

34. vSphere 5 Editions
New in vSphere 5.0 Essentials Essentials Enterprise
` Essentials Essentials Standard Standard
Advanced Enterprise
Plus Plus Plus
vRAM Entitlement per proc 32 GB 32 GB 32 GB 64 GB 96 GB
vCPU 8 way 8 way 8 way 8 way 32 way
Features
Hypervisor
High Availability
Data Recovery
vMotion
Virtual Serial Port Concentrator
Hot Add
vShield Zones
Fault Tolerance
Storage APIs for Array Integration
Storage vMotion
Distributed Resource Scheduler
Distributed Switch
I/O Controls (Network and Storage)
Host Profiles
Auto deploy
Profile-Driven Storage
Storage DRS
All editions include: Thin Provisioning, Update Manager, Storage APIs for Data Protection, Image Profile, and SLES (except Ess and Ess +)
34
