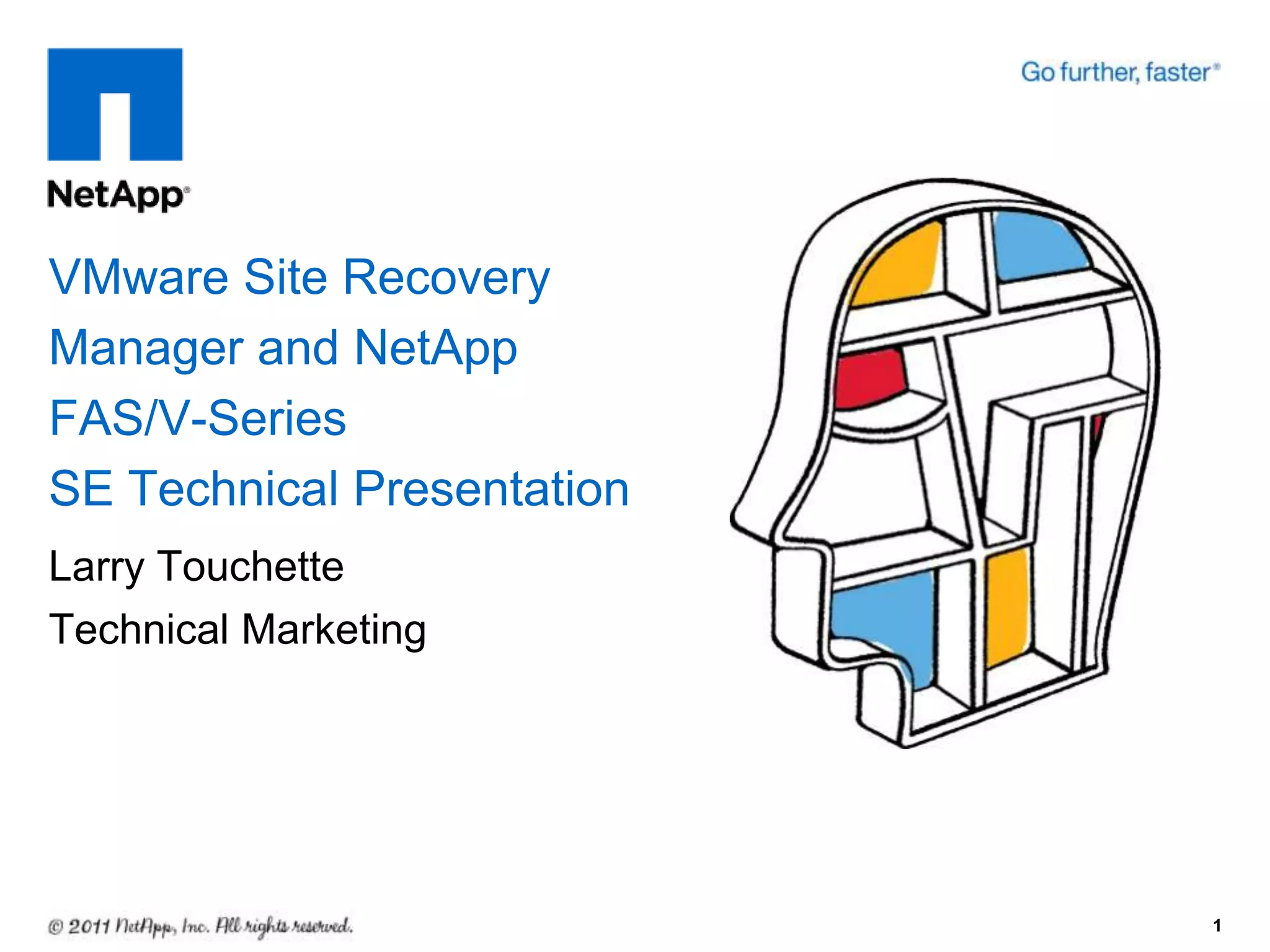

- 1. Larry Touchette Technical Marketing VMwareSite Recovery Manager and NetApp FAS/V-Series SE Technical Presentation 1

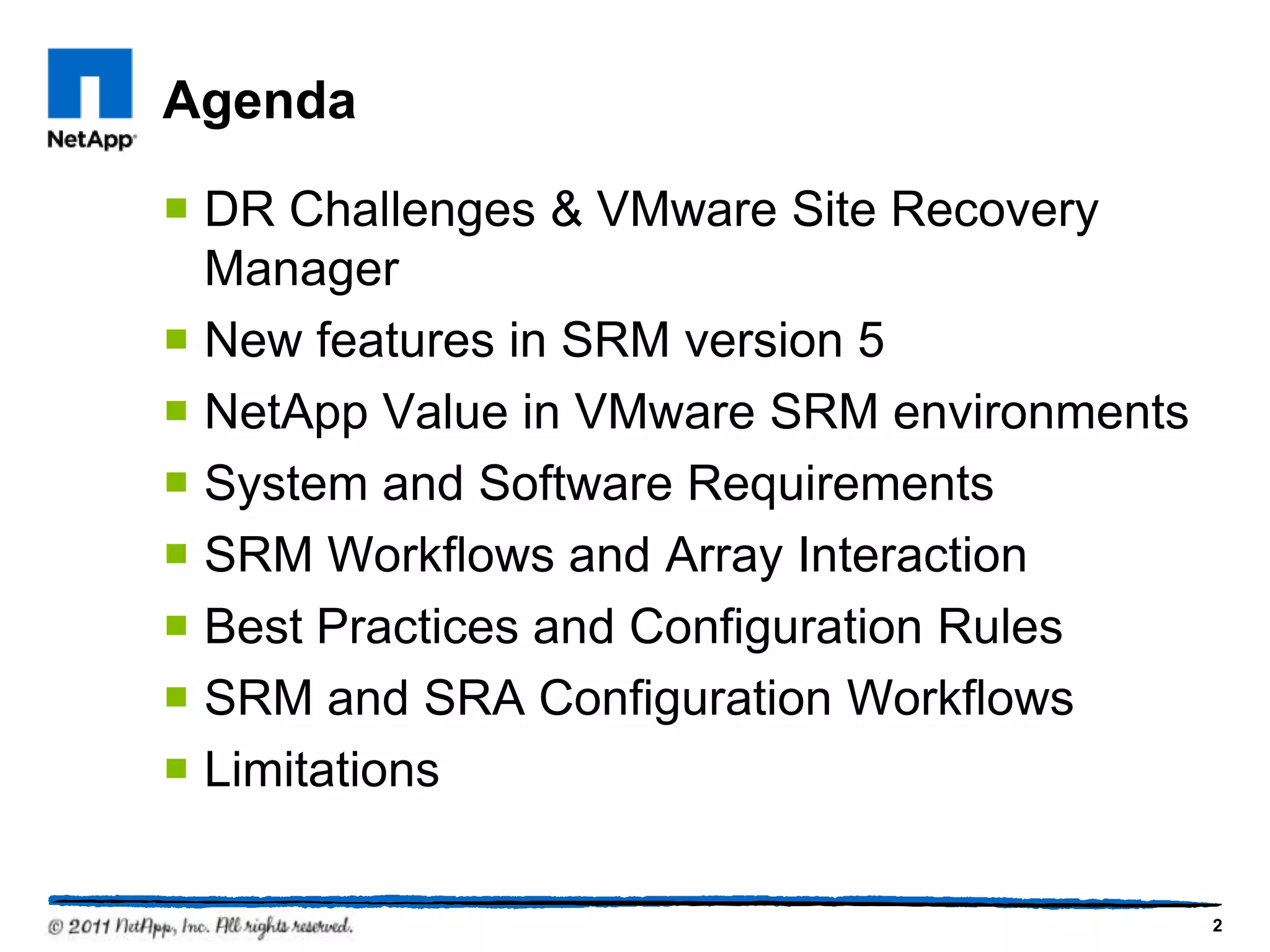

- 2. Agenda DR Challenges& VMware Site Recovery Manager New features in SRM version 5 NetApp Value in VMware SRM environments System and Software Requirements SRM Workflows and Array Interaction Best Practices and Configuration Rules SRM and SRA Configuration Workflows Limitations 2

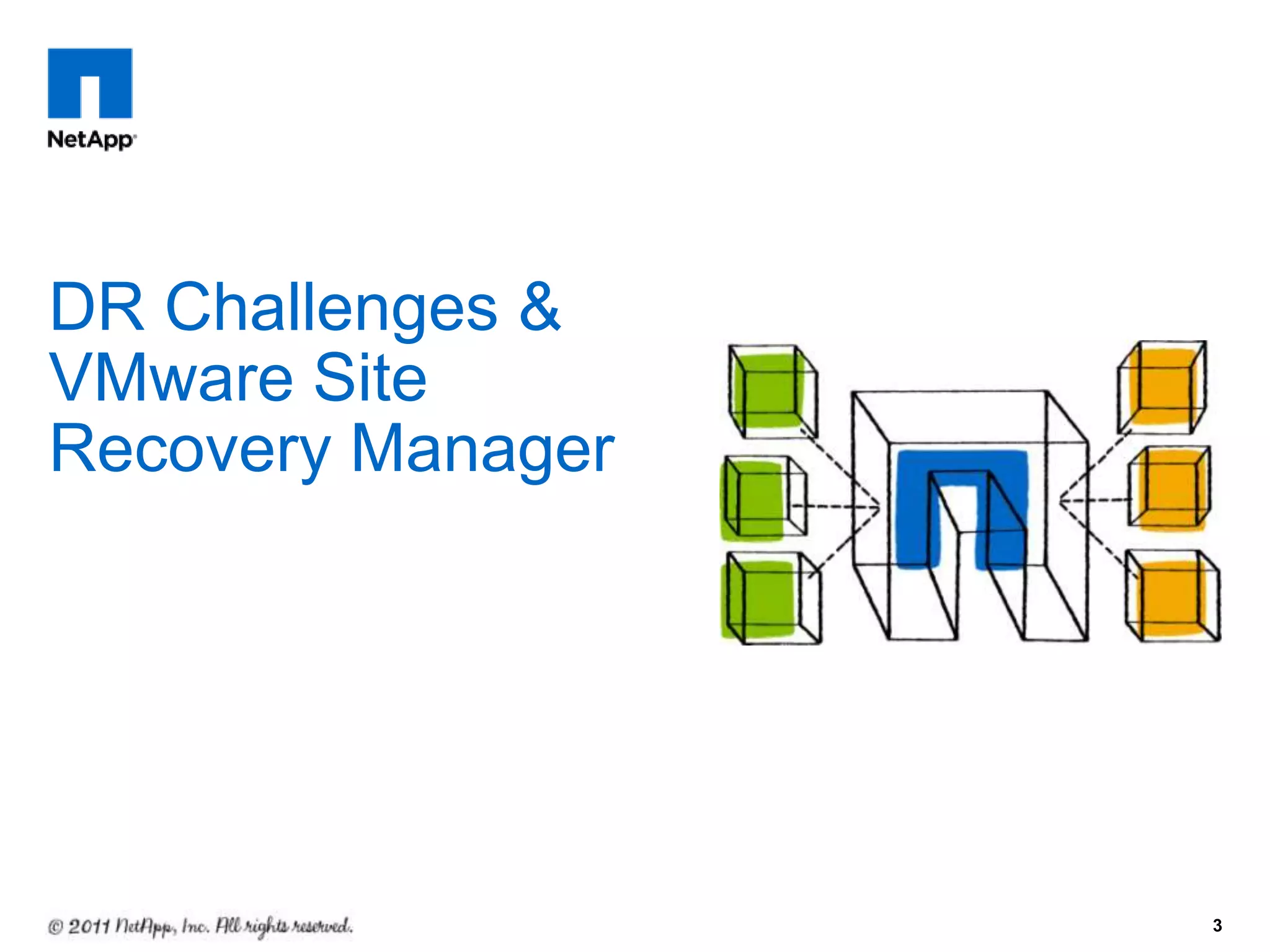

- 3. 3 DR Challenges & VMwareSite Recovery Manager

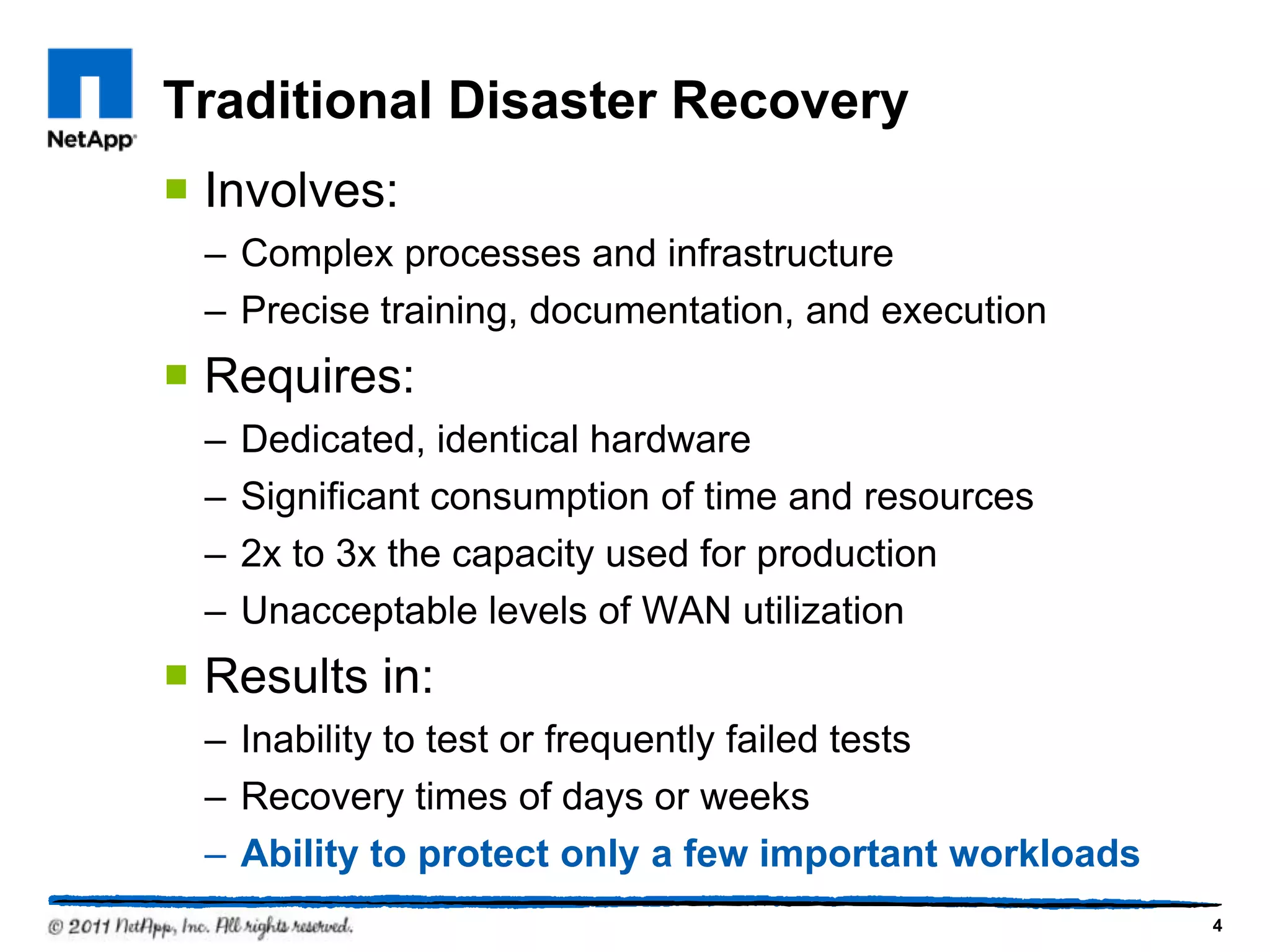

- 4. Traditional Disaster Recovery Involves: – Complex processes and infrastructure – Precise training, documentation, and execution Requires: – Dedicated, identical hardware – Significant consumption of time and resources – 2x to 3x the capacity used for production – Unacceptable levels of WAN utilization Results in: – Inability to test or frequently failed tests – Recovery times of days or weeks – Ability to protect only a few important workloads 4

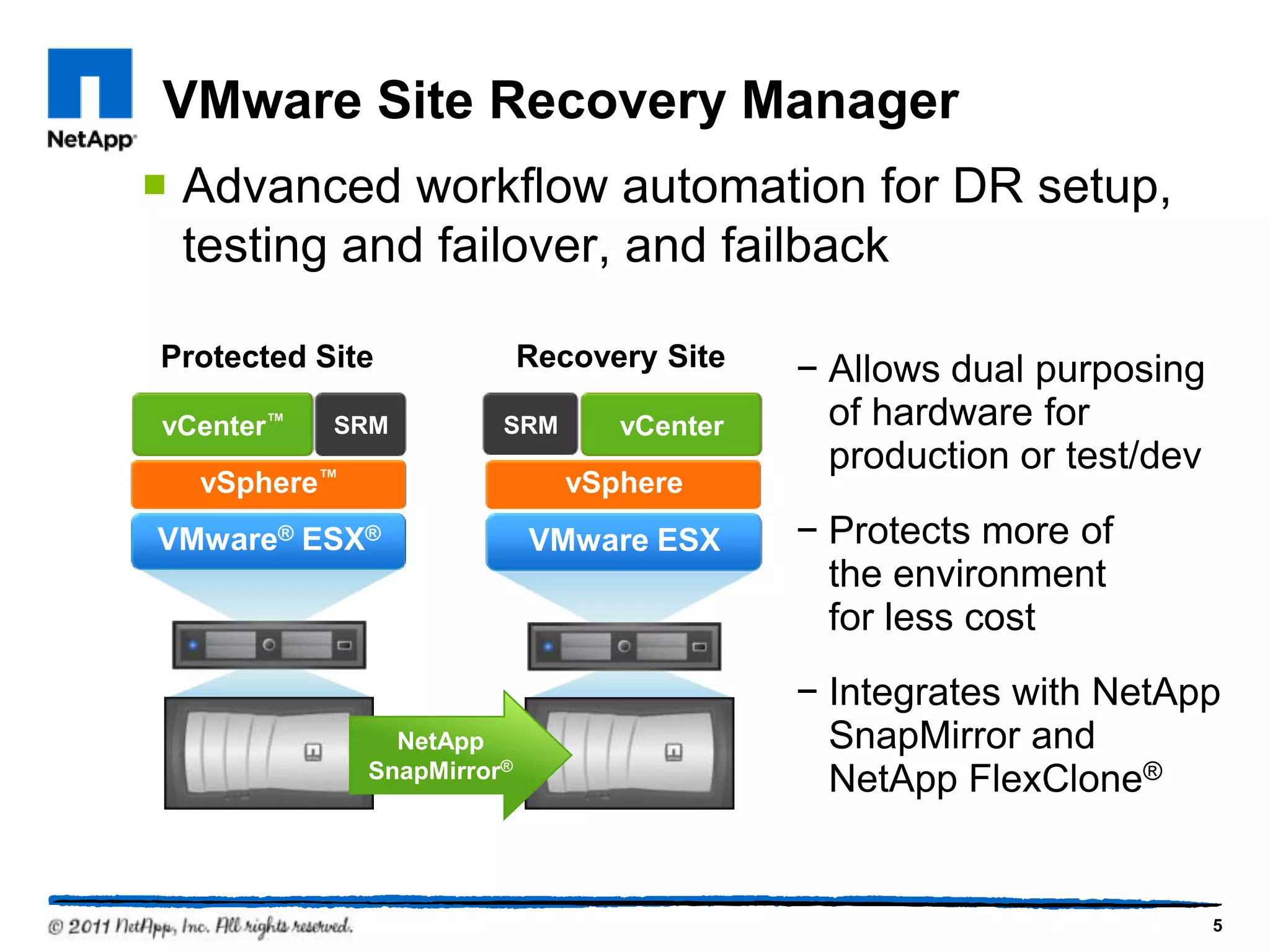

- 5. VMware Site RecoveryManager Advanced workflow automation for DR setup, testing and failover, and failback vCenter™ SRM VMware® ESX® vSphere™ SRM vCenter VMware ESX vSphere − Allows dual purposing of hardware for production or test/dev − Protects more of the environment for less cost − Integrates with NetApp SnapMirror and NetApp FlexClone® Recovery SiteProtected Site NetApp SnapMirror® 5

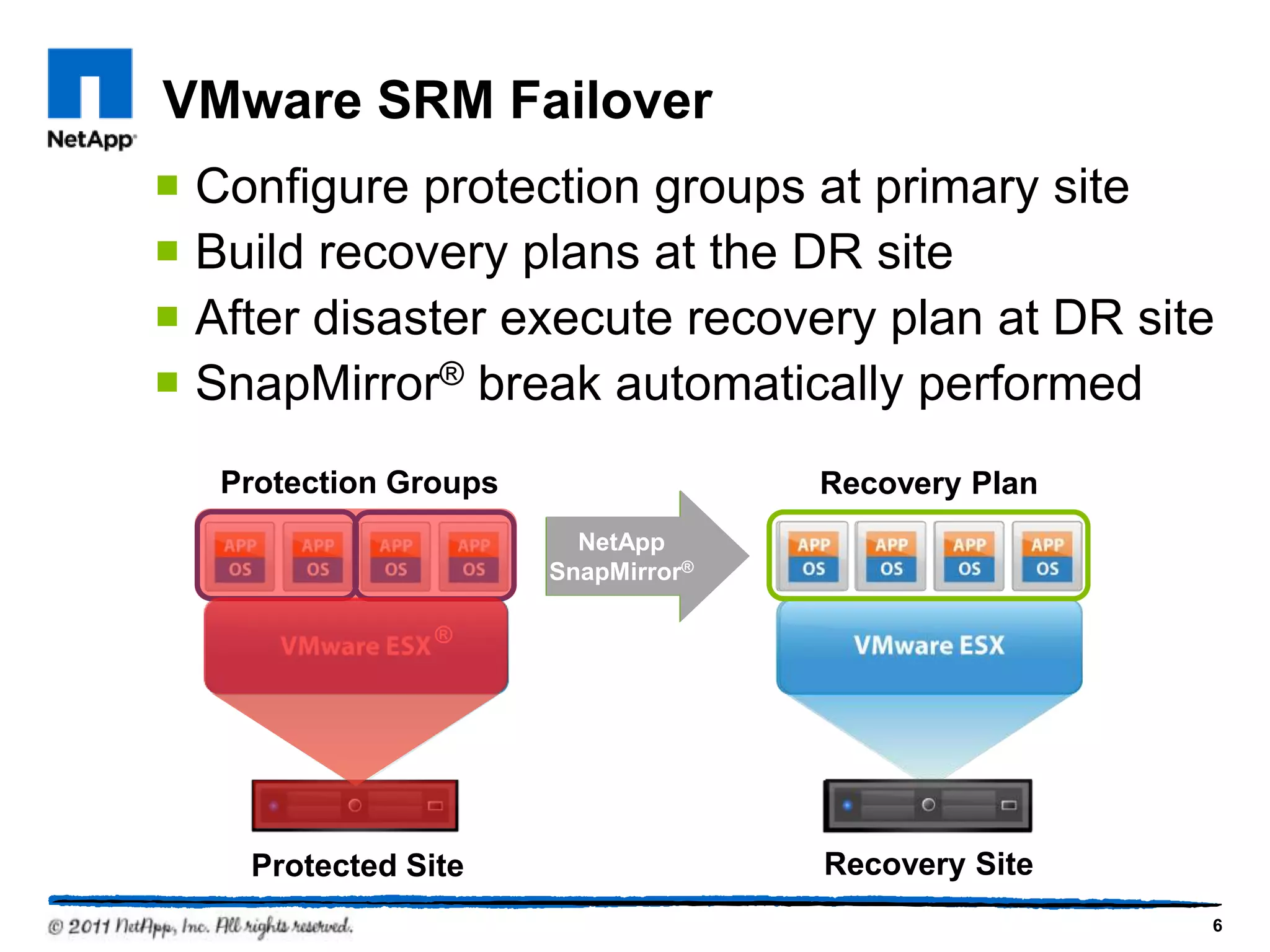

- 6. VMware SRM Failover Configure protection groups at primary site Build recovery plans at the DR site After disaster execute recovery plan at DR site SnapMirror® break automatically performed Protected Site Recovery Site Protection Groups Recovery Plan ® NetApp SnapMirror NetApp SnapMirror® 6

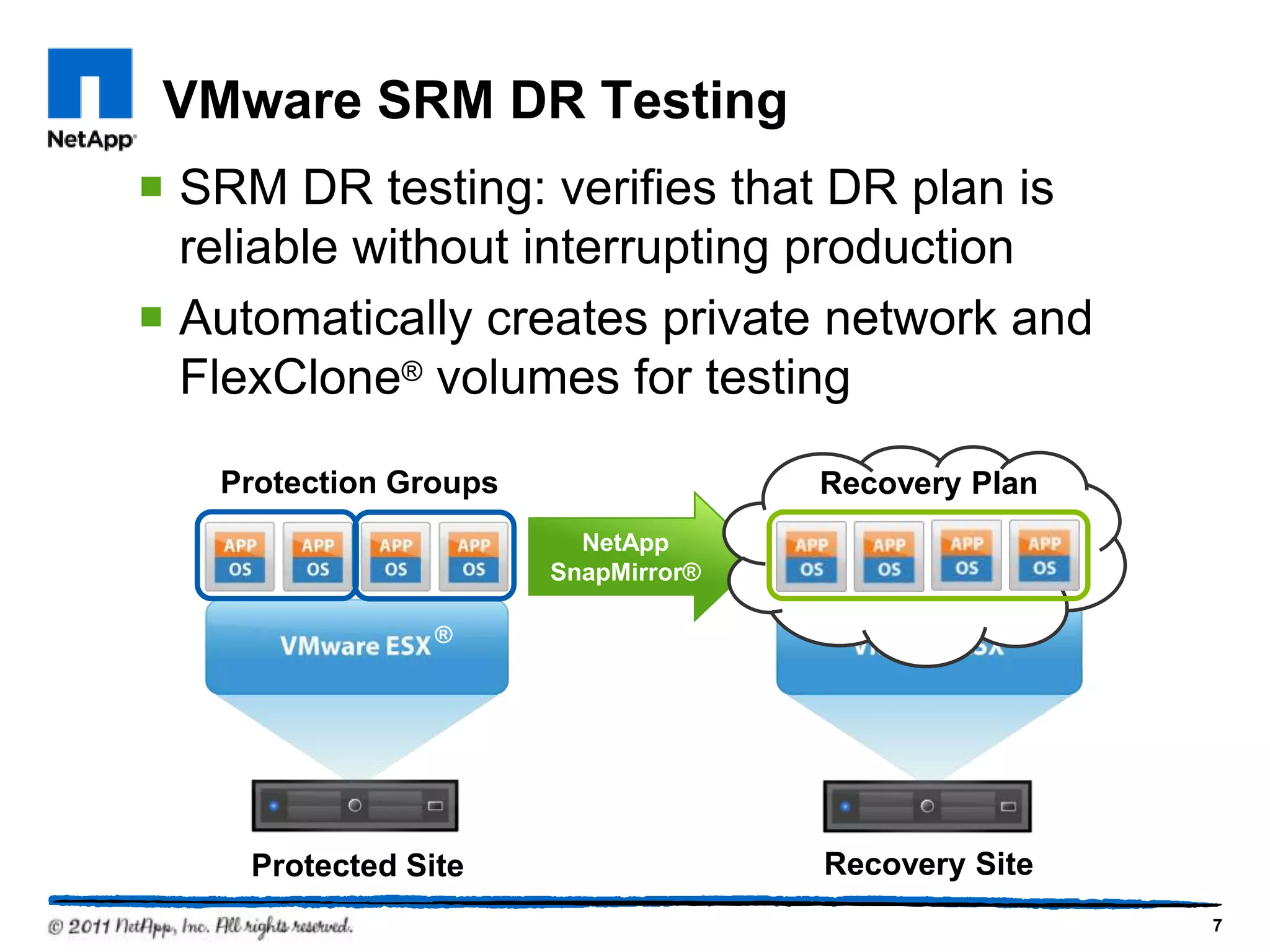

- 7. NetApp SnapMirror® VMware SRM DRTesting SRM DR testing: verifies that DR plan is reliable without interrupting production Automatically creates private network and FlexClone® volumes for testing Protected Site Recovery Site Protection Groups Recovery Plan 7 ®

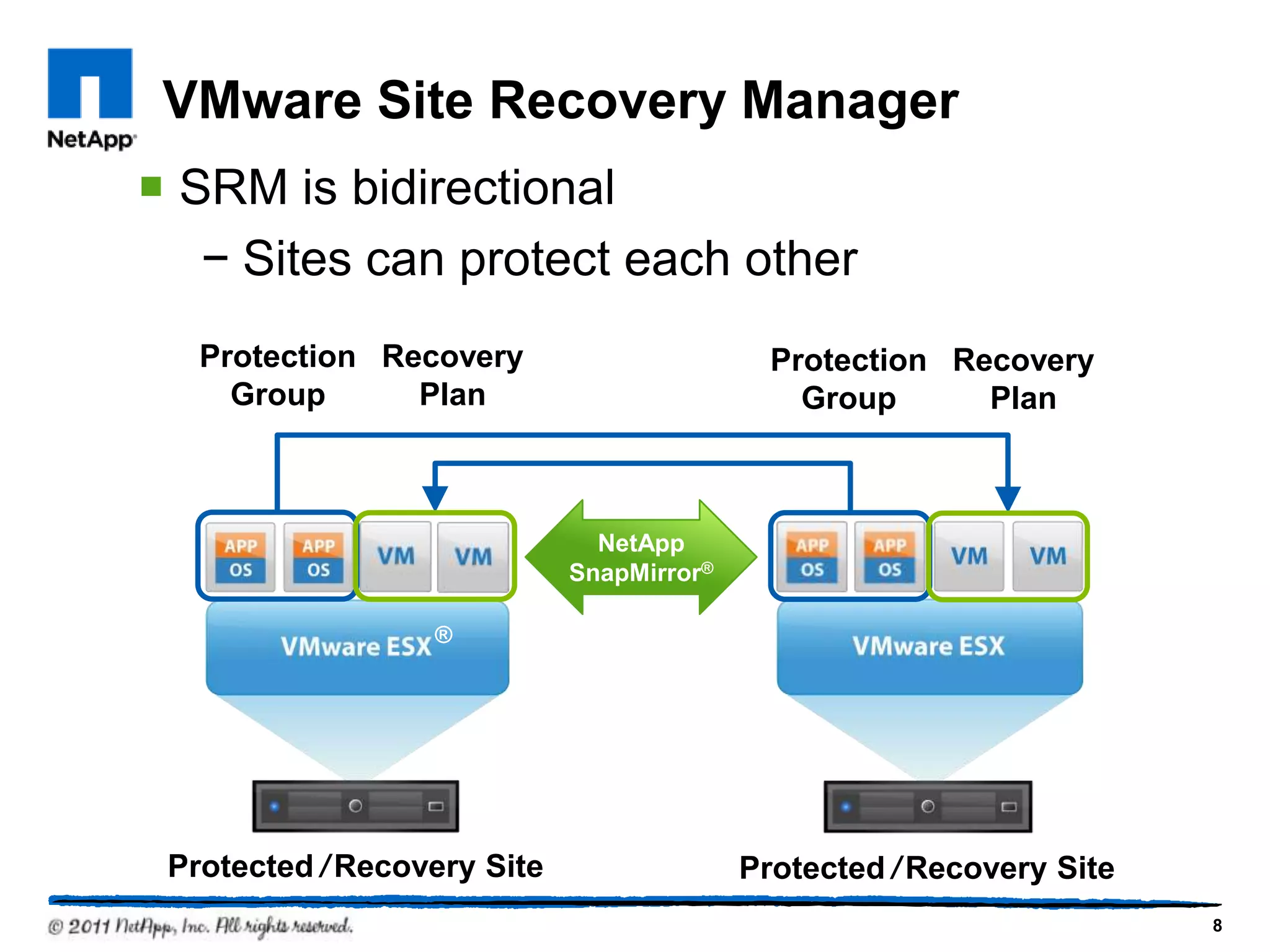

- 8. VMware Site RecoveryManager SRM is bidirectional − Sites can protect each other Protected / Recovery Site Protected / Recovery Site Protection Group Recovery Plan Protection Group Recovery Plan NetApp SnapMirror® 8 ®

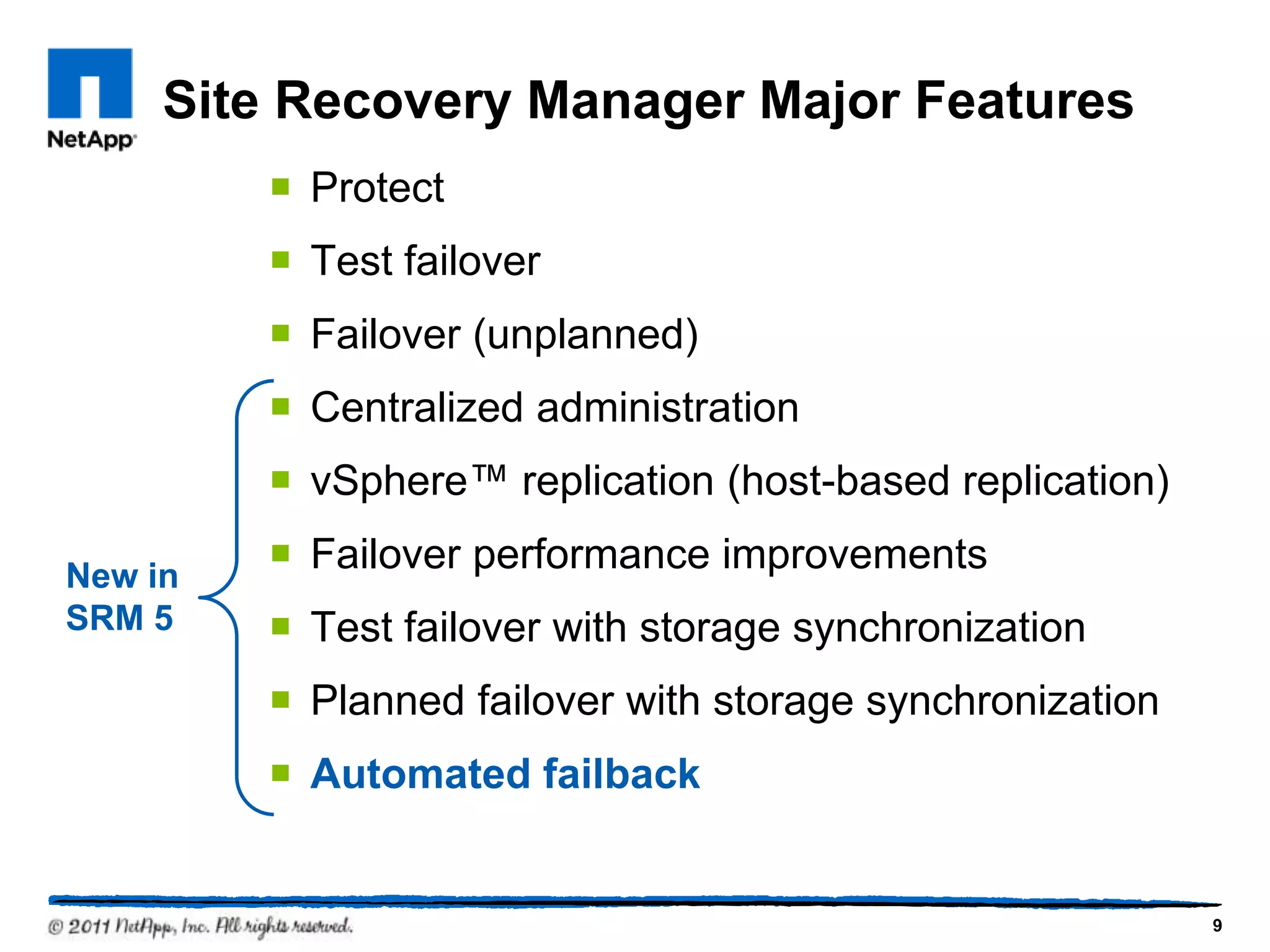

- 9. Site Recovery ManagerMajor Features Protect Test failover Failover (unplanned) Centralized administration vSphere™ replication (host-based replication) Failover performance improvements Test failover with storage synchronization Planned failover with storage synchronization Automated failback New in SRM 5 9

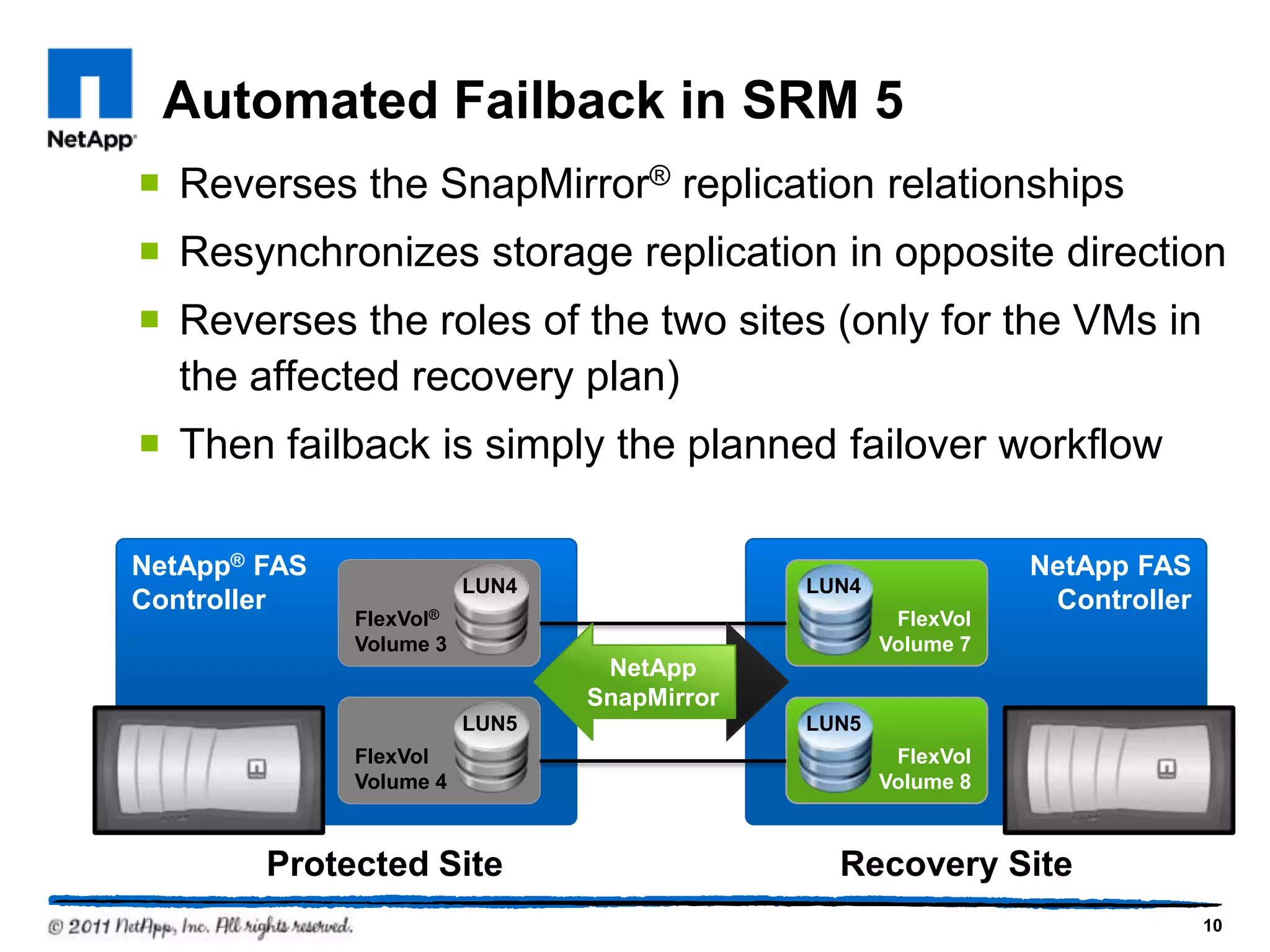

- 10. Automated Failback inSRM 5 Reverses the SnapMirror® replication relationships Resynchronizes storage replication in opposite direction Reverses the roles of the two sites (only for the VMs in the affected recovery plan) Then failback is simply the planned failover workflow NetApp FAS Controller Recovery Site NetApp® FAS Controller Protected Site FlexVol Volume 3 LUN4 FlexVol Volume 4 LUN5 FlexVol Volume 7 FlexVol Volume 8 LUN4 LUN5 NetApp SnapMirror NetApp SnapMirror FlexVol® Volume 3 LUN4 FlexVol Volume 4 LUN5 NetApp SnapMirror 10

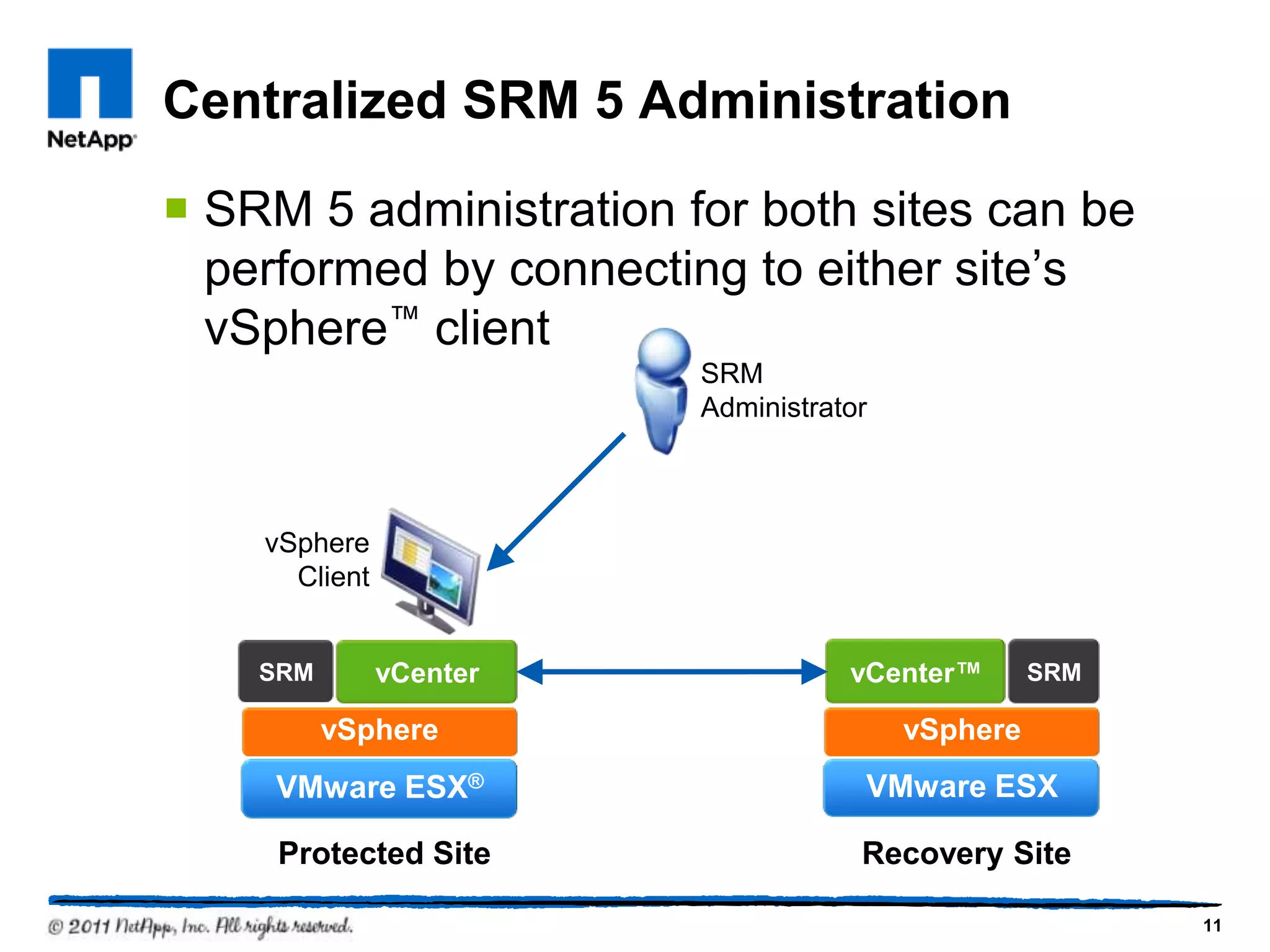

- 11. Centralized SRM 5Administration SRM 5 administration for both sites can be performed by connecting to either site’s vSphere™ client Protected Site Recovery Site vCenter™ SRM VMware ESX vSphere SRM vCenter VMware ESX® vSphere vSphere Client SRM Administrator 11

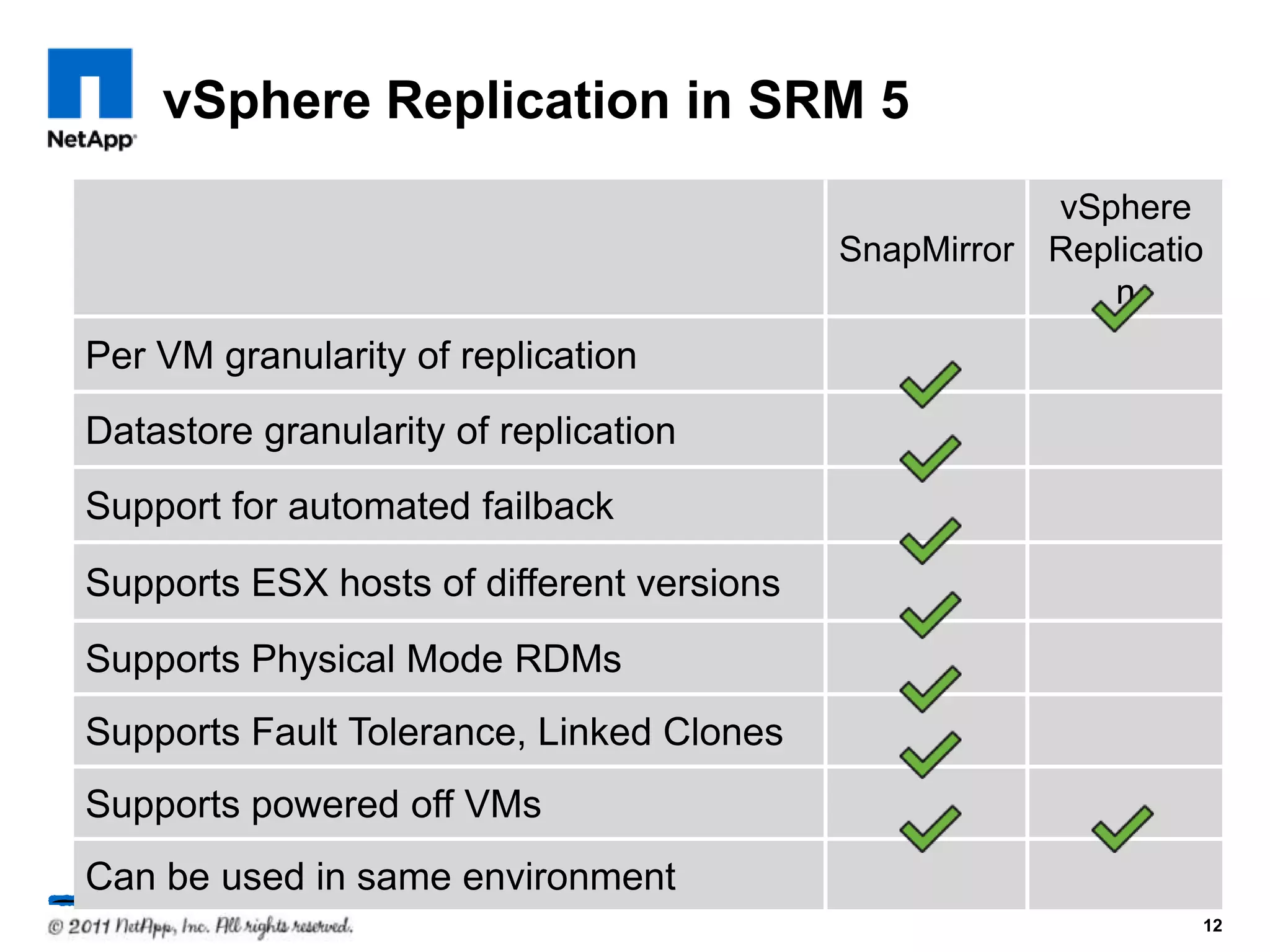

- 12. vSphere Replication inSRM 5 12 SnapMirror vSphere Replicatio n Per VM granularity of replication Datastore granularity of replication Support for automated failback Supports ESX hosts of different versions Supports Physical Mode RDMs Supports Fault Tolerance, Linked Clones Supports powered off VMs Can be used in same environment

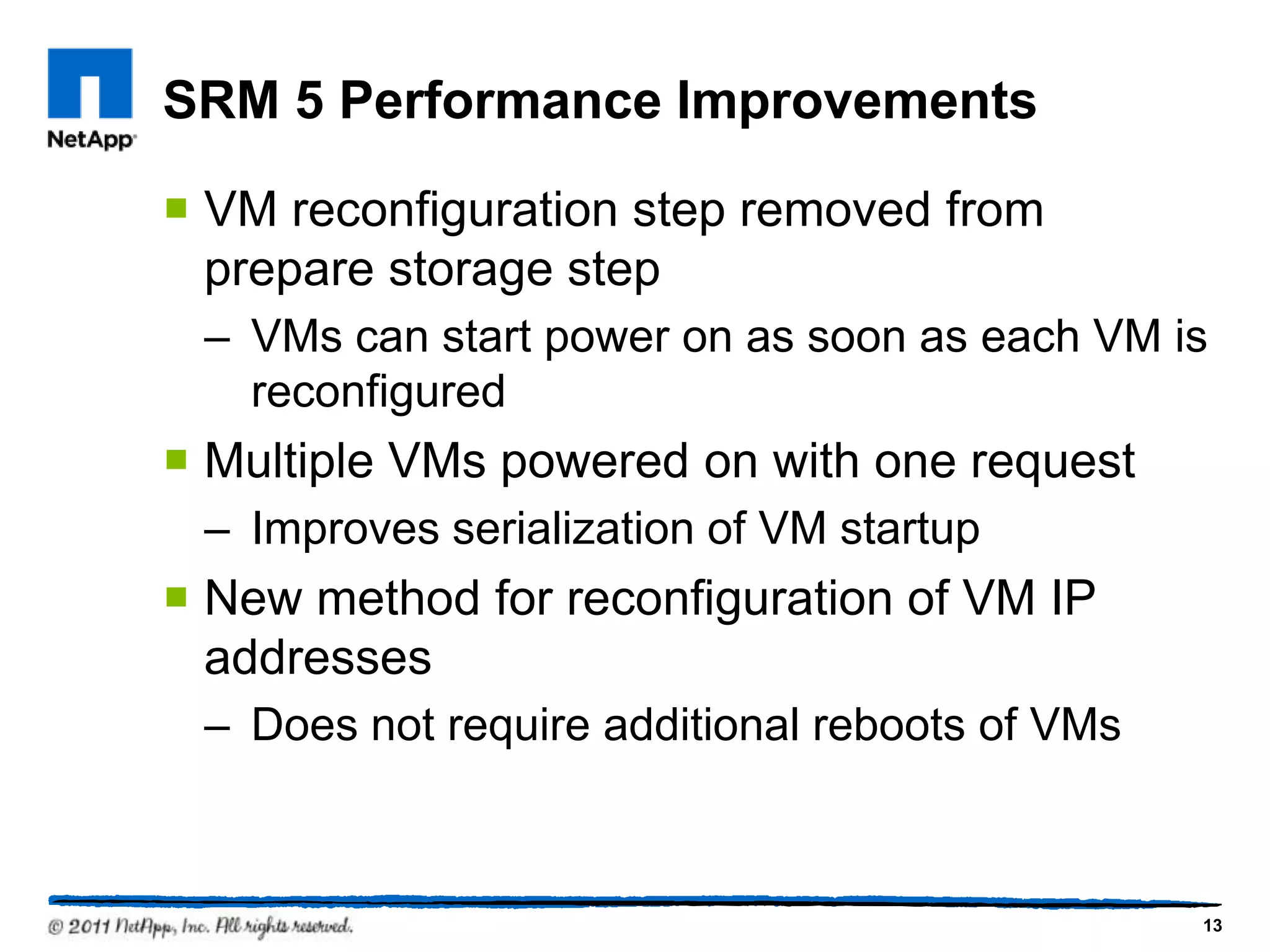

- 13. SRM 5 PerformanceImprovements VM reconfiguration step removed from prepare storage step – VMs can start power on as soon as each VM is reconfigured Multiple VMs powered on with one request – Improves serialization of VM startup New method for reconfiguration of VM IP addresses – Does not require additional reboots of VMs 13
- 14. 14 NetApp Value in SRMEnvironments

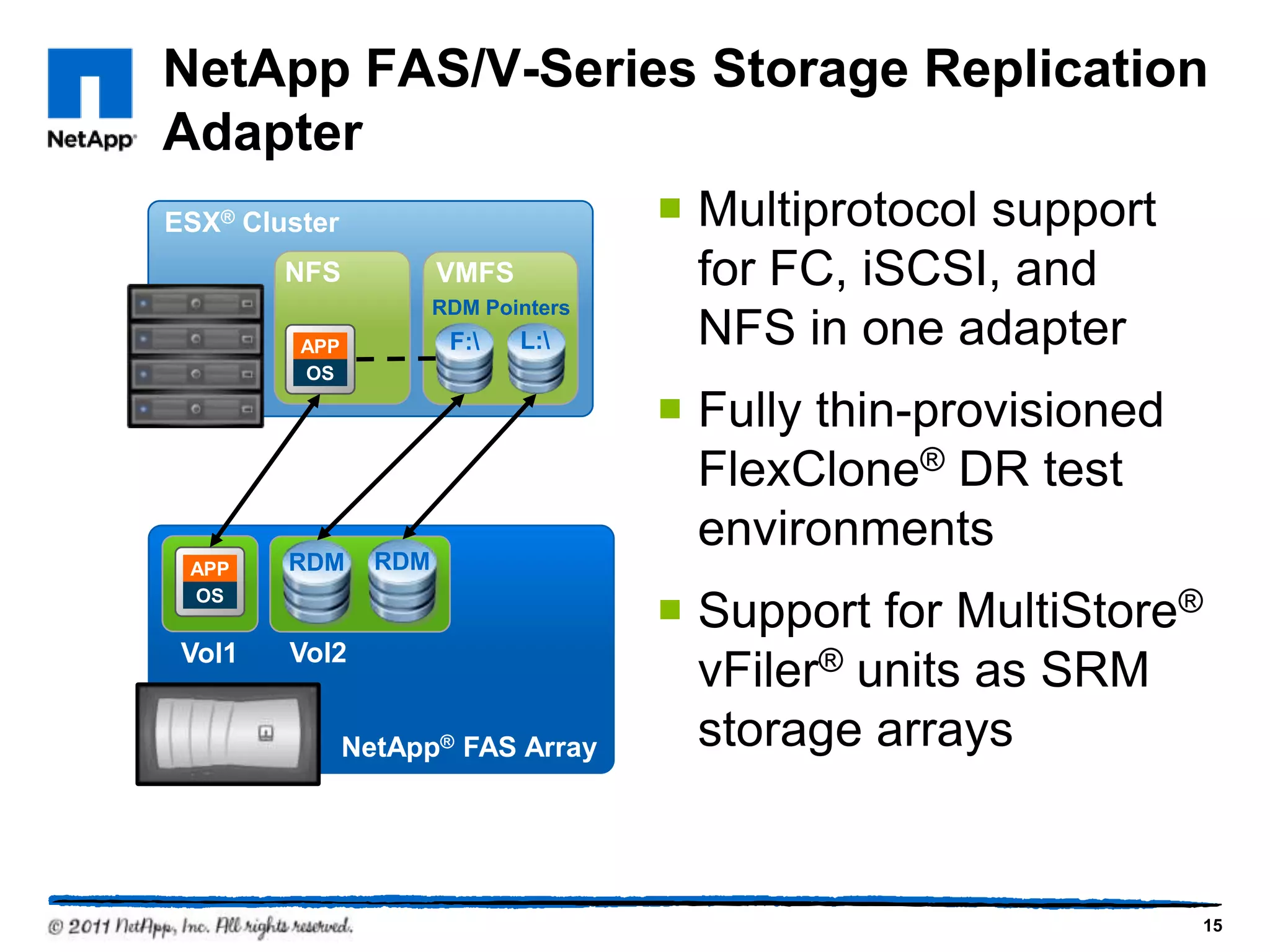

- 15. NetApp® FAS Array RDMRDM Vol2Vol1 APP OS ESX® Cluster VMFS APP OS RDM Pointers F: L: NFS NetApp FAS/V-Series Storage Replication Adapter Multiprotocol support for FC, iSCSI, and NFS in one adapter Fully thin-provisioned FlexClone® DR test environments Support for MultiStore® vFiler® units as SRM storage arrays 15

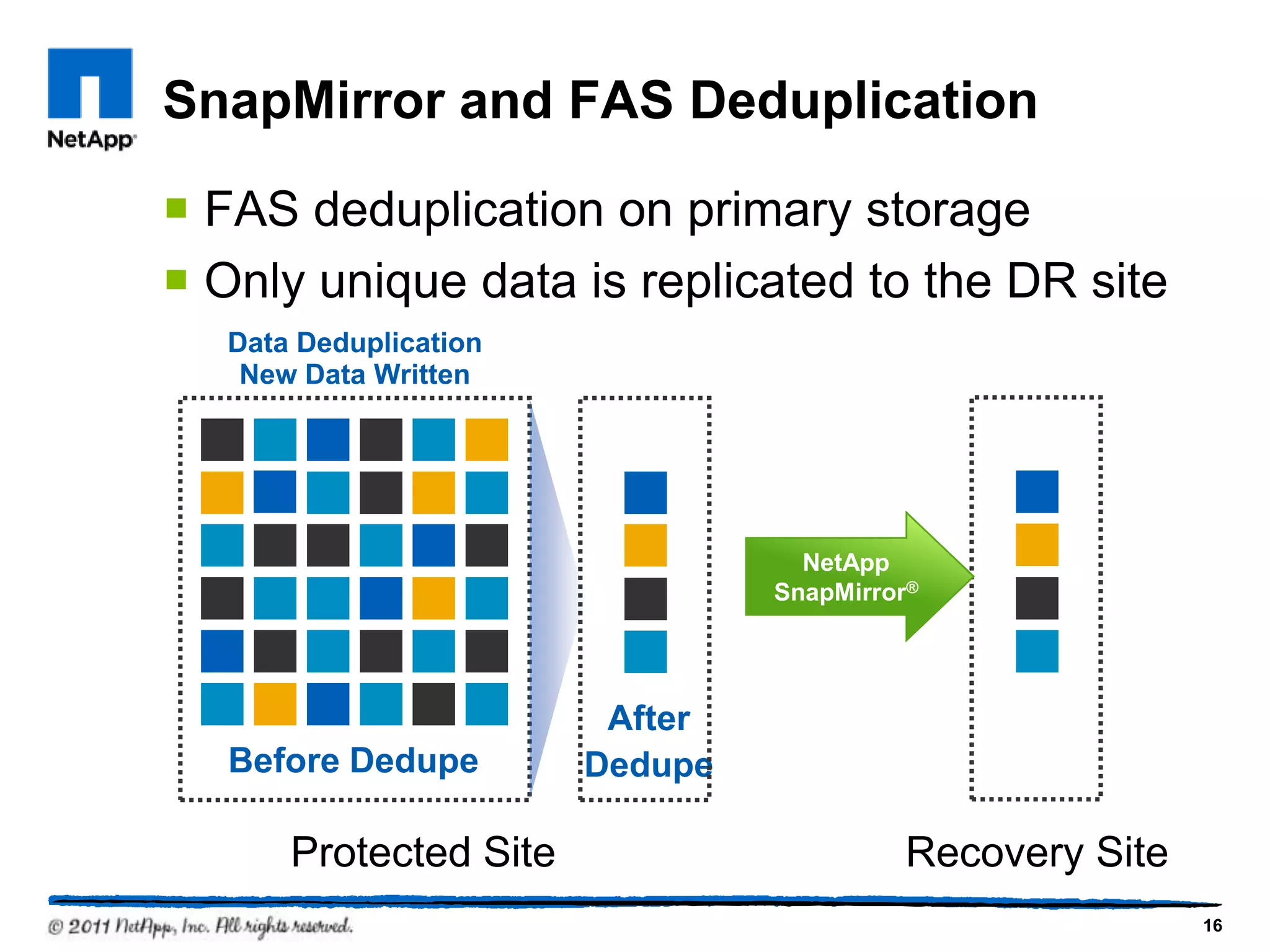

- 16. SnapMirror and FASDeduplication FAS deduplication on primary storage Only unique data is replicated to the DR site Protected Site Recovery Site New Data Written Before Dedupe After Dedupe Data Deduplication NetApp SnapMirror® 16

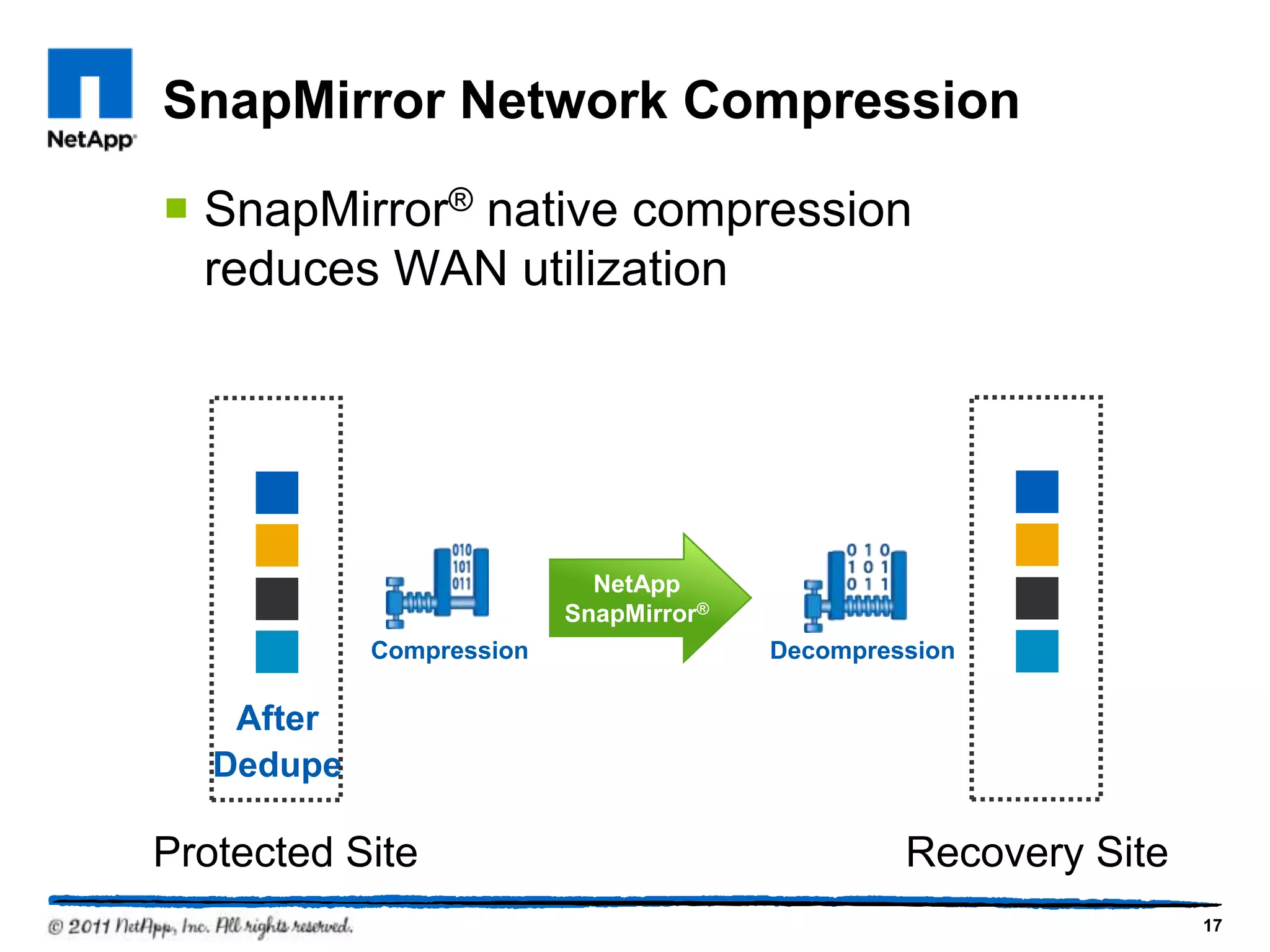

- 17. SnapMirror Network Compression SnapMirror® native compression reduces WAN utilization Recovery SiteProtected Site After Dedupe Compression Decompression NetApp SnapMirror® 17

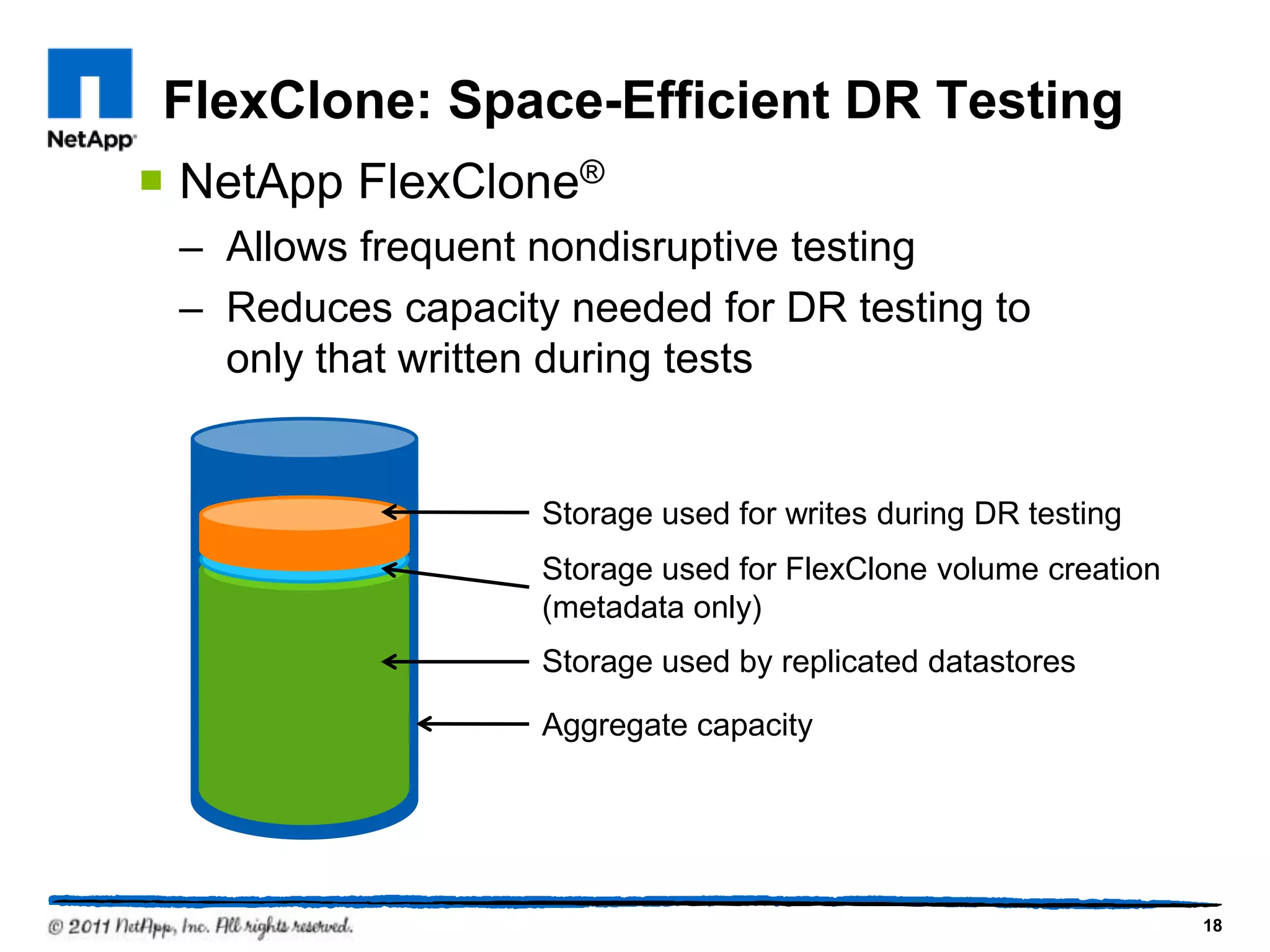

- 18. FlexClone: Space-Efficient DRTesting NetApp FlexClone® – Allows frequent nondisruptive testing – Reduces capacity needed for DR testing to only that written during tests Aggregate capacity Storage used by replicated datastores Storage used for FlexClone volume creation (metadata only) Storage used for writes during DR testing 18

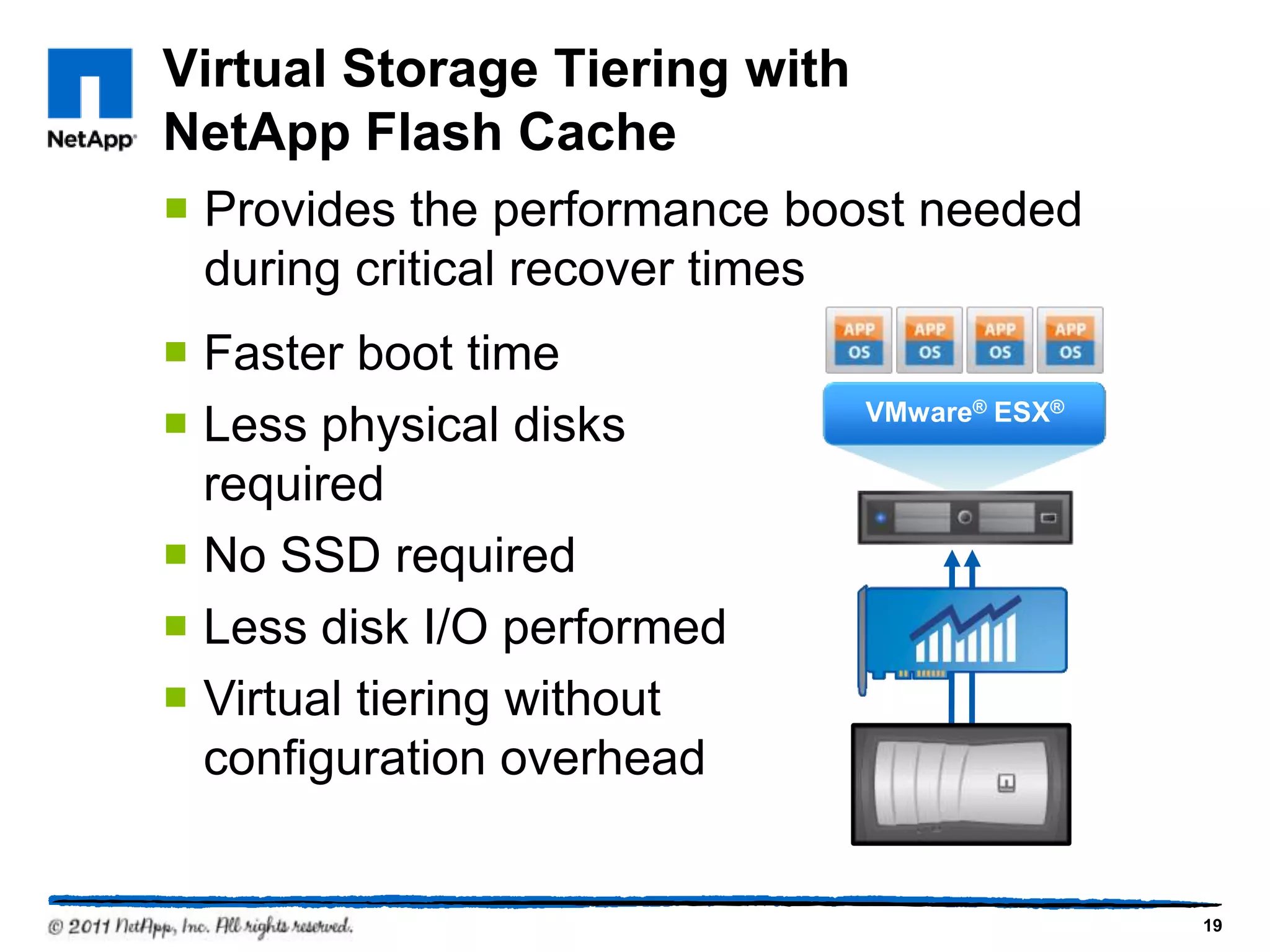

- 19. Virtual Storage Tieringwith NetApp Flash Cache Provides the performance boost needed during critical recover times 19 VMware® ESX® Faster boot time Less physical disks required No SSD required Less disk I/O performed Virtual tiering without configuration overhead
- 20.

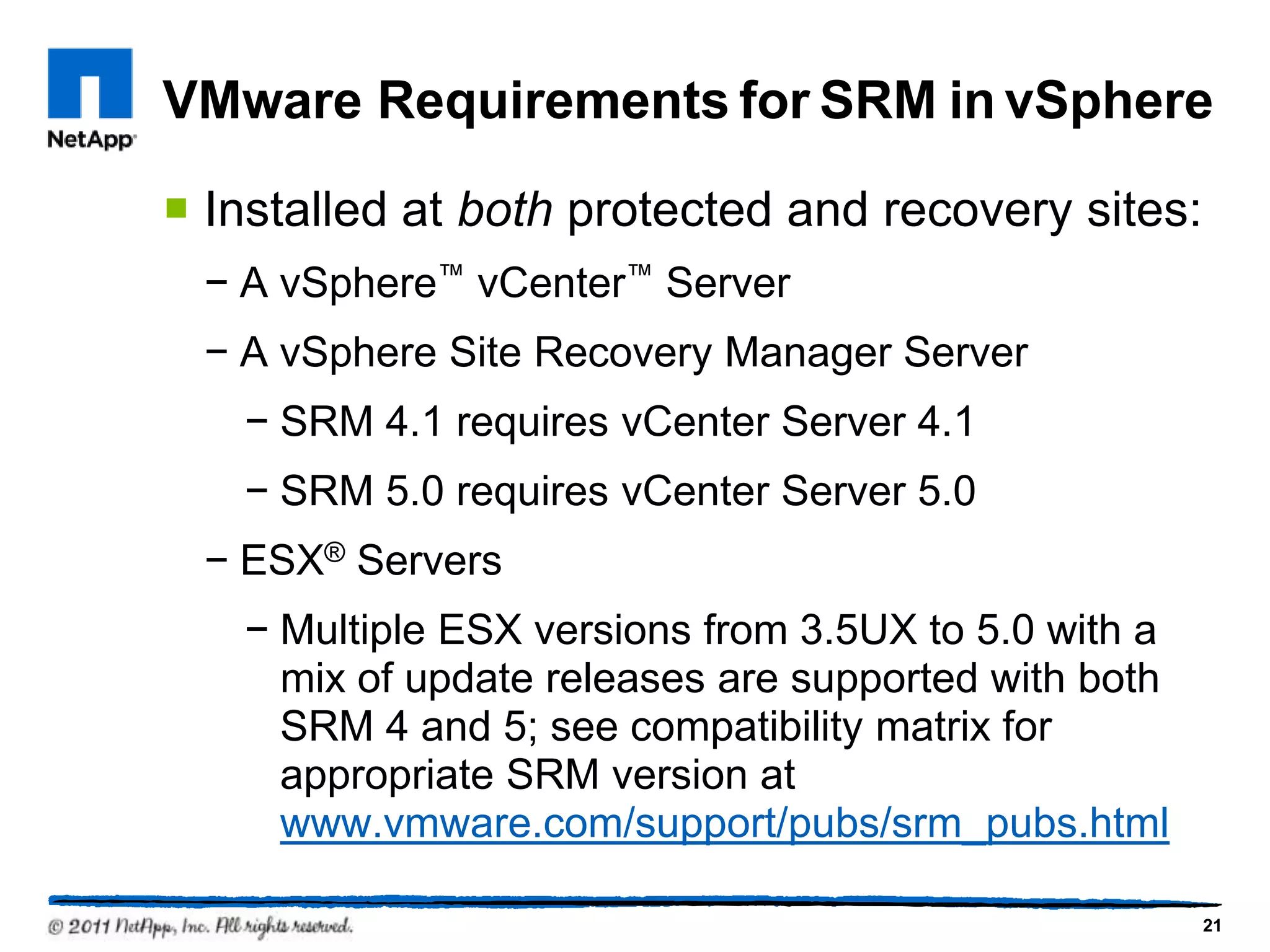

- 21. VMware Requirements forSRM in vSphere Installed at both protected and recovery sites: − A vSphere™ vCenter™ Server − A vSphere Site Recovery Manager Server − SRM 4.1 requires vCenter Server 4.1 − SRM 5.0 requires vCenter Server 5.0 − ESX® Servers − Multiple ESX versions from 3.5UX to 5.0 with a mix of update releases are supported with both SRM 4 and 5; see compatibility matrix for appropriate SRM version at www.vmware.com/support/pubs/srm_pubs.html 21

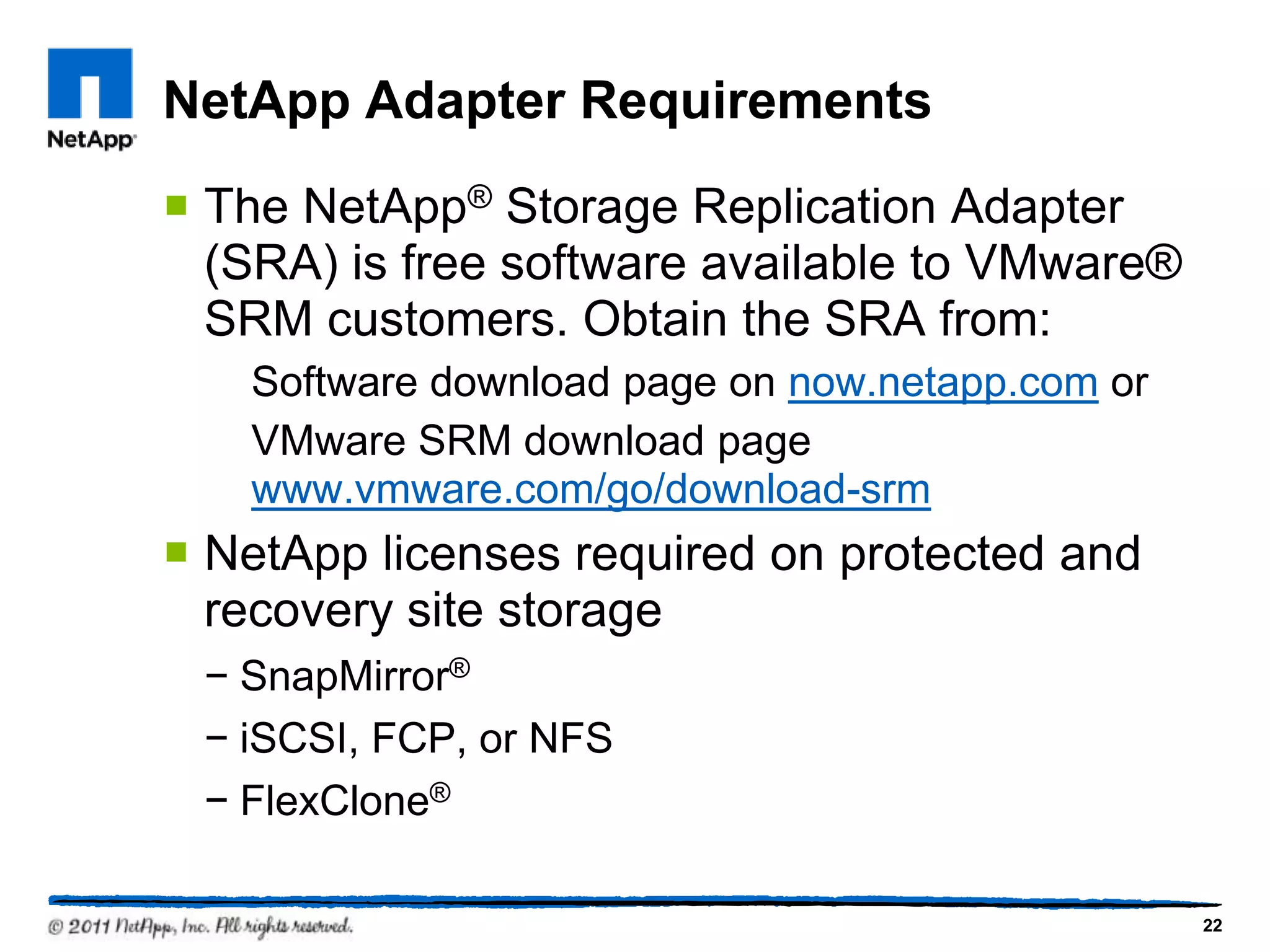

- 22. NetApp Adapter Requirements The NetApp® Storage Replication Adapter (SRA) is free software available to VMware® SRM customers. Obtain the SRA from: Software download page on now.netapp.com or VMware SRM download page www.vmware.com/go/download-srm NetApp licenses required on protected and recovery site storage − SnapMirror® − iSCSI, FCP, or NFS − FlexClone® 22

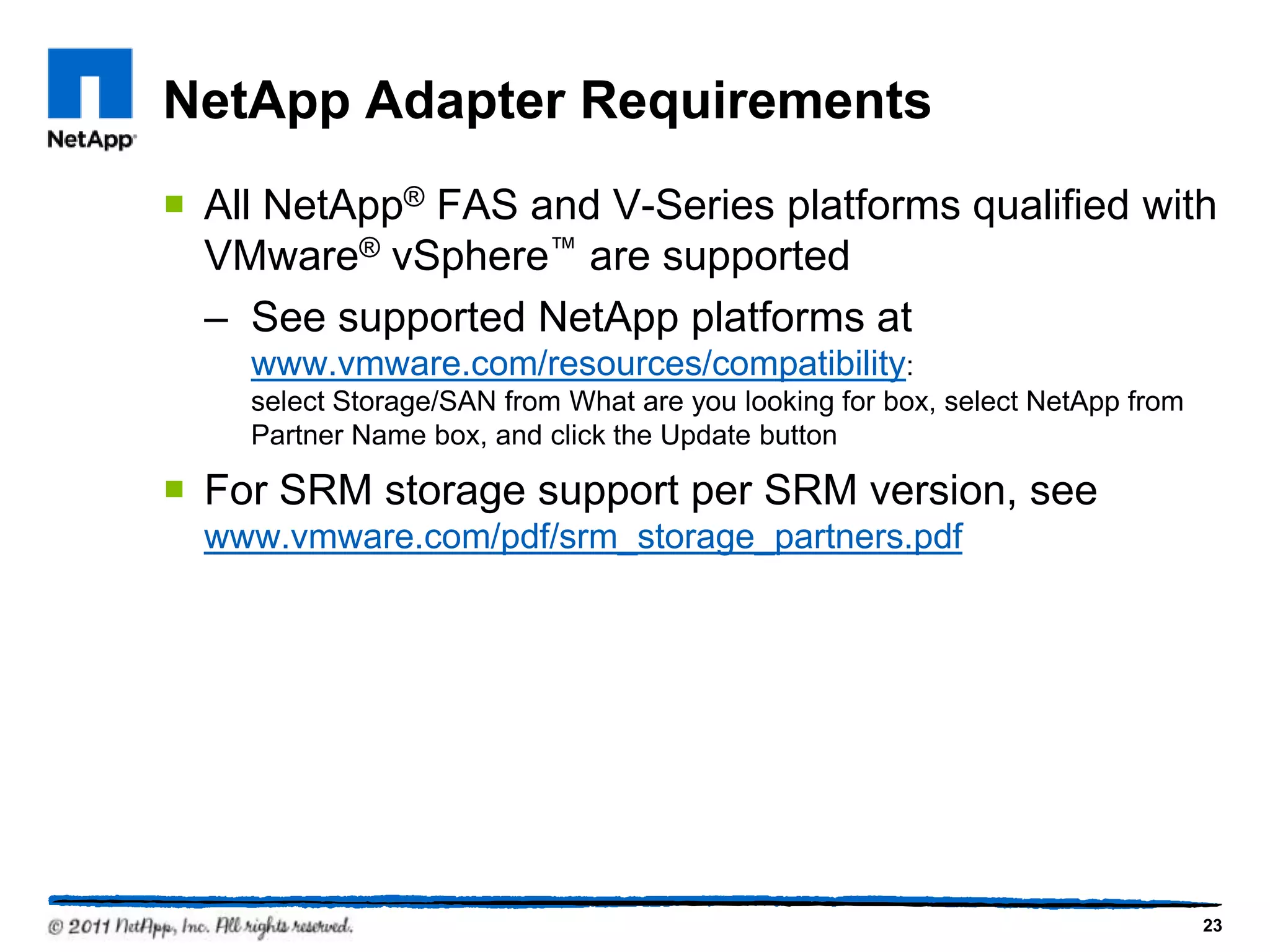

- 23. NetApp Adapter Requirements All NetApp® FAS and V-Series platforms qualified with VMware® vSphere™ are supported – See supported NetApp platforms at www.vmware.com/resources/compatibility: select Storage/SAN from What are you looking for box, select NetApp from Partner Name box, and click the Update button For SRM storage support per SRM version, see www.vmware.com/pdf/srm_storage_partners.pdf 23

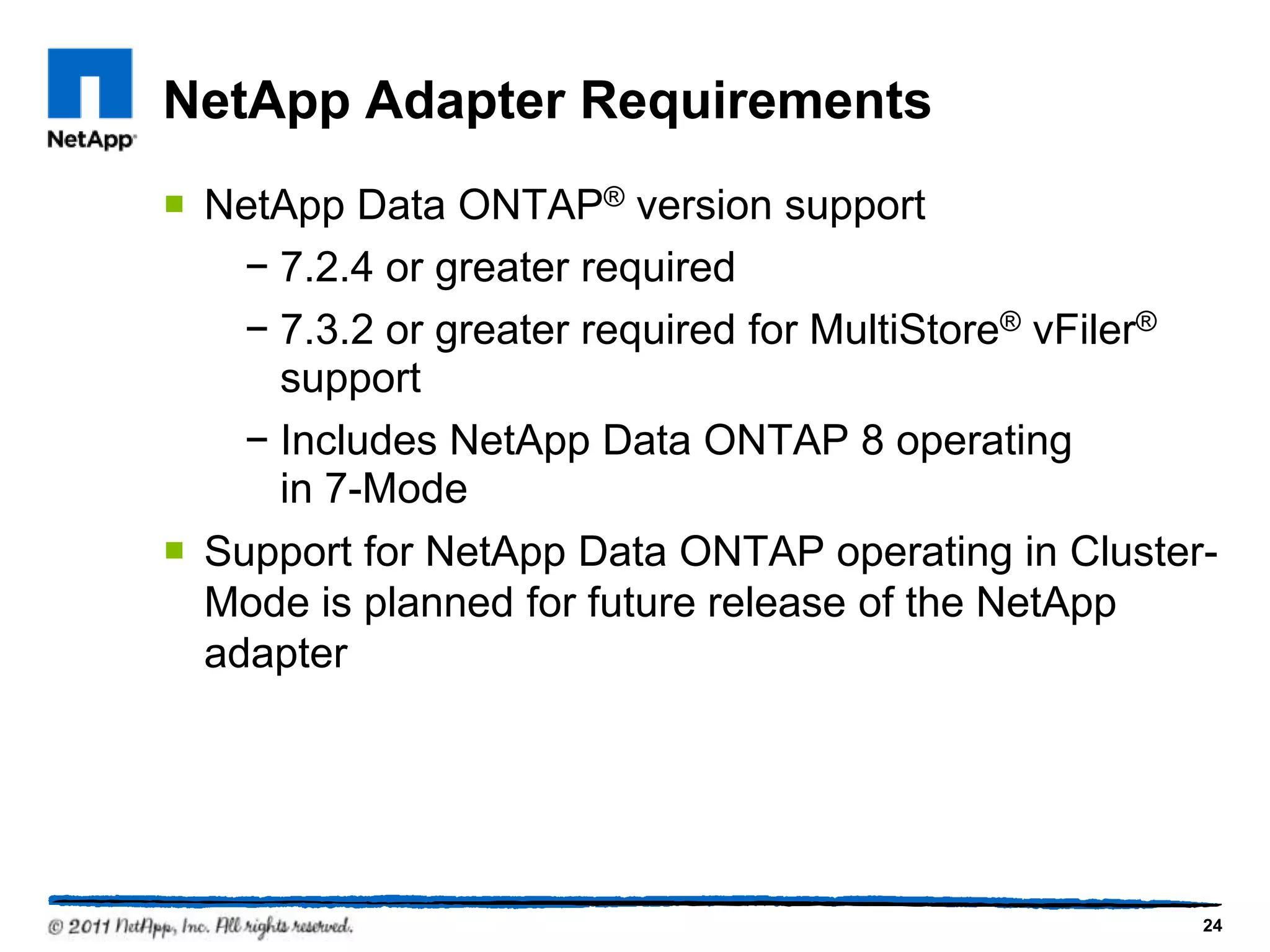

- 24. NetApp Adapter Requirements NetApp Data ONTAP® version support − 7.2.4 or greater required − 7.3.2 or greater required for MultiStore® vFiler® support − Includes NetApp Data ONTAP 8 operating in 7-Mode Support for NetApp Data ONTAP operating in Cluster- Mode is planned for future release of the NetApp adapter 24

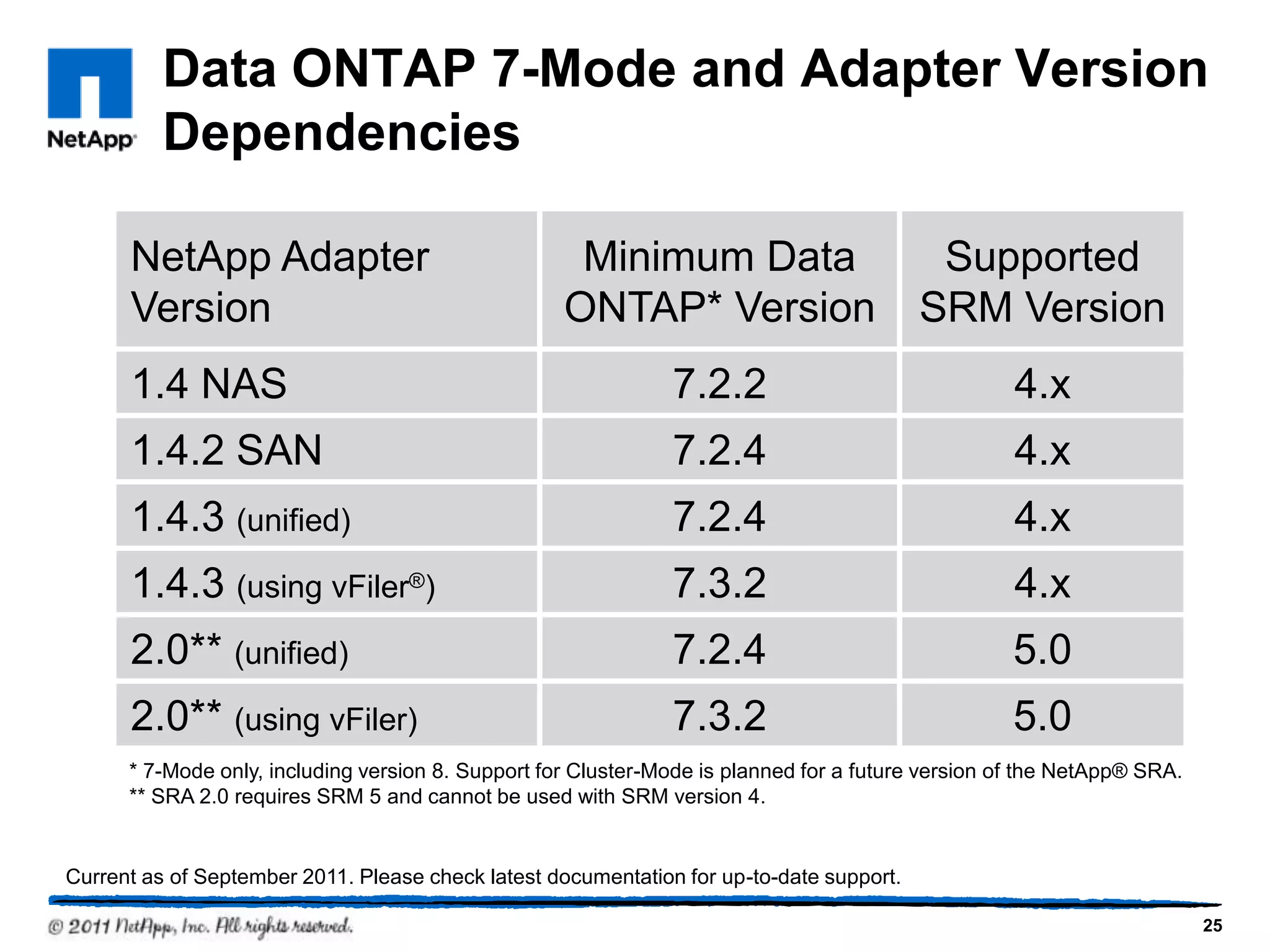

- 25. Data ONTAP 7-Modeand Adapter Version Dependencies NetApp Adapter Version Minimum Data ONTAP* Version Supported SRM Version 1.4 NAS 7.2.2 4.x 1.4.2 SAN 7.2.4 4.x 1.4.3 (unified) 7.2.4 4.x 1.4.3 (using vFiler®) 7.3.2 4.x 2.0** (unified) 7.2.4 5.0 2.0** (using vFiler) 7.3.2 5.0 Current as of September 2011. Please check latest documentation for up-to-date support. * 7-Mode only, including version 8. Support for Cluster-Mode is planned for a future version of the NetApp® SRA. ** SRA 2.0 requires SRM 5 and cannot be used with SRM version 4. 25

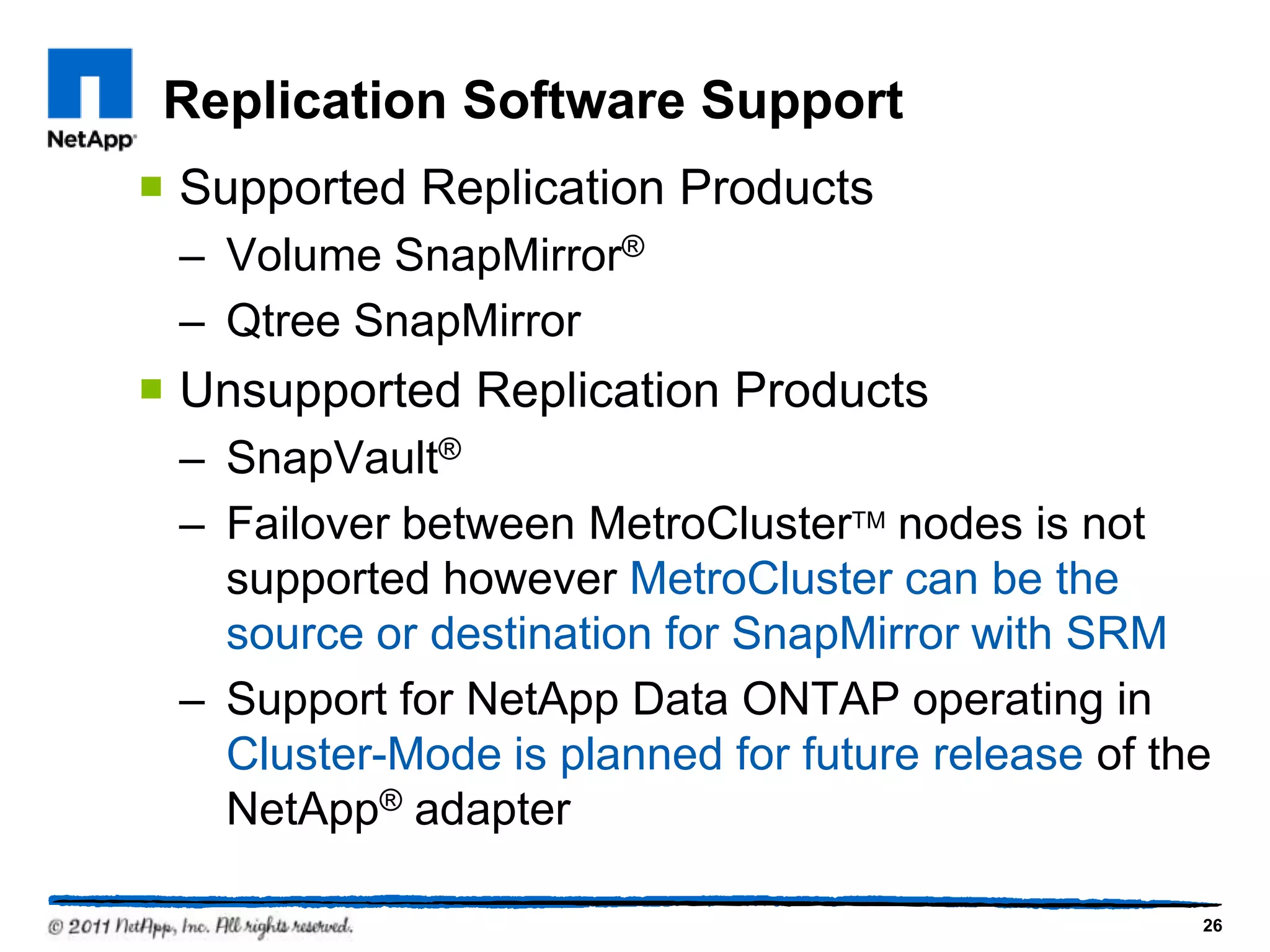

- 26. Replication Software Support Supported Replication Products – Volume SnapMirror® – Qtree SnapMirror Unsupported Replication Products – SnapVault® – Failover between MetroClusterTM nodes is not supported however MetroCluster can be the source or destination for SnapMirror with SRM – Support for NetApp Data ONTAP operating in Cluster-Mode is planned for future release of the NetApp® adapter 26

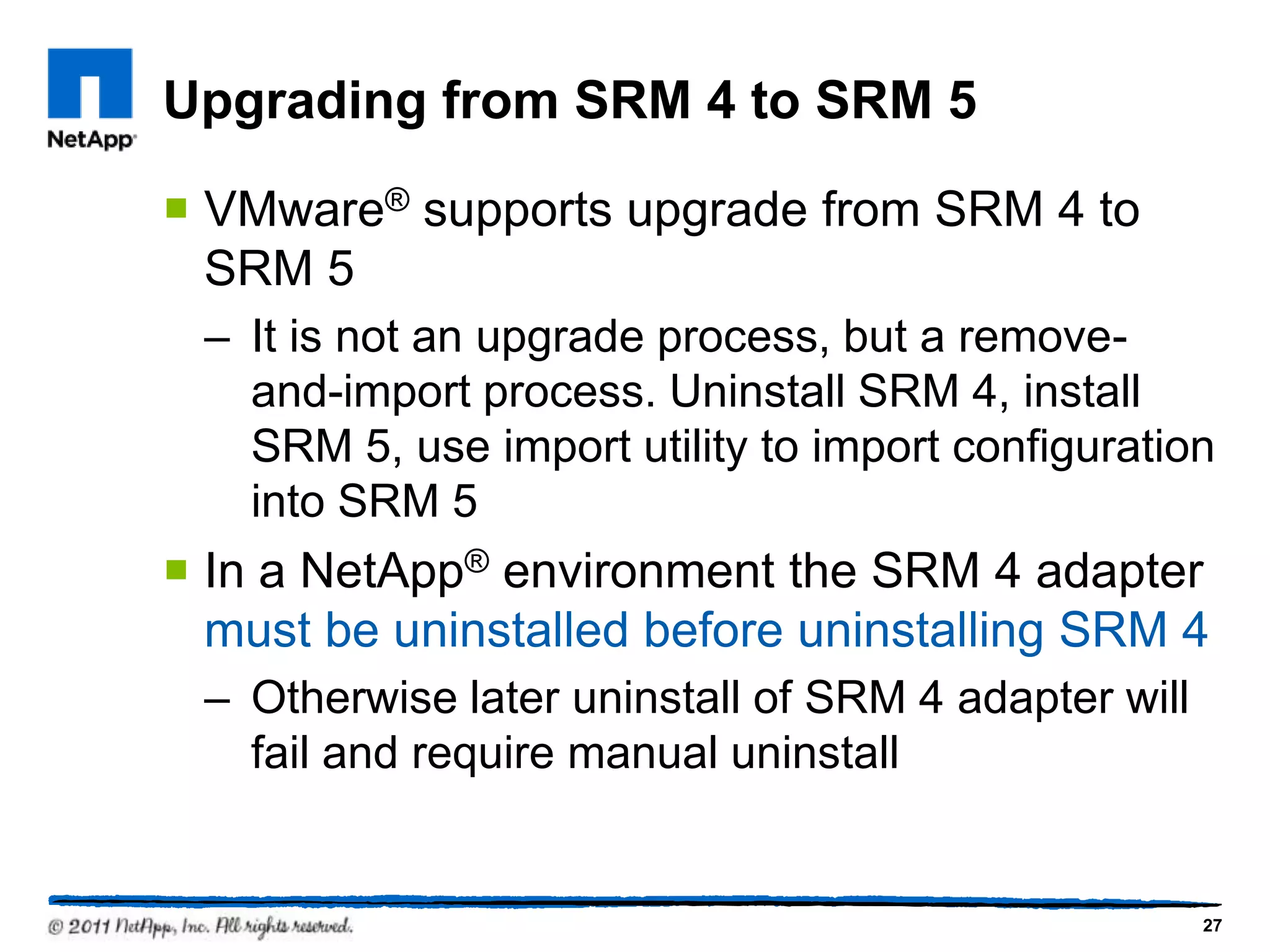

- 27. Upgrading from SRM4 to SRM 5 VMware® supports upgrade from SRM 4 to SRM 5 – It is not an upgrade process, but a remove- and-import process. Uninstall SRM 4, install SRM 5, use import utility to import configuration into SRM 5 In a NetApp® environment the SRM 4 adapter must be uninstalled before uninstalling SRM 4 – Otherwise later uninstall of SRM 4 adapter will fail and require manual uninstall 27
- 28.

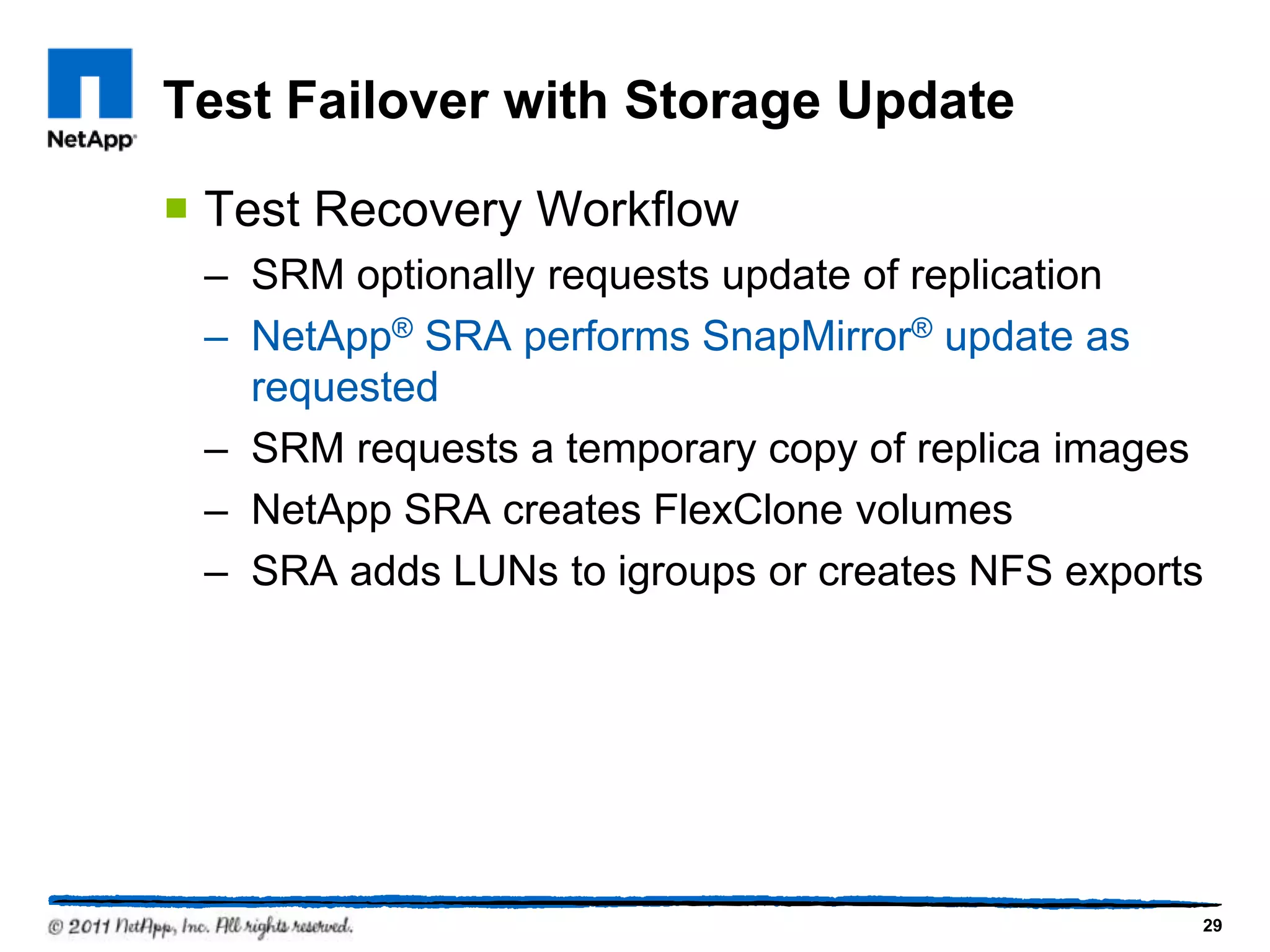

- 29. Test Failover withStorage Update Test Recovery Workflow – SRM optionally requests update of replication – NetApp® SRA performs SnapMirror® update as requested – SRM requests a temporary copy of replica images – NetApp SRA creates FlexClone volumes – SRA adds LUNs to igroups or creates NFS exports 29

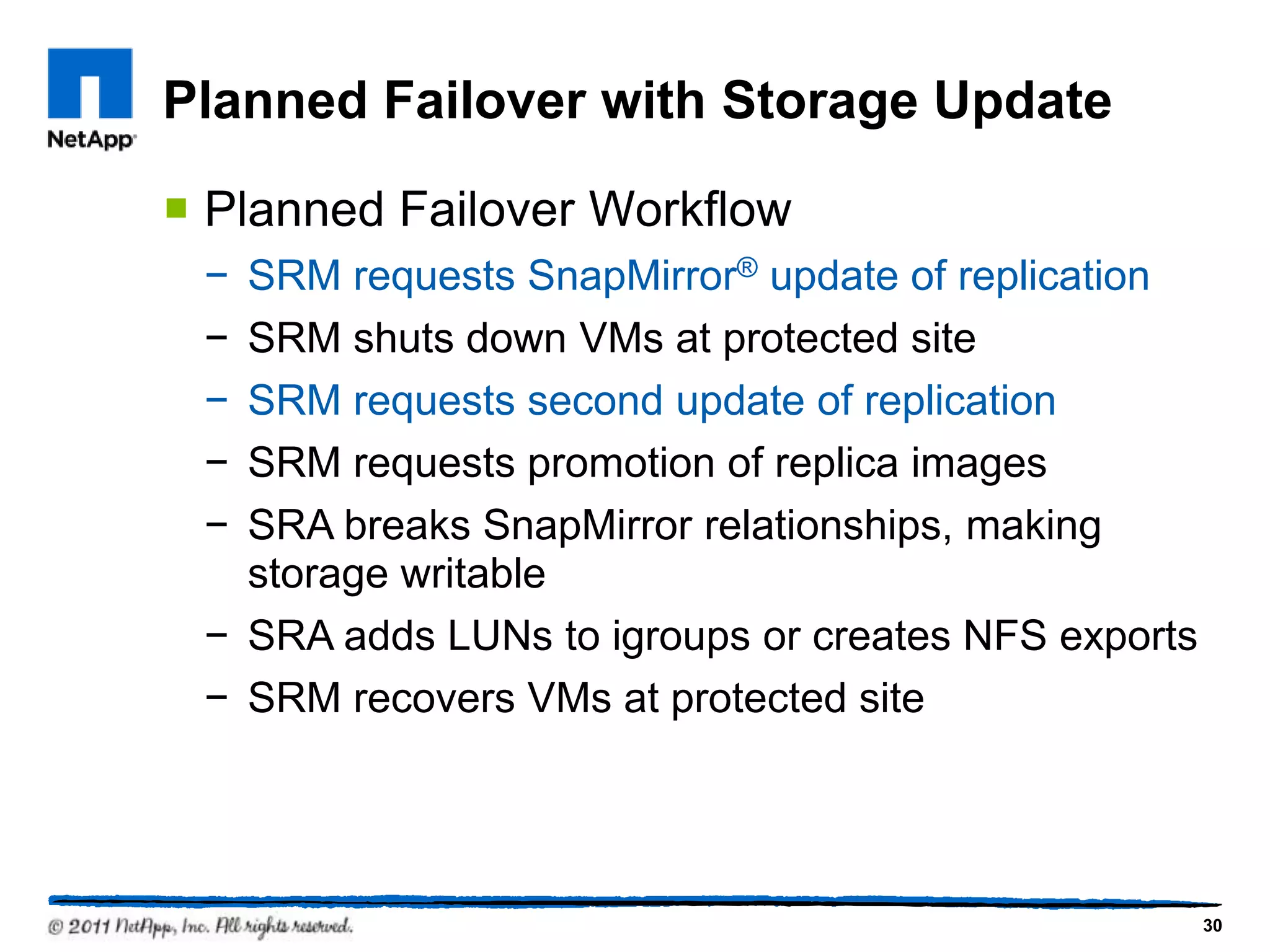

- 30. Planned Failover withStorage Update Planned Failover Workflow − SRM requests SnapMirror® update of replication − SRM shuts down VMs at protected site − SRM requests second update of replication − SRM requests promotion of replica images − SRA breaks SnapMirror relationships, making storage writable − SRA adds LUNs to igroups or creates NFS exports − SRM recovers VMs at protected site 30

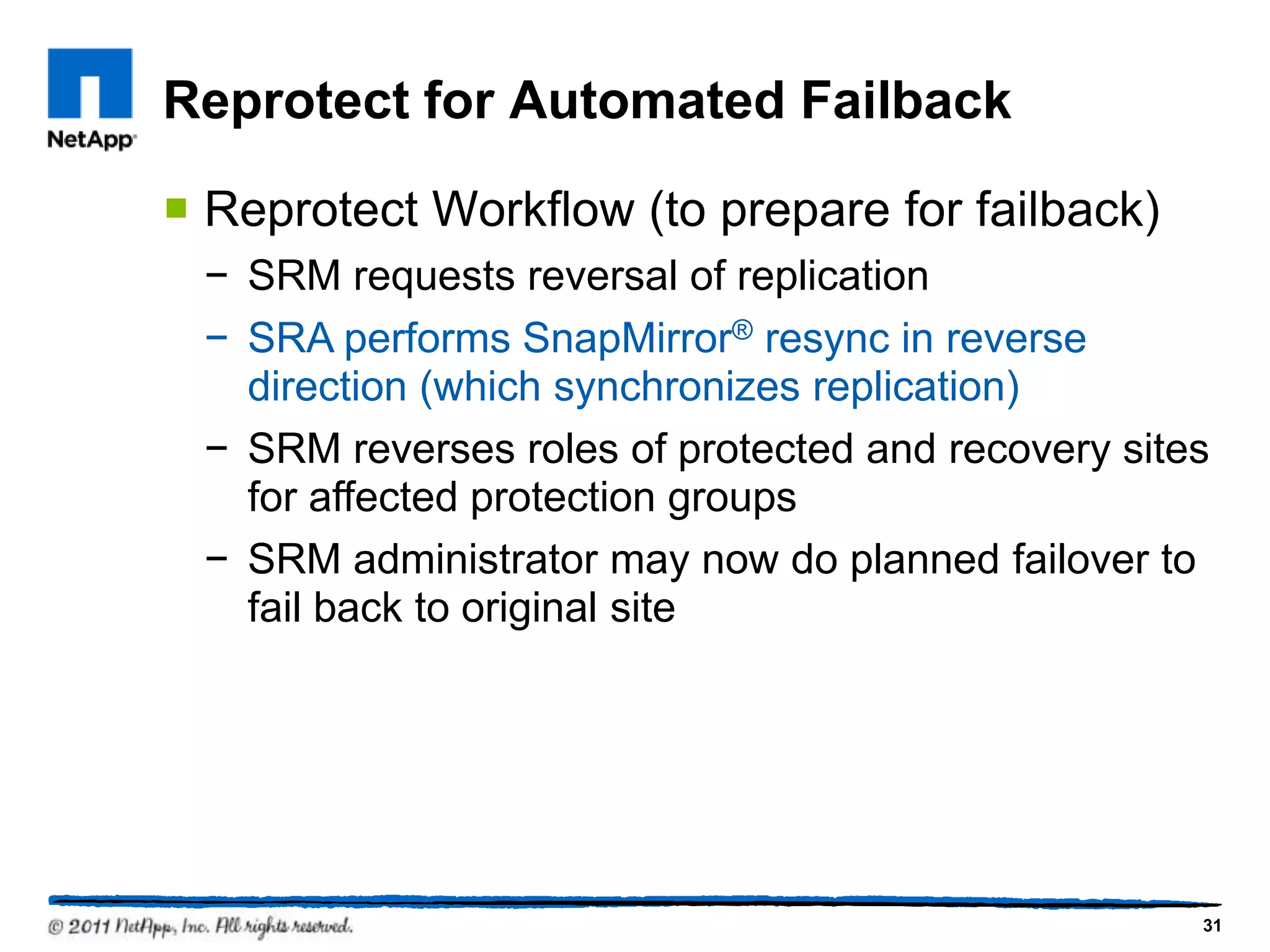

- 31. Reprotect for AutomatedFailback Reprotect Workflow (to prepare for failback) − SRM requests reversal of replication − SRA performs SnapMirror® resync in reverse direction (which synchronizes replication) − SRM reverses roles of protected and recovery sites for affected protection groups − SRM administrator may now do planned failover to fail back to original site 31
- 32.

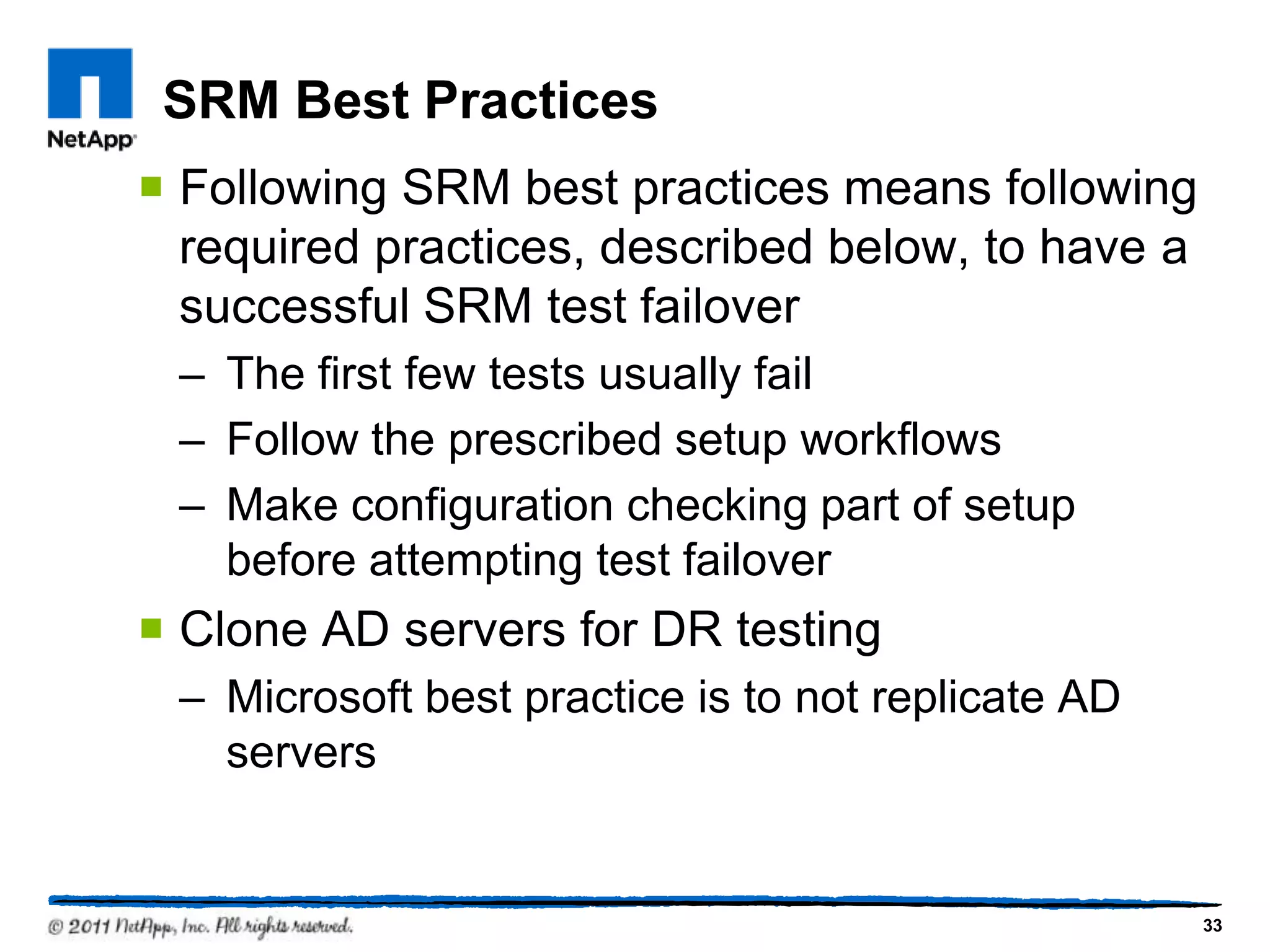

- 33. SRM Best Practices Following SRM best practices means following required practices, described below, to have a successful SRM test failover – The first few tests usually fail – Follow the prescribed setup workflows – Make configuration checking part of setup before attempting test failover Clone AD servers for DR testing – Microsoft best practice is to not replicate AD servers 33
- 34. Upgrading from SRM4 to SRM 5 VMware® supports upgrade from SRM 4 to SRM 5 – It is not an upgrade process, but a remove- and-import process. Uninstall SRM 4, install SRM 5, use import utility to import configuration into SRM 5 In a NetApp® environment the SRM 4 adapter must be uninstalled before uninstalling SRM 4 – Otherwise later uninstall of SRM 4 adapter will fail and require manual uninstall 34

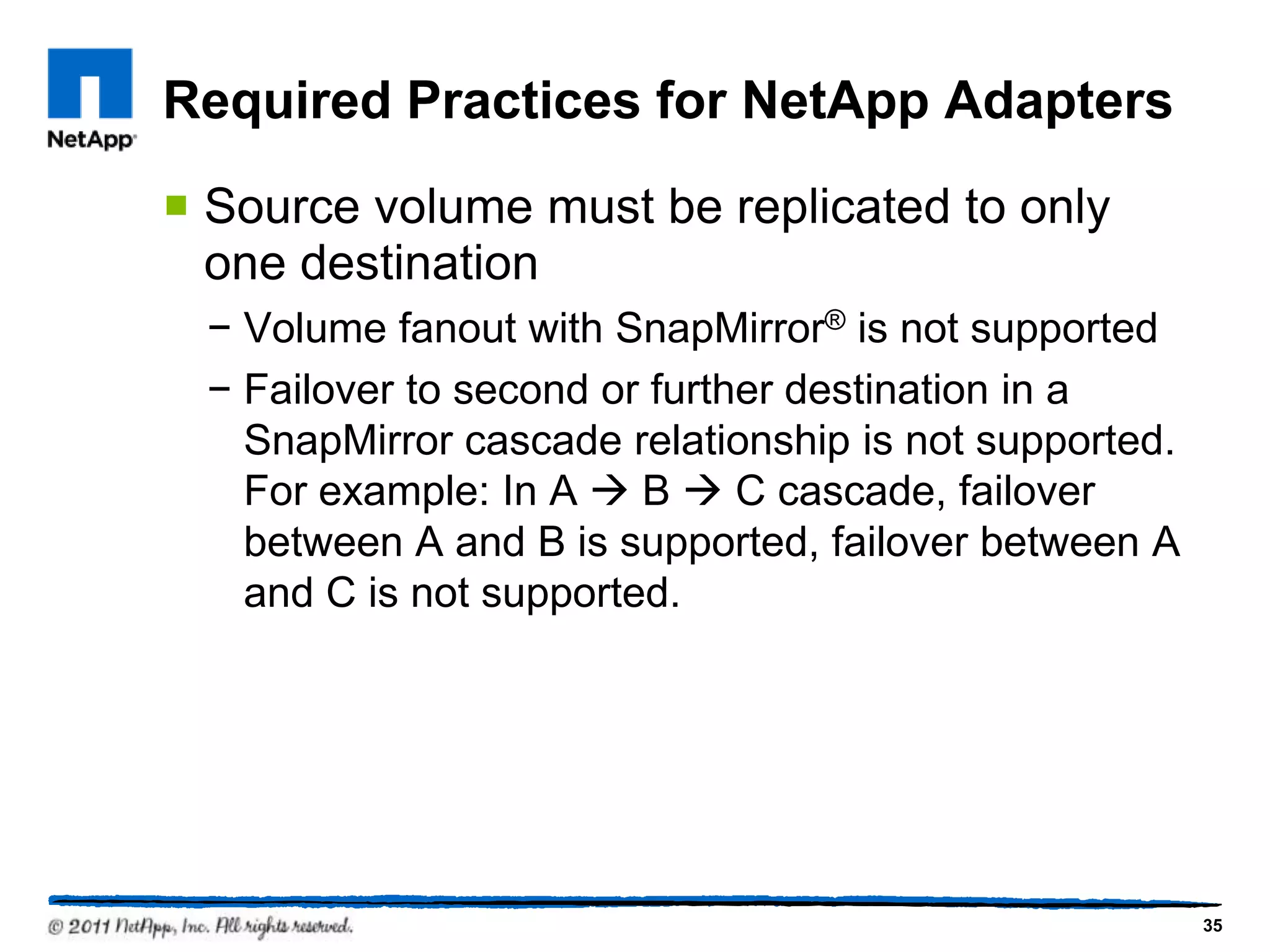

- 35. Required Practices forNetApp Adapters Source volume must be replicated to only one destination − Volume fanout with SnapMirror® is not supported − Failover to second or further destination in a SnapMirror cascade relationship is not supported. For example: In A B C cascade, failover between A and B is supported, failover between A and C is not supported. 35

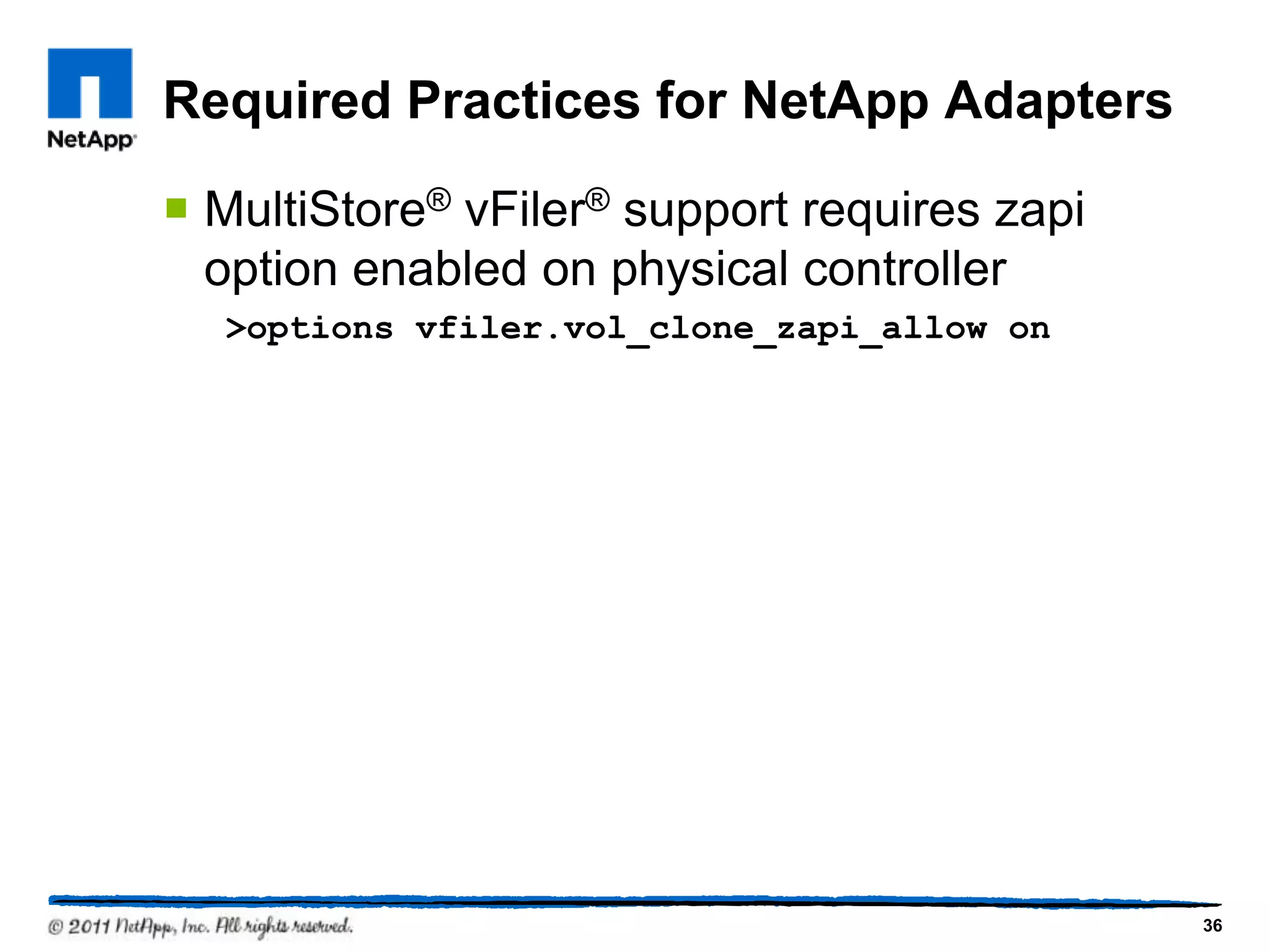

- 36. Required Practices forNetApp Adapters MultiStore® vFiler® support requires zapi option enabled on physical controller >options vfiler.vol_clone_zapi_allow on 36

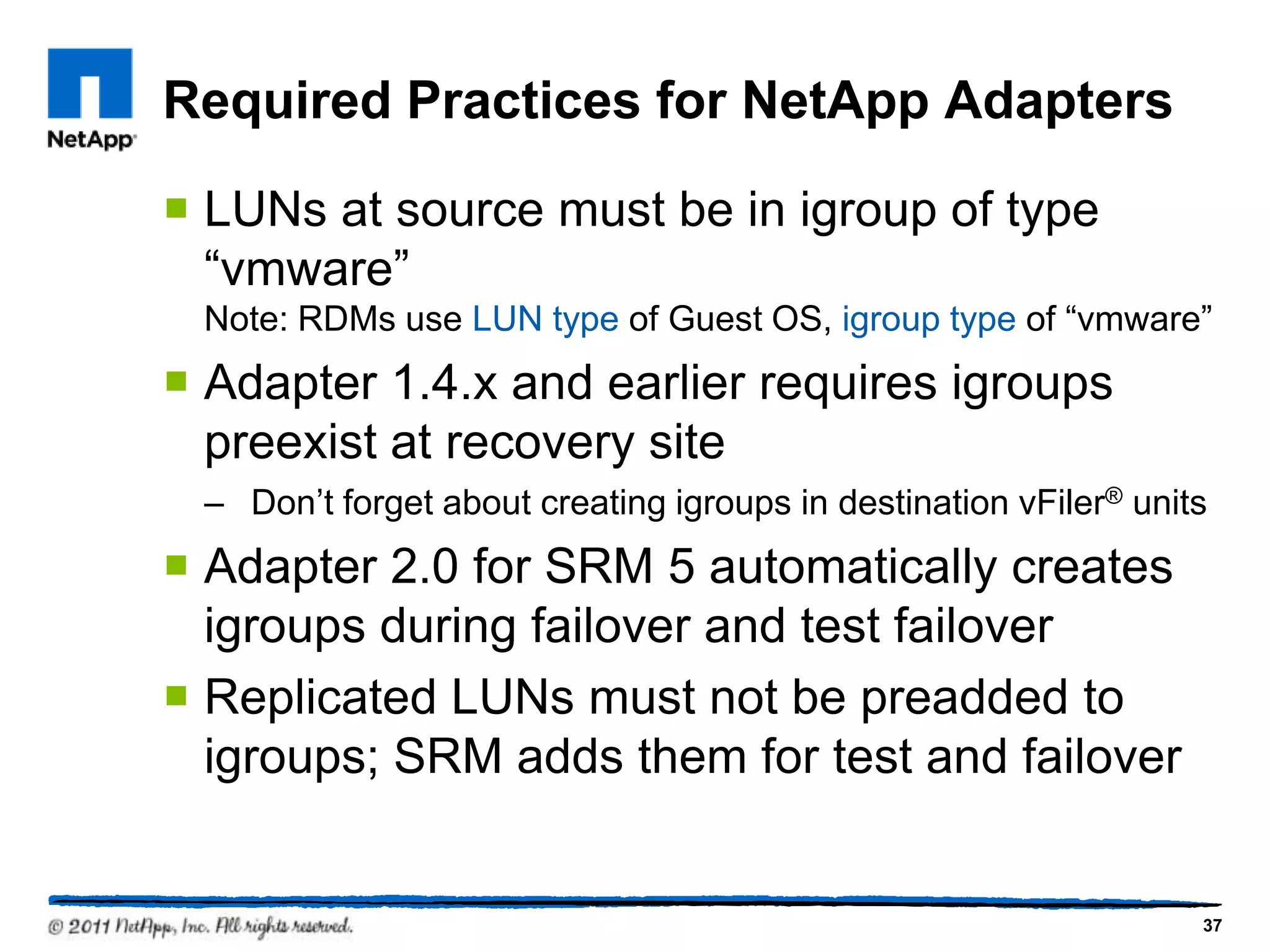

- 37. Required Practices forNetApp Adapters LUNs at source must be in igroup of type “vmware” Note: RDMs use LUN type of Guest OS, igroup type of “vmware” Adapter 1.4.x and earlier requires igroups preexist at recovery site – Don’t forget about creating igroups in destination vFiler® units Adapter 2.0 for SRM 5 automatically creates igroups during failover and test failover Replicated LUNs must not be preadded to igroups; SRM adds them for test and failover 37

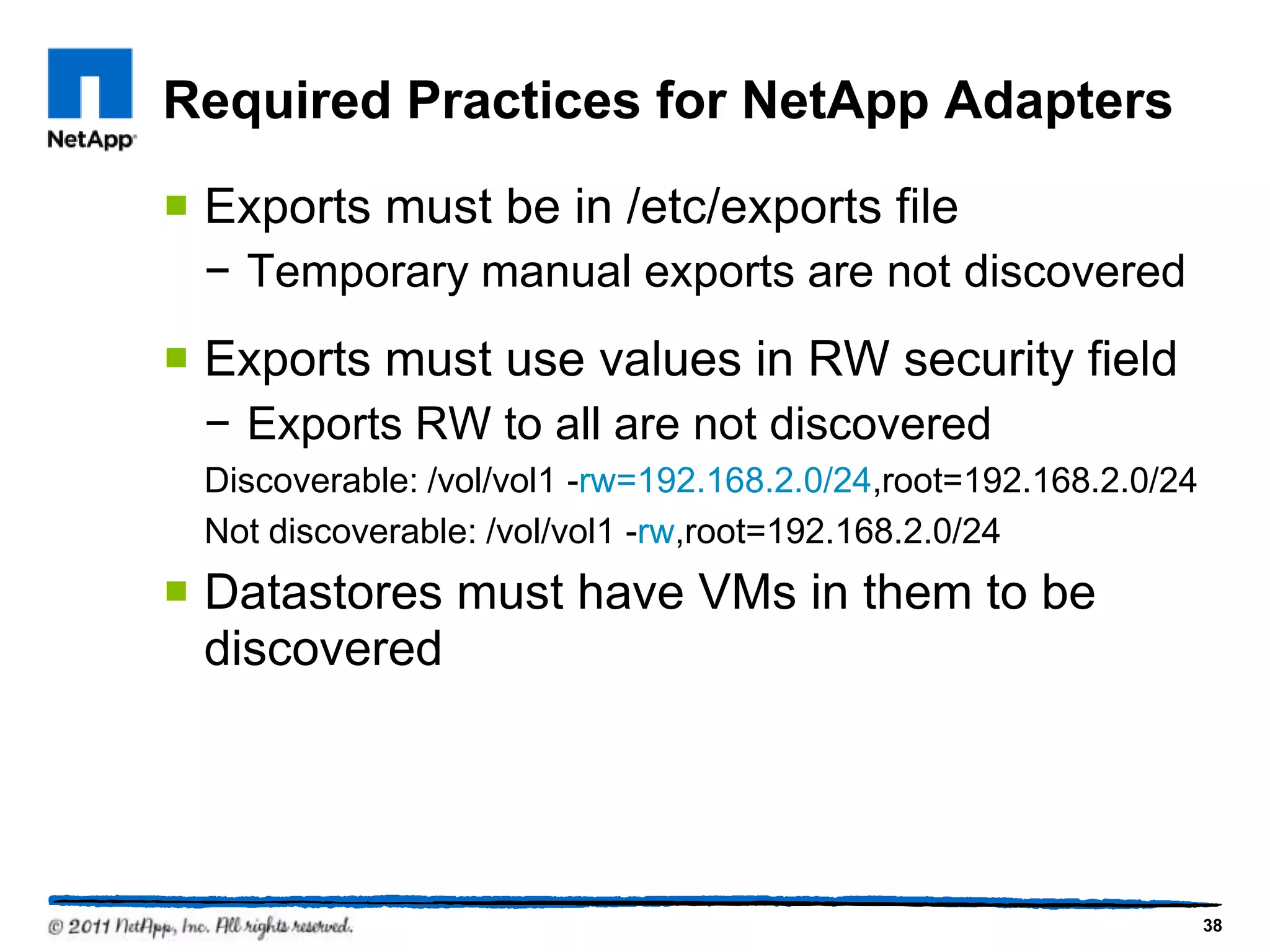

- 38. Required Practices forNetApp Adapters Exports must be in /etc/exports file − Temporary manual exports are not discovered Exports must use values in RW security field − Exports RW to all are not discovered Discoverable: /vol/vol1 -rw=192.168.2.0/24,root=192.168.2.0/24 Not discoverable: /vol/vol1 -rw,root=192.168.2.0/24 Datastores must have VMs in them to be discovered 38

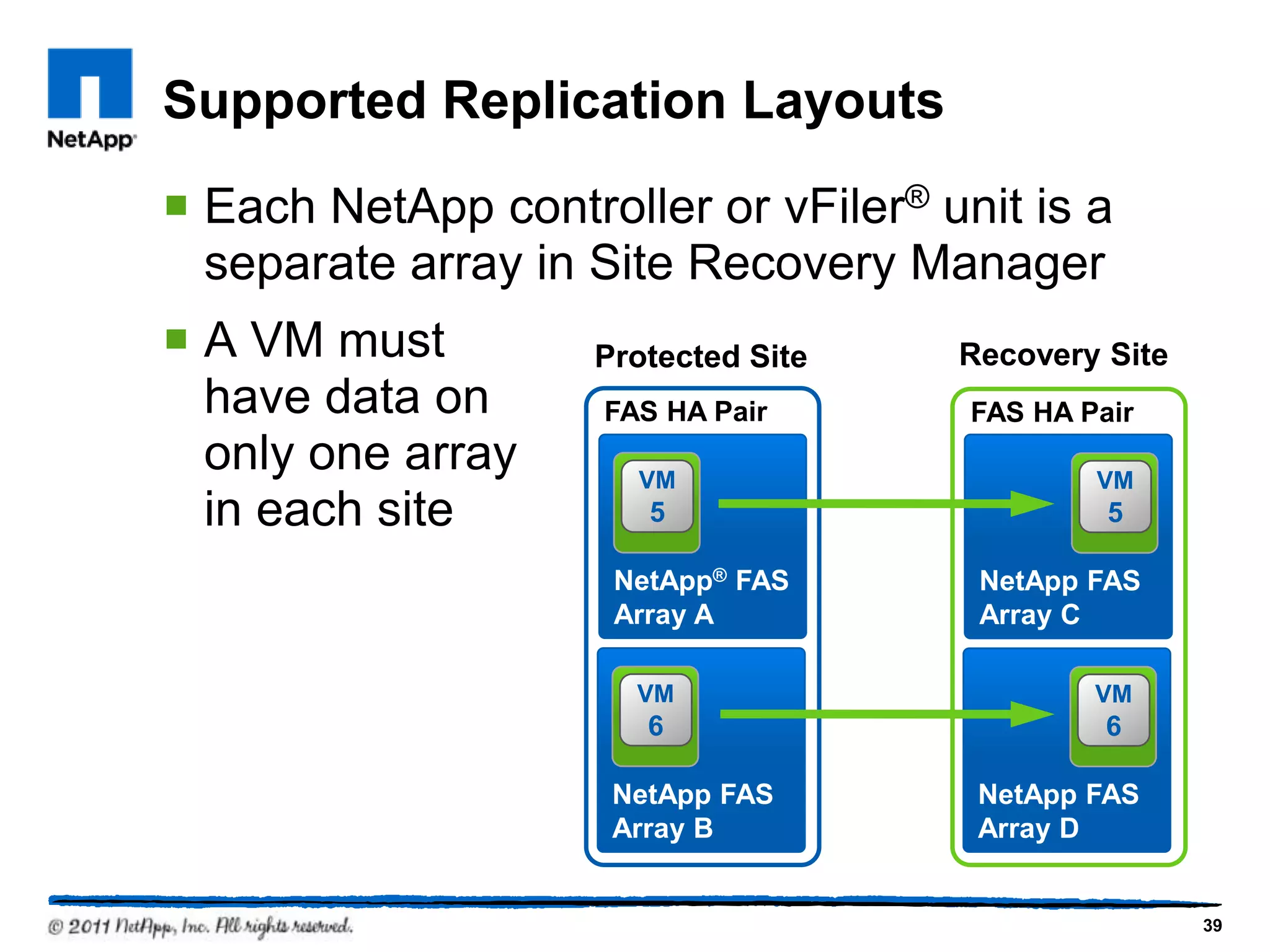

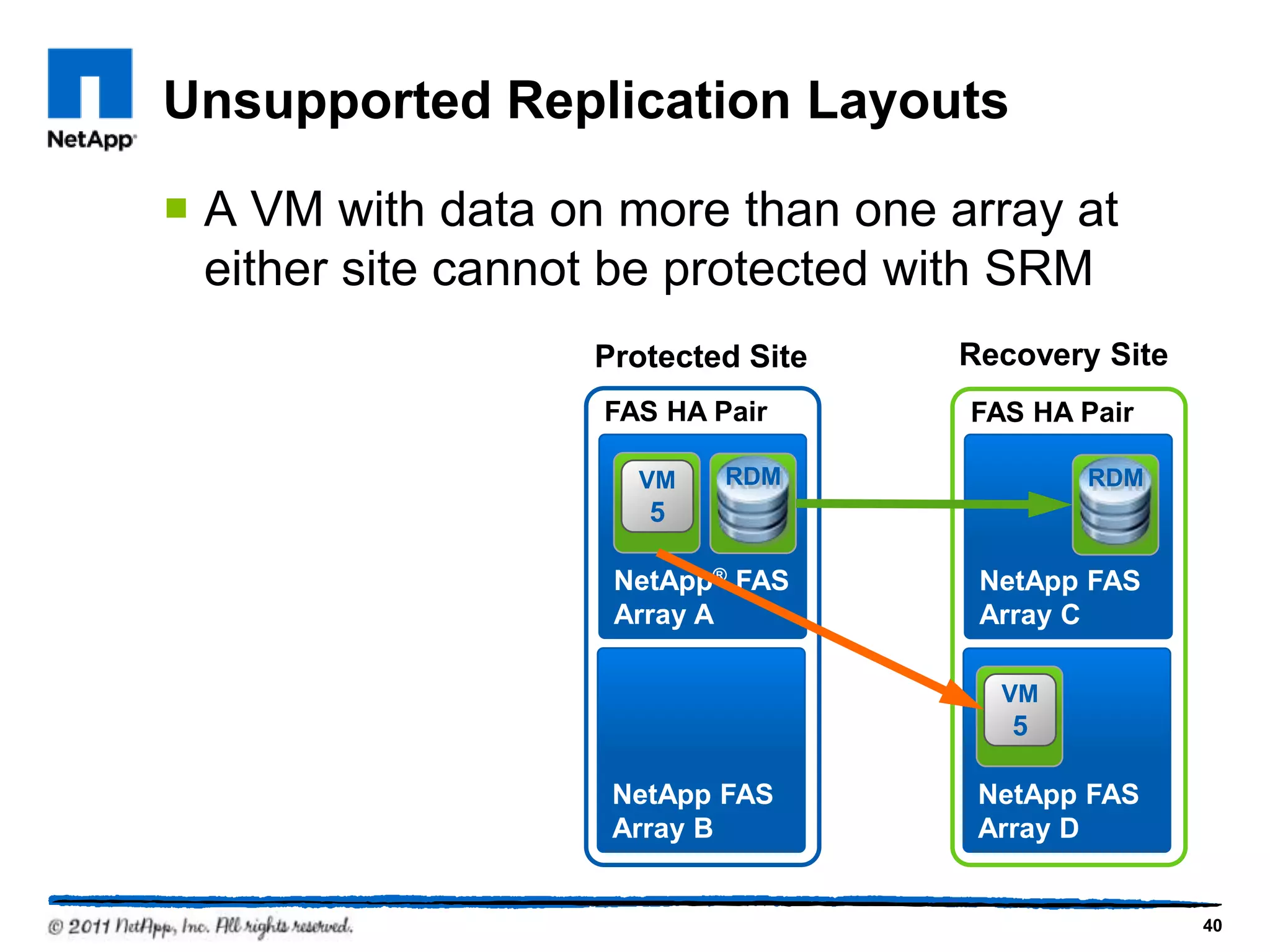

- 39. Each NetAppcontroller or vFiler® unit is a separate array in Site Recovery Manager A VM must have data on only one array in each site NetApp® FAS Array A VM 5 FAS HA Pair NetApp FAS Array B VM 6 NetApp FAS Array C VM 5 FAS HA Pair NetApp FAS Array D VM 6 Supported Replication Layouts Protected Site Recovery Site 39
- 40. NetApp® FAS Array A VM 5 FASHA Pair NetApp FAS Array B NetApp FAS Array C FAS HA Pair NetApp FAS Array D Unsupported Replication Layouts A VM with data on more than one array at either site cannot be protected with SRM Protected Site Recovery Site VM 5 RDM RDM 40

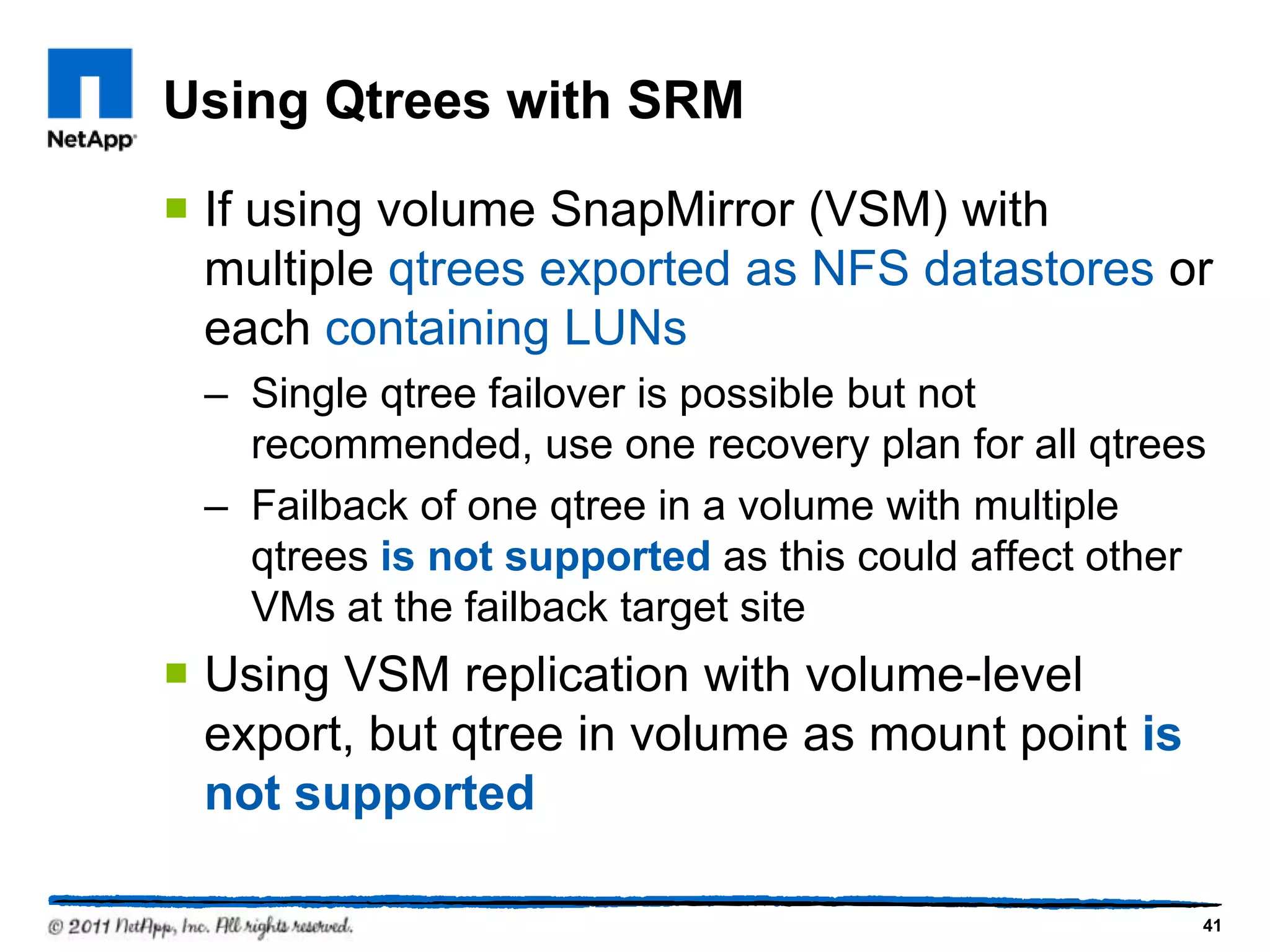

- 41. Using Qtrees withSRM If using volume SnapMirror (VSM) with multiple qtrees exported as NFS datastores or each containing LUNs – Single qtree failover is possible but not recommended, use one recovery plan for all qtrees – Failback of one qtree in a volume with multiple qtrees is not supported as this could affect other VMs at the failback target site Using VSM replication with volume-level export, but qtree in volume as mount point is not supported 41

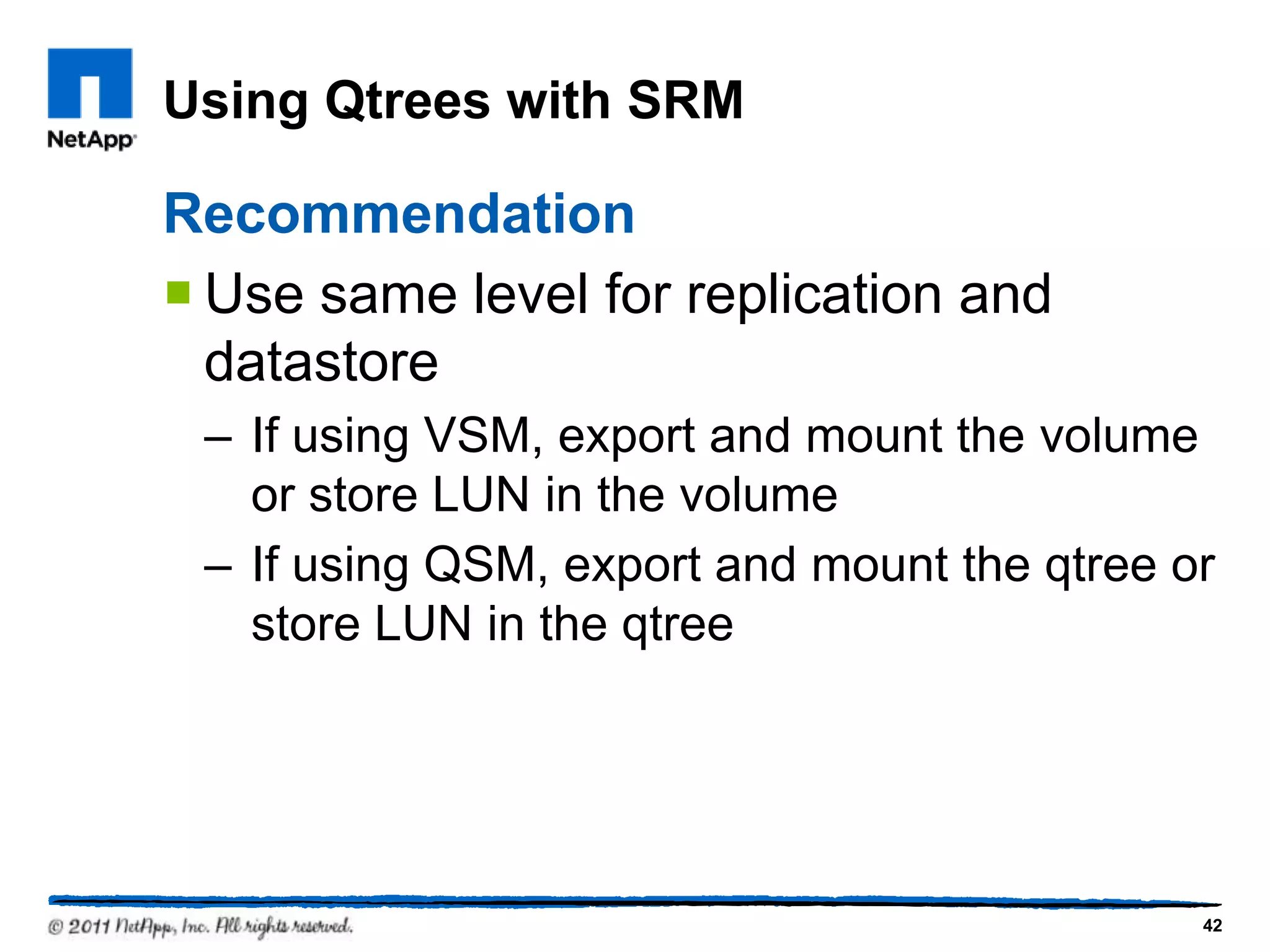

- 42. Using Qtrees withSRM Recommendation Use same level for replication and datastore – If using VSM, export and mount the volume or store LUN in the volume – If using QSM, export and mount the qtree or store LUN in the qtree 42

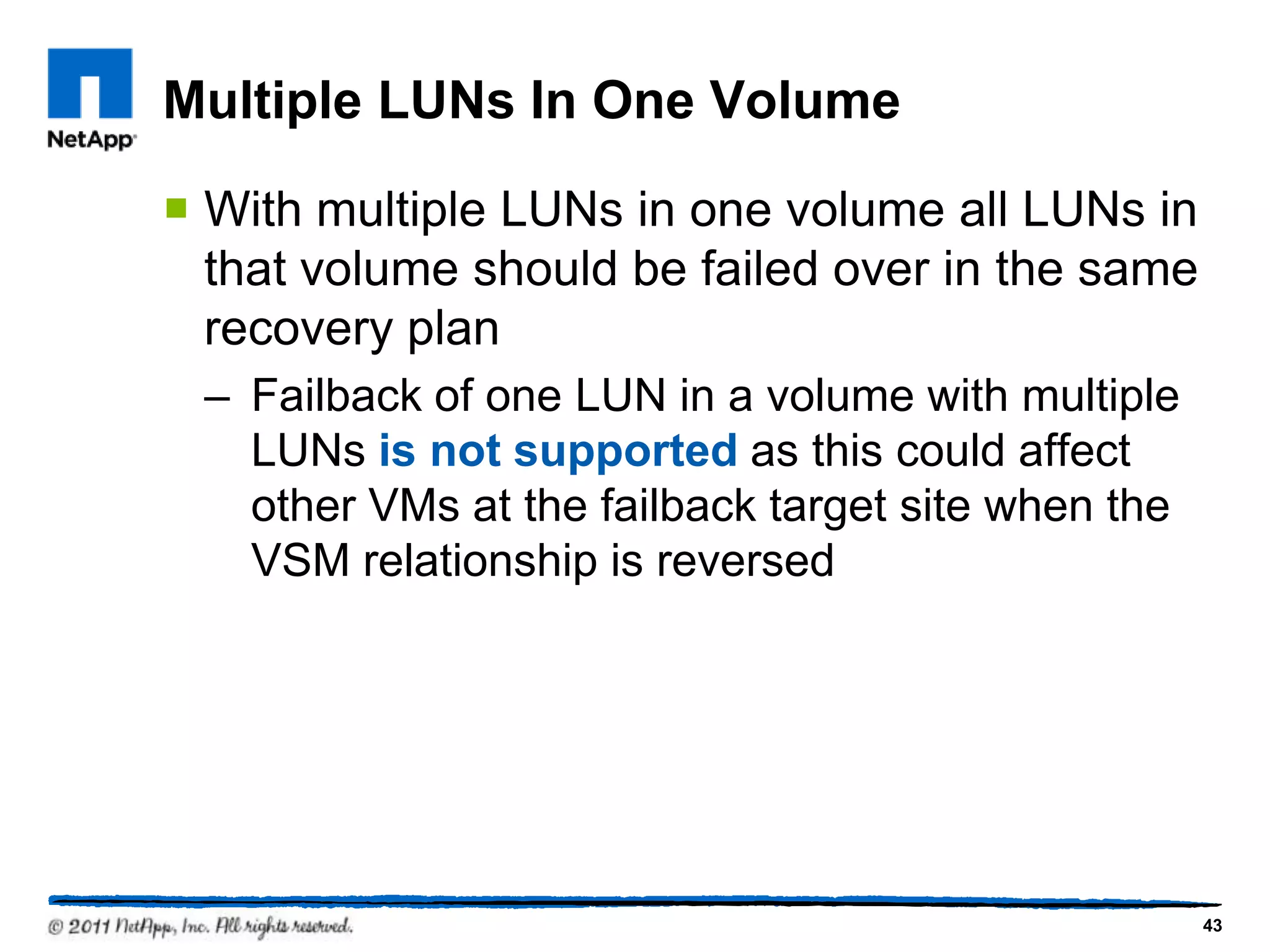

- 43. Multiple LUNs InOne Volume With multiple LUNs in one volume all LUNs in that volume should be failed over in the same recovery plan – Failback of one LUN in a volume with multiple LUNs is not supported as this could affect other VMs at the failback target site when the VSM relationship is reversed 43

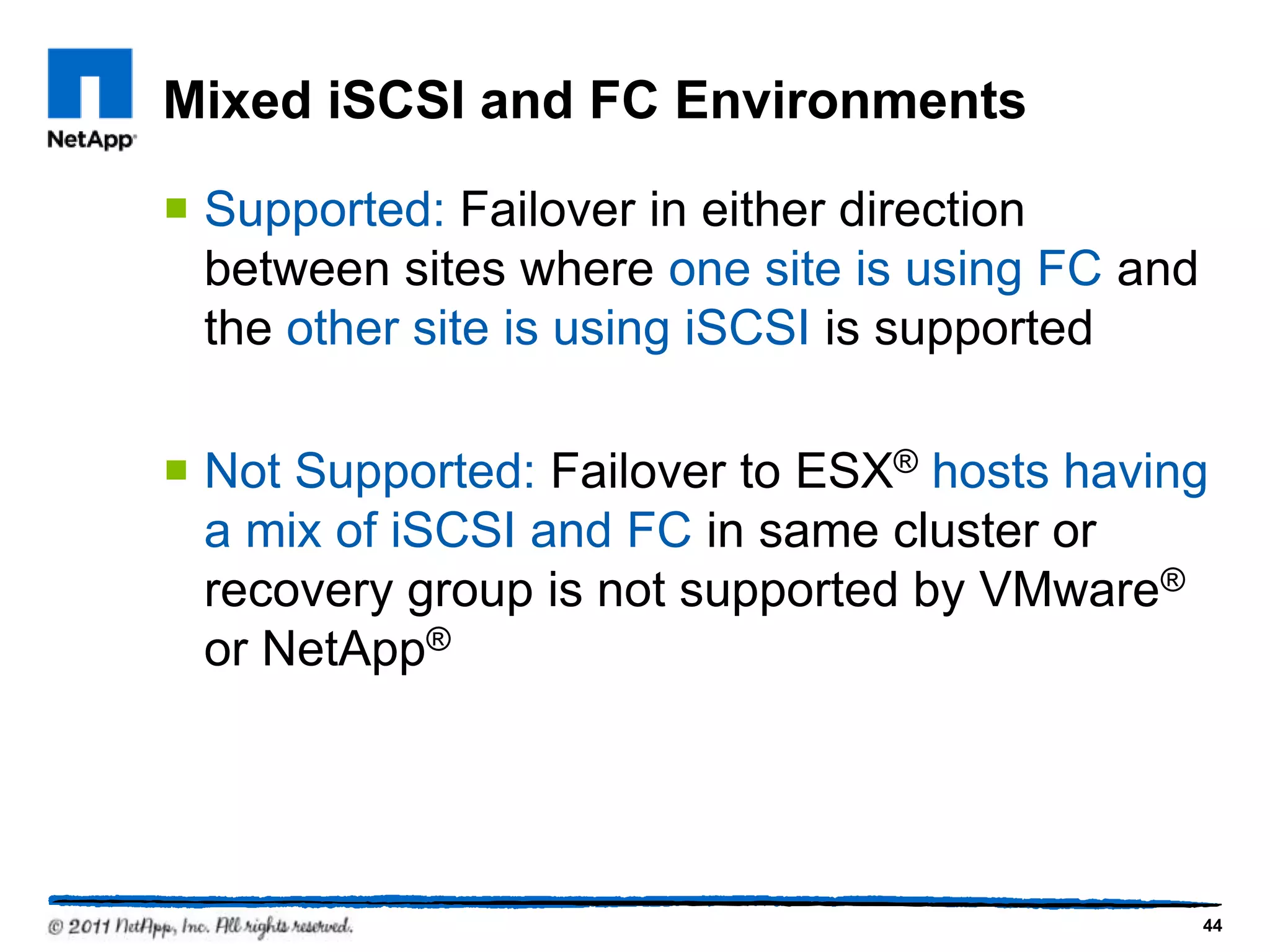

- 44. Mixed iSCSI andFC Environments Supported: Failover in either direction between sites where one site is using FC and the other site is using iSCSI is supported Not Supported: Failover to ESX® hosts having a mix of iSCSI and FC in same cluster or recovery group is not supported by VMware® or NetApp® 44
- 45.

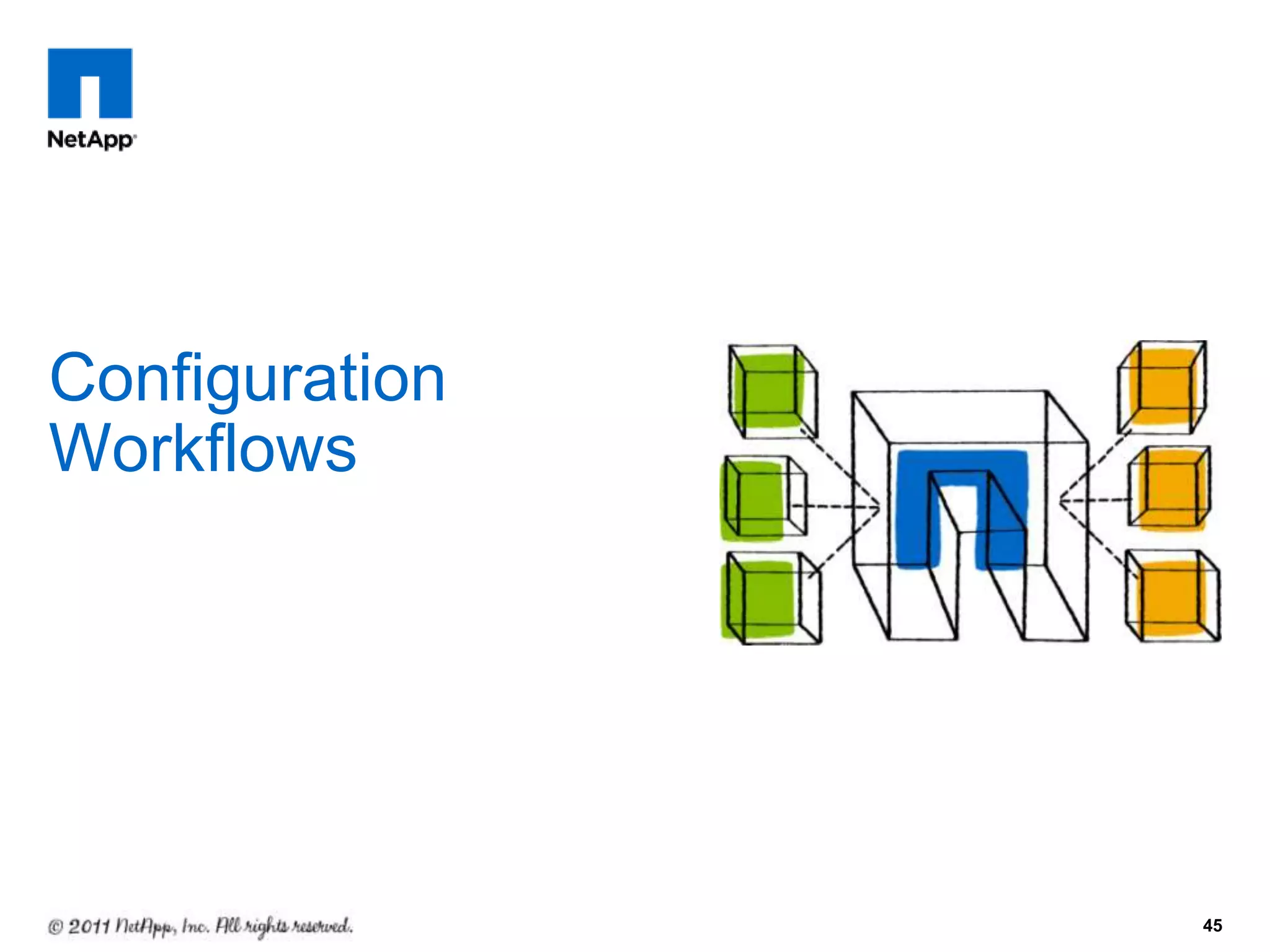

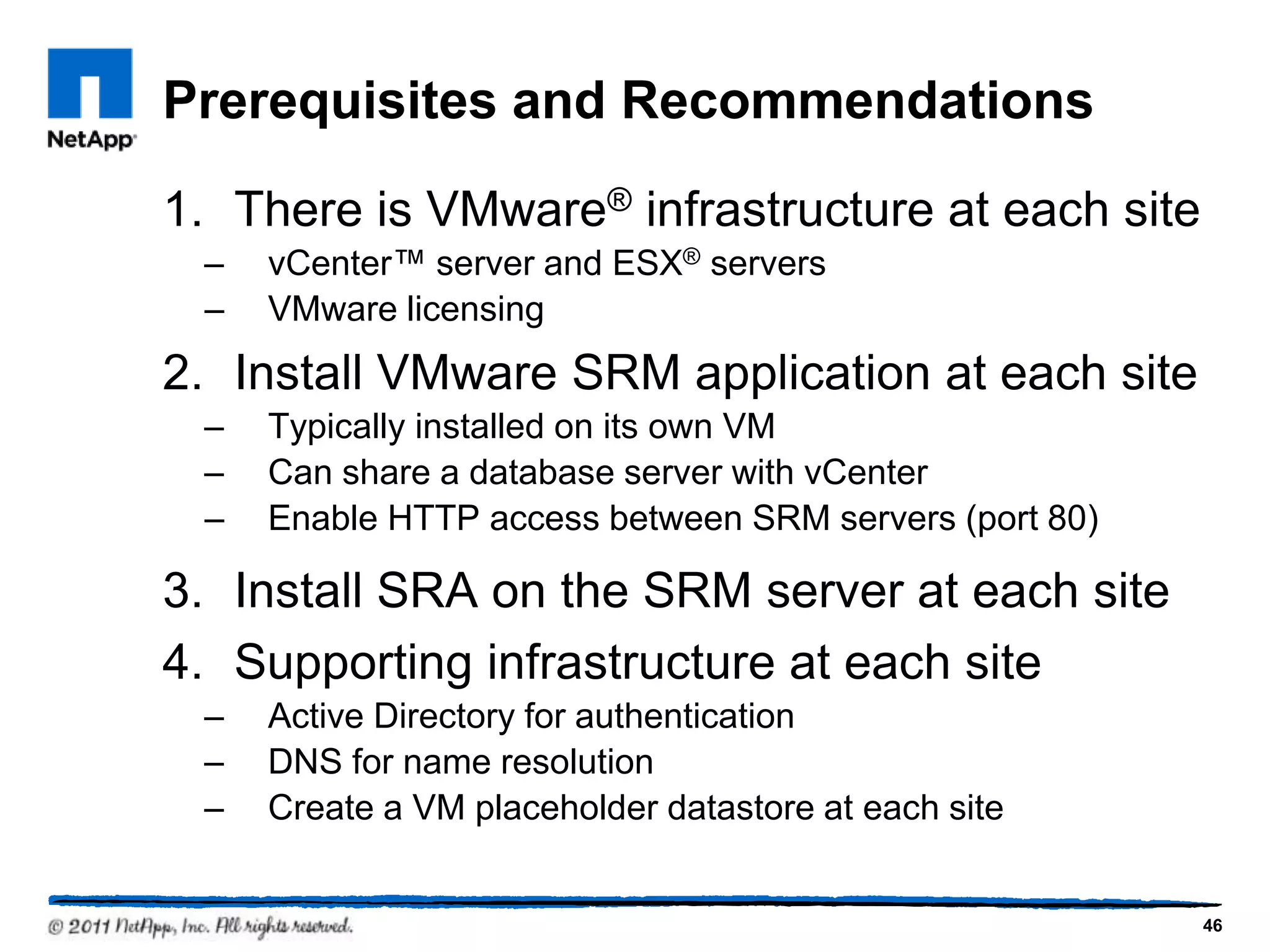

- 46. Prerequisites and Recommendations 1.There is VMware® infrastructure at each site – vCenter™ server and ESX® servers – VMware licensing 2. Install VMware SRM application at each site – Typically installed on its own VM – Can share a database server with vCenter – Enable HTTP access between SRM servers (port 80) 3. Install SRA on the SRM server at each site 4. Supporting infrastructure at each site – Active Directory for authentication – DNS for name resolution – Create a VM placeholder datastore at each site 46

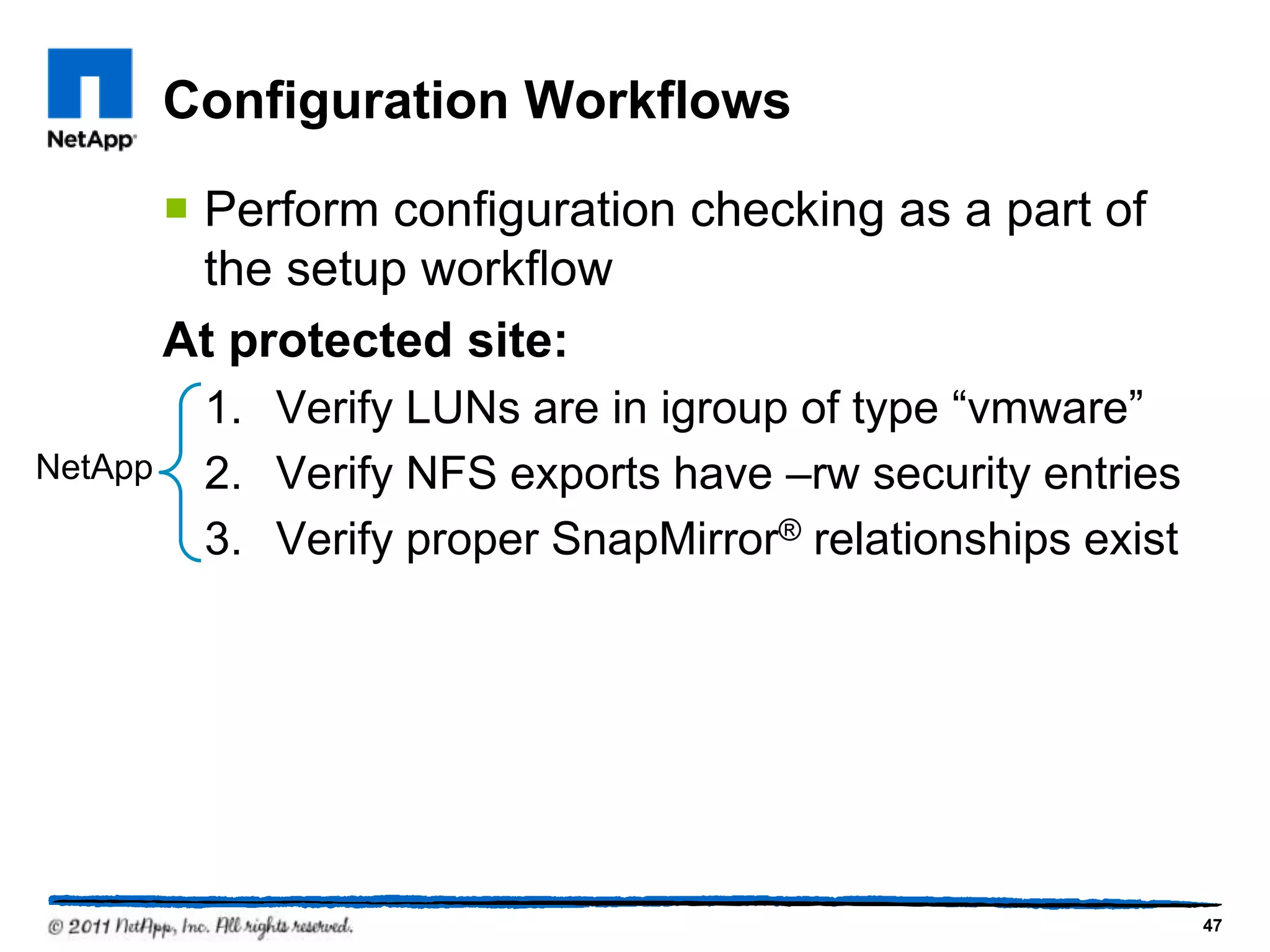

- 47. Configuration Workflows Performconfiguration checking as a part of the setup workflow At protected site: 1. Verify LUNs are in igroup of type “vmware” 2. Verify NFS exports have –rw security entries 3. Verify proper SnapMirror® relationships exist 47 NetApp

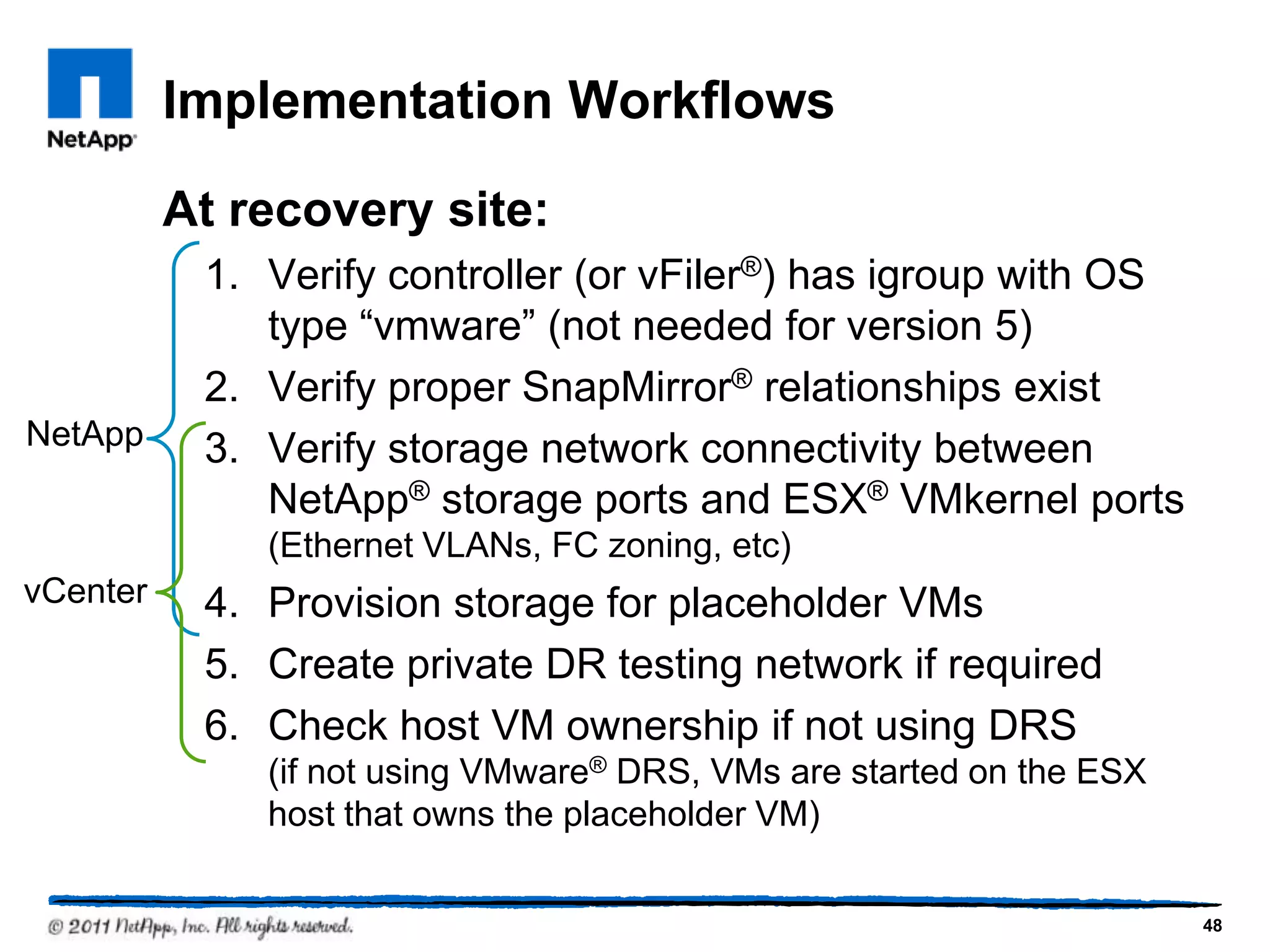

- 48. Implementation Workflows At recoverysite: 1. Verify controller (or vFiler®) has igroup with OS type “vmware” (not needed for version 5) 2. Verify proper SnapMirror® relationships exist 3. Verify storage network connectivity between NetApp® storage ports and ESX® VMkernel ports (Ethernet VLANs, FC zoning, etc) 4. Provision storage for placeholder VMs 5. Create private DR testing network if required 6. Check host VM ownership if not using DRS (if not using VMware® DRS, VMs are started on the ESX host that owns the placeholder VM) NetApp vCenter 48

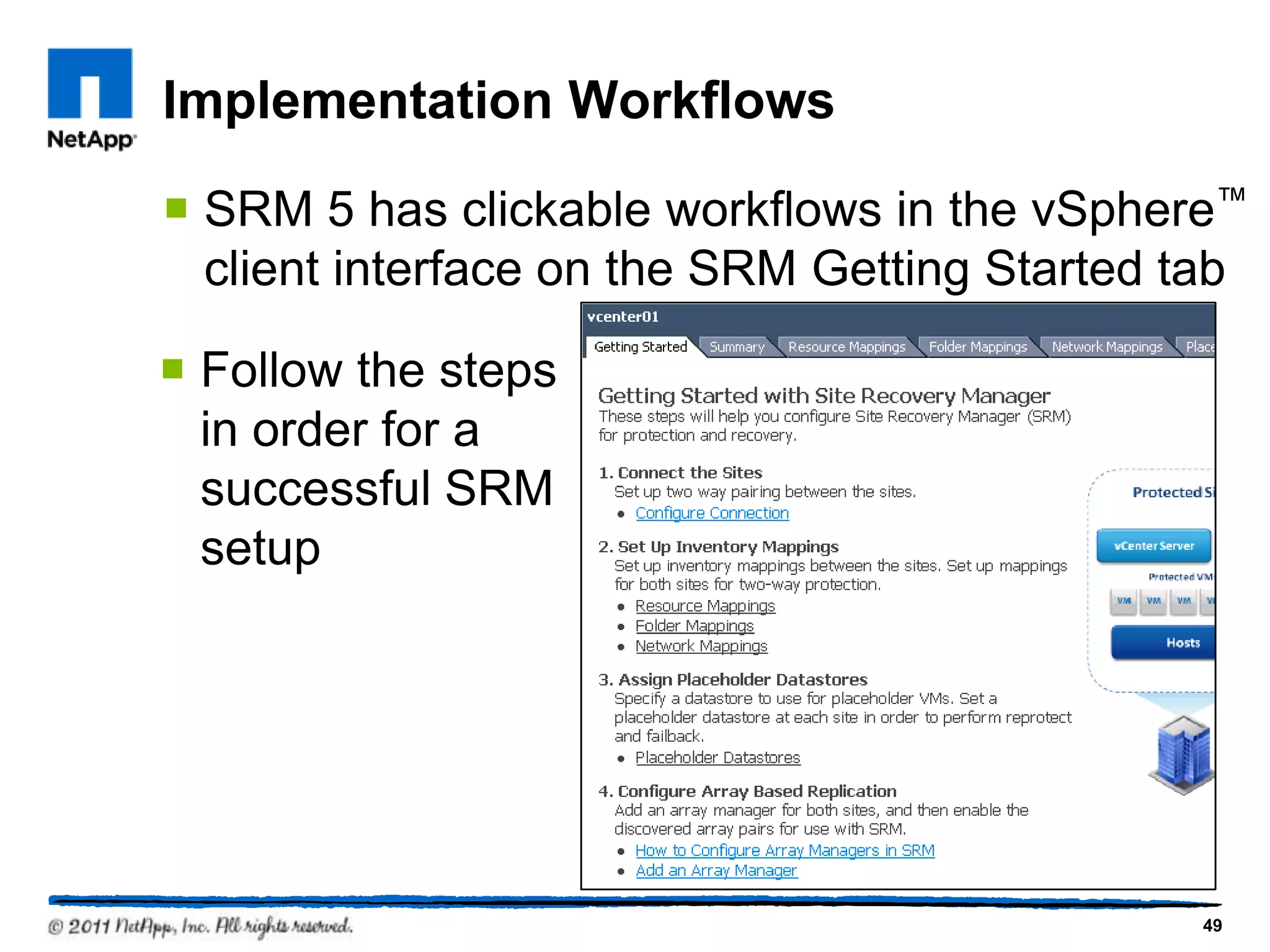

- 49. Implementation Workflows SRM5 has clickable workflows in the vSphere™ client interface on the SRM Getting Started tab 49 Follow the steps in order for a successful SRM setup

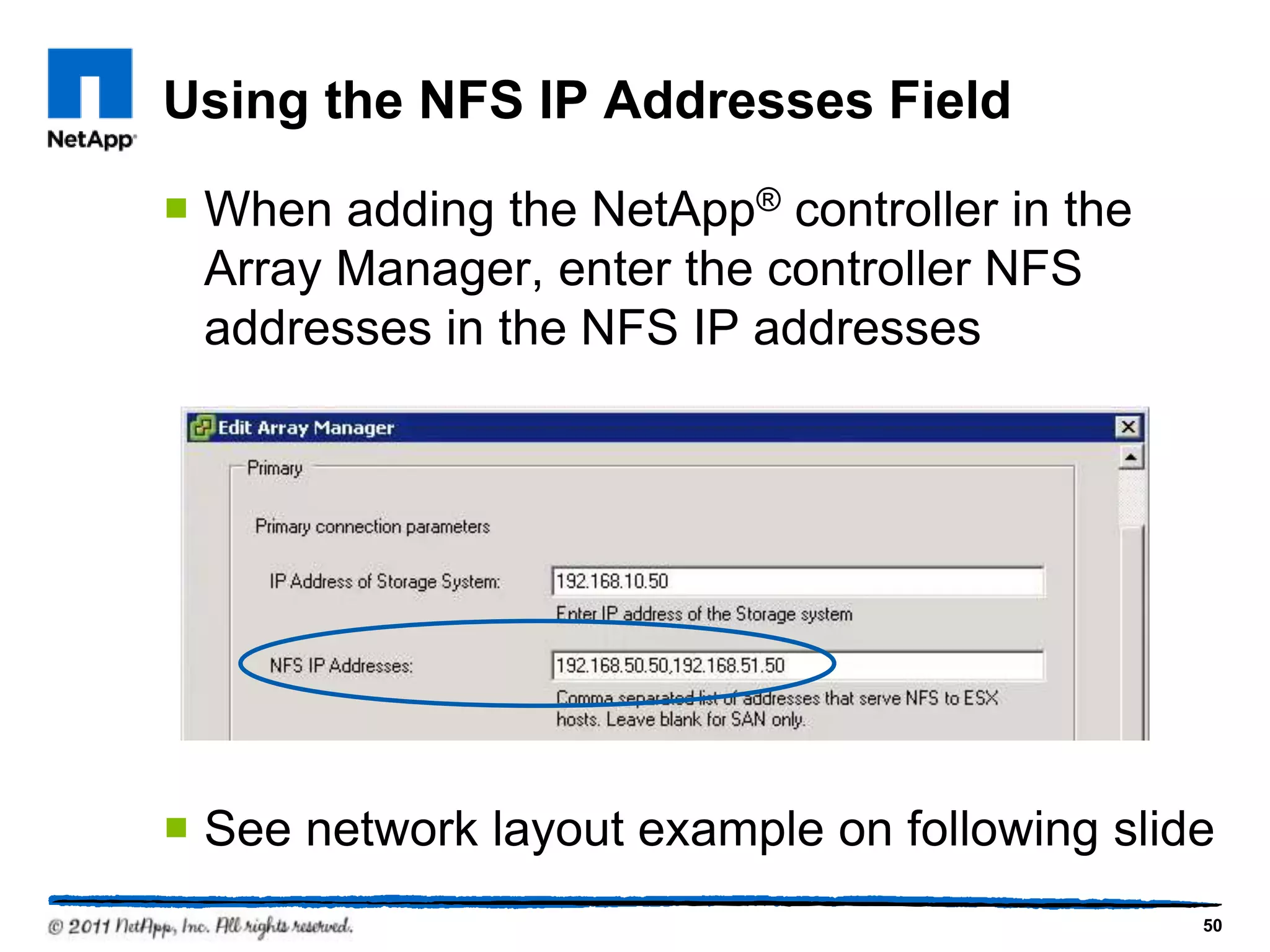

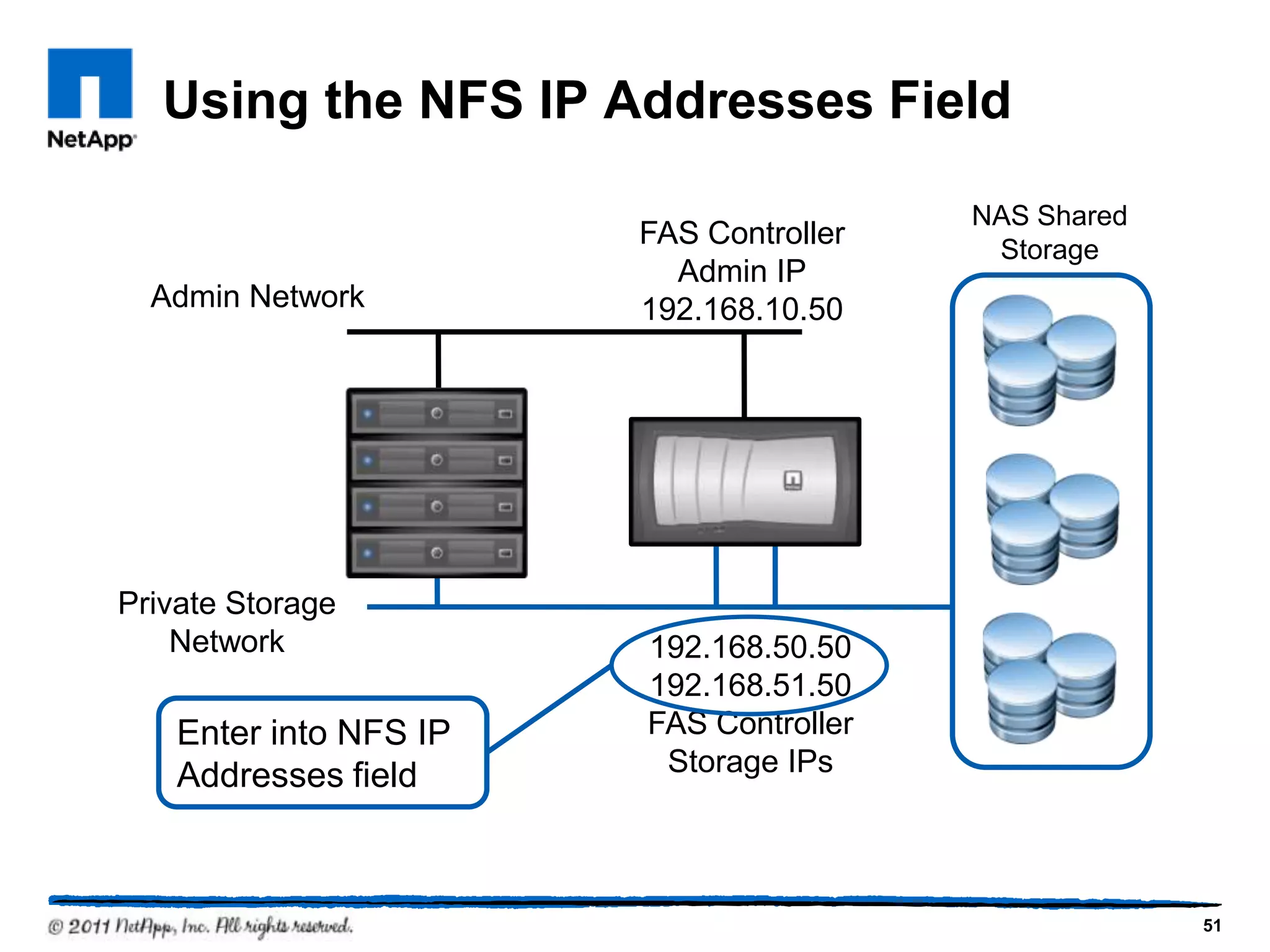

- 50. Using the NFSIP Addresses Field When adding the NetApp® controller in the Array Manager, enter the controller NFS addresses in the NFS IP addresses See network layout example on following slide 50
- 51. Using the NFSIP Addresses Field 192.168.50.50 192.168.51.50 FAS Controller Storage IPs Private Storage Network FAS Controller Admin IP 192.168.10.50 NAS Shared Storage Admin Network 51 Enter into NFS IP Addresses field

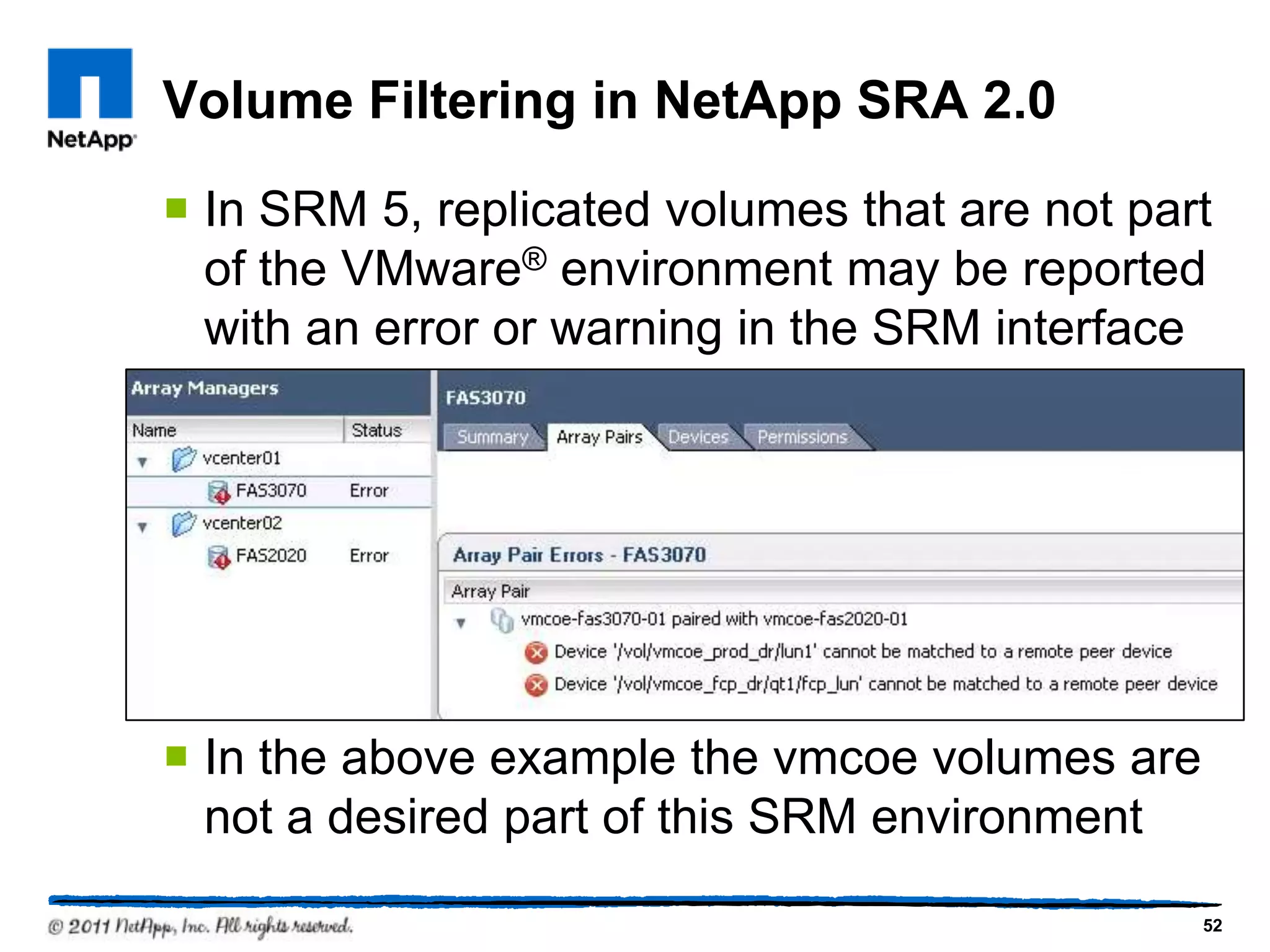

- 52. Volume Filtering inNetApp SRA 2.0 In SRM 5, replicated volumes that are not part of the VMware® environment may be reported with an error or warning in the SRM interface In the above example the vmcoe volumes are not a desired part of this SRM environment 52

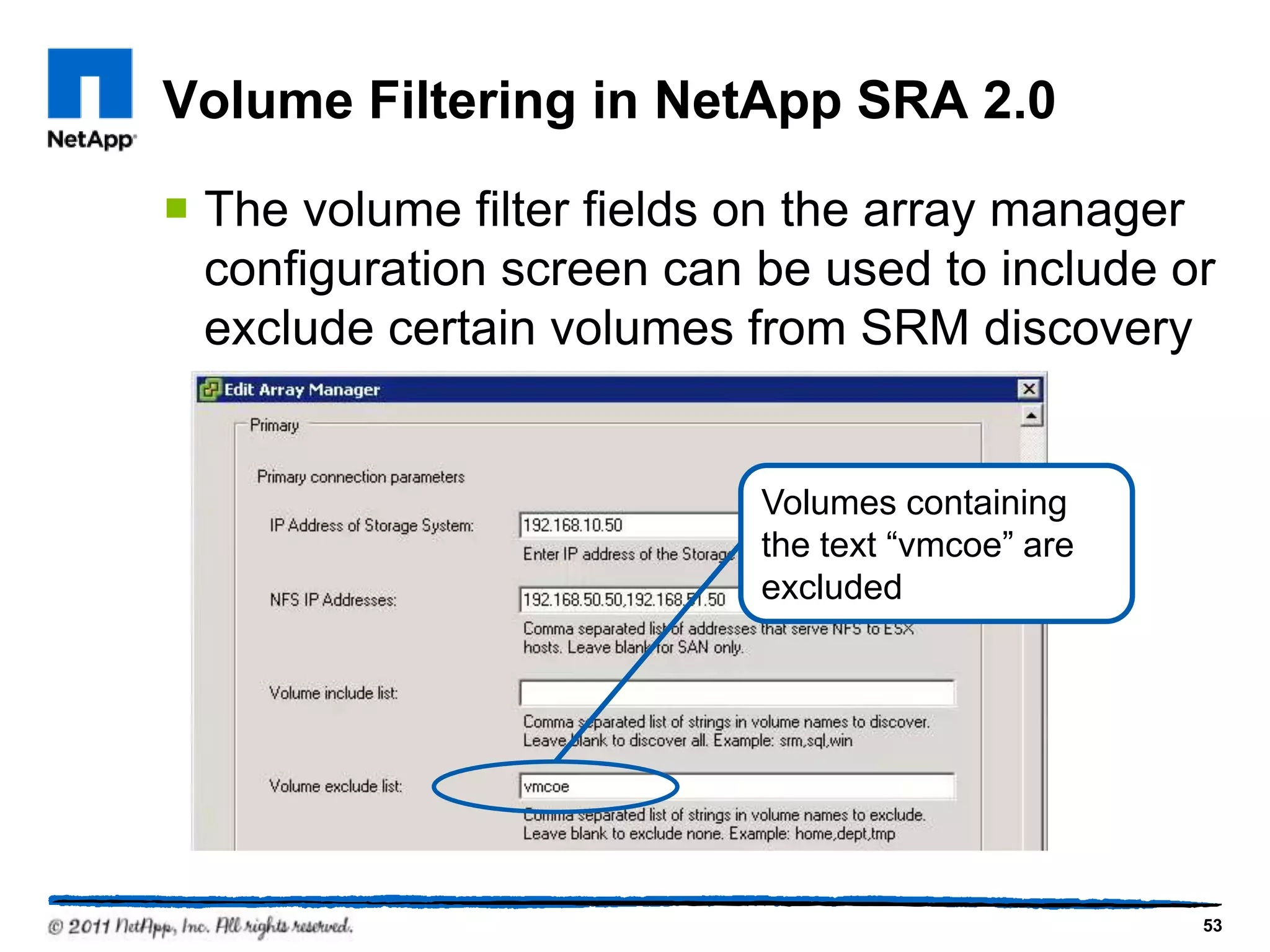

- 53. Volume Filtering inNetApp SRA 2.0 The volume filter fields on the array manager configuration screen can be used to include or exclude certain volumes from SRM discovery 53 Volumes containing the text “vmcoe” are excluded

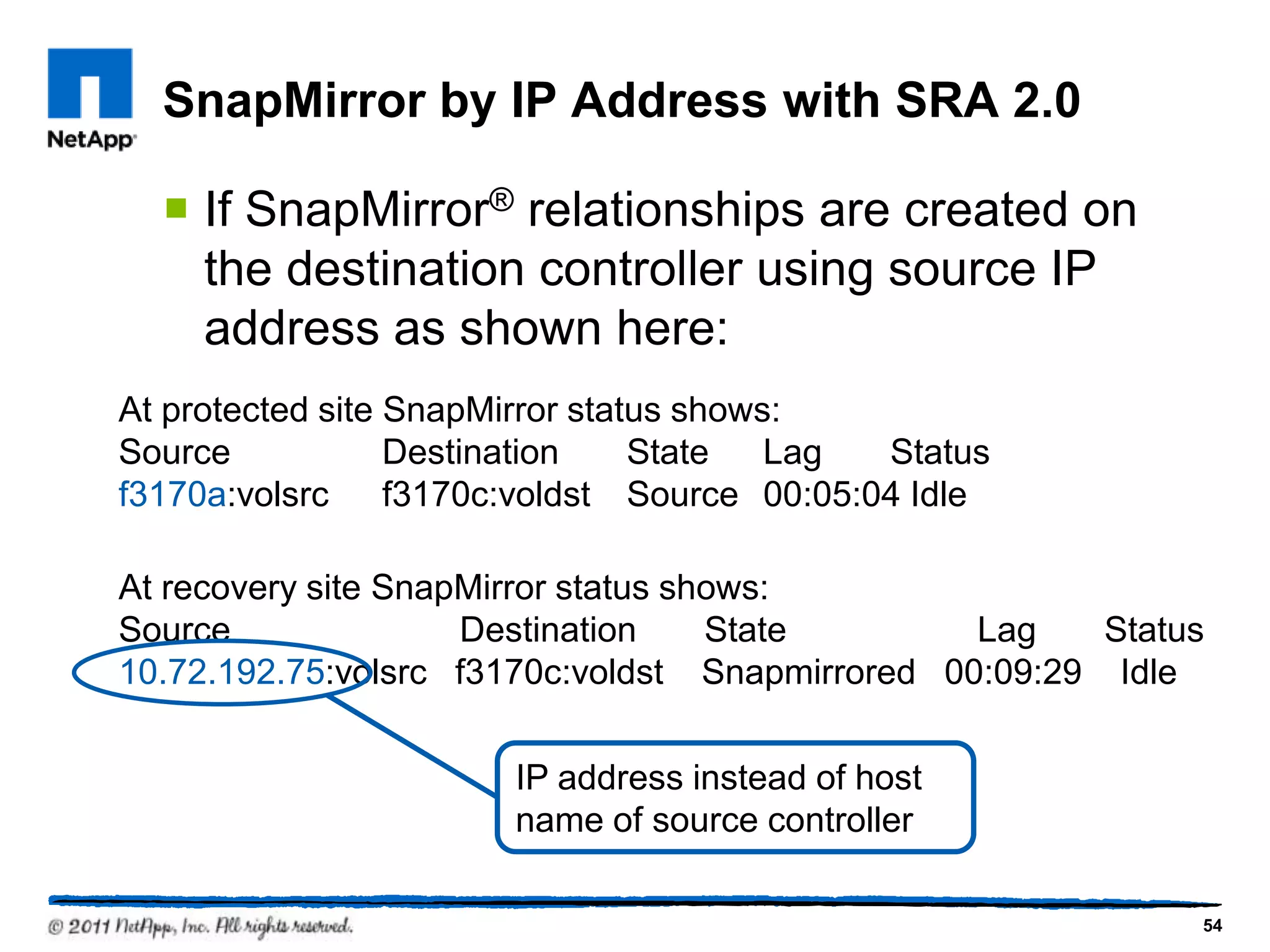

- 54. SnapMirror by IPAddress with SRA 2.0 If SnapMirror® relationships are created on the destination controller using source IP address as shown here: At protected site SnapMirror status shows: Source Destination State Lag Status f3170a:volsrc f3170c:voldst Source 00:05:04 Idle At recovery site SnapMirror status shows: Source Destination State Lag Status 10.72.192.75:volsrc f3170c:voldst Snapmirrored 00:09:29 Idle 54 IP address instead of host name of source controller

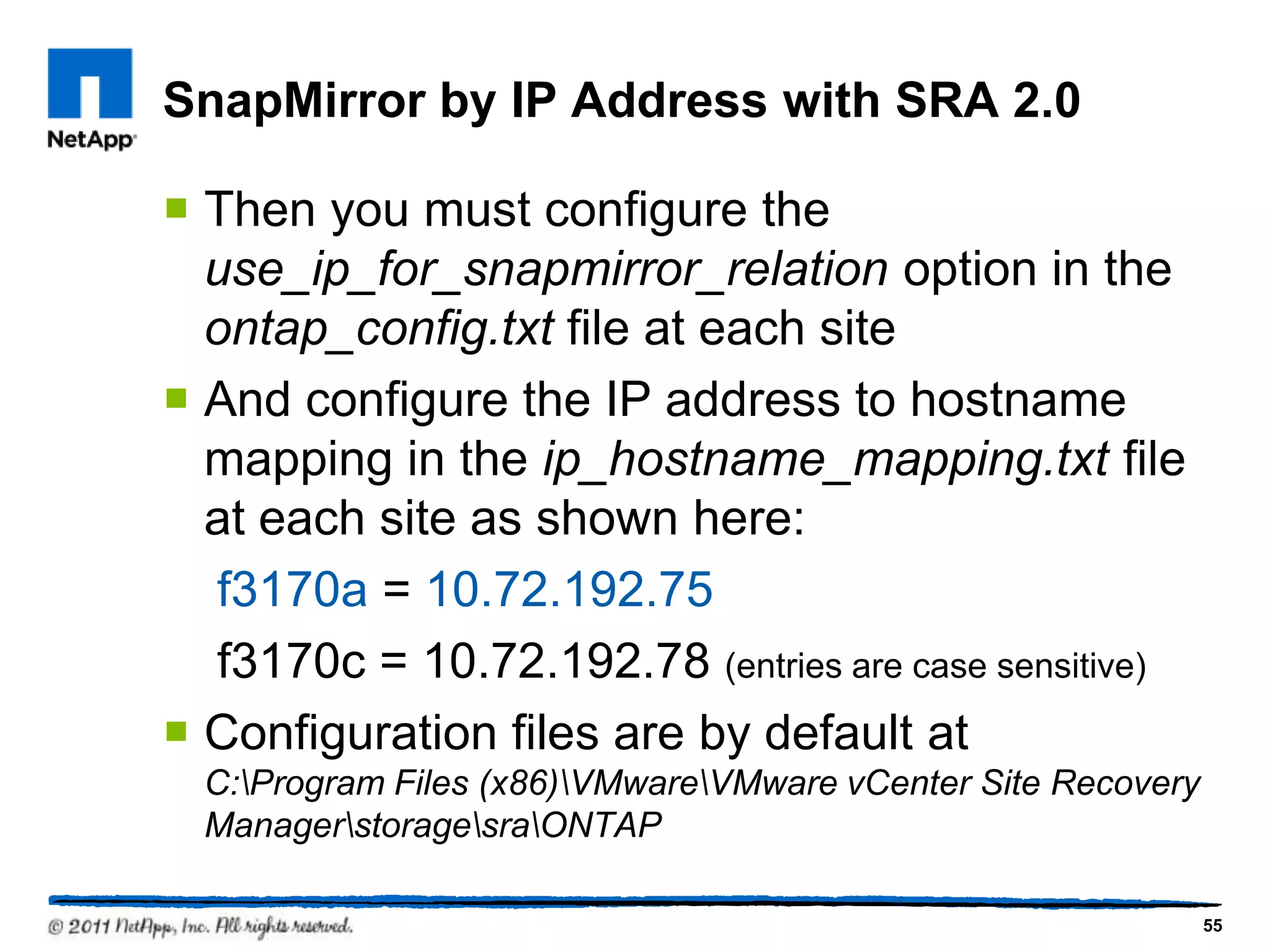

- 55. SnapMirror by IPAddress with SRA 2.0 Then you must configure the use_ip_for_snapmirror_relation option in the ontap_config.txt file at each site And configure the IP address to hostname mapping in the ip_hostname_mapping.txt file at each site as shown here: f3170a = 10.72.192.75 f3170c = 10.72.192.78 (entries are case sensitive) Configuration files are by default at C:Program Files (x86)VMwareVMware vCenter Site Recovery ManagerstoragesraONTAP 55
- 56.

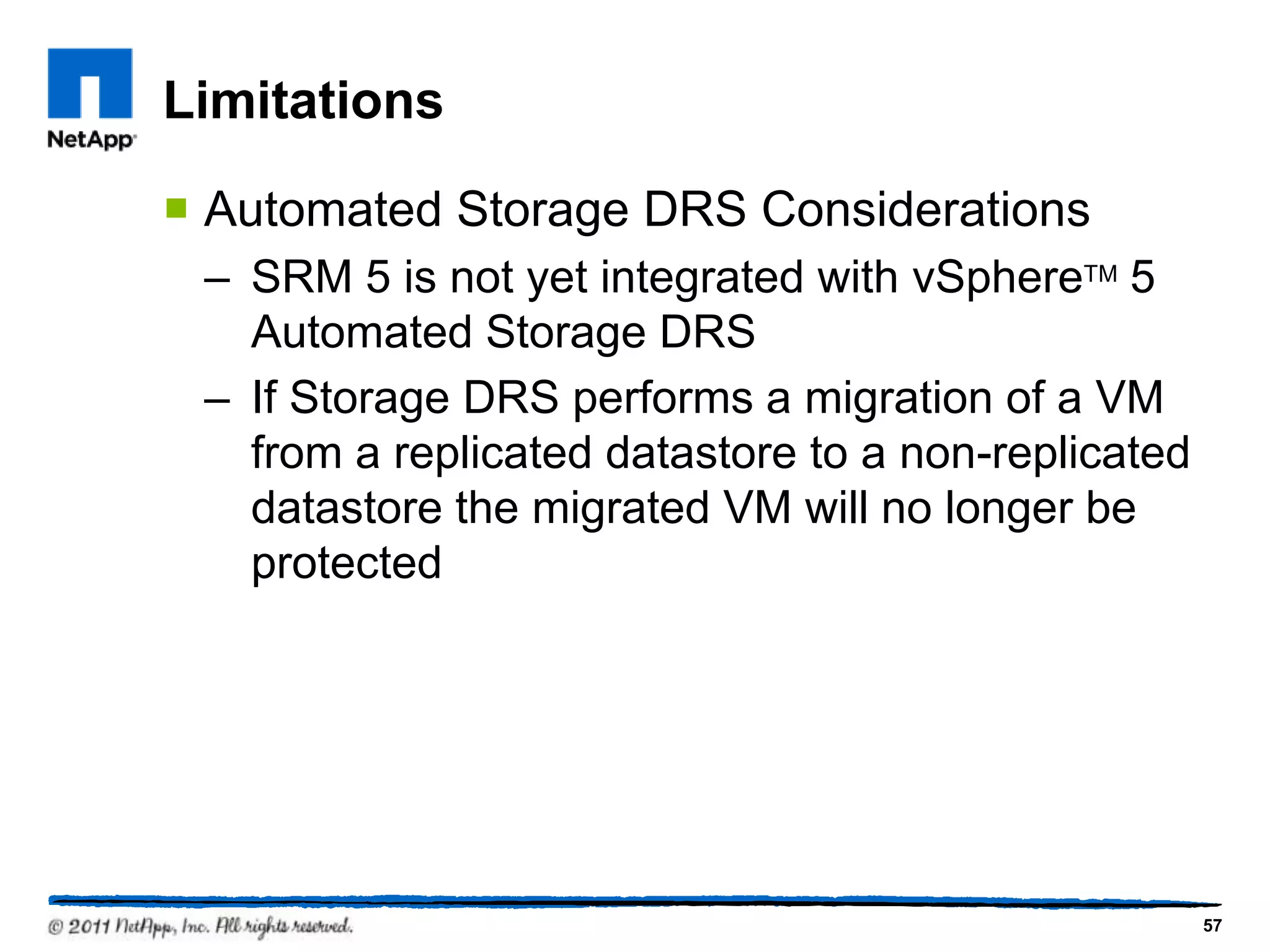

- 57. Limitations Automated StorageDRS Considerations – SRM 5 is not yet integrated with vSphereTM 5 Automated Storage DRS – If Storage DRS performs a migration of a VM from a replicated datastore to a non-replicated datastore the migrated VM will no longer be protected 57

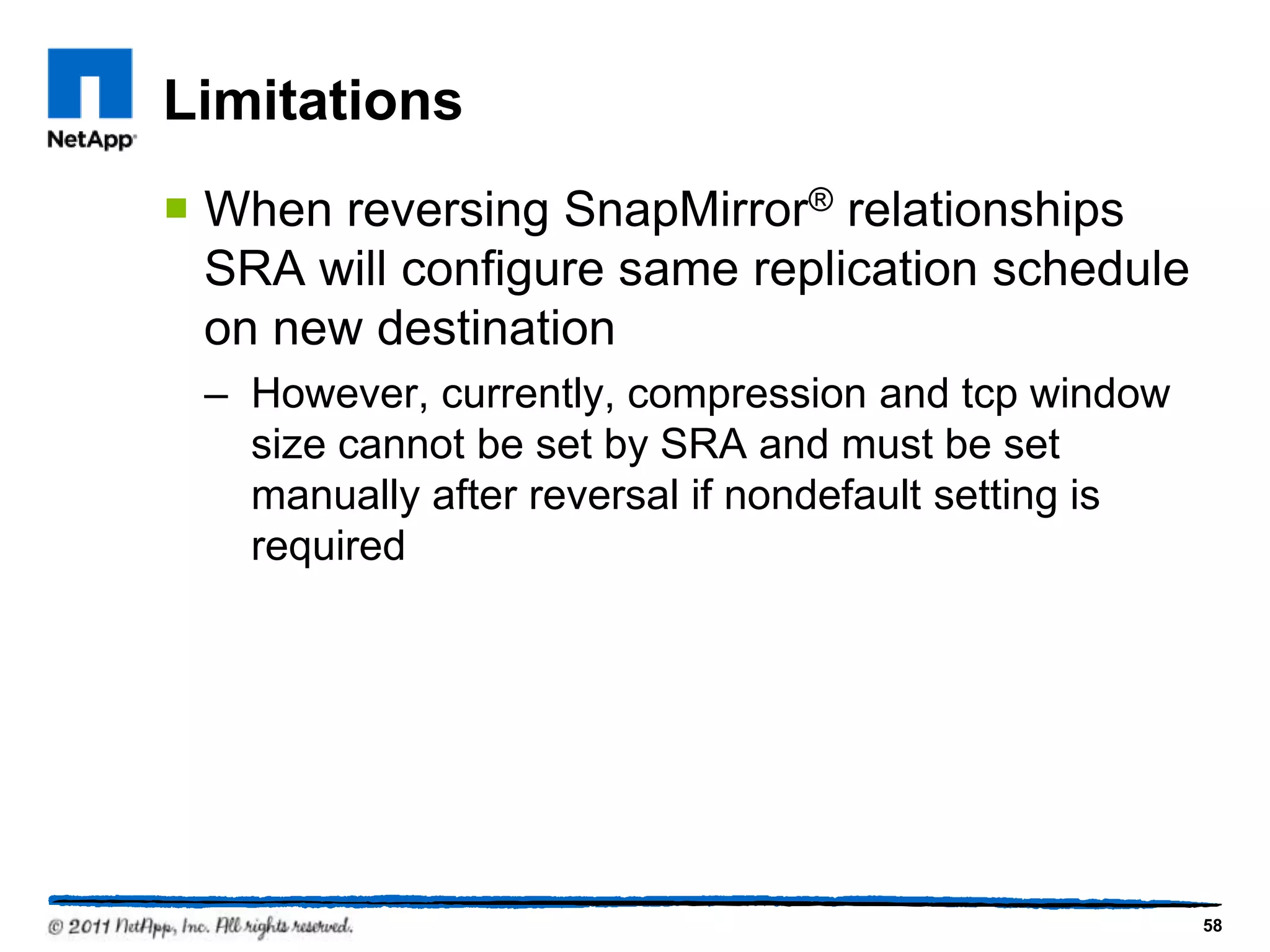

- 58. Limitations When reversingSnapMirror® relationships SRA will configure same replication schedule on new destination – However, currently, compression and tcp window size cannot be set by SRA and must be set manually after reversal if nondefault setting is required 58

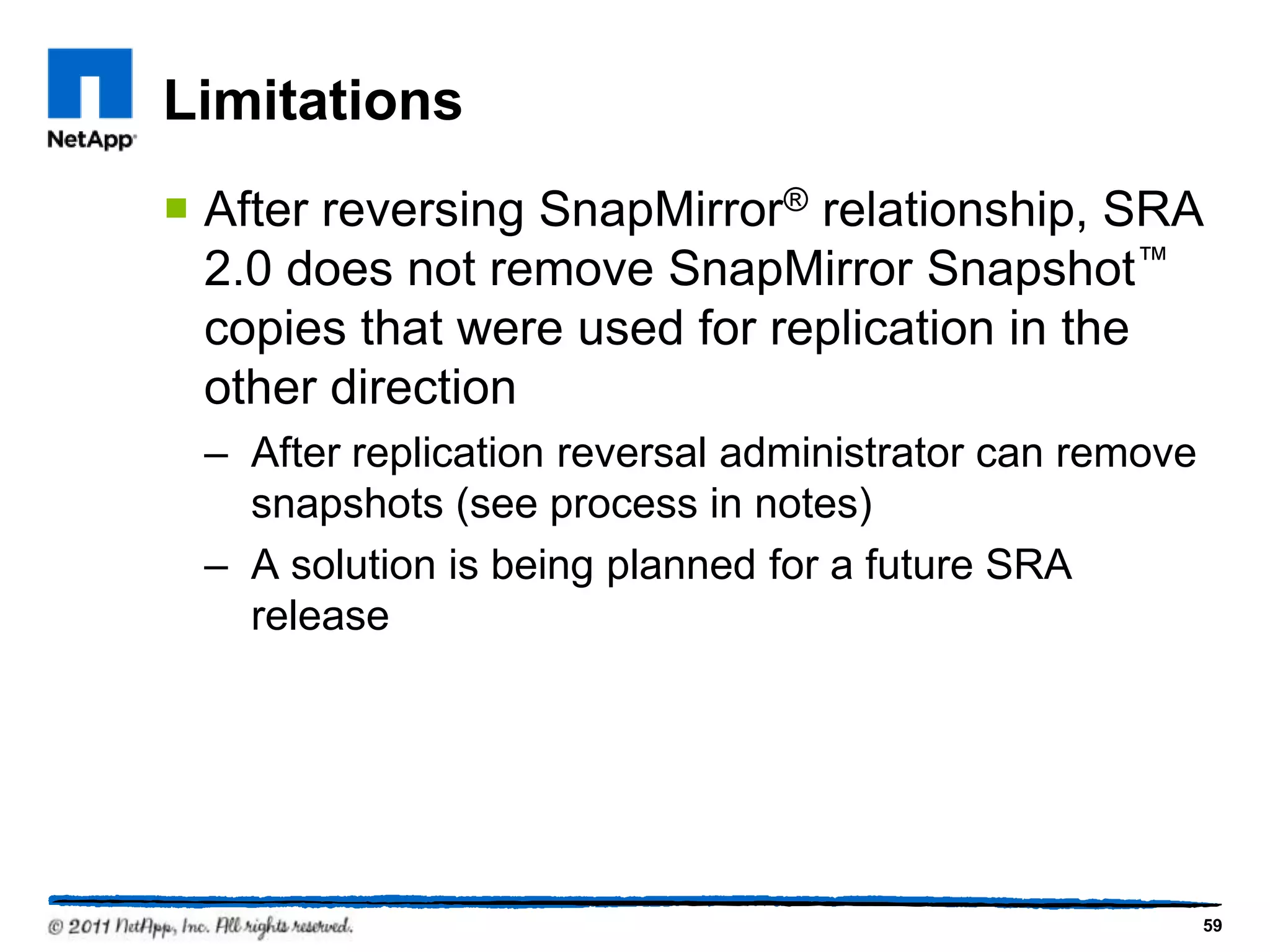

- 59. Limitations After reversingSnapMirror® relationship, SRA 2.0 does not remove SnapMirror Snapshot™ copies that were used for replication in the other direction – After replication reversal administrator can remove snapshots (see process in notes) – A solution is being planned for a future SRA release 59

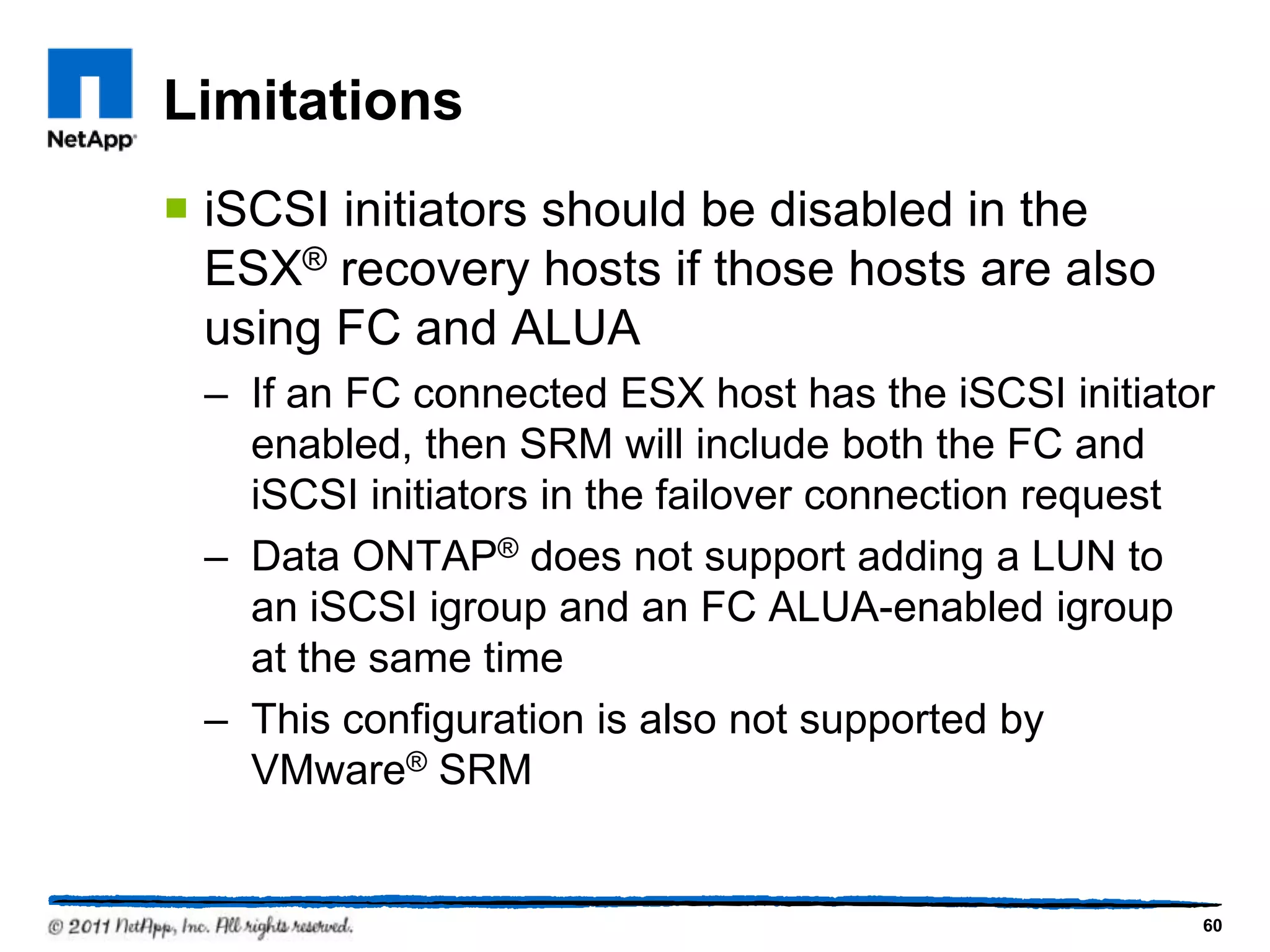

- 60. Limitations iSCSI initiatorsshould be disabled in the ESX® recovery hosts if those hosts are also using FC and ALUA – If an FC connected ESX host has the iSCSI initiator enabled, then SRM will include both the FC and iSCSI initiators in the failover connection request – Data ONTAP® does not support adding a LUN to an iSCSI igroup and an FC ALUA-enabled igroup at the same time – This configuration is also not supported by VMware® SRM 60

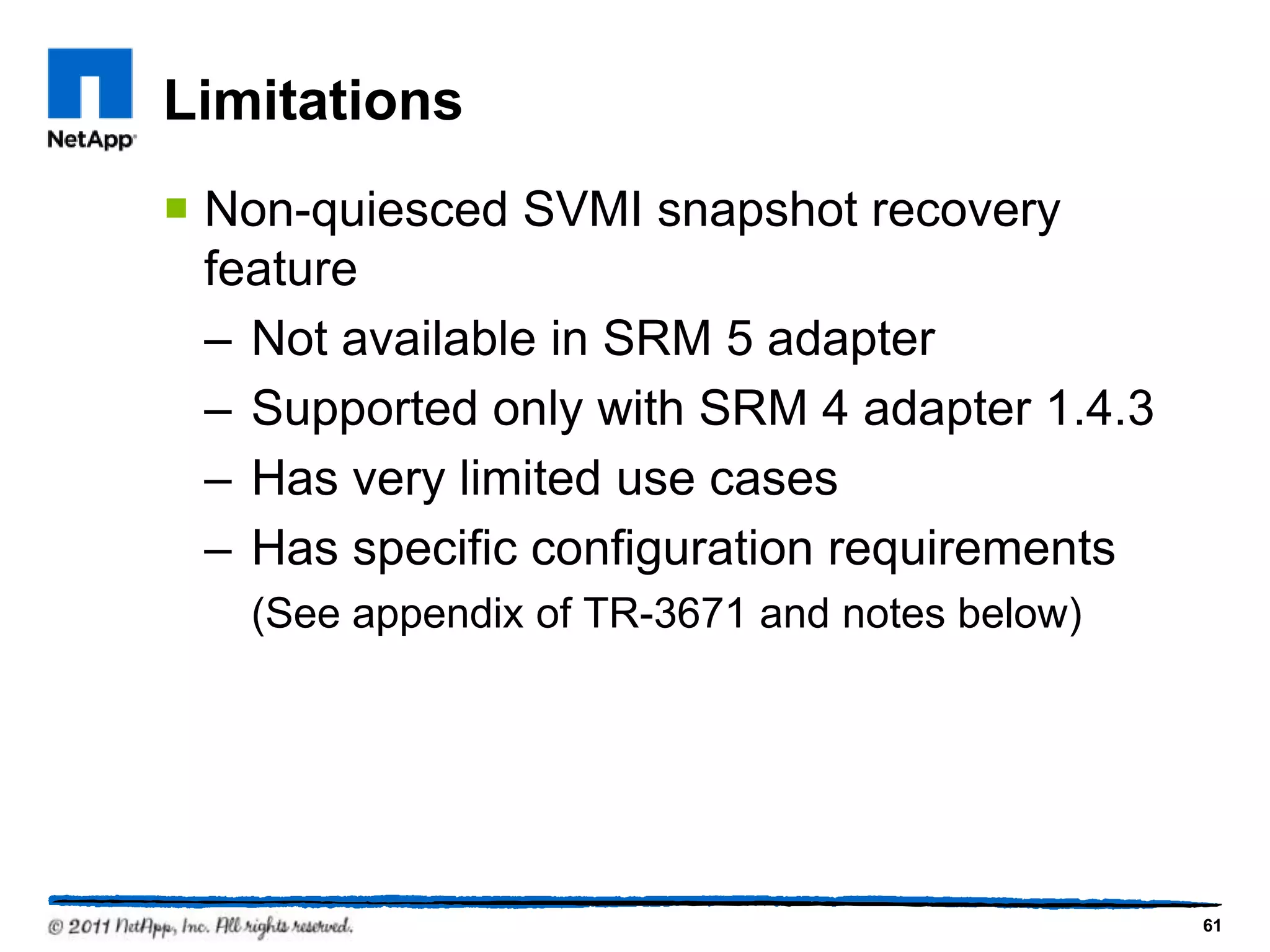

- 61. Limitations Non-quiesced SVMIsnapshot recovery feature – Not available in SRM 5 adapter – Supported only with SRM 4 adapter 1.4.3 – Has very limited use cases – Has specific configuration requirements (See appendix of TR-3671 and notes below) 61

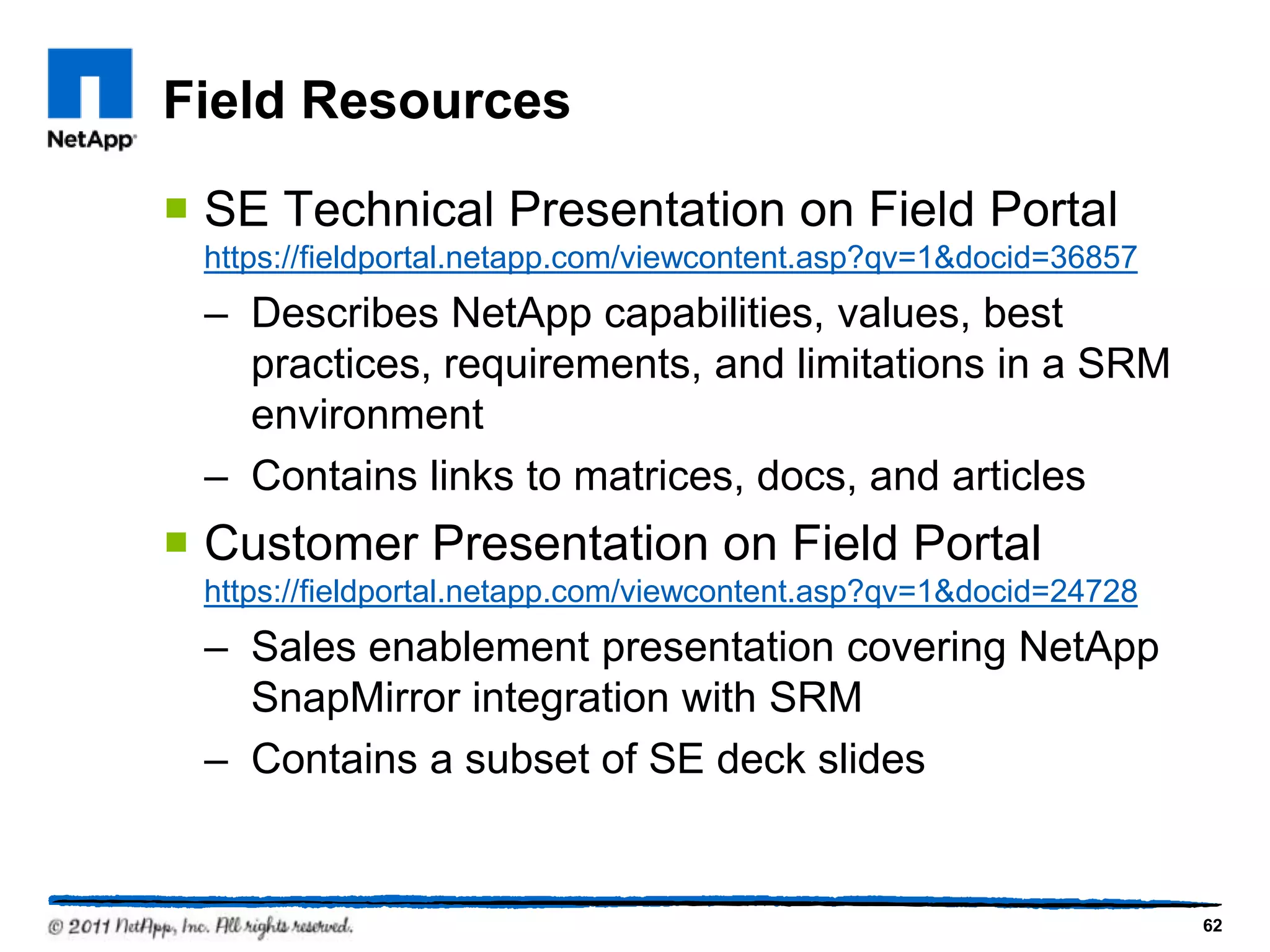

- 62. Field Resources SETechnical Presentation on Field Portal https://fieldportal.netapp.com/viewcontent.asp?qv=1&docid=36857 – Describes NetApp capabilities, values, best practices, requirements, and limitations in a SRM environment – Contains links to matrices, docs, and articles Customer Presentation on Field Portal https://fieldportal.netapp.com/viewcontent.asp?qv=1&docid=24728 – Sales enablement presentation covering NetApp SnapMirror integration with SRM – Contains a subset of SE deck slides 62

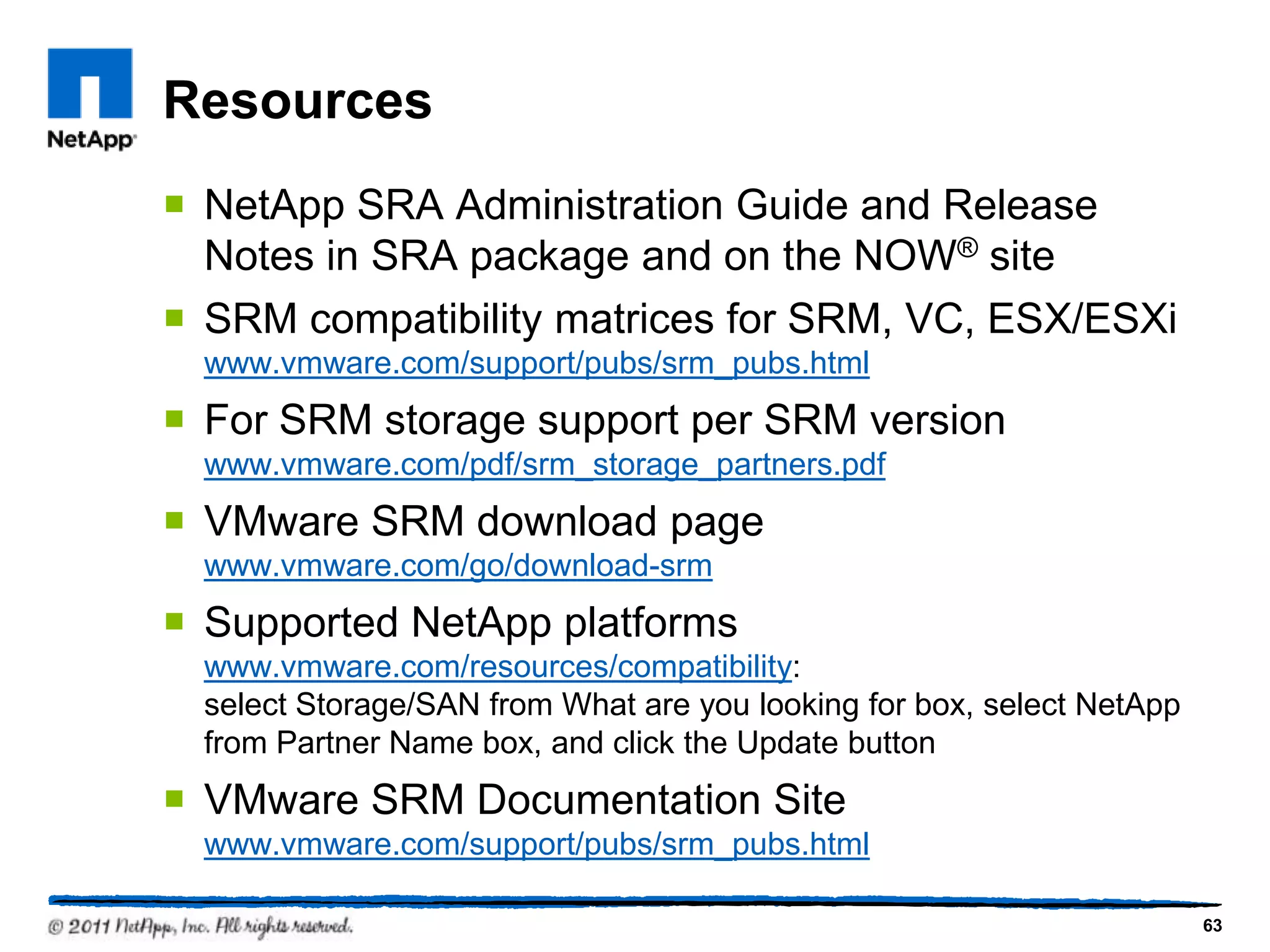

- 63. Resources NetApp SRAAdministration Guide and Release Notes in SRA package and on the NOW® site SRM compatibility matrices for SRM, VC, ESX/ESXi www.vmware.com/support/pubs/srm_pubs.html For SRM storage support per SRM version www.vmware.com/pdf/srm_storage_partners.pdf VMware SRM download page www.vmware.com/go/download-srm Supported NetApp platforms www.vmware.com/resources/compatibility: select Storage/SAN from What are you looking for box, select NetApp from Partner Name box, and click the Update button VMware SRM Documentation Site www.vmware.com/support/pubs/srm_pubs.html 63

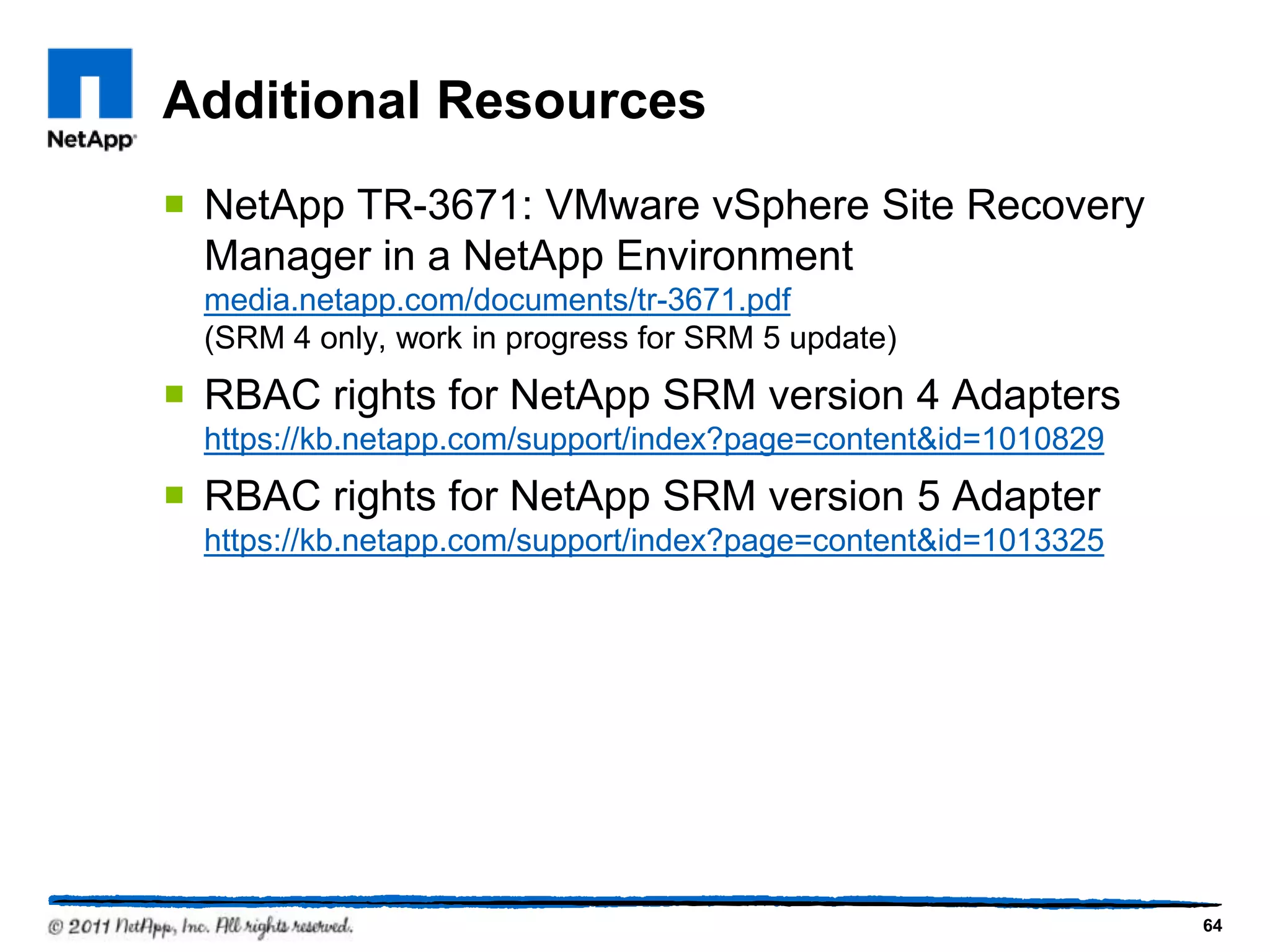

- 64. Additional Resources NetAppTR-3671: VMware vSphere Site Recovery Manager in a NetApp Environment media.netapp.com/documents/tr-3671.pdf (SRM 4 only, work in progress for SRM 5 update) RBAC rights for NetApp SRM version 4 Adapters https://kb.netapp.com/support/index?page=content&id=1010829 RBAC rights for NetApp SRM version 5 Adapter https://kb.netapp.com/support/index?page=content&id=1013325 64

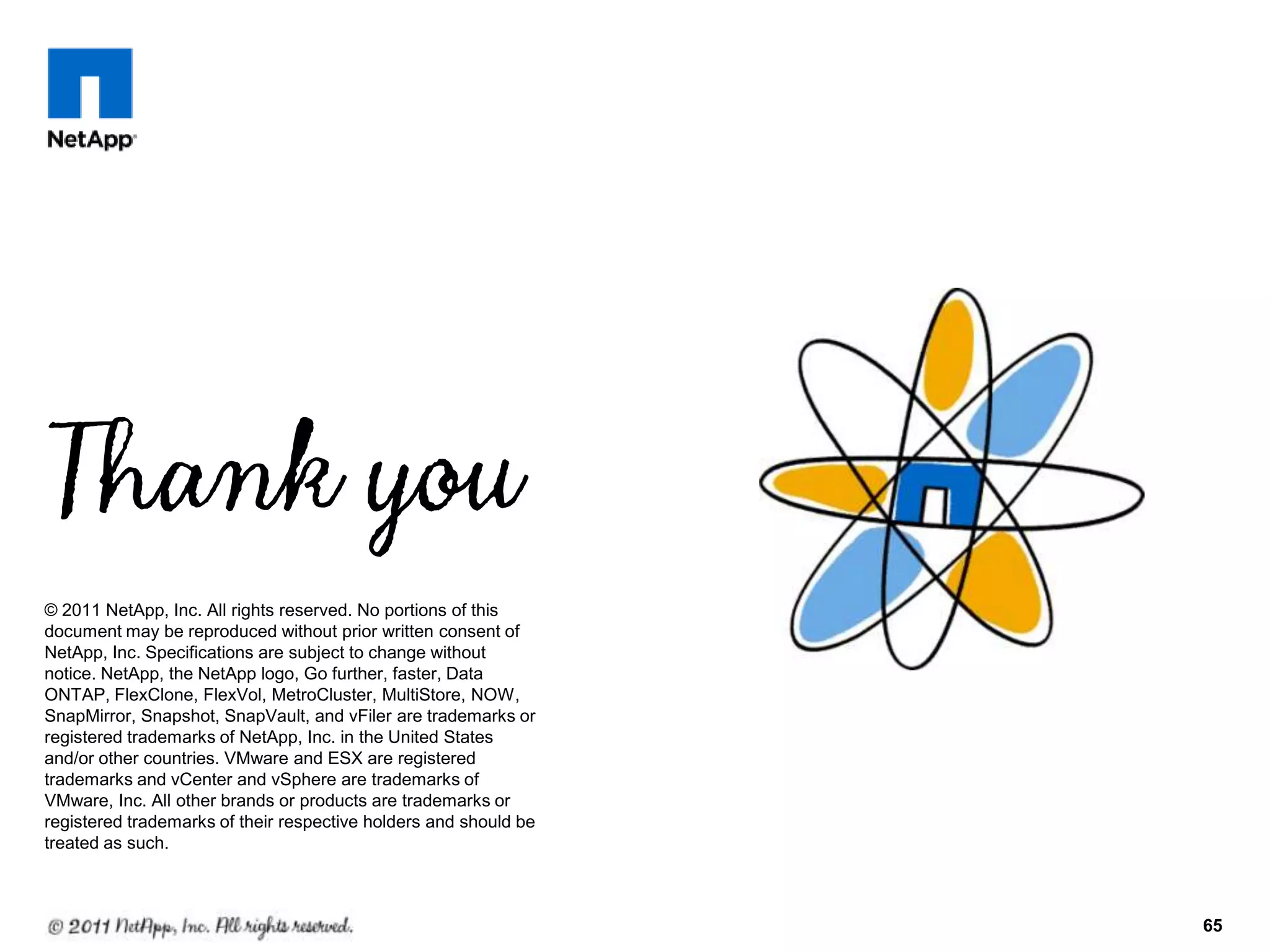

- 65. 65 © 2011 NetApp,Inc. All rights reserved. No portions of this document may be reproduced without prior written consent of NetApp, Inc. Specifications are subject to change without notice. NetApp, the NetApp logo, Go further, faster, Data ONTAP, FlexClone, FlexVol, MetroCluster, MultiStore, NOW, SnapMirror, Snapshot, SnapVault, and vFiler are trademarks or registered trademarks of NetApp, Inc. in the United States and/or other countries. VMware and ESX are registered trademarks and vCenter and vSphere are trademarks of VMware, Inc. All other brands or products are trademarks or registered trademarks of their respective holders and should be treated as such.
